Operator's Manual

Front Tine Tiller

Model Series

300 & 330

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A. FORM NO. 770-10564D

(2/2004)

Content

Important Safe Operation Practices

Assembling Your Tiller

Know Your Tiller

Operating Your Tiller

Making Adjustments

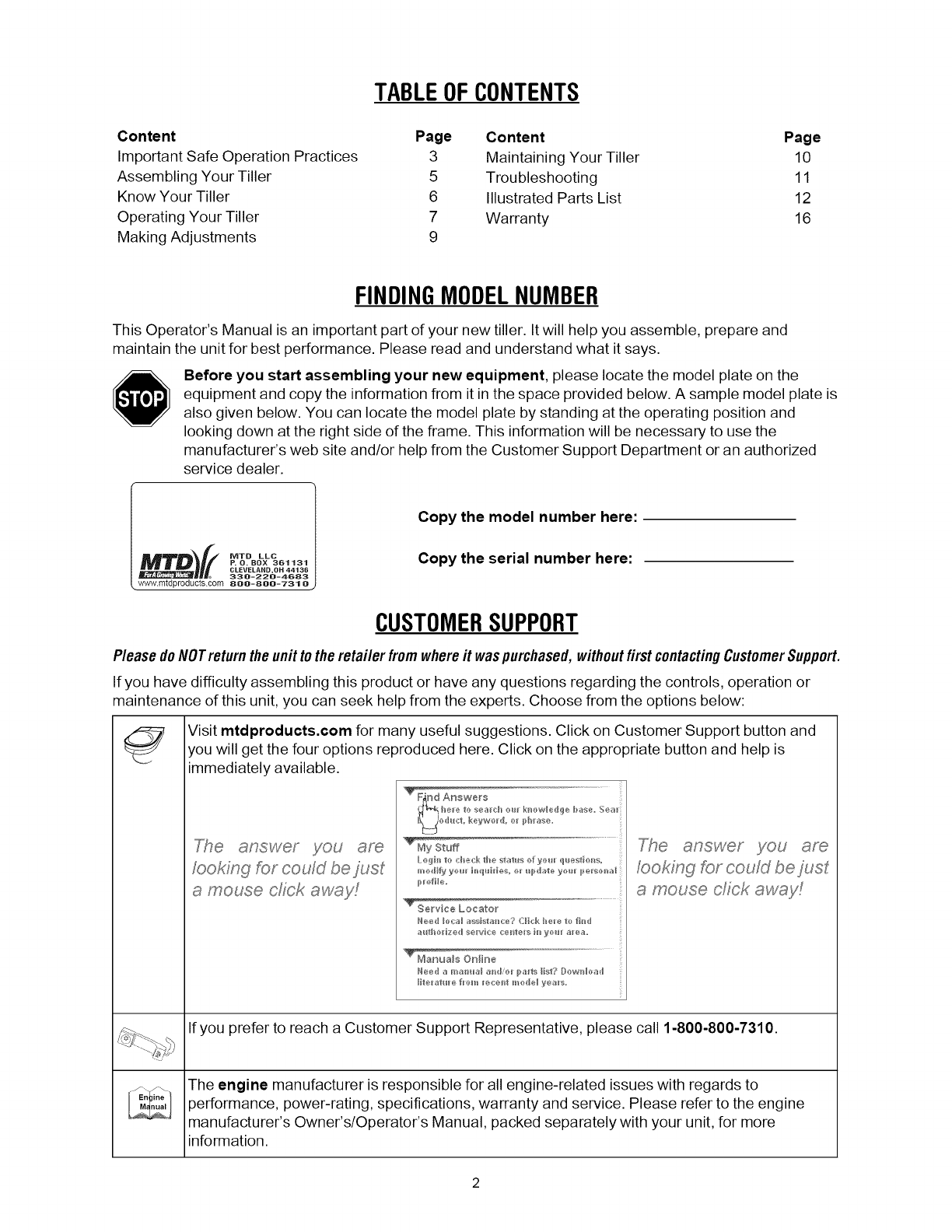

TABLEOFCONTENTS

Page Content

3 Maintaining Your Tiller

5 Troubleshooting

6 Illustrated Parts List

7 Warranty

Page

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new tiller. It will help you assemble, prepare and

maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. A sample model plate is

also given below. You can locate the model plate by standing at the operating position and

looking down at the right side of the frame. This information will be necessary to use the

manufacturer's web site and/or help from the Customer Support Department or an authorized

service dealer.

P. O. BOX 3611131

CLEVELAND,OH 44136

330-228-4683

', www.m{uprOuuc_s.com 888-888-7318

Copy the model number here:

Copy the serial number here:

CUSTOMERSUPPORT

Please doNOTreturntheunit to the retailer fromwhereit waspurchased,withoutfirstcontactingCustomerSupport.

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, you can seek help from the experts. Choose from the options below:

En ine

Visit mtdproducts.com for many useful suggestions. Click on Customer Support button and

you will get the four options reproduced here. Click on the appropriate button and help is

immediately available.

answer you are

looking for could be just

a mouse c//cA awayf

answer are

looking for could be just

a mouse c//cA awayf

If you prefer to reach a Customer Support Representative, please call 1-800-800-7310.

The engine manufacturer is responsible for all engine-related issues with regards to

performance, power-rating, specifications, warranty and service. Please refer to the engine

manufacturer's Owner's/Operator's Manual, packed separately with your unit, for more

information.

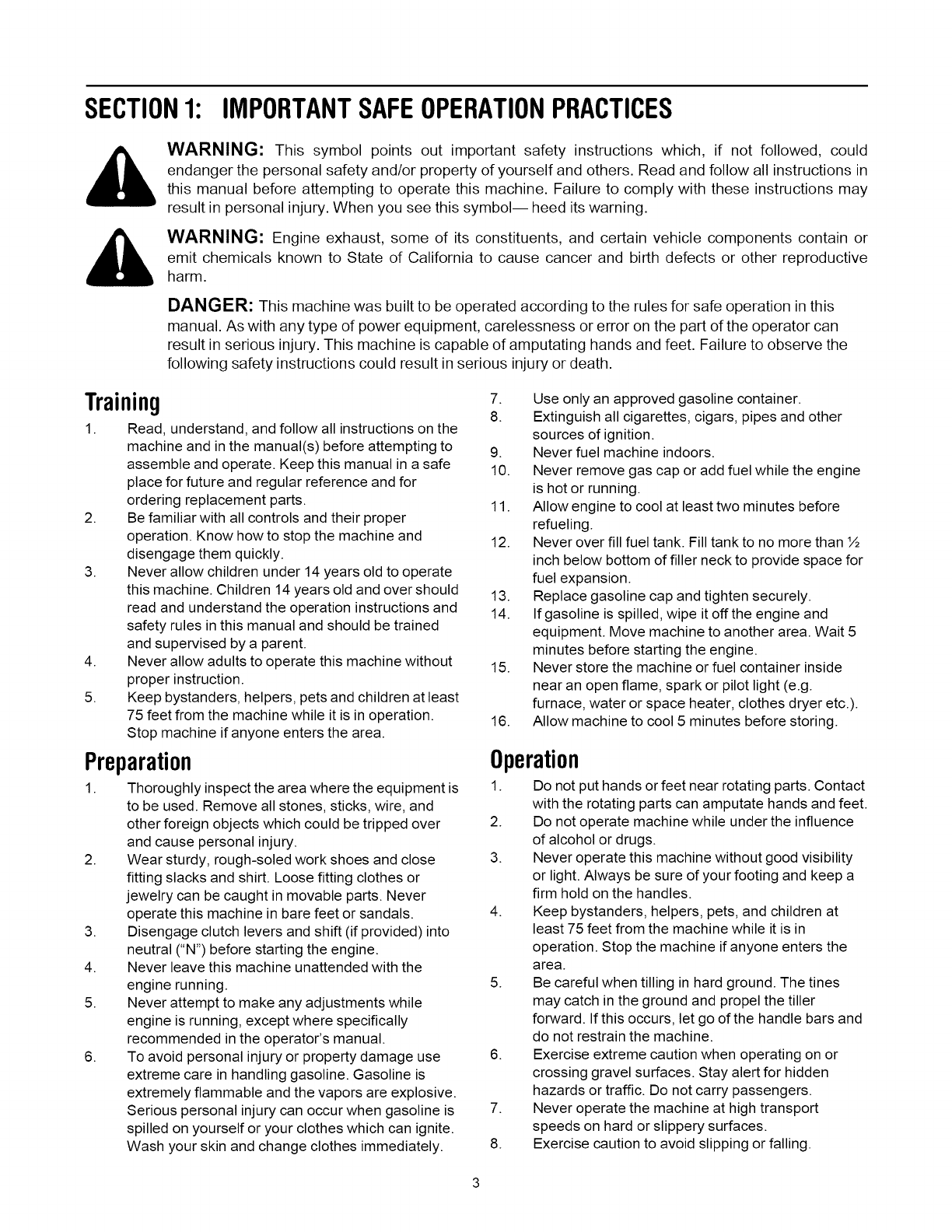

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

WARNING" This symbol points out important safety instructions which, if not followed, could

endanger the personal safety and/or property of yourself and others. Read and follow all instructions in

this manual before attempting to operate this machine. Failure to comply with these instructions may

result in personal injury. When you see this symbol-- heed its warning.

WARNING" Engine exhaust, some of its constituents, and certain vehicle components contain or

emit chemicals known to State of California to cause cancer and birth defects or other reproductive

harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This machine is capable of amputating hands and feet. Failure to observe the

following safety instructions could result in serious injury or death.

Training

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe

place for future and regular reference and for

ordering replacement parts.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage them quickly.

3. Never allow children under 14 years old to operate

this machine. Children 14 years old and over should

read and understand the operation instructions and

safety rules in this manual and should be trained

and supervised by a parent.

4. Never allow adults to operate this machine without

proper instruction.

5. Keep bystanders, helpers, pets and children at least

75 feet from the machine while it is in operation.

Stop machine if anyone enters the area.

Preparation

1. Thoroughly inspect the area where the equipment is

to be used. Remove all stones, sticks, wire, and

other foreign objects which could be tripped over

and cause personal injury.

2. Wear sturdy, rough-soled work shoes and close

fitting slacks and shirt. Loose fitting clothes or

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals.

3. Disengage clutch levers and shift (if provided) into

neutral CN") before starting the engine.

4. Never leave this machine unattended with the

engine running.

5. Never attempt to make any adjustments while

engine is running, except where specifically

recommended in the operator's manual.

6. To avoid personal injury or property damage use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are explosive.

Serious personal injury can occur when gasoline is

spilled on yourself or your clothes which can ignite.

Wash your skin and change clothes immediately.

7. Use only an approved gasoline container.

8. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

9. Never fuel machine indoors.

10. Never remove gas cap or add fuel while the engine

is hot or running.

11. Allow engine to cool at least two minutes before

refueling.

12. Never over fill fuel tank. Fill tank to no more than ½

inch below bottom of filler neck to provide space for

fuel expansion.

13. Replace gasoline cap and tighten securely.

14. If gasoline is spilled, wipe it offthe engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine.

15. Never store the machine or fuel container inside

near an open flame, spark or pilot light (e.g.

furnace, water or space heater, clothes dryer etc.).

16. Allow machine to cool 5 minutes before storing.

Operation

1. Do not put hands or feet near rotating parts. Contact

with the rotating parts can amputate hands and feet.

2. Do not operate machine while under the influence

of alcohol or drugs.

3. Never operate this machine without good visibility

or light. Always be sure of your footing and keep a

firm hold on the handles.

4. Keep bystanders, helpers, pets, and children at

least 75 feet from the machine while it is in

operation. Stop the machine if anyone enters the

area.

5. Be careful when tilling in hard ground. The tines

may catch in the ground and propel the tiller

forward. If this occurs, let go of the handle bars and

do not restrain the machine.

6. Exercise extreme caution when operating on or

crossing gravel surfaces. Stay alert for hidden

hazards or traffic. Do not carry passengers.

7. Never operate the machine at high transport

speeds on hard or slippery surfaces.

8. Exercise caution to avoid slipping or falling.

9. Lookdownandbehindandusecarewhenin

reverseorpullingmachinetowardsyou.

10. Starttheengineaccordingtotheinstructionsfound

inthismanualandkeepfeetwellawayfromthe

tinesatalltimes.

11. Afterstrikingaforeignobject,stoptheengine,

disconnectthesparkplugwireandgroundagainst

theengine.Thoroughlyinspectthemachineforany

damage.Repairthedamagebeforestartingand

operating.

12. Disengageallclutchleversandstopenginebefore

youleavetheoperatingposition(behindthe

handles).Waituntilthetinescometoacomplete

stopbeforeuncloggingthetines,makingany

adjustments,orinspections.

13. Neverrunanengineindoorsorinapoorly

ventilatedarea.Engineexhaustcontainscarbon

monoxide,anodorlessanddeadlygas.

14. Mufflerandenginebecomehotandcancausea

burn.Donottouch.

15. Usecautionwhentillingnearfences,buildingsand

undergroundutilities.Rotatingtinescancause

propertydamageorpersonalinjury.

16. Donotoverloadmachinecapacitybyattemptingto

tillsoiltodeepattofastofarate.

17. Ifthemachineshouldstartmakinganunusualnoise

orvibration,stoptheengine,disconnectthespark

plugwireandgrounditagainsttheengine.Inspect

thoroughlyfordamage.Repairanydamagebefore

startingandoperating.

18. Keepallshields,guardsandsafetydevicesinplace

andoperatingproperly.

19. Neverpickuporcarrymachinewhiletheengineis

running.

20. Useonlyattachmentsandaccessoriesapprovedby

themanufacturer.Failuretodoso,canresultin

personalinjury.

21. Ifsituationsoccurwhicharenotcoveredinthis

manual,usecareandgoodjudgment.Contactyour

dealerortelephone1-800-800-7310forassistance

andthenameofyournearestservicingdealer.

Maintenance& Storage

1. Never tamper with safety devices. Check their

proper operation regularly.

2. Check bolts and screws for proper tightness at

frequent intervals to keep the machine in safe

working condition. Also, visually inspect machine for

any damage.

3. Before cleaning, repairing, or inspecting, stop the

engine and make certain the tines and all moving

parts have stopped. Disconnect the spark plug wire

and ground it against the engine to prevent

unintended starting.

10.

Do not change the engine governor settings or over-

speed the engine. The governor controls the

maximum safe operating speed of the engine.

Maintain or replace safety and instruction labels, as

necessary.

Follow this manual for safe loading, unloading,

transporting, and storage of this machine.

Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

such as a water heater, furnace, clothes dryer etc.

Always refer to the operator's manual for proper

instructions on off-season storage.

If the fuel tank has to be drained, do this outdoors.

Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

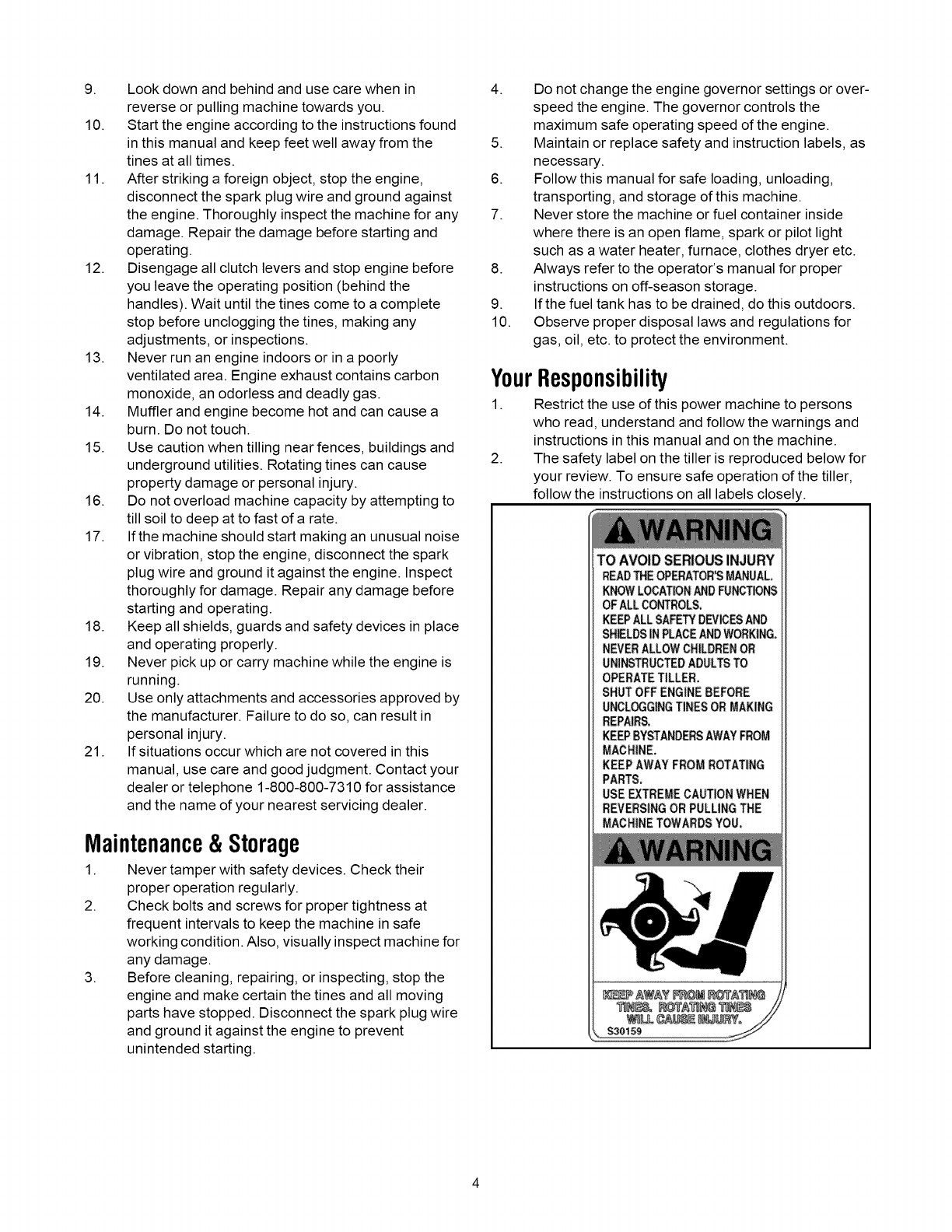

YourResponsibility

1. Restrict the use of this power machine to persons

who read, understand and follow the warnings and

instructions in this manual and on the machine.

2. The safety label on the tiller is reproduced below for

your review. To ensure safe operation of the tiller,

follow the instructions on all labels closely.

TO AVOID SERIOUS INJURY

README OP_ATOR'SMANUAL.

KNOWLOCAT_N_D FUNCTIONS

OFALLCO'NTROL&

KEEPALLSAFETYDEVICESAND

SHIELDSiNPLACEANDWORK]r,_3.

NEVERALLOWCHILDRENOR

UNII'_TRUCTEDADUL_ TO

OPERATETILLER,

SHUTOFFENGINEBEFORE

UNCLOGGINGTINESORMAKING

REPAIR&

KEEPBYSTANDE_AWAYFROM

MACHINE,

KEEPAWAYFROMROTATING

PARTS.

USEEXTREMECAUTIONWHEN

REVERSINGORPULLINGTHE

MACHINETOWARDSYOU,

SECTION2: ASSEMBLINGYOURTILLER

NOTE: This operator's manual covers various models

of tillers. The units illustrated may vary slightly from

your unit. Follow only those instructions which pertain

to your model number.

NOTE: References to right or left side of the tiller are

determined from behind the unit in the operating

position.

ToRemoveUnitFromCarton

• Remove staples, break glue on top flaps, or cut

tape at carton end and peel along top flap to open

carton.

• Remove loose parts included with unit (i.e.,

operator's manual, etc.).

• Cut corners and lay carton down flat.

• Remove packing material.

• Roll or slide unit out of carton. Check carton

thoroughly for loose parts.

• Extend control cable and lay on the floor. Be careful

not to bend or kink control cable.

IMPORTANT: This unit is shipped without gasoline or oil

in the engine. Be certain to service engine with gasoline

and oil as instructed in the separate engine manual

before operating your machine.

LoosePartsIn Carton

Tailpiece and Depth Stake

NOTE: All hardware needed for assembly is attached

to the loose parts or the tiller.

BeforeAssembly

_, WARNING: Disconnect the spark plugwire and ground it against the engine to

prevent unintended starting.

AssemblingTheHandle

• Remove the handle adjustment lever from handle

and lift up upper handle to raise in operating

position. See Figure 1.

• Reinsert adjustment lever through the lower hole,

tightening the lever into lock nut on the retainer

bracket.

• Once the lever is in the lock nut, the handle can be

moved to the desired position and then tighten

securely.

AttachingTailpieceandDepthStake

• Remove the two self-tapping screws on the frame

and slide the tailpiece into the frame, with the lower

hole in the tailpiece toward the front. See Figure 2.

• Secure tailpiece with the screws just removed.

Handle

Adjustment Lever

Tailpiece

Figure 1

Self-Tapping

Screws

Figure 2

Handle

Adjustment Lever

-Retainer Bracket

Nut

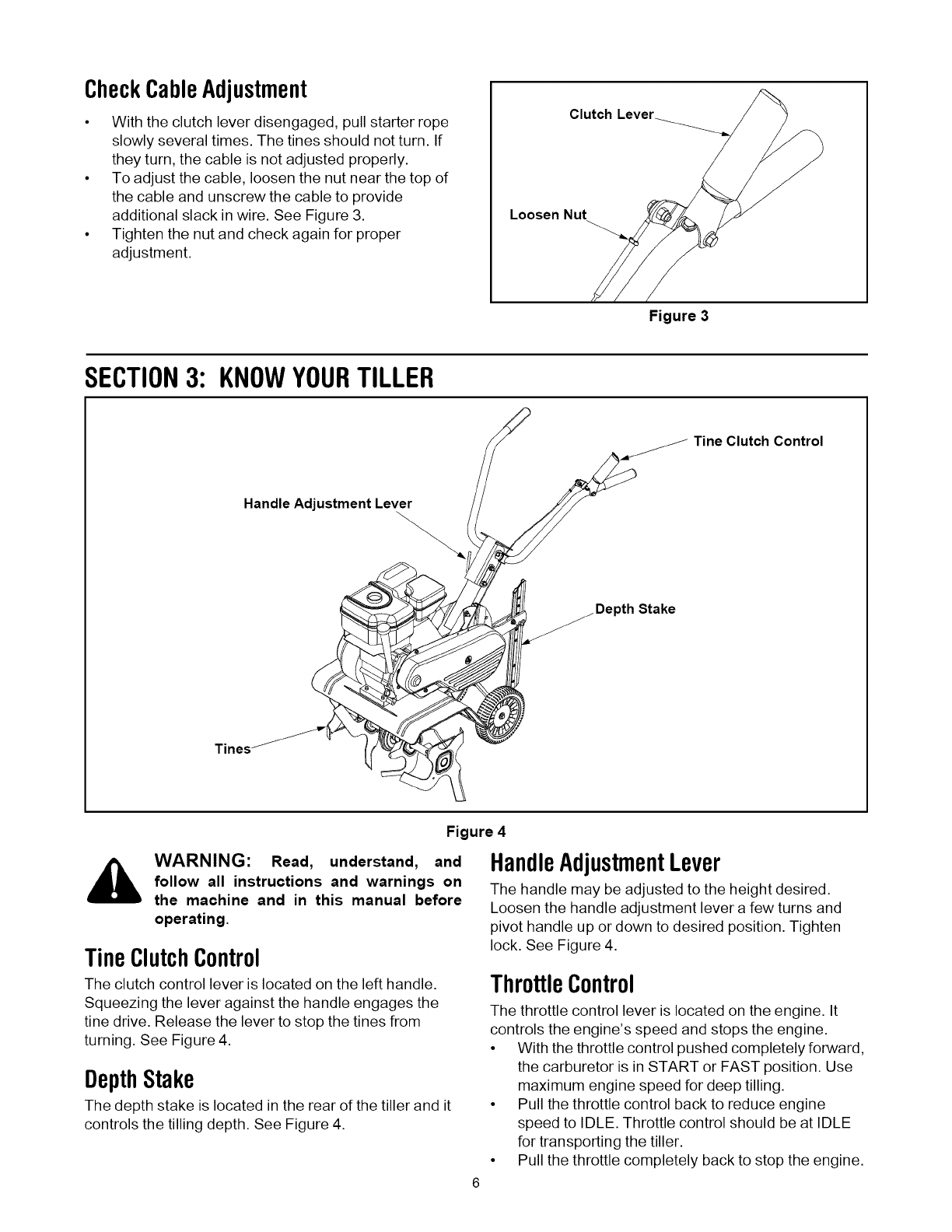

CheckCableAdjustment

•With the clutch lever disengaged, pull starter rope

slowly several times. The tines should not turn. If

they turn, the cable is not adjusted properly.

• To adjust the cable, loosen the nut near the top of

the cable and unscrew the cable to provide

additional slack in wire. See Figure 3.

• Tighten the nut and check again for proper

adjustment.

Clutch

Loosen Nut

Figure 3

SECTION3: KNOWYOURTILLER

Tine Clutch Control

Handle Adjustment Lever

Stake

Tines

Figure 4

WARNING: Read, understand, and

follow all instructions and warnings on

the machine and in this manual before

operating.

TineClutchControl

The clutch control lever is located on the left handle.

Squeezing the lever against the handle engages the

tine drive. Release the lever to stop the tines from

turning. See Figure 4.

DepthStake

The depth stake is located in the rear of the tiller and it

controls the tilling depth. See Figure 4.

HandleAdjustmentLever

The handle may be adjusted to the height desired.

Loosen the handle adjustment lever a few turns and

pivot handle up or down to desired position. Tighten

lock. See Figure 4.

ThrottleControl

The throttle control lever is located on the engine. It

controls the engine's speed and stops the engine.

• With the throttle control pushed completely forward,

the carburetor is in START or FAST position. Use

maximum engine speed for deep tilling.

• Pull the throttle control back to reduce engine

speed to IDLE. Throttle control should be at IDLE

for transporting the tiller.

• Pull the throttle completely back to stop the engine.

ChokeLever

The choke lever is located near the throttle control. It is

used to enrich the fuel mixture when starting a cold

engine.

StarterHandle

The starter handle is located on the

used to manually start the engine.

engine and is

EngineControls

See the separate engine manual for additional

information and functions of the engine controls.

SECTION4: OPERATINGYOURTILLER

WARNING: Read, understand, and

follow all instructions and warnings on

the machine and in this manual before

operating.

BeforeStarting

GasAndOilFill-Up

Service the engine with gasoline and oil as instructed in

the separate engine manual packed with your tiller.

Read instructions carefully.

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely

flammable and the vapors are explosive.

Never fuel machine indoors or while the

engine is hot or running.

NOTE: See your engine manual packed with your unit

for more detailed instructions.

StoppingEngine

• Move throttle control lever to STOP or OFF

position.

• Disconnect spark plug wire from spark plug and

ground against the engine.

UsingYourTiller

Your tiller (also known as a cultivator) is a precision

built machine designed for seed bed preparation,

cultivating, furrowing and mulching. It is engineered to

minimize the hardest work in the vegetable or flower

garden, to till the soil for planting and cultivating, and to

perform many other useful labor saving tasks in the

garden.

StartingEngine

_ WARNING: Be sure no one is standing

in front of the tiller while the engine is

running or being started.

• Attach spark plug wire to spark plug. Make sure the

metal cap on the end of the spark plug is fastened

securely over the metal tip on the spark plug.

• Make sure that the tine clutch control is

disengaged.

• Place the throttle control in the FAST position.

• Move choke lever to CHOKE position. A warm

engine requires little or no choke.

• Grasp starter handle and pull rope out slowly until

engine reaches start of compression cycle (rope

will pull slightly harder at this point). Let the rope

rewind slowly.

• Pull rope with a rapid, continuous, full arm stroke.

Keep a firm grip on starter handle. Let rope rewind

slowly. Do not let starter handle snap back against

starter. Repeat until engine starts.

• When engine starts, move choke lever on engine

halfway between CHOKE and RUN. As the engine

warms up, move the lever to RUN position.

WheelPosition

The tiller is shipped with the wheels adjusted such that

the unit sits level. While tilling, as the tines enter the

ground and the front of the tiller lowers, the wheels

must be raised to level the unit, which is essential for

proper engine operation. This adjustment is made by

removing the clevis pin and hairpin clip from wheel

yoke, raising the wheels to the desired height, and

replacing the clevis pin and hairpin clip. See Figure 5.

Depth Stake

Hairpin j

& Clevis Pins

Yoke

Figure 5

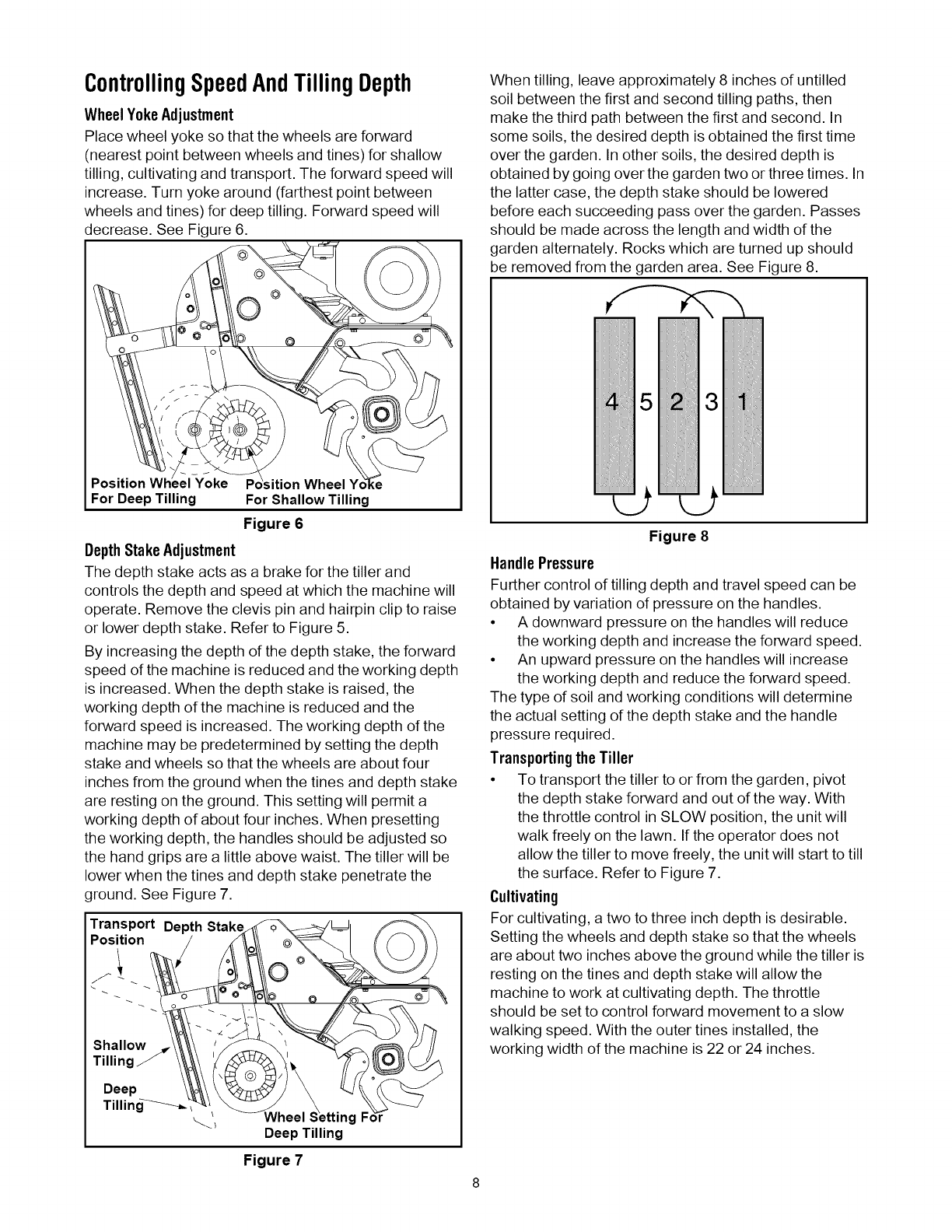

ControllingSpeedAndTillingDepth

WheelYokeAdjustment

Place wheel yoke so that the wheels are forward

(nearest point between wheels and tines) for shallow

tilling, cultivating and transport. The forward speed will

increase. Turn yoke around (farthest point between

wheels and tines) for deep tilling. Forward speed will

decrease. See Figure 6.

Position Yoke

For Deep Tilling For Shallow Tilling

Figure 6

DepthStake Adjustment

The depth stake acts as a brake for the tiller and

controls the depth and speed at which the machine will

operate. Remove the clevis pin and hairpin clip to raise

or lower depth stake. Refer to Figure 5.

By increasing the depth of the depth stake, the forward

speed of the machine is reduced and the working depth

is increased. When the depth stake is raised, the

working depth of the machine is reduced and the

forward speed is increased. The working depth of the

machine may be predetermined by setting the depth

stake and wheels so that the wheels are about four

inches from the ground when the tines and depth stake

are resting on the ground. This setting will permit a

working depth of about four inches. When presetting

the working depth, the handles should be adjusted so

the hand grips are a little above waist. The tiller will be

lower when the tines and depth stake penetrate the

ground. See Figure 7.

Transport

Position Depth Stake

Shallow

Tilling_ _"

Deep

Deep Tilling

Figure 7

When tilling, leave approximately 8 inches of untilled

soil between the first and second tilling paths, then

make the third path between the first and second. In

some soils, the desired depth is obtained the first time

over the garden. In other soils, the desired depth is

obtained by going over the garden two or three times. In

the latter case, the depth stake should be lowered

before each succeeding pass over the garden. Passes

should be made across the length and width of the

garden alternately. Rocks which are turned up should

be removed from the garden area. See Figure 8.

Figure 8

HandlePressure

Further control of tillingdepth and travel speed can be

obtained by variation of pressure on the handles.

• A downward pressure on the handles will reduce

the working depth and increase the forward speed.

• An upward pressure on the handles will increase

the working depth and reduce the forward speed.

The type of soil and working conditions will determine

the actual setting of the depth stake and the handle

pressure required.

Transportingthe Tiller

• To transport the tiller to or from the garden, pivot

the depth stake forward and out of the way. With

the throttle control in SLOW position, the unit will

walk freely on the lawn. If the operator does not

allow the tiller to move freely, the unit will start to till

the surface. Refer to Figure 7.

Cultivating

For cultivating, a two to three inch depth is desirable.

Setting the wheels and depth stake so that the wheels

are about two inches above the ground while the tiller is

resting on the tines and depth stake will allow the

machine to work at cultivating depth. The throttle

should be set to control forward movement to a slow

walking speed. With the outer tines installed, the

working width of the machine is 22 or 24 inches.

Forcultivation,thismaybereducedto13inchesby

removingtheoutertines.RefertotheAdjustment

Section.Whenlayingoutplantrows,besuretoallow

enoughwidthtopermitcultivationbetweentherows.In

growingcornorsimilarcrops,check-rowplantingwill

permitcrosscultivationandpracticallyeliminatehand

hoeing.SeeFigure9.

oO OO

Figure 9

The tiller has many uses other than tilling and

cultivating a garden. One of these is the preparation of

lawn area for seeding. The tiller will prepare a deep

seed bed which will be free of hard untilled spots,

allowing a better stand of grass to grow. The tiller is

very useful for loosening hard soil for excavation with a

shovel. No tedious handwork will be necessary. Your

tiller may be used for mixing compost in the pile, or for

mixing it with the soil in your garden. This should be

done after the soil has been broken to the full working

depth. The compost should be worked in to a depth of

six to seven inches. This may be done by working the

length of the garden and then by making separate

passes across its width. The addition of decayed

organic matter will substantially increase the fertility of

your garden. For proper decaying action, fertilizer

should be applied and worked in with the mulch

materials. Breaking up leaves and straw and mixing it

with several inches of soil causes the soil to hold

moisture longer and allows proper aeration of the plant

root system. This also retards the growth of weeds.

SECTION5: MAKINGADJUSTMENTS

,_ WARNING: Disconnect the spark plugwire and ground it against the engine

before performing any adjustments.

EngineAdjustment

Refer to the separate engine manual for engine

adjustment instructions.

WheelAdjustment

To adjust the wheel yoke and wheel position, refer to

the Operating Section.

DepthStakeAdjustment

To adjust the depth stake to a desired position, refer to

the Operating Section.

ClutchControlAdjustment

Periodic adjustment of the belt tension may be required

due to normal stretch and wear on the belt. To adjust

the clutch control lever, refer to the Assembly Section.

TineWidthAdjustment

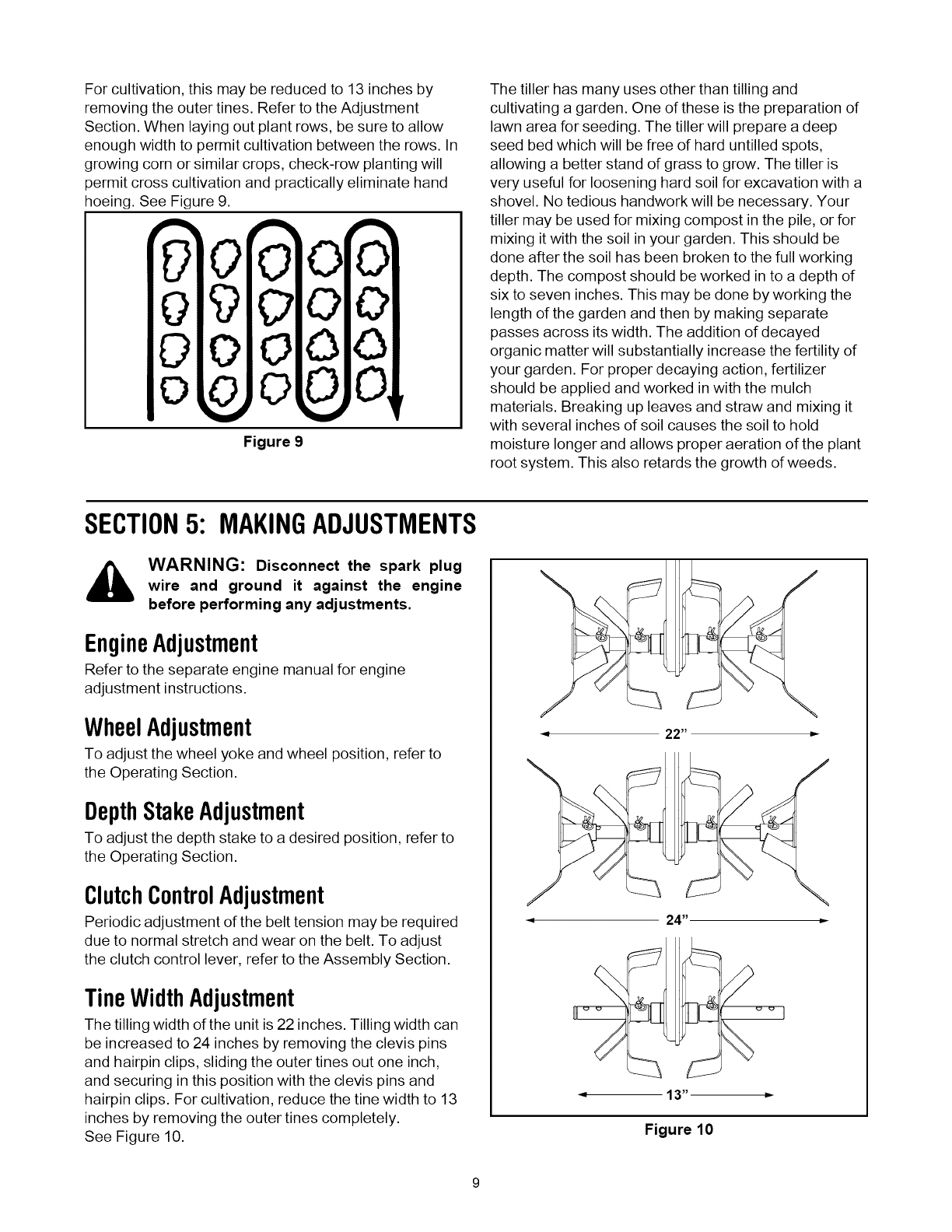

The tilling width of the unit is 22 inches. Tilling width can

be increased to 24 inches by removing the clevis pins

and hairpin clips, sliding the outer tines out one inch,

and securing in this position with the clevis pins and

hairpin clips. For cultivation, reduce the tine width to 13

inches by removing the outer tines completely.

See Figure 10.

22"

13" ,.

Figure 10

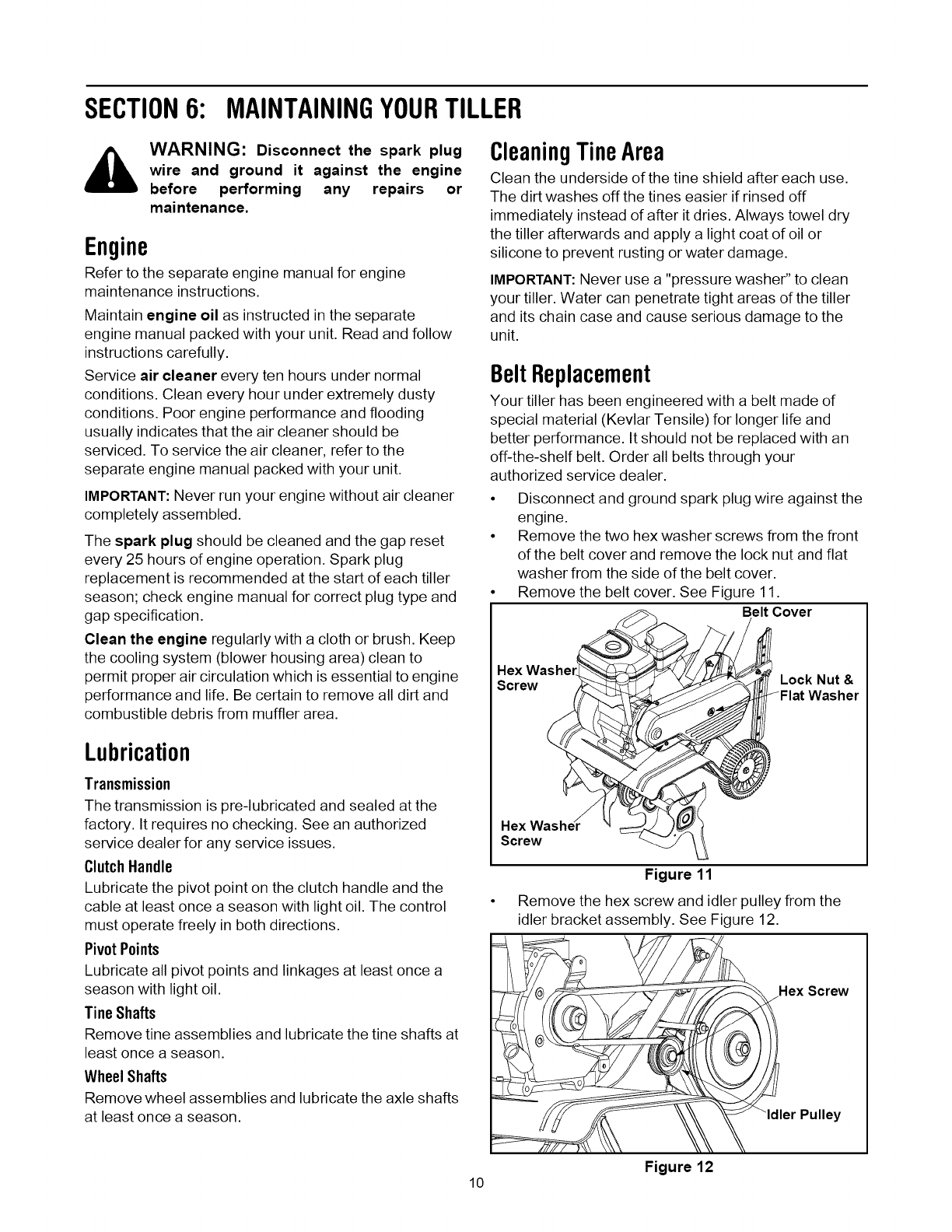

SECTION6: MAINTAININGYOURTILLER

,i_ WARNING: Disconnect the spark plug

wire and ground it against the engine

before performing any repairs or

maintenance.

Engine

Refer to the separate engine manual for engine

maintenance instructions.

Maintain engine oil as instructed in the separate

engine manual packed with your unit. Read and follow

instructions carefully.

Service air cleaner every ten hours under normal

conditions. Clean every hour under extremely dusty

conditions. Poor engine performance and flooding

usually indicates that the air cleaner should be

serviced. To service the air cleaner, refer to the

separate engine manual packed with your unit.

IMPORTANT: Never run your engine without air cleaner

completely assembled.

The spark plug should be cleaned and the gap reset

every 25 hours of engine operation. Spark plug

replacement is recommended at the start of each tiller

season; check engine manual for correct plug type and

gap specification.

Clean the engine regularly with a cloth or brush. Keep

the cooling system (blower housing area) clean to

permit proper air circulation which is essential to engine

performance and life. Be certain to remove all dirt and

combustible debris from muffler area.

Lubrication

Transmission

The transmission is pre-lubricated and sealed at the

factory. It requires no checking. See an authorized

service dealer for any service issues.

Clutch Handle

Lubricate the pivot point on the clutch handle and the

cable at least once a season with light oil. The control

must operate freely in both directions.

PivotPoints

Lubricate all pivot points and linkages at least once a

season with light oil.

Tine Shafts

Remove tine assemblies and lubricate the tine shafts at

least once a season.

Wheel Shafts

Remove wheel assemblies and lubricate the axle shafts

at least once a season.

CleaningTineArea

Clean the underside of the tine shield after each use.

The dirt washes off the tines easier if rinsed off

immediately instead of after it dries. Always towel dry

the tiller afterwards and apply a light coat of oil or

silicone to prevent rusting or water damage.

IMPORTANT:Never use a "pressure washer" to clean

your tiller. Water can penetrate tight areas of the tiller

and its chain case and cause serious damage to the

unit.

BeltReplacement

Your tiller has been engineered with a belt made of

special material (Kevlar Tensile) for longer life and

better performance. It should not be replaced with an

off-the-shelf belt. Order all belts through your

authorized service dealer.

Disconnect and ground spark plug wire against the

engine.

Remove the two hex washer screws from the front

of the belt cover and remove the lock nut and flat

washer from the side of the belt cover.

Remove the belt cover. See Figure 11.

Belt Cover

Hex Washei

Screw Lock Nut &

_Flat Washer

Hex

Screw

Figure 11

Remove the hex screw and idler pulley from the

idler bracket assembly. See Figure 12.

Hex Screw

Figure 12

• Reassemblethenewbeltandreattachidlerpulley

tosecureinplace.

• Replacebeltcoverassemblyandsecurewiththe

hardwareremovedearlier.

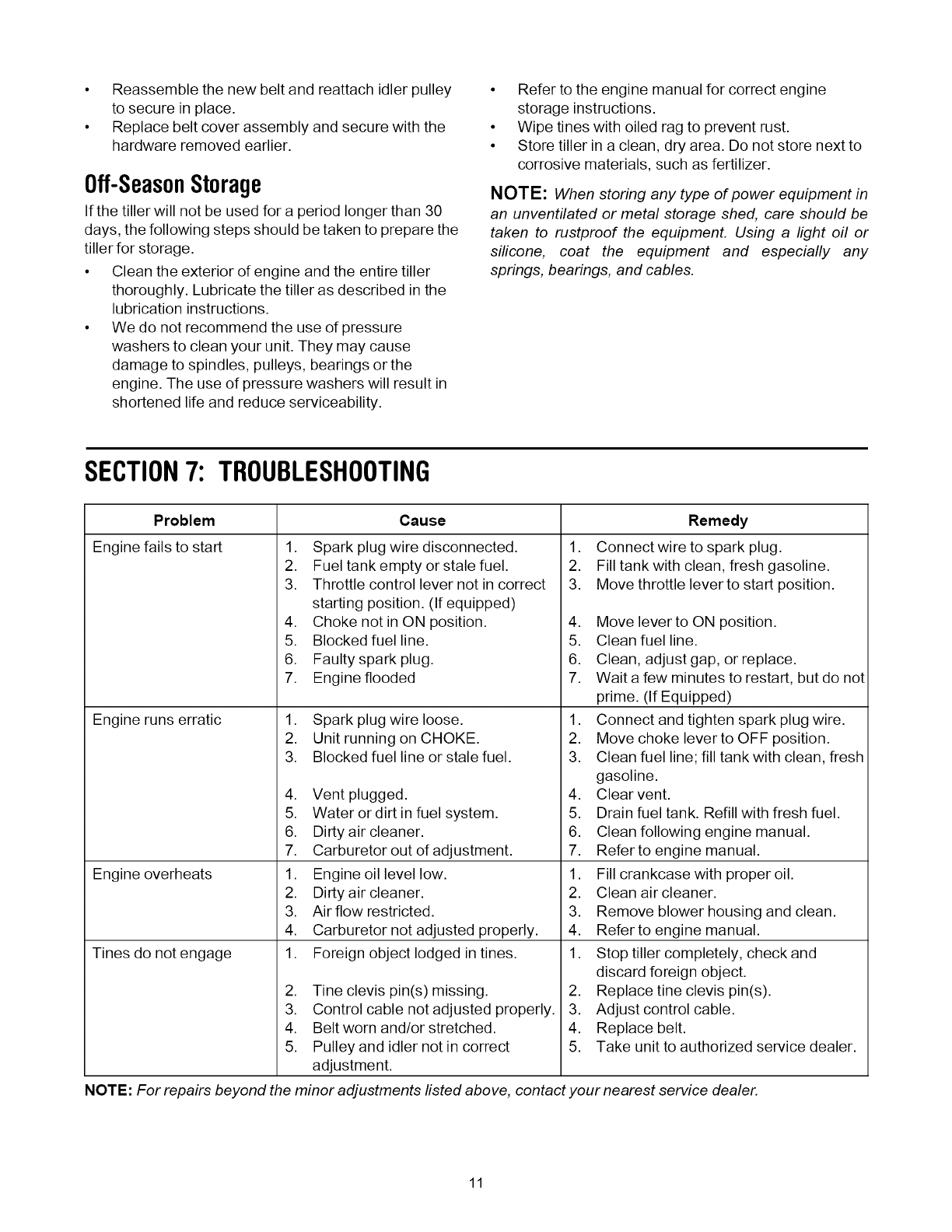

Off-SeasonStorage

If the tiller will not be used for a period longer than 30

days, the following steps should be taken to prepare the

tiller for storage.

• Clean the exterior of engine and the entire tiller

thoroughly. Lubricate the tiller as described in the

lubrication instructions.

• We do not recommend the use of pressure

washers to clean your unit. They may cause

damage to spindles, pulleys, bearings or the

engine. The use of pressure washers will result in

shortened life and reduce serviceability.

• Refer to the engine manual for correct engine

storage instructions.

• Wipe tines with oiled rag to prevent rust.

• Store tiller in a clean, dry area. Do not store next to

corrosive materials, such as fertilizer.

NOTE: When storing any type of power equipment in

an unventilated or metal storage shed, care should be

taken to rustproof the equipment. Using a light oil or

silicone, coat the equipment and especially any

springs, bearings, and cables.

SECTION7: TROUBLESHOOTING

Problem Cause Remedy

Engine fails to start

Engine runs erratic

Engine overheats

Tines do not engage

1. Spark plug wire disconnected.

2. Fuel tank empty or stale fuel.

3. Throttle control lever not in correct

starting position. (If equipped)

4. Choke not in ON position.

5. Blocked fuel line.

6. Faulty spark plug.

7. Engine flooded

1. Spark plug wire loose.

2. Unit running on CHOKE.

3. Blocked fuel line or stale fuel.

4. Vent plugged.

5. Water or dirt in fuel system.

6. Dirty air cleaner.

7. Carburetor out of adjustment.

1. Engine oil level low.

2. Dirty air cleaner.

3. Air flow restricted.

4. Carburetor not adjusted properly.

1. Foreign object lodged in tines.

2. Tine clevis pin(s) missing.

3. Control cable not adjusted properly.

4. Beltworn and/or stretched.

5. Pulley and idler not in correct

adjustment.

1. Connect wire to spark plug.

2. Fill tank with clean, fresh gasoline.

3. Move throttle lever to start position.

4. Move lever to ON position.

5. Clean fuel line.

6. Clean, adjust gap, or replace.

7. Wait a few minutes to restart, but do not

prime. (If Equipped)

1. Connect and tighten spark plug wire.

2. Move choke lever to OFF position.

3. Clean fuel line; fill tank with clean, fresh

gasoline.

4. Clear vent.

5. Drain fuel tank. Refill with fresh fuel.

6. Clean following engine manual.

7. Refer to engine manual.

1. Fill crankcase with proper oil.

2. Clean air cleaner.

3. Remove blower housing and clean.

4. Refer to engine manual.

1. Stop tiller completely, check and

discard foreign object.

2. Replace tine clevis pin(s).

3. Adjust control cable.

4. Replace belt.

5. Take unit to authorized service dealer.

NOTE: For repairs beyond the minor adjustments fisted above, contact your nearest service dealer.

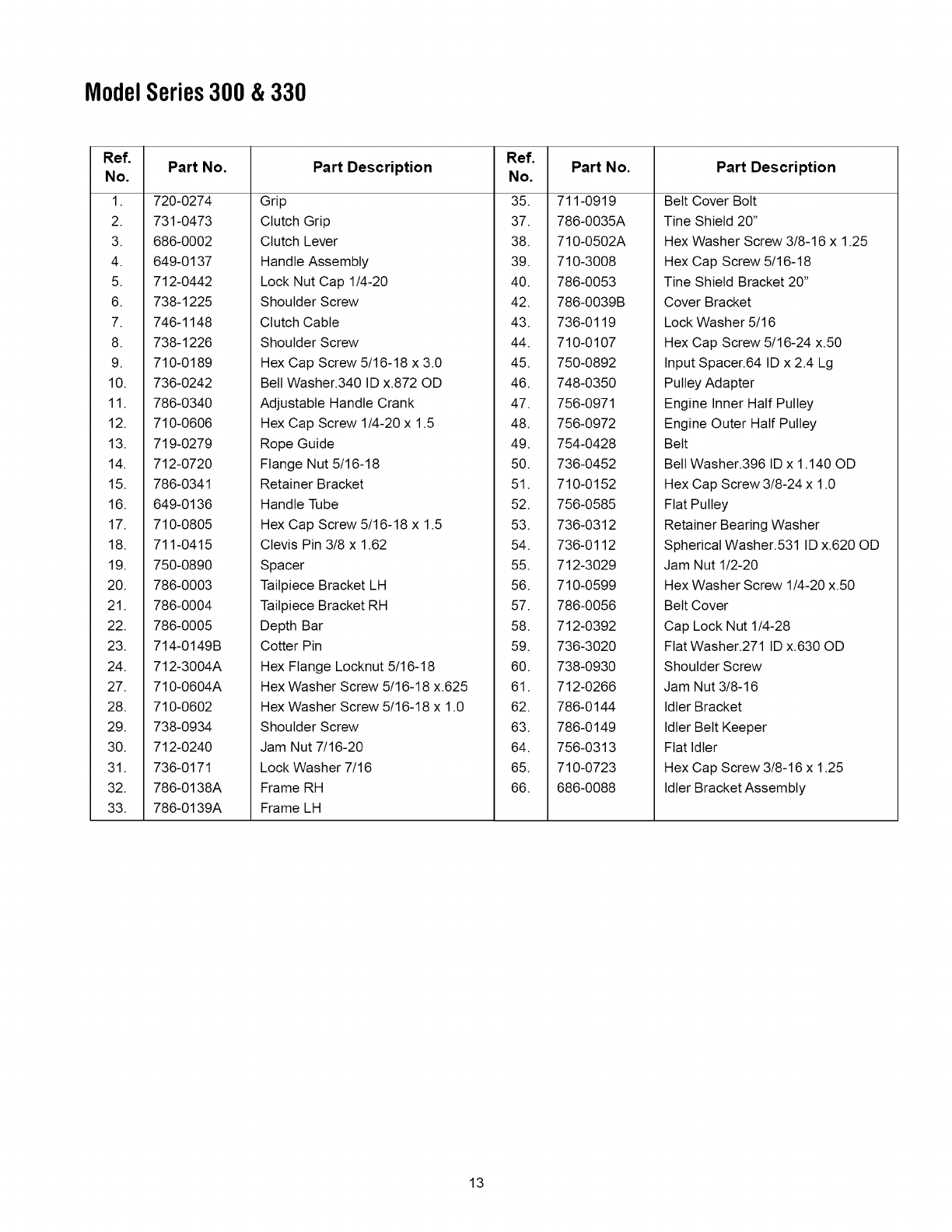

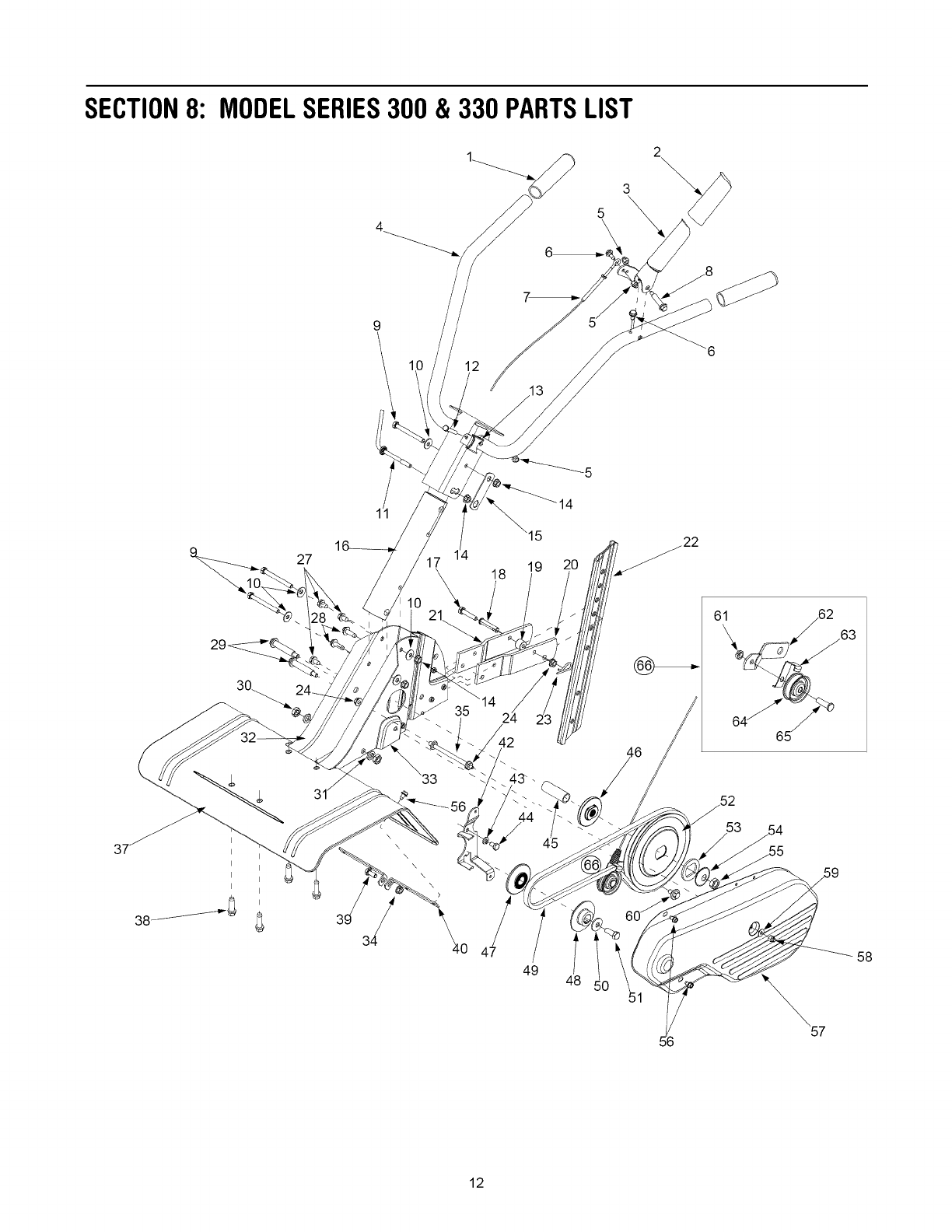

SECTION8: MODELSERIES300 & 330 PARTSLIST

38J

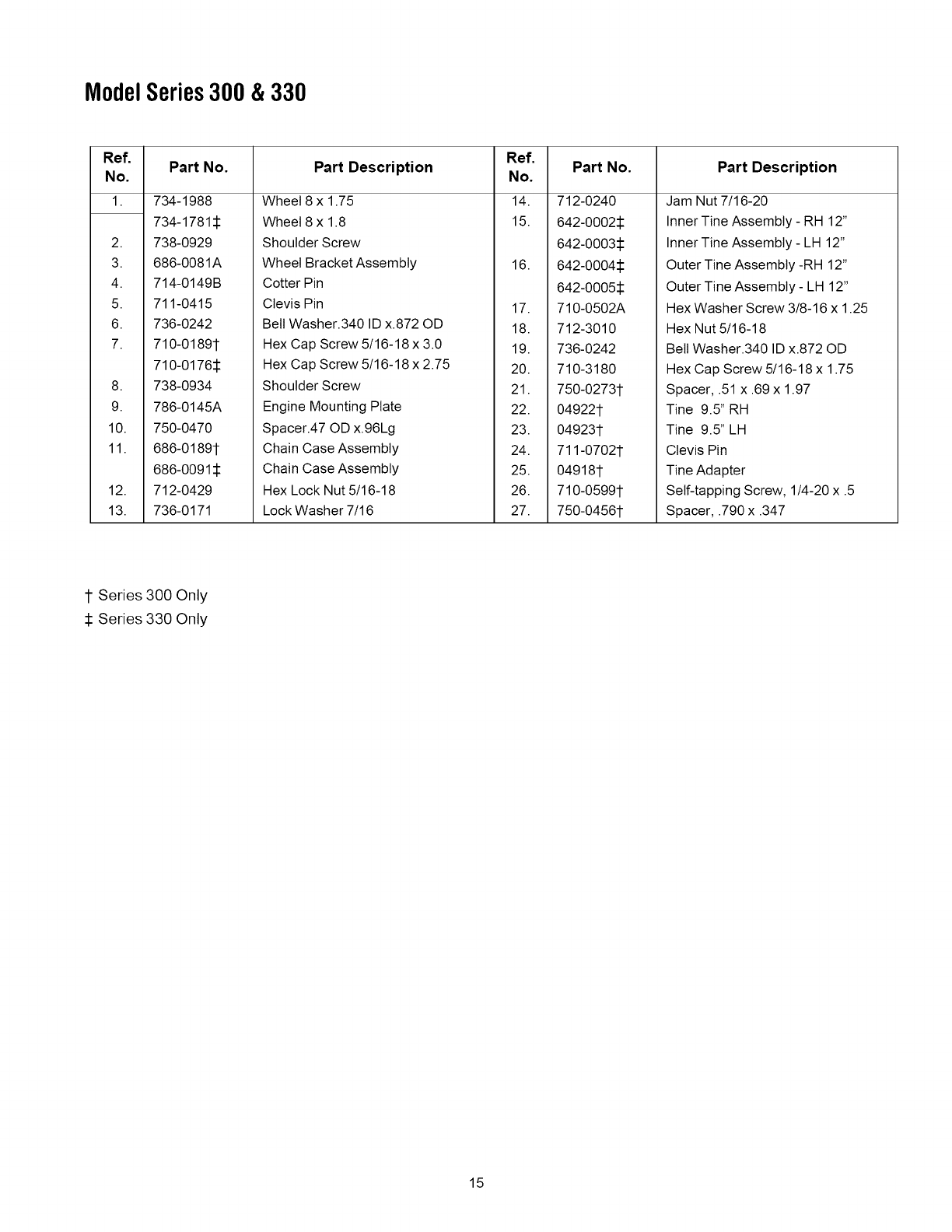

ModelSeries300 & 330

Ref. Part No.

No.

1. 720-0274

2. 731-0473

3. 686-0002

4. 649-0137

5. 712-0442

6. 738-1225

7. 746-1148

8. 738-1226

9. 710-0189

10. 736-0242

11. 786-0340

12. 710-0606

13. 719-0279

14. 712-0720

15. 786-0341

16. 649-0136

17. 710-0805

18. 711-0415

19. 750-0890

20. 786-0003

21. 786-0004

22. 786-0005

23. 714-0149B

24. 712-3004A

27. 710-0604A

28. 710-0602

29. 738-0934

30. 712-0240

31. 736-0171

32. 786-0138A

33. 786-0139A

Part Description

Grip

Clutch Grip

Clutch Lever

Handle Assembly

Lock Nut Cap 1/4-20

Shoulder Screw

Clutch Cable

Shoulder Screw

Hex Cap Screw 5/16-18 x 3.0

Belt Washer.340 ID x.872 OD

Adjustable Handle Crank

Hex Cap Screw 1/4-20 x 1.5

Rope Guide

Flange Nut 5/16-18

Retainer Bracket

Handle Tube

Hex Cap Screw 5/16-18 x 1.5

Clevis Pin 3/8 x 1.62

Spacer

Tailpiece Bracket LH

Tailpiece Bracket RH

Depth Bar

Cotter Pin

Hex Flange Locknut 5/16-18

Hex Washer Screw 5/16-18 x.625

Hex Washer Screw 5/16-18 x 1.0

Shoulder Screw

Jam Nut 7/16-20

Lock Washer 7/16

Frame RH

Frame LH

Ref.

No.

35.

37.

38.

39.

40.

42.

43.

44.

45.

46.

47.

48.

49.

50.

51.

52.

53.

54.

55.

56.

57.

58.

59.

60.

61.

62.

63.

64.

65.

66.

Part No.

711-0919

786-0035A

710-0502A

710-3008

786-0053

786-0039B

736-0119

710-0107

750-0892

748-0350

756-0971

756-0972

754-0428

736-0452

710-0152

756-0585

736-0312

736-0112

712-3029

710-0599

786-0056

712-0392

736-3020

738-0930

712-0266

786-0144

786-0149

756-0313

710-0723

686-0088

Part Description

Belt Cover Bolt

Tine Shield 20"

Hex Washer Screw 3/8-16 x 1.25

Hex Cap Screw 5/16-18

Tine Shield Bracket 20"

Cover Bracket

Lock Washer 5/16

Hex Cap Screw 5/16-24 x.50

Input Spacer.64 ID x 2.4 Lg

Pulley Adapter

Engine Inner Half Pulley

Engine Outer Half Pulley

Belt

Bell Washer.396 ID x 1.140 OD

Hex Cap Screw 3/8-24 x 1.0

Flat Pulley

Retainer Bearing Washer

Spherical Washer.531 ID x.620 OD

Jam Nut 1/2-20

Hex Washer Screw 1/4-20 x.50

Belt Cover

Cap Lock Nut 1/4-28

Flat Washer.271 ID x.630 OD

Shoulder Screw

Jam Nut 3/8-16

Idler Bracket

Idler Belt Keeper

Flat Idler

Hex Cap Screw 3/8-16 x 1.25

Idler Bracket Assembly

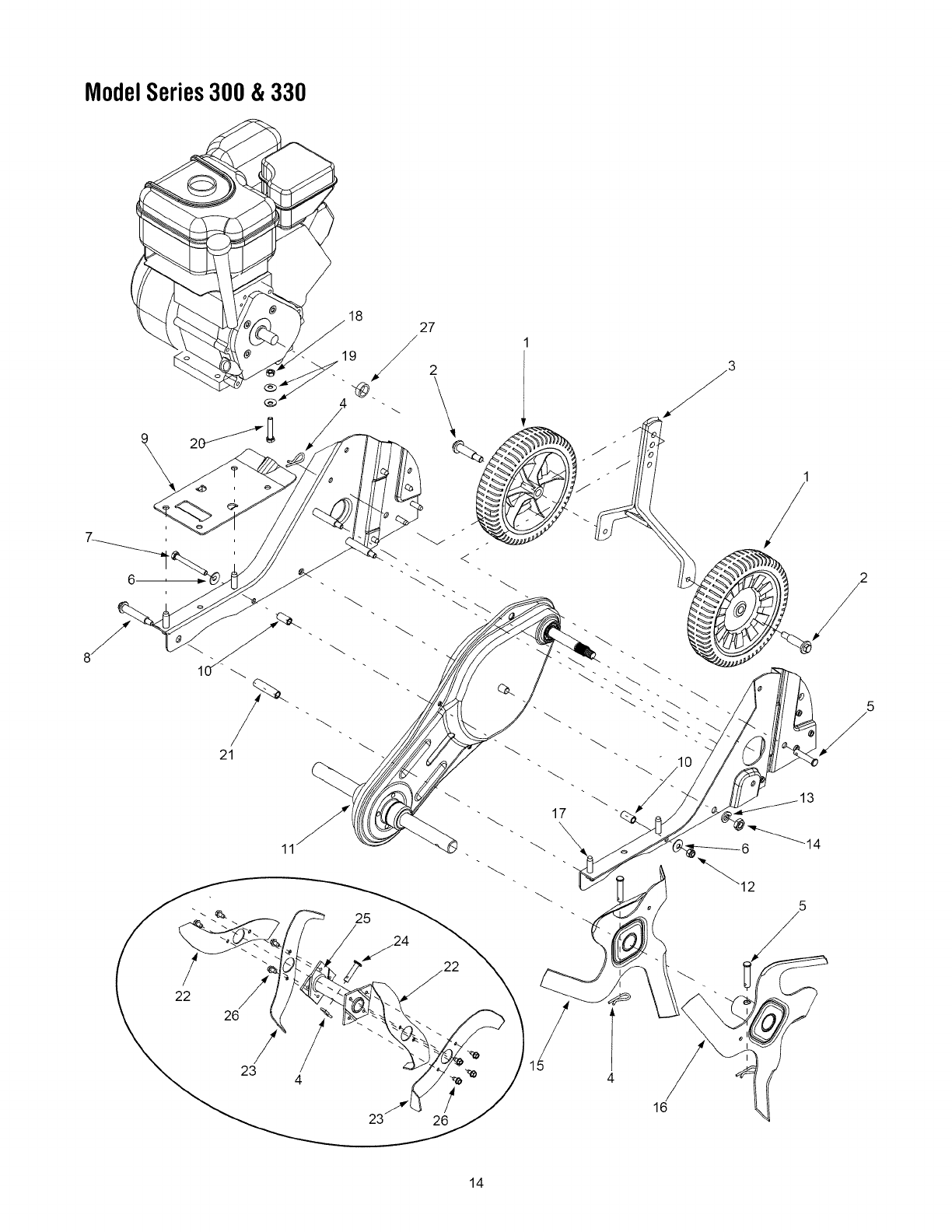

ModelSeries300 & 330

Ref. Part No.

No.

1. 734-1988

734-17815

2. 738-0929

3. 686-0081A

4. 714-0149B

5. 711-0415

6. 736-0242

7. 710-01897

710-0176_

8. 738-0934

9. 786-0145A

10. 750-0470

11. 686-01897

686-0091_

12. 712-0429

13. 736-0171

Part Description

Wheel 8 x 1.75

Wheel 8 x 1.8

Shoulder Screw

Wheel Bracket Assembly

Cotter Pin

Clevis Pin

Bell Washer.340 ID x.872 OD

Hex Cap Screw 5/16-18 x 3.0

Hex Cap Screw 5/16-18 x 2.75

Shoulder Screw

Engine Mounting Plate

Ref.

No.

14.

15.

16.

17.

18.

19.

20.

21.

22.

Part No.

712-0240

642-00025

642-00035

642-00045

642-00055

710-0502A

712-3010

736-0242

710-3180

750-02737

04922t

Part Description

Jam Nut 7/16-20

Inner Tine Assembly - RH 12"

Inner Tine Assembly - LH 12"

Outer Tine Assembly -RH 12"

Outer Tine Assembly - LH 12"

Hex Washer Screw 3/8-16 x 1.25

Hex Nut 5/16-18

Bell Washer.340 ID x.872 OD

Hex Cap Screw 5/16-18 x 1.75

Spacer, .51 x .69 x 1.97

Tine 9.5" RH

Spacer.47 OD x.96Lg

Chain Case Assembly

Hex Lock Nut 5/16-18

Lock Washer 7/16

23.

24.

25.

26.

27.

04923t

711-07027

04918t

710-05997

750-04567

Tine 9.5" LH

Clevis Pin

Tine Adapter

Self-tapping Screw, 1/4-20 x .5

Spacer, .790 x .347

1-Series 300 Only

:1:Series 330 Only

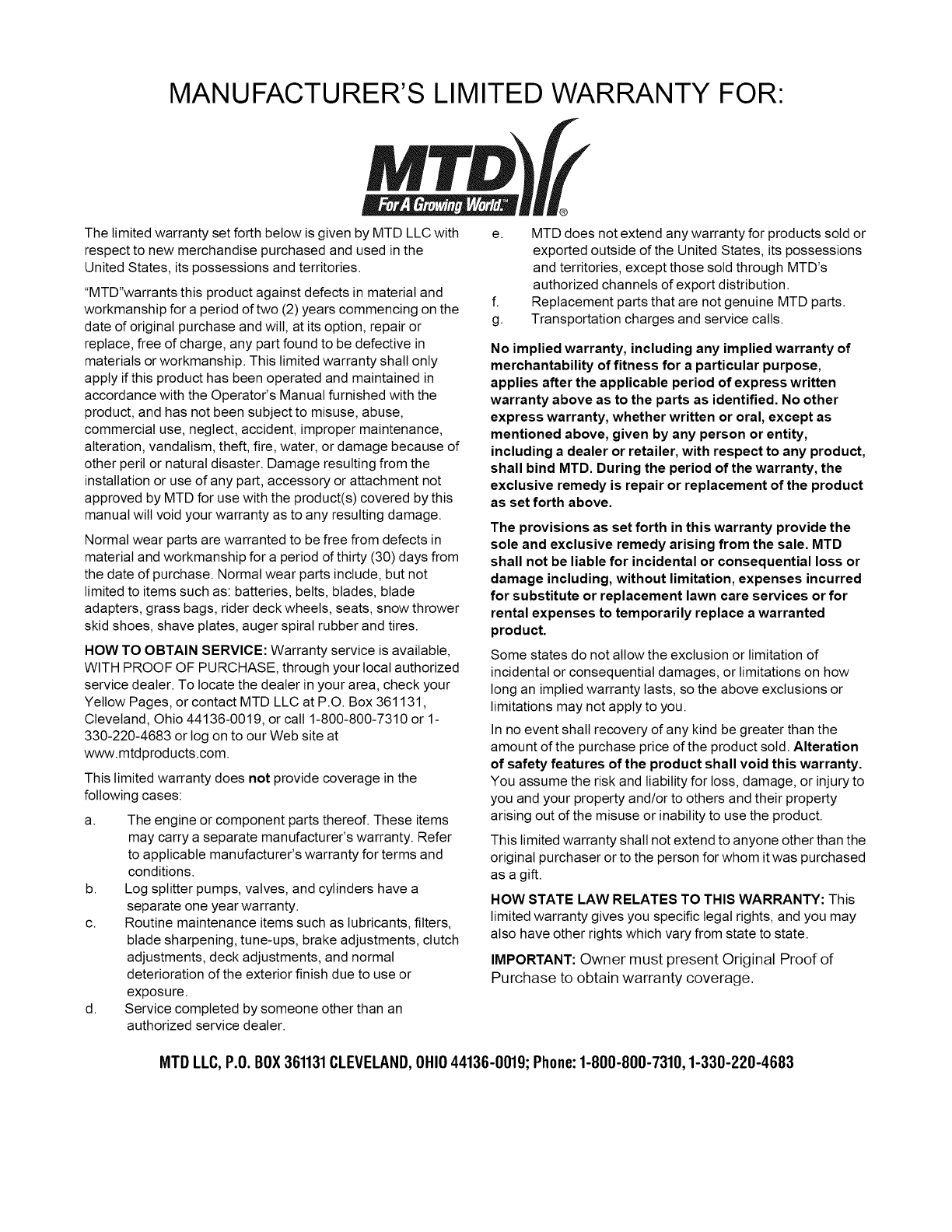

MANUFACTURER'S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD LLC with

respect to new merchandise purchased and used in the

United States, its possessions and territories.

"MTD"warrants this product against defects in material and

workmanship for a period of two (2) years commencing on the

date of original purchase and wilt, at its option, repair or

replace, free of charge, any part found to be defective in

materials or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator's Manual furnished with the

product, and has not been subject to misuse, abuse,

commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of

other peril or natural disaster. Damage resulting from the

installation or use of any part, accessory or attachment not

approved by MTD for use with the product(s) covered by this

manual will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in

material and workmanship for a period of thirty (30) days from

the date of purchase. Normal wear parts include, but not

limited to items such as: batteries, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow thrower

skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact MTD LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-

330-220-4683 or tog on to our Web site at

www.mtdproducts.com.

This limited warranty does not provide coverage in the

following cases:

The engine or component parts thereof. These items

may carry a separate manufacturer's warranty. Refer

to applicable manufacturer's warranty for terms and

conditions.

Log splitter pumps, valves, and cylinders have a

separate one year warranty.

Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or

exposure.

Service completed by someone other than an

authorized service dealer.

MTD does not extend any warranty for products sold or

exported outside of the United States, its possessions

and territories, except those sold through MTD's

authorized channels of export distribution.

Replacement parts that are not genuine MTD parts.

Transportation charges and service calls.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as

mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,

shall bind MTD. During the period of the warranty, the

exclusive remedy is repair or replacement of the product

as set forth above.

The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. MTD

shall not be liable for incidental or consequential loss or

damage including, without limitation, expenses incurred

for substitute or replacement lawn care services or for

rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or

limitations may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for toss, damage, or injury to

you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased

as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This

limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT: Owner must present Original Proof of

Purchase to obtain warranty coverage.

MTD LLC, P.O.BOX361131CLEVELAND,OHIO44136-0019; Phone:1-800-800-7310,1-330-220-4683

MTD 21A 332A700 User Manual FRONT TINE TILLER Manuals And Guides 1108347L

Navigation menu

Versions of this User Manual:

Views

Navigation
