Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
L
600-Series Snow Thrower mC/D Style
MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136-0019
PrintedIn USA FormNo.769-01274F
(June26,2007)

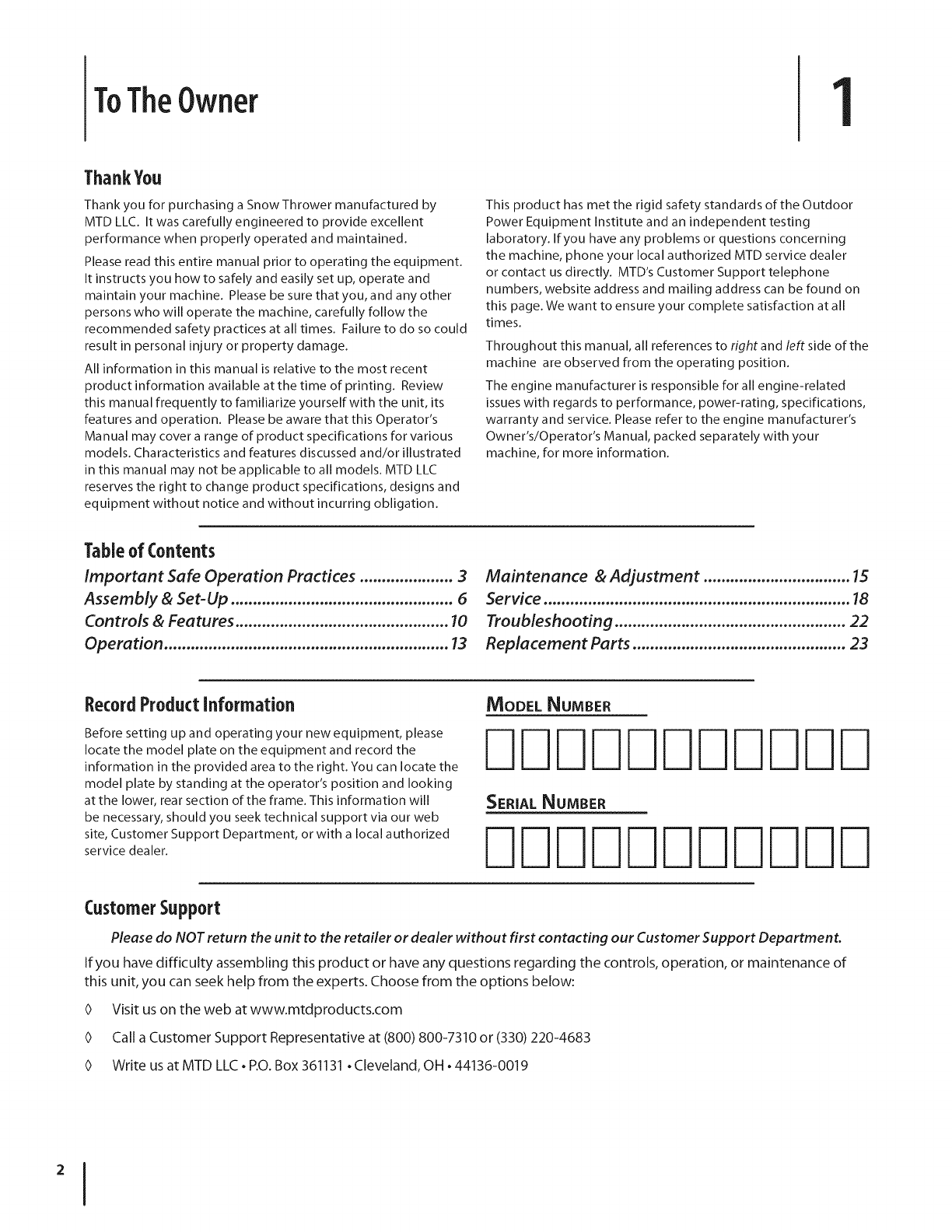

ToTheOwner 1
ThankYou
Thank you for purchasing a Snow Thrower manufactured by
MTD LLC. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the unit, its
features and operation. Please be aware that this Operator's
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. MTD LLC
reserves the right to change product specifications, designs and
equipment without notice and without incurring obligation.
This product has met the rigid safety standards of the Outdoor
Power Equipment Institute and an independent testing
laboratory. If you have any problems or questions concerning
the machine, phone your local authorized MTD service dealer
or contact us directly. MTD's Customer Support telephone
numbers, website address and mailing address can be found on
this page. We want to ensure your complete satisfaction at all
times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer's
Owner's/Operator's Manual, packed separately with your
machine, for more information.
TableofContents
Important Safe Operation Practices ..................... 3
Assembly &Set-Up .................................................. 6
Controls & Features ................................................ 10
Operation ................................................................ 13
Maintenance & Adjustment ................................. 13
Service ..................................................................... 18
Troubleshooting .................................................... 22
Replacement Parts ................................................ 23
RecordProductinformation
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator's position and looking
at the lower, rear section of the frame. This information will
be necessary, should you seek technical support via our web
site, Customer Support Department, or with a local authorized
service dealer.
MODEL NUMBER
D[31313131313131313D
SERIAL NUMBER
DF=IDF=IDF=IDF=IDF=ID
CustomerSupport
Please do NOT return the unit to the retailer or dealer without first contacting our Customer Support Department.
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this unit, you can seek help from the experts. Choose from the options below:
0 Visit us on the web at www.mtdproducts.com
0 Call a Customer Support Representative at (800) 800-7310 or (330) 220-4683
0 Write us at MTD LLC • RO. Box 361131 • Cleveland, OH • 44136-0019
importantSafeOperationPractices 2

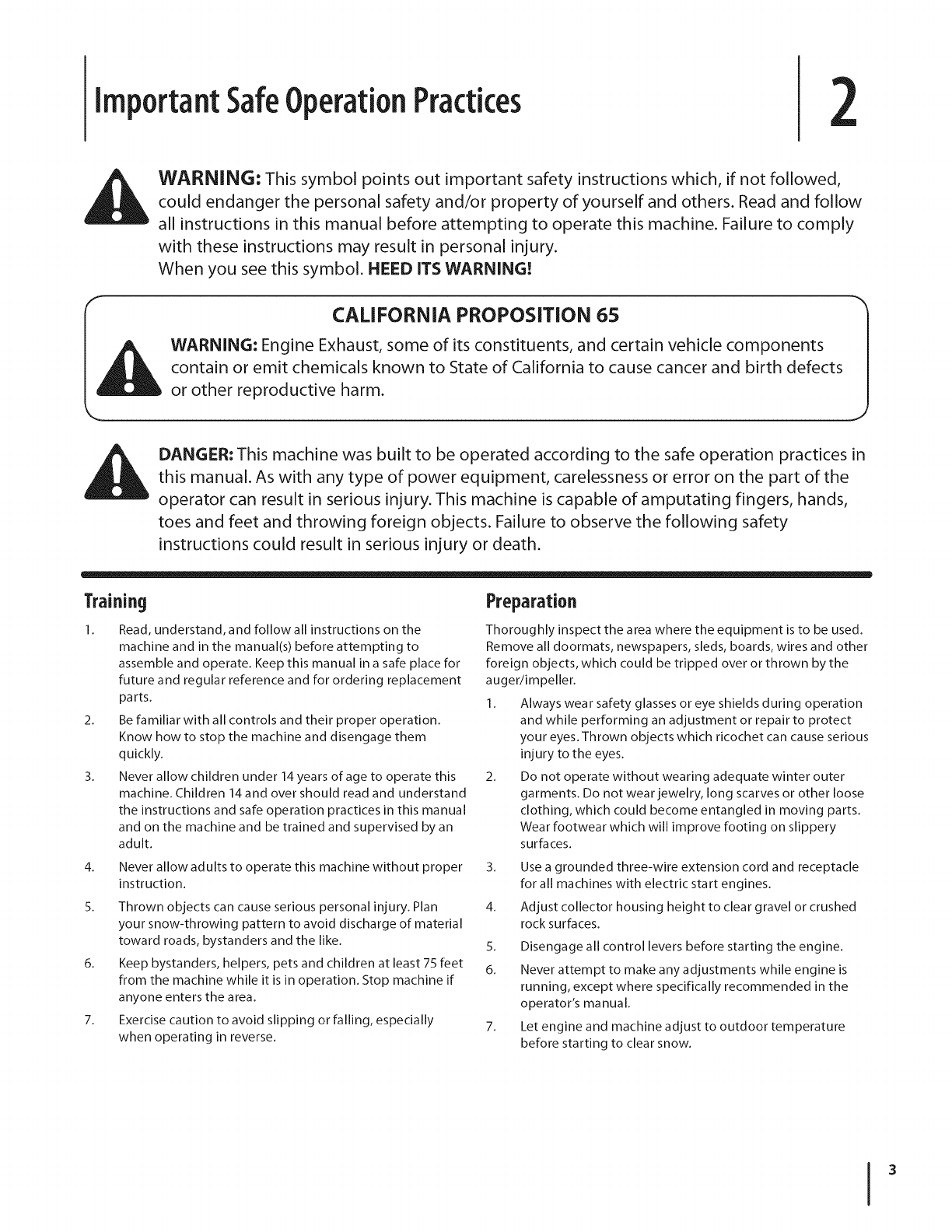

WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing foreign objects. Failure to observe the following safety
instructions could result in serious injury or death.
Training Preparation
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow-throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
Thoroughly inspect the area where the equipment is to be used.
Remove all doormats, newspapers, sleds, boards, wires and other
foreign objects, which could be tripped over or thrown by the
auger/impeller.
1. Always wear safety glasses or eye shields during operation
and while performing an adjustment or repair to protect
your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
2. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other loose
clothing, which could become entangled in moving parts.
Wear footwear which will improve footing on slippery
surfaces.
3. Use a grounded three-wire extension cord and receptacle
for all machines with electric start engines.
4. Adjust collector housing height to clear gravel or crushed
rock surfaces.
5. Disengage all control levers before starting the engine.
6. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator's manual.
7. Let engine and machine adjust to outdoor temperature
before starting to clear snow.

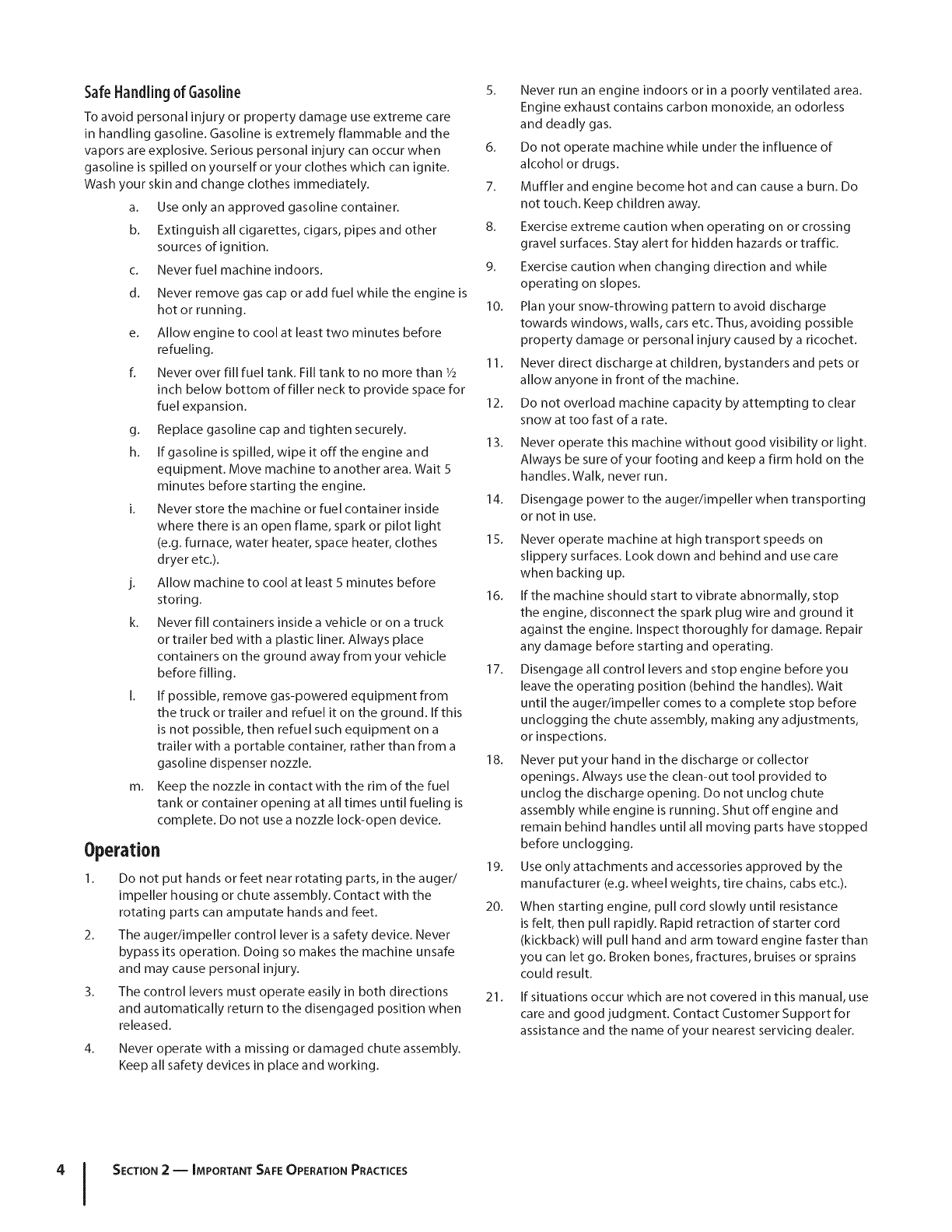

SafeHandling0f Gas01ine
To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the engine is
hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than 1/2
inch below bottom of filler neck to provide space for
fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
k. Never fill containers inside a vehicle or on a truck
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
I. If possible, remove gas-powered equipment from
the truck or trailer and refuel it on the ground. If this
is not possible, then refuel such equipment on a
trailer with a portable container, rather than from a
gasoline dispenser nozzle.
m. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
Operation
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or chute assembly. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller control lever is a safety device. Never
bypass its operation. Doing so makes the machine unsafe
and may cause personal injury.
3. The control levers must operate easily in both directions
and automatically return to the disengaged position when
released.
4. Never operate with a missing or damaged chute assembly.
Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
6. Do not operate machine while under the influence of
alcohol or drugs.
7. Muffler and engine become hot and can cause a burn. Do
not touch. Keep children away.
8. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while
operating on slopes.
10. Plan your snow-throwing pattern to avoid discharge
towards windows, walls, cars etc. Thus, avoiding possible
property damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets or
allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.
13.
14.
15.
Never operate this machine without good visibility or light.
Always be sure of your footing and keep a firm hold on the
handles. Walk, never run.
Disengage power to the auger/impeller when transporting
or not in use.
Never operate machine at high transport speeds on
slippery surfaces. Look down and behind and use care
when backing up.
16. If the machine should start to vibrate abnormally, stop
the engine, disconnect the spark plug wire and ground it
against the engine. Inspect thoroughly for damage. Repair
any damage before starting and operating.
17. Disengage all control levers and stop engine before you
leave the operating position (behind the handles). Wait
until the auger/impeller comes to a complete stop before
unclogging the chute assembly, making any adjustments,
or inspections.
18. Never put your hand in the discharge or collector
openings. Always use the dean-out tool provided to
unclog the discharge opening. Do not unclog chute
assembly while engine is running. Shut off engine and
remain behind handles until all moving parts have stopped
before unclogging.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. When starting engine, pull cord slowly until resistance
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
21. If situations occur which are not covered in this manual, use
care and good judgment. Contact Customer Support for
assistance and the name of your nearest servicing dealer.

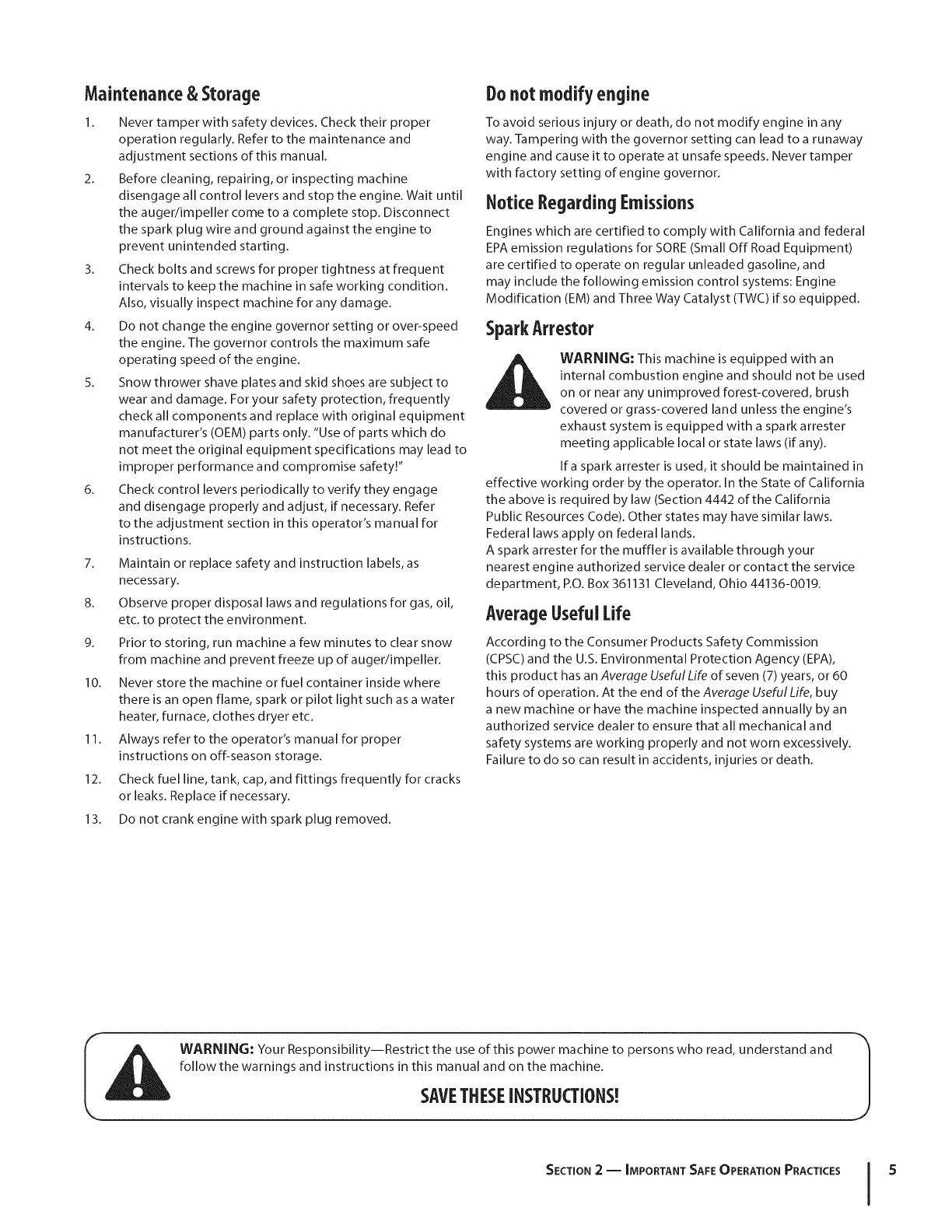

4J SECTION 2 -- iMPORTANT SAFE OPERATION PRACTICES
Maintenance&Storage
1. Never ta roper with safety devices. Check their proper
operation regularly. Refer to the maintenance and
adjustment sections of this manual.
2. Before cleaning, repairing, or inspecting machine
disengage all control levers and stop the engine. Wait until
the auger/impeller come to a complete stop. Disconnect
the spark plug wire and ground against the engine to
prevent unintended starting.
3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original equipment
manufacturer's (OEM) parts only. "Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!"
6. Check control levers periodically to verify they engage
and disengage properly and adjust, if necessary. Refer
to the adjustment section in this operator's manual for
instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator's manual for proper
instructions on off-season storage.
12. Check fuel line, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
13. Do not crank engine with spark plug removed.
Donot modifyengine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM) and Three Way Catalyst (TWC) if so equipped.
SparkArrestor
i_li WARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush
covered or grass-covered land unless the engine's
exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).
Ira spark arrester is used, it should be maintained in
effective working order by the operator. In the State of California
the above is required by law (Section 4442 of the California
Public Resources Code). Other states may have similar laws.
Federal laws apply on federal lands.
A spark attester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, RO. Box 361131 Cleveland, Ohio 44136-0019.
AverageUseful Life
According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years, or 60
hours of operation. At the end of the Average Useful Life, buy
a new machine or have the machine inspected annually by an
authorized service dealer to ensure that all mechanical and
safety systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
WARNING: Your Responsibility--Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVETHESEiNSTRUCTIONS!
SECTION 2 -- IMPORTANT SAFE OPERATION PRACTICES S
Assembly& Set-Up 3
Contents of Carton
One Snow Thrower
One Snow Thrower Operator's
Manual
Two Replacement Auger Shear Pins
One Tecumseh Engine Operator's
Manual
One Chute Assembly
One Product Registration Card
Assembly
Handle
1. Observe the lower rear area of the snow thrower to be sure
both cables are aligned with roller guides before pivoting
the handle upward. See Fig. 3-1.
NOTE: Make certain the upper ends of each cable are
seated properly in its bracket.
/
/
/

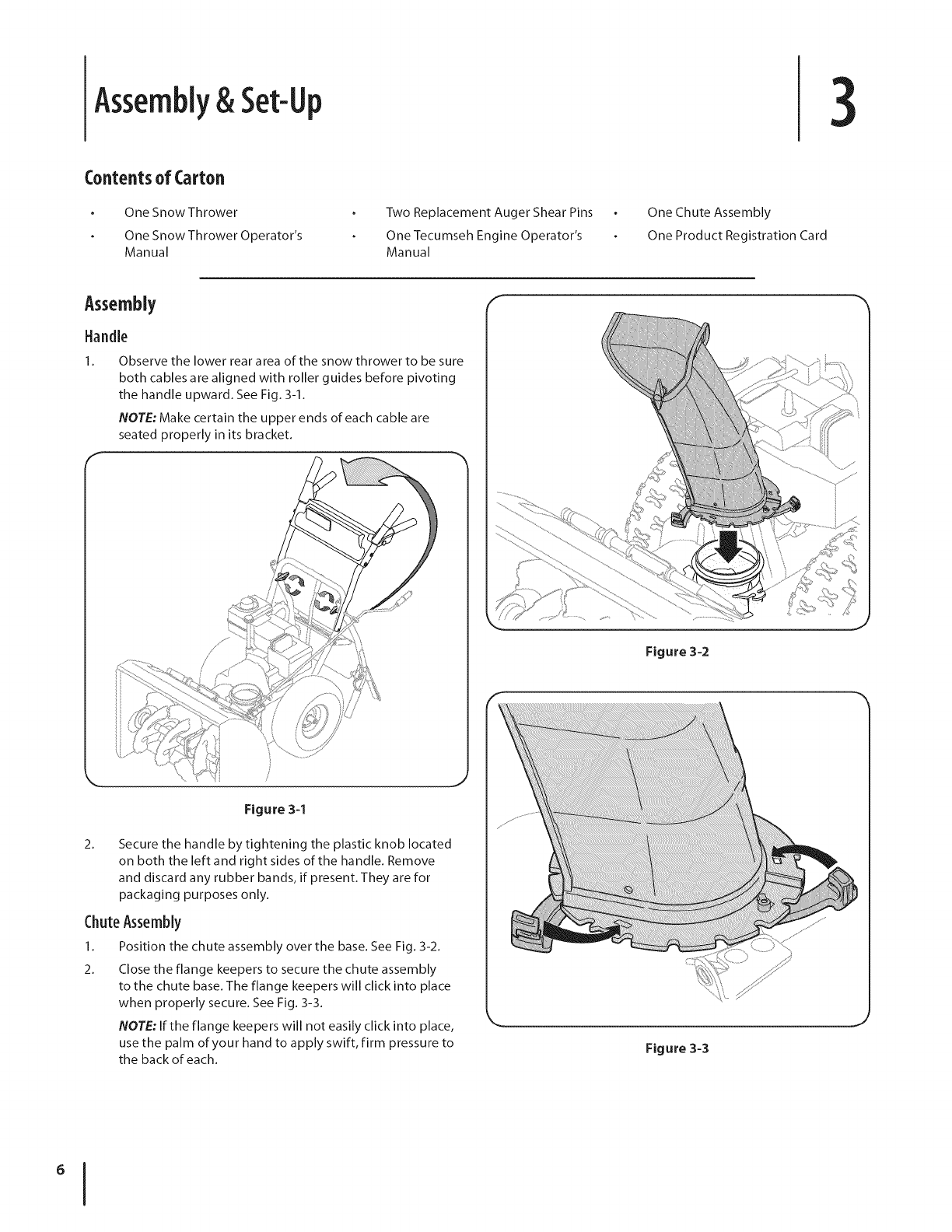

Figure 3-1
2. Secure the handle by tightening the plastic knob located
on both the left and right sides of the handle. Remove
and discard any rubber bands, if present. They are for
packaging purposes only.
ChuteAssembly
1. Position the chute assembly over the base. See Fig. 3-2.
2. Close the flange keepers to secure the chute assembly
to the chute base. The flange keepers will click into place
when properly secure. See Fig. 3-3.
NOTE: If the flange keepers will not easily click into place,
use the palm of your hand to apply swift, firm pressure to
the back of each.
f
Figure 3-3
ChuteDirectional Control

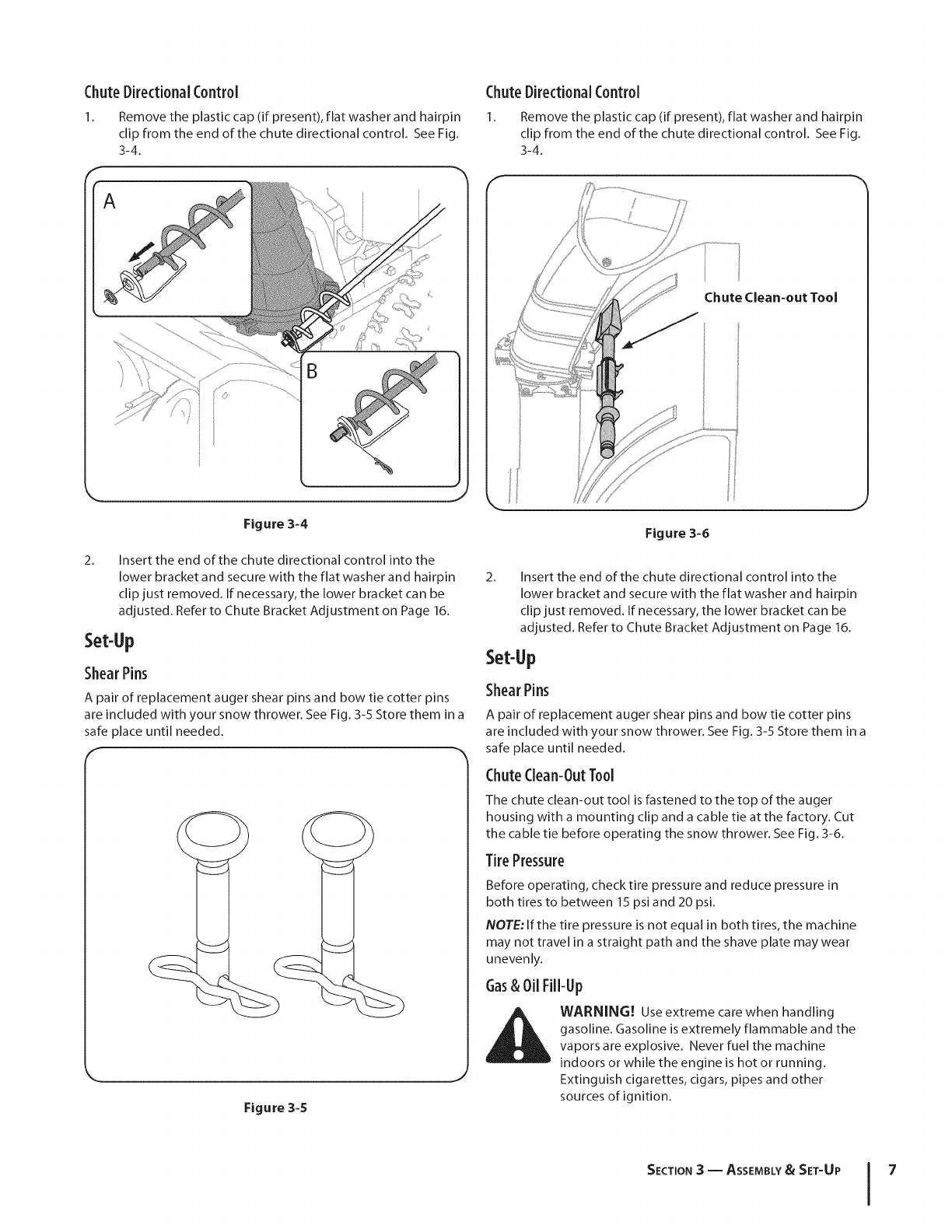

1. Remove the plastic cap (if present), flat washer and hairpin
clip from the end of the chute directional control. See Fig.
3-4.
J
Figure 3-4
2. Insert the end of the chute directional control into the
lower bracket and secure with the flat washer and hairpin
clip just removed. If necessary, the lower bracket can be
adjusted. Refer to Chute Bracket Adjustment on Page 16.
Set-Up
ShearPins
A pair of replacement auger shear pins and bow tie cotter pins
are included with your snow thrower. See Fig. 3-5 Store them in a
safe place until needed.
Figure 3-5
ChuteDirectionalControl
Remove the plastic cap (if present), flat washer and hairpin
clip from the end of the chute directional control. See Fig.
3-4.
Figure 3-6
2. Insert the end of the chute directional control into the
lower bracket and secure with the flat washer and hairpin
clip just removed. If necessary, the lower bracket can be
adjusted. Refer to Chute Bracket Adjustment on Page 16.
Set-Up
ShearPins
A pair of replacement auger shear pins and bow tie cotter pins
are included with your snow thrower. See Fig. 3-5 Store them in a
safe place until needed.
ChuteClean-OutT001
The chute clea n-out tool is fastened to the top of the auger
housing with a mounting clip and a cable tie at the factory. Cut
the cable tie before operating the snow thrower. See Fig. 3-6.
TirePressure
Before operating, check tire pressure and reduce pressure in
both tires to between 15 psi and 20 psi.
NOTE: If the tire pressure is not equal in both tires, the machine
may not travel in a straight path and the shave plate may wear
unevenly.
Gas& OilFill-Up
WARNING! Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
SECTION3 -- ASSEMBLY&SET-UP 7
Adjustments

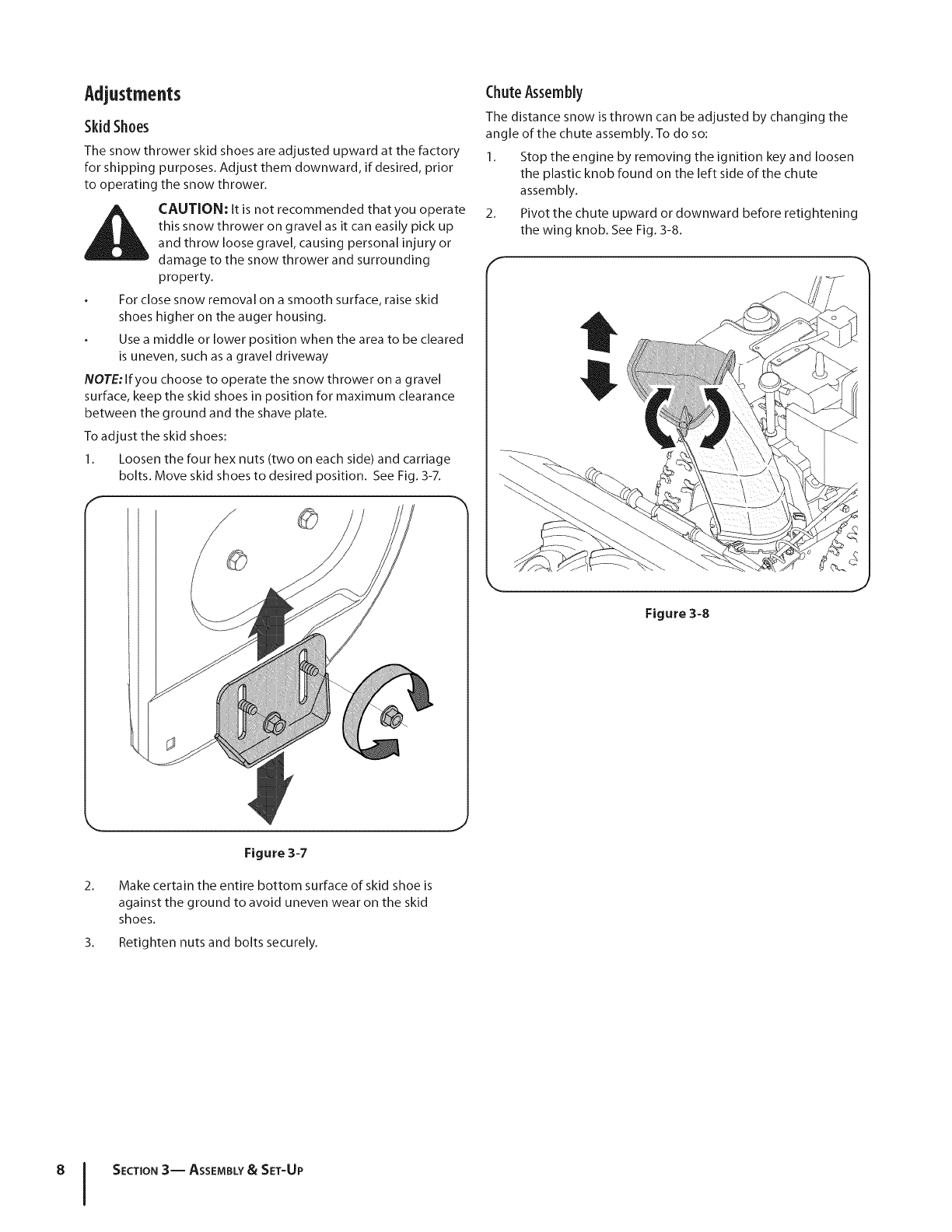

SkidShoes
The snow thrower skid shoes are adjusted upward at the factory
for shipping purposes. Adjust them downward, if desired, prior
to operating the snow thrower.
CAUTION: It is not recommended that you operate
this snow thrower on gravel as it can easily pick up
and throw loose gravel, causing personal injury or
damage to the snow thrower and surrounding
property.
For close snow removal on a smooth surface, raise skid
shoes higher on the auger housing.
Use a middle or lower position when the area to be cleared
is uneven, such as a gravel driveway
NOTE: If you choose to operate the snow thrower on a gravel
surface, keep the skid shoes in position for maximum clearance
between the ground and the shave plate.
To adjust the skid shoes:
1. Loosen the four hex nuts (two on each side) and carriage
bolts. Move skid shoes to desired position. See Fig. 3-7.
ChuteAssembly
The distance snow is thrown can be adjusted by changing the
angle of the chute assembly. To do so:
1. Stop the engine by removing the ignition key and loosen
the plastic knob found on the left side of the chute
assembly.
2. Pivot the chute upward or downward before retightening
the wing knob. See Fig. 3-8.
Figure 3-8
J
Figure 3-7
2. Make certain the entire bottom surface of skid shoe is
against the ground to avoid uneven wear on the skid
shoes.
3. Retighten nuts and bolts securely.
8ISECTION3-- ASSEMBLY&SET-UP

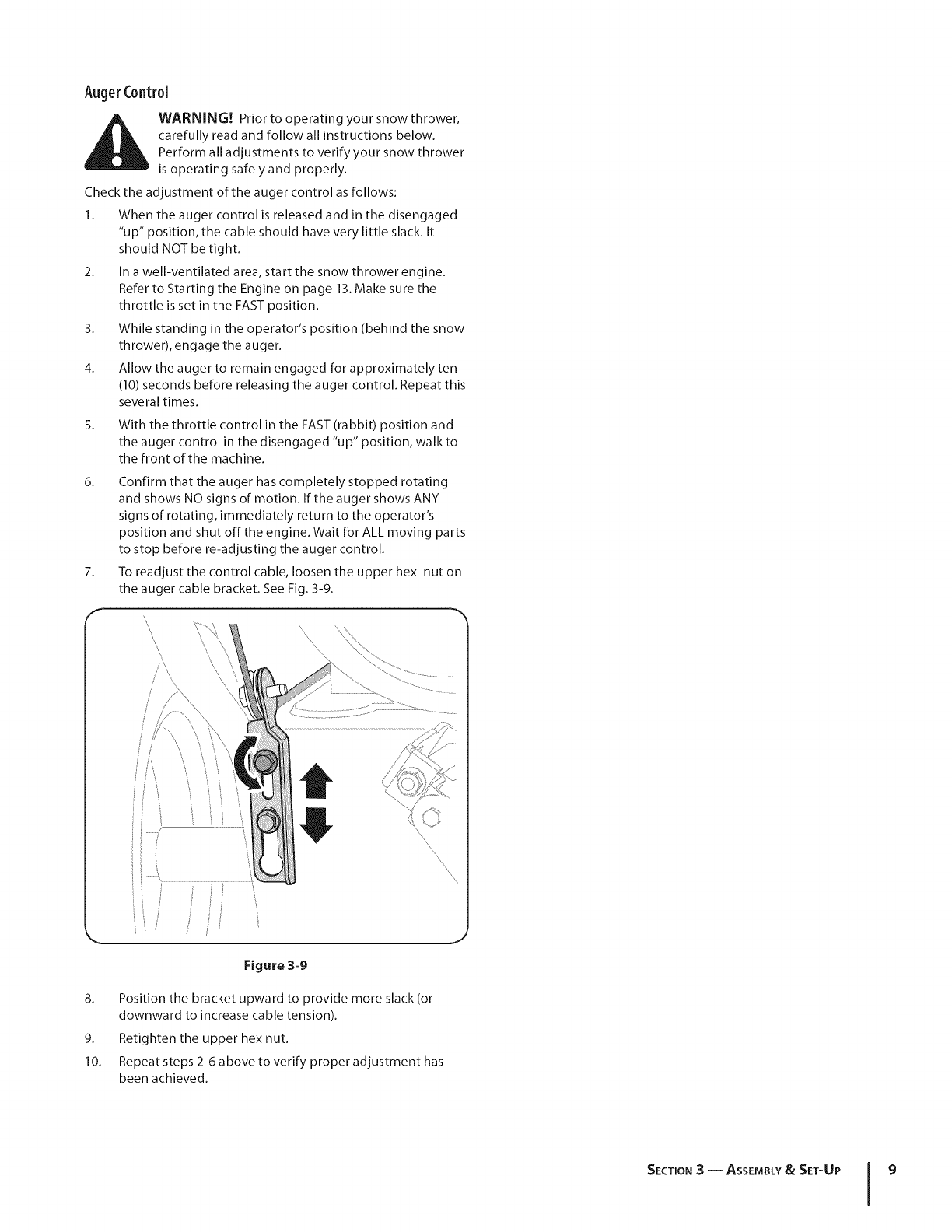

AugerControl
WARNING! Prior to operating your snow thrower,
carefully read and follow all instructions below.
Perform all adjustments to verify your snow thrower
is operating safely and properly.
Check the adjustment of the auger control as follows:
1. When the auger control is released and in the disengaged
"up" position, the cable should have very little slack. It
should NOT be tight.
2. In a well-ventilated area, start the snow thrower engine.
Refer to Starting the Engine on page 13. Make sure the
throttle is set in the FAST position.
3. While standing in the operator's position (behind the snow
thrower), engage the auger.
4. Allow the auger to remain engaged for approximately ten
(10) seconds before releasing the auger control. Repeat this
several times.
5. With the throttle control in the FAST (rabbit) position and
the auger control in the disengaged "up" position, walk to
the front of the machine.
6. Confirm that the auger has completely stopped rotating
and shows NO signs of motion. If the auger shows ANY
signs of rotating, immediately return to the operator's
position and shut off the engine. Wait for ALL moving parts
to stop before re-adjusting the auger control.
7. To readjust the control cable, loosen the upper hex nut on
the auger cable bracket. See Fig. 3-9.
,J
Figure 3-9
8.
9.
10.
Position the bracket upward to provide more slack (or
downward to increase cable tension).
Retighten the upper hex nut.
Repeat steps 2-6 above to verify proper adjustment has
been achieved.
SECTION 3-- ASSEMBLY& SET-UP 9

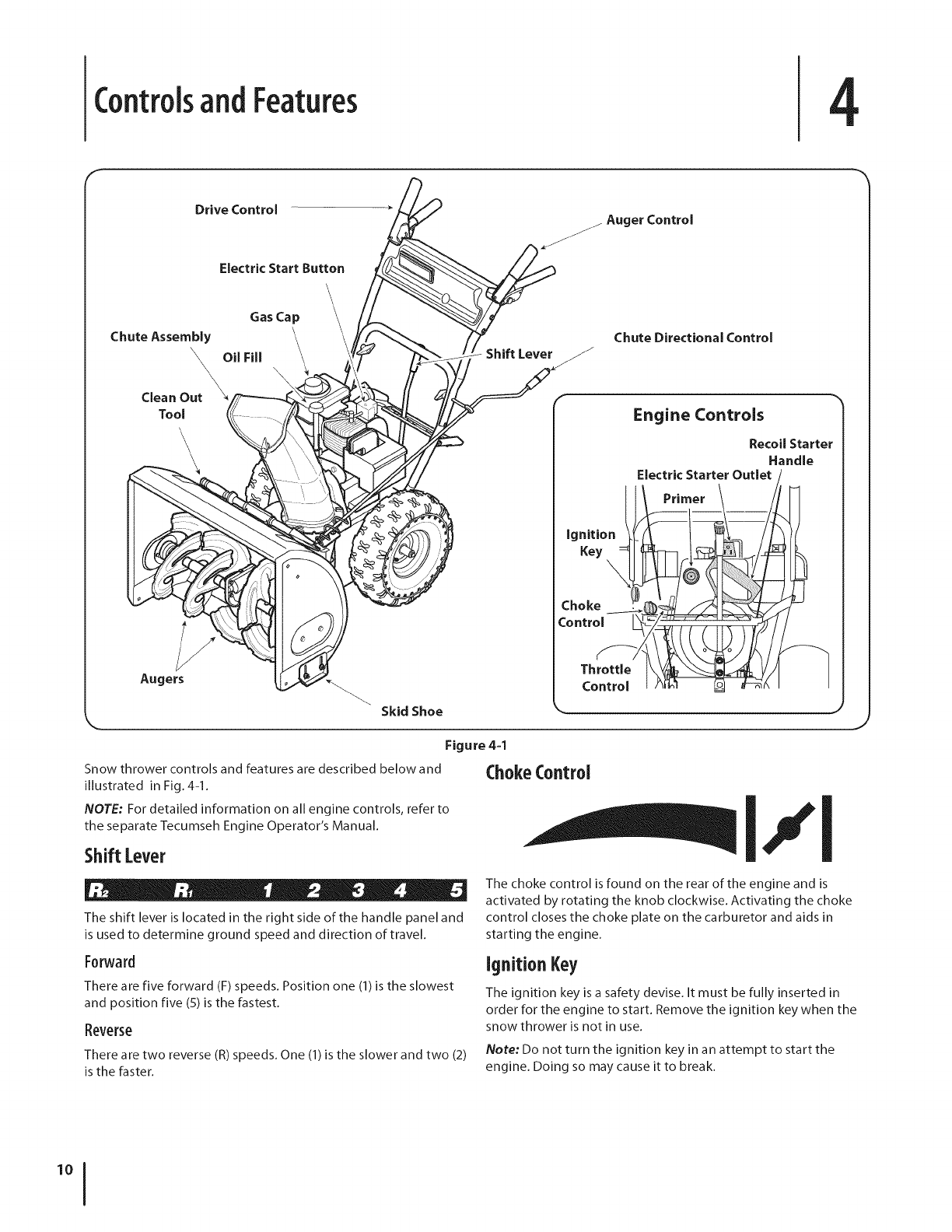

Controlsand Features 4
f
Drive Control /Auger Control
Electric Start Button
Gas Cap
Chute Assembly \\
\, oil Fill
\
\\ \\
Clean Out
Tool
Augers
Skid Shoe
Choke
Control
Throttle
Control
Chute Directional Control
Engine Controls
Recoil Starter
Handle
ElectricPrimerStarter Outlei.
Figure 4-1
Snow thrower controls and features are described below and
illustrated in Fig. 4-1.
NOTE: For detailed information on all engine controls, refer to
the separate Tecumseh Engine Operator's Manual.
Shift [ever
ChokeControl Ill
The shift lever is located in the right side of the handle panel and
is used to determine ground speed and direction of travel.
Forward
There are five forward (F) speeds. Position one (1) is the slowest
and position five (5) is the fastest.
Reverse
There are two reverse (R) speeds. One (1) is the slower and two (2)
is the faster.
The choke control is found on the rear of the engine and is
activated by rotating the knob clockwise. Activating the choke
control closes the choke plate on the carburetor and aids in
starting the engine.
Ignition Key
The ignition key is a safety devise. It must be fully inserted in
order for the engine to start. Remove the ignition key when the
snow thrower is not in use.
Note: Do not turn the ignition key in an attempt to start the
engine. Doing so may cause it to break.

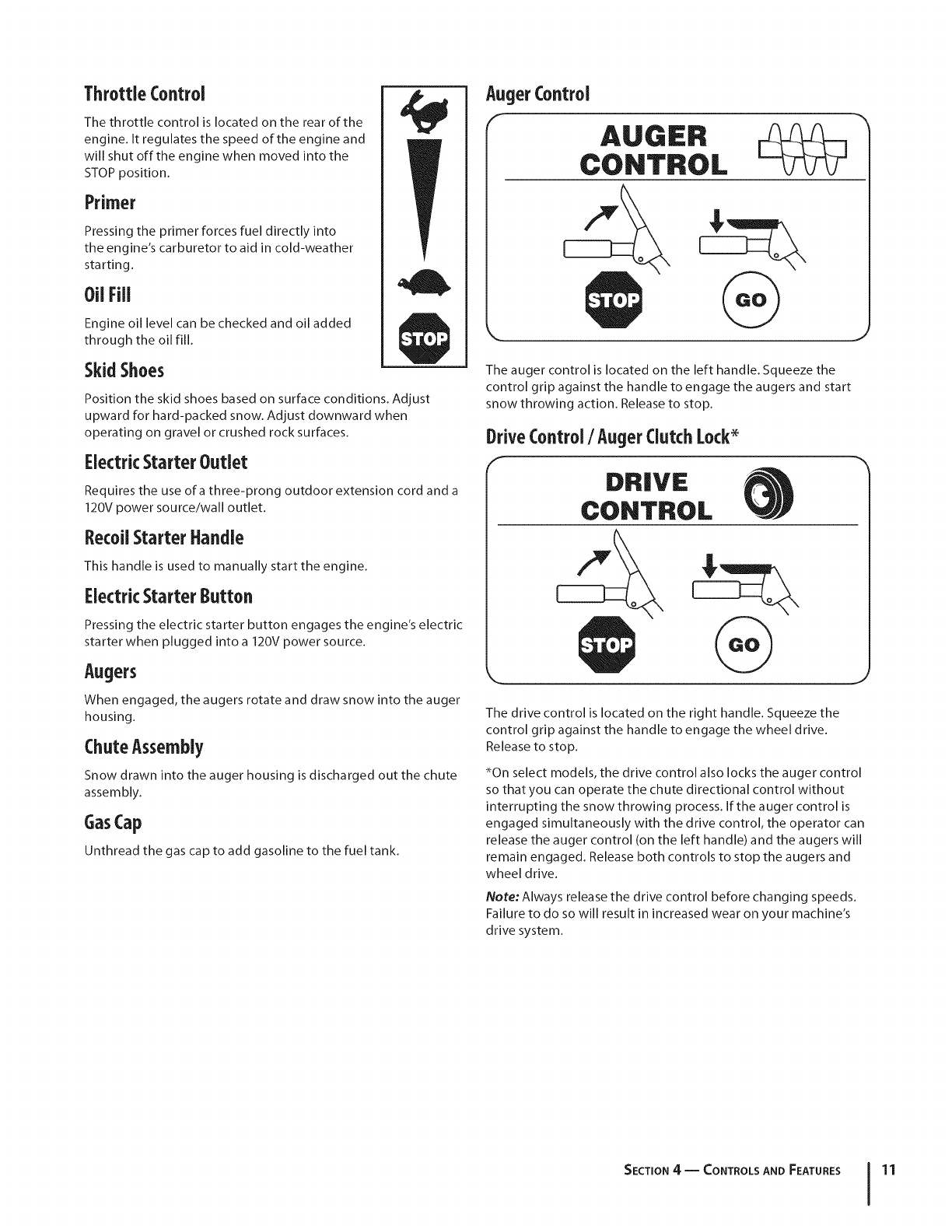

ThrottleControl
The throttle control is located on the rear of the
engine. It regulates the speed of the engine and
will shut offthe engine when moved into the
STOP position.
Primer
Pressing the primer forces fuel directly into
the engine's carburetor to aid in cold-weather
starting.
OilFill
Engine oil level can be checked and oil added
through the oil fill.
SkidShoes
Position the skid shoes based on surface conditions. Adjust
upward for hard-packed snow. Adjust downward when
operating on gravel or crushed rock surfaces.
Electric Starter Outlet
Requires the use of a three-prong outdoor extension cord and a
120V power source/wall outlet.
RecoilStarter Handle
This handle is used to manually start the engine.
Electric Starter Button
Pressing the electric starter button engages the engine's electric
starter when plugged into a 120V power source.
Augers
When engaged, the augers rotate and draw snow into the auger
housing.
ChuteAssembly
Snow drawn into the auger housing is discharged out the chute
assembly.
GasCap
Unthread the gas cap to add gasoline to the fuel tank.
The auger control is located on the left handle. Squeeze the
control grip against the handle to engage the augers and start
snow throwing action. Release to stop.
DriveControl/AugerClutchI_ock_
fDRIVE
CONTROL
The drive control is located on the right handle. Squeeze the
control grip against the handle to engage the wheel drive.
Release to stop.
*On select models, the drive control also locks the auger control
so that you can operate the chute directional control without
interrupting the snow throwing process. If the a uger control is
engaged simultaneously with the drive control, the operator can
release the auger control (on the left handle) and the augers will
remain engaged. Release both controls to stop the augers and
wheel drive.
Note: Always release the drive control before changing speeds.
Failure to do so will result in increased wear on your machine's
drive system.
SECTION4 -- CONTROLS AND FEATURES 11

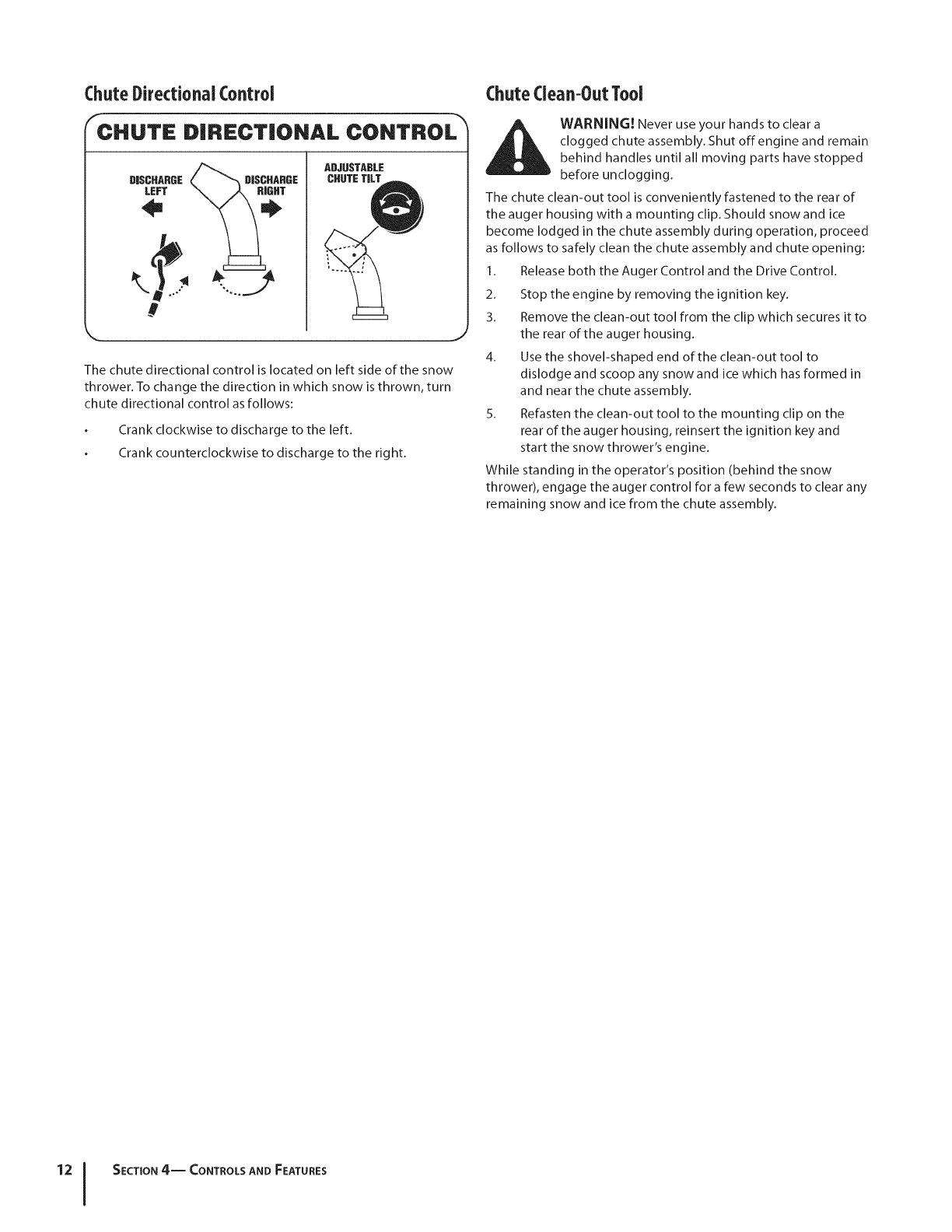

Chute Directional Control
CHUTE DIRECTIONAL CONTROL
DISCHARGE
LEFT
Q
ADJUSTABLE
CHUTE TILT
The chute directional control is located on left side of the snow
thrower. To change the direction in which snow is thrown, turn
chute directional control as follows:
Crank clockwise to discharge to the left.
Crank counterclockwise to discharge to the right.
ChuteClean-OutTool
_1 ARI_IING! Never use your hands to clear a
clogged chute assembly. Shut offengine and remain
behind handles until all moving parts have stopped
before unclogging.
The chute clean-out tool is conveniently fastened to the rear of
the auger housing with a mounting clip. Should snow and ice
become lodged in the chute assembly during operation, proceed
as follows to safely clean the chute assembly and chute opening:
1. Release both the Auger Control and the Drive Control.
2. Stop the engine by removing the ignition key.
3. Remove the clean-out tool from the clip which secures it to
the rear of the auger housing.
4. Use the shovel-shaped end of the clean-out tool to
dislodge and scoop any snow and ice which has formed in
and near the chute assembly.
5. Refasten the clean-out tool to the mounting clip on the
rear of the auger housing, reinsert the ignition key and
start the snow thrower's engine.
While standing in the operator's position (behind the snow
thrower), engage the auger control for a few seconds to clear any
remaining snow and ice from the chute assembly.
12 J SECTION 4-- CONTROLS AND FEATURES
Operation

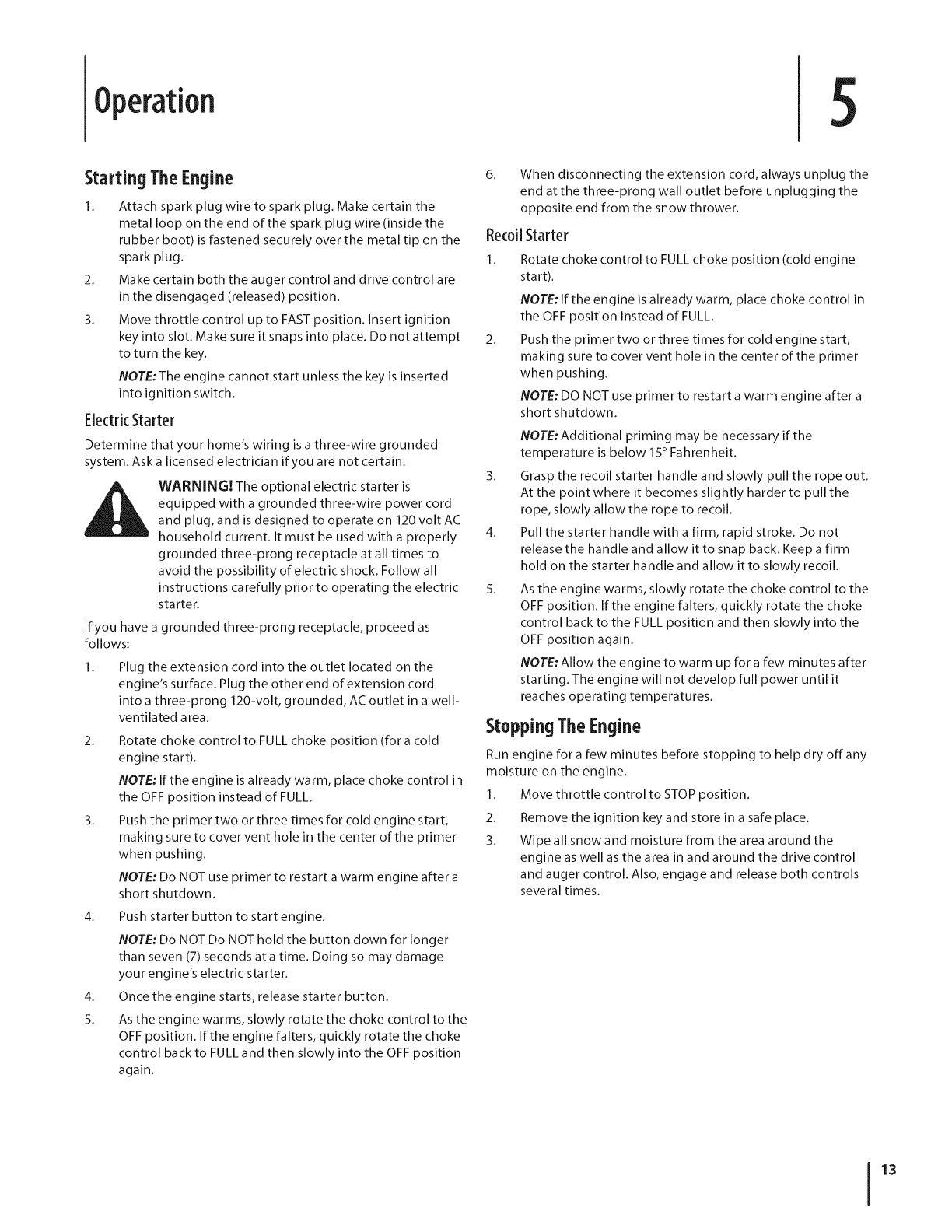

Starting TheEngine
1. Attach spark plug wire to spark plug. Make certain the
metal loop on the end of the spark plug wire (inside the
rubber boot) is fastened securely over the metal tip on the
spark plug.
2. Make certain both the auger control and drive control are
in the disengaged (released) position.
3. Move throttle control up to FAST position. Insert ignition
key into slot. Make sure it snaps into place. Do not attempt
to turn the key.
NOTE:The engine cannot start unless the key is inserted
into ignition switch.
Ele(trk Starter
6_ When disconnecting the extension cord, always unplug the
end at the three-prong wall outlet before unplugging the
opposite end from the snow thrower.
Re(0il Starter
2_
Determine that your home's wiring is a three-wire grounded
system. Ask a licensed electrician if you are not certain. 3.
i_i WARNING! The optional electric starter is
equipped with a grounded three-wire power cord
and plug, and is designed to operate on 120 volt AC
household current. It must be used with a properly 4.
grounded three-prong receptacle at all times to
avoid the possibility of electric shock. Follow all
instructions carefully prior to operating the electric 5.
starter.
If you have a grounded three-prong receptacle, proceed as
follows:
Plug the extension cord into the outlet located on the
engine's surface. Plug the other end of extension cord
into a three-prong 120-volt, grounded, AC outlet in a well-
ventilated area.
2. Rotate choke control to FULL choke position (for a cold
engine start).
NOTE: If the engine is already warm, place choke control in
the OFF position instead of FULL.
3. Push the primer two or three times for cold engine start,
making sure to cover vent hole in the center of the primer
when pushing.
NOTE: Do NOT use primer to restart a warm engine after a
short shutdown.
4. Push starter button to start engine.
NOTE: Do NOT Do NOT hold the button down for longer
than seven (7) seconds at a time. Doing so may damage
your engine's electric starter.
4. Once the engine starts, release starter button.
5. As the engine warms, slowly rotate the choke control to the
OFF position. If the engine falters, quickly rotate the choke
control back to FULL and then slowly into the OFF position
again.
Rotate choke control to FULL choke position (cold engine
start).
NOTE: If the engine is already warm, place choke control in
the OFF position instead of FULL.
Push the primer two or three times for cold engine start,
making sure to cover vent hole in the center of the primer
when pushing.
NOTE: DO NOT use primer to restart a warm engine after a
short shutdown.
NOTE:Additional priming may be necessary if the
temperature is below 15° Fahrenheit.
Grasp the recoil starter handle and slowly pull the rope out.
At the point where it becomes slightly harder to pull the
rope, slowly allow the rope to recoil.
Pull the starter handle with a firm, rapid stroke. Do not
release the handle and allow it to snap back. Keep a firm
hold on the starter handle and allow it to slowly recoil.
As the engine warms, slowly rotate the choke control to the
OFF position. If the engine falters, quickly rotate the choke
control back to the FULL position and then slowly into the
OFF position again.
NOTE: Allow the engine to warm up for a few minutes after
starting. The engine will not develop full power until it
reaches operating temperatures.
Stopping TheEngine
Run engine for a few minutes before stopping to help dry off any
moisture on the engine.
1. Move throttle control to STOP position.
2. Remove the ignition key and store in a safe place.
3. Wipe all snow and moisture from the area around the
engine as well as the area in and around the drive control
and auger control. Also, engage and release both controls
several times.
13

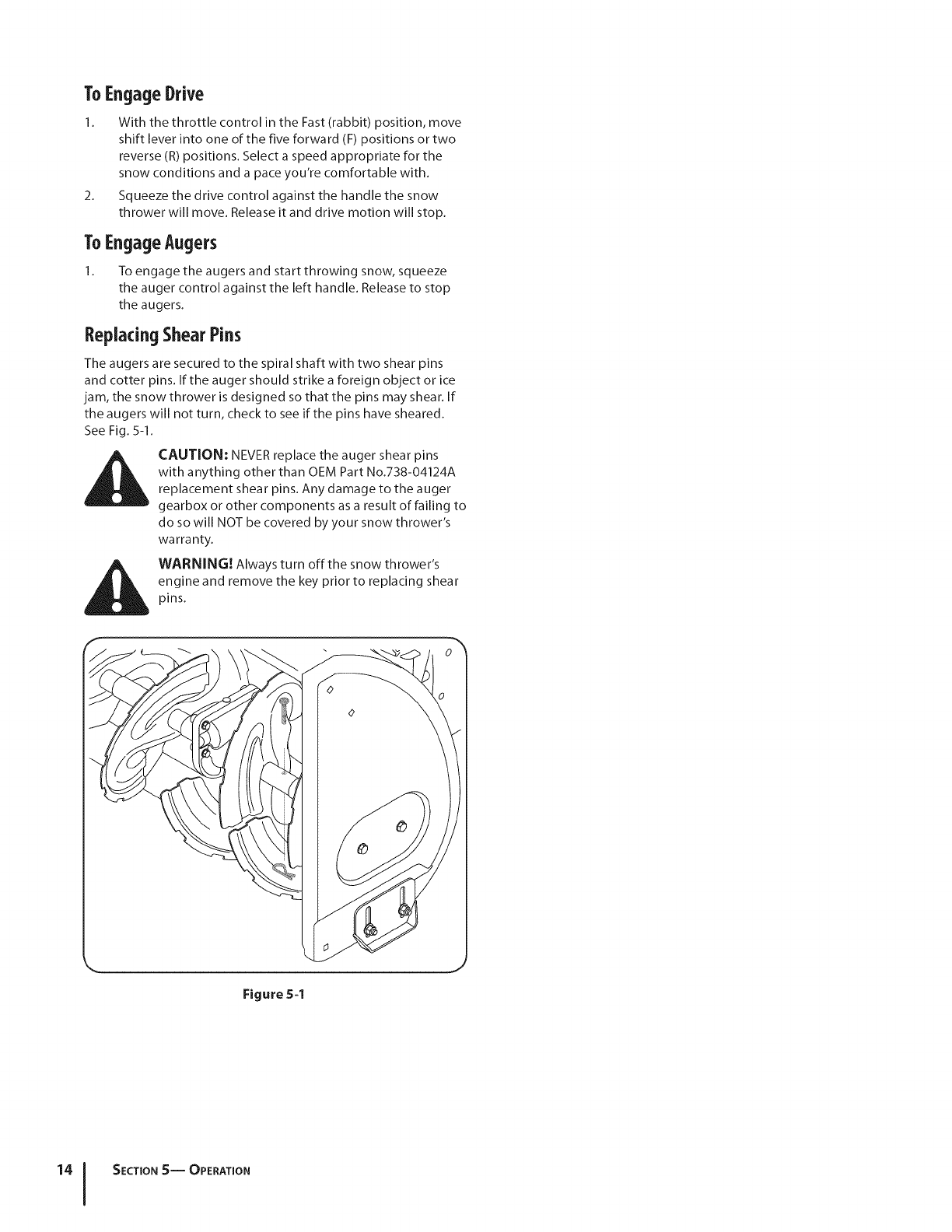

ToEngageDrive
1. With the throttle control in the Fast (rabbit) position, move
shift lever into one of the five forward (F) positions or two
reverse (R) positions. Select a speed appropriate for the
snow conditions and a pace you're comfortable with.
2. Squeeze the drive control against the handle the snow
thrower will move. Release it and drive motion will stop.
ToEngageAugers
1. To engage the augers and start throwing snow, squeeze
the auger control against the left handle. Release to stop
the augers.
ReplacingShearPins
The augers are secured to the spiral shaft with two shear pins
and cotter pins. If the auger should strike a foreign object or ice
jam, the snow thrower is designed so that the pins may shear. If
the augers will not turn, check to see if the pins have sheared.
See Fig. 5-1.
CAUTION: NEVER replace the auger shear pins
with anything other than OEM Part No.738-04124A
replacement shear pins. Any damage to the auger
gearbox or other components as a result of failing to
do so will NOT be covered by your snow thrower's
warranty.
WARNING! Always turn off the snow thrower's
engine and remove the key prior to replacing shear
pins.
Figure 5=1
SECTION S-- OPERATION

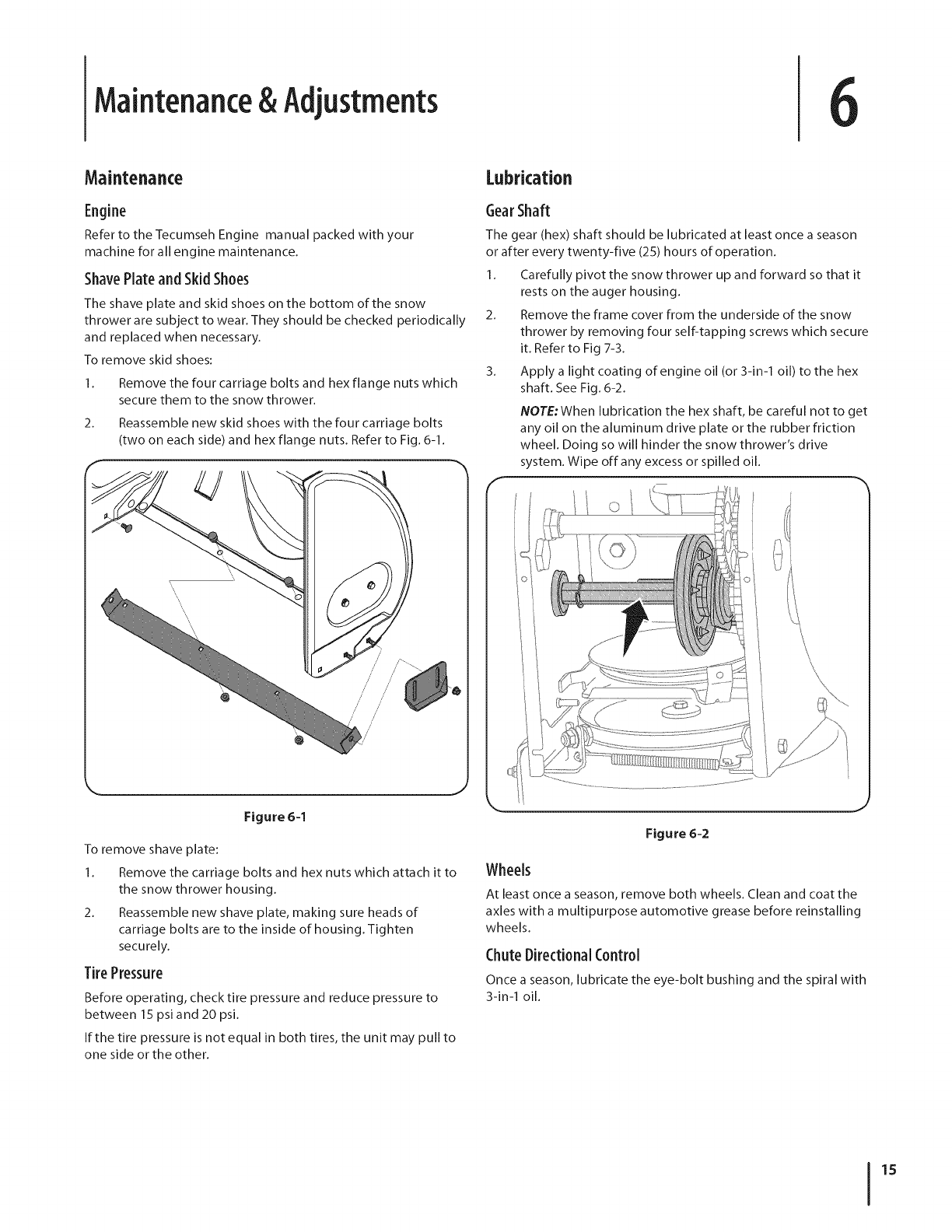

Maintenance& Adjustments 6
Maintenance
Engine
Refer to the Tecumseh EngJne manual packed wJth your
machine for all engJne maJntenance.
ShavePlate and Skid Shoes
The shave plate and skid shoes on the bottom of the snow
thrower are subject to wear. They should be checked periodically
and replaced when necessary.
To remove skid shoes:
Remove the four carriage bolts and hex flange nuts which
secure them to the snow thrower.
Reassemble new skid shoes with the four carriage bolts
(two on each side) and hex flange nuts. Refer to Fig. 6-1.
/ /
/ /
/ /
/ /
/ /
J
Figure 6-1
To remove shave plate:
1. Remove the carriage bolts and hex nuts which attach it to
the snow thrower housing.
2. Reassemble new shave plate, making sure heads of
carriage bolts are to the inside of housing. Tighten
securely.
TirePressure
Before operating, check tire pressure and reduce pressure to
between 15 psi and 20 psi.
If the tire pressure is not equal in both tires, the unit may pull to
one side or the other.
Lubrication
GearShaft
The gear (hex) shaft should be lubricated at least once a season
or after every twenty-five (25) hours of operation.
1. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.
2. Remove the frame cover from the underside of the snow
thrower by removing four self-tapping screws which secure
it. Refer to Fig 7-3.
3. Apply a light coating of engine oil (or 3-in-1 oil) to the hex
shaft. See Fig. 6-2.
NOTE; When lubrication the hex shaft, be careful not to get
any oil on the aluminum drive plate or the rubber friction
wheel. Doing so will hinder the snow thrower's drive
system. Wipe off any excess or spilled oil.
f
Figure 6-2
Wheels
At least once a season, remove both wheels. Clean and coat the
axles with a multipurpose automotive grease before reinstalling
wheels.
ChuteDirectional Control
Once a season, lubricate the eye-bolt bushing and the spiral with
3-in-1 oil.
15

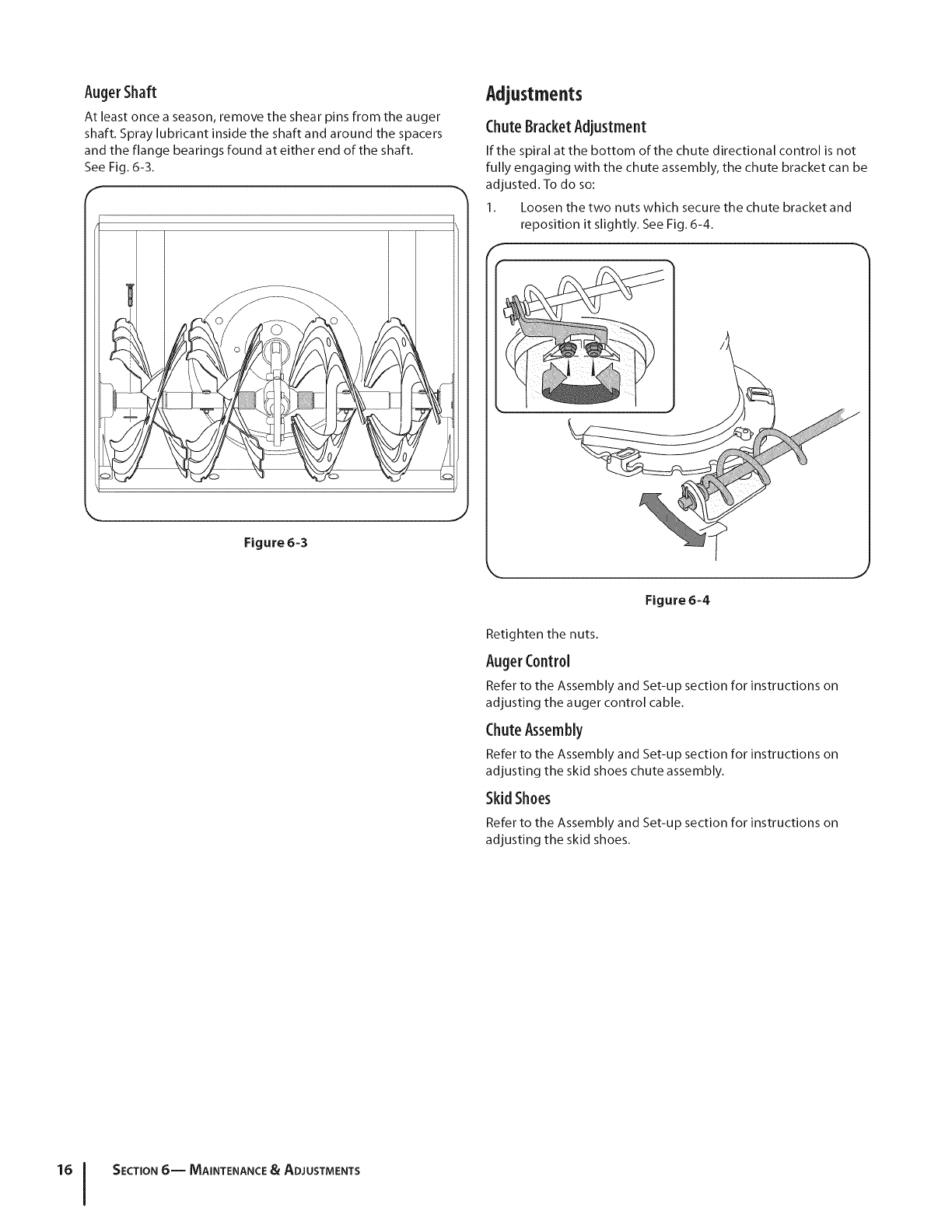

AugerShaft
At least once a season, remove the shear pins from the auger
shaft. Spray lubricant inside the shaft and around the spacers
and the flange bearings found at either end of the shaft.
See Fig. 6-3.
I __ o
I............. S
k. j
Figure 6-3
Adjustments
ChuteBracketAdjustment
If the spiral atthe bottom of the chute directional control is not
fully engaging with the chute assembly, the chute bracket can be
adjusted. To do so:
1. Loosen the two nuts which secure the chute bracket and
reposition it slightly. See Fig. 6-4.
j
Figure 6-4
Retighten the nuts.
AugerControl
Refer to the Assembly and Set-up section for instructions on
adjusting the auger control cable.
ChuteAssembly
Refer to the Assembly and Set-up section for instructions on
adjusting the skid shoes chute assembly.
Skid Shoes
Refer to the Assembly and Set-up section for instructions on
adjusting the skid shoes.
'°1SECTION 6-- MAINTENANCE & ADJUSTMENTS

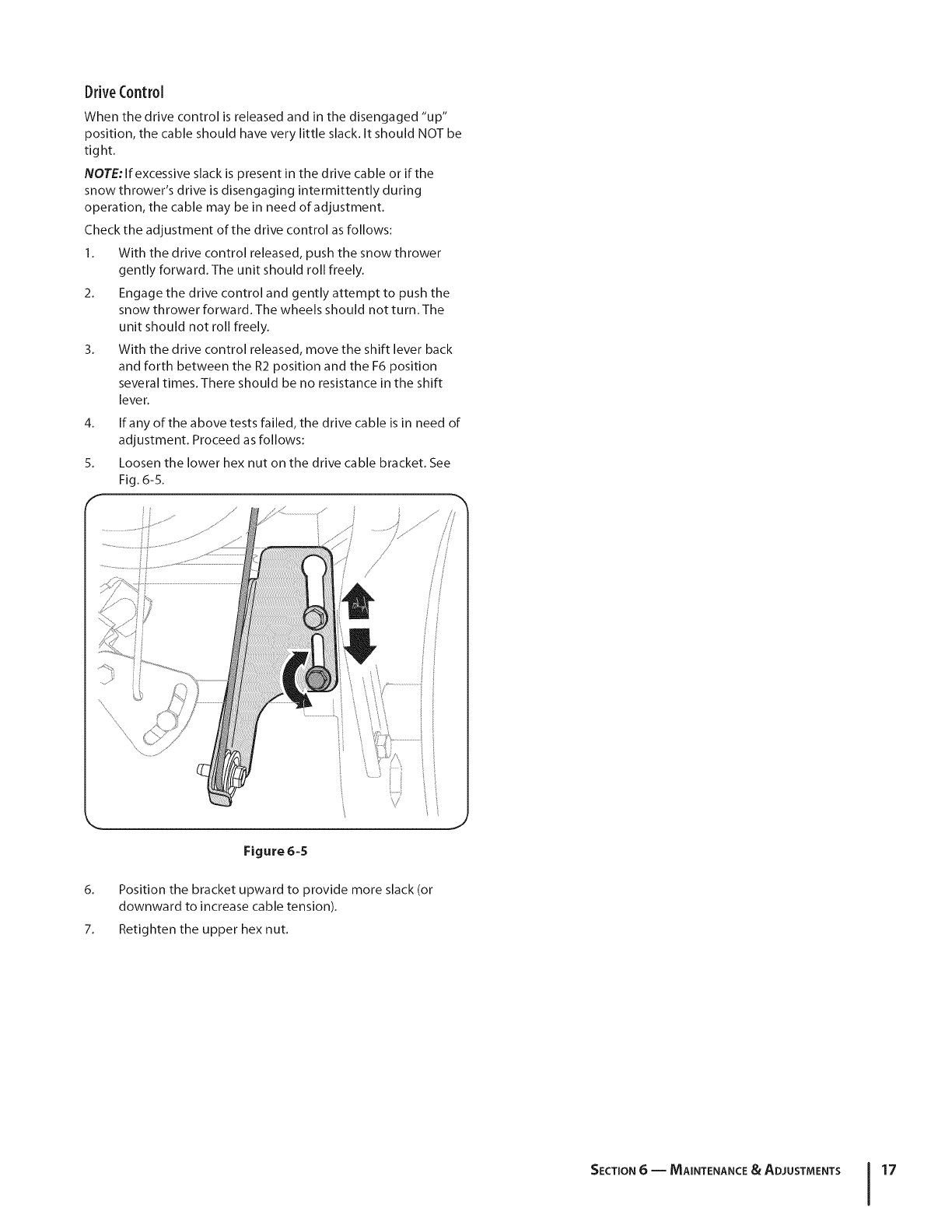

DriveControl
When the drive control is released and in the disengaged "up"
position, the cable should have very little slack. It should NOT be
tight.
NOTE: If excessive slack is present in the drive cable or if the
snow thrower's drive is disengaging intermittently during
operation, the cable may be in need of adjustment.
Check the adjustment of the drive control as follows:
1. With the drive control released, push the snow thrower
gently forward. The unit should roll freely.
2. Engage the drive control and gently attempt to push the
snow thrower forward. The wheels should not turn. The
unit should not roll freely.
3. With the d rive control released, move the shift lever back
and forth between the R2 position and the F6 position
several times. There should be no resistance in the shift
lever.
4. If any of the above tests failed, the drive cable is in need of
adjustment. Proceed as follows:
5. Loosen the lower hex nut on the drive cable bracket. See
Fig. 6-5.
i ................................../////
Figure 6-5
6. Position the bracket upward to provide more slack (or
downward to increase cable tension).
7. Retighten the upper hex nut.
SECTION 6 -- MAINTENANCE &ADJUSTMENTS 17
Service 7

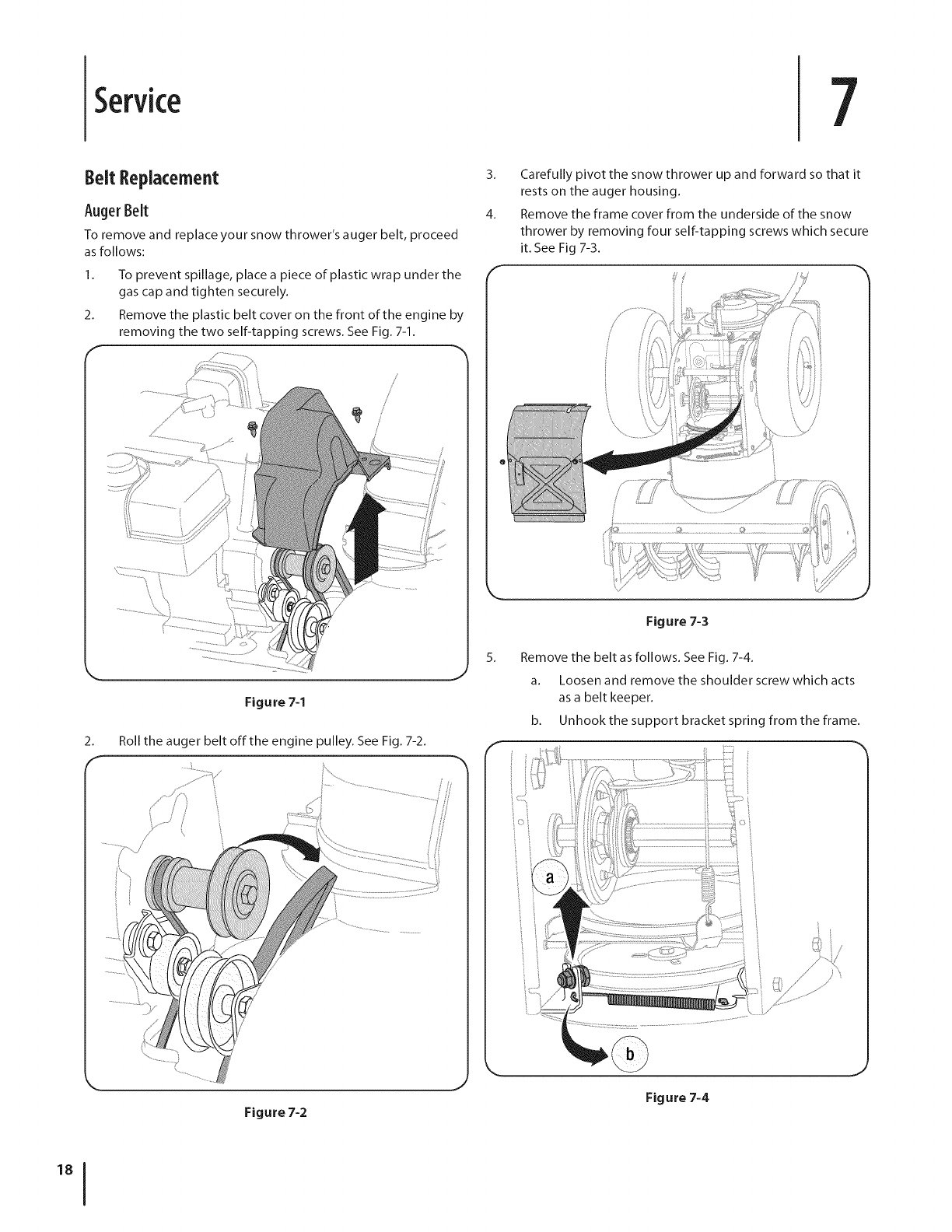

Belt Replacement
Auger Belt
To remove and replace your snow thrower's auger belt, proceed
as follows:
1. To prevent spillage, place a piece of plastic wrap under the
gas cap and tighten securely.
2. Remove the plastic belt cover on the front of the engine by
removing the two self-tapping screws. See Fig. 7-1.
2. Roll the auger belt off the engine pulley. See Fig. 7-2.
3. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.
4. Remove the frame cover from the underside of the snow
thrower by removing four self-tapping screws which secure
it. See Fig 7-3.
f
Figure 7-3
5. Remove the belt as follows. See Fig. 7-4.
a. Loosen and remove the shoulder screw which acts
as a belt keeper.
b. Unhook the support bracket spring from the frame.
Figure 7-2 Figure 7-4
6. Remove the belt from around the auger pulley, and slip the
belt between the support bracket and the auger pulley.
See Fig. 7-5.
J
Figure 7-5
7. Reassemble auger belt by following instructions in reverse
order.
NOTE: Do not forget to reinstall the shoulder screw
and reconnect the spring to the frame after installing a
replacement auger belt.

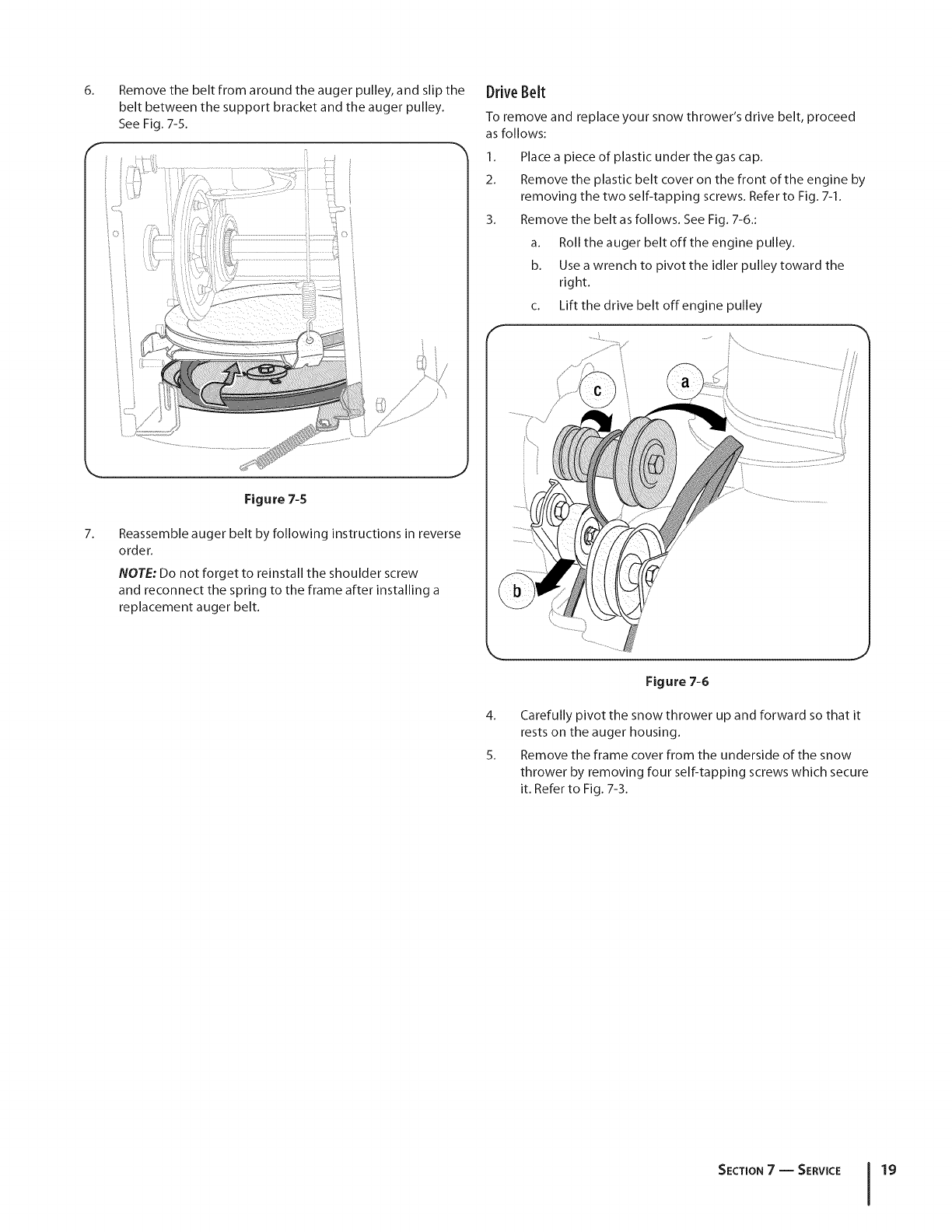

DriveBelt
To remove and replace your snow thrower's drive belt, proceed
as follows:
1. Place a piece of plastic under the gas cap.
2. Remove the plastic belt cover on the front of the engine by
removing the two self-tapping screws. Refer to Fig. 7-1.
3. Remove the belt as follows. See Fig. 7-6.:
a. Roll the auger belt off the engine pulley.
b. Use a wrench to pivot the idler pulley toward the
right.
c. Lift the drive belt off engine pulley
Figure 7-6
4. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.
5. Remove the frame cover from the underside of the snow
thrower by removing four self-tapping screws which secure
it. Refer to Fig. 7-3.
SECTION7 -- SERVICE 19
6_ Slip the drive belt offthe pulley and between friction
wheel and friction wheel disc. See Fig. 7-7.
Figure 7-7
7. Remove and replace belt in the reverse order.
NOTE: Engaging the drive control will ease reassembly of
the belt.

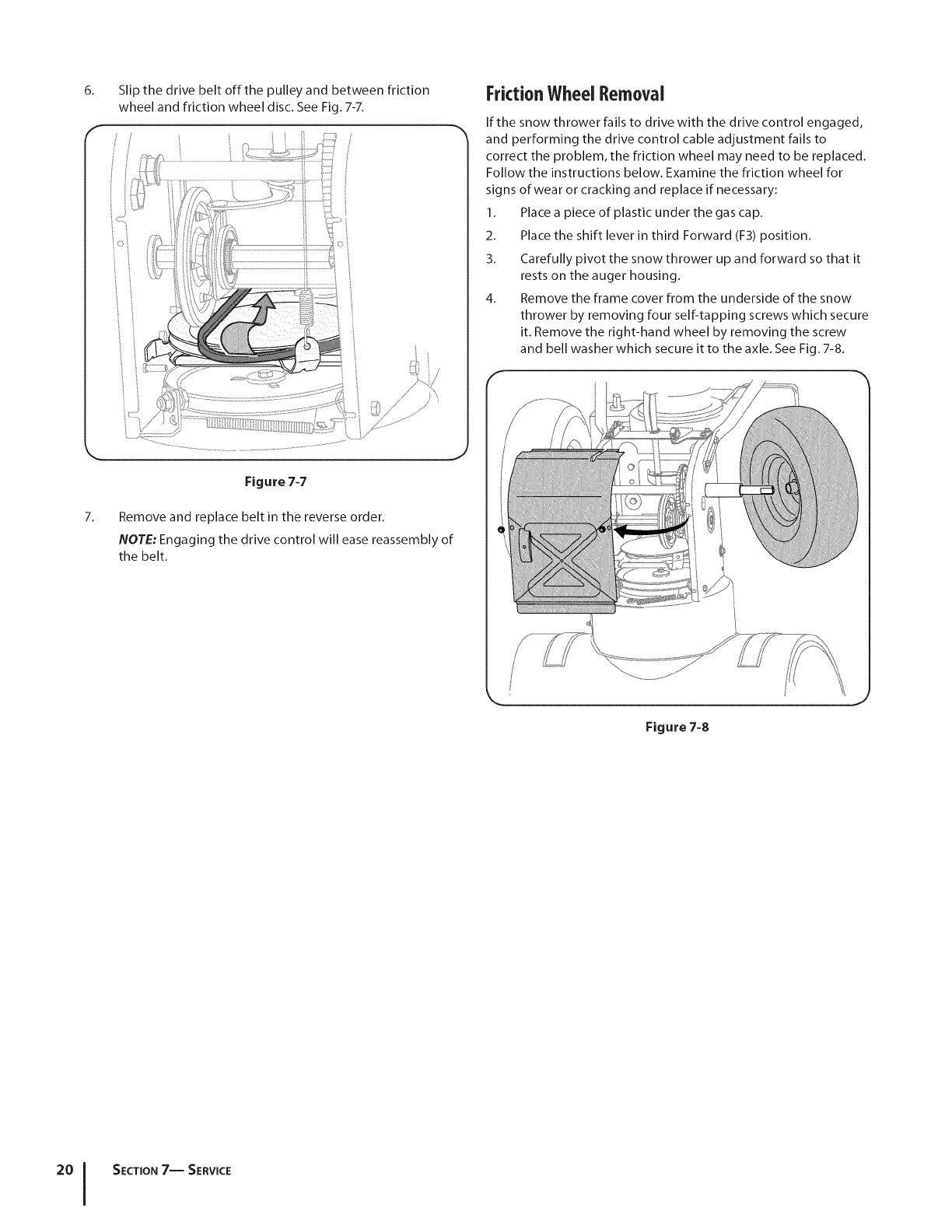

Friction WheelRemoval
If the snow thrower fails to drive with the drive control engaged,
and performing the drive control cable adjustment fails to
correct the problem, the friction wheel may need to be replaced.
Follow the instructions below. Examine the friction wheel for
signs of wear or cracking and replace if necessary:
1. Place a piece of plastic under the gas cap.
2. Place the shift lever in third Forward (F3) position.
3. Carefully pivot the snow thrower up and forward so that it
rests on the auger housing.
4. Remove the frame cover from the underside of the snow
thrower by removing four self-tapping screws which secure
it. Remove the right-hand wheel by removing the screw
and bell washer which secure it to the axle. See Fig. 7-8.
SECTION7-- SERVICE
5_
6_

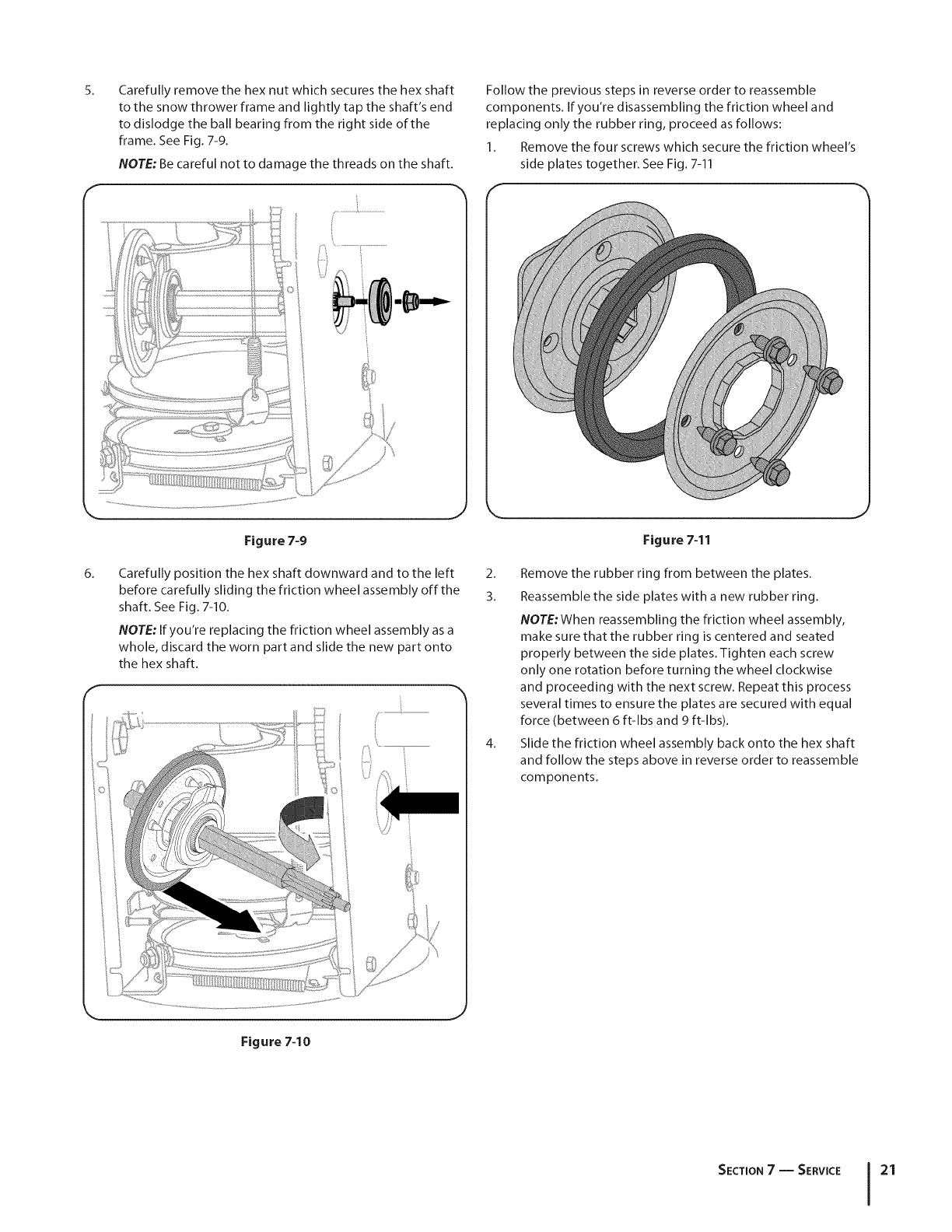

Carefully remove the hex nut which secures the hex shaft
to the snow thrower frame and lightly tap the shaft's end
to dislodge the ball bearing from the right side of the
frame. See Fig. 7-9.
NOTE: Be careful not to damage the threads on the shaft.
Figure 7-9
Carefully position the hex shaft downward and to the left
before carefully sliding the friction wheel assembly off the
shaft. See Fig. 7-10.
NOTE: If you're replacing the friction wheel assembly as a
whole, discard the worn part and slide the new part onto
the hex shaft.
J
Figure 7-10
Follow the previous steps in reverse order to reassemble
components. If you're disassembling the friction wheel and
replacing only the rubber ring, proceed as follows:
1. Remove the four screws which secure the friction wheel's
side plates together. See Fig. 7-11
Figure 7-11
2. Remove the rubber ring from between the plates.
3. Reassemble the side plates with a new rubber ring.
NOTE: When reassembling the friction wheel assembly,
make sure that the rubber ring is centered and seated
properly between the side plates. Tighten each screw
only one rotation before turning the wheel clockwise
and proceeding with the next screw. Repeat this process
several times to ensure the plates are secured with equal
force (between 6 ft-lbs and 9 ft-lbs).
4. Slide the friction wheel assembly back onto the hex shaft
and follow the steps above in reverse order to reassemble
components.
SECTION7 -- SERVICE 21
Troubleshooting
Problem Cause l Remedy
Engine runs erratic
Excessive vibration
Unit fails to propel itself
1. Engine running on CHOKE.
2. Stale fuel.
3. Water or dirt in fuel system.
4. Carburetor out of adjustment.
1. Loose parts ordamaged auger.
1. Drive control cable in need of adjustment.
2. Drive belt loose or damaged.
1. Move choke control to OFF position.
2. Fill tank with clean, fresh gasoline.
3. Drain fuel tank. Refill with fresh fuel.
4. Contact a Tecumseh Engine Service Center.
1. Stop engine immediately and disconnect
spark plug wire. Tighten all bolts and nuts. If
vibration continues, have unit serviced by an
authorized Service Center.
1. Adjust drive control cable. Refer to
Maintenance & Adjustments section.
2. Replace drive belt. Refer to Service section

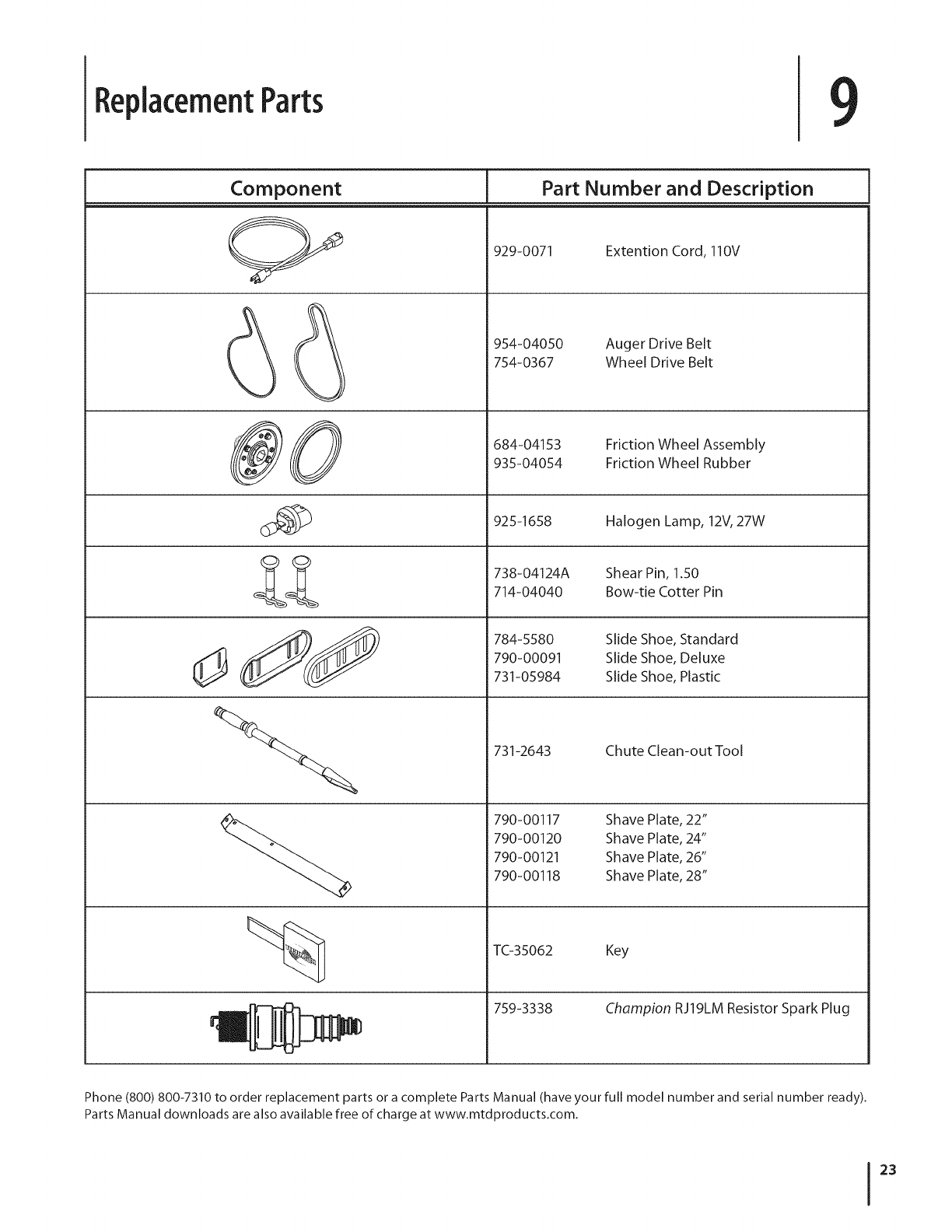

ReplacementParts 9
Component l Part Number and Description
929-0071 Extention Cord, 110V
954-04050 Auger Drive Belt
754-0367 Wheel Drive Belt
684-04153
935-04054
Friction Wheel Assembly
Friction Wheel Rubber
925-1658 Halogen Lamp, 12V, 27W
738-04124A
714-04040
Shear Pin, 1.50
Bow-tie Cotter Pin
784-5580
790-00091
731-05984
Slide Shoe, Standard
Slide Shoe, Deluxe
Slide Shoe, Plastic
731-2643 Chute Clean-out Tool
790-00117
790-00120
790-00121
790-00118
Shave Plate, 22"
Shave Plate, 24"
Shave Plate, 26"
Shave Plate, 28"
TC-35062 Key
759-3338 Champion RJ19LM Resistor Spark Plug
Phone (800) 800-7310 to order replacement parts or a complete Parts Manual (have your full model number and serial number ready).
Parts Manual downloads are also available free of charge at www.mtdproducts.com.
23

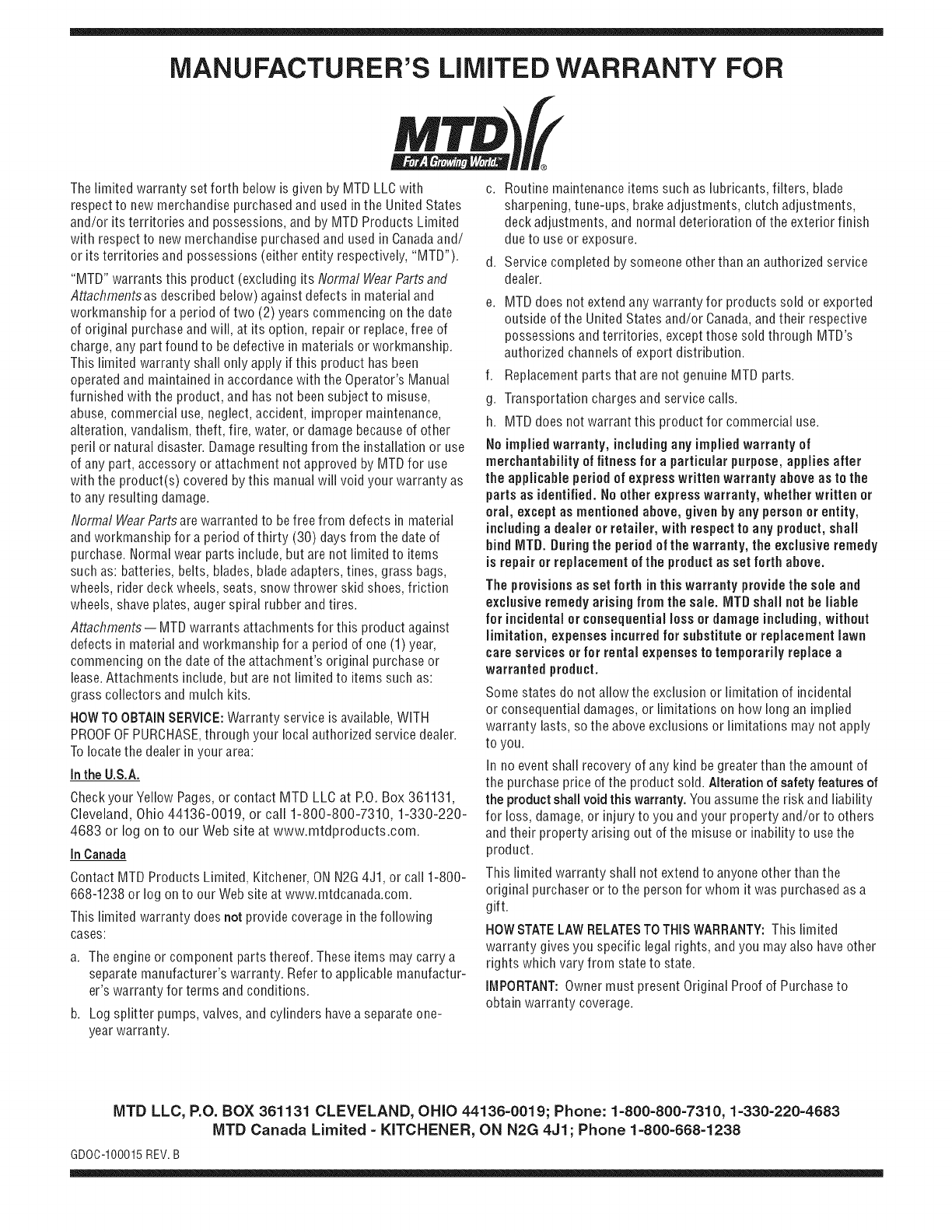

MANUFACTURER'S LiMiTED WARRANTY FOR
The limited warranty set forth below is given by MTD LLC with
respect to new merchandise purchased and used in the United States
and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased and used in Canadaand/
or its territories and possessions (either entity respectively, "MTD").
"MTD" warrants this product (excluding its Normal Wear Parts and
Attachments as described below) against defects in material and
workmanship for a period of two (2) years commencing on the date
of original purchase and will, at its option, repair or replace, free of
charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been
operated and maintained in accordance with the Operator's Manual
furnished with the product, and has not been subject to misuse,
abuse, commercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water, or damage because of other
peril or natural disaster. Damage resulting from the installation or use
of any part, accessory or attachment not approved by MTD for use
with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal WearParts are warranted to befree from defects in material
and workmanship for a period of thirty (30) days from the date of
purchase. Normal wear parts include, but are not limited to items
such as: batteries, belts, blades, blade adapters, tines, grass bags,
wheels, rider deck wheels, seats, snow thrower skid shoes, friction
wheels, shave plates, auger spiral rubber and tires.
Attachments-- MTD warrants attachments for this product against
defects in material and workmanship for a period of one (1) year,
commencing on the date of the attachment's original purchase or
lease. Attachments include, but are not limited to items such as:
grass collectors and mulch kits.
HOWTO OBTAINSERVICE:Warranty service is available, WITH
PROOFOFPURCHASE,through your local authorized service dealer.
To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact MTD LLC at RO. Box 361131,
Cleveland, Ohio 44136-0019, or call 1-800-800-7310, 1-330-220-
4683 or log on to our Web site at www.mtdproducts.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G4J1, or call 1-800-
668-1238 or log onto our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following
cases:
a. The engine or component parts thereof. These items may carry a
separate manufacturer's warranty. Refer to applicable manufactur-
er's warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders havea separate one-
year warranty.
c. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments,
deck adjustments, and normal deterioration of the exterior finish
due to use or exposure.
d. Service completed by someone other than an authorized service
dealer.
e. MTD does not extend any warranty for products sold or exported
outside of the United States and/or Canada,and their respective
possessions and territories, except those sold through MTD's
authorized channels of export distribution.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. MTD does not warrant this product for commercial use.
No implied warranty, including any implied warranty of
merchantability of fitness for a particular purpose, applies after
the applicable period of express written warranty above as to the
parts as identified. No other express warranty, whether written or
oral, except as mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall
bind MTD. Duringthe period of the warranty, the exclusiveremedy
is repair or replacement of the productas set forth above.
The provisions as set forth in this warranty providethe sole and
exclusive remedy arising from the sale. MTD shall not be liable
for incidental orconsequential loss or damage including, without
limitation, expenses incurred for substitute or replacement lawn
care services or for rental expenses to temporarily replace a
warranted product.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied
warranty lasts, so the above exclusions or limitations may not apply
to you.
In no event shaft recovery of any kind be greater than the amount of
the purchase price of the product sold. Alteration of safetyfeatures of
the product shall void this warranty. You assume the risk and liability
for loss, damage, or injuryto you and your property and/or to others
and their property arising out of the misuse or inability to use the
product.
This limited warranty shall not extend to anyone other than the
original purchaser or to the person for whom it was purchased as a
gift.
HOWSTATELAW RELATESTOTHIS WARRANTY: This limited
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
IMPORTANT: Owner must present Original Proof of Purchase to
obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHiO 44136=0019; Phone: 1=800=800=7310, 1=330=220=4683
MTD Canada Limited = KITCHENER, ON N2G 4J1; Phone 1=800=668=1238
GDOC-lO0015 REV.B

Navigation menu
