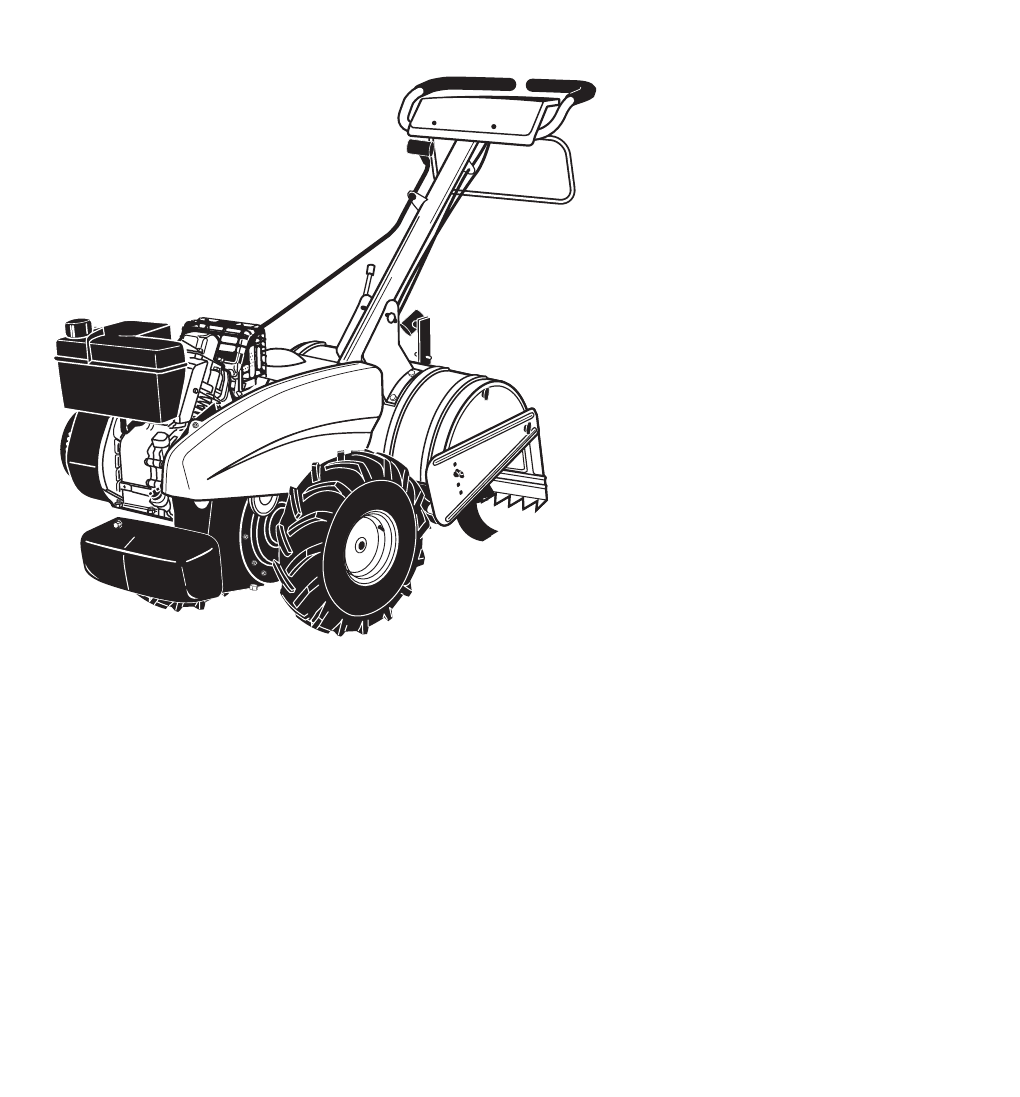

Rear Tine Tiller

Model Series 410

Operator’s Manual

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting

applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.

In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have

similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized

service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

PRINTED IN U.S.A.

FORM NO.

769-02358.fm

2/3/06

2

This Operator’s Manual is an important part of your new tiller. It will help you assemble, prepare

and maintain the unit for best performance. Please read and understand what it says.

TABLE OF CONTENTS

FINDING AND RECORDING MODEL NUMBER

CUSTOMER SUPPORT

Please do NOT return the unit to the retailer from where it

was purchased, without first contacting Customer Support.

If you have difficulty assembling this product or have any questions regarding the

controls, operation or maintenance of this unit, you can seek help from the experts.

Choose from the options below:

1. Visit mtdproducts.com. Click on the Service & Support menu option.

2. Phone a Customer Support Representative at 1 (800) 800-7310.

3. The engine manufacturer is responsible for all engine-related issues with regards to

performance, power rating, specifications, warranty and service. Please refer to the

engine manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for

more information.

Content Page

Important Safe Operation Practices 3

Assembling Your Tiller 5

Know Your Tiller 8

Operating Your Tiller 10

Making Adjustments 12

Maintaining Your Tiller 13

Troubleshooting 15

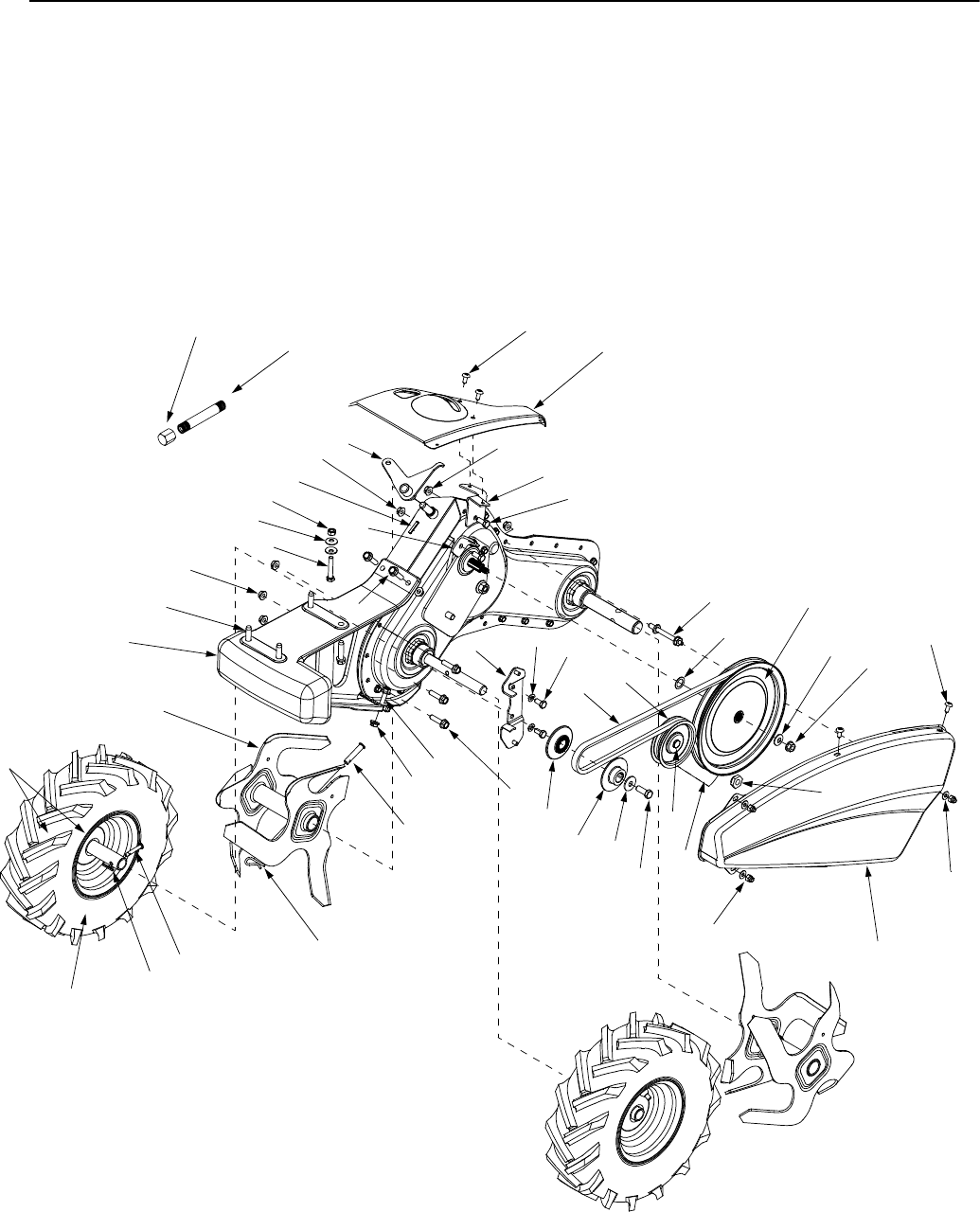

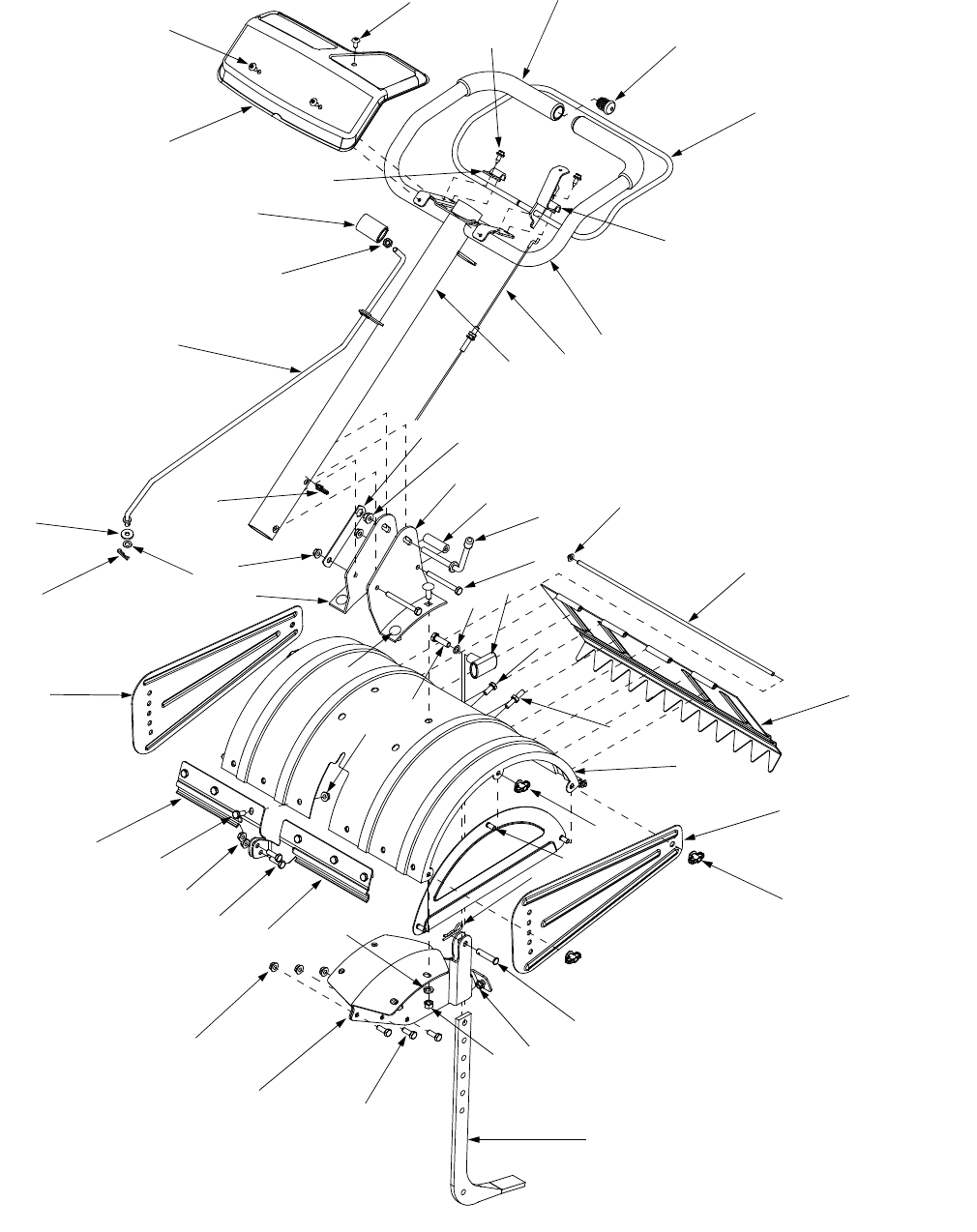

Illustrated Parts List 16

Warranty 24

Content Page

www.mtdproducts.com

MTD LLC

P. O. BOX

361131

CLEVELAND,OH

44136

330-220-4683

800-800-7310

Model Number: Serial Number:

BEFORE YOU START ASSEMBLING

YOUR NEW EQUIPMENT,

please locate the model plate on the equipment and

copy the information from it in the space provided

below. A sample model plate is also given below.

You can locate the model plate by standing at the

operating position and looking down at the center

of the rear tine cover. This information will be

necessary to use the manufacturer’s web site

and/or help from the Customer Support Department

or an authorized service dealer.

3

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

WARNING:

This symbol points out important safety instructions which, if not followed, could

endanger the personal safety and/or property of yourself and others. Read and follow all instructions in

this manual before attempting to operate this machine. Failure to comply with these instructions may

result in personal injury. When you see this symbol - heed its warning.

WARNING:

Engine Exhaust, some of its constituents, and certain vehicle

components contain or emit chemicals known to State of California to cause cancer

and birth defects or other reproductive harm.

DANGER:

This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

Training

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe

place for future and regular reference and for

ordering replacement parts.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage them quickly.

3. Never allow children under 14 years old to operate

this machine. Children 14 years old and over should

read and understand the operation instructions and

safety rules in this manual and should be trained

and supervised by a parent.

4. Never allow adults to operate this machine without

proper instruction.

5. Keep bystanders, helpers, pets and children at least

75 feet from the machine while it is in operation.

Stop machine if anyone enters the area.

Preparation

1. Thoroughly inspect the area where the equipment is

to be used. Remove all stones, sticks, wire, and

other foreign objects which could be tripped over

and cause personal injury.

2. Wear sturdy, rough-soled work shoes and close

fitting slacks and shirt. Loose fitting clothes or

jewelry can be caught in movable parts. Never

operate this machine in bare feet or sandals.

3. Disengage clutch levers and shift (if provided) into

neutral (“N”) before starting the engine.

4. Never leave this machine unattended with the

engine running.

5. Never attempt to make any adjustments while

engine is running, except where specifically

recommended in the operator’s manual.

6. To avoid personal injury or property damage use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are explosive.

Serious personal injury can occur when gasoline is

spilled on yourself or your clothes which can ignite.

Wash your skin and change clothes immediately.

7. Use only an approved gasoline container.

8. Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

9. Never fuel machine indoors.

10. Never remove gas cap or add fuel while the engine

is hot or running.

11. Allow engine to cool at least two minutes before

refueling.

12. Never over fill fuel tank. Fill tank to no more than ½

inch below bottom of filler neck to provide space for

fuel expansion.

13. Replace gasoline cap and tighten securely.

14. If gasoline is spilled, wipe it off the engine and

equipment. Move machine to another area. Wait 5

minutes before starting the engine.

15. Never store the machine or fuel container inside

near an open flame, spark or pilot light (e.g.

furnace, water or space heater, clothes dryer etc.).

16. Allow machine to cool 5 minutes before storing.

Operation

1. Do not put hands or feet near rotating parts. Contact

with the rotating parts can amputate hands and feet.

2. Do not operate machine while under the influence

of alcohol or drugs.

3. Never operate this machine without good visibility

or light. Always be sure of your footing and keep a

firm hold on the handles.

4. Keep bystanders, helpers, pets, and children at

least 75 feet from the machine while it is in

operation. Stop the machine if anyone enters the

area.

5. Be careful when tilling in hard ground. The tines

may catch in the ground and propel the tiller

forward. If this occurs, let go of the handle bars and

do not restrain the machine.

6. Exercise extreme caution when operating on or

crossing gravel surfaces. Stay alert for hidden

hazards or traffic. Do not carry passengers.

4

7. Never operate the machine at high transport

speeds on hard or slippery surfaces.

8. Exercise caution to avoid slipping or falling.

9. Look down and behind and use care when in

reverse or pulling machine towards you.

10. Start the engine according to the instructions found

in this manual and keep feet well away from the

tines at all times.

11. After striking a foreign object, stop the engine,

disconnect the spark plug wire and ground against

the engine. Thoroughly inspect the machine for any

damage. Repair the damage before starting and

operating.

12. Disengage all clutch levers and stop engine before

you leave the operating position (behind the

handles). Wait until the tines come to a complete

stop before unclogging the tines, making any

adjustments, or inspections.

13. Never run an engine indoors or in a poorly

ventilated area. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

14. Muffler and engine become hot and can cause a

burn. Do not touch.

15. Use caution when tilling near fences, buildings and

underground utilities. Rotating tines can cause

property damage or personal injury.

16. Do not overload machine capacity by attempting to

till soil to deep at to fast of a rate.

17. If the machine should start making an unusual noise

or vibration, stop the engine, disconnect the spark

plug wire and ground it against the engine. Inspect

thoroughly for damage. Repair any damage before

starting and operating.

18. Keep all shields, guards and safety devices in place

and operating properly.

19. Never pick up or carry machine while the engine is

running.

20. Use only attachments and accessories approved by

the manufacturer. Failure to do so, can result in

personal injury.

21. If situations occur which are not covered in this

manual, use care and good judgment. Contact your

dealer or telephone 1-800-800-7310 for assistance

and the name of your nearest servicing dealer.

Maintenance & Storage

1. Never tamper with safety devices. Check their

proper operation regularly.

2. Check bolts and screws for proper tightness at

frequent intervals to keep the machine in safe

working condition. Also, visually inspect machine for

any damage.

3. Before cleaning, repairing, or inspecting, stop the

engine and make certain the tines and all moving

parts have stopped. Disconnect the spark plug wire

and ground it against the engine to prevent

unintended starting.

4. Do not change the engine governor settings or

over-speed the engine. The governor controls the

maximum safe operating speed of the engine.

5. Maintain or replace safety and instruction labels, as

necessary.

6. Follow this manual for safe loading, unloading,

transporting, and storage of this machine.

7. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

such as a water heater, furnace, clothes dryer etc.

8. Always refer to the operator’s manual for proper

instructions on off-season storage.

9. If the fuel tank has to be drained, do this outdoors.

10. Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

Your Responsibility

1. Restrict the use of this power machine to persons

who read, understand and follow the warnings and

instructions in this manual and on the machine.

2. The safety label on the tiller is reproduced below for

your review. To ensure safe operation of the tiller,

follow the instructions on all labels closely.

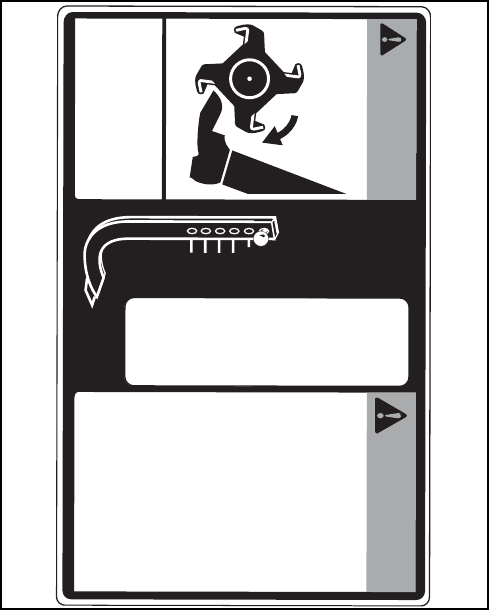

WARNING

TO AVOID SERIOUS INJURY

1. READ THE OPERATOR'S MANUAL.

2. KNOW LOCATION AND FUNCTIONS

OF ALL CONTROLS.

3. KEEP ALL SAFETY DEVICES AND

SHIELDS IN PLACE AND WORKING.

4. NEVER ALLOW CHILDREN OR

UNINSTRUCTED ADULTS TO

OPERATE TILLER.

5. SHUT OFF ENGINE BEFORE

UNCLOGGING TINES OR MAKING

REPAIRS.

6. KEEP BYSTANDERS AWAY FROM

MACHINE.

7. KEEP AWAY FROM ROTATING

PARTS.

8. USE EXTREME CAUTION WHEN

REVERSING OR PULLING THE

MACHINE TOWARDS YOU.

S32146

WARNING

KEEP AWAY FROM

ROTATING TINES.

ROTATING TINES

WILL CAUSE INJURY.

C

U

T

O

U

T

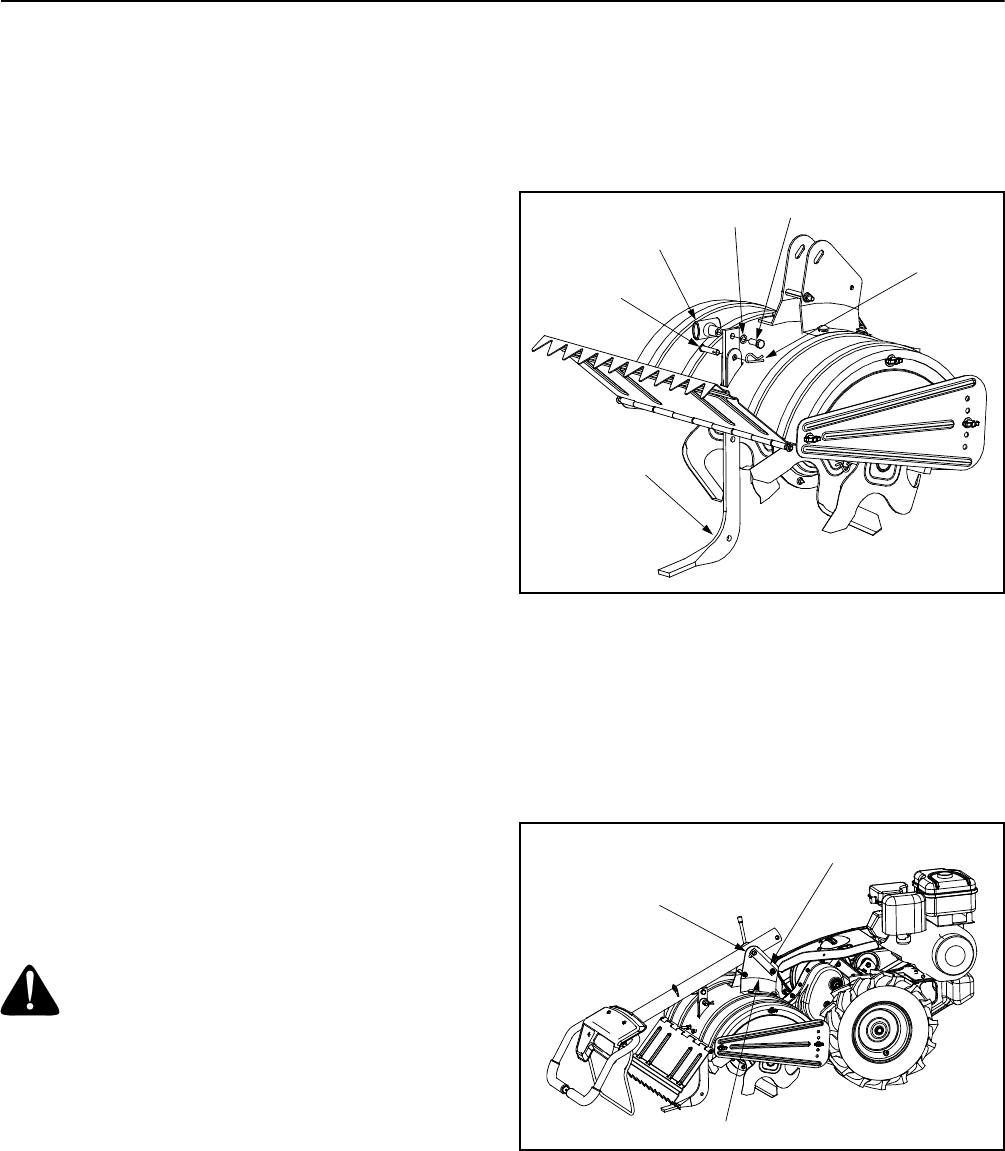

DEPTH

STAKE

TRANSPORT

3"

1"

5"

7"

5

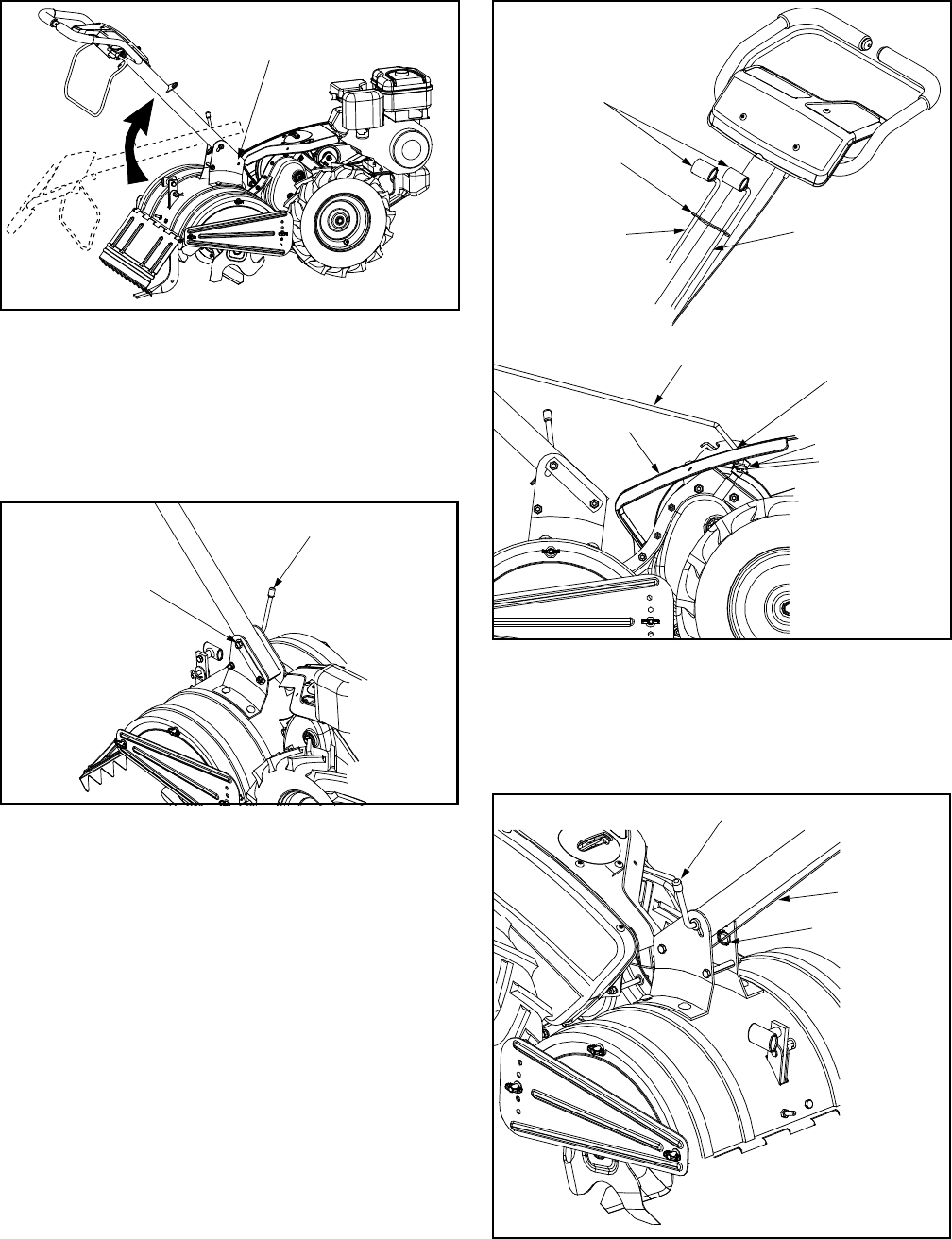

SECTION 2: ASSEMBLING YOUR TILLER

NOTE: This operator’s manual covers various models

of tillers. The units illustrated may vary slightly from

your unit. Follow only those instructions which pertain

to your model number.

NOTE: References to right or left side of the tiller are

determined from behind the unit in the operating

position.

To Remove Unit From Carton

• Remove staples, break glue on top flaps, or cut

tape at carton end and peel along top flap to open

carton.

• Remove loose parts included with unit (i.e.,

operator’s manual, etc.).

• Cut corners and lay carton down flat.

• Remove packing material.

• Roll or slide unit out of carton. Check carton

thoroughly for loose parts.

• Extend control cable and lay on the floor. Be careful

not to bend or kink control cable.

IMPORTANT:

This unit is shipped without gasoline or oil

in the engine. Be certain to service engine with gasoline

and oil as instructed in the separate engine manual

before operating your machine.

Loose Parts In Carton

Depth Stake

Handle Assembly

Shift Rod

NOTE: All hardware needed for assembly is attached

to the loose parts or the tiller.

Before Assembly

WARNING: Disconnect the spark plug wire

and ground it against the engine to prevent

unintended starting.

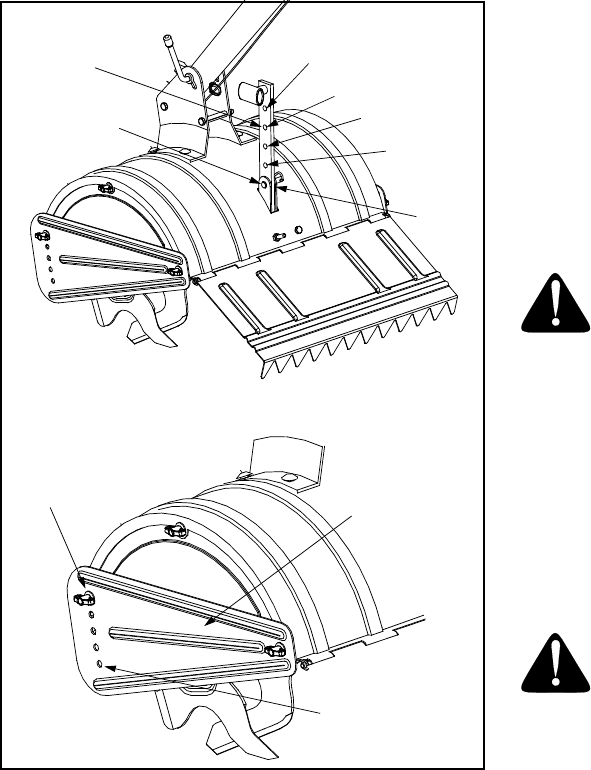

Attaching Depth Stake

• Tip the tiller forward so it rests on front

counterweight.

• Unthread the “T” knob from the top of the depth

stake and remove the flat washer and hex bolt.

Remove the hairpin clip from the clevis pin.

See Figure 1.

• Raise the tine shield hinge flap assembly and insert

the depth stake assembly in the slot (under the tine

shield) and up through the tine shield assembly.

• Insert clevis pin through the tine shield and depth

stake assemblies. Secure with hairpin clip.

• Insert hex bolt into the top hole of the depth stake

assembly. Place flat washer on the hex bolt and

thread “T” knob onto the hex bolt. Tighten securely.

See Figure 1.

• Tip the tiller back down so it rests on the tines.

Figure 1

Attaching Handle Assembly

• Remove the handle adjustment crank, flange nut,

retainer bracket, shoulder bolt, and lock nut from

the pivot bracket.

• Place the handle assembly in position in the handle

pivot bracket lining the upper holes in the handle

with the slots in the pivot bracket. See Figure 2.

Figure 2

• Lift up the handle assembly and align the bottom

holes in the handle assembly with the holes in the

pivot bracket. Insert shoulder bolt from the left side

of unit through the pivot bracket and the retainer

bracket on the right hand side of the unit.

See Figure 3.

T-Knob

Flat Washer Hex Bolt

Hairpin Clip

Clevis Pin

Depth Stake

Pivot Bracket

Handle Adjustment Crank

and Flange Nut

Retainer Bracket,

Shoulder Bolt, & Lock Nut

6

Figure 3

• Place the hex opening of the flange nut retainer

bracket over the flange nut securing the handle

adjustment crank and install the lock nut on the

lower shoulder bolt. See Figure 4.

• Pivot handle assembly into position desired.

Tighten the bottom bolt, lock nut, and the handle

adjustment lock securely.

Figure 4

Attaching Gear Shift Rod

• Remove the T-handle, hairpin clip, flat washer and

rubber washer from the end of the gear shift rod.

Slide the rod up through the right side of bracket on

the front of the handle assembly. See Figure 5.

• Insert the end of the gear shift rod through the

opening in the top of the shift cover and into the

shift bracket. Secure with rubber washer first, flat

washer, and then hairpin clip. See Figure 5.

• Install the nut and T-handle on the gear shift rod.

Figure 5

Attaching Clutch Cable

• Route the clutch cable underneath the handle and

through the cable clip. Be careful not to bend or

kink the cable. See Figure 6.

Figure 6

Retainer Bracket

Shoulder Bolt & Lock Nut

Handle Adjustment Crank

Retainer Bracket

T-Handles

Gear Shift Rod Handle

Adjustment Rod

Bracket

Gear Shift Rod

Shift Cover

Opening

Rubber Washer

Flat Washer

Hairpin Clip

(Model Series 420)

Cable Clip

Handle Adjustment Crank

Clutch Cable

7

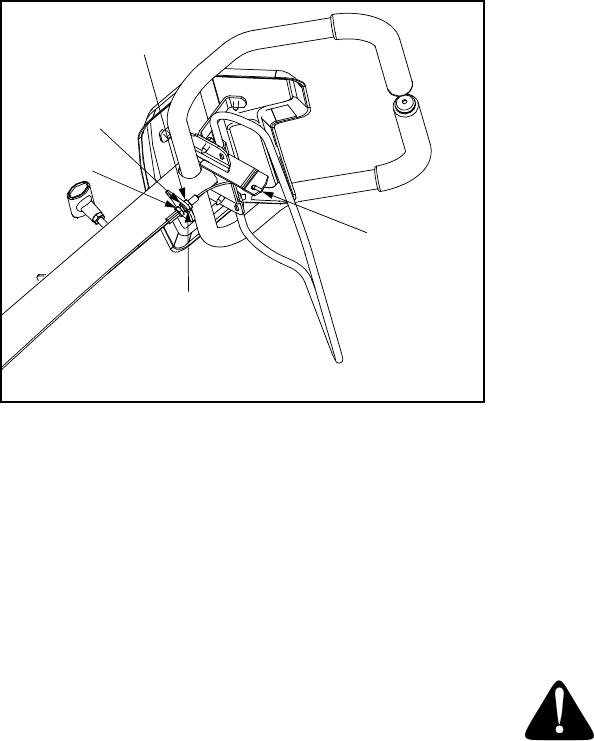

• Remove one hex nut from the threaded casing on

the end of the cable. Slip the wire up through the

slot on the cable bracket underneath the handle.

• Push the end of the casing up through the cable

bracket. Rethread the hex nut on the end of the

cable. Do not tighten at this time.

Figure 7

• Pull the cable upwards to obtain slack and hook the

Z end of the cable from right to left into the bracket

on the clutch control (beneath the handle panel).

Tighten the nut against the cable bracket.

See Figure 7.

NOTE: Do not overtighten clutch cable, since too much

tension may cause it to break.

Final Clutch Adjustment

IMPORTANT:

Service the engine with oil and gasoline

before checking this adjustment. Refer to the separate

engine manual packed with your tiller.

• Position the tiller so the front counterweight is

against a solid object, such as a wall. With the gear

selection lever in NEUTRAL, start the engine. Refer

to Operation section.

NOTE: Keep hands out of belt area while unit is

operating.

• Standing on the right side of the tiller, visually

examine the belt (inside the belt cover). It should

not be turning.

•If the belt turns with the unit in neutral, adjust by

moving the hex nut below the cable bracket down a

few turns.Tighten the upper hex nut against the

bracket. See Figure 7.

• Now move the shift lever to FORWARD (Wheels

Forward) position. Carefully engage the clutch by

squeezing the clutch handle against the handle.

The wheels should spin.

•If the wheels do not spin with the unit in

forward, adjust by moving the hex nut which is

above the cable bracket up a few turns. Tighten the

bottom hex nut against the bracket.

Recheck both adjustments, and readjust as necessary.

Make certain hex nuts at cable bracket are tight (do not

overtighten clutch cable).

NOTE: If additional adjustment is required, it may be

necessary to remove the belt cover and move the hex

nuts at the other end of the clutch cable to increase belt

tension.

Tire Pressure

The tires on your unit may be over-inflated for shipping

purposes. Reduce the tire pressure before operating

the unit. Recommended operating tire pressure is

approximately 14 p.s.i. on 14 inch tires. Check the

sidewall of tire for tire manufacturer’s recommended

pressure.

WARNING: Maximum tire pressure under

any circumstances is 30 p.s.i. Equal tire

pressure should be maintained on both

tires.

Slot in

Cable Bracket

Lock

Washer

Hex Nut

Hex Nut

Z End

(Viewed From Under Handle)

8

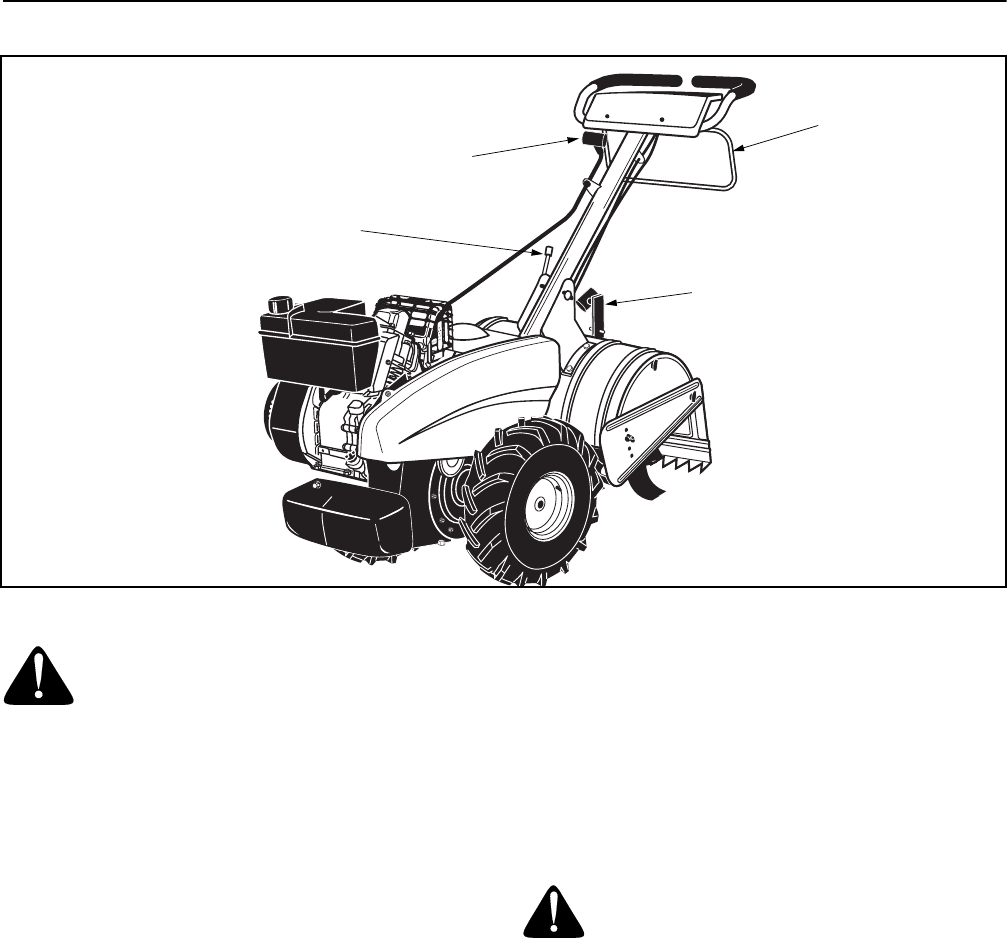

SECTION 3: KNOW YOUR TILLER

Figure 8

WARNING: Read, understand, and follow

all instructions and warnings on the

machine and in this manual before

operating.

Gear Selection Handle

The gear selection handle is located on the front of the

handle assembly. It is used to select NEUTRAL,

REVERSE, or one of the FORWARD modes.

This tiller is designed for the gear selection handle to be

moved while the engine is running. (It will be difficult to

obtain all four positions with the engine off.) Pull or push

the handle so that the indicator on top of shift cover

points to the area of the operating mode desired.

See Figure 8.

NOTE: If difficulty is encountered in moving the gear

selection handle, refer to the following helpful hints:

• To shift into forward or reverse wheel drive, move

tiller forward slightly then backward to allow the

gears to synchronize.

• To shift into forward wheels and tine drive, push

forward slightly on the gear selection handle and

slowly engage the clutch handle allowing the gears

to synchronize.

• To stop forward movement and tine drive, release

the clutch handle. Do not shift gears with the clutch

handle engaged except when engaging the tines.

Reverse

Reverse wheel drive only.

Neutral

Transmission is in neutral.

Wheels Forward

Forward wheel drive only.

Tines Reverse

Forward wheel drive and reverse tine drive.

WARNING: Make certain unit is in

NEUTRAL when starting the engine.

Clutch Handle

The clutch handle is located beneath the handle.

Squeezing the clutch handle against the handle

engages the wheel and tine drive mechanisms.

See Figure 8.

Throttle Control

The throttle control lever is located on the engine. It

controls the engine speed and stops the engine.

Gear Selection

Handle

Clutch Handle

Depth Stake

Model 410 Series

Handle Adjustment

Handle

9

Choke Lever

(If Equipped)

The choke lever is located on top of the carburetor on

the back of the engine underneath the muffler. It is used

to enrich the fuel mixture in the carburetor when starting

a cold engine.

Be careful when disengaging the Choke,

especially after the engine warms up, the

muffler will be hot!

Primer Button

(If Equipped)

The primer button is located behind the air cleaner. It is

used to enrich the fuel mixture in the carburetor when

starting a cold engine.

Depth Stake

The depth stake controls the tilling depth. Refer to

‘‘Setting the Depth’’ in the Operating Section.

Handle Adjustment Crank

The handle may be adjusted to the height desired.

Loosen the handle height adjustment lock a few turns.

Pivot handle up or down to desired position. Tighten

lock. See Figure 8.

Fuel Shut-Off Valve

(If Equipped)

Make sure the valve is in the On (horizontal) position

when starting the unit. Any time the tiller is not in

operation (i.e., storing, performing maintenance or

adjustment), make sure the valve is in the OFF

(vertical) position.

Engine Controls

See the separate engine manual for additional

information and functions of the engine controls.

10

SECTION 4: OPERATING YOUR TILLER

WARNING: Read, understand, and follow

all instructions and warnings on the

machine and in this manual before

operating.

Before Starting

Gas And Oil Fill-Up

Service the engine with gasoline and oil as instructed in

the separate engine manual packed with your tiller.

Read instructions carefully.

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely

flammable and the vapors are explosive.

Never fuel machine indoors or while the

engine is hot or running.

Starting Engine

NOTE: When pushing the unit with the engine off, you

will hear a ratcheting sound (gear noise) which is

normal.

WARNING: Be sure no one is standing in

front of the tiller while the engine is

running or being started.

• Place gear selection lever in NEUTRAL.

• Place the throttle control lever in FAST position or if

equipped, place the engine speed control in the

START position.

• Move choke lever to CHOKE position or, if

equipped, push primer two (2) or three (3) times.

Wait about two (2) seconds between each push.

NOTE: A warm engine may not require choking or to be

primed.

• Stand at side of tiller. Grasp the starter handle and

pull out slowly, until it pulls slightly harder. Let rope

rewind slowly.

• Pull starter handle rapidly. Do not allow handle to

snap back. Allow it to rewind slowly while keeping a

firm hold on the starter handle.

• Repeat previous steps until engine starts.

• As engine warms up and begins to operate evenly,

move choke lever gradually to RUN position. If

engine falters, return to choke position, then slowly

move to RUN position.

NOTE: See your engine manual packed with your unit

for more detailed instructions.

NOTE: After starting and prior to using the tiller for the

first time, be certain to check the clutch adjustment as

described in “Checking the Clutch Adjustment” section

of the Assembly Instructions.

To Stop Engine

• Move throttle control to STOP or OFF position.

• Disconnect spark plug wire and ground to prevent

accidentally starting while equipment is

unattended.

NOTE: After the first ten hours of operation, recheck

the clutch adjustment. Refer to final clutch adjustment

in Assembly Instructions.

Setting The Depth

Tilling depth is controlled by the depth stake which can

be adjusted to five different settings. Adjust the side

shields as you adjust the depth stake.

WARNING: Be certain spark plug wire is

disconnected and grounded against the

engine when performing any adjustments.

11

• When using the tiller for the first time, use the

second adjustment hole from the top (1" of tilling

depth). See Figure 9.

Figure 9

• When breaking up sod and for shallow cultivation,

use the setting which gives 1" of tilling depth

(second hole from the top). Place the side shields in

their lowest position.

• For further depth, raise the depth stake and side

shields and also make one or two more passes

over the area.

• When tilling loose soil, the depth stake may be

raised to its highest position (use bottom

adjustment hole) to give the deepest tilling depth.

Raise the side shields to their highest position.

• To transport tiller, lower the depth stake (use top

adjustment hole).

To adjust the depth stake, remove the clevis pin and

hairpin clip. Move the depth stake to the desired setting

and secure with the clevis pin and hairpin clip.

See Figure 9.

To adjust the side shields, remove the wing nuts. Move

the side shield to the desired position and replace the

wing nuts. Tighten securely.

Operating the Tiller

• Select the depth stake setting.

• Start engine as instructed on the previous page.

• Move gear selection handle to one of the forward

modes or reverse.

WARNING: Do not move the gear selection

handle with the wheels or tines engaged.

Make certain the unit is stopped

completely before changing the gear

selection. A partial engagement may be

necessary when engaging tines.

• Squeeze the clutch handle against the handle to

engage the wheels and tines.

NOTE: Make certain the gear selection indicator is

correctly positioned before engaging the clutch handle.

If it is between gears, the engine will stall.

To transport tiller, do not engage the tines. Select the

wheel drive only.

WARNING: Do not push down on the

handles so that the wheels are lifted off the

ground while using the tine drive, or the

tiller could move backward and cause

personal injury.

For best results, it is recommended the garden be tilled

twice (lengthwise, then widthwise) to pulverize the soil.

Use This Position

First Time Transport Position

1”

3”

5”

7”

Clevis Pin

Use This Hole For

Lowest (Shallowest)

Position

Use This Hole For

Highest (Deepest)

Position

Side Shields

12

SECTION 5: MAKING ADJUSTMENTS

WARNING: Never attempt to make any

adjustments while the engine is running,

except where specified in operator’s

manual.

Handle Adjustment

The handle may be adjusted to the height desired and

on Model 420 series, the handle may also be adjusted

to be in line with the tiller or swung to the left or right.

Refer to the handle adjustment in the Know Your Tiller

section for details.

Belt Tension Adjustment

Periodic adjustment of the belt tension may be required

due to normal stretch and wear on the belt. Adjustment

is needed if the tines or wheels seem to hesitate while

turning, but the engine maintains the same speed.

To adjust the tension on the belt, refer to Final Clutch

Adjustment in Assembly Instructions.

Engine Adjustment

Refer to the separate engine manual for engine

adjustment instructions.

13

SECTION 6: MAINTAINING YOUR TILLER

WARNING: Disconnect the spark plug wire

and ground it against the engine before

performing any repairs or maintenance.

Engine

Refer to the separate engine manual for engine

maintenance instructions.

Maintain engine oil as instructed in the separate

engine manual packed with your unit. Read and follow

instructions carefully.

Service air cleaner every ten hours under normal

conditions. Clean every hour under extremely dusty

conditions. Poor engine performance and flooding

usually indicates that the air cleaner should be

serviced. To service the air cleaner, refer to the

separate engine manual packed with your unit.

IMPORTANT:

Never run your engine without air cleaner

completely assembled.

The spark plug should be cleaned and the gap reset

every 25 hours of engine operation. Spark plug

replacement is recommended at the start of each tiller

season; check engine manual for correct plug type and

gap specification.

Clean the engine regularly with a cloth or brush. Keep

the cooling system (blower housing area) clean to

permit proper air circulation which is essential to engine

performance and life. Be certain to remove all dirt and

combustible debris from muffler area.

Lubrication

Transmission

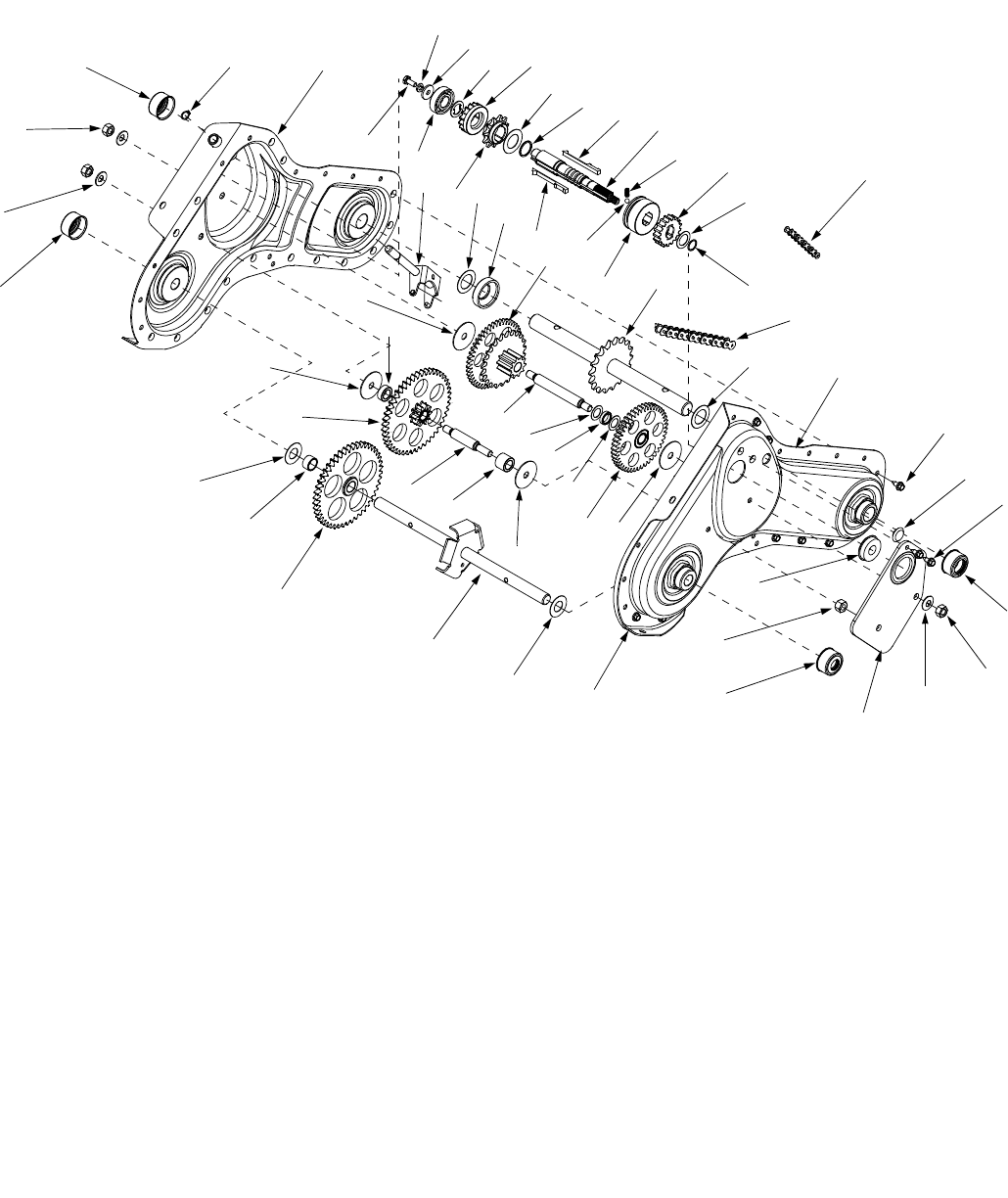

The transmission is pre-lubricated and sealed at the

factory. It requires no checking unless the transmission

is disassembled. To fill with grease, lay the right half of

the transmission on its side, add 22 ounces of

Benalene 920 grease, and assemble the left half to it.

This grease can be obtained at your nearest authorized

dealer by ordering part number 737-0300.

Clutch Handle

Lubricate the pivot point on the clutch handle and the

cable at least once a season with light oil. The control

must operate freely in both directions.

Pivot Points

Lubricate all pivot points and linkages at least once a

season with light oil.

Tine Shafts

Remove tine assemblies and lubricate the tine shafts at

least once a season.

Wheel Shafts

Remove wheel assemblies and lubricate the axle shafts

at least once a season.

Cleaning Tine Area

Clean the underside of the tine shield after each use.

The dirt washes off the tines easier if rinsed off

immediately instead of after it dries. Always towel dry

the tiller afterwards and apply a light coat of oil or

silicone to prevent rusting or water damage.

IMPORTANT:

Never use a "pressure washer” to clean

your tiller. Water can penetrate tight areas of the tiller

and its chaincase and cause serious damage to the

unit.

Tires

Recommended operating tire pressure is

approximately 14 p.s.i. on 14 inch tires and 20 p.s.i. on

16 inch tires. (Check sidewall of tire for tire

manufacturer’s recommended pressure). Maximum tire

pressure under any circumstances is 30 p.s.i. Equal tire

pressure should be maintained on both tires.

When installing a tire to the rim, be certain rim is clean

and free of rust. Lubricate both the tire and rim

generously.

WARNING: Excessive pressure (over 30

p.s.i.) when seating beads may cause tire/

rim assembly to burst with force sufficient

to cause serious injury.

Belt Replacement

Your tiller has been engineered with a belt made of

special material (Kevlar Tensile) for longer life and

better performance. It should not be replaced with an

off-the-shelf belt. Order all belts through you authorized

service dealer.

• Disconnect and ground the spark plug wire against

the engine.

• Remove the belt cover from the left side of the tiller

by removing two torx head screws from the top of

belt cover.

• Remove two hex cap nuts and flat washers from

front side of the belt cover. Remove the hex nut and

flat washer at the back of the cover.

• Remove the belt keeper assembly located behind

the engine pulley by removing two hex bolts and

lock washers. See Figure 10.

• Remove belt and reassemble the new belt. Follow

instructions in reverse order.

14

NOTE: Upon reassembly, make certain the belt is

routed over the idler pulley and inside of belt keepers by

engine pulley. See Figure 10.

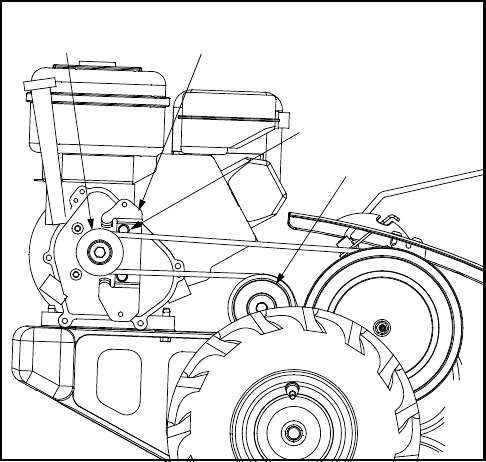

Figure 10

Off-Season Storage

If the tiller will not be used for a period longer than 30

days, the following steps should be taken to prepare the

tiller for storage.

• Clean the exterior of engine and the entire tiller

thoroughly. Lubricate the tiller as described in the

lubrication instructions.

• We do not recommend the use of pressure

washers to clean your unit. They may cause

damage to electric components, spindles, pulleys,

bearings or the engine. The use of pressure

washers will result in shortened life and reduce

serviceability.

• Refer to the engine manual for correct engine

storage instructions.

• Wipe tines with oiled rag to prevent rust.

• Store tiller in a clean, dry area. Do not store next to

corrosive materials, such as fertilizer.

NOTE: When storing any type of power equipment in

an unventilated or metal storage shed, care should be

taken to rustproof the equipment. Using a light oil or

silicone, coat the equipment and especially any

springs, bearings, and cables.

Engine

Pulley Belt Keeper

Hex Bolt

Idler Pulley

15

SECTION 7: TROUBLE SHOOTING GUIDE

NOTE: For repairs beyond the minor adjustments above, contact your local authorized service dealer.

Trouble Possible Cause(s) Corrective Action

Engine fails to

start

Fuel tank empty, or stale fuel.

Throttle control lever not in correct starting

position (if so equipped).

Blocked fuel line.

Dirty aircleaner.

Choke not in ON position.

Spark plug wire disconnected.

Faulty spark plug.

Engine flooded.

Fill tank with clean, fresh gasoline. Fuel will not last over thirty

days unless a fuel stabilizer is used.

Move throttle lever to start position.

Clean fuel line.

Refer to the engine manual packed with your unit.

Move choke to ON position.

Connect wire to spark plug.

Clean, adjust gap or replace.

Refer to the engine manual packed with your unit.

Engine runs

erratic

Unit running on CHOKE.

Spark plug wire loose.

Blocked fuel line or stale fuel.

Vent in gas cap plugged.

Water or dirt in fuel system.

Dirty air cleaner.

Carburetor out of adjustment.

Move choke lever to OFF position.

Connect and tighten spark plug wire.

Clean fuel line; fill tank with clean, fresh gasoline. Fuel will not

last over thirty days unless a fuel stabilizer is used.

Clear vent.

Drain fuel tank. Refill with fresh fuel.

Refer to the engine manual packed with your unit.

Refer to the engine manual packed with your unit.

Engine overheats Engine oil level low.

Dirty air cleaner.

Air flow restricted.

Carburetor not adjusted properly.

Fill crankcase with proper oil.

Refer to the engine manual packed with your unit.

Refer to the engine manual packed with your unit.

Adjust carburetor as instructed in separate engine manual.

Tines do not

engage

Foreign object lodged in tines.

Tine clevis pin(s) missing.

Pulley and idler not in correct

adjustment.

Not shifting properly.

Control cable not adjusted properly.

Belt worn and/or stretched.

Dislodge foreign object.

Replace tine clevis pin(s).

Take unit to authorized service dealer.

Refer to controls section of operator’s manual for proper

shifting procedures.

Adjust control cable (see assembly instructions).

Replace belt.

Wheels do not

engage

Clevis pin missing.

Tiller is not being shifted properly.

Control cable not adjusted properly.

Belt worn and/or stretched.

Replace clevis pin.

Refer to controls section of operator’s manual for proper

shifting procedures.

Adjust control cable (see assembly instructions).

Replace belt.

16

SECTION 8: PARTS LIST FOR MODEL SERIES 410

43 2

34

4

56

7

21

8

9

10

4

11

12

13

14

15

4

21

21

22 23 24

25

26

27 28

29

30

31

32 33

34

35

36

37

38

1

39

40

41

42

1

18

19

16

17

44

17

Model Series 410

Ref.

No. Part No. Part Description

1. 710-1017 Hex Screw 1/4-20 x.625

2. 786-0168 Shift Cover - Tecumseh

3. 686-0095 Crank Shift Assembly

4. 712-04063 Hex Lock Nut 5/16-18

5. 715-0120 Spiral Pin

6. 786-0117 Shift Cover Mounting Bracket

7. 710-3008 Hex Cap Screw 5/16-18 x.75

8. 712-3010 Hex Nut 5/16-18

9. 736-0242 Bell Washer.340 ID x.872 OD

10. 710-3180 Hex Cap Screw 5/16-18 x 1.75

11. 710-1007 Hex Washer Screw 3/8-16 x 1.5

12. 619-0009A Frame Counterweight

13. 642-0015 Tine Assembly - LH

642-0016 Tine Assembly - RH

14. 711-0415 Clevis Pin

15. 714-0149B Cotter Pin

16. 634-0240 Complete Wheel Ass’y - RH (14”)

634-0241 Complete Wheel Ass’y - LH (14”)

17. 711-1017 Hex Head Screw 1/4-20

18 734-1796 Tire Only (14”)

634-0112 Rim Only (6.0 x 3.25)

19. 714-0104 Cotter Pin

21. 710-1090 Flange Screw 5/16-18 x 1.25

22. 686-0031A Belt Keeper Bracket Ass’y

23. 736-0119 Lock Washer 5/16

24. 710-0237 Hex Cap Screw 5/16-24 x.625

25. 756-0971 Inner Pulley Half

26. 756-0972 Outer Pulley Half

27. 754-0438 V-Belt

28. 756-0405 Flat Idler

29. 738-0899 Bolt 5/16-18 x 1/4-28 x 2.35

30. 736-0256 Flat Washer.635 ID x.930 OD

31. 756-0634 Flat Pulley

32. 736-0105 Spring Washer.401 ID x.870 OD

33. 712-0379 Flange Lock Nut 3/8-24

34. 736-0452 Bell Washer.396 ID x 1.140 OD

35. 710-1039 Hex Cap Screw 3/8-24 x 1.0

36. 786-0080 Idler Bracket

37. 710-0723 Hex Cap Screw 3/8-16 x 1.25

38. 738-0876 Shoulder Nut 7/16-20

39. 736-3020 Flat Washer.271 ID x.630 OD

40. 786-0100 Belt Cover

41. 712-0392 Hex Lock Nut 1/4

42. 786-0107 Cable Bracket

43. 737-0298 Oil Drain Extension

44. 737-0132 End Cap

Ref.

No. Part No. Part Description

IMPORTANT: For a proper working machine, use Factory

Approved Parts.

V-BELTS are specially designed to engage and disengage

safely. A substitute (non OEM) V-Belt can be dangerous by not

disengaging completely.

18

Model Series 410

1

2

3

4

56

7

10

11

12

13

14

15

16

17

19

20

21

22

13

23

15

11 24

25

26

27

25

1

28

4

29

3

2

30

9

31

32 33

34

35 36

37

38 39 40

40

41

42

43

44

45

46

47

48

49

50

51

52

51

53 48

19

Ref.

No. Part No. Part Description

1. 721-0378 Shaft Seal 1.0 Dia

2. 712-0378 Hex Nut 7/16-20

3. 736-0407 Bell Washer.45 ID x 1.0 OD

4. 721-0379 Shaft Seal.75 Dia

5. 716-0865 Snap Ring.50 Dia

6. 686-0038 Gear Case Assembly - RH Half

7. 618-0245B Shift Assembly

9. 713-0233 Chain - #41 1/2” Pitch x 30 Links

10. 750-0570 Space 1.0 ID x 2.0 OD

11. 736-0163 Thrust Washer 1.03 ID x 1.62 OD

12. 750-0936 Spacer.635 ID x 1.0 OD

13. 736-0518 Thrust Washer.445 ID x 1.92 OD

14. 617-0004 Idler Gear Assembly

15. 736-0351 Flat Washer.760 ID x 1.50 OD

16. 750-0938 Spacer.735 ID x.886 OD

17. 717-1458 Spur Gear 46T

19. 611-0021 Tine Shaft Assembly 18T

20. 713-0226 Chain - #50 5/8” Pitch x 52 Links

21. 738-0885 Jack Shaft 5/8 Dia. X. 2.06 Lg

22. 750-0935 Spacer.635 ID x 1.0 OD

23. 611-0058 Wheel Shaft Assembly

24. 686-0039 Gear Case Assembly - LH Half

25. 710-0896 Hex Washer Screw 1/4-14 x.625

26. 726-0331 Plug

27. 741-0563 Ball Bearing w/Snap Ring

28. 712-3067 Hex Patch L-Nut 7/16-20

29. 786-0086 Reinforcement Bracket

30. 721-0295 Chain Case Gasket

31. 710-0751 Hex Cap Screw 1/4-20 x.625

32. 736-0329 Lock Washer 1/4

33. 736-0512 Flat Washer.281 ID x.875 OD

34. 741-0124 Ball Bearing

35. 736-0541 Flat Washer

36. 717-1451A Spur Gear 16T

37. 713-0435 Sprocket 11T #41 Chain

38. 736-0265 Flat Washer.88 ID x 1.50 OD

39. 716-0235 Retainer Ring

40. 718-0237 Clutch Key

41. 711-1087 Drive Shaft

42. 732-0863 Compression Spring

43. 741-0862 Detent Ball

44. 718-0234 Clutch Collar

45. 717-1409 Spur Gear 17T

46. 736-0442 Flat Washer.69 ID x 1.06 OD

47. 732-0614 Wire Ring

48. 736-0518 Thrust Washer.445 ID x 1.9 OD

49. 611-0016 Intermediate Gear Assembly

50. 738-0884 Jack Shaft

51. 736-0336 Flat Washer.625 ID x 1.0 OD

52. 750-0931 Spacer.635 ID x.86 OD

53. 617-0003 Tine Drive Assembly

Ref.

No. Part No. Part Description

Model Series 410

20

1

1

2

3

4

5

6

7

8

9

10

11

9

13

14

15

16

18

17

19

20 21

22

23

24

25

26

27

28

10

29

30

30

31

33

33

34

35

35

36

17

37

46

39

17

38

32

17

40

41

43

42

12

17

44

45

47

Model Series 410

21

Model Series 410

NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed,

to the part number to order a replacement part. For instance, if a part numbered 700-xxxx is painted Oyster Gray, the part

number to order would be 700-xxxx-0662.

Black — 0691; Black, Powder — 0637; Blue, Midnight — 0667; Charcoal — 0483; Grey — 0648;

Grey, Oyster — 0662; Orange — 0606; Red — 0650; Red, MTD — 0638; Silver — 0629; Yellow — 0674.

Ref.

No. Part No. Part Description

1. 710-1017 Tap Screw 1/4-14 x.625

2. 786-0131 Handle Cover w/o Throttle

3. 710-0896 Hex Washer Screw 1/4-14 x.625

4. 720-0278A Foam Grip

5. 735-0246A End Plug

6. 647-0014 Clutch Control Assembly

7. 786-0118 Return Bracket - LH

8. 786-0098 Return Bracket - RH

9. 649-0017 Handle Assembly

10. 720-0210A Knob

11. 712-3008 Jam Nut 3/8-16

12. 726-0330 Cable Clip

13. 747-0902 Shift Control

14. 735-0127 Rubber Washer.33 ID x.87 OD

15. 714-0104 Cotter Pin

16. 736-0204 Flat Washer.344 ID x.62 OD

17. 712-04063 Hex Flange Lock Nut 5/16-18

18. 784-0191 Retainer Bracket

19. 712-0379 Flange Lock Nut 3/8-24

20. 750-0885A Spacer.322 ID x.625 OD

21. 784-0190 Handle Adjustment Crank

22. 710-0189 Hex Screw 5/16-18 x 3.0

23. 786-0109 Handle Mounting Bracket - LH

24. 786-0108 Handle Mounting Bracket - RH

25. 726-0106 Cap Nut

26. 747-0432 Rod

27. 786-0113 Rear Tine Shield Flap

28. 710-3005 Hex Cap Screw 3/8-16 x 1.25

29. 736-0117 Flat Washer.375 ID x.620 OD

30. 710-3008 Hex Cap Screw 5/16-18 x.75

31. 738-0849 Hex Screw 5/16-18 x.75

32. 786-0085 Tine Shield

33. 712-0421 Wing Nut

34. 686-0044A End Cover Assembly

35. 786-0090 Side Shield

36. 786-0076 Shield Bracket RH

37. 710-0376 Hex Cap Screw 5/16-18 x 1.0

38. 736-0169 Lock Washer 3/8

39. 711-0415 Clevis Pin

40. 712-3017 Hex Nut 3/8-16

41. 710-3038 Hex Cap Screw 5/16-18 x.875

42. 686-0043A Tine Shield Bracket Assembly

43. 786-0120 Depth Stake

44. 786-0077 Shield Bracket - LH

45. 710-3097 Carriage Bolt 3/8-16 x 1.0

46. 714-0147 Cotter Pin

47. 746-0916 Clutch Cable

Ref.

No. Part No. Part Description

22

NOTES

23

NOTES

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD LLC with

respect to new merchandise purchased and used in the

United States, its possessions and territories.

“MTD”warrants this product against defects in material and

workmanship for a period of two (2) years commencing on the

date of original purchase and will, at its option, repair or

replace, free of charge, any part found to be defective in

materials or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator’s Manual furnished with the

product, and has not been subject to misuse, abuse,

commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of

other peril or natural disaster. Damage resulting from the

installation or use of any part, accessory or attachment not

approved by MTD for use with the product(s) covered by this

manual will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in

material and workmanship for a period of thirty (30) days from

the date of purchase. Normal wear parts include, but not

limited to items such as: batteries, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow thrower

skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact MTD LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-

330-220-4683 or log on to our Web site at

www.mtdproducts.com.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

may carry a separate manufacturer’s warranty. Refer

to applicable manufacturer’s warranty for terms and

conditions.

b. Log splitter pumps, valves, and cylinders have a

separate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or

exposure.

d. Service completed by someone other than an

authorized service dealer.

e. MTD does not extend any warranty for products sold or

exported outside of the United States, its possessions

and territories, except those sold through MTD’s

authorized channels of export distribution.

f. Replacement parts that are not genuine MTD parts.

g. Transportation charges and service calls.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as

mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,

shall bind MTD. During the period of the warranty, the

exclusive remedy is repair or replacement of the product

as set forth above.

The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. MTD

shall not be liable for incidental or consequential loss or

damage including, without limitation, expenses incurred

for substitute or replacement lawn care services or for

rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or

limitations may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for loss, damage, or injury to

you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased

as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This

limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT:

Owner must present Original Proof of

Purchase to obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683
