Operator’s Manual

FORM NO.

770-10134A.fm

(3/00)

TABLE OF CONTENTS

Content Page

Important Safe Operation Practices................................................................... 3 Thru 5

Slope Gauge...................................................................................................... 6

Unpacking.......................................................................................................... 7

Assembling Your Lawn Mower........................................................................... 7

Know Your Lawn Mower .................................................................................... 11

Operating Your Lawn Mower ............................................................................. 12

Maintaining Your Lawn Mower........................................................................... 14

Making Adjustments .......................................................................................... 15

Service............................................................................................................... 15

Off- Season Storage .......................................................................................... 18

Troubleshooting ................................................................................................. 19

Parts List............................................................................................................ 21

Engine Shrouds ................................................................................................. 26

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new Lawn Mower. It will help you assemble, prepare

and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the

equipment and copy the information from it in the space provided below. The information on

the model plate is very important if you need help from our Customer Support Department or

an authorized dealer.

• You can locate the model number by standing behind the unit in the operating position and looking

down at the rear of the deck. A sample model plate is explained below. For future reference, please

copy the model number and the serial number of the equipment in the space below.

CALLING CUSTOMER SUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, please call the Customer Support Department.

Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support

representative. Please have your unit’s model number and serial number ready when you

call. See previous section to locate this information. You will be asked to enter the serial

number in order to process your call .

MTD PRODUCTS INC

CLEVELAND, OHIO 44136

Copy the model number here:

Copy the serial number here:

(Model Number) (Serial Number)

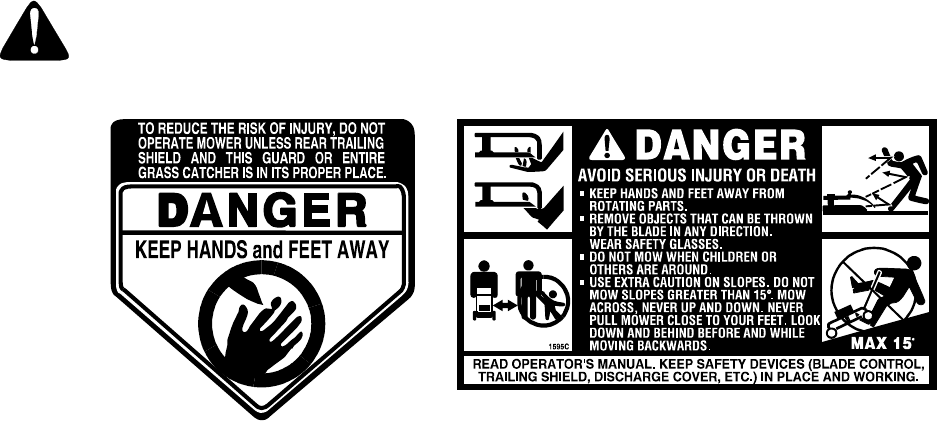

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

WARNING: This symbol points out important safety instructions which, if not followed, could

endanger the personal safety and/or property of yourself and others. Read and follow all

instructions in this manual before attempting to operate your lawn mower. Failure to comply with

these instructions may result in personal injury. When you see this symbol, heed its warning.

WARNING: The Engine Exhaust from this product contains chemicals known to the State of

California to cause cancer, birth defects or other reproductive harm.

DANGER: Your lawn mower was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This lawn mower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

GENERAL OPERATION

• Read this operator’s manual carefully in its entirety

before attempting to assemble this machine. Read,

understand, and follow all instructions on the

machine and in the manual(s) before operation. Be

completely familiar with the controls and the proper

use of this machine before operating it. Keep this

manual in a safe place for future and regular

reference and for ordering replacement parts.

• Your rotary mower is a precision piece of power

equipment, not a plaything. Therefore, exercise

extreme caution at all times. Your unit has been

designed to perform one job: to mow grass. Do not

use it for any other purpose.

• Never allow children under 14 years old to operate

a power mower. Children 14 years old and over

should only operate mower under close parental

supervision. Only responsible individuals who are

familiar with these rules of safe operation should be

allowed to use your mower.

• Keep the area of operation clear of all persons,

particularly small children and pets. Stop engine

when they are in the vicinity of your mower to help

prevent blade contact or thrown object injury.

Although the area of operation should be

completely cleared of foreign objects, an object

may have been overlooked and could be

accidentally thrown by the mower in any direction

and cause serious personal injury to the operator or

any others allowed in the area.

• Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Shirts and pants that cover

the arms and legs and steel-toed shoes are

recommended. Do not wear loose fitting clothes or

jewelry. They can be caught in moving parts. Never

operate a unit in bare feet, sandals, slippery or light

weight (e.g. canvas) shoes.

• Always wear safety glasses or safety goggles

during operation or while performing an adjustment

or repair, to protect eyes from foreign objects that

may be thrown from the machine in any direction.

• Thoroughly inspect the area where the equipment

is to be used. Remove all stones, sticks, wire,

bones, toys and other foreign objects which could

be picked up and thrown by the mower in any

direction and cause serious personal injury to the

operator or any others allowed in the area. Plan

your mowing pattern to avoid discharge of material

toward roads, sidewalks, bystanders and the like.

To help avoid a thrown objects injury, keep

children, bystanders and helpers at least 75 feet

from the mower while it is in operation.

• Do not put hands or feet near or under rotating

parts. Keep clear of discharge opening at all times

as the rotating blade can cause injury.

• Many injuries occur as a result of the mower being

pulled over the foot during a fall. Do not hang on to

the mower if you are falling; release the handle

immediately.

• Never pull the mower toward you while you are

walking. If you must back the mower away from a

wall or obstruction first look down and behind, and

then follow these steps:

• Step back from the mower to fully extend your

arms.

• Be sure you are well balanced with sure footing.

• Pull the mower back slowly, no more than half way

toward you.

• Repeat these steps as needed.

• Do not operate the mower while under the influence

of alcohol or drugs.

• Do not adjust the throttle control with the engine

running.

• Do not engage the self-propelled mechanism on

units so equipped while starting engine.

• The blade control handle is a safety device. Never

attempt to bypass its operation. Doing so makes

the safety device inoperative and may result in

personal injury through contact with the rotating

blade. The blade control handle must operate

easily in both directions and automatically return to

the disengaged position when released.

• Never operate the mower in wet grass. Always be

sure of your footing. A slip and fall can cause

serious personal injury. Keep a firm hold on the

handle and walk, never run. If you feel you are

losing your footing, RELEASE THE BLADE

CONTROL HANDLE IMMEDIATELY and the blade

will stop rotating within three seconds.

• Mow only in daylight or good artificial light.

• Stop the blade when crossing gravel drives, walks

or roads.

• If the equipment should start to vibrate abnormally,

stop the engine and check immediately for the

cause. Vibration is generally a warning of trouble.

• Shut the engine off and wait until the blade comes

to a complete stop before removing the grass

catcher or unclogging the chute. The cutting blade

continues to rotate for a few seconds after the

engine is shut off. Never place any part of the body

in the blade area until you are sure the blade has

stopped rotating.

• Never operate mower without proper guards, grass

catcher, plates or other safety protective devices in

place.

• Muffler and engine become hot and can cause a

burn. Do not touch.

• Only use accessories approved for this machine by

the manufacturer. Read, understand, and follow all

instructions provided with the approved accessory.

• If situations occur which are not covered in this

manual, use care and good judgment. Contact your

dealer for assistance.

SLOPE OPERATION

For your safety, use the slope gauge included as part of

this manual to measure slopes before operating this

unit on a sloped or hilly area. If the slope is greater than

15 degrees as shown on the slope gauge, do not

operate this unit on that area or serious injury could

result.

DO:

• Mow across the face of slopes; never up and down.

Exercise extreme caution when changing direction

on slopes.

• Watch for holes, ruts, hidden objects, or bumps.

Tall grass can hide obstacles.

• Always be sure of your footing. A slip and fall can

cause serious personal injury. If you feel you are

losing your balance release the blade control

handle immediately and the blade will stop in less

than 3 seconds.

DO NOT:

• Do not mow near drop-offs, ditches or

embankments. The operator could lose footing or

balance.

• Do not mow slopes greater than 15 degrees as

shown on the slope gauge.

• Do not mow on wet grass. Reduced footing could

cause slipping.

CHILDREN

Tragic accidents can occur if the operator is not alert to

the presence of children. Children are often attracted to

the mower and the mowing activity. Never assume that

children will remain where you last saw them.

• Keep children out of the mowing area and under

the watchful care of a responsible adult other than

the operator.

• Be alert and turn mower off if a child enters the

area.

• Before and while moving backwards, look behind

and down for small children or other objects.

• Never allow children under age 14 to operate the

mower. Children 14 years of age and above should

read and understand the operation instructions and

safety rules in this manual.

• Use extreme care when approaching blind corners,

shrubs, trees, or other objects that may obscure

your vision of a child or hazard.

SERVICE

• Use extreme care in handling gasoline and other

fuels. They are extremely flammable and the

vapors are explosive.

• Use only an approved gasoline container.

• Never remove gas cap or add fuel while the engine

is running. Allow engine to cool at least two minutes

before refueling.

• Replace gasoline cap securely and wipe off any

spilled gasoline before starting the engine as it may

cause a fire or explosion.

• Extinguish all cigarettes, cigars, pipes and other

sources of ignition.

• Never refuel machine indoors because flammable

vapors will accumulate in the area.

• Never store the machine or fuel container inside

where there is an open flame or spark such as a

gas water heater, space heater, or furnace.

• Never run an engine inside a closed area.

• To reduce fire hazard, keep mower free of grass,

leaves, or other debris build-up. Clean up oil or fuel

spillage. Allow mower to cool at least 5 minutes

before storing.

• Before cleaning, repairing, or inspecting, make

certain the blade and all moving parts have

stopped. Disconnect the spark plug wire, and keep

the wire away from the spark plug to prevent

accidental starting.

• We do not recommend the use of pressure

washers or garden hose to clean your unit. They

may cause damage to electric components,

spindles, pulleys, bearings or the engine. The use

of pressure washers will result in shortened life and

reduce serviceability.

• Check the blade and engine mounting bolts at

frequent intervals for proper tightness. Also,

visually inspect blade for damage (e.g., bent,

cracked or worn). Replace with blade which meets

original equipment specifications listed in this

manual.

• Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition.

• Never tamper with safety devices. Check their

proper operation regularly.

• After striking a foreign object, stop the engine,

remove the wire from the spark plug, and

thoroughly inspect the mower for any damage.

Repair the damage before starting and operating

the mower.

• Never attempt to make a wheel or cutting height

adjustment while the engine is running.

• Grass catcher components are subject to wear,

damage and deterioration, which could expose

moving parts or allow objects to be thrown. For

safety protection, frequently check components

and replace with manufacturer’s recommended

parts, when necessary.

• Mower blades are sharp and can cut. Wrap the

blade(s) or wear gloves, and use extra caution

when servicing them.

• Do not change the engine governor setting or

overspeed the engine. Excessive engine speeds

are dangerous.

WARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to persons who read,

understand and follow the warnings and instructions in this manual and on the machine.

SECTION 2: SLOPE GAUGE

15°

SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE

A POWER POLE

A CORNER OF A BUILDING

OR A FENCE POST

FOLD ON DOTTED LINE, REPRESENTING A 15° SLOPE

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower

could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain

your footing and you could slip, resulting in serious injury.

Operate RIDING mowers up and down slopes, never across the face of slopes.

Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

WARNING

SECTION 3: UNPACKING

Removing Unit From Carton

•Remove staples, break glue on top flaps or cut tape

at carton end and peel along top flap to open

carton.

•Remove loose parts if included with unit (i.e.,

operator's manual, etc.).

•Cut corners and lay carton down flat. Remove

packing material.

•Roll or slide unit out of carton. Check carton

thoroughly for loose parts.

NOTE: Make sure not to crimp the cables while

removing the loose parts or the entire unit from the

carton.

NOTE: Reference to right or left hand side of the mower

is observed from the operating position.

SECTION 4: ASSEMBLING YOUR LAWN MOWER

Tools Required

•Pair of Pliers

•Funnel

•Set of adjustable wrenches

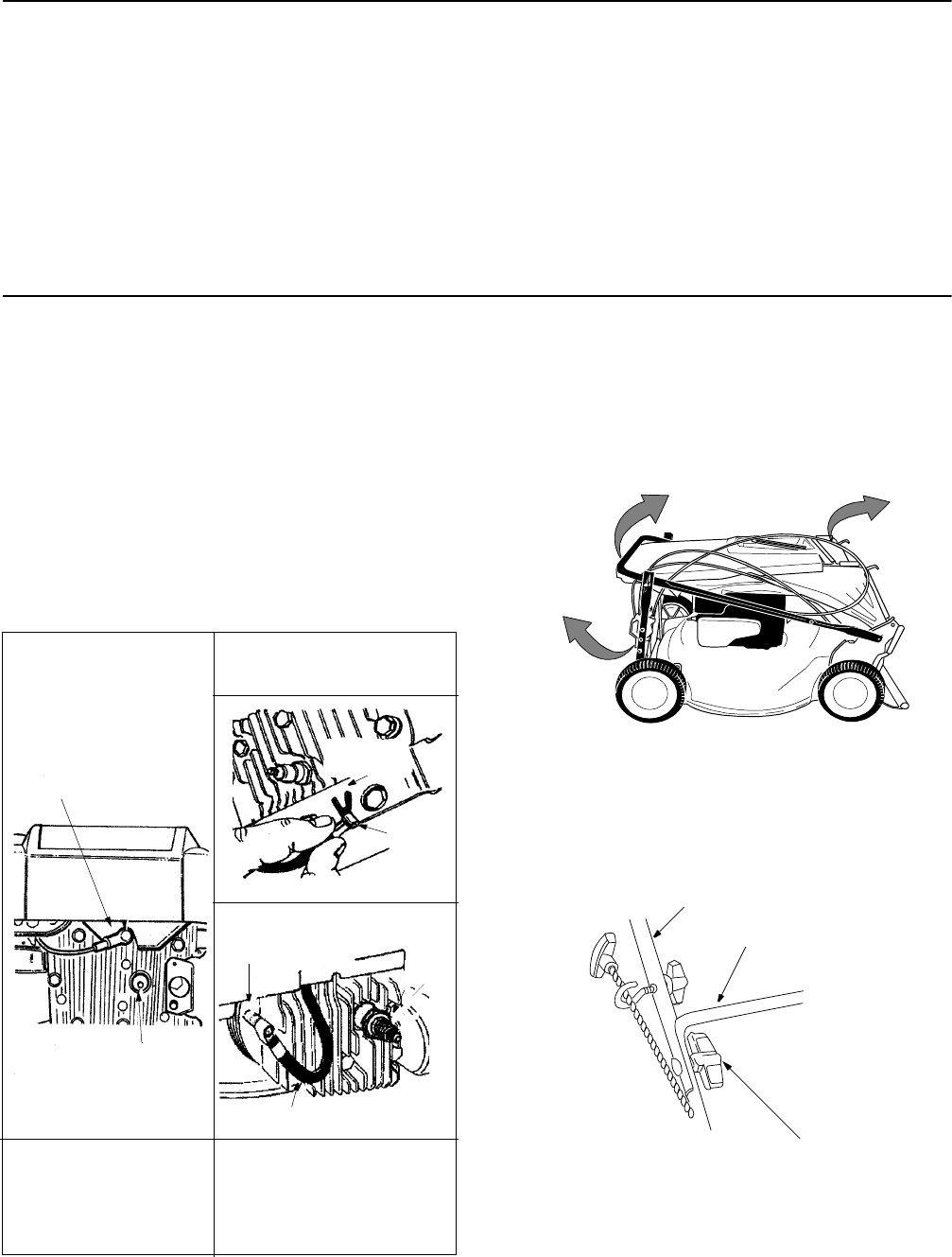

Disconnecting Spark Plug

•Before setting up your lawn mower, disconnect the

spark plug wire from the spark plug, and ground it to

a bolt, retaining post or V-slot on the engine. See

Figure 1.

Figure 1

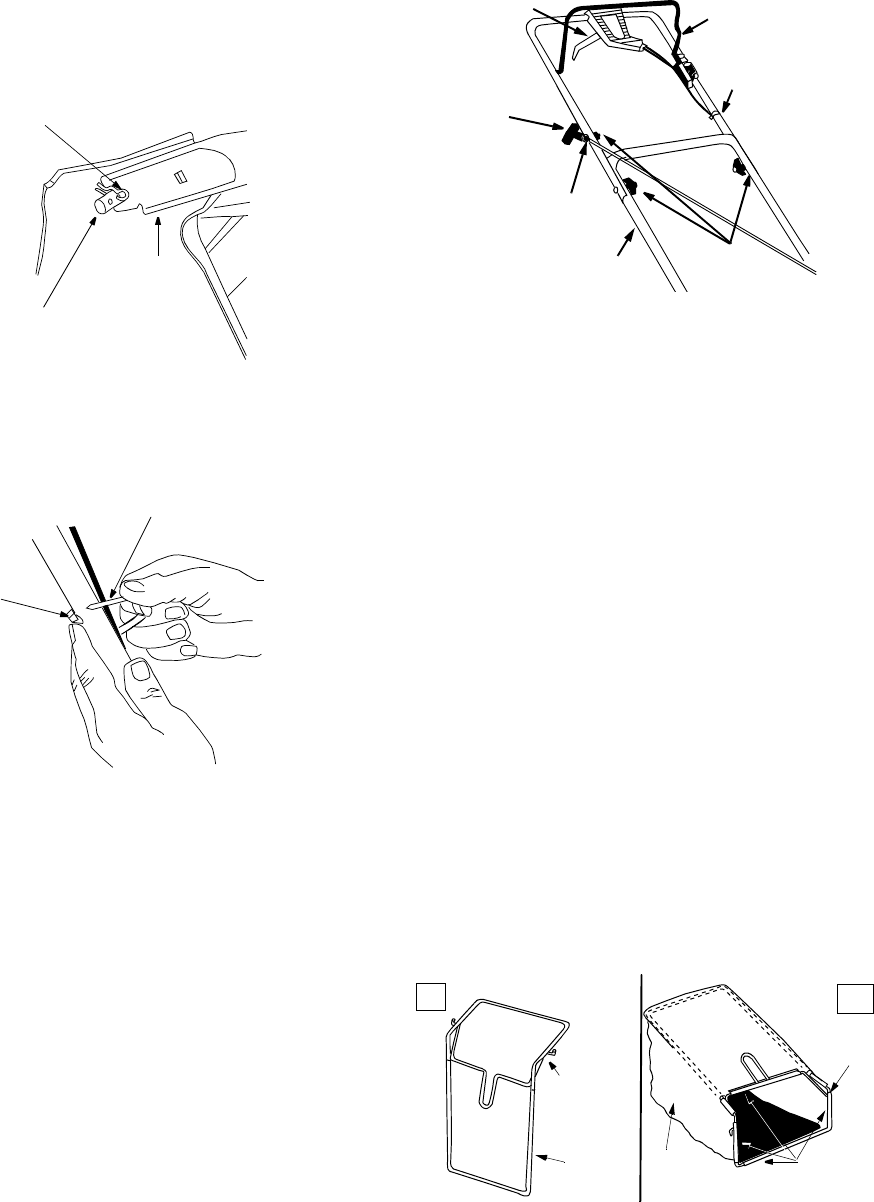

Assembling Handle

•Remove grass bag from the unit and set it out of the

way. See Figure 2 (step 1).

Figure 2

•Raise the lower handle in the direction shown in

Figure 2 (step 2) till it snaps into place.

•Raise the upper handle in the direction shown in

Figure 2 (step 3). Tighten the wing nuts which are

already on the handle. See Figure 5.

Figure 3

NOTE: Make sure to route the cables outside the lower

handle. Also do not crimp the cables while lifting the

handle up.

All Engines Tecumseh

Boot

With Rubber

Briggs & Stratton

Engines

Spark Plug Wire

With Rubber Boot

Spark

Plug

Wire

V-Slot

on Engine

Spark

Plug

Retaining

Post

Spark Plug Wire

Spark Plug

1. Move bag away

3. Lift upper

handle

2. Lift lower handle

Tighten

Lower Handle

Upper Handle

Wing Nut

•For shipping purposes, the hairpin clip is placed in

the outer hole of the weld pin on the lower handle.

Remove the hairpin clip from the outer hole of the

weld pin.

•Using a pair of pliers, insert the hairpin clip into the

inner hole in the weld pin. Repeat on other side.

See Figure 4.

Figure 4

•Insert post of cable ties that are on lower handle

into the holes provided on the lower handle. The

holes may be on the inside or outside. Pull cable

ties tight and cut off the extra. See Figure 5 below.

Figure 5

Attaching Starter Rope

The rope guide is already attached to the right side of

the upper handle of your mower. See Figure 6.

•With the spark plug wire disconnected and

grounded, hold the blade control handle against the

upper handle, and pull the starter rope up to the

rope guide. See Figure 6.

•Slip the rope through the rope guide as shown

below. Tighten the wing nut holding the rope guide

to the upper handle.

Figure 6

Grass Catcher Assembly

NOTE: Make certain the grass bag is turned right side

out before assembling (warning label will be on the

outside).

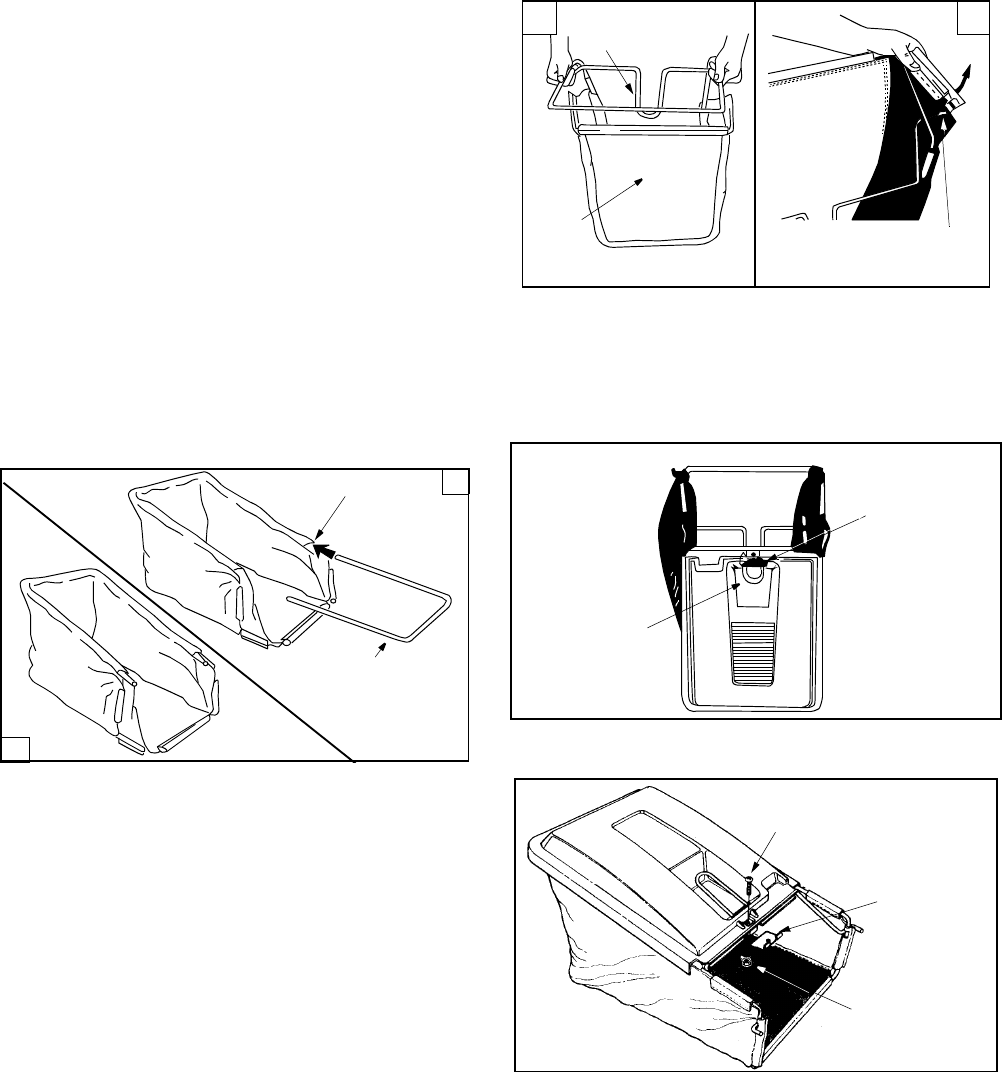

SOFT GRASS BAG

Parts for Soft Grass Bag:

•Front Frame

•Rear Frame

•Bag

Assemble soft grass bag as follows:

•Join the rear frame and front frame assembly as

shown in Figure 7A.

•Place bag over frame (black plastic side is the

bottom of bag). Slip the openings in the side of the

plastic channels on the bag over the hooks on the

grass catcher frame.

•Secure bag to frame by working the plastic

channels on bag over frame as shown in Figure 7B.

All of the plastic channels except the center top of

the bag attach from the outside of bag. The center

top of the bag attaches from inside the bag.

Figure 7

Move hairpin clip to

this hole

Weld Pin

Handle

Lower

Cable Tie

Post on

Cable Tie

Wing Nut

Rope Guide

Upper Handle

Lower Handle

Recoil Starter

Blade Control Handle

Drive Control Lever

Front

Frame

Assembly

Rear

Frame Bag

Hook

Plastic

Channels

HARDTOP GRASS BAG

Parts for Hardtop Grass Bag:

•Rear Frame (packed inside hardtop cover)

•Front Frame

•Bag

•Hardtop Cover

•Mounting Bracket

•Hex Lock Nut

•Phillips Screw

Assemble hardtop grass bag as follows:

•Insert one end of the rear frame into the slit in the

cloth channel on the edge of the grass bag (slits are

approximately 6 inches from the end of the bag).

See Figure 8A. Feed all the bag material on one

side of the frame before working it around frame.

Make certain the other end of rear frame comes out

the slit in the other side. See Figure 8B.

Figure 8

•Slide the ends of the front frame assembly into the

ends of the rear frame as shown in Figure 9A. The

handle in front frame assembly goes away from the

black plastic bottom of the bag. Push the two

frames together until the cross piece on the front

frame contacts the rear frame.

•Slip the openings in the side of the plastic channel

on bag over hooks on the grass catcher frame. See

Figure 9B.

•Secure front of bag to front frame by working the

five plastic channels on bottom, sides and top of

bag over frame.

Figure 9

•Hold the bag and frame so the bag hangs from the

frame (is not bunched around the frame). Slide the

handle on the grass catcher frame down into the

slot in the hardtop cover as shown in Figure 10.

Figure 10

Figure 11

•Press the rear frame into the two tabs at the back of

the hardtop cover and the cross bar on the front

frame into the channel on the front of the hardtop

cover. Some force may be required.

•Place the mounting bracket under the front of the

handle, with the tabs on the bracket facing up.

Insert phillips head screws down through the

hardtop cover and mounting bracket. Secure with

hex lock nuts. See Figure 11.

Rear

Frame

Slit A

Black

Plastic

Bottom

Handle

Hook

Slot In

Hardtop

Cover

Grass

Catcher

Handle

Phillips

Head

Screw

Mounting

Bracket

Hex Lock

Nut

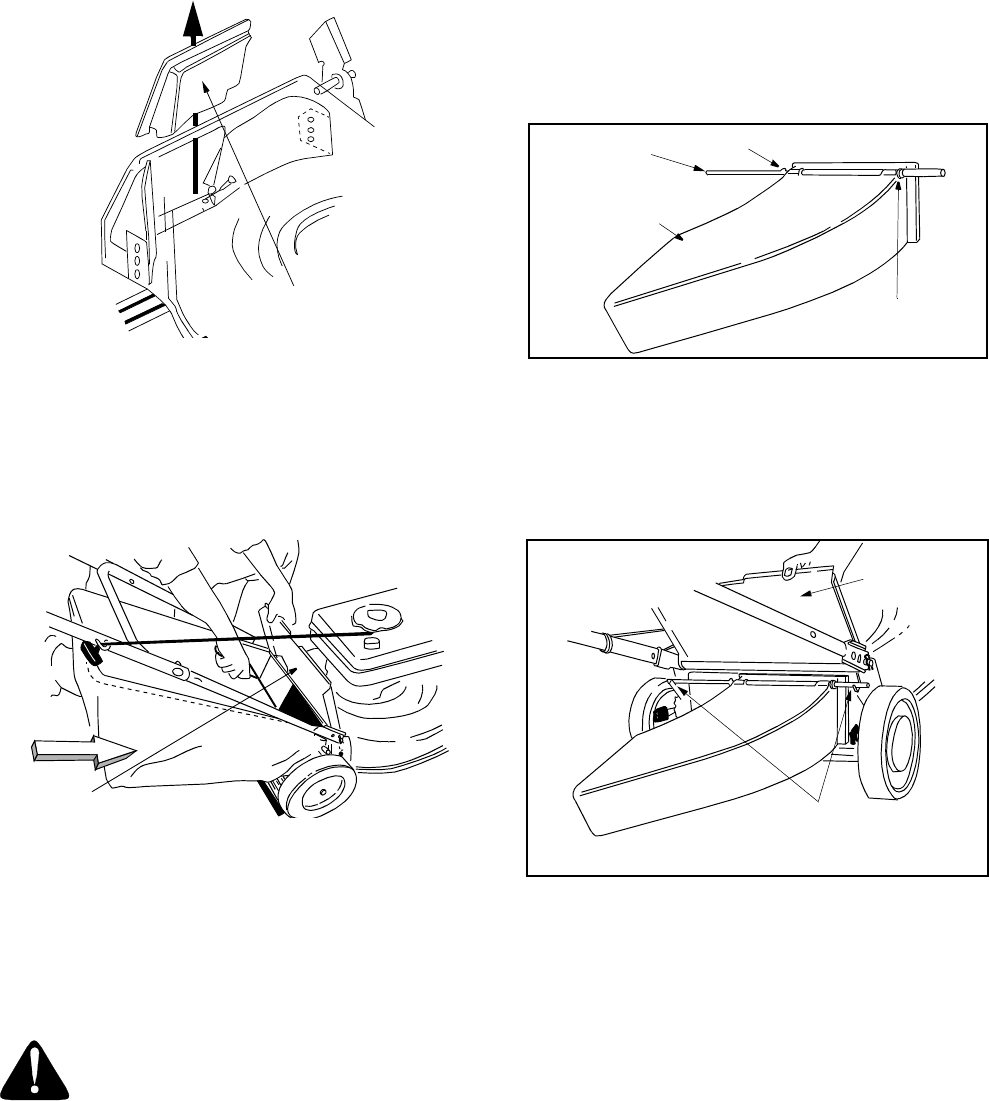

Attaching Grass Catcher

•If your mower is equipped with a mulching plug,

and it is in place on the mower, lift the rear

discharge door and remove the rear mulching baffle

from the mower. See Figure 12.

Figure 12

NOTE: Make sure that the cables are routed to the

outside of the handle when attaching the grass catcher.

•Lift the rear discharge door.

•Place the hooks of the grass catcher into the slots

in the handle bracket assemblies on both sides.

See Figure 13. Release the rear discharge door.

Figure 13

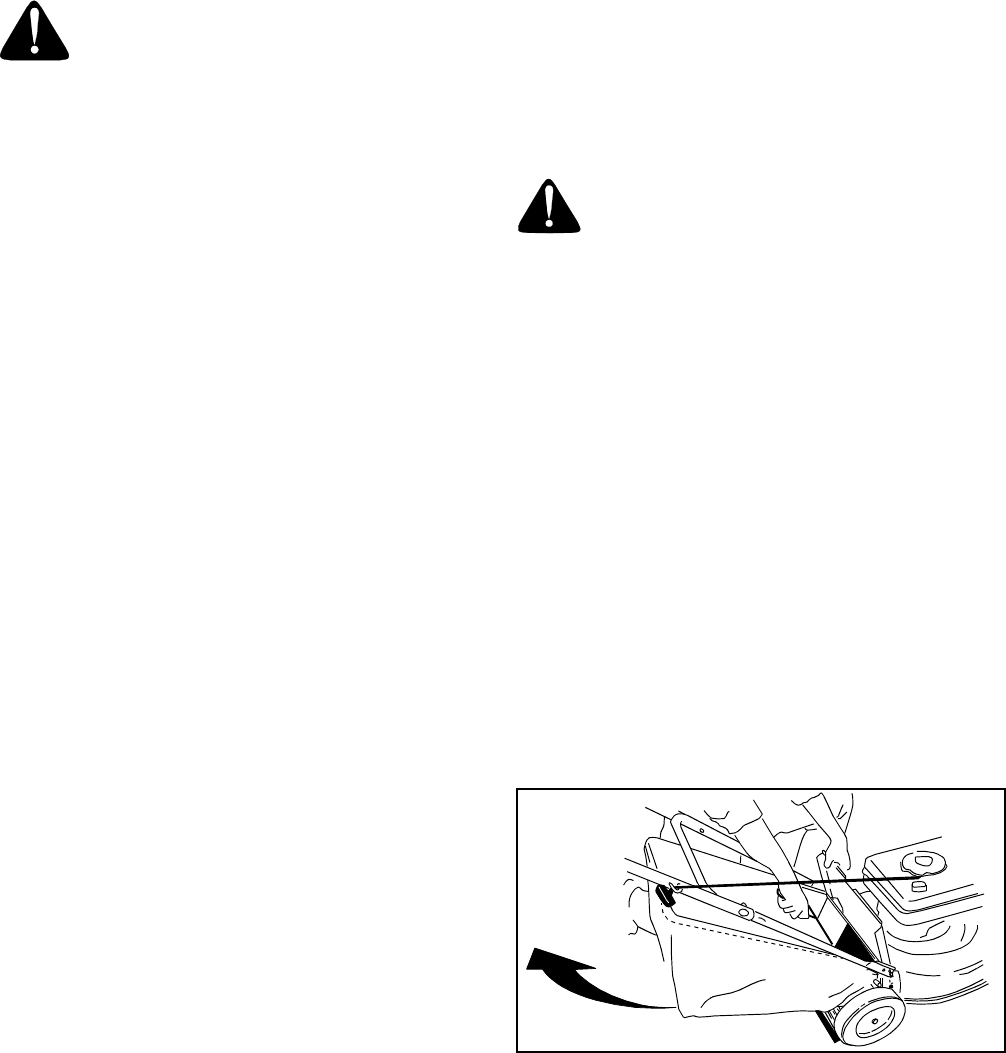

Removing the Grass Catcher

•Lift the rear discharge door on the mower.

•Lift the grass catcher up, out of the slots in the

handle bracket assemblies.

•Reinstall the plastic rear mulching baffle.

•Release the rear discharge door.

WARNING: Never operate the mower

unless the hooks on the grass catcher are

seated in the slots on the handle bracket

assemblies, and the rear discharge door

rests firmly against the top of the grass

catcher.

Optional Chute Deflector

If your mower is equipped with the optional chute

deflector, assemble as follows:

•Slide the rod into the upper edge of the chute

deflector so the tab on the rod is toward the left side

of the chute deflector. When assembled correctly,

the rod will extend further to the left side than the

right side. See Figure 14.

•Slide the push nut onto the right side of the rod to

secure.

Figure 14

Attaching Chute Deflector

•Lift the rear discharge door on the mower.

•Place the ends of the rod into the slots in the handle

bracket assemblies. See Figure 15.

•Release the rear discharge door.

Figure 15

Converting to Mulcher

•Lift the rear discharge door.

•Remove the grassbag or chute deflector.

•Insert the mulch plug. See Figure 12.

•Release the rear discharge door. See Figure 13.

Rear Mulching Plug

Rear Discharge Door

Tab

Rod

Chute

Deflector

Push

Nut

Rear

Discharge

Door

Slots in

Handle Bracket

Assemblies

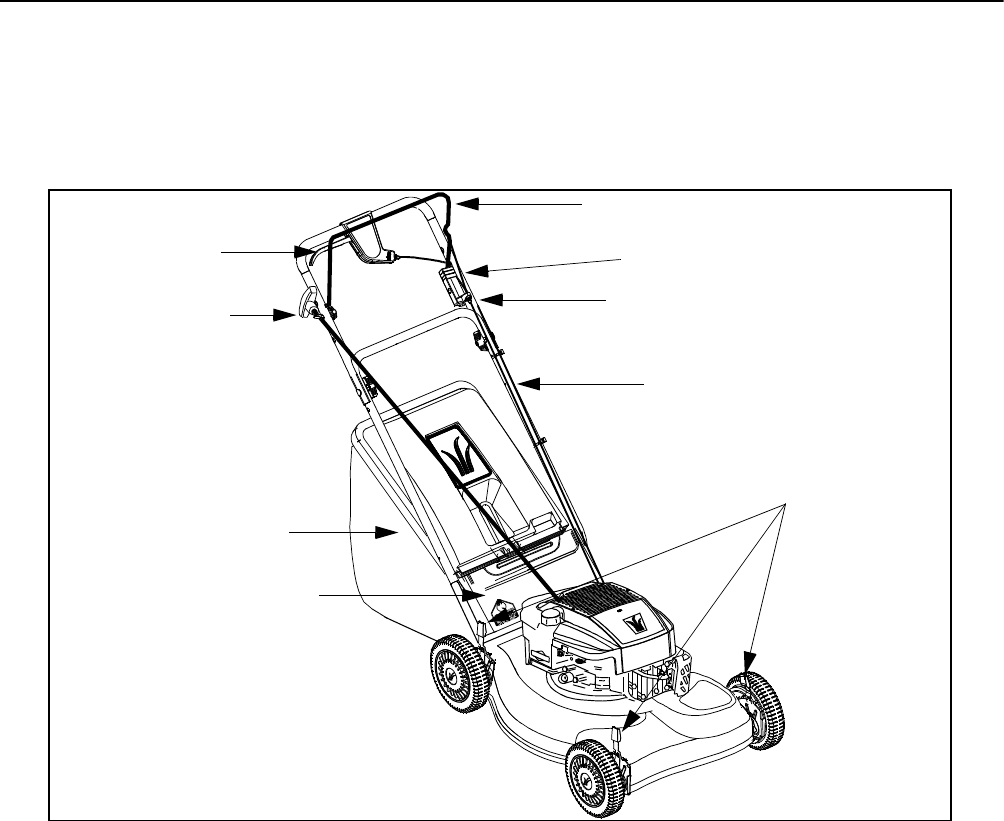

SECTION 5: KNOW YOUR LAWN MOWER

Read this owner’s manual and safety rules before

operating your lawn mower. Compare the illustrations

in Figure 16 with your lawn mower to familiarize

yourself with the location of various controls and

adjustments.

The operation of any lawn mower can result in foreign

objects being thrown into the operator’s eyes thus

causing severe eye damage. Always wear safety

glasses while operating the mower, or while

performing any adjustments or repairs on it.

Figure 16

Recoil Starter

The recoil starter is attached to the handle. Stand

behind the unit and pull the recoil starter to start the

unit.

Primer

The primer is used to pump gas into the carburetor. Use

it to assist in starting a cold engine, but do not use it

when restarting a warm engine after a short shutdown.

Refer to engine manual for location of the primer.

Blade Control Handle

The blade control handle is located on the upper handle

of the mower. The blade control handle must be

depressed in order to operate the unit. Release the

blade control handle to stop the engine and the blade.

Drive Clutch Control

The drive control lever is located on the upper handle

and is used to engage the drive. Squeeze the lever

against the upper handle to engage the drive; release

the drive control lever to slow down or stop the mower

from propelling.

Throttle Controls (If Equipped)

Your unit will be equipped with one of three optional

throttle controls. Follow the instructions which pertain to

your unit.

•The throttle control is located on the left side of the

upper handle. It is used to regulate engine speed.

•The throttle control is located on the engine. It is

used to regulate engine speed.

•The engine is equipped with a constant speed

throttle which is set at full throttle for maximum

engine and cutting performance.

WARNING: The throttle control can not be used to

stop the engine. If your throttle control is located

on the engine, do not adjust the throttle control

with the engine running.

Blade Control Handle

Lower Handle

Drive Control

Lever

Rear Discharge Door

Cutting Height

Adjustment

Recoil Starter Upper Handle

Grassbag

Throttle Control (If Equipped)

Electric Start Ignition Switch

(If Equipped)

If your mower is equipped with an electric starter, the

ignition switch is located on the left side of the handle

panel. It is used only for the electric starter. See Figure

17.

Figure 17

SECTION 6: OPERATING YOUR LAWN MOWER

Gas And Oil Fill-Up

WARNING: Never fill fuel tank indoors, or

when engine is running or hot. Do not

smoke when filling up the fuel tank.

•Service the engine with gasoline and oil as

instructed in the separate engine manual packed

with your mower. Read the instructions carefully.

Before Starting Mower

Electric Start Units Only (If Equipped)

WARNING: The battery contains corrosive

fluid and toxic material—HANDLE WITH

CARE. Keep away from children. Do not

puncture, disassemble, mutilate or

incinerate the battery. Explosive gases

could be vented during charging or

discharging. Use in a well ventilated area,

away from sources of ignition.

IMPORTANT:

Use only the battery charger supplied with

this mower.

Charging the Battery:

•Remove the protective cap from the end of the

battery pack lead. Always plug charger lead into

battery pack lead first, and then insert battery

charger plug into 120 volt standard household

outlet. See Figure 18. Follow this order of action

every time you charge the battery.

•Charge battery for 16 hours before initial use. Do

not charge longer than 20 hours.

•After charging, disconnect battery charger plug

from household outlet first, then disconnect charger

lead from battery pack lead.

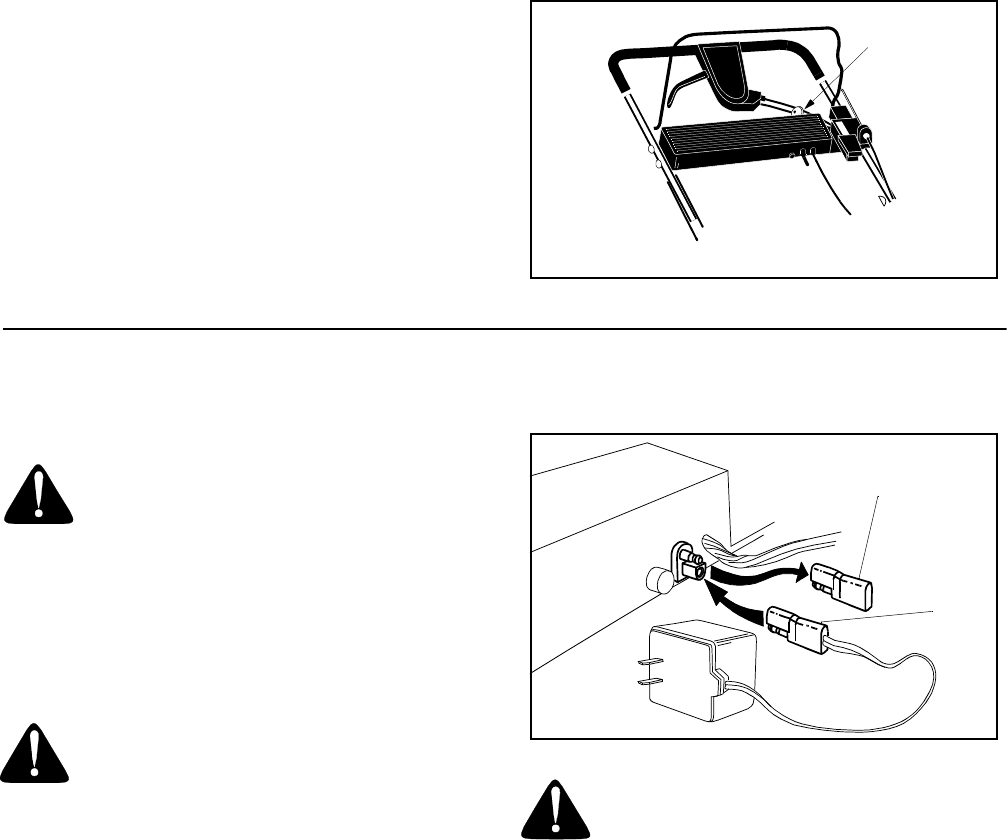

Figure 18

WARNING: Do not remove the battery

pack from the handle panel for any reason

other than replacement. When replacing

the battery pack, refer to the instructions

in the Service & Adjustments section.

All Units:

•Attach spark plug wire to spark plug. Make certain

the metal cap on the end of the spark plug wire

(inside the rubber boot) is fastened securely over

the metal tip on the spark plug.

•Check the drive clutch control for proper

adjustment. If the mower does not propel itself or

the drive wheels hesitate with the drive clutch

engaged, perform the drive clutch control

adjustment as instructed on page 16 of this manual.

Ignition

Switch

Electric Start Units Only (Optional)

Protective cap

Battery

pack

lead

Starting Engine

WARNING: Be sure no one other than the

operator is standing near the lawn mower

while starting engine or operating mower.

Never run engine indoors or in enclosed, poorly

ventilated areas. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

Keep hands, feet, hair and loose clothing away

from any moving parts on engine and lawn mower.

When starting the unit for the first time, face the

mower against a solid object such as a wall, fence,

etc. Start the unit and if it shows any signs of

motion while the drive clutch control is still

disengaged, shut the engine off immediately.

•Make sure that the drive clutch control is adjusted

so the drive belt is as loose as possible.

•Move throttle control lever (if equipped) toward the

“rabbit” position.

•Push the primer three times. Wait two seconds

between each push. In temperatures below 55° F,

prime five times. Do not prime to restart a warm

engine after a short shutdown.

•Standing behind the mower, depress the blade

control handle and hold it against the upper handle.

•Electric Start: Turn the ignition key to the right to

start the engine. Release the key after the engine

starts.

•Recoil Start: Grasp starter handle and pull rope

out slowly until engine reaches the start of

compression cycle (rope will pull slightly harder at

this point). Let the rope rewind slowly. Pull rope with

a rapid, continuous, full arm stroke. Keeping a firm

grip on the starter handle, let the rope rewind

slowly.

Stopping Engine

•Release blade control handle to stop the engine

and the blade.

•Disconnect spark plug wire and move away from

spark plug to prevent accidental starting.

Using Your Lawn Mower

•Do not operate the mower without the mulching

cover, the grass catcher bag, or the discharge

chute properly installed.

•Be sure that the lawn is clear of stones, sticks, wire,

or other objects which could damage lawn mower

or engine. Such objects could be accidently thrown

by the mower in any direction and cause serious

personal injury to the operator and others.

•For best results, do not cut wet grass because it

tends to stick to the underside of the mower,

preventing proper discharge of grass clippings,

poor mulching conditions, and could cause you to

slip and fall. New grass, thick grass, or wet grass

may require a narrower cut.

•For a healthy lawn, always cut off one-third or less

of the total length of the grass. Lawn should be

trimmed in fall as long as there is growth.

•Always operate your mower with the engine in the

full throttle (rabbit) position for the most effective

mulching or bagging of the cut grass.

WARNING: If you strike a foreign object,

stop the engine. Remove spark plug wire

from spark plug, thoroughly inspect the

mower for any damage. Repair the damage

before restarting and operating the mower.

Extensive vibration of the mower during

operation is an indication of damage. The

unit should be promptly inspected and

repaired.

Bagging Grass Clippings

You can use the grass catcher bag to collect clippings

while you are operating the mower. Attach the grass

catcher following instructions on page 10 of this

manual. The grass clippings will automatically collect in

the bag as you run the mower. Operate the mower till

the grass bag is full. Do NOT allow the bag to overfill

with grass clippings.

•Stop the engine completely by releasing the control

handle.

•Make sure that the unit has come to a complete

stop.

•Lift discharge door and pull grass bag up and away

from the mower to dispose of the grass clippings

See Figure 19.

Figure 19

Adjusting Cutting Height

Refer to height adjustments section of this manual on

page 17 for instruction on how to adjust the cutting

height and the handle height.

•For best results in mowing, keep the cutting height

position high until it is determined which height is

best for your lawn.

SECTION 7: MAINTAINING YOUR LAWN MOWER

WARNING: Always stop the engine and

disconnect the spark plug wire before

performing any maintenance work or

adjustments on your lawn mower.

Cleaning Mower

The underside of the mower deck should be cleaned

after each use to prevent any build-up of grass

clippings, leaves, dirt, or other debris. If this debris is

allowed to accumulate, it will result in rust and

corrosion.

We do not recommend the use of pressure washers or

garden hose to clean your unit. They may cause

damage to electric components, spindles, pulleys,

bearings or the engine. The use of water will result in

shortened life and reduce serviceability.

•Disconnect spark plug wire.

•Drain the gasoline from the lawn mower, or place a

piece of plastic under the gas cap.

•Tilt the mower so that the side with the air cleaner is

facing UP. Hold the mower firmly.

•Scrape and clean the underside of the deck with a

suitable tool. Do NOT spray with water.

•Put the mower back on its wheels. If you had put

plastic under the gas cap, remove it now.

WARNING: Never tip the mower more than

90 degrees in any direction and do not

leave the mower tipped for any length of

time. Oil can drain into the upper part of

the engine causing a starting problem.

Engine Maintenance

•A list of key maintenance jobs required for good

performance by the mower is given below. Follow

the accompanying engine manual for detailed list

and instructions.

•Change engine oil after the first two operating

hours and every 25 operating hours thereafter.

Check the oil level before starting the engine every

time.

•Service foam filter in the air cleaner every 25 hours

of use and replace the paper filter component every

100 hours. You may have to service the air filter

more frequently if you are operating the mower

under extremely dusty conditions.

•Clean the engine periodically. Remove dirt and

debris with a cloth or brush.

•Clean the spark plug and reset the gap to.030” at

least once a season or every 50 hours of operation.

Spark plug replacement is recommended at the

start of each season.

Inspect muffler periodically, and replace if necessary.

Damaged mufflers or spark arresters can create a fire

hazard. Make sure to avoid muffler and surrounding

areas while the mower engine is hot because

temperature of these areas of the engine may exceed

150o F.

Lubrication

Wheels

•Lubricate the wheels and bearings, if so equipped,

at least once a season with light oil or engine oil.

Also, if the wheels are removed for any reason,

lubricate the surface of the axle bolt and the inner

surface of the wheel with light oil.

Chute Deflector & Rear Discharge Door

•Lubricate the torsion spring and the pivot point on

each end of the chute deflector and the rear

discharge door using a light oil. This will prevent

rusting and ensure that the deflector, which is a

safety device, can always work properly.

Engine

•Follow the engine manual instructions and

recommended schedule for lubricating engine

components.

Transmission

•The transmission is pre-lubricated and sealed at

the factory and does not require lubrication on a

regular basis as part of maintenance. However, if

you disassemble the transmission for any reason,

refill with two ounces of Alvania grease (part # 737-

0168) as part of reassembly.

Pivot Points

•Lubricate the pivot points on the blade control

handle, brake cable and the cutting height

adjustment lever at least once a season with light

oil. The blade control handle must operate freely in

both directions. The cutting height adjustment

levers should be able to move easily.

SECTION 8: SERVICE AND MAKING ADJUSTMENTS

Blade Care

Periodically inspect the blade adapter and pulley for

cracks, especially if you strike a foreign object. Replace

when necessary.

WARNING: When removing the cutting

blade for sharpening or replacement,

protect hands by using heavy gloves or a

thick rag to grasp the cutting blade.

•Disconnect spark plug wire from spark plug.

•Turn mower on its side making sure that the air filter

and the carburetor are up.

To Remove Blade

•Remove the bolt and bell washer that hold the

blade-pulley assembly to the engine crankshaft.

See Figure 20. Remove the assembly from the

crankshaft.

•Remove the two bolts and lock nuts from the blade

assembly.

•Remove the blade from the blade adapter and

pulley.

To Replace Blade:

•Before reinstalling the blade-pulley assembly to the

unit, lubricate the engine crankshaft and the inner

surface of the blade adapter with light oil or engine

oil.

•Also lubricate the bolt holes, bolt and the inner

surface of the nuts.

•Install the blade adapter on the pulley with the “star”

away from the pulley. See Figure 20.

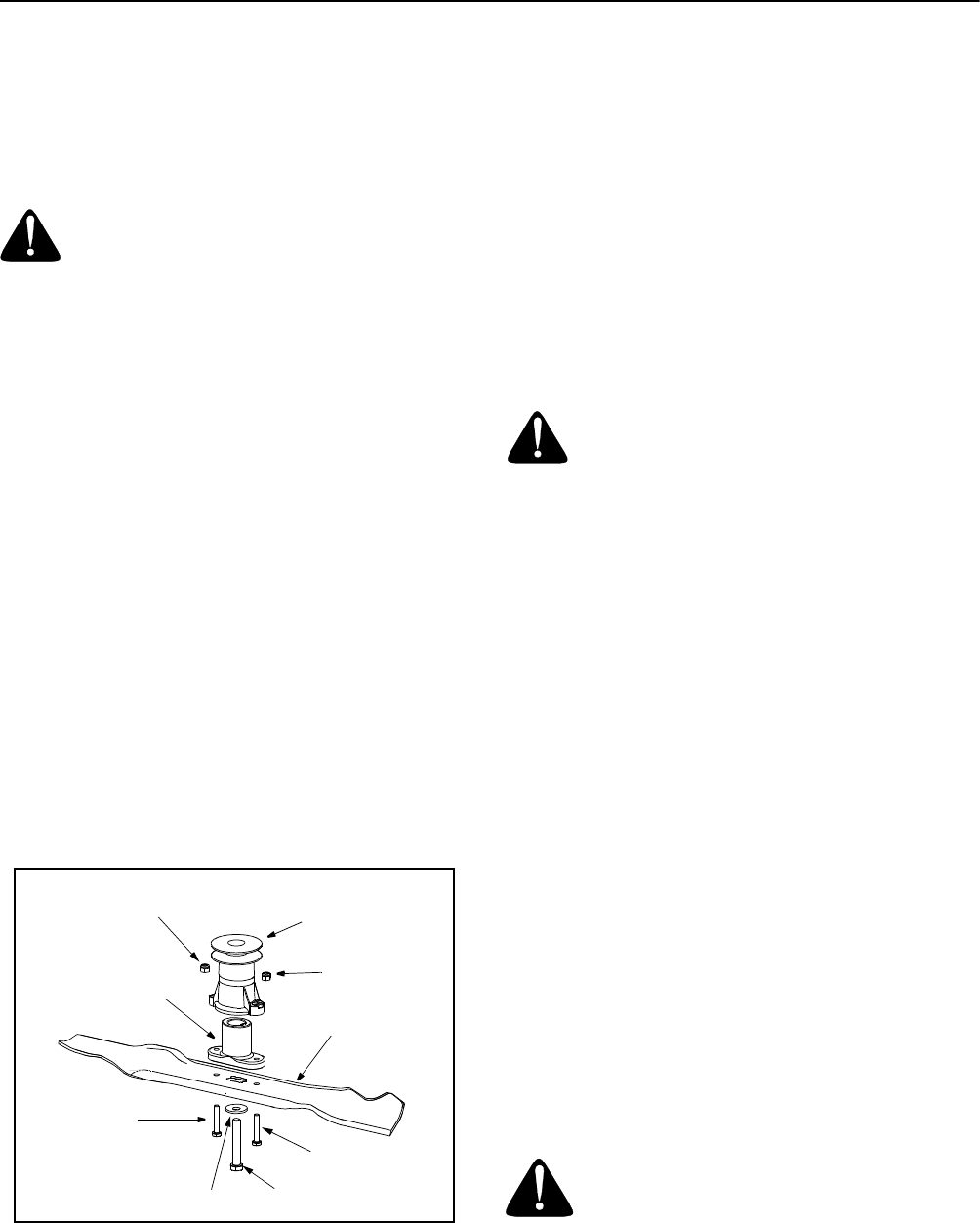

Figure 20

•Place the new blade on the blade adapter with the

side marked bottom (has a part number) facing

away from the adapter.

•Secure the blade to the assembly with two hex

bolts and lock nuts. Tighten the hex bolts to the

recommended torque. Refer to ‘Blade Mounting

Torque’ section below.

•Install the blade assembly on the engine

crankshaft. Secure with the hex bolt and bell

washer (cupped side of washer to blade) and

tighten to the recommended torque. Refer to ‘Blade

Mounting Torque’ section below.

IMPORTANT:

The bolt used to secure the blade to the

engine is specially heat-treated. Do not substitute. To

order replacement bolt, refer to the parts list in the back

of this manual.

WARNING: To ensure safe operation of

your unit, all nuts and bolts must be

checked periodically for correct tightness.

To Sharpen Blade:

•The blade can be sharpened with a file or on a

grinding wheel. Do not attempt to sharpen the

blade while it is still on the mower.

•Follow the original angle of grind as a guide. Make

sure that each cutting edge receives an equal

amount of grinding to prevent an unbalanced blade.

An unbalanced blade will cause excessive vibration

when rotating at high speeds, may cause damage to

the mower and could break, and may causing personal

injury. Test the blade by balancing it on a round shaft

screwdriver or a blade balancer.

•If the blade is not balanced, remove metal from the

heavy side until it balances evenly.

Blade Mounting Torque:

Blade adapter bolts: 120 in.lbs. minimum, 150 in.lbs.

maximum.

Center bolt: 450 in.lbs. minimum, 600 in.lbs. maximum.

Battery Pack Replacement

(Electric Start Units Only)

Remove the battery pack from the handle panel for

replacement only. Do not separate the batteries for any

reason. Dispose of batteries properly.

WARNING: Batteries contain sulfuric acid

which may cause burns. Do not short

circuit or mutilate batteries in any way. Do

not put batteries in fire as these may burst

or release toxic materials.

Lock Nut

Lock Nut Pulley

Assembly

Blade

Adapter

Blade

Bell

Washer

Hex Bolt

When replacing battery pack in handle panel, battery

pack must be positioned with the positive terminal to

the right hand side and the negative terminal to the left

hand side of panel. Replacing the battery pack

incorrectly will cause serious damage. The positive

lead on the wire harness has the smaller connector.

Connect the positive lead to the positive side of the

battery pack, then connect the negative side.

In-line Fuse (Electric Start Only)

The unit is equipped with an in-line fuse. If the unit fails

to start, check the fuse inside the battery cover by

turning the end of the fuse holder and removing from

the battery cover. Replace with standard automotive 7-

1/2 amp fuse.

Replacing Drive Belt

•Remove the two shoulder screws from on top of the

deck which secures the front drive cover to the

mower deck. See Figure 21.

•Remove the front drive cover from the unit by lightly

pressing inward on the sides of the front drive

cover. This will release the tabs that secure the

front drive cover to the height adjuster brackets.

•Remove the idler and hardware from the idler

bracket using 7/16” wrench and socket. See Figure

21.

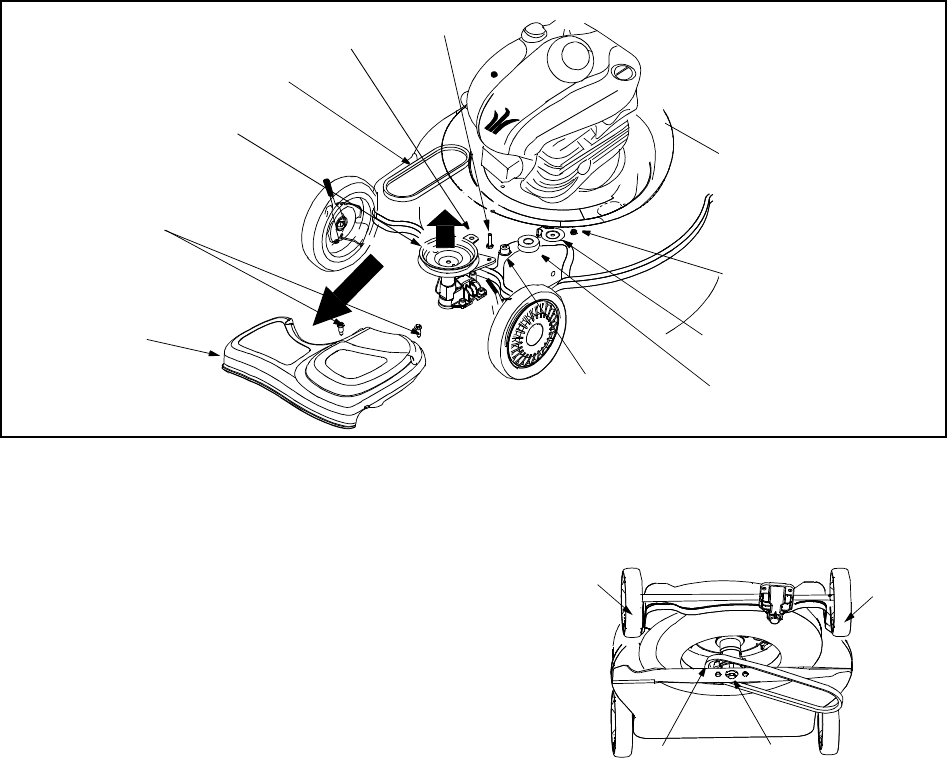

•Remove the belt from the transmission pulley as

shown in Figure 21.

Figure 21

•Lift and stabilize the front of the deck.

•Loosen the center hex bolt and lower the blade and

engine pulley until there is adequate clearance to

move the belt past the belt keeper.

•Remove the belt from the engine pulley and around

the blade. See Figure 22.

•Reassemble in reverse order with new belt (part #

754-0465). NOTE: Begin idler reassembly by

inserting bolt up through the idler bracket hole.

Adjust the drive clutch following the instructions

below.

NOTE: Torque center hex bolt to between 450 and 600

in. lbs.

Figure 22

Adjusting Drive Clutch Control

•The drive clutch adjustment wheel is located on the

drive control lever housing and is used to tighten or

loosen tension on the drive cable. Perform this

adjustment if the following exists.

Lock Nut

Belt Keeper

Idler

Bracket

Drive Belt

Pulley

Front Drive Cover

Shoulder

Screw

NOTE: The wheels have

been moved forward in

this picture for clarity.

Do not remove the

wheels away from the

mower housing while

doing the job.

Bolt

Spacer

Engine

Pulley

Left Front

Wheel

Right Front

Wheel

Center

Hex Bolt

a. The mower does not propel itself with the

drive control lever engaged.

b. The mower’s drive wheels hesitate with the

drive control lever engaged.

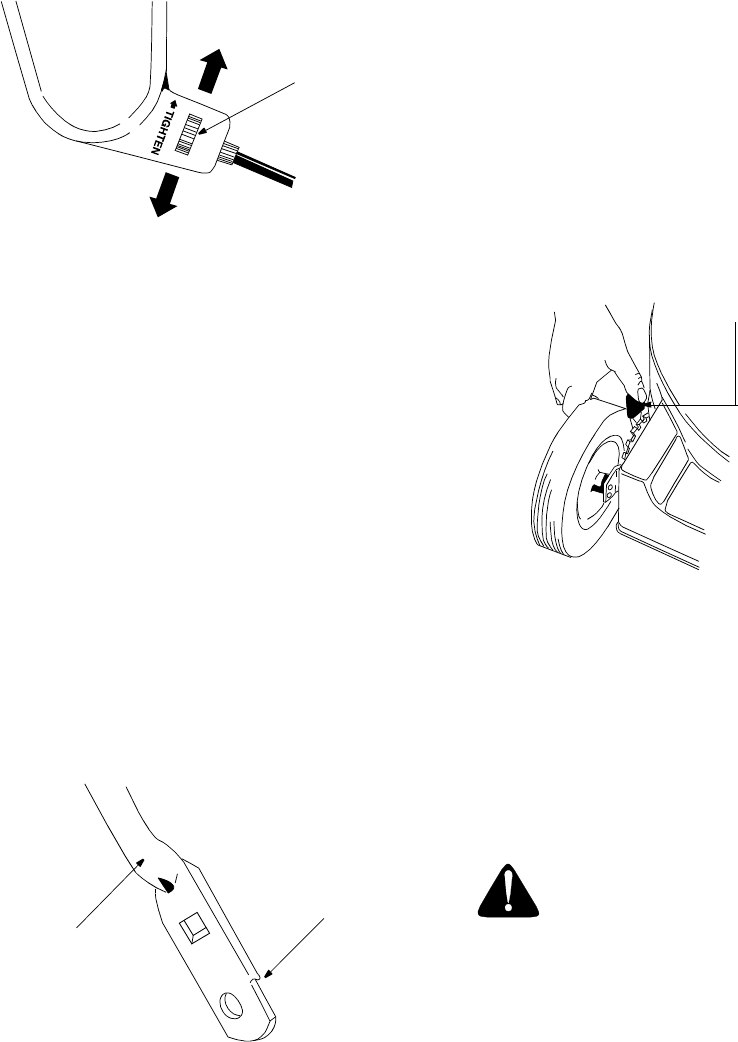

•To resolve the above problems, rotate the

adjustment wheel with your fingers: clockwise to

tighten the cable, and counter-clockwise to loosen

the cable. See Figure 23 .

Figure 23

Adjusting Handle Height

Your mower is shipped with the handle in the higher

height position. To lower the handle height, proceed as

follows.

•Remove the starter rope from the rope guide.

•Remove the upper handle by removing the hand

knobs and carriage bolts. Lay the upper handle out

of the way, being careful not to bend or kink the

cables.

•Remove the hairpin clips from the weld pins on the

handle brackets. Refer to Figure 4. Press out on the

legs of the lower handle. Remove lower handle

from the mower.

•Turn the lower handle around so the notch on the

bottom of the lower handle is facing forward as

shown in Figure 24. Reassemble, placing the

bottom holes in the handle over the weld pins in the

handle mounting bracket.

Figure 24

•Reassemble the upper handle to the lower handle.

•Place the hairpin clips in the inner holes of the weld

pins and attach the starter rope as instructed in the

Assembling Your Lawn Mower section.

Adjusting Cutting Height

IMPORTANT:

All wheels must be placed in the same

relative position. For rough or uneven lawns, move the

height adjustment lever to a higher position. This will

help stop scalping of the grass.

An adjusting plate and thumb lever at each wheel

position provides cutting height adjustment. Each

adjusting plate has nine height positions. Height of cut

will be changed when the thumb lever is moved from

one hole to another.

•Simply depress the lever towards the wheel and

move the lever assembly to desired position. See

Figure 25.

Figure 25

Adjusting Carburetor

NOTE: A dirty air cleaner may cause an engine to run

rough too. Make sure that the air cleaner is clean and

attached to the carburetor before deciding to adjust the

carburetor.

To adjust the carburetor, please follow the

recommendations and instructions found in the engine

manual.

WARNING: If any adjustments are made to

the engine (e.g. carburetor) while the

engine is running, keep clear of all moving

parts. Be careful of heated surfaces like the

muffler.

To tighten

cable

To loosen

cable

Adjustment

Wheel

Notch

Lower

Handle

Height Adjustment

Lever

SECTION 9: OFF-SEASON STORAGE

Prepare your lawn mower for storage at the end of the

season or if the unit will not be used for 30 days or

more. Store the mower in a clean, dry area.

Mower

•Clean underside of the mower following

instructions in the Maintenance section of this

manual.

•We do not recommend the use of pressure

washers or garden hose to clean your unit. They

may cause damage to electric components,

spindles, pulleys, bearings or the engine. The use

of water will result in shortened life and reduce

serviceability.

•Lubricate the mower as instructed in the

Maintenance section of this manual.

•You can fold your mower’s handle for convenient

storage: Remove the starter rope from the rope

guide; loosen the two hand knobs on the sides of

the handle, and let the upper handle fold down to

the rear. Move the hairpin clips to the outer hole in

the weld pins on the handle mounting brackets.

Spread the sides of the lower handle, and push it

forward and down.

•Inspect and replace/sharpen blade, if required.

Refer to the Service & Adjustments section of this

manual for blade care instructions.

Engine

•Follow recommendations in the accompanying

engine manual for off-season storage of the

engine.

•Change oil as necessary as stated in the engine

owners manual.

•Clean engine and remove any grass clippings, dirt,

and debris from the cooling fins, air intake screen,

levers, linkage and the exterior of the engine.

Storage Of The Battery

The battery must be stored with a full charge. A

discharged battery will freeze.

IMPORTANT:

All batteries discharge during storage.

Recharge battery every two months and before

returning to service. Refer to charging instructions in

OPERATING YOUR LAWN MOWER section on page

12.

Other

•Do not store gasoline from one season to another.

Gasoline that is older than one month old may

significantly contribute to difficulty in starting your

engine.

•Replace your gasoline can if it starts to rust. Rust

and/or dirt in the gasoline will cause problems.

Store unit in a clean, dry area. Do not store next to

corrosive materials, such as fertilizer or rocksalt.

NOTE: If storing in an unventilated or metal storage

shed, be certain to rustproof the equipment by coating

with a light oil or silicone.

SECTION 10: TROUBLE-SHOOTING GUIDE

PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION

Engine fails to start 1. Blade control handle disengaged

2. Spark plug wire disconnected

3. Throttle control lever not in starting position

4. Fuel tank empty, or stale fuel

5. Blocked fuel line

6. Faulty spark plug

7. Engine flooded

1. Engage blade control handle

2. Connect wire to spark plug

3. Move throttle lever to correct position

4. Fill up tank with fresh gasoline

5. Clean fuel line

6. Clean, adjust gap, or replace

7. Wait a few minutes and start again.

Engine runs erratic 1. Spark plug wire loose

2. Blocked fuel line or stale fuel

3. Vent in gas cap plugged

4. Water or dirt in fuel system

5. Dirty air cleaner

1. Connect and tighten spark plug wire.

2. Clean fuel line, fill tank with clean, fresh

gasoline.

3.Clear vent.

4. Drain fuel tank. Refill with fresh fuel.

5. Clean air cleaner. Refer to engine

manual.

Engine overheats 1. Engine oil level low

2. Air flow restricted

1. Fill crankcase with proper oil.

2. Clean lawn mower engine.

Occasional skip

(hesitates) at high

speed

1. Spark plug gap too close 1. Adjust gap to.030 inches.

Idles poorly 1. Spark plug fouled, faulty, or gap too wide

2. Dirty air cleaner

1. Reset gap to.030 inches or replace

spark plug.

2. Clean air cleaner.

Excessive vibration 1. Cutting blade loose or unbalanced

2.Bent cutting blade

3. Bent engine crankshaft

1. Tighten blade and adapter, balance

blade.

2. Replace blade.

3. Contact your nearest service center

Mower will not

mulch grass

1. Engine speed too low

2.Wet grass

3. Excessively high grass

4. Dull blade

1. Move throttle lever to FAST position.

2. Wait until grass is dry to cut.

3. Mow once at a high cutting height, then

mow again at desired height.

4. Sharpen or replace blade.

Uneven cut 1. Wheels not in same height position

2. Dull blade

1. Reposition all wheels at same height.

2. Sharpen or replace blade.

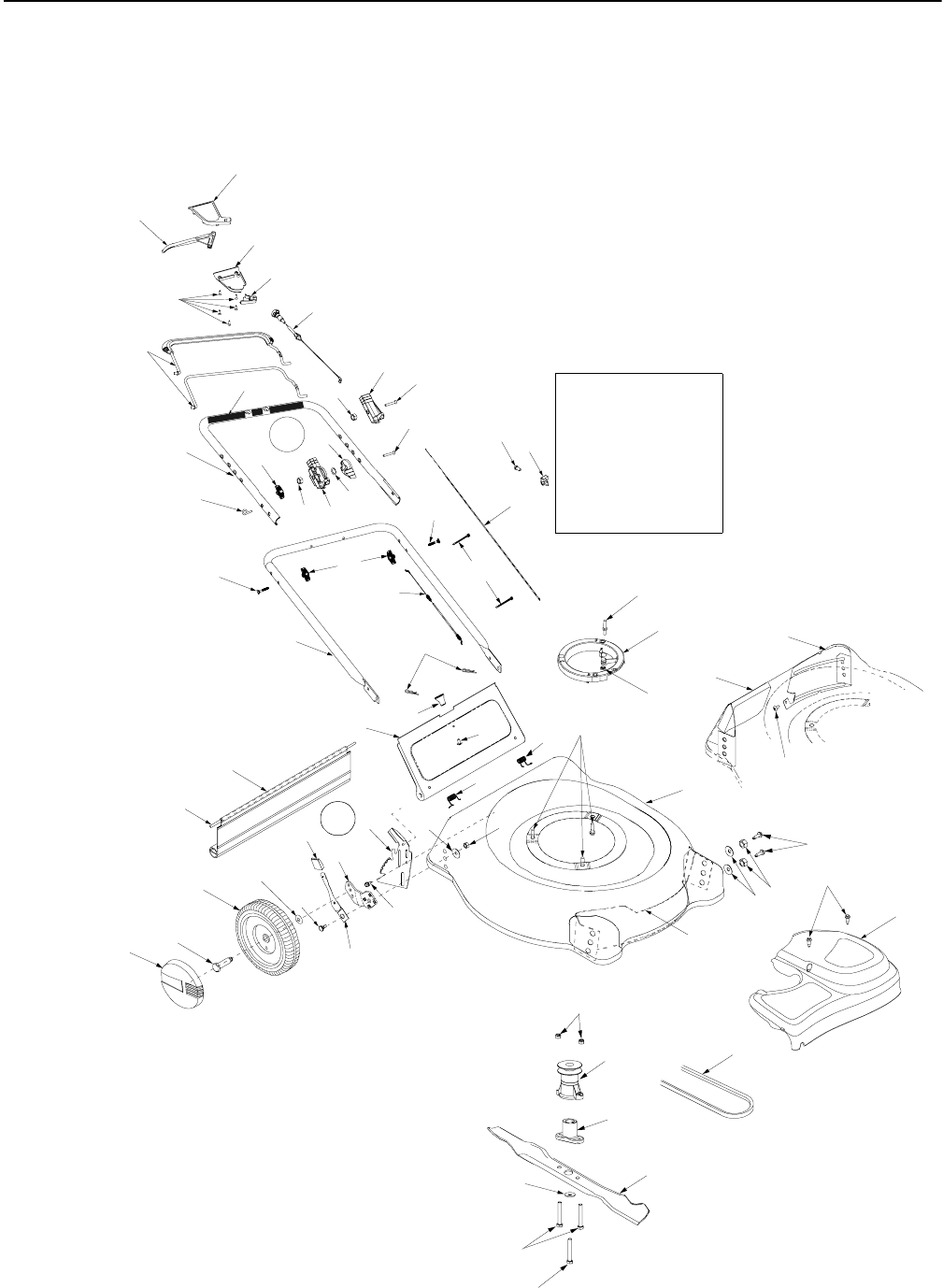

SECTION 11: PARTS LIST FOR MODEL 440 THRU E450 SERIES

SEE ENGINE

MANUAL

27 26

61 60

37 38 41

23 24

Models 440 Thru E450 Series

Ref. No Part No. Description

1 731-1057 Upper Drive Cover

2 731-0620 Drive Lever

3 731-1058 Lower Drive Cover

4 731-1059 Mounting Cap

5 710-1667A Screw #10-12:75

6 746-0960 Drive Cable

7 747-0824 Control Lever

647-0004 Deluxe Control Lever

8 749-1230 Upper Handle

9 712-0324 Hex Lock Nut 1/4-20

10 746-0883 Control Hsg.

11 710-1270 Scr. Oval C-Sunk 1/4-20 x 1.31

12 710-0605 Scr. Oval C-Sunk 1/4-20 x 1.81 †

13 746-0876 Throttle Lever †

14 736-0501 Curved Washer .663 x .980 x .014 †

15 746-0875 Throttle Housing †

16 712-0324 Hex Lock Nut 1/4-20 Thd.

17 811-00185 Throttle Body Comp. †

18 720-0279 Knob

19 710-1205 Eye Bolt 1/4-20

20 710-1174 Carriage Bolt 5/16-18 x 2.0

21 720-0314 Knob

22 749-0928 Lower Handle

23 746-0843 Throttle Cable: 55” (B&S) †

746-0847 Throttle Cable: 42” (Tec) †

24 726-0240 Tie Cable

25 746-0553 Control Cable 39” (B&S)

746-0737 Control Cable 51” (Tec)

26 751B213146 Cable Clamp (B&S) †

7510007775 Cable Clamp (Tec) †

27 710-1237 Hex Screw: T: #10-32 (B&S) †

710-0871 Hex Screw: #10-32 (Tec) †

28 711-1293 Pin-Belt Keeper

29 631-0075A Engine Spacer

30 712-0271 Hex Nut 1/4-20 Thread

31 710-1008 Tapp Screw w/Hex Lock Wash

32 782-5004 Rear Baffle Right

33 782-5003 Rear Baffle Left

34 710-1017 Scr. AB: 1/4-14 .625 Trust

35 782-0080A Deck 21” RD

36 782-5002 Front Baffle

37 712-0798 Hex Nut 3/8-16

38 736-0331 Bell Washer .39 x 1.13 x .062

39 710-0216 Hex Screw 3/8-16 x .75

40 7510042824 Screw #12 x .457

41 731-1936A Trans Cover - Black

731-1937A Trans Cover - Yellow

42 754-0465 V-Belt

43 712-0324 Hex Lock Nut 1/4-20

44 756-1146A Drive Pulley

45 748-0411 Blade Adapter

46 742-0741 21” Mulching Blade w/star

742-0641 21” Standard Blade

47 736-0452 Bell Washer .396 I.D. x 1.140 O.D. x

48 710-0606 Hex Screw 1/4-2 0x 1.50

49 710-1257 Hex Screw 3/8-24 x 2.50

50 712-3005 Hex Nut 3/8-16

51 732-0677 Torsion Spring L.H.

52 710-0192 Scr. Tr. Mach #10-24 x .380

53 720-0275 Knob

54 714-0104 Cotter Pin

55 782-7000 RD Door

56 682-0515 Complete Handle Brkt Ass’y - LH

682-0516 Complete Handle Brkt Ass’y - RH

57 736-0356 Bell Washer .39 ID x 1.38 OD

58 682-0513 Handle Brkt Ass’y - LH

682-0514 Handle Brkt Ass’y - RH

59 710-0896 Hex Screw w/wsh. 1/4-14 x .62

60 14766 Pivot Bar - LH

14765 Pivot Bar - RH

61 720-0190 Knob

62 732-0417A Spring Lever

63 738-0507B Shldr Screw .500 Dia x .434 Long

64 736-0105 Bell Washer .380 x .880 x .062

65 634-0020 Wheel 8 x1.75 Disk Bar Grey

66 738-0102 Shldr Screw .498 x 1.445

67 720-0249 Hubcap: Euro Grey 3 1/2”

731-0981A Hubcap: Radial Spoke Grey 5”

68 732-0700 Wire

69 731-1236 Rear Flap

70 732-0678 Torsion Spring R.H.

71 720-0294 Foam Grip (2 Req’d)

Ref. No Part No. Description

† If Equipped

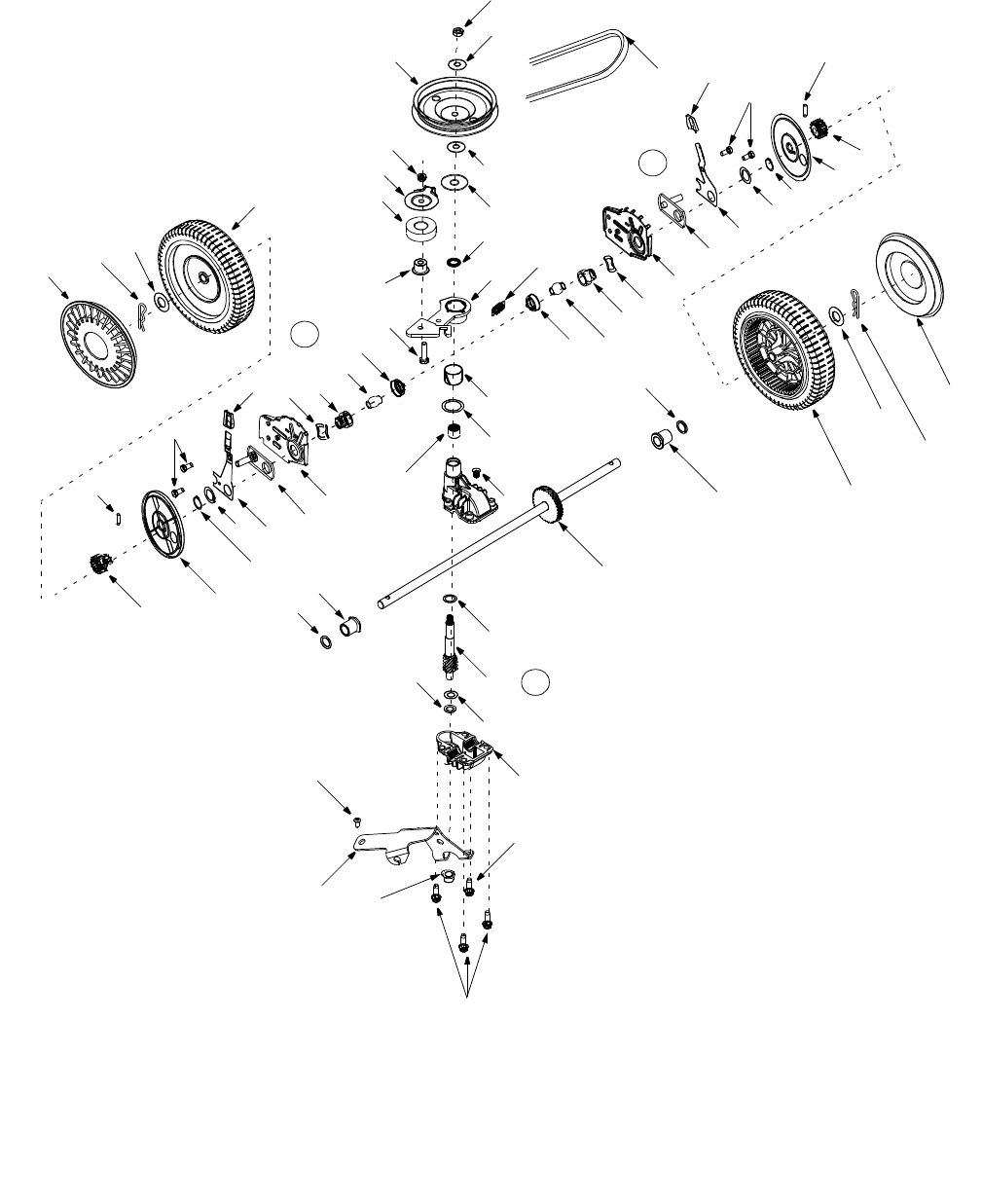

Models 440 Thru E450 Series

10 11 13

30 31

3233

37 36

Models 440 Thru E450 Series

Ref. No Part No. Description

1. 712-3025 Hex Jam Nut 5/16-24

2. 736-0425 Bell Washer .325 x .930 x .045

3. 756-1042 Pulley, 3.82 x .313 x .68

4. 736-0425 Bell Washer .325 x .930 x .045

5. 712-0896 Lock Nut 1/4-28

6. 736-0406 Flat Washer .442 x 1.38 x .060

7. 782-7598 Belt Keeper

8. 741-0124 Ball Bearing

9. 721-0457 Oil Seal

10. 750-1050 Flange Spacer

11. 682-0028 Idler Bracket Assembly

12. 741-0682A Bearing Sleeve

13. 732-0849A Flat Washer .504 x .700 x.030

14. 710-0299 Hex Cap Screw 1/4-28 x 1.00

15. 736-0570 Flat Washer .865 x 1.145 x .030

16. 741-0699 Needle Bearing .438 x .625 x .500

17. 721-0325 Plug 1/4 x .437

18. 618-0300A Upper Housing

19. 721-0329 Oil Seal .500 x .687 x .094

20. 741-0673 Flange Bearing

21. 611-0105 Output Shaft

22. 736-0520 Flat Washer .504 x .700 x .030

23. 717-1492 Pinion Shaft 10T

24. 736-0314 Thrust Washer .375 x .70 x .030

25. 736-0569 Thrust Washer .388 x .625 x .062

26. 618-0299A Lower Housing

27. 741-0672 Flange Bearing .378 x .531 x .370

28. 710-1276 Hex Screw w/Washer 1/4-20 x .750

29. 618-0298A Transmission Assembly

(Includes Ref. # 1to Ref. #30)

30. 732-0708 Bearing Retainer

31. 741-0604 Bearing Sleeve .50 I.D.

32. 748-0355 Bearing Support

33. 736-0447 Wave Washer 1.5 x 1.0 x .029

34. 782-0512B RH Height Adj. Plate

35. 782-0511A LH Height Adj. Plate

36. 682-0509 Pivot Plate Assembly

37. 732-0706 RH Front Lever

38. 732-0707 LH Front Lever

39. 720-0190 Knob

40. 710-0216 Hex Cap Screw 3/8-16 x .75

41. 736-0474 Washer DD 1.5” O.D.

42. 716-0102 Snap Ring 1.0 dia.

43. 782-7551 Wheel Dust Cap

44. 717-1534 Gear 14T RH FWD

45. 717-1533 Gear 14T LH FWD

46. 634-0021A Wheel, 8x2 x 1.75

47. 731-0981A Hubcap: Gray

48. 682-0512A RH Height Adj. Complete

49. 682-0511A LH Height Adj. Complete

50. 682-0030 Cable Idler Bracket

51. 715-0221 Dowel Pin

52. 736-3013 Flat Washer 1/2 x 1.00 x .063

53. 714-0101 Cotter Pin .08 x 1.42

54. 738-1002 Screw

55. 754-0465 Belt

Ref. No Part No. Description

IMPORTANT:

For a proper working machine, use factory approved parts.

V-Belts are specially designed to engage and disengage safely. A substitute (non OEM) V-Belt can be dangerous

by not disengaging completely.

Models 440 Thru E450 Series

12 10

914

Electric Start

(Optional)

Models 440 Thru E450 Series

REF.

NO. PART NO. DESCRIPTION

1 725-0201 Ignition Key

2 725-0873 Key Switch

3 731-0891A Battery Tray

4 725-0727 Battery Charger

5 725-0298 Fuse 7.5 Amp

6 725-1428 Fuse Holder

7 725-1276 Battery 12V

8 710-0501 Hex Screw:1/4-20:2.0

9 736-0270 Bell Washer .265 x .75 x .062

10 712-0329 Special Hex Nut 5/16-18

11 725-1206 Plug

12 712-0267 Nut 5/16-18

13 736-0242 Bell Wash .340 ID x .872 OD

14 712-0287 Hex Nut 1/4-20

15 710-1250 Carriage Bolt 5/16-18 x 1

16 710-0111 Carriage Screw

17 782-9012 Lower Battery Tray

18 710-0969 Tapp Screw

19 725-1538 Harness Extension

20 625-0022 Harness

21 764-0310 Rear Catcher Frame

22 782-9011 Mounting Bracket

23 710-0286 Hex Screw 1/4 -20 x .5

24 712-0324 Hex Nylon L-Nut 1/4-20

25 731-1322A Hardtop Cover w/o Logo: Econo: Blk.

731-1876 Hardtop Cover w/Logo: Econo: Blk.

764-0433 Grassbag for Hardtop Assy

26 764-0476A Grass Bag: Soft Top w/ Logo

764-0309 Grass Bag: Econo: Soft Top w/o Logo

27 782-5007A Mulcher Plug

28 726-0201 Nut: Spd. .3125 ID

29 711-0996 Rod

30 731-1405 Side Discharge Adapter

31 764-0311 Front Catcher Frame

32 190-104-000 Chute Deflector Complete

REF.

NO. PART NO. DESCRIPTION

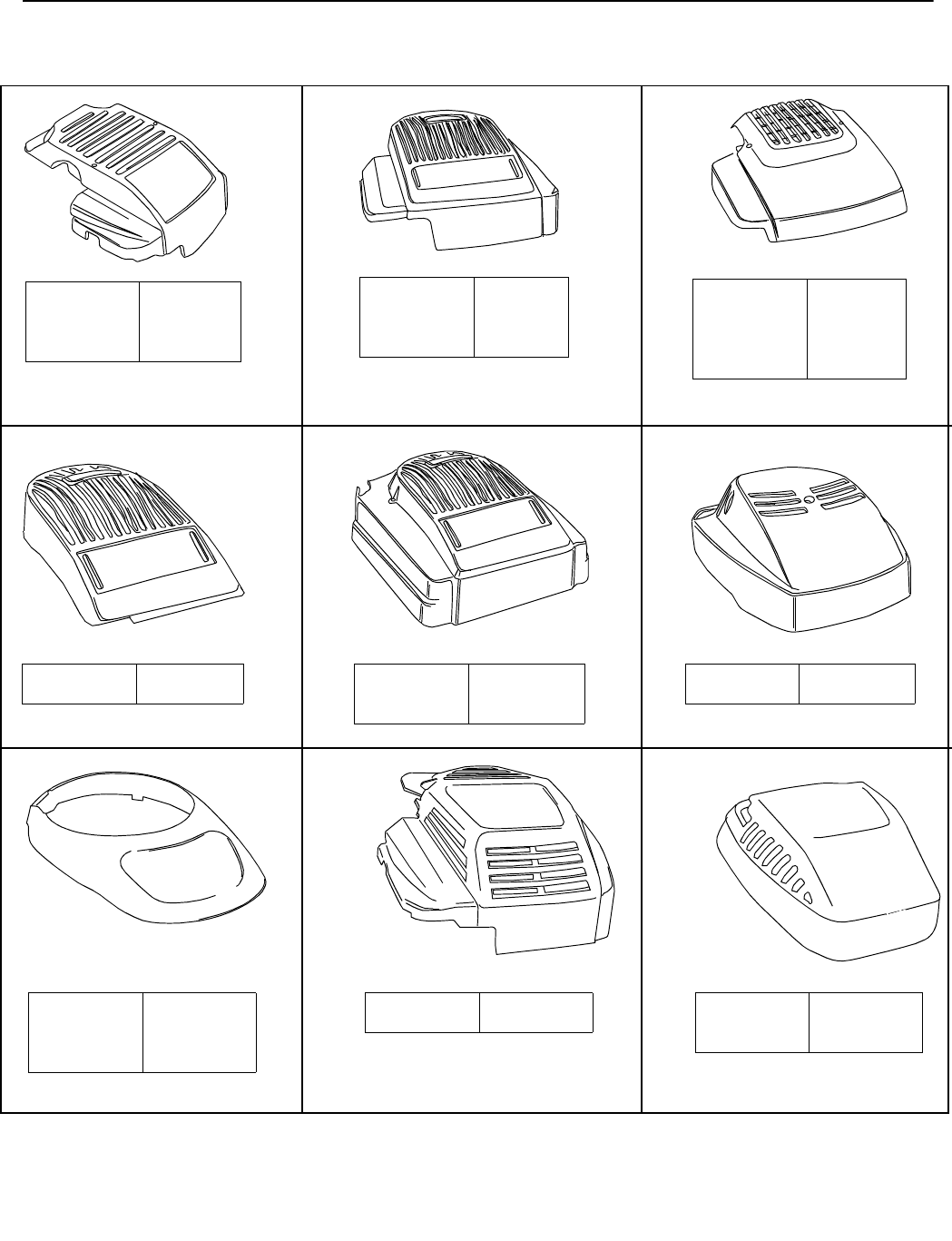

SECTION 12: ENGINE SHROUDS

Hardware: 710-1256 (Screw)

Part No.

751B281439

751B281440

751B281443

Color

Dark Red

Black

Bright Red

Hardware: 710-1256 (Screw)

Part No.

731-1395A

731-1396A

731-1397A

Color

Red

Black

Gray

Hardware: 710-1256 (Screw)

Part No.

731-1402A

731-1694

731-1695

731-1934

Color

Ye l l o w

Black

Silver

Charcoal

Hardware: 7510042823 (Screw)

Part No.

7510143208

Color

Black

Hardware: 7510042823 (Screw)

Part No.

731-1586B

731-1612A

Color

Black

Red

Hardware: 710-1274 (Screw)

Part No.

731-1585B

Color

Black

Part No.

7511681311

7511681911

7511682011

Color

Black

Red

Gray

Hardware: 710-1256 (Screw)

Part No.

751B281451

Color

Gray

Hardware: 710-1237 (Screw)

Part No.

751B281476

751B281777

Color

Black

Ye l l o w

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD

PRODUCTS INC (“MTD”) with respect to new merchandise

purchased and used in the United States, its possessions

and territories.

MTD warrants this product against defects in material and

workmanship for a period of two (2) years commencing on

the date of original purchase and will, at its option, repair or

replace, free of charge, any part found to be defective in

material or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator’s Manual furnished with the

product, and has not been subject to misuse, abuse, com-

mercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water or damage because

of other peril or natural disaster. Damage resulting from the

installation or use of any accessory or attachment not

approved by MTD Products Inc. for use with the product(s)

covered by this manual will void your warranty as to any

resulting damages.

Normal wear parts or components thereof are subject to

separate terms as follows: All normal wear part or compo-

nent failures will be covered on the product for a period of

90 days regardless of cause. After 90 days, but within the

two year period, normal wear part failures will be covered

ONLY IF caused by defects in material or workmanship of

OTHER component parts. Normal wear parts and compo-

nents include, but are not limited to, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow

thrower skid shoes, shave plates and tires. Batteries are

covered by a 90-day limited replacement warranty.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE THROUGH YOUR LOCAL

AUTHORIZED SERVICE DEALER. To locate the dealer in

your area, please check for a listing in the Yellow Pages or

contact the Customer Service Department of MTD PROD-

UCTS INC by calling 1-800-800-7310 or writing to P.O. Box

368022, Cleveland, Ohio 44136-9722.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer’s warranty. Please refer

to the applicable manufacturer’s warranty on these

items.

b. Log splitter pumps, valves and cylinders have a sepa-

rate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening and tune-ups, or adjustments such

as brake adjustments, clutch adjustments or deck

adjustments; and normal deterioration of the exterior

finish due to use or exposure.

d. MTD does not extend any warranty for products sold

or exported outside of the United States of America,

its possessions and territories, except those sold

through MTD’s authorized channels of export distribu-

tion.

No implied warranty, including any implied warranty of

merchantability or fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty or guaranty, whether written or oral,

except as mentioned above, given by any person or

entity, including a dealer or retailer, with respect to any

product shall bind MTD. During the period of the War-

ranty, the exclusive remedy is repair or replacement of

the product as set forth above. (Some states do not

allow limitations on how long an implied warranty lasts, so

the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the

sole and exclusive remedy arising from the sales. MTD

shall not be liable for incidental or consequential loss

or damages including, without limitation, expenses

incurred for substitute or replacement lawn care ser-

vices, for transportation or for related expenses, or for

rental expenses to temporarily replace a warranted

product. (Some states do not allow the exclusion or limita-

tion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you.)

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of the safety features of the product shall void this War-

ranty. You assume the risk and liability for loss, damage, or

injury to you and your property and/or to others and their

property arising out of the use or misuse or inability to use

the product.

This limited warranty shall not extend to anyone other than

the original purchaser, original lessee or the person for

whom it was purchased as a gift.

How State Law Relates to this Warranty: This limited

warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.

MTD 440 Thru E459 770 10134A User Manual To The 97e0674b 6d0d 451f 9742 E77a71e3fcff

Navigation menu

Versions of this User Manual:

Views

Navigation
