Two-Stage Snow Thrower

Styles E & F

Operator’s Manual

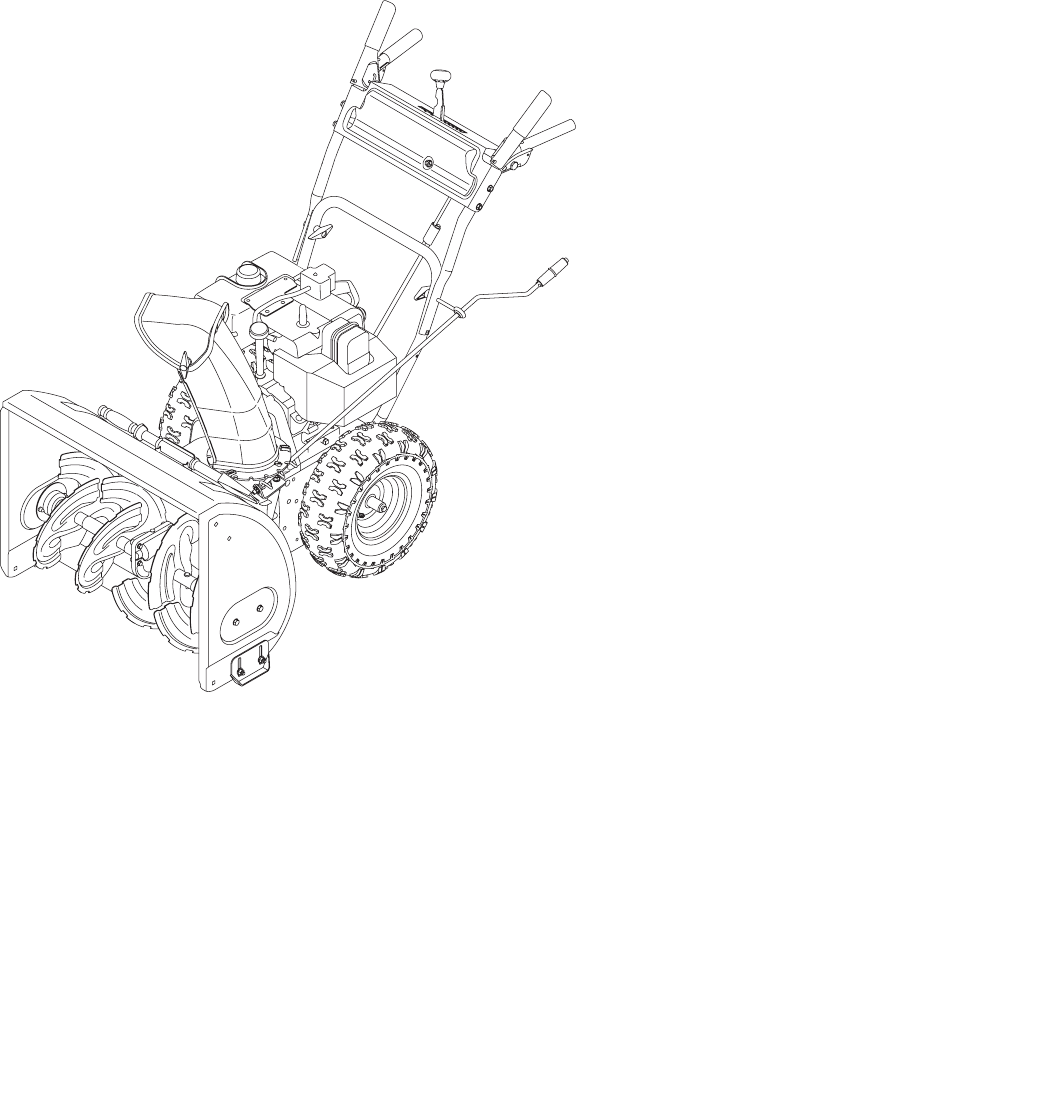

Model 6FE Shown

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-

covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if

any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required

by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark

arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131

Cleveland, Ohio 44136-0019.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A.

FORM NO.

769-01275.fm

(6/7/2004)

2

TABLE OF CONTENTS

FINDING MODEL NUMBER

This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and

maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment

and copy the information from it in the space provided below. A sample model plate is also given below.

You can locate the model plate by standing at the operating position and looking down at the rear of the

deck. This information will be necessary to use the manufacturer’s web site and/or help from the

Customer Support Department or an authorized service dealer.

CUSTOMER SUPPORT

Please do NOT return the unit to the retailer from where it was purchased, without first contacting Customer Support.

If you have difficulty assembling this product or have any questions regarding the controls, operation or

maintenance of this unit, you can seek help from the experts. Choose from the options below:

Visit mtdproducts.com for many useful suggestions. Click on Customer Support button and

you will get the four options reproduced here. Click on the appropriate button and help is

immediately available.

To reach a Customer Support Representative, please call 1(800) 800-7310.

The engine manufacturer is responsible for all engine-related issues with regard to

performance, power-rating, specifications, warranty and service. Please refer to the engine

manufacturer’s Owner’s/Operator’s Manual, packed separately with your unit, for more

information.

Content Page

Important Safe Operation Practices 3

Assembling Your Snow Thrower 6

Know Your Snow Thrower 8

Operating Your Snow Thrower 10

Making Adjustments 13

Maintaining Your Snow Thrower 15

Servicing Your Snow Thrower 15

Troubleshooting 20

Illustrated Parts List 22

Warranty Back Cover

Content Page

Copy the model number here:

Copy the serial number here:

www.mtdproducts.com

MTD LLC

P. O. BOX

361131

CLEVELAND,OH

44136

330-220-4683

800-800-7310

The answer you are

looking for could be just

a mouse click away!

The answer you are

looking for could be just

a mouse click away!

Engine

Manual

3

SECTION 1: IMPORTANT SAFE OPERATION PRACTICES

WARNING: Engine Exhaust, some of its constituents, and certain vehicle components

contain or emit chemicals known to the State of California to cause cancer, birth defects or

other reproductive harm.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can

result in serious injury. This machine is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury or death.

DANGER: This machine was built to be operated according to the rules for safe operation in this manual. As with

any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This

machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety

instructions could result in serious injury or death.

Training

1. Read, understand, and follow all instructions on the

machine and in the manual(s) before attempting to

assemble and operate. Keep this manual in a safe

place for future and regular reference and for

ordering replacement parts.

2. Be familiar with all controls and their proper

operation. Know how to stop the machine and

disengage them quickly.

3. Never allow children under 14 years old to operate

this machine. Children 14 years old and over

should read and understand the operation

instructions and safety rules in this manual and

should be trained and supervised by a parent.

4. Never allow adults to operate this machine without

proper instruction.

5. Thrown objects can cause serious personal injury.

Plan your snow-throwing pattern to avoid discharge

of material toward roads, bystanders and the like.

6. Keep bystanders, helpers, pets and children at

least 75 feet from the machine while it is in

operation. Stop machine if anyone enters the area.

7. Exercise caution to avoid slipping or falling,

especially when operating in reverse.

Preparation

1. Thoroughly inspect the area where the equipment

is to be used. Remove all doormats, newspapers,

sleds, boards, wires and other foreign objects,

which could be tripped over or thrown by the auger/

impeller.

2. Always wear safety glasses or eye shields during

operation and while performing an adjustment or

repair to protect your eyes. Thrown objects which

ricochet can cause serious injury to the eyes.

3. Do not operate without wearing adequate winter

outer garments. Do not wear jewelry, long scarves

or other loose clothing, which could become

entangled in moving parts. Wear footwear which

will improve footing on slippery surfaces.

4. Use a grounded three-wire extension cord and

receptacle for all units with electric start engines.

5. Adjust collector housing height to clear gravel or

crushed rock surfaces.

6. Disengage all control levers before starting the engine.

7. Never attempt to make any adjustments while

engine is running, except where specifically

recommended in the operator’s manual.

8. Let engine and machine adjust to outdoor

temperature before starting to clear snow.

9. To avoid personal injury or property damage use

extreme care in handling gasoline. Gasoline is

extremely flammable and the vapors are explosive.

Serious personal injury can occur when gasoline is

spilled on yourself or your clothes, which can ignite.

Wash your skin and change clothes immediately.

a. Use only an approved gasoline container.

b. Extinguish all cigarettes, cigars, pipes and

other sources of ignition.

c. Never fuel machine indoors.

d. Never remove gas cap or add fuel while the

engine is hot or running.

e. Allow engine to cool at least two minutes

before refueling.

f. Never over fill fuel tank. Fill tank to no more

than ½ inch below bottom of filler neck to

provide space for fuel expansion.

g. Replace gasoline cap and tighten securely.

h. If gasoline is spilled, wipe it off the engine

and equipment. Move machine to another

area. Wait 5 minutes before starting the

engine.

i. Never store the machine or fuel container

inside where there is an open flame, spark or

pilot light (e.g. furnace, water heater, space

heater, clothes dryer etc.).

j. Allow machine to cool at least 5 minutes

before storing.

4

Operation

1. Do not put hands or feet near rotating parts, in the

auger/impeller housing or chute assembly. Contact

with the rotating parts can amputate hands and

feet.

2. The auger/impeller control lever is a safety device.

Never bypass its operation. Doing so makes the

machine unsafe and may cause personal injury.

3. The control levers must operate easily in both

directions and automatically return to the

disengaged position when released.

4. Never operate with a missing or damaged chute

assembly. Keep all safety devices in place and

working.

5. Never run an engine indoors or in a poorly

ventilated area. Engine exhaust contains carbon

monoxide, an odorless and deadly gas.

6. Do not operate machine while under the influence

of alcohol or drugs.

7. Muffler and engine become hot and can cause a

burn. Do not touch.

8. Exercise extreme caution when operating on or

crossing gravel surfaces. Stay alert for hidden

hazards or traffic.

9. Exercise caution when changing direction and

while operating on slopes.

10. Plan your snow-throwing pattern to avoid discharge

towards windows, walls, cars etc. Thus, avoiding

possible property damage or personal injury

caused by a ricochet.

11. Never direct discharge at children, bystanders and

pets or allow anyone in front of the machine.

12. Do not overload machine capacity by attempting to

clear snow at too fast of a rate.

13. Never operate this machine without good visibility

or light. Always be sure of your footing and keep a

firm hold on the handles. Walk, never run.

14. Disengage power to the auger/impeller when

transporting or not in use.

15. Never operate machine at high transport speeds on

slippery surfaces. Look down and behind and use

care when backing up.

16. If the machine should start to vibrate abnormally,

stop the engine, disconnect the spark plug wire and

ground it against the engine. Inspect thoroughly for

damage. Repair any damage before starting and

operating.

17. Disengage all control levers and stop engine before

you leave the operating position (behind the

handles). Wait until the auger/impeller comes to a

complete stop before unclogging the chute

assembly, making any adjustments, or inspections.

18. Never put your hand in the discharge or collector

openings. Always use the clean-out tool provided to

unclog the discharge opening. Do not unclog chute

assembly while engine is running. Shut off engine

and remain behind handles until all moving parts

have stopped before unclogging.

19. Use only attachments and accessories approved

by the manufacturer (e.g. wheel weights, tire

chains, cabs etc.).

20. If situations occur which are not covered in this

manual, use care and good judgment. Contact your

dealer or call 1-800-800-7310 for assistance and

the name of your nearest servicing dealer.

Maintenance & Storage

1. Never tamper with safety devices. Check their

proper operation regularly. Refer to the

maintenance and adjustment sections of this

manual.

2. Before cleaning, repairing, or inspecting machine

disengage all control levers and stop the engine.

Wait until the auger/impeller come to a complete

stop. Disconnect the spark plug wire and ground

against the engine to prevent unintended starting.

3. Check bolts and screws for proper tightness at

frequent intervals to keep the machine in safe

working condition. Also, visually inspect machine

for any damage.

4. Do not change the engine governor setting or over-

speed the engine. The governor controls the

maximum safe operating speed of the engine.

5. Snow thrower shave plates and skid shoes are

subject to wear and damage. For your safety

protection, frequently check all components and

replace with original equipment manufacturer’s

(OEM) parts only. “Use of parts which do not meet

the original equipment specifications may lead to

improper performance and compromise safety!”

6. Check controls periodically to verify they engage

and disengage properly and adjust, if necessary.

Refer to the adjustment section in this operator’s

manual for instructions.

7. Maintain or replace safety and instruction labels, as

necessary.

8. Observe proper disposal laws and regulations for

gas, oil, etc. to protect the environment.

9. Prior to storing, run machine a few minutes to clear

snow from machine and prevent freeze up of auger/

impeller.

10. Never store the machine or fuel container inside

where there is an open flame, spark or pilot light

such as a water heater, furnace, clothes dryer etc.

11. Always refer to the operator’s manual for proper

instructions on off-season storage.

5

YOUR RESPONSIBILITY

Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in

this manual and on the machine.

Do not modify engine

To avoid serious injury or death, do not modify engine

in any way. Tampering with the governor setting can

lead to a runaway engine and cause it to operate at

unsafe speeds. Never tamper with factory setting of

engine governor.

Notice regarding Emissions

Engines which are certified to comply with California

and federal EPA emission regulations for SORE (Small

Off Road Equipment) are certified to operate on regular

unleaded gasoline, and may include the following

emission control systems: Engine Modification (EM)

and Three Way Catalyst (TWC) if so equipped.

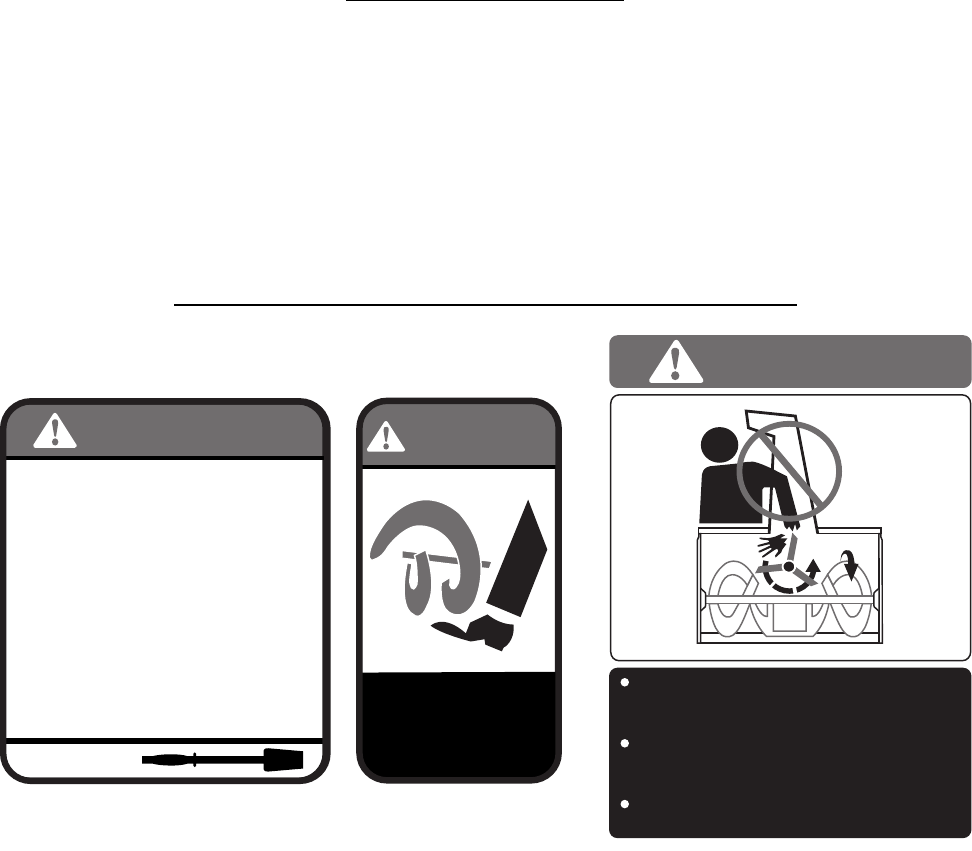

SAFETY LABELS FOUND ON YOUR SNOW THROWER

DANGER

NEVER PUT HAND IN CHUTE. CONTACT WITH

ROTATING PARTS CAN AMPUTATE FINGERS

AND HANDS.

SHUT OFF ENGINE AND WAIT UNTIL ALL

MOVING PARTS HAVE STOPPED BEFORE

UNCLOGGING.

USE CLEAN-OUT TOOL OR WOODEN

STICK TO

UNCLOG DISCHARGE CHUTE.

KEEP AWAY FROM ROTATING IMPELLER

AND AUGER. CONTACT WITH IMPELLER OR

AUGER CAN AMPUTATE HANDS AND FEET

.

USE CLEAN-OUT TOOL TO UNCLOG

DISCHARGE CHUTE.

DISENGAGE CLUTCH LEVERS, STOP ENGINE,

AND REMAIN BEHIND HANDLES UNTIL ALL

MOVING PARTS HAVE STOPPED BEFORE

UNCLOGGING OR SERVICING MACHINE.

TO AVOID THROWN OBJECTS INJURIES,

NEVER DIRECT DISCHARGE AT BYSTANDERS.

USE EXTRA CAUTION WHEN OPERATING ON

GRAVEL SURFACES.

READ OPERATOR'S MANUAL.

1.

2.

3.

4.

5.

DANGER

CLEAN-OUT TOOL

DANGER

AVOID INJURY FROM

ROTATING AUGER -

KEEP HANDS, FEET

AND CLOTHING AWAY.

6

SECTION 2: ASSEMBLING YOUR SNOW THROWER

NOTE: References to right or left side of the snow

thrower are determined from behind the unit in the

operating position (standing directly behind the snow

thrower, facing the handle panel).

NOTE: This Operator’s Manual covers several

models. Snow thrower features vary by model. Not

all features referenced and pictured in this manual are

applicable to all snow thrower models.

IMPORTANT:

Two replacement auger shear pins are

included with this manual. Refer to Augers on page 19

for more information regarding shear pin replacement.

CAUTION: Prior to operating your snow

thrower, refer to Auger Control Test on page 11.

Read and follow all instructions carefully and

perform all adjustments to verify your snow

thrower is operating safely and properly.

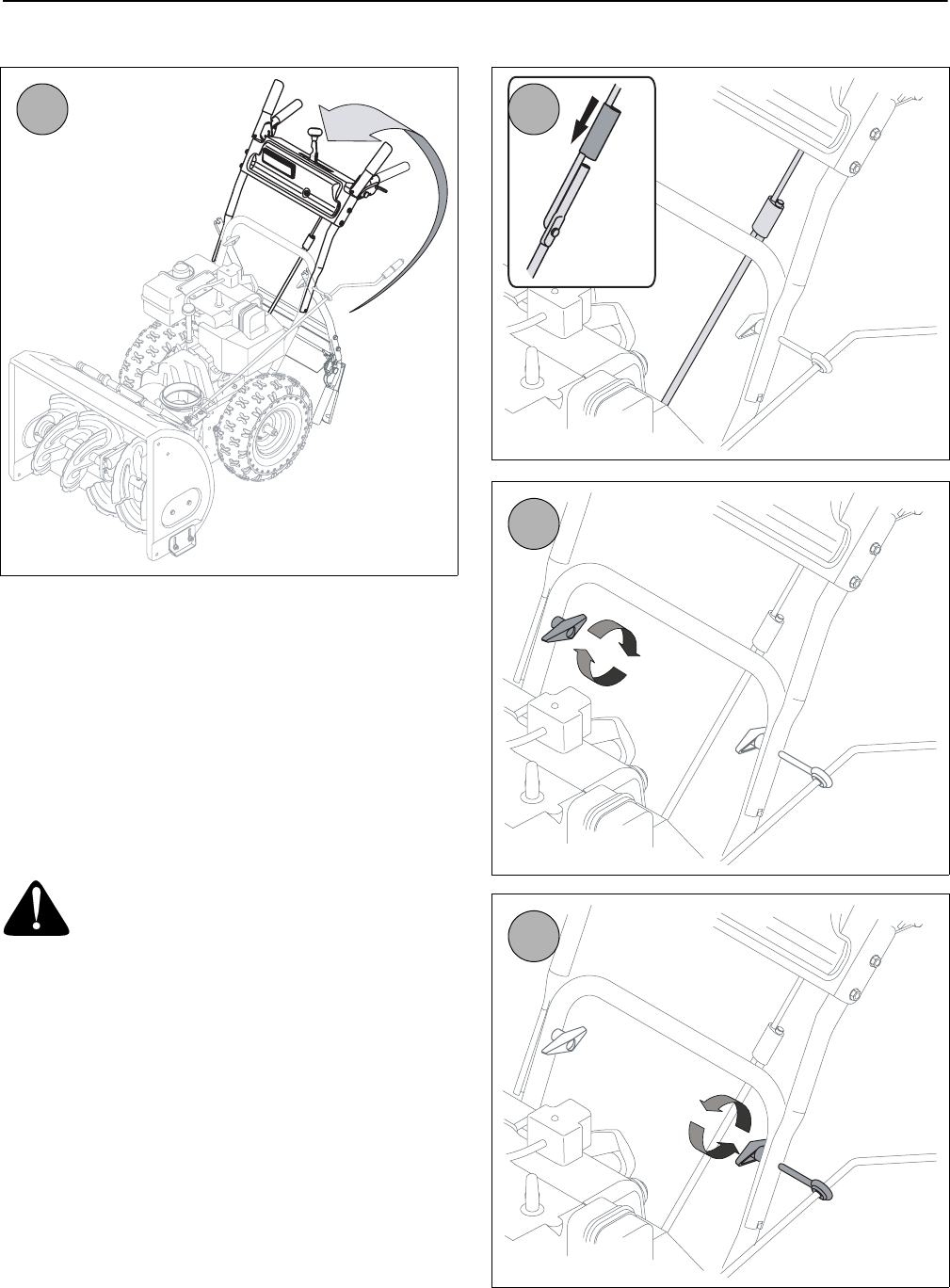

Securing the Handle

1. Observe the lower rear area of the snow thrower to

be sure both cables are aligned with roller guides

before pivoting the handle upward until it clicks into

the place.

2. Secure the upper shift rod to the lower shift rod by

sliding the connector sleeve downward. Tap the

connector until it locks onto the lower shift rod.

3. Secure the right side of the handle by tightening the

plastic wing knob.

4. Secure the left side of the handle by tightening the

plastic wing knob into the eyebolt.

2

3

4

1

7

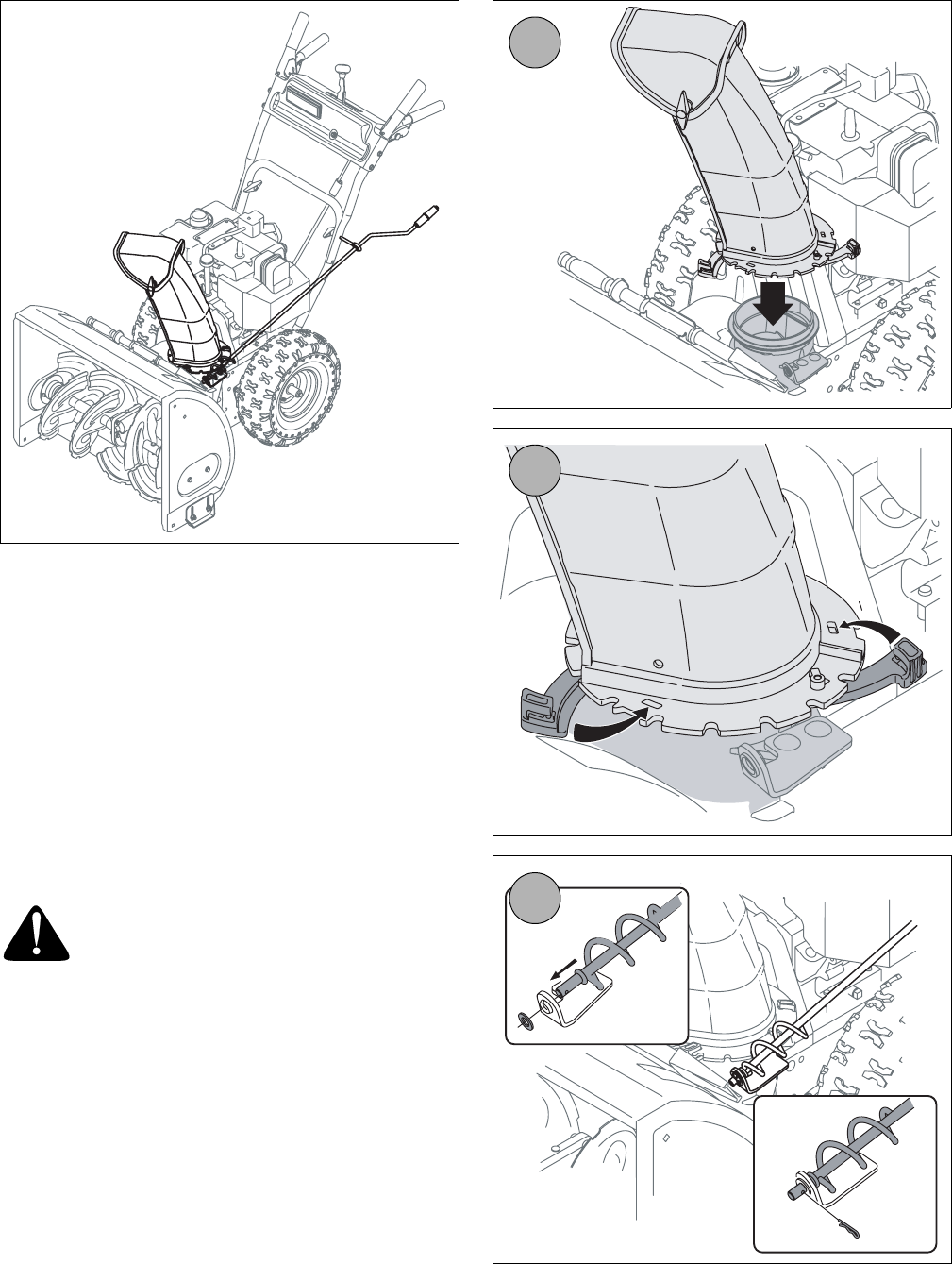

Attaching the Chute Assembly and Directional Control

1. Apply a light lubricant (i.e. 3-in-1 oil) to the rim of

the chute base and position the chute assembly

over the base.

2. Close the flange keepers to secure the chute

assembly to the chute base. The flange keepers

will click into place when properly secure.

3. Remove the flat washer and hairpin clip from the

end of the chute directional control. Insert the end

of the chute directional control into the lower

bracket and secure with the flat washer and hairpin

clip just removed.

NOTE: If necessary, the lower bracket can be

adjusted. Refer to Chute Bracket Adjustment. on Page 14.

CAUTION: Prior to operating your snow

thrower, refer to Auger Control Test on page 11.

Read and follow all instructions carefully and

perform all adjustments to verify your snow

thrower is operating safely and properly.

Tire Pressure

• Before operating, check tire pressure and reduce

pressure in both tires to between 15 psi and 20 psi.

NOTE: If the tire pressure is not equal in both tires,

the unit may not travel in a straight path and the shave

plate may wear unevenly.

1

3

2

8

SECTION 3: KNOW YOUR SNOW THROWER

WARNING: Read, understand, and follow

all instructions and warnings on the machine

and in this manual before operating.

NOTE: For detailed starting instructions and more

information on all engine controls, refer to the

Tecumseh Engines manual packed separately and

Starting The Engine on page 10 of this manual.

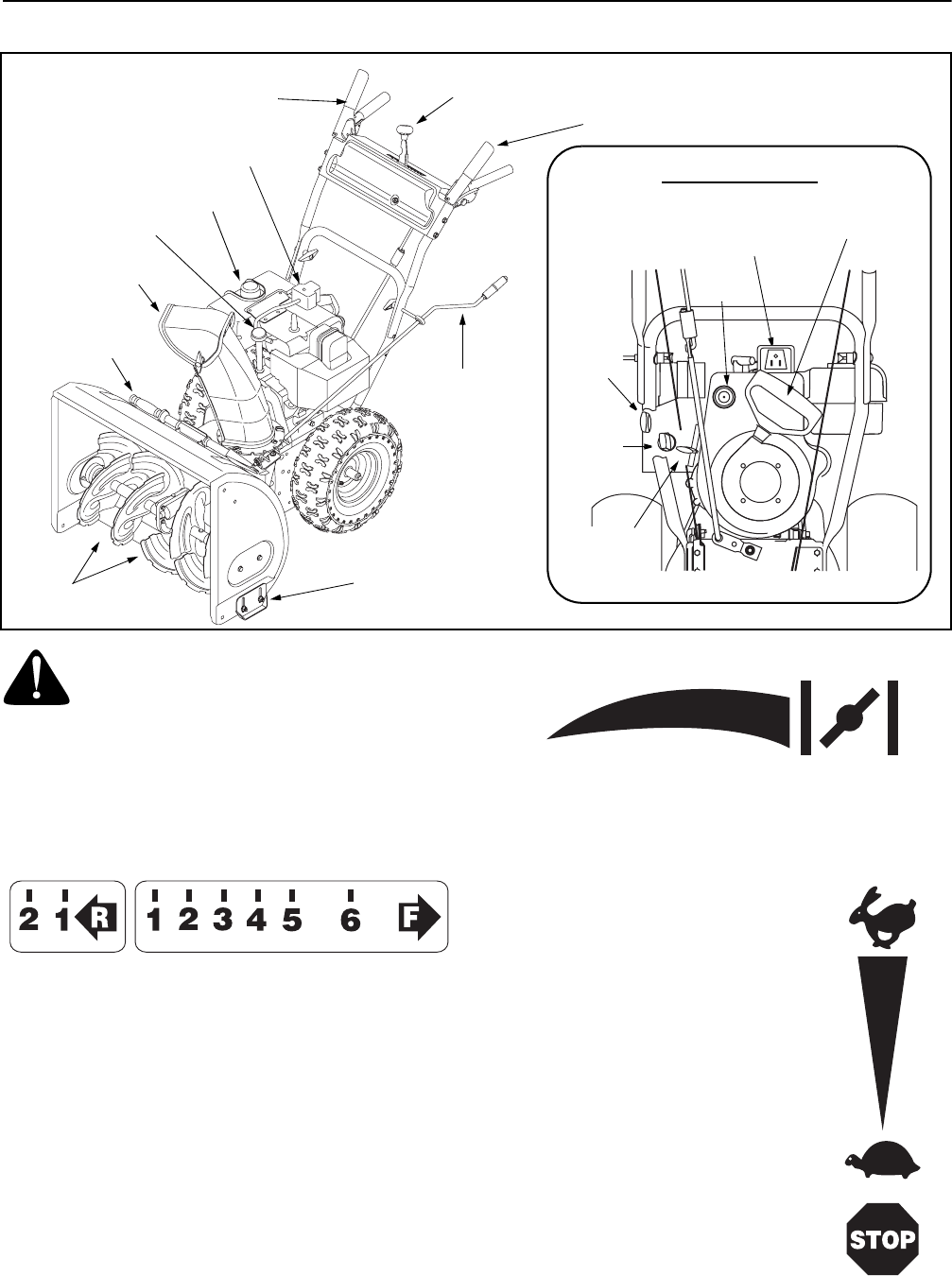

Shift Lever

The shift lever is located in the center of the handle

panel. Place the shift lever into any of eight positions to

control the direction of travel and ground speed.

Forward

There are six forward (F) speeds. Position one (1) is the

slowest and position six (6) is the fastest.

Reverse

There are two reverse (R) speeds. One (1) is the slower

and two (2) is the faster.

Gas Cap

Unthread the gas cap to add gasoline to the fuel tank.

Choke Control

The choke control is found on the rear of the engine and

is activated by rotating the knob clockwise. Activating

the choke control closes the choke plate on the

carburetor and aids in starting the engine.

Throttle Control

The throttle control is located on the

engine. It regulates the speed of the

engine and will shut off the engine

when pushed down completely.

Primer

Depressing the primer forces fuel

directly into the engine’s carburetor to

aid in cold-weather starting.

Oil Fill

Engine oil level can be checked and

oil added through the oil fill.

Choke

Primer

Recoil Starter

Ignition

Drive Control

Auger Control

Shift Lever

Skid Shoe

Augers

Chute Assembly

Oil Fill

Gas Cap

Chute Directional

Control

Clean-out

Tool

Electric Starter Outlet

Key

Throttle

Control

Control

Handle

Engine Controls

Electric Starter Button

9

Auger Control

The auger control is located on the left handle.

Squeeze the control grip against the handle to engage

the augers and start snow throwing action. Release to

stop.

Drive Control

The drive control is located on the right handle.

Squeeze the control grip against the handle to engage

the wheel drive. Release to stop.

Chute Directional Control

The chute directional control is located on left side of

the snow thrower.

To change the direction in which snow is thrown, turn

chute directional control as follows:

• Crank clockwise to discharge to the left.

• Crank counterclockwise to discharge to the right.

Ignition Key

The ignition key is a safety devise. It must be fully

inserted in order for the engine to start. Remove the

ignition key when the snow thrower is not in use.

IMPORTANT:

Do not turn the ignition key in an attempt

to start the engine. Doing so may cause it to break.

Clean-Out Tool

WARNING: Never use your hands to clear

a clogged chute assembly. Shut off engine

and remain behind handles until all moving

parts have stopped before unclogging.

The chute clean-out tool is fastened to the top of the

auger housing with a mounting clip. The tool is

designed to clear a clogged chute assembly. Refer to

Operating Your Snow Thrower section for more detailed

information regarding the chute clean-out tool.

NOTE: This item is fastened with a cable tie to the

rear of the auger housing at the factory. Cut the cable

tie before operating the snow thrower.

Skid Shoes

Position the skid shoes based on surface conditions.

Adjust upward for hard-packed snow. Adjust downward

when operating on gravel or crushed rock surfaces.

Recoil Starter Handle

The recoil starter handle is used to manually start the

engine.

Electric Starter Button (If so equipped)

Pressing the electric starter button engages the

engine’s electric starter when plugged into a 120V

power source.

Electric Starter Outlet (If so equipped)

Requires use of a three-prong outdoor extension cord

(packed with the snow thrower) and a 120V power

source/wall outlet.

Augers

When engaged, the augers rotate and draw snow into

the housing.

Chute Assembly

Snow drawn into the auger housing is discharged out

the chute assembly.

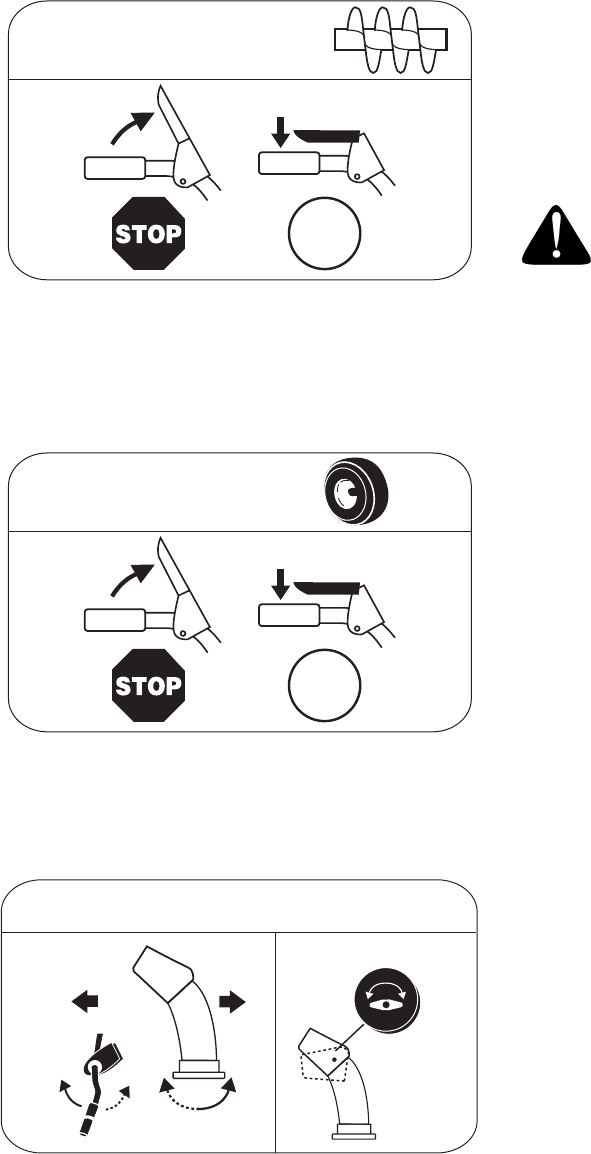

AUGER

CONTROL

GO

DRIVE

CONTROL

GO

CHUTE DIRECTIONAL CONTROL

DISCHARGE

LEFT

DISCHARGE

RIGHT

ADJUSTABLE

CHUTE TILT

10

SECTION 4: OPERATING YOUR SNOW THROWER

Before Starting

WARNING: Read, understand, and follow

all instructions and warnings on the machine

and in this manual before operating.

Gas & Oil Fill-Up

Service the engine with gasoline and oil as instructed in

the Tecumseh Engines manual packed separately with

your snow thrower. Read instructions carefully.

WARNING: Use extreme care when

handling gasoline. Gasoline is extremely

flammable and the vapors are explosive.

Never fuel the machine indoors or while the

engine is hot or running. Extinguish cigarettes,

cigars, pipes and other sources of ignition.

• A small plastic cup may be located inside the fuel fill

opening beneath the gas cap. Remove and discard

this cup before filling up the tank.

Starting The Engine

• Attach spark plug wire to spark plug. Make certain

the metal loop on the end of the spark plug wire

(inside the boot) is fastened securely over the metal

tip on the spark plug.

• Make certain both the auger control and drive

control are in the disengaged (released) position.

• Move throttle control up to FAST position. Insert

ignition key into slot. Make sure it snaps into place.

Do not attempt to turn the key.

NOTE: The engine cannot start unless the key is

inserted into ignition switch.

Electric Starter (on models so quipped)

• Determine that your home’s wiring is a three-wire

grounded system. Ask a licensed electrician if you

are not certain.

CAUTION: If your home’s wiring system

is not a three-wire grounded system, do

not use this electric starter under any

conditions.

WARNING: The optional electric starter is

equipped with a grounded three-wire power

cord and plug, and is designed to operate on

120 volt AC household current. It must be

used with a properly grounded three-prong

receptacle at all times to avoid the possibility

of electric shock. Follow all instructions

carefully prior to operating the electric starter.

WARNING: If your home electrical

system is grounded, but a three-hole

receptacle is not available, do not use your

snow thrower’s electric starter.

If you have a grounded three-prong receptacle,

proceed as follows:

• Plug the extension cord into the outlet located on

the engine’s surface. Plug the other end of

extension cord into a three-prong 120-volt,

grounded, AC outlet in a well-ventilated area.

• Rotate choke control to FULL choke position (cold

engine start).

NOTE: If the engine is already warm, place choke

control in the OFF position instead of FULL.

• Push the primer two or three times for cold engine

start, making sure to cover vent hole in the center of

the primer when pushing.

NOTE: DO NOT use primer to restart a warm engine

after a short shutdown.

• Push starter button to start engine.

• Once the engine starts, immediately release starter

button.

• As the engine warms, slowly rotate the choke

control to the OFF position. If the engine falters,

quickly rotate the choke control back to FULL and

then slowly into the OFF position again.

• When disconnecting the extension cord, always

unplug the end at the three-prong wall outlet before

unplugging the opposite end from the snow

thrower.

Recoil Starter

• Rotate choke control to FULL choke position (cold

engine start).

NOTE: If the engine is already warm, place choke

control in the OFF position instead of FULL.

• Push the primer two or three times for cold engine

start, making sure to cover vent hole in the center of

the primer when pushing.

NOTE: DO NOT use primer to restart a warm engine

after a short shutdown.

NOTE: Additional priming may be necessary if the

temperature is below 15° Fahrenheit.

• Grasp the recoil starter handle and slowly pull the

rope out. At the point where it becomes slightly

harder to pull the rope, slowly allow the rope to

recoil.

11

• Pull the starter handle with a firm, rapid stroke.

IMPORTANT:

Do not release the handle and allow it to

snap back. Keep a firm hold on the starter handle and

allow it to slowly recoil.

• As the engine warms, slowly rotate the choke

control to the OFF position. If the engine falters,

quickly rotate the choke control back to the FULL

position and then slowly into the OFF position

again.

Stopping The Engine

• Run engine for a few minutes before stopping to

help dry off any moisture on the engine.

• To help prevent possible starter freeze-up, proceed

as follows:

Electric Starter (on models so equipped)

1. Connect extension cord to the electric starter outlet

on the engine, then to 120 volt AC outlet.

2. With the engine running, push the starter button

and allow the starter for spin for several seconds.

The noise made by the starter is normal. The

engine’s starter is not being harmed.

3. When disconnecting the extension cord, always

unplug the end at the three-prong wall outlet before

unplugging the opposite end from the snow

thrower.

4. Move throttle control to STOP position.

5. Remove the ignition key.

6. Wipe all snow and moisture from the carburetor

cover in the area of the drive control and auger

control. Also, engage and release the controls

several times.

NOTE: Keep the key in a safe place. The engine

cannot start without the ignition key.

Recoil Starter

1. With engine running, pull starter rope with a rapid,

continuous full arm stroke three or four times.

Pulling the starter rope will produce a loud

clattering sound, which is not harmful to engine.

2. Move throttle control to STOP position.

3. Remove the ignition key.

NOTE: Keep the key in a safe place. The engine

cannot start without the ignition key.

4. Wipe all snow and moisture from the carburetor

cover in the area of the drive control and auger

control. Also, engage and release the controls

several times.

To Engage Drive

• With the throttle control in the Fast (rabbit) position,

move shift lever into one of the six forward (F)

positions or two reverse (R) positions. Select a

speed appropriate for the snow conditions and a

pace you’re comfortable with.

IMPORTANT:

Use the slower speeds until you are

comfortable and familiar with the operation of the snow

thrower.

• Squeeze the auger control against the handle and

the augers will turn. Release it and the augers will

stop.

• Squeeze the drive control against the handle the

snow thrower will move. Release it and drive

motion will stop.

IMPORTANT:

NEVER reposition the shift lever (change

speeds or direction of travel) without first releasing the

drive control and bringing the snow thrower to a

complete stop. Doing so will result in premature wear to

the snow thrower’s drive system.

To Engage Augers

• To engage the augers and start throwing snow,

squeeze the auger control against the left handle.

Release to stop the augers.

Auger Control Test

IMPORTANT:

Perform the following test before

operating your snow thrower for the first time and at the

start of each winter season.

Check the adjustment of the auger control as follows:

• When the auger control is released and in the

disengaged “up” position, the cable should have

very little slack. It should NOT be tight.

• In a well-ventilated area, start the snow thrower

engine as instructed earlier in this section under the

heading Starting the Engine. Make sure the throttle is

set in the FAST position.

• While standing in the operator’s position (behind

the snow thrower), engage the auger.

• Allow the auger to remain engaged for

approximately ten (10) seconds before releasing

the auger control. Repeat this several times.

• With the throttle control in the FAST (rabbit)

position and the auger control in the disengaged

“up” position, walk to the front of the machine.

• Confirm that the auger has completely stopped

rotating and shows NO signs of motion.

IMPORTANT:

If the auger shows ANY signs of rotating,

immediately return to the operator’s position and shut

off the engine. Wait for ALL moving parts to stop before

re-adjusting the auger control.

12

• To readjust the control cable, loosen the hex jam

nut on the auger control cable “Z” fitting.

• Rotate the coupling end of the cable

counterclockwise to provide more slack.

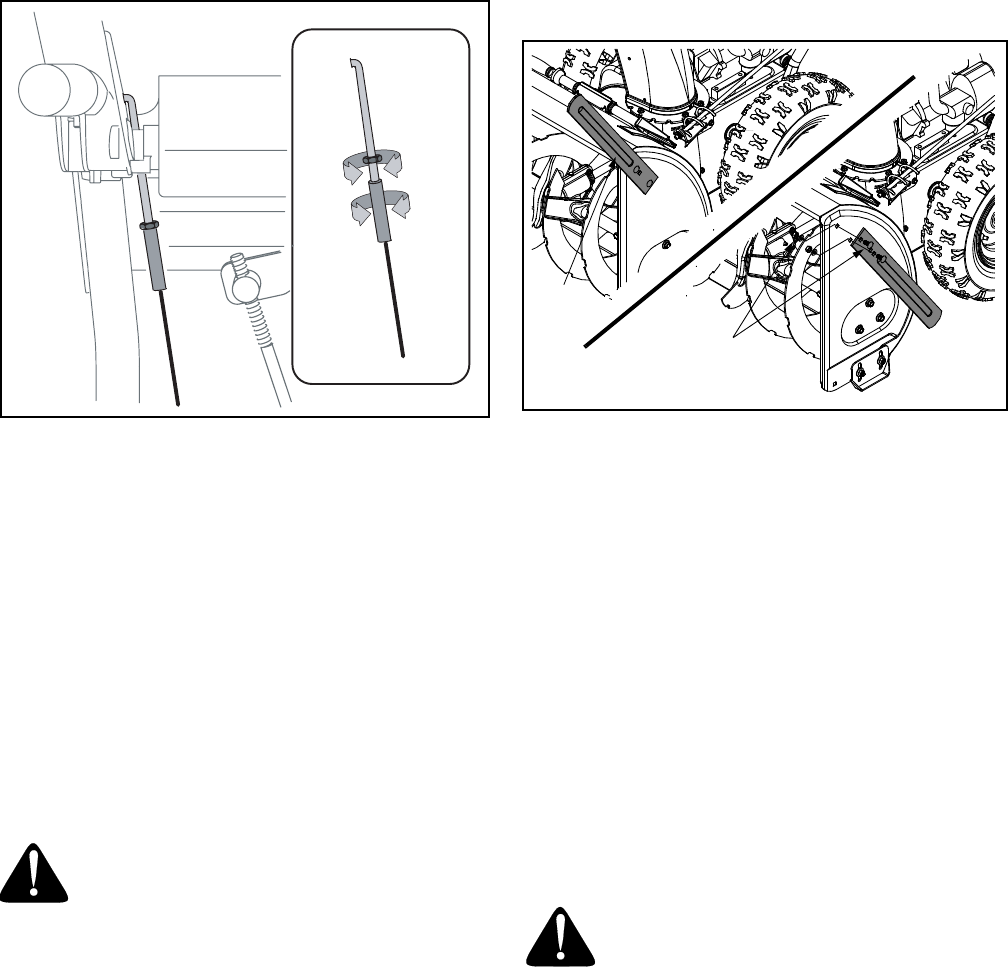

• Retighten the hex jam nut. See Figure 1.

• Repeat Auger Control Test to verify proper

adjustment has been achieved.

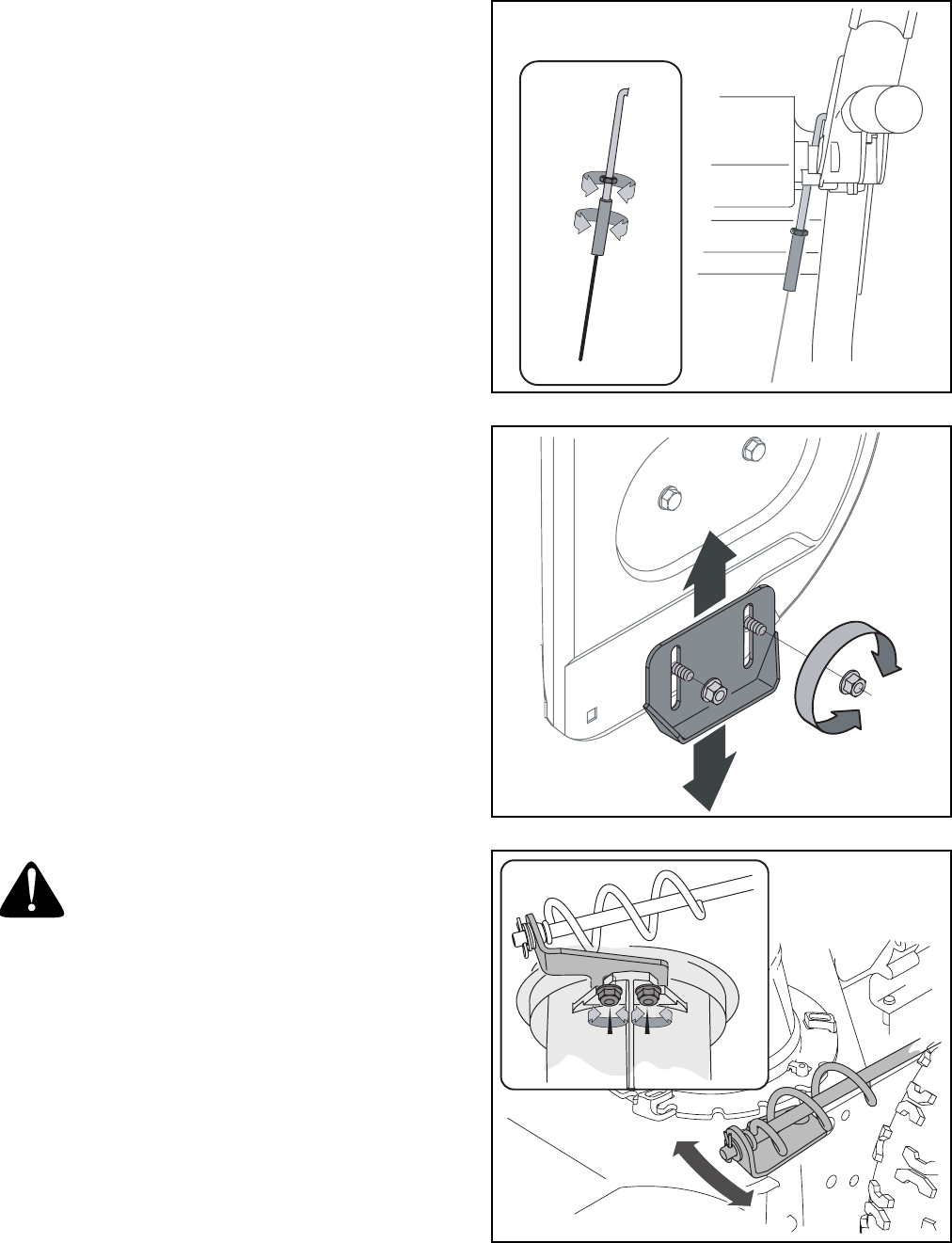

Figure 1

Chute Clean-Out Tool

The chute clean-out tool is conveniently fastened to the

rear of the auger housing with a mounting clip. Should

snow and ice become lodged in the chute assembly

during operation, proceed as follows to safely clean the

chute assembly and chute opening:

• Release both the Auger Control and the

Drive

Control

.

• Stop the engine by removing the ignition key.

• Remove the clean-out tool from the clip which

secures it to the rear of the auger housing.

• Use the shovel-shaped end of the clean-out tool to

dislodge and scoop any snow and ice which has

formed in and near the chute assembly.

WARNING: Never use your hands to clean

snow and ice from the chute assembly or

auger housing

• Refasten the clean-out tool to the mounting clip on

the rear of the auger housing, reinsert the ignition

key and start the snow thrower’s engine.

• While standing in the operator’s position (behind

the snow thrower), engage the auger control for a

few seconds to clear any remaining snow and ice

from the chute assembly.

Drift Cutters (on models so equipped)

Drift cutters should be used when operating the snow

thrower in heavy drift conditions.

On models so equipped, drift cutters are assembled to

the auger housing inverted. Remove the carriage bolts

by unthreading the hex nuts which secure them, and

reinstall the drift cutters in their proper position before

operating the snow thrower. See Figure 2.

Figure 2

If your unit is not equipped with drift cutters, contact

Customer Support as instructed on page 2 for

information regarding price and availability.

Snow Thrower Model Drift Cutter Kit

All models OEM-390-679

Tire Chains (on models so equipped)

Tire chains should be used whenever extra traction is

needed. If your unit is not equipped with tire chains,

contact Customer Support as instructed on page 2 for

information regarding price and availability.

Operating Tips

NOTE: Allow the engine to warm up for a few minutes

after starting. The engine will not develop full power

until it reaches operating temperature.

WARNING: The muffler, engine and

surrounding areas become hot and can

cause a burn. Do not touch.

• Discharge snow downwind whenever possible.

• Slightly overlap each previous swath.

• Set the skid shoes 1/4” below the scraper bar for

normal usage. The skid shoes may be adjusted

upward for hard-packed snow. Adjust downward

when using on gravel or crushed rock.

• Avoid possible starter freeze-up. Clean the snow

thrower thoroughly after each use.

Z Fitting

Hex Nut

Cable Should

Be Straight

Carriage Screws /

Hex Nuts

Drift

Cutter

13

SECTION 5: MAKING ADJUSTMENTS

WARNING: Never attempt to make any

adjustments while the engine is running,

except where specified in operator’s manual.

Shift Rod Adjustment

If the full range of speeds (forward and reverse) cannot

be achieved, refer to the figures to the right and adjust

the shift rod as follows:

1. Place the shift lever in the fastest forward speed

position. Remove the hairpin clip which secures the

ferrule to the shift lever.

2. Rotate the shift arm clockwise as far as it will go.

3. Thread the ferrule up or down the shift rod until it

aligns with the hole in the shift lever behind the

handle panel. Resecure the ferrule with the hairpin

clip removed earlier.

Tire Pressure

• Before operating, check tire pressure and reduce

pressure to between 15 psi and 20 psi.

NOTE: If the tire pressure is not equal in both tires,

the unit may pull to one side or the other.

Chute Assembly

The distance snow is thrown can be adjusted by

changing the angle of the chute assembly. To do so,

stop the engine by removing the ignition key and loosen

the plastic wing knob found on the left side of the chute

assembly. Pivot the chute upward or downward before

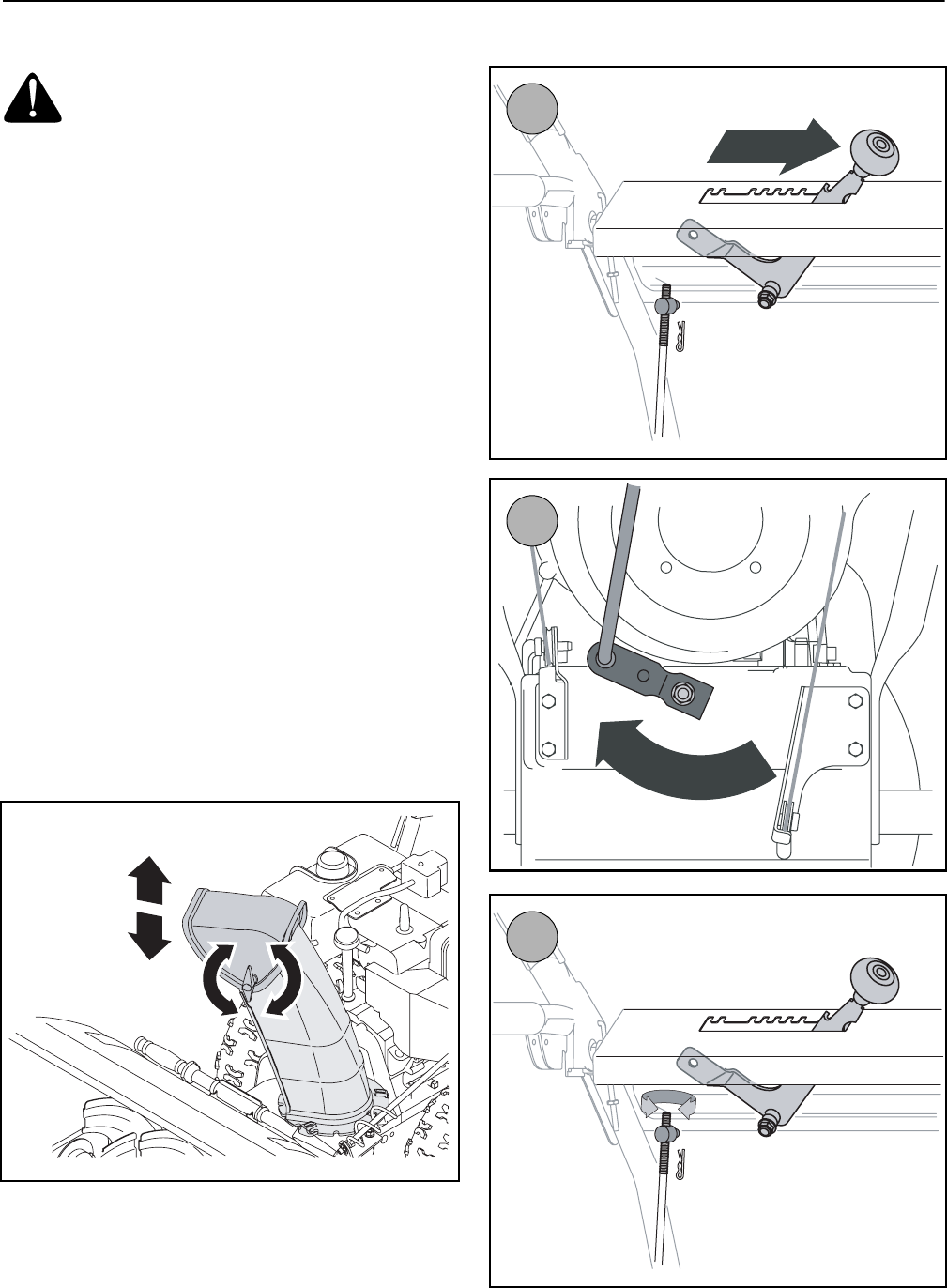

re-tightening the wing knob. See Figure 3.

Figure 3

1

2

3

14

Drive Control

When the drive control is released and in the

disengaged “up” position, the cable should have very

little slack. It should NOT be tight.

Check the adjustment of the drive control as follows:

1. With the drive control released, push the snow

thrower gently forward. The unit should roll freely.

2. Engage the drive control and gently attempt to push

the snow thrower forward. The wheels should not

turn. The unit should not roll freely.

3. With the drive control released, move the shift lever

back and forth between the R2 position and the F6

position several times. There should be no

resistance in the shift lever.

If any of the above tests failed, the drive cable is in need

of adjustment. refer to the figure at the right and

proceed as follows:

• Loosen the hex jam nut on the auger control cable

“Z” fitting and rotate the coupling end of the cable

downward to provide more slack or upward to take

up slack. See Figure 4.

• Retighten the hex jam nut and repeat all three tests

to verify proper adjustment has been achieved.

Auger Control

Refer to Auger Control Test on Page 11 to adjust the auger

control.

Skid Shoes

The space between the skid shoes and the ground can

be adjusted. See Figure 5.

• For close snow removal on a smooth surface, raise

skid shoes higher on the auger housing.

• Use a middle or lower position when the area to be

cleared is uneven, such as a gravel driveway.

CAUTION: Loose gravel can be picked up

and thrown by the auger, causing injury to the

operator and bystanders and/or damage to

the snow thrower and surrounding property.

• Adjust skid shoes by loosening the four hex nuts

(two on each side) and carriage bolts. Move skid

shoes to desired position.

• Make certain the entire bottom surface of skid shoe

is against the ground to avoid uneven wear on the

skid shoes. Retighten nuts and bolts securely.

Chute Bracket Adjustment

If the spiral at the bottom of the chute directional control

is not fully engaging with the chute assembly, the chute

bracket can be adjusted. To do so, loosen the two nuts

which secure the chute bracket and reposition it slightly

before retightening the nuts. See Figure 6.

Figure 4

Figure 5

Figure 6

15

SECTION 6: MAINTAINING AND SERVICING YOUR SNOW THROWER

WARNING: Before lubricating, repairing, or

inspecting, disengage all controls and stop

engine. Wait until all moving parts have come

to a complete stop.

Engine

Refer to the separate Tecumseh Engines manual

packed with your unit for all engine maintenance.

Lubrication

Engine

Refer to the separate Tecumseh Engines manual

packed with your unit for all engine lubrication

instructions.

Gear Shaft

The gear (hex) shaft should be lubricated at least once

a season or after every 25 hours of operation.

• Remove the lower frame cover by removing the two

screws which secure it.

• Apply a light coating of an all-weather multi-

purpose grease to the hex shaft. See Figure 7.

Figure 7

IMPORTANT:

Keep lubricant off the friction wheel and

drive plate.

Wheels

• At least once a season, remove both wheels. Clean

and coat the axles with a multipurpose automotive

grease before reinstalling wheels.

Chute Directional Control

• Once a season, the spiral end on the chute

directional control should be greased with

multipurpose automotive grease.

Auger Shaft

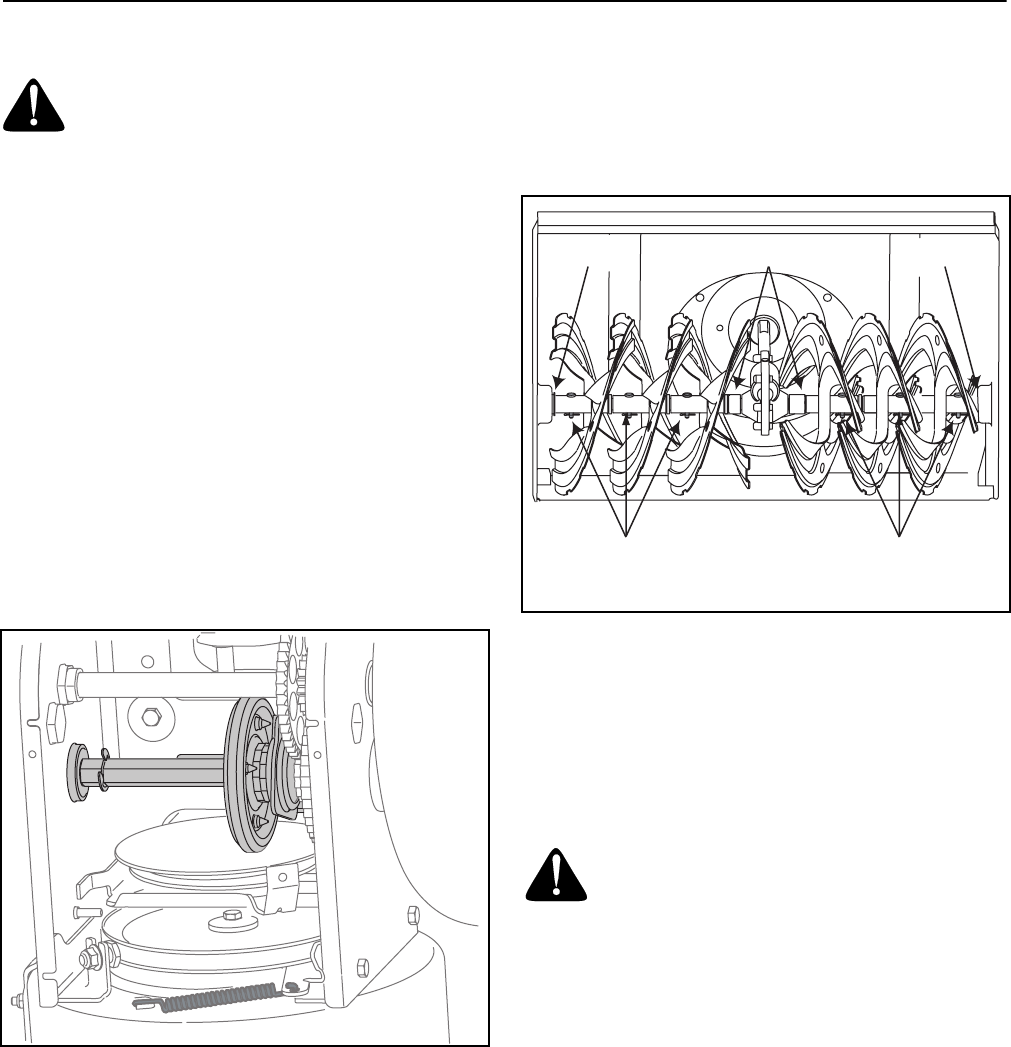

• At least once a season, remove the shear pins on

auger shaft. Spray lubricant inside shaft, around

the spacers. Also lubricate the flange bearings

found at either end of the shaft. See Figure 8.

Figure 8

Gear Case

The auger gear case has been filled with grease at the

factory. If disassembled for any reason, lubricate with

two ounces of grease (Part Number 737-0168).

IMPORTANT:

Do not overfill the gear case. Damage to

the seals could result. Be sure the vent plug is free of

grease in order to relieve pressure.

WARNING: Before servicing, repairing, or

inspecting, disengage all controls and stop

engine. Wait until all moving parts have come

to a complete stop.

Shave Plate and Skid Shoes

• The shave plate and skid shoes on the bottom of

the snow thrower are subject to wear. They should

be checked periodically and replaced when

necessary.

• To remove skid shoes, remove the four carriage

bolts and hex flange nuts which secure them to the

snow thrower. Reassemble new skid shoes with the

four carriage bolts (two on each side) and hex

flange nuts. Refer to Figure 5.

• To remove shave plate, remove the carriage bolts

and hex nuts which attach it to the snow thrower

housing. Reassemble new shave plate, making

sure heads of carriage bolts are to the inside of

housing. Tighten securely.

Shear Pins Shear Pins

SpacersBearing Bearing

NOTE: 30-inch Auger Shown

16

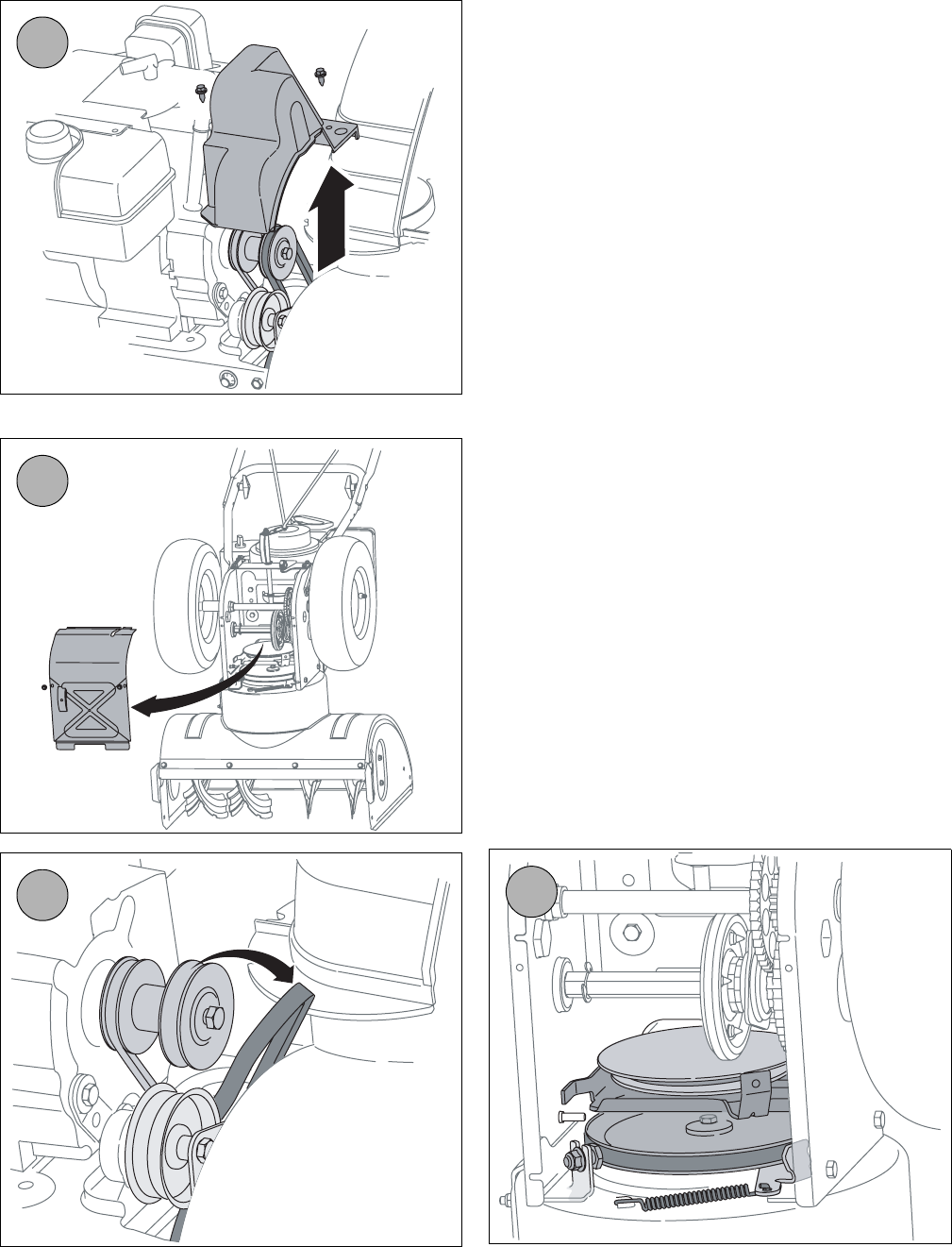

Auger Belt Replacement

To remove and replace your snow thrower’s auger belt,

proceed as follows:

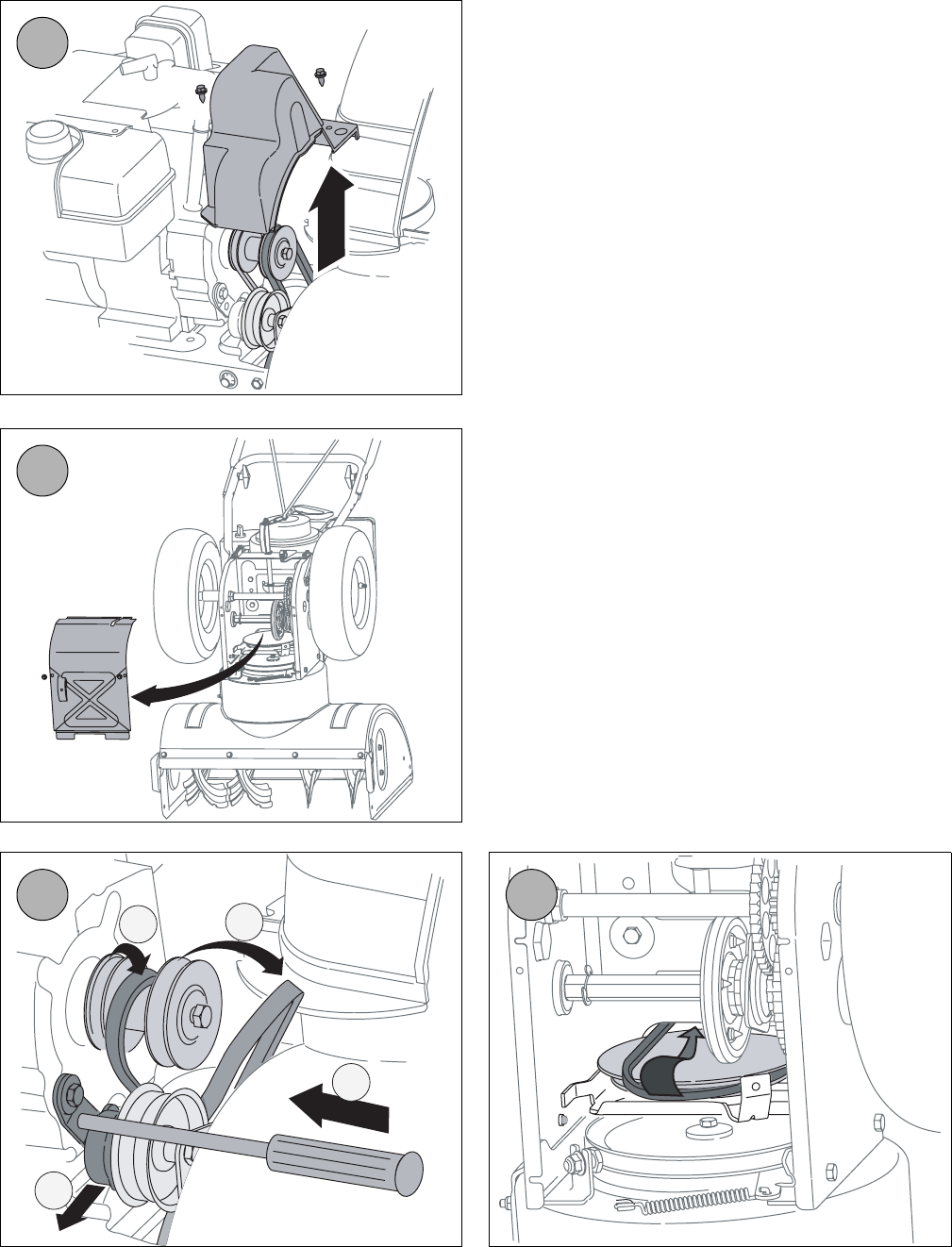

1. Remove the plastic belt cover on the front of the

engine by removing the two self-tapping screws.

• Drain the gasoline from the snow thrower, or place

a piece of plastic under the gas cap.

• Carefully pivot the snow thrower up and forward so

that it rests on the auger housing.

2. Remove the frame cover from the underside of the

snow thrower by removing four self-tapping screws

which secure it.

3. Roll the auger belt off the engine pulley.

4. Unhook the support bracket spring from the frame.

• Loosen and remove the shoulder screw which acts

as a belt keeper.

• Remove the belt from around the auger pulley, and

slip the belt between the support bracket and the

auger pulley

• Reassemble auger belt by following instructions in

reverse order.

IMPORTANT:

Do NOT forget to reinstall the shoulder

screw and reconnect the spring to the frame after

installing a replacement auger belt.

1

4

2

3

17

Drive Belt Replacement

To remove and replace your snow thrower’s auger belt,

proceed as follows:

1. Remove the plastic belt cover on the front of the

engine by removing the two self-tapping screws.

• Drain the gasoline from the snow thrower, or place

a piece of plastic under the gas cap.

• Carefully pivot the snow thrower up and forward so

that it rests on the auger housing.

2. Remove the frame cover from the underside of the

snow thrower by removing four self-tapping screws

which secure it.

3. a. Grasp the idler pulley and pivot it toward the

right.

b. Insert a screw driver through aligning holes in

both the idler bracket and the engine.

c. Roll the auger belt off the engine pulley.

d. Lift the drive belt off engine pulley.

4. Slip the drive belt off the pulley and between friction

wheel and friction wheel disc.

• Remove and replace belt in the reverse order.

1

2

4

c

b

a

d

3

18

Friction Wheel Removal

If the snow thrower fails to drive with the drive control

engaged, and performing the drive control cable

adjustment on page 14 fails to correct the problem, the

friction wheel may need to be replaced. Follow the

instructions below. Examine the friction wheel for signs

of wear or cracking and replace if necessary

• Place the shift lever in third Forward (F3) position.

• Drain the gasoline from the snow thrower, or place

a piece of plastic under the gas cap.

• Carefully pivot the snow thrower up and forward so

that it rests on the auger housing.

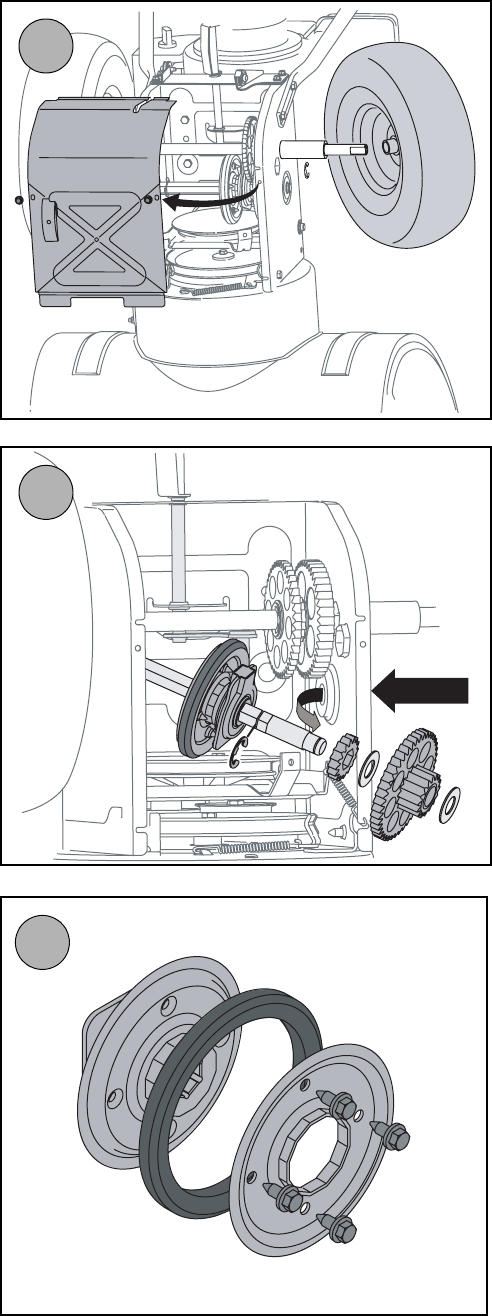

1. a. Remove the frame cover from the underside

of the snow thrower by removing four self-

tapping screws which secure it.

b. Remove the right-hand wheel by removing

the screw and bell washer which secure it to

the axle.

c. Locate the hex shaft and E-ring on the right

side of the snow thrower frame, about two

inches from the wheel axle.

c. Using a suitable tool, carefully remove the

outer E-ring which secures the hex shaft to

the snow thrower frame and lightly tap the

shaft’s end to dislodge the ball bearing from

the right side of the frame.

2. a. Slide the hex shaft downward and to the left

while carefully un-meshing the lower gears

on the hex shaft from the upper gears on the

wheel axle.

b. Set the hex shaft’s gears aside.

c. Carefully remove the inner E-ring from the

hex shaft and slide the friction wheel

assembly off the hex shaft.

NOTE: If you’re replacing the friction wheel assembly

as a whole, discard the worn part and slide the new part

onto the hex shaft. Follow the steps above in reverse

order to reassemble components. If you’re

disassembling the friction wheel and replacing only the

rubber ring, proceed as follows:

3. Remove the four screws which secure the friction

wheel’s side plates together.

• Remove the rubber ring from between the plates.

• Reassemble the side plates with a replacement

rubber ring.

IMPORTANT:

Tighten each screw only one rotation

before turning the wheel clockwise and proceeding with

the next screw. Repeat this process several times to

ensure the plates are secured with equal force.

• Slide the friction wheel assembly back onto the hex

shaft and follow the steps above in reverse order to

reassemble components.

1

2

3

19

Augers

• The augers are secured to the spiral shaft with two

shear pins and cotter pins. If the auger should strike

a foreign object or ice jam, the snow thrower is

designed so that the pins may shear.

Refer to Figure 8.

• If the augers will not turn, check to see if the pins

have sheared. One set of replacement shear pins

has been provided with the snow thrower. When

replacing pins, spray an oil lubricant into shaft

before inserting new pins.

IMPORTANT:

NEVER replace the auger shear pins with

anything other than OEM Part No.738-04124

replacement shear pins. Any damage to the auger

gearbox or other components as a result of failing to do

so will NOT be covered by your snow thrower’s

warranty.

SECTION 7: OFF-SEASON STORAGE

WARNING: Never store the machine or

fuel container indoors where there is an open

flame, spark or pilot light such as on a water

heater, furnace, clothes dryer or other gas

appliances.

WARNING: Drain fuel into an approved

container outdoors, away from open flame.

Allow engine to cool. Extinguish cigarettes,

cigars, pipes, and other sources of ignition

prior to draining fuel. Fuel left in engine for

extended period deteriorates and will cause

serious starting problems.

If unit is to be stored over 30 days, prepare for storage

as follows:

• Remove gasoline from carburetor and fuel tank to

prevent gum deposits from forming on these parts

and causing possible malfunction of engine.

• Run engine until fuel tank is empty and engine

stops due to lack of fuel.

• Drain carburetor by pressing upward on bowl drain,

located below the carburetor cover.

NOTE: Fuel stabilizers, such as STA-BIL®, are an

acceptable alternative in minimizing the formation of

fuel gum deposits during storage. Do not drain

carburetor if using a fuel stabilizer.

• Wipe equipment with an oiled rag to prevent rust.

• Remove spark plug and pour one ounce of engine

oil through spark plug hole into cylinder. Cover

spark plug hole with rag. Crank engine several

times to distribute oil. Replace spark plug.

• Follow the lubrication recommendations found in

the Maintenance Section.

• Always store the snow thrower in a clean, dry area.

When storing any type of power equipment in an

unventilated or metal storage shed, care should be

taken to rust proof the equipment. Using a light oil or

silicone, coat the equipment, especially any chains,

springs, bearings and cables.

20

SECTION 8: TROUBLE SHOOTING GUIDE

NOTE: For repairs beyond the minor adjustments above, contact your local authorized service dealer.

Trouble Possible Cause(s) Corrective Action

Engine fails to start Fuel tank empty, or stale fuel.

Blocked fuel line.

Choke control not in ON position

Faulty spark plug.

Ignition key not present.

Spark plug wire disconnected.

Engine not primed.

Fill tank with clean, fresh gasoline. Fuel will not last over thirty days

unless a fuel stabilizer is used.

Clean fuel line.

Move choke control to ON position

Clean, adjust gap or replace.

Insert key into ignition switch.

Connect spark plug wire.

Refer to the Tecumseh engine manual or Starting the Engine on page

10 of this manual for instructions on the engine primer.

Engine runs erratic Unit running on CHOKE.

Blocked fuel line or stale fuel.

Water or dirt in fuel system.

Carburetor out of adjustment.

Move choke control to OFF position.

Clean fuel line; fill tank with clean fresh gasoline. Fuel will not last

over thirty days unless a fuel stabilizer is used.

Drain fuel tank. Refill with fresh fuel.

Refer to the Tecumseh engine manual.

Loss of power Spark plug wire loose.

Gas cap vent hole plugged.

Exhaust port plugged.

Connect and tighten spark plug wire.

Remove ice and snow from cap. Be certain vent hole is clear.

Clean following the engine manual.

Engine overheats Carburetor not adjusted

properly.

Refer to the Tecumseh engine manual packed with your unit or

have carburetor adjusted by an authorized service dealer.

Excessive vibration Loose parts or damaged auger. Stop engine immediately and disconnect spark plug wire. Tighten

all bolts and nuts. Make all necessary repairs. If vibration

continues, have unit serviced by an authorized service dealer.

Unit fails to propel itself Incorrect adjustment of drive

control cable.

Drive belt loose or damaged.

Adjust drive control cable.

Replace drive belt.

Unit fails to

discharge snow

Chute assembly clogged.

Foreign object lodged in auger.

Incorrect adjustment of auger

control cable.

Drive belt loose or damaged.

Stop engine immediately. Clean chute assembly and inside of

auger housing with chute clean-out tool

Stop engine immediately. Remove object from auger.

Adjust auger control cable.

Replace drive belt.

21

NOTES

22

SECTION 9: PARTS LIST

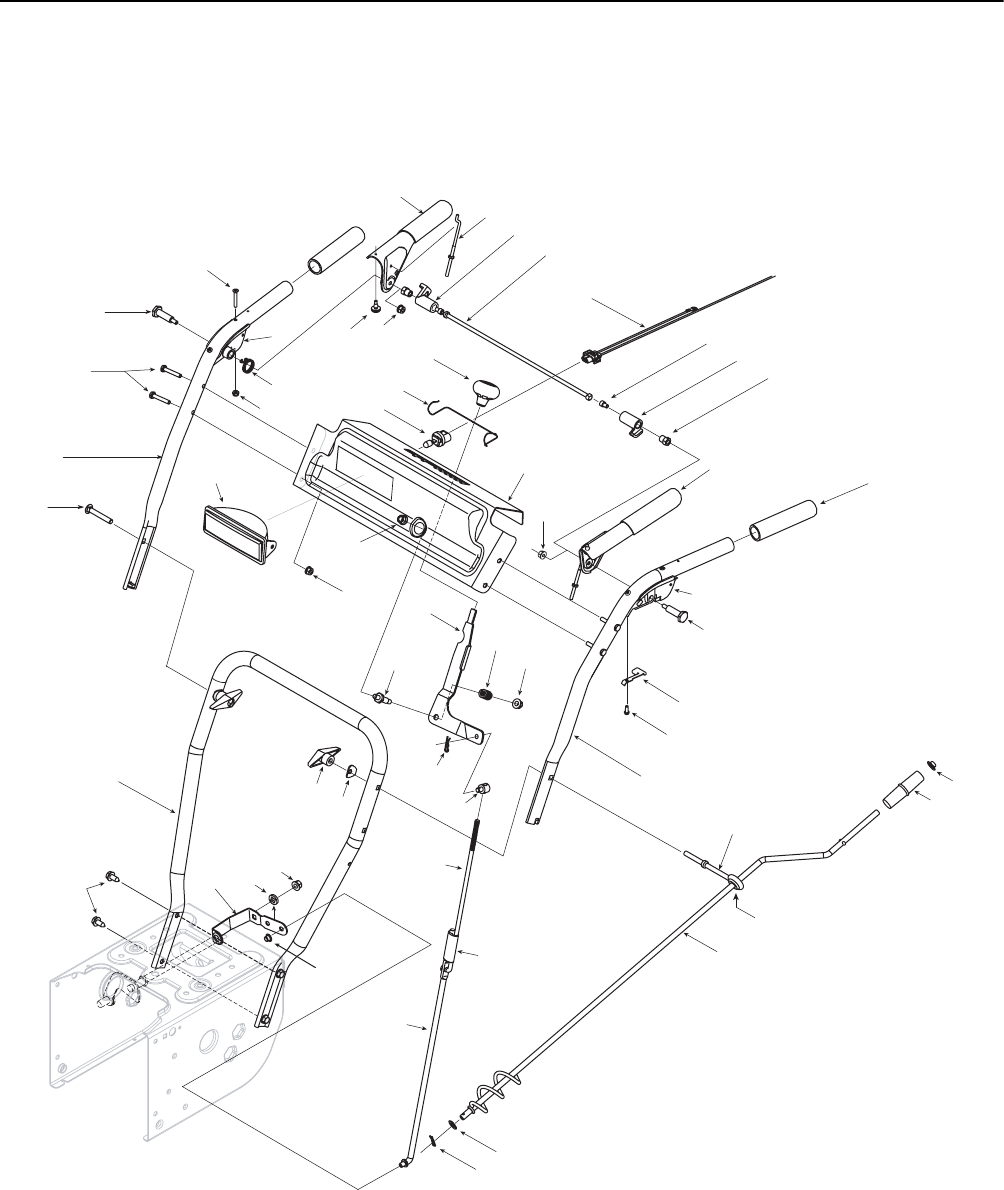

4

20

3

38

28

6

50

17

13 8

1

2

20

14

10

39

36

32

31

33

27

26

8

30 35

37

3

7

11

25

8

19

15

7

9

5

22

24

23

16

12

7

18

34

9

43

42

41

40

21

47

45

29

48

49

44

46

23

Styles E & F

REF.

NO.

PART

NO. DESCRIPTION

1 684-04106 Handle Ass’y, Engagement RH Black

2 684-04105 Handle Ass’y, Engagement, LH Black

3 710-0726 Screw, Self-tapping, 5/16-12, 0.750

4 710-1233 Screw, Machine, #10-24, 1.375

5 711-0677 Ferrule, 5/16-18 x .312 Diameter

6 712-0161 Nut, Hex Lock, #10-24, Gr2, Nylon

7 712-04063 Nut, Flange Lock, 5/16-18, Grf, Nylon

8 712-04064 Nut, Flange Lock, 1/4-20, Grf, Nylon

9 714-0104 Pin, Cotter, .072 Diameter x 1.13

10 720-0274 Grip, 1.0 ID x 5.0

11 720-04039 Shift Knob, Black

12 726-0135 Nut, Push, 5/16

13 731-04784 Handle, Clutch Lock, RH

14 731-04785 Handle, Clutch Lock, LH

15 732-0193 Spring, Compression, .39x.60 x .88

16 732-04205 Spring, Shift, Lever

17 735-0199A Bumper, Rubber, .62 OD x .22

18 736-3015 Washer, Flat, .469 x .875 x .105

19 738-04118 Bolt, Shoulder, 5/16-18 x 0.830

20 738-04122 Screw, Shoulder, .437 x 1.345, 1/4-20

21 746-0778 Z Fitting, Cable

22 747-04256 Rod, Shift, .312 x 10.0 Upper

23 747-04280 Rod, Shift, Lower

24 750-04314 Connector Sleeve, Shift Rod

25 790-00116 Lever, Shift, Speed

26 790-00129 Panel, Handle, E-Style

790-00108 Panel, Handle, F-Style (w/ Cutout)

27 684-04104 Crank Assembly, Chute

28 710-0449 Screw, Carriage, 5/16-18, 2.25, Gr5

29 712-04081 Shoulder Nut, Hex, 1/4-20

30 720-0284 Knob Assembly, Wing Nut, 5/16-18

31 720-0201A Crank Knob, 1.0 Diameter x 3.2, Black

32 726-0100 Cap, Push, 3/8 Rod

33 735-0234 Grommet, .44 ID x .94 OD x .50

34 736-0185 Washer, Flat, .375 x .738 x .063

35 736-0451 Washer, Saddle, 320 x .93 x .060

36 747-04263 Eye Bolt, Chute Crank

37 749-04138 Handle, Lower, Snow

38 749-04141 Handle, Upper, RH

39 749-04142 Handle, Upper, LH

40 725-04220 Harness, Headlight

41 725-1658 Lamp, Halogen, 12V, 27W

42 725-1672 Lens Assembly, Lamp

43 747-1136 Retainer, Lens

44 731-04894 Plate, Lock

45 731-04896 Cam, Lock

46 711-04287 Rod, Pivot

47 710-04354 Screw, 1/4-20, .375

48 710-04164 Screw, #8-18 x .375

49 732-04219 Spring, Control Lever Lock

50 732-04238 Spring, Torsion, .8156 x .3038

NOTE: Snow thrower features and components vary by model. NOT all parts listed above and pictured on the previous page

are standard equipment.

24

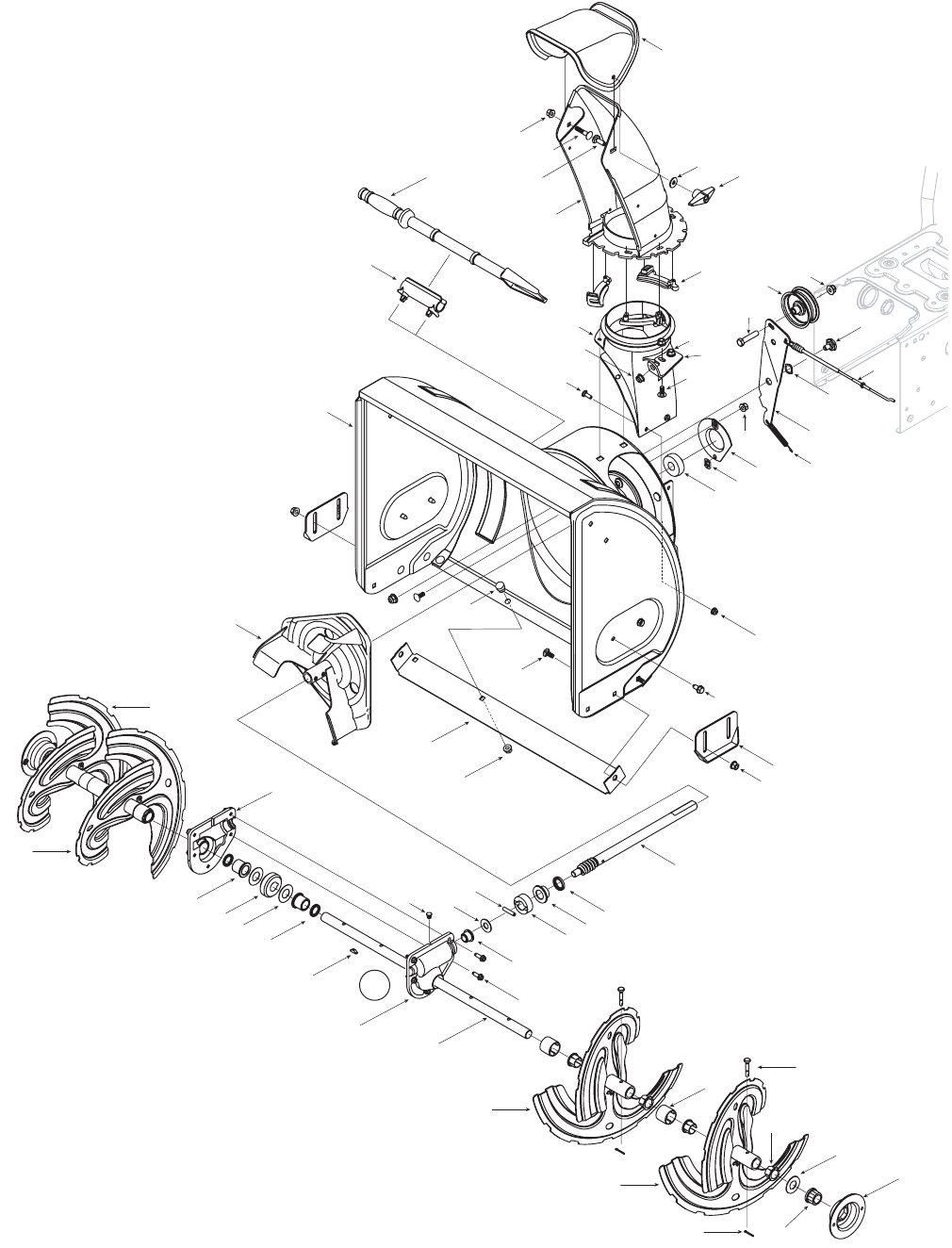

27

27

50

46

49

52

59

56

60

33

29 33

28

28

51

45

30*

31

34

32

53

57

48

55

2

7

35

4

4

8

44

8

6

21

23

12

7

14

18

61

15

24

3

22 9

38

40

4

36

1

16

5

13

26

37

41

8

6

8

43

4

42

25

62

54

58

47

Styles E & F

25

Sales E & F

REF.

NO.

PART

NO. DESCRIPTION

1 731-2643 Clean Out Tool

2 684-04057 Impeller Assembly, 12” Diameter

3 710-0347 Hex Screw, 3/8-16, 1.75, Gr5, Std

4 710-0451 Bolt, Carriage, 5/16-18, .750 Gr1

5 710-0703 Screw, Carriage, 1/4-20, .75, Gr5

6 710-0726 Screw, Self-tapping, 5/16-12, 0.750

7 712-04063 Nut, Flange Lock, 5/16-18, Grf, Nylon

8 712-04064 Nut, Flange Lock, 1/4-20, Grf, Nylon

9 712-04065 Nut, Flange Lock, 3/8-16, Grf, Nylon

10 714-0149B Internal Cotter Pin

11 725-0157 Cable, Tie, 3/16 x .05 x 7.4

12 726-04012 Nut, Push-on, .25 Diameter

13 731-04705 Chute, Adapter 5” Diameter

14 732-0611 Spring, Extension, .38 OD x 3.6

15 736-0174 Washer, Wave, .625 x.885 x.015

16 731-2635 Mount, Clean Out Tool

17 738-0143 Screw, Shoulder, .498 x .340, 3/8-16

18 738-0281 Screw, Shoulder, .625 x .170, 3/8-16

19 738-04124 Pin, Shear, .25 x 1.50, Gr2

20 741-0245 Bearing, Hex Flange x .75 ID

21 741-0309 Bearing, Ball, .75 ID x 1.85 OD

22 756-0981A Idler Pulley, Flat 2.75 OD

23 790-00075 Housing, Bearing, 1.85 ID

24 790-00080 Bracket, Auger Idler w/ Brake

25 618-04170 Gearbox Assembly, Auger, 22”

618-04171 Gearbox Assembly, Auger, 24”

618-04172 Gearbox Assembly, Auger, 26”

618-04173 Gearbox Assembly, Auger, 28”

618-04165 Gearbox Assembly, Auger, 30”

26 684-04067 Housing Assembly, Auger 22”

684-04069 Housing Assembly, Auger 24”

684-04071 Housing Assembly, Auger 26”

684-04073 Housing Assembly, Auger 28”

684-04063 Housing Assembly, Auger 30”

27 684-04107 Spiral Assembly, LH

28 684-04108 Spiral Assembly, RH

29 714-0507 Cotter Pin

30 731-04870* Spacer, 1.25 OD x .75 ID x 1.00

31 736-0188 Washer, Flat, .76 x 1.49 x .06

32 738-04124 Shear Pin, .25 x 1.50, Gr2

33 741-0493A Bushing, Flange, .800 ID x .910 OD

34 790-00087 Housing, Bearing, 1” Hex

35 790-00117 Plate, Shave, 2.25 x 21.66

790-00120 Plate, Shave, 2.25 x 23.66

790-00121 Plate, Shave, 2.25 x 25.66

790-00118 Plate, Shave, 2.25 x 27.66

790-00119 Plate, Shave, 2.25 x 29.66

36 710-04071 Bolt, Carriage, 5/16-18, 1.0

37 720-04032 Knob Assembly

38 731-04426A Chute, Upper, w/ Domestic Label

39 731-04869 Chute, Keeper Flange

40 731-04912 Chute, Lower, 5.0 Diameter

41 736-0159 Washer.349 ID x .879 OD x .063

42 741-0475 Bushing, Plastic, .380

43 784-5647 Bracket, Chute Crank

44 784-5580 Shoe, Slide

45 719-0319 Housing, Auger, RH Reduced

46 719-0320 Housing, Auger, LH Reduced

47 721-0179 Seal, Oil, .750 ID

48 741-0662 Bearing, Flange, .75 ID x 1.00 OD x .59

49 710-0642 Screw, Self-tapping, 1/4-20, 0.750

50 711-04286 Axle, Auger, 22"

711-04285 Axle, Auger, 24"

711-04284 Axle, Auger, 26"

711-04283 Axle, Auger, 28"

711-04282 Axle, Auger, 30"

51 714-0161 Key, Hi-pro 3/16 x 5/8

52 715-04021 Pin, Dowel, .25 OD x 1.2

53 717-04126 Shaft, Worm .75 OD

54 717-0528A Gear, Worm 20T

55 718-04071 Collar, Thrust

56 721-0325 Plug, 1/4 x .437

57 721-0327 Seal, Oil, .75 x 1 x .131

58 736-0351 Washer, Flat, .760 ID x 1.5 OD

59 736-3084 Washer, Flat, .51 x 1.12

60 741-0663 Bearing, Flange, .75 ID x 1.00 OD x .925

61 746-0897 Auger Clutch Cable, 44.75”

62 741-0661A Bearing, Flange, .75 ID x 1.00 OD x .975

REF.

NO.

PART

NO. DESCRIPTION

* None found between spirals on models with 22-inch auger housing.

* One found between spirals on models with 24-inch auger housing.

* Two found between spirals on models with 26-inch auger housing.

* Three found between spirals on models with 28-inch auger housing.

NOTE: Snow thrower features and components vary by model. NOT all parts listed above and pictured on the previous page

are standard equipment.

26

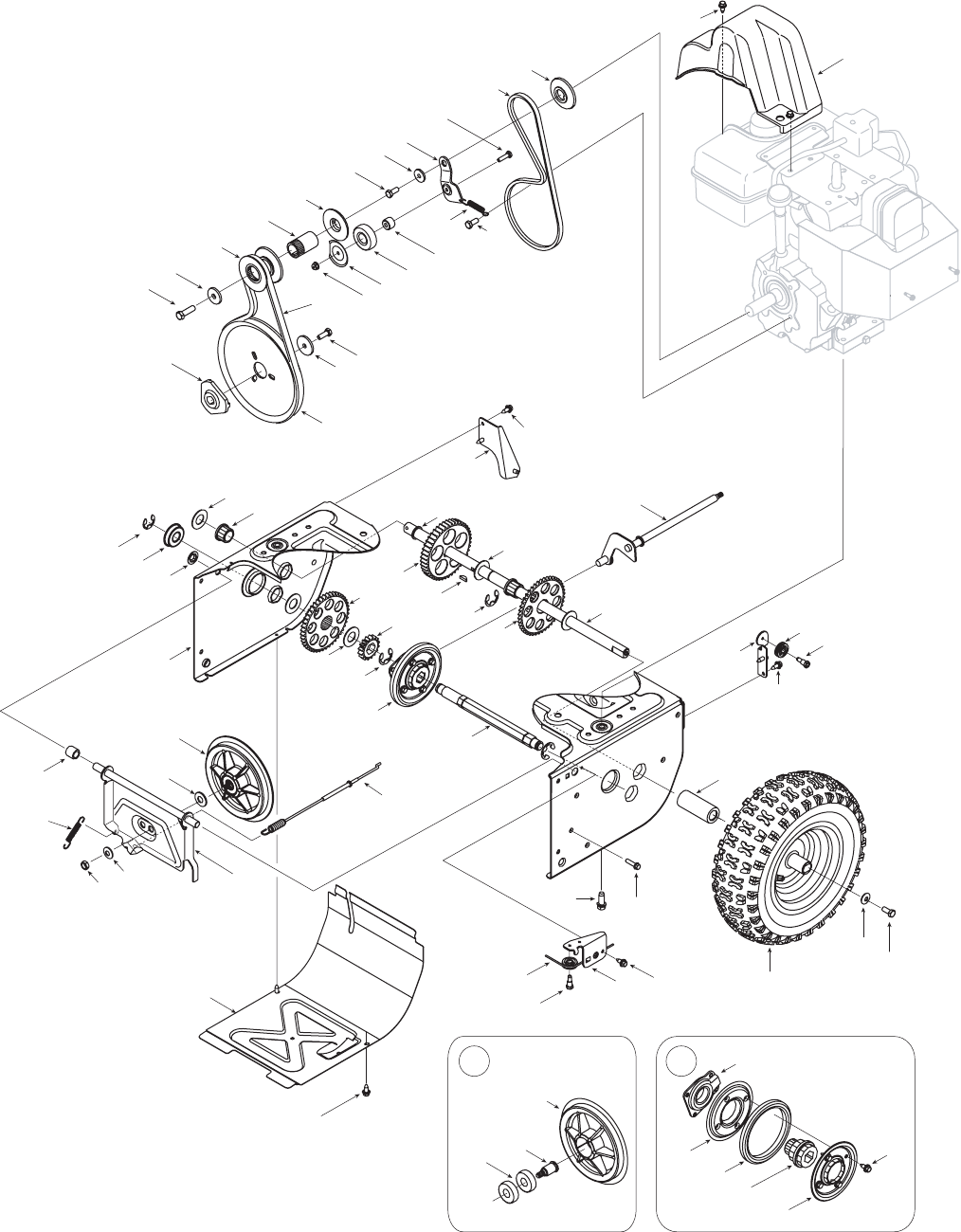

39

50

46

56

52

47

55

57

4

51

4

45

48

58

43

53

42

49 59

40

54

57 44

5

41

2

21

68

24 5

66

67

23

35

31

26

34

33

5

25

17

16

29

18

27

10

32

819 3

22

1

37

18

13

21

18

62

15 14

9

11

12

11

28

5

30

25

5

36

6

60

20

4

61

38

5

65 64

63

Styles E & F

27

REF.

NO.

PART

NO. DESCRIPTION

1 656-0012A Disc Assembly, Wheel, .375 Friction

2 684-04066 Friction Wheel Ass’y, Bearing, 4.9 OD

3 684-04045 Support Bracket Ass’y, Friction Wheel

4 710-0627 Hex Screw, 5/16-24, .750, Gr5

5 710-0896 Screw, Self-tapping, 1/4-14, 0.625

6 710-0788 Screw, Self-tapping, 1/4-20, 1.000

7 711-04246A Shaft, Drive, .75 Hex

8 712-0711 Nut, Jam, 3/8-16

9 714-0161 Key, Hi-pro 3/16 x 5/8

10 716-0231 Ring, E-Type, .750Diameter

11 716-0136 Ring, E-Type, .875 Diameter

12 617-04025 Gear Assembly, 16/44T

13 717-04129A Pinion, 16T

14 717-04137A Gear, 44T

15 617-04026 Gear Assembly, 16/44T

16 726-0221 Nut, Speed, .500

17 732-0264 Extension Spring

18 736-0287 Washer, Flat, .793 x 1.24 x .06

19 736-0105 Washer, Bell, .375 x .870 x .063

20 736-0242 Washer, Bell, .340 x .872 x .060

21 736-04161 Washer, Flat, .75 x 1.00 x .06

22 736-0300 Washer, Flat, .406 x .875 x .059

23 790-00010 Plate, Friction, 12 Pt 4.60 Dia

24 790-00011 Plate, Friction, Extrs, 12 Pt 4.60 Dia

25 738-0924 Screw, Shoulder, 1/4-28, .375

26 684-04139 Rod Assembly, Shift

27 741-0563 Bearing, Ball, 17 x 40 x12

28 711-04246A Drive Shaft, Hex, .75

29 741-0245 Bearing, Hex Flange, .75

30 746-0897 Auger Clutch Cable, 44.75”

31 746-04086 Drive Clutch Cable, 41.75”

32 748-0190 Spacer, .508 ID x .750 OD x .68

33 756-0625 Roller, Cable

34 784-5687A Guide Bracket, Auger Cable

35 790-00072 Frame

* Found on models with a 22-inch auger housing only.

36 790-00096 Guide Bracket, Front, Auger Cable

37 790-00054 Frame Cover

38 790-00055 Roller Bracket, Drive Cable

39 710-0191 Hex Screw, 3/8-24, 1.25, Gr8

40 710-0597 Hex Screw, 1/4-20, 1.00, Gr5

41 710-0654A Sems Screw, Self-tapping, 3/8-16, 1.000

42 710-1245B Hex Screw, 5/16-24, .875, Gr8, Lock

43 712-04064 Nut, Flange Lock, 1/4-20, Grf, Nylon

44 731-04792 Cover, Belt

45 732-0710 Spring, Extension, .38 OD x 2.68

46 736-0247 Washer, Flat, .406 x1.25 x.157

47 736-0505 Washer, Flat, .34 x 1.50 x .150

48 741-0919 Bearing, Ball, 20 x 47 x 14

49 748-0234 Shoulder Spacer

50 748-04053 Pulley Adapter, .75 Diameter

51 750-04230 Spacer, .777 OD x .260 ID x .550

52 750-04303 Spacer, .875 ID x 1.185 OD

53 754-04050 V-belt, 1/2

54 754-0456 V-belt, 3/8

55 756-04109 Pulley, Auger, 8.1 x .5 Belt

56 756-04113 Pulley, Half, 2.6 OD

57 756-04114 Pulley, Half, 2.2 OD

58 790-00062 Washer, Bearing, 2.12 OD x .255 ID

59 790-00082 Idler Bracket, Drive

60 See Chart Wheel, Assembly Complete

61 731-04873 Spacer, 1.25 OD x .75 ID x 3.00

731-04877* Spacer, 1.25 OD x .75 ID x 1.50

62 738-04095A Axle, .75 x 22”

738-04109A* Axle, .75 x 20”

63 756-0648A Friction Disc, Wheel, .375 x 6.0

64 738-0865 Pin, Friction Disc Bearing

65 741-0600 Bearing, Ball

66 618-04169 Bearing Assembly, Friction Wheel

67 718-04070 Hub, Friction Wheel

68 735-0243B Friction Wheel Rubber, 4.875 OD

REF.

NO.

PART

NO. DESCRIPTION

Styles E & F

Wheel Assembly

Complete Wheel Size Rim Only Tire Only Air Valve

634-04144 13 x 4 634-04151 734-1732 734-0255

634-04143 13 x 5 634-04151 734-1527 734-0255

634-04142 15 x 5 634-04151 734-1859 734-0255

634-04141 16 x 4.8 634-04140 734-1530 734-0255

NOTE: Snow thrower features and components vary by model. NOT all parts listed above and pictured on the previous page

are standard equipment.

MANUFACTURER’S LIMITED WARRANTY FOR:

The limited warranty set forth below is given by MTD LLC with

respect to new merchandise purchased and used in the

United States, its possessions and territories.

“MTD”warrants this product against defects in material and

workmanship for a period of two (2) years commencing on the

date of original purchase and will, at its option, repair or

replace, free of charge, any part found to be defective in

materials or workmanship. This limited warranty shall only

apply if this product has been operated and maintained in

accordance with the Operator’s Manual furnished with the

product, and has not been subject to misuse, abuse,

commercial use, neglect, accident, improper maintenance,

alteration, vandalism, theft, fire, water, or damage because of

other peril or natural disaster. Damage resulting from the

installation or use of any part, accessory or attachment not

approved by MTD for use with the product(s) covered by this

manual will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in

material and workmanship for a period of thirty (30) days from

the date of purchase. Normal wear parts include, but are not

limited to items such as: batteries, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow thrower

skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available,

WITH PROOF OF PURCHASE, through your local authorized

service dealer. To locate the dealer in your area, check your

Yellow Pages, or contact MTD LLC at P.O. Box 361131,

Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-

330-220-4683 or log on to our Web site at

www.mtdproducts.com.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

may carry a separate manufacturer’s warranty. Refer

to applicable manufacturer’s warranty for terms and

conditions.

b. Log splitter pumps, valves, and cylinders have a

separate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening, tune-ups, brake adjustments, clutch

adjustments, deck adjustments, and normal

deterioration of the exterior finish due to use or

exposure.

d. Service completed by someone other than an

authorized service dealer.

e. MTD does not extend any warranty for products sold or

exported outside of the United States, its possessions

and territories, except those sold through MTD’s

authorized channels of export distribution.

f. Replacement parts that are not genuine MTD parts.

g. Transportation charges and service calls.

No implied warranty, including any implied warranty of

merchantability of fitness for a particular purpose,

applies after the applicable period of express written

warranty above as to the parts as identified. No other

express warranty, whether written or oral, except as

mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product,

shall bind MTD. During the period of the warranty, the

exclusive remedy is repair or replacement of the product

as set forth above.

The provisions as set forth in this warranty provide the

sole and exclusive remedy arising from the sale. MTD

shall not be liable for incidental or consequential loss or

damage including, without limitation, expenses incurred

for substitute or replacement lawn care services or for

rental expenses to temporarily replace a warranted

product.

Some states do not allow the exclusion or limitation of

incidental or consequential damages, or limitations on how

long an implied warranty lasts, so the above exclusions or

limitations may not apply to you.

In no event shall recovery of any kind be greater than the

amount of the purchase price of the product sold. Alteration

of safety features of the product shall void this warranty.

You assume the risk and liability for loss, damage, or injury to

you and your property and/or to others and their property

arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the

original purchaser or to the person for whom it was purchased

as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This

limited warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

IMPORTANT:

Owner must present Original Proof of

Purchase to obtain warranty coverage.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683
