IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
Model Numbers
E602E,E642E,
E642F, E662E,
E662H, 614E,
E644E, E664F,
E6A4E
Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.
PRINTED IN U.S.A. FORM NO. 770-10003B
OPERATOR’S MANUAL
6/99
Model Style 4 Shown
![](asset-2.png)
2
SECTION 1: FINDING YOUR MODEL NUMBER
This Operator’s Manual is an important part of your new snow thrower. It will help you assemble, prepare and
maintain your snow thrower. Please read and understand what it says.
Before you start to prepare your snow thrower for its first use, please locate the model plate and copy the
information from it in this Operator’s Manual. The information on the model plate is very important if you need
help from your dealer or the MTD customer support department.
•Every snow thrower has a model plate. You can locate it by standing behind the unit in the operating
position and looking down at the rear frame below the engine. See Figure 1.
Figure 1
SECTION 2: CALLING CUSTOMER SUPPORT
•LOCATE YOUR MODEL NUMBER AND SERIAL NUMBER — Record this information in the space
provided. To find your unit’s specific model number and serial number, see SECTION 1: FINDING
YOUR MODEL NUMBER.
•If you are having difficulty assembling this product or if you have any questions regarding the controls,
operation or maintenance of this unit, please call the Customer Support Department.
•Customer Support can be reached by dialing: 1- (330) 220-4MTD
(4683)
or
1- (800)-800-7310
•Please have your model number and serial number ready when you call.
•Although both numbers are important, you will be asked to enter only your
serial
number before your
call can be processed.
MTD PRODUCTS INC
CLEVELAND, OHIO 44136
XXX-X-XXX-X-XXXXXXXXXXXXXX
This is where your model numberwill be.
This is where your serial number will be.
Copy the model number here:
Copy the serial number here:
![](asset-3.png)
3
SECTION 3: IMPORTANT SAFE OPERATION PRACTICES

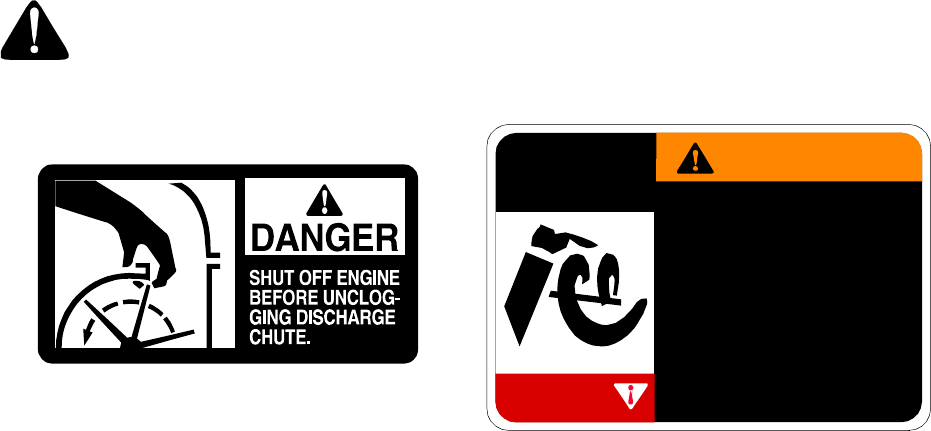

WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF
NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF
YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE YOUR SNOW THROWER. FAILURE TO COMPLY WITH
THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY. WHEN YOU SEE THIS
SYMBOL-HEED ITS WARNING.
WARNING: The Engine Exhaust from this product contains chemicals known
to the State of California to cause cancer, birth defects or other reproductive harm.
DANGER: Your snow thrower was built to be operated according to the rules for safe
operation in this manual. As with any type of power equipment, carelessness or error on the
part of the operator can result in serious injury. If you violate any of these rules, you may
cause serious injury to yourself or others.
1. TRAINING
• Read this operator's manual carefully in its entirety
before attempting to assemble or operate this
machine. Be completely familiar with the controls
and the proper use of this machine before
operating it. Keep this manual in a safe place for
future and regular reference and for ordering
replacement parts.
• Never allow children under 14 years old to operate
a snow thrower. Children 14 years old and over
should only operate snow thrower under close
parental supervision. Only persons well acquainted
with these rules of safe operation should be
allowed to use your snow thrower.
• No one should operate this unit while intoxicated or
while taking medication that impairs the senses or
reactions.
• Keep the area of operation clear of all persons,
especially small children and pets.
• Exercise caution to avoid slipping or falling,
especially when operating in reverse.
2. PREPARATION
• Thoroughly inspect the area where the equipment
is to be used and remove all door mats, sleds,
boards, wires and other foreign objects.
• Disengage all clutches and shift into neutral before
starting engine.
• Do not operate equipment without wearing
adequate winter outer garments. Do not wear
jewelry, long scarfs or other loose clothing which
could become entangled in moving parts. Wear
footwear which will improve footing on slippery
surfaces.
• Before working with gasoline, extinguish all
cigarettes and other sources of ignition. Check the
fuel before starting the engine. Gasoline is an
extremely flammable fuel. Do not fill the gasoline
tank indoors, while the engine is running, or until
engine has been allowed to cool at least two
minutes. Replace gasoline cap securely and wipe
off any spilled gasoline before starting the engine
as it may cause a fire or explosion.
• Use a grounded three wire plug-in for all units with
electric drive motors or electric starting motors.
• Adjust collector housing height to clear gravel or
crushed rock surface.
• Never attempt to make any adjustments while
engine is running (except where specifically
recommended by manufacturer).
• Let engine and machine adjust to outdoor
temperature before starting to clear snow.
• Always wear safety glasses or eye shields during
operation or while performing an adjustment or
repair, to protect eyes from foreign objects that may
be thrown from the machine in any direction.
3. OPERATION
• Do not put hands or feet near or under rotating
parts. Keep clear of discharge opening and auger
at all times.
• Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert
for hidden hazards or traffic. Do not carry
passengers.
• After striking a foreign object, stop the engine,
remove wire from spark plug, and thoroughly
inspect the snow thrower for any damage. Repair
the damage before restarting and operating the
snow thrower.
![](asset-4.png)
4
• If the snow thrower should start to vibrate
abnormally, stop the engine and check immediately
for the cause. Vibration is generally a warning of
trouble.
• Stop engine whenever you leave the operating
position, before unclogging the collector/impeller
housing or discharge guide, and making any
repairs, adjustments, or inspections. Never place
your hand in the discharge or collector openings.
Use a stick or wooden broom handle to unclog the
discharge opening.
• Take all possible precautions when leaving the unit
unattended. Disengage the collector/impeller, stop
the engine, and remove the key.
• When cleaning, repairing, or inspecting, make
certain collector/impeller and all moving parts have
stopped. Disconnect spark plug wire and keep
away from plug to prevent accidental starting.
• Do not run engine indoors, except when starting
engine and transporting snow thrower in or out of
building. Open doors. Exhaust fumes are
dangerous.
• Do not clear snow across the face of slopes.
Exercise extreme caution when changing direction
on slopes. Do not attempt to clear steep slopes.
• Never operate snow thrower without guards, plates,
or other safety protection devices in place.
• Never operate snow thrower near glass enclosure,
automobiles, window wells, drop off, etc., without
proper adjustments of snow thrower discharge
angle. Keep children and pets away.
• Do not overload machine capacity by attempting to
clear snow at too fast a rate.
• Never operate the machine at high transport
speeds on slippery surfaces. Look behind and use
care when backing.
• Never direct discharge at bystanders or allow
anyone in front of unit.
• Disengage power to collector/impeller when
transporting or not in use.
• Use only attachments and accessories approved
by the manufacturer of snow thrower (such as
wheel weights, counter weights, cabs, etc.).
• Never operate the snow thrower without good
visibility or light. Always be sure of your footing and
keep a firm hold on the handles. Walk, never run.
• Muffler and engine become hot and can cause a
burn. Do not touch.
4. MAINTENANCE AND STORAGE
• Check shear bolts, engine mounting bolts, etc., at
frequent intervals for proper tightness to be sure
equipment is in safe working condition.
• Never store the machine with fuel in the fuel tank
inside a building where ignition sources are
present, such as hot water and space heaters,
clothes dryers, and the like. Allow engine to cool
before storing in any enclosure.
• Always refer to operator's manual instructions for
important details if snow thrower is to be stored for
an extended period.
• Run machine a few minutes after throwing snow to
prevent freeze up of collector/impeller.
• Check clutch controls periodically to verify they
engage and disengage properly and readjust if
necessary. Refer to operator's manual for
adjustment instructions.
WARNING - YOUR RESPONSIBILITY: Restrict the use of this power machine to
persons who read, understand and follow the warnings and instructions in this manual and
on the machine.
Figure 2
STOP ENGINE BEFORE REMOVING
DEBRIS AND SERVICING UNIT.
KEEP CLEAR OF IMPELLER WHILE
ENGINE IS RUNNING.
NEVER DIRECT DISCHARGE AT
BYSTANDERS OR WINDOWS OR
ALLOW ANYONE IN FRONT OF
UNIT.
THOROUGHLY INSPECT THE AREA
WHERE THE EQUIPMENT IS TO BE
USED AND REMOVE ALL DOOR
MATS, SLEDS, BOARDS, WIRES AND
OTHER FOREIGN OBJECTS.
REFER TO OWNERS MANUAL FOR
FULL INSTRUCTIONS.
1.
2.
3.
4.
5.
AVOID INJURY FROM
ROTATING AUGER -
KEEP HANDS, FEET
AND CLOTHING AWAY.
WARNING
DANGER
![](asset-5.png)
5

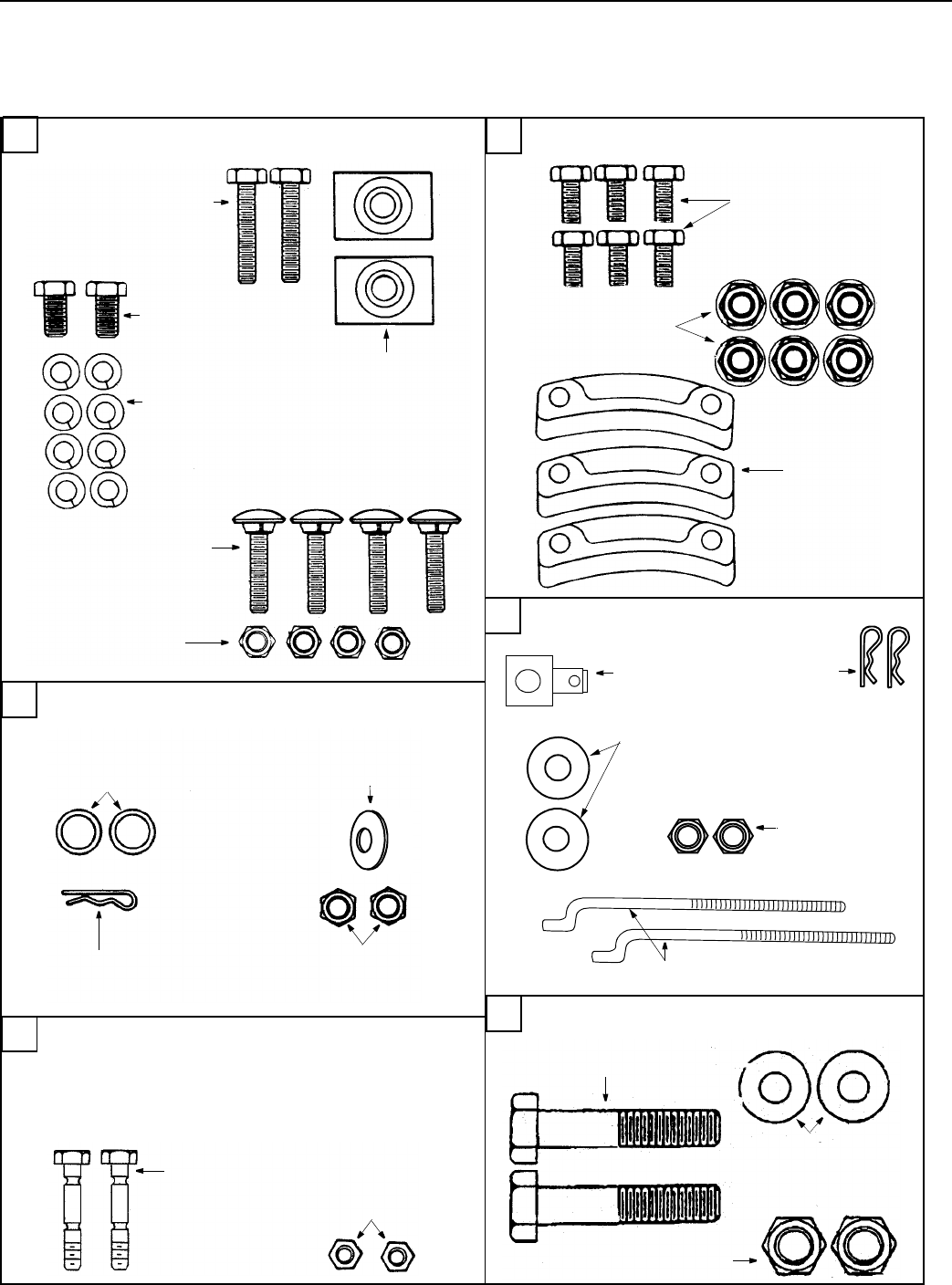

SECTION 4: CONTENTS OF HARDWARE PACK

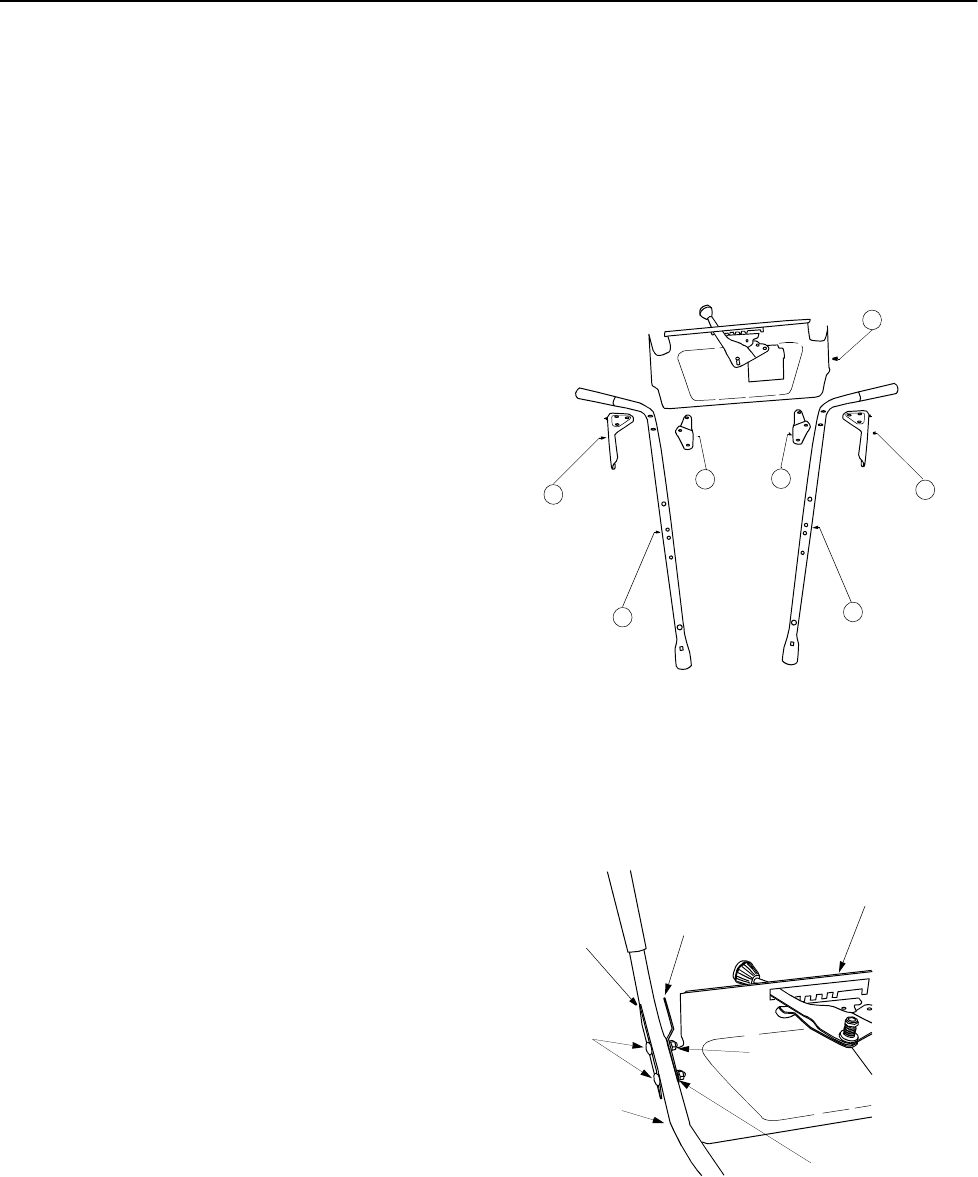

AATTACHING THE HANDLE ASSEMBLY
Lay out the hardware according to the illustration for identification purposes. Parts are illustrated approximately
one-half size. Part numbers are shown in parentheses. (Hardware pack may contain extra items which are not
used on your unit.)
BATTACHING THE CHUTE ASSEMBLY
CATTACHING THE CHUTE DIRECTIONAL
CONTROL

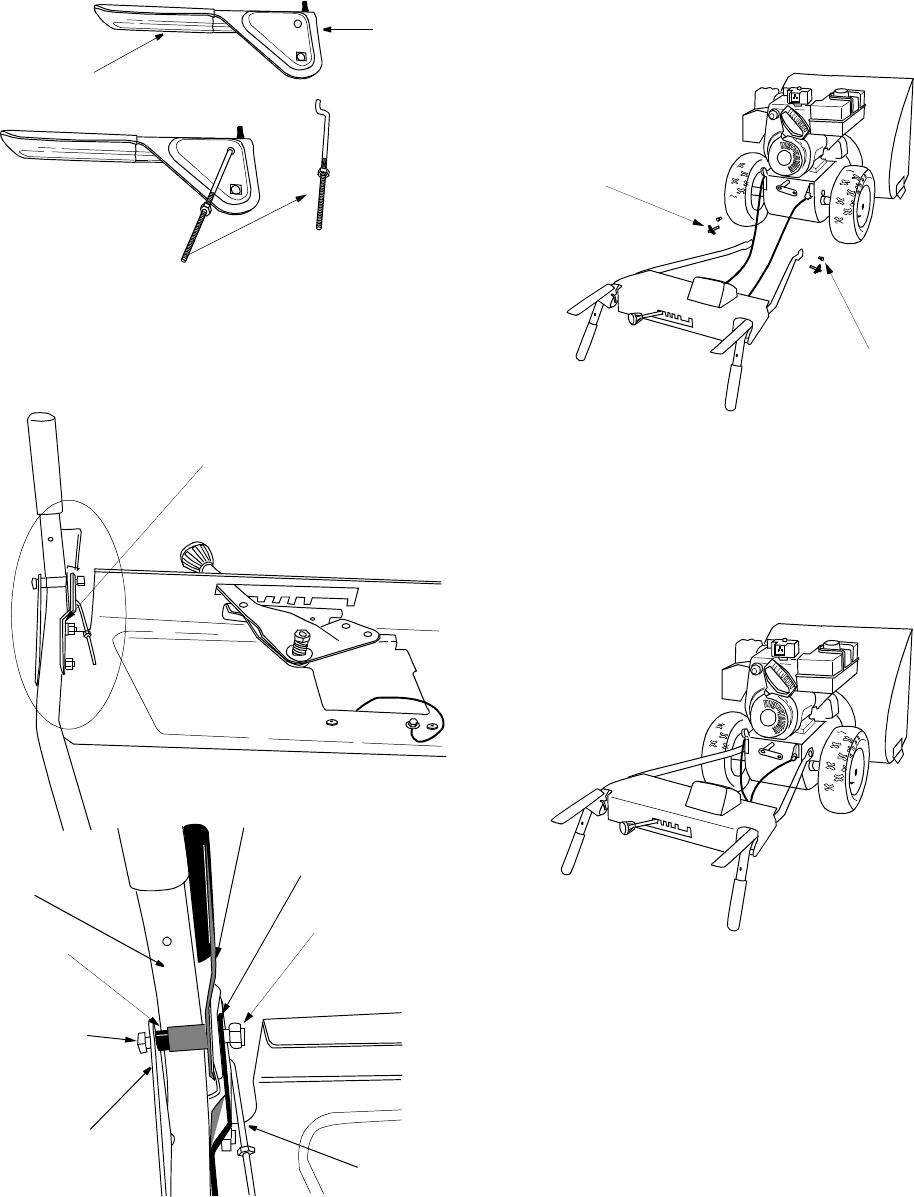

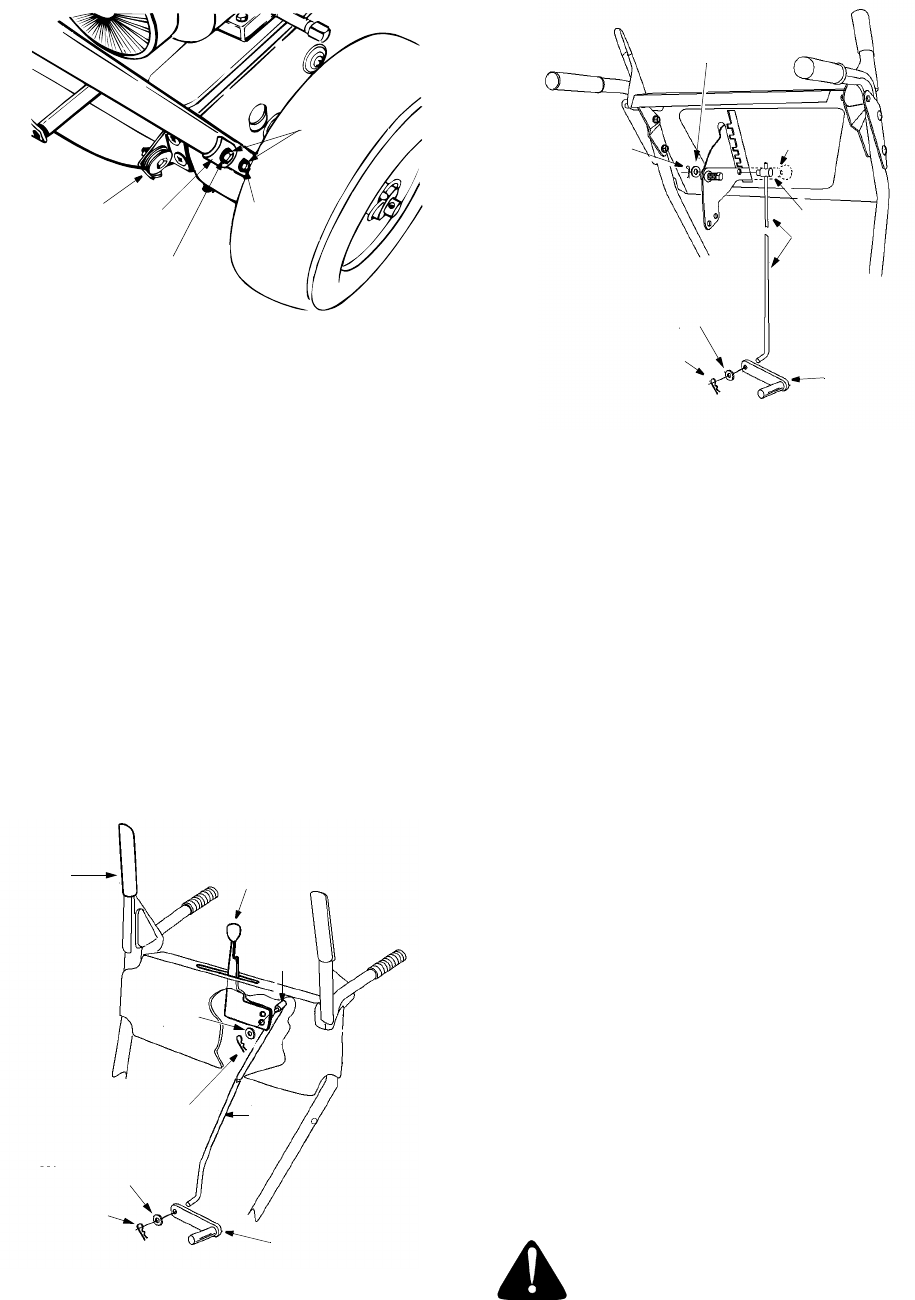

DATTACHING THE SHIFT ROD
AND CLUTCH CABLES
FAUGER SHEAR BOLTS
Ferrule
(711-0677)
Hairpin Clips
(714-0104)
Hex Nuts
#10-24 Thread
(712-0121)
“Z”-Fitting (R)
(746-0778)

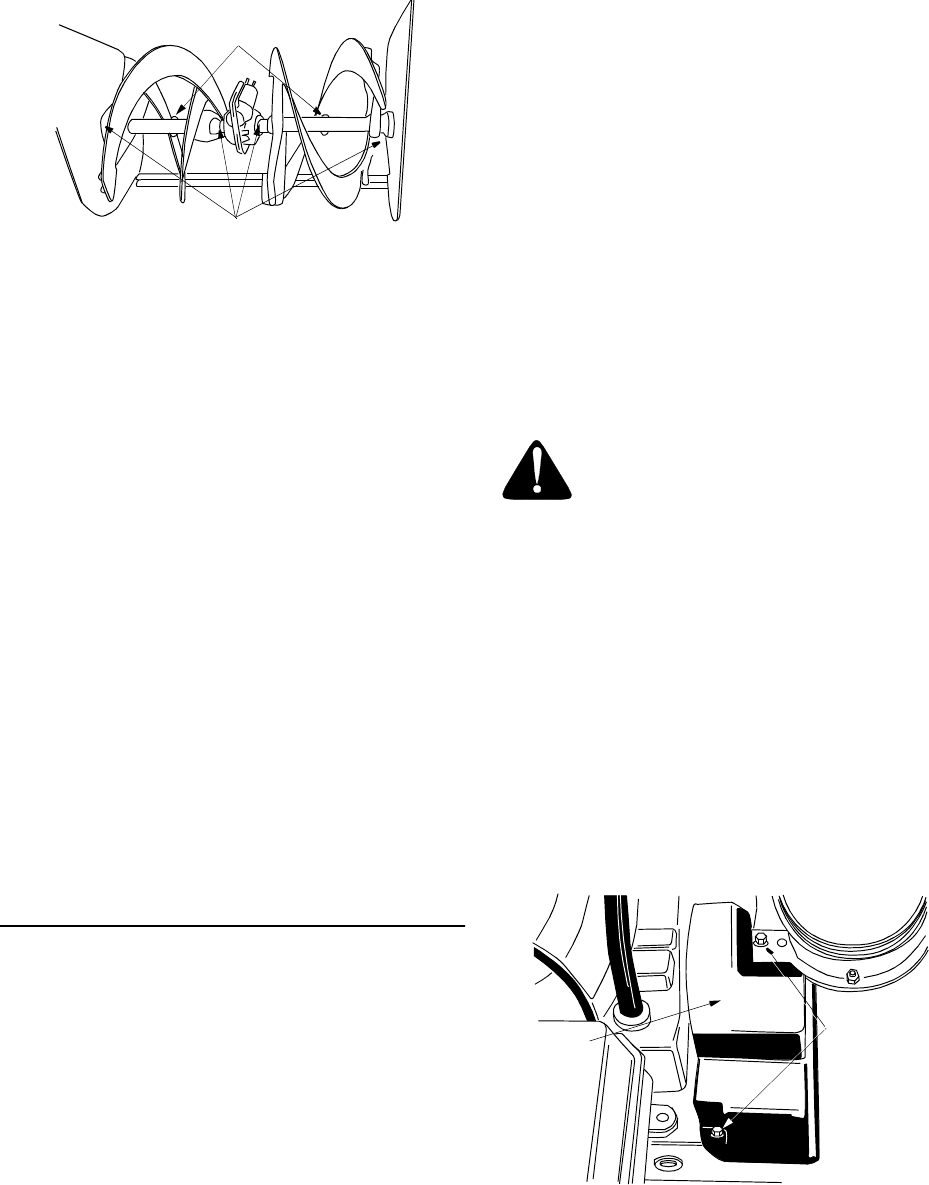

NOTE: The augers are secured to the spiral shaft with two shear bolts and hex
lock nuts. If you hit a hard foreign object or an ice jam, the snow thrower is
designed so that the bolts may shear. Two replacement shear bolts and nuts are
provided for your convenience. Store in a safe place until needed.
EATTACHING THE CLUTCH GRIPS
Flat Washers
5/16" I.D. x 5/8" O.D.
(736-0264)
Hex Bolts
5/16-18 x 1-3/4" Long
(710-3180)
Hex Bolts
5/16-18 x 3/4" Long
(710-3008)
Hex Nuts
5/16-18 Thread
(712-3010)
Saddle
(784-5599)
Lock Washers
5/16" I.D.
(736-0119)
Carriage Bolts
5/16-18 x 1-1/2" Long
(710-0262)
Hex Bolts
1/4-20 x 3/4" Long
(710-3015)
Hex Lock Nuts
1/4-20 Thread
(712-3027)
Chute Flange
Keepers
(731-0851A)
Hex Lock Nuts
5/16-18 Thread
(712-0429)
Shear Bolts
5/16-18 x
1-1/2" Long
(710-0890A)
Hex Screw 5/16-18
x 2.0 (710-0116)
Hex Top L-Nut
5/16-18 (712-0429)
Spacer
.325 I.D. x .50 O.D. x .25
(750-1032)
Flat Washers
3/8” I.D. x 5/8” O.D.
(736-0185)
Hairpin Clip
(714-0104)
Cupped Washer
5/16” I.D.
(736-0242)
Hex Nuts
5/16-18 Thread
(712-3010)
Eyebolt Not Shown
(747-0697)
![](asset-6.png)
6
SECTION 5: ASSEMBLY INSTRUCTIONS
This operator’s manual covers various models of
snow throwers. The units illustrated may vary slightly
from your unit. Follow only those instructions which
pertain to your model snow thrower.
IMPORTANT: After assembly, service engine with
gasoline, and check oil level as instructed in the
separate engine manual packed with your unit.
NOTE: All references to right or left side of the
snow thrower are determined from behind the unit in
the operating position.
UNPACKING
1. Remove staples or break glue on the top flaps of
the carton. Remove any loose parts like
operator’s manual or hardware pack included
with unit.
2. Cut corner’s and lay end of carton down flat.
Remove packing material.
3. Roll unit out of carton. Check carton thoroughly
for loose parts.
4. Extend cables out behind unit and lay them on
the floor.
5. Lay out the contents of the hardware pack
according to the illustration in section 4 and
identify each part.
6. Find the loose parts in the carton and lay these
on the floor. See Figure 3. You should locate the
following loose parts in the carton:
TOOLS REQUIRED
The snow thrower comes partly assembled in the
carton. You will have to complete the assembly.
Follow assembly instructions in this operator’s
manual to make the job safe and easy. You will need
the following tools to assemble the snow thrower.
Attaching the Handle Assembly.
(Hardware A and E)
Lay loose parts out on flat surface.
Figure 3
1. Attach left handle and left grip bracket to handle
panel with two carriage bolts, lock washers and
hex nuts. (Be sure the bend in the grip bracket is
towards the center of the handle panel. (See
Figure 4.) Do not tighten at this time.
Figure 4
2. Locate auger control grip, part #4 in Figure 3.
The triangular metal tab on the auger control grip
must face the center of the handle panel.
3. Insert curved end of the Z fitting into the top hole
in the triangular metal tab on the auger control
grip. See Figure 5.
1. Handle Panel
2. Right Handle
3. Left Handle
4. Auger Control Grip
5. Traction Control Grip
6. Right Clutch Grip Bracket
7. Left Clutch Grip Bracket
8. Shift Rod (Not Illustrated)
9. Chute Directional Control Assembly
(Not Illustrated)
10. Chute Assembly (Not Illustrated)
11. Hardware Pack (Not Illustrated)
A. Set of Wrenches (3/8", 9/16", 1/2" or
adjustable)
B. Pair of pliers
1. Handle Panel
2. Right Handle
3. Left Handle
4. Auger Control Grip
5. Traction Control
Grip
6. Right Grip Bracket
7. Left Grip Bracket
1
2
3
6
7
45
Handle Panel
Carriage
Bolts
Left Grip Bracket
Panel
Lock Washers
(curves in)
Outer
of Handle
Edge
Left Handle
Hex Nuts
![](asset-7.png)
7
Figure 5
4. Place the auger control grip on top of the left
handle. The triangular metal tab must be
between the handle and the grip bracket. See
Figure 6.
Figure 6
5. Secure with hex bolt, spacer and lock nut. See
Figure 6. (Do not overtighten this bolt as it will
prevent the grips from automatically returning to
their upright position.)
6. Repeat process for the right side Traction
Control Grip.
7. Lay handle assembly behind snow thrower. See
Figure 7.
Figure 7
8. Insert a hex bolt 3/4” long and lock washer
through the lower hole on the bottom of the
handle. See Figure 7.
9. Hold the handle assembly up to the bottom of
the snow thrower frame and thread the hex bolt
into the lower hole in snow thrower frame. Do
not tighten at this time. See Figure 8.
Figure 8
10. Repeat process on the other side.
11. Raise the handle assembly into the upright
position and align the top holes in the handles
with the top holes in the snow thrower frame.
Attach using hex bolts 1 3/4” Long, lock washers
and saddles. (Curve in saddle must match the
curve in the handle.) See Figure 9.
12. Tighten all hardware used to attach the handle
assembly to the snow thrower frame.
Auger Control
Grip
“Z” Fitting
Triangle
Metal Tab
Auger Control Grip
Left Grip Bracket
Handle
Panel
Hex
Spacer Hex Lock Nut
“Z” Fitting
Left
Handle
Screw
Triangle
Metal Tab
Hex Bolt
Lock Washer
![](asset-8.png)
8
Figure 9
ATTACHING SHIFT ROD
(Hardware D)
1. Place the shift lever in the fastest forward speed
position.
2. Models 602, 642, 662: Rotate the shift arm
assembly counter clockwise, as far as it will go.
Insert the shift rod through the shift arm
assembly. When installed the shift arm assembly
should point to the right. Secure with flat washer
and hairpin clip. See Figure 10.
Models 614, 644, 664 and 6A4: Rotate the shift
arm assembly counter clockwise as far as it will
go. Insert the shift rod through the shift arm
assembly. When installed, the shift arm
assembly should point left. Secure with flat
washer and hairpin clip. See Figure 11.
Figure 10
Figure 11
3. Models 602, 642, 662: Thread the ferrule up or
down the shift rod and align with the lower hole on
the shift lever assembly behind the handle panel.
See Figure 10 .
Models 614, 644, 664, and 6A4: Thread the
ferrule onto the shift rod, up or down the shift rod
and align with the far hole on the narrow side of the
shift lever assembly behind the handle panel. See
Figure 11.
4. Secure the ferrule to the shift arm assembly with
flat washer and hairpin clip.
NOTE: Make certain to check for correct
adjustment of the shift rod as instructed in the FINAL
ADJUSTMENTS section before operating the snow
thrower.
ATTACHING CLUTCH CABLES
(Hardware D)
1. Thread the hex jam nuts all the way up the
threaded portion of the “Z” ends.
2. Make certain all cables are in the grooves of the
cable roller guides. The roller guides are located
in the lower rear of the unit. Lift the clutch grip in
the raised (up) position.
3. Thread the cable onto the threaded portion of
the “Z” end until there is no slack in the cable,
but the cable is NOT tight. Do not overtighten
cable. See Figure 12.
WARNING: If cable is tightened so
there is tension on the cable with the
clutch grip released, the safety features
of the snow thrower may be overridden.
Handle
Bolt 1-3/4”
3/4” Long
Washers
Hex Bolt
Tab
Long
Hex
Lock
Cable
Roller
Guide
Traction
Clutch
Drive Shift
Lever
Ferrule
Hairpin
Clip
Flat
Washer
Hairpin
Clip Shift
Arm
Assembly
Flat
Washer
Shift
Rod
Models 602, 642 and 662
(Bottom
Hole)
Flat
Washer
Shift
Lever
Hairpin
Clip
Ferrule
Flat
Washer
Hairpin
Clip
Shift
Rod
Shift
Arm
Assembly
Models 614, 644, 664, and 6A4
![](asset-9.png)
9

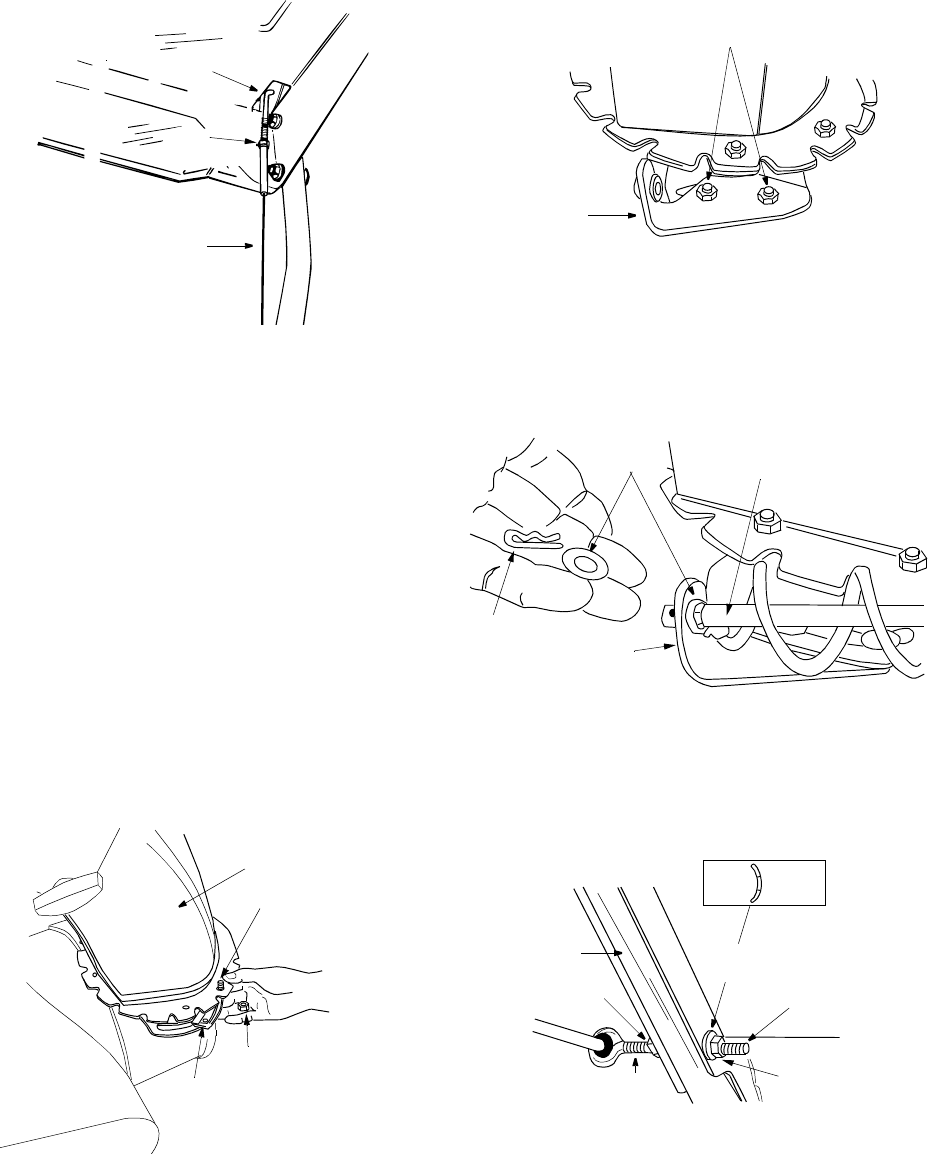

Figure 12
4. When correct adjustment is reached, tighten the
hex nut against the cable to lock it in position.
ATTACHING THE CHUTE ASSEMBLY
(Hardware B)
1. Place chute assembly over chute opening, with
the opening in the chute assembly facing the
front of the unit.
2. Place chute flange keepers beneath lip of chute
assembly, flat side down.
3. Insert hex bolt up through chute flange keeper
and chute assembly as shown in Figure 13.
Secure with hex lock nut.
4. After assembling all three chute flange keepers,
tighten all nuts and bolts securely, then back off
1/4 turn to allow easier movement.
Figure 13
ATTACHING THE CHUTE DIRECTIONAL
CONTROL (Hardware C)
1. Loosen the two hex nuts which secure the lower
chute directional control support bracket to the
snow thrower housing. See Figure 14.
Figure 14
2. Place one flat washer over the end of the chute
directional control, then insert the end of the
chute directional control into the hole in the
plastic bushing in the chute bracket. See Figure
15. Place the second flat washer on the chute
directional control, and secure with hairpin clip.
Figure 15
3. Thread one hex nut onto the eyebolt on the chute
directional control assembly until there is at least
two inches of threads showing between the nut
and the head of the eyebolt. See Figure 16.
Figure 16
4. Place the eyebolt into the hole located half way
up the left handle. Secure with cupped washer
(cupped side against the handle, see inset) See
Figure 16.
5. Adjust the chute directional control support
bracket (see figure 15) so that the spiral on the
chute directional control fully engages the teeth
on the chute assembly. Tighten the hex nuts on
the lower chute directional control bracket
securely. Tighten the hex nuts on the eyebolt.
“Z”
Hex
Nut
Cable is
Straight
Chute
Assembly
Hex Bolt
Hex Lock Nut
Chute Flange
Keeper
Carriage Bolts
Hex Lock Nuts
Chute
Directional
Control
Bracket
Hairpin Clip
Chute Directional
Control Bracket
Flat Washer Chute Directional
Control
Cup
Side Crown
Side
Left
Handle
Hex Nut
2” of
Threads
Cupped
Washer
Eyebolt
Hex Nut
![](asset-a.png)
10
6. Check to make sure all nuts and bolts on the
control panel and all four bolts which secure the
handles to the frame are tight.
LAMP WIRING (If Equipped)
Figure 17
1. Wrap the wire from the lamp down the right
handle until the wire can be plugged into the
alternator lead wire under the fuel tank. See
Figure 17. Be sure lamp wire does not interfere
with the movement of any controls or cables.
IMPORTANT: After attaching the shift rod and
clutch cables, check the adjustments as instructed,
and make any final adjustments necessary before
operating your snow thrower. Failure to follow the
instructions may cause damage to the snow thrower.
FINAL ADJUSTMENTS
Auger Control Clutch
1. To check the adjustment of the auger control
clutch, push forward on the left hand clutch grip
depressing the rubber bumper under the clutch
grip. There should be slack in the cable.
2. Release the clutch grip. The cable should be
straight. Make certain you can depress the auger
control clutch grip against the left handle
completely.
3. If necessary, loosen the hex jam nut and thread
the cable in (for less slack) or out (for more slack)
as necessary. Refer to Figure 12. Recheck the
adjustment. Tighten the jam nut against the cable
when correct adjustment is reached.
Traction Control Clutch and Shift Lever
Adjustment
To check the adjustment of the traction control clutch
and shift lever:
1. Move the shift lever all the way to the highest
speed. With the traction control lever released,
push the snow thrower forward. The unit should
roll forward.
2. Then engage the traction control clutch grip. The
wheels should stop turning.
3. Now release the traction control clutch grip, and
push the unit again. Move the shift lever back to
the fast reverse position, then all the way forward
again. There should be no resistance in the shift
lever, and the wheels should keep turning.
4. If you have resistance when moving the shift lever
or the wheels stop when they should not, loosen
the jam nut on the traction control cable and
unthread the cable one turn. If the wheels do not
stop when you engage the traction control clutch
grip, loosen the jam nut on the traction control
cable and thread the cable in one turn. Recheck
the adjustment and repeat as necessary.
5. Tighten the jam nut to secure the cable when
correct adjustment is reached.
NOTE: If you are uncertain that you have reached
the correct adjustment, refer to SECTION 8:
ADJUSTMENTS.
Adjusting The Skid Shoes
The space between the shave plate and the ground
can be adjusted by adjusting the skid shoes.
1. Place skid shoes in the low position to remove
snow close to the ground. Place skid shoes in a
higher position to remove snow from uneven
ground. See Figure 18.
2. Adjust skid shoes by loosening the four hex nuts
and carriage bolts and moving skid shoes to
desired position. Make certain the entire bottom
surface of skid shoe is against the ground to avoid
uneven wear on the skid shoes. Retighten nuts
and bolts securely.
Figure 18
WARNING: It is not recommended that
you operate this snow thrower on gravel
as loose gravel can be easily picked up
and thrown by the auger causing an
injury and/or damage to the snow
thrower.
Lamp Wire Alternator
Lead
Right Handle
Skid
Shoe Hex Nuts
Carriage
Bolts
Low Position
High Position
![](asset-b.png)
11

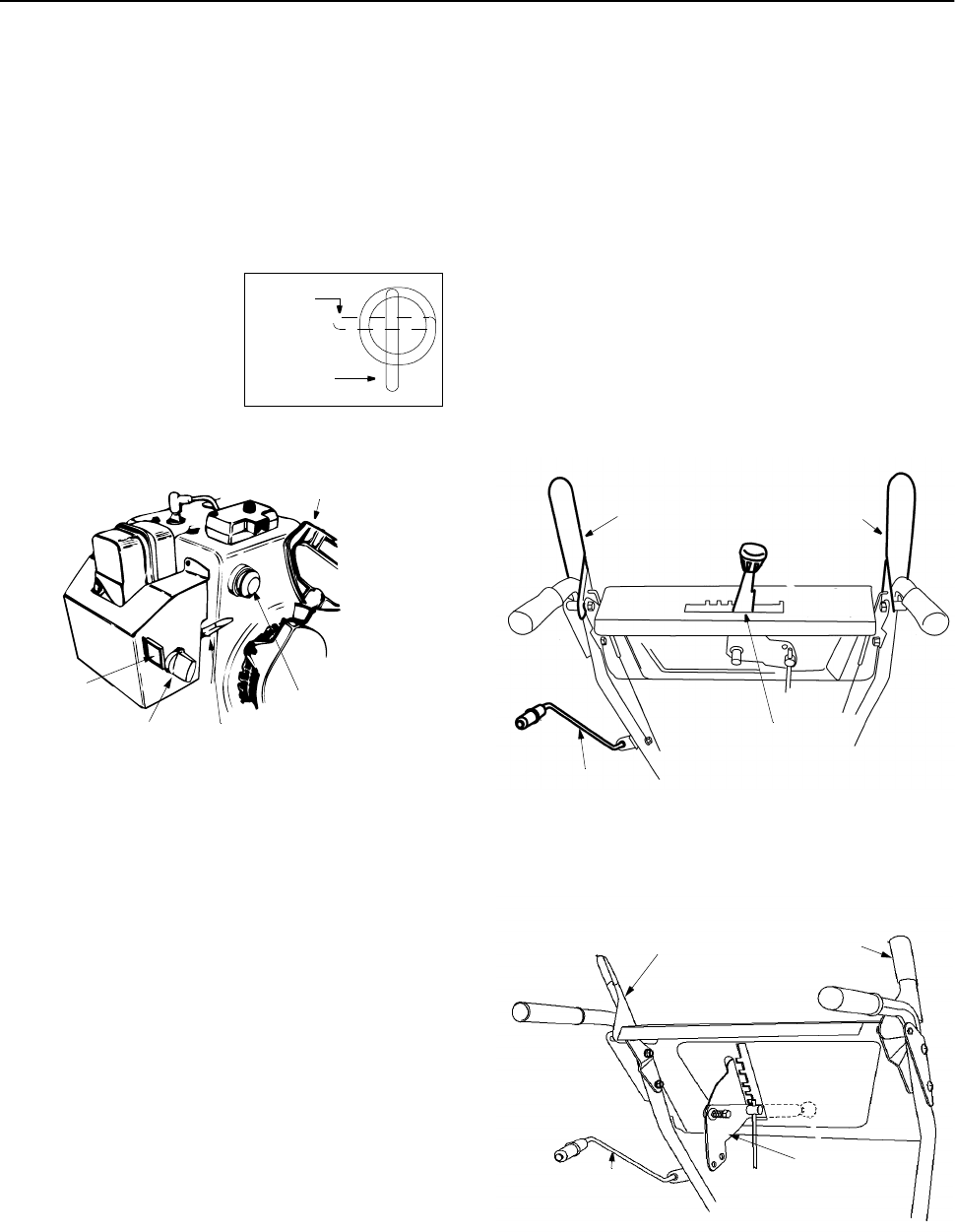

SECTION 6: CONTROLS
THROTTLE CONTROL
The throttle control is located on the engine. It regu-
lates the speed of the engine. See Figure 20.
SAFETY IGNITION SWITCH
The ignition key must be inserted in the switch before
the unit will start. Remove the ignition key when
snow thrower is not in use.
FUEL SHUT-OFF
VALVE
The fuel shut-off valve,
located under fuel tank,
controls fuel flow from
tank. (If equipped)
See Figure 19.
Figure 20
SHIFT LEVER
(See Figure 21 for Model 602, 642 and 662. See
Figure 22 for Models 614, 644, 664, and 6A4)
The shift lever is located in the center of the handle
panel. The shift lever may be moved into one of six
positions. Run engine with throttle in the fast
position. Use the shift lever to determine ground
speed.
Forward—Five forward speeds: position one (1) is
the slowest; position five (5) is the fastest.
Reverse—One reverse (R) speed.
NOTE: Model 614, 644, 664, and 6A4 has five
forward positions and two reverse.
AUGER CONTROL CLUTCH
(See Figure 21 for Model 602, 642 and 662. See
Figure 22 for Models 614, 644, 664, and 6A4)
The auger control clutch is located on the left
handle. Squeeze the auger control clutch against the
handle to engage the augers. Release to stop the
snow throwing action.
TRACTION CONTROL CLUTCH
(See Figure 21 for Model 602, 642 and 662. See
Figure 22 for Models 614, 644, 664, and 6A4)
The traction control clutch is located on the right
handle. Squeeze the traction control clutch to
engage the wheel drive. Release to stop.
CHUTE DIRECTIONAL CONTROL
(See Figure 21 for Model 602, 642 and 662. See
Figure 22 for Models 614, 644, 664, and 6A4)
The chute directional control is located on left hand
side of the snow thrower.
To change the direction in which snow is thrown,
turn chute directional control as follows:
Crank clockwise to discharge to the left.
Crank counterclockwise to discharge to the right.
Figure 21
Figure 22
Figure 19
Closed
Open
Ignition
Key
Choke Throttle
Primer
Starter
Handle
Chute
Directional Control
Auger
Control
Clutch
Traction
Control
Clutch
Shift
Lever
Models 602, 642 and 662
Shift
Lever
Chute
Directional Control
Auger
Control
Clutch
Traction
Control
Clutch
Models 614, 644, 664, and 6A4
![](asset-c.png)
12
SECTION 7: OPERATION
BEFORE STARTING
WARNING: Observe all Warning Labels
on the snow thrower prior to use. See
Figure 2.
Your snow thrower is shipped with oil; however,
you must check the oil level before operating. Be
careful not to overfill.
The spark plug wire was disconnected for safety.
Attach spark plug wire to spark plug before starting
GAS AND OIL FILL-UP
Check oil level and add oil if necessary. Service the
engine with gasoline as instructed in the separate
engine manual packed with your snow thrower.
Read instructions carefully.
WARNING: Never fill fuel tank
indoors, with engine running or while
engine is hot. Do not smoke when filling
fuel tank.
TO START ENGINE
NOTE: If unit shows any sign of motion (drive or
augers) with the clutch grips disengaged, shut
engine off immediately. Readjust as instructed in the
Final Adjustments section of SECTION 5:
ASSEMBLY INSTRUCTIONS.

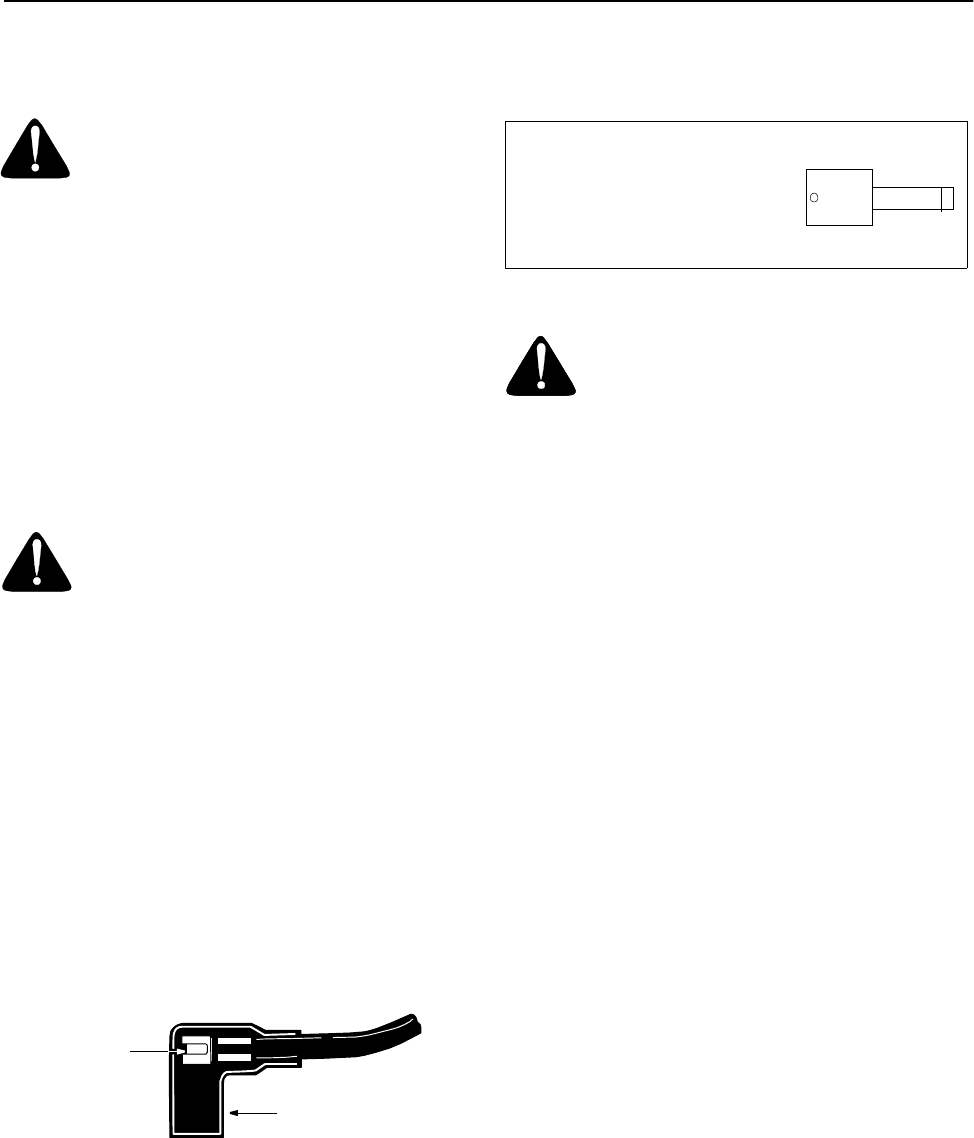

1. Attach spark plug wire to spark plug. Make
certain the metal loop on end of the spark plug
wire (inside the boot) is fastened securely over
the metal tip on the spark plug. See Figure 23.
2. Make certain the fuel cutoff valve is in the OPEN
(vertical) position. See Figure 19.
Figure 23
3. Make certain the auger and drive clutch levers
are in the disengaged (released) position.
4. Move throttle control up to FAST position. Insert
ignition key into slot. See Figure 20. Be certain it
snaps into place. Do not turn key.
Electric Starter: (If Equipped)
WARNING: The electric starter is
equipped with a three-wire power cord
and plug, and is designed to operate on
120 volt AC household current. It must
be properly grounded at all times to
avoid the possibility of electric shock
which may be injurious to the operator.
Follow all instructions carefully. If the
house wiring system is not a three-wire
grounded system, do not use this
electric starter under any conditions.
Follow all instructions carefully. Determine that your
house wiring is a three wire grounded system. Ask a
licensed electrician if you are not certain. If your
house wiring system is not a three-wire grounded
system, do not use this electric starter under any
conditions. If your system is grounded and a three-
hole receptacle is not available at the point your
starter will normally be used, one should be installed
by a licensed electrician.
When connecting the power cord, always connect
cord to starter on engine first, then plug the other
end into a three-hole grounded receptacle.
When disconnecting the power cord, always unplug
the end from the three-hole grounded receptacle
first.
1. Make certain the auger control and traction
control clutch grips are in the disengaged
(released) position.
2. Move throttle control up to FAST position. Insert
ignition key into slot. Refer to Figure 20. Be
certain it snaps into place. Do not turn key.
3. Rotate choke knob to OFF position.
NOTE: Do not prime engine.
4. Connect power cord to switch box on engine.
Plug the other end of power cord into a three-
hole, grounded 120 volt AC receptacle.
5. Push starter button on top of the engine to crank
engine. As you crank the engine, move choke
knob to FULL choke position.
Metal Loop
on Spark
Plug Wire
Rubber Boot
ENGINE WILL NOT START
UNLESS IGNITION KEY IS IN-
SERTED INTO IGNITION
SLOT IN CARBURETOR
COVER. DO NOT TURN IGNI-
TION KEY.
![](asset-d.png)
13
6. When engine starts, release starter button, and
move choke gradually to OFF. If engine falters,
move choke immediately to FULL and then
gradually to OFF.
7. Repeat steps 6 and 7 until engine starts. If
engine fails to start, repeat steps 5, 6, and 7 until
engine starts.
8. As engine warms up and begins to operate
evenly, rotate choke knob slowly to OFF
position. If engine falters, return to FULL choke,
then slowly move to OFF position.
Recoil Starter.
1. Make certain the auger control and traction
control clutch grips are in the disengaged
(released) position.
2. Move throttle control up to FAST position. Insert
ignition key into slot. Refer to Figure 20. Be
certain it snaps into place. Do not turn key.
3. Rotate choke knob to FULL choke position (cold
engine start).
If engine is warm, place choke in OFF position
instead of FULL.
4. Push primer button two or three times. Refer to
Figure 20. If engine is warm, push primer button
once only.
NOTE: Always cover vent hole in primer button
when pushing. Additional priming may be necessary
for first start if temperature is below 15oF.
5. Grasp starter handle (refer to Figure 20) and pull
rope out slowly, until it pulls slightly harder. Let
rope rewind slowly.
6. Pull starter handle rapidly. Do not allow handle
to snap back. Allow it to rewind slowly while
keeping a firm hold on the starter handle.
7. Repeat steps 6 and 7 until engine starts. If
engine fails to start, repeat steps 5, 6 and 7 until
engine starts.
TO STOP ENGINE
1. Run engine for a few minutes before stopping to
help dry off any moisture on the engine.
2. To help prevent possible freeze-up of starter,
proceed as follows.
Electric Starter:
Connect power cord to switch box on engine, then to
120 volt AC receptacle. With the engine running,
push starter button and spin the starter for several
seconds. The unusual sound made by spinning the
starter will not harm engine or starter. Disconnect
the power cord from receptacle first, and then from
switch box.
Recoil Starter:
With engine running, pull starter rope with a rapid,
continuous full arm stroke three or four times. Pulling
the starter rope will produce a loud clattering sound,
which is not harmful to the engine or starter.
3. To stop engine, remove the ignition key. Do not
turn key. Disconnect the spark plug wire from
the spark plug to prevent accidental starting
while equipment is unattended.
NOTE: Do not lose ignition key. Keep it in a safe
place. Engine will not start without the ignition key.
4. Wipe all snow and moisture from the carburetor
cover in the area of the control levers. Also,
move control levers back and forth several
times. Leave throttle control lever in the STOP or
OFF position. Leave choke control in the FULL
choke position.
TO ENGAGE DRIVE/AUGER
1. With the engine running near top speed, move
shift lever into one of the FORWARD or
REVERSE positions. Select a speed appropriate
for the snow conditions that exist. Use the
slower speeds until you are familiar with the
operation of the snow thrower.
2. Squeeze the left hand auger control clutch to
engage auger.
3. While the left hand auger control clutch is
engaged, engage the right hand traction control
clutch.
NOTE: NEVER move shift lever without first
releasing the drive clutch.
TIRE CHAINS (OPTIONAL)
Use tire chains when extra traction is necessary.
OPERATING TIPS
NOTE: Allow the engine to warm up for a few
minutes as the engine will not develop full power
until it reaches operating temperature.
WARNING: Temperature of muffler and
surrounding areas may exceed 150oF.
Avoid these areas.
• For most efficient snow removal, remove
snow immediately after it falls.
• Discharge snow downwind whenever
possible. Slightly overlap each previous
swath.
![](asset-e.png)
14
• Set the skid shoes 1/4" below the scraper bar
for normal usage. The skid shoes may be
adjusted upward for hard-packed snow. Adjust
downward when using on gravel or crushed
rock.
• Be certain to follow the precautions listed
under ‘‘To Stop Engine’’ in previous column to
prevent possible freeze-up.
• Clean the snow thrower thoroughly after each
use.
SECTION 8: ADJUSTMENTS
WARNING: Never attempt to clean
chute or make any adjustments while
engine is running.
ADJUSTING CHUTE
You can control the distance that snow is thrown by
adjusting the angle of the chute assembly. The
sharper the angle, the shorter the distance snow is
thrown.
1. To adjust the chute, loosen the hand knob. See
Figure 24.
2. Pivot the top of the chute assembly to the
position desired.
Figure 24
ADJUSTING SKID SHOE
The space between the shave plate and the ground
can be adjusted by adjusting the skid shoe. Slide the
skid shoe upwards and lower the housing to remove
snow close to the ground. Slide skid shoe
downwards and raise the housing to remove snow
from uneven ground like gravel. For more details,
refer to Adjusting the Skid Shoes in section 5.
ADJUSTING TRACTION CONTROL
CLUTCH
Refer to the Final Adjustments section on page 10
for instructions to adjust the traction control clutch. If
you are not sure whether you have been able to
adjust the traction control clutch properly, check as
follows.
1. Drain the gasoline from the snow thrower or put
a plastic film under the gas cap if the snow
thrower has already been operated. Tip the
snow thrower forward onto the auger housing.
2. Remove the frame cover underneath the snow
thrower by removing the six self-tapping screws.
3. With the traction control clutch released, check if
there is clearance between the friction wheel
and the drive plate in all positions of the shift
lever. For correct adjustment there has to be
enough clearance.
4. With the traction control clutch engaged, check if
the friction wheel is contacting the drive plate.
See Figure 25.
5. If adjustment is necessary, loosen the jam nut
on the traction control cable, and thread cable in
or out as necessary.
6. Tighten the jam nut to secure the cable when
correct adjustment is reached. Reassemble the
frame cover with six self-tapping screws.
Figure 25
Note: If you had earlier placed plastic film under
the gas cap, be sure to remove it once the
adjustment to the traction control clutch is done and
the snow thrower frame is re-installed.
ADJUSTING AUGER CLUTCH
To adjust the auger clutch, refer to the Final
Adjustments in section 5.
Hand
Knob
Drive
Plate
Gear
Shaft
Friction
Wheel
![](asset-f.png)
15
ADJUSTING SHIFT ROD
1. Remove the hairpin clip and flat washer from the
ferrule and remove the ferrule from the shift
lever. Place the shift lever in the fastest forward
speed position.
Models 602, 642, 662:
2. Push up on the shift arm assembly as far as it
will go. Thread the ferrule up or down the shift
rod and align with the lower hole on the wider
side of the shift lever assembly behind the
handle panel. Secure the ferrule to the shift arm
assembly again with the hardware earlier
removed.
Models 614, 644, 664, and 6A4:
3. Push down on the shift arm assembly as far as it
will go. Thread the ferrule up or down the shift
rod and align it with the hole closest to the shift
knob on the narrow side of the shift lever
assembly behind the handle panel.
NOTE: Make certain to check for correct
adjustment of the shift rod as instructed in the Final
Adjustments section before operating the snow
thrower.
CARBURETOR ADJUSTMENT
WARNING: If any adjustments are
made to the engine while the engine is
running (e.g. carburetor), keep clear of
all moving parts. Be careful of heated
surfaces and muffler.
Minor carburetor adjustment may be required to
compensate for differences in fuel, temperature,
altitude and load.
Refer to the separate engine manual packed with
your unit for carburetor adjustment information.

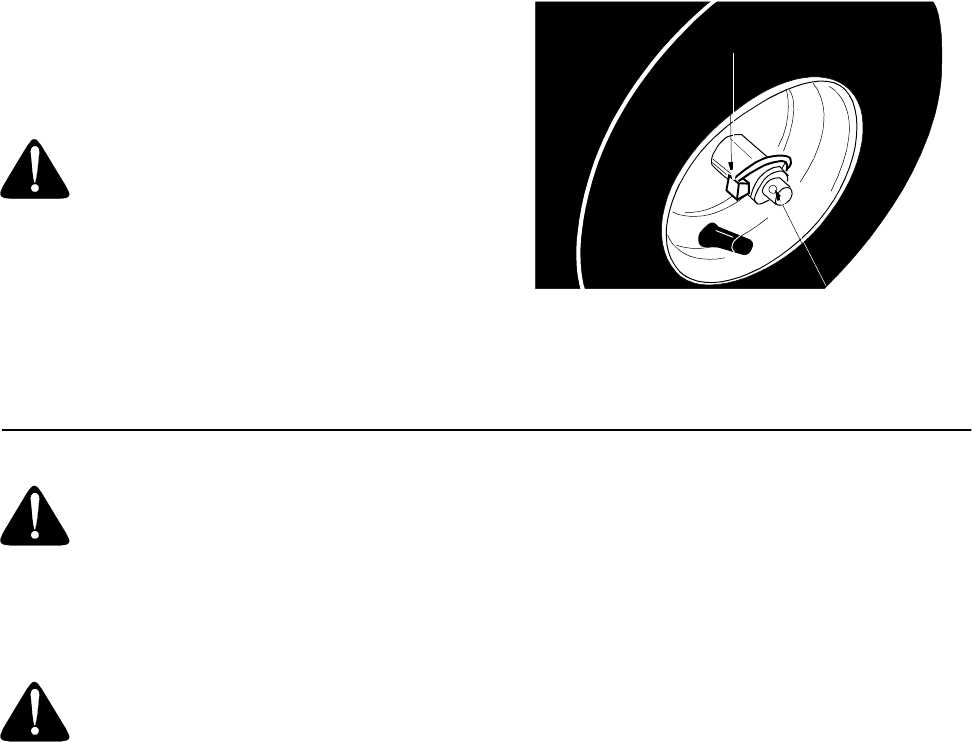

DRIVE WHEELS
The wheels may be adjusted for two different
methods of operation. The adjustment is made by
placing the klick pins in one of two different holes on
the right side of the unit. See Figure 26.
1. One Wheel Driving—Place klick pin in the
outside axle hole on the right side. This position
gives power drive to the left wheel only, making
the unit easier to maneuver.
2. Both Wheels Driving—Place klick pin in the
hole in the hub next to the rim on the right side.
This position is good for heavy snow as there is
power drive in both wheels.
Figure 26
SECTION 9: LUBRICATION
WARNING: Disconnect the spark plug
wire and ground against the engine
before performing any lubrication or
maintenance.
ENGINE
Refer to engine manual for all engine lubrication
instructions.
WARNING: When following instruct-
ions in separate engine manual for
draining oil, be sure to protect frame to
avoid oil dripping onto transmission
parts.
CHUTE DIRECTIONAL CONTROL
The gear on the end of the chute directional control
should be greased with multi-purpose automotive
grease once a season.
AUGER SHAFT
At least once a season, remove shear bolts on auger
shaft. Oil or spray lubricant inside shaft. See Figure
27. Also lubricate the auger bearings at least once a
season.
Klick Pin in Hole
in Hub Next to Rim
Outside Hole
in Axle
![](asset-10.png)
16
Figure 27
SPROCKET SHAFT
Lubricate the sprocket shaft with a light oil at least
once a season or after every 25 hours of operation.
IMPORTANT: Keep all grease and oil off of the
rubber friction wheel and aluminum drive plate.
DRIVE AND SHIFTING MECHANISM
At least once a season or after every 25 hours of
operation, remove the bottom frame cover. Lubricate
any chains, sprockets, gears, bearings, shafts, and
shifting mechanism at least once a season. Use
engine oil or a spray lubricant. Avoid getting oil on
rubber friction wheel and aluminum drive plate.
GEAR CASE
The gear case is lubricated with grease at the
factory and does not require checking. If
disassembled for any reason, lubricate with 2
ounces of shell grease, part number 737-0168.
IMPORTANT: Do not overfill the gear case.
Damage to the seals could result. Be sure the vent
plug is free of grease in order to relieve pressure.
SECTION 10: MAINTENANCE
AUGERS
The augers are secured to the spiral shaft with two
shear bolts and hex lock nuts. Refer to Figure 27. If
you hit a hard foreign object or ice jam, the snow
thrower is designed so that the hex bolts will shear.
If the augers will not turn, check to see if the bolts
have sheared. Two replacement shear bolts and hex
lock nuts have been provided with the snow thrower.
For future use, order part number 710-0890A (shear
bolt 5/16-18 x 1.5" long) and 712-0429 (hex insert
lock nut 5/16-18 thread).
SHAVE PLATE AND SKID SHOES
The shave plate and skid shoes on the bottom of the
snow thrower are subject to wear. They should be
checked periodically and replaced when necessary.
To remove skid shoes, remove the four carriage
bolts, belleville washers and hex nuts which attach
them to the snow thrower. Reassemble new skid
shoes with the four carriage bolts, belleville washers
(cupped side goes against skid shoes) and hex nuts.
Make certain the skid shoes are adjusted to the
same level on both sides.
To remove shave plate, remove the carriage bolts,
belleville washers and hex nuts which attach it to the
snow thrower housing. Reassemble new shave
plate, making sure heads of the carriage bolts are
to the inside of the housing. Tighten securely.
ENGINE
Refer to separate engine manual for all engine
maintenance procedures.
BELT REMOVAL AND REPLACEMENT
WARNING: Disconnect the spark plug
wire from the spark plug and ground.
AUGER BELTS
NOTE: It is necessary to remove both belts in
order to change either one. If changing just one belt,
be certain to check the condition of the other belt.
1. Remove the plastic belt cover on the front of the
engine by removing the two self-tapping screws.
See Figure 28.
2. Drain the gasoline from the snow thrower, or
place a piece of plastic under the gas cap.
3. Tip the snow thrower up and forward so that it
rests on the auger housing.
Figure 28
4. Remove six self-tapping screws from the frame
cover underneath the snow thrower.
Bearings
Shear
Bolts
Self-Tapping
Screws
Belt
Cover
![](asset-11.png)
17

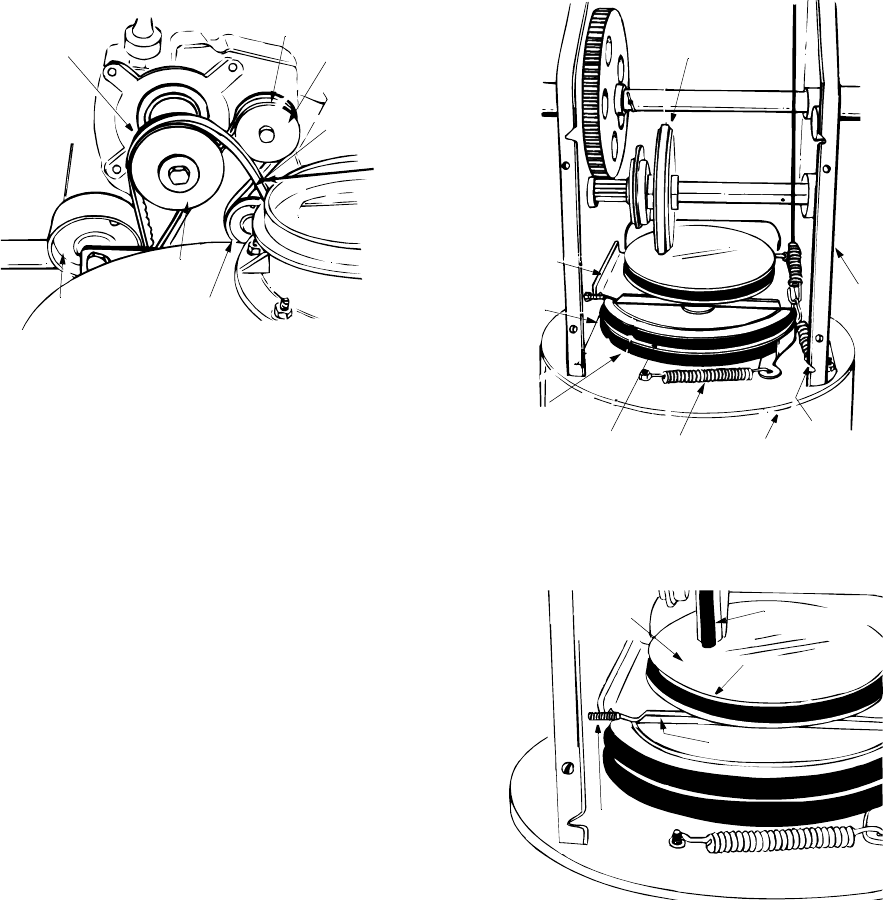

Figure 29
NOTE: It may be necessary to loosen the six hex
nuts that fasten the frame to the auger housing to
aid in belt removal.
5. Roll the front and rear auger belts off the engine
pulley. See Figure 29.
6. Unhook the idler spring from the hex bolt on the
auger housing. See Figure 30.
7. Back out the stop bolt to allow the belts to slip
between the bolt and auger pulley.
See Figure 31.
8. Lift the rear auger belt from the auger pulley,
and slip belt between the support bracket and
the auger pulley. See Figure 31. Repeat this
step for front auger belt.
9. Replace both auger control belts by following
instructions in reverse order.
DRIVE BELT
1. Follow steps 1 through 4 of previous
instructions.
2. Pull idler pulley up, and lift belt off engine pulley,
idler pulley, and friction wheel disc.
See Figure 29.
3. Back out the stop bolt until the support bracket
rests on the auger pulley. See Figure 31.
4. Slip belt between friction wheel and friction
wheel disc. See Figure 31. Remove and replace
belt. Reassemble following the instructions in
reverse order.
NOTE: The support bracket must rest on the stop
bolt after the new belt has been assembled. See
Figure 31.

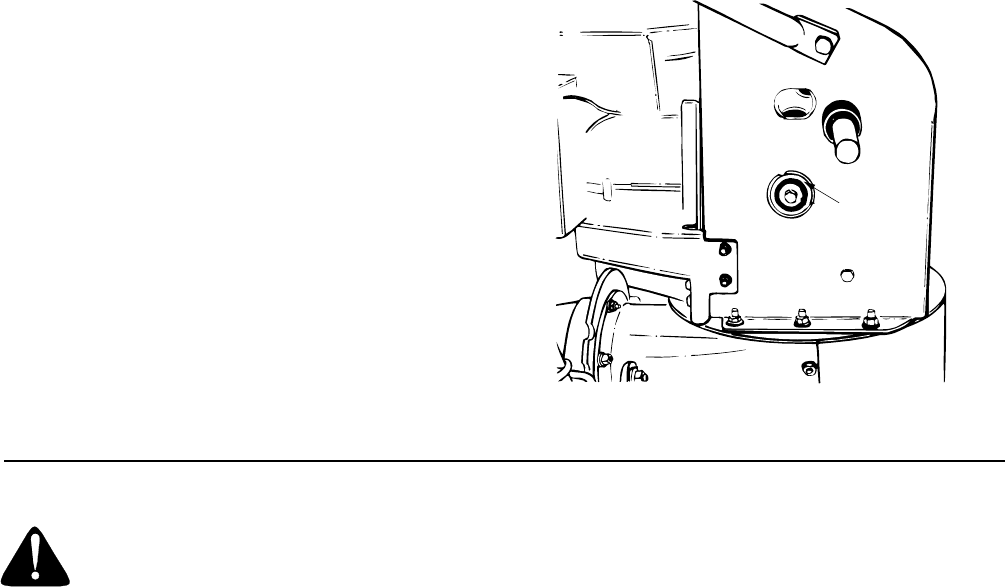

Figure 30
Figure 31
CHANGING THE FRICTION WHEEL
RUBBER
The rubber on the friction wheel is subject to wear
and should be checked after 25 hours of operation,
and periodically thereafter. Replace the friction
wheel rubber if any signs of wear or cracking are
found.
1. Drain the gasoline from the snow thrower, or
place a piece of plastic under the gas cap.
2. Tip the snow thrower up and forward, so that it
rests on the auger housing.
3. Remove six self-tapping screws from the frame
cover underneath the snow thrower.
4. Remove the klick pins which secure the wheels,
and remove the wheels from the axle.
Rear
Auger
Belt
Drive
Belt Engine
Pulley
Front
Auger
Belt
Idler
Pulley Idler
Pulley
Engine
Pulley
Friction
Wheel
Frame
Support
Bracket
Rear
Auger
Belt
Front
Auger
Pulley Auger
Pulley Idler
Spring Auger
Housing
Support
Bracket
Spring
Stop
Bolt
Friction
Wheel
Disc
Drive Belt
Friction Wheel
Support Bracket
![](asset-12.png)
18
5. Using a 7/8" wrench to hold the shaft, loosen, but
do not completely remove, the hex nut and bell
washer on the left end of gear shaft. See Figure
32.
6. Lightly tap the hex nut to dislodge the ball bearing
from the right side of frame. Remove the hex nut
and bell washer from left end of shaft.
7. Slide the gear shaft to the right and slide the
friction wheel assembly from the shaft.
8. Remove the six screws from the friction wheel
assembly (three from each side). Remove the
friction wheel rubber from between the friction
wheel plates.
9. Reassemble new friction wheel rubber to the
friction wheel assembly, tightening the six screws
in rotation and with equal force.
10. Position the friction wheel assembly up onto the
pin of the shift rod assembly, and slide the shaft
through the assembly. Reassemble in reverse
order.
Figure 32
SECTION 11: OFF-SEASON STORAGE
WARNING: Never store engine with fuel
in tank indoors or in poorly ventilated
areas, where fuel fumes may reach an
open flame, spark or pilot light as on a
furnace, water heater, clothes dryer or
other gas appliance.
1. If unit is to be stored over 30 days, prepare the
engine for storage as instructed in the separate
engine operator’s manual included with your unit.
2. Remove all dirt from exterior of engine and
equipment.
3. Follow lubrication recommendations in section 9.
NOTE: When storing any type of power equipment
in a poorly ventilated or metal storage shed, care
should be taken to rust proof the equipment. Using a
light oil or silicone, coat the equipment, especially any
chains, springs, bearings and cables.
Hex Nut
Bell
Washer
![](asset-13.png)
19
SECTION 12: TROUBLE SHOOTING GUIDE
Note: For repairs beyond the minor adjustments above, contact your local authorized service dealer.
Trouble Possible Cause(s) Corrective Action
Engine fails to start Fuel tank empty, or stale fuel.
Blocked fuel line.
Choke not in ON position
Faulty spark plug.
Key not in switch on engine.
Spark plug wire
disconnected.
Primer button not depressed.
Fuel shut-off valve closed
(if so equipped).
Improper gasoline and oil
mixture.
Fill tank with clean, fresh gasoline. Fuel will not last over thirty
days unless a fuel stabilizer is used.
Clean fuel line.
Move switch to ON position
Clean, adjust gap or replace.
Insert key.
Connect spark plug wire.
Refer to the engine manual packed with your unit.
Open fuel shut-off valve.
Refer to the engine manual packed with your unit.
Engine runs
erratic** Unit running on CHOKE.
Blocked fuel line or stale fuel.
Water or dirt in fuel system.
Carburetor out of adjustment.
Move choke lever to OFF position.
Clean fuel line; fill tank with clean fresh gasoline. Fuel will not last
over thirty days unless a fuel stabilizer is used.
Drain fuel tank. Refill with fresh fuel.
Refer to the engine manual packed with your unit or have
carburetor adjusted by an authorized service dealer.
Loss of power Spark plug wire loose.
Gas cap vent hole plugged.
Exhaust port plugged.
Connect and tighten spark plug wire.
Remove ice and snow from cap. Be certain vent hole is clear.
Clean-see Maintenance section of engine manual.
Engine overheats Carburetor not adjusted
properly. Refer to the engine manual packed with your unit or have
carburetor adjusted by an authorized service dealer.
Excessive vibration Loose parts or damaged
auger. Stop engine immediately and disconnect spark plug wire. Tighten
all bolts and nuts. Make all necessary repairs. If vibration
continues, have unit serviced by an authorized service dealer.
Unit fails to propel
itself Incorrect adjustment of drive
cable.
Drive belt loose or damaged.
Adjust drive cable. Refer to Adjustment section of this manual.
Replace drive belt. Refer to Belt Replacement in Maintenance
section of this manual.
Unit fails to
discharge snow Discharge chute clogged.
Foreign object lodged in
auger.
Incorrect adjustment of drive
cable.
Drive belt loose or damaged.
Stop engine immediately and disconnect spark plug wire. Clean
discharge chute and inside of auger housing.
Stop engine immediately and disconnect spark plug wire.
Remove object from auger.
Adjust drive cable. Refer to Adjustment section of this manual.
Replace drive belt. Refer to Belt Replacement in Maintenance
section of this manual.
![](asset-14.png)
20
Blower Housing
E602E, E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E
1
2
3
4
5
6
7
8
9
10
11
12
13
9
8
14
15
16
17
7
18
18
7
19
20
21
16 6
22
23
13
13
6
7
24
6
16
26
27
28
25
29 30
31
32
33
34
36
37
33
32
32
33
35
37
36
33
32
31 30
6
38
![](asset-15.png)
21
Blower Housing
REF.
NO. PART
NO. DESCRIPTION
1 712-0116 Lock Jam Nut 3/8-24
2 756-0178 Flat Idler
3 784-5632A Auger Idler Arm
4 710-0459A Hex Cap Screw 3/8-24 x 1.50
5 741-0475 Bushing
6 736-0242 Bell Washer
7 712-3010 Hex Nut 5/16-18
8 712-0324 Hex Lock Nut 1/4-20
9 736-0463 Flat Washer
10 705-5226 Reinforcement Chute
11 731-1379A Chute Adapter
12 710-0703 Carriage Screw 1/4-20 x .62
13 710-0451 Carriage Bolt 5/16-18
14 738-0281 Shoulder Screw
15 736-0174 Wave Washer
16 712-3068 Hex Nut 5/16-18
17 732-0611 Extension Spring
18 736-0119 Lock Washer 5/16
19 05931 Bearing Housing
20 741-0309 Ball Bearing
21 684-0039C 24” Housing Assembly
684-0040C 26” Housing Assembly
684-0041C 28” Housing Assembly
684-0055B 30” Housing Assembly
22 736-0169 Lock Washer 3/8
23 712-0798 Hex Nut 3/8-16
24 784-5580 Slide Shoe
25 784-5581A 24” Shave Plate
784-5579A 26” Shave Plate
784-5582A 28” Shave Plate
784-5575 30” Shave Plate
26 684-0065 Impeller Assembly
27 715-0114 Pin
28 618-0120 24” Gear Assembly
618-0121 26” Gear Assembly
618-0122 28” Gear Assembly
618-0160 30” Gear Assembly
29 710-0604 Hex Washer Screw 5/16-18
30 784-5618 Bearing Housing
31 741-0245 Hex Flange Bearing
32 736-0188 Flat Washer
33 741-0493A Flange Bushing
34 605-5188A Spiral 24” RH
605-5192A Spiral 26” RH
605-5196A Spiral 28” RH
605-5248A Spiral 30” RH
35 605-5189A Spiral 24” LH
605-5193A Spiral 26” LH
605-5197A Spiral 28” LH
605-5249A Spiral 30” LH
36 710-0890A Shear Bolt 5/16-18 x 1.5
37 712-0429 Lock Nut 5/16-18
38 784-5647 Chute Directional Control Bracket
REF.
NO. PART
NO. DESCRIPTION
E602E, E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E
![](asset-16.png)
22

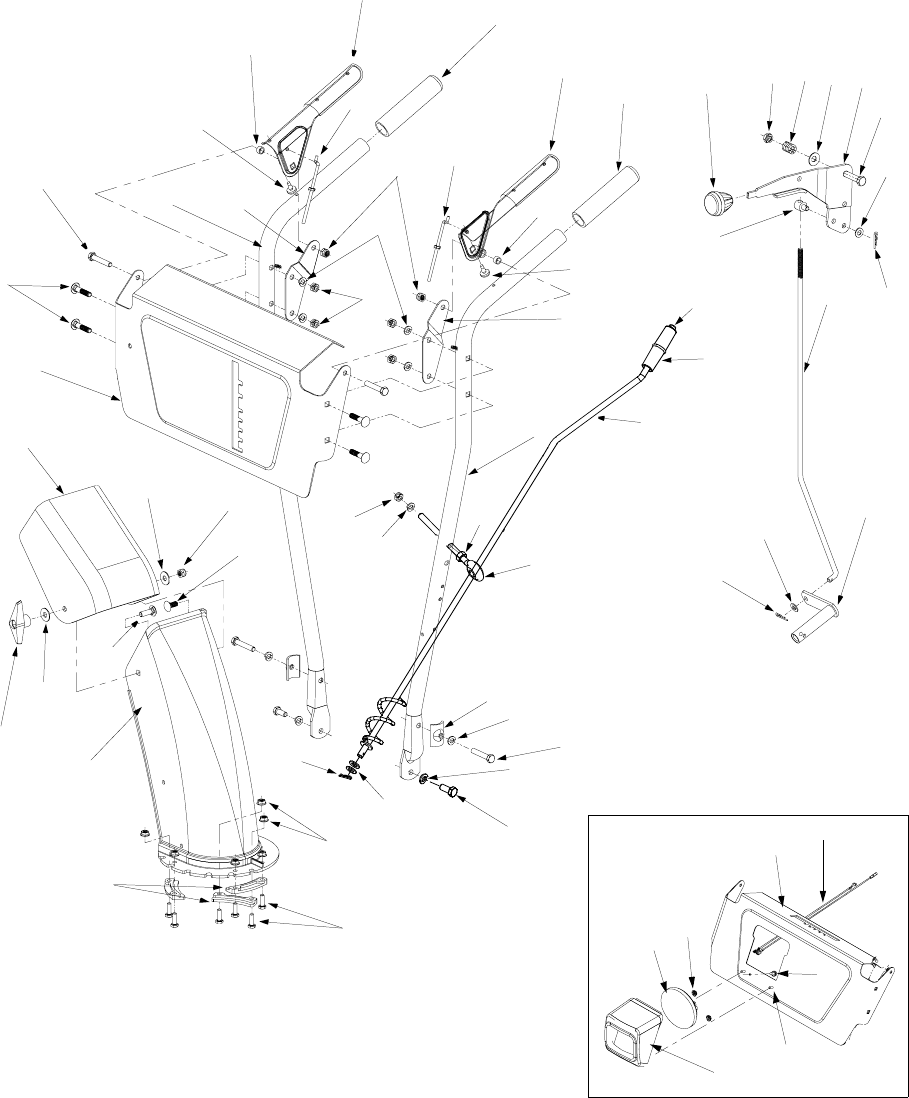

Handle Assembly
E602E, E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E
1234
5
6
7
8
9
11
15
6
7
16
16
17
18
18
19
19
20
20
21
22
23
24
25
26
27
28
29
30
24
53
23
34
35
23
36
38
22
39
40
41
39
42
43
44
45
46
17
47
29
48
49
50
51
52
14
13
7
37
10
12
24
![](asset-17.png)
23
Handle Assembly
REF.
NO. PART
NO. DESCRIPTION
1 712-0116 Jam Lock Nut 3/8-24
2 732-0193 Compression Spring
3 736-0105 Bell Washer
4 784-5619A Shift Handle
5 710-0459A Hex Cap Screw 3/8-24
6 736-0275 Flat Washer
7 714-0104 Cotter Pin
8 720-0232 Shift Knob
9 711-0677 Ferrule
10 726-0100 Push Cap
11 747-0921 Shift Rod
12 720-0201A Chute Knob
13 705-5204A Chute Directional Control
14 747-0697 Eyebolt
- 735-0234 Grommet only
15 684-0008A Shift Arm Assy
16 720-0274 Grip
17 705-5233 Clutch Lever Assy LH
705-5234 Clutch Lever Assy RH
18 750-1032 Spacer
19 735-0199A Rubber Bumper
20 746-0778 Cable
21 705-5275 Lever Bracket LH
22 712-0429 Lock Hex Nut 5/16-18
23 736-0119 Lock Washer 5/16
24 712-3010 Hex Nut 5/16-18
25 705-5274 Lever Bracket RH
26 749-0910B Handle RH
27 710-3103 Hex Cap Screw 5/16-18 x 1.75
28 710-0262 Carriage Bolt 5/16-18 x 1.50
29 684-0104 Control Panel Assy - 2 Style
684-0145 Control Panel Assy- 2 Style w/light
684-0106 Control Panel Assy - 4 Style
30 749-0911B Handle LH
34 784-5599 Handle Tab
35 710-3180 Hex Cap Screw 5/16-18 x 2.0
36 710-3008 Hex Cap Screw 5/16-18 x .75
37 736-0185 Flat Washer
38 731-0921 Upper Chute
39 736-0159 5/16 Washer
40 710-0451 Carriage Bolt 5/16-18 x .75
41 710-0276 Carriage Screw 5/16-18 x 1.0
42 720-0284 Knob
43 731-1300A Lower Chute
44 712-3027 Hex Lock Nut 1/4-20
45 731-0851A Flange Keeper
46 710-3015 Hex Cap Screw 1/4-20 x .75
47 629-0058 Round Light Harness
48 710-1652 Hex Tap Screw 1/4-20 x .625
49 710-1003 Hex Screw
50 712-0415 Hex Nut
51 725-1300 Headlight 18 Watts
52 731-1317 Headlight Cover
53 736-0242 Bell Washer
REF.
NO. PART
NO. DESCRIPTION
E602E, E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E

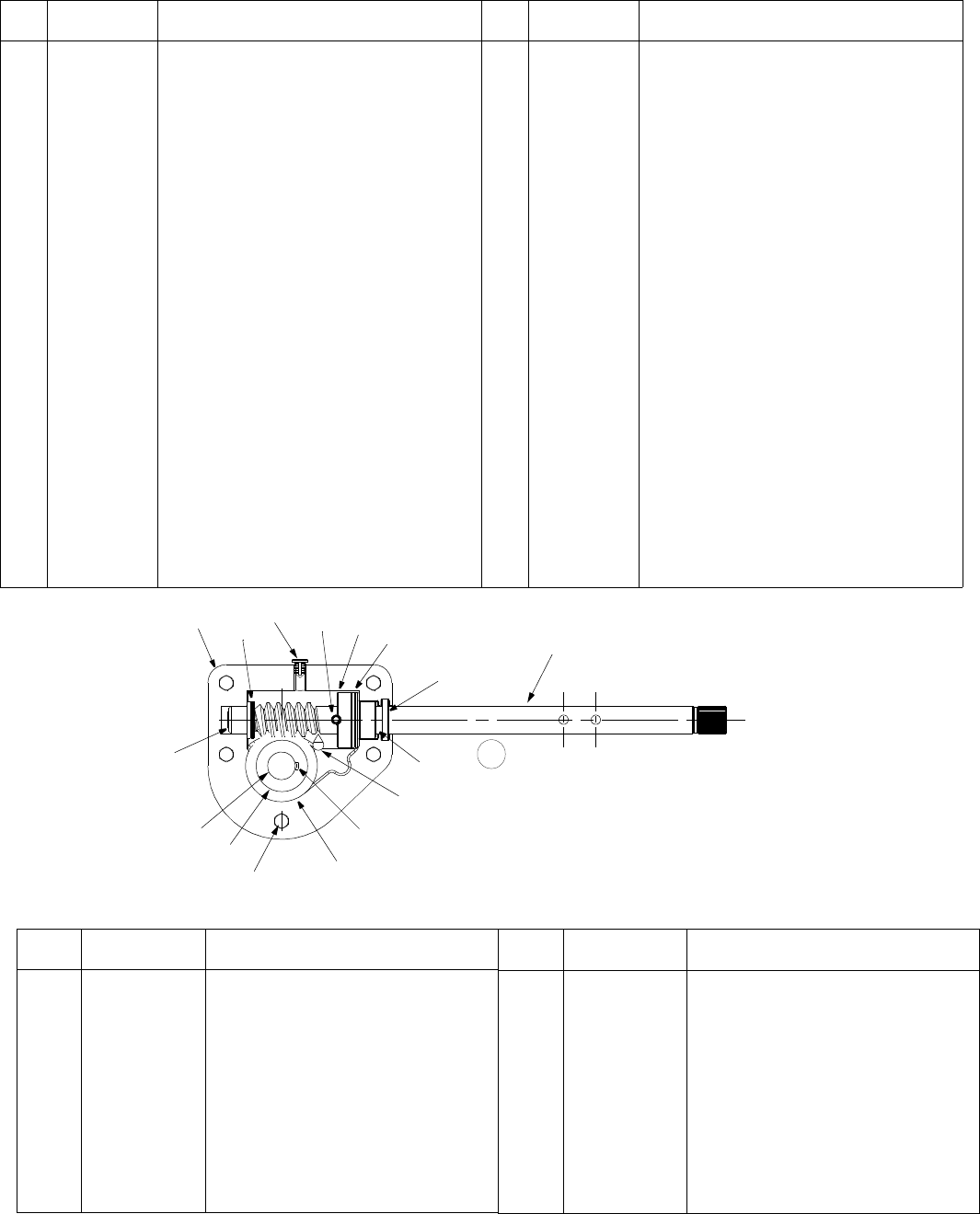

1
2
34
5
6
7
8
9
10
11
12 13
14
15
16
17
REF.
NO. PART
NO. DESCRIPTION
1 618-0123 Housing—R.H.
618-0124 Housing—L.H.
2 710-0642 Hex Screw 1/4-20 x .75
3 711-0908 Spiral Axle 24"
711-0909 Spiral Axle 26"
711-0910 Spiral Axle 28"
711-1024 Spiral Axle 30”
4 714-0161 Key
5 715-0143 Pin-Spiral
6 717-0526 Shaft-Worm
7 717-0528 Gear-Worm
8 718-0186 Collar-Thrust
9 721-0325 Plug
10 721-0327 Seal-Oil
11 736-0351 Washer-Flat
12 736-0369 Washer-Flat
13 736-0445 Washer-Flat
14 737-0168 Grease
15 741-0662 Bearing-Flange
16 741-0663 Bearing-Flange
17 618-0120 Ass’y. Complete 24"
618-0121 Ass’y. Complete 26"
618-0122 Ass’y. Complete 28"
618-0160 Ass’y Complete 30”
REF.
NO. PART
NO. DESCRIPTION
![](asset-18.png)
24
Frame Assembly
E602E, E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E
1
1
2
34
4
5
5
6
16” Wheels
13” or 15” Wheels
4
7
7
8
910
10
11
11
12
1
5
13
14
15
16
17
18
1
19
20
21
22
23
24
25
25
26
28
29
26
1
1
30
31
32
33
34
8
35
Drive Clutch
Cable
Auger Clutch
Cable
Auger Clutch
Cable
Blower
Housing
36
20
20
37
37
38
39
40
27
![](asset-19.png)
25
Frame Assembly
REF.
NO. PART
NO. DESCRIPTION
1 710-1652 Hex Screw
2 784-5688 Drive Cable Guide Bracket
3 784-5687A Auger Clutch Cable Bracket
4 756-0625 Roller Cable
5 738-0924 Hex Screw 1/4-28
6 684-0030 Frame Assembly
7 741-0563 Ball Bearing
8 736-0105 Bell Washer
9 712-0116 Lock Jam Nut
10 741-0598 Hex Flange Bearing
11 736-0188 Flat Washer
12 784-5689A Front Support Guide Bracket
13 710-0538 Lock Hex Screw
14 736-0242 Bell Washer .340 ID x .872 OD
15 714-0474 Cotter Pin
16 736-0160 Flat Washer .536 ID x .930 OD
17 710-0788 Hex Washer Screw 1/4-20
18 784-5590 Frame Shift Bracket
19 784-5638 Frame Cover
20 710-0599 Hex Washer Screw 1/4-20
21 736-0351 Flat Washer .760 ID x .50 OD
22 717-1445 Gear
23 714-0126 Key
24 717-1444 7-Tooth Shaft
25 715-0249 Roll Pin
26 714-0143 Klik Pin
27 684-0042B Friction Wheel Assembly
28 656-0012A Friction Disc Wheel
29 684-0013B Wheel Shift Rod Assembly
30 746-0897 Drive Cable
31 748-0190 Spacer
32 684-0021 Friction Wheel Bracket Assembly
33 732-0264 Extension Spring
34 712-0711 Jam Nut 3/8-24
35 746-0898 Drive Cable
36 738-0869 Axle 13” Wheels
738-0830 Axle 16” Wheels
37 784-5617A Friction Plate
38 735-0243 Friction Wheel Rubber
39 718-0301A Friction Wheel Hub
40 618-0063 Friction Wheel Bearing
REF.
NO. PART
NO. DESCRIPTION
2
1
3
5
5
4

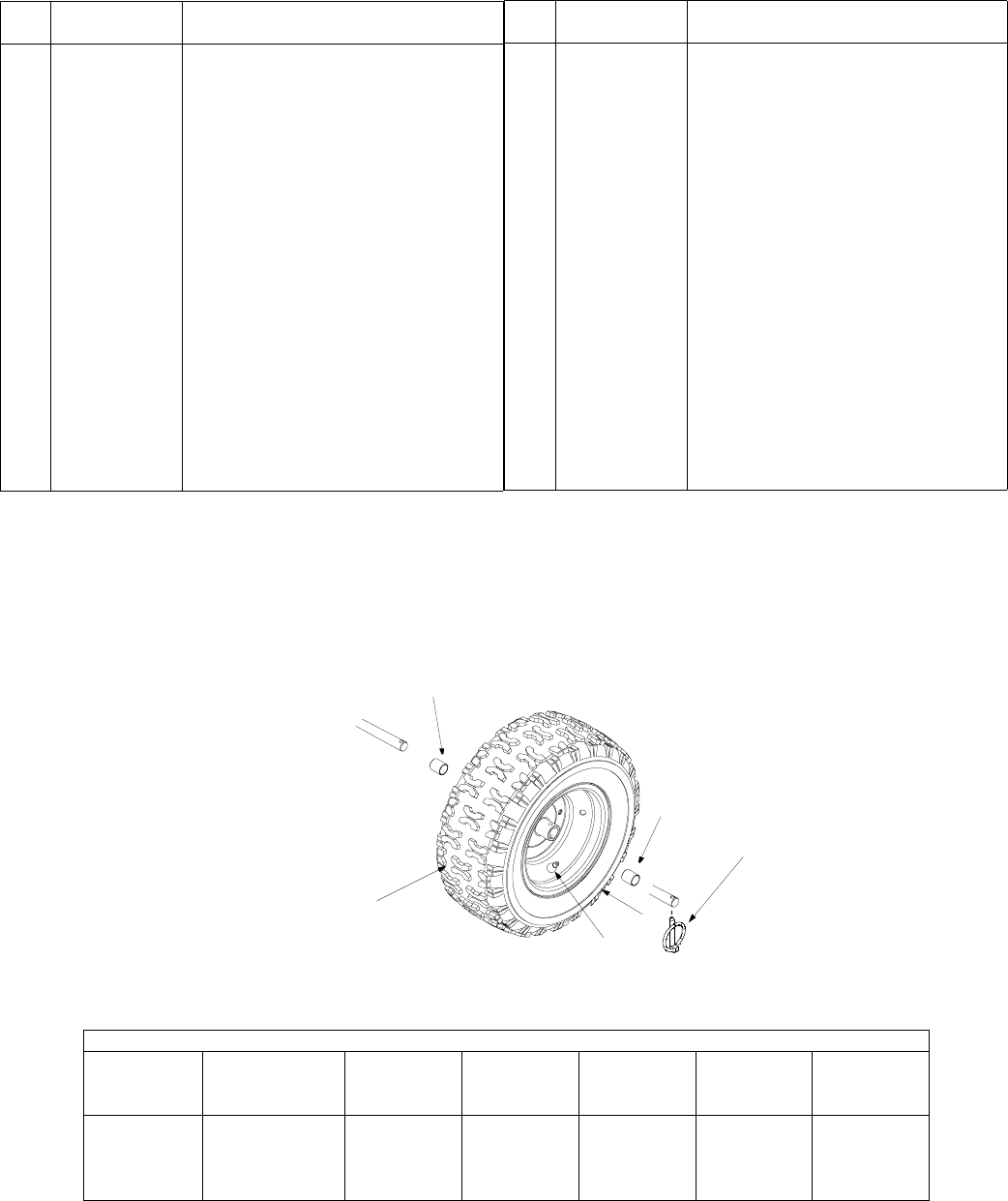

Wheel Assembly
SIZE REF. NO. 1
WHEEL ASS’Y
COMPLETE
REF. NO. 2
TIRE
ONLY
REF. NO. 3
AIR
VALVE
REF. NO. 4
RIM
ONLY
REF. NO. 5
SLEEVE
BEARING (2)
REF. NO 6
Klik Pin
13 x 4 634-0114 734-1732 734-0255 734-1713 741-0401 714-0143
13 x 5 734-1714 734-1527 734-0255 734-1713 741-0401 714-0143
16 x 6.5 734-1712 734-1525 734-0255 734-1711 741-0401 714-0143
16.5 x 4.8 734-1709 734-1530 734-0255 734-1708 741-0401 714-0143
6
E602E, E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E
![](asset-1a.png)
26

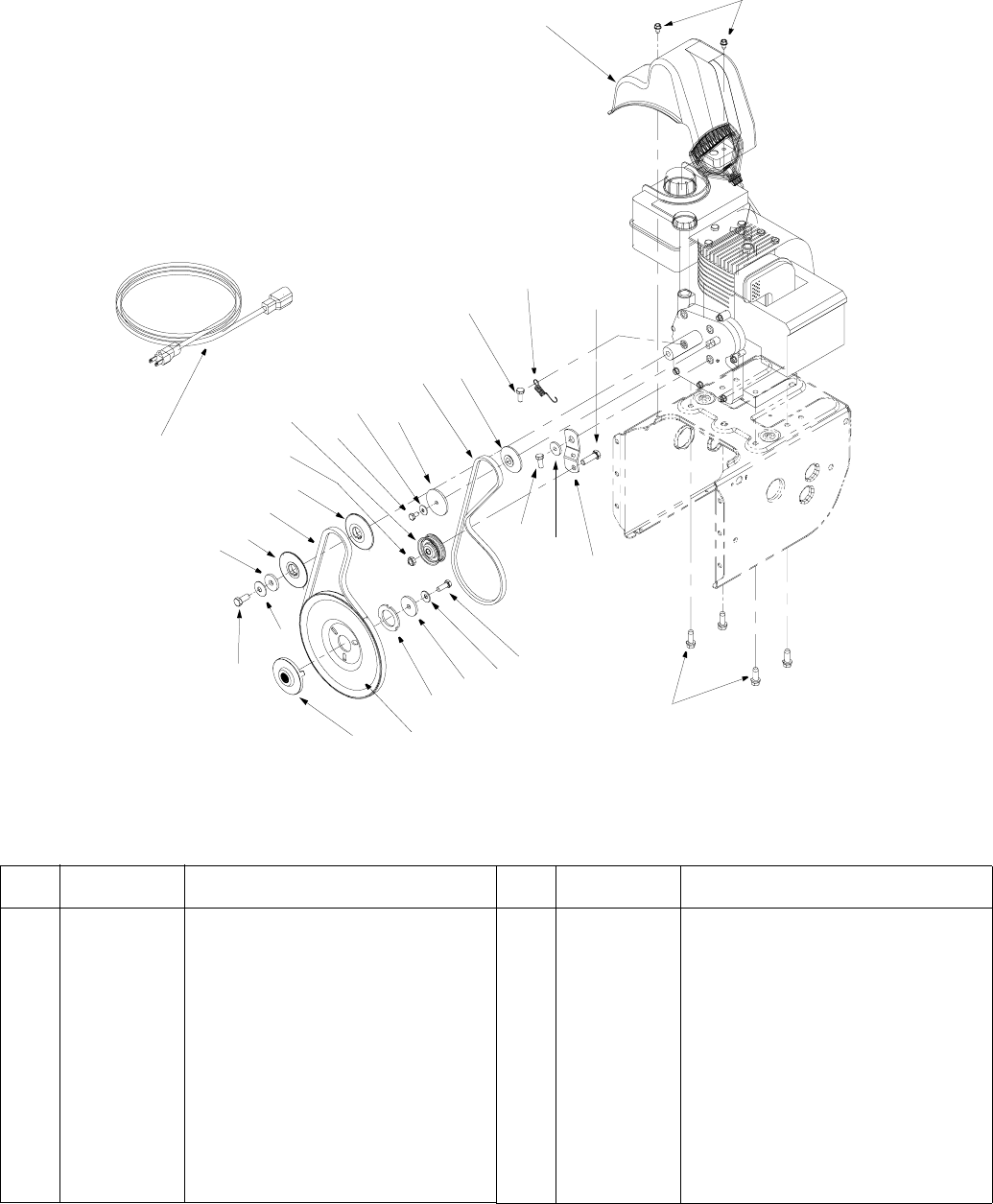

Engine and V-Belts
E602E, 614E
2
3
45
6
7
4
8
9
10
11
12
13
14
15
16
17
18
19
20
16
21
22
23
24
25
26
27
1
REF.
NO. PART
NO. DESCRIPTION
1 710-1652 Hex Washer Screw 1/4-20 x.5
2 731-1324 Belt Cover
3 732-0339 Extension Spring
4 710-0627 Hex Screw 5/16-24 x .75
5 710-3005 Hex Cap Screw 3/8-16 x 1.25
6 05896A Drive Clutch Bracket
7 748-0234 Shoulder Spacer
8 756-0985 Pulley Half
9 754-0343 V-Belt
10 756-0984 Pulley Half
11 736-0270 Bell Washer
12 710-0230 Hex Cap Screw 1/4-28 x .50
13 756-0313 Flat Idler
14 710-1245 Lock Cap Screw 5/16-24
15 712-0181 Lock Jam Nut 3/8-16
16 756-0569 Pulley Half
17 736-0242 Bell Washer
18 736-0505 Flat Washer
19 736-0507 Washer
20 754-0430A Belt
21 756-0967 Auger Pulley
22 736-0247 Flat Washer
23 736-0331 Bell Washer
24 710-0696 Hex Cap Screw 3/8-24
25 748-0360 Pulley
26 710-0654A Hex Washer Screw 3/8-16 x 1.0
27 629-0071 Extension Cord
OEM-390-986 Electric Start Kit
REF.
NO. PART
NO. DESCRIPTION
IMPORTANT: For a proper working machine, use Factory
Approved Parts.
V-BELTS are specially designed to engage and disengage
safely. A substitute (non OEM) V-Belt can be dangerous by not
disengaging completely.
![](asset-1b.png)
27

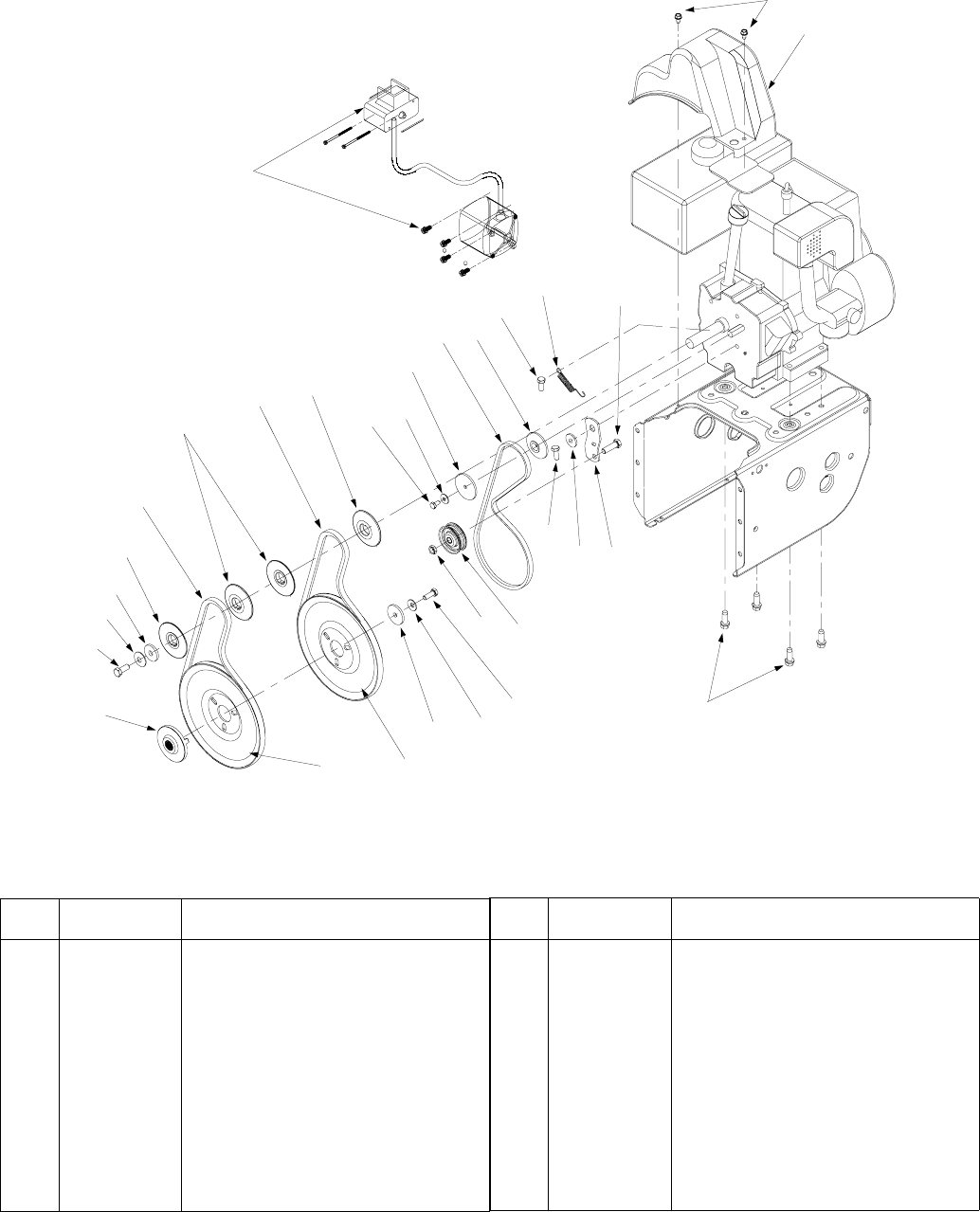

Engine and V-Belts
E642E, E642F, E662E, E662H, 614E, E644E, E664F AND E6A4E
1
2
3
4
5
6
7
5
8
9
10
11
12
13
14
15
16
17
18
19
19
20
20
20
21
21
22
23
24
25
26
REF.
NO. PART
NO. DESCRIPTION
1 710-1652 Hex Washer Screw 1/4-20 x .50
2 731-1324 Belt Cover
3 710-3005 Hex Cap Screw 3/8-16 x 1.25
4 732-0710 Spring Extension
5 710-0627 Hex Screw 5/16-24 x .75
6 05896A Drive Clutch Idler Bracket
7 748-0234 Shoulder Spacer
8 756-0987 Pulley Half
9 754-0346 Belt
10 756-0986 Pulley Half
11 736-0270 Bell Washer
12 710-0230 Hex Cap Screw
13 756-0313 Flat Idler
14 712-0181 Lock Jam Nut 3/8-16
15 710-0654A Hex Washer Screw 3/8-16 x 1.0
16 710-1245 Hex Lock Screw 5/16-24 x .875
17 736-0242 Bell Washer .340 ID x .872 OD
18 736-0505 Flat Washer .341 ID x .50 OD
19 756-0967 Pulley Auger
20 756-0569 Pulley Half
21 754-0430A V-Belt
22 736-0247 Flat Washer
23 736-0331 Bell Washer .39 ID x 1.13 OD
24 710-0696 Hex Cap Screw 3/8-24 x .875
25 748-0360 Pulley Adapter
26 OEM-390-987 Electric Start
REF.
NO. PART
NO. DESCRIPTION
IMPORTANT: For a proper working machine, use Factory
Approved Parts.
V-BELTS are specially designed to engage and disengage
safely. A substitute (non OEM) V-Belt can be dangerous by not
disengaging completely.
![](asset-1c.png)
MANUFACTURER’S LIMITED WARRANTY FOR:
The limited warranty set forth below is given by MTD
PRODUCTS INC (“MTD”) with respect to new merchan-
dise purchased and used in the United States, its posses-
sions and territories.
MTD warrants this product against defects in material and
workmanship for a period of two (2) years commencing on
the date of original purchase and will, at its option, repair or
replace, free of charge, any part found to be defective in
material or workmanship. This limited warranty shall only
apply if this product has been operated and maintained in
accordance with the Operator’s Manual furnished with the
product, and has not been subject to misuse, abuse, com-
mercial use, neglect, accident, improper maintenance,
alteration, vandalism, theft, fire, water or damage because
of other peril or natural disaster. Damage resulting from the
installation or use of any accessory or attachment not
approved by MTD Products Inc. for use with the product(s)
covered by this manual will void your warranty as to any
resulting damages.
Normal wear parts or components thereof are subject to
separate terms as follows: All normal wear part or compo-
nent failures will be covered on the product for a period of
90 days regardless of cause. After 90 days, but within the
two year period, normal wear part failures will be covered
ONLY IF caused by defects in material or workmanship of
OTHER component parts. Normal wear parts and compo-
nents include, but are not limited to, belts, blades, blade
adapters, grass bags, rider deck wheels, seats, snow
thrower skid shoes, shave plates and tires. Batteries are
covered by a 90-day limited replacement warranty.
HOW TO OBTAIN SERVICE: Warranty service is avail-
able, WITH PROOF OF PURCHASE THROUGH YOUR
LOCAL AUTHORIZED SERVICE DEALER. To locate the
dealer in your area, please check for a listing in the Yellow
Pages or contact the Customer Service Department of
MTD PRODUCTS INC by calling 1-800-800-7310 or writ-
ing to P.O. Box 368022, Cleveland, Ohio 44136-9722. No
product returned directly to the factory will be accepted
unless prior written permission has been extended by the
Customer Service Department of MTD PRODUCTS INC.
This limited warranty does not provide coverage in the
following cases:
a. The engine or component parts thereof. These items
carry a separate manufacturer’s warranty. Please
refer to the applicable manufacturer’s warranty on
these items.
b. Routine maintenance items such as lubricants, filters,
blade sharpening and tune-ups, or adjustments such
as brake adjustments, clutch adjustments or deck
adjustments; and normal deterioration of the exterior
finish due to use or exposure.
c. Log splitter pumps, valves and cylinders have a sepa-
rate one year warranty.
d. MTD does not extend any warranty for products sold
or exported outside of the United States of America,
its possessions and territories, except those sold
through MTD’s authorized channels of export distribu-
tion.
No implied warranty, including any implied warranty of
merchantability or fitness for a particular purpose,
applies after the applicable period of express written
warranty above as to the parts as identified. No other
express warranty or guaranty, whether written or oral,
except as mentioned above, given by any person or
entity, including a dealer or retailer, with respect to any
product shall bind MTD. During the period of the War-
ranty, the exclusive remedy is repair or replacement of
the product as set forth above. (Some states do not
allow limitations on how long an implied warranty lasts, so
the above limitation may not apply to you.)
The provisions as set forth in this Warranty provide the
sole and exclusive remedy arising from the sales. MTD
shall not be liable for incidental or consequential loss
or damages including, without limitation, expenses
incurred for substitute or replacement lawn care ser-
vices, for transportation or for related expenses, or for
rental expenses to temporarily replace a warranted
product. (Some states do not allow the exclusion or limita-
tion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you.)
In no event shall recovery of any kind be greater than the
amount of the purchase price of the product sold. Alteration
of the safety features of the product shall void this War-
ranty. You assume the risk and liability for loss, damage, or
injury to you and your property and/or to others and their
property arising out of the use or misuse or inability to use
the product.
This limited warranty shall not extend to anyone other than
the original purchaser, original lessee or the person for
whom it was purchased as a gift.
How State Law Relates to this Warranty: This limited
warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
