Safety • Assembly • Operation • Tips & Techniques • Maintenance • Troubleshooting • Parts Lists • Warranty

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-

covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any).

If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law

(Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester

for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland,

Ohio 44136-0019.

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

PRINTED IN U.S.A.

READ SAFETY RULES AND INSTRUCTIONS CAREFULLY BEFORE OPERATION

IMPORTANT

OPERATOR’S MANUAL

21” Rotary Mower — Model Series 580

9/21/2006

FORM NO. 769-02310A

2

Finding and Recording Model Number

Table of Contents

BEFORE YOU BEGIN TO ASSEMBLE YOUR NEW

EQUIPMENT, please locate the model plate on the

equipment and copy the information to the sample

model plate provided to the right. You can locate the

model plate by standing at the operating position and

looking down at the rear of the deck. This information

will be necessary to use the manufacturer’s web

site, to obtain assistance from the Customer Sup-

port Department, or when contacting an authorized

service dealer.

This Operator’s Manual is an important part of your new lawn mower. It will help you assemble,

prepare and maintain the unit for best performance. Please read and understand what it says.

Model Number Serial Number

• Visit www.mtdproducts.com

• Call a Customer Support Representative at 1-800-800-7310.

• The engine manufacturer is responsible for all engine-related issues with regards to performance, power-

rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s

Manual, packed separately with your unit, for more information.

MTD LLC reserves the right to change product specifications, designs, and equipment without notice and without incurring obligation.

Please do

NOT

return the unit to the retailer from which it was

purchased, without first contacting Customer Support.

Customer Support

Slope Gauge........................................................ 3

Safe Operation Practices ................................... 4

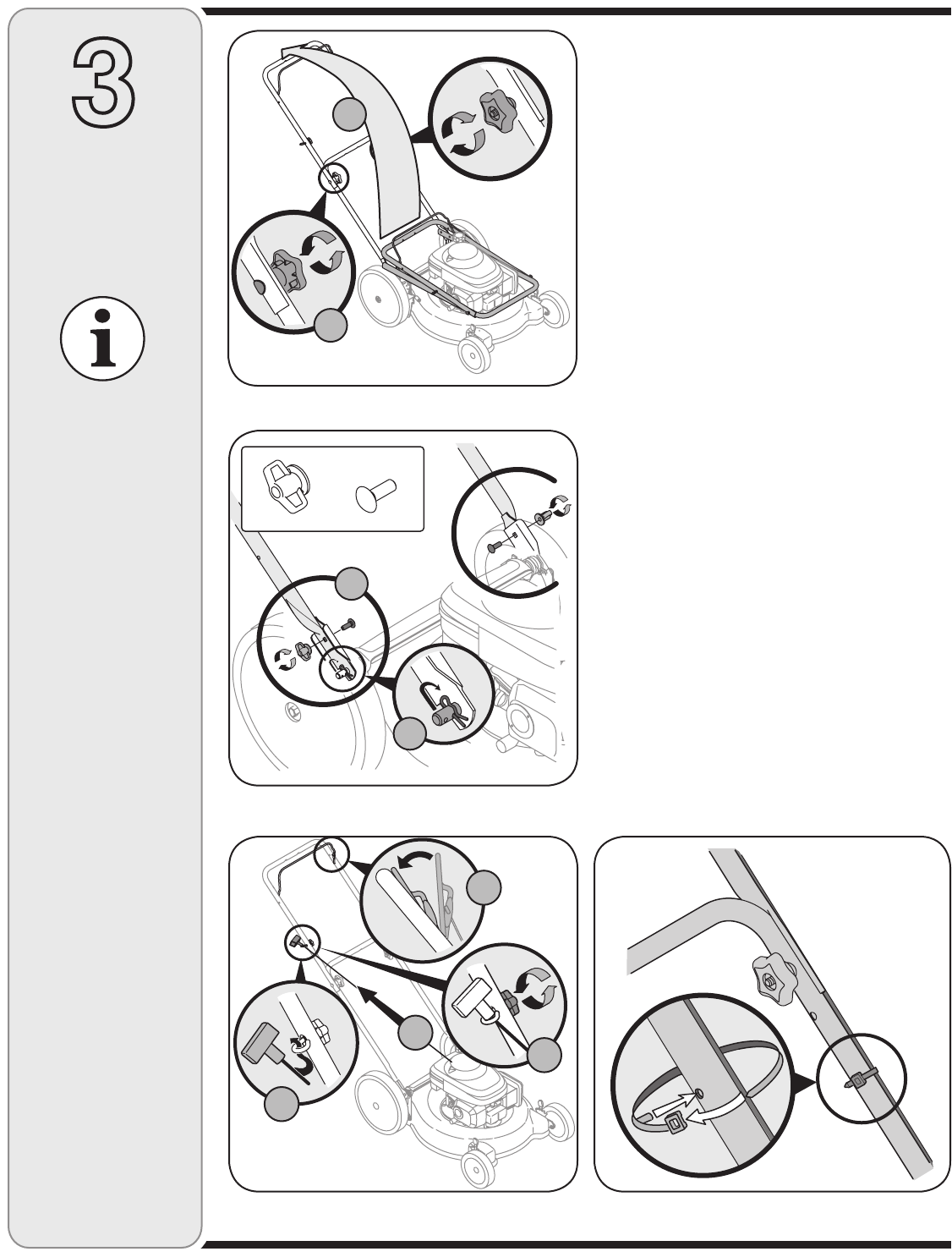

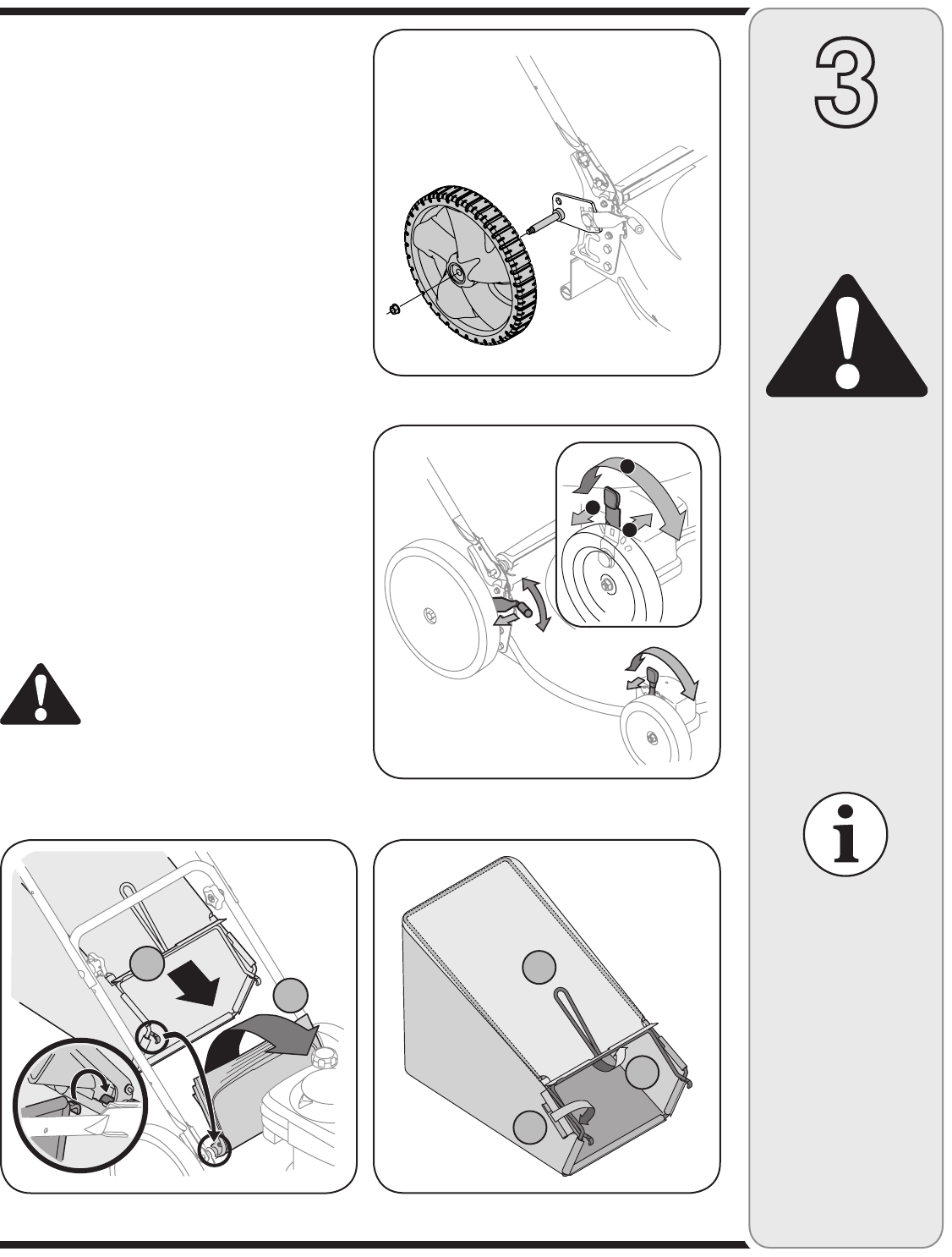

Setup and Adjustment ....................................... 6

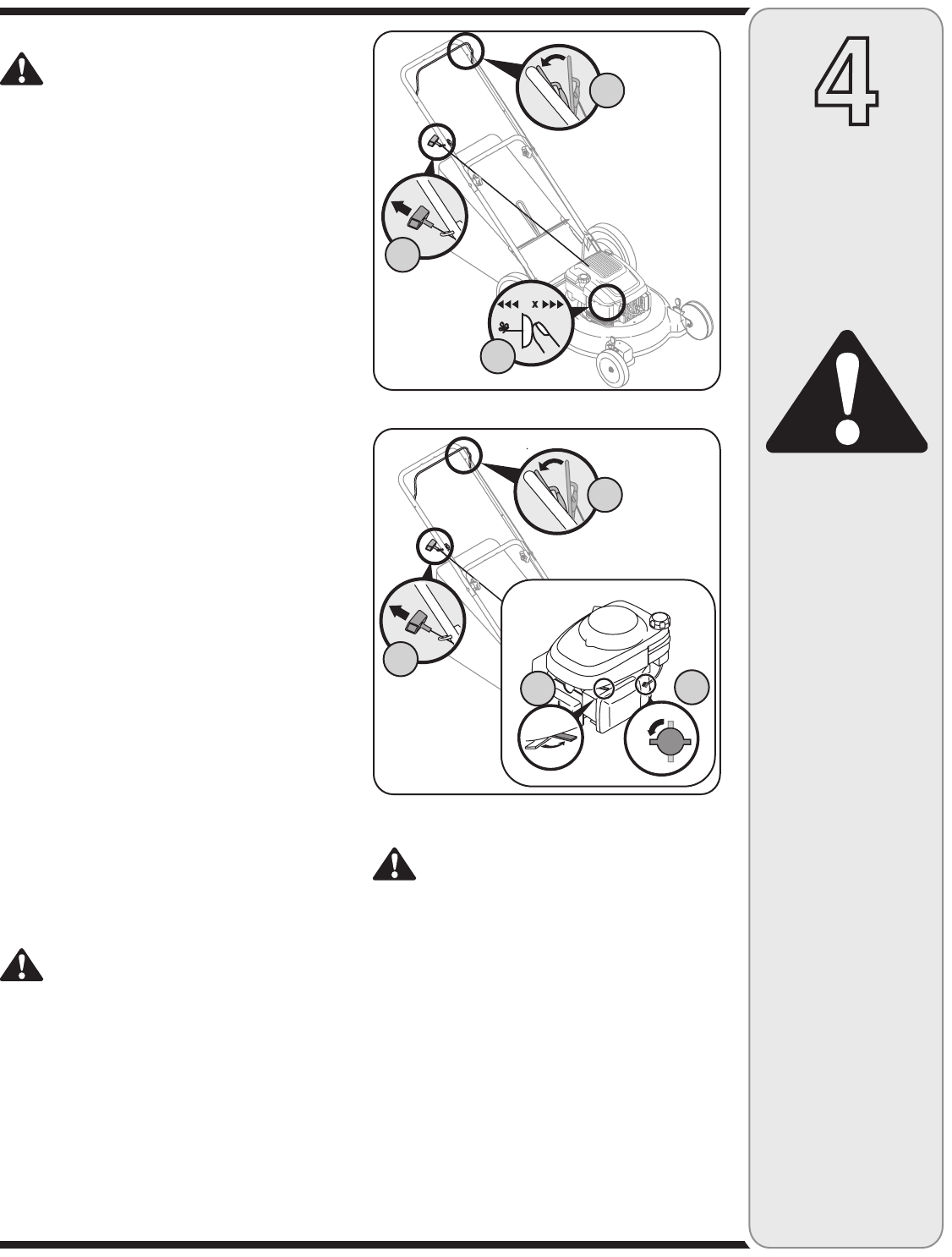

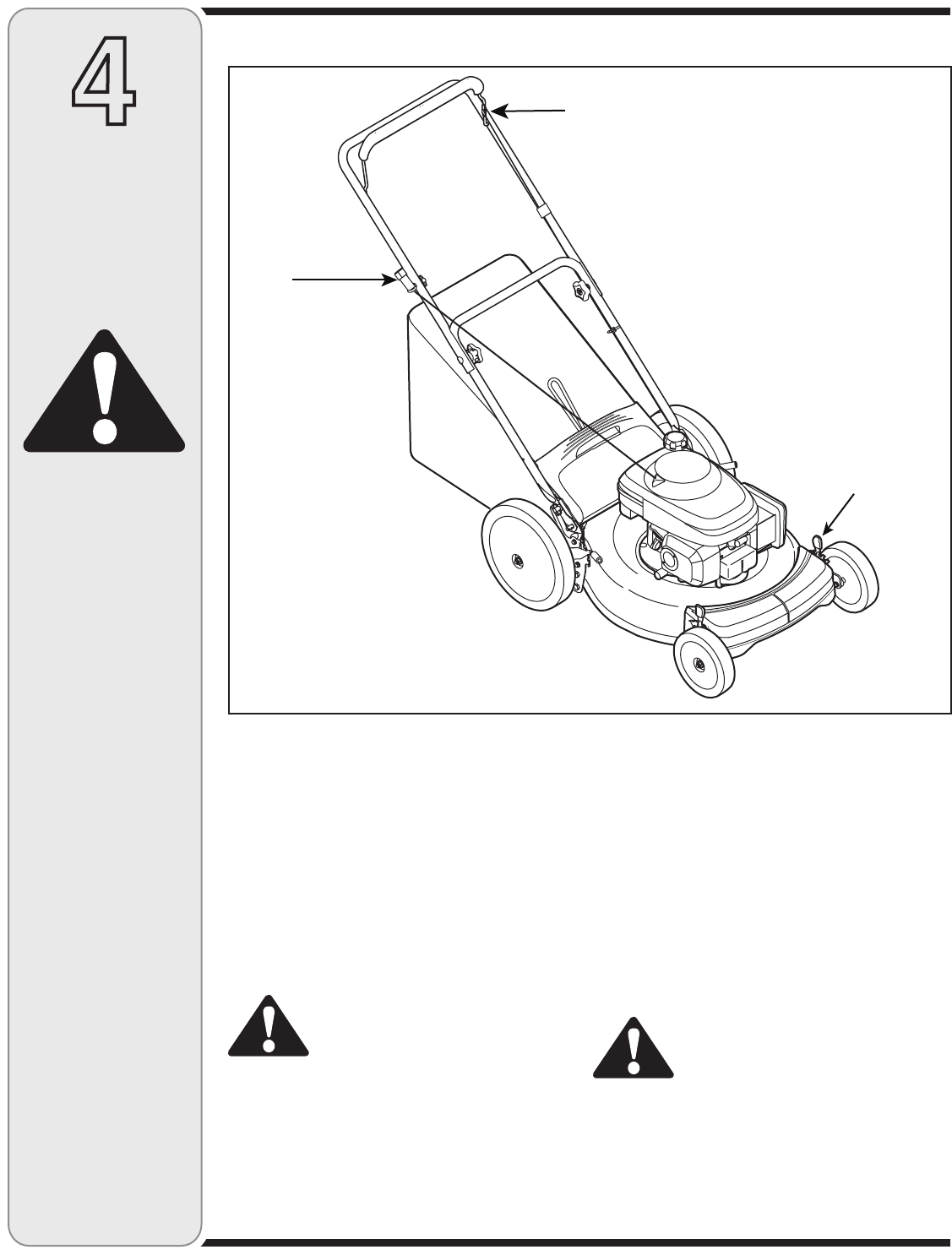

Operating Your Lawn Mower .............................. 8

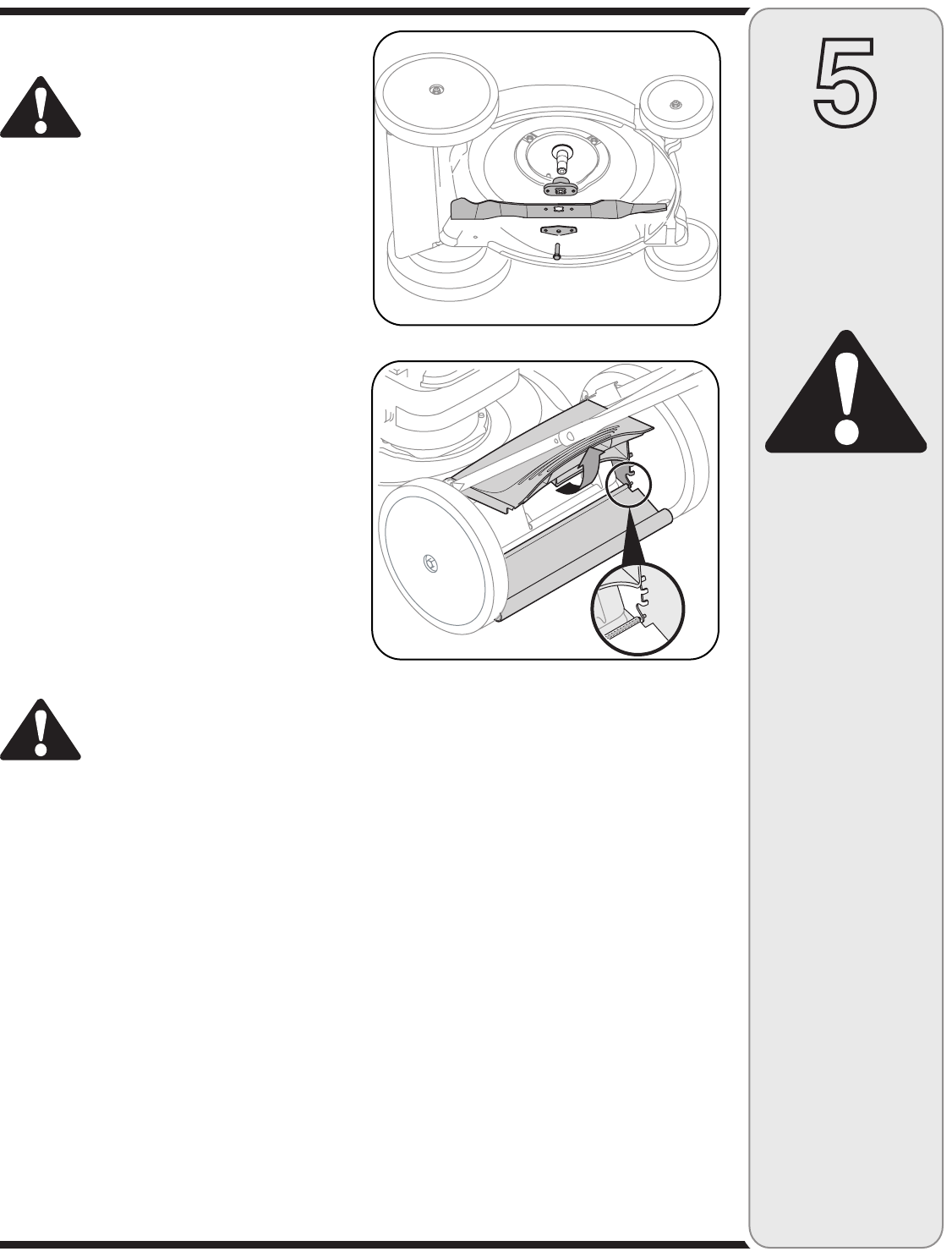

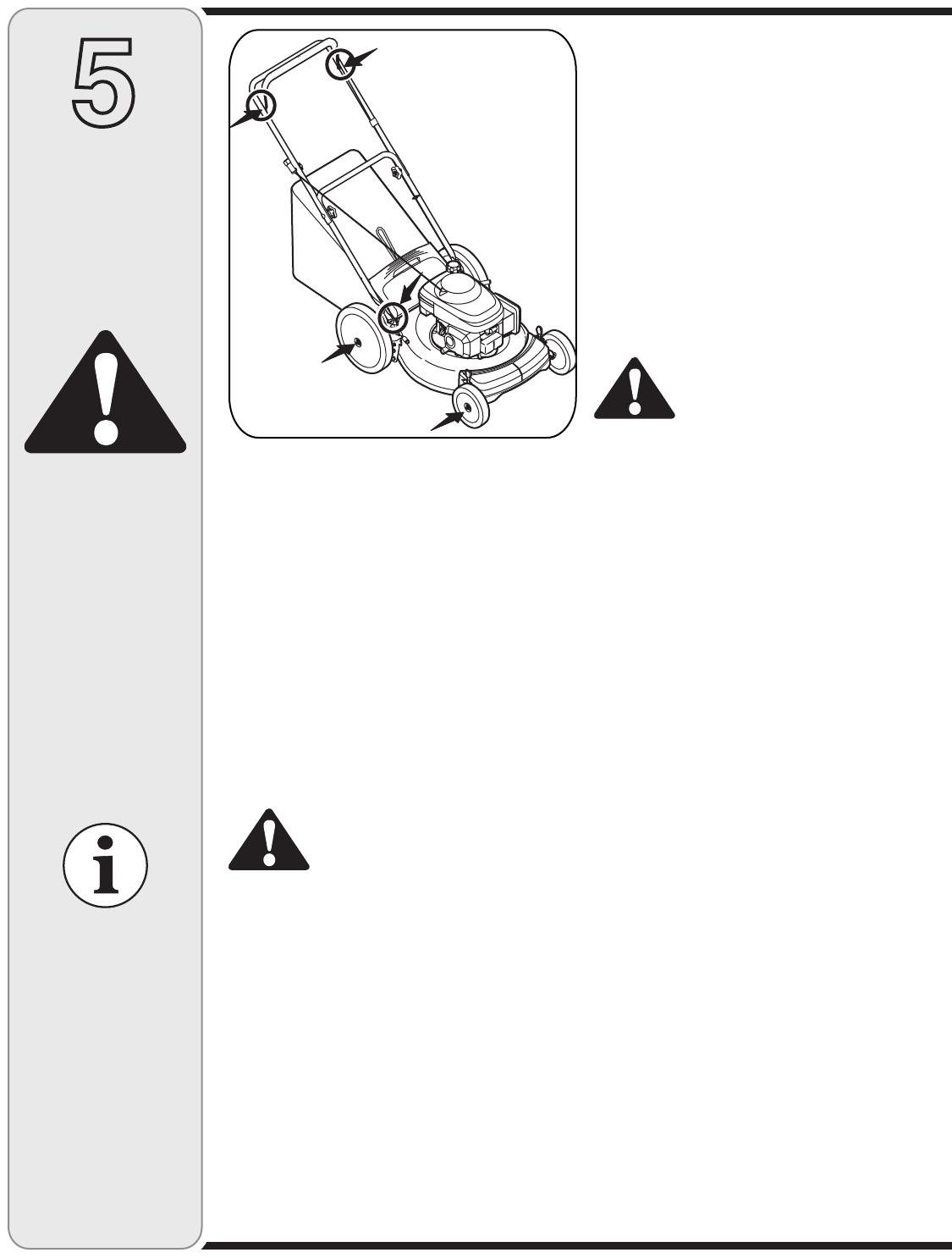

Maintaining Your Lawn Mower ......................... 10

Troubleshooting ................................................ 12

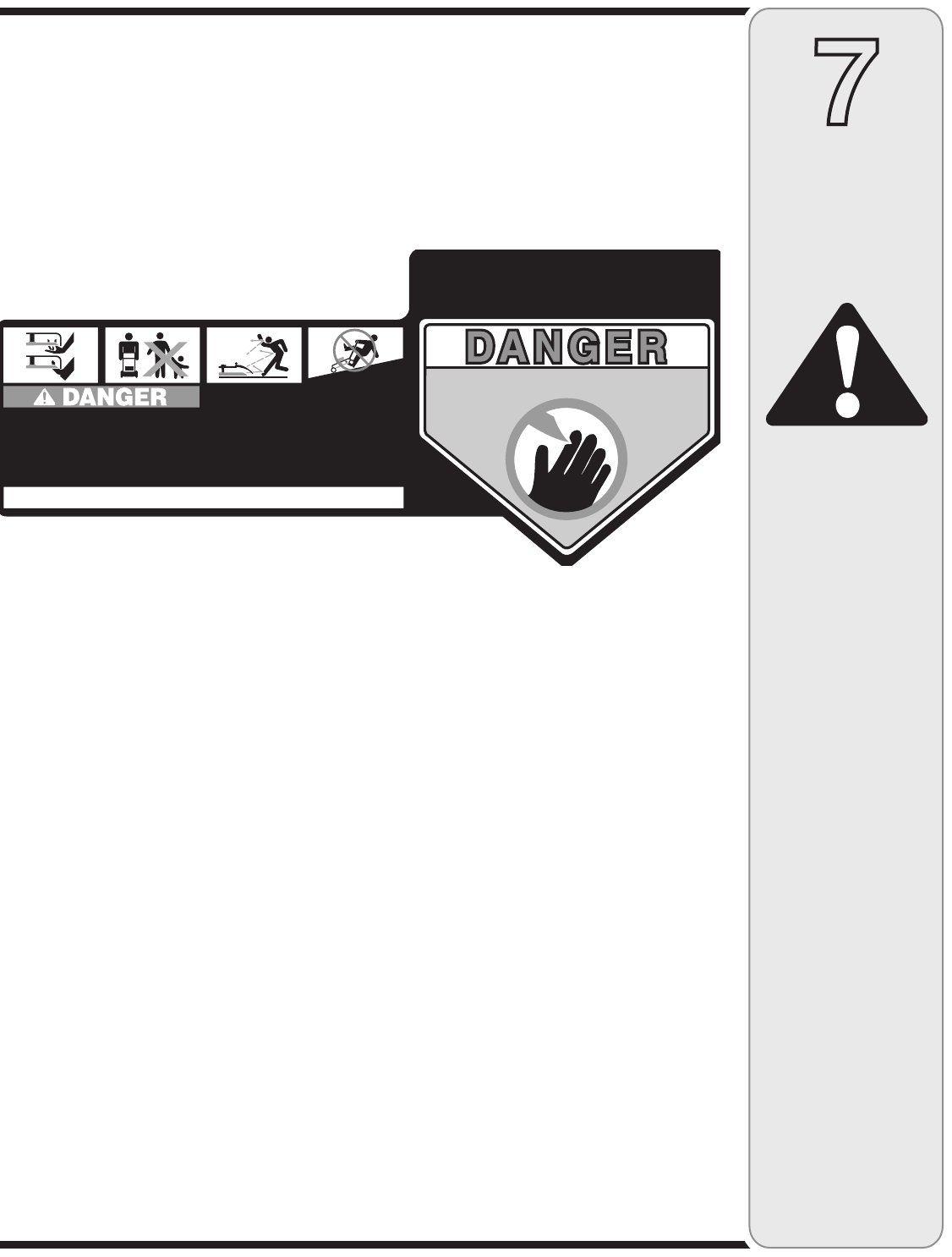

Safety Labels .................................................... 13

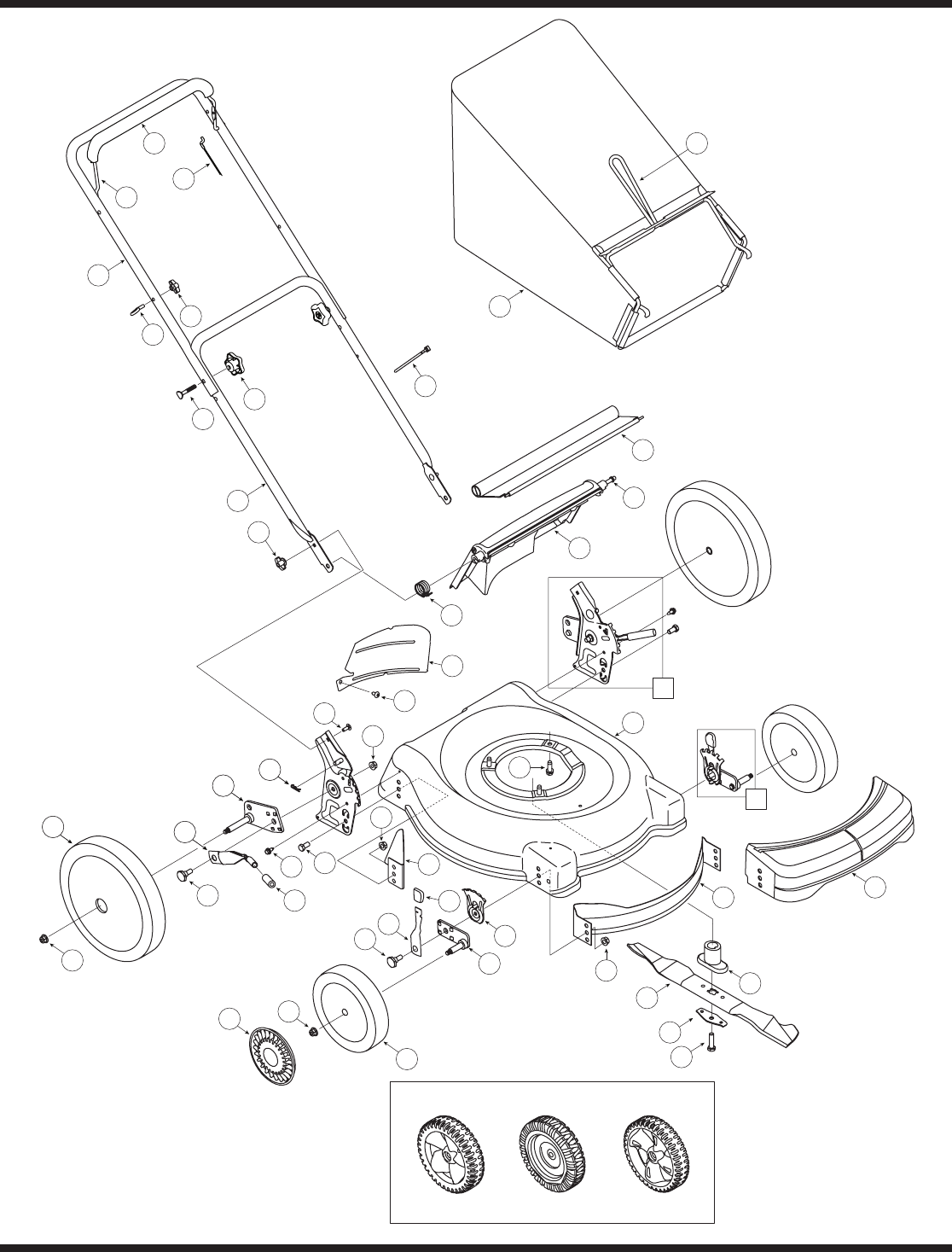

Parts List ........................................................... 14

Warranty .............................................Back Cover

If you have difficulty assembling this product or have any questions regarding the controls, operation, or

maintenance of this unit, you can seek help from the experts. Choose from the options below:

3

1

Slope

Gauge

WARNING

Do not mow on inclines

with a slope in excess

of 15 degrees (a rise

of approximately

2-1/2 feet every 10

feet). A riding mower

could overturn and

cause serious injury.

If operating a walk-

behind mower on such

a slope, it is extremely

difficult to maintain your

footing and you could

slip, resulting in serious

injury.

Operate RIDING

mowers up and down

slopes, never across

the face of slopes.

Operate

WALK-BEHIND

mowers across the

face of slopes, never

up and down slopes.

3IGHTANDHOLDTHISLEVELWITHAVERTICALTREE

ORACORNEROFABUILDING

ORAFENCEPOST

&OLDALONGDOTTEDLINEREPRESENTSASLOPE



Use this page as a guide to determine slopes where you may not operate safely.

Do not operate your lawn mower on such slopes.

4

2

Safe

Operation

Practices Children

Tragic accidents can occur if operator is not alert to presence

of children. Children are often attracted to mower and mowing

activity. They do not understand the dangers. Never assume

that children will remain where you last saw them.

1. Keep children out of the mowing area and under watchful

care of a responsible adult other than the operator.

2. Be alert and turn mower off if a child enters the area.

3. Before and while moving backwards, look behind and down

for small children.

4. Use extreme care when approaching blind corners,

doorways, shrubs, trees, or other objects that may obscure

your vision of a child who may run into the mower.

5. Keep children away from hot or running engines. They can

suffer burns from a hot muffler.

6. Never allow children under 14 years old to operate a power

mower. Children 14 years old and over should read and

understand operation instructions and safety rules in this

manual and should be trained and supervised by a parent.

General Operation

1. Read this operator’s manual carefully in its entirety before

attempting to assemble this machine. Read, understand,

and follow all instructions on the machine and in the

manual(s) before operation. Be completely familiar with

the controls and the proper use of this machine before

operating it. Keep this manual in a safe place for future

and regular reference and for ordering replacement parts.

2. This machine is a precision piece of power equipment,

not a plaything. Therefore, exercise extreme caution at all

times. Your unit has been designed to perform one job: to

mow grass. Do not use it for any other purpose.

3. Never allow children under 14 years old to operate this

machine. Children 14 years old and over should read and

understand the instructions in this manual and should

be trained and supervised by a parent. Only responsible

individuals who are familiar with these rules of safe

operation should be allowed to use this machine.

4. Thoroughly inspect the area where the equipment is to

be used. Remove all stones, sticks, wire, bones, toys

and other foreign objects, which could be tripped over or

picked up and thrown by the blade. Thrown objects can

cause serious personal injury. Plan your mowing pattern

to avoid discharge of material toward roads, sidewalks,

bystanders and the like. Also, avoid discharging material

against a wall or obstruction, which may cause discharged

material to ricochet back toward the operator.

5. To help avoid blade contact or a thrown object injury,

stay in operator zone behind handles and keep children,

bystanders, helpers and pets at least 75 feet from mower

while it is in operation. Stop machine if anyone enters

area.

6. Always wear safety glasses or safety goggles during opera-

tion and while performing an adjustment or repair to protect

your eyes. Thrown objects which ricochet can cause serious

injury to the eyes.

7. Wear sturdy, rough-soled work shoes and close-fitting

slacks and shirts. Shirts and pants that cover the arms and

legs and steel-toed shoes are recommended. Never operate

this machine in bare feet, sandals, slippery or light-weight

(e.g. canvas) shoes.

8. Do not put hands or feet near rotating parts or under cutting

deck. Contact with blade can amputate hands and feet.

9. A missing or damaged discharge cover can cause blade

contact or thrown object injuries.

10. Many injuries occur as a result of the mower being pulled

over the foot during a fall caused by slipping or tripping.

Do not hold on to the mower if you are falling; release the

handle immediately.

11. Never pull the mower back toward you while you are

walking. If you must back the mower away from a wall or

obstruction first look down and behind to avoid tripping and

then follow these steps:

a. Step back from mower to fully extend your arms.

b. Be sure you are well balanced with sure footing.

c. Pull the mower back slowly, no more than half way

toward you.

d. Repeat these steps as needed.

12. Do not operate the mower while under the influence of

alcohol or drugs.

13. Do not engage the self-propelled mechanism on units so

equipped while starting engine.

14. The blade control handle is a safety device. Never attempt

to bypass its operation. Doing so makes the safety device

inoperative and may result in personal injury through

contact with the rotating blade. The blade control handle

must operate easily in both directions and automatically

return to the disengaged position when released.

15. Never operate the mower in wet grass. Always be sure of

your footing. A slip and fall can cause serious personal

injury. If you feel you are losing your footing, release the

blade control handle immediately and the blade will stop

rotating within three seconds.

16. Mow only in daylight or good artificial light. Walk, never run.

17. Stop the blade when crossing gravel drives, walks or roads.

18. If the equipment should start to vibrate abnormally, stop the

engine and check immediately for the cause. Vibration is

generally a warning of trouble.

WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo-

nents contain or emit chemicals known to State of California to cause cancer and

birth defects or other reproductive harm.

WARNING

This symbol points

out important safety

instructions which, if

not followed, could

endanger the personal

safety and/or property

of yourself and others.

Read and follow all

instructions in this

manual before at-

tempting to operate

this machine. Failure

to comply with these

instructions may result

in personal injury. When

you see this symbol.

HEED ITS WARNING!

Your Responsibility

Restrict the use

of this power machine

to persons who read,

understand

and follow the warnings

and instructions

in this manual

and on the machine.

DANGER: This machine was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator

can result in serious injury. This machine is capable of amputating hands and feet and throwing

objects. Failure to observe the following safety instructions could result in serious injury or death.

5

19. Shut the engine off and wait until the blade comes to a

complete stop before removing the grass catcher or unclog-

ging the chute.

The cutting blade continues to rotate for a few seconds after

the engine is shut off. Never place any part of the body in

the blade area until you are sure the blade has stopped

rotating.

20. Never operate mower without proper trail shield, discharge

cover, grass catcher, blade control handle or other safety

protective devices in place and working. Never operate

mower with damaged safety devices. Failure to do so can

result in personal injury.

21. Muffler and engine become hot and can cause a burn. Do

not touch.

22. Only use parts and accessories made for this machine by

manufacturer. Failure to do so can result in personal injury.

23. If situations occur which are not covered in this manual,

use care and good judgment. Contact your dealer for

assistance.

Slope Operation

Slopes are a major factor related to slip and fall accidents, which

can result in severe injury. Operation on slopes requires extra

caution. If you feel uneasy on a slope, do not mow it. For your

safety, use the slope gauge included as part of this manual to

measure slopes before operating this unit on a sloped or hilly

area. If the slope is greater than 15 degrees, do not mow it.

Do:

1. Mow across the face of slopes; never up and down. Exercise

extreme caution when changing direction on slopes.

2. Watch for holes, ruts, rocks, hidden objects, or bumps

which can cause you to slip or trip. Tall grass can hide

obstacles.

3. Always be sure of your footing. A slip and fall can cause

serious personal injury. If you feel you are losing your

balance, release the blade control handle immediately, and

the blade will stop rotating within 3 seconds.

Do Not:

1. Do not mow near drop-offs, ditches or embankments, you

could lose your footing or balance.

2. Do not mow slopes greater than 15 degrees as shown on

the slope gauge.

3. Do not mow on wet grass. Unstable footing could cause

slipping.

Service

Safe Handling Of Gasoline:

1. To avoid personal injury or property damage use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive. Serious personal injury can

occur when gasoline is spilled on yourself or your clothes,

which can ignite. Wash your skin and change clothes

immediately.

2. Use only an approved gasoline container.

3. Never fill containers inside a vehicle or on a truck or trailer

bed with a plastic liner. Always place containers on the

ground away from your vehicle before filling.

4. Remove gas-powered equipment from the truck or trailer

and refuel it on the ground. If this is not possible, then refuel

such equipment on a trailer with a portable container, rather

than from a gasoline dispenser nozzle.

5. Keep the nozzle in contact with the rim of the fuel tank or

container opening at all times until fueling is complete. Do

not use a nozzle lock-open device.

6. Extinguish all cigarettes, cigars, pipes and other sources

of ignition.

7. Never fuel machine indoor because flammable vapors will

accumulate in the area.

8. Never remove gas cap or add fuel while engine is hot or

running. Allow engine to cool at least two minutes before

refueling.

9. Never over fill fuel tank. Fill tank to no more than ½ inch

below bottom of filler neck to provide for fuel expansion.

10. Replace gasoline cap and tighten securely.

11. If gasoline is spilled, wipe it off the engine and equipment.

Move unit to another area. Wait 5 minutes before starting

engine.

12. Never store the machine or fuel container near an open

flame, spark or pilot light as on a water heater, space

heater, furnace, clothes dryer or other gas appliances.

13. To reduce fire hazard, keep mower free of grass, leaves,

or other debris build-up. Clean up oil or fuel spillage and

remove any fuel soaked debris.

14. Allow a mower to cool at least 5 minutes before storing.

General Service:

1. Never run an engine indoors or in a poorly ventilated area.

Engine exhaust contains carbon monoxide, an odorless

and deadly gas.

2. Before cleaning, repairing, or inspecting, make certain the

blade and all moving parts have stopped. Disconnect the

spark plug wire and ground against the engine to prevent

unintended starting.

3. Check the blade and engine mounting bolts at frequent

intervals for proper tightness. Also, visually inspect blade

for damage (e.g., bent, cracked, worn) Replace blade with

the original equipment manufacture’s (O.E.M.) blade only,

listed in this manual. “Use of parts which do not meet the

original equipment specifications may lead to improper

performance and compromise safety!”

4. Mower blades are sharp and can cut. Wrap the blade or

wear gloves, and use extra caution when servicing them.

5. Keep all nuts, bolts, and screws tight to be sure the equip-

ment is in safe working condition.

6. Never tamper with safety devices. Check their proper

operation regularly.

7. After striking a foreign object, stop the engine, discon-

nect the spark plug wire and ground against the engine.

Thoroughly inspect the mower for any damage. Repair the

damage before starting and operating the mower.

8. Never attempt to make a wheel or cutting height adjust-

ment while the engine is running.

9. Grass catcher components, discharge cover, and trail

shield are subject to wear and damage which could

expose moving parts or allow objects to be thrown. For

safety protection, frequently check components and re-

place immediately with original equipment manufacturer’s

(O.E.M.) parts only, listed in this manual. “Use of parts

which do not meet the original equipment specifications

may lead to improper performance and compromise

safety!”

10. Do not change the engine governor setting or over-rev the

engine. The governor controls the maximum safe operating

speed of the engine.

11. Maintain or replace safety labels, as necessary.

12. Observe proper disposal laws and regulations. Improper

disposal of fluids and materials can harm the environment.

2

Safe

Operation

Practices

WARNING

This symbol points

out important safety

instructions, which if

not followed, could

endanger the personal

safety and/or property

of yourself and others.

Read and follow all

instructions in this man-

ual before attempting to

operate this machine.

Failure to comply with

these instructions may

result in personal injury.

When you see this

symbol.

HEED IT’S WARNING!

Your Responsibility

Restrict the use

of this power machine

to persons who read,

understand

and follow the warnings

and instructions

in this manual

and on the machine.

6

3

Setup and

Adjustment

1. Remove any packing material which may be between

upper and lower handles.

a. Pull up and back on upper handle as shown in

Figure 3-1. Make certain the lower handle is seated

securely into the handle mounting brackets.

b. Tighten hand knobs securing upper handle to

lower handle. Make sure that each carriage bolt is

seated properly in the handle.

2. Locate hairpin clip in one hole on the weld pin on each

side of lower handle.

NOTE: Your mower is shipped with the handle in the

higher height position.

a. Remove hairpin clip from this hole. Using a pair of

pliers, insert hairpin clip into the other hole on the

weld pin. Repeat on other side. See Figure 3-2.

b. Insert a carriage bolt from the hardware pack into

the upper hole on the handle mounting bracket.

Secure with one plastic wing nut, also included

in the hardware pack. Repeat on other side with

remaining items from hardware pack.

3. The rope guide is attached to the right side of the

upper handle. Loosen the wing nut which secures the

rope guide.

a. Hold blade control handle against upper handle.

b. Pull starter rope out of the engine. Release blade

control handle. See Figure 3-3.

c. Slip starter rope into rope guide.

d. Tighten wing nut.

4. Insert post on cable ties into holes provided on the

lower handle. Pull cable tie tight and trim excess.

5. If not already installed, assemble rear wheels as

described below:

a. Place rear of the mower deck on raised blocks.

b. Remove lock nut from pivot arm assembly (on

select models, these may be included separately

in a plastic bag).

NOTE: Stand behind

the mower as if you

were going to operate

it. Your right hand cor-

responds to the right

side of the mower; your

left hand corresponds

to the left side of the

mower.

IMPORTANT

This unit is shipped

without gasoline or

oil in the engine. Fill

up gasoline and oil

as instructed in the

accompanying engine

manual BEFORE

operating your mower.

NOTE: Each end of

the lower handle must

be placed in the same

relative position.

NOTE: This Operator’s

Manual covers

several models. Lawn

Mower features vary by

model. Not all features

discussed (or engines

pictured) in this manual

are applicable to all

Lawn Mower models.

Figure 3-1: Unfold handle and tighten hardware.

Figure 3-2: Secure lower handle to mounting brackets.

Figure 3-3: Pull recoil starter through rope guide and tighten. Figure 3-4: Secure cable to handle using cable ties.

A

B

Wing Nuts (2)

Hardware Pack

Carriage Bolts (2)

A

B

A

C

D

B

7

CUTTING HEIGHT

All wheels must be

placed in the same

relative position.

GRASS CATCHER

Make certain bag is

turned right side out

before assembling

(warning label will be

on the outside).

3

Setup and

Adjustment

Never operate mower

unless the hooks on

the grass catcher are

firmly seated in the

slots on the handle

bracket assemblies,

and the rear dis-

charge door rests

firmly against top of

the grass catcher.

c. Slide wheel, with hollow side in, onto pivot arm and

secure with lock nut. See Figure 3-5.

d. Assemble the other side in the same manner.

6. An adjusting plate and thumb lever at each wheel

position provides cutting height adjustment.

a. Depress lever towards wheel.

b. Move it to any of the nine positions for desired

cutting height. See Figure 3-6.

c. Release lever towards mower deck.

7. Follow steps below to assemble the grass catcher:

a. Place bag over frame so that its black plastic side

is at the bottom.

b. Slip plastic channel of grass bag over hooks on

the frame. See Figure 3-7. All the plastic channels

except center top of bag attach from outside of

bag.

c. Attach center top of bag from inside of bag.

8. Follow steps below to attach grass catcher:

a. Lift rear discharge door.

b. Place grass catcher on the pivot rod. Let go

of discharge door so that it rests on the grass

catcher. See Figure 3-8.

To remove grass catcher or convert to a mulcher, lift rear

discharge door on the mower as shown in Figure 3-8. Lift

grass catcher up and out of the pivot rod. Release rear

discharge door to allow it to close rear opening of mower.

WARNING: Never operate mower

unless the hooks on the grass

catcher are firmly seated in the

slots on the handle bracket as-

semblies, and the rear discharge

door rests firmly against top of

the grass catcher.

WARNING

A

C

B

Figure 3-7: Assemble the grass catcher (if needed).

Figure 3-8: Attach the grass catcher.

Figure 3-6: Use adjustment levers at each wheel to change the

cutting height.

Figure 3-5: If not already installed, assemble rear wheels.

B

A

A

B

C

8

4

Operating

Your Lawn

Mower

Now that you have set up your lawn mower for opera-

tion, get aquainted with its controls and features. These

are described below and illustrated on this page. This

knowledge will allow you to use your new equipment to

its fullest potential.

Blade Control

The blade control is attached to the upper handle of

the mower. Depress and squeeze it against the upper

handle to operate the unit. Release it to stop engine and

blade.

WARNING: This blade control mecha-

nism is a safety device. Never attempt

to bypass its operations.

Cutting Height Adjustment Levers

One adjustment lever is located on each wheel and is

used to adjust the cutting height. All four levers have to

be at the same relative position to ensure a uniform cut.

Recoil Starter

The recoil starter is attached to the right upper handle.

Stand behind the unit and pull the recoil starter rope to

start the unit.

Gas and Oil Fill-Up

1. Check oil level and add oil if necessary. Follow engine

manual for this.

2. Service the engine with gasoline as instructed in the

engine manual. See engine manual for location of

gasoline and oil fill.

WARNING: Use extreme care when han-

dling gasoline. Gasoline is extremely

flammable and the vapors are explosive.

Never fuel the machine indoors or while

the engine is hot or running. Extinguish

cigarettes, cigars, pipes and other

sources of ignition.

WARNING

The blade control

mechanism is a

safety device. Never

attempt to bypass its

operations.

Use extreme care

when handling

gasoline. Gasoline is

extremely flammable

and the vapors are

explosive. Never fuel

the machine indoors

or while the engine

is hot or running.

Extinguish cigarettes,

cigars, pipes and

other sources of

ignition.

Keep hands and feet

away from the chute

area on cutting deck.

Refer to warning

label on the unit.

Know Your Lawn Mower

Figure 4-1: The main components on the mower.

Blade Control

Recoil

Starter

Cutting Height

Adjustment Lever

(for each wheel)

9

4

Operating

Your Lawn

Mower

WARNING

The operation of any

lawn mower can result

in foreign objects

being thrown into

the eyes, which can

damage your eyes

severely. Always wear

safety glasses while

operating the mower,

or while performing

any adjustments or

repairs on it.

Be sure no one other

than the operator is

standing near the lawn

mower while starting

engine or operating

mower. Never run

engine indoors or

in enclosed, poorly

ventilated areas. En-

gine exhaust contains

carbon monoxide, an

odorless and deadly

gas. Keep hands, feet,

hair and loose clothing

away from any moving

parts on engine and

lawn mower.

WARNING: If you strike a foreign object,

stop the engine. Remove wire from the

spark plug, thoroughly inspect mower for

any damage, and repair damage before restarting

and operating. Extensive vibration of mower during

operation is an indication of damage. The unit

should be promptly inspected and repaired.

Using as Mulcher

For mulching grass, remove the grass catcher from the

mower. For effective mulching, do not cut wet grass. If

the grass has been allowed to grow in excess of four

inches, mulching is not recommended. Use the grass

catcher to bag clippings instead.

Using Grass Catcher

You can use the grass catcher to collect clippings while

you are operating the mower. Refer to setup section for

instructions on attaching the grass catcher.

Starting Engine

WARNING: Be sure no one other than the

operator is standing near the lawn mower

while starting engine or operating mower. Never

run engine indoors or in enclosed, poorly ventilated

areas. Engine exhaust contains carbon monoxide, an

odorless and deadly gas. Keep hands, feet, hair and

loose clothing away from any moving parts on engine

and lawn mower.

Follow the set of instructions pertaining to your unit.

Refer to engine manual for help with the engine.

Briggs & Stratton/ Tecumseh Engine:

1. Push primer three times. Wait about two seconds

between each push. See Figure 4-2. In temperature

around 55° F or below, prime five times. Do not prime

to restart a warm engine.

2. Standing behind the mower, squeeze the blade control

against upper handle.

3. Holding these two handles together firmly, grasp recoil

starter handle and pull rope out with a rapid, continu-

ous, full arm stroke. See Figure 4-2. Keeping a firm

grip on the starter handle, let the rope rewind slowly.

Repeat until engine cranks. Let the rope rewind each

time slowly.

Honda Engine:

1. Place the fuel valve lever found on the left side of the

engine into the ON (OPEN) position. See Figure 4-3.

2. Move the choke lever all the way backward into the

choke position.

3. Standing behind the mower, squeeze the blade control

against upper handle. The choke will now begin to

slowly return to the off choke position after activating

the blade control. Therefore, quickly move onto step

four below.

4. Holding these two handles together firmly, grasp recoil

starter handle and pull rope out with a rapid, continu-

ous, full arm stroke. See Figure 4-3. Keeping a firm

grip on the starter handle let the rope rewind slowly.

Repeat until engine cranks. Let the rope rewind each

time slowly.

WARNING: Wait for the blade to stop com-

pletely before performing any work on the

mower or to remove the grass catcher.

Stopping Engine

1. Release blade control to stop the engine and blade.

2. Disconnect spark plug wire from spark plug and

ground against the engine.

Using Your Lawn Mower

Be sure lawn is clear of stones, sticks, wire, or other

objects which could damage lawn mower or engine.

Such objects could be accidently thrown by the mower

in any direction and cause serious personal injury to the

operator and others.

Figure 4-2: Starting the Briggs & Stratton/ Tecumseh engine.

Figure 4-3: Starting the Honda engine.

ON

OFF

4

1

3

2

3

3

1

2

10

5

Maintaining

Your Lawn

Mower

WARNING

Always stop engine,

disconnect spark

plug, and ground

against engine before

cleaning, lubricating

or doing any kind of

maintenance on your

machine.

NOTE: We do not

recommend the use

of pressure washers

or garden hose to

clean your unit. These

may cause damage to

electric components,

spindles, pulleys, bear-

ings, or the engine. The

use of water will result

in shortened life and

reduce serviceability.

Figure 5-1

General Recommendations

1. Always observe safety rules when performing

any maintenance.

2. The warranty on this lawn mower does not cover

items that have been subjected to operator abuse

or negligence. To receive full value from warranty,

operator must maintain the lawn mower as

instructed here.

3. Changing of engine-governed speed will void

engine warranty.

4. All adjustments should be checked at least once

each season.

5. Periodically check all fasteners and make sure these

are tight.

WARNING: Always stop engine,

disconnect spark plug, and

ground against engine before

cleaning, lubricating or doing

any kind of maintenance on your

machine.

Lubrication

1. Lubricate pivot points on the blade control at least

once a season with light oil. The blade control must

operate freely in both directions. See Figure 5-1.

2. Lubricate the wheels at least once a season with

light oil (or motor oil). If wheels are removed for any

reason, lubricate surface of the pivot arm and inner

surface of the wheel with light oil. See Figure 5-1.

3. Lubricate the torsion spring and pivot point on the rear

discharge door periodically with light oil to prevent

rust. See Figure 5-1.

4. Follow the accompanying engine manual for lubrica-

tion schedule and instruction for engine lubrication.

Deck Care

Clean underside of the mower deck after each use to

prevent build-up of grass clippings or other debris. Follow

steps below for this job.

1. Disconnect spark plug wire. Drain gasoline from lawn

mower, or place a piece of plastic under the gas cap.

2. Tip mower so that it rests on the housing. Keep the

side with the air cleaner facing up. Hold mower firmly.

WARNING: Never tip the mower

more than 90 degrees in any

directions and do not leave the

mower tipped for any length of

time. Oil can drain into the upper

part of the engine causing a

starting problem.

3. Scrape and clean the underside of the deck with a

suitable tool. Do not spray with water.

4. Put the mower back on its wheels on the ground. If

you had put plastic under the gas cap earlier, make

sure to remove it now.

Engine Care

A list of key engine maintenance jobs required for good

performance by the mower is given below. Follow the

accompanying engine manual for a detailed list and

instructions.

1. Maintain oil level as instructed in engine manual.

2. Service air cleaner every 25 hours under normal

conditions. Clean every few hours under extremely

dusty conditions. Poor engine performance and

flooding usually indicates that the air cleaner should

be serviced. To service the air cleaner, refer to the

engine manual.

3. Clean spark plug and reset the gap once a season.

Spark plug replacement is recommended at the start

of each mowing season. Check engine manual for

correct plug type and gap specifications.

4. Clean engine regularly with a cloth or brush. Keep the

cooling system (blower housing area) clean to permit

proper air circulation. Remove all grass, dirt and

combustible debris from muffler area.

11

Figure 5-3

5

Maintaining

Your Lawn

Mower

WARNING

When removing

the cutting blade

for sharpening or

replacement, protect

your hands with a

pair of heavy gloves

or use a heavy rag to

hold the blade.

An unbalanced blade

will cause excessive

vibration when rotat-

ing at high speeds. It

may cause damage

to mower, and could

break causing per-

sonal injury.

Blade Care

WARNING: When removing the

cutting blade for sharpening or

replacement, protect your hands

with a pair of heavy gloves or use

a heavy rag to hold the blade.

Periodically inspect the blade adapter for cracks,

especially if you strike a foreign object. Replace when

necessary. Follow the steps below for blade service.

1. Disconnect spark plug wire from spark plug. Turn

mower on its side making sure that the air filter and

the carburetor are up.

2. Remove the bolt and the blade bell support which

hold the blade and the blade adapter to the engine

crankshaft. See Figure 5-2.

3. Remove blade and adapter from the crankshaft.

4. The blade can be sharpened with a file or on a grind-

ing wheel. Do not attempt to sharpen the blade while it

is still on the mower.

5. When sharpening the blade, follow the original angle

of grind. Grind each cutting edge equally to keep the

blade balanced.

6. Remove blade from the adapter for testing balance.

7. Balance the blade on a round shaft screwdriver to

check. Remove metal from the heavy side until it

balances evenly.

WARNING: An unbalanced blade

will cause excessive vibration

when rotating at high speeds. It

may cause damage to mower, and

could break causing personal

injury.

8. Lubricate the engine crankshaft and the inner surface

of the blade adapter with light oil. Slide the blade

adapter onto the engine crankshaft.

9. Place the blade on the adapter such that the side

of the blade marked “Bottom” (or with part number)

faces the ground when the mower is in the operating

position. Make sure that the blade is aligned and

seated on the blade adapter flanges.

10. Place blade bell support on the blade. Align notches

on the blade bell support with small holes in blade.

11. Replace hex bolt and tighten hex bolt to torque: 450

in. lbs. min., 600 in. lbs. max.

To ensure safe operation of your mower, periodically

check the blade bolt for correct torque.

Replacing Rear Flap

1. To remove rear flap, lift rear door, and press flap in

on either side to remove from hole. See Figure 5-3.

2. Remove flap from opposite hole and replace with

new flap in the opposite order and manner of

removal.

Off-Season Storage

The following steps should be taken to prepare your

lawn mower for storage.

1. Clean and lubricate mower thoroughly as described

in the lubrication instructions.

2. We do not recommend the use of a pressure washer

or garden hose to clean your unit.

3. Refer to engine manual for correct engine

storage instructions.

4. Coat mower’s cutting blade with chassis grease to

prevent rusting.

5. Store mower in a dry, clean area. Do not store next

to corrosive materials, such as fertilizer.

When storing any type of power equipment in a poorly

ventilated or metal storage shed, care should be taken

to rust-proof the equipment. Using a light oil or silicone,

coat the equipment, especially cables and all moving

parts of your lawn mower before storage.

Figure 5-2

12

For repairs beyond

the minor adjustments

listed here, contact

an authorized service

dealer.

6

Trouble

Shooting

Cause

Problem Remedy

Engine fails to start 1. Blade control disengaged.

2. Spark plug wire disconnected.

3. Fuel tank empty or stale fuel.

4. Engine not choked.

5. Faulty spark plug.

6. Blocked fuel line.

7. Engine flooded.

1. Engage blade control.

2. Connect wire to spark plug.

3. Fill tank with clean, fresh gasoline.

4. Choke engine as instructed in the

“Operating Your Lawn Mower” section.

5. Clean, adjust gap, or replace.

6. Clean fuel line.

7. Wait a few minutes to restart, but do

not prime.

Engine runs erratic 1. Connect and tighten spark plug wire.

2. Clean fuel line; fill tank with clean,

fresh gasoline.

3. Clear vent.

4. Drain fuel tank. Refill with fresh fuel.

5. Refer to engine manual.

6. Refer to engine manual.

1. Spark plug wire loose.

2. Blocked fuel line or stale fuel.

3. Vent in gas cap plugged.

4. Water or dirt in fuel system.

5. Dirty air cleaner.

6. Carburetor out of adjustment.

Engine overheats 1. Fill crankcase with proper oil.

2. Remove blower housing and clean.

3. Refer to engine manual.

1. Engine oil level low.

2. Air flow restricted.

3. Carburetor not adjusted properly.

Occasional skips

(hesitates) at high speed

1. Adjust gap to .030-inch.

2. Refer to engine manual.

1. Spark plug gap too close.

2. Carburetor idle mixture adjustment

improperly set.

Idles poorly 1. Reset gap to .030-inch or replace

spark plug.

2. Refer to engine manual.

3. Refer to engine manual.

1. Spark plug fouled, faulty or gap too wide.

2. Carburetor improperly adjusted.

3. Dirty air cleaner.

Mower will not mulch grass 1. Do not mow when grass is wet; wait

until later to cut.

2. Mow once at a high cutting height,

then mow again at desired height or

make a narrower cutting path.

3. Sharpen or replace blade.

1. Wet grass.

2. Excessively high grass.

3. Dull blade.

Uneven cut 1. Place all four wheels in same

height position.

2. Sharpen or replace blade.

1. Wheels not positioned correctly.

2. Dull blade.

Excessive Vibration 1. Cutting blade loose or unbalanced.

2. Bent cutting blade.

1. Tighten blade and adapter. Balance

blade.

2. See an authorized service dealer.

NOTE: Specifications are

subject to change without

notification or obligation.

Images my not reflect your

exact model and are for

reference purposes only.

13

7

Safety

Labels

WARNING

DO NOT remove safety

(or any) labels from

mower for any reason.

Safety Label Found On Your Lawn Mower

TON

O

D

,

Y

RU

JN

I F

O

KS

IR

EHT ECUDE

R

O

T

S

SE

L

N

U

E

T

AR

EPO R

O R

E

V

O

C E

G

RA

H

C

SI

D

A

C

S

S

A

R

G .EC

A

L

P

RE

P

OR

P

S

T

I

N

I

SI

RE

H

C

T

.

YLET

A

I

D

E

MM

I

E

CA

L

P

ER

,D

EG

AM

AD

F

I

Y

A

WA

T

E

EF

d

na S

DN

A

H

P

E

E

K

PEEK • M

O

RF Y

A

WA TEEF

DN

A

SDN

AH .STRAP G

N

I

TA

T

OR

NWOR

HT

EB NA

C

TAHT

S

TCEJBO

EVOMER • .NOI

T

CERID YNA

NI

EDAL

B

EHT

Y

B .SESSALG YTEF

AS

R

AE

W

S

R

EH

T

O R

O

NERDLI

H

C

N

EH

W

W

OM TON OD • .DNU

O

RA ERA

T

O

N

O

D

.SEPOLS

NO

N

O

I

TUAC ARTXE ES

U

• 51 NAHT RE

TA

ER

G

SEPO

LS

W

OM ˚WOM REVE

N

.NWOD

D

N

A

PU REVE

N

,SSO

R

CA

KOO

L

.TEEF

R

U

O

Y OT ESO

L

C REWOM LLUP

ELIHW DN

A

E

R

OF

EB

D

N

I

HE

B DNA NW

O

D

.S

D

R

A

WKCA

B

GNI

V

OM

HTA

E

D RO

Y

RU

J

NI SU

O

IRE

S

DI

O

V

A

,DLEIH

S

GNI

L

IART

,L

OR

T

NO

C E

D

AL

B

(

S

EC

IV

E

D Y

TE

F

AS

P

E

EK

LA

U

N

A

M

S

'

RO

TA

RE

PO

D

AE

R.YLETAID

EM

M

I

E

CAL

P

ER

,

DEG

A

MA

D

F

I

.

GNI

KR

OW

DN

A

ECA

LP

N

I

)C

TE ,REV

OC EGR

AHC

SI

D

5

1

X

A

M˚

DC 20123S

14

Model Series 580

15

Zag Tread K2 Bar TreadPin Bar Tread

Wheel Treads

18

32

35

30

25

27

45 22

21

43

29

28

14

42

16

4

23

24

26

8

3

2

33

46

20

6

7

911

5

13

1

37

34

45

31

36

41

39

38

17

19

30

45

40 47

44

12

45

45

15

8

Parts List

Ref.

No.

Part No. Description

1 747-1161A Blade Control

2 749-1092A Upper Handle

3 747-04080 Grass Catcher Frame

4 749-0928A Lower Handle

5 720-0279 Wing Nut

6 710-1205 Rope Guide

7 710-1174 Carriage Bolt ,5/16-18 x 2

8 664-04027 Grass Bag Assembly

9 720-04072 Star Knob

10 736-0182 Washer, Sprg, .500 x 1.00 x .022

11 726-0240 Cable Tie

12 710-0703 Carriage Bolt ,1/4-20

13 631-04225 Rear Discharge Door

14 782-5004B Rear Baffle - RH

15 731-0981A† Hub Cap

16 732-04090A Torsion Spring - RH

17 734-04093 Rear Wheel, 12” x 2.125”, Zag

734-04089 Rear Wheel, 12” x 1.8”, Pin Bar

18 782-5003A Rear Baffle - LH

19 720-0312 Spring Lever Grip

20 787-01248 Deck - 21”

21 782-5002B Front Baffle

22 748-04096 Blade Adapter

23 742-0741 Mulching Blade

24 710-1044 Hex Screw , 3/8-24 x 1.50

25 687-02077A Pivot Arm Assy. -RH (8” Wheel)

687-02076A Pivot Arm Assy. - LH (8” Wheel)

687-02076A Pivot Arm Assy. -RH (7” Wheel)

687-02077A Pivot Arm Assy. - LH (7” Wheel)

Ref.

No.

Part No. Description

26 736-0524B Blade Bell Support

27 787-01290 Front Adjustment Plate

28 720-0426 Adjustment Lever Knob

29 732-0404 Spring Lever

30 738-0507B Shoulder Screw

31 734-2005A Front Wheel, 8” x 2.125”, Zag

734-04086 Front Wheel, 7” x 1.8”, Pin Bar

32 710-1017 Screw, 1/4-14 x .625

33 746-1130 Control Cable - 40”

746-0554 Control Cable - 40.5”

34 731-05642 Trailshield

35 731-1523A† Front Cover

36 712-0397 Wing Nut, 1/4-20

37 747-04588 Rear Door Pivot Rod

38 732-0866 Spring Lever

39 687-02039A Pivot Arm Assembly - RH

687-02040A Pivot Arm Assembly - LH

40 710-1652 AB Screw

41 714-0104 Hairpin Clip

42 710-0654A TT Sems Screw, 3/8-16 x 1.0

43 687-02075A Ht. Adj. Assy. Front - LH (8” Wheel)

687-02074A Ht. Adj. Assy. Front - RH (8” Wheel)

687-02099A Ht. Adj. Assy. Front - LH (7” Wheel)

687-02100A Ht. Adj. Assy. Front - RH (7” Wheel)

44 687-02280 Rear Handle Bracket Assy. - LH

687-02279 Rear Handle Bracket Assy. - RH

45 712-04065 Flange Lock Nut, 3/8-16

46 731-2626† Bail Cover

47 710-0216 Hex Screw, 3/8-16 x 0.75

To order replacement

parts, call

1-800-800-7310

or visit us on

the web at

www.mtdproducts.com

This Operators Manual may cover a range of product specifications for various models. Characteristics and features

discussed and/or illustrated in this manual may not be applicable to all models.

† If Equipped

The limited warranty set forth below is given by MTD LLC with respect

to new merchandise purchased and used in the United States, its

possessions and territories.

“MTD” warrants this product against defects in material and workman-

ship for a period of two (2) years commencing on the date of original

purchase and will, at its option, repair or replace, free of charge, any

part found to be defective in materials or workmanship. This limited war-

ranty shall only apply if this product has been operated and maintained

in accordance with the Operator’s Manual furnished with the product,

and has not been subject to misuse, abuse, commercial use, neglect,

accident, improper maintenance, alteration, vandalism, theft, fire, water,

or damage because of other peril or natural disaster. Damage resulting

from the installation or use of any part, accessory or attachment not

approved by MTD for use with the product(s) covered by this manual

will void your warranty as to any resulting damage.

Normal wear parts are warranted to be free from defects in material and

workmanship for a period of thirty (30) days from the date of purchase.

Normal wear parts include, but are not limited to items such as: batter-

ies, belts, blades, blade adapters, grass bags, rider deck wheels, seats,

snow thrower skid shoes, shave plates, auger spiral rubber and tires.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH

PROOF OF PURCHASE, through your local authorized service

dealer. To locate the dealer in your area, check your Yellow Pages,

or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-

0019, or call 1-800-800-7310 or 1-330-220-4683 or log on to our

Web site at www.mtdproducts.com.

This limited warranty does not provide coverage in the following cases:

a. The engine or component parts thereof. These items may carry a

separate manufacturer’s warranty. Refer to applicable manufacturer’s

warranty for terms and conditions.

b. Log splitter pumps, valves, and cylinders have a separate one year

warranty.

c. Routine maintenance items such as lubricants, filters, blade

sharpening, tune-ups, brake adjustments, clutch adjustments, deck

adjustments, and normal deterioration of the exterior finish due to

use or exposure.

d. Service completed by someone other than an authorized service

dealer.

e. MTD does not extend any warranty for products sold or exported

outside of the United States, its possessions and territories, except

those sold through MTD’s authorized channels of export distribution.

f. Replacement parts that are not genuine MTD parts.

g. Transportation charges and service calls.

No implied warranty, including any implied warranty of mer-

chantability of fitness for a particular purpose, applies after the

applicable period of express written warranty above as to the

parts as identified. No other express warranty, whether written or

oral, except as mentioned above, given by any person or entity,

including a dealer or retailer, with respect to any product, shall

bind MTD. During the period of the warranty, the exclusive remedy

is repair or replacement of the product as set forth above.

The provisions as set forth in this warranty provide the sole and

exclusive remedy arising from the sale. MTD shall not be liable

for incidental or consequential loss or damage including, without

limitation, expenses incurred for substitute or replacement lawn

care services or for rental expenses to temporarily replace a

warranted product.

Some states do not allow the exclusion or limitation of incidental or

consequential damages, or limitations on how long an implied warranty

lasts, so the above exclusions or limitations may not apply to you.

In no event shall recovery of any kind be greater than the amount of the

purchase price of the product sold. Alteration of safety features of

the product shall void this warranty. You assume the risk and liability

for loss, damage, or injury to you and your property and/or to others and

their property arising out of the misuse or inability to use the product.

This limited warranty shall not extend to anyone other than the original

purchaser or to the person for whom it was purchased as a gift.

HOW STATE LAW RELATES TO THIS WARRANTY: This limited

warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

IMPORTANT: Owner must present Original Proof of Purchase to obtain

warranty coverage.

MANUFACTURER’S LIMITED WARRANTY FOR

MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310, 1-330-220-4683
