MTMS B1230T27 26.96-27.28 MHz WIRELESS REMOTE CONTROL TOY-TX User Manual Ignite jackal Instruction manual

Bear River International LLC 26.96-27.28 MHz WIRELESS REMOTE CONTROL TOY-TX Ignite jackal Instruction manual

User Manual

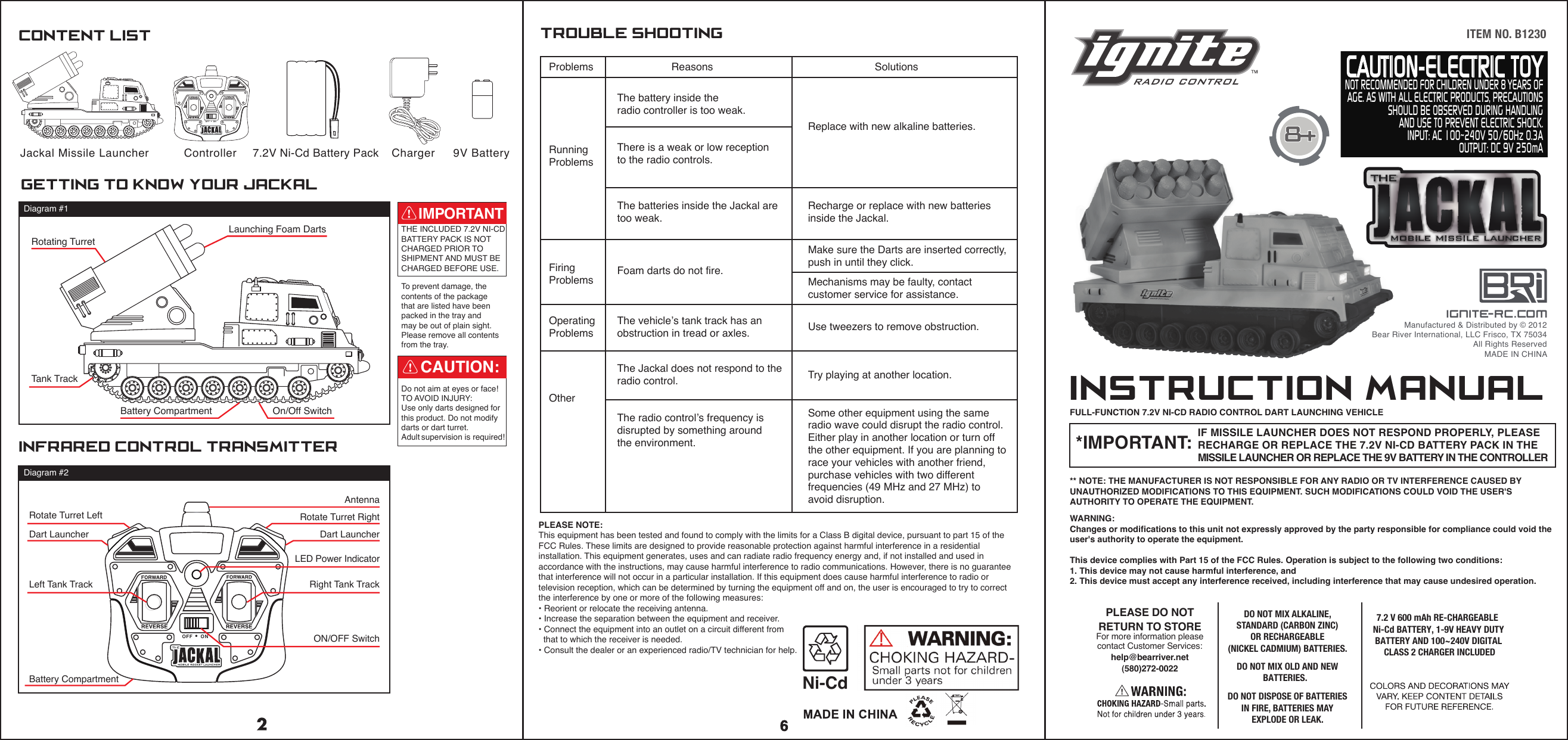

OFF • ONCAUTION-ELECTRIC TOYNOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OFAGE. AS WITH ALL ELECTRIC PRODUCTS, PRECAUTIONSSHOULD BE OBSERVED DURING HANDLINGAND USE TO PREVENT ELECTRIC SHOCK.INPUT: AC 100~240V 50/60Hz 0.3AOUTPUT: DC 9V 250mAITEM NO. B1230PLEASE NOTE:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.• Consult the dealer or an experienced radio/TV technician for help.Controller 7.2V Ni-Cd Battery Pack Charger 9V BatteryJackal Missile LauncherCONTENT LISTinfrared control transmittergetting to know your jackalBattery CompartmentRotating TurretLaunching Foam DartsTank TrackOn/Off SwitchDiagram #1Diagram #2THE INCLUDED 7.2V NI-CDBATTERY PACK IS NOT CHARGED PRIOR TO SHIPMENT AND MUST BE CHARGED BEFORE USE.To prevent damage, the contents of the packagethat are listed have been packed in the tray and may be out of plain sight.Please remove all contents from the tray.INSTRUCTION MANUALIF MISSILE LAUNCHER DOES NOT RESPOND PROPERLY, PLEASE RECHARGE OR REPLACE THE 7.2V NI-CD BATTERY PACK IN THE MISSILE LAUNCHER OR REPLACE THE 9V BATTERY IN THE CONTROLLER FULL-FUNCTION 7.2V NI-CD RADIO CONTROL DART LAUNCHING VEHICLE** NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.*IMPORTANT:WARNING:Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation.Do not aim at eyes or face! TO AVOID INJURY: Use only darts designed for this product. Do not modify darts or dart turret. Adult supervision is required!CAUTION:IMPORTANTignite-rc.comManufactured & Distributed by © 2012Bear River International, LLC Frisco, TX 75034All Rights ReservedMADE IN CHINALED Power IndicatorProblems Reasons SolutionsTROUBLE SHOOTINGThe battery inside the radio controller is too weak.There is a weak or low receptionto the radio controls.Replace with new alkaline batteries.The batteries inside the Jackal are too weak.Foam darts do not fire.The vehicle’s tank track has anobstruction in tread or axles.The Jackal does not respond to the radio control.The radio control’s frequency is disrupted by something around the environment.Recharge or replace with new batteries inside the Jackal.Make sure the Darts are inserted correctly,push in until they click.Mechanisms may be faulty, contact customer service for assistance.Use tweezers to remove obstruction.Try playing at another location.Running ProblemsFiring ProblemsOperating ProblemsOtherSome other equipment using the sameradio wave could disrupt the radio control. Either play in another location or turn off the other equipment. If you are planning to race your vehicles with another friend, purchase vehicles with two different frequencies (49 MHz and 27 MHz) to avoid disruption.Dart Launcher Dart LauncherLeft Tank TrackON/OFF SwitchBattery CompartmentRight Tank TrackRotate Turret Left Rotate Turret RightAntennaPLEASE DO NOTRETURN TO STOREFor more information pleasecontact Customer Services:help@bearriver.net(580)272-00227.2 V 600 mAh RE-CHARGEABLE Ni-Cd BATTERY, 1-9V HEAVY DUTY BATTERY AND 100~240V DIGITAL CLASS 2 CHARGER INCLUDEDDO NOT MIX ALKALINE,STANDARD (CARBON ZINC)OR RECHARGEABLE (NICKEL CADMIUM) BATTERIES.DO NOT MIX OLD AND NEW BATTERIES.DO NOT DISPOSE OF BATTERIES IN FIRE, BATTERIES MAY EXPLODE OR LEAK.Ni-CdOFF • ON

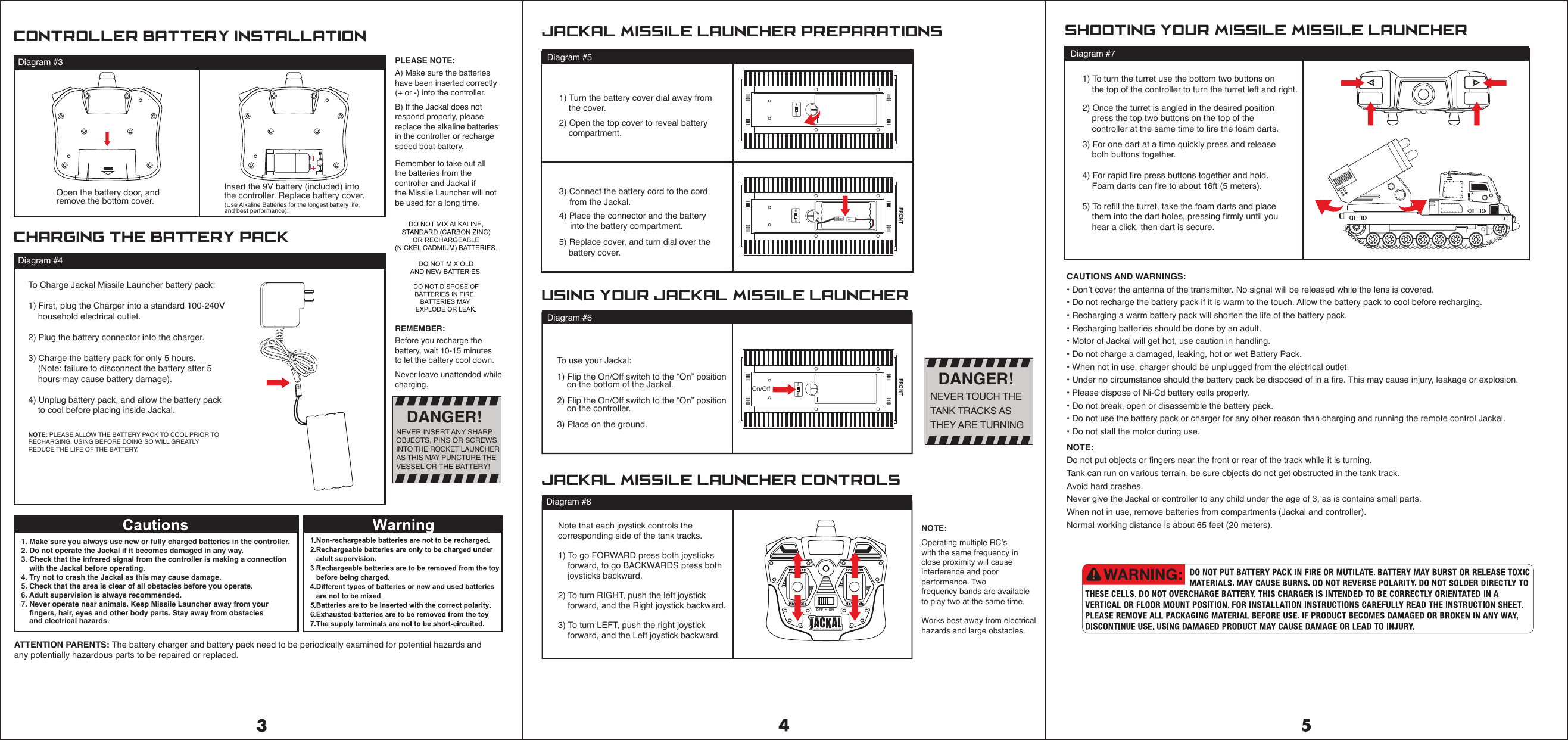

On/OffDiagram #8Diagram #71) To turn the turret use the bottom two buttons on the top of the controller to turn the turret left and right. 2) Once the turret is angled in the desired position press the top two buttons on the top of the controller at the same time to fire the foam darts. ATTENTION PARENTS: The battery charger and battery pack need to be periodically examined for potential hazards and any potentially hazardous parts to be repaired or replaced.1) Turn the battery cover dial away from the cover.2) Open the top cover to reveal battery compartment.3) Connect the battery cord to the cord from the Jackal.4) Place the connector and the battery into the battery compartment.5) Replace cover, and turn dial over the battery cover.3) For one dart at a time quickly press and release both buttons together. 4) For rapid fire press buttons together and hold. Foam darts can fire to about 16ft (5 meters).5) To refill the turret, take the foam darts and place them into the dart holes, pressing firmly until you hear a click, then dart is secure.Note that each joystick controls the corresponding side of the tank tracks. 1) To go FORWARD press both joysticks forward, to go BACKWARDS press both joysticks backward.2) To turn RIGHT, push the left joystick forward, and the Right joystick backward.3) To turn LEFT, push the right joystick forward, and the Left joystick backward. controller battery installationJackal MISSILE Launcher CONTROLS Shooting your MISSILE Missile launcherJackal MISSILE launcher PreparationsDiagram #3charging the Battery PackDiagram #4PLEASE NOTE:A) Make sure the batteries have been inserted correctly(+ or -) into the controller.B) If the Jackal does not respond properly, please replace the alkaline batteries in the controller or recharge speed boat battery.REMEMBER:Before you recharge the battery, wait 10-15 minutes to let the battery cool down.Never leave unattended whilecharging.Remember to take out all the batteries from the controller and Jackal if the Missile Launcher will not be used for a long time.NOTE:Operating multiple RC’swith the same frequency in close proximity will cause interference and poor performance. Two frequency bands are availableto play two at the same time.Works best away from electricalhazards and large obstacles.Insert the 9V battery (included) into the controller. Replace battery cover.(Use Alkaline Batteries for the longest battery life, and best performance).Open the battery door, and remove the bottom cover.To Charge Jackal Missile Launcher battery pack:1) First, plug the Charger into a standard 100-240V household electrical outlet.2) Plug the battery connector into the charger.3) Charge the battery pack for only 5 hours. (Note: failure to disconnect the battery after 5 hours may cause battery damage).4) Unplug battery pack, and allow the battery pack to cool before placing inside Jackal.NOTE: PLEASE ALLOW THE BATTERY PACK TO COOL PRIOR TO RECHARGING. USING BEFORE DOING SO WILL GREATLY REDUCE THE LIFE OF THE BATTERY.DANGER!NEVER INSERT ANY SHARPOBJECTS, PINS OR SCREWSINTO THE ROCKET LAUNCHERAS THIS MAY PUNCTURE THEVESSEL OR THE BATTERY!DANGER!NEVER TOUCH THE TANK TRACKS ASTHEY ARE TURNINGDiagram #5To use your Jackal:1) Flip the On/Off switch to the “On” position on the bottom of the Jackal.2) Flip the On/Off switch to the “On” position on the controller. 3) Place on the ground.using your Jackal MISSILE launcherDiagram #6CAUTIONS AND WARNINGS:• Don’t cover the antenna of the transmitter. No signal will be released while the lens is covered.• Do not recharge the battery pack if it is warm to the touch. Allow the battery pack to cool before recharging.• Recharging a warm battery pack will shorten the life of the battery pack.• Recharging batteries should be done by an adult.• Motor of Jackal will get hot, use caution in handling.• Do not charge a damaged, leaking, hot or wet Battery Pack.• When not in use, charger should be unplugged from the electrical outlet.• Under no circumstance should the battery pack be disposed of in a fire. This may cause injury, leakage or explosion.• Please dispose of Ni-Cd battery cells properly.• Do not break, open or disassemble the battery pack.• Do not use the battery pack or charger for any other reason than charging and running the remote control Jackal.• Do not stall the motor during use.1. Make sure you always use new or fully charged batteries in the controller.2. Do not operate the Jackal if it becomes damaged in any way.3. Check that the infrared signal from the controller is making a connection with the Jackal before operating.4. Try not to crash the Jackal as this may cause damage.5. Check that the area is clear of all obstacles before you operate.6. Adult supervision is always recommended.7. Never operate near animals. Keep Missile Launcher away from your fingers, hair, eyes and other body parts. Stay away from obstacles and electrical hazards.ONOFFONOFFFRONTONOFFFRONTNOTE:Do not put objects or fingers near the front or rear of the track while it is turning.Tank can run on various terrain, be sure objects do not get obstructed in the tank track.Avoid hard crashes.Never give the Jackal or controller to any child under the age of 3, as is contains small parts.When not in use, remove batteries from compartments (Jackal and controller).Normal working distance is about 65 feet (20 meters).OFF • ON
