MTN ELECTRONICS MTO-WA718N-A1 WIRELESS AP User Manual WA718N AP V1 0
SHENZHEN MTN ELECTRONICS CO., LTD. WIRELESS AP WA718N AP V1 0
Users Manual
MTO-WA718N-A1 Wireless AP
Quick Installation Guide
VER : 1.0
UnRegistered
2
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
This device should be installed and operated with a minimum distance of 20 cm
between the antenna and all persons.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cau se harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by
SHENZHEN MTN ELECTRONICS CO., LTD.may void the FCC authorization to operate
this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
Label requirements:
Contains 802.11bgn Module FCC ID: ZBXMTO-WA718N-A1.
![](/img.php?id=1486204&img=bg3.png)

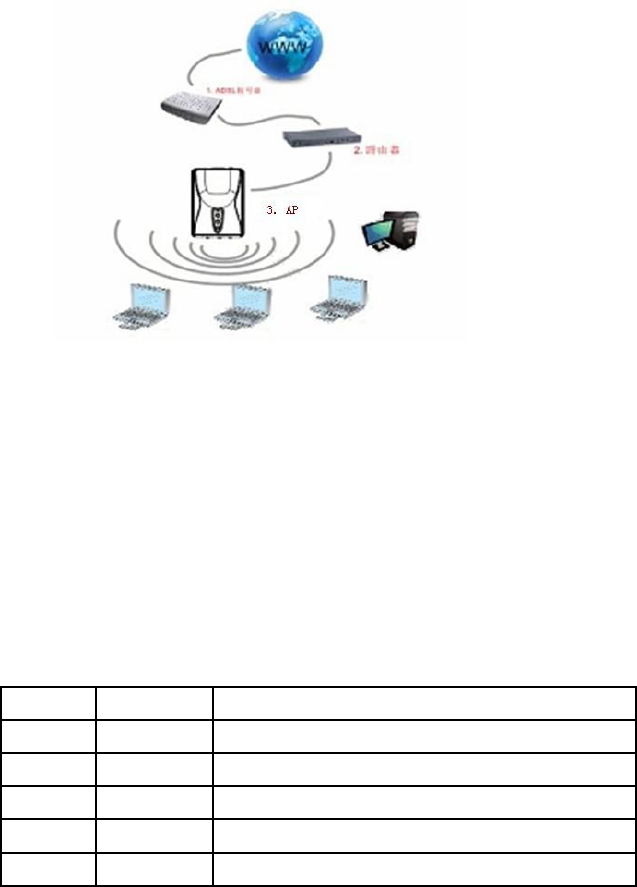

1. Hardware connections:
Matching the power adapter into MTO-WA718N-A1 the power outlet, computers can be
connected through a network cable or wireless device.
After the connection is complete, Check that the LED is correctly:
LED LED State
Description
POWER
Light Power status normal
SYS Light Start when the system power-on light
LAN Light Wired network connectivity
WLAN Light Wireless network boot
WPS Light One-click encryption started
If the LED is not lit or not properly, check that the connection is correct.
Warning :
1. Thunderstorm weather power the device and all of the lines removed, so as not
to suffer from lightning damage;
2. Away from sources of heat, maintain ventilation;
3. In storage, in transport and environment, please pay attention to the
waterproofing.
UnRegistered
![](/img.php?id=1486204&img=bg4.png)

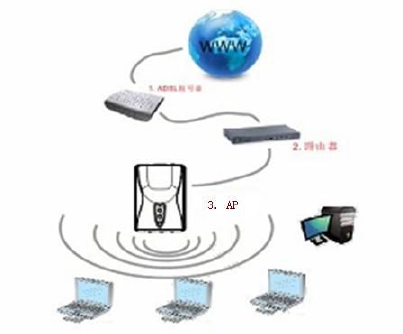

2. Application model
Wireless access point AP Mode
Will end the network cable to WTO-WA718N-A 1the network port, connected to a switch
or router at the other end; WTO-WA718N-A1 as a complement to wired local area network,
implementation of wired LAN wireless access.
As long as connected to the power supply, insert and attach the network cable,
and then connect the computer wirelessly after simple settings WTO-WA718N-A1 to the
Internet. WLAN green led is lit, data transfer and shining; POWER green led is
lit; LAN green led is lit, data transfer and shining. AP and the computer's IP
address and DNS address required under the front of the required settings for the
wireless router address.
Application environment: applies to the temporary need for wireless devices to
a wired network environment, such as bars, hotels, schools hostels.
3. PC Connection settings ( in front of the set, make sure that your computers
installed the wireless card )
1) . WTO-WA718N-A1 connected to the power supply, network cable from the router
associated, convert for wired network to a wireless network, is to front-end access
to gateway 192.168.8.1 wired router (open this router DHCP function) connection
settings, for example description :

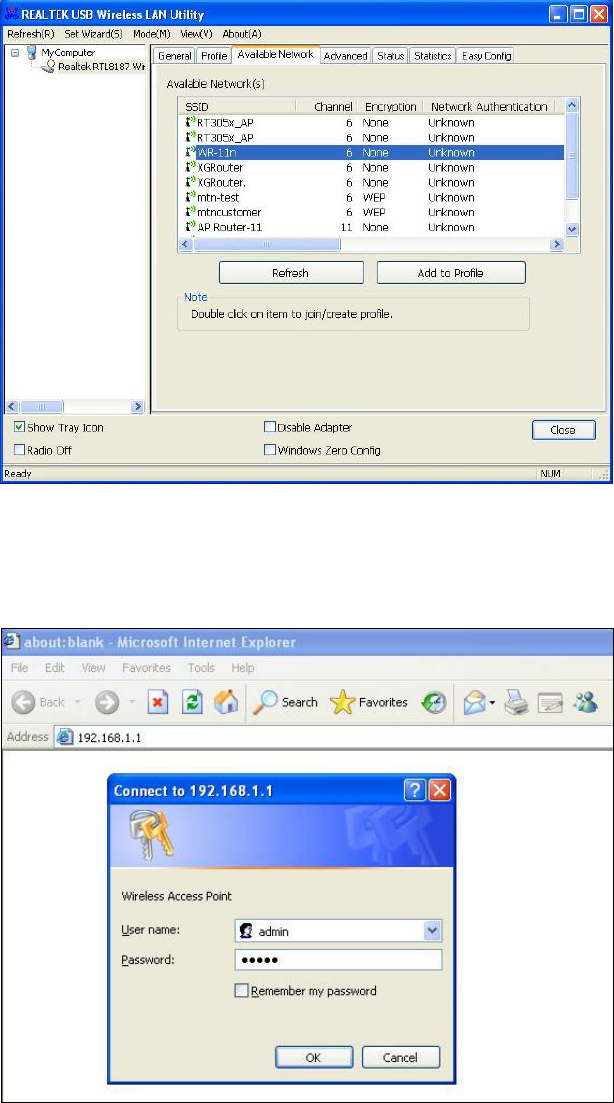

2). Found in the wireless networks list name “WR-11n” AP device; Double-click
follow the on-screen instructions to establish a connection;
UnRegistered
![](/img.php?id=1486204&img=bg5.png)
3). Wireless connection after IE address bar enter AP initial address
“http://192.168.1.1” , user name and password is “Admin”; Login WEB management
interface , such as:

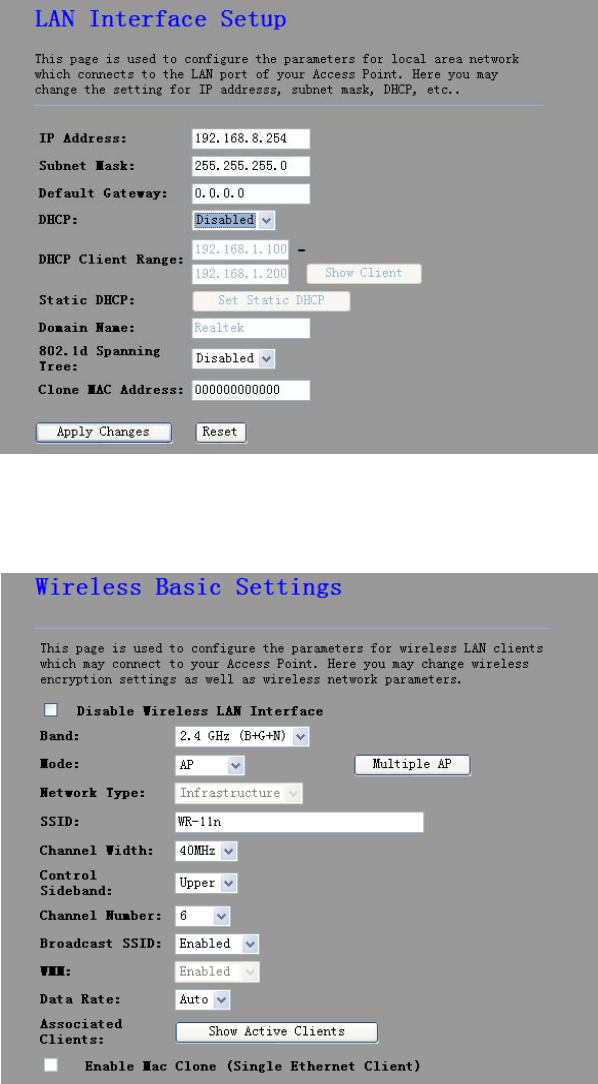

4). In the WEB management interface for LAN Interface set to corresponding to the
front of the IP address “192.168.8.254”, and DHCP is set to “Disabled” , and click
“Apply Changes” , restart later ;
UnRegistered
![](/img.php?id=1486204&img=bg6.png)
5). In the WEB management interface for Wireless Basic can change SSID “WR-11N” ,
change the channel, click on the “Apply Changes” , restart later ;

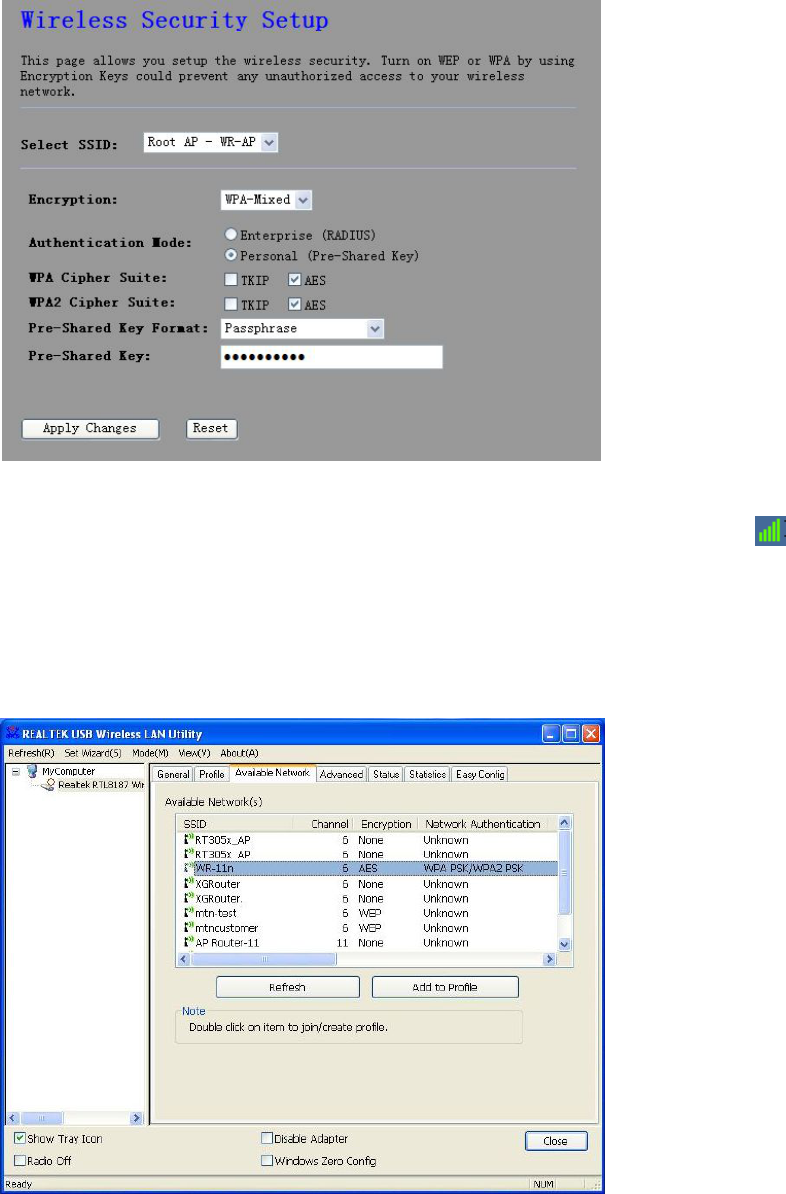

6). In the WEB management interface for Wireless Security can be set and encrypted
passwords, click “Apply Changes” , restart at a later time ; All electric start on
again after you set the AP ;
UnRegistered
![](/img.php?id=1486204&img=bg7.png)

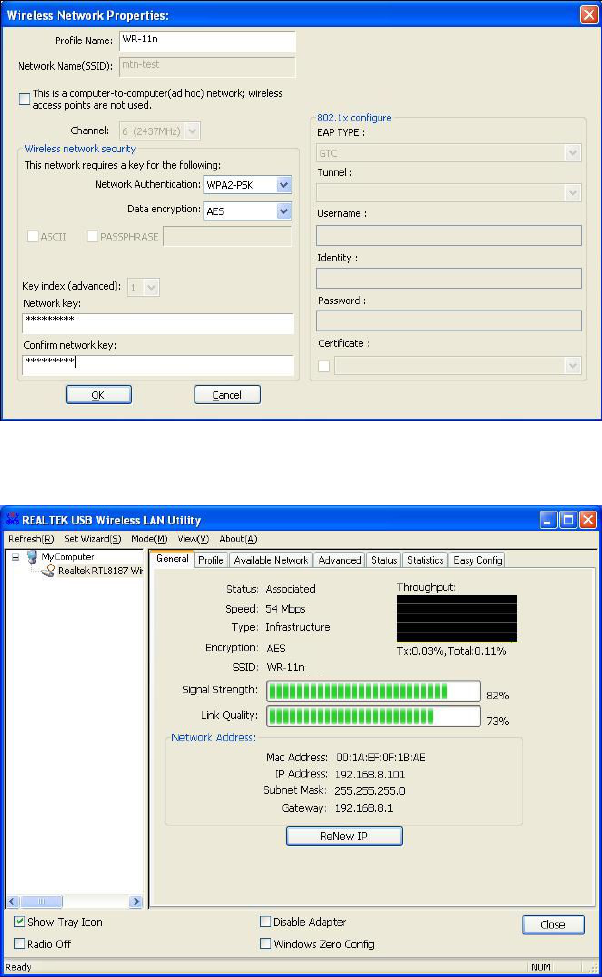

7). Click the computer icon in the lower right corner of the wireless network,
open " wireless network connection " interface, refresh network list, found "
WR-11n" has enabled security of wireless network, click " Add to Profile" , in
pop-up interface of "network key" within type new set of password, confirmed
password, connection OK , you of personal security wireless network can using has.
UnRegistered
![](/img.php?id=1486204&img=bg8.png)
UnRegistered
Appendix-frequently asked questions:
1 、 Wireless signal under the influence of factors?
1) Family spaces are crowded, there is not enough space open, where walls are
the most important obstacles in the room. As wireless local area network using a
wireless microwave frequency band. Microwave is the greatest feature of a
near-straight lines, diffraction from a very weak, so embedded in the barrier behind
wireless receiving equipment will receive very weak signal, or did not receive the
signal.
2) Physical obstructions, blocking not only microwave wireless signal, it also
absorbed electromagnetic energy, generate a weak flow discharge and, therefore,
wireless signals obstructions in the largest metal object in a family environment
is within the mesh reinforcement of floor slab, almost does not penetrate may signal
in this direction. To be able to penetrate, the signal is very weak.
3) IEEE 802.11b/g standard working frequency is 2.4GHz , and the industry on many
devices but also happens to work in the bands such as: microwave ovens, Bluetooth
devices, no rope telephone, refrigerator, etc. If the near strong magnetic fields
exist, then the wireless network will be affected.
4) If there are multiple wireless devices in a wireless environment could also
have a channel conflict, wireless signal crosstalk problem.
5) From the wireless devices and cable lines 100 meters in the radio transmission
towers, electric welding machine, strong signal interference sources such as trams
or high-voltage power transformers, or may cause interference to radio signals or
equipment.
6) Signal is outdoor propagation effects of weather conditions on wireless
signals are large, or if it is in a thunderstorm days when weather cloudy comparison
of signal attenuation, and signal transmission distance is farther in the sunny days.
2 、 How to improve the signal quality?
1) For wireless AP Select a best place of location. This placement locations are
as follows:
a , Position should be higher, for down radiation in high places, reducing
obstacles obstruct to minimize signal gaps;
b , location, location choice should make the signal as little as possible through
the wall, preferably in the rooms of the wireless client and wireless AP Visual
between.
UnRegistered
2) Modify the channels, reduce Wireless interference. Note: when you set up your
own wireless signal transmission channel also to try to leave wireless signal channel
5 more.
3) Home electrical interference reduction, ensuring the signals clear. Place the
wireless AP as possible when away from the equipment.
3, And forget your security password device configuration, network card cannot
connect to the device, what should I do?
At this time restore the factory parameters. Method for recovering the factory
parameters: click "RESET" button 5 seconds or more.
4, And my computer cannot log on to the appliance, or on the Internet, and right
corner of my computer network connection icon appears in the Yellow River Delta
with exclamation point symbol, how to deal with?
This problem is due to your network card is not currently assigned to IP address
of the causes, if it is set to automatically obtain IP , please make sure that the
source router DHCP is open, DHCP functionality can automatically assign you an IP
address if no DHCP , please give card set static IP address, and fill in the gateway
and DNS will not be online.
