Users Manual
USB Wireless Adaptor User Manual
一、 Network Card Installation
Please follow the following steps to install your new wireless network card:
1. Insert the USB wireless network card into an empty USB2.0 port of your computer when computer
has power on. Never use force to insert the card, if you feel it’s stuck, flip the card over and try
again.

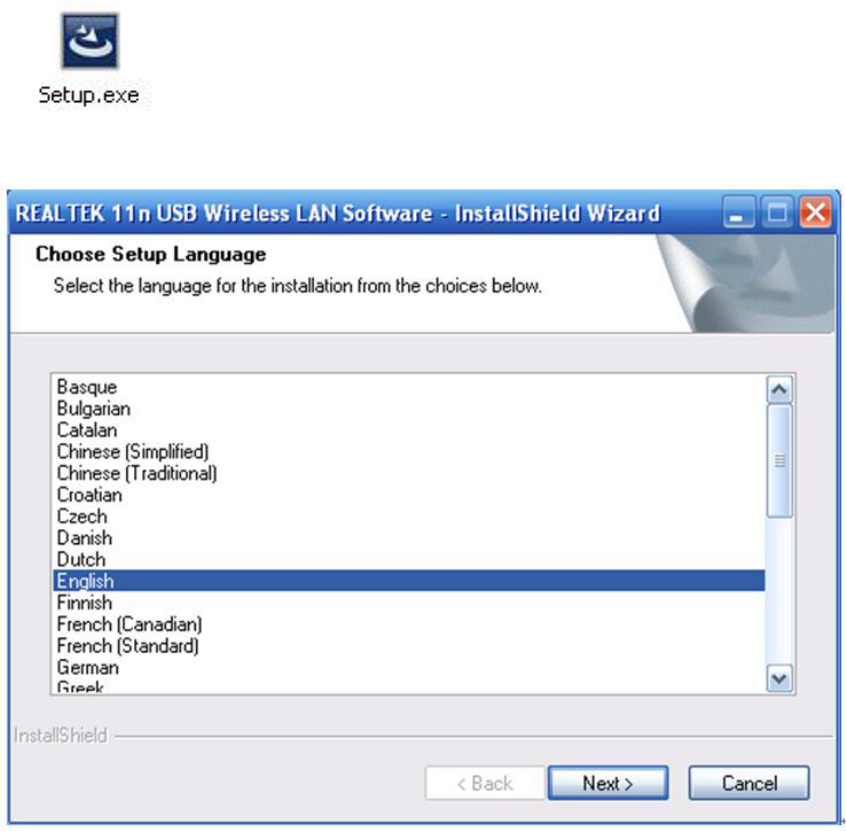

2. Insert device driver CD into the CDROM drive of your computer, double click the ‘Setup.exe’ icon
and run the ‘Setup.exe’ program.
3. Select the language that you are familiar with.

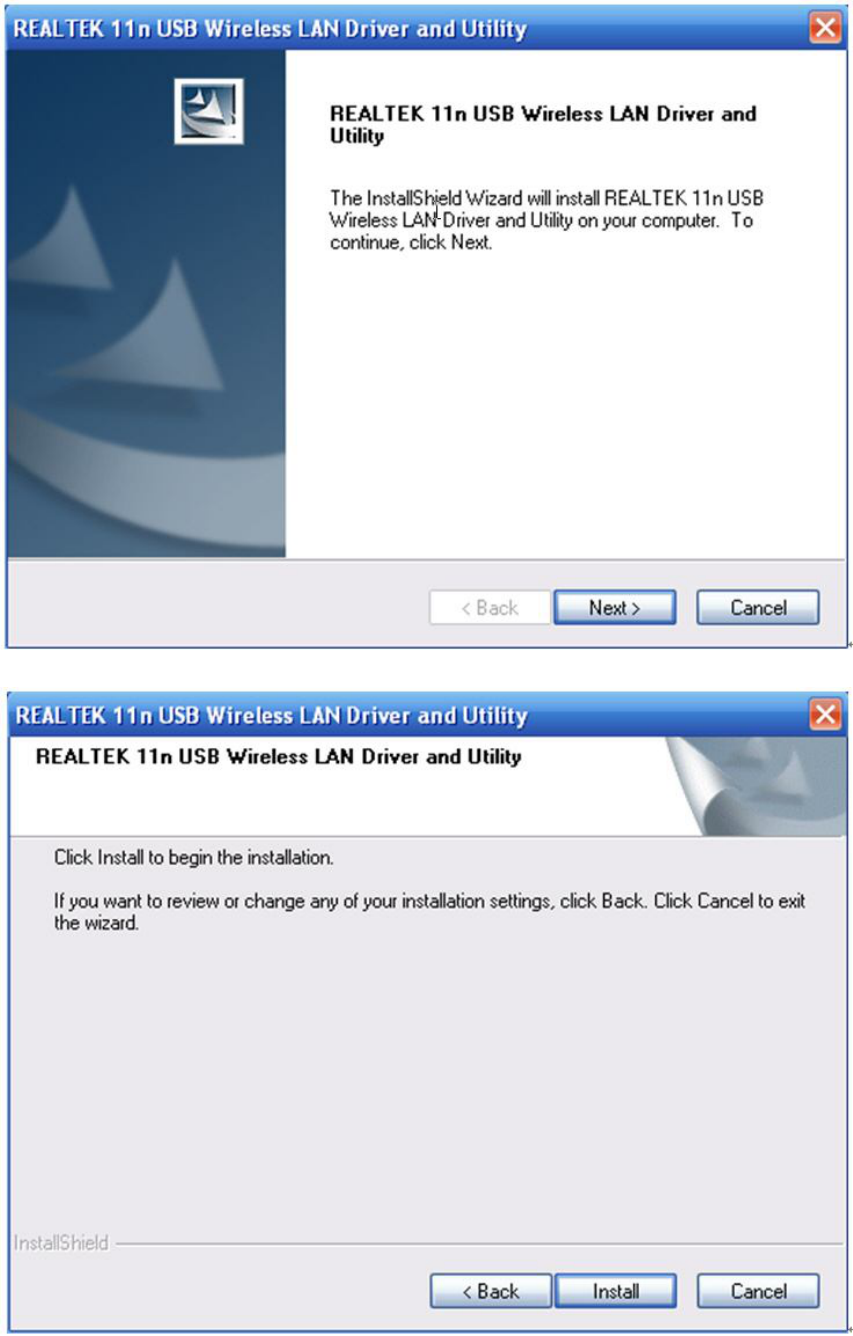

4. Click ‘OK’, then pop up the InstallShield Wizard
5. Click ‘Next’ ,
6. Click ‘Install’, and begin the installation

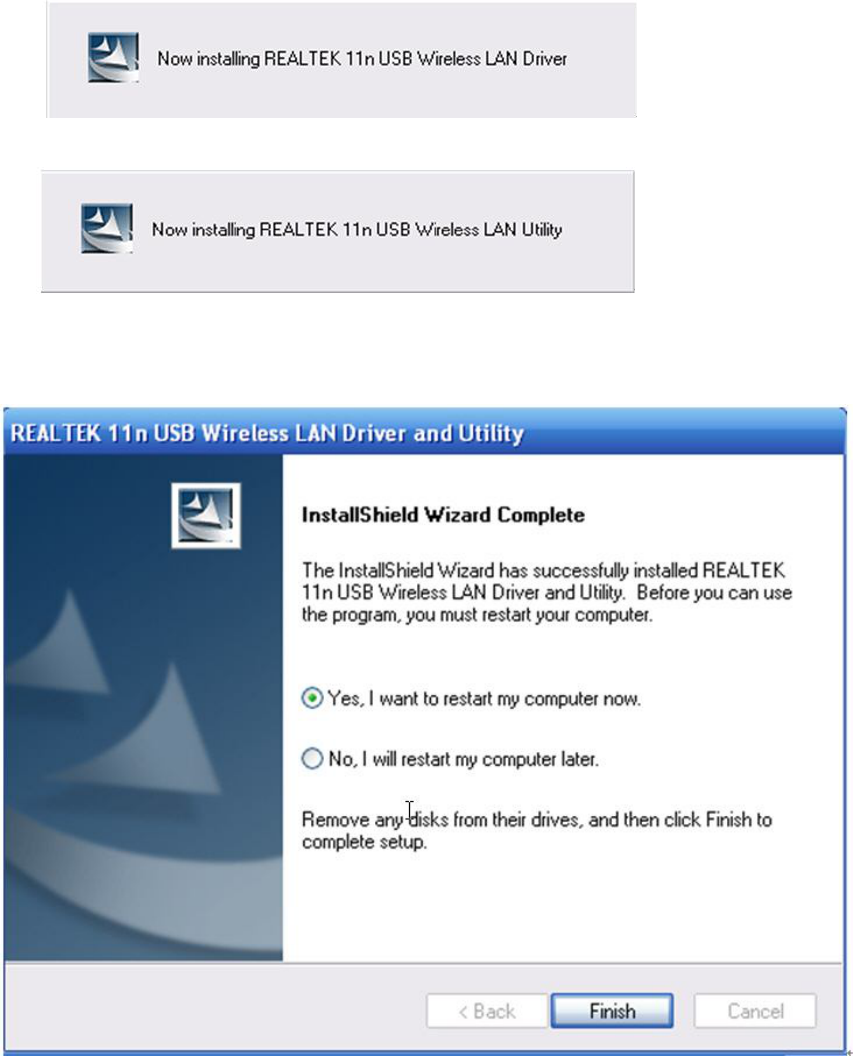

7. Please wait while the installation procedure is running. Finally, click ‘Finish’ and restart your
computer to finish the driver installation
二、 Connect to Wireless Access Point

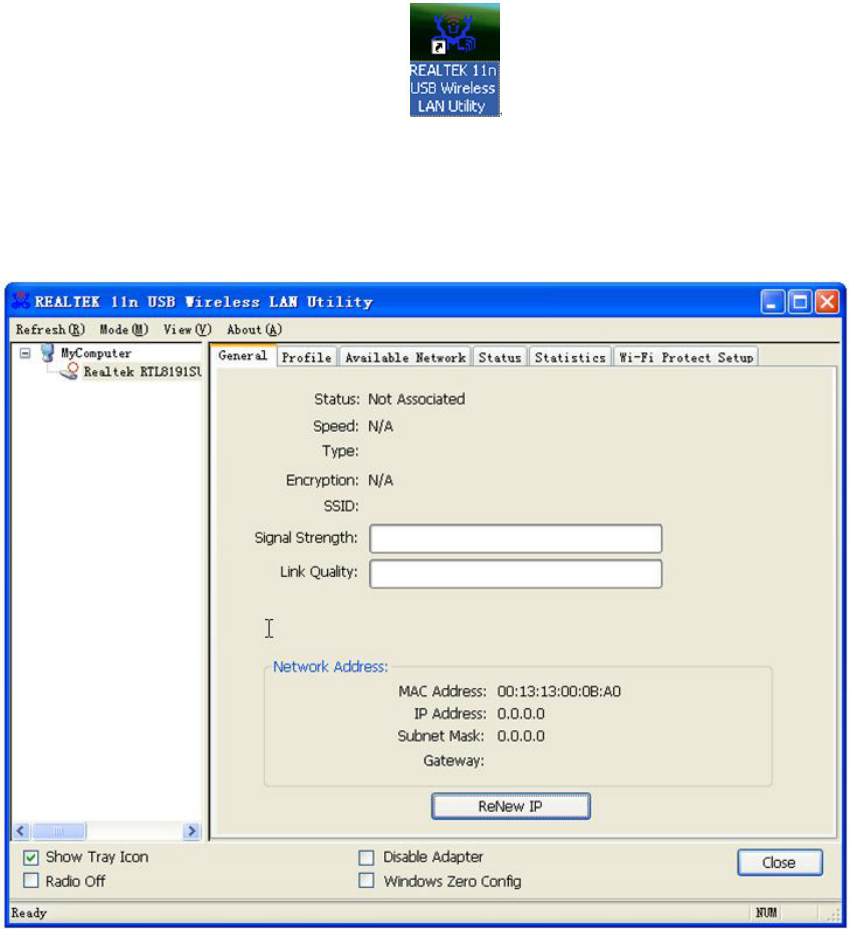

1. After installation has finished, wireless configuration utility will be shown on the desktop of your
computer, and it will try to connect to any unencrypted wireless access point automatically. If you want
to connect to a specific wireless access point, or the access point you wish to connect uses encryption,
you have to configure the wireless network card and input the correct password to get connected to the
wireless access point. Double click the icon on your desktop.

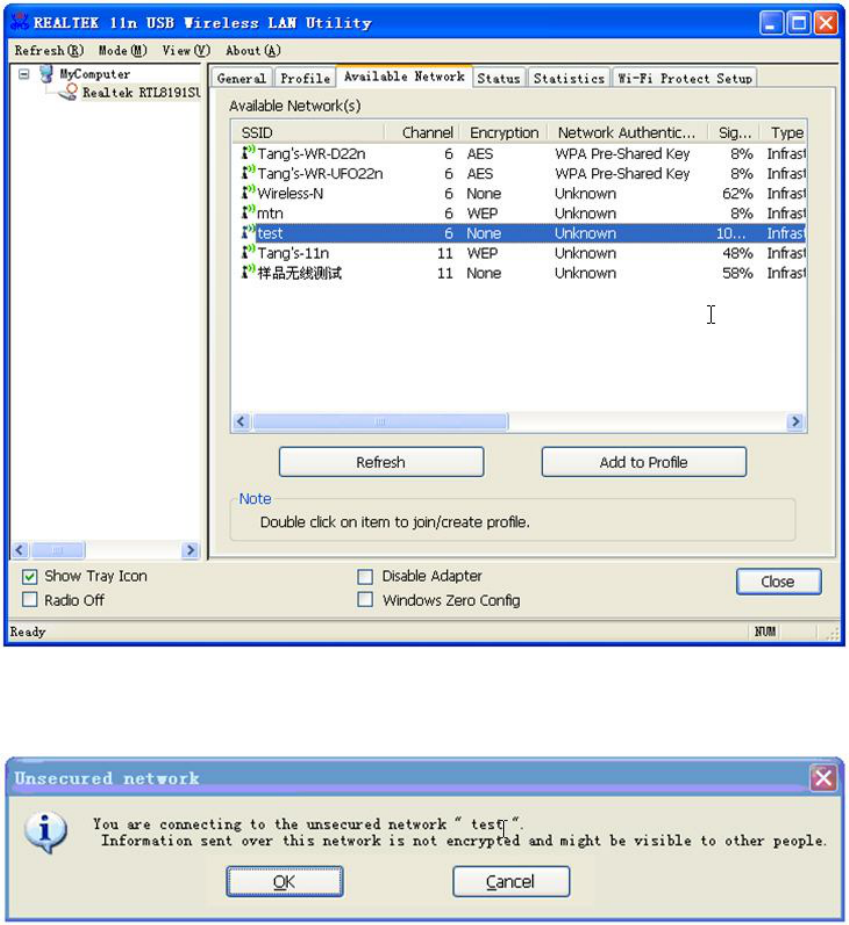

2. Scan available wireless access point. Scan results will display in the ‘Available Network’ zone. If
you can’t find the access point you wish to connect here, click the ‘Refresh’ button, until you can find
your wireless access point.
3. Choose the wireless access point’s SSID, and click ‘Add to Profile’
4. If it’s an open wireless network system, you will be warned by this pop up dialogue
5. Click ‘OK’, and fill your information in the ‘Wireless network properties’, or just click ‘OK’. If the
wireless access point has enabled encryption, you will have to input the WEP key or WPA preshared
key in the form.
6. Then, you can find your wireless access point in the ‘Profile’, it will automatically connect to the
access point every time you use your usb network card.

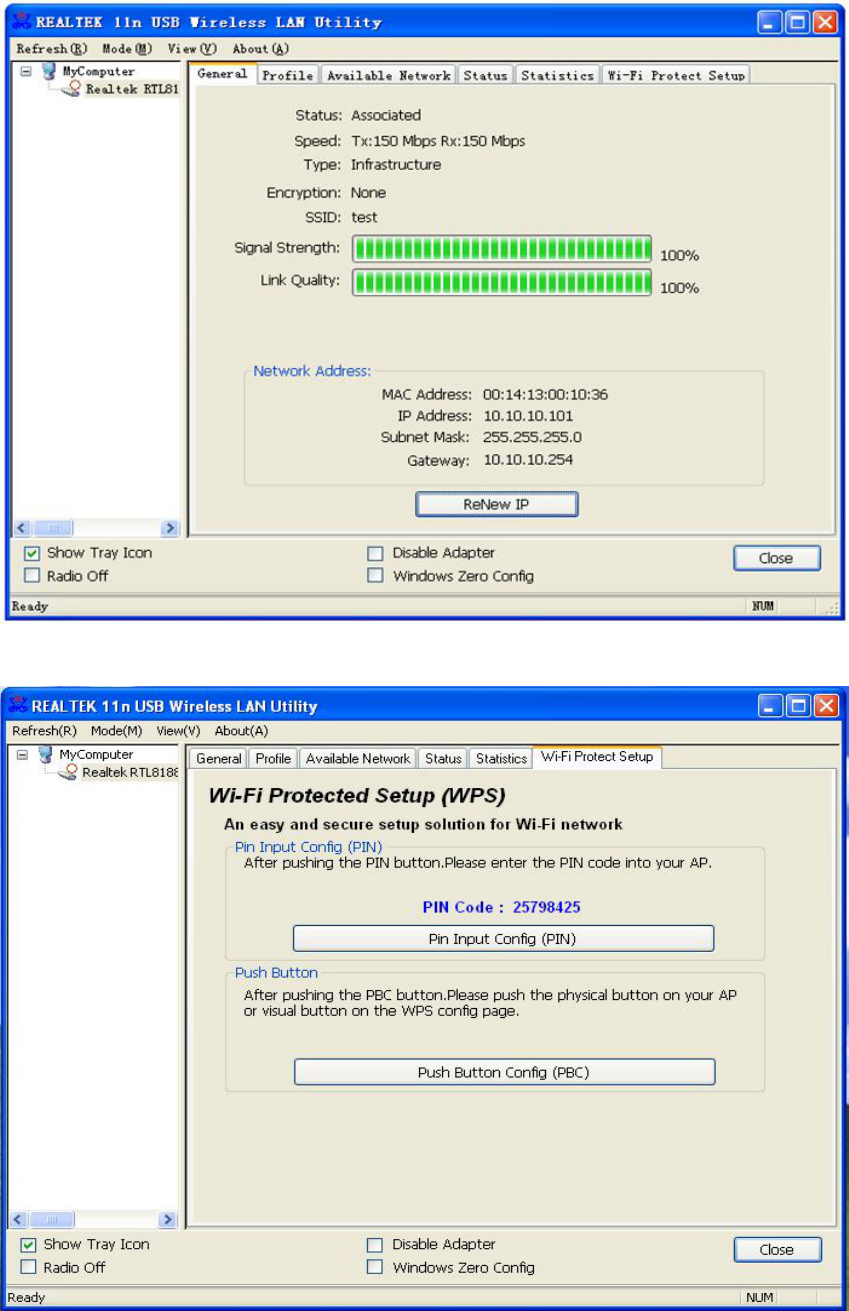

7. After you have connected to the wireless access point successfully, click the ‘General’ menu, you
can get the detail information of connected access point, such as status、IP address、speed and so on.
8. Click the ‘Wi-Fi Protect Setup’ menu, by a simple setting allows you to secure connection to your
wireless AP.
NOTICE:
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications made to this equipment not expressly approved by SHENZHEN MTN
ELECTRONICS CO., LTD. may void the FCC authorization to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
Please see the RF Exposure information.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications
to this equipment. Such modifications could void the user's authority to operate the equipment.
