User manual

MD1600

User Manual

VER: 1.0

User Manual

Contents

Contents .................................................................................................................. i

1 Safety Precautions .............................................................................................. 1

Default Safety Language in manual .................................................................... 2

2 Overview............................................................................................................. 3

2.1 Application ................................................................................................... 3

2.2 Features ...................................................................................................... 4

2.3 Standards Compatibility and Compliance ..................................................... 5

3 Hardware Description and Installation ................................................................. 6

3.1 Hardware Description .................................................................................. 6

3.1.1 Front Panel ................................................................................. 6

3.1.2 Rear Panel and Side Panel ......................................................... 7

3.2 Hardware Installation ................................................................................... 8

3.2.1 Choosing the Best Location for Wireless Operation .................... 8

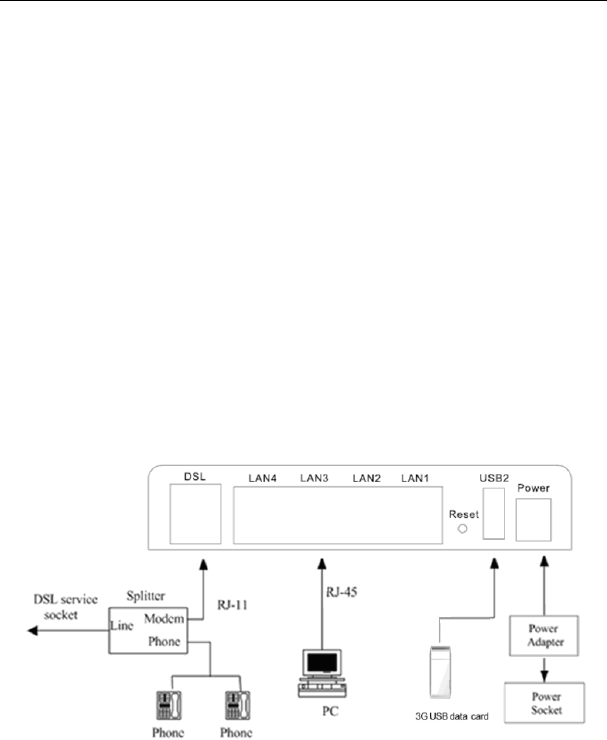

3.2.2 Connecting the Device ................................................................ 9

4 PC Network Configuration and Login ................................................................ 10

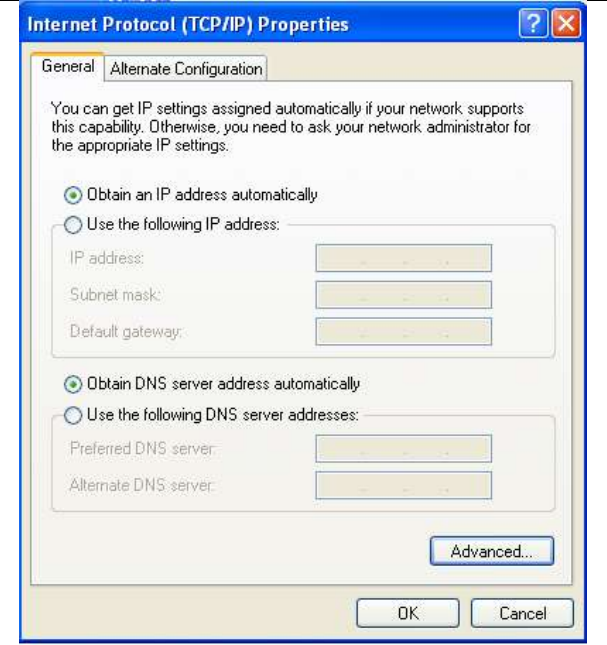

4.1 PC Network Configuration ......................................................................... 10

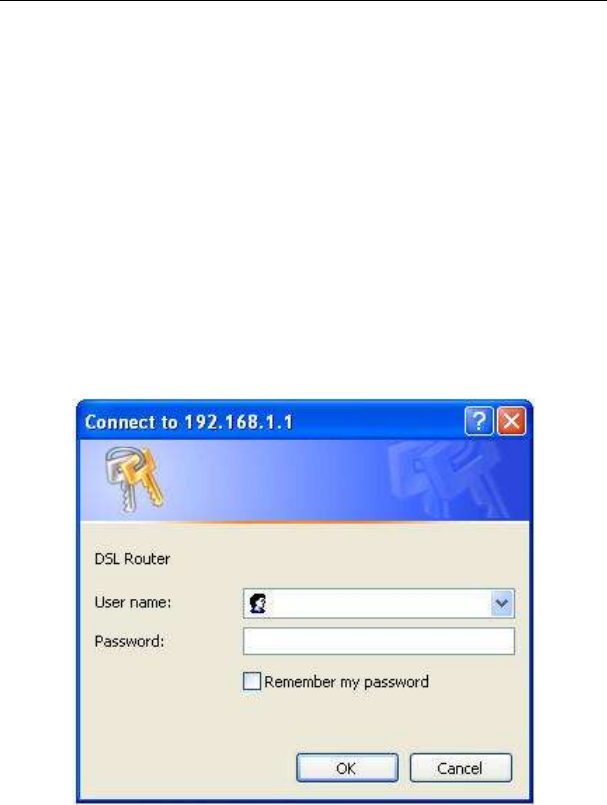

4.2 Logging In to the DSL Router ..................................................................... 12

5 Web-Based Management ................................................................................. 13

5.1 Device Information ..................................................................................... 13

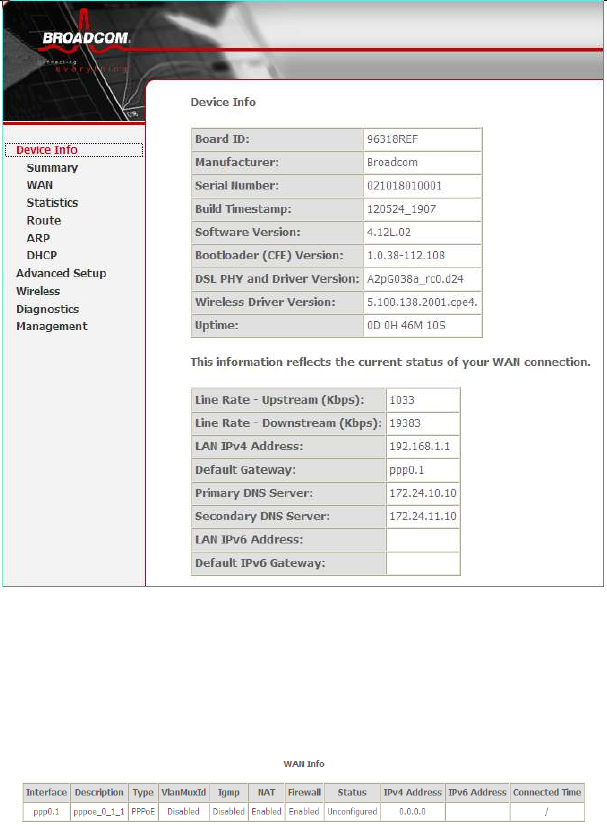

5.1.1 Summary .................................................................................. 13

5.1.2 WAN ......................................................................................... 14

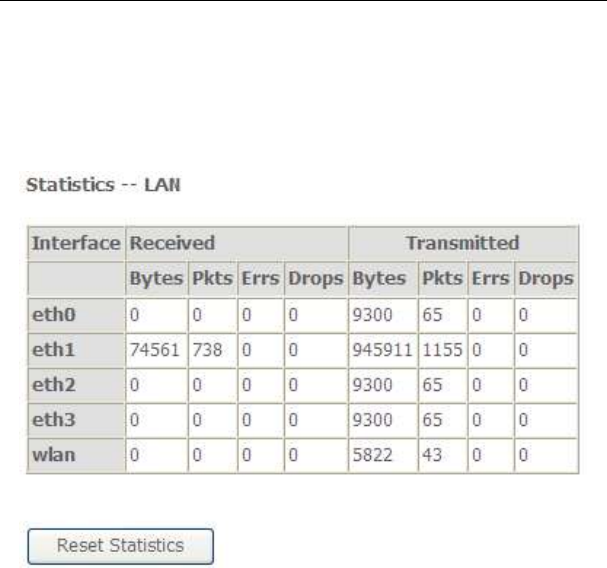

5.1.3 Statistics ................................................................................... 15

5.1.4 LAN 15

5.1.5 WAN Service ............................................................................ 15

5.1.6 xTM 16

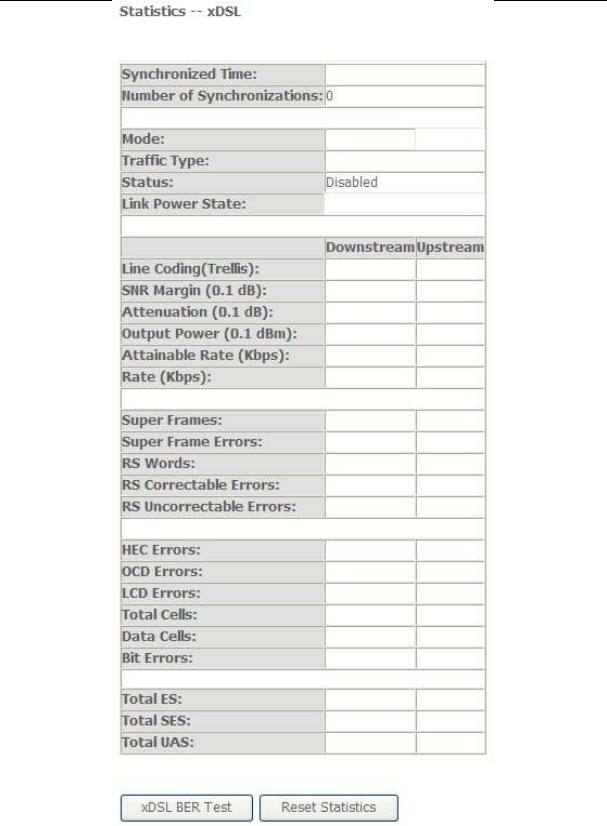

5.1.7 xDSL ........................................................................................ 16

5.1.8 Route........................................................................................ 19

5.1.9 ARP .......................................................................................... 20

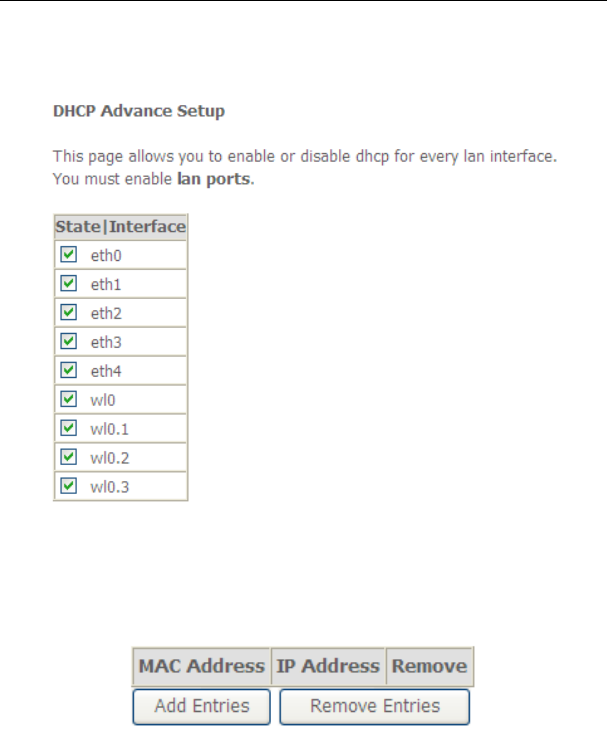

5.1.10 DHCP ..................................................................................... 20

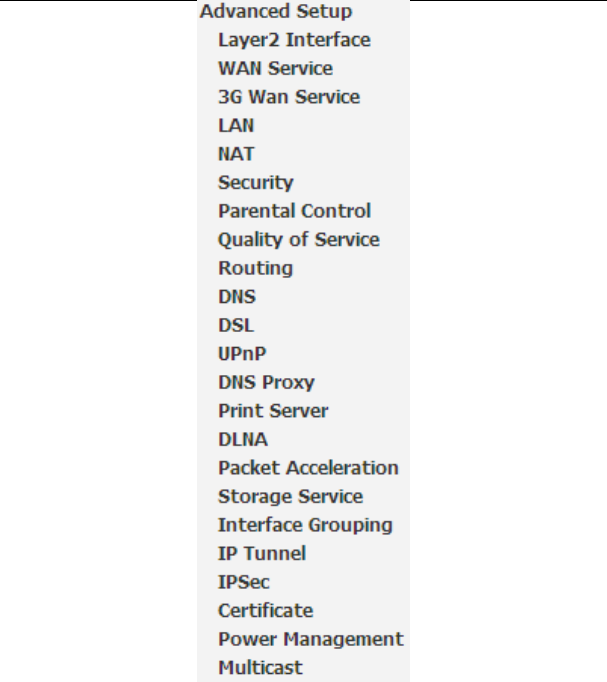

5.2 Advanced Setup ........................................................................................ 20

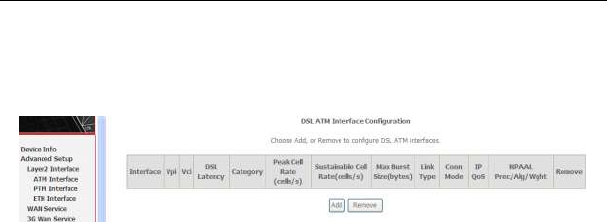

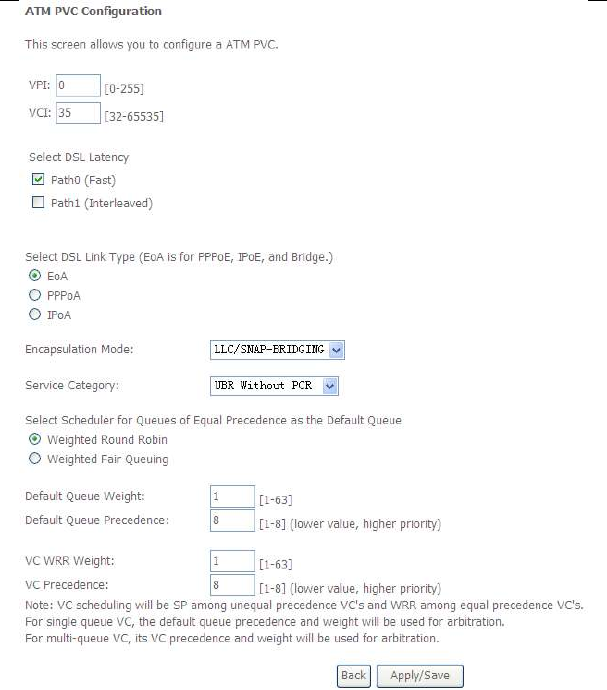

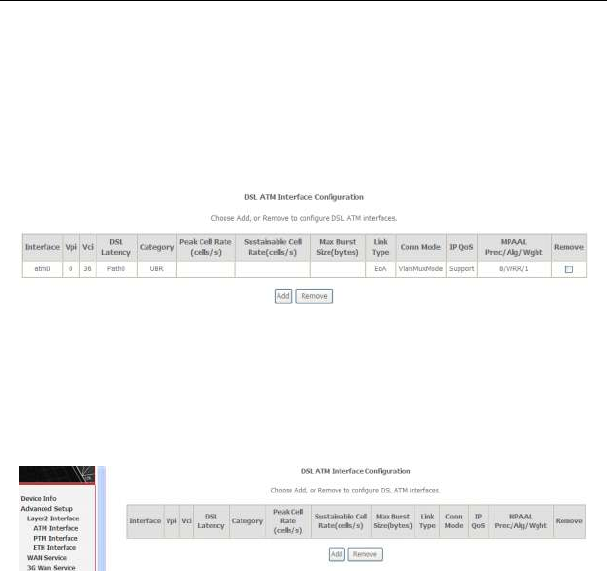

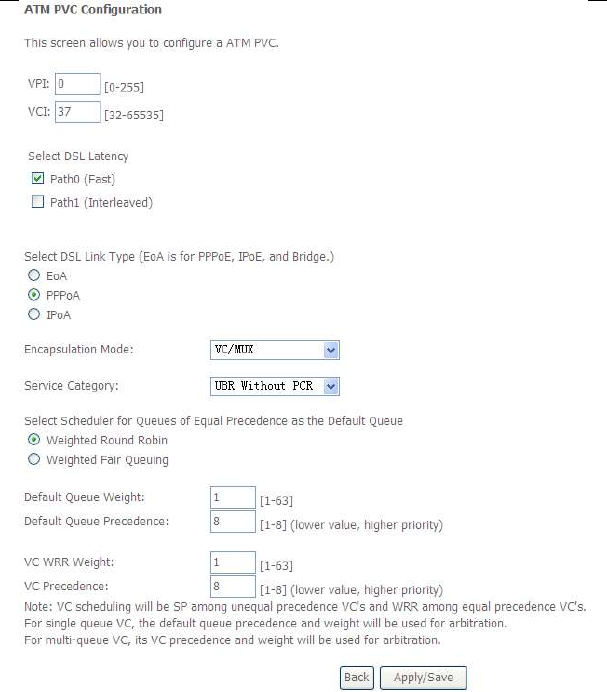

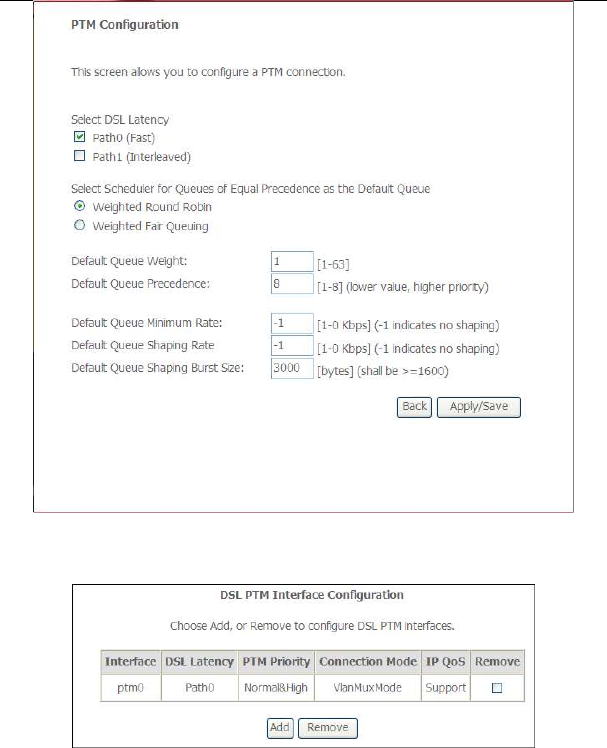

5.2.1 Layer2 Interface........................................................................ 22

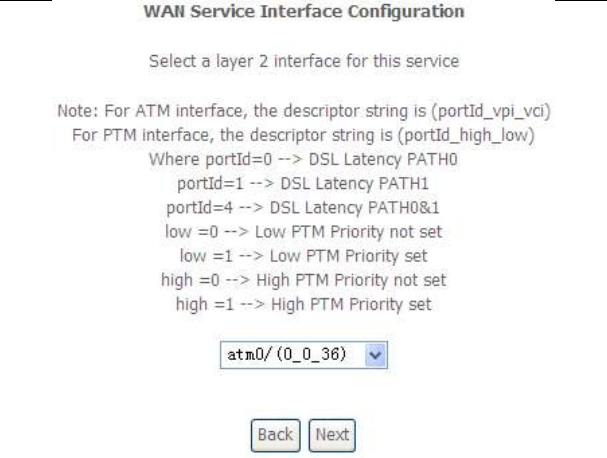

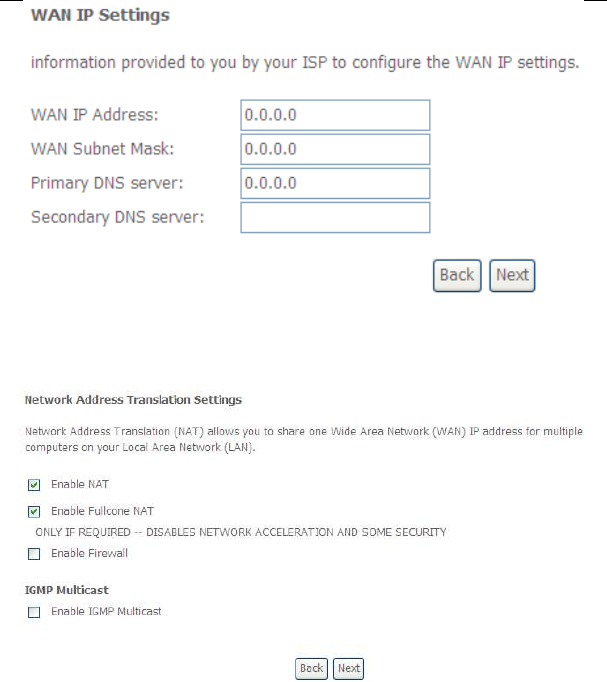

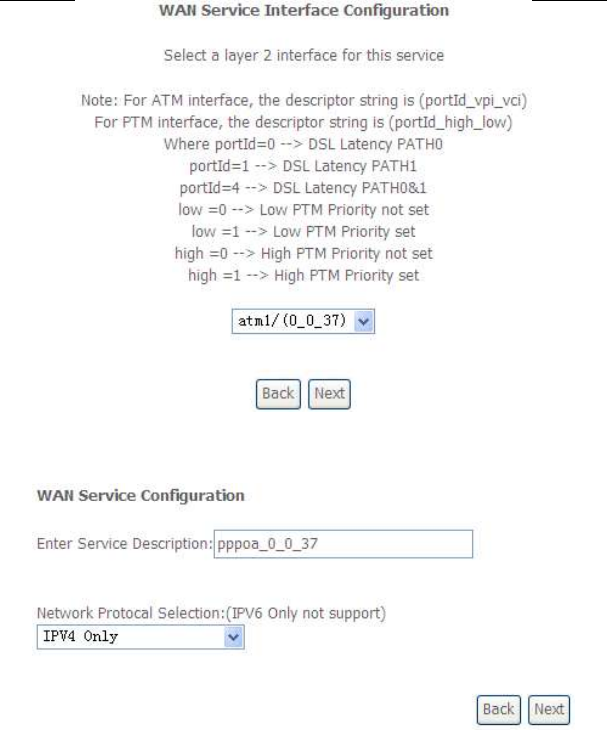

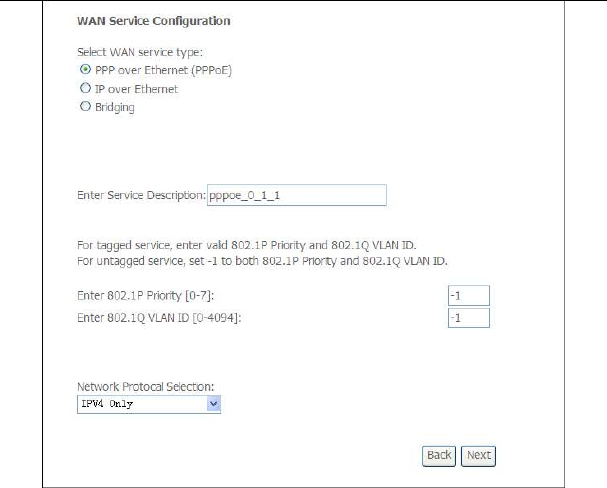

5.2.2 WAN Service ............................................................................ 26

User Manual

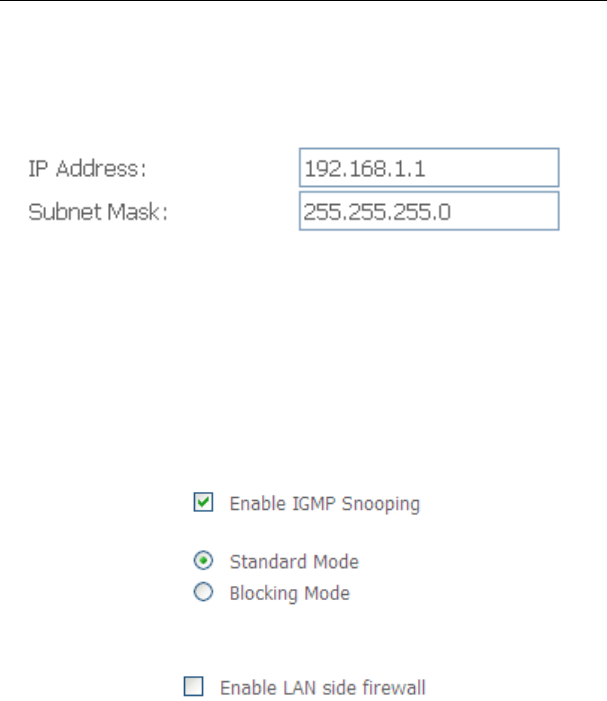

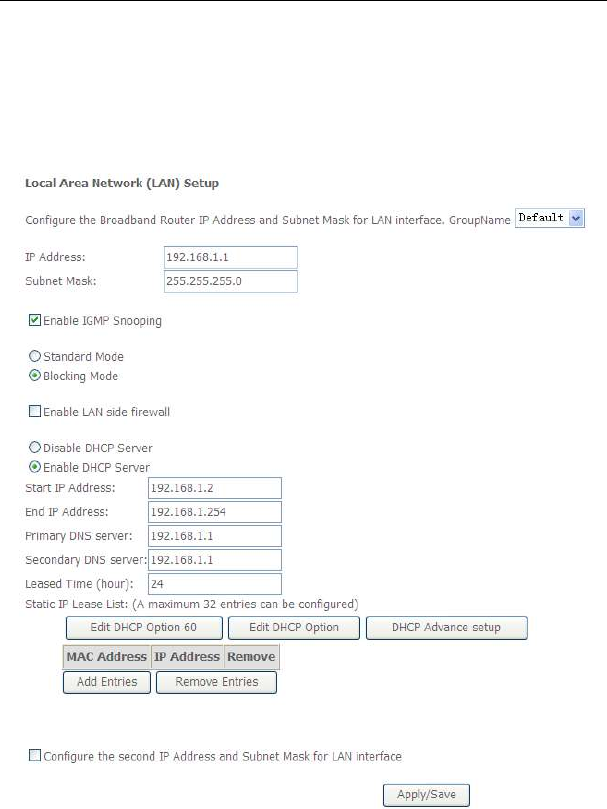

5.2.3 LAN Configuration .................................................................... 51

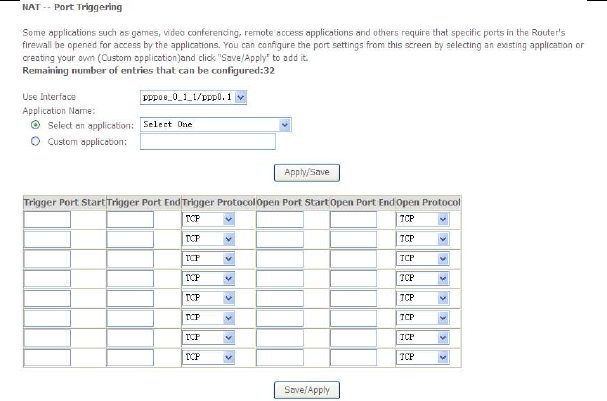

5.2.4 NAT 57

5.2.5 Security .................................................................................... 61

5.2.6 Parental Control ........................................................................ 64

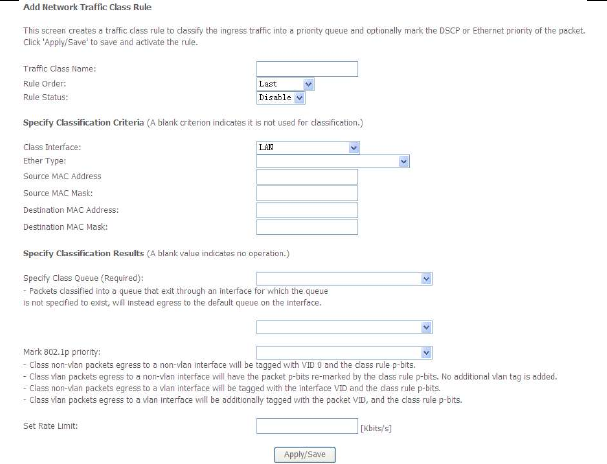

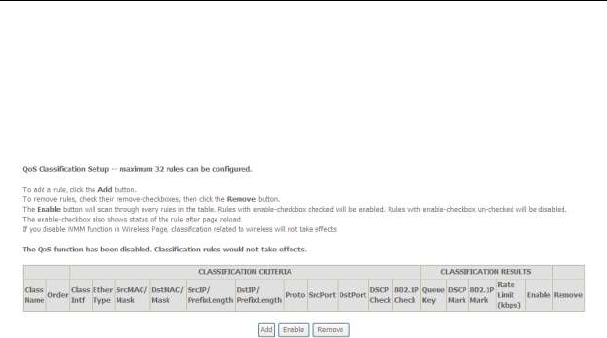

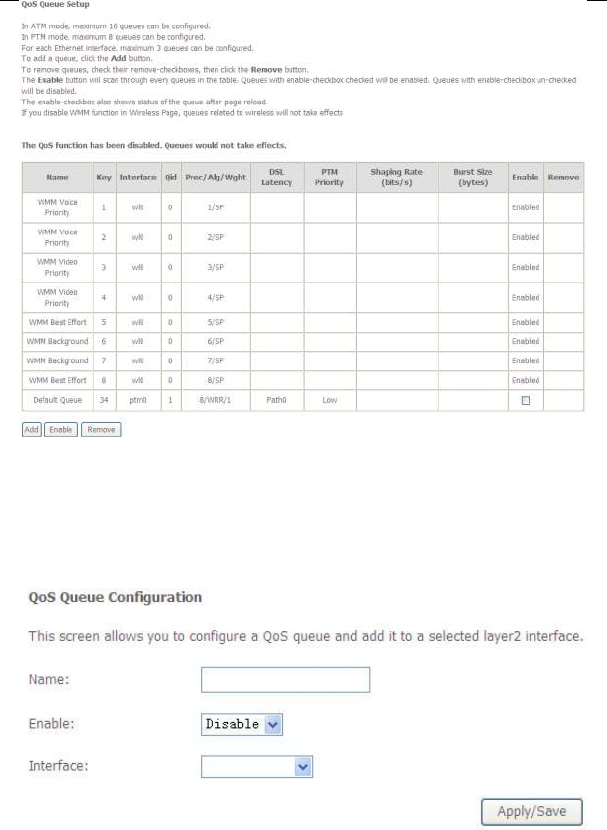

5.2.7 Quality of Service ..................................................................... 66

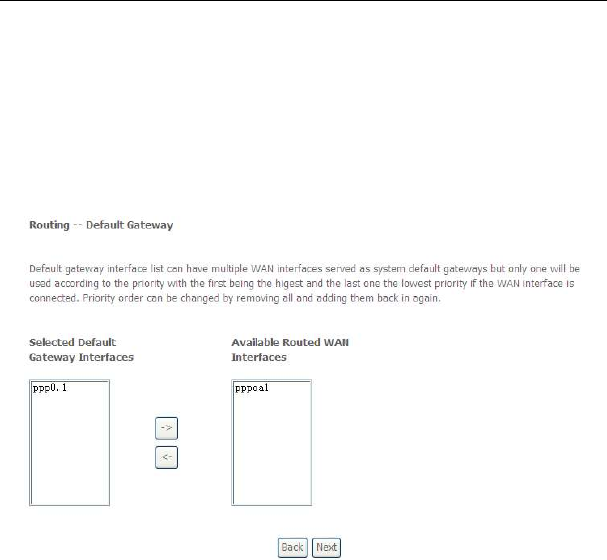

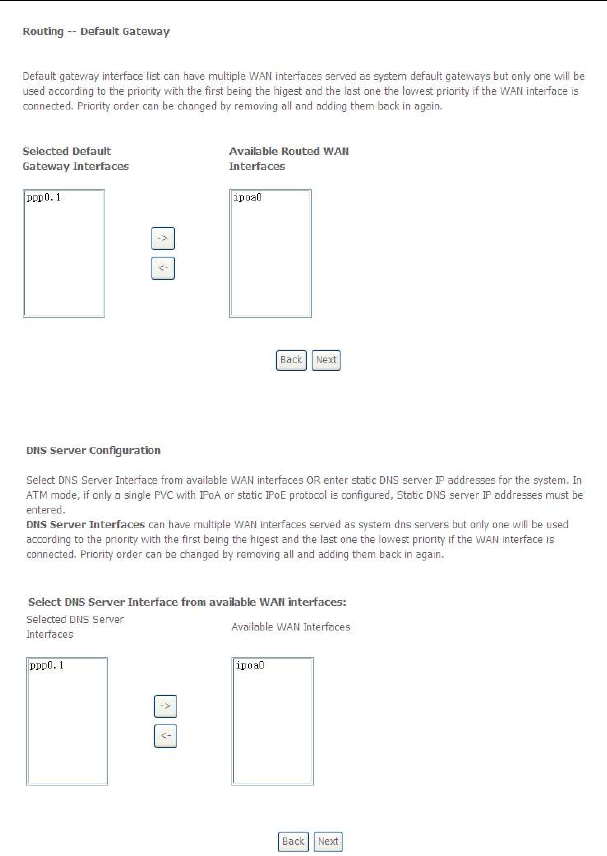

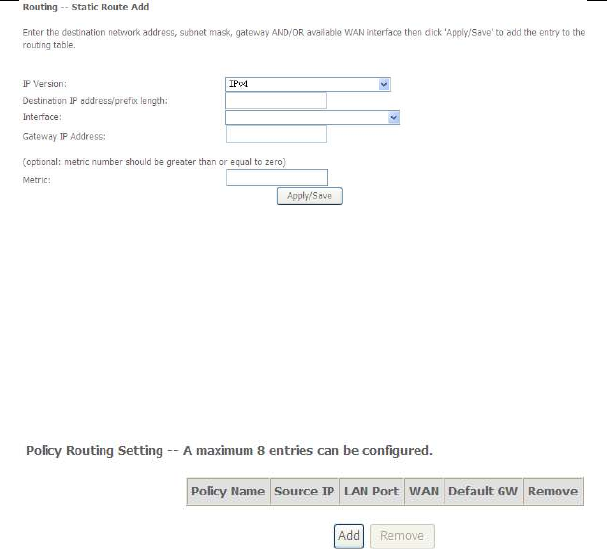

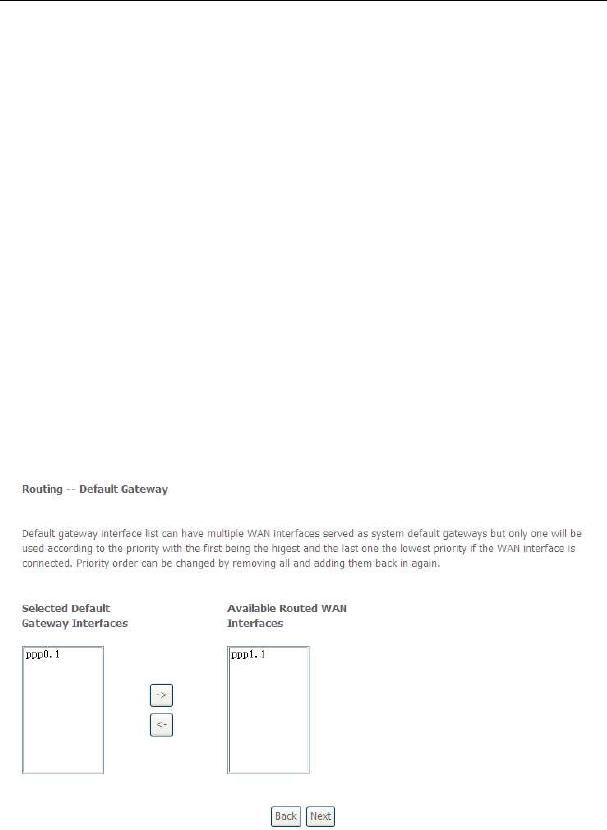

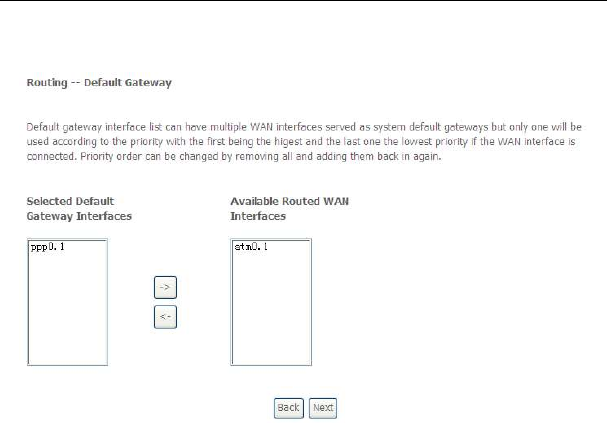

5.2.8 Routing ..................................................................................... 70

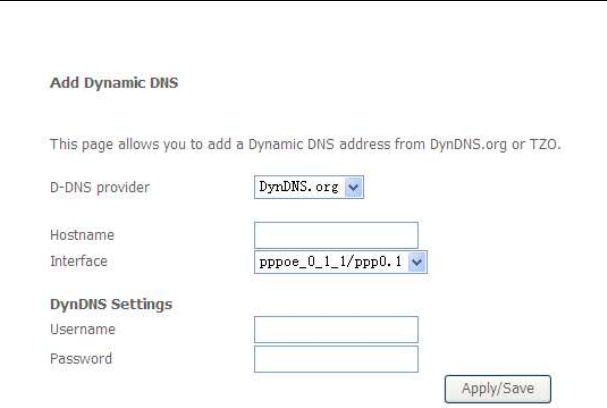

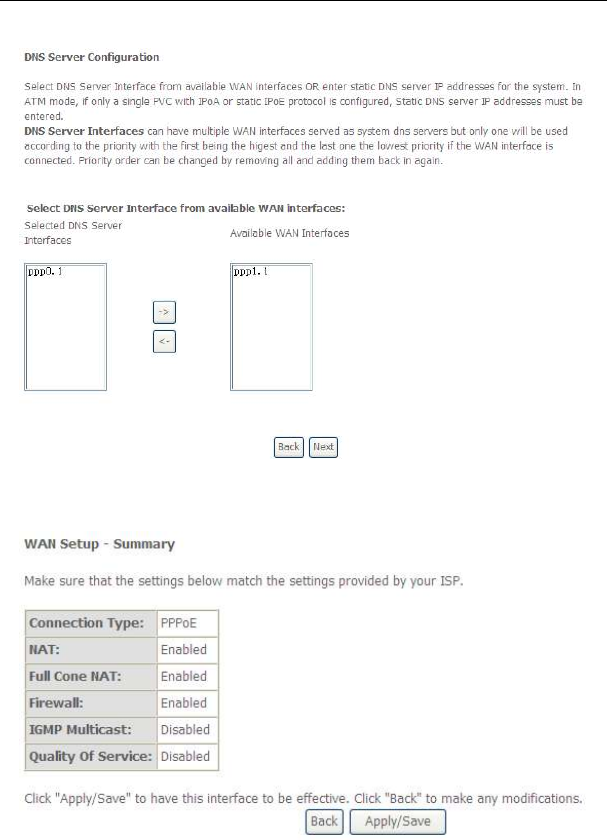

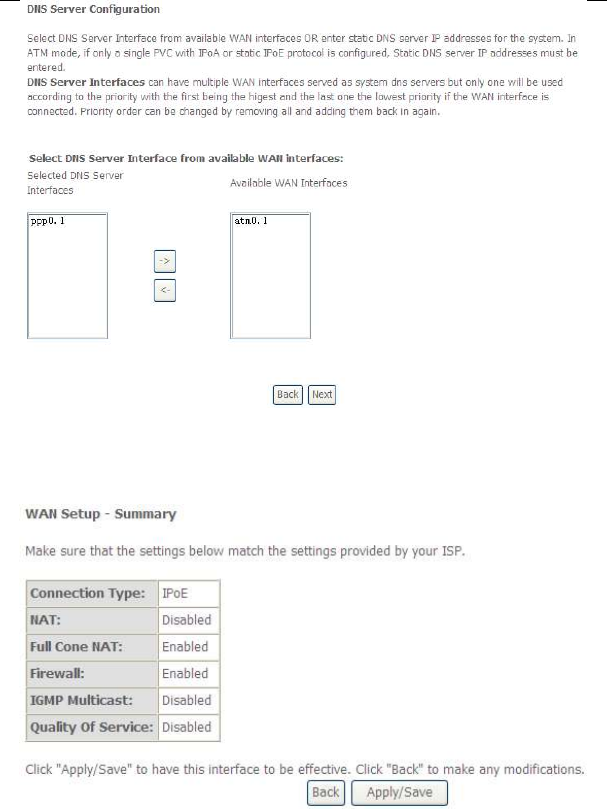

5.2.9 DNS ......................................................................................... 74

5.2.10 DSL ........................................................................................ 75

5.2.11 UPnP ...................................................................................... 76

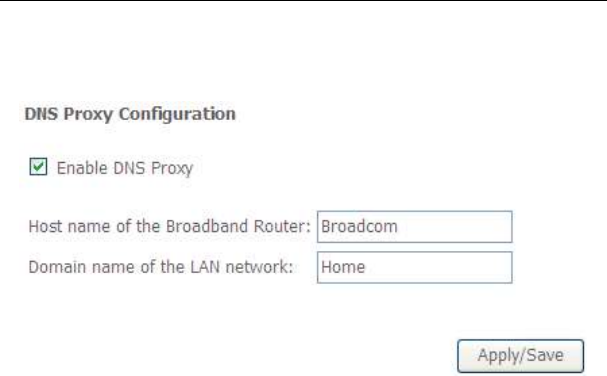

5.2.12 DNS Proxy .............................................................................. 77

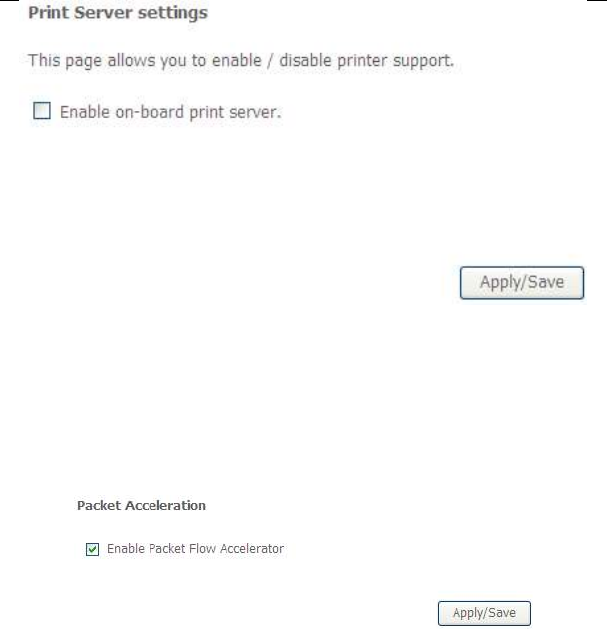

5.2.13 Print Server ............................................................................ 77

5.2.14 Packet Acceleration ................................................................ 78

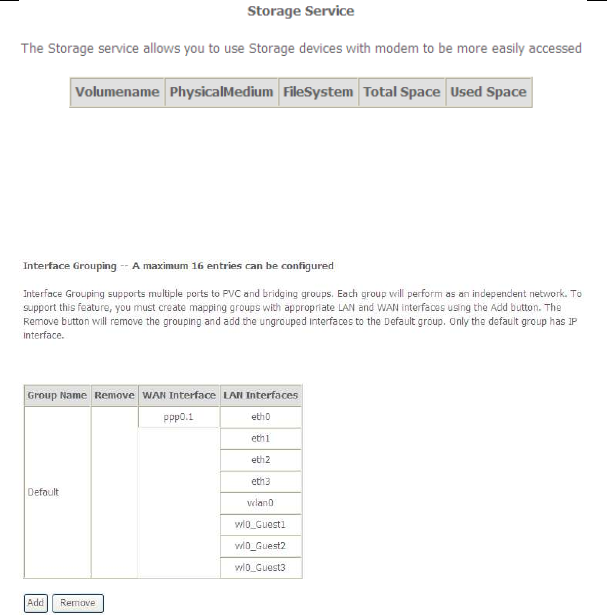

5.2.15 Storage Service ...................................................................... 78

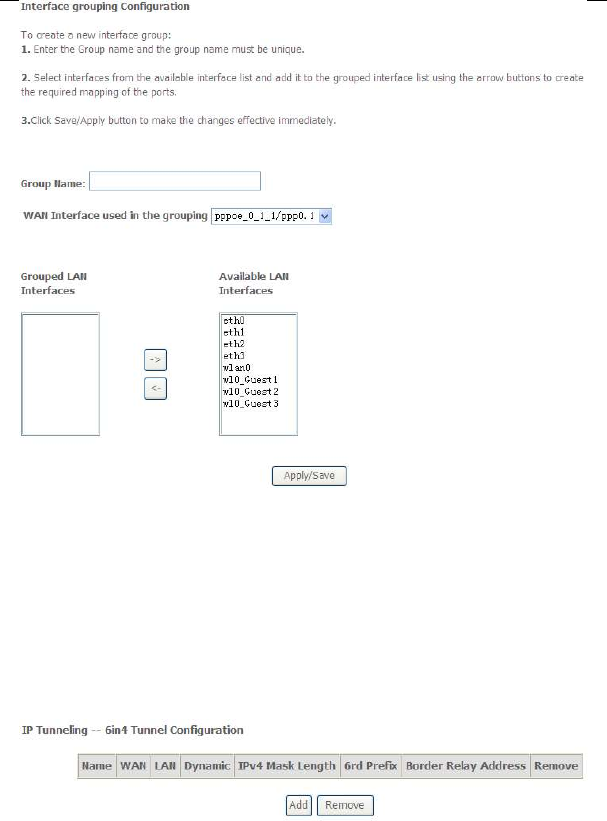

5.2.16 Interface Grouping .................................................................. 79

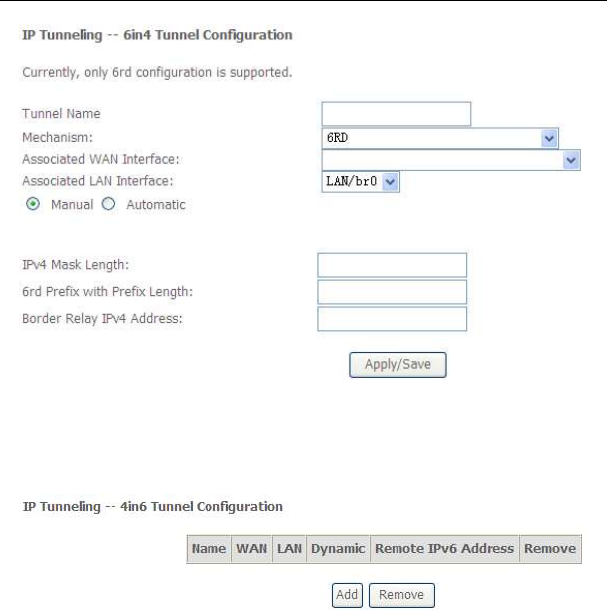

5.2.17 IP Tunnel ................................................................................ 80

5.2.18 IPSec ...................................................................................... 82

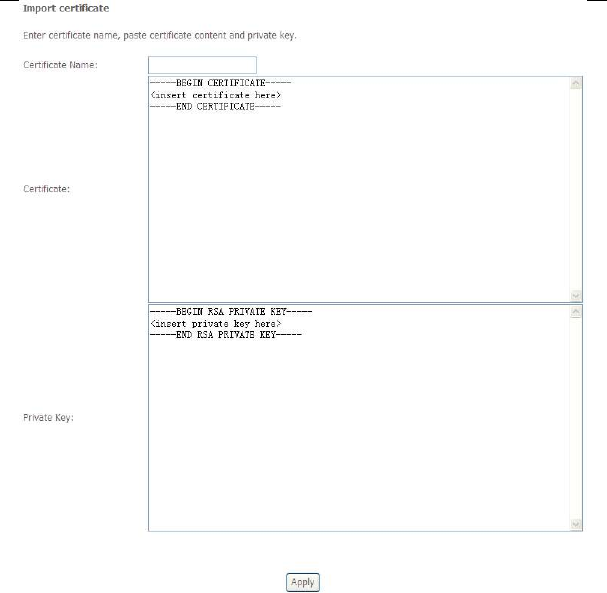

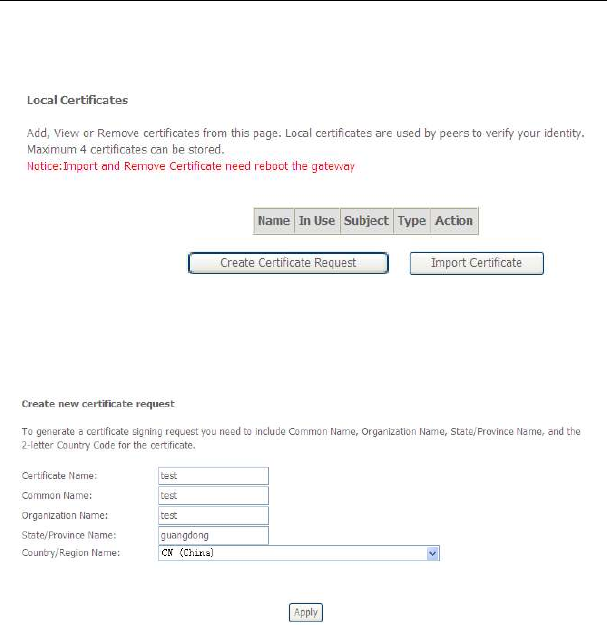

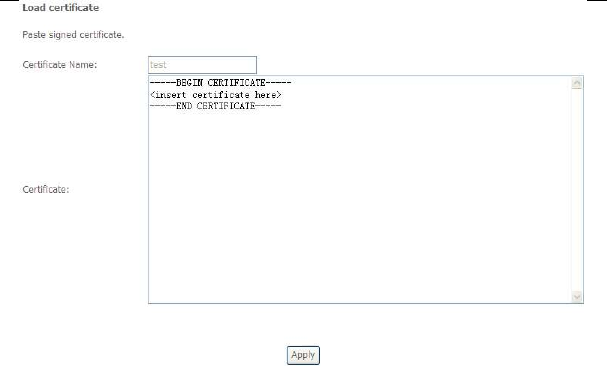

5.2.19 Certificate ............................................................................... 84

5.2.20 Power Management................................................................ 88

5.2.21 Multicast ................................................................................. 89

5.3 Wireless .................................................................................................... 90

5.3.1 Basic Settings ........................................................................... 91

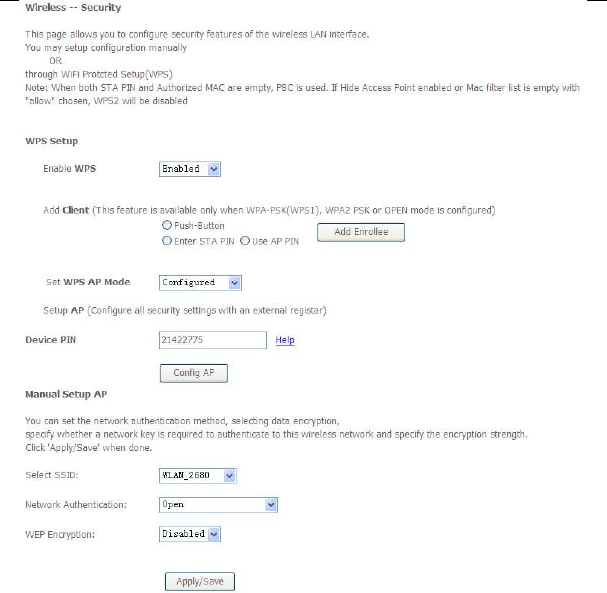

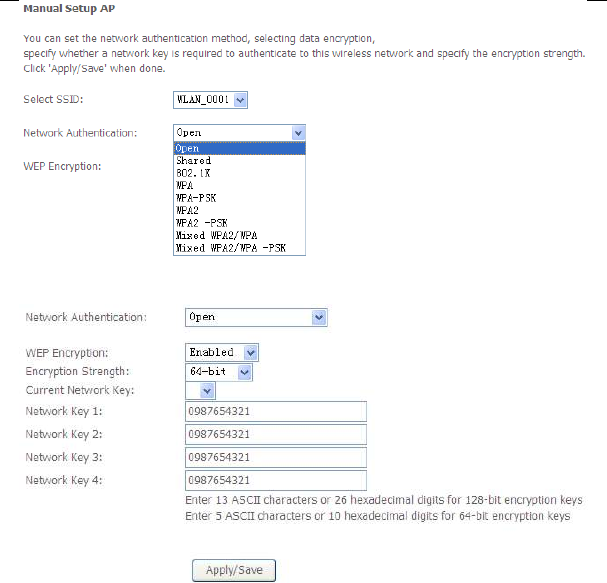

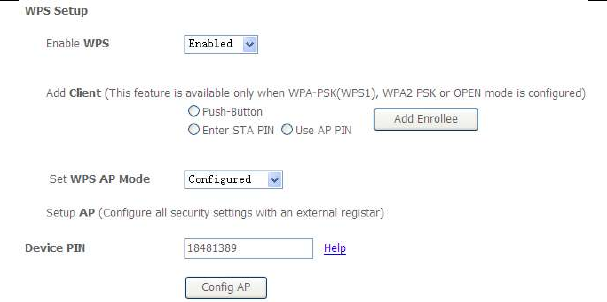

5.3.2 Security .................................................................................... 92

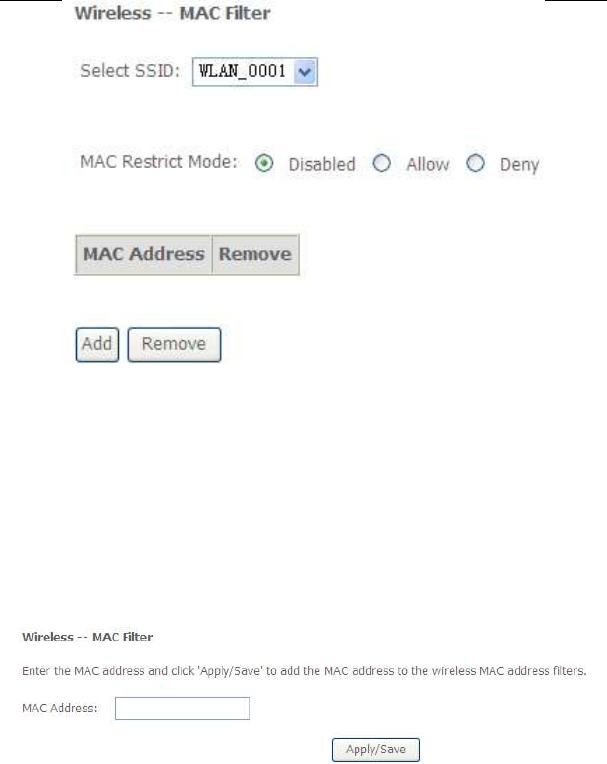

5.3.3 MAC Filter .............................................................................. 100

5.3.4 Wireless Bridge ...................................................................... 101

5.3.5 Advanced Settings .................................................................. 102

5.3.6 Station Info ............................................................................. 105

5.4 Diagnostics .............................................................................................. 105

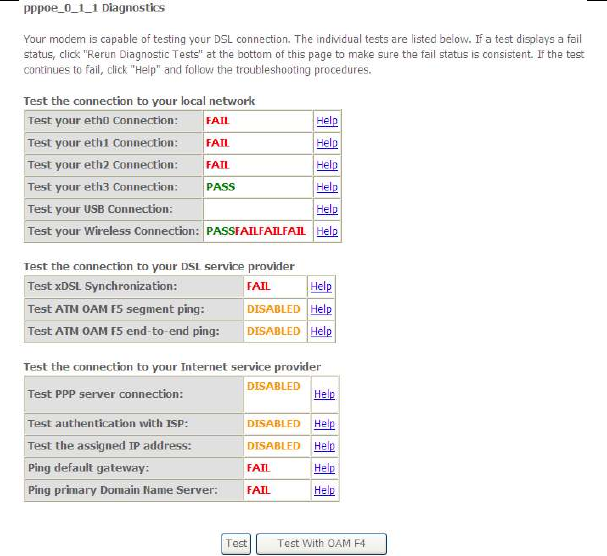

5.4.1 Diagnostics ............................................................................. 105

5.5 Management ........................................................................................... 106

5.5.1 Settings .................................................................................. 107

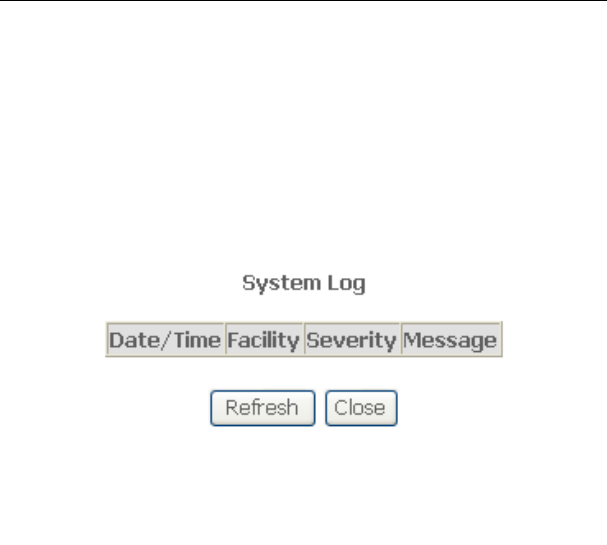

5.5.2 System Log ............................................................................ 108

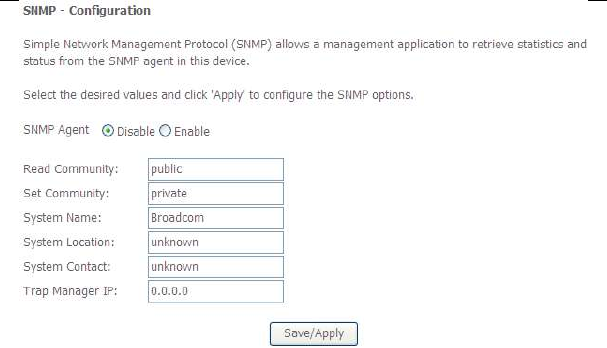

5.5.3 SNMP Agent ........................................................................... 109

5.5.4 TR-69 Client ............................................................................ 110

5.5.5 Internet Time ........................................................................... 111

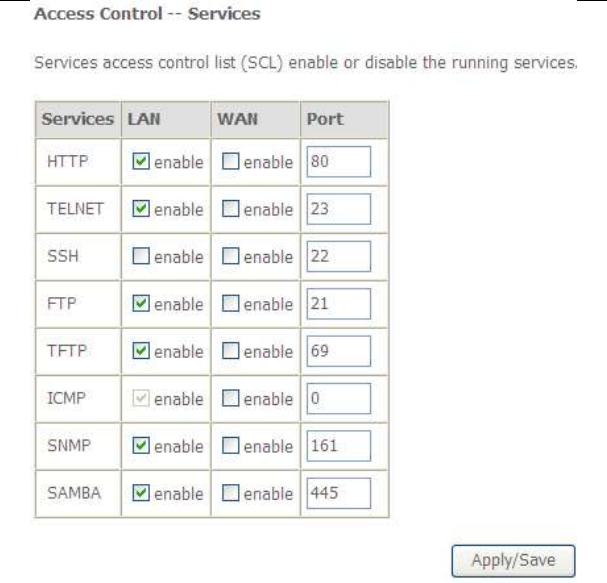

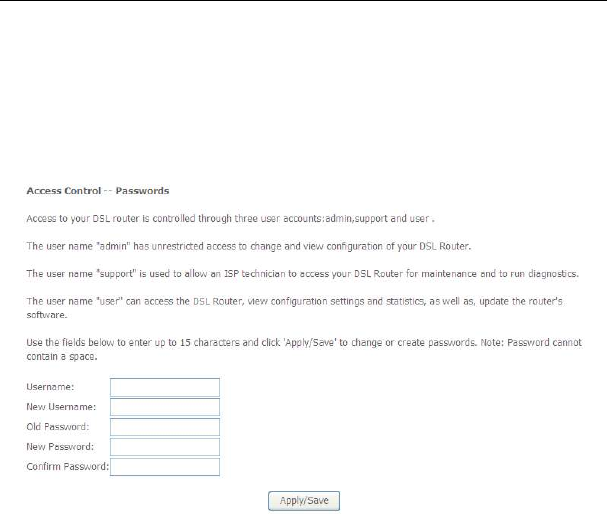

5.5.6 Access Control ........................................................................ 113

User Manual

iii

5.5.7 Update Software ...................................................................... 114

5.5.8 Reboot ..................................................................................... 115

6 Q&A ................................................................................................................. 116

.............................................................................................................................. 116

7 Technical Support ............................................................................................ 117

We like to help. .................................................................................................... 117

User Manual

1 Safety Precautions

NOTICE

This document contains proprietary information protected by copyright, and this

Manual and all the accompanying hardware, software, and documentation are

copyrighted. No part of this document may be photocopied or reproduced by

mechanical, electronic, or other means in any form.

The manufacturer does not warrant that the hardware will work properly in all

environments and applications, and makes no warranty or representation, either

expressed or implied, with respect to the quality, performance, merchantability, or

fitness for a particular purpose of the software or documentation. The manufacturer

reserves the right to make changes to the hardware, software, and documentation

without obligation to notify any person or organization of the revision or change.

All brand and product names are the trademarks of their respective owners.

SAFETY PRECAUTIONS

This equipment is designed with the utmost care for the safety of those who install and

use it. However, special attention must be paid to the dangers of electric shock and

static electricity when working with electrical equipment. All guidelines of this and of

the computer manufacture must therefore be allowed at all times to ensure the safe

use of the equipment. MOTOROLA and MTRLC assume no liability for damage

caused by any improper use of the DSL router.

CAUTION:

 Place the device on a stable surface in its normal upright orientation.

 Do not use the DSL router outdoors.

 Keep the DSL router in an environment that is between 0°C and 40°C

(between 32°F and 104°F).

 Do not place any object on top of the DSL router since this may cause

overheating.

 Do not place the DSL router in a confined space that may cause

overheating.

 Do not restrict the flow of air around the DSL router.

 Use only the telephone cord that is packed within the device package.

 Use only the power adapter that is packed within the device package.

 Pay attention to the power load of the outlet or power adapter wires. An

overburden power outlet or damaged wires and plugs may cause electric

shock or fire accident. Check the power cords regularly. If you find any

damage, replace it at once.

User Manual

 Do not put this device close to a place where a heat source exits or high

temperature occurs. Avoid placing the device in direct sunlight.

 Do not put this device close to a place where it is high moisture or wet. Do

not spill any fluid on this device.

FCC Statement

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment. This device

complies with Class B Part 15 and Part 68 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and (2) this

device must accept any interference received, including interference that may cause

undesired operation.

Note: this equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the

following measures: reorient or relocate the receiving antenna, increase the separation

between the equipment and receiver, connect the equipment into an outlet on a circuit

different from that to which the receiver is connected, and/or consult the dealer or an

experienced radio/TV technician for help.

FCC Radiation Exposure Statement: This equipment complies with radiation exposure

limits and should be installed and operated with minimum distance 20cm between the

radiator and your body. This transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

FCC - PART 68

This equipment complies with Part 68 of the FCC rules and the requirements adopted

by the ACTA. On the bottom case of this equipment is a label that contains, among

other information, a product identifier in the format US: MTLDL01AMD1600 and REN:

0.1A for this equipment.

This equipment uses the following USOC jacks: RJ-11/RJ45/USB/Power Jacks!

A plug and jack used to connect this equipment to the premises wiring and telephone

network must comply with the applicable FCC Part 68 rules and requirements

adopted by the ACTA. A compliant telephone cord and modular plug is provided with

this product. It is designed to be connected to a compatible modular jack that is also

compliant. See installation instructions for details.

User Manual

REN (RINGER EQUIVALENT NUMBERS) STATEMENT

REN=0.1

Notice: The Ringer Equivalence Number (REN) assigned to each terminal device

provides an indication of the maximum number of terminals allowed to be connected to

a telephone interface. The termination on an interface may consist of any combination

of devices subject only to the requirement that the sum of the Ringer Equivalence

Numbers of all the devices does not exceed 5.

If this equipment MD1600 causes harm to the telephone network, the telephone

company will notify you in advance that temporary discontinuance of service may be

required. But if advance notice isn't practical, the telephone company will notify the

customer as soon as possible. Also, you will be advised of your right to file a complaint

with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or

procedures that could affect the operation of the equipment. If this happens the

telephone company will provide advance notice in order for you to make necessary

modifications to maintain uninterrupted service.

If trouble is experienced with this equipment MD1600, for repair or warranty information,

please contact MTRLC LLC If the equipment is causing harm to the telephone network,

the telephone company may request that you disconnect the equipment until the

problem is resolved.

Connection to party line service is subject to state tariffs. Contact the state public utility

commission, public service commission or corporation commission for information.

If your home has specially wired alarm equipment connected to the telephone line,

ensure the installation of this MD1600 does not disable your alarm equipment. If you

have questions about what will disable alarm equipment, consult your telephone

company or a qualified installer.

Input supply voltage is from AC outlet (mains), disconnect device from outlet to

remove power.

WEEE is a directive in the EU that designates safe and responsible collection,

recycling, and recovery procedures for electronic waste.

MTRLC LLC

PO Box 121147

Boston, MA 02112-114

H Overview

The xDSL Router integrates wireless LAN, and USB storage into one unit. It is

designed to provide a simple and cost-effective xDSL Internet connection for a

private Ethernet and 802.11g/802.11b/802.11n wireless network. The Router

combines high-speed xDSL Internet connection, IP routing for the LAN and

wireless connectivity in one package. It is usually preferred to provide high access

performance applications for the individual users, the SOHOs, and the small

enterprises.

The Router is easy to install and use. The Router connects to an Ethernet L

computers via standard Ethernet ports. The xDSL connection is made usin ordinary

telephone line with standard connectors. The advanced security enhancements,

packet filtering and port redirection, can help protect your network from potentially

devastating intrusions by malicious agents from outside your network.

Network and Router management is done through the web-based management

interface that can be accessed through the local Ethernet using any web browser.

You may also enable remote management to enable configuration of the Route

the WAN interface.

1.1 Application

 Home gateway

 Wireless LAN

 SOHO

 Small enterprises

 Higher data rate broadband sharing

 Audio and video streaming and transfer

 PC file and application sharing

 Network and online gaming

 USB storage

1.2 Features

 User-friendly GUI for web configuration

 Several pre-configured popular games. Just enable the game and the port

settings are automatically configured.

 Compatible with all standard Internet applications

 Industry standard and interoperable xDSL interface

 Simple web-based status page displays a snapshot of system configuration,

and links to the configuration pages

 Downloadable flash software updates

 Support for up to 8 permanent virtual circuits (PVC)

 Support for up to 8 PPPoE sessions

 Support RIP v1 & RIP v2

 WLAN with high-speed data transfer rates, compatible with IEEE 802.11b/g/n

 IP routing and bridging

 Asynchronous transfer mode (ATM) and digital subscriber line (DSL) support

 Point-to-point protocol (PPP)

 Network/port address translation (NAT/PAT)

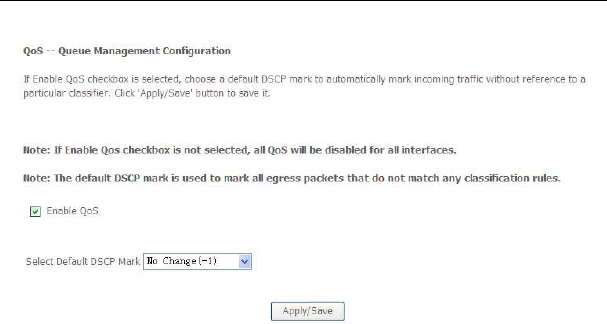

 Quality of service (QoS)

 Wireless LAN security: WPA, 802.1x, RADIUS client

 Universal plug-and-play(UPnP)

 Print server

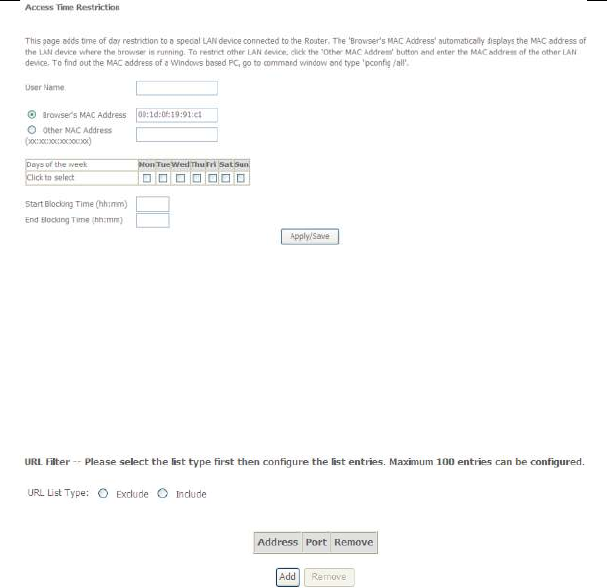

 Web filtering

 Management and control

Web-based management (WBM)

Command line interface (CLI)

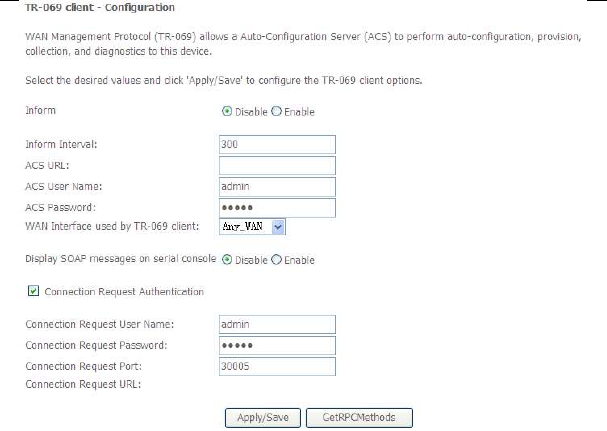

TR-069 WAN management protocol

 Remote update

 System statistics and monitoring

 DSL router is targeted at the following platforms: DSL modems, wireless

access points and bridge.

1.3 Standards Compatibility and Compliance

 Support application level gateway (ALG)

 ITU G.992.1 (G.dmt)

 ITU G.992.2 (G.lite)

 ITU G.994.1 (G.hs)

 ITU G.992.3 (ADSL2)

 ITU G.992.5 (ADSL2+)

 ANSI T1.413 Issue 2

 IEEE 802.3

 IEEE 802.3u

 IEEE 802.11b

 IEEE 802.11g

 IEEE 802.11n

User Manual

 Hardware Description and Installation

 Note:

The figures in this document are for reference only.

2.1 Hardware Description

2.1.1

Front Panel

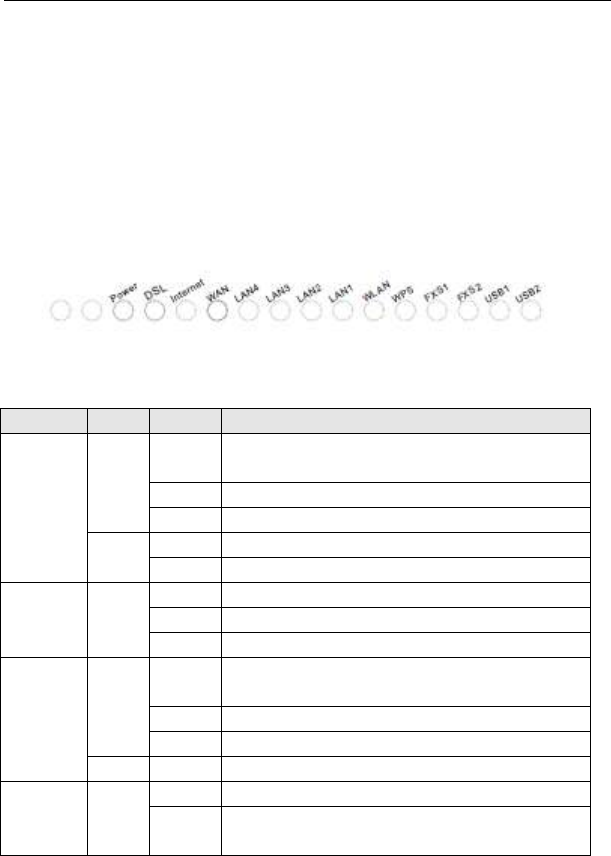

Figure 1 Front panel

The following table describes the indicators on the front panel.

Indicator

Color

Status

Description

Power

Green

On The device is powered on and the device operates

normally.

Blink The software is upgrading.

Off The device is powered off.

Red

On The device is initiating.

Blink The software is upgrading.

DSL Green

On DSL link has established.

Blink The DSL line is training.

Off Device is powered off.

Internet Green

On Internet is synchronized successfully in the route

mode.

Blink Internet data is being transmitted.

Off Ethernet interface is disconnected.

Red On Authentication has failed.

LAN

1/2/3/4 Green

On The Ethernet interface is connected.

Blink Data is being transmitted through the Ethernet

interface.

User Manual

Indicator

Color

Status

Description

Off The Ethernet interface is disconnected.

USB Green

On The connection of USB flash disk has established.

Blink Data is being transmitted.

Off No signal is detected.

WLAN Green

On WLAN is enabled.

Blink Data is being transmitted through the wireless

interface.

Off WLAN is disabled.

WPS Green

On Connection succeeds under Wi-Fi Protected

Setup.

Blink Negotiation is in progress under Wi-Fi Protected

Setup.

Off Wi-Fi Protected Setup is disabled.

2.1.2

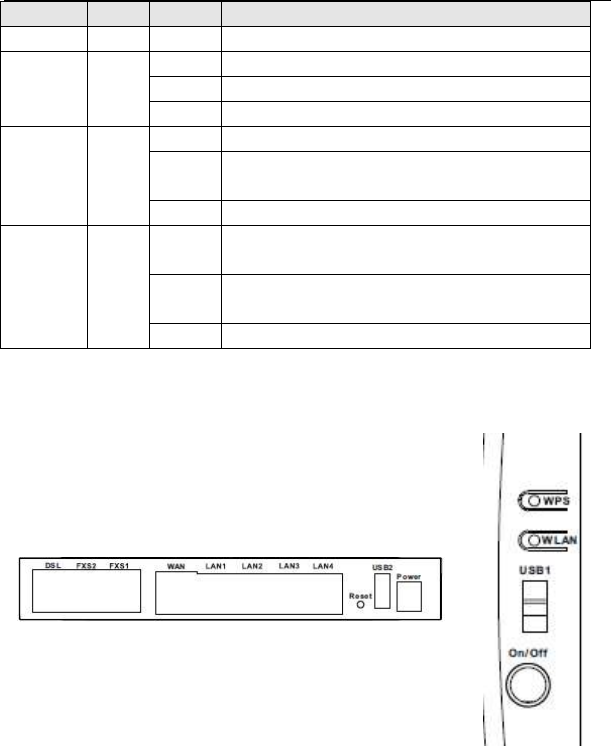

Rear Panel and Side Panel

Figure 2 Rear panel Figure 3 Side

panel

User Manual

The following table describes the interfaces or the buttons.

Interface

Description

DSL RJ-11 port: Connect the router to DSL connector or splitter through

telephone cable.

LAN 4~1 RJ-45 port, for connecting the router to a PC or another network

device.

Reset Press the button for at least 1 second and then release it. System

restores the factory default settings.

USB For connecting the USB storage devices.

Power Power interface, for connecting the power adapter.

On/Off Power switch.

WLAN WLAN switch, for enabling or disabling the WLAN function.

WPS

This button is used for enabling WPS PBC mode. If WPS is enabled,

press this button, and then the wireless router starts to accept the

negotiation of PBC mode.

Warning:

Do not press the Reset button unless you want to clear the current settings. The

Reset button is in a small circular hole on the rear panel. If you want to restore the

default settings, please press the Reset button gently for 1 second with a fine needle

inserted into the hole and then release the button. The system reboots and returns to

the factory defaults.

2.2 Hardware Installation

2.2.1

Choosing the Best Location for Wireless

Operation

Many environmental factors may affect the effective wireless function of the DSL

Router. If this is the first time that you set up a wireless network device, read the

following information:

The access point can be placed on a shelf or desktop, ideally you should be able to

see the LED indicators in the front, as you may need to view them for troubleshooting.

Designed to go up to 100 meters indoors and up to 300 meters outdoors, wireless

LAN lets you access your network from anywhere you want. However, the numbers of

User Manual

walls, ceilings, or other objects that the wireless signals must pass through limit signal

range. Typical ranges vary depending on types of materials and background RF

noise in your home or business.

2.2.2

Connecting the Device

Step 1

Connect the DSL port of the router and the Modem port of the splitter

with a telephone cable; connect the phone to the phone port of the

splitter through a cable; and connect the incoming line to the Line port of

the splitter.

The spliiter has three ports:

 Line: Connect to a wall phone jack (RJ-11 jack)

 Modem: Connect to the Line interface of the router

 Phone: Connect to a telephone set

Step 2

Connect the LAN port of the router to the network card of the PC through

an Ethernet cable.

Step 3

Plug the power adapter to the wall outlet and then connect the other end

of it to the Power port of the router.

The followig figure displays the connection of the DSL router, PC, and telephones.

Figure 4 Connecting the DSL router

User Manual

3 PC Network Configuration and Login

3.1 PC Network Configuration

Each network interface on the PC should either be configured with a statically defined

IP address and DNS address, or be instructed to automatically obtain an IP address

using the network DHCP server. DSL router provides a DHCP server on its LAN and it

is recommended to configure your LAN to automatically obtain its IP address and

DNS server IP address.

The configuration principle is identical but should be carried out differently on each

operating system.

The following displays the TCP/IP Properties dialog box on Windows XP.

User Manual

Figure 5 IP and DNS configuration

TCP/IP configuration steps for Windows XP are as follows:

Choose Start > Control Panel > Network Connections.

Right-click the Ethernet connection icon and choose Properties.

On the General tab, select the Internet Protocol (TCP/IP) component and click

Properties.

The Internet Protocol (TCP/IP) Properties window appears.

Select the Obtain an IP address automatically radio button.

User Manual

Select the Obtain DNS server address automatically radio button.

Click OK to save the settings.

3.2 Logging In to the DSL Router

To log in to the DSL router, do as follows:

Open a Web browser on your computer.

Enter http://192.168.1.1 (the default IP address of the DSL router) in the address

bar. The login page appears.

Enter the user name and the password. The default username and password of the

super user are admin and admin. The username and password of the

common user are user and user. You need not enter the username and

the password again if you select the option Remember my password. It

is recommended to change these default values after logging in to the

DSL router for the first time.

Click OK to log in to the Web page. Otherwise, please click Cancel to exit the login

page.

Figure 6 Login page

User Manual

After logging in to the DSL router as a super user, you can query, configure, and

modify all the settings, and diagnose the system.

4 Web-Based Management

This chapter describes how to use Web-based management of the DSL router, which

allows you to configure and control all of DSL router features and system parameters

in a user-friendly GUI.

4.1 Device Information

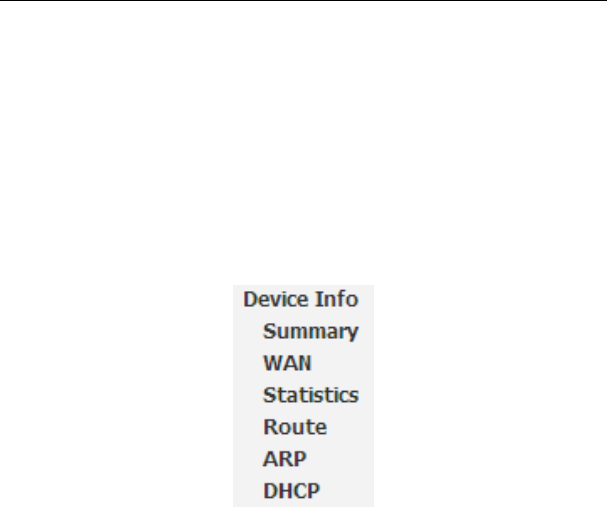

Choose Device Info, and the submenus of Device Info are shown as below:

4.1.1

Summary

Choose Device Info > Summary, and the following page appears.

User Manual

This page displays the device information such as the board ID, software version, and

the information of your WAN connection such as the upstream rate and the LAN

address.

4.1.2

WAN

Choose Device Info > WAN and the following page appears.

User Manual

This page displays the information of the WAN interface, such as the connection

status, and the IP address.

4.1.3

Statistics

4.1.4

LAN

Choose Device Info > Statistics > LAN and the following page appears.

In this page, you can view the statistical information about the recevied and

transmitted data packets of the Ethernet and wireless interfaces.

Click Reset Statistics to restore the values to zero and recount them.

4.1.5

WAN Service

Choose Device Info > Statistics > WAN Service and the following page appears.

User Manual

In this page, you can view the statistical information about the recevied and

transmitted data packets of the WAN interface.

Click Reset Statistics to restore the values to zero and recount them.

4.1.6

xTM

Choose Device Info > Statistics > xTM and the following page appears.

In this page, you can view the statistical information about the recevied and

transmitted data packets at the xTM interfaces.

Click the Reset button to restore the values to zero and recount them.

4.1.7

xDSL

Choose Device Info > Statistics > xDSL and the following page appears.

User Manual

In this page, you can view the statistical information about the recevied and

transmitted data packets of the xDSL interfaces.

Click xDSL BER Test to test the xDSL Bit Error Rate.

Click Reset Statistics to restore the values to zero and recount them.

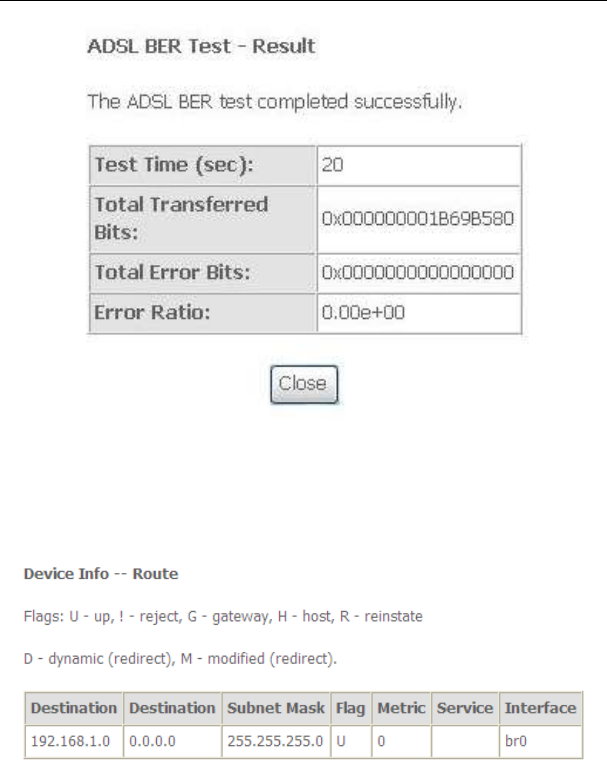

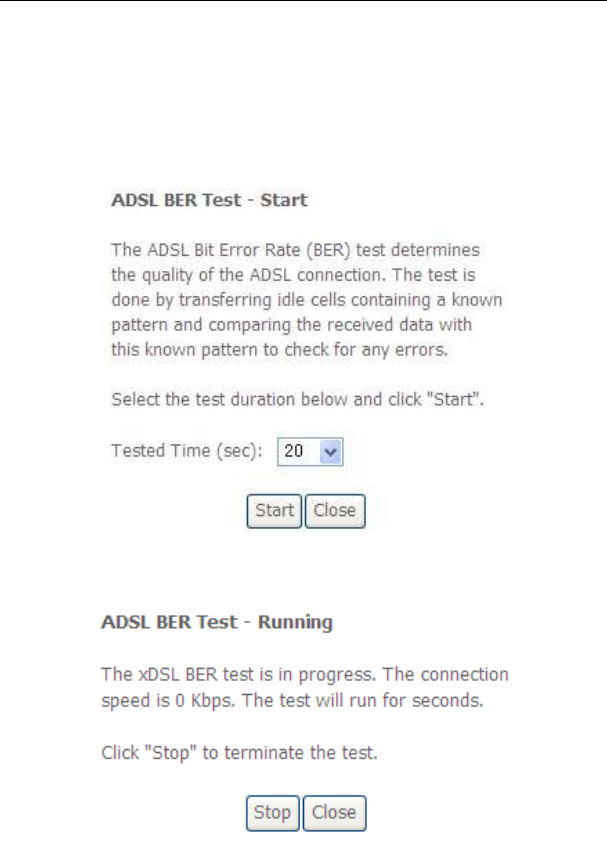

xDSL BER Test

Click xDSL BER Test to perform a bit error rate (BER) test on the DSL line. The test

page is as follows:

The Tested Time (sec) can be 1, 5, 10, 20, 60, 120, 180, 240, 300, or 360. Select a

time in the drop-down list and click Start. The following pages appear.

User Manual

When the ADSL BER test completes, the following page appears.

Note:

If the BER reaches e-5, you cannot access the Internet.

4.1.8

Route

Choose Device Info > Route and the following page appears.

In this page, you can view the route table information.

User Manual

4.1.9

ARP

Choose Device Info > ARP and the following page appears.

In this page, you can view the MAC address and IP address information of the device

connected to the router.

4.1.10

DHCP

Choose Device Info > DHCP and the following page appears.

In this page, you can view the host name, the IP address assigned by the DHCP

server, the MAC address this is corresponding to the IP address, and the DHCP lease

time.

4.2 Advanced Setup

Choose Advanced Setup and the submenus of Advanced Setup are shown as

below:

User Manual

4.2.1

Layer2 Interface

4.2.1.1 ATM Interface

Choose Advanced Setup > Layer2 Interface > ATM Interface . In this page, you

can add or remove to configure DSL ATM Interfaces.

Click Add to add ATM Interface and the following page appears.

User Manual

In this page, you can enter this PVC (VPI and VCI) value, and select DSL link type

(EoA is for PPPoE, IPoE, and Bridge.), encapsulation mode, service category.

 VPI (Virtual Path Identifier): The virtual path between two points in an ATM

network, and its valid value is from 0 to 255.

 VCI (Virtual Channel Identifier): The virtual channel between two points in

an ATM network, ranging from 32 to 65535 (1 to 31 are reserved for known

protocols).

User Manual

 DSL Link Type: EoA (it is for PPPoE, IPoE, and Bridge), PPPoA, or IPoA

 Encapsulation Mode: LLC/SNAP-BRIDGING, or VC/MUX

 Service Category: UBR Without PCR, UBR With PCR, CBR, Non Realtime

VBR, Realtime VBR.

 Select Scheduler for Queues of Equal Precedence as the Default Queue:

Weighted Round Robin or Weighted Fair Queuing.

Click Apply/Save to save the configuration, and return the following page:

If you want to remove this Interface, please select the Remove check box and click

Remove.

4.2.1.2 PTM Interface

Choose Advanced Setup > Layer2 Interface > PTM Interface . In this page, you

can add or remove to configure DSL PTM Interfaces.

Click Add to add PTM Interface and the following page appears.

User Manual

In this page, you can configuration the PTM interface Click Apply/Save.

Click Apply/Save to save the configuration, and return the following page:

If you want to remove this Interface, please select the Remove check box and click

Remove.

User Manual

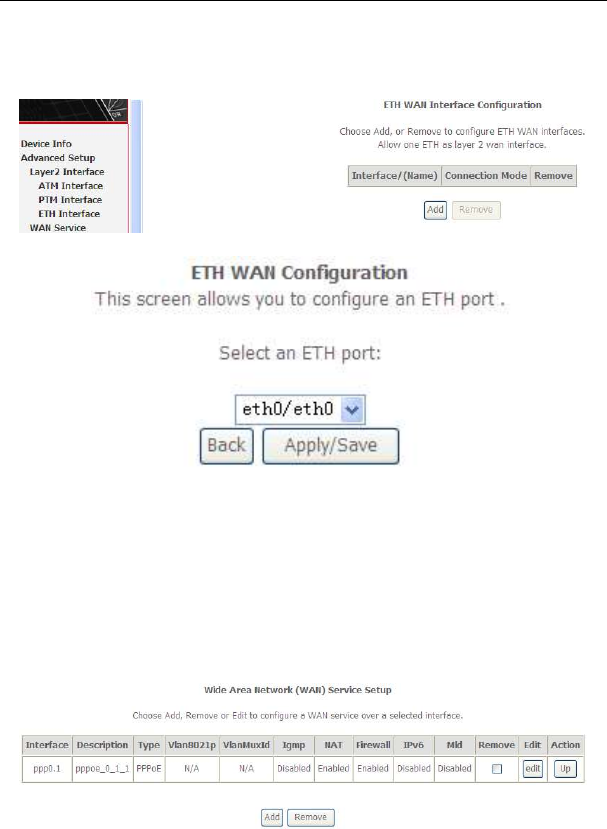

4.2.1.3 ETH Interface

Choose Advanced Setup > Layer2 Interface > ETH Interface, and the following

page appears. In this page, you can add or remove to configure ETH WAN

Interfaces.

Click Add and the following page appears.

In this page, you can select a ETH port. Click Apply/Save to save configuration.

Note:

If ETH Interface is selected, there are two WAN service types (PPPoE and

IPoE).

4.2.2

WAN Service

Choose Advanced Setup > WAN Service, and the following page appears.

In this page, you are allowed to add, remove, or edit a WAN service.

User Manual

4.2.2.1 Adding a PPPoE WAN Service

This section describes the steps for adding the PPPoE WAN service.

Step1 In the Wide Area Network (WAN) Service Setup page, click the Add

button to display the following page. (At first, you must add a proper ATM

interface for this WAN service.)

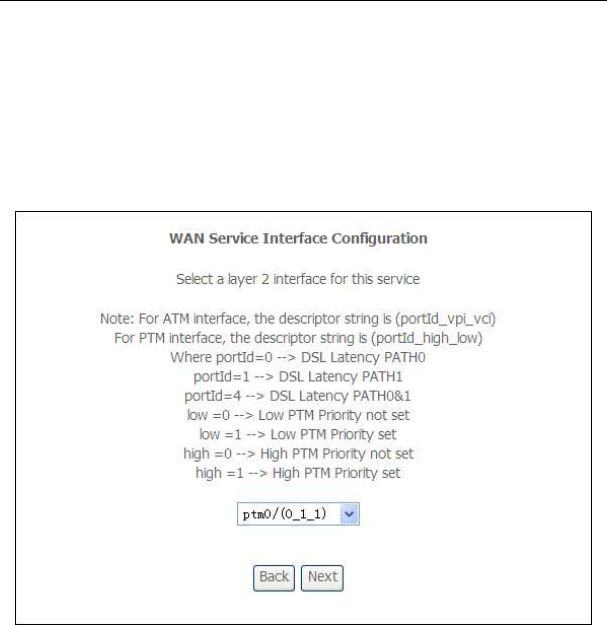

Step2 In this page, you can select a ATM Interface for the WAN service. After

selecting the ATM interface, click Next to display the following page.

User Manual

Step3 In this page, select the WAN service type to be PPP over Ethernet

(PPPoE). Click Next to display the following page.

User Manual

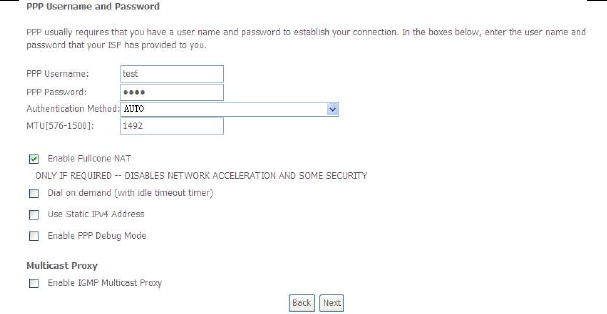

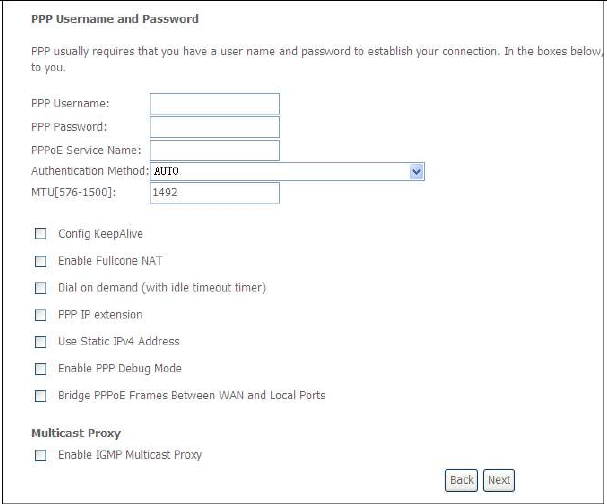

Step4 In this page, you can modify the PPP username, PPP password, PPPoE

service name and authentication method.

 PPP Username: The correct user name provided by your ISP.

 PPP Password: The correct password provided by your ISP.

 PPPoE Service Name: If your ISP provides it to you, please enter it. If not,

do not enter any information.

 Authentication Method: The value can be AUTO, PAP, CHAP, or MSCHAP.

Usually, you can select AUTO.

 Enable Fullcone NAT:. NAT is one where all requests from the same internal

IP address and port are mapped to the same external IP address and port.

Furthermore, any external host can send a packet to the internal host, by

sending a packet to the mapped external address.

User Manual

 Dial on demand (with idle timeout timer): If this function is enabled, you

need to enter the idle timeout time. Within the preset minutes, if the modem

does not detect the flow of the user continuously, the modem automatically

stops the PPPoE connection. Once it detects the flow (like access to a

webpage), the modem restarts the PPPoE dialup. If this function is disabled,

the modem performs PPPoE dial-up all the time. The PPPoE connnection

does not stop, unless the modem is powered off and DSLAM or uplink

equipment is abnormal.

 PPP IP extension: If you want to configure DMZ Host, you should enable it

first.

 Use Static IPv4 Address: If this function is disabled, the modem obtains an

IP address assigned by an uplink equipment such as BAS, through PPPoE

dial-up. If this function is enabled, the modem uses this IP address as the

WAN IP address.

 Enable PPP Debug Mode:Enable or disable this function.

 Bridge PPPoE Frames Between WAN and Local Ports:Enable or disable

this function.

 Enable IGMP Multicast Proxy:If you want PPPoE mode to support IPTV,

enable it.

Step5 After setting the parameters, click Next to display the following page.

User Manual

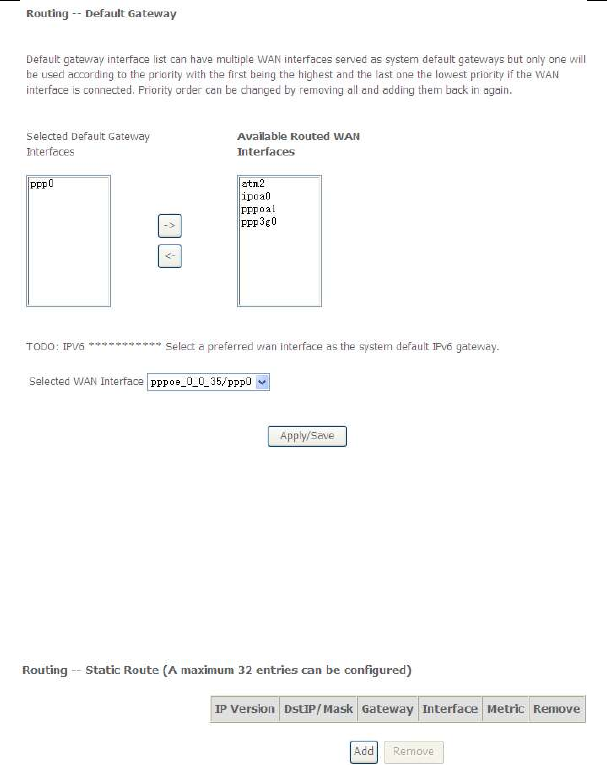

Step6 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

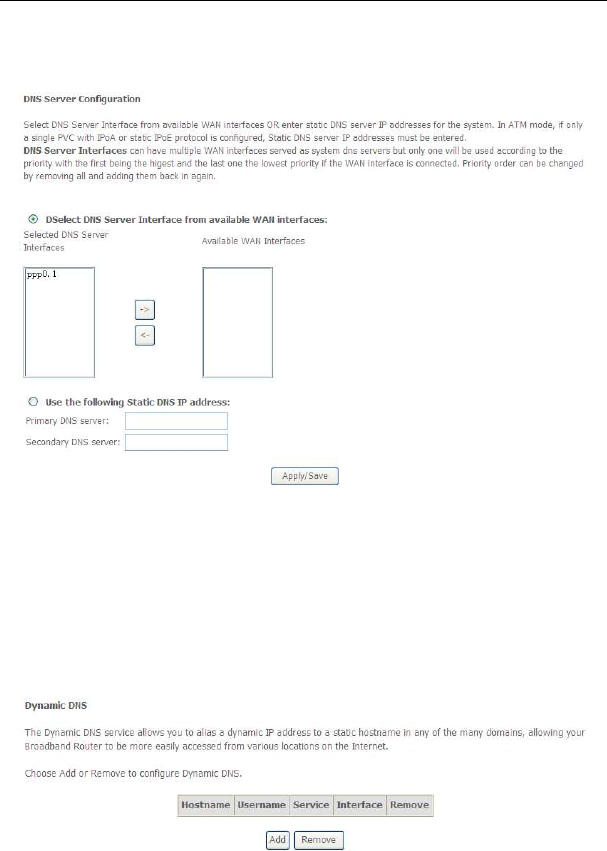

Step7 In this page, you can obtain the DNS server addresses from the selected

WAN interface. Click Next, and the following page appears.

User Manual

Step8 In this page, it displays the information about the PPPoE settngs. Click

Apply/Save to save and apply the settings.

4.2.2.2 Adding a MER (IPoE) WAN service

This section describes the steps for adding the MER WAN service.

Step1 In the Wide Area Network (WAN) Service Setup page, click the Add

button to display the following page. (At first, you must add a ATM

interface for this WAN service.)

Step2 Select an ATM Interface, and then click Next to display the following

page.

User Manual

Step3 In this page, select the WAN service type to be IP over Ethernet, enter

the service description for this service. After finishing setting, click Next to

display the following page.

User Manual

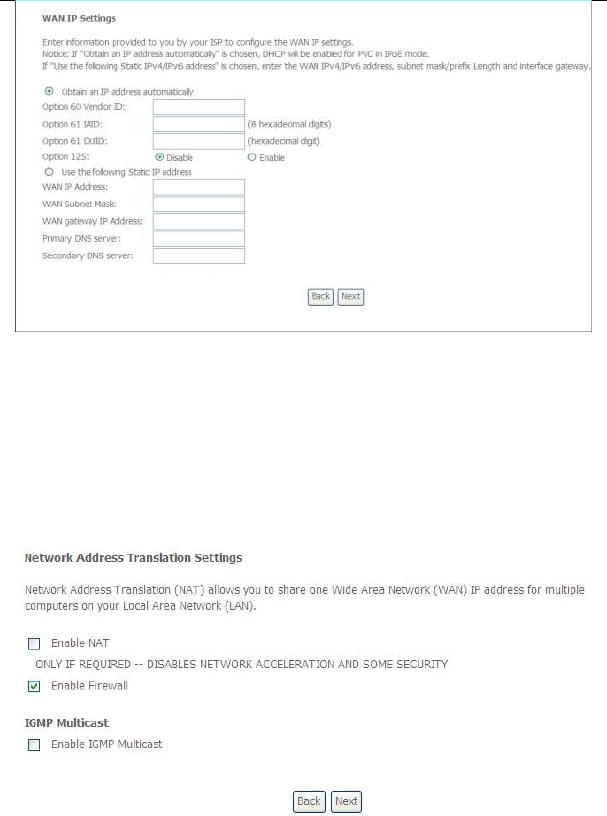

Step4 In this page, you may modify the WAN IP settings. You may select obtain

an IP address automatically or manually enter the IP address provided by

your ISP. Click Next and the following page appears.

Note:

If selecting Obtain an IP address automatically, DHCP will be enabled for PVC in

MER mode.

If selecting Use the following Static IP address, please enter the WAN IP address,

subnet mask and gateway IP address.

User Manual

Step5 In this page, you can set the network address translation settings,for

example, enabling NAT, enabling firewall, and enabling IGMP multicast.

After finishing setting, click Next and the following page appears.

Step6 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

User Manual

Step7 In this page, you can obtain the DNS server addresses from the selected

WAN interface. After finishing setting, click Next to display the following

page.

User Manual

Step8 In this page, it displays the information about the IPoE settngs.Click

Apply/Save to save and apply the settings.

4.2.2.3 Adding a PPPoA WAN service

This section describes the steps for adding the PPPoA WAN service.

Step1 Choose Advanced Setup > Layer2 Interface > ATM Interface to

dsipaly the DSL ATM Interface Configuration page. In this page, you

need to add a PVC for PPPoA mode. Click the Add button in the DSL

ATM Interface Configuration page to display the following page.

User Manual

Step2 Select the DSL link type to be PPPoA, and select the encapsulation

mode to be VC/MUX (according to the uplink equipment). After finishing

setting, click the Apply/Save button to apply the setings.

Step3 Choose WAN Service and click Add to display the following page.

User Manual

Step4 Select the proper interface for the WAN service, and then click Next to

display the following page.

Step5 In this page, you may modify the service description. Click Next to

display the following page.

User Manual

 PPP Username: The correct user name provided by your ISP.

 PPP Password: The correct password provided by your ISP.

 Authentication Method: The value can be AUTO, PAP, CHAP, or MSCHAP.

Usually, you can select AUTO.

 Enable Fullcone NAT:. NAT is one where all requests from the same internal

IP address and port are mapped to the same external IP address and port.

Furthermore, any external host can send a packet to the internal host, by

sending a packet to the mapped external address.

 Dial on demand (with idle timeout timer): If this function is enabled, you

need to enter the idle timeout time. Within the preset minutes, if the modem

does not detect the flow of the user continuously, the modem automatically

stops the PPPoA connection. Once it detects the flow (like access to a

webpage), the modem restarts the PPPoA dialup. If this function is disabled,

the modem performs PPPoA dial-up all the time. The PPPoA connnection

does not stop, unless the modem is powered off and DSLAM or uplink

equipment is abnormal.

 PPP IP extension: If you want to configure DMZ Host, you should enable it

first.

 Use Static IPv4 Address: If this function is disabled, the modem obtains an

IP address assigned by an uplink equipment such as BAS, through PPPoA

User Manual

dial-up. If this function is enabled, the modem uses this IP address as the

WAN IP address.

 Enable PPP Debug Mode:Enable or disable this function.

 Enable IGMP Multicast Proxy: If you want PPPoE mode to support IPTV,

enable it.

Step6 In this page, you can enter the PPP username and PPP password

provided by your ISP. Select the authentication method according to your

requirement. After finishing setting, click Next to display the following

page.

Step7 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

User Manual

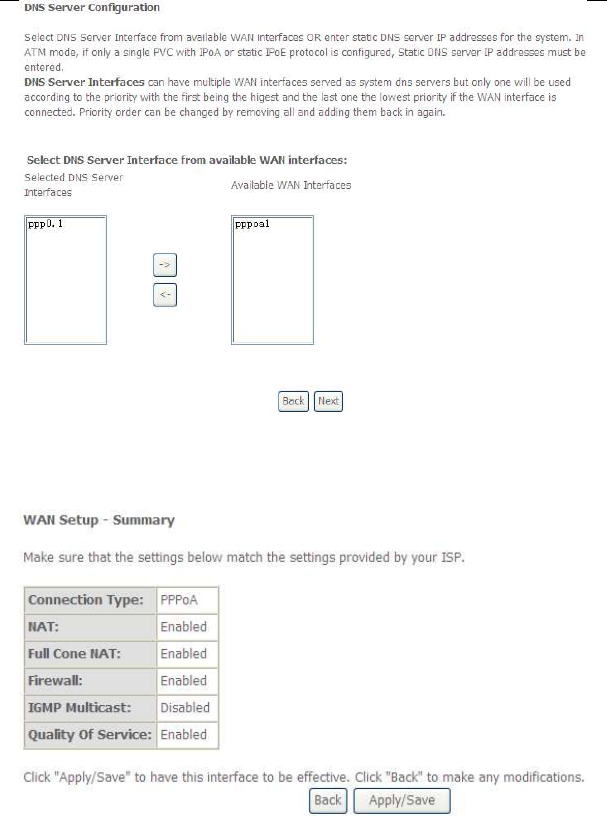

Step8 In this page, you can obtain the DNS server addresses from the selected

WAN interface. After finishing setting, click Next to display the following

page.

User Manual

Step9 In this page, it displays the information about the PPPoA settngs.Click

Apply/Save to apply the settings. You can modify the settings by clicking

the Back button if necessary.

4.2.2.4 Adding an IPoA WAN service

This section describes the steps for adding the IPoA WAN service.

Step1 Choose Advanced Setup > Layer2 Interface > ATM Interface to

dsipaly the DSL ATM Interface Configuration page. In this page, you

need to add a PVC for IPoA mode. Click the Add button in the DSL ATM

Interface Configuration page to display the following page.

User Manual

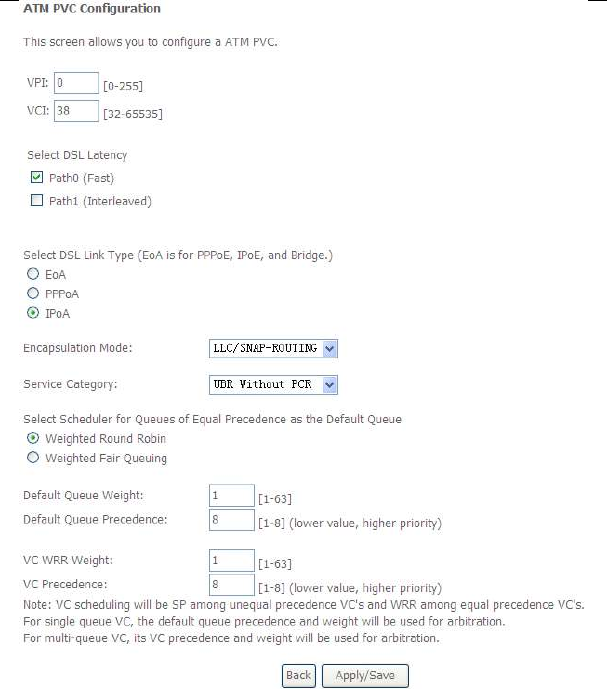

Step2 Select the DSL link type to be IPoA, and select the encapsulation mode

to be LLC/SNAP-ROUTING (according to the uplink equipment). After

finishing setting, click the Apply/Save button to save the settings.

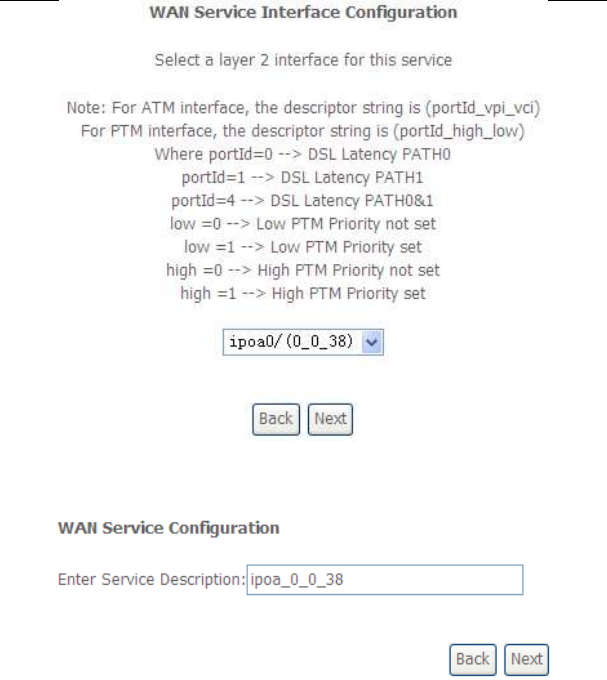

Step3 Choose WAN Service and click Add to display the following page.

User Manual

Step4 Select the proper interface for the WAN service ,and then click Next to

display the following page.

Step5 In this page, you may modify the service description. Click Next to

display the following page.

User Manual

Step6 In this page, enter the WAN IP address, the WAN subnet mask, and

primary DNS server provided by your ISP and then click Next to display

the following page.

In this page, Network Address Translation (NAT) allows you to share one Wide

Area Network (WAN) IP address for multiple computers on your Local Area

Network (LAN).

If you do not want to enable NAT, and wish the user of modem to access the

Internet normally, you need to add a route on the uplink equipment. Otherwise, the

access to the Internet fails. Normally, please enable the NAT function.

User Manual

Step7 After finishing setting, click Next to display the following page.

Step8 In this page, select a preferred WAN interface as the system default

gateway and then click Next to display the following page.

User Manual

Step9 In this page, you can obtain the DNS server addresses from the selected

WAN interface. After finishing setting, click Next to display the following

page.

Step10 In this page, it displays the information about the IPoA settngs. Click

Apply/Save to save and apply the settings. You can modify the settings

by clicking the Back button if necessary.

4.2.2.5 Adding a Bridge WAN service

This section describes the steps for adding the Bridge WAN service.

 In the Wide Area Network (WAN) Service Setup page, click the

Add button to display the following page. (At first, you must add a proper

ATM interface for this WAN service.) Click the Add button to display the

following page.

User Manual

 Select the proper ATM Interface and then click Next to display the

following page.

User Manual

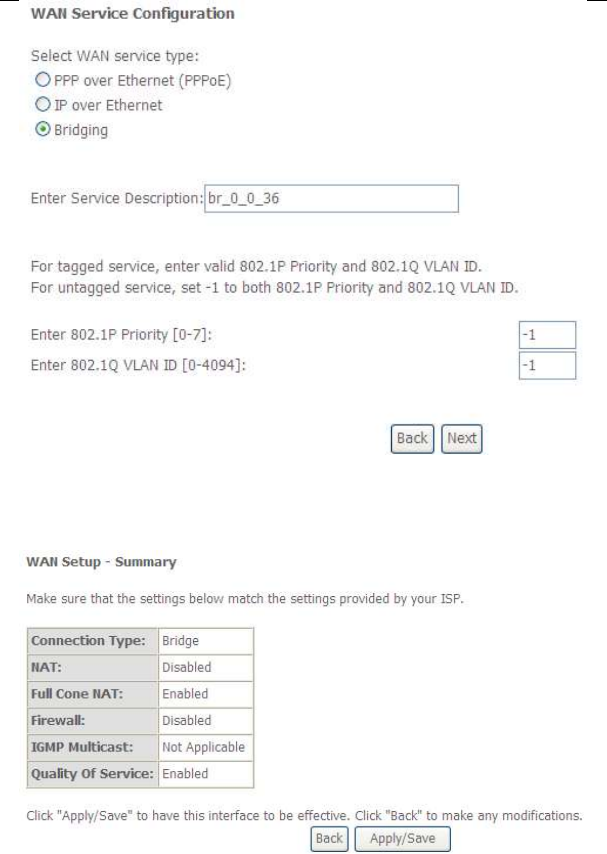

 In this page, you can select the WAN service type, and modify the

service description for this service. After finishing setting, click Next to

display the following page.

User Manual

 In this page, it displays the information about the bridge settngs.

Click Apply/Save to save and apply the settings. You can modify the

settings by clicking the Back button if necessary.

4.2.3

LAN Configuration

Choose Advanced Setup > LAN, and the following page appears.

User Manual

In this page, you can configure an IP address for the DSL router, enable IGMP

snooping, enable or disable the DHCP server, edit the DHCP option, configure the

DHCP advanced setup and set the binding between a MAC address and an IP

address.

Configuring the Private IP Address for the DSL Router

In this page, you can modify the IP address of the device. The preset IP address is

192.168.1.1.

Enabling IGMP Snooping

IGMP snooping enables the router to forward multicast traffic intelligently, instead of

flooding all ports in the VLAN. With IGMP snooping, the router listens to IGMP

membership reports, queries and leave messages to identify the switch ports that are

members of multicast groups. Multicast traffic will only be forwarded to ports identified

as members of the specific multicast group or groups.

Enabling the LAN Side Firewall

Firewall can prevent unexpected traffic on the Internet from your host in the LAN.

In this page, you can enable or disable the LAN side firewall.

User Manual

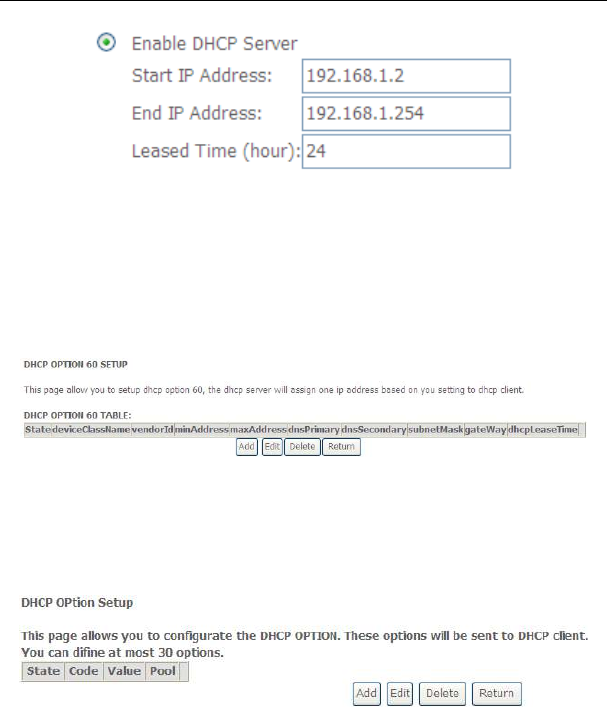

Configuring the DHCP Server

If you enable the DHCP sever, the clients will automatically acquire the IP address

from the DHCP server. If the DHCP server is disabled, you need to manually set the

start IP address, end IP address and the lease time for the clients in the LAN.

Editing the DHCP Option60

Click the Edit DHCP Option60 button in the Local Area Network (LAN) Setup page

to display the DHCP Option60 Setup page.

In this page, you can add, edit or delete the DHCP60 options.

Editing the DHCP Option

Click the Edit DHCP Option button in the Local Area Network (LAN) Setup page to

display the DHCP Option Setup page.

In this page, you can add, edit or delete the DHCP options, and these options will be

sent to the DHCP client.

User Manual

DHCP Advanced Setup

Click the DHCP Advance Setup button in the Local Area Network (LAN) Setup

page to display the following page. In this page, you can enable or disable DHCP for

every LAN interface.

Configuring the DHCP Static IP Lease List

The lease list of static IP address can reserve the static IP addresses for the hosts

with the specific MAC addresses. When a host whose MAC address is in the lease

list of static IP address requests the DHCP server for an IP address, the DHCP server

assigns the reserved IP address to the host.

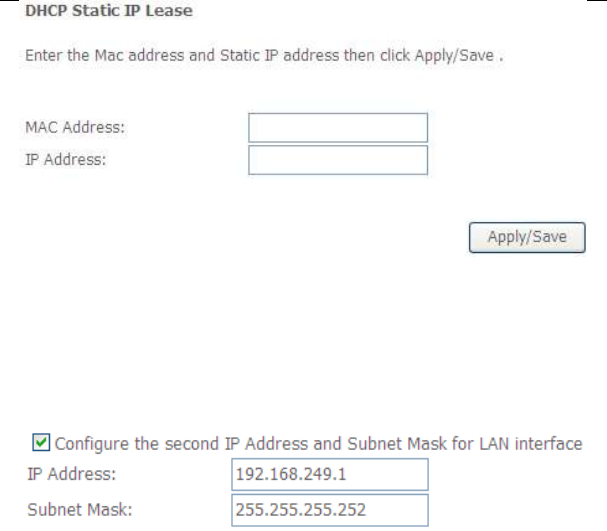

Click the Add Entries button in the Local Area Network (LAN) Setup page to

display the DHCP Static IP Lease page.

User Manual

In this page, enter the MAC address of the LAN host and the static IP address that

is reserved for the host, and then click the Apply/Save button to apply the settings.

Configuring the Second IP Address and Subnet Mask for a LAN

Interface

In the Local Area Network (LAN) Setup page, you are allowed to set the second IP

address and the subnet mask for a LAN interface.

After enabling Configure the second IP Address and Subnet Mask for LAN

interface, enter an IP address and a subnet mask for the LAN interface.

After finishing setting, click the Apply/Save button to apply the settings.

4.2.3.1 IPv6 Auto-configuration

Click Advanced Setup > LAN >IPv6 Autoconfig, and the following page appears.

User Manual

In this page, you can set an IP address for the DSL IPv6 router, enable the

DHCPv6 server, enable RADVD and enable the MLD snooping function.

 Enable DHCPv6 Server:

WIDE-DHCPv6 is an open-source implementation

of dynamic host configuration protocol for IPv6 (DHCPv6) originally

developed by the KAME project. The implementation mainly complies with

the following standards: RFC3315, RFC3319, RFC3633, RFC3646,

RFC4075, RFC 4272 etc.

 Enable RADVD: The router advertisement daemon (RADVD) is run by Linux

or BSD systems acting as IPv6 routers. It sends router advertisement

messages, specified by RFC2461, to a local Ethernet LAN periodically and

when requested by a node sending a router solicitation message. These

messages are required for IPv6 stateless auto-configuration.

 Enable MLD Snooping: Multicast Listener Discovery Snooping (MLD

Snooping) is an IPv6 multicast constraining mechanism that runs on Layer 2

devices to manage and control IPv6 multicast groups. By analyzing received

MLD messages, a Layer 2 device running MLD Snooping establishes

mappings between ports and multicast MAC addresses and forwards IPv6

multicast data based on these mappings.

User Manual

After finishing setting, click the Save/Apply button to apply the settings.

4.2.4

NAT

4.2.4.1 Virtual Servers

Firewall can prevent unexpected traffic on the Internet from your host on the LAN.

The virtual server can create a channel that can pass through the firewall. In that

case, the host on the Internet can communicate with a host on your LAN within

certain port range.

Choose Advanced Setup > NAT > Virtual Servers, and the following page

appears.

In this page, you are allowed to add or remove a virtual server entry.

To add a virtual server, do as follows:

Step 4

Click the Add button to display the following page.

User Manual

 Use interface: Select an interface that you want to configure.

 Select a Service: Select a proper service in the drop-down list.

 Custom Server: Enter a new service name to establish a user service type.

 Server IP Address: Assign an IP address to virtual server.

 External Port Start: When selecting a service, the port number will

automatically be displayed. You can modify it if necessary.

 External Port End: When selecting a service, the port number will

automatically be displayed. You can modify it if necessary.

 Protocol: You may select TCP/UDP, TCP, or UDP in the drop-down list.

 Internal Port Start: When selecting a service, the port number will

automatically be displayed. You can modify it if necessary.

User Manual

 Internal Port End: When selecting a service, the port number will

automatically be displayed. You can modify it if necessary.

Step 5

After finishing setting, click Save/Apply to save and apply the settings.

4.2.4.2 Port Triggering

Some applications need some ports to be opened in the firewall for the remote

access. When an application initializes a TCP/UDP to connect to a remote user,

port triggering dynamically opens the open ports of the firewall.

Choose Advanced Settings > NAT > Port Triggering, and the following page

appears.

In this page, you may add or remove an entry of port triggering.

Click the Add button to display the following page.

User Manual

 Use interface: Select an interface that you want to configure.

 Select an application: Select a proper application in the drop-down list.

 Custom application: Manually define an application.

 Trigger port Start: The start port number that LAN uses to trigger the open

port.

 Trigger port End: The end port number that LAN uses to trigger the open

port.

 Trigger Protocol: Select the application protocol. You may select TCP/UDP,

TCP, or UDP.

 Open Port Start: The start port number that is opened to WAN.

 Open Port End: The end port number that is opened to WAN.

 Open Protocol: Select the proper protocol that is opened to WAN. You may

select TCP/UDP, TCP, or UDP.

After finishing setting, click Save/Apply to apply the settings.

Note:

User Manual

You can use a single port number, several port numbers separated by commas,

port blocks consisting of two port numbers separated by a dash, or any

combination of these, for example 80, 90-140, 180.

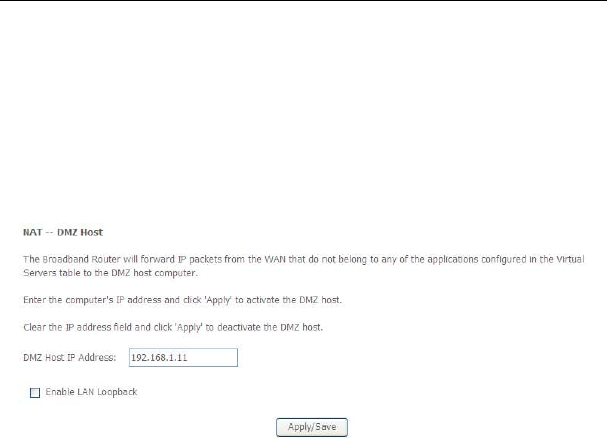

4.2.4.3 DMZ Host

DMZ allows all the ports of a PC on your LAN to be exposed to the Internet. Set the

IP address of the PC to be DMZ host, so that the DMZ host will not be blocked by

firewall.

Choose Advanced Setup > NAT > DMZ host to display the following page.

In this page, enter the IP address of the DMZ host.

After finishing the settings, click the Apply/Save button to apply the settings.

If you want to clear the DMZ function of the host, please delete the IP address of

the host in the field of DMZ Host IP Address, and then click the Apply/Save

button.

4.2.5

Security

Firewall

Choose Security > Firewall and the following page appears.

User Manual

Click Modify Firewall or Remove Firewall to modify or remove the firewall. And

click Modify Rule or Remove Rule to modify or remove the rule.

Click Add Firewall, and the following page appears.

 name: The name of firewall.

 interface: You can select LAN or WAN from the drop-down list.

 type: You can select IN or OUT from the drop-down list.

 defaultaction: You can select Permit or Drop from the drop-down list.

MAC Filtering Setup

In some cases, you may want to manage Layer2 MAC address to block or permit a

computer within the home network. When you enable MAC filter rules, the DSL

router serves as a firewall that works at layer 2.

User Manual

Note:

MAC filtering is only effective on ATM PVCs configured in bridge mode.

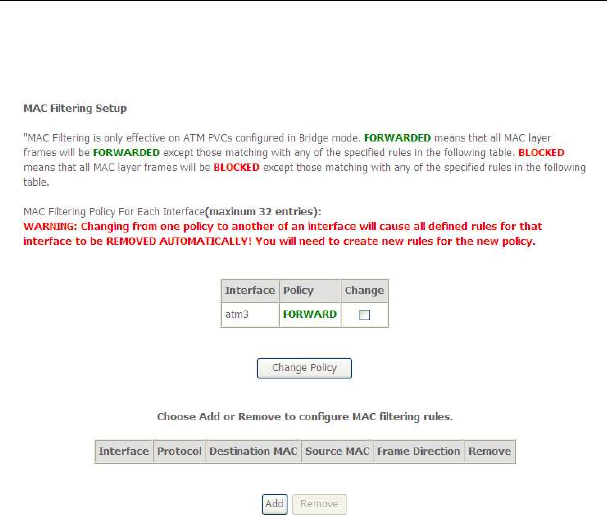

Choose Security > MAC Filtering and the following page appears.

In this page, you can add or remove the MAC filtering rule. You may change the MAC

filtering policy from FORWARDED to BLOCKED by clicking the Change Policy

button.

Click the Add button to display the following page.

User Manual

 Protocol Type: Select the proper protocol type.

 Destination MAC Address: Enter the destination MAC address.

 Source MAC Address: Enter the source MAC address.

 Frame Direction: The direction of transmission frame.

 WAN Interface (Configured in bridge mode only): Select the proper WAN

interface in the drop-down list.

After finishing setting, click Apply/Save to save and apply the filtering rule.

4.2.6

Parental Control

Time Restriction

Choose Advanced Setup > Parental Control > Time Restriction, and the

following page appears.

Click the Add button to display the following page.

User Manual

This page is used to control the time restriction to a special LAN device that

connects to the DSL router. In this page, se the user name and configure the time

settings.

After finishing setting, click the Apply/Save button to save and apply the settings.

Url Filter

Click Advanced Setup > Parental Control > Url Filter, and the following page

appears.

Thisp age is used to prevent the LAN users from accessing some Websites in the

WAN.

In this page, you may select the Exclude URL list type or the Include URL list type.

If you select the Exclude URL list type, it means that the URLs in the list are not

accessible. If you select the select the Include URL list type, you are allowed to

access the the URLs in the list.

Click the Add button to display the following page.

User Manual

In this page, enter the URL address and its corresponding port number. For

example, enter the URL address http://www.google.com and the port number 80,

and then click the Apply/Save button. See the following figure:

4.2.7

Quality of Service

Enabling QoS

Choose Advance Setup > Quality of Service and the following page appears.

User Manual

Select Enable QoS to enable QoS and configure the default DSCP mark.

In this page, enable the QoS function and select the default DSCP mark.

After finishing setting, click Apply/Save to save and apply the settings.

Note:

If the Enable Qos checkbox is not selected, all QoS will be disabled for all

interfaces. The default DSCP mark is used to mark all egress packets that do

not match any classification rules.

Queue Configuration

Choose Advanced Setup > Quality of Service > QoS Queue, and the following

page appears.

User Manual

In this page, you can enable, add or remove a QoS rule.

Note:

The lower integer value for precedence indicates the higher priority.

Click the Add button to display the following page.

 Name: Enter the name of QoS queue.

User Manual

 Enable: Enable or disable the QoS queue.

 Interface: Select the proper interface for the QoS queue.

After finishing setting, click Apply/Save to save and apply the settings.

QoS Classification

Choose Advanced Setup > Quality of Service > Qos Classification and the

following page appears.

In this page, you can enable, add or remove a QoS classification rule.

Click the Add button to display the following page.

User Manual

4.2.8

Routing

Default Gateway

Choose Advanced Setup > Routing > Default Gateway, and the following page

appears.

User Manual

In this page, you can modify the default gateway settings.

Select a proper WAN interface in the drop-down list of Selected WAN Interface as

the system default gateway.

After finishing setting, click Apply/Save to save and apply the settings.

Static Route

Choose Advanced Setup > Routing > Static Route and the following page

appears.

In this page, you can add or remove a static routing rule.

Click the Add button to display the following page.

User Manual



IP Version: Select the IP version.



Destination IP address/prefix length: Enter the destination IP address.



Interface: select the proper interface for the rule.



Gateway IP Address: The next-hop IP address.



Metric: The metric value of routing.

After finishing setting, click Apply/Save to save and apply the settings.

Policy Routing

Choose Advanced Setup > Routing > Policy Routing and the following page

appears.

In this page, you can add or remove a static policy rule.

Click the Add button to display the following page.

User Manual

In this page, enter the policy name, source IP and default gateway, and select the

physical LAN port and interface.

After finishing setting, click Apply/Save to save and apply the settings.

RIP

Choose Advanced Setup > Routing > RIP and the following page appears.

In this page, if you want to configure an individual interface, select the desired RIP

version and operation, and then select the Enabled checkbox for the interface.

After finishing setting, click Apply/Save to save and apply the settings.

User Manual

4.2.9

DNS

DNS Server

Choose Advanced Setup > DNS > DNS Server and the following page appears.

In this page, you can select a DNS server interface from the available interfaces,

manually enter the DNS server addresses, or obtain the DNS address from a WAN

interface.

After finishing setting, click Apply/Save to save and apply the settings.

Dynamic DNS

Choose Advanced Setup > DNS > Dynamic DNS and the following page

appears.

User Manual

In this page, you are allowed to modify the DDNS settings.

Click the Add button to display the following page.

 D-DNS provider: Select a proper DDNS server in the drop-down list.

 Hostname: It is the domain name and it can be modified.

 Interface: The interface that the packets pass through on the DSL router.

 Username: Enter the username for accessing the DDNS management

interface.

 Password: Enter the password for accessing the DDNS management

interface.

After finishing setting, click Apply/Save to save and apply the settings.

4.2.10

DSL

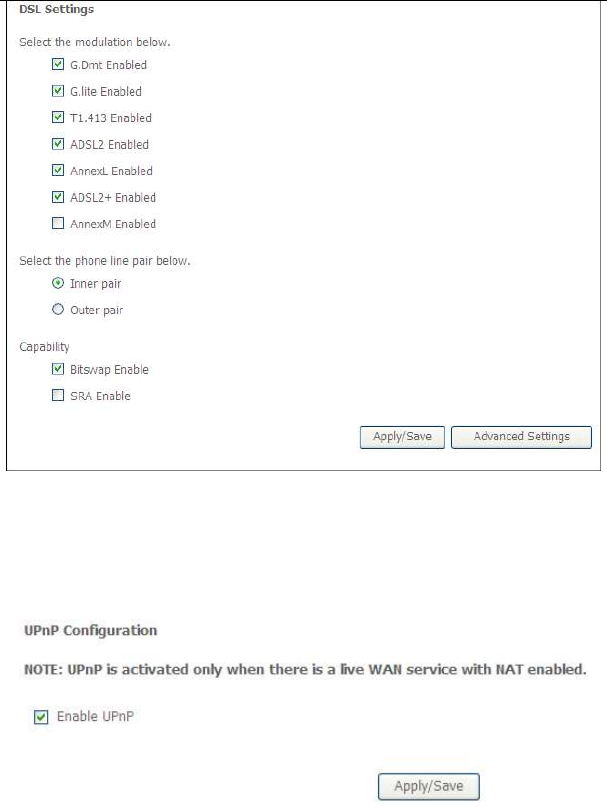

Choose Advanced Setup > DSL and the following page appears. In this page, you

can view the DSL settings. Usually, you can keep this factory default setting. The

modem negotiates the modulation mode with the DSLAM.

User Manual

In this page, you can set the DSL settings. Usually, you do not need to modify the

factory default settings.

After finishing setting, click Apply/Save to save and apply the settings.

4.2.11

UPnP

Choose Advanced Setup > UPnP and the following page appears.

In this page, you can enable or disable the UPnP function.

User Manual

After finishing setting, click Apply/Save to save and apply the settings.

4.2.12

DNS Proxy

Choose Advanced Setup > DNS Proxy and the following page appears.

In this page, you can enable or disable the DNS proxy function.

After enabling the DNS proxy function, enter the host name of the broadband

router and the domain name of the LAN network, and then click Apply/Save to

save and apply the settings.

4.2.13

Print Server

Choose Advanced Setup > Printer Server and the following page appears.

User Manual

In this page, you can enable or disable the printer server.

After finishing setting, click Apply/Save to save and apply the settings.

4.2.14

Packet Acceleration

Choose Advanced Setup > Packet Acceleration and the following page appears.

In this page, you can enable packet flow accelerator.

4.2.15

Storage Service

Storage Device Info

Choose Advanced Setup > Storage Service > Storage Device Info and the

following page appears.

User Manual

This page is used to display the information of the storage device that connects to

the DSL router.

4.2.16

Interface Grouping

Choose Advanced Setup > Interface Grouping and the following page appears.

Interface grouping supports multiple ports to PVC and bridging groups. Each group

will perform as an independent network. To support this feature, you must create

mapping groups with the appropriate LAN and WAN interfaces using the Add

button. The Remove button will remove the grouping and add the ungrouped

interfaces to the default group. Only the default group has IP interface.

Click the Add button to display the following page.

User Manual

In this page, please follow the on-screen configuration steps to configure the

parameters of the interface grouping.

After finishing setting, click Apply/Save to save and apply the settings.

4.2.17

IP Tunnel

4.2.17.1 IPv6 in IPv4

Choose Advanced Setup > IP Tunnel > IPv6inIPv4 and the following page

appears. The default value is IPv6 in IPv4 information.

User Manual

Click Add and the following page appears. In this page, you can add a new tunnel.

4.2.17.2 IPv4 in IPv6

Choose Advanced Setup > IP Tunnel > IPv4inIPv6 and the following page

appears.

Click Add and the following page appears. In this page, you can add a new tunnel

of IPv4 in IPv6.

User Manual

4.2.18

IPSec

Choose Advanced Setup > IPSec and the following page appears.

In this page, you can add or remove the IPSec tunnel connections.

Click the Add button to display the following page.

User Manual

In this page, set the parameters such as the IPSec connection name, tunnel mode,

and remote IPSec gateway address.

If you need to configure the advanced settings of this IPSec tunnel connection,

please click the Show Advanced Settings button to display the other parameters.

After finishing setting, click Apply/Save to save and apply the settings.

User Manual

4.2.19

Certificate

Local

Choose Advanced Setup > Certificate > local and the following page appears.

In this page, you can acquire the local certificate by creating a certificate request or

importing a certificate. You may also create or remove a certificate.

 Creating a New Certificate Request

Click the Create Certificate Request button to display the following page.

In this page, please set the following parameters.

 Certificate name: Set the certificate name.

 Common Name:

The common name is the "fully qualified domain name," (or

FQDN) used for DNS lookups of your server (for example,

www.mydomain.com). Browsers use this information to identify your Web

site. Some browsers will refuse to establish a secure connection with your

site if the server name does not match the common name in the certificate.

Please do not include the protocol symbol "http://" or any port numbers or

User Manual

pathnames in the common name. Do not use wildcard characters such as *

or ?, and do not use an IP address.

 Organization Name:

The name of the organization to which the entity

belongs (such as the name of a company).

 State/Province Name: This is the name of the state or province where your

organization's head office is located. Please enter the full name of the state

or province.

 Country/Region Name:

This is the two-letter ISO abbreviation for your

country (for example, GB for the United Kingdom).

After finishing setting, click the Apply button to apply the settings.

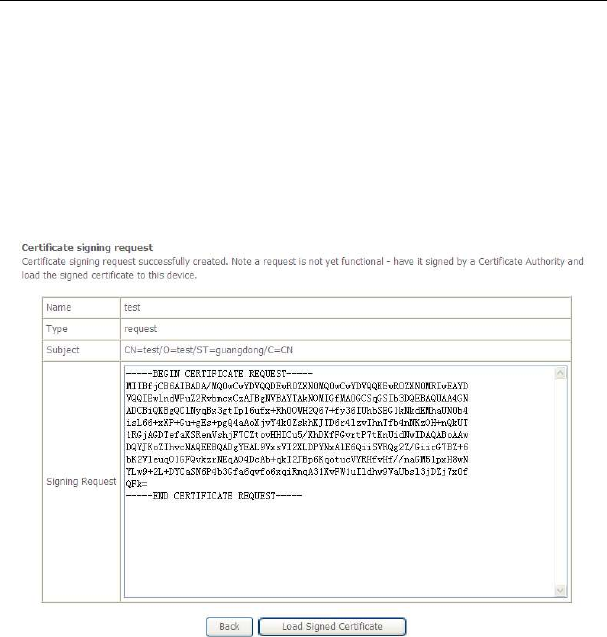

The certificate request needs to be submitted to a certificate authority, which will

sign the request. Then the signed certificate needs to be loaded to the DSL router.

Click Load Signed Certificate in this page, and the following page appears.

User Manual

In this page, paste the signed certificate, and then click the Apply button. A new

certificate is created.

 Importing an Existing Local Certificate

To import an existing certificate, click the Import Certificate button to display the

following page.

User Manual

In this page, paste the certificate and the private key. Finally, click the Apply button

to import the certificate.

Trusted CA

Choose Advanced Setup > Certificate > Trusted CA and the following page

appears.

User Manual

In this page, you may import or remove a CA certificate.

Click the Import Certificate button to display the following page.

In this page, enter the certificate name and paste the certificate content. Finally,

click the Apply button to import the certificate.

4.2.20

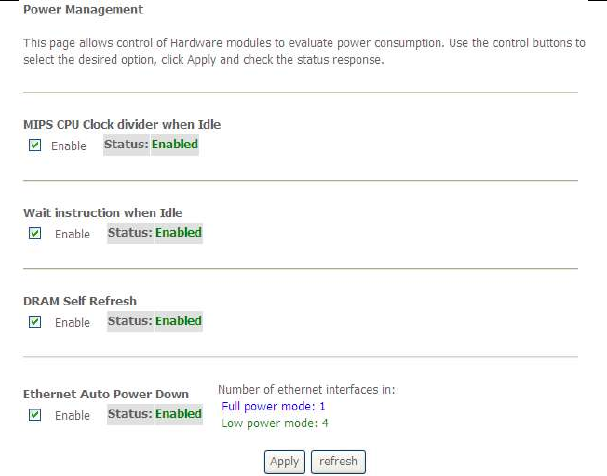

Power Management

Choose Advanced Setup > Power Management and the following page appears.

This page allows control of Hardware modules to evaluate power consumption.

Use the control buttons to select the desired option.

User Manual

After proper configurations, click Apply to take the configurations effect.

4.2.21

Multicast

Choose Advanced Setup > Multicast and the following page appears.

User Manual

In this page, you can configure the multicast parameters.

After finishing setting, click Apply/Save to save and apply the settings.

4.3 Wireless

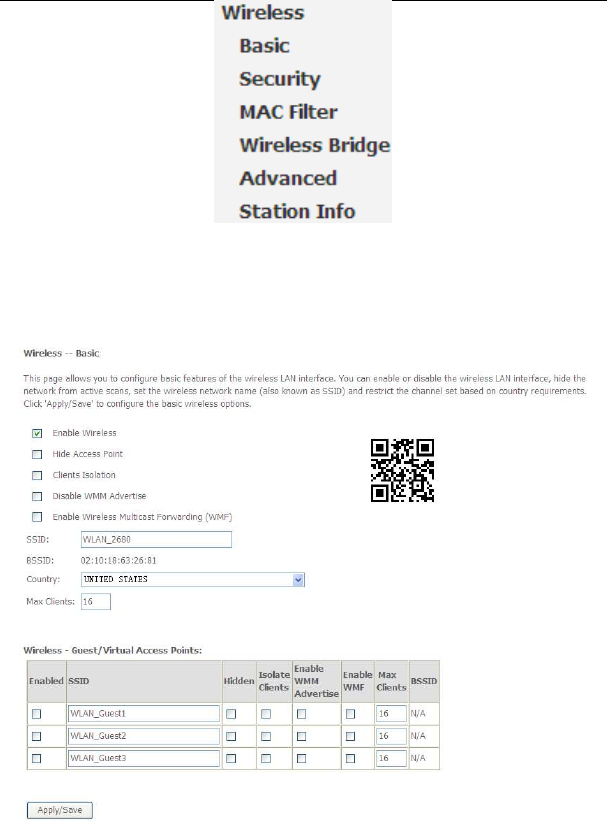

Choose Wireless and the submenus of Wireless are shown as below:

User Manual

4.3.1

Basic Settings

Choose Wireless > Basic to display the following page. In this page, the figure in

the right area is 2-dimensional code. It includes the wireless SSID and password.

You can obtain the wireless SSID and password through scanning this figure.

User Manual

This page allows you to configure the basic features of the wireless LAN interface.

 Enable Wireless: Enable or disable the wireless function.

 Hide Access Point: if you want to hide any access point for your router,

select this option, and then a station cannot obtain the SSID through the

passive scanning.

 Clients Isolation: When many clients connect to the same access point,

they can access each other. If you want to disable the access between the

clients that connect to the same access point, you can select this option.

 Disable WMM Advertise: After enabling this option, the transmission

performance multimedia of the video data can be improved.

 Enable Wireless Multicast Forwarding (WMF): After enabling this option,

the transmission quality of video service such as IPTV can be improved.

 SSID: For the security reason, you should change the default SSID to a

unique name.

 BSSID: Display the MAC address of the wireless interface.

 Country: The name of the country with which your gateway is configured.

This parameter further specifies your wireless connection. For example, The

channel will adjust according to nations to adapt to each nation's frequency

provision.

 Max Clients: Specify the maximum wireless client stations to be enabled to

link with AP. Once the clients exceed the max vlaue, all other clients are

refused. The value of maximum clients is 16.

 Wireless - Guest/Virtual Access Points: If you want to make Guest/Virtual

network function be available, you have to check those boxes in the table

below. In the current software version, three virtual access points can be

configured.

After finishing setting, click Apply/Save to save the basic wireless settings and

make the settings take effect.

4.3.2

Security

Choose Wireless > Security to display the following page.

User Manual

This page allows you to configure the security features of the wireless LAN

interface. In this page, you can configure the network security settings by the Wi-Fi

Protected Setup (WPS) method or setting the network authentication mode.

 WPS Setup

User Manual

There are 2 primary methods used in the Wi-Fi Protected Setup:

 PIN entry, a mandatory method of setup for all WPS certified devices.

–

Enter STA PIN: If you select it, you need to enter the station PIN from

client.

–

Use AP PIN: The PIN is generated by AP.

 Push button configuration (PBC), an actual push button on the hardware or

through a simulated push button in the software. (This is an optional method

on wireless client).

If you are using the PIN method, you will need a Registrar (access point/wireless

router) to initiate the registration between a new device and an active access

point/wireless router. (Note: The PBC method may also need a Registrar when

used in a special case where the PIN is all zeros)

In order to use the push-button for WPS authentication, you must ensure that the

network card support the function. if it supports, you need not to do any

configuration. You can press the WPS button directly to enable the WPS function.

 Manual Setup AP

This page provides 9 types of network authentication modes, including Open,

Shared, 802.1X, WPA, WPA-PSK, WPA2, WPA2-PSK, Mixed WPA2/WPA, and

Mixed WPA2/WPA-PSK.

User Manual

- Open Mode

 Select SSID: Select a SSID for configuring the security settings.

 Network Authentication: Select the Open mode.

 WEP Encryption: Enable or disable WEP encryption. After enabling this

function, you can set the encryption strength, current network key, and

network keys.

 Encryption Strength: You can set 64-bit or 128-bit key.

 Current Network Key: The current key that you use.

 Network Key1/2/3/4: Set the network key. If it is 128-bit key, you need to

enter 13 ASCII characters or 26 hexadecimal digits. For the 64-bit key, you

need to enter 5 ASCII characters or 10 hexadecimal digits.

User Manual

- Shared Mode

The parameters’ description of shared mode, please refer to the Open Mode.

802.1x

 Select SSID: Select a SSID for configuring the security settings.

 Network Authentication: Select the 802.1X in the drop-down list.

User Manual

 RADIUS Server IP Address: Enter the IP address of the RADIUS server.

RADIUS server is used to authenticate the hosts on the wireless network.

 RADIUS Port: The port number that the RADIUS server uses. The default

port number is 1812. You may change it according to the server setting.

 RADIUS Key: Set the RADIUS key for accessing the RADIUS server.

 WEP Encryption: You can only select Enabled.

 Encryption Strength: You can set 64-bit or 128-bit key.

 Current Network Key: The current key that you use.

 Network Key1/2/3/4: Set the network key. If it is 128-bit key, you need to

enter 13 ASCII characters or 26 hexadecimal digits. For the 64-bit key, you

need to enter 5 ASCII characters or 10 hexadecimal digits.

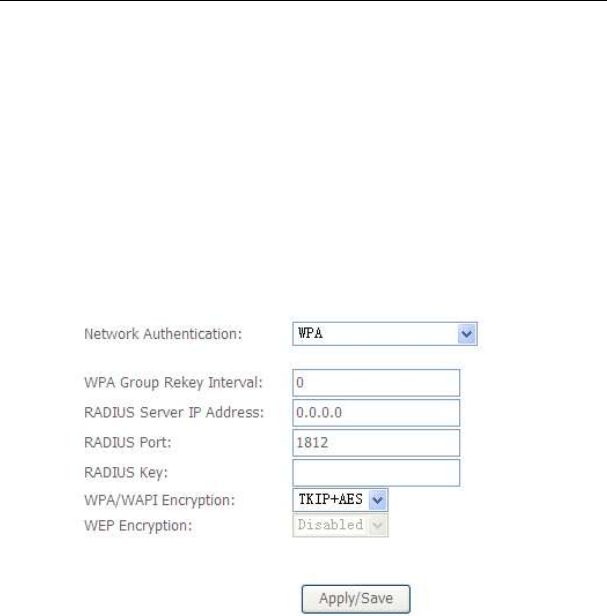

WPA Mode

 Select SSID: Select a SSID for configuring the security settings.

 Network Authentication: Select the WPA-PSK mode.

 WPA Group Rekey Interval: Setting the interval for renewing key.

 RADIUS Server IP Address: Enter the IP address of the RADIUS server.

RADIUS server is used to authenticate the hosts on the wireless network.

 RADIUS Port: The port number that the RADIUS server uses. The default

port number is 1812. You may change it according to the server setting.

 RADIUS Key: Set the RADIUS key for accessing the RADIUS server.

 WPA/WAPI Encryption: You may select AES, or TKIP+AES.

User Manual

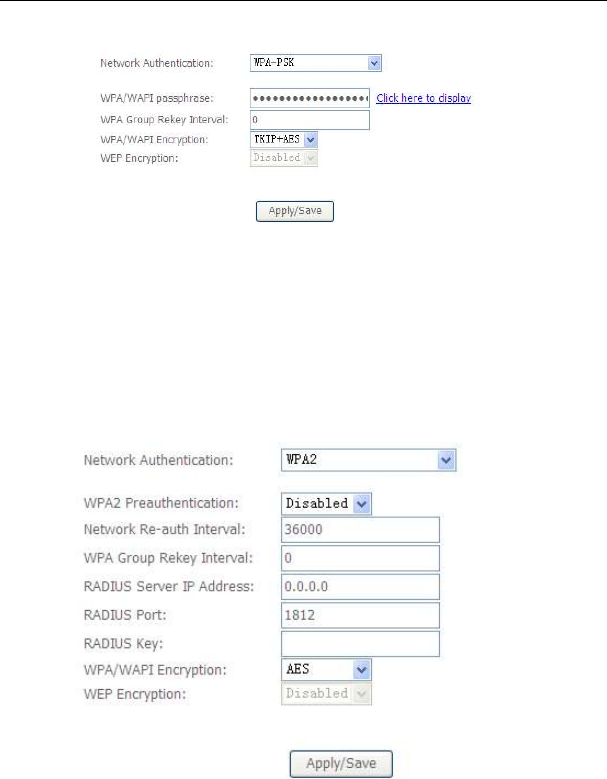

WPA-PSK Mode

 Select SSID: Select a SSID for configuring the security settings.

 Network Authentication: Select the WPA-PSK mode.

 WPA/WAPI passphrase: The key for WPA encryption. Click the Click here

to display button to display the current key. The default key is 87654321.

 WPA Group Rekey Interval: Setting the interval for renewing key.

 WPA/WAPI Encryption: You may select AES, or TKIP+AES.

WPA2 Mode

 Select SSID: Select a SSID for configuring the security settings.

 Network Authentication: Select the WPA2 mode.

User Manual

100

 WPA2 Preauthentication: Enable or disable pre-authentication.

 Network Re-auth Interval: Set the network re-auth interval.

 WPA Group Rekey Interval: Setting the interval for renewing key.

 RADIUS Server IP Address: Enter the IP address of the RADIUS server.

RADIUS server is used to authenticate the hosts on the wireless network.

 RADIUS Port: The port number that the RADIUS server uses. The default

port number is 1812. You may change it according to the server setting.

 RADIUS Key: Set the RADIUS key for accessing the RADIUS server.

 WPA/WAPI Encryption: You may select AES, or TKIP+AES.

WPA2-PSK

The parameters’ description of WPA2-PSK mode, please refer to the WPA-PSK

mode.

Mixed WPA2/WPA

User Manual

101

The parameters’ description of Mixed WPA2/WPA mode, please refer to the WPA2

mode.

Mixed WPA2/WPA-PSK

The parameters’ description of Mixed WPA2/WPA-PSK mode, please refer to the

WPA-PSK mode.

4.3.3

MAC Filter

Choose Wireless > MAC Filter to display the following page.

User Manual

102

This page is used to allow or reject the wireless clients to access the wireless

network of the wireless router.

In this page, you can add or remove the MAC filters.

The MAC restrict modes include Disabled, Allow, and Deny.

 Disabled: Disable the wireless MAC address filtering function.

 Allow: Allow the wireless clients with the MAC addresses in the MAC

Address list to access the wireless network of the wireless router.

 Deny: Reject the wireless clients with the MAC addresses in the MAC

Address list to access the wireless network of the wireless router.

Click the Add button to display the following page.

In this page, enter the MAC address of the wireless client, and then click the

Apply/Save button to add the MAC address to the MAC address list.

User Manual

103

4.3.4

Wireless Bridge

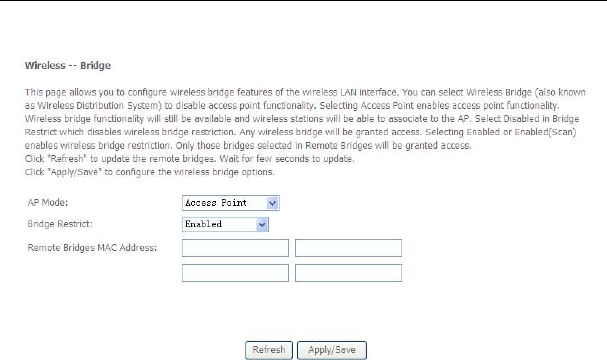

Choose Wireless > Wireless Bridge to display the following page.

This page allows you to configure the wireless bridge features of the wireless LAN

interface.

 AP mode: you may select Access Point or Wireless Bridge.

 Bridge Restrict: Enable or disable the bridge restrict function.

 Remote Bridges MAC Address: Enter the remote bridge MAC address.

After finishing setting, click the Apply/Save button to save and apply the settings.

4.3.5

Advanced Settings

Choose Wireless > Advanced to display the following page. This page allows you

to configure the advanced features of the wireless LAN interface. Usually, you do

not need to change the settings in this page.

User Manual

104

 Band: You can select 2.4GHz or 5GHz.

 Channel: Fill in the appropriate channel to correspond with your network

settings. All devices in your wireless network must use the same channel in

order to work correctly. This router supports auto channeling functionality.

 Auto Channel Timer(min): Specifies the timer of auto channelling.

 802.11n/EWC: Select disable 802.11n or Auto.

 Bandwidth: Select the bandwidth for the network. You can select 20MHz in

Both Bands, 20MHz in 2.4G Band and 40MHz in 5G Band, or 40MHz in

Both Bands.

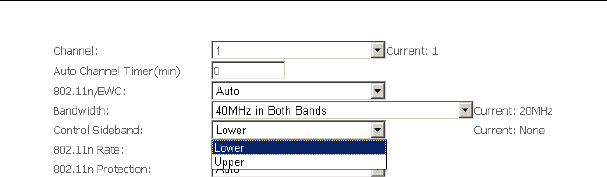

 Control Sideband: If you select 20MHz in Both Bands or 20MHz in 2.4G

Band and 40MHz in 5G Band, the service of control sideband does not

work. When you select 40MHz in Both Bands as the bandwidth, the

following page appears. Then you can select Lower or Upper as the value

User Manual

105

of sideband. As the control sideband, when you select Lower, the channel is

1~7. When you select Upper, the channel is 5~11.

 802.11n Rate: Select the transmission rate for the network. The rate of data

transmission should be set depending on the speed of your wireless network.

You can select from a range of transmission speeds, or you can select Auto

to have the Router automatically use the fastest possible data rate and

enable the Auto-Fallback feature. Auto-Fallback will negotiate the best

possible connection speed between the Router and a wireless client. The

default value is Auto.

 802.11n Protection: The 802.11n standards provide a protection method so

802.11b/g and 802.11n devices can co-exist in the same network without

“speaking” at the same time.

 Support 802.11n Client Only: Only stations that are configured in 802.11n

mode can associate.

 Multicast Rate: Select the multicast transmission rate for the network. The

rate of data transmission should be set depending on the speed of your

wireless network. You can select from a range of transmission speeds, or

you can select Auto to have the Router automatically use the fastest

possible data rate and enable the Auto-Fallback feature. Auto-Fallback will

negotiate the best possible connection speed between the Router and a

wireless client. The default value is Auto.

 Basic Rate: Select the basic transmission rate ability for the AP.

 Fragmentation Threshold: Packets that are larger than this threshold are

fragmented into multiple packets. Try to increase the fragmentation

threshold if you encounter high packet error rates. Do not set the threshold

too low, since this can result in reduced networking performance.

 RTS Threshold: This value should remain at its default setting of

2347.Should you encounter inconsistent data flow, only minor reductions are

recommended. Should you encounter inconsistent data flow, only minor

reduction of the default value, 2347, is recommended. If a network packet is

smaller than the preset RTS threshold size, the RTS/CTS mechanism will

not be enabled. The Router sends Request to Send (RTS) frames to a

particular receiving station and negotiates the sending of a data frame. After

receiving an RTS, the wireless station responds with a Clear to Send (CTS)

frame to acknowledge the right to begin transmission. The RTS Threshold

value should remain at its default value of 2347.

User Manual

106

 DTIM Interval:

(Delivery Traffic Indication Message) Enter a value between

1 and 255 for the Delivery Traffic Indication Message (DTIM.) A DTIM is a

countdown informing clients of the next window for listening to broadcast

and multicast messages.

 Beacon Interval: A beacon is a packet of information that is sent from a

connected device to all other devices where it announces its availability and

readiness. A beacon interval is a period of time (sent with the beacon) before

sending the beacon again. The beacon interval may be adjusted in

milliseconds (ms). Default (100) is recommended.

 XPress Technology: Select Enable or Disable. This is a special accelerating

technology for IEEE802.11g. The defaule is Disabled.

 Transmit Power:

Adjust the transmission range here. This tool can be

helpful for security purposes if you wish to limit the transmission range.

 WMM (Wi-Fi Multimedia): Select whether WMM is enable or disabled.

Before you disable WMM, you should understand that all QoS queues or

traffic classes relate to wireless do not take effects.

 WMM No Acknowledgement: Select whether ACK in WMM packet. By

default, the 'Ack Policy' for each access category is set to Disable, meaning

that an acknowledge packet is returned for every packet received. This

provides a more reliable transmission but increases traffic load, which

decreases performance.

 WMM APSD: APSD is short for automatic power save delivery, Selecting

enable will make it has very low power consumption. WMM Power Save is

an improvement to the 802.11e amendment adding advanced power

management functionality to WMM.

Click Apply/Save to configure the advanced wireless options and make the

changes take effect.

Note:

The advanced wireless setting is only for the advanced user. For the common

user, do not change any settings in this page.

4.3.6

Station Info

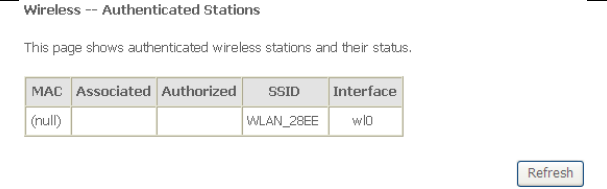

Choose Wireless > Station Info to display the following page.

User Manual

107

This page shows the authenticated wireless stations and their status.

4.4 Diagnostics

4.4.1

Diagnostics

Click Diagnostics > Diagnostics, and the following page appears.

This page is used to test the connection to your local network, the connection to

your DSL service provider, and the connection to your Internet service provider.

You may diagnose the connection by clicking the Test button or click the Test With

OAM F4 button. If the test continues to fail, click Help and follow the

troubleshooting procedures.

User Manual

108

4.5 Management

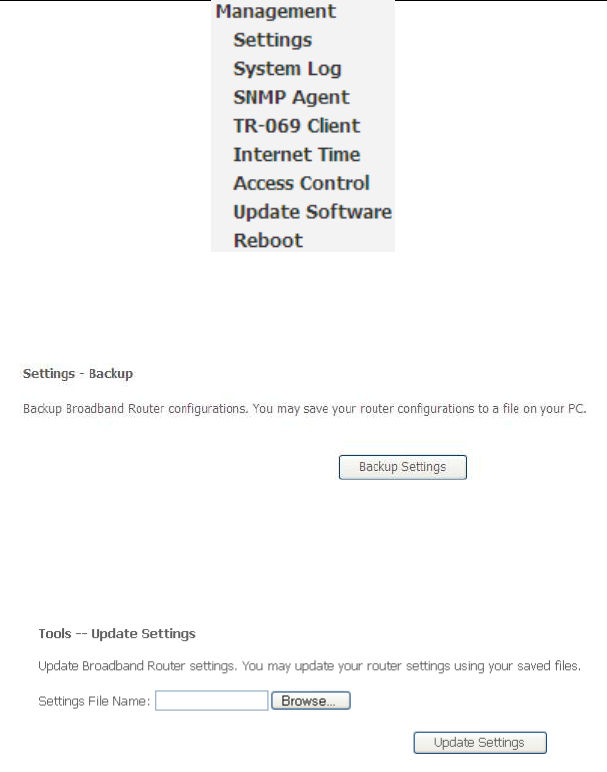

Choose Management and the submenus of Management are shown as below:

User Manual

109

4.5.1

Settings

Backup

Choose Management > Settings > Backup to display the following page.

In this page, click the Backup Settings button to save your router’s settings to your

local PC.

Update

Choose Management > Settings > Update, and the following page appears.

In this page, click the Browse… button to select the correct new settings file, and

then click the Update Settings button to update the router’s settings.

User Manual

110

Restore Default

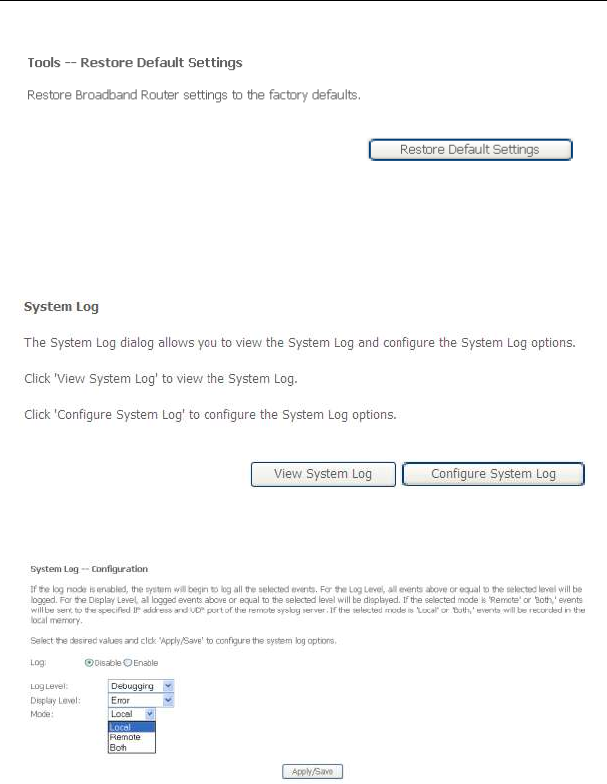

Choose Management > Settings > Restore Default to display the following page.

In this page, click the Restore default settings button, and then system returns to

the default settings.

4.5.2

System Log

Choose Management > System Log to display the following page.

In this page, you are allowed to configure the system log and view the security log.

 Configuring the System Log

Click the Configure System Log button to display the following page.

In this page, you can set 3 types of system log modes, including Local, Remote, and

Both.

User Manual

111

 Local: When selecting Local, the events are recorded in the local memory.

 Remote: When selecting Remote, the events are sent to the specified IP

address and UDP port of the remote system log server.

 Both: When selecting Both, the events are recorded in the local memory or

sent to the specified IP address and UDP port of the remote system log

server.

After finishing setting, click the Apply/Save button to save and apply the settings.

Note:

If you want to log all the events, you need to select the Debugging log level.

 View System Log

Click the View System Log button to display the following page.

In this page, you can view the system log.

Click the Refresh button to refresh the system log. Click the Close button to exit.

4.5.3

SNMP Agent

Choose Management > SNMP Agent, and the following page appears.

User Manual

112

Simple Network Management Protocol (SNMP) allows a management application to

retrieve statistics and status from the SNMP agent in this device.

In this page, you may enable or disable the SNMP agent and set the parameters such

as the read community, system name and trap manager IP.

After finishing setting, click the Save/Apply button to save and apply the settings.

4.5.4

TR-69 Client

Choose Management > TR-069Client to display the following page.

User Manual

113

WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to

perform auto-configuration, provision, collection, and diagnostics to this device.

In this page, you may configure the parameters such as the ACS URL, ACS

password, and connection request user name.

After finishing setting, click the Apply/Save button to save and apply the settings.

4.5.5

Internet Time

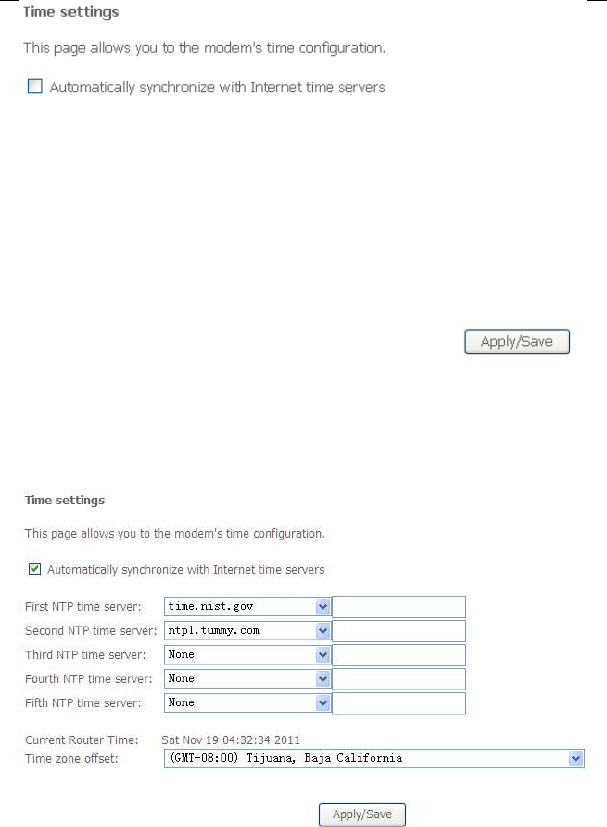

Choose Management > Internet Time to display the following page.

User Manual

114

In this page, you may configure the router to synchronize its time with the Internet

time servers.

After enabling Automatically synchronize with Internet time servers, the following

page appears.

User Manual

115

In this page, set the proper time servers, and then click the Apply/Save button to

save and apply the settings.

4.5.6

Access Control

Passwords

Choose Management > Access Control > Passwords, and the following page

appears.

In the page, you can modify the username and password of different users.

After finishing setting, click the Apply/Save button to save and apply the settings.

Services

Choose Management > Access Control > Services Control and the following page

appears.

User Manual

116

In this page, you can enable or disable the different types of services.

After finishing setting, click the Apply/Save button to save and apply the settings.

4.5.7

Update Software

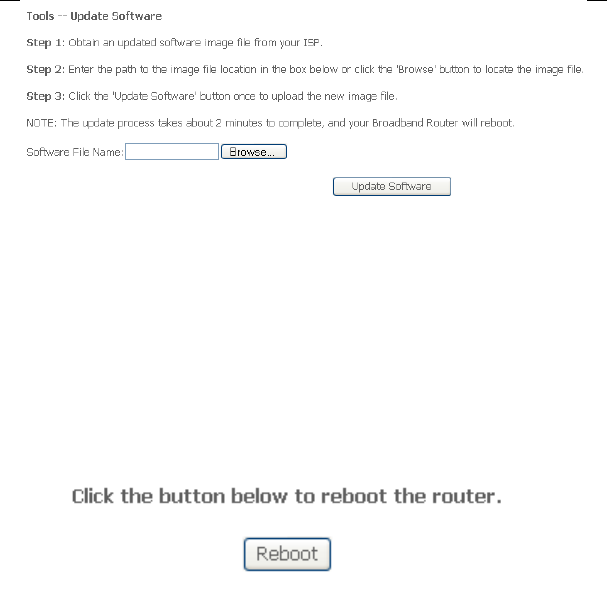

Choose Management > Update Software, and the following page appears.

User Manual

117

If you want to upload the software, click the Browse… button to choose the new

software, and then click the Update Software button.

Note:

When software update is in progress, do not shut down the router. After software

update completes, the router automatically reboots.

Please make sure that the new software for updating is correct, and do not use other

software to update the router.

4.5.8

Reboot

Choose Management > Reboot and the following page appears.

In this page, click the Reboot button, and then the router reboots.

User Manual

118

5 Q&A

(1)

Q: Why all the indicators are off?

A: Check the following:

 The connection between the power adaptor and the power socket.

 The status of the power switch.

(2)

Q: Why the LAN indicator is off?

A: Check the following:

 The connection between the ADSL router and your computer, hub, or

switch.

 The running status of your PC, hub, or switch.

(3)

Q: Why the DSL indicator is off?

A: Check the connection between the “DSL” port of router and the wall jack.

(4)

Q: Why Internet access fails while the DSL indicator is on?

A: Check whether the VPI, VCI, user name, and password are correctly

entered.

(5)

Q: Why I fail to access the web configuration page of the DSL router?

A: Choose Start > Run from the desktop, and ping 192.168.1.1 (IP address of

the DSL router). If the DSL router is not reachable, check the type of the

network cable, the connection between the DSL router and the PC, and

the TCP/IP configuration of the PC.

(6)

Q: How to load the default settings after incorrect configuration?

A: To restore the factory default settings, turn on the device, and press the

reset button for about 1 second, and then release it. The default IP

address and the subnet mask of the DSL router are 192.168.1.1 and

255.255.255.0, respectively.

 User/password of super user: admin/admin

 User/password of common user: user/user

User Manual

119

6 Technical Support

We like to help.

Please visit our support Website or call our support specialists. Our Website has our

Motorola Mentor information, and also provides returns and warranty information.



www.motorolanetwork.com/support



Email: support@motorolanetwork.com



Phone:



In the US and most other countries:



800-753-0797 or +1 617-753-0562



UK: +44 800 023 9083



Spain: +34 900 839 783

Limited Warranty

MTRLC LLC warrants this product against defects in material and

workmanship for a warranty period of 2 years. To read the full

warranty, please go to www.motorolanetwork.com/warranty

MTRLC MD1600 VDSL2/ADSL2+ Modem plus AC1600 Router User Manual

MTRLC LLC VDSL2/ADSL2+ Modem plus AC1600 Router

User manual
