ENTR Tiny Bridge
Wi-Fi Kit Integration Guide
Revision 2.0
Date 24-04-17
Proprietary Notice
The information contained in this document is proprietary to Mul-T-Lock.
Use or transfer of this document or the information contained herein
without the express written consent of Mul-T-Lock is prohibited.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 2
Table of Contents
1. Package contents ............................................................................................................................................... 3
2. HMI and Led Indicators ...................................................................................................................................... 3
3. Getting Started .................................................................................................................................................. 4
3.1 Generating BLE key with the owner Smartphone ............................................................................................... 5
3.2 Powering up the Tiny Bridge ................................................................................................................................ 7
3.3 Configuration the Tiny Bridge step by step ......................................................................................................... 8
3.3.1 Configuration App. connecting to the Tiny Bridge ...................................................................................... 8
3.3.2 Pairing the Tiny Bridge to the ENTR BLE domain .................................................................................... 10
3.3.3 Pairing the Tiny Bridge to the Wi-Fi network domain ............................................................................... 13
3.3.4 Tiny Bridge to server configuration procedure ........................................................................................... 15
3.3.5 WPS Configuration ................................................................................................................................ 16
4. For radio enclosure ...................................................................................................................................... 17
4.1 Radio Frequency Interference (RFI) (FCC 15.105) ................................................................................... 17
4.2 Labeling Requirements (FCC 15.19) ......................................................................................................... 17
4.3 Modifications (FCC 15.21) ........................................................................................................................ 18
4.4 RF Exposure info (FCC 2.1093)-for module radio .................................................................................... 18
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 3
1. Package contents
1 x Tiny Bridge unit.
1 x Wi Fi kit integration guide.

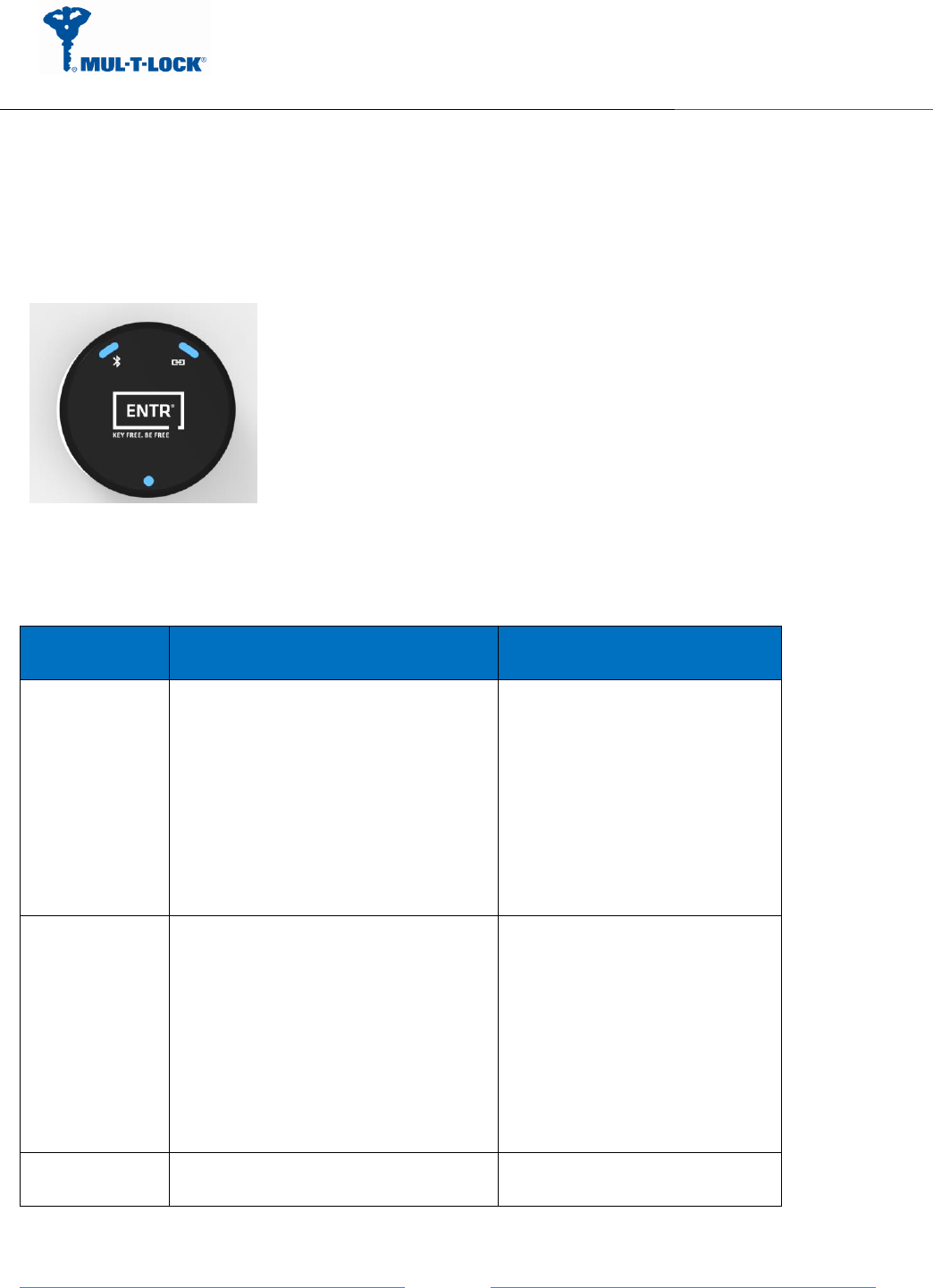

2. HMI and Led Indicators
LED/Push
Button
Remarks
Power
BLE
Amber Color = Red + Green
Wi-Fi
White Color = Red + Green +
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 4
Blue
WPS push
Button
Factory Reset
push Button
3. Getting Started
The Tiny Bridge is connecting to various ecosystem domains, the first one is BLE connectivity to
the ENTR lock, the second is to the Wi-Fi home network and the last one is to the server
(integrator cloud).
In order to configure/pair all three of the above we are using dedicated configuration
application.
Assuming the ENTR DU is already paired to the smartphone the Tiny Bridge is considered as an
ENTR user and for that the ENTR App. owner has to add this user to the ENTR system in the
following procedure:
After configuring the ENTR per "ENTR user manual" and use the "ENTR™ lock App User Manual"
go through the "set owner" and "find lock”, now you can add a new user (Tiny Bridge) per
paragraph 3.1.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 5
3.1 Generating BLE key with the owner Smartphone
Get into “Lock Settings” by tapping the lock icon:
Tap on “Add User”
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 6

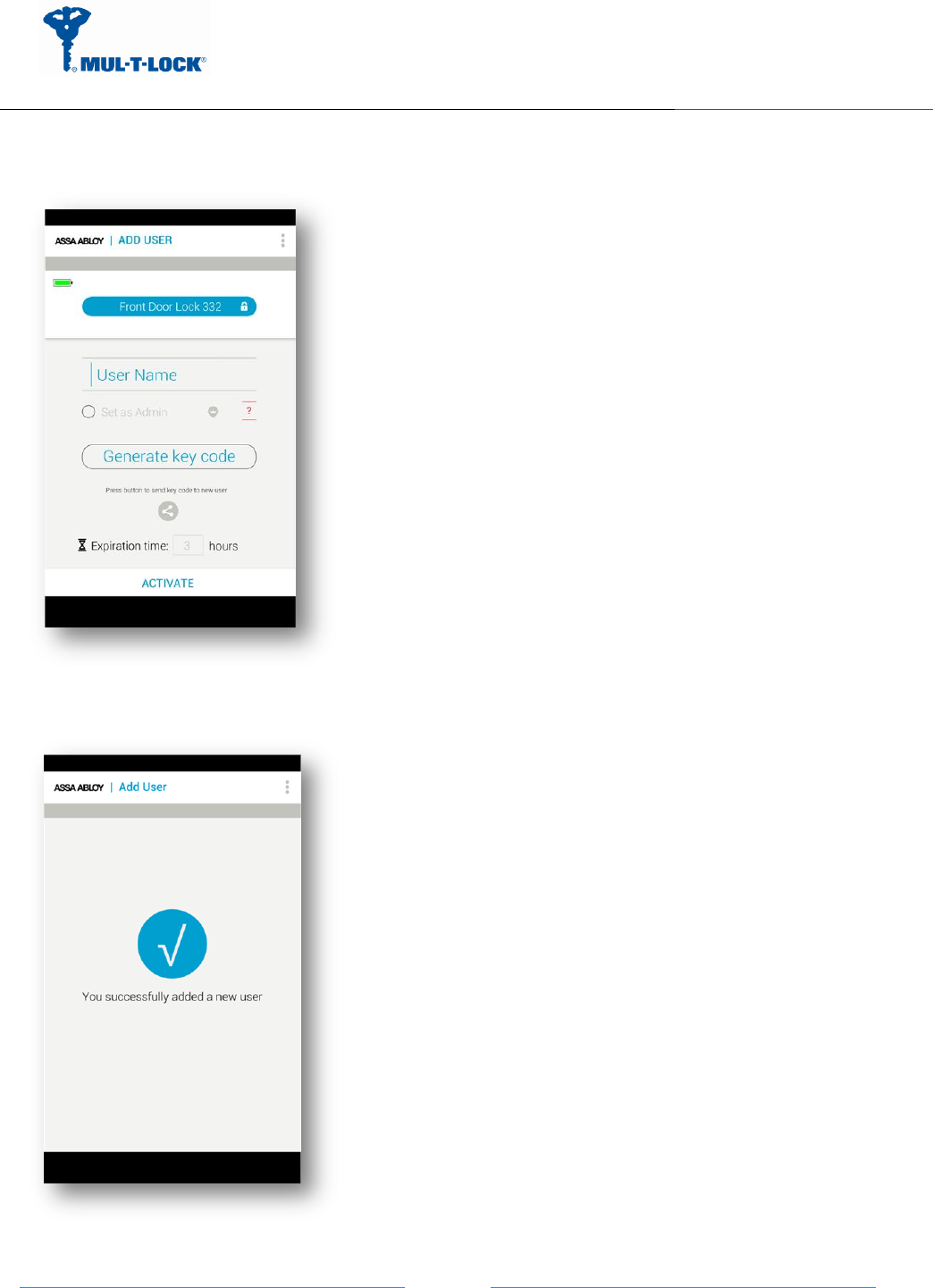

Enter the user name, generate the key code, and share or remember the code for the process
of getting the key through the Tiny Bridge unit. Press “Activate”.
On Success you will see the following screen:
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 7
From this moment, for the predefined expiration time, the key will be waiting in the lock
(pending) until it will be pulled from the lock using this code. The key pulling can be done by the
Tiny Bridge.
3.2 Powering up the Tiny Bridge
It is recommended that you first set up this Tiny Bridge somewhere close to the wireless router,
and then move this Tiny Bridge to another location for optimal Wi-Fi reception.
Insert the Tiny Bridge adaptor into the AC socket.
The Tiny Bridge will start powering up and the green power led will become steady if the BIT
procedure passes successfully (picture 1).
The BLE pairing, server, IP or URL address procedures are done via the Configuration App. as
well.

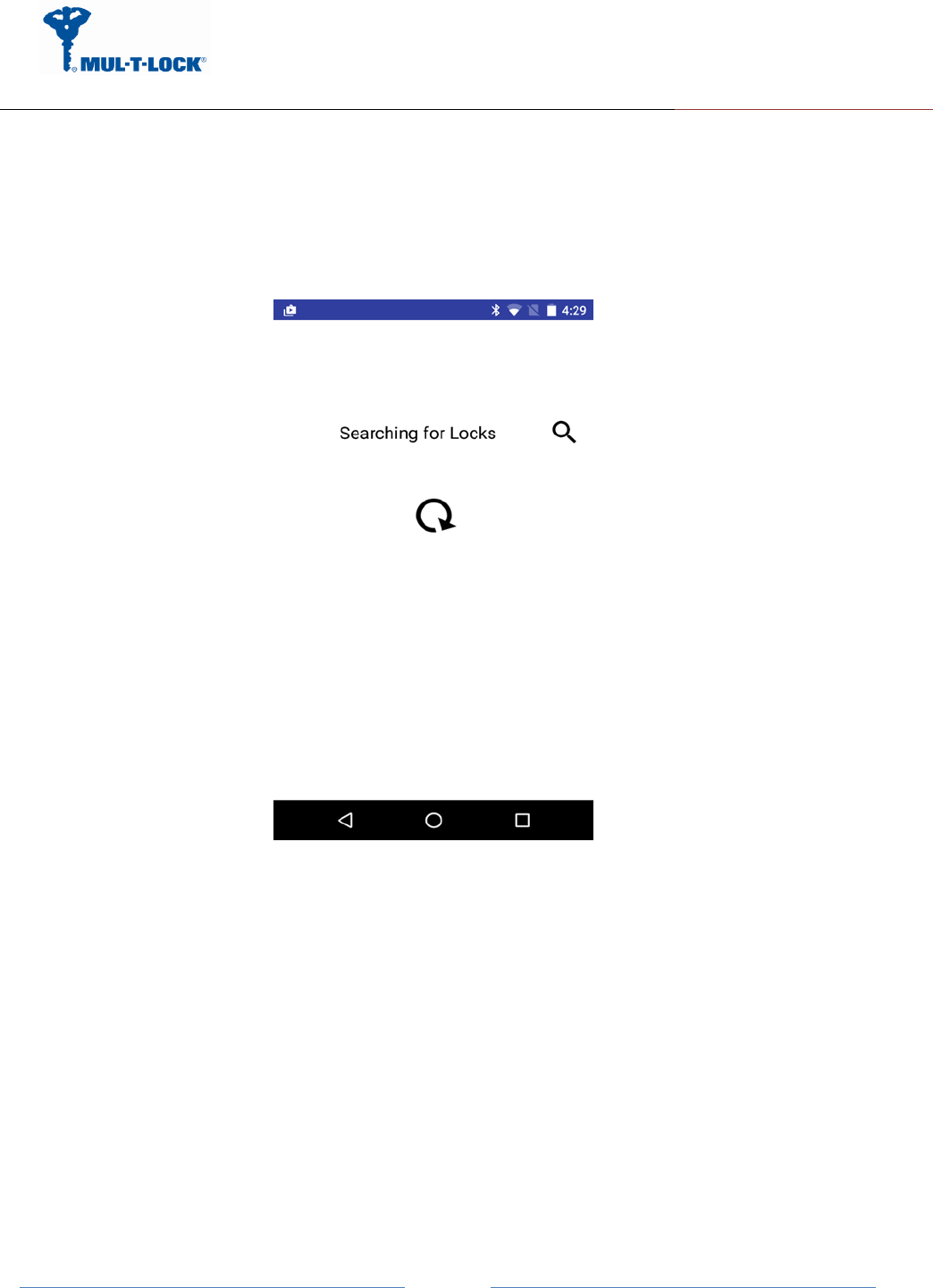

Picture 1.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 8
3.3 Configuration the Tiny Bridge step by step
3.3.1 Configuration App. connecting to the Tiny Bridge
Open the configuration application on your mobile phone.

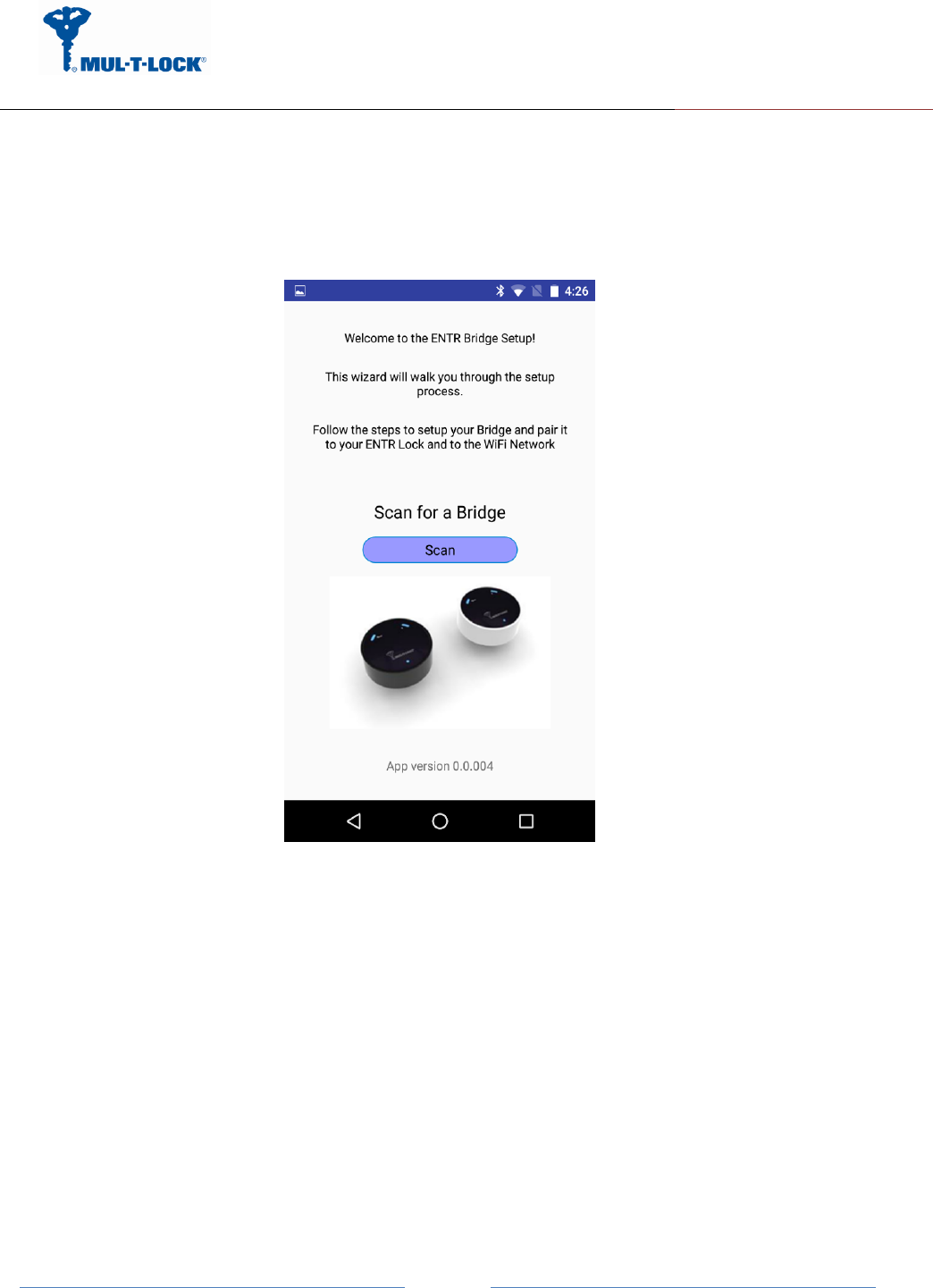

Picture 2.
A welcome ENTR Tiny Bridge set up appears.
Now press the "Scan" button and wait for the app to connecting to the Tiny Bridge.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page 9

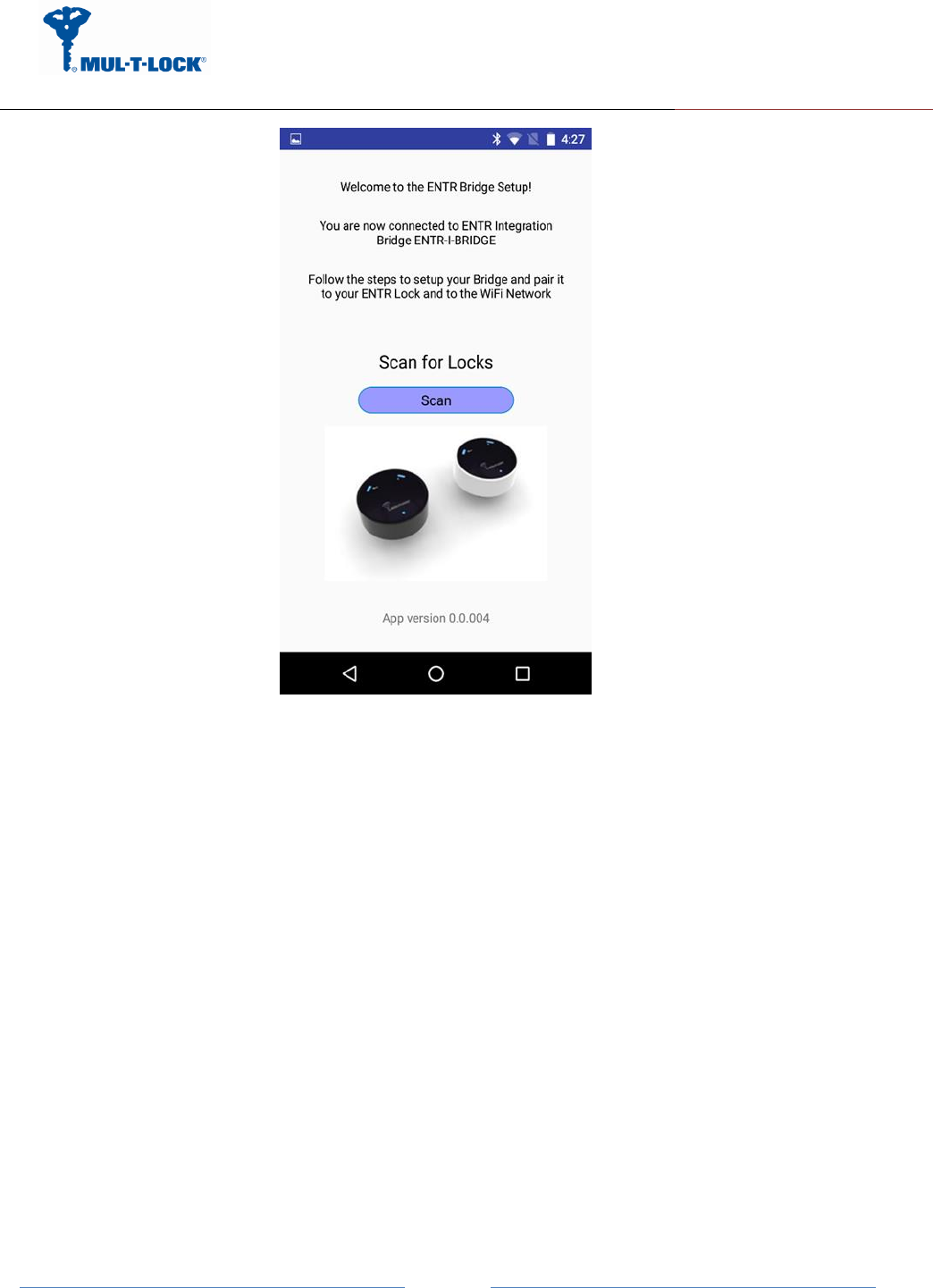

Picture 3.
After the App. is connecting to the Tiny Bridge successfully the App. updates its status to "You
are now connected to ENTR Integration Tiny Bridge ENTR-I-TINY BRIDGE".
Remark: The same configuration application supports both integration and Tiny Bridges.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
10
3.3.2 Pairing the Tiny Bridge to the ENTR BLE domain
After adding the Tiny Bridge and generating a key per paragraph 3.1 we can start paring the
Tiny Bridge to the ENTR BLE domain.
Press the scan icon (picture 3) for ENTR door locks that pending a key.
Picture 4.
The App. is searching for locks that are in BLE range and have a pending key.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
11

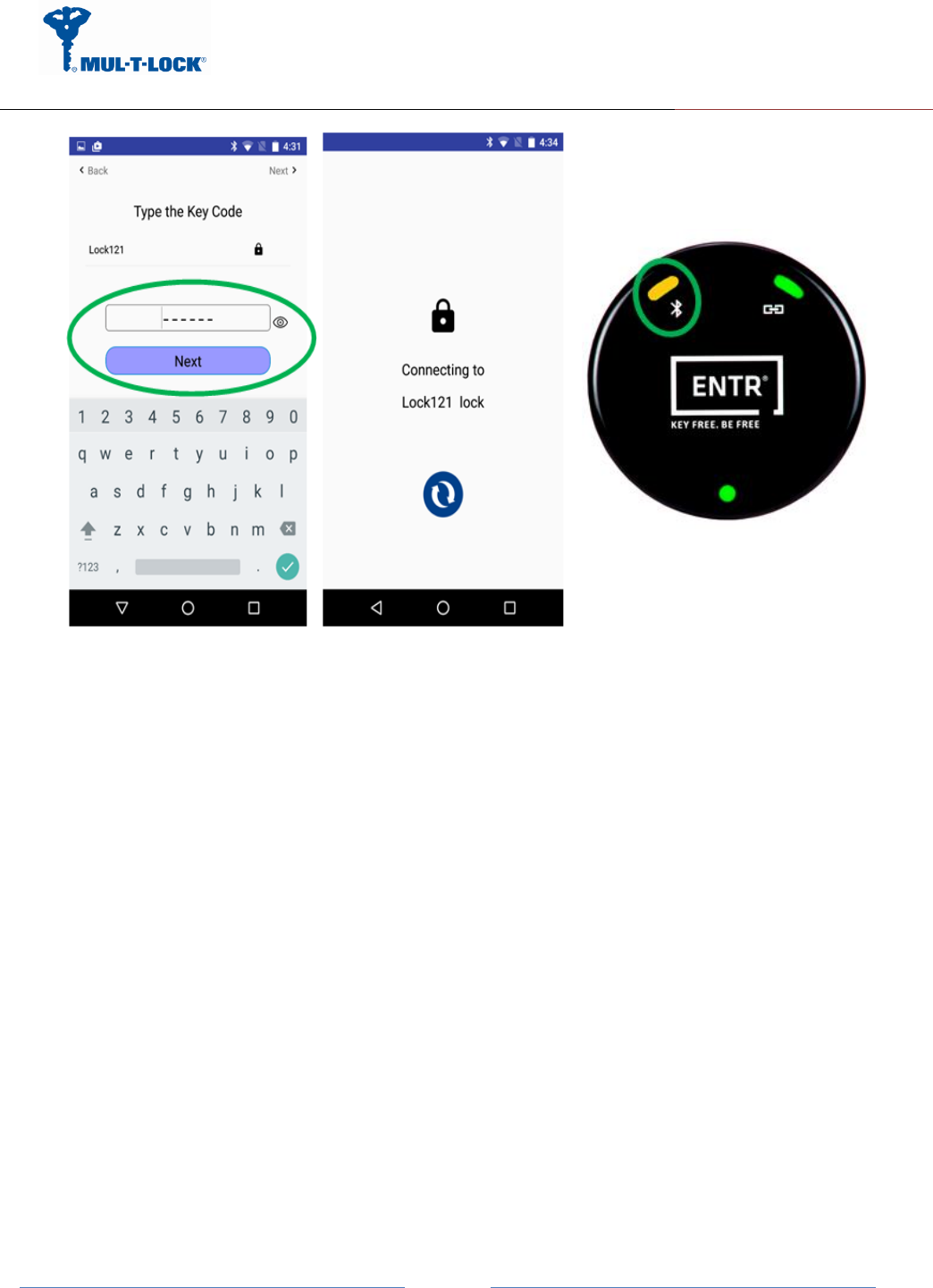

Picture 5.

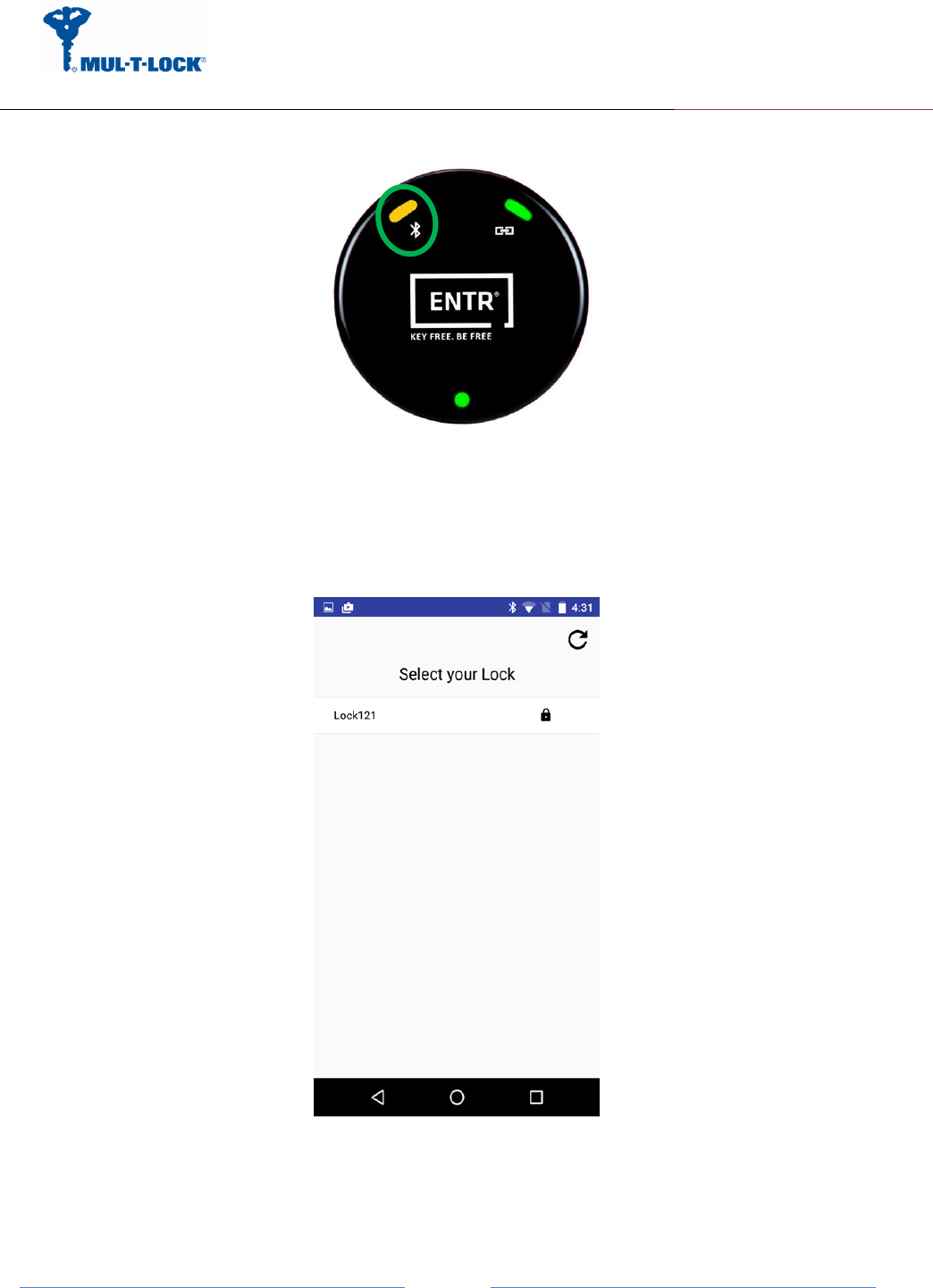

The BLE LED blinks in Amber color that indicates that the Tiny Bridge is searching for locks
that are within BLE range and have a pending key.
Picture 6.
Select "Lock 121" from the list appears on the screen on picture 6.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
12
Picture 7.
Type your pin code that you received per paragraph 3.1.a connecting attempt will appears
on your screen.
Wait for successful connection and ensure that the BLE LED is steady state amber colored.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
13
3.3.3 Pairing the Tiny Bridge to the Wi-Fi network domain
Picture 8.
Now we are ready to configure the Wi-Fi section of the Tiny Bridge.
Remark: There are two methods to connect to a Wi-Fi network, one is via WPS (QSS)
procedure (see appendix A) and the other is via the configuration application.

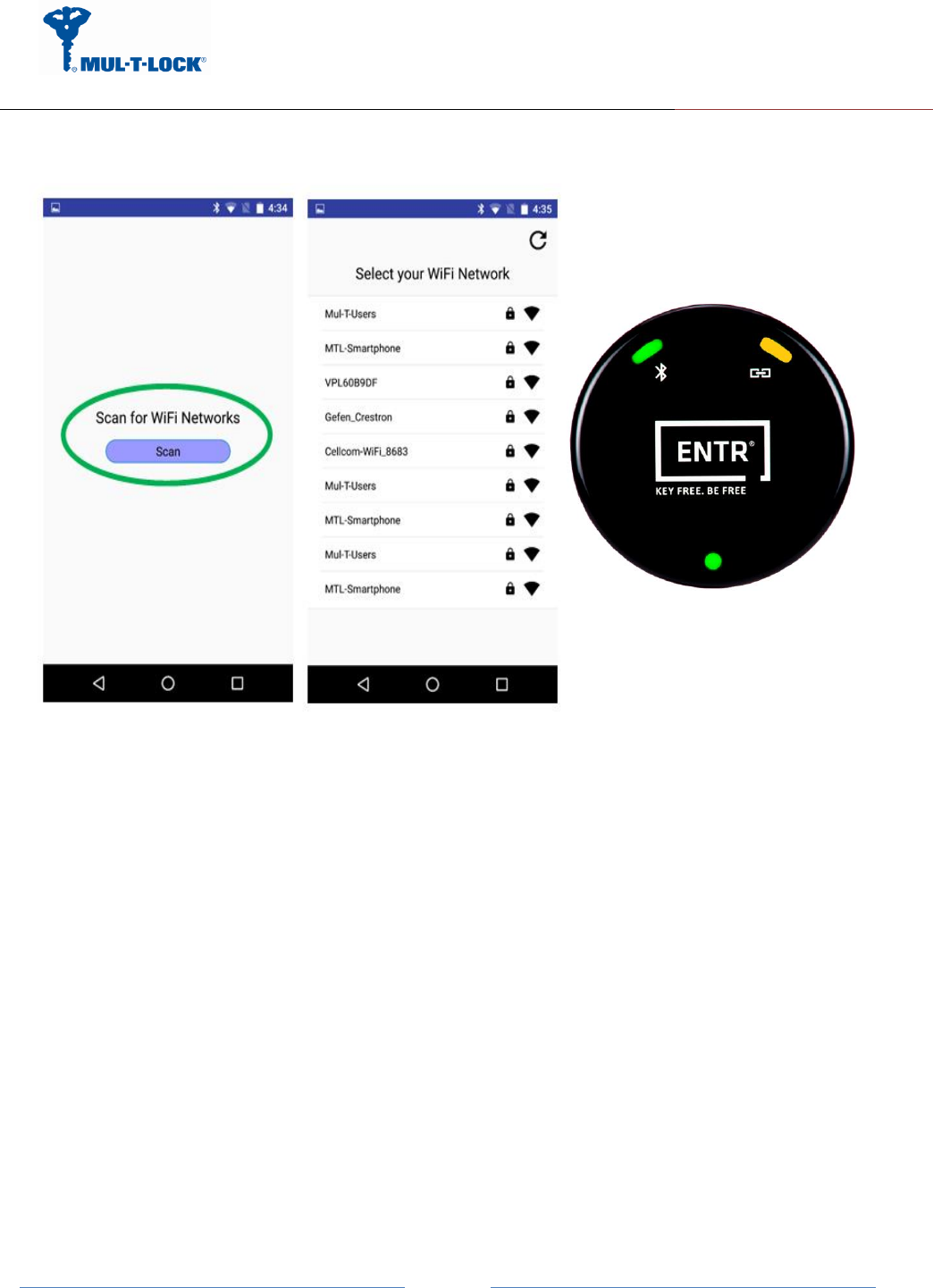

Press the Wi-Fi scan icon in order to scan for Wi-Fi networks within Wi-Fi range (see picture
8).
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
14
Picture 9.

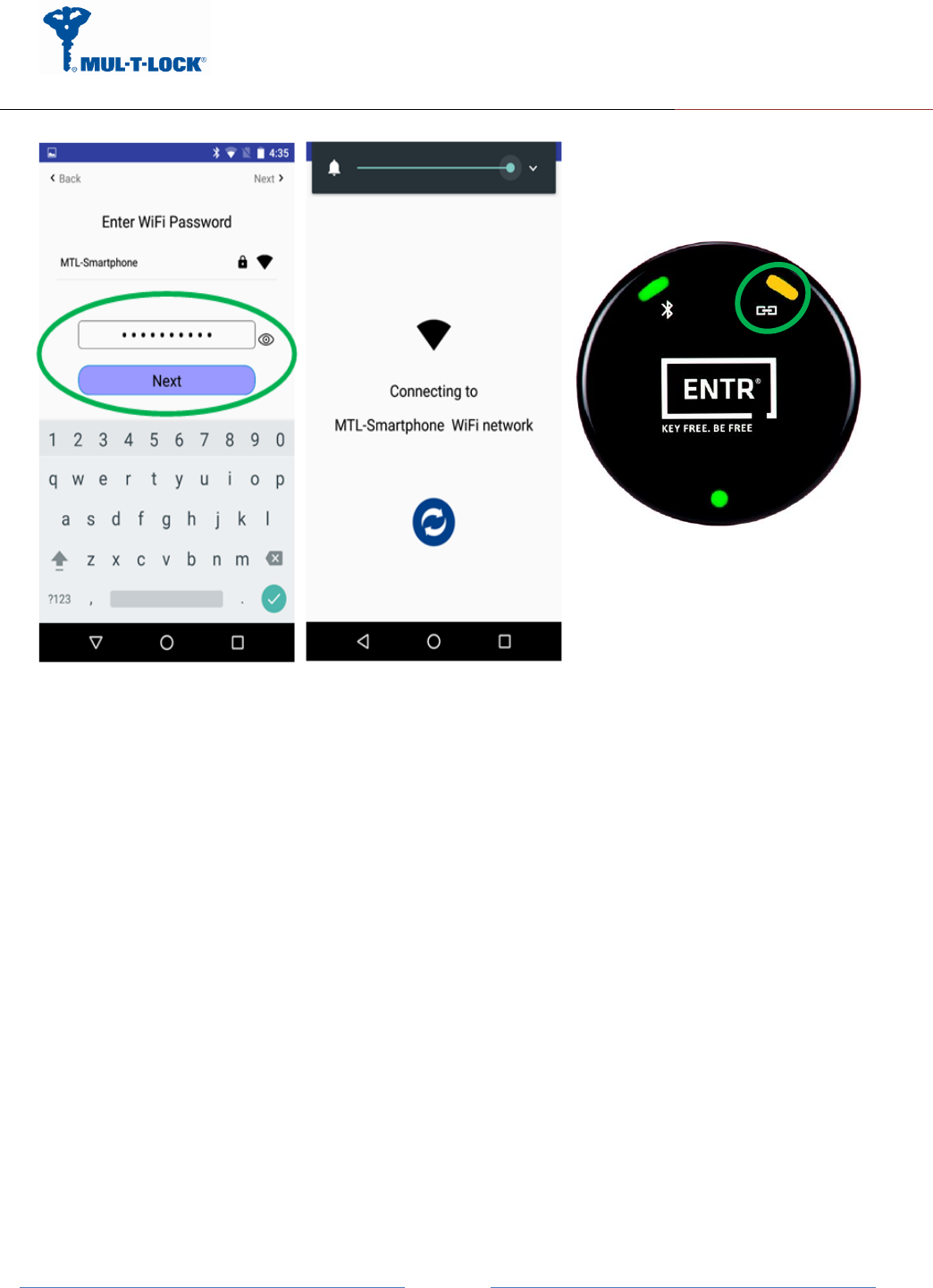

Enter the Wi-Fi network password (SSID), a connecting attempt will appears on your screen.
The Wi-Fi LED blinks in Amber color and wait for successful connection – Wi-Fi LED become
steady state amber colored.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
15
3.3.4 Tiny Bridge to server configuration procedure

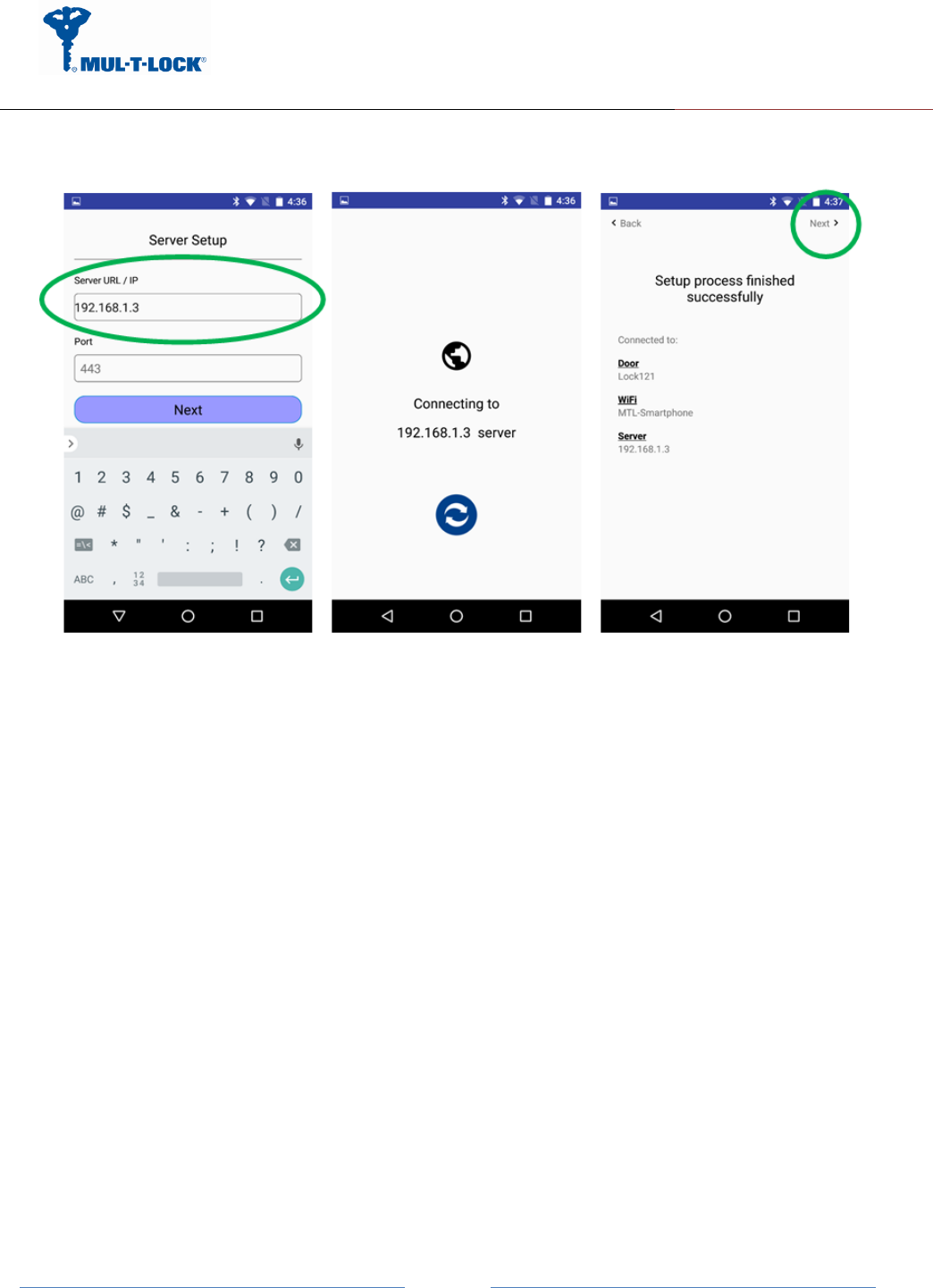

The integrator has to enter the DNS server IP or URL address and port number (optional).
Default port number is 40003.
Press "Next" after filling both fields.
When setup is done, the Tiny Bridge will try to connect to the server. Make sure the server is
running.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
16
3.3.5 WPS Configuration
You can connect to the Tiny Bridge’s Wi-Fi network with Wi-Fi Protected Setup (WPS), to use
WPS procedure do the following:
Make sure that the Tiny Bridge has power (its green Power LED is lit steady).

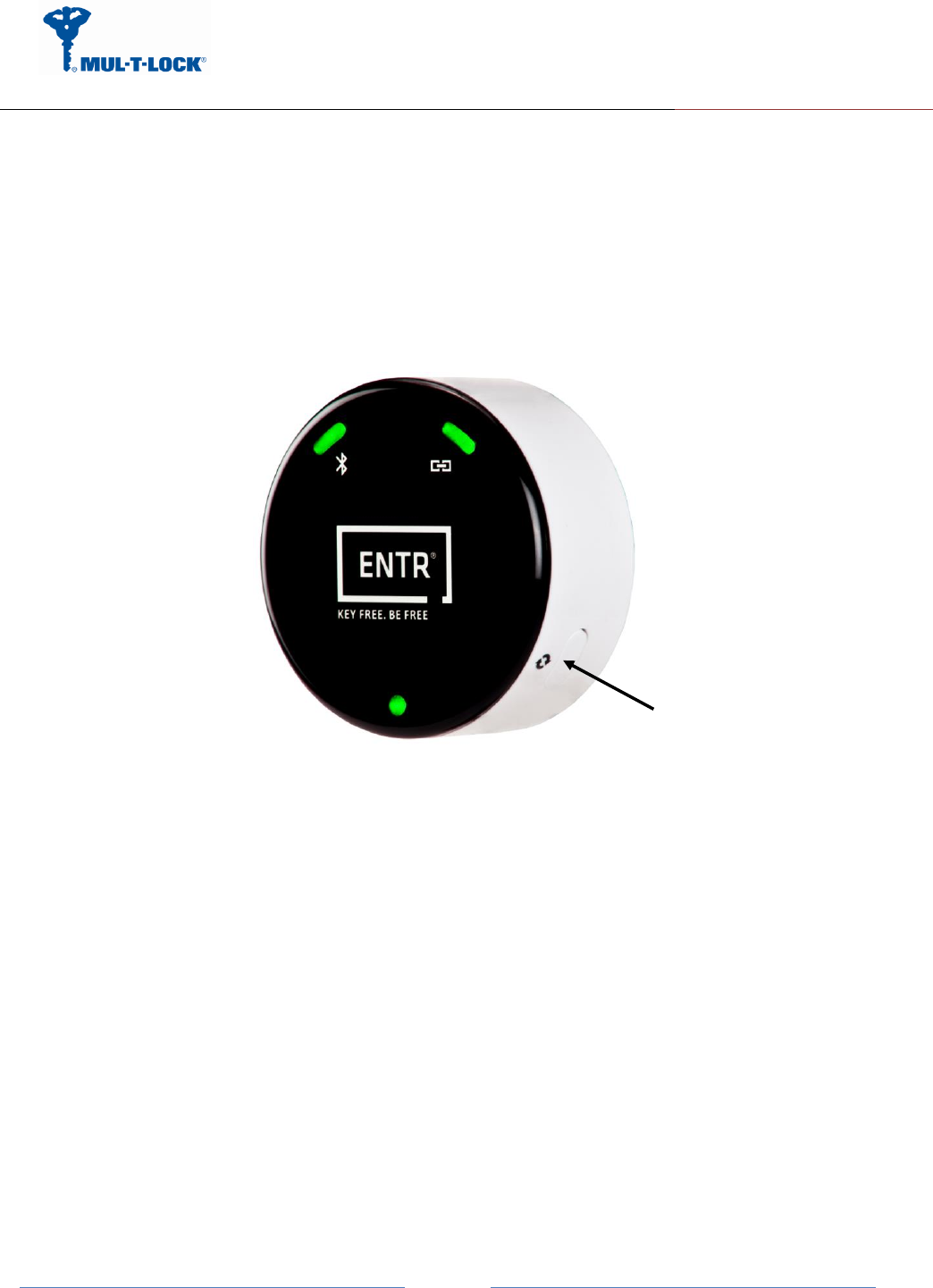

Press the WPS button on the Tiny Bridge for 3 seconds (WPS button is located on the bottom
right of the Tiny Bridge) until the Wi-Fi white color led start blinking.
Within two minutes, on your router, press its WPS button or follow its instructions for WPS
connections, now wait for the WPS setup to end till the Wi-Fi white color led will lit steady.
Now wait that the Wi-Fi amber led will lit steady (white color led will turn off) to indicate the
Tiny Bridge join the network successfully ,If the WPS configuration fails the white led will
turn off and a solid red led will lit to indicate that the Tiny Bridge fails to join the network.
If the WPS procedure fails or the wireless router does not support WPS procedure go to
paragraph 3.3.3.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
17
4 For radio enclosure
Federal Communications Commission (FCC) Statement labelling
requirement for small device statement (FCC15.19 (3))
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
4.3 Radio Frequency Interference (RFI) (FCC 15.105)
This equipment has been tested and found to comply with the limits for Class B digital devices
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential environment. This equipment
generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
and correct the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and the receiver.
•
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
•
Consult the dealer or an experienced radio/TV technician for help.
4.4 Labeling Requirements (FCC 15.19)
This device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
ENTR Wi-Fi Tiny Bridge integration Guide de
April, 24, 2017
An ASSA ABLOY Group Brand
Page
18
Product FCC ID: 2AHH881135
4.5 Modifications (FCC 15.21)
Changes or modifications to this equipment not expressly approved by Mul-T-Lock® may void
the user’s authority to operate this equipment.
4.6 RF Exposure info (FCC 2.1093)-for module radio
This equipment has been approved for mobile applications where the equipment should be
used at distances greater than 20cm from the human body (with the exception of hands, wrists,
feet and ankles). Operation at distances less than 20cm is strictly prohibited.
FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation
Exposure Statement:
This equipment complies with ISED radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
