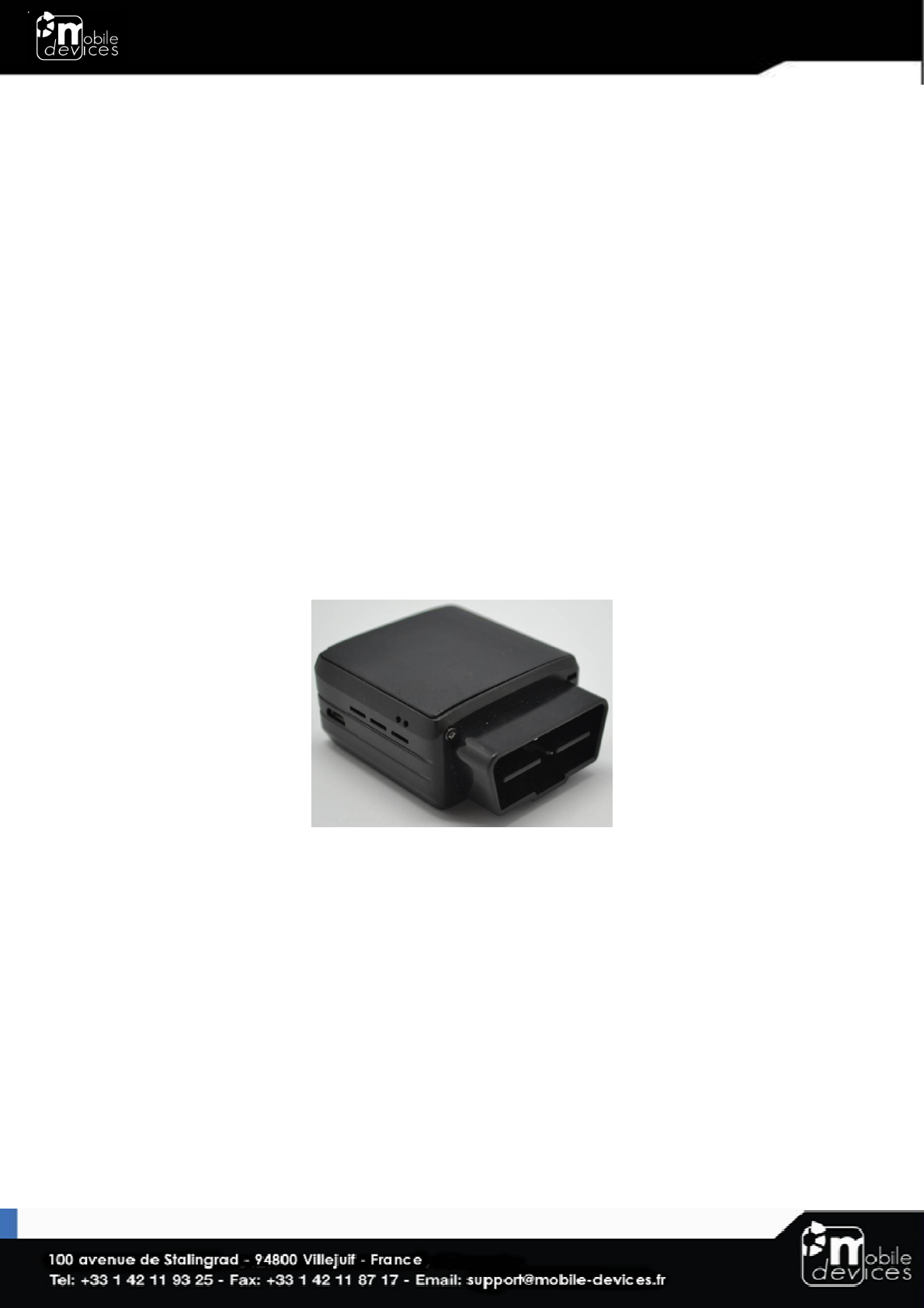

MUNIC C4D-4GMUSV6 TELEMATICS EMBEDDED SYSTEMS User Manual InstallationGuide V1 0
Mobile Devices Ingenierie TELEMATICS EMBEDDED SYSTEMS InstallationGuide V1 0
MUNIC >
InstallationGuide_V1.0
C4D-4GMUSAA_V6 - INSTALLATION GUIDE
V 1.0
19/03/2018
Table of contents
Preface ...................................................................................................................................3
Warnings and notices ............................................................................................................3
FCC Regulations .................................................................................................................... 3
FCC RF Exposure Information (SAR) ...................................................................................... 4
1. Hardware features .............................................................................................................3
2. Hardware description ........................................................................................................6
2.1. External view ...............................................................................................................6
2.2. Internal view ...............................................................................................................6
2.3 OBD connector pin out ...............................................................................................7
3. Preparing/installing the device ..........................................................................................8
3.1. Open the device to insert a SIM card ........................................................................8
3.2. Properly close the device ............................................................................................9
3.3. Install the OBD Dongle ............................................................................................ 11
4. LED sequences................................................................................................................. 11
5. Support ............................................................................................................................ 11
Preface
The information contained in this installation guide is subject to changes in order to improve the reliability,
design or features without prior notice. Mobile Devices Ingénierie reserves the right to make changes in the
content without obligation to notify any person or organisation of such changes or improvements. Mobile
Devices Ingénierie can in no event be held liable for technical or editorial errors or omissions herein, nor for
incidental, special or consequential damages from the furnishing, performance or use of this installation
guide.
Please contact our technical support for current updates and supplemental information concerning the use
and operation of this or other Mobile Devices Ingénierie products.
Warnings and notices
The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the product.
Please read the installation guidelines, as well as the safety and operating instructions before operating your
device. Follow all instructions and heed all warnings in the installation guide.
There is a risk of explosion if the battery is replaced by a wrong battery type. Please discard empty battery
according to local regulations.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could
void the user‘s authority to operate the equipment.
FCC RF Exposure Information (SAR)
This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency
(RF) energy set by the Federal Communications Commission of the United States.
During SAR testing, this device is set to transmit at its highest certified power level in all tested frequency
bands, and placed in positions that simulate RF exposure in usage near the body with the separation of 5
mm. Although the SAR is determined at the highest certified power level, the actual SAR level of the while
operating can be well below the maximum value. This is because the device is designed to operate at
multiple power levels so as to use only the power required to reach the network. In general, the closer you
are to a wireless base station antenna, the lower the power output.
The exposure standard for wireless employs a unit of measurement known as the Specific Absorption Rate, or
SAR. The SAR limit set by the FCC is 1.6W/kg.
The FCC has granted an Equipment Authorization for this model device with all reported SAR levels
evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is
on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fc cid after
searching on FCC ID: A6GC4D-4GMUSV6
For this device, the highest reported SAR value for usage near the body is 1.198 W/kg.
While there may be differences between the SAR levels of various devices and at various positions, they all
meet the government requirement.
SAR compliance for body operation is based on a separation distance of 5mm between the unit and the
human body.
1. Hardware features
OBD Dongle
Performance
Processor
Cortex A5
-
500MHz
RAM
128
Mbytes
NAND Flash
256 Mbytes
P
ower supply
External power supply
range
8
-
1
8
V
External voltage
measurement
●
Li
-
pol battery
*
450mA.h
Communication
Modem
4
G
Cat
-
M
1d
ata
module (
ME910C1
-
NA
)
Modem
antenna
Internal
Positioning
GNSS receiver
U
-
blox M8 (
GPS, GLONASS, BeiD
ou
)
G
NSS
a
ntenna
Internal
Interface & Telematics features
USB (2.0 Host)
powered (
100mA on 5V minimum
)
optional
3D Accelerometer
±2g,
±4g, ±6g, ±8g, ±16g
OBD protocols
CAN, KWP2000, VPW, PWM
Additional
CAN interface
●
OBD pin multiplexer
●
Environmental
C
onnectors
OBD connector
Mini USB
Operating temperature *
-
25/+60°C
Dimensions
With OBD connector: 27x60,5x49,5 mm
Without OBD connector: 27x48x49,5 mm
SIM card
slot
* Please read warnings section at the beginning of the installation guide

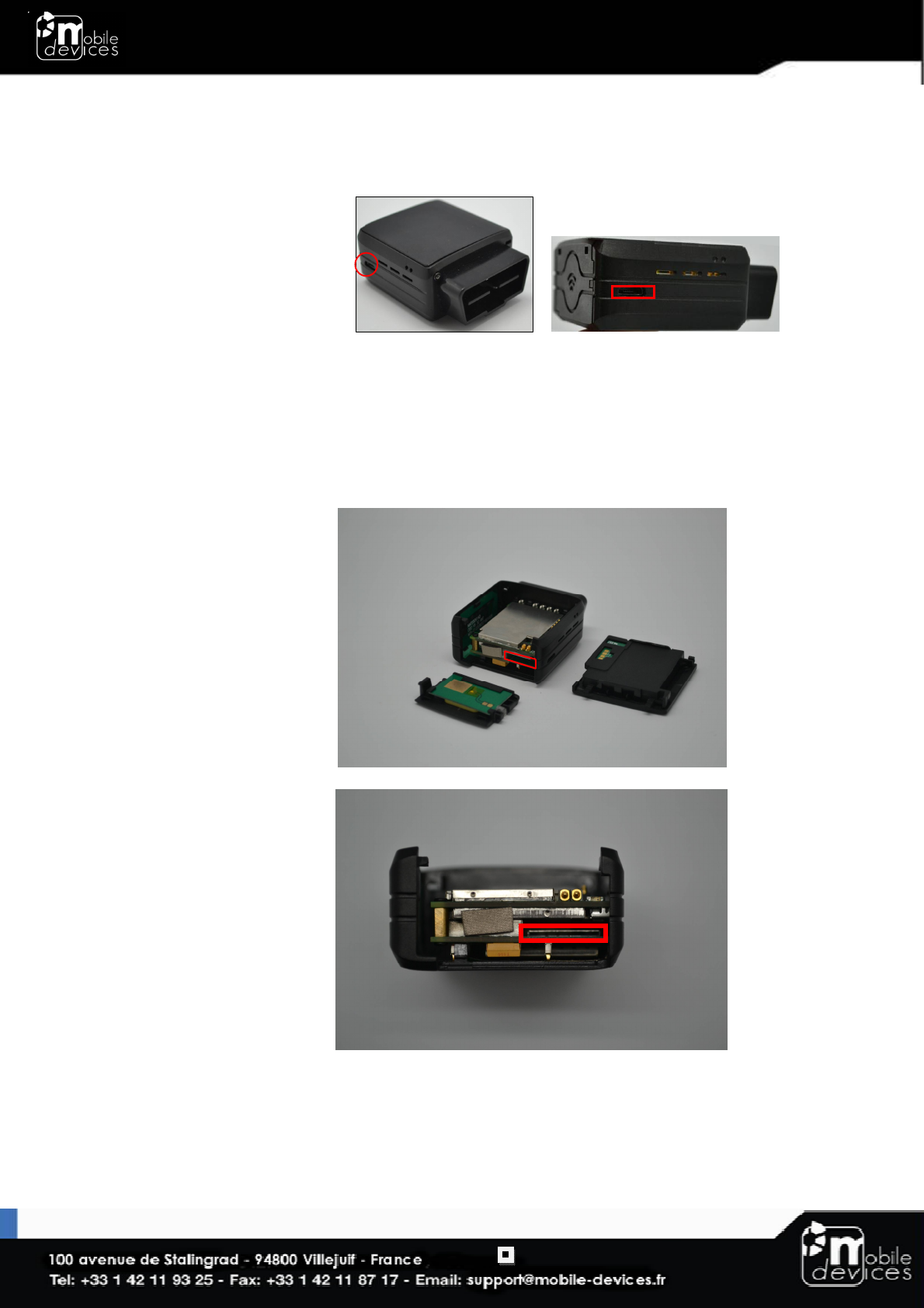

2. Hardware description
2.1. External view
1. ODB connector
2. microUSB connector
3. LED
2.2. Internal view
4. Modem antenna
5. GNSS antenna
6. SIM holder
7. Internal battery*
* Please read warnings section at the beginning of the installation guide
1
2
3
1
2
5
4
6 7
6
2.3 OBD connector pin out
Pin #
Comment
2
J1850+ (PWM/VPW)
4
Chassis ground
5
Signal
ground
6
CAN High
7
K line
10
J1850
-
(PWM)
14
CAN low
15
L line
16
Battery voltage
3. Preparing/installing the device

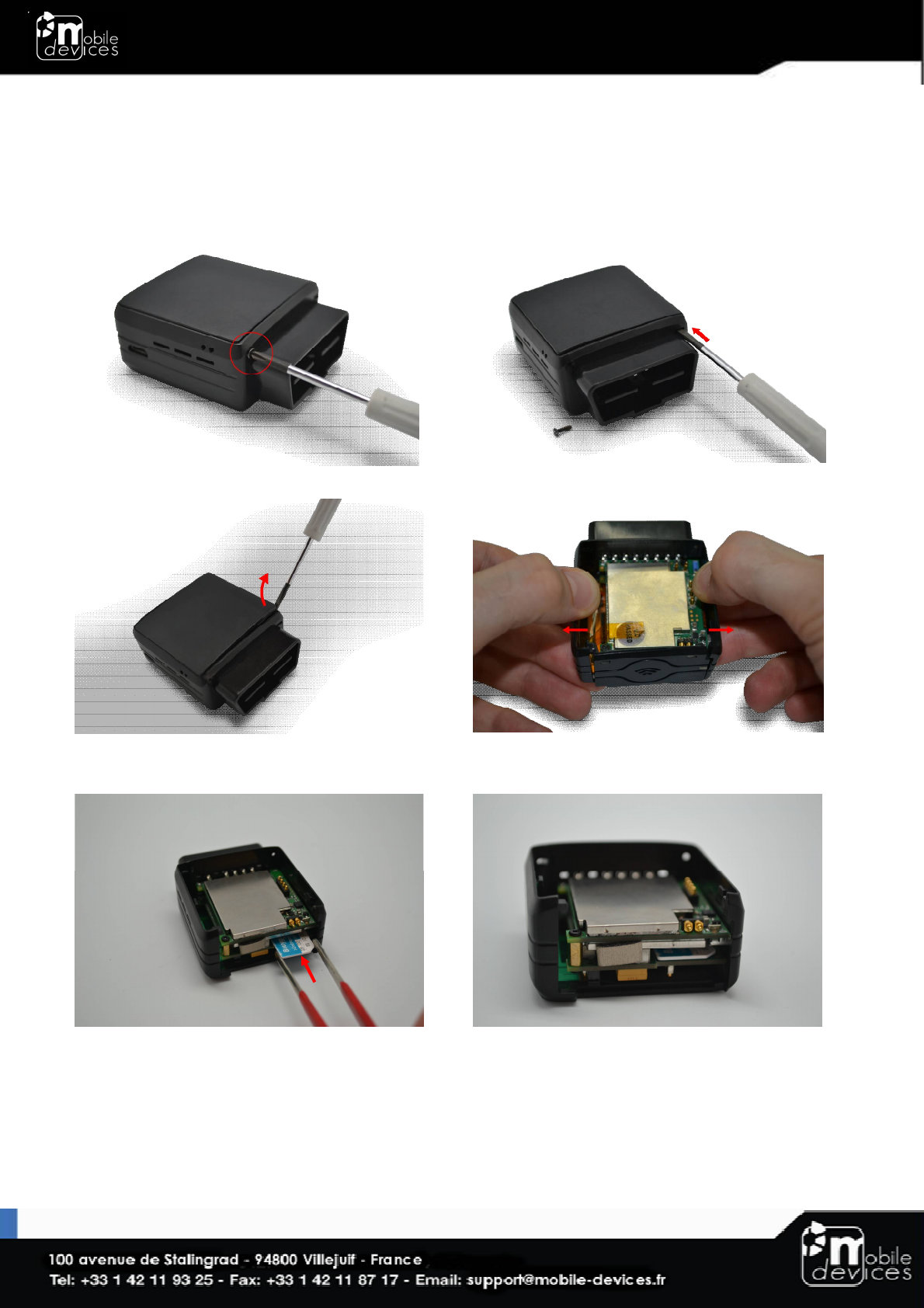

3.1. Open the device to insert a SIM card
3.2. Properly close the device

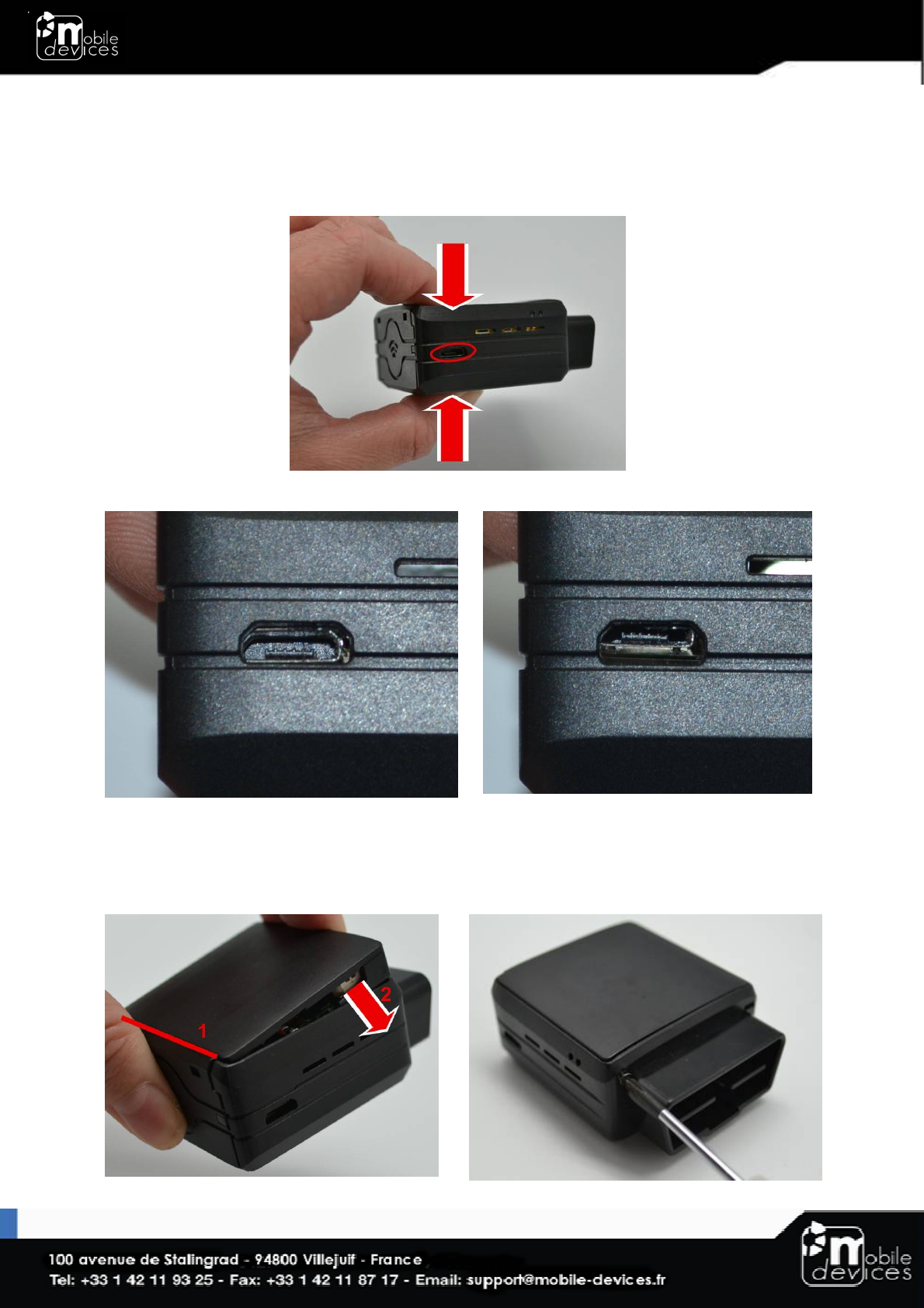

First, check that the hole of the electronic card is correctly inserted in the plastic part.
If it’s not inserted proceed as shown below.

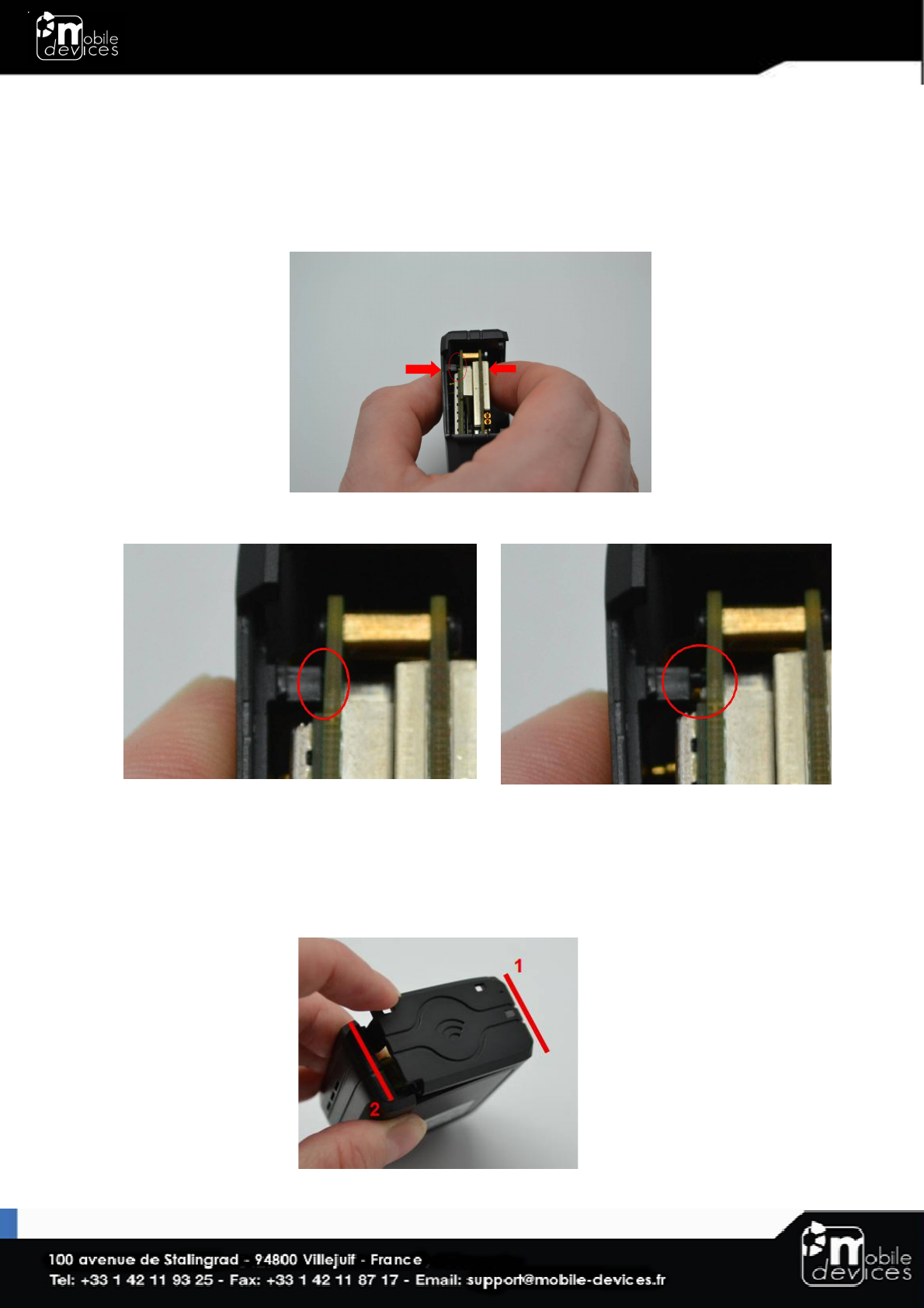

Second, insert the GPS antenna as shown below.
GOOD
NOT GOOD
Third, check that the micro USB port is correctly inserted on its place.
If it’s not inserted proceed as shown below.
Finally, insert the battery and place the screw.
GOOD
NOT GOOD
3.3. Install the OBD Dongle
Connect the OBD Dongle on your vehicle OBD connector.
4. LED sequences
The Dongle has a two-coloured LED, green and red.
When both colours are brightened, you can see an orange light.
Green LED
Red LED
Sequence
Meaning
Sequence
Meaning
Dongle OFF
OFF
No
M
odem
/No GNSS
3 times (50ms ON/100ms OFF)
3550ms OFF
Ext. Power/Run ON
No
Modem
/Fix GNSS
2 times (50ms ON/100ms OFF)
3700ms OFF
Modem
OK
/No GNSS
1 time (50ms ON/100ms OFF)
3850ms OFF
Modem
OK
/Fix GNSS
2000ms ON
2000ms OFF
Shutdown/Hibernate
30ms ON / 1 s OFF
Idle/Sleep
30ms ON / 1 s OFF
5. Support
For all questions not related in this installation guide, please contact the support team by email at
support@mobile-devices.fr
