User manual
C4DONGLE-3GNA-WBT
INSTALLATION GUIDE
V 1.0
07/08/2015
Table of contents
Preface..................................................................................................................................... 3
Warnings and notices .......................................................................................................... 3
1. Hardware features ........................................................................................................... 4
2. Hardware description...................................................................................................... 5
2.1. External view............................................................................................................... 5
2.2. Internal view................................................................................................................ 5
2.3 OBD connector pin out ............................................................................................ 5
2.4 OBD adapter wires..................................................................................................... 6
3. Preparing/installing the device .................................................................................... 7
3.1. Open the device to insert a SIM card................................................................. 7
3.2. Properly close the device ....................................................................................... 8
3.3. Install the OBD Dongle........................................................................................... 10
4. LED sequences ................................................................................................................ 10
5. Support .............................................................................................................................. 10
6. FCC Regulations: ............................................................................................................ 10
7. RF Exposure Information................................................................................................ 11
8. IC Notice ........................................................................................................................... 12
9. IC Radiation Exposure Statement.............................................................................. 12
Preface
The information contained in this installation guide is subject to changes in order to improve
the reliability, design or features without prior notice. Mobile Devices Ingénierie reserves the
right to make changes in the content without obligation to notify any person or organisation
of such changes or improvements. Mobile Devices Ingénierie can in no event be held liable
for technical or editorial errors or omissions herein, nor for incidental, special or consequential
damages from the furnishing, performance or use of this installation guide.
Please contact our technical support for current updates and supplemental information
concerning the use and operation of this or other Mobile Devices Ingénierie products.
Warnings and notices
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the product.
Please read the installation guidelines, as well as the safety and operating instructions before
operating your device. Follow all instructions and heed all warnings in the installation guide.
There is a risk of explosion if the battery is replaced by a wrong battery type. Please discard
empty battery according to local regulations.
1. Hardware features
OBD Dongle
Performance Processor ARM 11 - 500MHz
RAM 128 Mbytes
NAND Flash 256 Mbytes
Power supply External power supply 8-
32V
●
External voltage
measurement
●
Li-pol battery 450mA.h
Communication Modem 3G US Data module (UE910)
• GSM 850, PCS 1900
• 3G WCDMA FDD B2, B5
GSM antenna Internal
Positioning GPS receiver Sirf Atlas V (A-GPS on option)
GPS antenna Internal
Interface & Telematics
features
(Micro) USB (2.0 Host) powered (limited to 500 mA on 5V)
optional
3D Accelerometer ±2g, ±4g, ±8g
3 axis Gyroscope Please contact us
LED 1 (controlled by software)
Product specific feature Bluetooth Bluetooth 4.0 BLE dual-mode (with
internal antenna)
Wifi IEEE Std 802.11n (with internal
antenna)
Environmental Connectors OBD connector
Micro USB
Operating temperature * -25/+60°C
Dimensions With OBD connector: 27x60,5x49,5
mm
Without OBD connector: 27x48x49,5
mm"
SIM card Slot
OBD messaging protocols could be provided as an option (not included in standard
catalogue)
* Please read warnings section at the beginning of the installation guide

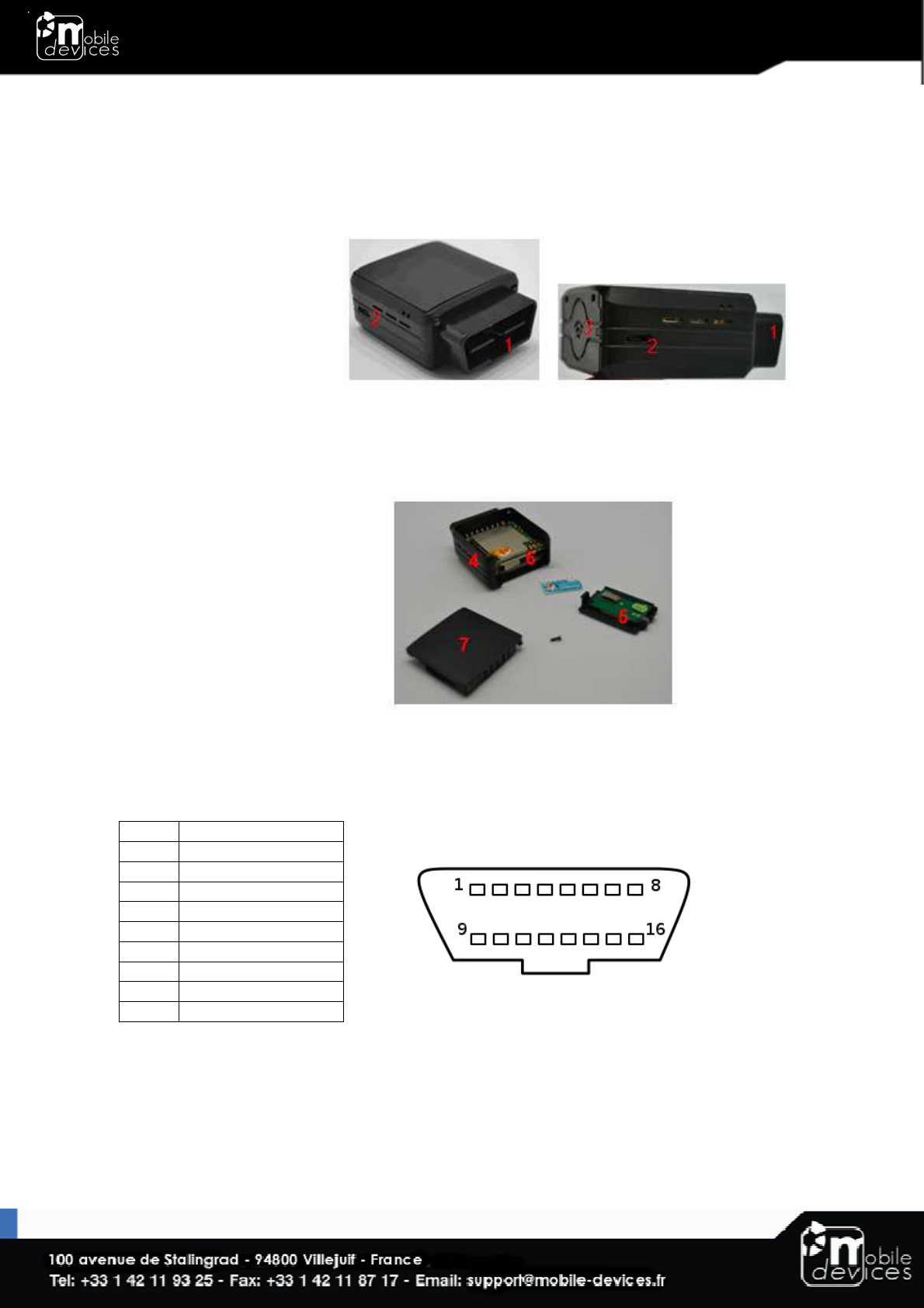

2. Hardware description
2.1. External view
1. ODB connector
2. microUSB connector
3. LED
2.2. Internal view
4. GSM antenna
5. GPS antenna
6. SIM holder
7. Internal battery*
2.3 OBD connector pin out
Pin # Comment
2 J1850+ (PWM/VPW)
4 Chassis ground
5 Signal ground
6 CAN High
7 K line
10 J1850- (PWM)
14 CAN low
15 L line
16 Battery voltage
* Please read warnings section at the beginning of the installation guide

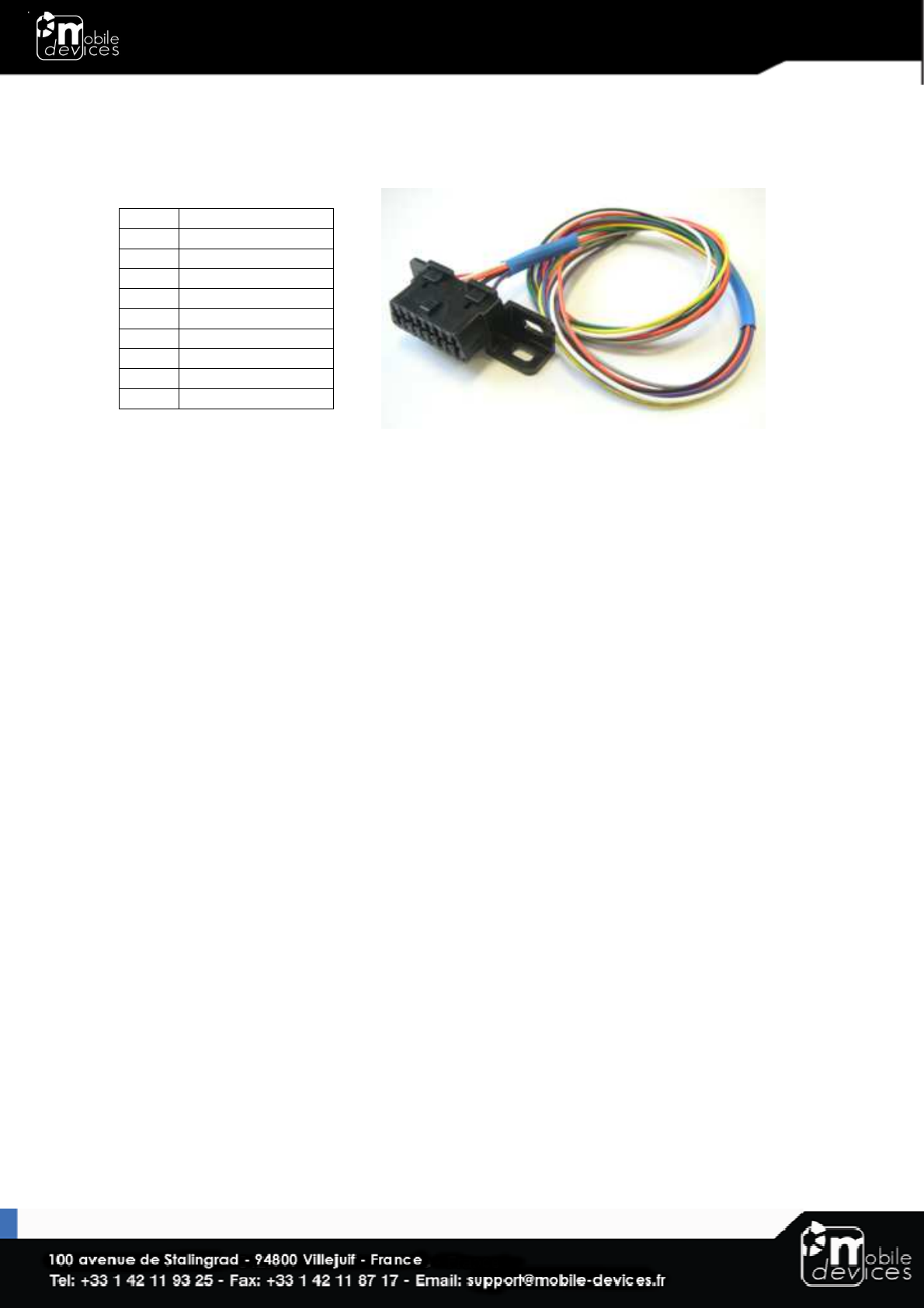

2.4 OBD adapter wires
This adapter is only used to connect the OBD to a computer (laptop/desktop).
Pin # Wire color
2 Yellow
4 Black
5 Grey
6 Green
7 Blue
10 Violet
14 Orange
15 White
16 Red
3. Preparing/installing the device

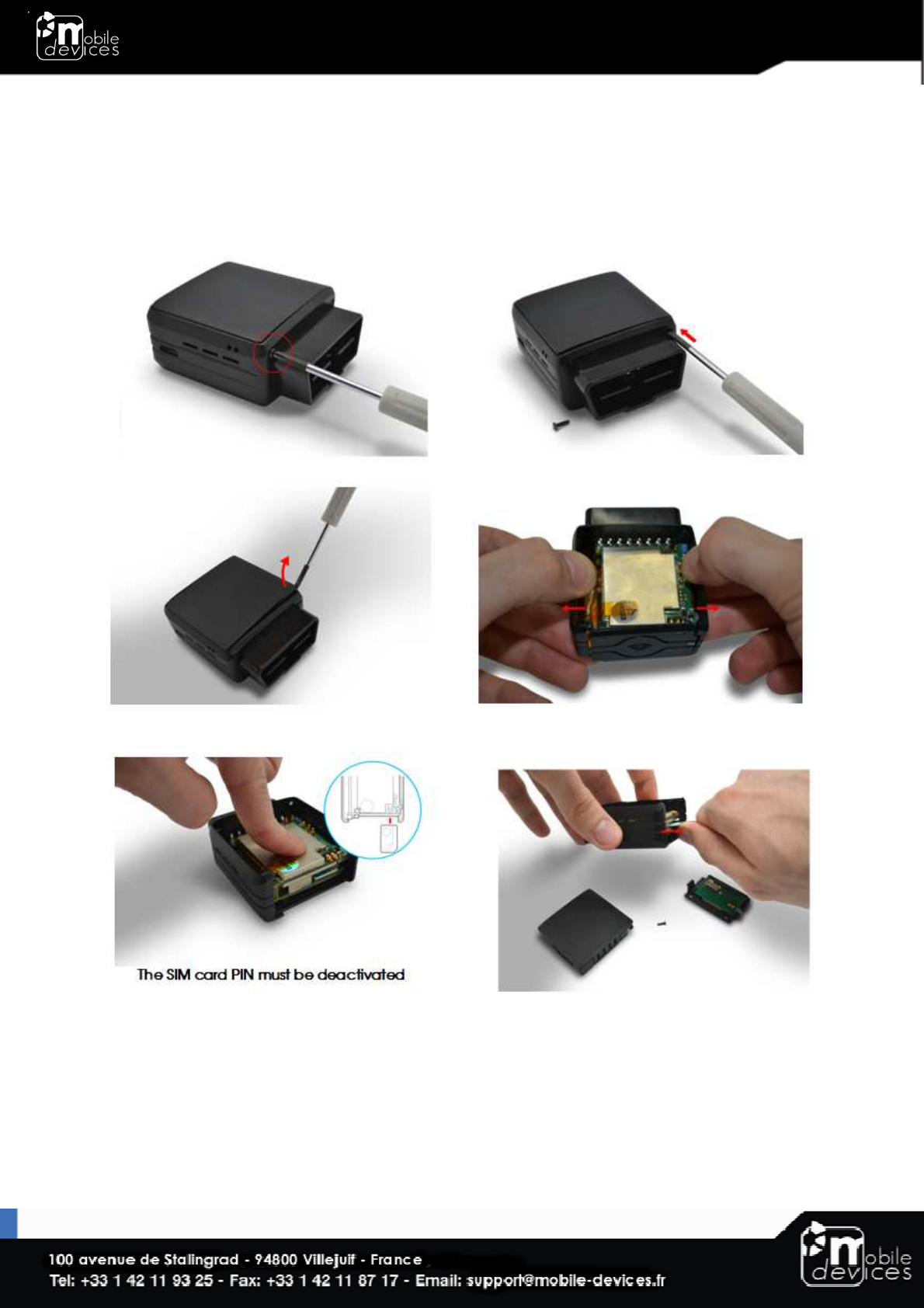

3.1. Open the device to insert a SIM card

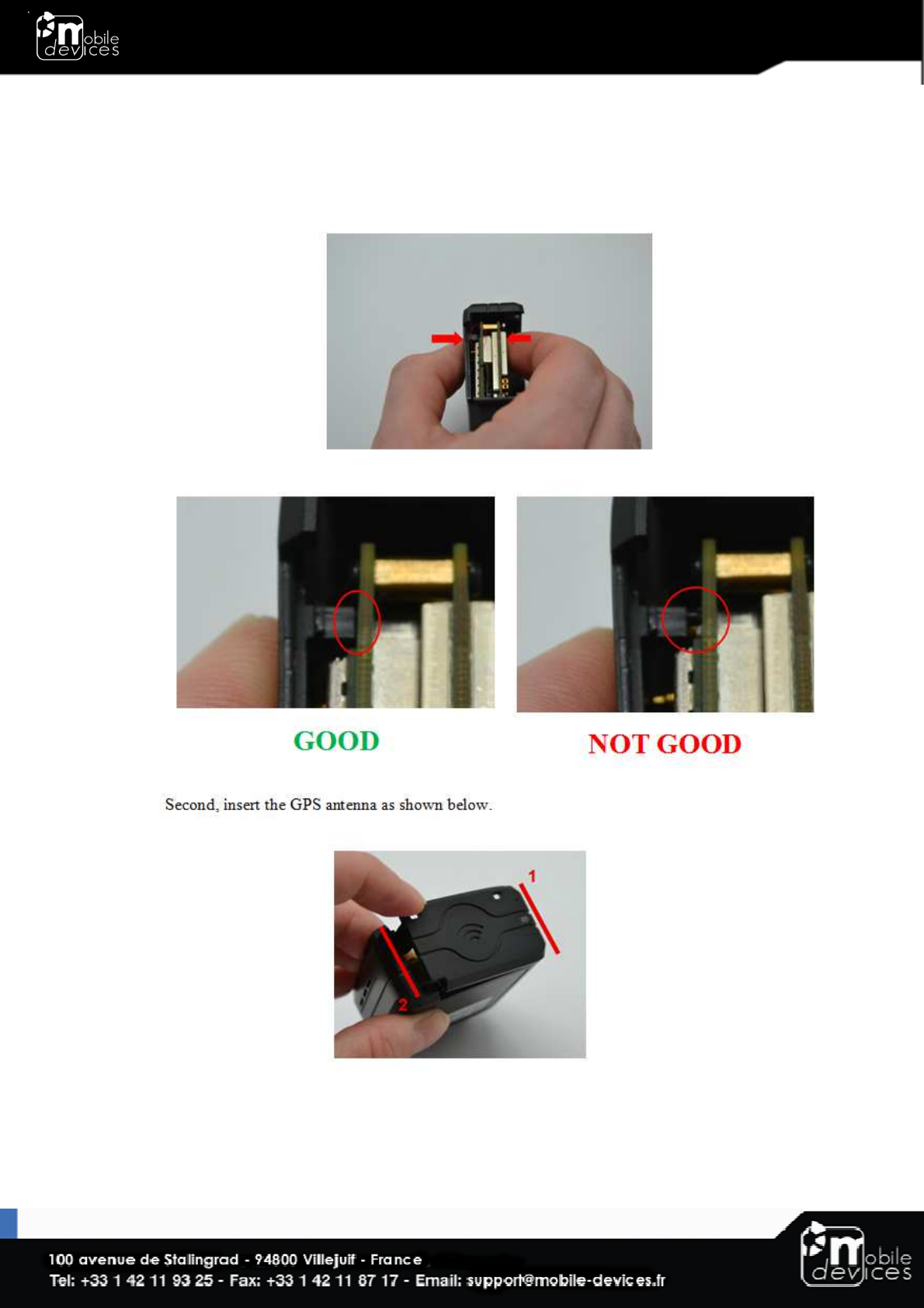

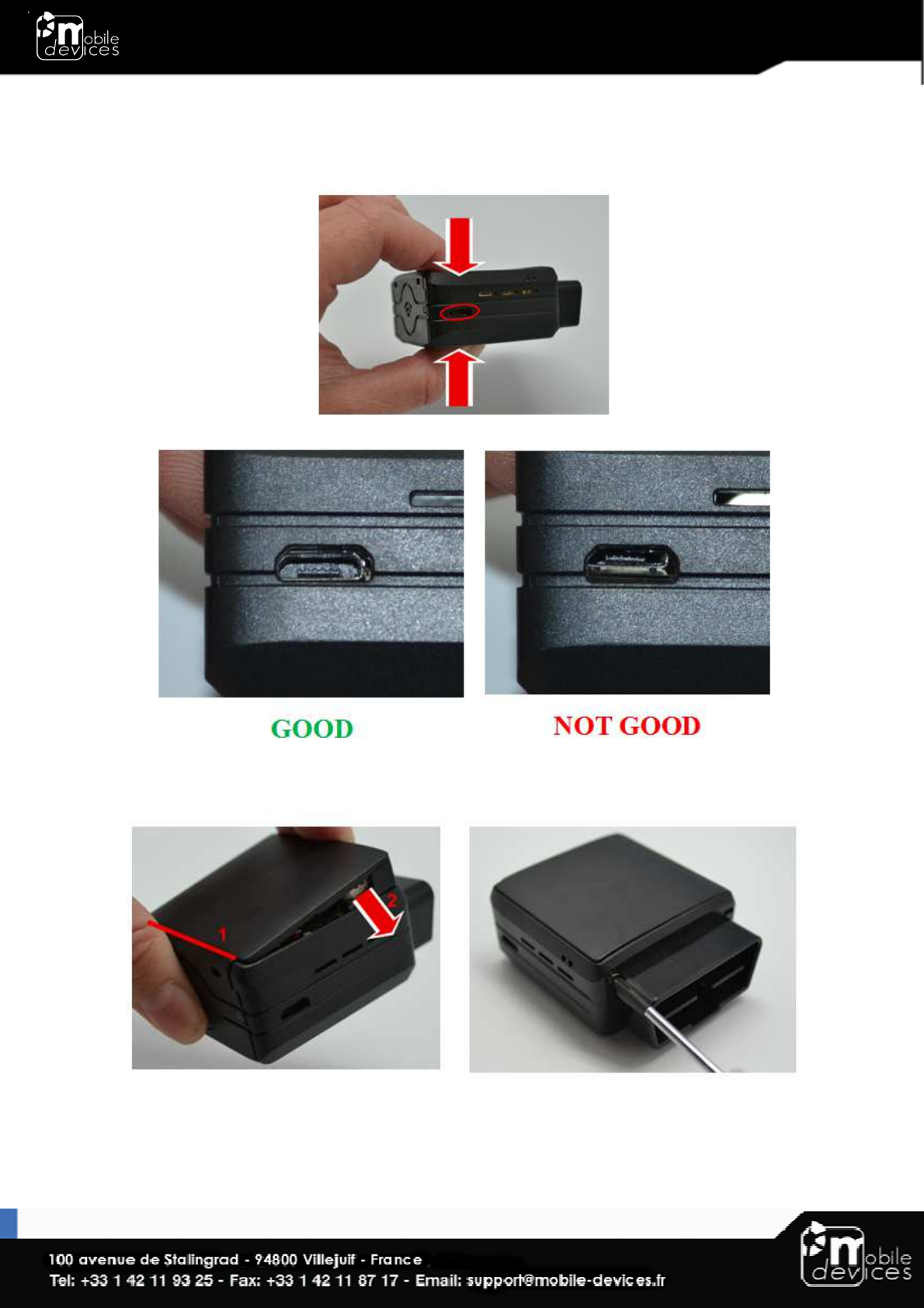

3.2. Properly close the device
First, check that the hole of the electronic card is correctly inserted in the plastic part.
If it’s not inserted proceed as shown below.
Third, check that the micro USB port is correctly inserted on its place.
If it’s not inserted proceed as shown below.
Finally, insert the battery and place the screw.

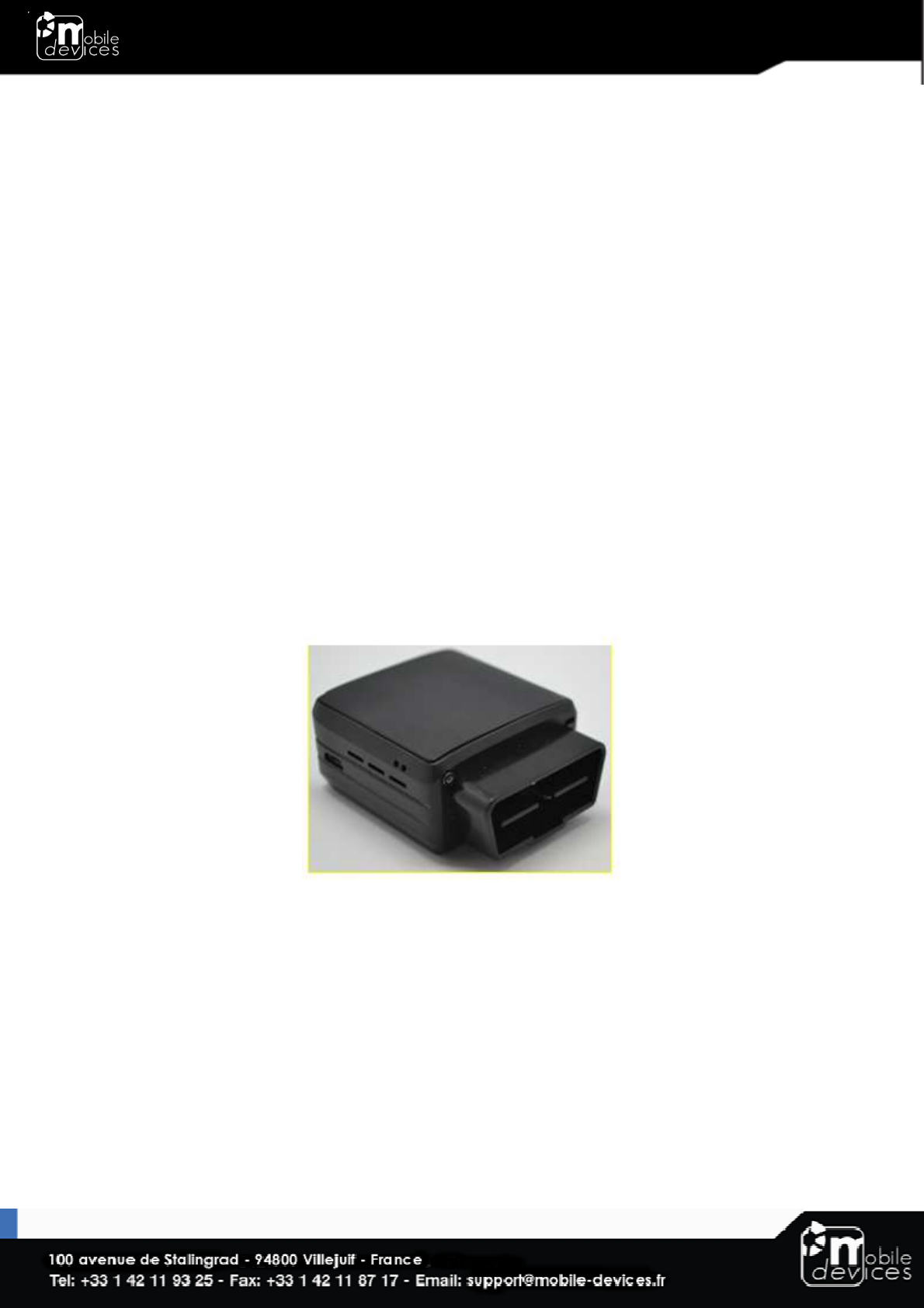

3.3. Install the OBD Dongle
Connect the OBD Dongle on your vehicle OBD connector.
4. LED sequences
The Dongle has a two-coloured LED, green and red.
When both colours are brightened, you can see an orange light.
Green LED Red LED
Sequence Meaning Sequence Meaning
Dongle OFF OFF
No GPRS/No
GPS
3 times (50ms ON/100ms OFF)
3550ms OFF
No GPRS/Fix
GPS
2 times (50ms ON/100ms OFF)
3700ms OFF
GPRS OK/No
GPS
1 time (50ms ON/100ms OFF)
3850ms OFF
GPRS OK/Fix
GPS
2000ms ON
2000ms OFF
Ext. Power/Run ON
Shutdown/Hibern
ate 30ms ON / 1 s OFF
Idle/Sleep 30ms ON / 1 s OFF
5. Support
For all questions not related in this installation guide, please contact the support team by
email at support@mobile-devices.fr
6. FCC Regulations:
This mobile phone complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This mobile phone has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiated radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
7. RF Exposure Information
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure to
radio frequency (RF) energy set by the Federal Communications Commission of the U.S.
Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal
operation.
8. IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
IC: 20253-C4DONGLE3G
9. IC Radiation Exposure Statement
This device complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the IC RSS-102 radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during
normal operation.
Cet appareil est conforme aux limites d'exposition aux rayonnements de la IC CNR-102
définies pour un environnement non contrôlé. Afin d'éviter la possibilité de dépasser les limites
d'exposition aux fréquences radio de la IC CNR-102, la proximité humaine à l'antenne ne doit
pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement normal.
