LYNX™ WIRELESS CONTROLLER
PLAYSTATION®2, PSONE™ and PLAYSTATION®
Thank you for purchasing the Mad Catz Lynx Wireless controller for use with
the PlayStation 2/PlayStation/PS one video game system. The Lynx puts you in
control of your game system with all the comfort of a remote controller combined
with the reliability of cutting-edge wireless technology. With its ‘unblockable” RF
signal transceivers, the Lynx lets you comfortably play from up to 40’ from your
PlayStation 2/PlayStation/PS one while maintaining complete control over your
gaming experience. This user guide will help you understand how to use your
Lynx and get the most from the features it has to offer.
The Lynx is one of the most durable and reliable accessories you can buy. Be
sure to visit www.madcatz.com to register your product and check out our full line
of other quality video game accessories.
TABLE OF CONTENTS
LAYOUT 2
CHANNEL SELECTION 3
RUMBLE MODE 3
SLEEP MODE 4
CONTROL MODES 4
CAUTIONS 4
TROUBLESHOOTING 5
WARRANTY 6
TECHNICAL SUPPORT 6
LAYOUT
Antenna Receiver: Used to transmit and receive data from the controller to
the game console.
Directional Pad: The D-pad controls the direction in which the character
moves. This is the primary directional control while in Digital Mode.
Analog Sticks: The two analog sticks each control two axes (X-and Y-axis).
Different software titles will allow you to modify the way that the analog sticks
react in the games. While in Analog Mode, any software title that is Vibration
Function Compatible will cause the Lynx to vibrate at different levels, depending on
actions taking place from within the game (e.g., being hit, crashing, or shooting).
NOTE : NOT ALL GAMES ARE VIBRATION FUNCTION COMPATIBLE. LOOK FOR THE
“VIBRATION FUNCTION COMPATIBLE” ICON ON THE BACK OF THE PACKAGE OR

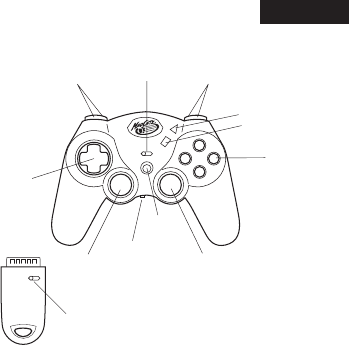

1 2
Receiver
Controller
Receiver
Channel
Switch
Power
Switch
Controller
Channel
Switch
L3
(press down)
R3
(press down)
Mode
Indicator
Start
Select
Directional
Pad
Action
Buttons
L1(above)
L2(below)
R1(above)
R2(below)
INSTRUCTION MANUAL FOR THE GAME THAT YOU ARE PLAYING.
Shoulder Buttons (L1, L2, R1, and R2): These are action buttons and
their specific functions depend on the software being used.
Action Buttons ( ) : These buttons are used to perform
various actions, depending on the software. For more details, see the software
instruction manual.
Start Button: This button is generally used to make selections in the menus
and for pausing the game. For more details, see the software instruction manual.
Select Button: This is a standard button that allows you to do various things,
depending on the software. For more details, see the software instruction manual.
Mode Button: The Lynx has two different modes; Analog Controller Mode,
Steering Wheel Mode and Digital Mode. The current mode is indicated by the
color of the [MODE] Button on the faceplate of the controller:
Red Light - ANALOG MODE
Light Off - DIGITAL MODE
(Refer to “CONTROL MODES” for instructions on this feature.)
CHANNEL SELECTION
The Lynx controller has 4 different radio channels to choose from. The controller
and the receiver need to have the same channel selected in order to operate.
For example, to use your Lynx controller on Channel 1, adjust your CONTROLLER
CHANNEL SWITCH to “1”, and adjust your RECEIVER CHANNEL SWITCH to
“1”. When using multiple Lynx controllers in the same environment, ensure that
you have each controller using a different channel. When using a single Lynx
controller, always be sure to have channel “1” selected for the receiver and
the controller.
RUMBLE MODE
Rumble and vibration can cause excessive drain on the batteries of the Lynx
controller. If you would prefer to maximize battery life, you can turn OFF the
rumble capability of the Lynx controller. The RUMBLE MODE SWITCH is located
inside the battery compartment of the Lynx controller, on the bottom of the
ENGLISH ENGLISH
controller. To turn off the RUMBLE MODE, open the battery compartment and
change the switch to the “OFF” position.
SLEEP MODE
When not in use, the Lynx controller will enter a “SLEEP MODE” in order to save
battery life. The SLEEP MODE will become enabled when the controller is not
used for at least 3 minutes. In order to bring the controller out of sleep mode,
turn the power switch to the OFF position and then ON again. When not in use for
prolonged periods of time, the Lynx controller should be turned off by placing the
power switch in the OFF position.
CONTROL MODES
There are two different control modes from which you can choose, depending on
your style of play. Change control modes by pressing the Mode button. The color of
the lighted Mode button tells you which mode you are in:
Analog Controller Mode - RED light
This is the standard “Dual Shock™” mode. Some games will only vibrate if the
controller is in Analog Controller mode.
Digital Mode - Light OFF
This is the original PlayStation controller mode. This is the default control mode.
CAUTIONS
- IMPORTANT! Before using this product read all accompanying information and
your game system’s instruction manual for safety, health and other information.
- To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do
not use within 30’ of any water such as swimming pools, bathtubs, or sinks.
- To avoid electrical shock, do not disassemble. Refer servicing to qualified
personnel only.
- This unit should be operated only from the power source indicated on the unit. If
you are not sure of the type of electrical power supplied to your home, contact
your local power company.
- Never push objects of any kind, other than authorized items, into the product as
they may touch dangerous voltage points or short out parts that could result in
3 4
ENGLISH ENGLISH
fire or electrical shock.
- Stop using this unit immediately if you begin to feel tired or if you experience
discomfort or pain in your hands and/or arms while operating the unit. If the
condition persists, consult a doctor.
- Do not attempt to operate the unit in any way except with your hands. Do not
bring the unit in contact with your head, face, or near the bones of any other
part of your body
- The vibration function of this unit can aggravate injuries. Switch off or do not
use the vibration function of the unit if you have any ailment of the bones or
joints of your hands or arms.
- Avoid prolonged use of this unit. Take breaks every 30 minutes.
- Use this unit only as intended.
- Do not dispose of batteries in fire. Refer to local country, state and city
guidelines for appropriate methods of battery disposal.
- Do not put batteries into unit backwards.
- Misuse of batteries within this unit may cause batteries to leak and/or explode
and lead to personal injury.
- This product contains small parts that may cause choking if swallowed. Not
intended for children under 3 years of age.
TROUBLESHOOTING
Problem: The Lynx controller does not respond.
Solution: Make sure the batteries are fully charged.
Solution: Check to make sure the receiver and controller are on the same
channel.
Solution: Make sure the receiver is fully plugged in to the PlayStation
game console.
Problem: The Lynx controller does not vibrate.
Solution: Check the game to make sure that the game is “Vibration Function
Compatible”.
Solution: Change the control mode to Analog. Not all games will instruct the
controller to vibrate unless it is in Analog Mode.
Solution: Check the options menu in the game. Some games require the
vibration function to be turned on.
Solution: Ensure that the Rumble Mode Switch is turned on (located in the
battery compartment).
5-YEAR LIMITED WARRANTY
Mad Catz warrants this product to be free from defects in materials and
workmanship for the warranty period. This non-transferable, five (5) year limited
warranty is only to you, the first end-user purchaser. If a defect covered by this
warranty occurs AND you have registered your product with Mad Catz AND you
provide proof of purchase, Mad Catz, at its option, will repair or replace the product
at no charge.
The Mad Catz five (5) year limited warranty is available to North American
customers only, including Canada, Mexico and the United States. Your sole and
exclusive remedy is repair or replacement of your Mad Catz product. In no event
shall Mad Catz liability exceed the original purchase price of the product. This
warranty does not apply to:
(a) normal wear and tear or abusive use; (b) industrial, professional or commercial
use; (c) if the product has been tampered with or modified.
To receive warranty service you must:
- Call Mad Catz Technical Support at 1.800.659.2287 or 1.619.683.9830
- Obtain a Return Authorization Number from Mad Catz Technical Support
- Ship the product to Mad Catz at your expense for service
- Enclose a copy of the original sales receipt showing a purchase date
- Enclose a full return address with daytime and evening phone numbers
TECHNICAL SUPPORT
Online Support and User Guides: www.madcatz.com
E-mail: techsupport@madcatz.com
Telephone: Available 8 A.M. to 4 P.M. Pacific Standard Time, Monday through Friday
(excluding holidays) at 1.800.659.2287 (US only) or 1.619.683.9830 (outside US).
5 6
ENGLISH
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is needed.
• Consult the dealer or an experienced radio TV technician for help.
Any changes or modification to the Lynx Controller or Base Unit not expressly
approved by Mad Catz, Inc. could void your authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Thank you for purchasing the Mad Catz Lynx Wireless Controller for the
PlayStation, PS one and PlayStation 2 video game systems. Be sure to register
your product at www.madcatz.com and check out our full line of quality video
game accessories.
© 2003 Mad Catz, Inc. 7480 Mission Valley Road, Suite 101, San Diego, CA 92108 USA. Mad Catz, Lynx, and the Mad Catz
logo are trademarks or registered trademarks of Mad Catz, Inc., its subsidiaries and affiliates. PlayStation and PS one
are registered trademarks or trademarks of Sony Computer Entertainment, Inc. (“SCEI”). This product is not sponsored,
endorsed or approved by SCEI. International and domestic patents pending. Made in China. Printed in Honk Kong. All
rights reserved. Features, appearance and specifications may be subject to change without notice. Please retain this
information for future reference. Mad Catz stands behind its products 100%.
Questions? Visit our web site at www.madcatz.com or call 1.800.659.2287 (USA only) or 1.619.683.9830.
Product No. 8246 03/03
