Operation
and Installation
Manual
®
RV5090 AM / FM Stereo
Multi-Media Receiver
with Bluetooth
MHz
Please take the time to read all of the information in this manual. Familiarity with operation and instal-
lation procedures will help you obtain the best possible performance from your new AM/FM Stereo
Multi-Media Receiver.
WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove
cover or bottom screws. No user-serviceable parts inside. Refer servicing to qualified person
nel.
Introduction
2
Index
Button Locations and Functions 3-4
Remote Control Button Locations and Functions 5
General Operation 6
Sound Controls 6-8
Speaker Selection 8
Setting the Clock 8-9
Sleep Timer Operation 9
Alarm Operation 10
Radio Operations 11-12
Disc Warnings 12
Music Disc Operation 13-15
MP3 Disc Operation 15-16
Movie Disc Operation 17-19
Setup Menu 19
IPOD Operations 20-22
USB Input 23
Bluetooth Operation 24
Audio/Video Input 25
Audio Input 25
Headphone Output 26
Reset Button 26
Additional Feature 26
Installation 27
Speaker Connections 28
Wiring and Auxiliary Connections 29-30
Safety Instructions 31
Warranty 32

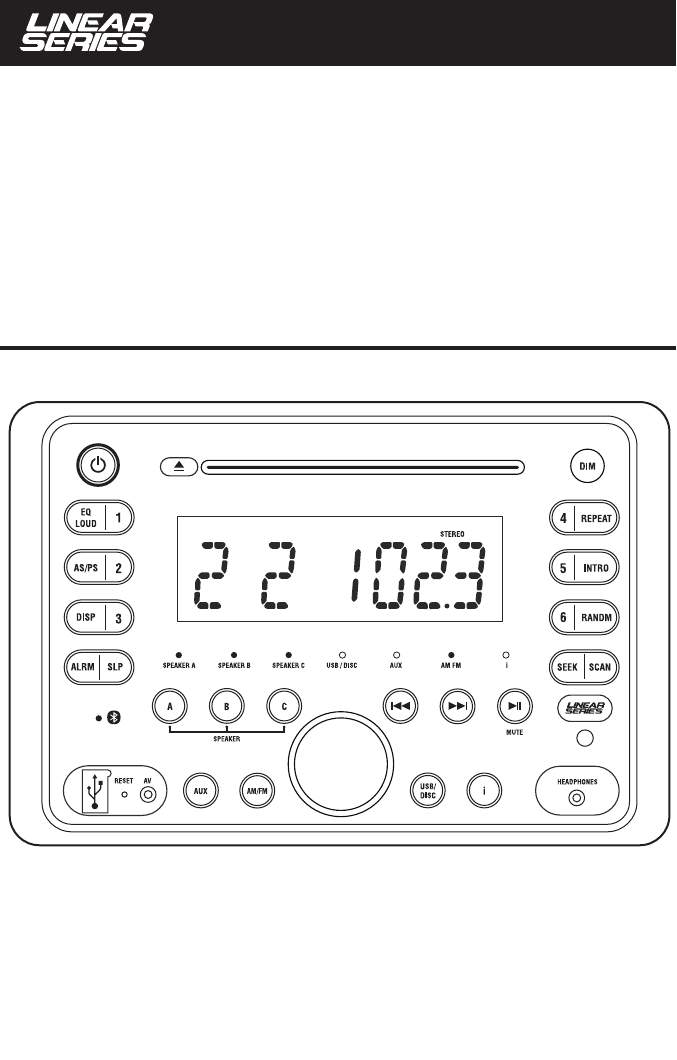

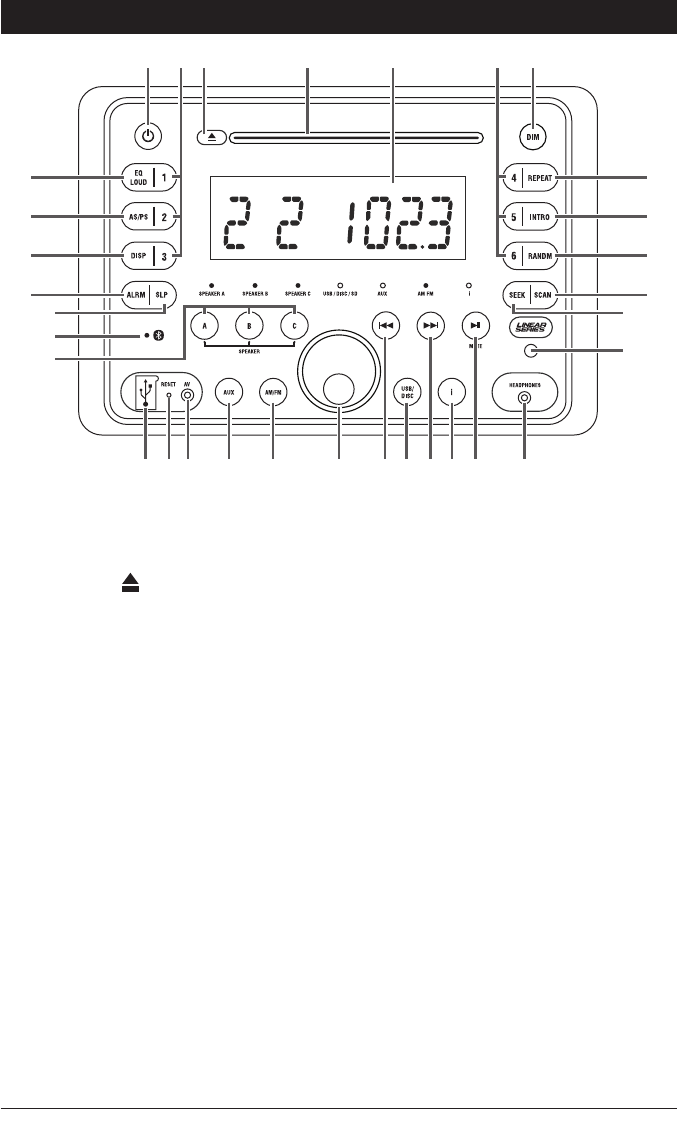

Button Locations and Functions
3
1. Power On/Off: Press to turn the unit on or off.
2. Radio Station Recall Buttons (1-3): Press and release when recalling preset radio stations. Press and
hold until the preset number appears to memorize a radio station.
3. Eject Button ( ): Press to eject the disc.
4. Disc Slot: To play a disc, insert the disc into slot with label facing up.
5.
Display Area: This area displays all function information for the radio, clock, disc player and auxiliary
input devices.
6. Radio Station Recall Buttons (4-6): Press and release when recalling preset radio stations. Press and
hold until the preset number appears to memorize a radio station.
7.
Display Dimmer Button
(DIM)
: Press to select the desired level of brightness of the display.
8. Repeat Button:
Disc Mode: Press to repeat a music disc track. Press again to cancel.
IPOD Mode: (See IPOD Operations section for more details).
9. Music Disc Intro Button: Press to preview each track on the music disc for 15 seconds. Press again
to cancel.
10. Music Disc Random Button: Press to play all the tracks on the music disc in random order. Press
again to cancel.
11. Radio Scan Button: Press this button and the tuner will scan up, pausing for 5 seconds at each
strong station. Press the button again to cancel the scan function.
12. Radio Seek Button: Press this button and the tuner will seek up to the next strong station and stop.
13. Infrared Eye: Receives the signals from the remote control.
14. Headphone Socket: Accepts 3.5mm stereo headphone jacks.
MHz
147
9
10
13
1415
16
5
3
8
11
12
17
18
19
202122232425
28
29
30
31
32
26
26
27
4
Button Locations and Functions (Continued)
15. Play/Pause and Mute Button (ll):
Radio and Multimedia Input Modes: Press to mute volume level. Press again to restore.
Disc Mode: Press to pause disc play, press again to resume play.
IPOD Mode: Press to pause play, press again to resume play.
Bluetooth: Press to pause play, press again to resume play.
16. IPOD Selection Button: Press to choose IPOD input mode.
17. Seek Up (l) Buttons:
Radio Mode: Press to tune the radio to a higher frequency.
Disc Mode: Press to search for the beginning of next track or chapter.
IPOD Mode: Press to search for the beginning of the next track.
Bluetooth Mode: Press to search for the beginning of the next track.
18. USB/Disc Selection Button: Press to choose between Disc and USB modes.
19. Seek Down (l) Buttons:
Radio Mode: Press to tune the radio to a lower frequency.
Disc Mode: Press to search for the beginning or previous track or chapter.
IPOD Mode: Press to search for the beginning of the previous track.
Bluetooth Mode: Press to search for the beginning of the previous track.
20. Volume and Select Knob: Rotate to increase or decrease the volume level. Press to select the sound
controls: Bass, Treble and Balance.
21. AM/FM Radio Selection Button: Press to choose Radio mode. Sequential presses will select radio
bands: FM1, FM2, FM2 (MHz) and AM1, AM2 (KHz).

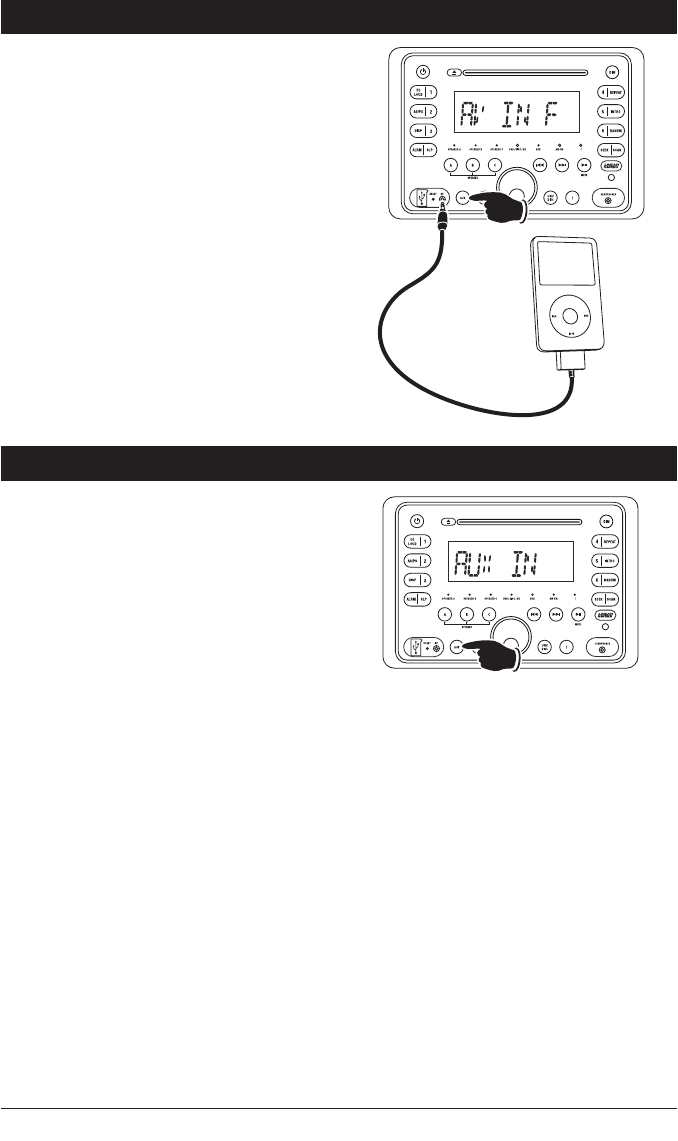

22. Auxiliary Input Selection Button (AUX): Press to choose auxiliary input modes: Audio/Video input
front, Audio/Video input rear, Audio input rear or Bluetooth.
23. Audio/Video Input Jack: Press the AUX button until “AV IN F” appears in the display then plug in a
device via the 3.5mm audio/video input plug.
Note: The RV5090 does not control the device, it just allows the audio/video to be played through the
system.
24. Reset Button: Press to reset the unit to it’s default settings.
25. USB Input: Press the USB/DISC button until “DISC” appears in the display. Then plug in your USB
device. “USB” will then appear in the display.
Note: The RV5090 will control the USB audio device. (See “USB Input” for more details).
26. Speaker Selection Buttons (A, B and C): Switches the speaker sets on and off. Refer to the LED indi-
cators above the button to determine if the speaker set is on or off.
27. Bluetooth Indicator: Indicates Bluetooth status. (See “Bluetooth Operation” for more details).
28. Sleep Button (SLP): Sets the sleep timer. (See “Sleep Timer Operation” for more details).
29. Alarm Button (ALRM): Sets the alarm. (See “Alarm Operation” for more details).
30. Display Button (DISP): Press to display the clock or frequency in radio mode, track in music disc
mode, chapter and elapse time in movie disc mode or track in IPOD mode. Press and hold to perform
clock setting functions (See “Setting the Clock” for more details).
31. Radio AS/PS Button: Automatic radio station memory storing (AS) and Preset radio station scanning
(PS). (See “AM/FM Operation” for more details).
32. Equalizer and Loudness Button (EQ/LOUD): Press to select between the preset sound equalization
settings. Press and hold the button to boost high and low tones at low volume levels (loudness).
5

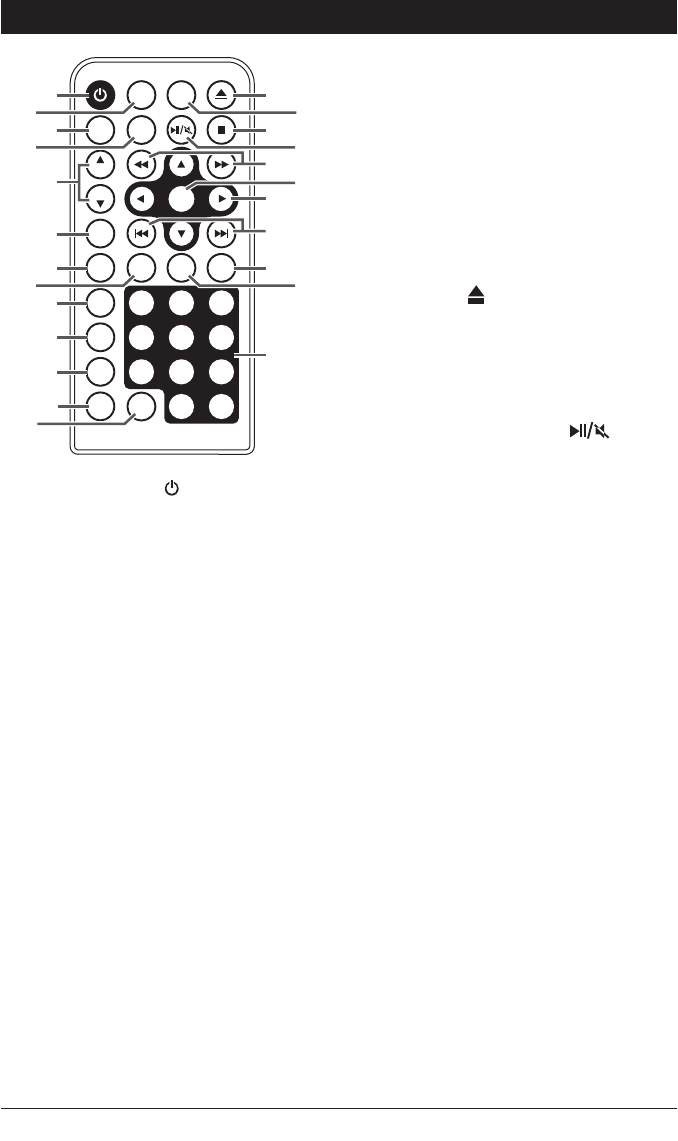

Remote Control Button Locations and Functions
1. Power On/Off Button ( ): Press to turn the
unit on or off.
2. Menu Button: Press to access the Menu screen
in movie mode.
3. Sound Control Button (VOL/TONE): Press to
select the sound controls: Bass, Treble and
Balance.
4. Setup Button: Displays the on-screen SETUP
menu.
5. Volume Buttons (VOL s / VOL t): Press VOL s
to increase or VOL t decrease the volume level.
6. Display Button (DISP): Press to toggle through
the available display information.
7. Repeat Button:
Disc: Press to repeat a music disc track or to
repeat a movie disc title or chapter. Press
again to cancel.
8. Random Button:
Disc: Press to play all the tracks on the music disc
in random order. Press again to cancel.
9. Equalizer Button (EQ):Press to select between
the preset sound equalization settings. Press and
hold the button to boost high and low tones at
low volume levels (loudness).
10. Band Button: Press to select the radio mode.
Sequential presses will select radio band:
FM1, FM2, FM2 (MHz) and AM1, AM2 (KHz).
11. AS/PS Elapse Button:
Radio: Automatic radio station memory stor-
ing (AS) and Preset radio station scanning
(PS). (See “AM/FM Operation” for more
details).
Disc: Press to display movie information.
12. Audio Button:
Press to select appropriate movie
audio/language setup.
13. Subtitle Button (SUB.TT):
Press to access the
movie disc’s subtitle languages.
14. Eject Button ( ): Press to eject the disc.
15. Mode Button: Press to select between the
different modes: Radio, Disc, USB, Auxiliary
Input or Bluetooth .
16. Stop Button (): Press to stop disc play.
17. Play/Pause and Mute Button ( ): Press
to pause disc play, press again to resume play.
18. Backwards () or Fast Forward ()
Disc Play: Press and “BACKWARD X 2”
appears in the display and the disc will play
backwards at 2 times the normal speed.
Press again and “BACKWARD X 4” will
appear. X8 and X20 speeds can also be
selected. Fast Forward button works the
same way but fast forward. Press the ll
button at any time to resume normal play.
19. Enter Button: Executes the selected item.
20. Navigation Buttons (s, , t,): Moves
feature selection up, down, left or right.
21. Down (l), Up (l) Buttons:
Radio Mode: Press to manually tune the radio
to a lower or higher frequency.
Disc Mode: Press to search for the beginning
or next track or chapter.
Bluetooth Mode: Press to search for the
beginning or next track.
22. Slow Button: Press to play the movie in slow
motion.
23. Zoom Button: Press to enlarge or reduce the
movie’s on-screen image.
24. Numeric Buttons (1, 2, 3, 4, 5, 6, 7, 8, 9,
10/0 and 10+)
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
ENTER
VOL
DISP
ZOOM SLOW
RANDOM
REPEAT
EQ
1 3
BAND
AS/PS
ELAPSE
AUDIO SUB.TT
2
4 65
7 98
10/0 10+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
6
General Operations

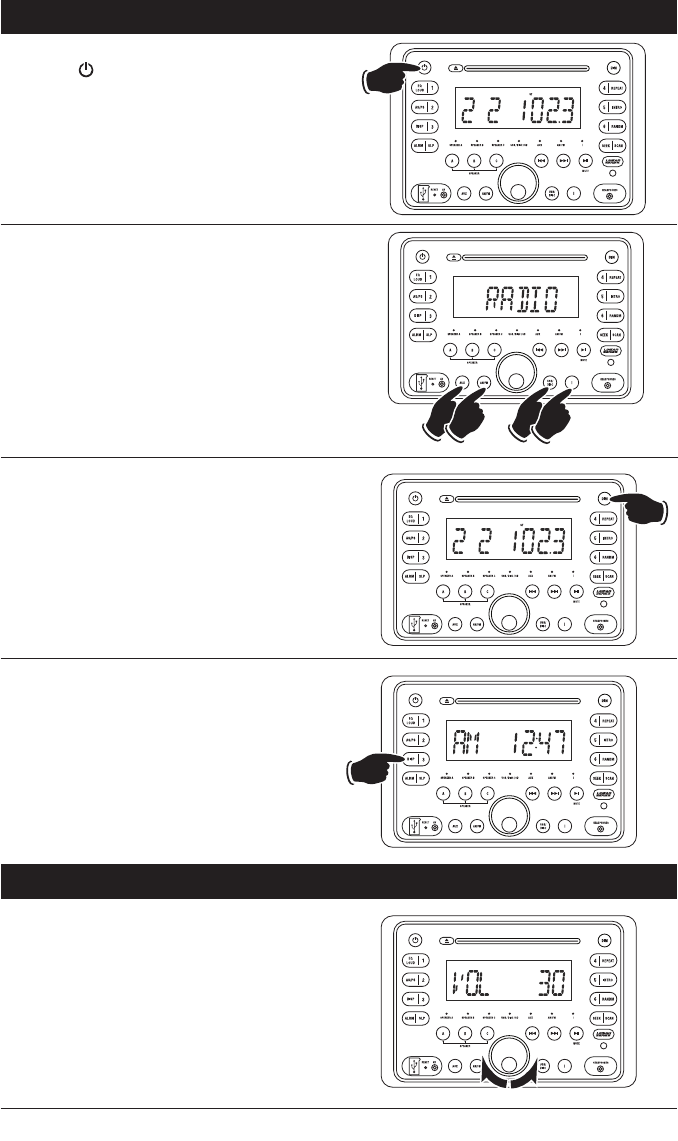

Power On/Off:
Press the button to turn the unit On/Off.
Selecting a Play Source:
To select a play source, press one of the follow-
ing mode buttons:
AUX: Audio/Video Input Front (AV IN F),
Audio/Video Input Rear (AV IN R),
Audio Input Rear (AUX IN) or
Bluetooth (BT A2DP)
AM/FM: AM
(KHz) or FM
(Mhz)
Radio Band (RADIO)
USB/DISC: Disc (DISC) or USB Input (USB)
i: IPOD Input (IPOD)
Dimming the Display:
Press the DIM button to select from the 4 levels
of brightness for the display area.
Display Selection:
Press the DISP button to display the clock.
Press again to return to previous display.
Press and hold to perform clock setting func-
tions (See “Setting the Clock” for more details).
Volume:
Increase the volume by rotating the VOLUME
knob clockwise. Decrease the volume by rotating
the Volume knob counterclockwise.
Sound Controls
MHz
MHz
7

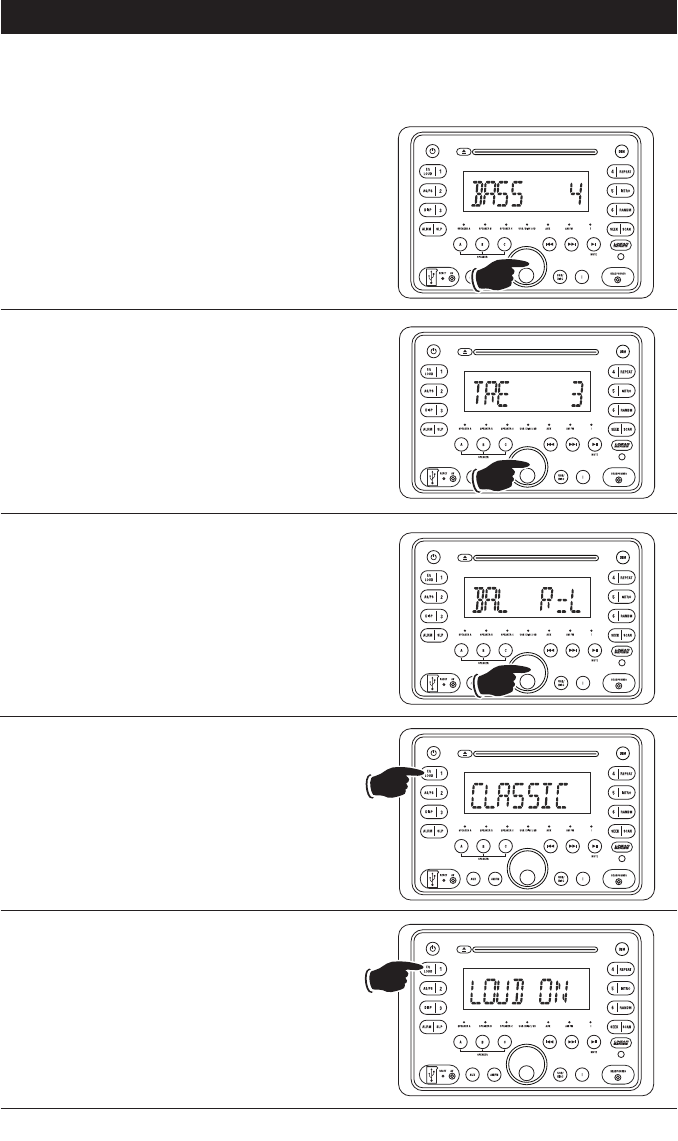

Sound Controls
Bass:
Select the Bass mode by pressing the VOLUME
knob. Increase the Bass by rotating the knob
clockwise. Decrease the Bass by rotating the
knob counterclockwise. After 6 seconds control
reverts back to volume control.
Bass, Treble and Balance Control
Select the desired sound mode by pressing the VOLUME knob. The modes will be displayed in the fol-
lowing order: Bass, Treble, Balance and Volume.
Balance:
Select the Balance mode by pressing the VOLUME
knob. Adjust the Balance by rotating the knob.
R -
- L = Equal sound Right and Left
R 7 = Right speaker only
L 7 = Left speaker only
After 6 seconds control reverts back to volume
control.
Treble:
Select the Treble mode by pressing the VOLUME
knob. Increase the Treble by rotating the knob
clockwise. Decrease the Treble by rotating the
knob counterclockwise. After 6 seconds control
reverts back to volume control.
Equalizer (EQ):
Press the EQ button to choose between the
preset equalizer settings: Normal, Classic, Rock,
Pop and Jazz as indicated in the display area.
Loud:
To boost high and low tones at low volume
levels, press and hold the EQ button until “LOUD
ON” appears in the display. To deselect, press
and hold the EQ button again until “LOUD OFF”
appears in the display.
Hold
8
Sound Controls (Continued)

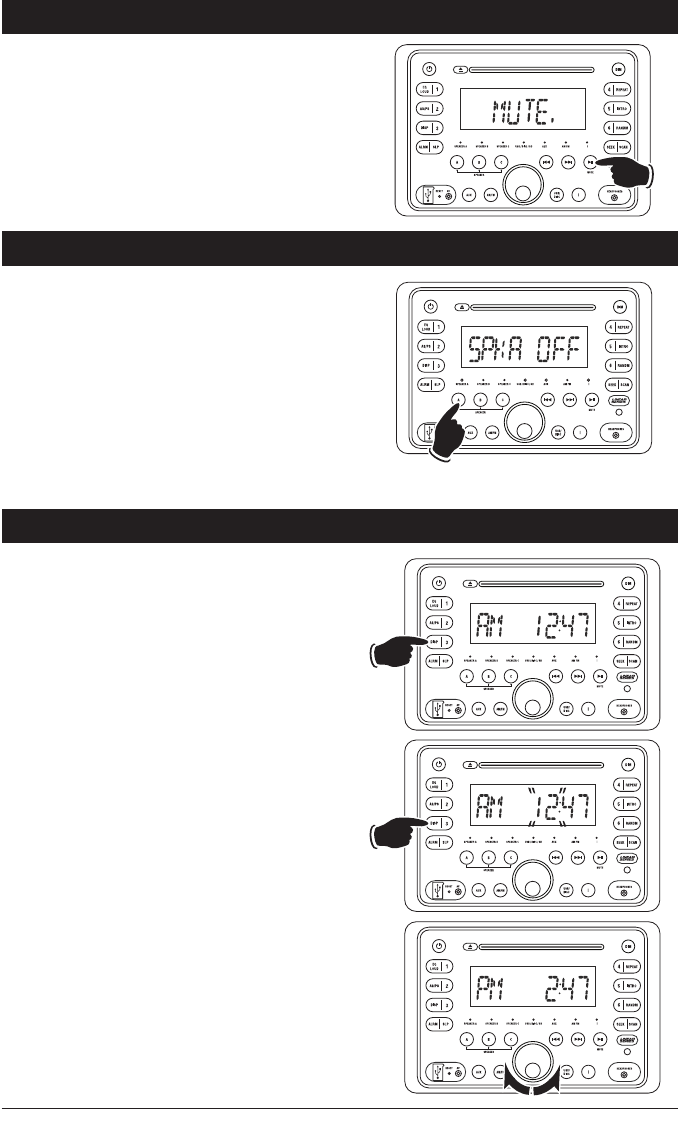

Mute:
Press the MUTE button to mute the volume
level. Press the MUTE button again to restore the
volume.
Speaker Selection
Selecting Speaker Sets:
• Press the A button to toggle speaker set A on
and off. The LED above SPEAKER A lights up
when speaker set A is on.
• Press the B button to toggle speaker set A on
and off. The LED above SPEAKER B lights up
when speaker set B is on.
• Press the C button to toggle speaker set A on
and off. The LED above SPEAKER C lights up
when speaker set C is on.

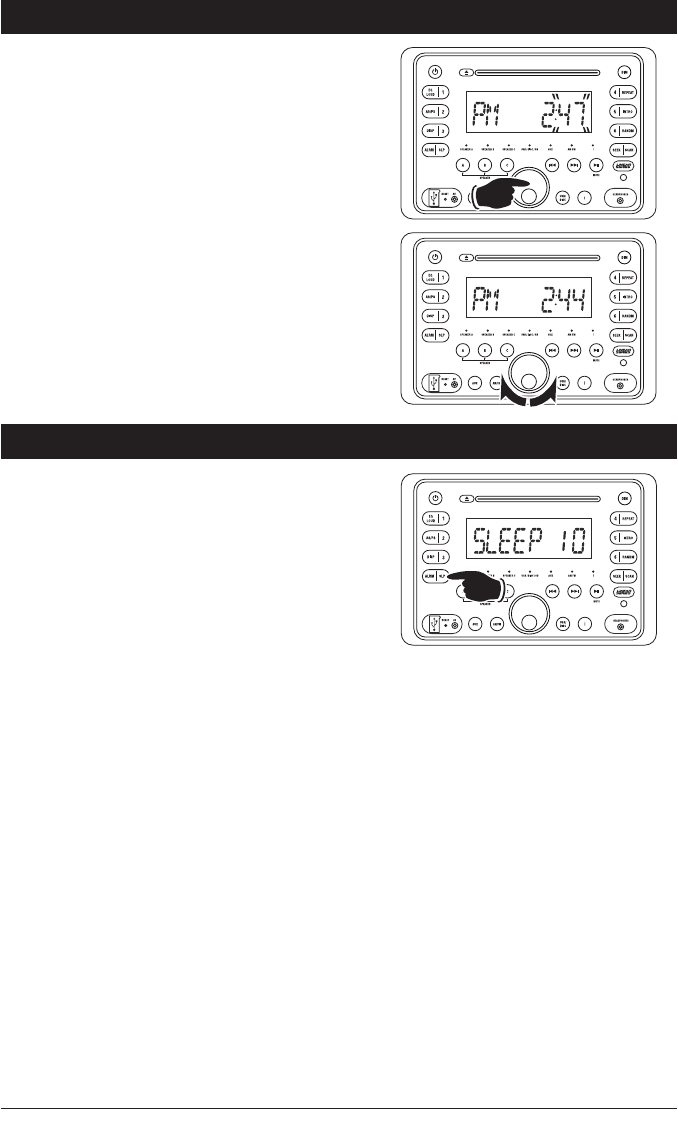

Setting the Clock
1. Press the DISP button until the clock appears in
the display.
2. Press and hold the DISP button until the Hours
number starts flashing.
3. Rotate the VOLUME knob until the correct Hour
appears in the display.
Note: When setting the clock make sure to
select the correct AM or PM.
Hold
9
Sleep Timer Operation
Setting the Sleep Timer:
1. Press the SLP button and “SLEEP 10” appears
in the display.
2. Keep pressing the SLP button again until the
desired sleep time appears in the display (0,
10, 20, 30, 40, 50, 60, 70, 80 minutes).
3. Wait 5 seconds and the display will return to
normal operation and “SLEEP” will appear in
the display.
4.
After the designated sleep timer has expired
the unit will turn off automatically
.
Cancelling the Sleep Timer:
1. Press the SLP button until “0” is displayed.
2. Wait 5 seconds and the display will return to
normal operation.
Setting the Clock (Continued)
4. Press the VOLUME knob and the Minute indica-
tors will start flashing.
5.
Rotate the VOLUME knob until the correct
Minutes appears in the display
. Wait 5 seconds
and the colon between the hours and the min-
utes will start flashing indicating the clock is set.
10

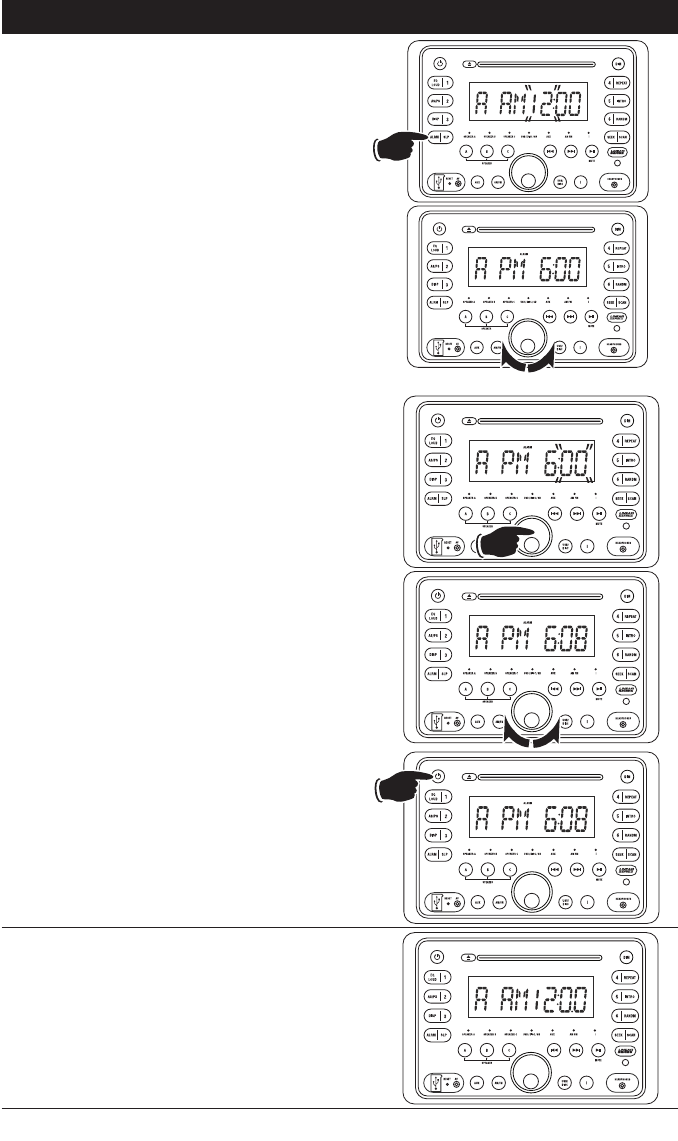

Alarm Operation
Setting the Alarm Timer:
1. Press the ALM button and the clock will
appear in the display with the Hour number
flashing.
2.
Rotate the VOLUME knob until the correct Hour
appears in the display. “ALARM” will appear in
the display indicating the alarm is activated.
Note 1: When setting the alarm clock make
sure to select the correct AM or PM indicator.
Note 2: When setting the alarm DO NOT use
12:00 AM, because that time is used to cancel
the alarm.
3. Press the VOLUME knob and the Minute indi-
cators will start flashing.
4.
Rotate the
VOLUME
knob until the correct
Minutes appears in the display
. Wait 5 seconds
and the colon between the hours and the min-
utes will start flashing. “ALARM” will appear
in the display indicating the alarm is set.
5. Press the POWER button to turn the unit off.
The unit will automatically turn on when the
set alarm time is reached.
Cancelling the Alarm Timer:
Follow the procedures above except set the
alarm time to “A AM 12:00”. “ALARM” will dis-
appear in the display indicating the alarm has
been cancelled.
11

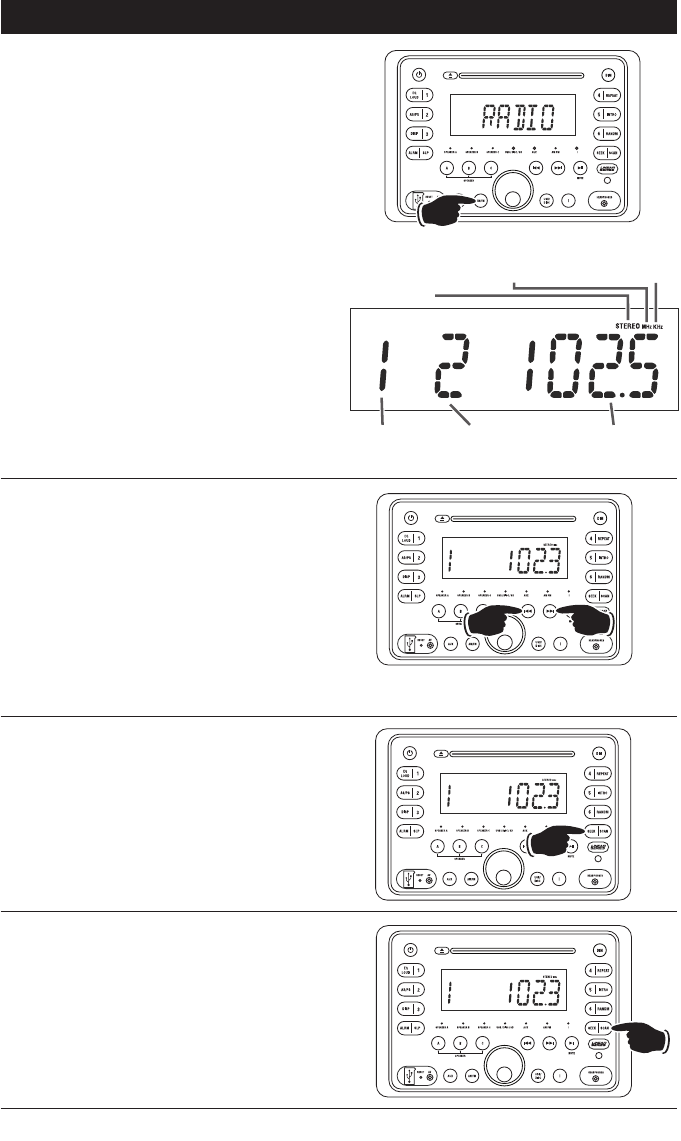

Radio Operations
Manually Tuning in a Radio Station:
Press the l button to tune in a lower radio
frequency. Press the l button to tune in a
higher radio frequency.
Note: The unit will automatically switch from
FM Mono to FM Stereo when the signal strength
increases to a stereo level. If the stereo signal
should become weak, the unit will switch back
to Mono. FM stereo reception is indicated when
“STEREO” appears in the display.
Tuning in a Radio Station Using Scan:
Press the SCAN button and the tuner will scan
up to the next strong station and pause for 10
seconds, then scan for the next strong station.
To cancel this function press the SCAN button
again.
Tuning in a Radio Station Using Seek:
Press the SEEK button and the tuner will scan up
to the next strong station and stop seeking, then
start playing.

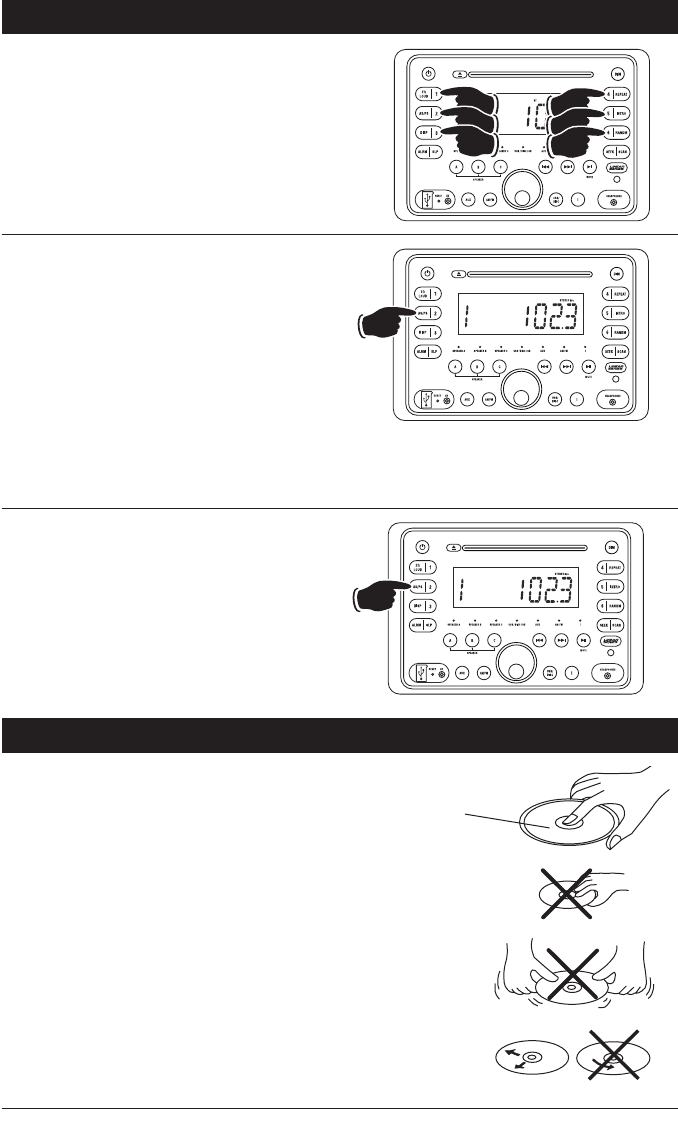

Selecting the Play Source:
Press the AM/FM button and “RADIO” appears in
the display. After a brief moment either KHZ (AM)
or MHZ (FM) will appear in the display.
Selecting the AM or FM:
Press the AM/FM button repeatedly and select
from MHZ (FM) 1, 2, 3, KHZ (AM) 1 or 2.
FM Band
Indicator (MHz)
FM Stereo
Indicator
(STEREO)
Preset Button
Number
Preset Bank Radio
Frequency
AM Band
Indicator (KHz)
12
Disc Warnings
DVD
12cm disc
(Single-sided disc only)
CD
12cm disc
MP3
12cm disc
Label side up
Do not touch
the underside
of the disc
Do not bend
Wipe the disc from
the center toward
the outside edge
Rough spots on
outside edge Rough spots on
inside edge
Ball point pen
or pencil
Handling and Cleaning:
•
Dirt, dust, scratches and warping disc will cause
non-operation.
• Do not place stickers on disc or scratch disc.
• Do not warp discs.
•
A disc should always be kept in its case when not
in use to prevent damage.
• Do not place discs in the following places: Direct
sunlight, Dirty, dusty and damp areas, Near car
heaters, Car seats or dashboard.
Disc Cleaning:
Use a dry soft cloth to wipe disc the surface. If the
disc is quite dirty, use a soft cloth slightly moist
with isopropyl (rubbing) alcohol. Never use solvents
such as benzine, thinner or conventional record
cleaners as they may mar the surface of the disc.
Radio Operation (Continued)
Scanning Stored Radio Stations:
1. Press the AM/FM button to select either the
FM or AM radio band.
2. Press the AS/PS button then release. The
tuner scans for preset stations stored in
the current band and pauses for 6 seconds
at each station. When a desired station is
reached, press the AS/PS button again to
stop scanning.
Automatically Store Radio Stations:
1. Press the AM/FM button to select either the
MHz (FM) or KHz (AM) radio band.
2. Press and hold the AS/PS button then release.
The tuner will search for the strongest sta-
tions and store them into memory. The new
stations will replace stations that were previ-
ously stored in the current band.
Note: When the MHz (FM) band is selected the 18
strongest stations will be stored. When KHz (AM)
band is selected the 12 strongest stations will be
stored.
Memorizing Radio Stations:
1. Press the AM/FM button to select either the
MHz (FM) 1, 2, 3, KHz (AM) 1 or 2 radio bank.
2. Tune-in the desired radio station.
3. To memorize the station press and hold any-
one of the six radio station recall buttons until
the preset number appears.
Hold
13
Music Disc Operation
General Operations:

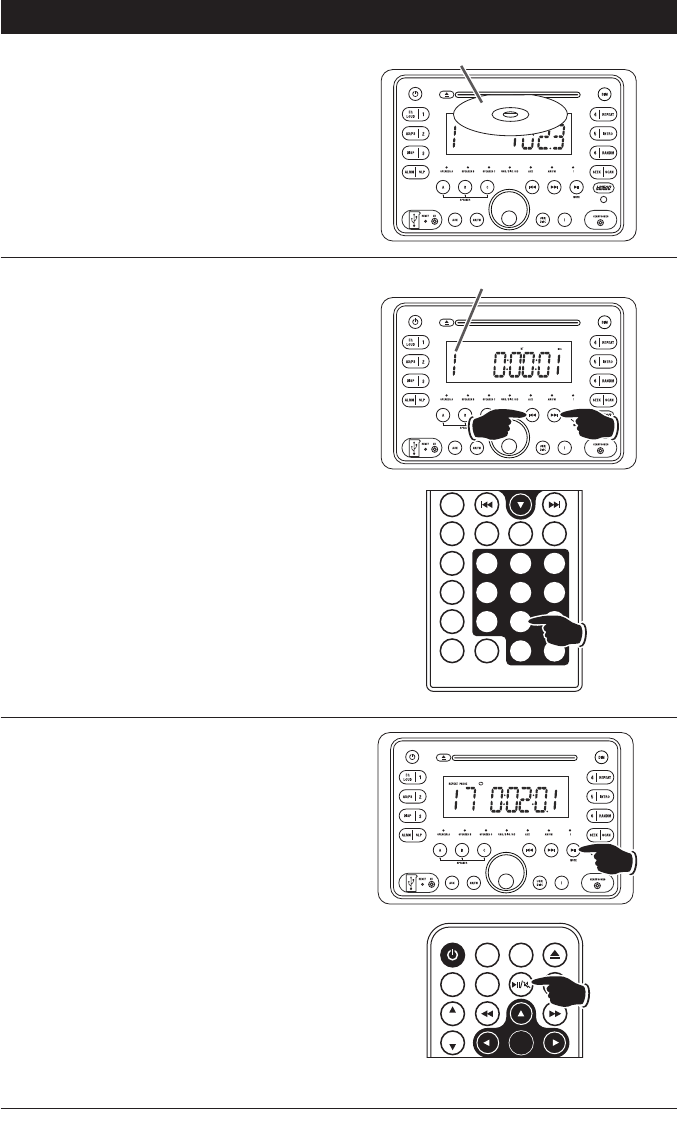

Gently insert the disc into the slot with the
label side up. The unit will automatically
load the disc.
Note: If a disc does not auto-load DO NOT
FORCE into the slot, as you may already
have a disc loaded.

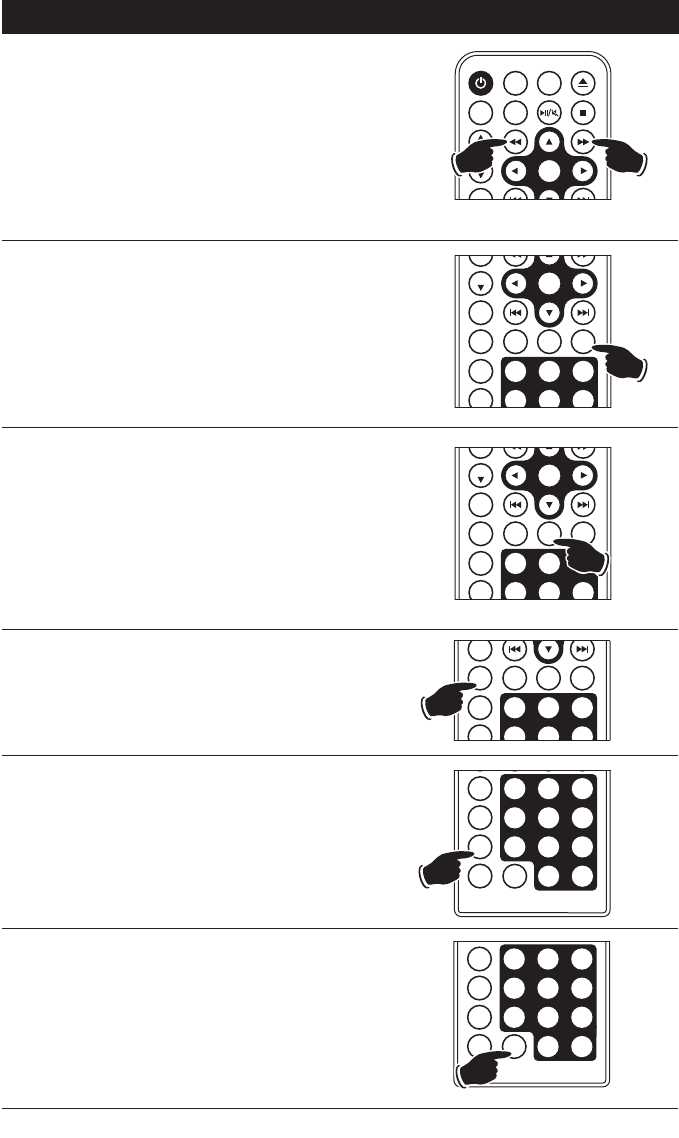

Music Track Selection:
Press the l button to select a lower track.
Press the l button to select a higher track.
The track number will appear in the display.
Tracks can also be selected by using the
remote control. Press the track selection num-
ber button that corresponds to the track you
want to play.
For example: If you want to play track 8, press
button 8. Track 8 will start playing and “8” will
appear in the display.
If you want to play track 12, press button 10+, fol-
lowed immediately by button 2. Track 12 will start
playing and “12” will appear in the display.
Label Side Up
Pausing the Disc:
Press the ll button to pause the disc and
“PAUSE” will appear in the display. Press it again
to resume play and “PAUSE” will disappear from
the display.
Note: You can also press the ll on the remote
control.
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
VOL ENTER
DISP
ZOOM SLOW
RANDOM
REPEAT
EQ
1 3
BAND
AS/PS
ELAPSE
AUDIO SUB.TT
2
4 65
7 98
10/0 10+
Track Number
14
Music Disc Operation (Continued)

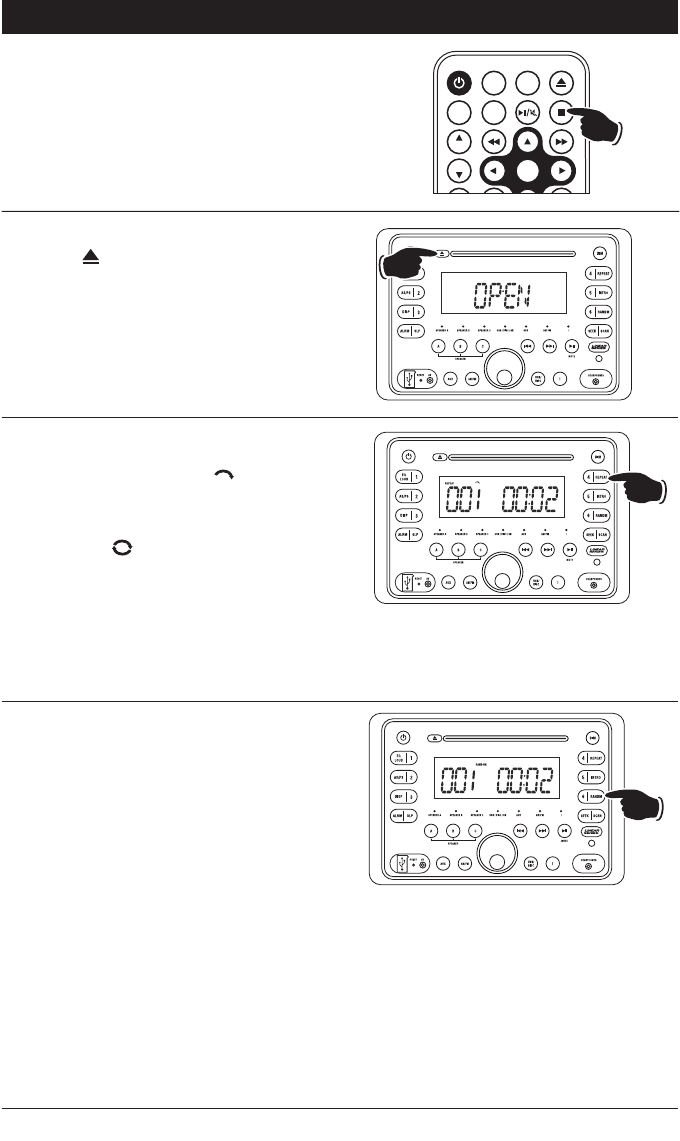

Ejecting the Disc:

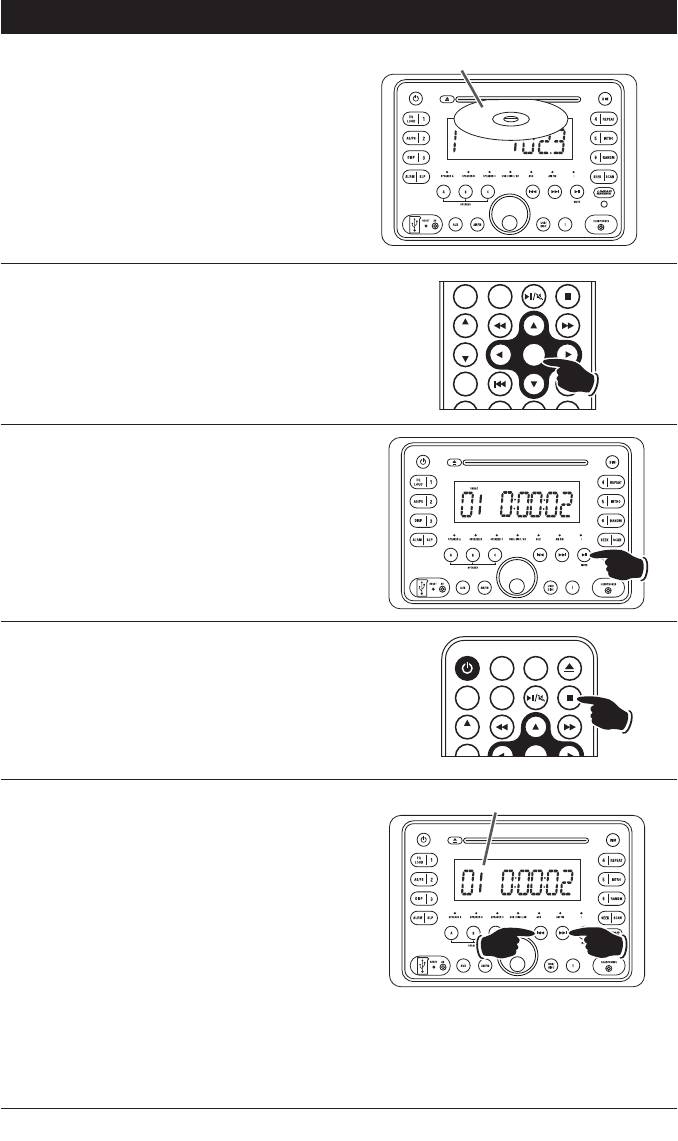

Press the button to eject a disc.

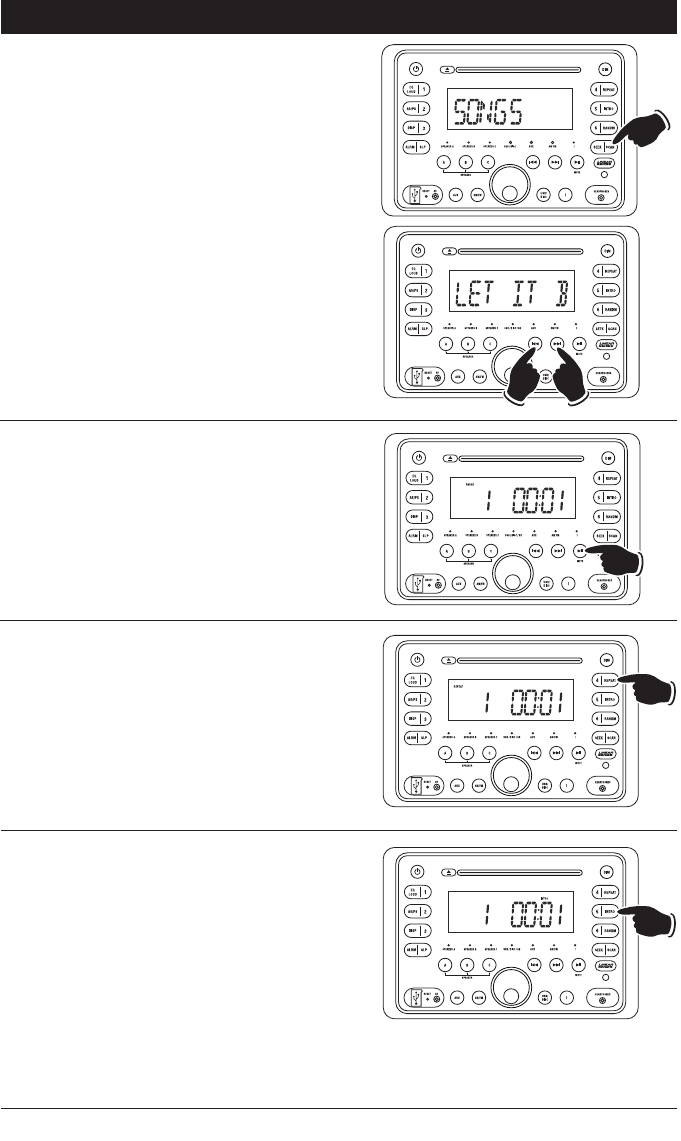

Preview Music Tracks:
Press the INTRO button to play the first 15 sec-
onds of each track, “INTRO” will appear in the
display. Press it again to stop introduction scan
and listen to the track and “INTRO” will disappear
from the display.
Random Music Track Play Order:
Press the RANDM button and the tracks on the
disc will play in a random order, “RANDOM”
will appear in the display. To cancel this feature
press the RANDM button again and “RANDOM”
will disappear from the display.

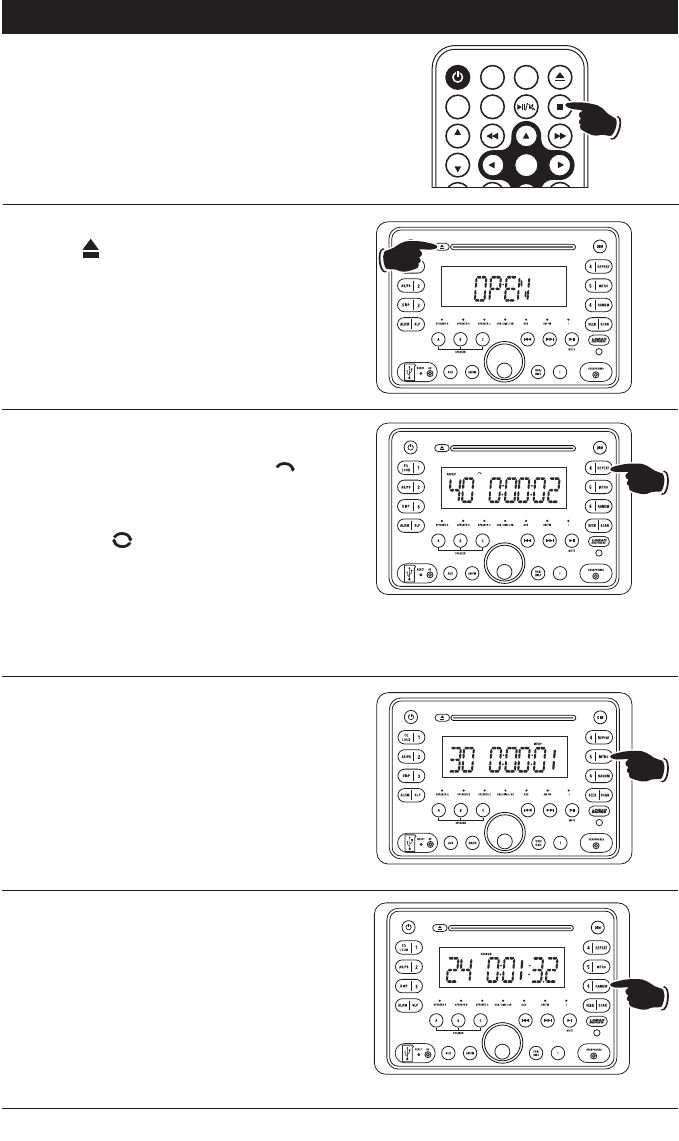

Stopping the Disc:
Press the button to stop the disc. To resume
play, press the ll button.
Pressing the button 2 times, then pressing the
ll button will play the disc from the beginning.
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
ENTER
VOL
Repeating a Music Track or Entire Disc:
Select the desired track to repeat, then press
the REPEAT button twice “REPEAT” and will
appear in the display. This track will play repeatedly.
Press the REPEAT button one more time
“REPEAT” and will appear in the display. The
entire disc will now be repeated.
To cancel this feature press the REPEAT button
again and nothing will appear in the display. The
disc will stop playing when the end of the disc
is reached.
15
Elapse Times:
Continue to press the AS/PS button during
music disc play to display the following disc
information in this order:
Single Elapse, Single Remain, Total Elapse and
Total Remain.
Music Disc Operation (Continued)
MP3 Disc Operation
General Operations:
Gently insert the disc into the slot with the
label side up. The unit will automatically
load the disc.
Note: If a disc does not auto-load DO NOT
FORCE into the slot, as you may already
have a disc loaded.
Disc File Selection:
Press the l button to select a lower file.
Press the l button to select a higher file. The
track number will appear in the display.
Files can also be selected by using the remote
control. Press the file selection number button
that corresponds to the file you want to play.
For example: If you want to play file 8, press but-
ton 8. File 8 will start playing and “8” will appear
in the display.
If you want to play file 12, press button 10+, fol-
lowed immediately by button 2. File 12 will start
playing and “12” will appear in the display.
Label Side Up
Pausing the Disc:
Press the ll button to pause the disc and
“PAUSE” will appear in the display. Press it again
to resume play and “PAUSE” will disappear from
the display.
Note: You can also press the ll on the remote
control.
EQ
1 3
BAND
AS/PS
ELAPSE
AUDIO SUB.TT
2
4 65
7 98
10/0 10+
File Number
16
MP3 Disc Operation (Continued)
Stopping the Disc:
Press the button to stop the disc. To resume
play, press the ll button.
Pressing the button 2 times, then pressing
the ll button will play the disc from the begin-
ning.
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
ENTER
VOL
Ejecting the Disc:
Press the button to eject a disc.
Random Music File Play Order:
Press the RANDM button and the files on the
disc will play in a random order, “RANDOM”
will appear in the display. To cancel this feature
press the RANDM button again and “RANDOM”
will disappear from the display.
Repeating a Music File or Entire Disc:
Select the desired file to repeat, then press the
REPEAT button “REPEAT” and will
appear in
the display. This track will play repeatedly.
Press the REPEAT button one more time
“REPEAT” and will appear in the display. The
entire disc will now be repeated.
To cancel this feature press the REPEAT button
again and nothing will appear in the display. The
disc will stop playing when the end of the disc
is reached.
17
Movie Disc Operation
General Operations:
Gently insert the disc into the slot with the
label side up. The unit will automatically
load the disc. “LOADING” will appear in the
display and the disc will automatically start
playing.
Note: If a disc does not auto-load DO NOT
FORCE into the slot, as you may already
have a disc loaded.
Label Side Up
Menu Function:
1. Press the MENU button during disc play and
the main menu will be displayed.
2.
Scroll through the menu with the navigation
buttons
(s, , t,)
on the remote control.
3. Select a feature by pressing the ENTER button.
Pausing the Movie
Press the ll button to pause the player,
“PAUSE” will appear in the display. Press it again
to resume play, and “PAUSE” will disappear from
the display.
Stopping a Movie:
Press the button to stop the movie. To resume
play, press the ll button.
Pressing the button 2 times. Then pressing
the ll button and the movie will start playing
from the beginning.
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
ENTER
VOL
SETUP
VOL
TONE
VOL
ENTER
VOL
DISP

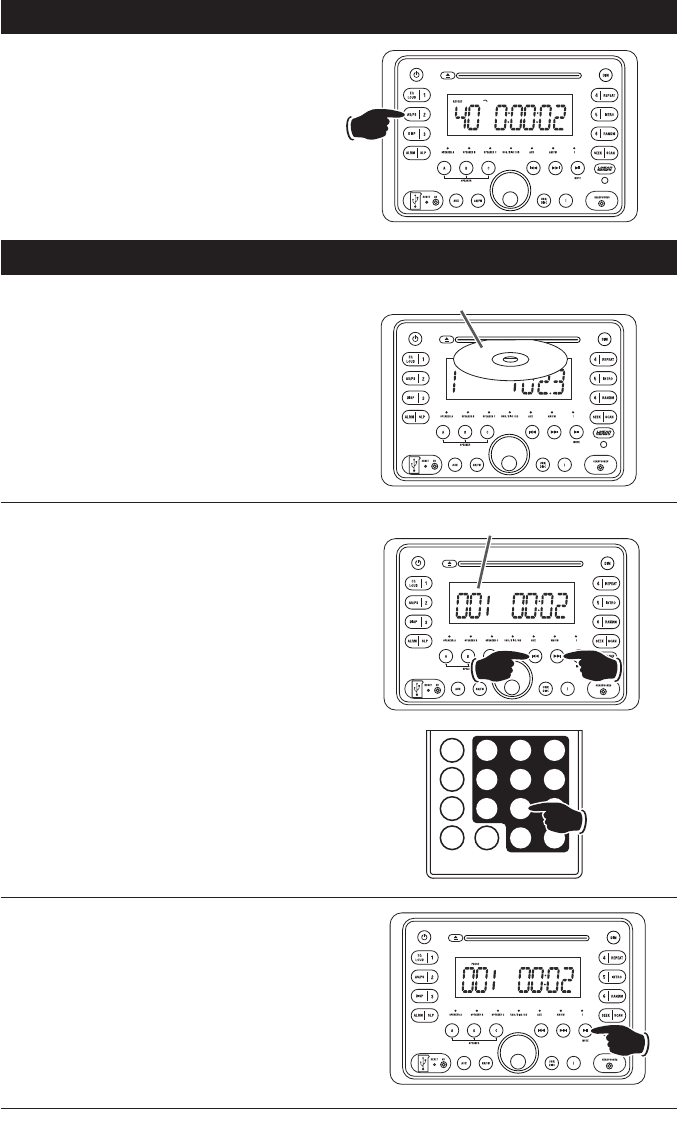

Movie Chapter Selection:
Press the l button to select a lower chapter.
Press the l button to select a higher chapter.
The chapter number will appear in the display.
Chapter selection can also be selected by using
the remote control. Press the chapter selection
number button that corresponds to the chapter
you want to play.
For example: If you want to play chapter 8, press
button 8 button.
If you want to play chapter 28, press the 10+
button twice followed immediately by button 8.
Chapter 28 will start playing and “28” will appear
in the display.
Chapter Number
18
Zooming the Image:
To enlarge the on-screen image during disc play,
press the ZOOM button. Each time the button is
pressed, the magnification increment changes in
the following order:
2X, 3X, 4X, 1/2, 1/3, 1/4.
Use the navigation buttons to move the image on
the screen.
Movie Disc Operation (Continued)
Fast Forward / Backwards Movie Play:
Press the (fast forward) or (backwards)
button on the remote control during play. Each
time the button is pressed the speed of fast for-
ward/ backwards changes in the following order:
2X, 4X, 8X, 20X
To resume normal play, press the ll (Play)
button.
Slow Motion:
Continue to press the SLOW button to play the
movie is slow motion in the following order:
SF 1/2, SF 1/3, SF 1/4, SF 1/5, SF 1/6, SF 1/7,
SB 1/2, SB 1/3, SB 1/4, SB 1/5, SB 1/6, SB 1/7
To resume normal play, press the ll (Play)
button.
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
ENTER
VOL
DISP
VOL
ENTER
VOL
DISP
ZOOM SLOW
RANDOM
REPEAT
EQ
1 3
BAND
2
4 65
VOL
ENTER
VOL
DISP
ZOOM SLOW
RANDOM
REPEAT
EQ
1 3
BAND
2
4 65
Subtitle Language Menu:
Press the SUB.TT button during playback. Each
time the button is pressed, the subtitle lan-
guage changes in sequential order.
• Some discs may only contain one subtitle
language.
• Depending on the disc, the number of subtitle
languages may be different.
Repeat:
Continue to press the REPEAT button to select
a repeat mode in the following order:
Repeat Chapter, Repeat Title, Off.
Elapse Times:
Continue to press the AS/PS ELAPSE button during
movie play to display the following information in
this order for most discs:
Title Elapse, Title Remain, Chapter Elapse,
Chapter Remain and Display Off.
EQ
1 3
BAND
AS/PS
ELAPSE
AUDIO SUB.TT
2
4 65
7 98
10/0 10+
EQ
1 3
BAND
AS/PS
ELAPSE
AUDIO SUB.TT
2
4 65
7 98
10/0 10+
DISP
ZOOM SLOW
RANDOM
REPEAT
EQ
1 3
BAND
2
4 65
19
Movie Disc Operation (Continued)
Audio Language Menu:
Press the AUDIO button during playback to review
the current setting. Most movies have their own
audio setup. Go to the on-screen menu to select
appropriate audio/language setup.
Setup Menu
Accessing the Movie Disc Setup Menu:
Press the
SETUP button on the remote control to
display the Setup Menu.
AS/PS
ELAPSE
AUDIO SUB.TT
7 98
10/0 10+
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
System Setup Page:
Use the navigation buttons to scroll between the
menu items. Make a selection by pressing the
ENTER button.
• TV System: NTSC, PAL or Auto
.
• TV Type: 4:3PS, 4:3LB or 16:9.
• Password: _ _ _ _
• Rating: 1 Kid Safe, 2 G, 3 PG, 4 PG13,
5 PG-R, 6 R, 7 NC-17, 8 Adult.
• Default: Restore
Language Setup Page:
Use the navigation buttons to scroll between the
menu items. Make a selection by pressing the
ENTER button. Language Setup Options:
• OSD Language: English or Spanish.
• Audio Lang: Chinese, English, Japan, French,
Spanish, Portuguese, Latin or German.
• Subtitle Lang: Chinese, English, Japan,
French, Spanish, Portuguese, German or Off.
• Menu Lang: Chinese, English, Japan, French,
Spanish, Portuguese, German or Latin.
Audio Setup Page:
Use the navigation buttons to scroll between the
menu items. Make a selection by pressing the
ENTER button. Audio Submenu Options:
• Audio Out: SPDIF/OFF, SPDIF/Raw or SPDIF/
PCM.
Video Setup Page:
Use the navigation buttons to scroll between the
menu items. Make a selection by pressing the
ENTER button. Video Submenu Options:
• Brightness: 12, 10, 8, 6, 4, 2 or 0.
• Contrast: 12, 10, 8, 6, 4, 2 or 0.
• Hue: +6, +4, +2, 0, -2, -4 or -6.
• Saturation: 12, 10, 8, 6, 4, 2 or 0.
• Sharpness: 8, 6, 4, 2 or 0.
Digital Setup Page:
Use the navigation buttons to scroll between the
menu items. Make a selection by pressing the
ENTER button. Digital Submenu Options:
• Dynamic Range: Full, 6/8, 4/8, 2/8 or Off.
• Dual Mono: Stereo, Mono L, Mono R or Mix
Mono.
TV SYSTEM
TV TYPE
PASSWORD
RATING
DEFAULT
SYSTEM SETUP
System Setup
Page
Language Setup
Page
Audio Setup
Page
Speaker Setup
Page
Video Setup
Page
20
IPOD Operation
General Operations:

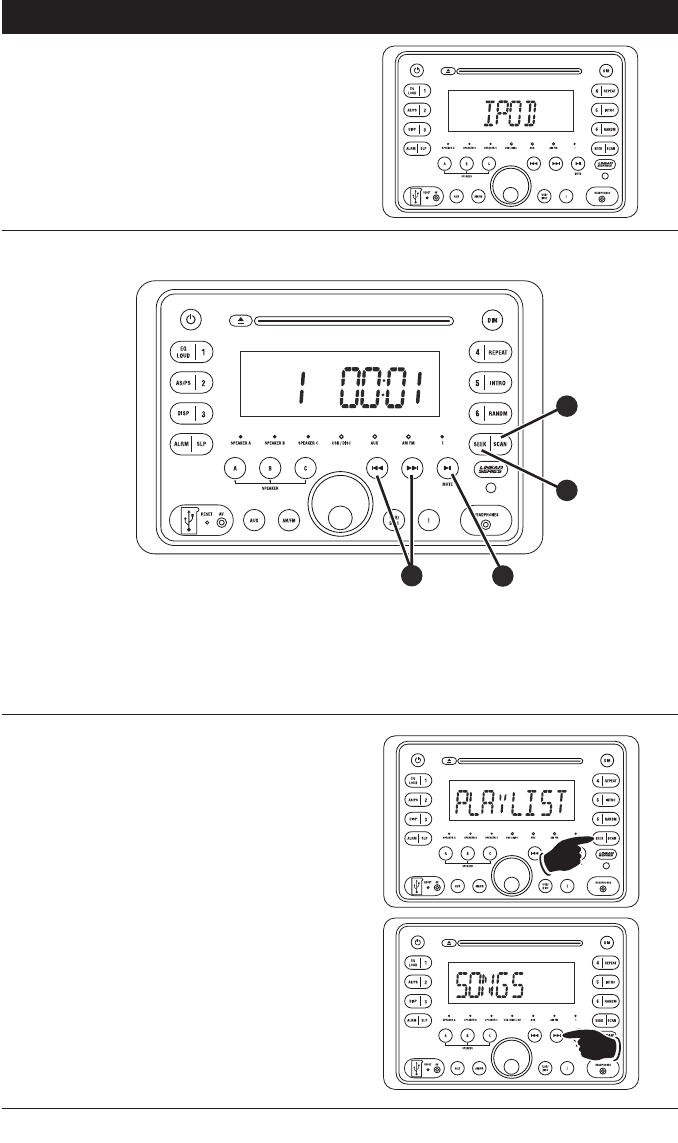

1. Connect an IPOD to the cable attached to the
RV5090.
2. The unit will automatically switch to the IPOD
mode and start playing.
Note: The IPOD controls will become inoperable,
and the RV5090 now controls the IPOD.
IPOD Mode Button Location and Functions:
1. Seek Button: Same operation as the MENU but-
ton on an IPOD.
2. Track Up/Down Buttons: Press these buttons
to scroll through the menu items, which is the
same operation as the IPOD’s Click Wheel.
3. Play/Pause Button ( ll ): Same operation as
the ll button on an IPOD.
4. Scan Button: Same operation as the Center
Select/Enter button on an IPOD.
Browse for a Song:
1. Press the SEEK button and “PLAYLIST” will
appear in the display.
2. Press the l button to select the “SONGS”
menu.
3
2
4
1
21
IPOD Operation (Continued)
3. Press the SCAN button to select the SONGS
menu.
Pausing a Track:
Press the ll button to pause the track. Press it
again to resume play.
4. Press the
l or l
button to select the
desired song from the menu. The selected
song will automatically start playing.
Repeating a Track:
Select the desired track to repeat, then press the
REPEAT button once and “REPEAT” will appear
in the display. This track will play repeatedly. To
cancel this function press the REPEAT button
one more time, and “REPEAT” will disappear
from the display.
Preview Tracks:
Press the INTRO button and “INTRO” appears
in the display. Each track on the IPOD will now
play for 10 seconds. To cancel this feature press
the INTRO button and “INTRO” disappears from
the display.
22
IPOD Operation (Continued)

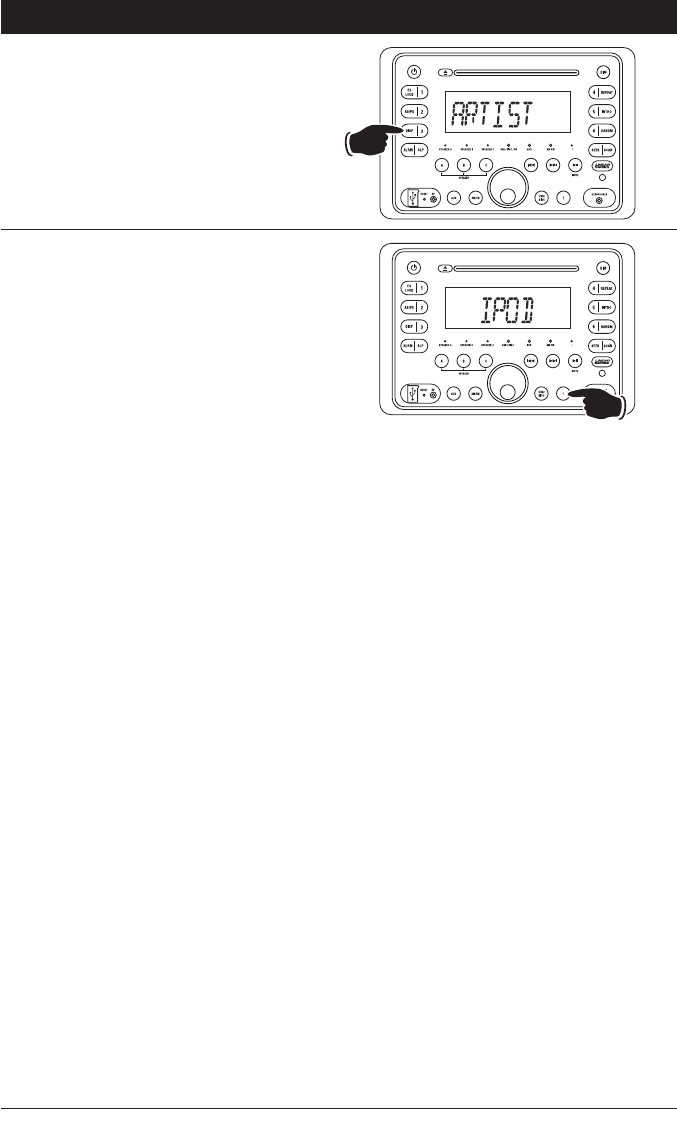

Display Selection:
Press the DISPLAY button to display the follow-
ing track information: Elapse Time, Artist, Album
and Title.
Manually Selecting the IPOD Source:
If a different source is playing and you wish to
listen to the IPOD, press the i button until “IPOD
AUT” appears in the display. The last song that
was playing on the IPOD will resume.
23
USB Input

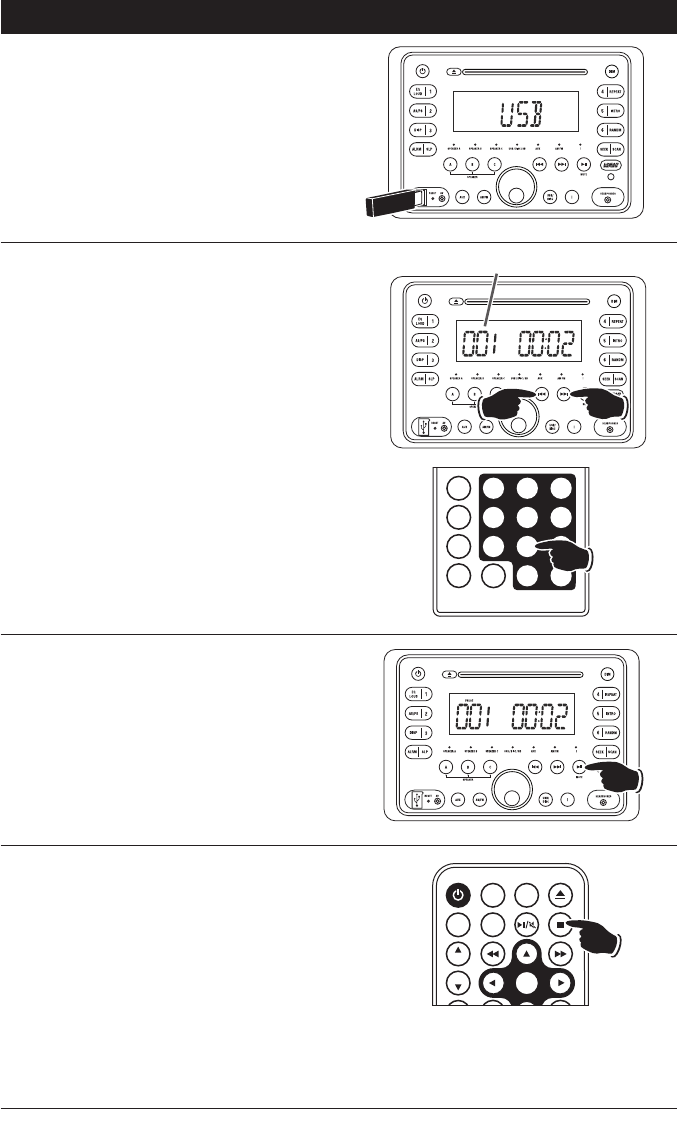

Selecting USB Audio Play Source:
Press the USB/DISC button and “DISC” appears
in the display. Remove the cover from the USB
port. Insert the USB device and the files will
automatically start playing.
Note: You can insert the USB device in any
mode, the unit will automatically switch modes
and start playing the USB device.
Disc File Selection:
Press the l button to select a lower file.
Press the l button to select a higher file. The
file number will appear in the display.
File selection can also be selected by using the
remote control. Press the file selection number
button that corresponds to the file you want to
play then press the ENTER button.
For example: If you want to play file 8, press but-
ton 8, then the ENTER button.
If you want to play file 28, press 10+, then press
button 2, followed immediately by button 8 and
finally press the ENTER button. File 28 will start
playing and “28” will appear in the display.
Pausing a MP3 Player:
Press the ll button to pause the player,
“PAUSE” will appear in the display. Press it again
to resume play, and “PAUSE” will disappear from
the display.
Stopping a MP3 Player:
Press the button to stop play. To resume play,
press the ll button and play will begin from the
first file.
EQ
1 3
BAND
AS/PS
ELAPSE
AUDIO SUB.TT
2
4 65
7 98
10/0 10+
File Number
MENU MODE
EJECT
POWER
SETUP
VOL
TONE
VOL
ENTER
VOL
24
Bluetooth Operation
Pairing Bluetooth Devices:

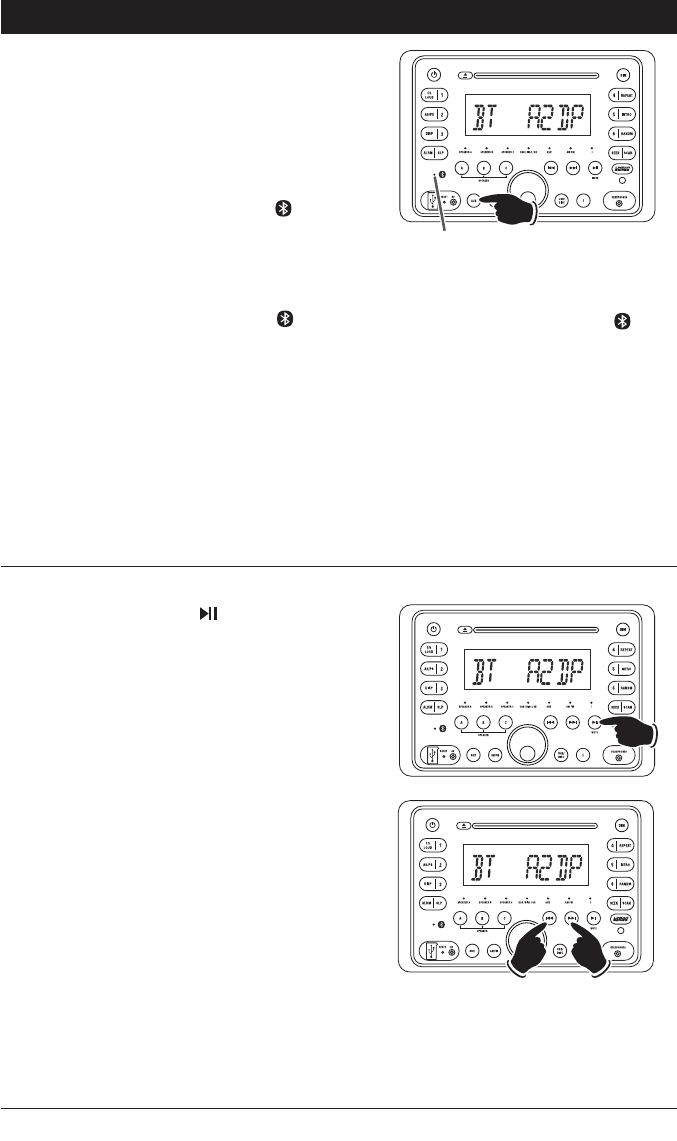

1. Press the AUX button until “BT A2DP” appears in
the display.
2. Open the mobile device’s setup menu.
3. Open the Bluetooth setup program on the mobile
device and activate the Bluetooth feature.
4. From your mobile device scan for available devices
.
5. Select ”WALL MOUNT RECEIVER” to connect to
the unit. The “•” indicator next to the on the
RV5090 will flash quickly during pairing.
Note: If the mobile device requires a password
enter “0000” as the password.
6.
When phone has been paired the “
•
” will be illu-
minted continuously. When the unit starts stream-
ing music the “
•
” indicator
next to the
will
flashes every 5 seconds.
Note 1: If the mobile device has been previously
paired with the entertainment center, the unit will
connect automatically to the Bluetooth mobile device
when the unit is turned on.
Note 2: If the Bluetooth mobile device is already
paired with the entertainment center, select “WALL
MOUNT RECEIVER” on your phone and touch
“Connect”.
Note 3: To directly select the Bluetooth mode press the
MODE button on the remote controller until “BT A2DP”
appears in the display.
Bluetooth Operation:
Play/Pause Button:
Press the button to pause the
Bluetooth playback. Press again to resume playback.
Note: The RV5090 display will not show the play-
back is pause. The mobile device will show that the
playback is paused.
Changing the Track:
Press the
l button to select a higher track.
Press the
l button to select a lower track.
Sound Controls: Use the sound controls on the
RV5090 to adjust the volume and sound quality.
Note: For optimum sound quality make sure the
media volume on the device is set at 75% or greater.
Bluetooth Indicator “•” next to logo
•
is off = RV5090 is not in Bluetooth mode.
• is flashing quickly = RV5090 is trying
to pair with the device.
• is on solid = RV5090 is paired with the
device but music is not streaming.
• flahes every 5 seconds = RV5090 is
streaming music.
Bluetooth
Indicator
25
Audio/Video Input
Selecting the Audio/Video Source:
Note: The RV5090 does not control the device, it
just allows the audio/video to be played through
the system.
Front Audio/Video Input:
Insert the 3.5mm jack from the audio/video
device into the AV input socket on the front
of the housing. Press the AUX button until
“AV IN F” appears in the display. Refer to
the audio/video device’s owner’s manual for
proper operation.
Rear Audio/Video Input:
To select the rear input Audio/Video play
source, press the AUX button until “AV IN R”
appears in the display. Refer to the audio/video
device’s owners manual for proper operation.
MENU
Audio Input
Selecting the Audio Source:
Note: The RV5090 does not control the device,
it just allows the audio to be played through the
system.
Dual RCA Rear Audio Input:
Press the AUX button until “AUX IN” appears
in the display.
26

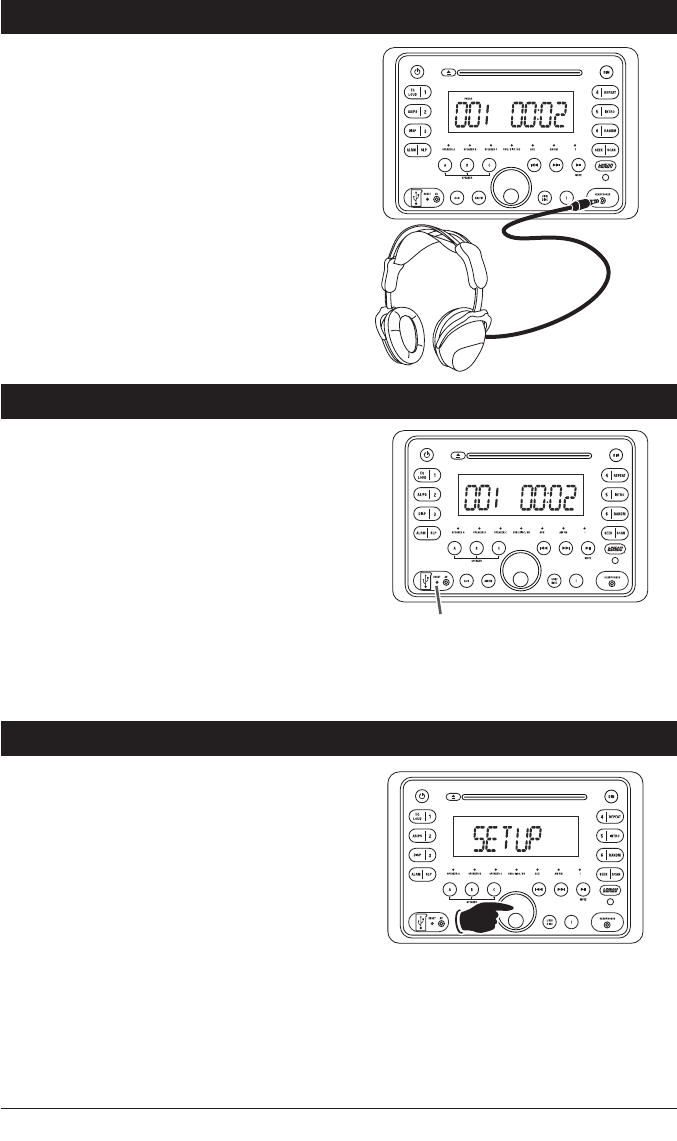

Headphone Output
Plugging in Headphone:
Insert a 3.5mm headphone jack into the
Headphone Output socket. Use the Volume knob
on the headphone to adjust the audio level.
Note:
To make it so the sound only can be heard
through the headphones
press the A, B, C but-
tons once to deselected speaker sets A, B and C.
The LED indicators for each speaker set will be off.
The LCD display may fail to function normally due
to the vehicle’s battery condition, and could require
resetting the radio microprocessor if:
• The vehicle has been “jump started” from a
dead battery condition.
• The vehicle battery becomes very low and is
quick-charged.
• The vehicle battery is removed and replaced.
Should any of these conditions occur, simply press
and release the RESET button on the radio front
panel using the tip of a ball point pen. This will reset
the radio microprocessor to the original factory set-
tings. After pressing the RESET button you should
recheck to see if the radio functions normally.
Reset Button
Additional Feature
Area Radio Frequency Adjustment:
Note: If operating the unit in the USA, do not
change the area.
To Change the Area:
1.
Press the AM/FM button and “RADIO” appears
in the display.
2.
Press and hold the VOL/TONE knob until
“SETUP” appears in the display
.
3. Press the
ll
button and “US” or “OCEAN”
will be displayed
.
4. Press the
l
or
l
button to change the
setting to US or OCEAN
.
5. Press the ll button to save the setting. The
unit will clear all the station settings. After wait-
ing a few seconds the unit exit program
ming.
Reset Button
27

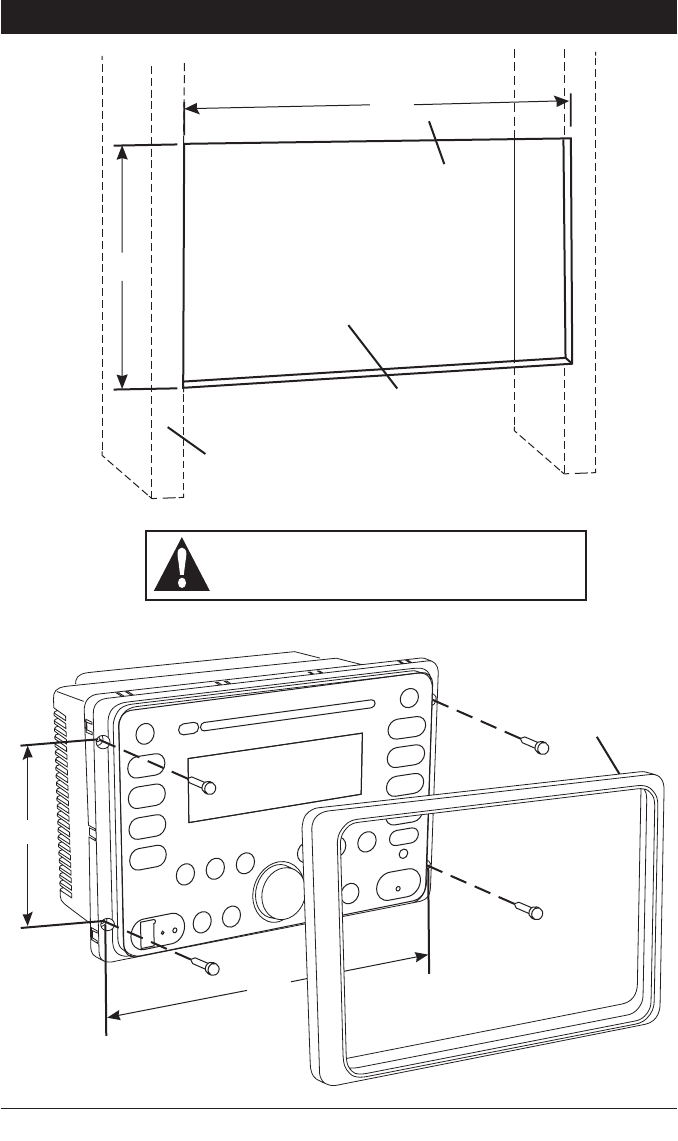

Installation
9
45/8”
6
1
/
4
”
Chassis Opening
Structural Stud
Wall
Panel
Caution: Do not install radio without rear cover installed:
No user-serviceable parts inside. Rear cover provides
protection against potential fire hazard.
9
3
/
4
”
Trim Ring
3
/
8
”
28

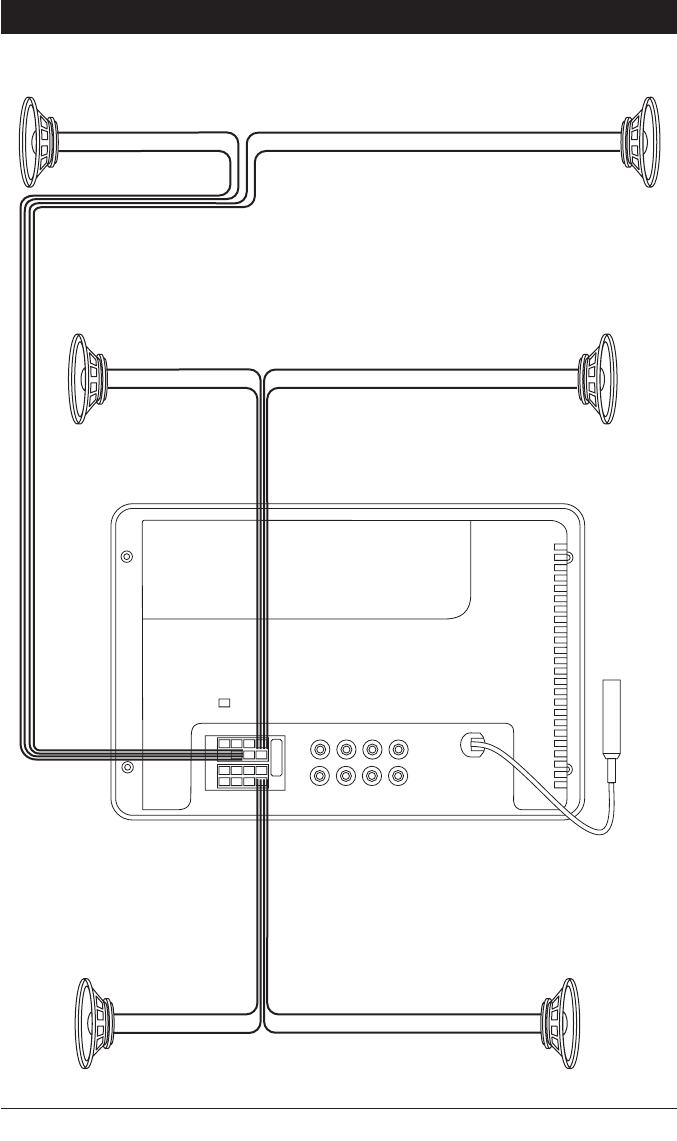

Speaker Connections
_
+
Brown/Black Wire _
+
Right
Speaker A
Left
Speaker A
_
+
_
+
Right
Speaker C
Left
Speaker C
Brown Wire
Gray/Black Wire
Gray Wire
_
+
Green/Black Wire _
+
Right
Speaker B
Left
Speaker B
Green Wire
Blue/Black Wire
Blue Wire
White Wire
White/Black Wire
Purple Wire
Purple/Black Wire
29

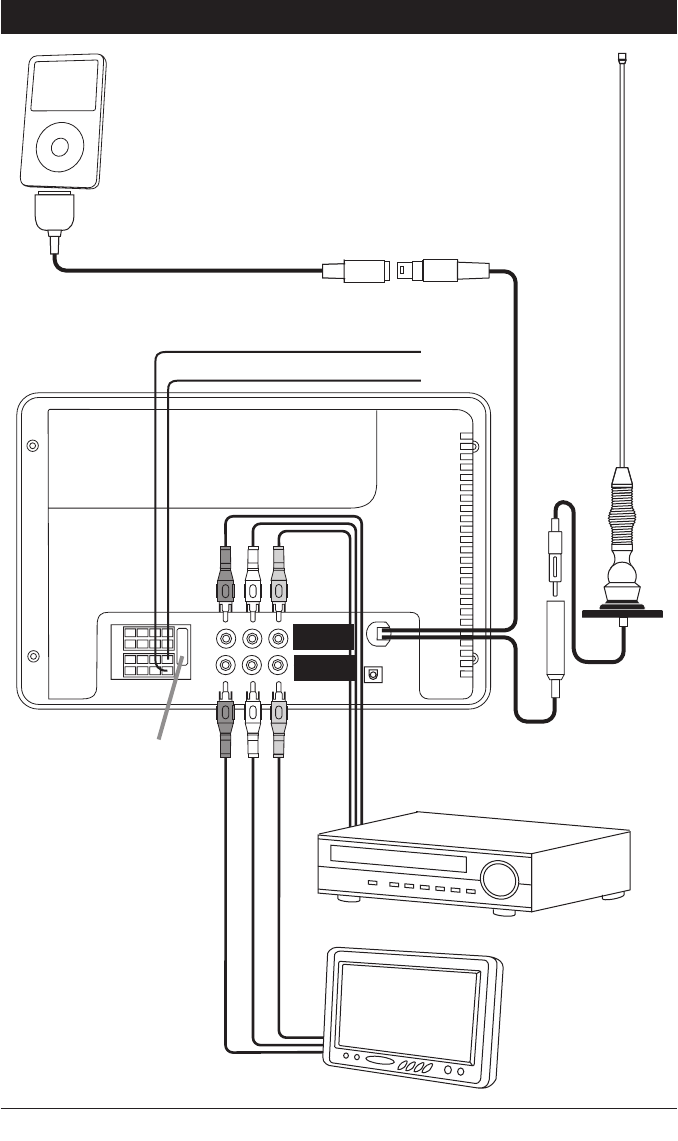

Wiring and Auxiliary Connections
Red Wire (+) to 12 Volt DC Power
Black Wire Ground
15A Fuse
External Automotive
Type Antenna
(Optional)
AV In
Monitor
(Optional)
IPOD
(Optional)
IPOD Cable (Optional)
Movie Disc Player
(Optional)
AV Out
30

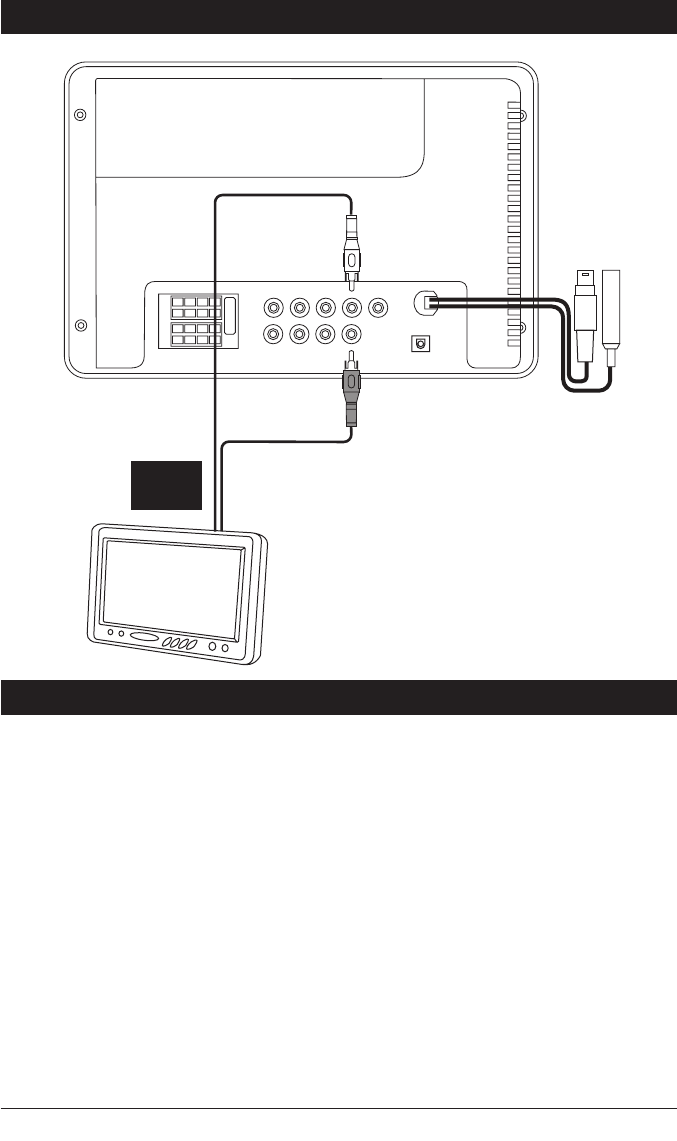

Wiring and Auxiliary Connections (Continued)
Analog
Audio In
Monitor
(Optional)
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in ac-
cordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate this equipment.
RF Exposure: A distance of 20 cm shall be maintained between the antenna and users, and the transmitter module may not
be co-located with any other transmitter or antenna.
31

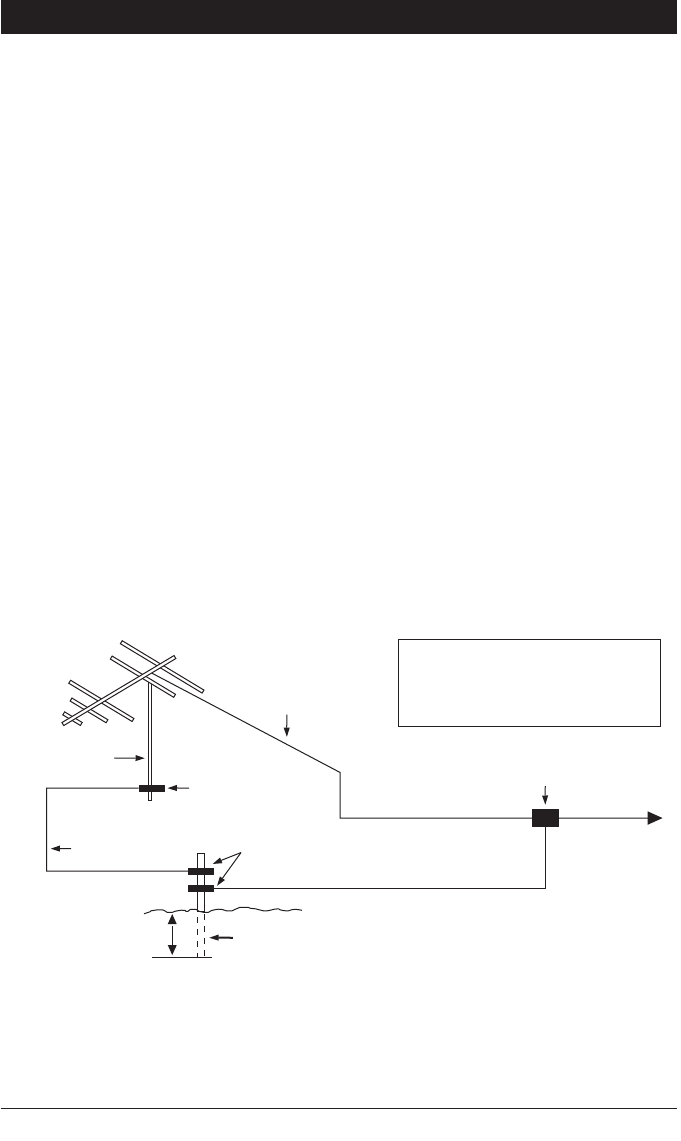

Outdoor Antenna Grounding:
If an outside antenna is connected to the receiver, be sure the antenna system is grounded, so as to
provide some protection against voltage surges and built up static charges. Section 810 of the National
Electrical Code, ANSI/NFPS No. 70-1983, provides information with respect to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode. See illustration below.
•
Read Instructions: All the safety and operating instructions should be read before the appliance is operated.
• Retain Instructions: The safety and operating instructions should be retained for future reference.
• Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to.
• Follow Instructions: All operating and use instructions should be followed.
• Water and Moisture: The appliance should not be used near water. For example, near a bathtub, wash-
bowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.
• Wall or Cabinet Mounting: The appliance should be mounted to a wall or cabinet only recommended by
the manufacturer.
• Heat: The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• Power Supply: The appliance should be connected to a power supply only of the type described in the
operating instructions or as marked on the appliance.
• Power Lines: An outdoor antenna should be located away from power lines.
• Object and Liquid Entry: Care should be taken so that objects do not fall, and liquids are not spilled into
the enclosure through openings.
Antenna Lead-In
Wire (B)
Antenna Discharge Unit (C)
To Receiver
Mast
Ground
Clamp
Ground Wire
(A,B ) Grounding
Clamps
Grounding Electrode
Driven 8’ Into the Earth
2.44 Meters
Example of Antenna Grounding as per
National Electrical Code. Instructions
Contained in Article 810-"Radio and
Television Equipment"
A. Use No. 10 AWG (5.3mm2) copper, No. 8 AWG (8.4mm2) aluminum, No. 17 AWG (1.0mm2) copper clad steel or
bronze wire, or larger as ground wire.
B. Secure antenna lead-in and ground wires to house with stand-off insulators spaced from 4 feet (1.22m) to 6 feet
(1.83m) apart.
C. Mount antenna discharge unit as close as possible to where lead-in enters house.
Safety Instructions
© Copyright 2013
Magnadyne Corporation
RV5090-UM
Rev. B 6-26-13
Warranty
ONE (1) YEAR LIMITED WARRANTY
Magnadyne Corporation or its authorized agents will within one year from the date of sale
to you, repair, replace or refund the retail sales price of said product or any part thereof, at
the option of the Magnadyne Corporation or its authorized agents, if said product or part
is found defective in materials or workmanship, when properly connected and operating
on the correct power requirements designated for the specific product. This warranty and
Magnadyne Corporation or its authorized agent’s obligations hereunder do not apply where
the product was; damaged while in the possession of the consumer, subjected to unrea-
sonable or unintended use, not reasonably maintained, utilized in commercial or industrial
operations, or serviced by anyone other than Magnadyne Corporation or its authorized
agents, or where the warning seal on the product is broken or the power and/or plugs
are detached from the unit. Magnadyne Corporation or any of its authorized agents will
not assume any labor costs for the removal and reinstallation of any product found to be
defective, or the cost of transportation to Magnadyne Corporation or its authorized agents.
Such cost are the sole responsibility of the purchaser.
This warranty does not cover the cabinet appearance items or accessories used in
connection with this product, or any damage to recording or recording tape, or any
damage to the products resulting from improper installation, alteration, accident,
misuse, abuse or acts of nature.
MAGNADYNE CORPORATION OR ITS AUTHORIZED AGENTS SHALL NOT BE LIABLE TO
ANYONE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES OR CLAIMS EXCEPT THOSE
ACCORDED BY LAW. NO EXPRESSED WARRANTY OR IMPLIED WARRANTY IS GIVEN
EXCEPT THOSE SET FORTH HEREIN. NO IMPLIED WARRANTY SHALL EXTEND BEYOND
ONE YEAR FROM THE DATE OF SALE.
This warranty extends only to the original purchaser of the product and is not
transferable. Some states do not allow limitations on how long an implied warranty
lasts, and some states do not allow the exclusion or limitation of incidental or conse-
quential damages, so the above limitations or exclusion may not apply to you. This
warranty gives you specific legal rights, and you may have other rights that vary from
state to state.
“NOTE: The manufacturer is not responsible for any radio or TV interference caused
by unauthorized modifications to this equipment. Such modifications could void the
User’s authority to operate the equipment.”
Defective merchandise should be returned to the original point of purchase or
secondly, to Magnadyne Corporation, 1111 W. Victoria Street, Compton CA 90220.
Return Authorization must be obtained before sending, or merchandise may be refused.
