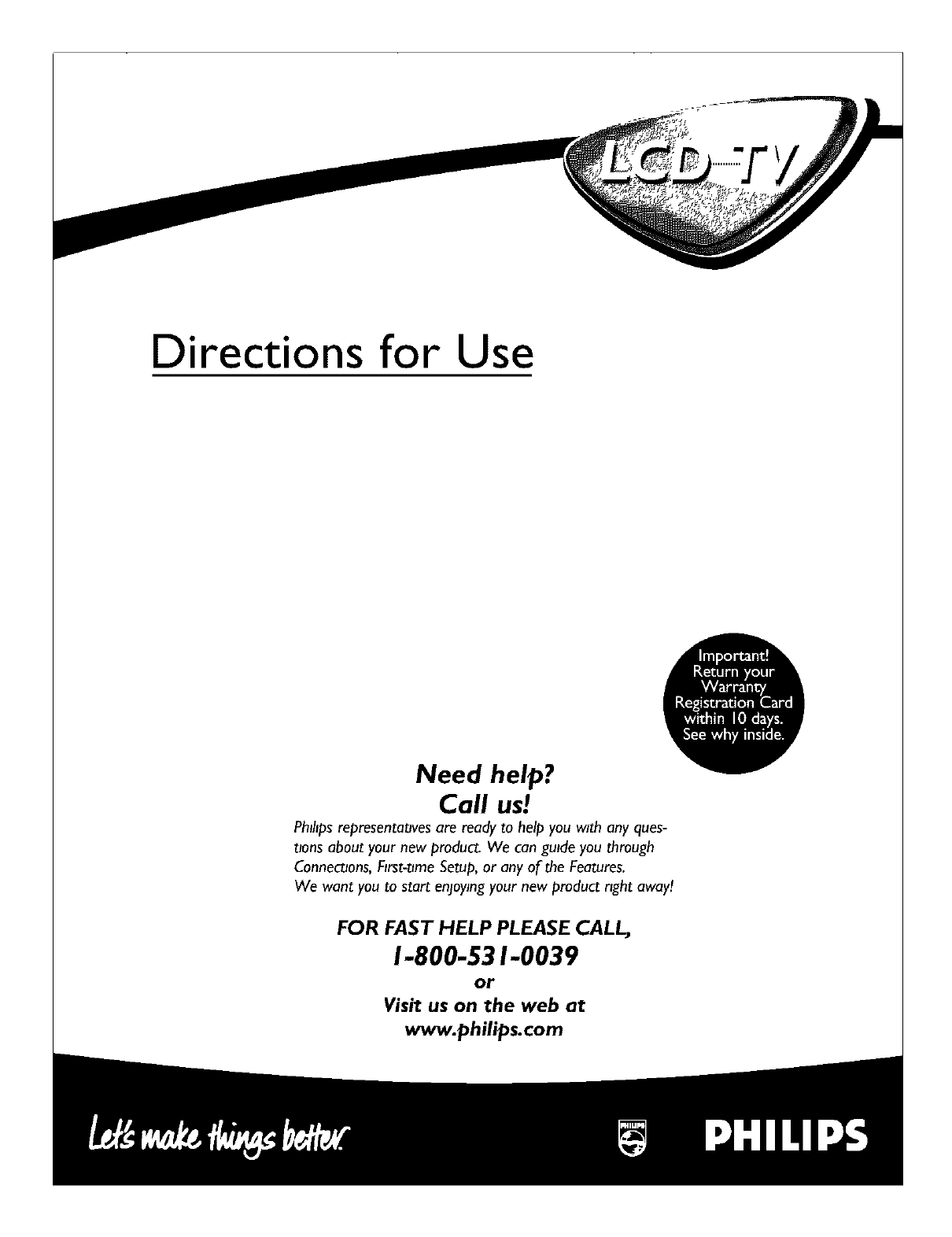

Directions for Use

Need help?

Call us!

PhlhpsrepresentatJvesare ready to help you with any ques-

tions about your new product. We can guide you through

Connections,First-time Seep, or any of the Fea_res.

We want you to start enjoyingyour new product right away!

FOR FAST HELP PLEASE CALL,

1-800-531-0039

Visit us on the web at

www.philips.com

Once your PHILIPS purchase is registered, you're eligible to receive all the privileges

of owning aPHILIPS product. So complete and return the Warranty Registration

Card enclosed with your purchase at once. And take advantage of these important benefits.

Congratulations on your purchase,

and welcome to the "family" PHILIPS

Dear PHILIPS product owner."

Thank you for your confidence in PHILIPS. You've selected one of the best-built, best-backed products available

today. And we'll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS "family," you're entitled to protection by one of the most comprehensive war-

ranties and outstanding service networks in the industry.

What's more, your purchase guarantees you'll receive all the information and special offers for which you quali-

fy, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.

All of this is our way of saying welcome-and thanks for investing in a PHILIPS produc_

Sincerely.

Lawrence J. Blanford

President and Chief Executive Officer

P.S. Remember, to get the most from your

PHILIPS product, you must return your

Warranty Registration Card within 10

days. So please mail it to us right now!

Know these

safetysymbols

_L This "bolt of lightning" indicates uninsulated material within your unit may cause an elec-

trical shock. For the safety of everyone in your household, please do not remove product cov-

_'The "exclamation point" calls attention to features for which you should read the

enclosed literature closely to prevent operating and maintenance problems.

WARNING: TO PREVENT FIREOR SHOCK HAZARD, DO NOT EXPOSETHIS EQUIP-

MENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.

ATTENTION: Pour 6viter les chocs _lectriques, introduire la lame la plus large de la fiche darts

la borne correspondante de la prise et pousser jusqu'au fond.

IMPORTANT SAFETY INSTRUCTIONS

Read before operating equipment

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

g. Do not use this appara/us near water.

6. Clean only with a dry cloth. 17.

7. Do not block any of the ventilation openings. Install in accordance

with the manufacturers instructions.

8. Do not install near any heat sources such as radiators, heal regis-

ters, stoves, or other apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and third ground-

ing prong. The wide blade or third prong are provided for your

safety. When the provided plug does not fit into your outlet, con- 18.

suit an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particu- 19.

lady at plugs, convenience receptacles, and the point where they

exit fiom the apparatus. 20.

If. On_se attachments/accessories specified by the manufacturer.

12. _ Use only with a cart, stand, tripod, bracket, or table

_1_1_ specified by the manufacturer, or sold with the app-

aratus. When a carl is used, use caution when moving

the cart/apparatus comblnatmn to avozd injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way. such

as power-supply cord or plug is damaged, liquid has been spilled 21.

or objects have fallen into apparatus, the apparatus has been

exposed to rain or moisture, does not operate normally, or has

been dropped. 22.

15. This product may contain lead and mercury. Disposal of these

materials may be regula/ed due to environmental considerations.

For disposal or recycling information, please contact your local

authorities or the Electronic Industries Alliance: www.eiae.org

16. Damage Requiring Service - The appliance should be serviced

by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or

B. Objects have fallen, or liquid has been spilled into the appli-

ance; or

C. The appliance has been exposed to rain; or

D. _le appliance does not appear to operate normally or

exhibits a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt mid stability properties

of its cabinet design.

• Do not compromise these design atandards by applying exces-

sive pull force to the front, or top, of the cabinet which could ulti-

mately overturn the product.

• Also, do not endanger yourself, or children, by placing electron-

ic equipment/toys on the top of the cabinet. Such items could

unsuspectingly fall fiom the top of the set and cause product dam-

age and/or personal injury.

Wall or Ceiling Mounting - The appliance should be mounted to

a wall or ceiling only as recommended by the manufacturer.

Power Lines - An outdoor antenna should be located away from

power lines.

Outdoor Antenna (]rounding - If an outside antenna is connect-

ed to the receiver, be sure the antenna system is grounded so as to

provide some protection against voltage surges and built up static

charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-

1984, provides information with respect to proper grounding of

the mast and supporting structure, grounding of the lead-in wire to

an antenna discharge unit, size of grounding connectors, location

of antenna-discharge unit, connection to grounding electrodes, and

requirements for the grounding electrode. See Figure below.

Object and Liquid Entry - Care should be taken so that objects

do not fall and liquids are not spilled into the enclosure through

openings.

Battery Usage CAUTION -'Ib prevent battery leakage thai may

result in bodily injury, property damage, or damage to the unit:

• Install all batteries correctly, widl + and - aligned as marked on

the unit.

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries when the unit is not used for a long time.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC

that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the

bui ding, as cose to the point of cab e entry as practica.

Example of Antenna Grounding

as per NEC - National Electric Code

GROUNDCLAMP ANTENNALEADINWIRE

ANTENNADISCHARGEUNITI_EcSECTmNs_o-zo)

GROUNDINGCONDUCTORS_NECSECTmN810-21)

GROUNDCLAMPS

-_-_'''"_ POWERSERVICEGROUNDINGELECTRODESYSTEM(NECART250PARTI_1

ELECTRICSERVICEEQUIPMENT

Additional Safety Precautions:

Do not shift or move the LCD TV around when it is powered on.

Do not connect any AC/DC adapter to your LCD TV that does not originally come with the television. Only use

the recommended part or parts that are approved by Philips Consumer Electronics.

Caution: Do not use any cover or enclose the AC/DC adapter with any objects like a cloth or box which might

shorten the life of the equipment.

Do not touch, push or rub the surface of the LCD screen with any sharp or hard objects.

When the surface of the LCD screen becomes dusty, wipe it gently with an absorbent cotton cloth or other soft

material like chamois. DO NOT use acetone, toluene or alcohol to clean the surface of the screen. These chemi-

cals will cause damage.

Wipe off water, or saliva as soon as possible. Long exposer time to liquids can cause deformation and color fad-

ing of the LCD screen.

Be careful of condensation when temperature changes occur. Condensation can cause damage to the LCD

screen and electrically parts. After condensation fades, spots or blemishes will be present on the LCD screen.

Positioning the LCD Television:

Place the LCD TV on a solid, sturdy base or stand. Be sure the stand is strong enough to handle the weight of

the LCD TV.

Try to leave at least 6" of space around each side of the LCD TV cabinet to allow for proper ventilation.

Do not place the LCD TV near a radiator or other sources of heat.

Do not place the LCD TV where it can be exposed to rain or excessive moisture.

Recycling Procedure/End of Life Disposal:

To minimize harm to the environment, the batteries supplied with the LCD TV do not contain mercury or nickel

cadmium. If possible, when disposing of batteries, use recycling means available in your area.

The LCD TV uses materials that can be recycled. To minimize the amount of waste in the environment, check

your area for companies that will recover used televisions for dismantling and collection of reusable materials, or

contact your dealer for TV recycling tips.

Please dispose of the carton and packing material through the proper waste disposal management in your area.

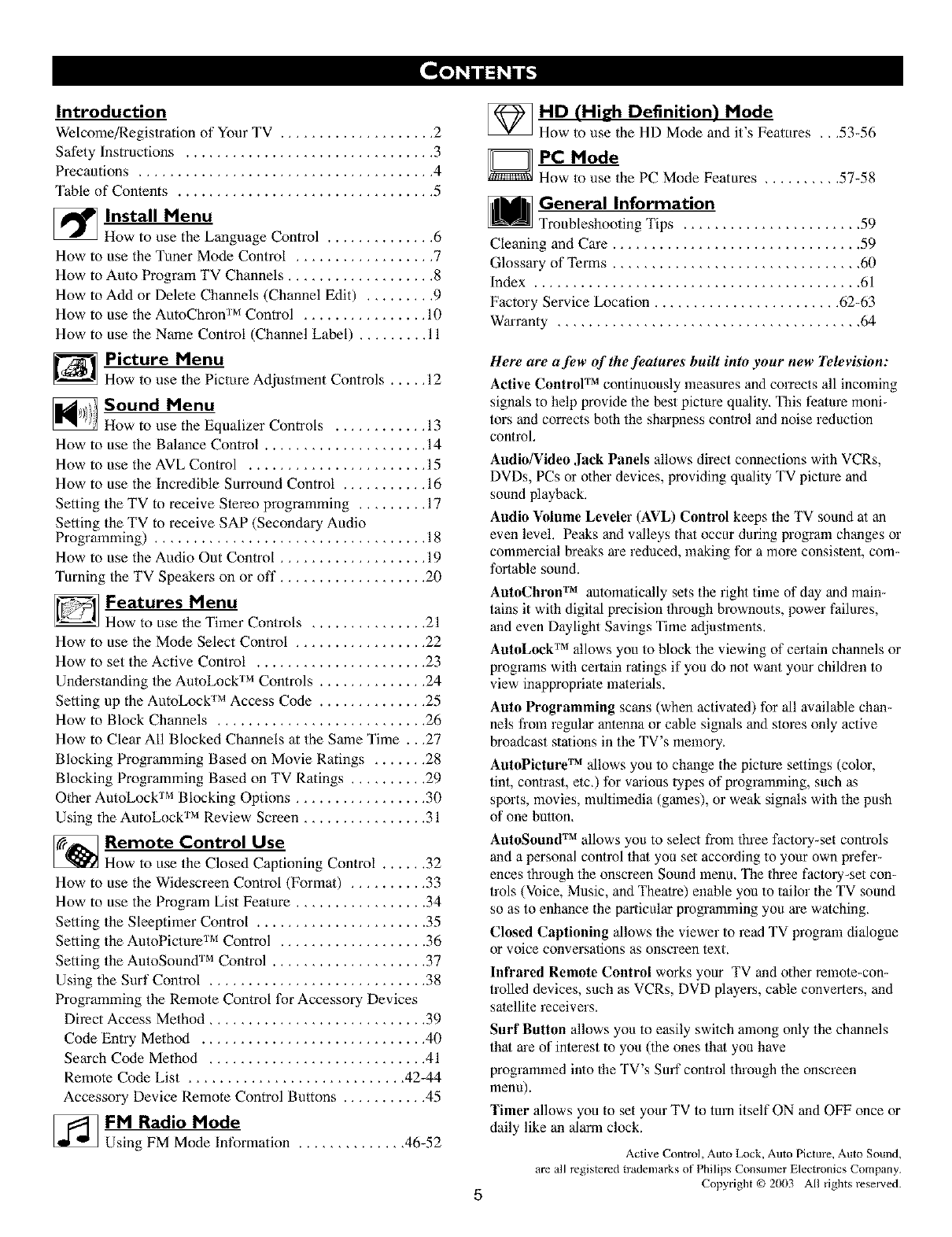

Introduction

Welcome/P, egistration of Your TV .................... 2

Safety Instructions ................................ 3

Precautions ...................................... 4

Table of Conlents ................................. 5

_Install Menu

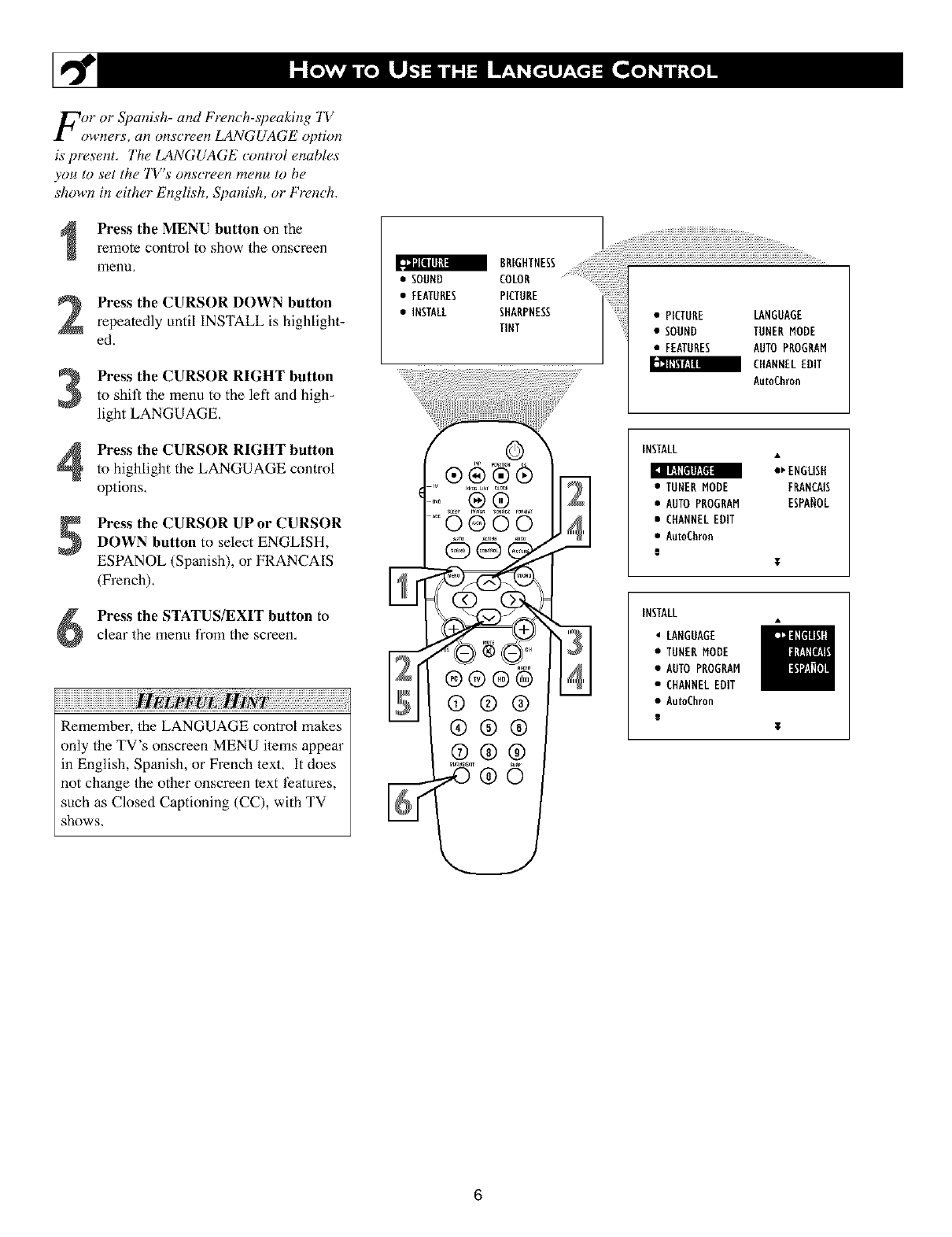

How to use the Language Control .............. 6

How to use the Tuner Mode Control .................. 7

How to Auto Program TV Channels ................... 8

How to Add or Delete Channels (Channel Edit) ......... 9

How to use the AutoChron TM Control ................ 10

How to use the Name Control (Channel Label) ......... 11

_ Picture Menu

How to use the Picture Adjustment Controls ..... 12

Sound Menu

How to use the Equalizer Controls ............ 13

How to use the Balance Control ..................... 14

How to use the AVL Control ....................... 15

How to use the Incredible Surround Control ........... 16

Setting the TV to receive Slereo programming ......... 17

Setting the TV to receive SAP (Secondary Audio

Programming) ................................... 18

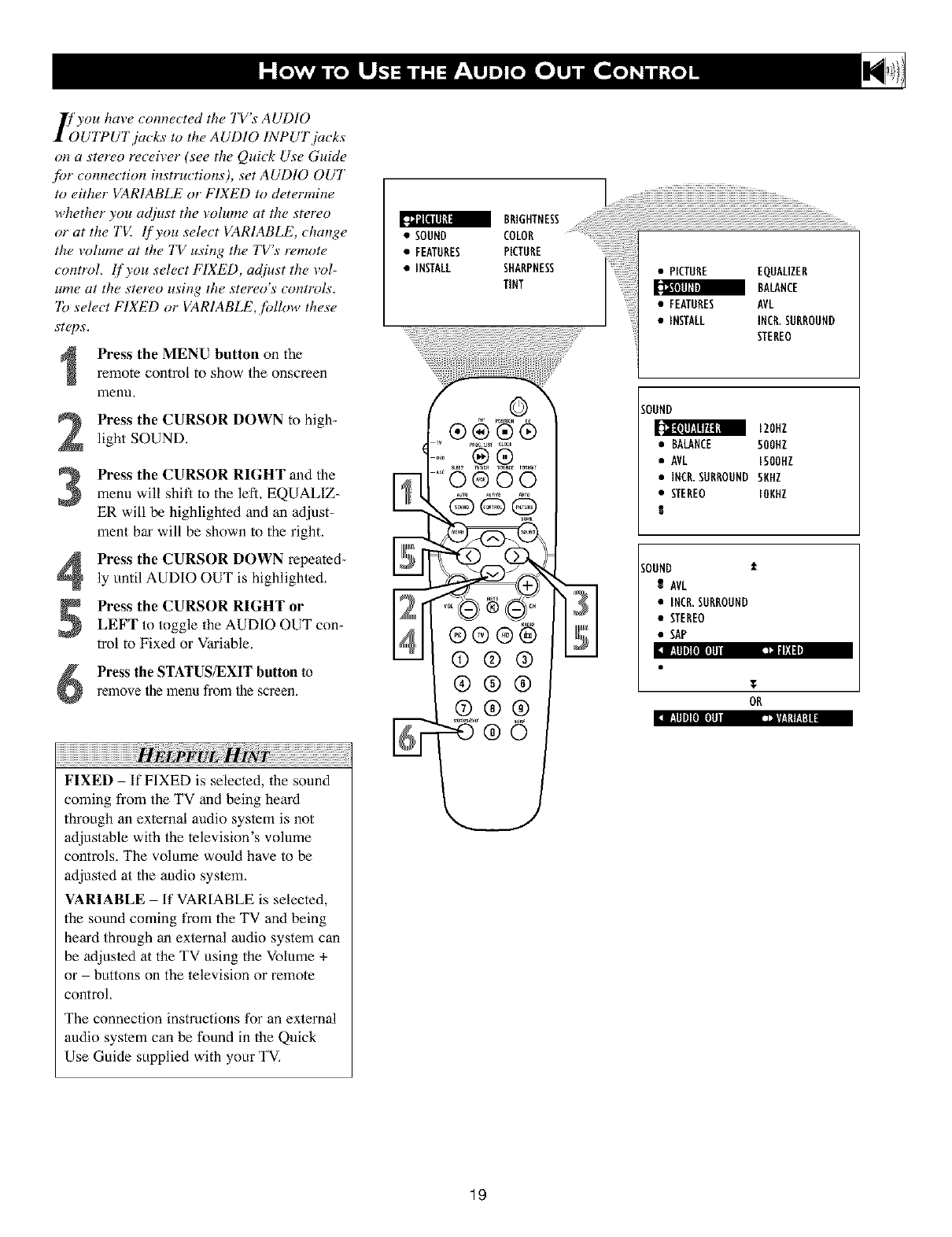

How to use the Audio Out Control ................... 19

Turning the TV Speakers on or off ................... 20

DFeatures Menu

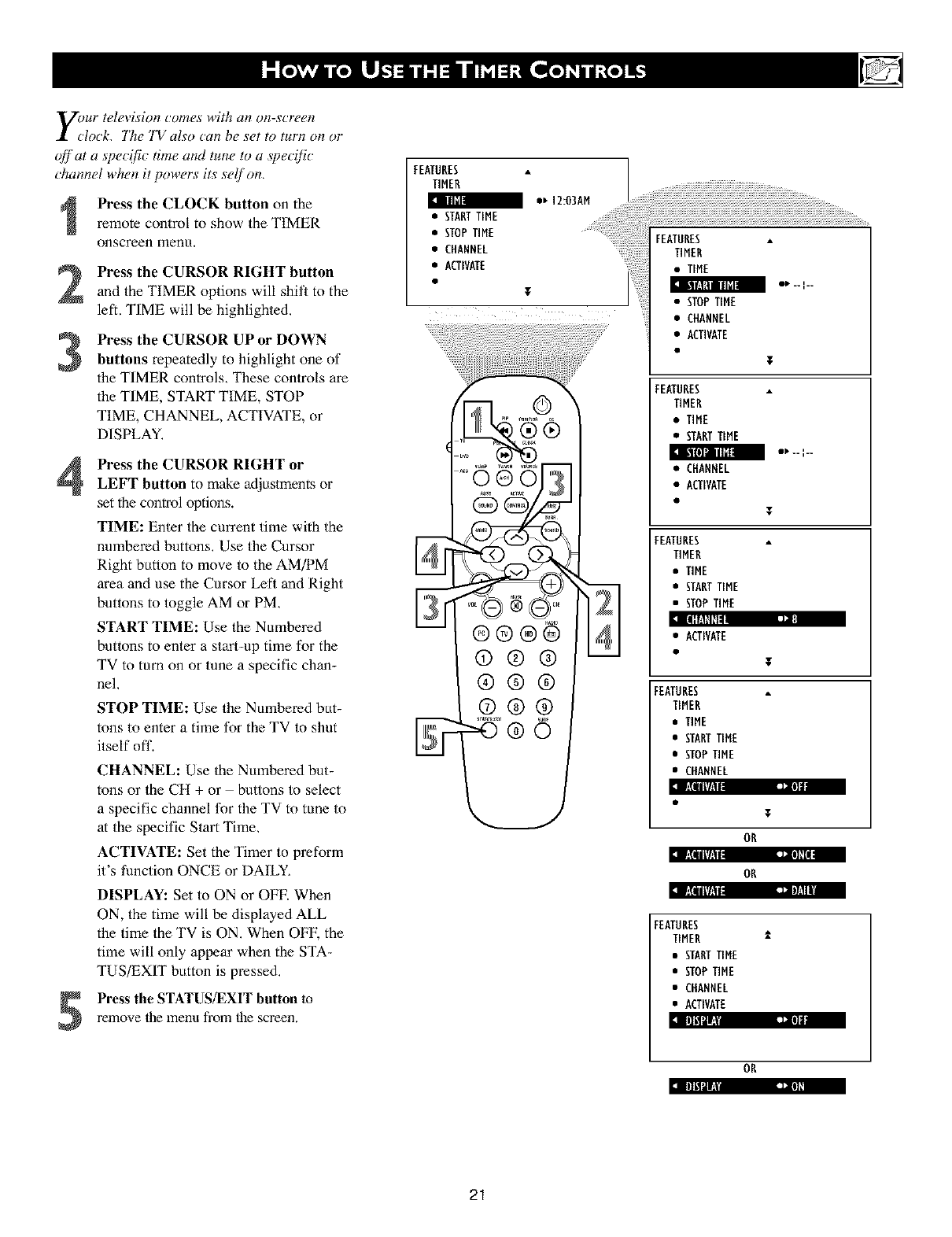

How to use the Timer Controls ............... 21

How to use the Mode Select Control ................. 22

How to set the Active Control ...................... 23

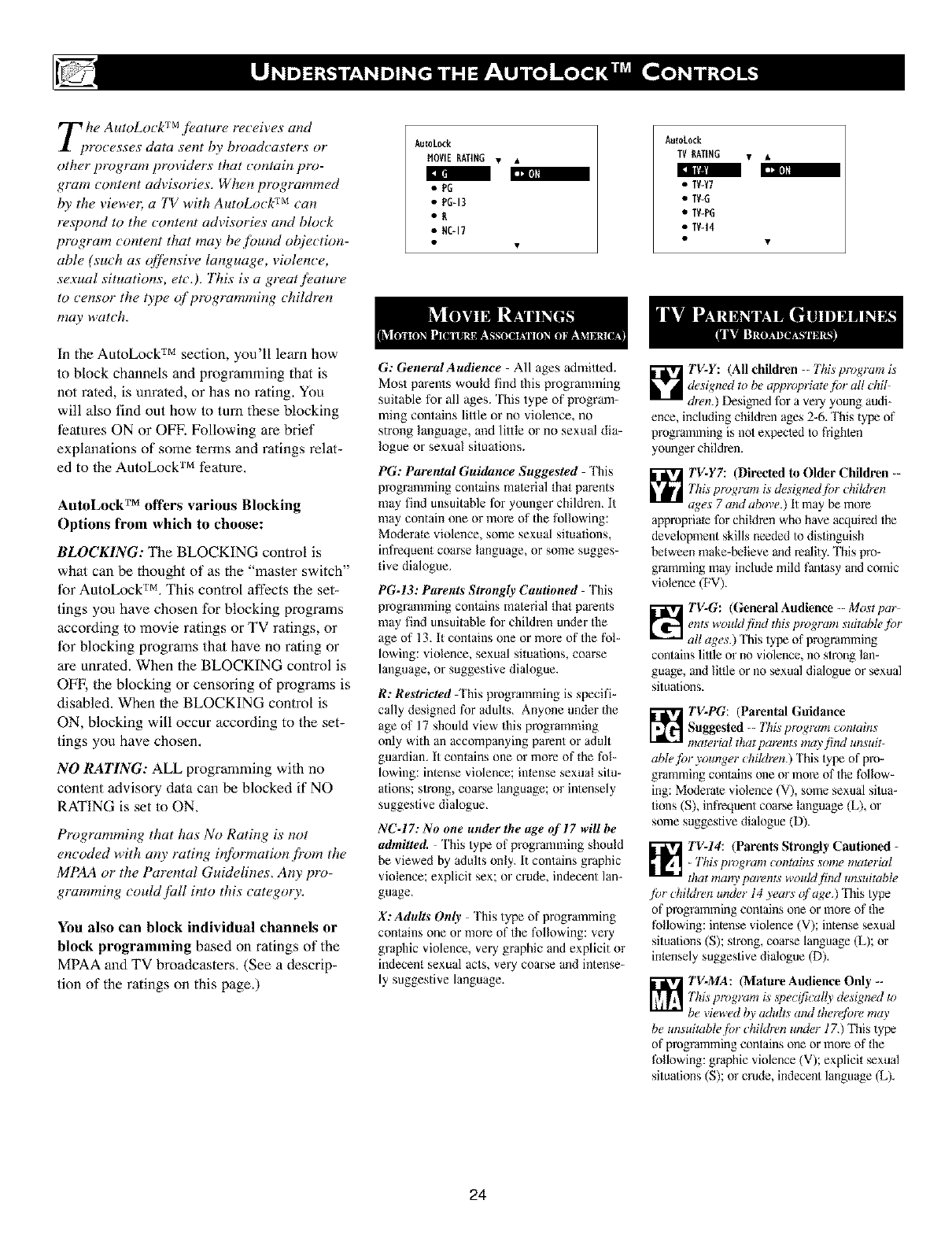

Understanding the AutoLock TM Controls .............. 24

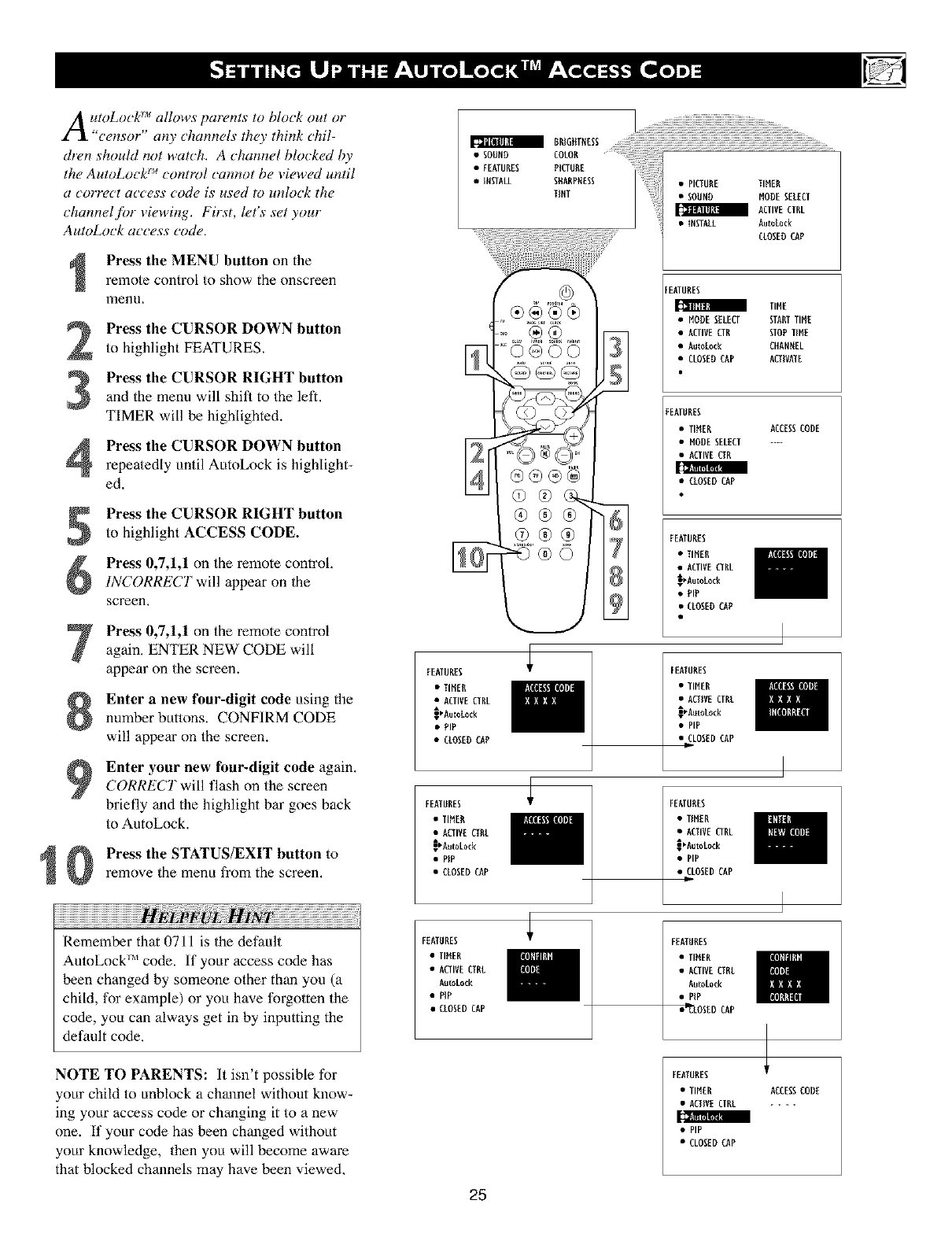

Setting up the AutoLock TM Access Code .............. 25

How to Block Channels ........................... 26

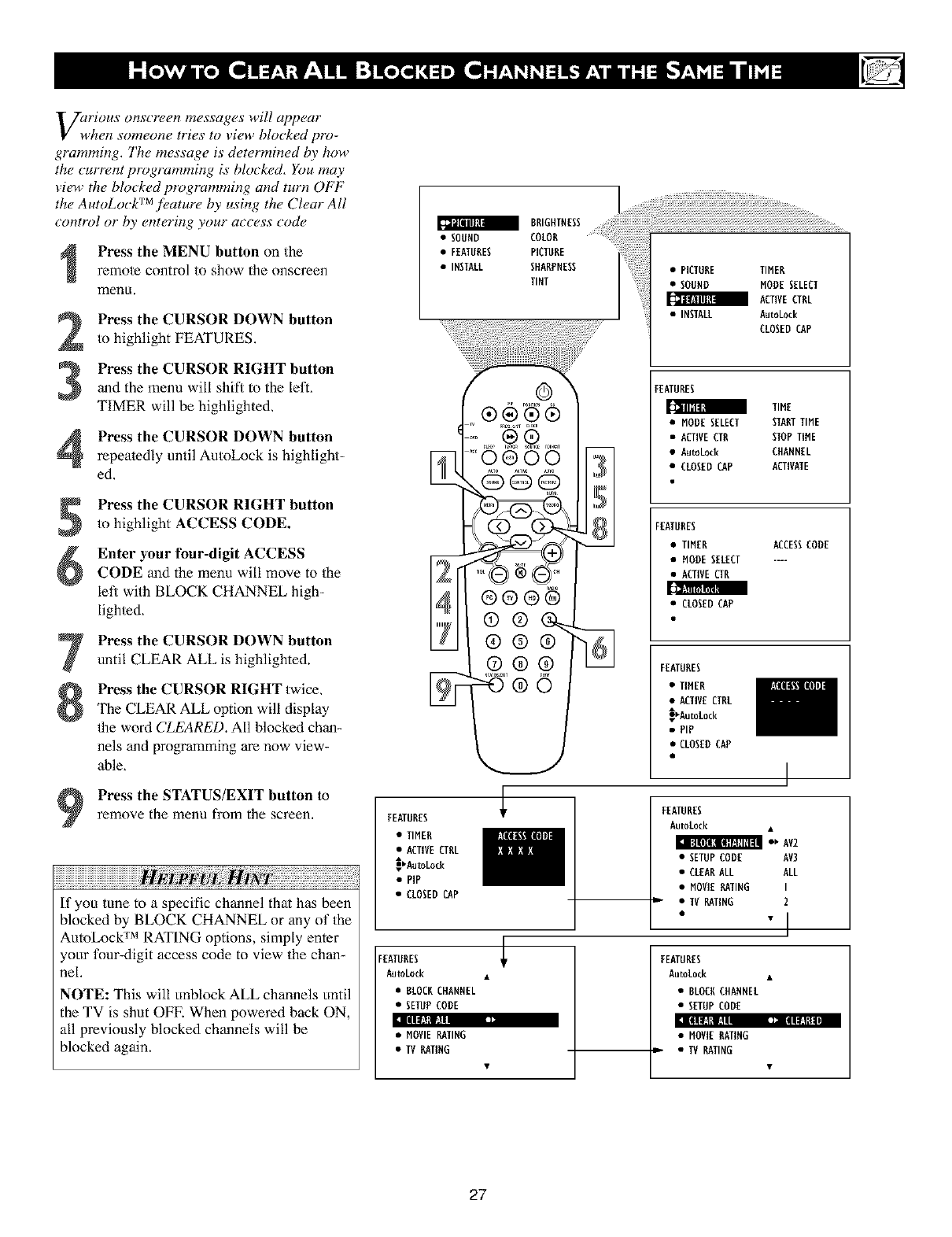

How to Clear All Blocked Channels at the Same Time .. ,27

Blocking Programming Based on Movie Ratings ....... 28

Blocking Programming Based on TV Ratings .......... 29

OIher AutoLock TM Blocking Options ................. 30

Using the AutoLock TM Review Screen ................ 31

_Remote Control Use

How to use the Closed Captioning Control ...... 32

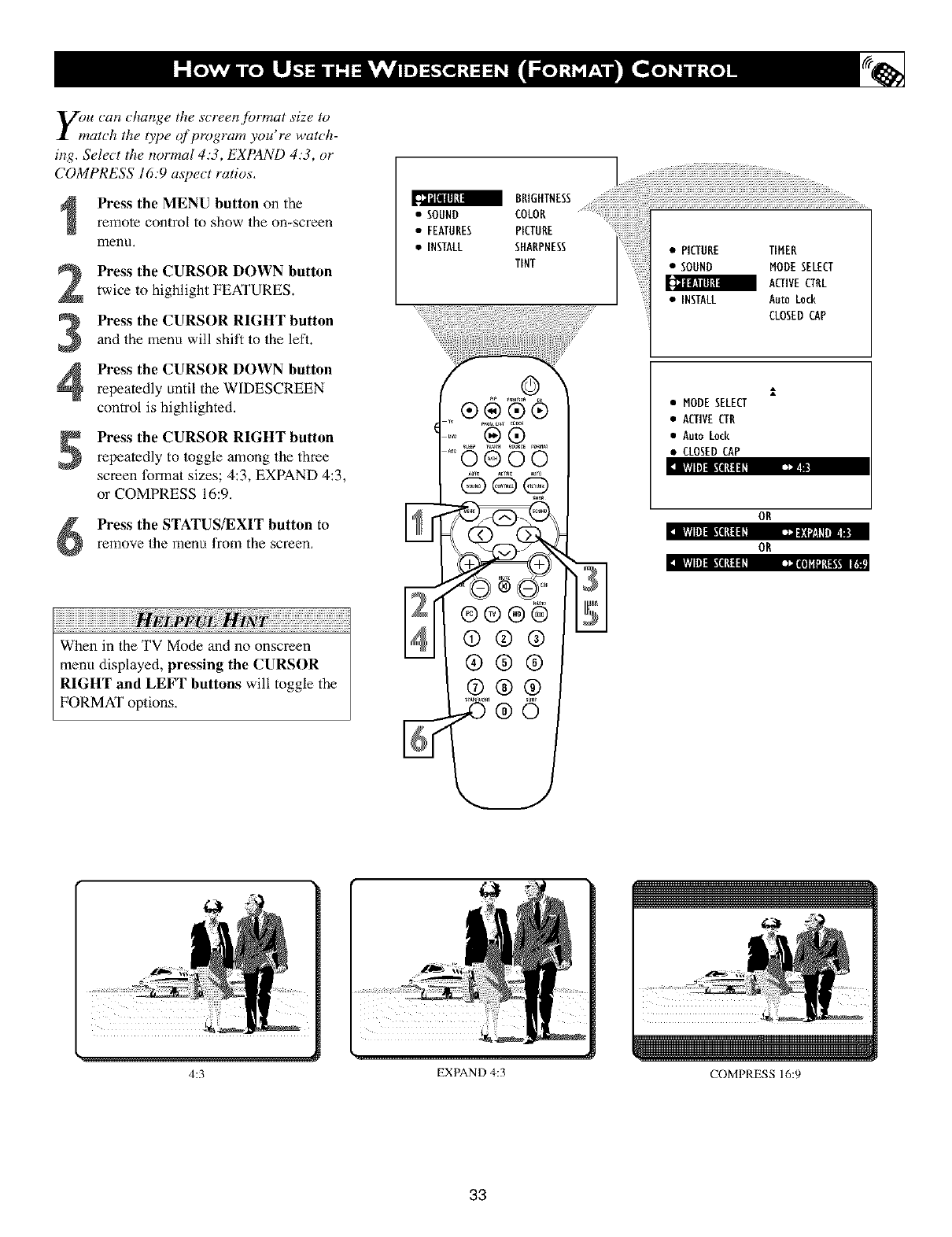

How to use the Widescreen Control (Formal) .......... 33

How to use the Program List Feature ................. 34

Setting the Sleeptimer Control ...................... 35

Setting the AutoPicture TM Control ................... 36

Setting the AutoSound TM Control .................... 37

Using the Surf Control ............................ 38

Programming the Remote Control for Accessory Devices

Direct Access Method ............................ 39

Code Entry Method ............................. 40

Search Code Method ............................ 41

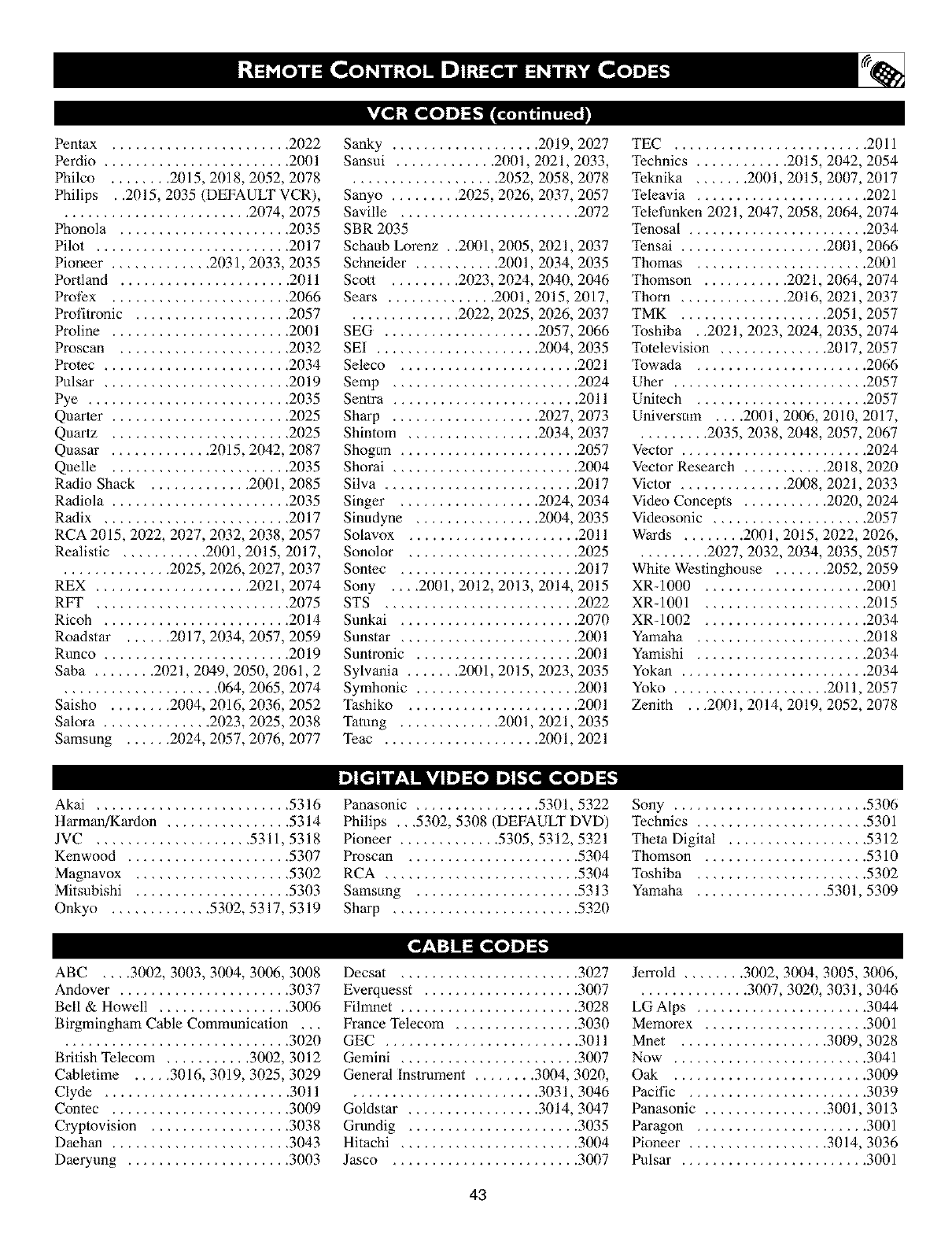

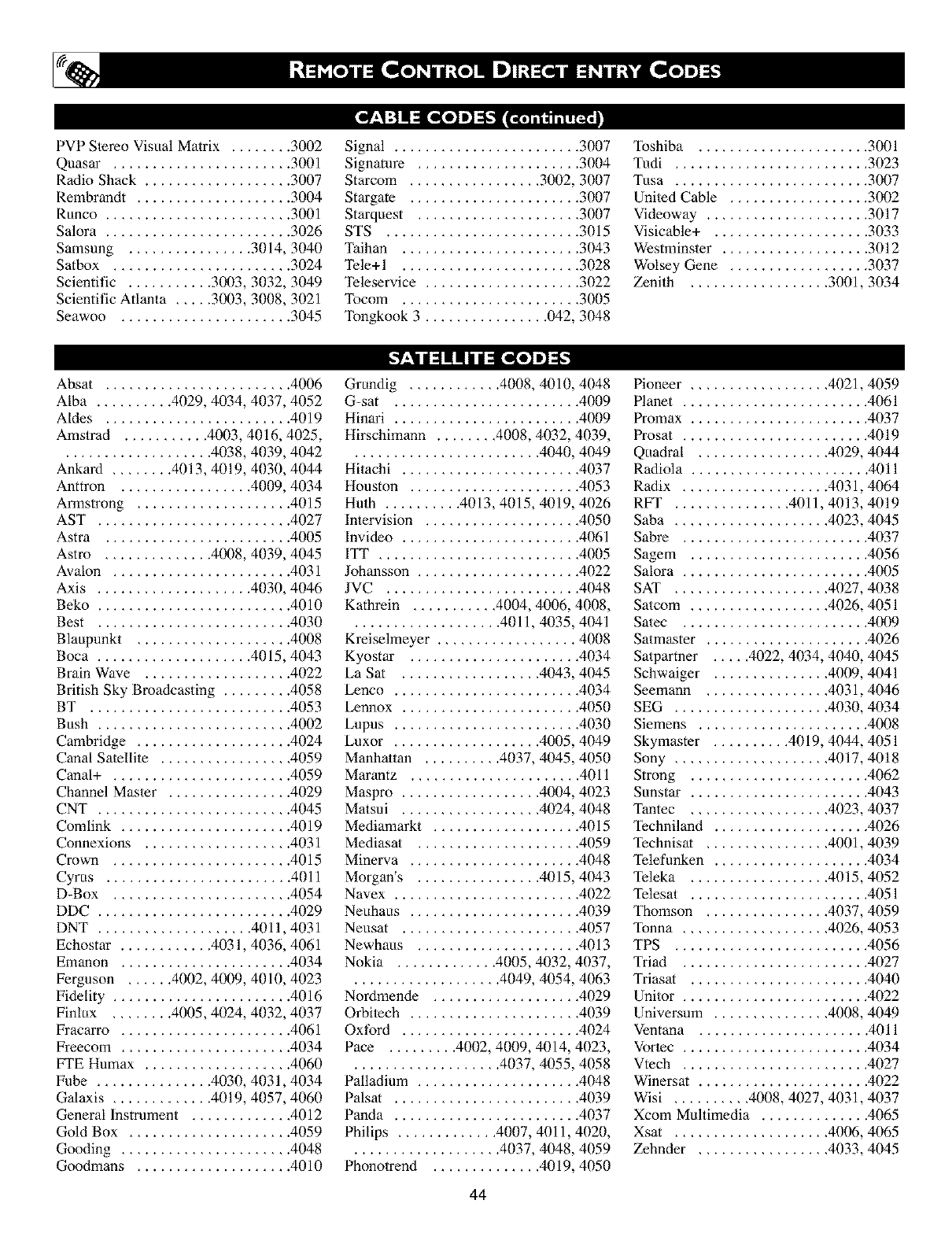

Remote Code List ............................ 42-44

Accessory Device Remote Control Buttons ........... 45

_FM Radio Mode

Using FM Mode information .............. 46-52

_HD (High Definition) Mode

How to use the HD Mode and it s Features ,, ,53-56

_PC Mode

How to use the PC Mode Features .......... 57-58

General Information

Troubleshooting Tips ....................... 59

Cleaning and Care ................................ 59

Glossary of Terms ................................ 60

Index .......................................... 61

Factory Service Location ........................ 62-63

Warranty ....................................... 64

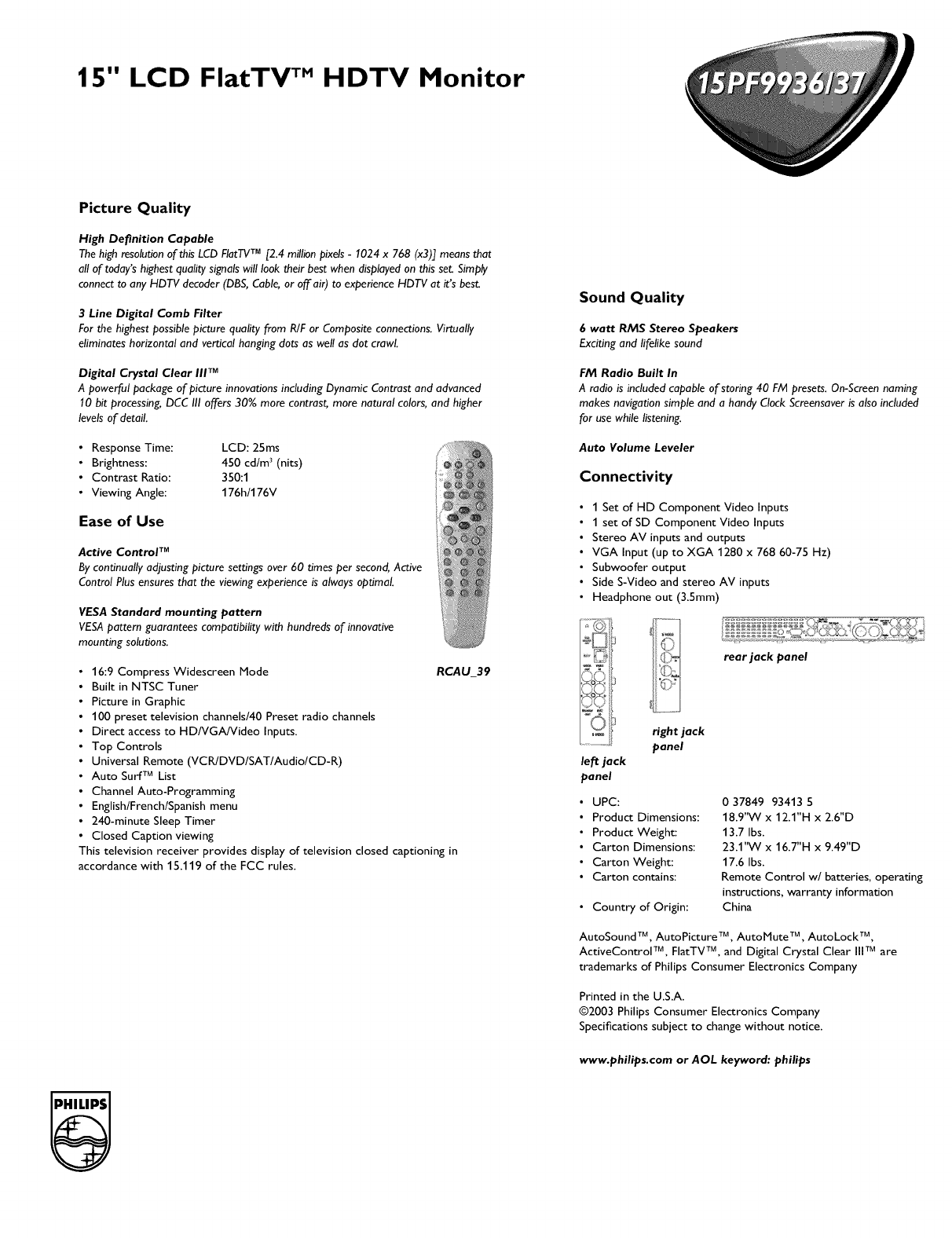

Here are a few of the,features built into your new Television:

Active Control TM continuously measures and corrects all incoming

signals to help provide the best picture quality, q_is feature moni-

tors and corrects both the sharpness control and noise reduction

control.

Audio/Video Jack Panels allows direct connections with VCRs,

DVDs, PCs or other devices, providing quality TV picture and

sound playback.

Audio Volume Leveler (AVL) Control keeps the TV sound at an

even level. Peaks and valleys that occur during program changes or

commercial breaks are reduced, making for a more consistent, com-

fortable sound.

AutoChron TM automatically sets the right time of day and main-

tains it with digital precision through brownouts, power failures,

and even Daylight Savings Time adjustments.

AutoLock TM allows you to block the viewing of certain channels or

programs with certain rulings if you do not want your children to

view inappropriate malerials+

Auto Programming scans (when activaled) for all available chan-

nels from regular antenna or cable signals and stores only active

broadcast stalions in the TV's memory.

AutoPicture TM allows you to change the picture settings (color,

tint, contrast, etc+) for various types of programming, such as

sports, movies, multimedia (games), or weak signals with the push

of one button.

AutoSound TM allows you to select from three factory-set controls

and a personal control that you set according to your own prefer-

ences through the onscreen Sound menu, "l_e three factory-set con-

trols (Voice, Music, and Theatre) enable you to tailor the TV sound

so as to enhance the parlicalar programming you are watching,

Closed Captioning allows the viewer to read TV program dialogue

or voice conversations as onscreen text.

Infrared Remote Control works your TV and other remote-con-

trolled devices, such as VCRs, DVD players, cable converters, and

satellite receivers.

Surf Button allows you to easily switch among only the channels

that are of interest to you (the ones that you have

programmed into the TV's Surf control through the onscreen

menu).

Timer allows you to set your TV to tUlTlitself ON and OFF once or

daily like an alarm clock.

Active Control, Auto Lock, Auto Picture, Auto Sound,

are all registered trademarks of Philips Consumer E[ectronics Company.

For or Spanish- and French-speaking 1V

owners, an onscreen LANGUAGE option

is present, The LANGUAGE control enables

you to set the TV's onscreen menu to be

shown in either English, Spanish, or French,

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button

to shit_ the menu to the left and high_

light LANGUAGE.

Press the CURSOR RIGHT button

to highlight the LANGUAGE control

options,

Press the CURSOR UP or CURSORDOWN button to select ENGLISH,

ESPANOL (Spanish), or FRANCAIS

(French),

Press the STATUS/EXIT button toclear the menu from the screen,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil ii !i!i!i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸¸

Remember, the LANGUAGE control makes

only the TV's onscreen MENU items appear

in English, Spanish, or French text, It does

not change the other onscreen text t?atures,

such as Closed Captioning (CC), with TV

shows,

L._iUmJmI BRIGHTNESS .....................

•SOUND COLOR ............

•"EERTHRESINsTRLLSHARPNEssP'CTORE

TINT • PICTURE LANGUAGE

• SOUND TUNER MODE

•FEATURES AUTO PROGRAM

CHANNEL EDIT

AutoChron

INSTALL

_ ENGLISH

•TUNERMODE FRANCAIS

• AUTOPROGRAM ESPAROL

• CHANNELEDIT

•Au_Chron

INSTALL

LANGUAGE

• TUNERMODE

• AUTOPROGRAM

• CHANNELEDIT

• Au_Ch_n

Tthe TUNER MODE allows you to change

he TV s signal input to CABLE, ANTEN-

NA, or AUTO mode,. It's" important for the TV

to know if you want to receive channels fr_)m

a cable TV signal or a normal antenna signal,

NOTE: The AUTO mod¢_ setting helps the TV

ch,t¢_rmine the type of signal or' channels being

received when AUTO PROGRAM is activat-

ed,

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT buttonto shill the menu to the left.

Press the CURSOR DOWN button to

highlight the TUNER MODE control.

Press the CURSOR RIGHT buttonto highlight the tuner options.

6Press the CURSOR UP or CURSOR

DOWN button to select CABLE,

ANTENNA or AUTO.

If TUNER MODE is set to AUTO,

Auto Program (see below) will delect

whether or not cable input is present.

i:' illl[ll_t I+O]l]d

Press the STATUS/EXIT button to

clear the menu from the screen,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸¸

When CABLE is selected, channels l 125

are available,

When ANTENNA is selected, channels

2_9 are available,

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

®®

®®®®

®®®

•PICTURE LANGUAGE

•SOUND TUNER MODE

•FEATURES AUTO PROGBAM

CHANNEL EDIT

AutoChron

_ENGLISH

• TUNERMODE FRANCAIS

• AUTOPROGRAM ESPANOL

• CHANNELEDIT

•AutoChron

•LANGUAGE

-_ANTENNA

• AUTO PROGRAM AUTO

•CHANNEL EDIT CABLE

•AutoChron

•LANGUAGE

TUNER MODE

• AUTO PROGRAM

• CHANNEL EDIT

•AutoCh_n

B)ur TV can automatically set itse!f.f!)r

ocal area (ol- cable TV) chalmels. This

makes it easy f!)r you to select only the TV

stations in your area by pressing the CHAN-

NEL (+) ol- (-) button,

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button

to shit_ the menu to the left. LAN-

GUAGE will be highlighted.

Press the CURSOR DOWN button

repeatedly until the AUTO PROGf_,AM

control is highlighted.

Press the CURSOR RIGHT button

to start the Auto Program scanning of

channels.

Press the STATUS/EXIT button to

clear the menu from the screen,

Afler you've mn Auto Program, check out

the results. Press the CHANNEL (+) or (-)

button and see which channels you can

select.

Remember, an anlenna or cable TV signal

must first be connecmd to your TV (see

instructions for making connections on page

1 of this guide).

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

'=0®00

®®@

®@@

@@@

•PICTURE LANGUAGE

•SOUND TUNER MODE

•FEATURES AUTO PROGRAM

CHANNELEDIT

AutoChron

INSTALL

Illll I._lI[rlly._IflIII e_.ENGLISH

•TUNERMODE FRANCAIS

•AUTO PROGRAM ESPANOL

• CHANNELEDIT

•AutoChron

INSTALL

•LANGUAGE

•TUNER MODE

e_SEANCH[1.*111111d_l*IM;!,.lt

•CHANNEL EDIT

• AutoCh_n

INSTALL

•LANGUAGE

•TUNER MODE

4 AUTO PROGRAM

•CHANNEL EDIT

•AutoChron

CHANNEL EDIT makes it easy,?br you to

add o1"delete channels,firm the list qf

channels stored in the TV's memo13,.

Press the MENU button on the remote

control to show the onscreen menu.

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

Press the CURSOR RIGHT button to

shift the menu to the left. LANGUAGE

will be highlighted.

Press the CURSOR DOWN button

repeatedly until the CHANNEL EDIT

control is highlighted.

Press the CURSOR RIGHT button to

access the CHANNEL EDIT menu.

Press the CURSOR UP or CURSOR

DOWN button to scroll lhrough 1helist

of available channels. Or press 1henum-

ber buttons on your remote control to

select a specific channel (for example,

press 0and then 2to select channel 2).

7With the channel you want lo edit selecl-

ed, press the CURSOR RIGHT button

to mark the channel as SKIPPED. "l_e

channel you've marked SKIPPED will

not appear when you are changing from

channel to channel while watching TV.

NOTE: When you want to add a channel that

has been marked SKIPPED, press the CUR-

SOR UP or CURSOR DOWN button to

highlight the channel; then press the CUR-

SOR RIGHT button to remove the word

SKIPPED.

The channels available for you to edit are the

ones that the AUTO PROGRAM feature

fimnd through a search of your TV antenna

or cable TV signals, Channels not found dur-

ing the search are marked SKIPPED.

BRIGHTNESS.......

• SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

_u _0G u_r CLACK

0,0 ®®

®®®®

®®®

•PICTURE LANGUAGE

•SOUND TUNER MODE

•FEATURES AUTO PROGRAM

CHANNEL EDIT

AutoChron

INSTALL

I_ IIF.![[_l!.*Idll *_ENGLISH

•TUNER MODE FRANCAIS

• AUTO PROGRAM ESPANOL

• CHANNELEDIT

•AutoChron

INSTALL

• LANGUAGE

•TUNERMODE 2

•AutoChron 5

l¥

INSTALL

•LANGUAGE

•TUNER MODE

•AUTO PROGRAM

CHANNELEDIT

• AutoChron

| T

INSTALL

•LANGUAGE

•TUNER MODE

• AUTO PROGRAM

CHANNEL EDIT

• AutoCh_n

AutoChFon _an automatt_ally set the TVs

l_Xonscreen clock, Because the time is

re_eived ti"om a broadcast signal, you must be

surc_ that a cable TV o1"antenna signal is prc_s-

ent betbre you attempt to use the AutoChron TM

f_J£1IH1Y_,

Press the MENU button on the remote

to show the onscreen menu.

Press the CURSOR DOWN button

repeatedly until INSTALL is highlight-

ed.

I_ IllJ[[dl_;[H U

Press the CURSOR RIGHT button to

shift the menu to the left. LANGUAGE

will be highlighted.

Press the CURSOR DOWN button

until the AutoChron control is highlight-

ed.

Press the CURSOR RIGHT button to

s/art the AutoChron TM feature. Then just

follow the onscreen instructions to set

the clock,

Press the CURSOR RIGHT button toselect AUTO, Within a few seconds, a

menu for choosing your time zone will

appear.

Press the CURSOR UPor CURSORDOWN button to highlight your correct

time zone.

With your correct time zone high-

lighted, press the CURSOR RIGHT

button. Within a few seconds, you will

be given the option to choose whether

you want to select Daylight Savings

Time, If your time zone uses Daylight

Savings, select YES.

Enter your local PBS channel or any

local channel that transmitthe current

time, and press the CURSOR RIGHT

button to start the searching process, If

the AutoChron TM features finds the cur-

rent time you are done. If it doenot find

the current time, re-enter an o/her chan-

nel and search again.

When tinned ON, the AutoChron TM feature

can affect the start up of your lelevision,

When the power button is press and the

AutoChron TM feature is set to the AUTO

position, the TV will scan the channels tk)r a

PBS channel to set the clock automatically,

It may take SEVERAL seconds betbre the

TV Ix)wers itself ON,

SOUNDEOLDRRR'0NTN"E0' " ! i! i!ii!iiiiiiiiiiiiiiiiiiiiii!!!iiiii.....................................

•• INSTALLFERTUHESSHRRPNESETINTPICTURE:[3/ EHRNNELEDIT

•PICTURE LANGUAGE

•SOUND TUNERNODE

•FEATURES AUTO PROSIER

.... ...... R.oEh 0.

tNSTRLR

INSTALL

•LANGUAGE

•TUNER MODE

•AUTO PROGILAN

•CHANNELEDIT

•RutoEhron

_ENGLISH

•TUNER MODE F_HCRIE

•AUTO PROGRAM EERANOL

• ENANNEL ENT

•RutoERron

INSTALL

• LANOUROE

•TUNERNODE EElTIME

•RUIOPROORAM

• ENANNELEDIT

E RT!T_$TE_ • _RUTO

NANDAL

INSTALL

•LANOUROE

•TUNER NODE

-- • AUTO PROORAN

• CNANNEL EDIT

•RutoERron

INSTALL

•LANOUROE

•TUNERNODE

•AUTO PRO0_N

• ENANNELENT

•Rut0ERr0n

INSTALL

•LANGUAGE

•TUNERNODE

•AUTO PROGRAN

• CNANNEL EDIT

• RutoERron

INSTRLL

•LANGUROE

•TUNER NODE

• AUTO PROGRRN

•CHANNELEDIT

AutoEhro_

INSTALL

• LAHGDAGE

• TUNER _ODE

• AUTO PROGRAN

• CHRHNELEDiT

• AutoChron

INSTALL

• LAHGURGE

• TUNER NODE

• AUTO PROGRAN

• CHRHNELEDiT

AutoChro_

T_w channel NAME.fi, ature allows you to list

he "call" letters qf your fin,orite stations

beside their channel numbers when the)"

appear on the screen. 77w TV has its memo 0, a

list of the 50 most popular channel names (fi)r

example, ABC, NBC, FOX, etc.). Ybu also can

enter a custom name (up to five characters).

Tune to a specific channel that you want to

add a label to, then;

Press the MENU button on the remote

control to show the onscreen menu+

Press the CURSOR DOWN button

repeatedly until INSTALL in highlight-

ed.

Press the CURSOR RIGHT button toshift the menu to the left. LANGUAGE

will be highlighte&

Press the CURSOR DOWN button

repeatedly until flae NAME conlrol is

highlighted.

Press the CURSOR RIGHT button to

highlight the NAME options area.

Press the CURSOR RIGHT button

again; then press the CURSOR UP or

CURSOR DOWN button to scroll

through a list of options for the first char-

acter (A lhroagh Z, 0 through 9)+ Press

the CURSOR RIGHT button and

repeal for the second, third, fourth, and

fiflh characlers

After you have selected a name for the

channel, press the MENU button to

save the name in the TV's memory+

Press the STATUS/EXIT button to

clear the menu from the screen.

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii ! ii i ! iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸

The five characters that the channel NAME

feature allows you to input can be letters, a

dash character, or the numbers 0 through 9,

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

®®®®

©®@

®®®

(7)@@

The Channel Label or NAME will appear

when evel a channel change is nlade oi

when the STATUS/EXIT button is pressed.

•PICTURE LANGUAGE

• SOUND TUNERMODE

•FEATURES AUTOPROGRAM

CHANNELEDIT

AutoChron

INSTALL

:_ ENGLISH

:I|,.ll[ltl/_lli

•TUNERMODE FRANCAIS

•AUTOPROGRAM ESPANOL

•CHANNELEDIT

•AumChron

INSTALL

•TUNERMODE

•AUTOPROGRAM

• CHANNELEDff

•AutoChron

[ Ill:fill 1_ PERSONAL

INSTALL

•TUNERMODE

• AUTOPROGRAM

iNNELEDII

INSTALL

•TUNERMODE

•AUTOPROGRAM

•CHANNELEDIT

•AumChron

•NAME

r'_) adiust your TV picture controls, select a

Ichamwl andfi_llow these steps,

Press the MENU button on the remote

control to show the onscreen lnena. PIC-

TURE will be highlighted.

Press the CURSOR RIGHT and the menu

will shift to the left BRIGHTNESS will be

highlighted and an adjustment bar will be

shown to the fight.

II_litlltllllll

Use the CURSOR LEFT or RIGHT to

adjust the BRIGHTNESS level of the pic-

tare.

After adjusting the BRIGHTNESS con-

trol, press the CURSOR DOWN to

select another picture adjasllnent:

COLOR, PICTURE, SHARPNESS,

TINT, COLOR TEMP, DNR, or CON-

TP,AST +, Press the CURSOR LEFT

or RIGHT to adjust the selected control.

NOTE: "l_e menu will show only five ilems a/a

time, so you will need to continue scrolling with

the CURSOR DOWN to adjust the TINT,

COLOR TEMR DNR, or CONTP, AST +,

iiilllnl

IIg[llllll

Press the STATUS/EXIT button to

remove the menu fl'om the screen.

Remember, when the bar scale is centered

, the control settings are at

normal, mid-range levels, Picture adjust-

ments are descried here.

NOTE: The SHARPNESS and TINT

Controls will not be available for adjust-

ments when tuned to the CVI Inputs (CVI

Channel),

BRIGHTNESS adds or subtracts light

from the darkest part of the picture.

COLOR adds or eliminates color.

PICTURE improves the detail of the light-

est parts of the picture.

SHARPNESS improves the detail in the

ictare,

TINT adjusts the picture lo obtain natural

skin tones.

COLOR TEMP - offers NORMAL (keeps

whites, while), COOL (makes whites, bluish),

or WARM (makes whites, reddish) picture

?references.

DNR can help eliminate slightly "speck-

led" picture (an indication of signal noise in

the picture).

CONTRAST + helps to "sharpen" the

picture quality, The black Ix)rtions of the

?icture _come richer in darkness and the

whites become brighler.

BRIGHTNESS

• SONND COCOP_

• FEATURES PICTUBE

• INSTALL SHARPNESS

TINT

T, 6

"0 oo

©©©

®®®®

®®®

®®(9

PICTHBE •

•BPdGHTNESS

• COLOR

• PICTURE

• SHARPNESS

:l kIl_13th

IIII1_1 :n [lllln]illlll_l ,l Ilrl]ll_l

PICTURE t_

• PICTHBE

• SHARPNESS

• TINT

• COLORTEHP

PICTHBE

• COLOR

• PICTURE

• SHARPNESS

• TINT

PICTHBE

• BRIGHTNESS

• PICTNBE

• SHARPNESS

I TINT

PICTHBE

•BRIGHTNESS

• COLOB

• SHABPNESS

I TINT

PICTHBE

•BRIGHTNESS

• COLOB

•PICTURE

• TINT


• COLOR

• PICTURE

• SHABPNESS

• TINT

PICTHBE

gPICTURE

• SHAP,PNESS

•TINT

•DNB

:1 [lul III[f!vl

]llll,

The Equalizer Contlvls allow you to adiust the

sound /?equencies to suit the type _f program-

ming be watched.

Press the MENU button on the remote

control to show the onscreen menu.

Press the CURSOR DOWN button

repeatedly until SOUND in highlighted.

S Press the CURSOR RIGHT button to

shift the menu to the left. EQUALIZER

will be highlighted.

Press the CURSOR RIGHT button to

highlight the EQUALIZER options area.

Press the CURSOR UPor DOWN

buttons to highlight any of the frequen-

cy options.

Press the CURSOR RIGHT or LEFT

buttons to adjust the control slider to the

level desired.

Once all the Equalizer controls havebeen set, press the STATUS/EXIT but-

ton to clear the menu from the screen.

BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

• iNSTALL SHARPNESS

TiNT

•PICTURE EQUAUZEB

BALANCE

•FEATURES AVL

• iNSTALL INC_SURROUND

STEREO

SOUND

120HZ

• BALANCE 500HZ

• AVL ISOOHZ

•IHCR.SHBROHND 5KHZ

• STEREO IOKHZ

SOUND

EQHAUZEB

_m1!!'l •

•SOOHZ -2

•i500HZ _1_ 0

•SKHZ _6

•IOKHZ _3

T_/e Balance Control will allow you to at!just

he sound levels between the right and left

speaker ou&ut.

iPress the MENU button on the remote

control to show the onscreen menu, PIC-

TURE will be highlighted.

Press the CURSOR DOWN button

repeatedly until SOUND in highlighted.

Press the CURSOR RIGHT button to

shift the menu to the lefL EQUALIZER

will be highlighted.

Press the CURSOR DOWN to highlight

Ihe BALANCE control,

Press CURSOR RIGHT or LEFT but-

tons to adjust lhe sound between the right

and left speakers.

Press the STATUS/EXIT button to

relnove the menu from the screen,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii !i !i !i

When the Balance Control slider is at a set-

ting of "0", both lef/and right speakers

should have equal sound level between them,

•SOUNOEOLOR"IONTNESS

•FEATURES PICTURE

•INSTALL SHARPNESS

TiNT •PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

120HZ

• BALANCE 500HZ

• AVL ISOOHZ

•INCR. SURROUND 5NHZ

• STEREO IOKHZ

SOUND

•EQUALIZER

Hi_l;fdf:t_r

•AVL

• INC_SURROUND

•STEREO

I_i+ most _ases, the volume levels coming

om broadcast programming or commer-

cials arc, never the same, With the AVL

(Audio Volume Le_eh, r) control turned ON,

you can have the TV level out sound that is

being heard, This makes f!)r a more _onsis-

t_mt sound by reducing the peaks and vallo's

that occur during program _hanges or _om-

inertial breaks. "lb turn the AVL ON, follow

these steps,

Press the MENU button on the

remote control to show the onscreen

menn,

Press the CURSOR DOWN to high+

light SOUND.

Press the CURSOR RIGHT and the

menu will shit_ to the left. EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until AVL is highlighted.

Press the CURSOR RIGHT or

LEFT to toggle AVL ON or OFF.

Press the STATUS/EXIT button to

remove the menu fi'om the screen.

.s00NuCOLoN+TNESS

• FEATURES PICTURE

• INSTALL SHARPNESS

TINT

_,>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>,,

!i!!i!!i !!i!!i!!

• PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

120HZ

• BALANCE 500HZ

• AVL ISOOHZ

•INCR. SUNNOUND 5KHZ

•STEREO IOKHZ

SOUND

•EQUALIZER

•BALANCE

•INCR. SNRRONND

• STEREO

e Incredible Surround feature adds

rearer dapth and dimension to both mon-

aural (MONO) and sterao TV sound, With

the _ontrol set to INCR, SURROUND

(ln_redibl_ Surround), the TV's speak_rs can

add e_en wid_r sound separation to normal

broadcasts.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT and the

menu will shit_ to the left, EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until INCR. SURROUND is high_

lighted. (Incredible Surround)

Press the CURSOR RIGHT or

LEFT to toggle the INCR, SUR-

ROUND control settings.

If signal is Stereo: Select STEREO, or

INCR. SURROUND,

tII+[l_ll.11lIl_{llll+ll_ 1:nl+llti_lllt!talll+l

If signal is MONO: Select MONO, or

SPATIAL.

Press the STATUS/EXIT button to

relnove the menu from the screen.

III_IIlli!llLIlalll_lwm u_Hl_.

You can also change the INCR. SUR-

ROUND onscreen menu control set-

tings by pressing the SURR. (sur-

round) SOUND button on the remote

control,

tII+I|lli!lll!laIIl+ll: N+[I]+I

III_IIlli¶llLIlaIIl_l_, tJ_l_,.|n

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiil i !i!i!i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii¸¸

SPATIAL widens the sound, simulating a

broader, fuller sound,

INCR. SURROUND widens the sound,

simulating a broader, fuller sound.

BRIGHTNESS

•SOUND COLOR ..........................

•FEATURES PICTURE ...................

•INSTALL SHARPNESS

TINT

®®(i)

®®®

•PICTURE EQUALIZER

BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

120HZ

•BALANCE SOOHZ

• AVL I5UUHZ

•INC_SURROUND SKHZ

• STEREO lOgHZ

IF STEREO:

SOUND

•EQUAUZER

• BALANCE

• AVL

• STEREO

IF HONO:

y_u can receive broadcast stereo TV pro-

rams, The TV has both an amplifier and

twin speakers through which the stereo sound

can be heaiJ,

iPress the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT and the

menu will shit_ to the left, EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until STEREO is highlighted,

Press the CURSOR RIGHT or

LEFT to toggle the STEREO control

to Stereo or Mono,

Press the STATUS/EXIT button to

relnove the menu from the screen.

Remember, if stereo is not present on a

selected show and the TV is placed in the

STEREO mode, the sound coming t¥om the

set will remain monaural.

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

•PICTURE EQUALIZER

BALANCE

•FEATURES AVL

•INSTALL INCR.SURROUND

STEREO

120HZ

• BALANCE SOOHZ

• AVL 1500HZ

•INC_SURROUNDSNHZ

•STEREO IONHZ

SOUND

• EQUALIZER

• BALANCE

• AVL

•INCR. SURROUND

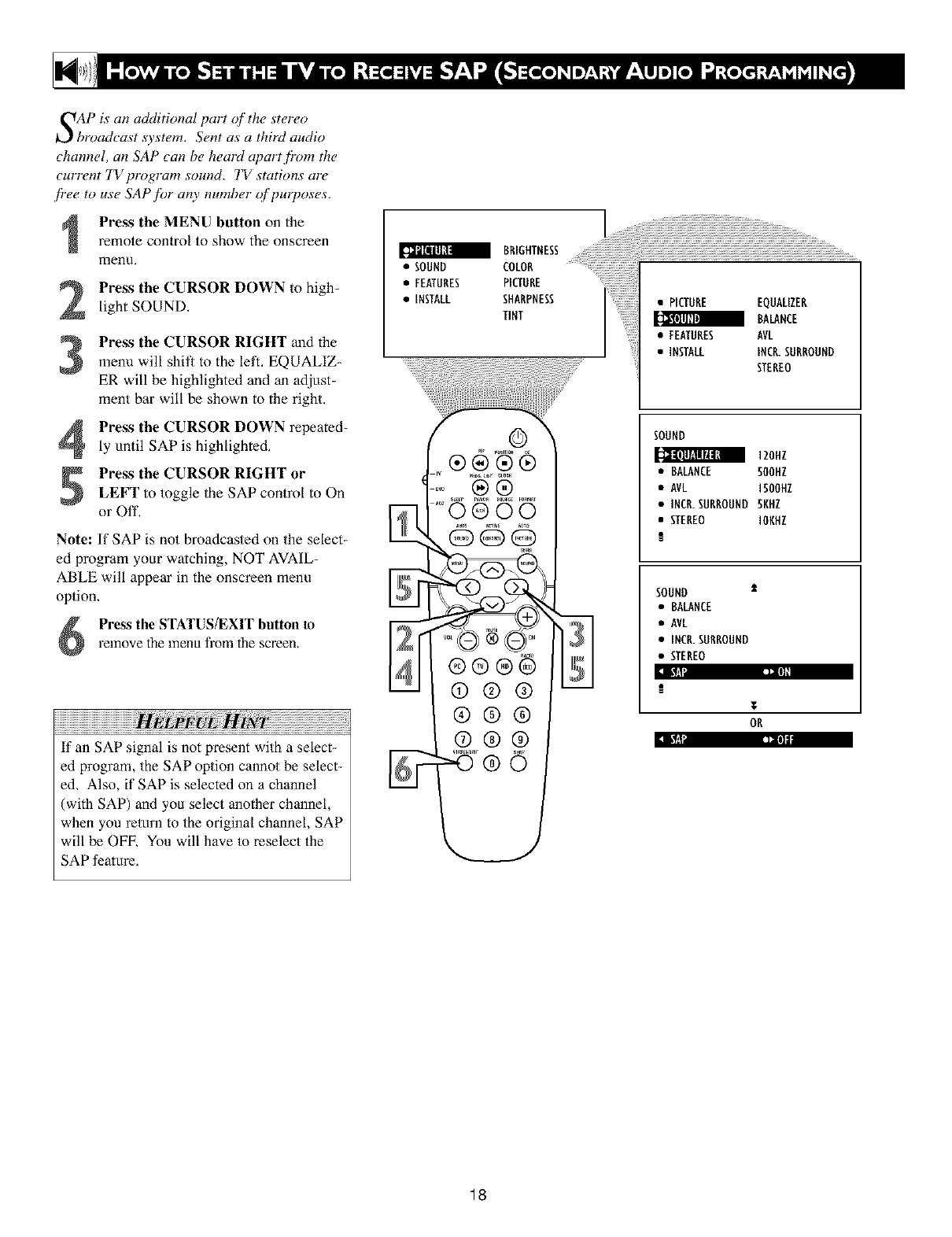

SAP is an additional part qf' the stereo

broadcast system. Sent as a third audio

channel, an SAP can be heard apart fi'om the

current TV program sound. TV stations are

fi"ee to use SAP fi)r an), number c)f purposes.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT and themenu will shit_ to the left, EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until SAP is highlighted,

Press the CURSOR RIGHT or

LEFT to toggle the SAP control to On

or Off,

Note: If SAP is not broadcasted on the seLect-

ed program your watching, NOT AVAIL-

ABLE will appear in the onscreen menu

option,

Press the STATUS/EXIT button to

relnove the menu from the screen.

If an SAP signal is not present with a select-

ed program, the SAP option cannot be select-

ed, Also, if SAP is selected on a channel

(with SAP) and you select another channel,

when you return to the original channel, SAP

will be OFE You will have to reselect the

SAP feature,

•SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

®®

II1_ I

•PICTURE EQUALIZER

BALANCE

•FEAIURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

120Hl

• BALANCE SOOHZ

• AVL ISOOHZ

•INCR. SURROUND SKHZ

• STEREO IOKHZ

SOUND

• BALANCE

• AVL

•INCR. SURROUND

• STEREO

_/'you have comwcted the TV s AUDIO

I')JUTPUT jacks to the AUDIO INPUT jacks

on a stereo receiver (see the Quick Use GuMe

.fiJr _om_ec tion instructions), set AUDIO OUT

to either VARIABLE or' FIXED to determine

whether you ac(iust the _olume at the stereo

or at the TVI [[you select VARIABLE, _hange

the volume at the TV using the TV's remote

(ontrol. l[you select FIXED, a4iust the _ol-

ume at the stereo using the stereo's controls.

7b select FIXED or VARIABLE, follow these

stu)s.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light SOUND.

Press the CURSOR RIGHT and themenu will shit_ to the left. EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until AUDIO OUT is highlighted,

Press the CURSOR RIGHT or

LEFT to toggle the AUDIO OUT con-

trol to Fixed or Variable. IIRIIII[III]I ]_al._I_l

Press the STATUS/EXIT button to

remove the menu fl'om the screen.

I]llll[( 1111 i=,l!|_!_.1;_i

FIXED If FIXED is selected, the sound

coming from the TV and being heard

through an external audio system is not

adjustable with the television's volume

controls, The volume would have to be

adjusted at the audio system.

VARIABLE If VARIABLE is selected,

the sound coming fi_om the TV and being

heard through an ex/emal audio system can

be adjus/ed at the TV using the Volume +

or buttons on the television or remote

control,

The connection instructions for an external

audio system can be found in the Quick

Use Guide supplied with your TV,

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

• PICTURE EQUALIZER

_ BALANCE

•FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

SOUND

IZOHZ

• BALANCE 500HZ

•AVL ISOOHZ

•INCR. SURROUND 5KHZ

• STEREO IONHZ

SOUND ±

AVL

•INCR. SURROUND

• STEREO

• SAP

U_;ing the TV's Audio (Monitor) Output

cks or the IZ._ternal Speaker connec-

tions, the TV speakers _an be turned off

allowing the t_d_,vision sound to be heard only

frz_m the ext_,rnal audio system or the ext_,rnal

speakt, rs.

i Press the MENU button on theremote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

Light SOUND,

Press the CURSOR RIGHT and the

menu will shift to the left, EQUALIZ-

ER will be highlighted and an adjust-

ment bar will be shown to the right.

Press the CURSOR DOWN repeated-

ly until TV SPEAKERS is highlighted.

Press the CURSOR RIGHT or

LEFT to toggle the TV SPEAKERS

On or Off.

Press the STATUS/EXIT button torelnove the menu from the screen.

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!i

Be sure to first ret?r to the Quick Use

Guide supplied with your TV to connect an

external attdio system to the television's

Monitor Output (audio) jacks.

BRIGHTNESS.....

•SOUND COLOR

•FEATURES PICTURE

• INSTALL SHARPNESS

TINT

0®00

•PICTURE EQUALIZER

BALANCE

:;;;;• FEATURES AVL

• INSTALL INCR.SURROUND

STEREO

;OUND

12ONE

•BALANCE SOOHZ

•AVL ISOOHZ

•INC_SURROUND SNHZ

• STEREO IONHZ

OUND ±

INCR.SUNROUND

• STEREO

• SAP

•AUDIO OUT

_IIIq t_l_lll:l[lll,,]a:_,l'l

your television comes with an on-screen

'lock. The TV also can be set to turn on or

q_'at a speo]ic time and tune to a specl]i'c

cham_el when it powers its se!f on,

Press the CLOCK button on the

remote control to show the TfMEP,

onscreen menu.

Press the CURSOR RIGHT button

and the TIMER options will shill to the

left. TIME will be highlighted.

3Press the CURSOR UP or DOWN

buttons repeatedly to highlight one of

the TIMER controls. These controls are

the TIME, START TIME, STOP

TIME, CHANNEL, ACTIVATE, or

DISPLAYI

4Press the CURSOR RIGHT or

LEFT button to make adjustments or

_t the control options.

TIME: Enter the current time with the

numbered buttons, Use the Cursor

Right button to move to the AM]PM

area and use the Cursor _fl and Right

buttons to toggle AM or PM,

START TIME: Use the Numbered

buttons to enter a startmp time for the

TV to mrn on or tune a specific chan-

nel,

STOP TIME: Use the Numbered but-

tons to enter a time for the TV to shut

itself off.

CHANNEL: Use the Nmnbered but-

tons or the CH +or buttons to select

a specific channel for the TV to tune to

at the specific Start Time,

ACTIVATE: Set the Timer to preform

it's function ONCE or DALLY,

I[J.[| J|1_*_| J--.1,

I[J.[| J|11._| I:1_111

DISPLAY: Set to ON or OFF. When

ON, the time will be displayed ALL

the time the TV is ON. When OFF, the

time will only appear when the STA-

TUS/EXIT button is pressed,

Press the STATUS/EXIT button Io

remove |he menu from |he screen.

FEATURES

TIMER

** 12:O3AH

•STARTTIME

• STOPTIME

.EUAHHEL]ii!iiiii

_ACTIVATE T

*URR

®®®®

®@@

FEATURES

TIMER

•TIHE

• STOPTIHE

• CHANNEL

•ACTIVATE

FEATURES

TIMER

•TIME

• STARTTIME

• CHANNEL

•ACTIVATE

FEATURES

TIMER

•TIME

• STARTTIME

• STOPTIME

•ACTIVATE

FEATURES

TIMER

•TIME

• STARTTIHE

• STOPTIME

•CHANNEL

FEATURES

TIMER 2

• STARTTIME

• STOPTIME

• CHANNEL

•ACTIVATE

IIt] [II_lll 1111 l

IIll [II_lll JJl|i

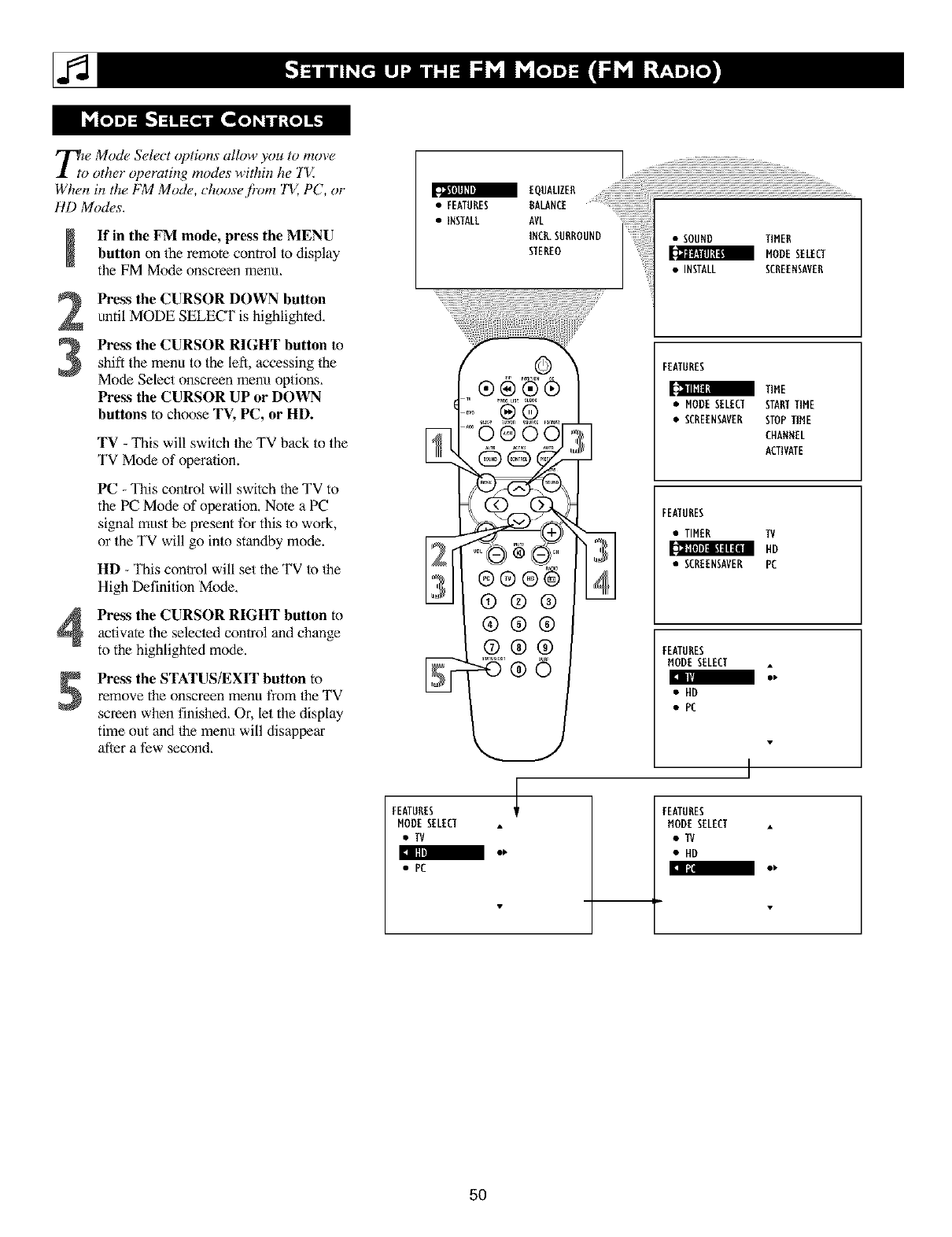

rl_z_e Mode Select Control will allow you to

tse set the TV into the TV, FM, HD, or PC

Modes, Du)ending on how the TV will be

used, these modes may hme their' own

onscreen menus controls to optimize there use

when used with _omputers, radios, or high-

d_finition receivers.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN to high-

light FEATURES.

Press the CURSOR RIGHT and the

menu will shift to the left. TIMER will

be highlighted,

Press the CURSOR DOWN repeated-

ly until MODE SELECT is highlight-

ed.

Press the CURSOR RIGHT button

to shift the menu to the left. the first

option, FM RADIO will be highlight-

ed.

Press the CURSOR UP or DOWN but-tons to highlight the desired mode option

(FM RADIO, HD, or PC).

Press the CURSOR RIGHT buttonto change the TV to the desired mode.

Please r_f!,r to each specifi_ mode later

in this manual,

Press the STATUS/EXIT button to

remove the menu fi'om the screen.

BRIGHTNESS............................

• SOUND COLOR ........_iiiiii!!!!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ililil

•FEATURES PICTURE .....

•INSTALL SHARPNESS

TINT • PICTURE TIMER

•SOUND MODE SELECT

aACTIVECTRL

• INSTALL AutoLock

CLOSEDCAP

FEATURE

TIME

• MODESELECT STARTTIME

• ACTIVECTRL STOPETIME

•Auto Lock CHANNEL

• CLOSEDCAP ACTIVATE

FEATURE

•TIMER FM RADIO

•ACTIVECTBL PC

• AutoLock

• CLOSEDCAP

FEATURE

MODESELECT

• HD

• PC

J, w

Specific information regarding each of the

MODE SELECT options can be found later

in this manual.

FM RADIO - refer to page 46-49,

HD - refer to page 50-53,

PC - rei_r to page 54.

FEATURE

MODESELECT

•FM RADIO

• PC

FEATURE

MODE SELECT

•FM RADIO

•HD

T_lle A_ t{ve Control monitors and acljusts

_commg video signals to hel I) provide the

best picture quality.

When you choose to turn the Active Control

ON, the picture sharpness and noise reduc-

tion arc, controlh, d automatically. Active

Control acliusts these picture settings _ontinu-

ously aM automatically,

Press the MENU button on the

remote control to show the onscreen

menLL

Press the CURSOR DOWN to high-

light FEATURES.

Press the CURSOR RIGHT and themenu will shift to the leh. TIMER will

be highlighted.

l_lllill_ll

Press the CURSOR DOWN repeated-

ly until ACTIVE CTP.L (control) is

highlighted.

Press the CURSOR RIGHT button

repeatedly to toggle the control

options. Choose from: ON, ON + DIS-

PLAY, or OFF

Press the STATUS/EXIT button to

remove the menu from the screen. :i l,.lllUltll [11! ,-,_

7You can also press the ACTIVE

CONTROL button on the remote

control to toggle the ACTIVE CON-

TROL ON, ON + DISPLAY, or OFF

directly;

:i l,.lilUltl [ill ,a,J

:i I,.IllUltl [ill _:llJII II1l!II!,!

Toggle the ACTIVE CONTROL to ON +

DISPLAY wiih the remote control and a

screen display will appear showing the Active

Control in work, You will _e the sharpness

and noise reduction settings changing lo pro-

vide the best Ix)ssible picture quality.

®®®®

(D®@

®@@

@@@

TIME

• MODESELECT STARTIIME

• ACTIVECTR STOPTIME

• AutoLock CNANNEL

• CLOSEDCAP ACTIVATE

FEAIHRES

•TIMER

• MODESELECT

•Auto Lock

• CLOSEDCAP

i_lJ

ACTIVECONTROL

SHARPNESS

NOISEREDIICIION

BLACKEXPANDER

WHITE EXPANDER

OFF

When ACTIVE CONTROL is set to ON + DIS-

PLAY, this screen witl be displayed briefly when-

ever a channel change occurs.

he AutoLock TM ,f!_ature receives and

)rocesses data sent by broadcasters or

other program providers that contain pro-

gram content adHsories, When programmed

by the Hewer; a TV with AutoLoc k TM can

resT)ond to the content adHsories and block

program content that may be,found ol_i_c tion-

able (such as offensive language, violence,

sexual situations, etc,), This is a grc_at f!_ature

to censor the type (_{programming children

may watch.

IDBI_A'|

€][tl

In the AutoLock TM section, you'll learn how

to block channels and programming that is

not rated, is unrated, or has no rating. You

will also find out how to turn these blocking

features ON or OFF. Following are brief

explana/ions of some lerms and ratings relat-

ed to the AutoLock TM feature.

AutoLock TM offers various Blocking

Options from which to choose:

BLOCKING: The BLOCKING control is

what can be thought of as the "master switch"

for AutoLock TM, This control affects the set-

tings you have chosen for blocking programs

according to movie ratings or TV ratings, or

for blocking programs thai have no rating or

are unrated. When the BLOCKING control is

OFF, the blocking or censoring of programs is

disabled. When the BLOCKING control is

ON, blocking will occur according to the set-

tings you have chosen.

NO RATING: ALL programming with no

content advisory data can be blocked if NO

RATING is set to ON,

Programming that has No Rating is not

encod_,d with any rating infiJrmation from the

MPAA or the Parental Guidelines, Any pro-

gramming couM fall into this cat_goo,.

You also can block individual channels or

block programming based on ratings of the

MPAA and TV broadcasters, (See a descrip-

tion of the ratings on this page,)

AutoLock

HOVIERATING ••

•PG

•PG-13

,,,g

• NCq7

G: GeneralAudience All ages admitted.

Most parents would find tiffs programming

suitable for all ages. This type of program-

ruing contains little or no violence, no

strong language, aud little or no sexual dia-

logue or sexual situations.

PG: Parental Guidance Suggested This

programming contains material that parents

may find unsuitable for younger children. It

may contain one or more of the following:

Moderate violence, some sexual situations,

infrequent coarse language, or some sugges-

tive dialogue.

PG-13: Parents Strongly Cautioned This

programming contains material that parents

may find unsuitable for children under the

age of 13, It contains one or more of/he fol-

lowing: violence, sexual situations, coarse

language, or suggestive dialogue.

R: Restricted This programming is specifi-

cally designed for adults, Anyone under the

age of 17 should view this programming

only with an accompanying parent or adult

guardian. It contains one or more of the fol-

lowing: in/ense violence; intense sexual situ-

ations; strong, coarse language; or in/ensely

suggestive dialogue,

NC-17: No one under the age of 17 will be

admitted. This type of programming should

be viewed by adults only. It contains graphic

violence; explicit sex; or crude, indecent lan-

guage.

X: Adults Only This type of programming

contains one or more of/he following: vel_

graphic violence, very graphic and explicit or

indecent sexual acts, very coarse and intense-

ly suggestive language.

AutoLock

TVIIATIHG ••

•IV-Y7

•TV-G

•TV-PG

•TVq4

NV-Y: (All children -- Thisprogram is

designed to be appropriate fi)r all chil

dren.) Designed for a very young audi-

ence, including children ages 2-6. This type of

programming is not expected to frighten

younger children.

TV-Y7: (Directed to Older Children --

ThLt program is designed filr children

ages 7 and abol e. ) It may be more

appropriate for children who have acquired the

development skills needed/o distinguish

between make-believe and reality. This pro-

gramming may include mild t_ntasy and comic

violence (FV).

TV-G: (General Audience -- Most par

ent_twould.find this program suitabh, for

all ages.) This type of programming

contains little or no violence, no strong lan-

guage, and little or no _,exual dialogue or _,exual

situations.

TV-PG: (Parental Guidance

Suggested -- "l_ffsprogram contains

material that paJ ents may find ttnsuit-

ablefi)r younger children.) This type of pro_

gramming contains one or more of the follow-

ing: Moderate violence (V), some sexual situa-

tions (S), infi'equent coarse language (L), or

some suggestive dialogue (D).

TV-14: (Parents Strongly Cautioned -

-This program contains some material

that many parents would find tmsuitable

[br children under t4 years _f age.) This type

of programming contains one or more of the

following: intense violence (V); in/ense sexual

situations (S); strong, coarse language (L); or

intensely suggestive dialogue (D).

TV-MA: (Mature Audience Only --

This program is specifically designed to

be viewed by aduhs aJ_d ther@)re may

be unsuitable fi)r _hildren under 17.) This type

of programming contains one or more of the

following: graphic violence (V); explicit sexual

situations (S); or chide, indecent language (L).

Az, t,toLock _allows parents to block out or

censor' any channels they think chil-

dr_,n should not watch, A channel blocked by

the AutoLock TM control cannot be viewed until

acorrect access code is used to unlock the

channel for viewing, First, let's set your

AutoLock access code,

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the left.

TIMER will he highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Press 0,7,1,1 on the remote control,

INCORRECT will appear on the

screen.

Press 0,7,1,1 on the remote control

again, ENTER NEW CODE will

appear on the screen.

Enter a new four-digit code using the

number buttons. CONFIRM CODE

will appear on the screen.

Enter your new four-digit code again.CORRECT will flash on the screen

briefly and the highlight bar goes back

to AntoLock.

Press the STATUS/EXIT button to

remove the menu from the screen,

Remember that 0711 is the det3ult

AntoLock _ code. If your access code has

been changed by someone other than you (a

child, for example) or you have forgotten the

code, you can always get in by inputting the

default code,

NOTE TO PARENTS: It isn't Ix)ssible for

your child to unblock a channel without know-

ing your access code or changing it to a new

one. If your code has been changed without

your knowledge, then you will become aware

that blocked channels may have been viewed,

/ BNIGNTNESS

•SODND COLON

•FEATURES PICTUNE

• INSTALL SHARPNESS

TINT

@@@

®@®®

@@@

.___;

FEATURES

•TINEN

•ACTIVECTEL

_AutoLock

•PIP

• CLOSEDCAF

....II)_IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII;.....

CLOSEDCAP

:EATUAES

llIlllllIl TIN[

• NODE SELECT STARTTIN[

•ACTIVECTII STOPTIN[

31 •Autotock CHANNEL

•CLOSEDCAP ACTIVATE

EATNNES

• TINEN ACCESSCODE

•NODE SELECT ....

• ACTIVECTN

• CLOSEDCAP

FEAIUNES

• TINEN

•ACTIVECTRL

_AutoEock

• FIr

• CLOSED_F

FEATURES

• TINEN

•ACTIVECTN[

_AutoLock

•PIP

•CLOSED CAP

FERTNNES

• TIHEN

•ACTIVECTN[

_t0L0ck

•PIP

• CLOSEDCAP

FEATURES

• TINEN

•ACTIVECTNL

i_AutoLock

•PIP

•fLOSED CAP

FERTNNES

• fiNER

•ACTIVECTNL

RutoLock

•PIP

•CLOSEDCAP

FERTNRES

• TIMER

• ACTIVECTNL

AutoLock

•PIP

•m[LOSEDCAP

FEATURES

•TINEN ACCESSCODE

• ACTIVECTNL ....

• PIP

• CLOSEDCAP

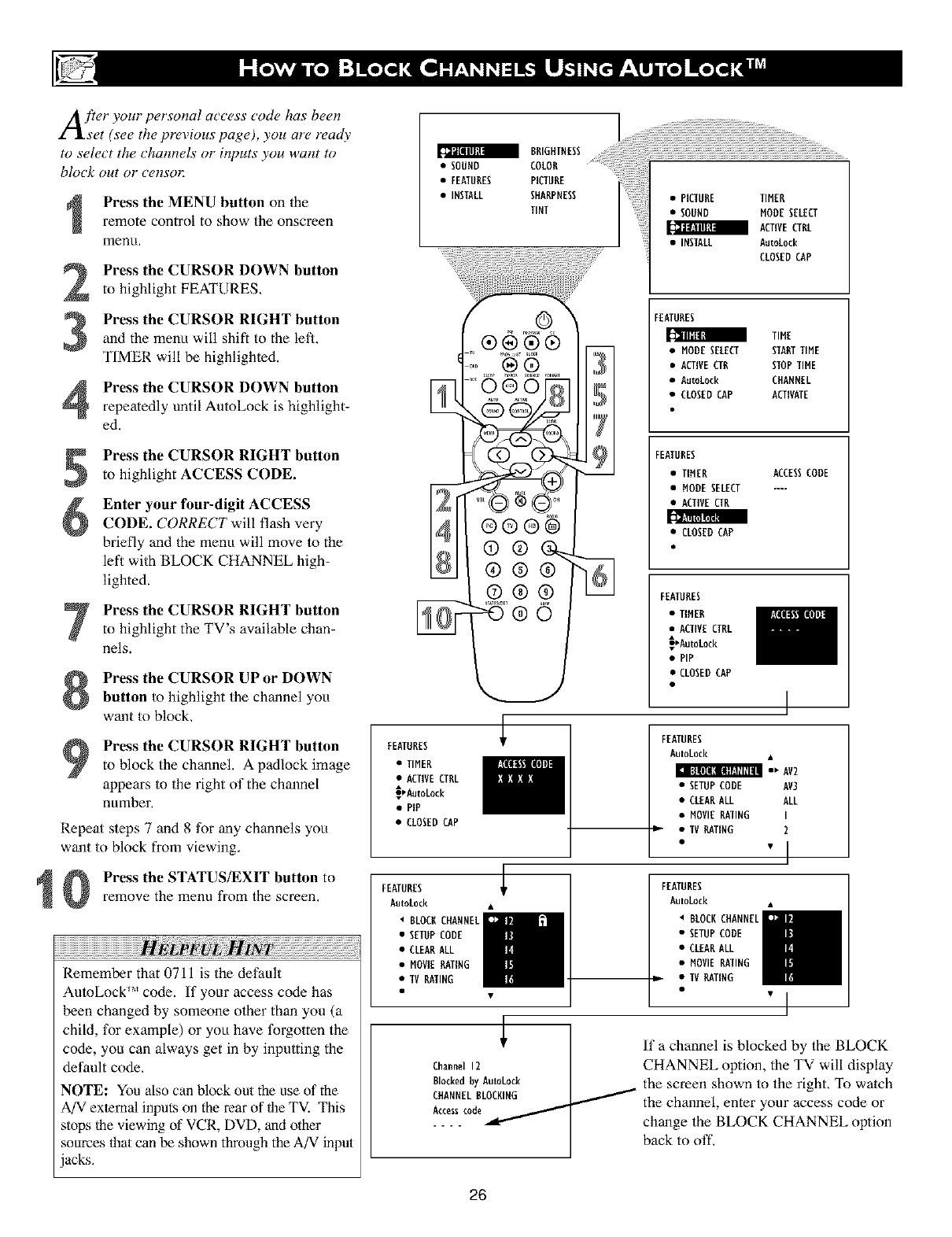

After your personal a_ cess code has been

set (see the previous page), you are r_,ady

to select the chalmels or inputs you want to

block out or censo_:

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES,

Press the CURSOR RIGHT button

and the menu will shift to the letL

TIMER will be highlighted,

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESSCODE. CORRECT will flash very

briefly and the menu will move to the

lefl with BLOCK CHANNEL high-

lighted.

Press the CURSOR RIGHT buttonto highlight the TV's available chan-

nels.

Press the CURSOR UP or DOWN

button to highlight the channel you

want to block,

Press the CURSOR RIGHT button

to block the channel, A padlock image

appears to the right of the channel

number,

Repeat steps 7 and 8 for any channels you

want to block from viewing,

Press the STATUS/EXIT button to

remove the menu from the screen.

Remember that 0711 is the det_ult

AutoLock _ code. If your access code has

been changed by someone other than you (a

child, for example) or you have forgotten the

code, you can always get in by inputting the

default code,

NOTE: You also can block out the use of the

AiV ex/emal inputs on the rear of life TV. This

stops 1he viewing of VCR, DVD, and other

sources ll]at can be shown through the A/V input

acks,

a BRIGHTNESS

• SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

• PICTURE TIMER

•SOUND MODESELECT

aACTIVECTRL

• INSTALL Autotock

CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTRL

_AutoLock

• PIP

• CLOSEDCAP

®®®

FEATURES

1_111111111 TIME

•MODESELECT STARTTIME

•ACTIVECTR STOPTIME

•AutoLocR CHARNEL

• CLOSEDCAP ACTIVATE

FEATURES

•TIMER ACCESSCODE

• NODESELECT ....

•ACTIVECTN

• CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTRL

_AutoLock

• PiP

• CLOSEDCAP

FEATURES

AutoLock LAv2

• SETUPCODE AV3

• CLEARALL ALL

• MOVIERATING I

P • TV RATING 2

FEATURES

Autotock •

BLOCRCHANNEL

•SETUPCODE

• CLEARALL

•MOVIERATING

•TV RATING "1

FEATURES

AutoLock

4BLOCKCHANNEL

•SETUPCODE

• CLEARALL

•MOVIERATING

•TV RATING

Channel 12

Blockedby AutoLock

CHANNELRLOCKING

!tee:s_ code

If a channel is blocked by the BLOCK

CHANNEL option, the TV will display

the screen shown to the right, To watch

the channel, enter your access code or

change the BLOCK CHANNEL option

back to off,

Various m_screen messages will apl)ear

he#_ someone tries to view blocked pro-

gramming. The message is determi!_ed by how

the _urrem programmi!_g is blocked, You may

flew be blocked programming and turn OFF

the A utoLo_k TM f!,ature by usi!_g the Clear All

control or by enteri#_g your a_ cess _od_

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN button

to highlight FEATURES.

Pre_s the CURSOR RIGHT button

and the menu will shill to the left,

TIMER will be highlighted,

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed,

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE and the menu will move to Ihe

left with BLOCK CHANNEL high-

lighted,

Press the CURSOR DOWN button

until CLEAR ALL is highlighted.

Press the CURSOR RIGHT twice,

The CLEAR ALL option will display

1he word CLEARED. All blocked chan-

nels and programming are now view-

able,

Press the STATUS/EXIT button toremove the menu from the screen,

If you tune to a specific channel that has been

blocked by BLOCK CHANNEL or any of the

AutoLock TM RATING options, simply enter

your four-digit access code to view the chan-

nel.

NOTE: This will unblock ALL channels until

the TV is shut OFF. When powered back ON,

all previously blocked channels will be

blocked again.

m..SOUNDFEATHBESCOLOBp,CTUBEBNONTNESSii iiiiiii!i!!iii!ii!i!!

• INSTALL SHARPNESS

TINT

° 0®00

®®®®

©®®

._J

FEATURES

•TIHEB

• ACTIVECTBL

_AutoLock

• PIP

• CLOSEDCAP

FRATUFFS

AutoLock

• BLOCKCHANNEL

• SETUPCODE

ilI ll:l [11! ]1 ill !,1 [t I

• MOVIE RATING

•TV BATING

• PICTURE TIMER

• SOUND NODESELECT

ACTIVECTBL

• INSTALL AutoLock

CLOSEDCAP

FEATURES

1_111111_1 TIME

• MODESELECT STABTTIME

•ACTIVECTB STOPTIME

• AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FRATUBES

•TIMER ACCESSCODE

•HODESELECT ....

•ACTIVECTN

• CLOSEDCAP

FEATUBES

• TIHEN

• ACTIVECTNL

_Aut0L0ck

• PIP

• CLOSEDCAP

FEATURES

AutoLock •

1_ AV2

• SETUPCODE AV3

• CLEARALL ALL

•MOVIERATING I

•IV RATING 2

FEATURES

AutoLock •

•BLOCKCHANNEL

• SETUPCODE

• _OVIE BATING

-_ • IV RATING

After your personal access code has been

set, you can select specifi_ movie ratings

that you want to _ensor:

Press the MENU button on the

remote control to show the onscreen

menu.

Press the CURSOR DOWN button

to highlight FEATURES.

Pre_s the CURSOR RIGHT buttonand the menu will shill to the left,

TIMER will be highlighted,

Press the CURSOR DOWN button

repeatedly until Ant•Lock is highlight-

ed,

Press the CURSOR RIGHT buttonto highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

let1 with BLOCK CHANNEL high-

lighted,

Press the CURSOR DOWN repeated-

ly until MOVIE RATING is highlight-

ed,

Press the CURSOR RIGHT and the

Rating menu shifts to the left with G

highlighted.

Pre_s the CURSOR UP or DOWN tohighlight each rating you want,

Press the CURSOR RIGHT to mm

the rating ON or OFE Turning the rat-

ing ON will block programs with that

rating t¥om being seen.

Press the STATUS/EXIT button to

remove the menu from the screen.

When a rating is turned ON, all higher ratings

also will be turned on automatically. For

example, if the Rra/ing is turned on, the NC-

17 and Xratings also will be turned on.

All Movie Ratings can be turned ON or OFF, , Ii=!

Rethr to page 23 for Movie Rating defini-

tions,

a0R,0NTNESSiiii!iiiiiiiiiiiiiiiiiiiiiii!iiiii!iiiiiiiiiiiiiiiiiiiiiiilililili

:S?E DBESCp OBBE

• INSTALL SHARPNESS !i!ii!i!i!i!i!iii •PICIUBE TIMER

::i!ii aACTIVECTBL

_iliiiiiiii•SOUND MODESELECT

TINT

J•INSTALL AutoLock

CLOSEDCAP

oD ®O

ooo®

ooo

OOO

FEATURES

TIME

• MODESELECT STABTTIME

• ACTIVECTB STOPTIME

•AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATUBES

•TIMER ACCESSCODE

• MODESELECT ....

•ACTIVECTR

• CLOSEDCAP

FEATUBES

• TIMEB

•ACTIVECTRL

_Autotock

• PiP

• CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTBL

_*AutoLock

• PIP

• CLOSEDCAP

FEATUBES

Ant•Lock •

• BLOCK CHANNEL G

• SETUP CODE PG

•CLEARALL PG-13

[ci_llSIglllilElll[rl

•TV RATING NC-17

Aut0L0ck

MOVIE RATING •

• PG

• PG-13

•R

•NC-17

FEATURES

AutoLock L

• SETUPCODE AV3

• CLEARALL ALL

•MOVIERATING I

•IV RATING 2

•"l

AutoLock

MOVIEBATING

I Ill

• PG

• PG-13

• NC-17 "i

Channel 12

Blockedby AutoLock

MOVIERATING

Access code

F_u can select specific TV ratings that you

ant to censor by following these steps,

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the lefl.

TIMER will be highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

left with BLOCK CHANNEL high_

lighted.

Press the CURSOR DOWN repeated-

ly until TV RATING is highlighted.

Press the CURSOR RIGHT and the

menu will shit_ to highlight the TV

RATING options.

Press the CURSOR UP or DOWN to

select arating.

Press the CURSOR RIGHT to mm

the block on the rating ON or OFF.

NOTE: More specific subratings (tbr violence,

sexual content, dialogue, or fantasy violence)

are available for TV-Y7, TV-PG, TV-14, and

TV-MA. (Refer to page 31 for definitions.)

To access these suhratings, wilh the main rating

selected, press the CURSOR RIGHT. Then,

repeat s/eps 9 and 10 to turn the sub-ratings ON

or OFE

[ ip,II ,1 .

1Press the STATUS/EXIT button to

remove the menu from the screen,

Jll 1141

When a rating is turned ON, all higher ratings

also will be turned on automa/ically. For

example, if the Rrating is turned on, the NC-

17 and Xratings also will be turned on.

a BRIGHTNESS

•SOUND COLOR

•FEATUBES PICTURE

• INSTALL SHARPNESS

TINT • PICTURE TIHER

• SOUND HODESELECT

a ACTIVECTBL

•INSTALL AatoLock

CLOSEDCAP

®®

®®®

FEATUBES

[_llllll I[t TIME

•HODESELECT STABTTIHE

• ACTIVECTB STOPTIHE

• AatoLock CHANNEL

• CLOSEDCAP ACTIVATE

FEATURES

• TIHER ACCESSCODE

•HODE SELECT ....

•ACTIVECTR

• CLOSEDCAP

FEATUBES

•TIHEB

•ACTIVECTRL

_Autotock

• PIP

• CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTBL

_AatoLock

• PIP

• CLOSEDCAP

FEATUBES

AatoLock

• BLOCK CHANNEL TV-T

• SETUP CODE TV-T7

• CLEAB ALL TV-G

•HOVIE HATING TV-PG

_l'J_lh TV- J

AutoLock

IV RATING •

•TV-Y7

•TV-G

•TV-PG

•TV-14

FEATURES

AutoLock L

• SETUPCODE AV3

• CLEARALL ALL

•MOVIERATING I

_' • IV BATING 2

•,i

IV RATING •

•TV-Y7

•TV-G

•TV-PG

•TV-14

Channel 12

Blockedby AutoLock

TV RATING

Access code

T_e BLOCKING control is w,hat can be

hought qf as the "master switch" ,_)r

AutoLock TM. This control affects the settings

you ha_e chose!z,for blockbzg programs

according to movie ratings or' TV ratings, or

,_)r blocking programs that ha_e no ratbzg.

When the BLOCKING control is OFF, the

blocking or ce!zsorbzg qf t)rograms is dis-

abled. When the BLOCKING control is ON,

blocking w,ill occur ac cordbzg to the settings

you have chose!z. Follow these steps to toggle

BLOCKING OFF or ON.

Press the MENU button on the

remote control to show the onscreen

menu,

Press the CURSOR DOWN button

to highlight FEATURES,

Press the CURSOR RIGHT button

and the menu will shift to the lefl.

T|MER will be highlighted.

Press the CURSOR DOWN button

repeatedly until AutoLock is highlight-

ed.

Press the CURSOR RIGHT button

to highlight ACCESS CODE.

Enter your four-digit ACCESS

CODE. CORRECT will flash very

briefly and the menu will move to the

left with BLOCK CHANNEL high-

lighted.

Press the CURSOR DOWN repeated-

ly until BLOCK OPTIONS is high-

lighted.

Press the CURSOR RIGHT to enter

the BLOCK OPTIONS menu.

BLOCKING will he highlighted. Or

choose NO RATING.

11:t Kill[Ill ]_'

Press the CURSOR RIGHT or

LEFT to toggle BLOCKING (or NO

RATING) ON or OFE

Press the STATUS/EXIT button to

remove the menu from the screen,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii !!!TM 222222111TM

Remember, when the BLOCKING control is

OFF, the blocking or censoring of programs

is disabled. When the BLOCKING control is

ON, blocking will occur according to the set-

tings you have chosen,

BRIGHTNESS

•SOUND COLOR

• FEATURES PICTURE

• INSTALL SHARPNESS

TINT •PICTURE TIMER

•SOUND HOD[ SELECT

ACTIVECTBL

•INSTALL Ant•Lock

CLOSEDCAP

N oo,oo

®®®®

®®®

©®®

EEATUBES

•TIHEB

•ACTIVECTBL

_AatoLock

• PIP

• CLOSEDCAP

FEATURES

AutoLock

•SETUPCODE BLOCBING

• CLEARALL NO RATING

• MOVIE_TING

•TV RATING

AutoLock

BLOCKOPTIONS .

FEATURES

TIME

• MODESELECT STARTTItlE

•ACTIVECTB STOPTItlE

•Ant•Lock CHANNEL

• CLOSEDCAP ACTIVATE

FEATUBES

•TIMER ACCESSCODE

• MODESELECT ....

•ACTIVECTB

• CLOSEDCAP

FEATURES

•TIMER

•ACTIVECTRL

_Autotock

•PIP

• CLOSEDCAP

FEATURES

AutoLock •

•_AV2

•SETUPCODE AV3

• CLEARALL ALL

• MOVIEBATING I

•TV RATING 2

AutoLock

BLOCK OPTIONS

•NO RATING

[ll:lllll[ll 11 II"

•NO RATING

_l_ remind you which ratings you have

locked and which Block Options you

have selected, a review screen is m,ailable to

rt, view your AutoLocU _settings. 7b access

this screen follow the stu)s below.

Press the STATUS/EXIT button on

your remote control TWICE, Your

AntoLock _ settings will appear on the

screen.

NOTE: If you have blocked specific sabrat-

ings, such as Vfor Violence in the TV-PG cat-

egory, these blocked subratings will not appear

in the review. The sabratings howeve], are still

blocked according to your selections.

After a few seconds, the settings will

leave the screen atttomatically, or you

can press tile STATUS/EXIT button

a third time to remove them from the

screen.

MOVIERATING

IV RATING{

BLOCKING

NO BATING

_w ®o..................d

G©G

®®®6

@®®

®®®

®©

This display will appear after the step i above

is completed if the AutoLock TM BLOCKING

option is set to ON.

This display will appear after the step 1 above

is completed if theAutoLock' BLOCKING

option is set to OFF.

MOVIEBATING/IV RATING/

BLOCKING

NORATING

AutoLockDISABLED

Closed CaptioiHng (CC) allows you to

read the voice content of television pro-

grams o!_ the TV s_rc,en, Designed to hel l) the

hearing inwaired, this f!,ature uses o!_s_reen

"text boxes" to show dialogue a!_d conversa-

tions while the TV program is in progress.

Press the MENU button on the

remote control to show the on-screen

menu,

Press the CURSOR DOWN button

twice to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the lefL

Press the CURSOR DOWN button

repeatedly until the CLOSED CAP

control is highlighted.

Press the CURSOR RIGHT button

again. The menu will shit_ to the left

and CAPTION MODE will be high-

lighted. l_6f_ [fiF_

Press the CURSOR RIGHT button

to highlight CAPTION MODEs,

Press the CURSOR UP or DOWN

button to select a CAPTION MODE:

CCI, CC2, CC3, CC4, CC MUTE,

TXTI, TXT2, TXT3, or TXT4, CC

DISPLAY turns lext OFF or ON if the

TV station broadcasting on the channel

is making CLOSED CAPTIONING

available. With CC DISPLAY high-

lighted, press the CURSOR RIGHT to

toggle Closed Captioning ON or OFF.

NOTE: YOUalso can press the CC

button on the remote control to turn

the CC option ON or OFF.

Press the STATUS/EXIT button toremove the menu from the screen.

Not all TV programs and product commer-

cials are broadcast wilh Closed Captioning

(CC). Nor are all Closed Captioning

MODEs (CAPTION 1_ or TEXT 1_)

necessarily being used by broadcast stations

during the transmission of a program oft?r-

ing Closed Captioning. Refer to your area's

TV program listings for the stations and

times of shows being broadcast wilh Closed

Captioning.

a BRIGHTNESS

•SOUND COLOR

• FEATURES PICTURE

• INSTALL SHARPNESS

TINT

®®

®®®®

©®®

®®®

©®®

CAIrI'ION l'¢Iode

Example nisplay

TEXT Mode Examl)le Display -

The TV set.eli will be

blocked fi'om viewing.

:, !.,_,]}*_lll_ • .

•PICTURE TIMER

• SOUND MODESELECT

aACTIVECTRL

• INSTALL Auto Lock

CLOSEDCAP

MATURES

TIME

•MODE SELECT STARTTIME

• ACTIVECTR STOPTIME

•AutoLock CHANNEL

• CLOSEDCAP ACTIVATE

MATURES

CLOSEDCAP

•TIMER CAPTIONMODE

• MODE SELECT CCDISPLAY

•ACTIVECTR

•Auto Lock

MATURES

CLOSEDCAP :,cc,

• CCDISPLAY CC2

CC3

CC4

CCMUTE

MATURES

CLOSEDCAP

ml:,cc,

CCDISPLAY /CC2

/CC3

CC4

CCMUTE

MATURES

CLOSEDCAP :,ccl

• CCDISPLAY CC2

CC3

CC4

CCMUTE

FEATURES

CLOSEDCAP

• CAPTIONMODE

_m i

E)nU can change the screen,format size to

atch the 07)e of program you're watch-

ing. Select the normal 4.'3, EXPAND 4.'3, or

COMPRESS 16:9 aspect ratios.

Press the MENU button on the

remote control to show the on-screen

menH,

Press the CURSOR DOWN button

twice to highlight FEATURES.

Press the CURSOR RIGHT button

and the menu will shift to the lefl.

Press the CURSOR DOWN button

repeatedly until the WIDESCREEN

control is highlighted.

Press the CURSOR RIGHT button

repeatedly to toggle among the three

screen format sizes; 4:3, EXPAND 4:3,

or COMPRESS 16:9.

Press the STATUS/EXIT button toremove the menu from the screen,

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

When in the TV Mode and no onscreen

menu displayed, pressing the CURSOR

RIGHT and LEFT buttons will toggle the

FORMAT options,

BRIGHTNESS

•SOUND COLOR

•FEATURES PICTURE

•INSTALL SHARPNESS

TINT

• PICTURE TIMER

•SOUND MODE SELECT

ACTIVECTBL

• INSTALL Auto Lock

CLOSEDCAP

• MODESELECT

• ACTIVECTR

• Auto Lock

• CLOSEDCAP

4:3 EXPAND 4:3 COMPRESS 16:9

Tll w Program List Control will allow you to

uickly overview all the programmed

_hannels that have been plu_ ed into the tele-

visions memorly (see the Auto Programming

section of this manual for more details),

Program List will let you easily select the

desired channels your looking,for: Program

List will display the _hannel number; the

name of the channel if you have given it one,

and whether it hme AutoLo_k turn on or qffl

Press the PROGRAM LIST buttonon the remote control to show the cur-

rent list of installed channels (the cur-

rent channel will be highlighted),

Press the CURSOR UP or DOWNbuttons to scroll the list of channel,

highlighting the one you want to acti-

vate,

Press the CURSOR RIGHT button

to activate the channel, The TV will

tune to that channel,

Press the STATUS/EXIT button toremove the menu from the screen.

®®®®

(9@@

®@@

@@@

....:!i!ii! i!ii!ii!i!i!i!i!i!i! i!ii!ii!ii!ii!ii!i!ii!

mTve you ever fallen aslec 7) in,fivnt o{the

"V,only to have it wake you up at two in

the morning with a t¢,st pattern sound

scrc,e_hing in your ear's? Well, your TV _an

enable you to avoid that discomfort by auto-

matically turning itse!f qff, With the Slec7)

"lTmerf!,ature, you can set a timer to automat-

i_ally switch the TV OFF after a period q["

time you choose (15-minute increments up to

60 minutes, then 30-minute, in_r<_ments up to

90 minutes, then 6()-minute, in_ rc,ments up to

240 minutes).

Press the SLEEP button on theremote control. The SLEEP timer

onscreen display will appear in the

upper part of the screen.

2Within five seconds, press the

SLEEP button repeatedly to pick the

amount of time (15-minute increments

up to 60 minutes, then 30-minute

increments up to 90 minutes, then 60-

minute increments up to 240 minutes)

before the TV will ruin itself old\

An onscreen countdown will appear during

the last minute betk)re the TV shuts itself off',

To see how many minutes remain before the

TV shuts itself off, press the STATUS/EXIT

button,

A Sleep Timer setting can be cancelled by

pressing any button during the last minute

of the operation.

®®

®®©

@®®

®®®

@©

Dm'ing the [ast minute of a SLEEP timer setting an

onscreen countdown will be disp[ayed.

During the last I0 seconds of a SLEEP timer set-

ting, an onscreen display will read GOOD BYE.

Wl_ether you're watching a movie or a

,ideo game, your TV has automatic

video control settings that will match with

your current program sou_ze or CoRtg_Rt.

AutoPi_ture TM quickly resets your TV's video

_ontrols for a number qf di[f_rent types of

programs and _iewing _onditions that you

may ha_e in your home. The Mo_ies, Sports,

Weak Signal, and Multimedia AutoPi_ ture TM

_ontrols have been preset at the factory to

automatically ac/iust the TV's brighmess,

(olo_, picture, sha_7)ness, tint, attd (olor n,m-

perature levels. The PersonalAutoPicture TM

settings are the ones that you mad_ through

the PICTURE options within the ons(reen

Press the PICTURE button on theremote control, The current

AutoPicture _ setting will appear in the

middle of the screen.

Press the PICTURE button repeat-

edly to select either PERSONAL,

MOVIES, SPORTS, WEAK SIGNAL,

or MULTIMEDIA picture settings,

NOTE: The PERSONAL setting and the

PICTURE options wilhin the onscreen menu

are the same. This is the only option in

AutoPicturd _ that can be changed, To adjust

these settings, use the PICTURE options

within the onscreen menu. All other settings

are set up a/the factory during production and

cannot be adjusted.

PErSOnAL

BRIGHTNESS S8

COLOR S8

PETURE SO

SHARPNESS I

sgx.

®®®®

Q®®

®®®

oooj

SPORTS

BRIGffTHESS 36

COLOR 34

PICTURE 65

SffARpHESS 3

WEARS]GHAL

BRIGffT_ESS_34

COLOR 26

pICIURE 65

SffAReHESS E

MULTIMEDIA

NOTE: The values shown in the

diagram above are sample values

only. Your television's values may

vary and d sp ay d fferent numbers.

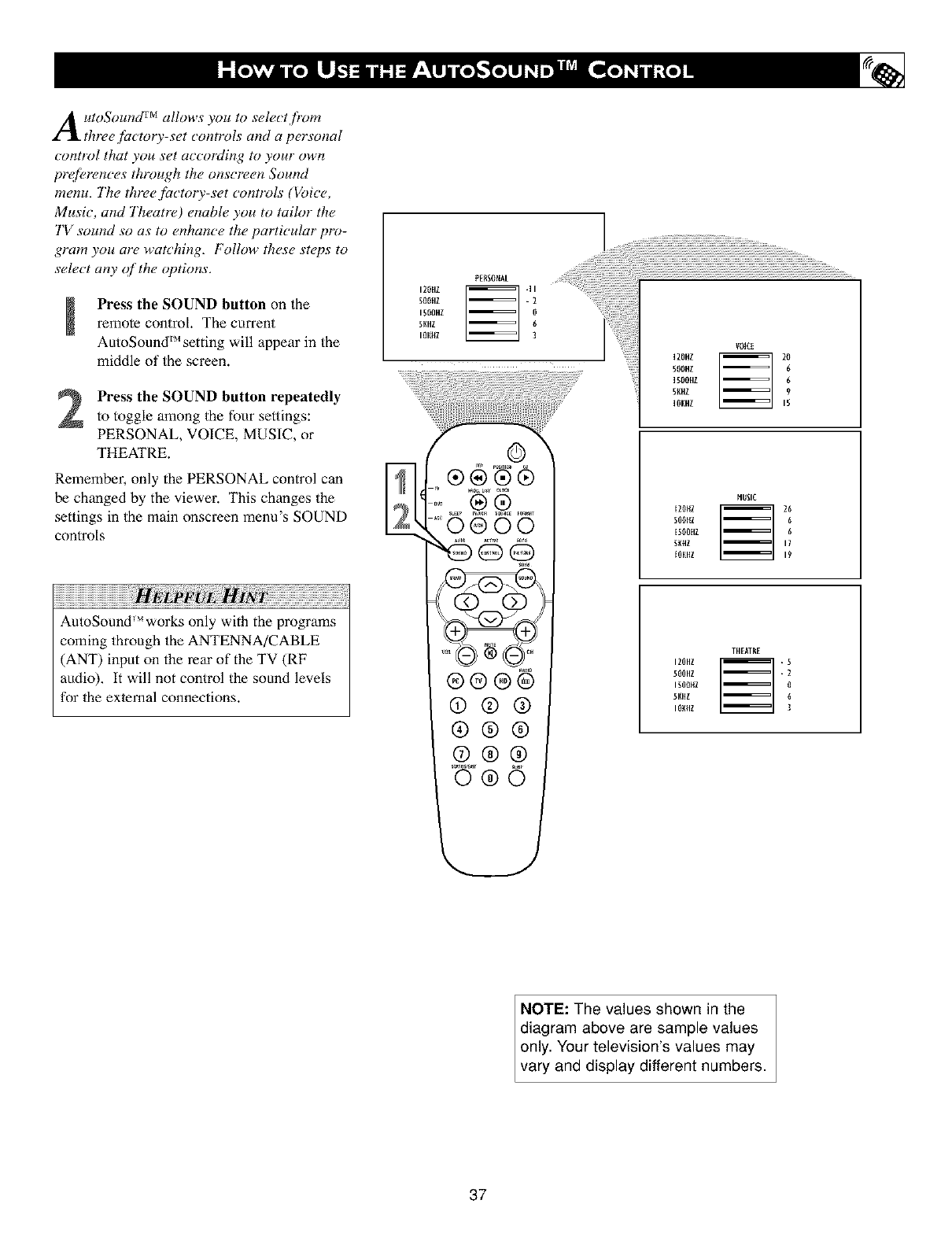

AutoSound TM allows you to select from

thr_,e factorly-set controls and a personal

_ontrol that you set according to your own

preferences through the onscreen Sound

menu, The three fa_torly-set _ontrols (Voice,

Music, and Theatre) enabl_ you to tailor the

TV sound so as to enhance the parTi_ ulur pro-

gram you arc_ watching, Follow these steps to

sellout any q[the options,

Press the SOUND button on theremote control. The current

AutoSound _ setting will appear in the

middle of the screen.

Press the SOUND button repeatedly

to toggle among the fnur settings:

PERSONAL, VOICE, MUSIC, or

THEATRE.

Remember, only the PERSONAL control can

be changed by the viewer. This changes the

settings in the main onscreen menu's SOUND

controls

AntoSound TM works only with the programs

coming through the ANTENNA/CABLE

(ANT) input on the rear of the TV (RF

audio), It will not control the sound levels

for the exmmal connections.

120HZ

500HZ

1500HZ

5KHZ

MUSIC

[2OffZ 26

$OOffZ 6

ISOOHZ 6

_HZ 17

_OEHZ 19

THEATRE

120HZ .5

500HZ -2

5KHZ 6

IO_HZ 3

NOTE: The values shown in the

diagram above are sample values

only. Your television's values may

vary and d sp ay d fferent numbers.

Alist or series of previously viewed chan-

nels can be selected with the SURF button

on your remote control. With this f(,uture, you

can easily switch between dil_rcmt TV chan-

nels that _urrently int_,rest you. The SURF

control allows you to set up to t_m channels in

its qui_k _iewing list.

Press the CHANNEL(+) or (-) but-

ton (or the numbered buttons) to select

a channel to add to the SUP,F list.

2Press the SURF button on the remote

control, The onscreen display may

read, "SURF LIST EMPTYI" The num-

ber of the current channel will

shown with "ADD?" to the right.

3While the SURF list message or the

SURF channel list appears on the

screen, press the CURSOR RIGHT

button to add the present channel to

the SURF list,

If you want to delete the present channel

from ihe SURF list, pre_s the CURSOR

RIGHT button again,

Repeat steps l through 3 to add more chan-

nels (up to 10) to the SURF list,

Along wiih regularly programmed chan-

nels, the exlemal video source connections

can be added to the SURF list, This means

that the exlemal A/V Jacks and their chan-

nels can be added to your SURF list. Use

the Source button to tune their channel and

use the same procedure described on this

page.

®®®®

®®®

©®®

F;ur remote control is set to work your 7"1/

nd many infrared remote (IR) control

VCRs, Cabl_ Boxes, Satellite Systems, DBS,

DVD, etc, However; an easy onetime step may

be ne_ essao" b@Jre the remot_ will work your

VCR,

Try this initial Direct Access Method to see if

going on to the fidlowing section is necessaly,

Place the TV/DVD/ACC Mode

Switch in the proper position.

Point the remote control at the device

and press the POWER button,

Does the remote turn the device ON?

If YES, stop and try other function buttons on

the remole, If they also work the device, then

the remole is ready and no further steps are

needed,

If NO, continue,,.

First look up a FOUR-DIGIT remote

control number for your brand of

Device before going through the simple

steps on the foliowing page,

Find your Four-Digit Code on pages

42-44.

VCR

Satellite Receiver

I'V

DVD

ACC

PIP POSITION CC

®®®®

PROG. LIST CLOCK

®@

SLEEP TVNCR SOURCE FORMAT

O@OO

AUTO ACTIVE AUTO

,vw

If more than one number is listed, you may

have to |ry more than the fi_t Four-Digit code

given in orde" to locate your l_vice s "emote

code.

NOTE: Setting up 1he remote is for use wfih

external accessory devices only and not for use

wfih olher television brands.

eo..................d

©©@ _ue_

@@®@

@@@

®@@

Nd w that you hm,e looked up the three-

igit Remote Code Number for your

brand of device, you are rt,ady to follow the

four simple steps below.

Please read through steps 1-4 bc_fore begin-

ning.

Place the TV/DVD/ACC Mode

Switch in the proper position,

Press the • RECORD button on the

remote control and release.

Press the AUTO SOUND button on

the remote within 30 seconds, then

release,

Enter the FOUR-DIGIT REMOTE

CODE NUMBER (page 42-44) for

your desired device. The remote is now

ready to send commands to the unit,

5Point the remote at the Device. Press

the POWER button on the remote to

mrn the unit ON. If this works you are

finished, If it d_s not work the first

time, repeat the s/eps using a different

remote code number.

After a second u'y and the remote does not

operate your device, see if there is another

four-digit code number (pages 42-44) listed

for your device and repeat the s/eps above

using lhe new number.

If after repeated attempts the code number

method does not work you device, try the

SEARCH METHOD on the next page.

NOTE: Setting up the relnole is for use with

external accessory devices only and not for use

with other lelevision brands.

VCR

ISatellite Receiver

or DBS, DVD

Cable Convener

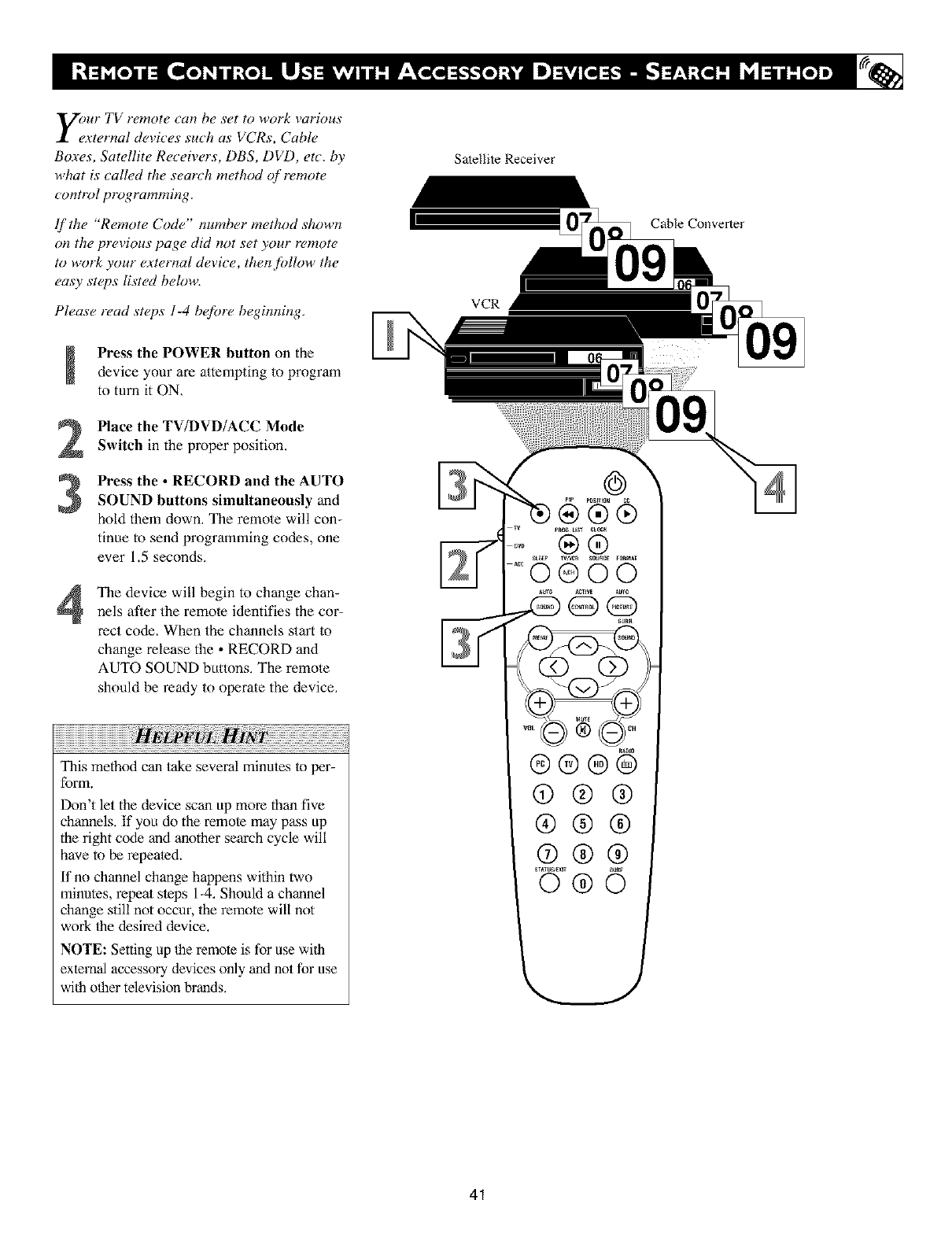

y_ur TV remote can be set to work various

_ternal devices such as VCRs, Cable

Boxes, Satellite Receivers, DBS, DVD, etc. by

what is called the search method qf remote

control programming,

If the "Remote Cod_" number method shown

on the previous page did not set your remot_

to work your external dmice, then,f!)llow the

easy stcT)s listed below,

Please r_ad steps l-4 b@Jre beginning,

Press the POWER button on the

device your are attempting to program

to turn it ON,

Place the TV/DVD/ACC Mode

Switch in the proper position.

Press the • RECORD and the AUTO

SOUND buttons simultaneously and

hold them down, The remote will con-

tinue to send programming codes, one

ever 1.5 seconds.

4The device will begin to change chan-

nels after the remole identifies the cor-

rect code, When the channels start to

change release the • RECORD and

AUTO SOUND buttons, The remote

should be ready to operate the device,

This method can take several minutes to per-

form.

Don't let the device scan up more than five

channels, tf you do the remole may pass up

the right code and another search cycle will

have to be repeated.

If no channel change happens within two

minutes, repeat sleps 1-4, Should a channel

change still not occur, the remote will not

work 1he desired device.

NOTE: Setting up 1he remote is for use wfih

external accessory devices only and not for use

wfih other television brands.

Satellite Receiver

Cable Converter

VCR O9

ooo6

OOO

OOO ©

kvLe]_l[e[e] ,,] _

Admiral ................. 2027, 2052

Adventura .................... 2001

Aiko ......................... 2059

Aiwa .... 2001, 2017, 2062, 2070, 2072

Akai ..... 2021, 2029, 2038, 2060, 2063

Akiba ........................ 2034

Alba .............. 2011, 2034, 2052,

................... 2059, 2063, 2072

Ambassador ................... 2011

American Action ............... 2059

American High ................ 2015

Amstrad ....... 2001, 2059, 2067, 2068

Anam ............. 2017, 2042, 2054,

.............. 2057, 2059, 2082, 2084

Anam National ...... 2042, 2054, 2087

Anitech ...................... 2034

Asa ..................... 2017, 2035

Asha ......................... 2057

Asuka ........................ 2017

Audiovox ..................... 2017

Baird ......... 2001, 2021, 2037, 2039

Basic Line .......... 2011, 2034, 2059

Beaumark ..................... 2057

Bell & Howell ................. 2037

Blaupunkt ..... 2003, 2005, 2010, 2014,

.... 2041, 2042, 2048, 2054, 2055, 2075

Brandt ............. 2047, 2064, 2065

Brandt Electronic ............... 2021

Broksonic 2002, 2040, 2046, 2052, 2078

Bush ......... 2034, 2052, 2059, 2072

Calix ........................ 2017

Canon ........................ 2015

Capehart ...................... 2011

Carver ....................... 2035

Catron ....................... 2011

CCE .................... 2034, 2059

CGE ......................... 2001

Cimline ...................... 2034

Cineral ....................... 2059

Citizen .................. 2017, 2059

Clatronic ..................... 2011

Colt ......................... 2034

Combitech .................... 2072

Condor ....................... 2011

Craig .... 2017, 2026, 2034, 2057, 2058

Crown ............. 2011, 2034, 2059

Curtis Mathes . .2015, 2021, 2032, 2042

Cybernex ..................... 2057

Cyrus ........................ 2035

Daewoo . .2011, 2024, 2025, 2059, 2083

Dansai ....................... 2034

Daytron ...................... 2011

De Graaf ................ 2022, 2043

Decca ................... 2001, 2035

Denon ....................... 2022

Dual ......................... 2021

Dumont ............ 2001, 2035, 2037

Dyna/ech ..................... 2001

Elbe ......................... 2018

Elcatech ...................... 2034

Electrohome ................... 2017

Electrophonic .................. 2017

Emerex ....................... 2012

Emerson ...... 2001, 2002, 2017, 2023,

.............. 2040, 2046, 2051, 2052,

................... 2059, 2078, 2083

ESC .................... 2057, 2059

Ferguson ...... 2021, 2039, 2064, 2065

Fidelity ....................... 2001

Finlandia ................ 2035, 2037

Finlux ........ 2001, 2022, 2035, 2037

Firstline . ,2017, 2023, 2024, 2034, 2052

Fisher ......... 2025, 2026, 2030, 2037

Frontech ...................... 2011

Fuji .......................... 2015

Funai ........................ 2001

Garrard ....................... 2001

GE ........... 2015, 2027, 2032, 2057

GEC ......................... 2035

General ...................... 2011

Go Video ................ 2077, 2081

Goldhand ..................... 2034

Goldstar ....... 2017, 2018, 2053, 2079

Goodmans 2001, 2017, 2034, 2059, 2075

Gradiente ................ 2001, 2008

Graetz ........ 2005, 2021, 2037, 2057

Granada ............ 2025, 2035, 2037

Grandin ............ 2001, 2017, 2034

Grundig ...... 2003, 2005, 2007, 2010,

.............. 2034, 2035, 2048, 2050,

.............. 2054, 2069, 2071, 2075

Hanseatic ..................... 2017

Harley Davidson ............... 2001

Harman/Kardon ........... 2018, 2035

Harwood ..................... 2034

HCM ........................ 2034

Headquarter ................... 2025

Hinari ........ 2004, 2034, 2057, 2072

Hi-Q ......................... 2026

Hitachi ............ 2001, 2004, 2021,

................... 2022, 2043, 2057

Hughes Network Systems ........ 2022

Hypson ....................... 2034

Imperial ...................... 2001

Ingersol ...................... 2004

Imerfunk ..................... 2035

ITT .......... 2005, 2021, 2025, 2037,

................... 2038, 2057, 2074

ITV .................... 2017, 2059

Jensen ....................... 2021

JVC .......... 2008, 2021, 2033, 2049,

................... 2050, 2074, 2080

Kaisui ........................ 2034

KEC .................... 2017, 2059

Kendo .................. 2038, 2052

Kenwood ........... 2018, 2021, 2033

KLH ......................... 2034

Kodak .................. 2015, 2017

Korpel ....................... 2034

Layco ........................ 2034

_nco ........................ 2059

LG .......................... 2079

Lloyd's .................. 2001,2051

Loewe ........ 2004, 2005, 2017, 2035

Logik .............. 2004, 2034, 2057

Luxor .... 2023, 2025, 2027, 2037, 2038

LXI ......................... 2017

M Electronic .................. 2001

Magnasonic ................... 2059

Magnavox ..... 2001, 2015, 2019, 2035

Magnin ....................... 2057

Manesth ................. 2024, 2034

Marantz ....... 2003, 2005, 2015, 2035

Marta ........................ 2017

Matsui ............. 2004, 2016, 2036,

................... 2052, 2070, 2072

Matsushita .......... 2015, 2042, 2055

Mei .......................... 2015

Melectronic ................... 2018

Memorex ..... 2001, 2015, 2017, 2019,

......... 2025, 2026, 2027, 2037, 2052,

......... 2057, 2062, 2085, 2087, 2088

Memphis ..................... 2034

Metz .............. 2003, 2005, 2017,

.............. 2042, 2048, 2055, 2069

MGA ................... 2023, 2057

MGN Technology .............. 2057

Mincrva ...................... 2048

Minerva ............ 2005, 2010, 2048

Minolta ...................... 2022

Mitsubishi 2023, 2027, 2033, 2035, 2045

Motorola ................ 2015, 2027

MTC ................... 2001, 2057

Multitech ................ 2001, 2034

Murphy ...................... 2001

NAD ........................ 2031

National ...................... 2054

NEC ..... 2018, 2020, 2021, 2033, 2037

Neckermann ................... 2035

Nesco ........................ 2034

Nikko ........................ 2017

Nikon ........................ 2014

Noblex ....................... 2057

Nokia ......... 2025, 2037, 2038, 2057

Nokia .... 2021, 2025, 2037, 2038, 2057

Nordmende ......... 2021, 2061, 2064,

........................ 2065, 2074

Oceanic ................. 2001, 2021

Okano .................. 2063, 2070

Olympus ................ 2015, 2054

Optimus ....... 2017, 2027, 2031, 2037,

......... 2042, 2077, 2086, 2087, 2088

Orion ........ 2002, 2004, 2016, 2036,

......... 2046, 2052, 2070, 2072, 2078

Osaki .............. 2001, 2017, 2034

Otto Versand .................. 2035

Palladium ..... 2005, 2017, 2021, 2034

Panasonic .......... 2015, 2042, 2053,

................... 2054, 2055, 2087

Pa/he Cinema .................. 2016

Pa/he Marconi ................. 2021

Penny ............. 2015, 2017, 2018,

................... 2020, 2022, 2057

kvLe]_![e[o]m]::1[._][_ !]

Pentax ....................... 2022

Perdio ........................ 2001

Philco ........ 2015, 2018, 2052, 2078

Philips . .2015, 2035 (DEFAULT VCR),

........................ 2074, 2075

Phonola ...................... 2035

Pilot ......................... 2017

Pioneer ............. 2031, 2033, 2035

Portland ...................... 2011

Prot?x ....................... 2066

Profitronic .................... 2057

Proline ....................... 2001

Proscan ...................... 2032

Prolec ........................ 2034

Pulsar ........................ 2019

Pye .......................... 2035

Quar/er ....................... 2025

Quartz ....................... 2025

Quasar ............. 2015, 2042, 2087

Quelle ....................... 2035

Radio Shack ............. 2001, 2085

Radiola ....................... 2035

Radix ........................ 2017

RCA 2015, 2022, 2027, 2032, 2038, 2057

Realistic ........... 2001, 2015, 2017,

.............. 2025, 2026, 2027, 2037

REX .................... 2021, 2074

RFT ......................... 2075

Ricoh ........................ 2014

Roadstar ...... 2017, 2034, 2057, 2059

Runco ........................ 2019

Saba ........ 2021, 2049, 2050, 2061, 2

.................... 064, 2065, 2074

Saisho ........ 2004, 2016, 2036, 2052

Salora .............. 2023, 2025, 2038

Samsung ...... 2024, 2057, 2076, 2077

Sanky ................... 2019, 2027

Sansui ............. 2001, 2021, 2033,

................... 2052, 2058, 2078

Sanyo ......... 2025, 2026, 2037, 2057

Saville ....................... 2072

SBR 2035

Schaub Lorenz , ,2001, 2005, 2021, 2037

Schneider ........... 2001, 2034, 2035

Scott ......... 2023, 2024, 2040, 2046

Sears .............. 2001, 2015, 2017,

.............. 2022, 2025, 2026, 2037

SEG .................... 2057, 2066

SEI ..................... 2004, 2035

Seleco ....................... 2021

Setup ........................ 2024

Sentra ........................ 2011

Sharp ................... 2027, 2073

Shintom ................. 2034, 2037

Shogun ....................... 2057

Shorai ........................ 2004

Silva ......................... 2017

Singer .................. 2024, 2034

Sinudyne ................ 2004, 2035

Solavox ...................... 2011

Sonolor ...................... 2025

Somec ....................... 2017

Sony .... 2001, 2012, 2013, 2014, 2015

STS ......................... 2022

Sunkai ....................... 2070

Sunstar ....................... 2001

Suntronic ..................... 2001

Sylvania ....... 2001, 2015, 2023, 2035

Symhonic ..................... 2001

Tashiko ...................... 2001

Tatung ............. 2001, 2021, 2035

Teac .................... 2001, 2021

TEC ......................... 2011

Technics ............ 2015, 2042, 2054

Teknika ....... 2001, 2015, 2007, 2017

Teleavia ...................... 2021

Telefunken 2021, 2047, 2058, 2064, 2074

Tenosal ....................... 2034

Tensai ................... 2001, 2066

Thomas ...................... 2001

Thomson ........... 2021, 2064, 2074

Thorn .............. 2016, 2021, 2037

TMK ................... 2051, 2057

Toshiba . ,2021, 2023, 2024, 2035, 2074

Totelevision .............. 2017, 2057

Towada ...................... 2066

Uher ......................... 2057

Unitech ...................... 2057

Universum .... 2001, 2006, 2010, 2017,

......... 2035, 2038, 2048, 2057, 2067

Vector ........................ 2024

Vector Research ........... 2018, 2020

Victor .............. 2008, 2021, 2033

Video Concepts ........... 2020, 2024

Videosonic .................... 2057

Wards ........ 2001, 2015, 2022, 2026,

......... 2027, 2032, 2034, 2035, 2057

White Westinghouse ....... 2052, 2059

XR-1000 ..................... 2001

XR-1001 ..................... 2015

XR-1002 ..................... 2034

Yamaha ...................... 2018

Yamishi ...................... 2034

Yokan ........................ 2034

Yoko .................... 2011, 2057

Zenith .. ,2001, 2014, 2019, 2052, 2078

Im][e']bIV_'1Ikvl Iml:[o]I m]_'_ol [o[ol ml=[,."1

Akai ......................... 5316

Harman/Kardon ................ 5314

JVC .................... 5311, 5318

Kenwood ..................... 5307

Magnavox .................... 5302

Mitsubishi .................... 5303

Onkyo ............. 5302, 5317, 5319

Panasonic ................ 5301, 5322

Philips ., ,5302, 5308 (DEFAULT DVD)

Pioneer ............. 5305, 5312, 5321

Proscan ...................... 5304

RCA ......................... 5304

Samsung ..................... 5313

Sharp ........................ 5320

Sony ......................... 5306

Technics ...................... 5301

Theta Digital .................. 5312

Thomson ..................... 5310

Toshiba ...................... 5302

Yamaha ................. 5301, 5309

leT:5:)I ::lie][elm]::[,,"]

ABC .... 3002, 3003, 3004, 3006, 3008

Andover ...................... 3037

Bell & HoweLl ................. 3006

Birgmingham Cable Communication ,,,

............................. 3020

British Telecom ........... 3002, 3012

Cabletime ..... 3016, 3019, 3025, 3029

Clyde ........................ 3011

Contec ....................... 3009

Cryptovision .................. 3038

Daehan ....................... 3043

Daerynng ..................... 3003

Decsat ....................... 3027

Everquesst .................... 3007

Filmnet ....................... 3028

France Telecom ................ 3030

GEC ......................... 3011

Gemini ....................... 3007

General Instrument ........ 3004, 3020,

........................ 3031, 3046

Goldstar ................. 3014, 3047

Grnndig ...................... 3035

Hitachi ....................... 3004

Jasco ........................ 3007

Je_old ........ 3002, 3004, 3005, 3006,

.............. 3007,3020,3031,3046

LG Alps ...................... 3044

Memorex ..................... 3001

Mnet ................... 3009,3028

Now ......................... 3041

Oak ......................... 3009

Pacific ....................... 3039

Panasonic ................ 3001,3013

Paragon ...................... 3001

Pioneer .................. 3014,3036

Pulsar ........................ 3001

[__,_;]nil:4[_-] m]:;[,-")I[¢"_?T'_?TP?'_,)]

PVP Slereo Visual Matrix ........ 3002

Quasar ....................... 3001

Radio Shack ................... 3007

Rembrandt .................... 3004

Runco ........................ 3001

Salora ........................ 3026

Samsung ................ 3014, 3040

Satbox ....................... 3024

Scientific ........... 3003, 3032, 3049

Scientific Atlanta ..... 3003, 3008, 3021

Seawoo ...................... 3045

Signal ........................ 3007

Signature ..................... 3004

Starcom ................. 3002, 3007

Stargate ...................... 3007

Starquest ..................... 3007

STS ......................... 3015

Taihan ....................... 3043

Tele+l ....................... 3028

Teleservice .................... 3022

Tocom ....................... 3005

Tongkook 3 ................ 042, 3048

Toshiba ...................... 3001

Tudi ......................... 3023

Tusa ......................... 3007

Uni/ed Cable .................. 3002

Videoway ..................... 3017

Visicable+ .................... 3033

Westminster ................... 3012

Wolsey Gene .................. 3037

_nith .................. 3001, 3034

l,."#_'_id::!il il bd_[o][e] m]::;[,,',]

Absat ........................ 4006

Alba .......... 4029, 4034, 4037, 4052

Aides ........................ 4019

Amstrad ........... 4003, 4016, 4025,

................... 4038, 4039, 4042

Ankard ........ 4013, 4019, 4030, 4044

Anttron ................. 4009, 4034

Armstrong .................... 4015

AST ......................... 4027

Astra ........................ 4005

Astro .............. 4008, 4039, 4045

Avalon ....................... 4031

Axis .................... 4030, 4046

Beko ......................... 4010

Best ......................... 4030

Blaupunkt .................... 4008

Boca .................... 4015, 4043

Brain Wave ................... 4022

British Sky Broadcasting ......... 4058

BT .......................... 4053

Bush ......................... 4002

Cambridge .................... 4024

Canal Salellite ................. 4059

Canal+ ....................... 4059

Channel Mas/er ................ 4029

CNT ......................... 4045

Comlink ...................... 4019

Connexions ................... 4031

Crown ....................... 4015

Cyrus ........................ 4011

D-Box ....................... 4054

DDC ......................... 4029

DNT .................... 4011,4031

Echostar ............ 4031, 4036, 4061

Emanon ...................... 4034

Fergnson ...... 4002, 4009, 4010, 4023

Fidelity ....................... 4016

Finlux ........ 4005, 4024, 4032, 4037

Fracarro ...................... 4061

Freecom ...................... 4034

FTE Humax ................... 4060

Fube ............... 4030, 4031, 4034

Galaxis ............. 4019, 4057, 4060

General Instrument ............. 4012

Gold Box ..................... 4059

Gooding ...................... 4048

Goodmans .................... 4010

Grundig ............ 4008, 4010, 4048

G-sat ........................ 4009

Hinari ........................ 4009

Hirschimann ........ 4008, 4032, 4039,

........................ 4040, 4049

Hitachi ....................... 4037

Houston ...................... 4053

Huth .......... 4013, 4015, 4019, 4026

Intervision .................... 4050

Invideo ....................... 4061

ITT .......................... 4005

Johansson ..................... 4022

JVC ......................... 4048

Kathrein ........... 4004, 4006, 4008,

................... 4011, 4035, 4041

Kreiselmeyer .................. 4008

Kyostar ...................... 4034

La Sat .................. 4043, 4045

Lenco ........................ 4034

Lennox ....................... 4050

Lupus ........................ 4030

Luxor ................... 4005, 4049

Manha/tan .......... 4037, 4045, 4050

Marantz ...................... 4011

Maspro .................. 4004, 4023

Matsui .................. 4024, 4048

Mediamarkt ................... 4015

Mediasa/ ..................... 4059

Minerva ...................... 4048

Morgan's ................ 4015, 4043

Navex ........................ 4022

Neuhaus ...................... 4039

Neusat ....................... 4057

Newhaus ..................... 4013

Nokia ............. 4005, 4032, 4037,

................... 4049, 4054, 4063

Nordmende ................... 4029

Orbi/ech ...................... 4039

Oxti_rd ....................... 4024

Pace ......... 4002, 4009, 4014, 4023,

................... 4037, 4055, 4058

Palladium ..................... 4048

Palsat ........................ 4039

Panda ........................ 4037

Philips ............. 4007, 4011, 4020,

................... 4037, 4048, 4059

Phonotrend .............. 4019, 4050

Pioneer .................. 4021, 4059

Planet ........................ 4061

Promax ....................... 4037

Prosat ........................ 4019

Quadral ................. 4029, 4044

Radiola ....................... 4011

Radix ................... 4031, 4064

RFT ............... 4011, 4013, 4019

Saba .................... 4023, 4045

Sabre ........................ 4037

Sagem ....................... 4056

Salora ........................ 4005

SAT .................... 4027, 4038

Satcom .................. 4026, 4051

Satec ........................ 4009

Satmaster ..................... 4026

Satpartner ..... 4022, 4034, 4040, 4045

Schwaiger ............... 4009, 4041

Seemann ................ 4031, 4046

SEG .................... 4030, 4034

Siemens ...................... 4008

Skymaster .......... 4019, 4044, 4051

Sony .................... 4017, 4018

Strong ....................... 4062

Sunstar ....................... 4043

Tantec .................. 4023, 4037

Techniland .................... 4026

Technisat ................ 4001, 4039

Telefunken .................... 4034

Teleka .................. 4015, 4052

Telesat ....................... 4051

Thomson ................ 4037, 4059

Tonna ................... 4026, 4053

TPS ......................... 4056

Triad ........................ 4027

Triasat ....................... 4040

Unitor ........................ 4022

Universum ............... 4008, 4049

Ventana ...................... 4011

Vor/ec ........................ 4034

Vtech ........................ 4027

Winersat ...................... 4022

Wisi .......... 4008, 4027, 4031, 4037

Xcom Multimedia .............. 4065

Xsat .................... 4006, 4065

_hnder ................. 4033, 4045

W_wn using the TV remote with an acces-

ory device, first make certain it is set

to control your accessorly device (by the

REMOTE CODE or SEARCH method)

Set the TV/DVD/ACC mode switch

to the proper position on the remote,

Point the top of the remote toward

the t¥ont of the accessory device

(remole sensor window) when pressing

the buttons

SYSTEM SWITCH

Set in the proper position to send

device

RECORD •

Hold the VCR •RECORD button down to

begin a VCR recording

REWIND BUTTON _1_1

Press to rewind tapes, For some VCR's

the STOP button may have to be

pressed first, then REWIND. May be

used to scan back through chap/ers or

titles on DVD movies.

FAST FORWARD BUTTON

Press to rapidly advance

DVD devices, you

may

first

In playback mode hold the button down

to view the " ,m

the forward direction.

TV/VCR BUTTON

Press while in 1heVCR mode (VCR indi-

cator on the front of 1heunit will light) to

view 1heplayback of a 1ape, Press again to

place in the TV position (VCR indicator

light will go off) to view one prograrn

while recording another program.

When used in the TV mode, the TV/VCR

button will will have no funOionality,

PIP POSITION CC

RADIO

@@@@

®@

®@@

@@@

STATU R/_XIT SURF

0@0

Press to turn the accessory device ON

and OFF,

Press to begin playback of a video

tape, DVD, etc.

STOP BUTTON •

Press to stop the motion of a tape or to

stop the playback of a DVD.

BUTTON II

Press to lemporarily stop the taIm dur-

ing a playback or recording or pause

the playback of a DVD, Press again to

release Pause,

HANNEL + & - BUTTONS

Press to scan up or down through the

channel numbers if your accessory

device will change channels,

Press buttons for direct channel selec-

tions. May also be used for direct

number entries in certain onscreen

menu feature settings.

The buttons on the remo|e will not operate your

accessory device if flmse features are not found

on your accessory's remole control.

Note: All functions (parlicularly Search,

Rewind, Fast Forward, etc.) will ol_rate lhe

same as with 111eoriginal remole control pro-

vided wilh your accessory device.

This TV also provides you with an FM

adio. An FM Radio signal must be con-

!+ected to the FM A!+telma 75_) Jack lo(ated

o!+the bottom of the TV.

To enter the FM Mode, press theRADIO button on the remote control.

The FM Mode has its own onscreen

menu options.

Press the MENU button on the

remote control to display the FM Mode

onscreen men[L

3Press the CURSOR UP or DOWN

buttons to scroll through the available

FM Mode onscreen options, These

options include: Language, Auto

Program, Manual Store, Sort, or

Name.

LANGUAGE - Choose to view the

onscreen menu in English, French or

Spanish.

AUTO PROGRAM - The Auto

Program control will search the FM

antenna signal and store any FM chan-

nel it finds in the TV's memory;

MANUAL STORE - This control will

allow you to manually tune any avail-

able FM signals.

SORT - The Sort Control will allow

you to rearrange your stored FM sta-

tions in the order you pret?r,

NAME - You can label or apply a

name to your programmed FM radio

stations. Add your own personal name

or choose one from the predefined list. [_lll0lill

Press the CURSOR RIGHT button

to adjust or select items within the

highlighted feature sub-menu,

BPress the STATUS/EXIT button to

remove the onscreen menu from the

TV screen when finished. Or, let the

display time out and the menu will dis-

appear after a few second,

EQUALIZER

•FEATURES BALANCE

• INSTALL AVL

INC_SURROUND

STEREO •SOUND LANGUAGE

•FEATURES AUTOPROGRAM

mMANUALSTORE

SORT

NAME

INSTALL

_ENGLISN

I=lII:l_[lll!._I_li

•AUTOPROGRAM FRANCAIS

• MANUALSTORE ESPANOL

• SORT

• NAME

INSTALL

• LANGUAGE

•_ SEARCH

•MANUALSTORE

• SORT

•NAME

INSTALL

• LANGUAGE SEARCH

•AUTOPROGRAM CHANNEL

STORE

• SORT

•NAME

INSTALL

• LANGUAGE FROM

•AUTOPROGRAM TO

• MANUALSTORE EXCHANGE

•NAME

INSTALL

• LANGUAGE

•AUTOPROGRAM

•MANUALSTORE

• SORT

•_"PERSONAL

ii NURU u_ 885 F

:i [III!IIIL -- ,,1

;I ll It;, lliliil'l"

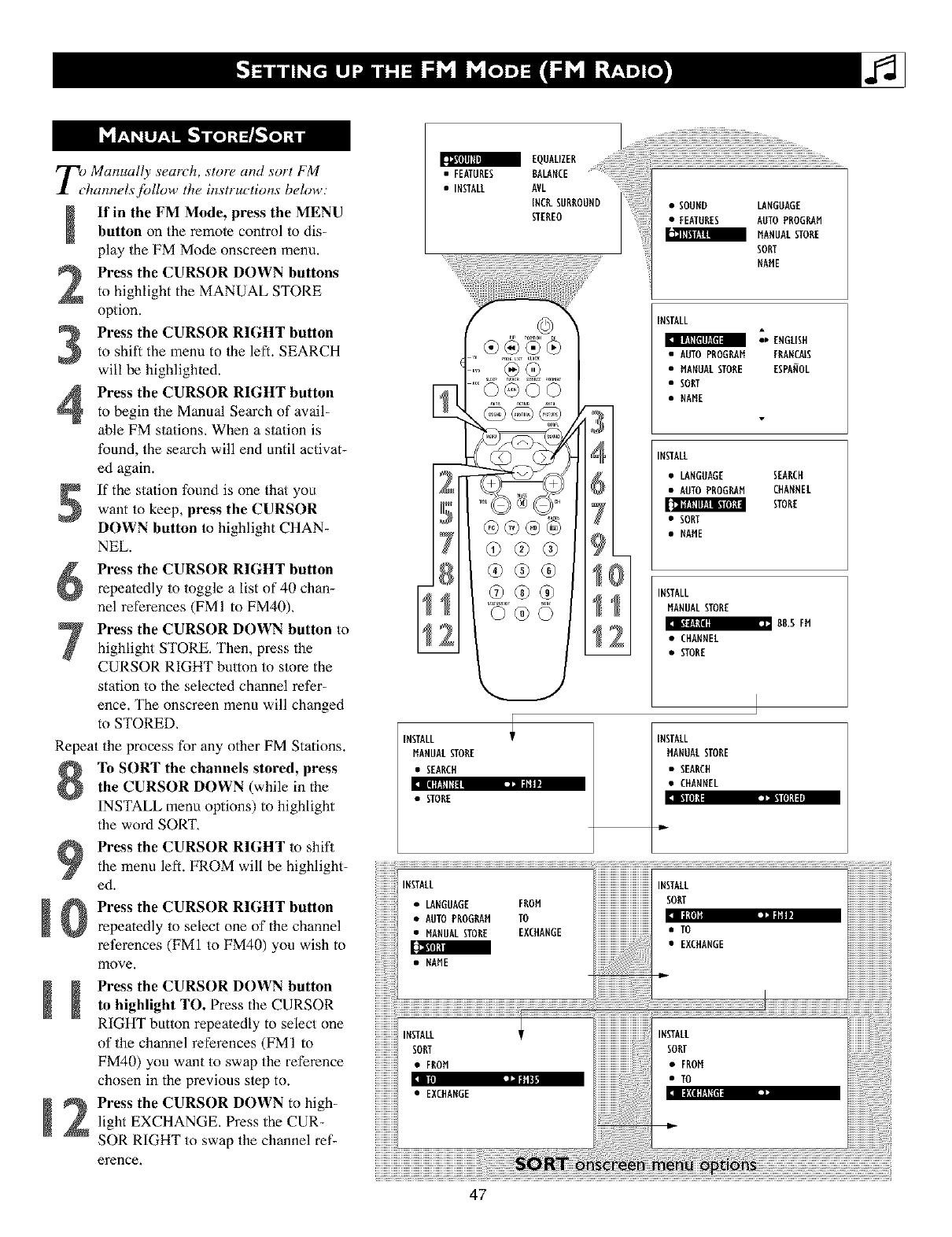

rr_2 Ma#_ually searrh, store, and sort FM

Icltam_elsfollow the imtructio#_s below:

If in the FM Mode, press the MENU

button on the remote control to dis-

play the FM Mode onscreen menu.

Press the CURSOR DOWN buttons

to highlight the MANUAL STOP,E

option.

Press the CURSOR RI(;HT buttonto shift the menu to the left. SEARCH

will be highlighted.

Press the CURSOR RIGHT button

to begin the Manual Search of avail-

able FM stations, When a station is

found, the search will end until activat-

ed again.

If the station found is one that youwant to keep, press the CURSOR

DOWN button to highlight CHAN-

NEL.

Press the CURSOR RI(;HT buttonrepeatedly to toggle a list of 40 chan-

nel references (FMI to FM40),

Press the CURSOR DOWN button to

highlight STORE, Then, press the

CURSOR RIGHT button to store the

station to the selected channel refer-

ence. The onscreen menu will changed

to STORED,

Repeat the process for any other FM Stations.

To SORT the channels stored, press

the CURSOR DOWN (while in the

INSTALL menu options) to highlight

the word SORT,

Press the CURSOR RI(;HT to shill

the menu left. FROM will be highlight-

ed.

Press the CURSOR RI(;HT button

repeatedly to select one of the channel

retbrences (FM1 to FM40) you wish to

move.

Press the CURSOR DOWN button

to highlight TO. Press the CURSOR

RIGHT button repea/edly to select one

of the channel references (FMI to

FM40) you want to swap the reference

chosen in the previous step to.

Press the CURSOR DOWN to high-

light EXCHANGE, Press the CUR-

SOR RIGHT to swap the channel ref-

erence.

.... @ ©

_UT _al0E mT_

@®®

®®®

NAME

INSTALL

:' ENGEISN

•AUTOPROGRAM ERANCAIS

• MANUALSTORE ESPANOL

• SORT

• NAME

INSTALL

•LANGUAGE SEARCH

•AUTOPROGRAM CHANNEE

• SORT

_t!.ll Ill.llil 0|_t| STORE

•NAME

! 1 INSTALL

MANUAL STORE

_; .CHANNEL

-- • STORE

INSTALL

MANUALSTORE

• SEARCH

• STORE

INSTALL

MANUAL STORE

•SEARCH

•CHANNEL

_e!_surv, the best som_d quali O,,fmm the FM

adio,featmw of this "I'V5several Sou!_d

Controls are available for acliustme!_t,

To enter the FM Mode, press the

RADIO button on Ihe remote controL.

The FM Mode has its own onscreen

menu options.

Pre_s tile MENU button on the remotecontrol to display the FM Mode

onscreen menu,

Pre_s the CURSOR DOWN button

until SOUND is highlighted,

Press the CURSOR RIGHT button to

shift Ihe menu to the left, accessing Ihe

SOUND onscreen menu options, these

option include: EQUALIZER, BAL-

ANCE, STORE, AVL, INCREDIBLE

SURROUND, STERE(), AUDIO

OUT, or SPEAKERS.

EQUALIZER - Allows the listener to

change 1hesound frequencies to 1heir

liking,

BALANCE - This conlrols the sound

level balance between the right and lefl

TV speakers.

STORE - Once Sound controls are

adjusled, activating Ihe STORE control

will save those se/tings in the TV's

memory.

AVL - Automa/ic Volume _veler, when

ON, will keep lhe volume level at a con-

sistent level should there be sudden

peaks and valleys in sound levels dtuing

commercial breaks or channel changes.

INCREDIBLE SURROUND - Allows

the user to select a predefined Incredible

Surround setting or Stereo when the sig-

nal is stereo or Spalial and Mono when

the signal is being received in mono.

:_ II_RllilllWdllll/NI Hlglg! iilliF{*lll_

STERE() - Select Stereo or Mono. if

the signal is being received in Mono the

control cannot be placed in Stereo.

AUDIO OUT - When using an external

slereo for sound reproduction, 1heAudio

Out control will allow FIXED or VARI-

ABLE output options,

I[!llllllll [I ilil|l,i iliiilI ll, iii[l_

SPEAKERS - When tising an external

speaker syslem, the Speaker control will

allow you lo turn the TV speakers ON

or OFF.

5Pre_s the STATUS/EXIT button to

remove the onscreen menu fi'om lhe TV

screen when finished, Or, let the display

time out and lhc menu will disappear

afier a few second,

I E UALIZER

•FEATURES BALANCE

•INSTALL AVL .....i

INCR.SURROUND II EQUALIZER

STEREO • FEATURES BALANCE

• INSTALL AVL

INCR,SURROUND

SOUND

• EQUALIZER

• BALANCE

•AVL

• STEREO

SOUND

•EQUALIZER

• BALANCE

• AVL

•INCR.SURROUND

PF_G LI _L_K

®0

O6GG

ooo&

000

OOO

SOUND

IAVL ±

• INCR,SURROUND

• STEREO

• AUDIO OUT

iltl:l[I I'. ,_..

STEREO

SOUND

120UZ

•BALANCE 500HZ

• AVL 1500HZ

• INCR.SURROUND 5HZ

• STEREO IOKHZ

SOUND

•EQUALIZER

I IlI!l I!l!l I

•A_L

• INCR.SURROUND

• STEREO

SOUND

•EQUALIZER

• BALANCE

•INCR.SURROUND

• STEREO

SOUND

•EQUALIZER

•BALANCE

• AVL

• STEREO

SOUND t

IBALANCE

• AVL

•INCR.SURROUND

•STEREO

•T

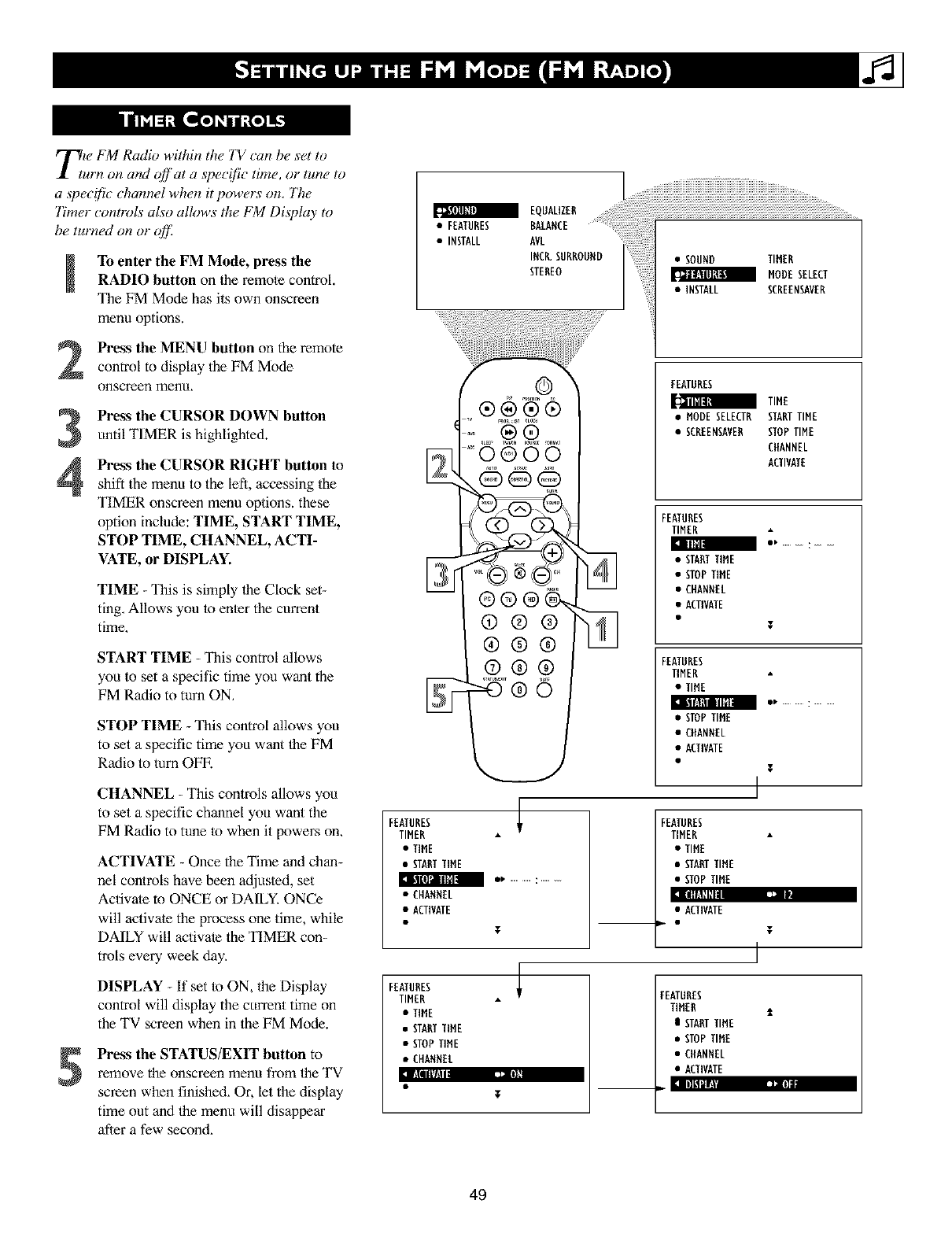

Tie FM Radio within the TV can be set to

urn on a!_zloffal a specific time, or tune to

asT)ecific chwmel when it powers on. The

Timer conm)ls also allows the FM Display to

be turned on or qff]

To enter the FM Mode, press the

RADIO button on the remote control.

The FM Mode has its own onscreen

menu options.

Press the MENU button on the remote

control to display the FM Mode

onscreenmenu,

Press the CURSOR DOWN button

until TIMER is highlighted.

Press the CURSOR RIGHT button to

shift the menu to the left, accessing the

TIMER onscreen menu options, these

option include: TIME, START TIME,

STOP TIME, CHANNEL, ACTI-

VATE, or DISPLAY.

TIME - This is simply the Clock set-

ting, Allows you to enter the current

time,

START TIME - This control allows

you to set a specific time you want the

FM Radio to turn ON,

STOP TIME - This control allows you

to set a specific time you want the FM

Radio to turn OFE

CHANNEL - This controls allows you

to set a specific channel you want the

FM Radio to tune to when it powers on,

ACTIVATE - Once the Time and chan-

nel controls have been adjusted, set

Activate ro ONCE or DAILY, ONCe

will activate the process one time, while

DAILY will activate the TIMER con-

tmls every week day,

DISPLAY - it"set to ON, the Display

control will display the currant time on

the TV screen when in the FM Mode.

5Press the STATUS/EXIT button to

remove the onscreen menu from the TV

screen when finished, Or, let the display

time out and the menu will disappear

after a few second,

m Q ......idiiiiiii!!@iiiiiili!i!i!i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

•FEATNNES BALANCE..... _

•INSTALL AVL .....

INCN.SNNNOUND •SONND TIMEN

STEREO _ MODESELECT

[• INSTALL SCNEENSAVEN

@@@

@®®

®®®

©®®

FEATURES

TIMER

• TIME

• STANTTIME

*l.

• CHANNEL

• ACTIVATE

FEATURES

mTIME

• MODESELEUN STARTTIME

• SCNEENSAVEN STOPTIME

CHANNEL

ACTIVATE

FEAINNES

TIMER

I. ...........

• STARTTIME

• STOPTIME

• CHANNEL

• ACTIVATE

FEATURES

TIMER

•TIME

• STOPTIME

•CHANNEL

• ACTIVATE

FEATURES

TIMER

•TIME

• SIAMTIME

• STOPTIME

• ACTIVATE

FEAINNES

TIMER

•TIME

•STARTTIME

• STOPTIME

• CHANNEL

:l [!II [|lt:ll Jill

FEATURES

TIMEN

I STARTTIME

• STOPTIME

• CHANNEL

• ACTIVATE

Tw Mode Select options allow you to move

o other operating modes within he I'V.

When in the FM Mode, choose from "I'V,PC, or

HD Modes.

If in the FM mode, press the MENU

button on the remote control to display

the FM Mode onscreen menu,

Pre_s the CURSOR DOWN button

until MODE SELECT is highlighted,

Pre_s tile CURSOR RIGHT button to

shift lbe menu to the left, accessing the

Mode Select onscreen menu options,

Pre_s tile CURSOR UP or DOWN

buttons to choose TV, PC, or HD.

TV - This will switch the TV back to the

TV Mode of operation.

PC - This control will switch the TV to

the PC Mode of oImra/ion. Note a PC

signal must be present tbr this to work,

or the TV will go into standby mode.

HD - This con/rol will set the TV to 1he

High Definition Mode,

Pre_s the CURSOR RIGHT button toactivate the selected conlrol and change

to the highlighted mode.

5Pre_s the STATUS/EXIT button to

remove the onscreen menu fi'om 1he TV

screen when finished, Or, let the display

time out and 1he menu will disappear

afler a few second,

•FEATURES BALANCE

• I_STALL AVL

INCR.SIIRROIIND

STEREO

_R_ LI_ r_

®®

®®®®

®@@

FEATURES

FIODESELECT

*IV

/°_

• PC

•SOUND TIMER

aHODE SELECT

• INSTALL SCREENSAVER

FEATURES

L_ TIME

•HODE SELECT STARTTIME

• SCREENSAVER STOPTIME

CNAN_EL

ACTIVATE

FEATURES

• TIHER TV

_ND

• SCREENSAVER PC

FEATURES

NODE SELECT

•HD

• PC

FEATURES

NODE SELECT

•TV

•HD

Wsile in the FM Mode, therc_ is a

crwensaver option that can be used. The

Screensaver control, when on, will circulate the

sclY.en station indication around the display.

If in the FM mode, press the MENUbutton on the remote control to display

the FM Mode onscreen menu.

Press the CURSOR DOWN button

until FEATURES is highlighted.

Press the CURSOR RIGHT button to

shift the menu to the lefi. TIMEP. will

be highlighted.

Press the CURSOR DOWN button

until SCP.EENSAVEP. is highlighted.

Press the CURSOR RIGHT or LEFT

button to toggle the Screensaver control

ON or OFE

With the Screensaver control set to ON,

the display will shift around the screen

pausing in one place for a brief moment.

Press the STATUS/EXIT button to

remove the onscreen menu from 1he TV

screen when finished. Or, let the display

time out and the menu will disappear

after a few _cond.

•FEATURES BALANCE ........

• INSTALL AVL ....

INCR.SURROUND { • SOUND TIMER

STEREO _ MODESELECT

I:::::::: • INSTALL SCREENSAVER

Ill_ I

FEATURES

TIME

•MODESELECT STARTTIME

• SCREENSAVER STOPTIME

CHANNEL

ACTIVAIE

FEAIURES

•TIMER

• MODESELECT

[I ill_tilll!fflla • ...,.

FEAIURES

•TIMER

• MODESELECT

[llll_tillklfflt:_ _lllil

FM2 iii !7 ii_!!i

ii) ii 7¸ i;!17

104.5 FM

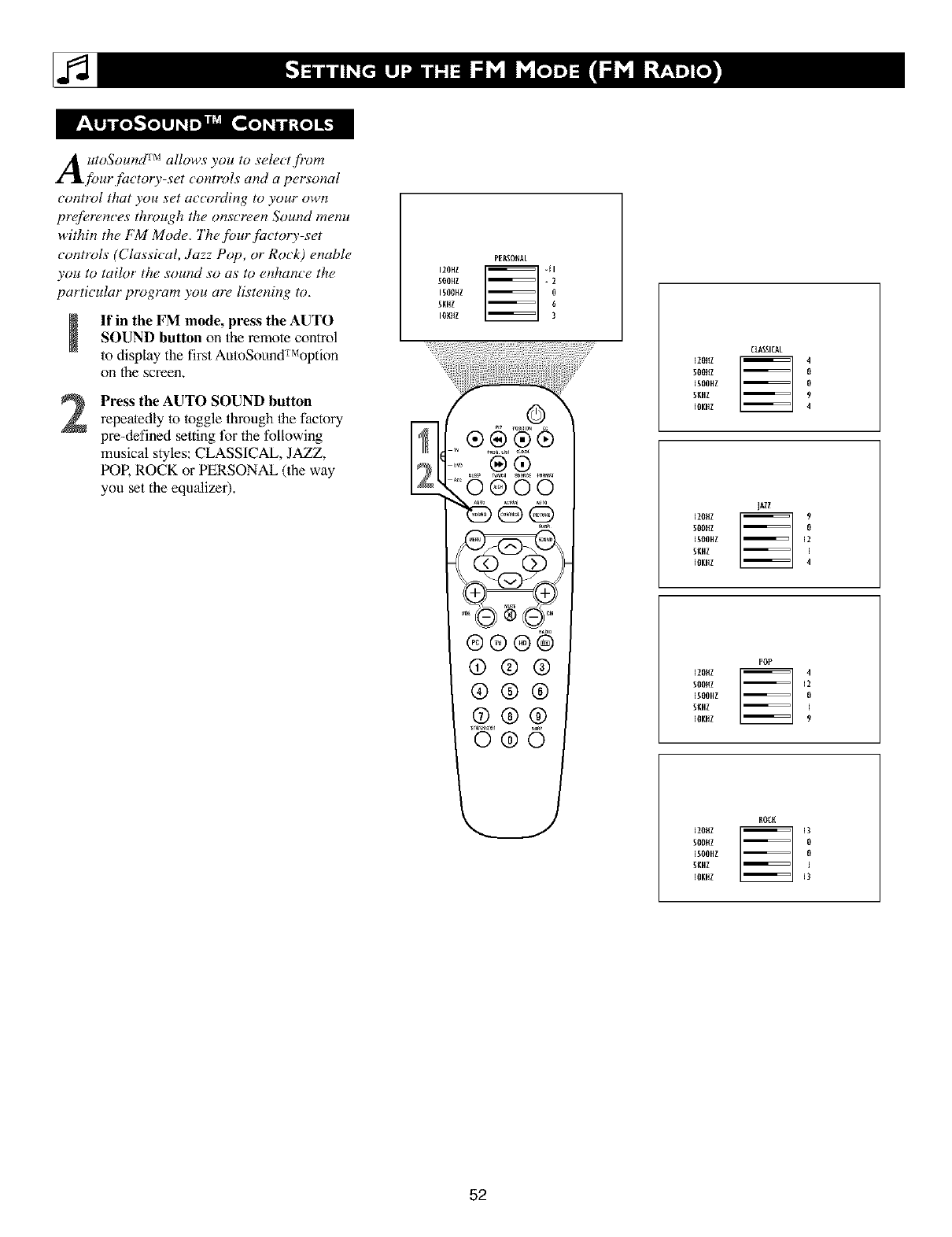

AutoSound TM allows you to select from

,four factorT-set controls and a personal

control that you set according to your own

preferences through the onscreen Sound menu

within the FM Mode. The four fa_ tolT-set

controls (Classical, Jazz Pop, or Rock) enable

you to tailor the sound so as to enhance the

particular program you are listening to,

If in the FM mode, press the AUTO

SOUND button on the remote control

to display the firstAutoSoundrMoption

on the screen.

Press the AUTO SOUND button

reI_atedly to toggle through the factory

pre-defined setting tbr the following

musical styles: CLASSICAL, JAZZ,

POE ROCK or PERSONAL (the way

you set the equalizer).

120HZ

500HZ

1500HZ

5EHZ

IOKffl

PERSONAL

-1

,,_ ®® o

@®®

(b®®

©®® O

,_5

CLASSI_L

120ffl 4

SOOffl 0

ISOOHZ 0

SRHZ 9

IOKHZ 4

]AZZ

120ffl 9

SOOffl 0

ISOOHZ 12

$RHZ I

IOKHZ 4

POP

120ffl 4

SOOff/ 12

I500Hl 0

S_HZ I

IOKHZ 9

ROCK

120ffl 13

SOOffl 0

I500HZ 0

$RHZ I

_OKHZ 13

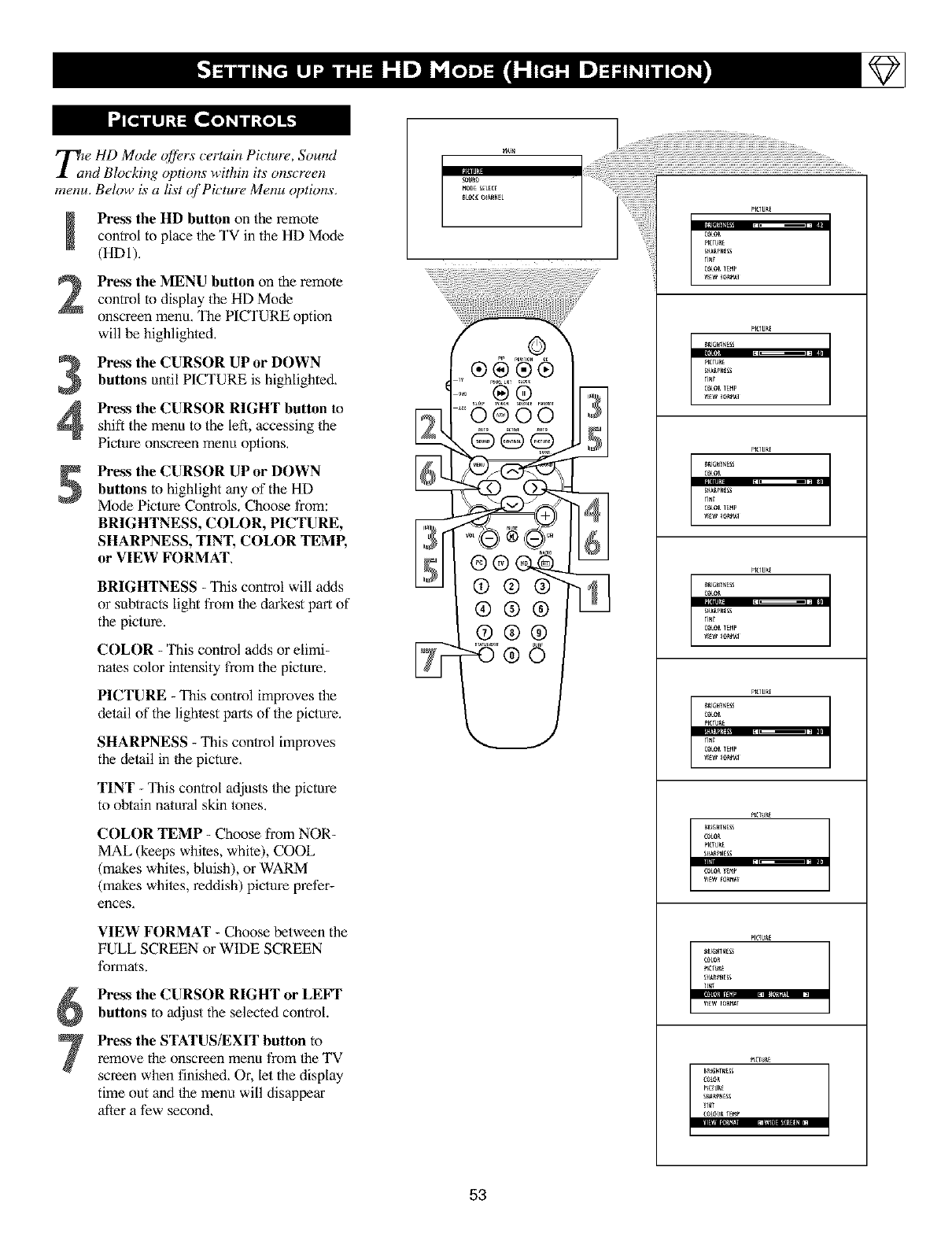

Tie HD Mode offers certain Pictur(., Sound

nd Blocking options within its onscreen

menu. Below is a list qf Pictur(_ Menu options.

Press the HD button on the remotecontrol to place the TV in the HD Mode

(HDI),

Press the MENU button on the remotecontrol to display the HD Mode

onscreen menu. The PICTURE option

will be highlighted,

Press the CURSOR UP or DOWN

buttons until PICTURE is highlighted,

Press the CURSOR RIGHT button to

shift the menu to the left, accessing the

Picture onscreen menu options,

5Press the CURSOR UP or DOWN

buttons to highlight any of the HD

Mode Picntre Controls. Choose fi'om:

BRIGHTNESS, COLOR, PICTURE,

SHARPNESS, TINT, COLOR TEMP,

or VIEW FORMAT.

BRIGHTNESS - This control will adds

or subtracts light from 1he darkest part of

the pictare.

COLOR - This control adds or elimi-

nates color intensity from the pictare.

PICTURE - This control improves the

detail of the lighlest parts of the pictare.

SHARPNESS - This control improves

the detail in/he pictare,

TINT - This control adjusts Ihe pictare

to obtain na/aral skin tones.

COLOR TEMP - Choose from NOR-

MAL (keeps whites, white), COOL

(makes whiles, bluish), or WARM

(makes whiles, reddish) picture prefer-

ences,

VIEW FORMAT - Choose between the

FULL SCREEN or WIDE SCREEN

formats.

Press the CURSOR RIGHT or LEFT

buttons to adjust the selected control.

Press the STATUS/EXIT button to

remove the onscreen menu from lhe TV

screen when finished, Or, let the display

time out and the menu will disappear

afler a few second,

_EC_U_E

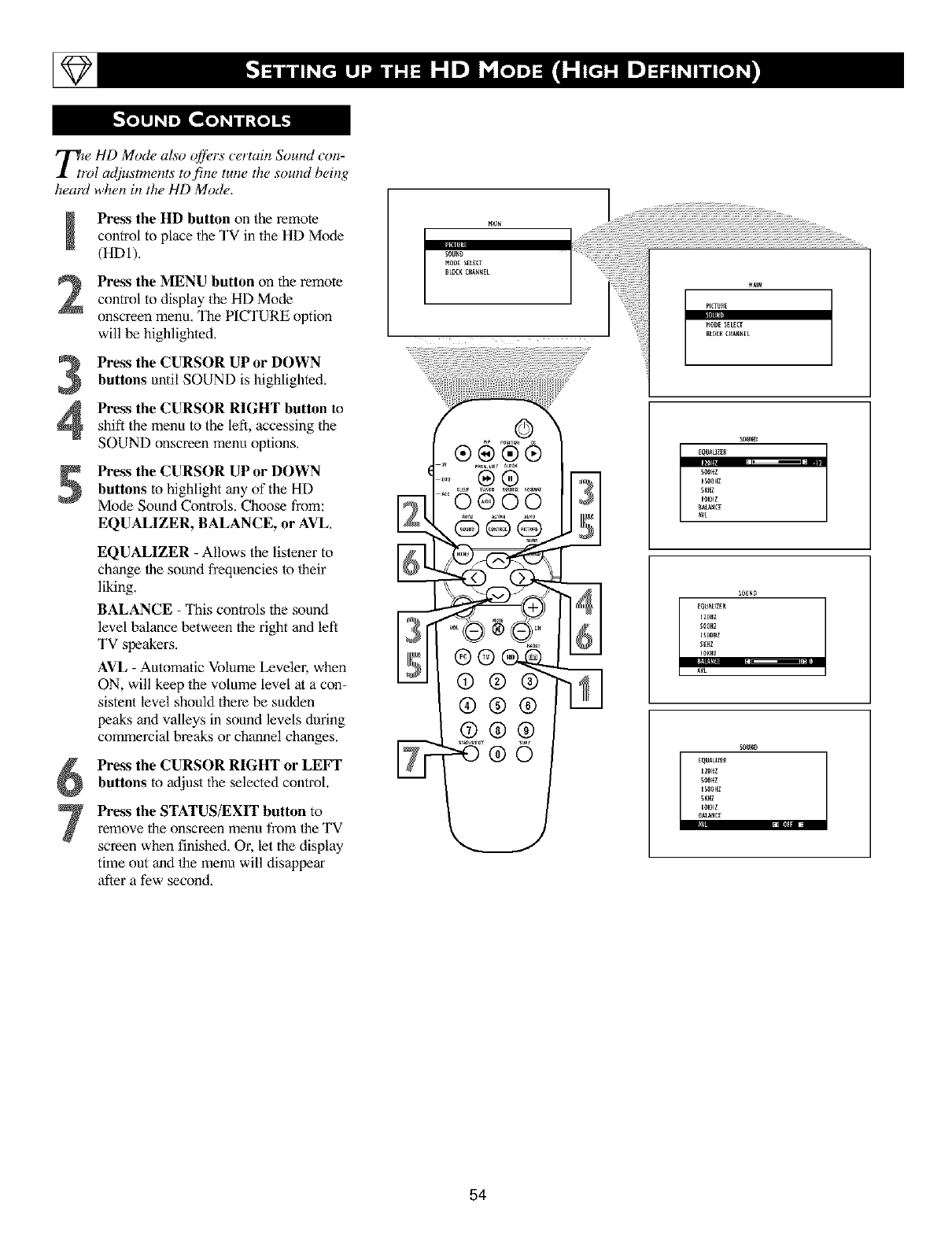

Tw HD Mode also qffMs certain Sound con-

rol a4justments to fine tune the sound being

hearzl when in the HD Mode,

Pre_s the HD button on the remotecontrol to place the TV in the HD Mode

(HDI).

Pre_s the MENU button on the remotecontrol to display the HD Mode

onscreen menu. The PICTURE option

will be highlighted,

Pre_s the CURSOR UP or DOWN

buttons until SOUND is highlighted,

Pre_s the CURSOR RIGHT button to

shift the menu to the left, accessing the

SOUND onscreen menu options,

Pre_s the CURSOR UP or DOWN

buttons to highlight any of the HD

Mode Sound Controls. Choose from:

EQUALIZER, BALANCE, or AVL,

EQUALIZER - Allows the listener to

change 1he sound frequencies to lheir

liking,

BALANCE - This conlrols the sound

level balance between the right and left

TV sI_akers.

AVL - Automa/ic Volume _veler, when

ON, will keep the volume level at a con-

sistent level should there be sudden

peaks and valleys in sound levels during

commercial breaks or channel changes.

Pre_s the CURSOR RIGHT or LEFT

buttons to adjust the selected control.

Pre_s the STATUS/EXIT button to

remove the onscreen menu from lhe TV

screen when finished, Or, let the display

time out and the menu will disappear

afler a few second.

P_AIH

SO_B

BLOCKC_AHHEL

_o_z

_VL

_OUHB

EOU_LIZ[R

I$_HZ

SK_Z

_VL I

_O0_Z

_K_Z

_HCE

rl_e HD Select Control will allow you to

uicklv change f!'om the HD Mode <_foper-

ation to the TV, FM Radio, or PC Modes,

If in the HD Mode, press the MENUbutton on/he remote control to display

the HD Mode onscreen menu, The PIC-

TURE option will be highlighted.

Pre_s the CURSOR UP or DOWN

buttons until MODE SELECT is high-

lighted.

Press the CURSOR RIGHT button lo

shift the menu to the left displaying the

MODE SELECT options. Choose from

TV MODE, FM RADIO MODE, or

PC MODE.

Press the CURSOR RIGHT button toactivate the highlighted m_×lecontrol.

Ma_

BLOCKC_A_[ L

0000

@6@

ooo®

OOO

ooo

MN?__EtECT

M_E _EtECT

7_cte HD Mode ckwmel can be blocked to

"ensor tke viewing qf programming not

suitable f!)r ckildrYm. "lb block the HD Mode

chatmel,,f!)llow tke steps below,

Press the HD button on the remotecontrol to place the TV in ihe HD Mode

(HDI),

Press the MENU button on the remotecontrol to display the HD Mode

onscreen menu. The PICTURE option

will be highlighted,

Press the CURSOR UP or DOWN

buttons until BLOCK CHANNEL is

highlighted.

4Press the NUMBERED buttons and

enier your tbur digit Access Code lhat

was so/up for lhe TV AuioLock l;ea/ure.

The Block Channel Control will be

available for adjustment

5Press the CURSOR RIGHT button to

Joggle ihe control ON or OFF. If sei to

ON, ihe HDI channel (mode) will not

allow viewing of programs. This control

would have to be sel to OFF to make the

HDI channel (mode) viewable,

Press the STATUS/EXIT button to

remove ihe onscreen menu from the TV

screen when finished,

...... ;777777777771'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_'_

@®

PI_NR[

_OUND

HMOD_SEL_CT

PI_NR[

_OUND

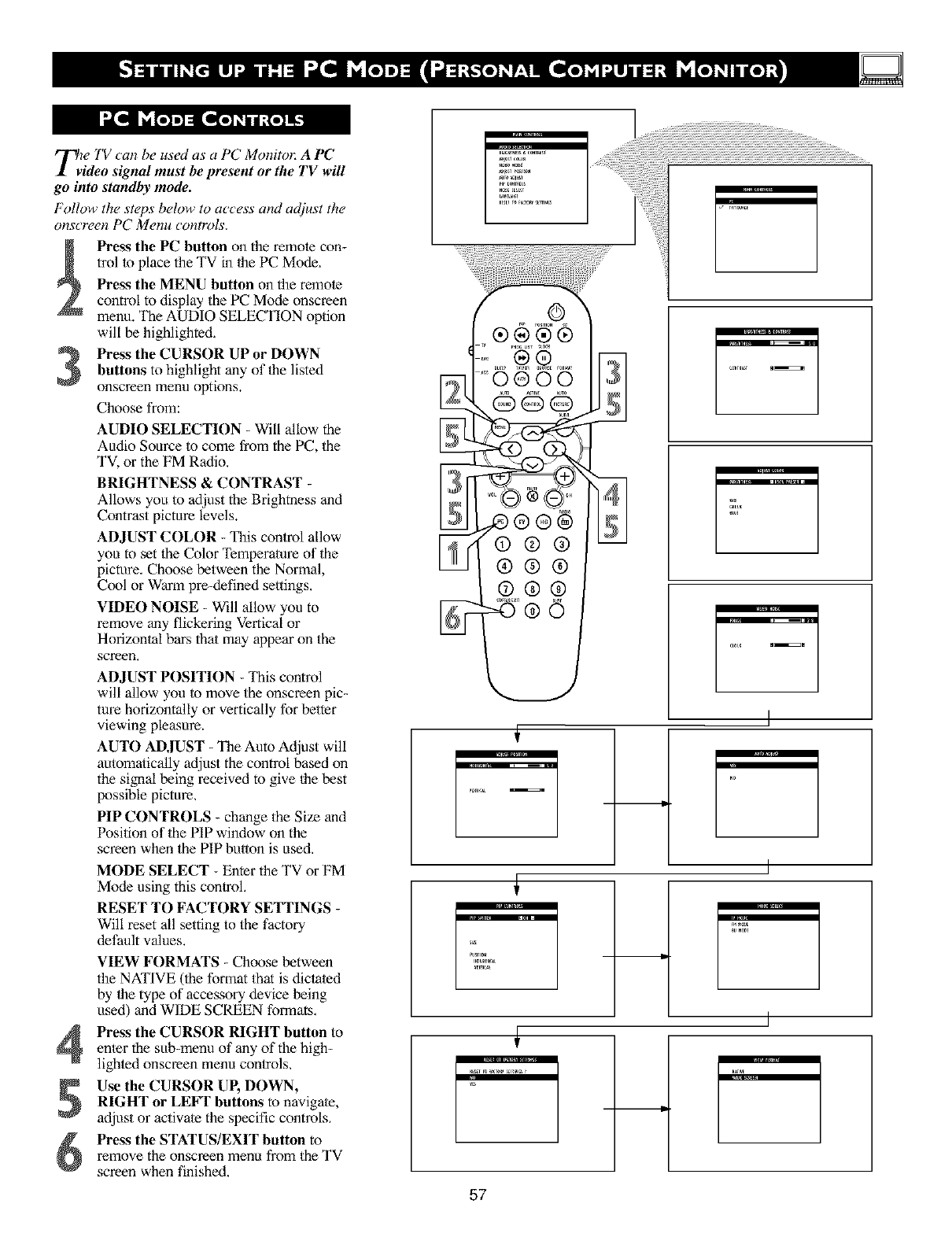

The TV can be used as a PC Monitol: A PC

dee signal mast be present or the TV will

go into standby mode.

Follow the steps below to access and adjust the

onscreen PC Menu controls.

Press the PC button on the remote con-

trol to place the TV in the PC Mode.

Press the MENU button on the remote

control to display the PC Mode onscreen

menu. The AUDIO SELECTION option

will be highlighted.

S Press the CURSOR UP or DOWN

buttons to highlight any of lhe listed

onscreen menu options.

Choose from:

AUDIO SELECTION - Will allow the

Audio Source to come from the PC, the

TV, or the FM Radio,

BRIGHTNESS & CONTRAST -

Allows you to adjust the Brightness and

Contrast picture levels.

ADJUST COLOR - This control allow

you to set the Color Temperature of the

picture. Choose between the Normal,

Cool or Warm pre-defined sellings.

VIDEO NOISE - Will allow you to

remove any flickering Vertical or

Horizontal bars thai may appear on the

screen,

ADJUST POSITION - This control

will allow you tn move the onscreen pic-

ture horizontally or vertically for better

viewing pleasure.

AUTO ADJUST - The Autn Adjust will

automalically adjust the control based on

the signal being received tn give ihe best

possible picture,

PIP CONTROLS - change the Size and

Position of the PIP window on the

screen when the PIP buiion is used,

MODE SELECT - Enter the TV or FM

Mode using this control.

RESET TO FACTORY SETTINGS -

Will reset all setting to the factory

default values.

VIEW FORMATS - Choose between

the NATIVE (the format that is dictated

by the type of accessory device being

used) and WIDE SCREEN formats,

Press the CURSOR RIGHT button toenter the sub-menu of any of the high-

lighted onscreen menu controls,

Use the CURSOR UP, DOWN,

RIGHT or LEFT buttons to navigate,

adjust or activate the specific controls.

Press the STATUS/EXIT button to

remove the onscreen menu fi'om the TV

screen when finished.

@OO

©©®

_t_E

m._ll

M_Vl

t_r,u

H_TIV[

i, .....

No. Resolution

1640 x 480

6 720 x 400

7 800 x 600

12 832 x 624

13 1024 x 768

17 1152 x 864

18 1280 x 960

19 1280 x1024

Ref_sh

Rate

60 Hz

67 Hz

72 Hz

75 Hz

85 Hz

70 Hz

56 Hz

60 Hz

72 Hz

75 Hz

85 Hz

75 Hz

60 Hz

70 Hz

75 Hz

85 Hz

75 Hz

60 Hz

75 Hz

Veffical

Sync

Horizontal

Sync

31,500 kHz

35,000 kHz

37,900 kHz

37,500 kHz

43,300 kHz

31,469 kHz

35,100 kHz

37,900 kHz

48,100 kHz

46,900 kHz

53,700 kHz

49,700 kHz

48,400 kHz

56,500 kHz

60,000 kHz

68,700 kHz

67,500 kHz

60,000 kHz

64,000 kHz

80,000 kHz

Horizontal

Polarity

Pixel

Frequency

25,175 I'lHz

30,240 I'lHz

31,500 I'lHz

31,500 I'IH

36,000 I'lHz

28,322 I'lHz

36,000 I'lHz

40,000 I'lHz

50,000 I'lHz

49,500 F1Hz

56,250 I'lHz

57,300 I'lHz

65,000 I'lHz

75,000 I'lHz

78,750 I'lHz

94,500 F1Hz

108,000 I'lHz

135,000 I'lHz

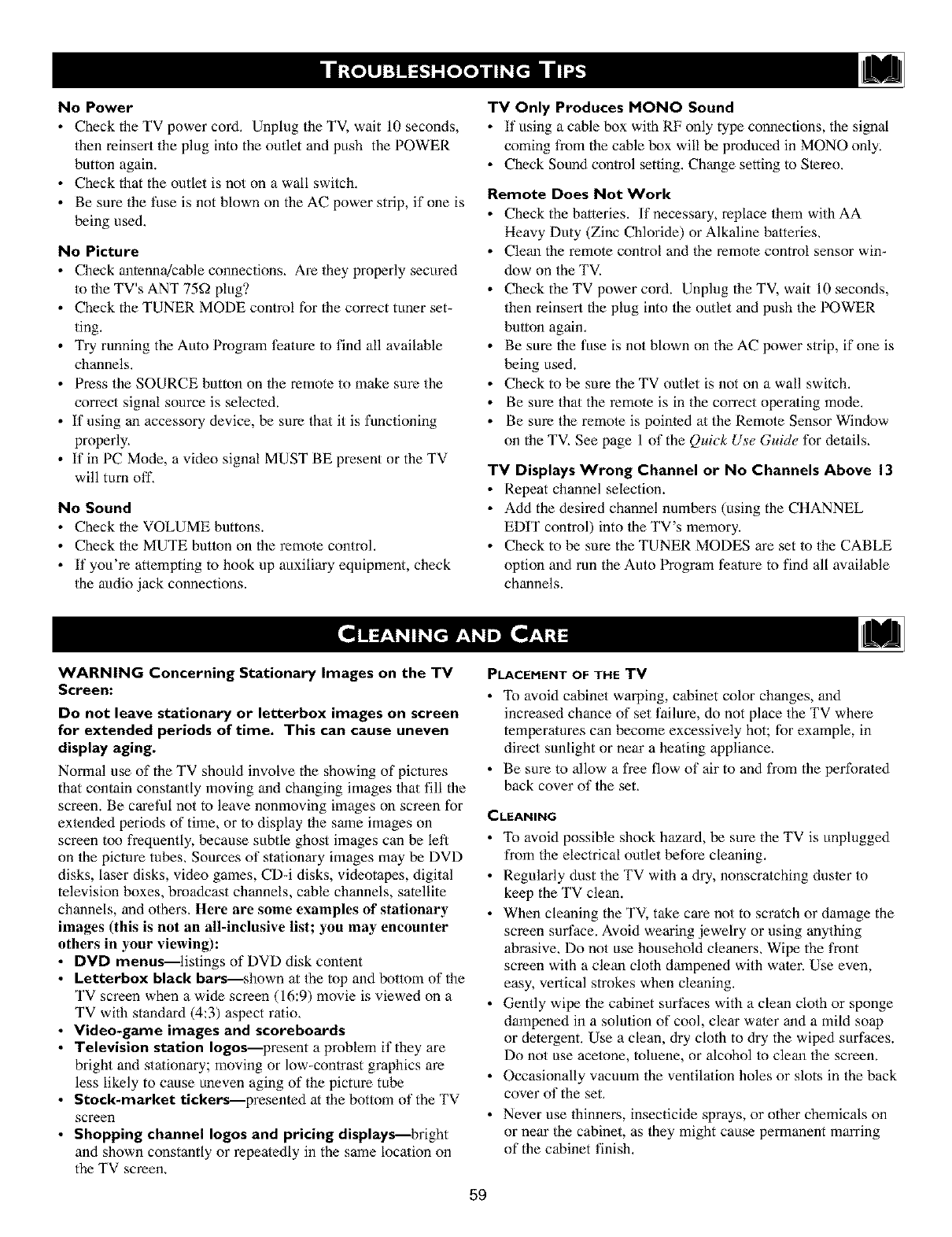

No Power

•Check the TV power cord, Unplug the TV, wait 10 seconds

then reinsert the plug into the outlet and push the POWER

button again.

• Check that the outlet is not on a wall switch,

• Be sure the t_se is not blown on the AC power strip, if one :s

being used,

No Picture

•Check antenna/cable connections, Are they properly secured

to the TV's ANT 75_2 plug?

• Check the TUNER MODE control fur the correct tuner set-

ting,

• Try running the Auto Program feature to find all available

channels,

• Press the SOURCE button on the remote to make sure the

correct signal source is selected.

• If using an accessory device, be sure that it is functioning

properly,

• If in PC Mode, a video signal MUST BE present or the TV

will turn off,

No Sound

• Check the VOLUME buttons.

• Check the MUTE button on the remole control.

• If you're attempting to hook up auxiliary equipment, check

the audio jack connections.

TV Only Produces MONO Sound

• If using a cable box with RF only tyI m connections, the signal

coming from the cable box will be produced in MONO only;

• Check Sound control setting, Change setting to Slereo,

Remote Does Not Work

•Check the batteries. If necessary, replace them with AA

Heavy Duty (Zinc Chloride) or Alkaline batteries,

• Clean the remote control and the remote control sensor win-

dow on the TV.

• Check the TV power cord. Unplug the TV, wait 10 seconds,

then reinsert the plug into the outlet and push the POWER

button again,

• Be sure the fuse is not blown on the AC power strip, if one is

being used.

• Check to be sure the TV outlet is not on a wall switch.

• Be sure that the remote is in the correct opera/ing mode.

• Be sure the remole is poinled at the Remote Sensor Window

on the TV, See page 1 of the Quick Use Guide for details,

TV Displays Wrong Channel or No Channels Above 13

• Repeat channel selection.

• Add the desired channel numbers (using the CHANNEL

EDIT control) into the TV's memory,

• Check to be sure the TUNER MODES are set to the CABLE

option and mn the Auto Program feature to find all available

channels.

WARNING Concerning Stationary Images on the TV

Screen:

Do not leave stationary or letterbox images on screen

for extended periods of time. This can cause uneven

display aging.

PLACEMENT OF THE TV

Normal use of the TV should involve the showing of pictures

that contain constantly moving and changing images that fill the

screen. Be caret_l not to leave nonmoving images on screen fur

extended periods of time, or to display the same images on CLEANING

screen too frequently, because subtle ghost images can he left

on the picture tubes, Sources of stationary images may be DVD

disks, laser disks, video games, CD-i disks, videotapes, digital

television boxes, broadcast channels, cable channels, satellite

channels, and others, Here are some examples of stationary

images (this is not an all-inclusive list; you may encounter

others in your viewing):

•DVD menus---listings of DVD disk content

•ketterbox black bars--shown at Ihe top and bottom of the

TV screen when a wide screen (16:9) movie is viewed on a

TV with standard (4:3) aspect ratio,

•Video-game images and scoreboards

•Television station Iogos--present a problem if they are

bright and sta/ionary; moving or low-contrast graphics are

less likely to cause uneven aging of the picture tube

• Stock-market tickers--presenled at the bottom of the TV

screen °

•Shopping channel Iogos and pricing displays---.-bright

and shown constantly or repeatedly in the same location on

the TV screen.

• To avoid cabinet warping, cabinet color changes, and

increased chance of set failure, do not place the TV where

tempera/ures can become excessively hot; fur example, in

direct sunlight or near a heating appliance.

• Be sure to allow a free flow of air to and from the perfnrated

back cover of the set,

• To avoid possible shock hazard, be sure the TV is unplugged

from the electrical outlet befnre cleaning,

• Regularly dust the TV wilh a dry, nonscra/ching dus/er to

keep the TV clean.

• When cleaning the TV, take care not to scratch or damage the

screen surface. Avoid wearing jewelry or using anything

abrasive, Do not use household cleaners, Wipe the front

screen with a clean cloth dampened with waler. Use even,

easy, vertical strokes when cleaning.

• Gently wipe the cabinet surt3ces with a clean cloth or sponge

dampened in a solution of cool, clear wa/er and a mild soap

or detergent, Use a clean, dry cloth to dry the wiped surfaces.

Do not use acetone, toluene, or alcohol to clean the screen.

Occasionally vacuum the ventila/ion holes or slots in the back

cover of the set,

Never use Ihinners, insecticide sprays, or other chemicals on

or near the cabinet, as they might cause permanent marring

of the cabinet finish,

Active Control • Active Control continuously measures and cor-

rects the incoming signals to provide the best picture possible.

Audio/Video Inputs • Jacks (standard RCA), located on the

back of the TV, used tbr ex/emal accessory devices. These jacks

are designed to receive higher picture resolution and offer

sound-connection options.

Auto Programming •When activaled, this thamre scans for all

available channels from reguiar antenna or cane signals and

stores only active broadcast stations in the TV's memory.

Channel Edit °The feature that allows you to add or delete

channels from the list of channels stored in the TV's memory.

Closed Captioning • The broadcast standard feature thai allows

you to read the voice content of wlevision programs on the TV

screen. Designed to help the hearing impaired, Closed

Captioning shows dialogue and conversa/ions while aTV pro-

gram is in progress.

Coaxial Cable °A single solid wire normally matched with a

metal plug (F-type) end connector that screws (or pushes) direct-

ly onto a 75-ohm input fnund on the television or VCR.

Component Video Inputs • Inputs that allow the separate recep-

tion of blue, red, and luminance signals. These inputs provide

the highest possible color and picture resolution in the playback

of digital signal-source material, such as the kind available from

DVD players.

Composite Video Input • An input in which all the components

required fnr displaying the onscreen image are combined in one

signal.

High-definition Television (HDTV) •High-resolution digital

television.

Incredible Surround •False acoustic management of the audio

signal thai produces a dramatic expansion of the wail of sound

thai surrounds the listener and heightens overall viewing pieas-

ure.

Menu •An onscreen list of feature controls available for you to

adjust or set.

Onscreen Displays (OSD) •The wording or messages generat-

ed by the television (or VCR) to help you wilh specific feature

controls (color adjustment or programming, fnr example).

Remote Control Sensor Window ° The window or opening

found on the television control panel through which infrared

remote control command signals are received,

Second Audio Program (SAP) • An additional audio channel

provided for in the Muitichannel Television Sound (MTS)

broadcast standard. A monaural soundtrack included within the

recorded or video signal (usually containing a second language

translation for the displayed programming),

Status/Exit Button •The remote control function that allows

you to quickly confirm what channel number you are watching.

Status/Exit can also be used to clear the television of onscreen

displays or infnrmation. You can use Status!Exit ralher than hav-

ing to wait tbr the displays to "time out," or automatically disap-

pear from the screen.

S-Video Input •Signal input that allows direct connection of

high-resolution video sources, such as asa/eliite receiver, DVD

player, S (Super)-VHS videocassetle recorder, or video games.

Provides improved picture resolution, sharpness, and clarity,

Tint • TV function that allows you to change the general color

balance between cool and warm. Adjust tint according to your

personal preference.

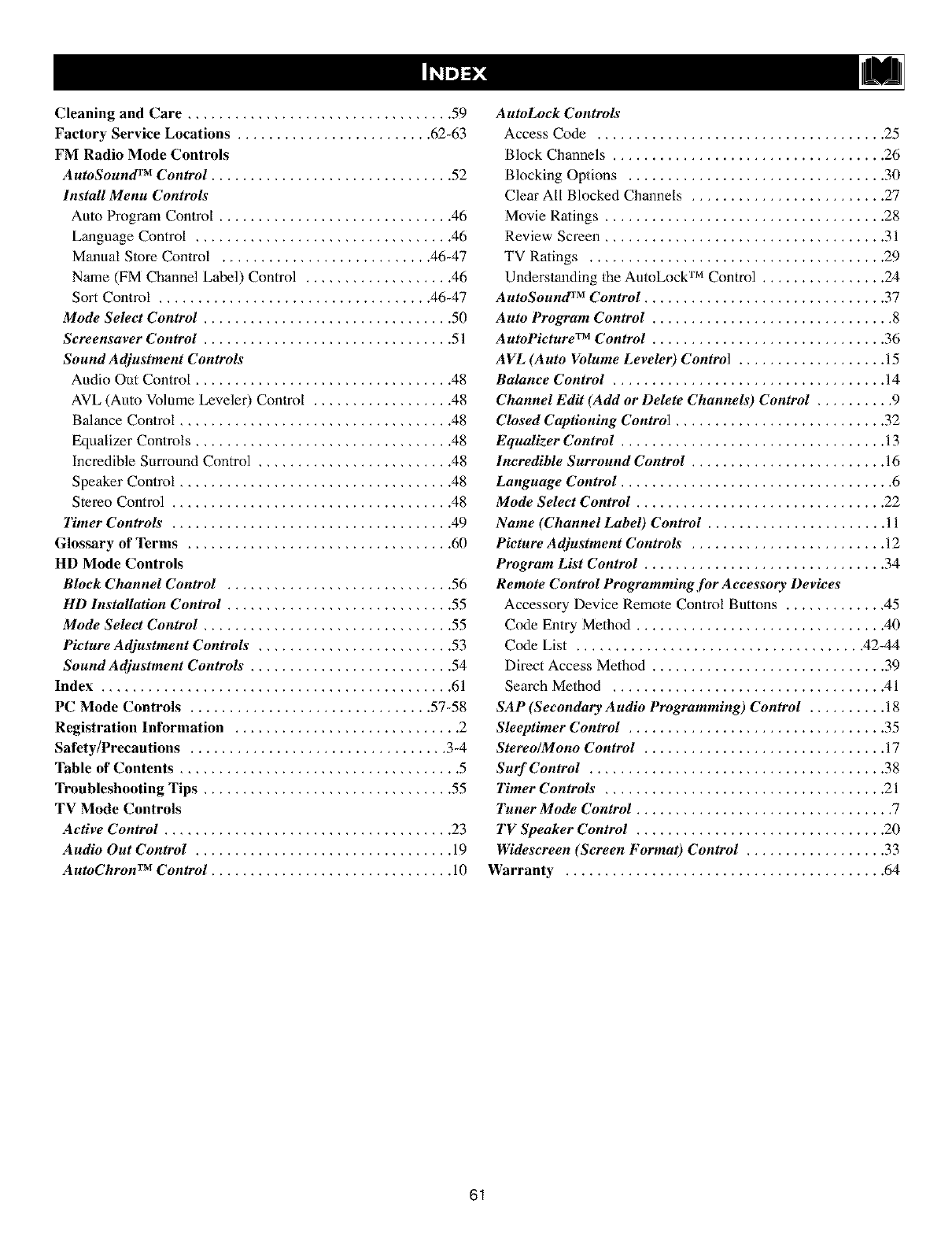

Cleaning and Care .................................. 59

Factory Service Locations ......................... 62-63

FM Radio Mode Controls

AutoSound TM Control ............................... 52

Install Menu Controls +

Auto Program Control .............................. 46

Language Control ................................. 46

Manual Store Control ........................... 46-47

Name (FM Channel Label) Control ................... 46

Sort Control ................................... 46-47

Mode Select Control ................................ 50

Sereensaver Control ................................ 51

Sound Adjustment Controls"

Audio Out Control ................................. 48

AVL (Auto Volume Leveler) Control .................. 48

Balance Control ................................... 48

Equalizer Controls ................................. 48

Incredible Surround Control ......................... 48

Speaker Control ................................... 48

Stereo Control .................................... 48

Timer Controls .................................... 49

Glossary of Terms .................................. 60

HD Mode Controls

Block Channel Control ............................. 56

HD Installation Control ............................. 55

Mode Select Control ................................ 55

Picture Adjustment Controls ......................... 53

Sound Adjustment Controls +.......................... 54

Index ............................................. 61

PC Mode Controls ............................... 57-58

Registration Information ............................. 2

Safety/Precautions ................................. 3-4

Table of Contents .................................... 5

Troubleshooting Tips ................................ 55

TV Mode Controls

Active Control ..................................... 23

Audio Out Control ................................. 19

AutoChron TM Control ............................... 10

AutoLock Controls

Access Code ..................................... 25

Block Channels ................................... 26

Blocking Options ................................. 30

Clear All Blocked Channels ......................... 27

Movie Ratings .................................... 28

Review Screen .................................... 31

TV Ratings ...................................... 29

Understanding Ihe AntoLock TM Control ................ 24

AutoSound TM Control ............................... 37

Auto Program Control ............................... 8

AutoPicture TM Control .............................. 36

AVL (Auto Volume Leveler) Control ................... 15

Balance Control ................................... 14

Channel Edit (Add or Delete Channels) Control .......... 9

Closed Captioning Control ........................... 32

Equalizer Control .................................. 13

Incredible Surround Control ......................... 16

Language Control ................................... 6

Mode Select Control ................................ 22

Name (Channel Label) Control ....................... 11

Pieture Adjustment Controls + ......................... 12

Program List Control ............................... 34

Remote Control Programming for Accessory Deviees

Accessory Device Remote Control Buttons ............. 45

Code Entry Method ................................ 40

Code List ..................................... 42-44

Direct Access Method .............................. 39

Search Method ................................... 41

SAP (Secondary Audio Programming) Control .......... 18

Sleeptimer Control ................................. 35

Stereo/M ono Control ............................... 17

Surf Control ...................................... 38

Timer Controls .................................... 21

Tuner Mode Control ................................. 7

TV Speaker Control ................................ 20

Widescreen (Screen Format) Control .................. 33

Warranty- ......................................... 64

"kIndicates In-Home Sendce Only _--_

Milwaukee:call Chicago

Cincinnatiand Columbus:call Cleveland

NashvJl/eand Chattanooga:call Knoxville

Washir_n/BaJUmore: callPhiladelphia

Charlotte:callAUanta

AllFlorida/ocagons;call Tampa

• Indicates In-Home/Cany-ln Sendce

Toll-free numbersprovidedon the nextpage

•Phlladelphla/8 New Jersey

Atlanta/N Georgia _ash/IBalt

Tampa/W Flodda

_tRM. Myers/SW Florida

immi/SEFlodda

NOTE:If you reside in one of our Philips FactoryService Branch areas (see directory on back), you can contact the nearest Service Branch to obtain

efficient and expedient repair for your product, if your product is In-Warranty, you should have proof-of-purchase to ensure No ChargeService. For

Out-of-Warranty service, call the location nearest you.

NOTA:Si vous r_sidez dartsune des r6gions desservies par une succursale de service apr_svente du fabricant Philips (voir Iiste ci-dessous), vous

pourrez contacter la branche deservice apr_s vente la plus pros dechez vous pour obtenir un service apr_s vente rapide et efficace. Si le produit est

sous garantie, il suffira de pr6senter une preuve d'achat pour b6n_ficier d'un service sansfrais. Pour les produits non couverts par la garantie, con-

tactez le centre le plus pros de chezvous.

NOTA:Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de f_brica (vet directorio rods abajo), Ud. puede comunicarse con

la sucursal de servicio m_s cercanapara obtener una reparaci6n oportuna y eficaz de su producto. Si su producto estdtodavia bajo garantfa, Ud.

debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio despu6s delvencimiento de la garantia, Ilame

al lugar m_s cercano de los abajo indicados.

I_anada

How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product

Pleasecontact Philips at 1-800-661-6162 (French speaking)

1-800-531-0039 (English or Spanish speaking)

Au Canada

Comment obtenir le service apr_s-vente pour les produits apport6s ou envoy_s par la poste _ notre centre de service ou le service _ domicile

Veuillezcontacter philips i: 1-800-661-6162 (Francophone)

1-800-531-0039 (Anglais ou Espagnol)

Enel Canada1

C6mo recibir servicio efficiente para su producto, en persona, por correo o a domicillo

Favorde comunicarse con Philips ah 1-800-661-6162 (franc6fono)

1-800-531-0039 (Ingles o EspaSol))

Rev GG _ 11/20/2002

QUALITYSERVICEIS ASCLOSEASYOURTELEPHONE!SIMPLYLOOKOVERTHELISTBELOWFORTHENUMBEROFA FACTORYSERVICECENTER

NEARYOU. YOURPRODUCTWILLRECEIVEEFFICIENTANDEXPEDIENTCARRY-IN_MAIL-IN_ORIN-HOMESERVICE,ANDYOUWILLRECEIVEPEACEOFMIND,

KNOWINGYOURPRODUCTIS BEINGGIVENTHEEXPERTAITENTIONOFPHELPS'FACTORYSERVICE.

COMMENTORTENIRNOTRESERVICEAPRESVENTERAPIDEET EFFICACESOIT PARCOURRER, ,_DOMICILE, OUEN SE PRESENTANT,_ON CENTREDESERVICEPNIUPS PLUSDE600 CENTRESDE

RECEPTIONOE PRODOITSA REPARERA TRAVERSLE PAYS:CONTACTERLE CENTREDESERVICEAUXCONSOMMATEURSLEPLUSPROCHEPOURSAVOIRUEMPLACEMENTDECESDEPOTSOANS

UN RAYONDES0 A75 MILES(80 RM ,_ 120 KM)DU CENTREDESERVICELOCAL,

COMOOBTENERUN SERV[CIOOPORTUNOY EFICIENTEPOR CORREO,ENCASAO ENPERSONAPARASU PRODUCTOA TRAVESDE UNCENTROPNILIPSDESERVICIO MAS DE600 MTIOS POR

TODOEL PAlS PARALA RECEPCIONDEPROOUCTOSNECEMTADOSDE REPARACIONES:COMUNICARSECONEL CENTRODE SERVICIODEFABRICAMASCERCANOPARAESTOSLUGARESOENTRO

DE[IN RADIODE 80 A 120 KM {50 A 75 MILLAS)DELCENTRODESERVICIOLOCAL

ATLANTA

Philips FactoryService

550 FranklinRoad., Suite F

Marietta,GA30067

800-273-1501

TAMPA

Philips FactoryService

1911 US Highway 301 North, Suite 100

Tampa,FL 33619

800-442-2027

SANFRANCISCO

Philips FactoryService

681 EastBrokaw Rd.

SanJose, CA 95112

800-300-9013

HOUSTON

Philips FactoryService

1110 N. Post Oak Rd.,Suite 100

HDUStDn,TX 77055

800-952-3254

CLEVELAND

Philips FactoryService

950 KeynoteCircle

Brooklyn Heights,OH44131

800-331-7037

DETROIT

Philips FactoryService

25173 Dequindre

Madison Heights,MI 48071

800-438-1398

DALLAS

Philips FactoryService

415 N. Main Street,#107

Euless,TX 76040

800-952-3254

LOSANGELES

Philips FactoryService

20930 Bonita, Ste.V

Carson,CA 90746

800-300-9013

CHICAGO

Philips FactoryService

1279W. Hamilton Pkwy.

Itasca,lL 60143

800-531-2922

KNOXVILLE

Philips FactoryService

OnePhilips Drive

Knoxville, TN37914

800-821-1767

PHILADELPHIA

Philips FactoryService

352 Dunks Ferry Rd.

Bensalem,PA19020

800-847-9320

LCD COLOR TELEVISION

One Year Free Labor

One Year Free Replacement of Parts

This product must be carried in for service.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales

receipt or other document showing that you purchased the product is

considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For one year

thereafter, all parts will be repaired or replaced free, and labor is free.

From one year from the day of purchase, all parts will be repaired or

replaced free, and for all labor charges. After one year from the day of

purchase, you pay for the replacement or repair of all parts, and for

all labor charges.

All parts, including repaired and replaced parts, are covered only for

the original warranty period. When the warranty on the product

expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

labor charges for installation or setup of the product, adjustment of

customer controls on the product, and installation or repair of

antenna systems outside of the product.

product repair and/or part replacement because of misuse, acci-

dent, unauthorized repair or other cause not within the control of

Philips Consumer Electronics Company

reception problems caused by signal conditions or cable or antenna

systems outside the unit.

a product that requires modification or adaptation to enable it to

operate in any country other than the country for which it was

designed, manufactured, approved and/or authorized, or repair of

products damaged by these modifications.

incidental or consequential damages resulting from the product.

(Some states do not allow the exclusion of incidental or consequen-

tial damages, so the above exclusion may not apply to you. This

includes, but is not limited to, prerecorded material, whether copy-

righted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is offi-

cially distributed by Philips Consumer Electronics Company in coun-

tries where Philips Consumer Electronics Company does not distribute

the product, the local Philips service organization will attempt to pro-

vide service (although there may be a delay if the appropriate spare

parts and technical manual(s) are not readily available).

HAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of

purchase. Attach it to this owner's manual and keep both nearby

Also keep the original box and packing material in case you need to

returnyour producL

BEFORE REQUESTING SERVICE...

Please check your owner's manual before requesting service.

Adjustments of the controls discussed there may save you a service

call

TO GET WARRANTY SERVICE IN U.S.A.,

PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or author-

ized service center to arrange repair.

(In U.S.A. Puerto Rico and U.S. Virgin islands, all implied warranties,

including implied warranties of merchantability and fitness for a partic-

ular purpose, are limited in duration to the duration of this express

warranty. But, because some states do not allow limitations on how

long an implied warranty may last, this limitation may not apply to

you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 if calling from Canada (French speaking)

1-800-531-0039 (Englishor Spanishspeaking)

(In Canada,this warranty is given in lieu of all other warranties. No

other warranties are expressedor implied, including any impliedwar-

ranties of merchantability or fitness for a particular purpose. Philips is

not liableunder any circumstances for any direct, indirect, special, inci-

dental or consequential damages,howsoever incurred, even if notified

of the possibility of such damages.)

REHEHBER...

Please record the model and serial numbers found on the product

below. Also, please fill out and mail your warranty registration card

promptly It will be easier for us to notify you if necessary.

MODEL#

SERIAL#

Philips Consumer Electronics, P.O. Box 520890, Miami, FL 33152, (402) 536-4171

Printed in China.

PHILIPS

uick Use and Hookup Guide

Important Notice/Warning ..................... 1

Basic TV Operation .......................... 1

Remote Battery Installation ................... 1

Remote Control Button Descriptions ............ 1

Hooking up the Television

Basic Cable/Cable Box TV Connections ......... 2

Basic Antenna TV Connections ................ 2

AV1 Input Connections ...................... 3

Component Video Input Connections ........... 3

High Definition Input Connections ............. 3

Headphone/Sub-woofer/Data Jacks ............. 3

PC (Monitor) Connection .................... 4

AV2 Input Connections ...................... 4

AV3 Input Connection ....................... 4

Monitor Output Connections .................. 4

IMPORTANT

NOTE: This owner's manual is used with several

different television models. Not all features (and

drawings) discussed in this manual will necessarily

match those found with your television set. This is

normal and does not require that you contact your

dealer or request service.

WARNING: TO PREVENT FIRE OR SHOCK

HAZARD DO NOT EXPOSE THIS UNIT TO

RAIN OR EXCESSIVE MOISTURE.

Tt 1is

;7;

LCD television has a set of controls located on the top of

cabinet for use when the remote control is not needed.

Press the POWER button on the fiont of the TV cabinet to

turn the TV ON.

Note: With AutoChron ON, the TV will search for a PBS chan-

nel to set the clock before powering itself on. This can take a

few seconds.

Press the VOLUME + button to increase the sound level or

the VOLUME - button to lower the sound level.

Pressing both buttons at the same time will display the

onscreen menu. After you are in the menu, use these buttons to

make adjustments or selections.

Press the CHANNEL + or - button to select TV channels.

Use these buttons to make adjustments or selections in the

onscreen menu.

There is also a set of Audio and Video Input ,jacks located on both sides

and the bottom of the television cabinet. Refer to the Audio/Video

Hookup sections within this Guide.

o load the stq_plied hatteries into the remote"

Remove the battery compartment door on the back of the

remote.

Place the batteries (2-AA) in the remote. Be sure the I+) and

( ) ends of the batteries line up COtTectly (the inside of the case

is marked).

Reattach the battery compartment door.

Volume and Channel buttons are located

on the top of the television cabinet.

Remote

Sen_of _,Vl ndo \\

DC Input located on the

bottom jack panel of the TV

,,_ ',,_,,' _,

, .E.o

Remote Sensor \\ redo\\ on the

tront ot the television \\ hen u_lng

the remote control to operate the

television

Remote Control

(sho\\ 11 frolll the bottom)

2 "'AA'" Batteries

Po\\ el" Cord and Adapter

Battery Compal'tmer_t Door

Battery Compamnent

PIP Button - When in the PC Mode, pressing the PIP button will bring ug

smaller second screen window to view prognamming while using tt_e TV as a com-

puter monitor.

Accessory Device alal, l, I_, I_l_, It Buttons- Pre_ to rewind,

fasfforward, or pause/freeze a videotape, or DVD.

TV/DVD/ACC Mode S_vitch - Slide to the TV position to control TV func-

tiom to the DVD position to control DVD Player functions, or to the ACC position

to control the functions of accessory devices (a cable converter, DBS, or VCR, for

example).

Program List Button - Pre_ to display a list of channel numbers and their

names. Each channel will appear as a selectable menu item. Refer to the ProgTam

Li,,t section within the Dtmtrtons.lo_ Use manual ,,upplied with the TV for detailed

in,,truction,,.

Sleep Button -Press to set the TV to automatically turn if, elf OFF at a given

amount of time.

TV/VCR (A/CH) Button - TV/VCR Press while in the VCR mode I

indicator on the flont of the VCR will light) to view the playback of a tape. Press

again to place in the TV position (the VCR indicator light will go off) to view one

progTam while recording another progTam. A/CH Press to toggle between the cur-

rently viewed channel and the previou,,ly viewed channel.

Auto Sound Button - Pm,,s to ,,elect an AutoSound zxzcontrol. Choo,,e from

throe factoDr-,,et control,, (VOICE, MUSIC, and THEATRE) and a PERSONAL to

tailor the TV sound to enhance the particular type of progrmn you are watching.

Menu (Select) Button - Pres_ for the on,,creen menu to appear Pms,,ing the

menu button alter menu selection,, are made will eliminate the menu flom the dis-

play.

Active Control Button - Pres,, repeatedly to toggle the Active Control to ON or

OFF. When ON, the sharpness and noise reduction will be continuou,,ly monitored.

Cursor Buttons CLeft,Right, Up, Dmvn) - Pre,, these button_tohighlight,

,,elect, and adju,,t items on tim TV's on,,creen menu.

Volume {+) or {-) Buttons - Pre,,,, to adju,,t the TV ,,ound level.

Mute Button -Pre,s to tuna the TV ,,ound OFF. Pre,,,, again to return tim ,,ound

it,, previous level.

Status/Exit Button -Pres, to ,,ee tim cunent channel number on tim TV ,,creen.

Al,,opre,,,, to clear the TV ,,creen after control adju,,nnent,,.

I...,=1 PROG LIST CLOCK r- - ,.i

TV,VCR SOURCE FORMAT

@®@

q)®@

®®0,,,

STATUS,EXIT SURF

Button -Press to turn the TV ON and OFF.

Position Button - When using the PC Mode and the PIP window is present

on the screen, press the PoMtion button to move the PIP window to any of the

four corners.

CC Button - Press to select Closed Captioning options wnhin the menu.

(See the DirectionL/or Use manual for details.)

Clock Button - Press the CLOCK bunon to access the onscreen Clock

menu.

Format Button - Press to toggle the different screen format options.

Source Button - Press to toggle between the different AiV Input jack con-

nections and the currently tuned channel.

Picture Button -Press to select an AutoPicture control. Choose

fiom tour factory-set controls (MOVIES, SPORTS, WEAK SIGNAL, and

MULTI MEDIAl and a PERSONAL control that you set according to your

own preferences through the onscreen PICTURE menu. The four factory-set

controls will tailor tl_e TV picture so as to enhance the particular type of pro-

gram you are watching, or to maprove the p_cture of a progranl that has a weak

signal.

Surf. Sound button - Press to set various factory Incredible Surround

Sound hstening modes. (Refer to tl_e Incredible Surround section within tlae

Directions'Jot Use for detailed lnstructions.)

Channel (+) or (-) Buttons - Press to change the tuned channel.

Mode buttons - Press to directly enter a N_ecific mode, use the PC bunon to

place the TV m the PC (computer monitor) mode, press the HD button to

place the TV m the HD (high definition) mode, press the Radio button to place

the TV m the FM Radio mode, or the TV bunon to place the TV back to ns

normal TV mode.

Number Buttons -Press tlae llunlber buttons 1o select TV channels. When

selecting single-digH channels, press the number of the desired channel. The

TV will pause for a few seconds and then tune to the selected channel. (Note:

You can press 0, then the number also.) For channels 100 and above, first

press 1then the nex:t two numbers of tl_e desired channel.

Surf Button - Press to select previously viewed channels. You can place up

to 10 channels in memory. Then by pressing the SURF burton you can quickly

view the select channels. (See the "'Using the Channel Surf Control" section m

your hwrt_ctionL/or Us'e manual to see how to select a series of channels

tlSi]lg the Surf button.)

our Cable TV input into your home may be a single (75 ohm)

able or use a cable box decoder. In either case the connec-

tion is very simple. Follow the steps below to connect your cable

signal to your new television.

Direct Cable Connections:

This connection will supply Stereo sound to the TV.

Connect the open end of the round Cable Company sup-

plied cable to the 75f2 input on the bottom of the TV. Screw

it down finger tight.

Direct Cable Connection:

Cable signal

coming trom

Cable Company

(Round 75ff2

coaxial cable) oo.

Jack Panel Bottom of TV

.+o

Cable Box (w/RF In/Outputs):

This connection will NOT supply Stereo sound to the TV. The sound

from the cable box will be mono.

Connect the open end of the round Cable Company sup-

plied cable to the cable signal IN(put) plug on the back of

the Cable Box.

Using a separate round coaxial cable, connect one end to the

OUT(put) (TO TV) plug on the back of the Cable Box.

Connect the other end of the round coaxial cable to the

75f2 input on the bottom of the television. Screw it down fin-

ger tight.

NOTE: Be sure to set the OUTPUT CHANNEL SWITCH on the

back of the cable box to CH 3 or 4, then tune the cable box on the

TV to the corresponding channel. Once tuned, change channels at

the cable box, not the television.

Cable Box with RF Inputs and Outputs Connection:

Cable Signal

1N from the

Cable

Company

CABLE

IN TO 'T'V

Output Channel Switch

OUTPUT

3 4 II II

L_J

Jack Panel Back

of Cable Box

Round 75

Coaxial Cable

oo+

Jack Panel Bottom of TV

HDinput 75 g2r COMP

VmEO

Cable Box (w/Audio/Video Outputs):

This connection will supply Stereo sound to the TV.

Connect the open end of the round Cable Company sup-

plied cable to the cable signal IN(put) plug on the back of

the Cable Box.

Using a RCA type Video Cable, connect one end of the

cable to the Video (yellow) (or ANT, your cable box may be

labeled differently) Out jack on the cable box madthe other

end to the Video Input on the bottom of the TV.

Using a RCA type Audio Left mad Right Cable, connect one

end to the left and right Audio Out L & R jacks (red &

white) on the cable box. Connect the other end to the Audio

L & R Input jacks on the bottom of the TV.

NOTE: Use the SOURCE button on the TV remote control to tune to

the AV1 channel for the cable box signal. Once tuned, change chan-

nels at the cable box, not the television. Pressing the SOURCE button

repeatedly will scroll all the AV Input channels, including the present-

ly tuned chmmel.

Cable Box with Audio/Video Outputs Connection:

Cable Signal IN

from the Cable

Company

CABLE

0trOUT

@ ° @@@

3 4

TO VIDEO

OUT

Jack Panel Back

of Cable Box with A/V Outputs

Video Cable,

Audio Cables

L & R (Red, White)

Jack Panel Bottom of TV

A ombination antenna receives normal broadcast chan-

nels (VHF 2-13 and UHF 14-69). Your connection is

easy because there is only one 75Q (ohm) antenna plug on

the back of your TV, and that's where the antenna goes.

If your antenna has around cable (75 ohm) on the end,

then you're ready to connect it to the TV.

If your antenna has fiat, twin-lead wire (300 ohm), you

first need to attach the antenna wires to the screws on a

300- to 75-ohm adapter.

Push the round end of the adapter (or antenna) onto the

75ff2 (ohm) plug on the bottom of the TV. If the round end

of the antenna wire is threaded, screw it down finger tight.

Antenna Connection:

Outdoor or Indoor Antenna

(Combination VHF/UHF)

The combination antenna receives normal

broadcast channels 2-13 (VHF) and 14-69 (UHF).

\_X_//_/'/////_///_ 300_d7p5t;oh m

Twin _XII __ _

Lead Wire IK,j¢@_' I

t I

Round 75_

Coaxial Cable

from Antenna

Jack Panel

Bottom of TV

e audio/video input jacks on the bottom panel of the TV am

r direct picture and sound connections between the TV and

a VCR (or similar device) that has audio/video output jacks.

Connect the VIDEO (yellow) cable to the VIDEO AV1 injack on the bottom of the TV.

Connect the AUDIO (red and white) cables to the

AUDIO (left and right) AV1 in jacks on the bottom of the

TV.

Connect the VIDEO (yellow) cable to the VIDEO OUTjack on the back of the VCR or accessory device being

used.

Connect the AUDIO (red and white) cables to the

AUDIO (left and right) OUT jacks on the rear of the VCR

or accessory device being used.

Turn the VCR or accessory device and the TV ON.

Press the SOURCE button on the remote control to select

the AV1 channel for the accessory device. AV1 will appear

in the upper left corner on the TV screen when tuned prop-

erly.

With the VCR (or accessory device) ON and a prerecorded

tape (CD, DVD, etc.) inserted, press the PLAY button to

view the tape on the television.

AVl

®®®@

0@@

@@@

'©*'®©

AUDIO IN

ANT/CABLE 8-VIDEO R VIDEO

OUT OUT AUDIO OUT OUT

VIDEO IN (YELLOW)

BACK OF VCR

(o1" Accessory device)

VCR (or accessory device)

(EQUIPPED WITH VIDEO AND

AUDIO OUTPUT JACKS)

omponent Video inputs provide the highest possible color and

ictum resolution in the playback of digital signal source

material, such as with DVD players.

Connect the Component (Y, Pb, Pr) Video OUT jacks

from the DVD player (or similar device) to the

COMP(onent) VIDEO Input (Y green, Pb blue, Pr red)

jacks on the bottom of the TV. When using the Component

Video Inputs, it is best not to connect a signal to the AV1 in

Video Jack.

Connect the red and white AUDIO CABLES to theAudio (left and right) output jacks on the rear of the acces-

sory device to the Audio (L and R) AV 1 in Input Jacks on

the TV.

3Turn the TV and the DVD (or digital accessory device)

ON.

Press the SOURCE button to scroll the available chan-

nels until CVI appears in the upper left corner of the TV

screen.

Insert a DVD disc into the DVD player and press thePLAY ml_button on the DVD Player.

CVl

ooo6

]

AUDIO CABLES

(RED/%VH1TE)

S VIDEO VIDEO

OUT OUT

The CVI connection

will be dominate over

the AV 1 in Video Input.

When a Component

Video Device is con-

nected as described, it is

best not to have a video

signal connected to the

AV 1 in Video Input

jack.

ACCESSORY DEVICE

EQUIPPED WITH COMPO-

NENT VIDEO OUTPUTS.

ital accessory owner's manual for definitions and connection details.

your using a High Definition receiver that can transmit high

efinition programming, the TV can except those signals

through the HD Inputs located on the bottom of the TV.

Connect the Component (Y, Pb, Pr) Video OUT jacks

from the HD Receiver (or similar device) to the HD (Y, Pb,

Pr) input jacks on the bottom of the TV.

Connect the red and white AUDIO CABLES to theAudio (left and right) output jacks on the rear of the HD

Receiver to the Audio In (PC/HD) Input Jacks on the bot-

tom of the TV.

Turn the TV and the HD Receiver ON.

Press the HD Mode button to set the TV into the HD

Mode and tune to the HD signal.

Note: The Audio/Video cables needed for this connection are not

supplied with your TV. Please contact your dealer or Philips at

800-531-0039 for information about purchasing the needed

cables.

HD 1

0_o ®®

®®@1

BO_fTOM OF TV

Coaxial Cable

Lead-in

from

AUDIO _,,t_ Satellite

CABLES "'e'v Dish Antenna

1 \ i•I

RF PR_ _ _T _2 .... _,N

Rear of HD Receiver Coaxial Cable Lead-in

(Illustration is for reference only. from Cable Outlet,

Your HD Receiver's jack panel will Cable Converter Box,

look and be labelled different.) or VHF/UHF Antenna

HD RECEIVER

EQUIPPED WITH COMPONENT

VIDEO OUTPUTS.

TV VIEWED FROM THE BACK

e left side ,lack Panel contains three.jacks that can be used

r your convenience. They include a Headphone ,lack, a Sub-

Woofer ,lack, and a Data ,lack.

HEAD PHONE JACK - Used for headphone listening in

any of the available modes. When headphones are connect-

ed to this jack the TV speakers will be muted.

SUB-WOOFER JACK - An external Sub-woofer speakercan be connected to the TV at this jack. This would pro-

vide for a deeper bass sound.

DATA JACK - This jack is used in service applicationsand should not be used by the customer.

iS TV can be used as a PC Monitor. Your computer will have

be equipped with a VGA type video output and VGA cable.

Connect one end of the VGA Video cable to the Monitor

(video) output on the computer to the PC Input (VGA) jack

on the bottom of the TV.

Although audio connections are not required, the TV can

reproduce the computers audio out by an AUDIO

ADAPTER to the Audio output jack on the computer (if

available) while connecting the other ends of the Audio

cables to the Audio In left and right (PC/HD) Input Jacks

on the bottom of the TV.

Turn the TV and the Computer ON.

Press the PC Mode button to set the TV into the HD

Mode and tune to the computer's signal.

Note: Please contact your dealer or Philips at 800-531-0039 for

information about purchasing the needed cables.

®®

®®®

BOTTOM OF TV

VGA CABLE

AUDIO

ADAPTER_

VGA/FtGB ]

Audio Out /PC with VIDEO VGA OUT

ere are Audio/Video Input.lacks located on both sides of the TV

cated under removable panels. These.jack allow for extra acces-

sory device connections for items such as cameras or gaming stations.

Connect the VIDEO (yellow) cable to the VIDEO AV2 injack on the left rear of the TV. Connect the other end of the

VIDEO (yellow) cable to the VIDEO OUT jack on the back of

the accessory device being used. Note: An S-Video cable can

be used in place of the yellow Video cable if your device is

equiped with an S-Video Output. S-Video provides better video

playback.

Connect the AUDIO (red and white) cables to the AUDIO(left and right) AV2 in jacks on the left rear of the TV. Connect

the other ends of the AUDIO (red and white) cables to the

AUDIO (left and righ0 OUT jacks on the rear of the accessory

device being used.

Turn the accessory device and the TV ON.

Press the SOURCE button on the remote control repeatedly

to select the AV2 channel for the accessory device, AV2 will

appear in the upper left comer on the TV screen when tuned

properly,

With the accessory device ON, press the PLAY button to acti-

vate the playback on the television,

®®

_°°0®

®®@@

@®®

®®®

@®@

JACK PANEL

BACK LEFT OF TV

out

VlOEOout Vl_nE0

Monitor AV2

out in

AUDIO CABLES

(Left and Right)

AN S-VIDEO CABLE CAN BE

USED IN PLACE OF THE

YELLOW VIDEO CABLE IF

DESIRED.

ACCESSORY DEVICE

(Camera., DVD, VCR, etc.)

VIDEO CABLE

AUDIO VIDEO

RIGHT LEFT S-VIDEO

ACCESSORY DEVICE

JACK PANEL

Ch like the AV2 jacks', the AV3.jacks" allow _br extra accessory

vice connections for items such as cameras or gaming stations.

The AV3 Input Jacks am located on the right mar of the TE.

Connect the VIDEO (yellow) cable to the VIDEO AV3 in jackon the fight rear of the TV. Connect the other end of the

VIDEO (yellow) cable to the VIDEO OUT jack on the back of

the accessory device being used. Note: An S-Video cable can be

used in place of the yellow Video cable if your device is equiped

with an S-Video Output. S-Video provides better video playback.

Connect the AUDIO (red and white) cables to the AUDIO

(left and right) AV2 in jacks on the right rear of the TV. Connect

the other ends of the AUDIO (red and white) cables to the

AUDIO (left and right) OUT jacks on the rear of the accessory

device being used.

Turn the accessory device and the TV ON.

Press the SOURCE button on the remote control repeatedly to

select the AV3 channel for the accessory device. AV3 will appear

in the upper left corner on the TV screen when tuned properly.

With the accessory device ON, press the PLAY button to acti-vate the accessory device (DVD, VCR, CAMERA, etc.) and

view the playback on the television.

®®®

@®@

@©

AN S-VIDEO CABLE CAN BE

USEDIN PLACE OFTHE

YELLOW VIDEO CABLEIF

DESIRED.

ACCESSORY DEVICE

(Camera., DVD, VCR, etc.)

AUDIO

CABLES

(Left and

Right)

VIDEO CABLE

ACCESSORY DEVICE

JACK PANEL

TVCRe Monitor Mudio/Video) out jacks are groat for recording with a

or used to connect an external audio system for better audio.

For Audio System Connection:

Connect one end of the R(ight) and L(eft) AUDIO (MonitorOut) jacks located on the right rear of the TV to the R and L

audio input jacks on your sound system. Refer to the AUDIO

OUT control within the Directions for Use for FIXED or VARI-

ABLE settings.

Turn the TV and audio system ON. TV sound can be heardthrough the audio system

For Second VCR Connection/Recorder:

The following steps allow you to connect a VCR to record the pro-

gram while your watching it.

Connect one end of the yellow Video Cable to the Monitor

out VIDEO OUT plug on the left rear of the TV. Connect the

other end to the VIDEO IN plug on the second VCR.

Connect one end of the red and white Audio cable from theMonitor out L and R plugs on the left rear of the TV to the

AUDIO IN plugs on the VCR.

S Turn the VCR ON, insert a black VHS tape and it's ready torecord what's being viewed on the TV screen.

Audio System

Connection:

AV OUT

AUDIO L(eft) and R(ight)

Second VCR

Connection/Recorder:

VIDEO CABLE

(Yellow)

SECOND VCR

AUDIO CABLES (Red & White)

AUDIO CABLES

(Red & White)

AUDIO SYSTEM

with AUDIO INPUTS

Monitor OUT

VIDEO &AUDIO

L(eft) and R(ight)

JACK PANEL

Located on the back left of the

15" LCD FlatTV_

HDTV Monitor

•Active Control TM

•High Definition Monitor (I080i, 720p) displayed as 720p

•3 Line Digital Comb Filter

•Digital Crystal Clear III TM

•NTSC Tuner

•Built-in speakers with 6watts RMS

•Flexible inputs: HD Component and VGA (WXGA Resolution)

• Built-in FM Radio with 40 presets

15" LCD FlatTV TMHDTV Monitor

Picture Quality

High Definition Capable

The high resolution of this LCD FlatTVTM [2.4 million pixels -1024 x 768 (x3)] means that

all of today's highest quality signals will 100k their best when displayed on this set. Sim#_

connect to any HDTV decoder (DBS, Cable, or off air) to experience HDTV at it's best.

3 Line Digital Comb Filter

For the highest possible picture quality from R/F or Composite connections. Virtually

eliminates horizontal and vertical hanging dots as well as dot crawl.

Digital Crystal Clear III TM

A powerful package of picture innovations including Dynamic Contrast and advanced

10 bit processing, DCC III offers 30% more contrast, more natural colors, and higher

levels of detaiL

•Response Time: LCD: 25ms

• Brightness: 450 cd/m 3 (nits)

• Contrast Ratio: 350:1

• Viewing Angle: 176h/176V

Ease of Use

Active Control TM

By continually adjusting picture settings over 60 times per second, Active

Control Plus ensures that the viewing experience is always optimal.

VESA Standard mounting pattern

VESA pattern guarantees compatibility with hundreds of innovative

mounting solutions.

16:9 Compress Widescreen Mode

Built in NTSC Tuner

Picture in Graphic

100 preset television channels/40 Preset radio channels

Direct access to HD/VGA/Video Inputs.

Top Controls

Universal Remote (VCR/DVD/SAT/Audio/CD-R)

Auto Surf TM List

Channel Auto-Programming

English/French/Spanish menu

240-minute Sleep Timer

Closed Caption viewing

This television receiver provides display of television closed captioning in

accordance with 15.119 of the FCC rules.

RCAU_39

Sound Quality

6watt RMS Stereo Speakers

Exciting and lifelike sound

FM Radio Built In

A radio is included capable of storing 40 FM presets. On-Screen naming

makes navigation simple and a handy Clock Screensaver is also included

for use while listening.

Auto Volume Leveler

Connectivity

1 Set of HD Component Video Inputs

1 set of SD Component Video Inputs

Stereo AV inputs and outputs

VGA Input (up to XGA 1280 x 768 60-75 Hz)

Subwoofer output

Side S-Video and stereo AV inputs

Headphone out (3.5ram)

,_ right jack

....................... panel

left jack

panel

UPC:

Product Dimensions:

Product Weight:

Carton Dimensions:

Carton Weight:

Carton contains:

• Country of Origin:

rear jack panel

0 37849 93413 5

18.9"W x 12.1"H x 2.6"D

13.7 Ibs.

23.1"W x 16.7"H x 9.49"D

17.6 Ibs.

Remote Control w/batteries, operating

instructions, warranty information

China

AutoSound TM, AutoPicture TM,AutoMute TM, AutoLock TM,

ActiveControl TM, FlatTV TM,and Digital Crystal Clear III TMare

trademarks of Philips Consumer Electronics Company

Printed in the U.S.A.

@2003 Philips Consumer Electronics Company

Specifications subject to change without notice.

www.philips.com or AOL keyword: philips

Magnavox 15PF9936 User Manual LCD Manuals And Guides L0310128

MAGNAVOX LCD Television Manual L0310128 MAGNAVOX LCD Television Owner's Manual, MAGNAVOX LCD Television installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
