MDV410/MDV430 DVD PLAYER

OWNER’SMANUAL

READ THIS MANUAL FIRST!

CONGRATULATIONS ON PURCHASING THIS PRODUCT.WE’VE INCLUDED

EVERYTHING YOU NEED TO GET STARTED.IF YOU HAVE ANY PROBLEMS,

OUR REPRESENTATIVES CAN HELP YOU GET THE MOST FROM YOUR

NEW PRODUCT BY EXPLAINING:

• HOOKUPS • FIRST TIME SETUP • FEATURE OPERATION

DO NOT ATTEMPT TO RETURN THIS PRODUCT TO THE STORE.

FOR FAST HELP

,CALL US FIRST!

1-800-705-2000

THANK YOU FOR MAKING US A PART OF YOUR HOME!

IMPORTANT!

RETURN YOUR WARRANTY REGISTRATION CARD WITHIN 10 DAYS.

SEE WHY INSIDE.

MDV410/430 2/7/02 11:18 AM Page 1

Once your MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of own-

ing a MAGNAVOX product. So complete and return the Warranty Registration Card enclosed

with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to

ensure you receive all the benefits you’re entitled to.

For Customer Use

Enter below the Serial No.

which is located on the rear of

the cabinet. Retain this infor-

mation for future reference.

Model No.________________

Serial No. ________________

Congratulations on your purchase,

and welcome to the “family!”

Dear MAGNAVOX product owner:

Thank you for your confidence in MAGNAVOX. You’ve selected

one of the best-built, best-backed products available today. And

we’ll do everything in our power to keep you happy with your

purchase for many years to come.

As a member of the MAGNAVOX “family,” you’re entitled to

protection by one of the most comprehensive warranties and

outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the

information and special offers for which you qualify, plus easy

access to accessories from our convenient home shopping

network.

And most importantly you can count on our uncompromising

commitment to your total satisfaction.

All of this is our way of saying welcome-and thanks for investing

in a MAGNAVOX product.

P.S. Remember, to get the most from your

MAGNAVOX product, you must return your

Warranty Registration Card within 10 days. So

please mail it to us right now!

Know these

safetysymbols

This “bolt of lightning” indi-

cates uninsulated material

within your unit may cause an

electrical shock. For the safety

of everyone in your household,

please do not remove product

covering.

The “exclamation point”

calls attention to features

for which you should read the

enclosed literature closely to

prevent operating and mainte-

nance problems.

WARNING: TO PREVENT

FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR

MOISTURE.

CAUTION: To prevent elec-

tric shock, match wide blade of

plug to wide slot, fully insert.

ATTENTION: Pour éviter les

choc électriques, introduire la

lame la plus large de la fiche

dans la borne correspondante

de la prise et pousser jusqu’au

fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Hurry!

Warranty

Verification

Registering your product within

10 days confirms your right to

maximum protection under the

terms and conditions of your

MAGNAVOX warranty.

Owner

Confirmation

Your completed Warranty

Registration Card serves as

verification of ownership in the

event of product theft or loss.

Model

Registration

Returning your Warranty

Registration Card right away

guarantees you’ll receive all

the information and special

offers which you qualify for as

the owner of your model.

Visit our World Wide Web Site at http://www.magnavox.com

MDV410/430 2/7/02 11:18 AM Page 2

Table of Contents 3

General Information

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Playable Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Getting Started

Remote Control Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-13

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Disc Playback and Features

Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Paused and Step-by-Step Playback, Resume On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Fast Forward/Reverse Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Slow Motion, Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Specific Track Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Specific Title/Chapter Playback, Specific Time Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

A-B Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Programmed Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Random Playback, MP3 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

MP3 Display Information, MP3 Track Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Random MP3 Playback, Programmed MP3 Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Audio Language, Stereo Sound Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Subtitle Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Camera Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

DVD Player Setup and Features

On-Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Parental Controls Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Parental Controls Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Marker Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

Display Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40-41

Language Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-43

Black Level Settings, TruSurround Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Information You May Need

Care and Maintenance, Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46-47

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

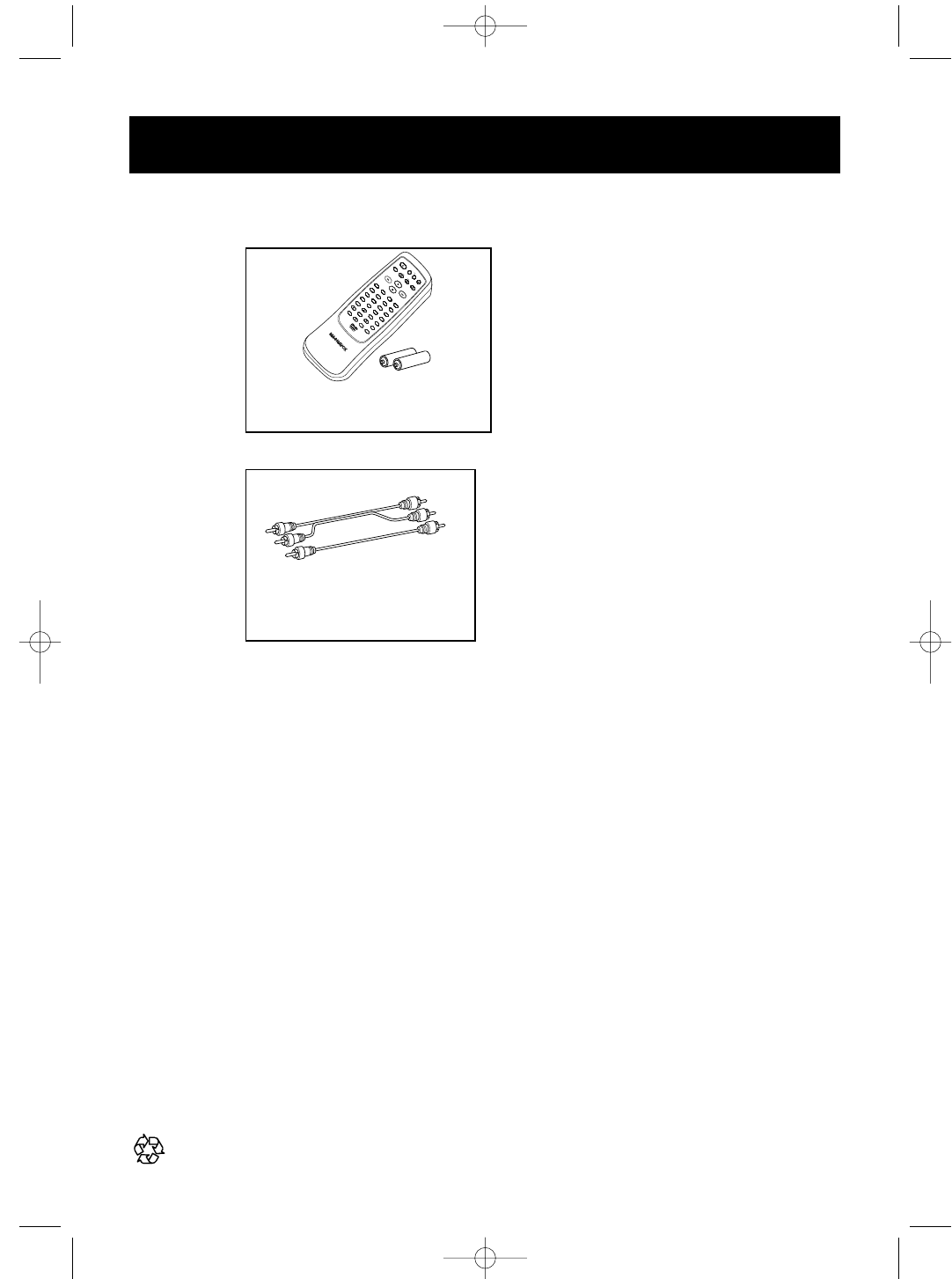

Supplied Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

MDV410/430 2/7/02 11:18 AM Page 3

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose this equipment to rain or

moisture.

Federal Communications Commission (FCC) Warning: Any unauthorized

changes or modifications to this equipment void the user’s authority to operate it.

Laser Safety

This unit employs a laser. Only a qualified service person should remove the cover or

attempt to service this device, due to possible eye injury.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND

INTERLOCK DEFEATED. DO NOT STARE INTO BEAM. THE BEAM IS LOCATED

INSIDE, NEAR THE DECK MECHANISM.

Special Information for Canadian Users

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Radio/TV Interference

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television recep-

tion, which can be determined by turning the equipment off and on, the user is encour-

aged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and the receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

Unauthorized copying, broadcasting, public performance and lending of Discs are

prohibited.

This product incorporates copyright protection technology that is protected by method

claims of certain U.S. patents and other intellectual property rights owned by Macrovision

Corporation and other rights owners. Use of this copyright protection technology must

be authorized by Macrovision Corporation and is intended for home and other limited

viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engi-

neering or disassembly is prohibited.

Declaration of Conformity

Model Number: MDV410, MDV430

Trade Name: Magnavox

Responsible Party: Philips Consumer Electronics

P.O. Box 14810

Knoxville, TN 37914-1810

(865) 521-4316

4 Safety Information

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of

Dolby Laboratories.

MDV410/430 2/7/02 11:18 AM Page 4

Introduction 5

Welcome!

This owner’s manual describes two models: the MDV410 and the MDV430. The dis-

play panels of these two Players have a different appearance. Also, the MDV430 has

COMPONENT VIDEO OUT jacks, but the MDV410 does not. Otherwise, the two

models operate identically. Unless noted otherwise, the MDV430 is shown in this man-

ual.

These Digital Video Disc Players provide high picture quality, clear sound, and endless

playback features available on Digital Video Discs (DVDs). Add options to your DVD

viewing - watch a director’s cut of a movie, listen to the producer’s comments, or play

your favorite scene over and over again. The possibilities are limited only by your

choices and the materials available on the DVD.

You can listen to Audio Compact Discs and MP3 files on this DVD Player as well.

To get the most enjoyment from the DVD Player, read this owner’s manual carefully.

It describes how to access the features listed below.

Features

When referring to this manual, remember...

Indicates the feature described is available on some Digital Video Discs.

Indicates the feature described is available on some Audio Compact Discs.

Indicates the feature described is available with MP3 files.

Disc Menus...

Some explanations in this manual describe the DVD Disc Menus. These menus are set by

the movie producers and will vary among Discs. Not all Discs have menus. However, if the

Disc has a menu, you can access the Disc Menu by pressing the MENU button on the

remote control. Details are on page 20.

DVD Player Setup Menus...

Some instructions explain how to use the DVD Player’s Setup menu to set features of the

DVD Player or the Disc. Access the DVD Player’s Setup menu by pressing SETUP on the

remote control when Disc playback is stopped. Even if a feature is set up in the DVD

Player’s menu, it may not be available if the current Disc does not include that feature.

Available Disc Features...

All the features described in this manual may not be available on every Disc.

If the feature is not available on the Disc, you cannot use the DVD Player to

make the feature available. An “X” will appear in the top right corner of the

TV screen if you try to access a feature that is not available on the current

Disc or not available at the current time.

DVD

AUDIO CD

• Audio Language choices *

• Camera Angles *

• DVD Menus in a desired

language *

• Markers

• MP3 Playback

• Parental Controls*

• Paused/Fast/Slow/Step-

by-Step Playback

• Program Playback

• Random Playback

• Repeat, A-B Repeat

• Specific Time/Title/

Chapter/Track Playback

• Subtitles *

• Zoom

* If available on the Disc

This unit employs TruSurround system

of SRS Labs, Inc. as virtual technology.

TruSurround and the symbol are trademarks of SRS Labs, Inc.

TruSurround technology is incorporated under license from SRS Labs, Inc.

MP3

MDV410/430 2/7/02 11:18 AM Page 5

Playable Discs

This DVD Player will play Digital Video Discs (DVDs) and Audio Compact Discs

(CDs), and has limited playability of finalized Digital Video Discs Rewritable

(DVD+RW) and Compact Discs Rewritable (CD-RW).

To play a DVD on this DVD Player, make sure the Disc meets the requirements for

Region Codes and Color Systems as described below.

Discs that have the following logos will play on this DVD Player.

DVD DVD Audio CD CD-RW DVD+RW

(limited) (limited)

•CD-ROM

•Compact Disc-Interactive (CD-I)

•DVD-RAM

•DVD-ROM

•Super Audio CD (SACD) (The Audio

CD layer of a hybrid SACD may play.)

•Photo CD

•Video CD

•Video Single Disc (VSD)

6 Playable Discs

Region Codes

DVDs must be labeled for ALL regions or for Region 1 in order to play on this DVD

Player. You can not play DVDs that are labeled for other regions.

Look for the symbols below on your DVDs. If these region symbols do not appear on

your DVD, you cannot play the DVD in this DVD Player.

The number inside the globe refers to a region of the world. Region 1 represents the

United States, Canada, upper regions of North America, Bermuda, the U.S. Virgin

Islands, and small regions near Australia.

A Disc encoded in a specific region format can only play on DVD Players with the

same region code. For example, if a Disc is labeled for Region 2, you can not play the

DVD on this DVD Player.

Color Systems

Different color systems are available throughout the world. The most common color

systems are NTSC, which is used primarily in the United States and North America,

PAL, and SECAM.

This DVD Player uses the NTSC color system. Therefore, the Discs that you play

must be recorded in the NTSC system. You cannot play Discs recorded in other for-

mats. The color system of the DVD may be listed on the DVD or on the Disc case.

Unacceptable Discs

If you insert an unacceptable type of disc, “Please insert a playable disc” will appear on

the TV screen. (Also, “- - - - - “ will appear on the display panel of the MDV430. There

is no indication on the front of the MDV410 if an unacceptable Disc is in the disc tray.)

The following Discs will not play on this DVD Player.

•Compact Disc-Graphic (CD-G) •Compact Disc-Video (CD-V)

Audio of the following discs might play, but video will not be accessible.

ReWritable

MDV410/430 2/7/02 11:18 AM Page 6

Remote Control Setup 7

Using the Remote Control

Point the remote control at the DVD Player’s remote sensor

(see page 16) when using the remote control to operate the

DVD Player.

Do not put objects between the remote control and the

DVD Player.

Putting Batteries in the Remote Control

1Remove the battery compartment lid on the

bottom of the remote control by sliding the lid down

and off, following the direction of the arrow on the

lid.

2Place two AA batteries inside the battery

compartment with their +and –ends aligned as

indicated.

3Replace the battery compartment lid.

Recycling Guidelines/Battery Safety

●Your new product and its packaging contain materials

that can be recycled and reused. Specialized compa-

nies can recycle your product to increase the amount

that needs to be properly disposed. Your product

uses batteries that should not be thrown away when

depleted but should be disposed of as small chemical

waste. Please find out about the local regulations on

disposal of your old product, batteries, and packaging

whenever you replace existing equipment.

●Battery Usage CAUTION - To prevent battery leak-

age that may result in bodily injury or damage to the

unit:

• Install ALL batteries correctly, with the + and -

markings on the battery aligned as indicated on the

unit;

• Do not mix batteries, for example, old with new or

carbon with alkaline; and

• Remove batteries when the unit will not be used

for a long time.

MDV410/430 2/7/02 11:18 AM Page 7

8 Hookups

Depending on your TV and other equipment you wish to connect, there are various

ways you could connect the DVD Player. Use only one of the connections described

in the following pages.

Before you begin...

●Refer to the manuals of your TV, Stereo or other devices as necessary. Note the

style of jacks and connectors on the other equipment. Determine how to

choose different Audio and Video In channels on your other equipment so you

can see and hear the DVD Player on the TV, Stereo, etc.

●Disconnect all equipment from the power outlets. Connect the equipment

to the power outlets only after you have finished hooking up everything.

Never make or change connections with equipment connected to the

power outlet.

Determining the best possible connection...

Your hookup will be determined primarily by feature availability of your existing

equipment. However, the following guidelines describe which options have the best

picture and sound quality.

 COMPONENT VIDEO OUT jacks provide the best picture quality.

These are available on the MDV430 only.

Use the S-VIDEO OUT jack for excellent picture quality.

 Use the yellow VIDEO OUT jack for good picture quality.

 If your TV only has an RF-style jack, usually labelled Antenna In or

75 ohm, you will need an RF adapter in order to connect the DVD

Player to the TV. Ask your electronics retailer for details. The DVD pic-

ture still will exceed the quality of videotapes and other analog recordings.

 Digital audio connections provide the clearest sound. Connect the DVD

Player’s DIGITAL AUDIO OUT COAXIAL jack to your Stereo for the best

sound quality.

 If digital connections are not possible, connect the DVD Player’s red and white

AUDIO OUT jacks to the Audio In jacks of your Stereo or TV.

Remember...

●Connect the DVD Player directly to the TV. For example, do not connect the

DVD Player to a VCR, then connect the VCR to a TV. This type of connec-

tion may distort the picture and sound. Also, your VCR might have the copy

protection system, which could further distort the DVD image.

●Set the TV to the correct Video In channel. Such channels may be called

AUX or AUXILIARY IN, AUDIO/VIDEO or A/V IN, EXT1 or EXT2 or

External In, etc. These channels often are located near channel 00. See your

TV owner’s manual for details. Or, keep changing channels at the TV until

you see the DVD logo or DVD playback on the TV screen. (The DVD

Player power must be on.)

●Set the Stereo to the correct channel or “source” mode.

●Do not connect the DVD Player’s AUDIO OUT jacks to the PHONO IN

jack of your Stereo.

●Depending on your connection, you may need to purchase additional cables.

●You only need one audio connection and one video connection.

●If you do not connect the DVD Player to a Dolby Digital-compatible Stereo, set

DOLBY DIGITAL to OFF on the DVD Player. Details are on pages 11 and 39.

Playing a Disc when the settings are wrong could distort the sound or damage

the speakers.

Once you determine the best option, find your choice on pages 9-13.

Follow the specific steps for the hookup you chose.

MDV410/430 2/7/02 11:18 AM Page 8

Hookups (cont’d) 9

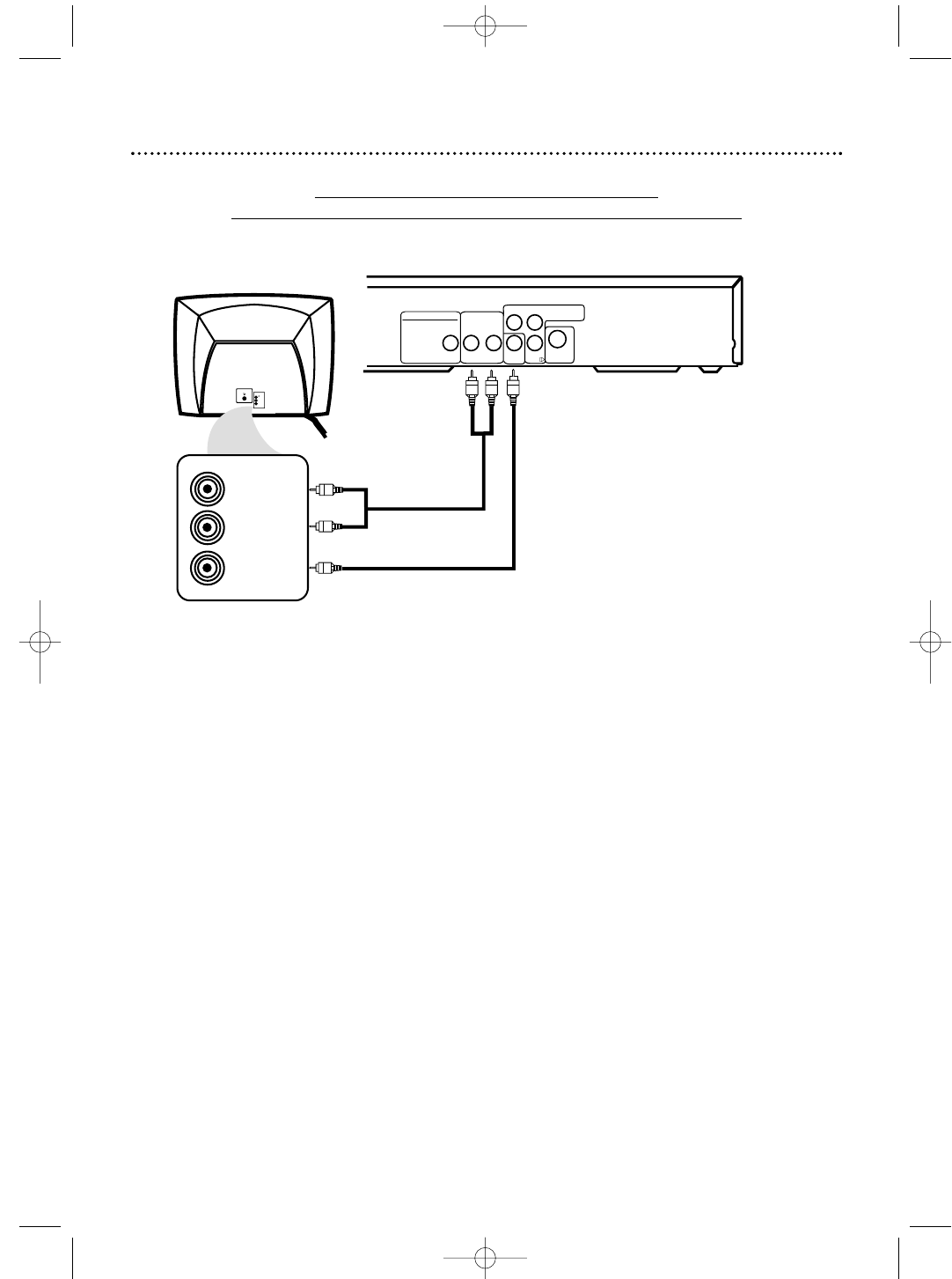

Connecting the DVD Player to a TV only

TV has AUDIO (red and white) and VIDEO (yellow) IN jacks

VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

AUDIO OUT

COAXIAL

VIDEO

OUT

Cb S-VIDEO

OUT

YCr

VIDEO

L/MONO

AUDIO

DIGITAL AUDIO OUT

PCM/MULTICHANNEL

COMPONENT

VIDEO OUT

1Connect the supplied red and white audio cables to the red and white

AUDIO OUT jacks on the DVD Player and to the red and white

AUDIO IN jacks on the TV, matching the cable colors to the jack col-

ors.

2Connect the supplied yellow video cable to the VIDEO OUT jack on

the DVD Player and to the VIDEO IN jack on the TV.

3Connect the TV’s power cord to a power outlet.

Turn on the TV and set it to the Audio/Video In channel, which also

may be referred to as A/V In or Auxiliary In. This channel usually is near chan-

nel 00. See your TV owner’s manual for details.

4Connect the DVD Player’s power cord to a power outlet.

Press the POWER yybutton to turn on the DVD Player.

You should see the DVD logo on the TV screen. If you do not, check your con-

nections and make sure the TV is set to the correct Audio/Video In channel.

Back of TV

(example only)

MDV410/430 2/7/02 11:18 AM Page 9

10 Hookups (cont’d)

Connecting the DVD Player to a TV only

TV has AUDIO (red and white) and S-VIDEO IN jacks

VIDEO

L/MONO

AUDIO

S-VIDEO IN

LEFT AUDIO IN

RIGHT AUDIO IN

AUDIO OUT

COAXIAL

VIDEO

OUT

Cb S-VIDEO

OUT

YCr

DIGITAL AUDIO OUT

PCM/MULTICHANNEL

COMPONENT

VIDEO OUT

1Connect the supplied red and white audio cables to the red and white

AUDIO OUT jacks on the DVD Player and to the red and white

AUDIO IN jacks on the TV, matching the cable colors to the jack

colors.

2Connect an S-Video cable (not supplied) to the S-VIDEO OUT jack

on the DVD Player and to the S-VIDEO IN jack on the TV.

3Connect the TV’s power cord to a power outlet.

Turn on the TV and set it to the S-VIDEO IN channel. This channel may

be near channel 00. See your TV owner’s manual for details.

4Connect the DVD Player’s power cord to a power outlet.

Press the POWER yybutton to turn on the DVD Player.

You should see the DVD logo on the TV screen. If you do not, check your con-

nections and make sure the TV is on the correct S-Video In channel.

Back of TV

(example only)

MDV410/430 2/7/02 11:18 AM Page 10

Hookups (cont’d) 11

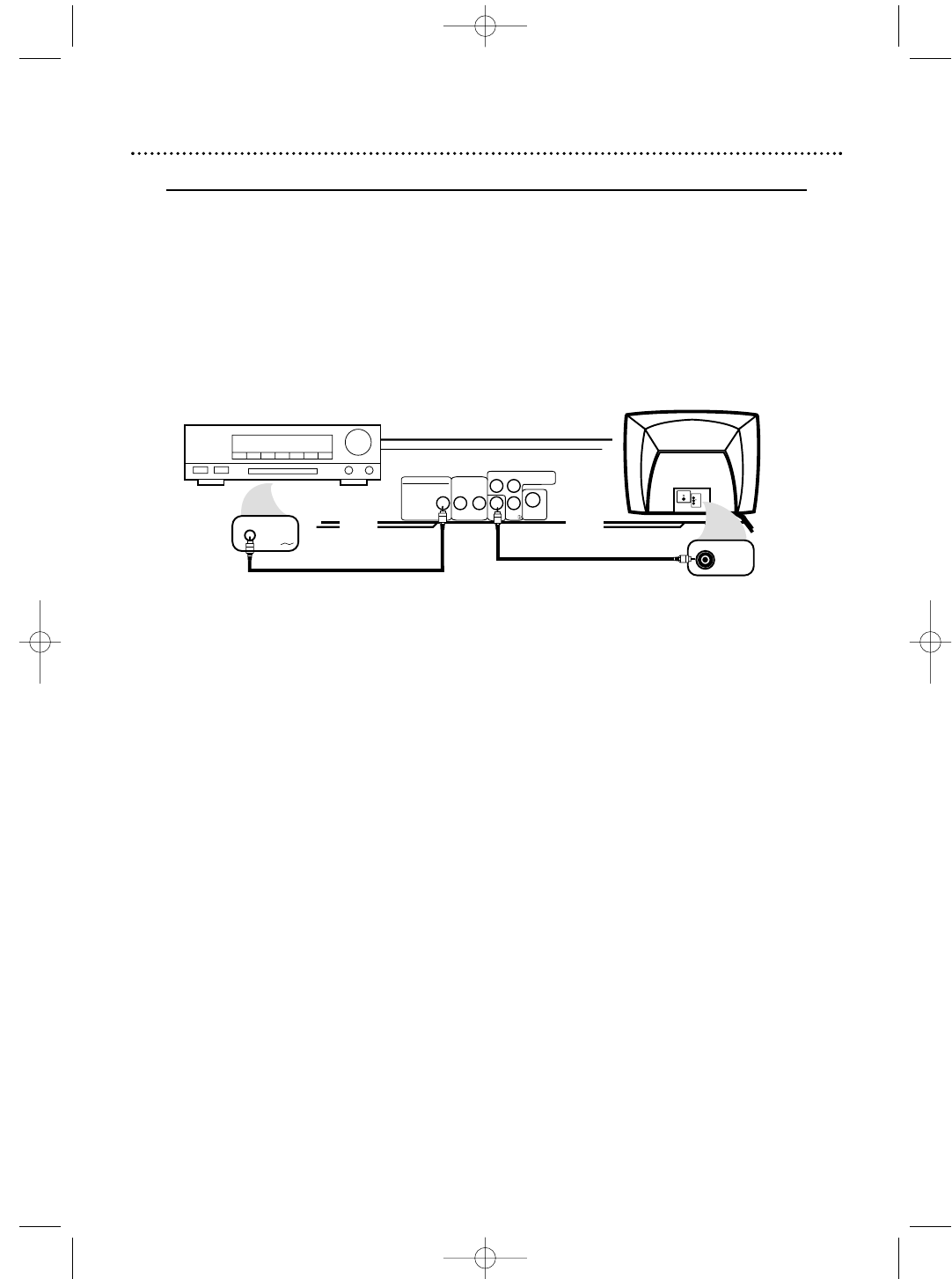

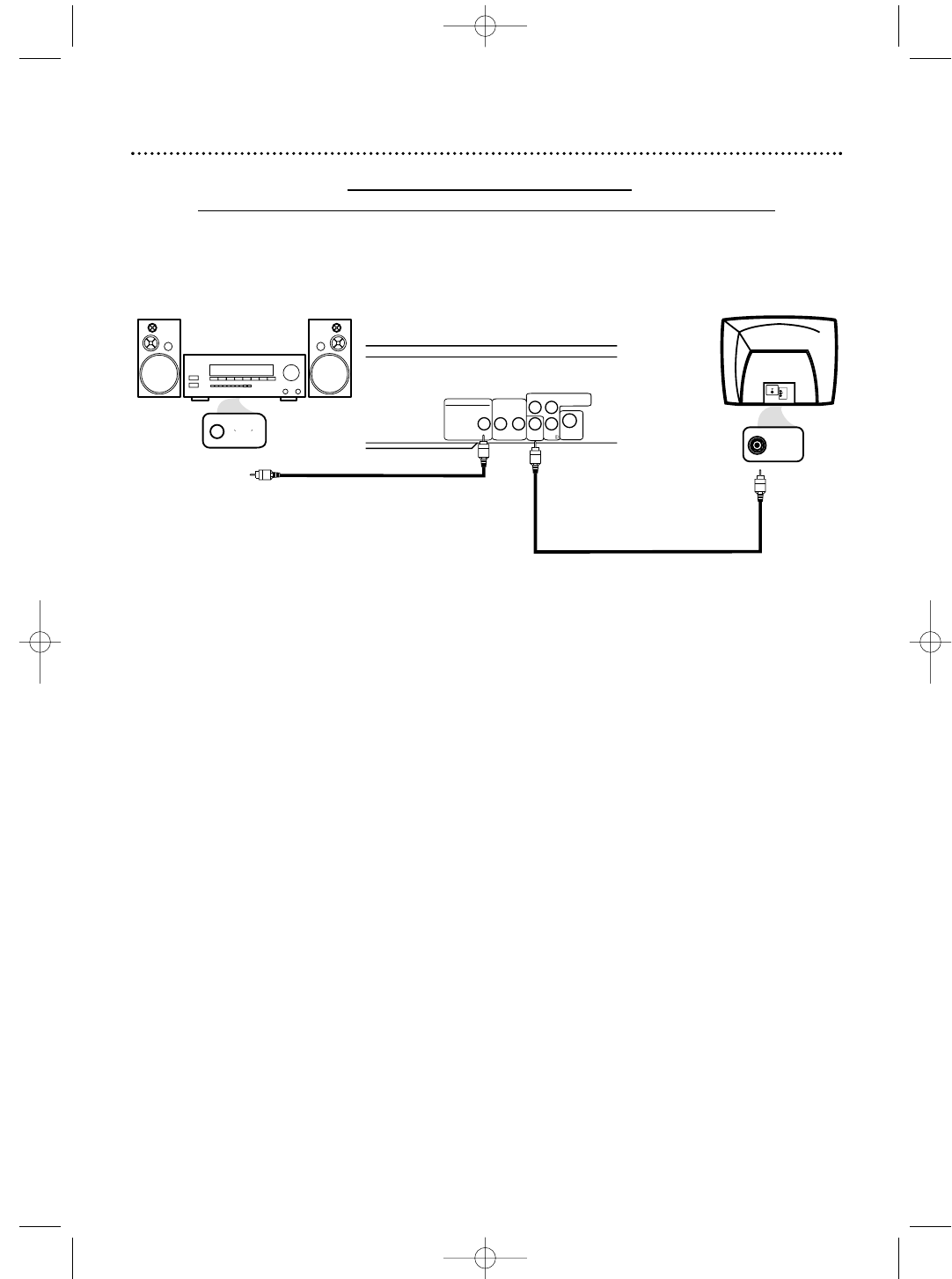

Connecting to a TV and a Stereo that is Dolby Digital or MPEG compatible

Some Discs are recorded in a 5.1 channel Dolby Digital Surround format. These Discs will sound best if

you connect the DVD Player to a Stereo that has Dolby Digital.

●Set DOLBY DIGITAL to ON if you connect the Player to a Dolby Digital-compatible Stereo. Details

are on page 39.

●If you play an MPEG audio disc and connect the Player to an MPEG-compatible Stereo, set MPEG to

ON. Details are on page 39.

●Select 5.1 channel Dolby Digital Surround sound if available in the DVD’s menu.

●This DVD Player does not support the Digital Theater System (DTS).

AUDIO OUT

COAXIAL

VIDEO

OUT

Cb S-VIDEO

OUT

YCr

DIGITAL AUDIO OUT

PCM/MULTICHANNEL

COMPONENT

VIDEO OUT

DVD Player

VIDEO

L/MONO

AUDIO

VIDEO IN

Back of TV

(example only)

COAXIAL DIGITAL

AUDIO IN

Back of Stereo

(example only)

1Connect a coaxial digital audio cable (not supplied) to the COAXIAL

jack on the DVD Player and to the COAXIAL DIGITAL AUDIO IN

jack on the Stereo.

2Connect the supplied yellow video cable to the yellow VIDEO OUT

jack on the DVD Player and to the VIDEO IN jack on the TV.

You may use S-Video or Component Video (MDV430 only) if S-Video or

Component Video is available on your TV. See pages 10 and 12 for these optional

video connections. Remember, you only need one video connection between the

TV and the DVD Player.

3Plug in the Stereo’s power cord. Turn on the Stereo and select the

Auxiliary IN station. During Disc playback, you will adjust the volume at the

Stereo. See your Stereo owner’s manual for details.

4Plug in the TV’s power cord. Turn on the TV and set it to the correct

Video In channel. During Audio CD playback, you may check the Disc status

on your TV screen. During DVD playback, you will watch the program on the

TV. See your TV owner’s manual for details.

5Connect the DVD Player’s power cord to a power outlet. Press the

POWER yybutton to turn on the DVD Player.

You should see the DVD logo on the TV screen. If you do not, check your con-

nections and make sure the TV is on the correct channel.

MDV410/430 2/7/02 11:18 AM Page 11

12 Hookups (cont’d)

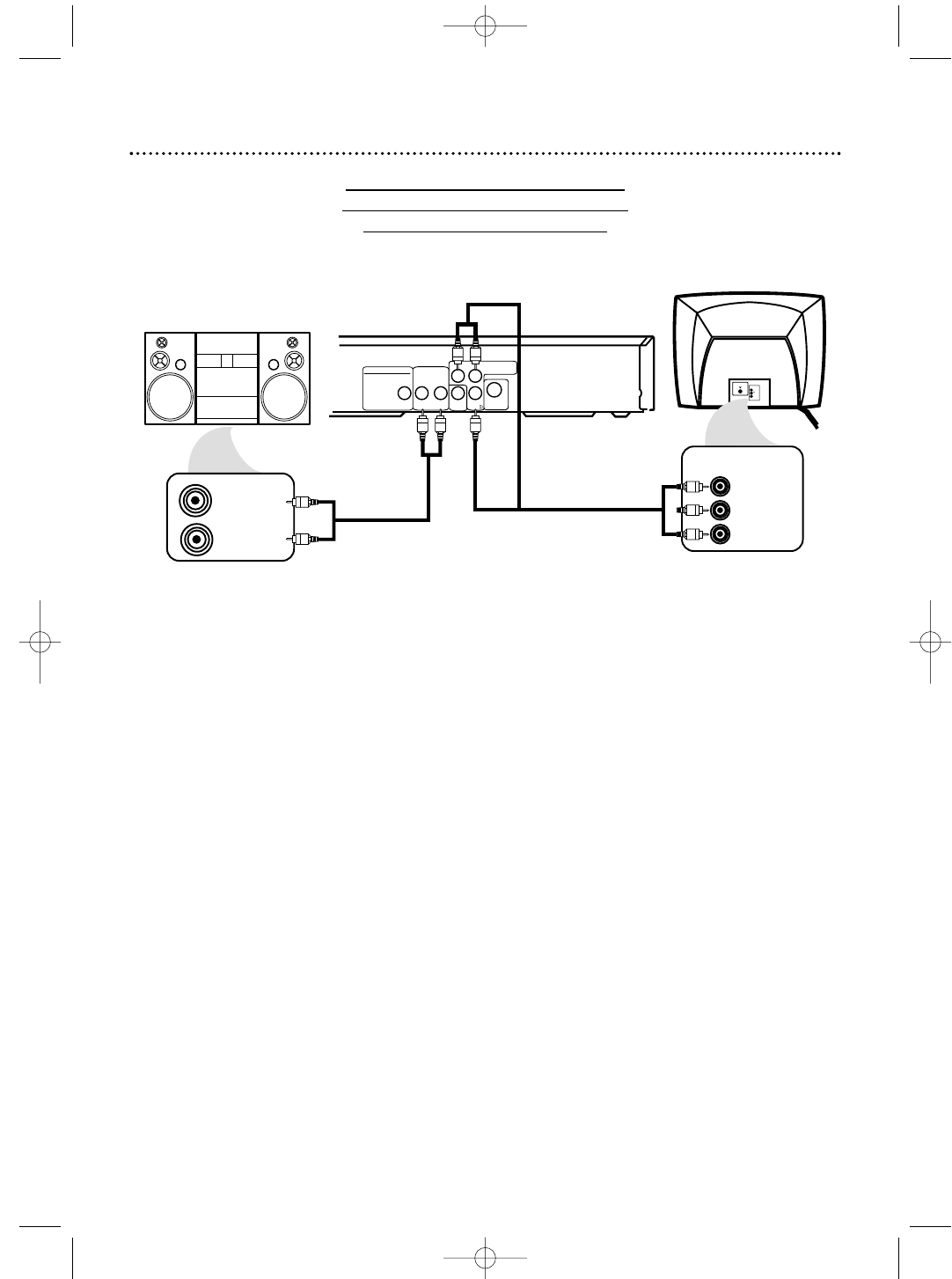

Connecting to a TV and a Stereo

TV has Component Video In Jacks

(possible only with MVD430)

AUDIO OUT

COAXIAL

VIDEO

OUT

Cb S-VIDEO

OUT

YCr

DIGITAL AUDIO OUT

PCM/MULTICHANNEL

COMPONENT

VIDEO OUT

VIDEO

L/MONO

AUDIO

AUDIO (RIGHT) IN

AUDIO (LEFT) IN

Back of TV

(example only)

Back of Stereo

(example only)

Cb/B-Y

Cr/R-Y

COMPONENT

VIDEO IN

1Connect the supplied red and white audio cables to the red and white

AUDIO OUT jacks on the DVD Player and to the red and white

AUDIO IN jacks on the Stereo, matching the cable colors to the jack

colors.

You can use the Digital Audio Out Coaxial connection instead if your Stereo

has a Coaxial In jack. Details are on pages 11 and 13. Remember, you only need

one audio connection.

2Connect component video cables (not supplied) to the COMPO-

NENT VIDEO OUT jacks on the DVD Player and to the COMPO-

NENT VIDEO IN jacks on the TV.

3Plug in the Stereo’s power cord. Turn on the Stereo and select the

Stereo’s Auxiliary IN station. During Disc playback, you will adjust the vol-

ume at your Stereo. See your Stereo owner’s manual for details.

4Plug in the TV’s power cord. Turn on the TV and set it to the

Component Video In channel, which may be near channel 00. During

Audio CD playback, you may check the status of Audio CDs on your TV

screen. During DVD playback, you will watch the program on the TV. See your

TV owner’s manual for details.

5Connect the DVD Player’s power cord to a power outlet.

Press the POWER yybutton to turn on the DVD Player.

You should see the DVD logo on the TV screen. If you do not, check your con-

nections and make sure the TV is on the correct Component Video In channel.

MDV410/430 2/7/02 11:18 AM Page 12

Connecting to a TV and a Stereo

with Digital Input jacks, Mini-Disc Deck or Digital Audio Tape Deck

●If the Disc is recorded in 5.1 channel Dolby Digital Surround, you cannot copy the Disc in digital sound

using a Mini-Disc or Digital Audio Tape Deck.

AUDIO OUT

COAXIAL

VIDEO

OUT

Cb S-VIDEO

OUT

YCr

DIGITAL AUDIO OUT

PCM/MULTICHANNEL

COMPONENT

VIDEO OUT

VIDEO

L/MONO

AUDIO

VIDEO IN

COAXIAL DIGITAL

AUDIO IN

Hookups (cont’d) 13

1Connect a coaxial digital audio cable (not supplied) to the COAXIAL

jack on the DVD Player and to the COAXIAL DIGITAL AUDIO IN

jack on the Stereo.

2Connect the supplied yellow video cable to the yellow VIDEO OUT

jack on the DVD Player and to the VIDEO IN jack on the TV.

You may use S-Video or Component Video (MDV430 only) if S-Video or

Component Video is available on your TV. See pages 10 and 12 for these optional

video connections. Remember, you only need one video connection between the

TV and the DVD Player.

3Plug in the Stereo’s power cord. Turn on the Stereo and select the

Auxiliary IN station. During Disc playback, you will adjust the volume at the

Stereo. See your Stereo owner’s manual for details.

4Plug in the TV’s power cord. Turn on the TV and set it to the correct

Video In channel. During Audio CD playback, you may check the status of

the Disc on your TV screen. During DVD playback, you will watch the program

on the TV. See your TV owner’s manual for details.

5Plug in the DVD Player’s power cord. Press the POWER yybutton to

turn on the DVD Player. You should see the DVD logo on the TV screen .

If you do not, check your connections and make sure the TV is on the correct

channel.

Back of Stereo

(example only)

Back of TV

(example only)

MDV410/430 2/7/02 11:18 AM Page 13

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

A-B REPEAT Button

Press to set up A-B Repeat Play, which repeatedly plays a specific

segment of a Disc. Details are on page 27.

MODE Button

When playback is stopped, press to set up programmed or ran-

dom playback for an Audio CD or MP3 files.

Details are on pages 28-29.

During DVD playback, press to set up the black level setting or

TruSurround setting. Details are on page 44.

DISPLAY Button

Press to see the current status of the Disc on the TV screen

during playback. Press repeatedly to remove the status display.

Details are on page 35.

CLEAR Button

Press to erase incorrect information when setting up features.

MARKER Button

Press to set a Marker, which will give you quick access to points

on a Disc that you select. Details are on page 38.

14 Remote Control Buttons

POWER yyButton

Press to turn the power on and off. P-ON or P-OFF appears

briefly on the display panel of the MDV430. The red POWER

light appears on the front of the MDV410 when the power is on.

MENU Button

Press to display the Disc menu. Details are on pages 5 and 20.

OPEN/CLOSE AButton

Press to open or close the Disc tray.

SETUP Button

When Disc playback is stopped, press to access or remove the

DVD Player’s Setup menu.

REPEAT Button

Press to repeat playback of the current Disc or Track (Audio

CD) or a Title or Chapter (DVD). Details are on page 26.

SEARCH MODE Button

Press to access or remove the Search display, which allows you

to go directly to a specific Title/Chapter/Track/Time.

Details are on pages 24-25.

Arrow Buttons

Press to select an item in the DVD Player’s Setup

menu or in the Disc menu.

Number Buttons

Press to directly select a Track (Audio CD) for playback.

Details are on page 24.

Use the Number buttons to program Tracks (Audio CD)

for playback. Details are on page 28.

ZOOM Button

Press to enlarge the DVD picture. Details are on page 23.

MDV410/430 2/7/02 11:18 AM Page 14

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

Remote Control Buttons (cont’d) 15

Stop CButton

Press to stop Disc play.

Play BButton

Press to begin Disc play.

SUBTITLE Button

Press to select a language for the subtitles (among those

available) or to turn off the subtitles. Details are on page 33.

ANGLE Button

Press to view the picture from a different angle (if available).

Press to choose one of the available angles.

Details are on page 34.

RETURN Button

Press to return to the previous DVD Player Setup menu or to

remove the Setup menu from the TV screen.

SKIP Gand HButtons

Press to skip Chapters or Tracks. Details are on page 24-25.

Pause FButton

Press to pause Disc playback. Details are on page 21. Press

repeatedly to advance the DVD picture step by step (or one

frame at a time). Details are on page 21.

Fast Forward g Button

Press to fast forward the Disc. Details are on page 22.

On a DVD, press the Pause Fbutton, then press the Fast

Forward gbutton to begin slow motion playback. Press

the Fast Forward gbutton repeatedly to change the for-

ward speed of slow motion. Details are on page 23.

TITLE Button

Press to display the Title menu of the DVD, if available.

Details are on page 20.

AUDIO Button

Press to choose one of the audio languages available on a DVD

or to choose a Stereo sound mode during Audio CD playback.

Details are on page 32.

OK Button

Press to select, change, or confirm a setting in

the DVD Player’s Setup menu.

Press to select a feature in the DVD Disc menu.

Reverse h Button

Press to view the picture in fast reverse motion (DVD) or to

reverse playback of an Audio CD. Details are on page 22.

MDV410/430 2/7/02 11:18 AM Page 15

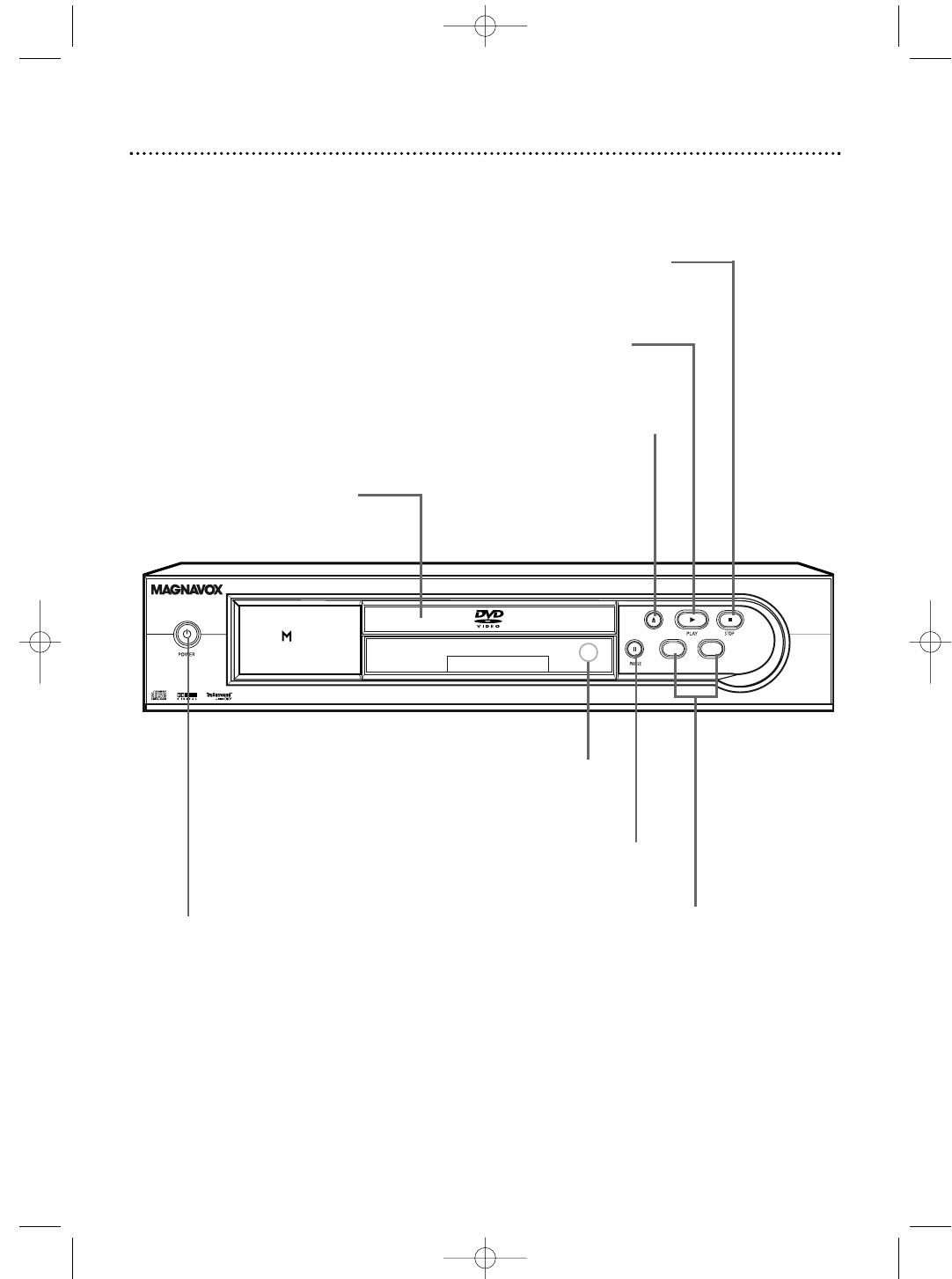

16 Front Panel

OPENOPEN/CLOSECLOSE

SKIPSKIP/SEARCHSEARCH

MP3 CD PLAYBACK

OPEN/CLOSE AButton

Press to open or close the

Disc tray.

Details are on page 19.

PLAY BButton

Press to start or resume

Disc playback. Details are

on page 19.

STOP CButton

Press to stop Disc playback.

Details are on page 19.

PAUSE FButton

Press to pause Disc

playback. Press repeat-

edly to advance DVD

playback one frame at

a time. Details are on

page 21.

POWER yyButton

Press to turn the DVD Player’s power

on and off. Details are on page 19.

Remote Sensor

Receives a signal from your remote

control so you can operate your

DVD Player from a distance.

SKIP/SEARCH

j/ GButtons

Press to go to pre-

vious or subsequent

Tracks or Chapters.

Press and hold for

about three seconds

for a fast forward

or reverse search.

Disc tray

Insert a Disc here.

MDV410/430 2/7/02 11:18 AM Page 16

TITLE CHP. TRK.

REPEAT

A – B

OPEN/CLOSE

SKIP/SEARCH

MP3 CD PLAYBACK

Display Panel 17

Display with Dimmer

Messages about current DVD Player opera-

tions appear here. See Display Messages below.

You can adjust the brightness of the display.

Details are on pages 40-41.

REPEAT: Appears during

Repeat Playback, along with

A-B, TITLE, CHP, or TRK.

Details are on pages 26-27.

B: Appears during Disc

playback. F: Appears when

play is paused.

DVD: Lights when a

DVD is in the tray and

ready for playback.

CD: Lights when an

Audio CD is in the tray

and ready for playback.

Displays the elapsed playing

time of the current Title or

Track. Briefly displays Title,

Chapter, or Track numbers.

Power is turning on.

Appears after the disc tray closes if the tray is empty, if

there is an error reading the disc, or if an unacceptable

disc is installed.

Tray is opening or is open.

Tray is closing.

Disc is loading.

Power is turning off.

POWER PLAY DISC IN

POWER Light

This red light appears

when the power is on.

Display Messages (MDV430)

PLAY Light

This green light appears

during Disc playback.

DISC IN Light

This green light appears when

a disc is in the DVD Player.

MDV410

MDV430

MDV410/430 2/7/02 11:18 AM Page 17

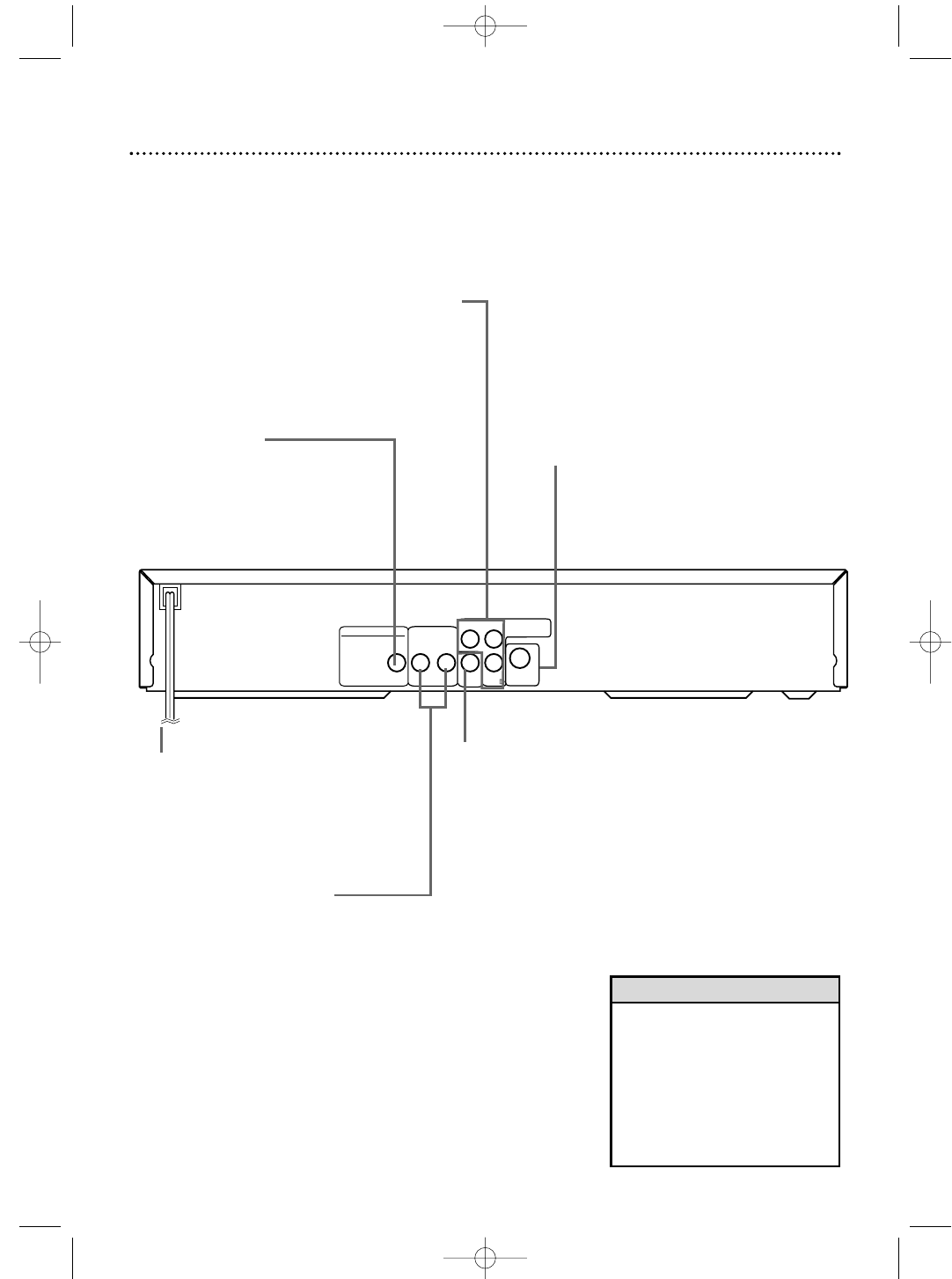

18 Rear Panel

AUDIO OUT

COAXIAL

VIDEO

OUT

Cb S-VIDEO

OUT

YCr

DIGITAL AUDIO OUT

PCM/MULTICHANNEL

COMPONENT

VIDEO OUT

AC Power Cord

Connect to a standard AC

outlet to supply power to

the DVD Player.

COAXIAL Jack

Connect an optional audio coaxial

digital cable here and to the coaxial

digital Audio In jack of a stereo.

Details are on pages 11 and 13.

S-VIDEO OUT Jack

Connect an optional S-Video cable here

and to the S-Video In jack of a television.

Details are on page 10.

VIDEO OUT Jack

Connect the yellow video cable

(supplied) here and to the TV’s

Video In jack. Details are on

pages 9, 11, and 13.

AUDIO OUT Jacks

Connect the supplied red and white

audio cables here and to the Audio In

jacks of a television or stereo. Match

the cable colors to the jack colors.

Details are on pages 9, 10, and 12.

Y Cr Cb COMPONENT VIDEO OUT

Jacks (MDV430 only)

Connect optional component video cables

here and to the component Video In jacks

of a television. Details are on page 12.

• You only need one audio connec-

tion and one video connection, so

you will not have a cable con-

nected to every jack. For exam-

ple, if you are using the S-VIDEO

OUT jack, you will not use the

yellow VIDEO OUT jack or the Y

Cr Cb COMPONENT VIDEO

OUT jacks.

Helpful Hint

MDV410/430 2/7/02 11:18 AM Page 18

Playing a Disc 19

Before you begin, turn on the power of the TV, stereo, and

any other equipment connected to the DVD Player. Make

sure the TV and the stereo (if applicable) are set to the cor-

rect channel. Details are on pages 8-13.

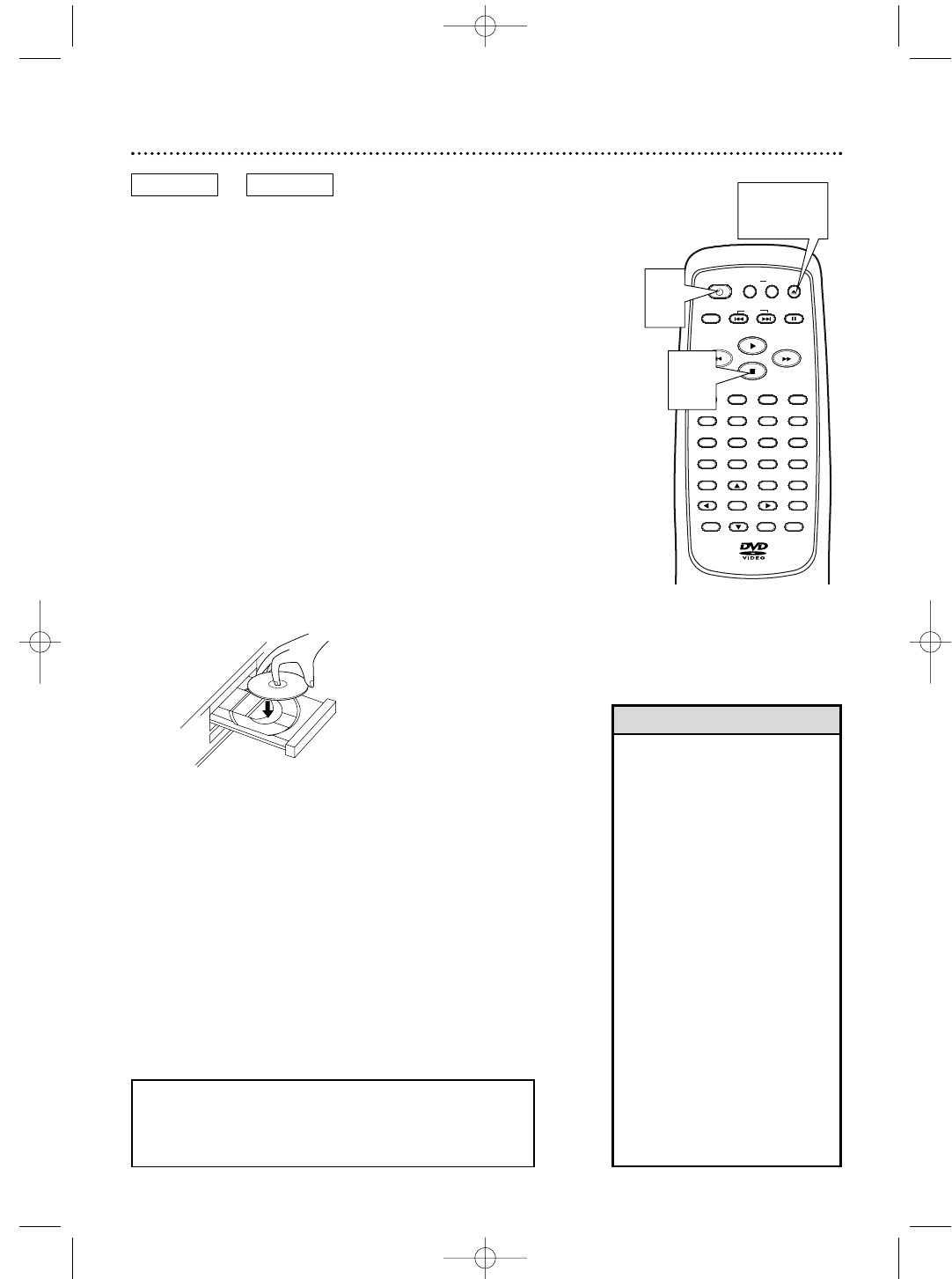

2Press OPEN/CLOSE Ato open the Disc tray.

1Press POWER to turn on the DVD Player.

P-ON will appear briefly on the display panel of the

MDV430. The red POWER light will appear on the

front of the MDV410 when the power is on.

3Place a Disc into the tray. Make sure the Disc is

sitting properly in the recessed groove of the tray.

Some DVDs are recorded on both sides. Make sure

the side you want to play is facing up. Or, if the DVD

is recorded on only one side, place the Disc in the

tray with the label facing up (shiny side facing down).

4Press OPEN/CLOSE Ato close the tray. Disc

playback may start automatically. Or, if the DVD has

a menu, the menu may appear on the screen instead.

Details are on page 20.

With some Audio CDs, playback will not begin until

you press Play B.

To search forward or backward during playback, see

page 22.

5Press Stop Cto stop playback.

DVD AUDIO CD

Remember, this DVD Player

will play only certain Discs.

See page six for details.

• An “X” may appear in the top

right corner of the TV screen

when you try a feature. This

means either the feature you tried

is not available on the Disc, or the

DVD Player can not access the

feature at this time. This does not

indicate a problem with the DVD

Player.

• If a Disc is dirty or has scratches,

the pictures may appear distorted

and playback may stop. In such

cases, remove the Disc and turn

off the DVD Player. Unplug the

power cord, then reconnect it to

the power outlet. Clean the Disc,

then turn on the DVD Player

again and reinsert the Disc for

playback.

• If a Disc has multiple layers, the

picture may freeze occasionally.

This happens when the first layer

switches to the second layer. This

is not a malfunction.

Helpful Hints

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

2,4

MDV410/430 2/7/02 11:18 AM Page 19

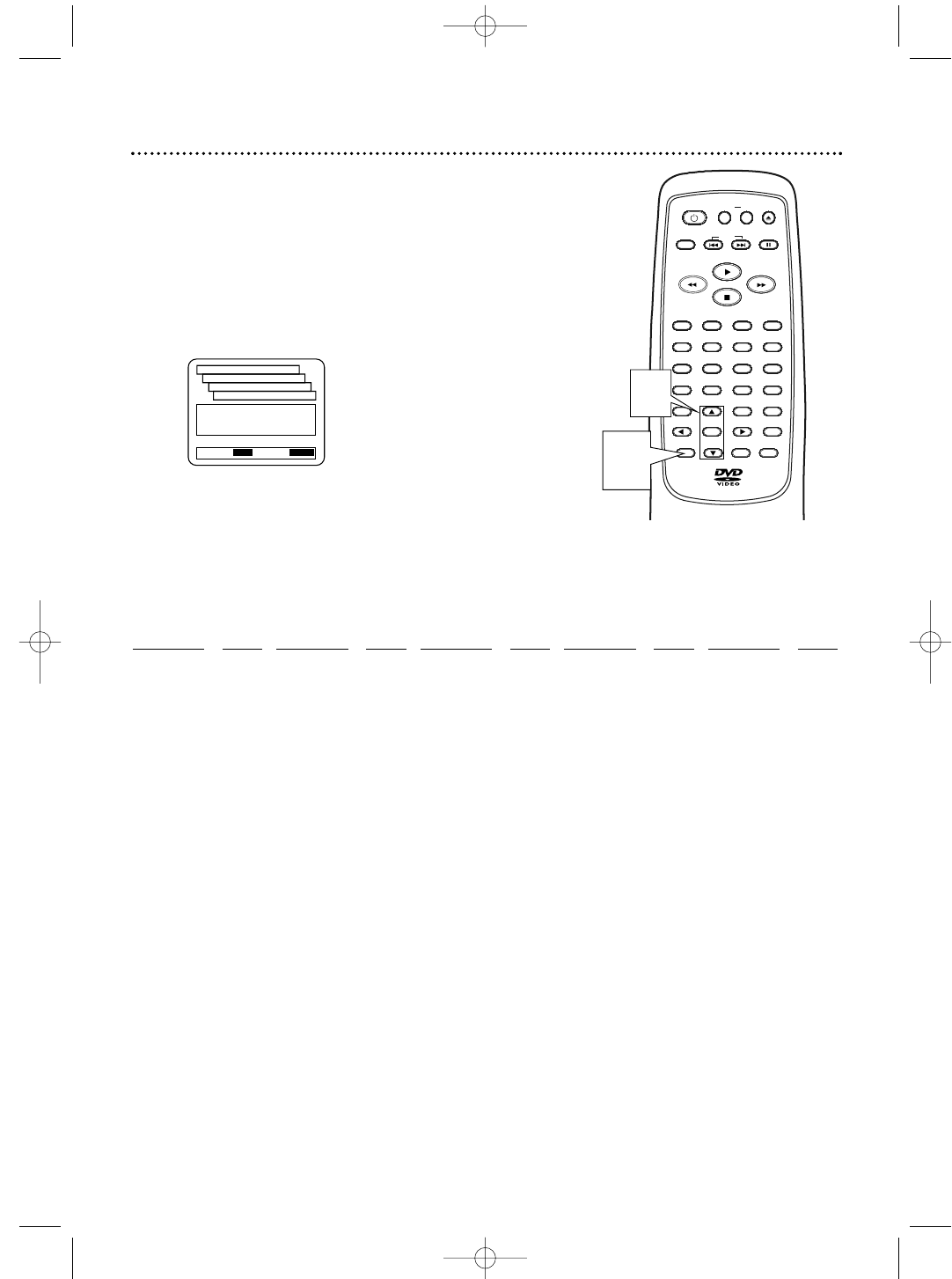

Title Menu

Some DVDs have a Title Menu, which lists the Titles avail-

able on the Disc. Use the Title Menu to start playback at a

specific Title.

1While playback is stopped, press TITLE. The

Title Menu will appear.

If a Title menu is not available, the “X” may appear

on the TV screen. If the DVD only has a main menu,

the main menu may appear when you press the

TITLE button.

2Press opsB to select the desired Title,

then press OK.

Playback will begin at the Title you selected.

• Menus may vary among Discs.

Refer to the literature accompa-

nying the Disc for details.

• Not all DVDs have Title menus.

• Some DVDs may refer to

Chapters as “scenes.” Some

DVDs may refer to the Title

Menu as the “scene index.”

• The TITLE button may not be

active with all DVDs.

Helpful Hints

20 Menus

DVD Disc Menus

Some DVDs contain menus that describe the contents of

the Disc or allow you to customize Disc playback. For

example, the menu may offer choices for subtitle languages,

director’s commentary, or soundtrack playback.

To use the DVD menu and select playback features, follow

these steps.

1Press MENU. The DVD’s main menu will appear.

2Press ops B to select an item, then press

OK. Continue this process to set up all the features

you wish to see on the Disc or to start playback.

DVD

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

MDV410/430 2/7/02 11:18 AM Page 20

Paused and Step-by-Step Playback, Resume On 21

Paused and Step-by-Step Playback

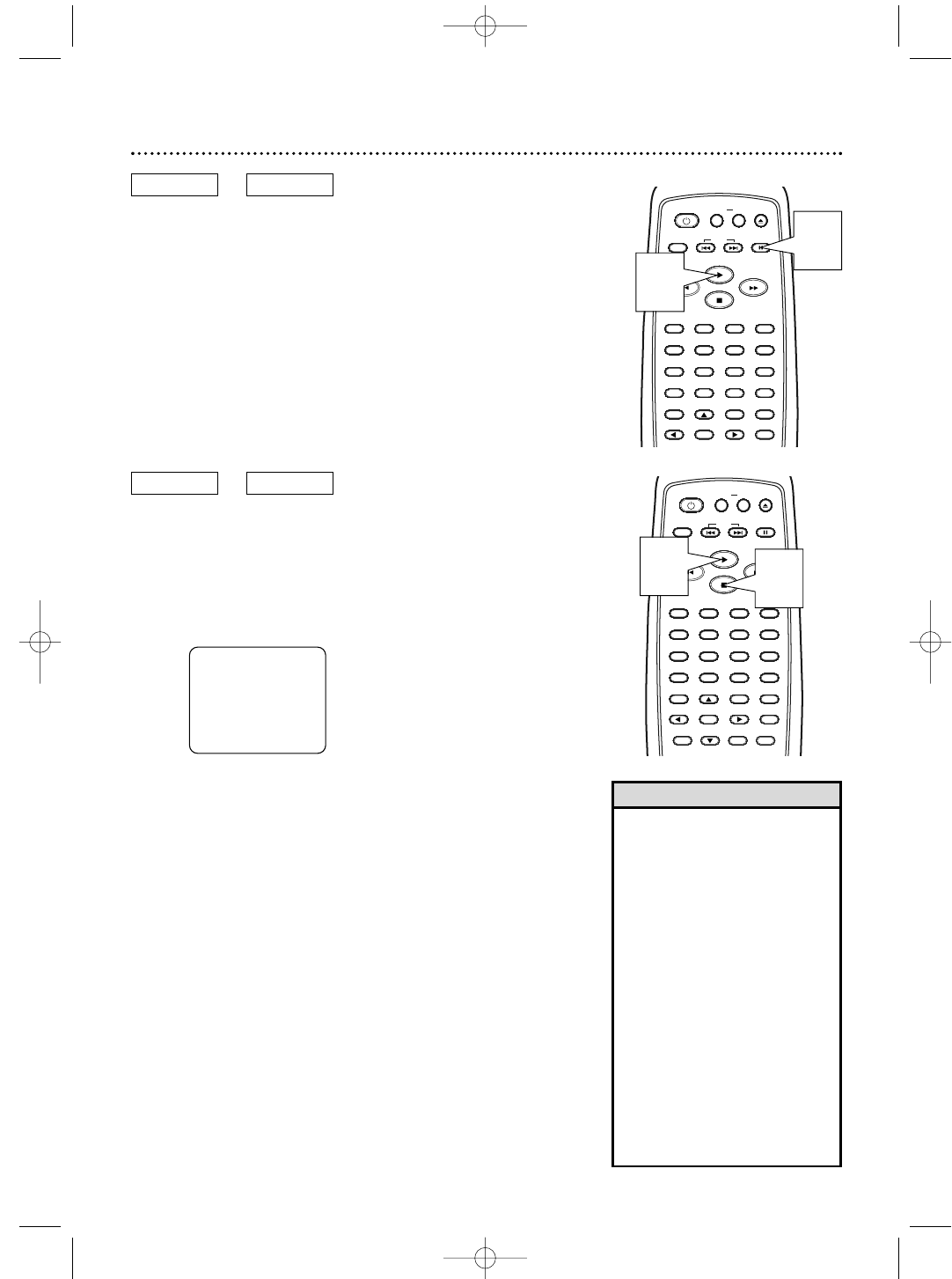

1During playback of a DVD or Audio CD, press

PAUSE F. Playback will pause and the sound will be

mute.

During DVD playback, press PAUSE Frepeatedly to

advance the picture one frame at a time.

2Press Play Bto resume playback.

• To cancel resume playback and

start playing the Discs from the

beginning, press Stop Ca sec-

ond time while playback is

stopped.

The C will appear briefly at the

top right corner of the TV

screen. Press Play Bto play the

Disc from the beginning.

• Resume On is retained when you

turn off the DVD Player’s power.

When you turn on the power

again later, RESUME ON will

appear on the TV screen when

the Disc is loaded and ready for

playback. Press Play Bto

resume play at the point you last

stopped it.

• Opening the disc tray will cancel

Resume On.

Helpful Hints

Resume On

You may choose to resume playback from the point at

which playback stopped last.

1Press Stop Cduring playback. In a few seconds,

the following Resume message will appear on the TV

screen.

2Press Play B. In a few seconds, playback will

resume from the point at which playback stopped

last.

Press 'PLAY' to play from here.

To play the beginning, press 'STOP' first

and then 'PLAY'.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

DVD AUDIO CD

MDV410/430 2/7/02 11:18 AM Page 21

22 Fast Forward/Reverse Search

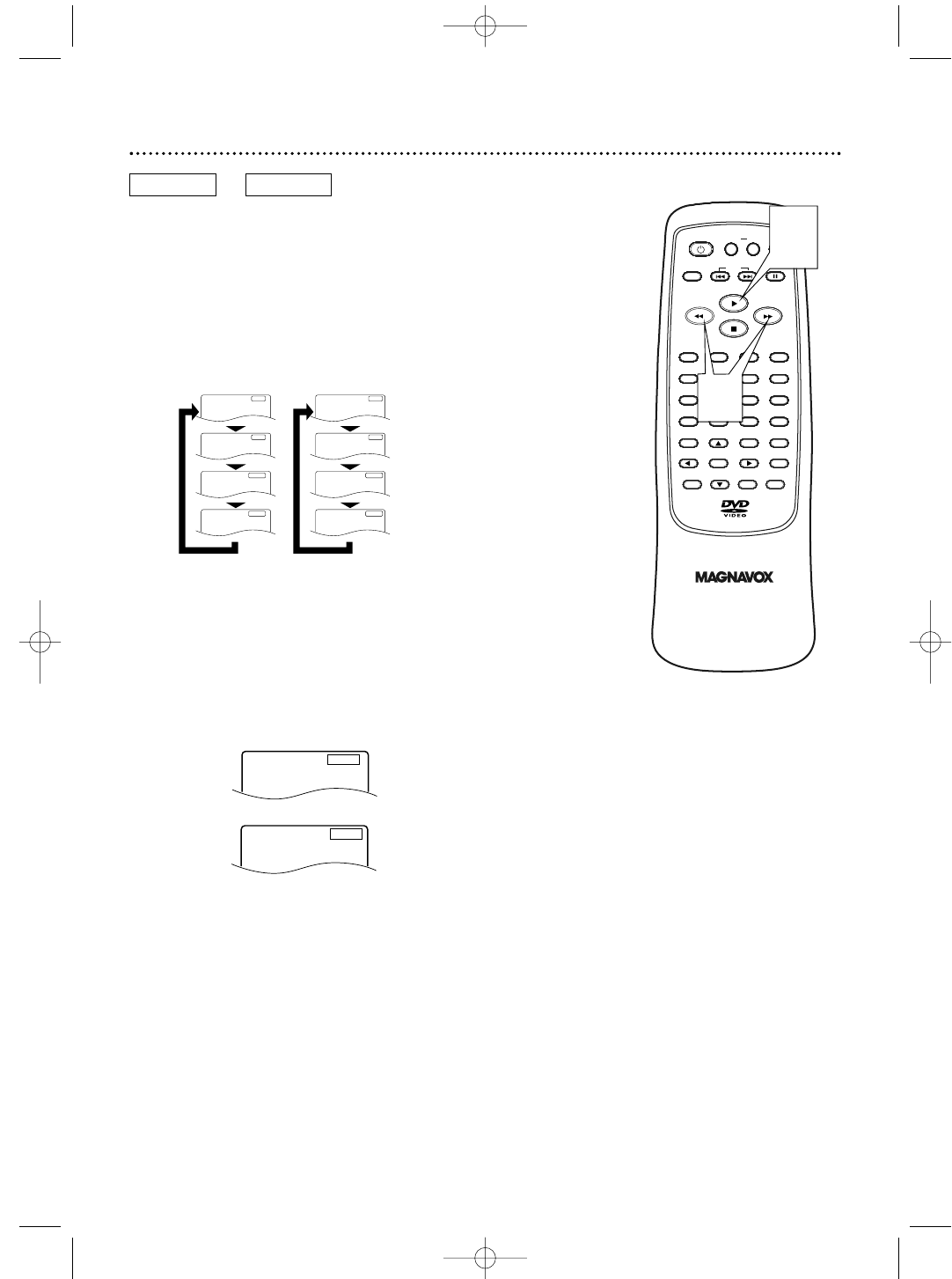

1During playback, press Fast Forward gor

Reverse hon the remote control.

● On a DVD, pressing Fast Forward gor Reverse

hrepeatedly will forward or reverse the picture at

twice, eight times, 30 times, or 60 times the normal

playback speed. Sound will be mute.

Use Fast Forward gfor a forward search. Press

Reverse hfor a reverse search.

●On an Audio CD, you may search forward or

backward at 16 times the normal playback speed

(hx16 or gx16). Pressing the Fast Forward g

or Reverse hbutton repeatedly will not affect the

speed of the search. Sound will be intermittent during

searching on an Audio CD.

Use Fast Forward gfor a forward search. Press

Reverse hfor a reverse search.

2Press Play Bto return to normal playback.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

DVD AUDIO CD

Dx16

Press the Fast Forward button during Audio CD playback.

Ex16

Press the Reverse button during Audio CD playback.

Ex2

Ex8

Ex30

Ex60

Dx8

Dx2

Press Reverse

during DVD playback.

Press Fast Forward

during DVD playback.

Dx30

Dx60

MDV410/430 2/7/02 11:18 AM Page 22

Zoom

You can enlarge the DVD picture during playback or when

you have paused the picture. The picture can be two or four

times larger than normal.

1Press ZOOM during playback or when play is

paused. The picture will appear twice as large. Press

ZOOM again to make the picture four times as large

as normal.

2While the picture is enlarged, press ops B

to move the zoomed image up, down, left, or

right. To remove the Cfrom the lower right screen

corner, press OK.

3To return the picture to its normal size, press

ZOOM so that ZOOM [OFF] appears briefly in

the top right corner of the TV screen.

Slow Motion

1Press PAUSE Fduring playback.

2Press Fast Forward D.Slow motion playback will

begin. Press Fast Forward Drepeatedly during slow

motion playback to vary the speed of slow motion

playback. You may play the DVD at 1/16, 1/8, or 1/2

the normal playback speed.

3Press Play Bto return to normal playback.

Slow Motion, Zoom 23

• The sound will be mute when

playback is paused and during

slow motion playback.

• You can not play the DVD in

reverse slow motion.

Helpful Hints

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

1,3

DVD

Press Fast Forward while play is paused.

Press Fast Forward again.

x1/16

x1/8

x1/2

DVD

ZOOM [x4]ZOOM [x2] ZOOM [OFF]

MDV410/430 2/7/02 11:18 AM Page 23

24 Specific Track Playback

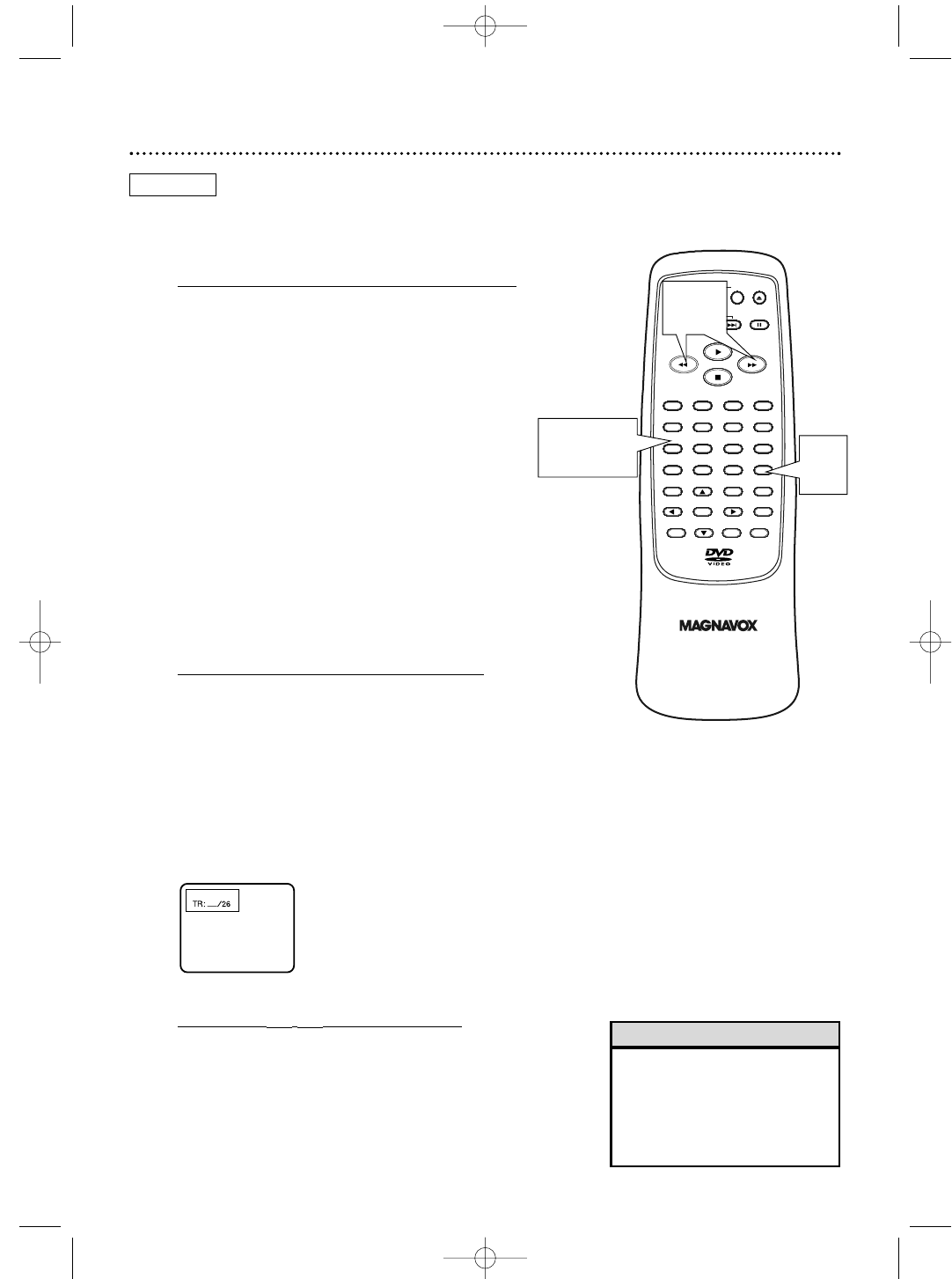

There are three ways to begin playback on an Audio CD at

a specific Track. You may use the Number buttons, the

SEARCH MODE button, or the SKIP H G buttons.

AUsing the Number Buttons to Select a Track

Press the Number buttons to enter the

desired Track number. Playback will start at the

selected Track. You may select a Track with the

Number buttons during playback or when playback is

stopped.

For single-digit Tracks (1-9), press a single Number

button. For example, to play Track three, press the

Number 3 button.

For Tracks 10 and above, press the +10 button once

so the Track Search display (TR) appears on the TV

screen. Then press the Number button of the first

digit, then press the Number button of the second

digit.

For example, to play Track 26, press the +10 button,

then press the Number 2 button, then press the

Number 6 button.

If you enter a Track number that is not available on

the Disc, playback will not begin (or the current

Track will continue to play). An “X” will appear in

the top right corner of the TV screen.

BUsing SEARCH MODE to Select a Track

Press SEARCH MODE once so the Track

Search display appears (TR). Within 30 sec-

onds, press the Number buttons to select the

Track number you desire. Playback will begin

at the selected Track.

For a single-digit Track (1-9), enter a zero first. For

example, to play Track 5, press 0, 5.

For Tracks numbered 10 or above, use the Number

buttons. For example, for Track 15, press the

Number button 1, then the Number button 5. (You

do not have to use the +10 button.)

CUsing SKIP H G to Select a Track

Press SKIP GGduring playback to skip the

current Track and move to the next Track.

Press SKIP GGrepeatedly to skip subsequent

Tracks.

Press SKIP HHduring playback to return to

the beginning of the current Track. Press SKIP

HHrepeatedly to go to previous Tracks.

• The SKIP H / G buttons are

not active when playback is

stopped.

• You can not use SKIP H / G

to go from the last Track on the

disc to the first Track.

Helpful Hints

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

A-B B

AUDIO CD

MDV410/430 2/7/02 11:18 AM Page 24

Specific Time Playback

1During playback, press SEARCH MODE

repeatedly so the Time Search display appears on

the TV screen.

2Within 30 seconds, use the Number buttons to

enter the elapsed playing time at which you

want playback to begin. Within a few seconds,

playback will start at the specified time.

●Example: 1 hour, 23 minutes and 30 seconds

1 →2 →3 →3 →0

●Make sure the time you enter is within the total

time of the current Title or Track. If it is not, you

must re-enter a valid time.

● If you make a mistake, press CLEAR. Then, enter

the correct information.

DVD AUDIO CD

Specific Title/Chapter Playback, Specific Time Playback 25

DVD

Specific Title/Chapter Playback

1Press SEARCH MODE so the Title/Chapter

Search display appears on the TV screen.

2Within 30 seconds, press oor pto select the

TT (Title) space, then press the Number but-

tons to enter the Title number. CH (Chapter)

will be selected next automatically.

3While CH is selected and within 30 seconds,

press the Number buttons to enter the

Chapter number. The DVD Player will begin play-

back at the selected Chapter.

• Title/Chapter playback is not

available with some DVDs.

• Press SKIP Gduring DVD

playback to skip the current

Chapter and move to the next

Chapter. Press SKIP Grepeat-

edly to skip subsequent

Chapters. Press SKIP Hduring

DVD playback to return to the

beginning of the current Chapter.

Press SKIP Hrepeatedly to go

to previous Chapters.

Helpful Hints

CLEAR

RETURN

TITLE

MODE

ZOOM

MARKER

SETUP

AUDIO

SUBTITLE

ANGLE

654

987

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

2-3

TT:4 /

CH:12/17

TIME

–:

–

TOTAL 1

MDV410/430 2/7/02 11:18 AM Page 25

26 Repeat Playback

1Press REPEAT repeatedly until the repeat

mode you want appears in the top left corner

of the TV screen.

● On a DVD, repeatedly pressing REPEAT during

playback lets you choose Repeat Chapter, Repeat

Title, or Repeat Off.

● Selecting a new Chapter or Title will cancel repeat

playback on a DVD.

REPEAT

[OFF]

REPEAT

[CHAPTER]

REPEAT

[TITLE]

●On an Audio CD, repeatedly pressing REPEAT dur-

ing playback lets you choose Repeat Track, Repeat

All, or Repeat Off.

● Selecting a new Track will cancel repeat playback

on an Audio CD.

REPEAT

[OFF]

REPEAT

[TRACK]

REPEAT

[ALL]

The entire Audio CD will

play repeatedly.

The entire current Title plays

over and over.

The current Track will play

repeatedly.

The current Chapter plays

over and over.

Repeat playback is cancelled.

Regular playback will occur.

• Repeat playback is not available

with some Discs.

Helpful Hint

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

DVD AUDIO CD

MDV410/430 2/7/02 11:18 AM Page 26

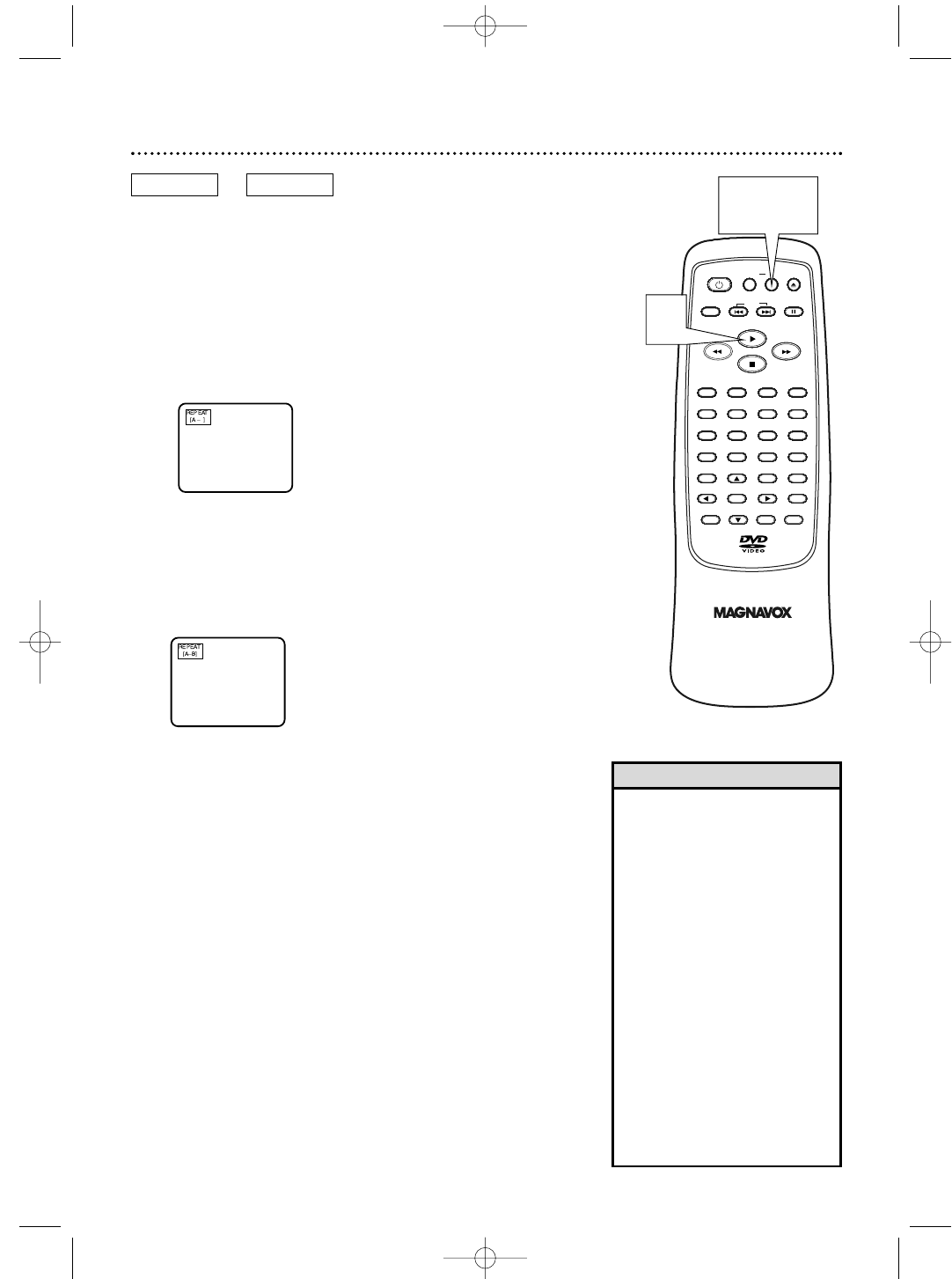

A-B Repeat Playback 27

• A-B Repeat playback is not avail-

able with some DVDs.

• With DVDs, the entire A-B

repeat section must be within a

single Title. The DVD Player will

automatically set the end point

(B) at the end of the Title if you

do not set “B” before the end of

the Title is reached.

• With Audio CDs, the A-B repeat

section must be within a single

Track. The DVD Player will auto-

matically set the end point (B) at

the end of the Track if you do

not set “B” before the end of the

Track is reached.

• Point B must be later on the

Disc than Point A.

• You can not set up A-B Repeat

Playback during Repeat playback

(as described on page 26).

Helpful Hints

You can play a section of an Audio CD or DVD repeatedly.

Follow these steps to set up the section that you want to

play over and over.

1Press Play Bto play the Disc to the point at

which you want repeated playback to begin.

2Press A-B REPEAT to set the starting point

(A). If you make a mistake, press CLEAR. This will

erase point A and let you start over. REPEAT [OFF]

will appear briefly on the TV screen.

3Play the Disc to the point at which you want

repeated playback to end, then press A-B

REPEAT again. Within a few seconds, the section

will begin to play. The segment will play over and

over until you cancel the A-B Repeat feature.

4To cancel A-B Repeat Playback, press A-B

REPEAT so REPEAT [Off] appears on the TV

screen. Regular Disc playback will resume.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

2-4

DVD AUDIO CD

MDV410/430 2/7/02 11:18 AM Page 27

28 Programmed Playback

You may determine the order in which Tracks will play. The

order that you set is called the Program. To set up pro-

grammed playback, follow these steps.

1While playback is stopped, press MODE. The

Program screen will appear.

2Press the Number buttons to enter the num-

ber of the first Track you want to play.

●Press CLEAR to erase the last Track in the

Program.

● Enter single-digit Tracks with a single Number but-

ton. For example, for Track three, press the Number

3 button.

●For Tracks 10 and above, press the +10 button,

then the Number button for the first digit, then the

Number button for the second digit. For example, to

play Track 26, press the +10 button, then press the

Number 2 button, then press the Number 6 button.

● The first Program screen can display 50 Tracks.

Press pto go to the next page, which can display 49

Tracks. Press oto return to the first Program

screen.

3Repeat step 2 until you have selected all the

Tracks you wish to play in the Program. Make

sure the Track numbers you enter are available on

the Audio CD. If you enter an incorrect Track num-

ber, you must re-enter a valid Track number.

4Press Play B.

The Tracks will play in the order in which you pro-

grammed them. The Program will play once. Turning

off the Player or opening the disc tray will erase the

Program.

• You can not use the Number but-

tons or SEARCH MODE to select

another Track during pro-

grammed playback. You may use

the SKIP G/ Hbuttons to

select other Tracks within the

Program. Details are on page 24.

• You can not combine random

playback with programmed play-

back.

• You may play a Program or a

Track within a Program repeated-

ly. During programmed playback,

press REPEAT so REPEAT [ALL]

or REPEAT [TRACK] appears. The

entire Program or the current

Track will play over and over.

• You can not alter a Program dur-

ing program playback.

• While the Program is playing,

press MODE to see the Program

screen. The currently playing

Track will appear in yellow. To

remove the Program screen, press

RETURN.

• A Program can have a maximum

of 99 Tracks.

Helpful Hints

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

2-3

AUDIO CD

PROGRAM TIME 0:00:00 1/1

RANDOM

: MODE

EXIT

: RETURN

START: PLAY

DELETE

: CLEAR

02 05 07 04 10 14 06 15 21 08

20 28 10 25 35 12 30 42 11 34

49 16 40 58 18 45 63 01 03 _

PROGRAM TIME 2:07:43 1/1

RANDOM

: MODE

EXIT

: RETURN

START: PLAY

DELETE

: CLEAR

MDV410/430 2/7/02 11:18 AM Page 28

MP3

Random Playback, MP3 Playback 29

Random Playback

You may play the Tracks of an Audio CD in Random order

instead of the order in which they are recorded (1,2,3...). To

set up Random Playback, follow these steps.

1While playback is stopped, press MODE twice

so the RANDOM screen appears.

2While the RANDOM screen appears, press

Play B.The Tracks will play in random order. After

each Track plays once, playback will stop.

MP3 Playback

1When you put a CD-RW with MP3 files in the DVD

Player, the MP3 menu will appear on the TV screen.

While playback is stopped, press oor pto

select the Album or Track you want to play.

●If you choose a Track, press Play B or OK. The

tracks will play in the order in which they were

recorded, i.e. 1, 2, 3, starting with the Track you

selected.

●If you select an Album and press OK, the Track

selection screen will appear. Press Kor Lto select

the Track you want to play, then press Play B or

OK.

●Choose FIRST PLAY to start play from the first

Track listed.

●Press the TITLE button to go back to the first item

on the first MP3 screen.

2To stop playback, press Stop C.

RANDOM

EXIT

: MODE

START

: PLAY

AUDIO CD

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

• Folders are known as Albums; files

are known as Tracks.

• A “+” will appear at the start of

the Album name.

• If all the Tracks can not appear

on the screen at the same time,

pindicates more Tracks on the

next screen; Kindicates previous

screens. The current screen num-

ber and the total number of

screens will appear on the screen.

• The player will recognize a total of

255 Albums and Tracks.

Helpful Hints

MDV410/430 2/7/02 11:18 AM Page 29

30 MP3 Display Information, MP3 Track Selection

MP3

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

1-3

MP3 Display Information

You can check the MP3 files during playback.

Press DISPLAY during playback.

The currently

playing Track will be highlighted in yellow.

2Press DISPLAY again.

The elapsed playing time of the current track will

appear at the top of the display.

D indicates Disc repeat

A indicates Album (folder) repeat

T indicates Track repeat.

3Press DISPLAY again to remove the display.

• During playback, press the

Number buttons to select another

Track, which will begin playing

immediately. Or, press SKIP H

or Gto move to previous or

subsequent Tracks.

• If the Track you chose is not avail-

able or can not be accessed, “X”

will appear in the top right corner

of the TV screen. Play may

resume at a different Track.

• Specific Time playback is not pos-

sible with MP3 files.

Helpful Hints

MP3

MP3 Track Selection

Press the SEARCH MODE button.

●The SEARCH menu will appear.

●The current Track or the Track at which play will

Resume (Resume On) will be highlighted. If Resume is

off and playback is stopped, the first Track of the Disc

will be highlighted.

2Press oor p to select a Track you want to

play. Press Play Bto start playing the Track.

●Press the RETURN or SEARCH MODE button to

remove the SEARCH menu.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

START

: PLAYSELECT: o p

+ALBUM01

TRACK11

TRACK12

TRACK13

TRACK14

1/15

ALBUM NAME

1/1

MDV410/430 2/7/02 11:18 AM Page 30

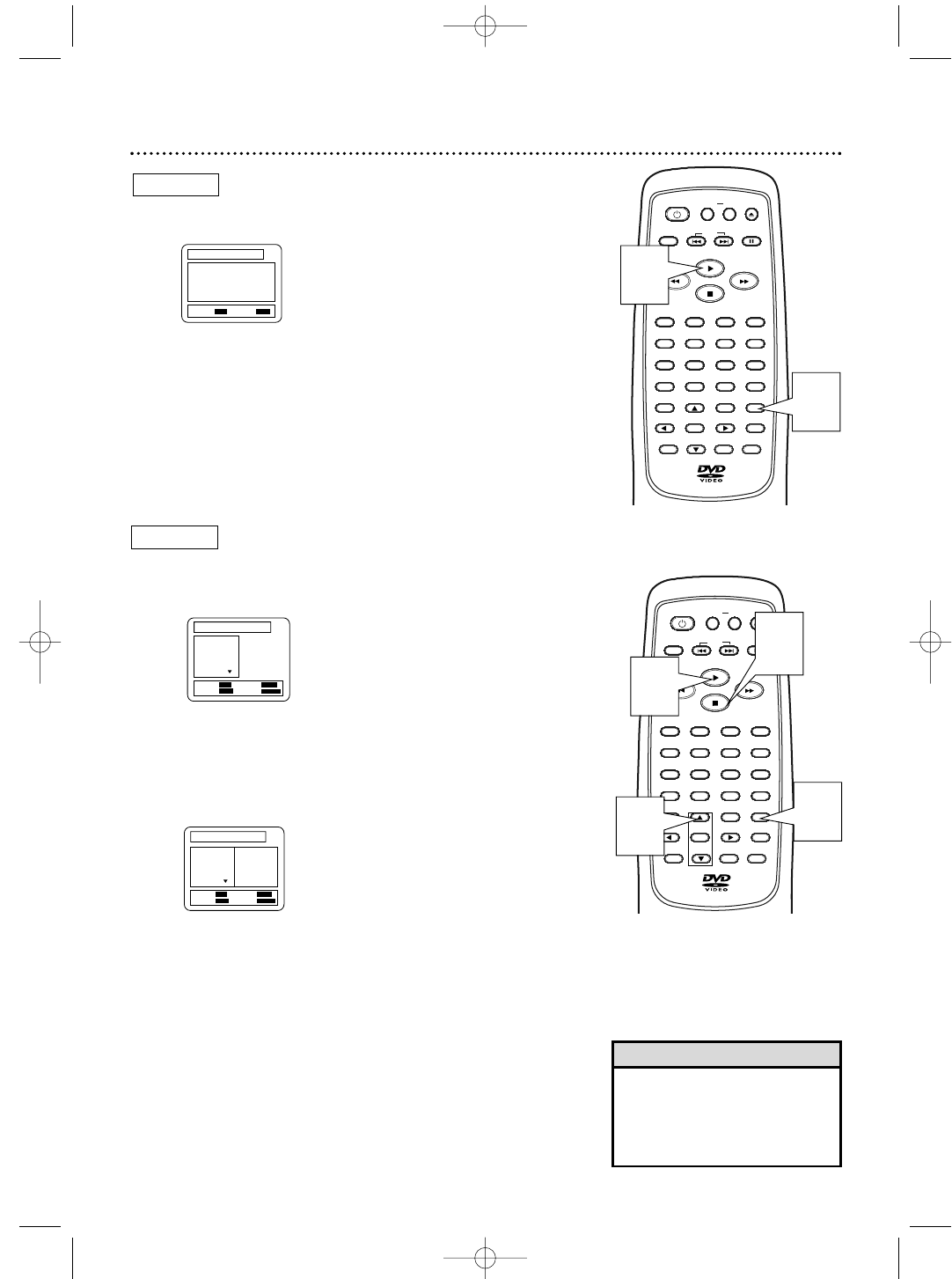

Random MP3 Playback, Programmed MP3 Playback, 31

• Press CLEAR to delete the last

item in the Program.

• Turning off the DVD Player’s

power or opening the Disc tray

will erase the entire Program.

Helpful Hints

MP3

Programmed MP3 Playback

While playback is stopped, press MODE.

The

Program screen will appear.

2Press oor pto select a track, then press OK

to save it in the Program. The programmed track

will appear on the right side of the Program screen.

Press oor pif necessary to see additional Tracks.

Repeat step 2 to enter all the Tracks you want.

MP3

Random MP3 Playback

Press MODE twice while playback is stopped.

2Press Play Bto play the tracks in random order.

3Press Play B to start programmed playback.

4Press Stop C to stop playing the Program.

RAMDOM: MODE

EXIT

: RETURN

START

: PLAY DELETE: CLEAR

TRACK01

+ALBUM11

+ALBUM12

TRACK11

TRACK12

1/2

TRACK11

1/1

PROGRAM - ALBUM01

1/1

RANDOM

EXIT

: MODE

START

: PLAY

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

RAMDOM: MODE

EXIT

: RETURN

START

: PLAY DELETE: CLEAR

+ALBUM01

+ALBUM02

+ALBUM03

TRACK01

TRACK02

1/2

PROGRAM FOLDER NAME

1/1

MDV410/430 2/7/02 11:18 AM Page 31

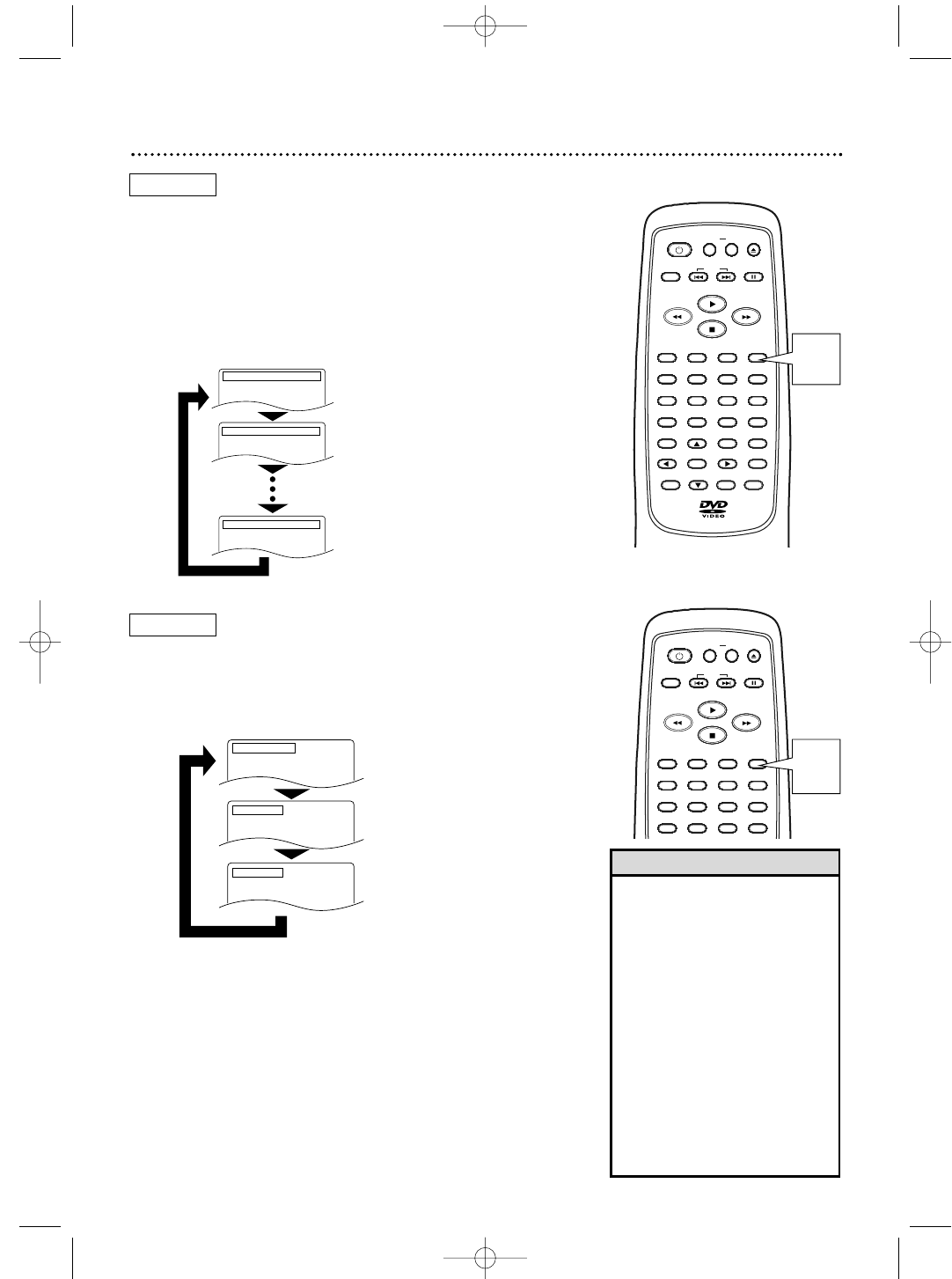

32 Audio Language, Stereo Sound Mode

Audio Language

The DVD Player allows you to select a language for DVDs

during playback. You can change the language only if multiple

languages are available on the DVD.

1Press AUDIO during playback so the audio dis-

play appears at the top of the TV screen. Press

AUDIO repeatedly until you select your desired lan-

guage.

AUDIO 1.ENG DolbyD 5.1CH 48k/3

AUDIO 2.FRE DolbyD 5.1CH 48k/3

AUDIO 3.JPN DolbyD 5.1CH 48k/3

DVD

AUDIO CD

• If a desired language is not avail-

able after pressing AUDIO several

times, the DVD does not have

that language.

• The display will disappear after

about five seconds.

• Some DVDs only allow you to

change the language in the Disc

menu.

• If you are using the COAXIAL

jack, changing the sound mode is

not applicable. Details are on

pages 11 and 13.

• For some Audio languages, three

dashes (- - -) may appear instead

of a three-letter abbreviation for

the language (ENG, FRE, etc.).

Helpful Hints

Stereo Sound Mode

1Press AUDIO repeatedly during playback to

choose AUDIO STEREO, AUDIO L-CH, or

AUDIO R-CH.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

AUDIO STEREO

Only the right channel is active.

AUDIO L-CH

AUDIO R-CH

Only the left channel is active.

Both right and left channels

are active (stereo).

OPEN/

CLEAR

DISPLAY

MODE

REPEAT

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

MDV410/430 2/7/02 11:18 AM Page 32

Subtitle Language 33

• With some DVDs, you may select a

subtitle language only in the Disc

menu.

• If the desired language does not

appear after pressing the SUBTITLE

button several times, the Disc does

not have subtitles in that language.

• The subtitles may be delayed for a

few seconds.

• For some Subtitle languages, three

dashes (- - -) may appear instead of

a three-letter abbreviation for the

language (ENG, FRE, etc.).

Helpful Hints

The DVD Player allows you to select a language for subtitles

during playback. You may select only the subtitles that are

available on the Disc.

1Press SUBTITLE repeatedly to select a subti-

tle language. The subtitle display will appear at the

top of the TV screen. The number of available lan-

guages appears at the right of the audio display. In

this example, six languages are available (1/6). The

display will disappear after about five seconds.

Press SUBTITLE.

Press SUBTITLE to

select another language.

To turn off subtitles, press

SUBTITLE or s/B repeatedly

until SUBTITLE OFF appears in

the display.

SUBTITLE 1.ENG/6

SUBTITLE 2.FRE/6

SUBTITLE OFF

DVD

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

MDV410/430 2/7/02 11:18 AM Page 33

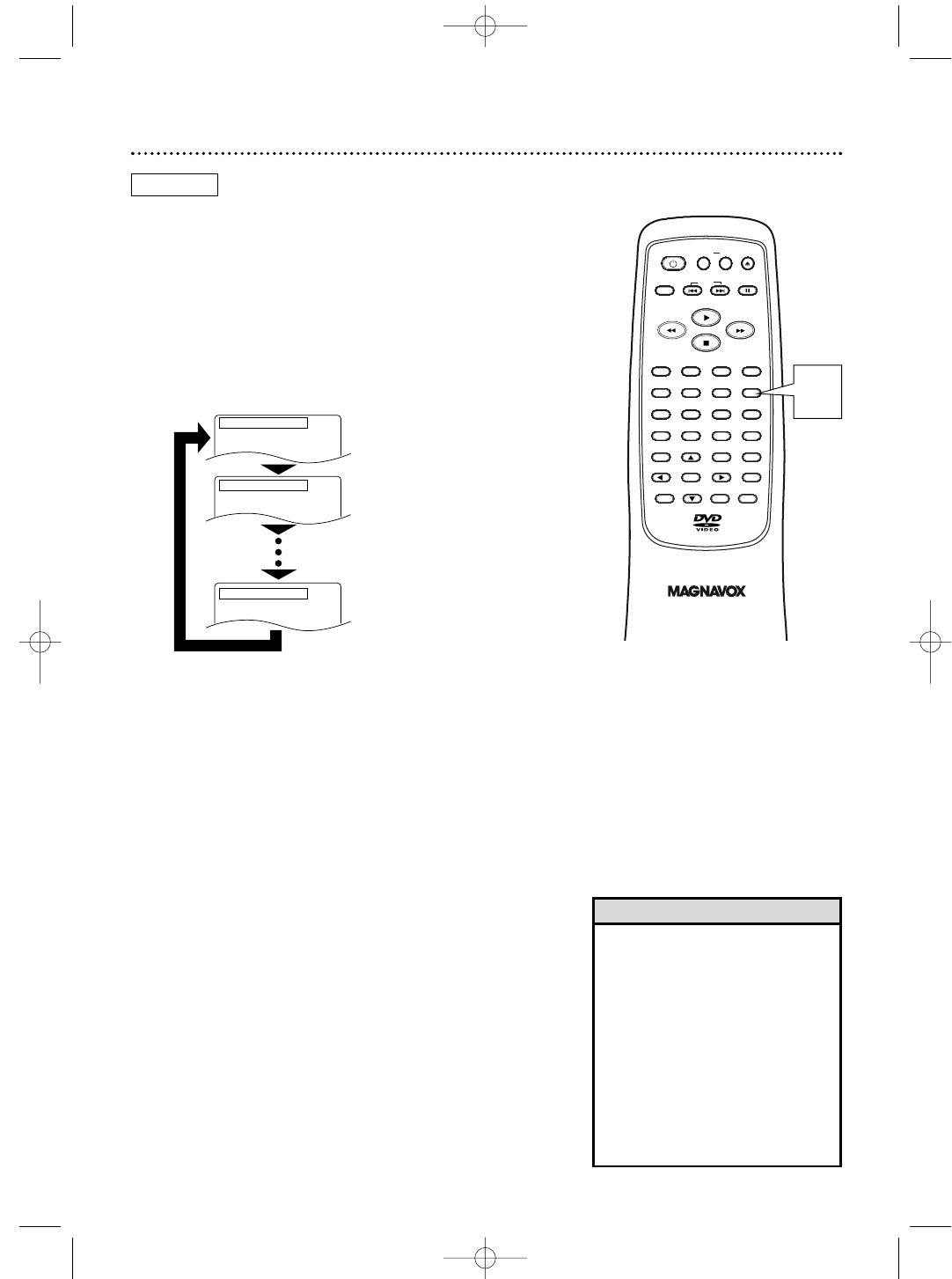

Some DVDs contain scenes that were recorded from differ-

ent angles. You may select a camera angle with the DVD

Player’s remote control during playback.

Angle 1 of eight

available angles

Press ANGLE repeatedly

to select another angle.

ANGLE 1 / 8

ANGLE 2 / 8

ANGLE 8 / 8

1Press ANGLE repeatedly to select a different

angle. The Angle display will appear in the top left

corner of the TV screen. The number of available

angles appears at the right of the Angle display. In this

example, eight angles are available (1/8).

The Angle display will disappear after about five sec-

onds. Playback will continue from the angle you

selected, as long as it is available.

DVD

34 Camera Angles

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

• The current camera angle will

appear when you first press

ANGLE.

• If the Disc contains sequences

recorded from different camera

angles, the angle symbol will

appear at the top right corner of

the screen. You can change the

camera angle when the symbol

appears on the screen. ANGLE

ICON must be ON. Details are

on pages 40-41.

• The camera angle will not

change if the Disc does not con-

tain sequences recorded from

different camera angles.

Helpful Hints

MDV410/430 2/7/02 11:18 AM Page 34

Changing The On-Screen Display 35

You can check information about the current Disc by press-

ing DISPLAY on the remote control.

1Press DISPLAY during playback.

2Press DISPLAY again. If you want, you can press a

Number button now to start playing a specific Chapter.

2Press DISPLAY again. If you want, you can press a

Number button now to start playing a specific Track.

3Press DISPLAY again.

3Press

DISPLAY or RETURN to remove the dis-

play.

4Press DISPLAY or RETURN to remove the

display.

DVD

TT 1/2 0:00:00 - 1:23:45

TT (Title):

Current Title number

/ Total Titles

Elapsed playing time of the

current Title; remaining playing

time of the current Title

CH 7/49 0:01:46 - 0:03:27

CH (Chapter):

Current Chapter number

/ total Chapters

Elapsed playing time

of the current Chapter;

remaining playing time

of the current Chapter

BIT RATE

BIT RATE: The quantity of

information recorded on the DVD.

CL0

Layer number, if applicable

L0: Layer 0 is playing

L1: Layer 1 is playing

Current Repeat setting, if active

C: Chapter repeat

T: Title repeat

A B: A-B repeat

TR 4/12 0:03:21 - 0:02:15

TR (Track):

Current Track number

/ total Tracks

Elapsed playing time

of the current Track;

remaining playing time

of the current Track

ALL 4/12 0:13:45 - 0:45:40

ALL:

Current track number

/ total Tracks

Elapsed playing time

of the current Audio CD;

remaining playing time of

the current Audio CD

Current Repeat setting, if active

T: Track repeat

A: All repeat

A B: A-B repeat

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

1-4

1-3

AUDIO CD

MDV410/430 2/7/02 11:18 AM Page 35

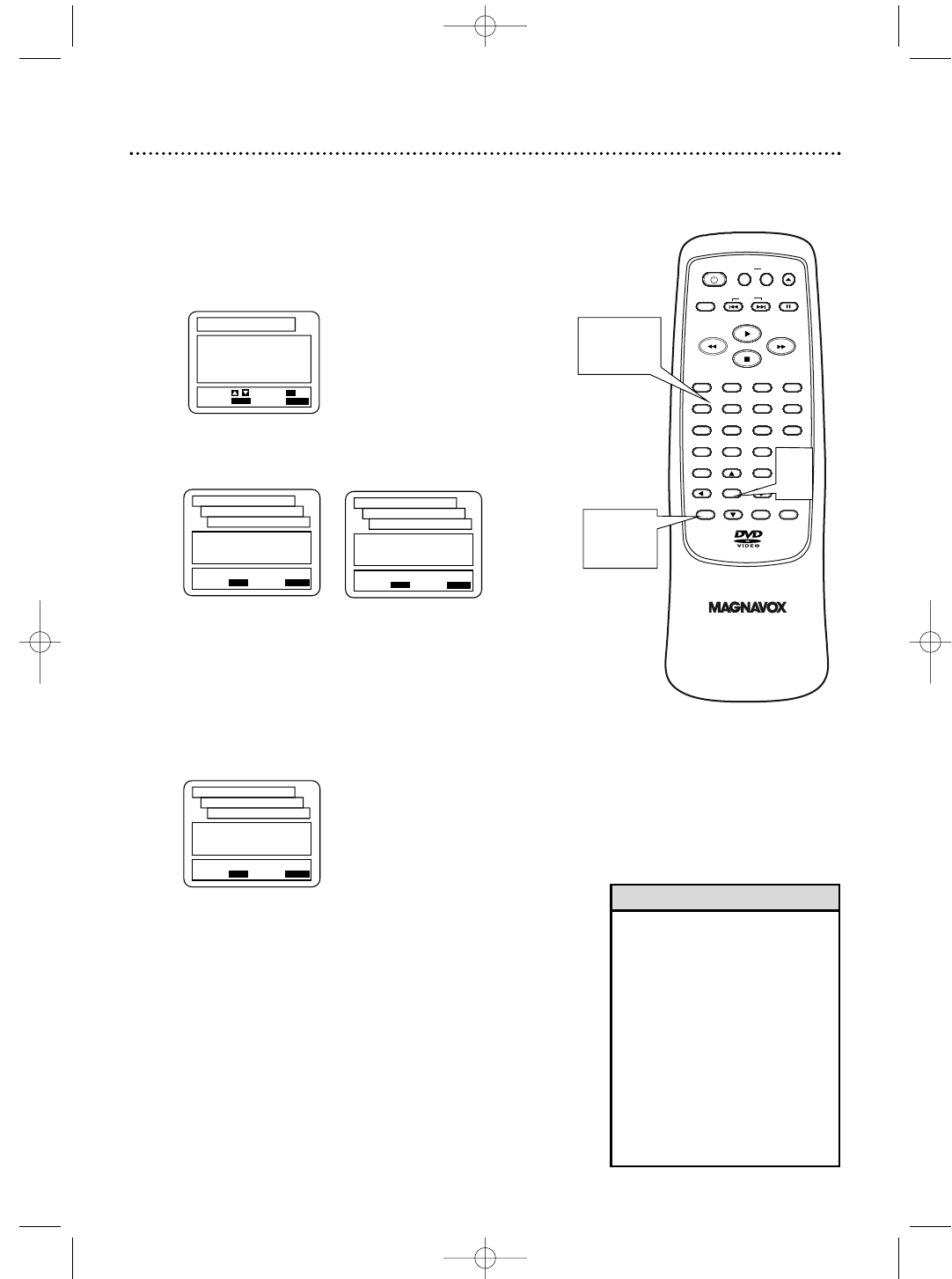

• Write down your password in

case you forget it.

• The default (factory preset)

password is 4737. If you forget

your password, press Number

buttons 4, 7, 3, 7 at step 3. The

Player immediately will ask you

to enter a new four-digit code.

Use the Number buttons to

enter a new four-digit code, then

press OK. PARENTAL LEVEL

automatically will be reset to

ALL. See page 37 to reset

PARENTAL LEVEL as you desire.

Helpful Hints

36 Parental Controls Password

Follow these steps to change your Parental Controls pass-

word. You will need a password to change the levels of the

Parental Controls and to play Discs that are locked by

Parental Controls.

1While playback is stopped, press SETUP. The

setup screen will appear.

2Press the Number 4 button to select Parental.

The SET-UP PARENTAL CONTROLS PASSWORD

menu will appear.

3Press the Number buttons to enter your four-

digit password. When doing this for the first time,

enter any four digits, then press OK. That number

will be used as the password from that point forward.

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

4Press the Number 2 button to select

CHANGE.

5Press the Number buttons to enter your new

four-digit password, then press OK.

6Press SETUP to remove the menu.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

1,6

2-5

Please enter a 4-digit password.

- - - -

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

PARENTAL CONTROLS

PASSWORD

Enter current password.

- - - -

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

PARENTAL CONTROLS

PASSWORD

Please enter a 4-digit password.

- - - -

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

PARENTAL CONTROLS

PASSWORD

MDV410/430 2/7/02 11:18 AM Page 36

Parental Controls Levels 37

• When you play a Disc whose rat-

ing exceeds the level you set, a

message will appear on the

screen, indicating the Disc cannot

play. If this happens, remove the

Disc, then select a level that

allows playback. Or, select All to

turn off Parental Controls. Load

the Disc again and begin playback

as usual. Some Discs may allow

you to enter your four-digit pass-

word to begin playback. Refer to

the instructions of the Disc.

• Some DVDs are not compatible

with Parental Controls. Make sure

the DVD plays according to the

Parental Controls settings you

have made before you allow chil-

dren access to the DVD Player.

• You can not change Parental Level

settings until you enter the correct

password.

Helpful Hints

RATING EXPLANATIONS

•ALL - Parental Controls is inactive.

All discs can play.

•8 - Adult material

•7 - NC-17 Not appropriate for

children under 17

•6 - R - Restricted; parental

approval required for viewers

under 18.

•4 - PG-13 - Unsuitable for children

under 13.

•3 - PG - Parental Guidance sug-

gested.

•1- G - General Audience; recom-

mended for audiences of all ages.

1While playback is stopped, press SETUP. The

setup screen will appear.

Follow these steps to set the rating level for Parental

Controls. Discs whose ratings exceed the level you set will

not play. See Helpful Hints below.

2Press the Number 4 button to select Parental.

The SET-UP PARENTAL CONTROLS PASSWORD

screen will appear.

3Press the Number buttons to enter your four-

digit password. If your entry is incorrect, press OK,

then enter the correct password as prompted by the

on-screen message.

4Press the Number 1 button to select Parental

Level.

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

Enter current password.

- - - -

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

PARENTAL CONTROLS

PASSWORD

5Press a Number button to select the level you

desire. For example, if you want to play Discs rated

PG-13, press the Number 4 button. The level you

select will appear on the screen beside PARENTAL

LEVEL in the SET-UP PARENTAL CONTROLS

screen.

6Press SETUP to remove the menu.

CLEAR

RETURN

TITLE

MODE

ZOOM

MARKER

SETUP

AUDIO

SUBTITLE

ANGLE

654

987

PARENTAL LEVEL ALL

CHANGE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

PARENTAL CONTROLS

ALL

[NC-17]

[R]

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

PARENTAL CONTROLS

PARENTAL LEVEL

1,6 2-5

MDV410/430 2/7/02 11:18 AM Page 37

1 2 3 4 5 AC

NOT SET

1 2 3 4 5 AC

TT01_0:12:01

1 2 3 4 5 AC

TR 05_0:00:41

38 Marker Setup Screen

• Opening the disc tray or turning

off the DVD Player will erase all

the Markers.

• To erase a single Marker, press

MARKER, then press sor Bto

select your desired Marker. Press

CLEAR. “NOT SET” will appear

on the Marker display. Press

RETURN or MARKER to remove

the display.

• To erase all the Markers, press

MARKER, then press Brepeat-

edly to select “AC.” Press OK.

Press MARKER to remove the

display.

Helpful Hints

Use Markers to remember your favorite places on a Disc.

To set the Markers, follow these steps. Before you begin,

play the Disc to approximately the point at which you want

to place the Marker.

1During playback, press MARKER. The Marker dis-

play will appear in the top left corner of the screen.

2Within 30 seconds, press sor Bto select 1, 2,

3, 4, or 5. Make sure “NOT SET” appears in the dis-

play beneath the number you select.

3Within 30 seconds, play the Disc to the point at

which you want to set the Marker.

4When the Disc reaches the point that you want

to remember, press OK. The Title and elapsed play-

ing time (DVD) or Track and its elapsed playing time

(Audio CD) will appear in the display.

5To return to the Marker later, press MARKER

during playback. Press sor Bto choose the

Marker you want, then press OK. Disc play will

continue from the marked point.

CLEAR

RETURN

TITLE

MODE

ZOOM

MARKER

SETUP

AUDIO

SUBTITLE

ANGLE

654

987

2, 4-5

DVD AUDIO CD

1,5

MDV410/430 2/7/02 11:18 AM Page 38

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

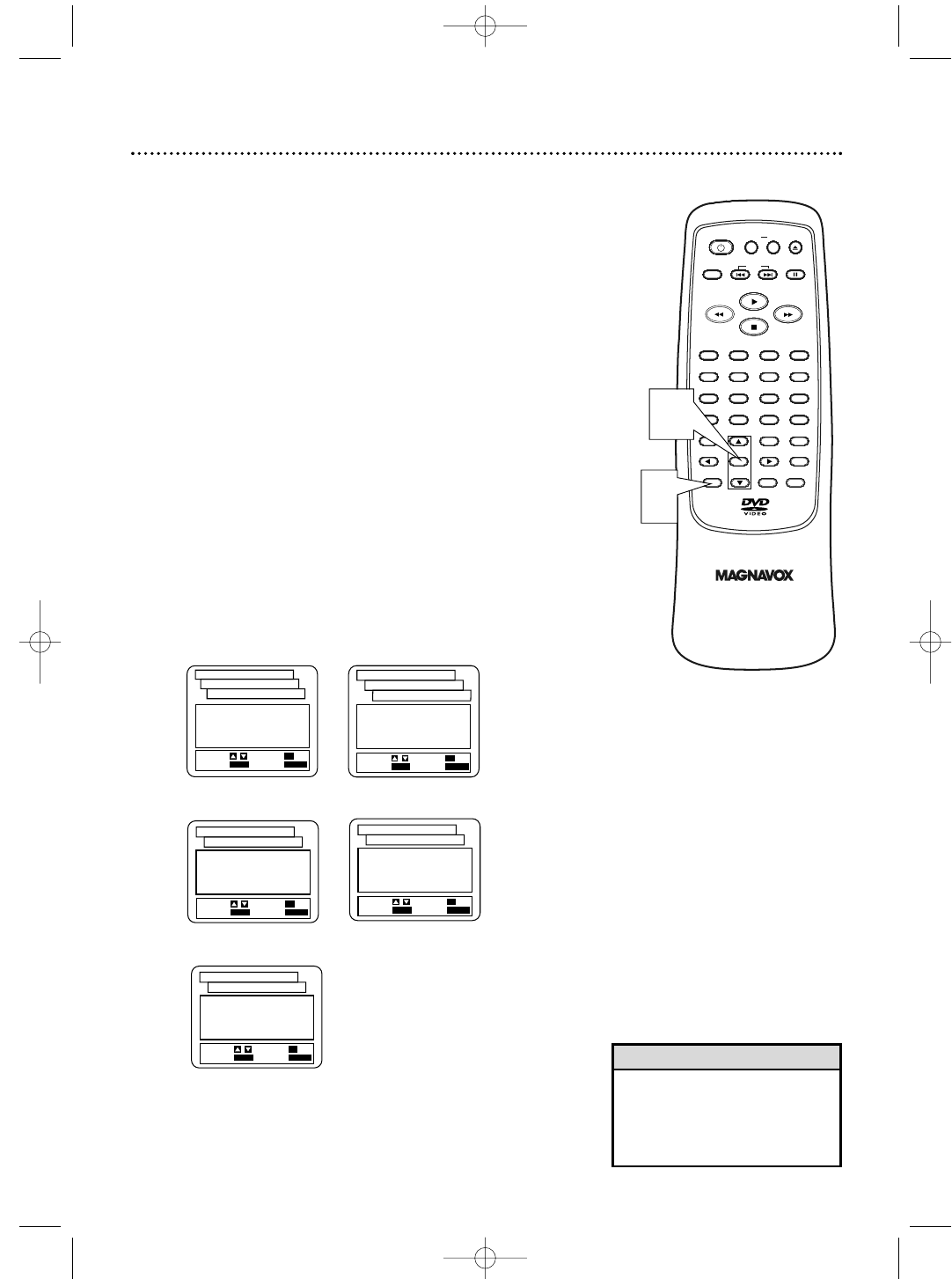

Audio Controls 39

1While playback is stopped, press SETUP. The

setup screen will appear.

2Press the Number 3 button to select Audio.

3Press ooor ppto select an item, then follow

step 4 accordingly.

4●If you selected DRC, press OK repeatedly to turn

Dynamic Range Control (DRC) ON or OFF. This com-

presses the range of sound volume by suppressing loud

sound and raising the volume of low sound.

●If you selected DOLBY DIGITAL, press OK repeat-

edly to turn DOLBY DIGITAL ON or OFF. Select ON

if you connected the DVD Player to a stereo that is

Dolby Digital compatible. Details are on page 11.

●If you selected MPEG, press OK repeatedly to turn

MPEG ON or OFF. Select ON when the DVD Player

is connected to an MPEG-compatible Stereo. Details are

on page 11.

●If you selected DOWN SAMPLING, press OK. Then,

press oor pto select AUTO, 48 kHz, or 96 kHz,

then press OK. The AUDIO CONTROLS menu will

reappear.

Select 96 kHz if the Disc was recorded in PCM 96 kHz.

Otherwise, select 48 kHz.

DRC OFF

DOLBY DIGITAL ON

MPEG OFF

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

AUDIO CONTROLS

DRC OFF

DOLBY DIGITAL ON

MPEG ON

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

AUDIO CONTROLS

DOLBY DIGITAL

DRC ON

DOLBY DIGITAL ON

MPEG OFF

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

AUDIO CONTROLS

DRC

MPEG

DRC OFF

DOLBY DIGITAL ON

MPEG OFF

DOWN SAMPLING AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

AUDIO CONTROLS

DOWN SAMPLING

1,5

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

5Press SETUP to remove the menu.

3-4

• Selecting 96 kHz activates copy-

right protection and mutes the

sound. Selecting AUTO sets

downsampling to 48 kHz.

Helpful Hint

MDV410/430 2/7/02 11:18 AM Page 39

TV ASPECT 4:3 LETTER BOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

BACKGROUND BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

DISPLAY CONTROLS

Display Controls

1Press SETUP while playback is stopped. The

setup screen will appear.

2Press the Number 2 button to select

DISPLAY.

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

DVD

40 Display Controls

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

MDV410/430 2/7/02 11:18 AM Page 40

Display Controls (cont’d) 41

BRIGHT

2. DIMMER

3. AUTO

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/SET

: OK

DISPLAY CONTROLS

PANEL DISPLAY

TV ASPECT 4:3 LETTERBOX

PANEL DISPLAY BRIGHT

ANGLE ICON ON

AUTO POWER OFF ON

5.BACKGROUND

BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/SET

: OK

DISPLAY CONTROLS

TV ASPECT 4:3 LETTERBOX

PANEL DISPLAY BRIGHT

ANGLE ICON OFF

AUTO POWER OFF ON

5.BACKGROUND GRAY

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/SET

: OK

DISPLAY CONTROLS

TV ASPECT 4:3 LETTERBOX

PANEL DISPLAY BRIGHT

ANGLE ICON OFF

AUTO POWER OFF ON

5.BACKGROUND BLUE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/SET

: OK

DISPLAY CONTROLS

• Selecting a different TV Aspect

setting is only effective if it is

available on the Disc.

• PANEL DISPLAY is not available

in the menu on the MDV410.

Helpful Hints

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

3Press Kor Lto select an item, then press OK.

●If you selected TV ASPECT, press oor pto select

a setting, then press OK. Choose 4:3 LETTER BOX if

you want black bars to appear at the top and bottom of the

screen. Choose 4:3 PAN & SCAN for a full height picture,

with both sides trimmed. Choose 16:9 WIDE : If a

widescreen TV is connected to the DVD Player.

●If you selected PANEL DISPLAY, press oor pto

select BRIGHT, DIMMER, or AUTO, then press OK.

This adjusts the brightness of the display panel. The

default setting is BRIGHT. If you choose AUTO, the

display dims only during playback.

●If you selected ANGLE ICON, press OK repeatedly

to turn ANGLE ICON ON or OFF. The default setting

is ON. Choose ON to see the Angle icon when multi-

ple camera angles are available. Details are on page 34.

Choose OFF to disable the Angle icon.

●If you selected AUTO POWER OFF, press OK

repeatedly to turn AUTO POWER OFF ON or OFF.

The default setting is ON. Choose ON if you want the

DVD Player to turn itself off automatically after 35 min-

utes of no use. Details are on page 47.

●If you selected BACKGROUND, press OK repeat-

edly to select BLUE or GRAY as the background color

for the on-screen menus.

4Press SETUP to remove the menus.

1.4:3

LETTER BOX

2.4:3

PAN & SCAN

3.16:9

WIDE

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

DISPLAY CONTROLS

TV ASPECT

ANGLE ICON

BACKGROUND

AUTO POWER OFF

PANEL DISPLAY

MDV410/430 2/7/02 11:18 AM Page 41

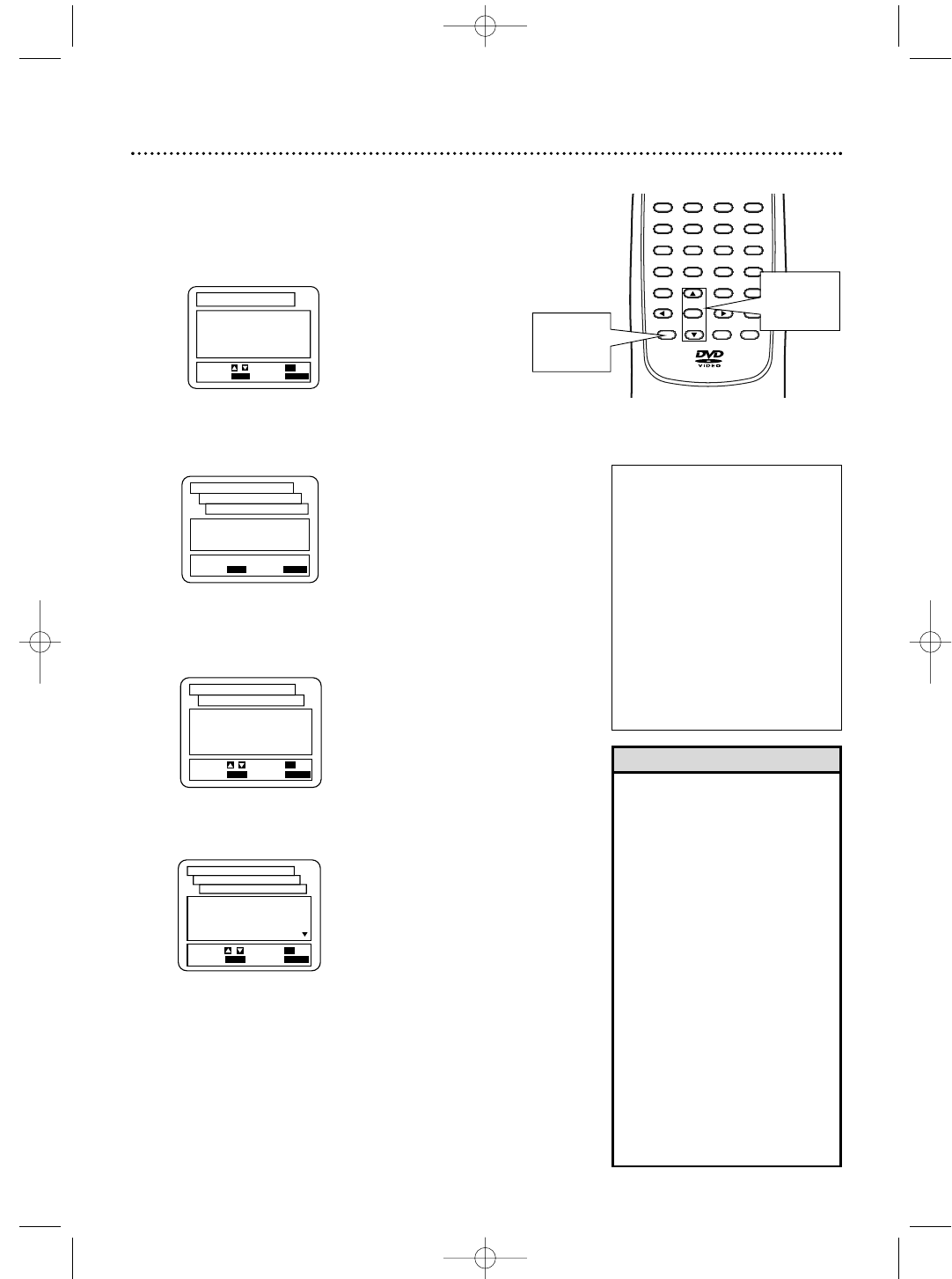

42 Language Controls

1While playback is stopped, press SETUP. The

setup screen appears.

2Press ooor ppto select LANGUAGE, then

press OK.

3Press ooor ppto select AUDIO, SUBTITLE,

DISC MENU, or PLAYER MENU. Then, press

OK. The menu for the selected item will appear.

LANGUAGE

DISPLAY

AUDIO

PARENTAL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

DVD

AUDIO: The DVD’s audio

plays in the selected language, if

available on the Disc.

SUBTITLE: Subtitles appear in

the chosen language, if available

on the Disc.

DISC MENU: A DVD’s Disc

menu appears in the chosen

language, if available.

PLAYER MENU: The DVD

Player’s Setup menu appears in

the selected language.

AUDIO ORIGINAL

SUBTITLE ENGLISH

DISC MENU ORIGINAL

PLAYER MENU ENGLISH

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

LANGUAGE CONTROLS

ORIGINAL

2. ENGLISH

3. FRENCH

4. SPANISH

5. GERMAN p

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

LANGUAGE CONTROLS

AUDIO

1. OFF

2. ENGLISH

3. FRENCH

4. SPANISH

5. GERMAN p

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

LANGUAGE CONTROLS

SUBTITLE

1. ORIGINAL

2. ENGLISH

3. FRENCH

4. SPANISH

5. GERMAN p

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

LANGUAGE CONTROLS

DISC MENU

1. ENGLISH

2. FRANÇAIS

3. ESPAÑOL

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

SELECT:

/ SET

: OK

LANGUAGE CONTROLS

PLAYER MENU

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

2-3

• If the DVD’s default settings for

Audio and Subtitle are the same

language, the subtitles may not

show until you turn them on.

• Language options for AUDIO,

SUBTITLE, and DISC MENU are

not available with some Discs.

Use the AUDIO and SUBTITLE

buttons instead to select differ-

ent languages for the audio and

subtitles among those available

on the Disc. Details are on

pages 32-33.

Helpful Hints

MDV410/430 2/7/02 11:18 AM Page 42

A-B

Abkhazian 4748

Afar 4747

Afrikaans 4752

Albanian 6563

Amharic 4759

Arabic 4764

Armenian 5471

Assamese 4765

Aymara 4771

Azerbaijani 4772

Bangla 4860

Bashkir 4847

Basque 5167

Bengali 4860

Bhutani 5072

Bihari 4854

Bislama 4855

Breton 4864

Bulgarian 4853

Burmese 5971

Byelorussian 4851

C-E

Cambodian 5759

Catalan 4947

Chinese [CHI] 7254

Corsican 4961

Croatian 5464

Czech 4965

Danish [DAN] 5047

Dutch [DUT] 6058

English [ENG] 5160

Esperanto 5161

Estonian 5166

F-H

Faroese 5261

Fiji 5256

Finnish [FIN] 5255

French [FRE] 5264

Frisian 5271

Gaelic (Scots) 5350

Galician 5358

Georgian 5747

German [GER] 5051

Greek [GRE] 5158

Greenlandic 5758

Guarani 5360

Gujarati 5367

Hausa 5447

Hebrew 5569

Hindi 5455

Hungarian [HUN] 5467

I-K

Icelandic [ICE] 5565

Indonesian 5560

Interlingua 5547

Interlingue 5551

Inupiak 5557

Irish [IRI] 5347

Italian [ITA] 5566

Japanese [JPN] 5647

Javanese 5669

Kannada 5760

Kashmiri 5765

Kazakh 5757

Kinyarwanda 6469

Kirghiz 5771

Kirundi 6460

Korean [KOR] 5761

Kurdish 5767

L-N

Laothian 5861

Latin 5847

Latvian 5868

Lettish 5868

Lingala 5860

Lithuanian 5866

Macedonian 5957

Malagasy 5953

Malay 5965

Malayalam 5958

Maltese 5966

Maori 5955

Marathi 5964

Moldavian 5961

Mongolian 5960

Nauru 6047

Nepali 6051

Norwegian [NOR]6061

O-R

Occitan 6149

Oriya 6164

Oromo (Afan) 6159

Panjabi 6247

Pashto 6265

Persian 5247

Polish 6258

Portugese [POR] 6266

Pushto 6265

Quechua 6367

Rhaeto-Romance 6459

Romanian [RUM] 6461

Russian [RUS] 6467

Samoan 6559

Sangho 6553

Sanskrit 6547

Serbian 6564

Serbo-Croatian 6554

Sesotho 6566

Setswana 6660

Shona 6560

Sindhi 6550

Singhalese 6555

Siswat 6565

Slovak 6557

Slovenian 6558

Somali 6561

Spanish [SPA] 5165

Sundanese 6567

Swahili 6569

Swedish [SWE] 6568

Tagalog 6658

Tajik 6653

Tamil 6647

Tatar 6666

Telugu 6651

Thai 6654

Tibetan 4861

Tigrinya 6655

Tonga 6661

Tsonga 6665

Turkish [TUR] 6664

Turkmen 6657

Twi 6669

U-Z

Ukrainian 6757

Urdu 6764

Uzbek 6772

Vietnamese 6855

Volapuk 6861

Welsh 4971

Wolof 6961

Xhosa 7054

Yiddish 5655

Yoruba 7161

Zulu 7267

Language Code Language Code Language Code Language Code Language Code

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

Language Controls (cont’d) 43

4Press ooor ppto select a setting, then press

OK.

●If you select OTHER at the AUDIO, SUBTITLE, or

DISC MENU screen, press four Number buttons to

enter the code for the language you desire. Refer to

the list below.

●You can only select other languages for AUDIO,

SUBTITLE, and DISC MENU if the language is avail-

able on the Disc.

5Press SETUP to remove the menu.

Please enter a 4-digit language code.

- - - -

SET-UP

EXIT

: SETUP

CANCEL

: RETURN

LANGUAGE CONTROLS

DISC MENU

LANGUAGE CODE

MDV410/430 2/7/02 11:18 AM Page 43

44 Black Level Settings, TruSurround Setting

Black Level Settings

Adjust the Black Level Settings to make the black parts of

the picture as bright as you prefer.

1Press MODE during playback.

2Press OK repeatedly to choose ON or OFF.

ON makes the dark parts brighter. OFF shows the

original picture as recorded.

DVD

SRS TruSurround Setting

You can enjoy improved stereo sound when you play Discs

in Dolby Digital, PCM 48 kHz, or MPEG Audio.

1Press MODE twice during playback.

2Press OK repeatedly to choose ON or OFF.

The default setting is OFF. Choose ON only if you

connected the DVD Player to a stereo that has a

Dolby Digital or MPEG decoder. Details are on page

11. Make sure the current DVD is recorded in Dolby

Digital, PCM 48 kHz, or MPEG Audio.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

654

987

SKIP

BLACK LEVEL : ON

SRS TruSurround ON

• SRS TruSurround is available

only when the DVD Player is

connected to a TV or Stereo

using the red and white AUDIO

OUT jacks on the DVD Player.

• If you connected the DVD Player

to a stereo using the COAXIAL

DIGITAL AUDIO OUT jack as

described on page 11, turn off

SRS TruSurround; otherwise,

there will be no sound.

Helpful Hints

MDV410/430 2/7/02 11:18 AM Page 44

Glossary

AUDIO OUT Jacks: Jacks on the back of the DVD Player that send audio

to another system (TV or stereo).

COAXIAL jack: Sends digital audio to a stereo, allowing you to adjust the

volume at the stereo. The stereo must have a Coaxial In jack. This connection

provides the 5.1 channel surround sound as heard in movie theaters.

COMPONENT VIDEO OUT Jacks (MDV430 only): Jacks on the back

of the DVD Player that send high-quality video to a TV that has Component

Video In jacks.

Dolby Digital: A surround sound system that provides 5.1 channel sound as

used in movie theaters.

Letterbox: A TV Aspect setting (4:3). Displays the video in full-width, with

black bars at the top and bottom of the TV screen. This format is used often

when you see a movie in a theater. If the Disc does not include a letterbox

format , selecting Letterbox may have no effect. (For example, some DVD

discs are two-sided, with one side playing in Letterbox and the other side

playing in a normal format.)

Pan & Scan: A TV Aspect setting (4:3). Displays the video with full-height

picture, with one or both sides of the picture trimmed to fit your screen.

Remote Control: The small electronic unit that came with your DVD

Player; allows you to operate your DVD Player from a distance.

S-Video: Produces a clearer picture by sending separate signals for the lumi-

nance and the color. If you connect an optional S-Video cable, you will not

need to use the supplied yellow video cable. You can use S-Video only if your

TV has an S-Video In jack.

VIDEO OUT Jack: Jack on the back of the DVD Player that sends video to

a TV. Use the supplied yellow video cable to make this connection.

Wide: A TV Aspect setting (16:9). Displays the video appropriately when

you connect the DVD Player to a widescreen TV.

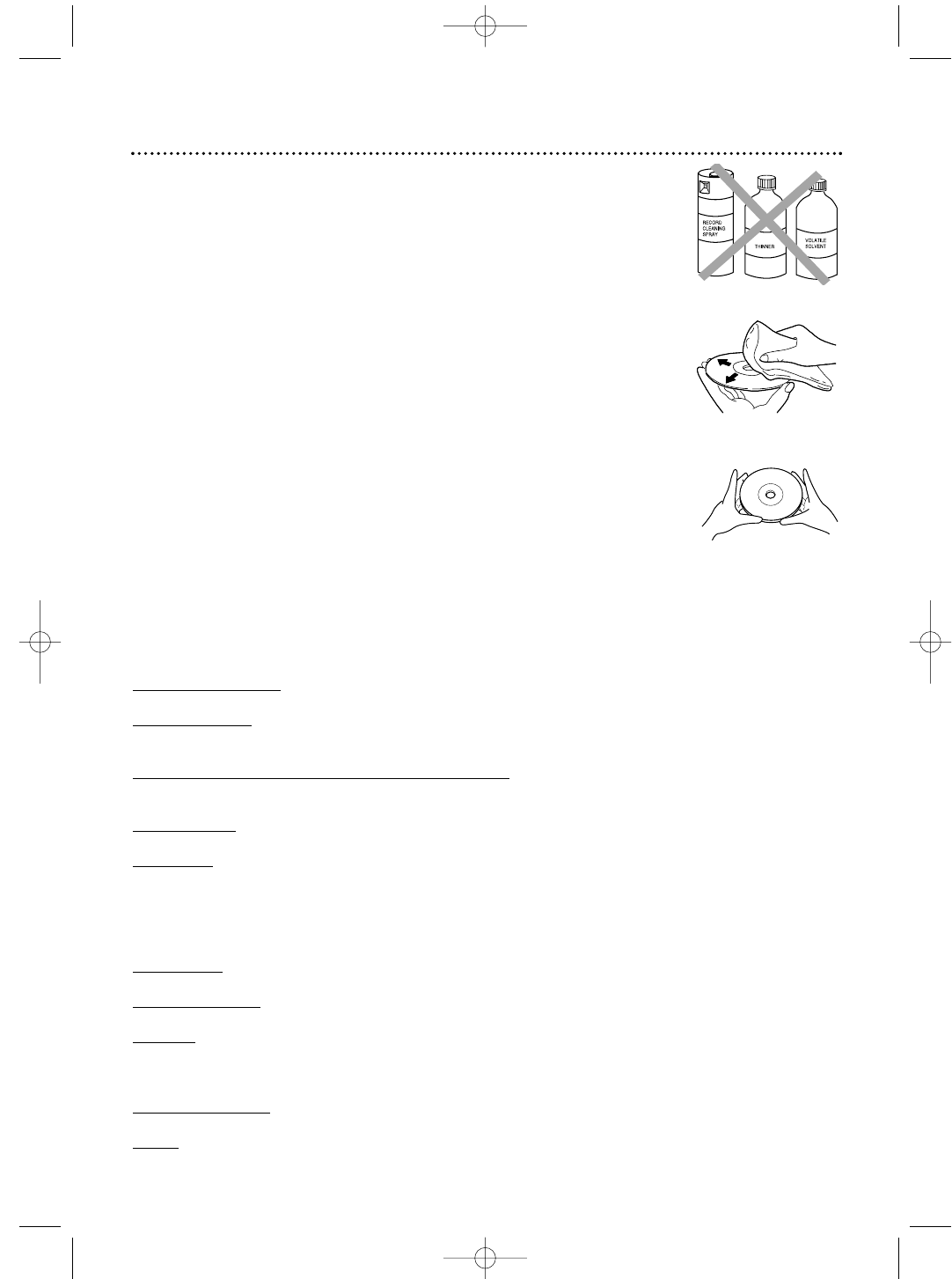

Care and Maintenance, Glossary 45

Care and Maintenance

Cleaning the DVD Player

• Wipe the front panel and other exterior surfaces of the DVD Player with a

soft, slightly damp cloth.

• Never use a solvent, thinner, benzene, or alcohol to clean the DVD Player.

Do not spray insecticide liquid near the DVD Player. Such chemicals may dis-

color the surface or damage the DVD Player.

Cleaning a Disc

• Use a soft, dry cloth to wipe the Disc.

• Wipe the Disc in a straight line from the center to the edge. Never wipe the

Disc in a circular motion.

• Do not use detergent or abrasive cleaning agents.

• Handle the Discs by the edges so fingerprints and dust do not adhere to the

surfaces of the Discs.

• Always store the Disc in its protective case when it is not in use.

Checking the Laser

• If the DVD Player does not operate as described in this owner’s manual, the

laser may be dirty. Consult an Authorized Service Center for inspection and

cleaning of the laser.

Don’t use cleaners.

Wipe Discs from the

center to the edge.

Handle Discs

by the edges.

MDV410/430 2/7/02 11:18 AM Page 45

46 Helpful Hints

If you are having problems with your product, check this list of problems and possible

solutions before requesting service. You may be able to solve the problem yourself.

If you need to call a customer service representative, please know the model number

and serial number of your product before you call. This information is on the back of

the product. Also, please take a moment to identify the problem you are having, and

be prepared to explain this to the representative. If you believe the representative will

need to help you with operations, please stay near the product. Our representatives

will be happy to assist you.

The DVD Player has no power.

•Make sure the power cord is connected completely to an AC (alternating current)

outlet.

•Press the POWER ybutton to turn on the DVD Player. “P-ON” will appear briefly

on the display panel of the MDV430 as the power is turning on. The red POWER

light will appear on the front of the MDV410 when the power is on.

The remote control will not operate the DVD Player.

•Aim the remote control directly at the DVD Player’s remote sensor.

Details are on page 16.

•Remove all obstacles between the remote control and the DVD Player.

•Inspect and/or replace the batteries in the remote control. Details are on page seven.

•Use the remote control within 23 feet of the DVD Player.

No picture

•Make sure the video cable is connected correctly. You may connect either the yel-

low video cable (supplied), an optional S-Video cable, or optional component video

(MDV430 only) cables. You only need one video connection between the DVD

Player and the TV. Details are on pages 8-13.

•Make sure the TV is set to the correct Video channel (usually the AUX IN, A/V IN,

Auxiliary In, EXT or External In, Component Video In or S-Video In channel). These

channels usually are located near channel 00. Check your TV owner’s manual for

details. Or, change channels at the TV until you see the DVD logo or DVD playback

on the TV screen.

•Insert a Disc that is playable on this DVD Player. Details are on page six.

Disc cannot play.

•Insert a playable Disc. Details are on page six.

•Place the Disc correctly in the recesses in the Disc tray. If the Disc is one-sided,

place the Disc in the tray with the label facing up. If the Disc is two-sided, make sure

the side you want to play is facing up.

•Clean the Disc. Details are on page 45.

•Check the Parental Controls and adjust if necessary. Details are on pages 36-37.

No sound

•Connect the audio cables firmly. Make sure the cables are connected to the AUDIO

IN jacks on the TV or audio equipment. Details are on pages 8-13.

•Check the Audio Settings of the DVD Player. Details are on page 39.

•Turn on the power of the audio equipment and make sure it is set to the correct

channel, usually Auxiliary IN. Refer to the owner’s manual of the audio equipment

for details.

•Check the Audio Settings of the Disc. For example, you may have selected “sound-

track” playback on a DVD. Only the music of the movie will play, not the characters’

dialog; music might not be recorded throughout the entire DVD.

Details are on page 32.

MDV410/430 2/7/02 11:18 AM Page 46

Helpful Hints (cont’d) 47

Distorted picture

•Connect the DVD Player directly to the TV. Details are on page eight.

•There are some cases where the picture may be distorted slightly and briefly; this is

not a malfunction of the DVD Player.

You can not change the camera angle.

•The DVD might not contain segments recorded from different camera angles. See if

multiple angles are available by referring to the DVD case or menu for more infor-

mation. Details are on page 34.

You can not change the audio or subtitle language.

•The DVD does not contain audio or subtitles in the desired language. Not all DVDs

contain audio or subtitles in multiple languages. See if other languages are available.

Details are on page 32-33.

An “X” appears on the TV screen, prohibiting an operation.

•You can not access the current operation at the current time or the feature is not

available on the Disc. For example, some menus or features can be accessed or

changed only when Disc play is stopped, while some are available only during play-

back. Check the instructions for accessing the feature before trying again. Details are

on page five.

The DVD Player turns off after 35 minutes.

•If AUTO POWER OFF is activated, the DVD Player turns off automatically if play-

back stops for more than 35 minutes and you press no buttons on the remote con-

trol or the DVD Player. When you receive the DVD Player, the factory has set

AUTO POWER OFF to ON. Details are on pages 40-41.

A large DVD logo appears on the TV screen.

•The DVD logo will appear on the TV screen if you stop Disc playback for more than

five minutes and you do not press any buttons on the remote control or the DVD

Player. The logo will appear on the screen for 35 minutes, then the Player will turn

off automatically as described above. To prevent damage to your TV’s picture tube,

avoid leaving the DVD logo on the TV screen. Turn off the DVD Player when it is

not in use. A prolonged still image, including TV station identification logos or video

games, may damage your TV picture tube.

MDV410/430 2/7/02 11:18 AM Page 47

RENEWED

90 DAY

LIMITED WARRANTY

50 Specifications

Product Type

Digital Video Disc Player

Frequency Response

DVD (linear sound): 20 Hz to 22 kHz (sample rate: 48 kHz)

20 Hz to 44 kHz (sample rate: 96 kHz)

Audio CD: 20 Hz to 20 kHz

Signal-to-Noise Ratio (S/N Ratio)

Audio CD: 110 dB EIAJ (Electronic Industries Association of Japan)

Dynamic Range

DVD (linear sound): 95 dB

Audio CD: 94 dB (EIAJ)

Total Distortion Factor

Audio CD: 0.005% (EIAJ)

Wow and Flutter

Below the measurement limitation (±0.001% W PEAK) (EIAJ)

Power Requirement

120V AC ± 10%, 60 Hz ± 0.5%

Connections

S-Video output Mini DIN 4-pin jack (75 Ω)

Video output One pin jack, 1 Vpp (75 Ω)

Coaxial digital output One pin jack, 500m Vpp (75Ω)

Analog audio output Two pin jacks

(one left channel, one right channel)

2 Vrms (47 kΩ)

Component video output One pin jack (Y), 1 Vpp (75Ω)

(MDV430 only) Two pin jacks (Cb and Cr), 700m Vpp (75Ω)

Power Consumption

Power on: 14 W

Power off: 1.2 W (MDV410)

2.2 W (MDV430)

Operating Temperature

41°F (5°C) to 104°F (40°C)

Relative Humidity

30% to 80%

Dimensions

17-1/8” (W) x 2-15/16” (H) x 8-5/16” (D)

(360mm x 75mm x 211mm)

Weight

4.42 lbs. (2.0 kg.)

NOTE: Designs and specifications are subject to change without notice.

MDV410/430 2/7/02 11:18 AM Page 50

Index 51

ac power cord . . . . . . . . . . . . .18

accessories . . . . . . . . . . . . . . .51

angle button . . . . . . . . . . .15, 34

arrow buttons . . . . . . . . . . . . .14

audio button . . . . . . . . . . .15, 32

audio cd . . . . . . . . . . . . . . .6, 19

audio controls . . . . . . . . . . . . .39

audio out jacks . . . . . . . .8-10, 15

a-b repeat . . . . . . . . . . . . . . . .27

a-b repeat button . . . . . . .14, 27

batteries . . . . . . . . . . . . . . . . . .7

bit rate . . . . . . . . . . . . . . . . . .35

black level settings . . . . . . . . . .34

camera angle . . . . . . . . . . . . . .34

chapters . . . . . . . . . . . . . . . . .25

clear button . . . . . . . . . . . . . . .14

coaxial jack . . . . . .11, 13, 18, 45

color systems . . . . . . . . . . . . .56

component video

out jacks (MDV430 only)12, 18, 45

connections . . . . . . . . . . . . .8-13

contents, table of . . . . . . . . . . .3

controls, remote . . . . . . . .14-15

disc in light (MDV410 only) . . .17

disc menus . . . . . . . . . . . . . . .20

disc tray . . . . . . . . . . . . . . . . .16

display button . . . . . . . . . .14, 35

display controls . . . . . . . . .40-41

display panel . . . . . . . . . . . . . .17

display screens . . . . . . . . . . . .35

dvd video . . . . . . . . . . . . . . . . .6

fast forward button . . . . . .15, 22

front panel . . . . . . . . . . . . . . . .16

glossary . . . . . . . . . . . . . . . . . .45

helpful hints . . . . . . . . . . . .46-47

hookups

amplifier with digital in jacks/

md deck/dat deck . . . . . . . .13

dolby digital/mpeg . . . . . . . . .11

s-video . . . . . . . . . . . . . . . . .10

stereo . . . . . . . . . . . . . . .11-13

tv . . . . . . . . . . . . . . . . . . . .8-13

language controls . . . . . . . .42-43

maintenance . . . . . . . . . . . . . .45

marker button . . . . . . . . . .14, 38

markers . . . . . . . . . . . . . . . . . .38

menu button . . . . . . . . . . .14, 20

menus . . . . . . . . . . . . . . . . .5, 20

mode button . . . . . . . .14, 28-29

MP3 playback . . . . . . . . . . .29-31

number buttons . . . . . . . . . . . .14

ok button . . . . . . . . . . . . . . . .15

on-screen display . . . . . . . . . . .35

open/close button . . . .14, 16, 19

parental controls . . . . . . . .36-37

password . . . . . . . . . . . . . . . . .36

pause button . . . . . .15-16, 21, 23

play button . . . . . . . . . .15-16, 19

play light (MDV410 only) . . . . .17

playing . . . . . . . . . . . . . . . . . . .19

power

button . . . . . . . . . . . . . . .14, 16

cord . . . . . . . . . . . . . . . . . . .18

light (MDV410 only) . . . . . . .17

program . . . . . . . . . . . . . .28, 31

random . . . . . . . . . . . . . . .29, 31

rear panel . . . . . . . . . . . . . . . .18

region codes . . . . . . . . . . . . . . .6

remote control

buttons . . . . . . . . . . . . . .14-15

sensor . . . . . . . . . . . . . . . . . .16

using . . . . . . . . . . . . . . . . . . . .7

repeat button . . . . . . . . . .14, 26

repeat playback . . . . . . . . . . . .26

resume on . . . . . . . . . . . . . . . .21

return button . . . . . . . . . . . . .15

reverse button . . . . . . . . . .15, 22

safety precautions . . . . . . . . . . .4

search mode button . . .14, 24-25

searching . . . . . . . . . . . . . . . . .22

setup button . . .14, 36-37, 39-43

skip buttons . . . . . . .15-16, 24-25

slow motion . . . . . . . . . . . . . .23

specifications . . . . . . . . . . . . . .50

step-by-step playback . . . . . . .21

stereo sound mode . . . . . . . . .32

still picture . . . . . . . . . . . . . . .21

stop button . . . . . . . . .15-16, 19

subtitle button . . . . . . . . . .15, 33

s-video out jack . . . . . .10, 18, 45

table of contents . . . . . . . . . . . .3

time search . . . . . . . . . . . . . . .25

title button . . . . . . . . . . . .15, 20

title menu . . . . . . . . . . . . . . . .20

titles . . . . . . . . . . . . . . . . .20, 25

tracks . . . . . . . . . . . . . . . . . . .24

trusurround . . . . . . . . . . . . . . .44

video out jack . .9, 11, 13, 18, 45

warranty . . . . . . . . . . . . . . . 48

“x” . . . . . . . . . . . . . . . . . . .5, 47

zoom button . . . . . . . . . . .14, 23

MDV410/430 2/7/02 11:18 AM Page 51

IB8337E001

Printed In China

0VMN02956 / E56UD * * * * *

SUPPLIED ACCESSORIES

The following items are supplied with your DVD Player;

they are provided to help you use or set up your DVD Player.

OPEN/

CLEAR

RETURN

DISPLAY

TITLE

MODE

ZOOM

REPEAT

MARKER

SETUP

AUDIO

PAUSE

A-B

SUBTITLE

ANGLE

POWER

SKIP

Remote Control 4835 218 37332

Two AA Batteries 4835 138 17012

This owner’s manual is made of recyclable materials.

Remember to recycle!

Audio and Video Cables

4835 321 17148

MDV410/430 2/7/02 11:18 AM Page 52

Magnavox Mdv430 Owners Manual MDV410/430

MDV410/430 mdv430sl99_dfu_aen

MDV430SL99 mdv430sl99_dfu_aen Philips MDV430SL99 user manual - US English, Pdf file (34 Kb) - Owner's / User's manual

MDV410 to the manual 3cab975a-d3ab-4654-c544-04d7b5b7ab11

Navigation menu

Versions of this User Manual:

Views

Navigation
