Magtek orporated 21079821A0 tDynamo User Manual

Magtek Incorporated tDynamo

User manual

1
tDynamo
Model: 21079821
Manual
January 2017
Version 001
Content
1 Installation Guide…………………………………………………………
2 Operation Guide………………………………………………………………
3 TransactionsGuide………………………………………………………………
2
9
-
8
3
2
1. Installation Guide

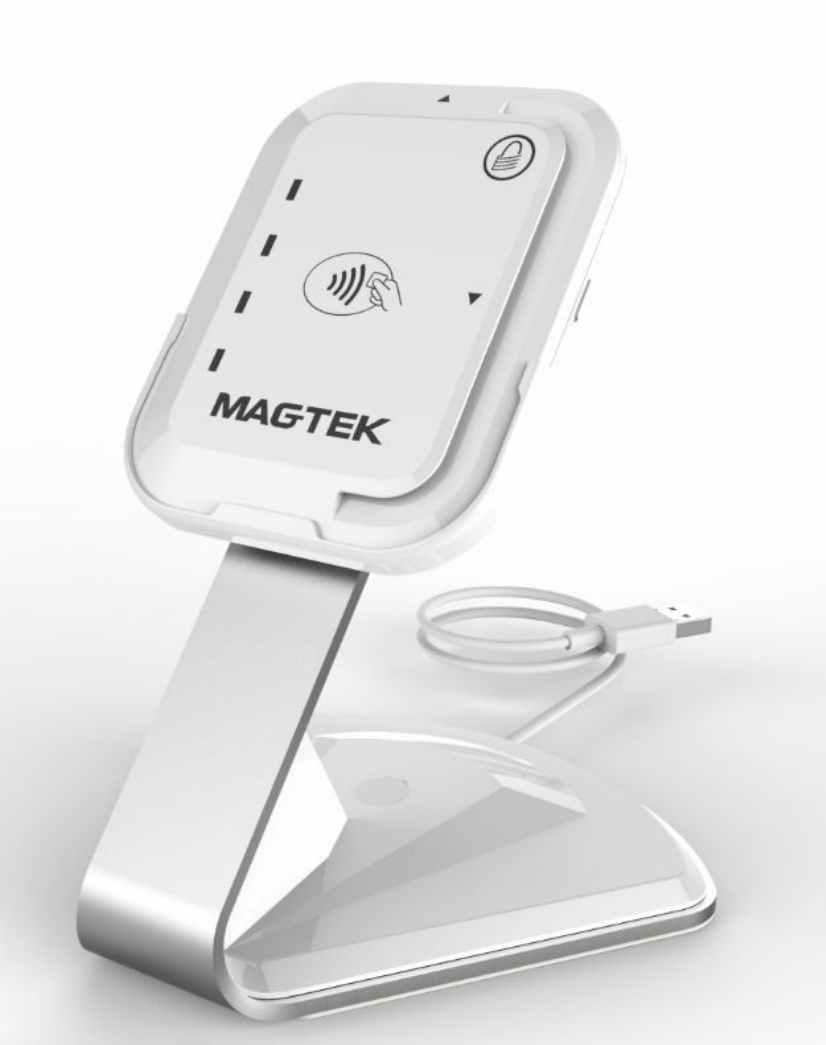

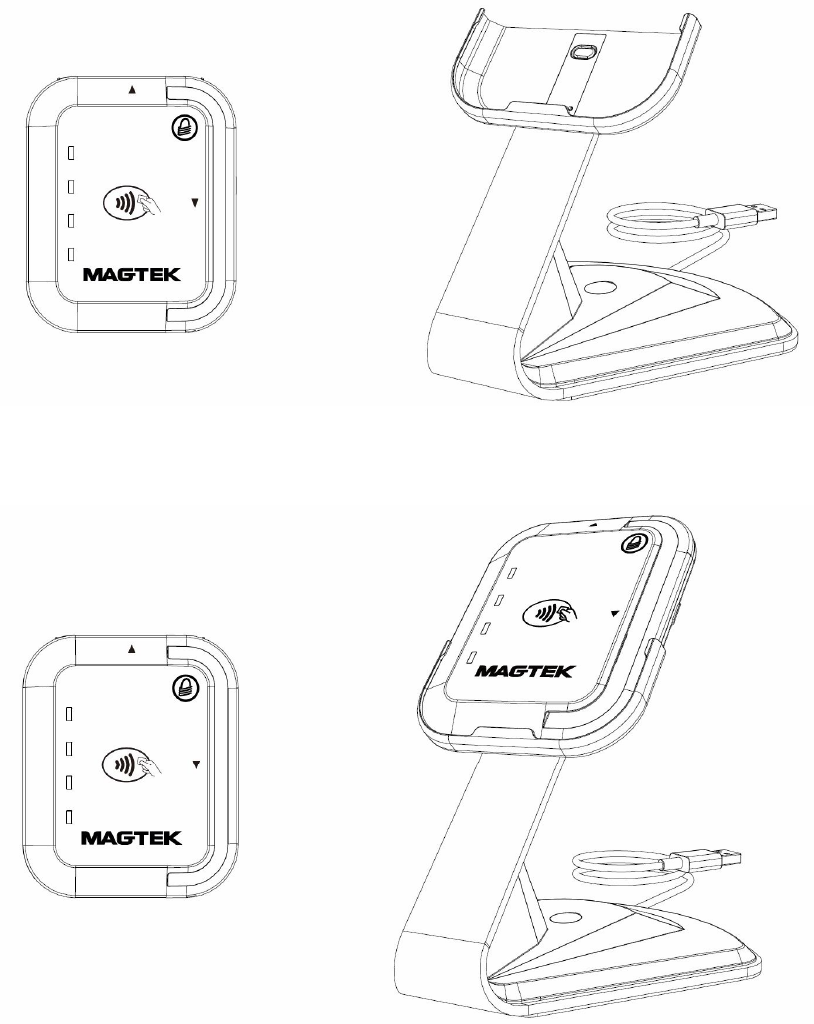

1.1 tDynamo has two parts.
1.2 tDynamo can be used alone, also can be used on the
support .
3
2 Operation Guide
2.1 There are three kinds of usage

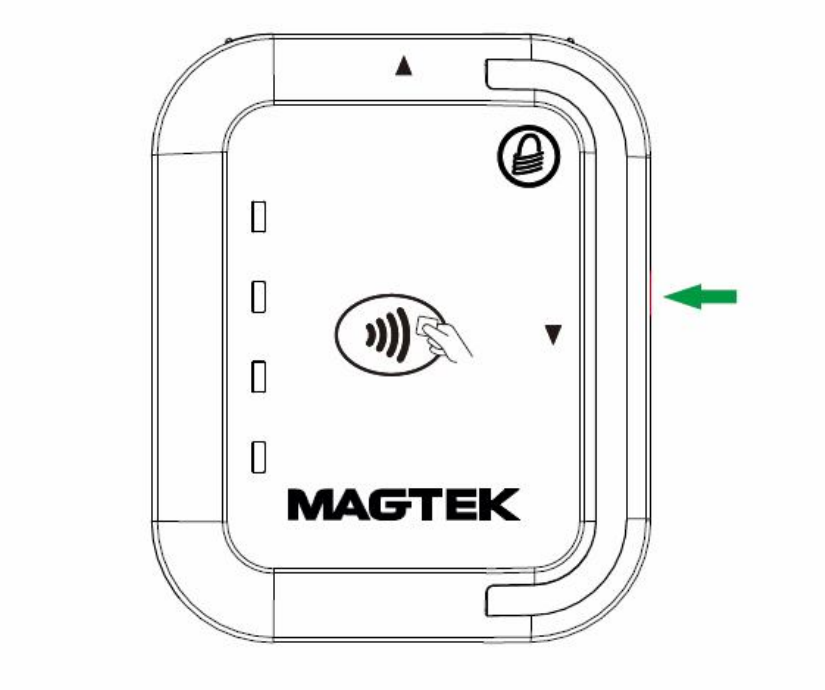

2.1.1 First, press the button after using bluetooth link equipment

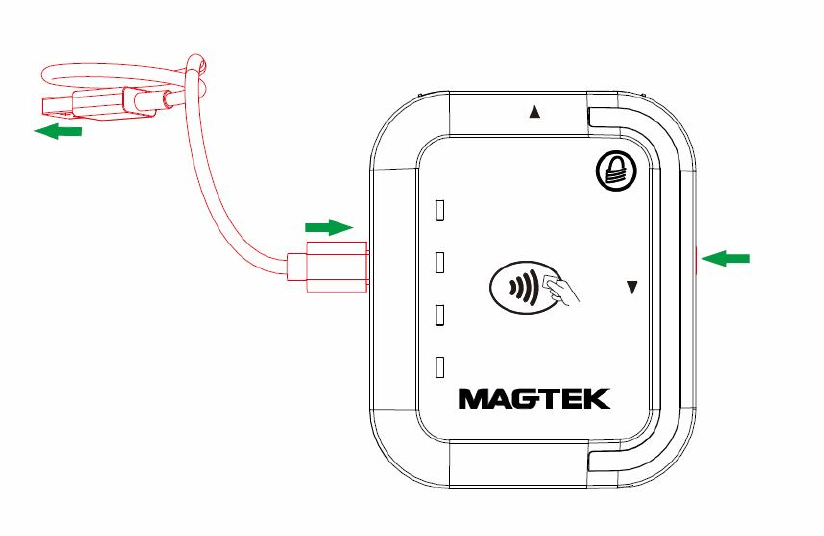

2.1.2 Second, on the card reader Connect the usb type - c interface, the other end
is inserted into the host with USB interface, and then open the power supply
4

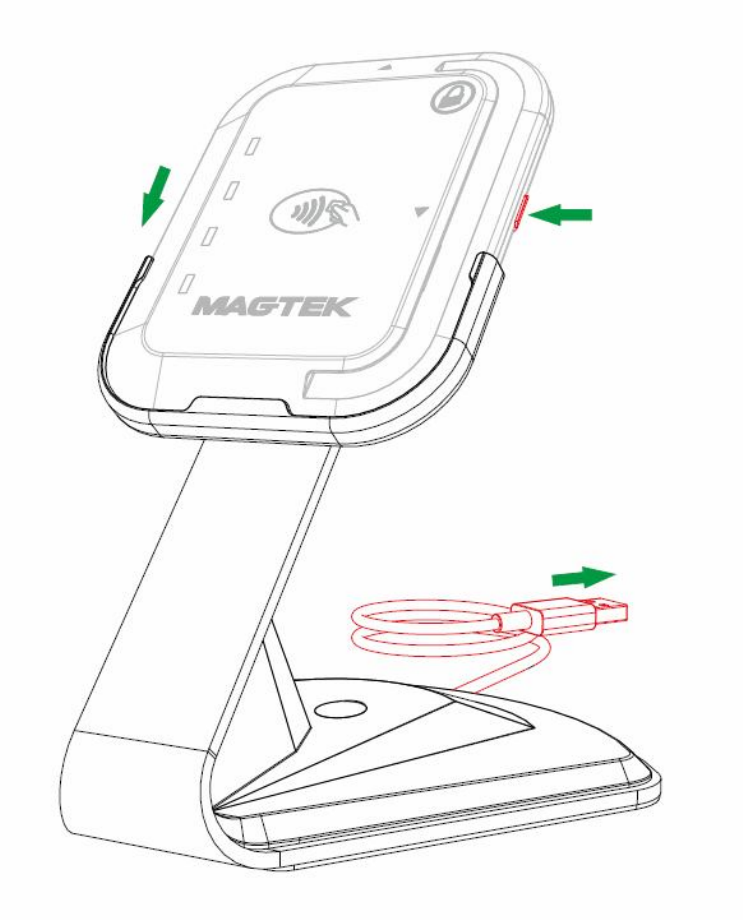

2.1.3 In the third, put the reader into the base, with the base USB inserted into
the host, open the power
5
supply

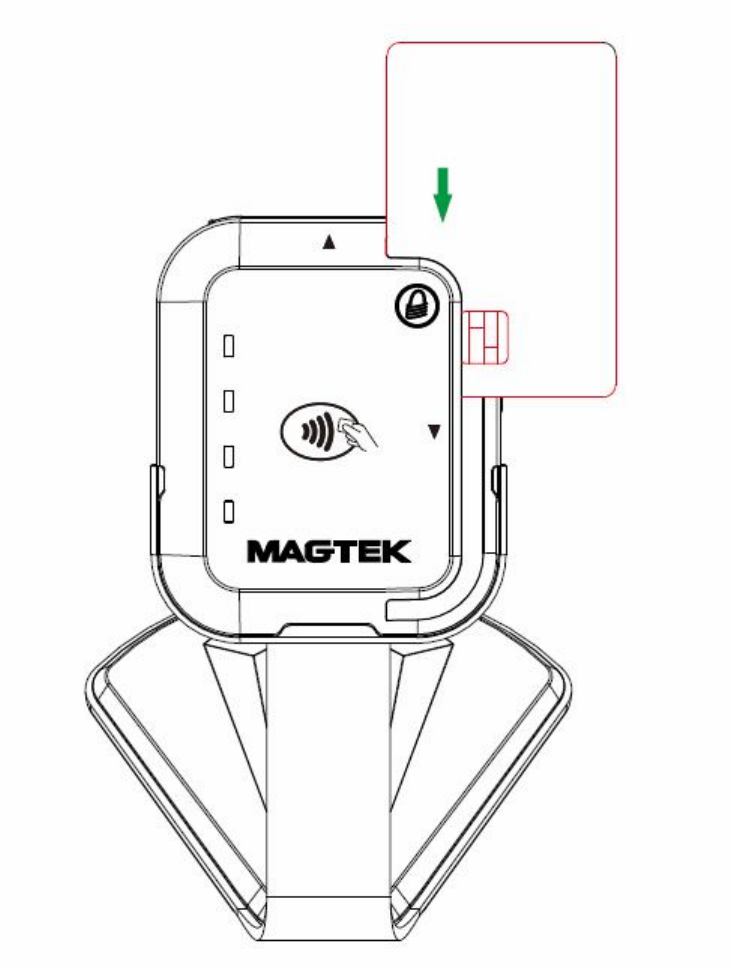

2.2 To use a MSR card
To swipea card, make sure the MSR is on the bottom side, press the card to the bottom
of the slot and swipea it .
6

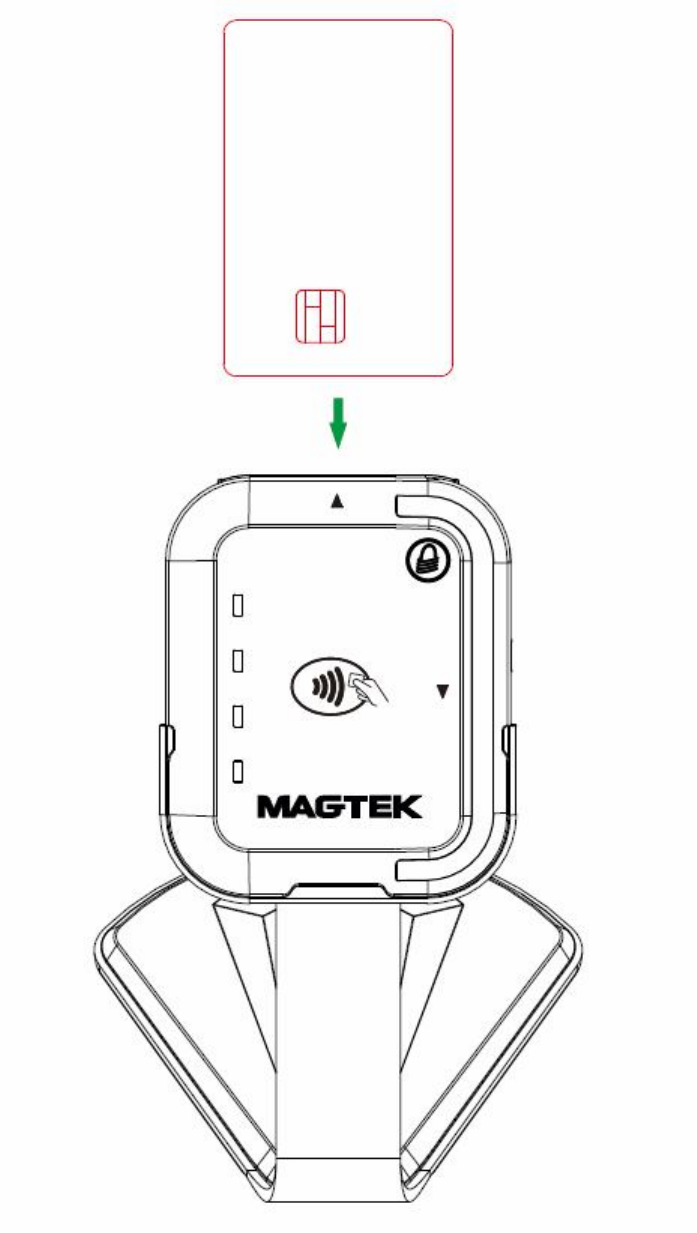

2.3 TO use a IC card
Make sure the IC contacts are on the top side. Insert the card to the end of the
7
slot.

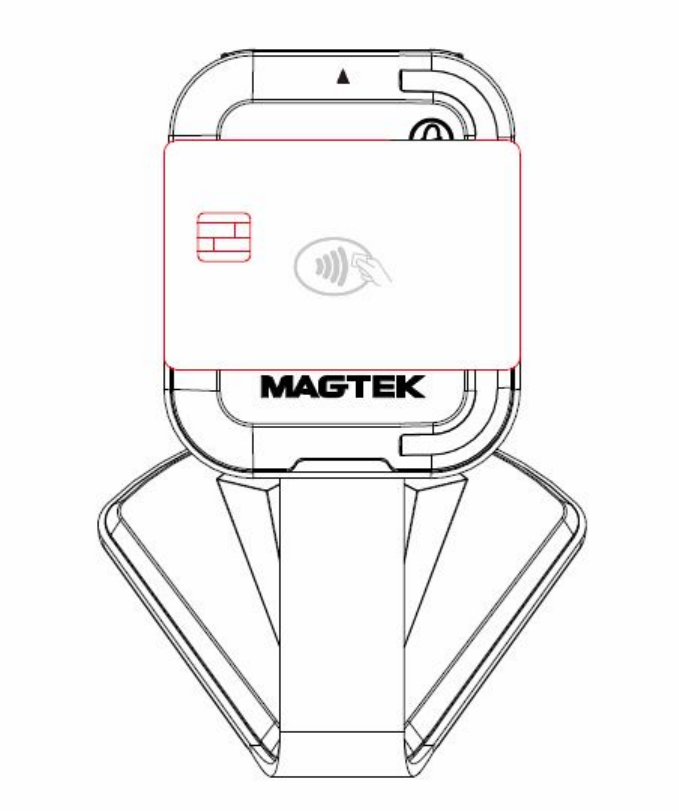

2.4 To use a NFC card
Place the card near the NFC symbol on the case.
8
9
3 TransactionsGuide
Refer to the guide of the software.
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the
