Maiori Design SLS-B Solar Hybrid Module User Manual P MAI 003 MK2 B Manual 20190102
Maiori Design Company Limited Solar Hybrid Module P MAI 003 MK2 B Manual 20190102
User Manual
DESCRIPTION
PRODUCT DESCRIPTION

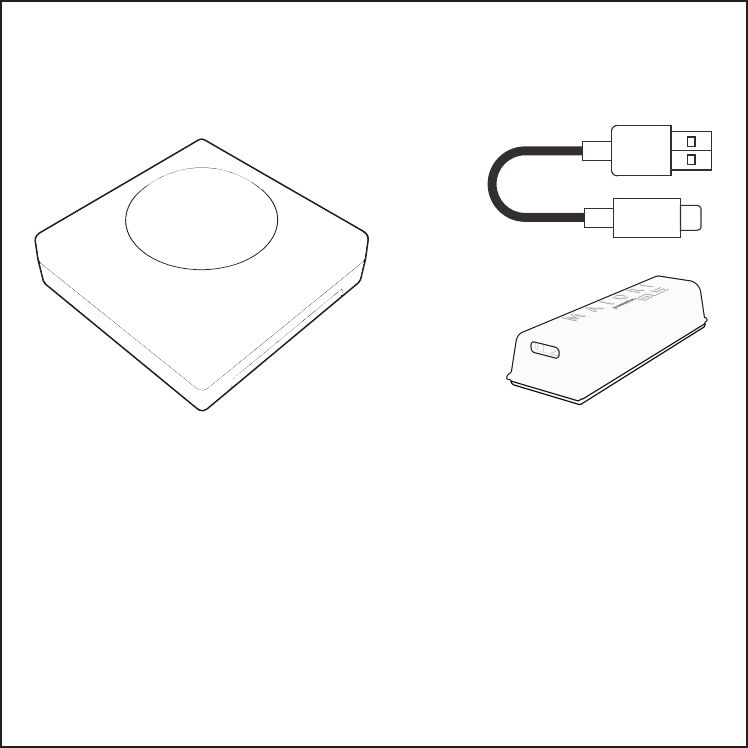

Components In The Box
Module
USB Cable Type-C
USB Dock
- Built-in lithium battery, Bluetooth APP operation.
- Configure external charging type-c, solar power supply system.
- Dual button mode, auto/manual mode switching, brightness.
- Adjustment mode OFF - 25% - 50% - 100%.
- 1 -

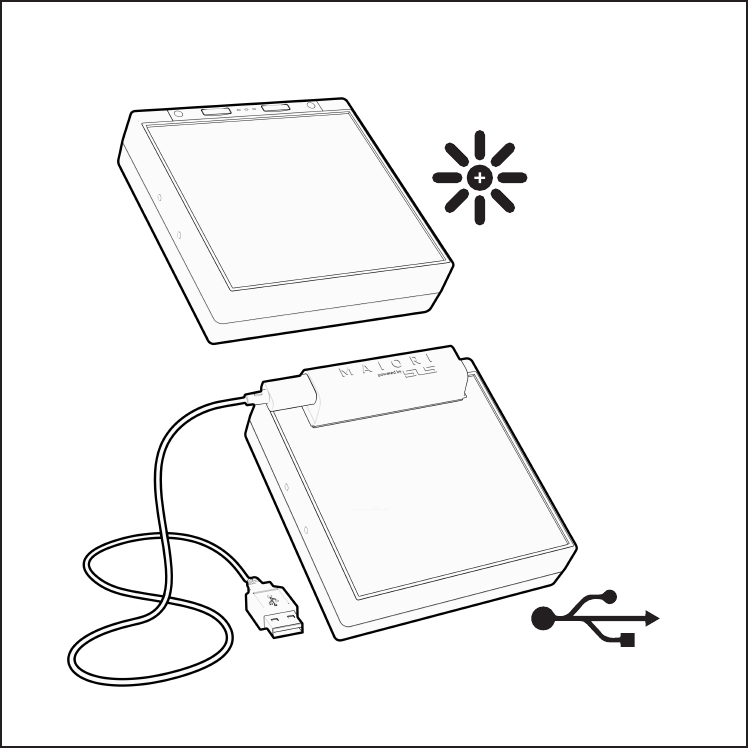

FUNCTIONAL DIAGRAM
BY SUN
BY USB DOCK
- 2 -
Charging Pin Charging Pin
Auto/manual Battery level ON/OFF/Dimming
INSTRUCTIONS
E
ON/OFF:
The ON OFF button allows to go through the main light
functions : OFF > 75 lumens > 150 lumens > 300 lumens
- 3 -
Auto/Manual
If the user doesn’t want to use the automatic sunlight detection mode,
please press one time the left button to disable it. The ON/OFF button
is on the right. On Auto mode, the module will be working only when
the ambient light received by the solar panel is sufficiently low.
BASIC FUNCTIONS
E
Charging indicator
When the module is charging, a blue light located in the bulb will be
glowing slowly and as soon as the battery is fully charged, it will stop.
When not in use for a long time, the module can be put into deep sleep
mode to save energy by pressing both buttons for 5 seconds until the 3
leds indicator blinks. A short press on the Auto/Manual button allows
the module to wake up.
Battery level
The 3 leds battery indicator gives the information related to the current
battery status. Each time when the user is pressing a button, the 3 leds
indicator will be displaying the battery level for 3 seconds – 3 led lights
means fully charged battery level, 2 led lights means an average battery
level, 1 led light means a low but still usable battery level and 1 blinking
led light means a critical low battery level indicating the user to charge the module.
- 4 -
Please check our website to have more information about
how to use our smartphone APP
INSTRUCTIONS
1. Download the MAIORI application onto your Smartphone.
2. The module must be charged before its first use, and regularly
afterwards (otherwise the battery may deteriorate). It will glow
blue when charging.
3. Set up your module using the MAIORI application. Refer to the user
guide for further instructions: https://maiori.com/en/
4. In the event of a connection problem, press on the « ON/OFF »
button for 10 seconds to reset it.
E
- 5 -
MAIORI APP BASIC FUNCTIONS
ON / OFF + DIMMER
GROUPS LAMPS
PREFFERED LAMPS
SCHEDULING
SUN SET/RISE MODE
DEACTIVATE BUTTONS ON THE SOLAR HYBRID MODULE
DEEP SLEEP (BLUETOOTH OFF)
E
- 6 -
OUTDOOR &
INDOOR USE
Remains lit for
Depending on settings
10hours
RECHARGE OF
THE BATTERY
Solar Powered Lithium Battery Sustainable Weatherproof
Recyclable
Product
100% Recyclable
Packaging and
Shock Proof
Tested waterproof
for outdoor use
OUTDOOR LIGHTING
LED Lighting
LED
UP TO
LUMENS
300 under the sun
Solar Powered
100%
INSTRUCTIONS
E
- 7 -
FCC WARNING STATEMENT
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
‐‐ Reorient or relocate the receiving antenna.
‐‐ Increase the separation between the equipment and receiver.
‐‐ Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
‐‐ Consult the dealer or an experienced radio/TV technician for help.
E
- 8 -
Maiori Products are guaranteed for 2 years from the date of the purchase
against defects in material and workmanship. The warranty does not
cover normal wear and tear, scratches, deliber-ate damage or misuse,
and / or damage caused by failure to observe operating instructions.
The warranty will be void if the solar module unit has been opened.
WARRANTY
For More Information
www.maiori.com
E
- 9 -
