WLAN Configuration

Main contents:

z Introduction to WLAN

z Wireless interface parameter configuration

z Virtual AP parameter configuration

z Wireless security profile configuration

z WLAN typical configuration

Introduction to WLAN

WLAN (Wireless Local Area Networks) is developed from the earliest

802.11 standard to the later 802.11b/g, which makes WLAN bandwidth be

improved greatly. 802.11i standard ensures the WLAN security;

802.11f/r/s standard makes the WLAN removable and deployable.

WLAN consists of Independent BSS, Infrastructure BSS and ESS. This

chapter describes the configuration and debugging of the access point in

Infrastructure BSS. The virtual AP mentioned in the following text refers to

multiple access points on the same wireless interface and they have the

same physical parameters, but the protocol parameters in the security

policy can be different.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 5 of 37

Wireless Interface Parameter

Configuration

Main contents:

z Introduction to wireless interface parameter

z Basic commands of wireless interface parameter

z Application instance of wireless interface parameter

z Monitoring and debugging of wireless interface parameter

Introduction

Wireless interface has some configurable parameters, including antenna,

channel, power, mode, rate, re-transmission times, country code,

preamble length, SLOT length, beacon period and so on. The parameters

of all virtual APs are the same.

Basic Commands

Command Description

Configuration

Mode

antenna {rx | tx} {left | right | diversity}

Select antenna. The

receiving and sending

antennas can be selected

separately. You can select

fixed or auto.

config-if-

dot11radio0

beacon {period | dtim-period}

time

The beacon period and

DTIM period config-if-

dot11radio0

channel

number

channel auto

time

Select channel config-if-

dot11radio0

packet {long | short} retry

1-15

Set the times of re-

transmitting packets config-if-

dot11radio0

power {100 | 50 | 25 | 12 | min} Set the power; set according

to the percentage of the

maximum power

config-if-

dot11radio0

preamble {short | long} Set long and short preamble config-if-

dot11radio0

radioMode {11b | 11g | mixed} Set wireless mode config-if-

dot11radio0

radioSpeed {basic-x.x | x.x} Set the wireless rate config-if-

dot11radio0

rts {retry | threshold}

count

Set the RTS threshold and

re-transmission times config-if-

dot11radio0

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 6 of 37

slot {short | long} Set the slot length of the

conflict window config-if-

dot11radio0

shutdown Close the wireless interface config-if-

dot11radio0

worldwide countrycode

code

Set the country code config-if-

dot11radio0

 Note

The command description with * means that the command has the

configuration instance to describe.

 antenna

The antenna has two antennas. You can select one or auto.

antenna {rx | tx} {left | right | diversity}

no antenna {rx | tx}

Syntax Description

rx left Select the left antenna for receiving

rx right Select the right antenna for receiving

rx diversity The receiving selects the antenna according to the

signal intensity automatically.

tx left Select the left antenna for sending

tx right Select the right antenna for sending

tx diversity The receiving selects the antenna according to the

signal intensity automatically.

Default status: By default, select antenna automatically for sending and

receiving.

 Note

The receiving antenna on MP1800 SERIES router can take effect only

when being set as auto.

 beacon

The command is used to set the beacon period and DTIM period.

beacon {period | dtim-period} time

no beacon {period | dtim-period}

Syntax Description

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 7 of 37

period

100-3000

Set the period of sending the beacon packets and the

unit is 1024us

dtim-period

1-30

Set the period of sending buffered broadcast packets

and the unit is beacon periods

Default status: The default beacon period is 300 and the period of

sending the buffer packets is 6.

 channel

You can select the fixed channel or set to search the idle channels

automatically.

channel number

channel auto

channel auto time

no channel

Syntax Description

1-14

Set the specified channel. The channel is the wireless

center channel. In fact, after expanding, it may occupy

the center channel left two and right two channels.

Therefore, the enter channels without overlapping are 1,

6, and 11. In fact, the configurable channel range is

related with the set country code.

auto Automatically detect the idle channel for one time.

auto

1-6000

Automatically detect the idle channels with the configured

minutes as the period. The auto detection affects the

normal communication, so the period cannot be set too

small.

Default status: By default, automatically detect the idle channel for one

time.

 packet

The command is used to set the times of re-transmitting the packets.

packet {long | short} retry 1-15

no packet {long | short} retry

Syntax Description

short retry

count

Set the times of re-transmitting the packet with the

length smaller than RTS threshold

long retry

count

Set the times of re-transmitting the packet with the

length larger than RTS threshold

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 8 of 37

Default status: By default, the re-transmission times is 10.

 power

The command is used to set the percentage of the maximum wireless

power.

power {100 | 50 | 25 | 12 | min}

no power

Syntax Description

100 Set the wireless sending power as 100% of the maximum

power

50 Set the wireless sending power as 50% of the maximum

power

25 Set the wireless sending power as 25% of the maximum

power

12 Set the wireless sending power as 12% of the maximum

power

min Set the wireless sending power as the minimum power

Default status: By default, the wireless sending power is 100% of the

maximum power.

 preamble

The command is used to set the length of the preamble.

preamble {short | long}

no preamble

Syntax Description

short Set the preamble as the short preamble

long Set the preamble as the long preamble

Default status: By default, it is the short preamble.

 radioMode

The command is used to set the wireless mode.

radioMode {11b | 11g | mixed}

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 9 of 37

no radioMode

Syntax Description

11b Set the wireless mode as 802.11b

11g Set the wireless mode as 802.11g

mixed Set the wireless mode as 802.11b/g mixed

Default status: By default, the wireless mode is 802.11b/g mixed.

 Note

Set the wireless mode to affect the rate configuration. When being set as

802.11b, the rate can only be set as 1.0, 2.0, 5.5, 11.0; when being set

as 802.11g, the rate can only be set as 6.0, 9.0, 12.0, 18.0, 24.0, 36.0,

48.0, and 54.0; when being set as mixed, you can set all rates.

 radioSpeed

You can select multiple wireless rates. Meanwhile, you need to specify

whether each rate is the basic rate (the basic rate is the rate that all

associated stations must support).

radioSpeed {basic-x.x | x.x}

no radioSpeed

Syntax Description

basic-x.x …

Set the wireless basic rate

x.x …

Set the wireless extended rate

Default status: All 802.11b/g rates: basic-1.0 2.0 5.5 6.0 9.0 11.0 12.0

18.0 24.0 36.0 48.0 54.0.

 Note

1. The wireless rate means the rate that must be supported when the

wires access node is associated with the stations. At least one basic

rate must be set.

2. You can set multiple rates, such as radioSpeed basic-1.0 basic-2.0

48.0 54.0.

3. During the actual running, the program selects from the rate setting

range according to the signal.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 10 of 37

4. The no format of the command selects the appropriate rate according

to the current wireless mode.

 rts

The command is used to set the RTS threshold and retransmission times.

rts {retry | threshold} count

no rts {retry | threshold}

Syntax Description

threshold

256-2346

Set the packet size threshold of using the RTS/CTS

mechanism. When the unicast packet is larger than the

threshold, use RTS/CTS to interact.

retry

1-15

Set the re-transmission times of RTS

Default status: By default, the RTS threshold is 2346 bytes and the RTS

re-transmission times is 10.

 shutdown

The command is used to disable the wireless interface.

shutdown

no shutdown

Default status: By default, the wireless interface is enabled.

 slot

The command is used to set the length of the conflicting window slot.

slot {short | long}

no slot

Syntax Description

short Set the conflicting window as short slot, that is, 9us.

long Set the conflicting window as long slot, that is, 20us.

Default status: By default, it is the short slot.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 11 of 37

 worldwide

The command is used to set the country code of the wireless interface.

Each country may have different limitation for wireless signal.

worldwide countrycode code

no worldwide countrycode

Syntax Description

code

Use two capital letters to express the ISO country code.

For example, CN is for China and US is for America.

Default status: CN

 Note

1. The setting of the country code affects the available wireless channel

and the maximum sending power.

2. The configurable country codes:

Country code Country name

AR ARGENTINA

AT AUSTRIA

AU AUSTRALIA

BE BELGIUM

BG BULGARIA

BR BRAZIL

CA CANADA

CH SWITZERLAND

CL CHILE

CN CHINA (Default)

CO COLOMBIA

CY CYPRUS

CZ CZECH REPUBLIC

DE GERMANY

DK DENMARK

EE ESTONIA

ES SPAIN

FI FINLAND

FR FRANCE

GB UNITED KINGDOM

GR GREECE

HK HONGKONG

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 12 of 37

HR CROATIA

HU HUNGARY

ID INDONESIA

IE IRELAND

IL ISRAEL

IN INDIA

IS ICELAND

IT ITALY

JP JAPAN

KR KOREA

LI LIECHTENSTEIN

LT LITHUANIA

LU LUXEMBOURG

LV LATVIA

MA MOROCCO

MT MALTA

MX MEXICO

MY MALAYSIA

NL NETHERLANDS

NO NORWAY

NZ NEW ZEALAND

PE PERU

PH PHILIPPINES

PL POLAND

PT PORTUGAL

RO ROMANIA

RU RUSSIAN FEDERATION

SA SAUDI ARABIA

SE SWEDEN

SG SINGAPORE

SI SLOVENIA

SK SLOVAKIA

TH THAILAND

TR TURKEY

TW TAIWAN,PROVINCE OF CHINA

US UNITED STATES

UY URUGUAY

ZA SOUTH AFRICA

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 13 of 37

Application Instance

Application Instance 1

WLAN application network topology

 Illustration

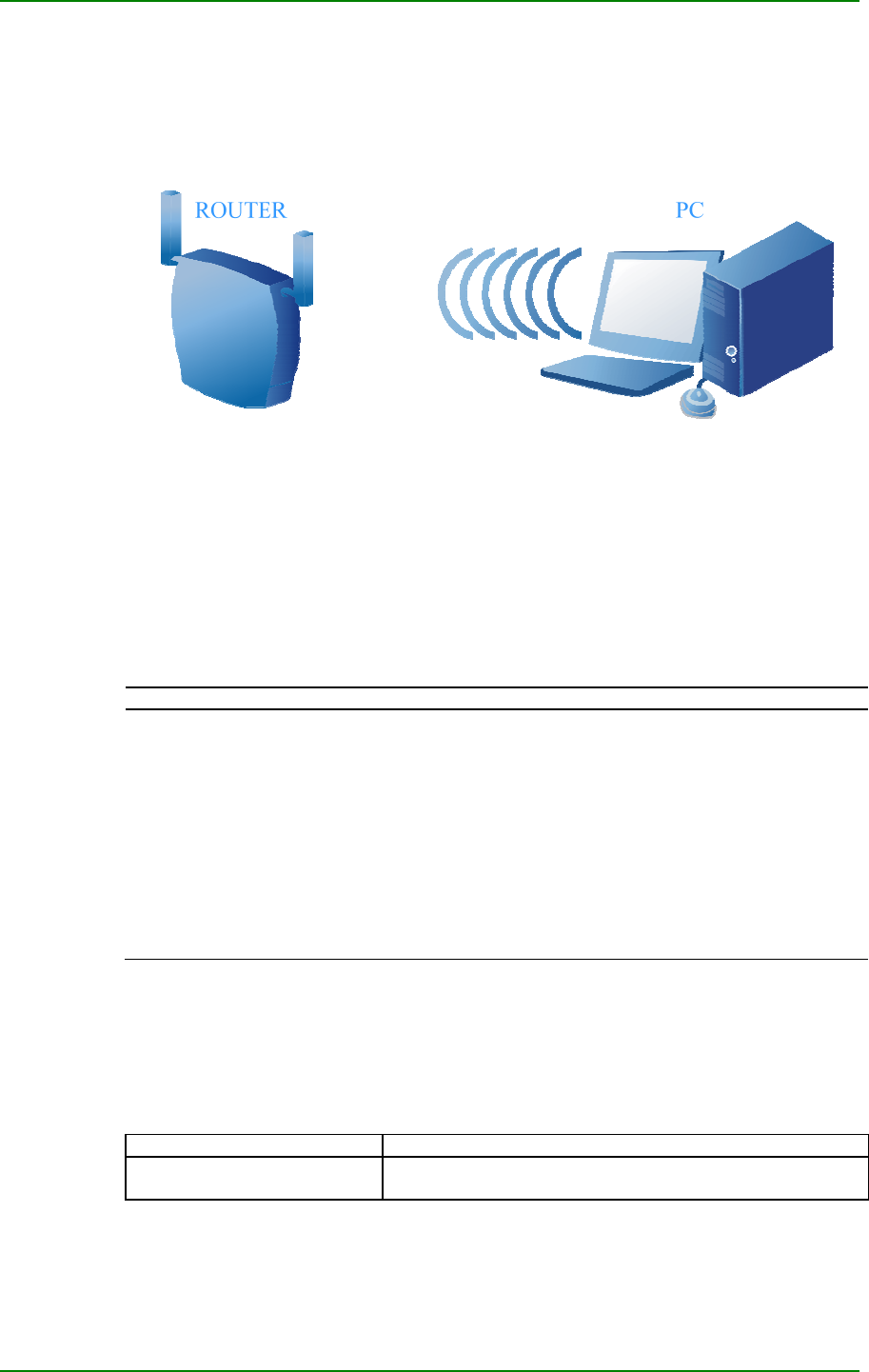

One router with the WLAN module and one PC with the wireless adapter

are interconnected.

ROUTER configuration:

Command Description

router(config)#interface dot11radio0 Enter the wireless interface

mode

router(config-if-dot11radio0)#beacon period 100 Configure beacon period as

100ms

router(config-if-dot11radio0)#channel auto Configure selecting channel

automatically

router(config-if-dot11radio0)#radioSpeed basic-1.0 basic-2.0

54.0 Configure the basic rate and

extended rate

router(config-if-dot11radio0)# worldwide countrycode CN Configure the country code as

CN

router(config-if-dot11radio0)#exit Exit the wireless interface

mode

Monitoring and Debugging

Monitoring Command

Command Description

show dot11radio

unit

Display the running parameter and status of the wireless

interface

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 14 of 37

Monitoring Command Instance

router#show dot11radio 0

Displayed result:

dot11radio 0:

LinkStatus : Up

Mac Address : 0001.7a12.3456

Current SSIDs : 2 MAX SSIDs : 4

*************************************************************************

SSID(network name) LinkStatus VLAN Stations Privilege

maipu Up 1 1 No

CPE Up 2 0 No

*************************************************************************

Country Code : 156 RadioMode : 11b/g mixed

Allowed Channels : 1 2 3 4 5 6 7 8 9 10 11 12 13

Auto Channel : Yes Auto ReChannel : Disable

Current Channel : 4 [AUTO] Power : 100%

Recv Antenna : diversity Transmit Antenna : diversity

Allowed Rates : [1] 2 5.5 6 9 11 12 18 24 36 48 54

Broadcast rate : 1 Need Protection : No

Beacon Period : 300 Short Time Slot : Yes

Dtim Period : 6 Short Preamble : No

RTS Threshold : 2346 Packet Short Retry: 10

RTS Retry : 10 Packet Long Retry : 10

Fragment Input : 1026 Fragment Output : 139

Bytes Input : 90704 Bytes Output : 24162

Frame Input : 3104 Frame Output : 139

Multicast Input : 2923 Multicast Output : 136

Duplicates Rcvd : 0 Exceeded Retries : 0

Decrypt Failed : 5 Data Retries : 0

MIC Failed : 0 RTS Retries : 0

FCS Failed : 138

Associate Request : 1 Associate Response: 1

Associate Success : 1 Diassociate : 0

Description and analysis:

The above information includes three parts:

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 15 of 37

1. The current wireless interface status, including the Link status of the

wireless interface, the information about all virtual APs under the

wireless interface and so on;

2. The running parameters of the current wireless interface;

3. The statistics information of the current wireless interface;

Virtual AP Parameter

Configuration

Main contents:

z Overview

z Basic commands of virtual AP parameters

z Application instance of virtual AP parameters

z Monitoring and debugging of virtual AP parameters

Overview

Virtual AP refers to the multiple virtual logical wireless access point (AP)

on the same wireless interface. The parameters of the virtual APs can be

different and can be bound to different security policies.

Basic Commands

Command Description Configuration Mode

ssid

name

Enter the virtual AP

configuration mode or

create a new virtual AP

config-if-dot11radio0

config-dot11radio0-ssid-xxx

clientlimit

1-56

Set the maximum

number of the access

clients of the virtual AP config-dot11radio0-ssid-xxx

encapsulation {802.1h |

rfc1042} Select the LLC

encapsulation format config-dot11radio0-ssid-xxx

fragment

256-2346

Set the fragment

threshold config-dot11radio0-ssid-xxx

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 16 of 37

idle-timeout

0-60

Set the idle timeout config-dot11radio0-ssid-xxx

maclist

2001-3000

Bind the access list of

the MAC address config-dot11radio0-ssid-xxx

regroup time

1-30

Re-calculate the period

of the multicast key config-dot11radio0-ssid-xxx

security

name

Bind the security

profile config-dot11radio0-ssid-xxx

shutdown Disable the virtual AP config-dot11radio0-ssid-xxx

ssidIe {enable | disable} Enable and disable the

SSID advertisement of

virtual AP config-dot11radio0-ssid-xxx

vlan

1-4094

Configure the vlan ID

of the virtual AP config-dot11radio0-ssid-xxx

privilege {enable | disable} Configure the privilege

attribute of the virtual

AP config-dot11radio0-ssid-xxx

station isolate {enable | disable} Configure whether the

AP isolates the station config-dot11radio0-ssid-xxx

interface dot11radio0.x

Create one the

wireless sub interface

and enter the

configuration mode of

the wireless sub

interface

config

config-if

encapsulation dot1q

1-4094

Encapsulate the

wireless sub interface

with the VLAN ID config-if-dot11radio0.x

 Note

The command description with * means that the command has the

configuration instance to describe.

 ssid

The command is used to create a new virtual AP or enter the existing

virtual AP, with ssid as ID.

ssid name

no ssid name

Syntax Description

ssid

name

If virtual AP identified by

name

does not exist, first

create a new virtual AP and enter the virtual AP

configuration mode, that is, the ssid configuration mode

no ssid

name

Delete the virtual AP identified by

name

Default status: none

 Note

At most four virtual APs can be configured.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 17 of 37

 clientlimit

The command is used to limit the maximum number of the stations of the

virtual AP.

clientlimit 1-56

no clientlimit

Syntax Description

1-56

The maximum number of the access stations of the

virtual AP

Default status: By default, up to 14 access stations are permitted.

 Note

1. Each virtual AP can be configured with up to 56 access stations, but

the total number of the associated stations of all virtual APs of one

wireless interface cannot exceed 56. Therefore, the total number of

the stations of all virtual APs exceeds 56, the system prints the

prompt information.

2. The encrypted policy affects the maximum number of the associated

stations of the wireless interface. If the encrypted policy is TKIP, one

station occupies two resources. Therefore, the wireless interface can

associates with 56 stations at most. If all associated stations use TKIP,

the maximum number of the stations that can be associated with the

wireless interface changes to 28.

 encapsulation

The command is used to set the OUI encapsulation format of the link layer

LLC/SNAP.

encapsulation {802.1h | rfc1042}

no encapsulation

Syntax Description

rfc1042 Encapsulate LLC/SNAP (aa-aa-03-00-00-00) by RFC1042

802.1h Encapsulate LLC/SNAP (aa-aa-03-00-00-f8) by 802.1H.

Default status: Encapsulate by rfc1042.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 18 of 37

 Note

1. The command is invalid for the IPX and AppleTalk protocol packets.

The IPX and AppleTalk packets are encapsulated by 802.1h.

2. The command does not affect the de-encapsulating of the

encapsulated packet and the device processes according to IEEE

802.1H-1997 standard.

 fragment

The command is used to set the fragment threshold. The packet that

exceeds the threshold is fragmented.

fragment 256-2346

no fragment

Syntax Description

256-2346

Set the bytes of the packet fragment

Default status: The threshold of the packet fragment is 2346 bytes.

 idle-timeout

The command is used to set the idle timeout of the station.

idle-timeout 0-60

no idle-timeout

Syntax Description

0-60

0 means no timeout forever. The remaining means 1-

60-minute timeout.

Default status: By default, the timeout is 5 minutes.

 maclist

The command is used to bind the MAC access list.

maclist 2001-3000

no maclist

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 19 of 37

Syntax Description

2001-3000

Bind the created MAC access list, which is used for the

basic authentication of 802.11.

Default status: By default, no MAC access list is bound.

 regroup

The command is used to set re-calculating the multicast key period.

regroup time 1-30

no regroup time

Syntax Description

1-30

Set re-calculating the period of the multicast key, in the

unit of minute.

Default status: By default, do not re-calculate the multicast key.

 Note

The setting is valid only when the security policy is WPA1 or WPA2.

 security

The command is used to bind the configured security profile.

security name

no security

Syntax Description

name

Bind the configured security profile. Check the contents

of the security profile during binding. If there is

conflicting project, the system prompts error.

Default status: No security profile is bound.

 shutdown

The command is used to disable the virtual AP.

shutdown

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 20 of 37

no shutdown

Default status: Enable the virtual AP.

 ssidIe

The command is used to set whether to broadcast SSID of the virtual AP.

ssidIe {enable | disable}

no ssidIe

Syntax Description

enable Broadcast the SSID of the virtual AP.

disable Do not broadcast SSID of the virtual AP.

Default status: Broadcast the SSID of the virtual AP.

 vlan

The command is used to set the VLAN ID of the virtual AP.

vlan 1-4094

no vlan

Syntax Description

1-4094

Set the VLAN of the virtual AP. The vlan number

corresponds to the VLAN number of the wireless sub

interface, so the wireless packets of the virtual AP can

be submitted to the IP protocol stack.

Default status: no vlan attribute

 Note

Modifying the configuration results in the disconnection of all stations.

 privilege

The command is used to set the privilege attribute of the virtual AP.

privilege {enable | disable}

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 21 of 37

no privilege

Syntax Description

enable Set the virtual AP as the privilege virtual AP. Once the

attribute is set, only the privilege user on the web

interface can view and configure the virtual AP.

disable Set the virtual AP as the common virtual AP and all

users can view and configure.

Default status: No privilege attribute

 station isolate

The command is used to set the privilege attribute of the virtual AP.

station isolate {enable | disable}

no station isolate

Syntax Description

enable Set the virtual AP to isolate all associated stations. All

stations cannot communicate with each other, but they

can only communicate with the wireless sub interface.

disable Set the virtual AP not to isolate stations. All stations in

the virtual AP can communicate with each other and the

wireless sub interface.

Default status: Do not isolate the stations.

 interface dot11radio0.x

The command is used to create the wireless sub interface or enter the

wireless sub interface configuration mode.

interface dot11radio0.x

Default status: No sub interface

 Note

1. Wireless sub interface is the channel of the virtual AP connecting the

DS system. You can configure the IP address, NAT, ACL, route

protocol and bridge group on the wireless sub interface.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 22 of 37

2. The wireless main interface can only be configured with the wireless

parameters and SSID, but cannot be configured with the IP address or

run the IP protocol stack. It can only serve as one console interface.

 encapsulation dot1q

The command is used to configure the VLAN number of the wireless sub

interface.

encapsulation dot1q 1-4094

Syntax Description

1-4094

Set the VLAN number of the wireless sub interface. The

vlan number corresponds to the VLAN number of the

wireless sub interface, so the wireless packets of the virtual

AP can be submitted to the IP protocol stack.

Default status: No vlan attribute

Application Instance

Application Instance 1

Refer to Figure 1-1.

Router configuration:

Command Description

router(config)#interface dot11radio0 Enter the wireless interface mode

router(config-if-dot11radio0)#ssid test Enter the virtual AP configuration

mode

router(config-if-dot11radio0-ssid-test)#clientlimit 10 Configure the limitation for the clients

of the virtual AP

router(config-if-dot11radio0-ssid-test)#fragment

2000 Configure the fragment threshold of

the virtual AP

router(config-if-dot11radio0-ssid-test)#idle-timeout

60 Configure the client idle timeout of the

virtual AP

router(config-if-dot11radio0-ssid-test)#security wpa Bind the security profile of the virtual

AP

router(config-if-dot11radio0-ssid-test)#vlan 1 Configure the VLAN attribute of the

virtual AP

router(config-if-dot11radio0-ssid-test)#exit Exit the virtual AP configuration mode

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 23 of 37

Monitoring and Debugging

Monitoring Commands

For example:

Command Description

show dot11radio

unit

ssid name Display the running parameters and

status of the virtual AP

show dot11radio

unit

ssid

name

station

mac-

address

Display the running status of the access

station

Monitoring Command Instance

router# show dot11radio 0 ssid maipu

Displayed result:

SSID [maipu]:

LinkStatus : Up

Mac Address : 0201.7a12.3456

Current Stations : 1 MAX Stations : 14

*****************************************************************************

MAC Address IP Address Authenticated Associated WPA1/2-PSK EAP-802.1X

00b0.8c51.0327 192.168.119.40 Yes Yes - -

*****************************************************************************

Vlan : 1 Security Profile :

Hidden SSID : No RegroupTime : 0

Encapsulation : RFC1042 MacList :

Fragment Threshold : 2346 Privilege : No

Fragment Input : 437 Fragment Output : 100

Bytes Input : 60351 Bytes Output : 18539

Frame Input : 437 Frame Output : 100

Multicast Input : 255 Multicast Output : 96

Duplicates Rcvd : 0 Exceeded Retries : 0

Decrypt Failed : 0 Data Retries : 0

MIC Failed : 0 RTS Retries : 0

Associate Request : 1 Associate Response: 1

Associate Success : 1 Diassociate : 0

Description and analysis:

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 24 of 37

The above information includes three parts:

1. The current virtual AP status, including the Link status of the virtual

AP, the information about all associated stations of the virtual AP;

2. The running parameters of the current virtual AP;

3. The statistics information of the current virtual AP;

router#show dot11radio 0 ssid maipu station 00b0.8c51.0327

Displayed result:

Station [00b0.8c51.0327]:

MAC Address : 00b0.8c51.0327 IP Address : 192.168.119.40

SSID : maipu Vlan : 1

SecPol : - Authenticated : Yes

AuthPol: : - Associated : Yes

CiphPol: : - AID : 1

Supported Rates : [1] 2 5.5 6 9 11 12 18 24 36 48 54

Receive Rate : 54 Transmit Rate : 54

Signal Strength : -70dBm Connected For : 490 seconds

Signal Quality : 41% Activity Timeout : 120 seconds

Power-save : Off Last Activity : 26 seconds ago

Fragment Input : 71 Fragment Output : 1

Bytes Input : 4704 Bytes Output : 360

Frame Input : 71 Frame Output : 1

Duplicates Rcvd : 0 Exceeded Retries : 0

Decrypt Failed : 0 Data Retries : 0

MIC Failed : 0 RTS Retries : 0

Description and analysis:

The above information includes two parts:

1. The running parameters of the associated station

2. The statistics information of the associated station

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 25 of 37

Debugging Commands

Command Description

debug dot11radio pro

assoc Debug the association of the station

debug dot11radio pro auth Debug the basic authentication of the station

debug dot11radio pro data Debug all packets received and sent by the wireless interface

debug dot11radio pro

datanull Debug the datanull packets received by the wireless interface

debug dot11radio pro

deauth Debug the de-authentication of the station

debug dot11radio pro

disassoc Debug the dis-association of the station

debug dot11radio pro

dperx Debug the packets received by the wireless interface

debug dot11radio pro

dpetx Debug the packets sent by the wireless interface

debug dot11radio pro pm Debug the converting of the mode of saving energy of the

station

debug dot11radio pro

probe Debug the detection frames received by the wireless

interface and the response

debug dot11radio pro

pspoll Debug the pspoll frame received by the wireless interface

debug dot11radio pro

ratectrl Debug the rate adjusting of the wireless interface

debug dot11radio pro

reassoc Debug the re-association of the station

debug dot11radio pro scan Debug the process of the wireless interface of detecting the

idle channel automatically

debug dot11radio rsn Debug the process of the wireless interface expanding

security

Debugging Command Instance

For environment, refer to Figure 1.1.

1. A complete process of connecting the station

The following debugging switches need to be enabled:

debug dot11radio pro auth

debug dot11radio pro assoc

debug dot11radio rsn

Information and analysis:

00:03:53: DOT11->AUTH: from 00:b0:8c:51:03:27 to 02:e0:4c:fb:76:a7

The authentication packet is sent from the station 00:b0:8c:51:03:27 to

the virtual AP 02:e0:4c:fb:76:a7

00:03:53: DOT11->Update Sta:00:b0:8c:51:03:27 Start

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 26 of 37

Update the status of the station 00:b0:8c:51:03:27.

00:03:53: DOT11->Sta:00:b0:8c:51:03:27 is already here

Find that the station 00:b0:8c:51:03:27 already exists.

00:03:53: DOT11->Update Sta:00:b0:8c:51:03:27 End

00:03:53: DOT11->Auth Recv Start

Start to process the authentication packet.

00:03:53: DOT11->OPEN-SYSTEM-SEQ-1

The authentication mode opensystem, the first frame (reques)

00:03:53: DOT11->Auth Send Start

00:03:53: DOT11->Sta:00:b0:8c:51:03:27

Send the authentication response packet.

00:03:53: DOT11->Auth Send End

00:03:53: DOT11->Open-System Authentication success!

Pass the opensystem basic authentication.

00:03:53: DOT11->Auth Recv End

00:03:53: DOT11->ASSOC: from 00:b0:8c:51:03:27 to 02:e0:4c:fb:76:a7

Receive the association packet sent from the station 00:b0:8c:51:03:27 to

virtual AP 02:e0:4c:fb:76:a7.

00:03:53: DOT11->Assoc Recv Start

00:03:53: DOT11->Asso Rsp Send Start

00:03:53: DOT11->Sta:00:b0:8c:51:03:27

Send the association response packet to the station 00:b0:8c:51:03:27.

00:03:53: DOT11->Asso Rsp Send End

00:03:53: DOT11->Association success

The association succeeds.

00:03:53: DOT11->Sta's negAuthPol is PSK

The authentication mode of the station is PSK.

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 27 of 37

00:03:53: DOT11->Send uniCast MSG A to 00:b0:8c:51:03:27

Start to perform the RSN authentication and send the first packet to the

station.

00:03:53: DOT11->Received uniCast MSG B from 00:b0:8c:51:03:27

Receive the second response packet RSN of the station.

00:03:53: DOT11->Key data added!

00:03:53: DOT11->Send uniCast MSG C/RSN to 00:b0:8c:51:03:27

Send the RNS third packet to the station.

00:03:53: DOT11->Received uniCast MSG D from 00:b0:8c:51:03:27

Receive the RSN fourth response packet of the station.

2. The debugging of power saving mode

The following debugging switches need to be enabled:

debug dot11radio pro pm

debug dot11radio pro pspoll

debug dot11radio pro datanull

The process of AP buffering the packers of the station in the power

saving mode and TIM advertising:

ROUTER#ping 192.168.119.40

The station is already in the power saving mode, so it is necessary to send

packets from the AP to the station actively, buffer them and use the TIM

advertising:

Press key (ctrl + shift + 6) interrupt it.

Sending 5, 76-byte ICMP Echos to 192.168.119.40 , timeout is 2 seconds:

00:11:57: DOT11->Enqueue to Sta's PM Queue

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 28 of 37

The station is in the power saving state, so the packets sent to the station

is buffered in the PM queue.

00:11:57: DOT11->enough space in Sta's PM Queue

The PM buffer queue still has space.

00:11:57: DOT11->Started to SET AID 5. Byte = 0, bit = 5 (oldStart = 0, oldStop=1)

Set the fields from AID 5 to TIM of the station, so as to inform the station

that there are packets for it via beacon.

00:11:57: DOT11->Bit 5 set in byte 0 (newStart=0 newStop = 1)

00:11:58: DOT11->PSPOLL: from 00:b0:8c:51:03:27 to 02:e0:4c:fb:76:a7

After receiving the beacon advertisement, the station sends the pspoll

packets to require receiving the buffered data.

00:11:58: DOT11->PsPoll Recv Start

00:11:58: DOT11->PmFlush Start:ONE,SEND

Send one packet in the PM buffer queue at once.

00:11:58: DOT11->Sta:00:b0:8c:51:03:27

The destination station is 00:b0:8c:51:03:27.

00:11:58: DOT11->Packet Send Start

00:11:58: DOT11->Send to Driver Start

00:11:58: DOT11->Send to Driver End

00:11:58: DOT11->Packet Send End

Sending packets is complete.

00:11:58: DOT11->No More Packets In Queue

The PM buffer queue of the station is empty.

00:11:58: DOT11->Started to CLEAR AID 5. Byte = 0, bit = 5 (oldStart = 0, oldStop=1)

Clear up the AID 5 of the TIM field and inform the station that there is no

buffered packet.

00:11:58: DOT11->Byte 0 after clear Bit 5 is zero(oldStart=0 oldStop=1)

00:11:58: DOT11->Bit 5 clear in byte 0 (newStart=0 newStop=1)

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 29 of 37

The process of converting the power saving state of the station:

00:31:30: DOT11->DATA-NULL: from 00:b0:8c:51:03:27 to 02:e0:4c:fb:76:a7

Receive the datanull packet from the station.

00:31:30: DOT11->DataNull Recv Start

00:31:30: DOT11->PM from FALSE to TRUE

The PM information in the datanull packet means that the station changes

from the normal state to the power saving state.

00:31:51: DOT11->DataNull Recv End

Here, the station pings the wireless sub interface actively, so the

station actively changes to the normal state for communicating.

00:31:48: DOT11->PM from TRUE to FALSE

Receive the ping packet from the station and the PM field in the packet

means that the status changes to normal.

00:31:48: DOT11->PmFlush Start:ALL,SEND

The power saving state of the station changes to normal, so it is necessary

to send all buffered packets to the station.

00:31:48: DOT11->Sta:00:b0:8c:51:03:27

00:31:48: DOT11->No packets in queue

The buffer queue is already empty.

00:31:48: DOT11->Started to CLEAR AID 5. Byte = 0, bit = 5 (oldStart = 0, oldStop=1)

00:31:48: DOT11->Bit 5 already cleared in byte 0 (oldStart=0 oldStop=1)

There are no buffered packets of the station, so modify the AID of the TIM

field.

00:31:51: DOT11->DATA-NULL: from 00:b0:8c:51:03:27 to 02:e0:4c:fb:76:a7

Receive the datanull packets from the station (because there is no

communication for a period of time, the station enters the power saving

state.)

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 30 of 37

00:31:51: DOT11->DataNull Recv Start

00:31:51: DOT11->PM from FALSE to TRUE

The PM information in the datanull packet means that the station changes

from the normal state to the power saving state.

00:31:51: DOT11->DataNull Recv End

Wireless Security Profile

Configuration

Main contents:

z Overview

z Basic commands of wireless security profile

z Application instance of wireless security profile

z Monitoring and debugging of wireless security profile

Overview

Wireless security profile means to configure the authentication, encryption

and password of the wireless security to one profile and then bind the

profile to any virtual AP. One virtual AP can only be bound to one security

profile, but multiple virtual APs can be bound to one security profile. After

the security profile is bound to the virtual AP, it cannot be modified, but

should be un-bound first.

Basic Commands

Command Description Configuration Mode

ssid-security-profile

name

Create one wireless

security profile and

enter the security

profile

configuration mode

config

config-dot11radio0-ssid-

xxx

config-ssid-secprofile-xxx

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 31 of 37

authpol

{opensystem|sharekey|psk|802.1x}

Set the

authentication

policy config-ssid-secprofile-xxx

ciphpol {none | wep40 | wep104 |

aes | tkip} Set the encryption

policy config-ssid-secprofile-xxx

secpol {none | wep | wpa1 | wpa2} Set the security

policy config-ssid-secprofile-xxx

 Note

The command description with * means that the command has the

configuration instance to describe.

 ssid-security-profile

The command is used to create one new security profile or enter the

configuration mode of the existing security profile.

ssid-security-profile name

no ssid-security-profile name

Syntax Description

ssid-security-profile

name

Create one new security profile or enter the configuration

mode of the existing security profile

no ssid-security-profile

name

Delete the existing security profile

Default status: none

 authpol

The command is used to set the authentication policy.

authpol {opensystem|sharekey|psk|802.1x}

Syntax Description

opensystem Set the 802.11 basic authentication as open; no extended

authentication mode

sharekey

Set the 802.11 basic authentication as share; no extended

authentication mode

psk ascii

string

Set the 802.11 basic authentication as open and the

extended authentication mode is PSK; set the key with a

length of 8-63 bytes.

psk hex

hex-string

Set the 802.11 basic authentication as open and the

extended authentication mode is PSK; set the hex number of

the key with a length of 64 characters (that is, 32-byte hex

number)

802.1x default

802.1x

name

Set the 802.11 basic authentication as open and the

extended authentication mode is 802.1x; set the 802.1x

authentication server list name (by default, it is default).

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 32 of 37

Default status: opensystem

 ciphpol

The command is used to set the encryption policy.

ciphpol {none | wep40 | wep104 | aes | tkip}

Syntax Description

none Set no encryption policy

wep40 key-slot

1-4

key hex

hex-string

Set the encryption policy as wep, use the 40-bit

key and set the hex number of the key index

and key, with a length of 10 characters (that is,

5-byte hex number)

wep40 key-slot

1-4

key ascii

string

Set the encryption policy as wep, use the 40-bit

key and set the ascii character string of the key

index and key, with a length of 5 characters

(that is, 5-byte hex number)

wep104 key-slot

1-4

key hex

hex-string

Set the encryption policy as wep, use the 104-bit

key and set the hex number of the key index

and key, with a length of 26 characters (that is,

13-byte hex number)

wep104 key-slot

1-4

key ascii

string

Set the encryption policy as wep, use the 104-bit

key and set the ascii character string of the key

index and key, with a length of 13 characters

(that is, 13-byte hex number)

tkip Set the encryption policy as TKIP (only WPA1

and WPA2 can set the encryption policy)

aes Set the encryption policy as AES (that is, CCMP;

only WPA1 and WPA2 can set the encryption

policy)

Default status: none

 Note

Encryption policy affects the maximum number of the associated stations

of the wireless interface. If the encryption policy is TKIP, one station

occupies two resources. Therefore, the wireless interface can be

associated with 56 stations at most. If all associated stations use TKIP, the

maximum number of the associated stations of the wireless interface

changes to 28.

 secpol

The command is used to set the security policy.

secpol {none | wep | wpa1 | wpa2}

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 33 of 37

Syntax Description

none Set non security policy

wep

Set the security policy as WEP

wpa1 Set the security policy as WPA1

wpa2 Set the security policy as WPA2

Default status: none

Application Instance

Application Instance 1

There are the following typical wireless security profiles:

 WEP

The configuration of the security profile:

Syntax Description

secpol wep Set the security policy as wep

authpol {opensystem | sharekey} Set the authentication policy as

opensystem or sharekey

ciphpol {wep40 | wep104} key-slot

1-4

key

{ascii | hex}

string

Set the encryption policy as wep40 or

wep104

 WPA1-PSK

The configuration of the security profile:

Syntax Description

secpol wpa1 Set the security policy as wpa1

authpol psk {ascii | hex}

string

Set the authentication policy as PSK and

set the key value

ciphpol {tkip | aes} Set the encryption policy as TKIP or AES

 WPA1-EAP

The configuration of the security profile:

Syntax Description

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 34 of 37

secpol wpa1 Set the security policy as wpa1

authpol 802.1x

name

Set the authentication policy as 802.1x

and set the authentication server list

name

ciphpol {tkip | aes} Set the encryption policy as TKIP or AES

 WPA2-PSK

The configuration of the security profile:

Syntax Description

secpol wpa2 Set the security policy as wpa2

authpol psk {ascii | hex}

string

Set the authentication policy as PSK and

set the key value

ciphpol {tkip | aes} Set the encryption policy as TKIP or AES

 WPA2-EAP

The configuration of the security profile:

Syntax Description

secpol wpa2 Set the security policy as wpa2

authpol 802.1x

name

Set the authentication policy as 802.1x

and set the authentication server list

name

ciphpol {tkip | aes} Set the encryption policy as TKIP or AES

Monitoring and Debugging

Monitoring Command

Command Description

show ssid-security-profile

name

Display the contents of the security

profile

Monitoring Command Instance

router# show ssid-security-profile wpa2

Displayed result:

ssid-security-profile wpa2

secpol wpa2

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 35 of 37

authpol psk ascii abcdefgh

ciphpol aes

Description and analysis:

The displayed result includes the security policy, authentication policy and

encryption of the security profile.

WLAN Typical Configuration

Command Description

router#configure terminal Enter global configuration

mode

router(config)#ssid-security-profile wpa2 Create the security profile

wpa2 and enter the security

profile configuration mode

router(config-ssid-secprofile-wpa2)#secpol wpa2 Set the security policy as

wpa2

router(config-ssid-secprofile-wpa2)#authpol psk ascii

12345678 Set the authentication policy

as psk and configure the key

value

router(config-ssid-secprofile-wpa2)#ciphpol aes Set the encryption policy as

aes

router(config-ssid-secprofile-wpa2)#exit Return to the global

configuration mode

router(config)#int dot11radio 0 Enter the wireless interface

configuration mode

router(config-if-dot11radio0)#ssid test Create one virtual AP, whose

SSID is test, and enter the

SSID configuration mode

router(config-dot11radio0-ssid-test)#security wpa2 Bind the security profile

wpa2 to the virtual AP

router(config-dot11radio0-ssid-test)#vlan 1 Set the VLAN ID of the

virtual AP as 1,

corresponding to the later

wireless sub interface

router(config-dot11radio0-ssid-test)#exit Return to the wireless

interface configuration mode

router(config-if-dot11radio0)#int dot11radio 0.1 Create the wireless sub

interface dot11radio0.1 and

enter the wireless sub

interface configuration mode

router(config-if-dot11radio0.1)#encapsulation dot1q 1 Configure the VLAN ID of

the wireless sub interface as

1, corresponding to the

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 36 of 37

VLAN ID of the previous

virtual AP

router(config-if-dot11radio0.1)#ip address 192.168.1.1

255.255.255.0 Configure the IP address of

the wireless sub interface

router(config-if-dot11radio0.1)#exit Return to the global

configuration mode; up to

now, the WLAN

configuration is complete,

but WLAN should cooperate

with DHCP to complete the

access function, so the

following describe the DHCP

configuration.

router(config)#ip dhcp pool wlan Create the DHCP pool

named wlan

router(dhcp-config)#range 192.168.1.100 192.168.1.200

255.255.255.0 Configure the distributable

IP address pool of DHCP

router(dhcp-config)#default-router 192.168.1.1 Configure the default

gateway distributed by

DHCP

router(dhcp-config)#dns-server 61.139.2.69 Configure the DNS server

distributed by DHCP

MP1800 series Multi-Operation Access Router Datasheet

Maipu Confidential & Proprietary Information Page 37 of 37

Software & Hardware Version

Hardware version: MP1800 SERIES H020

Software version: rp8-i-6.1.XX(RL09-70).bin

Maipu Communication Technology MP1800 Multi-Operation Access Router User Manual

Maipu Communication Technology Co., Ltd Multi-Operation Access Router

Users manual

Navigation menu

Namespaces

Views

Navigation
