Makeblock BLUETOOTH01 Bluetooth Module (Dual Mode) V2.0_a User Manual
Makeblock Co., Ltd. Bluetooth Module (Dual Mode) V2.0_a
User Manual
1
Dual-mode Bluetooth module
Bluetooth Module (Dual Mode) V2.0_a
2
1.Overview
ThismoduleisafullyintegratedBluetoothmodulethatcomplieswithBluetooth4.2dual
modeprotocols(BR/EDR/BLE).ItprovidesseveralinterfacessuchasUART,etc.,whichcan
customizeddifferentapplications.ItsupportsSPP,BLEprofiles.ItintegratesMCU,
Basebandcontroller,RF,etc.inasmallpackage,sothedesignerscanhavebetter
flexibilitiesfortheproductshapes.ItcanbecontrolledbyUARTportorotherinterfaces.
Pleaserefertosoftwaredesignguidefortheinterfacingprotocol.
2. Feature
1．Fully qualified Bluetooth
4.2/4.1/4.0/3.0/2.1/2.0/1.2/1.1
2．Low power
3．Class 2 support(high output power)
4．support classic Bluetooth (BR) and
low- power Bluetooth LE
5．The default UART Baud rate is
115200bps and can support 9600、19200、
38400、57600、115200bps,.
6．UART, data connection interfaces
7．Embedded Bluetooth stack profiles
support(requires no host stack): SPP,
HFP/HSP, A2DP, AVRCP, MAP, and all
BLE protocols.
8．Data Throughput
1Mbps(BR)
24Kbps(LE)
9．Operating Characteristics：
Voltage power supply（3.5V~5.5V）；
Operating temperature （-10 ℃
~70℃）；
10．RF characteristics
Frequency: 2.402 to 2.480GHz
Receiving sensitivity : -90dBm (BR), -
89dBm (LE)
Output Power : 2dBm (BR), 2dBm (LE)
11．Package size
12．15.9mm * 13.7mm * 0.8mm
3.ApplicationFields
Smart Watch and Bluetooth Bracelet
Health & Medical devices
Measurement and monitoring systems
Industrial sensors and controls
robot
Asset tacking
3

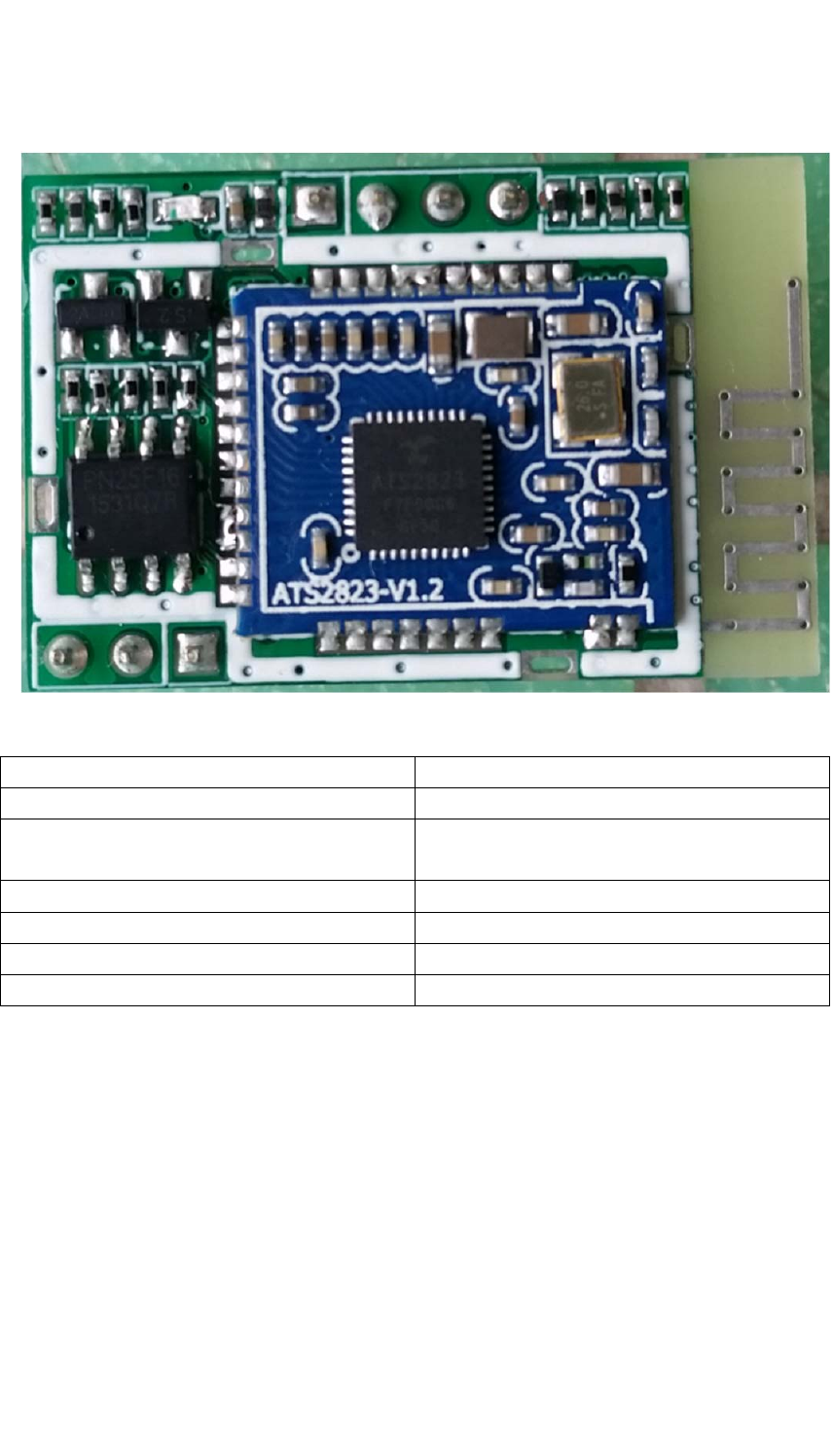

4.Photo of module
5.specifications
OperatingFrequencyBand2.4GHz~2.48GHzunlicensedISMband
BluetoothSpecificationV2.1+EDR/V3.0/V4.0/V4.1(BLE)
BluetoothProtocolA2DP,AVRCP,HFP,SPP
BAS,DIS,FMP,HRP,HRS,HTP,HTS,IAS,LLS
OutputPowerClassClass2
OperatingVoltageCore:1.2V,IO:3.3V,BAT:3.4V~4.2V
Operatingtemperaterange‐10℃~+70℃
ExternalInterfaceUART,SPI,IR,DMIC,SPDIFTX

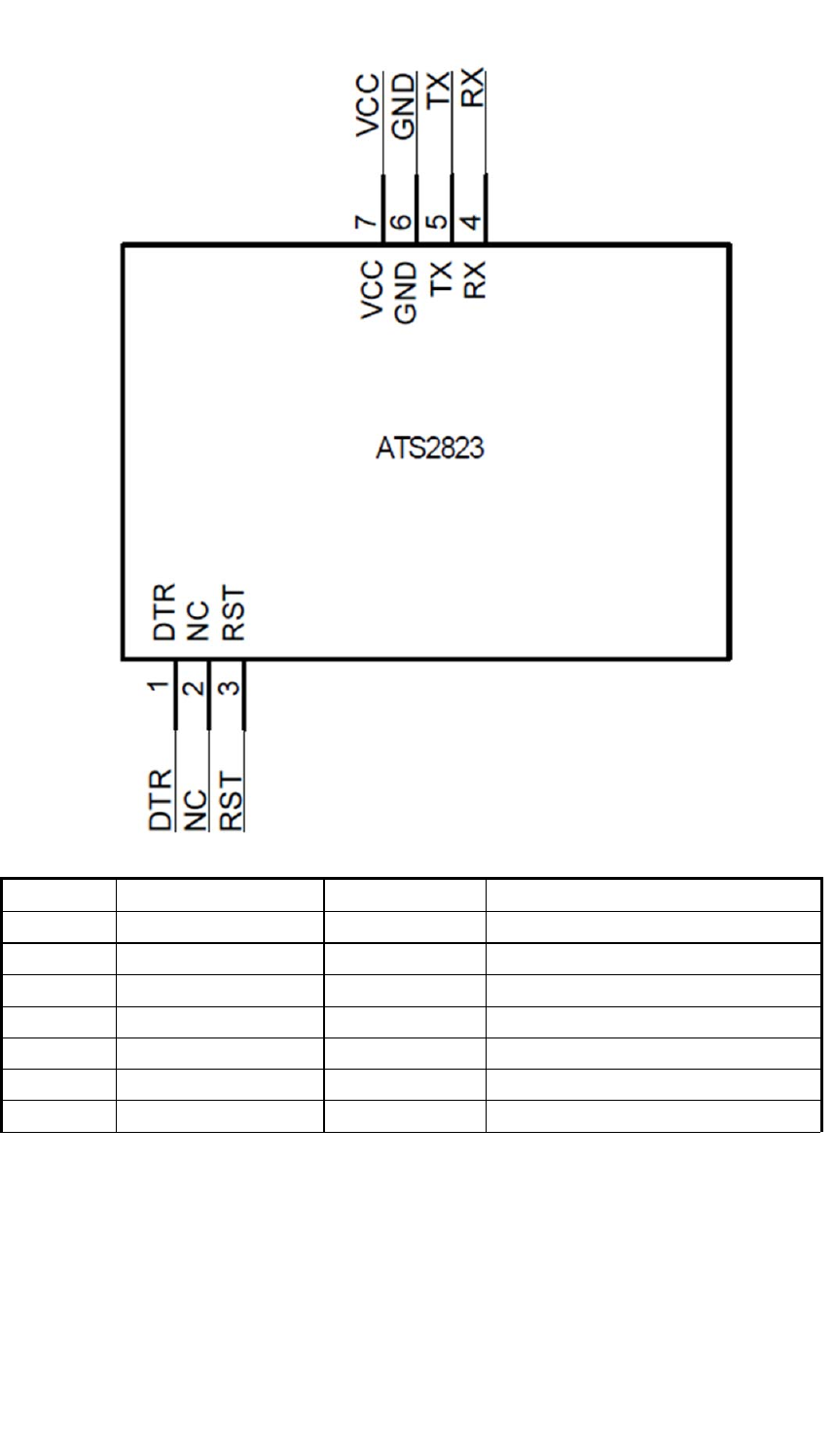

6.Pin definitions
4
PINNO.NAMETYPEFUNCTION
1DTRIOIO
2NCNCNC
3RSTIORESETPINLOWACTIVE
4RXIOUARTRX
5TXIOUARTTX
6GNDPowergroundGND
7VCCPowerVCC
5
7.

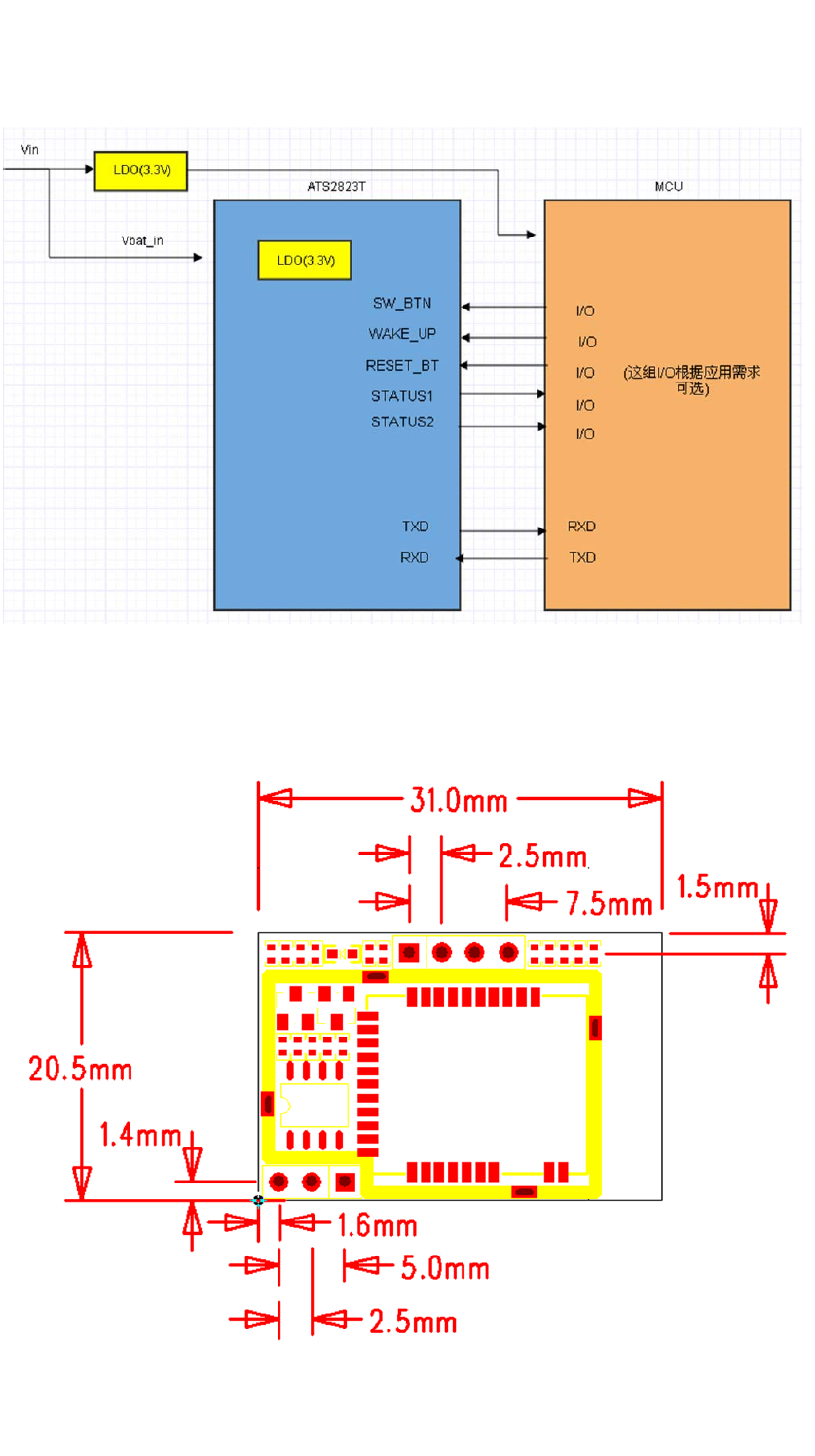

UARTInterface
OperationofUARTUncontrolflow
8.Module Size
TopVIEW
6
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body: Use
only the supplied antenna.
This product should not collocate with other radio.
If the FCC identification number is not visible when the module is installed inside another
device, then the outside of the device into which the module is installed must also display a
label referring to the enclosed module. This exterior label can use wording such as the
following: “Contains Transmitter Module FCC ID: 2AH9Q-BLUETOOTH01” or
“Contains FCC ID: 2AH9Q-BLUETOOTH01”.
The module’s antenna is internal antenna, and the antenna can’t be replaced.
(a)The module should not collocate with other wireless radio
(b) PCB antenna of antenna OEM should be use. Antenna Gain is
0dBi to connect with the antenna seat.
