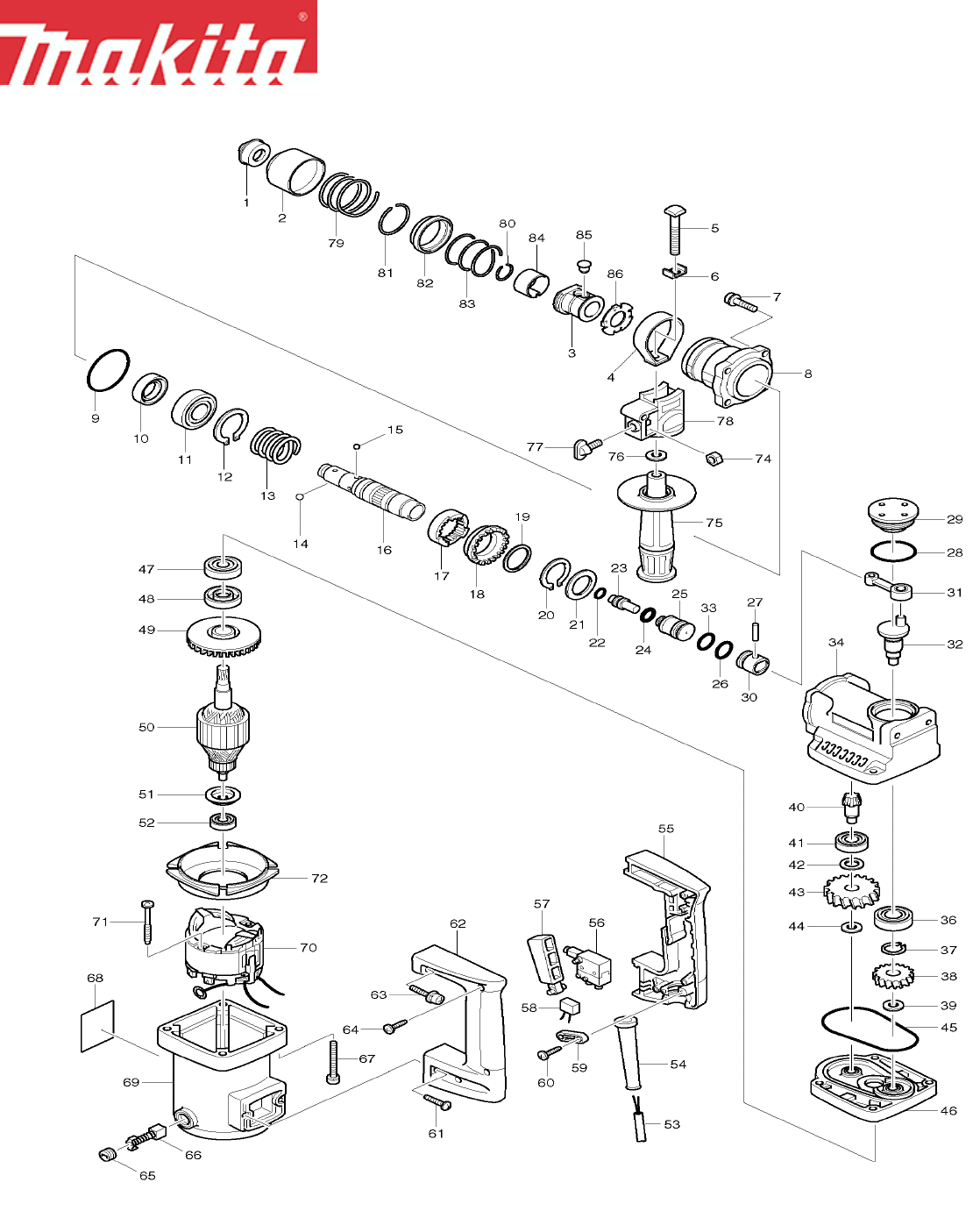

Parts Breakdown HR2010
Page 1 of 3 12/8/2008
Parts Breakdown HR2010
Fig # Part ID Part Name Quantity
Products with multiple versions are listed in subsiding order with the newest version on top not indented
1 286265-0 CAP 31, HR2400,T2 0
1 286248-0 CAP 31, HR2400 T1 0
1 286251-1 CAP 37, HR2410,T2 0
2 416410-5 CHUCK COVER, HR2400 0
2 415076-8 CHANGE RING COVER, HR2400 0
3 323820-8 CHUCK RING, HR2410 0
3 152470-0 CHANGE RING COMPLETE, HR2410 0
4 344205-5 BELT, HR2410 0
5 266092-1 SQUARE BOLT M8X60, HR2410 0
6 267719-6 SQUARE WASHER 9, HR2410 0
7 922231-0 H.S.H. BOLT M5X20, HR2010 0
8 317102-8 BARREL, HR2010 0
8 316781-9 BARREL, HR2010-T1 0
9 213604-1 O RING 50, 6911D 0
10 213313-2 OIL SEAL 20, HR2410 0
11 211304-7 BALL BEARING 6004, HR2010 0
12 961110-7 RETAINING RING S-30, HR2010 0
13 233145-1 COMP. SPRING 31, HR2010 0
14 216022-2 STEEL BALL 7.0, HR2400 0
14 216009-4 STEEL BALL 7.1, HR2400 0
15 216011-7 STEEL BALL 5.6, 6222DWE 0
16 323821-6 TOOL HOLDER, HR2010 0
16 322843-3 TOOL HOLDER, HR2010-T2 0
17 223112-4 CLUTCH CAM, HR2010 0
18 226732-3 SPIRAL BEVEL GEAR 33, HR2010 0
19 267127-1 FLAT WASHER 26, 9046 0
20 961106-8 RETAINING RING S-26, HR2010 0
21 267148-3 FLAT WASHER 23, HR2010 0
22 213063-9 O RING 10, HR2400 0
23 323818-5 IMPACT BOLT, HR2410 0
23 322739-8 IMPACT BOLT, HR2410 0
24 213117-2 O RING 11, HR2410 0
25 322864-5 STRIKER, HR2010 0
26 213172-4 O RING 15, HR2010 0
27 256123-4 PIN 5, HR1821 0
28 213510-0 O RING 36, HR2010 0
29 415902-1 CRANK CAP, HR2010 0
30 316819-0 PISTON, HR2010 0
31 152504-9 CONNECTING ROD CPL.,HR2010 0
32 322842-5 CRANKSHAFT, HR2010 0
33 213172-4 O RING 15, HR2010 0
34 159847-0 CRANK HOUSING CPL.,HR2010 0
36 211204-1 BALL BEARING 6002, HR2511 0
37 961055-9 RETAINING RING S-15, 5057KB 0
38 226458-7 HELICAL GEAR 29, HR2010 0
39 253865-1 F. WASHER 8, HR5000 0
40 226731-5 SPIRAL BEVEL GEAR 9, HR2010 0
41 211104-5 BALL BEARING 6001, HM1303 0
42 253744-3 F. WASHER 12, HR2410 0
43 226459-5 HELICAL GEAR 43, HR2010 0
44 253865-1 F. WASHER 8, HR5000 0
45 213760-7 O RING 78, HR2010 0
46 159846-2 GEAR HOUSING CPL., HR2010 0
47 211064-1 B. BEARING 6000, 2414B 0
48 213112-2 OIL SEAL 12, HR2400 0
49 241879-2 FAN 60, 9046 0
50 516266-7 ARMATURE ASS'Y 115V, HR2010 0
51 681625-5 INS. WASHER, HR2400 0
52 211033-2 B. BEARING 608LB, 5091D 0
54 682567-6 CORD GUARD 8, HM0810B 0
54 682503-2 CORD GUARD 8-90, 9005B 0
55 182816-6 HANDLE SET, HR2010 0
56 651918-4 SWITCH, HR2400 0
57 415903-9 SWITCH LEVER, HR2010 0
Page 2 of 3 12/8/2008
Parts Breakdown HR2010
59 687063-9 STRAIN RELIEF, 4323K 0
60 265995-6 TAPPING SCREW 4X18, 4323K 0
61 266041-8 TAPPING SCREW, FLANGE 5X25, 5177B 0
62 182816-6 HANDLE SET, HR2010 0
63 911243-8 P.H. SCREW M5X25, GA7911 0
64 265995-6 TAPPING SCREW 4X18, 4323K 0
65 643600-9 BRUSH CAP 6-10, 9005B 0
66 181038-5 A.C.CARBON BRUSH CB-105,HM0810B 0
67 922910-0 H.S.H. BOLT M5X45, HR2010 0
68 858055-7 NAME PLATE, HR2010 0
69 159889-4 MOTOR HOUSING CPL., HR2010 0
70 594251-0 FIELD ASS'Y 115V, HR2010 0
71 266046-8 T. SCREW FLANGE PT5X50,HR2010 0
72 415904-7 BAFFLE PLATE, HR2010 0
74 931202-6 HEX NUT M5, HR2410 0
75 152521-9 GRIP 36 CPL., HR2010 0
76 253865-1 F. WASHER 8, HR5000 0
77 265720-5 THUMB SCREW M5X14, HR2410 0
78 415658-6 GRIP BASE, HR2410 0
79 233203-3 COMPRESSION SPRING 38, HR2400 0
80 231979-6 RING SPRING 16, HR2400 0
81 231936-4 RING SPRING 30.5, HR2000 0
82 323819-3 SPRING GUIDE, HR2410 0
83 233234-2 COMP. SPRING 35, HR2410 0
84 232190-3 LEAF SPRING 26, HR2410 0
84 232190-3 LEAF SPRING 26, HR2410 0
85 256447-8 PIN 8, HR2420 0
86 344690-2 GUIDE WASHER, HR2410 0
1001 321144-6 STOPPER POLE, HR2400 0
1002 824464-2 PLASTIC CARRYING CASE, HR2010 0
1003 421342-3 DUST CUP 5, HR2450F 0
5001 810134-9 CAUTION LABEL, 3709 0
Page 3 of 3 12/8/2008
