Instructions

Congratulations on your purchase of the Mamiya 645 PRO

Mamiya pioneered the 6x4.5 film format and introduced the world’s first 645

SLR in 1975. The 645 PRO is the latest masterpiece in this series and

incorporates all the latest mechanical, electronic and optical advances. Its

external appearance, too, has been modernized and its ergonomic design

further enhanced.

We are sure that you will enjoy the many advantages this camera and its

accessories offer and want to particularly mention:

The 645 PRO has a built-in self-timer (delayed shutter release) which will also

facilitate time exposures. Attaching special leaf shutter lenses will automati-

cally set the focal plane shutter to

1/8

sec. Heavy duty gears connect to the

improved Power Drive Grip WG401. This grip also

automatically cocks the lea

shutter lenses and permits remote control.

The AE Prism Finder FE401, specially created for this camera, automates

exposure and shows LED safety signals. 35mm film holders now come with

panoramic adapters. A super fast 300mm f/2.8 APO lens was also designed

for this camera.

We are convinced that your camera will serve you well, because we have

designed it for heavy professional use. However, we ask you to please read

all operating instructions carefully before you put your equipment to work, in

order to ensure proper operation and maximum results.

This manual covers the

basic camera. Sepa-

rate instructions are

supplied with all sys-

tem accessories, in-

cluding lenses,finders,

film holders, etc.

For additional informa-

tion please feel free to

contact your author-

ized Mamiya dealer or

the Mamiya importer in

your country.

Special Features of Mamiya 645PRO....................3

Names and Function of Parts..................................7

Attaching and Removing Lenses

.........................10

Attaching and Removing Roll Film Holders

........

.11

Attaching

andRemoving

Viewfinders.................12

Attaching and Removing the Film Advance

Crank.........................................................................13

Inserting

Battery andBatteryCheck ........

...............14

Shutter Release Selector.......................................16

A Trial Familiarization Test ...................................17

Film Loading...........................................................18

Advancing Film to the First Exposure.................21

Aperture

Ring/Stop-downOperation

...................23

Focusing

................................................................ .24

Depth-of-field

..........................................................25

FilmTransport andFilmUnloading

.................... .26

Using the Self-timer/Delayed Shutter Release.

..2 7

Multiple Exposures

................................................27

TimeExposures

.....................................................28

MirrorLock-upPhotography

................................29

Infrared Photography............................................30

Using Flash

............................................................

.31

Using a Tripod

........................................................32

Holding the Camera Steady and Securely...........33

Attaching andRemoving the Neck Strap

............34

Specifications

.........................................................35

Trouble Shooting

...................................................37

Basic Accessories

.................................................39

System Chart.........................................................

.41

StoringandChecking

the

Camera

.......................42

Features and specifications subject to change without notice.

3 x More Negative Area Than the 35mm Format

Plus

Superior Image

Quality

From Mamiya World-

Class Lenses

The

6x4.5cm

format offers approx. 3 times more image

area than the 35mm

(24x36mm)

format, Man’s vision is

horizontal and rectangular.

Film Holders are rectangular and so are most pictures in

them. The

6x4.5 format

is also large enough to be viewed

without a magnifier and its aspect ratio (horizontal

vertical)

is ideal, requiring minimum cropping. Mamiya’s high

performance medium format lenses assure sharpness

and beautiful color fidelity.

Sturdy, Versatile, Safe and Highly Reliable Body

Tailored to Satisfy Pro Needs

Introduced in 1975 to not only provide an alternative to

the 35mm format, but to afford the user with advanced

versatility given its much larger format, the Mamiya 645

Series is constantly being upgraded. Elements such as

speed and handling plus a host of other special features

have been enhanced to satisfy the needs of most de-

manding professionals.

Two new convenient safety features have been added to

the 645 PRO in the form of state-of-the-art optoelectronics

which immediately identifies problems with the shutter

(i.e. when it will not release) when the AE Prism Finder

FE401 is used. Whether these malfunctions develop from

failure to draw out the Dark Slide, or if there are problems

in film take-up, the LED will indicate the source of the

trouble. With these new advancements, Mamiya believes

the most demanding pro will be more than satisfied with

the new edition 645.

Enhanced Interchangeable Roll Film Holder System

Enables Polaroid and Even 35mm Panoramic

Photography

The 645 PRO features an interchangeable film holder

system capable of using a far wider range of roll film

holders than before. Depending on the application, the

system can be quickly attached to or detached from the

camera, ensuring the ability to catch even fast changing

scenes. It also features fail-safe devices including, for

example, one that warns when you have failed to take out

the dark slide when the AE Prism Finder FE401 is being

used.

Interchangeable Viewfinders

1. AE Prism Finder FE401

The AE (automatic exposure) Prism Finder FE401 fea-

tures three modes of TTL metering, including automatic

switching from center-weighted averaging to spot me-

tering. It also has a

+/-3EV

exposure compensation ad-

justment.

2. Prism Finder

PF401

The Prism Finder

PF401

is without metering electronics

and designed for manual photography mode. Both Prism

Finders show an unreversed, upright image and are ideal

for eyelevel photography.

3. Waist Level Finder N

The Waist level Finder N is desirable for low angle

photography and particularly for horizontal composition.

A self erecting hood with built-in magnifier shields

groundglass from all ambient light. A built-in sportsfinder

permits eyelevel viewing and is ideal for action photog-

raphy.

Bright, Dynamic Images Visible on the Focusing

Screen

5 Selectable Types Available

The 645

PRO can reproduce bright, dynamic and sharp

images on the focusing screen, enabling optimum com-

position to be obtained according to the photographic

purpose. In addition, the 645 PRO greatly enhances

focusing.

5 types of focusing screens are available to facilitate

photographing a wide variety of subjects.

A Comprehensive Series of Interchangeable Lenses

- Sharp Images and Outstanding Color Balance -

There are an amazing variety of interchangeable lenses

in the PRO 6 x 4.5 format series. Mamiya has concen-

trated an all-out effort on the systematic production of

lenses in an effort to satisfy a multitude of needs. All

lenses are multi-coated to eliminate flare and ghosting

even under the most adverse light conditions. While the

series now also features three leaf shutter lenses, all

lenses exhibit the utmost in color balance, high

resolu-

tion and crystal clear definition. A feature lens is the new

300mm f/2.8 APO lens which eliminates chromatic aber-

ration and produces photos with the sharpest definition.

Given the wide variety of lenses in the 645 PRO Series,

they greatly expand the world of images that are possible.

Auto winding with the Power Drive Grip WG401

This Power Drive Grip WG401 has been specially de-

signed for heavy duty, motorized operation with the 645

PRO. It also permits automatic shutter cocking of the leaf

shutter lenses and can be remote controlled. Another

feature, not available previously is the following:

When attaching a partially exposed film holder (in which

the film has not been advanced to a new frame), to the

645 PRO equipped with the Power Drive Grip WG401, a

built-in camera mechanism will automatically advance

the film to the next frame, when the shutter release is

activated, either on the camera body or on the Power

Drive Grip WG401.

New Automatic Leaf Shutter Lenses for added

versatility.

55mm (Wide Angle), 80mm (Standard) 150mm

(Telephoto) lenses

These

lenses are all in Seiko #0 shutter, offer the advan-

tages of syncroflash photography at all shutter speeds

30,

1/60,

1/125,1/250 and

1/500sec.

The optional Power

Drive Grip WG401 will automatically cock the shutters as

it transports the film and moves the mirror.

The camera’s focal plane shutter must be set at 1/8 sec.

for leaf shutter mode operation. The leaf shutter lenses

can do it automatically.

A Broad Accessory System

For Specialized Applications

A useful accessory system to serve the specialized

needs of the photographer. It includes Auto Bellows and

Auto Extension Rings for close-up and copying work;

Infrared Remote Control for studio and nature photogra-

phy; External Battery Case for operating in cold sur-

roundings; Camera Grips for convenient holding and

more.

Other Features

After focusing, the

Mirror

can be locked up before making

an exposure. This is convenient when the camera is used

at slow shutter speeds and is mounted on a tripod for

telephotography, copy work, etc., since even

a very

small

amount of vibrations should be eliminated.

<Self-timer>

Self-timer for delayed shutter release. When activated it

will light a red pilot lamp in the front of the camera for eightlamamp in the front

seconds and will blink for two seconds before triggering

the shutter.

Time exposures are made by utilizing the Self-timer and

the “B” shutter setting. A new power saving circuit design

switches the battery off and extends is life.

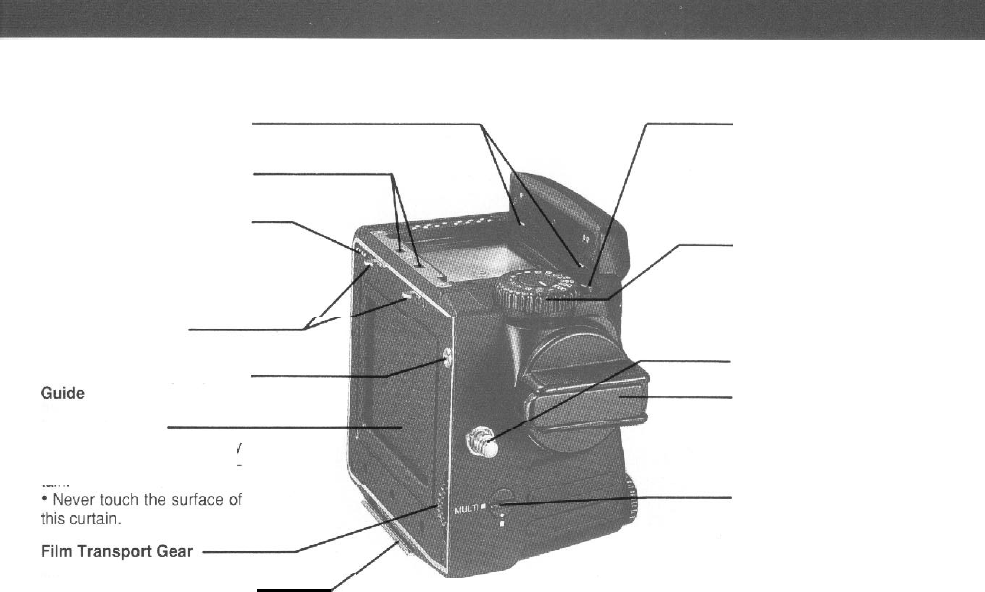

Focusing Screen

13 Gold Plated Contacts

These contacts interface the

Aperture Ring Couping Pin

This

is fitted into the

Ex-

posure

Meter Coupler of the

lens, to

transmit the aperture

data

the AE Prism Finder.

AEPrism

Finder with the ISO

dial on the film holder and

the shutter speeds.

Hot-shoe (X contact)

cordless flash can be used

Battery Check Lamp

Focusing Screen Release Pin

When

you

want to change

the screen. slide this pin to

the left and

remove

the

screen.

with

this

shoe.

Lens Release Button

collar is turned to the

red dot.

Auxiliary Release Contact

When the cover is moved to

the left. the contact appears.

This contact is used for

con-

nections of external

releases

such as a special hand

grip

and remote control unit.

Mirror

Never touch the surface of

the mirror.

Battery Check Button

LED displays the present

battery condition.

Finder Coupling Panel (Front)

Finder

Coupling

Panel (Rear)

Electric Contact for Film

Holder

This contact receives film

sensitivity data from the film

holder.

Film Holder Mount

Film Holder Coupling

Shutter Curtain

Exposures are controlled by

opening and closing the cur-

tain

Film Holder Mounting

Bracket

Shutter Speed Dial Lock

Release Button

This

button is used for un-

locking the Shutter Speed

Dial from an AE position.

Shutter Speed Dial

This

dial

selects the shutter

speed, and switches the op-

eration mode from AE

manual photography.

Neck Strap Lug

Film Advance Crank

Single complete turn cocks

the shutter and advances the

film for each exposure.

Multiple Exposure Lever

When this lever is set at

“MULTI”, film

is not advanced

even

when the Film Advance

Crank

turned.

thus

allow-

ing multiple exposures on the

same film frame.

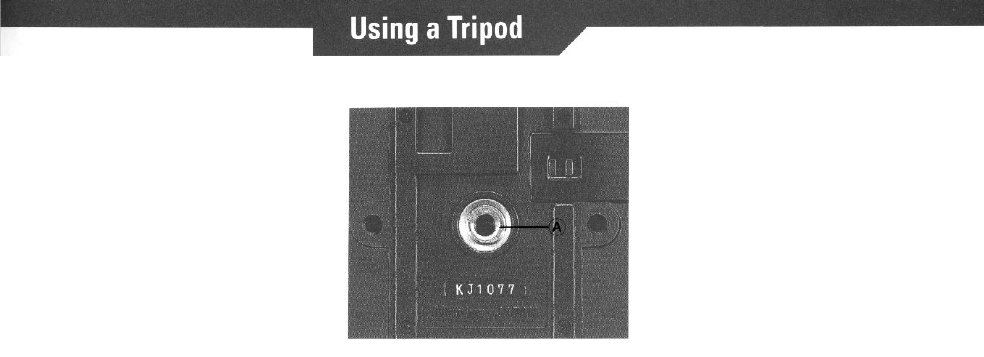

Tripod Socket

1/4" tripod socket. To con-

vert to a 3/8" socket, remove

the small screw in the base of

the socket. Then remove the

bushing. See page 32.

Distance Scale

The camera to subject dis-

tance can be set or confirmed

with this scale.

Lens Alignment Dot

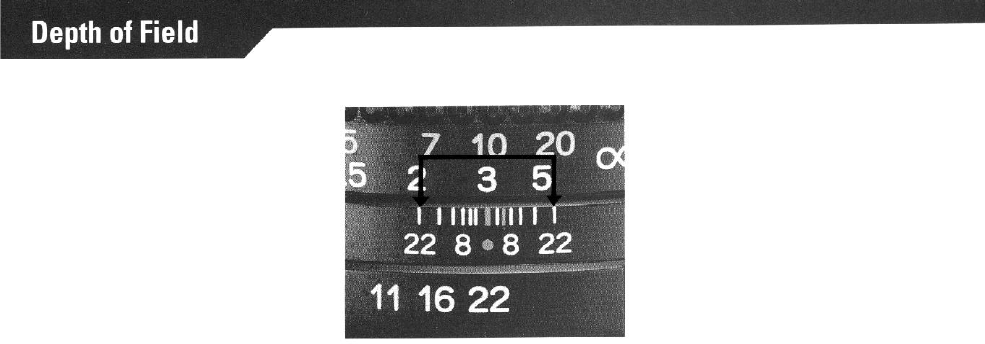

Depth-of-field Scale

Provides a quick reading of

depth-of-field for various ap-

ertures and distances.

Exposure Meter Coupler

This coupler is engaged with

the Aperture Ring Coupling

Pin, transmitting diaphragm

information to the AE Prism

Finder.

Battery Chamber Cover

Latch

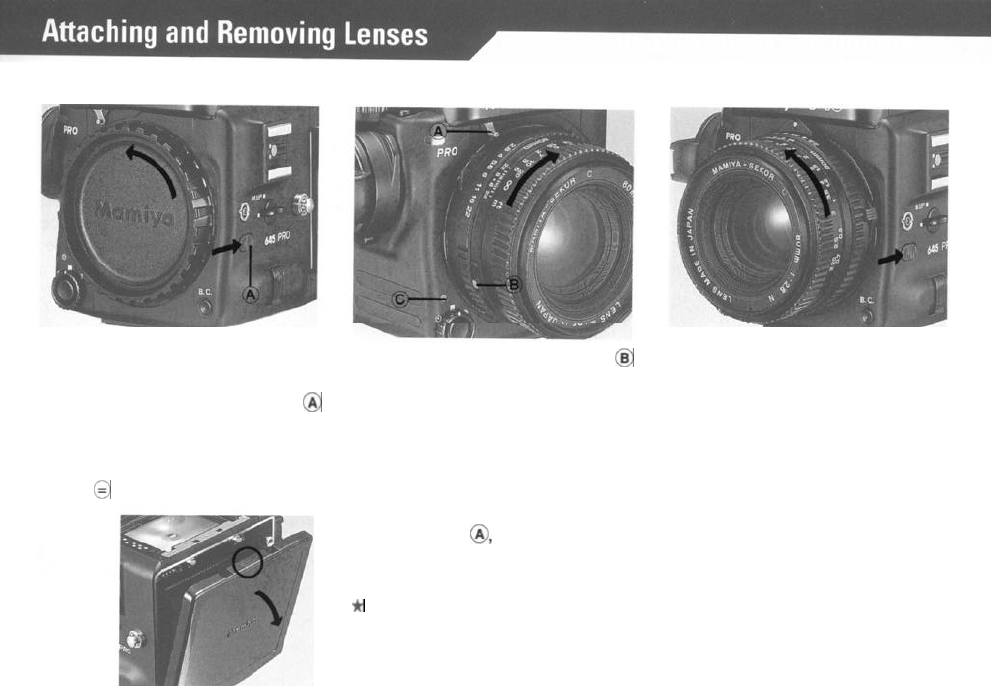

Removing the Front Body Cap and

Rear Cover Attaching the Lens Removing the Lens.

First remove the Front Body Cap in

the direction of the arrow, while

pushing the Lens Release Button

backwards as indicated by arrow.

Rear Body Protective Cover can be

readily removed by depressing the

part

as shown in the illustration.

Line up red Lens Alignment Dot

against red camera Alignment Dot

camera body. Then turn the lens

clock wise, as indicated by arrow,

until it clicks into place. Make sure

that the Aperture Ring Coupler Pin

is engaged with the Exposure Meter

Coupling Pin

which sticks out

under the

Mamiya name plate of the

camera.

While pushing lens release button back-

wards, turn lens counterclockwise.

(Same procedure as removing

body

cap).

When the Aperture Ring Coupler Pin is engaged

by the exposure meter coupling pin lever, F/stop

data is conveyed to the AE Prism Finder.

Attaching the Roll Film Holder Removing the Roll Film Holder

Remove the Roll Film Holder

Cover.

1. While spanning the Roll Film Holder

between your thumb and middle fin-

ger, holding it on the rubberized fin-

ger rests, carefully align its Film

Holder Mounting Bracket with the

corresponding center clip of the

camera body.

2. While keeping this alignment, press

the upper part of the Roll Film Holder

against the camera body, so that it

clicks into place by engaging the

spring loaded twin camera catch.

1. Insert the Dark slide

into

the slot

marked by White Lines on the side

of the holder.

2. Push the lower one of the Film

Holder Detaching Lock Release

Button (A) downward, while simulta-

neously pushing the Film Holder

Detaching Button

inward.

If the

Dark

Slide is not inserted,

the safety lock will prevent the

holder from being removed.

The Dark Slide can be inserted

in the Roll Film Holder up to the

Green Line, marked on the slide,

without affecting the image.

Green Line

Attaching the Finder. Removing the Finder

The same procedure applies to all

finders. The illustrations shows

the AE Prism Finder

FF401.

Lift the Upper Cover from the camera

body.

Insert the Attaching Latches (A) of the

finder into the Finder Coupling Panel

(B) in the front wall of the body. Press

the finder down until the rear latch

locks securely in place.

Spanning

the finder with your fin-

gers, push the button on its right side

marked with a downward pointing

arrowQ,downward,

while pushing

the other button, on the left

side@,

inward.

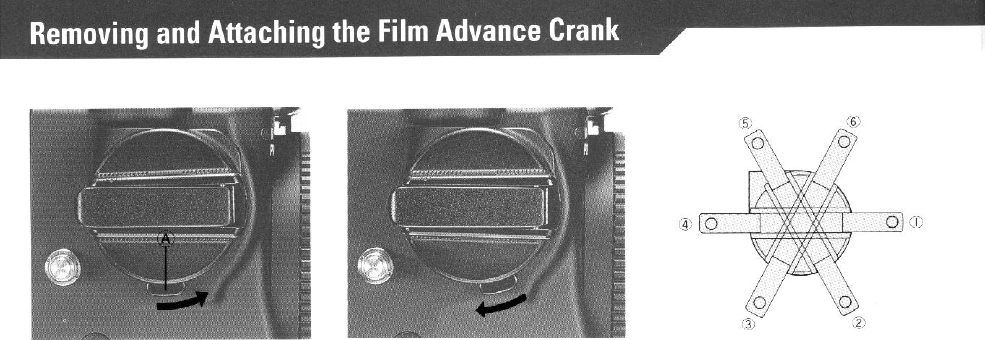

Removing the Crank

Push

the

lock Lever (A) on its bottom

in a forward direction as far as

will

go (see illustration).

Attaching the Crank

With the flat part, having a White You may choose six different crank

Index Line, on top, line the Crank up starting positions to suit

your

prefer-

against its mounting plate on the side ence.

The orientation of the crank

of the body and push Film Advance proper against its base, before it is

Crank Lock Lever backward. attached to the camera, will be

maintained when the entire assem-

bly is locked into place.

Inserting the Battery The camera will not function without a battery

The camera will not function with-

out a battery

With your fingernail, pull the Battery

Chamber Cover latch,

on the bottom

of the camera body, as indicated by

the arrow in the illustration. Lift the

cover off. The camera requires a 6V

alkaline, silver oxide or lithium bat-

tery. It is a good idea to wipe the

battery terminals before insertion to

assure proper contact. Observe po-

larity. + position is marked in battery

cavity.

InserttheOsidefirstatasteep

angle and then push entire battery

into place, making sure that the lift

ribbon wraps around battery. Close

cover by inserting twin-prong end first

and pushing it down.

Be particularly careful not to let

the lift ribbon cover

theOterminal.

Checking Battery

Press Battery Check Button “B.C.”

(A) on lower front of the camera.

Battery Check Lamp (B) on top op-

posite side should light. Bright light

indicates good condition. Blinking

light means replace battery. No light

means battery is dead or improperly

inserted.

Important:

The sealed, new battery which is

supplied with this camera may have

been subject to storage conditions

which have reduced its service life.

Therefore it is desirable to replace it

with a fresh battery as soon

pos-

sible.

2. Carefully wipe the battery con-

tacts before inserting into the cham-

ber. Failure to do so may result in

poor electrical contact and conse-

quent malfunctioning of the camera.

3. Always remove battery when

camera is not used for a while. Al-

ways carry spare batteries.

4. Battery life differs, depending on

type, age, storage condition, ambient

temperature, frequency of

use

etc.

Battery strength will be indicated

by whether the light:

Glows . . .

..Battery

strength is suf-

ficient.

Blinks

. . . ..

Battery

capacity has

dropped below the al-

lowable level. (Replace

the battery.)

Does not light

. . . . ..

The

camera

will not work. (Replace

the battery.)

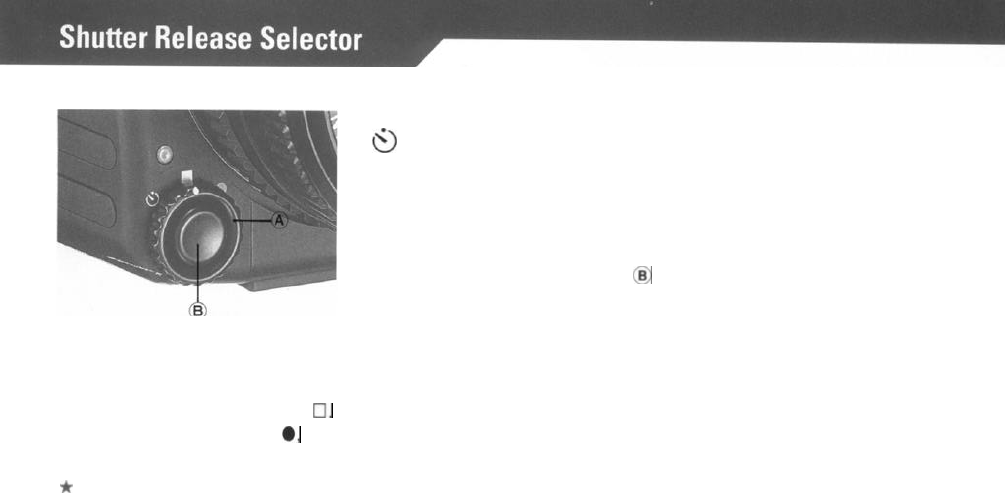

For normal operation set the White

Dot of the Shutter Release Selector

(A) against the White Square Dot

Cl.

When set to the Red Dot

the

Release Button is locked.

Select this mode if the camera

will be idle for a period and to

prevent accidental shutter re-

lease. Also when the Power Drive

Grip is used.

When set to the yellow clock symbol

the self-timer is operative. See

page 27 and 28 for further instruc-

tions.

Operating

the shutter

Release

Button

1. The Shutter Release Button

functions in two steps. Gentle pres-

sure will light the metering informa-

tion display if the AE Prism Finder is

used. Continued pressure will re-

lease the electromagnetic shutter.

2. If the film is not completely ad-

vanced, if the Dark Slide is not with-

drawn or if the battery is dead, the

shutter will not function, even when

the Shutter Release Button is

pressed. This will also be the case if

the Shutter Speed Dial is set to “A”

“AEL”

when the AE Prism Finder

is not attached.

3. After releasing the shutter, the

Film Advance Crank will automati-

cally unlock and be ready to advance

the film.

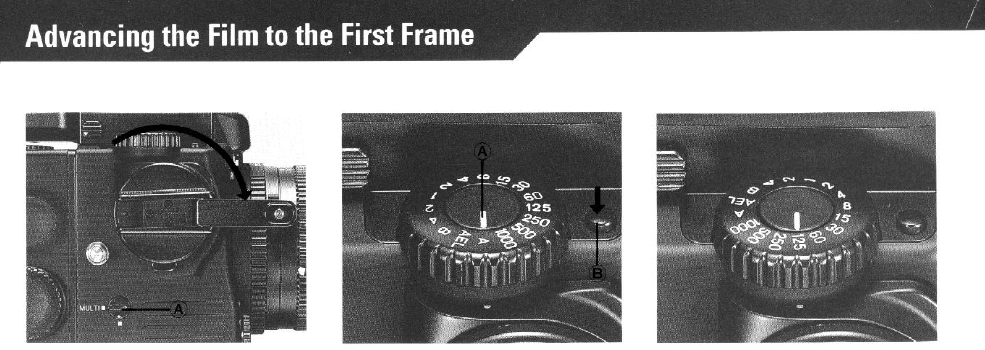

1. Attach the Roll Film

Holder to the camera body.

2. Pull out the Dark Slide

and place it into its Storage

Slot.

3. Set the Shutter Speed

Dial to any other position

than ”A” or ”AEL”.

When the

AE Prism Finder is not

mounted on the camera, the

shutter will not release if the

Shutter Speed Dial is in the

“A” or

“AEL”

position.

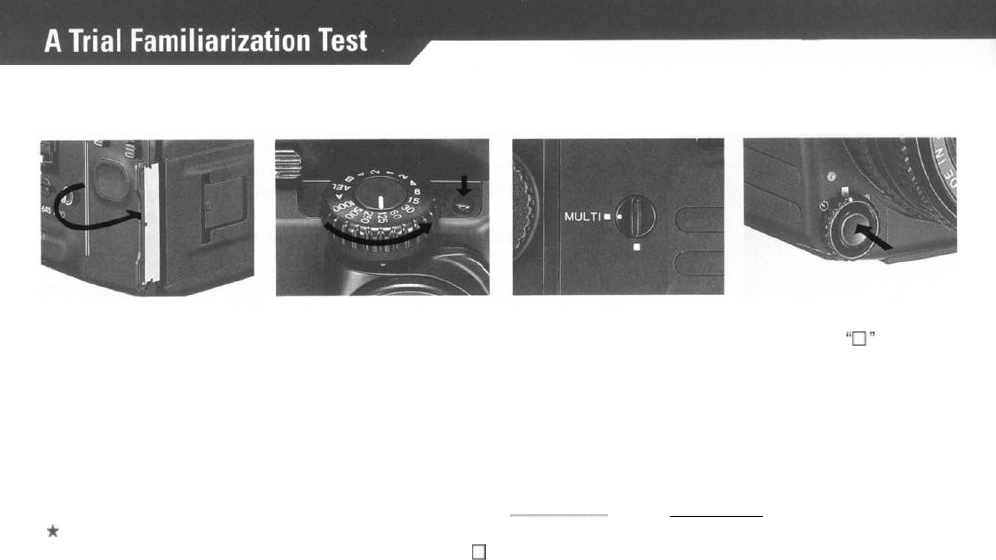

When only the body is tested, the familiarization

checkout can be made either in the “MULTI” or

(normal mode).

4. Set the Multiple Expo-

sure Lever on the body to

the “MULTI” position.

5. Set the Shutter Release

Selector to

“0”

(normal

mode), and press the Shut-

ter Release Button.

6. After the shutter has been

released, advance the Film

Advance Crank one com-

plete revolution and the next

frame will be ready.

____~~~

The empty film spool included with the film holder

supplied with a vinyl tube. When placed in the take-up

compartment it engages the film sensor and makes

the holder function as if it is loaded with film. Please

remove the tube after your test.

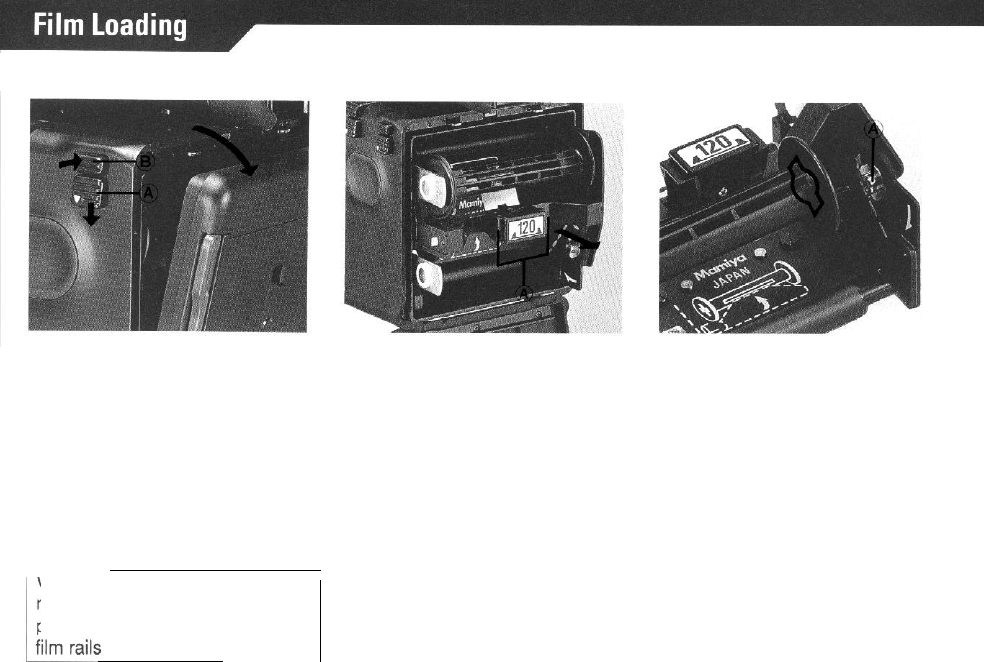

1. While pushing the Back Cover

Lock Release Button (A) downward,

press the Back Cover Opening

But-

ton, and the Back Cover will open.

When you load film

for

the first time,

remove

and discard the protective

paper cover which is attached to the

in the

roll

film holder.

2. While squeezing in on both sides

of the Release Latch

(A)

pull the Roll

Film Insert out of the camera body.

At that time,

move

the empty spool

in the upper part down to the lower

spood

compartment.

Align

the right-hand side of this

empty spool with the lower Spool

Stud (A) (convex). Slide the spool

into position making sure that the

left-side of the spool is properly held

by the Spool Clip.

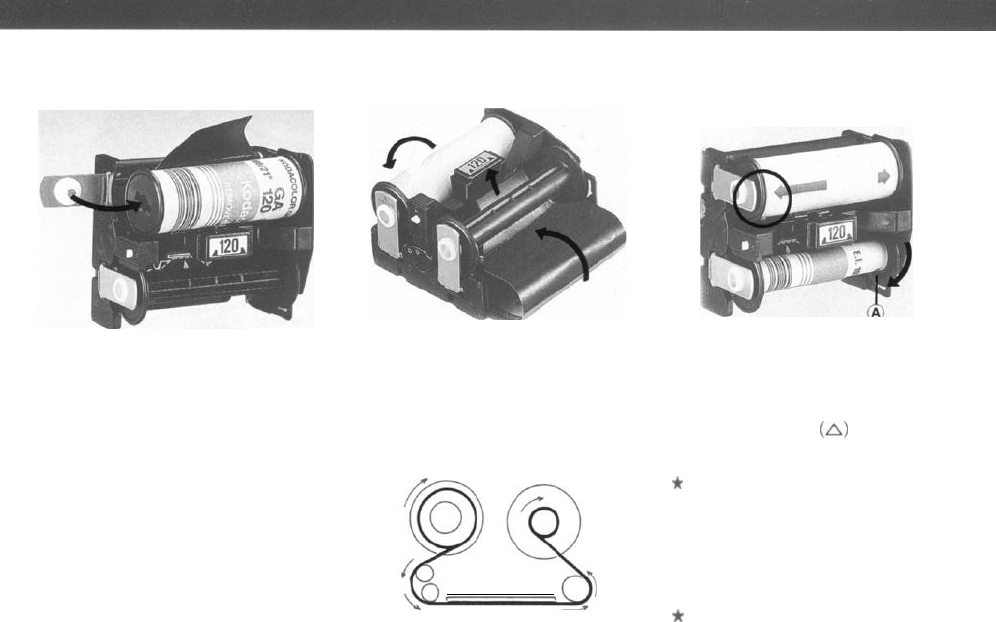

4. In the same manner, insert a roll

of film in the upper compartment. At

that time, check that the film leader

paper is set as shown in the photo

above. (The leader paper inside is

facing outward on the pressure plate.

Note that the film direction is wrong if

the leader paper is facing inward.)

5. Pull out some of the leader paper.

Insert the tip of the leader paper into

the slot of the lower Take-up Spool.

Gently rotate the take-up spool as

shown in the photo until the start

mark on the leader paper is aligned

with the start mark

(A)

on the spool

clip.

Correctly align the start marks

with each other, making sure that

the film feeds properly. When

im-

proper

feeding occurs, the proper

number of exposures may not be

taken.

Avoid exposing the film to di-

rect sunlight when inserting or

removing film.

Inserting the Roll Film Insert

Insert

the loaded Roll

Film

Insert

into the holder, the

film

roll on top,

while squeezing on both sides of the

Release Latch (A) as shown in illus-

tration. Make sure that is been

properly seated and is locked in

place. Then close cover by firmly

pressing its top against the Roll Film

Holder.

To close the Back Cover, firmly

press the top of the

back cover on

both sides.

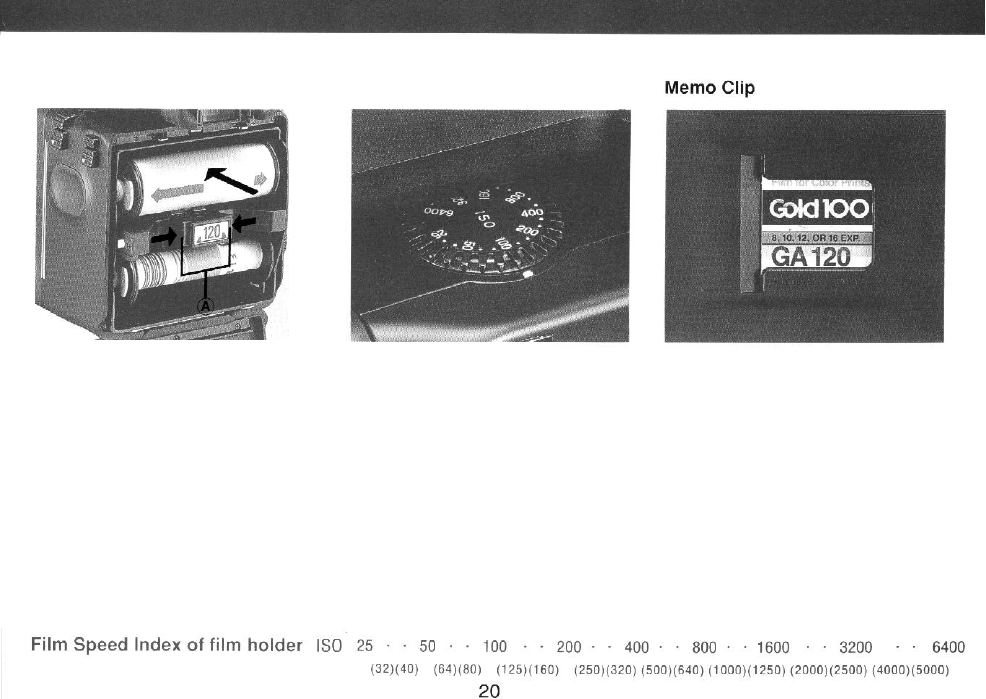

Film Speed

(ISO)

Dial

Each film holder has this important

feature. It electronically interfaces

the film holder with the AE Prism

Finder, the focal plane shutter and

the lens diaphragm, for exposure

automation.

This eliminates the need of having

to manually reset the meter, every

time you change film holders loaded

with different films. Therefore make

it a routine to always set this dial

with the speed of the loaded film.

The Memo Clip on the back of the

Roll Film Holder Cover accepts the

box top of the film carton and can

also be used for other reminders.

Color Codes

Attach the loaded Roll Film Holder

to the camera. Remove Dark Slide

and store it. Turn the Multiple Expo-

sure Lever (A) to its normal position,

White Dot against White Square.

Turn the Film Advance Crank until it

stops. The number “1” will now ap-

pear in the Film Counter Window.

The Focal Plane Shutter and Mirror

are now cocked and the camera is

ready for the first exposure.

Set the desired shutter speed against

the white index line (A) on the Shutter

Speed Dial.

At the "A" and

"AEL"

settings, the

ShutterSpeed Dial is locked between

these two positions.

2. To release this lock, turn the Shut-

ter Speed Dial while pushing the

Lock Release Button (B).

3. At all other settings the dial can be

rotated freely and each speed

number will click into place.

1. full seconds. All other numbers

are fractional seconds.

(i.e.

30 = 1/

30 sec.)

2. The yellow B indicates Bulb. At

thissettingtheshutterremainsopen

as long as the release is pressed.

3. The red 60 (1160 sec.) reminds

you that it is the fastest permissible

shutter speed setting when using

electronic flash.

“A

and

“AEL”

explained

“A

(auto exposure) and

“AEL”

(auto

exposure lock) setting

must

only be

used when the AE

Prism

Finder is

attached to camera.

it is not attached and the dial is

set to either of these positions, the

shutter release will not work.

2. If it is not attached and the

Self-

Timer is activated, the Pilot Lamp

will

Iight for 10 seconds

but the shut-

ter will again not release.

If the Shutter Speed Dial is set

be-

tween click stops either the

higher or

lower exposure speed may result.

Set the desired f/stop on the Aper-

ture Ring (A) by aligning the f/number

with the red reference dot

(B)

in the

center of the Scale Ring. The Aper-

ture Ring has a click stop for each

stop. In-between clicks can also be

used.

The effect the set f/stop will have

upon the picture area can be con-

firmed on the Finder Screen.

Move the AM Lever on the lens so

that “M” becomes visible - the lens

then can be stopped down to the

preselected aperture.

position “A”, the lens is al-

ways stopped down only when

the shutter is being released with

the aperture being open.

During normal photography,

set the AM Lever so that “A” is

visible. At

“M”,

focusing will be a

little difficult.

* When using the AE Prism

Finder, be sure to set the AM Le-

ver on “A”; otherwise, correct

exposure cannot be obtained.

*When aperture has been con-

firmed, be sure to reset the AM

Lever to “A”.

See “Depth-of-field” on page 25.

While looking through the viewfinder,

turn the lens Focusing Ring until the

most important subject part appears

sharp and clear.

Focusing with the Standard Focusing Screen N Type E

The camera comes equipped with

a bright, Type E, RangefinderlMi-

cro-prism Focusing Screen. It fea-

tures a center, split-image

range-

finder spot and the subject is in

sharp focus when the split images

combine into one.

2. The microprism ring around the

split-image center further facilitates

focusing. The microprisms disap-

pear only when the subject is in

sharp focus.

The rest of the ground glass area

can also be used for focusing.

Interchangeable Focusing

Screens

There are four additional focus-

ing screens available for special-

ized applications. They are easy

to interchange and come with in-

structions.

Reading the Depth of Field Scale

Depth of field is defined as the zone

of sharpness before and behind the

plane of focus. It depends on cam-

era subject/distance, focal length of

lens, aperture setting and distance

the lens is focused at.

addition

to visual observation, the

Depth of Field can be determined by

using the Depth of Field Scale on

each lens. f/stop numbers appear

on both the right and left side of the

red index mark in the center of the

scale ring. Simply read the figures

which appear above the f/stop num-

bers on the distance scale of the

Iens.

For example, with the

80mm

f/2.8N

lens focused at 3m and the aperture

set at f/22, the depth of field scale

indicates that the

zone

of sharp

fo-

cus will extend from

about 2m to 6m.

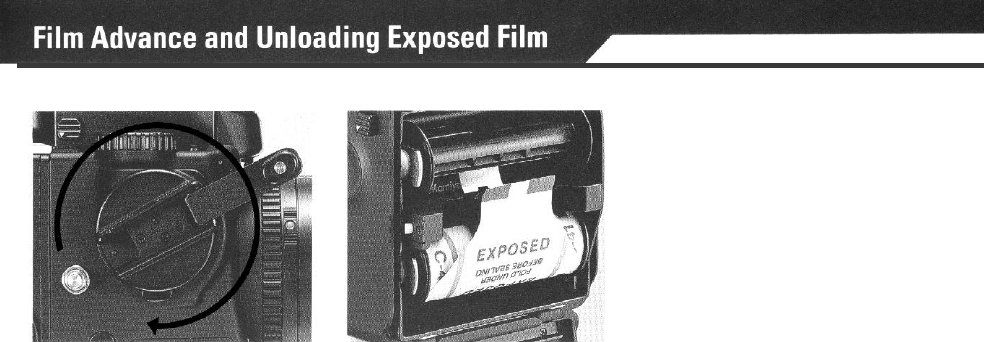

Giving the Film Advance Crank

one complete turn, will cock the

shutter and mirror and ready the

camera for the next exposure.

2. When the film is completely ex-

posed (15 exposures on

120, 30

220 film), the crank stop will disen-

gage. Continue turning until the pa-

per trailer is completely wound onto

the take-up spool. (About five turns

after

the

last exposure.)

Move the empty spool from the

top to the lower (take-up) com-

partment, ready for loading the

next film roll.

Never load, unload or handle

film in direct sunlight.

3. Open the Back Cover. and

re-

move the

Roll

Film

Insert. The Expo-

sure Counter will return to

(start)

automatically.

4. Pull the Spool Clip on the roll film

insert out to remove the film.

5. Remove the film from the roll film

insert;

make sure that the film on the

roll does not loosen, and seal imme-

diately.

To use the Self-Timer, set the Shut-

ter Release Selector to

and press

the Shutter Release Button. The

Battery Check Lamp will light for 8

seconds and blink for 2 seconds,

whereupon the shutter will go off.

After using the self-timer mode,

be sure to return the Shutter

Re-

lease Selector to the White

Square. (Normal mode.)

To override the self-timer, after

having pressed the release, move

the selector back to the white

square.

*The Self-Timer can also be

overridden by inserting the Dark

Slide into the Film Holder or set-

ting the camera Shutter Speed

Dial to “B”.

Aligning the white dot of the Multiple

Exposure Lever with the yellow

“MULTI” square, disengages the

multiple exposure prevention

mechanism, and the film will not

advance after an exposure is made

and the Film Advance Crank is

turned. However, the shutter will be

recocked,

thus making multiple ex-

posures possible. In this mode the

Exposure Counter will not advance.

To override the multiple expo-

sure mode or to return to normal

operation, be sure to return the

lever’s

White Dot against the white

squareandthenadvancethefilm.

(If you forget you will continue to

make multiple exposures on the

same frame.)

For time exposures set the Shutter

Release Selector to

the self-

timer mode, and set the Shutter

Speed Dial to “B”. Press the shutter

release and both mirror and shutter

will stay open until the shutter re-

lease is pressed again. You may

also use a cable release together

with the cable release adapter. (The

battery circuit will automatically

switch off to save power.)

“B” can be terminated by shift-

ing the Shutter Release Selector

from

or the Shutter Speed

Dial from

“B”.

This is an important feature when

the tripod mounted camera is used

at slow or long exposure times and

particularly also with use of long

telephoto lenses. It eliminates the

possibility

even

the slightest “mir-

ror

bounce ”which may affect image

sharpness.

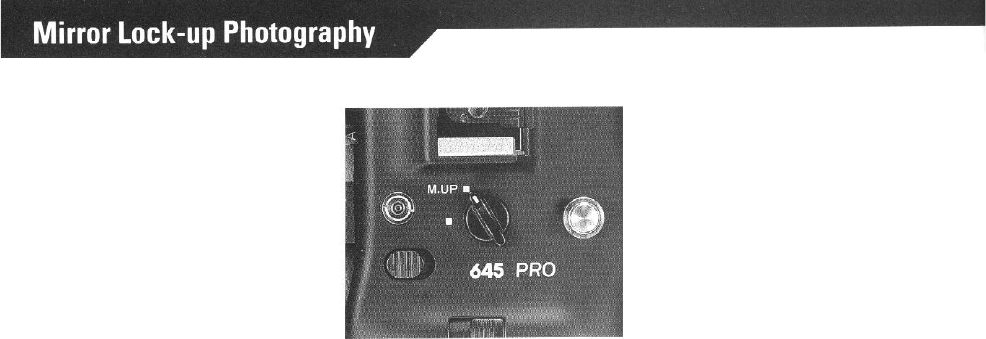

Move the Mirror-up Lever to the

yellow "M.UP" square, after you have

composed and focused your pic-

ture. This will raise the mirror and

the viewfinder image will be blacked

out.

After use,

return

lever

normal

(white square) position.

When using the AE Prism

Finder, set the Shutter Speed Dial

to “AEL”. Press the shutter re-

lease halfway and then lock the

mirror up. If set to “A” and the

mirror is locked up, “LT” (long

time) will appear in the finder dis-

play and correct exposure can-

not be obtained.

* When using a Leaf Shutter

Lens, be sure to read the instruc-

tions accompanying it.

Infrared light rays

being of longer

wavelength - focus at a slightly dif-

ferent plane and require the follow-

ing adjustment:

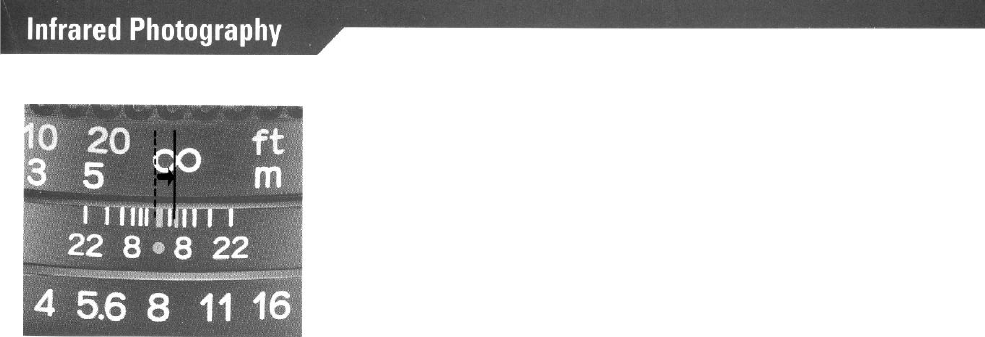

1. Note

the Red Index Mark against

which you read your distance scale.

The red infrared index mark is slightly

to its right.

2. After focusing in the usual man-

ner, read the distance scale and

move it to the right to line up with the

infrared index mark.

* For proper filter and exposure

information be sure to consult

the instructions enclosed with in-

frared film.

The A300mm f/2.8 APO lens for

645,

being also corrected for in-

frared light rays, does not need

an Index Mark for infrared.

When using the Hot-shoe,

be sure to put an appropri-

ate Safety Cover over the

X-

sync terminal so that you

won’t

receive a

high voltage

electric shock if the terminal

is accidentally touched. (A

Safety Cover is put on the

X-

sync terminal when the

camera leaves the factory.)

1. When using an electronic flash,

Do not use a flash unit specifi-

plug the synchronization cord into

cally

dedicated for another

cam-

the Sync Terminal and set the Shutter era. It may

damage

your 645 PRO.

Speed Dial to 1/60 sec.

or slower.

If you use a flash unit whose

flash duration is slower than 1/

The Mamiya 645 PRO has an X-

sync terminal.

Attach a shoe-mount flash to the

hot-shoe of the camera or the Left

Hand Grip GL401 (optional).

1000 sec., set the shutter speed

dial to 1/30 sec. or slower.

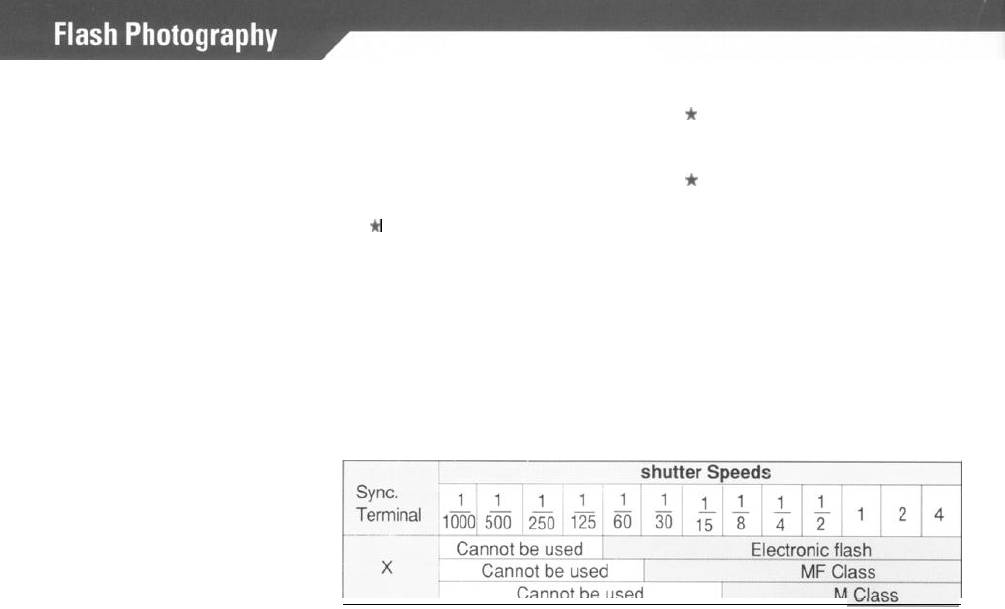

Flash Synchronization Chart

~~~

2. For MF and

bulbs, set the

Shutter Speed Dial to 1/30 sec.

slower for the MF type, and

1/15

sec. or slower for the M type.

When using a flash, carefully

read the instructions that come

with the flash bulbs or flash unit

to check for appropriate shutter

speeds and to avoid malfunctions.

The Mamiya 645 PRO Tripod Socket

accepts a standard 1/4

tripod

mounting

screw. For use with tri-

pods having 3/8

mounting screws,

first unscrew the small black philips

head retaining screw in the

center

the tripod socket. Then remove the

1/4” bushing with a thin coin. To re

install the

1/4”

bushing, reverse the

process

Eye-level Operation Waist Level Operation

Hold the camera as shown in the

illustration, with its base resting

your left hand, the right hand sup-

porting it from the side and top.

Press

both elbows against your body

and activate the shutter release with

a smooth, steady stroke.

For waist level operation,

is desir- * Handholding the camera is

able to have the Neck Strap at-

even

easier

using

the Power Drive

tached

and adjusted for your size. Grip WG401 or kept Hand Grip

During exposure keep it taut and

GL401.

press the camera firmly against your

body.

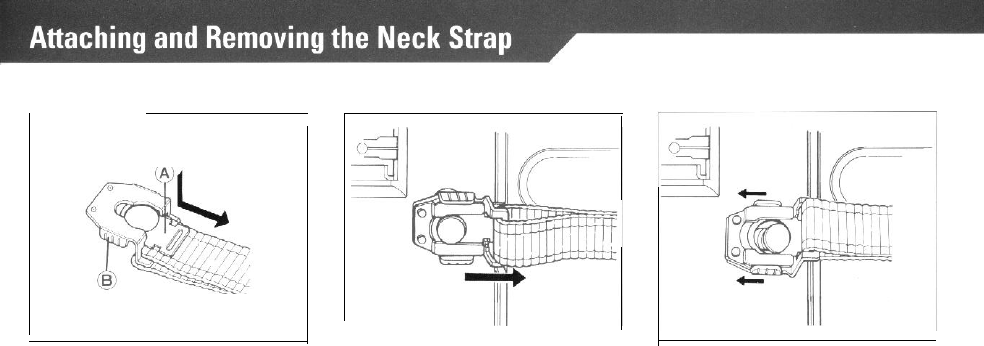

Attaching the Strap to the Camera

1. While pushing down, pull out the 2. Place the hole of the strap

fas-

Neck Strap Fastener (A) of the at-

tener

(A)

over the Neck Strap on the

taching

clip. camera body as illustrated, and pull

until it clicks and locks into place.

Removing the Strap from the Camera

With your fingers, puII the Neck Strap

Fastener

(A)

of the attaching clip up-

ward and push

part

(B)

in the direc-

tion of the arrow. The strap can now

be removed.

* When attaching the Strap to the

Neck Strap Lug on the side of the

camera with the Film Advance

Crank, insert the neck strap fas-

tener (A) into the lower part of the

double slot.

4.5cm

electronic focal-plane shutter SLR

Polaroid pack film (Polaroid

100,

600 series)

135 roll film in film cartridge

Film loading

Daylight loading-interchangeable film holders with film speed dial available

Standard lenses

..___

Lens

mount

M645 bayonet

mount

(applicable to all

M645

lenses)

Shutter

Moving coil, electronic controlled focal-plane shutter

Shutter speed

(Manual) 4 sec.

1/1000 sec., B (T)

(Auto) 8 sec.

1/1,000

sec. (when the AE Prism Finder FE401 is used)

Shutter release

Electromagnetic release.

Selectable release lock or self-timer mode.

Mirror

lock~up

capability.

Viewfinder Interchangeable (Waist Level Finder N, Prism Finder

FP401

and AE Prism Finder FE401

(Viewfinders for the M645 Super can be used)

Focusing screen

Fresnel

Lens, accessory screens available

(Same as the M645 Super)

Field of view

Film transport

Exposure counter

Multiple

exposure

Depth-of-field

Self-timer

Single turn winding by Film Advance Crank

AC401.

Variable crank start

position@

(6 positions).

Interchangeable (Power

Drive

Grip WG401 and Power Drive Grip N

..___

Progressive type: automatic reset.

The counter for 120 and 220 film will be automatic.

..___

Activated by the Multiple Exposure Lever.

Depth-of-field Scale provided on lens

Electronic LED display Lights for 8 seconds, flashes for 2 seconds, before shutter release.

Has manual override.

Battery check

Control and Electronic Cable Releases.

The-Battery Check Button, indicates residual battery capacity in 3 stages.

Time (T) photography can be taken.

shoe, Flash synchronization at

1/60 sec.

or slower speeds

Back cover

Power supply

Others

Dimenslons & Weight

With Neck Strap.

Body with 120 Roll Film Holder HA401 124mm (W) x102.5mm (H)

124mm (D)

980g

With Waist Level Finder N,

80mm

f2.8N

124mm (W) x106 mm (H)

158mm

(D)

1,345g

With Prism Finder FP401, 80mm f/2.8N

124mm

(W) x128 mm (H)

170mm

(D)

1,530g

With AE Prism Finder FE401, 80mm f/2.8N

124mm

(W) x135 mm (H) x 170mm

(D)

1,545g

With Power Drive Grip

AE Prism Finder FE40

WG401,

1, 80mm f/2.8N 172mm (W) x135 mm (H)

170mm

(D)

1,800g

(Without Battery)

If the camera should fail to function properly,

please check the following:

The Shutter Release Button does not move.

Push the Battery Check Button.

If the lamp does not light, check:

Is a Battery in the camera?

If yes, is it correctly inserted? (Polarity)

Is it dead?

If the lamp does light, check:

Has the Film Holder Dark Slide been pulled?

Is the Shutter Release Selector in the locked

(Red Dot) position?

If so, move it to the White Square and try again

Is the Shutter Speed Dial in the “A” or

“AEL”

position?

If so, turn to other setting and try again.

2. The finder is black

very dark.

Has the Lens Cap been removed?

Is the Mirror-up Lever in the

“M.UP”

position?

If so, turn the lever to the White Square.

Is the “AM” setting on the lens at “M" (Depth of

Field Preview)?

If so, move it to “A”.

3. The Roll Film Holder cannot be removed from the

camera body.

Insert the Dark Slide.

4. The developed film has fewer exposures than

specified.

Most likely

the

Start Mark had not been aligned

properly when the film was loaded. (See load

ing instructions page 20

)

The Film Advance Crank continues to turn and does

not stop.

Was the Roll Film Insert placed in the Roll Film

Holder?

Was the empty fim spool left in the upper

compartment?

Things to Watch

When using the AE Prism Finder FE401

When using this finder it is imperative that the

Film Speed Dial on the Roll Film Holder is prop-

erly set for the ISO number of the loaded film, as

it interfaces with this finder. If not done, wrong

exposures may result.

*When the mirror is locked in the up position.

* The Focal Plane Shutter Curtain may be dam-

aged if the camera faces strong light sources,

especially the sun. Return mirror to normal po-

sition or cap lens

prevent such damage.

Cold Temperature Photography

a. Use a fresh lithium battery

b. Utilize the External Battery Case accessory.

(Permits battery to be placed inside clothing).

Batteries that fail at low temperatures may still

be used at normal temperatures. However fre-

quent temperature changes shortens

battery life.

c. Avoid sudden temperature changes when going

indoors, to prevent moisture condensation on

camera and lenses. (Also important for film

protection).

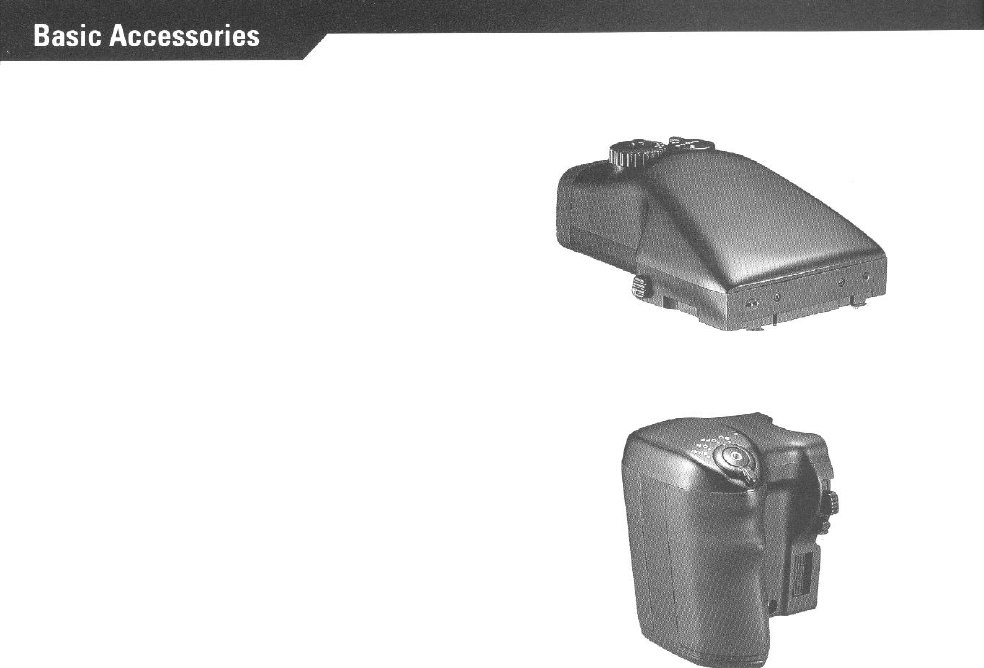

The AE Prism Finder FE401

The Mamiya AE (Automatic Exposure) Prism Finder

FE401 pentaprism guarantees a true, upright image

and features built-in electronic shutter control which,

ensures aperture-priority, TTL automatic exposure

metering while in the A or AEL mode.

< 3-Way

Metering System>

The FE401 comes with three metering modes: average

metering

(AV), spot metering (SP), and AV-SP metering

capable of automatically selecting AV

SP according

to subject conditions.

The LED display in the viewfinder indicates correct

exposure

If you forget to extract the Dark Slide when the finder is

being used with the 645 PRO, an LED will flash a

warning.

The Power Drive Grip WG401

The Power Drive Grip WG401 is integral with the

winder and hand grip, enabling quick and continuous

exposures to be taken: frames can be advanced (about

frames/sec.).

Usable with any of three recently developed leaf shut-

ter lenses, it

can

be connected with the

lens and

winder

with the Grip Connecter

PL401,

thus automatically

interlocking it with the lens. 39

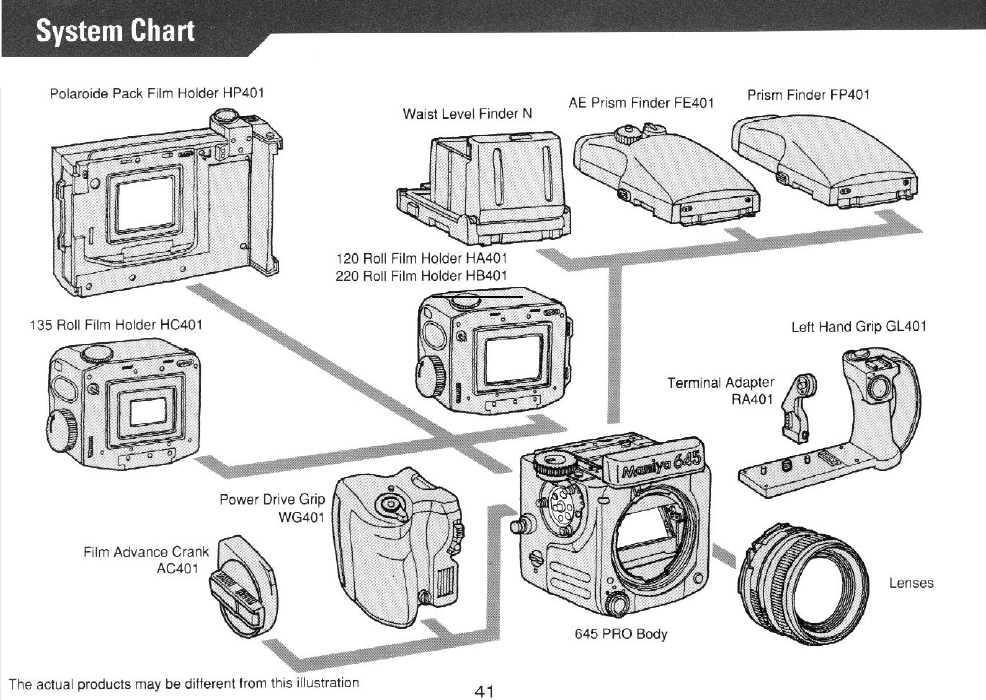

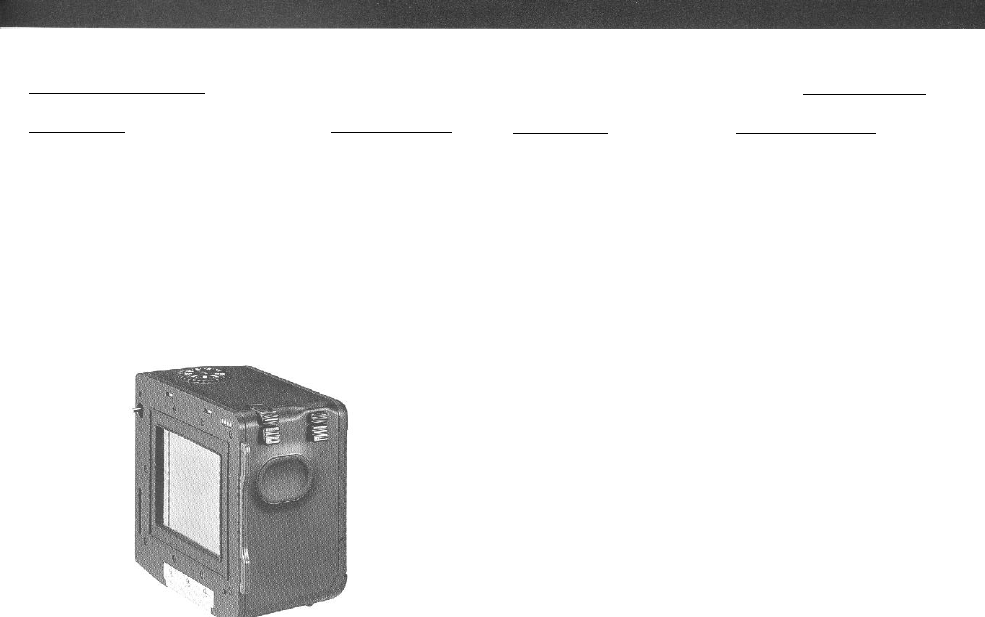

Roll Film Holders Interchangeable Lenses

120 Roll Film Holder HA401 Wide-angle Lenses

35mm

f/3.5N,

45mm

f/2.8N,

220 Roll Film Holder HB401 55mm

f/2.8N

135 Roll Film Holder

HC401

Telephoto Lenses

150mm

f/3.5N,

A150mm

f/2.8,

(with Panoramic Adapter)

210mm

f/4N

Polaroid Land Pack Film Holder HP401

ULD300mm f/5.6N, A300mm

f/2.8AP0,

500mm f/5.6

Standard Lenses

80mm

f/1

.9N,

80mm

f/2.8N,

110mm

W2.8N

Zoom Lenses

: Zoom 55

110mm

f/4.5N,

Zoom ULD105 - 210mm f/4.5

Special Effect Lenses:

Fish-eye ULD24mm f/4,

Shift

50mm

f/4,

Macro 80mm

f/4N

Soft

145mm

f/4

Leaf Shutter Lenses

A55mm

f/2.8N/L,

A80mm

f/2.8N/L,

A150mm

f/3.8N/L

TeleConverter

Tele-Converter

When the camera is not used for a long period of time,

remove

the battery and any film from the camera.

Avoid storing the camera for prolonged periods of time

in a damp

salty atmosphere. (Color film should be

stored at the manufacturer’s recommended tempera-

tures.)

Since cameras are precision instruments, avoid shocks

and rough handling.

When camera and lens are stored for a long time,

periodically exercise the shutter(s) at various speeds

and also turn the lens diaphragms.

Cleaning

Never touch the surface coated mirror. Clean dust

particles with a blower and optical surfaces with lens

cleaning tissue and lens cleaner.

Periodic Check

Periodically check the camera to make sure that it is in

good working order, especially before an important

assignment. Check the battery, flash synchronization,

mirror and shutter movement, film advance, diaphragm

operation, etc.

Should any malfunction occur or if the camera has

been dropped, jarred

become wet, do not attempt to

fix it yourself but send it to the Service Department of

your Mamiya distributor.

Mamiya 645 Pro Instruction Manual @ 300dpi B&W

PRO 645 to the manual eb0d823f-5cc1-43c8-9d83-f711973d5031

645 Pro - Instructions Mmy_645_pro Free User Guide for Mamiya Camera, Manual

645_Pro3

Navigation menu

Versions of this User Manual:

Views

Navigation
