Maniway Electronics MW-1266 2.1 CH BLUETOOTH SPEAKER User Manual
Shenzhen Maniway Electronics Limited. 2.1 CH BLUETOOTH SPEAKER
User manual
2
2.
.1
1C
CH
H
B
Bl
lu
ue
et
to
oo
ot
th
h
S
Sp
pe
ea
ak
ke
er
r
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
Model No.: MW-1266
1
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water – The appliance should not be
used near water or moisture – for example, in a wet basement or near a
swimming pool, and the like.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacture’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding plug. A
polarized plug has two blades with one wider than the other. A grounding
plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
the plugs,convenience receptacles, and at the point where they exit from
the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug the apparatus during lightning storms or when unused for long
periods of time.
13. Refer all servicing to qualified personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the
apparatus has been exposed to rain or moisture, does not operate normally,
or has been dropped.
14. CAUTION: These servicing instructions are for use by qualified service
personnel only.To reduce the risk of electric shock, do not perform any
servicing other than that contained in the operating instructions unless you
are qualified to do so.
15. Do not install this equipment in a confined or building-in space such as
a book case or similar unit, and remain a well ventilation conditions at open
site. The ventilation should not be impeded by covering the ventilation
openings with items such as newspaper,
table-cloths, curtains etc.
16. WARNING：Please refer the information on exterior bottom enclosure
for electrical and safety information before installing or operating the
2
apparatus.
17. WARNING：To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture. The apparatus shall not be exposed to
dripping or splashing and that objects filled with liquids, such as vases,
shall not be placed on apparatus.
18. CAUTION: Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
19. WARNING: The battery (battery or batteries or battery pack) shall not
be exposed to excessive heat such as sunshine, fire or the like.
20. WARNING: The mains plug is used as disconnect device, the
disconnect device shall remain readily operable.
21. This equipment is a Class II or double insulated electrical appliance.
It has been designed in such a way that it does not require a safety
connection to electrical earth.
22.
23.
- This lightning flash with arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of non-insulated “dangerous
voltage”within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
- Warning: To reduce the risk of electric shock, do not remove cover (or
back) as there are no user-serviceable parts inside. Refer servicing to
qualified personnel.
- The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions
in the literature
accompanying the appliance.
4

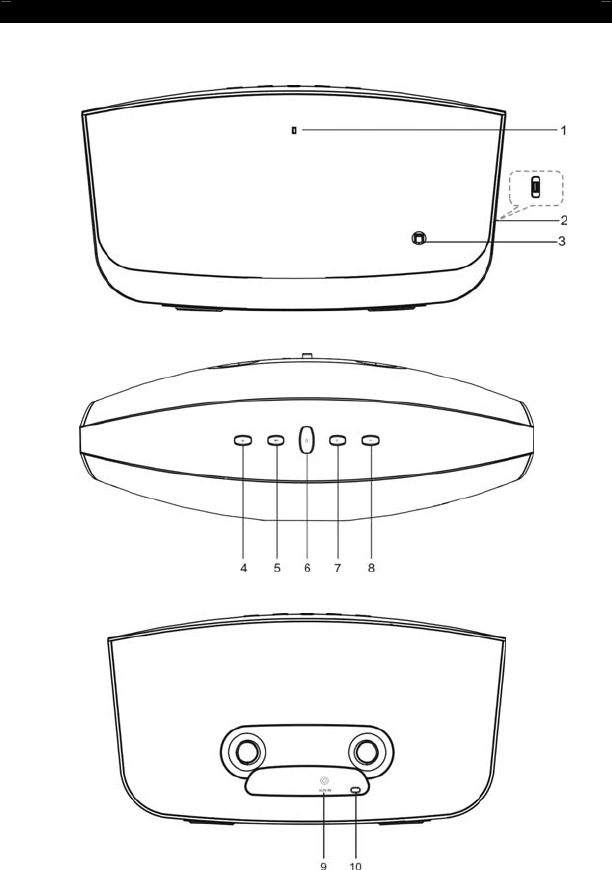

LOCATION OF CONTROLS
Front View
Top View
Back View
5
REMOTE CONTROL
1 Power Indicator
2 USB port (only for charging)
3 Remote sensor
8
>( / Vol + ) Button:
·Press this button once to to
advance to the next track .
Press and hold this button to
adjust volume level up.
9Aux-in Jack
10 AC Power
4
MODE button
Press to toggle between
Bluetooth and Aux-in modes 11 EQ Button
12 MUTE Button
5 Play/Pause button Album up
13
14 Album down
6 Power On/Standby Button 15 button, previous track
16 button, next track
17 OK Button
18 Vol - Button
19 Vol+ Button
20 Bass- Button
7
< ( / Vol -) Button
·Press this button once to
return to the beginning of
current track or previous track.
·Press and hold this button to
adjust volume level down.
21 Bass+Button
6
POWER SOURCES
Power of Main unit
This unit is designed or operated on AC 100-240V~50/60Hz household
mains supply, connect the AC cord into a convenient AC wall outlet.
Power of Remote Control
To use the remote control, please ensure the remote control battery
CR2032 (included) is installed properly and take the insulation clarity paper
out.(Once you stop to use the remote control, please Insert in it same as
before). Replace the remote control battery when it stops working. It is
highly recommended to use a good quality button cell.
BATTERY NOTE AND CARE
Danger of explosion if the battery is replaced incorrectly. Replace only
with the same type battery.
Only use a good quality known brand battery to ensure the longest life
and best performance.
If the remote is not to be used for an extended period of time, remove the
battery. An old or leaking battery can cause damage to the remote and
may void the warranty.
Do not dispose of batteries in fire. Batteries may leak or explode.
Do not try to recharge batteries that are not intended to be recharged;
they can overheat, rupture and leak (Follow battery manufacturer’s
directions).
ACCESSORIES
1 x Remote Control (include 1PC button cell CR2032)
1 x User manual
1 x Line-in cable
GETTING STARTED
WARNING: Do not apply power to the unit until all of your connections are
made.
7
1. Plug the AC cord plug into a convenient AC wall outlet.
2. The power indicator will be lights up with ‘Red’ colour. The unit enters
into ‘STANDY BY’ Mode.
2. Press the Button on main unit or press & hold the key on remote
control to turn on the unit.
3. Press and hold the Button on main unit or the key on remote
control to turn on the unit to switch the unit back to Standby mode.
4. Remove the power plug out of the AC wall outlet if you want to switch off
the main voltage completely.
How to change the play mode
Press the MODE Button during power on, the play mode will be changed
between the Bluetooth mode and AUX-IN mode, the power indicator will be
in different colour during different play mode:
Green colour for Aux-in mode
Blue colour for Bluetooth mode
SPECIAL TIPS:
If Blue colour indicator flashes means that the speaker is available for
pairing with other Bluetooth devices now, and if pairing is completed, the
blue colour indicator stops flashing.
Playback via Bluetooth
Bluetooth involves a technology for wireless radio connection of devices
over a short distance. Devices with Bluetooth standard are transmitting
between 2.402 and 2.480 GHz in the ISM band (Industrial, Scientific and
Medical). Interference can be caused for example by WLAN-networks,
DAB radios, cordless phones, or microwave ovens which work on the
same frequency band.
This device offers you the possibility to use a Bluetooth enabled device.
The functional radius is limited to approx.10 metres depending on the
surroundings and the unit used.
If your playing device supports the A2DP profile (Advanced Audio
Distribution Profile) and has a music-player function, then you can also
8
wirelessly transfer music to the device. The A2DP profile involves a
multi-vendor Bluetooth profile. By streaming, stereo-audio signals are
wirelessly transferred between the playing device (source) and the
receiving device.
Due to the different device manufacturers, models, and software versions,
a full functionality cannot be guaranteed.
Logging on devices (Pairing)
Before you listen to music via the unit, you must pair the devices.
1. Ensure, that the Bluetooth function is activated in your player (e.g.
mobile phone). For this, refer to the operation manual of your player.
2. Press the MODE button repeatedly, until the power indicator changed to
blue to enter the Bluetooth mode. The blue color indicator flashes to show
that the unit is in pairing mode.
3. Chose the Bluetooth menu in your player and register the device in your
player. For this, refer to the operation manual of your player. The device
“MW-1266” will show in your player as a selection.
NOTE:
Only one playback unit can be connected to the speaker. If the speaker is
already connected to another playback unit, the speaker will not appear
in the BT selection menu.
4. If your device asks for a passkey (depending on the device
manufacturers, model, and software version), then enter digits “0000”(four
zeros) and press OK.
If pairing has been carried out successfully, the Blue colour indicator stops
flashing.
For the further procedure, please refer to the user manual of the playback
unit. If possible, adjust the volume of the external unit to a comfortable
level.
NOTE:
• Depending on the device manufacturer, you need to perform the
registration (PAIRING) again to connect the devices
9
• The Bluetooth compatibility cannot be ensured for devices (e.g. mobile
phones) getting released in the future.
• To ensure an optimal connection, make sure that the battery of your
player is completely charged.
• Some of the mobile phone brands have an energy-saving mode.
Deactivate the energy-saving mode as it can otherwise result in
problems during the data transfer through Bluetooth.
• To be able to transfer audio data, Bluetooth needs to stay activated in
your player Observe the operation manual of your player.
• If a mobile phone on which you are playing music receives a call, the
music will be interrupted. The sound however is not played back via the
speaker. After you have ended the call, the devices are connected to
each other again and playback continues. The volume increases slowly.
USB Port : 5V Power Supply
This USB port is designed for charging external devices only.
AUX-IN (LINE IN) OPERATION
If you are using an iPod or other MP3/digital audio player which can not
connect this unit via Bluetooth, you can still play it on the unit via an audio
connecting cable.
1. Connect an end of the audio cable (accompanied) to the headphone or
line-out jack of an audio device and plug the other end into the Aux -in jack
located on back of the main unit .
2. Press the button on the main unit or press & hold the key on
remote control to turn on the unit.
3. Press MODE Button until the power indicator turns to Green to enter
the AUX-IN mode.
4. Start the playback of the audio device connected.
5. Press “Vol +” / “Vol – ” key on remote control or press and hold the“>”/
“<”button on the main unit to raise/lower the volume level. When finished,
press and hold the button on the main unit or press & hold the key
on remote control to turn off the main unit. Remember to turn off your audio
device, too.
10
TROUBLESHOOTING GUIDE
Should you experience difficulties in the use of this player, please refer to
the following chart.
Fault Cause Solution
Unit cannot be
operated.
Unit crashes and
“hangs”
Disconnect from the mains for
around 5 seconds. Then switch the
unit on again.
Speaker is not
paired to the audio
source.
Check whether a connection exists.
If necessary, pair the speaker
again to the audio source.
Increase the volume on the
speaker
No audio signal
via the
Bluetooth
connection Volume too low Increase the volume on the the
audio source.
Pairing does not
work
Check whether the audio source
supports the A2DP protocol
Audio source is
switched off Switch on the audio source
Bluetooth is
switched off at the
audio source.
Switch on the Bluetooth function in
the audio source.
Speaker cannot
be connected
Bluetooth version
is not supported. Use a different playback unit.
Poor sound
quality from a
Bluetooth®
device
Bluetooth device
is almost out of
range of the
MW-1266
Move your Bluetooth device
closer to the MW-1266
Low battery. Replace the battery with correct
type CR2032
Remote control
is not
functioning
properly.
Remote Control
is not pointed
to ward the IR
window
Point the Remote Control to ward
the unit IR window, use with in 10
feet of the unit.
11
SPECIFICATIONS
Model: MW-1266
Power Supply: 100-240V ~ 50/60Hz
Power Consumption: 40W
Power of Remote control: 1x3V type CR2032 Lithium Battery
Standby power consumption: ≤0.5W
Protection Class: II
Net Weight : approx. 2.5kg
Temperature rage for use: 0-45℃
Bluetooth
Bluetooth support : V3.0+EDR
Range : approx. 10 metres
Transmission frequency : 2.4GHz
Protocols : A2DP 1.2
The right to make technical and design modifications in the course of
Continuous product development remains reserved.
FCC Information and Copyright
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment .This equipment should be installed and operated with minimum distance 20cm
between the radiator& your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
