Maniway Electronics MW1306 PORTABLE BLUETOOTH SPEAKER User Manual MW 1306 FCC
Shenzhen Maniway Electronics Limited. PORTABLE BLUETOOTH SPEAKER MW 1306 FCC
User manual
B
BR
RA
AN
ND
D
P
Po
or
rt
ta
ab
bl
le
e
B
Bl
lu
ue
et
to
oo
ot
th
h
S
Sp
pe
ea
ak
ke
er
r
PLEASE READ BEFORE OPERATING THIS EQUIPMENT.
Model No. :MW-1306
1
IMPORTANT SAFETY INSTRUCTIONS
When used in the directed manner, this unit has been designed
and manufactured to ensure your personal safety. However,
improper use can result in potential electrical shock or fire
hazards. Please read all safety and operating instructions
carefully before installation and use, and keep these instructions
handy for future reference. Take special note of all warnings
listed in these instructions and on the unit.
Water and Moisture
The unit should not be used near water or wet space . Such as
bathtub, washbowl, kitchen sink, laundry tub, swimming pool or
basement.
Ventilation
The unit should be situated in the location or position which
places won’t interfere its proper ventilation. For example, it
should not be situated on a bed, sofa, rug or similar surface that
may block the ventilation openings. Also, it should not be placed
in a built-in installation, such as a bookcase or cabinet, which
may impede the flow of air through the ventilation openings.
Heat
The unit should be situated away from heat sources such as
radiators, heat registers, stoves or other appliances (including
amplifiers) that produce heat.
Power Charger
The unit should be connected to a power charger(not included)
only of the type described in the operating instructions or as
marked on the appliance.
2
Cleaning
The unit should be cleaned only as recommended. See the
section « Care and Maintenance » of this manual for cleaning
instructions.
Object and Liquid Entry Care should be taken so that objects do
not fall and liquids are not spilled into any openings or vents
located on the product.
Damage Requiring Service
This unit should be serviced by qualified service personnel
when:
Objects have fallen into or liquid has been spilled into the
enclosure.
The unit has been exposed to rain.
The unit has been dropped or the enclosure damaged.
The unit exhibits a marked change in performance or does not
operate normally.
Periods of Nonuse
If the unit is to be left unused for an intended period of time, such
as a week or longer, the power cord should be unplugged from
the unit to prevent damage or corrosion.
Servicing
The user should not attempt to service the unit beyond those
methods described in the user’s operating instructions.
Service methods not covered in the operating instructions
should be referred to qualified service personnel.
3
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
WARNING:
Batteries shall not be exposed to excessive heat such as
sunshine, fire or the like.
To reduce the risk of fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be
exposed to dripping or splashing and that objects filled with
liquids, such as vases, shall not be placed on apparatus.
CARE AND MAINTENANCE
Do not subject the unit to excessive force, shock, dust or
extreme temperature.
Do not tamper the internal components of the unit.
Clean the unit with a damp (never wet) cloth except metal
contact or speaker grille, Solvent or detergent should never
be used.
Avoid leaving your unit in hot, humid or dusty places.
Keep your unit away from heating appliances and sources of
electrical noise such as fluorescent lamps or motors.
Always keep your finger dry and clear before touching all the
buttons.
Do not dispose of batteries in fire, batteries may explode or
leak.
4

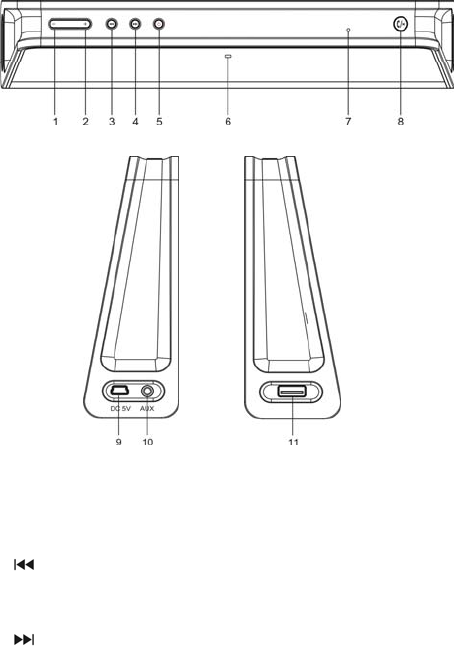

LOCATION OF CONTROLS
Top View
1. -Button
Press this button to adjust volume level down.
2. + Button
z Press this button to adjust volume level up
3. Button(for USB only)
z Press this button once to return to the beginning of current
track or previous track.
4. Button(for USB only)
5
z ·Press this button once to to advance to the next track .
5. Power On/Standby Button
6. Battery charging Indicator (Red color)
z Rapid flashing =low battery
While charging :
z Flashing =charging
z Steady Red= full charged
Operating mode indicator (Blue/Green/Cyan)
Blue color =Bluetooth mode
Green=Aux-in mode
Green=USB mode
7. Built-in Microphone
8. Button
z While unit is in Bluetooth or TF card Playback mode, press
once to play or pause the current track.
z In Bluetooth mode, when receiving an incoming call on
your cell phone, tap this button once to answer the phone,
press this button again or press and hold this button to end
the call or ignore the incoming call.
9. Mini USB Charging jack
10. Aux-In Jack
11. USB port
BATTERY CHARGING INSTRUCTION
This unit operates on a built-in Li-ion battery that can be
recharged either using the USB port on your computer or from a
6
USB power adaptor (not included) with a rated output of DC 5V
500mA and up.
Note: The mini USB CHARGING JACK located on this unit is
only designed for charging the built-in Li-ion battery.
CHARGING THE BATTERY FOR FIRST TIME
1.) Charge the built-in Li-ion battery a minimum of 4 hours prior
to first use.
Plug the unit into the USB port on your computer or into a USB
power adaptor (not included) using the included USB cable.
2.) The battery charging indicator flashes while charging and it
stops flashing when the unit is fully charged.
Unplug the USB cable from the power source once the battery is
fully charged.
RECHARGING THE INTERNAL BATTERY
After prolonged use, the internal battery will become weak and
the operation may become intermittent. When the internal
battery capacity is very low, the battery Indicator will rapidly
flash in red to alert you to recharge the internal battery as soon
as possible.
Plug the speaker into a USB port on your computer by using the
included USB cable or into a DC 5V, 500mA and up USB power
adaptor (not included). Disconnect the USB cable from the
speaker as soon as it is fully charged.
Notes:
7
1. Charging time will vary if you are listening to music while
charging the internal battery. We recommend you switch off
the speaker power during the charging process.
2. To prolong the life of a rechargeable battery, it is
recommended to completely discharge it before fully charging
it again .
3. Rechargeable batteries need to be cycled for maximum
performance and longer battery life. If you don't use the player
that often, be sure to recharge the battery at least once a
month in order to keep the internal battery working properly.
Battery Note and Care
Do not burn or bury batteries.
Do not puncture or crush.
Do not disassemble.
Li-ion batteries must be recycled. Do not dispose of in the trash.
Use only chargers rated for Li-ion cells. Be sure the charger's
voltage and current settings are correct for the battery pack
being charged.
Charge batteries on a fireproof surface and away from
flammable items or liquids. Batteries should NEVER be left
unattended while charging. Only adults should charge the
batteries.
Follow the manufacturer's instructions for charging the product
and do not charge longer than recommended. Unplug the
charger when the battery is charged or not in use.
8
Note: The speaker is not magnetically shielded and may cause
color distortion on the screen of some TVs or video monitors. To
avoid this, you may need to move the unit further away from the
TV or monitor if an unnatural color shifts or image distortion
occurs.
TURN THE SPEAKER POWER ON/OFF
1. Slide the Power ON/OFF selector on the bottom of the unit to
ON position (where the orange round mark on the selector
can not been seen),a voice prompt “Power on” and a beep
sound is heard in 2-3 seconds. Meanwhile, the Operating
mode indicator will flash in blue.
2. To turn the unit off, slide the Power ON/OFF switch to OFF
position (where the orange round mark on the selector can
been seen).
OPERATING THE SPEAKER IN BLUETOOTH MODE
Bluetooth involves a technology for wireless radio connection of
devices over a short distance. Devices with Bluetooth standard
are transmitting between 2.402 and 2.480 GHz in the ISM band
(Industrial, Scientific and Medical). Interference can be caused,
for example by WLAN-networks, DAB radios, cordless phones,
or microwave ovens which work on the
same frequency band.
z This speaker offers you the possibility to use a Bluetooth
enabled device. The functional radius is limited to approx.10
metres depending on the surroundings and the unit used.
9
z If your playing device supports the A2DP profile (Advanced
Audio Distribution Profile) and has a music-player function,
then you can also wirelessly transfer music to the device. The
A2DP profile involves a multi-vendor Bluetooth profile. By
streaming, stereo-audio signals are wirelessly transferred
between the playing device (source) and the receiving
device.
z Due to the different device manufacturers, models, and
software versions, a full functionality cannot be guaranteed.
Pairing (Linking) A Bluetooth Enabled Cell Phone Or Other
Bluetooth Enabled Device To The Speaker
If the speaker has never been paired with a Bluetooth device
before . You need to follow the pairing instructions below to link
the speaker with your Bluetooth device .
1. When the speaker turned on, the Operating mode Indicator
flashes in blue . The speaker is ready to pair (link) with your
Bluetooth device .
2. Activate Bluetooth on the compatible device, and set it to
search for compatible devices.
3. Select the speaker name:”1308” from the list of found
devices.
Tips: Only one playback unit can be connected to the speaker.
If the speaker is already connected to another playback unit, the
speaker will not appear in the BT selection list.
10
4. If your device asks for a passkey (depending on the device
manufacturers, model, and software version), then enter
digits “0000”(four zeros) and press OK.
If pairing has been carried out successfully, a voice prompt
“Pairing completed” and a beep sound is heard, meanwhile, the
Blue color indicator stops flashing.
If the speaker has ever been paired with a Bluetooth device
before. You need to follow the pairing instructions below to
link the speaker with your Bluetooth device .
1. After turning on the speaker, the speaker will search for the
last paired device . The operating mode indicator will flash
in blue. If the unit finds the paired Bluetooth device , a beep
sound is heard and operating mode indicator will keep in
blue and stop flashing .
2. After successfully pairing (linking) , you can begin playing
music from your Bluetooth device wirelessly to the speaker .
3. Press the + / - button on the speaker to adjust to the desired
volume level .
Using The Speaker as a Handfree Bluetooth Speakerphone
1. Link your cell phone to the speaker via Bluetooth as
described above .
2. When receiving an incoming call on your cell phone , tap
button on the speaker to switch the incoming call from cell
phone to the speaker. A short beep sound will be heard
confirming the call was answered. Complete your call using
the built-in microphone and speaker.
11
3. Adjust the volume control of your cell phone to obtain the
desired sound level.
4. To end the call, just tap the button again, a short beep
sound will be heard and the call will end. If you were playing
music from your cell phone to the speaker before answering
the call, the music will automatically resume playing when
you hang up .
5. To ignore an incoming call, simply press and hold the
button on the speaker for about 2 seconds, a beep sound will
be heard and the call will be ignored .
USB port
This device has been developed in line with the latest technical
advances in the USB filed. The wide range of different USB
storage devices of all types which are currently on the market,
unfortunately do not allow us to guarantee full compatibility with
all USB storage devices. For this reason, in rare cases there
may be problems in playing back files from USB storage devices.
This is not a malfunction of the device.
1. Connect a USB storage device directly into the port, the
indicator turns to Cyan color to enter into the USB mode.
2. After a few seconds, it will start music playback
automatically.
NOTE:
• The USB port is also designed for charging external devices
during any mode other than USB mode.
12
OPERATING THE SPEAKER IN AUX-IN MODE
If you are using an iPod, MP3/MP4 player or other mobile phone
which can not connect this unit via bluetooth directly, you can
still play it on the speaker via an audio connecting cable.
1. Plug one end of the 3.5mm audio cable (included) into the
headphone or line out jack on your player, plug the other end
of cable into the unit AUX-IN jack of the speaker.
2. Turn on the external audio source and play your device.
3. Slide the Power ON/OFF switch to ON position to turn on the
unit, the operating mode indicator will light up in Green.
4. The volume level can now be controlled through the main unit.
Operate all other functions on the external device as usual.
Notes:
1). If you're connected to the Line out Jack of your external
device, then you only need to adjust the volume control of this
speaker. If you're connected to the Headphone Jack of your
external device, then you may need to adjust both the volume
control of your external device and the volume control of this unit
to find the most desirable volume setting.
2) Slide the Power ON/OFF selector to OFF position to turn off
the unit when you finish listening.
Don't forget to switch off the power of your external device as
well.
3) During AUX mode, if you plug A USB disc into the unit, the
play mode will automatically change to TF Card playback mode.
13
Troubleshooting Guide
Should you experience difficulties in the use of this player,
please refer to the following chart.
Fault Cause Solution
The USB power adaptor
(not included) is not
plugged into a wall
outlet or the USB cable
(included)is not plugged
into the mini USB jack
on the bottom of the
MW-1306
Plug the USB power
adaptor (not
included) into a wall
outlet and plug the
USB cable (included)
into the mini USB
jack on the MW-1306
Wall outlet is not
functioning.
Plug another device
into the same outlet
to confirm the outlet
is working.
No Charging
Computer USB port is
not function.
Make sure your
computer power is
turned on and try
another USB port.
The MW-1306 battery is
dead.
Recharge the
MW-1306 battery.
The MW-1306 is not
linked with the cell
phone.
Go through “Speaker
Operations” process
to link the speaker.
NO Sound
Volume set too low. Increase the volume
of your device.
14
Speaker is not paired to
the audio source.
Check whether a
connection exists. If
necessary, pair the
speaker again to the
audio source.
Increase the volume
on the speaker
No audio
signal via the
Bluetooth
connection
Volume too low Increase the volume
on the audio source.
Pairing does not work
Check whether the
audio source
supports the A2DP
protocol
Audio source
is switched off
Switch on the audio
source
Bluetooth is switched off
at the audio source.
Switch on the
Bluetooth function in
the audio source.
Speaker
cannot be
connected
Bluetooth version is not
supported.
Use a different
playback unit.
Poor sound
quality from
a Bluetooth®
device
Bluetooth device is
almost out of range of
the MW-1308
Move your Bluetooth
device closer to the
MW-1308
SPECIFICATIONS
Battery capacity (included): 1600 mAH
Charging Voltage: DC 5V, 500Ma and up.
Max Play Time: 4 Hours
Working Temperature: -5℃~+ 40℃
Working Humidity： 20%~80%
15
The right to make technical and design modifications in the
course of Continuous product development remains reserved.
This device has been tested according to all relevant current CE
guidelines, such as electromagnetic compatibility and low
voltage directives, and has been constructed in accordance with
the latest safety regulations.
NOTE:
Changes or Modifications not expressly
approved by the party responsible could void
the user’s authority to operate this device
NOTE: This equipment has been tested and
found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate
radio frequency energy and, if not installed and
used in accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful
16
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the
equipment and receiver.
-- Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician for help.
15.19 Labelling requirements.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference,
and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
FCC RF warning statement: the device has been
evaluated to meet general RF exposure requirement , The
device can be used in portable exposure condition without
restriction.
