user manual
Maniway

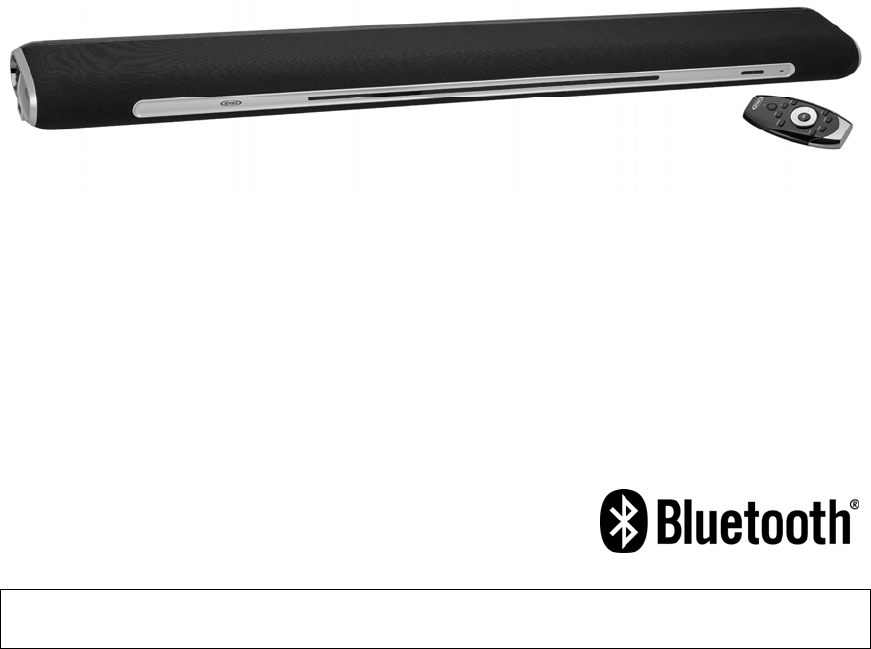

WALL MOUNTABLE 2.1CH BLUETOOTH
SOUNDBAR SPEAKER WITH BUILT-IN SUBWOOFER
USER MANUAL
MW-1481
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING
THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
E‐1
WARNING
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN
BE
FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR
SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The Caution Marking is located at the bottom of the apparatus.
The Rating plate is located at the bottom enclosure of the apparatus
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that product heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong is provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with the product.
When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for a long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. This appliance shall not be exposed to dripping or splashing water and that no
object filled with liquids such as vases shall be placed on the apparatus.
E‐2
16. Do not overload wall outlet. Use only power source as indicated.
17. Use replacement part as specified by the manufacturer.
18. The product may be mounted to a wall only if recommended by the
manufacturer.
19. Upon completion of any service or repairs to this product, ask the service
technician to perform safety checks.
20. Power Sources - This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of the type of power
supply to your home, consult your product dealer or local power company. For
products intended to operate from battery power, or other sources, refer to the
operating instruction.
21. Object and Liquid Entry - Never push objects of any kind into this product
through openings as they may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock. Never spill liquid of any kind on
the product.
22. Damage Requiring Service - Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product,
c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in damage
and will often require extensive work by a qualified technician to restore the
product to its normal operation.
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicates a
need for service.
23. Main plug is used as disconnect device and it should remain readily operable
during intended use. In order to disconnect the apparatus from the mains
completely, the mains plug should be disconnected from the mains socket
outlet completely.
24. The battery (battery or batteries or battery pack) shall not be exposed to
excessive heat such as sunshine, fire or the like.
25. Excessive sound pressure from earphones and headphone can cause hearing
loss.
This symbol indicates that this product incorporates
d
o
ub
le
insulation
between hazardous mains voltage and
us
er
accessible
p
a
r
ts.
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE
BLADE OF AC PLUG TO WIDE SLOT. FULLY INSERT.
SAVE THESE INSTRUCTIONS
E‐3
COMPLIANCE WITH FCC REGULATIONS
FCC ID OG5MW1481
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
WARNING
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
PROTECT YOUR FURNITURE
This system is equipped with non-skid rubber ‘feet’ to prevent the product from
moving when
you
operate the controls. These ‘feet’ are made from non-migrating
rubber material specially
formulated
to avoid leaving any marks or stains on your
furniture. However certain types of oil based
furniture
polishes, wood
preservatives, or cleaning sprays may cause the rubber ‘feet’ to soften, and
leave
marks or a rubber residue on the
furniture.
To prevent any damage to your furniture we strongly recommend that you
purchase small
self-
adhesive felt pads, available at hardware stores and home
improvement centers everywhere,
and
apply these pads to the bottom of the
rubber ‘feet’ before you place the product on fine
wooden furniture.
E‐4
DEAR CUSTOMER
Selecting fine audio equipment such as the unit you've just purchased is only
the start of
your
musical enjoyment. Now it's time to consider how you can
maximize the fun and excitement
your
equipment offers. This manufacturer
and t h e E l e c tr o n i c Industries Association's
Consumer
Electronics Group
want you to get the most out of your equipment by playing it at a safe level.
One
that lets the sound come through loud and clear without annoying blaring or
distortion and,
most
importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time
your
hearing "comfort level" adapts to
higher volumes of sound. So what sounds "normal" can
actually
be loud and
harmful to your hearing. Guard against this by setting your equipment at a safe
level
BEFORE your hearing
adapts.
To
establish
a safe l
e
v
e
l
:
• Start your volume control at a low
setting.
• Slowly increase the sound until you can hear it comfortably and clearly, and
without
distortion.
• Once you have
established
a
comfortable sound
l
e
v
e
l
:
Set the dial and
leave it
there.
Taking a minute to do this now will help to prevent hearing damage or loss in the
future.
After
all, we want you listening for a
lifetime.
We Want You
Listening
For a
Li
f
e
t
i
m
e
Used wisely, your new sound equipment will provide
a lifetime
of
fun and enjoyment. Since hearing
damage from loud noise
is
often undetectable until
it is too late, this manufacturer and
the Electronic
Industries
Association
'
s
Consumer
Electronics
Group
recommend you avoid prolonged exposure to
excessive
noise.
E‐5
LOCATION OF CONTROLS

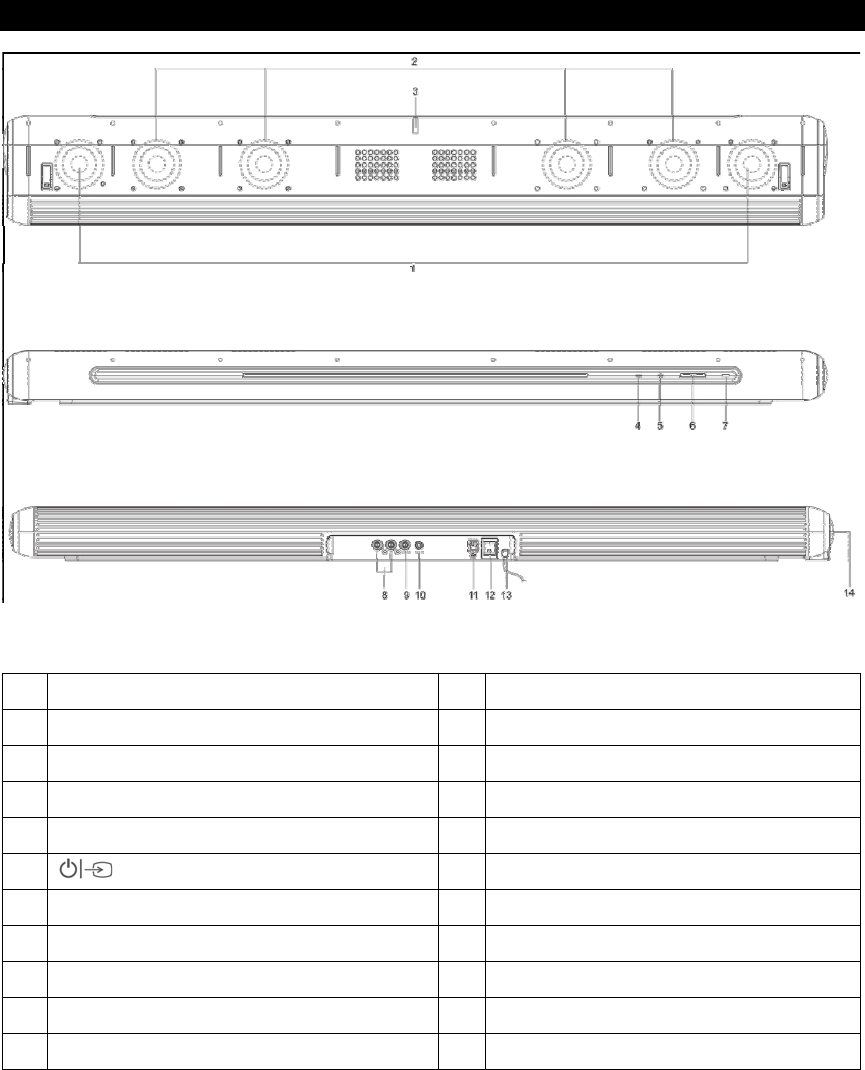

1 MID-HIGH RANGE SPEAKERS 8 RCA LINE-IN JACKS
2 WOOFER SPEAKERS 9 RCA COAXIAL JACK
3 REMOTE CONTROL SENSOR 10 AUX-IN JACK
4 - (volume down) 11 OPTICAL–IN JACK
5 + (volume up) 12 POWER ON/OFF SWITCH
6 13 POWER CORD
7 LED INDICATOR 14 USB JACK (for USB charging)
RED = STANDBY
BLUE = BLUETOOTH MODE
CYAN = OPTICAL INPUT MODE
PINK = COAXIAL INPUT MODE
E‐6
REMOTE CONTROL

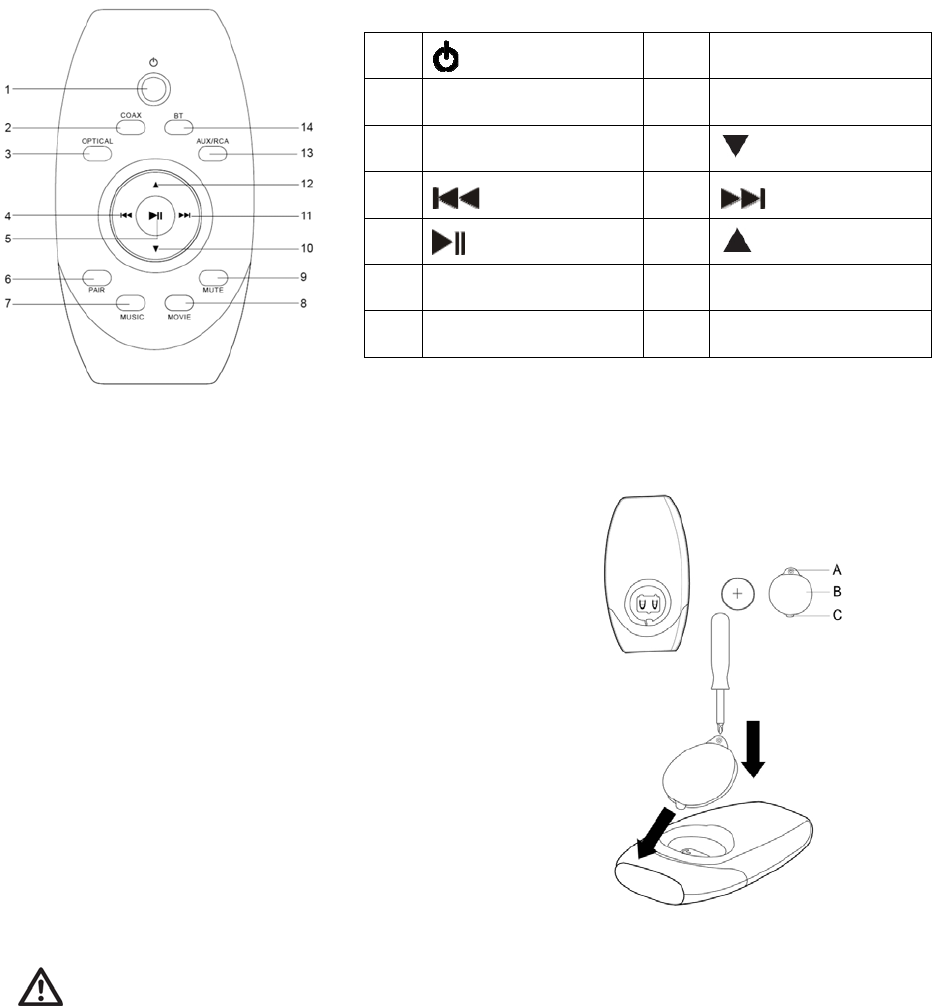

Remove the protective tab for first-time use
The Remote Control has a pre-installed lithium
CR2032 battery. Remove the protective tab to
activate the remote control battery.
Battery Installation
1. Use a screwdriver to remove the screw (#A)
2. Remove the battery compartment cover (#B)
3. Place the battery into the battery compartment.
4. Make sure that the side marked with + is facing
up.
5. Replace the battery door.
6. Use a screwdriver to secure the screw (#A).
Note :
1. If the remote control does not work properly,
replace the battery.
WARNING : DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD.
The remote control supplied with this product contains a coin/button cell battery. If
the coin/button cell battery is swallowed, it can cause severe internal burns in just
2 hours and can lead to death.
Keep new and used batteries away from children. If the battery compartment does
not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
1 8 MOVIE
2 COAX 9 MUTE
3 OPTICAL 10 (Volume down)
4 11
5 12 (Volume up)
6 PAIR 13 AUX/RCA
7 MUSIC 14 BT
E‐7
BATTERY WARNING
1. Be sure that the batteries are installed correctly. Wrong polarity may damage
the unit.
2. Use only the size and type of batteries specified.
5. If the unit is not to be used for an extended period of time, remove the batteries.
Old or leaking batteries can cause damage to the unit and may void the
warranty.
6. Do not try to recharge batteries not intended to be recharged; they can
overheat and rupture. (Follow battery manufacturer’s directions).
7. Do not dispose of batteries in fire, batteries may leak or explode.

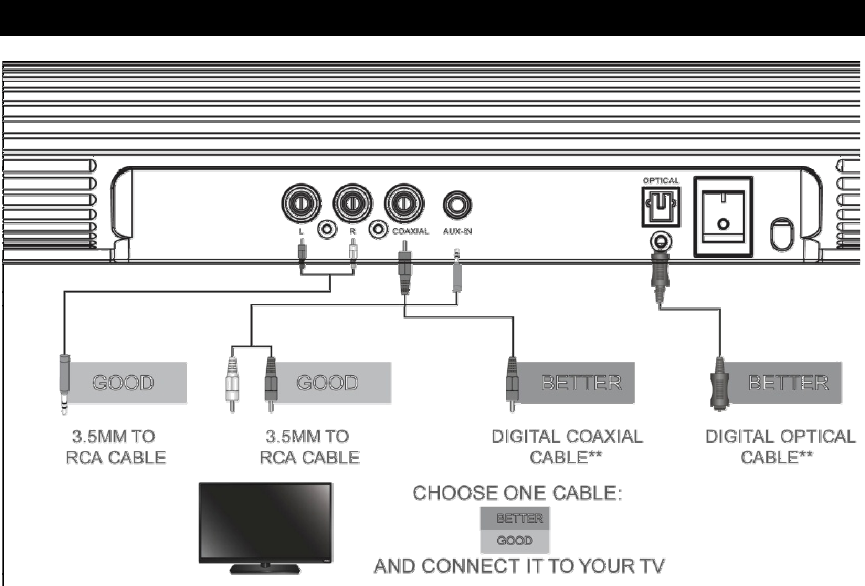

CONNECTION
*Not all TVs have the audio outputs shown above. To connect the Sound Bar
directly to your other devices (Blu-ray player, game system, etc) see your device’s
user manual.
**When using either of the Digital Inputs, if the status indicator light is flashing
quickly:
(A) Ensure that the Optical cable or Coaxial cable is properly connected; (B) Try
setting the TV output to PCM; or (C) Connect directly to your Blu-ray/other source,
some TVs do not pass through digital audio.
E‐8

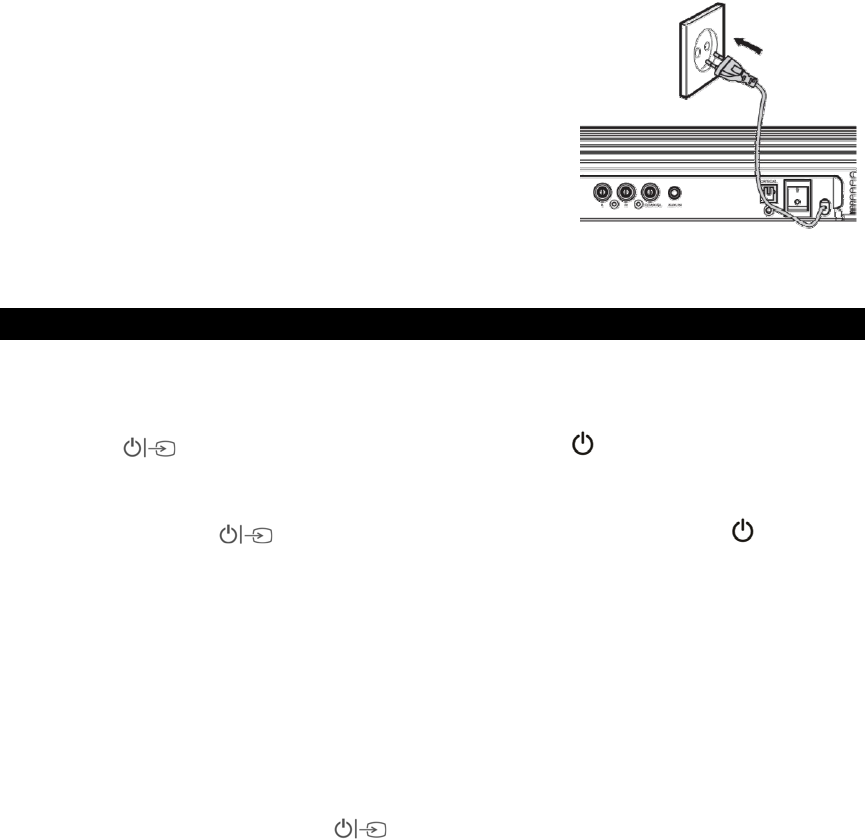

CONNECT POWER
Risk of product damage!
- Ensure that the power supply voltage corresponds to
the voltage printed on the back or the underside of
the unit.
- Before connecting the AC power cord, ensure you
have completed all other connections.
- Connect the mains plug of the main unit to a mains
socket.
- Ensure all connections are connected before
connecting to the mains power socket.
GETTING STARTED
• Press the POWER ON/OFF SWITCH (#12) on the rear of the soundbar to ON
position, the main unit will enter standby mode, the STATUS INDICATOR (#7)
will light up red.
• Press the BUTTON (#6) on the main unit or the BUTTON (#1) on the
remote control to switch the JSBW-750 on. The STATUS INDICATOR (#7) of the
last operating mode will light up.
• Press and hold the BUTTON (#6) on the main unit or press the
BUTTON (#1) on the remote control to switch the main unit back to Standby
mode. The STATUS INDICATOR (#7) will light up red.
• Set the POWER ON/OFF SWITCH (#12) to OFF position if you want to switch the
JSBW-750 off completely.
Note : When the soundbar is idle or there is no any input for 60 minutes, it will
automatically switch to Standby mode.
Select Modes
Press the audio source buttons (BT (#14), OPTICAL (#3), COAX (#2), AUX/RCA
(#13) on the remote control to enter the relevant mode directly.
Or you can also short press the BUTTON (#6) on the main unit repeatedly
during ON mode, the play mode will be changed circularly between Bluetooth
mode, Optical input mode, Coaxial input mode and Aux-in/RCA mode, meanwhile,
the STATUS INDICATOR (#7) will lights in different colour:
Blue=Bluetooth mode
Cyan=Optical input mode
Pink=Coaxial input mode
Green=AUX/RCA input mode
E‐9
BLUETOOTH OPERATION
Pairing a Bluetooth enabled device with the soundbar.
1. Turn on the soundbar, select BT mode. The STATUS INDICATOR (#7) will light
up Blue and flash.
2. The soundbar will go into Pairing/Discoverable mode.
3. Turn on the Bluetooth function for the device you want to link to, and enable the
search or scan function to find the soundbar.
4. Select " MW-1481" from the device list when it appears on your device screen.
If required, enter the pass code “0000” to pair (link) with your device.
5. If you are pairing (linking) your computer to the speaker using Bluetooth, you
may need to set the soundbar as your computer’s default sound device.
6. After successfully pairing the soundbar with your Bluetooth device, The
STATUS INDICATOR (#7) will stop flashing and remain lit.
7. If you want to pair (link) the soundbar with another Bluetooth device, press and
hold the PAIR BUTTON (#6) on the remote a few seconds. The STATUS
INDICATOR (#7) will flash. The soundbar will go into Pairing/Discoverable
mode. Repeat steps 3 & 4.
Now you can play music from your Bluetooth device wirelessly to the soundbar.
1. Select your favorite song, press the Play/Pause on your Bluetooth device or the
Play/Pause BUTTON (#5) on the soundbar to play or pause the song from
your Bluetooth device.
2. Press the Skip Forward BUTTON (#11) or Skip Backward BUTTON
(#4) to select the Next or Previous track.
3. Press “▲” / “ ” BUTTON (#12/10) on remote control or tap the “+”/ “-” BUTTON
(#5/4) on the main unit and adjust the volume control of your Bluetooth device
until you reach a comfortable listening level.
Note :
1. Refer to the manual of your cell phone, tablet PC, computer or other Bluetooth
enabled devices for Bluetooth operation since it may vary from model to
model.
2. If your Bluetooth enabled device does not support A2DP profile, it will not play
the music through the speaker, even if paired (linked).
3. Remember to turn off the soundbar when you have finished listening,
4. Don't forget to switch off the power of your Bluetooth device as well.
5. The music playback will automatically be paused when you have an incoming
call. When the call is ended, the soundbar will start playing again.
E‐10
OPTICAL/COAXIAL (DIGITAL INPUTS) OPERATION
1. Ensure that the unit is well connected to the TV or other audio device via
Optical or Coaxial cables (not included).
2. Turn on the soundbar, press the BUTTON (#6) on the main unit repeatedly
or press the OPTICAL BUTTON (#3) or COAX BUTTON (#2) on the remote
control to select the relevant OPTICAL or COAXIAL mode.
3. Operate your audio device directly for playback features.
4. Press “▲” / “ ” BUTTON (#12/10) on remote control or tap the “+”/ “-” BUTTON
(#5/4) on the main unit until you reach a comfortable listening level.
NOTE : If there is no sound come out from the soundbar and the status indicator
light flashes quickly, Make sure the audio (digital output) setting of your
source player (e.g. TV, DVD player, game player) is set to PCM.
AUX/RCA OPERATION
1. Ensure that the unit is well connected to the TV or other audio device via the
accompanied 3.5mm-RCA cable.
2. Turn on the soundbar, press the BUTTON (#6) on the main unit repeatedly
or press the the AUX/RCA BUTTON (#13) on remote control to select the
AUX/RCA input mode.
3. Operate your audio device directly for playback features.
4. Press “▲” / “ ” BUTTON (#12/10) on remote control or tap the “+”/ “-” BUTTON
(#5/4) on the main unit until you reach a comfortable listening level.
Note:
• If you want to play it via RCA LINE-IN JACKS (#8), make sure the AUX-IN
JACK is unlugged.
• If you connect the soundbar to the Line-Out Jack of your external device, you
only need to adjust the volume control of your soundbar. If you connect to the
headphone jack of your external device, you may need to adjust both the
volume controls of your external device and the soundbar to obtain the desirable
listening level.
• Remember to turn off the soundbar when you have finished listening. Don't
forget to switch off the power of your external audio device as well.
E‐11
Ecology note
This product is an eco designed product. After 60 minutes without any audio input,
the device will automatically switch into standby mode. Follow up the instruction
manual to resume the operation.
Important note:
This device is equipped with an energy saving mode: if no signal is given during 60
minutes the device will switch automatically into standby mode in order to save
energy. Please note that low volume setting in the audio source may be recognized
as “no audio signal”: this will affect the capability of signal detection from the device
and can also originate an automatic switch into standby mode. If this happens
please reactivate the audio signal transmission or increase the volume setting on
the audio source player (MP3 player, etc.), in order to resume playback. Please
contact the local service center if the problem remains.
WALL MOUNTING
E‐12
TROUBLE SHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
No Power The unit is disconnected from
the AC outlet
AC outlet is not functioning
Power On/Off Switch is off
Reconnect to the AC outlet
Change to another outlet
Set the Power On/Off Switch to On
Remote
Control does
not work
Battery empty
Installed battery wrong polarity
Too far from the main unit
Replace battery
Re-install battery in correct polarity
Reduce the distance
No Sound Select wrong source input Select correct source input
Sound is
distorted
Volume level is set too high Decrease the volume level
Unit gets
warm after
extended
play at high
volume
This is normal Turn the unit off for a period of
time or lower volume
No sound
when
playing
audio
via
Bluetooth
Your Bluetooth device
has
been paired
The volume control of
your
Bluetooth device is set at
too low
The volume control of main
unit
is set at too
low
According to the
"Bluetooth
operation"
Increase the volume of
your
Bluetooth
device
Increase the volume of
main
unit
to adjust the
VOLUME control
SPECIFICATION
Power Input 120V~60Hz
Power Consumption 45 W
USB Output 5V 1A
Output Power (RMS) 10Wx2 +40W (Bass)
Mid-High Range Speaker 2 x 2” 8Ohm 10W
Mid-High Range Speaker 4 x 2” 4Ohm 10W
Frequency Response 40Hz-20KHz
Remote Control 1 x DC 3V CR2032 button cell (included) Working
Temperature ............................. 0-35℃
Working Humidity....................... 20%~80%
