ADVANCED AC POWER MANAGEMENT SOLUTIONS
FOR TODAY’S HOME THEATER, AUDIOPHILE & VIDEOPHILE APPLICATIONS
120V CONSUMER ELECTRONICS LINE CATALOG
ACCOLADES FROM TOP PROFESSIONAL INTEGRATORS
I spent the night listening to my home system fully
Furmanized and I have to say, in complete sincerity, I
cannot remember the last performance upgrade I made
in my system that moved the sound quality up-opened
the door so much-as these “optional” components.
Every single aspect of the sound through this system is
dramatically superior to the same system without the
Furman line conditioners.
– Jonathan Spelt, Ultra Fidelis
Furman products do everything that they say they will
do. The stuff works and it works well!
– Bob Cole, World Wide Stereo
We carry Furman products because of their reliability.
Furman has an outstanding reputation in the pro A/V
industry for providing high-quality solutions at an
attractive price point.
– Mark Halsten, Halsten Entertainment
Furman is a no-pressure, great-product company that any
professional retailer or system integrator should be proud
to be associated with. It’s always a huge plus when a
company that treats you well in all aspects of the business
makes a product that takes a back seat to none of its
competition.
– David Wexler, The Little Guys
ACCOLADES FROM THE PRESS
I was in no way prepared for the difference the Furman
made and had to hook and re-hook the power cords many
times before I believed what I was hearing was real.
– Darryl Wilkinson, Home Theater Magazine
With the Furman in my system the difference was
profound... I wanted to listen to more music... watch more
TV, more movies and more music DVD’s.
– Rick Schmidt,
Secrets of Home Theater and High Fidelity
Bass instantly tightened, the noise floor dropped, and a
veil seemed lifted from my loudspeakers after removing
the power plugs from my wall and inserting the Elite-15 PF
i. The difference was immediately obvious in my system.
– Danny Richelieu, Widescreen Review
The IT-Reference 20i is built like a tank, and worked
flawlessly... Owners of ambitious systems are well advised
to invest in a high-quality power-management solution
such as the IT-Reference 20i.
– John Marks, Stereophile
www.furmanpower.com 3
For over 40 years, Furman has been the leading manufacturer of AC power
conditioners, AC voltage regulators, balanced isolation transformers, and AC
distribution equipment for audio, video, and broadcast professionals.
Our products are relied upon by respected profes-
sional musicians, renowned recording and film stu-
dios, and major touring and performance companies
throughout North America and across the world.
They choose Furman for our reputation for reliability
and our years of engineering expertise focusing on
the specific needs of industry professionals that
cannot afford equipment failure or downtime.
Introduced in 2001, Furman’s acclaimed line of con-
sumer power management products build upon the
virtually maintenance free, performance enhancing
technology found in our professional line. With com-
ponents that have been re-engineered from the
ground up, Furman’s consumer electronics product
line is designed to meet the specific challenges
found in today’s home theater and high-perfor-
mance audio systems.
We at Furman are focused on the future and our
commitment to stretch the bounds of technology
to provide the most advanced power management
solutions available for audio and video electronics.
AWARD-WINNING DESIGN & TECHNOLOGY
4
EXTREME VOLTAGE SHUTDOWN (EVS)
Extreme voltage conditions (such as
sustained over-voltage conditions) are
some of the most threatening power
problems faced by your equipment.
A power pole that was damaged in a
storm or accident, or a lost or inter-
mittent neutral wire in a multiple zone
system, can result in a sudden connec-
tion in excess of 208 volts AC. Most
extreme voltage conditions will result
in destroyed equipment or, at best, a
destroyed surge suppression system.
In either event, equipment service is
certainly required.
Furman’s EVS protects against these
scenarios by employing a circuit that
constantly monitors the incoming AC.
When voltage is detected at 15% above
nominal, a power relay opens, cutting off
the AC supply to all connected equipment
and critical circuits. Once the voltage is
corrected, the unit is reset and normal
operation may continue.
SERIES MULTI-STAGE PROTECTION (SMP)
Typical surge suppressors rely exclu-
sively on sacrificial components to
protect your equipment from voltage
surges and spikes. They are designed to
“take the bullet” when exposed to a cata-
strophic voltage irregularity, hopefully
saving your equipment, but sacrificing
internal components in the process. In
a best-case scenario, this leaves your
equipment unprotected until the surge
suppression device can be repaired or
replaced. In the worst case, the device
can’t absorb the entire surge before
failing, letting voltage pass into your
system and damage your equipment.
Furman’s technology is different.
The key to our SMP suppression system
is that the severity of the offending
voltage spike is critically damped so that
the overall energy level is reduced to
a fraction of what the clamping device
can handle. So, like a well-tuned shock
absorber, the SMP circuit protects itself,
as well as your connected equipment.
Furman’s SMP circuit has been tested
to withstand multiple 6000V or 3000A
pulses without sustaining any damage,
far beyond the demands placed on
typical surge suppressors*.
* Tests performed at World Products Laboratory with
a Keytec #587 generator, measured with an Agilent
Infiniium oscilloscope and associated current and
voltage probes. Applied signal = 120VAC with a
6kV/3kA B3 pulse applied at the peak of the sine
wave. Complete circuit suppressed voltage = 183V
to 188V peak (equivalent to 133VAC).
Without proper protection, the end result is
destroyed equipment, or at best, a destroyed
surge suppression system.
The SMP circuit protects itself,
as well as your connected
equipment.
120V CONSUMER ELECTRONICS LINE CATALOG
Every day, the need for advanced power management solutions is becoming more and more apparent.
Today’s A/V technologies are more sophisticated than ever, but the AC grid that powers our equipment
is increasingly overtaxed, antiquated, and dilapidated. AC problems that went unnoticed fifty or
sixty years ago, when our power system was put in place, can now cause performance issues,
reduced reliability, and damage to sensitive components.
Furman’s solutions are engineered to address today’s real-world needs. Below are some of
the advanced exclusive technologies you will only find in Furman products:
www.furmanpower.com 5www.furmanpower.com 5

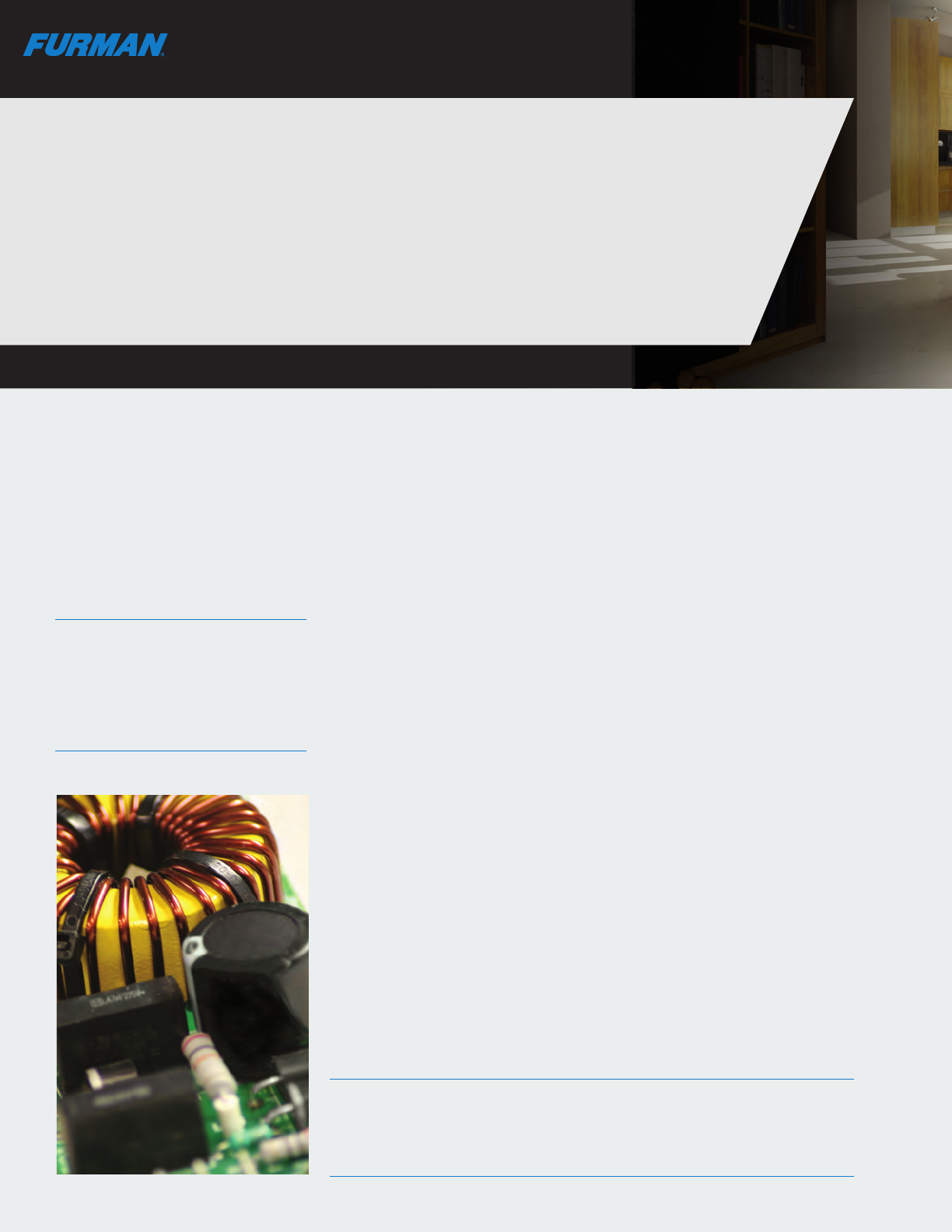

TECHNOLOGY
POWER FACTOR TECHNOLOGY
Furman’s Power Factor Technology was
designed to help power amplifiers sound
their best and reproduce audio signals
accurately. While a typical 15 amp tap is
enough to supply the modest RMS current
draw needed by most power amplifiers,
the extremes and dynamics of an audio
presentation may require the power ampli-
fier to draw in excess of 30 amps for a
brief moment. The punch of a bass guitar,
the forceful hammering of a dense piano
chord, or the ringing crash of a drummer’s
cymbal are all audio transients that can
require a power amplifier to provide more
current than is available to reproduce the
signal. When this occurs, the transients
can be blurred, compressed, and squashed,
resulting in the audio presentation losing
the drama and excitement that was intended
by the artist who recorded the program.
With Furman’s Power Factor Technology,
power amplifiers are supplied a momentary
current reservoir which lowers the AC line
impedance while providing up to 80 amps
of peak current from which to draw. Simply
put, Power Factor Technology allows power
amplifiers to get the current they need when
they need it most.

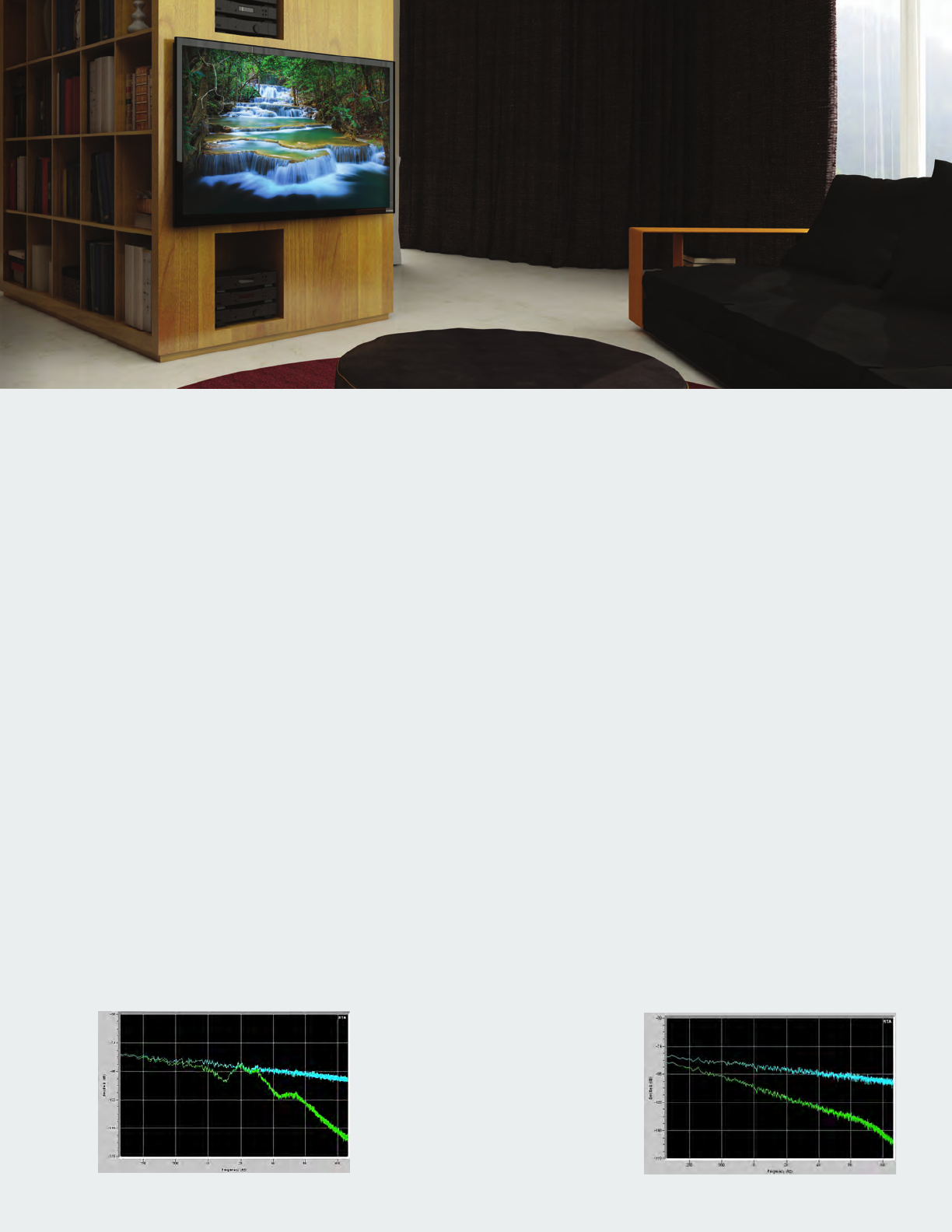

LEFT: Output of real-time noise analysis software,
showing the noise attenuation curve of a standard
AC noise filter. Note the uneven shape of the curve
(the green line).
RIGHT: Output of the same analysis using Furman’s
Linear Filtering Technology. As you can see, the noise
attenuation curve is smooth and linear, without the
resonant peaking seen in the standard filter.
LINEAR FILTERING TECHNOLOGY (LiFT)
While delivering power your AC tap also
delivers a significant amount of line noise.
This is due to many reasons: the widening
popularity of switching power supplies and
the harmonics they backfeed into our AC
power mains, the deterioration of our power
grid from age and use, and the noise pollu-
tion generated from the massive amounts of
electronic devices on our grid at any given
time, among others. When this AC noise
couples into critical circuits, it will distort
and mask low-level signal information. This
information is vital to today’s high-perfor-
mance, high-definition video and audio.
Furman’s LiFT employs a finely tuned low-
pass filter to reduce the differential AC
noise coming through your line. What is
significant about Furman’s filtering is that
it reduces the AC noise in a linear fashion
across a very wide bandwidth. Prior filtering
schemes (such as those found in most AC
conditioners and in Furman’s own condi-
tioners prior to developing LiFT) reduce
noise unevenly, creating a noise attenuation
curve that resembles a roller coaster. This is
akin to a poor job of equalizing a recording.
With Furman’s LiFT, differential AC noise
is reduced linearly, across a very wide
bandwidth, even extending into the video
frequencies. This results in a lower noise
floor for your audio system, improved
picture on your video display, and protec-
tion from possible data corruption and
losses caused by low-level differential AC
noise fed into digital systems.
TECHNOLOGY
6

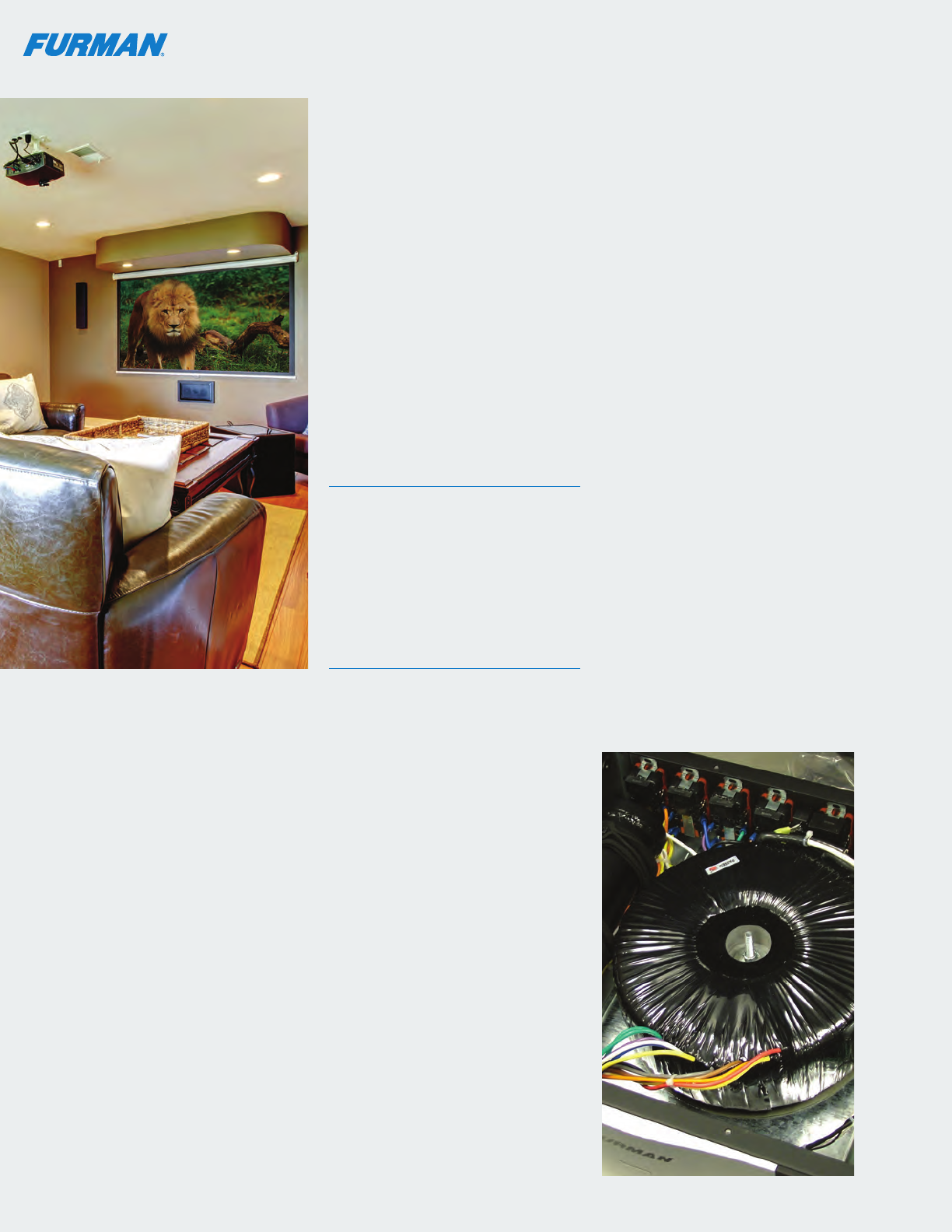

DISCRETE SYMMETRICALLY BALANCED POWER
While differential AC noise (such as
electromagnetic and radio frequency
interference) can be effectively reduced
with a low-pass filter such as Furman’s
LiFT, common mode AC noise - the
cause of ground loops and video hum
bars - requires more advanced solutions.
Effective reduction of common mode
noise without rewiring the electrical
service requires the use of an isolation
transformer. The most effective of these
are true symmetrically balanced isola-
tion transformers.
Furman’s Discrete Symmetrically
Balanced Power is achieved by running
the incoming AC into a 1:1 isola-
tion transformer with a precisely
placed center tap on the transformer’s
secondary. The incoming voltage (120V
on the line terminal and 0V on the neutral
and ground) is split into perfect halves
on the transformer’s output. The AC line
now has 60V on the line and 60V on
the neutral when referenced to the new
center-tapped ground, which remains at
0V AC. What is significant about this is
that the two 60V AC terminals are now
in opposite polarity. This completely
cancels all common mode noise from
the incoming AC line. This noise reduc-
tion is extraordinarily efficient and linear
across a huge frequency range, and the
result is perfectly clean power devoid of
ground loops and AC hum noise.
Furman’s isolation transformers utilize
Dual Screen Technology, which yields
the widest bandwidth of noise reduction
available. This allows Furman’s Discrete
Symmetrically Balanced Power units to
uncover unprecedented levels of video
and audio detail while ensuring that flat
panel displays or video projectors are
free of AC ground contamination from
an audio processor or power amplifier.
STABLE POWER REGULATION
With today’s chaotic demands on many
municipal power facilities, AC voltage is
often reduced so that it can be stretched
to fulfill excess demand. This creates
a substantial negative impact on your
system’s performance. Power ampli-
fiers and powered subwoofers cannot
perform to their full potential. Even
a relatively modest reduction in AC
voltage can obliterate the sonic impact
of an otherwise superior system. Low
voltage can also burn out a component’s
power supply, as the internal power
supply must work harder to make up
for the lack of incoming voltage. Just
as problematic are excessively high
line voltages. Excess voltage can over-
heat sensitive circuits, lower the life and
reliability of projector lamps, and cause
many circuits to shut down.
With Furman’s exclusive Stable Power
Regulation Technology, incoming volt-
ages that are either too low or dangerously
high are converted to a stable, steady
120V AC (typically ±1V). This allows a
voltage-starved system to perform at its
full potential. Electronic components are
supplied with constant, unwavering AC
voltage, assuring trouble-free service
for any environment suffering from
unstable power. Furthermore, Furman’s
Stable Voltage Regulation generates
virtually no heat, and produces none of
the mechanical noise typical in inferior
AC voltage regulators. Our zero-crossing
solid state technology provides virtually
unlimited peak current delivery, avoiding
the current limiting found in AC regula-
tors that convert AC power into DC and
then synthesize an AC output signal.
120V CONSUMER ELECTRONICS LINE CATALOG TECHNOLOGY
Electronic components are
supplied with constant,
unwavering AC voltage,
assuring trouble-free service
for any environment
www.furmanpower.com 7www.furmanpower.com 7

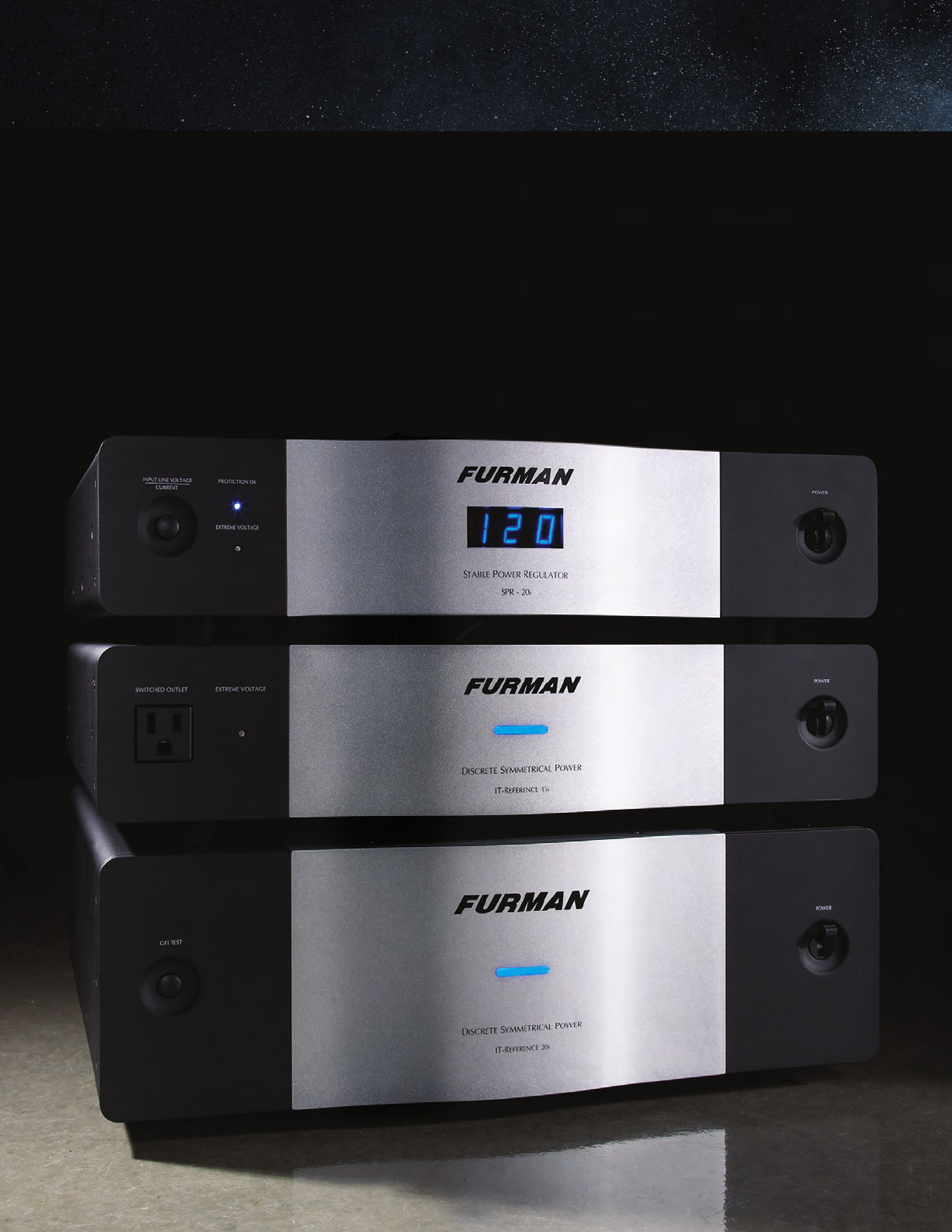

IT-REFERENCE 20i ...............................Page 8
Discrete Symmetrically Balanced Power Conditioner, 20A
IT-REFERENCE 15i ...............................Page 9
Discrete Symmetrically Balanced Power Conditioner, 15A
SPR-20i .......................................Page 10
Stable Power Voltage Regulator, 20A
REFERENCE MODELS i SERIES
8

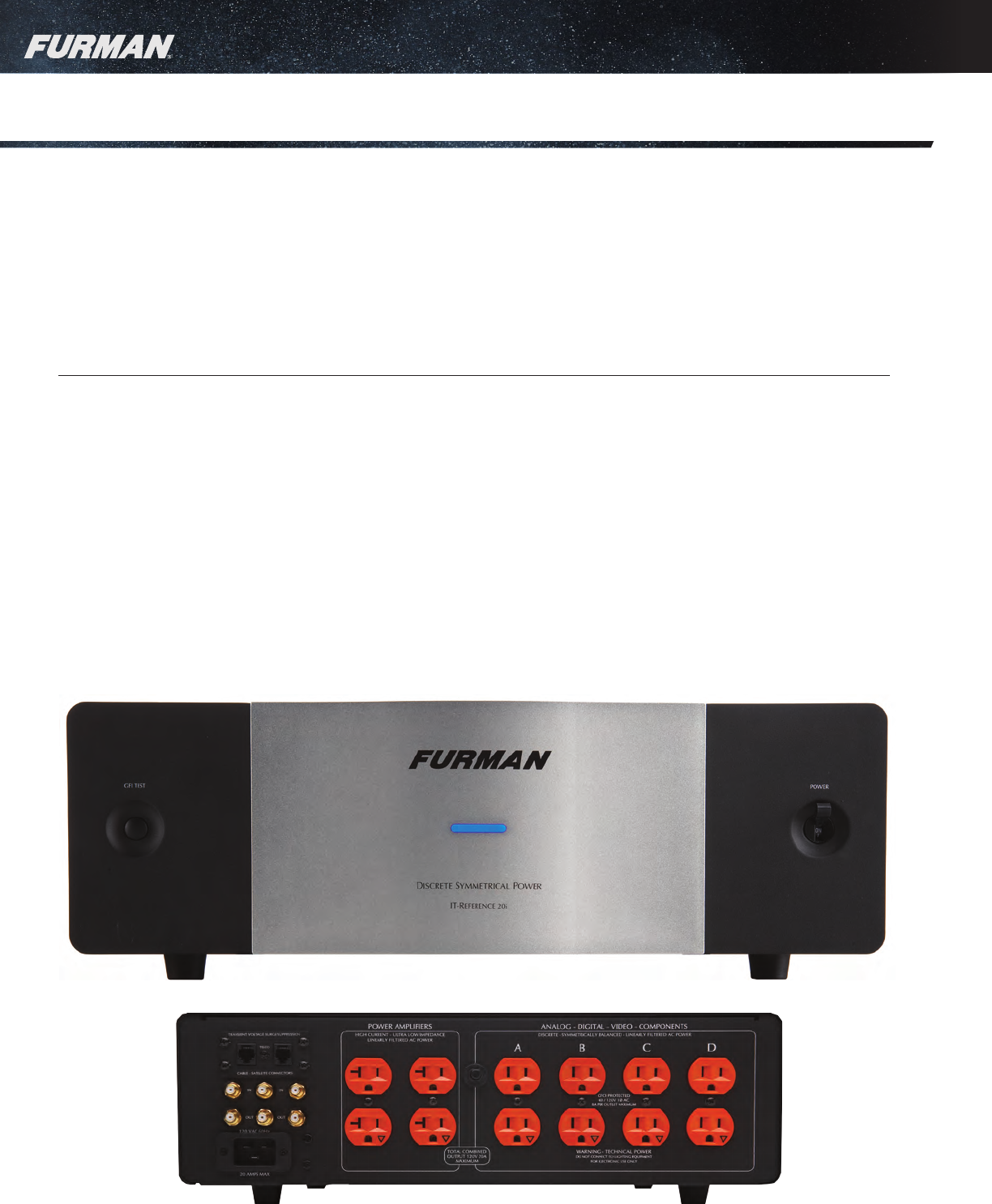

DISCRETE SYMMETRICALLY BALANCED AC POWER CONDITIONER, 20A
IT-REFERENCE 20i
FEATURES
• Discrete Symmetrically Balanced Power with Dual Screen
Technology cancels hum-inducing noise from audio and video
• Five discrete power banks eliminate inter-component
interference and noise
• Power Factor Technology provides surplus current (80A peak)
for power-starved amplifiers
• Linear Filtering Technology for unequaled audio / video clarity
• Virtually maintenance-free AC surge suppression
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial
connectors and detachable module for telco surge suppression
• 12 outlets, 20A capacity
DESCRIPTION
Designed for the most ambitious high-current audiophile,
videophile and home theater systems, the Furman IT-Reference
20i’s Discrete Symmetrical Power features total isolation between
its four filtered high-current outlets and each of its isolated
symmetrical power AC outlet banks. This positively breaks
noise inducing ground loops, hum bars, and power supply
backwash between critical interconnected equipment, all without
compromising electrical safety. Furman’s newly refined isolation
transformer featuring Dual-Screen Technology yields the widest
bandwidth of noise-reduction available, enabling the IT-Reference
20i to uncover unprecedented levels of video and audio detail.
The IT-Reference 20i also features Furman’s Power Factor
Technology to ensure optimum performance for current-starved
power amplifiers and powered subwoofers, while Furman’s Linear
Filtering Technology provides a finely tuned low-pass filter to
remove differential noise from the incoming AC line. Whether
defeating problem ground loops or simply providing pure power
to allow high-quality connected equipment to perform its best, the
Furman IT-Reference 20i ensures system performance without
compromise.
www.furmanpower.com 9
TECHNOLOGYDISCRETE SYMMETRICALLY BALANCED AC POWER CONDITIONER, 15A

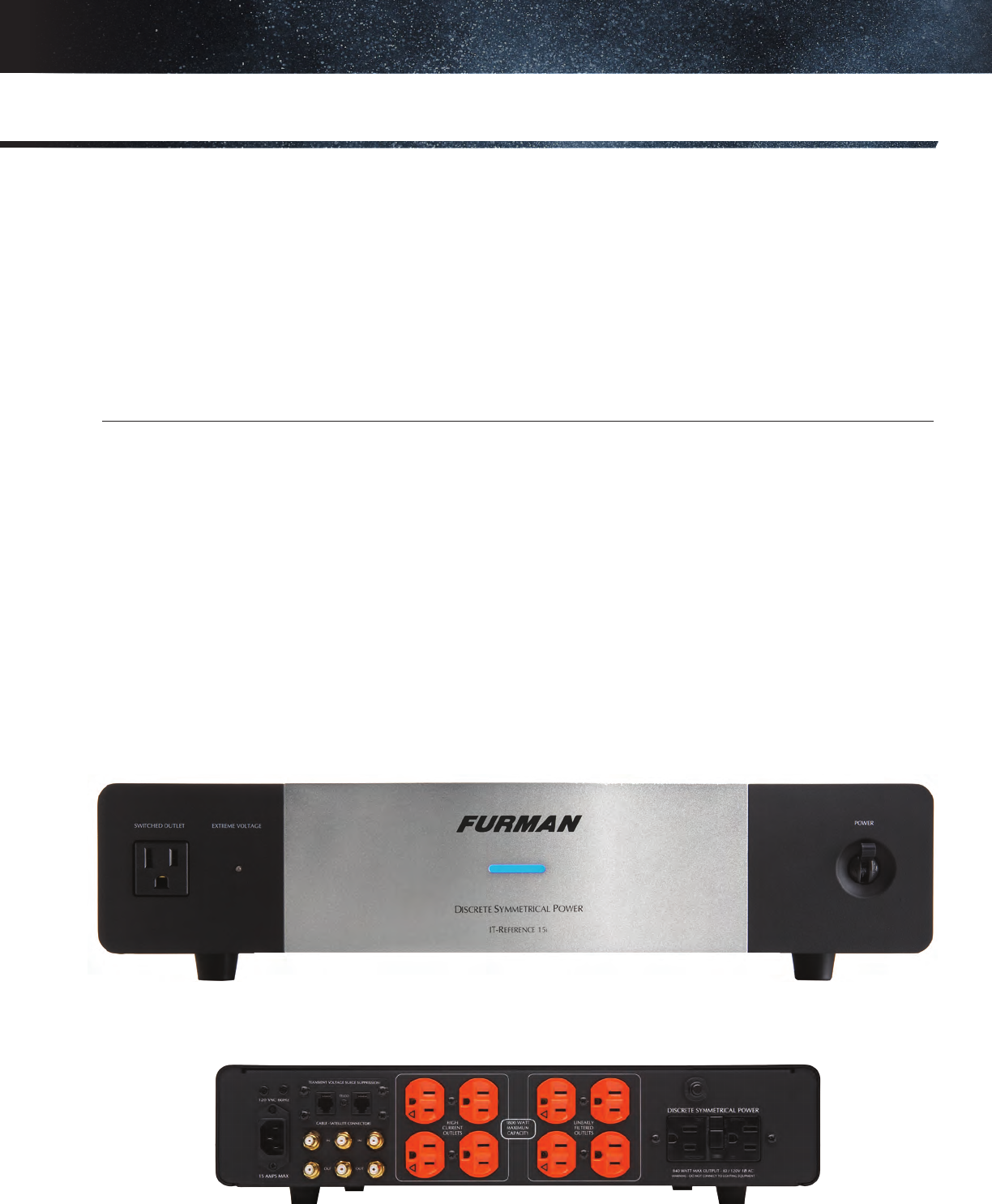

IT-REFERENCE 15i
FEATURES
• Discrete Symmetrically Balanced Power with Dual Screen
Technology cancels hum-inducing noise from audio and video
• Power Factor Technology provides surplus current (55A peak) for
power-starved amplifiers
• Linear Filtering Technology (LiFT) for unequaled audio / video clarity
• Series Multi-Stage Protection (SMP) provides maximum
AC surge suppression
• Extreme Voltage Shutdown (EVS) guards against prolonged over/
under voltage conditions
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial connectors
and detachable module for telco surge suppression
• 11 outlets, 15A capacity
DESCRIPTION
For premium home theater systems where flawless performance
is essential, the IT-Reference 15i delivers Discrete Symmetrically
Balanced Power to connected equipment, effectively canceling all
common mode line noise - the cause of ground loops and video
hum bars. Additional noise reduction is provided by Furman’s
Linear Filtering Technology, which provides a low-pass filter
engineered to reduce differential line noise in a linear fashion
across a very wide bandwidth. The IT-Reference 15i also features
Power Factor Technology, which provides power amplifiers and
powered subwoofers with an extremely efficient, low-impedance
supply of AC power to enable maximum performance.
Additionally, Furman’s virtually maintenance free, non-sacrificial
SMP surge protection and EVS over/under voltage protection
provide peace of mind by offering the most advanced protection
available.
Note: The IT-Reference 15i is rated with a 15A current
capacity. If higher capacity is required, Furman recommends
the IT-Reference 20i.
10

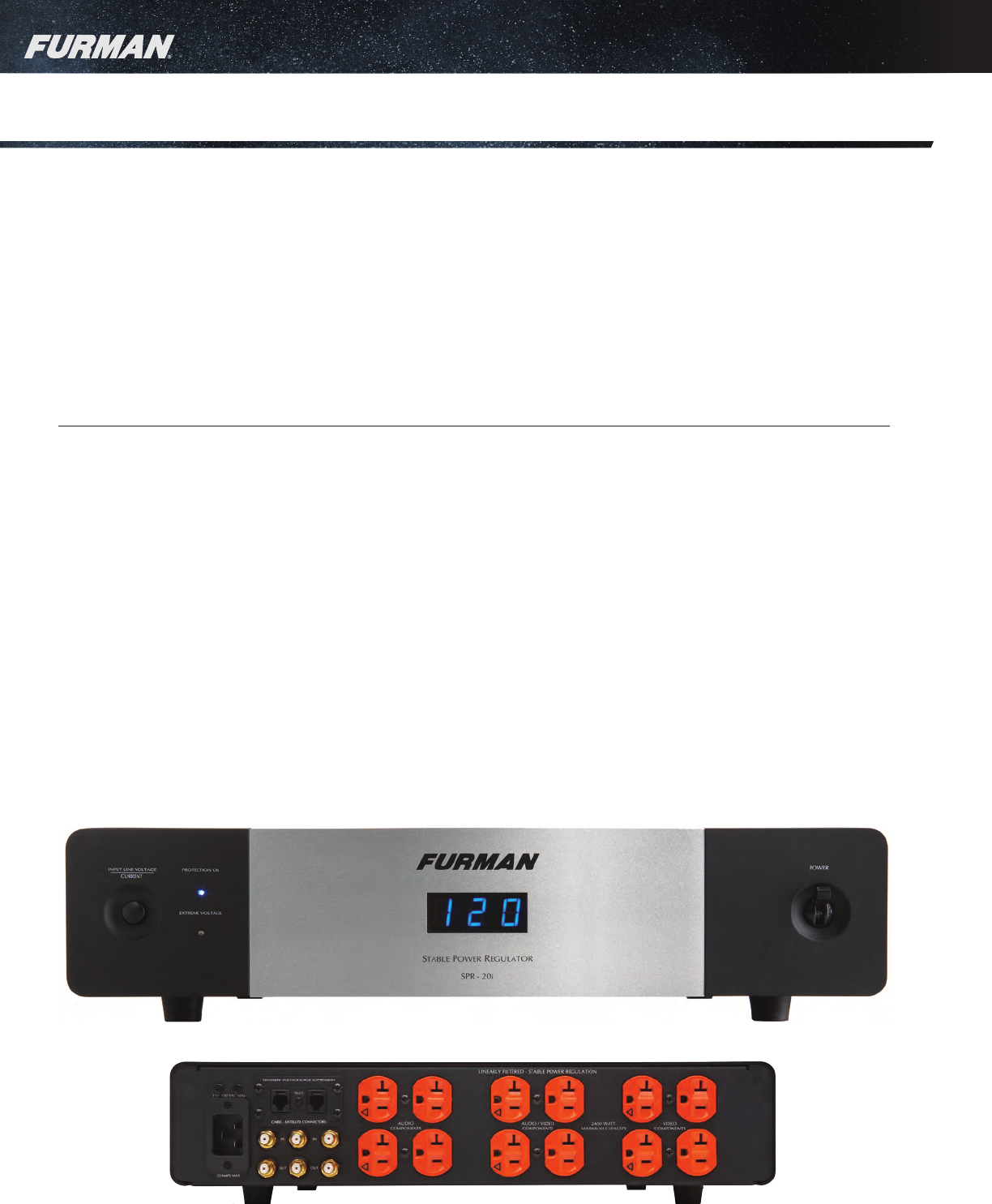

STABLE POWER VOLTAGE REGULATOR, 20A
SPR-20i
FEATURES
• Provides an ultra-stable 120 VAC supply from low or high voltage sources
• Linear Filtering Technology (LiFT) for unequaled audio / video clarity
• Series Multi-Stage Protection provides maximum AC surge suppression
• Extreme Voltage Shutdown (EVS) guards against prolonged over/under voltage conditions
• Cool-running, noise free regulation technology allows placement in critical listening environments
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial connectors and detachable module for telco surge suppression
• 12 outlets, 20A RMS capacity
DESCRIPTION
With the SPR-20i’s exclusive Stable Power AC Voltage Regulation
Technology, home theaters are supplied with constant, virtually
unwavering AC voltage. This assures trouble-free service for any
environment suffering from unstable power.
The SPR-20i’s solid state multi-tap autoformer provides AC regu-
lation for a continuous output of 120VAC (+/- 1.0V typically) with
an input voltage range of 113VAC to 126VAC (the SPR-20i will
regulate well beyond 113VAC to 126, but not within 1.0VAC). This
unit generates virtually no heat and produces none of the mechan-
ical noise typical in inferior AC voltage regulators, making it ideal
for use in critical listening environments. Further, Furman’s
zero-crossing solid state technology provides virtually unlimited
peak current delivery, avoiding the current limiting found in AC
regulators that convert AC power into DC and then synthesize an
AC output signal.
The SPR-20i also features Linear Filtering Technology
for unsurpassed differential AC noise reduction, Series
Multi-Stage Protection to provide virtually maintenance-free
suppression from transient voltage surges and spikes, and
Extreme Voltage Shutdown to guard against prolonged over/
under voltage conditions.
The SPR-20i may be used in combination with a Furman
IT-Reference 20i Discrete Symmetrical Power Conditioner for a
comprehensive, premium AC power management solution.
ELITE-20 PFi ...................................Page 12
Ultra-Linear Filtering Power Conditioner with Power Factor Technology, 20A
ELITE-15 PFi ...................................Page 13
Linear Filtering Power Conditioner Power Factor Technology, 15A
ELITE-15 DMi ...................................Page 14
Linear Filtering Power Conditioner, 15A
ELITE-15i ......................................Page 15
Linear Filtering Power Conditioner, 15A

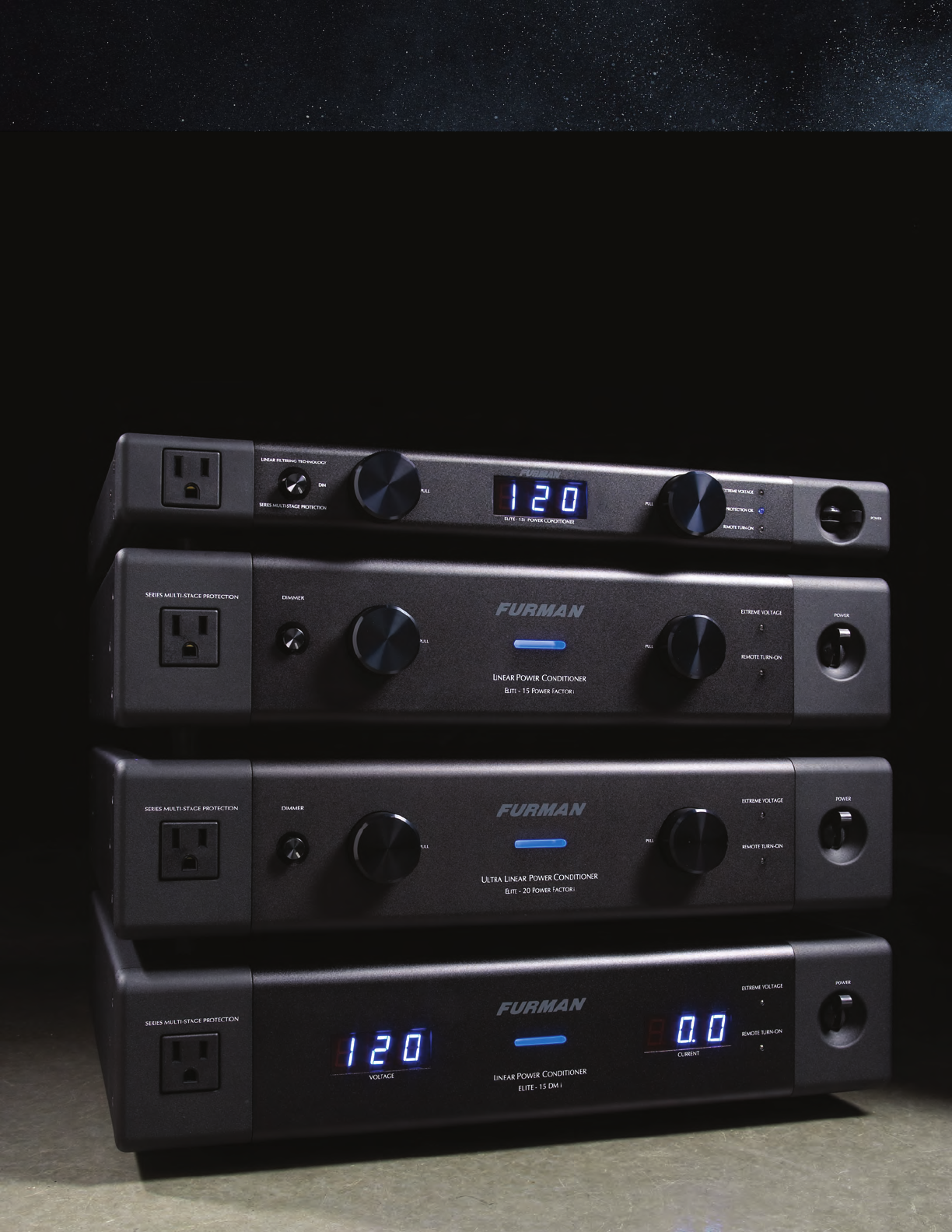

ELITE MODELS i SERIES
www.furmanpower.com 11
12
ULTRA-LINEAR FILTERING AC POWER CONDITIONER, 20A

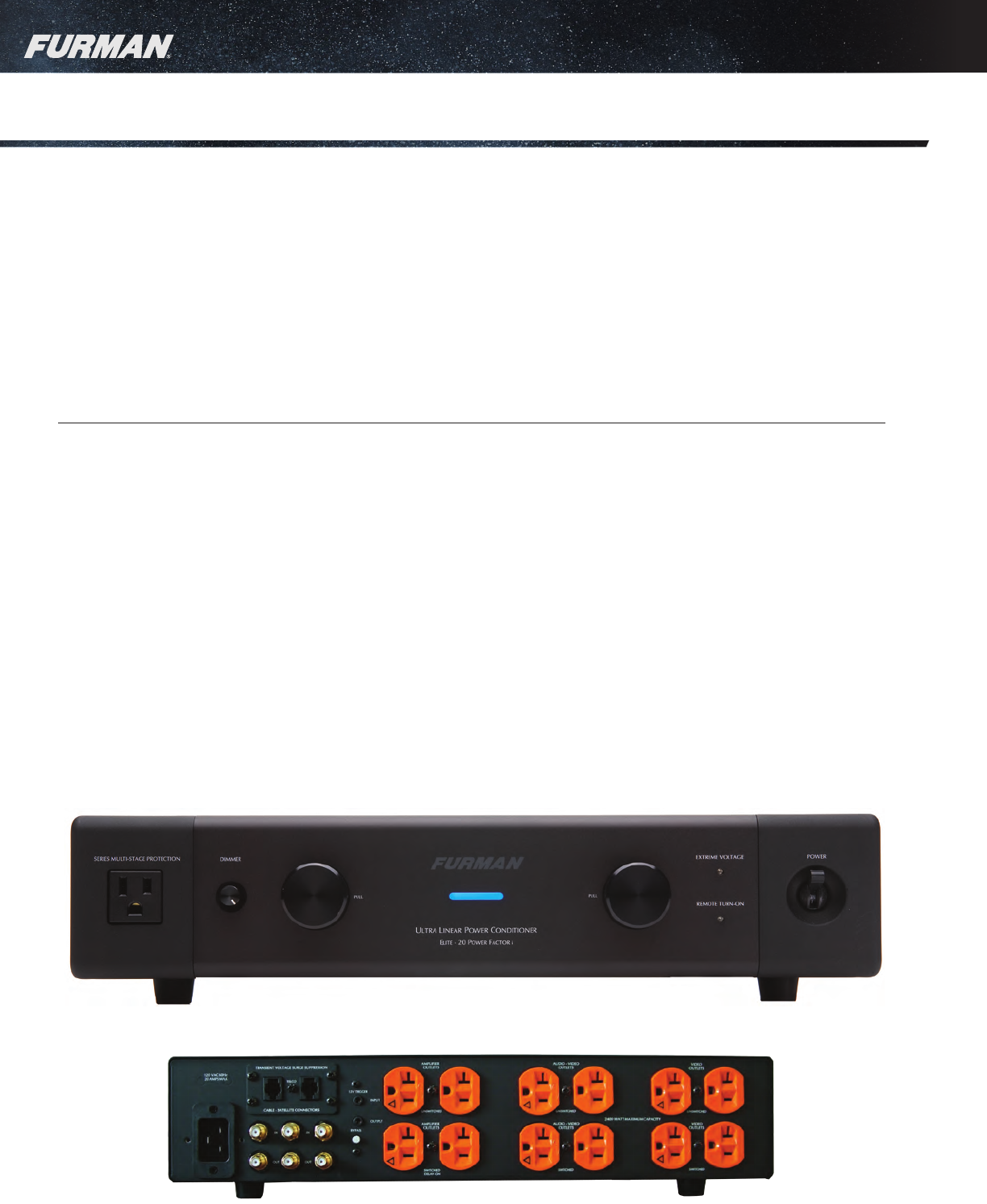

ELITE-20 PFi
FEATURES
• Power Factor Technology provides surplus current (55A peak)
for power-starved amplifiers
• Ultra-Linear Filtering Technology for unequaled audio
and video clarity
• Series Multi-Stage Protection (SMP) featuring Auto-Reset
Extreme Voltage Shutdown (EVS)
• Zero ground contamination circuitry protects critical
digital components
• Ultrasonic filtering isolates digital and video circuits from
analog components
• Retractable LED lamps illuminate a cabinet or rack full of equipment
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial connectors
and detachable module for telco surge suppression
• 12 Volt triggering for remote control
• 13 outlets, 20A capacity
DESCRIPTION
The Furman Elite-20 PF i is engineered to provide today’s home
theater systems with clean, ultra-low noise AC power to assure
maximum performance. The Elite 20 PF i’s Ultra-Linear Filtering
reduces noise across an even greater bandwidth than Furman’s
Linear Filtering Technology - in fact, the Elite-20 PF i is so substan-
tial in its ability to unmask critical signal content, its performance is
surpassed only by the Furman Reference Series.
The essence of the Elite-20 PF i is Furman’s unique Power
Factor Technology. The Elite-20 PF i has a current reserve of over
55 amps peak charge (4.5 amps RMS) for the most extreme peak
power demands. This technology enables power amplifiers and
powered subwoofers to operate at maximum efficiency, reaching
levels of performance previously unattainable. Furthermore, the
Elite 20-PF i’s 20A capacity provides sufficient current for large
power amplifiers and other current-hungry components.
The Elite-20 PF i also features remote control capability via 12V
triggering, compatible with the 12V triggering devices commonly
found in power receivers and pre-amp processors. Additional prod-
ucts (such as a remote subwoofer) can be daisy-chained from the
12V output jack for an additional triggered unit. The 12V triggering
feature may be bypassed if desired. Convenient pull-out lights
discreetly illuminate a rack full of equipment.
www.furmanpower.com 13
LINEAR FILTERING AC POWER CONDITIONER, 15A
ELITE-15 PFi
FEATURES
• Power Factor Technology provides surplus current (45A peak)
for power-starved amplifiers
• Wide bandwidth Linear Filtering Technology (LiFT) for stunning
audio / video clarity
• Series Multi-Stage Protection (SMP) featuring Auto-Reset
Extreme Voltage Shutdown (EVS)
• Zero ground contamination circuitry protects critical digital
components
• Retractable LED lamps illuminate a cabinet or rack full of equipment
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial connectors
and detachable module for telco surge suppression
• 12 volt triggering for remote control
• 13 outlets, 15A capacity
DESCRIPTION

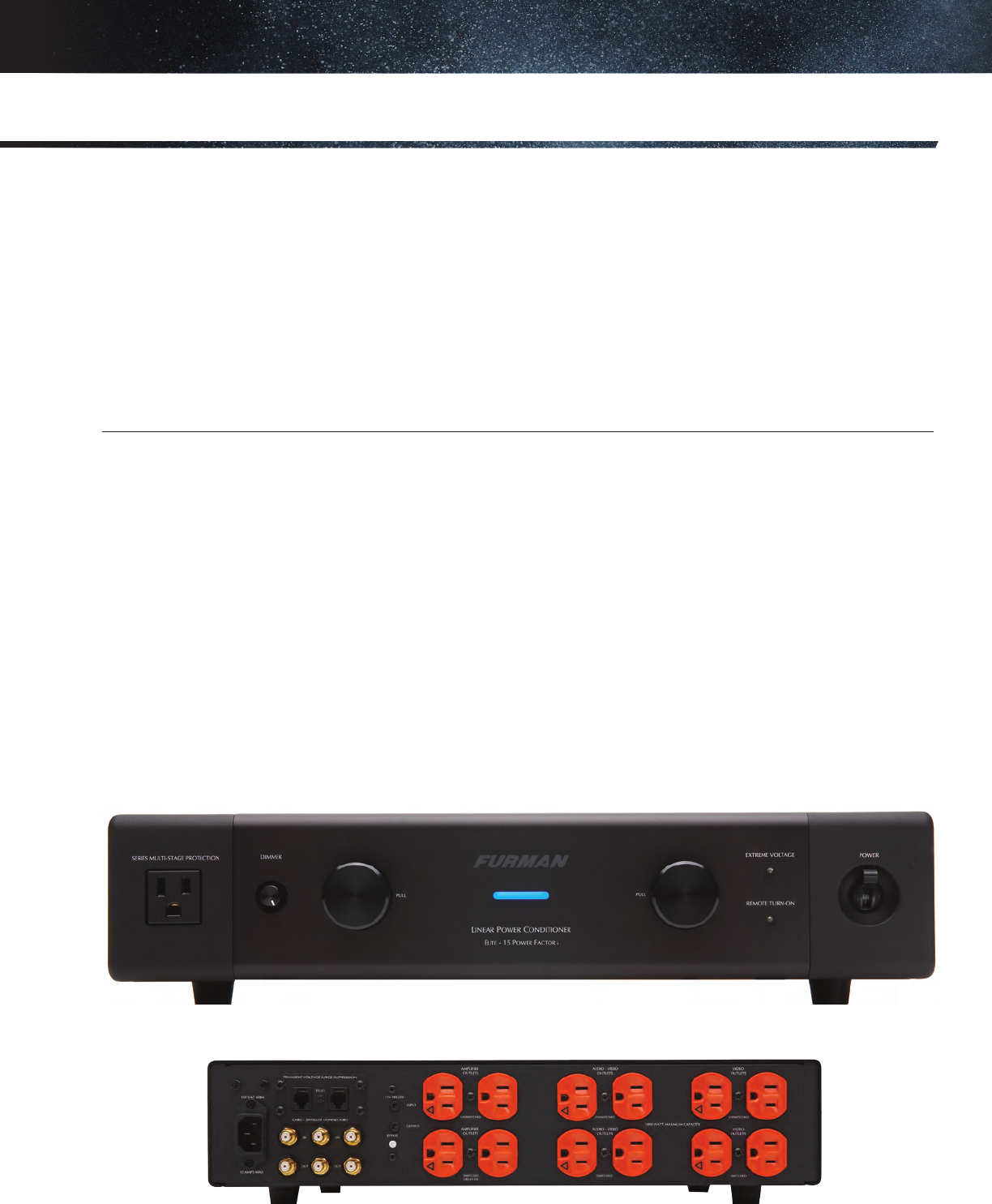

The Furman Elite-15 PF i is the ideal power conditioner for
moderate home theater systems utilizing power amplifiers or
powered subwoofers that draw no more than 15 amps. The
Elite-15 PF i has a current reserve of over 45 amps peak charge
(3 amps RMS) for the most extreme peak power demands. This
technology enables power amplifiers and powered subwoofers to
operate at maximum efficiency, reaching levels of performance
previously unattainable. The Elite-15 PF i also offers Linear
Filtering Technology for stunning audio/video clarity as well as
SMP non-sacrificial surge suppression for virtually maintenance-
free protection of your valuable electronics.
The Elite-15 PF i’s 12V triggering provides remote control capa-
bility compatible with the 12V triggering devices commonly
found in power receivers and pre-amp processors. Additional
products (such as a remote subwoofer) can be daisy-chained
from the 12V output jack for an additional triggered unit. The 12V
triggering feature may be bypassed if desired.
Furman’s signature pull-out rack lights are also provided. Perfect
for home theater environments, these high-intensity LED lights
provide discreet illumination of your equipment, and the lights
may be dimmed or turned off completely when not in use.
14
LINEAR FILTERING AC POWER CONDITIONER, 15A
ELITE-15 DMi
FEATURES
• Linear Filtering Technology (LiFT) for stunning audio / video clarity
• Series Multi-Stage Protection (SMP) featuring Auto-Reset Extreme
Voltage Shutdown (EVS)
• Laboratory grade dual voltage and current meters
• Zero ground contamination circuitry protects critical
digital components
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial
connectors and detachable module for telco surge suppression
• 12 volt triggering for remote control
• 13 outlets, 15A capacity

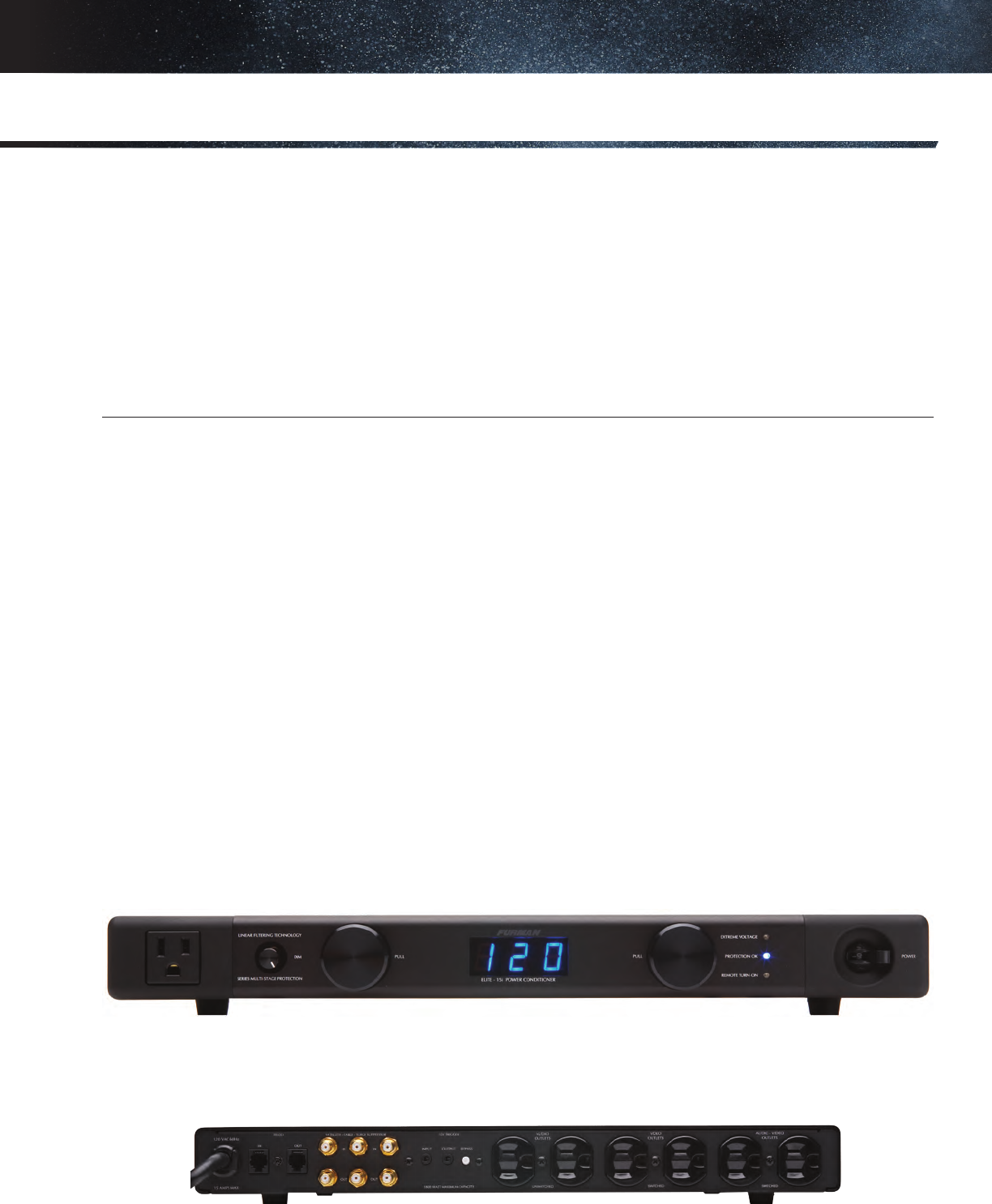

DESCRIPTION

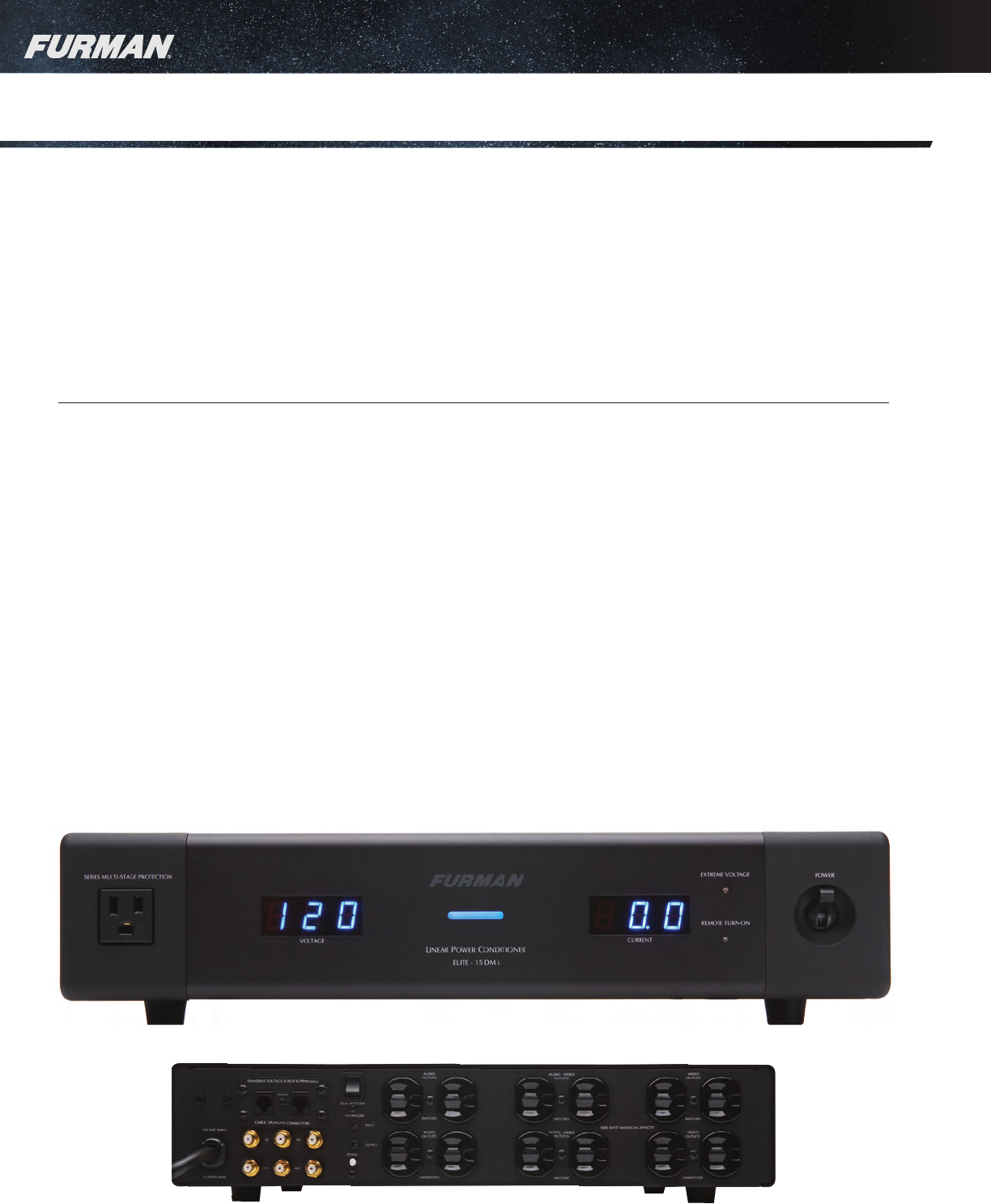

The Furman Elite-15 DM i features Linear Filtering Technology,
supplying connected electronics with linearly-filtered AC power.
This dramatically reduces noise and ensures peak operation
regardless of load conditions or time of day. With the Elite-15
DM i, you will see and hear your home theater as it should be
- uncompromised.
The Elite-15 DM i also features Furman’s SMP protection. This
virtually maintenance-free surge suppression ensures the highest
level of AC protection possible, without sacrificing itself when the
offending surge is severe - no damaged equipment, no service
calls, no downtime.
Further, the Elite-15 DM i’s digital AC voltage and current meters
allow precise measurements of the incoming AC line and current
loads. These meters are a valuable asset when monitoring systems
that are connected to today’s potentially poor power grids. The
meters may be dimmed when monitoring is not required.
As with all Elite models, remote control capability is offered
via 12V triggering, compatible with the 12V triggering devices
commonly found in power receivers and pre-amp processors.
Additional products (such as a remote subwoofer) can be daisy-
chained from the 12V output jack for an additional triggered unit.
The 12V triggering feature may be bypassed if desired.
www.furmanpower.com 15
LINEAR FILTERING AC POWER CONDITIONER, 15A
ELITE-15i
FEATURES
• Linear Filtering Technology (LiFT) for stunning audio / video clarity
• Series Multi-Stage Protection (SMP) featuring Auto-Reset
Extreme Voltage Shutdown (EVS)
• Retractable LED lamps illuminate a cabinet or rack full of equipment
• Zero ground contamination circuitry protects critical digital
components
• Laboratory precision grade voltmeter
• 3 pairs of HD-ready cable / satellite TVSS isolated coaxial
connectors and detachable module for telco surge suppression
• 12 volt triggering for remote control
• 7 outlets, 15A capacity
DESCRIPTION
The Furman Elite-15i packs Linear Filtering Technology, robust
SMP protection, front panel pull-out rack lights, 12V triggering,
and a digital front panel voltmeter, all in a convenient, slim package.
Furman’s exclusive Linear Filtering Technology unveils the low-
level signals masked by AC line noise. This low-level content is
critical because it relays the crucial harmonics and ambience in
audio, as well as the depth and clarity in video. The Elite-15 i’s
Linear Filtering Technology dramatically reduces AC noise in a
linear fashion across a very wide bandwidth.
The Elite-15i also features SMP surge protection, assuring the
highest level of protection available. Furman’s SMP has been tested
with multiple 3000A/6000V pulses without sustaining any damage
- well beyond the capabilities of a typical surge suppressor.
The front panel of the Elite-15i offers two retractable LED lamps
for rack or cabinet illumination. These lamps are ideal for use in
a home theater environment, allowing discreet illumination of
equipment when theater lights are off. The lights feature a dimmer
knob and automatically switch off when pushed into the chassis.
Also featured on the front panel is a laboratory-precision grade
voltmeter which displays incoming line voltage.
As with all Elite models, remote control capability is offered
via 12V triggering, compatible with the 12V triggering devices
commonly found in power receivers and pre-amp processors.
Additional products (such as a remote subwoofer) can be daisy-
chained from the 12V output jack for an additional triggered unit.
The 12V triggering feature may be bypassed if desired.
16

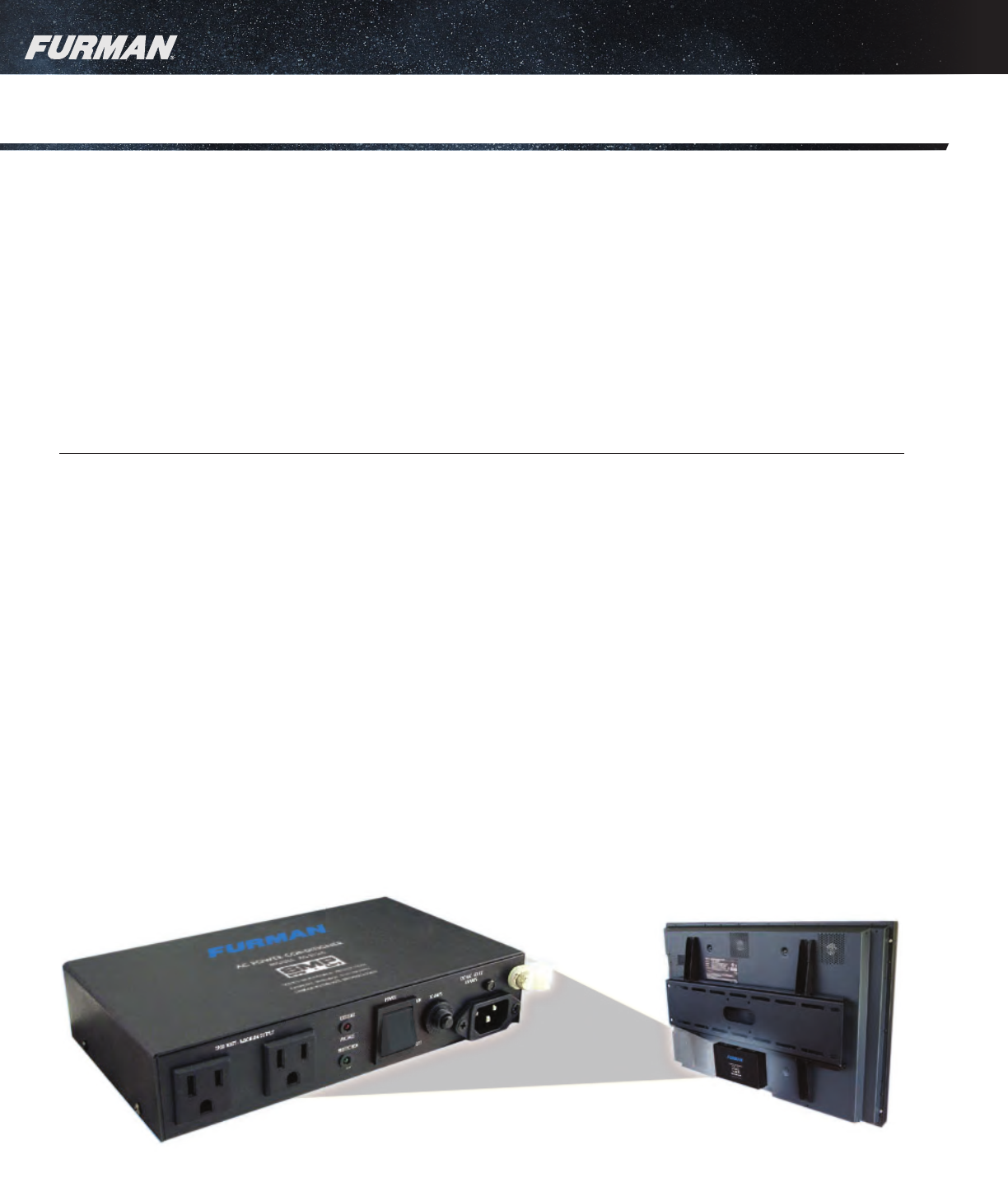

COMPACT LINEAR FILTERING AC POWER CONDITIONER, 10A
AC-215A
FEATURES
• Series Multi-Stage Protection provides the highest level of protection available
• Linear Filtering Technology significantly reduces AC line noise
• Auto-Reset Extreme Voltage Shutdown protects equipment from dangerous voltage conditions
• Zero ground contamination circuitry assures delivery of pure AC
• Compact chassis design allows for discreet, unobtrusive placement
• Mounting brackets included for easy installation
• 2 outlets, 10A capacity
DESCRIPTION
At only 1.75”H x 5”W x 8.5”D, and weighing in at only 3 lbs., the
AC-215A’s compact, low-profile design makes it ideal for mounting
to the back of a flat-screen television, to the top of a video projector,
or anywhere that discreetly located, remote power protection and
purification are needed. Included mounting brackets make installa-
tion simple and easy.
The Furman AC-215A offers two outlets providing Linear Filtering
Technology, Series Multi-Stage Protection, and Extreme Voltage
Shutdown featuring automatic reset functionality - the essential
features of the larger Elite Series products.
When employing the AC-215A, connected equipment will reap the
benefits of the most advanced surge and spike protection avail-
able, thanks to Furman’s SMP and EVS circuitry. Additionally,
Furman’s Linear Filtering Technology smoothly reduces AC line
noise to maximize performance of audio and video components.
The AC-215A is the perfect accessory for home theater installa-
tions that require advanced power conditioning in a discreet or
remote location away from the main equipment rack.
www.furmanpower.com 17

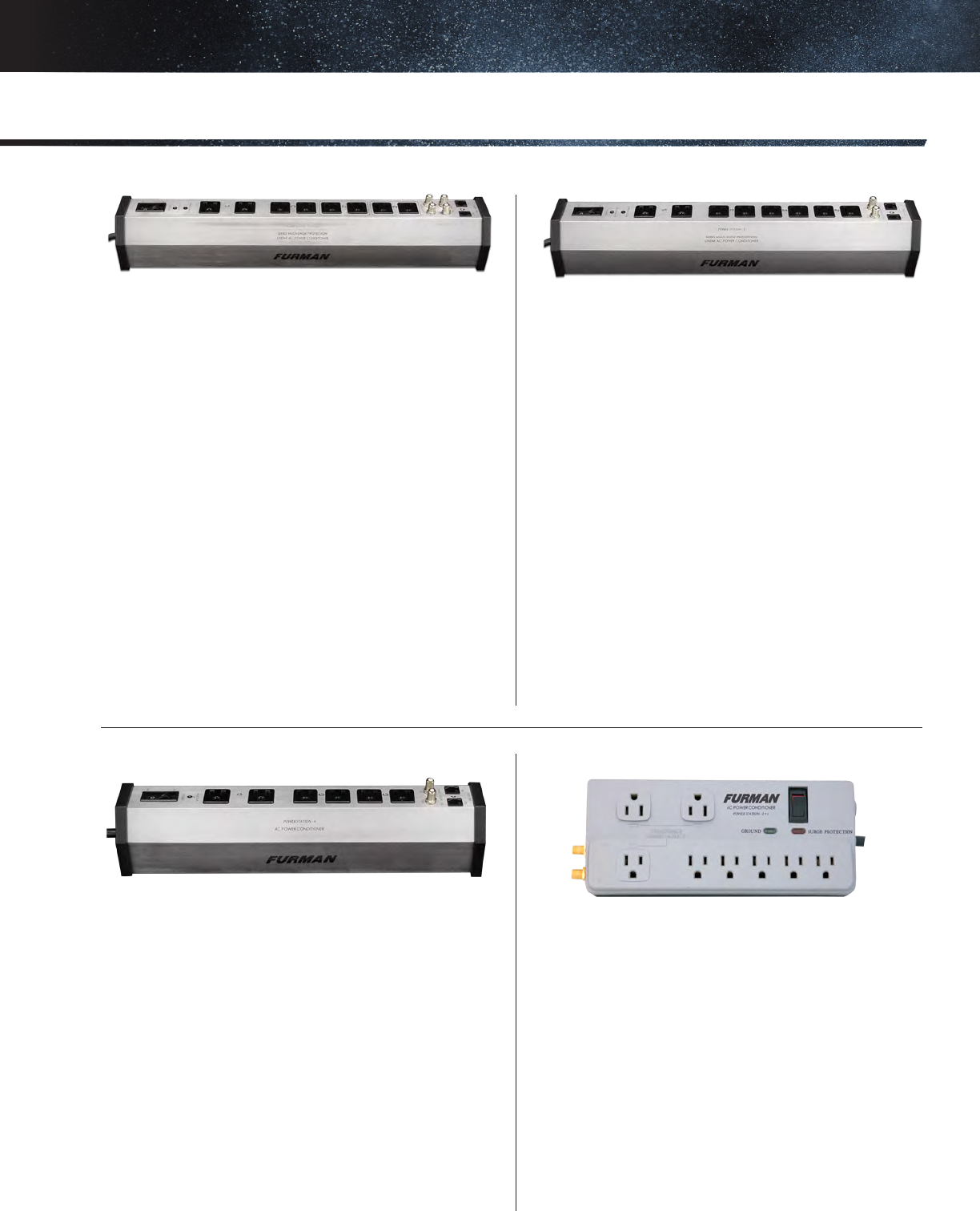

ADVANCED POWER STRIPS
PST 8D / PST 8 / PST 6 / PST 2+6 POWER STATIONS
PST 2+6
FEATURES
• Advanced surge suppression with zero ground contamination
offers superior protection over a standard power strip
• One pair of cable/satellite and telco connectors deliver
advanced protection to connected equipment
• Audible alarm indicates excessive power surge
• Compact design enables discreet placement
• 8 outlets
PST 6
FEATURES
• Advanced surge suppression with zero ground contamination
offers superior protection over a standard power strip
• One pair of cable/satellite and telco connectors deliver
advanced protection to connected equipment
• Compact design enables discreet placement
• 6 outlets
PST 8
FEATURES
• Linear Filtering Technology dramatically reduces AC line noise
and contamination resulting in improved audio/video clarity
• Series Multi-Stage Protection for the highest level of AC surge
suppression
• Extreme Voltage Shutdown guards your valuable equipment
from dangerous wiring faults
• Zero ground contamination circuitry assures the delivery
of pure AC
• One pair of cable/satellite and telco connectors delivers
advanced protection to connected equipment
• 8 outlets
PST 8D
FEATURES
• Linear Filtering Technology dramatically reduces AC line noise
and contamination resulting in improved audio/video clarity
• Series Multi-Stage Protection for the highest level of AC surge
suppression
• Extreme Voltage Shutdown guards your valuable equipment
from dangerous wiring faults
• Zero ground contamination circuitry assures the delivery
of pure AC power
• One pair of cable/satellite and one pair of telco connectors
deliver advanced protection to connected equipment
• Isolated outlet banks prevent interference between digital
and analog components
• 8 outlets
18
UNINTERRUPTIBLE POWER SUPPLY, 1500VA F1500-UPS
F1500-UPS
FEATURES
• 1500 VA Battery Backup maintains critical data and allows
orderly shutdown during a power outage

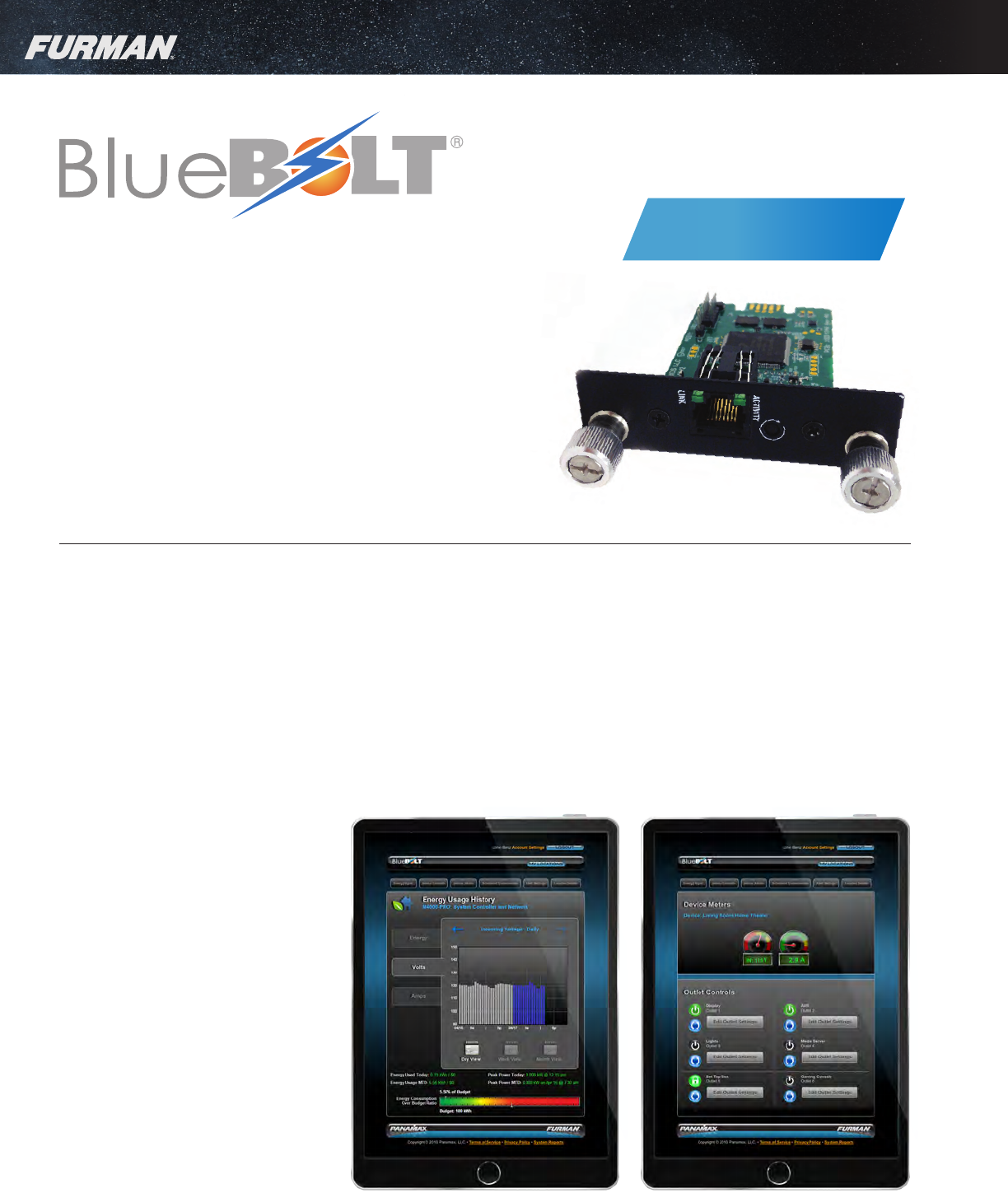

• BlueBOLT® Technology (requires BlueBOLT-CV1 or BlueBOLT-CV2
interface card – sold separately) provides remote access to reboot
components, power equipment on or off, and monitor power quality
from anywhere in the world
• Series Multi-Stage Protection (SMP) provides virtually
maintenance-free AC surge suppression
• Linear Filtering Technology (LiFT) for unequaled audio/video clarity
• Extreme Voltage Shutdown (EVS) protects your equipment from
dangerous voltage conditions
• Dual Learning IR Blasters allow safe shut-down
of remote components
• RS-232 Interface provides custom open source
and control programming
• Easy to use CD-ROM software included
• USB interface
• Critical Load Management prioritizes allocation of temporary power
to connected equipment
• AVR voltage regulation provides a consistent 120V (± 5-10%) output
• Optional Battery Extension Pack available for extended runtime
capability
• Optional rack ears included
• 8 outlets
DESCRIPTION
Furman’s F1500-UPS provides 1500VA true sine wave battery
backup, BlueBOLT® Compatibility, SMP and EVS protection,
Linear Filtration, and AVR standard level voltage regulation to
provide ideal backup and protection to equipment that risks data
loss or damage in the event of a power outage. The F1500-UPS’
robust 1500VA battery backup provides true sine wave output
(ideal for A/V equipment) and will keep connected equipment
powered on for up to 15 minutes at half load, 7 minutes at full
load, allowing ample time to save data and shut down equipment
properly. If extended runtime is needed, an external battery pack
(BATT1500-EXT, sold separately) is available to increase battery
capacity by up to 4x.
Compatible
www.furmanpower.com 19

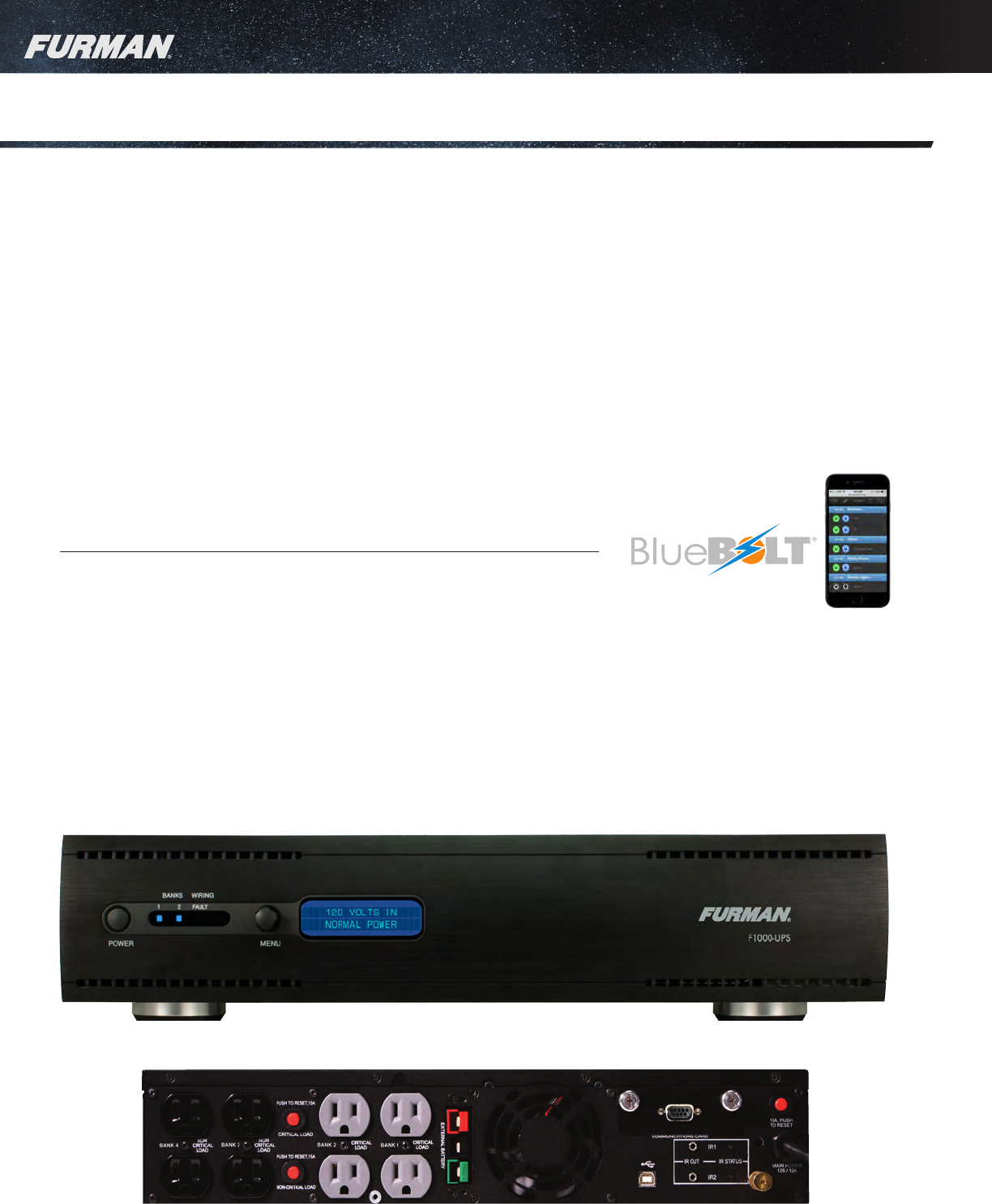

UNINTERRUPTIBLE POWER SUPPLY, 1000VA
F1000-UPS
FEATURES
• 1000 VA Battery Backup maintains critical data and allows orderly
shutdown during a power outage
• Series Multi-Stage Protection (SMP) provides virtually
maintenance-free AC surge suppression
• Linear Filtering Technology (LiFT) for unequaled audio/video clarity
• Extreme Voltage Shutdown (EVS) protects your equipment from
dangerous voltage conditions
• Dual Learning IR Blasters allow safe shut-down of
remote components
• Easy to use CD-ROM software included
• RS-232 Interface provides custom open source and
control programming
• USB interface
• Critical Load Management prioritizes allocation
of temporary power to connected equipment
• AVR voltage regulation provides a consistent
120V (± 5-10%) output
• Optional rack ears included
• 8 outlets
DESCRIPTION

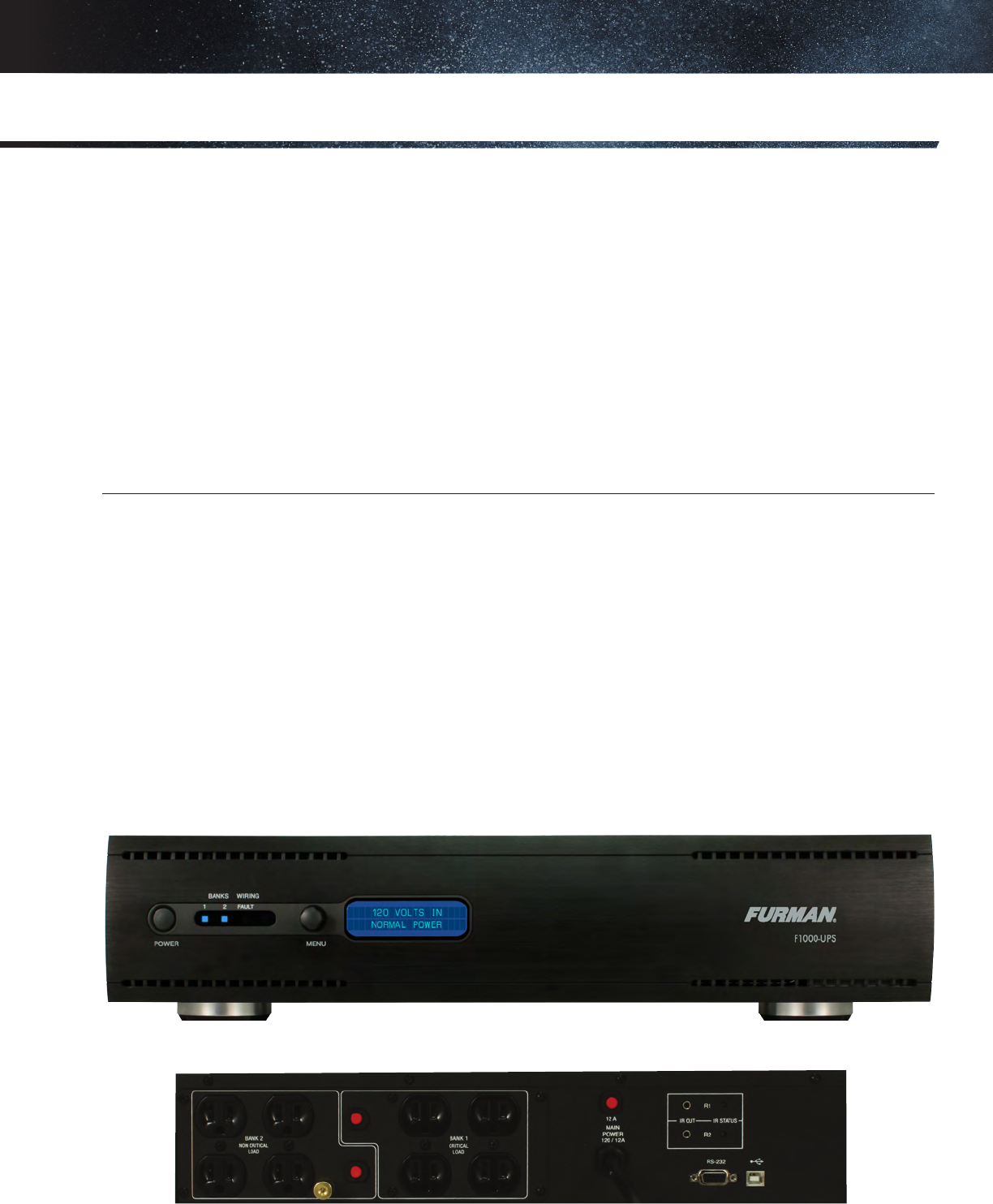

The Furman F1000-UPS is a 1000VA (simulated sine wave)
Uninterruptible Power Supply specifically engineered for the
needs of today’s A/V equipment. With the large increase of
components with critical data (such as media servers, control/
automation systems, DVRs, and gaming consoles), as well as
equipment that requires proper shutdown to avoid damage (such
as DLP projectors and televisions), a UPS system has become an
essential component of many theater systems. The F1000-UPS
maintains temporary power to connected equipment to ride
out short black-outs or brown-outs, preventing lengthy restart
sequences and avoiding data loss. It also allows safe shut down
for extended black-outs, allowing equipment to turn off properly
and providing an opportunity to save any critical data prior to
shutting down the system.
20
REMOTE POWER & ENERGY NETWORK MANAGEMENT
SAVE TIME. SAVE MONEY. SAVE ENERGY.

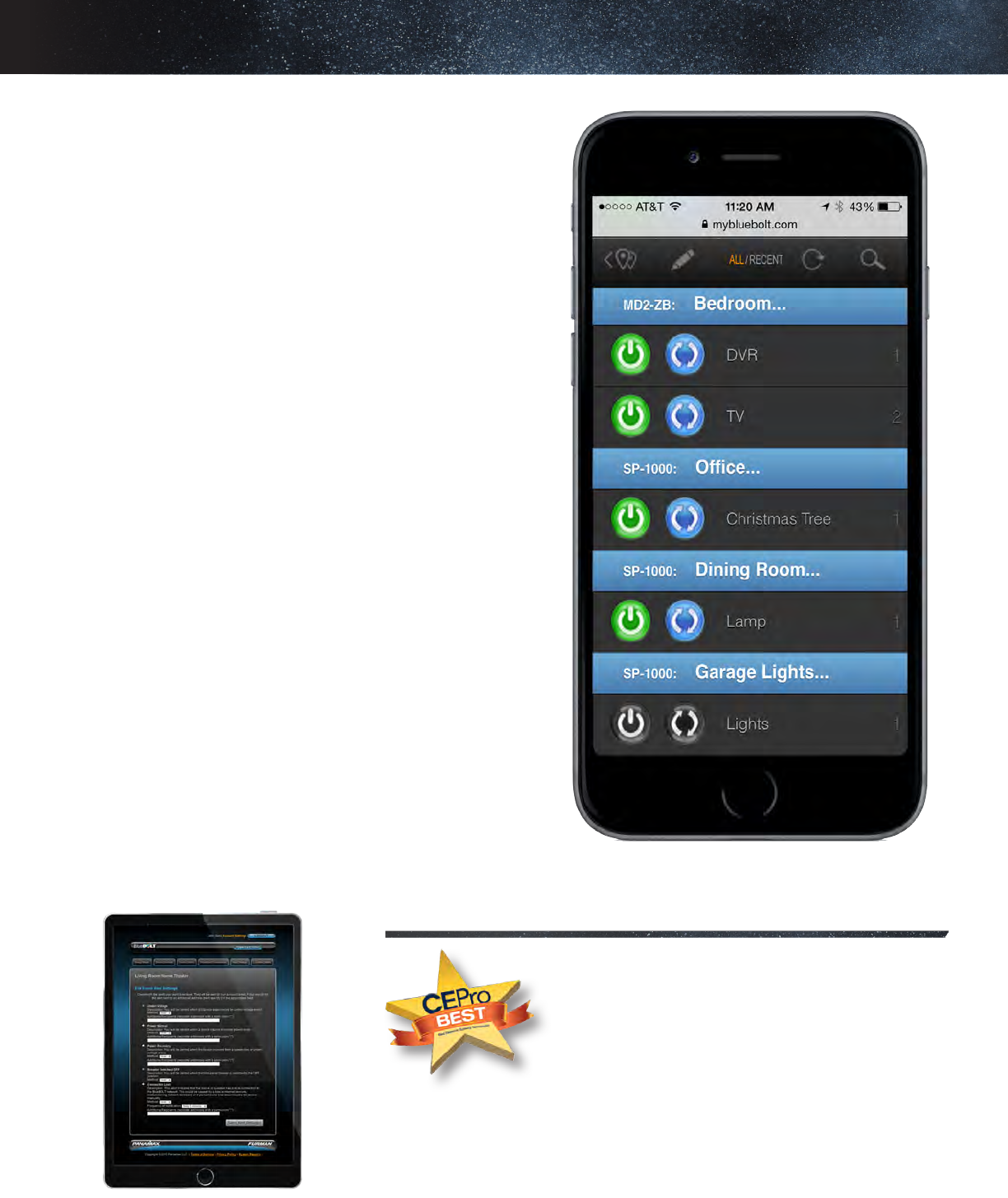

BlueBOLT® Remote Power and Energy Management provides
real-time, cloud based control and monitoring of the energy used
by your electronic devices. Simply plug your electronics into a
BlueBOLT-enabled power management component to open up
a new world of command and visibility of your energy usage.
From easy reboots of locked-up electronics to comprehensive
energy tracking and scheduled conservation, BlueBOLT provides
a unique combination of control and monitoring directly at your
electronics’ power source.
GO GREEN WITH SCHEDULED CONSERVATION
Standby power (sometimes called “vampire
power”) – the power used by electronic
devices when they are turned off – is often
identified as one of the biggest wastes of
electric power, adding up to more than
$3 billion of annual energy costs in the U.S.
alone*. With utility rates rising and more
people trying to live greener lifestyles, how
can we realistically reduce this waste?
BlueBOLT’s Scheduled Conservation allows
you to automatically shut off all power to
electronic devices during non-use hours -
providing a real-world solution to reduce
your energy bills and your impact on the
environment.
* Source: http://www.economist.com/node/5571582?story_id=5571582
Provides secure, local and hosted IP system control and monitoring as well as
additional BlueBOLT® compatible products from Furman and Panamax
FEATURES
• Control for individual outlet banks featuring power, trigger and delay settings
• Auto rebooting for connected network devices
• Remote diagnostics: check unit status and incoming line voltages
• Easy, plug-in installation
• Email alerts for over and under-voltages help you anticipate or prevent service calls
BlueBOLT-CV2
Online Remote Power Management
(For use with the F1500-UPS)
New Version!
Now with Embedded Web Control
www.furmanpower.com 21
REMOTE POWER & ENERGY MANAGEMENT
For more information visit www.mybluebolt.com
TAME YOUR ROUTER
Remote management systems are only as good as their network.
Have you ever needed to reboot your router or modem when you’ve
lost your Internet connection? With BlueBOLT, you can assign
outlets to automatically reboot once an active Internet connec-
tion is lost completely automating the all-to-common procedure of
re-establishing your Internet connection with a hard reboot.
THE POWER OF CONTROL -
ANYWHERE IN THE WORLD
Today’s home entertainment systems and electronic components
are more sophisticated and connected than ever – and with this
complexity comes a higher chance for electronic lockups, freezes,
and crashes. All too often, the only fix for a locked-up compo-
nent is to unplug it from the wall and plug it back in (also known
as a “hard reboot”). Electronics plugged into a BlueBOLT-enabled
component can easily be rebooted with the click of a button
through BlueBOLT’s easy to use, cloud-based user interface, from
any web-enabled device, from anywhere in the world.
SETUP IN MINUTES
BlueBOLT’s cloud-based communications provides an incredibly
easy setup procedure - simply plug your BlueBOLT-enabled power
management component into the wall, connect it to a standard
Ethernet cable with an active Internet connection, and plug in
your electronic components. BlueBOLT will automatically detect
your device as active and you can immediately register it and
begin monitoring and controlling it from your computer, tablet or
smartphone: no static IP addresses or port forwarding needed.
If desired, BlueBOLT-enabled power management components
may also be accessed via standard Telnet communications or
integrated into a home automation system via RS-232.
“Now more than ever, consumers are looking for ways to effectively
manage their power consumption to lower utility bills and reduce their
impact on the environment. With BlueBOLT, Panamax/Furman have
developed a realistic way for consumers to do this with their electronics
systems. This technology gives homeowners the data needed to make
better choices in the use of home electronics and the ability to easily
effect change with their power usage. For the installer, BlueBOLT’s remote
power control capabilities allow many service issues to be diagnosed,
and often solve remotely without sending a technician. The energy
management features provide a huge layer of value to every installation.”
- Bob Archer, CE Pro Senior Editor
22

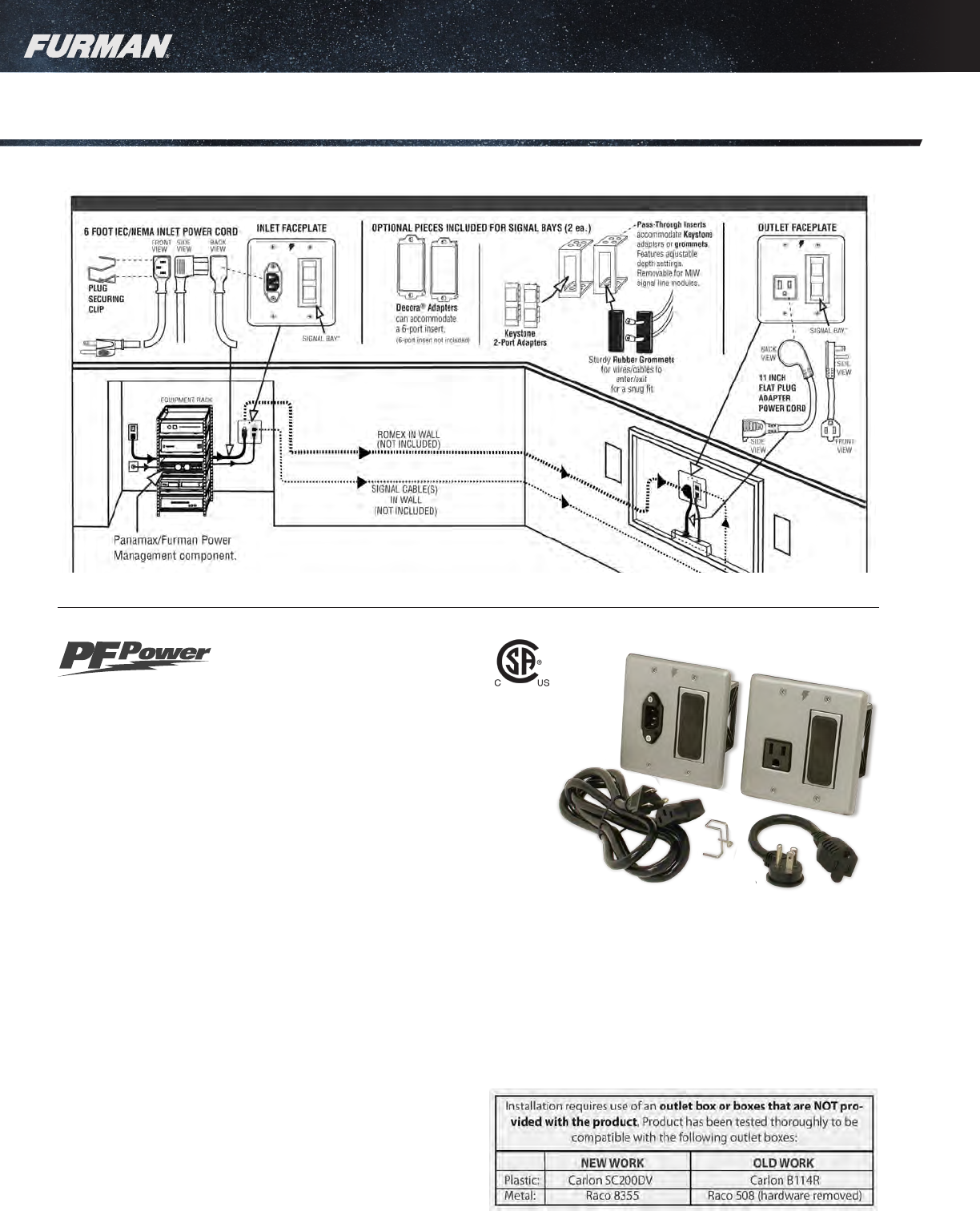

IN-WALL SOLUTIONS / MIW UNITS

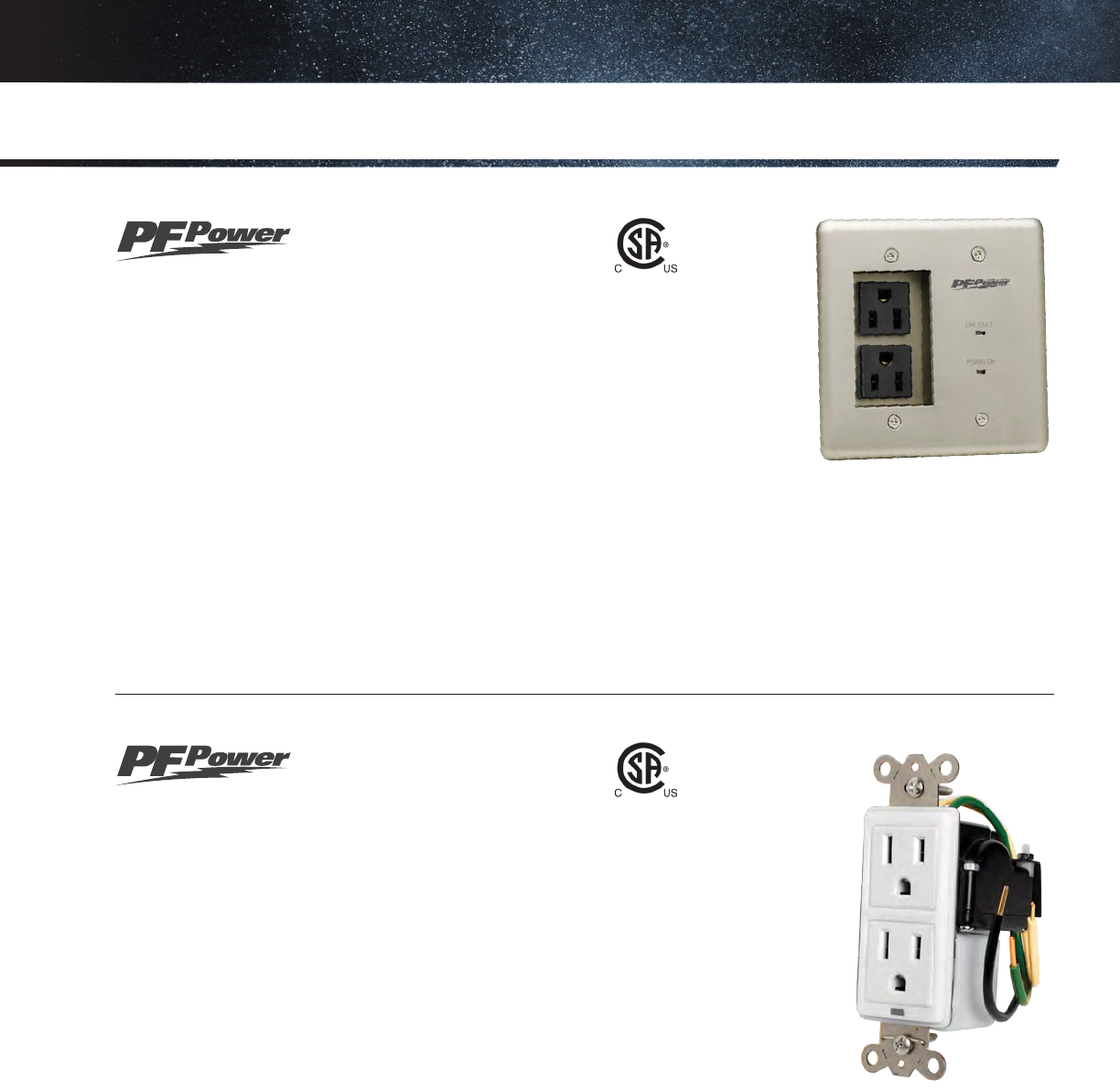

FEATURES
• Ultra-thin profile allows equipment to hang less than
one inch from the wall
• EMI/RFI noise filtration built into outlet receptacle
• Power and signal lines are hidden in the wall behind panel
displays for a clean, tidy and professional installation
• Extends Connected Equipment Policy to remote equipment when
used with Panamax/Furman Power Management components
• Accommodates optional installation solutions by using: DECORA®
Adapter, Pass-Through Insert, Keystone 2-port adapter, MIW
Signal Line Modules (MIW modules sold separately)
• CSA Certified for code compliant installations
• 3 year product warranty
MIW-XT
DESCRIPTION
MIW-XT extends safe, noise free power from Panamax / Furman
Power Management components to remote panel displays,
ceiling mounted video projectors and powered subwoofers.
Discreetly hides behind electronic equipment for a neat, clean,
code compliant and professional installation.
152908
MIW-XT
KIT INCLUDES: In-Wall Faceplates (INLET & OUTLET), 2 DECORA®
Adapters, 2 Signal Bay Pass-Through Inserts for 2 Keystone 2-Port
Adapters and 2 Rubber Grommets, 6 ft. IEC Power Cord & Securing Clip,
11 in. Flat Plug Adapter Power Cord, 6 wire nuts, 16 mounting screws,
2 mounting brackets, 1 Mounting Template
By
Panamax
~
Furman
www.furmanpower.com 23
IN-WALL SOLUTIONS / MIW UNITS
FEATURES
• Protects equipment against prolonged over voltages by
disconnecting the power and reconnecting it when safe
power returns
• Used in conjunction with MIW-DUAL SIGNAL BAY and signal
line modules. (Sold Separately)
• 3 Year Product Warranty
FEATURES
• DECORA® Faceplate Interface. This piece surrounds
the receptacles and fits within a standard cover plates
DECORA® cutout.
• Uses standard wiring device screw-hole.
• Both Outlets with Protect-or-Disconnect Circuitry.
• Bi-color Indicator LED. Green = Power On Red = Line Fault
• 3 Year Product Warranty
MIW-POWER-PRO-PFP / MIW-SURGE-1G
DESCRIPTION
The MIW-Power-Pro-PFP provides safe power in a convenient,
discreet, and easy to install in-wall package. Features Extreme
Voltage Shutdown to protect your equipment from dangerous,
prolonged over-voltage onditions. Can be combined with dual
signal bays and signal modules (sold separately) to provide an
aesthetically pleasing, code-compliant solution for running power
and signal lines.
DESCRIPTION
Two AC receptacles provide
power protection to remotely
located devices. Fits most
standard single gang plastic
or metal boxes.
152908
DECORA® is a registered trademark of Leviton Manufacturing Company
MIW-POWER-PRO-PFP
KIT INCLUDES: MIW-POWER-PRO-PFP, 3 wire nuts, 4 mounting screws
MIW-SURGE-1G
KIT INCLUDES: 3 wire nuts, 2 mounting screws (Pre-installed)
By
Panamax
~
Furman
By
Panamax
~
Furman
24

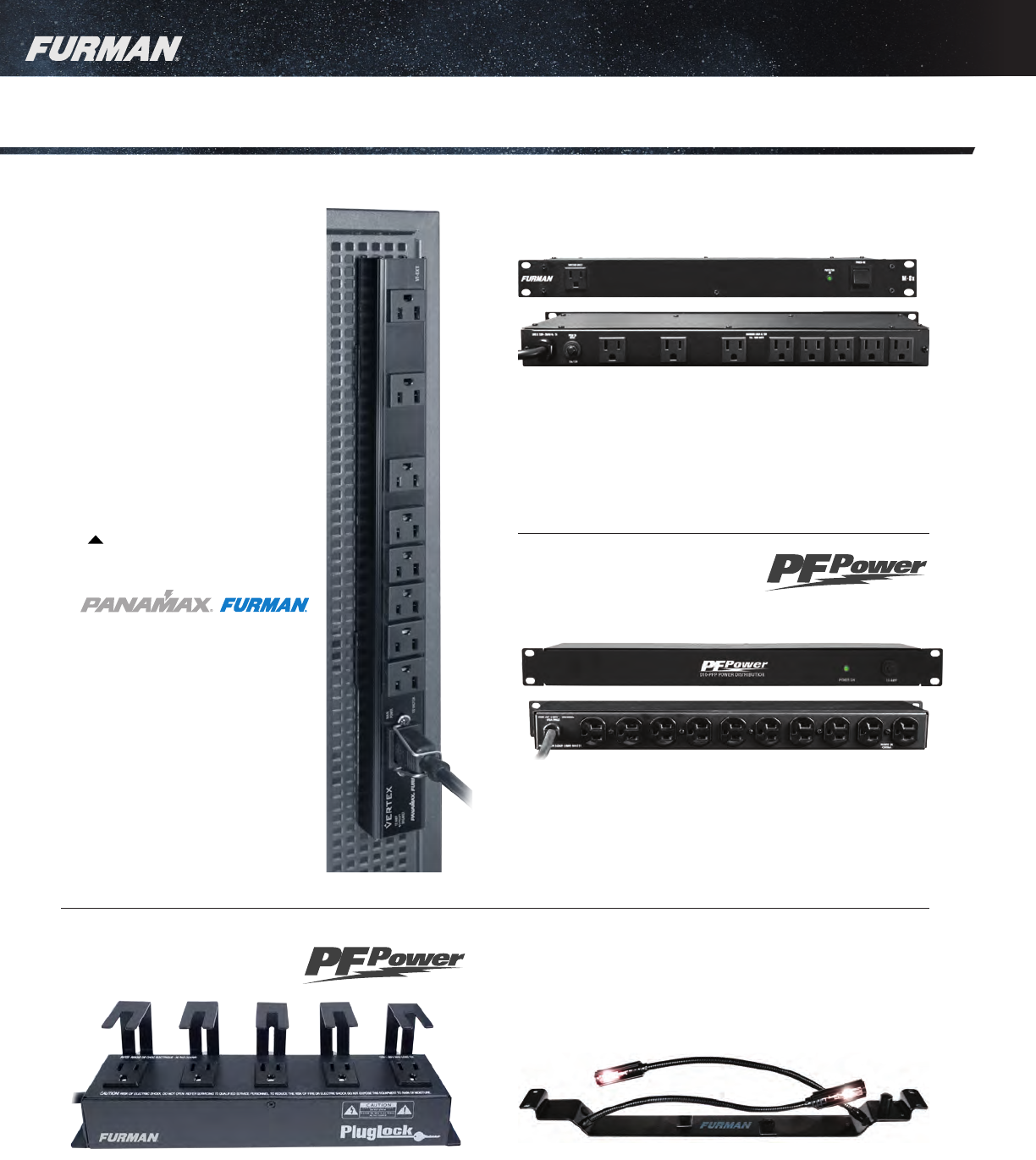

ACCESSORIES
VT-EXT / M-8X2 / D10 / PLUGLOCK-PFP / RL-LED
The low-cost solution for your 15 amp AC power conditioning
needs. The Furman M-8x² is a 19 inch rack mountable power
conditioner featuring standard level surge suppression and RFI/
EMI filtration, 8 rear panel outlets, one front panel outlet, and
15A circuit breaker.
The PF Power D10-PFP is a 19” rack-mountable power distributor
featuring 10 rear panel outlets. The D10-PFP contains no surge
suppression or filtration circuitry, making it the perfect solution
for adding extra AC outlets to an existing power conditioner.
The Furman RL-LED is a 19” rack-mounted plate featuring two
adjustable, long-lasting LED gooseneck lamps. These lamps
provide cool, efficient illumination of your equipment rack and
may be dimmed or switched off when not in use.
VT-EXT
EQUIPMENT RACK
POWER DISTRIBUTION
M-8X2
D10-PFP
RL-LED
The PLUGLOCK-PFP circuit-breaker protected locking outlet strip
provides enough wall wart spacing for five bulky transformers
and can be safely mounted out of sight in the rear of your rack.
Secure clamping design “locks” your transformers and conven-
tional plugs in place.
PLUGLOCK-PFP
An 8 outlet power strip designed
specifically to be mounted to the
vertical leg section of an equipment
rack. The perfect way to extend the
protection and filtration from an
existing Panamax or Furman power
conditioner.
By
Panamax
~
Furman
By
Panamax
~
Furman
VERTEX
by
www.furmanpower.com 25
TECHNOLOGY
IT-Reference 20i IT-Reference 15i SPR-20i
Current
Capacity
Input 20A 15A 20A
Output 12-20A RMS 11-15A RMS 20A RMS
Outlets
Symmetrical + LiFT 8 2 -
Power Factor + LiFT 4 4 -
Regulated + LiFT - - 12
LiFT -5-
Total Outlets 12 11 12
Linear Noise
Attenuation
Differential Mode
>20dB (1kHz-2kHz)
>40 dB (2kHz-100kHz)
>80 dB (100kHz-1GHz)
>40 dB (4kHz-100kHz)
>80 dB (100kHz-1GHz)
>40 dB (4kHz-100kHz)
>80 dB (100kHz-1GHz)
Common Mode >95 dB (10Hz-50kHz)
>40dB (50kHz-1MHz)
>90 dB (10Hz-50kHz)
>40dB (50kHz-1MHz) N/A
Non-Sacrificial Surge Suppression Yes Yes Yes
Extreme Voltage Shutdown (EVS) N/A Yes Yes
Ground Contamination Free Circuitry Yes Yes Yes
Linear Filtering Technology (LiFT) Yes Yes Yes
Discrete Symmetrical Balanced Power Yes Yes No
Power Factor Technology Yes (80A) Yes (55A) No
Stable Power Regulation No No Yes, 120V Out
Dimensions w/ Feet (HxWxD) 5.75”x17”x15.6” 4”x17”x15.75” 4”x17”x15.6”
Rack Height (w/ Feet Removed) 3RU 2RU 2RU
Agency cETLus cETLus cETLus
Weight 83 lbs. 50 lbs. 31 lbs.
REFERENCE “i” SERIES
SPECIFICATIONS
26

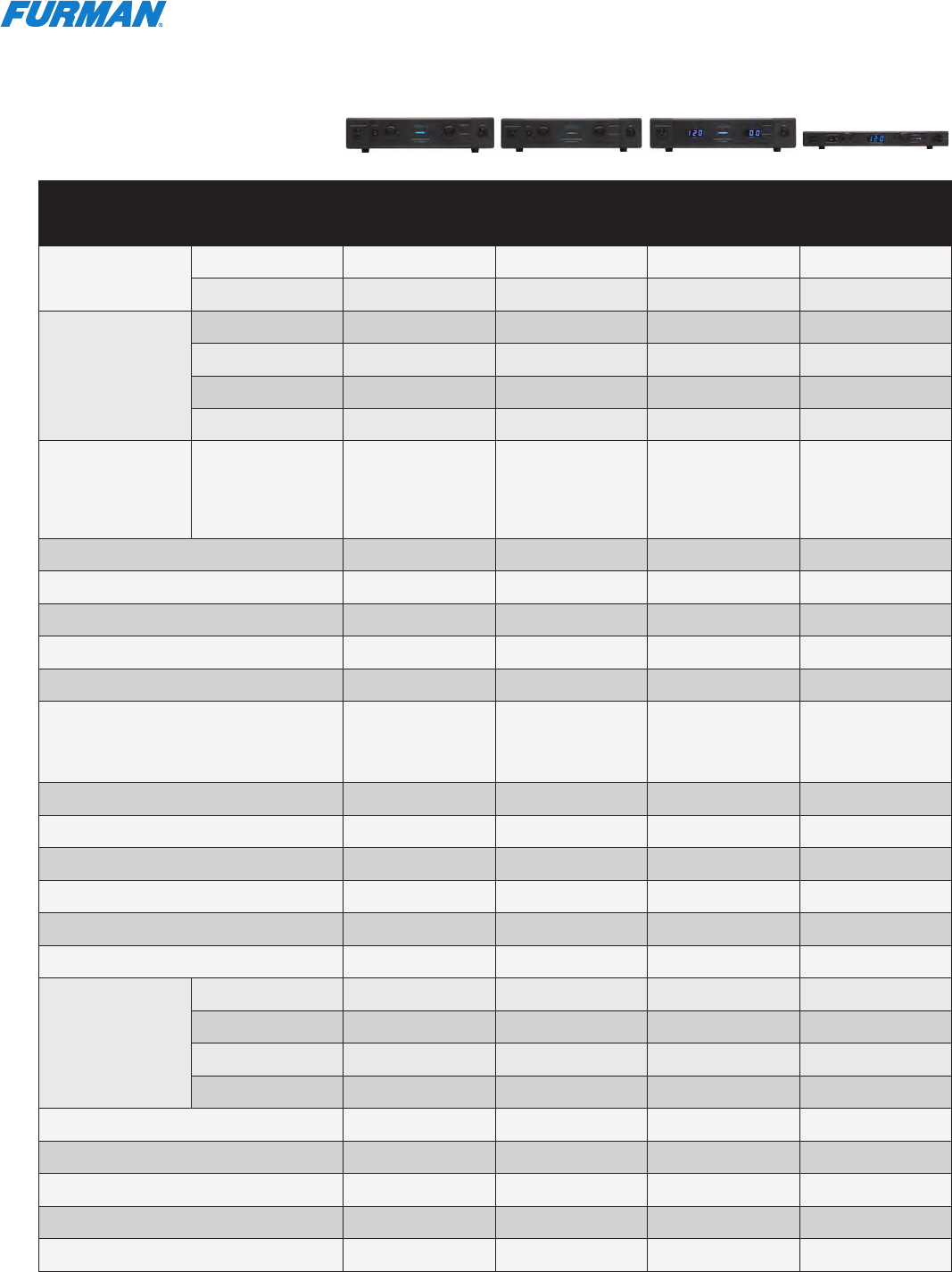

ELITE “i” SERIES
SPECIFICATION
Elite-20 PFi Elite-15 PFi Elite-15 DMi Elite-15i
Current
Capacity
Input 20A 15A 15A 15A
Output 16-20A RMS 11-15A RMS 15A RMS 15A RMS
Outlets
Power Factor + LiFT 4 4 - -
Ultra-LiFT 9 - - -
LiFT - 9 13 7
Total Outlets 13 13 13 7
Linear Noise
Attenuation Differential Mode
>40 dB
(5kHz-100kHz)
>80 dB
(100kHz-1GHz)
>40 dB
(10kHz-100kHz)
>80 dB
(100kHz-1GHz)
>40 dB
(10kHz-100kHz)
>80 dB
(100kHz-1GHz)
>40 dB
(4kHz-100kHz)
>80 dB
(100kHz-1GHz)
Non-Sacrificial Surge Suppression Yes (SMP) Yes (SMP) Yes (SMP) Yes (SMP)
Extreme Voltage Shutdown (EVS) Yes (Auto Reset) Yes (Auto Reset) Yes (Auto Reset) Yes (Auto Reset)
Ground Contamination Free Circuitry Yes Yes Yes Yes
Linear Filtering Technology (LiFT) Yes (Ultra-LiFT) Yes Yes Yes
Power Factor Technology Yes (55A) Yes (45A) No No
EVS Voltage Shutoff
80VAC (Under
Voltage), 140VAC
(Over Voltage)
80VAC (Under
Voltage), 140VAC
(Over Voltage)
80VAC (Under
Voltage), 140VAC
(Over Voltage)
80VAC (Under
Voltage), 140VAC
(Over Voltage)
Front Rack Lights Yes Yes No Yes
Digital Voltmeter No No Yes (Volt & Current) Yes
12V Triggering Yes Yes Yes Yes
12V Trigger Delay Yes Yes No No
Telco Protectors 2 2 2 2
Cable/Satellite Protectors 3 pairs 3 pairs 3 pairs 3 pairs
Universal Coax
Protection
Shielded Yes Yes Yes Yes
Insertion Loss <0.5 dB <0.5 dB <0.5 dB <0.5 dB
HD 1080 i/p Ready Yes Yes Yes Yes
Frequency Range 0 MHz - 2.2 GHz 0 MHz - 2.2 GHz 0 MHz - 2.2 GHz 0 MHz - 2.2 GHz
AC Cord (Captive/Removable) Removable Removable Captive Captive
Dimensions w/ Feet (HxWxD) 4”x17”x14.75” 4”x17”x14.75” 4”x17”x15.5” 2.15”x17”x14.75”
Rack Height (w/ Feet Removed) 2RU 2RU 2RU 1RU
Agency cETLus cETLus cETLus cETLus
Weight 18 lbs. 15 lbs. 14 lbs. 11 lbs.

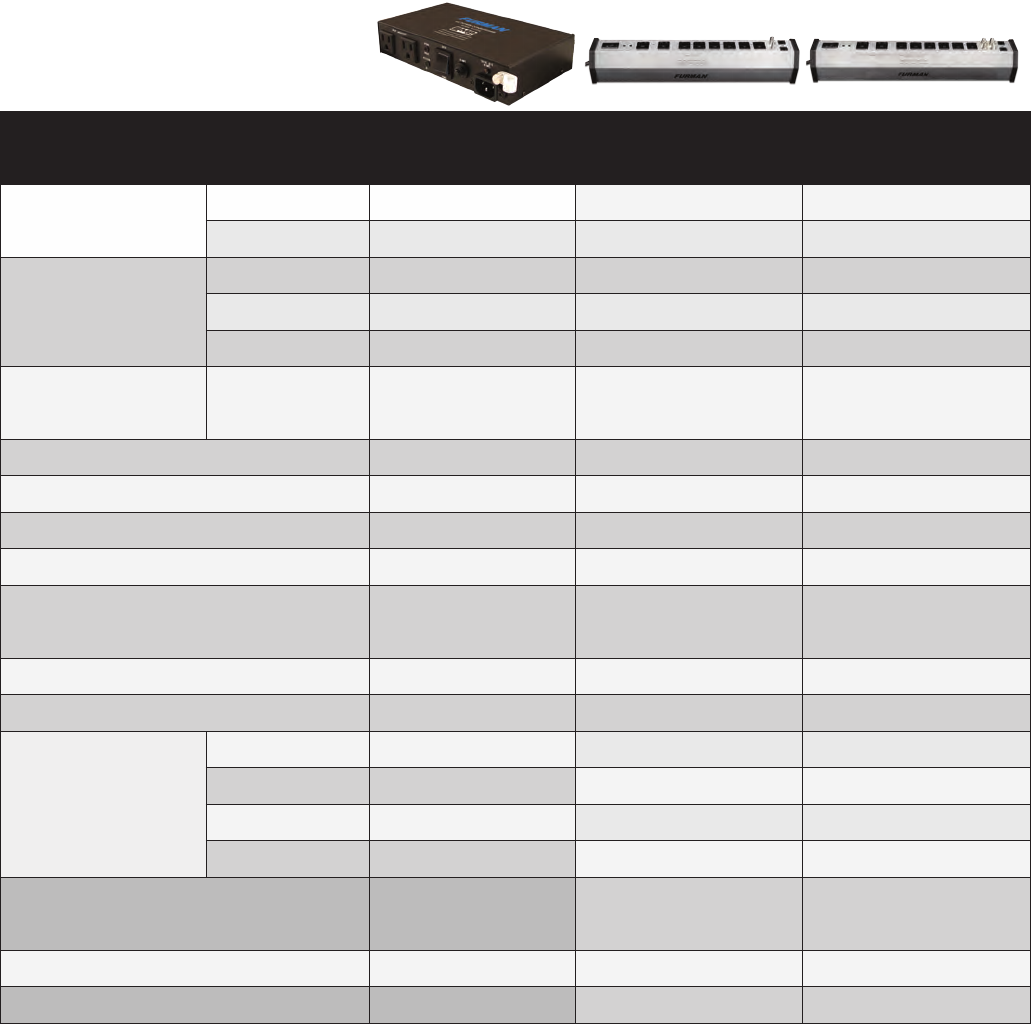

SPECIFICATIONS
SPECS PG 3
AC215
PSTs
AC-215A PST 8D PST 8
Current
Capacity
Input 10A 15A 15A
Output 10A RMS 15A RMS 15A RMS
Outlets
Standard Filtration - - -
LiFT Filtration 2 8 8
Total Outlets 2 8 8
Linear Noise
Attenuation Differential Mode >40 dB (10kHz-100kHz)
>80 dB (100kHz-1GHz)
>40 dB (10kHz-100kHz)
>80 dB (100kHz-1GHz)
>40 dB (10kHz-100kHz)
>80 dB (100kHz-1GHz)
Non-Sacrificial Surge Suppression Yes (SMP) Yes (SMP) Yes (SMP)
Extreme Voltage Shutdown (EVS) Yes (Auto Reset) Yes Yes
Ground Contamination Free Circuitry Yes Yes Yes
Linear Filtering Technology (LiFT) Yes Yes Yes
EVS Voltage Shutoff 80VAC (Under Voltage),
140VAC (Over Voltage) 2 1
Telco Connectors N/A 1 Pair 1 Pair
Cable / Satellite Connectors N/A 2 Pairs 1 Pair
Universal Coax Protection
Shielded Yes Yes Yes
Insertion Loss <0.5 dB <0.5 dB <0.5 dB
HD 1080 i/p Ready Yes Yes Yes
Frequency Range 0 MHz - 2.2 GHz 0 MHz - 2.2 GHz 0 MHz - 2.2 GHz
Dimensions (HxWxD) 1.75” H x 5” W x 8.5” D 2.75“ H x 3.375“ W
x 18.5“ D
2.75“H x 3.375“W
x 17.75“D
Agency cCSAus cULus cULus
Weight 3 lbs. 5 lbs. 3 lbs.
AC-215A / PST 8D / PST 8
www.furmanpower.com 27
28

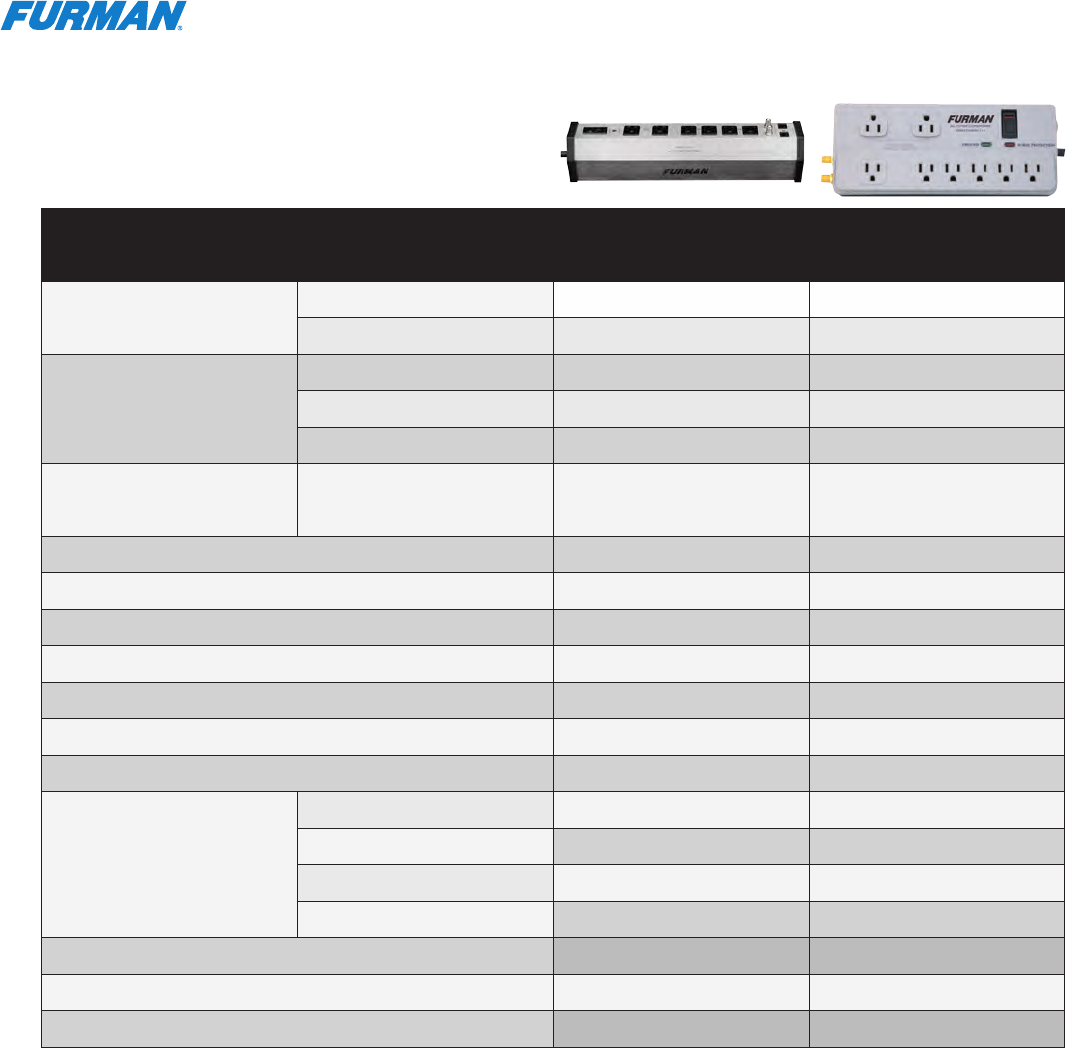

SPECIFICATIONS
PST 6 PST 2+6
Current
Capacity
Input 15A 15A
Output 15A RMS 15A RMS
Outlets
Standard Filtration 6 8
LiFT Filtration - -
Total Outlets 6 8
Linear Noise
Attenuation Differential Mode > 40 dB
(150 kHz - 100 MHz)
> 40 dB
(150 kHz - 100 MHz)
Non-Sacrificial Surge Suppression No No
Extreme Voltage Shutdown (EVS) No No
Ground Contamination Free Circuitry Yes Yes
Linear Filtering Technology (LiFT) No No
Isolated Filter Banks N/A N/A
Telco Connectors 1 Pair 1 Pair
Cable / Satellite Connectors 1 Pair 1 Pair
Universal Coax Protection
Shielded Yes Yes
Insertion Loss <0.5 dB <0.5 dB
HD 1080 i/p Ready Yes Yes
Frequency Range 0 MHz - 2.2 GHz 0 MHz - 2.2 GHz
Dimensions (HxWxD) 2.75” H x 3.75” W x 13.5” D 1.7” H x 11.75” W x 5” D
Agency cULus cULus
Weight 3 lbs. 2 lbs.
PST 6 / PST 2+6

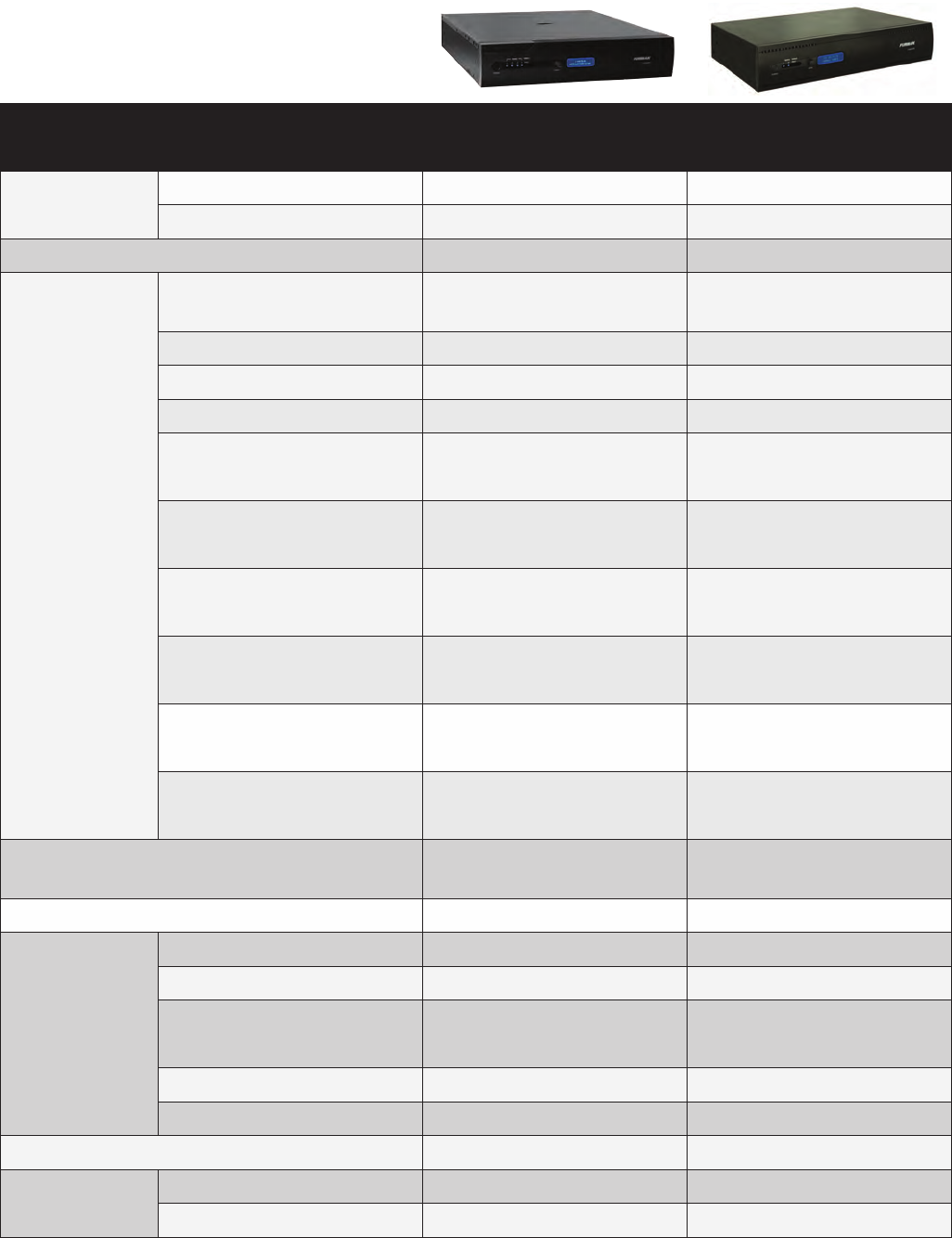

SPECIFICATIONS
F1500-UPS F1000-UPS
Input
Voltage 85VAC - 137VAC 85VAC - 137VAC
Frequency 57 - 63Hz 57 - 63Hz
Outlets 8 8
AC Power
Surge Protection Non-sacrificial SMP
(Series Multi-Stage Protection)
Non-sacrificial SMP
(Series Multi-Stage Protection)
Current Rating (Circuit Breaker) 12A 12A
Over-voltage Shutoff (Fast Rise) 150 ± 5V 150 ± 5V
Over-voltage Shutoff (Slow Rise) 140 ± 5V 132 ± 5V
Noise Attenuation 10 dB @ 10kHz, 40 dB @ 100 kHz,
50 dB @ 500kHz
10 dB @ 10kHz, 40 dB @ 100 kHz,
50 dB @ 500kHz
Linear Attenuation Curve From 0.05 - 100 Ohms
line impedance
From 0.05 - 100 Ohms
line impedance
Automatic Voltage Regulation
Capture Range (Sensitive Mode) 96-135V 99-135V
Automatic Voltage Regulation
Output Range (Sensitive Mode) 120 ± 5% 120 ± 5%
Automatic Voltage Regulation
Capture Range (Standard Mode) 93-142V 94-142V
Automatic Voltage Regulation
Output Range (Standard Mode) 120 ± 10% 120 ± 10%
External Control Options RS-232
TCP/IP (w/ BlueBOLT-CV1) RS-232
IR Blasters 2 2
UPS Output
Voltage 120 ± 5V True Sine Wave 120 ± 5V Simulated Sine Wave
Frequency 60 Hz ± 1% 60 Hz ± 1%
UPS Output Capacity
1500VA, 900W @ 0.6pf
Expandable with external battery
pack (BATT1500-EXT)
1000VA, 600W @ 0.6pf
UPS Backup Time 12 minutes at full load 3 minutes at full load
Transfer Time <4 milliseconds <4 milliseconds
Agency cULus cULus
Dimensions
Product 3.5” H x 19” L x 17” W 4” H x 17” L x 13” W
Weight 72 lbs. 36 lbs.
F1500-UPS / F1000-UPS
www.furmanpower.com 29
30

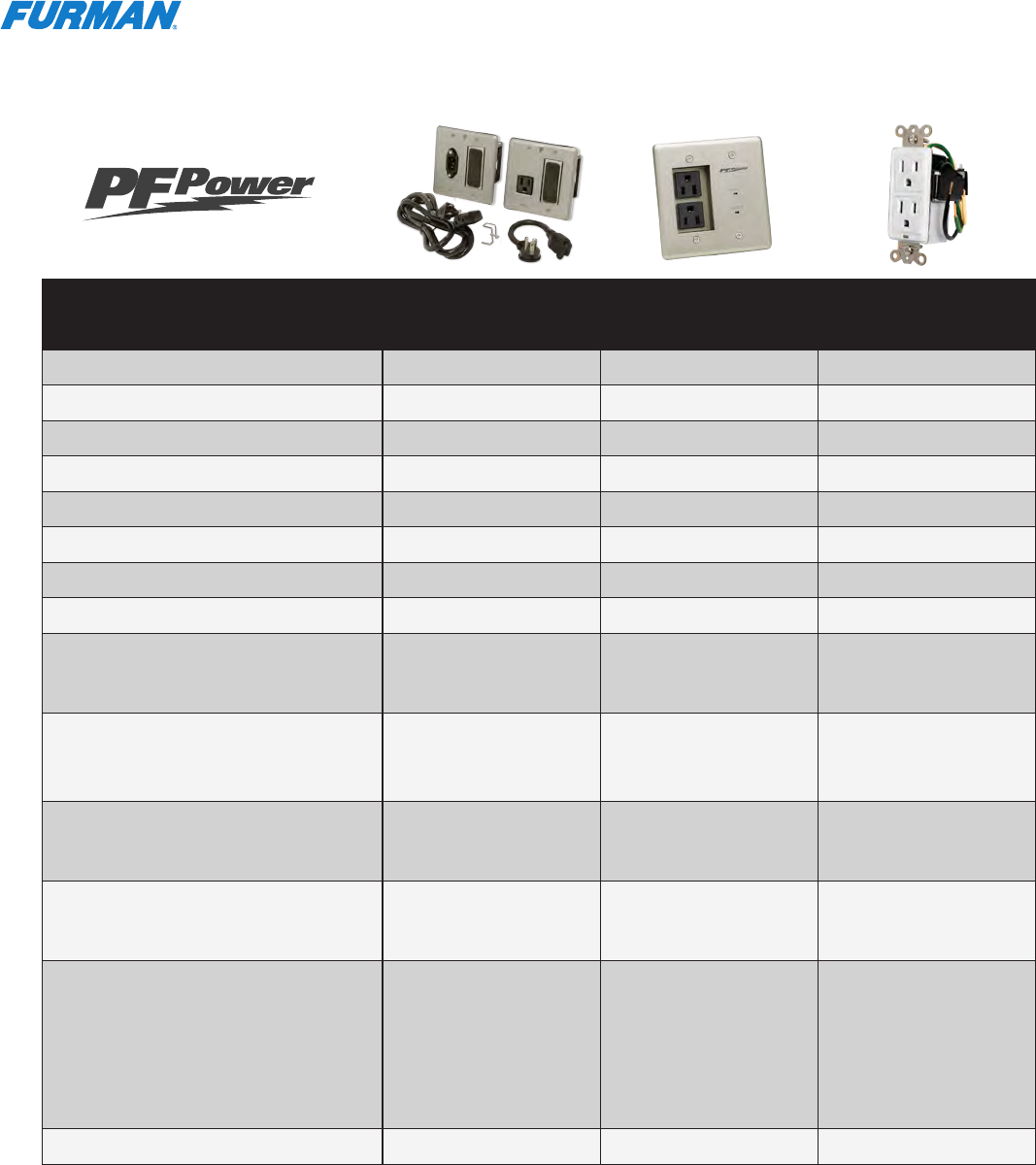

SPECIFICATIONS
MIW-XT MIW-POWER-PRO-PFP MIW-SURGE-1G
Line Voltage 120V, 50/60Hz 120V, 50/60Hz 120V, 50/60Hz
Total Current Capacity 15A 15A 15A
Protection Modes - L-N, L-G, N-G L-N, L-G, N-G
Energy Dissipation - 546 Joules 1350 Joules
Peak Impulse Current - 32,500A -
Catastrophic Surge Circuit - Yes -
Over-Voltage Shutoff - 142 VAC ± 5 VAC -
Thermal Fusing - Yes -
Power Cord
11” Flat Plug Power Cord
with NEMA 5-15P and
NEMA 5-15R Connectors
- -
Power Inlet Faceplate
IEC 320 C14 AC Connector
(Signal Line Protection
not included)
- -
Power Outlet Faceplate
NEMA 5-15 AC Connector
(Signal Line Protection
not included)
- -
IEC Power Inlet Cord 6’ Cord with IEC 320-C13
and NEMA 5-15 Connectors - -
Agency cCSAus cCSAus
cCSAus
UL 1449 2nd Ed.
Suppressed Voltage Rating
(@500A): 330V
UL 1449 3rd Ed. Voltage
Protection Rating
(@3000A): 400V
Weight 4 lbs. 2 lbs. .3 lbs.
By
Panamax
~
Furman
MIW-XT / MIW-POWER-PRO-PFP / MIW-SURGE-1G
www.furmanpower.com 31

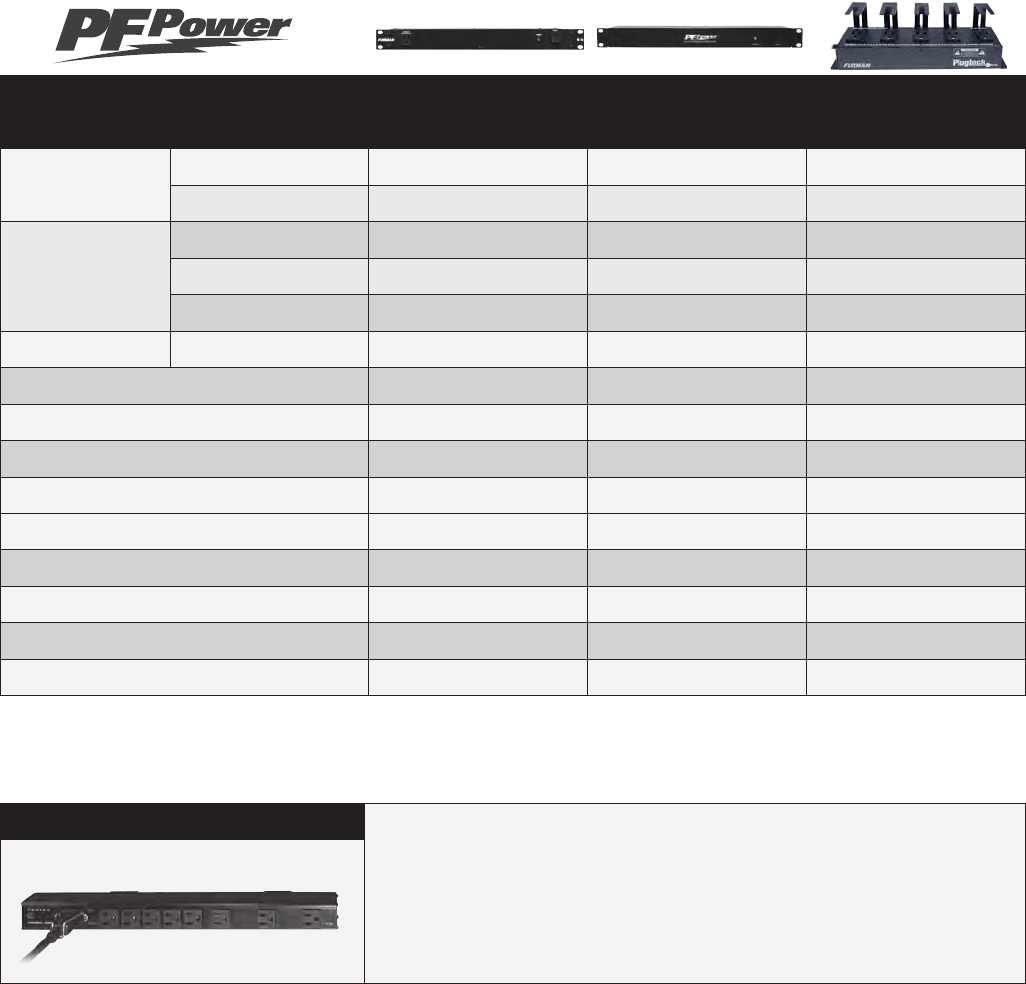

VT-EXT • 8 AC outlet (no surge protection or filtration - extends protection and filtration
from Panamax/Furman power conditioner) • 10 ft. power cord, detachable,
IEC 320 C13/NEMA 5-15P with security retention clip • Resettable circuit breaker
• Ground isolation from rack provided by plastic spacers in mounting clips
• 1 Year Limted Product Warranty • Dimensions 18 x 1.5 X 1.5 in.
• Weight: 2 lbs. • Agency: cULus
SPECIFICATIONS
M-8x2 D10-PFP PLUGLOCK-PFP
Current
Capacity
Input 15A 15A 15A
Output 15A RMS 15A RMS 15A RMS
Outlets
RFI/EMI Filtered 9 - -
No Filtering - 10 5
Total Outlets 9 10 5
Noise Attenuation Differential Mode >20dB, 1.5 to 200 MHz N/A N/A
Non-Sacrificial Surge Suppression No No No
Extreme Voltage Shutdown (EVS) No No No
Ground Contamination Free Circuitry No No No
Linear Filtering Technology (LiFT) No No No
AC Cord (Captive/Removable) Captive Captive Captive
Dimensions (HxWxD) 1.75” x 19” x 3.75” 1.75” x 19” x 2.5” 12.6” x 2.3” x 2.5”
Rack Height 1RU 1RU N/A
Agency cTUVus cULus cTUVus
Weight 5 lbs. 3 lbs. 2.125 lbs.
For product questions or to locate your
local Authorized Furman Dealer,
please contact us at 707-763-1010
or visit:
www.furmanpower.com
Specifications for all products subject to change without notice due to product improvement.
By
Panamax
~
Furman
M-8X2 / D10-PFP / PLUGLOCK-PFP / VT-EXT
©2017 Core Brands, LLC. All rights reserved.
Furman® is a registered trademark of Core Brands, LLC.
P/N: L1C101, Rev B, 08/2017
Petaluma, CA 94954, USA
To nd your local Furman Dealer or Regional Sales Representative,
please visit: www.FurmanPower.com

Navigation menu
