HBZ7390

HobbyZone® products are distributed exclusively by

Horizon Hobby, Inc.

4105 Fieldstone Road

Champaign, IL 61822

©2009 Horizon Hobby, Inc.

Horizon Hobby UK

Units 1-4 Ployters Rd

Staple Tye

Harlow, Essex

CM18 7NS

United Kingdom

Horizon Hobby Deutschland GmbH

Hamburger Strasse 10

25335 Elmshorn

Germany

14931 Printed 3/09

Congratulations on your purchase of the HobbyZone®

Super Cub Floats. These floats add a new level of fun and

excitement to your Super Cub.

Note: Only use the floats if you are comfortable flying your Super Cub

and have repeatedly and successfully taken off, flown and landed.

Flying off water poses a higher risk to the airplane because the

electronics can fail if immersed in water.

Crash damage is not covered

under the warranty.

Be sure to read the warranty

on page 16 and "Warnings and

Safety" on pages 14–15 before

you proceed to Step 1.

3

Step 1

4

Step 1

Assembly

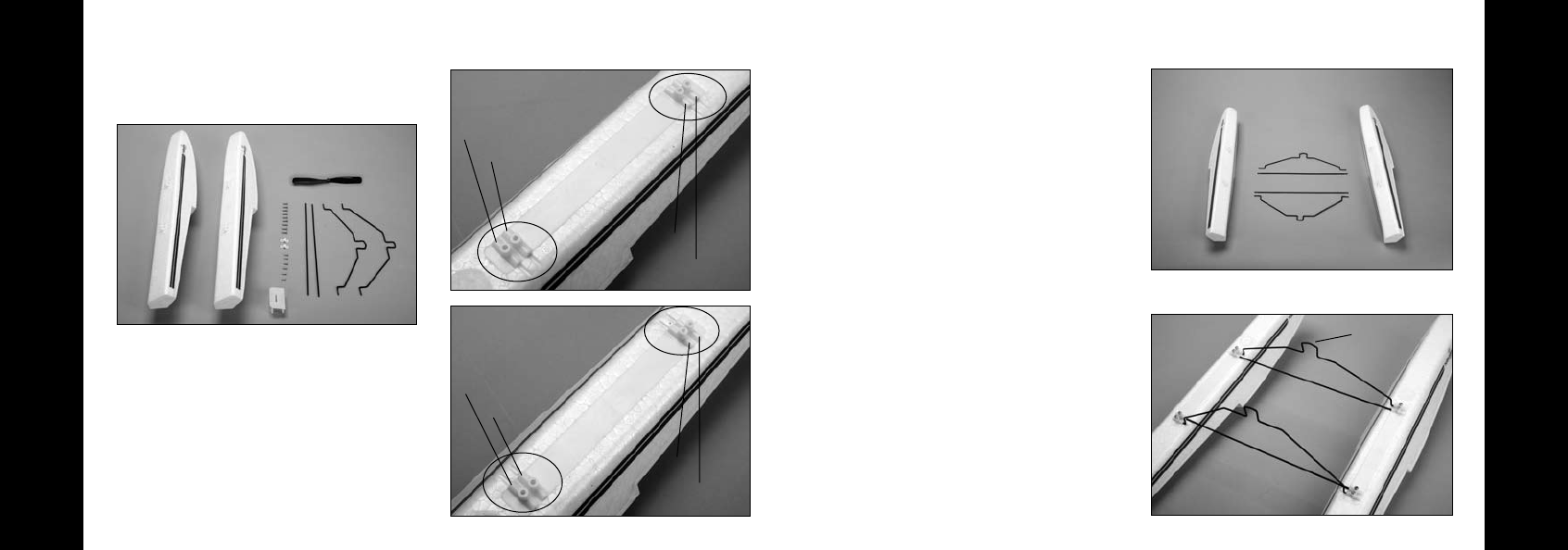

• Remove contents from the box

and inspect for missing parts or

any damage.

• Separate the eight 3mm x 10mm

Phillips head machine screws, the

spreader wires and the two landing

gear legs.

• Note that there is a right and left

float. The indentions in the foam for

the spreader wires and landing gear

will face inward.

• Install the landing gear with the wider

top portion into the front holes on the

floats. Next install the front spreader

wire into the second holes on the

floats. Install the rear spreader wire

into the third holes on the floats.

Finally, install the rear landing gear

legs with the narrower top portion into

the rear holes on the floats.

Wider

Right Float

1 (front holes)

4 (rear holes)

4 (rear holes)

2

3

3

Left Float

1 (front holes)

2

5

Step 1

6

Step 2

Installation

• Install the eight 3mm x 10mm Phillips

head machine screws into the

floats making sure the screws are

tightening against the flat spots on

the wires.

• Install 10 x 8 propeller included with

the float kit*. Do not use the 9 x 6

prop included with the airplane as

there will not be enough power to

successfully fly on floats.

* When using the 10 x 8 propeller, it is

essential that you allow approximately

10–15 minutes between flights in order

to allow the 480 motor to properly cool.

Failure to follow this warning will greatly

reduce motor life.

• Remove the landing gear and

landing gear covers from your

Super Cub.

• Insert the front landing (wider) gear

wire of the floats into the front

landing gear slot.

• Insert the rear landing gear wire into

the rear float mount in the fuselage.

Rear Float

Mount

• The Super Cub LP (blue Super Cub

with Li-polymer battery) comes with

the rear float mount pre-installed in

the fuselage. If you are attaching

your Super Cub floats to an original

red Super Cub (HBZ7100), a rear float

mount will have to be installed into

the fuselage. This is a separate part

that has been included with this float

set. Please see page 9 for installation

instructions.

7

Step 2

8

Success Tips

• Install the landing gear straps on the

rear float mount with the included

self-tapping screws.

Note: If installing the floats on the original

red and white Super Cub (HBZ7100),

refer to page 9 of this manual for

installation of the rear float mount.

Prior to each flight, make sure ACT is off

and never attempt to fly with the floats with

ACT on.

When flying with floats always take off

and land into the wind. Do not fly off

water when the wind is too high as the

wind causes larger waves and makes the

plane more likely to flip over.

Attempt your first float flight only if the

water is calm with very little wind. When

taxiing in the water always hold full up-

elevator. When starting your takeoff or

just after touchdown, hold up-elevator

to prevent the floats from “digging”

into the water and causing the plane to

flip over.

On takeoff when the floats begin to ride

on top of the water, or get “on step”,

reduce the up elevator input and allow

the plane to build up speed before

lifting off.

When flying off water there is usually a

lot of room to fly, do not try to force the

plane into the water. Let the airplane

settle into the water when landing. If a

float starts to “dig” into the water it will

cause the airplane to veer to one side or

the other. Reduce power immediately

and abort the takeoff.

The floats add weight well below the

airplane and cause a “pendulum” effect

that will change the flying characteristics

of the Super Cub.

9 10

When finished flying off water check all

components for water, if any water is in

the airplane or around the battery

cavity, dry with a paper towel.

Check for water inside the floats. The

joint between the plastic bottom surface

and the foam structure has been sealed,

but if for some reason that seal has

been broken, water could build up

inside the float. This could cause

serious weight gain and/or CG issues.

Installing Floats on the Red and White Super Cub

If installing floats on your red and white

Super Cub (HBZ7100), you will need to

install the included rear float mount on

the fuselage.

Note: We recommend you change the

receiver unit in your red and white

Super Cub to the receiver unit in the

Super Cub LP. You will also need to use

the 3S 11.1V Li-Po Battery (PKZ1033)

The ESC auto cut in the original Super

Cub has been set for Ni-MH cells and

can cause permanent damage to a Li-Po

battery pack if flown to the low-voltage

cutoff point.

Measure back 5 3/4 inches from the

rear of the slot for the original landing

gear. Place the front edge of the rear

float mount at this distance and press

the rear mount into the fuselage of your

Super Cub.

Note: The rounded corners will be facing

forward.

Success Tips (continued)

11 12

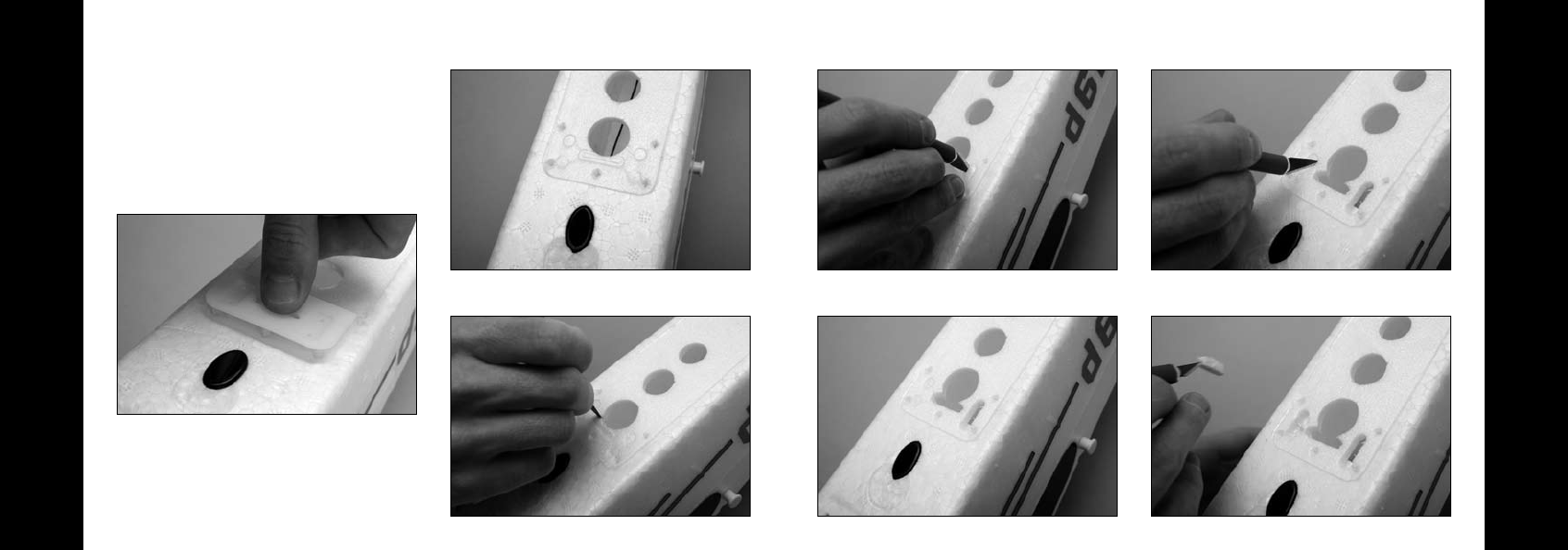

Press hard enough to leave marks in the

foam on the fuselage to indicate what

foam needs to be removed. Set the

rear mount aside, then slowly cut away

where the foam is compressed by the

rear float mount until the mount is flush

with the bottom of the fuselage.

13 14

Glue the rear float mount into the

fuselage using epoxy, making sure not

to get epoxy in the screw holes. Go to

the assembly and installation section

when done mounting the rear float

mount into your Super Cub.

Note: The rear float mount will rest on top of

the foam and not be recessed into the

bottom of the fuselage.

• Do not y off of water if you are

uncomfortable flying the Super Cub

on land. Only use the floats if you can

fly the Super Cub without having any

incidents and can take off and land

smoothly and multiple times in a row.

• Do not y in wind over 5–7 mph

(8-11km/h) as wind will cause larger

waves and make the plane more

susceptible to flipping over.

• Always stay clear of the propeller.

• Always select wide open spaces.

• Always follow all aircraft instructions

when using the floats.

• Always y your aircraft responsibly.

• Stay away from boat wake as it may

cause the airplane to flip or splash

water into the airplane and on the

electronics.

Warnings and Saftey

• Always check the bottom of the oats

each time you pull the airplane out

of the water to check if there is any

damage from hitting submerged

sticks or rocks. If water is found in a

float, it needs to be carefully

removed before the next flight.

• Never attempt to swim out to your

airplane in the water. Use a boat,

RC boat or fishing pole to retrieve

your airplane. Also be aware that

the airplane is still powered up when

retrieving it.

• Never retrieve the airplane alone.

Always have another person with you

to assist in retrieval.

• If the motor of the airplane gets

wet, do not power up to get the

airplane back to the shore. It is

possible to burn up the motor if it is

run while wet.

15 16

• Always allows 10-15 minutes for the

motor to cool between flights when

flying with the 10 x 8 propeller. The

Super Cub’s 480 motor may be

damaged if you don’t follow this

warning.

Prior to each flight, make sure ACT is off

and never attempt to fly with the floats with

ACT on.

Warnings and Saftey (continued)

The Super Cub Floats are guaranteed

against any manufacturing defects at

the time of production. There is no

warranty of any kind from damage to

either the aircraft or the floats itself due

to hard landings or crashes. If you have

any questions regarding your floats,

please contact the Horizon Service

Center at 1.877.504.0233

Warranty Period

Exclusive Warranty- Horizon Hobby, Inc.,

(Horizon) warranties that the Products

purchased (the “Product”) will be free

from defects in materials and

workmanship at the date of purchase by

the Purchaser.

Limited Warranty

(a) This warranty is limited to the original

Purchaser (“Purchaser”) and is not

transferable. REPAIR OR

REPLACEMENT AS PROVIDED UNDER

THIS WARRANTY IS THE EXCLUSIVE

Warranty

REMEDY OF THE PURCHASER. This

warranty covers only those Products

purchased from an authorized Horizon

dealer. Third party transactions are

not covered by this warranty. Proof of

purchase is required for warranty claims.

Further, Horizon reserves the right to

change or modify this warranty without

notice and disclaims all other

warranties, express or implied.

(b) Limitations- HORIZON MAKES NO

WARRANTY OR REPRESENTATION,

EXPRESS OR IMPLIED, ABOUT NON-

INFRINGEMENT, MERCHANTABILITY

OR FITNESS FOR A PARTICULAR

PURPOSE OF THE PRODUCT. THE

PURCHASER ACKNOWLEDGES THAT

THEY ALONE HAVE DETERMINED

THAT THE PRODUCT WILL SUITABLY

MEET THE REQUIREMENTS OF THE

PURCHASER’S INTENDED USE.

17 18

(c) Purchaser Remedy- Horizon’s sole

obligation hereunder shall be that

Horizon will, at its option, (i) repair or

(ii) replace, any Product determined by

Horizon to be defective. In the event of

a defect, these are the Purchaser’s ex-

clusive remedies. Horizon reserves the

right to inspect any and all equipment

involved in a warranty claim. Repair or

replacement decisions are at the sole

discretion of Horizon. This warranty

does not cover cosmetic damage or

damage due to acts of God, accident,

misuse, abuse, negligence,

commercial use, or modification of or to

any part of the Product. This warranty

does not cover damage due to

improper installation, operation,

maintenance, or attempted repair by

anyone other than Horizon. Return of

any goods by Purchaser must be

approved in writing by Horizon before

shipment.

Damage Limits

HORIZON SHALL NOT BE LIABLE FOR

SPECIAL, INDIRECT OR

CONSEQUENTIAL DAMAGES, LOSS

OF PROFITS OR PRODUCTION OR

COMMERCIAL LOSS IN ANY WAY

CONNECTED WITH THE PRODUCT,

WHETHER SUCH CLAIM IS BASED IN

CONTRACT, WARRANTY,

NEGLIGENCE, OR STRICT LIABILITY.

Further, in no event shall the liability of

Horizon exceed the individual price of

the Product on which liability is

asserted. As Horizon has no control over

use, setup, final assembly, modification

or misuse, no liability shall be assumed

nor accepted for any resulting damage

or injury. By the act of use, setup or

assembly, the user accepts all resulting

liability. If you as the Purchaser or user

are not prepared to accept the liability

associated with the use of this Product,

you are advised to return this Product

immediately in new and unused

condition to the place of purchase.

Law: These Terms are governed by

Illinois law (without regard to conflict of

law principals).

Safety Precautions

This is a sophisticated hobby Product

and not a toy. It must be operated

with caution and common sense and

requires some basic mechanical ability.

Failure to operate this Product in a safe

and responsible manner could result in

injury or damage to the Product or

other property. This Product is not

intended for use by children without

direct adult supervision. The Product

manual contains instructions for safety,

operation and maintenance. It is

essential to read and follow all the

instructions and warnings in the manual,

prior to assembly, setup or use, in order

to operate correctly and avoid damage

or injury.

Questions, Assistance, and Repairs

Your local hobby store and/or place of

purchase cannot provide warranty

support or repair. Once assembly, setup

or use of the Product has been started,

you must contact Horizon directly. This

will enable Horizon to better answer

your questions and service you in the

event that you may need any assistance.

For questions or assistance, please

direct your email to

productsupport@horizonhobby.com, or

call 877.504.0233 toll free to speak to a

service technician.

Inspection or Repairs

If this Product needs to be inspected or

repaired, please call for a Return

Merchandise Authorization (RMA). Pack

the Product securely using a shipping

carton. Please note that original boxes

may be included, but are not designed

to withstand the rigors of shipping

without additional protection. Ship via a

carrier that provides tracking and

insurance for lost or damaged parcels,

19 20

as Horizon is not responsible for

merchandise until it arrives and is

accepted at our facility. A Service Repair

Request is available at

www.horizonhobby.com on the

“Support” tab. If you do not have

internet access, please include a letter

with your complete name, street

address, email address and phone

number where you can be reached

during business days, your RMA

number, a list of the included items,

method of payment for any

non-warranty expenses and a brief

summary of the problem. Your original

sales receipt must also be included for

warranty consideration. Be sure your

name, address, and RMA number are

clearly written on the outside of the

shipping carton.

Warranty Inspection and Repairs

To receive warranty service, you must

include your original sales receipt

verifying the proof-of-purchase date.

Provided warranty conditions have been

met, your Product will be repaired or

replaced free of charge. Repair or

replacement decisions are at the sole

discretion of Horizon Hobby.

Non-Warranty Repairs

Should your repair not be covered by

warranty the repair will be completed

and payment will be required without

notification or estimate of the expense

unless the expense exceeds 50% of the

retail purchase cost. By submitting the

item for repair you are agreeing to

payment of the repair without

notification. Repair estimates are

available upon request. You must

include this request with your repair.

Non-warranty repair estimates will be

billed a minimum of ½ hour of

labor. In addition you will be billed for

return freight. Please advise us of your

preferred method of payment. Horizon

accepts money orders and cashiers

checks, as well as Visa, MasterCard,

American Express, and Discover cards.

If you choose to pay by credit card,

please include your credit card number

and expiration date. Any repair left

unpaid or unclaimed after 90 days will

be considered abandoned and will be

disposed of accordingly. Please note:

non-warranty repair is only available on

electronics and model engines.

United States

Electronics and engines requiring

inspection or repair should be shipped

to the following address:

Horizon Service Center

4105 Fieldstone Road

Champaign, Illinois 61822

All other Products requiring warranty

inspection or repair should be shipped

to the following address:

Horizon Product Support

4105 Fieldstone Road

Champaign, Illinois 61822

Please call 877-504-0233 or e-mail us

at productsupport@horizonhobby.com

with any questions or concerns

regarding this product or warranty.

21 22

United Kingdom

Electronics and engines requiring

inspection or repair should be shipped

to the following address:

Horizon Hobby UK

Units 1-4 Ployters Rd

Staple Tye

Harlow, Essex

CM18 7NS

United Kingdom

Please call +44 (0) 1279 641 097 or

e-mail us at sales@horizonhobby.co.uk

with any questions or concerns

regarding this product or warranty.

Germany

Electronics and engines requiring

inspection or repair should be shipped

to the following address:

Horizon Technischer Service

Hamburger Strasse 10

25335 Elmshorn

Germany

Please call +49 4121 46199 66 or e-mail

us at service@horizonhobby.de with any

questions or concerns regarding this

product or warranty.
