Infinix
Together we can!
Infinix HOT 6
Quick Guide
Hereby, INFINIX MOBILITY LIMITED
Declares that this Mobile Phone is in compliance with the essential requirements and other relevant provisions of
Directive 2014/53/EU.
Infinix
1

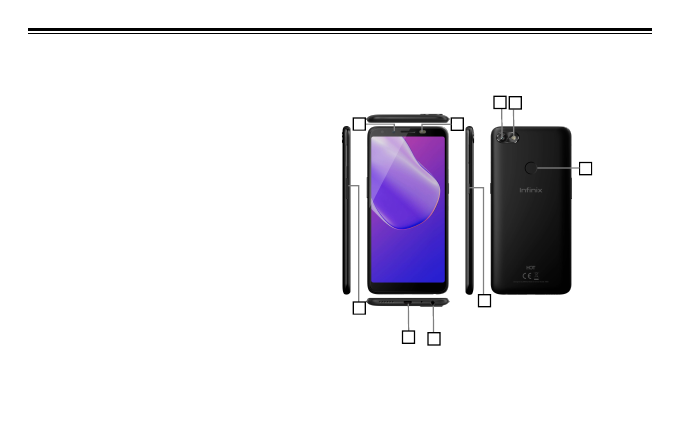

Connaître votre téléphone
①Prise d’écouteurs
②Appareil photo frontal
③Appareil photo
④Bouton de volume
⑤Bouton d’alimentation
⑥Prise USB
⑦Flash frontal
⑧Flash
⑨Empreintes digitales
9
7
2
4
5
1
6
8
3
Infinix
2
Démarrer

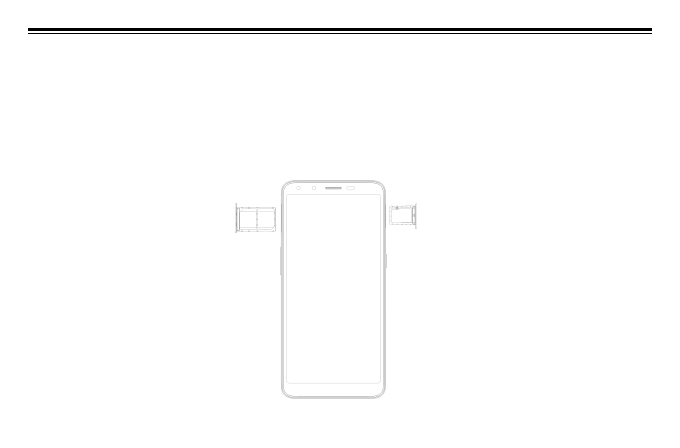

Insérer la carte SIM et la carte mémoire
①Insérez le support dans les fentes de la carte SIM à côté du trou du dé à coudre.
②Placez les cartes SIM face vers le bas et alignez-les avec l'ouverture du support.
③Insérez-les correctement dans les fentes pour carte SIM du téléphone.
Infinix
3

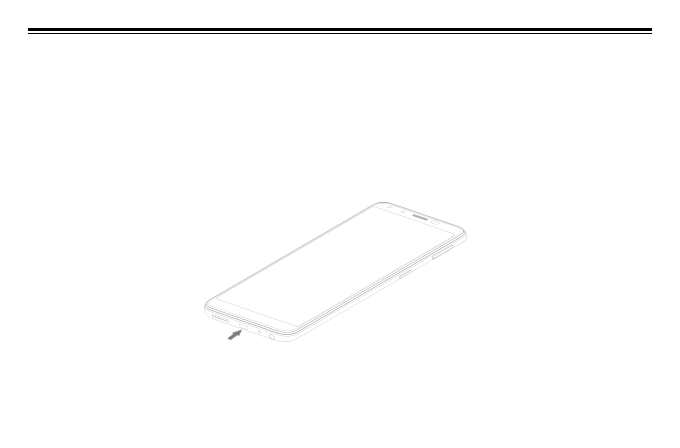

Charger le téléphone
Vous pouvez charger votre appareil à l'aide d'un chargeur ou en le connectant à un ordinateur à
l'aide d'un câble USB (fourni avec le téléphone).
Remarque: utilisez uniquement un chargeur compatible; une batterie incorporée inamovible.
Le téléphone peut être redémarré en maintenant le bouton d'alimentation pendant 10
secondes
Infinix
1
CAUTION(A)
1.Use careful with the earphone maybe excessive sound pressure from earphones and headphones can cause hearing
loss.
2.Risk of explosion if battery is replaced by an incorrect type, dispose of used batteries according to the instructions.
3.The product shall only be connected to a USB interface of version USB2.0
4.Adapter shall be installed near the equipment and shall be easily accessible.
5.EUT Temperature:-10℃～+65℃.
6.Charging Temperature: 0℃～+55℃
7.Adapter1: XCU32
Input: 100~240V 50/60Hz 500mA
Output: 5.0V 2.0A
Adapter2: CU-60YX
Input: 100~240V 50/60Hz 400mA
Output: 5.0V 2.0A
8.The device complies with RF specifications when the device used at 5mm from your body.
9.To prevent possible hearing damage, do not listen at high volume levels for long periods.
10.Earphone and USB cable are shielded.
Infinix
2
Operating Frequency Band (RF)：
E-GSM900: 880-915MHz (TX), 925-960MHz (RX);
DCS1800: 1710-1785 MHz (TX), 1805-1880 MHz (RX);
WCDMA BAND I:1920-1980 MHz (TX), 2110 - 2170 MHz (RX);
WCDMA BAND VIII: 880-915MHz (TX), 925- 960MHz (RX);
Bluetooth: 2400 -2483.5 MHz (TX/RX);
WiFi: 2412-2472 MHz (TX/RX);
GPS:1.57542GHz
FM:87.5 MHz- 108 MHz.
Modulation mode：
GMSK,8PSK(GSM)
BPSK,QPSK(WCDMA)
GFSK, π/4- DQPSK, 8DPSK (BT)
GFSK(BLE)
CCK for IEEE 802.11b(WiFi)
OFDM for IEEE 802.11g/n (HT-20)/HT-40 (WiFi)
BPSK(GPS)
RF Output Power：
GSM900：33dBm±2dB
GSM1800：30dBm±2dB
WCDMA BAND I/VIII:24dBm+1.7dB/-3.7dB
Bluetooth：0-10 dBm
Wifi: 14dBm +/-3dB
Infinix
3
Specific Absorption Rate (SAR) Certification
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Body parts
Test value
Test distance
Limit
Head
0.314W/Kg10g
0mm
2.0 W/Kg10g
Body
0.853W/Kg10g
5mm
2.0 W/Kg10g
DOC information available on the Internet: www.infinixmobility.com
Infinix
4
Declaration of conformity
We：INFINIX MOBILITY LIMITED
(Name of manufacturer)
RMS 05-15, 13A/F SOUTH TOWER WORLD FINANCE CTR HARBOUR CITY 17 CANTON RD TST KLN HONG KONG.
(Address)
declare under our own responsibility that the product
Product name : Mobile phone
Model No.: X606D
Trademark: Infinix
(Including product name, model No. descriptions,versions and supplementary characteristics)
to which this declaration refers conforms with the relevant standards or other standardising documents
3.1a Health: EN 50360:2017
EN 50566:2017
EN 62479:2010
3.1a Safety:EN60950-1:2006+A11:2009+A1:2010
+A12:2011+ A2:2013
3.1b EMC:Draft ETSI EN 301 489-1 V2.2.0 (2017-03)
Draft ETSI EN 301 489-17 V3.2.0 (2017-03)
Draft ETSI EN 301 489-19 V2.1.0 (2017-03)
Draft ETSI EN 301 489-52 V1.1.0 (2016-11)
Infinix
5
EN 55032:2015
EN 55035:2017
EN61000-3-2:2014
EN61000-3-3:2013
3.2 Radio: ETSI EN 301 511 V12.5.1 (2017-03)
ETSI EN 301 908-1 V11.1.1 (2016-07)
ETSI EN 301 908-2 V11.1.1 (2016-07)
ETSI EN 300 328 V2.1.1 (2016-11)
ETSI EN 303 413 V1.1.1 (2017-06)
Final Draft ETSI EN 303 345 V1.1.7(2017-03)
Software Version：X606C-H8023CE-O-180424V2
Hardware Version：V1.3
Adapter 1:XCU32
Input:100-240V~50/60Hz 500mA
Output:5.0V 2.0A
Adapter 2:CU-60YX
Input:100-240V~50/60Hz 400mA
Output:5.0V 2.0A
Li-ion battery : BL-39HX
Voltage: 3.85V
Capacity: 3900mAh/4000mAh(min/ typ)
Infinix
6
Limited Charge Voltage: 4.4V
1.Notified body involved: TÜV Rheinland LGA Products GmbH, 0197.
2.Performed conformity assessment according to Directive Annex III Module B of the 2014/53/EU Radio Equipment
Directive (RED) and issued the EU-type examination certificate.
3.This declaration of conformity is issued under the sole responsibility of the manufacturer.
4.The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Directive 2014/53/EU
Other Union harmonisation legislation where applicable
Place and date of issue (of this DoC): Shenzhen/2018-5-8
Lebin,Xie/Manager
(Name / Title)
(Name and signature of person responsible)
Infinix
7
CAUTION(C)
1.Use careful with the earphone maybe excessive sound pressure from earphones and headphones can cause hearing
loss.
2.Risk of explosion if battery is replaced by an incorrect type, dispose of used batteries according to the instructions.
3.The product shall only be connected to a USB interface of version USB2.0
4.Adapter shall be installed near the equipment and shall be easily accessible.
5.EUT Temperature:-10℃～+65℃.
6.Charging Temperature: 0℃～+55℃
7.Adapter1: XCU32
Input: 100~240V 50/60Hz 500mA
Output: 5.0V 2.0A
Adapter2: CU-60YX
Input: 100~240V 50/60Hz 400mA
Output: 5.0V 2.0A
8.The device complies with RF specifications when the device used at 5mm from your body.
9.To prevent possible hearing damage, do not listen at high volume levels for long periods.
10.Earphone and USB cable are shielded.
Infinix
8
Operating Frequency Band (RF)：
E-GSM900: 880-915MHz (TX), 925-960MHz (RX);
DCS1800: 1710-1785 MHz (TX), 1805-1880 MHz (RX);
WCDMA BAND I:1920-1980 MHz (TX), 2110 - 2170 MHz (RX);
WCDMA BAND VIII: 880-915MHz (TX), 925- 960MHz (RX);
Bluetooth: 2400 -2483.5 MHz (TX/RX);
WiFi: 2412-2472 MHz (TX/RX);
GPS:1.57542GHz
FM:87.5 MHz- 108 MHz.
Modulation mode：
GMSK,8PSK(GSM)
BPSK,QPSK(WCDMA)
GFSK, π/4- DQPSK, 8DPSK (BT)
GFSK(BLE)
CCK for IEEE 802.11b(WiFi)
OFDM for IEEE 802.11g/n (HT-20)/HT-40 (WiFi)
BPSK(GPS)
RF Output Power：
GSM900：33dBm±2dB
GSM1800：30dBm±2dB
WCDMA BAND I/VIII:24dBm+1.7dB/-3.7dB
Bluetooth：0-10 dBm
Wifi: 14dBm +/-3dB
Infinix
9
Specific Absorption Rate (SAR) Certification
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Body parts
Test value
Test distance
Limit
Head
0.314W/Kg10g
0mm
2.0 W/Kg10g
Body
0.853W/Kg10g
5mm
2.0 W/Kg10g
DOC information available on the Internet: www.infinixmobility.com
Infinix
10
Declaration of conformity
We：INFINIX MOBILITY LIMITED
(Name of manufacturer)
RMS 05-15, 13A/F SOUTH TOWER WORLD FINANCE CTR HARBOUR CITY 17 CANTON RD TST KLN HONG KONG.
(Address)
declare under our own responsibility that the product
Product name : Mobile phone
Model No.: X606C
Trademark: Infinix
(Including product name, model No. descriptions,versions and supplementary characteristics)
to which this declaration refers conforms with the relevant standards or other standardising documents
3.1a Health: EN 50360:2017
EN 50566:2017
EN 62479:2010
3.1a Safety:EN60950-1:2006+A11:2009+A1:2010
+A12:2011+ A2:2013
3.1b EMC:Draft ETSI EN 301 489-1 V2.2.0 (2017-03)
Draft ETSI EN 301 489-17 V3.2.0 (2017-03)
Draft ETSI EN 301 489-19 V2.1.0 (2017-03)
Draft ETSI EN 301 489-52 V1.1.0 (2016-11)
Infinix
11
EN 55032:2015
EN 55035:2017
EN61000-3-2:2014
EN61000-3-3:2013
3.2 Radio: ETSI EN 301 511 V12.5.1 (2017-03)
ETSI EN 301 908-1 V11.1.1 (2016-07)
ETSI EN 301 908-2 V11.1.1 (2016-07)
ETSI EN 300 328 V2.1.1 (2016-11)
ETSI EN 303 413 V1.1.1 (2017-06)
Final Draft ETSI EN 303 345 V1.1.7(2017-03)
Software Version：X606C-H8023CE-O-180424V2
Hardware Version：V1.3
Adapter 1:XCU32
Input:100-240V~50/60Hz 500mA
Output:5.0V 2.0A
Adapter 2:CU-60YX
Input:100-240V~50/60Hz 400mA
Output:5.0V 2.0A
Li-ion battery : BL-39HX
Voltage: 3.85V
Capacity: 3900mAh/4000mAh(min/ typ)
Infinix
12
Limited Charge Voltage: 4.4V
1.Notified body involved: TÜV Rheinland LGA Products GmbH, 0197.
2.Performed conformity assessment according to Directive Annex III Module B of the 2014/53/EU Radio Equipment
Directive (RED) and issued the EU-type examination certificate.
3.This declaration of conformity is issued under the sole responsibility of the manufacturer.
4.The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Directive 2014/53/EU
Other Union harmonisation legislation where applicable
Place and date of issue (of this DoC): Shenzhen/2018-5-8
Lebin,Xie/Manager
(Name / Title)
(Name and signature of person responsible)
Infinix
13
CAUTION(D)
1.Use careful with the earphone maybe excessive sound pressure from earphones and headphones can cause hearing
loss.
2.Risk of explosion if battery is replaced by an incorrect type, dispose of used batteries according to the instructions.
3.The product shall only be connected to a USB interface of version USB2.0
4.Adapter shall be installed near the equipment and shall be easily accessible.
5.EUT Temperature:-10℃～+65℃.
6.Charging Temperature: 0℃～+55℃
7.Adapter1: XCU32
Input: 100~240V 50/60Hz 500mA
Output: 5.0V 2.0A
Adapter2: CU-60YX
Input: 100~240V 50/60Hz 400mA
Output: 5.0V 2.0A
8.The device complies with RF specifications when the device used at 5mm from your body.
9.To prevent possible hearing damage, do not listen at high volume levels for long periods.
10.Earphone and USB cable are shielded.
Infinix
14
Operating Frequency Band (RF)：
E-GSM900: 880-915MHz (TX), 925-960MHz (RX);
DCS1800: 1710-1785 MHz (TX), 1805-1880 MHz (RX);
WCDMA BAND I:1920-1980 MHz (TX), 2110-2170 MHz (RX);
Bluetooth: 2400-2483.5 MHz (TX/RX);
WiFi: 2412-2472 MHz (TX/RX);
GPS:1.57542GHz
FM:87.5 MHz-108 MHz.
Modulation mode：
GMSK,8PSK(GSM)
BPSK,QPSK(WCDMA)
GFSK, π/4- DQPSK, 8DPSK (BT)
GFSK(BLE)
CCK for IEEE 802.11b(WiFi)
OFDM for IEEE 802.11g/n (HT-20)/HT-40 (WiFi)
BPSK(GPS)
RF Output Power：
GSM900：33dBm±2dB
GSM1800：30dBm±2dB
WCDMA BAND I:24dBm+1.7dB/-3.7dB
Bluetooth：0-10 dBm
Wifi: 14dBm +/-3dB
Infinix
15
Specific Absorption Rate (SAR) Certification
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Body parts
Test distance
Limit
Head
0mm
2.0 W/Kg10g
Body
5mm
2.0 W/Kg10g
DOC information available on the Internet: www.infinixmobility.com
Infinix
16
Declaration of conformity
We：INFINIX MOBILITY LIMITED
(Name of manufacturer)
RMS 05-15, 13A/F SOUTH TOWER WORLD FINANCE CTR HARBOUR CITY 17 CANTON RD TST KLN HONG KONG.
(Address)
declare under our own responsibility that the product
Product name : Mobile phone
Model No.: X606D
Trademark: Infinix
(Including product name, model No. descriptions,versions and supplementary characteristics)
to which this declaration refers conforms with the relevant standards or other standardising documents
3.1a Health: EN 50360:2017
EN 50566:2017
EN 62479:2010
3.1a Safety:EN60950-1:2006+A11:2009+A1:2010
+A12:2011+ A2:2013
3.1b EMC:Draft ETSI EN 301 489-1 V2.2.0 (2017-03)
Draft ETSI EN 301 489-17 V3.2.0 (2017-03)
Draft ETSI EN 301 489-19 V2.1.0 (2017-03)
Draft ETSI EN 301 489-52 V1.1.0 (2016-11)
Infinix
17
EN 55032:2015
EN 55035:2017
EN61000-3-2:2014
EN61000-3-3:2013
3.2 Radio: ETSI EN 301 511 V12.5.1 (2017-03)
ETSI EN 301 908-1 V11.1.1 (2016-07)
ETSI EN 301 908-2 V11.1.1 (2016-07)
ETSI EN 300 328 V2.1.1 (2016-11)
ETSI EN 303 413 V1.1.1 (2017-06)
Final Draft ETSI EN 303 345 V1.1.7(2017-03)
Software Version：X606C-H8023CE-O-180424V2
Hardware Version：V1.3
Adapter 1:XCU32
Input:100-240V~50/60Hz 500mA
Output:5.0V 2.0A
Adapter 2:CU-60YX
Input:100-240V~50/60Hz 400mA
Output:5.0V 2.0A
Li-ion battery : BL-39HX
Voltage: 3.85V
Capacity: 3900mAh/4000mAh(min/ typ)
Infinix
18
Limited Charge Voltage: 4.4V
1.Notified body involved: TÜV Rheinland LGA Products GmbH, 0197.
2.Performed conformity assessment according to Directive Annex III Module B of the 2014/53/EU Radio Equipment
Directive (RED) and issued the EU-type examination certificate.
3.This declaration of conformity is issued under the sole responsibility of the manufacturer.
4.The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Directive 2014/53/EU
Other Union harmonisation legislation where applicable
Place and date of issue (of this DoC): Shenzhen/2018-5-8
Lebin,Xie/Manager
(Name / Title)
(Name and signature of person responsible)
Infinix
19
CAUTION(E)
1.Use careful with the earphone maybe excessive sound pressure from earphones and headphones can cause hearing
loss.
2.Risk of explosion if battery is replaced by an incorrect type, dispose of used batteries according to the instructions.
3.The product shall only be connected to a USB interface of version USB2.0
4.Adapter shall be installed near the equipment and shall be easily accessible.
5.EUT Temperature:-10℃～+65℃.
6.Charging Temperature: 0℃～+55℃
7.Adapter1: XCU32
Input: 100~240V 50/60Hz 500mA
Output: 5.0V 2.0A
Adapter2: CU-60YX
Input: 100~240V 50/60Hz 400mA
Output: 5.0V 2.0A
8.The device complies with RF specifications when the device used at 5mm from your body.
9.To prevent possible hearing damage, do not listen at high volume levels for long periods.
10.Earphone and USB cable are shielded.
Infinix
20
Operating Frequency Band (RF)：
E-GSM900: 880-915MHz (TX), 925-960MHz (RX);
DCS1800: 1710-1785 MHz (TX), 1805-1880 MHz (RX);
WCDMA BAND I:1920-1980 MHz (TX), 2110-2170 MHz (RX);
Bluetooth: 2400-2483.5 MHz (TX/RX);
WiFi: 2412-2472 MHz (TX/RX);
GPS:1.57542GHz
FM:87.5 MHz-108 MHz.
Modulation mode：
GMSK,8PSK(GSM)
BPSK,QPSK(WCDMA)
GFSK, π/4- DQPSK, 8DPSK (BT)
GFSK(BLE)
CCK for IEEE 802.11b(WiFi)
OFDM for IEEE 802.11g/n (HT-20)/HT-40 (WiFi)
BPSK(GPS)
RF Output Power：
GSM900：33dBm±2dB
GSM1800：30dBm±2dB
WCDMA BAND I:24dBm+1.7dB/-3.7dB
Bluetooth：0-10 dBm
Wifi: 14dBm +/-3dB
Infinix
21
Specific Absorption Rate (SAR) Certification
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR EXPOSURE TO RADIO WAVES
Body parts
Test distance
Limit
Head
0mm
2.0 W/Kg10g
Body
5mm
2.0 W/Kg10g
DOC information available on the Internet: www.infinixmobility.com
Infinix
22
Declaration of conformity
We：INFINIX MOBILITY LIMITED
(Name of manufacturer)
RMS 05-15, 13A/F SOUTH TOWER WORLD FINANCE CTR HARBOUR CITY 17 CANTON RD TST KLN HONG KONG.
(Address)
declare under our own responsibility that the product
Product name : Mobile phone
Model No.: X606C
Trademark: Infinix
(Including product name, model No. descriptions,versions and supplementary characteristics)
to which this declaration refers conforms with the relevant standards or other standardising documents
3.1a Health: EN 50360:2017
EN 50566:2017
EN 62479:2010
3.1a Safety:EN60950-1:2006+A11:2009+A1:2010
+A12:2011+ A2:2013
3.1b EMC:Draft ETSI EN 301 489-1 V2.2.0 (2017-03)
Draft ETSI EN 301 489-17 V3.2.0 (2017-03)
Draft ETSI EN 301 489-19 V2.1.0 (2017-03)
Draft ETSI EN 301 489-52 V1.1.0 (2016-11)
Infinix
23
EN 55032:2015
EN 55035:2017
EN61000-3-2:2014
EN61000-3-3:2013
3.2 Radio: ETSI EN 301 511 V12.5.1 (2017-03)
ETSI EN 301 908-1 V11.1.1 (2016-07)
ETSI EN 301 908-2 V11.1.1 (2016-07)
ETSI EN 300 328 V2.1.1 (2016-11)
ETSI EN 303 413 V1.1.1 (2017-06)
Final Draft ETSI EN 303 345 V1.1.7(2017-03)
Software Version：X606C-H8023CE-O-180424V2
Hardware Version：V1.3
Adapter 1:XCU32
Input:100-240V~50/60Hz 500mA
Output:5.0V 2.0A
Adapter 2:CU-60YX
Input:100-240V~50/60Hz 400mA
Output:5.0V 2.0A
Li-ion battery : BL-39HX
Voltage: 3.85V
Capacity: 3900mAh/4000mAh(min/ typ)
Infinix
24
Limited Charge Voltage: 4.4V
1.Notified body involved: TÜV Rheinland LGA Products GmbH, 0197.
2.Performed conformity assessment according to Directive Annex III Module B of the 2014/53/EU Radio Equipment
Directive (RED) and issued the EU-type examination certificate.
3.This declaration of conformity is issued under the sole responsibility of the manufacturer.
4.The object of the declaration described above is in conformity with the relevant Union harmonisation legislation:
Directive 2014/53/EU
Other Union harmonisation legislation where applicable
Place and date of issue (of this DoC): Shenzhen/2018-5-8
Lebin,Xie/Manager
(Name / Title)
(Name and signature of person responsible)

Navigation menu
