LOSB0024 Parts Explosion

User Manual: Manual Losi 1/5 5IVE-T 4WD Off-Road RC Truck Roller | Horizon Hobby

Open the PDF directly: View PDF .
Page Count: 14

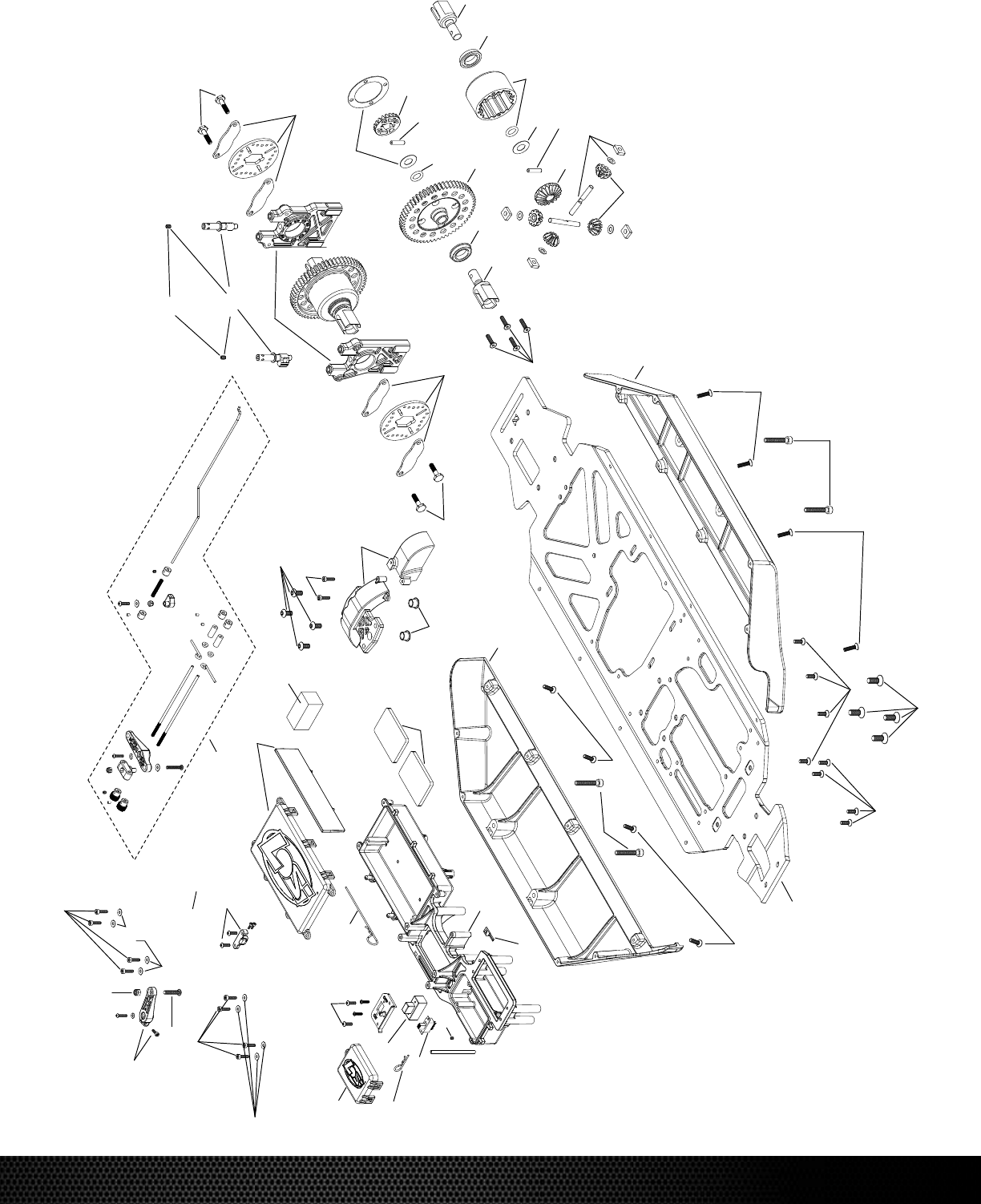

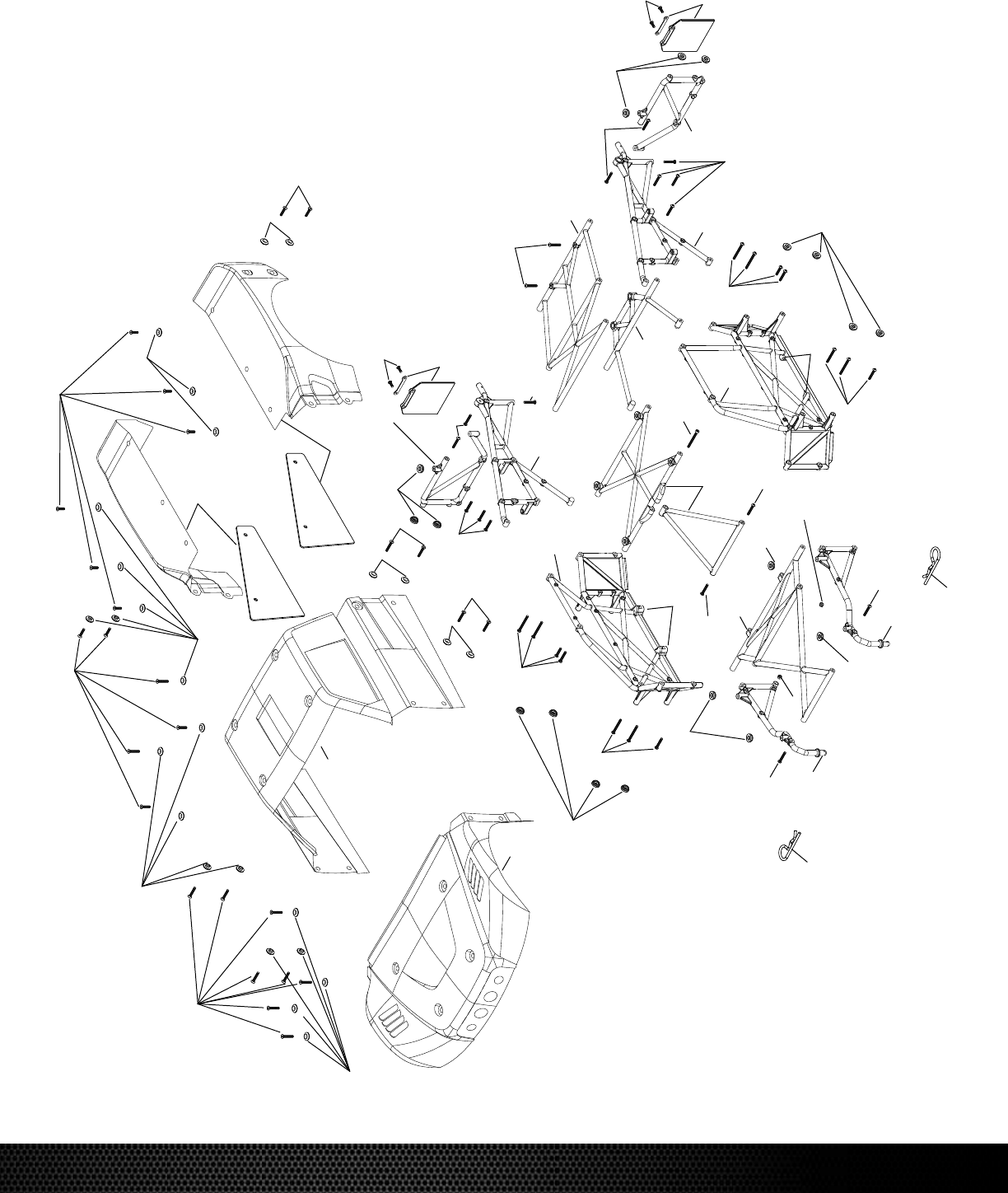

Losi 5ive-T RTR • iNsTRucTioN maNuaL

40 Losi 5ive-T • iNsTrucTioN maNuaL

B5901

B2585

B0886

B2586

B2585

B5800

B2585

B6110

B3230

B3231

B6451

B2545

B3230

B3231

B2545

B6451

B6535

B6590

B5900

B3203

B3201

B6560,

B3203

B6560,

B3203

B2570

B6480

B6465

B6480

B6465

B6480

B2570

B3201

B3202

B3203

B3202

B3201

B3210

B5973

B3214

B2586 B2585

B2585

B0897

B5800

B2585

B6501

B2540

B6451

B6535

B6085 B6501

SPM1452

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

B2853

B2965

B2857

B2855

B3227

B5972

B6501

B6590

B3225

B6560

B3255

B2074

B2072

B5904

B6450

B7028

B7240,

*B7243

B7241

B7027

B2079

B2078F B6450

B7028

B5903

B7027

B5903

B6490

B2071

B6490

B6465

B3212

B3202

B3203

B3202

B3203

B5973 B5973

B3201

B3204

B3203

B6560

B3201

B3202

B6579

B6501

B2080 B6535

B6535 B2074

B5902

B5904

B5971

B2073

B6590

B6501

B3224

B3217

B3216

B6560

B6110

B2574

B2573

B2575

B2574

B6480

B2575

B6085

B6590

B2575

B2541

B6535

B2541

B5974

B2855

B2859

B2082

B6590,

B2859

B6590

B5974

B3218

B6590

B322, B32180

B6110

B2078F

B2079

B6480

B3220

B3217,

B3220,

B3218,

B6560

B3208

B2562

B6480

B2562

B6451

B6501

B2574

B6110

B3203

B3201

B2859,

B6535

B2858

B2871

B2853

B2856

B2855

B2856

B2855

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

42 Losi 5ive-T • iNsTrucTioN maNuaL

B2078R

B2079

B6481

B2078R

B6501

B2543

B2542

B6535

B3208

B2084

B2855

B2859,6590

B6590

B5974

B2562

B6110

B2576

B6085

B2079

B2562

B6451

B2859,B6535

B6501

B6480

B2542

B2580

B2859

B6110

B6590

B2576

B6085

B6110

B2576

B6590

B3217, B3218,

B3220, B65060

B3220

B6480

B3217

B6480

B3220,B3219

B5974

B2558

B6481

B5903

B2080

B6590

B5972

B6501

B6465

B2562

B5904

B7240

*B7243(Soft)

B7241

B2573

B5904

B6590

B6579

B6110

B5971

B2077

B3224,B6560

B6501

B3224

B3217

B3216

B6560

B3225

B3227

B2076

B2543

B5902

B3219

B6450

B7028

B6450

B7028

B7027

B3212

B3202

B3203, B6560

B6560

B3202

B3203

B3202

B3203

B5973 B5973

B3201

B3206

B3203

B3201

B3203

B5800

B2854

B2972

B2857

B2855

B2858

B2854

B2856

B2855

B2856

B2872

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

B6480

B5970

B2558

B2553

B5900

B6110

B2550

B6590

B5038

B5044

B2550

B2558

B5800

B5023

B6085

B6535

B5014

B5017

B5014

B6535

B6085

B5015

B5016

B5014

B6085

B6535

B5014

B5017

B2552

B6480

B5903

B5904

B5903

B5902

B5904 B2550

B2553

B5014

B6451

B5022

B5014

B6085

B6480

B2551

B2553

B6490

B6480

B5801

B6480

B6490

B6465

B6480 B6465

B6480

B2552

B5038

B5975

B6490

B5036 B5975

B6535

B5970

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

44 Losi 5ive-T • iNsTrucTioN maNuaL

B6465

B2582

B6465

B2577

B5800

B2577

B6085

B2582

B6085

B2582

B6590

B2582

B6085

B2571

B2582

B2579

B8102

B2572

B6085

B2582

B2578

B6465

B8101

B8104

B8103

B2578

B2580

B2579

B6085

B6085 B6085

B2580

B2582

B6085

B2580

B2582

B6085

B2581

B2582

B6465

B6085

B2582

B6591

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB5970 Steering Bearing Set, 10 x 15 x

4mm (4): 5T

Kugellagerset Lenkung, 10 x 15 x

4mm (4): 5T

5T -Set de roulements 10 x 15 x

4 de direction (4)

Set cuscinetti sterzo, 10 x 15 x

4mm (4): 5T

Rodamientos de dirección, 10 x

15 x 4mm (4): 5T

LOSB5971 Inner Axle Bearings, 20 x 32 x

7mm (2): 5T

Kugellager Radachse Innen (2),

20 x 32 x 7mm: 5T

5T -Roulement intérieur fusée 20

x 32 x 7mm (2)

Cuscinetti asse interno, 20 x 32

x 7mm (2): 5T

Rodamiento interno de la man-

gueta, 20 x 32 x 7mm (2): 5T

LOSB5972 Outer Axle Bearings, 12 x 24 x

6mm (2): 5T

Kugellager Radachse Außen (2),

12 x 24 x 6mm: 5T

5T -Roulement extérieur fusée 12

x 24 x 6mm (2)

Cuscinetti asse esterno, 12 x 24

x 6mm (2): 5T

Rodamiento externo de la man-

gueta, 12 x 24 x 6mm (2): 5T

LOSB5973 Diff Support Bearings, 15 x 24 x

5mm, Flanged (2): 5T

Kugellager mit Flansch für Diff

(2), 15 x 24 x 5mm: 5T

5T -Roulement 15 x 24 x 6mm à

ﬂasques pour différentiel (2)

Cuscinetti supporto diff. 15 x 24

x 5mm, ﬂangiati (2): 5T

Rodamientos de diferencial, 15

x 24 x 5mm con pestaña (2): 5T

LOSB5974 Diff Pinion Bearings, 9 x 20 x

6mm (2): 5T

Kugellager 9 x 20 x 6mm (2): 5T 5T -Roulements 9 x 20 x 6mm

pour pignons de différentiel (2)

Cuscinetti pignone diff. 9 x 20 x

6mm (2): 5T

Rodamiento del piñón de

ataque, 9 x 20 x 6mm (2): 5T

Ball Bearings // Kugellager // Roulements // Cuscinetti // Rodamientos

Part # English Deutsch Français Italiano Español

LOSB2071 Front Suspension Arm Set (2): 5T Querlenker Set Vorne (2): 5T 5T -Set de bras de suspension

avant (2)

Set braccetti sospensione

anteriore (2): 5T

Trapecios delanteros (2): 5T

LOSB2072 Front Spindle Set (2): 5T Achsschenkel Vorne (2): 5T 5T -Set de fusées avant (2) Set fuselli anteriori (2): 5T Manguetas delanteras (2): 5T

LOSB2073 Front Spindle Carrier Set (2): 5T Achsschenkelhalter Set (2): 5T 5T -Set d'étrier porte fusées (2) Set supporti fuselli anteriori

(2): 5T

Porta manguetas (2): 5T

LOSB2074 Front King Pins & Arm Bushings,

Alum: 5T

Lenkhebelträgerbolzen & Lager-

buchse , Alu. 5T

5T -Axes avants et paliers Boccole perni e braccetti King

anteriori, Allum: 5T

King Pins delanteros y casquil-

los de aluminio: 5T

LOSB2076 Rear Suspension Arm Set (2): 5T Achsschenkel Hinten (2): 5T 5T -Set de bras de suspension

arrière (2)

Set braccetti sospensione poste-

riore (2): 5T

Trapecios traseros (2): 5T

LOSB2077 Rear Hub Carrier Set (2): 5T Radträger Hinten: 5T 5T -Set de fusées arrière(2) Set supporto mozzo posteriore

(2): 5T

Manguetas traseras (2): 5T

LOSB2078F Front Hinge Pin Brace Set, Alum:

(2) 5T

Querlenkerhalter Set Vorne,

Aluminium (2): 5T

5T -Set de renforts de cellule

avant en aluminium (2)

Set fermo perno cardine ante-

riore, Allum: (2) 5T

Placa delantera sujeción pasa-

dores, Aluminio: 5T

LOS-

B2078R

Rear Hinge Pin Brace Set, Alum:

(2) 5T

Querlenkerhalter Set Vorne,

Aluminium (2): 5T

5T -Set de renforts de cellule

arrière en aluminium (2)

Set fermo perno cardine posteri-

ore Allum: (2) 5T

Placa trasera sujeción pasa-

dores, Aluminio: 5T

LOSB2079 F/R Pin Mount Covers (4): 5T Abdeckkappe für Antriebsklaue

Mitte V/H (4): 5T

5T -Protections de reforts de

cellules avant et arrière (4)

Coperture montaggio perni F/R

(4): 5T

Cubiertas para los pins F/R

LOSB2080 Hinge Pin Set (6): 5T Querlenkerstift Set (6): 5T 5T -Set d'axes (6) Set perni cardine (4): 5T Juego de pasadores (6): 5T

LOSB2082 Front Shock Tower, 7075 Alum: 5T Dämpferbrücke Vorne: 5T 5T -Support d'amortisseurs avant Attacco ammortizzatore ante-

riore, 7075 Allum: 5T

Torreta delantera, Aluminio

7075: 5T

LOSB2084 Rear Shock Tower, 7075 Alum:

5-T

Dämpferbrücke Hinten: 5T 5T -Support d'amortisseurs

arrière

Attacco ammortizzatore posteri-

ore, 7075 Allum: 5T

Torreta trasera, Aluminio 7075:

Suspension // Aufhängung // Suspension // Sospensioni // Suspensión

Part # English Deutsch Français Italiano Español

LOSB2540 Main Chassis Plate: 5T Chassis : 5T 5T -Plaque principale de châssis Piastra principale chassis: 5T Chasis: 5T

LOSB2541 Front Transmission Case Set: 5T Diff. Kasten Vorne: 5T 5T -Carter de différentiel avant Set scatola trasmissione

anteriore: 5T

Caja del grupo delantero: 5T

LOSB2542 Rear Transmission Case Set: 5T Diff. Kasten Hinten: 5T 5T -Carter de différentiel arrière Set scatola trasmissione

posteriore 5T

Caja del grupo trasero: 5T

LOSB2543 Bearing Inserts, Rear Diff/Trans:

Lagerschalen für Diff. Kasten

Hinten: 5T

5T -Cales de réglage de différen-

tiel et de transmission

Inserti cuscinetti diff/trasm.

posteriore: 5T

Casquillos de los rodamientos

diferencial trasero: 5T

LOSB2545 Center Diff Mount Set: 5T Mitteldiff. Halter Set: 5T 5T -Set de support de différentiel

central

Set supporto differenziale

centrale: 5T

Bancada del diferencial central:

LOSB2550 Servo Saver & Bellcrank Plastics

(3): 5T

Servosaver u. Anlenkung Kunst-

stoff (3): 5T

5T -Sauve servo Salva servo e squadretta in

plastica (3): 5T

Salvaservos

LOSB2551 Steering Post Set (2): 5T Stehbolzen Servosaver Set

(2): 5T

5T -Set de pivots de direction (2) Set montante sterzo (2): 5T Postes del salvaservos (2): 5T

LOSB2552 Steering Drag Link & Hardware:

Ackermann inkl. Zbh. : 5T 5T -Barre d'Ackerman et visserie Tirante dello sterzo e accessori:

Placa de dirección y hardware:

LOSB2553 Servo Saver Tube, Spring &

Adjuster: 5T

Steckrohr inkl. Feder u. Rändel-

schraube: 5T

5T -Tube,ressort et bague de

sauve servo

Tubo, molla e regolatore salvas-

ervo: 5T

Postes, muelle y tuerca del

salvaservos: 5T

LOSB2558 F&R Chassis Brace & Spacer

Set: 5T

Chassis Streben u. Distanzstück

Set: 5T

5T -Set de renforts av et arr de

châssis et entretoises

Set staffe e distanziali chassis

F&R: 5T

Rigidiﬁcadores delantero y

trasero y espaciadores: 5T

LOSB2562 Sway Bar Set & Hardware (3 ea.

F&R): 5T

Stabilisator Set inkl. Zubehör

Vorne/Hinten: 5T

5T -Set de barre anti-roulis av et

arr et visserie

Set barra antitorsione e acces-

sori (3 cad. F&R): 5T

Barras estabilizadoras y Hard-

ware (3 F&R): 5T

Chassis // Chassis // Chassis // Chassis // Chasis

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

46 Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB2570 Side Guard Set (2): 5T Seitenschutz Set (2): 5T 5T -Protections latérales (2) Set protezione laterale (2): 5T Protectores laterales: 5T

LOSB2571 Left Cage Side: 5T Überrollbügel Set Links: 5T 5T -Arceau, coté gauche Gabbia lato sinistro: 5T Cabina izquierda: 5T

LOSB2572 Right Cage Side: 5T Überrollbügel Set Rechts: 5T 5T -Arceau, coté droit Gabbia lato destro: 5T Cabina derecha: 5T

LOSB2573 F&R Bumper Set: 5T Stoßfänger Set Vorne/Hinten: 5T 5T -Set de parechocs avant et

arrière

Set paraurti F&R: 5T Parachoques F&R: 5T

LOSB2574 Front Skid Plate, Bumper Brace &

Spacers: 5T

Unterfahrschutz u. Stoßfänger-

halter :5T

5T -Plaque de friction

avant,renforts de parechoc et

entretoises

Piastra protezione anter., staffa

e distanziali paraurti: 5T

Protector de chasis delantero,

placa de parachoques y espa-

ciadores: 5T

LOSB2575 Headlight Set: 5T Frontscheinwerfer Attrappe: 5T 5T -Set de phares Set fari: 5T Faro: 5T

LOSB2576 Rear Bumper Brace Set (3): 5T Stoßfänger Set Hinten: 5T 5T -Set de renforts de parechoc

arrière (3)

Set staffe paraurti posteriore

(3): 5T

Placas parachoques trasero

(3): 5T

LOSB2577 Front Cage Support Set (2): 5T Überrollbügel Reparaturset

Vorne: 5T

5T -Set de supports d'arceau

avant (2)

Set supporto gabbia anteriore

(2): 5T

Soporte delantero de la cabina:

LOSB2578 Center & Front Top Cage Support

Set: 5T

Überrollbügel Reparaturset Mitte/

Oben: 5T

5T -Set de supports d'arceau

avant supérieur et central (2)

Set supporto gabbia superiore

anteriore e centrale: 5T

Soportes central y superior

frontal de la cabina: 5T

LOSB2579 Rear Top & Side Cage Set: 5T Überrollbügel Hinten/Oben/

Seite: 5T

5T -Set d'arceau arrière supérieur

et latéral

Set gabbia postero-superiore &

laterale: 5T

Parte superior trasera y lateral

de la cabina: 5T

LOSB2580 Rear Cage Mount & Fender Brace

Set (4): 5T

Überrollbügelhalter hinten &

Kotﬂügelhalter Set (4): 5T

5T -Support d'ailes et d'arceau

arrière (4)

Set supporto gabbia posteriore

& staffa parafango (4): 5T

Soporte trasero de cabina y

placas de los paneles (4): 5T

LOSB2581 Mud Flap & Retainer Set (2): 5T Überrollbügelbefestigung und

Klemmset (2): 5T

5T -Set de bavettes (2) Set ﬁssaggio aletta parafango

(2): 5T

Guardabarros de las ruedas

(4): 5T

LOSB2582 Body Mount Washers & Pads

(56): 5T

Karosseriehalter Unterlegs-

cheiben & Pads

5T -Rondelles et patins de sup-

port de carrosserie(56)

Rondelle e sedi per ﬁssaggio

carrozzeria (56): 5T

Arandelas y cojinetes para la

carrocería (56): 5T

LOSB2585 Radio Tray Set: 5T Radioplatte Set: 5T 5T -Platine radio Set alloggiamento radio: 5T Bandeja de radio

LOSB2586 Radio Tray Covers: 5T Abdeckungen für Radioplatte: 5T 5T -Couvercle de platine radio Coperchio alloggiamento radio:

Tapas de la bandeja de radio

Part # English Deutsch Français Italiano Español

LOSB3201 Diff Housing Set (1): 5T Diff. Gehäuse Set(1): 5T 5T -Set de corps de différentiel

(1)

Set sede differenziale (1): 5T Caja del diferencial (1): 5T

LOSB3202 Internal Diff Gears & Shims (6): 5T Differential und Distanzscheiben

(6): 5T

5T -Rondelles et pignon internes

de différentiel (6)

Ingranaggi e distanziali interni

differenziale (6): 5T

Satélites, planetarios y arande-

las (6): 5T

LOSB3203 Diff Seal & Hardware Set (1): 5T Dichtungsatz und Zubehör für

Diff (1): 5T

5T -Set de joint et visserie de

différentiel (1)

Set guarnizione e accessori

differenziale (1): 5T

Juntas diferencial y hardware

(1): 5T

LOSB3204 Front Diff Ring Gear: 5T Tellerrad Vorne: 5T 5T -Couronne de différentiel avant Corona dentata diff. anteriore:

Corona del diferencial delantero:

LOSB3206 Rear Diff Ring Gear: 5T Tellerrad Hinten: 5T 5T -Couronne de différentiel

arrière

Corona dentata diff. posteriore:

Corona del diferencial trasero:

LOSB3208 F/R Diff Pinion Gear, 13T: 5T Triebling 13Z Vorne/Hinten: 5T 5T -Pignon d'attaque de différen-

ciel av/arr, 13T

Pignone F/R diff. 13T: 5T Piñón de ataque del diferencial

F/R 13T: 5T

LOSB3210 Center Diff Spur Gear, 58T: 5T Hauptzahnrad, 58Z: 5T 5T -Couronne de différentiel

central, 58T

Ingranaggio diff. centrale 58T:

Corona del diferencial central:

LOSB3212 F/R Diff Outdrive Set (2): 5T Antriebsklauen Vorne/Hinten

(2): 5T

5T -Noix de sortie de diff av/

arr (2)

Set alberi esterni F/R diff. (2): 5T Vasos de diferencial F/R (2): 5T

LOSB3214 Center Diff Outdrive Set (2): 5T Antriebsklauen Mitte (2): 5T 5T -Noix de sortie de diff central

(2)

Set alberi esterni F/R diff.

centrale (2): 5T

Vasos de diferencial central

(2): 5T

LOSB3216 F/R Driveshaft & CV Coupler

(1): 5T

Antriebsachse und CV Verbinder

Vorne/Hinten(1): 5T

5T -Cardan CVD av/arr (1) Semiasse F/R e accoppiatore

CV (1): 5T

Cardan F/R y vasos de ruedas

(1): 5T

LOSB3217 CV Joints & Pins (2): 5T CV Verbinder inkl. Stift (2): 5T 5T -Goupille et jonction de cardan

CVD (2)

Giunti CV & perni (2): 5T Juntas y pins del vaso de

ruedas (2): 5T

LOSB3218 Front Center Driveshaft & CV

Coupler: 5T

Antriebsachse und CV Verbinder

Vorne/Mitte(1): 5T

5T -Cardan CVD central avant Albero centrale anteriore & ac-

coppiatore CV: 5T

Cardan central delantero y

vaso: 5T

LOSB3219 Rear Center Driveshaft & CV

Coupler: 5T

Antriebsachse und CV Verbinder

Hinten/Mitte(1): 5T

5T -Cardan CVD central arrière Albero centrale posteriore &

accoppiatore CV: 5T

Cardan central trasero y vaso:

LOSB3220 F/R Center Drive Pinion Coupler

Set (2): 5T

Kupplungsstück f. Antriebsstrang

Mitte (2):5T

5T -Set de de liaison de pignon

av/arr (2)

Set accoppiatore e pignone

centrale F/R (2): 5T

Vasos de los piñones de ataque

F/R (2): 5T

LOSB3224 F/R Stub Axle & Pins (1): 5T Radachse & Pins (1):5T 5T -Axe de roue av/arr avec

goupille (1)

Perno ruota F/R e perni (1): 5T Ejes de ruedas con rótulas y

pins (1): 5T

LOSB3225 F/R Wheel Hex & Pin (2): 5T Radmitnehmer v/h (2): 5T 5T -Hexagone de roue av/arr (2) F/R esagonale ruota e perno

(2): 5T

Hexágono de ruedas F/R y Pins

(2): 5T

LOSB3227 Wheel Nuts, Blue Anodized (4): 5T Radmutter, Blau eloxiert (4): 5T 5T -Ecrou de roues anodisés

bleu (4)

Dadi ruote anodizzati blu (4): 5T Tuercas de rueda, Azules (4): 5T

Drivetrain // Antrieb // Transmission // Trasmissione // Transmisión

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB2853 Front Shock Body & Adjuster

(1): 5T

Dämpfergehäuse und Rändel-

schraube Vorne (1): 5T

5T -Corps et bague de réglage

d'amortisseur avant (1)

Corpo ammortizzatore anteriore

e regolatore (1): 5T

Cuerpo amortiguador delantero

y tuerca de ajuste (1): 5T

LOSB2854 Rear Shock Body & Adjuster

(1): 5T

Dämpfergehäuse und Rändel-

schraube Hinten (1): 5T

5T -Corps et bague de réglage

d'amortisseur arrière (1)

Corpo ammortizzatore posteriore

e regolatore (1): 5T

Cuerpo amortiguador trasero y

tuerca de ajuste (1): 5T

LOSB2855 Shock Plastics & Balls (4): 5T Kugelpfanne und Kugel (4): 5T 5T -Pièces plastique et rotules

d'amortisseurs (4)

Parti in plastica e sfere am-

mortizzatore (4): 5T

Partes de plástico y bolas (4): 5T

LOSB2856 Shock Rebuild/Hardware Set

(4): 5T

Reparaturset und Zubeghör für

Dämpfer (4): 5T

5T -Set de réparation

d'amortisseurs (4)

Set ricostruzione ammortizz. e

accessori (4): 5T

Kit de reparación de amortigua-

dores (4): 5T

LOSB2857 Shock Boots (8): 5T Schutztüllen für Dämpfer (8): 5T 5T -Chaussettes d'amortisseurs

(8)

Base ammortizzatore (8): 5T Guardabarros (8)

LOSB2858 Shock Caps, Blue (2): 5T Dämpferkappe Blau (2): 5T 5T -Bouchons d'amortisseus,

bleu (2)

Cappucci ammortizzatori, Blu

(2): 5T

Tapas de amortiguador Azul

(2): 5T

LOSB2859 Shock Mount Set (4): 5T Dämpferbefestigung (4): 5T 5T -Fixations d'amortisseurs (4) Set montaggio ammortizzatori

(4): 5T

Soportes de amortiguadores

(4): 5T

LOSB2965 Front Springs 11.6 lb. Rate, Blue

(2): 5T

Federnsatz Vorne (2) Blau: 5T 5T -Ressort avant dureté 11.6lb.,

Bleu (2)

Molle anteriori 5,5 kg, tipo blu

(2): 5T

Muelles delanteros 11.6lb, Azul

(2): 5T

LOSB2871 Nutted Shock Shaft & Piston Kit,

Front: 5T

Stoßdämpferkolben m. In-

nengewinde u. Kolben, vorne: 5T

Tige d’amortisseur avant à

ﬁxation par écrou avec kit

de pistons : 5T

Kit albero ammortizz. con

dado e pistone, anteriore: 5T

Vástago amortiguador con

tuerca y pistón, Delantero:5T

LOSB2872 Nutted Shock Shaft & Piston Kit,

Rear: 5T

Stoßdämpferkolben m. In-

nengewinde u. Kolben, hinten: 5T

Tige d’amortisseur arrière à

ﬁxation par écrou avec kit

de pistons : 5T

Kit albero ammortizz. con

dado e pistone, posteriore: 5T

Vástago amortiguador con

tuerca y pistón, Trasero:5T

LOSB2972 Rear Springs 8.0 lb. Rate, Blue

(2): 5T

Federnsatz Hinten (2) Blau: 5T 5T -Ressort arrière dureté 8.0lb.,

Bleu (2)

Molle posteriori 4,0 kg, tipo blu

(2): 5T

Muelles traseros 8.0lb, Azule

(2): 5T

Shock Parts // Stoßdämpferteile // Eléments d'Amortisseurs // Parti Ammortizzatore //

Partes de los Amortiguadores

Part # English Deutsch Français Italiano Español

LOSB7027 Wheel and Beadlock Set (2): 5T Rad & Beadlock Set (Set): 5T 5T -Jantes et anneaux beadlock

(2)

Set ruote e Beadlock (2): 5T Llantas Bedlock(2): 5T

LOSB7028 Beadlock Set, Inner & Outer, Black

(2): 5T

Beadlock, Innen & Außen,

Schwarz (2):5T

5T -Set d'anneaux int/exter (2) Set Beadlock interno & esterno,

nero(2): 5T

Juego Bedlock, interno y

externo, Negro (2): 5T

LOSB7241 Tire Inserts, Soft (2): 5T Reifen Einlagen, weich (2): 5T 5T -Inserts de pneus souples (2) Inserti gomme, morbide (2): 5T Foam, Blando (2): 5T

LOSB7240 Nomad Tire Set, Firm (1ea. L/R):

Nomad Reifen Set, Firm (1ea.

L/R): 5T

5T -Pneus Nomad gauche ou

droit, ferme (1)

Set gomme Nomad dure, (1 cad.

L/R): 5T

Neumáticos Nomad, Duras: 5T

Wheels & Tires // Räder & Reifen // Jantes et Pneus // Ruote & Gomme // Llantas y Ruedas

Part # English Deutsch Français Italiano Español

LOSB3230 Brake Cams & Bushings (2): 5T Bremsgestänge (2): 5T 5T -Came de frein avec paliers (2) Camme freno e boccole (2): 5T Levas de freno y casquillos

(2): 5T

LOSB3231 Brake Disk, Pad & Screw Set: 5T Bremsscheiben, Beläge und

Schraubensatz: 5T

5T -Set de Disque, plaquettes de

frein et visserie

Set disco freno, sede e viti: 5T Disco de freno, leva y tornillos:

Part # English Deutsch Français Italiano Español

LOSB5022 Air Cleaner Set Complete: 5T Luftﬁlter kompl.: 5T 5T -Filtre à air complet Set completo ﬁltro aria: 5T Filtro de aire completo: 5T

LOSB5023 Air Cleaner Foam Elements

(2ea): 5T

Luftﬁltereinsatz: 5T 5T -Mousse de ﬁltre à air (2) Elementi in spugna per ﬁltro aria

(2 cad.): 5T

Espuma del ﬁltro de aire (2): 5T

LOSB5044 19T Pinion Gear, 1.5M & Hard-

ware: 5T

Ritzel 19Z inkl. Zubehör; 5T 5T -Pignon 19T, m1,5 et acces-

soires

Pignone 19T, 1,5M e accessori:

Piñón de 19T 1.5M y Hardware:

LOSB5014 Gas Tank Mount Set: 5T Tank Montageset: 5T 5T -Set de ﬁxation du réservoir Set montaggio serbatoio: 5T Soportes del depósito: 5T

LOSB5015 Gas Tank Complete: 5T Tank Komplett: 5T 5T -Réservoir complet Serbatoio completo: 5T Depósito completo: 5T

LOSB5016 Gas Tank Cap Set: 5T Tankverschluß Set: 5T 5T -Bouchon de réservoir Set coperchio serbatoio: 5T Tapa del depósito: 5T

LOSB5017 Gas Line & Clamp Set: 5T Benzinleitung und Klemmen-

satz: 5T

5T -Set durites et attaches Set tubetto benzina e morsetto:

Tubo de combustible

y abrazaderas

Engine & Accessories // Motor & Zubehör // Moteur & Accessoires // Motore & Accessori //

Motor & Accesorios

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

48 Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB8101 Hood/Front Fenders Body Section,

Clear: 5T

Karosserie vorne m. Kotﬂügel

Klar: 5T

5T -Capot et ailes avant Sezione anteriore carrozzeria e

parafanghi, chiari: 5T

Techo/paneles delanteros,

Transparentes: 5T

LOSB8102 Cab Body Section, Clear: 5T Karosserie Fahreraum, Klar: 5T 5T -Cabine Sezione cabina, chiara: 5T Sección de cabina, Transpar-

ente: 5T

LOSB8103 Left Rear Fender & # Plate,

Clear: 5T

Karosserie links hinten, Klar: 5T 5T -Aile gauche avec plaque

porte numéro

Parafango post. sinistro & #

piastra, chiara: 5T

Panel trasero izquierdo y placa

del #, Transparente: 5T

LOSB8104 Right Rear Fender & # Plate,

Clear: 5T

Karosserie rechts hinten, Klar: 5T 5T -Aile droite avec plaque porte

numéro

Parafango post. destro & #

piastra, chiara: 5T

Panel trasero derecho y placa

del #, Transparente: 5T

LOSB8255 5IVE Sticker & Graphic Sheet Set,

Black: 5T

5IVE Aufkleber & Dekorbogen Set

Schwarz: 5T

5T -Planche de décoration, noir Foglio adesivo 5IVE con set

decals, nero: 5T

Adhesivos 5IVE y hoja con moti-

vos decorativos, Negro: 5T

LOSB8256 5IVE Sticker & Graphic Sheet Set,

White: 5T

5IVE Aufkleber & Dekorbogen Set

Weiss: 5T

5T -Planche de décoration, blanc Foglio adesivo 5IVE con set

decals, bianco: 5T

Adhesivos 5IVE y hoja con moti-

vos decorativos, Blanco: 5T

Body and Stickers // Karosserie & Aufkleber // Carrosserie & Stickers // Carrozzeria & Adesivi //

Carroceria & Adhesivos

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

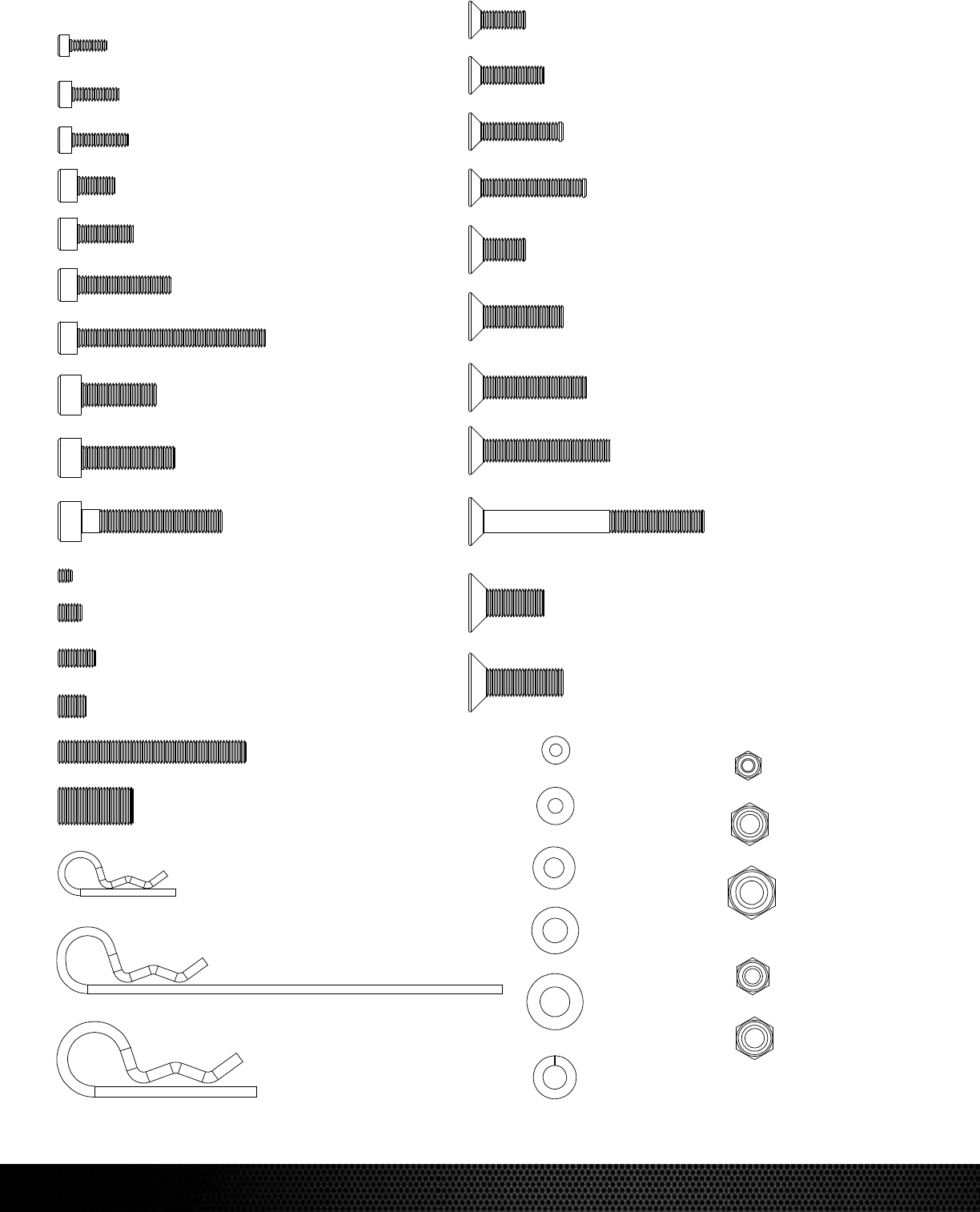

M2.5 x 8mm (LOSB5900)

M4 x 12mm (LOSB6465)

M4 x 16mm (LOSB6465)

M4 x 20mm (LOSB6465)

M4 x 25mm (LOSB6465)

M5 x 12mm (LOSB6480)

M5 x 20mm (LOSB6480)

M5 x 25mm (LOSB6480)

M5 x 30mm (LOSB6480)

M5 x 50mm (LOSB6480)

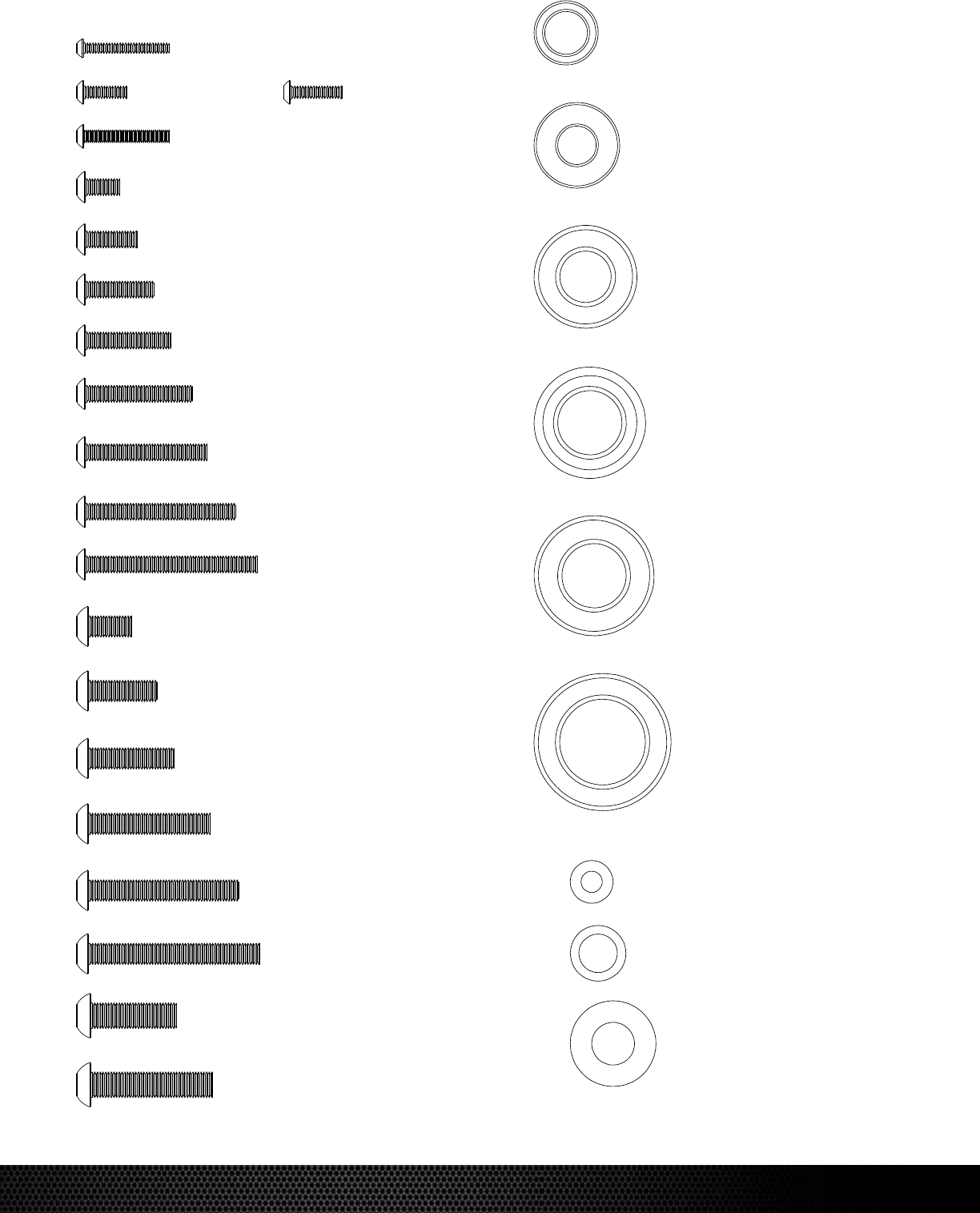

M6 x 16mm (LOSB6490)

M6 x 20mm (LOSB6490)

M2.5 (LOSB6535)

M3 (LOSB6535)

M4 (LOSB6535)

M5 (LOSB6535)

M6 (LOSB6535)

M5 (LOSB6535)

M3 Nylock (LOSB6590)

M5 Nylock (LOSB6590)

M6 Nylock (LOSB6590)

M4 Nylock (LOSB6590)

M5 Nylock (LOSB6590)

M3 x 10mm (LOSB6451)

M3 x 12mm (LOSB6451)

M4 x 8mm (LOSB6465)

M4 x 12mm (LOSB6465)

M4 x 20mm (LOSB6465)

M4 x 40mm (LOSB6465)

M5 x 16mm (LOSB6480)

M5 x 20mm (LOSB6480)

M5 x 30mm (LOSB6480)

M3 x 3mm (LOSB6501)

M4 x 5mm (LOSB6501)

M4 x 8mm (LOSB6501)

M5 x 6mm (LOSB6501)

M5 x 40mm (LOSB6501)

M8 x 16mm (LOSB6501)

(LOSB5800)

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

50 Losi 5ive-T • iNsTrucTioN maNuaL

M2.5 x 20mm (LOSB2575)

M3 x 10mm (LOSB6451) M3 x 12mm (LOSB6451)

M3 x 20mm (LOSB6451)

M4 x 8mm (LOSB6085)

M4 x 12mm (LOSB6085)

M4 x 16mm (LOSB6085)

M4 x 20mm (LOSB6085)

M4 x 25mm (LOSB6085)

M4 x 30mm (LOSB6085)

M4 x 35mm (LOSB6085)

M4 x 40mm (LOSB6085)

M5 x 10mm (LOSB6110)

M5 x 16mm (LOSB6110)

M5 x 20mm (LOSB6110)

M5 x 30mm (LOSB6110)

M5 x 35mm (LOSB6110)

M5 x 40mm (LOSB6110)

M6 x 20mm (LOSB6490)

M6 x 30mm (LOSB6490)

10 x 20 x 0.5mm (LOSB3202)

9 x 13 x 0.2mm (LOSB3208)

5 x 10 x 0.3mm (LOSB3202)

20 x 32 x 7mm (LOSB5971)

15 x 28 x 7mm (LOSB5975)

15 x 24 x 5mm Flanged (LOSB5973)

12 x 24 x 6mm (LOSB5972)

9 x 20 x 6mm (LOSB5974)

10 x 15 x 4mm (LOSB5970)

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB5800 Spring Body Clip Set (14): 5T Karosserieklammern (14): 5T 5T -Set de clips de ressorts (14) Set clip per molle carrozzeria

(14): 5T

Clips de carrocería (14): 5T

LOSB5801 Engine Mount Inserts & Screws,

19T (4): 5T

Motorbefestigungset und

Schrauben (4) 19Z: 5T

5T -Inserts de support moteur 19T

(4)

Supporti motore e viti, 19T

(4): 5T

Casquillos bancada del motor

y tornillos, 19T (4): 5T

LOSB5900 Steering Linkage Set: 5T LOSI Lenkgestänge Set: 5T 5T -Set de tringlerie de direction Set rinvii sterzo: 5T Tirante de dirección: 5T

LOSB5901 Throttle/Brake Linkage Set: 5T Gas und Bremsgestänge Set: 5T 5T -Set de tringlerie de gaz/frein Set rinvii motore/freno: 5T Varillaje completo: 5T

LOSB5902 Turnbuckle Set (6): 5T Gewindestiftsatz Recht/Links

(6): 5T

5T -Set de biellettes (6) Set tenditori (6): 5T Juego de tirantes: 5T

LOSB5903 Rod End Set (12): 5T Kugelpfannen (12): 5T 5T -Set de chappes (12) Set terminali uniball (12): 5T Rótulas (12): 5T

LOSB5904 Camber & Steering Pivot Ball Set

(12): 5T

Kugelkopf f. Sturz u. Lenkung 5T -Set de rotules (12) Set perni a sfera camber &

sterzo (12): 5T

Pivot Balls (12): 5T

LOSB6085 4mm BH Screw Asst. (27): 5T Rundkopfschraube M4: 5T 5T -Assortiment de vis à tête bom-

bée M4 (27)

Viti BH 4 mm (27): 5T Tornillos de botón 4mm

(27): 5T

LOSB6110 5mm BH Screw Asst (24): 5T Rundkopfschraube M5: 5T 5T -Assortiment de vis à tête bom-

bée M5 (24)

Viti BH 5 mm (24): 5T Tornillos de botón 5mm

(24): 5T

LOSB6450 Wheel Screw Set, 3x10mm BH &

Cap (20ea): 5T

Radschrauben Set,3 x10mm

(20):5T

5T -Vis à tête bombée M3x10 et

bouchon(20)

Set viti ruote, 3x10mm BH &

Cap (20 cad.): 5T

Tornillos de llanta, 3x10mm

cabeza de botón (20): 5T

LOSB6451 3mm BH & Cap Screw Asst (38):

3mm Rundkopf & Kopfschraube

Sortiment (38):5T

5T -Assortiment de vis M3 à tête

bombée (38)

Viti a brugola & BH 3 mm

(38): 5T

Tornillos de botón 3mm

(38): 5T

LOSB6465 4mm FH & Cap Screw Asst.

(32): 5T

4mm Flachkopf & Kopfschraube

Sortiment( 32):5T

5T -Assortiment de vis M4 à tête

fraisée (32)

Viti a brugola & FH 4 mm (32):

Tornillos planos 4mm (32): 5T

LOSB6480 5mm FH & Cap Screw Asst.

(24): 5T

5mm Flachkopf & Kopfschraube

Sortiment (32):5T

5T -Assortiment de vis M5 à tête

fraisée (24)

Viti a brugola & FH 5 mm (24):

Tornillos planos 5mm (24): 5T

LOSB6481 Rear Toe Block & Brace Screws

(2): 5T

Querlenkerhalter hinten &

Schrauben (2) :5T

5T -Vis de Bloc de pincement arrière

et du renfort

Viti blocco "toe" posteriore e

staffe (2): 5T

Placa trasera de convergen-

cia (2): 5T

LOSB6490 6mm BH & FH Screw Asst (20): 5T 6mm Rund- Flachkopf-

schrauben Sortiment (20): 5T

5T -Assortiment de vis à tête bom-

bée et fraisée M6 (20)

Viti BH & FH 6 mm (20): 5T Tornillos planos y de botón

6mm (20): 5T

LOSB6501 Set Screw Asst. 3,4,5 & 8MM

(19): 5T

Madenschrauben Sortiment .

3,4,5 & 8MM (19): 5T

5T -Assortment de vis M3,M4,M5

et M8 (19)

Set viti 3, 4, 5, 8 mm (19): 5T Kit tornillos 3,4,5 y 8mm

(19): 5T

LOSB6535 Washer Assortment, 6 sizes

(27): 5T

Unterlegscheibensortiment 6

Größen (27) :5T

5T -Assortiment de rondelles, 6

tailles (27)

Assortimento rondelle, 6 misure

(27): 5T

Arandelas, 6 tamaños (27): 5T

LOSB6560 Drive Pin Set (16): 5T Mitnehmerbolzen (16): 5T 5T -Set de goupilles (16) Set perni trasmissione (16): 5T Pins (16): 5T

LOSB6579 Lower Shock Mounting Screw Set,

5mm (6): 5T

Stoßdämpferhalter Schrauben

Set Unten, 5mm (6):5T

5T -Set de vis M5 de ﬁxation inféri-

eure d'amortisseurs

Set viti inferiori ammmortizz. 5

mm (6): 5T

Tornillos soporte inferior de

los amortiguadores, 5mm

(6): 5T

LOSB6590 Lock Nut Asst. 3,4,5,6MM (24): 5T Stopmuttern 3,4,5,6MM (24): 5T 5T -Assortiment d'écrous auto-

freinés M3,M4,M5 et M6 (24)

Assortimento dadi autobloccanti

3, 4, 5, 6 mm (24): 5T

Tuercas, 3,4,5,6mm (24): 5T

LOSB6591 Side Cage Nut-Inserts (4): 5T Mutterneinsätze Seitenkäﬁg

(4):5T

5T -Insert lateraux d'arceau Inserti-dadi gabbia laterale

(4): 5T

Casquillos de tuercas (4): 5T

LOSB6592 5IVE Emergency Hardware Kit

(150+): 5T

5IVE Notfall Emergency Repera-

tur Set (150+): 5T

5T - Emergency Hardware Kit

(150+): 5T

Kit viteria di emergenza per 5IVE

(150+): 5T

Tornillería 5IVE (+150): 5T

Hardware // Zubehör // Visserie et Accessoires // Viti e Parti Meccaniche // Tornillería

Part # English Deutsch Français Italiano Español

LOSA99210 2-Cycle Oil, 100cc: 5ive-T 2-Cycle Oil, 100cc: 5ive-T 2-Cycle Oil, 100cc: 5ive-T 2-Cycle Oil, 100cc: 5ive-T 2-Cycle Oil, 100cc: 5ive-T

LOSB4610 Wheel, Shock, & Multi-Wrench

Set: 5T

Rad und Dämpferwerkzeug;

Kunstoff: 5T

5T -Clé à roues et amortisseurs en

plastique

Set chiavi multiple varie: 5T Herramienta multiusos: 5T

LOSB0897 HD On/Off Switch w/20AWG

wire, 5T

HD EIN/AUS Schalter m/20AWG

Kabel & Gold Kontaktstecker

Interrupteur On/Off , câbles diam

0,8mm,contacts paqués or

Interruttore HD on/off con ﬁli

20AWG (0,8 mm), 5T

Interruptor con cables

20AWG: 5T

LOSA99209 HD Ring & Pinion Grease Getriebefett Hochbelastbar Graisse pour pignons Grasso HD per ingranaggi Grasa para piñones

Misc. Parts // Diverse Teile // Pièces Diverses // Varie // quipamiento

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB2089 Ti-Nitrided F/R Inner Hinge Pins

(2): 5T

Querlenkerhalterbolzen innen

v/h (2) Ti-Nickel: 5T

5T -Axes de suspension en Titane

intérieurs, av/arr (2)

Perno cardine interno F/R Ti-

Nitrurato (2): 5T

Pasadores interiores F/R en

Ti-Nitride (2): 5T

LOSB2090 Ti-Nitrided Rear Outer Hinge Pins

(2): 5T

Querlenkerhalterbolzen außen

hinten, Ti-Nickel (2): 5T

5T -Axes de suspension en Titane,

extérieurs,arr (2)

Perno cardine esterno F/R Ti-

Nitrurato (2): 5T

Pasadores exteriores traseros

en Ti-Nitride (2): 5T

LOSB2091 Alum. Front Spindle Set, Blue

(2): 5T

Alu. Achsschenkel vorne, Blau

(2): 5T

5T -Set de fusées avant en alu-

minium (2), bleu

Set fuselli anteriori allum., blu

(2): 5T

Manguetas delanteras en

aluminio, Azul (2): 5T

LOSB2094 Alum. Rear Hub Set, Blue (2): 5T Alu Achsschenkelhalter Set Blau

(2): 5T

5T -Set de fusées arrière en alu-

minium (2), bleu

Set mozzo posteriore allum.,

blu (2): 5T

Manguetas traseras en alumi-

nio, Azul: 5T

LOSB2544 Alum. Bearing Inserts, Rear Diff

(2), Blue: 5T

Alu Lagerschalen für Diff.

Kasten hinten (2), Blau: 5T

5T -Insert de roulements de diff

arrière en alunimium (2), bleu

Inserti allum. cuscinetti differen-

ziale poster. (2), blu: 5T

Casquillos rodamientos dife-

rencial trasero en aluminio,

Azul (2): 5T

LOSB2549 Alum. Servo Saver Arm Blue: 5T Alu. Servo Saver Arm Blau: 5T 5T -Bras de sauve servo en alu-

minium, bleu

Braccio salvaservo allum.

Blu: 5T

Placa de dirección en alumi-

nio, Azul: 5T

LOSB2559 Alum. Front Top Chassis Brace,

Blue: 5T

Alu Chassis Streben vorne

oben, Blau: 5T

5T -Renfort avant supérieur de châs-

sis en aluminium, bleu

Staffe superiori chassis ante-

riore allum., blu: 5T

Subchasis superior delantero

en aluminio, Azul: 5T

LOSB2560 Alum. Front Chassis Brace,

Blue: 5T

Alu Chassis Streben vorne,

Blau: 5T

5T -Renfort avant de châssis en

aluminium, bleu

Staffe chassis anteriore allum.,

blu: 5T

Rigidiﬁcador delantero en

aluminio, Azul: 5T

LOSB2561 Alum. Rear Chassis Brace, Blue:

Alu Chassis Streben hinten,

Blau: 5T

5T -Renfort arrière de châssis en

aluminium, bleu

Staffe poster. chassis allum.,

blu: 5T

Rigidiﬁcador trasero en

aluminio, Azul: 5T

LOSB2860 Titanium Shock Mount Set (4): 5T Titanium Dämpferbefestigung

(4): 5T

5T -Titanium Fixations

d'amortisseurs (4)

Set montaggio ammortizzatori

Titanium (4): 5T

Soportes de amortiguadores

Titanium (4): 5T

LOSB2861 Ti-Nitrided Front Shock Shaft Set

(2): 5T

Kolbenstangen Set Vorne (2)

Ti-Nickel: 5T

5T -Tiges d'amortisseurs avant en

Titane (2)

Set albero ammortizz. anteriore

Ti-Nitrurato (2): 5T

Vástago delantero en Ti-

Nitride (2): 5T

LOSB2862 Ti-Nitrided Rear Shock Shaft Set

(2): 5T

Kolbenstangen Set Hinten (2)

Ti-Nickel: 5T

5T -Tiges d'amortisseurs arrière en

Titane (2)

Set albero ammortizz. posteriore

Ti-Nitrurato (2): 5T

Vástago trasero en Ti-Nitirde

(2): 5T

LOSB2863 Hard Anodized Front Shock Body

Set,(2): 5T

Dämpfergehäuse Set Vorne,

Harteloxiert: 5T

5T -Corps d'amortisseur avant,

anodisé dur (2)

Set corpo ammortizz. anteriore

anodizzato (2): 5T

Cuerpos de amortiguador

delantero reforzados (2): 5T

LOSB2864 Hard Anodized Rear Shock Body

Set, (2): 5T

Dämpfergehäuse Set Hinten,

Harteloxiert: 5T

5T -Corps d'amortisseur arrière,

anodisé dur (2)

Set corpo ammortizz. posteriore

anodizzato (2): 5T

Cuerpos de amortiguador

trasero reforzados (2): 5T

LOSB2964 Front Springs 10.3 lb Rate, Gold

(2): 5T

Federnsatz Vorne 10,3 lb Gold

(2): 5T

5T -Ressort avant dureté 10.3lb.,

doré (2)

Molle anteriori 5 kg, tipo oro

(2): 5T

Muelles delanteros 10.3lb,

Oro (2): 5T

LOSB2966 Front Springs 12.9 lb Rate, Red

(2): 5T

Federnsatz Vorne 12,9 lb Rot

(2): 5T

5T -Ressort avant dureté 12.9lb.,

rouge (2)

Molle anteriori 6,5 kg, tipo rosso

(2): 5T

Muelles delanteros 12.9lb,

Rojo (2): 5T

LOSB2970 Rear Springs 6.8 lb Rate, Gold

(2): 5T

Federnsatz Hinten 6,8 lb Gold

(2): 5T

5T -Ressort arrière dureté 6.8lb.,

doré (2)

Molle posteriori 3,5 kg, tipo oro

(2): 5T

Muelles traseros 6.8lb, Oro

(2): 5T

LOSB2971 Rear Springs 9.3 lb Rate, Red

(2): 5T

Federnsatz Hinten 9,3 lb Rot

(2): 5T

5T -Ressort arrière dureté 9.3lb.,

rouge (2)

Molle posteriori 4,5 kg, tipo

rosso (2): 5T

Muelles traseros 9.3lb, Rojo

(2): 5T

LOSB3213 F/R Diff Outdrive Set Lightened

(2): 5T

Antriebsklauen Vorne/Hinten

erhellt (2): 5T

5T -Noix de sortie de diff av/arr

allégée (2)

Set alberi esterni F/R diff.

alleggerito (2): 5T

Vasos de diferencial F/R

aligerado (2): 5T

LOSB3215 Center Diff Outdrive Set

Lightened (2): 5T

Antriebsklauen Mitte erhellt

(2): 5T

5T -Noix de sortie de diff central

allégée (2)

Set alberi esterni F/R diff.

centrale alleggerito (2): 5T

Vasos de diferencial central

aligerado (2): 5T

LOSB3228 Wheel Nuts, Captured (4): 5T Radmuttern (4): 5T 5T -Ecrous de roues (4) Dadi ruote, prigionieri (4): 5T Tuercas ciegas de rueda

(4): 5T

LOSB4611 Alum. Wheel Wrench: 5T Alu Radschlüssel: 5T 5T -Clé de roues en aluminium Chiave ruota allum.: 5T Llave de ruedas de aluminio:

LOSB4612 Alum. Turnbuckle Wrench 5T Alu Einstellschlüssel f. Gewind-

estange: 5T

5T -Clé de biellette en aluminium Chiave tenditori allum.: 5T Herramienta de aluminio para

los tirantes: 5T

LOSB5045 20T Pinion Gear, 1.5M & Hard-

ware: 5T

Ritzel 20Z, 1,5M & Zubehör 5T -Pignon 20T, m1,5 et accessoires Pignone 20T, 1,5M e accessori:

Piñón 20T 1.5M y Hardware:

Optional Parts // Diverse Teile // Pièces Optionnelles // Parti Opzionali // Opciones

Losi 5ive-T • iNsTrucTioN maNuaL

Losi 5ive-T RTR • iNsTRucTioN maNuaL

Losi 5ive-T • iNsTrucTioN maNuaL

Part # English Deutsch Français Italiano Español

LOSB5046 18T Pinion Gear, 1.5M & Hard-

ware: 5T

Ritzel 18Z, 1,5M & Zubehör 5T -Pignon 18T, m1,5 et accessoires Pignone 18T, 1,5M e accessori:

Piñón 18T 1.5M y Hardware:

LOSB5802 Engine Mount Inserts & Screws,

20T (4): 5T

Justierplatten Motorhalterung &

Schrauben 20T (4): 5T

5T -Inserts de support moteur 20T

(4)

Supporto motore e viti, 20T

(4): 5T

Casquillos bancada del motor

y tornillos, 20T (4): 5T

LOSB5803 Engine Mount Inserts & Screws,

18.5/58 (4): 5T

Justierplatten Motorhalterung &

Schrauben 18,5/58T (4): 5T

5T -Inserts de supports moteur et

vis, 18,5/58 (4)

Supporti motore e viti, 18,5/58

(4): 5T

Casquillos bancada del motor

y tornillos, 18.5/58 (4): 5T

LOSB5804 Engine Mount Inserts & Screws,

19.5/58 (4): 5T

Justierplatten Motorhalterung &

Schrauben 19,5/58T (4): 5T

5T -inserts de supports moteur et

vis, 19,5/58 (4)

Supporti motore e viti, 19,5/58

(4): 5T

Casquillos bancada del motor

y tornillos, 19.5/58 (4): 5T

LOSB5805 Engine Mount Inserts & Screws,

18/58 (4): 5T

Justierplatten Motorhalterung &

Schrauben 18/58 (4): 5T

5T -inserts de supports moteur et

vis, 18/58 (4)

Supporti motore e viti, 18/58

(4): 5T

Casquillos bancada del motor

y tornillos, 18/58 (4): 5T

LOSB5806 Engine Mount Inserts & Screws,

17.5/58 (4): 5T

Justierplatten Motorhalterung &

Schrauben 17.5/58 (4): 5T

5T -inserts de supports moteur et

vis, 17.5/58 (4)

Supporti motore e viti, 17.5/58

(4): 5T

Casquillos bancada del motor

y tornillos, 17.5/58 (4): 5T

LOSB5910 Titanium Turnbuckle Set (6), 5T Alu Einstellschlüssel f. Gewind-

estange Set (6): 5T

5T -Set de biellette en titane (6) Set tenditori in titanio (6), 5T Tirantes de titanio (6): 5T

LOSB5911 Titanium Turnbuckles 6x99mm

(2), 5T

Alu Einstellschlüssel f. Gewind-

estange 6x99mm (2): 5T

5T -Biellettes en titane 6x99mm Tenditori in titanio 6x99mm

(2), 5T

Tirantes de titanio 6x99mm

(2): 5T

LOSB5912 Titanium Turnbuckles 6x112mm

(2), 5T

Alu Einstellschlüssel f. Gewind-

estange 6x112mm (2): 5T

5T -biellettes en titane 6x112mm Tenditori in titanio 6x112mm

(2), 5T

Tirantes de titanio 6x112mm

(2): 5T

LOSB7029 Beadlock Set, Inner & Outer, Blue

(2ea): 5T

Beadlock Set Innen & Außen,

Blau (je 2): 5T

5T -Set d'anneaux Beadlock , int et

ext (2), bleu

Set Beadlock interno & esterno,

blu (2 cad.): 5T

Juego Bedlock interno y

externo, Azul: 5T

LOSB7243 Nomad Tire Set, Soft (1ea. L/R):

Nomad Reifen Set, weich (1)

L/R): 5T

5T -Pneus Nomad gauche ou droit,

souple (1)

Set gomme Nomad morbide, (1

cad. L/R): 5T

Neumático Nomad, Blando: 5T

LOSA5222 Silicone Shock Fluid 20wt. Silikon Dämpferöl, 20 wt, 2oz Huile Silicone d'amortisseurs 20wt. Fluido al silicone ammortizz.

20wt

Hidráulico de amortiguadores

20wt

LOSA5223 Silicone Shock Fluid 25wt. Silikon Dämpferöl, 25 wt, 2oz Huile Silicone d'amortisseurs 25wt. Fluido al silicone ammortizz.

25wt

Hidráulico de amortiguadores

25wt

LOSA5224 Silicone Shock Fluid 30wt. Silikon Dämpferöl, 30 wt, 2oz Huile Silicone d'amortisseurs 30wt. Fluido al silicone ammortizz.

30wt

Hidráulico de amortiguadores

30wt

LOSA5225 Silicone Shock Fluid 35wt. Silikon Dämpferöl, 35 wt, 2oz Huile Silicone d'amortisseurs 35wt. Fluido al silicone ammortizz.

35wt

Hidráulico de amortiguadores

35wt

LOSA5226 Silicone Shock Fluid 40wt. Silikon Dämpferöl, 40 wt, 2oz Huile Silicone d'amortisseurs 40wt. Fluido al silicone ammortizz.

40wt

Hidráulico de amortiguadores

40wt

LOSA5277 Silicone Fluid, 1000cs Silikon Difföl, 1000CS Huile Silicone, 1000cs Fluido al silicone, 1000cs Silicona 1000cs

LOSA5278 Silicone Fluid, 2000cs Silikon Difföl, 2000CS Huile Silicone, 2000cs Fluido al silicone, 2000cs Silicona 2000cs

LOSA5279 Silicone Fluid, 3000cs Silikon Difföl, 3000CS Huile Silicone, 3000cs Fluido al silicone, 3000cs Silicona 3000cs

LOSA5280 Silicone Fluid, 5000cs Silikon Difföl, 5000CS Huile Silicone, 5000cs Fluido al silicone, 5000cs Silicona 5000cs

LOSA5281 Silicone Fluid, 7000cs Silikon Difföl, 7000CS Huile Silicone, 7000cs Fluido al silicone, 7000cs Silicona 7000cs

LOSA5282 Silicone Fluid, 10,000cs Silikon Difföl, 10000CS Huile Silicone, 10,000cs Fluido al silicone, 10000cs Silicona 10000cs

LOSA99202 LOSI-LOK Threadlock - Blue LOSI-LOK Schraubensicherung

- Blau

LOSI Frein ﬁlet bleu Frenaﬁletti LOSI-LOK - blu Fija tornillos LOSI-LOK - AZUL

LOSA99167 Losi Tuning Screwdriver (Long) Losi Einsteller (lang) LOSI Tournevis de réglage (Long) Cacciavite di precisione LOSI

(lungo)

Destornillador de carburar

(Largo)

LOSA99171 Temp-Tuner, Screwdriver & Temp

Gauge

Einsteller mit Thermometer Réglage de température, tournevis et

thermomètre

Regolatore di temperatura, cac-

ciavite misuratore

Destornillador de carburar con

termómetro

LOSA99172 Camber Gauge Sturzlehre Cale de mesure de carrossage Misuratore di camber Medidor de caídas

LOSA99173 Ride Height Gauge Höhenmesser Cale de mesure de garde au sol Misuratore di altezza Medidor de altura del chasis

LOSA99208 Shock O-Ring Grease Dämpferfett Graisse pour loints toriques

d'amortisseurs

Grasso O-ring ammortizz. Grasa para tóricas de amor-

tiguador

Optional Parts // Diverse Teile // Pièces Optionnelles // Parti Opzionali // Opciones

Losi 5ive-T • iNsTrucTioN maNuaL

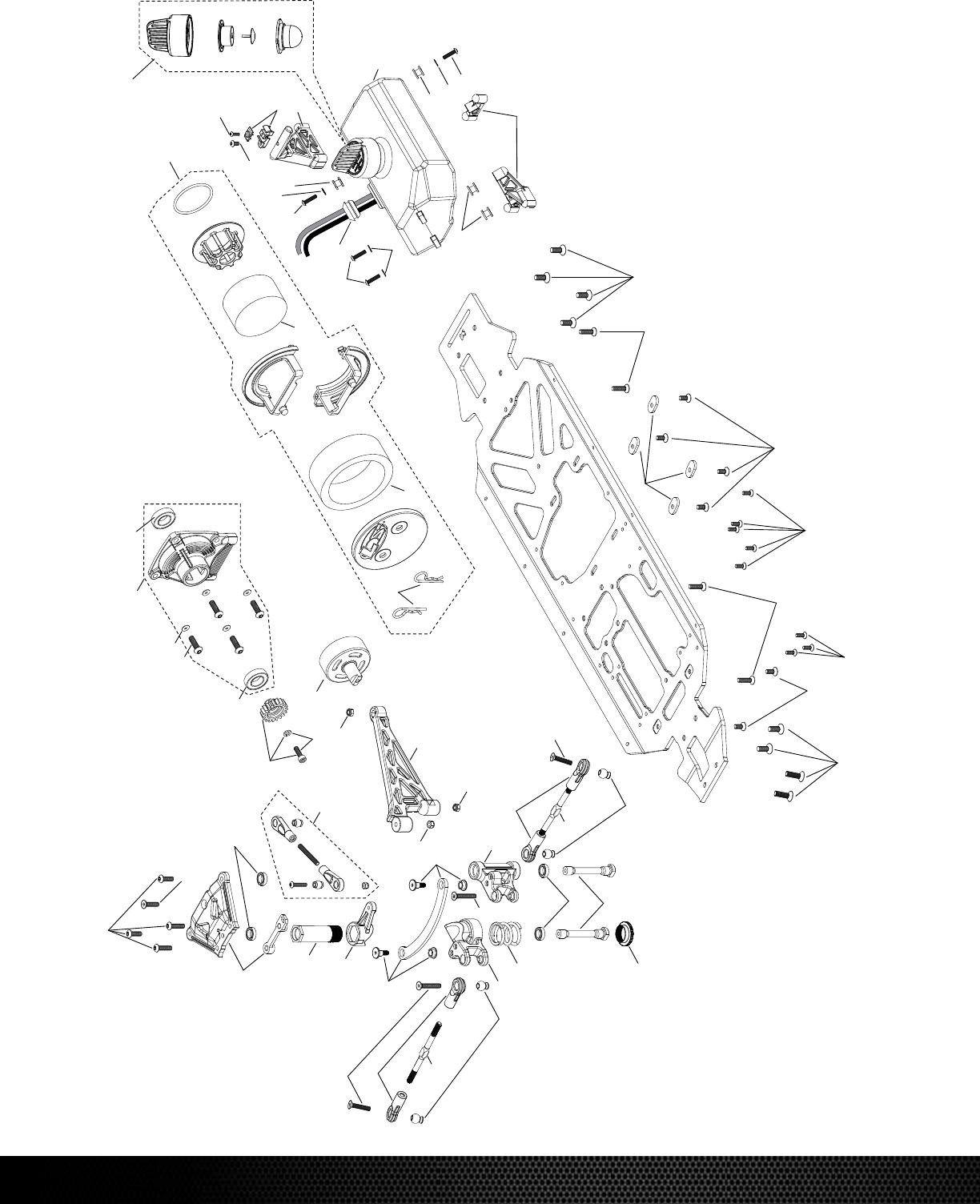

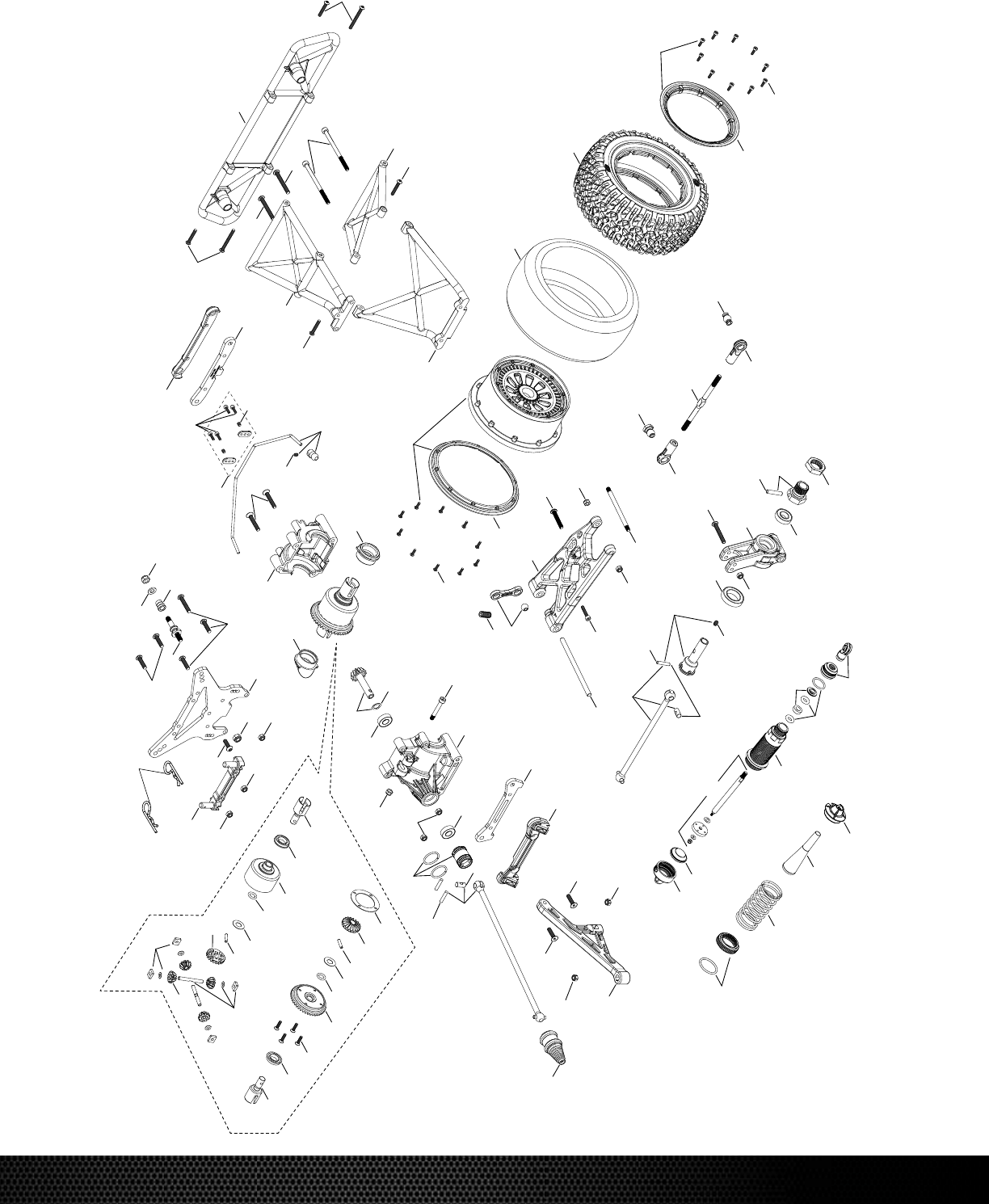

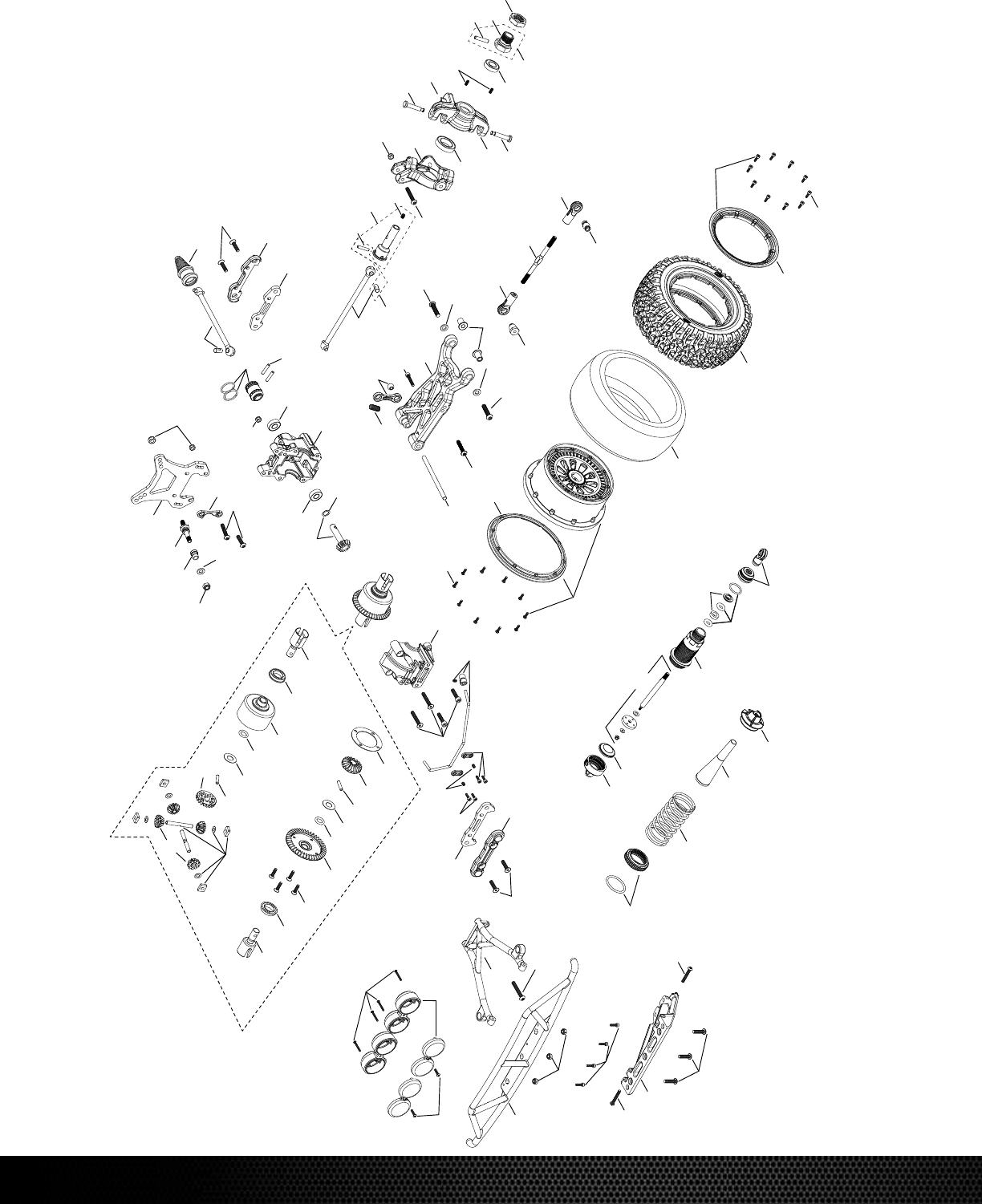

LOSB0024 Parts Explosion

Navigation menu

Versions of this User Manual:

Views

Navigation
