ELAN EL-600-IC-6

600 Series In-Ceiling Speakers

(Sold In Pairs)

Remote. Redefined.

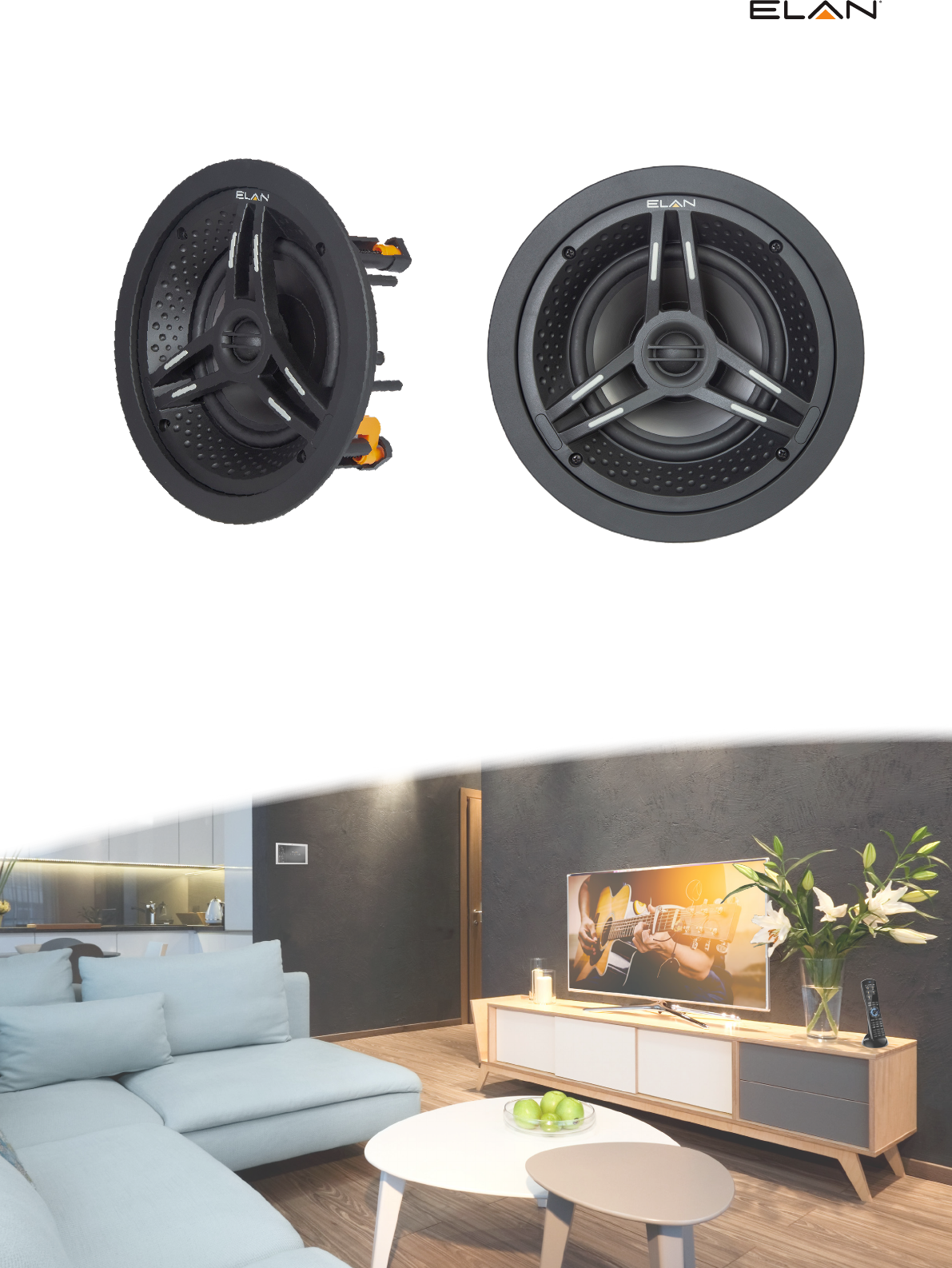

A multipurpose speaker with step-up performance, the EL-600-IC-6 features

an upgraded injection molded polypropylene cone woofer and pivoting 1” silk

dome tweeter that’s perfect for distributed audio and home theater.

Enhanced Performance.

EL-600-IC-6 In-Ceiling Speakers

ORDER NO. EL-600-IC-6

Room Filling Sound

Low crossover points and a woofer that’s

mounted as close to the surface as possible

delivers the widest dispersion and best sound

quality possible.

Silky Smooth Highs

Silk dome tweeters reduce the severity of

break-up modes resulting in silky smooth

sound which is pleasing to the ear–even at

high volumes.

Tilt Tweeter

The tilting tweeter mechanism allows you

to direct sound to the listening area and

maintains high frequency performance even

when the speaker is mounted in less than

ideal locations.

Thin is In

A thin-bezel magnetic grille ensures a secure

fit, pleasing aesthetic and with a one-step

paint process, it fits universally into almost

any décor.

Easy-Grip Tweeter Bridge

We know you do it! Installing speakers

above your head requires a sturdy grip point

and the ELAN Tweeter bridge ensures you

have one. We even protect the tweeter from

accidental finger pokes.

Dimpled Baffle Design

The dimpled baffle design eliminates

annoying echoes and increases dispersion

by reducing the focusing action of the

concave baffle. The result is crystal-clear

room-filling sound.

Secure Connection

All ELAN speakers feature spring loaded

binding posts that provide a secure, worry-

free connection in the wall or ceiling.

Lifetime Warranty

Feel confident that all ELAN architectural

speakers are backed by a limited

lifetime warranty.

SPECIFICATIONS

Woofer Size 6.5” (160mm)

Woofer Construction Injection Molded Polypropylene Cone

Tweeter 1” (25mm) Pivoting Silk Dome

Frequency Response 51Hz-20kHz

Impedance 8 Ohms

Power Handling 110 Watts

Sensitivity 88 dB

Timbre Timbre-Matched to all 600 Series Speakers

Dimensions 9.625” (237mm) Diameter x 3.8” (97mm) Depth

Hole Cutout Dimensions 8.25” (210mm) Diameter

Mounting Depth 3.7” (94mm)

©2019 Nortek Security & Control, LLC. All rights reserved. ELAN® is a registered trademark of Nortek Security & Control, LLC. Rev-A 01/2019

www.elanhomesystems.com

Use Pre-Construction Bracket

EL-PCB-IC-6
