The ELAN HR10 Wi-Fi Remote Control builds

upon the successes of its predecessors – the

HR2 and HR200 – and it continues to raise

expectations of what a remote control can do.

The HR10 is designed to place the elegant ELAN

experience in areas that were previously not a

practical option – such as kids rooms and guest

rooms – as well as to create the ultimate single

room control solution. The ELAN HR10 delivers

the intuitive easy-to-use ELAN interface at a price

that will keep dealers and their clients happy.

The newly designed HR10's intuitive 2.4" color

display - with soft keys on either side - makes it

effortless to surf favorite channels, check the

status of the lights and adjust the temperature.

The 46 hard buttons - six are assignable - allow

easy and intuitive audio/video system control,

with personalized one-button control options

for audio, video, or lighting systems. Soft keys

on either side of the HR10 features a built-in

accelerometer that ensures the remote is

connected and ready to use when needed.

Its Lithium Polymer battery powers the HR10

for more than 6 hours with the display

on and over 14 days on standby. The sleek and

stylish charging base is included, cradling

the HR10 in a convenient upright position.

The ELAN Configuration Software allows the

HR10 to quickly be added to any ELAN project.

Interface templates for popular sources com-

bined with ELAN's easy to use Configuration

software allow the HR10 to be personalized

so all ELAN customers get the most intuitive

experience for their needs. The easy-to-use

HR10 features an updated 802.11 b/g/n Wi-Fi

radio allowing it to be easily placed in all your

projects. When the system design calls for an

intuitive and easy remote control in a secondary area,

the HR10 puts that control where it belongs –

in the clients’ hands.

The Single Zone Sensation.

ORDER NO. EL-HR10

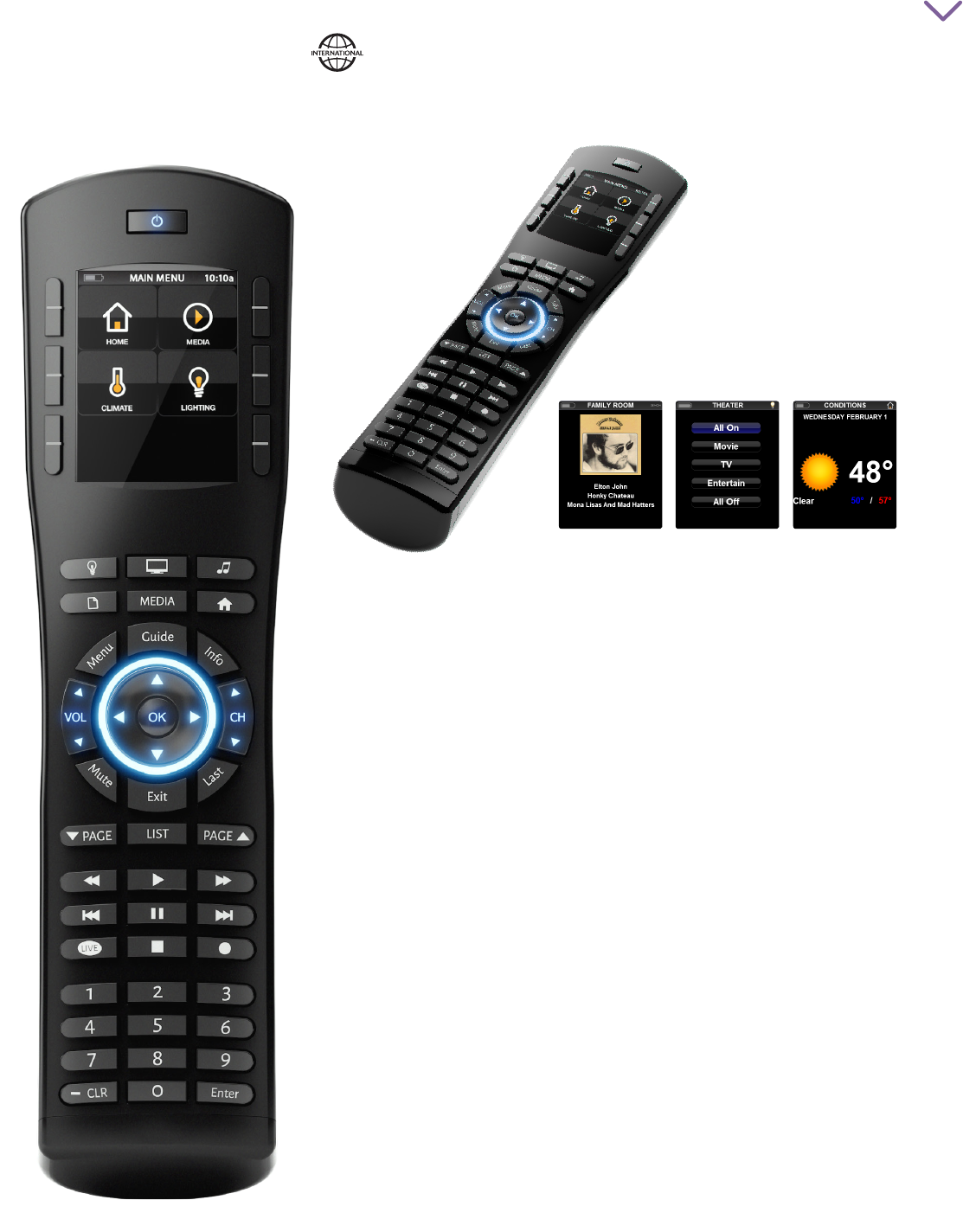

EL-HR10 Handheld Remote

SINGLE ZONE SOLUTION WITH INSTANT FEEDBACK

AND CONTROL OF MUSIC, LIGHTING AND CLIMATE.

USER INTERFACES

ORDER NO. EL-HR10

EL-HR10 Handheld Remote

SPECIFICATIONS

Screen size 2.4” diagonal (61 mm)

Viewing angle 130° (up/down/left/right)

LCD DISPLAY

Type 18 bit, 2.4” Active Matrix LCD

Colors 262K

FEATURES

�Fast, responsive high-resolution screen

�Soft key control on either side of display

�Affordable, easy to use and simple to configure

�Controls all AV sources with metadata feedback

for supported devices

�Controls lighting and climate with metadata

feedback

�46 backlit hard buttons for common functions

found on today’s sources

�Six assignable buttons

�Noiseless accelerometer for activating

LCD and backlight

�Slim profile for ease of use and comfort

�Uses Wi-Fi for communication

�Quick & easy programming using

the ELAN Configuration Software

�Compatible with all current ELAN

System Controllers

�Ships standard with battery, charging base,

power supply, and USB Cable.

© 2017 Core Brands, LLC. All rights reserved. ELAN® is a registered trademark of Core Brands, LLC. Rev-A 08/2017

Included in box

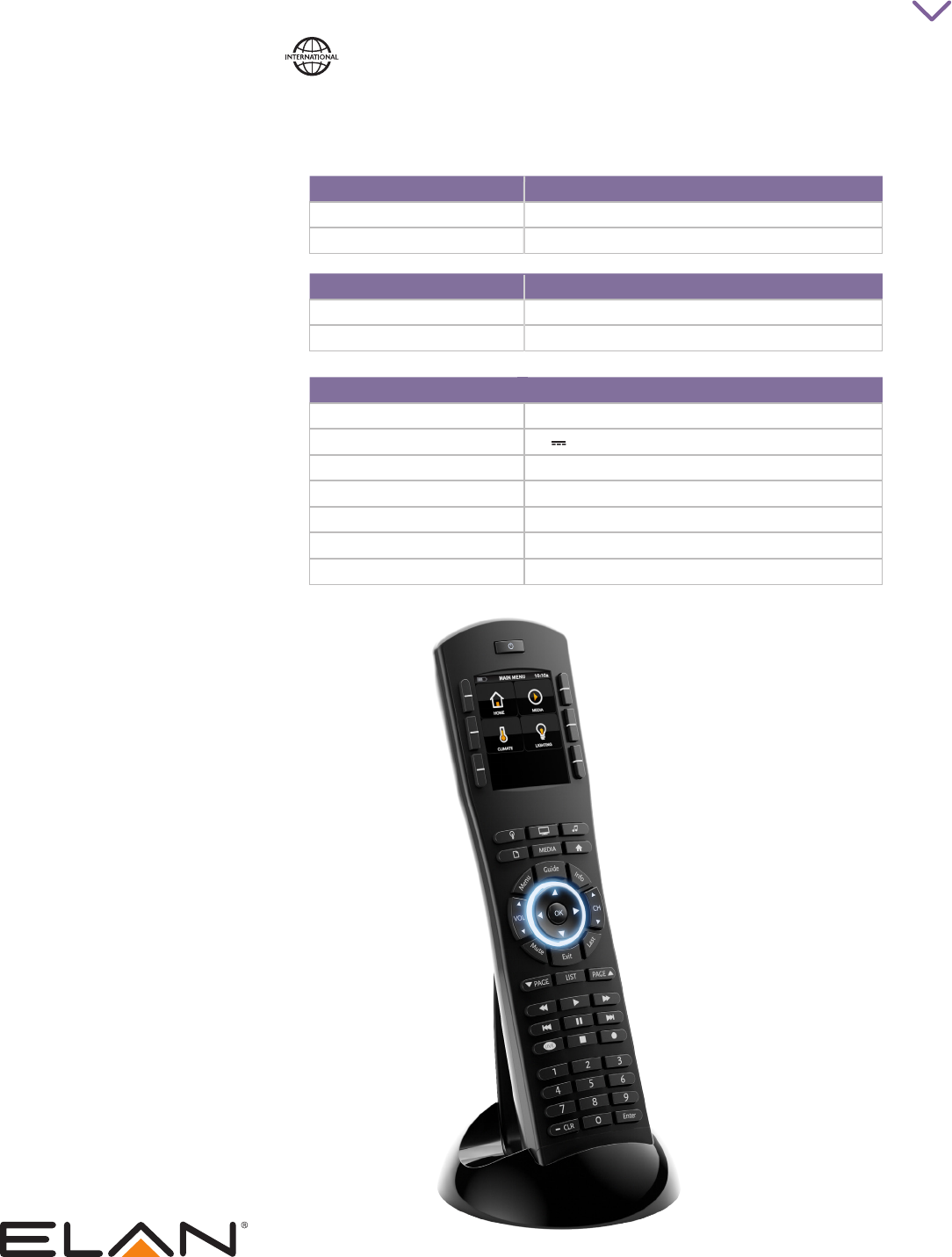

(1) Remote

(1) Charging Station

(1) USB to Micro-USB Cable

(1) 5V @ 2.00A USB Power Supply

(1) Quick Reference Guide Quick Reference Card

SPECIFICATIONS

Download Port Micro-USB

Power Requirements 5 V 2.00 A

Dimensions – Remote (in.) 2.50 W x 9.59 H x 1.26 D (mm) 63.4 W x 243 H x 32 D

Dimensions – Cradle (in.) 4 Diameter x 4.88 H (mm) 101.60 W x 124.00 H

Product Weight 8.3 oz. (235.3 g)

Charging Cradle Weight 8.1 oz. (229.6 g)

Shipping Weight 2.3 lbs. / 1.04 kg

USER INTERFACES
