SPECIFICATIONS SHEET
Blending HigH Fidelity An d ArcHitecture®CALL 1-800-BUY-HIFI – 305.238.4373 – www.nilesaudio.com
■ Comprehensive and Flexible Control Options – Eight
IR ports and eight RS-232 ports are assignable and
addressable for positive control of virtually any
component. Three 12V triggers and three contact
closures are fully programmable and provide
comprehensive system automation capabilities.
■ Wizard-Based Programming – The HT-MSU is
programmed with QuickConfig™, our easy-to-use,
wizard-based programming software.
■ Audio/Video Power Sync Ports – Sense the power
status of the connected home theater components
so the correct on/off commands are always issued.
■ External IR Sensor Input – Routes to appropriate
home theater components to trigger system-wide
automation.
■ A Variety of Control Options – The HT-MSU is
compatible with the Niles iC2™ remote, the R-4,
R-8, R-6L and R-8L remotes, plus any universal
remote loaded with Niles IR codes (available at
nilesaudio.com).
HT-MSU HOME THEATER MAIN SYSTEM UNIT
Key Features

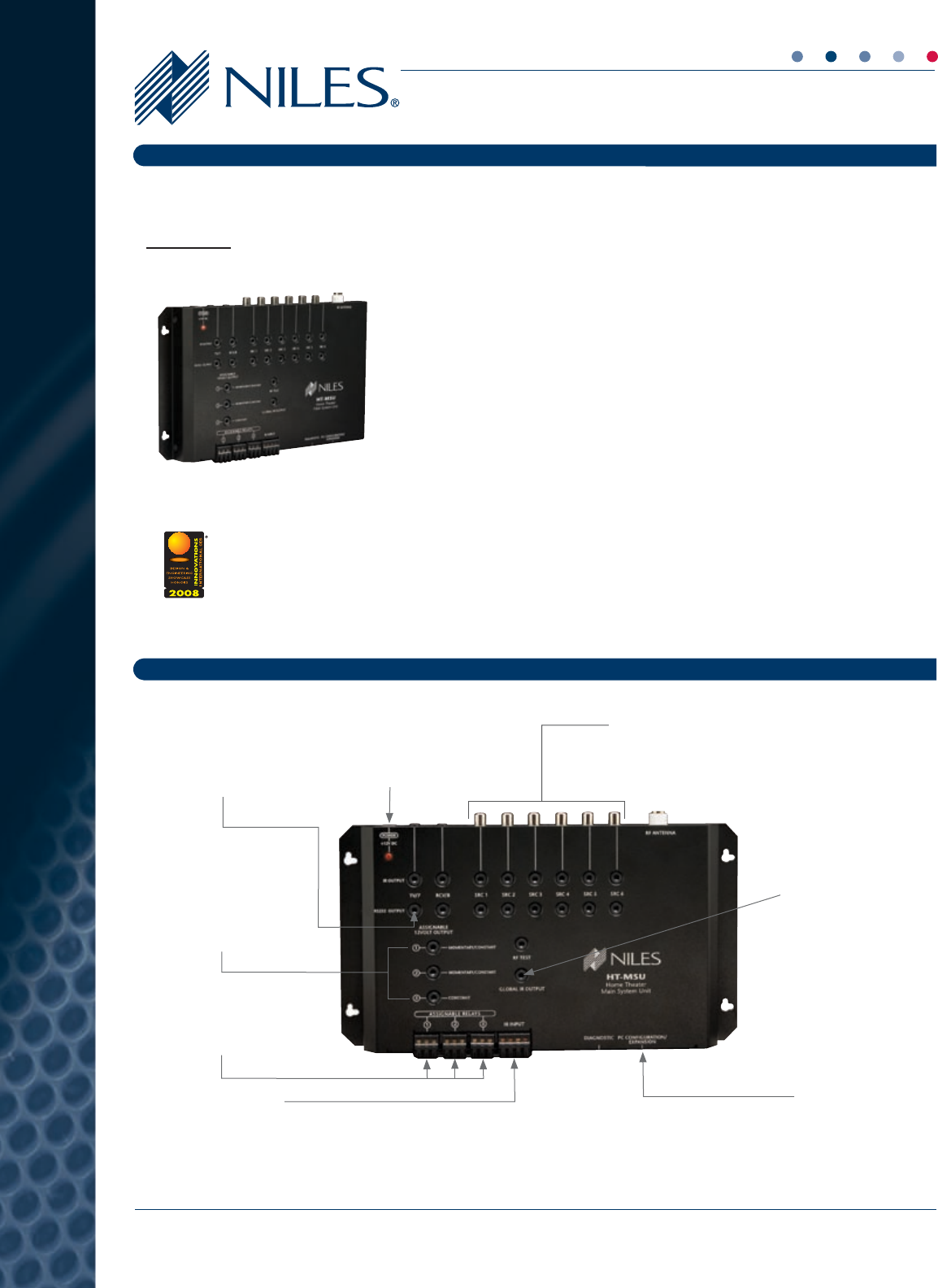

Parts Guide
SPECIFICATIONS SHEET
NILES AUDIO CORPORATION 12331 SW 130 Street, Miami, FL 33186 1-800-BUY-HIFI- 305-238-4373 – www.nilesaudio.com
12V DC POWER
CONNECTION
A 12V DC UL-Listed external
power supply is included
ASSIGNABLE
12V OUTPUTS
Integrate electronic components
and outboard automation
devices to satisfy all your
customization needs
ASSIGNABLE RELAYS
Contact closures/relays can be
programmed to automate lights,
curtains, screen lifts and other devices
GLOBAL IR OUTPUT
This output provides all of the IR
codes that the Main System Unit
generates, plus any codes that
come in through the Infrared Input.
Commonly used with Niles IRB1
High-Output IR Flashers to control all
components with only one flasher
INFRARED INPUT
Provides a connection for an IR sensor
that enables IR control of the Main
System Unit and also acts as an IR
pass-through for connected sources
POWER SYNC PORTS
These ports sense the power status of the
home theater components so the correct
on/off commands are always issued
PC CONFIGURATION/
EXPANSION
This connection is used to
configure the HT-MSU with
a laptop computer and for
expanding the system design
IR AND RS-232
SERIAL OUTPUT PORTS
Provide the flexibility to control
home theater components via
IR and RS-232 control
LOW-PROFILE, EASY INSTALL DESIGN
Two-way mounting ears enable the MSU to be
mounted vertically or horizontally
©2008 Niles Audio Corporation. All Rights Reserved. Niles, the Niles logo and Blending High Fidelity and Architecture are registered trademarks of Niles Audio Corporation.
iC2 and QuickConfig are trademarks of Niles Audio Corporation. All other trademarks are the property of their respective owners. CS0295A
Specifications
Specifications
■Works with the iC2™ or other remote controls to manage, automate, and
synchronize components in a home theater system
■Eight IR and eight RS-232 control ports are both assignable and addressable to
provide multiple control options
■Three fully programmable 12V triggers
■Three fully programmable contact closures
■External IR sensor pass-through connection
■IR routing for all sources enables discrete control over several identical components
■Six home theater source 12V or video sync ports provide positive system turn-on
and turn-off
■Two 12V sync ports for TV and receiver provide positive turn-on and turn-off
■QuickConfig™ wizard-based software provides fast system setup (requires IR-CS,
sold separately)
■Includes power supply, antenna, 10’ antenna extension (for use with iC2 remote)
Dimensions
■10.5” wide x 6” high x 1” deep (26.7 cm x 15 cm x 2.6 cm)
Warranty: Two-year limited
Shipping weight: Approximately 7 lbs (3.18 kg)
HT-MSU
Home Theater Main System Unit
Stock Number
FG01343
International CES
Innovations 2008
Design & Engineering
Award honoree in the
Home Theater Accessories
product category
