DS8
High-Denition loudspeakers are optimal for advanced home theaters and primary listening rooms.
Proprietary IMPACT (Improved Aluminum Ceramic Technology) woofer cone, midrange, and tweeter provide
the ultimate in performance and musicality.
HIGH DEFINITION LOUDSPEAKER SPECIFICATIONS SHEET
8" Left/center/right
DirecteD SounDfieLD LouDSPeAKer
■ Designer Aesthetics Magnetically attached
MicroThin™ speaker grilles ensure a clean, virtually
invisible appearance that blends with the room’s
aesthetics. Optional square grilles provide added
design exibility.
■ Superior Sound Quality Patented Directed
Soundeld™ technology directs the sound to the
listening area for optimum sound quality. New patent-
pending pivot mechanism adjusts smoothly and holds
the loudspeaker woofer securely in position.
■ Installation Ease Three patent-pending spring-
tensioned mounting clamps permit quick installation
and compensate for uneven mounting surfaces and
varied environmental conditions. Weather-resistant
construction enables installation in moist areas, such
as bathrooms or outdoors under eaves.
■ Install With Confidence The best-built loudspeakers
deserve the best protection—the Niles Lifetime Limited
Warranty.
FEATURES AND BENEFITS
LIFETIME
LIMITED WARRANTY
DS7PR
7” Per formance
DS8PR
8” Per formance
DS7HD
7” High Denition
DS8HD
8” High Denition
DS7FX
7” Surround Effects
DS8FX
8” Surround Effects
DS7MP
7” Multi Purpose
DS7SI
7” Stereo Input
NILES AUDIO CORPORATION 1-800-BUY-HIFI – www.nilesaudio.com
©2010 Niles Audio Corporation. All Rights Reserved. Niles, the Niles logo, Blending High Fidelity and Architecture and UltraSilk are registered trademarks of Niles Audio Corporation.
MicroThin and Directed Soundfield are trademarks of Niles Audio Corporation. All other trademarks are the property of their respective owners. CS0308A
DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKERS
DS8HD
8" Left/Center/Right Directed
Soundfield™ Loudspeaker
For advanced home theaters and
primary listening rooms
Packaged Individually with
Round MicroThin™ Grille
Stock Number
FG01623

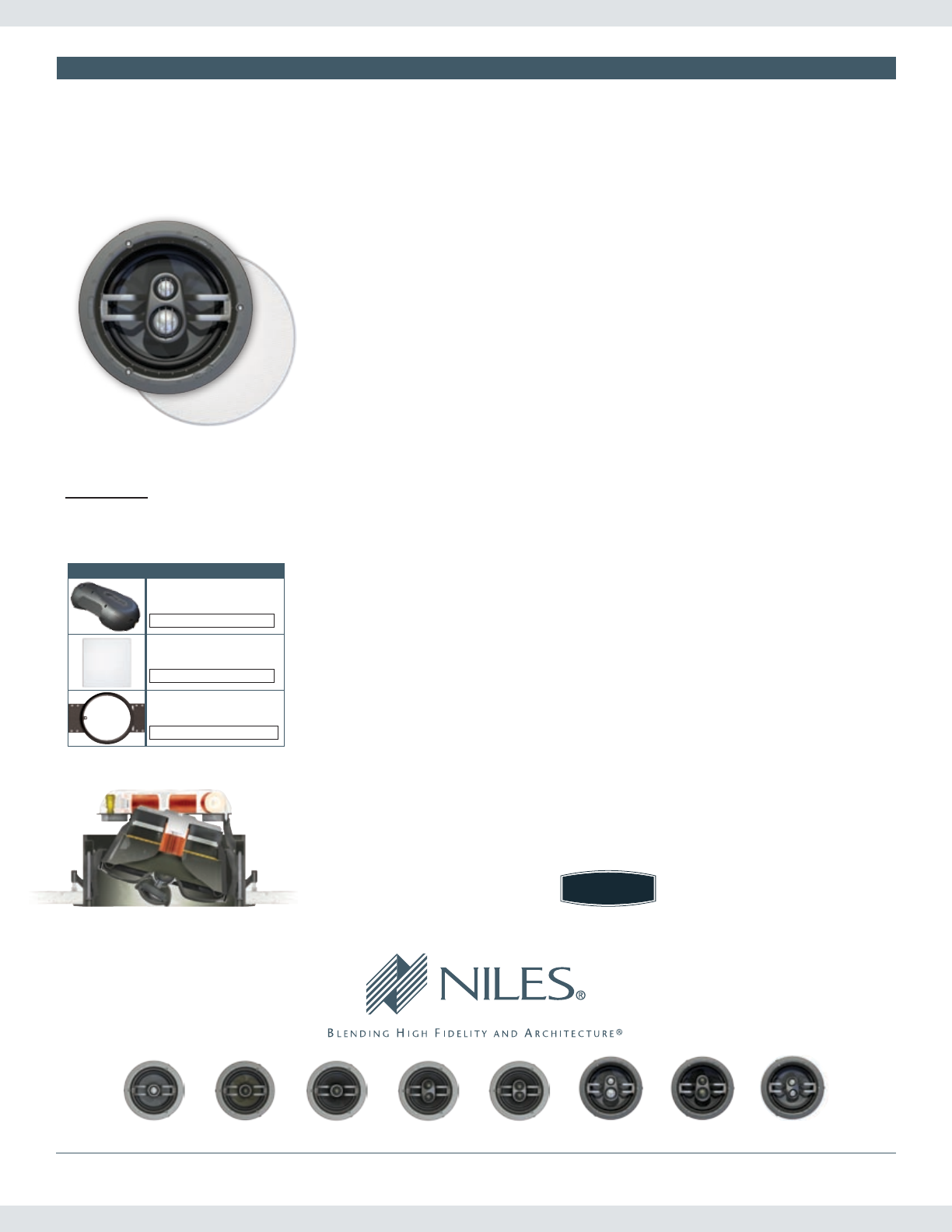

F E ATUR ES
■ Patented Directed Soundeld technology* with new patent-pending pivot
mechanism directs the sound to the optimum listening area
■ 8" IMPACT (Improved Aluminum Ceramic Technology) woofer cone with
curvilinear prole and extended pole provides natural, at response
■ 1-1/2" nano-coated IMPACT dome midrange provides ultra-resolution midrange
frequencies
■ 1” nano-coated IMPACT dome tweeter utilizes a vapor deposited coating to
move any ringing frequencies outside the range of hearing for ultra-detailed high
frequencies
■ Zero-diffraction tweeter assembly pivots up to 15º (30º when the woofer is in its
maximum position) for precise aiming of high frequencies to the listening area
■ Kapton non-conductive voice coil former and copper shorting caps combine to
lower distortion and increase high frequency sound pressure levels
■ Magnetically attached, rust-resistant grille covers install quickly and provide a low
prole look
■ Integrated bafe/frame assembly increases the cone area for deeper bass than
competitive speakers of the same diameter
■ Dialog switch enhances vocal presence when used as the center channel in a
home theater
■ Tweeter level switch enables precise adjustments to match room acoustics
■ Patent-pending spring tensioned mounting clamps permit quick installation and
compensate for uneven mounting surfaces and varied environmental conditions
■ Weather-resistant construction enables installation in wet environments and
outdoors under eves
■ Optional rear wave enclosure is precisely shaped for predictable sound
performance and to eliminate unwanted sound from bleeding into adjacent rooms
or spaces
SpEcIFIcATIoNS
■ Recommended amplier power: 10 - 160 watts
■ Impedance: 8 ohm nominal; 6 ohm minimum
■ Frequency response: 48 Hz to 21 kHz +/ -3 dB
■ Voice coil size: 1-1/4"
DImENSIoNS
■ Frame dimensions (with grille): 11-1/4" (28.52 cm) diameter
■ Hole cutout dimensions: 9-3/4" (24.76 cm) diameter
■ Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
WARRANTY: Lifetime Limited
*US Patent 6,070,694
Directed Soundfield™ technology with
a new patent–pending pivot mechanism
directs the sound to ensure the best
possible listening experience.
RELATED PRODUCTS
RWE8C
8" Rear Wave Enclosure
Stock Number: FG01644
SG8C
8" Square Loudspeaker Grille
Stock Number: FG01646
NCB8C
8" New Construction Bracket
Stock Number: FG01648
