RWC7. 5

7" LEFT/CENTER/RIGHT REAR WAVE CONTROL LOUDSPEAKER

Advanced Performance Ceiling-Mount Loudspeaker with custom-tuned, integrated Rear Wave Control Enclosure for primary

and secondary listening rooms and home theater applications. Glass fiber woofer cones and proprietary Teteron® tweeters

extend the frequency response for a superior listening experience.

Ceiling Mount loudspeakers

designer aesthetiCs | audiophile perforManCe | installation ease

KEY FEATURES

■ Designer Aesthetics Magnetically attached MicroThin™

round speaker grilles ensure a clean, virtually invisible

designer appearance that blends with the room’s aesthetics.

Optional square grilles provide even more design flexibility.

■ Audiophile Performance Premium components, high-level

crossovers, and a rigid, cast metal bridge combine to provide

exceptional sonic performance; the custom-tuned, integrated

Rear Wave Control Enclosure ensures consistent, predictable

sound while significantly reducing unwanted sound from

bleeding into adjacent rooms and spaces.

■ Directed Soundfield™ This patented technology directs the

sound to the listening area to ensure the best sound quality.

A new patent-pending pivot mechanism rotates smoothly and

holds the assembly securely in place.

■ Installation Ease Patented-pending spring-tensioned

mounting clamps install quickly and compensate for uneven

mounting surfaces and varied environmental conditions. The

unique shape of the custom-tuned integrated Rear Wave

Control Enclosure enables it to be easily tucked through the

loudspeaker’s hole cutout—perfect for retrofit installations.

■ Install With Confidence The best-built loudspeakers deserve

the best protection—a Lifetime Limited Warranty.

LIFETIME

LIMITED WARRANTY

RWC7. 5

7" LEFT/CENTER/RIGHT REAR WAVE CONTROL LOUDSPEAKER

Specifications subject to change without notice.WWW.INTELLICONTROL.COM

PRODUCT DETAILS

©2010 Niles Audio Corporation. All Rights Reserved. Niles, the Niles logo and Blending High Fidelity and Architecture are registered trademarks

of Niles Audio Corporation. All other trademarks are the property of their respective owners. CS0303A

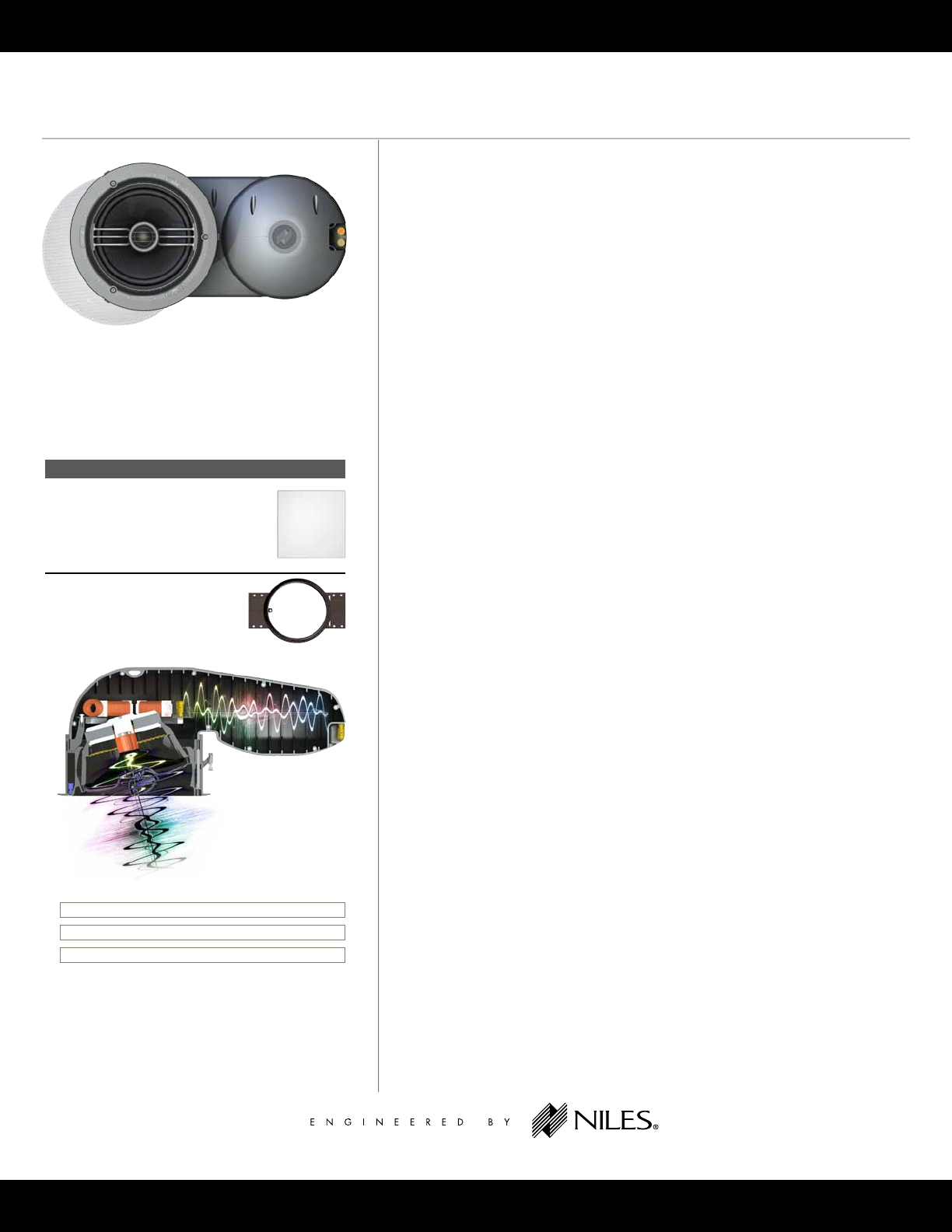

RWC7.5

7" LEFT/CENTER/RIGHT LOUDSPEAKER

FG01628

Packaged Individually with Round MicroThin™ Grille

FEATURES

• 7"blackglassberwooferconewithcurvilinearprolefordeepbassand

smoother reproduction in the important vocal range

• Pivoting1"uid-cooledTeteron® dome tweeter provides smooth, ultra-detailed

high frequency response

• Rigid,castmetaltweeterbridgestiffensthestructureforimprovedclarity

• Custom-tuned,integratedRearWaveEnclosureprovidesconsistent,repeatable

performance while reducing sound from bleeding into adjacent spaces; unique

design enables it to be retrofitted into existing construction

• PatentedDirectedSoundeld™ technology directs the sound to the listening

area to ensure the best possible listening experience

• Patent-pendingwooferpivotmechanismadjustssmoothlyandholdsthe

assembly securely in position

• Asymmetric3-4thorder2-waycomputeroptimizedLinkwitzRileycrossover

• Extendedpoleincreasespowerhandlingcapability

• Dialogswitchforcenterchannelapplications

• Tweeterlevelswitchcompensatesforspeakerplacementandroomacoustics

• Rust-resistant,magnetically-attachedgrilles

• Weather-resistantconstructionenablesinstallationinmoistareassuchas

bathrooms and outdoors under eaves

SPECIFICATIONS

•Recommendedamplierpower:10-140watts

•Impedance:8ohmnominal;6ohmminimum

•Frequencyresponse:52Hzto21kHz+/-3dB

DIMENSIONS

•Framedimensions(withgrille):9-7/8"(25.15cm)diameter

•Holecutoutdimensions:8-1/2"(21.60cm)diameter

•Depthbehindceiling(5/8"drywall):7-1/8"(18.08cm)

WARRANTY

•Lifetime Limited

*US Patent 6,070,694

Additional Patents Pending in the US and other countries

Rear Wave Control Enclosure Sound Isolation*

 50-500Hz....................................... -16dB

 500-2,000Hz.................................. -37dB

 2,000-20,000Hz............................. -25dB

*In typical installations.

RELATED PRODUCTS

SG7C 7" Magnetically Attached

Square MicroThin™ Speaker Grille

FG01645

NCB7C 7" New

Construction Bracket

FG01647
