Specically designed and engineered to provide protection, ltration and
power monitoring for your home theater system.
Specifications subject to change due to product upgrades and improvements
*Go to www.panamax.com for detailed noise filtering information.
HOME THEATER POWER MANAGEMENT
• 11 Protected & Filtered Power Outlets
• Exclusive Automatic Voltage Monitoring (AVM)
C US
C US
• Antenna, Cable, or Satellite, TEL and LAN Signal Protection
• 8 ft. Power Cable with Low Profile Plug
SPECIFICATIONS
FEATURES
WEIghTS, DImENSIONS AND UPC CODES
Model: MR5100
AC PROTECTION
Protect or Disconnect Circuitry__________________________________________Yes
Patented Power Management Circuit_____________________________________Yes
Overvoltage Shutoff_____________________________________________135V ±2
Undervoltage Shutoff____________________________________________95V ±3V
Thermal Fusing____________________________________________________Yes
Line Voltage____________________________________________120VAC, 50/60HZ
Initial Clamping Level__________________________________200V Peak, 141VRMS
Voltage Protection Rating (UL 1449 3rd Edition, 3,000A)____________________330V
Protection Modes___________________________________________ L-N, L-G, N-G
Maximum Current Rating______________________________________15A (1800W)
EMI/RFI Noise Filtration__________________________Panamax Level 4 Noise Filtration*
Response Time___________________________________________________< 1ns
Single Pulse Energy Dissipation__________________________________2025 Joules
Peak Impulse Current____________________________________________52,000 A
TEL PROTECTION
Fuseless / Auto-Resetting______________________________________________Yes
Clamping Level __________________________________________________ 260V
Wires Protected _________________________________________ 2 Wire, 1 Pair (4, 5)
Connectors_________________________________________________RJ-11
LAN PROTECTION
Clamping Level___________________________________________62±6V @ 1 mA
Compatibility___________________________________________10/100/1000bT
Wires Protected_________________________________________________8-Wires
Connectors_____________________________________________________RJ-45
UNIVERSAL COAX PROTECTION
HD 1080 i/p Ready_________________________________________________Yes
Bidirectional_____________________________________________________Yes
Shielded_______________________________________________________Yes
Clamping Level____________________________________________________75V
Frequency Range__________________________________________OMHz - 2.2 GHz
Insertion Loss__________________________________________________<0.5 dB
Connections________________________________________Female “F”, Gold Plated
POWER ON / OFF ON / OFF, CONTROL FOR
DECORATIVE BLUE LIGHTS
(Blue lights can be illuminated when power is off)

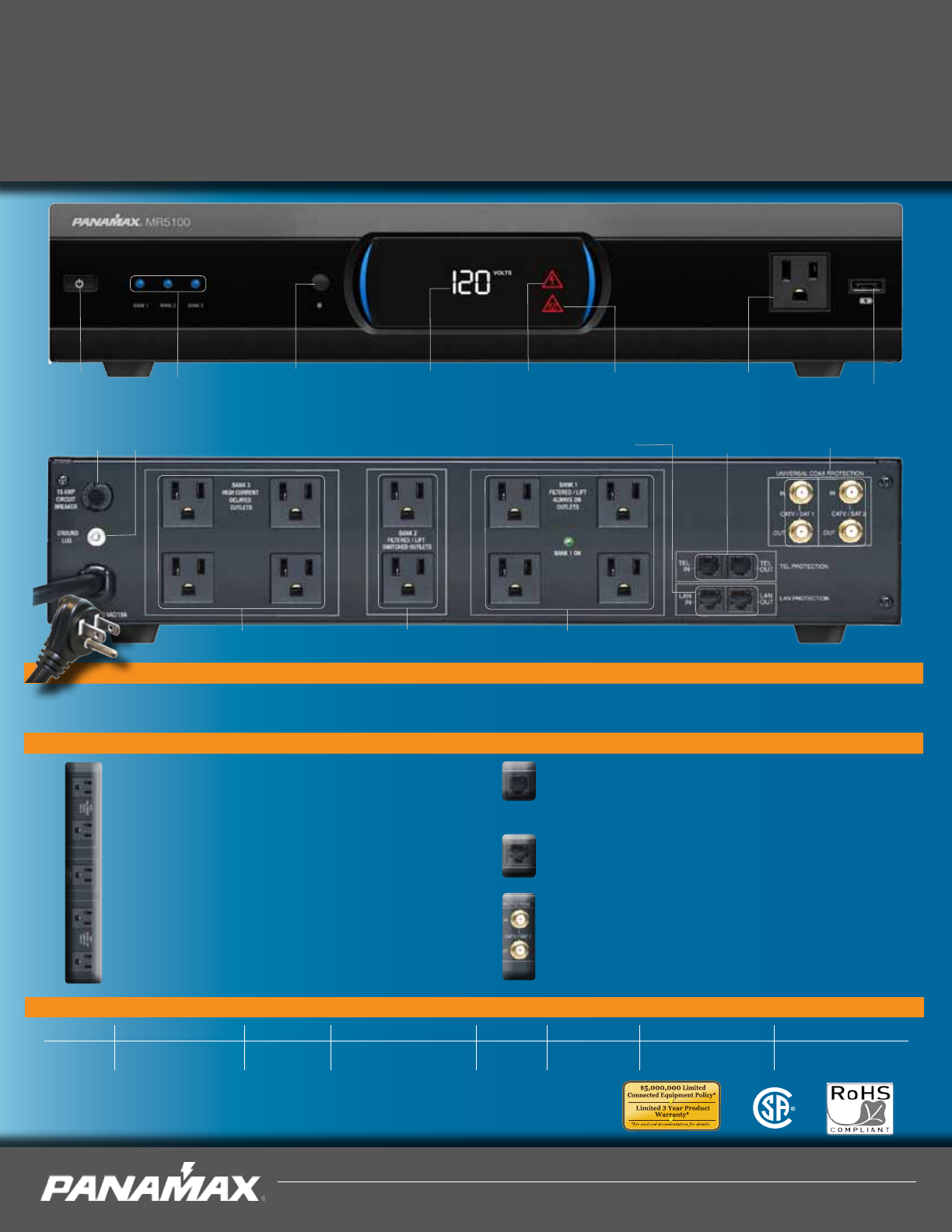

SAFE POWER AND
VOLTAGE INDICATOR
UNSAFE VOLTAGE
INDICATOR
LINE FAULT
INDICATOR
FRONT PANEL
CONVENIENCE OUTLET
OUTLET BANKS 1, 2 and 3
INDICATOR LEDS USB CHARGER
ALL AC OUTLETS (FRONT AND BACK) INCLUDE SURGE PROTECTION AND POWER FILTRATION
LAN SURGE PROTECTION
1 PAIR OF RJ-45 IN/OUT
CONNECTORS
COAXIAL SURGE PROTECTION
2 PAIRS UNIVERSAL IN/OUT
CONNECTORS
RACK MOUNTABLE
(RACK EARS INCLUDED)
TELCO SURGE PROTECTION
1 PAIR OF RJ-11 IN/OUT
CONNECTORS
GROUND LUG
15 AMP CIRCUIT
BREKAER
RESETTABLE
OUTLET BANK 3 (HIGH CURRENT) OUTLET BANK 2 (SWITCHED) OUTLET BANK 1 (ALWAYS ON) with INDICATOR LIGHT
• Protect or Disconnect™ Technology
• Linear Level 4 Noise Filtration
