PRODUCT CATALOG
Home Control - Loudspeakers - General Products
![](asset-2.png)

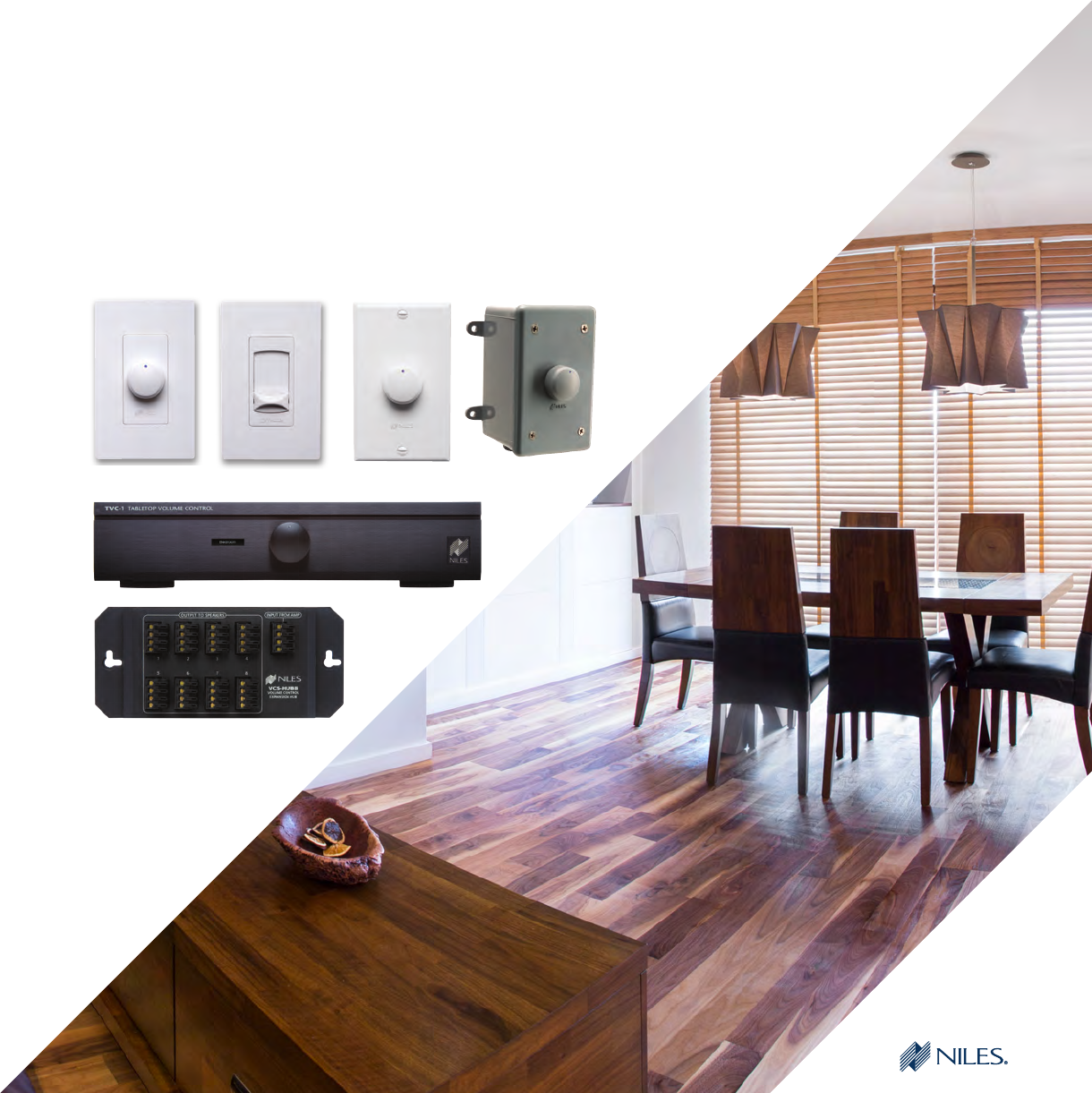

GENERAL
PRODUCTS
Complete the connected
experience here.
Page 85
HOME
CONTROL
Multi-room audio control,
now with lighting and
climate, plus remote access.
Page 4
LOUDSPEAKERS
Architectural audio solutions
where you live, work, and play.
Page 27
CATALOG NAVIGATION
Products are grouped by category of interest.
Sections are differentiated by color coding
on the bottom right of each page.
2
![](asset-3.png)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 3
![](asset-4.png)
The Niles name is synonymous with premier whole home audio solutions. For nearly
four decades, Niles has delivered innovative products that enable simple and easy
access to home entertainment, and we are now creating audio solutions that
seamlessly integrate with lighting and climate control. Niles products enable
custom integrators to design and install systems that deliver truly
exceptional entertainment solutions for customers.
HOME CONTROL
A Heritage of Recognition
4Home Control
![](asset-5.png)
HOME CONTROL SOLUTIONS
Auriel - One Touch to Control . . . . . . . . . . . . . . 6
MRC-6430 Multi-Room Controller . . . . . . . . . . . 12
nTP7 Touch Panel .....................14
nTP4 Touch Panel .....................15
nKP7 Keypad .........................16
nHR200 Remote Control. . . . . . . . . . . . . . . . . . 17

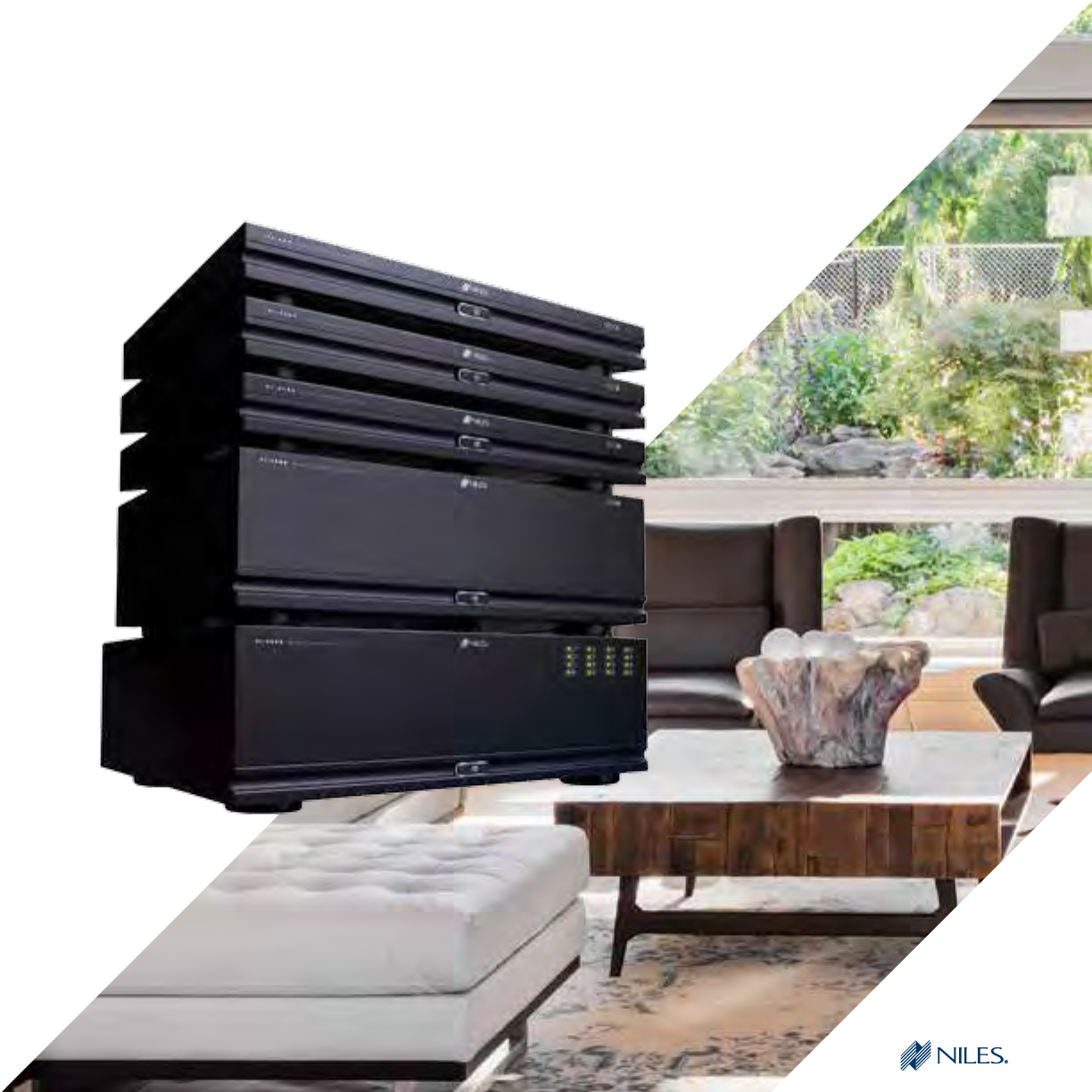

SYSTEMS INTEGRATION AMPLIFIERS®
16-Channel Amplifier . . . . . . . . . . . . . . . . . . . . 20
12-Channel Amplifier . . . . . . . . . . . . . . . . . . . . 21
2-Channel Amplifiers . . . . . . . . . . . . . . . . . . . . 22
CALL 1-800-BUY-HIFI – www.nilesaudio.com 5
Home Control
![](asset-6.png)

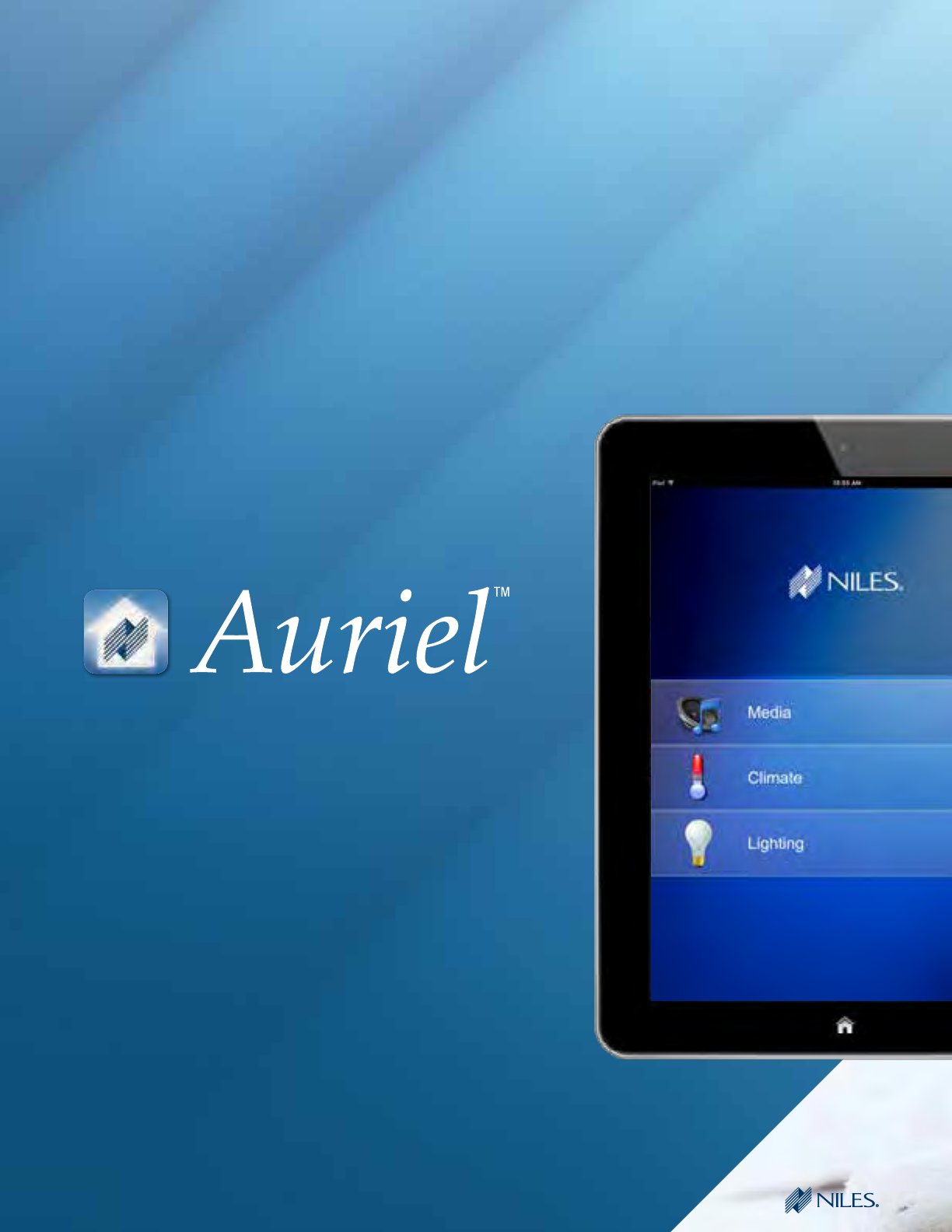

One Touch
to Control.
Niles Auriel now adds built-in streaming audio, plus
climate and lighting control to the award-winning multi-
room audio platform. The result is an exceptional home
control experience.
The wizard whisks you through simple decisions
that quickly congure the system for lighting scenes
and thermostat programming, audio sources, zone
preferences, user interface customization and home
theater control.
6Home Control
![](asset-7.png)
One Touch
to Control.
CALL 1-800-BUY-HIFI – www.nilesaudio.com 7
Home Control
![](asset-8.png)
• Home Control: Auriel now includes lighting and
climate control, plus built-in streaming audio.
• Audio Control: Six unique zones with seven distinct input
sources. The Niles Auriel MRC-6430 is the leading solution for
multi-room audio integrating automation and A/V control.
• Source Control: Two-way metadata, IP and IR control of a variety of
popular devices. Auriel includes an extensive pre-dened IR database.
• Home Theater Control: Manage audio and video components effortlessly and turn
any home into an enviable oasis.
• Easy Conguration: Tablet-based conguration eliminates hours of programming and the
built-in wizard easily congures user interfaces and user favorites in minutes.
• Mobile App: Free iOS and Android applications control the Niles Auriel MRC-6430 to queue up
soothing sounds at a moment’s notice.
• Consistent UI: Whether using a dedicated touch panel or a mobile device, the consistent UI makes it easy for
users to navigate.
• TCP/IP: A simple backbone for control with no proprietary wiring.
Visit www.NilesAudio.com/Auriel to see the list of compatible devices and download all data sheets.
AT A GLANCE
8Home Control
![](asset-9.png)
Get Happy.
Your streaming music favorites are
built-in as Auriel’s 7th audio source:
Spotify, Pandora, TuneIn, Tidal
and others.
Shine a Light.
Control up to 24 lighting loads from the
Niles Auriel interface. Scene control
is supported for select systems,
including Lutron Radio RA2® and
PCS Pulseworx.
Time to Chill.
Or get toasty. Set unique schedules
and remotely control up to three
wireless thermostats, maximizing
comfort and conserving energy.
In the Zone.
Auriel’s 7 sources send audio to 6
zones. Expand to 12 with a second
chassis. Home theater control
manages audio and video
components effortlessly.
Wizard-based Set-up.
The Wizard whisks you through
simple decisions that quickly
congure the system, saving
time on every project.
Lighting, Climate and of course – Entertainment.
CALL 1-800-BUY-HIFI – www.nilesaudio.com 9
Home Control
![](asset-a.png)

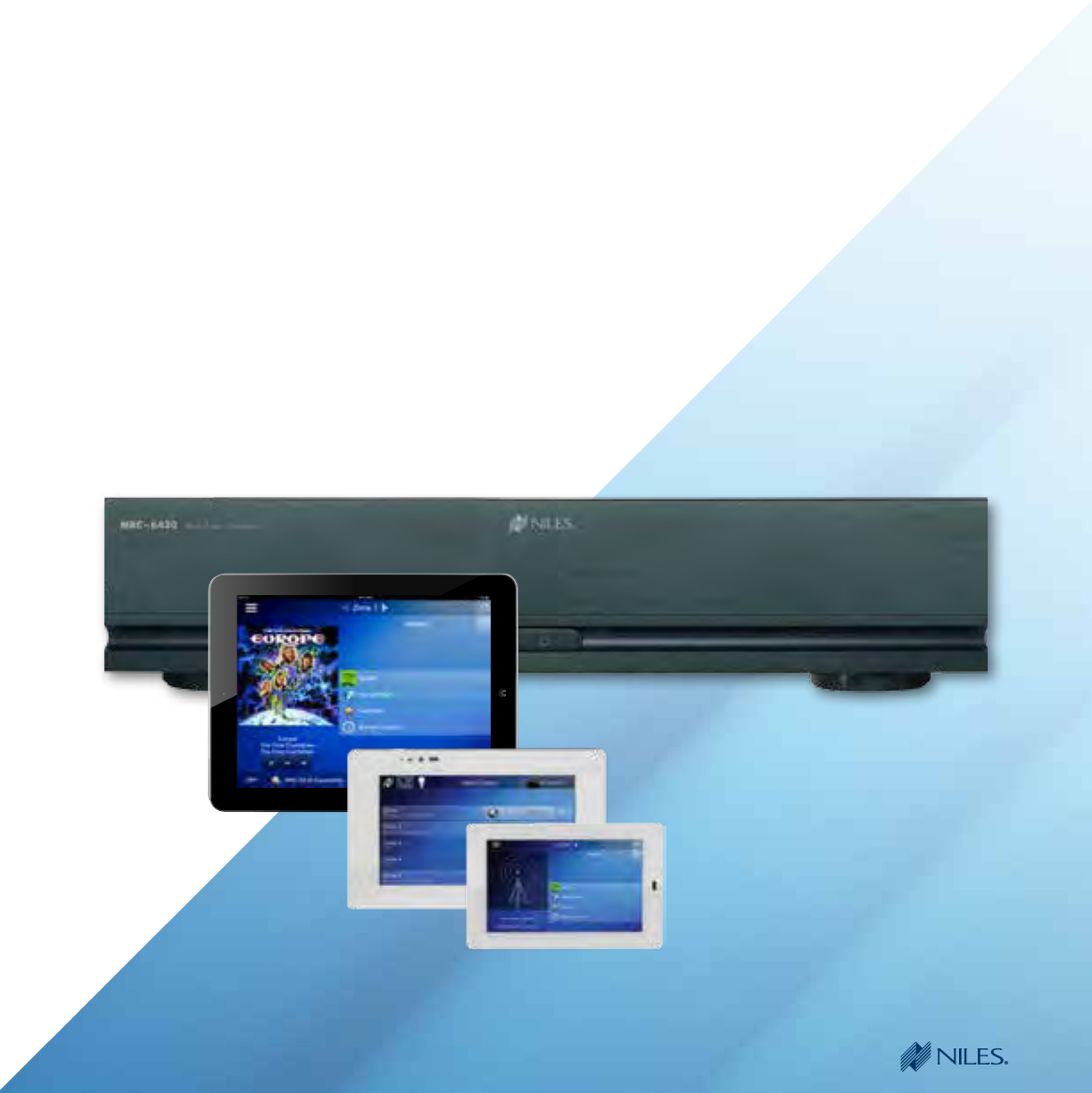

MRC-6430 MULTI-ROOM CONTROL
Transform any home into an enviable oasis.
New to Auriel: Built-in steaming audio services, climate and lighting control, plus remote access features. These are added to the already
award-winning whole home audio controller. At the heart of the Auriel experience is the MRC-6430 chassis, powered by the Niles Auriel
software and app. The MRC-6430 integrates multi-room audio, home theater, climate, and lighting control in a way that is as intuitive
for the installer to set up as it is easy for the homeowner to enjoy. Auriel raises the bar for integrator-friendly setup. Through the
Auriel Wizard and a tablet or PC, the installer is whisked through simple decisions that quickly configure the system for sources,
zone preferences, user interface customization, home theater control, lighting scenes and thermostat programming.
It takes only minutes to personalize the Niles Auriel for each project.
For larger homes, two MRC-6430s can be paired to create a 12-zone system. Additionally, all zones are
equipped with fixed or variable pre-outs, making it easy to add power and volume with Niles Systems

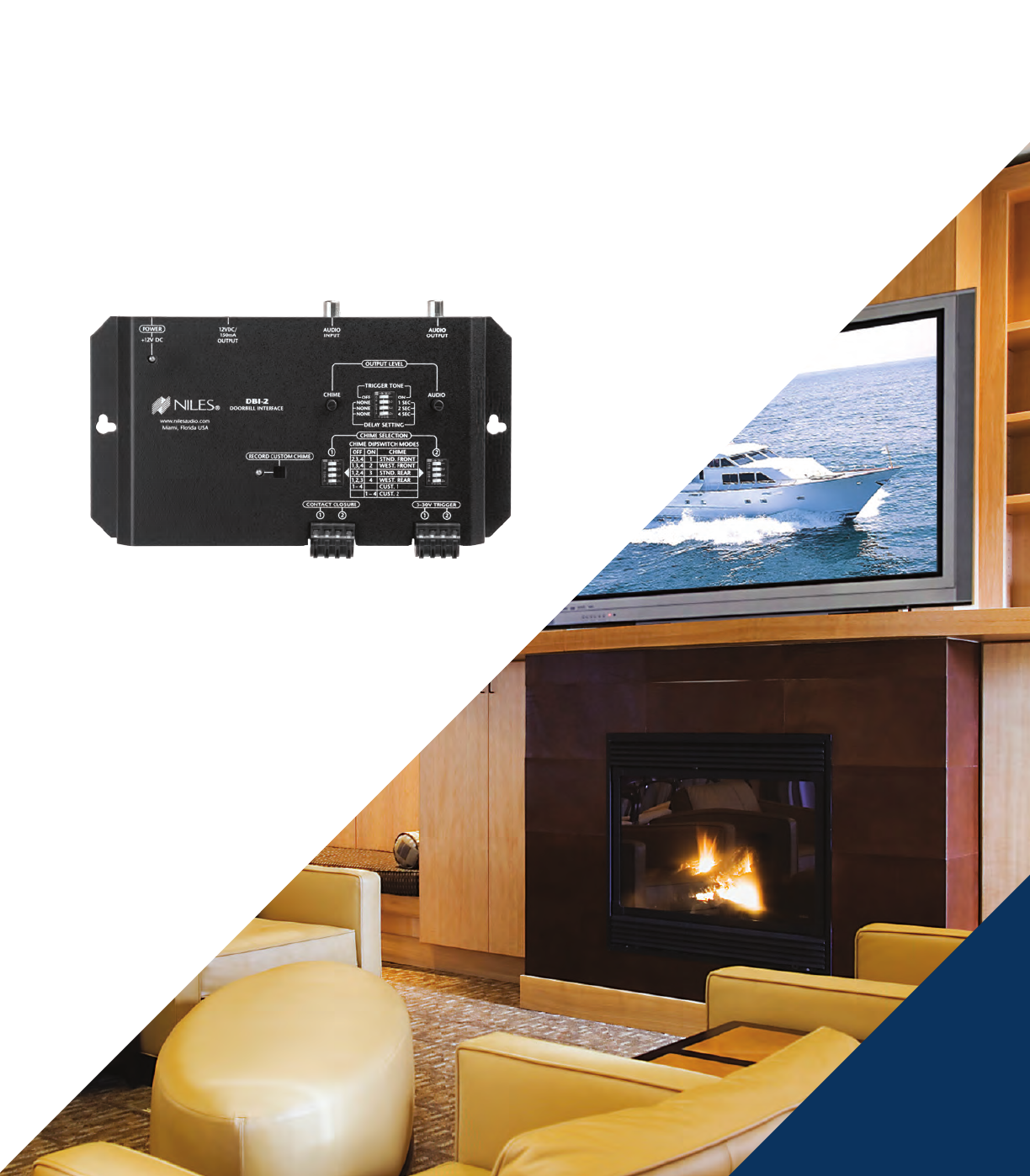

Integration Amplifiers. An optional Niles DBI-2 interface enables homeowners to route their doorbell
through the system, which temporarily mutes music so that the doorbell can be clearly heard in
every room. The updated user interface renders identically across devices and can be managed
from the nHR200 handheld remote, nKP7 keypad or nTP7/nTP4 touch panels, as well as
the iPhone®, iPad®, Android® phones & tablets, and Windows® or Mac® computers.
Once again, Niles has redefined whole home audio.
10 Home Control
![](asset-b.png)

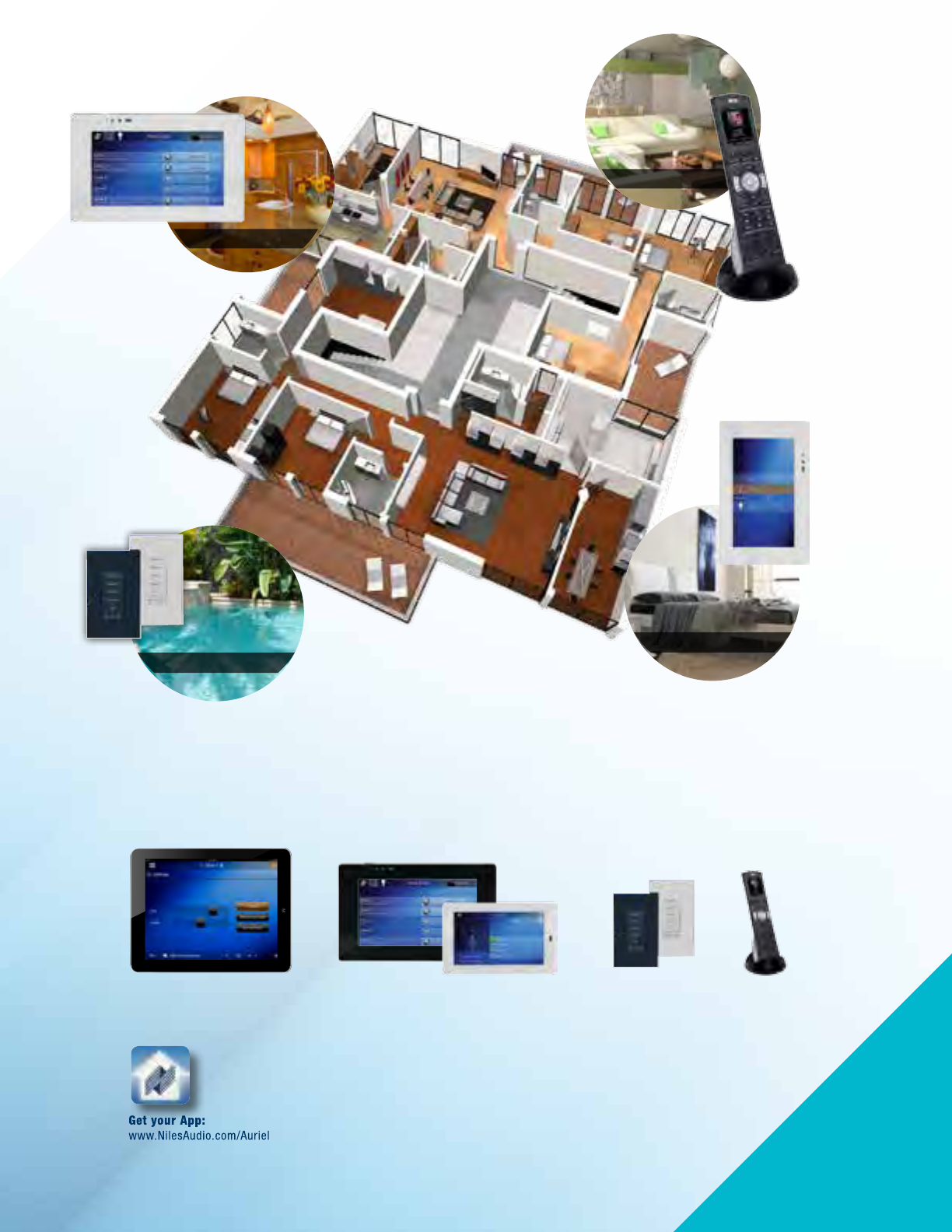

The Auriel ecosystem:
Simple, elegant audio, climate and lighting control.
Kitchen
Living Room
Pool & Patio
Bedroom
Use with your
favorite tablet.
nTP7, nTP4 touch panels.
Available in white or black.

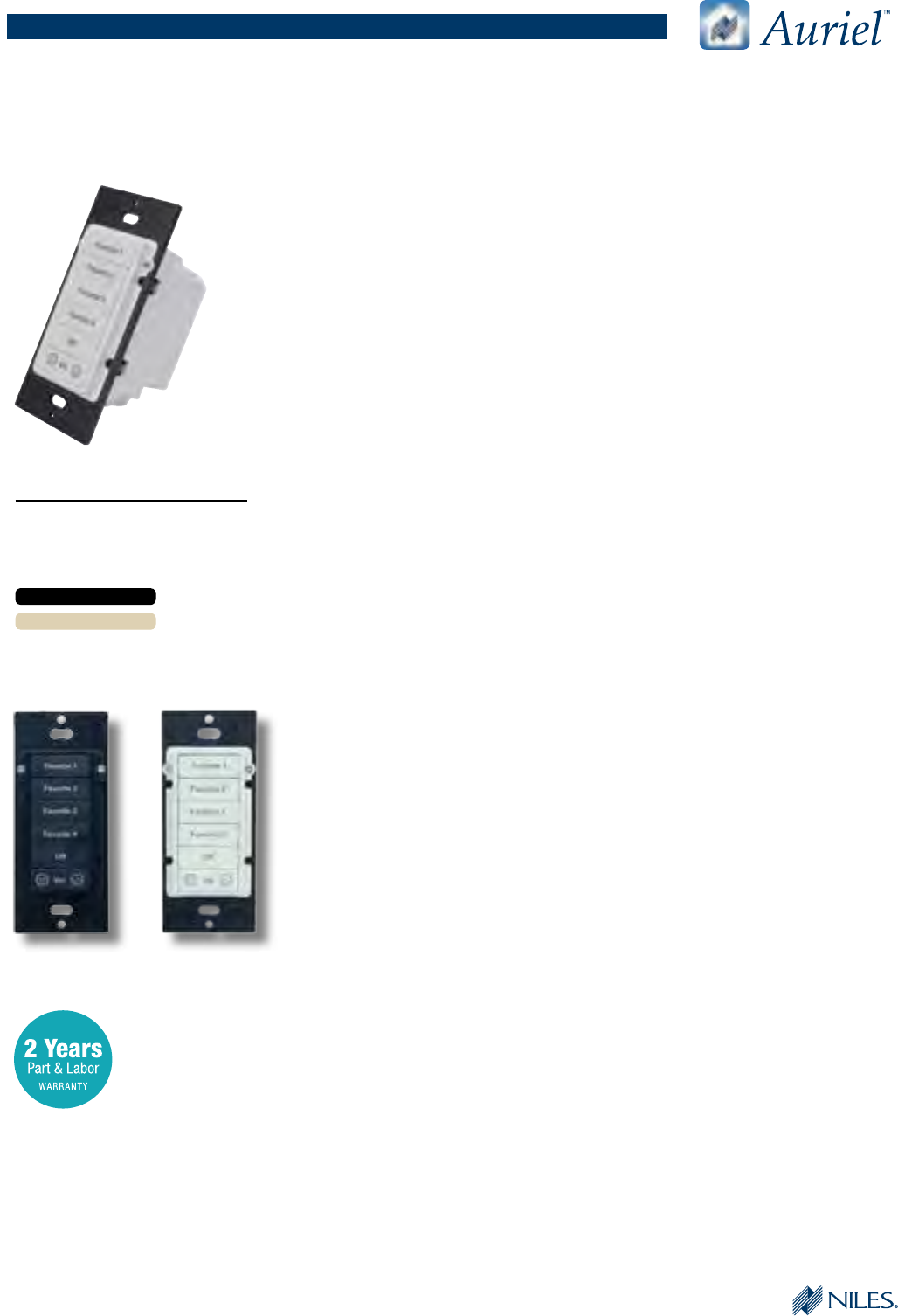

nKP7
Keypad
nHR200
Remote Control
nTP4
nHR200
nKP7
CALL 1-800-BUY-HIFI – www.nilesaudio.com 11
Home Control
nTP7
![](asset-c.png)
MULTI-ROOM AUDIO AND HOME CONTROL
MRC-6430
Seven-Source, Six-Zone
Multi-Room Audio Control for
the Next-Gen Home Installation
Model Stock Number
MRC-6430 MRC-6430
INCLUDED IN BOX
(1) MRC-6430
(1) US IEC power cord
(1) EU IEC power cord
FEATURES
■ Seven-Source, Six-Zone Multi-Room Controller: The Niles Auriel MRC-6430 independently
distributes up to seven audio sources (including one internal stream) to up to six zones.
■ Source Control: Two-way metadata, IP and IR control of a variety of popular devices.
Auriel includes an extensive pre-defined IR database.
■ Home Theater Control: Manage audio and video components using handheld remote or
mobile devices.
■ Easy Conguration: Tablet-based configuration eliminates hours of programming and
built-in Wizard easily configures user interfaces and user favorites in minutes.
■ Niles Interfaces: Provide a superior user experience with Niles remote, touch panel and keypads
■ Mobile App: iOS and Android applications control the Niles Auriel MRC-6430. (Free Download)
■ Best-in-Class Software Platform: Niles Auriel software platform scales for feature expansion.
■ TCP/IP: A simple backbone for control with no proprietary wiring.
■ Meta Data: When connected to compatible devices, Niles Auriel delivers metadata
to the industry’s widest selection of user interfaces.
■ Expandable to 12 Zones: Simply add another Niles Auriel MRC-6430 Controller
to create a system with twelve zones.
■ 8-CH High-Performance Digital Amplier: The advanced digital amplifiers deliver 30 watts
per channel to each zone. Low impedance capability (4Ω stable) provides speaker connection
flexibility and outstanding sound quality.
■ Pre-Out Connections: If you need more power, each zone features connections
for high powered amplifiers along with 2 unique pre-out only zones
■ Wide Selection of User Interfaces: Compatible with Niles handheld and wall mounted user
interfaces as well as Windows®- and Mac®- based computers and mobile devices.
■ System-Wide Audio Doorbell: When used with the Niles DBI-2 (Not included. See General
Products page 23), the Niles Auriel MRC-6430 automatically mutes the audio and plays doorbell
chimes through the system’s loudspeakers.
■ Extensive IR Code Library: Built into the controller and updated through the cloud. No IR
learning required.
■ System Conguration: Via tablet, Windows or Mac based computers
for quick and intuitive system set up.
■ Custom Tailored Sound: Independent bass, treble, and loudness controls enable
the customization of each zone to optimize performance.
SPECIFICATIONS
■ Dimensions: 17 1/4”W x 4 15/16”H x 12 7/8”D with feet (437 x 100 x 328 mm)
■Rackmount dimensions: 17 1/4”W x 3 1/2”H (2U) x 12 7/8”D without feet (437 x 88 x 328 mm)
■Weight: 18 lbs. (8,6 kg)
■Power Supply: 100-120 / 220-240 V~, 50 / 60 Hz
■Fuse Rating: T5 AL, 250 V~
■Power Consumption 200 W
■Amplifier Power Output: 30 watts/ch @ 8Ω / 45 watts/ch @ 4Ω
■THD: <0.10%, 1 watt output into 8Ω
■Signal to Noise Ratio: >100db, 20Hz-20kHz unweighted
■Audio Source Inputs: 6 – analog, RCA connectors
■Audio Zone Outputs: 6 – 4 Amp + Preamp, 2 Preamp Only
■Speaker Connections: (4) detachable, (4) pole terminals
■IR Outputs: 6 routable
■Ethernet: 1 RJ-45 10/100 BaseT
■USB: 1 Type-A
Warranty: Two years parts & labor
Shipping weight: 18 lb. (8,6 kg)
Two power cords on all units
(110V & 240V)
iOS
12 Home Control
![](asset-d.png)
APPLICATION STAND ALONE AURIEL MRC-6430 MULTIZONE CONTROLLER
Loudspeakers
Zone 1
Loudspeakers
Zone 2
Loudspeakers
Zone 3
Loudspeakers
Zone 4
POE Switch
nKP7nTP7
nTP4
Wireless Router
MRC-6430
Streaming Music Player
Set Top Box
AVR
Blu-Ray Player
Zone 6 - Outdoor Speakers
SI-2150
nHR200
TV
MEDIA
ROOM
TV HDMI In
DVD HDMI In
CD - In
Network Port
Zone 5 Aux In
MRC-6430 Multi Room Amplier Integrated with a Home
Theater System for unied control
CAT5
Stereo RCA
Flasher
Speaker Cable
HDMI
CALL 1-800-BUY-HIFI – www.nilesaudio.com 13
Home Control
![](asset-e.png)

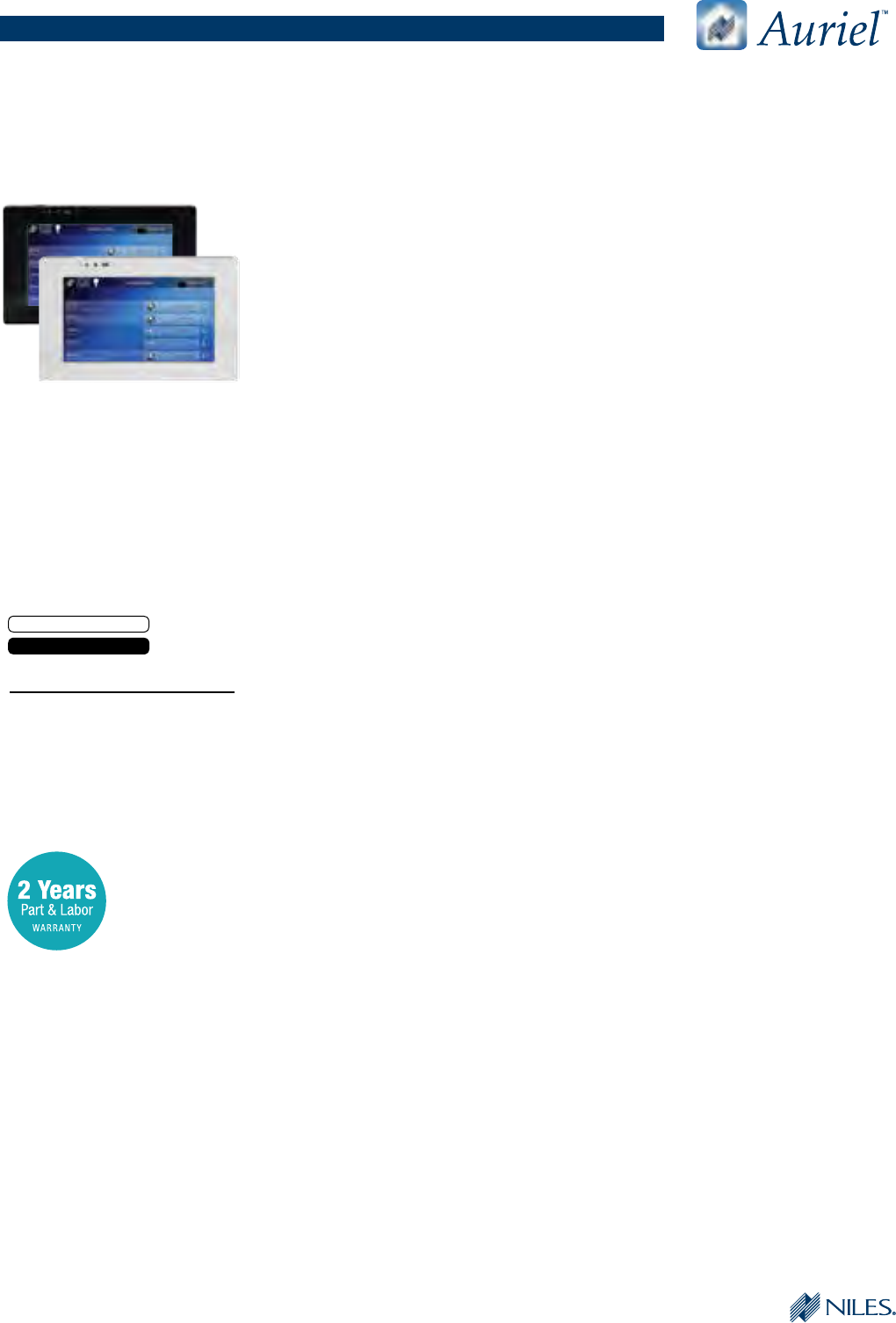

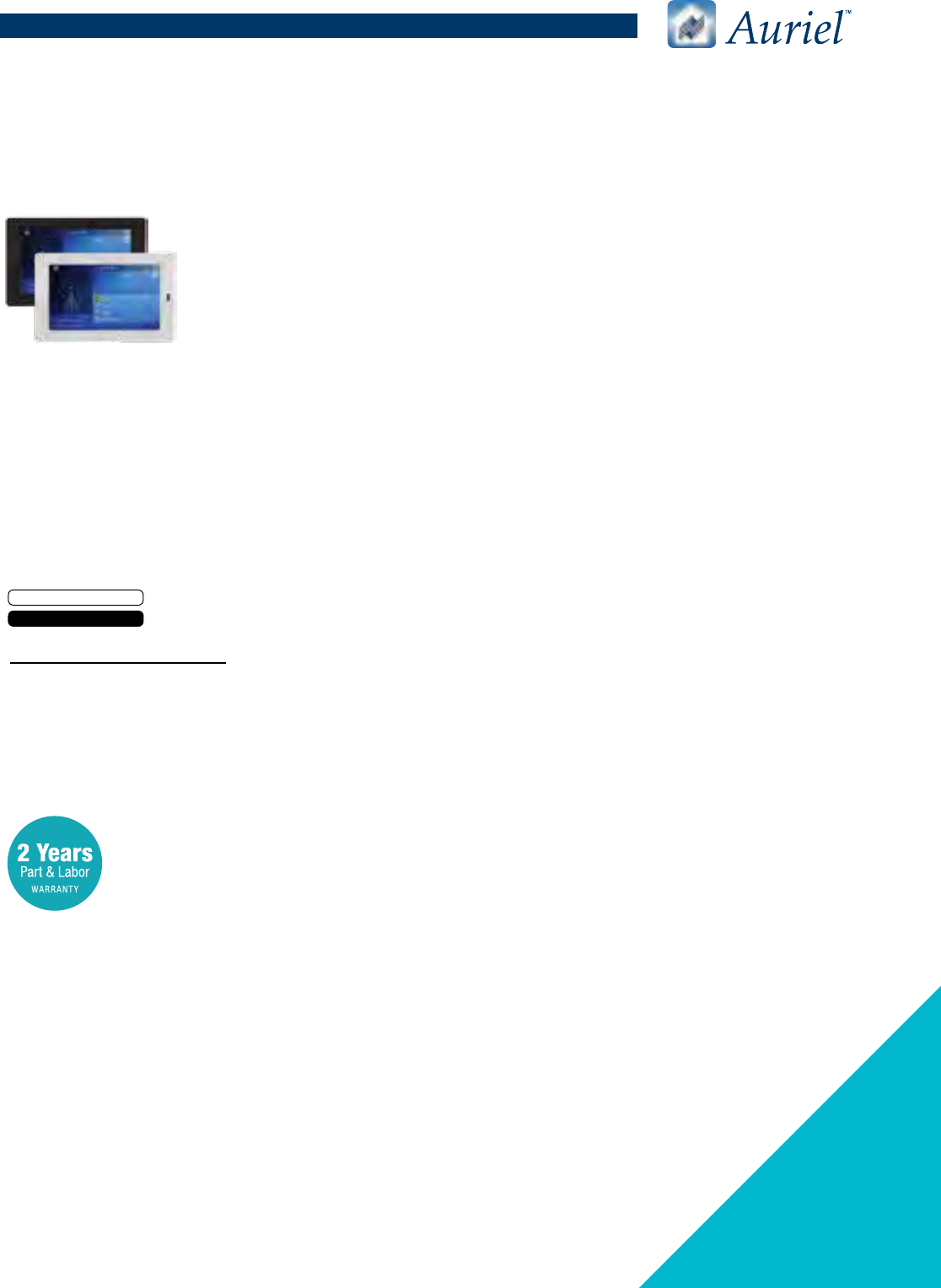

AURIEL MRC-6430 SYSTEM TOUCH PANELS
FEATURES
■ 7” diagonal viewable area LCD touchscreen interface
■ Contemporary, sleek design to match any interior
■ Edge to edge glass
■ High sensitive touchscreen
■ Proximity sensor to wake from sleep without touching as hand approaches
■ Mounts into drywall, brick, stone, plaster, wood using a standard 2g U.S. junction box
■ Portrait or landscape mounting
■ Single wire connection with PoE
■ Wi-Fi support
■ Plug and play operation with Niles Auriel Software
■ Locally powered (optional power supply required)
■ Available in White or Black bezel
■ One touch to music with the Auriel 7 button flyout
SPECIFICATIONS
■ Dimensions: Overall 8” wide x 5” height, mounting depth 1.75”
■Screen: size 7-inch diagonal, 16:9 widescreen
■Resolution: 800W x 480H
■Microphone: Dual Digital Beam Forming for Field Pickup
■Speaker: 2W integrated
■Camera: 640W x 480H
■Network: 10/100 Ethernet / 802.11 B/G/N WiFi
■2g (US) back box required
CONNECTIONS
■ Type: LAN/PoE: RJ-45
■USB: USB Type A (Future use)
■Audio Out: 1/8” stereo mini (Future Use)
POWER REQUIREMENTS
■PoE (Power over Ethernet) EEE 802.3at, 13w maximum draw (@48 V⎓270 mA max)
■ Direct: 12 V⎓, 1 A. Phoenix 2 pin screw terminal connector
INCLUDED IN BOX
(1) nTP7
(1) Mounting plate
(4) Mounting screws
Model Item Number
nTP7W white nTP7W
nTP7B black nTP7B
nTP7
Wall-Mount Touchscreen
Niles Auriel Control System
for the Next-Gen Home Installation
Warranty: Two years parts & labor
Shipping weight: 2.61 lb. (1.18 kg)
Available in 2 colors:
white
black
14 Home Control
![](asset-f.png)
AURIEL MRC-6430 SYSTEM TOUCH PANELS
FEATURES
■ 4.7” diagonal viewable area LCD touchscreen interface
■ Contemporary, sleek industrial design
■ Edge to edge glass
■ Capacitive sense touchscreen
■ Proximity sensor to wake from sleep without touching as hand approaches
■ Supports TCP/IP communication
■ Mounts into drywall, brick, stone, plaster, and wood,
using a standard 1g US or UK junction box
■ Portrait or landscape mounting
■ Plug and play operation with Niles Auriel Software
■ Locally powered (optional)
■ Available in white and black bezel
■ One touch to music with the Auriel 7 button flyout
SPECIFICATIONS
■ Dimensions: Overall 3.2” wide x 5.2” height, mounting depth 0.8”
■Screen: 4.7-inch diagonal, 16:9 widescreen
■Resolution: 540 x 960
■Microphone: Single Digital, Near Field Pickup
■Speaker: 1W integrated
■Network: 10/100/1000 Ethernet
■2g (US) back box required
CONNECTIONS
■ Type: LAN/PoE: RJ-45
■USB: Micro AB
■Audio Out: 1/8” stereo mini (Future Use)
POWER REQUIREMENTS
■IEEE 802.3at, (power over Ethernet) 13W maximum draw (@48V 270 mA max)
■ 9-12V 2A maximum
INCLUDED IN BOX
(1) nTP4
(1) Mounting plate
(4) Mounting screws
Model Item Number
nTP4W white nTP4W
nTP4B black nTP4B
nTP4
Wall-Mount Touchscreen
Niles Auriel Control System
for the Next-Gen Home Installation
Warranty: Two years parts & labor
Shipping weight: 0.71 lb. (0.32 kg)
Available in 2 colors:
white
black
CALL 1-800-BUY-HIFI – www.nilesaudio.com 15
Home Control
![](asset-10.png)
AURIEL MRC-6430 SYSTEM KEYPADS
nKP7
7-Button Keypad
Niles Auriel Control System
for the Next-Gen Home Installation
Model Stock Number
nKP7BK-B nKP7BK-B
nKP7BKLA nKP7BK-LA
FEATURES
■ 7-button backlit keypad
■ Four favorite channels plus volume up and down control, local & all zones off
■ POE for single wire hookup
■ No programming required – plug and play operation with Niles Auriel Software
■ Custom engraveable buttons
■ Gangable with any decorator format devices
■ Comes in white with optional black or light almond bezel button kit
■ One touch to music
■NOTE: Decorator trim plate not included
SPECIFICATIONS
■ Dimensions: 4.12” x 1.75” x 1.24”
■ Mounting Depth: 1.75”
■ Button type:
• Contact type buttons
• 5 individually capped
• 2 shared for rocker capping
• 5 individually controlled white LEDs for backlighting
• 2 shared control white LEDs for backlighting
• 10/100/1000 Ethernet
■ Connections: LAN/ PoE RJ-45
■ Power Requirements: PoE (Power over Ethernet) EEE
802.3at, 13w maximum draw (@44 V⎓350mA max)
INCLUDED IN BOX
(1) nKP7 single gang keypad with white Favorite 1-4, Off and \/ /\ buttons installed
(2) Mounting screws, (1) Quick Install Guide, (1) Alternate button pack
AVAILABLE SEPARATELY
nKP7BK-LA – Light Almond color change kit
nKP7BK-B – Black color change kit
Custom Engraved Buttons: visit www.NilesAudio.com/engraving
ships in white only
Warranty: Two years parts & labor
Shipping weight: 0.5 lb. (0.23 kg)
Optional color change kits:
black
Light Almond
Comes in white with optional
black or light almond bezel kit
16 Home Control
![](asset-11.png)
AURIEL MRC-6430 SYSTEM REMOTE CONTROL
nHR200
Handheld Remote Control
Home Theater & Multizone wireless control
for the MRC-6430
FEATURES
■ All the speed, response & graphics of a touchscreen
■ Controls AV sources with metadata feedback for supported devices
■ Plug and play operation with Niles Auriel Software
■ 46 backlit tactile buttons for common functions found on today’s audio/video sources
■ 2.4” LCD display
■ Accelerometer for activating LCD and backlight
■ Slim profile for ease of use and comfort
■ Uses instant-on Wi-Fi for communication
■ IR blaster for line-of-sight control
■ Ships standard with battery, charging base, power supply, and USB Cable
SPECIFICATIONS
■ Screen Size: 2.4” diagonal
■Viewing angle: 140°up/down/left/right
■Operating Temperature: 32°F-104°F / 0°C-40°C
LCD DISPLAY
■ Type: 18 bit, 2.4” Active Matrix LCD
■Colors: 262K
■Resolution: 240 W x 320 H
CONNECTIONS
■ Download: Port: Mini USB
■Power Requirements: 16vdC/1.87A
■Dimensions – Cradle: (in.) 2-1/4 W x 9-1/8 h x 7/8 d (mm) 57 W x 232 H x 23 D
■Product Weight: 6.9 oz./0.19kg
■Charging Cradle Weight: 6.7 oz./0.18kg
INCLUDED IN BOX
(1) nHR200
(1) Charging base
(1) Power transformer
(1) Quick Access Instructions
(1) Programming cable
(1) Rechargeable battery pre-installed
Model Item Number
nHR200 nHR200
Warranty: Two years parts & labor
Shipping Weight 2.3 lb./1.04kg
CALL 1-800-BUY-HIFI – www.nilesaudio.com 17
Home Control
![](asset-12.png)
Niles Systems Integration Amplifiers® are renowned for delivering superb sound and reliability along with feature sets that are
tailored to the needs of the custom installer. This powerful line consists of a 16-channel, 12-channel and three 2-channel
models—covering the gamut of configurations, power requirements and price points. With installer-friendly features including
new web-browser configuration, high output/bridgeable mode, and a BusMatrix Selector™, the line offers capabilities to
allow installers to adapt to any installation. By including features like multi-speaker stability, multiple turn-on modes,
and independent level controls. From a single zone or an entire home, there’s a Niles Systems Integration Amplifier
for the job.
SYSTEMS INTEGRATION AMPLIFIERS
Power, Stability &
Installation Friendly Features
18 Home Control
![](asset-13.png)
WEB BASED IP CONFIGURATION
The SI-1650’s Web browser conguration tool allows you to
assign any of the 16 inputs or combination of inputs to any
channel output for ultimate control. The conguration tool
also gives you precise line level audio controls, output
presets, selectable high output modes; any stereo pair to a
single 100W high power channel (8ch, 100W per/ch) and
selectable high pass and low pass lter for use with
subwoofers. Additionally you can save your settings to use
on your next installation, saving you time and money every
time you install one.
FREEDOM FROM NOISE AND CROSS-TALK
Niles incorporates advanced PCB construction ensuring
extremely high channel to channel isolation. Signal to noise
ratios and cross-talk are equivalent to a professional mixing
board found in a recording studio.
THE BUSMATRIX® SELECTOR
Each channel has a selection of four options: left bus,
right bus, left plus right bus (summed stereo), or the
channel’s dedicated input . The BusMatrix Selector is
now congurable via a web browser in the SI-1650.
MULTIPLE TURN-ON MODES
Three turn-on modes provide both reliability and exibility
when conguring the amplier to power on and off. They
include music sense, voltage trigger and manual mode.
CURRENT FOR REACTIVE LOADS
The high current design of the Niles System Integration
Ampliers assures that even unusual and reactive loads are
handled with ease.
INDEPENDENT LEVEL CONTROLS
Installer-adjustable level controls for every channel are
provided.
CHANNEL BRIDGING
Increase output power for demanding loads and high-
sound-pressure levels.
TRANSPARENT SOUND
The audio circuitry of the Niles System Integration Ampliers
is constructed using the nest parts available; including 1%
metal lm resistors, high quality capacitors, and oversized
heat sinks. All this attention to technical detail creates a
sound that is clear and uncolored with phenomenal imaging.
FEATURES
16-CHANNEL
SI-1650
SI-1230
Series 2
SI-2150
SI-2100
SI-250
2-CHANNEL
12-CHANNEL
CALL 1-800-BUY-HIFI – www.nilesaudio.com 19
Home Control
![](asset-14.png)
SYSTEM INTEGRATION AMPLIFIERS
SI-1650
16-Channel, TCP/IP, Fully Configurable
Power Amplifier; 16 x 50 Watts
Model Stock Number
SI-1650 FG01705
FEATURES
■ Fully configurable 16-Channel amplifier
■ 50 watts RMS per channel into 8 Ohms
■ 100 watts RMS per channel into 4 Ohms
■ High power mode configuration of channel pairs to create up
to 8 channels x 100 Watt RMS into 8 Ohms
■ Unique web browser configuration allows each channel to select from any of 16 inputs or
combination of inputs
■ IP web-based configurable EQ adjustment, volume level and high/low pass selection
■IP web-based configurable BusMatrix™ selector allows each channel to select from 4 options:
left bus, right bus, left plus right bus (summed stereo), or the channel’s dedicated input
■ Three turn-on modes: music sense, voltage trigger, and manual
■ Audio circuitry constructed with the finest parts available, including 1% metal film resistors,
high quality capacitors and oversized heat sinks for clear and uncolored sound
■ Independent thermal and short circuit protection on each channel
■ Status display for troubleshooting
SPECIFICATIONS
■ Voltage trigger input accepts 3-24VAC/DC
■ 12-volt control out
■ Removable line cord
■ Two year limited warranty
■ Conforms to UL/CSA 60065
■ Overall dimensions:
17.25” (43.81cm) wide
5.75” (14.47cm) high (including feet)
16.25” (41.11cm) de ep
■ 3U Rack mount without feet
■ Weight: 35 lb. (15.8 kg)
Warranty: Two-year limited
Shipping weight: 41.75 lb. (18.9 kg)

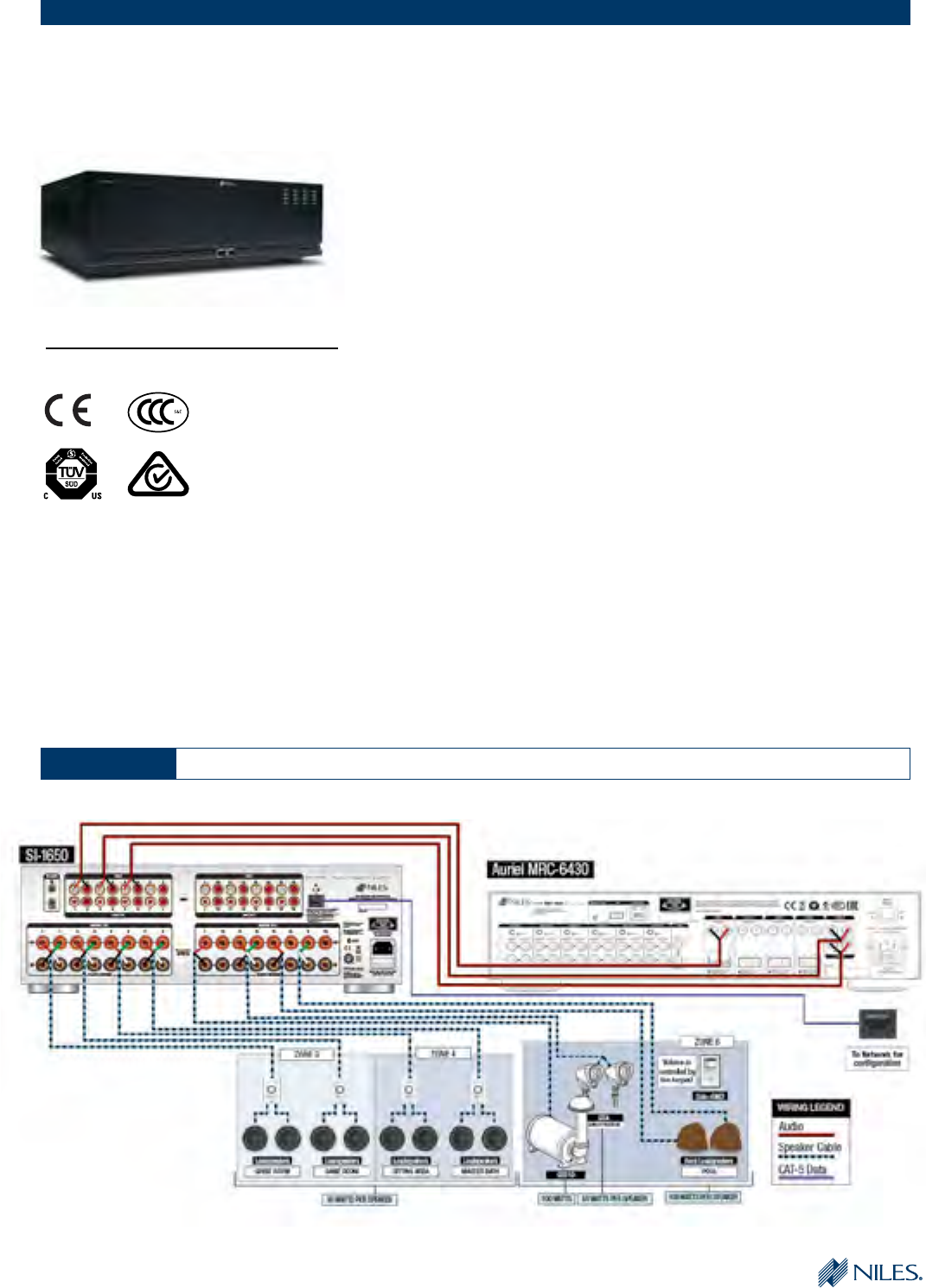

APPLICATION MUSIC EVERYWHERE WITH A MULTIZONE RECEIVER AND A HIGH-POWER 16-CHANNEL AMPLIFIER
INCLUDED IN BOX
(1) SI-1650
(1) US IEC power cord
(2) Rack Mount Ears
20 Home Control
![](asset-15.png)

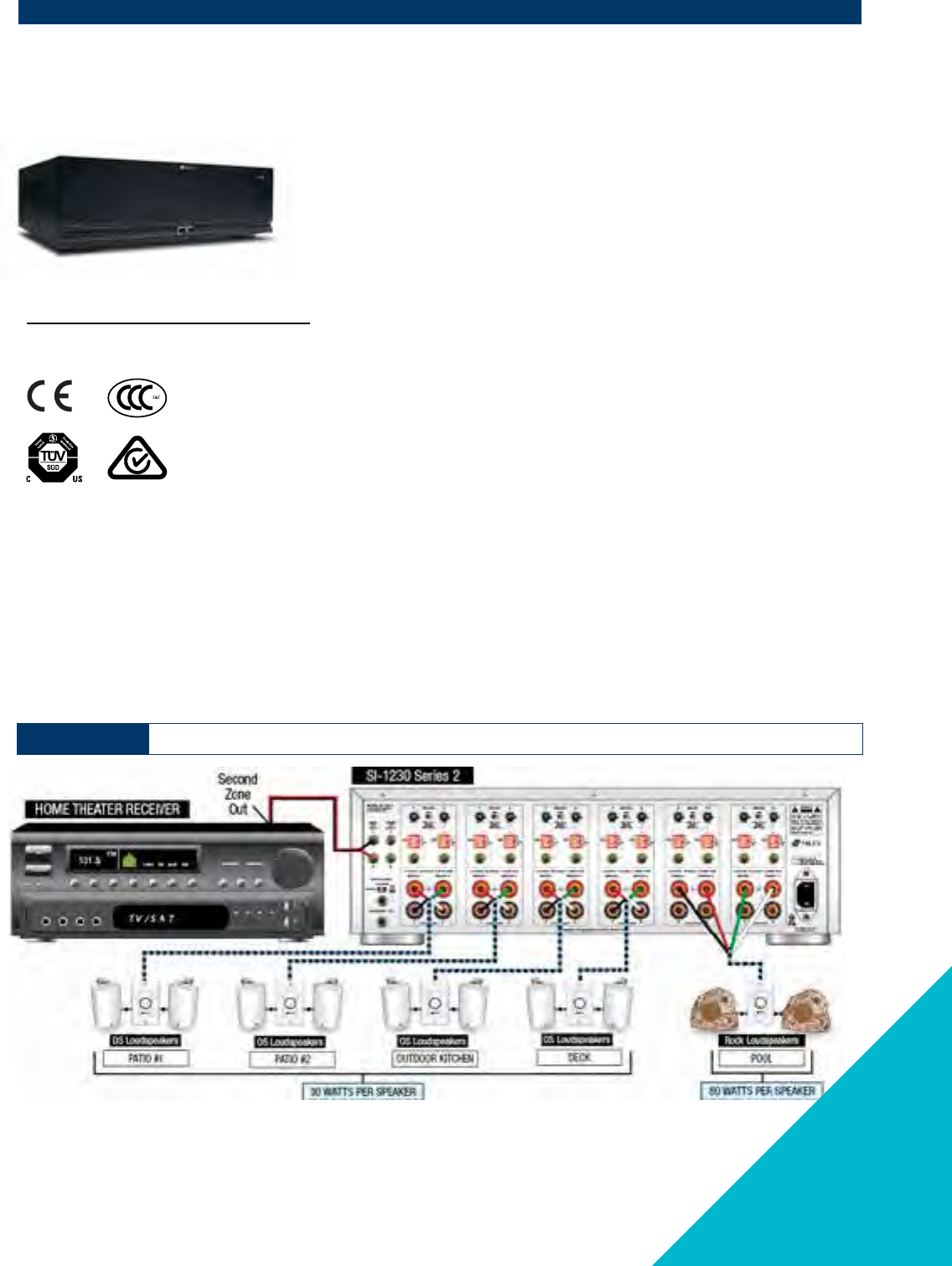

SYSTEM INTEGRATION AMPLIFIERS
FEATURES
■ All channels are stable into low-impedance loads (4 ohms)
■ Fully configurable 12-Channel amplifier
■ 30 watts RMS per channel into 8 Ohms (all channels driven)
■ 40 watts RMS per channel into 4 Ohms (all channels driven)
■ Adjacent channels are bridgable to 80 watts RMS into 8 Ohms (all channels driven)
■ Unique BusMatrix™ selector allows each channel to select from 4 options: left bus, right
bus, left plus right bus (summed stereo), or the channel’s dedicated input
■ Three turn-on modes: music sense, voltage trigger, and manual
■ Audio circuitry constructed with the finest parts available, including 1% metal film resistors,
high quality capacitors and oversized heat sinks for clear and uncolored sound
■ Independent level controls for all 12 channels
■ Status display for troubleshooting
SPECIFICATIONS
■ Voltage trigger input accepts 3-24VAC/DC
■ 12-volt control out
■ Removable line cord
■ Two year limited warranty
■ Conforms to UL/CSA 60065
■ Overall dimensions:
17.25” (43.81cm) wide
5.75” (14.47cm) high (including feet)
16.25” (41.11cm) de ep
■3U Rack mount without feet
■ Weight: 35 lb. (15.8 kg)
Warranty: Two-year limited
Shipping weight: 41.75 lb. (18.9 kg)
SI-1230 SERIES 2
12-Channel, Fully Configurable Power
Amplifier; 12 x 30 Watts
Model Stock Number
SI-1230 FG01704
APPLICATION MUSIC OUTDOORS IN MULTIPLE AREAS WITH A 12-CHANNEL AMPLIFIER
INCLUDED IN BOX
(1) SI-1230 Series 2
(1) US IEC power cord
(2) Rack Mount Ears
CALL 1-800-BUY-HIFI – www.nilesaudio.com 21
Home Control
![](asset-16.png)

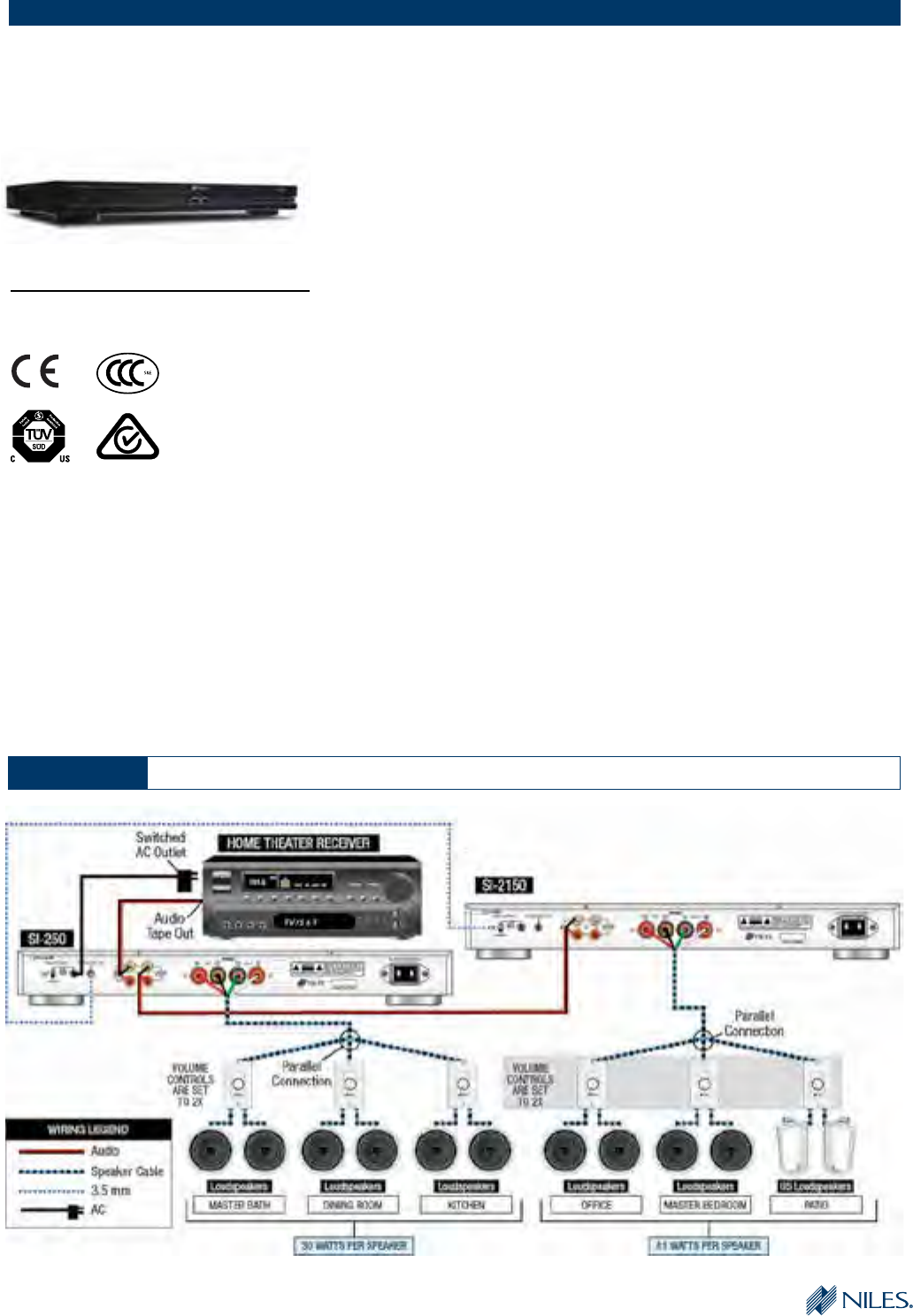

SYSTEM INTEGRATION AMPLIFIERS
F E ATU R E S
■ Digital, high current bridgeable stereo amplifier
■150 watts RMS per channel into 8 Ohms (all channels driven)
■ 270 watts RMS per channel into 4 Ohms (all channels driven)
■ Channels are bridgeable to 550 watts RMS into 8 Ohms
■ Three turn-on modes: music sense, voltage trigger, and manual
■ Voltage trigger input accepts 3-24VAC/DC
■ Audio circuitry constructed with the finest parts available,
including 1% metal film resistors, high quality capacitors and
oversized heat sinks for clear and uncolored sound
■ Independent level controls
SPECIFICATIONS
■ Voltage trigger input accepts 3-24 VAC/DC
■ 12-volt control out
■ Removable line cord
■ Two year limited warranty
■ Conforms to UL/CSA 60065
■ Overall dimensions:
17 ¼” (43.81 cm) wide
2 ¼” (5.6 cm) high (including feet)
13 ½” (34.35 cm) deep
■1U Rack mount without feet
■ Weight: 10.8 lb. (4.9 kg)
Warranty: Two-year limited
Shipping weight: 13.95 lb. (6.3 kg)
SI-2150
2-Channel, Bridgeable Power Amplifier;
2 x 150 Watts
Model Stock Number
SI-2150 FG01703

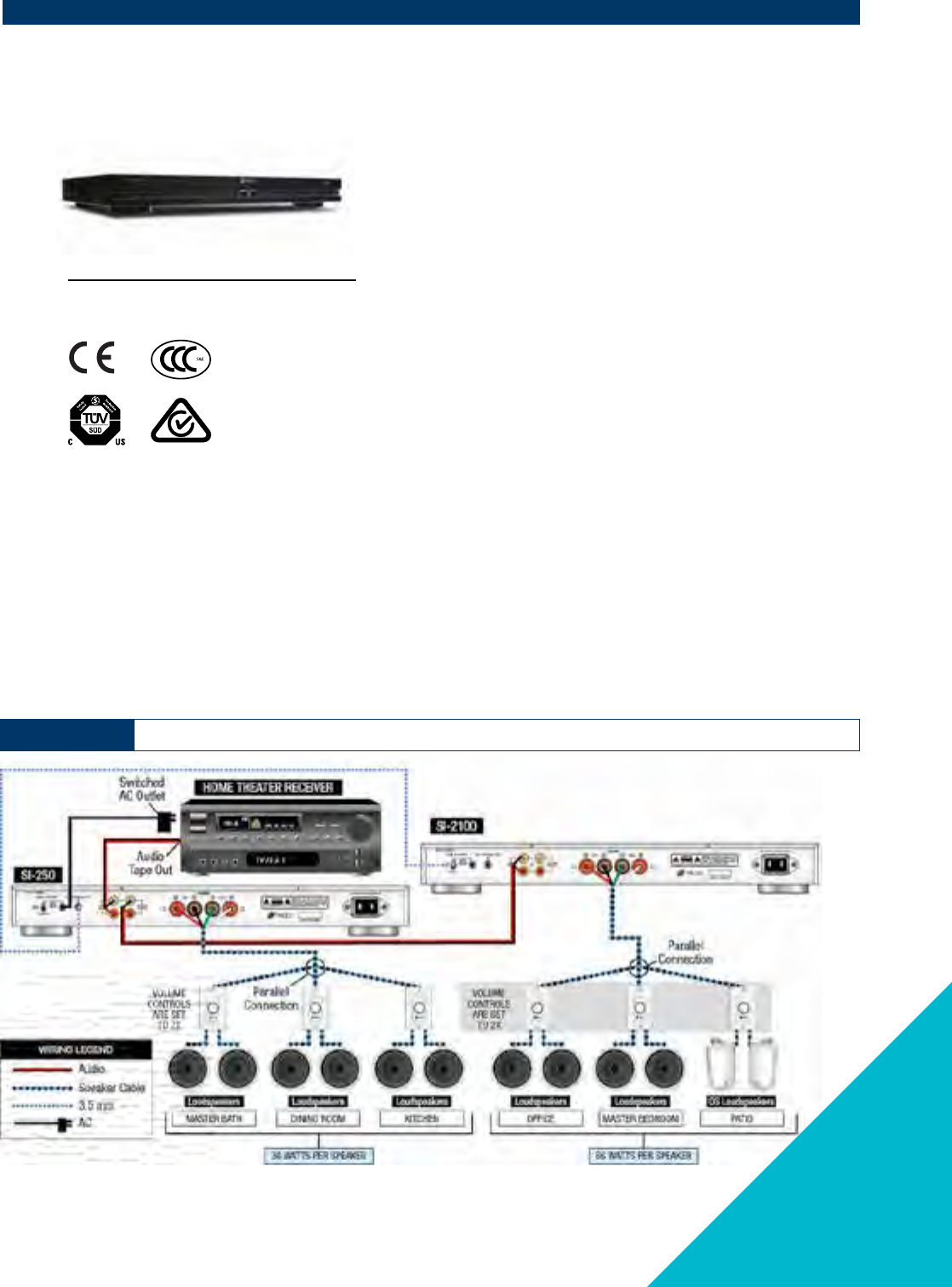

APPLICATION CASCADE TO INCREASE POWER IN CRITICAL AREAS
INCLUDED IN BOX
(1) SI-2150
(1) US IEC power cord
(2) Rack Mount Ears
22 Home Control
![](asset-17.png)
SYSTEM INTEGRATION AMPLIFIERS
FEATURES
■ Digital, high current bridgeable stereo amplifier
■100 watts RMS per channel into 8 Ohms (all channels driven)
■ 220 watts RMS per channel into 4 Ohms (all channels driven)
■ Channels are bridgeable to 400 watts RMS into 8 Ohms
■ Three turn-on modes: music sense, voltage trigger, and manual
■ Voltage trigger input accepts 3-24VAC/DC
■ Audio circuitry constructed with the finest parts available,
including 1% metal film resistors, high quality capacitors and
oversized heat sinks for clear and uncolored sound
■ Independent level controls
SPECIFICATIONS
■ Voltage trigger input accepts 3-24 VAC/DC
■ 12-volt control out
■ Removable line cord
■ Two year limited warranty
■ Conforms to UL/CSA 60065
■ Overall dimensions:
17 ¼” (43.81 cm) wide
2 ¼” (5.6 cm) high (including feet)
13 ½” (34.35 cm) deep
■1U Rack mount without feet
■ Weight: 10.8 lb. (4.9 kg)
Warranty: Two-year limited
Shipping weight: 14 lb. (6.33 kg)
SI-2100
2-Channel, Bridgeable Power Amplifier;
2 x 100 Watts
Model Stock Number
SI-2100 FG01702
APPLICATION CASCADE TO INCREASE POWER IN CRITICAL AREAS
INCLUDED IN BOX
(1) SI-2100
(1) US IEC power cord
(2) Rack Mount Ears
CALL 1-800-BUY-HIFI – www.nilesaudio.com 23
Home Control
![](asset-18.png)
SYSTEM INTEGRATION AMPLIFIERS
FEATURES
■ Digital, high current bridgeable stereo amplifier
■50 watts RMS per channel into 8 Ohms (all channels driven)
■ 100 watts RMS per channel into 4 Ohms (all channels driven)
■ Channels are bridgeable to 225 watts RMS into 8 Ohms
■ Three turn-on modes: music sense, voltage trigger, and manual
■ Voltage trigger input accepts 3-24VAC/DC
■ Audio circuitry constructed with the finest parts available,
including 1% metal film resistors, high quality capacitors and
oversized heat sinks for clear and uncolored sound
■ Independent level controls
SPECIFICATIONS
■ Voltage trigger input accepts 3-24 VAC/DC
■ 12-volt control out
■ Removable line cord
■ Two year limited warranty
■ Conforms to UL/CSA 60065
■ Overall dimensions:
17 ¼” (43.81 cm) wide
2 ¼” (5.6 cm) high (including feet)
13 ½” (34.35 cm) deep
■1U Rack mount without feet
■ Weight: 10.8 lb. (4.9 kg)
Warranty: Two-year limited
Shipping weight: 14 lb. (6.35 kg)
SI-250
2-Channel, Bridgeable Power Amplifier;
2 x 50 Watts
Model Stock Number
SI-250 FG01701
APPLICATION INCREASE POWER IN CRITICAL OUTDOOR AREAS
INCLUDED IN BOX
(1) SI-250
(1) US IEC power cord
(2) Rack Mount Ears
24 Home Control
![](asset-19.png)
Stock No. Model Part Description Unit MC
AURIEL MRC-6430 AUDIO RECEIVER
MRC-6430 MRC-6430 Multi-Room Controller with Home Theater Control EA 1
AURIEL MRC-6430 SYSTEM
nTP4B nTP4B 4” Wall-Mount Touchscreen Black EA 40
nTP4W nTP4W 4” Wall-Mount Touchscreen White EA 40
nTP7B nTP7B 7” Wall-Mount Touchscreen Black EA 10
nTP7W nTP7W 7” Wall-Mount Touchscreen White EA 10
nKP7 nKP7 7-Button Keypad EA 20
nKP7-B nKP7 Button Kit Buton Kit for nKP7 Black EA 30
nKP7-LA nKP7 Button Kit Buton Kit for nKP7 Light Almond EA 30
nHR200 nHR200 Handheld Remote Control EA 10
MULTICHANNEL POWER AMPLIFIERS
FG01705 SI-1650 16-Channel, TCP/IP, Fully Configurable Power Amplifier; 16 x 50 Watts EA 1
FG01704 SI-1230 SERIES 2 12-Channel, Fully Configurable Power Amplifier; 12 x 30 Watts EA 1
FG01703 SI-2150 Two-Channel, Bridgeable Power Amplifier; 2 x 150 Watts EA 2
FG01702 SI-2100 Two-Channel, Bridgeable Power Amplifier; 2 x 100 Watts EA 2
FG01701 SI-250 Two-Channel, Bridgeable Power Amplifier; 2 x 50 Watts EA 2
QUICK REFERENCE GUIDE
CALL 1-800-BUY-HIFI – www.nilesaudio.com 25
Home Control
![](asset-1a.png)
LOUDSPEAKERS
Speaker solutions that fit every
need and every design
Niles has always been at the forefront of developing reliable, application-
specific products that enable professional custom installers to design
and install systems that delight customers. For almost four decades
NILES has been innovating solutions that deliver easy access to
home entertainment and integrates seamlessly with the home
for a connected experience.
26 Loudspeakers
![](asset-1b.png)
NILES APPLICATION SPECIFIC
LOUDSPEAKERS
Overview ..................................28
DS DIRECTED SOUNDFIELD™
CEILING-MOUNT LOUDSPEAKERS
Overview ..................................30
7” Models & Accessories ......................32
8” Models & Accessories ......................34

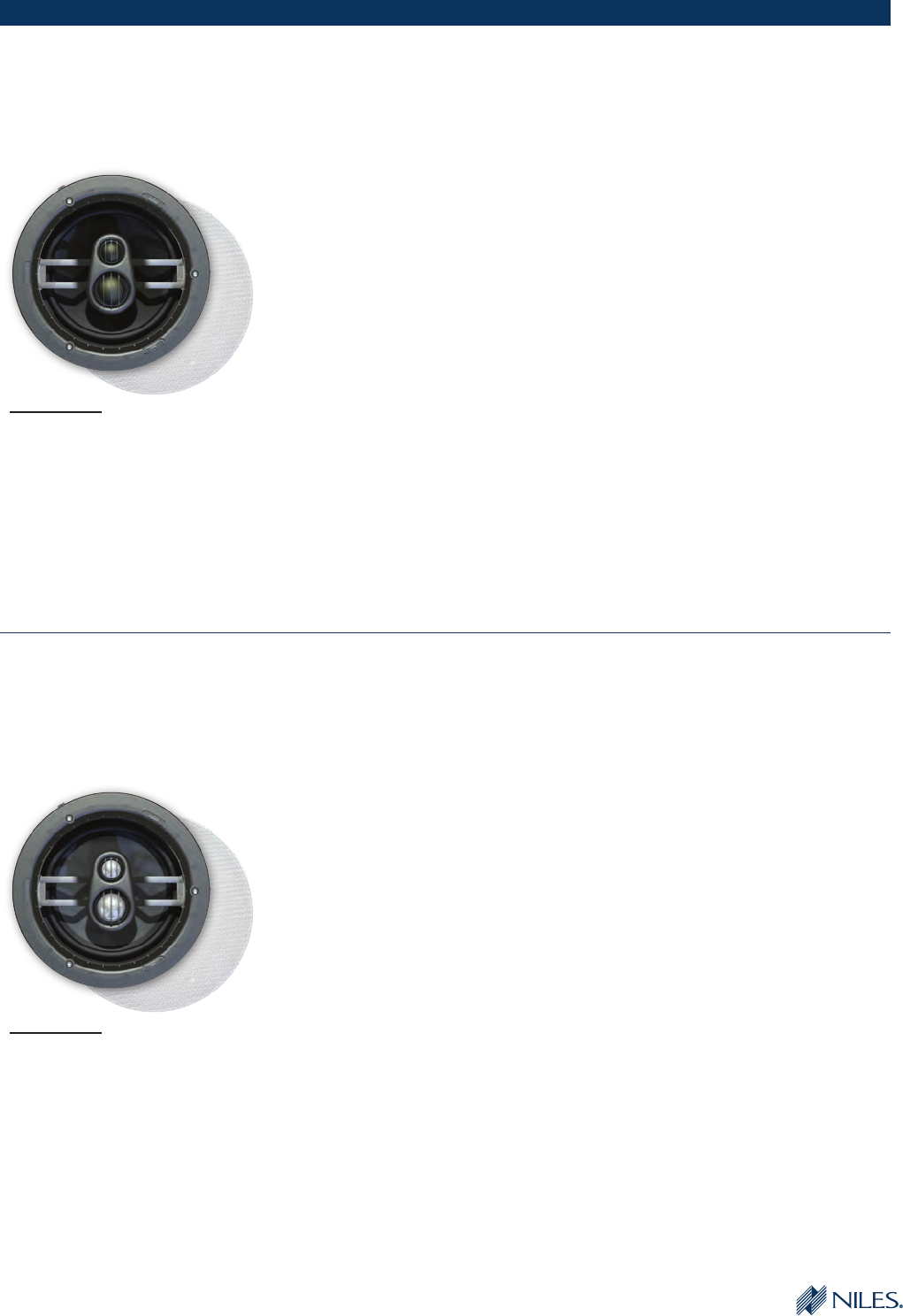

CEILING-MOUNT LOUDSPEAKERS
Overview ..................................36

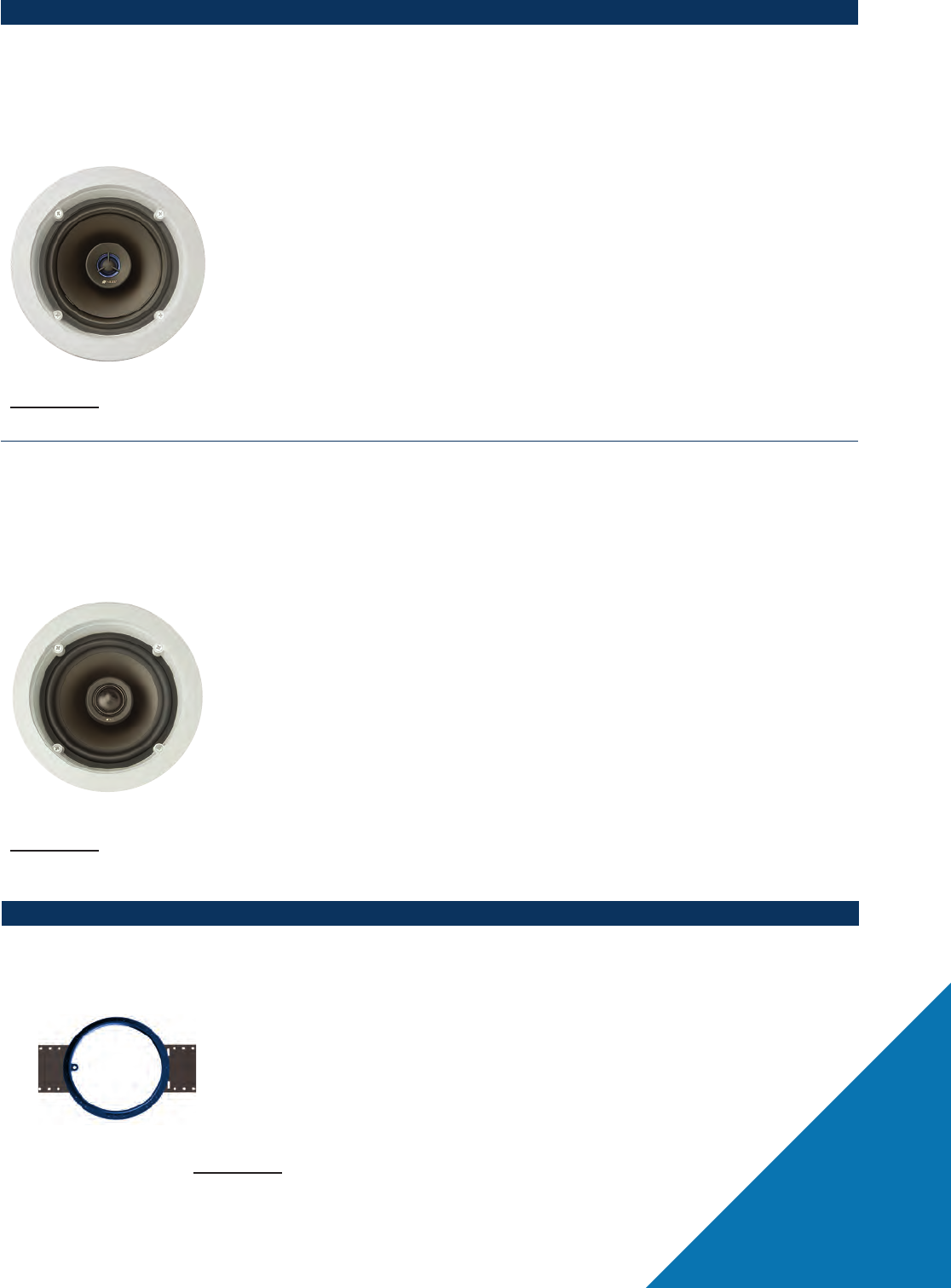

4” Models ..................................38
6” Models ..................................38

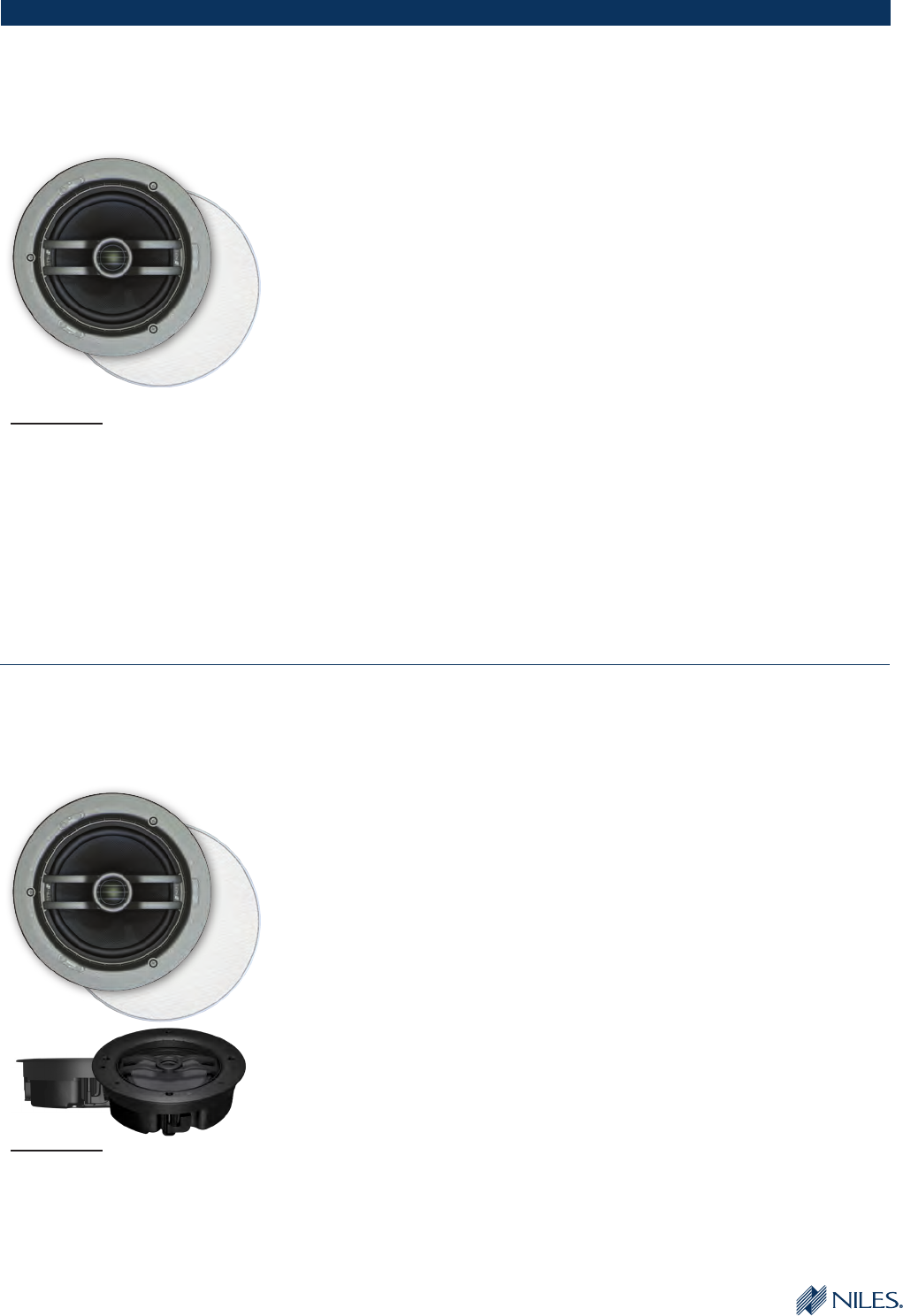

7” Models ..................................40
8” Models ..................................44

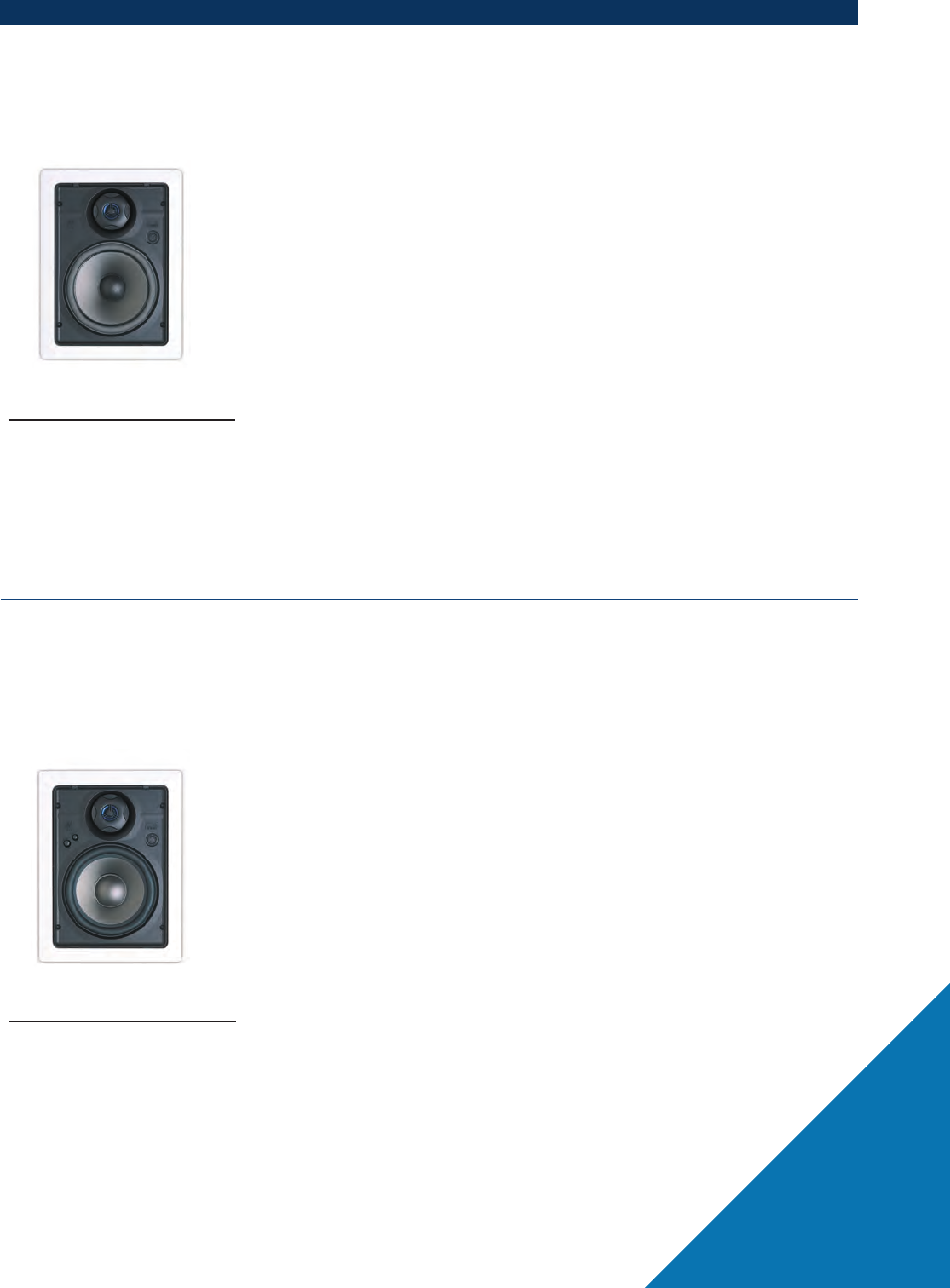

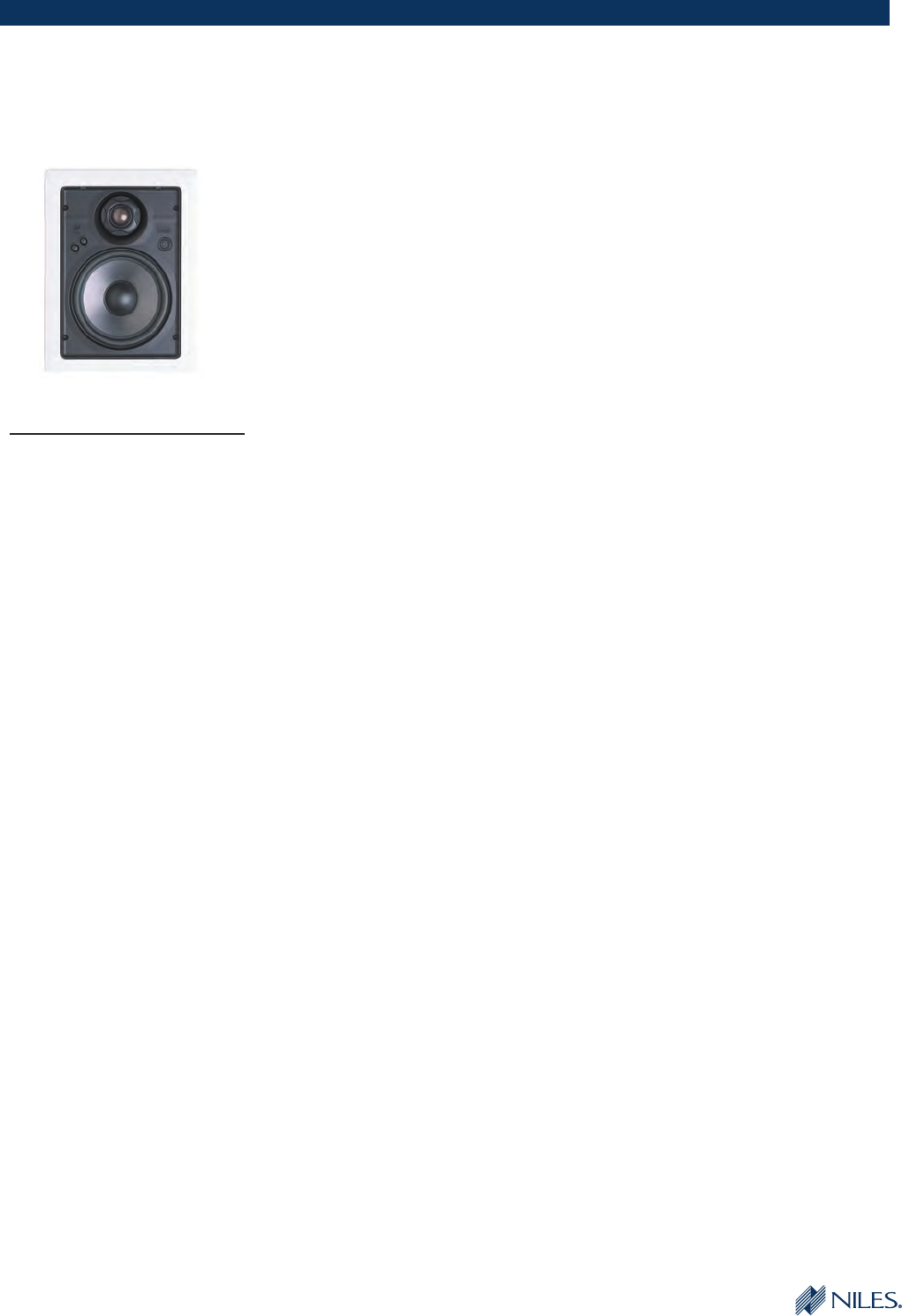

IN-WALL LOUDSPEAKERS
Overview ..................................46
5” Models ..................................48
6” Models ..................................49
8” Models ..................................51
Accessories ................................51
HD HIGH-DEFINITION LOUDSPEAKERS
Overview ..................................52
All Models .................................54

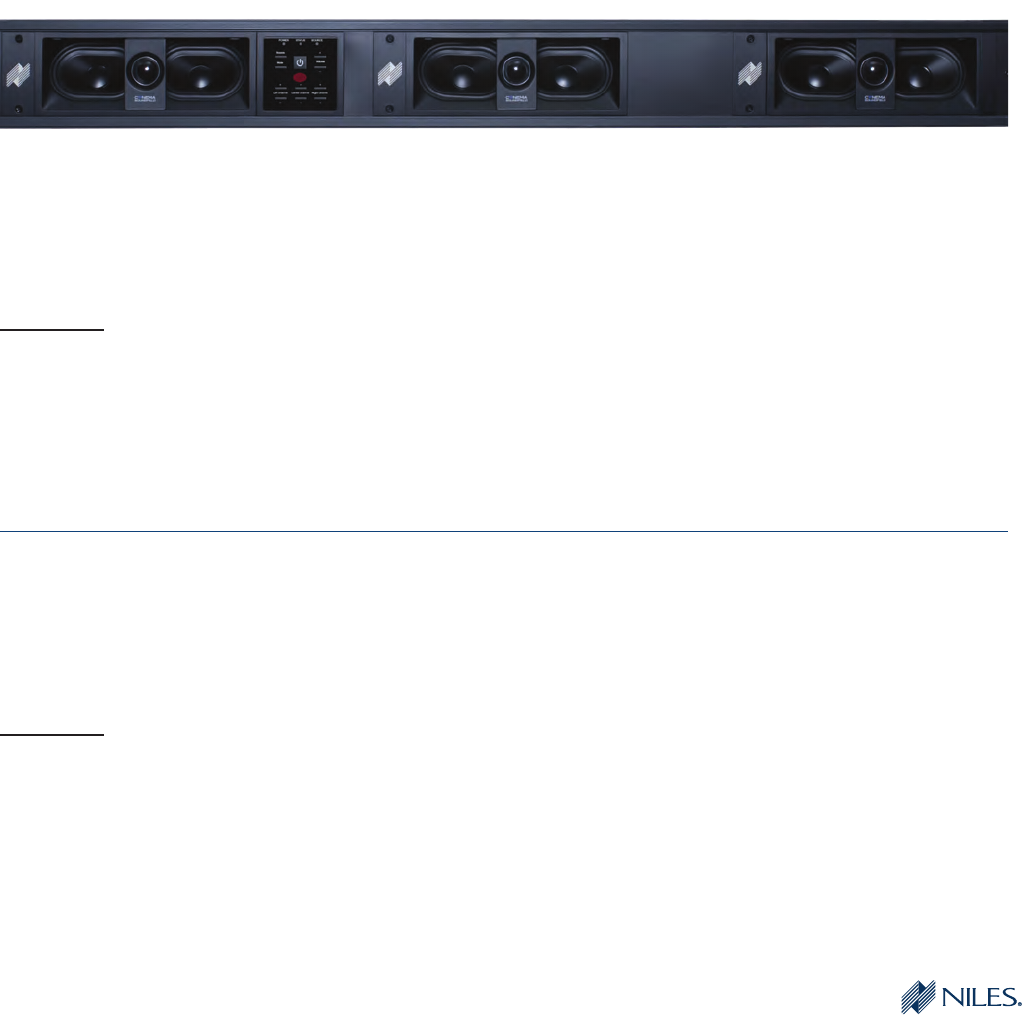

CYNEMA SOUNDFIELD
IN-WALL SOUNDBAR
Overview ..................................56
All Models .................................56
SUBWOOFERS
Overview ..................................58

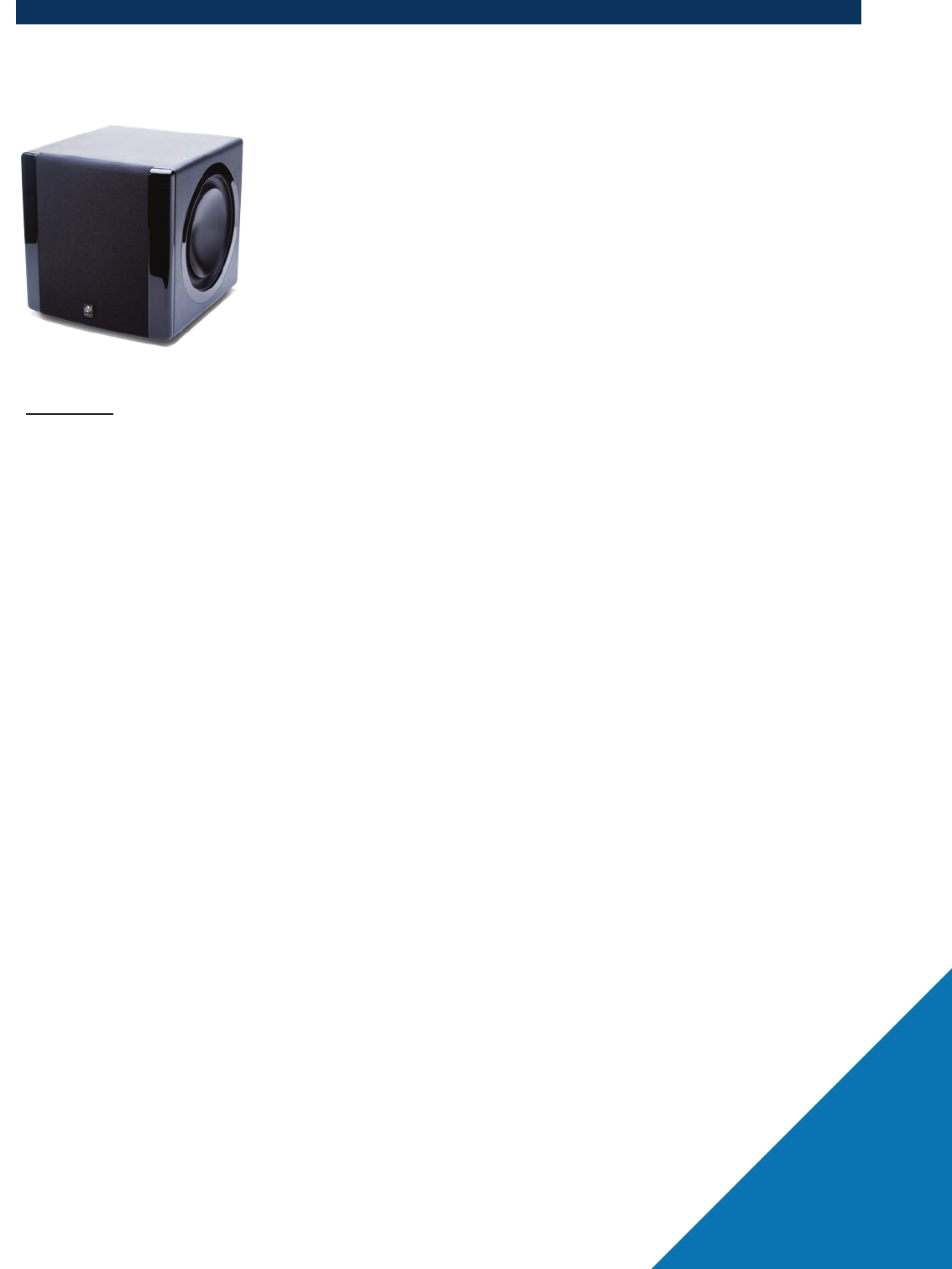

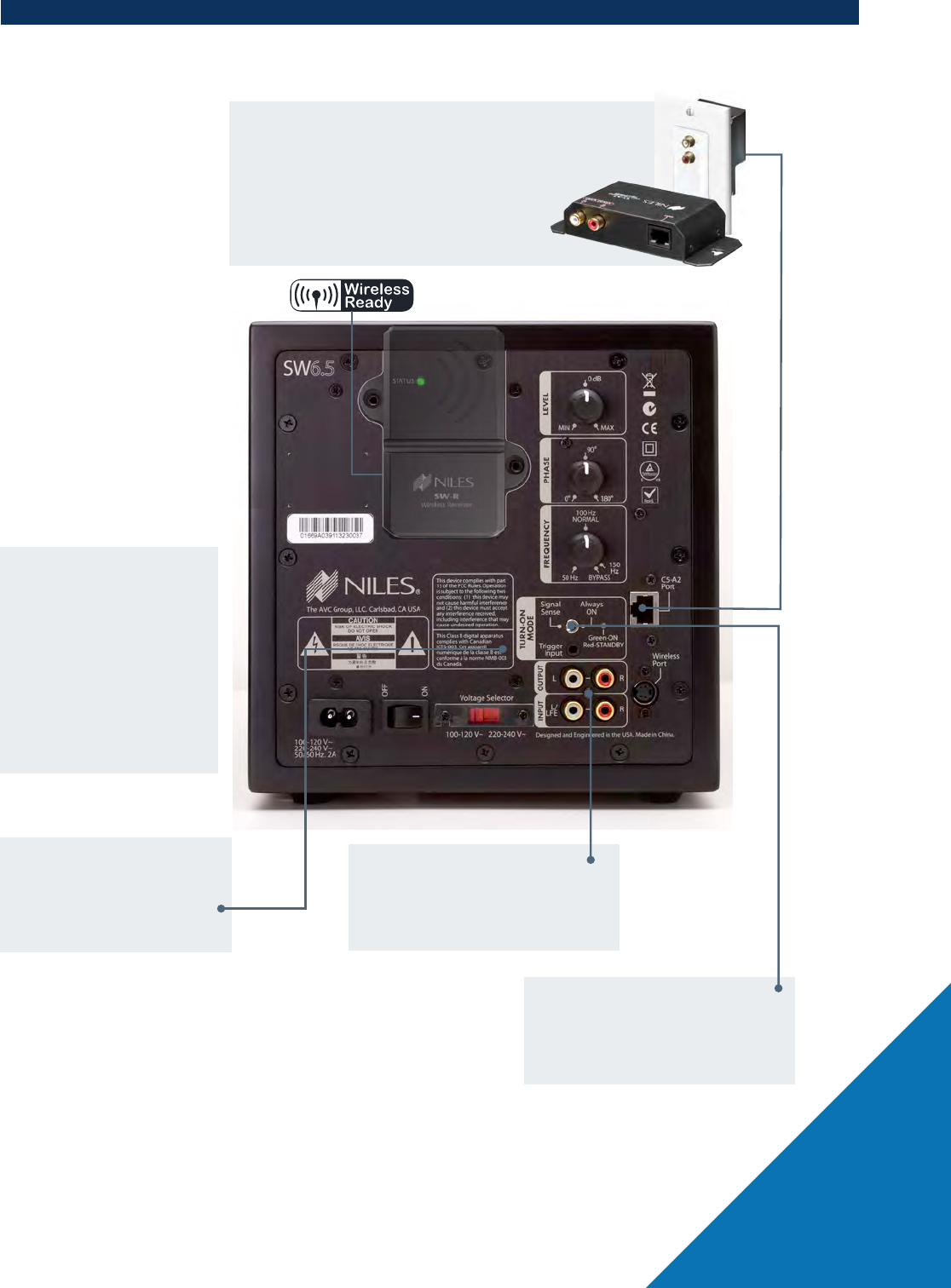

Powered Compact Subwoofers .................60
Accessories ................................62
WEATHERPROOF OUTDOOR
LOUDSPEAKERS
Satellite Speakers ............................63

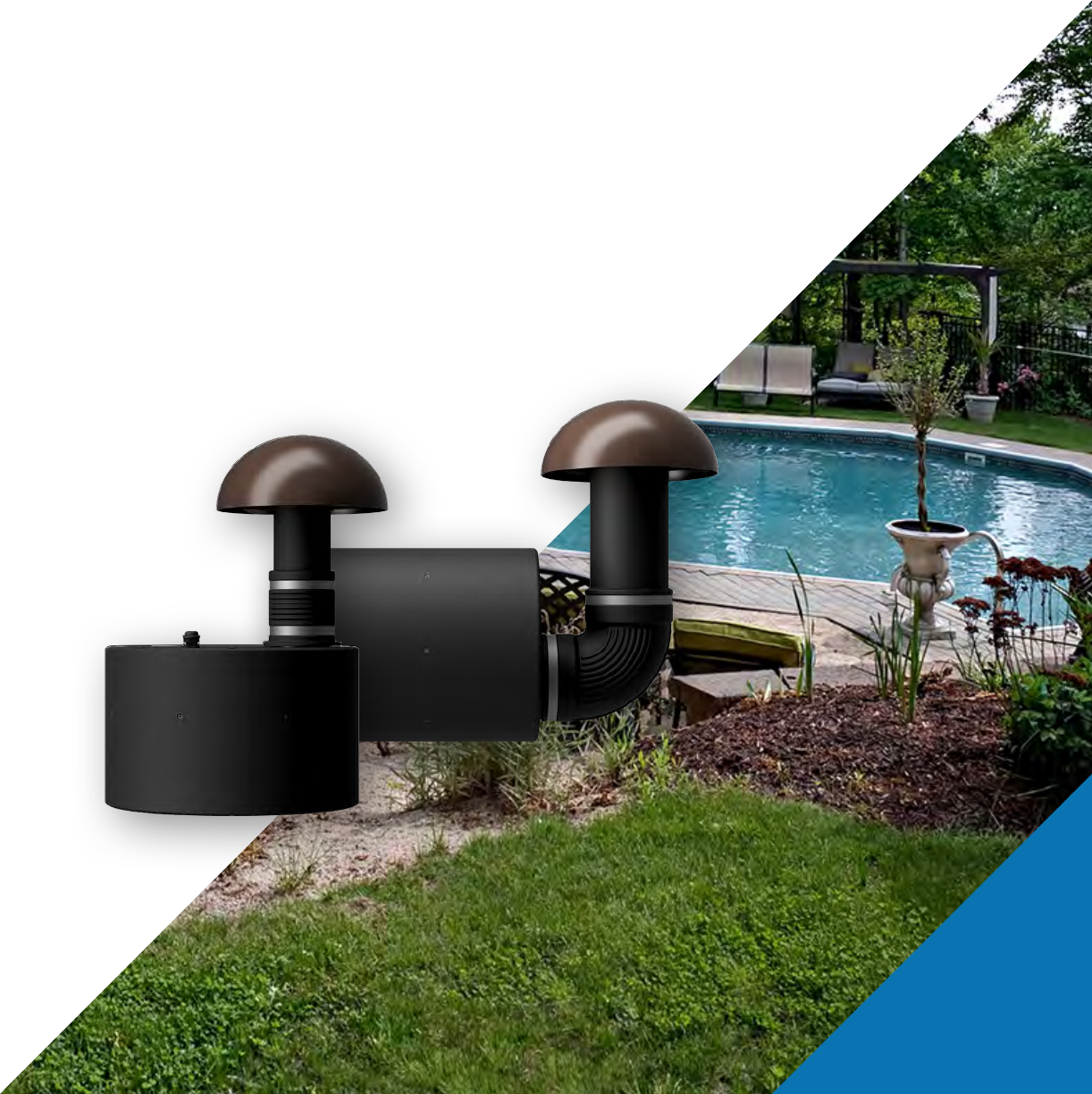

In-Ground Subwoofers ........................65
Accessories ................................67
WEATHERPROOF OUTDOOR
LOUDSPEAKERS
Overview ..................................68

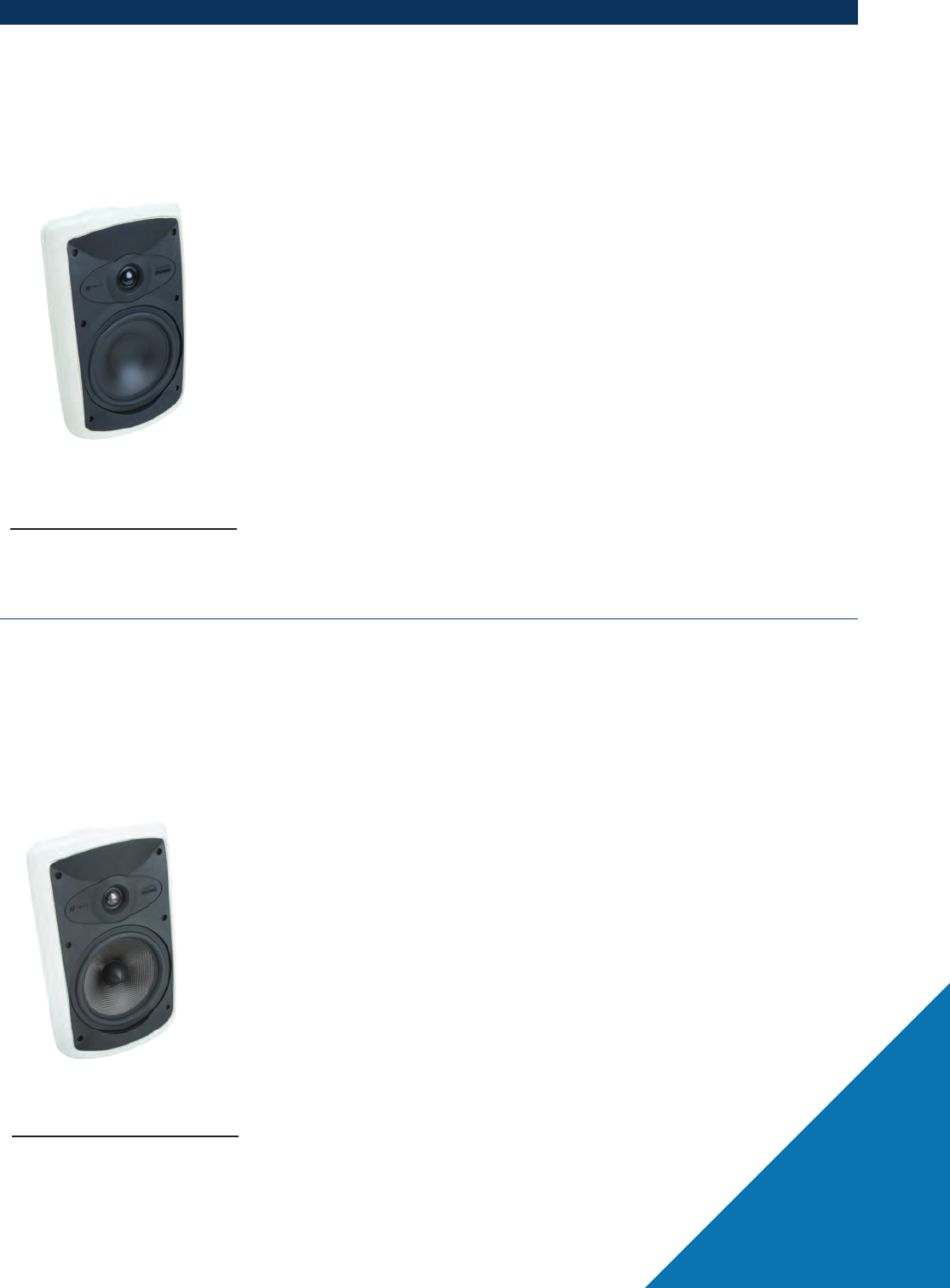

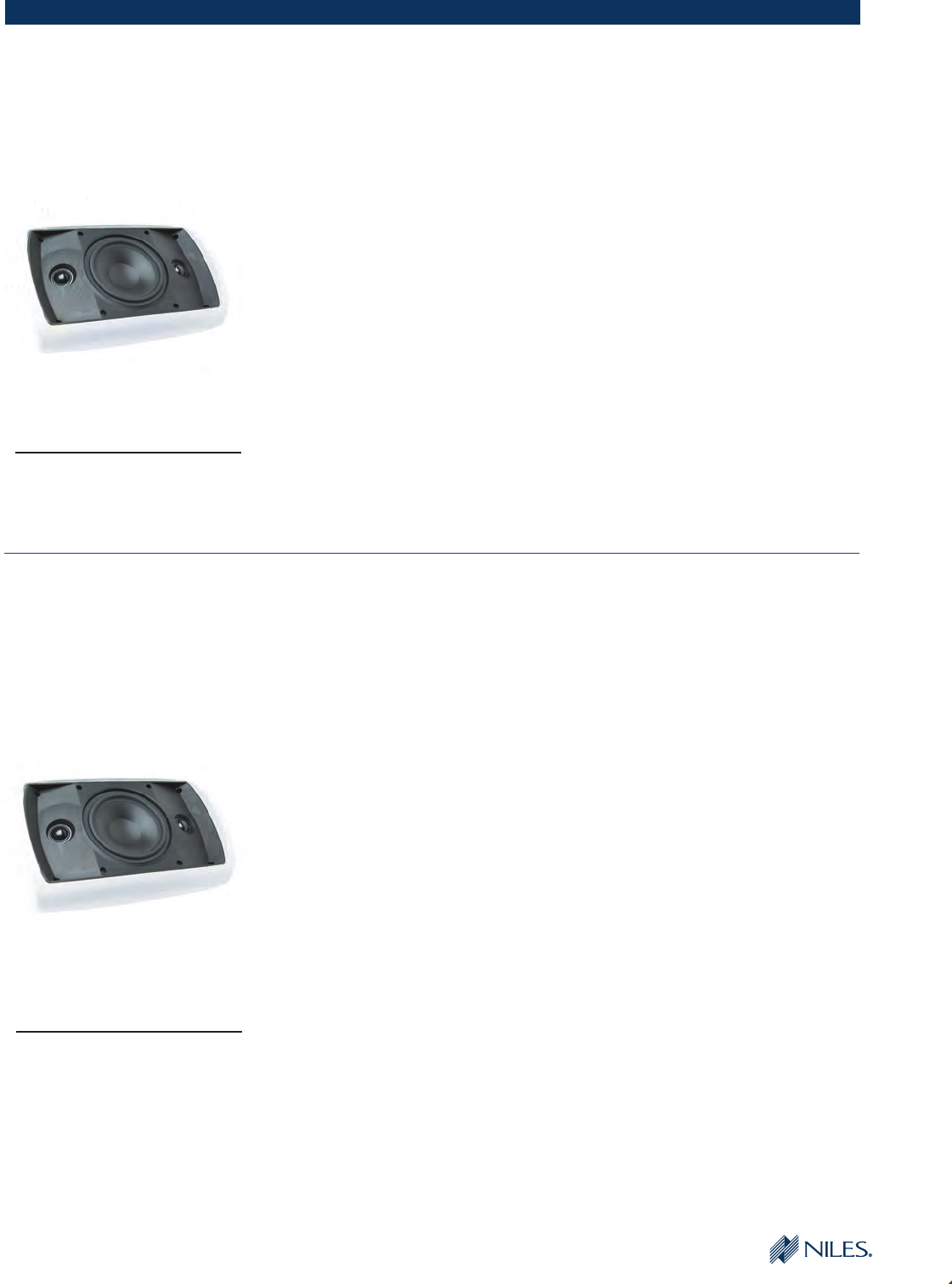

OS Loudspeakers ............................69
Garden Series Loudspeakers ...................73

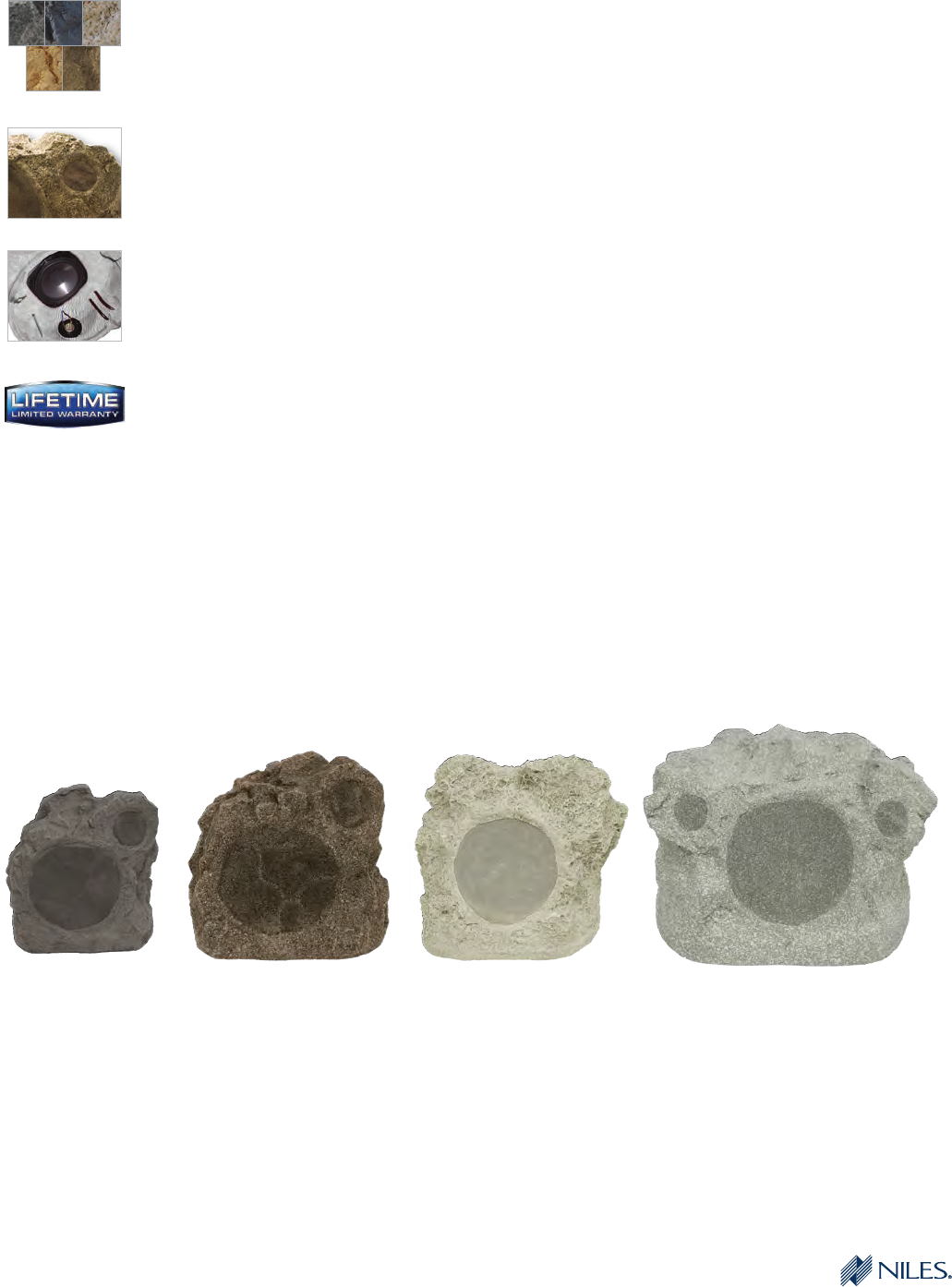

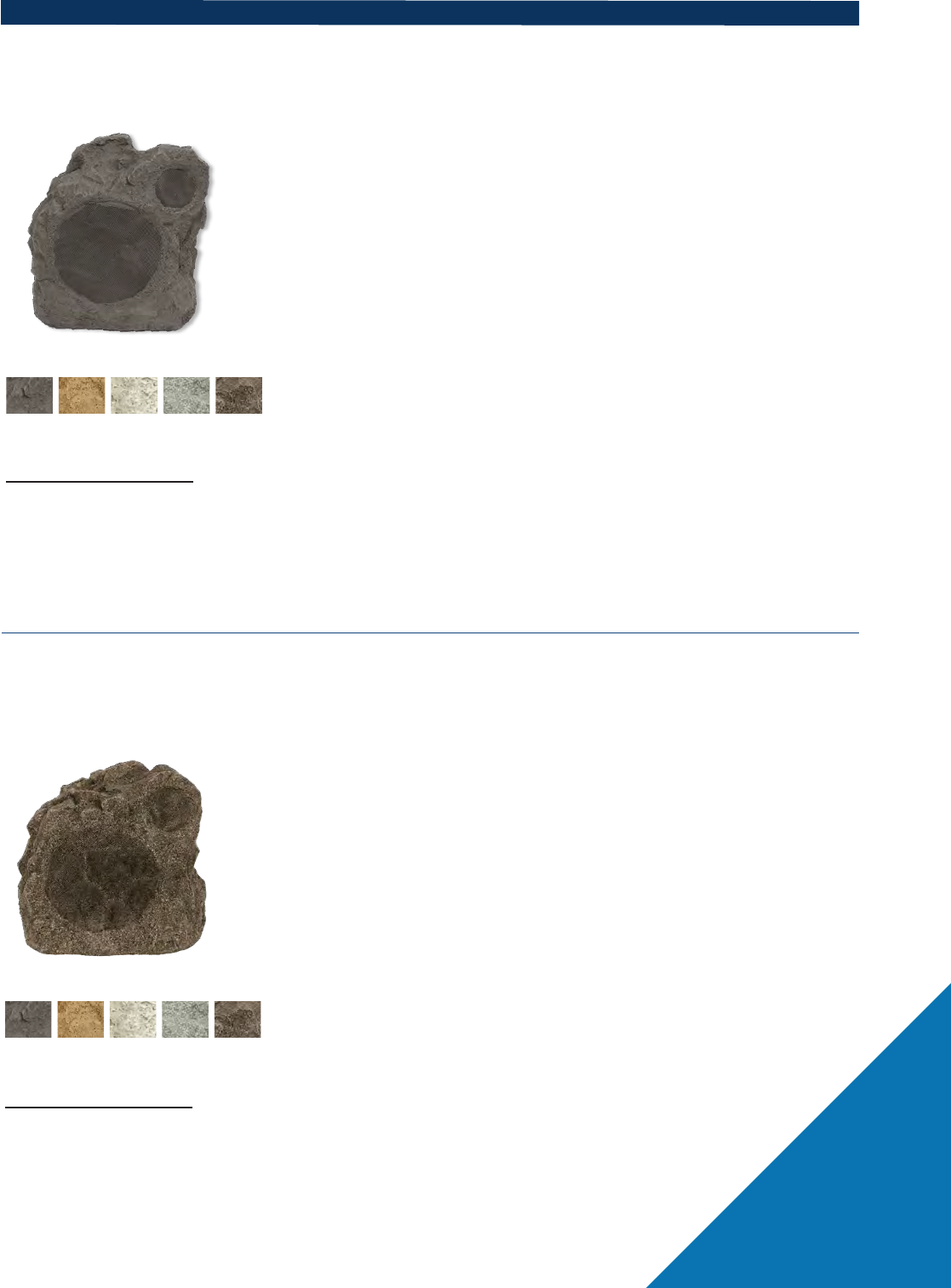

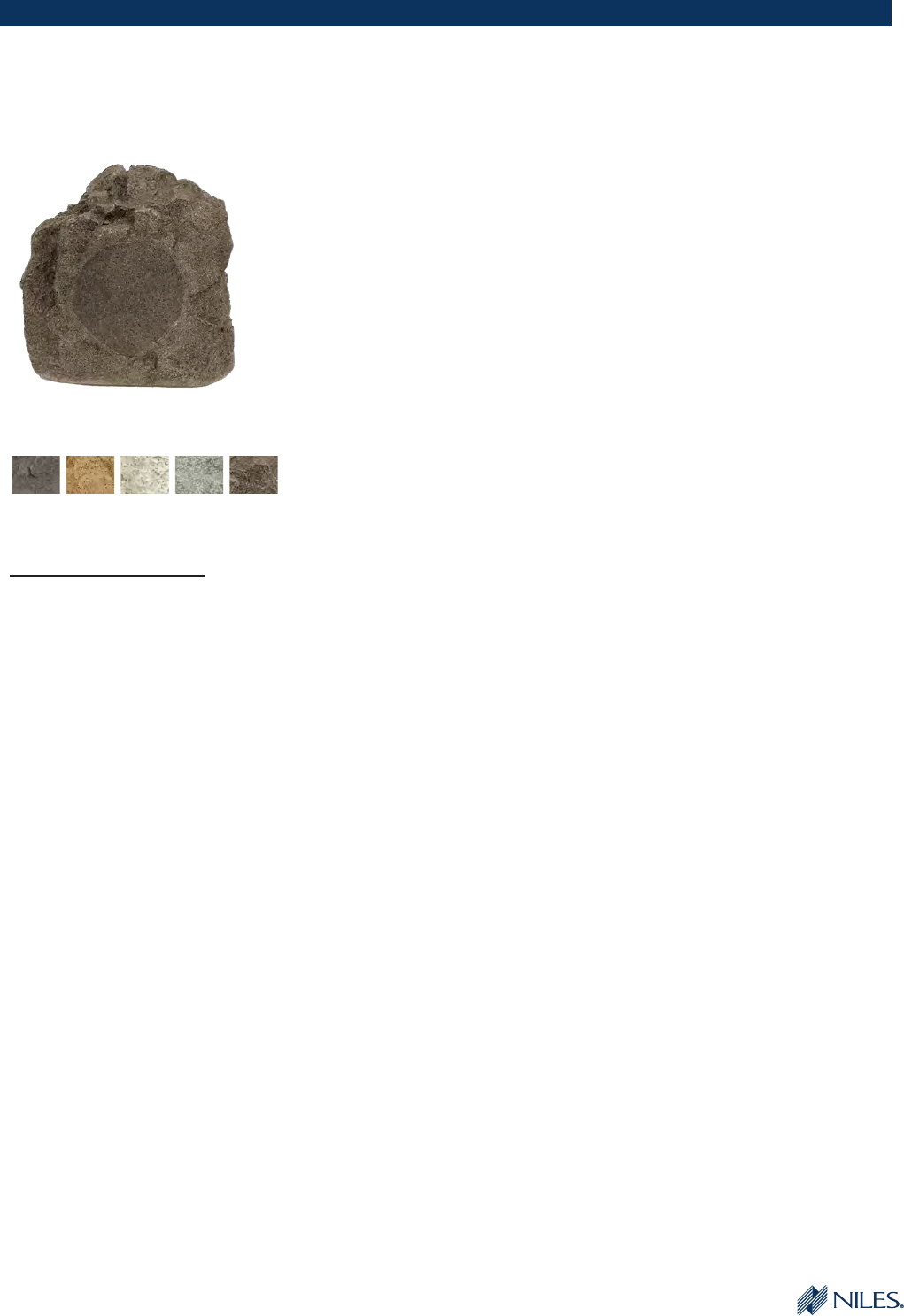

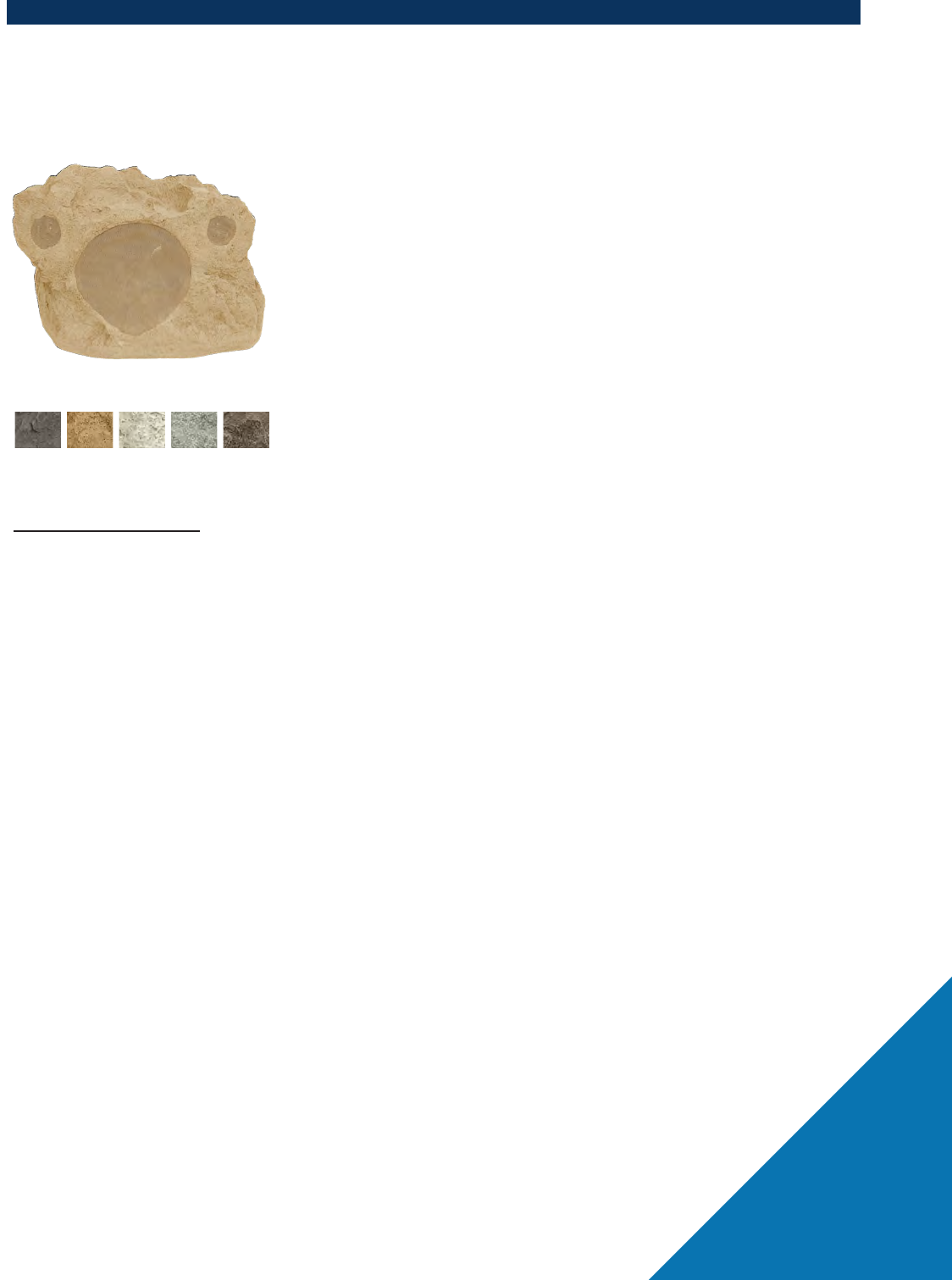

GeoRealistic™ Rock Loudspeakers ...............75

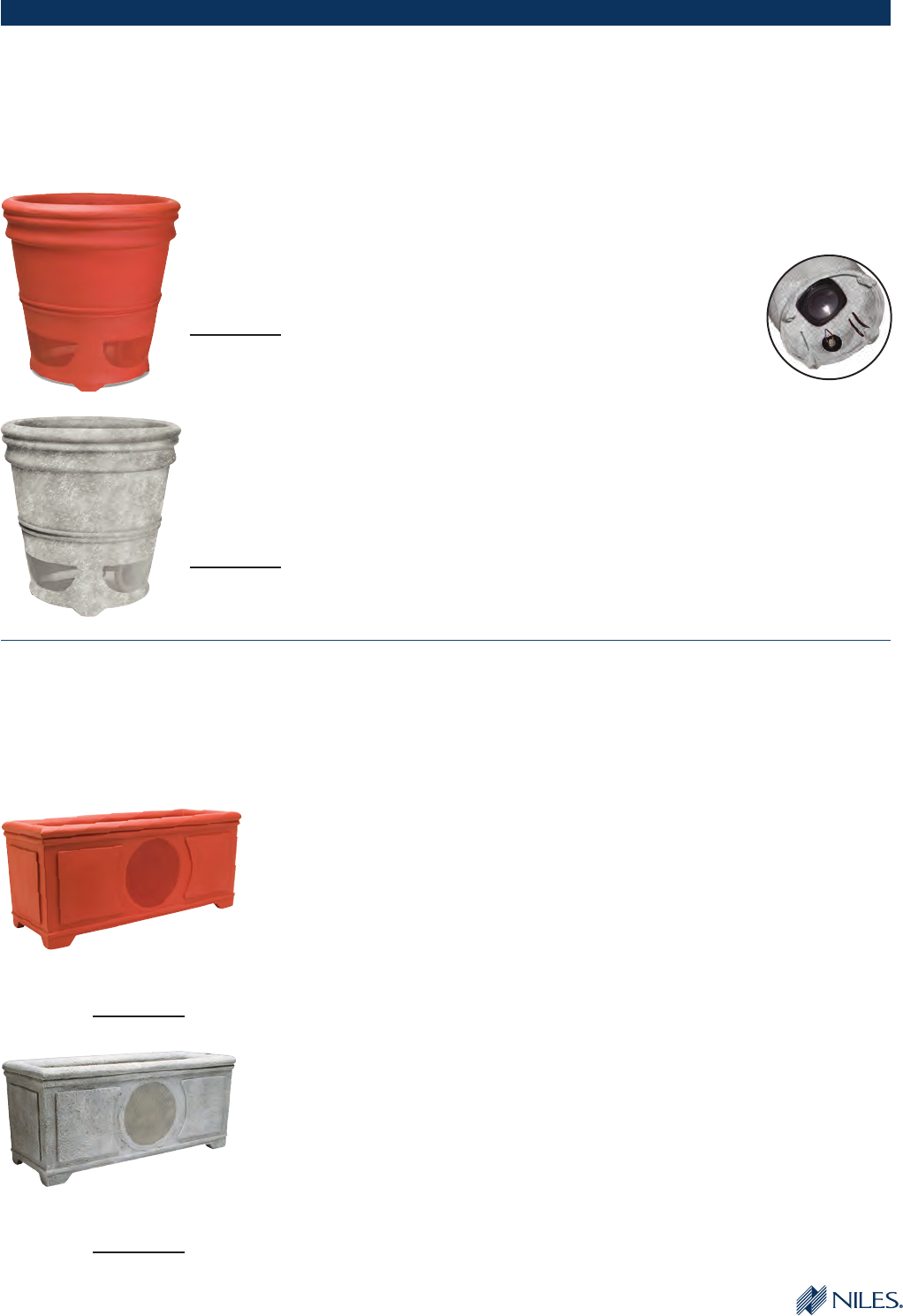

Planter Loudspeakers .........................80
Quick Reference Guide ........................83
CALL 1-800-BUY-HIFI – www.nilesaudio.com 27
Loudspeakers
![](asset-1c.png)
APPLICATION-SPECIFIC DESIGN
INDOOR APPLICATIONS
From basic background listening to multiroom systems, you can
be assured that there is always a Niles speaker to match your
needs. Whether you prefer In-Wall or In-Ceiling, shallow depth
or 4” options, or 6.5” compact subwoofers, Niles has a quality
solution for you. We have ultra-low-profile round and square
grilles to retrofit rear-wave-enclosures designed to reduce
sound transfer to adjacent rooms.
HOME THEATER APPLICATIONS
Home Theater is an essential addition to your home and cannot
be ignored. That’s why we make sure to provide Home Theater
specific loudspeakers. Building a 5.1 or 7.1 surround sound
environment has never been easier. Choose any of our 7” or 8”
PR or HD models for your Left/Center/Right channels. Each LCR
has features to enhance the sound for the position they are in.
Then add any FX speaker to complete the ambiance portion of
your system, and you’re done. Directional Soundfield™ speakers
are particularly well-suited for Home Theater because of their
ability to direct the sound towards the listeners from above.

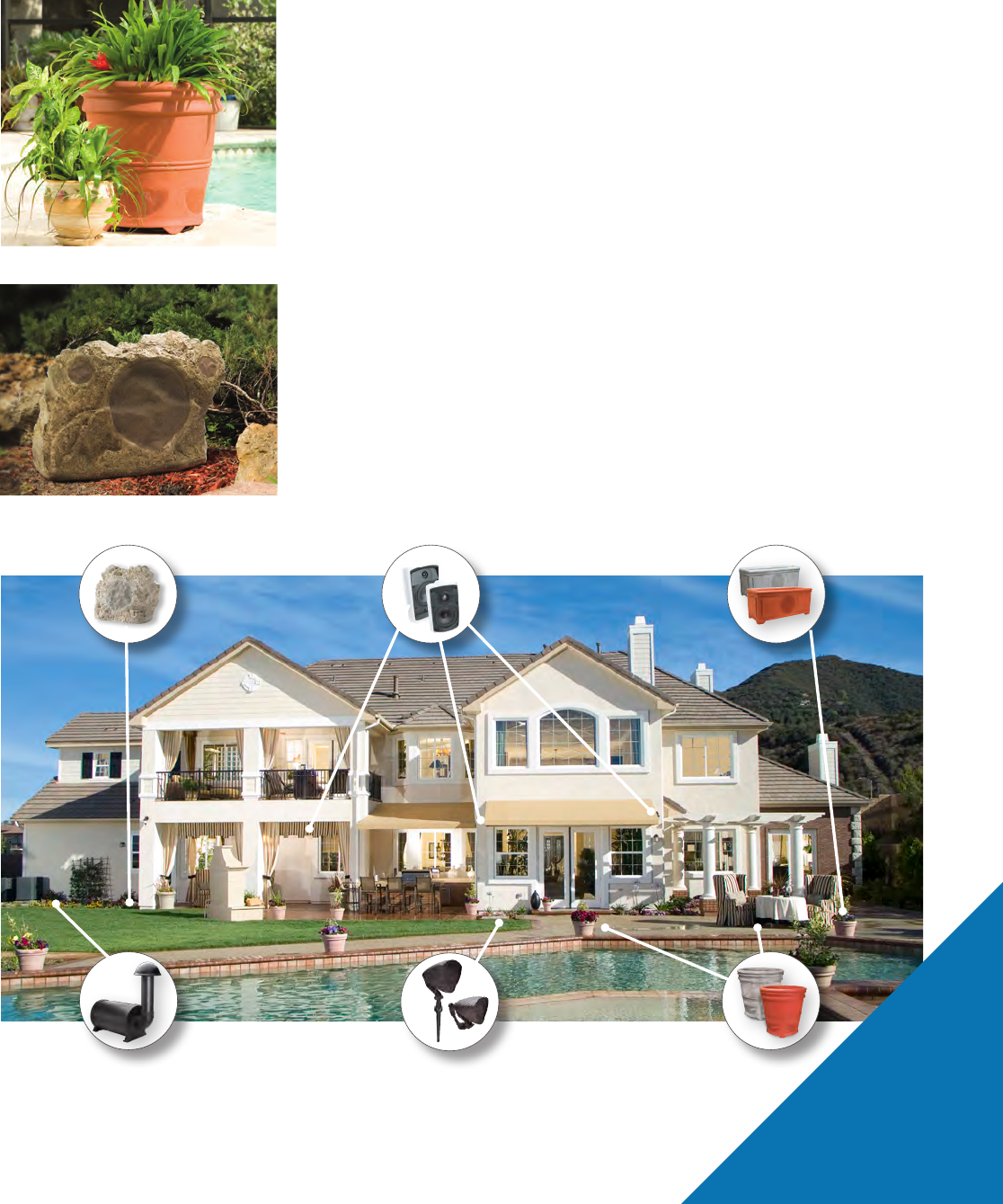

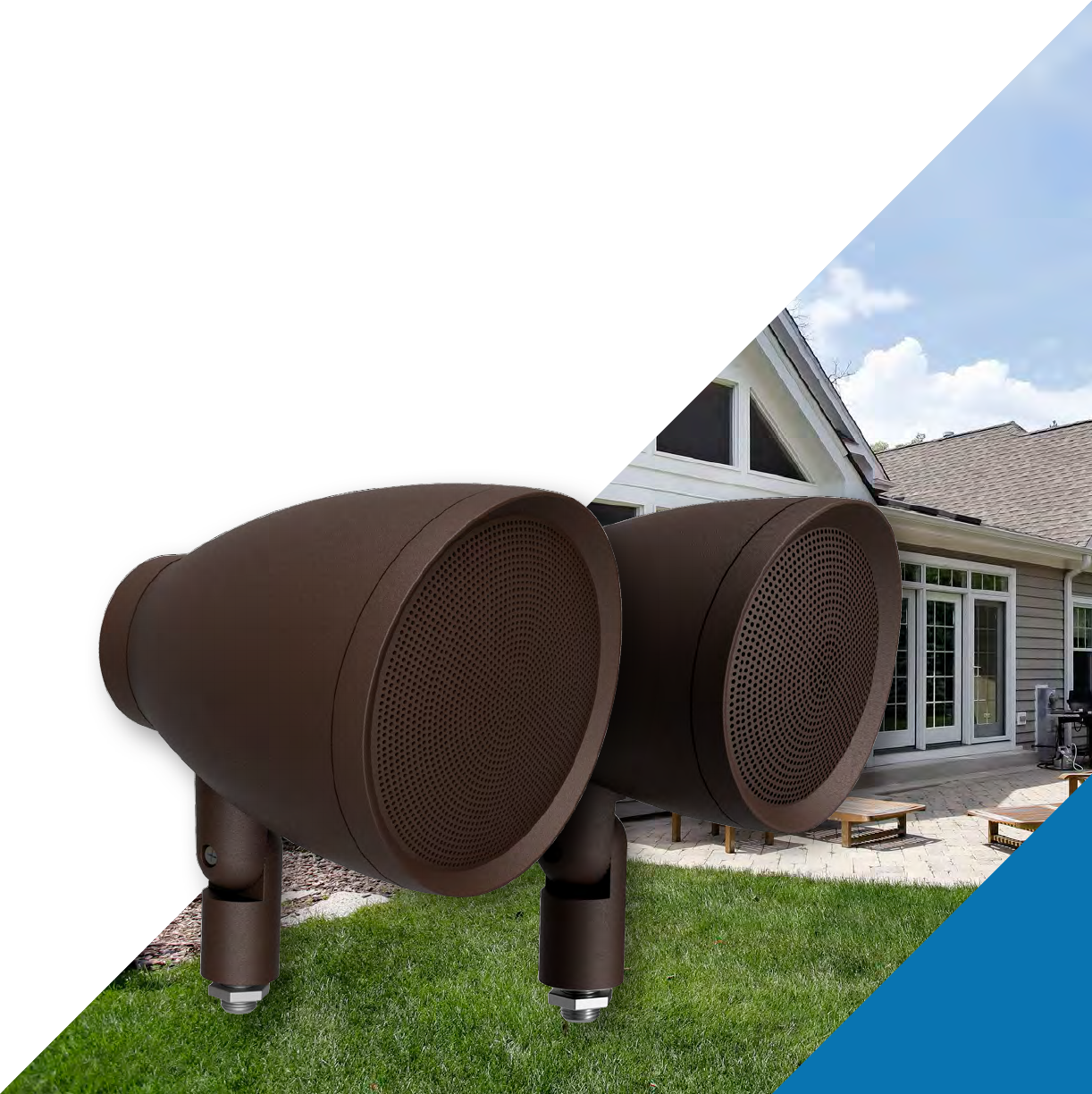

OUTDOOR APPLICATIONS
Outdoor is an exciting and growing category and Niles has
always been a leader in providing professional Outdoor solutions
to custom installers around the world. Our philosophy is the
same, solve the problem by providing unique application-specific
models to suit the custom installers’ needs, and delight their
customers. From Rocks to Planters, On-Wall to In-Ground, Niles
outdoor loudspeakers are built like tanks and perform gracefully
under extreme weather conditions.
28 Loudspeakers
![](asset-1d.png)

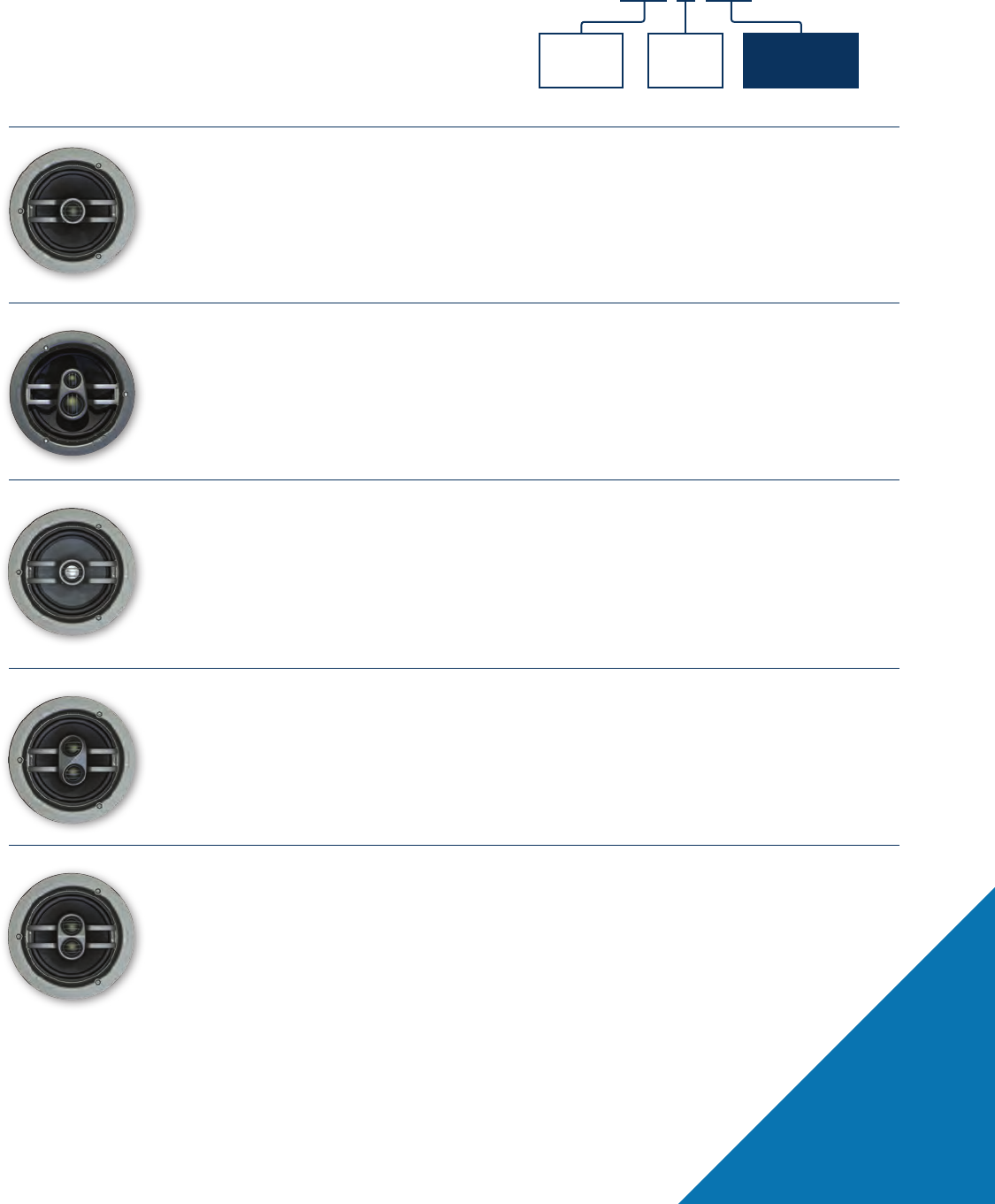

COMPLETE ASSORTMENT
EASY TO UNDERSTAND LINEUP
Niles Loudspeakers are organized into logical groupings based
on application and function, making them easy to specify, while
delivering optimum performance for every installation.
MP – MULTI-PURPOSE
A versatile loudspeaker that performs
well for multiple applications
Ideal Applications:
■Distributed audio systems
■Kid/Guest rooms or secondary listening areas
■Moisture-resistant for Bathrooms, Spas and Under Eaves.
■Low Cost / High Value
Ideal Applications:
■Primary listening areas
■Family rooms and bedrooms
■Small Home Theaters
■High Value
Ideal Applications:
■Left/center/right channel ideal for
advanced home theaters
■Mid to large sized room entertainment
■Primary listening areas
■Premium Value
Applications Include:
■Completing 5.1.4, 7.1.4, Dolby Atmos, DTS:X effects
channels for home theater systems
Applications Include:
■Hallways, foyers & kitchens
■Commercial applications such as restaurant bathrooms
and small dining areas
■Small rooms where multiple speakers
are inconvenient
■Great Value - Stereo speaker
performance for the price of one!
PR - PERFORMANCE
The perfect blend between value and
performance, these loudspeakers
deliver high-performance sound in a
wide variety of applications.
HD - HIGH-DEFINITION
Provide superior sound quality
and longevity by utilizing advanced
components, materials, and
circuit design.
FX – SURROUND EFFECTS
Surround effects (rear, side, height)
channel specific speakers
SI – STEREO-INPUT
Provides stereo sound from a single,
unobtrusive loudspeaker—ideal for
locations that are inconvenient for
more than one loudspeaker.
DS 7 PR
Type of
Speaker
Woofer
Size
Performance
Level
CALL 1-800-BUY-HIFI – www.nilesaudio.com 29
Loudspeakers
![](asset-1e.png)

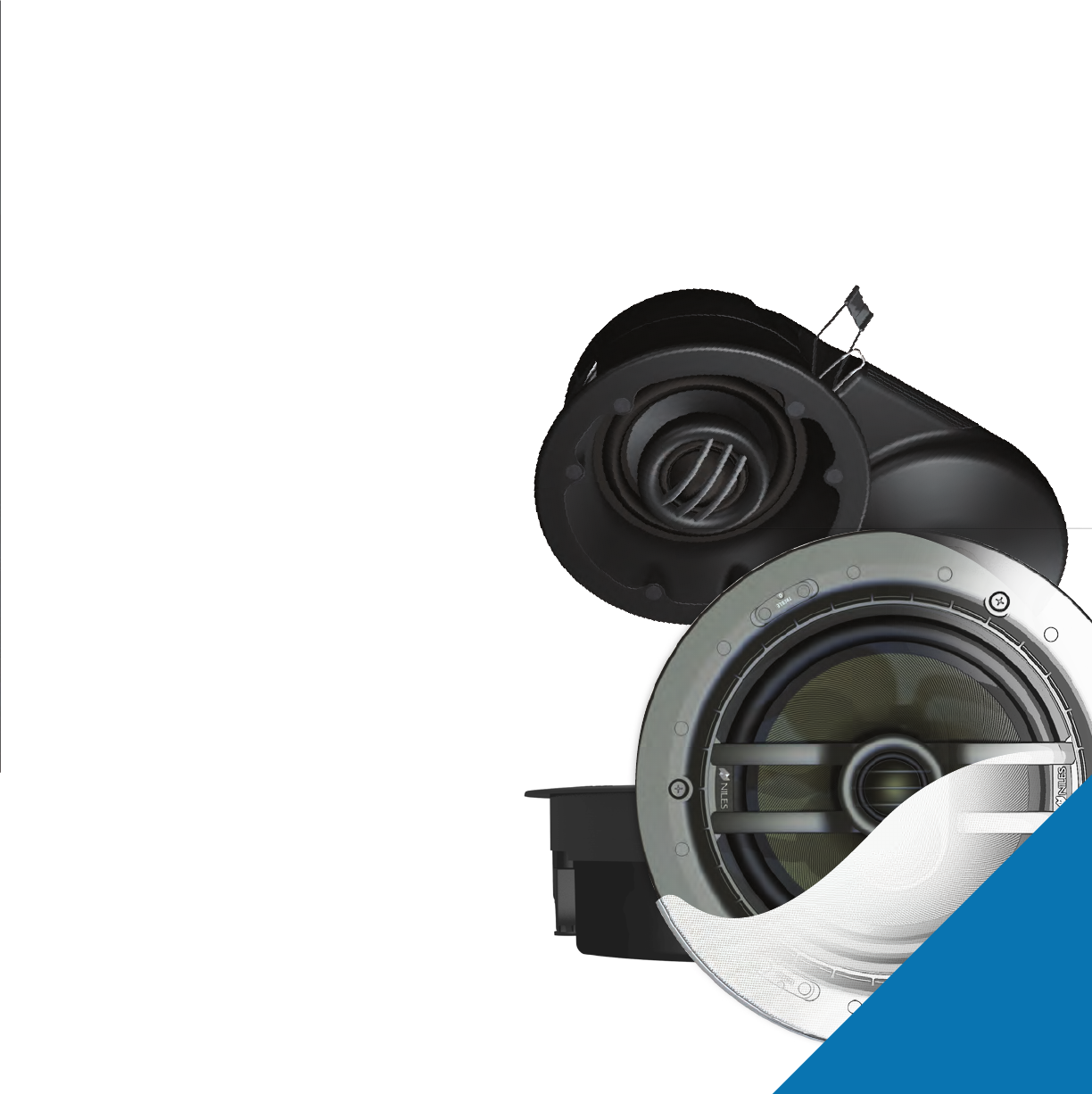

A REDEFINING MOMENT
The DS Directed Soundfield™
Ceiling-Mount Loudspeaker
When Niles presented the first Directed Soundfield™ (DS) loudspeakers in 2001 at CEDIA Expo in Indianapolis, everyone
was astounded by the performance and versatility they provided. People quickly agreed that the unique design with fully
adjustable, independent pivoting woofer and tweeter enabled DS loudspeakers to re-create high-fidelity sound accurately,
regardless of where in the ceiling they were located. Ever since then, tens of thousands of DS loudspeakers have been
delighting customers in distributed audio and home theater systems around the world.
The latest generation of Directed Soundfield loudspeakers ingeniously combines design aesthetics, advanced
technology, and installation versatility to address the challenges professional system integrators face today.
These challenges include seamless integration with high-design décor, containing unwanted sound from
bleeding into other rooms, and lifelike sonic quality not available from conventional loudspeakers. To
do this, we took the best ideas from the original DS design architecture and infused them with
significant and innovative new features.
The features include magnetically attached MicroThin™ speaker grilles for a clean, designer
appearance, and an optional Rear Wave Control enclosure that significantly reduces
the sound bleed into adjacent rooms. Also included is a spring-tensioned mounting
clamp system that tightly secures the loudspeaker—even if the mounting surface
expands or contracts.
30 Loudspeakers
![](asset-1f.png)
CREATE THE IDEAL LISTENING ENVIRONMENT
Patented Directed Soundeld™ technology directs the sound to the listening area, regardless of where the loudspeakers
are installed.
UNOBTRUSIVE APPEARANCE
Rustproof MicroThin™ loudspeaker grilles mount ush to the ceiling or wall to seamlessly blend with the room’s décor.
SUPERB SOUND QUALITY
IMPACT (Improved Aluminum Ceramic Technology) woofers and tweeters and other advanced materials ensure superb
sound resolution.
MATCH ROOM COLORS AND AESTHETICS
MicroThin speaker grilles can be painted to coordinate with any décor. Choose from round (included) or square (optional)
grilles.
HIGHER OUTPUT, LOWER DISTORTION
Precision crossover networks, copper shorting caps, and Kapton voice coil formers easily handle the demands of digital
music and home theater.
INSTALL WITH CONFIDENCE
Patent-pending, spring-tensioned mounting clamps simplify installation and compensate for expanding and contracting
mounting surfaces.
MicroThin™ grilles attach magnetically for a
clean, unobstrusive look. Optional square
grilles provide added design flexibility.
The optional Rear Wave
enclosure improves sound
performance while reducing
unwanted sound from bleeding
into adjacent rooms.
*In typical installations.
Rear Wave Enclosure Sound Isolation*
50 - 500 Hz ........................ -16dB
500 - 2,000 Hz ................... -37dB
2,000 - 20,000 Hz .............. -25dB
BENEFITS OF GOOD DESIGN
CALL 1-800-BUY-HIFI – www.nilesaudio.com 31
Loudspeakers
![](asset-20.png)

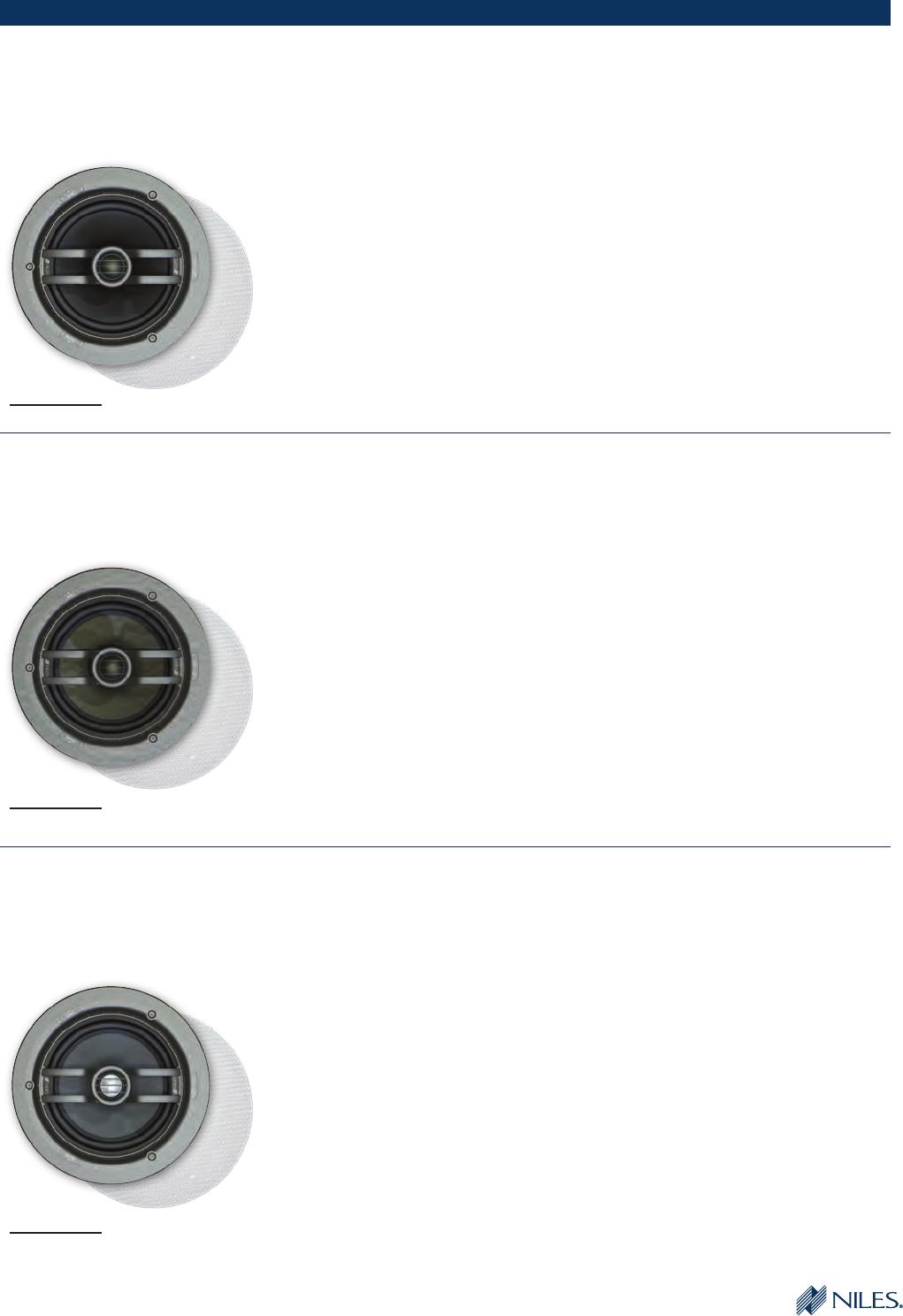

7" DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKERS
DS7MP
7" Directed Soundfield™
Loudspeaker
For distributed audio, background
music, and home theater applications
Packaged Individually with Round MicroThin™ Grille
Packaged Individually with Round MicroThin™ Grille
Packaged Individually with Round MicroThin™ Grille
Stock Number
FG01614
FEATURES
■Integrated baffle/frame assembly
■7" glass fiber woofer cone with curvilinear profile
■1" UltraSilk® soft dome tweeter
■Dialogue switch for center-channel applications
■Tweeter level switch
■Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 130 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 55 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 9-7/8" (25.15 cm) diameter
■Hole cutout dimensions: 8-1/2" (21.6 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited. Shipping weight: 6 lbs. (2.72 kg)
DS7PR
7" Directed Soundfield™
Loudspeaker
For primary and secondary listening
rooms and home theater applications
DS7HD
7" Directed Soundfield™
High-Definition Loudspeaker
For advanced home theaters and
primary listening rooms
FEATURES
■Integrated baffle/frame assembly
■7" glass fiber woofer cone with curvilinear profile
■1" fluid-cooled Teteron® dome tweeter
■Dialogue switch for center-channel applications
■Tweeter level switch
■Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 130 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 52 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 9-7/8" (25.15 cm) diameter
■Hole cutout dimensions: 8-1/2" (21.6 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited. Shipping weight: 6 lbs. (2.72 kg)
FEATURES
■Integrated baffle/frame assembly
■7" IMPACT (Improved Aluminum Ceramic Technology) woofer cone
■1" nano-coated IMPACT (Improved Aluminum Ceramic Technology) tweeter
■Kapton non-conductive voice coil former and copper shorting caps
■Dialogue switch for center-channel applications
■Tweeter level switch
■Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 160 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 48 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 9-7/8" (25.15 cm) diameter
■Hole cutout dimensions: 8-1/2" (21.6 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited. Shipping weight: 6 lbs. (2.72 kg)
Stock Number
FG01617
Stock Number
FG01621
32 Loudspeakers
![](asset-21.png)

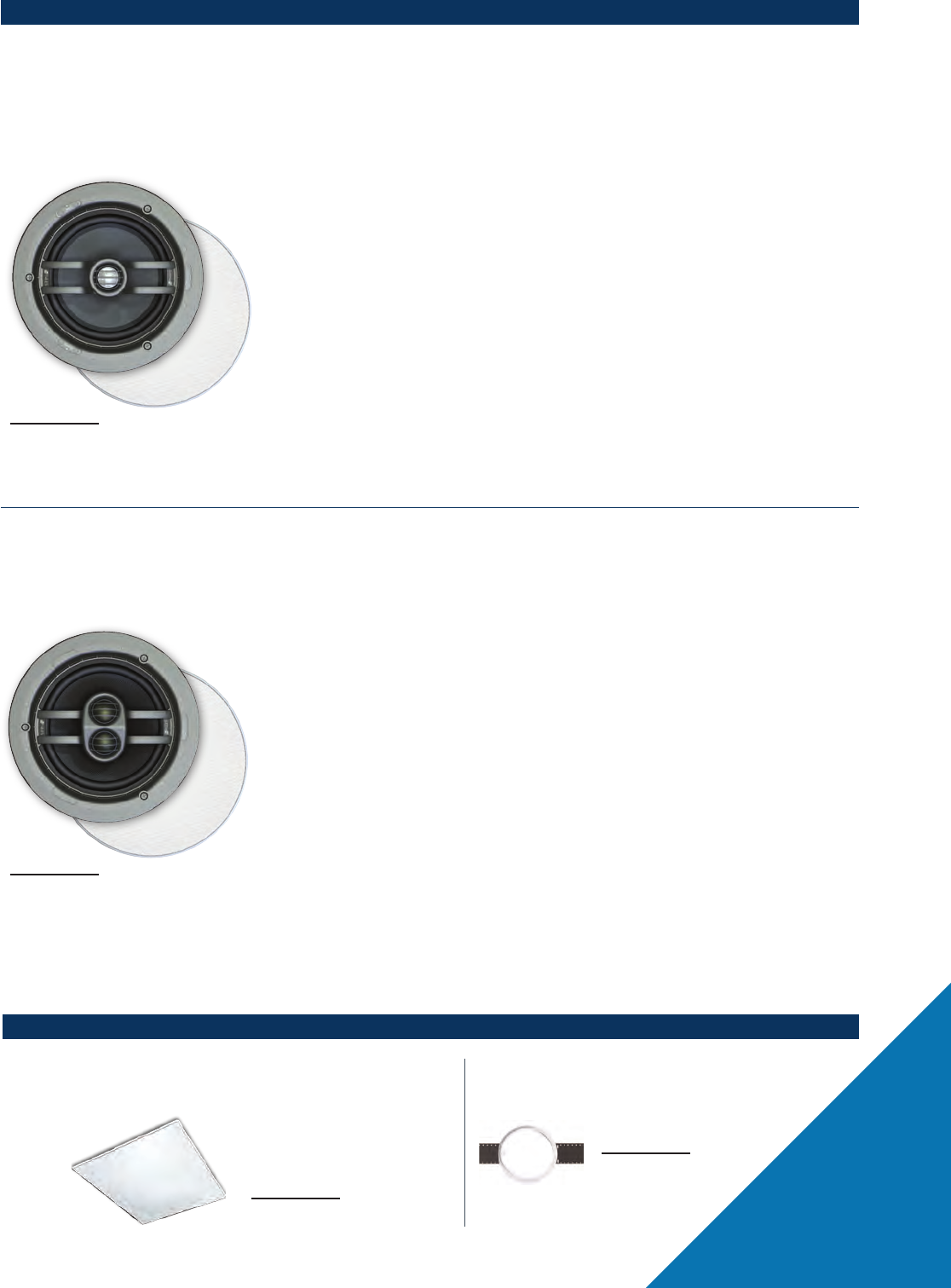

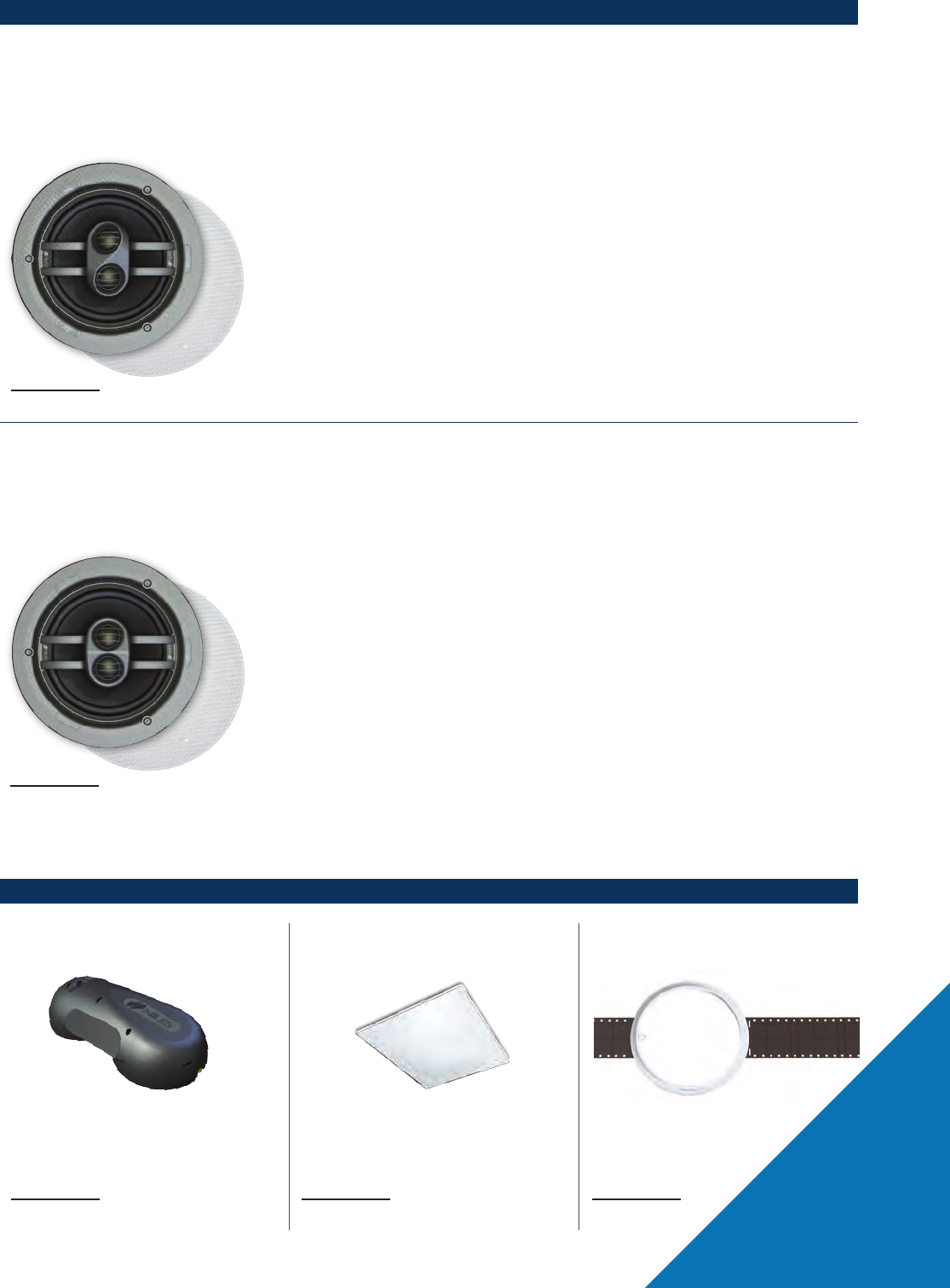

7" DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKERS
Packaged in Matched Pairs with Round MicroThin™ Grilles
Packaged Individually with Round MicroThin™ Grilles
Stock Number
FG01618
DS7FX
7" Directed Soundfield™ Surround
Effects Loudspeaker
For surround effects in multi-channel
home theater applications
FEATURES
■ Integrated baffle/frame assembly
■ 7" glass fiber woofer cone with curvilinear profile
■ Dual 1" fluid-cooled Teteron® dome tweeters
■ Multi-axis tweeter array positions tweeters at an opposing angle
■ Bipole/Dipole switch for room matching
■ Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 140 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 52 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 9-7/8" (25.15 cm) diameter
■Hole cutout dimensions: 8-1/2" (21.6 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited
Shipping weight: 12 lbs. (5.44 kg)
DS7SI
7” Directed Soundfield™
Stereo-Input Loudspeaker
For multi-purpose single-speaker
stereo applications
Stock Number
FG01616
FEATURES
■ Integrated baffle/frame assembly
■ 7" glass fiber dual voice coil woofer with a curvilinear profile
■ Dual 1" UltraSilk® soft dome tweeters
■ Bridge-mounted Stereo Imaging (SI) tweeter array directs the high-frequency sounds from the left
and right channels at opposing angles
■ Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 130 watts
■Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■Frequency response: 55 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 9-7/8" (25.15 cm) diameter
■Hole cutout dimensions: 8-1/2" (21.6 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited
Shipping weight: 6 lbs. (2.72 kg)
7” DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKER ACCESSORIES
RWE7C
7" Rear Wave Control Enclosure
■Provides superior-quality predictable
sound
■Reduces sound transfer into adjacent
rooms or spaces
SG7C
7" Square MicroThin™
Grille Cover
■Corrosion-resistant MicroPerf™ grille
material
■Can be painted to match room color
Packaged in Pairs
NCB7C
7" New Construction Bracket
■Arms with center marking lines to
allow visual adjustment to stud
Packaged in Pairs
Stock Number
FG01643
Stock Number
FG01645
Stock Number
FG01647
CALL 1-800-BUY-HIFI – www.nilesaudio.com 33
Loudspeakers
![](asset-22.png)
8" DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKERS
DS8PR
8" Directed Soundfield™
Performance Loudspeaker
For primary and secondary listening
rooms and home theater applications.
Packaged Individually with
Round MicroThin™ Grille
Packaged Individually with
Round MicroThin™ Grille
Stock Number
FG01619
FEATURES
■Integrated baffle/frame assembly
■8" glass fiber woofer cone with curvilinear profile
■1" fluid-cooled Teteron® dome tweeter
■1-1/2" fluid-cooled Teteron® dome midrange
■Dialogue switch for home theater applications
■Tweeter level switch
■Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 140 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 48 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 11-1/4" (28.52 cm) diameter
■Hole cutout dimensions: 9-3/4" (24.76 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited
Shipping weight: 7 lbs. (3.17 kg)
DS8HD
8" Directed Soundfield™
High-Definition Loudspeaker
For advanced home theaters and
primary listening rooms.
FEATURES
■Integrated baffle/frame assembly
■8" IMPACT (Improved Aluminum Ceramic Technology) woofer cone
■1" nano-coated IMPACT (Improved Aluminum Ceramic Technology) tweeter
■1-1/2" nano-coated IMPACT dome midrange
■Kapton non-conductive voice coil former and copper shorting caps
■Dialogue switch for center-channel applications
■Tweeter level switch
■Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 160 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 48 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 11-1/4" (28.52 cm) diameter
■Hole cutout dimensions: 9-3/4" (24.76 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited
Shipping weight: 7 lbs. (3.17 kg)
Stock Number
FG01623
34 Loudspeakers
![](asset-23.png)

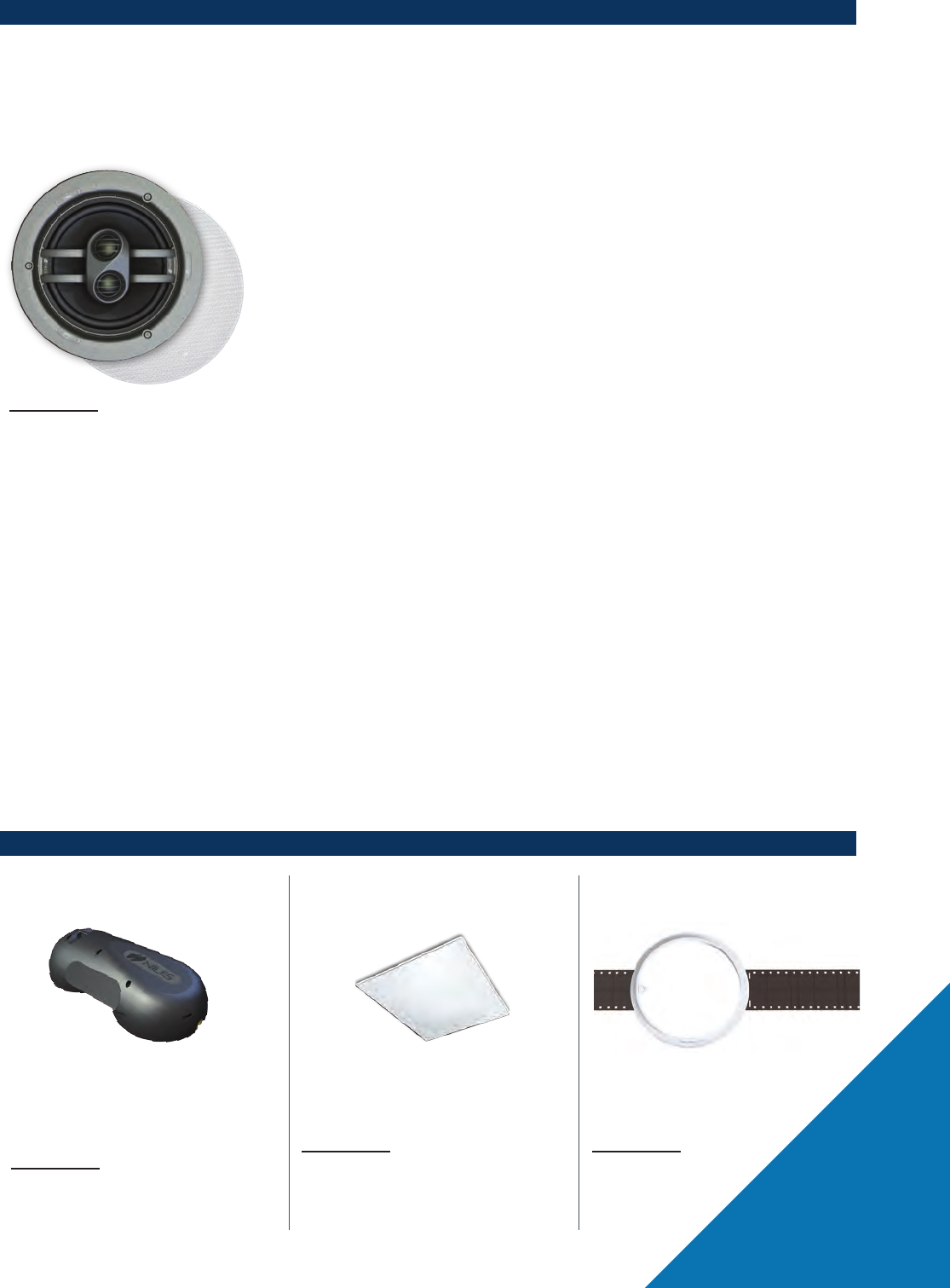

8" DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKERS
Packaged in Matched Pairs with
Round MicroThin™ Grille
DS8FX
8” Directed Soundfield™ Surround
Effects Loudspeaker
For surround effects in multi-channel
home theater applications
FEATURES
■Integrated baffle/frame assembly
■8" IMPACT (Improved Aluminum Ceramic Technology) woofer cone
■Dual 1" nano-coated IMPACT dome tweeters
■Multi-axis tweeter array positions tweeters at an opposing angle
■Bipole/Dipole switch for room matching
■Weather-resistant construction
SPECIFICATIONS
■Recommended amplifier power: 10 - 160 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 48 Hz to 21 kHz +/ -3 dB
■Frame dimensions (with grille): 11-1/4" (28.52 cm) diameter
■Hole cutout dimensions: 9-3/4" (24.76 cm) diameter
■Depth behind ceiling (5/8" drywall): 5-5/16" (13.6 cm)
Warranty: Lifetime Limited
Shipping weight: 14 lbs. (6.34 kg)
Stock Number
FG01624
8" DIRECTED SOUNDFIELD™ CEILING-MOUNT LOUDSPEAKER ACCESSORIES
RWE8C
8" Rear Wave Control Enclosure
■Provides superior-quality predictable
sound
■Reduces sound transfer into adjacent
rooms or spaces
Packaged in Pairs
SG8C
8" Square MicroThin™
Grille Cover
■Corrosion-resistant MicroPerf™ grille
material
■Can be painted to match room color
Packaged in Pairs
NCB8C
8" New Construction Bracket
■Arms with center marking lines to allow
visual adjustment to stud
Packaged in Pairs
Stock Number
FG01644
Stock Number
FG01646
Stock Number
FG01648
CALL 1-800-BUY-HIFI – www.nilesaudio.com 35
Loudspeakers
![](asset-24.png)
CM SERIES
The CM Series of Ceiling-Mount Loudspeakers
Niles didn’t become The First Name in Custom Installation® overnight. One of the keys to our success has been our Application-
Specific Design Philosophy – loudspeakers that are designed for a specific purpose and organized based upon logical groupings
and functions. The new CM Series takes that idea even further. As a complement to our highly-acclaimed DS Loudspeaker
models, you can now offer your customers a complete loudspeaker assortment that is simple to sell, simple to install and
offers easy options for both retrofits and system upgrades.
When developing the CM Series, we took care to integrate many of the great features of our incredible DS models,
from the stylish round or optional square MicroThin™ grilles that disappear into the décor to the advanced driver
technology of our UltraSilk™, Teteron and top-of-the-line nano-coated IMPACT (Improved Aluminum Ceramic
Technology) woofers and tweeters. All of this comes together in each model to deliver the defined bass,
silky-smooth mid-ranges and crisp vocals you have come to expect from Niles.
With our CM series, you now have even more options to select the best speaker for each particular
function and location in a home. System designers can now specify a single cutout hole size
and have a full range of application-specific loudspeakers.
Imagine how much simpler it will be as a system designer or as an installer if you
know that you can go to any home and use a single hole size in every speaker
location. With that simple step, you are now ready to install from any of the
Niles application-specific models to get just the right one for each location.
Even better, upgrading any of the locations to a different model is now as
easy as can be with a full range of models all using the same hole size.
Last-minute changes from your customers don’t have to cost your
valuable installation crew any additional time. Just give your crew
the new speaker.
36 Loudspeakers
![](asset-25.png)
SIMPLE TO SPECIFY, SIMPLE TO INSTALL
By specifying a single cutout hole size, you are free to install any of a full range of application-specic models. Changing or
upgrading a model after the hole has been cut no longer means extra work for your installation crew.
UNOBTRUSIVE APPEARANCE
Rustproof MicroThin™ loudspeaker grilles mount ush to the ceiling or wall to seamlessly blend with the room’s décor.
MATCH ROOM COLORS AND AESTHETICS
MicroThin speaker grilles can be painted to coordinate with any décor.
Choose from round (included) or square (optional) grilles.
HIGHER OUTPUT, LOWER DISTORTION
Precision crossover networks, copper shorting caps, and Kapton® voice coil formers easily handle the demands of digital
music and home theater.
APPLICATION
SPECIFIC
MODELS
Our CM4PR is designed for small rooms, closets,
hallways, or alcoves where traditional loudspeakers
just won’t fit. Its round (or optional square) MicroThin™
grille matches that of all of our other CM and DS
models and its custom Rear Wave Enclosure will keep
any unwanted sound from penetrating into adjoining
spaces.
Our CM7SD Shallow Depth loudspeaker can be
installed in a ceiling that is only 2-1/8” deep! Its
powder-coated steel cover not only protects it during
installation in tight spaces but also helps to minimize
sound penetration into adjoining areas, which can be a
real problem in specialized ceiling installations like in a
multi-dwelling unit.
Whatever your application or need, Niles makes the
loudspeaker that will help you delight your customers!
BENEFITS OF GOOD DESIGN
CALL 1-800-BUY-HIFI – www.nilesaudio.com 37
Loudspeakers
![](asset-26.png)

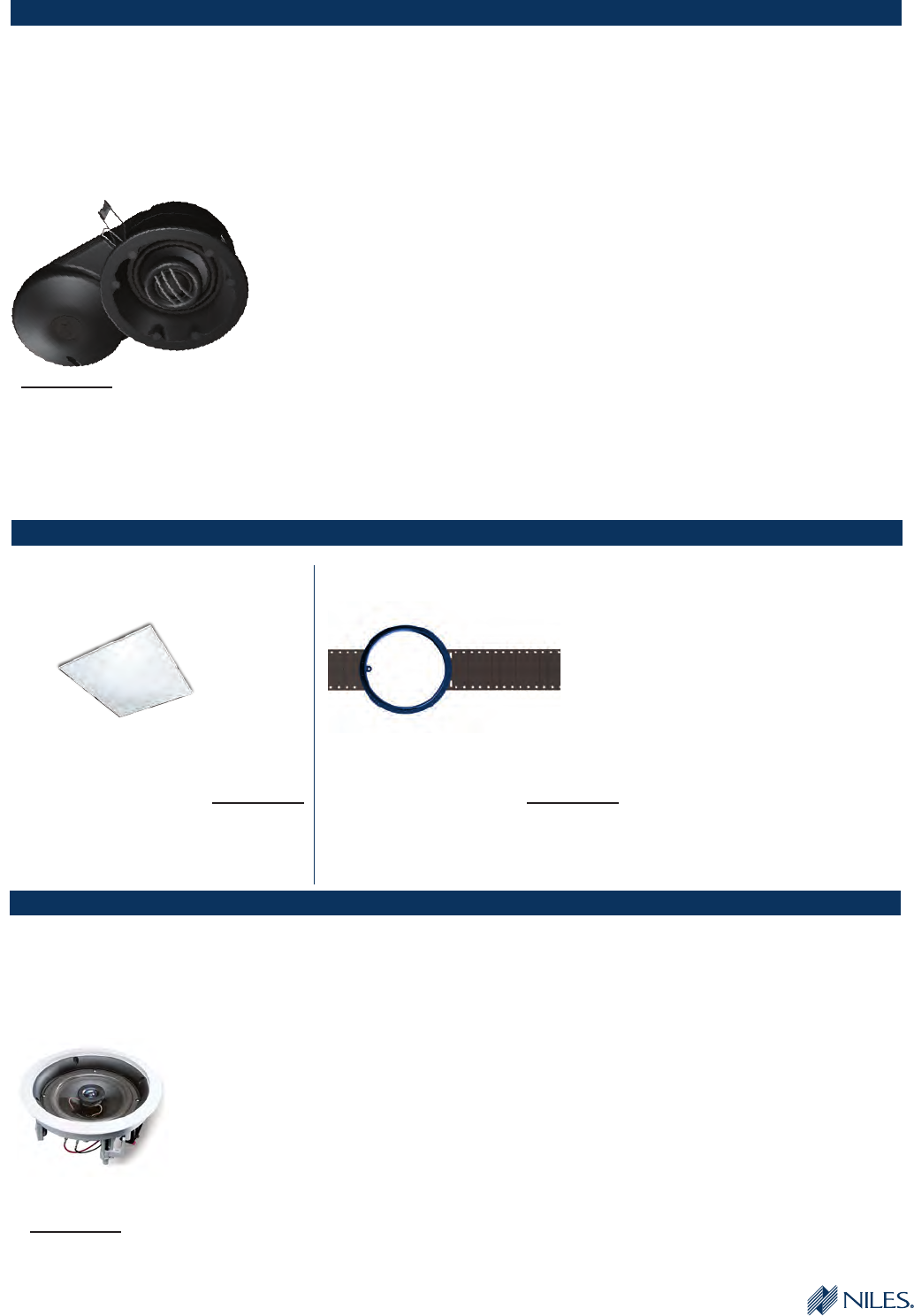

4” TWO-WAY CEILING-MOUNT LOUDSPEAKER
CM4PR
3-1/2” Two-Way Ceiling-Mount
Performance Loudspeaker
For smaller spaces or wherever
preventing sound bleed-through to
other spaces is critical
Packaged Individually
with Round MicroThin Grille
Stock Number
FG01666
FEATURES
■Custom Rear Wave Enclosure enhances acoustic performance while limiting
sound from bleeding through to adjacent spaces
■3 1/2” Mineral-Filled Polypropylene cone woofer is extremely rigid to reduce
breakup, lower distortion and provide enhanced bass response
■Butyl rubber surround damps resonance and provides exceptional durability
■1” fluid-cooled Teteron® dome tweeter offers ultra-wide dispersion and
silky-smooth high-frequency response
■Easy-to-use Tri-mount clips provide for quick installation
■Magnetically attached, rust-resistant grille covers install quickly and provide
a low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments or outdoors under eaves
SPECIFICATIONS
■Frequency Response: 70Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 25 to 100 Watts
■Hole Cutout Size: 4-5/8” (11.75 cm)
■Depth behind ceiling (5/8” drywall): 3-5/16” (8.4 cm)
Warranty: Lifetime Limited
4" CEILING-MOUNT LOUDSPEAKER ACCESSORIES
SG4C
4" Square MicroThin™ Grilles
■Corrosion-resistant MicroThin™
grille material
■Can be painted to match room color
Packaged in Pairs
NCB4C
4" New Construction Bracket
■Arms with center marking lines to allow
visual adjustment to stud
Packaged in Pairs
Stock Number
FG01674
Stock Number
FG01673
CC65
6 1/2" Ceiling mount
loudspeaker
Packaged in Pairs
Stock Number
FG01511
FEATURES
■Ideal for background listening applications where price is a concern but quality is important.
■6 1/2” polypropylene woofer delivers smooth bass response.
■Urethane woofer surround increases sensitivity while preserving durability.
■3/4” fluid-cooled Kaladex® tweeter provides extended treble tones and balanced woofer for
natural voice reproduction.
■Rustproof MicroPerf™ aluminum grilles can be painted to match decor.
SPECIFICATIONS
■Impedance: 8 ohm
■Recommended Amplifier Power: 5 to 50 Watts
■Frequency response: 55 Hz to 20 kHz +/ -4 dB
■Sensitivity: 91 dB for 2.83V pink noise
■Hole cutout dimensions: 8” (20.3 cm) diameter
■Mounting depth: 2-3/4” (7 cm) based on 1/2” drywall
Warranty: Lifetime Limited
6” TWO-WAY CEILING-MOUNT LOUDSPEAKER
38 Loudspeakers
![](asset-27.png)
6” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
CM610
6” Two-Way Ceiling-Mount
Multi-Purpose Loudspeaker
For use as primary loudspeakers in
price-sensitive installations
Packaged in Pairs with Round MicroPerf™ Grilles
Packaged in Pairs with Round MicroPerf™ Grilles
Stock Number
FG01294
Stock Number
FG01295
FEATURES
■Integrated woofer/baffle design
■6” polypropylene cone woofer with treated urethane surround
■1/2” fluid-cooled Kaladex® tweeter
■Includes a flush-mount aluminum grille plus a special recessed cloth
grille that masquerades as a light fixture
SPECIFICATIONS
■Recommended amplifier power: 5 - 50 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 65 Hz to 20 kHz +/ -4 dB
■Frame dimensions: 7-3/4” (19.7 cm) diameter
■Hole cutout dimensions: 6-1/2” (16.5 cm) diameter
■Depth behind ceiling: 3-5/8” (9.2 cm)
Warranty: Lifetime Limited
CM630
6” Two-Way Ceiling-Mount
Performance Loudspeaker
Blending value and performance, a
quality loudspeaker suitable for a
variety of applications
FEATURES
■Integrated woofer/baffle design
■6” polypropylene cone woofer with butyl rubber surround
■1” joystick-type pivoting UltraSilk™ soft dome tweeter
■Includes a flush-mount aluminum grille plus a special recessed
cloth grille that masquerades as a light fixture
SPECIFICATIONS
■Recommended amplifier power: 10 - 75 watts
■Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency response: 65 Hz to 20 kHz +/ -3 dB
■Frame dimensions: 7-3/4” (19.7 cm) diameter
■Hole cutout dimensions: 6-1/2” (16.5 cm) diameter
■Depth behind ceiling: 3-5/8” (9.2 cm)
Warranty: Lifetime Limited
6" CEILING-MOUNT LOUDSPEAKER ACCESSORIES
CM600 BKT
6" New Construction Bracket
Packaged in Pairs
Stock Number
FG01300
CALL 1-800-BUY-HIFI – www.nilesaudio.com 39
Loudspeakers
![](asset-28.png)
7” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
Stock Number
FG01655
CM7BG
7” Two-Way Ceiling-Mount
Background Loudspeaker
For use in non-primary listening areas
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing a larger 7” woofer, where competitive models of the same outer
size employ only 6-1/2” woofers in the same size speaker installation
■Polypropylene cone is light, strong and well damped to provide “best-in-
class” bass response
■Treated urethane surround increases sensitivity while preserving durability
■1/2” Kaladex® tweeter with fluid cooling provides wide dispersion for clear
and detailed high frequencies
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments or outdoors under eaves
SPECIFICATIONS
■ Recommended Amplifier Power: 10 to 75 Watts
■ Impedance: 8 ohm nominal; 6 ohm minimum
■Frequency Response: 58Hz to 20kHz +/-3dB
■Voice coil size: 3/4”
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2” (21.6 cm)
■Depth behind ceiling (5/8” drywall): 3-3/4” (9.5 cm)
Warranty: Lifetime Limited
Stock Number
FG01665
CM7SD
7” Two-Way Ceiling-Mount
Slim Design Performance
Loudspeaker
FEATURES
■7” Mineral-Filled Polypropylene woofer cone is extremely rigid to reduce
breakup, lower distortion and provide enhanced bass response
■Butyl rubber cone surround damps resonance and provides exceptional
durability
■3/4”soft dome tweeter offers wide dispersion and silky-smooth high-
frequency response
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Shallow Depth Design permits installation in a ceiling depth of as small as
2-1/8” behind 5/8” drywall
■Rear Powder-Coated Steel Cover minimizes sound penetration to
adjoining spaces
SPECIFICATIONS
■Frequency Response: 52Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 100 Watts
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2” (21.6 cm)
■Depth behind ceiling (5/8” drywall): 2-1/8” (5.4 cm)
Warranty: Lifetime Limited
Packaged individually with
Round MicroThin™ Grille
Packaged individually with
Round MicroThin™ Grille
APPLICATION - SPECIFIC MODEL
Our new CM7SD Shallow Depth loudspeaker can be installed in a ceiling that is only 2-1/8” deep!
Its powder-coated steel cover not only protects it during installation in tight spaces but also helps to
minimize sound penetration into adjoining areas, which can be a real problem in specialized ceiling
installations like in a multi-dwelling unit.
40 Loudspeakers
![](asset-29.png)
7” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
CM7MP
7” Two-Way Ceiling-Mount
Multi-Purpose Loudspeaker
with Pivoting Tweeter
Stock Number
FG01656
Stock Number
FG01657
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing a 7” woofer, where competitive models of the same outer size employ
6-1/2” woofers
■Glass fiber woofer cone is light, strong and well damped to provide “best-in-
class” bass response
■1” fluid-cooled UltraSilk® soft-dome tweeter provides for clear and detailed high-
frequency response
■Proprietary bridge-mounted tweeter-adjustment mechanism focuses the high-
frequency sound in any direction up to 20º without diffraction
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments or outdoors under eaves
SPECIFICATIONS
■Frequency Response: 55Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 130 Watts
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2” (21.6 cm)
■Depth behind ceiling (5/8” drywall): 3-3/4” (9.5 cm)
Warranty: Lifetime Limited
CM7PR
7” Two-Way Ceiling-Mount
Performance Loudspeaker
For advanced home theaters and
primary listening rooms.
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing a 7” woofer, where competitive models of the same outer size
employ 6-1/2” woofers
■Glass fiber woofer cone is extremely rigid to reduce breakup, lower distortion
and provide enhanced bass response
■Butyl rubber surround damps resonance and provides exceptional durability
■1” fluid-cooled Teteron® dome tweeter offers ultra-wide dispersion and
silky-smooth high-frequency response
■Proprietary bridge-mounted tweeter-adjustment mechanism focuses the
high-frequency sound in any direction up to 20º without diffraction
■Magnetically attached, rust-resistant grille covers install quickly and provide
a low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments or outdoors under eaves
SPECIFICATIONS
■Frequency Response: 52Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 130 Watts
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2” (21.6 cm)
■Depth behind ceiling (5/8” drywall): 3-3/4” (9.5 cm)
Warranty: Lifetime Limited
Packaged individually with
Round MicroThin™ Grille
Packaged individually with
Round MicroThin™ Grille
CALL 1-800-BUY-HIFI – www.nilesaudio.com 41
Loudspeakers
![](asset-2a.png)
7” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
Stock Number
FG01660
CM7FX
7” Two-Way Ceiling-Mount
Surround Effects
Performance Loudspeaker
For advanced home theaters and
primary listening rooms
CM7HD
7” Two-Way Ceiling-Mount
High-Definition Loudspeaker
with Pivoting Tweeter
For advanced home theaters and
primary listening rooms
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing a 7” woofer, where competitive models of the same outer size employ
6-1/2” woofers
■Glass fiber woofer cone is extremely rigid to reduce breakup, lower distortion
and provide enhanced bass response
■Butyl rubber cone surround damps resonance and provides exceptional
durability
■Dual 1” pivoting fluid-cooled Teteron® dome tweeters offer ultra-wide dispersion
and silky-smooth high-frequency response
■Bridge-mounted surround effects (FX) tweeter array directs the high-frequency
sounds at opposing angles to create realistic surround sound effects
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Adjustable Dipole/Bipole and effects level controls provide for optimum
room-matching, Patent-pending, spring-tensioned mounting clamps permit
quick installation and compensate for uneven mounting surfaces and varied
environmental conditions
SPECIFICATIONS
■Frequency Response: 52Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 140 Watts
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2“ (21.6 cm)
■Depth behind ceiling (5/8” drywall): 3-3/4” (9.5 cm)
Warranty: Lifetime Limited
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing a 7” woofer, where competitive models of the same outer size employ
6-1/2” woofers
■Interlaced glass fiber cone is lightweight yet extremely rigid for deep, powerful bass
response
■Butyl rubber surround damps resonance and provides exceptional durability
■1” nano-coated IMPACT (Improved Aluminum Ceramic Technology) dome tweeter
utilizes a vapor-deposited coating to move any ringing frequencies outside the
range of hearing for ultra-detailed high frequencies
■Proprietary bridge-mounted tweeter-adjustment mechanism focuses the high-
frequency sound in any direction up to 20º without diffraction
■Three-position tweeter level control provides for precise matching to room
acoustics
■Magnetically attached, rust-resistant grille covers install quickly and provide a low-
profile look
■Weather-resistant construction reduces installation limitations and provides unique
solutions in moist environments or outdoors under eaves
SPECIFICATIONS
■Frequency Response: 48Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 160 Watts
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2” (21.6 cm)
■Depth behind ceiling (5/8” drywall): 3-3/4” (9.5 cm)
Warranty: Lifetime Limited
Stock Number
FG01658
Packaged individually with
Round MicroThin™ Grille
Packaged in Matched Pairs
with Round MicroThin™ Grille
42 Loudspeakers
![](asset-2b.png)

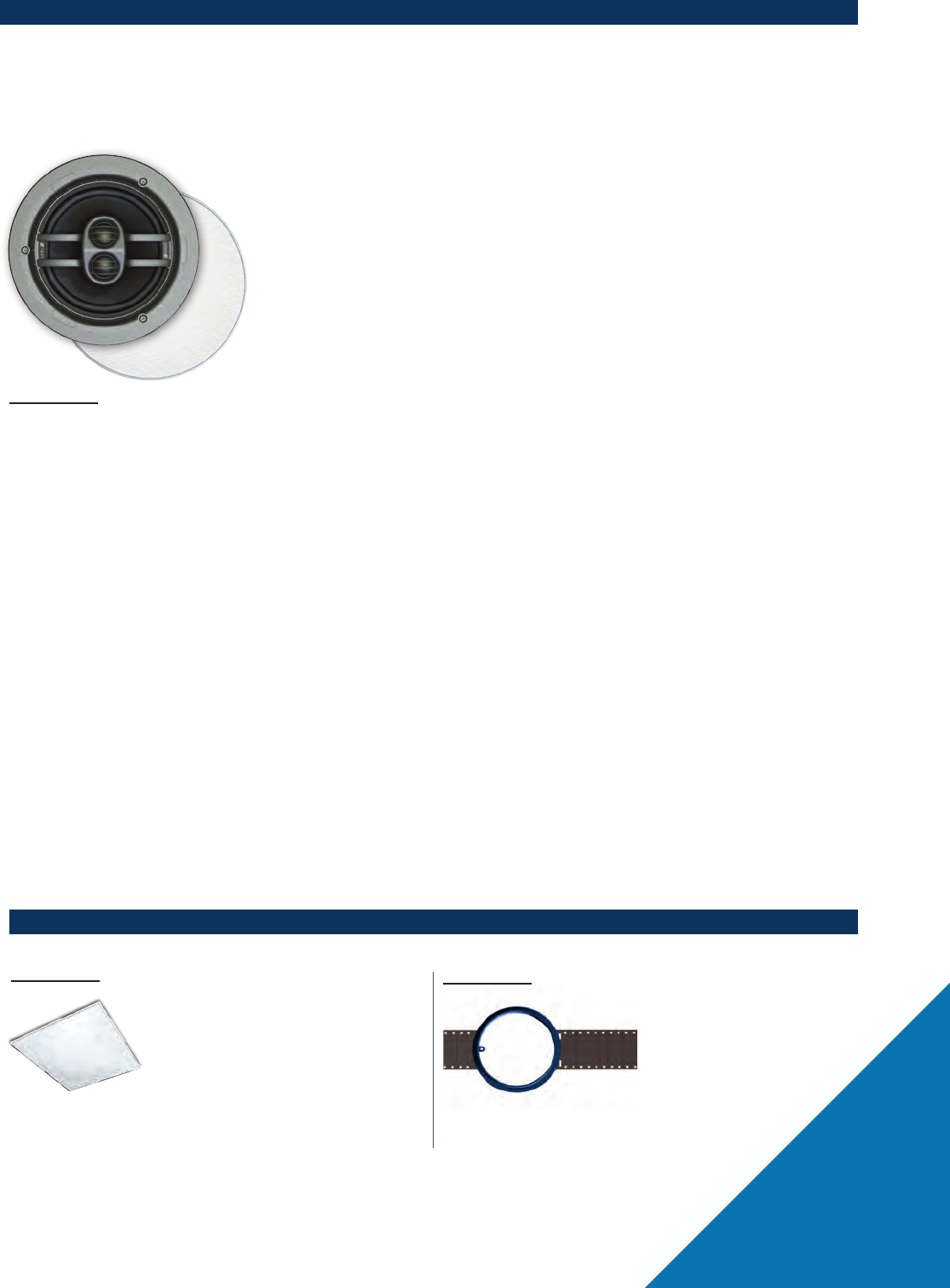

7” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
CM7SI
7” Two-Way Ceiling-Mount
Stereo Input Loudspeaker
For single-speaker stereo applications
Stock Number
FG01659
FEATURES
■7” glass fiber woofer cone with a curvilinear profile for smoother sound and
less peaking at high frequencies
■Glass fiber dual voice coil woofer reproduces left and right channel inputs from
a single-speaker
■High quality Butyl surround increases sensitivity and preserves durability
■Dual 1” fluid-cooled UltraSilk tweeters provide wide dispersion for clear and
detailed high frequencies
■Bridge-mounted stereo imaging (SI) tweeter array directs the high-frequency
sounds from both the left and right channels at opposing angles to preserve
stereo separation
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments or outdoors under eaves
■Integrated baffle/frame assembly increases the cone area for deeper bass
than competitive speakers of the same diameter
■Patent-pending, spring-tensioned mounting clamps permit quick installation
and compensate for uneven mounting surfaces and varied environmental
conditions
SPECIFICATIONS
■Frequency Response: 55Hz to 21kHz +/-3dB
■Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■Recommended Amplifier Power: 10 to 130 Watts
■Frame Dimensions: 9-7/8” (25.1 cm)
■Hole cutout dimensions: 8-1/2” (21.6 cm)
■Depth behind ceiling (5/8” drywall): 3-3/4” (9.5 cm)
Warranty: Lifetime Limited
Packaged individually with
Round MicroThin™ Grille
7" CEILING-MOUNT LOUDSPEAKER ACCESSORIES
SG7C
7" Square MicroThin™ Grilles
■Corrosion-resistant MicroThin™ grille material
■Can be painted to match room color
Packaged in Pairs
NCB7C
7" Construction Bracket
■Arms with center marking lines to
allow visual adjustment to stud
Packaged in Pairs
Stock Number
FG01645
Stock Number
FG01647
CALL 1-800-BUY-HIFI – www.nilesaudio.com 43
Loudspeakers
![](asset-2c.png)
8” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
Stock Number
FG01662
CM8PR
8” Two-Way Ceiling-Mount
Performance Loudspeaker
For advanced home theaters and
primary listening rooms
CM8MP
8” Two-Way Ceiling-Mount
Multi-Purpose Loudspeaker
With Pivoting Tweeter
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing an 8” woofer, where competitive models of the same outer size use
smaller woofers.
■Glass fiber woofer cone is extremely rigid to reduce breakup, lower distortion
and provide enhanced bass response
■Butyl rubber surround damps resonance and provides exceptional durability
■1” fluid-cooled Teteron® dome tweeter offers enhanced dispersion and silky-
smooth high-frequency response
■Proprietary bridge-mounted tweeter pivot mechanism focuses the high-
frequency sound in any direction up to 20° without diffraction
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments like bathrooms or outdoors under eaves
■Patent-pending, spring-tensioned mounting clamps permit quick installation and
compensate for uneven mounting surfaces and varied environmental conditions
SPECIFICATIONS
■Frequency response: 48Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended amplifier power: 10 to 140 watts
■Frame Dimensions: 11-3/8” (28.9 cm)
■Hole cutout dimensions: 9-3/4” (24.8 cm)
■Depth behind ceiling (5/8” drywall): 4-1/8” (10.5 cm)
Warranty: Lifetime Limited
FEATURES
■Integrated woofer/baffle design delivers greater low-frequency response by
employing a 8” woofer, where competitive models of the same outer size
employ 6-1/2” woofers
■Polypropylene cone is light, strong and well damped to provide “best-in-class”
bass response
■Butyl rubber surround damps resonance and provides exceptional durability
■1” fluid-cooled UltraSilk® soft-dome tweeter provides for clear and detailed
high-frequency response
■Proprietary bridge-mounted tweeter-adjustment mechanism focuses the high-
frequency sound in any direction up to 20º without diffraction
■Magnetically attached, rust-resistant grille covers install quickly and provide a
low-profile look
■Weather-resistant construction reduces installation limitations and provides
unique solutions in moist environments or outdoors under eaves
SPECIFICATIONS
■Frequency Response: 50Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 140 Watts
■Frame Dimensions: 11-3/8” (28.9 cm)
■Hole cutout dimensions: 9-3/4” (24.8 cm)
■Depth behind ceiling (5/8” drywall): 4-1/8” (10.5 cm)
Warranty: Lifetime Limited
Packaged individually with
Round MicroThin™ Grille
Stock Number
FG01661
Packaged individually with
Round MicroThin™ Grille
44 Loudspeakers
![](asset-2d.png)
8” TWO-WAY CEILING-MOUNT LOUDSPEAKERS
CM8HD
8” Two-Way Ceiling-Mount
High-Definition Loudspeaker
For advanced home theaters and
primary listening rooms
Packaged Individually with
Round MicroThin™ Grille
Packaged Individually with
Round MicroThin™ Grille
Stock Number
FG01663
Stock Number
FG01664
FEATURES
■8” IMPACT (Improved Aluminum Ceramic Technology) woofer cone with curvilinear profile
and extended pole provides natural, flat response
■1” nano-coated IMPACT dome tweeter utilizes a vapor-deposited coating to move any
ringing frequencies outside the range of hearing for ultra-detailed high frequencies
■Butyl rubber surround damps resonance and provides exceptional durability
■Proprietary bridge-mounted tweeter pivot mechanism focuses the high-frequency sound in
any direction up to 20° without diffraction
■Three-position tweeter level control for precise matching to room acoustics
■Magnetically attached, rust-resistant grille covers install quickly and provide a low-profile
look
■Weather-resistant construction reduces installation limitations and provides unique
solutions in moist environments like bathrooms or outdoors under eaves
■Patent-pending, spring-tensioned mounting clamps permit quick installation and
compensate for uneven mounting surfaces and varied environmental conditions
SPECIFICATIONS
■Frequency Response: 48Hz to 21kHz +/-3dB
■Impedance: 8 ohm nominal; 6 ohm minimum
■Recommended Amplifier Power: 10 to 160 Watts
■Frame Dimensions: 11-3/8” (28.9 cm)
■Hole cutout dimensions: 9-3/4” (24.8 cm)
■Depth behind ceiling (5/8” drywall): 4-1/8” (10.5 cm)
Warranty: Lifetime Limited
CM8SI
8” Two-Way Ceiling-Mount
Stereo Input Loudspeaker
For single-speaker stereo applications
FEATURES
■8” glass fiber woofer cone with a curvilinear profile for smoother sound and less peaking at high
frequencies
■Dual 1” Teteron tweeters provide wide dispersion for clear and detailed high frequencies
■Bridge-mounted Stereo Imaging (SI) tweeter array directs the high-frequency sounds from both the
left and right channels at opposing angles to preserve stereo separation
■Magnetically attached, rust-resistant grille covers install quickly and provide a low-profile look
■Integrated baffle/frame assembly increases the cone area for deeper bass than competitive speakers
of the same diameter
■Patent-pending, spring-tensioned mounting clamps permit quick installation and compensate for
uneven mounting surfaces and varied environmental conditions
■Weather-resistant construction enables installation in wet environments and outdoors under eves
SPECIFICATIONS
■Recommended amplifier power: 10 - 130 watts
■Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■Frequency response: 55 Hz to 21 kHz +/ -3 dB
■Voice coil size: 1.25”
■Frame Dimensions: 11-3/8” (28.9 cm)
■Hole cutout dimensions: 9-3/4” (24.8 cm)
■Depth behind ceiling (5/8” drywall): 4-1/8” (10.5 cm)
Warranty: Lifetime Limited
8” CEILING-MOUNT LOUDSPEAKER ACCESSORIES
SG8C
8" Square MicroThin™
Grille Cover
NCB8C
8" New Construction Bracket
Stock Number
FG01646
Stock Number
FG01648
■Corrosion-resistant MicroPerf™
grille material
■Can be painted to match room
color
Packaged in Pairs
CALL 1-800-BUY-HIFI – www.nilesaudio.com 45
Loudspeakers
![](asset-2e.png)
With 6 different models, each engineered to address a specific application; Niles has the right in-wall loudspeaker for any
system you can install. Each one has different features and performance characteristics to satisfy varying conditions such as
sound quality, placement, room size, or room acoustics.
For example, our exclusive tweeter housing ratchets in 1 mm increments to precisely direct the high frequencies
into the listening area. Baffle-mounted bass and treble tone controls let you compensate for less-than-ideal room
anomalies and speaker placement. Another installer-friendly touch is the standard snap-in loudspeaker baffle
that saves time and facilitates quick service while maintaining an unbroken paint seal.
And don’t forget the famous Niles Limited Lifetime Warranty. Our In-Wall Loudspeakers are so robust
that when you install them, you know they’ll stay installed—for years to come.
SELECTION, PERFORMANCE,
AND INSTALLABILITY
Niles In-Wall Loudspeakers Have It All
For application-specific solutions, easy
installation, and legendary quality and
reliability, look no further than Niles Audio.
Our integrated woofer/baffle provides a
deeper, richer bass than similarly sized
competitor’s models.
46 Loudspeakers
![](asset-2f.png)

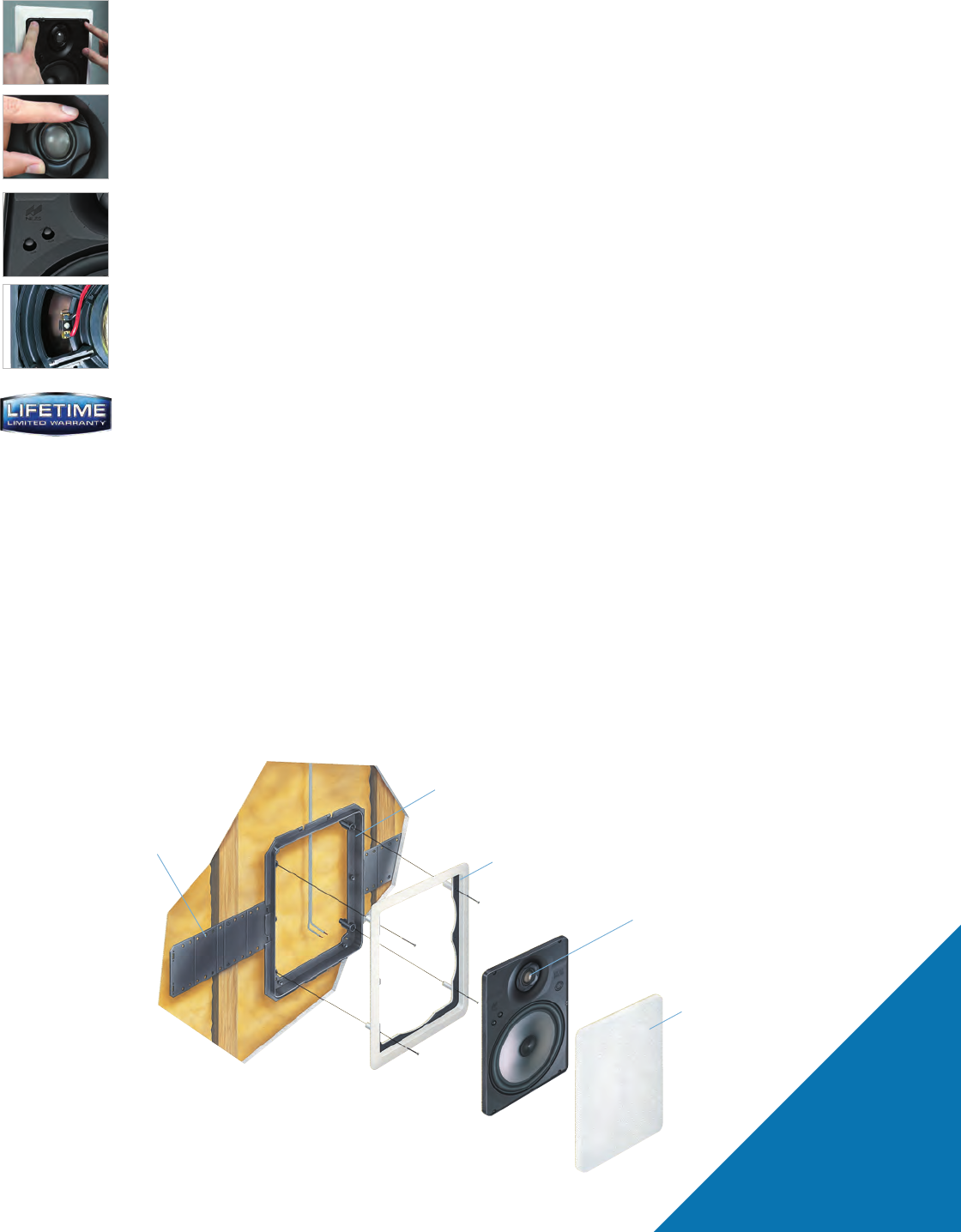

KEY FEATURES
ARCHITECTURALLY-FRIENDLY AESTHETICS
Snap-in loudspeaker bafes provide a seamless t to the wall, simplify painting, and allows easy removal
of the bafe from the frame for servicing or upgrades, without disrupting the paint seal.
SUPERIOR SOUND QUALITY
Advanced driver materials, quality crossovers, and our rotating and pivoting tweeter work in concert
to provide a listening experience that redenes the wall-mount loudspeaker category.
IMPEDANCE MANAGEMENT
Selectable 4 ohm or 8 ohm impedance switching enables you to optimize the design of your system.
SOPHISTICATED MOTOR AND MAGNET DESIGN
Our design includes shorting rings, extended pole pieces, and machined top plates for deep bass
response.
LIFETIME LIMITED WARRANTY
Our In-Wall Loudspeakers are so well made; we condently back them up with a Lifetime Limited
Warranty. With robust construction and bulletproof durability, you can expect fewer service calls—and
that means more money in your pocket.
Rotating and Pivoting Tweeter
Mechanism
Bracket
New Construction Wings
Frame
Grille
CALL 1-800-BUY-HIFI – www.nilesaudio.com 47
Loudspeakers
![](asset-30.png)

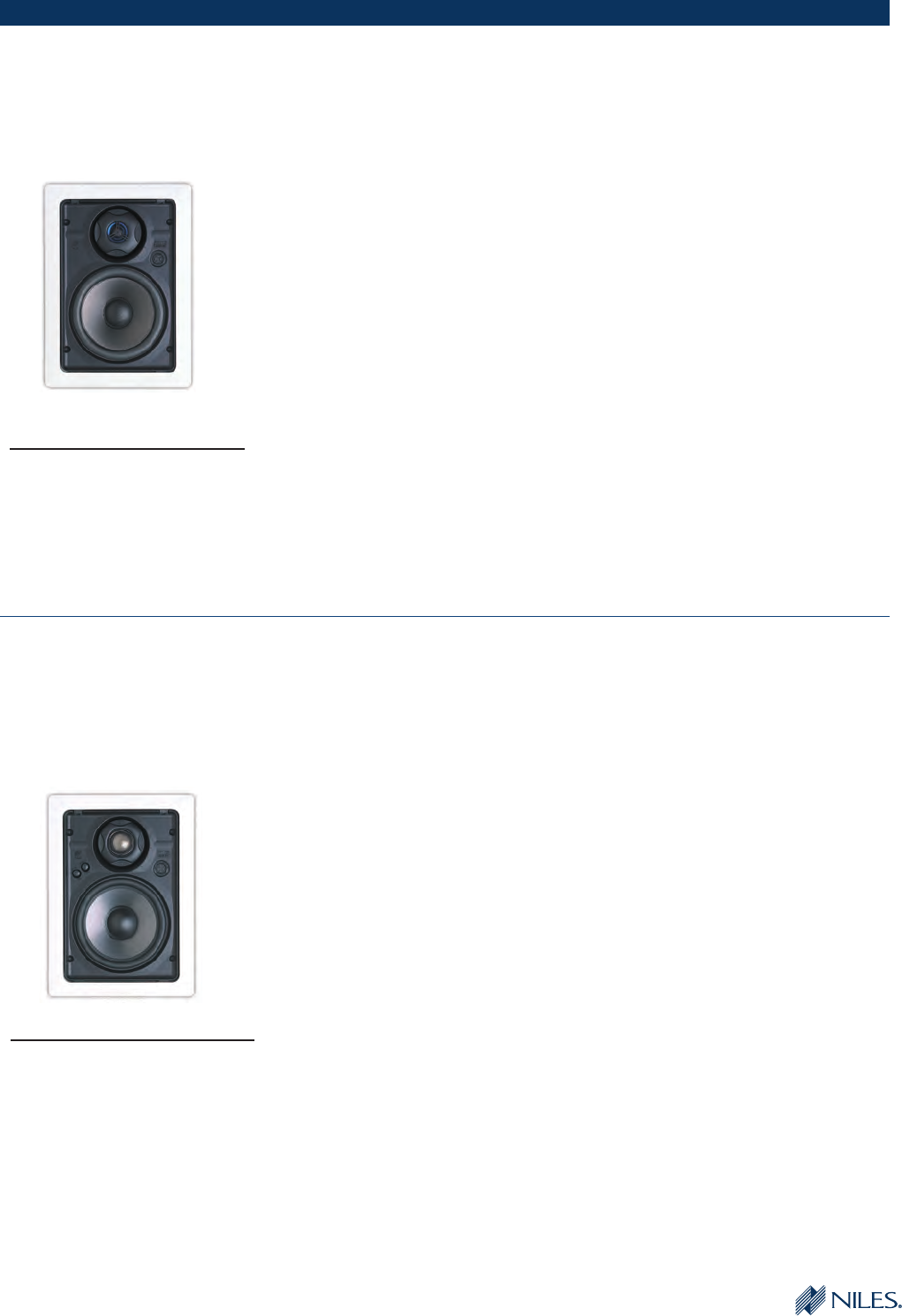

5” IN-WALL LOUDSPEAKERS
HD5R
5-1/4” Two-Way In-Wall
High-Definition Loudspeaker
Provides superior sound quality
and durability
Packaged in pairs
Model Stock Number
HD5R FG00882
FEATURES
■ 5-1/4” injection-molded TCC™ (Talc, Carbon and Ceramic-filled) polypropylene woofer is extremely
rigid to reduce breakup and lower distortion
■ Butyl rubber surround damps resonance and provides exceptional durability
■ High BL magnet structure with vented pole piece insures powerful bass response
■ 1” Tri-laminate Teteron® dome tweeter with fluid cooling and ultra-wide dispersion provides clear and
detailed high frequencies
■ Proprietary tweeter adjustment mechanism ratchets in 1 mm increments and pivots for precise
aiming of high frequencies
■ Baffle-mounted bass and treble controls provide simple, accessible sound adjustment for room and
acoustics matching
■ Low-diffraction MicroPerf™ aluminum grilles are acoustically transparent, paintable, and will not rust
■ 5 Series bracket kit included
SPECIFICATIONS
■ Recommended amplifier power: 10 –100 watts
■ Impedance: 6 ohms
■ Frequency response: 60 Hz – 21 kHz +/-3 dB
■ Sensitivity: 88 dB for 2.83V pink noise
■ Frame dimensions: 7-1/8” x 9-7/8” (18.11 cm x 25.1 cm)
■ Hole cutout dimension: 6-1/4” x 9” (15.88 cm x 22.86 cm)
■ Depth behind wall (based on 1/2” drywall): 3-5/8” (9.22 cm)
Warranty: Lifetime Limited
Shipping weight: 9 lbs. (4.1 Kg)
MP5R
5-1/4” Two-Way In-Wall
Multi-Purpose Loudspeaker
For price-sensitive and background
music applications
Packaged in pairs
Model Stock Number
MP5R FG00874
FEATURES
■ 5-1/4” Talc-filled polypropylene cone woofer Is light, strong and well damped to accommodate all
types of program material
■ Treated foam cone surround increases sensitivity and provides exceptional durability
■ 3/4” fluid-cooled Kaladex dome tweeter provides ultra-wide dispersion for clear, detailed high
frequencies
■ Proprietary tweeter adjustment mechanism ratchets in 1mm increments and pivots for precise aiming
of high frequencies
■ 5 Series bracket kit included
SPECIFICATIONS
■ Recommended amplifier power: 5 – 60 watts
■ Impedance: 8 ohms
■ Frequency response: 75 Hz – 20 kHz +/-3 dB
■ Sensitivity: 87 dB for 2.83V pink noise
■ Frame dimensions: 7-1/8” x 9-7/8” (18.11 cm x 25.1 cm)
■ Hole cutout dimension: 6-1/4” x 9” (15.88 cm x 22.86 cm)
■ Depth behind wall (based on 1/2” drywall): 3-5/8” (9.22 cm)
Warranty: Lifetime Limited
Shipping weight: 7 lbs. (3.2 Kg)
48 Loudspeakers
![](asset-31.png)
6” IN-WALL LOUDSPEAKERS
PR6R
6-1/2” Two-Way In-Wall
Performance Loudspeaker
Superb value and performance for a
wide variety of applications
Packaged in pairs
Model Stock Number
PR6R FG00880
FEATURES
■ 6-1/2” Talc-filled polypropylene cone woofer is extremely rigid to reduce
breakup and lower distortion
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ 3/4” fluid-cooled Kaladex dome tweeter provides ultra-wide dispersion for
clear, detailed high frequencies
■ Proprietary tweeter adjustment mechanism ratchets in 1mm increments and
pivots for precise aiming of high frequencies
■ 6 Series bracket kit included
SPECIFICATIONS
■ Impedance: 4 ohms or 8 ohms (selectable)
■ Recommended amplifier power: 10 – 100 watts
■ Frequency response: 60 Hz – 20 kHz +/-3 dB
■ Sensitivity: 88 dB for 2.83V pink noise
■ Frame dimensions: 8-3/4” X 11-11/16” (22.23 cm x 29.69 cm)
■ Hole cutout dimension: 7-5/8” X 10-5/8” (19.38 cm x 27.0 cm)
■ Depth behind wall (based on 1/2” drywall): 3-5/8” (9.22 cm)
Warranty: Lifetime Limited
Shipping weight: 10 lbs. (4.5 Kg)
MP6R
6-1/2” Two-Way In-Wall
Multi-Purpose Loudspeaker
For price-sensitive and background
music applications
Packaged in pairs
Model Stock Number
MP6R FG00876
FEATURES
■ 6-1/2” Talc-filled polypropylene cone woofer is light, strong and well damped
to accommodate all types of program material
■ Treated foam cone surround increases sensitivity and provides exceptional
durability
■ 3/4” fluid-cooled Kaladex dome tweeter provides ultra-wide dispersion for
clear, detailed high frequencies
■ Proprietary tweeter adjustment mechanism ratchets in 1mm increments and
pivots for precise aiming of high frequencies
■ 6 Series bracket kit included
SPECIFICATIONS
■ Recommended amplifier power: 10 – 75 watts
■ Impedance: 8 ohms
■ Frequency response: 65 Hz – 20 kHz +/-3 dB
■ Sensitivity: 88 dB for 2.83V pink noise
■ Frame dimensions: 8-3/4” x 11-11/16” (22.23 cm x 29.69 cm)
■ Hole cutout dimension: 7-5/8” x 10-5/8” (19.38 cm x 27.0 cm)
■ Depth behind wall (based on 1/2” drywall): 3-5/8” (9.22 cm)
Warranty: Lifetime Limited
Shipping weight: 10 lbs. (4.5 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 49
Loudspeakers
![](asset-32.png)
6” IN-WALL LOUDSPEAKERS
HD6R
6-1/2” Two-Way In-Wall
High-Definition Loudspeaker
Provides superior sound quality
and durability
Packaged in pairs
Model Stock Number
HD6R FG00884
FEATURES
■ 6-1/2” injection-molded TCC™ (Talc, Carbon and Ceramic-filled) polypropylene cone woofer is
extremely rigid to reduce breakup and lower distortion
■ Butyl rubber surround damps resonance and provides exceptional durability
■ High BL magnet structure with vented pole piece insures powerful bass response
■ 1” Tri-laminate Teteron® dome tweeter with fluid cooling and ultra-wide dispersion provides clear and
detailed high frequencies
■ Proprietary tweeter adjustment mechanism ratchets in 1 mm increments and pivots for precise
aiming of high frequencies
■ Baffle-mounted bass and treble controls provide simple, accessible sound adjustment for room and
acoustics matching
■ Low-diffraction MicroPerf™ aluminum grilles are acoustically transparent, paintable, and will not rust
■ 6 Series bracket kit included
SPECIFICATIONS
■ Recommended amplifier power: 10 –125 watts
■ Impedance: 6 ohms
■ Frequency response: 50 Hz – 21 kHz +/-3 dB
■ Sensitivity: 89 dB for 2.83V pink noise
■ Frame dimensions: 8-3/4” x 11-11/16” (22.23 cm x 29.69 cm)
■ Hole cutout dimension: 7-5/8” x 10-5/8” (19.38 cm x 27 cm)
■ Depth behind wall (based on 1/2” drywall): 3-5/8” (9.22 cm)
Warranty: Lifetime Limited
Shipping weight: 12 lbs. (5.4 Kg)
50 Loudspeakers
![](asset-33.png)

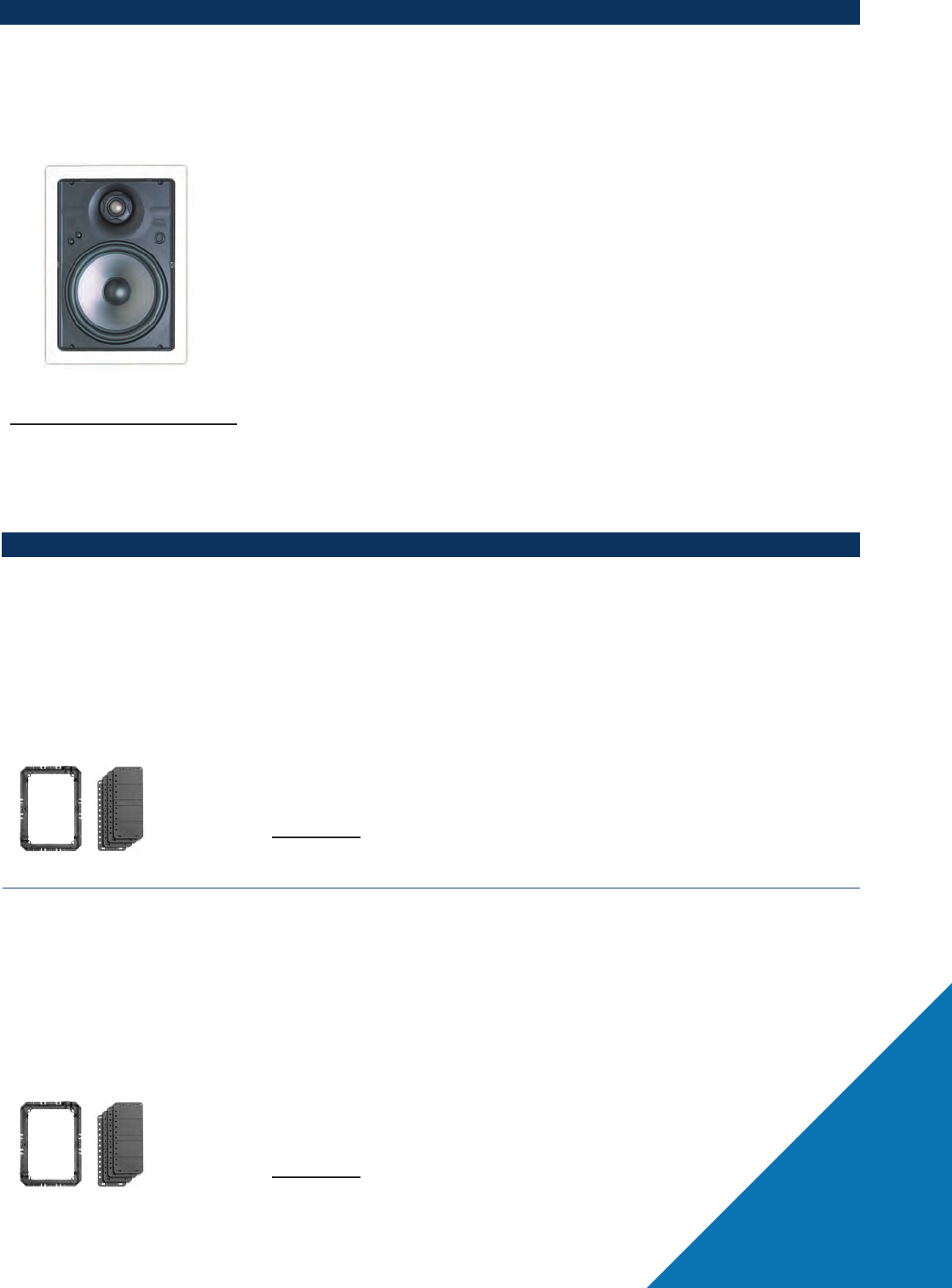

8” IN-WALL LOUDSPEAKERS
HD8R
8” Two-Way In-Wall
High-Definition Loudspeaker
Provides superior sound quality
and durability
Packaged in pairs
Model Stock Number
HD8R FG00886
FEATURES
■ 8” injection-molded TCC™ (Talc, Carbon and Ceramic-filled) polypropylene cone woofer is extremely
rigid to reduce breakup and lower distortion
■ Butyl rubber surround damps resonance and provides exceptional durability
■ High BL magnet structure with vented pole piece insures powerful bass response
■ 1” Tri-laminate Teteron® dome tweeter with fluid cooling and ultra-wide dispersion provides clear and
detailed high frequencies
■ Proprietary tweeter adjustment mechanism ratchets in 1 mm increments and pivots for precise aiming
of high frequencies
■ Baffle-mounted bass and treble controls provide simple, accessible sound adjustment for room and
acoustics matching
■ Low-diffraction MicroPerf™ aluminum grilles are acoustically transparent, paintable, and will not rust
■ 8 Series bracket kit included
SPECIFICATIONS
■ Recommended amplifier power: 10 –150 watts
■ Impedance: 6 ohms
■ Frequency response: 50 Hz – 21 kHz +/-3 dB
■ Sensitivity: 89 dB for 2.83V pink noise
■ Frame dimensions: 10-3/16” x14-1/4” (25.88 cm x 36.2 cm)
■ Hole cutout dimension: 9-1/8” x 13-1/8” (23.19 cm x 33.35 cm)
■ Depth behind wall (based on 1/2” drywall): 3-5/8” (9.22 cm)
Warranty: Lifetime Limited
Shipping weight: 17 lbs. (7.7 Kg)
IN-WALL LOUDSPEAKER ACCESSORIES
8 SERIES
BRACKET
Bracket Kit on both
Model & Description
For installing 8 Series In-Wall
Loudspeaker in new construction
applications
FEATURES
■ Accommodates Niles 8 Series in-wall loudspeaker models
■ Includes wings for new construction applications
■ QuickSnap feature for faster installation in new construction
■ Scored wings ensure flexibility in placement between wall studs
■ Very thin wings minimize sheetrock bulge
■ Wire ties on all four corners prevent the possibility of losing wires in walls
■ Not easily damaged by common sheetrock tools
■ Mates with matching frame to securely clamp sheetrock
Shipping weight: 3 lbs. (1.4 Kg)
Stock Number
FG00321
6 SERIES
BRACKET
Bracket Kit on both
Model & Description
For installing 6 Series In-Wall
Loudspeaker in new construction
applications
FEATURES
■ Accommodates all Niles 6 Series in-wall loudspeaker models
■ Includes wings for new construction applications
■ QuickSnap feature for faster installation in new construction
■ Scored wings ensure flexibility in placement between wall studs
■ Very thin wings minimize sheetrock bulge
■ Wire ties on all four corners prevent the possibility of losing wires in walls
■ Not easily damaged by common sheetrock tools
■ Mates with matching frame to securely clamp sheetrock
Shipping weight: 2 lbs. (1 Kg)
Stock Number
FG00320
CALL 1-800-BUY-HIFI – www.nilesaudio.com 51
Loudspeakers
![](asset-34.png)

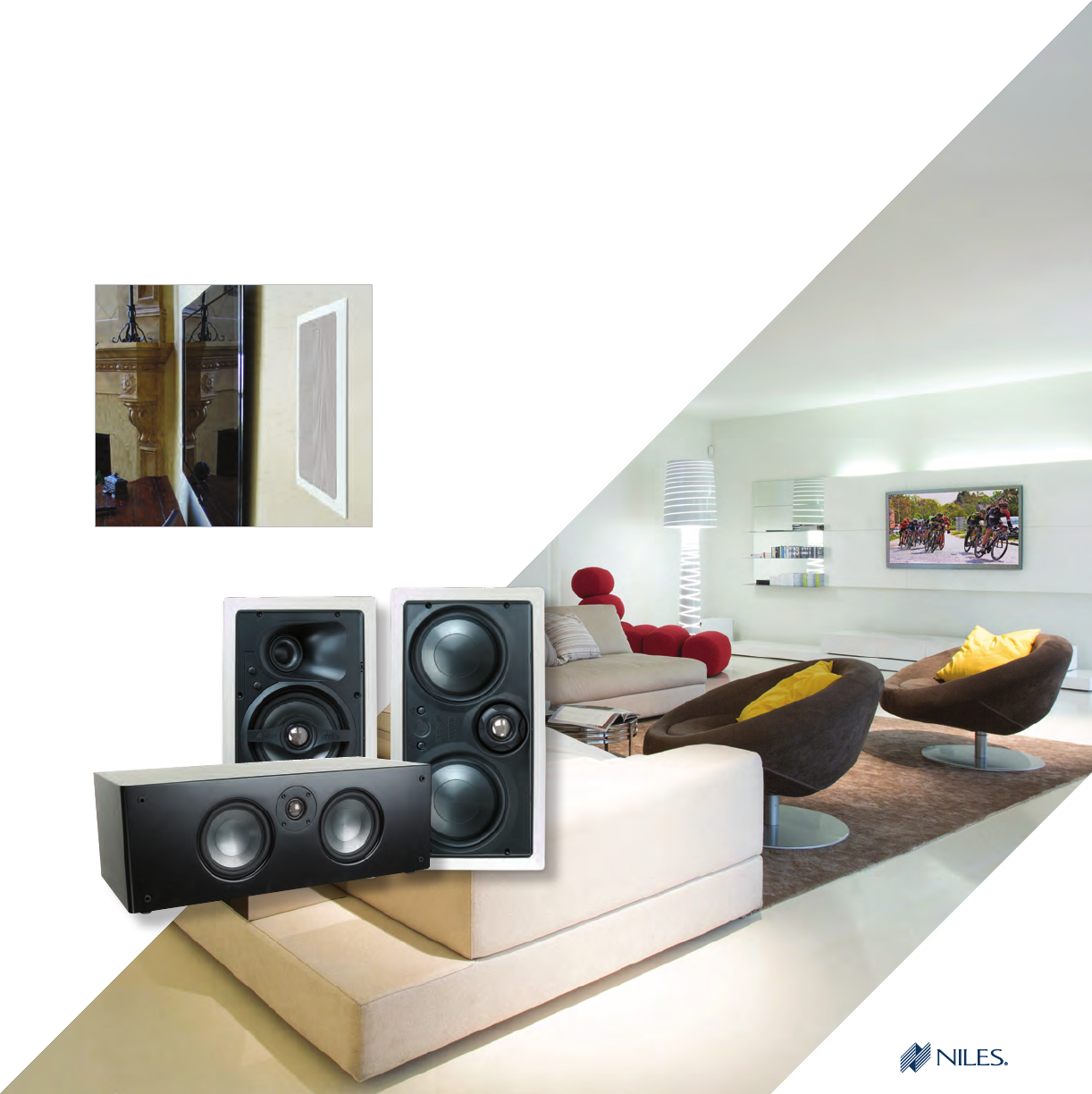

High-definition television forever changed home theater video. HD High-Definition Loudspeakers have done the same for home
theater surround sound. Available in cabinet, in-wall, and ceiling-mount versions, these loudspeakers provide a powerful
home theater experience that’s right at home with any room’s décor.
Each loudspeaker in the series uses our proprietary injection-molded TCC™ (Talc, Carbon, Ceramic-filled) woofer
cones, tri-laminate Teteron® tweeters, and are voice-matched so any combination of the three versions can be
specified. So take the guesswork out of great home theater sound. With thousands already in use today
throughout the world, Niles HD High-Definition Loudspeakers are the complete solution for creating home
theater magic for your customers.
HOME THEATER NEVER
SOUNDED SO GOOD
HD High-Definition Loudspeakers
For application-specific solutions, easy
installation, and legendary quality and
reliability, look no further than Niles.
Our integrated woofer/baffle
provides a deeper, richer
bass than similarly sized
competitor’s models.
52 Loudspeakers
![](asset-35.png)

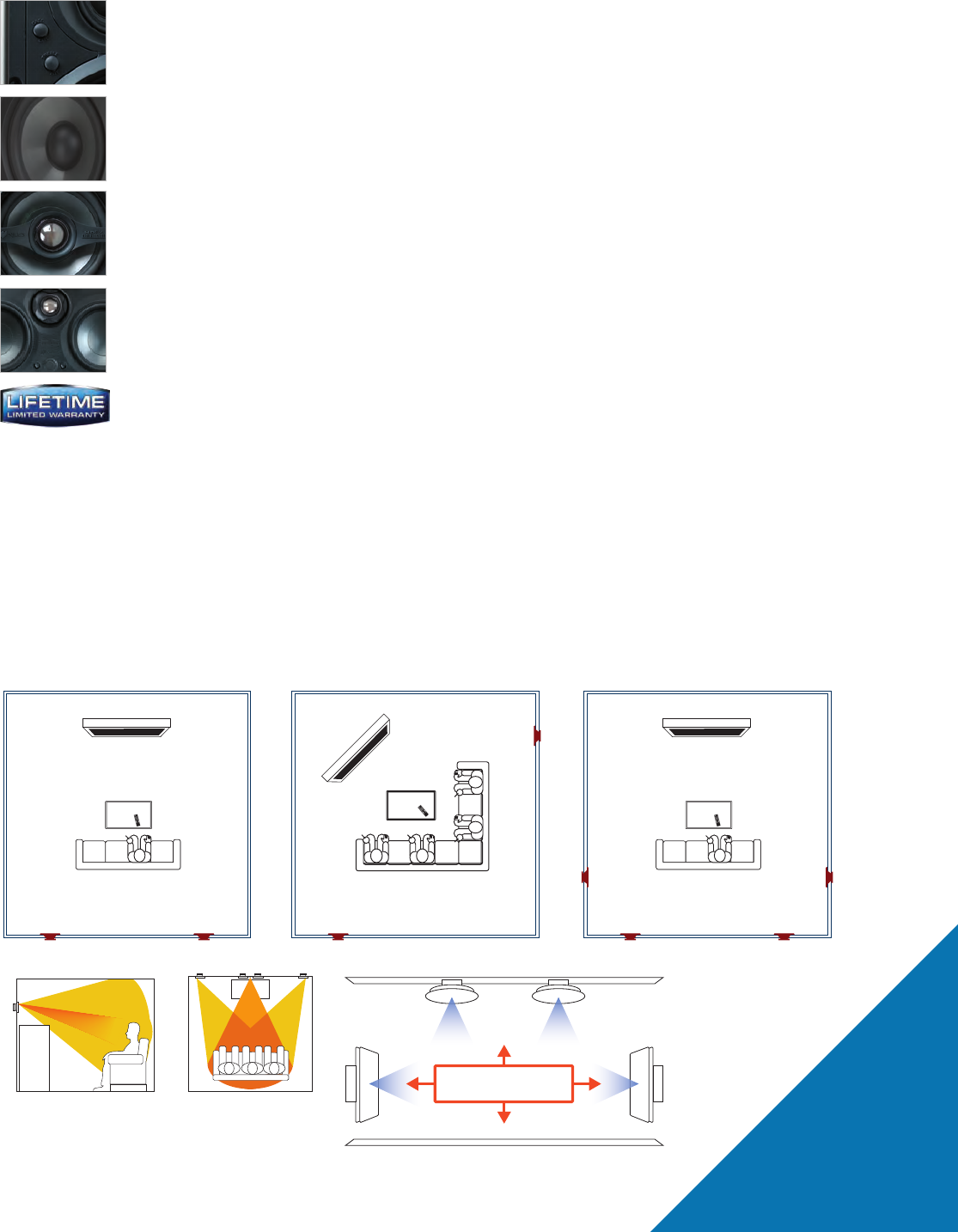

KEY FEATURES
DEEP, LOW-DISTORTION BASS
Our TCC™ (Talc, Carbon, Ceramic-lled) woofer cone exhibits the perfect balance of strength and
rigidity to reduce cone breakup, resulting in lower distortion with tighter, cleaner bass response.
LONG-THROW VOICE COIL/MAGNET STRUCTURE
We’ve maximized woofer cone excursion to enhance low-frequency response and dynamics.
SMOOTH TREBLE RESPONSE
Sophisticated uid-cooled Teteron® dome tweeters deliver silky smooth response with ultra-wide
dispersion characteristics.
HD HIGH-DEFINITION VOICE MATCHING
Compatibility with all other Niles HD High-Denition Loudspeakers is ensured, leaving you free to
specify any combination of the three form factors: cabinet, in-wall, and ceiling-mount.
LIFETIME LIMITED WARRANTY
HD High-Denition Loudspeakers are so well made; we condently back them up with a Lifetime
Limited Warranty. With robust construction and bulletproof durability, you can expect fewer service
calls—and that means more money in your pocket.
Directed Sound Field Geometry™ (DSFG) steers
the optimum response to the listener.
HDFX Loudspeakers are Placed
Near Back Corner Walls of a Home
Theater Room.
HDFX LOUDSPEAKER PLACEMENT
HDFX Loudspeakers are Placed Near
Back Corner Walls of a Home Theater
Room with an L-Shaped Sofa.
Two Pairs of HDFX Loudspeakers
Reproduce Dolby Surround Sound
in a Home Theater Room.
Object-based surround
systems are also possible,
which allow for a more 3D
audio experience.
3D SOUND OBJECT
CALL 1-800-BUY-HIFI – www.nilesaudio.com 53
Loudspeakers
![](asset-36.png)

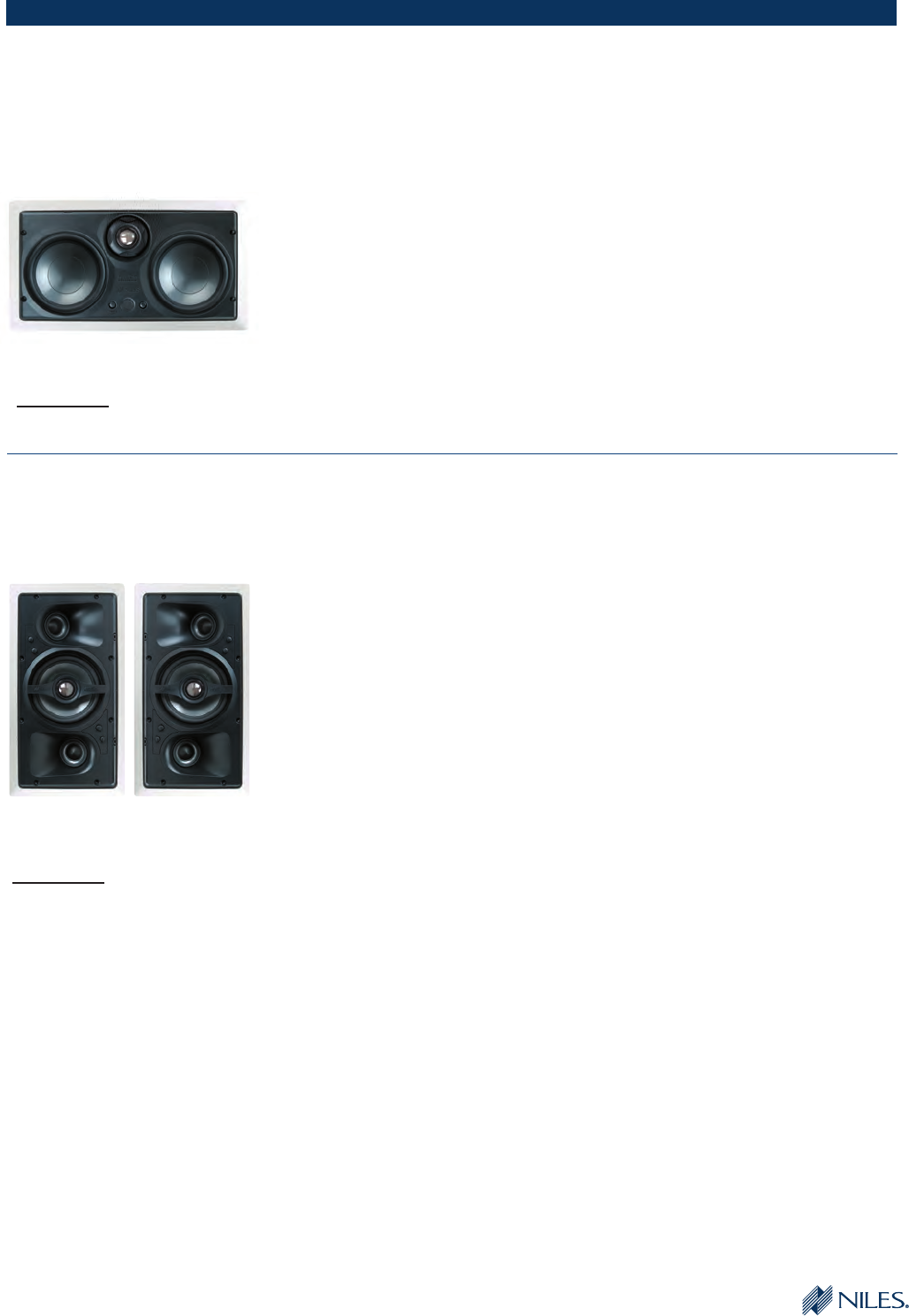

HD HIGH-DEFINITION HOME THEATER LOUDSPEAKERS
HDFX
In-Wall Side/Rear Channel
Effects High-Definition
Loudspeaker
Packaged in pairs
Stock Number
FG01155
FEATURES
■ 5-1/4” injection-molded TCC™ (Talc, Carbon and Ceramic-filled) polypropylene woofer
■ Long-throw voice coil/magnet structure extends cone excursion limits
■ Dual 2-1/4” injection-molded TCC polypropylene full-range drivers
■ 1” Tri-laminate Teteron® dome tweeter with fluid cooling and ultra-wide dispersion
■ Baffle-mounted dipole/bipole switch adjusts surround effects for either side or rear placement
■ Baffle-mounted effects cut switch adjusts direct/diffuse sound field balance
■ Baffle-mounted bass and treble controls
■ Paintable, textured, pearl white ABS frame with MicroPerf™ aluminum grille
SPECIFICATIONS
■ Recommended amplifier power: 10 – 150 watts
■ Impedance: 8 ohms
■ Frequency response: 65 Hz - 21 kHz +/-3 dB
■ Sensitivity: 88 dB with 2.83V pink noise input, measured at 1 meter on axis
■ Frame dimensions: 8-1/4” x 14-1/2” (20.85 cm x 36.83 cm)
■ Hole cutout dimensions: 7-1/8” x 13-1/4” (18.11 cm x 33.66 cm)
■ Depth behind wall (based on 1/2” drywall): 3-1/2” (8.89 cm)
Warranty: Lifetime Limited
Shipping weight: 8 lbs. (3.6 Kg)
HDLCR
In-Wall High-Definition
Loudspeaker
For left/right and center-channel use
in high-performance home theater
applications
Packaged Individually
Stock Number
FG01151
FEATURES
■ Dual 5-1/4” injection-molded TCC™ (Talc, Carbon and Ceramic-filled) polypropylene woofers
■ Long-throw voice coil/magnet structure extends cone excursion limits
■ 1” Tri-laminate Teteron® dome tweeter with fluid cooling and ultra-wide dispersion
■ Proprietary tweeter adjustment mechanism ratchets in 1 mm increments and pivots
■ Baffle-mounted bass and treble controls
■ Paintable, textured, pearl white ABS frame with MicroPerf™ aluminum grille
SPECIFICATIONS
■ Recommended amplifier power: 10 – 150 watts
■ Impedance: 4 ohms
■ Frequency response: 65 Hz – 21 kHz +/-3 dB
■ Sensitivity: 89 dB with 2.83V pink noise input, measured at 1 meter on axis
■ Frame dimensions: 8-1/4” x 14-1/2” (20.85 cm x 36.83 cm)
■ Hole cutout dimensions: 7-1/8” x 13-1/4” (18.11 cm x 33.66 cm)
■ Depth behind wall (based on 1/2” drywall): 3-1/2” (8.89 cm)
Warranty: Lifetime Limited
Shipping weight: 7 lbs. (3.2 Kg)
54 Loudspeakers
![](asset-37.png)

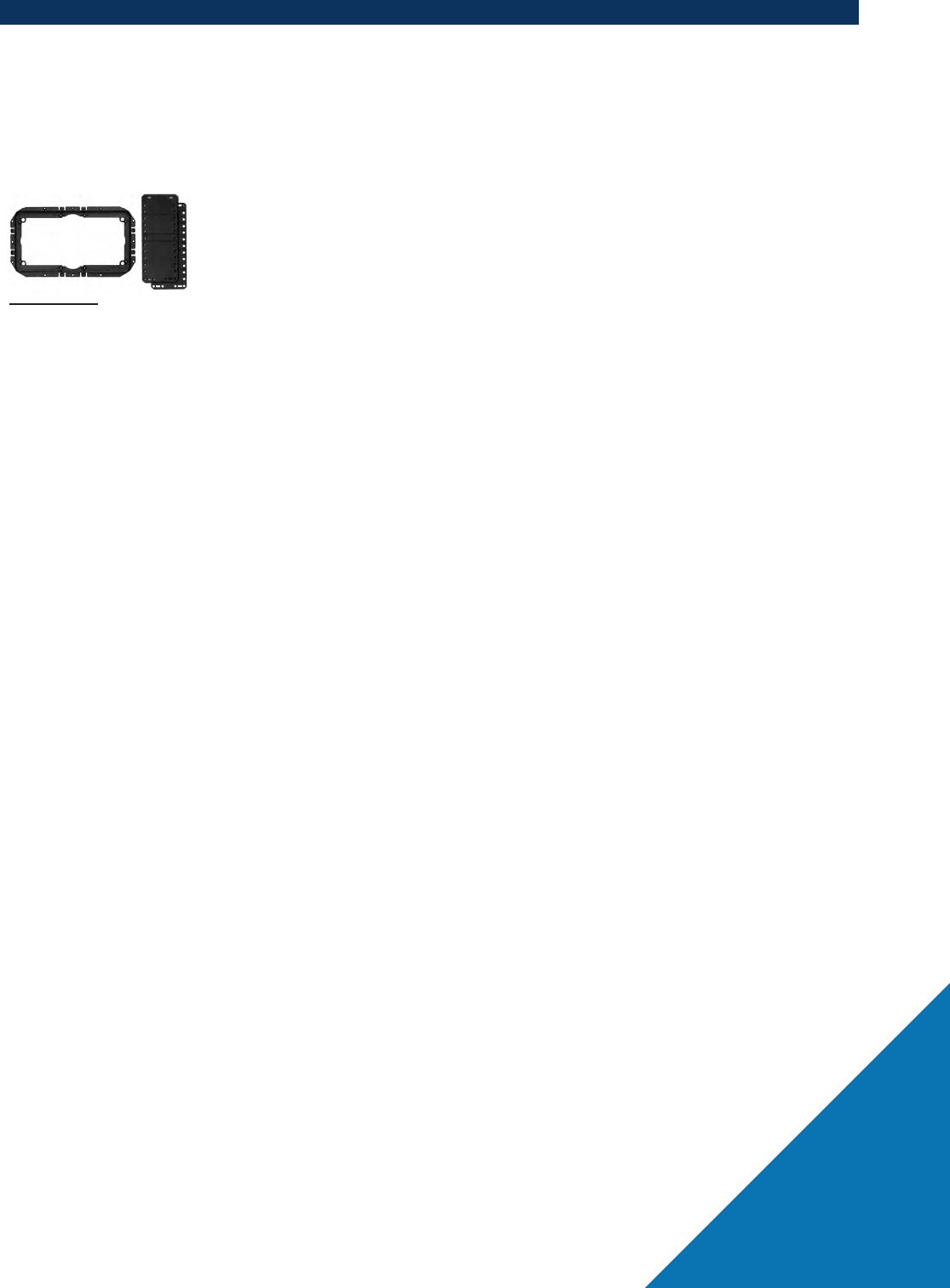

HD HIGH-DEFINITION LOUDSPEAKER ACCESSORIES
LCR/FX
BRACKET KIT
New Construction Bracket
for HDLCR and HDFX In-Wall
Loudspeakers
Packaged Individually
Stock Number
FG01152
FEATURES
■ Accommodates HDLCR and HDFX in-wall loudspeaker models
■ Includes wings for new construction applications
■ QuickSnap feature for faster installation in new construction
■ Scored wings ensure flexibility in placement between wall studs
■ Wire ties on all four corners prevent the possibility of losing wires in walls
■ Not easily damaged by common sheetrock tools
Shipping weight: 2 lbs. (1 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 55
Loudspeakers
![](asset-38.png)
The Cynema Soundfield System is the industry’s first in-wall soundbar that installs flush below any flat panel TV without the
need to cut studs. The three self contained speaker modules can be adjusted along the rails for best separation regardless
of stud locations. The digital amplifier included in the active models provides power for all three channels of audio, includes
Dolby processing, and provides for adding a wireless subwoofer to enhance the experience even more.
A UNIQUE AND POWERFUL SOLUTION
FOR FLAT PANEL INSTALLATIONS
Cynema Soundfield In-Wall Soundbar System
SPECIFICATIONS
■ Overall dimensions: 9.63” L x 4” D x 6.5” H (24.4cm L x 10.2cm D x 16.5cm H)
■ Amplifier Module built-in
INSTALLATION DIMENSIONS
■ Frame Dimensions (with grille): 5.25" H x 65" W (13.35 cm x 165.10 cm)
■ Hole Cutout Dimensions: 3.75" H x 62.25" W (9.53 cm x 158.115 cm)
■ Depth Behind Wall ( 5/8" drywall): 3.5" (13.6 cm)
Warranty: 2 year
Shipping weight: 14.3 lb. (6.4 Kg)
SPECIFICATIONS
■ Overall dimensions: 9.63” L x 4” D x 6.5” H (24.4cm L x 10.2cm D x 16.5cm H)
■ Amplifier Module built-in
INSTALLATION DIMENSIONS
■ Frame Dimensions (with grille): 5.25” H x 55” W (13.35 cm x 139.70 cm)
■ Hole Cutout Dimensions: 3.75” H x 55.25” W (9.53 cm x 140.34 cm)
■ Depth Behind Wall ( 5/8” drywall): 3.5” (13.6 cm)
Warranty: 2 year
Shipping weight: 12.8 lb. (5.8Kg)
CFS65A
65” Active Soundbar System
Stock Number
FG01710
CFS55A
55” Active Soundbar System
Stock Number
FG01709
56 Loudspeakers
![](asset-39.png)
FEATURES
■ DC power supply mounted separately sends
low voltage DC power through wall to
amplifier module allowing for installation
without the need for an electrician.
■ Mounting System allows for ideal placement
in any existing stud configuration.
■ Easily connect wireless subwoofer utilizing
the optional Niles SW-T and SW-R
■ Simply connect a Distributed Audio System
and it is automatically selected when
the TV is powered OFF.
■ TV sound always takes priority when the TV
is turned ON.
POWER SUPPLY
■ AC Input: 100-240V~2.5A, 50-60Hz
■ DC Output: 24V ⎓ 5A Max. & 120W Max.
AMPLIFIER MODULE
(ON SELECTED MODELS)
■ Output Power: 30W RMS x 3
■ Frequency Response: 100Hz - 20kHz. +0dB/-
3dB or better
■ Channel Separation: (channel to channel
crosstalk) @ 1kHz > 70dB or better
■ Signal to Noise: 100Hz to 20kHz un-weighted
> 75dB or better based on rated power
LOUDSPEAKER MODULE
■ Wiring: Impedance - Nominal 6Ω
■ Max SPL: 105 dB ( LCR system )
■ Frequency Response: 65Hz - 25kHz
■ Power Handling Capability: 100 Watts
CFS48A
48” Active Soundbar System
Stock Number
FG01708
CFS48P
48” Passive Soundbar System
Stock Number
FG01707
CYNEMA SOUNDFIELD IN-WALL SOUNDBAR SYSTEM
SPECIFICATIONS
■ Overall dimensions: 9.63” L x 4” D x 6.5” H (24.4cm L x 10.2cm D x 16.5cm H)
■ Amplifier Module built-in
INSTALLATION DIMENSIONS
■ Frame Dimensions (with grille): 5.25" H x 48" W (13.35 cm x 121.92 cm)
■ Hole Cutout Dimensions: 3.75" H x 45.25" W (9.53 cm x 114.94 cm)
■ Depth Behind Wall ( 5/8" drywall): 3.5" (13.6 cm)
Warranty: 2 year
Shipping weight: 11.3 lb. (5.1 Kg)
SPECIFICATIONS
■ Overall dimensions: 9.63” L x 4” D x 6.5” H (24.4cm L x 10.2cm D x 16.5cm H)
■ For Added Flexibility, The Passive CSF-48P Does Not Include An Amplifier Module, Allowing
Integrators To Utilize Any Form Of Amplification.
INSTALLATION DIMENSIONS
■ Frame Dimensions (with grille): 5.25" H x 48" W (13.35 cm x 121.92 cm)
■ Hole Cutout Dimensions: 3.75" H x 45.25" W (9.53 cm x 114.94 cm)
■ Depth Behind Wall ( 5/8" drywall): 3.5" (13.6 cm)
Warranty: 10 year limited
Shipping weight: 11.3 lb. (5.1 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 57
Loudspeakers
![](asset-3a.png)

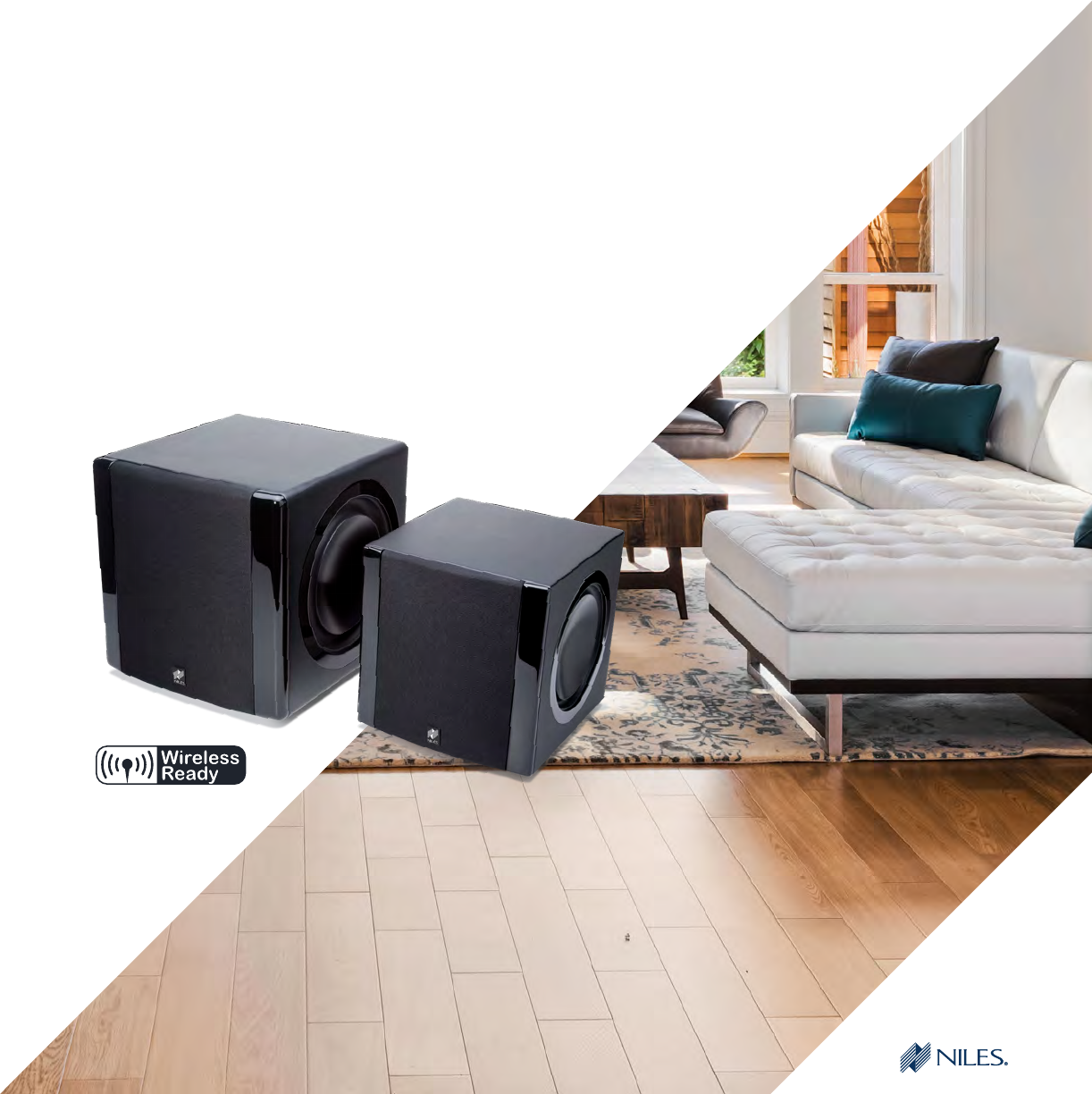

POWERED COMPACT
SUBWOOFERS
Built for the professional custom installer
Home Theater and High-Definition sound systems require a dedicated channel for bass and there is no better way to deliver room-
filling, rich harmonic bass tones than with the Niles line of Powered Compact Subwoofers. Easily configured for professional
installations, the Compact Subwoofer is ideal to blend in with any home’s décor, and the built-in mounting bracket option
enables an infinite range of installation possibilities for light commercial applications.
Designed with your designer in mind, its compact size provides various location choices without adding clutter
to a room. The unique combination of a fingerprint-resistant finish and a smooth piano-like surface gives this
subwoofer a great overall appearance that is easy to blend into any décor.
With bass drivers delivering the sound of a subwoofer four times the size, it’s clear the Niles Compact
Subwoofers have what it takes to round out your Home Theater soundscape and virtually any other
setup requiring more bass in less space.
Niles Compact Subwoofers feature: Automated Turn-On via 12v trigger or by audio sensing,
Built-in CAT-5 Balun to permit use of CAT-5 cabling for the audio signals, Built-In Bracket
Mount compatible with the OmniMount® 30.0 ST-MP, as well as wireless sound
capabilities.
With the addition of the SW-T and SW-R wireless transceiver and receivers, you
can turn any Niles Compact Subwoofer into a wireless speaker for applications
where running speaker wire is not an acceptable option.
58 Loudspeakers
![](asset-3b.png)
POWERED COMPACT SUBWOOFERS
Signal Sense – Congure
automatic turn on via audio signal
on all of the inputs (wireless,
CAT5, or analog audio)
Cascading I/O – Stereo L/R
Inputs and unbuffered pass-
through allows you to add up to
3 additional subwoofers.
Elegant Timeless Finish
Need a powerful yet
elegant solution? These
subs mix piano and matte
nishing with cloth grilles
and a compact size
for a stylish yet subtle
contemporary look.
Integrated CAT5 Audio Balun
There is no need to run expensive high-grade
audio cables to these subwoofers. Instead, use a
much more cost-effective and easier run of
CAT5 cable and use a Niles C5-A2 passive
audio balun to complete the signal.
Voltage Trigger Input –
Automatically turn on the
unit with a 3-30v AC/DC
voltage trigger.
FG01281
CALL 1-800-BUY-HIFI – www.nilesaudio.com 59
Loudspeakers
![](asset-3c.png)

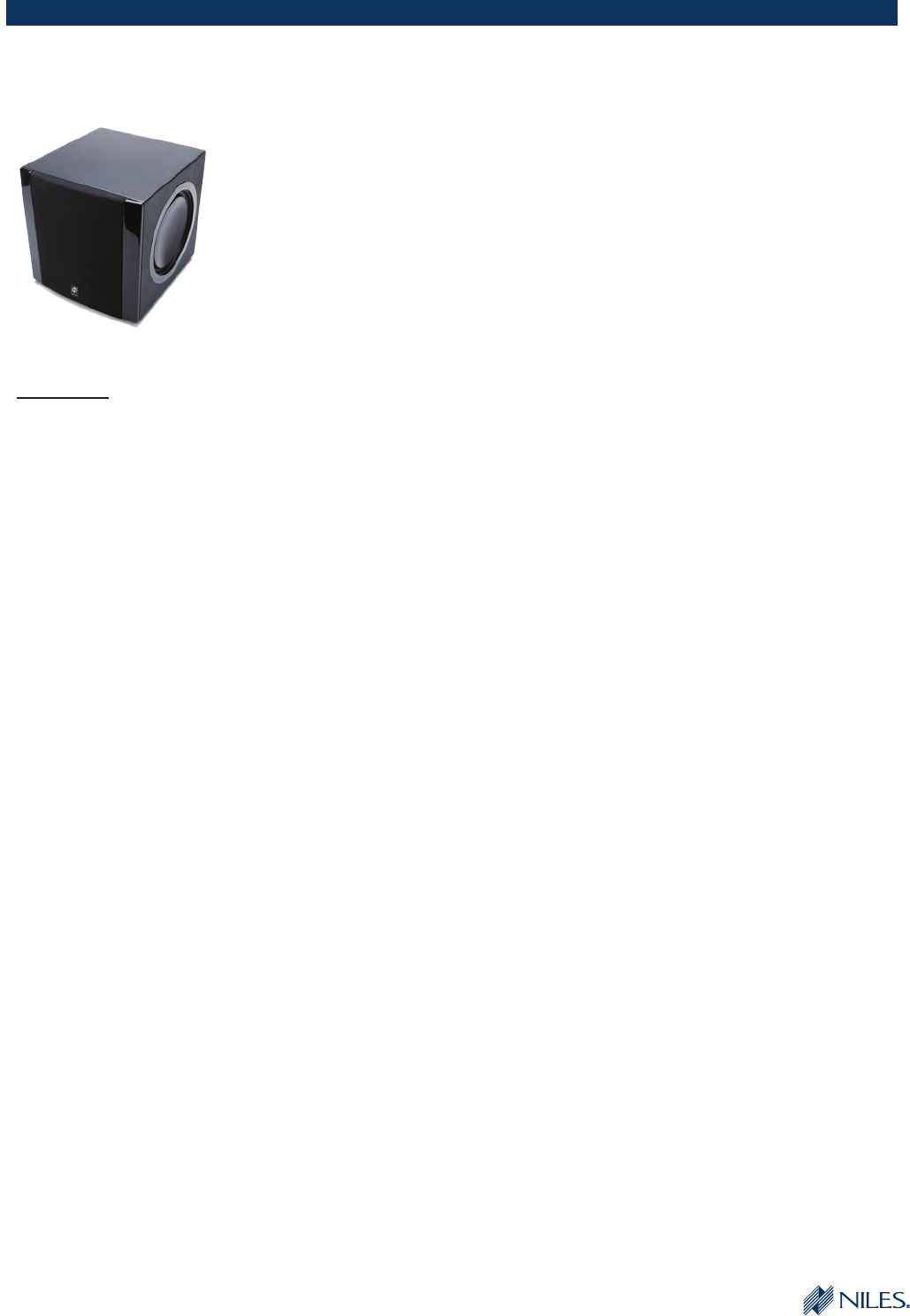

POWERED COMPACT SUBWOOFERS
SW6.5
6-1/2” Powered
Compact Subwoofer
Packaged Individually
Stock Number
FG01669
FEATURES
■ 800W dynamic, digital power amplifier provides high output and high efficiency, with
less heat produced compared to conventional analog power amplifiers.
■ High-power, long-throw active woofer drivers feature black anodized aluminum
cones, which provide superior rigidity compared to conventional paper cone
designs.
■ Dual anodized, aluminum cone passive radiators provide additional driver pistonic
area, and their combined output along with the main active driver equals that of a
larger single active driver.
■ Stereo (L/R) line inputs along with unbuffered stereo pass-through line outputs,
which also allows you to cascade the output to up to three additional subwoofers.
■ The C5-A2 port (RJ-45 connector) provides the option of an easier and less-
expensive wire run using CAT-5 cable from the A/V receiver or processor to the
subwoofer via an optional Niles CAT-5 Balun adapter / C5-A2 (FG01281) using
standard CAT-5 wiring (sold separately).
■ Wireless input port provides an additional input connection option via the available
Niles SW-T Transmitter (FG01671) and SW-R Receiver (FG01672) wireless
transmitter/receiver system. (Both sold separately)
■ Adjustable frequency control (50 Hz~150 Hz) features a bypass position, eliminating
low-pass filtering within the subwoofer. The variable phase control (0°~180°) allows
precise phase matching with the main speakers.
■ Auto Sense feature provides energy efficiency by putting the subwoofer into standby
mode when no audio signals are input to the sub.
SPECIFICATIONS
■ Driver Complement: One 6-1/2” long-throw, front-firing woofer; two 6-1/2” long-
throw, side-mounted passive radiators
■ Amplifier Power: 800W dynamic; 200W RMS
■ Frequency Range: SW6.5 42Hz-200Hz
■ Power Requirements: (switchable)
100~120V~; 220~240V~; 50/60Hz, 2A
■ Overall Dimensions: (with grille)
8-5/8” H x 8-3/8” W x 9-5/8” D
(21.9cm H x 21.3cm W x 24.4cm D)
Weight: 11 lbs. (5.0 kg)
60 Loudspeakers
![](asset-3d.png)
POWERED COMPACT SUBWOOFERS
F E ATUR E S
■ 1200W dynamic, digital power amplifier provides high output and high
efficiency, with less heat produced compared to conventional analog power
amplifiers.
■ High-power, long-throw active woofer drivers feature black anodized
aluminum cones, which provide superior rigidity compared to conventional
paper cone designs.
■ Dual anodized, aluminum cone passive radiators provide additional driver
pistonic area, and their combined output along with the main active driver
equals that of a larger single active driver.
■ Stereo (L/R) line inputs along with unbuffered stereo pass-through line
outputs, which also allows you to cascade the output up to three additional
subwoofers.
■ The C5-A2 port (RJ-45 connector) provides the option of an easier and less-
expensive wire run using CAT-5 cable from the A/V receiver or processor to
the subwoofer via an optional Niles CAT-5 Balun adapter / C5-A2 (FG01281)
using standard CAT-5 wiring (sold separately).
■ Wireless input port provides an additional input connection option via the
available Niles Transmitter (FG01671) and SW-R Receiver (FG01672) wireless
transmitter/receiver system. (Both sold separately)
■ Adjustable frequency control (50 Hz~150 Hz) features a bypass position,
eliminating low-pass filtering within the subwoofer. The variable phase control
(0°~180°) allows precise phase matching with the main speakers.
■ Auto Sense feature provides energy efficiency by putting the subwoofer into
standby mode when no audio signals are input to the sub.
SPECIFICATIONS
■ Driver Complement: One 8” long-throw, front-firing woofer;
two 8” long-throw, side-mounted passive radiators
■ Amplifier Power: 1200W dynamic; 300W RMS
■ Frequency Range: 36Hz-200Hz
■ Power Requirements: (switchable) 100~120V~; 220~240V~; 50/60Hz, 2A
■ Overall Dimensions: (with grille)
10-3/4” H x 10-1/2” W x 12-1/8” D
(27.3cm H x 26.7cm W x 30.8cm D)
Weight: 16.5 lbs. (7.5 kg)
SW8
8” Powered
Compact Subwoofer
Packaged Individually
Stock Number
FG01670
CALL 1-800-BUY-HIFI – www.nilesaudio.com 61
Loudspeakers
![](asset-3e.png)

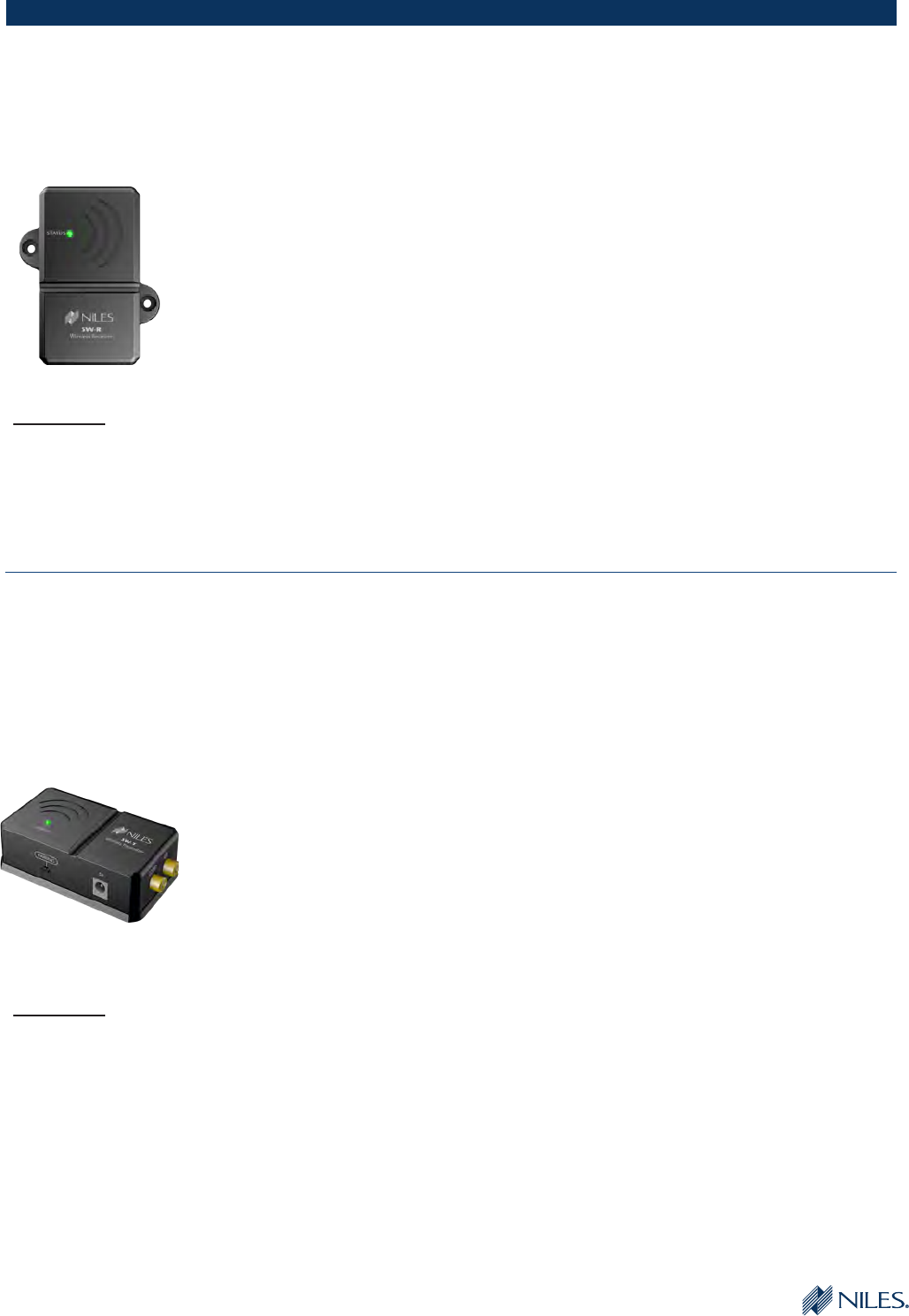

SW-T
Wireless Subwoofer
Transmitter
Packaged Individually
Stock Number
FG01671
SW-R
Wireless Subwoofer
Receiver
Packaged Individually
Stock Number
FG01672
FEATURES
■ Advanced 2.4 GHz frequency hopping technology – Makes setting up a wireless connection hassle-
free in even the most demanding environments
■ One SW-T transmitter can be used with up to 4 SW-R receivers simultaneously – Allows the flexibility
of easily expanding the bass in a room by adding additional subwoofers wirelessly
■ Extremely low latency 20 millisecond design – Provides the audiophile grade experience that Niles
customers demand
■ Wireless Range – up to 48 feet (15 m) – Allows flexibility to place your subwoofers where the room
aesthetics demand and to re-arrange whenever you want to
■ Easy connection to Niles SW6.5 and SW8 subwoofers – The single connection for both signal and
power makes an installation quick and easy
■ Convenient one-button pairing – Allows an installer to set up a reliable wireless connection quickly
and easily
■ Gold-plated RCA Connectors – For a high quality connection that is built to last. Best in class
adjacent channel rejection – Guarantees you the pure signal required for reliable audio performance
■ Uncompressed wireless digital audio – The digital, error-correcting signals assure you that the
subwoofer receives 100% of its audio signal, all day, and every day
SPECIFICATIONS
■ Overall Dimensions: Chassis: 3.75” Length X 2.15” Wide X 1.15” High (9.525cm X 5.46cm X 2.92cm)
Antenna: 4.1” (10.5 Cm) Length
Warranty: Two-year limited
Shipping weight: 1 lb. (.45 Kg)
FEATURES
■ Advanced 2.4 GHz frequency hopping technology – Makes setting up a wireless connection hassle-
free in even the most demanding environments
■ One SW-T transmitter can be used with up to 4 SW-R receivers simultaneously – Allows the flexibility
of easily expanding the bass in a room by adding additional subwoofers wirelessly
■ Extremely low latency 20 millisecond design – Provides the audiophile grade experience that Niles
customers demand
■ Wireless Range – up to 48 feet (15 m) – Allows flexibility to place your subwoofers where the room
aesthetics demand and to re-arrange whenever you want to
■ Easy connection to Niles SW6.5 and SW8 subwoofers – The single connection for both signal and
power makes an installation quick and easy
■ Convenient one-button pairing – Allows an installer to set up a reliable wireless connection quickly
and easily
■ Gold-plated RCA Connectors – For a high quality connection that is built to last. Best in class
adjacent channel rejection – Guarantees you the pure signal required for reliable audio performance
■ Uncompressed wireless digital audio – The digital, error-correcting signals assure you that the
subwoofer receives 100% of its audio signal, all day, and every day
SPECIFICATIONS
■ Overall Dimensions: Chassis: 3.75” Length X 2.15” Wide X 1.15” High (9.525cm X 5.46cm X 2.92cm)
Warranty: Two-year limited
Shipping weight: 1 lb. (.45 Kg)
POWERED COMPACT SUBWOOFER ACCESSORIES
62 Loudspeakers
![](asset-3f.png)
Bring indoor audio enjoyment outdoors with Niles Landscape Audio.
Featuring weatherproof landscape speakers that blend seamlessly into any outdoor environment and a selection of burial-
rated subwoofers that provide incredible performance even in the largest backyards, Landscape speakers from Niles are
sure to bring brilliant audio performance to any outdoor space.
DURABLE WEATHERPROOF DESIGN
Weatherproof fiberglass reinforced ABS enclosures are rugged, ensure years of reliable performance and are no
match for weed whackers and other outdoor lawn equipment.
NICKEL-PLATED BRASS FITTINGS
We’ve addressed a common failure point among other landscape speakers by relying on solid brass
fittings that are then nickel plated rather than plastic.
ADJUSTABLE VOLUME CONTROL
Need it louder near the pool but quieter near your eating area? No problem! Control
the volume of each speaker individually by adjusting the tap switch settings on the
back of each speaker (70V/100V mode only).
BETTER COVERAGE
110-degree wide dispersion ensure outdoor filling sound with better
coverage than a traditional speaker.
LANDSCAPE SPEAKERS
Satellite Loudspeakers
CALL 1-800-BUY-HIFI – www.nilesaudio.com 63
Loudspeakers
![](asset-40.png)

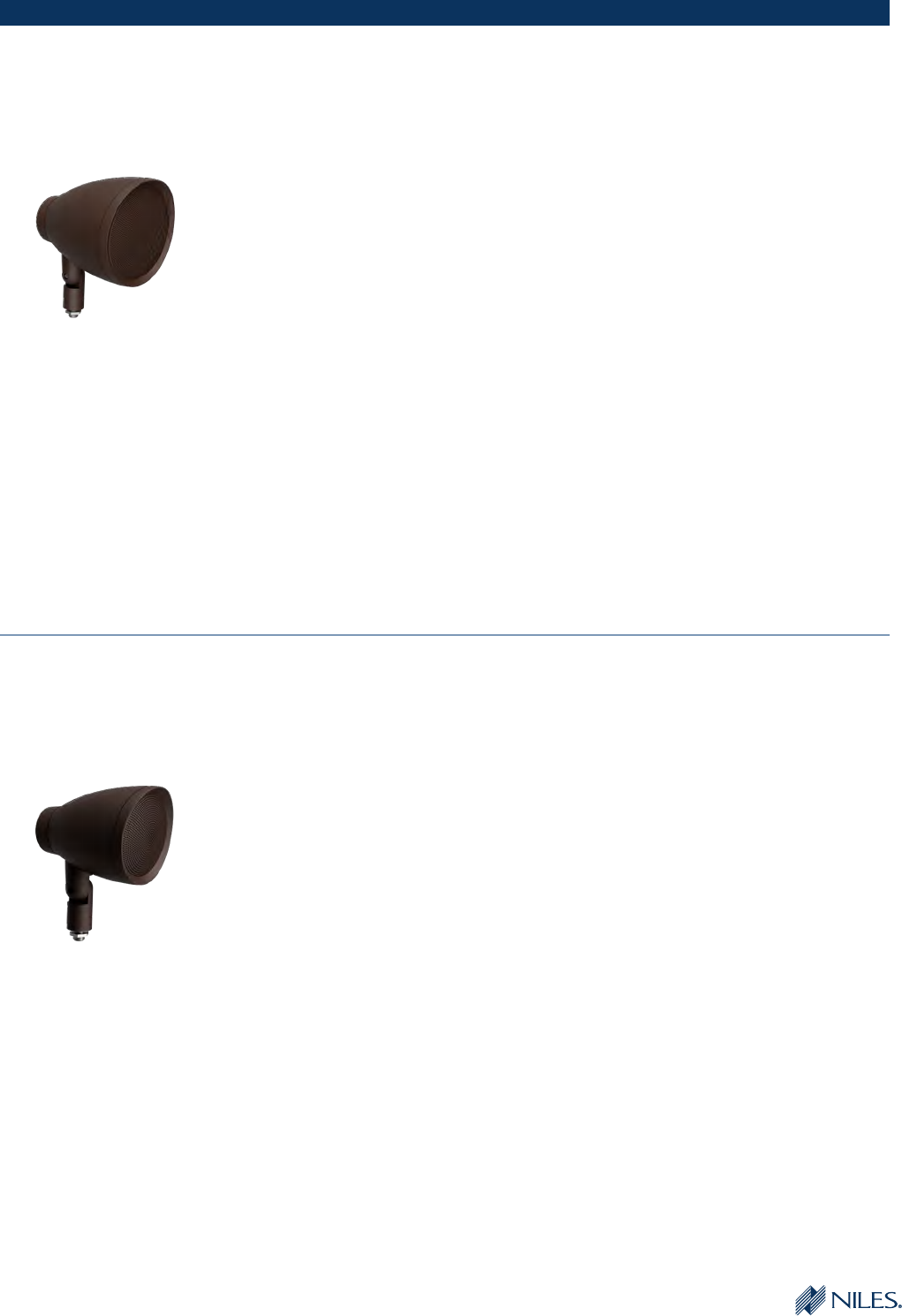

LANDSCAPE SPEAKERS
NI-GS-4
4” (100mm) 2-way All-Weather
Outdoor Satellite Speaker
FEATURES
■ 4” (100mm) Polypropylene Cone Woofer with NBR Surround
■ 3/4” (20mm) Aluminum Dome Tweeter
■ Weather-Resistant Fiberglass-Reinforced ABS Enclosure
■ Sensitivity: 84dB
■ Frequency Response: 110Hz-20kHz +/- 3dB
■ Power Handling: Up to 90W
■ Nominal Impedance: 8 ohms (in Bypass Mode)
■ Tap Settings: 70V/100V: 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
■ Dimensions: 8-3/4”x 5-7/8” x 10-1/4” (223mm x 149mm x 260mm) (without accessories)
■ Sold individually
■ Mounting accessories sold separately
NI-GS-6
6” (152mm) 2-way All-Weather
Outdoor Satellite Speaker
FEATURES
■ 6” (152mm) Polypropylene Cone Woofer with NBR Surround
■ 3/4” (20mm) Aluminum Dome Tweeter
■ Weather-Resistant Fiberglass-Reinforced ABS Enclosure
■ Sensitivity: 87dB
■ Frequency Response: 100Hz-20kHz +/- 3dB
■ Power Handling: Up to 120W
■ Nominal Impedance: 8 ohms (in Bypass Mode)
■ Tap Settings: 70V/100V: 3.75W (70V only), 7.5W, 15W, 30W, 8 Ohm (Bypass)
■ Dimensions: 10-1/4” x 7-5/8” x 11-1/2” (260mm x 194mm x 292mm) (without accessories)
■ Sold individually
■ Mounting accessories sold separately
64 Loudspeakers
![](asset-41.png)
WATERPROOF DESIGN
Waterproof HDPE enclosures are made from the same material used in municipal water supply lines. We even dunk test every
subwoofer at the manufacturing facility before it ships to ensure no leaks.
HIGH-FLOW PORT DESIGN
The internal design of the port and canopy assembly spreads moving air evenly in a 360 degree pattern reducing
air turbulence and eliminating annoying port noise.
WOOFER-COOLING AIR FLOW
The woofer magnet is located on the vented side of the enclosure which allows it to be cooled by
airflow in and out the enclosure providing added longevity to the motor structure.
CRITTER-PROOF COVER
The port assembly is covered by an aluminum mesh grille that allows unrestricted airflow
yet prevents intrusion of bugs, animals and debris.
LANDSCAPE SPEAKERS
In-Ground Subwoofers
CALL 1-800-BUY-HIFI – www.nilesaudio.com 65
Loudspeakers
![](asset-42.png)
IN-GROUND SUBWOOFERS
NI-GSBSUB-10
10” (250mm) In-Ground
Subwoofer
CROWN CDI
DRIVECORE
2|60 0 POWER
AMPLIFIER
Recommended Amplifier
for Landscape Speakers
and Subwoofer
FEATURES
■10” (250mm) Mica-injected Polypropylene cone woofer with NBR Surround
■Waterproof HDPE enclosure
■Buried Enclosure with critter-proof port assembly
■Optimized for use with OG-4 or OG-6 landscape speakers
■Sensitivity: 84dB
■Frequency Response: 30Hz-100Hz +/- 3dB
■Power Handling: Up to 300W
■Nominal Impedance: 8 ohms
■Dimensions: 15-3/4” x 15-3/4” x 22-7/8” (400mm x 400mm x 580.2mm)
(with port assembly installed)
■Recommended Amplifier: Crown CDi 2|600 Amplifier
■Sold individually
FEATURES
■600W x 2 at 4 Ohms
■Pre-loaded with custom DSP curves for landscape speakers and subwoofers
■Simultaneous 70V/100V and 8 Ohm operation
■2U rack mountable
■Network controllable
■Compatible with Harman’s HiQnet Audio Architect software
■Dimensions:
19” x 12-1/4” x 3.5” (483mm x 311mm x 89mm)
NI-GSBSUB-12
12” (300mm) In-Ground
Subwoofer
FEATURES
■12” (300mm) Mica-injected Polypropylene cone woofer with NBR Surround
■Waterproof HDPE enclosure
■Buried Enclosure with critter-proof port assembly
■Optimized for use with OG-4 or OG-6 landscape speakers
■Sensitivity: 86dB
■Frequency Response: 28Hz-100Hz +/- 3dB
■Power Handling: Up to 500W
■Nominal Impedance: 8 ohms
■Dimensions: 35-3/4” x 15-3/4” x 33-3/16” (907mm x 400mm x 842.5mm
(with port assembly installed)
■Recommended Amplifier: Crown CDi 2|600 Amplifier
■Sold individually
66 Loudspeakers
![](asset-43.png)
LANDSCAPE ACCESSORIES
AW-LS-STAKE
Landscape Speaker
Stake Mount
AW-LS-MOUNT
Landscape Speaker
Surface Mount
AW-LS-
CONDUIT
Landscape Speaker
Conduit Box Mount
FEATURES
■ 12” (300mm) stake mount for in-ground mounting
■ Quick connect design for easy assembly
■ Dimensions: 3-3/4” x 3-3/4” x 13” / (94mm x 94mmx 332mm)
■ Sold individually
FEATURES
■ Designed for mounting to flat surfaces like walls or decks
■ Quick connect design for easy assembly
■ Dimensions: 3-15/16” x 3-15/16” x 1-7/8” / (100mm x 100mm x 46.5mm)
■ Sold individually
FEATURES
■ Speaker mount for installations that use speaker wire in underground conduit
■ Doubles as a wiring junction box
■ Designed for use with standard ¾” conduit
■ Stable base with aluminum spike reinforcement
■ Quick connect design for easy assembly
■ Weatherproof
■ Includes additional 2” (50mm) extension arm for adjustable speaker height
■ Dimensions:
5-7/8” x 5-7/8” x 7-1/3” / (150mm x 150mm x 186mm) (without extension)
5-7/8” x 5-7/8” x 9-1/3” / (150mm x 150mm x 237mm) (with extension)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 67
Loudspeakers
![](asset-44.png)
Niles OS Indoor/Outdoor Loudspeakers are designed to deliver great sound indoors and out. Every model in the line is
equipped to handle the most extreme conditions—from blazing sun in Miami to blizzards in Minneapolis. In fact, these
rugged loudspeakers even surpass military anti-corrosion standards (MIL-STD-883D). But great build quality is nothing
without great sound. And that’s why the OS series is the best-selling loudspeaker line in its class.
By integrating the woofer basket into the baffle of the cabinet (a design we pioneered in our award-winning DS
Directed Soundfield™ loudspeakers) we are able to increase the woofer cone area to cabinet width area
ratio. This enables Niles OS Indoor/Outdoor Loudspeakers to provide levels of bass performance that
substantially exceed their physical size.
The architecturally friendly design and integrated mounting bracket enable OS Indoor/Outdoor
Loudspeakers to tuck discretely away in corners and under eaves. And even when used
outdoors, every single model is backed by our Lifetime Limited Warranty. You can install
the OS Series confidently knowing that they will perform brilliantly—for a lifetime.
CORNERS BEAUTIFULLY,
EVEN IN THE ELEMENTS
OS Indoor/Outdoor Loudspeakers
TOUGH ENOUGH FOR MARINE
APPLICATIONS AND BEACHFRONT LIVING.
EXCEEDS MILITARY ANTI-CORROSION
SPECS (MIL-STD-883D).
68 Loudspeakers
![](asset-45.png)

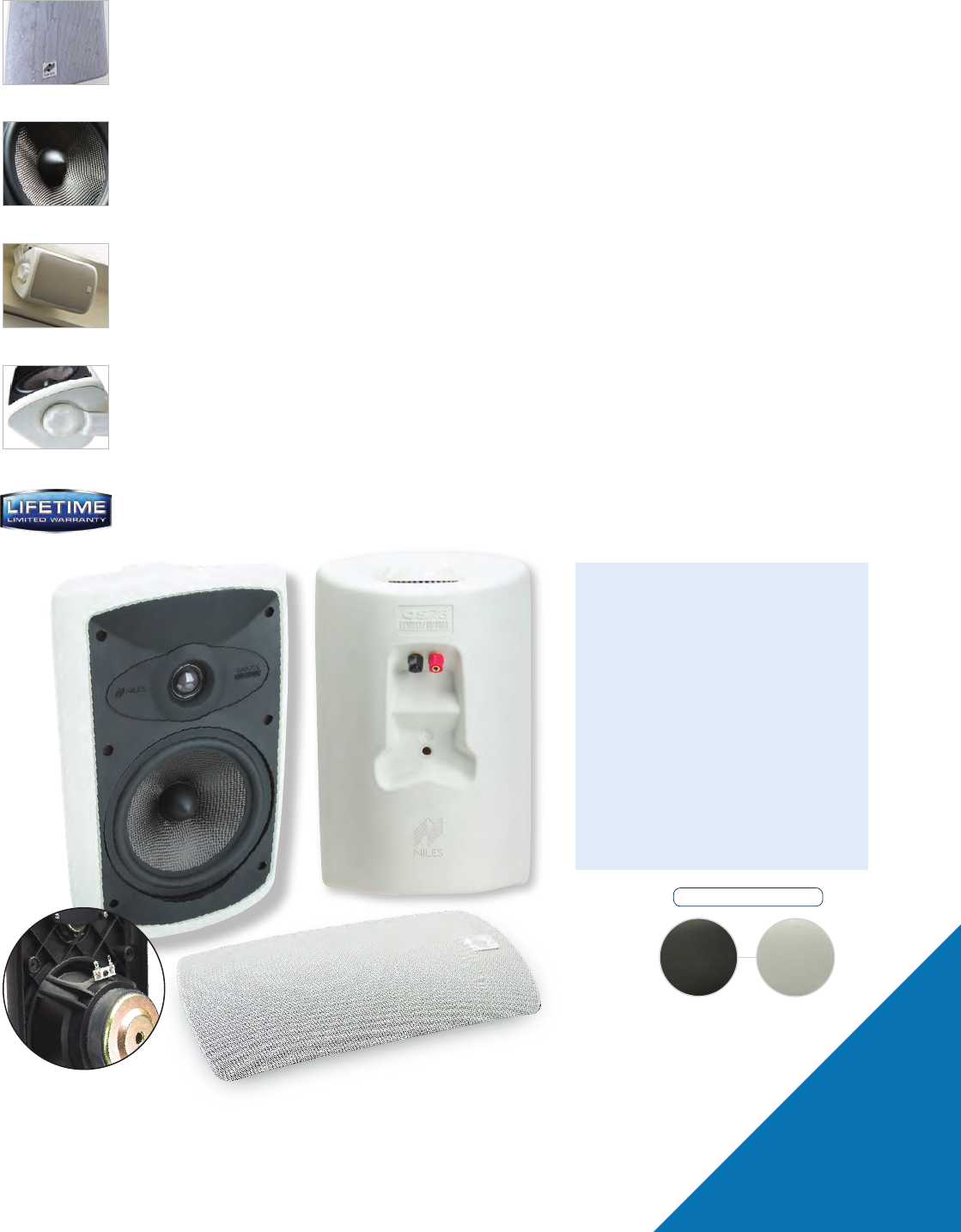

KEY FEATURES
ALL-WEATHER VERSATILITY
OS Series Loudspeakers handle weather extremes and are even tough enough for marine applications and
beachfront living.
INTEGRATED WOOFER/BAFFLE ASSEMBLY
We are able to substantially increase woofer cone size in relation to the cabinet size for bass performance
that substantially exceeds other loudspeakers of similar size.
INDOOR AND OUTDOOR APPLICATIONS
These versatile loudspeakers also work well in home theater applications, kitchens, saunas, and
bathrooms.
ARCHITECTURALLY FRIENDLY TAPERED SHAPE
We shaped the cabinets to facilitate mounting in corners and under eaves.
LIFETIME LIMITED WARRANTY
Install OS Series Loudspeakers with total condence knowing they are backed by the best warranty in
the business.
Black White
OS LOUDSPEAKERS
Low-Diffraction Grille and Front Bafe
for Precise Imaging
Integrated Woofer/Bafe Assembly
Rigid, Acoustically Inert Cabinet
Versatile Integrated Mounting Bracket
Advanced Weatherproof Engineering
Inverted Gold-Plated 5-Way Binding
Posts
MicroPerf™ Rustproof Aluminum
Grilles
CALL 1-800-BUY-HIFI – www.nilesaudio.com 69
Loudspeakers
![](asset-46.png)

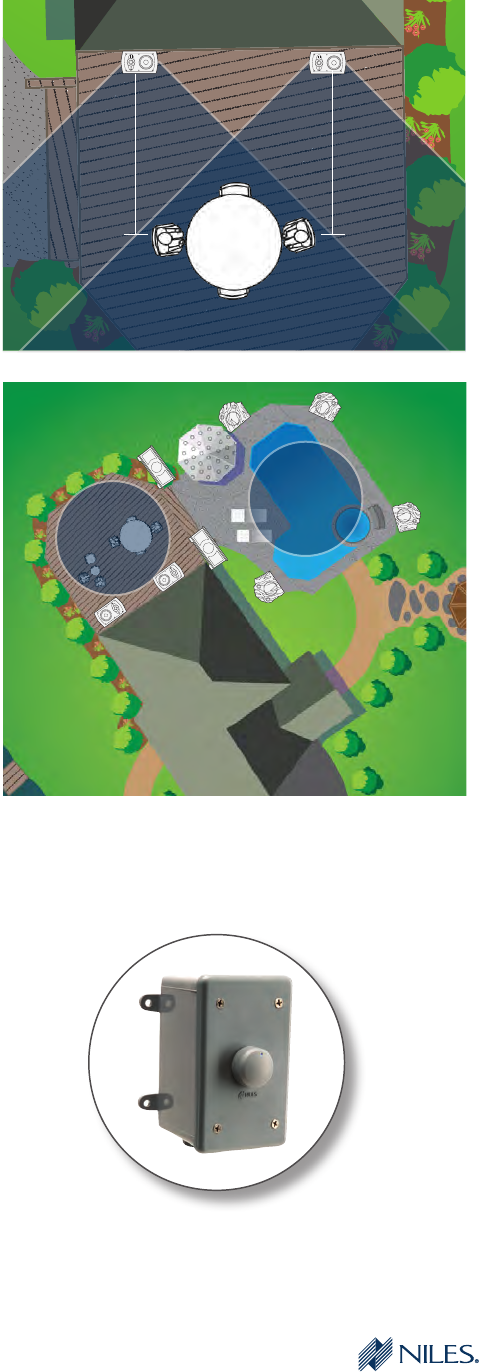

APPLICATIONS FOR OUTDOOR LOUDSPEAKERS
12’ (3.7m)
12’ (3.7m)
DESIGN TIP #1
Position Loudspeakers Between
12’ to 15’ of the Listening Area
This guideline may sound simple, but it’s amazing how often
it’s ignored. By positioning the loudspeakers between 12’
(3.7m) to 15’ (4.7m) of the listening area, you provide quality
sound for the listeners at comfortable volume levels, without
the need for huge amounts of amplifier power.
DESIGN TIP #2
More Loudspeakers Are Better
Than More Power
When you have an oversized or a particularly large outdoor
space, it’s always better to add more loudspeakers than more
power. In this Design Tip, we’ll start with the same listening
area from Design Tip #1, but we’ll add a pool area that’s
30’ (9m) away. You could boost the amplifier power so the
patio speakers play loud enough to reach the pool, but that
would be too loud for those people on the patio. The better
solution is more speakers to evenly distribute the sound at
comfortable volume levels.
DESIGN TIP #3
Provide Independent Volume Controls
for each Listening Area
Ideally, each listening area should be equipped with a way to
adjust the volume. Installing a keypad or volume control for
each listening area adds that extra flexibility to the outdoor
space. By providing independent volume controls for each
space, people sitting at the table can adjust the music to a
comfortable level, while the swimmers in the pool can enjoy
the music at a different volume level.
70 Loudspeakers
![](asset-47.png)
OS INDOOR/OUTDOOR LOUDSPEAKERS
O S 7. 5
High-Performance Indoor/
Outdoor Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged in pairs
Color Stock Number
White FG00996
Black FG00997
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful bass
output
■ 7” interlaced carbon fiber woofer cone is extremely rigid to reduce breakup and
lower distortion
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ Dispersion Stabilizer distributes midrange tones for clear off-axis sound
■ 1” Tri-laminate Teteron® dome tweeter with fluid-cooling provides ultra-wide
dispersion and clear and detailed high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 150 watts
■ Impedance: 8 ohms
■ Frequency response: 60 Hz to 23 kHz +/-3dB
■ Sensitivity: 91dB for 2.83V pink noise
■ Dimensions (includes bracket):
8-3/16” wide x 13-5/16” high x 9-3/16” deep
(21 cm wide x 34 cm high x 23.3 cm deep)
Warranty: Lifetime Limited
Shipping weight: 23 lbs. (10.4 Kg)
O S 7. 3
High-Performance Indoor/
Outdoor Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged in pairs
Color Stock Number
White FG00990
Black FG00991
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful
bass output
■ 7” Mica-filled polypropylene woofer cone is extremely rigid to reduce breakup
and lower distortion
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ 1” UltraSilk® dome tweeter with fluid-cooling provides ultra-wide dispersion and
clear, detailed and extended high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 150 watts
■ Impedance: 8 ohms
■ Frequency response: 65 Hz to 21 kHz +/-3dB
■ Sensitivity: 91dB for 2.83V pink noise
■ Dimensions (includes bracket):
8-3/16” wide x 13-5/16” high x 9-3/16” deep
(21 cm wide x 34 cm high x 23.3 cm deep)
Warranty: Lifetime Limited
Shipping weight: 21 lbs. (9.5 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 71
Loudspeakers
![](asset-48.png)

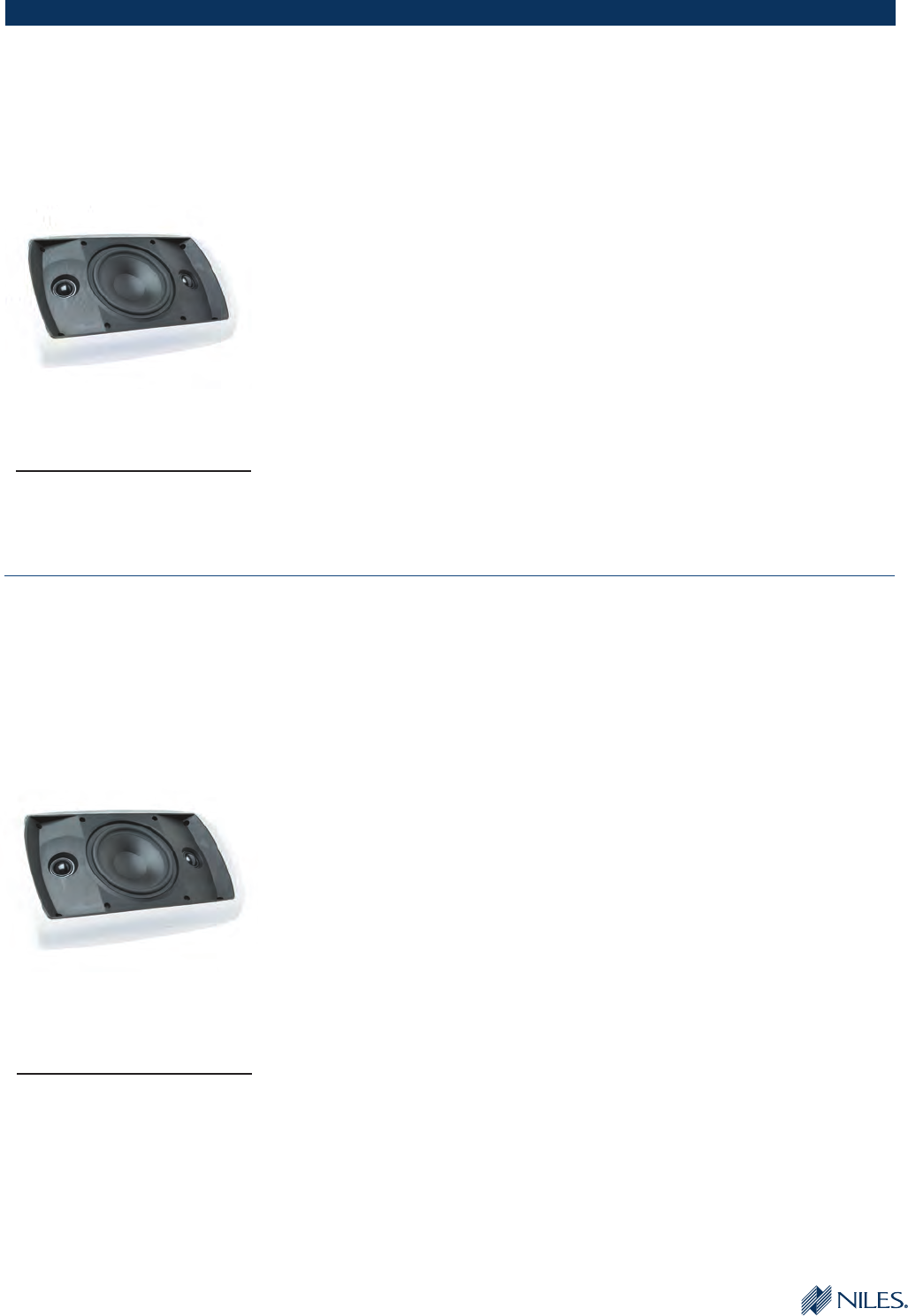

OS STEREO-INPUT INDOOR/OUTDOOR LOUDSPEAKERS
OS5.3SI
Stereo-Input Indoor/Outdoor
Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged Individually
Color Stock Number
White FG00998
Black FG00999
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful bass output
■ 5” Mica-filled polypropylene woofer cone is extremely rigid to reduce breakup and lower distortion
■ Dual voice coils deliver both left and right channels from a single woofer
■ Butyl rubber cone surround damps resonance and provides exceptional durability
■ Stereo Imaging Tweeter Array directs the high-frequency sounds from both the left and right
channels at opposing angles to preserve stereo separation
■ Dual 1” UltraSilk® dome tweeters with fluid-cooling provides ultra-wide dispersion and clear,
detailed and extended high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 100 watts
■ Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■ Frequency response: 85 Hz to 21 kHz +/-3dB
■ Sensitivity: 90dB for 2.83V pink noise
■ Dimensions (includes bracket):
7-7/16” wide x 12” high x 7-3/4” deep
(19 cm wide x 30.5 cm high x 19.7 cm deep)
Warranty: Lifetime Limited
Shipping weight: 10 lbs. (4.5 Kg)
OS6.3SI
Stereo-Input Indoor/Outdoor
Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged Individually
Color Stock Number
White FG01000
Black FG01001
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful
bass output
■ 6” Mica-filled polypropylene woofer cone is extremely rigid to reduce breakup
and lower distortion
■ Dual voice coils deliver both left and right channels from a single woofer
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ Stereo Imaging Tweeter Array directs the high-frequency sounds from both the
left and right channels at opposing angles to preserve stereo separation
■ Dual 1” UltraSilk® dome tweeters with fluid-cooling provides ultra-wide
dispersion and clear, detailed and extended high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 125 watts
■ Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■ Frequency response: 75 Hz to 21 kHz +/-3dB
■ Sensitivity: 90dB for 2.83V pink noise
■ Dimensions (includes bracket):
8-3/16” wide x 13-5/16” high x 9-3/16” deep
(21 cm wide x 34 cm high x 23.3 cm deep)
Warranty: Lifetime Limited
Shipping weight: 12 lbs. (5.4 Kg)
72 Loudspeakers
![](asset-49.png)
OS INDOOR/OUTDOOR LOUDSPEAKERS
O S 7. 5
High-Performance Indoor/
Outdoor Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged in pairs
Color Stock Number
White FG00996
Black FG00997
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful bass
output
■ 7” interlaced carbon fiber woofer cone is extremely rigid to reduce breakup and
lower distortion
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ Dispersion Stabilizer distributes midrange tones for clear off-axis sound
■ 1” Tri-laminate Teteron® dome tweeter with fluid-cooling provides ultra-wide
dispersion and clear and detailed high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 150 watts
■ Impedance: 8 ohms
■ Frequency response: 60 Hz to 23 kHz +/-3dB
■ Sensitivity: 91dB for 2.83V pink noise
■ Dimensions (includes bracket):
8-3/16” wide x 13-5/16” high x 9-3/16” deep
(21 cm wide x 34 cm high x 23.3 cm deep)
Warranty: Lifetime Limited
Shipping weight: 23 lbs. (10.4 Kg)
O S 7. 3
High-Performance Indoor/
Outdoor Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged in pairs
Color Stock Number
White FG00990
Black FG00991
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful
bass output
■ 7” Mica-filled polypropylene woofer cone is extremely rigid to reduce breakup
and lower distortion
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ 1” UltraSilk® dome tweeter with fluid-cooling provides ultra-wide dispersion and
clear, detailed and extended high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 150 watts
■ Impedance: 8 ohms
■ Frequency response: 65 Hz to 21 kHz +/-3dB
■ Sensitivity: 91dB for 2.83V pink noise
■ Dimensions (includes bracket):
8-3/16” wide x 13-5/16” high x 9-3/16” deep
(21 cm wide x 34 cm high x 23.3 cm deep)
Warranty: Lifetime Limited
Shipping weight: 21 lbs. (9.5 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 73
Loudspeakers
![](asset-4a.png)
OS STEREO-INPUT INDOOR/OUTDOOR LOUDSPEAKERS
OS5.3SI
Stereo-Input Indoor/Outdoor
Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged Individually
Color Stock Number
White FG00998
Black FG00999
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful bass output
■ 5” Mica-filled polypropylene woofer cone is extremely rigid to reduce breakup and lower distortion
■ Dual voice coils deliver both left and right channels from a single woofer
■ Butyl rubber cone surround damps resonance and provides exceptional durability
■ Stereo Imaging Tweeter Array directs the high-frequency sounds from both the left and right
channels at opposing angles to preserve stereo separation
■ Dual 1” UltraSilk® dome tweeters with fluid-cooling provides ultra-wide dispersion and clear,
detailed and extended high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 100 watts
■ Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■ Frequency response: 85 Hz to 21 kHz +/-3dB
■ Sensitivity: 90dB for 2.83V pink noise
■ Dimensions (includes bracket):
7-7/16” wide x 12” high x 7-3/4” deep
(19 cm wide x 30.5 cm high x 19.7 cm deep)
Warranty: Lifetime Limited
Shipping weight: 10 lbs. (4.5 Kg)
OS6.3SI
Stereo-Input Indoor/Outdoor
Loudspeaker
Weatherproof construction
exceeds military anti-corrosion
specs (MIL-STD-883D)
Packaged Individually
Color Stock Number
White FG01000
Black FG01001
FEATURES
■ Integrated woofer/baffle assembly increases cone area to provide powerful
bass output
■ 6” Mica-filled polypropylene woofer cone is extremely rigid to reduce breakup
and lower distortion
■ Dual voice coils deliver both left and right channels from a single woofer
■ Butyl rubber cone surround damps resonance and provides exceptional
durability
■ Stereo Imaging Tweeter Array directs the high-frequency sounds from both the
left and right channels at opposing angles to preserve stereo separation
■ Dual 1” UltraSilk® dome tweeters with fluid-cooling provides ultra-wide
dispersion and clear, detailed and extended high-frequency response
SPECIFICATIONS
■ Recommended amplifier power: 5 – 125 watts
■ Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■ Frequency response: 75 Hz to 21 kHz +/-3dB
■ Sensitivity: 90dB for 2.83V pink noise
■ Dimensions (includes bracket):
8-3/16” wide x 13-5/16” high x 9-3/16” deep
(21 cm wide x 34 cm high x 23.3 cm deep)
Warranty: Lifetime Limited
Shipping weight: 12 lbs. (5.4 Kg)
74 Loudspeakers
![](asset-4b.png)
BUILT LIKE A TANK AND
PLAYS LIKE MOZART
The Pro-Series Weatherproof Geo-Realistic™ Rock Loudspeakers
The NEW Professional Installation Weatherproof Rock Loudspeakers are ideal for any application of outdoor sound
systems requiring Geo-Realistic™ camouflage. With enhanced features such as covered crossovers,
NoFade™ UV protective paint and exceeding Military standards for corrosion, the Niles Pro series of rocks
can last a lifetime, guaranteed!
What really makes GeoRealistic™ loudspeakers special are their features. The loudspeakers are built with a
ConeForward™ design that positions the drivers close to the grille to markedly improve midrange intelligibility.
Stereo-Input models are ideal when only one speaker is the best choice for the application.
And since we enhanced them to exceed even our expectations, they are covered under our Lifetime
Limited Warranty. So for the best sound, the best looks, the best warranty…and the best profit
potential for your outdoor installations, there’s no reason to look anywhere else.
Granite Sandstone Coral Shale Brown
Speckled
Granite
PROTECTIVE
PAINT
PROTECTIVE
PAINT
CALL 1-800-BUY-HIFI – www.nilesaudio.com 75
Loudspeakers
![](asset-4c.png)
KEY FEATURES
GEOREALISTIC™ NOFADE™ COLORS AND FINISHES
Newley improved nish and color for ultra durability that will last a lifetime. Thes new Pro Series Rocks are
built like a tank and perform beautifuly even in the harshest of climates.
STEREO-INPUT (SI) TECHNOLOGY
Select Rocks and all Planters take advantage of Niles’ Stereo-Input Technology to create pleasing
stereo sound from a single loudspeaker.
ADVANCED DRIVER MATERIALS
Our injection-molded TCC™ woofers and Teteron® tweeters are specically designed to reproduce
high-delity music and to handle the harshest outdoor weather conditions.
LIFETIME LIMITED WARRANTY
Install Niles weatherproof loudspeakers with total condence knowing they are backed by the best
warranty in the business.
AVAILABLE IN 4 SIZES
Whether you want a small discreet rock to hide in the garden or a full 8” woofer with Stereo Input Technology, we have the right
speaker to ‘Rock’ the outdoors. Choose from 5 NoFade™ nishes.
RS5 RS6 RS6SI RS8SI
76 Loudspeakers
![](asset-4d.png)
WEATHERPROOF ROCK LOUDSPEAKERS
RS5PRO
5” Two-way High-Performance
Rock Loudspeaker
FEATURES
■ NoFade™ Protective Paint
■ Weatherproof design surpasses military standard 883 for corrosion resistance
■ Designed for extreme environmental conditions and both UV exposure and water resistance
■ Proprietary 4-layer fiberglass construction makes the cabinet acoustically inert and completely
weatherproof
■ Artistically crafted cabinet with shaped MicroPerf™ aluminum grilles looks natural and realistic
■ 5-1/4” (13.33 cm) talc-filled polypropylene woofer with butyl rubber surround
■ 1/2” (1.3 cm) fluid-cooled Kaladex™ tweeter mounted at a 20-degree angle for optimum
dispersion
■ ConeForward™ driver placement and high-quality crossover design delivers “living room”-quality
sonic performance to the outdoors
■ Integrated security system supplied with the loudspeaker means it stays where you put it
■ 3-foot burial-rated connection cable with waterproof wire-nuts ensures trouble-free connection
to your system
SPECIFICATIONS
■ Impedance: 8 ohms
■ Recommended amplifier power: 10W to 100W
■ Dimensions: 9-1/2” (24.1 cm) high x 10” (25.4 cm) wide x 8-1/2” (21.6 cm) deep
■ Shipping weight: 11.5 lbs. (5.2 kg)
■ Temperature Extremes: -50°F to 185°F (-45° to 85° Celsius)
Rock Speakers are available in 5 colors:
RS6PRO
6-1/2” Two-way
High-Performance
Rock Loudspeaker
FEATURES
■ No Fade™ Protective Paint
■ Weatherproof design surpasses military standard 883 for corrosion resistance
■ Designed for extreme environmental conditions and both UV exposure and water resistance
■ Proprietary 4-layer fiberglass construction makes the cabinet acoustically inert and completely
weatherproof
■ Artistically crafted cabinet with shaped MicroPerf™ aluminum grilles looks natural and realistic
■ 6-1/2” (16.51 cm) Injection-molded TCC (talc, carbon, and ceramic) filled polypropylene woofer with
butyl rubber surround
■ 1” (2.54 cm) fluid-cooled tri-laminate Teteron® tweeter mounted at a 20-degree angle for optimum
dispersion
■ ConeForward™ driver placement and high-quality crossover design delivers “living room”-quality
sonic performance to the outdoors
■ Integrated security system supplied with the loudspeaker means it stays where you put it
■ 3-foot burial-rated connection cable with waterproof wire-nuts ensure trouble-free connection to
your system
SPECIFICATIONS
■ Impedance: 8 ohms
■ Recommended amplifier power: 10W to 150W
■ Dimensions: 12” (30.48 cm) high x 14” (35.56 cm) wide x 11” (27.94 cm) deep
■ Shipping weight: 19 lbs. (8.55 kg)
■ Temperature Extremes: -50°F to 185°F (-45° to 85° Celsius)
Rock Speakers are available in 5 colors:
Granite Sandstone Coral Shale
Brown
Speckled
Granite
Granite Sandstone Coral Shale
Brown
Speckled
Granite
Stock Number
Granite FG01681
Sandstone FG01682
Coral FG01685
Speckled Granite FG01684
Shale FG01683
Stock Number
Granite FG01687
Sandstone FG01688
Coral FG01686
Speckled Granite FG01690
Shale FG01689
CALL 1-800-BUY-HIFI – www.nilesaudio.com 77
Loudspeakers
![](asset-4e.png)
RS6SiPRO
6-1/2” Two-way Stereo-Input
High-Performance Rock
Loudspeaker
Stock Number
Granite FG01692
Sandstone FG01693
Coral FG01691
Speckled Granite FG01695
Shale FG01694
WEATHERPROOF ROCK LOUDSPEAKERS
FEATURES
■ No Fade™ Protective Paint
■ Weatherproof design surpasses military standard 883 for corrosion resistance
■ Designed for extreme environmental conditions and both UV exposure and water resistance
■ Proprietary 4-layer fiberglass construction makes the cabinet acoustically inert and completely
weatherproof
■ Artistically crafted cabinet with shaped MicroPerf™ aluminum grilles looks natural and realistic
■ 6-1/2” (16.51 cm) dual-voice-coil Injection-molded TCC (talc, carbon, and ceramic) filled
polypropylene woofer with butyl rubber surround
■ Dual 1” (2.54 cm) fluid-cooled tri-laminate Teteron® tweeter mounted at a custom angle for
optimum dispersion
■ ConeForward™ driver placement and high-quality crossover design delivers “living room”-quality
sonic performance to the outdoors
■ Integrated security system supplied with the loudspeaker means it stays where you put it
■ 3-foot burial-rated connection cable with waterproof wire-nuts insures trouble-free connection
to your system
SPECIFICATIONS
■ Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■ Recommended amplifier power: 10W to 150W
■ Dimensions: 12” (30.48 cm) high x 14” (35.56 cm) wide x 11” (27.94 cm) deep
■ Shipping weight: 19 lbs. (8.55 kg)
■ Temperature Extremes: -50°F to 185°F (-45° to 85° Celsius)
Rock Speakers are available in 5 colors:
Granite Sandstone Coral Shale
Brown
Speckled
Granite
78 Loudspeakers
![](asset-4f.png)
WEATHERPROOF ROCK LOUDSPEAKERS
RS8SiPRO
8” Two-way Stereo-Input High-
Performance Rock Loudspeaker
Stock Number
Granite FG01697
Sandstone FG01698
Coral FG01696
Speckled Granite FG01699
Shale FG01700
FEATURES
■ NoFade™ Protective Paint
■ Weatherproof design surpasses military standard 883 for corrosion resistance
■ Designed for extreme environmental conditions and both UV exposure and water resistance
■ Proprietary 4-layer fiberglass construction makes the cabinet acoustically inert and completely
weatherproof
■ Artistically crafted cabinet with shaped MicroPerf™ aluminum grilles looks natural and realistic
■ 8” (20.32 cm) dual-voice-coil injection-molded TCC (talc, carbon, and ceramic) filled
polypropylene woofer with butyl rubber surround
■ Dual 1” (2.54 cm) fluid-cooled tri-laminate Teteron® tweeter mounted at a custom angle for
optimum dispersion
■ Separate left- and right-channel inputs provide stereo sound in a single loudspeaker projecting
quality stereo sound over a larger area than conventional loudspeakers
■ ConeForward™ driver placement and high-quality crossover design delivers “living room”-quality
sonic performance to the outdoors
■ Integrated security system supplied with the loudspeaker means it stays where you put it
■ Dual 3-foot burial-rated connection cables with waterproof wire-nuts ensure trouble-free
connection
■ Can be wired in one-speaker stereo-input mode or two-speaker stereo mode
SPECIFICATIONS
■ Impedance:
■ Wired Stereo, 8 ohm
■ Wired Mono (parallel), 4 ohm
■ Recommended amplifier power: 10W to 200W
■ Dimensions: 12-1/2” (31.75 cm) high x 19-1/2” (49.53 cm) wide x 16-1/2”
(41.91 cm) deep
■ Shipping weight: 27.9 lbs. (12.7 kg)
■ Temperature Extremes: -50°F to 185°F (-45° to 85° Celsius)
Rock Speakers are available in 5 colors:
Granite Sandstone Coral Shale
Brown
Speckled
Granite
CALL 1-800-BUY-HIFI – www.nilesaudio.com 79
Loudspeakers
![](asset-50.png)
Rugged good looks and natural sound make Niles’ GeoRealistic™ Rock and Planter Loudspeakers the professionals’ choice
for outdoor music applications. We achieved our leadership role by offering a wide range of models and finishes designed
to blend into virtually any outdoor environment. Our popular Rocks are available in granite, speckled granite, coral,
sandstone, and shale brown, while our Planters (and yes, you can really use them as planters) come in terracotta and
weathered concrete finishes.
We spent a lot of time making them look good. But it’s the way they sound that really makes GeoRealistic™
loudspeakers special. For example, our ConeForward™ design positions the drivers close to the grille to
markedly improve midrange intelligibility. Our PS6Si Planter features an innovative movable tweeter
assembly that adjusts the sound dispersion from 180º for placement in open areas, to 90º for
corners.
And since we build them so well, they come with our Lifetime Limited Warranty. So
there you go: the best sound, the best looks, the best warranty…and the best profit
potential. For your outdoor installations, there’s no reason to look anywhere else.
WHEN ENTERTAINING
MOVES OUTDOORS
Rock and Planter Loudspeakers
Terracotta
Weathered
Concrete
80 Loudspeakers
![](asset-51.png)
APPLICATIONS FOR ROCK AND
PLANTER LOUDSPEAKERS
Pools and Patios
Solution: Niles Planter Loudspeakers
Use Niles Planter Loudspeakers to combine great outdoor sound with
beautiful landscaping. Choose from two different styles: the traditional
circular planter shape, and a rectangular box shape. Niles Planter
Loudspeakers can be congured in two-speaker stereo, single-speaker
stereo, and monophonic modes.
Our versatile Rock and Planter loudspeakers cover virtually every outdoor
application, are built for years of trouble-free use, and feature the peace of
mind that comes with our Lifetime Limited warranty.
Gardens and Landscaping
Solution: Niles Rock Loudspeakers
With ve different GeoRealistic™ nishes, Niles Rock Loudspeakers are sure
to be the perfect match with any outdoor environment. Spread them evenly
throughout your backyard landscaping to provide even sound coverage
throughout the outdoor area.
CALL 1-800-BUY-HIFI – www.nilesaudio.com 81
Loudspeakers
![](asset-52.png)
STEREO-INPUT WEATHERPROOF PLANTER LOUDSPEAKERS
PS6SIPRO
Stereo-Input, High-Performance
Planter Loudspeaker,
6 1/2” Two-Way
Mono, two-speaker stereo, or single-
speaker stereo-input modes
FEATURES
■ Artistically crafted cabinet with shaped MicroPerf™ aluminum grilles looks like the real thing
■ 6-1/2” dual voice coil injection-molded TCC (talc, carbon, and ceramic-filled) polypropylene
woofer with butyl rubber surround for deep, low-distortion bass response
■ Dual 1” fluid-cooled tri-laminate Teteron® dome tweeter assembly has adjustable sound
dispersion from 180º (for open spaces) to 90º (for corners)
■ Separate left and right channel inputs provide satisfying stereo sound from a single
loudspeaker
■ Weatherproof design ensures High-Performance and longevity
■ Designed to accommodate live plants
■ Dual 3-foot burial-rated connection cables with waterproof wire-nuts
for a trouble-free connection
■ Can be wired in mono, two-speaker stereo, or single-speaker stereo-
input modes
SPECIFICATIONS
■ Recommended amplifier power: 10 – 150 watts
■ Impedance: Wired Stereo, 8 ohm / Wired Mono (parallel), 4 ohm
■ Frequency response: 60 Hz – 21 kHz +/-3 dB
■ Sensitivity: 89 dB for 2.83V pink noise
■ Dimensions: 19-1/2” wide x 19-1/2” high x 19-1/2” deep (50 cm wide x 50 cm x 50 cm deep)
Warranty: Lifetime Limited
Shipping weight: 35 lbs. (16 Kg)
Terracotta
Packaged
Individually
Stock Number
FG01679
Weathered
Concrete
Packaged
Individually
Stock Number
FG01680
Terracotta
Packaged Individually
Stock Number
FG01677
Weathered Concrete
Packaged Individually
Stock Number
FG01678
PB6SIPRO
Dual-Tweeter, High-Performance
Planter Loudspeaker,
6 1/2” Two-Way
Mono, two-speaker stereo, or
single-speaker stereo-input modes
FEATURES
■ Artistically crafted cabinet with shaped MicroPerf™ aluminum grilles looks like the real thing
■ 6-1/2” dual voice coil injection-molded TCC (talc, carbon, and ceramic-filled) polypropylene
woofer with butyl rubber surround for deep, low-distortion bass response
■ Dual 1” fluid-cooled tri-laminate Teteron® dome tweeter assembly has adjustable sound
dispersion from 180º (for open spaces) to 90º (for corners)
■ Separate left and right channel inputs provide satisfying stereo sound from a single
loudspeaker
■ Weatherproof design ensures High-Performance and longevity
■ Designed to accommodate live plants
■ Dual 3-foot burial-rated connection cables with waterproof wire-nuts for a trouble-free
connection
■ Can be wired in mono, two-speaker stereo, or single-speaker stereo-input modes
SPECIFICATIONS
■ Recommended amplifier power: 10 – 150 watts
■ Impedance: Wired Stereo, 8 ohm / Wired Mono (parallel), 4 ohm
■ Frequency response: 60 Hz – 21 kHz +/-3 dB
■ Sensitivity: 89 dB for 2.83V pink noise
■ Dimensions: 28” wide x 12-1/2” high x 11-1/2” deep
(71 cm wide x 32 cm x 29 cm deep)
Warranty: Lifetime Limited
Shipping weight: 35 lbs. (16 Kg)
82 Loudspeakers
![](asset-53.png)
Stock No. Model Part Description Unit MC
REAR WAVE CONTROL CEILING-MOUNT LOUDSPEAKER ACCESSORIES
FG01645 SG7C Square Grille for 7” DS Loudspeakers PR N/A
FG01647 NCB7C New Construction Bracket for 7” DS Loudspeakers PR N/A
FG01646 SG8C Square Grille for 8” DS Loudspeakers PR N/A
FG01648 NCB8C New Construction Bracket for 8” DS Loudspeakers PR N/A
DIRECTED SOUNDFIELD (DS) CEILING-MOUNT LOUDSPEAKERS
FG01614 DS7MP 7” DS Multi-Purpose Loudspeaker EA N/A
FG01617 DS7PR 7” DS Performance Loudspeaker EA N/A
FG01621 DS7HD 7” DS High Def Loudspeaker EA N/A
FG01618 DS7FX 7” DS Surround Effects Loudspeaker PR N/A
FG01616 DS7SI 7” DS Stereo-Input Loudspeaker EA N/A
FG01619 DS8PR 8” DS Performance Loudspeaker EA N/A
FG01623 DS8HD 8” DS High Def Loudspeaker EA N/A
FG01624 DS8FX 8” DS Surround Effects Loudspeaker PR N/A
DIRECTED SOUNDFIELD CEILING-MOUNT LOUDSPEAKER ACCESSORIES
FG01643 RWE7C 7” Rear Wave Control Enclosure EA N/A
FG01645 SG7C 7” Square MicroThin Grille Cover PR N/A
FG01647 NCB7C 7” New Construction Bracket PR N/A
FG01644 RWE8C 8” Rear Wave Control Enclosure EA N/A
FG01646 SG8C 8” Square MicroThin Grille Cover PR N/A
FG01648 NCB8C 8” New Construction Bracket PR N/A
QUICK REFERENCE GUIDE
CALL 1-800-BUY-HIFI – www.nilesaudio.com 83
Loudspeakers
![](asset-54.png)
Stock No. Model Part Description Unit MC
CEILING-MOUNT (CM) LOUDSPEAKERS
FG01666 CM4PR 3-1/2” Two-Way CM Performance Loudspeaker EA 4
FG01294 CM610 6” Two-Way CM Multi-Purpose Loudspeaker PR 4
FG01295 CM630 6” Two-Way CM Performance Loudspeaker PR 4
FG01655 CM7BG 7” Two-Way CM Background Loudspeaker EA 4
FG01665 CM7SD 7” Two-Way CM Slim Design Performance Loudspeaker EA 4
FG01656 CM7MP 7” Two-Way CM Multi-Purpose Loudspeaker EA 4
FG01657 CM7PR 7” Two-Way CM Performance Loudspeaker EA 4
FG01658 CM7HD 7” Two-Way CM High Def Loudspeaker EA 4
FG01660 CM7FX 7” Two-Way CM Surround Effects Performance Loudspeaker PR 2
FG01659 CM7SI 7” Two-Way CM Stereo Input Loudspeaker EA 4
FG01661 CM8MP 8” Two-Way CM Multi-Purpose Loudspeaker EA 4
FG01662 CM8PR 8” Two-Way CM Performance Loudspeaker EA 4
FG01663 CM8HD 8” Two-Way CM High Def Loudspeaker EA 4
FG01664 CM8SI 8” Two-Way CM Stereo-Input Loudspeaker EA 4
CEILING-MOUNT LOUDSPEAKERS ACCESSORIES
FG01674 SG4C 4” Square MicroThin Grilles PR 8
FG01673 NCB4C 4” New Construction Bracket PR 4
FG01300 CM600 BKT 6” New Contruction Bracket PR 4
FG01645 SG7C 7” Square MicroThin Grilles PR 8
FG01647 NCB7C 7” New Construction Bracket PR 4
IN-WALL LOUDSPEAKERS
FG00874 MP5R 5-1/4” Two-Way In-Wall High-Definition Loudspeaker; Incl. Bracket PR 4
FG00882 HD5R 5-1/4” Two-Way In-Wall High-Definition Loudspeaker; Incl. Bracket PR 4
FG00876 MP6R 6-1/2” Two-Way In-Wall Multi-Purpose Loudspeaker; Incl. Bracket PR 4
FG00880 PR6R 6-1/2” Two-Way In-Wall Performance Loudspeaker; Incl. Bracket PR 4
FG00884 HD6R 6-1/2” Two-Way In-Wall High-Definition Loudspeaker; Incl. Bracket PR 4
FG00886 HD8R 8” Two-Way In-Wall High-Definition Loudspeaker; Incl. Bracket PR 2
QUICK REFERENCE GUIDE
84 Loudspeakers
![](asset-55.png)
QUICK REFERENCE GUIDE
CALL 1-800-BUY-HIFI – www.nilesaudio.com 85
Loudspeakers
Stock No. Model Part Description Unit MC
IN-WALL LOUDSPEAKERS ACCESSORIES
FG00321 8 SERIES BRACKET Bracket Kit on Both Model & Description for 8 Series PR 2
FG00320 6 SERIES BRACKET Bracket Kit on Both Model & Description for 6 Series PR 4
HD HIGH-DEFINITION HOME THEATER LOUDSPEAKER
FG01151 HDLCR In-Wall High-Definition Loudspeaker EA 3
FG01155 HDFX In-Wall Side/Rear Channel Effects High-Definition Loudspeaker PR 2
HD HIGH-DEFINITION LOUDSPEAKER ACCESSORIES
FG01152 LCR/FX BRACKET KIT New Construction Bracket for HDLCR and HDFX In-Wall Loudspeakers EA 10
CYNEMA SOUNDFIELD IN-WALL SOUNDBAR
FG01710 CSF65A 65" In-Wall Soundbar (Active) EA N/A
FG01709 CSF55A 55” In-Wall Soundbar (Active) EA N/A
FG01708 CSF48A 48” In-Wall Soundbar (Active) EA N/A
FG01707 CSF48P 48” In-Wall Soundbar (Passive) EA N/A
POWERED COMPACT SUBWOOFERS
FG01669 SW6.5 6-1/2” Powered Compact Subwoofer EA 4
FG01670 SW8 8” Powered Compact Subwoofer EA 4
POWERED COMPACT SUBWOOFER ACCESSORIES
FG01671 SW-T Wireless Subwoofer Transmitter EA N/A
FG01672 SW-R Wireless Subwoofer Receiver EA N/A
OS INDOOR/OUTDOOR LOUDSPEAKERS
FG00986 OS5.3 WHITE 5” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00987 OS5.3 BLACK 5” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00992 OS5.5 WHITE 5” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00993 OS5.5 BLACK 5” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00988 OS6.3 WHITE 6” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00989 OS6.3 BLACK 6” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00994 OS6.5 WHITE 6” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00995 OS6.5 BLACK 6” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00990 OS7.3 WHITE 7” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00991 OS7.3 BLACK 7” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00996 OS7.5 WHITE 7” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00997 OS7.5 BLACK 7” High-Performance Indoor/Outdoor Loudspeaker PR 2
FG00998 OS5.3SI WHITE 5” Stereo-Input Indoor/Outdoor Loudspeaker EA 4
FG00999 OS5.3SI BLACK 5” Stereo-Input Indoor/Outdoor Loudspeaker EA 4
FG01000 OS6.3SI WHITE 6” Stereo-Input Indoor/Outdoor Loudspeaker EA 4
FG01001 OS6.3SI BLACK 5” Stereo-Input Indoor/Outdoor Loudspeaker EA 4
![](asset-56.png)
Stock No. Model Part Description Unit MC
GARDEN SERIES LOUDSPEAKERS
FG01667 GS4 High-Performance Garden Satellite Loudspeaker PR --
FG01668 GSS10 High-Performance Outdoor Subwoofer EA --
PRO SERIES ROCK SPEAKERS
FG01681 RS5PRO GRANITE 5” Two-way High-Performance Rock Loudspeaker
FG01682 RS5PRO SANDSTONE 5” Two-way High-Performance Rock Loudspeaker
FG01683 RS5PRO SHALE BROWN 5” Two-way High-Performance Rock Loudspeaker
FG01684 RS5PRO SPECKLED 5” Two-way High-Performance Rock Loudspeaker
FG01685 RS5PRO CORAL 5” Two-way High-Performance Rock Loudspeaker
FG01686 RS6PRO CORAL 6 1/2” Two-way High-Performance Rock Loudspeaker
FG01687 RS6PRO GRANITE 6 1/2” Two-way High-Performance Rock Loudspeaker
FG01688 RS6PRO SANDSTONE 6 1/2” Two-way High-Performance Rock Loudspeaker
FG01689 RS6PRO SHALE BROWN 6 1/2” Two-way High-Performance Rock Loudspeaker
FG01690 RS6PRO SPECKLED 6 1/2” Two-way High-Performance Rock Loudspeaker
FG01691 RS6SiPRO CORAL 6 1/2” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01692 RS6SiPRO GRANITE 6 1/2” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01693 RS6SiPRO SANDSTONE 6 1/2” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01694 RS6SiPRO SHALE BROWN 6 1/2” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01695 RS6SiPRO SPECKLED 6 1/2” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01696 RS8SiPRO CORAL 8” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01667 RS8SiPRO GRANITE 8” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01668 RS8SiPRO SANDSTONE 8” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01669 RS8SiPRO SHALE BROWN 8” Two-way Stereo-input High-Performance Rock Loudspeaker
FG01670 RS8SiPRO SPECKLED 8” Two-way Stereo-input High-Performance Rock Loudspeaker
PLANTER SPEAKERS
FG01679 PS6SiPRO TERRACOTTA Stereo-input, High-Performance Planter Loudspeaker, 6 1/2” Two-Way
FG01680 PS6SiPRO WEATHERED CONCRETE Stereo-input, High-Performance Planter Loudspeaker, 6 1/2” Two-Way
FG01677 PB6SiPRO TERRACOTTA Dual-tweeter, High-Performance Planter Loudspeaker, 6 1/2” Two-Way
FG01678 PB6SiPRO WEATHERED CONCRETE Dual-tweeter, High-Performance Planter Loudspeaker, 6 1/2” Two-Way
QUICK REFERENCE GUIDE
86 Loudspeakers
![](asset-57.png)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 87
Loudspeakers
![](asset-58.png)
GENERAL PRODUCTS
Complete Jobs with Confidence
Niles Controls and Accessories ensure that your installations are the smoothest they
can be so that you can complete every job with confidence. Niles features the
most advanced line of IR extender systems on the market today, a family of
speaker selection systems that serve as the industry benchmark, and
Baluns that simplify every installation, adding flexibility and reducing
cost on every job. Complete the connected experience here.
88 General Products
![](asset-59.png)
AUTOMATED SWITCHING SYSTEMS
Doorbell Interface ...........................105
Speaker-Level Switching Systems ..............105
Source-Switching Systems ....................107
Light-Sensing System ........................108
Triggering Power Supplies ....................108
VOLUME CONTROL SYSTEMS
Indoor Volume Controls ......................110
Outdoor Volume Controls .....................112
Volume Control Hub .........................113
Quick Reference Guide .......................114
Additional Information .......................116
INGENIOUS IR
IR Kits ....................................90
IR MicroSensors .............................91
IR Main System Units .........................94
IR High-Output Flasher ........................95
IR MicroFlashers .............................95
SPEAKER SELECTION SYSTEMS
Speaker Selector With Volume Controls ...........98
High-Power Speaker Selectors ..................99
Speaker Selectors ..........................100
Wall-Mount Speaker/Amplifier Selectors ..........100
High-Power Impedance Matching System ........101
CAT-5 BALUNS
Hdmi Cat-5 Baluns ..........................103
Video Cat-5 Baluns ..........................103
CALL 1-800-BUY-HIFI – www.nilesaudio.com 89
General Products
![](asset-5a.png)
Niles offers the most advanced line of IR extender systems on the market today. Our IR Sensors have been
redesigned to make them compatible with a new generation of IR code formats found on many new high-definition,
multimedia source devices. The sensors feature a high-fidelity wideband amplifier that can accurately pass
these IR code formats, Philips RCMM codes. In addition, a patent–pending Universal Noise Suppression
design effectively eliminates IR interference from plasmas, LCDs, and CFL lighting while maintaining
signal integrity. This two-stage technology combines an optical noise filter with a “smart” electronic
circuit to provide consistent, reliable control. Best of all, these advanced technologies are found
in each new Niles IR Sensor. Niles IR enables fast, predictable installations in any environment,
without the added cost of carrying specialized inventory.
INSTALL WITH CONFIDENCE
High-Fidelity Wideband IR Extender Systems
P
L
A
S
M
A
•
L
C
D
•
C
F
L
•
P
R
O
O
F
•
90 General Products
![](asset-5b.png)

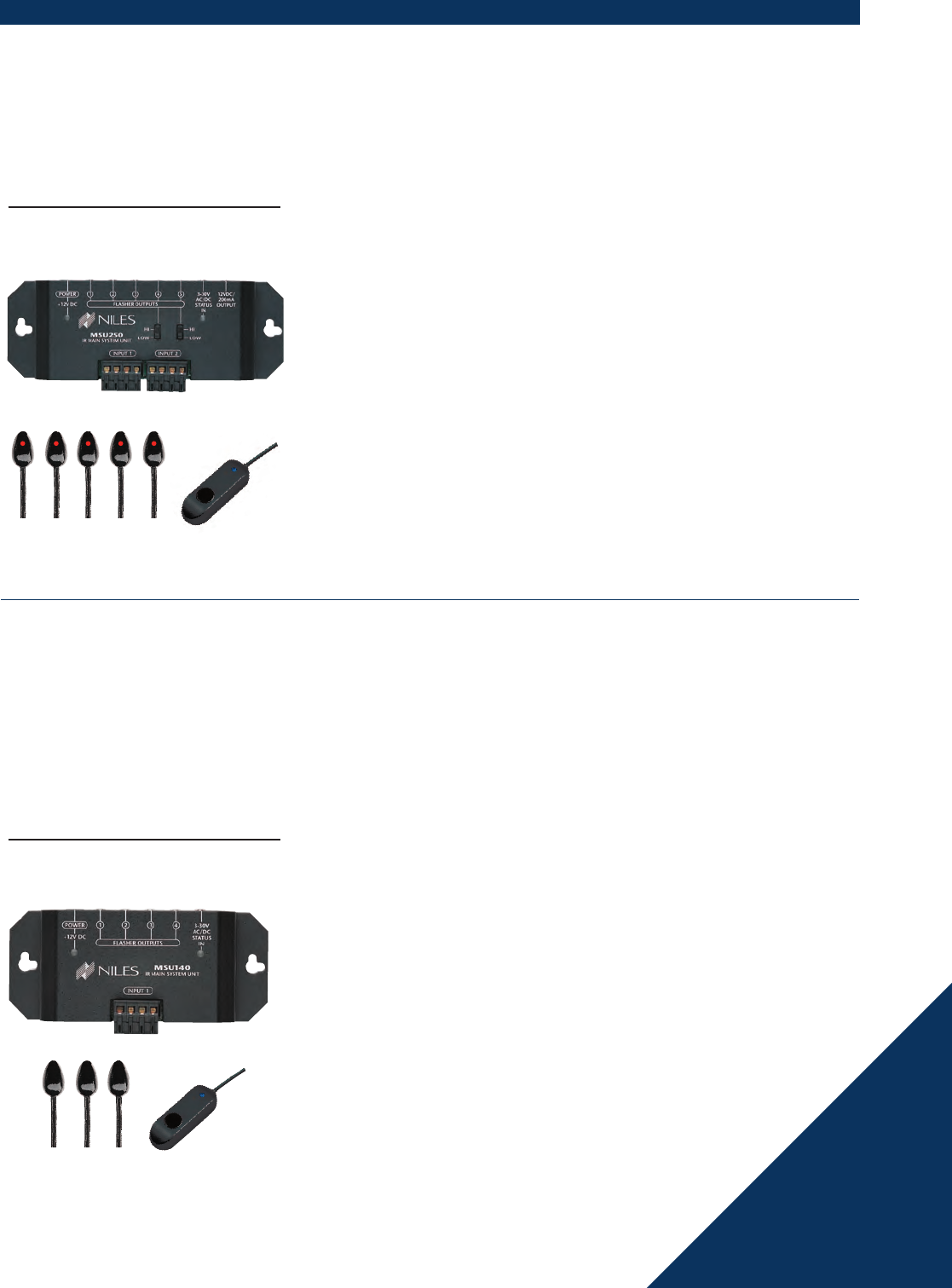

IR KIT
RCA-HT2
Remote Control Anywhere!® Kit for
Home Theater Application
Includes: Sensor, main system unit,
flashers, and 50' of CAT-5 cable
Packaged for retail display
Model Stock Number
Black FG01586
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate
IR code formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR
interference from plasmas, LCDs, and CFL lighting
■ One MS220 Surface-Mount IR Sensor in black
■ One MSU250 IR Main System Unit
■ Five MF1VF MicroFlashers® with visible feedback
■ 50’ of CAT-5 cable
■ UL-listed regulated in-line power supply with universal voltage
SPECIFICATIONS
■ Box Dimensions: 13" wide x 7-7/8” high x 3-1/2” deep
(33 cm wide x 20 cm high x 9 cm deep)
Warranty: Two-year limited
Shipping weight: 5 lbs. (2.3 Kg)
RCA-SM2
Remote Control Anywhere!® Kit
with Surface Mount Sensor
Includes: Sensor, main system unit,
flashers, and 50' of CAT-5 cable
Packaged for retail display
Model Stock Number
Black FG01585
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate
IR code formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR
interference from plasmas, LCDs, and CFL lighting
■ One MS220 Surface-Mount IR Sensor in black
■ One MSU140 IR Main System Unit
■ Three MF1 MicroFlashers®
■ 50’ of CAT-5 cable
■ UL-listed regulated in-line power supply with universal voltage
SPECIFICATIONS
■ Box Dimensions: 13" wide x 7-7/8” high x 3-1/2” deep
(33 cm wide x 20 cm high x 9 cm deep)
Warranty: Two-year limited
Shipping weight: 5 lbs. (2.3 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 91
General Products
![](asset-5c.png)

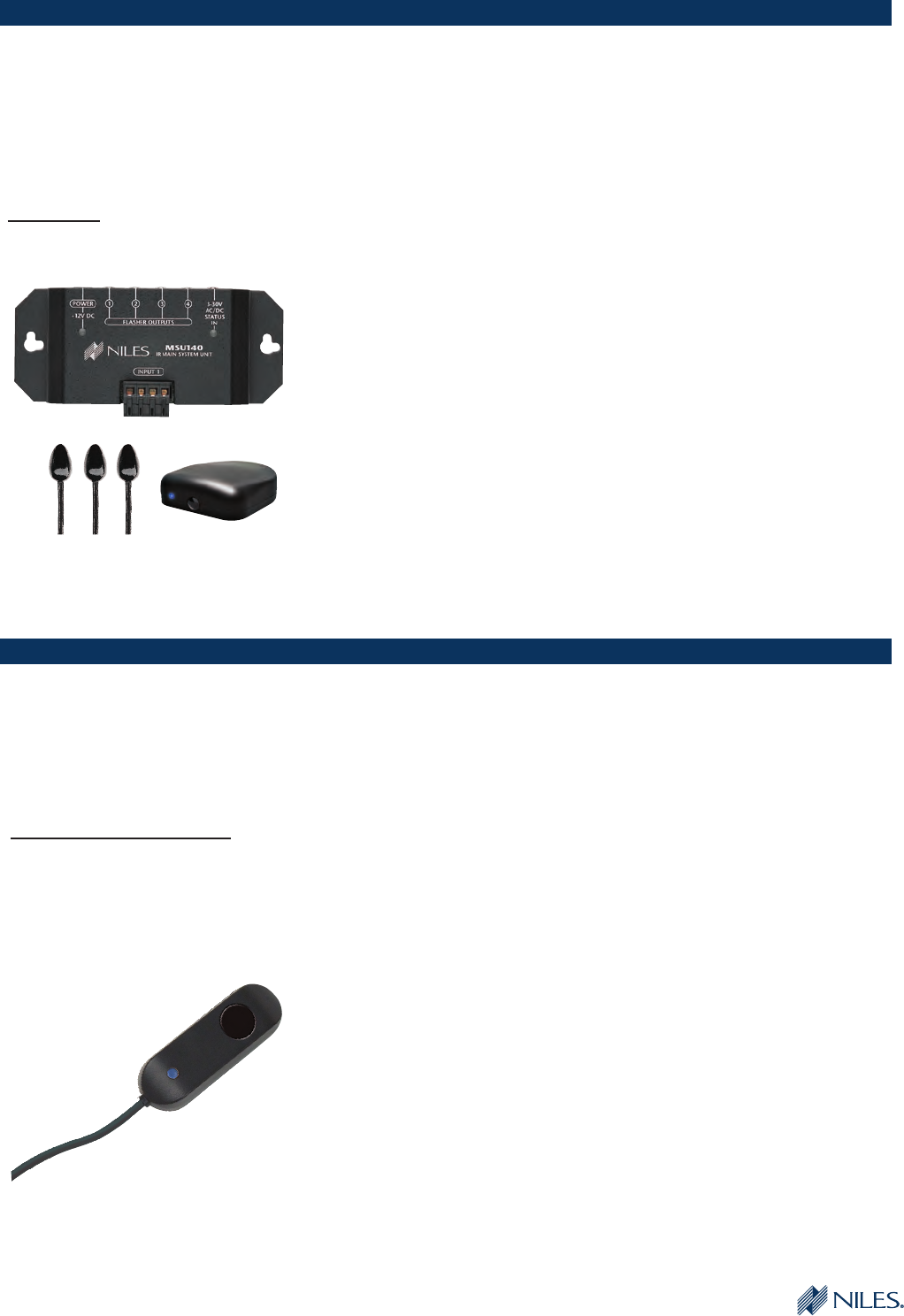

IR MICROSENSOR®
IR KIT
MS220
Surface-Mount IR MicroSensor®
Packaged for retail display
Surface-mounts virtually anywhere,
even on plasma displays
Color Stock Number
Black FG01577
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate
IR code formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR
interference from plasmas, LCDs, and CFL lighting
■ Receiving range is typically 20’ - 36’
■ Bi-color visible feedback LED
■ Includes 10’ of connecting wire
■ Secure 3M adhesive backing
SPECIFICATIONS
■ Dimensions: 2” wide x 11/16” high x 1/2” deep
(50.8 mm wide x 17.4 mm high x 12.7 mm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
RCA-TT2
Remote Control Anywhere!® Kit
with Tabletop Sensor
Includes: Sensor, main system unit,
flashers, and 50' of CAT-5 cable
Packaged for retail display
Stock Number
FG01584
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate
IR code formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR
interference from plasmas, LCDs, and CFL lighting
■ One TS120 Tabletop IR Sensor
■ One MSU140 IR Main System Unit
■ Three MF1 MicroFlashers®
■ 50’ of CAT-5 cable
■ UL-listed regulated in-line power supply with universal voltage
SPECIFICATIONS
■ Box Dimensions: 13" wide x 7-7/8” high x 3-1/2” deep
(33 cm wide x 20 cm high x 9 cm deep)
Warranty: Two-year limited
Shipping weight: 5 lbs. (2.3 Kg)
92 General Products
![](asset-5d.png)

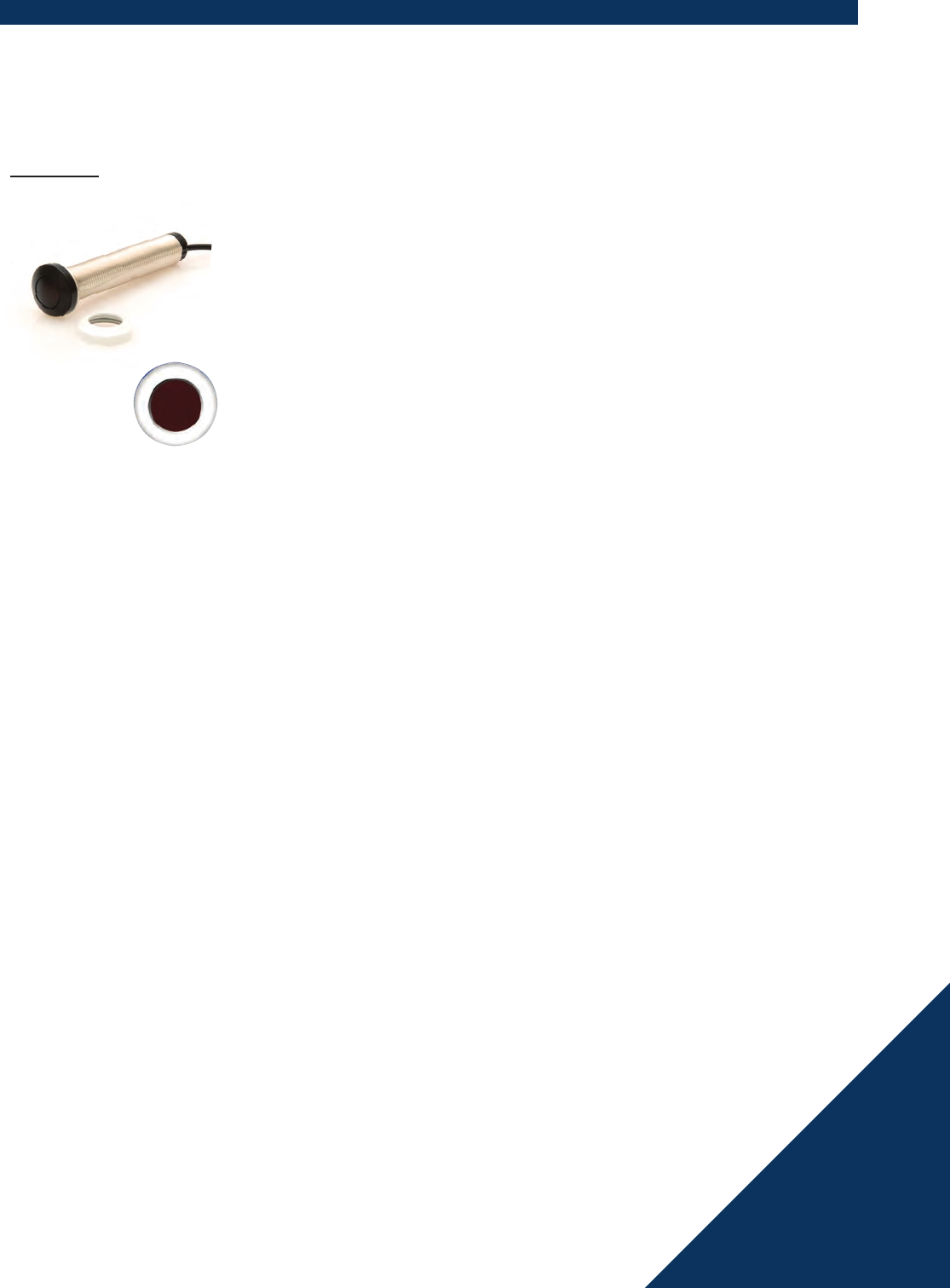

IR MICROSENSOR®
includes black
and white
bezels
Actual size of sensor
MS120
Miniature Flush-Mount IR MicroSensor®
Packaged for retail display
Flush-mounts into a 1/2" diameter hole
Stock Number
FG01580
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate
IR code formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR
interference from plasmas, LCDs, and CFL lighting
■ Receiving range is typically 20’ - 35’
■ Includes 10’ of connecting wire
■ Designed for discrete mounting
■ Includes black and white bezels
SPECIFICATIONS
■ Dimensions:
Lens bezel: 23/32” diameter x 5/16” high
(17.8 mm diameter x 7.9 mm high)
Overall: 23/32” diameter x 2-7/8” high
(17.8 mm diameter x 72.9 mm high
Hole cutout: 1/2” (1.27 cm) diameter
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 93
General Products
![](asset-5e.png)

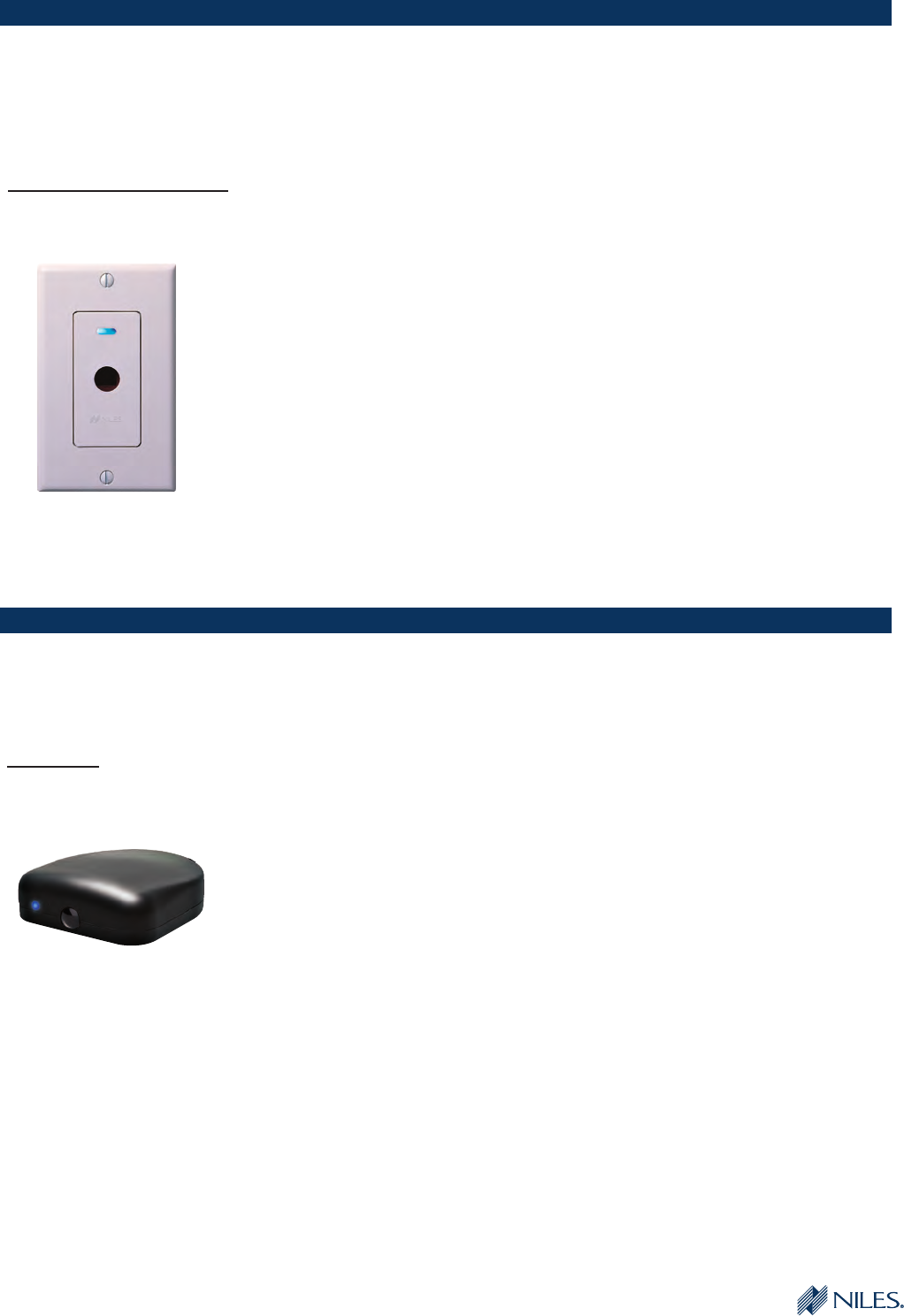

IR MICROSENSOR®
IR MICROSENSOR®
WS120
Wall-Mount IR Sensor
Packaged for retail display
Includes Decora® faceplate
Color Stock Number
White FG01582
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate IR code
formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR interference from
plasmas, LCDs, and CFL lighting
■ Receiving range is typically 20’ - 35’
■ Bi-color visible feedback LED
■ Packaged for discrete mounting
■ Fits into a single-gang box
SPECIFICATIONS
■ Dimensions: 2-3/4” wide x 4-1/2” high x 1-1/4 deep
(7 cm wide x 11.4 cm high x 3.2 cm deep)
■ Requires 1-gang electrical box at least 1-1/2” (4cm) deep
Warranty: Two-year limited
Shipping weight: 1 lbs. (0.5 Kg)
TS120
Tabletop IR Sensor
Packaged for retail display
Stock Number
FG01581
FEATURES
■ High-Fidelity Wideband Amplifier accurately passes high-data-rate
IR code formats, including Philips RCMM codes
■ Universal Noise Suppression effectively eliminates the IR interference
from plasmas, LCDs, and CFL lighting
■ Receiving range is typically 20’ - 36’
■ Bi-color visible feedback LED
SPECIFICATIONS
■ Dimensions: 2-7/8” wide x 1-1/16” high x 3-1/8” deep
(73 mm wide x 27 mm high x 79.4 mm deep)
Warranty: Two-year limited
Shipping weight: 1 lbs. (0.5 Kg)
94 General Products
![](asset-5f.png)

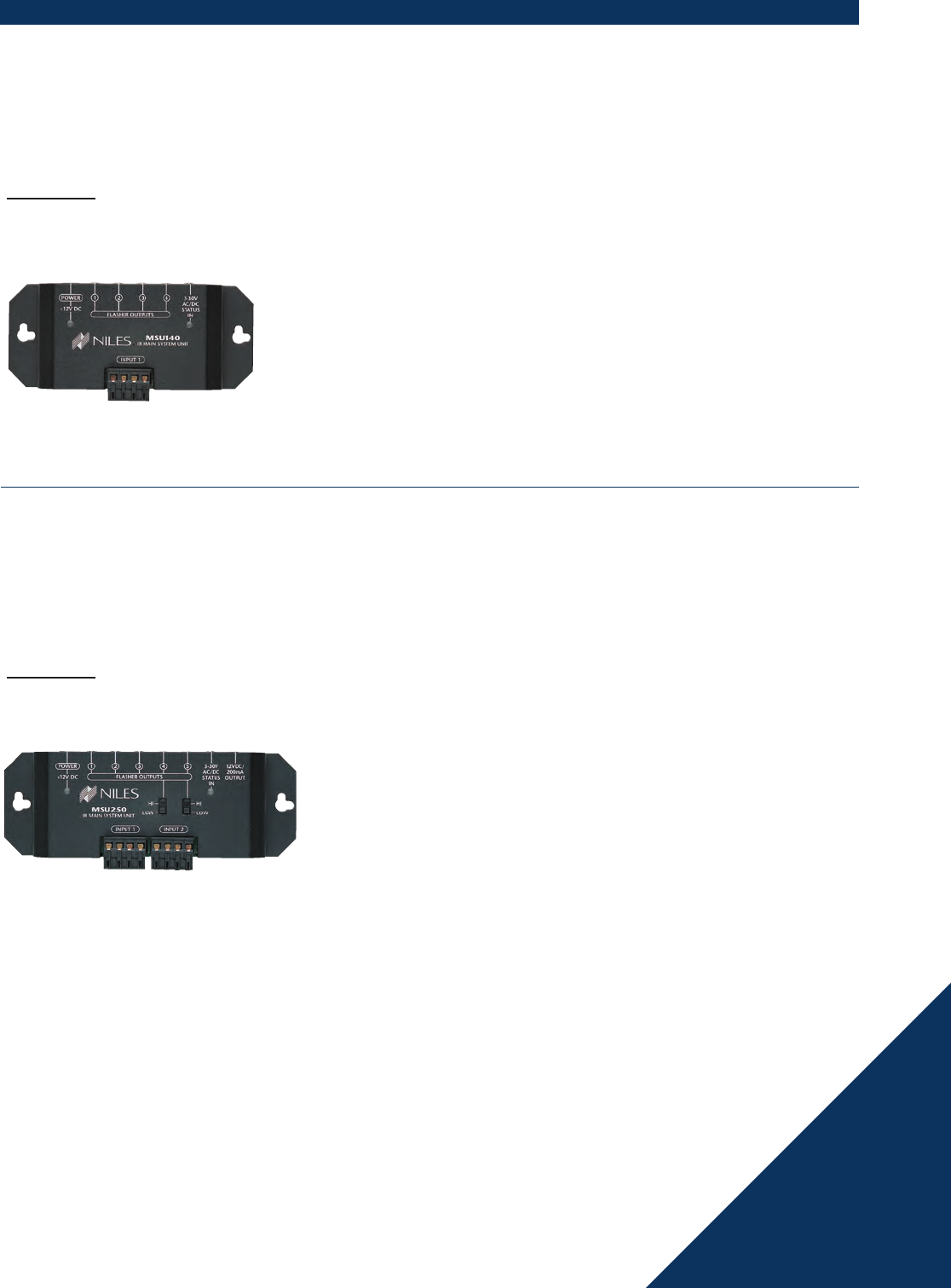

IR MAIN SYSTEM UNITS
MSU140
IR Repeater System for
Single-Zone Applications
One sensor input with four flasher outputs
Packaged for retail display
Stock Number
FG01002
FEATURES
■ One sensor input with removable screwless connectors
■ Use with IRH610 (FG01018 to provide additional inputs)
■ Four flasher outputs with 3.5mm flasher output jacks
■ Low-profile, small footprint for unobtrusive installation
■ Integrated mounting wings accommodate both vertical and
horizontal installation
■ UL-listed regulated in-line power supply with universal voltage
capability
■ 12-volt DC status input jack
■ System feedback LED indicator provides visual indication of
operation
■ Rugged all-metal chassis construction
SPECIFICATIONS
■ Dimensions: 4-3/4” wide x 1-1/4” high x 2" deep
(12 cm wide x 3.2 cm high x 5 cm deep)
Warranty: Two-year limited
Shipping weight: 1 lbs. (0.5 Kg)
MSU250
IR Repeater System for
Single-Zone Applications
Two sensor inputs with five flasher outputs
Packaged for retail display
Stock Number
FG01003
FEATURES
■ Two sensor inputs with removable screwless connectors
■ Use with IRH610 (FG01018 to provide additional inputs)
■ Five flasher outputs with 3.5mm flasher output jacks including: two
switchable high/low flasher jacks for driving IRB1 flooding flashers or
MicroFlashers®
■ Low-profile, small footprint for unobtrusive installation
■ Integrated mounting wings accommodate both vertical and horizontal
installation
■ UL-listed regulated in-line power supply with universal voltage capability
■ 12-volt DC status input jack
■ 3.5mm 12-volt output jack triggered by the presence of status or discrete
IR commands
SPECIFICATIONS
■ Dimensions: 5-5/8” wide x 1-1/4” high x 2" deep
(14.3 cm wide x 3.2 cm high x 5 cm deep)
Warranty: Two-year limited
Shipping weight: 2 lbs. (.5 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 95
General Products
![](asset-60.png)

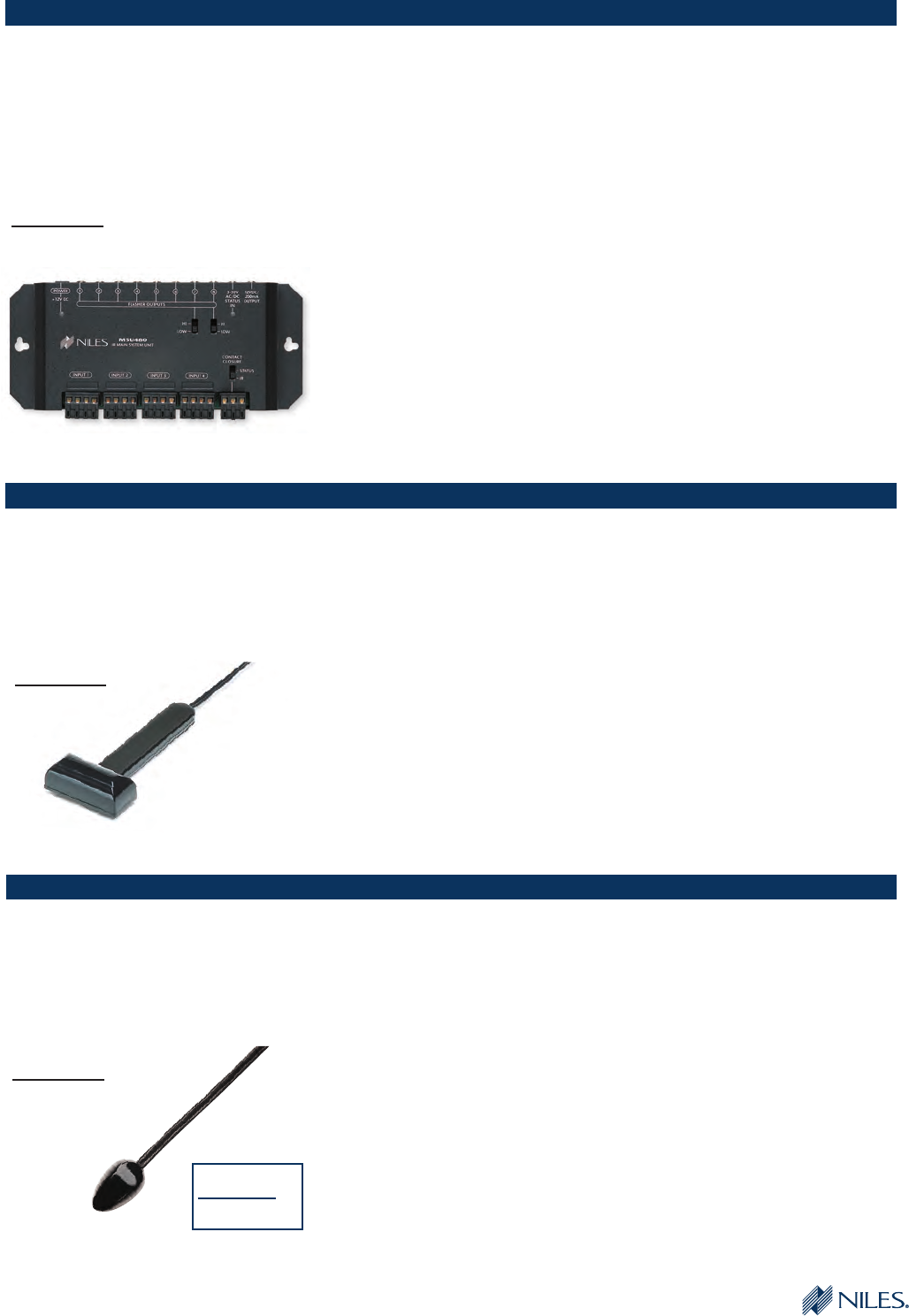

IR MAIN SYSTEM UNITS
IR HIGH OUTPUT FLASHER
IR MICROFLASHER®
MSU480
IR Repeater System for
Single-Zone Applications
Four sensor inputs with eight
flasher outputs
Packaged for retail display
Stock Number
FG01004
FEATURES
■ Four sensor inputs with removable screwless connectors
■ Use with IRH610 (FG01018 to provide additional inputs)
■ Eight flasher outputs with 3.5mm flasher output jacks
■ Low-profile, small footprint for unobtrusive installation
■ Integrated mounting wings accommodate both vertical and
horizontal installation
■ UL-listed regulated in-line power supply with universal voltage
capability
■ 12-volt DC status input jack
■ 3.5mm 12-volt output jack and integrated contact closure triggered
by the presence of status or discrete IR commands
SPECIFICATIONS
■ Dimensions: 7" wide x 1-1/4” high x 2" deep
(17.8 cm wide x 3.2 cm high x 5 cm deep)
Warranty: Two-year limited
Shipping weight: 2 lbs. (.5 Kg)
MF1
IR MicroFlasher®
For use with all Niles IR main system units,
MultiZone receivers and preamplifiers
Packaged for retail display
Stock Number
FG01019
FEATURES
■ Transparent to infrared light
■ One MF1 required for each component you wish to control
■ Low-profile, extremely small footprint
■ 10' cable with 3.5mm plug for easy installation
■ Includes improved elastomer-style blocking cover to facilitate
installation on curved surfaces
■ Improved, stronger adhesive
SPECIFICATIONS
■ Dimensions: 5/16" wide x 3/16" high x 1/2" deep
(.8 cm wide x .5 cm high x 1.3 cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
IRB1
High-Output IR Flasher
For use with all Niles IR main system units,
MultiZone receivers and preamplifiers
Packaged for retail display
Stock Number
FG01023
FEATURES
■ Controls an entire stack of audio/video components
■ High-power output
■ Perfect for mounting to the inside of a cabinet door or at the top of
an equipment rack
■ Adhesive backing for quick-and-easy mounting
■ Not compatible with MSU140
SPECIFICATIONS
■ Dimensions: 1" wide x 3/8" high x 2-1/4” deep
(2.5 cm wide x 1 cm high x 5.7 cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
Bulk Package
MV1VF Bulk
FG01161
96 General Products
![](asset-61.png)

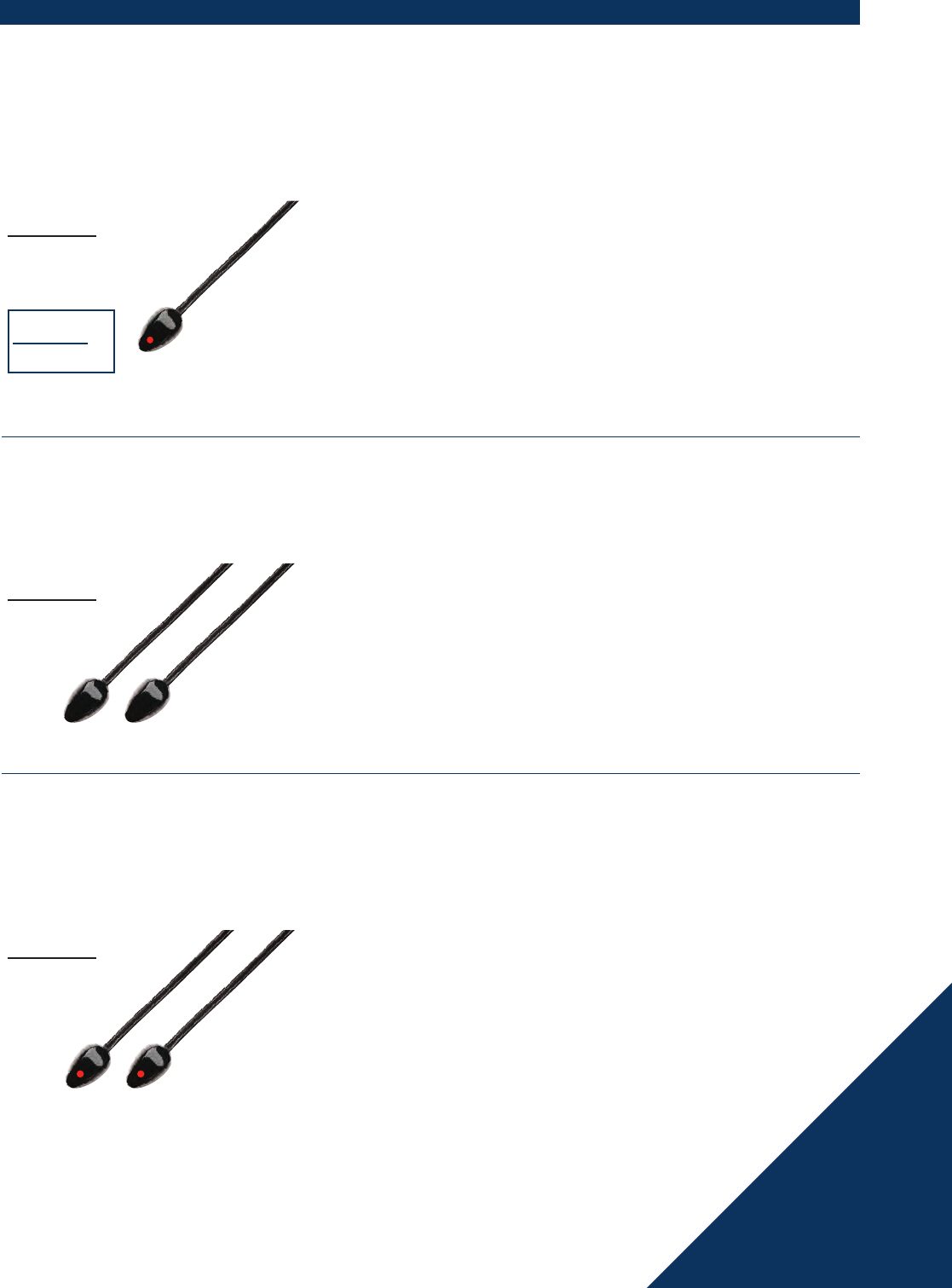

IR MICROFLASHER®
MF1VF
IR MicroFlasher®
with Visible Feedback
For use with all Niles IR main system units,
MultiZone receivers and preamplifiers
Packaged for retail display
Stock Number
FG01020
FEATURES
■ Transparent to infrared light
■ One MF1VF required for each component you wish to control
■ Low-profile, extremely small footprint
■ Flashback LED provides visual confirmation of operation
■ 10' cable with 3.5mm plug for easy installation
■ Improved, stronger adhesive
SPECIFICATIONS
■ Dimensions: 5/16" wide x 3/16" high x 1/2" deep
(.8 cm wide x .5 cm high x 1.3 cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
Bulk Shipping weight: 21 lb. (12 Kg)
MF2
Dual IR MicroFlasher®
For use with all Niles IR main system units,
MultiZone receivers and preamplifiers
Packaged for retail display
Stock Number
FG01021
FEATURES
■ Transparent to infrared light
■ Dual flashers on a single cable expand the flasher output capabilities
of main system units
■ Low-profile, extremely small footprint
■ 10' cable with 3.5mm plugs for easy installation
■ Includes improved elastomer-style blocking cover to facilitate
installation on curved surfaces
■ Improved, stronger adhesive
SPECIFICATIONS
■ Dimensions: 5/16" wide x 3/16" high x 1/2" deep
(.8 cm wide x .5 cm high x 1.3 cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
MF2VF
Dual IR MicroFlasher®
with Visible Feedback
For use with all Niles IR main system units,
MultiZone receivers and preamplifiers
Packaged for retail display
Stock Number
FG01022
FEATURES
■ Transparent to infrared light
■ Dual flashers on a single cable expand the flasher output capabilities
of main system units
■ Flashback LED on flasher provides visual confirmation of operation
■ Low-profile, extremely small footprint
■ 10' cable with 3.5mm plugs for easy installation
■ Improved, stronger adhesive
SPECIFICATIONS
■ Dimensions: 5/16" wide x 3/16" high x 1/2" deep
(.8 cm wide x .5 cm high x 1.3 cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
Bulk Package
MV1VF Bulk
FG01161
Bulk package contains twenty-four
MF1VF flashers
CALL 1-800-BUY-HIFI – www.nilesaudio.com 97
General Products
![](asset-62.png)
Niles speaker selection systems are the benchmark for the custom installation industry. Every model exhibits reference
performance and exemplary reliability in its particular application. Constructed from high-grade electrical components and
all-metal chassis with nonskid feet, Niles speaker selectors deliver more than they promise. They accommodate system
designs that require speaker selectors, high-power speaker selectors and speaker selectors with volume controls.
THE INDUSTRY STANDARD
Performance and Reliability
From Niles Speaker Selection Systems
98 General Products
![](asset-63.png)

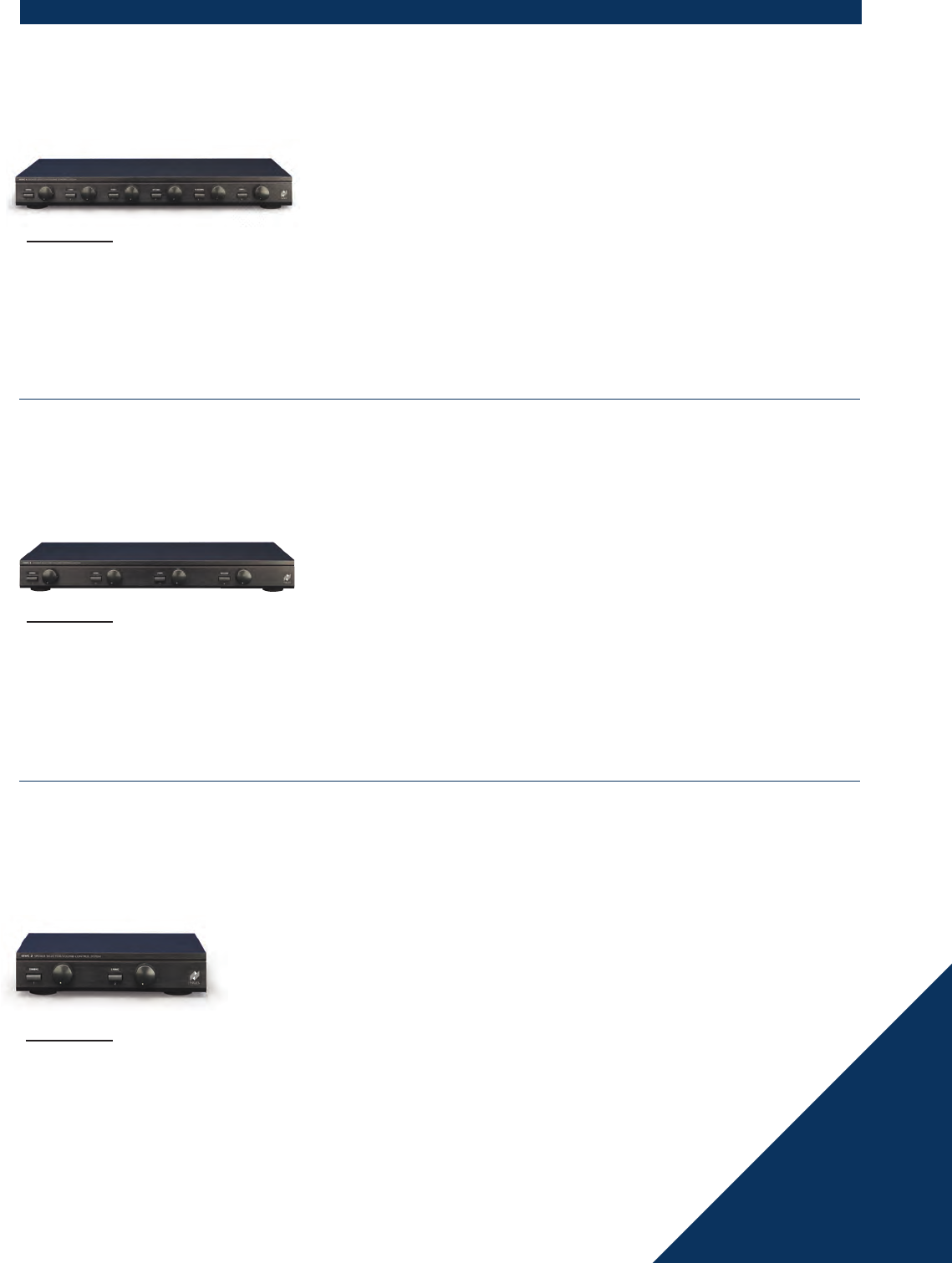

SPEAKER SELECTOR WITH VOLUME CONTROLS
SSVC-6
Six-Pair, Speaker Selector with
Volume Controls
Packaged for retail display
Stock Number
FG01044
FEATURES
■ Power handling: 100 watts per channel RMS; 200 watts peak
■ Selectable impedance magnification for 1, 2, 3/4, 5/6 pairs of speakers
■ Individual room on/off selector switches
■ 12-step controls; 54dB maximum attenuation
■ Separate left and right ground paths for compatibility with all amplifiers
■ Removable screwless connectors accommodate up to 12-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won’t scratch furniture and ensure unit stability during operation
■ 72 adhesive-backed room-identification labels
SPECIFICATIONS
■ Dimensions: 17” wide x 2” high x 9-1/8” deep
(43.2cm wide x 5cm high x 23.2cm deep)
Warranty: Ten-year limited
Shipping weight: 12 lbs. (5.4 Kg)
SSVC-4
Four-Pair, Speaker Selector
with Volume Controls
Packaged for retail display
Stock Number
FG01043
FEATURES
■ Power handling: 100 watts per channel RMS; 200 watts peak
■ Selectable impedance magnification for 1 or 2 pairs of speakers
■ Individual room on/off selector switches
■ 12-step controls; 54dB maximum attenuation
■ Separate left and right ground paths for compatibility with all amplifiers
■ Removable screwless connectors accommodate up to 12-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won’t scratch furniture and ensure unit stability during operation
■ 72 adhesive-backed room-identification labels
SPECIFICATIONS
■ Dimensions: 17” wide x 2” high x 9-1/8” deep
(43.2cm wide x 5cm high x 23.2cm deep)
Warranty: Ten-year limited
Shipping weight: 10 lbs. (4.5 Kg)
SSVC-2
Two-pair Speaker Selector
with Volume Controls
Packaged for retail display
Stock Number
FG01042
FEATURES
■ Power handling: 100 watts per channel RMS; 200 watts peak
■ Selectable impedance magnification for 1, 2, 3/4, 5/6 pairs of speakers
■ Individual room on/off selector switches
■ 12-step controls; 54dB maximum attenuation
■ Separate left and right ground paths for compatibility with all amplifiers
■ Removable screwless connectors accommodate up to 14-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won’t scratch furniture and ensure unit stability during
operation
■ 72 adhesive-backed room-identification labels
SPECIFICATIONS
■ Dimensions: 8-1/2” wide x 2” high x 7-1/4” deep
(21.6cm wide x 5cm high x 18.4cm deep)
Warranty: Ten-year limited
Shipping weight: 5 lbs. (2.3 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 99
General Products
![](asset-64.png)

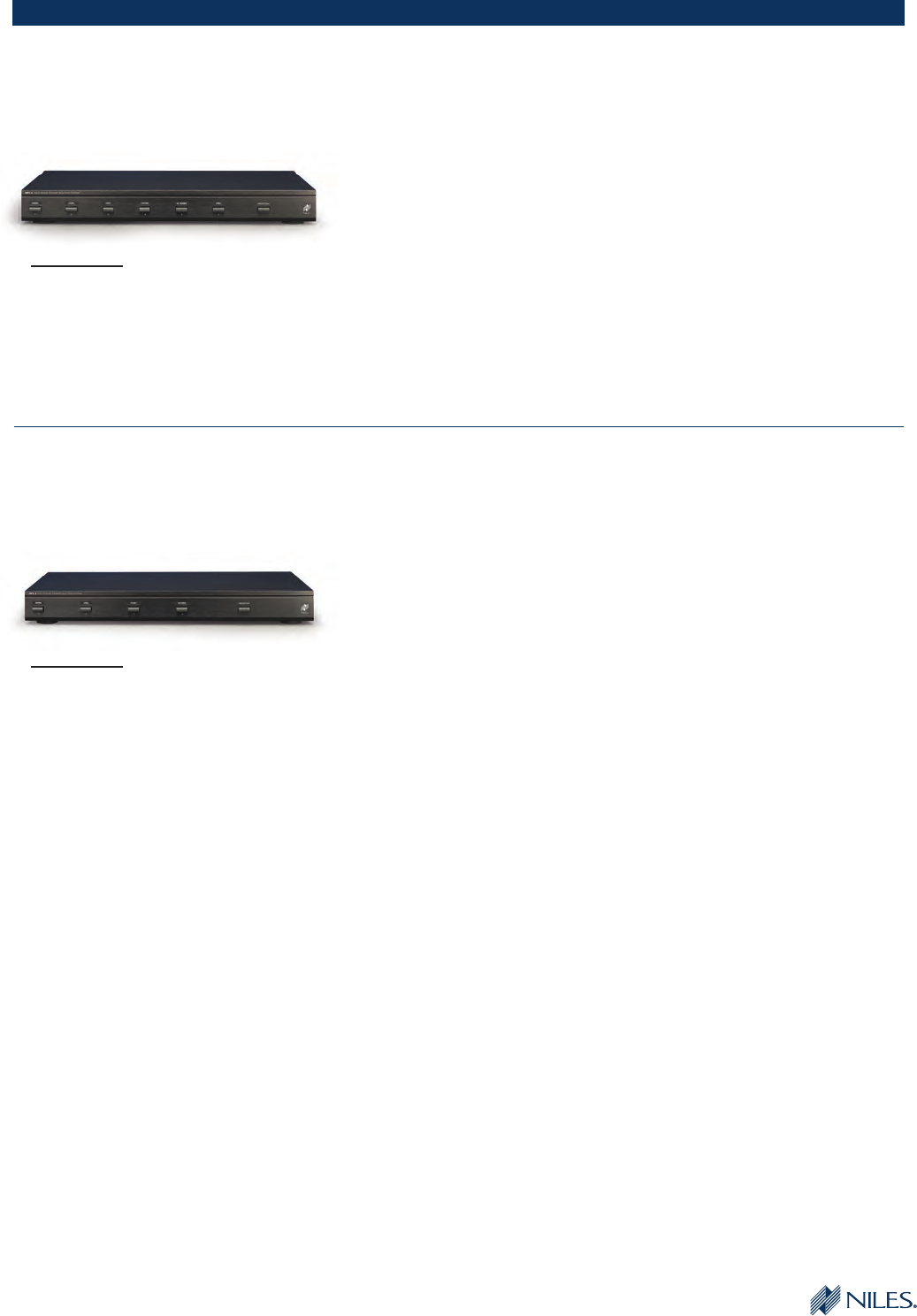

HIGH-POWER SPEAKER SELECTORS
HPS-6
Six-Pair, High-Power
Speaker Selector
Packaged for retail display
Stock Number
FG01038
HPS-4
Four-Pair, High-Power
Speaker Selector
Packaged for retail display
Stock Number
FG01037
FEATURES
■ Power handling: 250 watts per channel RMS
■ Protection circuit safeguards receiver/amplifier
■ Separate left and right ground paths for compatibility with all amplifiers
■ Rear-panel switch for constant or selectable impedance protection
■ Removable connectors accommodate up to 12-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won’t scratch furniture and ensure unit stability during operation
■ 72 adhesive-backed room-identification labels
■ Requires an amplifier that is compatible with a 4 ohm load
SPECIFICATIONS
■ Dimensions: 17” wide x 2” high x 8-5/8” deep
(43.2cm wide x 5cm high x 22cm deep)
Warranty: Ten-year limited
Shipping weight: 7 lbs. (3.2 Kg)
FEATURES
■ Power handling: 250 watts per channel RMS
■ Protection circuit safeguards receiver/amplifier
■ Separate left and right ground paths for compatibility with all amplifiers
■ Rear-panel switch for constant or selectable impedance protection
■ Removable connectors accommodate up to 12-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won’t scratch furniture and ensure unit stability
during operation
■ 72 adhesive-backed room-identification labels
■ Requires an amplifier that is compatible with a 4 ohm load
SPECIFICATIONS
■ Dimensions: 17” wide x 2” high x 8-5/8” deep
(43.2cm wide x 5cm high x 22cm deep)
Warranty: Ten-year limited
Shipping weight: 7 lbs. (3.2 Kg)
100 General Products
![](asset-65.png)

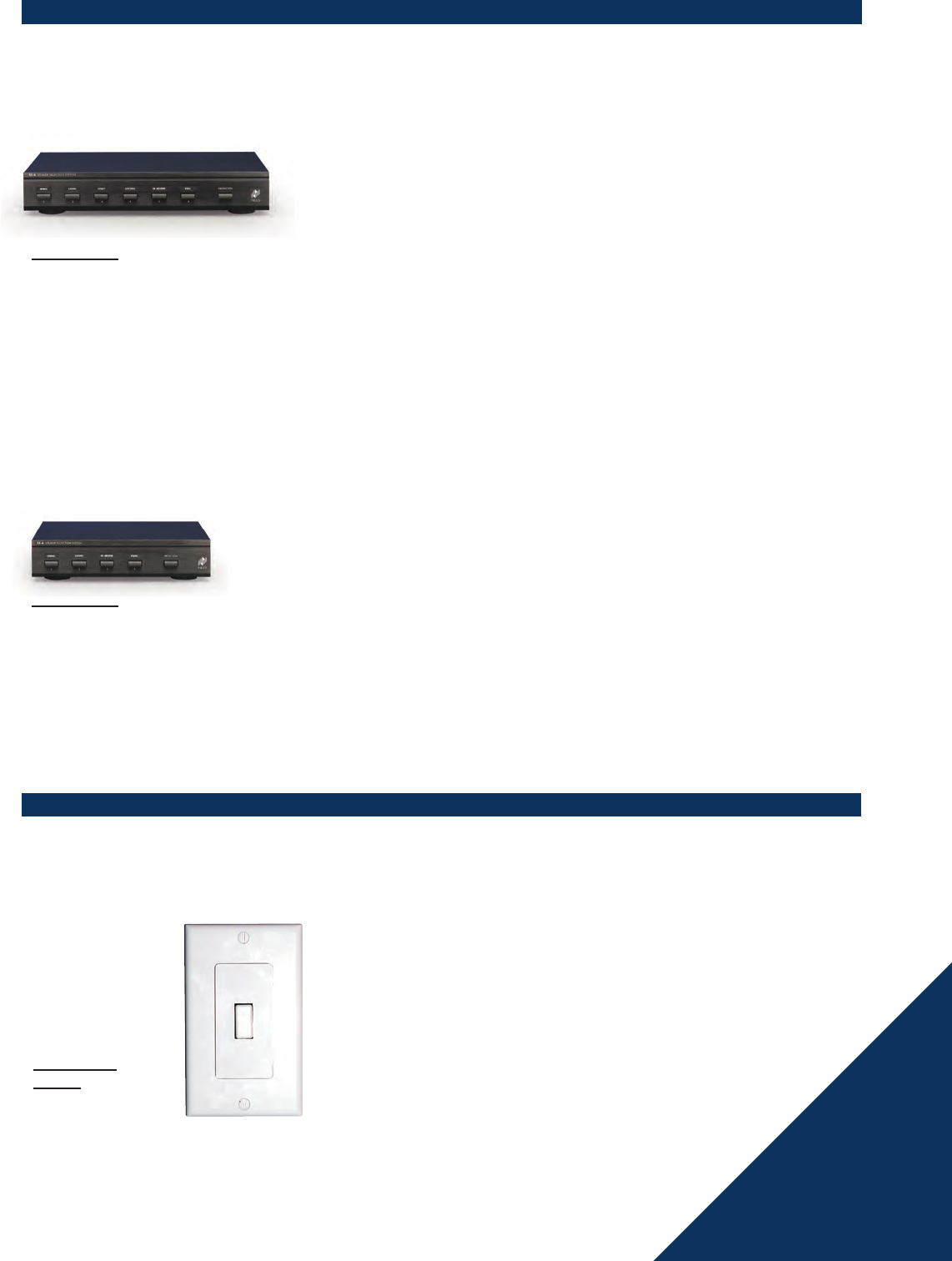

SPEAKER SELECTORS
WALL-MOUNT SPEAKER/AMPLIFIER SELECTORS
SS-6
Six-Pair, Speaker Selector
Packaged for retail display
Stock Number
FG01040
FEATURES
■ Power handling: 100 watts per channel RMS, 200 watts peak
■ Protection circuit safeguards receiver/amplifier
■ Separate left and right ground paths for compatibility with all amplifiers
■ Rear-panel switch for constant or selectable impedance protection
■ Removable connectors accommodate up to 14-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won’t scratch furniture and ensure unit stability
during operation
■ 72 adhesive-backed room-identification labels
■ Requires an amplifier that is compatible with a 4 ohm load
SPECIFICATIONS
■ Dimensions: 17" wide x 2" high x 8-5/8” deep
(43.2cm wide x 5cm high x 22cm deep)
Warranty: Ten-year limited
Shipping weight: 5 lbs. (2.3 Kg)
SS-4
Four-Pair, Speaker Selector
Packaged for retail display
Stock Number
FG01039
FEATURES
■ Power handling: 100 watts per channel RMS, 200 watts peak
■ Protection circuit safeguards receiver/amplifier
■ Separate left and right ground paths for compatibility with all amplifiers,
including bridged designs
■ Removable screwless connectors accommodate up to 14-gauge wire
■ Rugged all-metal chassis construction
■ Nonskid feet won‘t scratch furniture and ensure unit stability
during operation
■ 72 adhesive-backed room-identification labels
■ Requires an amplifier that is compatible with a 4 ohm load
SPECIFICATIONS
■ Dimensions: 8-1/2” wide x 2" high x 6-3/4” deep
(22cm wide x 5cm high x 17cm deep)
Warranty: Ten-year limited
Shipping weight: 4 lbs. (1.8 Kg)
ABA-1D
A-B Selector for Amplifiers
or Speakers
Includes Decora®
faceplate
Packaged for retail
display
Color Stock
Number
White
FG00402
FEATURES
■ Power handling: 350 watts per channel RMS
■ Connectors accommodate up to 14-gauge wire
■ Removable button and Decora® insert for quick and
easy color changes
SPECIFICATIONS
■ Dimensions: 2-3/4” wide x 4-1/2” high x 2-1/2” deep
(7cm wide x 11.4cm high x 6.4cm deep)
■ Requires 1-gang electrical box at least 3” (7.6cm) deep
Warranty: Ten-year limited
Shipping weight: 1 lb. (.5 Kg)
Standard shown
CALL 1-800-BUY-HIFI – www.nilesaudio.com 101
General Products
![](asset-66.png)

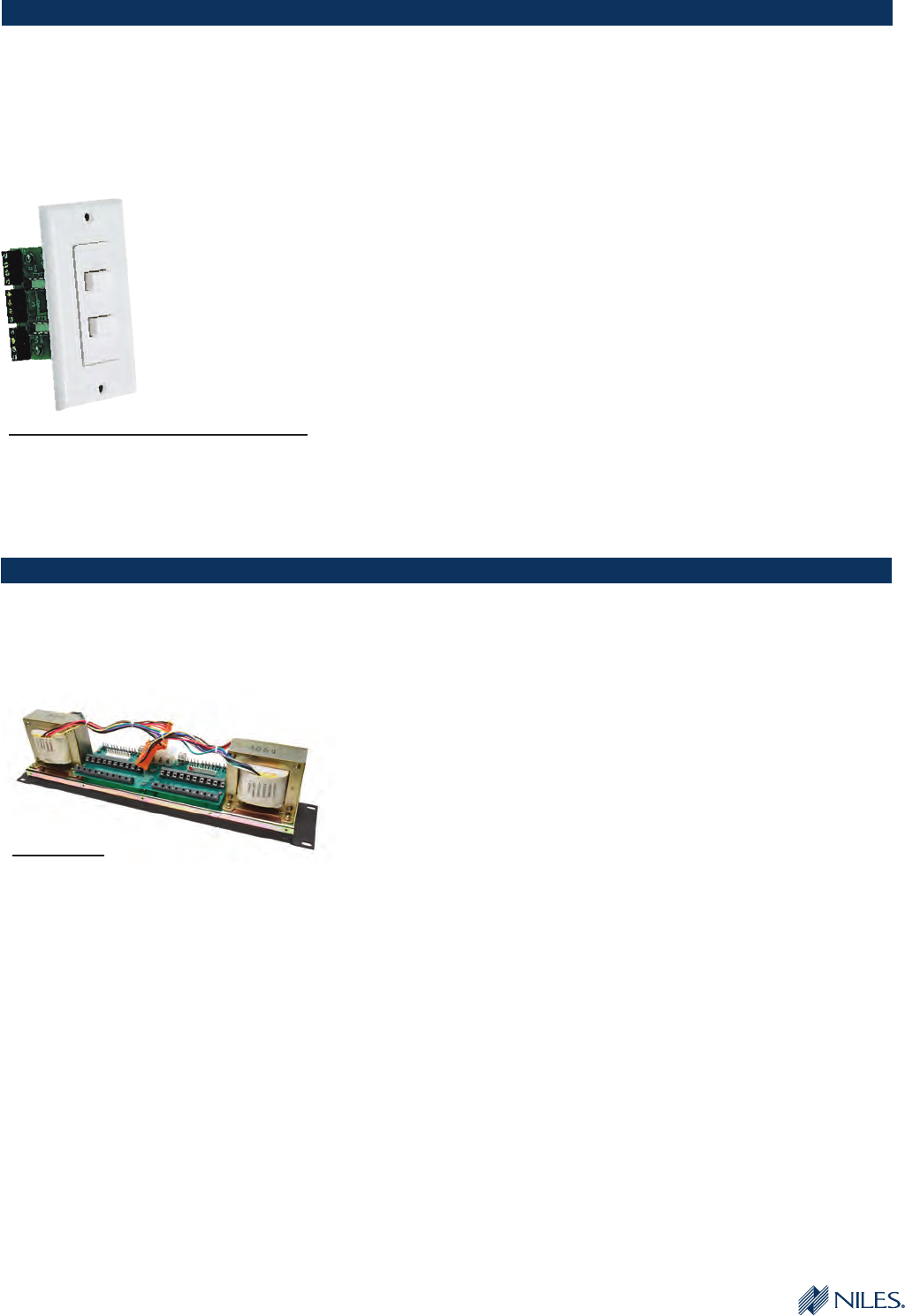

WALL-MOUNT SPEAKER/AMPLIFIER SELECTORS
HIGH-POWER IMPEDANCE MATCHING SYSTEM
AB-2D
A, B or A+B Selector for
Two Pair of Speakers
Includes Decora® faceplate
Packaged for retail display
Color Stock Number
White FG00395
FEATURES
■ Power handling: 350 watts per channel RMS
■ Connectors accommodate up to 14-gauge wire
■ Removable buttons and Decora® insert for quick-and-easy color
changes
SPECIFICATIONS
■ Dimensions: 2-3/4” wide x 4-1/2” high x 2-7/16” deep
(7cm wide x 11.4cm high x 6.2cm deep)
■ Requires 1-gang electrical box at least 3” (7.6cm) deep
Warranty: Ten-year limited
Shipping weight: 1 lb. (.5 Kg)
NOT FOR AMPLIFIER A-B SWITCHING.
Instead use ABA-1D or ABC1
SMS-10
Accommodates Ten Pairs of Speakers
Individually boxed
Stock Number
FG00229
FEATURES
■ Power handling: 200 watts per channel RMS
■ Adjustable impedance to match between 4, 6, or 8 ohm
protection
■ Premium autoformers ensure efficient impedance matching,
low-power loss, and minimal heat generation
■ Speaker output terminals accommodate up to 14-gauge wire
■ Amplifier input terminals accommodate up to 8-gauge wire
■ Freestanding or rack-mountable
■ 2 rack spaces high
SPECIFICATIONS
■ Dimensions: 19” wide x 3-1/2” high x 3-7/8” deep
(48.3cm wide x 9cm high x 9.8cm deep)
Warranty: Ten-year limited
Shipping weight: 16 lbs. (7.3 Kg)
102 General Products
![](asset-67.png)

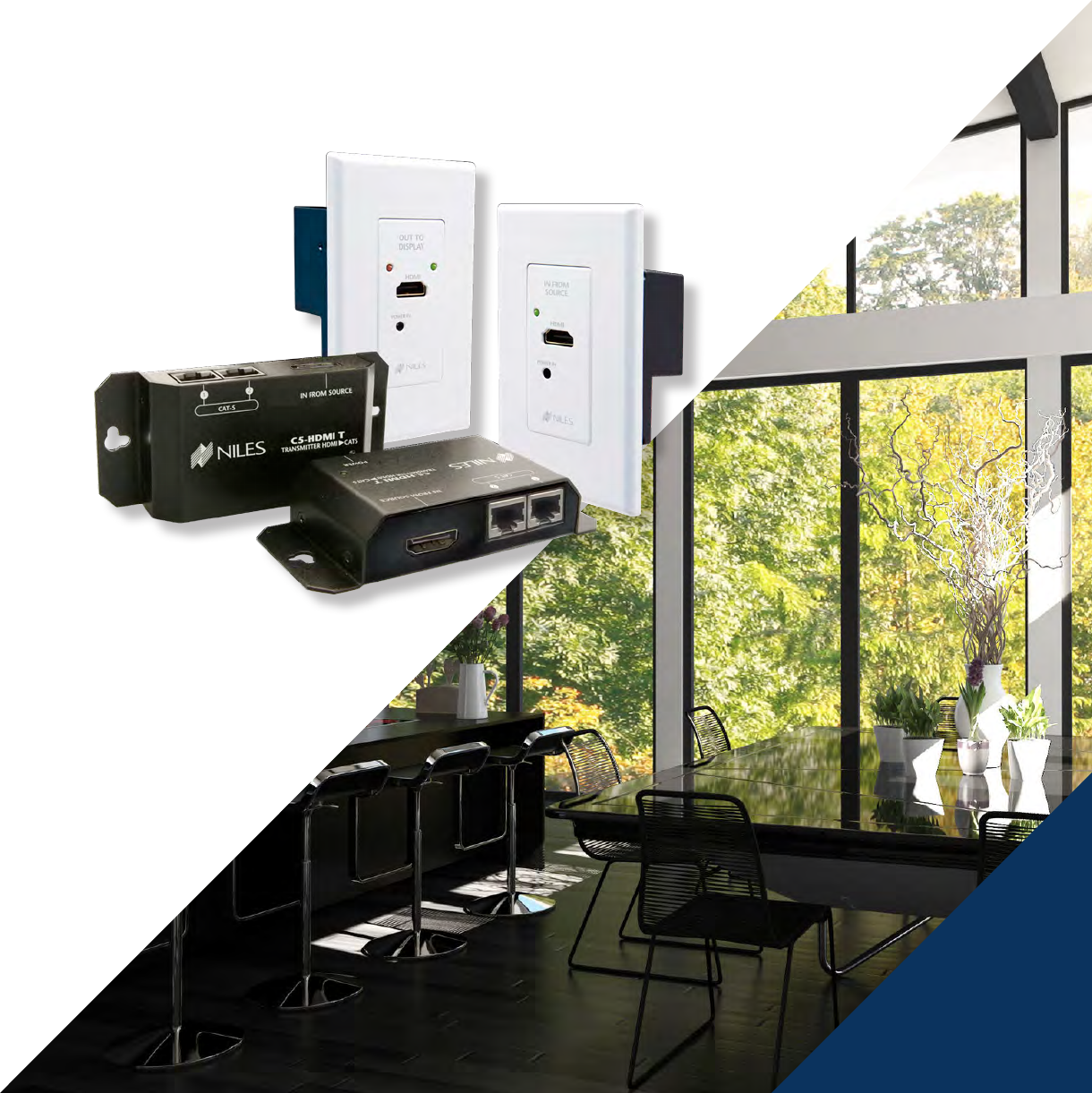

Niles CAT-5 Baluns simplify installations, provide additional flexibility, and reduce costs wherever long cable runs are required.
Niles CAT-5 Baluns also make it possible to expand systems in homes and buildings already wired with CAT-5 cable. Used
in pairs, every Niles Balun was designed with a specific application in mind: from sending analog audio to an upstairs
bedroom, to sending HDMI signals across the house to the family room. Niles makes two versions of each balun:
a clean, low-profile wall-mount and a compact chassis style. They can be mixed and matched to create a custom
solution for any installation project. And since they’re made by Niles, you know they’re rugged and reliable.
In fact, most come with a limited ten-year warranty to ensure years of trouble-free performance.
Stay Well Connected:
WALL-MOUNT CAT-5 BALUNS
Mix & Match Versatility
CALL 1-800-BUY-HIFI – www.nilesaudio.com 103
General Products
![](asset-68.png)

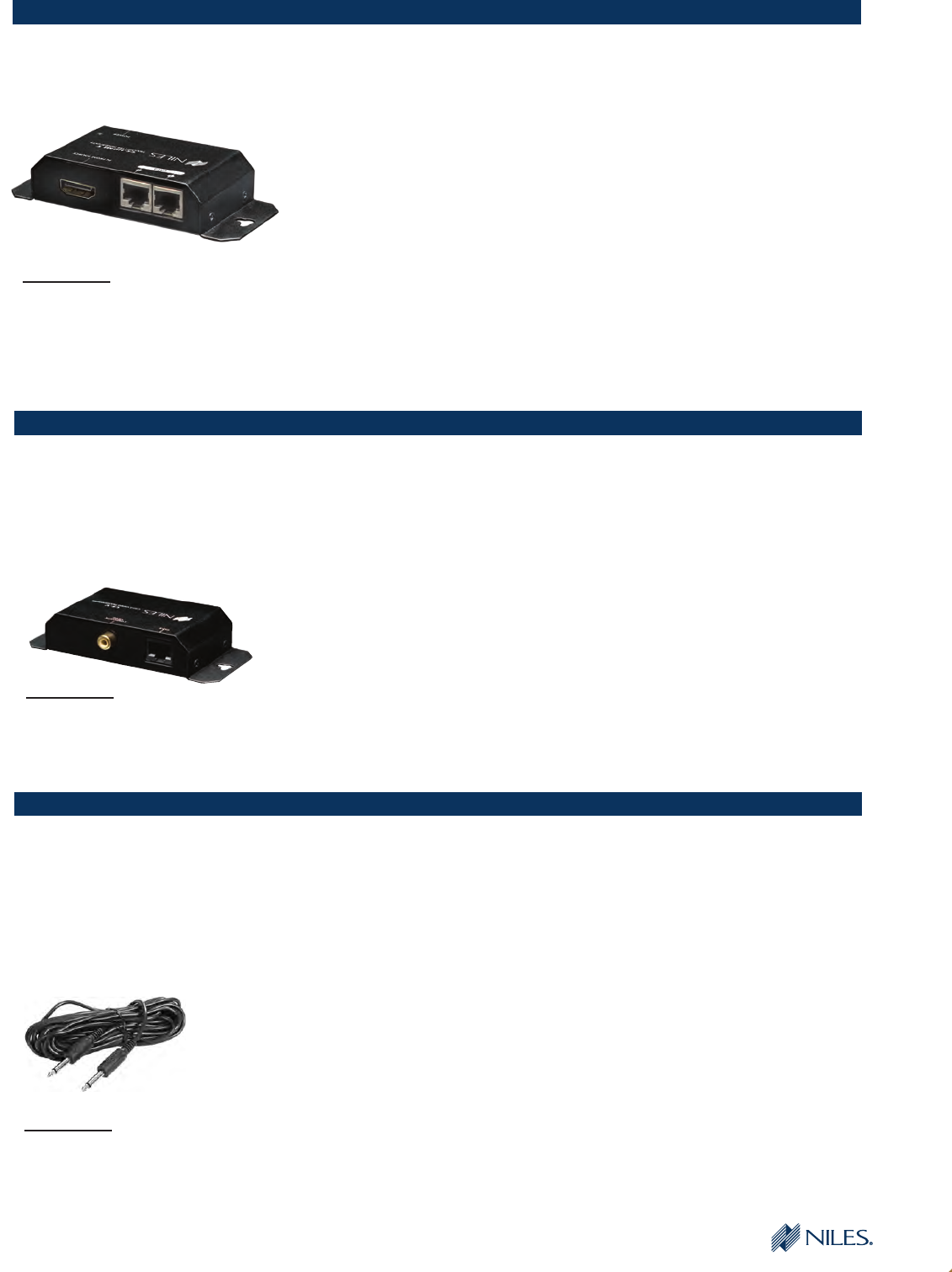

COMPONENT STYLE HDMI CAT-5 BALUNS
COMPONENT STYLE VIDEO CAT-5 BALUNS
ACCESSORY CABLE
* Actual performance may vary based on
multiple factors unique to the installation
C5-HDMI T
CAT-5 HDMI Transmit Balun
Stock Number
FG01565
SPECIFICATIONS
■ Overall dimensions: 4.75”
(120.7 mm) W x 2” (50.8 mm) H
x .85” (21.6 mm) D
■ Transmission Distance at each
resolution*:
• 480i, 480p, 720p and
1080i–up to 200 feet (61 m)
• 1080p–up to 100 feet (30.5 m)
■ 5V power supply included
Warranty: Two-year limited
Shipping weight: 1 lb.
FEATURES
■ Shielded CAT-5 connectors
■ Compatible with HDMI
resolutions from
480i to 1080p
■ A Transmitter and Receiver
Balun are required for a
complete system
■ Uses two runs of CAT-5 cable
■ HDCP compliant
■ HDMI version 1.3 compliant
■ Compatible with CAT-5,
CAT-5e & CAT-6 UTP and STP
C5-V
CAT-5 Video Balun
For Placing Composite Video
Devices Extended Distances
From Their Video Source
Stock Number
FG01278
■ Transmission Distance:
Color:
1500’ (457m) (CAT-3 UTP)
2200’ (671m) (CAT-5 UTP)
B & W:
2000’ (610m) (CAT-3 UTP)
2500’ (762m) (CAT-5 UTP)
Warranty: Ten-year limited
Shipping weight: 1 lb. (.5 Kg)
FEATURES
■ CAT-5 Connector
■ Gold-Plated, Color-Coded RCA
Connector
■ Universal Mounting Holes
SPECIFICATIONS
■ Overall dimensions:
4.75” W x .85” H x 2” D
(12cm W x 2.2cm H x 5cm D)
■ Bandwidth:
Video: DC to 10 MHz
FG00933
10’ 3.5mm to 3.5mm Male Mini
Mono Cable
10 FT. 3.5mm Mono Mini to 3.5mm Mono
Mini Cable
Individually packaged
Stock Number
FG00933
Warranty: Ten-year limited
Shipping weight: 1 lb. (.5 Kg)
FEATURES
■ 10’ cable with 3.5mm mono mini-plug to 3.5mm mono mini-plug
SPECIFICATIONS
■ Dimensions: 10’ long
104 General Products
![](asset-69.png)
Niles offers a complete line of automated switching systems that empower custom installation professionals to create magic
for their clients. These purpose-built products provide specific solutions for many switching functions and simplify the
automation and operation of complex A/V systems. Niles automated switching systems switch speaker-level, line-level,
RF, video, and 120V AC power signals. They can be triggered by voltage, current draw, sound, or video signals.
Additionally, the automated switching line-up includes products for AC power management and for converting
non-standard trigger signals into a standard 12V DC trigger signal. Whatever the switching task, you can count
on Niles switchers to deliver reliable performance that adds value to your installations.
BLACK BOX MAGIC
Niles Automated Switching Systems
CALL 1-800-BUY-HIFI – www.nilesaudio.com 105
General Products
![](asset-6a.png)

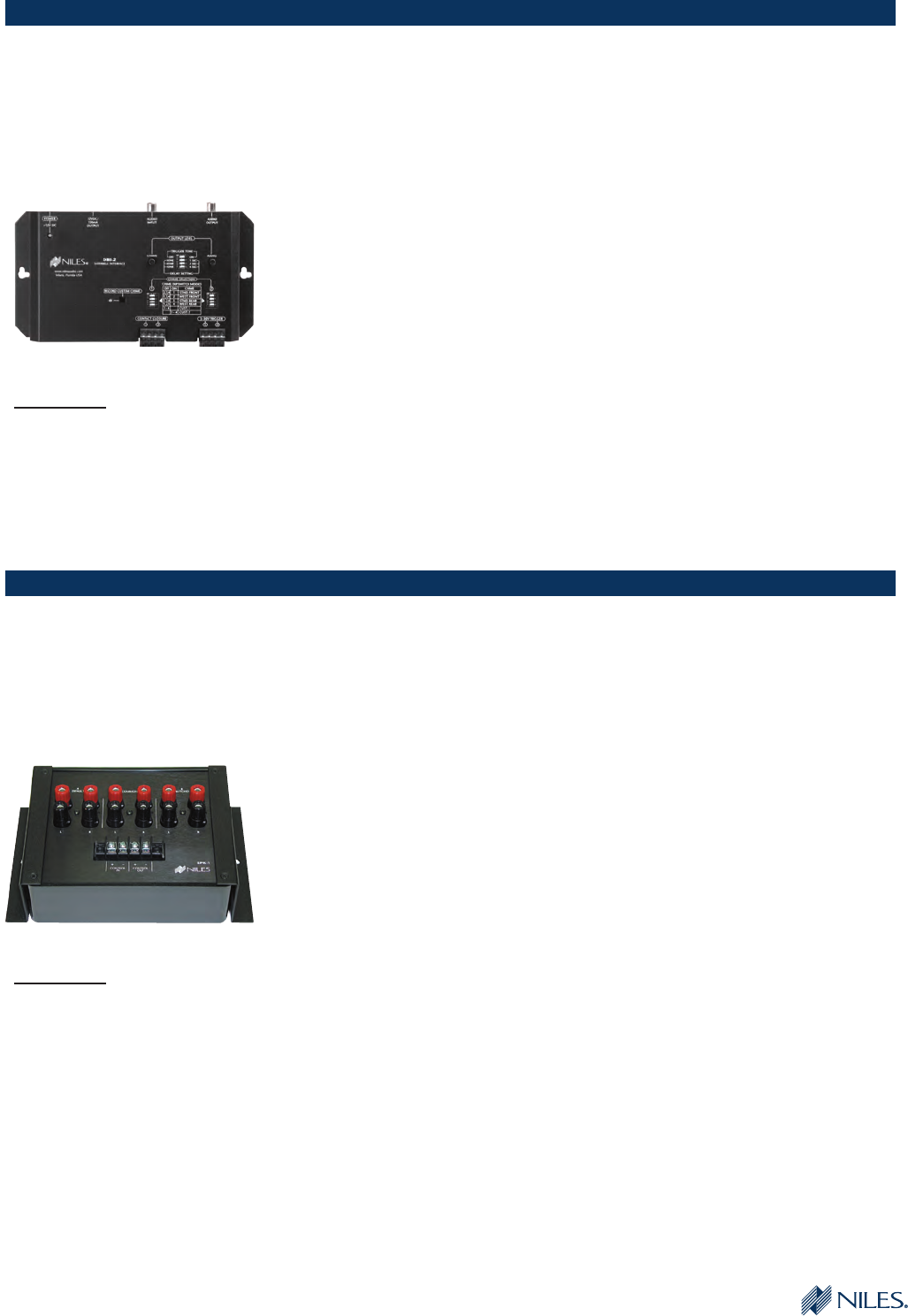

DOORBELL INTERFACE
FEATURES
■ Four selectable preprogrammed and one user-recorded doorbell sound option
■ Two doorbell inputs, front and rear, triggered by either voltage or contact closure
■ Separate level adjustments provided for chime and page
pass through
■ 1 gold-plated mono audio sensing page input
■ Features UL-listed regulated in-line power supply with universal voltage capacity
■ Works with lighted doorbells
SPECIFICATIONS:
■ Dimensions: 7-7/8” wide x 4-1/8” high x 1” deep
(20cm wide x 10.5cm high x 2.5cm deep)
Warrant y: Two-year limited
Shipping weight: 3 lbs. (1.4 Kg)
FEATURES
■ Replaces manually operated A-B switches
■ Audio power handling: 600W per channel
■ SPK-1 is activated by 12-volt DC signal (100mA minimum)
■ Requires 12-volt DC adapter to trigger SPK-1 from the switched outlet of a receiver or
preamp, can also be triggered by the 12-volt output of a Niles APC-2, AC-3, AVS-2, SAS-1
■ 12-volt control output for activating other Niles devices such as an
APC-2, AC-3, AVS-2, SAS-1
■ Not a Signal-Sensing Switcher; if signal-sensing is required
use the SAS-1 or ABS-1
■ Premium nickel-plated, five way binding post connectors
SPECIFICATIONS
■ Dimensions: 6-13/16” wide x 3-1/8” high x 5-5/16” deep
(17.3cm wide x 8cm high x 13.5cm deep)
Warranty: Two-year limited
Shipping weight: 3 lbs. (1.4 Kg)
DBI-2
Doorbell Interface
Compatible with virtually all MultiZone controllers
that have paging inputs
Stock Number
FG01613
SPK-1
Speaker-Level A-B Switcher
Voltage-triggered
Individually boxed
Stock Number
FG00240
SPEAKER-LEVEL SWITCHING SYSTEMS
106 General Products
![](asset-6b.png)

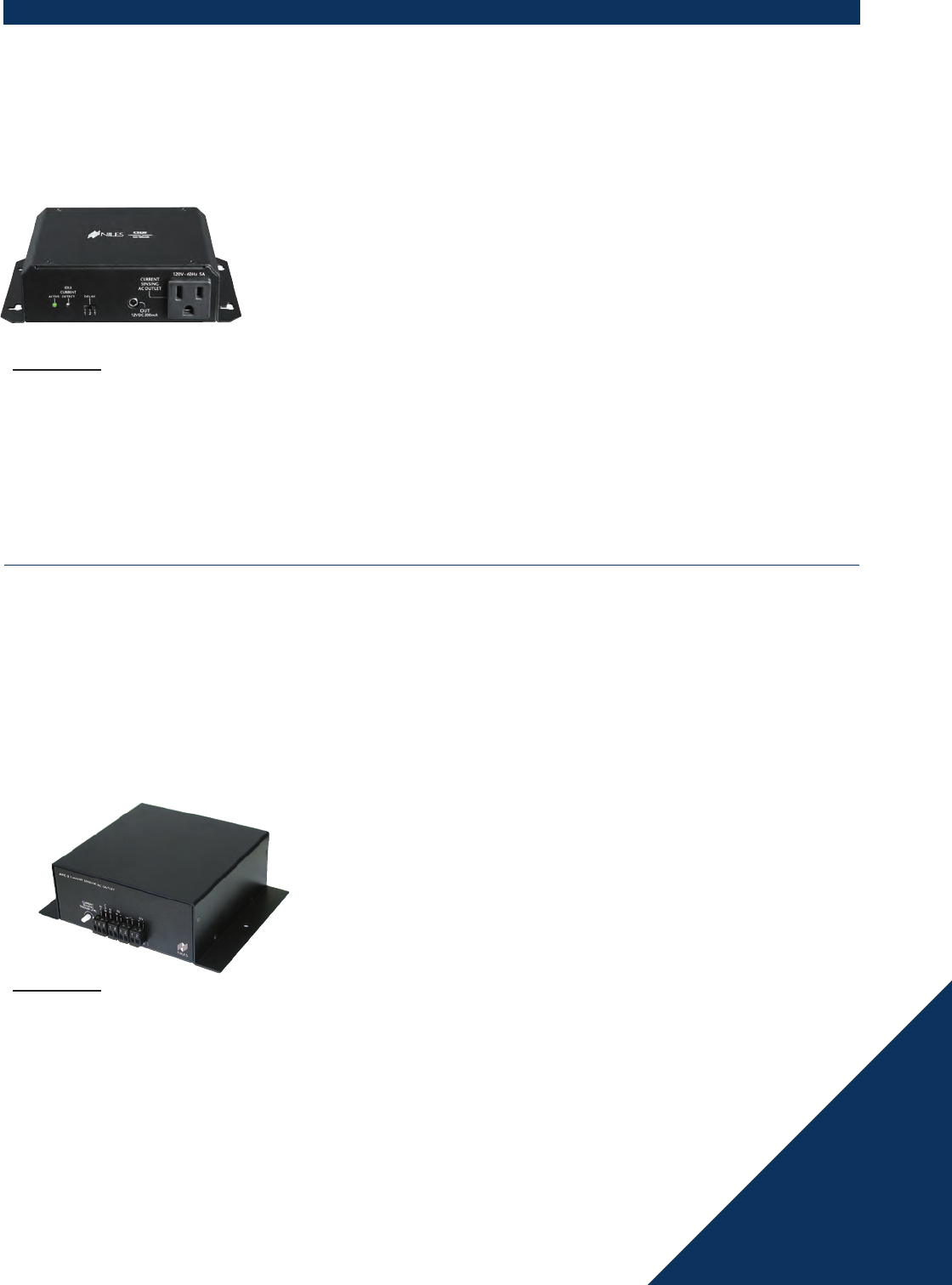

FEATURES
■ Universal system – Unique current-sensing circuit makes the
CS12V compatible with virtually any 110V electrical device
■ Trigger output is a constant 12VDC/ 200mA – Sufficient for
triggering virtually any low-voltage device
■ Compact footprint – Provides easy installation in unusual locations
(i.e. behind a plasma display)
■ No programming – Current-sensing circuitry remembers current
draw of device after installation
■ Printed circuit board design – Assures high reliability and long life
■ Integrated mounting wings – Provides for both horizontal and
vertical installation
SPECIFICATIONS
■ Dimensions: 6” wide x 1-5/8” high (without feet) x 4-1/2” deep
(15.2cm wide x 4cm high {without feet} x 11.4cm deep)
Warranty: Two-year limited
Shipping weight: 4 lbs. (1.8 Kg)
CS12V
Current-Sensing, 12-volt Trigger
Activates voltage-controlled devices by simply
turning another component on
Reliable plug-and-play operation
Stock Number
FG01173
120-VOLT AC POWER-SWITCHING SYSTEMS
APC-2
Current-Sensing, Outlet Switcher
Gives virtually any A/V component a switched
AC outlet
Current sense-triggered
Individually boxed
Stock Number
FG00254
FEATURES
■ Three AC outlets—one current-sensing (requires min. 30W current draw differential
between on/off for reliable sensing), one switched, one unswitched—1,500W maximum (all
outlets combined)
■ APC-2 is activated by current-sensing outlet or 12-volt DC signal (100mA minimum)
■ 12-volt control output for activating other Niles devices
such as the SPK-1, AVS-2, AC-3
■ N.O. (normally open) and N.C. (normally closed) relay contacts for controlling other devices
such as electric screens, motorized lifts and drapes, etc
■ Relay contacts rated at one amp, 30V max. AC/DC
SPECIFICATIONS
■ Dimensions: 8” wide x 2-3/4” high x 7” deep
(20.3cm wide x 7cm high x 17.8cm deep)
Warranty: Two-year limited
Shipping weight: 4 lbs. (1.8 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 107
General Products
![](asset-6c.png)
120VOLT AC POWER SWITCHING SYSTEMS
AC-3
Voltage-Triggered AC Power Strip
Automate power turn-on and turn-off
of an A/V component or system
Voltage-triggered
Individually boxed
Stock Number
FG00242
FEATURES
■ Three AC outlets—two switched, one unswitched; 1,500W maximum (all outlets combined)
■ AC-3 is activated by 12-volt DC signal (100mA minimum)
■ Requires 12-volt DC adapter to trigger AC-3 from the switched outlet of a receiver or
preamp, can also be triggered by the 12-volt output of a Niles APC-2, AC-3, SPK-1, SAS-1
■ 12-volt control output for activating other Niles devices such as an APC-2, AC-3, SPK-1,
SAS-1
■ Compatible with 110v devices
SPECIFICATIONS
■ Dimensions: 5-1/4” wide x 2-1/4” high x 4-1/4” deep
(13.3cm wide x 5.7cm high x 10.8cm deep)
Warranty: Two-year limited
Shipping weight: 4 lbs. (1.8 Kg)
SOURCE-SWITCHING SYSTEMS
DPS-1
Amplifier/Speaker A-B Selector
Individually boxed
Stock Number
FG00003
FEATURES
■ Plays either of two amplifiers through a shared pair of loudspeakers
■ Power handling: 350W per channel
■ Tabletop unit
■ Connectors accommodate up to 14-gauge wire
SPECIFICATIONS
■ Dimensions: 6-1/8” wide x 2-3/4” high x 3-5/8” deep
(15.6cm wide x 7cm high x 9.2cm deep)
Warranty: Ten-year limited
Shipping weight: 2 lbs. (1 Kg)
108 General Products
![](asset-6d.png)

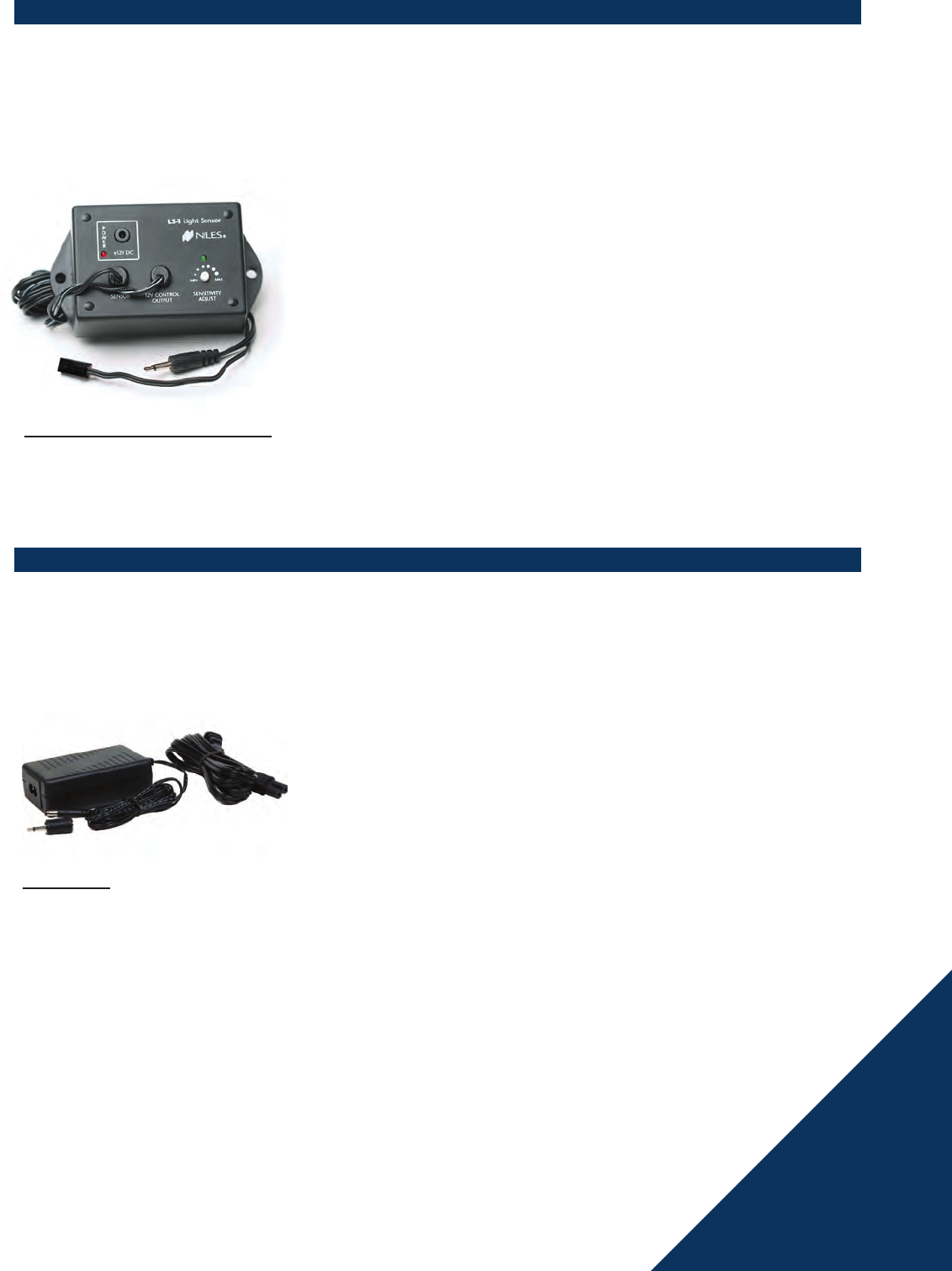

FEATURES
■ LS-1 is activated by the presence of light
■ LS-1 senses a component’s on/off status by the change in brightness of the component’s
front-panel display. When the display is brighter, the LS-1 outputs a continuous 12-volt DC
up to 400mA
■ Adjustable “sensitivity” feature allows precise trigger-level control and optimum front-panel
placement
■ Works with virtually all electronic audio/video components
SPECIFICATIONS
■ Dimensions: 3-1/2” wide x 2-1/2” high x 1-5/8” deep
(9cm wide x 6.4cm high x 4cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
LS-1
Light Sensor
Includes 12-volt AC power supply
Light-triggered
Individually boxed
Model Stock Number
Standard FG00728
LIGHT-SENSING SYSTEM
TRIGGERING POWER SUPPLIES
IS-12V
1.25A 12VDC Universal Wall Adaptor
Accessory 12-volt DC power adaptor
Individually boxed
Stock Number
FG01035
FEATURES
■ When plugged into a switched outlet, provides status to Niles Main System Units
■ Provides enough current to trigger up to six automated switchers simultaneously
SPECIFICATIONS
■ Dimensions: 4” wide x 1-1/4” high x 2-1/4” deep
(10.2cm wide x 3.2cm high x 5.7cm deep)
Warranty: Two-year limited
Shipping weight: 1 lb. (.5 Kg)
CALL 1-800-BUY-HIFI – www.nilesaudio.com 109
General Products
![](asset-6e.png)
VOLUME CONTROL SYSTEMS
Less SKUs, more features, easier to specify.
The Niles philosophy has always been, “Application Specific Design.” Our volume control offerings are a great example.
We have reduced the amount of models by including Volume Control; Installation Hardware; White, Light Almond, Bone,
and Black Wallplates; Knobs; and Decora® inserts with each model. Also, each model now has a significant design
difference, based on application, making specifying jobs easier as well as reducing your carrying costs. Then we made
each model impedance-matching, up to 100W continuous power handling, and have removable two-piece wire
connectors in addition to all the hardware you need to install the product.
This focused assortment begins with both in-wall volume controls with round knobs, in 100W and 50W
configurations (VCS100K & VCS50K), a sliding Volume Control (SVC100K) for an elegant design option,
and a tabletop model (TVC-1) with soft feet and an aluminum chassis. Then we paired down the
weatherproof options to include an in-wall (WVC100K) and a completely enclosed weatherproof
model ideal for mounting on decks and patios (VCSHUB8), we then finish the line with a
VCSHUB8 designed to expand a receiver’s stereo audio output to eight volume controls.
110 General Products
![](asset-6f.png)

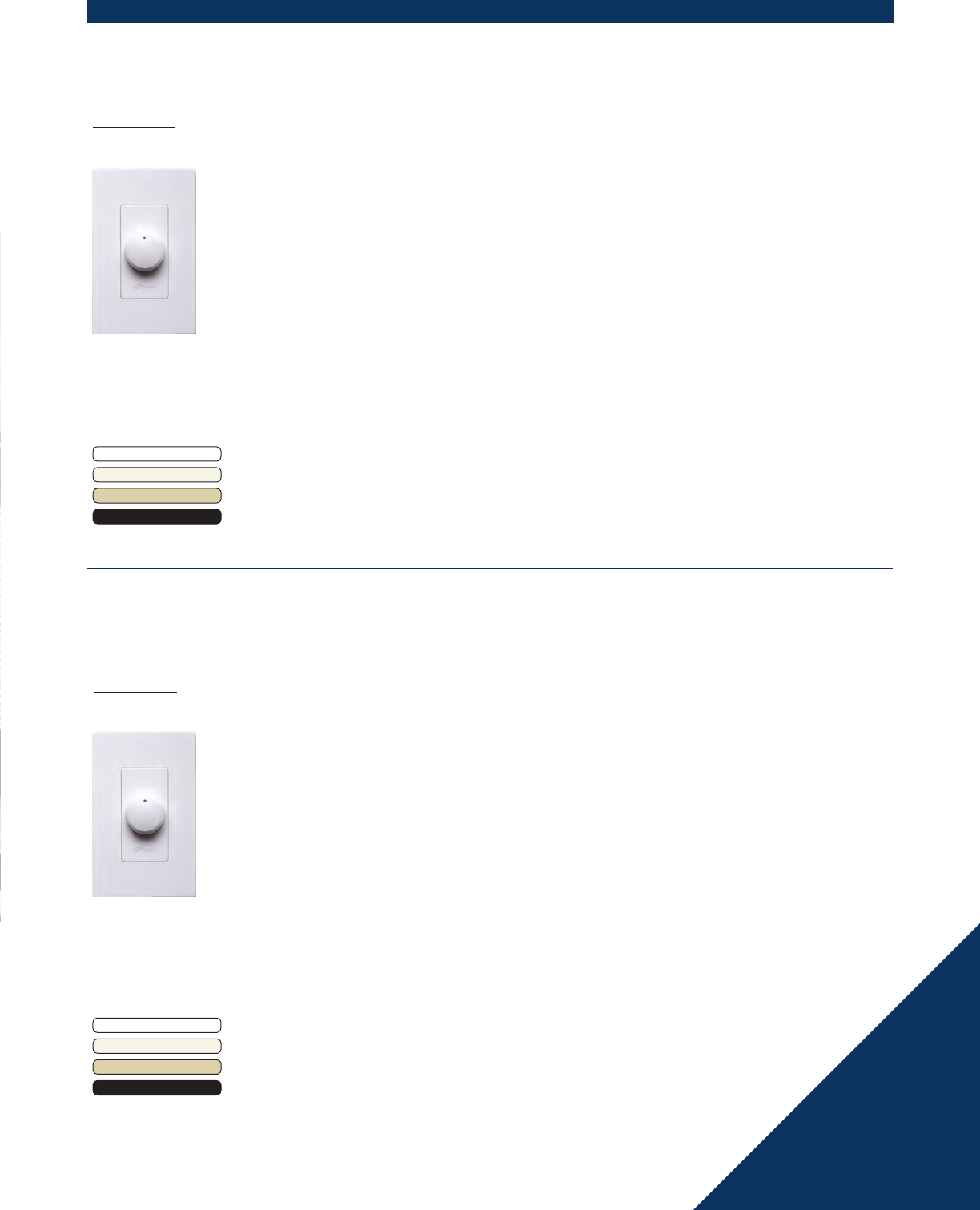

INDOOR VOLUME CONTROLS
FEATURES
■ Universal Impedance Magnifying circuit enables safe connection of up to eight pairs of loudspeakers to
a single amplifier or receiver using the VCSHUB8
■ Make-before-break switch design delivers 11-step, pop-free control for a wide range of listening
volumes
■ Ensures sound quality at 50W continuous power handling with flat frequency response (+/- 1.2dB)
■ Includes designer-approved screwless wallplates in four colors to blend seamlessly into any décor to
accommodate standard one-gang electrical boxes
■ Accommodates up to 16-gauge wire
■ 100% factory tested for frequency response, distortion, and power handling
■ Ten-year limited parts-and-labor warranty
SPECS
■ Power Handling: 50 W (RMS)/100 W (peak music power) per channel
■ Frequency Response: 20Hz to 20kHz ± 2dB
■ Impedance Settings: 1X, 2X, 4X, or 8X Switch
■ Minimum Speaker Load: 4 ohm
■ Mounting Requirements: In-wall, fits most 18-cubic-inch single-gang junction boxes at least 2-3/4” D
■ Wiring Requirements: 16-gauge, stranded-copper loudspeaker wire with two runs of two-conductor
wire, or one run of four-conductor wire
■ Colors: White, Light Almond, Bone and Black (Included)
■ Unit Dimensions: 1-5/8” W x 2-5/8” H x 2-9/16” D (behind faceplate)
■ Faceplate Dimensions: 2-3/4” W x 4-1/2” H
VCS50K
Stereo Volume Control
Stock Number
FG01651
FEATURES
■ Universal Impedance Magnifying circuit enables safe connection of up to eight pairs of loudspeakers
to a single amplifier or receiver using the VCSHUB8
■ Make-before-break switch design delivers 12-step, pop-free control for a wide range of listening
volumes
■ Premium-quality parts and construction ensure high-fidelity sound, 100W continuous power handling
with flat frequency response (+/- 1.2dB)
■ Includes designer-approved screwless wallplates in four colors to blend seamlessly into any décor and
accommodates standard one-gang electrical boxes
■ Two-piece, removable speaker connectors make installation quick and secure.
No screws necessary. Accommodates up to 16-gauge wire
■ 100% factory tested for frequency response, distortion, and power handling
■ Unlike other impedance-matching volume-control products, Niles IM volume controls maintain
a 12-position adjustment regardless of how much impedance magnification you use, with total
attenuation >48dB.
■ Redesigned autoformers provide superior sonic performance, exceeding the audio quality of
non-impedance magnifying volume controls
■ Isolated left and right-channel grounds ensure safety with any amplifier
■ Ten-year limited parts-and-labor warranty
SPECS
■ Mounting depth of only 2-9/16”. Fits into standard 18-cubic-inch one-gang junction boxes
■ Power handling: 100W/channel RMS, 200W peak.
■ Frequency response: 20Hz to 20kHz ±2dB
■ May be used with 4-, 6-, or 8-ohm speaker systems
■ Installation requires only a screwdriver and wire stripper
VCS100K
High-Power Stereo
Volume Control
Stock Number
FG01652
White
Light Almond
Bone
Black
Includes Volume
Control, Installation
Hardware, White, Light
Almond, Bone and Black
Wallplates, Knobs and
Decora® inserts
White
Light Almond
Bone
Black
Includes Volume
Control, Installation
Hardware, White, Light
Almond, Bone and Black
Wallplates, Knobs and
Decora® inserts
CALL 1-800-BUY-HIFI – www.nilesaudio.com 111
General Products
![](asset-70.png)

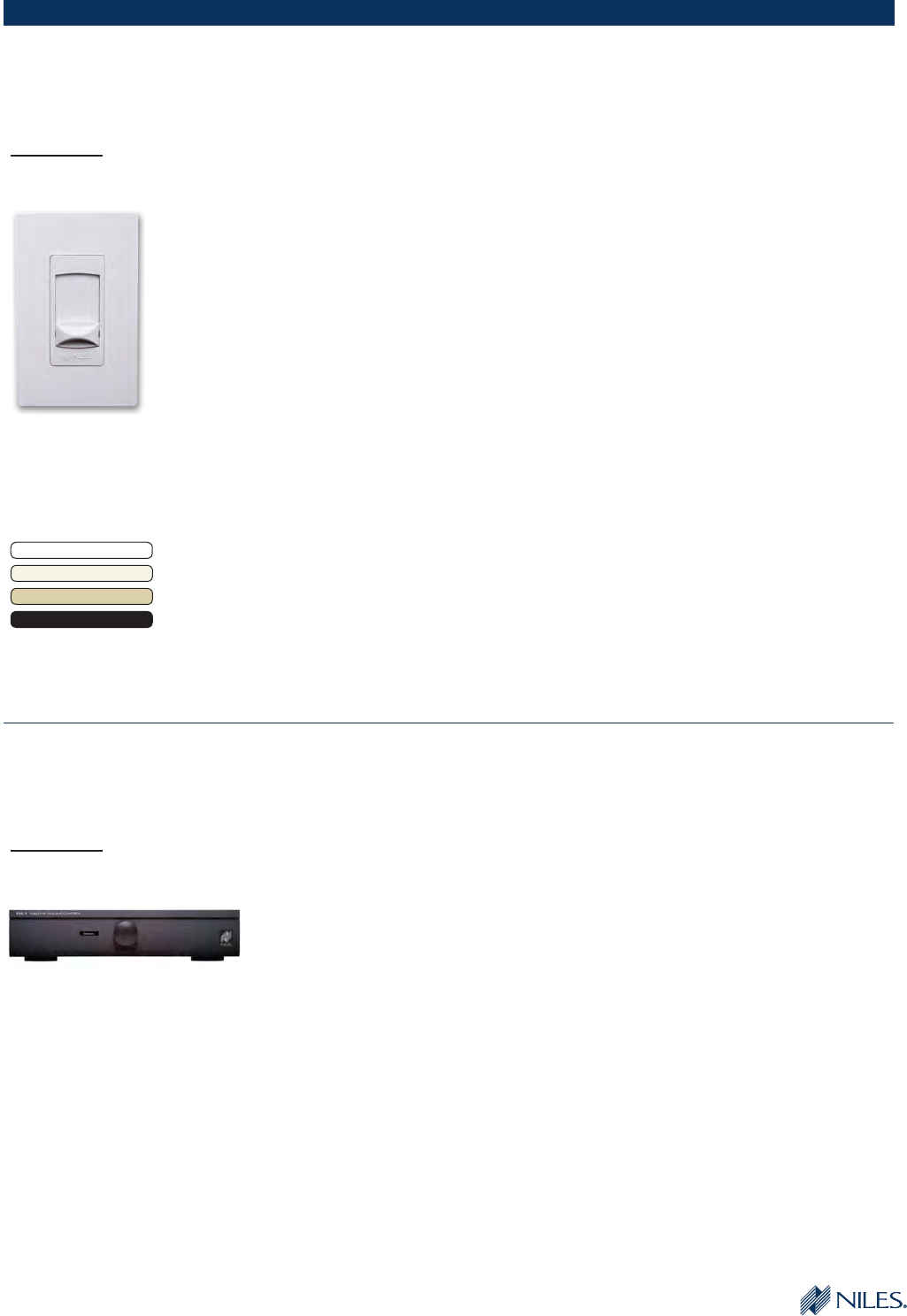

INDOOR VOLUME CONTROLS
FEATURES
■ Universal Impedance Magnifying circuit enables safe connection of up to eight pairs of loudspeakers to
a single amplifier or receiver using the VCSHUB8
■ Make-before-break switch design delivers 12-step, pop-free control for a wide range of listening
volumes
■ Premium-quality parts and construction ensure high-fidelity sound, 100W continuous power handling
with flat frequency response (+/- 1.2dB)
■ Includes designer-approved screwless wallplates in four colors to blend seamlessly into any décor and
accommodates standard one-gang electrical boxes
■ Convenient sliding volume control provides a modern and elegant look
■ Two-piece, removable speaker connectors make installation quick and secure.
No screws necessary. Accommodates up to 16-gauge wire
■ 100% factory tested for frequency response, distortion, and power handling
■ Ten-year limited parts-and-labor warranty
■ Unlike other impedance-matching volume-control products, Niles IM volume controls maintain
a 12-position adjustment regardless of how much impedance magnification you use, with total
attenuation >48dB
■ Redesigned autoformers provide superior sonic performance, exceeding the audio quality of non-
impedance magnifying volume controls
■ Isolated left- and right-channel grounds ensure safety with any amplifier
■ May be used with 4-, 6-, or 8-ohm speaker systems
■ Ideal for home and commercial sound installations
■ UL rated to comply with all local building codes
SPECS
■ Installation requires only a screwdriver and wire strippers
■ Mounting depth of only 2-9/16”. Fits into standard 18-cubic-inch one-gang junction boxes
■ Power handling: 100W/channel RMS, 200W peak.
■ Frequency response: 20Hz to 20kHz ±2dB
SVC100K
High-Power Sliding
Stereo Volume Control
Stock Number
FG01653
White
Light Almond
Bone
Black
Includes Volume
Control, Installation
Hardware, White, Light
Almond, Bone and Black
Wallplates, Knobs and
Decora® inserts
FEATURES
■ Universal Impedance Magnifying circuit enables safe connection of up to six pairs of loudspeakers to a
single amplifier or receiver
■ Premium 12-step control maintains full 48db of dynamic range for maximum adjustment capability
■ Premium-quality parts and construction ensure high-fidelity sound, 100W continuous power handling
with flat frequency response 48db
■ Rugged all-metal chassis design
■ Two-piece, removable speaker connectors make installation quick and secure. No screws necessary.
Accommodates up to 16-gauge wire
■ 100% factory tested for frequency response, distortion, and power handling
■ Ten-year limited parts-and-labor warranty
■ Selectable impedance magnification for 1, 2, 3/4, 5/6 pairs of speakers
■ Individual room on/off selector switches
■ Separate left and right ground paths for compatibility with all amplifiers
■ Removable screwless connectors accommodate up to 14-gauge wire
■ Nonskid feet won’t scratch furniture and ensure unit stability during operation
■ 72 adhesive-backed room identification labels
SPECS
■ Power handling: 100 watts per channel RMS; 200 watts peak
■ Dimensions: 8-1/2” wide x 2” high x 7-1/4” deep
■ Shipping weight: 2-1/4 lbs
T VC-1
High-Power Tabletop Stereo
Volume Control
Stock Number
FG01041
Includes a rugged all-metal
Tabletop Volume Control,
Room Identification Labels
and removable screwless
speaker connectors
112 General Products
![](asset-71.png)

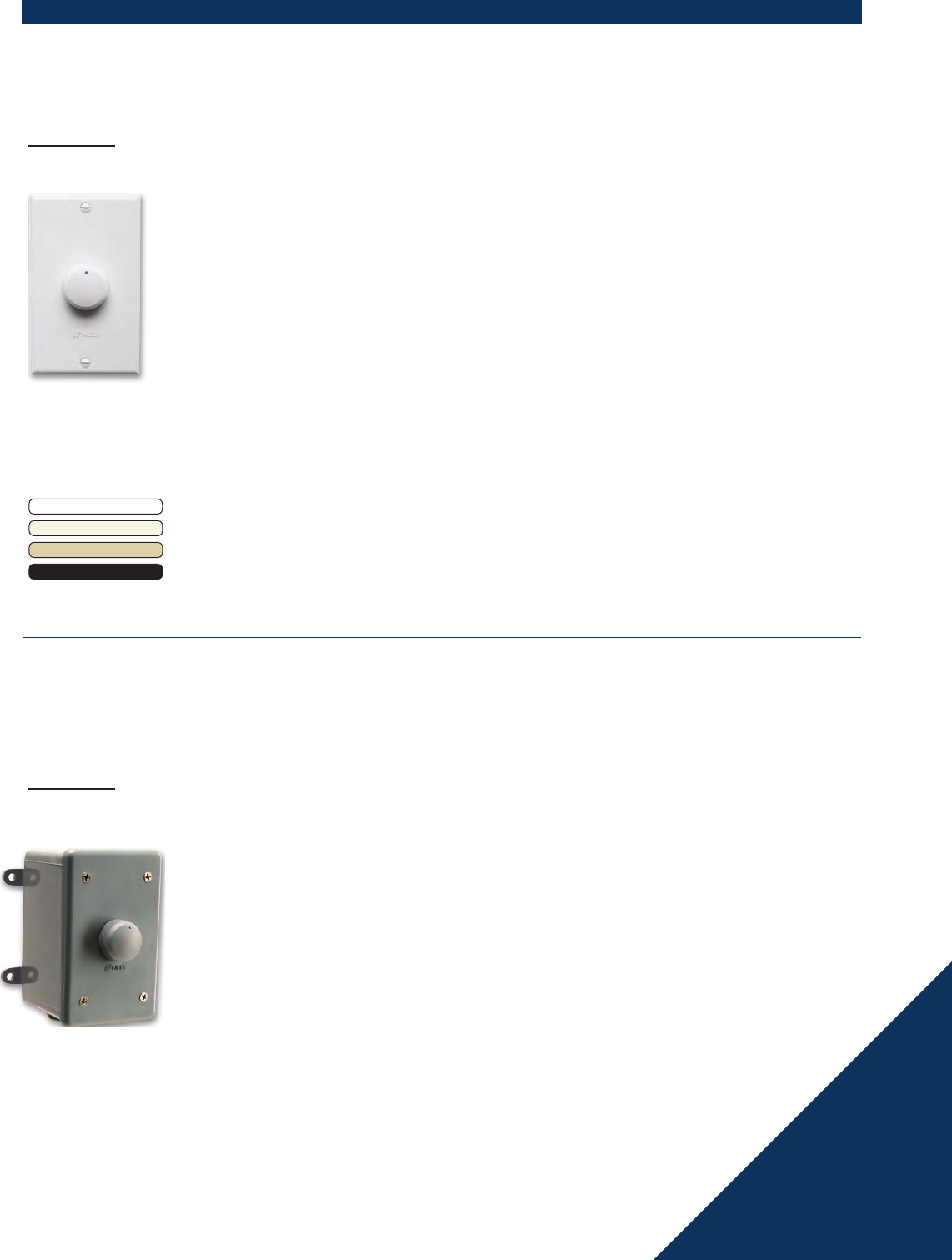

OUTDOOR VOLUME CONTROLS
FEATURES
■ Universal Impedance Magnifying circuit enables safe connection of up to eight pairs of loudspeakers
to a single amplifier or receiver using the VCSHUB 8
■ Make-before-break switch design delivers 12-step, pop-free control for a wide range of listening
volumes
■ Premium-quality parts and construction ensure high-fidelity sound, 100W continuous power handling
with flat frequency response (+/- 1.2dB)
■ Includes designer-approved wallplates in 4 colors to blend seamlessly into any décor and
accommodates standard one-gang electrical boxes
■ Two-piece, removable speaker connectors make installation quick and secure No screws necessary.
Accommodates up to 16-gauge wire
■ Designed for environmental wall-mount installation
■ A rubber gasket fits behind the faceplate during installation to seal out moisture
■ An impedance-magnifying switch on the front of the volume control sets the impedance of connected
speakers. You can magnify the speakers’ impedance by a factor of two, four, or eight
■ Mounting depth of only 2-9/16”. Fits into standard 18-cubic-inch one-gang junction boxes
■ Isolated left- and right-channel grounds ensure safety with any amplifier
■ May be used with 4-, 6-, or 8-ohm speaker systems
■ UL-rated to comply with all local building codes
■ Ten-year limited parts-and-labor warranty
SPECS
■ Installation requires only a screwdriver and wire stripper
■ Power handling: 100W/channel RMS, 200W peak.
■ Frequency response: 20Hz to 20kHz ±1.5dB
WVC100K
Outdoor High-Power Stereo
Volume Control
Stock Number
FG01654
White
Light Almond
Bone
Black
Includes Volume Control,
Installation Hardware,
White,
Light Almond, Bone
and Black Wallplates and
knobs
FEATURES
■ Adjust the volume of your remotely located outdoor speakers from a location convenient to you
■ Universal Impedance Magnifying circuit enables safe connection of up to six pairs of loudspeakers to
a single amplifier or receiver
■ Premium 12-step control maintains full 48db of dynamic range for maximum adjustment capability
■ Premium-quality parts and construction ensure high-fidelity sound, 100W continuous power handling
with flat frequency response (+/- 1.2dB)
■ Two-piece, removable speaker connectors make installation quick and secure
No screws necessary. Accommodates up to 16-gauge wire
■ 100% factory tested for frequency response, distortion, and power handling
■ Ten-year limited parts-and-labor warranty
■ Selectable impedance magnification for 1, 2, 3/4, 5/6 pairs of speakers
■ Individual room on/off selector switches
■ 12-step controls; 48dB maximum attenuation
■ Separate left and right ground paths for compatibility with all amplifiers
SPECS
■ Power handling: 100W/channel RMS, 200W peak.
■ Frequency response: 20Hz to 20kHz ±1.5dB
■ Ten Year parts and labor limited warranty
WVC100E
Outdoor High-Power Stereo
Volume Control
Stock Number
FG00965
Includes Volume Control,
Installation Hardware,
Weatherproof enclosure
and screwless speaker
connectors
CALL 1-800-BUY-HIFI – www.nilesaudio.com 113
General Products
![](asset-72.png)

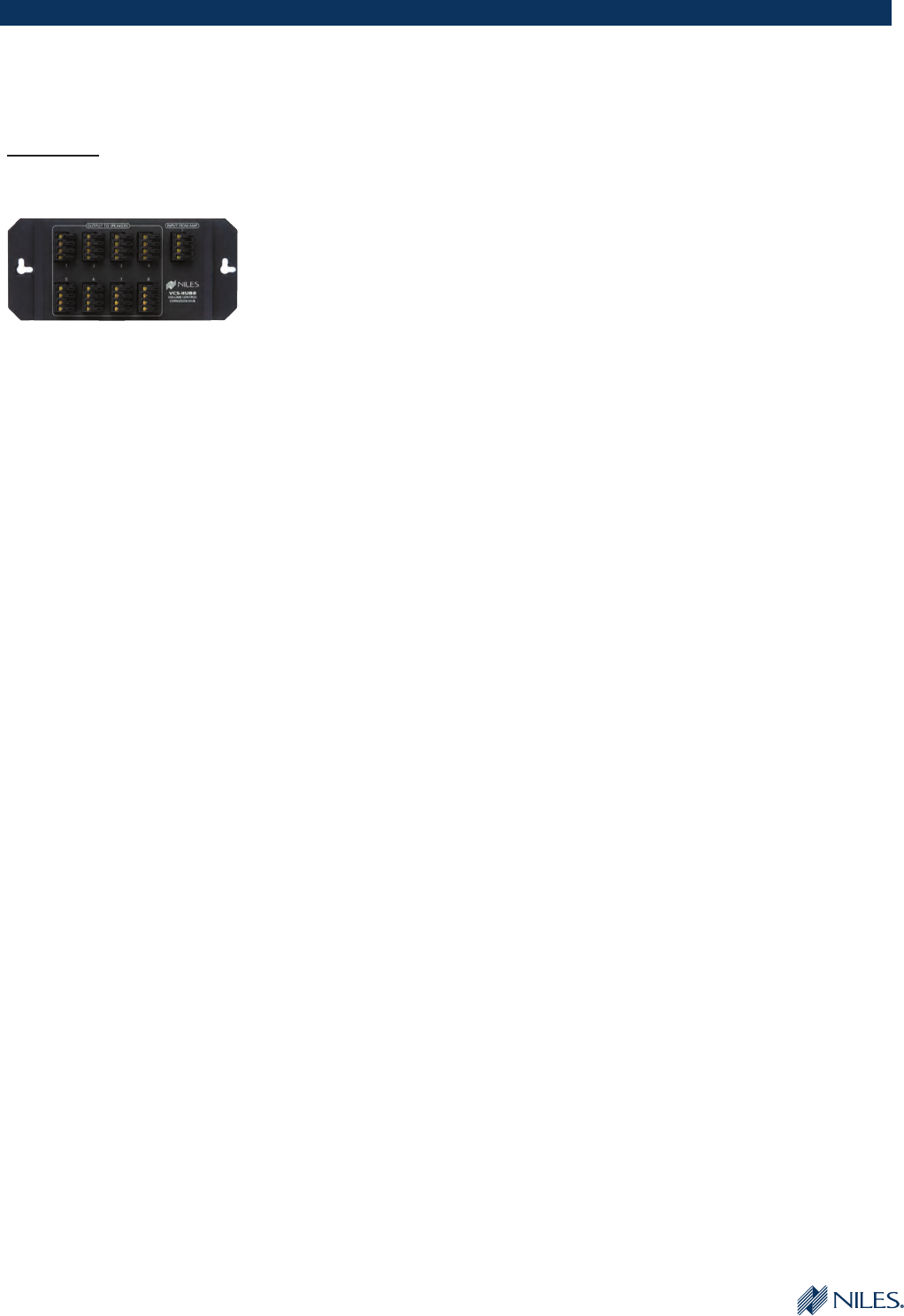

VOLUME CONTROL HUB
FEATURES
■ Expands 1 receiver stereo speaker output to 8 impedance magnifying volume controls
■ Small size and compact footprint, designed specifically to fit into a standard structured-
wiring cabinet. Designed to mount in standard (6” center) structured wiring cabinets. Snap-in
“Christmas Tree” plugs provided
■ Slotted wings allow for vertical and horizontal mounting
■ Rustproof, weather-resistant housing of high-impact, injection-molded plastic
■ Two-piece, removable screwless connector blocks accommodate up to 16-gauge wire for
convenient connections
■ Ten-year limited parts and labor warranty
■ Also suitable for wall-mounting
■ Ideal for home and commercial sound installations
SPECS
■ Mounting: In a structured-wiring cabinet, using convenient snap-in “Christmas tree” plugs
(supplied). On a wall or other flat surface, secured with drywall screws (not supplied)
■ Wiring Requirements: 18-gauge, two runs of two-conductor speaker wire, or one run of four-
conductor speaker wire
■ Unit Dimensions: 6.85” wide x 3” high x 1.3” deep
VCSHUB8
Volume Control 8-Speaker
Distribution Hub
Stock Number
FG00984
Small size and compact
footprint, designed
specifically to fit into a
standard structured-wiring
cabinet or mount directly
to a wall
114 General Products
![](asset-73.png)
QUICK REFERENCE GUIDE
*Includes Decora®-style snap-in color insert and knob. Faceplate not included.
**Requires Decora®-style snap-in insert, knob and faceplate (sold separately)
***Includes Decora®-style snap-in inserts, faceplates and knobs in three designer colors: Almond, Bone and White
Stock No. Model Part Description Unit Mstr. Carton
VOLUME CONTROLS
FG01651
VCS50K WHITE,
BONE, LIGHT
ALMOND, BLACK
Stereo Volume Control EA 24
FG01652
VCS100K WHITE,
BONE, LIGHT
ALMOND, BLACK
Stereo Volume Control w/Selectable Impedance EA 24
FG01653
SVC100K WHITE,
BONE, LIGHT
ALMOND, BLACK
High-Power Sliding Stereo Volume Control EA 24
FG01041 TVC-1 High-Power Tabletop Stereo Volume Control EA 4
FG01654
WVC100K
WHITE,
BONE, LIGHT
ALMOND, BLACK
Outdoor High-Power Stereo Volume Control EA 24
FG00965 WVC100E Outdoor High-Power Stereo Volume Control EA 6
FG00984 VCSHUB8 Volume Control 8-Speaker Distribution Hub EA 6
IR KITS
FG01586 RCA-HT2 BLACK Remote Control Anywhere! Kit for Home Theater Application, Packaged for Retail Display EA 4
FG01585 RCA-SM2 BLACK Remote Control Anywhere! Kit with Surface Mount Sensor, Packaged for Retail Display EA 4
FG01584 RCA-TT2 BLACK Remote Control Anywhere! Kit with Tabletop Sensor, Packaged for Retail Display EA 4
IR MICROSENSOR
FG01577 MS220 BLACK Surface-Mount IR MicroSensor, Packaged for Retail Display EA 6
FG01580 MS120 Miniature Flush-Mount IR MicroSensor, Packaged for Retail Display EA 6
FG01582 WS120,WHITE Wall-Mount IR Sensor, Packaged for Retail Display EA 6
FG01581 TS120 Tabletop IR Sensor, Packaged for Retail Display EA 6
FG01577 MS220 BLACK Miniature Surface-Mount IR MicroSensor, Packaged for Retail Display EA 6
FG01581 TS120 Tabletop IR Sensor,Packaged for Retail Display EA 6
FG01582 WS120,WHITE Wall-Mount IR Sensor,Packaged for Retail Display EA 6
IR MAIN SYSTEM UNITS
FG01002 MSU140 IR Repeater System for Single-Zone Applications, Packaged for Retail Display EA 6
FG01003 MSU250 IR Repeater System for Single-Zone Applications, Packaged for Retail Display EA 6
FG01004 MSU480 IR Repeater System for Single-Zone Applications, Packaged for Retail Display EA 2
CALL 1-800-BUY-HIFI – www.nilesaudio.com 115
General Products
![](asset-74.png)
QUICK REFERENCE GUIDE
Stock No. Model Part Description Unit Mstr. Carton
IR HIGH OUTPUT FLASHER
FG01023 IRB1 High-Output IR Flasher, Packaged for Retail Display EA 6
FG01019 MF1 IR MicroFlasher, Packaged for Retail Display EA 6
FG01066 MF1U BULK IR MicroFlashers; Bulk Package Contains 24 MF1 Flashers EA 15
FG01020 MF1VF IR MicroFlasher with Visible Feedback, Packaged for Retail Display EA 6
FG01161 MF1VF BULK IR MicroFlasher with Visible Feedback; Bulk Package Contains 24 MF1VF Flashers EA N/A
FG01021 MF2 Dual IR MicroFlasher, Packaged for Retail Display EA 6
FG01022 MF2VF Dual IR MicroFlasher with Visible Feedback, Packaged for Retail Display EA 6
SPEAKER SELECTORS
FG01044 SSVC-6 Six-Pair, Speaker Selector with Volume Controls, Package for Retail Display EA 4
FG01043 SSVC-4 Four-Pair, Speaker Selector with Volume Controls, Package for Retail Display EA 4
FG01042 SSVC-2 Two-Pair, Speaker Selector with Volume Controls, Package for Retail Display EA 4
FG01038 HPS-6 Six-Pair, High-Power Speaker Selector, Package for Retail Display EA 4
FG01037 HPS-4 Four-Pair, High-Power Speaker Selector, Package for Retail Display EA 4
FG01040 SS-6 Six-Pair, Speaker Selector, Package for Retail Display EA 4
FG01039 SS-4 Four-Pair, Speaker Selector, Package for Retail Display EA 4
FG00402 ABA-1D WHITE A-B Selector for Amplifiers or Speakers EA 6
FG00395 AB-2D WHITE Wall-Mount A,B or A+B Selector for Two Pairs of Speakers EA 6
FG00229 SMS-10 High-Power Impedance Matching System that accommodates Ten Pairs of Speakers EA N/A
CAT-5 BALUNS
FG01278 C5-V Component Style CAT-5 Video Balun EA 12
FG00933 10’ 3.5mm to 3.5mm, Male Mini Cable 3.5mm Mono Mini-Plug to 3.5mm Mono Mini Plug
Stock No. Model Part Description Unit Mstr. Carton
AUTO SWITCHERS
FG01613 DBI-2 Doorbell Interface EA N/A
FG00240 SPK-1 Speaker-Level A-B Switcher EA N/A
FG00230 SAS-1 Combo A-B Switcher; Speaker-Level, Line-Level, and Composite Video-Triggered EA N/A
FG01173 CS12V Current-Sensing, 12V Trigger EA 4
FG00242 AC-3 Voltage-Triggered AC Power Strip EA N/A
FG00254 APC-2 Current-Sensing, Outlet Switcher EA N/A
FG00728 LS-1 Light Sensor EA N/A
FG01035 IS-12V 1.25A 12VDC Universal Wall Adaptor EA N/A
FG00003 DPS-1 Amplifier/Speaker A-B Selector EA N/A
116 General Products
©2017 Core Brands, LLC. All rights reserved. Niles, the Niles Logos, Blending High Fidelity and Architecture, Directed SoundField Geometry (DSFG), ElastoDynamic,
Ingenious IR, IntelliControl, IntelliFile, IntelliPad, MicroFlasher, MicroSensor, Remote Control Anywhere!, iWARE, SmartDock, Select, Solo, StageFront Home Theater
Solutions, and Systems Integration Amplifiers are registered trademarks of Core Brands, LLC. Cone Forward, GeoRealistic, iC2, MicroPerf, QuickSnap and Twist & Lock are
trademarks of Core Brands, LLC. All other trademarks are the properties of their respective owners. Some of Niles products (or components thereof) are manufactured under
one or more U.S. Patents, foreign equivalents and/or pending patents (see product for details). We reserve the right to change specifications, descriptions, and prices without
notice. The technical and other information contained herein is not intended to set forth all technical and other specification. Additional information can be obtained on-line at
www.nilesaudio.com or by calling Niles at 800-289-4434.
ADDITIONAL INFORMATION
Visit the Core Brands Dealer Portal!
Our portal dramatically simplifies your ordering process. Try the portal at store.corebrands.com
Warranty
All Niles products are manufactured with reliability in mind and backed
by factory warranties against defects in materials or workmanship.
For details, see full warranty statement included with each product.
Customer Service and Technical Support
Call: 800-289-4434 (BUY-HIFI) in the USA or (760) 710-0992 internationally
Customer Service is available from 8:00 AM to 5:30 PM PST
Technical Support is available from 6:00 am to 4:00 pm PST
Online at: www.nilesaudio.com/techsupport
or via email: techsupport@nilesaudio.com
Product Suggestions
We are eager to hear your product suggestions. Please e-mail your suggestions to: productsuggestions@nilesaudio.com
Niles strives to constantly improve our products, all specifications may change without notice.
CALL 1-800-BUY-HIFI – www.nilesaudio.com 117
Loudspeakers 117
![](asset-76.png)
1800 South McDowell, Petaluma CA 94954 Tel: (800) BUY-HIFI (289-4434) – www.nilesaudio.com – Jan. 2018 Rev-A
© 2018 Nortek Security & Control. All Rights Reserved.
Niles® is a registered trademark of Nortek Security & Control.
