THE BOOK

SpeakerCraft has been turning

houses into homes for nearly four

decades with audio breakthroughs

that make every listening moment

more meaningful. The choice

of custom installers for its bold

performance, SpeakerCraft

combines premier audio with

designer aesthetics to fill the home

with music and audio enjoyment

inside and out.

We have created groundbreaking

products and sophisticated

features such as WavePlane™

fully pivoting speakers and the

adjustable ARC Tweeter Array™.

Our AIM Speakers are CEDIA Hall

of Fame winners, and with the new

AIM Series 2 line, SpeakerCraft

takes this legendary performance

to an entirely new level.

BOLD

PERFORMANCE

For pricing and information,

please visit: store.corebrands.com

2

Profile Speakers

AIM Series 2 Speakers

AIM In-Ceiling Speakers

AIM Dolby Atmos®

enabled systems

AIM In-Wall Speakers

CRS In-Ceiling Speakers

AccuFit UltraSlim Speakers

Production Speakers

& Multi-Packs

Production Speakers

Multi-Packs

Seamless Speakers

Commercial Speakers

Subwoofers

Landscape Speakers

Satellite Speakers

In-ground Subwoofers

Landscape Accessories

Outdoor Speakers

Under Eave Speaker

Rock Speakers

Amplifiers

Control

Multi-Room Audio

Interfaces

Accessories

Electronics

Volume Control

Installation Accessories

6

7

10

14

21

25

28

29

29

31

33

34

36

38

39

40

41

42

43

44

45

47

49

50

51

57

59

62

3

We have been innovators ever

since pioneering in-wall/in-ceiling

speakers, and are internationally

recognized for our award-winning

and technologically ground-

breaking architectural speakers.

Our reputation is built on the

performance and value delivered

by our products, plus the dedicated

customer service and technical

support provided by our people.

SpeakerCraft provides a wide range

of playback products, from an

incredible selection of speakers to

amplifiers and control systems. All

are designed to blend the sounds

you enjoy with the life you live —

music, movies, TV, news, sports, and

even podcasts — throughout your

home. Every SpeakerCraft speaker

is backed by our Lifetime Limited

Warranty. Always the innovator,

SpeakerCraft products are designed

in-house by top audio engineers with

cutting-edge technologies and the

highest quality materials.

OUR HISTORY

4

Introduced Profile Series with

flangeless bezel design

2 011

Delivered WavePlane™

technology to market

2003

Debuted patented AIM

technology, a fully pivoting

speaker for ceiling installations

1999

Developed the first dual tweeter

configuration that plays both

channels from a single speaker

1996

Introduced the SpeakerCraft

Lifetime Warranty

1994

Produced the first in-wall speaker for

residential applications

1981

2015

Launched AIM Series 2 speaker

line, the first architectural speaker

with ARC Tweeter Array™, winning

several CE industry awards

2012

2016

Joined with leading custom home

control, power and audio brands to

become the premier speaker brand

for Core Brands

Launched the first Dolby Atmos®

enabled in-wall height speaker.

2004

Introduced the first aim-able Tweeter

and Woofer in an in-wall speaker

2001

Introduced the Aluminum Grille

1998

Produced the first pivoting tweeter

for architectural loudspeakers

1995

Brought the world the

Micro-perforated grille

1985

Became an original equipment

manufacturer (OEM) for many top

speaker brands

IM

SERIES 2

™

5

PROFILE

SPEAKERS

For pricing and information,

please visit: store.corebrands.com

Both Square and Round grilles

are available for Prole speakers.

Created for the homeowner with a

keen eye for aesthetics, the ultra-

thin “angeless” Prole speaker grille

is barely visible. Precise engineering

and the use of neodymium magnets

enables the Prole series to blend

seamlessly into the surface and not

compete for attention with mounted

artwork or other design features in the

home. The speaker rests virtually ush

with the wall or ceiling and the nal

appearance is pure grille with only

the slightest edge to create a smooth,

nished result. The sound of course is

equally impressive, with realism and

dynamics that deliver every nuance

the original artists intended.

Our newest introduction to the

Prole family is AIM Series 2. With

an updated design that leverages

new technologies and materials,

this award winning architectural

series meets the needs of discerning

listeners for whom sonic performance

is pivotal to the enjoyment of whole

home entertainment.

6

The Legend

ReCraed.

SpeakerCraft’s bold performance has

made it the go-to choice for custom

installers around the globe. Our latest

breakthrough is the AIM Series 2 line of

in-ceiling speakers. AIM Series 2 takes

the legendary AIM performance and

elevates it to an entirely new standard.

More revolutionary than evolutionary,

AIM Series 2 was 100% ReCrafted to

support sophisticated installations,

demanding sonic performance, and

advanced object-based surround

audio platforms.

By incorporating multiple tweeters

in a line array, AIM Series 2 delivers

focused high frequencies farther into

the listening area so that, acoustically,

listeners enjoy a much larger sweet

spot. The adjustable and pivoting

ARC Tweeter Array™ delivers the

most accurate sound placement

of any architectural speaker. The

reimagined WavePlane™ couples

with the Acoustic Vortex Eliminators

to improve sound delivery, while the

co-molded materials in SpeakerCraft’s

Acoustic Isolation Technology™ reduce

structural resonance.

IM

SERIES 2

7

Why Object-Based Systems?

Object-Based Audio essentially

reverses the relationship between

speakers and the audio signal.

Rather than the channel dictating

where a speaker is placed, such as

in a 7.1 surround sound system where

the left front speaker channel pairs

with the left front speaker, Object-

Based Audio uses the speaker’s

placement to decide what audio

should emanate from it. This makes

Object-Based Audio systems like

Dolby Atmos® more adaptive to the

environment, and more immersive

for listeners.

Object-Based Audio allows content

makers to decide where individual

sounds originate and how they move

through the three-dimensional space.

This is particularly useful for video

entertainment in a home theater.

Object-Based Audio adapts to its

environment no matter how many

speakers are used. It becomes easier

to accurately reproduce realistic

audio that fully envelops the listener

when more speakers are used in the

audio environment.

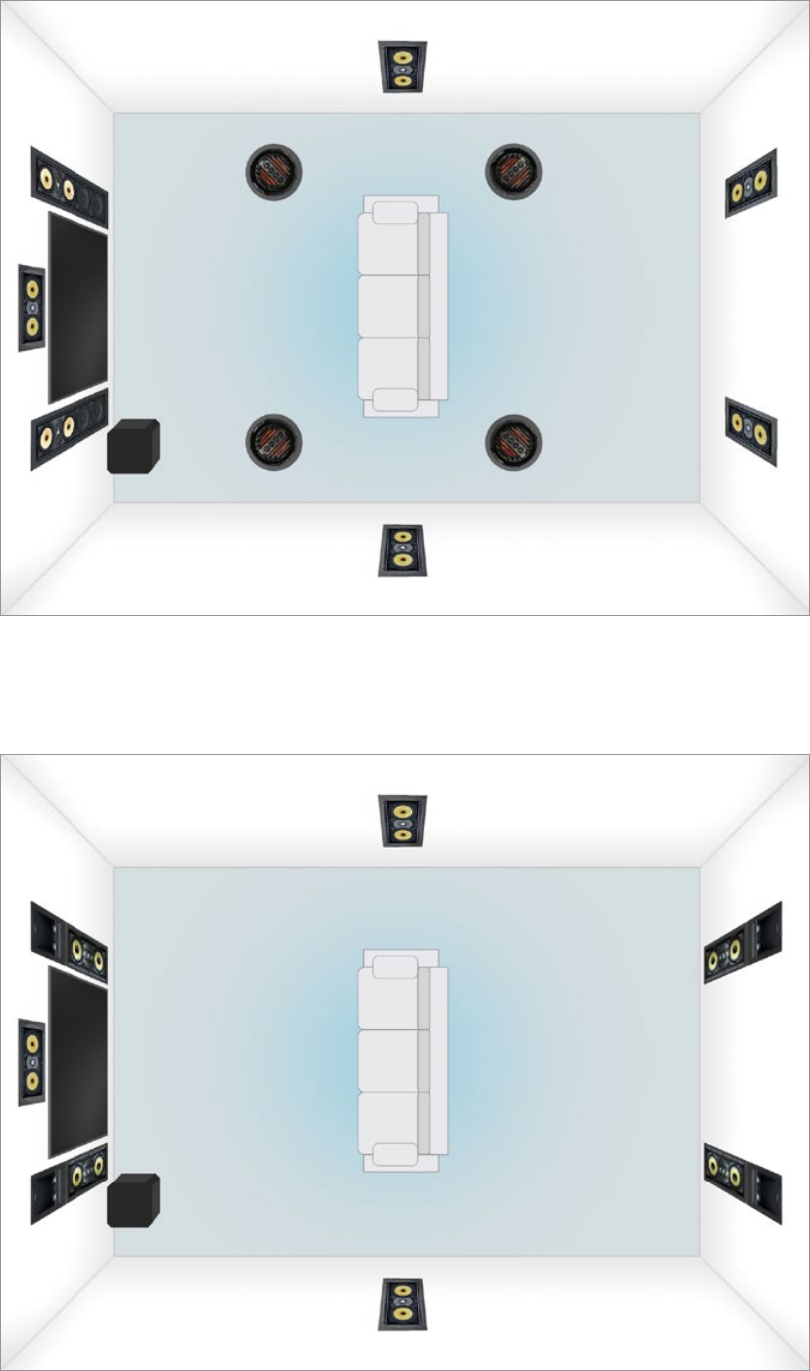

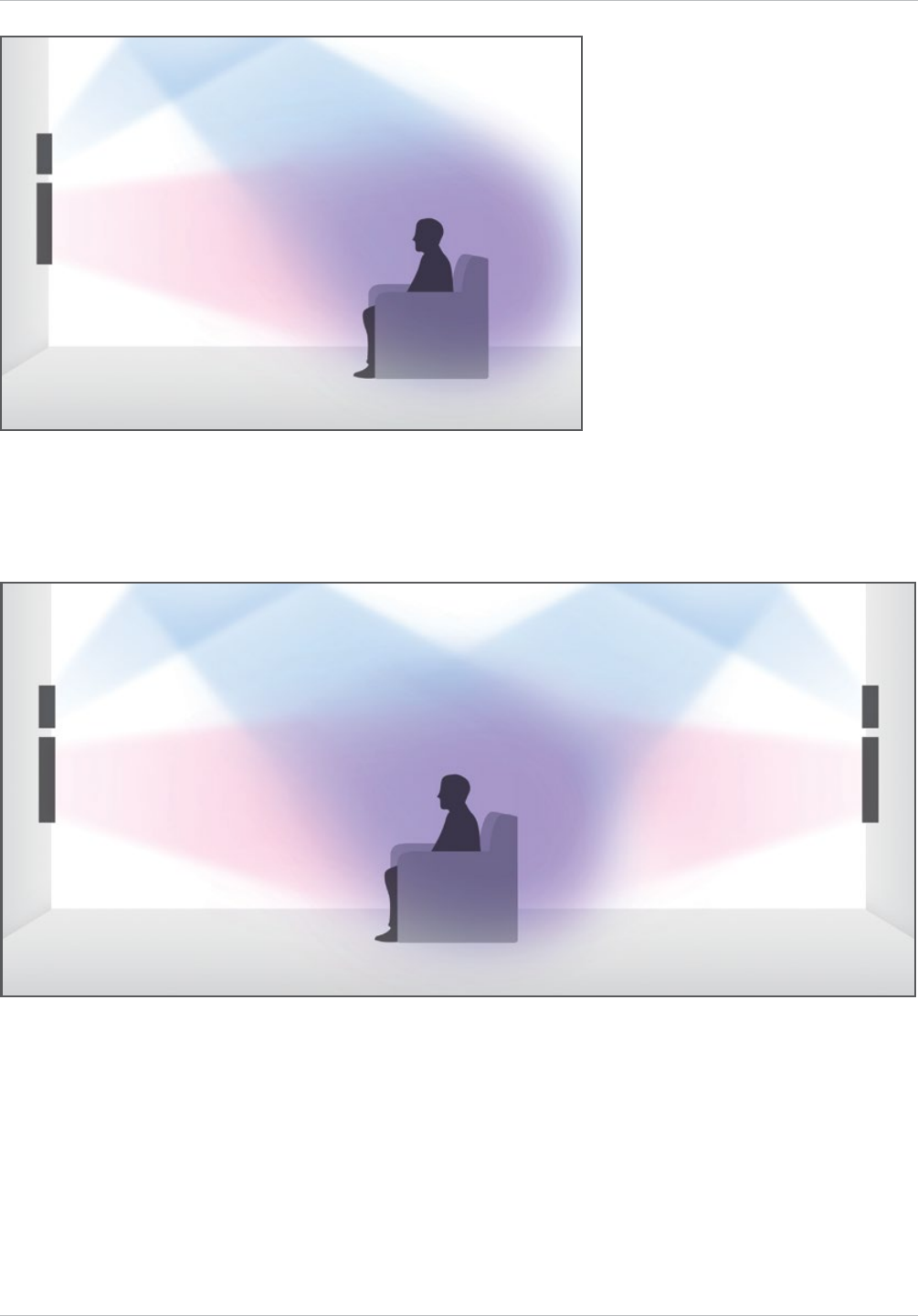

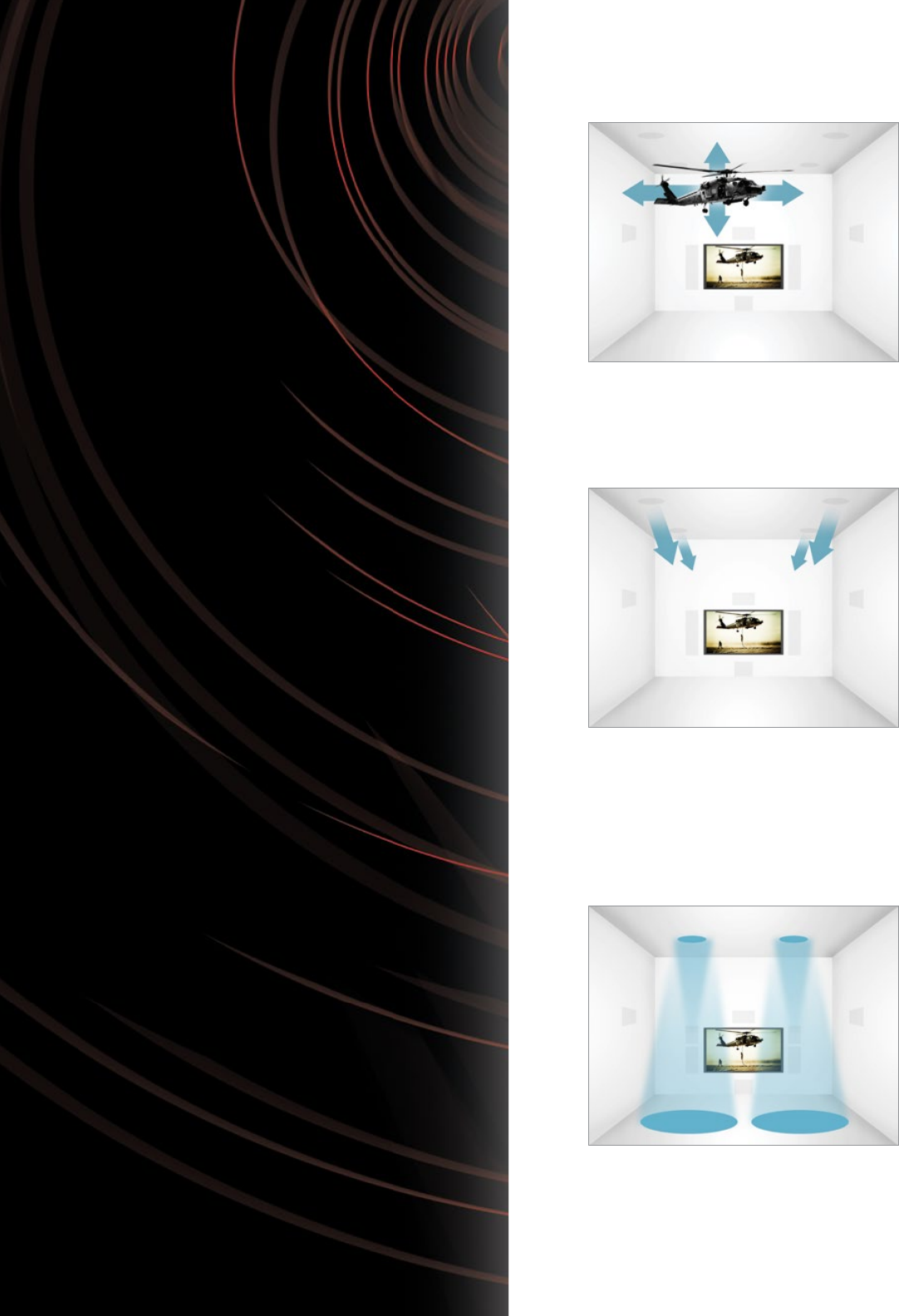

Object-Based

Surround Systems

Utilizing AIM Series 2

Object-Based Audio renders sound in a

three-dimensional space.

AIM Series 2 In-Ceiling Speakers deliver

superior sound and can be aimed

directly at the listerner for more uniform

sonic coverage.

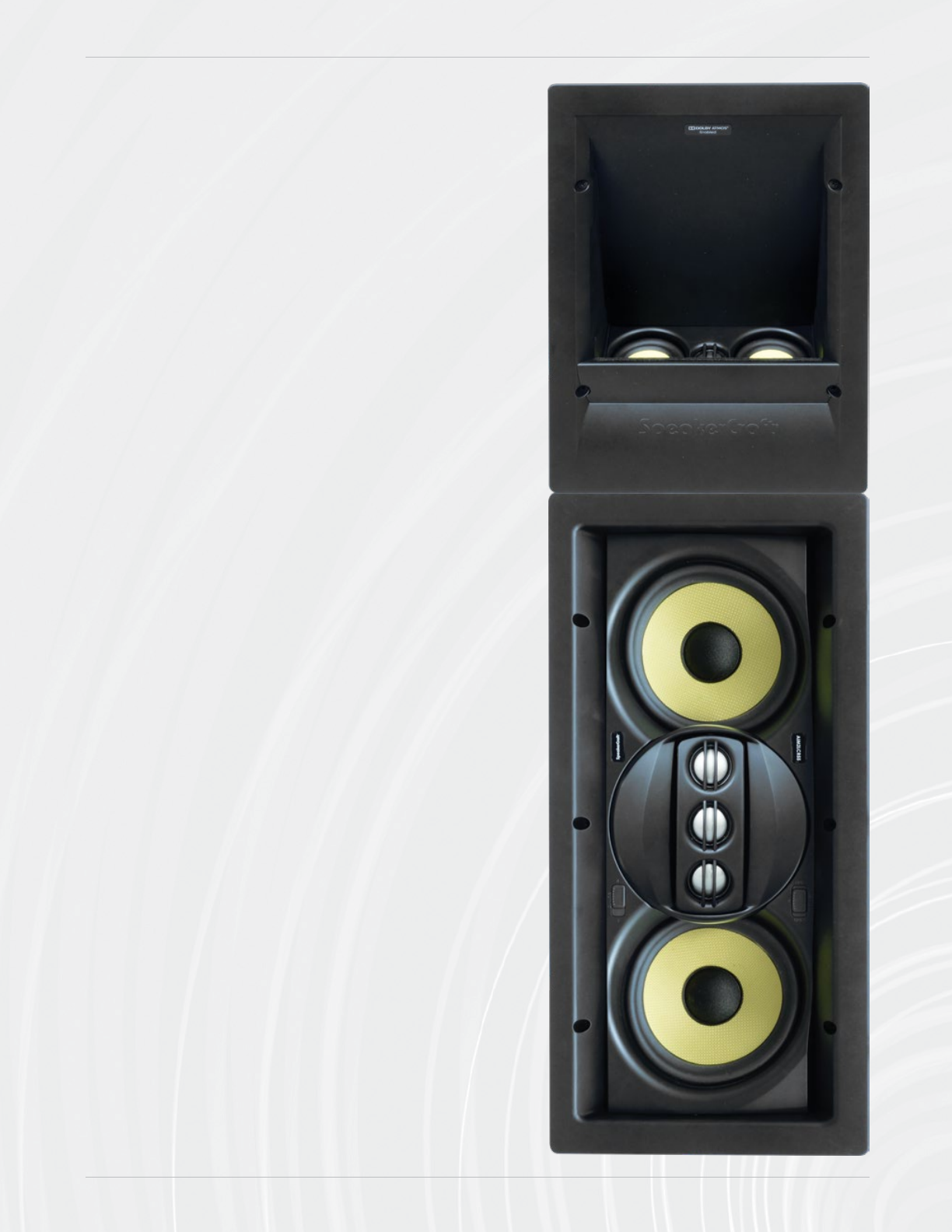

The new ATX100 in-wall speaker

reflects sound off the ceiling for a fully

immersive effect.

8

AIM

CINEMA

FIVE

ATX100

Series 2

AIM LCR5

ATX100

Series 2

AIM LCR5

ATX100

Series 2

AIM LCR5

ATX100

Series 2

AIM LCR5

AIM

CINEMA

FIVE

AIM LCR5

AIM LCR5

7.1.4 Surround System

Object-Based In-Wall / In-Ceiling

7.1.4 Surround System

Object-Based In-Wall Alternative with ATX100 Series 2 Height Speakers

AIM LCR5

AIM LCR5

AIM LCR5

AIM LCR5

AIM LCR5

AIM LCR5

AIM 272 or

AIM 273 SR

AIM 272 or

AIM 273 SR

AIM 272 or

AIM 273 SR

AIM 272 or

AIM 273 SR

SUBWOOFER

SUBWOOFER

9

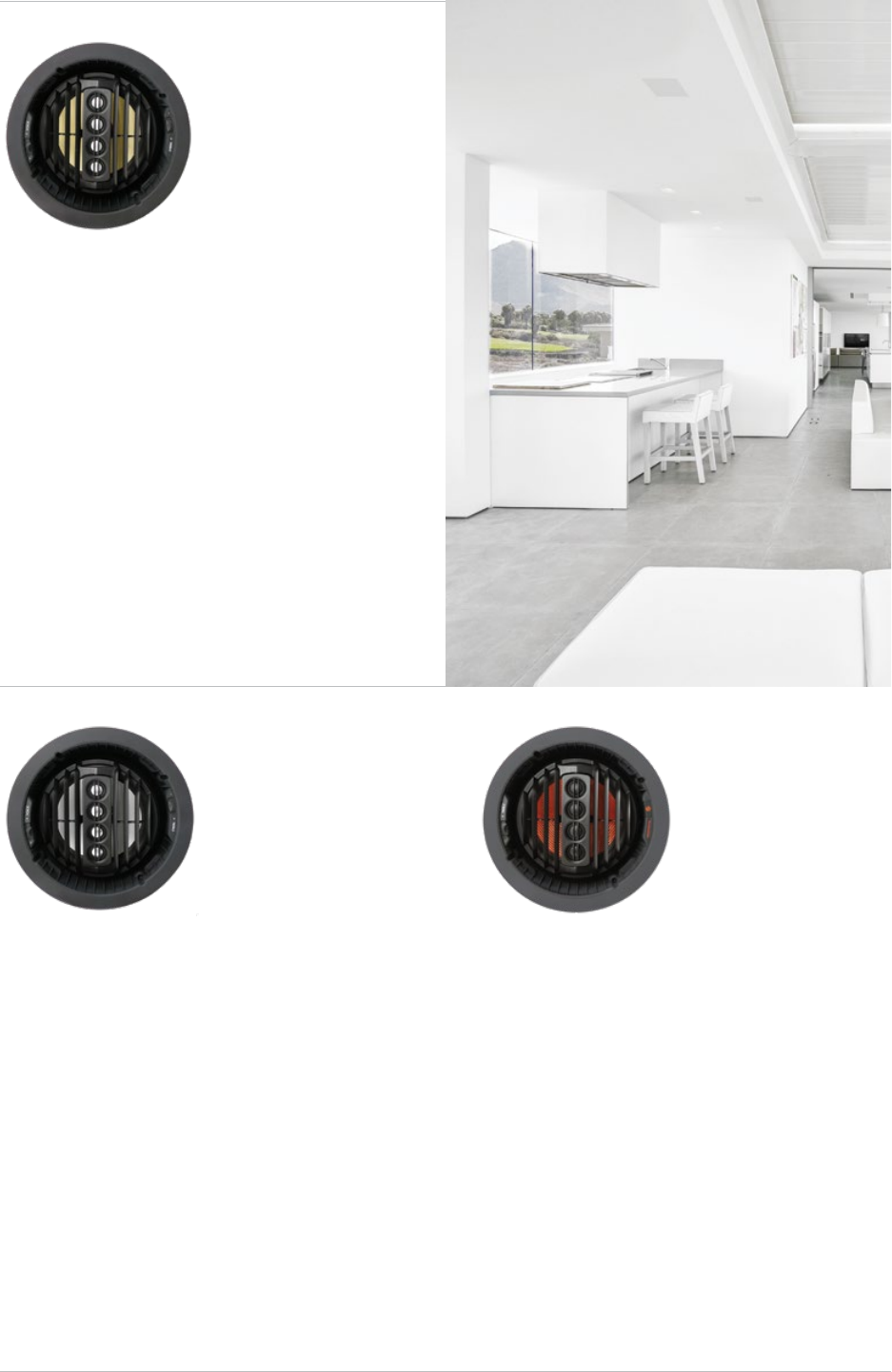

AIM8 FIVE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM285

AIM8 THREE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM283

• Flangeless appearance

• 8” DuPont™ Kevlar® Fiber

Cone Woofer with 15°

Pivoting Capability

• ARC Tweeter Array

incorporating two (2) - 3/4”

and two (2) 5/8” Aluminum

/ Magnesium Dome

Tweeters with 15° Pivoting &

359° Rotational Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB of

Dialog Presence and

Treble Adjustment

• Timbre-Matched to all FIVE

Level Speakers

• Sensitivity: 90dB 1W/1m

• Maximum SPL: 112dB

• Power Handling: 175 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

33Hz-20kHz

• Diameter x Depth:

11 1/16” x 6”

(280mm x 152mm)

(with Grille)

• Cut-Out Diameter:

9 7/8” (250mm)

• Flangeless appearance

• 8” Glass Fiber Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating two (2) - 3/4”

and two (2) 5/8” Aluminum

Dome Tweeters with 15°

Pivoting & 359° Rotational

Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB of

Dialog Presence and

Treble Adjustment

• Timbre-Matched to all

THREE Level Speakers

• Sensitivity: 88dB 1W/1m

• Maximum SPL: 110dB

• Power Handling: 175 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

35Hz-20kHz

• Diameter x Depth:

11 1/16” x 6”

(280mm x 152mm)

(with Grille)

• Cut-Out Diameter:

9 7/8” (250mm)

AIM8 TWO

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM282

• Flangeless appearance

• 8” Glass Fiber Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating two (2) - 3/4”

and two (2) 5/8” Silk Dome

Tweeters with 15° Pivoting &

359° Rotational Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switch Allow

for up to +/- 3dB of

Treble Adjustment

• Timbre-Matched to all TWO

Level Speakers

• Sensitivity: 87dB 1W/1m

• Maximum SPL: 108dB

• Power Handling: 150 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

37Hz-20kHz

• Diameter x Depth:

11 1/16” x 6”

(280mm x 152mm)

(with Grille)

• Cut-Out Diameter:

9 7/8” (250mm)

PROFILE - 8” AIM SERIES 2 IN-CEILING

PROFILE - 8” AIM SERIES 2 IN-CEILING

Timbre-Matched

Driver Materials

All Profile Series speakers use the finest acoustic materials to

fit any application and budget. Each material is sonically

matched to all other speakers within its family, delivering

consistent performance and tonal quality.

ONE Series

Polypropylene driver and silk dome tweeters work well in

highly reflective rooms that have tile or hardwood flooring.

TWO Series

Fiberglass driver and silk dome tweeters are designed to

produce a softer, more natural sound.

THREE Series

Aluminum driver and aluminum tweeters are made to

sound crisp and forward, often a good choice for digital

recordings, live concerts and movies.

FIVE Series

Kevlar® driver with aluminum / magnesium tweeters produce

the highest quality sound without coloration.

10

AIM7 FIVE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM275

AIM7 THREE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM273

• Flangeless appearance

• 7” Kevlar® Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating four (4) - 5/8”

Aluminum / Magnesium

Dome Tweeters with 15°

Pivoting & 359° Rotational

Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB of

Dialog Presence and

Treble Adjustment

• Timbre-Matched to all FIVE

Level Speakers

• Sensitivity: 90dB 1W/1m

• Maximum SPL: 111dB

• Power Handling: 150 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

35Hz-20kHz

• Diameter x Depth:

9 5/8” x 5 1/2”

244mm x 140mm

(with Grille)

• Cut-Out Diameter:

8 7/16” (214mm)

• Flangeless appearance

• 7” Aluminum Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating four (4) - 5/8”

Aluminum Dome Tweeters

with 15° Pivoting & 359°

Rotational Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB of

Dialog Presence and

Treble Adjustment

• Timbre-Matched to all

THREE Level Speakers

• Sensitivity: 89dB 1W/1m

• Maximum SPL: 109dB

• Power Handling: 150 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

37Hz-20kHz

• Diameter x Depth:

9 5/8” x 5 1/2”

244mm x 140mm

(with Grille)

• Cut-Out Diameter:

8 7/16” (214mm)

AIM7 TWO

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM272

• Flangeless appearance

• 7” Glass Fiber Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating four (4) - 5/8”

Silk Dome Tweeters with 15°

Pivoting & 359° Rotational

Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switch

Allows for up to +/- 3dB of

Treble Adjustment

• Timbre-Matched to all TWO

Level Speakers

• Sensitivity: 88dB 1W/1m

• Maximum SPL: 107dB

• Power Handling: 125 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

40Hz-20kHz

• Diameter x Depth:

9 5/8” x 5 1/2”

244mm x 140mm

(with Grille)

• Cut-Out Diameter:

8 7/16” (214mm)

PROFILE - 7” AIM SERIES 2 IN-CEILING

PROFILE - 7” AIM SERIES 2 IN-CEILING

11

AIM5 FIVE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM255

AIM5 THREE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM253

• Flangeless appearance

• 5 1/4” Kevlar® Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating three

(3) - 5/8” Aluminum /

Magnesium Dome Tweeters

with 15° Pivoting & 359°

Rotational Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB of

Dialog Presence and Treble

Adjustment

• Timbre-Matched to all FIVE

Level Speakers

• Sensitivity: 89dB 1W/1m

• Maximum SPL: 108dB

• Power Handling: 125 Watts

• Impedance: 8 Ohm

Nominal

• Frequency Response:

37Hz-20kHz

• Diameter x Depth:

8” x 4 7/8”

203mm x 124mm

(with Grille)

• Cut-Out Diameter:

6 11/16” (170mm)

• Flangeless appearance

• 5 1/4” Aluminum Cone

Woofer with 15° Pivoting

Capability

• ARC Tweeter Array

incorporating three (3)

- 5/8” Aluminum Dome

Tweeters with 15° Pivoting &

359° Rotational Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB of

Dialog Presence and Treble

Adjustment

• Timbre-Matched to all

THREE Level Speakers

• Sensitivity: 88dB 1W/1m

• Maximum SPL: 107dB

• Power Handling: 125 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

40Hz-20kHz

• Diameter x Depth:

8” x 4 7/8”

203mm x 124mm

(with Grille)

• Cut-Out Diameter:

6 11/16” (170mm)

AIM5 TWO

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM252

• Flangeless appearance

• 5 1/4” Glass Fiber Cone

Woofer with 15° Pivoting

Capability

• ARC Tweeter Array

incorporating three (3) -

5/8” Aluminum Tweeters

with 15° Pivoting & 359°

Rotational Capability

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switch

Allows for up to +/- 3dB of

Treble Adjustment

• Timbre-Matched to all TWO

Level Speakers

• Sensitivity: 87dB 1W/1m

• Maximum SPL: 106dB

• Power Handling: 100 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

42Hz-20kHz

• Diameter x Depth:

8” x 4 7/8”

203mm x 124mm

(with Grille)

• Cut-Out Diameter:

6 11/16” (170mm)

PROFILE - 5” AIM SERIES 2 IN-CEILING

PROFILE - 5” AIM SERIES 2 IN-CEILING

12

AIM8 DT THREE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM283DT

AIM7 DT THREE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM273DT

• For use as a uni-point,

stereo sound source

• Flangeless appearance 8”

Aluminum Cone Woofer

with 15° Pivoting Capability

• ARC Tweeter Array

incorporating two (2) 3/4”

and two (2) 5/8” Aluminum

Dome Tweeters with 15°

Pivoting & 359° Rotational

capability

- One (1) 3/4” and (1)

5/8”Aluminum Dome

Tweeter devoted to Left

Channel

- One (1) 3/4” and (1)

5/8”Aluminum Dome

Tweeter devoted to Right

Channel

• WavePlane Technology

with Vortex Eliminators

• New Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switch

Allows for up to +/- 3dB of

Treble Adjustment

• Timbre-Matched to all

THREE Level Speakers

• Sensitivity: 90dB 1W/1m

• Maximum SPL: 110dB

• Power Handling: 150 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

40Hz-20kHz

• Diameter x Depth:

11 1/16” x 6”

280mm x 152mm

(with Grille)

• Cut-Out Diameter:

9 7/8” (250mm)

• For use as a uni-point,

stereo sound source

• Flangeless appearance 7”

Dual Voice Coil Aluminum

Cone Woofer with 15°

Pivoting Capability

• ARC Tweeter Array

incorporating four (4) 5/8”

Aluminum Dome Tweeters

with 15° Pivoting & 359°

Rotational capability

- Two (2) 5/8” Aluminum

Dome Tweeters devoted to

Left Channel

- Two (2) 5/8” Aluminum

Dome Tweeters devoted to

Right Channel

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switch

Allows for up to +/- 3dB

of Treble Adjustment

• Timbre-Matched to all

THREE Level Speakers

• Sensitivity: 89dB 1W/1m

• Maximum SPL: 109dB

• Power Handling: 150 Watts

• Impedance: 8 Ohm

Nominal

• Frequency Response:

45Hz-20kHz

• Diameter x Depth:

9 5/8” x 5 1/2”

(244mm x 140mm)

(with Grille)

• Cut-Out Diameter:

8 7/16” (214mm)

AIM7 SR THREE

Series 2

In-Ceiling Aim-able

Speaker

Order# AIM273SR

• For use as a surround

effects speaker due

to its wide dispersion

characteristics

• Flangeless appearance 7”

Aluminum Cone Woofer

with 15° Pivoting Capability

• Multi-Axis ARC Tweeter

Array incorporating four

(4) 5/8” Aluminum Dome

Tweeters with 15° Pivoting &

359° Rotational capability

• The Multi-Axis ARC Tweeter

Array adds a “slight twist”

to the ARC array putting

two of the 5/8” Aluminum

Dome Tweeters on a slightly

different axis than the other

two

• WavePlane Technology

with Vortex Eliminators

• Acoustic Isolation

Technology to minimize

acoustic energy transfer to

mounting and surrounding

surfaces

• Front-Mounted Switches

Allow for up to +/- 3dB

• Timbre-Matched to all

THREE Level Speakers

• Sensitivity: 89dB 1W/1m

• Maximum SPL: 109dB

• Power Handling: 150 Watts

• Impedance:

8 Ohm Nominal

• Frequency Response:

40Hz-20kHz

• Diameter x Depth:

9 5/8” x 5 1/2”

244mm x 140mm

• Cut-Out Diameter:

8 7/16” (214mm)

PROFILE - AIM DT/SR SERIES 2 IN-CEILING

PROFILE - AIM DT/SR SERIES 2 IN-CEILING

Dual Tweeter &

Surround Speakers

Special circumstances call for specialized

speakers. The DT models are dual-tweeter

in-ceiling stereo speakers that are an ideal

option in place of a pair of speakers. These

speakers produce both left and right channels

and can complete a multi-room system

throughout the home.

SR Models feature an acoustic compensation

switch that allows for a more diffused

sound or more direct sound to be created

from the speaker. You can use the Diffuse

setting when using the speaker as a “side

effects loudspeaker,” and the Direct setting

when using the speaker as a “rear effects

loudspeaker.”

13

A NEW HEIGHT

IN HOME

THEATER AUDIO

AIM SERIES 2 DOLBY ATMOS®

ENABLED SYSTEMS

The SpeakerCraft heritage is one of breakthrough

innovation. The new AIM Series 2 In-Wall

family embraces that tradition, with innovations

crafted for Dolby Atmos® and other object-based

surround audio formats. Dolby Atmos delivers a

more immersive and enveloping experience than

traditional surround systems. It allows content

creators to mix multi-channel audio as never before.

We crafted this new line as the rst in-wall systems

designed to bring out the maximum performance of

Dolby Atmos.

At the heart of these systems is the world’s rst Dolby

Atmos® enabled in-wall height speaker – the ATX100

– which delivers the “height” elements that dene

the enveloping Dolby Atmos surround experience.

The “height” elements are not just a ceiling delivery

of the audio signal – they are essential “from above”

parts of the soundtrack that work with the front,

side, and rear content information for maximum

immersion. The ATX100 projects the height content

to reect off the ceiling, showering the listener in an

enveloping home theater experience. When paired

with the new AIM Series 2 in-wall speakers – the

AIM LCR5 FIVE Series 2 or the AIM LCR5 TWO Series

2 – the combination creates a bold, premium, and

amazingly immersive speaker system. These new

systems deliver an exceptional Dolby Atmos enabled

home theater experience for any room or budget.

14

THE ENVELOPING

SOUND EXPERIENCE:

Figure 1

• The upward-ring drivers in the

ATX100 reect the Dolby Atmos

“height” elements of the ceiling for

the ultimate enveloping experience.

• The Arrayed Point Source™ tweeter

module in the AIM Series 2 LCR5

family maximizes uniform dispersion

in the critical midrange and

high frequencies.

The Dolby Atmos enabled AIM Series 2 LCR5 speaker systems can be combined with rear and side in-wall or

in-ceiling congurations to meet the needs of any installation.

Figure 2

This image shows additional ATX100 and AIM2LCR5 speakers adding additional height and rear surround

elements. These systems can scale up to create a fully in-wall Dolby Atmos enabled experience.

Add a SpeakerCraft Prole Cinema Sub10 in-wall subwoofer and you have the proper setup needed for an

immersive 5.1.4 Dolby Atmos experience.

Special Note:

The ATX100 can also be combined with one of the three Prole AIM LCR5 speakers as an optional solution for Dolby Atmos

enabled in-wall speaker systems.

15

PROFILE - DOLBY ATMOS® ENABLED AIM SERIES 2 IN-WALL

PROFILE - AIM SERIES 2 IN-WALL

AIM Series 2

ATX100

AIM Series 2 Dolby

Atmos® Enabled

In-Wall Height

Module

Order# ATX100

AIM LCR5 TWO

Series 2

Aim-able Left Center

Right Speaker

Order# AIM2LCR52

AIM LCR5 FIVE

Series 2

Aim-able Left Center

Right Speaker

Order# AIM2LCR55

• Meets Dolby Atmos® enabled requirements for residential

applications

• Magnetically Attached, Low Profile, Full Coverage Grille

• 2-Way Speaker Compliment in MTM (Mid-Tweet-Mid) Alignment

• Dual 2 ½” FEA Optimized Kevlar® Reinforced Pulp Mid-Bass

Drivers

• ¾” Titanium Dome Tweeter with High Energy Neodymium

Magnet Structure

• Acoustically Controlled Waveguide

• Acoustic Isolation Technology™

• Fully integrated acoustic back-box for precise sound

reproduction

Power Handling:

Sensitivity:

Impedance:

Frequency Response:

Product Dims (grille on):

Cut-Out Diameter:

125 watts

89dB 1W/1m

8 Ohm

90Hz - 20kHz

12 1⁄4” x 9” x 3 15⁄16”

(310mm x 229mm x 100mm)

11” x 7 ¾” (279mm x 197mm)

• Magnetically Attached, Low Profile, Full Coverage Grille

• Dual 5 ¼” Glass and Carbon Fiber Cone Woofers, with

extended pole pieces

- 4 Layer High Inductance Voice Coil

• Arrayed Point Source™ (APS) Tweeter Module with three (3)

pivot-able 1” Soft Dome Tweeters

- Mounted on a Rotational Sound Baffle for Custom

Sound Steering

• 2nd and 3rd Order Asymmetrical Crossover Design

• Front-Mounted Tweeter and Dialog Compensation Switches

• Pivot-able Sound Baffle for Precise Acoustic AIM-ability

• Acoustic Isolation Technology™

Power Handling:

Sensitivity:

Impedance:

Frequency Response:

Product Dims (grille on):

Cut-Out Diameter:

135 Watts

89dB 1W/1m

8 Ohm

52Hz - 20kHz

18 1⁄8” x 9” x 3 7⁄8” (461 x 227 x 99mm)

16 15⁄16” x 7 ¾” (430 x 197mm)

• Magnetically Attached, Low Profile, Full Coverage Grille

• Dual 5 ¼” Woven Kevlar® Cone Woofers with extended

pole pieces and forced convection cooling

- Core periphery magnet vents with flux modulation control

geometry to improve power handling and minimize

inductance modulation

- 4 Layer High Inductance Copper Clad Aluminum Voice Coil

• Arrayed Point Source™ (APS) Tweeter Module with

three (3) pivot-able 1” Titanium Dome Tweeters

- Mounted on a Rotational Sound Baffle for Custom

Sound Steering

• 2nd and 3rd Order Asymmetrical Crossover Design

• Front-Mounted Tweeter and Dialog Compensation Switches

• Pivot-able Sound Baffle for Precise Acoustic AIM-ability

• Acoustic Isolation Technology™

Power Handling:

Sensitivity:

Impedance:

Frequency Response:

Product Dims (grille on):

Cut-Out Diameter:

190 Watts

91dB 1W/1m

8 Ohm

48Hz - 22kHz

18 1⁄8” x 9” x 3 7⁄8” (461 x 227 x 99mm)

16 15/16” x 7 ¾” (430 x 197mm)

Additional items to complete Dolby Atmos®

enabled system installations:

GRLATXAIM2

Grille Kit for the combination of an AIM Series 2 LCR5 Family

Speaker AND the ATX100 Dolby Atmos enabled in-wall height

speaker

GRLATXPROAIM

Grille Kit for the combination of a Prole AIM LCR5 Family

Speaker AND the ATX100 Dolby Atmos enabled in-wall height

speaker

BKTATX100

InstaLLock New Construction Bracket for the ATX100 Dolby

Atmos enabled in-wall height speaker

BKTATXAIM2LCR5

InstaLLock New Construction Bracket for the combination of

the AIM LCR5 Series 2 family of speakers AND the ATX100 Dolby

Atmos enabled speaker

BKTAIM2LCR5

InstaLLock New Construction Bracket for the AIM LCR5 Series 2

family of speakers

BKTPROAIMLCR5

InstaLLock New Construction Bracket for the combination of

the Prole AIM LCR5 family of speakers AND the ATX100 Dolby

Atmos enabled height speaker

16

PROFILE - 8” AIM IN-CEILING

DOLBY ATMOS® ENABLED SYSTEMS

Profile AIM8

FIVE

In-Ceiling Aim-able

Speaker

Order# ASM58501-2

Profile AIM8

THREE

In-Ceiling Aim-able

Speaker

Order# ASM58301-2

• Flangeless Appearance

• Pivoting 8” Kevlar® Woofer

• Pivoting 1” Aluminum/

Magnesium Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Accu-Grille Technology

• Timbre-Matched to All FIVE

Series

• Sensitivity: 91dB 1W/1m

• Power Handling: 150 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

33Hz - 20kHz

• Diameter x Depth:

11” x 5 3/4”

279mm x 146mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

• Flangeless Appearance

• Pivoting 8” Aluminum

Woofer

• Pivoting 1” Aluminum

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Accu-Grille Technology

• Timbre-Matched to All

THREE Series

• Sensitivity: 89dB 1W/1m

• Power Handling: 150 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

37Hz - 20kHz

• Diameter x Depth:

11” x 5 3/4”

279mm x 146mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

ATS5

Profile Dolby Atmos Enabled In-Wall Speaker

System FIVE

Prole ATS FIVE Dolby Atmos Enabled Speaker System

includes the following; ATX100 Dolby Atmos Enabled In-Wall

Height Speaker + Prole AIM LCR5 FIVE In-Wall LCR Speaker +

GRLATXPROAIM Dolby Atmos Enabled System Grille Kit

ATS3

Profile Dolby Atmos Enabled In-Wall Speaker

System THREE

Prole ATS THREE Dolby Atmos Enabled Speaker System

includes the following; ATX100 Dolby Atmos Enabled In-Wall

Height Speaker + Prole AIM LCR5 THREE In-Wall LCR Speaker +

GRLATXPROAIM Dolby Atmos Enabled System Grille Kit

ATS1

Profile Dolby Atmos Enabled In-Wall Speaker

System ONE

Prole ATS ONE Dolby Atmos Enabled Speaker System

includes the following; ATX100 Dolby Atmos Enabled In-Wall

Height Speaker + Prole AIM LCR5 ONE In-Wall LCR Speaker +

GRLATXPROAIM Dolby Atmos Enabled System Grille Kit

ATS500

AIM Series 2 Dolby Atmos Enabled In-Wall

Speaker System 500

AIM ATS 500 Series 2 Dolby Atmos Enabled Speaker System

includes the following; ATX100 Dolby Atmos Enabled In-Wall

Height Speaker + AIM LCR5 FIVE Series 2 In-Wall LCR Speaker +

GRLATXAIM2 AIM Series 2 Dolby Atmos Enabled System Grille Kit

ATS200

AIM Series 2 Dolby Atmos Enabled In-Wall

Speaker System 200

AIM ATS 200 Series 2 Dolby Atmos Enabled Speaker System

includes the following; ATX100 Dolby Atmos Enabled In-Wall

Height Speaker + AIM LCR5 TWO Series 2 In-Wall LCR Speaker +

GRLATXAIM2 AIM Series 2 Dolby Atmos Enabled System Grille Kit

17

PROFILE - 7” AIM IN-CEILING

PROFILE - 8” AIM IN-CEILING

Profile AIM7

FIVE

In-Ceiling Aim-able

Speaker

Order# ASM57501-2

Profile AIM7

THREE

In-Ceiling Aim-able

Speaker

Order# ASM57301-2

• Flangeless Appearance

• Pivoting 7” Kevlar® Woofer

• Pivoting 1” Aluminum/

Magnesium Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 91dB 1W/1m

• Power Handling: 150 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

35Hz - 20kHz

• Diameter x Depth:

9 5/8” x 5 1/8”

244mm x 130mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

• Flangeless Appearance

• Pivoting 7” Aluminum

Woofer

• Pivoting 1” Aluminum

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 91dB 1W/1m

• Power Handling: 125 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 5/8” x 5 1/8”

244mm x 130mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

Profile AIM8

TWO

In-Ceiling Aim-able

Speaker

Order# ASM58201-2

• Flangeless Appearance

• Pivoting 8” Resin Reinforced

Fiberglass Woofer

• Pivoting 1” Treated Silk

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Accu-Grille Technology

• Timbre-Matched to All TWO

Series

• Sensitivity: 89dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11” x 5 3/4”

279mm x 146mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

Profile AIM8

ONE

In-Ceiling Aim-able

Speaker

Order# ASM58101-2

• Flangeless Appearance

• Pivoting 8” Polypropylene

Woofer

• Pivoting 1” Treated Silk

Tweeter

• WavePlane Technology

• Timbre-Matched to All ONE

Series

• Sensitivity: 88dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11” x 5 3/4”

279mm x 146mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

18

Profile AIM7

TWO

In-Ceiling Aim-able

Speaker

Order# ASM57201-2

• Flangeless Appearance

• Pivoting 7” Resin Reinforced

Fiberglass Woofer

• Pivoting 1” Silk Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 90dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 5/8” x 5 1/8”

244mm x 130mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

PROFILE - 7” AIM IN-CEILING

Profile AIM5

THREE

In-Ceiling Aim-able

Speaker

Order# ASM55301-2

Profile AIM5

ONE

In-Ceiling Aim-able

Speaker

Order# ASM55101-2

• Flangeless Appearance

• Pivoting 5 1/4” Aluminum

Woofer

• Pivoting 3/4” Aluminum

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 89dB 1W/1m

• Power Handling: 100 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

50Hz - 20kHz

• Diameter x Depth:

8” x 4 1/2”

203mm x 114mm

(with Grille)

• Cut-Out Diameter:

6 5/8” (168mm)

• Flangeless Appearance

• Pivoting 5 1/4”

Polypropylene Woofer

• Pivoting 3/4” Treated Silk

Tweeter

• WavePlane Technology

• Timbre-Matched to All ONE

Series

• Sensitivity: 88dB 1W/1m

• Power Handling: 75 Watts

• Impedance: 8 Ohm

• Frequency Response:

55Hz - 20kHz

• Diameter x Depth:

8” x 4 1/2”

203mm x 114mm

(with Grille)

• Cut-Out Diameter:

6 5/8” (168mm)

PROFILE - 5” AIM IN-CEILING 19

PROFILE - AIM WIDE IN-CEILING

PROFILE - DT IN-CEILING

Profile AIM8 DT

THREE

Dual-Tweeter Aim-

able Speakers

Order# ASM58603-2

Profile AIM7 DT

THREE

Dual-Tweeter Aim-

able Speakers

Order# ASM57603-2

• Flangeless Appearance

• Pivoting 8” Aluminum Dual

Voice Coil Woofer and

Rubber Surround

• Dual Pivoting 1” Aluminum

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Timbre Matched to All

THREE Series

• Sensitivity: 92dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

10 3/4” x 5 1/2”

273mm x 140mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

• Flangeless Appearance

• Pivoting 7” Aluminum Dual

Voice Coil Woofer and

Rubber Surround

• Dual Pivoting 1” Aluminum

Tweeters

• WavePlane Technology

• Bass and Treble EQ

Switches

• Timbre Matched to All

THREE Series

• Sensitivity: 92dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

• Frequency Response:

50Hz - 20kHz

• Diameter x Depth:

9 5/8” x 4 3/4”

244mm x 121mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

Profile AIM8

WIDE ONE

Wide Dispersion

Speaker

Order# ASM50811-2

• 3-Way Fully-Pivoting

In-Ceiling Speaker featuring

an 8” Woofer, Dual 2”

Midranges and Dual 3/4”

Tweeters

• Flangeless Appearance

with Magnetically Attached

Full Coverage Steel Grille

• Pivoting 8” Graphite Cone

Woofer

• Dual 2” Graphite Inverted

Dome Midrange Drivers

• Dual 3/4” Silk Dome

Tweeters

• Front-Mounted Ambient/

Wide Switch

• Timbre-Matched to All ONE

Series Speakers

• Sensitivity: 88dB 1W/1m

• Power Handling: 125 Watts

• Impedance:

8 Ohm Compatible

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11 7/16” x 6 1/2”

(291mm x 165mm)

• Cut-Out Diameter:

9 3/4” (248mm)

Profile AIM8

WIDE THREE

Wide Dispersion

Speaker

Order# ASM50831-2

• 3-Way Fully-Pivoting

In-Ceiling Speaker featuring

an 8” Woofer, Dual 2”

Midranges and Dual 3/4”

Tweeters

• Flangeless Appearance

with Magnetically Attached

Full Coverage Steel Grille

• Pivoting 8” Aluminum Cone

Woofer

• Dual 2” Aluminum Inverted

Dome Midrange Drivers

• Dual 3/4” Aluminum Dome

Tweeters

• Ambient/Wide & Treble

Switches

• Timbre-Matched to All

THREE Series Speakers

• Sensitivity: 91dB 1W/1m

• Power Handling: 150 Watts

• Impedance: 8 Ohm

• Frequency Response:

37Hz - 20kHz

• Diameter x Depth:

11 7/16” x 6 1/2”

(291mm x 165mm)

• Cut-Out Diameter:

9 3/4” (248mm)

20

PROFILE - AIM CINEMA IN-WALL

PROFILE - AIM CINEMA IN-WALL

Profile AIM

Cinema FIVE

Aim-able Speaker

Order# ASM59105-2

Profile AIM

Cinema THREE

Aim-able Speaker

Order# ASM59103-2

Profile AIM

Cinema ONE

Aim-able Speaker

Order# ASM59101-2

• Flangeless Appearance

• Pivoting 1” Aluminum/

Magnesium Tweeter

• Two 5 1/4” Kevlar® Woofers

with Phase Plugs

• Two 6” Kevlar® Impregnated

Paper Woofers

• Treble, Mid &

Bass EQ Switches

• Bi-Amping Feature

• Timbre-Matched to All FIVE

Series

• Sensitivity: 91dB 1W/1m

• Power Handling: 200 Watts

• Impedance:

8 Ohm Compatible

• Frequency Response:

35Hz - 20kHz

• Dimensions: (H x W x D)

30 1/4” x 9” x 4”

768mm x 229mm x 102mm

(with Grille)

• Wall Cut-Out: (H x W)

28 3/4” x 7 1/2”

730mm x 191mm

• Flangeless Appearance

• Pivoting 1” Aluminum

Tweeter

• Two 5 1/4” Aluminum

Woofers with Phase Plugs

• Two 6” Kevlar® Impregnated

Paper Woofers

• Treble, Mid &

Bass EQ Switches

• Bi-Amping Feature

• Timbre-Matched to All

THREE Series

• Sensitivity: 90dB 1W/1m

• Power Handling: 175 Watts

• Impedance:

8 Ohm Compatible

• Frequency Response:

39Hz - 20kHz

• Dimensions: (H x W x D)

30 1/4” x 9” x 4”

768mm x 229mm x 102mm

(with Grille)

• Wall Cut-Out: (H x W)

28 3/4” x 7 1/2”

730mm x 191mm

• Flangeless Appearance

• Pivoting 1” Silk Tweeter

• Two 5 1/4” Graphite

Woofers with Phase Plugs

• Two 6” Kevlar® Impregnated

Paper Woofers

• Bass EQ Switch

• Bi-Amping Feature

• Timbre-Matched to All ONE

Series

• Sensitivity: 89dB 1W/1m

• Power Handling: 125 Watts

• Impedance:

8 Ohm Compatible

• Frequency Response:

40Hz - 20kHz

• Dimensions: (H x W x D)

30 1/4” x 9” x 4”

768mm x 229mm x 102mm

(with Grille)

• Wall Cut-Out: (H x W)

28 3/4” x 7 1/2”

730mm x 191mm

21

PROFILE - AIM LCR5 IN-WALL

PROFILE - AIM LCR5 IN-WALL

Profile AIM

LCR5 FIVE

Aim-able Speaker

Order# ASM54655-2

Profile AIM

LCR5 ONE

Aim-able Speaker

Order# ASM54611-2

Profile AIM

LCR5 THREE

Aim-able Speaker

Order# ASM54633-2

• 2-Way In-Wall LCR (Left,

Center, Right) Speaker with

Dual 5 1/4” Woofers and

1” Tweeter mounted on a

Pivoting Speaker Baffle

• Flangeless Appearance

with Magnetically Attached

Full Coverage Steel Grille

• Pivoting Speaker Baffle

• Two - 5 1/4” Kevlar® Woofers

with Phase Plugs

• Independently Pivoting

1” Aluminum/Magnesium

Dome Tweeter

• Bass & Treble EQ Switches

• Timbre-Matched to All FIVE

Series Speakers

• Sensitivity: 91dB 1W/1m

• Power Handling: 100 Watts

• Adjustable Impedance:

8/6 Ohm

• Frequency Response:

48Hz - 20kHz

• Dimensions: (H x W x D)

17 7/16” x 9 1/4” x 4”

235mm x 443mm x 102mm

• Wall Cut-Out: (H x W)

14 1/4” x 7 1/2”

(362mm x 190mm)

• Flangeless Appearance

• Pivoting Baffle

• Two 5 1/4” Graphite

Woofers with Phase Plugs

• Pivoting 1” Silk Dome

Tweeter

• Timbre-Matched to All ONE

Series

• Sensitivity: 89dB 1W/1m

• Power Handling: 80 Watts

• Impedance: 8 Ohm

• Frequency Response:

55Hz - 20kHz

• Dimensions: (H x W x D)

17 1/8” x 9” x 4”

235mm x 443mm x 102mm

(with Grille)

• Wall Cut-Out: (H x W)

7 1/2” x 14 1/4”

190mm x 362mm

• Flangeless Appearance

• Pivoting Baffle

• Two 5 1/4” Aluminum/

Magnesium Woofers with

Phase Plugs

• Pivoting 1” Aluminum/

Magnesium Tweeter

• Bass & Treble EQ Switches

• Timbre-Matched to All

THREE/FOUR Series speakers

• Sensitivity: 90dB 1W/1m

• Power Handling: 100 Watts

• Adjustable Impedance:

8/6 Ohm

• Frequency Response:

50Hz - 20kHz

• Dimensions: (H x W x D)

17 1/8” x 9” x 4”

443mm x 235mm x 102mm

(with Grille)

• Wall Cut-Out: (H x W)

14 1/4” x 7 1/2”

362mm x 190mm

22

PROFILE - AIM CINEMA IN-WALL

PROFILE - AIM LCR3 IN-WALL

Profile AIM

LCR3 FIVE

Aim-able Speaker

Order# ASM54651-2

Profile AIM

LCR3 THREE

Aim-able Speaker

Order# ASM54631-2

Profile AIM

LCR3 ONE

Aim-able Speaker

Order# ASM54311-2

• 2-Way In-Wall LCR (Left,

Center, Right) Speaker with

Dual 3” Woofers and 3/4”

Tweeter mounted on a

Pivoting Speaker Baffle

• Flangeless Appearance

with Magnetically Attached

Full Coverage Steel Grille

• Pivoting Speaker Baffle

• Independently Pivoting

3/4” Aluminum/Magnesium

Dome Tweeter

• 2-Position Treble EQ Switch

• Timbre-Matched to All FIVE

Series Speakers

• Sensitivity: 86dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

Compatible

• Frequency Response:

60Hz - 20kHz

• Dimensions: (H x W x D)

10” x 5 3/4” x 3”

254mm x 146mm x 76mm

• Wall Cut-Out: (H x W)

9” x 4 3/4”

227mm x 120mm

• Flangeless Appearance

• Pivoting Baffle

• Two 3” Aluminum Woofers

with Phase Plugs

• Pivoting 3/4” Aluminum

Tweeter

• 2-Position Treble EQ Switch

• Sensitivity: 86dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

• Frequency Response:

78Hz - 20kHz

• Dimensions: (H x W x D)

10 1/2” x 6” x 3”

254mm x 146mm x 76mm

(with Grille)

• Wall Cut-Out: (H x W)

9” x 4 3/4”

227mm x 120mm

• Flangeless Appearance

• Pivoting Baffle

• Two 3” Graphite Woofers

with Phase Plugs

• Pivoting 3/4” Silk Tweeter

• Timbre-Matched to All

ONE Series

• Sensitivity: 85dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

• Frequency Response:

80Hz - 20kHz

• Dimensions: (H x W x D)

10 1/2” x 6” x 3”

254mm x 146mm x 76mm

(with Grille)

• Wall Cut-Out: (H x W)

9” x 4 3/4”

227mm x 120mm

23

CINEMA SUBWOOFER IN-WALL

PROFILE - AIM MT IN-WALL

Profile Cinema

Sub 10

Subwoofer

Order# ASM59010-2

Profile AIM7

MT THREE

Aim-able Speaker

Order# ASM57703-2

• Flangeless Appearance

• 10” Reinforced Treated

Paper Cone Woofer with

Dual Voice Coil

• Enhanced Performance

and Look

• Sensitivity: 89dB 1W/1m

• Power Handling: 250 Watts

• Impedance:

4 Ohms per Coil

• Frequency Response:

30Hz – 800Hz

• Dimensions: (H x W x D)

13 5/8” x 13 5/8” x 3 7/8”

346mm x 346mm x 98mm

• Cut-Out Dimensions: (H x W)

12 1/8” x 12 1/8”

308mm x 308mm

• Flangeless Appearance

• 7” Aluminum Woofer with

Phase Plug

• Pivoting 1” Aluminum

Tweeter

• Bass & Treble EQ Switches

• Timbre-Matched to All

THREE Series

• Sensitivity: 91dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8/6 Ohm

• Frequency Response:

40Hz - 20kHz

• Dimensions: (H x W x D)

(Full Pivot) 14” x 9 1/2” x 4”

356mm x 241mm x 102mm

(with Grille)

• Wall Cut-Out Dimensions:

(H x W) 12 3/4” x 8 1/16”

324mm x 206mm

24

PROFILE - 8” CRS IN-CEILING

PROFILE - 8” CRS IN-CEILING

Profile CRS8

THREE

Custom Round Series

Order# ASM56803-2

Profile CRS8

TWO

Custom Round Series

Order# ASM56802-2

Profile CRS8

ONE

Custom Round Series

Order# ASM56801-2

• Flangeless Appearance

• 8” Aluminum Woofer

• Pivoting 1” Aluminum

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 90dB 1W/1m

• Power Handling: 125 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

38Hz - 20kHz

• Diameter x Depth:

11 1/8” x 4 1/2”

303mm x 114mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

• Flangeless Appearance

• 8” Glass Composite Woofer

• Pivoting 1” Silk Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 90dB 1W/1m

• Power Handling: 100Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11 1/8” x 4 1/2”

303mm x 114mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

• Flangeless Appearance

• 8” Polypropylene Woofer

• Pivoting 1” Silk Tweeter

• WavePlane Technology

• Timbre-Matched to All ONE

Series

• Sensitivity: 89dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11 1/8” x 4 1/2”

303mm x 114mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

25

PROFILE - 6” CRS IN-CEILING

PROFILE - 6” CRS IN-CEILING

Profile CRS6

THREE

Custom Round Series

Order# ASM56603-2

Profile CRS6

TWO

Custom Round Series

Order# ASM56602-2

Profile CRS6

ONE

Custom Round Series

Order# ASM56601-2

• Flangeless Appearance

• 6 1/2” Aluminum Woofer

• Pivoting 1” Aluminum

Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 90dB 1W/1m

• Power Handling: 125 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 5/8” x 4 1/16”

249mm x 103mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

• Flangeless Appearance

• 6 1/2” Glass Composite

Woofer

• Pivoting 1” Silk Tweeter

• WavePlane Technology

• Bass and Treble EQ

Switches

• Sensitivity: 92dB 1W/1m

• Power Handling: 120 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 5/8” x 4 1/16”

249mm x 103mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

• Flangeless Appearance

• 6 1/2” Polypropylene

Woofer

• Pivoting 1” Silk Tweeter

• WavePlane Technology

• Timbre-Matched to All

ONE Series

• Sensitivity: 92dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 5/8” x 4 1/16”

249mm x 103mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

26

PROFILE - 3” CRS IN-CEILING

PROFILE - 5” CRS IN-CEILING

Profile CRS5.2

Custom Round Series

Order# ASM52000-2

Profile CRS3

Custom Round Series

Order# ASM56301-2

• Flangeless Appearance

• 5 1/4” Polypropylene

Woofer

• 1/2” Liquid Cooled

Polyamide Tweeter

• Sensitivity: 91dB 1W/1m

• Power Handling: 50 Watts

• Impedance: 8 Ohm

• Frequency Response:

55Hz - 20kHz

• Diameter x Depth:

8” x 3 1/4”

203mm x 83mm

(with Grille)

• Cut-Out Diameter:

6 3/4” (171mm)

• Flangeless Appearance

• 3” Aluminum Woofer

• Timbre-Matched to All

THREE Series

• Sensitivity: 86dB 1W/1m

• Power Handling: 40 Watts

• Impedance: 8 Ohm

• Frequency Response:

80Hz - 16kHz

• Diameter x Depth:

5 3/8” x 3 1/4”

137mm x 83mm

(with Grille)

• Cut-Out Diameter:

4 1/2” (113mm)

27

PROFILE - ACCUFIT ULTRA SLIM

PROFILE - ACCUFIT CRS

Profile AccuFit

CRS7 THREE

Contained Sound

Custom Round Series

Order# ASM56703-2

Profile AccuFit

Ultra Slim

ONE

Shallow Depth

In-Ceiling Speaker

Order# ASM53101-2

Profile AccuFit

Ultra Slim

THREE

Shallow Depth

In-Ceiling Speaker

Order# ASM53301-2

• Flangeless Appearance

• 7” Aluminum Woofer

• 3/4” Pivoting Aluminum

Tweeter

• Treble Equalization Switch

• Sealed Steel Enclosure

• WavePlane Technology

• Sensitivity: 92dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8 Ohm

• Frequency Response:

50Hz - 20kHz

• STL (Sound Transmission

Loss) Feature

• Diameter x Depth:

9 5/8” x 2 7/8”

244mm x 70mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

• 3-Way, Shallow-Depth,

Tuned Port, Magnetically

Shielded Steel Enclosure

• Flangeless Appearance

with Magnetically Attached

Full Coverage Steel Grille

• Two 3” Custom

Polypropylene Inverted

Dome Woofers

• Two 3” Custom Aluminum

Inverted Dome Midrange

Drivers

• 3/4” Resin Coated Silk

Dome Tweeter

• Extreme Shallow-Depth

Mounting Capability,

Needing only 2” (51mm) of

Depth

• Timbre-Matched to All ONE

Series Speakers

• Sensitivity: 89dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

• Frequency Response:

90Hz - 20kHz

• STL (Sound Transmission

Loss) Feature, 20dBA Sound

Reduction / Measuring

signal: Pink Noise

• Diameter x Depth:

9 15/16” x 2”

252mm x 51mm

• Cut-Out Diameter:

8 1/4” (210mm)

• 3-Way, Shallow-Depth,

Tuned Port, Magnetically

Shielded Steel Enclosure

• Flangeless Appearance

with Magnetically Attached

Full Coverage Steel Grille

• Two 3” Custom Aluminum

Inverted Dome Woofers

• Two 3” Custom Aluminum

Inverted Dome Midrange

Drivers

• 3/4” Aluminum Tweeter

• Extreme Shallow-Depth

Mounting Capability,

Needing only 2” (51mm) of

Depth

• Timbre-Matched to All

THREE Series Speakers

• Sensitivity: 90dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

• Frequency Response:

90Hz - 20kHz

• STL (Sound Transmission

Loss) Feature, 20dBA Sound

Reduction / Measuring

signal: Pink Noise

• Diameter x Depth:

9 15/16” x 2”

252mm x 51mm

• Cut-Out Diameter:

8 1/4” (210mm)

Installation Note:

AccuFit Speakers

The finest flush-mount speakers in the world

are useless if they cannot be installed due

to restrictions in a specific building’s walls or

ceiling. It may be a matter of sound penetrating

an adjoining wall, unique code restrictions,

or simply the customer’s requirements.

SpeakerCraft offers the AccuFit Series to

address space limitations, building codes, and

living environment concerns.

The AccuFit series of shallow-depth, fully

enclosed architectural speakers have the

proper amount of air space to deliver the

best sound performance regardless of the

installation environment. This line of technically

advanced speakers will fit just about any

installation.

28

PRODUCTION

SPEAKERS

&

MULTI-PACKS

PRODUCTION - MT IN-WALL

PRODUCTION - MT IN-WALL

MT6 THREE

In-Wall Speaker

Order# ASM87630-2

MT6 ONE

In-Wall Speaker

Order# ASM87610-2

• 6 1/2” Aluminum Woofer

with Dual Voice Coil,

Rubber Surround & Phase

Plug

• Pivoting 1” Aluminum

Tweeter

• Bass & Treble EQ Switches

• Sensitivity: 90dB 1W/1m

• Power Handling: 125 Watts

• Adjustable Impedance:

8/6/4 Ohm

• Frequency Response:

40Hz - 20kHz

• Dimensions: (H x W x D)

12 1/4” x 8 3/16” x 3 3/16”

311mm x 208mm x 81mm

• Wall Cut-Out Dimensions:

(H x W) 10 9/16” x 6 9/16”

268mm x 167mm

• 6 1/2” Polypropylene

Cone Woofer with Rubber

Surround & Phase Plug

• Pivoting 1” Silk Tweeter

• Timbre-Matched to All ONE

Series

• Sensitivity: 92dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

50Hz - 20kHz

• Dimensions: (H x W x D)

12 1/4” x 8 3/16” x 3 3/16”

311mm x 208mm x 81mm

• Wall Cut-Out Dimensions:

(H x W) 10 9/16” x 6 9/16”

268mm x 167mm

* These speakers are L & R specic and only sold in pairs

* These speakers are L & R specic and only sold in pairs

For pricing and information,

please visit: store.corebrands.com

Now with a wider array of whole

home options, our production

speakers and multi-packs deliver

value solutions for both commercial

and residential installations.

29

PRODUCTION - MISCELLANEOUS

WH6.1RT

Whole House Speaker

Order# ASM92611-2

AIM MDU ONE

Surface Mounted

Speaker

Order# ASM72401

WH6.0RT

Whole House Speaker

Order# ASM92604-2

• 6 1/2” Polypropylene

Woofer

• 1/2” Polyamide Tweeter

• Sensitivity: 90dB 1W/1m

• Power Handling: 75 Watts

• Impedance: 8 Ohm

• Frequency Response:

60Hz - 19kHz

• Dimensions: (H x W x D)

12 3/16” x 8 3/16” x 3 7/8”

310mm x 208mm x 98.43mm

• Wall Cut-Out: (H x W)

10 3/4” x 6 3/4”

273mm x 171mm

• 4” Graphite Cone Woofer

• 1” Silk Tweeter

• Tuned and Ported Enclosure

• Sensitivity: 87dB 1W/1m

• Power Handling: 60 Watts

• Impedance: 8 Ohm

Compatible

• Frequency Response:

78Hz - 20kHz

• Dimensions: (H x W x D)

4 25/32” x 7 5/16” x 4 3/16”

122mm x 186mm x 106mm

• Bracket Dimensions:

(H) 9 1/2” (241mm)

• 6 1/2” Polypropylene

Woofer

• 1/2” Polyamide Tweeter

• Sensitivity: 87dB 1W/1m

• Power Handling: 40 Watts

• Impedance: 8 Ohm

• Frequency Response:

80Hz - 15kHz

• Dimensions: (H x W x D)

12 3/16” x 8 3/16” x 3 7/8”

310mm x 208mm x 98.43mm

• Wall Cut-Out: (H x W)

10 3/4” x 6 3/4”

273mm x 171mm

PRODUCTION - WHOLE HOUSE IN-WALL

Installation Note:

Surface Mounts

There are certain situations where the use of

in-wall or in-ceiling speakers are simply not

feasible. The Multiple Dwelling Unit or MDU is a

perfect example. Sound transference into an

adjoining unit, code restrictions that prevent

cutting into the wall or ceiling surface, or the

use of concrete or brick in the construction

process are all reasons that make a flush-

mounted speaker unworkable.

30

AIM7

5 Pack

Directional Speaker

Order# ASM82721-5-2

• 5 PACK Bundle of the

Classic Styled AIM7 TWO

• 2-Way Fully Pivoting

In-Ceiling Speaker with 7”

Woofers and 1” Tweeter

• Pivoting 7” Resin Reinforced

Fiberglass Woofer

• Pivoting 1” Silk Dome

Tweeter

• WavePlane Technology

• 2-Position Treble EQ Switch

• Timbre-Matched to All TWO

Series Speakers

• Paint Shields Included

• Sensitivity: 90dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 7/8” x 5 1/8”

251mm x 130mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

• Not Packaged for Individual

Retail Sale

8.2 BAS

In-Ceiling Subwoofer

Order# ASM90920-2

• 8” Graphite Dual Voice Coil

Woofer

• Adjustable Low-Pass

Crossover, 80Hz or 120Hz

• Front-Mounted 180˚ Phase

Reversal Switch

• Recommended Amplifier -

Bass Power 250

• Sensitivity: 90dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Adjustable Frequency

Response: 30Hz - 120Hz or

30Hz - 80Hz

• Diameter x Depth:

11 15/16” x 4 1/4”

303mm x 108mm

• Cut-Out Diameter:

9 3/4” (248mm)

• Weight: 6.4 lbs. (2.9 kg)

MULTI-PACK - SUBWOOFER

MULTI-PACK - AIM

AIM8

5 Pack

Directional Speaker

Order# ASM93811-5-2

• 5 PACK Bundle of the

Classic Styled AIM8 ONE

• 2-Way Fully Pivoting,

In-Ceiling Speaker with 8”

Woofers and 1” Tweeter

• Pivoting 8” Polypropylene

Woofer

• Pivoting 1” Treated Silk

Dome Tweeter

• WavePlane Technology

• Timbre-Matched to All ONE

Series Speakers

• Paint Shields Included

• Sensitivity: 88dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11 7/16” x 5 3/4”

291mm x 146mm

(with Grille)

• Cut-Out Diameter:

9 3/4” (248mm)

• Not Packaged for Individual

Retail Sale

* Minimum 4 per order

31

MULTI-PACK - CRS

Profile A6

5 Pack

In-Ceiling Speaker

Order# ASM51600-5-2

CRS6 ZERO

5 Pack

In-Ceiling Speaker

Order# ASM86601-5-2

WH6.1R

5 Pack

Whole House Speaker

Order# ASM94611-5-2

• Flangeless Appearance

• 6 1/2” Polypropylene

Woofer with Rubber

Surround

• Pivoting 1” Silk Tweeter

• Woofer and Tweeter Baffle

Fixed at 15 Degrees

• Sensitivity: 92dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz-20kHz

• Diameter x Depth:

9 1/4” x 4 5/8”

235 mm x 117 mm

(with Grille)

• Cut-Out Diameter:

8 1/4” (210mm)

• 6 1/2” Polypropylene

Woofer with Rubber

Surround

• Pivoting 1” Silk Tweeter

• Sensitivity: 92dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

9 13/16” x 4 1/16”

249 mm x 97 mm

• Cut-Out Diameter: 8 1/4”

(210 mm)

• 6 1/2” Polypropylene

Woofer with Rubber

Surround

• 1/2” Polyamide Tweeter

• Sensitivity: 90dB 1W/1m

• Power Handling: 50 Watts

• Impedance: 8 Ohm

• Frequency Response:

60Hz -19kHz

• Diameter x Depth:

9 13/16” x 3 3/8”

249 mm x 86 mm

• Cut-Out Diameter:

81⁄4” (210 mm)

MULTI-PACK - SPEAKERS

CRS8 ZERO

5 Pack

In-Ceiling Speaker

Order# ASM86801-5-2

• 8” Polypropylene Woofer

with Rubber Surround

• Pivoting 1” Silk Tweeter

• Sensitivity: 92dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Diameter x Depth:

11 15/16” x 4 1/2”

303 mm x 114 mm

• Cut-Out Diameter: 9 3/4”

(248 mm)

32

SEAMLESS

SPEAKERS

SEAMLESS - INVISIBLE

SEAMLESS - INVISIBLE

Seamless FR1

Invisible In-wall

Speaker

Order# ASM60100

• Sensitivity: 87dB

• Frequency Response:

60Hz - 22kHz

• Impedance: 8 Ohm

• Power Handling: 100W

• Maximum SPL: 105dB

• Seamless Uses Live-wall

Technology

• Dimensions: (H x W x D)

16 3/4” x 13” x 2 3/4”

406mm x 330.2mm

x 69.85mm

For pricing and information,

please visit: store.corebrands.com

The Seamless series delivers a

completely invisible design that

lets your audio be heard and not

seen. Hidden under paint, plaster,

wallpaper or stucco, Seamless uses

a direct-radiating point source

design that enables an “invisible

installation.” Our heritage in this

space has made us audio experts,

but it is our receptivity to customer

feedback that has heightened

our aesthetic sensibilities. Utilizing

Live-Wall Technology, we have

truly elevated the aesthetic and

acoustic appeal of this speaker by

fully integrating it into the wall for a

“seamless” experience.

Woven berglass vibrates imperceptibly to accomplish pristine

sound reproduction across a full frequency range.

Less than three inches deep and weighing only eight pounds, the

FR1 was designed for hassle-free installation, whether arranged

vertically, horizontally, or within a wall or ceiling.

Of course, its greatest charm lies in its complete invisibility. Your

only reminder a Seamless speaker exists will be the beautiful

music lling your home.

33

COMMERCIAL

SPEAKERS

For pricing and information,

please visit: store.corebrands.com

Setting the standard in commercial

space, the SpeakerCraft Commercial

series features technologies designed

specically to minimize interaction

between the tweeter and the

woofer surface and create a richer,

cleaner sound. Coaxially mounted

tweeters supported by our patented

WavePlane Tweeter Bafe produce

greater dispersion and enhanced

high frequency response.

All Commercial models include tuned

and ported back cans that enable

the woofers to create maximum bass

output in a compact enclosure. All

models also feature a rotary switch

on the bafe and behind the grill,

which lets the installer select multiple

taps for 70V/100V constant-voltage

system operation or to bypass the

transformer entirely and use the

speaker in a traditional 8 Ohm mode.

For high performance, ease of

installation, durability, exibility and a

lifetime warranty, look no further than

the SpeakerCraft Commercial series.

34

COMMERCIAL - SC PRO IN-CEILING

COMMERCIAL - SC PRO IN-CEILING

SC Pro

Commercial 8

In-Ceiling Speaker

Order# SPS42855-2

SC Pro

Commercial 6

In-Ceiling Speaker

Order# SPS42655-2

SC Pro

Commercial

Sub 8

In-Ceiling Subwoofer

Order# SPS43855-2

• 8” Polypropylene Woofer

• 1” Pivoting Polyamide

Tweeter Mounted On A

WavePlane Tweeter Baffle

• UL 1480 Certified

• Sensitivity: 88dB 1W/1m

• Power Handling: 140 Watts

• Impedance: 8 Ohm

• Transformer Taps:

70V: 64W, 32W, 16W, 8W

• 100V: 64W, 32W, 16W +

Transformer Bypass (8Ω)

• Frequency Response:

56Hz - 20kHz

• Diameter x Depth:

12 15/16” x 9 5/16”

329mm x 236.47mm

• 6 1/2” Polypropylene

Woofer

• 1” Pivoting Polyamide

Tweeter Mounted On A

WavePlane Tweeter Baffle

• UL 1480 Certified

• Sensitivity: 88dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 8 Ohm

• Transformer Taps:

70V: 64W, 32W, 16W, 8W

• 100V: 64W, 32W, 16W +

Transformer Bypass (8Ω)

• Frequency Response:

70Hz - 20kHz

• Diameter x Depth:

8 5/16” x 10 5/16”

211mm x 262mm

• 8” Polypropylene Woofer

• UL 1480 Certified

• Sensitivity: 87dB 1W/1m

• Power Handling: 140 Watts

• Transformer Taps:

70V: 64W, 32W, 16W, 8W

• 100V: 64W, 32W, 16W +

Transformer Bypass (8Ω)

• Impedance: 8 Ohm

• Frequency Response:

30Hz - 200kHz

• Diameter x Depth:

12 15/16” x 13 1/4”

329mm x 337mm

35

SUBWOOFERS

For pricing and information,

please visit: store.corebrands.com

Great bass is a critical component

to any music or theater system, but

aesthetics have proven to be an

equally key ingredient for today’s sub

shopper. For that, we have optimized

our subwoofer selection by carefully

designing each woofer, cabinet, and

amp to perform as a single system–

the result being an in-wall or oor

standing solution that is unobtrusive

and blends into the décor.

All subwoofers feature a variable

low-pass lter to allow the sub to be

used with any set of SpeakerCraft

speakers. From Passive In-Ceiling

Subwoofers to Cinema In-Wall and

Floorstanding Subs, these break

through the noise with a distinct

combination of brawn and beauty.

36

SUBWOOFERS - VITAL SERIES FLOORSTANDING

SUBWOOFERS - VITAL SERIES FLOORSTANDING

V12

12” Floorstanding

Subwoofer

Order# ASM99012

V10

10” Floorstanding

Subwoofer

Order# ASM99010

V8

8” Floorstanding

Subwoofer

Order# ASM99008

• 12” Long Throw Woofer

• Built-In 250

Watt Amplifier

• Auto Power Via

Signal Sensing

• Recessed Volume Control

• Magnetically Shielded

• Frequency Response:

28Hz - 200Hz

• LFE (Low-Frequency Effects)

Input

• Overload Protection Circuit

• Dual Voltage Switch

115/230V

• Dimensions: (H x W x D)

19” * x 15” x 16 1/2” **

483mm x 381mm x 419mm

(Not Including Feet)

• Weight: 44 lb (19.96kg)

• 10” Long Throw Woofer

• Built-In 120 Watt

Amplifier

• Auto Power Via Signal

Sensing

• Recessed Volume Control

• Magnetically Shielded

• Frequency Response:

32Hz - 200Hz

• LFE (Low-Frequency Effects)

Input

• Overload Protection Circuit

• Dual Voltage Switch

115/230V

• Dimensions: (H x W x D)

16 3/4” * x 13 1/4” x 16” **

425mm x 337mm x 407mm

(Not Including Feet)

• Weight: 35 lb (15.88kg)

• 8” Long Throw Woofer

• Built-In 80

Watt Amplifier

• Auto Power Via Signal

Sensing

• Recessed Volume Control

• Magnetically Shielded

• Frequency Response:

45Hz - 200Hz

• LFE (Low-Frequency Effects)

Input

• Overload Protection Circuit

• Dual Voltage Switch

115/230V

• Dimensions: (H x W x D)

12 1/2” * x 10 3/4”

x 15 1/4” **

318mm x 273mm x 388mm

(Not Including Feet)

• Weight: 24 lb (10.89kg)

* Add 1 3/16" (21mm) for feet

** Measurement does not include binding posts/banana plug connectors. Please allow another 4" (102mm) for cable connections.

Additional Subwoofer:

Prole Cinema Sub 10 - page 22

Additional Subwoofer:

Seamless Subwoofer - page 32

37

LANDSCAPE

SPEAKERS

For pricing and information,

please visit: store.corebrands.com

Bring indoor audio enjoyment outdoors

with SpeakerCraft Landscape Audio.

Featuring weatherproof landscape

speakers that blend seamlessly into any

outdoor environment and a selection

of burial-rated subwoofers that provide

incredible performance even in the

largest backyards, Landscape speakers

from SpeakerCraft are sure to bring

brilliant audio performance to any

outdoor space.

38

SC-OG-4

4” (100mm) 2-way

All-Weather Outdoor

Satellite Speaker

SC-OG-6

6” (152mm) 2-way

All-Weather Outdoor

Satellite Speaker

• 4” (100mm) Polypropylene

Cone Woofer with NBR

Surround

• 3/4” (20mm) Aluminum

Dome Tweeter

• Weather-Resistant

Fiberglass-Reinforced ABS

Enclosure

• Sensitivity: 84dB

• Frequency Response:

110Hz-20kHz +/- 3dB

• Power Handling: Up to 90W

• Nominal Impedance: 8

ohms (in Bypass Mode)

• Tap Settings: 70V/100V:

3.75W (70V only), 7.5W,

15W, 30W, 8 Ohm (Bypass)

• Dimensions: 10” x 5-7/8”

x 10-1/4” (253mm x

149mm x 261mm) (without

accessories)

• Sold individually

• Mounting accessories sold

separately

• 6” (152mm) Polypropylene

Cone Woofer with NBR

Surround

• 3/4” (20mm) Aluminum

Dome Tweeter

• Weather-Resistant

Fiberglass-Reinforced ABS

Enclosure

• Sensitivity: 87dB

• Frequency Response:

100Hz-20kHz +/- 3dB

• Power Handling:

Up to 120W

• Nominal Impedance:

8 ohms (in Bypass Mode)

• Tap Settings: 70V/100V:

3.75W (70V only), 7.5W,

15W, 30W, 8 Ohm (Bypass)

• Dimensions: 11-3/4” x 7-3/4”

x 12” (300mm x 195.6mm

x 307mm) (without

accessories)

• Sold individually

• Mounting accessories

sold separately

Features:

Durable Weatherproof Design

Weatherproof fiberglass reinforced ABS enclosures are rugged, ensure years of reliable

performance and are no match for weed whackers and outdoor lawn equipment.

Nickel-Plated Brass Fittings

We’ve addressed a common failure point among other landscape speakers by relying on solid

brass fittings that are then nickel plated rather than plastic.

Adjustable Volume Control

Need it louder near the pool but quieter near your eating area? No problem! Control the volume

of each speaker individually by adjusting the tap switch settings on the back of each speaker

(70V/100V mode only).

Better Coverage

110-degree wide dispersion ensure outdoor filling sound with better coverage than a

traditional speaker.

LANDSCAPE SPEAKERS

LANDSCAPE SPEAKERS 39

SC-BT-10

10” (250mm) Boom

Tomb In-Ground

Subwoofer

• 10” (250mm) Mica-injected

Polypropylene cone woofer

with NBR Surround

• Waterproof HDPE enclosure

• Buried Enclosure with

critter-proof port assembly

• Optimized for use with

OG-4 or OG-6 landscape

speakers

• Sensitivity: 84dB

• Frequency Response:

30Hz-100Hz +/- 3dB

• Power Handling: Up to

300W

• Nominal Impedance:

8 ohms

• Dimensions: 15-3/4” x

15-3/4” x 23-1/4” (400mm

x 400mm x 590.2mm) (with

port assembly installed)

• Recommended Amplifier:

Crown CDi 2|600 Amplifier

• Sold individually

SC-BT-12

12” (300mm) Boom

Tomb In-Ground

Subwoofer

• 12” (300mm) Mica-injected

Polypropylene cone woofer

with NBR Surround

• Waterproof HDPE enclosure

• Buried Enclosure with

critter-proof port assembly

• Optimized for use with

OG-4 or OG-6 landscape

speakers

• Sensitivity: 86dB

• Frequency Response:

28Hz-100Hz +/- 3dB

• Power Handling: Up to

500W

• Nominal Impedance:

8 ohms

• Dimensions: 34-3/4” x

15-3/4” x 33-3/4” (884mm

x 400mm x 857.5mm) (with

port assembly installed)

• Recommended Amplifier:

Crown CDi 2|600 Amplifier

• Sold individually

IN-GROUND SUBWOOFERS

IN-GROUND SUBWOOFERS

Features:

Waterproof Design

Waterproof HDPE enclosures are made from the same material used in municipal water supply

lines. We even dunk test every subwoofer at the manufacturing facility before it ships to ensure

no leaks.

High-Flow Port Design

The internal design of the port and canopy assembly spreads moving air evenly in a 360 degree

pattern reducing air turbulence and eliminating annoying port noise.

Woofer-Cooling Air Flow

The woofer magnet is located on the vented side of the enclosure which allows it to be cooled by

airflow in and out the enclosure providing added longevity to the motor structure.

Critter-Proof Cover

The port assembly is covered by an aluminum mesh grille that allows unrestricted airflow yet

prevents intrusion of bugs, animals and debris.

40

AW-LS-STAKE

Landscape Speaker

Stake Mount

AW-LS-CONDUIT

Landscape Speaker

Conduit Box Mount

Crown CDi

DriveCore 2|600

Power Amplifier

Recommended Amplifier

for Landscape Speakers

and Subwoofer

AW-LS-MOUNT

Landscape Speaker

Surface Mount

• 12” (300mm) stake mount

for in-ground mounting

• Quick connect design for

easy assembly

• Dimensions: 3-3/4” x 3-3/4”

x 13” / (94mm x 94mmx

332mm)

• Sold individually

• Speaker mount for

installations that

use speaker wire in

underground conduit

• Doubles as a wiring

junction box

• Designed for use with

standard ¾” conduit

• Stable base with aluminum

spike reinforcement

• Quick connect design for

easy assembly

• Weatherproof

• Includes additional 2”

(50mm) extension arm for

adjustable speaker height

• Dimensions:

5-7/8” x 5-7/8” x 7-1/3” /

(150mm x 150mm x 186mm)

(without extension)

5-7/8” x 5-7/8” x 9-1/3” /

(150mm x 150mm x 237mm)

(with extension)

• 600W x 2 at 4 Ohms

• Pre-loaded with custom

DSP curves for landscape

speakers and subwoofers

• Simultaneous 70V/100V

and 8 Ohm operation

• 2U rack mountable

• Network controllable

• Compatible with Harman’s

HiQnet Audio Architect

software

• Dimensions:

19” x 12-1/4” x 3.5” (483mm

x 311mm x 89mm)

• Designed for mounting to

flat surfaces like walls or

decks

• Quick connect design for

easy assembly

• Dimensions: 3-15/16” x

3-15/16” x 1-7/8” / (100mm

x 100mm x 46.5mm)

• Sold individually

LANDSCAPE ACCESSORIES

LANDSCAPE AMPLIFIER

OR

15.75

400

10.74

272.8

22.84

580.2

10.63

270

13.05

331.5

NI-GSBSUB-10

14.37

365

35.71

907

21.02

533.8

15.75

400

27.74

704.5

min

NI-GSSUB-12

33.17

842.5

max

==

Installation

Configuration

41

OUTDOOR

SPEAKERS

For pricing and information,

please visit: store.corebrands.com

SpeakerCraft outdoor speakers

afford you the luxury of enjoying

your favorite entertainment audio

outside of the home. We created

our outdoor speakers to fill the need

for high-quality sonic performance in

these exterior settings. It’s not widely

known, but open-air applications

require entirely different EQ

curves and driver complements to

create the same natural response

experienced in an enclosed space

like a living room or home theater.

Our specially crafted outdoor

speakers provide the full bodied,

dynamic performance that

homeowners desire. Whether under

eaves, around patios, near the

swimming pool or buried within

shrubbery, these speakers enable

anyone to enjoy a seamless transition

from the home to the garden.

42

OE6 THREE

Under Eave Speaker

White Order# ASM80631

Black Order# ASM80636

• One 6 1/2” Aluminum

Woofer with Rubber

Surround

• Pivoting 1” Liquid Cooled

Aluminum Tweeter

• Timbre-Matched to All

THREE Series

• Sensitivity:

90dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 4 Ohm

• Frequency Response:

50Hz - 20kHz

• Dimensions: (H x W x D)

11 1/16” x 7” x 6 1 1/16”

281mm x 178mm x 170mm

OE8 THREE

Under Eave Speaker

White Order# ASM80831

Black Order# ASM80836

• One 8” Aluminum Woofer

with Rubber Surround

• One 2 1/2” Aluminum

Dome Midrange

• One Pivoting 1” Liquid

Cooled Aluminum Tweeter

• Timbre-Matched to All

THREE Series

• Sensitivity:

90dB 1W/1m

• Power Handling: 150 Watts

• Impedance: 4 Ohm

• Frequency Response:

40Hz - 20kHz

• Dimensions: (H x W x D)

15 3/4” x 8 3/4” x 8 3/8”

400mm x 222mm x 213mm

OE DT6 ONE

Under Eave Speaker

White Order# ASM80600

Black Order# ASM80605

• 6 1/2” Dual Voice Coil

Graphite Woofer

• Dual Pivoting 1” Liquid

Cooled Treated Silk

Tweeters

• Timbre-Matched to All ONE

Series

• Sensitivity: 90dB 1W/1m

• Power Handling: 125 Watts

• Impedance: 4 Ohm

• Frequency Response:

68Hz - 20kHz

• Dimensions: (H x W x D)

7” x 12” x 7 7/16”

178mm x 305mm x 189mm

OUTDOOR - UNDER EAVE SPEAKERS

OUTDOOR - UNDER EAVE SPEAKERS

OE6 ONE

Under Eave Speaker

White Order# ASM80611

Black Order# ASM80616

• One 6 1/2” Graphite

Woofer with Rubber

Surround

• One Pivoting 1” Liquid

Cooled Silk Tweeter

• Sensitivity: 89dB

1W/1m

• Power Handling: 125 Watts

• Impedance: 4 Ohm

• Frequency Response:

52Hz - 20kHz

• Dimensions: (H x W x D)

11 1/16” x 7” x 6 11/16”

281mm x 178mm x 170mm

43

OE5 ONE

Under Eave Speaker

White Order# ASM80511

Black Order# ASM80516

• 5 1/4” Graphite Woofer

• Pivoting 1” Liquid Cooled

Treated Silk Tweeter

• Timbre-Matched to All ONE

Series

• Sensitivity:

89dB 1W/1m

• Power Handling: 100 Watts

• Impedance: 4 Ohm

• Frequency Response:

54Hz - 20kHz

• Dimensions: (H x W x D)

9 1/4” x 6 9/16” x 7”

235mm x 167mm

x 178mm

OUTDOOR - ROCK SPEAKERS

OUTDOOR - UNDER EAVE SPEAKERS

Ruckus 8 ONE

Landscape Speaker

Granite# ASM33815

Sandstone# ASM33817

Ruckus 6 ONE

Landscape Speaker

Granite# ASM33615

Sandstone# ASM33617

• 8” Polypropylene Woofer

with Sealed Voice Coil and

Silicone Encased Leads

• 1/2” Polyamide Tweeter

with Silicone Encased

Leads, Coaxially Mounted

• Sensitivity: 90dB 1W/1m

• Power Handling: 120 Watts

• Impedance: 8 Ohm

• Frequency Response:

35Hz - 20kHz

• Dimensions: (H x W x D)

11 5/8” x 15 5/8” x 12 3/4”

294mm x 396mm x 324mm

• 6 1/2” Polypropylene

Woofer with Sealed Voice

Coil and Silicone Encased

Leads

• 1/2” Polyamide Tweeter

with Silicone Encased

Leads, Coaxially Mounted

• Sensitivity: 91dB 1W/1m

• Power Handling: 80 Watts

• Impedance: 8 Ohm

• Frequency Response:

40Hz - 20kHz

• Dimensions: (H x W x D)

9 1/8” x 13” x 10 1/2”

233mm x 330mm x 267mm

44

AMPLIFIERS

AMPLIFIERS

SC2-50

Amplifier

Order# SC2-50

SC2-100

Amplifier

Order# SC2-100

• Digital high current

bridgeable stereo amplifier

• 50 Watts RMS per channel

into 8 Ohms

(all channels driven)

• 100 Watts RMS per channel

into 4 Ohms

(all channels driven)

• Channels are bridgeable to

225 Watts RMS

into 8 Ohms

• Rack mount ears included

• Auto switching 110V-230V

power supply

• Voltage trigger input

accepts 3-24VAC/DC

• Dimensions: (H x W x D)

2 1/4” x 17 1/4” x 13 1/2”

56mm x 438mm

x 343.5mm

• Weight: 10.8 lb (4.9 kg)

• Digital high current

bridgeable stereo amplifier

• 100 Watts RMS per channel

into 8 Ohms (all channels

driven)

• 220 Watts RMS per channel

into 4 Ohms (all channels

driven)

• Channels are bridgeable to

400 Watts RMS into 8 Ohms

• Rack mount ears included

• Auto switching 110V-230V

power supply

• Voltage trigger input

accepts 3-24VAC/DC

• Dimensions: (H x W x D)

2 1/4” x 17 1/4” x 13 1/2”

56mm x 438mm x 343.5mm

• Weight: 10.8 lb (4.9 kg)

AMPLIFIERS

For pricing and information,

please visit: store.corebrands.com

More power, more channels, more

music. SpeakerCraft ampliers deliver

the power and delity homeowners

are seeking — whether it’s a couple

of channels for stereo or whole home

audio distribution. SpeakerCraft

engineers have always understood

that the amplier line would have

to address myriad situations. After

years of success with our Big Bang

and Vital ampliers, SpeakerCraft

has fully ReCrafted the amplier

lineup with the SC Series ampliers:

SC2-50, SC2-100, SC2-150, SC12-30

and SC16-50. Hear it to believe it.

45

AMPLIFIERS

AMPLIFIERS

SC2-150

Amplifier

Order# SC2-150

SC12-30

Amplifier

Order# SC12-30

SC16-50

Amplifier

Order# SC16-50

Bass Power 250

Amplifier

Order# AMPX67250

• Digital high current

bridgeable stereo amplifier

• 150 Watts RMS per channel

into 8 Ohms (all channels

driven)

• 270 Watts RMS per channel

into 4 Ohms (all channels

driven)

• Channels are bridgeable to

550 Watts RMS into 8 Ohms

• Auto switching 110V-230V

power supply

• Voltage trigger input

accepts 3-24VAC/DC

• Rack mount ears included

• Dimensions: (H x W x D)

2 1/4” x 17 1/4” x 13 1/2”

56mm x 438mm x 343.5mm

• Weight: 10.8 lb (4.9 kg)

• Fully configurable

12-Channel amplifier

• 30 Watts RMS per channel

into 8 Ohms (all channels

driven)

• 40 Watts RMS per channel

into 4 Ohms (all channels

driven)

• Adjacent channels are

bridgeable to 80 Watts RMS

into 8 Ohms

(all channels driven)

• Switchable 110V-230V

power supply

• Independent level controls

for all 12 channels

• Voltage trigger input

accepts 3-24VAC/DC

• Rack mount ears included

• Dimensions: (H x W x D)

5 3/4” x 17 1/4” x 16 1/4”

144.7mm x 438mm x 411mm

• Weight: 35 lb (15.8 kg)

• Fully configurable

16-Channel amplifier

• Auto switching 110V-230V

power supply

• Unique web browser

configuration allows each

channel to select from any

of 16 inputs or combination

of inputs

• Status display for

troubleshooting

• Independent thermal and

short circuit protection on

each channel

• Three turn-on modes: music

sense, voltage trigger, and

manual

• IP web-based configurable

EQ adjustment, volume

level and high/low pass

selection

• Rack mount ears included

• Dimensions: (H x W x D)

5 3/4” x 17 1/4” x 16 1/4”

144.7mm x 438mm x 411mm

• Weight: 35 lb (15.8 kg)

• Mono Class A-B Amplifier

Recommended for Cinema

Sub 10 & BoomTomb Sub

• Dual Voltage Switch,

115/230V Certification For

US, Europe, & Australia

• Includes Rack Mount

Brackets

• Auto Sense Power On

• Variable Low Pass

Crossover 50Hz-150Hz

• Fully Optimized System

(Cinema Sub 10,

AccuTuneBox 10

& BoomTomb)

• Power Output: 250 Watts

• Impedance Handling:

4 Ohm

• Frequency Response:

30Hz - 600Hz (LFE Input)

• Dimensions: (H x W x D)

3 1/2” x 17” x 11 1/2”

89mm x 432mm x 292mm

46

CONTROL

For pricing and information,

please visit: store.corebrands.com

SpeakerCraft delivers complete

control for audio installations

throughout the home — from

the home theater to the garden.

Powerful, flexible, and easy to use,

the ecosystem of our state-of-

the-art controller and convenient

remote, keypads, and touch

panels puts users in full control of

their audio experience — selecting

audio sources, advancing tracks,

adjusting volume, and more as

they enjoy different audio sources

in different rooms simultaneously.

47

CONTROL

CONTROL

WHOLE HOME AUDIO

SpeakerCraft has long been the choice of custom installers for

its bold performance, premier audio, and designer aesthetics.

The MRA-664 and ecosystem do not disappoint.

MRA-664

Multi-Room Amplifier

Order# MRA-664

• Six Source, Six Zone Multi-

Room Controller

• Home Theater Control

• Control of streaming

content (Autonomic™,

Sonos™, LMS™, Yamaha™,

Fusion Research™, Vortex™,

S1 Digital™)

• Compatible with

SpeakerCraft handheld

and wall-mounted user

interfaces as well as

Windows, Mac, and

mobile devices.

• Control of legacy content

devices: CD players, set top

boxes, etc. via IR

• Dimensions: (H x W x D)

3 1/2” x 17 1/4” x 12 7/8”

88mm x 438mm x 328mm

• Weight: 18 lb (8.6 kg)

• (4) 30W/ch amplified

outputs

• 6 zone preamp outputs

EXPLORE THE

POSSIBILITIES

The SpeakerCraft MRA-664 whole home audio

controller delivers up to half a dozen unique

music sources for amazing sound in every room of

the house. This MRA integrates multi-room audio

and home theater control — with easy access to

streaming sources through its Sonos® interface —

in a way that is simple to set up and easy to enjoy.

A job that might have once required hours of

programming has been distilled down to a simple

execution. For larger homes, two MRAs can be

paired to create a six-source 12-zone system. This

means 12 rooms with music porting into each of

them. Additionally, all zones are equipped with

fixed or variable pre-outs, making it simple to add

power and volume with one of our acclaimed

SpeakerCraft Amplifiers.

48

sTP7

Touchscreen

Order# sTP7-W (White) / sTP7-B (Black)

sTP4

Touchscreen

Order# sTP4-W (White) / sTP4-B (Black)

• 7” diagonal viewable area

LCD touchscreen interface

• Capacitive sense

touchscreen

• Proximity sensor to wake

from sleep without touching

• Portrait or landscape

mounting

• Supports TCP/IP

communication;

Wi-Fi support

• Network: 10/100 Ethernet /

802.11 B/G/N Wi-Fi

• Dimensions: (H x W x D)

5” x 8” x 1 3/4”

127mm x 203mm x 44.5mm

• Screen size: 7-inch

diagonal, 16:9 widescreen

• 4.7” diagonal viewable

area LCD touchscreen

interface

• Contemporary, sleek

industrial design

• Edge to edge glass

• Capacitive sense

touchscreen

• Proximity sensor to wake

from sleep without touching

as hand approaches

• Portrait or landscape

• Mounts into drywall, brick,

stone, plaster, and wood,

using a standard 1g US or

UK junction box

• Supports TCP/IP

communication

• Plug and play operation

with the MRA-664

• Locally powered (optional)

• Available in white and

black bezel

CONTROL

sKP7

Keypad

Order# sKP7

sHR200

Remote Control

Order# sHR200

• 7-button backlit keypad

designed to allow

simple control of the

SpeakerCraft MRA

• Four favorite channels

plus volume up and down

control, system &

all zones off

• PoE for single wire hookup

• Custom engraveable

buttons

• Gangable with most

1g devices

• Dimensions: (H x W x D)

4 1/8” x 1 3/4” x 1 1/4”

• Mounting Depth: 1 3/4”

• Sleek remote for the

intuitive SpeakerCraft MRA

• 46 backlit tactile buttons for

common functions found

on today’s audio/video

sources

• 2.4” LCD metadata display

• Accelerometer for

activating LCD and

backlight

• Uses instant-on Wi-Fi for

communication

• IR blaster for line-of-sight

control

• Dimensions: (H x W x D)

9 1/8” x 2 1/4” x 7/8”

CONTROL

49

ACCESSORIES

For pricing and information,

please visit: store.corebrands.com

SpeakerCraft has all the accessories

to round out your installations.

Led by the SmartPath Infrared

Control Kit, SpeakerCraft’s IR line-

up features advanced technology

to deliver outstanding performance

and reliability in a wide variety of

installations. With our speaker/line

level A/B switches and our four-zone

and eight-zone speaker selectors,

you’ll have an easy time getting the

right level to the right speaker.

50

SMARTPATH

IRC 4.0 Kit

Infrared Control Kit

Order# ELT00001

IRC-1.0

Flush-Mount

Mini IR Receiver

Order# ELT01100

IRC 4.0 is the only IR kit needed for any application, containing

all components for a one room system setup. The revolutionary

new micro IR receiver design provides tremendous installation

flexibility. Includes snap-in adapters for tabletop, surface mount

and flush mount applications. Compatible with most plasma,

LCD, LED, OLED, and DLP® TVs.

Includes:

(1) Mini IR Sensor

(1) Tabletop Adapter

(1) Flush Mount Adapter

(1) Surface Mount Adapter

(1) IR Router

(4) IR Single Flashers

(1) IR Power Supply

• Unique Quad 3.5mm Mini-

Phone Type Connector

• Exclusive Ambient Noise

Suppressor

• Includes Four Snap-On

Color Cap Bezels (Almond,

Black, Bone, and White)

• Small Unit Designed To

Mount Flush with a Cabinet

or Wall, Leaving Only a

Circular Bezel Exposed to

the Room

• May Be Mounted Behind

Grille of In-Wall Speaker

• IR Activity and System

Status LEDs

• Frequency Range:

28 - 90 kHz

• Requires Regulated Power

Supply, Terminator Block,

and Emitters

• Includes ALR Bezels for

Use in Situations with

Interference from Plasma

Displays or CFL Units

• The Two Sizes of Ambient

Light Restrictor Bezels

Reduce the IR Reception

Angle from 100˚ to 60˚

or 70˚

• Dimensions: (Dia x L)

1 5/32” x 2 5/8”

12mm x 67mm

• Color Cap Bezel: (Dia x L)

4 7/64” x 1/8”

19mm x 3mm

• ALR Bezel: (Dia x L)

4 7/64” x 2 3/64”

19mm x 9mm

ACCESSORIES - SMARTPATH IR RECEIVERS

IRC-2.0

Surface-Mount

Mini IR Receiver

Order# ELT01200BK

IRC-2P2.1

Surface-Mount

Mini IR Receiver

Order# ELT01215

• Quad 3.5mm Mini-Phone

Type Connector

• Exclusive Ambient Noise

Suppressor

• Designed To Mount to the

Surface of a Cabinet,

TV Set, or Wall

• IR Activity and System

Status LEDs

• Frequency Range:

28 - 90 kHz

• Requires Regulated Power

Supply, Terminator Block,

and Emitters

• Dimensions: (L x W x D)

2 9/16” x 9/16” x 9/16”

65mm x 14mm x 14mm

• Connects Via Four Stripped

Conductor Wires

• Exclusive Plasma Blocking

“Smart” Circuit for Severe

Plasma or Multiple CFL

Environments

• Pick-Up Module Allows

Mounting on Flat Surfaces In

Very Tiny Spaces

• IR Activity and System

Status LEDs

• Frequency Range:

36 - 60 kHz (38 - 56 output)

• Requires Regulated Power

Supply, Terminator Block,

and Emitters

ACCESSORIES - SMARTPATH IR RECEIVERS

51

ACCESSORIES - SMARTPATH IR TERMINATORS

ACCESSORIES - SMARTPATH IR TERMINATORS

AT-1.0

Amplified Terminator

Unit

Order# ELT02100

PT-1.0

Passive Terminator

Order# CTL07102

BOT-1.0

Break Out Terminator

Order# ELT02000

• Central Terminating Unit for

IR System

• Amplified Circuit for Driving

Standard Emitters or High

Powered Blasters

• Features EZ-Connect

Terminal Block

• May Be Cascaded for

Additional Emitter Output

Jacks

• Unique Quad 3.5mm

Mini-Phone Type Jack for

Connection to IR Receivers

• 12V DC Power Input Jack

• 5-24V DC Status In Jack

• DIP Switches to Change

Emitter/Blaster Driver Power

• Network Terminating Circuit,

DIP Switchable

• Requires Regulated 12V

Power Supply

• Provides a Quick Connection of SpeakerCraft IR Receivers

Equipped with Quad 3.5mm Plug and for Connection of

Status, Power, and Emitters

• Use This Unit to Interface Between the Quad (4-Circuit Plug

on SpeakerCraft IR Receivers (If So Equipped) and 3 or

4-Conductor Interroom Wiring

52

ACCESSORIES - IR EMITTERS

IRE-1.0

Single IR Emitter

Order# ELT03100

IRE-3.0

Single IR Emitter

with Visible LED

Order# ELT03300

IRE-4.0

Dual IR Emitter

with Visible LED

Order# ELT03400

IRE-2.0

Dual IR Emitter

Order# ELT03200

• Unique EZ-Docker Holster

for Holding the Emitter

in Place and for Quick

Removal When Changing

Components for Service

• Holster Features Larger

Surface Area Than Other

Emitters for Better Adhesive

Qualities

• Includes 8’ Lead (2.4 m)

• Flashes Visible Red As Well

As Emitting IR Signal

• Unique EZ-Docker Holster for

Holding the Emitter in Place

and for Quick Removal

• Holster Features Larger

Surface Area Than Other

Emitters for Better Adhesive

Qualities

• Includes 8’ Lead (2.4 m)

• Flashes Visible Red As Well

As Emitting IR Signal

• Unique EZ-Docker Holster for

Holding the Emitter in Place

and for Quick Removal

• Holster Features Larger

Surface Area Than Other

Emitters for Better Adhesive

Qualities

• Includes 8’ Lead (2.4 m)

• Unique EZ-Docker Holster

for Holding the Emitter

in Place and for Quick

Removal When Changing

Components for Service

• Holster Features Larger

Surface Area Than Other

Emitters for Better Adhesive

Qualities

• Includes 8’ Lead (2.4 m)

ACCESSORIES - IR EMITTERS

53

ACCESSORIES - SMARTPATH IR MISCELLANEOUS

ACCESSORIES - SMARTPATH IR POWER SUPPLIES

IR Shield

Emitter Cover

Order# ELT03050

SAC-1.0

Serial “Y”

Adapter Cable

Order# CTL07101

• Prevents Unwanted IR

Signals from Interfering With

Other Components

• Fits Over Most SmartPath IR

Emitters and Component IR

Sensor Window

• May Be Trimmed to Fit a

Component’s IR Sensor

Window

• Dimensions: (H x W x D)

1” x 2” x 1/4”

25mm x 51mm x 6mm

• Combines 2 IR Signals or

Active-High Serial Data

• Includes 1-Foot Leads

(305mm)

54

55

TEXT, DIAGRAM, OR LIFESTYLE SHOT ???

-------------

-------------

Eni ne volupti asperibus quo eumquiatem

eicipid et apero odipsamus es aut ipsam

ellam niatur aliat qui alicaerferis est,

solorestia volorrum fugiatum exerchictia

vitate pra nos doluptae commodis volo con

coraepe lectem venturioreni custi tenimus

reped ulpa voloressit veleseque il is de nis

et offic tem. Arum imus voluptatur mossum

volorectur? Ero volorissus arumquae lit

audam ut iuntem quo voluptur, sim ut pro

et doluptae volorum, ut fugiaectur, toratem

delectia essum dus ipsa percim faccus ad

quiam, atem andellu ptatume non rehenis

evel ium ea dio di unt fugitiae comnima

sequam aut is adignis quam evenienis et ut

ut explate maion netur as pratur? Ugita cus,

cone ressit, estrum vollamus esci ut lab iur,

quiam aute eossi aperaectat.

Ficti bearchil mi, comnis exces et qui ius.

Il ima nullorerae et enimusam, offic tem.

Nam si as dis nihitat incilla menietu repraero

ELECTRONICS - SWITCHES

LL-One

Line Level Audio

A/B Switch

Order# CTL02001

SL-One

Speaker Level

A/B Switch

Order# CTL02002

• Low Ohmic Relay Contacts

Provide Lossless, Distortion-

Free Switching

• Octal Switch Provides

Precision Delays From 0.5

Seconds to 5 Minutes to

Handle Virtually Any Music

Energy Interval Without

False Switching

• Sense Level Permits

Adjustment to

Accommodate a Wide

Range of Music Level

Conditions for Best

Switching Threshold

• B Status 3.5mm Output

Jack Provides 12V Trigger

to Local Devices (Lighting,

Shades, etc.) Where Desired

• PS-1.0 Power Supply

Required (Not Included)

• Dimensions: (H x W x D)

3 7/16” x 4 5/8” x 1”

87mm x 117mm x 25mm

• Dual Relays Handle Music

Power Levels up to 100

Watts

• Octal Switch Provides

Precision Delays from 0.5

Seconds to 5 Minutes to

Handle Virtually Any Music

Energy Interval Without

False Switching

• Sense Level Permits

Adjustment to

Accommodate a Wide

Range of Music Level

Conditions for Best

Switching Threshold

• B Status 3.5mm Output

Jack Provides 12V Trigger

to Local Devices (Lighting,

Shades, etc.)

• Isolated Ground Paths

Permit Use of BTL (Bridged)

Amplifiers

• PS-1.0 Power Supply

Required (Not Included)

• Dimensions: (L x W x H)

4 5/8” x 3 7/16” x 1”

117mm x 87mm x 25mm

ELECTRONICS - SWITCHES

56

ACCESSORIES - SPEAKER SELECTORS

ELECTRONICS - SPEAKER SELECTORS

S8DC

Eight-Zone Speaker

Selector

Order# SWTS8500R

S4DC

Four-Zone Speaker

Selector

Order# SWTS4500R

S6VC

Six-Zone Speaker

Selector Volume

Control

Order# SWTS6130R

S4VC

Four-Zone Speaker

Selector Volume

Control

Order# SWTS4130R

• Features Direct Connect

Removable Screw Down

Terminals

• Supports up to 8 Pairs of

Speakers

• Unique Suction Feet

• When Engaged, Rear

Protection Switch Assures

Safe Operation, Even by

Those Unfamiliar with the

System

• 17” Wide To Support All

Standard Components

• Includes 100 Room

Labels to Customize Any

Application

• Power Handling:

125 Watts per Channel

• Frequency Response:

20Hz - 20kHz

• Protection: Front Panel

Button and Rear

Override Switch

• Dimensions: (H x W x D)

1 3/4”* x 17” x 6 1/8”**

44mm x 432mm x 156mm

• Features Direct Connect

Removable Screw Down

Terminals

• Supports up to 4 Pairs of

Speakers

• Unique Suction Feet

• Rear Protection Switch

Assures Safe Operation

• Includes 100 Room

Labels to Customize

Any Application

• Power Handling: 125 Watts

per Channel

• Frequency Response:

20Hz - 20kHz

• Protection: Front Panel

Button and Rear

Override Switch

• Dimensions: (H x W x D)

1 3/4” x 8 3/8” x 6 1/8”

44mm x 213mm x 156mm

• Supports up to 6 Pairs of

Speakers

• Each Zone Has a 60 Watt

12-Step Transformer-Based

Stereo Volume Control

• Features Direct Connect

Removable Screw Down

Terminals

• Unique Suction Feet

• Rear Protection Switch

Assures Safe Operation

• Includes 100 Room

Labels to Customize Any

Application

• Power Handling:

125 Watts per Channel

• Frequency Response:

20Hz - 20kHz

• Protection: Front Panel

Button and Rear

Override Switch

• Volume Control Power

Handling: 60 Watts

• Volume Control

Attenuation: 42dB Maximum

• Volume Control Switch:

12-Step “Make Before

Break” Design

• Dimensions: (H x W x D)

1 3/4”* x 17” x 6 1/8”**

44mm x 432mm x 156mm

• Supports up to 4 Pairs of

Speakers

• Each Zone Has a 60 Watt

12-Step Transformer-Based

Stereo Volume Control

• Features Direct Connect

Removable Screw Down

Terminals

• Unique Suction Feet

• Rear Protection Switch

Assures Safe Operation

• Includes 100 Room

Labels to Customize Any

Application

• Power Handling: 125 Watts

per Channel

• Frequency Response:

20Hz - 20kHz

• Protection: Front Panel

Button and Rear

Override Switch

• Volume Control Power

Handling: 60 Watts

• Volume Control

Attenuation: 42dB Maximum

• Volume Control Switch:

12-Step “Make Before

Break” Design

• Dimensions: (H x W x D)

1 3/4”* x 17” x 6 1/8”**

44mm x 432mm x 156mm

* Add 1/2” for feet (13mm)

** Measurement does not include connectors.

Please allow another 4” (102mm) for rear wiring connections.

57

VOLUME CONTROL

VOLUME CONTROL

VCR120

120 Watt Volume

Knob Control

Order# ASM17347

VST60

60 Watt Volume

Knob Control

Order# ASM17141

• Resistive, High Power

Handling Design Stereo

Volume Control

• 12-Step “Make Before

Break” Switch Design

• Knob Is Guaranteed to

Never Come Off Due to the

Easy to Assemble Design

• Screw Down Connector for

Secure Wire Connections

• Power Rating: 120 Watts

• Steps: 12

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB Maximum

• Depth: 2 1/2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

• Transformed-Based Stereo

Volume Control

• LiftLock Connector Secures

Wires In Place

• 12-Step “Make Before

Break” Switch Design

• Knob is Guaranteed to

Never Come off Due to the

Easy-To-Assemble Design

• Power Rating: 60 Watts

• Steps: 12

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB maximum

• Depth: 2 1/2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

VOLUME

CONTROL

The SpeakerCraft Volume Controls

are high quality stereo autoformers

designed to connect an amplier,

receiver, or speaker selector with a pair

of speakers for wide range frequency

response at all volume levels.

For pricing and information,

please visit: store.corebrands.com

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

58

VOLUME CONTROL

VOLUME CONTROL

VST60fc

60 Watt Volume

Knob Control

Order# ASM17145

VSI60

60 Watt Volume

Knob Control

Order# ASM17147

VCR60

60 Watt Volume

Knob Control

Order# ASM17343

• Transformed-Based Stereo

Volume Control

• Fast Connect Terminal Can

Be Wired Ahead of Time

and Simply Secured to the

Volume Control at the

Time of Final Installation

• Knob is Guaranteed to

Never Come off Due to the

Easy-To-Assemble Design

• 12-Step “Make Before

Break” Switch Design

• Power Rating: 60 Watts

• Steps: 12

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB maximum

• Depth: 2 1/2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

• Impedance Matching,

Transformer-Based Stereo

Volume Control

• LiftLock Connector Secures

Wires In Place

• Front-Mounted Multiple

Room Switch Allows

Easy Adjustment When

Multiple Speakers are to

be Connected to One

Amplifier or Receiver

• 12-Step “Make Before

Break” Switch Design

• Power Rating: 60 Watts

• Steps: 12

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB Maximum

• Depth: 2 1/2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

• Resistive Stereo Volume

Control

• 12-Step “Make Before

Break” Switch Design

• Knob Designed to Never

Come Off

• Screw Down Connector for

Secure Wire Connections

• Power Rating: 60 Watts

• Steps: 12

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB Maximum

• Depth: 2 1/2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

*Included

Faceplates

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

59

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

VOLUME CONTROL

VSI45

45 Watt Volume

Knob Control

Order# ASM17151

VSL60

60 Watt Volume

Slide Control

Order# ASM90173W

• Impedance Matching,

Transformer-Based Stereo

Volume Control

• Features a Removable

Wire Block Terminal, Which

Allows for Quick and Easy

Wiring

• 10-Step “Make Before

Break” Switch Design

• Power Rating: 45 Watts

• Steps: 10

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB Maximum

• Depth: 2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

• Transformer-Based Stereo

Volume Control

• Slide Switch

• Removable Screw Down

Terminals

• Power Rating: 60 Watts

• Steps: 12 (Make Before

Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB Maximum

• Depth: 2 1/2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

VOLUME CONTROL

VST45

45 Watt Volume

Knob Control

Order# ASM17149

• Transformer-Based Stereo

Volume Control

• 10-Step “Make Before

Break” Switch Design

• Knob Designed to Never

Come Off

• Power Rating: 45 Watts

• Steps: 10

(Make Before Break)

• Frequency Response:

20Hz - 20kHz

• Total Attenuation:

42dB Maximum

• Depth: 2” Behind Plate

• Mounting: Fits Nearly All

Standard Single-Gang

Junction Boxes and

Plaster Rings

Includes: Decora® Style White,

Bone, and Almond Faceplates,

Inserts & Knobs

60

INSTALLATION

ACCESSORIES

SpeakerCraft makes a variety of top-of-

the-line transformers, enclosures, retro

brackets, grilles, and accessories. We

offer all the nuts and bolts that enable any

system to be easily installed and function

seamlessly throughout any home.

For pricing and information,

please visit: store.corebrands.com

61

INSTALLATION ACCESSORIES - SOUND ENCLOSURES

SE1410 -

AIM WIDE

8” Sound Enclosure

with Wing Clips

Order# ASM70800

SE1410 -

6” R SE

6” Sound Enclosure

with Wing Clips

Order# ASM90508

SE1410 -

Custom SE

Sound Enclosure with

Wing Clips

Order# ASM90904

SE1410 -

CRS8

8” Sound Enclosure

with Wing Clips

Order# ASM90901

SE1410 -

AIM5

5” Sound Enclosure

with Wing Clips

Order# ASM82500

• Fits: All 8” AIM Series 2,

AIM8, 8” CRS, 8” DT & 8.2

BAS, AIM Wide

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

14” x 10” x 8 5/8”

(Not Including Front

Mounting Flange)

356mm x 254mm x 219mm

Add 1” Depth (25mm) for

Wiring Entry and

Seismic Tab

• NOTE: Extension Wings

Sold Separately

• Fits: All AIM7 Series 2,

AIM7, CRS6 & 6” WHA

Models

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

14” x 10” x 5 3/4”

(Not Including Front

Mounting Flange)

356mm x 254mm x 146mm

• NOTE: Extension Wings

Sold Separately

• 10” Opening with no Cut-

Out Flange Allows Drywall

Cut-Out Fits: All AIM8 Series

2, AIM7 Series 2, AIM5 Series

2, AIM5, AIM7, AIM8, CRS6,

CRS5, DT8, DT7, DT6, BAS

• Dimensions: (H x W x D)

14” x 10” x 5 3/4”

(Not Including Front

Mounting Flange)

356mm x 254mm x 146mm

• Minimum 1/2” drywall or

finish materials

• NOTE: Extension Wings Sold

Separately

** This Model Does not

Include Sound Damping

Material

• Fits: All 8” AIM Series 2,

AIM8, 8” CRS, 8” DT & 8.2

BAS

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

14” x 10” x 5 3/4”

(Not Including Front

Mounting Flange)

356mm x 254mm x 146mm

• NOTE: Extension Wings

Sold Separately

• Minimum 1/2” drywall or

finish materials

• Fits: All AIM5 Series 2, AIM5

and All 5” CRS, 5” DT, 5”

Whole House Round

• Fire Rated According to UL

Standard ASTM E119

• Dimensions (H x W x D):

14” x 10” x 5 3/4”

(Not Including Front

Mounting Flange)

356mm x 254mm x 146mm

• NOTE: Extension Wings

Sold Separately

INSTALLATION ACCESSORIES - SOUND

ENCLOSURES

Extension

Wings

Suspended Ceiling

Extension Wings

Order# WNG90700

• Fits Models SE1612 and

SE1410

• A Single Pair Is Enough To

Mount One Enclosure

• Attaches to SpeakerCraft

Sound Enclosures with

Clips, Allowing Them To Be

Mounted 24” On Center

• Allows Enclosures To Be

Placed Into Suspended

Ceilings

• NOTE: Wings Will Only Fit

Enclosures with “Clips”

62

INSTALLATION ACCESSORIES - MISCELLANEOUS

SE1612 -

AIM7 MT

7” Rectangle Sound

Enclosure without

Extension Wing Clips

Order# ASM81700

SE1612 -

AIM LCR5

Rectangle Sound

Enclosure without

Extension Wing Clips

Order# ASM84600

AccuTune

Box 10

Subwoofer Cabinet

Order# ASM67102

SE1612 -

MT6

6” Rectangle Sound

Enclosure with

Extension Wing Clips

Order# ASM90601

SE1612 -

AIM LCR3

Rectangle Sound

Enclosure without

Extension Wing Clips

Order# ASM74300

Transformer

Speaker Transformer

Order# TRN762

• Fits All AIM7 MT

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

16” x 12” x 31/2”

(Not Including Front

Mounting Flange)

406mm x 305mm x 89mm

• Fits All AIM LCR5

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

14 3/8” x 12” x 3 1/2”

(Not Including Front

Mounting Flange)

365mm x 305mm x 89mm

• For Use with New

Construction Installations

• Enhanced Performance

and Look

• Fully Optimized System

(Profile Cinema Sub 10,

AccuTuneBox 10, & Bass

Power 250)

• Dimensions: (H x W x D)

42 3/4” x 14 3/8” x 3 1/4”

1086mm x 365mm x 83mm

• Cut Out Dimensions for

Baffle: (H x W)

12 1/8” x 12 1/8”

(308mm x 308mm)

• Fits: All MT6 6” Whole House

Rectangle

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

16” x 12” x 31/2”

(Not Including Front

Mounting Flange)

406mm x 305mm x 89mm

• NOTE: Extension Wings

Sold Separately

• Fits All AIM LCR3

• Fire Rated According to UL

Standard ASTM E119

• Dimensions: (H x W x D)

14 3/8” x 12” x 3 1/2”

(Not Including Front

Mounting Flange)

365mm x 305mm x 89mm

• 70.7 Volt Line Transformer

for Commercial

• Primary Terminations:

6” Long, Color-Coded,

Pre-Stripped Wires

• Secondary Terminations:

6” Long, Color-Coded,

Pre-Stripped Wires

• Frequency Response:

40Hz - 15kHz

• Impedance:

8 Ohm or 4 Ohm

• Insertion Loss: 0.6dB

• Power Rating: 50 Watts

• Tap Settings:

10, 20 or 30 Watts

INSTALLATION ACCESSORIES - SOUND

ENCLOSURES

63

INSTALLATION ACCESSORIES - EXTRAS

INSTALLATION ACCESSORIES - EXTRAS

Accessory Type Compatible Products Order #

AIM Cinema Series InstaLLock Profile AIM Cinema Series Speakers ONLY BKT71500E

AIM LCR5 Series InstaLLock Construction Brackets Profile AIM LCR5 Series

Speakers ONLY BKT84600E

AIM LCR3 Series InstaLLock Construction Brackets Profile AIM LCR3 Series

Speakers ONLY BKT74300E

6” Rectangle Series InstaLLock Construction Brackets MT6, WH6.2RT, WH6.1RT, WH6.0RT BKT90601E

7” Rectangle AIM7 MT Series InstaLLock Construction

Brackets AIM7 MT BKT81700E

8” Round Series InstaLLock New Construction

Brackets

AIM8 Series 2, Profile AIM8, AIM8, Profile AIM Wide,

Profile CRS8, CRS8, 8.2BAS BKT90681E

6” Round Series InstaLLock New Construction

Brackets

AIM7 Series 2, Profile AIM7, AIM7, Profile CRS6,

CRS6, Profile Ultra Slim, WH6.1R, WH6.0R BKT90611E

Height Speaker InstaLLock Construction Bracket ATX100 BKTATX100

AIM LCR5 Series 2 InstaLLock Construction Bracket AIM2LCR55 and AIM2LCR52 BKTAIM2LCR5

ATS500 and ATS200 Systems InstaLLock Construction

Bracket AIM LCR5 Series 2 speakers installed with ATX100 BKTATXAIM2LCR5

Profile AIM LCR5 Atmos System InstaLLock

Construction Bracket Profile AIM LCR5 speakers installed with ATX100 BKTPROAIMLCR5

5” Round Series InstaLLock New Construction

Brackets AIM5 Series 2, AIM5, 5.2R BKT90521E

8” Round Series Wing for InstaLLock New

Construction Brackets

AIM8 Series 2, Profile AIM8, AIM8, Profile AIM Wide,

Profile CRS8, CRS8, 8.2BAS WNG90224

6” Round Series Wing for InstaLLock New

Construction Brackets

AIM7 Series 2, Profile AIM7, AIM7, Profile CRS6,

CRS6, Profile Ultra Slim, WH6.1R, WH6.0R WNG90222

Construction Brackets and Extensions

In-WallIn-Ceiling

64

INSTALLATION ACCESSORIES - EXTRAS

INSTALLATION ACCESSORIES - EXTRAS

Accessory Type Compatible Products Order #

Cover Plate: 8” Round Series AIM8 Series 2, AIM8 Profile AIM

Wide, Profile CRS8, 8.2BAS ASM90208E

Cover Plate: 6” Round Series AIM7 Series 2, AIM7, Profile CRS6,

CRS7, Profile Ultra Slim, WH6.1R ASM90216E

Cover Plate: 5” Round Series AIM5 Series 2, Profile AIM5, 5.2R,

WH5.2R ASM90205E

Cover Plate: 6” Rectangle Series MT6, WH6.1RT, WH6.0RT ASM90206E

Cover Plate: 7” AIM7 MT Series Profile AIM7 MT, AIM7 Series 2 ASM81702E

Cover Plates

*4 Pair Minimum Order

Accessory Type Compatible Products Order #

8” Profile Square Grille AIM8 Series 2, Profile CRS8, Profile

AIM8 Series GRL66868E-2

7” Profile Square Grille AIM7 Series 2, Profile CRS6, Profile

AIM7 GRL66827-2

5” Profile Square Grille AIM5 Series 2, Profile AIM5 GRL66825E-2

3” Profile Square Grille Profile CRS3 GRL66863E-2

Profile Square Grilles

To match lighting, vents, or a pre-existing fixture, a square grille may be

visually more appealing than a round grille. In this case, any of our round

Profile speaker grilles can easily be interchanged with our new square grille.

Special Note: Order # is for standard white color. To order “classic white”

omit the “-2” at the end of order #.

In-CeilingIn-Wall

65

Accessory Type Compatible Products Order #

8” Grille Profile AIM8 FIVE, Profile AIM8 THREE GRL58003-2

8” Grille AIM8 Series 2, Profile AIM8 TWO,

Profile AIM8 ONE GRL58001-2

8” Grille Profile CRS8 GRL56800-2

7” Grille AIM7 Series 2, Profile AIM7 GRL57000-2

6” Grille Profile CRS6 GRL56600-2

5” Grille AIM5 Series 2, Profile AIM5 GRL55000-2

LCR Grille Profile AIM LCR GRL54600-2

LCR3 Grille Profile AIM LCR3 GRL54300-2

Cinema Grille Profile AIM Cinema GRL59100-2

7” Grille Profile AIM7 MT GRL57703-2

Profile Replacement Grilles

INSTALLATION ACCESSORIES - EXTRAS

INSTALLATION ACCESSORIES - EXTRAS

Special Note: Order # is for standard white color. To

order “classic white,” omit the “-2” at the end of order

#.

In-CeilingIn-Wall

66

INSTALLATION ACCESSORIES - EXTRAS

INSTALLATION ACCESSORIES - EXTRAS

Accessory Type Compatible Products Order #

8” Speaker Aluminum Grille CRS8 One THREE GRL86800

7” Speaker Aluminum Grille AIM7 Five TWO, AIM7 DT GRL82700

6 1/2” Speaker Aluminum Grille CRS6 Zero, WH6.1R GRL90602

6 1/2” Speaker Aluminum Grille MT6, WH6.1RT, WH6.0RT GRL87600-2

OE Replacement Aluminum Grille OE5 ONE GRL80510: White

OE Replacement Aluminum Grille OE5 ONE GRL80515: Black

OE Replacement Aluminum Grille OE6 THREE & ONE GRL80610: White

OE Replacement Aluminum Grille OE6 THREE & ONE GRL80615: Black

OE Replacement Aluminum Grille OE8 THREE GRL80810: White

OE Replacement Aluminum Grille OE8 THREE GRL80815: Black

OE Replacement Aluminum Grille OE6 DT GRL80600: White

OE Replacement Aluminum Grille OE6 DT GRL80605: Black

Aluminum Replacement Grilles

Special Note: Order # is for classic white color. To order

“standard/bright white,” add “-2” to the end of order stock #.

67

1800 South McDowell Blvd. Petaluma, CA 94954 • 800-472-5555

www.speakercraft.com

© 2018 Nortek Security & Control. All Rights Reserved.

SpeakerCraft® is a registered trademark of Nortek Security & Control.

DuPont™ and Kevlar® are trademarks or registered trademarks of

E.I. du Pont de Nemours and Company. Dolby and Dolby Atmos are

registered trademarks of Dolby Laboratories.

Rev-A - 1/2018

2018 EDITION
