![](asset-1.png)
SV 104A
ACOUSTIC DOSIMETER
USER’S MANUAL
SVANTEK Sp. z o.o.
WARSAW, January 2017
For Sales & Service Contact
2650 E. 40th Ave. • Denver, CO 80205
Phone 303-320-4764 • Fax 303-322-7242
1-800-833-7958
www.geotechenv.com
![](asset-2.png)
SV 104A USER'S MANUAL_______________________________________________________
2
The software described in this manual is furnished under a license agreement and may be used only in
accordance with the terms of that agreement.
Copyright © 2017, SVANTEK sp. z o.o.
All rights reserved. No part of this publication may be reproduced or distributed in any form, or by any means,
without prior written consent from SVANTEK, Warsaw, Poland
Trademarks
Trademarks or registered marks in this manual belong to their respective manufacturers.
Microsoft and Windows are registered trademarks of Microsoft Corporation.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
Disclaimer
Information in this document is subject to change without notice and does not represent a commitment on the
part of Svantek.
Svantek provides this document “as is,” without warranty of any kind, either expressed or implied, including,
but not limited to, its particular purpose. Svantek reserves the right to make improvements and/or changes to
this manual, or to the products and/or the programs described in this manual, at any time.
Information provided in this manual is intended to be accurate and reliable. However, Svantek assumes no
responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
This product might include unintentional technical or typographical errors. Changes are periodically made to
the information herein to correct such errors, and these changes are incorporated into new editions of the
publication.
Technical Support Contact Information:
web: www.svantek.com
e-mail: office@svantek.com.pl
Thank you for buying and using this SVANTEK product!
![](asset-3.png)
SV 104A USER'S MANUAL_______________________________________________________
3
GENERAL WARNINGS, SAFETY CLAUSES, AND STANDARD INFORMATION
Note: The SV 104A dosimeter contains no user serviceable parts. Opening product case
invalidates the warranty.
Note: When in normal use, always fit the SA 122A windshield provided.
Note: Battery power indicator - To improve accuracy of remaining battery life indicator, run
the dosimeter until it is fully discharged; then proceed with a full charge via the micro USB port. The procedure
is recommended before first use. Repeat this procedure every few months of use to maintain more accurate
current battery condition indication.
Note: On account of continuous product improvement SVANTEK reserves the right to make
changes to product specifications without notice. To download the most up to date user's manual please visit
our web site at www.svantek.com.
This user’s manual presents the firmware revision named 1.02.1 (see the Unit Label review chapter 4.5
to check version details).
This user’s manual presents some aspects of Supervisor software revision named 1.8.10 and Assistant
application for mobile devices 2.1.19 (see the software start-up splash screen).
The succeeding software revisions (marked with the higher numbers) can change the view of some displays
presented in the text of the manual.
Notice: Dosimeter incorporates Bluetooth®
1
wireless communication operating in 2.4GHz RF band and
transmit power up to +9dBm.

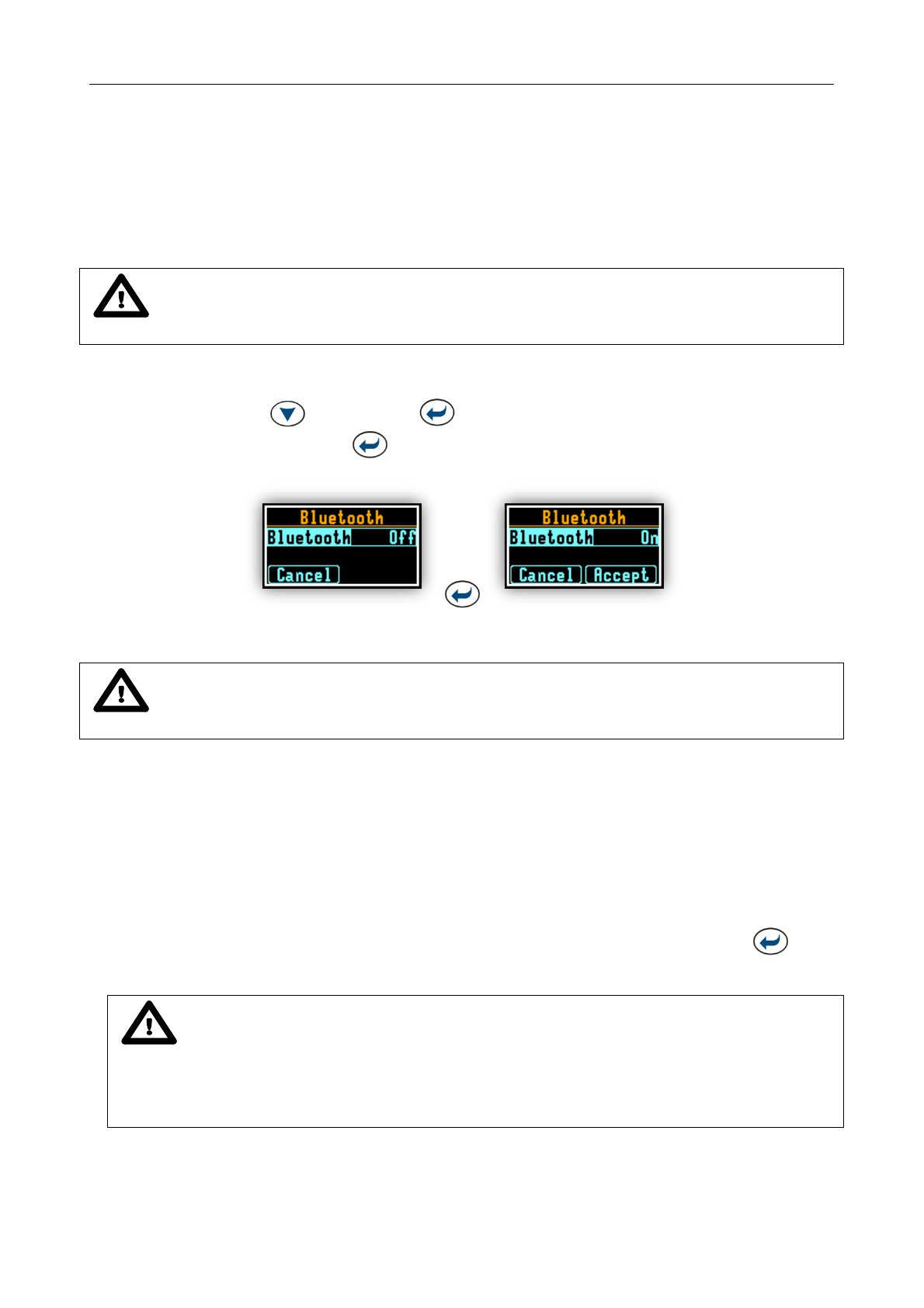

Notice: For air-transport turn off Bluetooth interface (see chapter 3.7.3, 6.5.7.4 and 4.6).
WEEE Notice: Do not throw the device away with the unsorted municipal waste at the end
of its life. Instead, hand it in at an official collection point for recycling. By doing this you will help to preserve
the environment.
1
“The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by
SVANTEK is under license. Other trademarks and trade names are those of their respective owners.
![](asset-4.png)
SV 104A USER'S MANUAL_______________________________________________________
4
SPECIAL PRECAUTIONS WHEN USING AND CHARGING LITHIUM BATTERIES
SV 104A instrument contains extremely high energy density lithium-ion cell. Use special caution when working
with lithium-ion cells. They are very sensitive to charging conditions and may explode or burn if mishandled.
• Do not replace battery yourself. The battery is only manufacturer replaceable.
• Do not charge the instrument underground (mining) or in other hazardous locations.
• Always charge lithium batteries in/on a fire-proof surface.
• Do not charge the instrument near flammable materials such as boxes, paper and furniture.
• Immediately discontinue use of the instrument, while using, charging, or storing the instrument, if the
instrument emits an unusual smell, feels hot, changes colour, changes shape, swells, or appears
abnormal in any other way. Contact your sales location or SVANTEK if any of these problems are
observed.
• Use caution to prevent puncturing or rupture of the instrument and cell within. Do not penetrate the
instrument with nails, strike the instrument with a hammer, step on the instrument, or otherwise subject
it to strong impacts or shocks.
• Do not place the instrument on or near fires, stoves, or other high-temperature locations. Do not use
or store the battery inside cars in hot weather. Do not place the instrument in direct sunlight or use
or store the instrument near a source of heat. Doing so may cause the battery contained inside
to generate heat, explode, or ignite. Using the instrument in this manner may also result in a loss of
performance and a shortened life expectancy.
• Do not place the instrument in microwave ovens, high-pressure containers, or on induction cookware.
• Although the instrument is IP65 protected do not expose it extensively to water conditions which could
cause the contained battery to get wet.
• The temperature range over which the instrument can be charged is 0°C to 40°C. Charging
the instrument at temperatures outside of this range may cause the battery to become hot or to break.
Charging the instrument outside of this temperature range may also harm the performance of the
battery or reduce the battery’s expectancy.
Assure that all of these precautions are observed before leaving the instrument charging unattended.
• The temperature range over which the battery can be stored is -20°C to +50°C and the temperature
range over which the battery can be discharged is -10°C to +50°C. Use of the battery outside of this
temperature range may damage the performance of the battery or may reduce its life expectancy.
• If you notice a performance decrease of greater than 20% in instrument, the battery is at the end of its
life cycle. Do not continue to use, and ensure the battery is disposed of properly. Contact your sales
location or SVANTEK.
ENVIRONMENTAL PROTECTION MARKING OF THE UNIT
Marking on the Unit
Explanation
IP65
Dust-tight. Protected against water jets
![](asset-5.png)
SV 104A USER'S MANUAL_______________________________________________________
5
CONTENTS
GENERAL WARNINGS, SAFETY CLAUSES, AND STANDARD INFORMATION 3
SPECIAL PRECAUTIONS WHEN USING AND CHARGING LITHIUM BATTERIES 4
ENVIRONMENTAL PROTECTION MARKING OF THE UNIT 4
1 INTRODUCTION 10
1.1 Sound pressure 11
1.2 Dosimetry 11
1.3 Standards 11
1.4 Applications 12
1.5 Measurement procedures 13
2 KIT COMPONENTS 14
2.1 SV 104A dosimeter short form specification 14
2.2 Accessories included 15
2.3 Accessories available 15
2.4 Instrument Software (Firmware) options available 15
3 GETTING STARTED 16
3.1 System description 16
3.2 Input output interfaces description 17
3.3 The windshield 18
3.4 The mounting clips 18
3.5 LED status indicator 19
3.6 Status bar icons 19
3.7 Manual control of the instrument 19
3.7.1 Primary key functions 20
3.7.2 Alternate key functions 21
3.7.3 Alternate combined keys functions 22
3.8 Three instruments in one – ACOUSTIC PROFILE concept 23
3.9 The VIEW mode presentation concept 23
3.9.1 Running SPL view mode 23
3.9.2 Primary “ONE-RESULT” view mode 24
3.9.3 RESULTS LIST view mode 24
3.9.4 OCTAVE analysis spectrum view mode 24
3.9.5 THIRD OCTAVE analysis spectrum view mode 26
3.9.6 INSTRUMENT STATUS view mode and Bluetooth security PIN code 27
3.10 ALARM screen review 28
4 RUNNING AND OPERATING BASIC PROCEDURES 29
4.1 USB Charging 29
4.1 DOCK STATION Charging 30
![](asset-6.png)
SV 104A USER'S MANUAL_______________________________________________________
6
4.2 Before you turn the instrument on 31
4.3 Turning on/off 31
4.4 Battery check 32
4.5 Reviewing unit label 32
4.6 Measurement setup - basic configuration 33

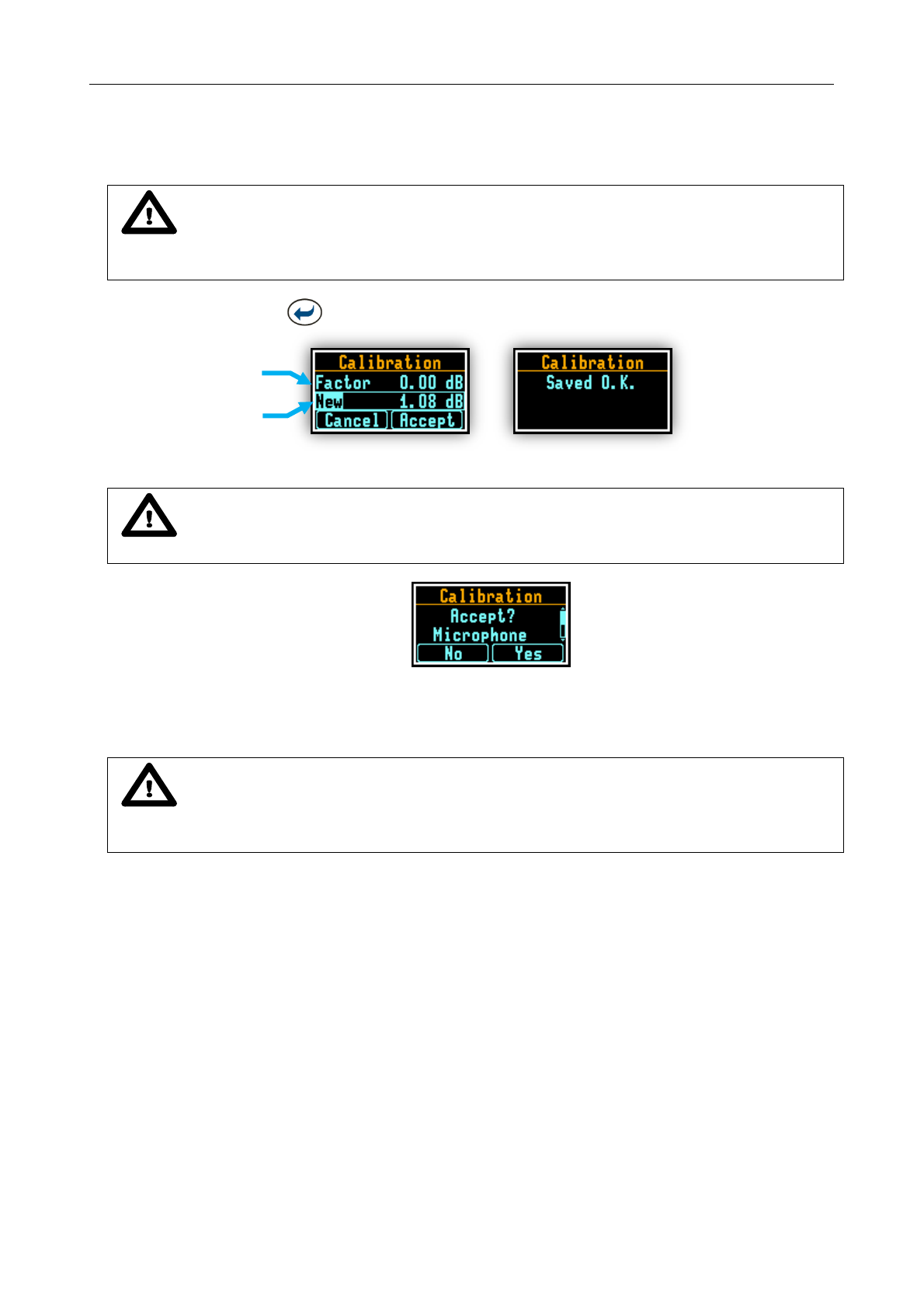

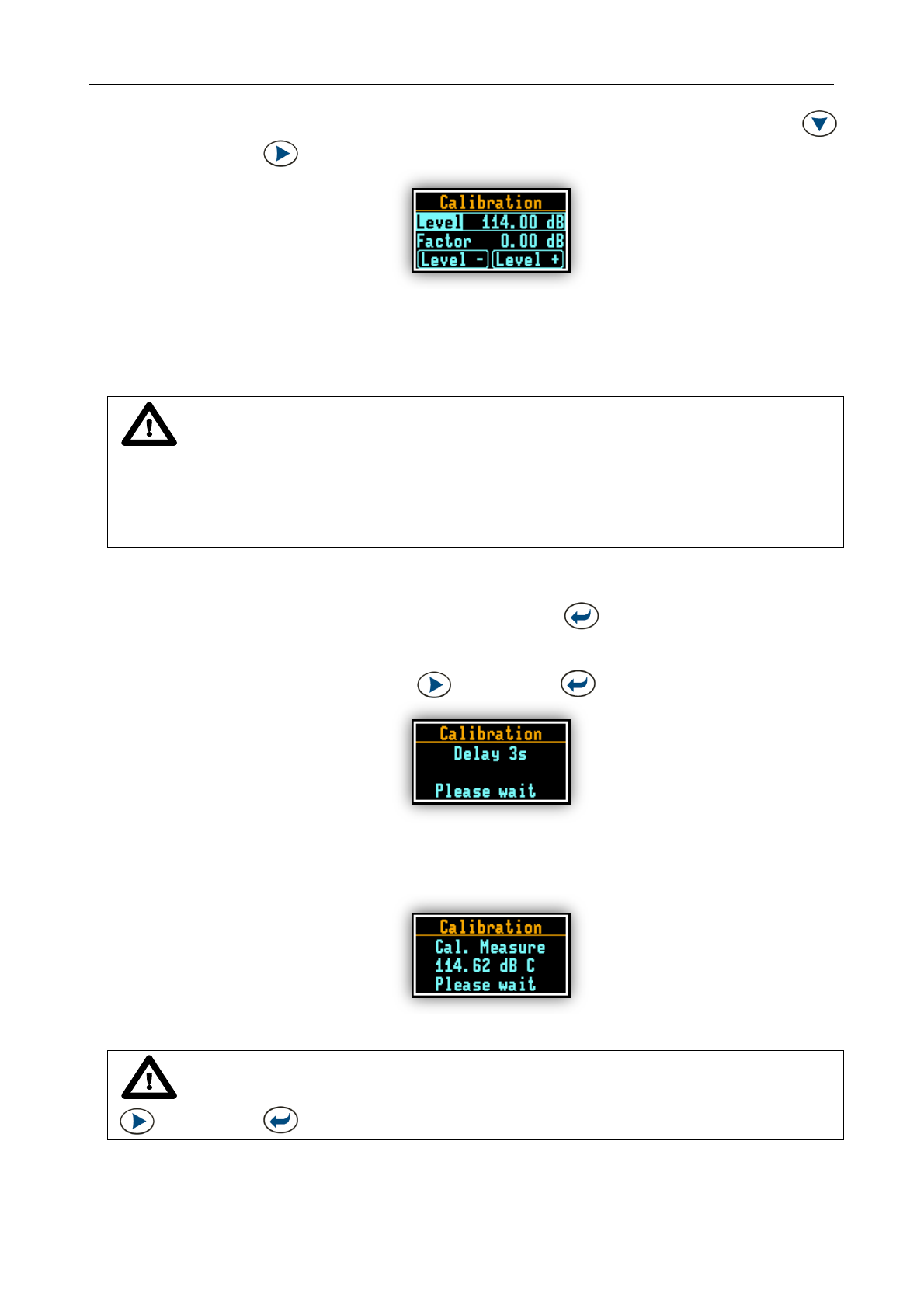

4.7 CALIBRATION 34

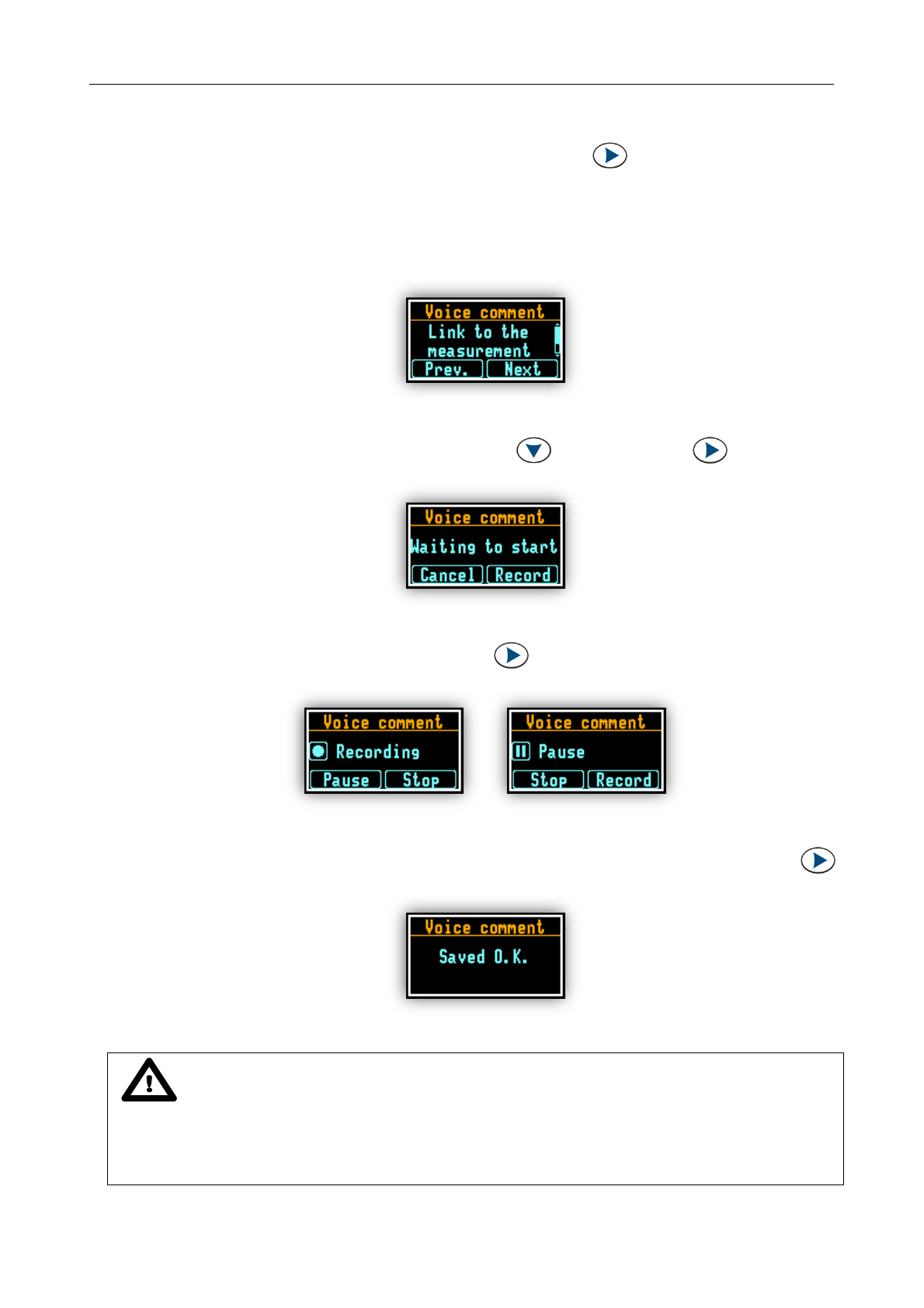

4.8 Voice comments recording 37
4.9 Before and after measurement run 38
4.10 Starting and stopping measurement run 38
4.11 Auto-run mode information 39
4.12 Security lock 39

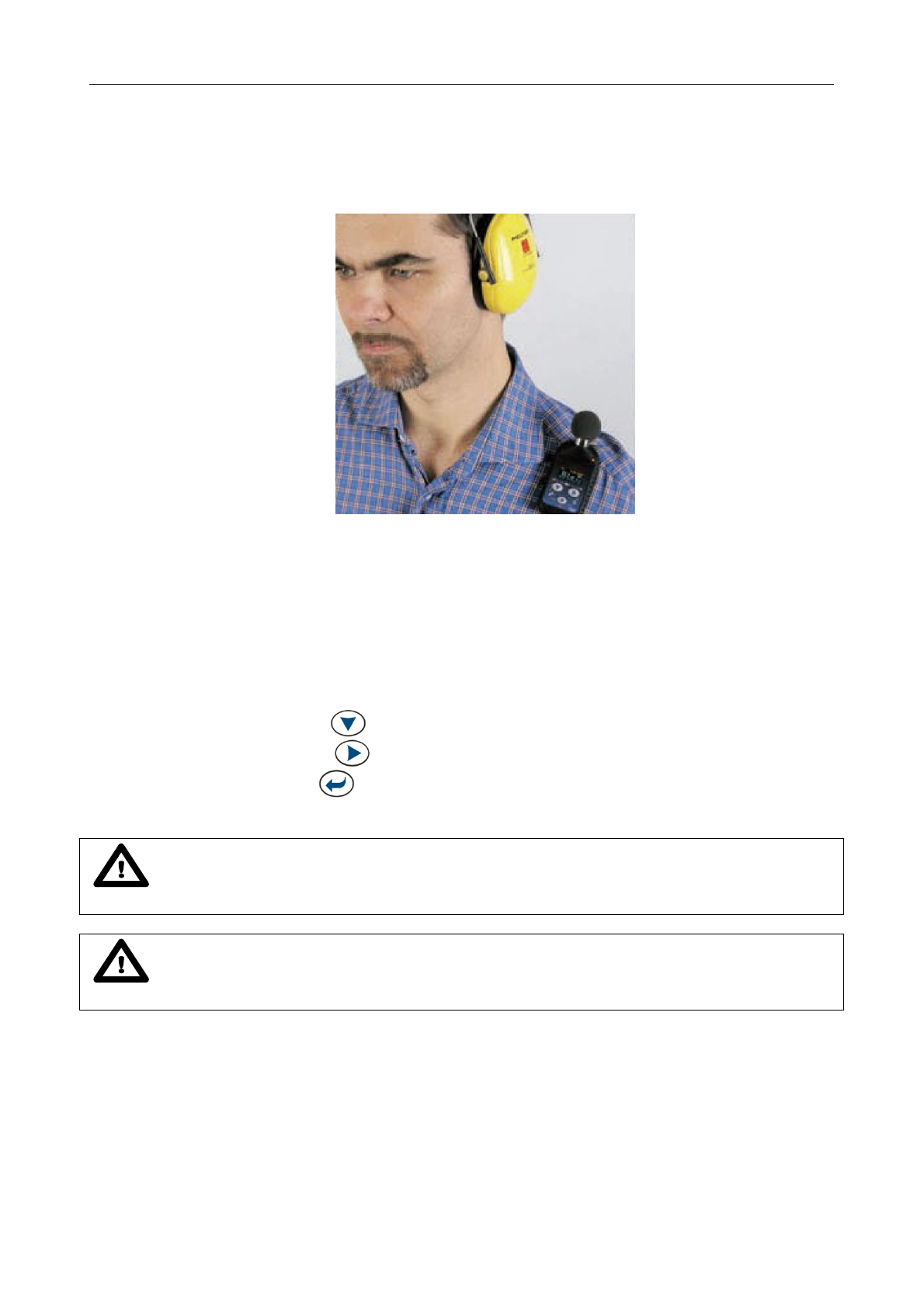

4.13 Mounting and positioning the SV 104A 40
4.14 Reviewing measurements 40
4.15 Control of the instrument via Bluetooth® wireless interface 41
4.16 Resetting the dosimeter 41
5 ASSISTANT BASIC OPERATIONS 42
5.1 Installation on mobile device 42

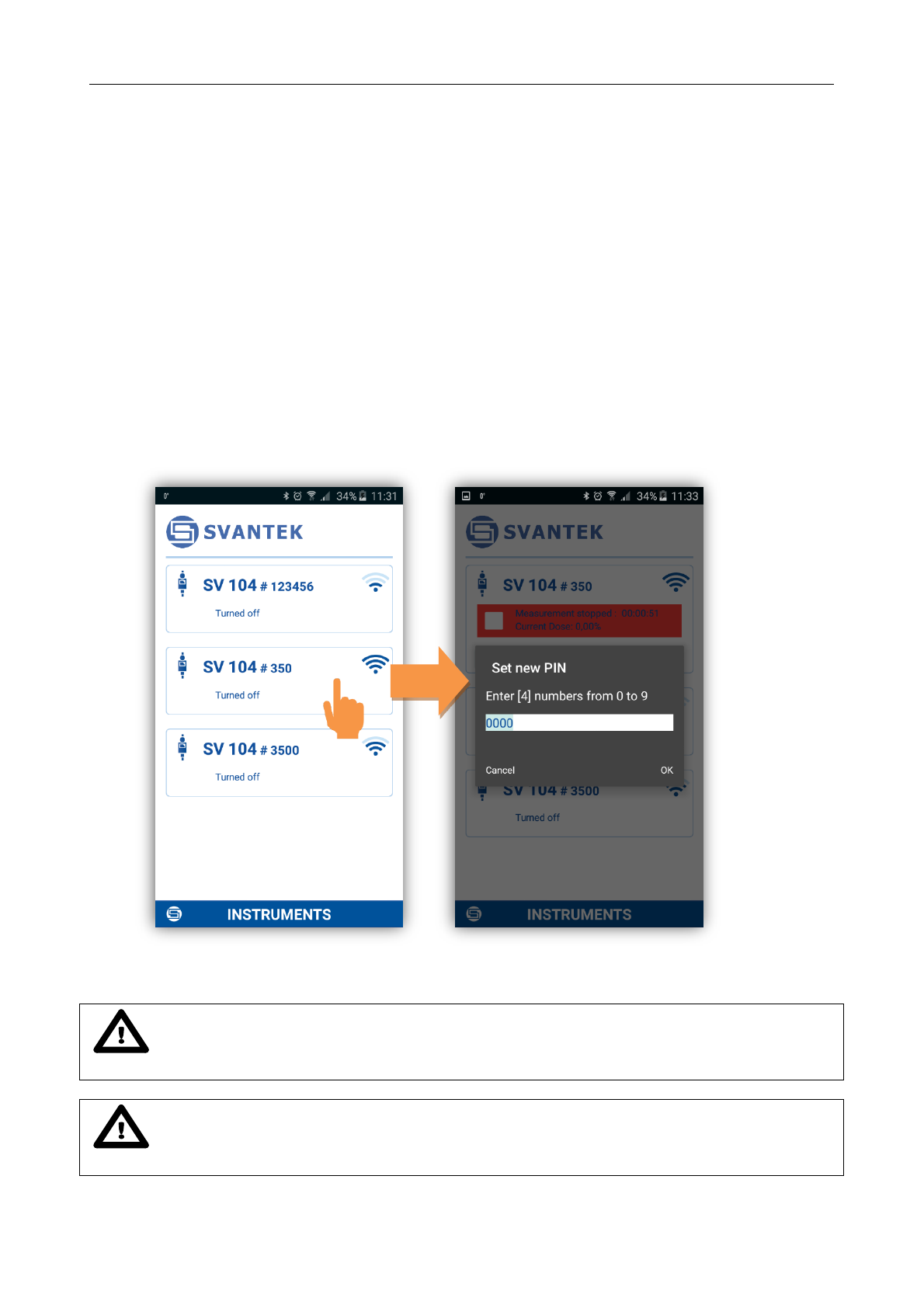

5.2 Connection via Bluetooth® 43
5.3 Control via Bluetooth® 44

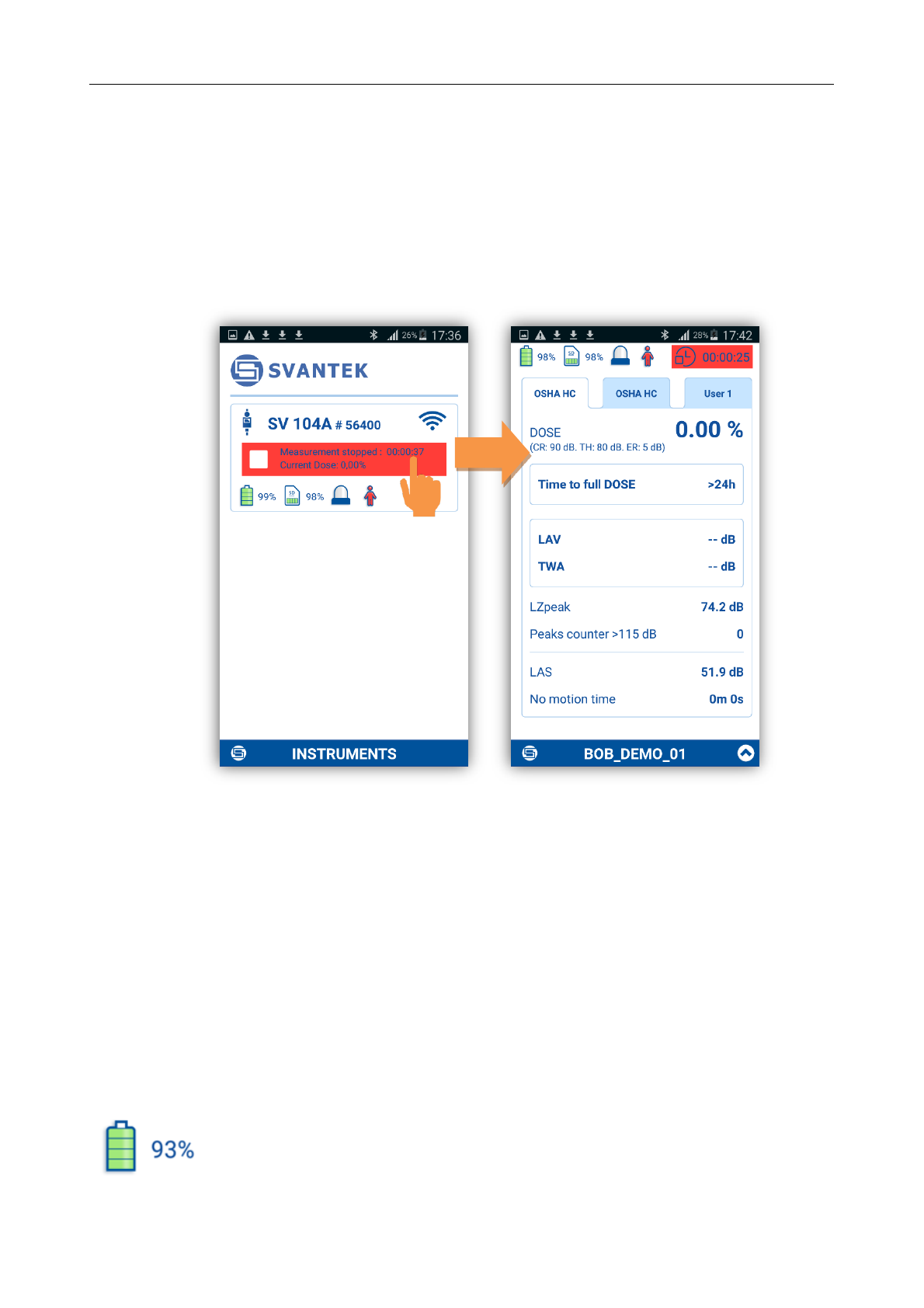

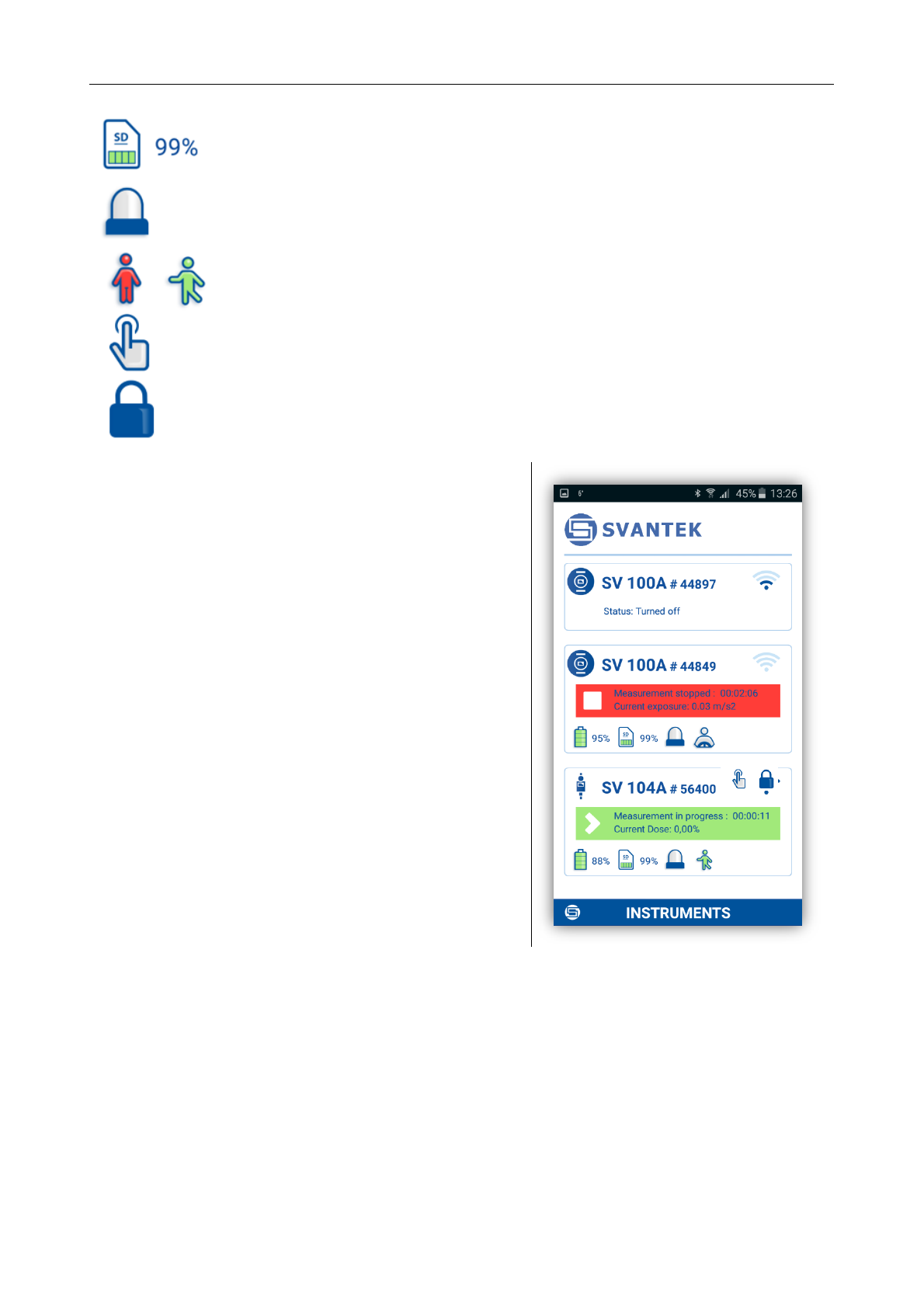

5.3.1 Instruments’ status screen 44

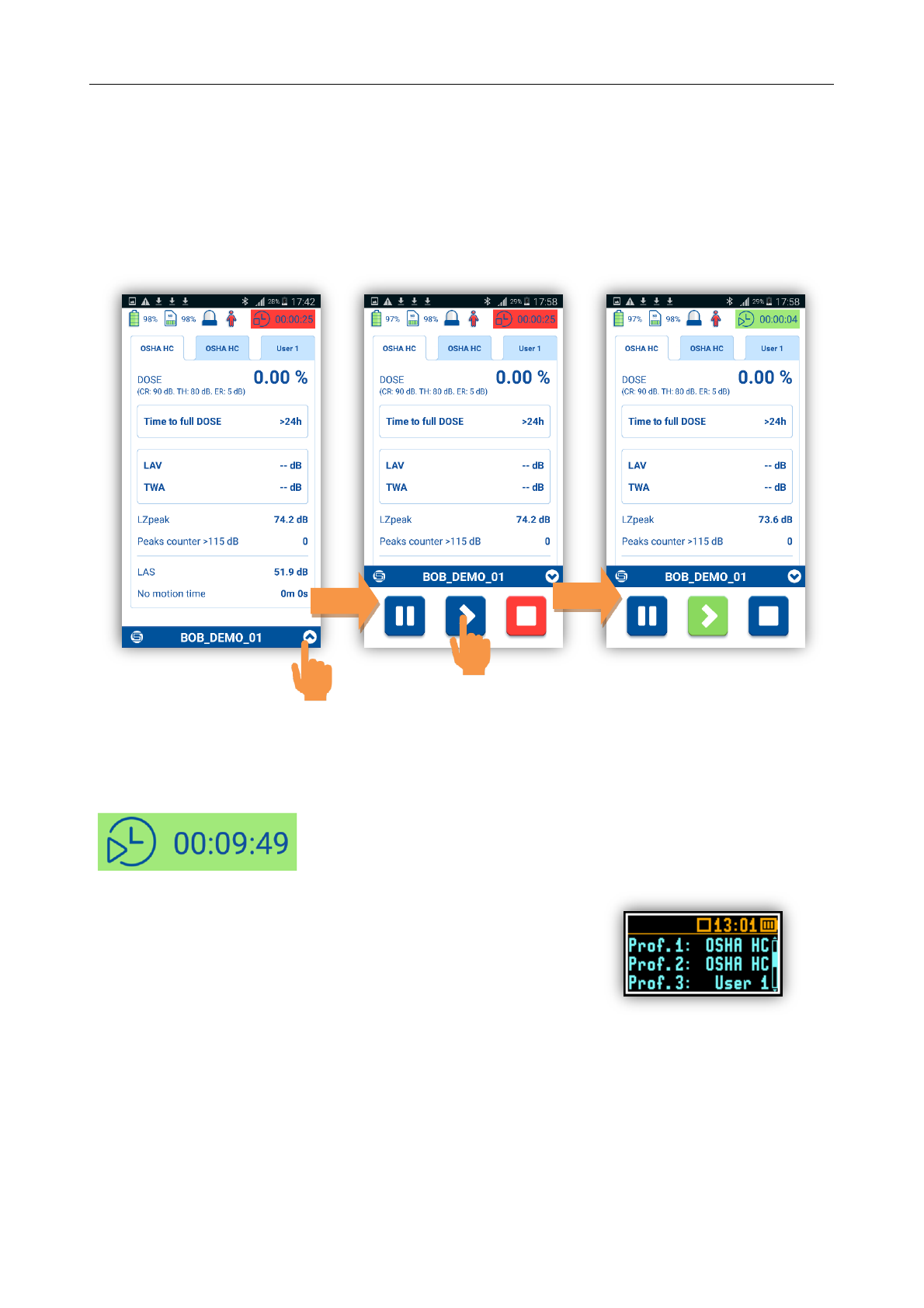

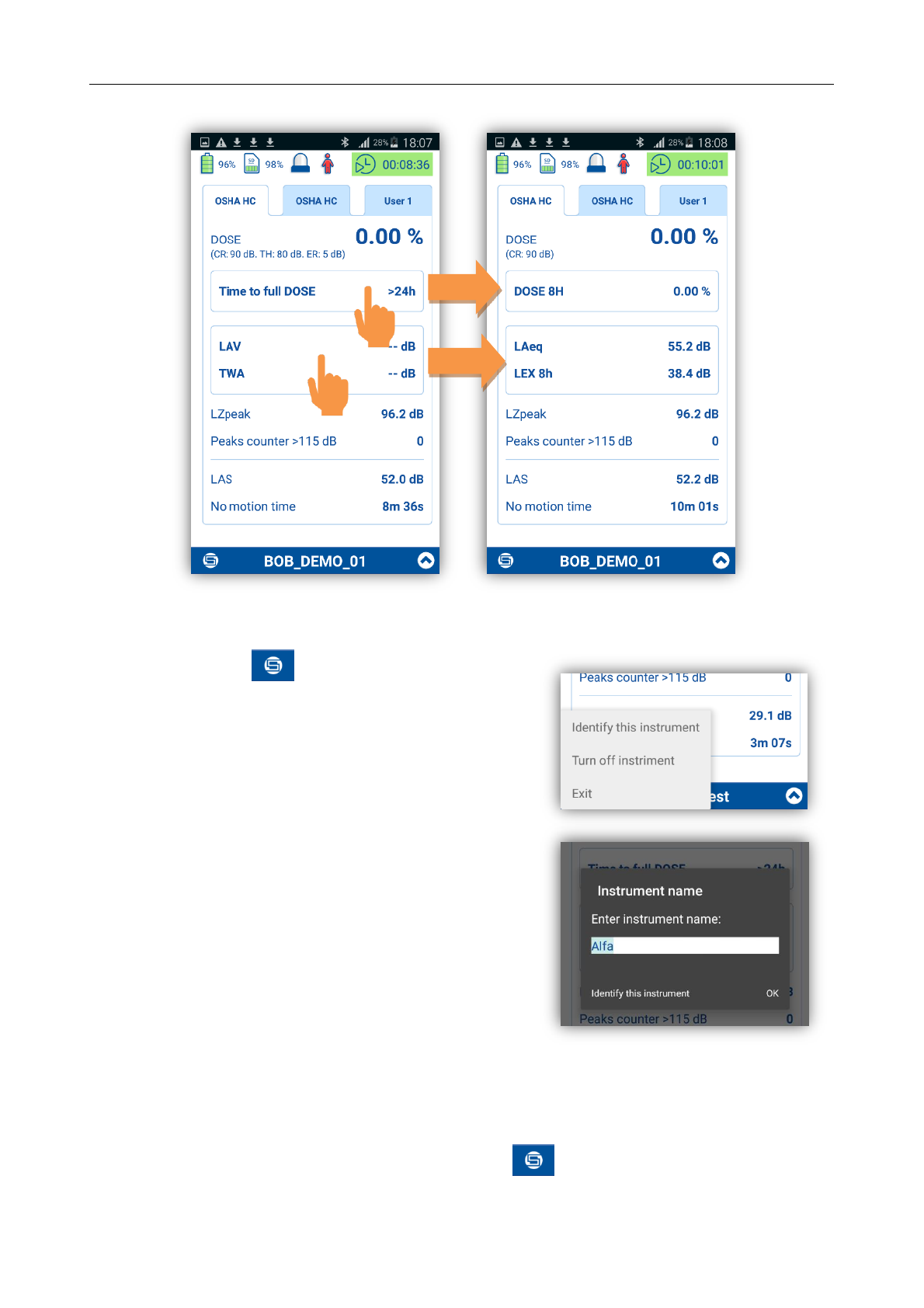

5.3.2 Working with the results view and control screen 46

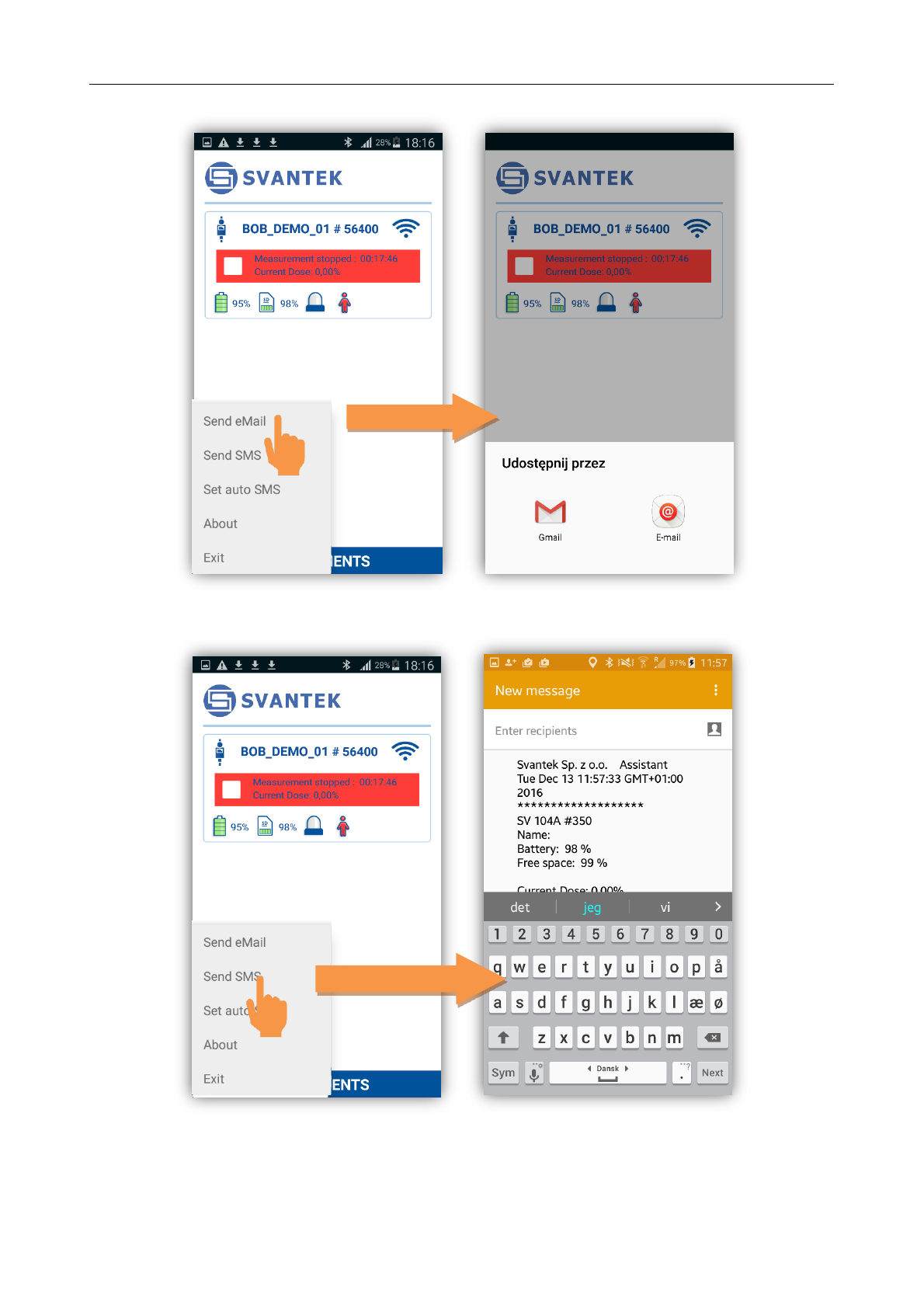

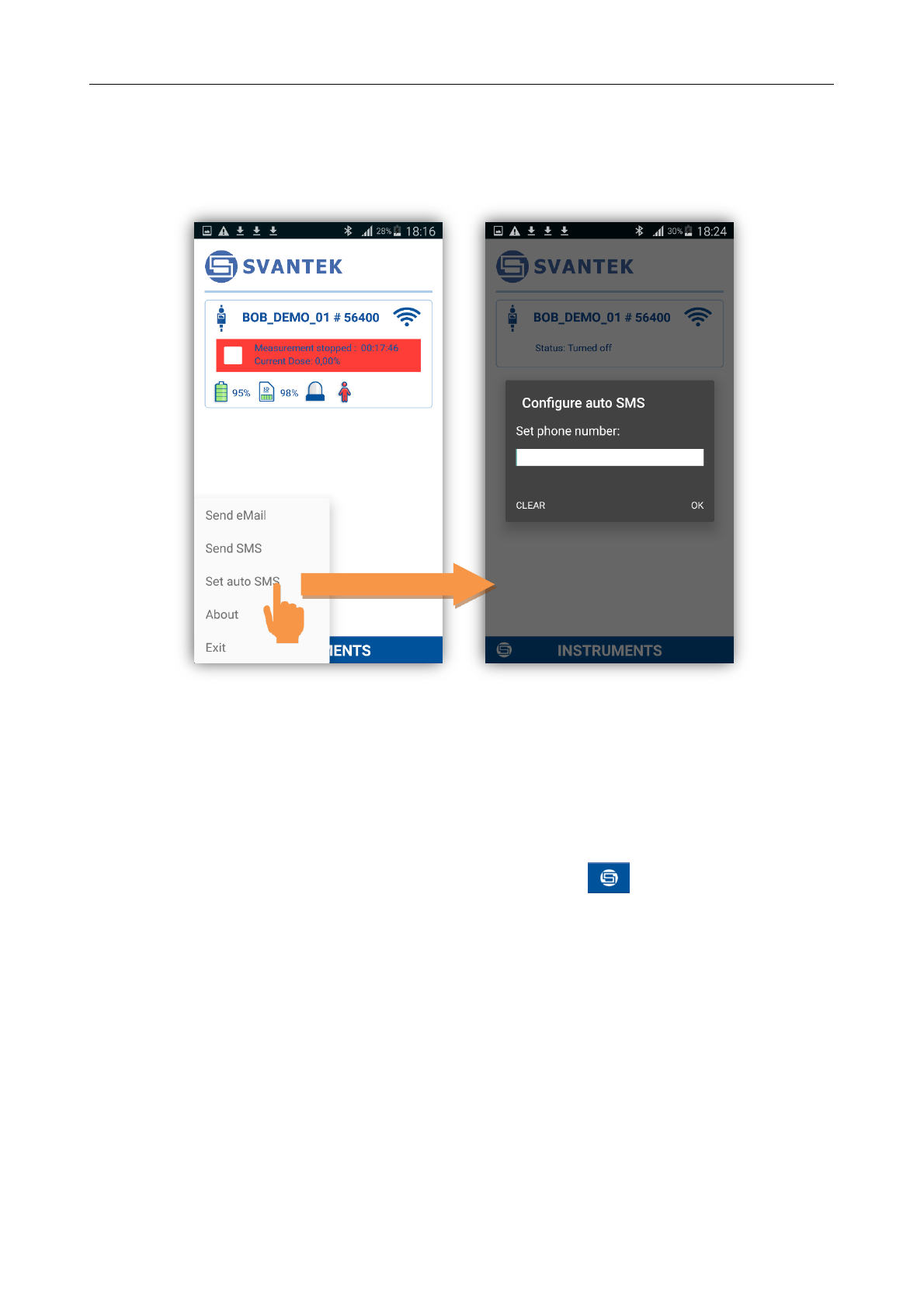

5.3.3 SMS and e-mail notification 47
5.4 Leaving the application and software version information 49
6 SUPERVISOR BASIC OPERATIONS 50
6.1 Installing and connecting to PC 50

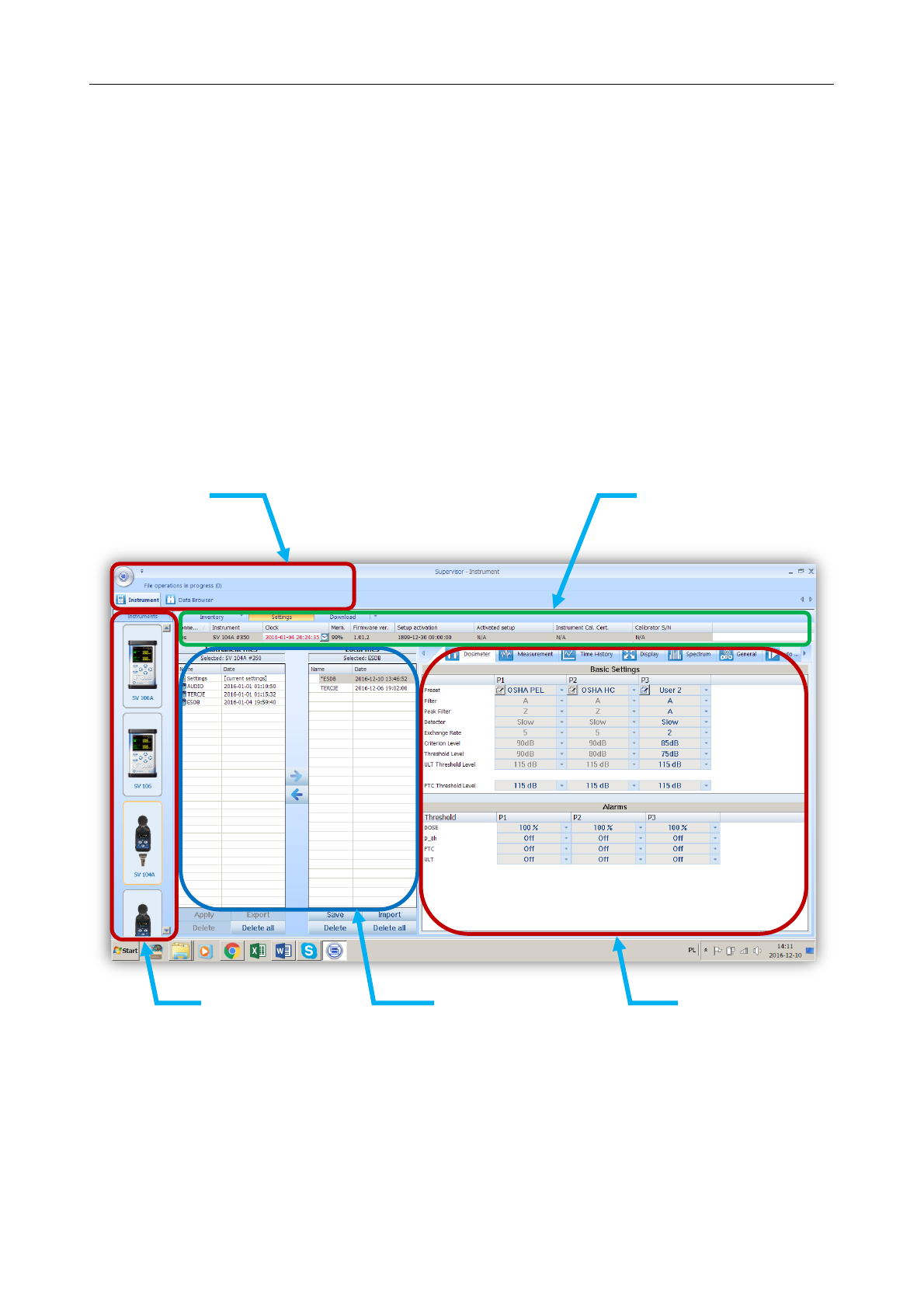

6.2 Main software window 51

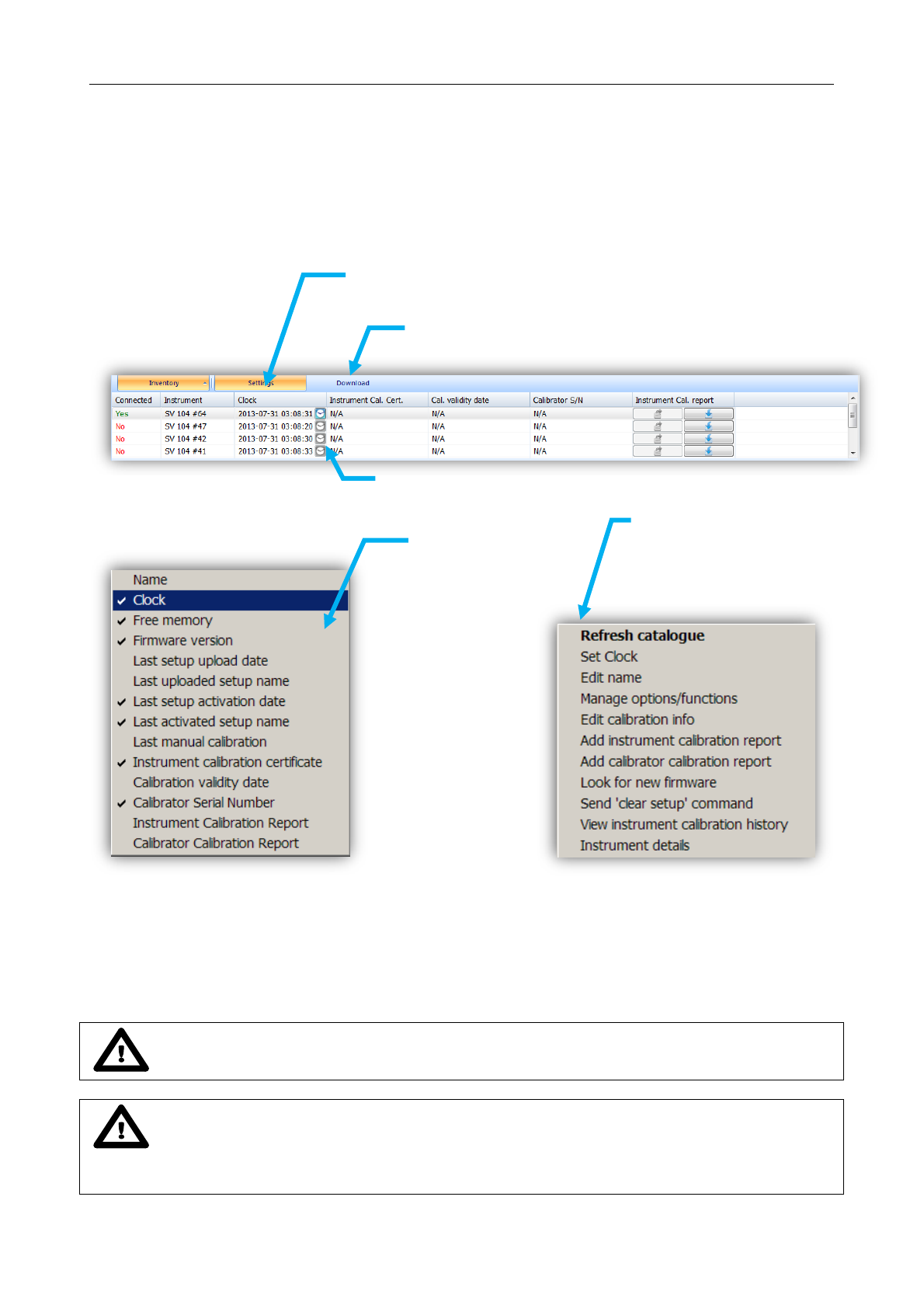

6.3 Instruments inventory panel 52
6.4 Instrument options unlock 53
6.5 Advanced configuration setup 54
6.5.1 Working with configuration setup files 54
6.5.2 Profile settings tab 57

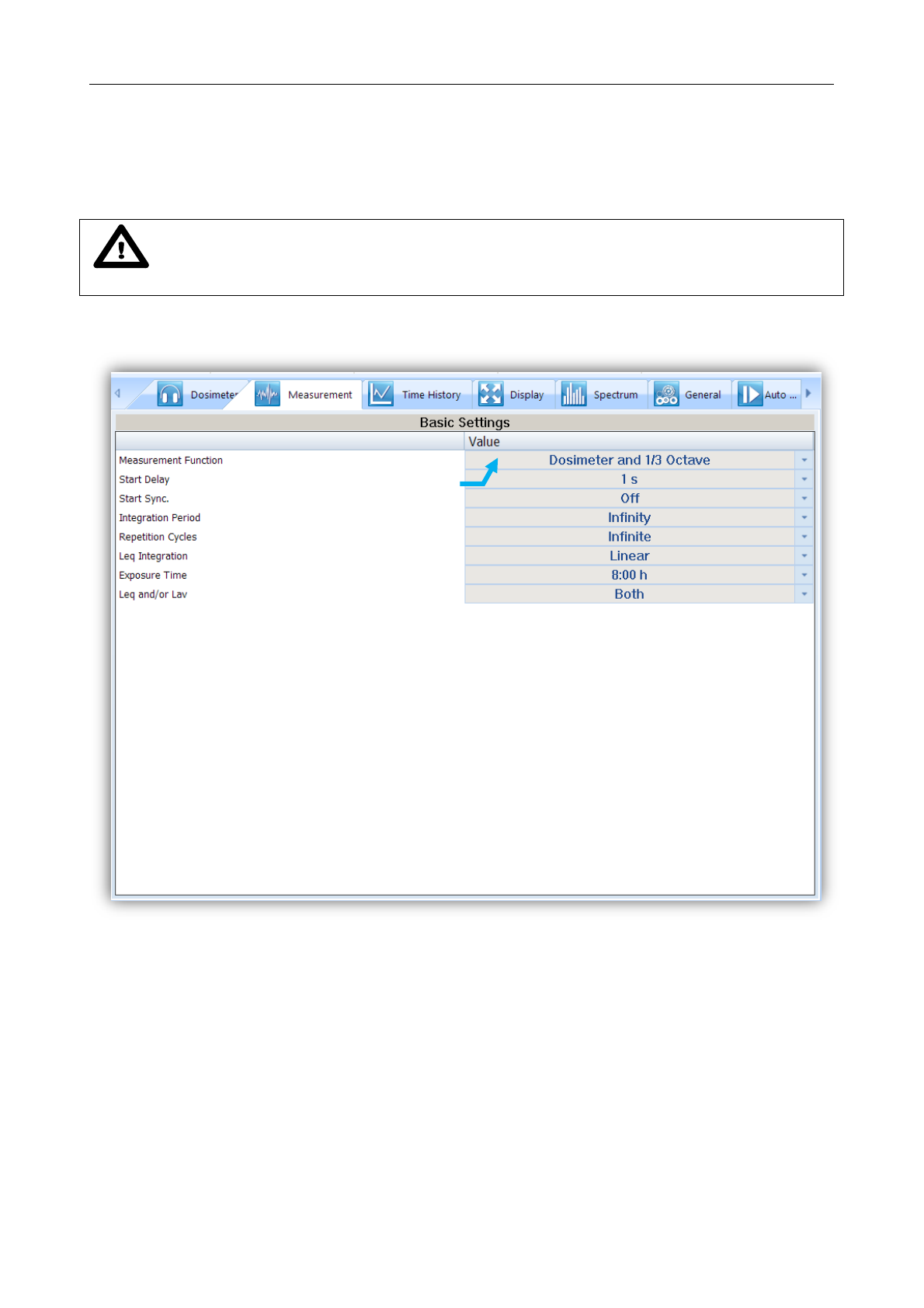

6.5.3 Measurement parameters settings tab 58

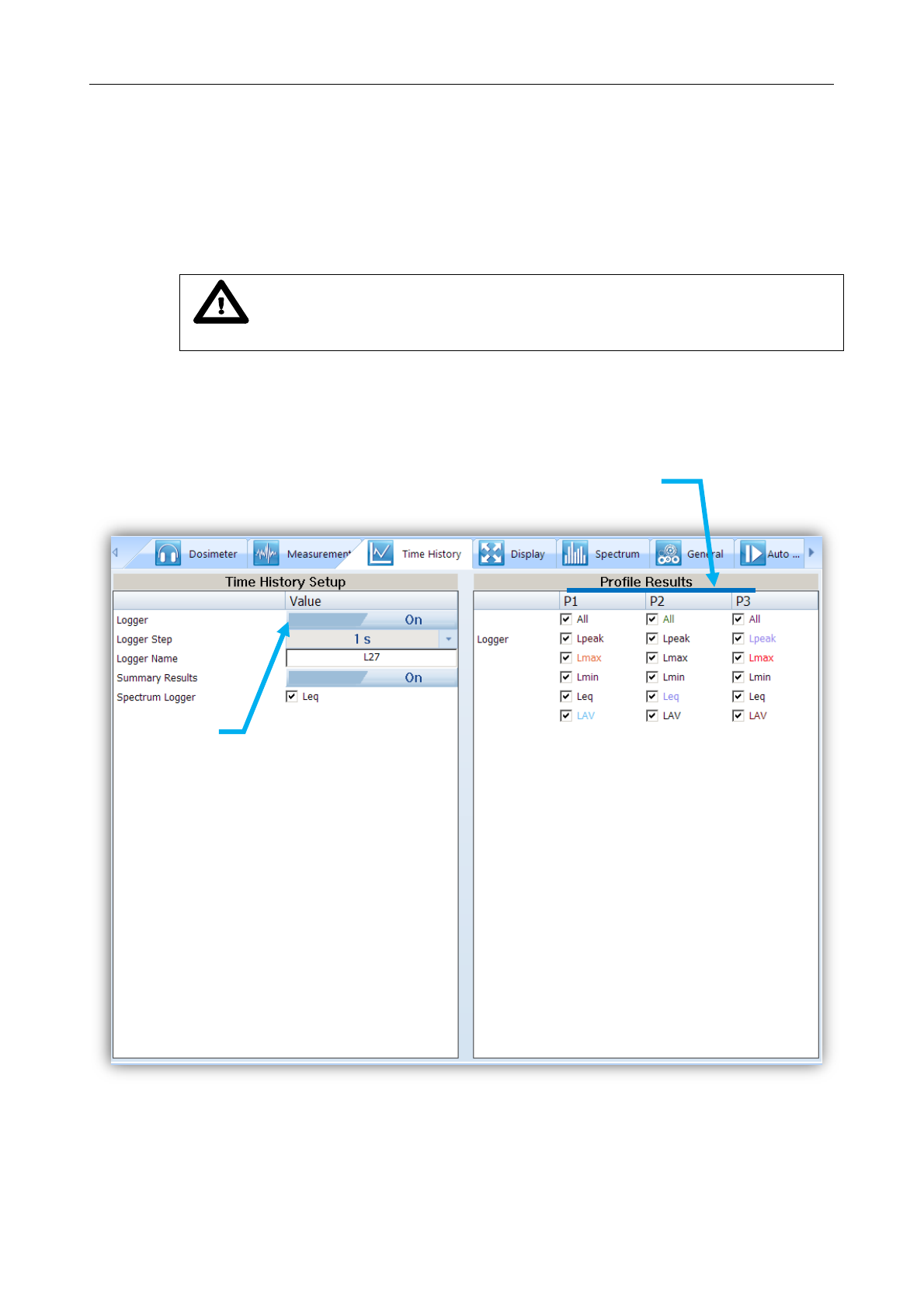

6.5.4 Time-history data logging settings tab 59

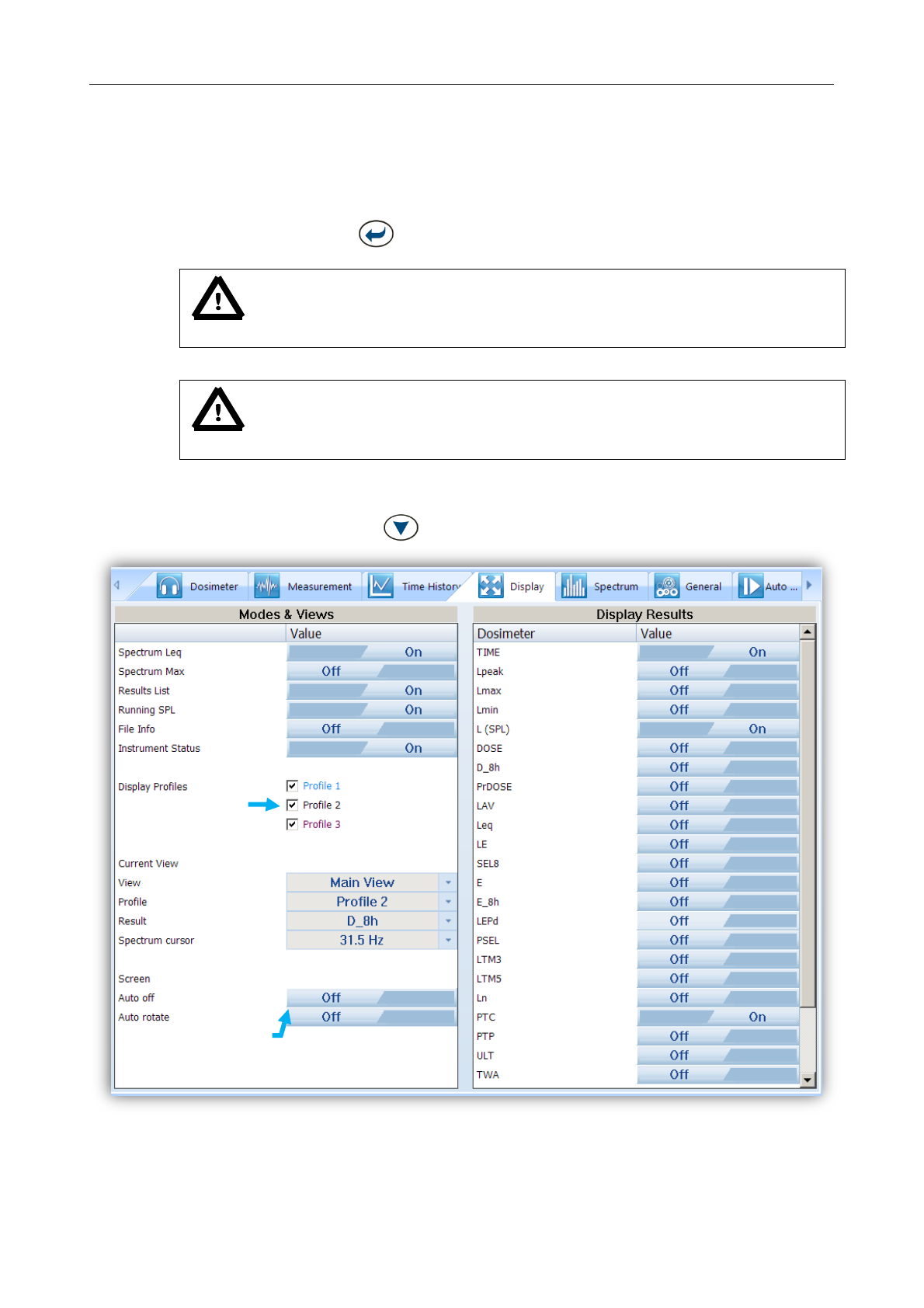

6.5.5 Display VIEW configuration tab 60
6.5.6 Octave analysis Spectrum configuration tab 61
6.5.7 General settings tab 61

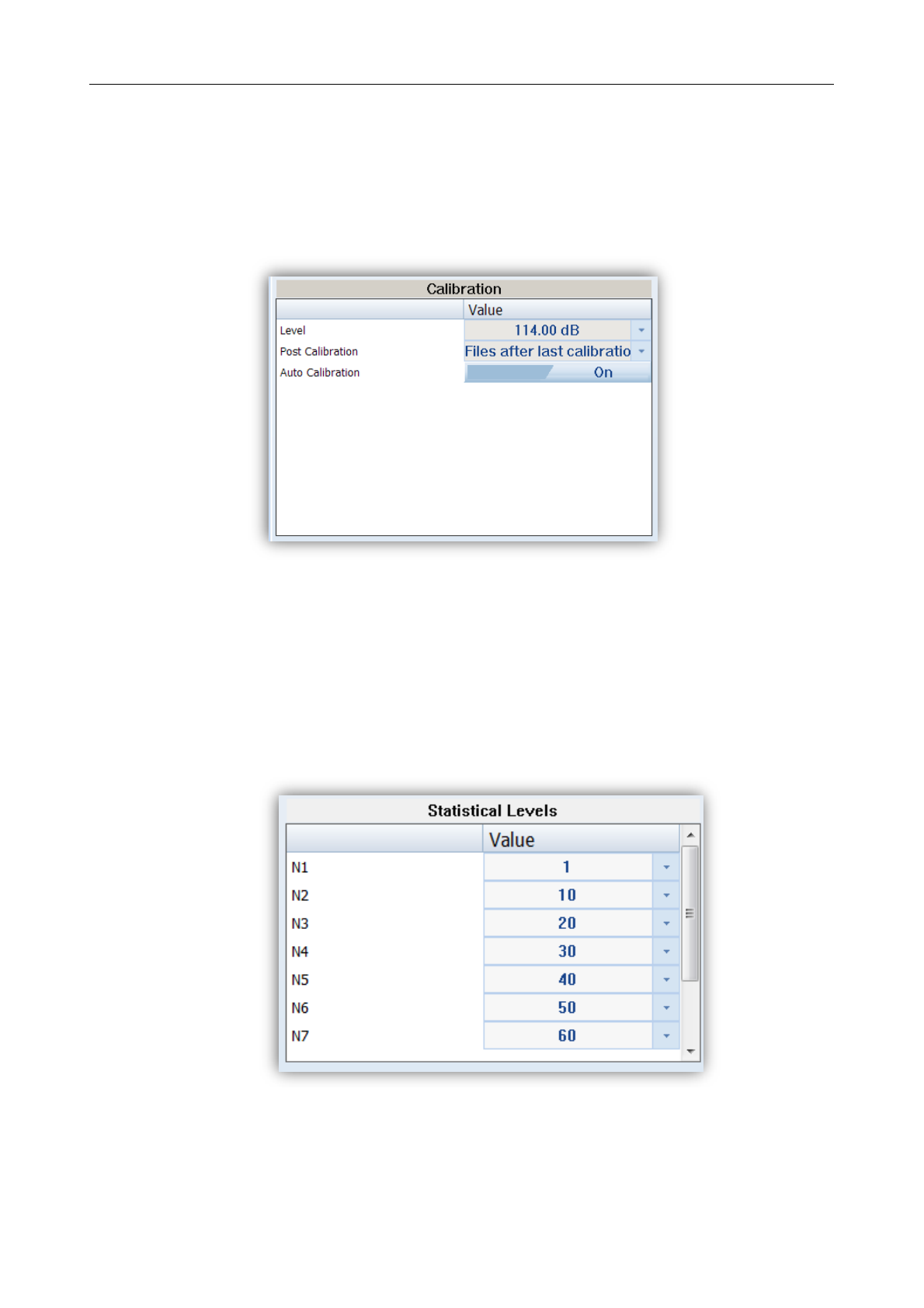

6.5.7.1 Calibration settings panel 62
6.5.7.2 Statistical levels settings panel 62
6.5.7.3 Keyboard security settings panel 63
6.5.7.4 Auxiliary settings panel and Bluetooth PIN code 63
6.5.8 Auto-Run settings (timer, pauses) tab 64
![](asset-7.png)
SV 104A USER'S MANUAL_______________________________________________________
7
6.5.9 Recording options tab 65

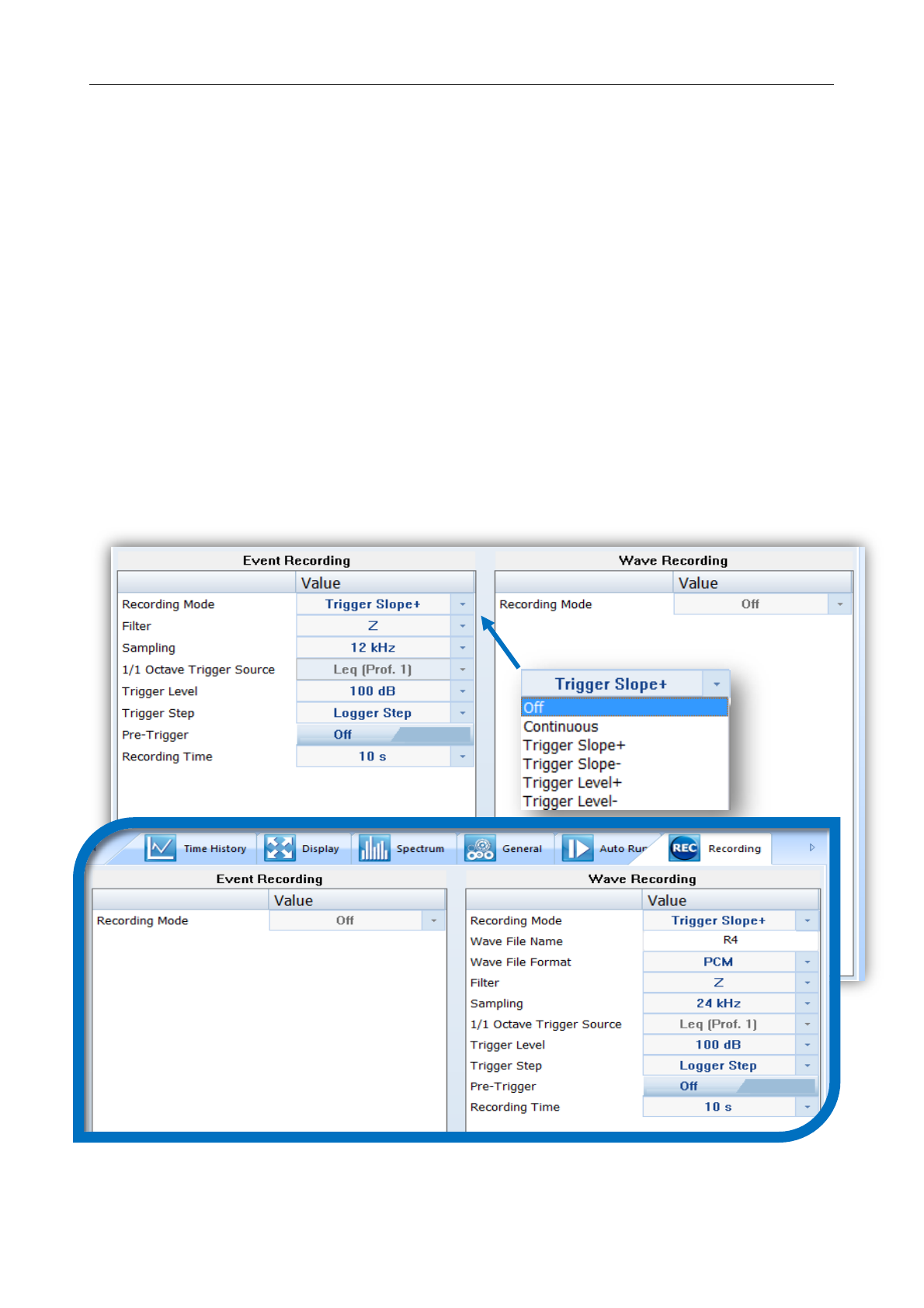

6.5.9.1 Event and Wave recording configuration panel 65
6.6 Working with data files 66

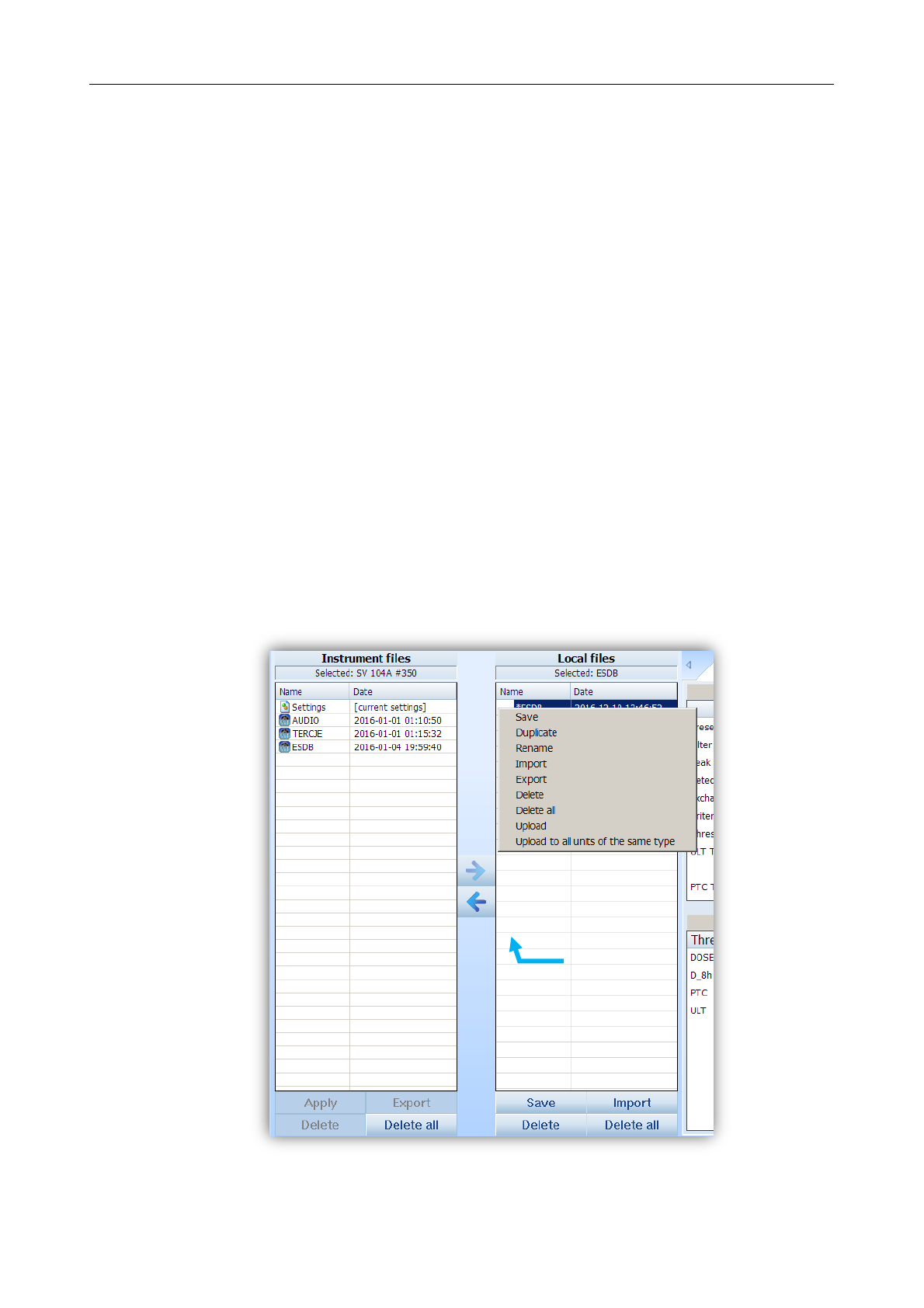

6.6.1 Instrument files 66
6.6.2 Local files “Data Browser” 67

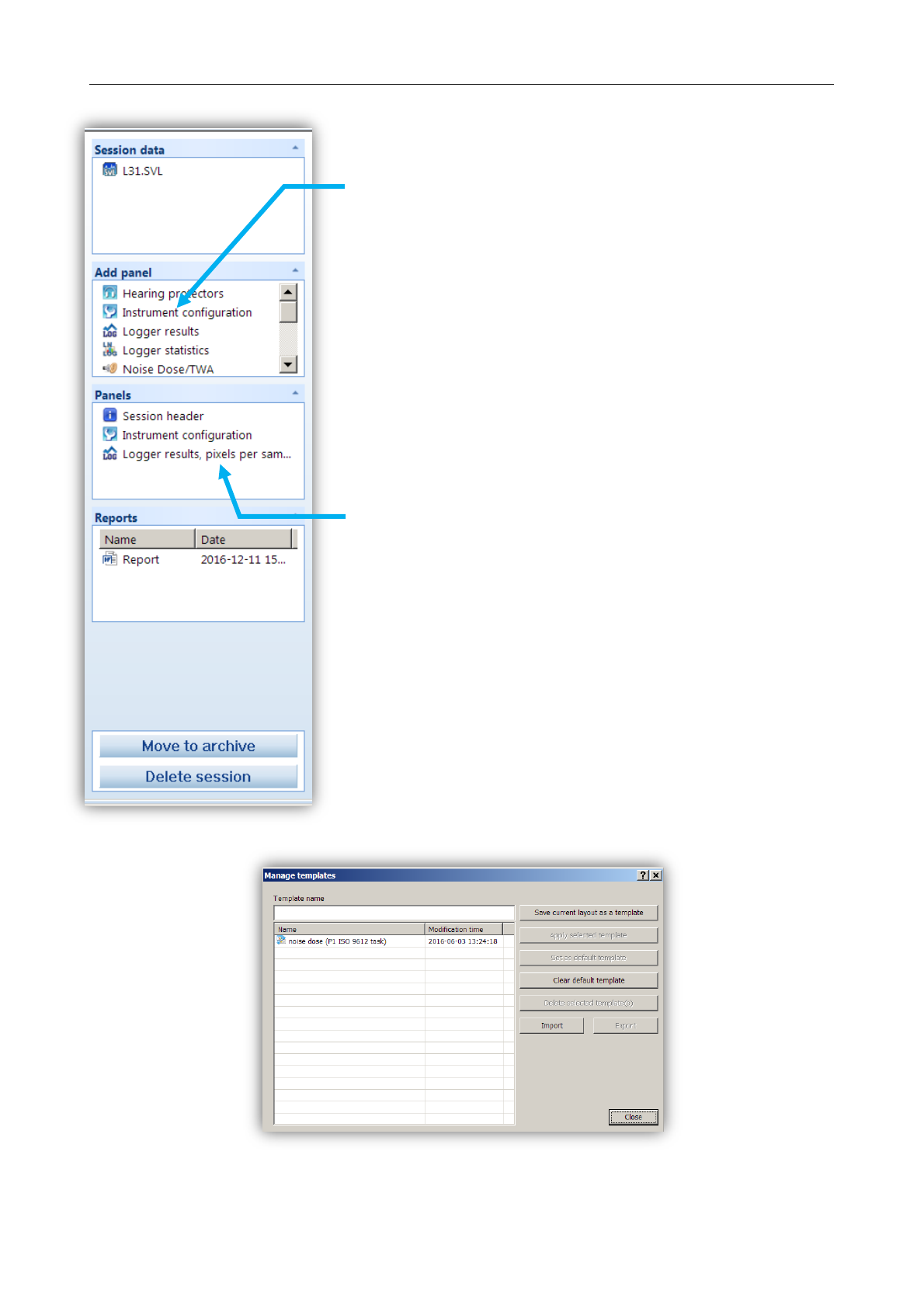

6.7 Working with sessions and reporting 68
6.7.1 Report panels 70
7 SV 104A MAINTENANCE 75
7.1 General recommendations for use 75
7.2 Cleaning 75
7.3 In situ calibration 75
7.4 Periodic testing 75
7.5 Changing the microphone and windshield 76
7.6 Firmware update 76
7.7 Storing the instrument 77
7.8 Transportation and carrying 77
7.9 Troubleshooting 77
8 RISK ASSESSMENT AND MITIGATION OF RISK 78
9 SVANTEK SERVICE 79
INDEX 80
![](asset-8.png)
SV 104A USER'S MANUAL_______________________________________________________
8
LIST OF FIGURES
FIGURE 2-1 SV 104A INSTRUMENT WITH THE MICROPHONE AND WINDSHIELD ..............................................................................14

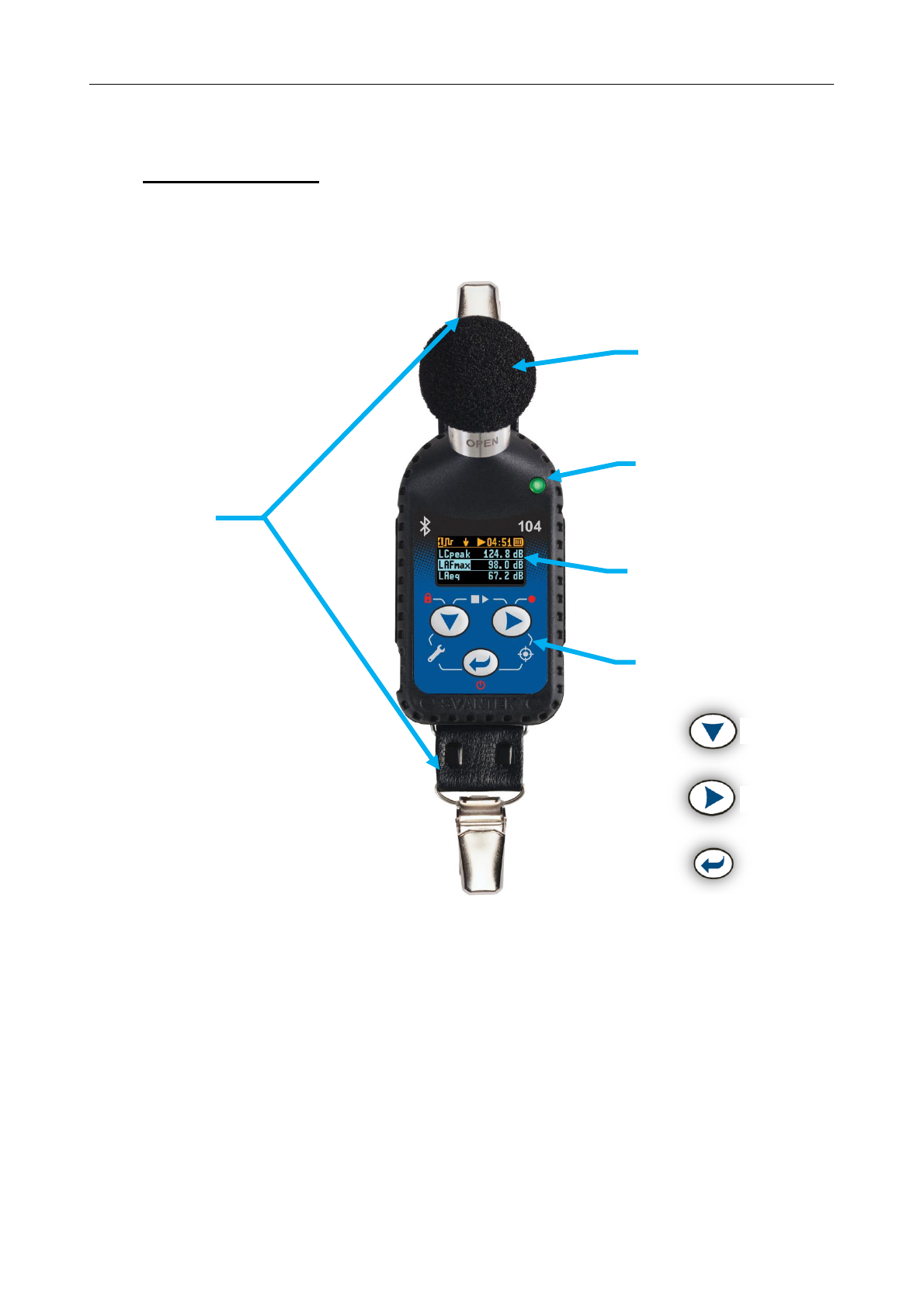

FIGURE 3-1 SV 104A AT A GLANCE ....................................................................................................................................16

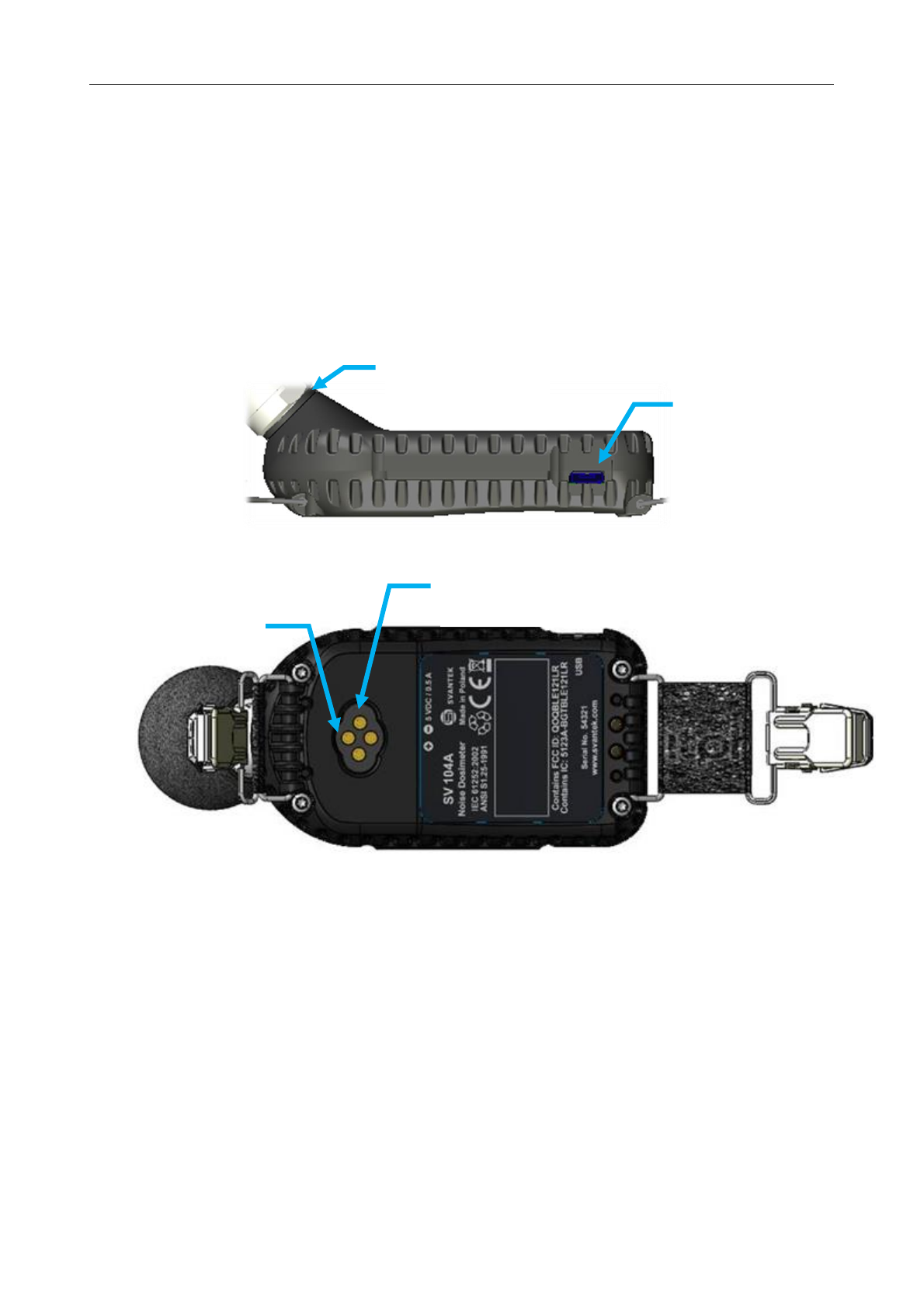

FIGURE 3-2 SV 104A SIDE VIEW – MICROPHONE AND MICRO USB CONNECTOR ............................................................................17
FIGURE 3-3 SV 104A BACK VIEW - CHARGING AND COMMUNICATION PORT (RESERVED FOR DOCKING STATION) ....................................17

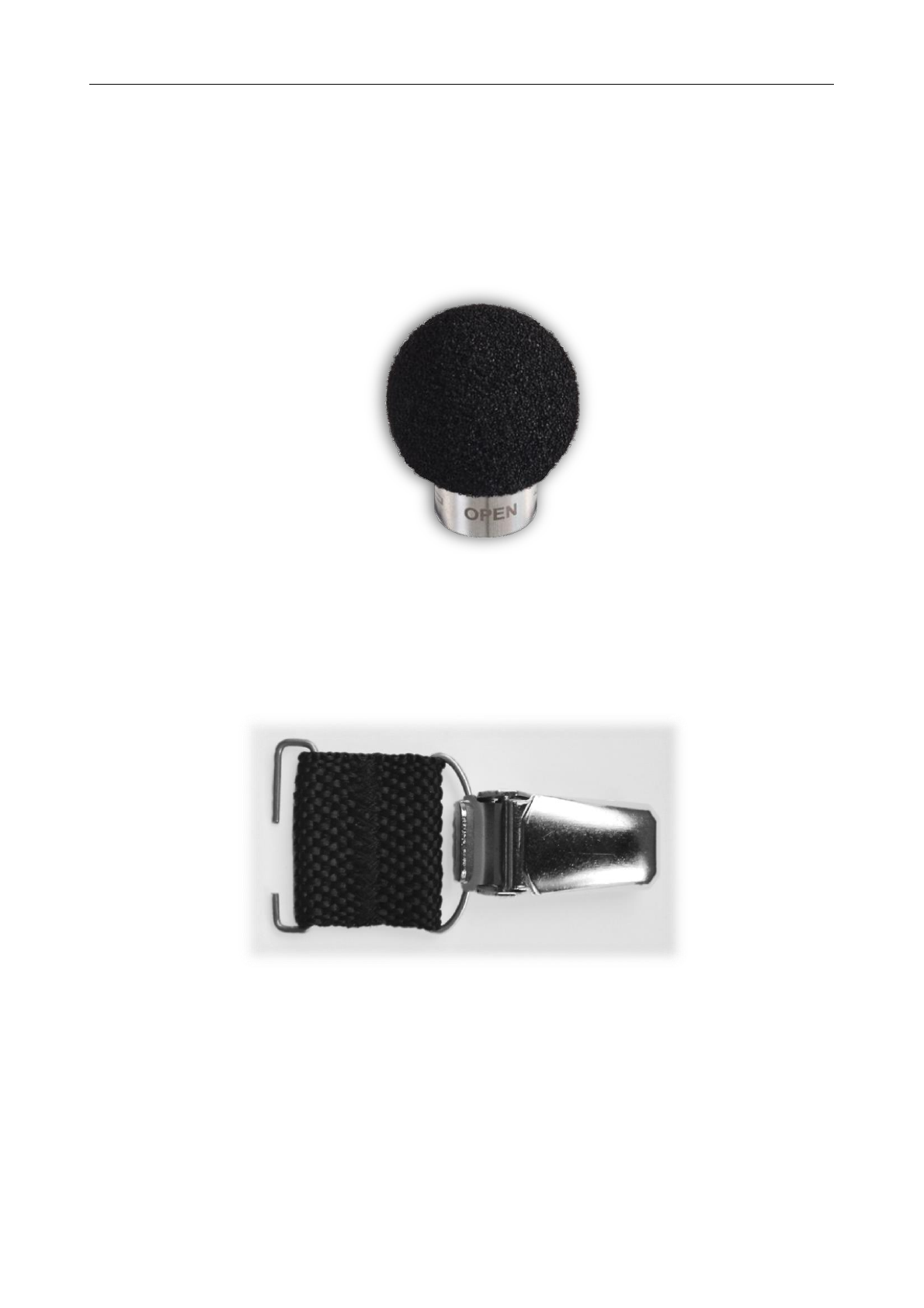

FIGURE 3-4 SA 122A WINDSHIELD .....................................................................................................................................18
FIGURE 3-5 SV 104A STANDARD MOUNTING CLIPS .................................................................................................................18

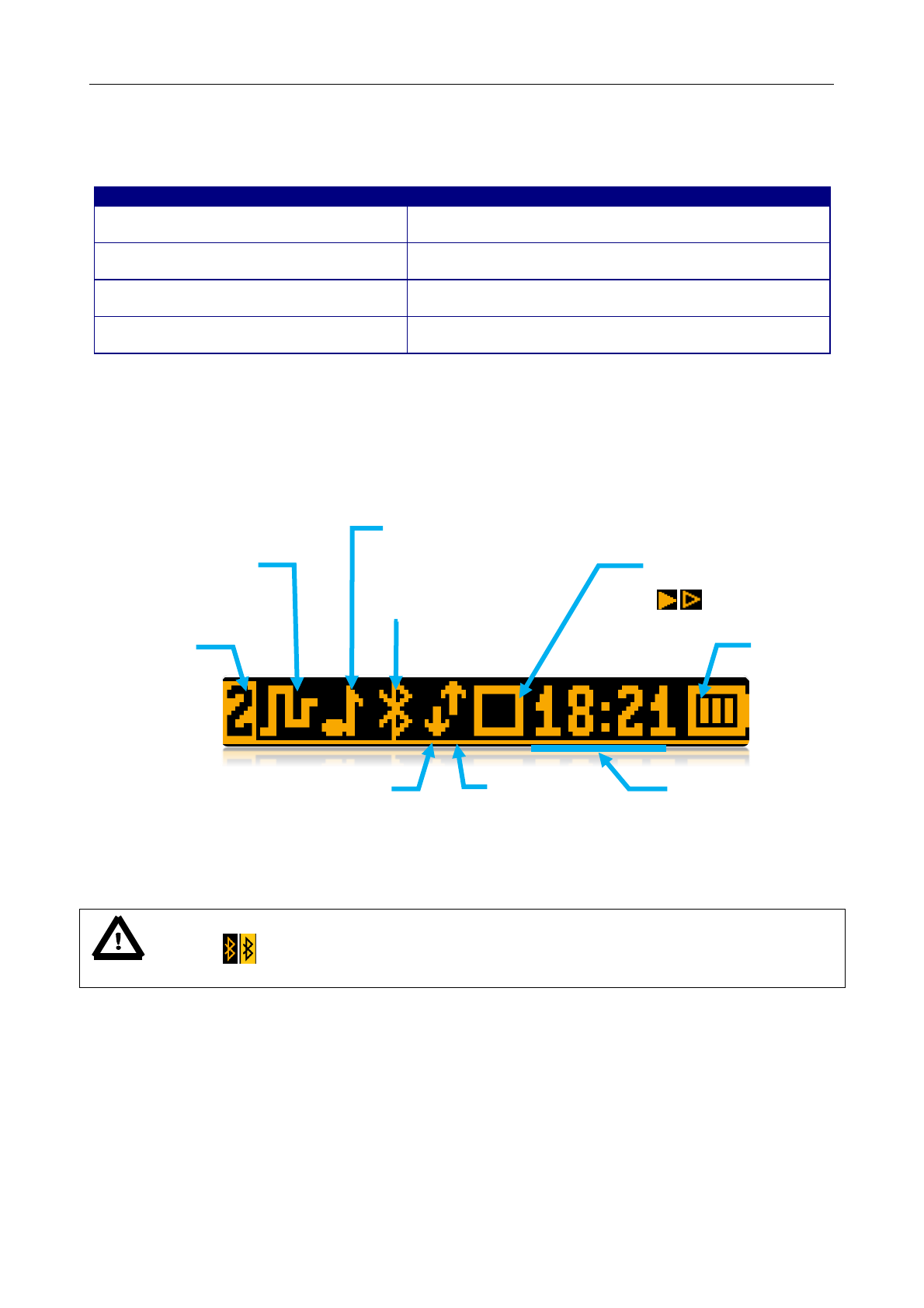

FIGURE 3-6 SV 104A DISPLAY ICONS DESCRIPTION .................................................................................................................19
FIGURE 3-7 CONTROL KEYPAD ON THE FRONT PANEL – PRIMARY KEY FUNCTIONS ............................................................................20
FIGURE 3-8 CONTROL KEYPAD ON THE FRONT PANEL – ALTERNATE KEY FUNCTIONS .........................................................................21

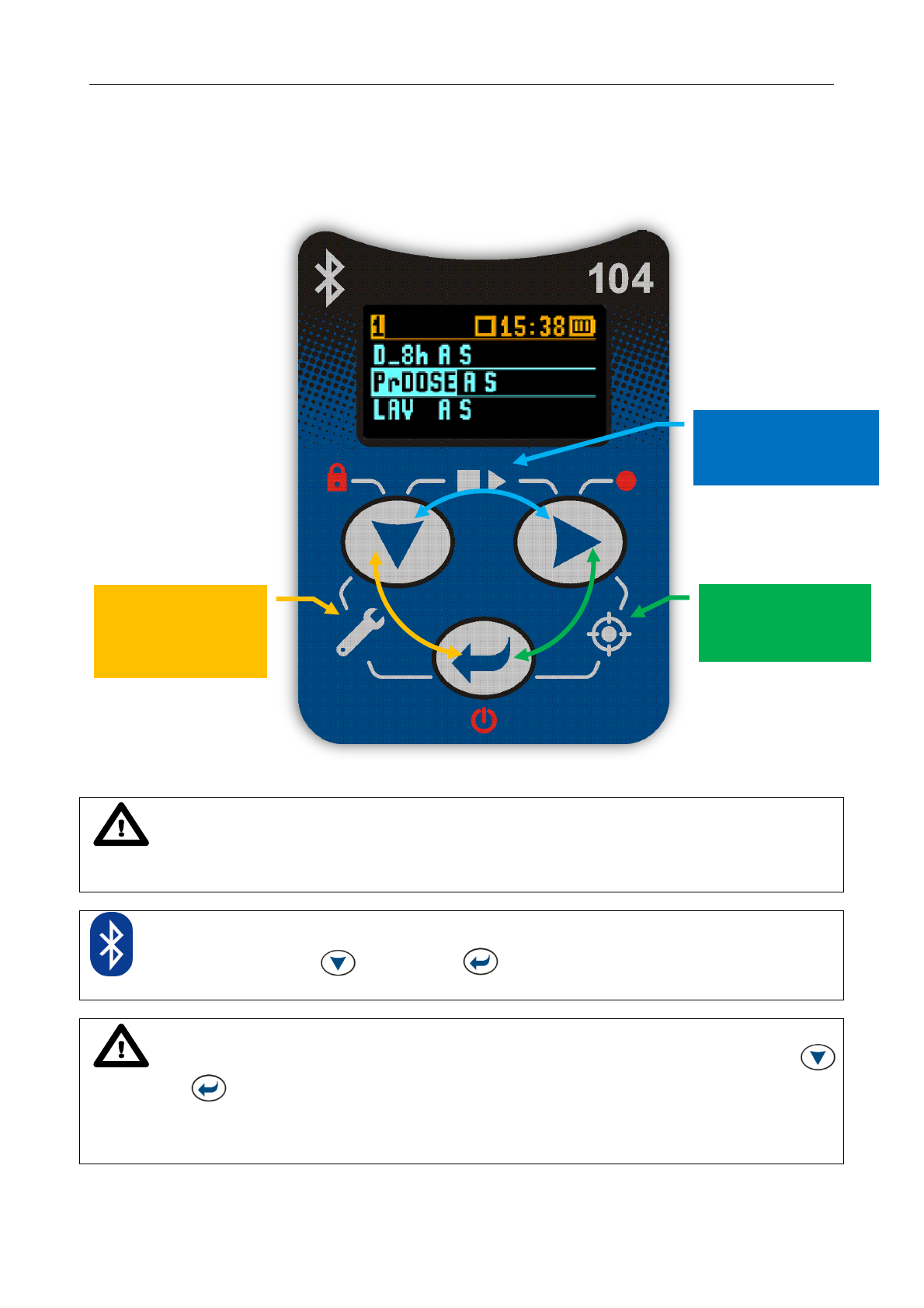

FIGURE 3-9 CONTROL KEYPAD ON THE FRONT PANEL – ALTERNATE COMBINED KEYS FUNCTION ...........................................................22

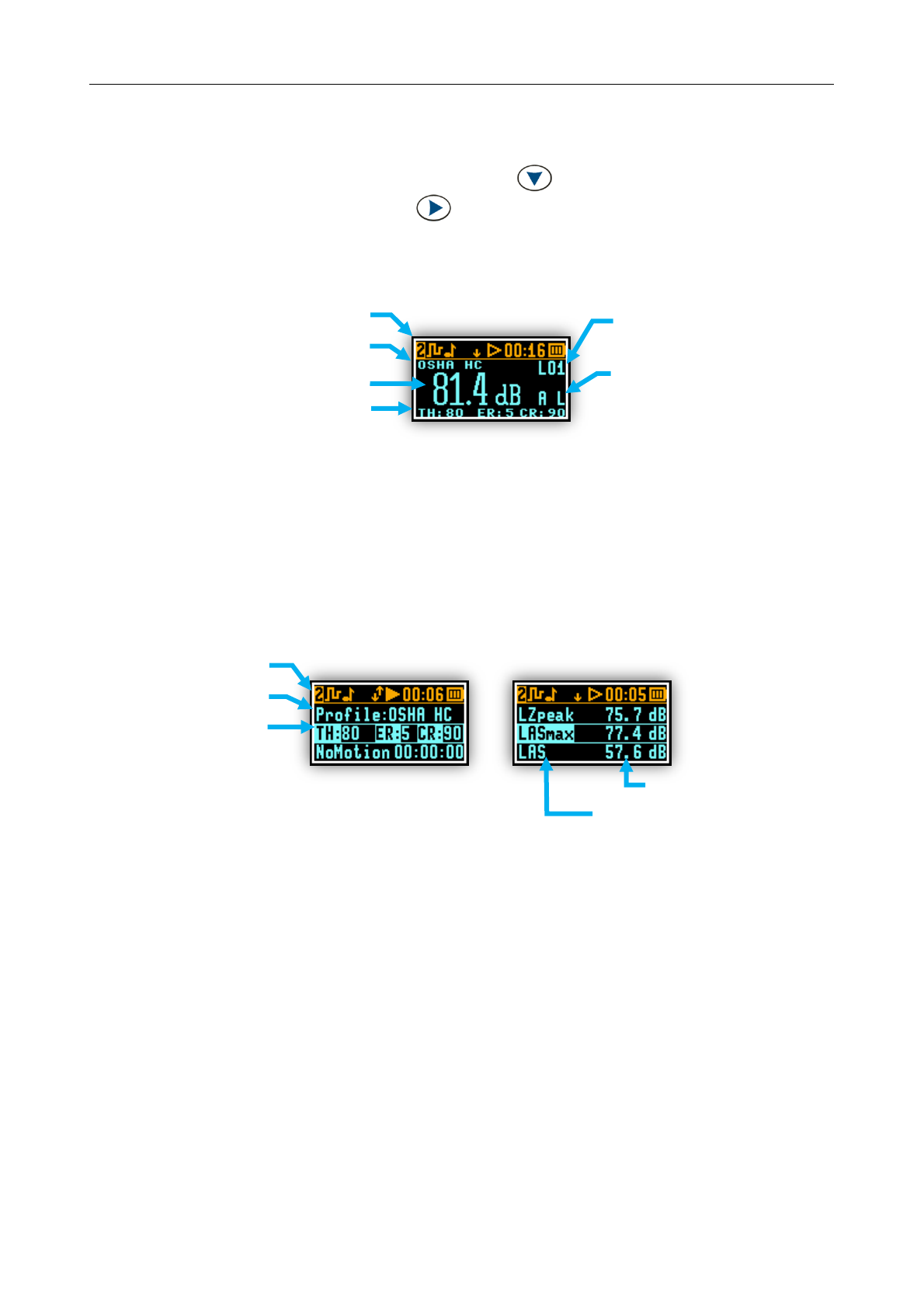

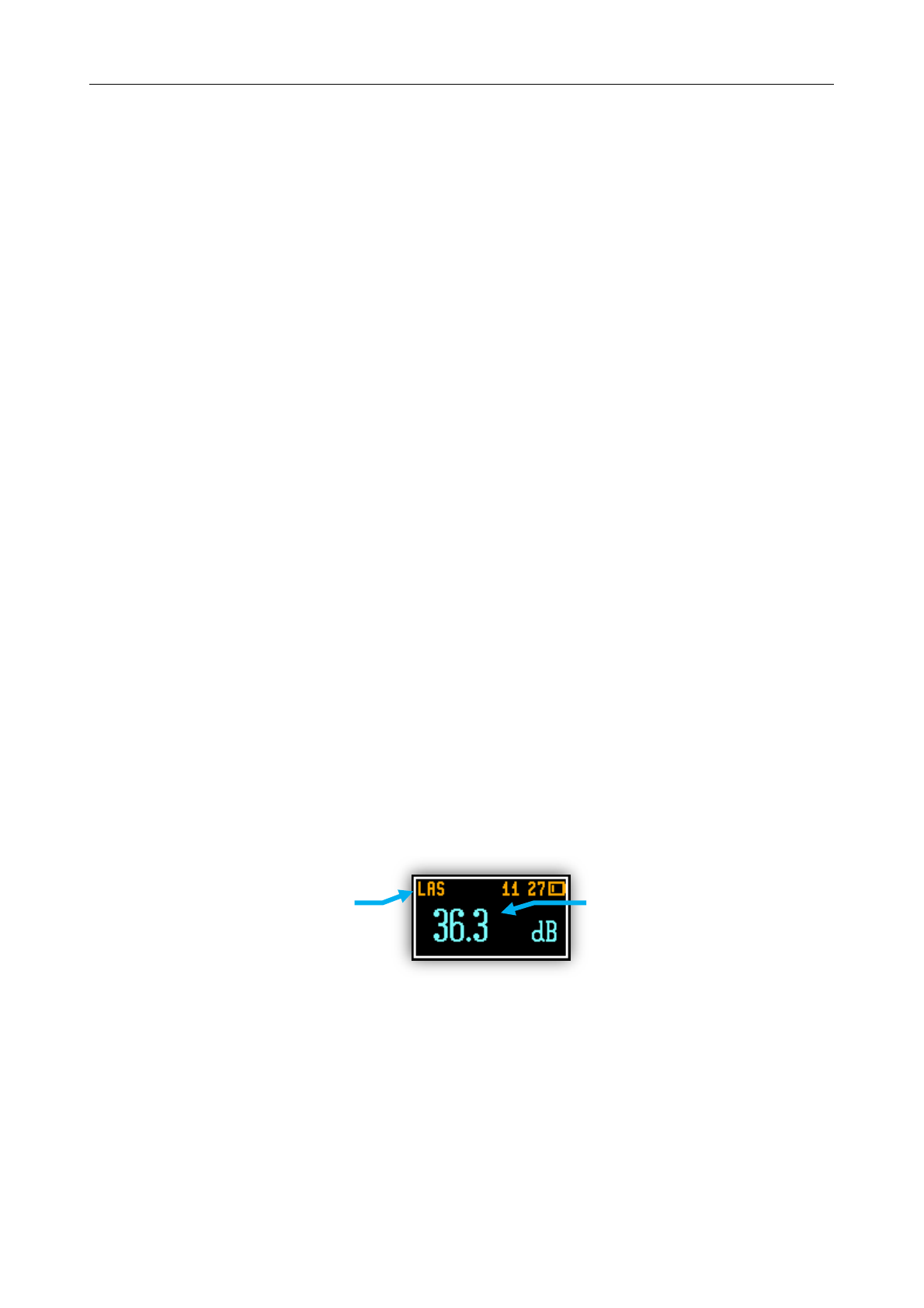

FIGURE 3-10 RUNNING SPL VIEW MODE SCREEN....................................................................................................................23
FIGURE 3-11 PRIMARY ONE RESULT VIEW MODE SCREEN.......................................................................................................24
FIGURE 3-12 RESULTS LIST VIEW MODE SCREENS .................................................................................................................24

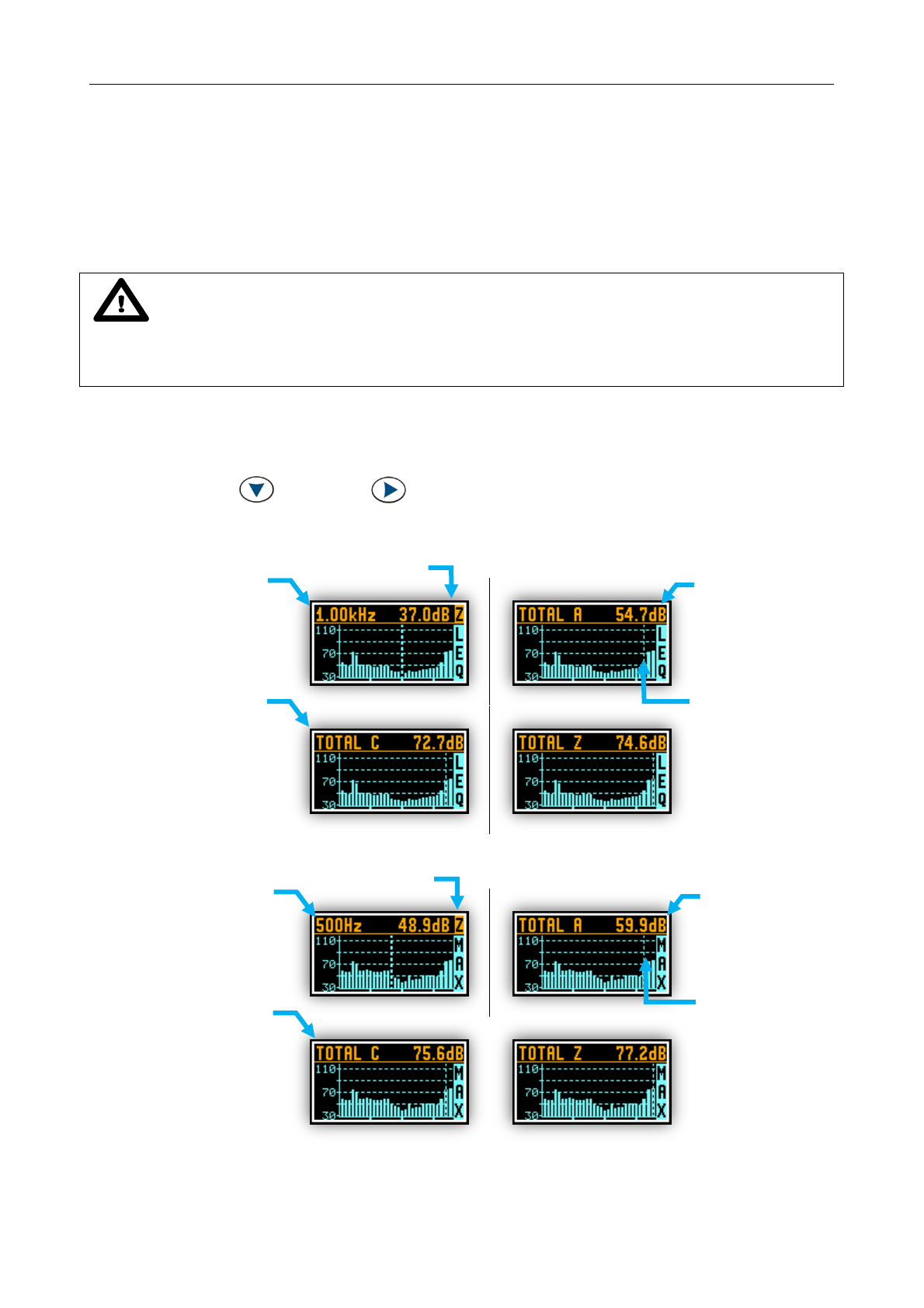

FIGURE 3-13 1/1 OCTAVE ANALYSIS SPECTRUM GRAPH LEQ VIEW MODE SCREENS .........................................................................25
FIGURE 3-14 1/1 OCTAVE ANALYSIS SPECTRUM GRAPH MAX VIEW MODE SCREENS ........................................................................25
FIGURE 3-15 1/3 OCTAVE ANALYSIS SPECTRUM GRAPH LEQ VIEW MODE SCREENS .........................................................................26
FIGURE 3-16 1/3 OCTAVE ANALYSIS SPECTRUM GRAPH MAX VIEW MODE SCREENS ........................................................................26

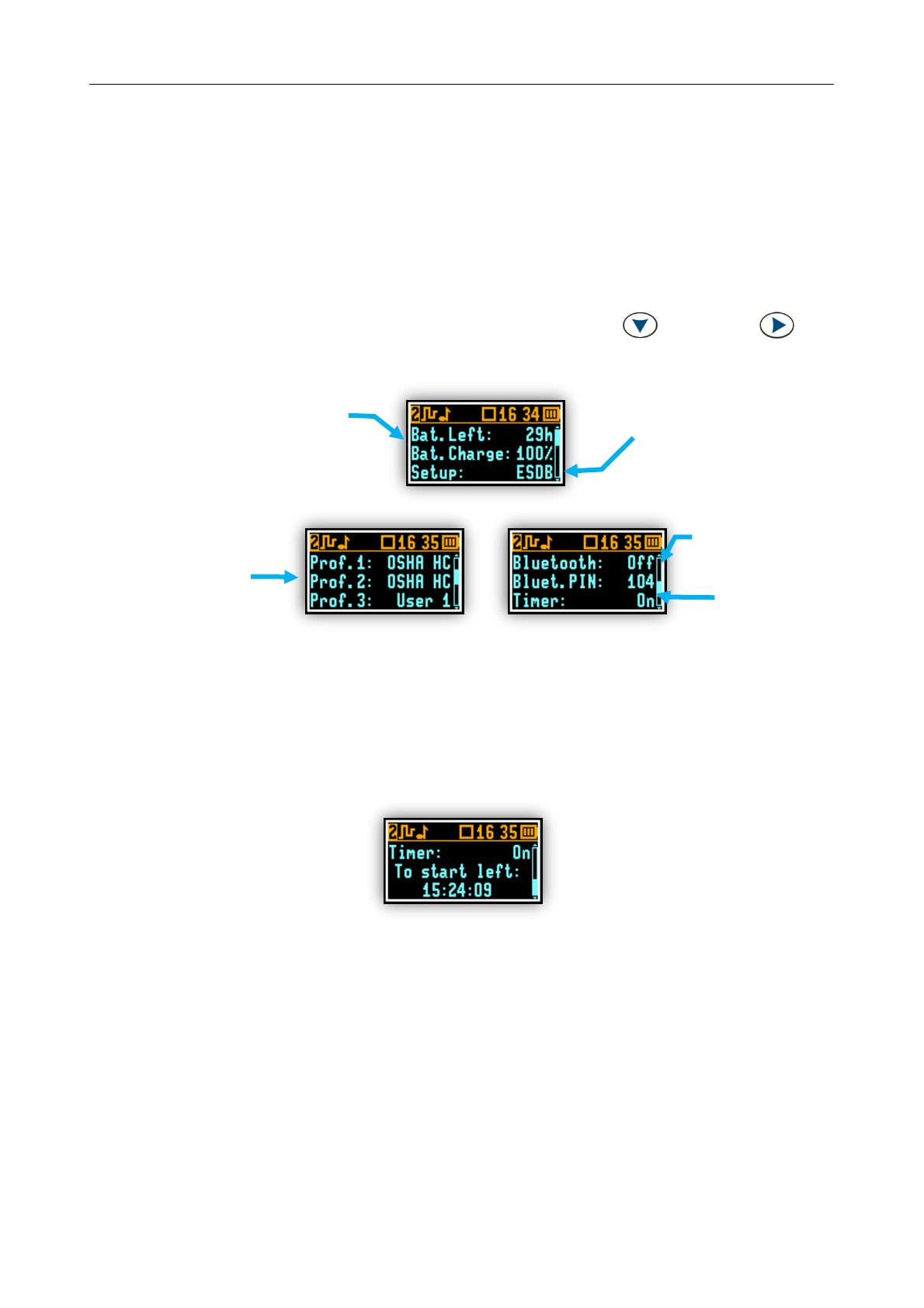

FIGURE 3-17 INSTRUMENT STATUS VIEW MODE SCREENS ...................................................................................................27

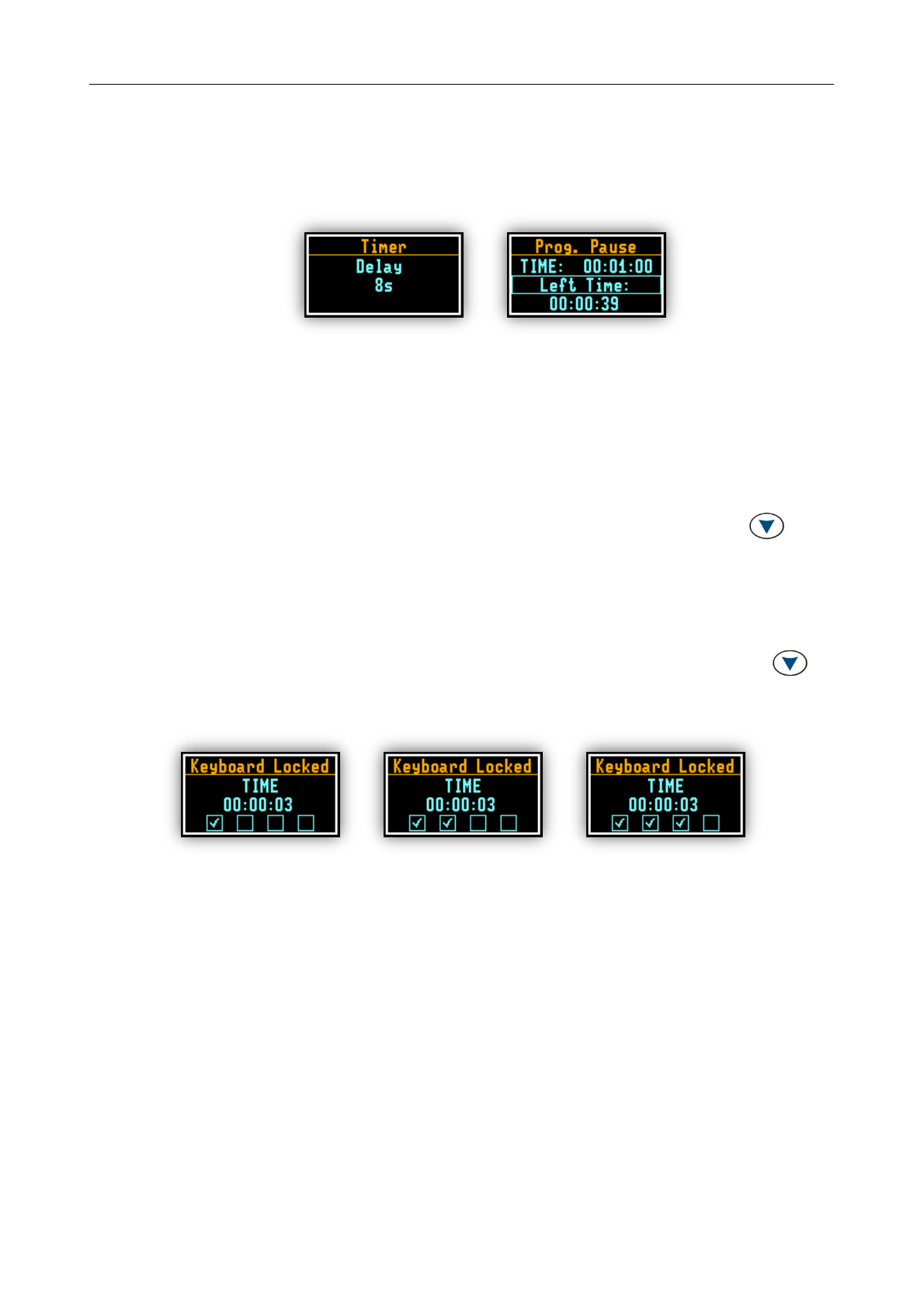

FIGURE 3-18 TIMER INFORMATION .....................................................................................................................................27

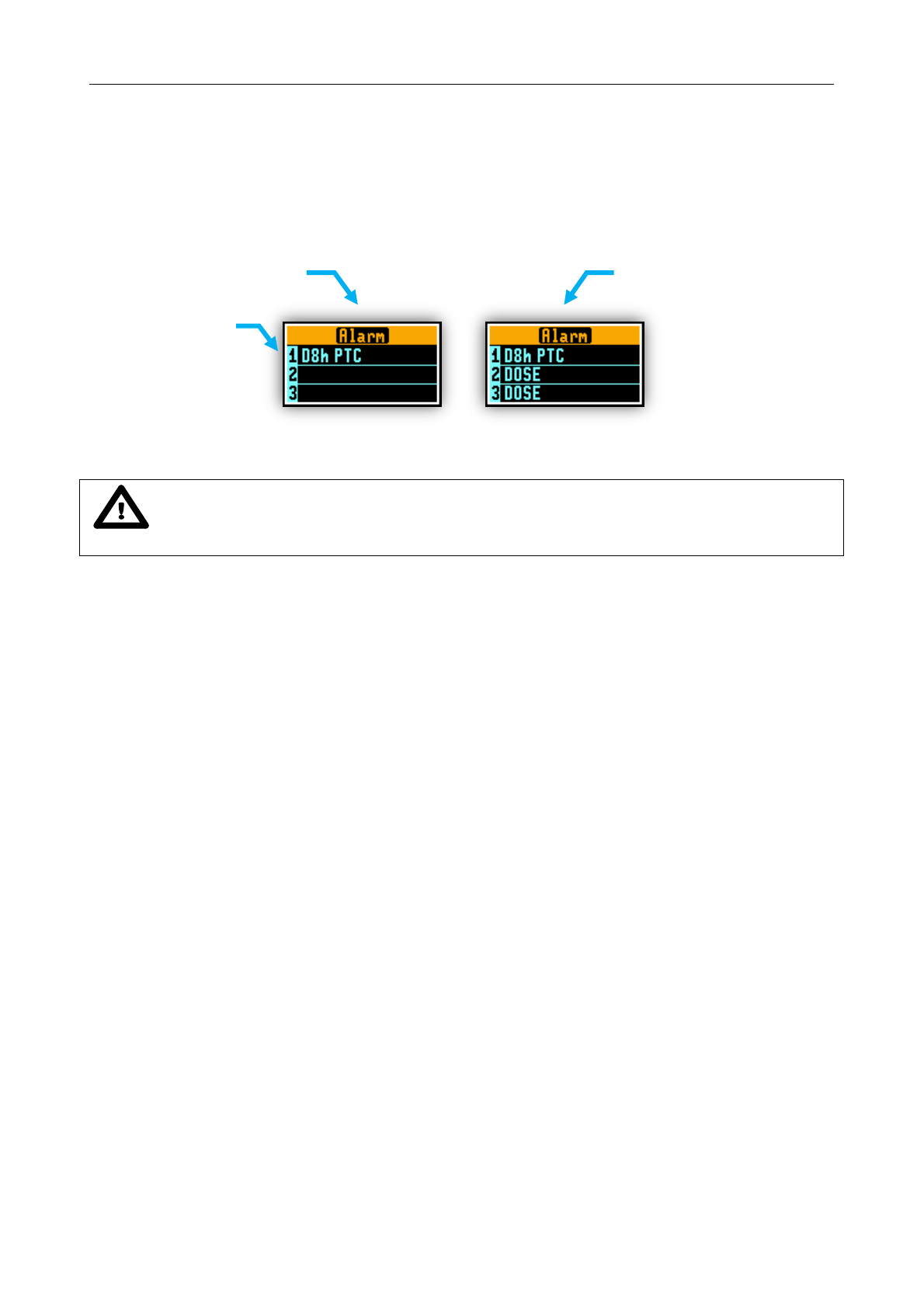

FIGURE 3-19 ALARM VIEW SCREENS ..................................................................................................................................28

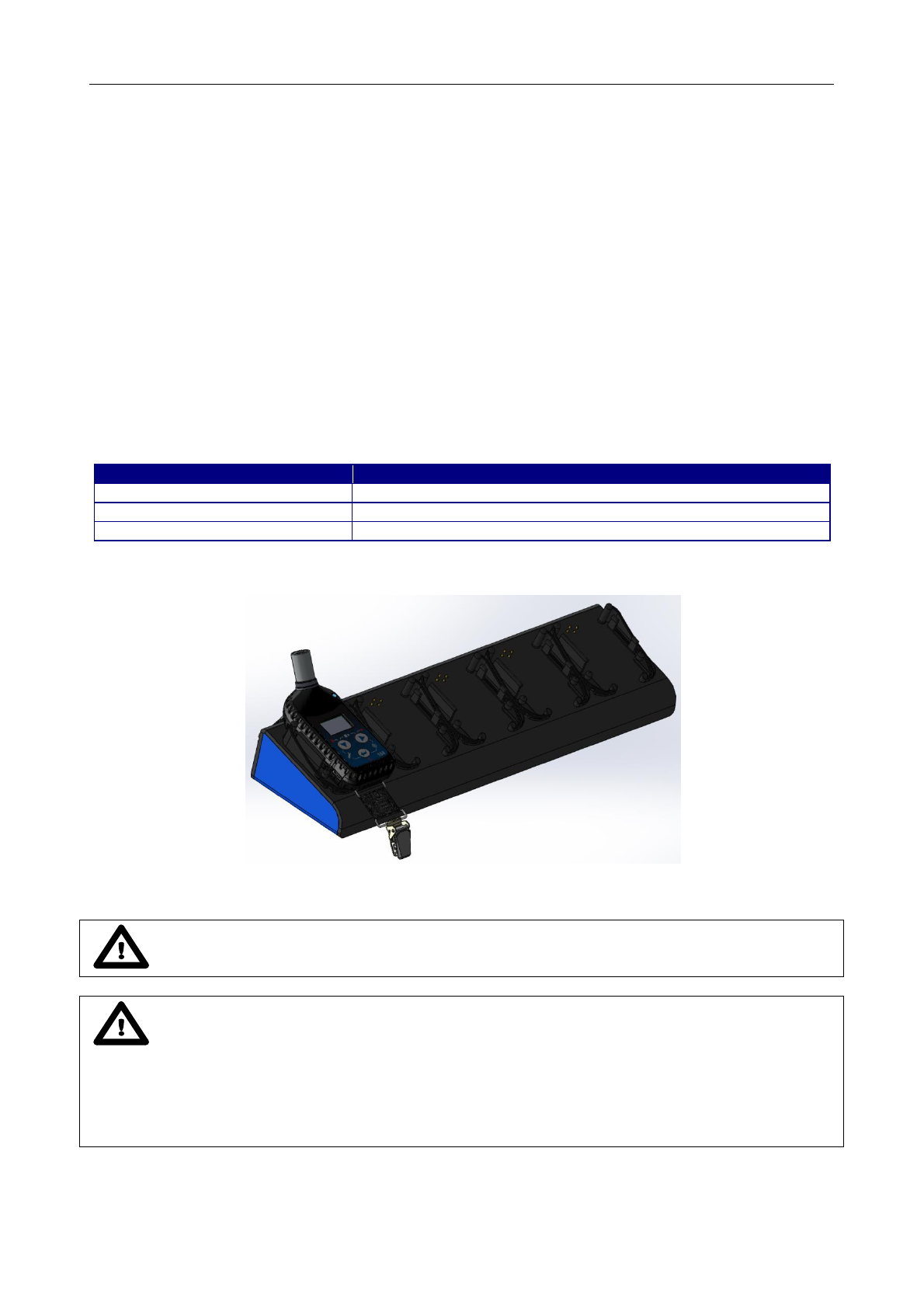

FIGURE 4-1 5-BAY DOCKING STATION (SB 104A-5) ................................................................................................................30

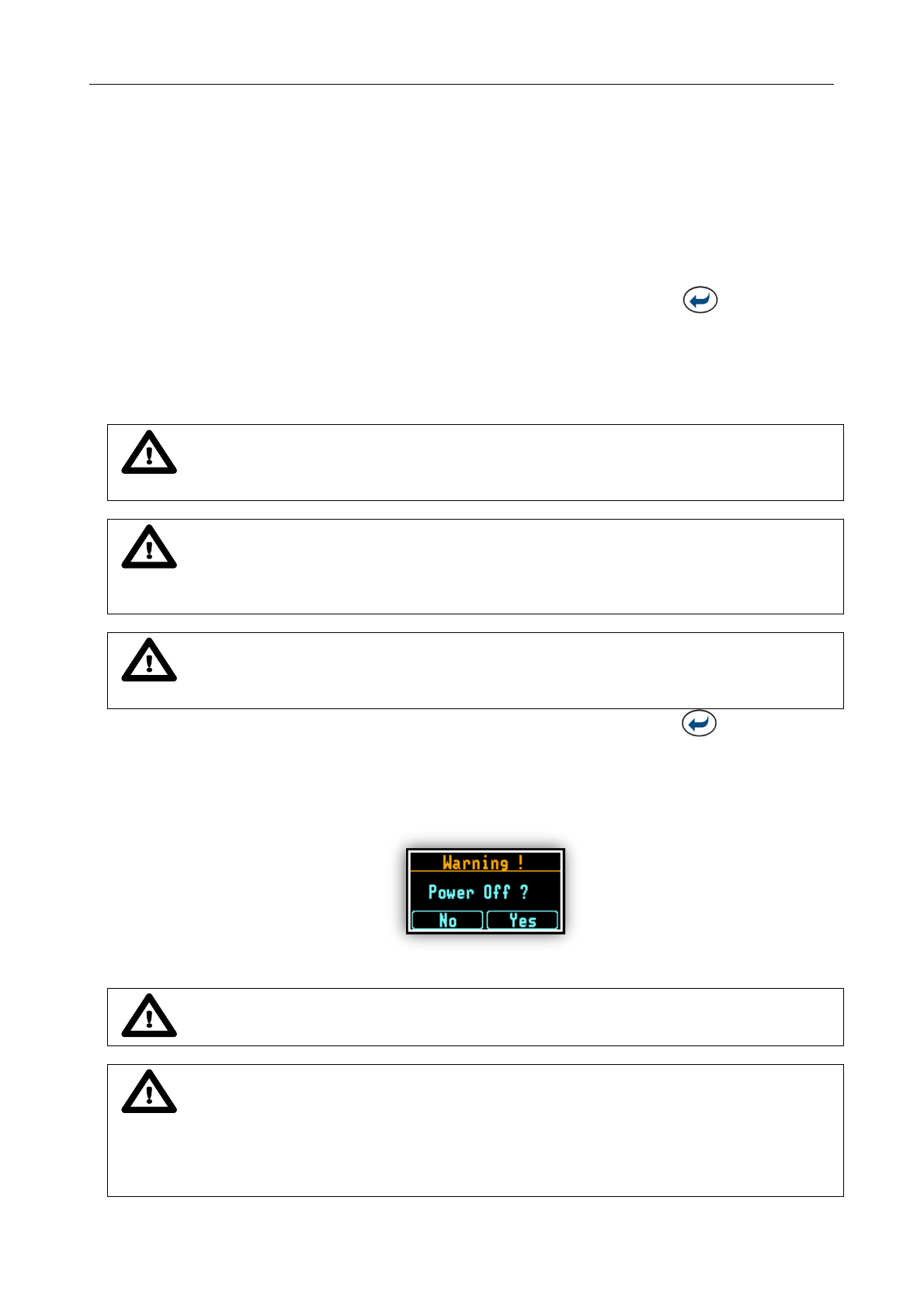

FIGURE 4-2 POWER-OFF WARNING SCREEN ...........................................................................................................................31

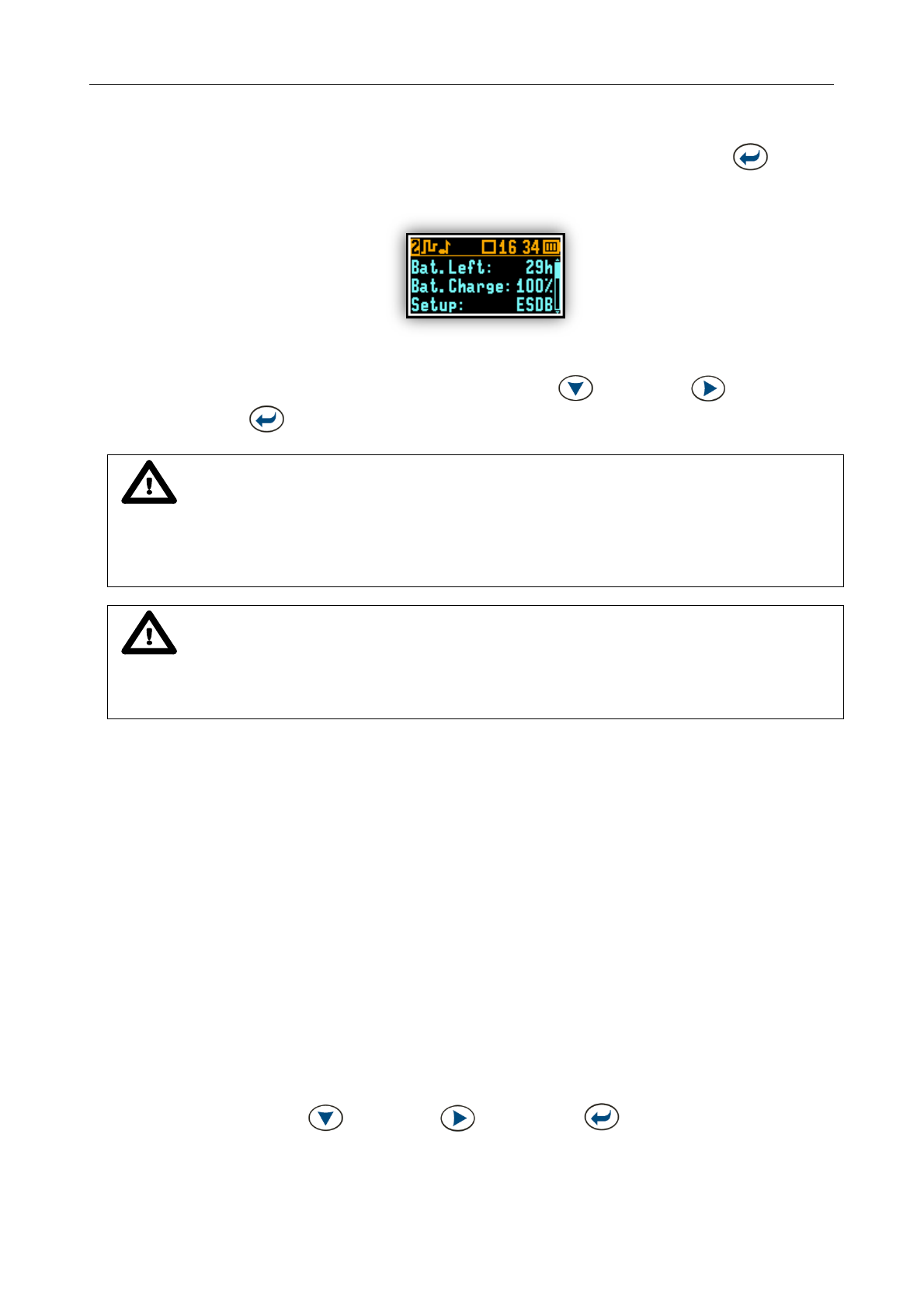

FIGURE 4-3 INSTRUMENT STATUS - BATTERY STATE .................................................................................................................32

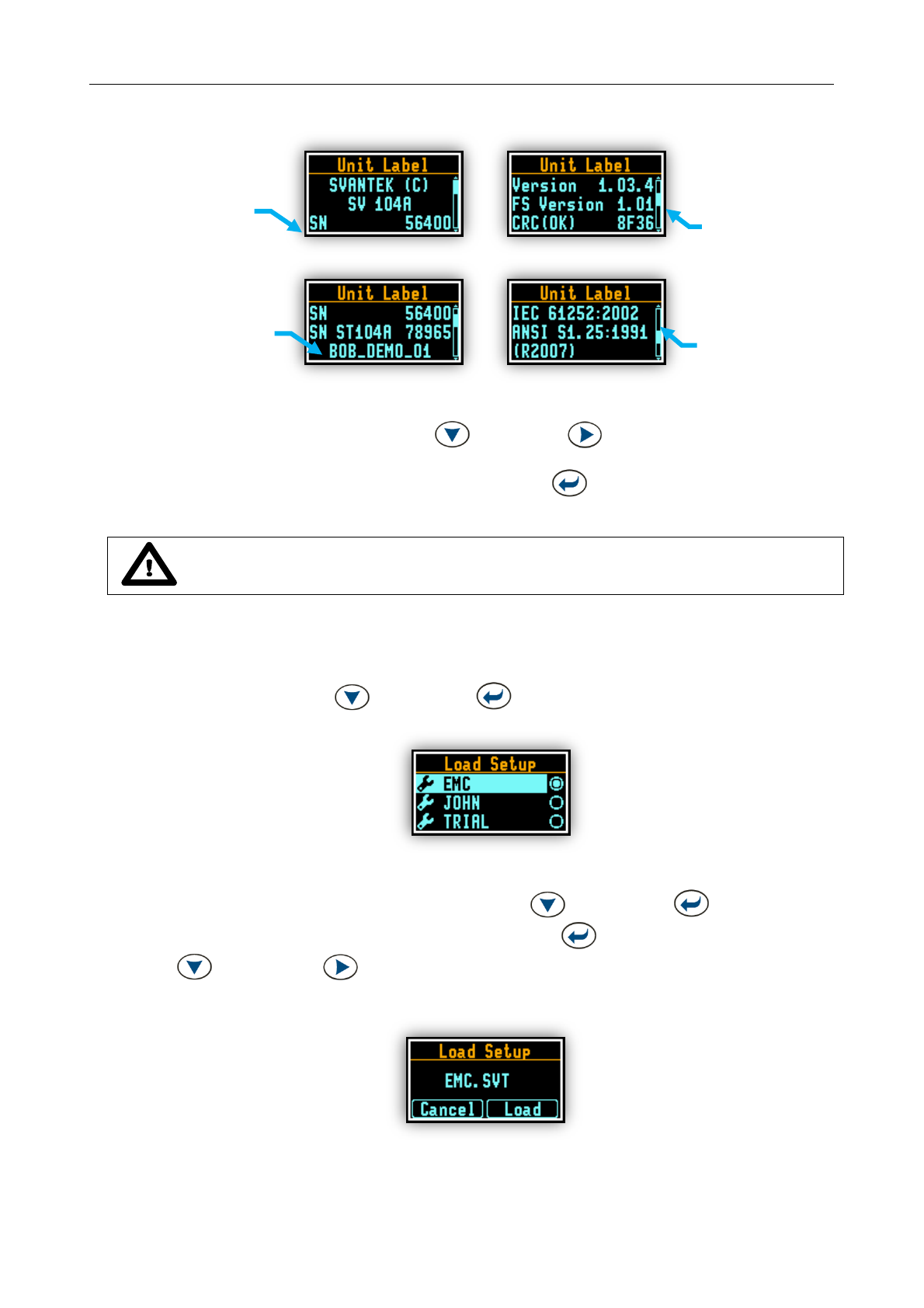

FIGURE 4-4 UNIT LABEL SCREENS ........................................................................................................................................33
FIGURE 4-5 LOAD SETUP MENU ..........................................................................................................................................33
FIGURE 4-6 LOAD SETUP CONFIRMATION ..............................................................................................................................33

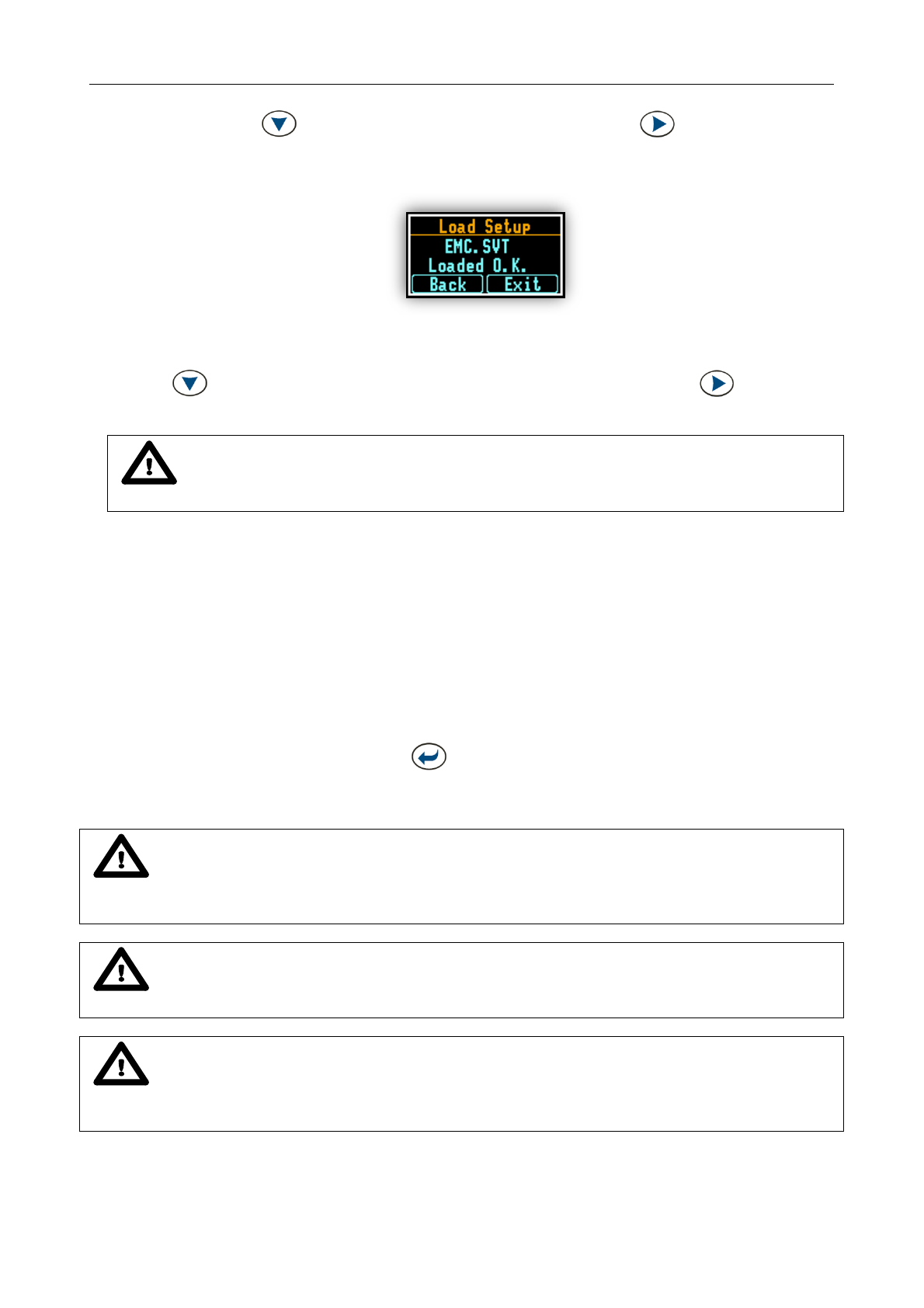

FIGURE 4-7 STATUS OF SETUP LOADING ................................................................................................................................34
FIGURE 4-8 CALIBRATION MENU.........................................................................................................................................35
FIGURE 4-9 CALIBRATION - INITIAL DELAY SCREEN ...................................................................................................................35
FIGURE 4-10 CALIBRATION IN PROGRESS SCREEN ....................................................................................................................35
FIGURE 4-11 CALIBRATION CONFIRMATION SCREEN ................................................................................................................36
FIGURE 4-12 CALIBRATION - MICROPHONE NOT IN TOLERANCE SCREEN ........................................................................................36
FIGURE 4-13 VOICE COMMENT LINKING SCREEN .....................................................................................................................37
FIGURE 4-14 VOICE COMMENT RECORDING COMMAND SCREEN .................................................................................................37
FIGURE 4-15 VOICE COMMENT RECORDING IN PROGRESS SCREENS..............................................................................................37
FIGURE 4-16 VOICE COMMENT RECORD CONFIRMATION SCREEN ................................................................................................37

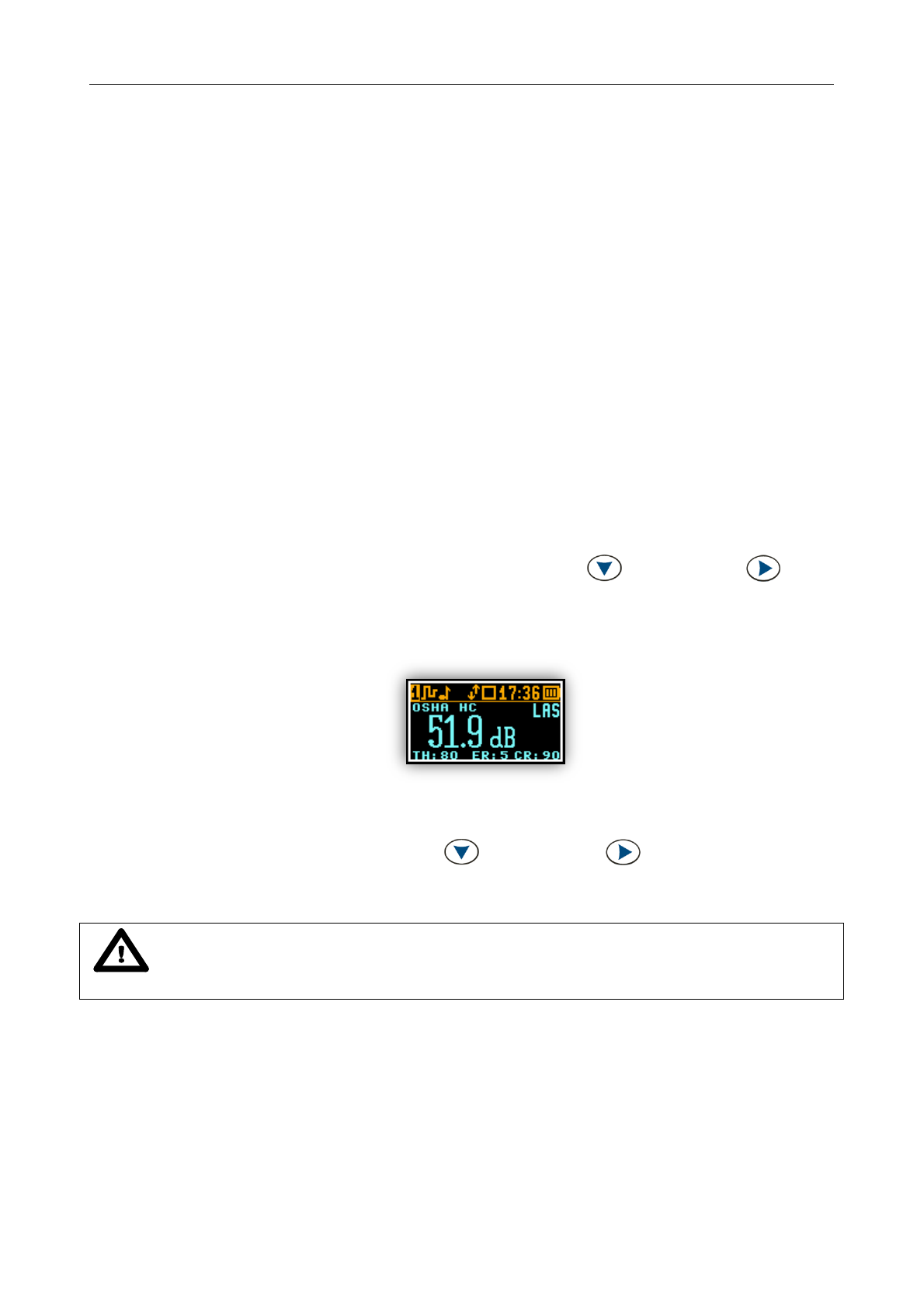

FIGURE 4-17 ONE PROFILE MODE SCREEN VIEW .....................................................................................................................38
FIGURE 4-18 AUTO-RUN MODE – TIMER AND PROGRAMMABLE PAUSE SCREEN ..............................................................................39
FIGURE 4-19 UNLOCKING THE UNIT SEQUENCE SCREENS ...........................................................................................................39
FIGURE 4-20 SV 104A POSITIONING...................................................................................................................................40
FIGURE 4-21 SWITCHING THE BLUETOOTH® ON ......................................................................................................................41
FIGURE 5-1 ASSISTANT WELCOME SCREEN ............................................................................................................................42
FIGURE 5-2 ASSISTANT SCANNING/STATUS SCREEN .................................................................................................................43
FIGURE 5-3 CHANGING MAIN VIEW SCREENS .........................................................................................................................44
FIGURE 5-4 ASSISTANT RESULTS REVIEW AND PAUSE/START/STOP SCREEN ....................................................................................46
FIGURE 5-5 CHANGING OF RESULTS VIEW .............................................................................................................................47
FIGURE 5-6 SENDING E-MAIL .............................................................................................................................................48
FIGURE 5-7 SENDING SMS ...............................................................................................................................................48
FIGURE 5-8 AUTO SMS CONFIGURATION SCREEN ...................................................................................................................49
FIGURE 6-1 SUPERVISOR SPLASH SCREEN ..............................................................................................................................50
FIGURE 6-2 SUPERVISOR MAIN WINDOW ..............................................................................................................................51
FIGURE 6-3 INVENTORY PANEL AND ITS CAPABILITIES ...............................................................................................................52

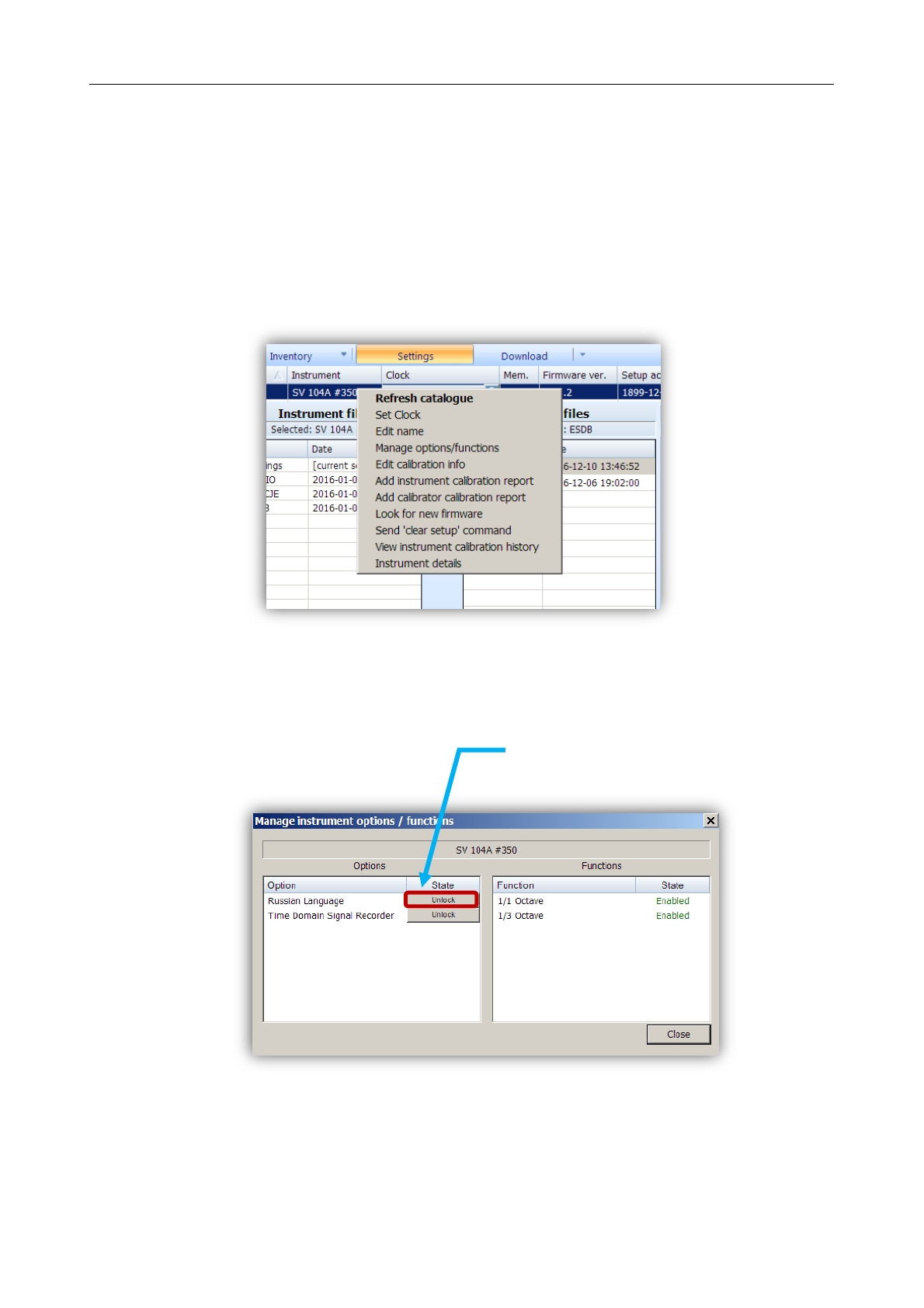

FIGURE 6-4 UNLOCKING THE FIRMWARE OPTIONS ...................................................................................................................53
FIGURE 6-5 SETUP FILES MANAGER PANEL.............................................................................................................................54
FIGURE 6-6 EXPORTING THE CONFIGURATION SETUP FILE ..........................................................................................................55
![](asset-9.png)
SV 104A USER'S MANUAL_______________________________________________________
9
FIGURE 6-7 INSTRUMENT FILES PANEL AND CONTEXT COMMANDS ...............................................................................................56
FIGURE 6-8 DOSIMETER SETTINGS - PROFILE CONFIGURATION TAB ..............................................................................................57
FIGURE 6-9 MEASUREMENT CONFIGURATION SETTTINGS TAB ....................................................................................................58
FIGURE 6-10 TIME HISTORY (LOGGER) SETTINGS TAB ..............................................................................................................59
FIGURE 6-11 DISPLAY VIEW CONFIGURATION TAB .................................................................................................................60
FIGURE 6-12 SPECTRUM CONFIGURATION TAB .......................................................................................................................61
FIGURE 6-13 GENERAL SETTINGS TAB ..................................................................................................................................61
FIGURE 6-14 CALIBRATION SETTINGS PANEL ..........................................................................................................................62
FIGURE 6-15 STATISTICAL LEVELS SETTINGS PANEL ..................................................................................................................62

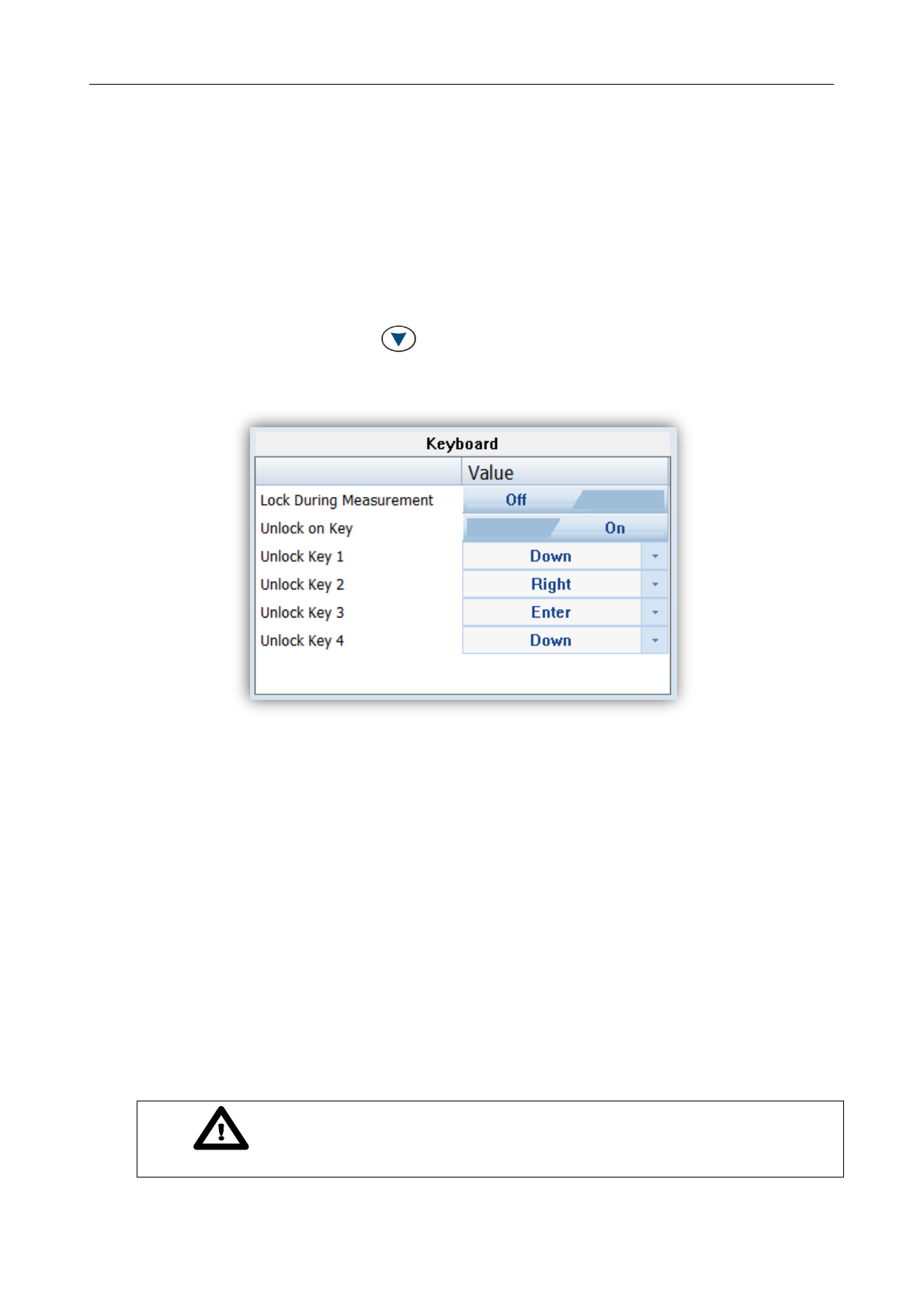

FIGURE 6-16 KEYBOARD SECURITY SETTINGS PANEL .................................................................................................................63
FIGURE 6-17 AUXILIARY SETTINGS PANEL ..............................................................................................................................64
FIGURE 6-18 AUTO-RUN CONFIGURATION TAB.......................................................................................................................64
FIGURE 6-19 AUDIO EVENT AND WAVE RECORDING CONFIGURATION PANELS................................................................................65

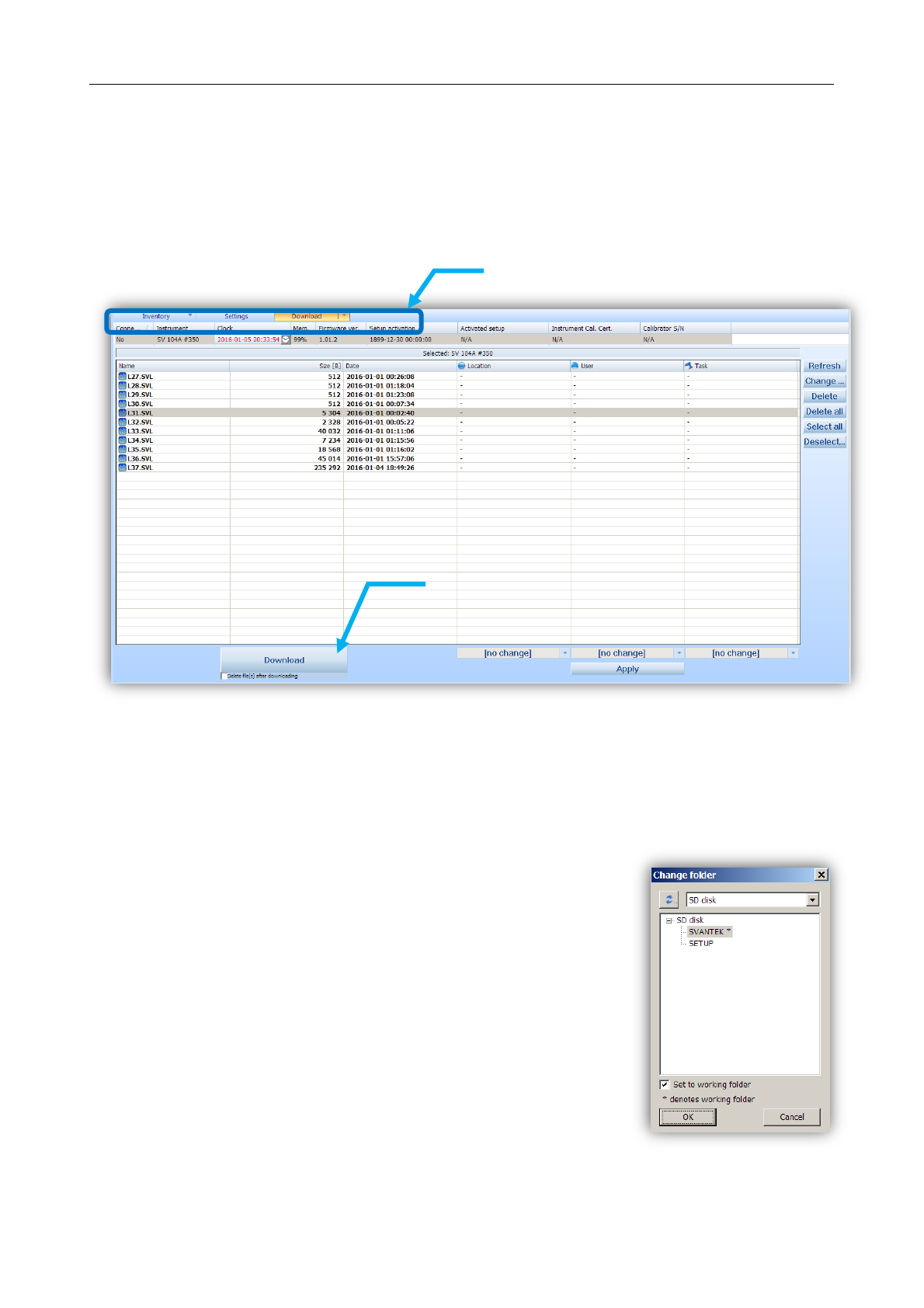

FIGURE 6-20 SV 104A DOWNLOAD WINDOW.......................................................................................................................66
FIGURE 6-21 CHANGE INSTRUMENT WORKING DIRECTORY WINDOW ...........................................................................................66

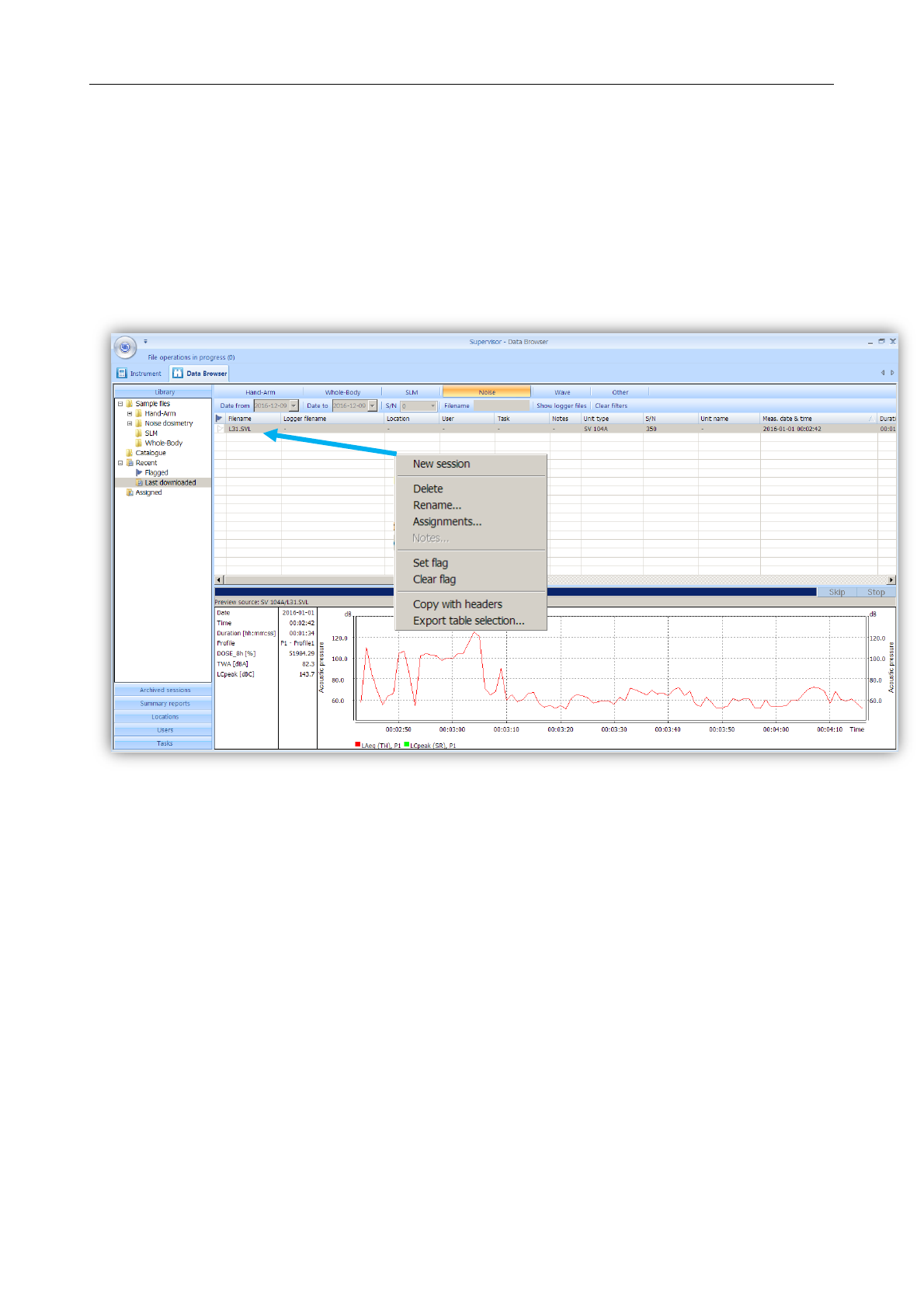

FIGURE 6-22 LOCAL FILES “DATA BROWSER” - WINDOW LAYOUT ...............................................................................................67

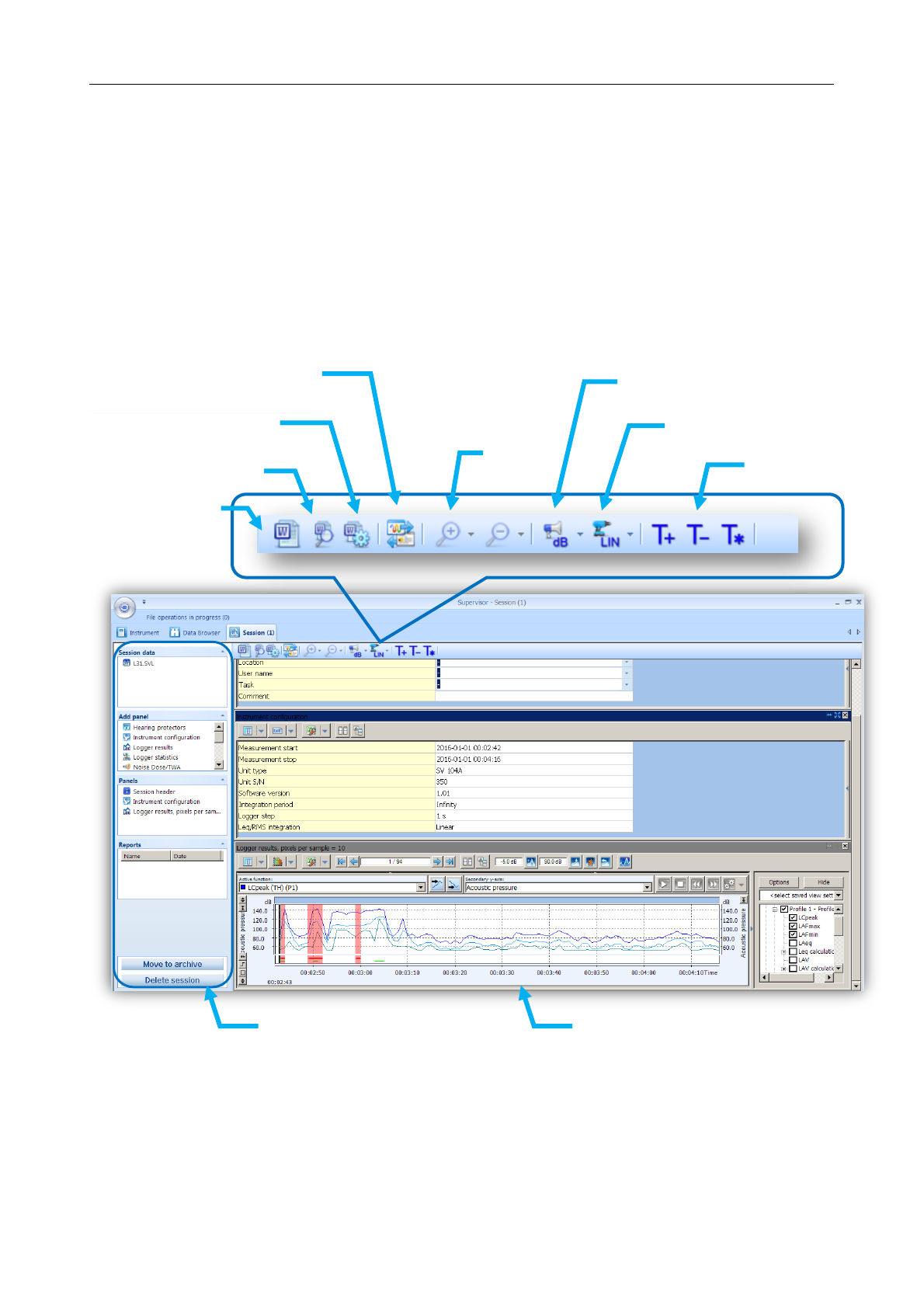

FIGURE 6-23 SUPERVISOR MAIN SESSION WINDOW ..............................................................................................................68
FIGURE 6-24 SESSION CONFIGURATION PANEL .....................................................................................................................69
FIGURE 6-25 MANAGING TEMPLATES WITH SUPERVISOR ..........................................................................................................69

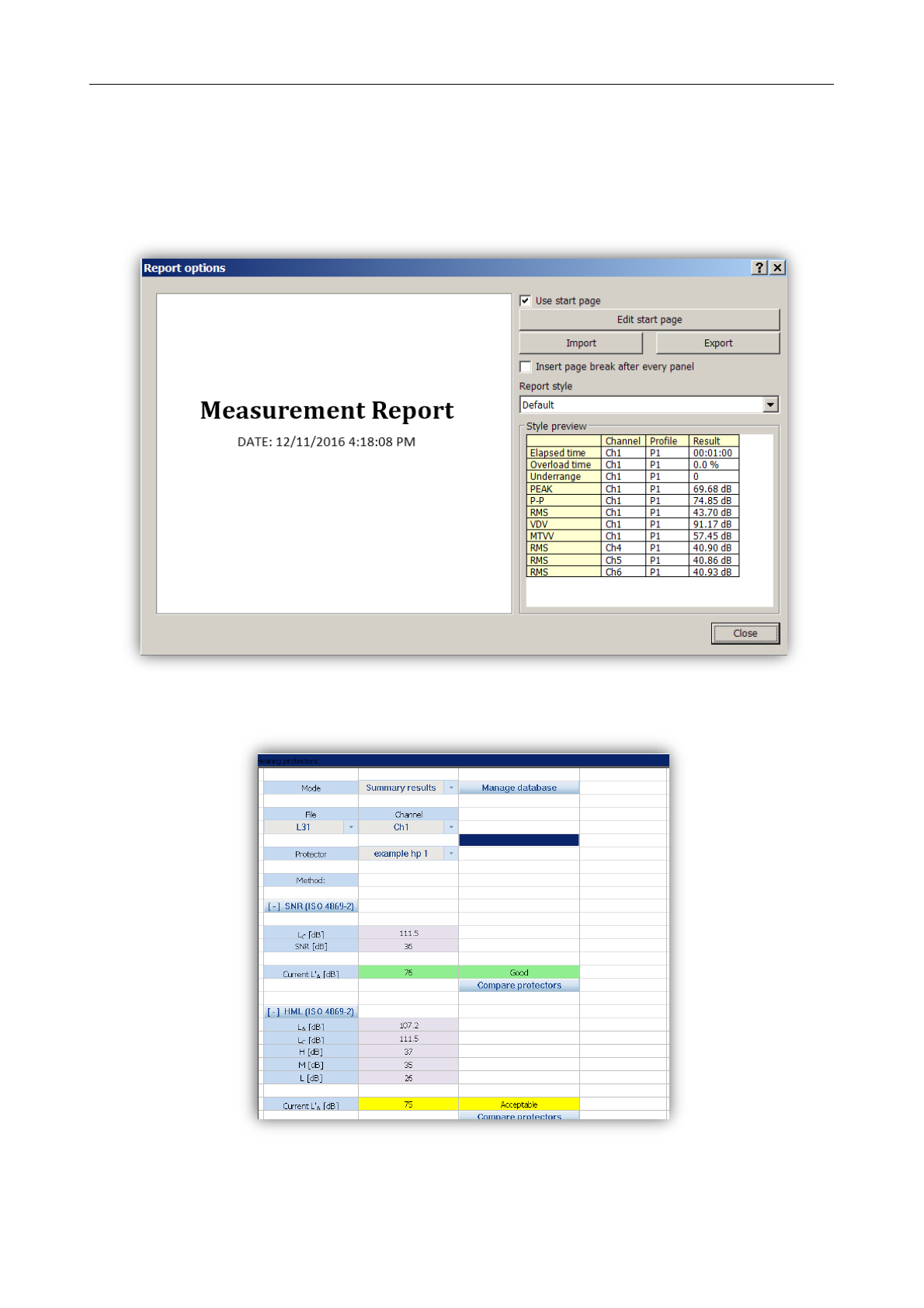

FIGURE 6-26 SUPERVISOR REPORT OPTIONS .........................................................................................................................70
FIGURE 6-27 HEARING PROTECTORS PANEL ...........................................................................................................................70

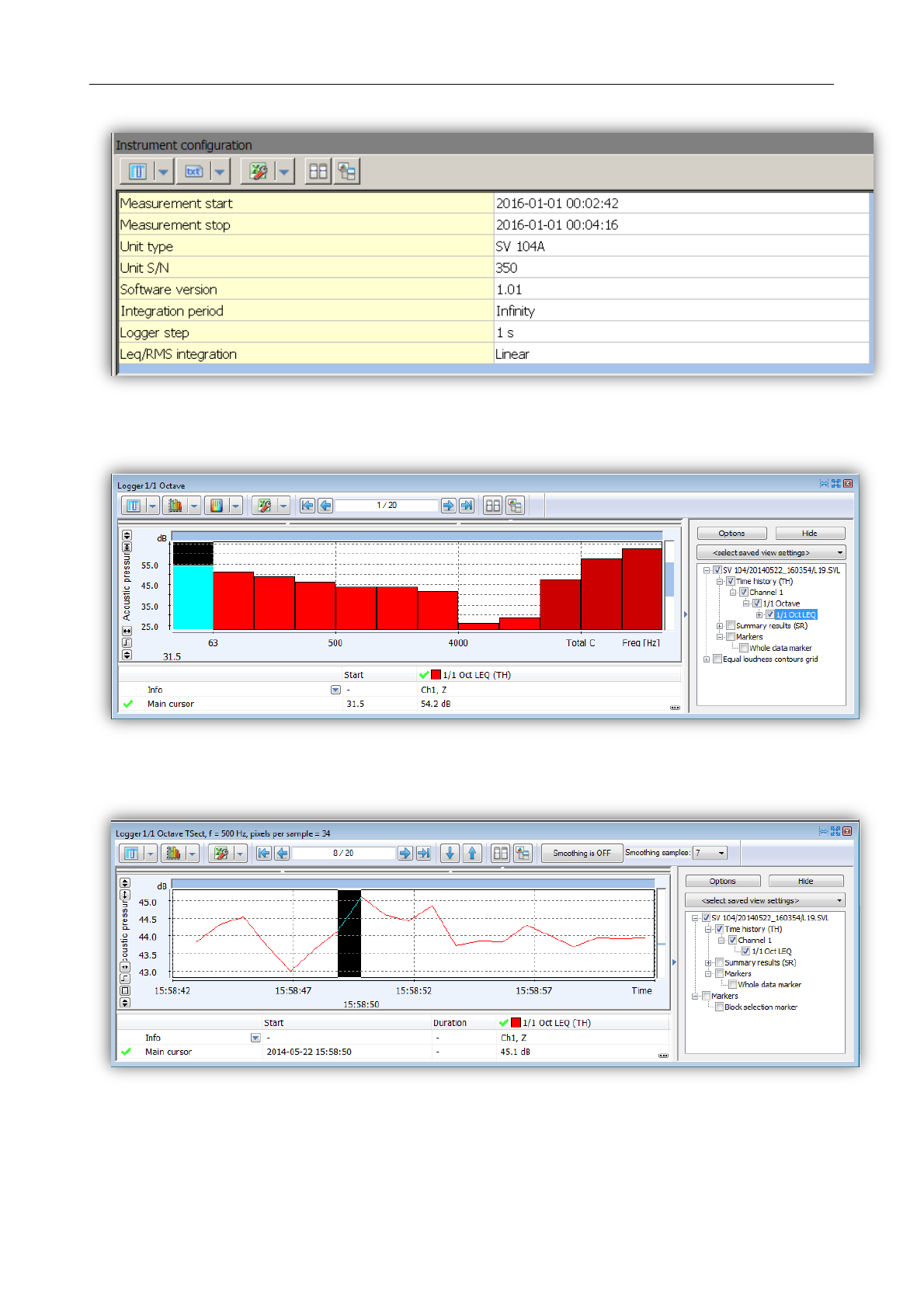

FIGURE 6-28 INSTRUMENT CONFIGURATION PANEL .................................................................................................................71
FIGURE 6-29 LOGGER 1/1 OCTAVE PANEL ............................................................................................................................71
FIGURE 6-30 LOGGER 1/1 OCTAVE TSECT PANEL ..................................................................................................................71
FIGURE 6-31 LOGGER RESULTS PANEL ..................................................................................................................................72
FIGURE 6-32 LOGGER STATISTICS PANEL...............................................................................................................................72

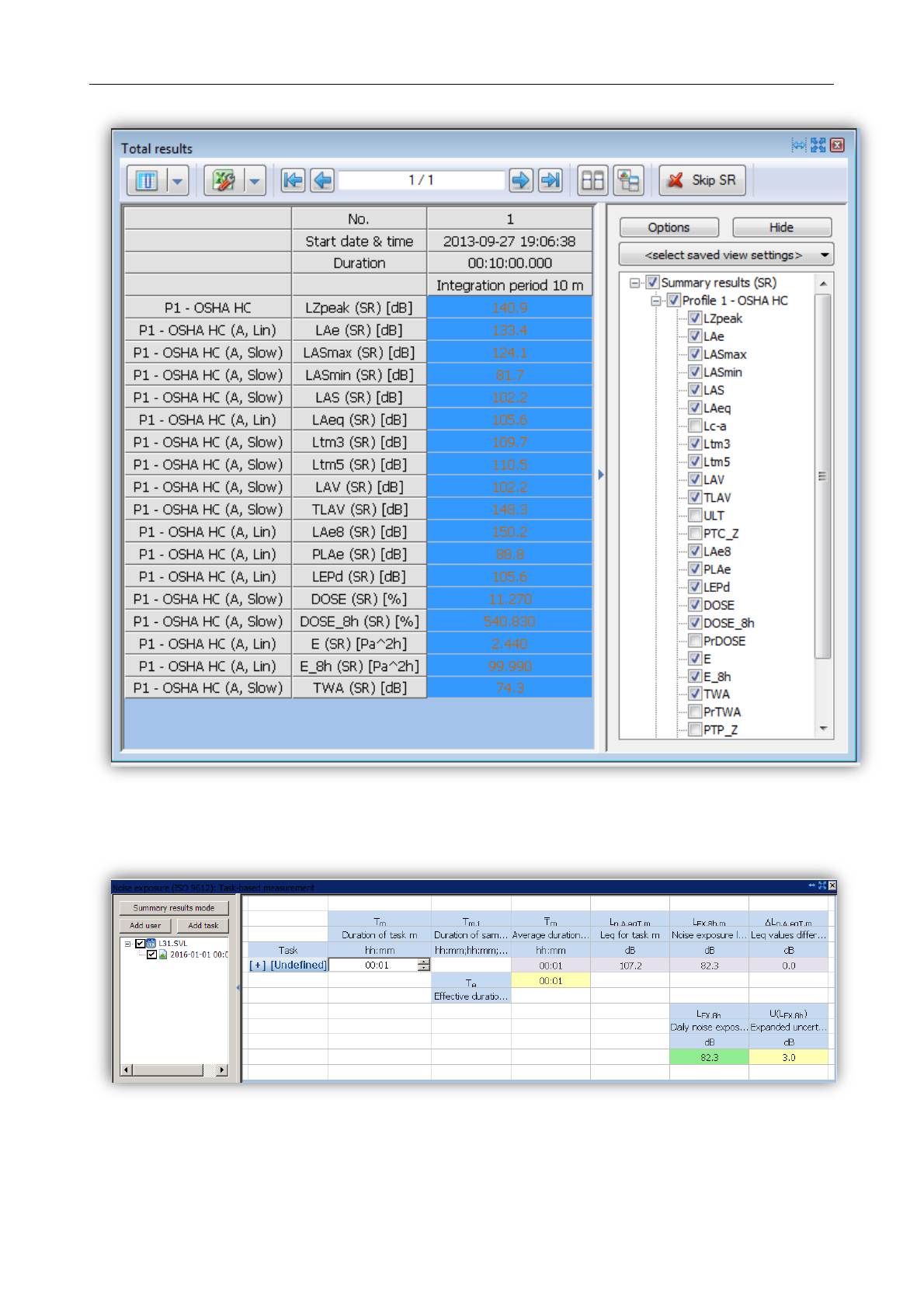

FIGURE 6-33 TOTALS RESULTS PANEL...................................................................................................................................73
FIGURE 6-34 NOISE EXPOSURE (ISO 9612) PANELS ................................................................................................................73

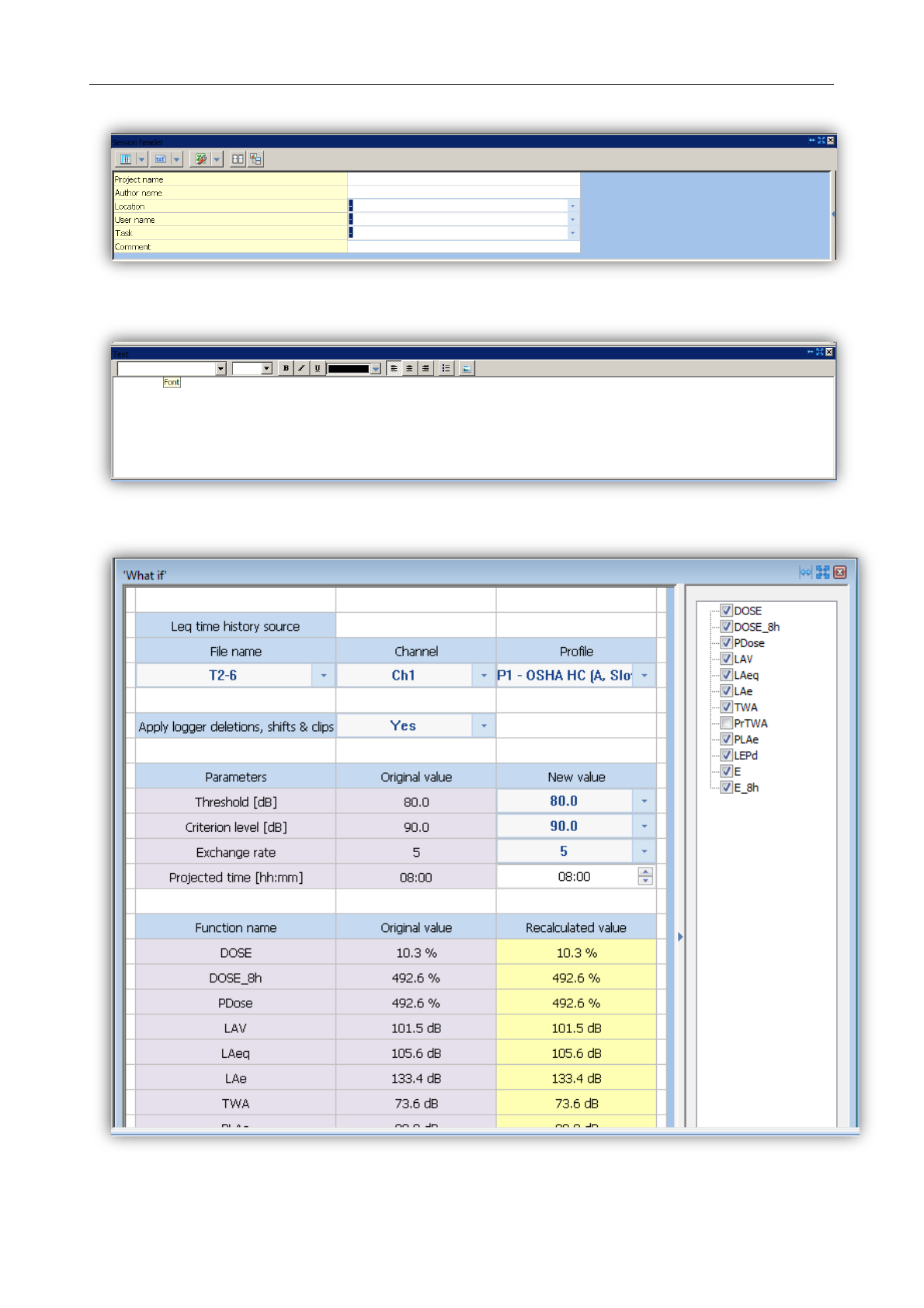

FIGURE 6-35 SESSION HEADER PANEL ..................................................................................................................................74
FIGURE 6-36 CONFIGURABLE TEXT PANEL .............................................................................................................................74
FIGURE 6-37 POWERFUL “WHAT IF” PANEL ..........................................................................................................................74

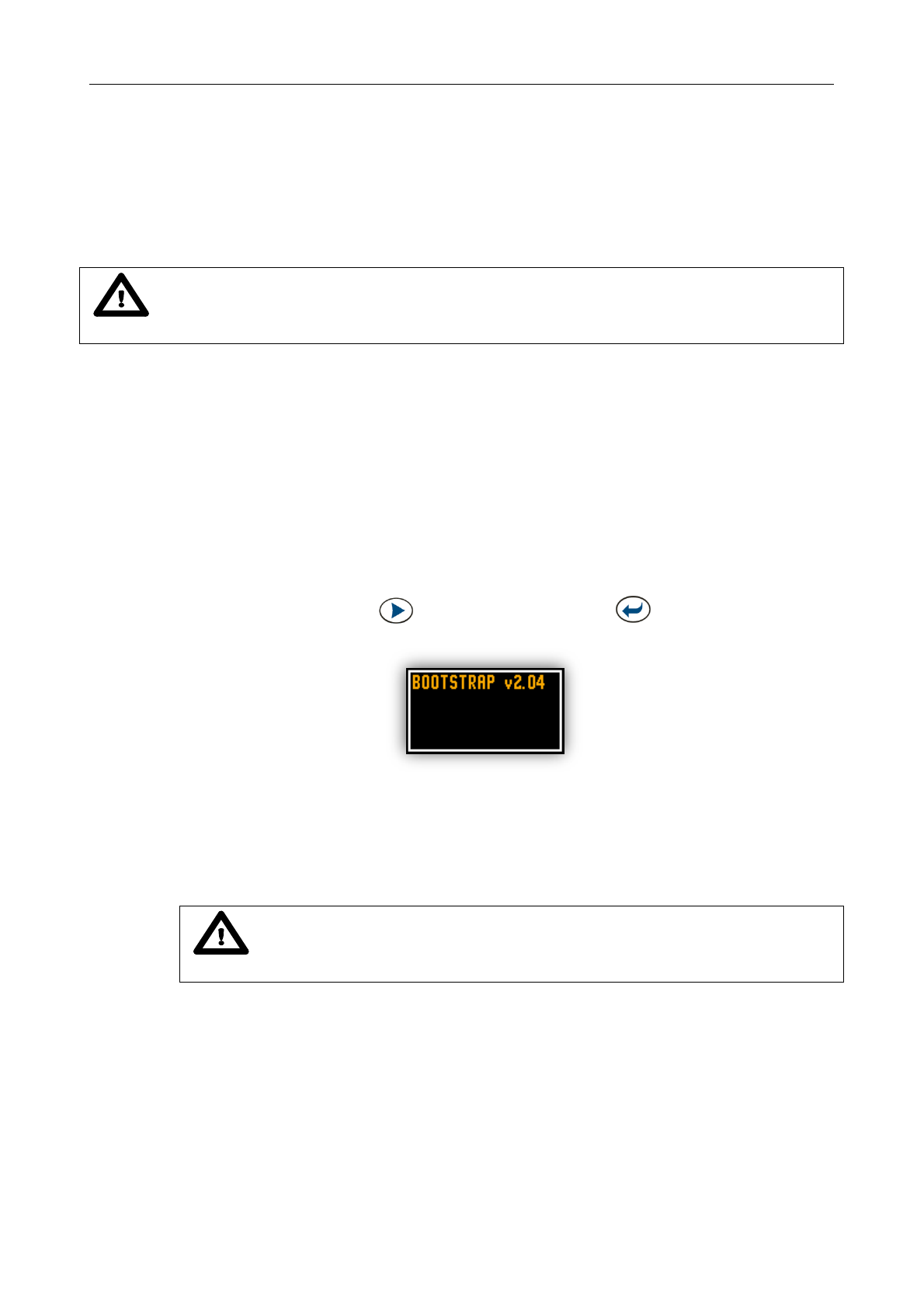

FIGURE 7-1 BOOTLOADER UPDATE MODE VIEW ......................................................................................................................76
LIST OF TABLES
TABLE 1-1 EXAMPLE SOUND SOURCE LEVELS ..........................................................................................................................11
TABLE 1-2 STANDARDIZATION ORGANIZATIONS’ WEBSITES ........................................................................................................12
TABLE 3-1 LED STATUS DESCRIPTION ...................................................................................................................................19
TABLE 4-1 CHARGER INSTRUMENT LED STATUS DESCRIPTION ....................................................................................................30
![](asset-a.png)
SV 104A USER'S MANUAL_______________________________________________________
10
1 INTRODUCTION
Now, the SV 104A instrument is even more revolutionary approach to occupational health and safety
noise monitoring offering voice comments, audio events recording and vibration shock detection
functions which are new and useful concepts in an instrument of this size. It is a cable-free dosimeter and is
typically attached to the user’s shoulder, close to the ear using the mounting clips supplied.
This personal dosimeter has an incredibly robust 1/2" MEMS microphone (part number ST 104A)
enabling easy and automatic calibration using most commonly available acoustic calibrators.
The class beating, high resolution, amazing colour OLED screen displays information in both text and
graphical form and offers excellent visibility in dark sites as well as in full daylight conditions. This makes taking
noise measurement a real pleasure.
Three independent acoustic profiles allow parallel measurements with separately defined filters
and RMS detector time constants. Each profile provides an extensive number of results (like Leq, Lmax, Lmin,
Lpeak, L, LE,…). All required weighting filters (A, C, Z) can be calculated in parallel.
For instance, it is trivial to set one profile to monitor noise parameters using the ACGIH (American
Conference of Governmental Industrial Hygienists) pre-set, second profile set to OSHA HC (Occupational
Safety and Health Administration - Hearing Conversation) pre-set and simultaneously monitor noise with the
OSHA PEL (Occupational Safety and Health Administration – Permissible Exposure Level) settings.
Using the computational power of its digital signal processor the SV 104A instrument can simultaneously
measure the dosimeter results and perform real time 1/1 Octave & 1/3 Octave analyses including the
calculations of the statistical levels.
An inbuilt tri-axial accelerometer for vibration shock detection firmly places SV 104A as both the most
technically advanced and the most robust personal dosimeter out there providing also information on the time
when dosimeter is not used by the worker.
Advanced time history logging for each profile provides safe and complete information about
measured signal in the internal large 8GB memory.
The instrument is powered from internal new generation Li-ion rechargeable batteries offering circa 48
hours
2
of continuous operation. Ultra-low battery self-discharge is about 1% per year. The powering and
charging of the instrument from the USB interface is provided which also enables easy data exchange
connection between the SV 104A and a PC without the requirement of a special docking station. Alternatively,
powering and charging of the instrument is possible with one of SB 104A-X series docking station with
the USB interface which also enables easy data exchange with PC.
The instrument works with Svantek’s specialist health and safety software packages – Supervisor,
mobile Assistant, and also with the full analysis package SVAN PC++.
Robust and lightweight design and Low Energy Long Range Bluetooth® Smart wireless interface
enhances the exceptional features of this new generation instrument. Add to it the automatic calibration
feature and one can say: “Never before has a noise dosimeter been so accomplished yet so affordable, making
your measurements more accurate and reliable than ever before”.
To get started quickly with the SV 104A, the first part of the manual describes basic noise dosimetry
information followed by a guide to setting up the dosimeter and running measurements.
2
Display off. Octave analysis off;
![](asset-b.png)
SV 104A USER'S MANUAL_______________________________________________________
11
1.1 Sound pressure
The human ear responds to audible sound pressure levels in the range from 20 μPa (hearing
threshold) to 20 Pa (pain threshold), resulting in the enormous scale 1:10,000,000. Since using such a large
arithmetic scale is not practical, a logarithmic scale in decibels (dB) was introduced which is also in agreement
with physiological and psychological hearing sensations. Therefore, it is common that sound pressure is
measured in decibels. Below there is sample information about expected sound levels for different sources.
Sound source
Sound level [dB]
Jet aircraft, 50 m away,
or gunshot at close range
140
Threshold of pain
130
Threshold of discomfort
120
Chainsaw, 1 m distance
110
Disco, 1 m from speaker
100
Vacuum cleaner, distance 1 m
70
Conversational speech, 1 m
60
Quiet library
40
Rustling leaves
10
Hearing threshold
0
Table 1-1 Example sound source levels
1.2 Dosimetry
Noise is definitely a serious hazard in many workplaces. In case exposure to noise from machinery
processes and equipment is not correctly eliminated or controlled, it may cause permanent hearing loss
in workers. The, so called, inner ear is very fragile part of our hearing sense, which with current knowledge
in medicine, cannot be truly repaired. Therefore, it is of great importance to protect our senses from excessive
noise. Exposure to high levels of noise may also create physical and psychological stress, reduce productivity
and interfere with normal communications. This may lead to accidents and injuries by making it difficult to hear
moving equipment, other workers, and warning signals. Undoubtedly hearing loss has a very significant impact
on the quality of life for many workers and their families.
Therefore, measuring noise exposure in the workplace is fundamental part of all good hearing
conservation and noise reduction programs. The aim of taking a measurement with a noise dosimeter is to
evaluate the average exposure of employees to noise during a normal shift. Wherever the worker goes the
noise dosimeter goes too so that it captures all of the harmful noise during the typical day.
The dosimeter may be worn for the complete shift if the work pattern is so variable that it is difficult to
predict exactly what will occur or it may be worn for a shorter but representative period and then the full day’s
dose extrapolated from that sample.
1.3 Standards
The effects of high sound exposure on hearing have been studied for many years. As far back in 1954
AIHA (American Industrial Hygiene Association) – Rosenwinkel & Stewart – described a “new device which
integrates sound energy over finite time periods.” In 1956 – von Witternand & von Gierke obtained a patent for
a noise exposure meter for “indicating the total time that noise exceeded a certain predetermined levels.”
Since then, measurements could be conducted over long periods of time and the instrument was worn by
personnel under normal work conditions.
Finally, organizations developed standards to regulate personal noise exposure. International standards
are specified by health and safety regulations such as the European Union Parliament and Council Directive
2003/10/EC of February 6, 2003 on minimum health and safety requirements regarding the exposure of
workers to the risks arising from physical agents (noise) or International Electrotechnical Commission IEC-
61252 guidelines. The EU directive links to the ISO 9612-2009 Acoustics – Determination of occupational
noise exposure – Engineering method.
![](asset-c.png)
SV 104A USER'S MANUAL_______________________________________________________
12
In the United States, the Occupational Safety and Health Administration (OSHA) 29 Code of Federal
Regulations (CFR) 1910 General Industry Regulations: Standard No. 1910.95 Occupational noise exposure,
the Mine Safety and Health Administration (MSHA), and the American Conference of Governmental Industrial
Hygienists (ACGIH) have created slightly different regulations and limitations on tolerable noise exposure.
Noise requirements are to ensure that the hazards associated with the exposure of workers to noise are
eliminated or properly controlled.
Organization
Website address
ISO
http://www.iso.org
IEC
http://www.iec.ch
OSHA
http://www.osha.gov
MSHA
http://www.msha.gov
NIOSH
http://www.cdc.gov/niosh
ACGIH
http://www.acgih.org
CCOHS
http://www.ccohs.ca
…
Table 1-2 Standardization organizations’ websites
Additionally, at present dosimeters should meet relevant accuracy and performance requirements
defined by:
- IEC 61252
- ANSI S1.25
1.4 Applications
The SV 104A noise dosimeter is extremely well suited to ISO, OSHA, ACGIH, MSHA, NIOSH,
CFR 1910.95, HSE L108 workplace noise measurements in noise exposure assessments. NIHL: Noise
Induced Hearing Loss remains noticeably significant occupational disease It is notably severe in the mining,
construction, oil & gas industry but also in a wide variety of manufacturing sectors and other commercial
operations. The dosimeter comes with pre-defined setups that suit different measurement requirements and
offer versatile possibilities to be specifically configured by the user for special requirements if needed:
- Measurement and control of the industrial noise
- work site assessments
- sites/plants/facilities survey monitoring systems
- hearing conservation compliance, noise induced hearing loss (NIHL)
- transportation noise studies
- personal noise verifications
- peak dosimeter for example in military applications
One of the most desirable SV 104A feature is the unique data logging function that stores significant
number of noise parameters at regular intervals and superimposed random vibration shock or audio events
during a run.
Due to the unattended nature of noise dosimetry it is important for workers to be fully engaged with the
risk assessment process. Motion sensing (No Motion Time) is particularly useful in cases of cheating to tamper
with the instrument or try to impact on the results, by for example instrument being taken off for the majority of
the time.
The addition of Bluetooth® wireless connectivity and the supporting mobile devices Assistant
application enables remote control and monitoring of the instrument’s status such as battery usage, memory
capacity and measurement progress without having to disturb the worker.
Noise profiled results can be easily transferred to the Supervisor or SvanPC++ software packages.
The noisiest times can be immediately seen in the graphical report and actions directed to the appropriate
area. This makes checking for different regulatory bodies’ compliance and ensuring if hearing conservation
programs are needed definitely easier than ever before. The SV 104A answers all the important questions
such as WHEN? and HOW? did the noise exposure appear? The data logging measurements can be started
immediately or they can be pre-programmed in advance so that measurement run can begin and end
automatically at a pre-set start and end time without the need for any onsite supervision.
Additionally, the SV 104A allows for custom voice note comments to be added before or after
the measurement run, and therefore this is the ideal instrument for the professional occupational hygienist to
use for all noise exposure studies.
![](asset-d.png)
SV 104A USER'S MANUAL_______________________________________________________
13
1.5 Measurement procedures
Preferably, when taking measurements, the noise dosimeter should be attached to the employee at the
start of a shift and collected at the end of the whole shift. In case a shorter period is sampled then care should
be taken to ensure that the result is representative of the full shift exposure. Shorter sampled periods require
that the sampler has a deep and full understanding of the expected working tasks during the shift and the
duration cycles of those tasks.
Before performing any noise measurements, ensure that employees selected for evaluation are
operating equipment or performing tasks under normal (representative) conditions, and emphasise
the importance of continuing to work in their usual manner (wearing the dosimeter should not interfere with
normal duties). Explain the purpose and procedures of sampling to the employee who will be wearing
the dosimeter and the importance of not touching, tapping or interfering with the microphone. Instruct
the employee not to remove the dosimeter unless absolutely necessary.
The general procedure for taking measurements could be as follows:
1. Check that the indicated instrument battery life is at least twice the time required for
the measuring period
2. Check the instrument setup mode is appropriate and change if necessary
3. Check the calibration of the instrument and adjust the settings if required
4. Secure the instrument onto the shoulder of the employee selected for sampling. Refer to
the chapter with specific requirements regarding orientation of the microphone
5. Start the recording session manually if it is not programmed for an automatic timed start
6. At the end of the measurement period, stop the recording session, and remove the dosimeter
from the employee
7. Recheck the dosimeter’s calibration. If the instrument is not within the calibration limits then the
results are invalid (usually if a discrepancy is found between two successive checks of more
than ± 0.5dB in the reference level, then the results of the measurements taken between the
two checks should be considered invalid and the cause investigated and the measurement
repeated).
8. Follow your organisation’s specific procedure for personal noise exposure recordings analysis
9. Ensure the report is submitted to the appropriate person
10. Distribute copies of noise exposure recordings to test participants, explain the results and
ensure that their hearing protection adequately protects against the recorded noise exposure
levels.
![](asset-e.png)
SV 104A USER'S MANUAL_______________________________________________________
14
2 KIT COMPONENTS
2.1 SV 104A dosimeter short form specification
• Acoustic Dosimeter conforming to international standards IEC 61252; ANSI S1.25;
• Class 2 Microphone, MEMS type: ST 104A, 1/2" housing with LIFETIME WARRANTY!
• OLED colour display with super brightness and contrast
• Large 8GB memory
• Wireless connectivity with low energy Long Range Bluetooth® Smart (4.0) interface
• USB 2.0 high speed interface
• Parallel Slow, Fast, Impulse detectors for the measurements with A, C, Z filters
• Frequency Range 20 Hz ÷ 10 kHz
• Measurement range better than 53 dBA RMS ÷ 141 dBA Peak
• Dynamic Range better than 98 dB
• Exchange rates 2, 3, 4, 5, 6
• Measurement results: Run Time (TIME), Lpeak, Lmax, Lmin, L, DOSE (%), D_8h, PrDOSE, Leq,
LAV, LE, SEL8, E, E_8h, LEPd, PSEL, Ltm3, Ltm5, Lstat, PTC, PTP, ULT, TWA, PrTWA, Lc-a,
OVL, No Motion Time
• 3 independent user configurable acoustic measurement profiles
• Easy in use predefined setups
• Time-history data logging of Leq/Lav/Lmax/Lmin/Lpeak with variable 0.1 s to 1 hr logger step and
separate summary results intervals with statistical levels
• 1/1 Octave real time analysis - 9 filters with centre frequencies 31 Hz ÷ 8 kHz, Type 2 – IEC 1260;
presented as a bar graph with Leq and Lmax band levels plus overall A, C and Z broadband weightings
(as option called SF 104A-OCT)
• 1/3 Octave real time analysis - 28 filters with centre frequencies 20 Hz ÷ 10 kHz, Type 2 – IEC 1260;
presented as a bar graph with Leq and Lmax band levels plus overall A, C and Z broadband weightings
(as option called SF 104A-3OCT)
• Audio events recording, triggered and continuous mode, 12/24 kHz sampling rate, wav format
(as option called SF 104A-WAV)
• Voice Comments records audio on demand, created before or after measurement, added to
measurement file
• Vibration shock detector with user selectable variable threshold: 1g-15g
• Automatic acoustic field calibration with one touch activation before and after measurement
• Operational time > 48 hours (display off, Bluetooth® off, octave analysis off)
• Extremely compact, lightweight and robust case with IP65 ingress protection
Figure 2-1 SV 104A instrument with the microphone and windshield
![](asset-f.png)
SV 104A USER'S MANUAL_______________________________________________________
15
2.2 Accessories included
• ST 104A - ½” MEMS microphone for SV 104A dosimeter
• SA 122A - windshield
• SC 156/1m - micro USB 2.0 cable
• CD with instruction
• Built-in rechargeable batteries (charger/ power supply wall adapter not included)
2.3 Accessories available
• ST 104A – ½” MEMS microphone for SV 104A dosimeter
• SA 122A_3 – Windscreens for SV 104A dosimeter 3 pcs per pack
• SV 34A – Class 2 acoustic calibrator: 1000Hz/114dB
• SC 156/1m – micro USB 2.0 cable
• SA 54 – Charger/power supply for 1 x SV 104A
• SA 73 - Carrying case for 5 x SV 104A dosimeters and accessories (waterproof)
• SA 147 - Carrying case for 1 x SV 104A dosimeters and accessories (waterproof)
• SA 156 – optional USB HUB for charging and data download from 5 x SV 104A dosimeters
• SC 104AT – Equivalent Impedance for electrical calibration
• NM104I1Z – Technological wrench to unscrew the microphone
• Supervisor Software for configuration, viewing and exporting data, USB drivers (MS Windows XP,
Vista, Windows 7) for 32 and 64 bit operating systems available as freeware
• SB 104A-1, SB 104A-3, SB 104A-5 – optional docking stations with power supply and electrical
communication contacts;
2.4 Instrument Software (Firmware) options available
• SF 104A OCT – real time 9 band 1/1 Octave analysis option
• SF 104A 3OCT – real time 9 band 1/1 Octave and 28 band 1/3 octave analysis option
• SF 104A WAV – Audio events recording option
Note: The software options can be purchased in any time as only the introduction of a special
code is required for their activation.
![](asset-10.png)
SV 104A USER'S MANUAL_______________________________________________________
16
3 GETTING STARTEDSystem description
The following Figure 3-1 shows the SV 104A controls and ports:
Figure 3-1 SV 104A at a glance
Colour display
128 x 64 pixel resolution
LED status indicator
➢AMBER: stop mode
➢GREEN: measuring
➢RED: alarm
➢
ST 104A microphone
with SA 122A windshield
Mounting
accessories
suspender clips
Keypad
Three control keys:
SCROLL
PROFILE
ENTER
![](asset-11.png)
SV 104A USER'S MANUAL_______________________________________________________
17
3.2 Input output interfaces description
SV 104A instrument is equipped with a set of useful interfaces:
• microphone connector (essential for measuring)
• micro USB connector (charging, and data download)
• charging connector (reserved for future use)
• fast communication port (reserved for docking station)
• Bluetooth® 4.0 wireless connectivity and the supporting mobile devices Assistant application
enables remote control and monitoring of the instrument’s results and status (see chapter 5 for
details)
Figure 3-2 SV 104A side view – microphone and micro USB connector
Figure 3-3 SV 104A back view - charging and communication port (reserved for docking station)
micro USB
connector
microphone
mounting head
Communication
electrical port
charging
connector
![](asset-12.png)
SV 104A USER'S MANUAL_______________________________________________________
18
3.3 The windshield
During use, it is strongly recommended that the SV 104A is fitted with the supplied SA 122A windshield.
To calibrate the dosimeter, it is necessary to remove the windshield to gain access to the microphone. It is not
necessary to remove the windshield to record the voice note comments.
The SV 104A uses anti-clockwise thread technique to fit tightly onto the microphone housing. To remove
the windshield, unscrew the windshield holding the lower half of the foam and lift the windshield off the
microphone housing. Once the SV 104A has been calibrated, refit the windshield by carefully screw it
clockwise over the microphone again.
Figure 3-4 SA 122A windshield
3.4 The mounting clips
Upon delivery, the SV 104A will be fitted with the standard mounting clips. Mounting clips can changed
using a pliers.
Figure 3-5 SV 104A standard mounting clips
![](asset-13.png)
SV 104A USER'S MANUAL_______________________________________________________
19
3.5 LED status indicatorThere is a three-colour instrument LED status indicator on the SV
104A, located to the right of the microphone mounting head and above the display.
Table 3-1 explains conditions under which the specific LED colour appears.
LED status indication
Description
GREEN flashing
once per second
Indicates the measurement is running and the dose
alarm level has not been exceeded.
AMBER flashing
once per over a dozen seconds
Indicates the measurement is stopped and the dose
alarm level has not been exceeded.
RED single isolated flashes
with a duration of nominally one second
Indicates vibration shock threshold has been detected.
This will go off once the high vibration shock has ceased.
RED flashing quickly,
four times per second
Indicates the alarm conditions:
for instance: the dose has exceeded the alarm level.
Table 3-1 LED status description
3.6 Status bar icons
The upper part of the display is designed as basic status information provider. See the description below.
Figure 3-6 SV 104A display icons description
Note: Bluetooth icon displayed inversely as negative means that the dosimeter is
connected with remote application such as Assistant - see chapter 5.
3.7 Manual control of the instrument
Although the Instrument is small, its keypad is designed to be minimal, but still highly ergonomic and easy
to use providing effective operational capabilities. Thanks to that, the number of the control push-buttons of
the instrument is reduced to only three.
Generally, the user can operate the instrument by:
current
ACOUSTIC
PROFILE
number
LOGGER
activation
indicator
UNDER-RANGE
indicator
MEASUREMENT STOP or
RUN flashing indicator
BATTERY
STATUS
indicator
incremental
flashing
during
charging
CURRENT TIME
when in stopped mode or
MEASURMENT TIME
during measurement run.
OVERLOAD
indicator
EVENT or WAVE
recording activation
indicator
Bluetooth
activation
indicator
![](asset-14.png)
SV 104A USER'S MANUAL_______________________________________________________
20
- change the VIEW
3
mode with the <ENTER> key
- select the required ACOUSTIC PROFILE
4
with the <PROFILE> key
- and SCROLL through the results with the <SCROLL> key
Note: To save power consumption and extend battery life SV 104A will automatically switch off
the display after 30 seconds if no button on the keypad is pressed. The LED indicator will still inform the user
about the current state of operation and any possible alarm conditions. Press any key, to reactivate the display.
3.7.1 Primary key functions
On the front panel of the instrument the following control push-buttons are located. See below for primary
(short press) key functions description:
Figure 3-7 Control keypad on the front panel – primary key functions
3
See chapter 3.9 about VIEW modes
4
See chapter 3.8 about “3in1” functionality (3 independent acoustic profiles)
<PROFILE> key
change presented
ACOUSTIC PROFILE,
1, 2, 3, 1, etc.
<SCROLL> key
scroll down thru
RESULTS
<ENTER> key
Change VIEW mode
(see chapter 3.9)
ACOUSTIC PROFILE
number and status bar
RESULTS
![](asset-15.png)
SV 104A USER'S MANUAL_______________________________________________________
21
3.7.2 Alternate key functions
Alternative long press of single key (keypad icons marked with red colour) allows quick access to special
functions:
- POWER ON/OFF the unit by holding down the <ENTER> key
- Record the VOICE COMMENT by holding down the <PROFILE> key
- LOCK keypad and screen by holding down the <SCROLL> key
Figure 3-8 Control keypad on the front panel – alternate key functions
Holding down individual key for few seconds during which a countdown is displayed the SV 104A gives
you time to decide if you really want to access the function that is going to be executed:
• Shutting down 3… 2… 1… for the <ENTER> key
• Keyboard lock 3… 2… 1… for the <SCROLL> key
• Voice comment 3… 2… 1… for the <PROFILE> key
If you release the key too early, SV 104A returns to the last used VIEW mode and the selected control
is not executed.
<PROFILE> key
VOICE COMMENT
recording
<SCROLL> key
LOCK ON
the keypad and
screen
<ENTER> key
POWER on/off
![](asset-16.png)
SV 104A USER'S MANUAL_______________________________________________________
22
3.7.3 Alternate combined keys functions
Additionally, combined short press of two keys simultaneously (keypad icons marked with white
colour) allow quick access to even more functionalities.
Figure 3-9 Control keypad on the front panel – alternate combined keys function
Note: Extra additional keypad functionality is also available to display the instrument’s Unit
Label screen showing the current firmware revision number. It is accessible by a short press of all three
keys at once.
Note: Press <SCROLL> and <ENTER> keys simultaneously twice to access Bluetooth
menu.
Note: Microphone compensation filter setting is accessible by holding down <SCROLL>
and <ENTER> keys simultaneously for three seconds.
Warning: Changing microphone compensation filter setting is not recommended for purposes
other than laboratory calibration!
<PROFILE>
&<ENTER
>
Enter/Exit
CALIBRATION
<SCROLL>
&
<ENTER>
Enter/Exit predefined
SETUP LOADER
<SCROLL>
&
<PROFILE>
START/STOP
MEASUREMENT RUN
![](asset-17.png)
SV 104A USER'S MANUAL_______________________________________________________
23
3.8 Three instruments in one – ACOUSTIC PROFILE concept
SV 104A is able to monitor and log noise by enabling up to three different parameter configuration
settings, also referred to as “ACOUSTIC PROFILE”. One can set profile no 1 to run measurements using the
OSHA HC (Occupational Safety and Health Administration - Hearing Conversation) parameters and at the
same time set profile no 2 to monitor the noise with the OSHA PEL (Occupational Safety and Health
Administration – Permissible Exposure Level) parameters while profile no 3 is set to ACGIH parameters. This
is the true triple instrument in one.
3.9 The VIEW mode presentation concept
Such an advanced noise dosimeter as the SV 104A offers a large amount of parameters for the operator
to inspect. Therefore, all information is divided in a neatly organized manner as VIEW modes for each
PROFILE.
The VIEW mode is a way in which the measurement parameters are presented to the operator. In other
words, when you change the VIEW mode, specific measurement parameters and status information will be
presented in different manner as distinct screen content.
SV 104A features the following VIEW modes, where most of them can be individually disabled:
▪ Running instantaneous SPL view mode ( 3.9.1) - can be disabled with PC software
▪ Primary “one-result” parameters view mode ( 3.9.2) - cannot be disabled
▪ Results list view mode ( 3.9.3) - can be disabled with PC software
▪ Octave analysis spectrum LEQ view mode ( 3.9.4) - can be disabled with PC software
▪ Octave analysis spectrum MAX view mode ( 3.9.4) - can be disabled with PC software
▪ 1/3 Octave analysis spectrum LEQ view mode ( 3.9.5) - can be disabled with PC software
▪ 1/3 Octave analysis spectrum MAX view mode ( 3.9.5) - can be disabled with PC software
▪ Instrument Status view mode ( 3.9.6) - can be disabled with PC software
3.9.1 Running SPL view mode
Running SPL presentation mode is used when measurement run is not actually running, that is when
the instrument is in standby mode before or after a measurement. In this mode the current SPL result is
calculated and displayed, but not stored in the instrument's memory. The purpose of this information is to give
the user a first indication of the sound levels about to be measured. This can be useful for some
measurements. The instrument behaves as a simple general purpose sound pressure level meter in this view
mode.
Figure 3-10 Running SPL view mode screen
acronym for:
Sound Level
weighting filter:
A,C,Z
detector type: Fast, Slow, Impulse
parameter value
![](asset-18.png)
SV 104A USER'S MANUAL_______________________________________________________
24
3.9.2 Primary “ONE-RESULT” view mode
The one result mode is always available in all measurement modes, and cannot be disabled. In one
result mode, any measurement result, selected via <SCROLL> , may be presented. The user may change
the actual profile view by pressing <PROFILE> key. This view mode is useful if in low vision conditions
or is suitable for operators with some visual impairment.
Figure 3-11 Primary ONE RESULT view mode screen
3.9.3 RESULTS LIST view mode
To get information about a number of results at one time it is handy to switch to the “results list” view
mode. Up to three parameters at a time are accessible for the operator.
Figure 3-12 RESULTS LIST view mode screens
3.9.4 OCTAVE analysis spectrum view mode
The instrument operates as a real time 1/1 octave band analyser (RTA). In addition and if enabled, 1/1
octave analysis is performed in parallel with the dosimeter operations. All 1/1-octave digital pass-band filters
(with 9 centre frequencies from 8 kHz down to 31.5 Hz; in base two system) are working in real-time with the
broadband frequency weighting filters (Z, A or C) and the linear LEQ (LEQ) detector. This enables the user to
pre-weight a spectrum with one of the selected broadband frequency curves if required for a particular
application such as the provision of hearing protectors in the control of high workplace noise levels.
acronym for:
weighting filter:
A,C,Z
detector type: Fast, Slow, Impulse
measured parameter name
acoustic profile number
profile preset name
parameter value
current criteria status bar:
THreshold, Exchange Rate, CR
iterion level
measured parameters name
acoustic profile number
parameter values
configuration line
TH
reshold,
Exchange R
ate,
CRiterion level
profile preset name
![](asset-19.png)
SV 104A USER'S MANUAL_______________________________________________________
25
Note: The three overall TOTAL LEQ results are measured with the weighting filters (A, C, Z)
without taking into account the settings of the level meters for profiles. The spectra are always linearly
averaged. Thus, the TOTAL values from 1/1 octave band analysis can be different from those obtained for the
profiles (if the LEQ Integration was set as Exponential).
The results of 1/1 Octave analysis (so-called spectrum) can be examined by the user on a display
in Spectrum VIEW presentation mode. 1/1 Octave spectra for all 9 centre frequencies of pass-band filters
together with the 3 TOTAL overall values measured with the user selected frequency weighting filters
are presented in the Spectrum mode if enabled in configuration setup. Spectrum cursor can be moved left and
right with <SCROLL> , <PROFILE> keys respectively.
With the use of Supervisor software, the user can select which spectrum (LEQ, MAX or both) will be
available for view (see chapter 6.5.5).
Figure 3-13 1/1 Octave analysis spectrum graph LEQ view mode screens
Figure 3-14 1/1 Octave analysis spectrum graph MAX view mode screens
current
centre
frequency
current
Total LEQ
weighting filter
value of the
spectrum
at cursor
position
weighting
filter
cursor
current
centre
frequency
current
Total Lmax
weighting filter
value of the
spectrum
at cursor
position
weighting
filter
cursor
![](asset-1a.png)
SV 104A USER'S MANUAL_______________________________________________________
26
3.9.5 THIRD OCTAVE analysis spectrum view mode
The instrument can also operate as a real time 1/3 octave band analyser (RTA). In addition and
if enabled, 1/3 octave analysis is performed in parallel with the dosimeter operations. All 1/3-octave digital
pass-band filters (with 28 centre frequencies from 10 kHz down to 20 Hz; in base two system) are working in
real-time with the broadband frequency weighting filters (Z, A or C) and the linear LEQ (LEQ) detector. This
enables the user to pre-weight a spectrum with one of the selected broadband frequency curves if required for
a particular application such as the provision of hearing protectors in the control of high workplace noise levels.
Note: The three overall TOTAL LEQ results are measured with the weighting filters (A, C, Z)
without taking into account the settings of the level meters for profiles. The spectra are always linearly
averaged. Thus, the TOTAL values from 1/3 octave band analysis can be different from those obtained for the
profiles (if the LEQ Integration was set as Exponential).
The results of 1/3 Octave analysis (so-called spectrum) can be examined by the user on a display
in Spectrum VIEW presentation mode. 1/3 Octave spectra for all 28 centre frequencies of pass-band filters
together with the 3 TOTAL overall values measured with the user selected frequency weighting filters
are presented in the Spectrum mode if enabled in configuration setup. Spectrum cursor can be moved left and
right with <SCROLL> , <PROFILE> keys respectively.
With the use of Supervisor software, the user can select which spectrum (LEQ, MAX or both) will be
available for view (see chapter 6.5.5).
Figure 3-15 1/3 Octave analysis spectrum graph LEQ view mode screens
Figure 3-16 1/3 Octave analysis spectrum graph MAX view mode screens
current
centre
frequency
current
Total LEQ
weighting filter
value of the
spectrum
at cursor
position
weighting
filter
cursor
current
centre
frequency
current
Total Lmax
weighting filter
value of the
spectrum
at cursor
position
weighting
filter
cursor
![](asset-1b.png)
SV 104A USER'S MANUAL_______________________________________________________
27
3.9.6 INSTRUMENT STATUS view mode and Bluetooth security PIN code
Instrument Status view presents:
• the battery charge status (Bat.Charge) along with estimated working time which is left until the
battery is expected to be completely drained (Bat.Left)
• current configuration information (Setup),
• Bluetooth status (On or Off) and PIN code,
• Timer status (On or Off) and time left to start.
Instrument status screen is moved down and up with <SCROLL> , <PROFILE> keys
respectively.
Figure 3-17 INSTRUMENT STATUS view mode screens
The Bluetooth security PIN enables the user to protect the instrument’s access via Bluetooth® by
Assistant mobile application. PIN is defined in the Supervisor software (see chapter 6.5.7.4).
When Timer is On there are additional positions in the Status list with time left to start.
Figure 3-18 Timer information
name of the
currently
setup loaded
Bluetoth status
and PIN
Battery status
- time left
- charge status
profile names
Timer status
![](asset-1c.png)
SV 104A USER'S MANUAL_______________________________________________________
28
3.10 ALARM screen review
Apart from simple LED alarm indications (see chapter 3.5) there are a few alarm conditions, when
ALARM presentation screens will appear. During a measurement run the SV 104A will immediately turn on
the display at the time that the programmable alarm condition is exceeded. The detailed alarm state condition
for each profile is presented to the user. Press any key, to confirm the information.
Figure 3-19 ALARM view screens
Note: At any time when battery power is almost exhausted the “low battery” alarm screen may
inform you about immediate recharging requirement.
PROFILE
list
Alarm conditions detected in
each profile
Two alarm conditions
detected in profile no 1
![](asset-1d.png)
SV 104A USER'S MANUAL_______________________________________________________
29
4 RUNNING AND OPERATING BASIC PROCEDURES
4.1 USB Charging
The battery inside SV 104A uses lithium-ion technology which requires special consideration and handling
techniques due to the extremely high energy density (see “SPECIAL PRECAUTIONS WHEN USING AND
CHARGING LITHIUM BATTERIES” clause on page 4).
Note that SV 104A dosimeter is equipped with an internal charger, so that the fixed internal batteries
can be charged directly from computer USB port or optionally provided charger (SA 54: universal micro-USB
charger).
Ensure the SV 104A is fully charged prior to use by connecting it to a USB port or to USB charger.
Ensure the power supply is connected and the supply is switched on. The SV 104A will automatically turn on
the display during charging and present how much charge is within the instrument. The SV 104A will display
‘Fully charged’ once charging is complete. This should take approximately 2 hours from a fully discharged
state. A charging time of about 30 minutes will be sufficient to perform greater than 8 hours of measurement.
A fully charged instrument holds enough charge to run for approximately 48 hours.
Note that once disconnected from USB power supply, the dosimeter will automatically switch off.
If returned to the USB connection or put again onto the docking station the dosimeter keeps trickle charging
regardless of whether or not it is fully charged. This keeps the battery performance in steady condition. If the
battery is fully discharged prior to being placed on a charger, the SV 104A trickle charges for a short time prior
to the fast charge cycle, this prevents damage to the batteries.
The number of hours you have used your dosimeter from your last charge will impact total charge time.
For example, if the battery clock indicator displays 40 hours remaining on the battery and you wish to charge
the battery, the approximate charging time is 1 hour.
Note: To charge a fully discharged battery, it would take approximately 2 to 2.5 hours or about
7-7.5 hours when using low power USB interface.
Note: To charge multiple dosimeters at the same time via the USB port, ensure your
computer or possibly the powered USB hub such as the SA 156 or switch is capable in terms of providing
enough current performance. Standard hub or switches without external power supply are not capable to
charge multiple SV 104A dosimeters due to insufficient current supply.
Current estimation: Assume the current consumption on 0.5A level, and calculate required power supply
requirement (N x 0.5A).
Power wattage estimation: With nominal voltage of 5V per USB, the power supply wattage should be 2.5W
per dosimeter (Nx2.5W).
For example, 5 dosimeters charged at once require: 2.5A/12.5W USB power supply
For example, 3 dosimeters charged at once require: 1.5A/7.5W USB power supply
For example, 1 dosimeter charged alone requires: 0.5A/2.5W USB power supply
Note: Use only high quality USB cables, such as SC 156. Many poor-quality cables do not
ensure low resistance of the cable, thus disabling proper charging of the internal cells.
![](asset-1e.png)
SV 104A USER'S MANUAL_______________________________________________________
30
4.1 DOCK STATION Charging
The battery inside SV 104A uses lithium-ion technology which requires special consideration and handling
techniques due to the extremely high energy density (see “SPECIAL PRECAUTIONS WHEN USING AND
CHARGING LITHIUM BATTERIES” clause on page 4).
Ensure the SV 104A is fully charged prior to use by placing it onto the docking station charger.
Ensure the power supply is connected and the supply is switched on. SV 104A will automatically turn on the
display during charging and present how much charge is within the instrument. The SV 104A will display ‘Fully
charged’ once charging is complete. This should take approximately 4 hours from a fully discharged state. A
charging time of about 1 hour will be sufficient to perform greater than 10 hours of measurement. A fully
charged instrument holds enough charge to run for approximately 48 hours.
Note that once disconnected from docking station, the dosimeter will automatically switch off. If put again
onto the docking station the internal battery is float charged. This keeps the battery performance in steady
condition. If the battery is fully discharged prior to being placed on a charger, it trickle charges for a maximum
1h time prior to the fast charge cycle, this prevents damage to the batteries.
The number of hours you have used your dosimeter from your last charge will impact your total charge
time. For example, if the battery clock indicator displays 10 hours remaining on the battery and you wish to
charge the battery, the approximate charging time is 3 hours.
Charger LED status indication
Description
OFF
Dock station is not powered on.
GREEN
Indicates the dock station is powered on and fully operational.
RED
Dock station is powered on, but not fully operational
Table 4-1 Charger instrument LED status description
Figure 4-1 5-bay docking station (SB 104A-5)
Note: To charge a fully discharged battery, it would take approximately 4 hours.
Note: To charge multiple dosimeters at the same time via the docking station, ensure your
12V AC/DC power supply such as the SA 33 is capable in terms of providing enough current performance.
Current estimation: Assume the current consumption on 0.24A level, and calculate required minimum power
supply current (5 x 0.24A = 1.2A).
Power wattage estimation: With nominal voltage of 12V the power supply wattage should be minimum 2.88W
per dosimeter (5 x 2.88W = 14.4W).
![](asset-1f.png)
SV 104A USER'S MANUAL_______________________________________________________
31
4.2 Before you turn the instrument on
There are only a few things to remember:
• Make sure the microphone is properly fastened onto mounting head before turning on the
instrument.
• When in use for a measurement run, always use the SA 122A windshield provided.
4.3 Turning on/off
TURNING ON: To switch the power on the operator should hold the <ENTER> key for a couple
of seconds. The instrument switches on and goes the self-test routine (during this time the manufacturer's
logo, the name of the instrument and firmware version is displayed).
Then the SV 104A will run through a short start-up sequence, showing the current configuration setup
loaded along with the names of all of three profiles, followed by battery state screen. After this, the instrument
will enter the stopped (ready to measure) mode and enter the running instantaneous SPL mode if enabled.
Note: Warm up time - After power on, the instrument should be warmed up for at least
60 seconds before starting measurement.
Note: If you leave the instrument in stopped (ready to measure) mode, the display will be
switched off after 30 seconds, and the unit will turn off after approximately 5 minutes of no keypad activity
to save the batteries.
Note: SV 104A will show a warning screen if the battery capacity is below 2 hours of
potential measurement time.
TURNING OFF: To shut down the unit the operator should hold the <ENTER> key for a couple
of seconds during which a countdown (“Shutting down” 3… 2… 1… ) is displayed. Thus, the SV 104A gives
you time to decide if you really want to turn off the instrument. If you release the key too early, the SV 104A
returns to the last presented VIEW mode.
If enabled in the configuration setup there may be presented an additional, double-check, warning
screen. This is for the operator to be aware and convinced the unit is really to be turned off. See figure below:
Figure 4-2 Power-off warning screen
Note: SV 104A will automatically shut down after 5 minutes in stopped mode.
Note: If auto-run (timer) mode is active, SV 104A will automatically stop the measurement
when the set time is over and then turn off. If no auto-run mode is used and specific time has not been
preset, the unit will continue to measure until the battery is exhausted. Just before switch off,
the measurement run will be stopped and all data until that point will be saved securely for later download
to the PC.
![](asset-20.png)
SV 104A USER'S MANUAL_______________________________________________________
32
4.4 Battery check
Observe the battery icon in the instrument’s icon status bar or press the <ENTER> key until
the Instrument Status view mode is presented and check the battery state. If it is too low, charge the batteries
(chapter 4.1).
Figure 4-3 Instrument Status - Battery state
Battery status screen is moved down and up with <SCROLL> , <PROFILE> keys.
Press <ENTER> to change to the next VIEW mode.
Note: Battery state of charge calculation is based on internal charge counter and should be
considered only as an overall, not very precise estimation. Therefore the time left could be noticeably
different. Although the newest technology cells are used the slight degradation over time is inevitable thus
aging requires occasionally factory based (or authorised service centre) replacement of the rechargeable
battery cells.,
Note: Battery power indicator - To improve accuracy of remaining battery life indicator, run
the dosimeter until it is fully discharged; then proceed with a full charge via the micro USB port or docking
station. The procedure is recommended before first use. Repeat this procedure every few months of use
to maintain more accurate current battery condition indication.
4.5 Reviewing unit label
Unit label screen provides information about elementary dosimeter properties such as:
• Copyrighted manufacturer name: SVANTEK (C)
• Instrument name: SV 104A
• Unit serial number: SN XXXXX
• ST 104A microphone serial number: SN ST104A XXXXX
• Unit name: XXXXXXX [user programmable name]
• Firmware version: Version X.XX.X
• File system version: FS Version X.XX
• CRC value: CRC(OK) XXXX
• Standards list, that dosimeter conforms to:
o IEC 61252:2002
o ANSI S1.25:1991 (R2007)
o Class 2: IEC 61672:2013
o Class 1: IEC 61260:1995 [with +Am1 2001]
To access Unit Label screen short press all three keys:
<SCROLL> , <PROFILE> and <ENTER> at the same time.
![](asset-21.png)
SV 104A USER'S MANUAL_______________________________________________________
33
The following screen will be presented:
Figure 4-4 Unit label screens
Unit label screen is moved with <SCROLL> , <PROFILE> keys.
To exit the Unit Label screen just shortly press the <ENTER> key. Then SV 104A will return to the
last presented VIEW mode.
Note: The personalized Unit Name can be set arbitrarily with Supervisor software.
4.6 Measurement setup - basic configuration
Press two keys <SCROLL> and <ENTER> at the same time. The “Load Setup” menu will
appear with the list of loaded configuration setups to choose.
Figure 4-5 Load setup menu
To abandon setup selection, press again the <SCROLL> and <ENTER> at the same time.
Otherwise select the required configuration setup with <ENTER> key navigating thru the list with
<SCROLL> or <PROFILE> key.
The following screen will appear, that will allow you to confirm you really want to load the selected setup
or cancel the selection and return to configuration setup list:
Figure 4-6 Load setup confirmation
UNIT NAME
user programmable
serial number
firmware
version
standards
conformity
![](asset-22.png)
SV 104A USER'S MANUAL_______________________________________________________
34
Press <SCROLL> key to cancel the setup loading, or <PROFILE> key to confirm loading
selected setup configuration.
Confirming the loading of configuration setup leads to the screen with status of the loading procedure:
Figure 4-7 Status of setup loading
After successfully setup loading it is possible to return back to list of predefined setups by pressing the
<SCROLL> key, or go further to measurement screen by pressing the <PROFILE> key.
Note: Detailed description of uploading setup files onto the SV 104A can be found in chapter
6.5.1 of this manual.
4.7 CALIBRATION
The SV 104A dosimeter is offered with the dedicated ST 104A MEMS microphone with ½” housing.
It makes the calibration very easy by direct usage of commonly available acoustic calibrators with a ½” cavity.
The instrument is factory calibrated with the supplied microphone for the standard environmental conditions.
Because the microphone sensitivity is a function of the temperature, ambient pressure and humidity, the
absolute calibration of the measurement channel should be performed locally. The instrument performs the
acoustic calibration automatically, when the calibrator is placed over the microphone (first remove the
windshield). The calibrator level is automatically detected and the calibration procedure is started.
The user simply has to press <ENTER> key to confirm the calibration results. Calibration is only
allowed in the stopped mode. A sound measurement cannot be in progress while the calibration is being
performed.
Note: It is advised to perform an acoustic calibration of the instrument each time before and
after the measurement run. A single calibration at the start of each day of use is usually sufficient for most
regulations.
Note: The calibration factor is always added to the results in the Dosimeter or 1/1 Octave or
1/3 Octave analyses modes.
Note: The manufacturer’s recommended factory calibration interval is every 12 months for
this instrument to be confident in its continuing accuracy and compliance with the international specifications.
Please contact your local SVANTEK distributor for further details.
To calibrate the instrument manually the user has to enter the Calibration menu.
![](asset-23.png)
SV 104A USER'S MANUAL_______________________________________________________
35
1. Adjust the actual calibration level of the calibrator to be used with the <SCROLL>
and <PROFILE> keys
Figure 4-8 Calibration menu
2. Attach the acoustic calibrator, SV 30A, SV 31, SV 34, B&K 4231 (or equivalent 114 dB / 1000 Hz)
carefully yet tightly over the microphone of the instrument. The presence of the calibrator will be
detected automatically
Note: It is also possible to use an electro-mechanical pistonphone, which generates the signal
(ca 124 dB) or different type of acoustic calibrator dedicated for ½” microphones with an alternative output
level such as 94 dB at 1 kHz. In any case, before starting the calibration measurement, the user has to
set the level of the signal generated by the given calibrator (Level position), which is stated in the
calibration certificate of the unit (the default expected value of the Calibration Level set by the manufacturer
of SV 104A is equal to 114 dB).
3. Switch on the calibrator and wait ca 30 seconds for the tone to stabilise before starting the calibration
measurement
4. Start the calibration measurement by pressing the <ENTER> key
5. The calibration measurement time is set to 1 second with 3 seconds’ delay and stops until the same
result is obtained 3 consecutive times. It is possible to stop the calibration measurement by pressing
two keys at the same time <PROFILE> and <ENTER>.
Figure 4-9 Calibration - initial delay screen
6. Delay before starting calibration measurement is counted down on the display. After the measurement,
its result is presented on the display.
Figure 4-10 Calibration in progress screen
Note: To quit the calibration procedure without saving the calibration factor press <PROFILE>
and <ENTER>.
7. It is recommended to repeat the calibration measurement a few times. The obtained results should be
almost the same (with ±0.1 dB difference). The reasons for the unstable results are as follows:
![](asset-24.png)
SV 104A USER'S MANUAL_______________________________________________________
36
• the calibrator is not properly attached to the instrument
• there are external acoustic disturbances such as high noise levels close by
• the calibrator or the measurement channel (for example the microphone) is damaged
Note: During the calibration measurement, the external disturbances (acoustic noise
or vibrations) should not exceed a value of 100 dB (when using a calibrator that generates a level
of 114 dB).
8. Press the <ENTER> key in order to accept the measurement result.
Figure 4-11 Calibration confirmation screen
Note: If a calibration factor does not meet tolerance criteria ±2 dB, you still can manually
accept the microphone, but the results could possibly be affected - see Figure 4-12.
Figure 4-12 Calibration - microphone not in tolerance screen
9. Post calibration. If enabled, the post processing is performed automatically under acceptance
of calibration measurement.
Note: If it is required to perform so called post-calibration of the instrument. In case the Post
Calibration is pre-programmed within configuration setup the SV 104A automatically adds the results to
the previously saved files.
new
calibration factor
previous
![](asset-25.png)
SV 104A USER'S MANUAL_______________________________________________________
37
4.8 Voice comments recording
In order to record a comment, the user should press <PROFILE> key for a few seconds during
which a countdown (“Voice comment” 3… 2… 1… ) is displayed. Thus, the SV 104A gives you time to decide
if you really want to record a voice comment. In case you release the key too early, SV 104A returns to the
last used VIEW mode.
Entering the voice comment recording usually brings up a window with a question to which logger file
the voice comment is to be linked - to the previous or to the next one. NOTE: This window will be skipped
if there are no previous logger files or the unit is just turned on.
Figure 4-13 Voice comment linking screen
After selecting an answer by pressing the <SCROLL> or the <PROFILE> key the record
command window will open.
Figure 4-14 Voice comment recording command screen
Starting the recording by means of the <PROFILE> - key flashing circle that indicates recording
in progress will appear on the screen.
Figure 4-15 Voice comment recording in progress screens
Further, one can continue to record a comment about the measurement and press <PROFILE>
key to finish recording. The recording end will be confirmed with the screen comment "Saved O.K.".
Figure 4-16 Voice comment record confirmation screen
Note: The voice comment can be recorded before or after the measurement run takes place
and linked to the Previous or the Next measurement run. But be beware, that linking to the previous
measurement will not be possible in case when the unit is switched off and on again or there are no
previous logger files. In this case the recording screen will appear (with default linking the comment to the
next logger file).
![](asset-26.png)
SV 104A USER'S MANUAL_______________________________________________________
38
4.9 Before and after measurement run
Before starting a measurement ensure:
1 the instrument is turned on (see chapter 4.3)
2 there is sufficient battery operating life and free memory by checking the status screen
(see chapter 4.4)
3 required configuration setup is selected (see chapter 4.6)
4 the SV 104A is calibrated, because it affects the results (see chapter 4.7)
5 the windshield is put on because it protects the microphone from industrial environment such
as dust and moisture or from effects of impact (see chapter 3.3)
After stopping the measurement run, make sure:
1 the calibration is still maintained (see chapter 4.7)
2 the data is properly downloaded to PC for further analysis (see chapter 5)
3 the instrument is turned off (see chapter 4.3)
4.10 Starting and stopping measurement run
START:
To start the measurements the user has to press the <SCROLL> and <PROFILE> keys at
the same time. The results of the measurement are displayed in the last used result’s display view mode. As
an example, ONE RESULT view mode is displayed. ONE RESULT view mode is always available for most
functions of the instrument. The results of the measurements can also be presented in other view modes,
which can be enabled or disabled and adjusted to the user’s needs.
Figure 4-17 One profile mode screen view
STOP:
The same combination of keys: <SCROLL> and <PROFILE> allows the user to stop the
measurement run. All run results are always saved automatically, there is no need to save them manually.
Note: The instrument can be started or stopped remotely thru wireless Bluetooth® interface.
See chapter 5 for mobile application description.
![](asset-27.png)
SV 104A USER'S MANUAL_______________________________________________________
39
4.11 Auto-run mode information
Note, that when auto-run mode (timer and/or pause) is configured, there is information on the screen
available for the user. There is no need to turn on the instrument manually. All the timer procedures can be
easily pre-programmed with the use of the Supervisor software.
Figure 4-18 Auto-run mode – timer and programmable pause screen
4.12 Security lock
Please consider locking the keypad and display during the measurement to prevent the wearer
or anybody else from tampering with the measurement run. The SV 104A can be set up to automatically go
into locked mode when it starts (see chapter 6.5.7.3). That automatically prevents any tampering, but
the unit can still be unlocked if necessary with proper sequence of key presses.
Locking SV 104A unit: To lock the instrument the operator should hold the <SCROLL> key for
a couple of seconds during which a countdown (“Keyboard lock” 3… 2… 1… ) is displayed and the unit gives
you time to decide if you really want to activate security lock. If you release the key too early, SV 104A returns
to the last presented VIEW mode.
Unlocking SV 104A unit: To unlock the unit one has to press the keys in the correct sequence.
The sequence is pre-programmed in the configuration setup (look the chapter 6.5.7.3). Note that in
case the security sequence is configured via Supervisor software, the simple hold of <SCROLL> key
for a couple of seconds during which a countdown (“Keyboard unlock” 3… 2… 1… ) is displayed and the unit
gives you time to decide if you really want to deactivate security lock.
Figure 4-19 Unlocking the unit sequence screens
![](asset-28.png)
SV 104A USER'S MANUAL_______________________________________________________
40
4.13 Mounting and positioning the SV 104A
Unless specified by local legislation, personal noise dosimeters should always be mounted on
the shoulder, circa 10 cm from the most exposed ear, with the microphone approximately a few cm above the
shoulder. SV 104A shape and microphone height ensures proper instrument position. see Figure 4-20 below.
Figure 4-20 SV 104A positioning
4.14 Reviewing measurements
Most of the parameters can be inspected in real-time during either measurement run or stopped mode
of operation. If the display screen is turned off just press any key (but watch notice below).
The keys on the keypad of the instrument enable you to navigate thru most of the parameters.
For specific information on the VIEW modes, please see chapter 3.9.
• Use the <SCROLL> key to move down the list through the various measurements
• Use the <PROFILE> key to change the ACOUSTIC PROFILE you would like to inspect
• Use the <ENTER> key to change the VIEW mode
Note: In most cases the keypad will be probably locked. To gain access to the results and
unlock the keypad see chapter 4.12.
Note: After reviewing results remember to lock the keypad again in order to maintain
the integrity of the measurement run by preventing uncontrolled access to the instrument.
![](asset-29.png)
SV 104A USER'S MANUAL_______________________________________________________
41
4.15 Control of the instrument via Bluetooth® wireless interface
The Long–Range Bluetooth® Low Energy wireless connectivity and the supporting Assistant mobile
application enables remote control and monitoring of the instrument’s status such as battery usage, memory
capacity and measurement progress and results without having to disturb the worker. You can be sure, that
confidence in the measurement minimises the likelihood of having to repeat an examination due to potentially
impaired data and therefore maximises your performance. For more detailed remote control description see
chapter 5.
Note: The instrument can be even remotely turned on or off if Bluetooth® interface is enabled
in uploaded and applied setup file.
The Bluetooth connection between the instrument and Assistant mobile application can be established after
setting up the PIN code. PIN code is defined through the Supervisor software (see chapter 6.5.7.4).
By pressing <SCROLL> and <ENTER> keys simultaneously twice the user can enter the
Bluetooth menu. Pressing <ENTER> key the user can turn the Bluetooth® on or off. Press Accept to
confirm active Bluetooth®.
Figure 4-21 Switching the Bluetooth® on
Note: By default, Bluetooth® is disabled. For Air-transport Bluetooth® should be turned off.
Make sure that correct settings file is applied, or turn it off manually: see chapter 3.7.3.
4.16 Resetting the dosimeter
• SYSTEM RESET: (internal software reset clears any setup configuration, and brings back
the default factory settings).
See Appendix A for remote control commands description.
• HARDWARE RESET: (internal hardware reset, no user data is changed)
Make sure the battery is not exhausted, and the unit is turned off. Hold down the <ENTER> key for
more than 15 seconds, and then release it. Turn on the instrument as usually (see chapter 4.3).
Note: Hardware reset is only to be used in extreme situations such as an instrument hang-up.
Be aware, that a hardware reset:
- will stop any pre-programmed auto-run modes
- will stop measurement run
- HARDWARE RESET works, even if the keyboard becomes locked out!
![](asset-2a.png)
SV 104A USER'S MANUAL_______________________________________________________
42
5 ASSISTANT BASIC OPERATIONS
Assistant is an application for mobile devices (smartphones and tablets) running on Android platform
(5.0 or higher) and iOS platform (9.0 or higher) extending functionalities of SV 104A. The application uses the
Low Energy Bluetooth® 4 interface enabling current results to be previewed on a mobile device as well as
controlling the measurement Start / Stop.
Assistant also signals an alarm when the certain limits are exceeded. The unique feature of
the application is functionality of sending email or SMS on pre-programmed alarm conditions.
The Assistant application supports also SV 100A vibration whole-body dosimeter.
5.1 Installation on mobile device
1) Login to svantek.com website and download Assistant from the support page to your smartphone
/ tablet with Android 5.0 and iOS 9.0 or higher systems,
2) Install Assistant on your smartphone/tablet,
3) Tap the icon to open the Assistant application,
4) The Assistant may ask you to enable Bluetooth® and Localization services on your smartphone or
tablet,
5) The Assistant will detect visible instruments automatically.
Figure 5-1 Assistant welcome screen
![](asset-2b.png)
SV 104A USER'S MANUAL_______________________________________________________
43
5.2 Connection via Bluetooth®
With Bluetooth® enabled, Assistant compatible products will always broadcast their basic status
and some basic data will be visible on mobile devices running the application.
Instruments with Bluetooth® interface enabled and powered off are detected and displayed. To turn on
turned-off device just tap the desired collapsed bar. Shortly afterwards, the turned-on instrument will broadcast
its certain basic status information. See Figures below for some exemplary displayed screens.
To start work with Assistant application, select its icon in your device and run it. If you have some
SV 104A nearby with active Bluetooth® the Assistant will detect them and ask you to select these new
Bluetooth connections.
If some SV 104A are switched off they appear on the instrument list with the comment “Turned off”. You
may switch them on by clicking on the specific instrument.
If instrument is protected by the PIN code you will be asked to enter this code in a special screen,
otherwise Assistant will not be able to download data from SV 104A.
Figure 5-2 Assistant scanning/status screen
Note: You will not get access to instruments that are under control of other simultaneously
running Assistant application on another mobile device.
Note: It is recommended that the SV104A is in locked mode to discourage the wearer from
tampering and is described in chapter 4.12.
![](asset-2c.png)
SV 104A USER'S MANUAL_______________________________________________________
44
5.3 Control via Bluetooth®
All parameters and certain control be checked discretely without having to disturb the worker who may
be performing a critical task or be inaccessible.
The Assistant application has two main screens: scanning/status screen and result view/control screen.
Tapping the fields inside the instrument frame you can go to the instrument’s results view and
measurement control screen.
Figure 5-3 Changing main view screens
If you wish to come back to the scanning/status screen just press “Exit” button on your device.
5.3.1 Instruments’ status screen
From the scanning/status screen you may observe status of the set of instruments.
Each instrument status is displayed in the frame that contain up to tree fields. First field displays the
instrument name and serial number. Instrument’s unique name can be defined by the user via Supervisor
software (see chapter 6.3). Second field shows the instrument status (Turned off) or if it is turned on – the
measurement status. If measurement is stopped the field is red, if in progress it is green, if in pause – yellow.
The third field contains several icons that inform you about:
Internal battery status of selected SV 104A. The battery capacity is displayed in
percentage. If battery is close to be empty its colour changes to red.
![](asset-2d.png)
SV 104A USER'S MANUAL_______________________________________________________
45
Internal memory status of selected SV 104A. The green area and the percentage
display the empty memory capacity.
Dose alarm. If dose is above the threshold level the icon is red and the device starts
to vibrate.
Movement of the controlled person. If the controlled person is moving the icon is
green, otherwise the icon is red.
Someone is using the instruments keyboard.
Blocking status because of other current device control over this instrument.
As an example:
- The instrument SV 100A #44897 is switched off.
- The instrument SV 100A #44897 is switched on and
measurement is stopped. Battery charging is 95%, free
memory is 99%, no alarm, the controlled person in not
driving a vehicle.
- The instrument SV 104A #56400 is switched on and
measurement is running. Current Dose value is
displayed. The controlled person presses the
instrument’s button and this instrument is already
controlled by another mobile device. Note, that since
scanning there may be a few seconds’ delay.
![](asset-2e.png)
SV 104A USER'S MANUAL_______________________________________________________
46
5.3.2 Working with the results view and control screen
From the result view/control screen you may view measured results and control the measurement of the
particular instrument.
From this screen, you can Pause, Start or Stop a measurement run. Touch the appropriate icon on the
bottom bar of the mobile device screen. Stopping the measurement run requires double confirmation.
Figure 5-4 Assistant results review and pause/start/stop screen
As in the scanning/status screen the same icons in the upper screen line describe the instrument status. In
addition to them integration time is displayed.
Integration time. If the measurement is running this icon is green and time
is counting. If the measurement stopped or paused the icon changes its
colour to red or yellow and time counting stops.
You can also navigate thru acoustic profiles (3.8) by pressing
certain tab at the top of the screen with profile’s names, defined in the
setup.
Note that you can change the Time to full DOSE parameter within Assistant application by pressing
its bar on the screen.
![](asset-2f.png)
SV 104A USER'S MANUAL_______________________________________________________
47
Figure 5-5 Changing of results view
After pressing the button the popup menu appears
in which you can:
• Turn the instrument off.
• Exit the application.
• Identify corresponded SV 104A.
After clicking the Identity this instrument position the
corresponded instrument will display its current name. This
name will blink during 5 seconds then the instrument returns to
the previous screen. At the same time your device will propose
you to change the name of this instrument.
5.3.3 SMS and e-mail notification
The Assistant is also capable of sending e-mail/SMS directly from application or send auto SMS
notification on pre-programmed alarm conditions. Alarm conditions are set within Supervisor software and
uploaded as setup configuration files (see chapters: 4.6 and 6.5.1).
E-mail and SMS recipient is defined by pressing the button, and then selecting appropriate
command from popup menu.
![](asset-30.png)
SV 104A USER'S MANUAL_______________________________________________________
48
Figure 5-6 Sending e-mail
Figure 5-7 Sending SMS
![](asset-31.png)
SV 104A USER'S MANUAL_______________________________________________________
49
Furthermore, you can set auto SMS recipient phone number selecting Set auto SMS command, entering
phone number and pressing OK button.
Consecutive notification is send when the certain alarm limits are exceeded.
Figure 5-8 Auto SMS configuration screen
5.4 Leaving the application and software version information
You can exit application by pressing in the lower left corner the button, and then select Exit
command. To see the software version, choose the About command.
![](asset-32.png)
SV 104A USER'S MANUAL_______________________________________________________
50
6 SUPERVISOR BASIC OPERATIONS
This chapter explains data storage, the configuration setup of the dosimeter, and how to customize
the parameters via the Supervisor software.
With use of micro USB cable, software, and SV 104A, it is easy to:
1. set up required configuration parameters and upload these, so called SETUPS, straight
to the SV 104A instrument
2. retrieve time history data to view and analyse your noise recorded charts, graphs, with extended
reporting functionality
6.1 Installing and connecting to PC
Insert the Supervisor software CD/DVD into your PC and run the installation program.
After installation, you are ready to connect the SV 104A dosimeter.
3. Plug the USB cable into the computer
4. Plug the opposite end of the cable (micro USB) into the dosimeter itself
5. The SV 104A is powered and charged directly through the computer; thus, you do not need
separate charger. The dosimeter screen will be switched on automatically with current charging
information only
6. Turn on the dosimeter (see chapter 4.3) - long press of the <ENTER> key
7. Windows will install drivers for Svantek instruments if not previously installed
8. Once switched on, run the Supervisor software.
Figure 6-1 Supervisor splash screen
Note: Supervisor software enables communication with multiple dosimeters. Therefore, with
the use of a USB hub such as the SA 156 it is pretty straightforward to connect all of them at the same time.
Just make sure your computer system has enough power capability (see chapter 4.1 for details).
![](asset-33.png)
SV 104A USER'S MANUAL_______________________________________________________
51
6.2 Main software window
The main screen of the Supervisor is divided into few panels. Panels expose areas of interest
of professional users and satisfy user’s needs to find, configure, download, review and assess stored data in a
very simple but still professional way.
• Control panel enables you to select: Instrument control, Data browser or Session you work with
• Instrument filter enables SV 104A device selection, or other Health and Safety dedicated instruments
• Inventory panel detects all SV 104A connected devices (see chapter 6.3)
• Quick access file manager enables you to copy configuration setup files between computer and
instrument internal memory (see chapter 6.5.1)
• Instrument configuration panel enables access to all measurement run configuration settings
(see chapter 6.5.1 for details)
Figure 6-2 Supervisor main window
instrument
filter
setup files
manager
Instrument
configuration
panel
inventory
panel
control
panel
![](asset-34.png)
SV 104A USER'S MANUAL_______________________________________________________
52
6.3 Instruments inventory panel
Click the SV 104A instrument icon in the left “Instrument filter” Panel (see Figure 6-2) to get access to the
devices.
Inventory panel (Figure 6-3) enables you to see all currently connected, or previously connected
instruments of the same type. There are a number of columns with information related to each particular
instrument related to the correct allocation of instrument and calibrator calibration report details.
Figure 6-3 Inventory panel and its capabilities
There are two control buttons near the Inventory Panel top menu:
- Settings button enables to configure current local configuration file, that can be later uploaded to
the SV 104A dosimeter;
- Download button enables to navigate and download files directly from the dosimeter.
Note: To download any setup, or data file, first click the row related to the chosen dosimeter.
Note: Edit name is very useful option which allows you to give an unique name to the
instrument. A unique name will help you to identify the instrument in the group of instruments that are in use
during the measurement session (see chapter 0).
configurable
columns
right click
on top menu row
possible context
operations
right click on instrument row
“Settings”
configure setup files and the dosimeter”
“Download”
download measurement data from the device
small clock update icon button
![](asset-35.png)
SV 104A USER'S MANUAL_______________________________________________________
53
6.4 Instrument options unlock
Certain features of SV 104A such as 1/1 octave or 1/3 octave measurement or time domain signal
recorder are not available before activation. Activation of these options is fairly easy and can be done in a few
steps: 1. Connect the dosimeter to a computer
2. Launch Supervisor software
3. In the instruments inventory panel (Chapter 6.3) locate the instrument that you wish to unlock,
and right click onto it to open context menu.
4. Select Manage options/functions command
Figure 6-4 Unlocking the firmware options
5. In the Manage options / functions window click the Unlock button next to the feature you wish
to unlock
6. Enter the code and confirm with OK button
unlock button
![](asset-36.png)
SV 104A USER'S MANUAL_______________________________________________________
54
6.5 Advanced configuration setup
Customizing and saving set-ups are performed via the Supervisor. The following sections discuss each
of the setup screens and explain how to save and send the parameters to the multiple dosimeter(s).
Setting described here apply to the type SV 104A model. If you are also using other instruments and
have them connected, they will appear in the Inventory section panel, but no device will appear unless you
first select the appropriate model picture on the left side of the application in instrument filter section.
The clicked instrument picture denotes that the models are selectable from inventory panel when setup
changes are applied and the “send setup to instruments” is selected.
To gain access to settings window click the “Settings” button near the Inventory panel (see chapter 6.3)
6.5.1 Working with configuration setup files
The idea behind the configuration setup is to download the configuration setup file from the instrument
to the computer you are working on and referred as “Local files” destination. Then it is possible to modify the
settings, and save with a custom name.
Figure 6-5 Setup files manager panel
upload
selected
setup file
download
selected setup
file or current
Settings
list of setup files
that are in
dosimeter
internal memory
list of setup files saved
in local database
![](asset-37.png)
SV 104A USER'S MANUAL_______________________________________________________
55
For example: To download current settings file from the SV 104A, modify it, save with custom name,
send it back to the device, export the setup to USB flash memory, and make sure the uploaded settings
are applied in the dosimeter follow the presented procedure described below:
Once connected and selected in the inventory panel (Figure 6-3) SV 104A dosimeter is ready for
the operation:
1. Select the “Settings” row position in left side panel named “Instrument files” (Figure 6-5)
2. Click the right arrow pictogram to download instrument “Settings” configuration setup to “Local files”
right side panel (Figure 6-5)
3. Select the just copied “Settings” with a click: this will display quite a few configuration tabs on the right
side so called Instrument configuration panel of the main Supervisor window (Figure 6-2)
4. Go through all the tabs to verify, or change required parameters of the measurement runs. Follow the
chapters from 6.5.2 to 6.5.9 to understand and configure the instrument
5. Once configured, come back to setups file manager (Figure 6-5) and click the just edited “Settings”
in “Local files” panel
6. Next click the “Save” button in bottom area of the panel (Figure 6-5)
7. To change the name right click on the selected row, and choose “Rename” command, which enables
you to input a custom name for the setup that has just been edited (see the figure below)
8. To export the setup file right click again on the selected row to open context menu and select the
“Export” command (see the figure below). This will open standard save file window, where you can
choose the USB flash memory disk, and save the configuration file to use on a different PC.
Note, it is also possible to import the previously saved settings file to re-use a created setup
configuration.
9. To import the setup file right click on the ”Local files” panel, and choose “Import” command (see the
figure below). This will open standard open file window, where you can choose previously created
setup and load it into the “Local files” panel.
Figure 6-6 Exporting the configuration setup file
upload
selected
setup file
![](asset-38.png)
SV 104A USER'S MANUAL_______________________________________________________
56
10. Now it is time to upload the configuration back to the instrument. Just click the left arrow pictogram.
11. Once copied select the copied file in the Instrument files, and right click onto it to open context menu.
Then choose “Apply” command (Figure 6-7). Alternatively, you can enter the “Load Setup” menu
directly in the instrument and load it as the current configuration. See chapter 4.6 for details.
Figure 6-7 Instrument files panel and context commands
12. This ends the procedure. Disconnect the dosimeter and the instrument is now ready for a new
measurement run using the settings you have just uploaded.
Note: During configuration, there are quite a number of parameters to set. To understand
detailed meaning of parameters and how the results are calculated refer to Appendix D and check the following
by chapters.
![](asset-39.png)
SV 104A USER'S MANUAL_______________________________________________________
57
6.5.2 Profile settings tab
The main settings where specific acoustic profile configuration can be set are located under “Dosimeter”
tab. There are already predefined pre-sets in each profile column. By choosing predefined configuration some
obvious fields will be automatically greyed. Others must be setup by the user.
There are three additional user-defined pre-sets, whose name can be changed during configuration with
use of the little icon (notes with a pen) which is then enabled.
Apart from alarm DOSE threshold there are three additional source of warning alarm, which can be set.
See figure below.
Figure 6-8 Dosimeter settings - profile configuration tab
Note: Note, that some profiles can be disabled to be seen later during measurement run (see
chapter 6.5.5)
change user
defined preset
name
change additional
source of alarm
![](asset-3a.png)
SV 104A USER'S MANUAL_______________________________________________________
58
6.5.3 Measurement parameters settings tab
Within the measurement tab you can choose in which mode of operation the SV 104A should work:
Dosimeter, or Dosimeter with 1/1 octave or 1/3 octave analysis.
Note: Enabling 1/1 or 1/3 octave analysis shortens battery life, so take it into consideration
and double check the battery status before measurement run.
Other basic parameters configuration is per figure provided below:
Figure 6-9 Measurement configuration setttings tab
select
measurement
mode of
operation
![](asset-3b.png)
SV 104A USER'S MANUAL_______________________________________________________
59
6.5.4 Time-history data logging settings tab
To enable logging time-history data go to the “Time History” settings tab and switch the very first switch
button on the left panel.
• In the left panel named “Time History Setup” there are basic configuration fields related to:
how frequently do you want to log the parameters, what name the logger file should have, and if
extended summary results should be saved.
Note: Summary results are saved on “Integration Period” basis (not on
“Logger Step” time). See Figure 6-9 how to set “Integration Period” parameter.
• Right panel named “Results” is accessible only if “Logger” switch button is set to “On”.
You have the ability to choose, which basic results for each acoustic profile should be logged
during measurement run and saved in internal storage memory.
Figure 6-10 Time History (logger) settings tab
logger
enable
profile number
![](asset-3c.png)
SV 104A USER'S MANUAL_______________________________________________________
60
6.5.5 Display VIEW configuration tab
As mentioned in chapter 3.9 there are quite a few VIEW modes accessible on the display, when
the dosimeter is performing a measurement run.
• In the left panel named “Modes views” you can select which VIEW mode will be present when
you press the <ENTER> key on the dosimeter keypad
Note: If you do not want to use all three ACOUSTIC PROFILES it would be convenient
for you to enable only one acoustic PROFILE to be displayed – just select the required one.
Note: The “ONE-RESULT” (chapter 3.9.2) is the only VIEW mode that is always
present, and cannot be disabled.
• In the right panel named “Display Results”, you will find a list of over a dozen
measurement parameters, that can be configured to be presented on the SV 104A display,
when you press <SCROLL> key. See Appendix D to review acronyms for each parameter.
Figure 6-11 Display VIEW configuration tab
Up to three
profiles can be
switched on
Screen saving
mode can be
activated
![](asset-3d.png)
SV 104A USER'S MANUAL_______________________________________________________
61
6.5.6 Octave analysis Spectrum configuration tab
Real time 1/1 or 1/3 octave analysis is an additional optional feature. Therefore, it has its own settings
tab. Within this tab there are the following panels:
• named “Data”: This configures the weighting filter that is to be used with octave calculation.
• named “Scale”: Here the visible dynamic range of the graphical plot can be set, as well as the
grid visibility enabled
Figure 6-12 Spectrum configuration tab
6.5.7 General settings tab
General settings tab concerns to many different usability options: See the followed by chapters
to understand exactly how to configure these instrument settings.
Figure 6-13 General settings tab
![](asset-3e.png)
SV 104A USER'S MANUAL_______________________________________________________
62
6.5.7.1 Calibration settings panel
Sometimes it is required to perform so called post-calibration of the instrument. The position Post Cal.
enables the user to perform additional calibration after a measurement session and add the results to the file
saved in the memory. In the panel below, there are three options for saving results: not to save “Off”, save in
the last file “Last File” or save in the files which will be created after last calibration (“Files after last
calibration”). Auto-calibration can be disabled if required for any reason.
Figure 6-14 Calibration settings panel
6.5.7.2 Statistical levels settings panel
In the Statistical Level panel, it is possible to define ten percentile statistical levels, named from N1 to
N10. The default statistical levels have the following settings: 1, 10, 20, 30, 40, 50, 60, 70, 80 and 90. All values
have to be within the integer range [1, 99]. Each value can be set independently from the others.
Figure 6-15 Statistical levels settings panel
![](asset-3f.png)
SV 104A USER'S MANUAL_______________________________________________________
63
6.5.7.3 Keyboard security settings panel
The security setting enables you to protect access to the instrument when in use with a simple keypad
password to prevent users from inadvertently terminating a measurement run. This feature is set through
the Supervisor’s “General” settings tab.
To turn on the security option: switch on “Lock During Measurement” button. Once turned on, the SV
104A will disable the keyboard every time, the measurement run is started.
See the chapter 4.12 how to lock, and unlock the SV 104A instrument.
If “Unlock on Key” is set to On, SV 104A will require special code to be input by pressing four keys
defined in this panel in a particular sequence
If “Unlock on Key” is set to Off, SV 104A can be locked/unlocked without providing Lock/Unlock
sequence. Simply hold the <SCROLL> key for a couple of seconds during which a countdown
(“Keyboard lock/unlock” 3… 2… 1… ) is displayed and the unit gives you time to decide if you really want
to activate/deactivate the security lock. If you release the key too early, the operation will be cancelled.
Figure 6-16 Keyboard security settings panel
6.5.7.4 Auxiliary settings panel and Bluetooth PIN code
Under auxiliary settings panel it is possible to:
• Enable additional warning screens to be displayed under certain conditions:
o “Logging disabled” it warns the operator that time history results will not be stored.
o “Power off” additional confirmation just before switching off (see chapter 4.3)
• “Comment file name” defines the name of the Voice note comment file. “Comment Text”
is also able to be entered here if required
• “Vibration Marker” is used on the basis of acceleration threshold setting (Off, 1g,…15g) the
lower the threshold level selected then the more sensitive the dosimeter will be to possible
bumps and shocks during use
• “Language” enables the user to change the menu language displayed on the screen of the
dosimeter. The default language is English
• “Time To Automatic Shutdown” enables the user to change time period after which the unit
will be shut down if no key will be pressed
• “Bluetooth” enables the user to switch on or off the Bluetooth® connection.
• Note: “Bluetooth PIN” code configuration is required to establish connection;
Note: For Air-transport Bluetooth® interface should be turned off. Make
sure that correct settings file is applied.
![](asset-40.png)
SV 104A USER'S MANUAL_______________________________________________________
64
Figure 6-17 Auxiliary settings panel
6.5.8 Auto-Run settings (timer, pauses) tab
In the Pause panel the user may program five independent PAUSES in real time – Begin and End of
the pause.
The Timer panel enables the user to program the internal real time clock to act as a delayed start and
stop timer. The instrument can be switched on by itself at the pre-selected programmed time and it can then
perform the measurement run, which was used before it was last switched off. Auto-run feature is useful if you
wish to pre-set the instruments to run and stop for a specific period, such as a week-long study.
Figure 6-18 Auto-run configuration tab
Enabled:
Pause and Timer
mode of operation
![](asset-41.png)
SV 104A USER'S MANUAL_______________________________________________________
65
The timer can be switched off – “Off”, switched on– “On”.
In case the timer function is active (On) and the instrument is switched on the Time screen appears until the
programmed measurement runs are finished.
The Start (hh:mm) and Stop (hh:mm) positions determines the time for the measurement to start and to stop
automatically. The required hour and minute should be selected.
The Day of week determines the days in a week when the measurements should start. The timer can be
programmed (Max. no. of measurement days) up to 100 days ahead or without limitation (Inf) and during
these days’ settings of the current state of the Real Time Clock is taken into account. Make sure to check that
the real-time clock settings for the measurement location are correct before beginning a delayed timer
measurement.
6.5.9 Recording options tab
Event and wave recording are mutually exclusive functions and as such you need to turn off the one
option in order enable the other one.
6.5.9.1 Event and Wave recording configuration panel
Audio Event and Wave Recording may be configured to measure in different “Recording Mode”: See
figure below.
Figure 6-19 Audio Event and Wave recording configuration panels
![](asset-42.png)
SV 104A USER'S MANUAL_______________________________________________________
66
6.6 Working with data files
6.6.1 Instrument files
If you want to download any recorded files, regardless the type: logger, voice comment, or audio events
files, you should click the “Download” button on the control area.
Figure 6-20 SV 104A Download window
Press the “Download” button, located in bottom area, and the previously selected run data files will be
downloaded to local computer and the Supervisor will enter “Data Browser” (see chapter 6.6.2) to further
manage downloaded files. Run data files in the instrument can be optionally deleted after download by
checking the box under the Download button.
To change the working directory or scan other folders, press the
“Change dir” button, and appropriate window will appear, see figure below.
Figure 6-21 Change instrument working directory window
Press here to download
selected files.
inventory control buttons
![](asset-43.png)
SV 104A USER'S MANUAL_______________________________________________________
67
6.6.2 Local files “Data Browser”
Within the Data Browser tab, you can see the list of previously downloaded files ready for further
processing. Note that selected files will generate a short preview in the bottom area giving the operator an
initial idea of the time history of the measurement results.
All files are simply divided per specific function: In the case of a dosimeter: Noise dosimetry and Wave
are relevant file groups.
To further process the selected file or files, right click on selection, and choose “New session”
command. This will bring you to the “Session” window (see chapter 6.7), where the reporting tool will allow
you to quickly and professionally review and asses the data.
Figure 6-22 Local files “Data Browser” - window layout
![](asset-44.png)
SV 104A USER'S MANUAL_______________________________________________________
68
6.7 Working with sessions and reporting
One of the main advantages of the Supervisor is its incredibly simple but professional and user
customizable report creation. Once you get familiar with the power of document design you will love it and
probably never come back to the old-fashioned way of reporting.
When the measurement data is downloaded via the download feature, the data is stored and viewable
via the local file “Data Browser” window. Further work with data downloaded from dosimeter is based
on, so called, SESSIONS – the most advanced charting, tables, and reporting capability in its class.
Each SESSION is highly configurable and the template of a document once created (Figure 6-25) can
be saved for future use with other measurement data. That gives the operator quick solutions at the
fingertip. The information is divided into panels and viewable in customizable graphs and/or with
selected measurement data/parameters.
Figure 6-23 Supervisor main SESSION window
generate report
generate report preview
report options
(see Figure 6-26)
template manager
(see
zoom
change sound units
change vibration units
font control
SESSION configuration panel
see detailed Figure 6-24
report detailed configuration area
![](asset-45.png)
SV 104A USER'S MANUAL_______________________________________________________
69
SESSION configuration panel enables you to see the currently selected
measurement data in the “Session data” sub-panel.
“Add panel” contains a list of available information sections or chunks
so called panels that are available to place in the report. Just double click
to add a new panel section to the report detailed configuration area.
Note, that each panel can be added more than once. It is possible to
change the information in each panel: for example: one panel with
parameters sorted in a table layout, and the other with a graph, or a
zoomed graph.
“Panels” contains the list of currently added information chunks to the
report detailed configuration area. Here you can change the names of
the individual added panels.
“Reports” contains information about user generated documents saved
by the software.
SESSIONS can be archived, or deleted with single button click.
Figure 6-24 SESSION configuration panel
Figure 6-25 Managing templates with Supervisor
double click to add
panel to the report
double click
to jump to
the selected panel
![](asset-46.png)
SV 104A USER'S MANUAL_______________________________________________________
70
6.7.1 Report panels
See the following panels, then configure, and generate report.
Report options: With “Report options” window it is very straightforward to edit basic report information
and predefined graphics, colour and style.
Figure 6-26 Supervisor Report Options
Figure 6-27 Hearing protectors panel
![](asset-47.png)
SV 104A USER'S MANUAL_______________________________________________________
71
Figure 6-28 Instrument configuration panel
Figure 6-29 Logger 1/1 Octave panel
Figure 6-30 Logger 1/1 Octave TSect panel
![](asset-48.png)
SV 104A USER'S MANUAL_______________________________________________________
72
Figure 6-31 Logger results panel
Figure 6-32 Logger Statistics panel
![](asset-49.png)
SV 104A USER'S MANUAL_______________________________________________________
73
Figure 6-33 Totals results panel
Figure 6-34 Noise exposure (ISO 9612) panels
![](asset-4a.png)
SV 104A USER'S MANUAL_______________________________________________________
74
Figure 6-35 Session header panel
Figure 6-36 Configurable Text panel
Figure 6-37 Powerful “What if” panel
![](asset-4b.png)
SV 104A USER'S MANUAL_______________________________________________________
75
7 SV 104A MAINTENANCE
7.1 General recommendations for use
7. Use only high quality USB cables, such as SC 156. Many poor-quality cables do not ensure low
resistance of the cable, thus disabling proper charging of the internal cells
8. It is not recommended to leave the instrument in direct sunlight conditions for prolonged periods
of time. Extended exposure such as behind the car window may affect the performance.
9. To improve accuracy of remaining battery life indicator, run the dosimeter until it is fully
discharged; then proceed with a full charge via the micro USB port. The procedure
is recommended before first use. Repeat this procedure every few months of use to maintain
more accurate current battery condition indication.
7.2 Cleaning
Few things to remember:
• Every time the SV 104A gets too dirty, clean the surface of the dosimeter with damp soft cloth.
• Pay special attention that the provided SA 122A windshield is clean because dirtiness can affect
the measurements. Take off the windshield, shake off any dirt, and clean it with damp cloth.
If necessary change the windshield to new one. The foam windshield is considered a
consumable item and will need replacing if it becomes lost or its condition deteriorates too much.
Packs of 3 replacement windshields are available under the part number SA 122A_3.
• Pay special attention that the ST 104A microphone front part is clean because dirtiness can
affect the measurements. Avoid the small inlet hole getting too dirty. Clean carefully with a dry
and soft non-fraying cloth.
7.3 In situ calibration
It is advised to perform an acoustic calibration of the instrument each time before and after
the measurement run. A single calibration at the start of each day of use is usually sufficient for most
regulations. See chapter 4.7 for calibration details, please.
7.4 Periodic testing
The manufacturer’s recommended factory calibration interval is every 12 months for SV 104A
to be confident in its continuing accuracy and compliance with the international specifications.
Note: Please contact your local SVANTEK distributor for further details on traceable
recalibrations that are recommended by most regulatory authorities.
![](asset-4c.png)
SV 104A USER'S MANUAL_______________________________________________________
76
7.5 Changing the microphone and windshield
To change the microphone, take off the windshield first (see chapter 3.3). Now, you need to unfasten
the microphone from the mounting head. Unscrew the microphone in a counter-clockwise direction.
To attach a new microphone, screw the microphone on clockwise until it fits tightly. It is critical to make
sure the sensor is tightly fitted. Use the NM104I1Z wrench but be gently and be aware not to break or strip
the thread.
Note: Note, when the microphone is changed, the new microphone serial number is
automatically stored into the SV 104A internal memory.
In case the windshield is destroyed/lost by any accident, or it gets too dirty to afford the microphone the
best protection then SVANTEK offers SA 122A_3 three pcs per pack (windscreens for SV 104A dosimeter).
7.6 Firmware update
SVANTEK is committed to continuous innovation path of development, and as such reserves the right
to provide firmware enhancements based on user’s feedback.
To update the instrument firmware:
• Unpack the provided firmware package (provided as a suitable compressed file).
• Make sure the unit is turned off.
• Hold down the <PROFILE> key and press the <ENTER>key to turn on the unit. This
ensures the unit will switch on and enter the special reprogramming BOOTLOADER mode.
Figure 7-1 Bootloader update mode view
• Then connect the USB cable. The <USB> text will now appear on the instrument display.
• Run the start.bat file.
• Successful firmware update will be indicated by relevant message.
• Turn off the unit.
Note: With use of Supervisor software it is very easy to check if there are
any new firmware releases available for download (see Figure 6-3 commands).
![](asset-4d.png)
SV 104A USER'S MANUAL_______________________________________________________
77
7.7 Storing the instrument
• To preserve the life of the internal batteries, it is recommended that the SV 104A instrument
is turned off when it is stored, and battery charge at half the capacity.
• Do not store the instrument permanently connected to the USB port or put on docking station.
It shortens battery lifecycle.
• It is recommended to turn off the Bluetooth® interface in applied settings;
• When the SV 104A is turned off, it still draws a small amount of battery power. Therefore,
it is recommended to 50% charge of the cell every few months if it is not going to be used
regularly.
7.8 Transportation and carrying
For transportation or storage purpose, always use the packaging provided by the manufacturer.
In a potentially dirty industrial environment it is advisable to use the carrying case provided by the manufacturer
such as the SA 73 (see chapter 2.3), which ensures excellent mechanical and environmental protection and
long term storage conditions.
Note: For Air-transport Bluetooth® interface should be turned off. Make
sure that correct settings file is applied.
7.9 Troubleshooting
1. Upon connection to the USB port, if automatic charging is not started: check the USB cable and power
supply ratings of the source.
2. If the incorrect time or date is displayed when turning on the instrument connect the device to the
computer and use Supervisor software to set the time and date (see) ensuring PC clock is set
correctly
3. In case the instrument is not able to turn on ensure the unit is charged by connecting to USB
or recommended charger. This ensures the battery is not exhausted. Then proceed with hardware
reset (chapter 0)
4. In case your dosimeter does not respond proceed with turn-off/turn-on procedure (chapter4.3),
and hardware reset of the instrument (chapter 0).
5. In case the measurement of the sound level is frozen or set to a fixed value proceed with turn-off/turn-
on procedure (chapter 4.3), then with hardware reset of the instrument (chapter 0).
6. In case the reset does not help proceed to chapter 9.
![](asset-4e.png)
SV 104A USER'S MANUAL_______________________________________________________
78
8 RISK ASSESSMENT AND MITIGATION OF RISK
Electrical safety HAZARDS are fully addressed by 6-16 clauses of the IEC 61010-1.
For details see:
GENERAL WARNINGS, SAFETY CLAUSES, AND STANDARD INFORMATION, page 2
SPECIAL PRECAUTIONS WHEN USING AND CHARGING LITHIUM BATTERIES, page 4
ENVIRONMENTAL PROTECTION MARKING OF THE UNIT, page 4
