SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla V3 Schematics

User Manual: Manual Motorola - Schematics & Service Manuals PDF

Open the PDF directly: View PDF PDF.
Page Count: 6

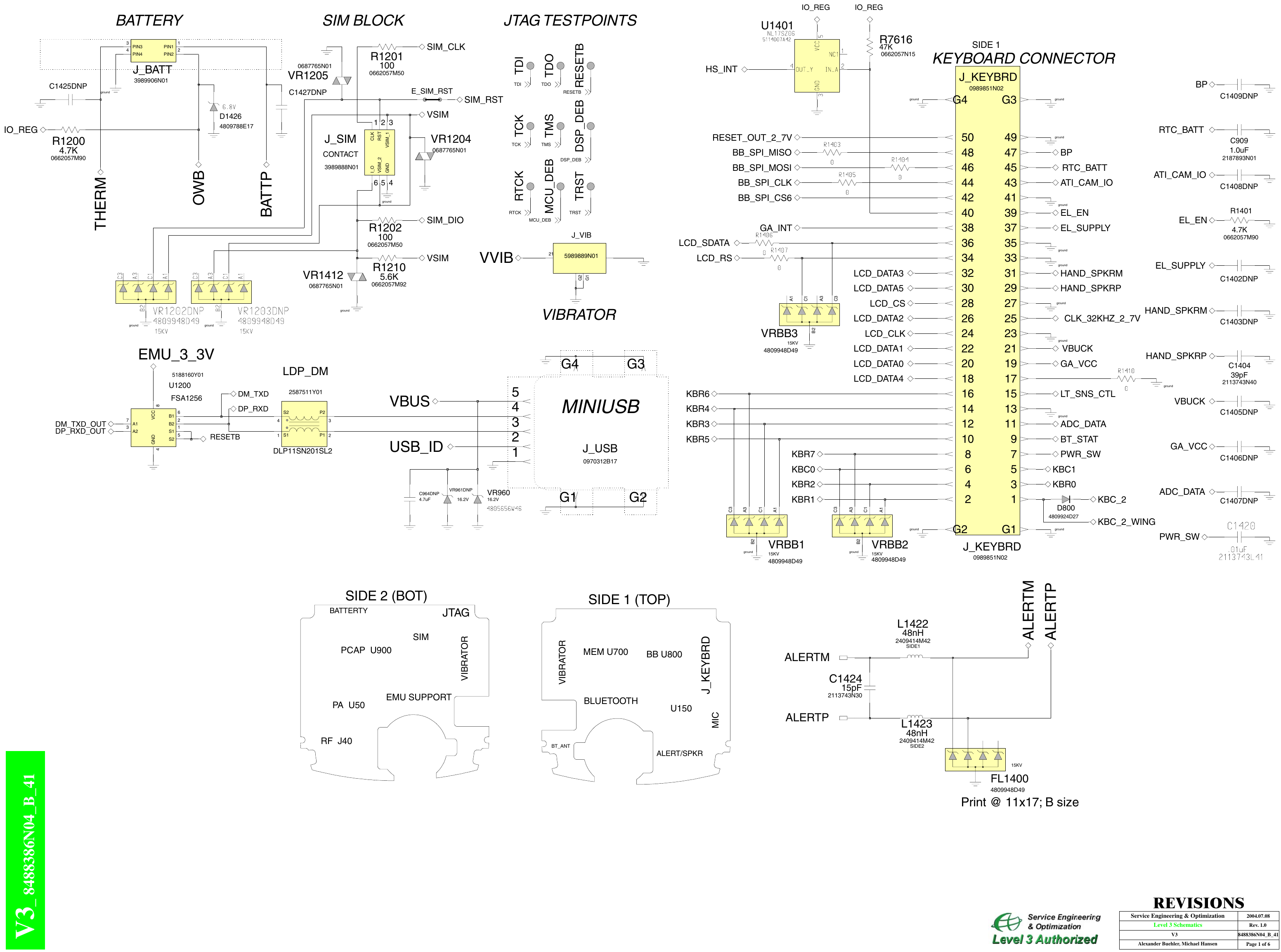

Page 1 of 6 - SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla-v3-schematics
Page 2 of 6 - SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla-v3-schematics

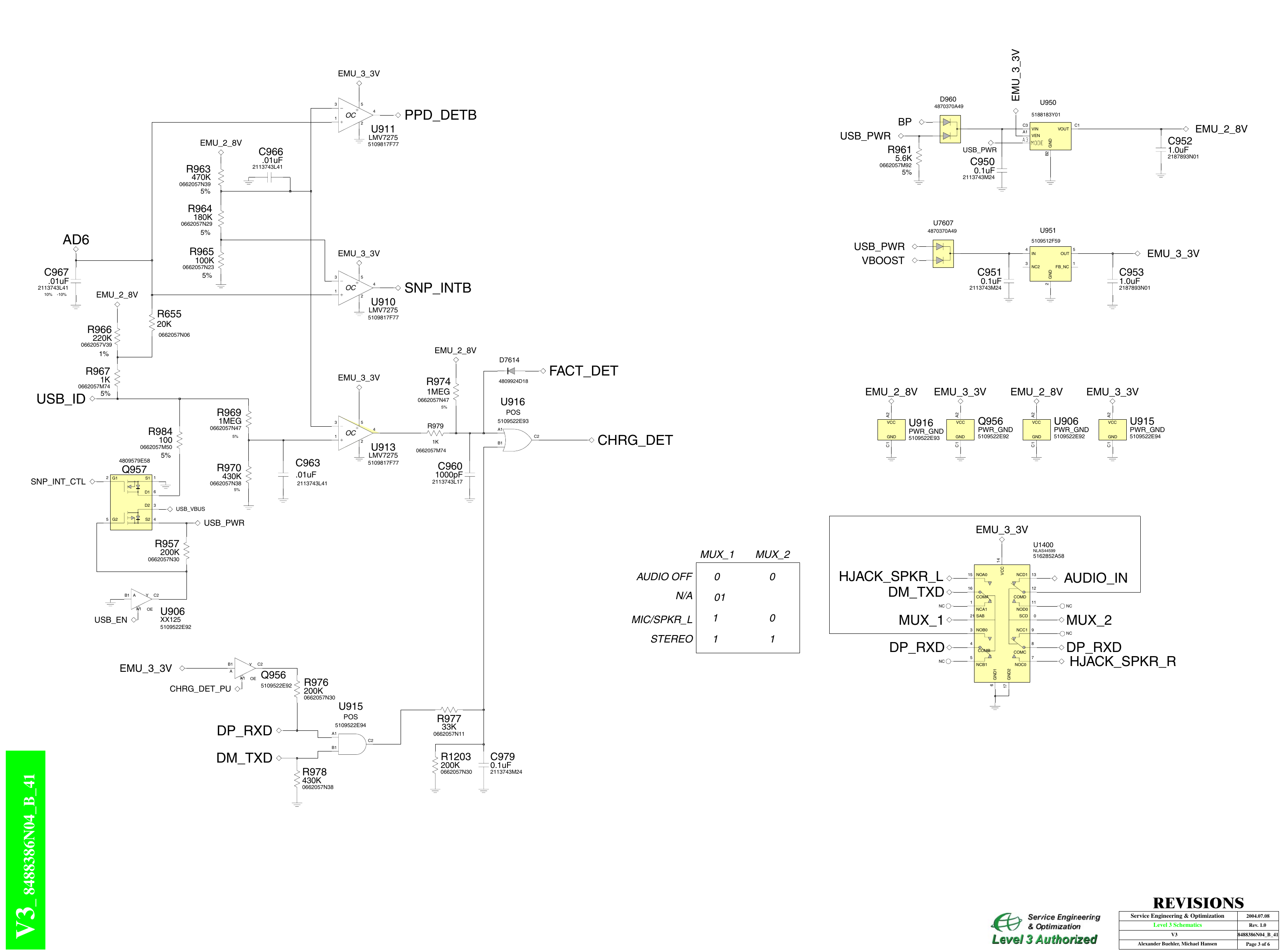

Page 3 of 6 - SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla-v3-schematics

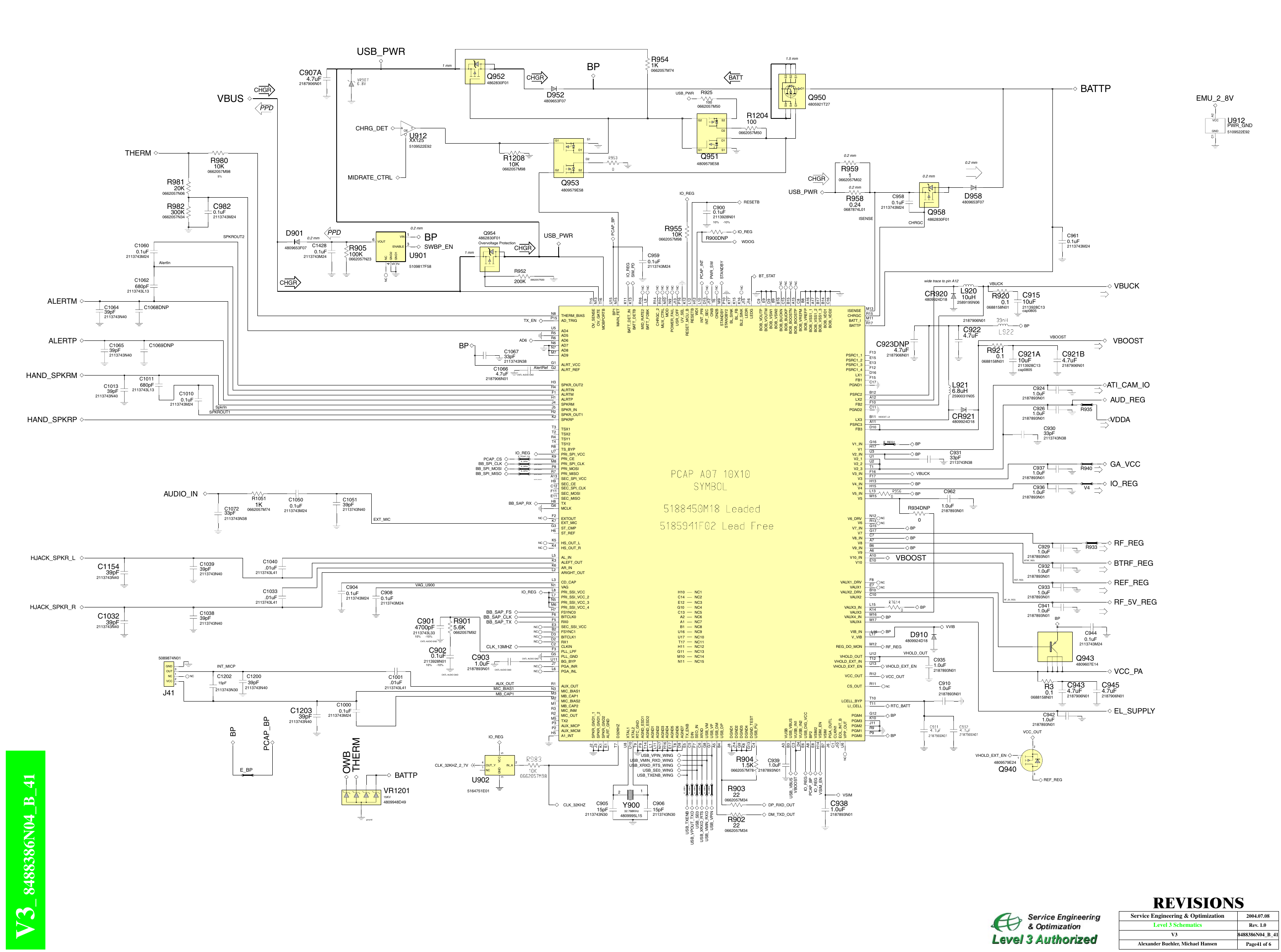

Page 4 of 6 - SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla-v3-schematics

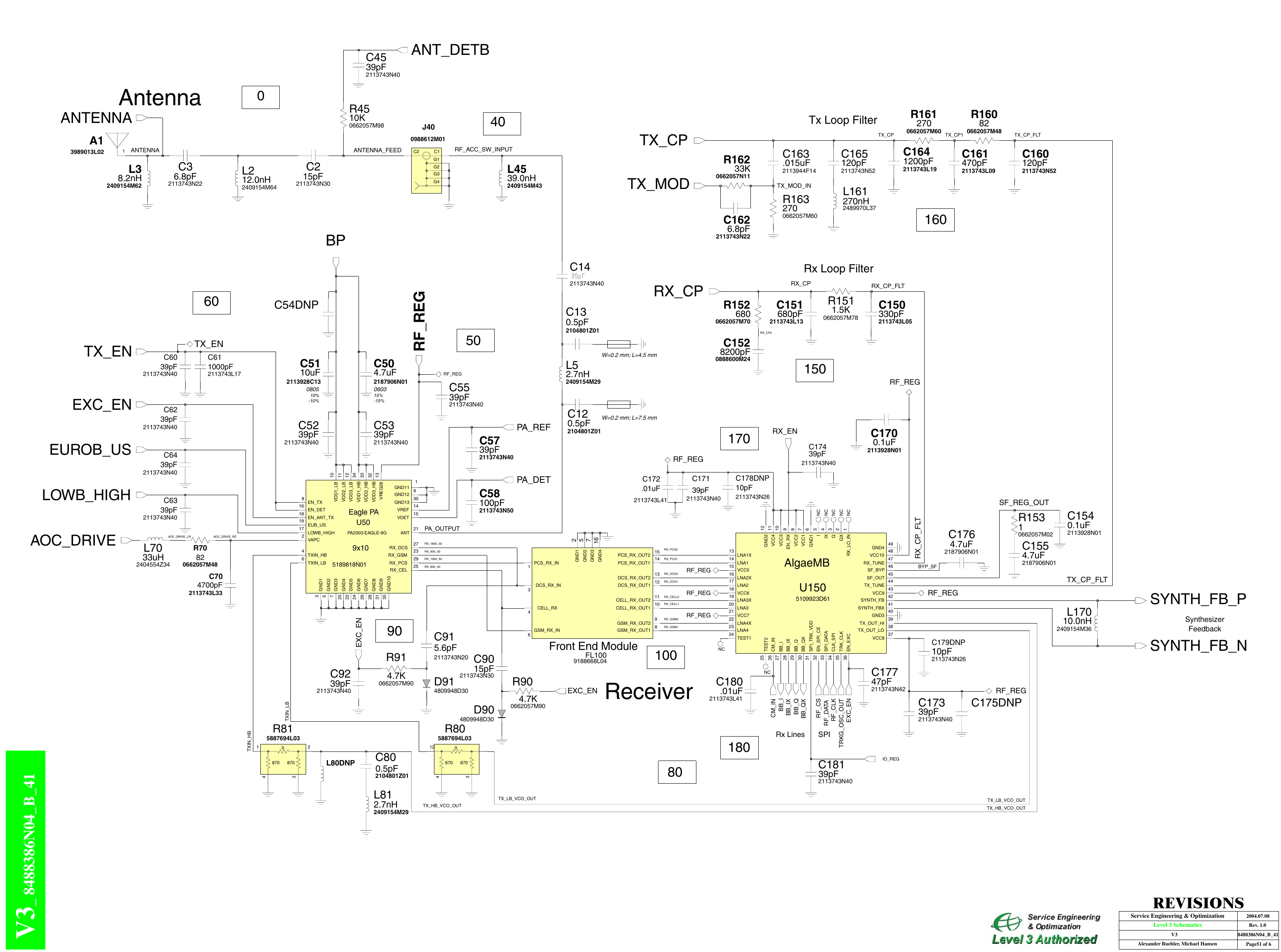

Page 5 of 6 - SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla-v3-schematics

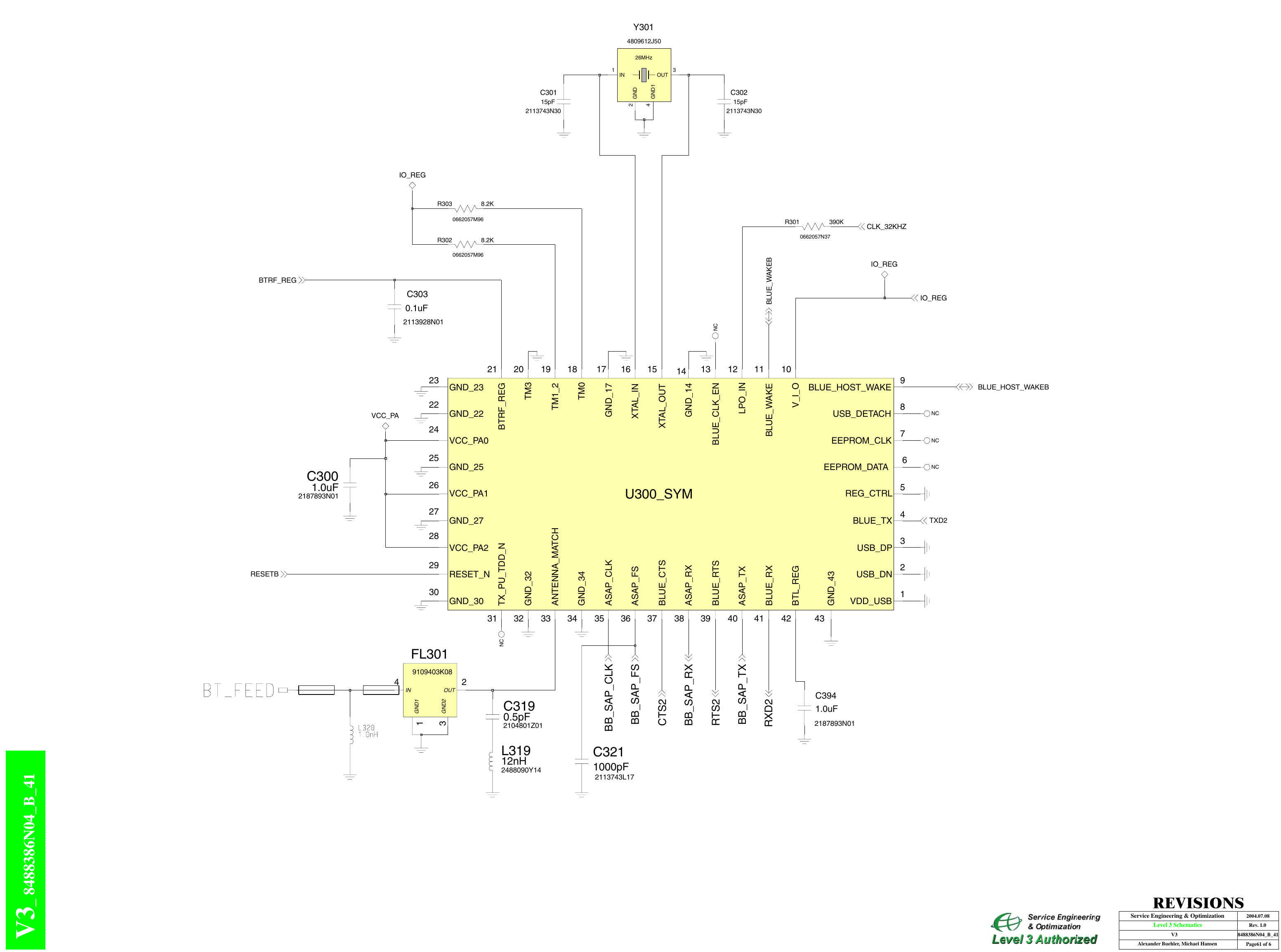

Page 6 of 6 - SCH_V3_A2_C_L3_8488386N04_B_41.cvx Motorolla-v3-schematics
