CD7300

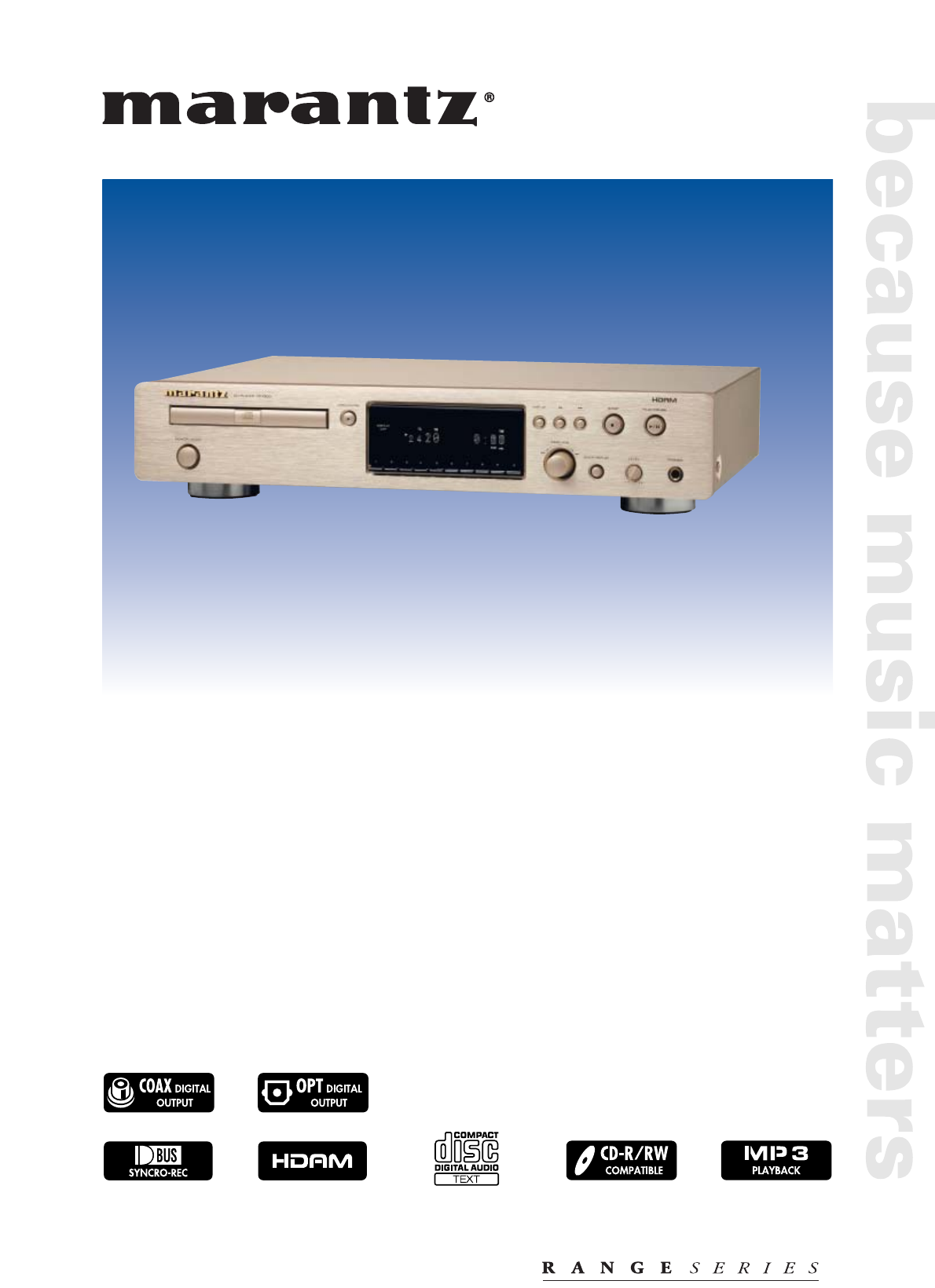

CD7300 CD player

The CD7300 is developed to provide excellent music reproduction and a wide range of

functionality. The new CD transport mechanism enables CD and CD-R/RW, even non

finalised discs, and MP-3 music files playability. The D/A converter from Cirrus-Logic ensures

accuracy of the audio signal while Marantz's Hi-Fi technologies, for example a super fast

HDAM and enforced chassis, turn it into true music. Quick Replay and Pitch Control

functions provide convenience features to participate into the music more actively.

CD PLAYERS

Black available

NEW

Build to perform

With the newly employed CD transport and digital-to-analogue

converter, the CD7300 will even satisfy the demanding

audiophiles. Designed to offer musical enjoyment, this player

will never disappoint in it's reproduction of pure audio.

CS4396 D/A Converter

In stereo playback the CS4396 has equal performance with its

big brother CS4397, the Super DAC, from Cirrus Logic.

The device includes a digital interpolation filter followed by a

oversampled multi-bit Delta Sigma modulator which drives

Dynamic-Element-Matching (DEM) selection logic.

This multi-bit architecture features significantly lower out-of-

band noise and jitter sensitivity than traditional 1-bit designs

and the advanced DEM guarantees low noise and distortion at

all signal levels.

VAM 1201 mechanism

The well appreciated CD transport mechanism has got advanced

capabilities. The VAM1201 is a proven CD transport

mechanism and has been used in many Marantz's CD players.

It's stability and quality are highly appreciated. Now this

mechanism has been renewed with the extra functionality to

playback non finalised CD-R and CD-RWs. It's not necessary

anymore to make a recording plan beforehand. Just record as

you like, and finalise it when you are satisfied or the disc is full.

HDAM

Audio devices are usually equipped with Op-Amps (operational

amplifiers) for which Integrated Circuit (IC) are commonly

used. Unfortunately these IC's do not match the very high

requirements of

Marantz. Marantz

developed it's own

discrete circuit boards

to replace the IC's.

These HDAM's

consists of discrete

surface mount

components with short

mirror image L/R signal

paths. These devices are

doing exactly the same thing as the Op-Amps, but outperform

the regular IC Op-amps dramatically in terms of the Slew Rate,

resulting in a much more dynamic, accurate and detailed sound.

CD-Text

Text information is added to most of todays normal audio CD's.

To be able to read this information, the CD-player must be

equipped with CD-text functionality. Most of the latest

generation Marantz CD-players are fully ready to process this

information and to display the text on the new dot-matrix

display. With this feature information about the performer and

the album can be read on the display of the CD-player.

Quick Replay

With just a single push on the remote control unit, the CD7300

moves back 10 seconds and plays that passage once again.

You will find this function useful to play your favourite part as

often as you like.

Pitch Control

Pitch control enables to increase/decrease playback speed by 15

steps. This feature is extremely usefull to practice with a musical

instrument, or to sing along with the track.

MP3 playback

Compressed audio is becoming more popular every day. Logical

if you consider that 10 hours of music easily will fit on a single

CD when the music is compressed using MP-3 technology.

The Marantz CD7300 is able to playback such encoded discs,

giving you many hours of musical pleasure and fine sound

quality.

D.Bus

To optimise equipment in terms of ease of use, Marantz has

designed the D.Bus system. Individual devices inform each

other, in order to automatically tune to the customers demands.

At the same time received remote control commands are

communicated via this bus. This enables equipment without

IR-receiver, like a cassette deck or tuner, to be controlled via a

Marantz Remote control.

Technological glossary:

■Incredibly accurate D/A conversion resulting ultra low-noise

music reproduction

■High slew rate and superb dynamics characterise the unique

Marantz HDAM output stages

■Offering additional text information like artist name, album

title and track name

■Move back to the desired passage with one touch operation

■Not completely recorded CD-R/RW don't need to be

finalised to enable playback

■Allows MP3 playback of over 10 hours of compressed audio

on a normal CD format

Benefits:Features:

■CS4396 D/A Converter

■HDAM

■CD-Text

■Quick Replay

■Un-finalised CD-R/RW playback

■MP-3 playback

■User manual

■Remote control

■Batteries

■1 Pair Audio cinch cable

■D.Bus cable

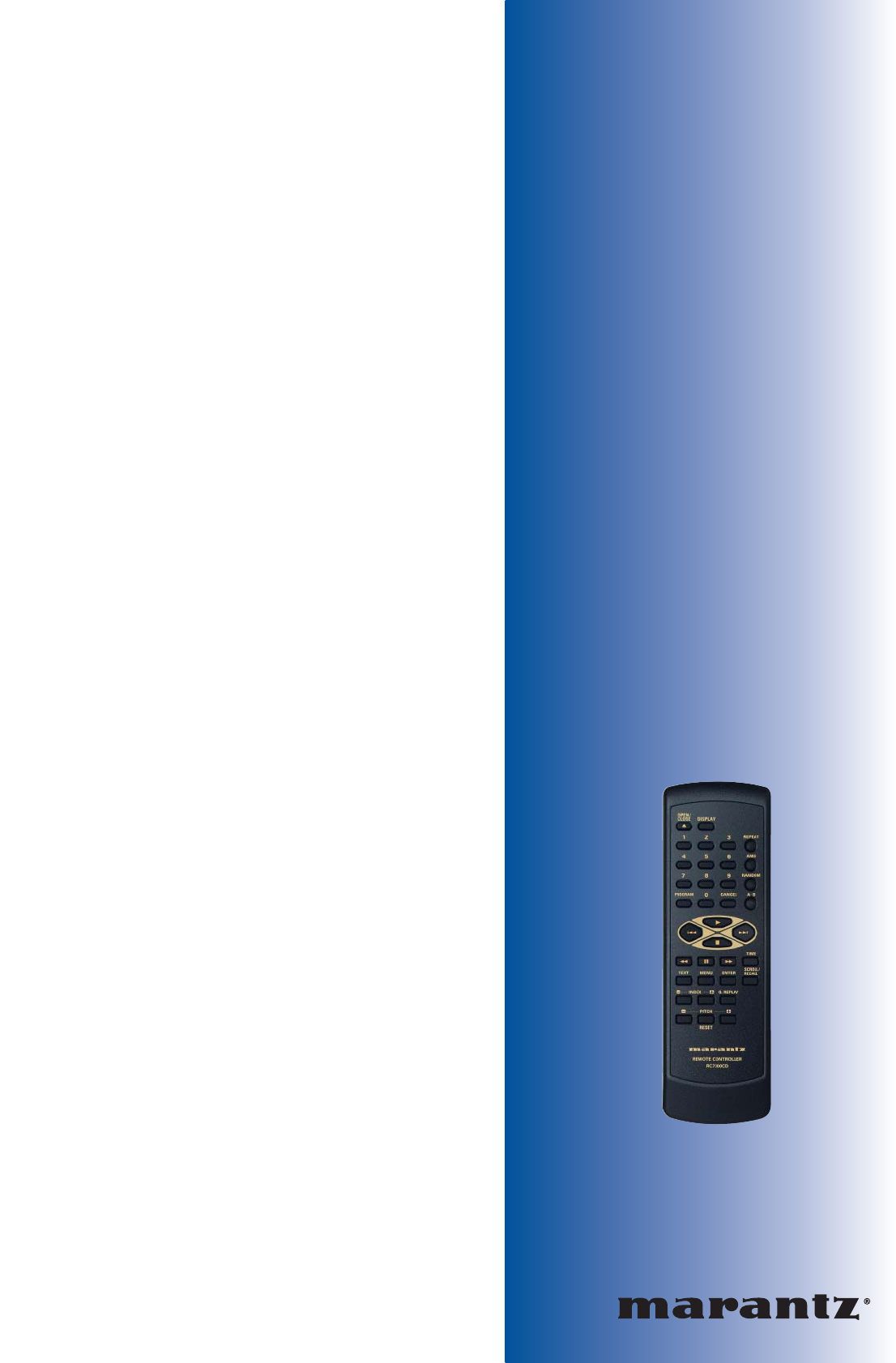

RC7300CD

Bypacked Accessories

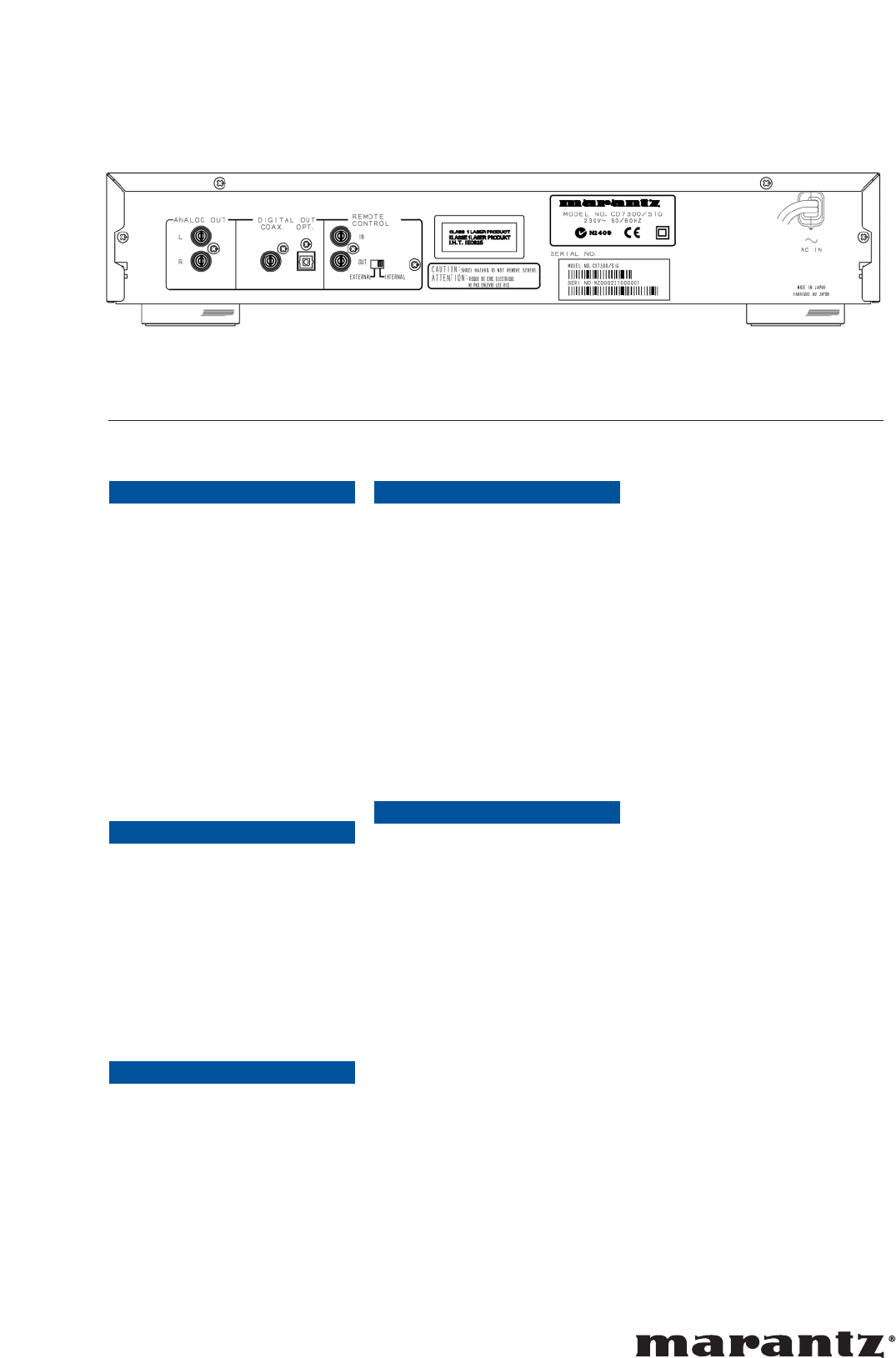

CD7300

Design and specifications are subject

to change by Marantz without notice

www.marantz.com

Preliminary Specifications

FEATURES

Disc Capacity 1

Playback Formats CD,CD-R/RW(Unfinalised),

MP-3

CD-Text •

Copper Plated Chassis -

High Grade Audio Components •

Costomised Components -

Power Transformer EI

Copper grounding -

Double Layer Bottom Plate •

HDAM • (copper)

CCNE -

Display Dimmer •

Variable Analogue Output -

PLAYBACK

Program Play 30

Auto Music Scan (AMS) •

Repeat: track/all/A-B •/•/•

Random Play •

Index Search •

Peak Search -

Edit Recording -

Sync Recording -

Pitch Control •

INPUTS/OUTPUTS

Analogue Out (Cinch) 2ch

Balanced Out -

Digital Optical Out 1

Digital Coaxial Out 1

Gold plated Cinch •

D-Bus In/Out •

Headphone out •

Headphone Volume Control •

SPECIFICATIONS

Mechanism VAM2202

Decoder SAA7324

D/A Conversion Multi-bit, Delta-Sigma

DAC IC CS4396

Digital Filter CS4396

Noise Shaper CS4396

Low Pass Filter stage HDAM

Output Buffer HDAM

Frequency Response 2Hz - 20kHz

Dynamic Range 100dB

Signal to Noise Ratio 110dB

Total Harmonic Distortion 0,000025

Channel Separation 100dB

GENERAL

Color Black / Gold

Metal Front Panel •

Remote Control RC7300CD

Power Consumption 12W

Detachable Power Cable -

Maximum Dimensions (W x D x H)

440 x 89 x 317 mm

Weight 5.7 kg
