Compact Disc Recorder

Model CDR631 User Guide

R

Recordable

ReWritable

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

i

ENGLISH

ENGLISH

WARRANTY

Contact your local Marantz distributors for warranty information.

RETAIN YOUR RECEIPT AS PROOF OF PURCHASE

Your receipt is proof of a valuable purchase. Keep it in a safe place

where you can easily find it for filing insurance claims when neces-

sary or when corresponding with Marantz.

IMPORTANT

It is the responsibility of the consumer to establish proof of purchase

when seeking servicing covered by the warranty. Your receipt or in-

voice is valid as such proof.

U.K. ONLY

This undertaking is in addition to a consumer’s statutory rights and

does not affect those rights in any way.

FRANÇAIS

GARANTIE

Veuillez contacter les revendeurs Marantz locaux pour de plus am-

ples informations concernant la garantie.

CONSERVER LE TICKET DE CAISSE COMME PREUVE

D’ACHAT

Le ticket de caisse représente la preuve d’un achat de valeur. Le

conserver dans un endroit sûr, où il peut être retrouvé aisément, afin

d’introduire les revendications éventuelles auprès des assurances

ou auprès de Marantz, le cas échéant.

IMPORTANT

Il incombe au consommateur d’établir la preuve de son achat, à l’aide

du ticket de caisse ou de la facture, lors de la demande d’interven-

tions couvertes par la garantie.

DEUTSCH

GARANTIE

Wenden Sie sich bezüglich Informationen zur Garantie an Ihren ört-

lichen Marantz-Händler.

BEWAHREN SIE ALS KAUFNACHWEIS IHRE KAUF-

QUITTUNG AUF

Ihre Quittung bzw. Rechnung ist ein Beweis für Ihren wertvollen Kauf.

Bewahren Sie diese an einem sicheren Ort auf, wo Sie sie im Fall

eines Versicherungsschadens oder bei der Korrespondenz mit

Marantz leicht wiederfinden können.

WICHTIG

Es liegt in der Verantwortung des Käufers, den Kaufnachweis zu lie-

fern, wenn Garantiereparaturen in Anspruch genommen werden sol-

len. Ihre Quittung oder Rechnung dient als ein solcher Nachweis.

NEDERLANDS

GARANTIE

Neem contact op met de Marantz distributeurs in uw buurt voor infor-

matie over de garantie.

BEWAAR UW REÇU ALS AANKOOPBEWIJS.

Uw reçu is het bewijs dat u een waardevol product heeft gekocht.

Berg het veilig op, zodat u het snel terug kunt vinden als u een

verzekeringsclaim moet indienen of voor uw correspondentie met

Marantz.

BELANGRIJK

De klant is verantwoordelijk voor het tonen van een aankoopbewijs

wanneer het apparaat onder garantie moet worden gerepareerd. Uw

reçu of uw factuur is een geldig aankoopbewijs.

ESPAÑOL

GARANTÍA

Consulte a su distribuidor local de Marantz si desea más información

sobre la garantía.

CONSERVE EL RECIBO COMO PRUEBA DE COMPRA

Su recibo constituye la prueba de compra. Guárdelo en un lugar

seguro donde pueda hallarlo fácilmente en caso de que lo necesite

para presentar una reclamación de garantía o mantener algún tipo

de correspondencia con Marantz.

IMPORTANTE

Es responsabilidad del consumidor presentar la prueba de compra

siempre que solicite alguna reparación cubierta por la garantía. La

factura o el recibo son documentos válidos como prueba de compra.

ITALIANO

GARANZIA

Contattare i distributori Marantz della zona dell’utente per informazioni

sulla garanzia.

CONSERVARE LA RICEVUTA COME PROVA D’ACQUISTO

La ricevuta comprova un acquisto di valore. Conservarla in un luogo

sicuro e facilmente reperibile per intraprendere dei reclami, ove

necessario, o quando ci si rivolga alla Marantz.

IMPORTANTE

L’utente ha la responsabilità di produrre una prova d’acquisto se vuole

servirsi dell’assistenza coperta da garanzia. La ricevuta o la fattura è

valida in questo senso.

PORTUGUÊS

GARANTIA

Para informações sobre a garantia, contacte o concessionário local

Marantz.

GUARDE O TALÃO DE COMPRA COMO PROVA

O talão de compra é a prova de ter comprado qualquer coisa de

valor. Guarde-o em lugar seguro, pois pode precisar dele para obter

uma cobertura de seguro ou no âmbito de correspondência com

Marantz.

IMPORTANTE

Para obter um serviço coberto pela garantia, o cliente deve apresentar

a prova e a data da compra. O talão ou a factura constituem provas

suficientes.

SVENSKA

GARANTI

Kontakta din lokala Marantz-distributör för information om garantin.

SPAR KVITTOT SOM INKÖPSBEVIS

Kvittot är ditt bevis för ett värdefullt inköp. Förvara det på en säker

plats där du lätt kan hitta det för försäkringsfrågor eller korrespondens

med Marantz.

VIKTIGT

Kunden ansvarar för att uppvisa inköpsbevis när service begärs som

täcks av garantin. Ditt kvitto eller faktura är ett giltigt inköpsbevis.

ii

ENGLISH

English

The unit is in conforms with the EMC directive and low-voltage directive.

Français

Cet appareil est conforme à la directive EMC et à la directive sur les basses tensions.

Deutsch

Dieses Greät entspricht den EMC-Richtlinien und den Richtlinien für Niederspannungsgeräte.

Nederlands

Dit apparaat voldoet aan de EMC-richtlijn en de richtlijn voor apparatuur met laag voltage.

Español

Esta unidad estáde acuerdo con las EMC y las relacionadas con baja tensión.

Italiano

Quest’ unitá è conforme alle direttiva EMC ed alla direttiva sulle basse tensioni.

Português

Esta unidade está em conformidade com as directivas EMC e as directivas de baixa voltagem.

Svenska

Denna enhet överrensstämmer med EMC direktivet och direktivet för lågspänning.

CE MARKING

SI DICHIARA CHE L’APPARECCHIO SINTO-AMPLIFICATORE SR-39 RISPONDE ALLE

PRESCRIZONI DELL’ ART.2 COMMA 1 DEL D.M. 28 AGOSTO 1995 N° 548.

FATTO A EINDHOVEN, IL 1/1/1977 MARANTZ EUROPE B.V.

5600 EINDHOVEN

THE NETHERLANDS

Este aparato lleva elementos antiparasitarios necesarios para cumplir con los limites que se

estableren en el Anexo V del Reglamento sobre Pertubaciones Radioelectricas e

Interferencias aprobado en el Real Decreto 138/1989. (B.O.E. de 9 de Febrero 1989)

WARNINGS FOR LASER RADIATION

CAUTION: INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM.

DANGER: INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

VARO!: AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINANAKYMÄTTÖMÄALLE

LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARNING!: OSYNLIG LASERSTÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR

URKOPPLAD. BETRAKTA EJ STRALEN.

iii

ENGLISH

MENU/

STORE CANCEL/

DELETE

0

987

654

321

RANDOMPROG.REPEAT

TRACK

INCR.

REMOTE CONTROLLER

RC6050DR

SCAN

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

MODEL NO.CDR631

PUSH

NEUTRIK

0 +22

IN

IN

OUT

0+22

L

(REF=+16dBu/0dBFS)

R

REMOTE

-TRIM- EXT.

INT.(IR)

IN

R

INPUT OUT

BALANCED L

L

2

HOT(+)

R

OUT

ANALOG

3

IN

DIGITAL

OUT

GROUND

(RC5)

IN

LOOP

COLD(-)

IN

SELECT

1

PUSH

NEUTRIK

PUSH

NEUTRIK

AC IN

(SPDIF)

AES/EBU

SPDIF

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

123456

7810

15 16 17 18

11

912131419

28 20

21232527

26 2224

30 31 32 33 35

34 36 37 41 42

39 40

44

45 46 47 48 49 50 51

52

53

54

55

56575859606162

65

63

64

66

67

68

69

70

71

72

73

74

78

77

7675

79

8182

86

85

84

83

80

38

29

43

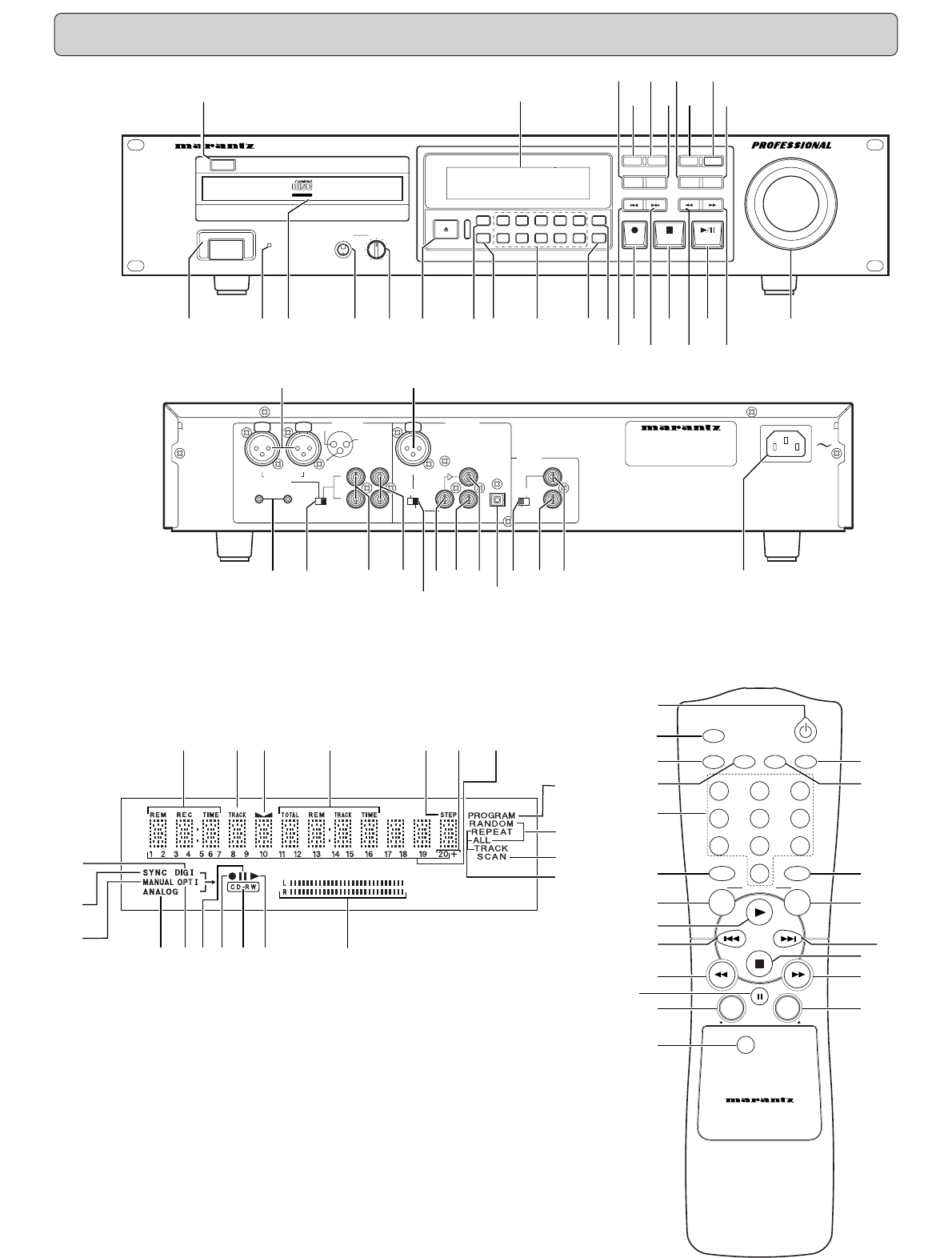

CONTROLS AND CONNECTIONS

Player front

Player back

Display

Remote control

1

ENGLISH

Copyright

Recording and playback of some material may require permis-

sion. For further information refer to the following:

- Copyright Act 1956

- Dramatic and Musical Performers Act 1958

- Performers Protection Acts 1963 and 1972

- Any subsequent statutory enactments and orders

Congratulations on the acquisition of your CD-Recorder. This

CD-Recorder now enables you to record, play and erase your

own audio Compact Discs. Naturally the recorder can also be

used to play all pre-recorded CDs.

With the exception of legal restrictions pertaining to copying,

you can now create your own high-quality audio recordings on

CD. The discs used to record must bear the logos shown be-

low.

There are two types of recordable AUDIO discs:

CD-R(W) discs have a compatibility to play/record on the CD-

Recorders based on the ORENGE BOOK Part II/III. But the

discs might not be able to be played/recorded properly depend-

ing on the combinations of the discs and CD-Recorders.

1

CD Recordable Disc (record once):

Fully recorded and subsequently finalized CD-R discs can be

played on CD players and recorders that are suitable for CD-R

discs. CD-R discs can be recognized by the following logos:

2 CD ReWritable Disc (multiple recording):

Recorded and finalized CD-RW discs can be played on all

CD players and recorders that are suitable for CD-RW discs.

CD-RW discs can be recognized by the following logos:

Once you start using the recorder, you will discover how easy it

is to ‘make’ your own CDs. Nevertheless, we recommend that

you use an erasable (CD-RW) digital audio disc on your first

attempt, while following the instructions given here.

Attention!

Recordings may only be made for personal use.

It is forbidden to copy material protected by copyright, in-

cluding computer programs, films, television and audio re-

cordings. This appliance may not be used for applications

of this type.

Note:

Some CD players can not play the finalized CD-R(W) discs be-

cause of the low reflectivity of such discs.

Because of laser power differences, some DVD players cannot

play the finalized CD-R(W) discs.

Read the text carefully and keep the instructions close at hand

so that you can refer to them if necessary.

Recordable

Recordable

INTRODUCTION

Foreword

This section must be read carefully before any connection is

made to the mains supply.

WARNINGS

Do not expose the equipment to rain or moisture.

Do not remove the cover from the equipment.

Do not insert anything into the equipment through the

ventilation holes.

Do not handle the mains lead with wet hands.

CE marking (only EU version)

This product is in conformity with the EMC directive

and low-voltage directive.

Equipment mains working system

Your Marantz product complies with the household power and

safety requirements in your area.

“/N1” Version product can be powered by 230 V AC only.

IMPORTANT: (FOR U.K. version only)

This apparatus is fitted with an approved moulded 13 Amp plug.

To change a fuse in this type of plug proceed as follows:

1. Remove fuse cover and fuse.

2. Fix new fuse which should be a BS1362 5A, A.S.T.A. or BSI

approved type.

3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should

be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of

5A. If a plug without a fuse is used, the fuse at the distribution

board should not be greater than 5A.

Note:

The severed plug must be destroyed to avoid a possible shock

hazard should it be inserted into a 13A socket elsewhere.

HOW TO CONNECT A PLUG

The wires in this mains lead are coloured in accordance with

the following core:

GREEN–and–YELLOW—”EARTH” (“E”)

BLUE—”NEUTRAL” (“N”)

BROWN—”LIVE” (“L”)

As the colours of the wires in the mains lead of this apparatus

may not correspond with the coloured markings identifying the

terminals in your plug, proceed as follows:

1. The wire which is coloured green-and yellow must be con-

nected to the terminal in the plug which is marked with the

letter “E” or by the earth symbol or coloured green or

green-and-yellow.

2. The wire which is coloured blue must be connected to the

terminal which is marked with the letter “N” or coloured

BLACK.

3. The wire which is coloured brown must be connected to the

terminal which is marked with the letter “L” or coloured RED.

Before replacing the plug cover, make certain that the cord grip

is clamped over the sheath of the lead — not simply over the

three wires.

ReWritable

ReWritable

2

ENGLISH

• Do not use conventional record cleaner for analog records,

as this will adversely affect the disc surface.

Store discs properly by placing them in their disc cases.

• Do not attach a piece of paper or sticker on the label side of

disc. When a disc has a piece of plastic tape or rental CD

label with paste protruded from the edge or when a disc has

a trace of such a sticky object, do not attempt to play the disc.

If such a disc is played on the CD player, impossibility of tak-

ing out the disc or other malfunction may result.

• Write only on the printed side of a CD-R or CD-RW, and only

with a soft felt-tipped pen.

• Do not use a disc with a special shape.

Do not attempt to play a disc with a special shape such as a

heart-shaped disc or octagonal disc. Otherwise the equip-

ment malfunction may result.

Maintenance

Clean the CD-Recorder with a soft, slightly dampened lint-free

cloth. Do not use any cleaning agents as they may have a cor-

rosive effect.

Do not expose the CD-Recorder, batteries or CDs to humidity,

rain, sand or excessive heat (caused by heating equipment or

direct sunlight).

If the CD-Recorder cannot read CDs correctly use a commonly

available cleaning CD to clean the lens before taking the CD

player to be repaired. Other cleaning methods may destroy the

lens. Always keep the tray closed to avoid dust on the lens.

The lenses may cloud over when the CD-Recorder is suddenly

moved from cold to warm surroundings. It is not possible to play

a CD then. Leave the CD-Recorder in a warm environment until

the moisture evaporates.

Unpacking

First check the contents of the packaging. It should contain the

following:

- CD-Recorder CDR631

- Remote control with batteries packaged separately

- Power cord

- Remote control cable (with orange plugs)

- Instructions

If one of these components is missing, please inform your sup-

plier immediately. Save the packaging material it may come in

handy if you move the appliance.

Setup

- Place the recorder on a strong, vibration-free surface.

- Do not use the recorder under extremely damp condi-

tions.

- If the recorder is placed in a cabinet, make sure that a

2.5 cm space remains free on all sides of the recorder

for proper ventilation.

Attention!

If the appliance is not used or operated in accordance with

the instructions, this may result in exposure to dangerous

radiation or other risks.

Only authorized technicians are allowed to open the appli-

ance casing or to perform repairs or maintenance.

Compact discs

The glossy side shining like a rainbow is the front side of the

disc, and the side on which the label is printed is the back.

Unlike conventional turntables for playing analog discs, the

CDR631 reads the information recorded on the disc from un-

derneath without contacting it using a beam of laser light.

Therefore, the performance of a compact disc will not degrade

like conventional analog records.

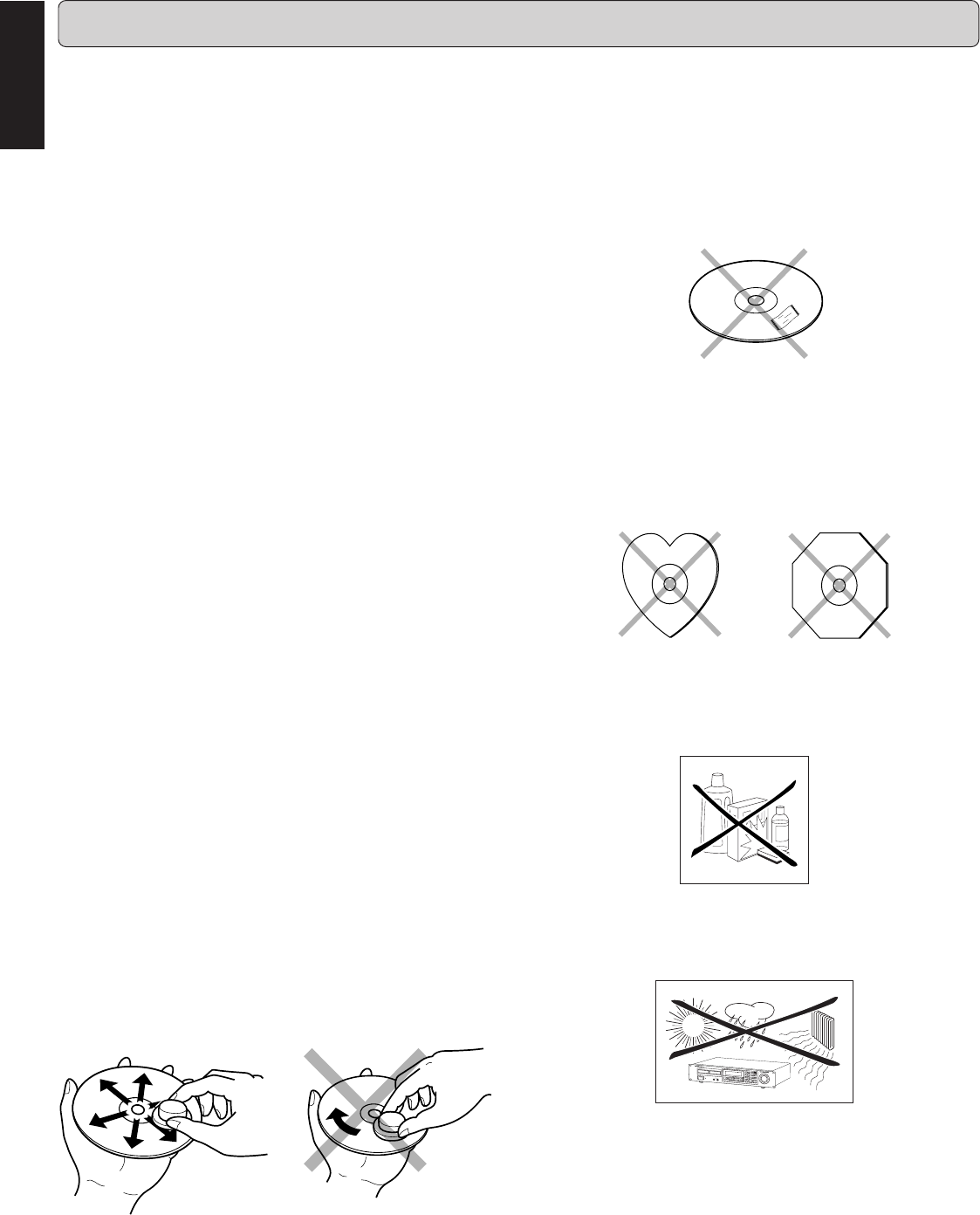

Handle discs carefully so as not to damage or scratch the

front side.

To protect the disc, avoid placing it in the following loca-

tions:

- In direct sunlight or near a source of heat like a heater.

- In a place which is damp or dirty.

- In a place which could be exposed to rain, such as near

a window.

Always keep the disc surface clean.

Up to six billion data units are recorded on the front side of the

disc. When cleaning the disc surface, always be sure to use a

special compact disc cleaner and wipe as shown below.

INTRODUCTION

Wipe in a radial direction. Do not wipe in circumferential direction.

CD RECORDER CDR631

POWER

IR

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEAT

RANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

STANDBY

3

ENGLISH

Controls on the front

(1) POWER..........................

turns the CD-Recorder ON and OFF

(2) STANDBY indicator

(3) Disc tray ........................ records CD-R(W) and plays CD

and CD-R(W)

(4) HEADPHONE ................ socket for headphones

(5) LEVEL ............................. adjust the headphone volume

(6) /.................................... opens/closes disc tray

(7) TIME............................... selects display information/text

(8) TEXT .............................. activate scrolling of text over the

display (once)

(9) Number keys 0 - 9 ........ selects a track by number

(10) INPUT ............................ selects external input source

(11) PROG............................. opens/closes program memory

(12) 0....................................

starts recording, finalizing, erasing

(13) 9..................................... stops/clears a program

(14) 2/;.................................. starts play/interrupts play or re-

cording

(15) S................................ previous track (Play and Pro-

gram mode)

(16) T................................ next track (Play and Program

mode)

(17) Q................................ - searches backward

- cursor control in Menu/Prog. re-

view mode

(18) R................................ - searches forward

- cursor control in Menu/Prog. re-

view mode

(19)

REC LEVEL/SELECT

...... - previous/next track (Play and

Program mode)

- recording level control (recording)

- selects settings (menu on)

PUSH ENTER ................ - plays selected tracks

(push) ............................ - selects settings in Menu mode

- programs track numbers

(20) STORE/MENU ............... -enters Menu mode

- stores Menu settings

(21) REPEAT......................... repeat play(All, program or track)

(22) RANDOM ....................... plays CD-R(W) or program in

random order

(23) DELETE/CANCEL ......... - deletes tracks from a program

- deletes text in Menu mode

- returns to a higher level in the

menu

(24) ERASE ........................... selects erasing mode

(25)

TRACK INCR. (ement)

.... increases track numbers during

recording

(26) REC MODE .................... selects recording modes

(27) FINAL............................. selects finalize mode General

(28) Display .......................... information screen

(29) IR sensor ....................... receives signals from the remote

control.

Note:

- When provided on the remote control, you can also use the

corresponding buttons.

- Some buttons are only on the remote control.

Connections at the back

(30) TRIM .............................. adjust the coming input level

(31) INPUT SELECT ............. selects the input BALANCED IN

or ANALOG IN

(32) ANALOG IN ................... connects to the line output of an

amplifier (left and right)

(33) ANALOG OUT ...............

connects to the line input of an ampli-

fier (left and right)

CONTROLS AND CONNECTIONS

(34)

AES/EBU-SPDIF switch ...

selects AES/EBU or SPDIF con-

nection

(35) DIGITAL (SPDIF) IN

.......

connects to the digital coaxial

output of an external CD player

(36)

DIGITAL (SPDIF) OUT

.... connects to the digital coaxial in-

put of e.g. amplifier or recording

device

(37) DIGITAL (SPDIF)

LOOP OUT .................... connects to the digital coaxial in-

put of e.g. amplifier or recording

device

(38) DIGITAL (SPDIF)

OPT INPUT .................... connects to the digital optical out

put of an external CD player

(39)

REMOTE CONTROL SWITCH

(40)

REMOTE CONTROL OUT

..... connects to a remote control in-

put on the Marantz amplifier

(41)

REMOTE CONTROL IN

.... connects to a remote control out-

put on the Marantz amplifier

(42) Connection to mains

(43) DIGITAL (AES/EBU)

BALANCED IN .............. connects to the digital balanced

output of amplifier

(44) BALANCED IN .............. connects to the balanced output

of amplifier (left and right)

DISPLAY indications

(45) REM/REC TIME ............. remaining recording time / re-

cording time

(46) TRACK........................... track number

(47) ............................... balance (lights during balance

adjustment)

(48) TOTAL REM

TRACK TIME ................. total or remaining time of disc or

track

(49) STEP .............................. indicates the number of tracks in

a program

(50) 20 + ................................ disc or program contains more

than 20 tracks

(51) Track Number ............... tracks on a discs or in a program

track in play

(52) PROGRAM .................... flashes during programming/

lights in program mode

(53) RANDOM ALL ............... plays tracks in random order

(54) SCAN ............................. lights up when the first 10 sec-

onds of each track are played.

(55) REPEAT TRACK/ALL ... lights up when a track/ complete

disc (or program) is repeated.

(56) L/R ................................. record/play level bar. Indicates

the audio signal level.

(57) 2..................................... lights during play

(58) R (W) .............................. unfinalized CD-R(W) disc in-

serted

(59) 0.................................... lights during recording

(60) ;..................................... pause function active

(61) .......................... optical input I selected for exter-

nal recording

(62) .................. analog input selected for external

recording

........................ analog recording

(63) MANUAL........................

manual start of external recording

(64) SYNC ............................. automatic or synchronized start

of external recording

(65) ........................ digital input I selected for external

recording

4

ENGLISH

REMOTE CONTROL

Remote control commands

(66) STANDBY ................. switches to Standby On/Off

(67) TRACK INCR. (ement) .. increases track numbers during

recording

(68) SCAN ............................. plays the first 10 seconds of each

track

(69) REPEAT......................... repeat play(All, program or track)

(70)

Number/alphabet keys 0 - 9 ..

- selects a track by number

- selects character for text input

(71) DISPLAY........................ selects display information/text

(72) CDR ............................... selects CD-Recorder

(73) 2..................................... starts CD-R(W) play

(74) S................................ previous track (Play and Pro-

gram mode)

(75) Q................................ - searches backward

- cursor control in Menu/Prog. re-

view mode

(76) ;.....................................

interrupts CD-R(W) play/record-

ing

(77) MENU/STORE ............... - enters Menu mode

- stores Menu settings

(78) ENTER ........................... - selects settings in Menu mode

- programs track numbers

- starts playback of selected

track

(79) CANCEL/DELETE ......... - deletes tracks from a program

- deletes text in Menu mode

- returns to a higher level in the

menu

(80) R................................ - searches forward

- cursor control in Menu/Prog. re-

view mode

(81) 9..................................... stops CD-R(W) and clears a pro-

gram

(82) T................................ next track (Play and Program

mode)

(83) CD .................................. selects CD player

(84) SCROLL ........................ activates scrolling of text over the

display

(85) PROG. (ram).................. opens/closes program memory

(86) RANDOM ....................... plays CD-R(W) or program in

random order

5

ENGLISH

This CD-Recorder can be used to record directly or through a

(pre-) amplifier from any digital or analog audio source.

In addition, the appliance can be used as a regular CD player.

Read how to connect the CD-Recorder based on the

possibilities your other audio equipment offers.

Please refer to the operating instructions for your other audio

equipment first.

The following options are available:

- Balanced analog connections

- Unbalanced analog connections

- Digital AES/EBU connections

- Digital SPDIF connections

- Digital Optical connections

- Digital cascade connections

Balanced analog connections

1 For recording, connect the analog balanced cable from

the CD-Recorder to a source based on the diagram be-

low:

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

ANALOG

R L

R L

BALANCED

IN

BALANCED

OUT

2

1

2 Select

INPUT SELECT

switch (31) to BALANCED IN.

0 +22

IN OUT

0+22

L

(REF=+16dBu/0dBFS)

R -TRIM-

R

INPUT

BALANCED L

L

R

3

COLD(-)

IN

SELECT

When this CD-Recorder is shipped, it is already set to

+16dBu/0dBFS at the MAX-REC-LEVEL. If you want to

change the level, rotate

TRIM

control (30) to adjust input

level for both L and R.

0 +22

IN OUT

0+22

L

(REF=+16dBu/0dBFS)

R -TRIM-

R

INPUT

BALANCED L

L

R

COLD(-)

IN

SELECT

INSTALLATION

Preamp, CD or DAT

The numbers between parentheses refer to the fold-out.

Unbalanced analog connections

1 For recording and playing, connect the CD-Recorder to

preamp or another equipment based on the diagram be-

low:

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

INPUT

L

R

OUTPUT

L

R

IN OUT

ANALOG

INPUT

L

R

OUTPUT

L

R

ANALOG

L

R

ANALOG

4

3

2 Select

INPUT SELECT

switch (31) to ANALOG L/R

(RCA).

0 +22

IN OUT

0+22

L

(REF=+16dBu/0dBFS)

R -TRIM-

R

INPUT

BALANCED L

L

R

3

COLD(-)

IN

SELECT

Note:

Never use the PHONO input.

Digital AES/EBU connections

1 For recording, connect the balanced cable from the CD-

Recorder to a source based on the diagram below:

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

DIGITAL

OUTPUT

IN

AES/EBU

DIGITAL

5

2 Select

AES/EBU SPDIF

switch (34) to AES/EBU.

IN

IN OUT

OUT

LOOP

NEUTRIK

(SPDIF)

AES/EBU

SPDIF

CD, MD or DAT

CD, MD or DAT

Preamp

6

ENGLISH

INSTALLATION

Digital cascade connections

1For cascade recording, connect a CD player from the dig-

ital out socket to CDR DIGITAL IN socket on the CDR631

recorder using able 9.

2 Connect the CDR631 recorder from CDR DIGITAL LOOP

OUT socket to CDR DIGITAL IN socket on another

CDR631 recorder using cable 0.

3Connect the CDR631 recorder using the cable ! in the

same way. Cascade connections of this CD-Recorder

are possible up to 5 stages.

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

INPUT OUTPUT

DIGITTAL

DIGITTAL

IN OUT

LOOP

OUT

DIGITTAL

IN OUT

LOOP

OUT

DIGITTAL

IN OUT

LOOP

OUT

9

0

!

5 CDR631s max.

Note:

Cascade connection is useful when you make a several copies

from an original source since the being the recording signal is

directly go through LOOP OUT from INPUT on this CD-Re-

corder. Cascade connections of this CD-Recorder are possible

up to 5 stages.

CD player

Digital SPDIF connections

1 For recording and playing, connect the coaxial cables

from the CD-Recorder to a digital equipment based on

the diagram below:

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

INPUT OUTPUT

DIGITTAL

INPUT OUTPUT

DIGITTAL

DIGITAL

IN OUT

LOOP

OUT

67

2

AES/EBU-SPDIF

switch (34) selects SPDIF.

IN

IN OUT

OUT

LOOP

(SPDIF)

AES/EBU

SPDIF

Note:

You can also connect the LOOP OUT socket on this CD-Re-

corder to the input sockets of a CD or DAT when DIGITAL

(SPDIF) IN is used.

Digital Optical connections

1 For recording and playing, connect the fiber-optic cable

from the CD-Recorder to a digital equipment based on

the diagram below.

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

INPUT

DIGITAL

IN

OUTPUTINPUT OUTPUT

OUT

9

8

Note:

Before connection the cables, remove the dust caps from the

digital optical connections. We recommend that you save the

caps.

CD, MD or DAT

CD, MD or DAT

MD or DAT

MD or DAT

7

ENGLISH

D-BUS CONNECTION

Marantz Amplifier

Remote control cable connections

By connecting CDR631 to the Marantz amplifier using a D-BUS

remote control cable @, you can operate the operations of

CDR631 from the remote control of the amplifier. Set the re-

mote control selector to ‘EXTERNAL’.

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

INT.(IR)

EXT.

CONTROL

REMOTE

IN

OUT

REMOTE

CONTROL

OUT

IN

@

Note:

When you don’t use the D-BUS connection, ALWAYS set

the remote control selector to ‘INTERNAL’.

Marantz Amplifier

The numbers between parentheses refer to the fold-out.

8

ENGLISH

USING THE RECORDER

Inserting discs

1 Press //

//

/ (6) to open the disc tray.

➔ lights up.

2 Insert a CD, CD-R or CD-RW in the appropriate recess in

the tray, label side up.

3 Press //

//

/ (6) to close the tray.

➔ lights up, followed by and the dis-

play will show the type of disc you inserted.

• If a CD-R(W) is finalized it will show CD on the display.

• If CD-text is available the TITLE/ARTIST will scroll by.

Note:

- For recording it is important that the blank disc is completely

free from dust particles or scratches. (see Compact Discs

page 2).

- If you insert a blank or partly-recorded CD-R(W) or

unfinalized CD-R(W), the CD-Recorder will calibrate the disc

for optimum recording. During this process the display will

first show and then the number of audio

tracks. Calibration can take up to 30 seconds.

-

Switching ON and OFF

1Plug the power cord supplied into the MAINS connector

on the CD-Recorder, then into a mains socket.

MADE IN JAPAN

MODEL NO.CDR631

OUT

IN

AC IN

q

2 Press the

POWER

(1) button on the front of the CD-Re-

corder to turn it on or off.

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

w

Using the remote control

1 Open the battery compartment cover.

2 Insert 2 batteries (AA, LR-6 or UM-3; as supplied) as

shown.

3 Replace the cover.

Note:

- We recommend you use 2 batteries of the same type and

condition.

- Always point the remote control directly towards the re-

corder and make sure there.

This remote control can switch “STANDBY ON/OFF” but can-

not switch “POWER ON/OFF” the CD-Recorder.

Batteries contain chemical substances, so they should be

disposed of properly.

The numbers between parentheses refer to the fold-out.

9

ENGLISH

RECORDING

Remarks about recording

You will soon discover how easy it is to make your own CDs.

Nevertheless, it is advisable to use a CD-RW disc for your first

try.

•If the disc is a CD-RW and is already finalized you must

unfinalize it first.

•The recording procedure is the same for CD-Rs and CD-

RWs.

• If the disc already contains recordings, the CD-Recorder will

automatically search for the end of the last track, so that re-

cording can start from there.

•There must be at least 7 seconds of recording time left

on the disc, otherwise you will not be able to enter record

standby mode. then lights up.

• A maximum of 99 tracks can be recorded on a disc. Minimum

allowable track length is 4 seconds.

• Recordings from DAT or DCC players will not always stop

automatically.

• SRS (Sample Rate Conversion)

This CD-Recorder can perform Sample Rate Conversion on

the incoming signal, it is capable of handling sources, hating

from 12 kHz up to 56 kHz.

If non 44.1 kHz (± 100 PPM) source was connected, this CD-

Recorder will automatically switch to SRC function.

Important:

If you want to play the recorded CD-R disc on any regular

CD player, it must first be finalized. (See FINALIZING/

UNFINALIZING.)

Finalized CD-RW discs play only on CD-RW compatible CD

players.

Recording from CD-changers should always be started in

the , or

mode.

Recording modes

Your recorder offers several recording modes.

- - to make a synchronised recording of the

complete disc or a program simply by starting the source.

- - to make a synchronised recording of a

single track simply by starting the source.

- - to manually start a recording simply by

pressing the 0 (RECORD) key.

- - to make a synchronised recording of the com-

plete disc or a program simply by starting the source. Finaliz-

ing will be done automatically.

Some remarks on recording:

- When Auto track is on (default setting), track numbers will

automatically be increased during recording.

- By programming tracks first, a compilation can be recorded.

- If a finalized CD recordable disc is inserted in the CD-Re-

corder, will be displayed. Recording is

not possible.

- If a finalized CD rewritable disc is inserted in the CD-Re-

corder, and will be dis-

played when the

REC MODE

(26) is pressed. If

PUSH EN-

TER

(19) is pressed, the disc will be unfinalized.

- This CD-Recorder can record about 17 seconds of a pause

time If you record a track including more than 17-seconds-

pause time by digital recording, the pause time will be re-

corded the different length of time from original. However,

the entire track time will not be changed and be able to listen

to the music as same as original.

- When you copy a special disc such as HDCD or DTS, you

have to

• set the sampling frequency at 44.1kHz.

• use the digital connection.

• set the digital rec-volume of the CD-Recorder at 0 dB.

- When you copy the tracks from a DAT recorded by different

sampling frequencies, noise might be recorded in the disc.

Please set a sampling frequency for every track in a DAT.

Warning:

No more recording possible after finalizing CD-R disc!

The numbers between parentheses refer to the fold-out.

10

ENGLISH

RECORDING

55

55

5To start recording, press

PLAY

on the selected source.

➔The CD-Recorder automatically starts to record. The re-

cording time left appears on the display.

• If, however, you start the source during a track, CD-

SYNC recording starts at the beginning of the next track

or after 2.7 seconds of silence in analog recordings.

• To check the elapsed recording time, press

TIME

(7) or

DISPLAY

(71). (This can also be done during recording)

• The recorder stops automatically.

66

66

6To stop recording manually, press 99

99

9 (13, 81).

• If 9 (13, 81) was pressed within 3 seconds after pressing

PLAY

on the selected source, no recording will take

place.

• To interrupt recording, press 2/;

(14) or ; (76).

To resume, press 0 (12) on the CD-Recorder.

After recording the display will show for sev-

eral seconds.

Note:

- Recordings from DAT, DCC or analog sources will only stop

after 20 seconds silence.

- MAKE CD is a recording mode for auto finalized after syn-

chronized recording. It takes about 1 minute to start auto fi-

nalizing after finish recording the last track. (WAIT appears

on the display.)

- The recorded sound might be distorted when you adjust the

recording level to set above 0dB for digital recording and -

12dB for analog recording. The default setting of recvolume

for digital is 0dB and analog is -12dB when this CD-Recorder

is shipped.

Important:

If you want to play the recorded CD-R disc on any regular

CD player, it must first be finalized. See finalizing discs.

Finalized CD-RW discs play only on CD-RW compatible CD

players.

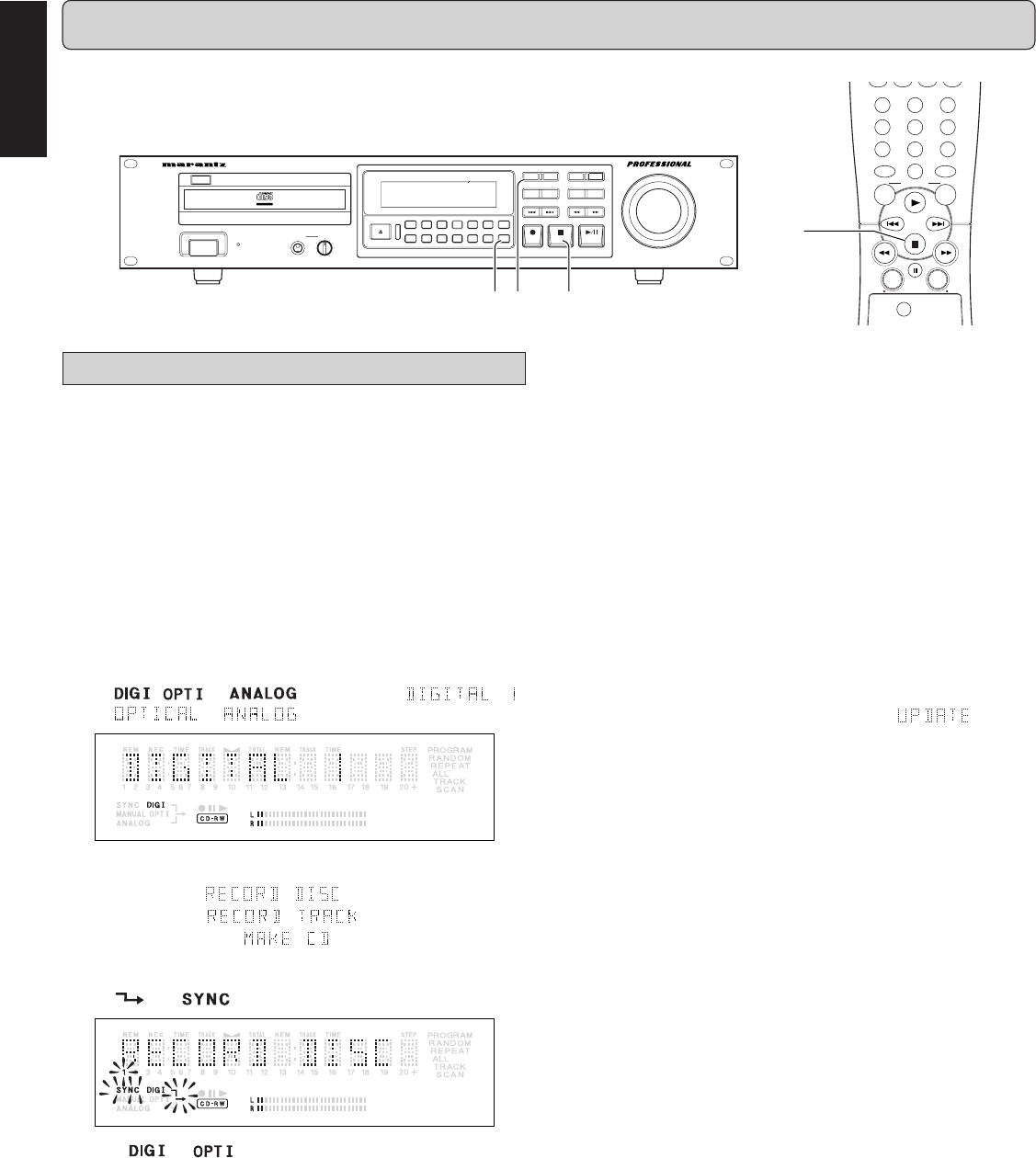

CD-SYNC

The CD-SYNC feature enables you to make fast and easy re-

cordings of a CD. Track increments are automatically detected

from the source material. Track increments cannot be added

manually. In analog source material a silence of 2.7 seconds or

more is automatically detected as a track increment.

11

11

1Make sure the disc is absolutely free of scratches and

dust particles.

22

22

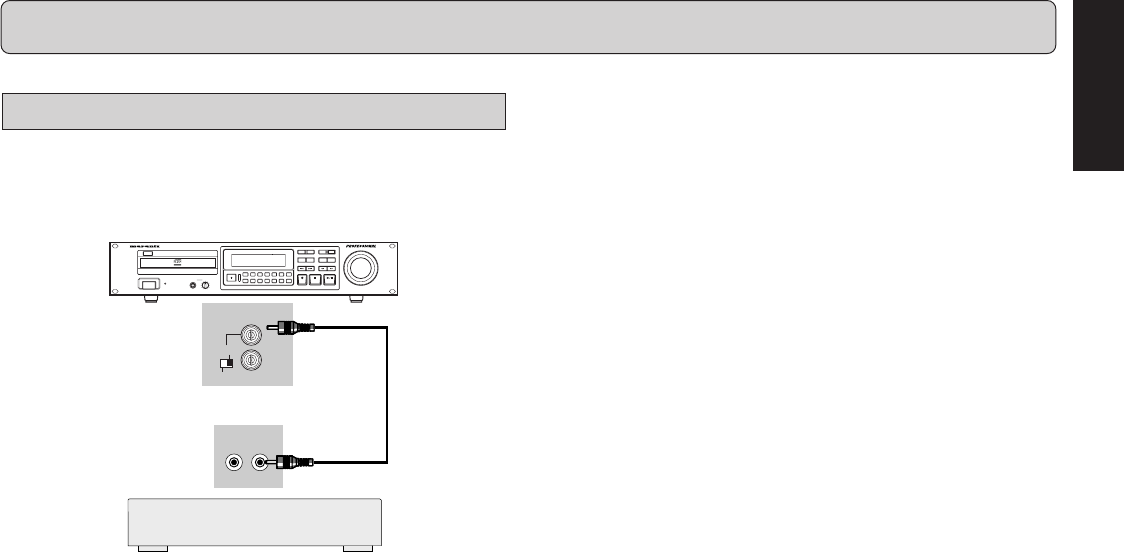

2Connect the cable from an external CD player to the CD-

Recorder. (see INSTALLATION from page 5 to 7.)

33

33

3Press

INPUT

(10) repeatedly until the selected source,

appears on the display (depending on the digital connec-

tion used):

➔, or lights up and ,

or appears on the display.

44

44

4With the CD-Recorder stopped, press

REC MODE

(26).

once: to select ‘ ’

twice: to select ‘ ’

four times: to select ‘ ’ (When ANALOG was se-

lected, this menu dose not appear on the dis-

play.

➔ and start to flash.

• If or flashes, the digital connection is incor-

rect.

Note:

You can adjust the recording level by rotating the

REC LEVEL/

SELECT

(19).

DIGITAL RECORDING : +6dB ~ –63dB

ANALOG RECORDING : 0dB ~ –63dB

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

MENU/

STORE CANCEL/

DELETE

0

987

654

321

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

er y

y

The numbers between parentheses refer to the fold-out.

11

ENGLISH

44

44

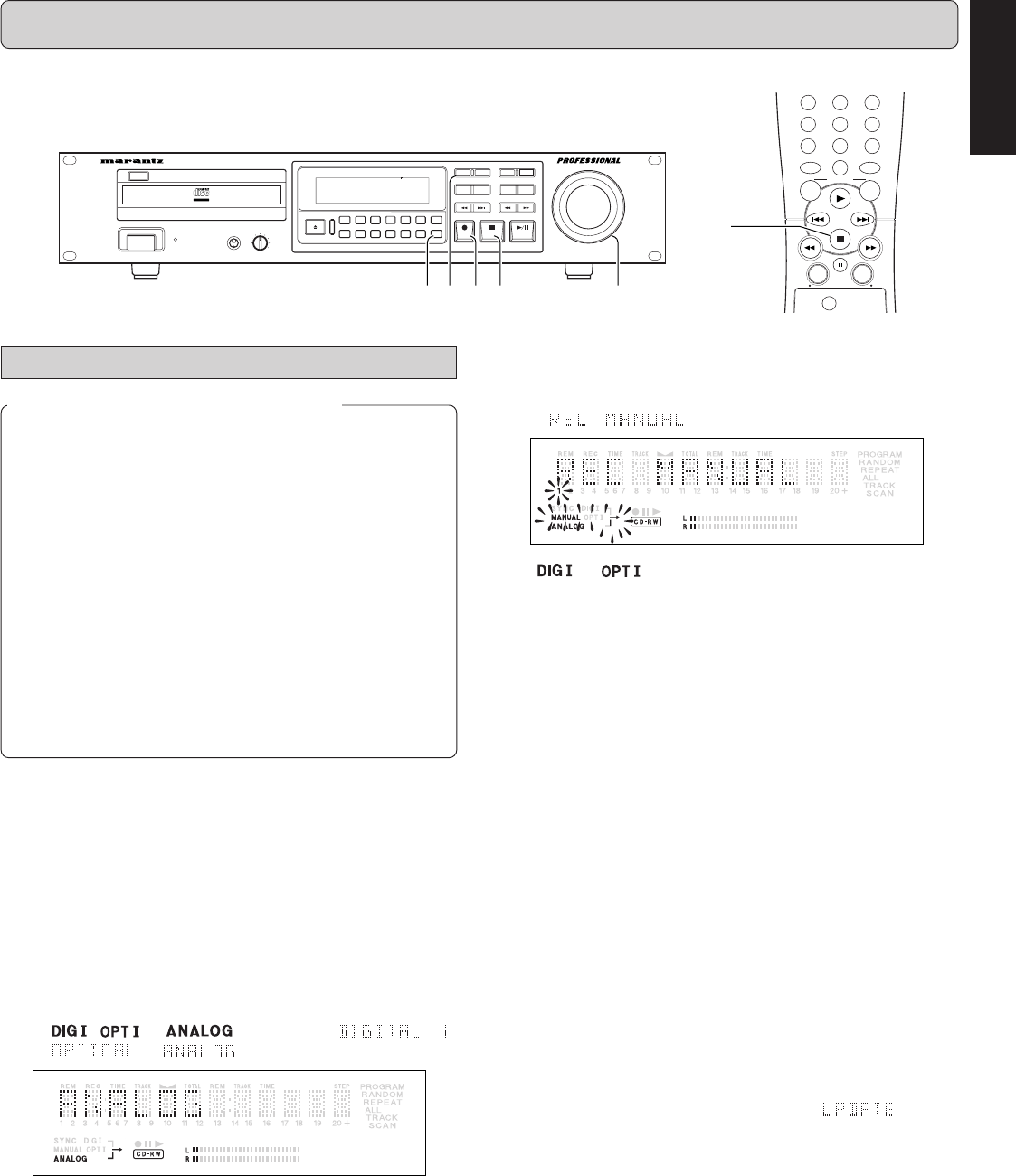

4With the recorder stopped, press

REC MODE

(26) three

times to enter the Manual Record standby mode.

➔MANUAL starts to flash and the display shows

.

• If

or

flashes, the digital connection is incorrect.

55

55

5Set the optimal recording level on the CD-Recorder.

1. Play the source first to set the optimal recording level on

the CD-Recorder.

2. Rotate the

REC LEVEL/SELCT

(19) key until, on the

Record/Play Level bar, all the blue segments are alight,

but the red segments do not light continuously during

the loudest passages.

DIGITAL RECORDING : +6dB ~ –63dB

ANALOG RECORDING: 0dB ~ –63dB

3. Stop the source.

• To record a 3-second silence at the start of a track,

press 2/; (14) or ; (76) on the CD-Recorder before

starting the source.

66

66

6To start recording, press 00

00

0 (12) on the CD-Recorder and

immediately start the source (from Stop-mode).

The track number and recording time left appear on the display.

• If 9 (13, 81) was pressed within 3 seconds after 0

(12), no recording will take place.

• To check the elapsed recording time, press

TIME

(7)

or

DISPLAY

(71). (This can also be done during the

recording.)

77

77

7

To stop recording, press 99

99

9 (13, 81).

• To interrupt recording, press 2/;

(14) or ; (76).

After recording the display will show for sev-

eral seconds.

Note:

The recorded sound might be distorted when you adjust the

recording level to set above 0dB for digital recording and -12dB

for analog recording. The default setting of recvolume for digital

is 0dB and analog is -12dB when this CD-Recorder is shipped.

Important:

If you want to play the recorded CD-R disc on any regular

CD player, it must first be finalized. See finalizing discs.

Finalized CD-RW discs play only on CD-RW compatible CD

players.

RECORDING

Manual start recording

About AUTO TRACK and AUTO STOP

• AUTO TRACK is a function to increment track numbers

either manually or automatically.

AUTO TRACK ON : track number will be automati-

cally incremented according to

the source. (See the table on

page 19.)

AUTO TRACK OFF:

track number can be manually

incremented by pressing

TR.

INCR.

(25) or

TRACK INCR

. (67).

• When AUTO TRACK is ON, you can also set AUTO

STOP function.

AUTO STOP ON : the recording will be stopped auto-

matically. (See the Table on page

20.)

AUTO STOP OFF: the recording has to be stopped

manually.

Note:

AUTO STOP function is only activated when Manual start re-

cording (REC MANUAL mode) is used.

11

11

1Make sure the disc is absolutely free of scratches and

dust particles.

22

22

2Connect the cable from an external CD player to the CD-

Recorder. (see INSTALLATION page 5 and 6.)

33

33

3Press

INPUT

(10) repeatedly until the selected external

source appears on the display (depending on the connec-

tion used):

➔, or lights up and ,

or appears on the display.

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

MENU/

STORE CANCEL/

DELETE

0

987

654

321

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

er u ty

u

The numbers between parentheses refer to the fold-out.

12

ENGLISH

0

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

we

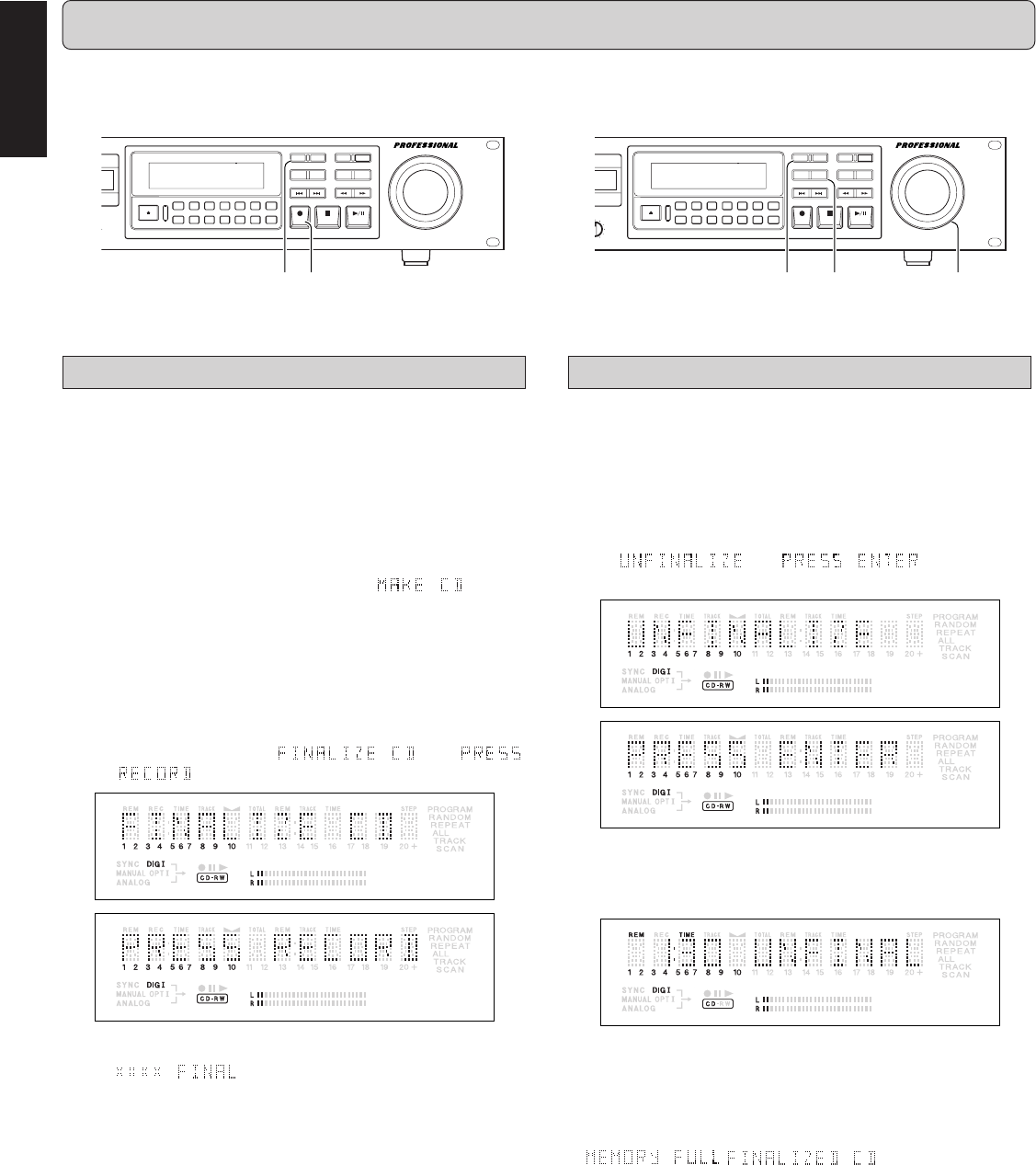

FINALIZING/UNFINALIZING

Finalizing CD-R & CD-RW discs

Finalizing is a simple procedure, necessary to:

- be able to play the recorded CD-R(W) disc on a CD

PLAYER.

- avoid further unwanted recordings on a disc.

- avoid erasure of tracks on a CD-RW.

Auto finalizing

Auto finalizing is possible when using the record-

ing function.

Manual finalizing

11

11

1Make sure the disc (in the CD-Recorder) is absolutely

free of scratches and dust particles.

22

22

2With the recorder stopped press

FINAL

(27).

➔The display shows and

.

33

33

3Press 00

00

0 (12).

➔ and the approximate finalization time

appears on the display.

The display counts down through the finalization.

On completion, the total number of tracks and the total

time recorded appears on the display.

For CD-R(W), CD-R(W) changes to CD on display.

Finalizing will take at least 2 - 4 minutes.

Note:

During finalization, the CD-Recorder accepts no operating

commands.

Unfinalizing CD-RW discs

For CD-RW discs only.

If you want to make more recordings (or erasures of tracks) on

a finalized disc you must unfinalize it first. The Table of Con-

tents (TOC) will be removed.

11

11

1With the CD-Recorder stopped, press

REC MODE

(26)

or

ERASE

(24).

➔ and will appear on

the display.

22

22

2Press

PUSH ENTER

(19).

➔The disc will now be unfinalized and can be recorded on

again.

Note:

- Unfinalizing will take approximately 1.5 minutes.

- When unfinalizing a CD-RW disc with text on it available, this

text will be transferred to the CD-Recorder memory. It may

occur that the text memory is full. The message

/ will be displayed.

You will now have to erase text, stored for other discs, or

finalize another disc in order to obtain memory space.

E

VEL

10

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

qq w

The numbers between parentheses refer to the fold-out.

13

ENGLISH

ERASING

Erasing

For unfinalized CD-RW discs only.

You can erase:

- one or more tracks from the end,

- the entire disc.

Erasing one or more tracks from the end

11

11

1Press

ERASE

(24) once.

➔The display shows the number of tracks and their total

playing time. and

lights up.

• If the disc is finalized, CD appears on the display after

inserting a CD-RW in the recorder. The recorder will ask

you to confirm unfinalizing first. Confirm by pressing the

PUSH ENTER

(19) key or

ENTER

(78) on the remote

control.

22

22

2Select the track(s) you wish to erase by turning the

REC

LEVEL/SELECT

(19) key to the left and confirm by

pressing this key.

➔The selected track numbers start blinking on the track

bar.

➔The display shows the remaining number of tracks and

the remaining playing time after erasing the selected

track(s).

33

33

3Press 00

00

0 (12).

➔The display shows the total countdown time and

appears on the display.

➔After the selected track(s) have erased, the display

shows the remaining tracks and their total playing time.

Erasing the entire disc

11

11

1Press

ERASE

(24) twice.

➔The display shows the number of tracks and their total

playing time. and

light up.

• If the disc is finalized, CD appears on the display after

inserting a CD-RW in the recorder. The recorder will ask

you to confirm unfinalizing first. Confirm by pressing the

PUSH ENTER

(19) key or

ENTER

(78) on the remote

control.

22

22

2Press 00

00

0 (12).

➔The display shows the total countdown time and

appears on the display. The complete disc will be

erased.

Erasure of a complete disc may take up to 15 seconds.

0

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

eq w

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

wq

The numbers between parentheses refer to the fold-out.

14

ENGLISH

PLAYING

Playing a CD

11

11

1Press 22

22

2/;;

;;

; (14) to start CD play.

➔2 lights up and the track number and track time of the

track in play appear on the display.

22

22

2Press

TIME

(7) or

DISPLAY

(71) once, twice or three

times to see:

➔remaining track time, total remaining time, text informa-

tion (see MENU MODE page 17).

33

33

3To interrupt play temporarily, press 22

22

2/;;

;;

; (14) again.

➔; lights on the display.

44

44

4To continue play, press 22

22

2/;;

;;

; (14) again.

55

55

5To stop play, press 99

99

9 (13, 81).

➔The number of tracks and the total playing time appear

on the display.

Selecting a track

Selecting a track during play

11

11

1On the CDR631 recorder <i>.

1Turn the

REC LEVEL/SELECT

(19) key until the re-

quired track number appears on the display.

➔Play skips to the beginning of the selected track.

22

22

2On the CDR631 recorder <ii>.

1Key in the required track number using the

NUMERICAL

(9) keys. For 2-digit track numbers, press the keys in

rapid succession.

33

33

3On the CDR631 recorder <iii>.

1Press S (15) or T (16) one or more times.

➔Play skip to the begining of the present, previous or

subsequent tracks.

44

44

4On the remote control <i>.

1Key in the required track number using the

NUMERICAL

(70) keys. For 2-digit track numbers, press the keys in

rapid succession.

➔Play skips to the beginning of the selected track.

55

55

5On the remote control <ii>.

1Press S (74) or T (82) one or more times.

➔Play skips to the beginning of the present, previous or

subsequent tracks.

Selecting a track when CD play is stopped

11

11

1On the CDR631 recorder <i>.

qTurn the

REC LEVEL/SELECT

(19) key until the re-

quired track number appears on the display.

wPress

PUSH ENTER

(19) to confirm or press 2/; (14) to

start playing.

22

22

2On the CDR631 recorder <ii>.

qKey in the required track number using the

NUMERICAL

(9) keys. For 2-digit track numbers, press the keys in

rapid succession.

33

33

3On the CDR631 recorder <iii>.

qBriefly press S (15) or T (16) one more times.

w

Start playback by pressing 2/; (14) or

PUSH/ENTER

(19).

44

44

4On the remote control <i>.

qKey in the required track number using the

NUMERICAL

(70) keys. For 2-digit track numbers, press the keys in

rapid succession. Play starts.

55

55

5On the remote control <ii>.

qBriefly press S (74) or T (82) one or more times.

wStart playback by pressing 2 (73) or

ENTER

(78).

EX: Selecting a track when CD play is stopped

11

11

1On the CDR631 recorder <i>.

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

MENU/

STORE

CANCEL/

DELETE

0

987

654

321

RANDOMPROG.REPEAT

REMOTE CONTROLLER

RC6050DR

SCAN

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

w t qer

q

r

e

t

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

w qw

The numbers between parentheses refer to the fold-out.

15

ENGLISH

PLAYING

Scan play

11

11

1To start scan play, press

SCAN

(68) on the remote con-

trol.

- It plays the first 10 seconds of each track.

- It automatically stops after playing all tracks.

22

22

2To stop playing, press 99

99

9 (13, 81).

- The SCAN level disappears from the display.

Search

11

11

1Press 22

22

2/; ;

; ;

; (14) or 2 2

2 2

2 (73).

22

22

2Hold down QQ

QQ

Q (17, 75) or RR

RR

R (18, 80).

➔The player first searches backwards or forwards at 10

times normal speed with sound at low volume, then

goes to 50 times normal speed with sound muted.

33

33

3Release the button at the desired passage.

➔Play starts at the desired passage.

Note:

During Random, Repeat Track or Programmed play, search is

restricted to within the track being played at the time.

Random play

11

11

1Press

RANDOM

(22, 86) before or during CD play to

start random play.

➔The tracks on the CD (or program if set) play in random

order.

22

22

2Press

RANDOM

(22, 86) again to return to normal CD

play.

Note:

RANDOM is also cleared if you open the disc tray.

EX: Repeat play

EX: Search

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

MENU/

STORE

CANCEL/

DELETE

0

987

654

321

REMOTE CONTROLLER

RC6050DR

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

wwq

ww

q

0

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

MENU/

STORE

CANCEL/

DELETE

0

987

654

321

RANDOMPROG.REPEAT

TRACK

INCR.

REMOTE CONTROLLER

RC6050DR

SCAN

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

qw

q

w

The numbers between parentheses refer to the fold-out.

Repeat play

11

11

1Press

REPEAT

(21, 69) one or more times during CD

play.

➔When REPEAT TRACK lights up, the current track

plays repeatedly. When REPEAT ALL lights up, the disc

or program plays repeatedly.

22

22

2To return to normal play, press

REPEAT

(21, 69) one or

more times until:

➔The REPEAT label disappears from the display.

Note:

Repeat is also cleared if you open the disc tray.

16

ENGLISH

PROGRAMMING

Clearing a program

11

11

1Press 99

99

9 (13, 81) if necessary to stop programmed play.

22

22

2Press 99

99

9 (13, 81) again to clear the program.

➔PROGRAM disappears from the display.

• The program is also cleared if you open the disc tray.

Erasing a track from a program

11

11

1In Stop mode press

PROG

(11, 85) to enter Program

mode.

22

22

2Use QQ

QQ

Q (17, 75) or RR

RR

R (18, 80) to select the track from

which to delete.

➔The track number and program step will be shown on

the display.

33

33

3Press

DELETE/CANCEL

(23, 79)

to erase the track from

the program.

➔The remaining program steps and the remaining playing

time of the program will be displayed.

Programmed play

• You can program up to 99 tracks to play in any desired se-

quence.

• Tracks can be programmed more than once, but each time

counts as a track. (step)

Programming for playback

11

11

1Press

PROG

(11, 85) on the remote control to enter Pro-

gram mode.

➔

PROGRAM flashes and appears on the display.

22

22

2

Select the required track numbers by turning the

REC

LEVEL/SELECT

(19) key left or right and store by pressing

PUSH ENTER

(19).

or:

Key in a track number with the

NUMBER

(9, 70). For 2-

digit numbers, press the keys in rapid succession and store

by pressing PUSH/ENTER (19) on ENTER (78).

➔The track will be stored in the program.

➔The track number, total program time and the number of

programmed tracks (steps) are displayed.

33

33

3Repeat step 22

22

2 for all tracks to be programmed.

44

44

4Press 99

99

9 (13, 81) or

PROG

(11, 85) to end programming.

➔PROGRAM lights continuously.

55

55

5Press 22

22

2/;;

;;

; (14) or 2 2

2 2

2 (73) to start programmed play.

The numbers between parentheses refer to the fold-out.

17

ENGLISH

MENU/

STORE CANCEL/

DELETE

0

987

654

321

CD

CDR

ABC DEF GHI

JKL MN OPQ

RST UVW XYZ

DISPLAY SPACE SCROLL

FUNCTION

ENTER

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

qiwr et

yu

wr

qi

e

t

u

y

MENU MODE

Storing names

11

11

1Press

STORE/MENU

(20, 77) to enter Menu mode.

appears on the display.

22

22

2Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the TEXT EDIT submenus.

33

33

3Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

44

44

4

Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82)

to select the required option in the submenu:

CD Artist, CD Title, Track 1 Artist, Track 1 Title, etc.

55

55

5Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

66

66

6Select the characters by rotating the

REC LEVEL/SE-

LECT

(19)

or by pressing the corresponding numeric/

alphabet key (70).

77

77

7Press

PUSH ENTER

(19) or

ENTER

(78) to store the

characters and move to the next cursor position.

Note:

- A maximum of 60 characters can be stored per item.

- With the Q (17) R (18) keys you can move to a required

cursor position.

- With the

CANCEL/DELETE

(23, 79) you can delete a character.

- By pressing the

PUSH ENTER

(19) or

ENTER

(78) without

selecting a character first, you can insert a space between

characters.

- When an artist’s name has been stored for a certain track,

the name will automatically be copied for the next track. The

name can be confirmed by pressing

STORE/MENU

(20, 77)

or a new name can be entered as described above.

88

88

8Press

STORE/MENU

(20, 77) to store a name you have

entered and return to the submenu or 9 9

9 9

9 (20, 81) to exit.

EX: Storing names of Text settings

About MENU MODE

MENU MODE can set up more sophisticated setting for making

CDs. There are two kinds of submenus in the MENU MODE.

• Text submenus ............. adding and erasing the CD text

• Recording submenus ... Auto track increment ON/OFF

... Auto stop ON/OFF

... Copy protaction

... Adjusting right-left-volume balance

during the recording

Note:

TEXT can only be edited for finalized discs. (finalized CD-RW

discs must be unfinalized)

Structure of MENU MODE

in the STOPMODE

Note:

When AUTO TRACK increment is OFF, AUTO STOP does not

appears on the display.

Text Submenus

The TEXT submenus allows you to enter text information on the

CD-R(W); for example the CD titles, the artist names, the track

names and so on. During the playback, the TEXT will be ap-

peared on the display.

The numbers between parentheses refer to the fold-out.

TEXT EDIT

TEXT ERASE

TEXT VIEW

AUTO TRACK

AUTO STOP

COPY

AUTO TRACK

ON/OFF

OFF

ON

18

ENGLISH

Erasing names

11

11

1Stay in the stop mode. (No Operation)

22

22

2Press

STORE/MENU

(20, 77) on the deck or the remote

control to enter Menu mode.

33

33

3Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the submenu TEXT ERASE.

appears on the display.

44

44

4Press

PUSH ENTER

(19) or

ENTER

(78) on the remote

control to confirm.

55

55

5Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the required option in the

submenu: All Text, CD Title, CD Artist, Track 1 Title,

Track 1 Artist, etc.

66

66

6Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

The display will ask you to reconfirm your selection.

77

77

7Press

PUSH ENTER

(19) or

ENTER

(78) to reconfirm.

88

88

8Press

STORE/MENU

(20, 77) to return to the submenu

or 9 9

9 9

9 (13, 81) to exit.

MENU MODE

The numbers between parentheses refer to the fold-out.

About TEXT

The input text data is saved in the text memory until the disc is

finalized. Therefore, the data is not written in the CD-R(W) disc

before finalizing the disc.

POPS

JAZZ 2

CLASSIC

POPS

CLASSIC

JAZZ 2

Finalizing the disc transfers the text data from the text memory

to the disc.

JAZZ 2

POPS

CLASSIC

JAZZ 2

Unfinalizing the disc transfers the text data from the disc to the

text memory.

ReWritable

MY BEST

MY BEST

POPS

CLASSIC

When the text memory is full, appears on the

display and you cannot add more text data.

In this case, you need to make more space in text memory. You

can either finalize one or more disc(s) to transfer the text data

to each disc, or erase (part of) the text data in the text memory.

Note:

When the text memory is full depends on the amount of the

input text data per disc and the number of discs.

Typically the text memory can store for 50 discs of the text data

consisting of 60 characters of an artist name or title for 20

tracks.

19

ENGLISH

MENU MODE

Text Memory Review/Erase Text Memory

The input text data of the disc is once saved in the text memory

until finalizing the disc. When the text memory is full,

will appear on the display and unable to add

more text data. If you want to add more text data, you have to

finalize the text data for each disc in order to obtain memory

space or erase the entire memory following the operation below.

11

11

1Stay in the stop mode. (No Operation)

22

22

2Press

STORE/MENU

(20, 77) on the deck or the remote

control to enter Menu mode.

33

33

3Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the TEXT VIEW submenu.

appears on the display.

44

44

4Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

55

55

5Rotate

RECLEVEL/SELECT

(19) or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the disc you wish to erase.

66

66

6Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

appears on the display.

77

77

7Press the

PUSH ENTER

(19) or

ENTER

(78) to confirm

the erasure of the text for that particular disc.

88

88

8Press

STORE/MENU

(20, 77) to return to the submenu

or 9 9

9 9

9 (13, 81) to exit.

Note:

- If there are no discs in the memory, the message

appears on the display.

- / may also appear when

unfinalizing a CD-RW disc for which text was stored (see

‘UNFINALIZING CD-RW discs’ page 12.). The same

action(s) should be taken in order to obtain memory space.

Recording submenus

• When Auto Track is ON, track numbers will automatically be

increase during the recording, also able to set Auto stop ON/

OFF.

• You can adjust the right and left volume balance during the

recording.

Auto track increment

11

11

1Stay in the stop mode. (No Operation)

22

22

2Press

STORE/MENU

(20, 77) on the deck or the remote

control to enter Menu mode.

The numbers between parentheses refer to the fold-out.

33

33

3Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the AUTO TRACK submenu.

appears on the display.

44

44

4Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

55

55

5Select Auto track or by rotating

REC LEVEL/

SELECT

(19) or

press SS

SS

S (15, 74), TT

TT

T (16, 82).

66

66

6Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

• When is selected, track numbers will be automati-

cally incremented during recording.

•

When is selected, you can number the recorded tracks

yourself by press

TR.INCR.

(25) or

TRACK INCR

(67).

77

77

7Press

STORE/MENU

(20, 77) to store settings and re-

turn to the submenu or 9 9

9 9

9 (13) to exit.

Source

No source

(no lock)

CD/MD

(with user data)

None

DAT/DCC

(with user data)

Unknow

(no user data)

Analog

Track increment based on user data of in

cominng siganl

Track increment based on user data of in

cominng siganl

Track increment after silence gap of 2.7

seconds on incominng siganl

Track increment after silence gap of 2.7

seconds on incominng siganl

AUTO TRACK ON

Note:

- Auto track is a function to switch increasing the track num-

bers either automatically or manually. When Auto track is

ON, there are two ways to activate the function.

- If a digital source has track information (Q-subcode) such as

CD or MD, the track transition is automatically increased ac-

cording to track information of the digital source.

- If an audio source is analog or digital without track informa-

tion, silence gap is detected. When length of silence gap is

more than 2.7 seconds, the auto track function is automati-

cally activated at the point of 2.7 seconds just before A (- 35

dB) is detected. (See following figure below.)

Track X+1

Audio source signal

A (-35 dB)

B (-55 dB)

Silence gap

2.7 sec

B is DETECTED A is DETECTED

Track X

20

ENGLISH

Auto stop

Note:

Set Auto track increment ON, otherwise AUTO TRACK does

not show on the display.

11

11

1Set stop mode.

22

22

2Press

STORE/MENU

(20, 77) on the deck or the remote

control to enter Menu mode.

33

33

3Rotate

REC LEVEL/SELECT

(19) or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the AUTO STOP submenus.

appears on the display.

44

44

4Press

PUSH/ENTER

(19) or

ENTER

(78) to confirm.

55

55

5Select Auto stop or by rotating

REC LEVEL/

SELECT

(19) or press SS

SS

S (15, 74), TT

TT

T (16, 82).

AUTO STOP ON : fully automatic stop.

AUTO STOP OFF : only manual stop during the recording.

66

66

6Press

PUSH/ENTER

(19) or

ENTER

(78) on the remote

control to confirm.

77

77

7Press

STORE/MENU

(20, 77) to store setting and return

to the submenu, or press 9 9

9 9

9 (13, 81) to exit.

Source

AUTO STOP

ON

Stop after 3 seconds of user DATA of stop

pattern detected on the incoming source signal

CD/MD

(with user data)

No source

(no lock)

DAT/DCC

(with user data)

Unknow

(no user data available)

Analog

Stop after 20 seconds of silence

Stop after 20 seconds of silence

Stop after 20 seconds of silence

Stop after 3 seconds of unlock

Copy protection

11

11

1Set stop mode.

22

22

2Press

STORE/MENU

(20, 77) to enter Menu mode.

33

33

3Rotate

REC LEVEL/SELECT

(19) or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the Copy submenus.

appears on the display.

44

44

4Press

PUSH/ENTER

(19) or

ENTER

(78) to confirm.

MENU MODE

55

55

5Select Copy , , or by rotating

REC LEVEL/

SELECT

(19) or press SS

SS

S (15, 74), TT

TT

T (16, 82).

Copy protection OFF:

makes this recording ‘copy permitted.’ Unlimited copies

can be made by a Consumer CD-Recorder.

Copy protection ON:

makes this recording ‘copy protected.’ One ‘Home Copy

of protected Original’ can be made from this recording;

this copy (HCO) cannot be reproduced by a Consumer

CD-Recorder.

Home Copy of Original:

make this recording a ‘Home Copy of protected Original’

(HCO) straight away. NO copy can be made from this

recording by a Consumer CD-Recorder.

66

66

6Press

PUSH/ENTER

(19) or

ENTER

(78) to confirm.

77

77

7Press

STORE/MENU

(20, 77) to store setting and return

to the submenu, or press 99

99

9 (13, 81) to exit.

Note:

- Since this CD-recorder is a professional CD-Recorder, all

CDs can be copied even with HCO.

- Making an analog copy is always possible from the recorded

CD-R(W) disc even selected either OFF, ON or HCO.

Balance (Only active in Record/Standby mode)

11

11

1Press

STORE/MENU

(20, 77) to enter Menu mode.

22

22

2Rotate

REC LEVEL/SELECT

(19)

or press SS

SS

S (15, 74),

TT

TT

T (16, 82) to select the SET BALANCE submenu.

appears on the display.

33

33

3Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

➔ and appear on the display.

44

44

4Adjust the recording balance by turning the

REC

LEVEL/SELECT

(19)

or press SS

SS

S (15, 74), TT

TT

T (16, 82).

55

55

5Press

PUSH ENTER

(19) or

ENTER

(78) to confirm.

66

66

6Press

STORE/MENU

(20, 77) to store settings.

Note:

The balance setting will not be stored.

The numbers between parentheses refer to the fold-out.

21

ENGLISH

.................. when trying to record on a finalized

CD-R(W) or a prerecorded CD

................. when trying to record on a

finalized CD-RW

.............. when a professional source is con-

nected

Play

......................... program mode selected

.............. will be followed by album title

.............. will be followed by track title

........... will be followed by artist name

........... will be followed by track artist name

Others

.............. when the recorder enters a data

track during recording

........... laser power calibration performed

96 times, finalize disc

........... during laser power calibration for

unfinalized discs

........... during disc recovering after power

failure

................... OPC failure during OPC procedure

(OPC = Optimum Power Calibra-

tion)

........... recording error in menu mode

................. when trying to record on or finalize

a recovered disc

.............. when text memory is full. To add a

CD to the list, first finalize or erase

another disc from the list.

DISPLAY

Messages, as listed and explained here, may appear on the

display for your guidance.

General

......................... reading disc information

................................. during tray opening

............................... during tray closing

......................... no disc inserted, disc unreadable or

disc inserted upside down

................... program full

.............. insert disc or insert disc in correct

way

................. inserted disc is no audio CD

.............. unfinalized CD-R(W) disc

................ indicates the amount of text

memory used for unfinalized discs

Recording

................................. - when 9 STOP is pressed during

recording

- when 9 STOP is pressed during

recording the first 4 seconds of a

track

............................ updating disc contents

.................... no more recording possible

.................... digital coaxial input 1 selected

......................... digital optical input selected

........................... analog input selected

........... no digital recording can be made of

the external source

........... when opening the tray with an

unfinalized disc inserted (in the CD-

Recorder)

......................... Start of synchronised recording of a

complete disc and Auto Finalize

function selected

.............. Start of synchronised recording of a

complete disc

........... Start of synchronised recording of a

single track

................ manual start of recording selected

............................ level is being adjusted

........... time left on CD-R(W) disc is not

enough for proposed recording

.............. when erasing one or more tracks

................. when erasing a disc

.............. when finalizing a disc

.............. when 0 is pressed while no digital

source is detected

.............. time countdown when erasing a

track or a disc

................. time countdown when finalizing a

disc

........... to start manual recording, finalizing

or erasing

........... to start synchronised recording

from a source

22

ENGLISH

DISPLAY OTHER INFORMATIONS

Menu messages

................... when attempting to edit text for a

disc which has no tracks

................... when entering Text Edit mode

.................... when editing or erasing an artist

name

...................... when editing or erasing a title

............... when editing or erasing an artist

name per track

................. when editing or erasing a title per

track

................. when entering Text Erase mode

...................... when entering All Text mode

...................... when confirmation for erasing has

to be given with ENTER key

........... when confirmation for erasing has

to be given with ENTER key

........... when waiting for confirmation when

erasing a disc

................... when selecting text review per

unfinalized disc in memory

........... when REVIEW is selected while no

text is in memory

............... when selecting auto track incre-

ment ON or OFF

...................................... Auto Track increment on

.................................... Auto Track increment off

.............. when selecting BALANCE

......................... no text stored for disc

Fixing problems

If you think your CD-Recorder is defective, it is wise to read this

list first. Maybe you forgot a simple step.

Warning!

Under no circumstances should you attempt to repair the

CD-recorder yourself as this will invalidate the guarantee.

No power

• ensure that the

POWER ON/OFF

(1) button is on: the

CD-Recorder is in standby mode, press any button to

activate it

• ensure that the power cord is plugged in correctly

• switch the recorder OFF and then immediately back ON

Auto track does not work

• check if auto track is selected

• check if there are 2.7 seconds silence in between the

tracks (analog recording only)

• check if the source is consumer source with the digital

output according to IEC audio standard

• source is DVD disc (no track information)

No sound

• check the audio connections

• if using an amplifier, try using a different source

Amplifier sound is distorted

• check that the CD-Recorder analog output is not con-

nected to the amplifier PHONE input.

Play will not start

• ensure that the label of the CD is facing up

• clean the disc

• check that the disc is not defective by trying another disc

Remote control does not work

• point the remote control directly at the CD-Recorder

• check the batteries and replace if necessary

• select the right source first

• set the remote control selector to ‘INTERNAL’

Will not record

• clean the disc

• check if CD-R(W) is an unfinalized disc

• check that the disc is recordable and replace if neces-

sary

• the disc is not an audio disc ( )

• wrong input source chosen.

•

text memory full ( / ).

When a CD-RW has to be unfinalized for recording.

Erase text for other disc(s) or finalize other disc(s) to

obtain memory space.

Recording is distorted

• make sure the recording level was not too high

20 second pause between recordings

• see ‘RECORDING’ CD SYNC

The numbers between parentheses refer to the fold-out.

23

ENGLISH

Player does not react

• use the

POWER ON/OFF

(1) button on the front of the

Player to switch it off and back on

on display

• a power failure has occurred during recording the CD-

Recorder is attempting to repair the disc

• If then appears on the display, the disc

cannot be recorded further, and cannot be finalised. But

it can still be played on the CD-Recorder or another CD-

Recorder.

• on a CD-R(W) disc, the track being recorded is lost, but

further recording and finalisation can still be done

OTHER INFORMATIONS

The numbers between parentheses refer to the fold-out.

2

ENGLISH

TECHNICAL SPECIFICATIONS

GENERAL

System....................................................................................................................... Compact disc digital audio

Number of channels ............................................................................................................................. 2 (stereo)

Applicable discs .......................................................................... CD,CD-R (digital audio),CD-RW (digital audio)

Power Requirement ...................................................................................................... AC 100 - 240 V 50/60 Hz

Power Consumption.................................................................................................................................... 19 W

Operating Temperature

Dimension (MAX)

Width ..............................................................................................................................19 inches (483 mm)

Height .................................................................................................................... 3-15/16 inches (100 mm)

Depth..................................................................................................................... 13-7/16 inches (340 mm)

Weight ................................................................................................................................. 10.4 lbs (4.7 Kg)

AUDIO

Frequency Response .................................................................................................................... 20 Hz - 20 kHz

Playback S/N ........................................................................................................................................... 108 dB

Playback Dynamic Range .......................................................................................................................... 95 dB

Payback Total Harmonic Distortion ............................................................................................................ 92 dB

Analog Recording S/N................................................................................................................................ 96 dB

Analog Recording Dynamic Range ............................................................................................................ 92 dB

Analog Recording Total Harmonic Distortion ............................................................................................. 88 dB

Analog Line Output Voltage .................................................................................................................. 2.0 Vrms

Digital Coaxial Output .................................................................................................................0.5 V (p-p)/75 Ω

Digital Optical Output .............................................................................................................................. -20dBm

Headphone ........................................................................................................................ 0 - 5 Vrms/ 8 - 2000

Recording values for line input

Digital Coaxial Input (automatic sample rate conversion) ............................................ 32/44.1 (11 kHz - 56 kHz)

Digital Optical Input (automatic sample rate conversion) ............................................. 32/44.1 (11 kHz - 56 kHz)

Digital XLR Input (automatic sample rate conversion) ................................................. 32/44.1 (11 kHz - 56 kHz)

Analog Input Sensitivity (Unbalanced) .................................................................................... 500 mVrms/50 k

(Balanced)................................................................................0 dBu to + 22 dBu/50 k

(default setting : +16dBu/50 k )

ACCESSORIES

Remote Control Unit RC6050DR .......................................................................................................................1

AA-size batteries ................................................................................................................................................2

AC power cord ...................................................................................................................................................1

Specifications subject to change without prior notice.

EXTERNAL DIMENSIONS

434 mm (17-1/16")

10.5 mm(7/16") 324mm (12-13/16") 5.5 mm (1/4")

483 mm (19'')

100 mm

(3-15/16'')

88 mm

(3-7/16")

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

Cautions of Installation

- Install the player horizontally (or within 10 degrees of level).

Too much inclination may result in damage to the player.

- Secure the player at four parts when installing it in a 19-inch

rack. (see also figure 3)

10

10

10 10

CD RECORDER CDR631

POWER

IR

STANDBY

Recordable

ReWritable

HEADPHONE LEVEL

010

MENU

DELETE

CANCL

TR.INCR.

REPEATRANDOM

ERASE

TEXT

0

5

9

8

7

4

3

6

12

TIME

REC MODE

STORE

FINAL

REC LEVEL/SELECT

PUSH ENTER

PROG

INPUT

00/03 387K851310 (MITi)

Printed in Japan

Ris a registered trademark.

Rergarding addresses for your local Marantz dealers,

please visit us on the web at

http://www.marantz.com.
