Model PMD570 User Guide

Solid State Recorder

Warnings and Cautions

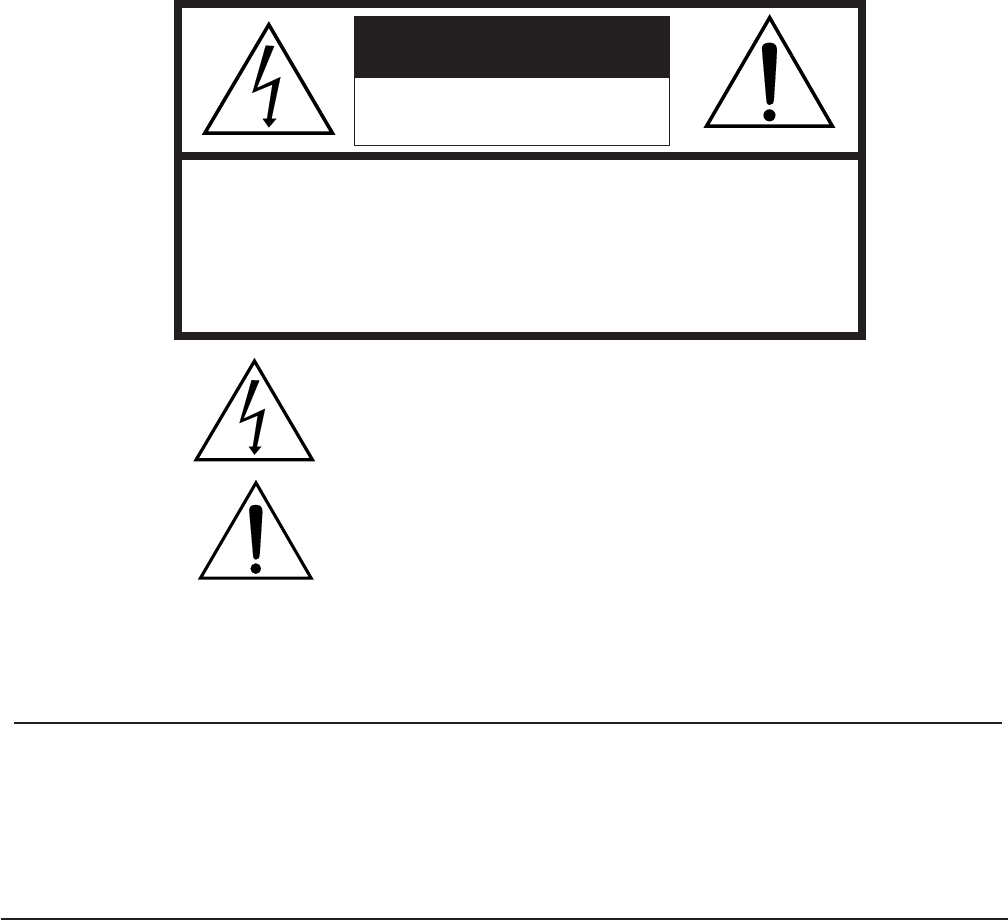

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the product.

- 2 -

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

- 3 -

Important Safety Instructions

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality

and safety standards. There are, however, some installation and

operation precautions which you should be particularly aware of.

1. Read Instructions – All the safety and operating instructions

should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions

should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the

operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should

be followed.

5. Cleaning – Unplug this product from the wall outlet before

cleaning. Do not use liquid or aerosol cleaners. Use a damp

cloth for cleaning.

6. Attachments – Do not use attachments not recommended by

the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water–for

example, near a bath tub, wash bowl, kitchen sink, laundry tub,

swimming pool, in a wet basement, and the like.

8. Accessories – Do not place this product on an unstable cart,

stand, tripod, bracket, or table. The product may fall, causing

serious injury to a child or adult, and serious damage to the

product. Use only with a cart, stand, tripod, bracket or table

recommended by the manufacturer, or sold with the product.

Any mounting of the product should follow the manufacturer's

instructions, and should use a mounting accessory

recommended by the manufacturer.

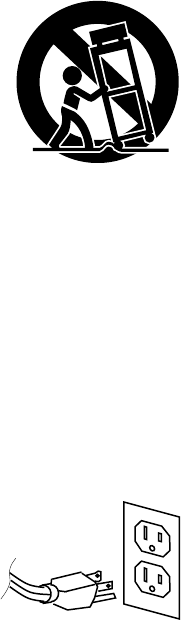

9. A product and cart combination

should be moved with care. Quick

stops, excessive force, and

uneven surfaces may cause the

product and cart combination to

overturn.

10. Ventilation – Slots and openings in

the cabinet are provided for

ventilation and to ensure reliable

operation of the product and to

protect it from overheating. These

openings must not be blocked or covered. The openings should

never be blocked by placing the product on a bed, sofa, rug, or

other similar surface. This product should not be placed in a

built-in installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's instructions have

been adhered to.

11. Power Sources – This product should be operated only from the

type of power source indicated on the marking label. If you are

not sure of the type of power supply to your home, consult your

product dealer or local power company. For products intended

to operate from battery power or other sources, refer to the

operating instructions.

12. Power Cord Protection – Power supply cords should be routed

so that they are not likely to be walked on or pinched by items

placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point where

they exit from the product.

specified by the manufacturer that has the same overload

protection as the original plug.

15. Outdoor Antenna Grounding – If an outside antenna or cable

system is connected to the product, be sure the antenna or

cable system is grounded so as to provide some protection

against voltage surges and built-up static charges. Article 810

of the National Electrical Code, ANSI/NFPA 70, provides

information with regard to proper grounding of the mast and

supporting structure, grounding of the lead-in wire to an

antenna discharge unit, size of grounding conductors, location

of antenna-discharge unit, connection to grounding electrodes,

and requirements for the grounding electrode. See Figure 1.

16. Lightning – Lightning – Unplug the unit from the wall outlet and

disconnect the antenna or cable system for added protection

during a lightning storm or when it is left unattended and

unused for long periods of time. This will prevent damage to the

product due to lightning and power line surges.

17. Power Lines – An outside antenna system should not be

located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines

or circuits. When installing an outside antenna system, extreme

care should be taken to keep from touching such power lines or

circuits as contact with them might be fatal.

18. Overloading – Do not overload wall outlets, extension cords, or

integral convenience receptacles as this can result in a risk of

fire or electric shock.

19. Object and Liquid Entry – Never push objects of any kind into

this product through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or

electric shock. Never spill liquid of any kind on the product.

20. Servicing – Do not attempt to service this product yourself as

opening or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified service

personnel.

21. Damage Requiring Service – Unplug this product from the wall

outlet and refer servicing to qualified service personnel under

the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions, as an improper

adjustment of other controls may result in damage and will often

require extensive work by a qualified technician to restore the

product to its normal operation.

e. If the product has been dropped or damaged in any way, and

f. When the product exhibits a distinct change in performance –

this indicates a need for service.

22. Replacement Parts – When replacement parts are required, be

sure the service technician has used replacement parts

specified by the manufacturer or have the same characteristics

as the original part. Unauthorized substitutions may result in

fire, electric shock, or other hazards.

23. Safety Check – Upon completion of any service or repairs to

this product, ask the service technician to perform safety

checks to determine that the product is in proper operating

condition.

24. Wall or Ceiling Mounting – The product should be mounted to a

wall or ceiling only as recommended by the manufacturer.

25. Heat – The product should be situated away from heat sources

such as radiators, heat registers, stoves, or other products

(including amplifiers) that produce heat.

13. Grounding or Polarization – This

product may be equipped with a

grounded polarized alternating-

current line plug (a plug having

one blade wider than the other

and a ground prong). This plug will

fit into the power outlet only one

way. This is a safety feature. If you

are unable to insert the plug fully

into the outlet,contact your electrician to replace your obsolete

outlet. Do not defeat the safety purpose of the polarized plug.

14. Protective Attachment Plug – The product is equipped with an

attachment plug having overload protection. This is a safety

feature. See Instruction Manual for replacement or resetting of

protective device. If replacement of the plug is required, be

sure the service technician has used a replacement plug

- 4 -

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

DISCHARGE

UNIT

(NEC SECTION

810-20)

ANTENNA

LEAD IN

WIRE

FIGURE 1

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

GROUND

CLAMP

GROUNDING

CONDUCTORS

(NEC SECTION

810-21)

POWER SERVICE

GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV (Cable-TV)

system installer's attention to Article 820-40 of the

NEC, which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building,

as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful inter-

ference in a residential installation. This equipment

generates, uses and can radiate radio frequency en-

ergy and, if not installed and used in accordance with

the instructions, may cause harmful interference to

radio communications. However, there is no guaran-

tee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV tech-

nician for help.

NOTE:Changes or modifications may cause this

unit to fail to comply with Part 15 of the FCC Rules and

may void the user's authority to operate the

equipment.

WARNINGS

Do not expose the equipment to rain or moisture.

Do not remove the cover from the equipment.

Do not insert anything into the equipment through

the ventilation holes.

Do not cover the ventilation with any items such

as tablecloths, newspapers, curtains, etc.

No naked flame sources, such as lighted candles,

should be placed on the equipment.

When setting up the recorder ensure that:

• it will not be exposed to interference from

external equipment.

• it will not be exposed to electrostatic dis-

charges.

• it will not be exposed to direct sunlight.

• heavy objects are not placed on the recorder.

Recording and playback of any material may require

consent. For further information refer to the following

US ordinances:

• Copyright act of 1956

• Dramatic and Musical Performance Act 1958

• Performers Protection Acts 1963 and 1972

• any subsequent statutory enactments and orders

MARANTZ EUROPE B.V.

5600 EINDHOVEN

THE NETHERLANDS

SI DICHIARA CHE L'APPARECCHIO SINTO-AMPLIFACATORE SR-39

RISPONDE ALLE PRESCRIZIONI DELL'ART. 2 COMMA 1 DEL D.M. 28

AGOSTO 1995 N° 548.

FATTO A EINDHOVEN, IL 1/1/1997.

CE marking (only EU version)

English

This product is in conformity with the EMC directive and low-voltage directive.

Français

Cet appareil est conforme á la directive EMC et á la de directive sur les basses

tensions.

Deutsch

Dieses Greät entspricht den EMC-Richtlinien und den Richtlinien für

Niederspannungsgeräte.

Nederlands

Dit apparaat voldoet aan de EMC-richtlijnene en de richtlijnen vooor apparatuur

met laag voltage.

Italiano

Quest' unitá è conforme alle diretive EMC ed alla direttiva sulle basse tensioni.

Português

Esta unidade está em conformidade com as directivas EMC e as directivas de

baixa voltagem.

Español

Esta unidad estáde acuerdo con las normas EMC y las relacionadas con baja

tensión.

Equipment mains working system

This product complies with household power and safety requirements in your area.

- 5 -

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme á la norme NMB-003 du Canada.

"Este aparato lleva elementos antiparasitarios necesarios para cumplir con ls

limites que se estableren en el Anexo V del Reglamento sobre Pertubaciones

Radioelectricas e Interferencias aprobado en el Real Decreto 138/1989. (B.O.E.

de 9 Febrero 1989)."

Table of Contents

Precautions

Warnings and Cautions ................................... 2

Important Safety Instructions ......................... 3

Regulatory Compliance .................................. 4

Table of Contents ................................................. 6

Package Contents................................................. 7

CF card ................................................................ 7

Introduction ......................................................... 8

Features................................................................ 9

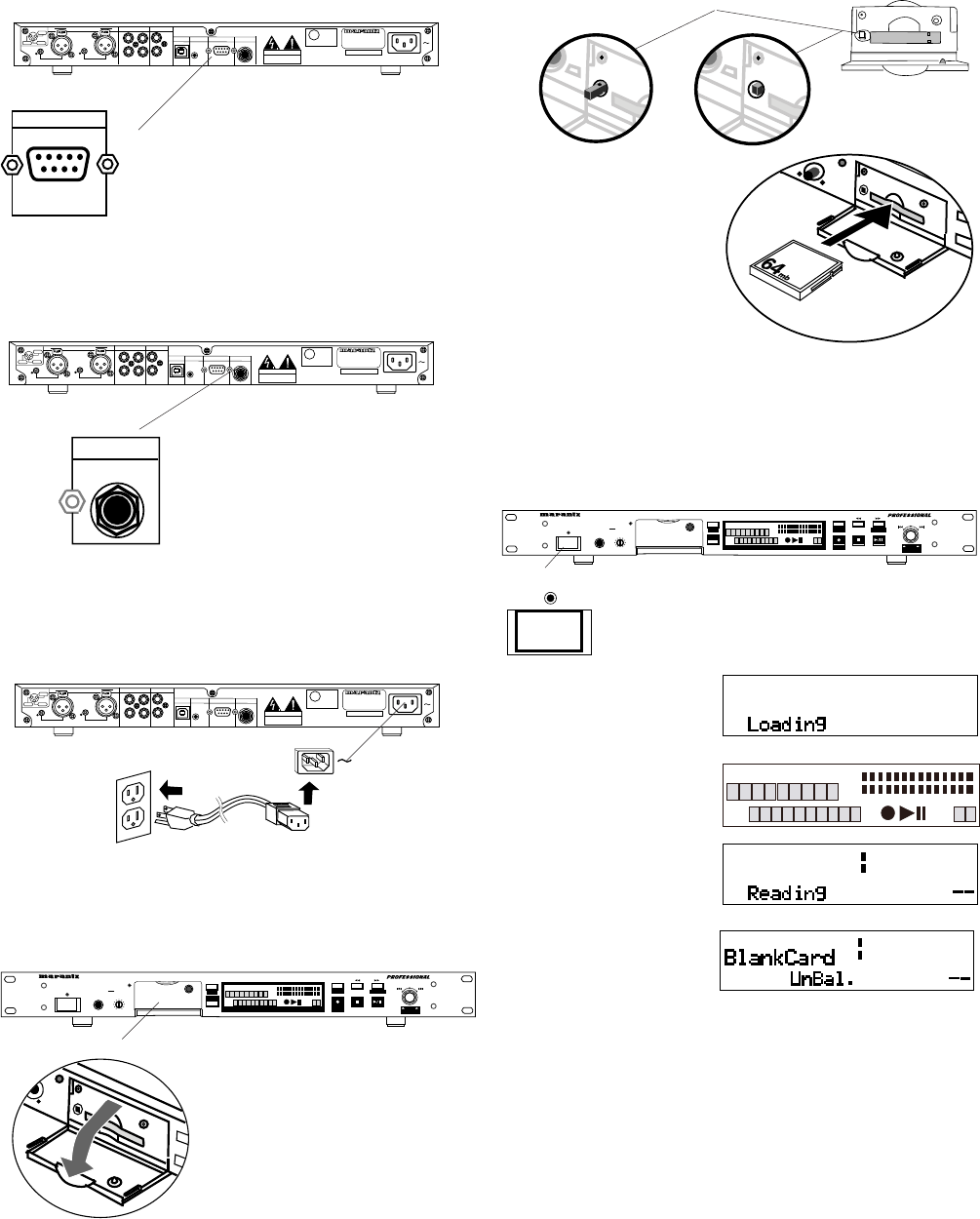

Basic installation and start-up ............................. 10

Recording setup ................................................... 11

Controls and Connections

Front............................................................... 12

POWER ON/OFF button .............................. 12

HEADPHONE jack ...................................... 12

LEVEL control .............................................. 12

CF card access light ...................................... 13

CF card compartment .................................... 13

Card eject button ........................................ 13

To eject a CF card ...................................... 13

To insert a CF card ..................................... 13

CF card Security ........................................ 13

DISPLAY button ........................................... 14

LOCK button LOCK ..................................... 14

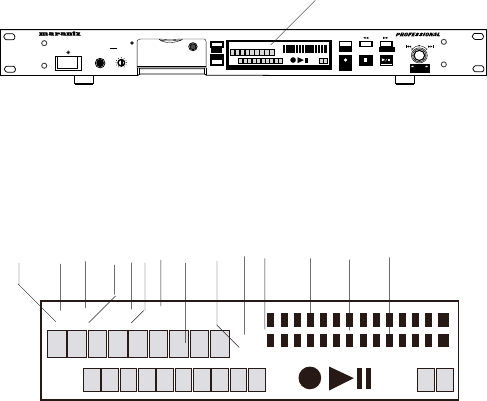

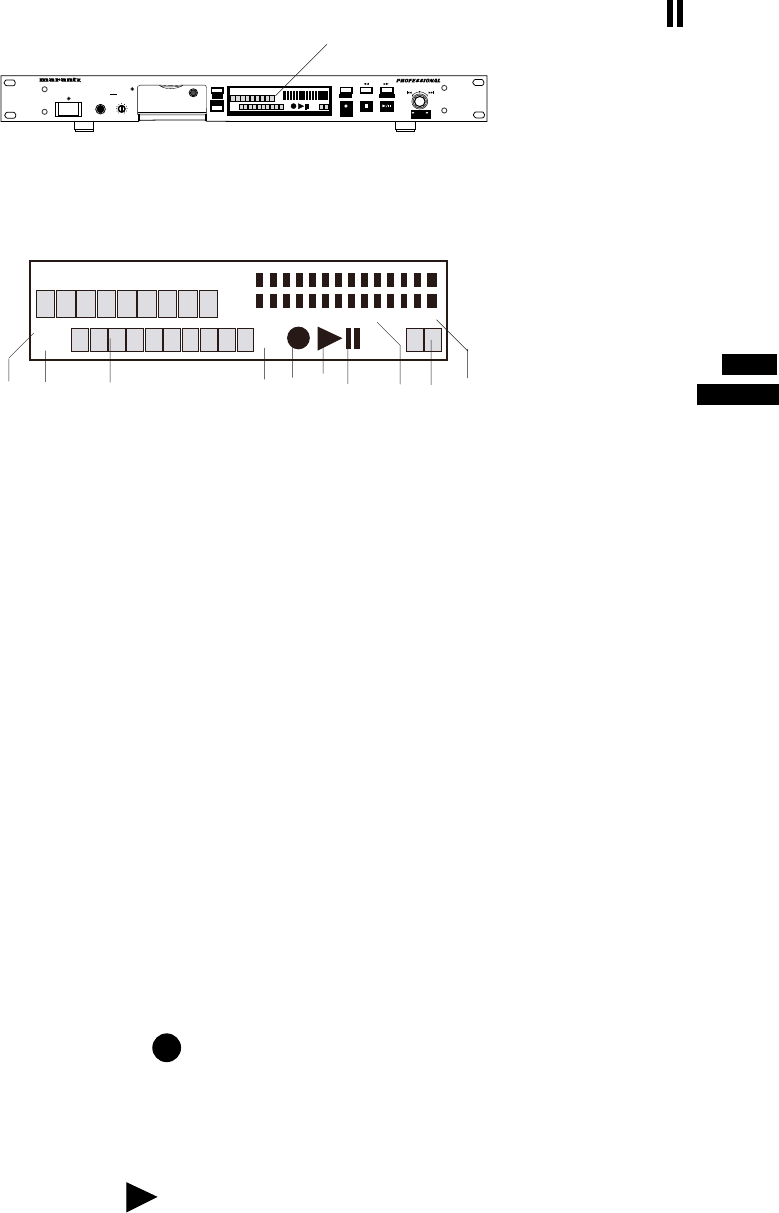

Display .......................................................... 15

MENU/STORE

EDIT

button .................... 17

Menu .......................................................... 17

Menu selections ......................................... 17

EDIT Menu ................................................ 17

Edit Menu selections.................................. 17

Rewind, Fast Forward button group ............. 18

Rewind button .................................... 18

UNDO button............................................. 18

Fast Forward button ........................... 18

M. RESET button ...................................... 18

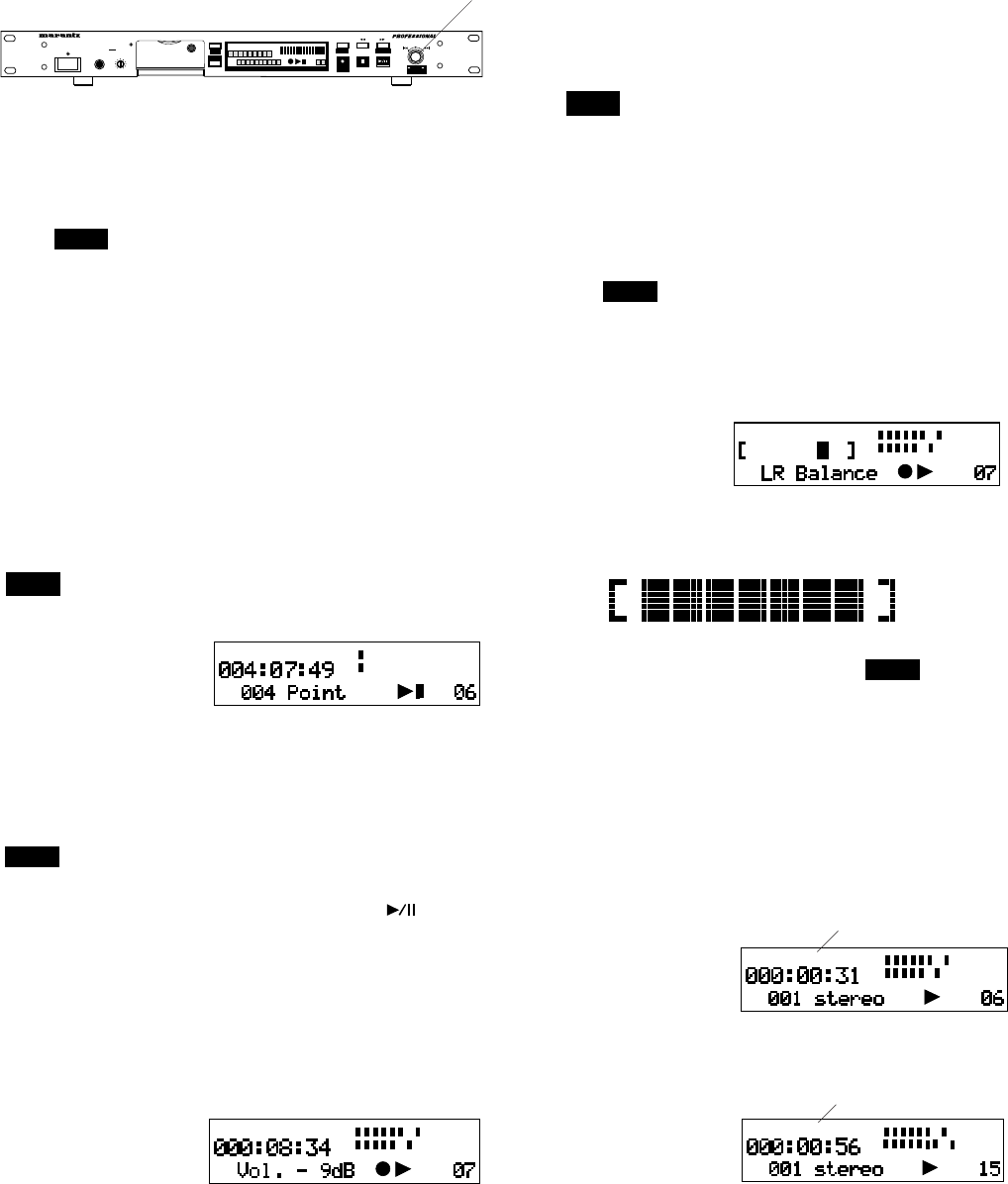

Jog Wheel ...................................................... 18

How to select tracks during playback ........ 19

How to select an EDL mark ....................... 19

How to adjust record level ......................... 19

How to adjust record balance .................... 19

How to A-B repeat ..................................... 19

SHIFT button

SHIFT

.................................... 20

Record/MARK button MARK ................ 20

How to start a new track ............................ 20

How to add an EDL mark while recording 20

Stop/CANCEL button .............................. 20

Play/Pause button .................................. 20

- 6 -

Back ................................................................. 21

BALANCED IN

ANALOG XLR inputs L&R ......................... 21

Trim L&R .................................................. 21

ANALOG IN/OUT jacks .............................. 21

L&R ANALOG IN jacks ........................... 21

L&R ANALOG OUT jacks ....................... 22

DIGITAL IN & OUT connectors .................. 22

DIGITAL IN jack (RCA) ........................... 22

DIGITAL OUT jack (RCA) ....................... 22

I/O port .......................................................... 22

REMOTE2 .................................................... 22

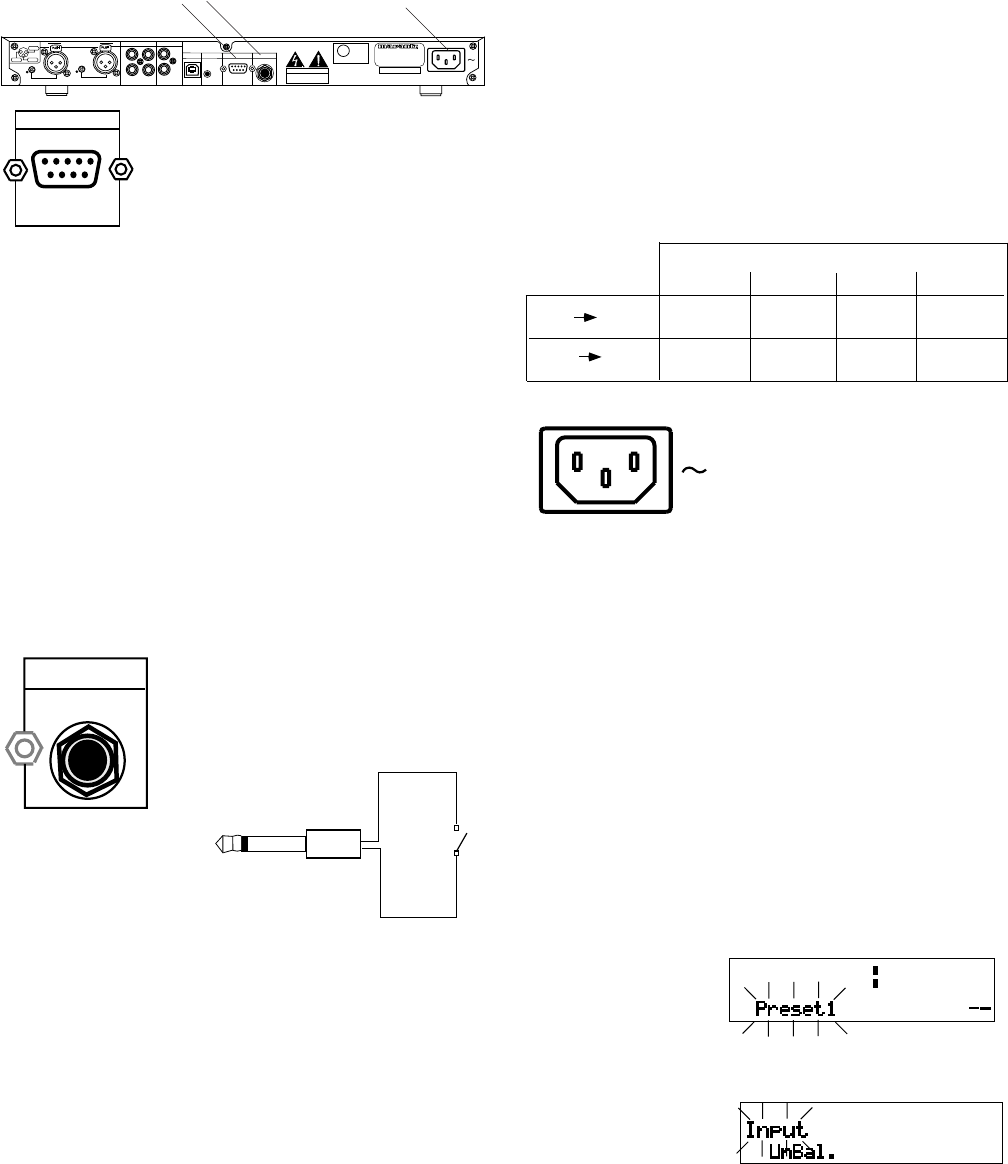

RS-232C connector ....................................... 23

REMOTE1 jack ............................................ 23

Remote Menu setting ................................. 23

AC IN ............................................................ 23

Editing and setup

Menu mode .......................................................... 23

Presets............................................................... 23

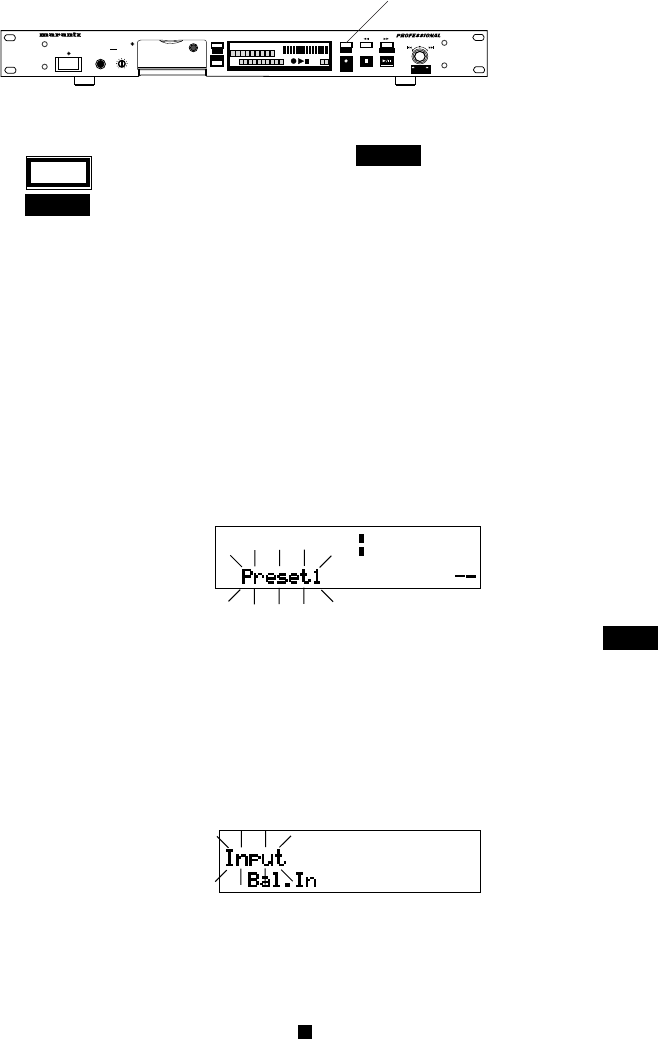

How to switch Presets ...................................... 23

Table of Preset defaults ................................. 24

Preset defaults ............................................... 25

General Menu procedure ............................... 25

How to select input(s) for recording ............. 25

How to set or change the Date and Time ......... 26

How to set or change the Date Form ................ 27

RecFormat ........................................................ 28

RecFormat parameters .................................. 28

How to set or change

the RecFormat parameters ......................... 29

Pre Record ........................................................ 31

Auto Mark ........................................................ 31

Manual TR........................................................ 32

Auto Trk ........................................................... 32

Minute Track ................................................. 32

SeamlsPly (Seamless Play) .............................. 33

SilentSkp (Silent Skip) ..................................... 34

Auto Cue .......................................................... 35

Play Mode ........................................................ 36

Normal .......................................................... 36

Repeat All...................................................... 36

Repeat TRK................................................... 36

Single ............................................................ 36

EDL Play .......................................................... 37

Remote ............................................................. 37

ID1dscrpt, ID2Origin, ID3OrRef

(Broadcast Wave ID Numbers) .................... 38

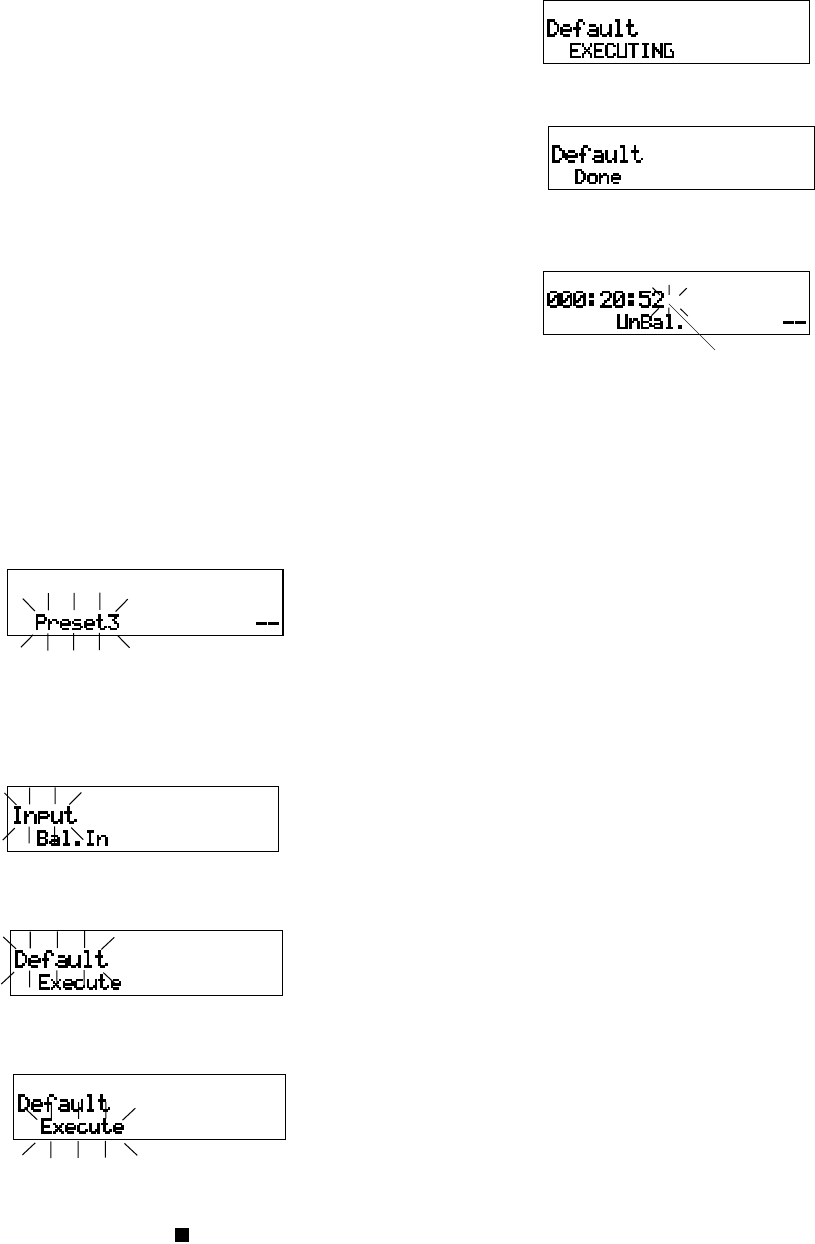

Default (Menu Default) .................................... 39

Edit Menu

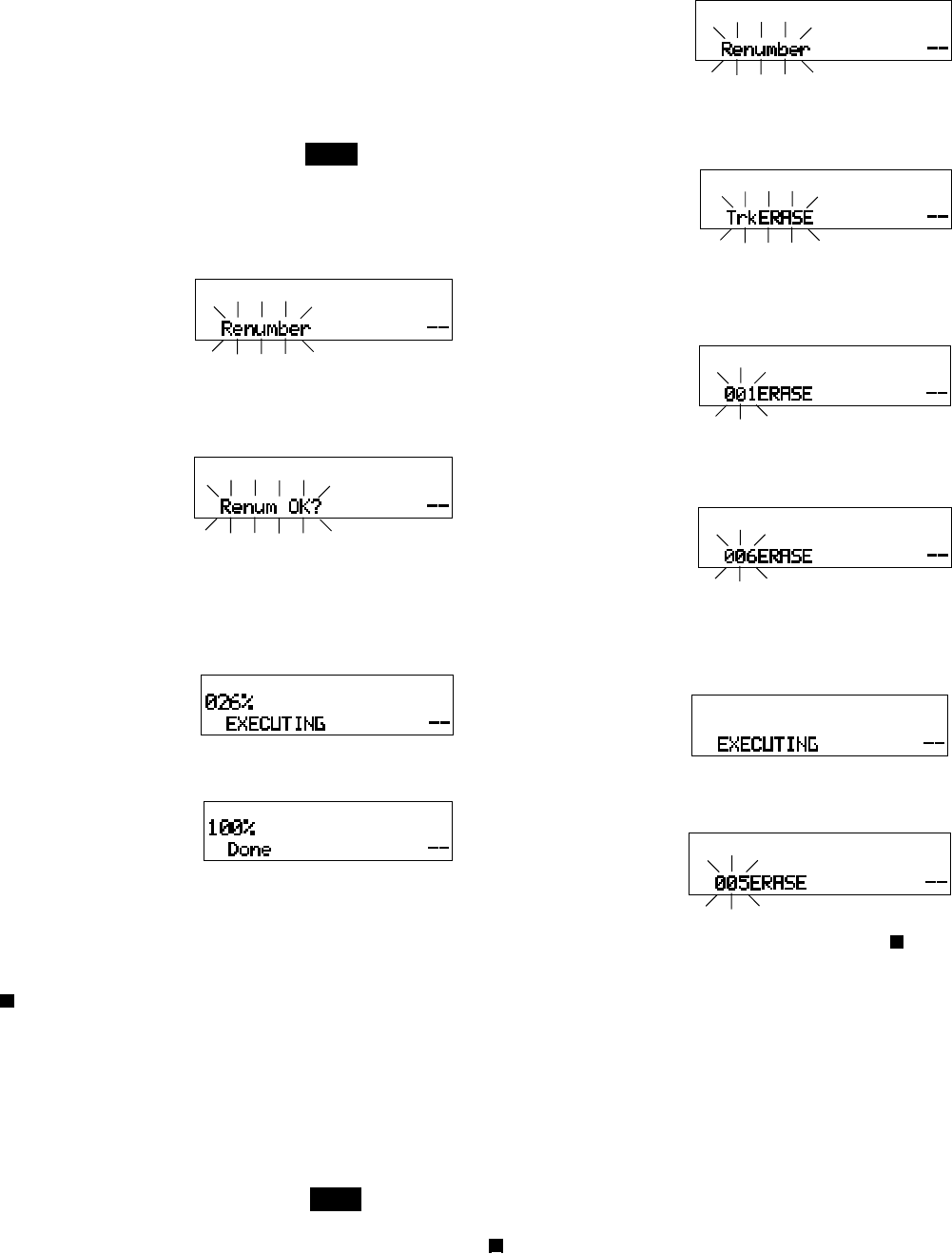

Renumber (tracks) ............................................ 40

TrkERASE........................................................ 40

continues

Package contents

• PMD570

- 7 -

TrkMkERASE .................................................. 41

AllMkERASE................................................... 42

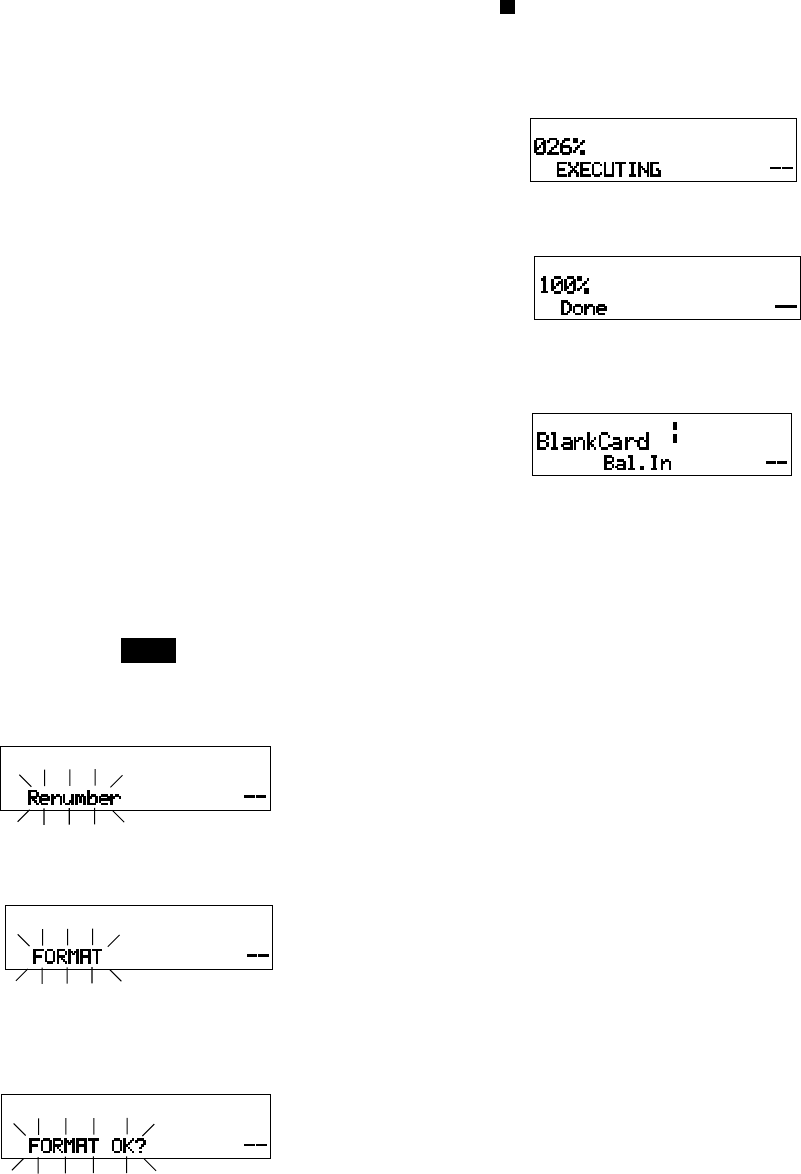

FORMAT (CF card) ......................................... 42

To FORMAT a CF card ................................. 42

I/O port ................................................................ 43

How to connect via the I/O port ....................... 43

Diagram of file structure .................................. 43

EDL marks ........................................................... 44

Locating EDL Marks ........................................ 44

EDL marks and the beginning of a Track......... 44

Custom playback sequences ............................. 44

How to Edit EDL Marks .................................. 45

EDL mark types................................................ 45

EDL Play .......................................................... 45

RS-232C Control Windows Application ............. 46

RS-232C control .................................................. 47

RS-232C specifications .................................... 47

Connector pin assignment ................................ 47

Physical specifications ..................................... 47

Flow control and timing ................................... 47

Command format.............................................. 47

Handshake flow charts for control command .. 48

Control command codes ................................... 48

Status Request and Status Information codes .. 48

Table of Control command codes ..................... 48

Table of Status Request and

Status Information codes ............................... 50

Recording time chart ........................................... 51

Troubleshooting ................................................... 52

Care and maintenance.......................................... 52

Error messages ..................................................... 52

Specifications ...................................................... 53

Limited Warranty ................................................. 54

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

• Audio cable (2)

(stereo pair)

(3' 3", 100cm)

• Security screw (2)

ISO 3x10 (3mm x 10mm

long)

For Memory compartment

door (1 spare)

• Plastic pin and retainer

(spare - for Memory compart-

ment door)

• CD-ROM

Contents of the CD-ROM may vary.

Contents usually include:

• PDF format manual(s)

Several languages may be included.

• Demonstration copy of Marantz Professional's

PMDEdit application software

• Instructions for obtaining full copy of Marantz

Professional's PMDEdit application software

• This User Guide

• Customer Registration Document

• Power cord

• 64MB CF card (US only)

(shipped formatted and

installed)

• I/O cable

(6ft, 180cm)

- 8 -

Introduction

Thank you for selecting the Marantz Professional

PMD570 Solid State Recorder. The PMD570 is an

audio recorder that records in digital audio formats

onto a Compact Flash™ memory card (CF card) or

Microdrive™.

Compact flash memory cards, also used in digital

cameras, are widely available at consumer electronics

retailers and computer resellers.

Computer compatible

The PMD570 records directly onto CF cards. Record-

ings can be transferred to your desktop or laptop

computer by removing the CF card from the PMD570

or by connecting the PMD570 to your computer via

the I/O port. Audio recorded in the popular MP3

compression format is directly available for intranet or

internet file sharing.

On your computer you can then:

• log and archive audio files

• play audio files

• save audio files to:

• your hard drive

• a floppy

• a CD-R disc

• post streaming audio files on your web site

• use software and your computer to transcribe

digital recordings

• An editing program (Marantz Professional's

PMDEdit application software, available from

Marantz Professional for PC users) lets you convert

and edit audio files that were recorded on the

PMD570.

Setup

• Three menu selectable Presets make it easy to

switch between your commonly used input,

recording format, playback parameters and other

menu selections.

Audio inputs may be from:

• line level sources connected to the BALANCED

IN XLR jacks,

• line level audio sources connected to the ANA-

• digital audio sources in SPDIF format connected

to the DIGITAL IN jack.

Audio outputs may be from:

• headphones connected to the HEADPHONE jack,

• analog audio devices such as an amplifier or other

device connected to the ANALOG OUT jacks,

and/or

• digital audio devices using SPDIF format con-

nected to the DIGITAL OUT jack.

External control

• RS-232C control codes enable full external

control of the PMD570.

• Suggested Presets that are downloadable to the

PMD570 via the RS-232C control port are

available at d-mpro.com.

• An optional wired Remote Marantz Model RC600

connects via a TRRS connector and permits:

• starting, stopping, or pausing recording

• adding EDL marks (see next page) to a track

• A second wired remote connection accepts a

mono Phone jack (remote control not supplied).

Depending on the menu selection a simple contact

closure connected here permits:

• Start Pause: pause and resume

• StrtPausTR: restart after pause while recording

initiates a new track

• EDL Mark: add a silent EDL mark

• Manual TRK: initiate a new track while record-

ing (if Seamless Play is off during playback

adds a small audio gap)

Security - CF cards

For security the CF card compartment door can be

secured with a screw. Requiring a tool to open the CF

card compartment reduces casual removal of the CF

card.

Automatic recording

The PMD570 can be set to stop recording when

there is silence (Silent Skip) and automatically start

when sound resumes. The PMD570 can be set to

automatically add an EDL mark to the track at each

such starting point.

Playback aids

A common problem with lengthy recordings is

difficulty in locating one or more specific passages for

playback. The PMD570 has several ways to mark or

tag specific record starting and/or ending points.

• Date and time

A built-in date and time generator marks the begin-

ning of each track.

- 9 -

• Tracks

• A new track (file) is automatically started each

time you begin a recording.

• It is not possible to record over a previously

recorded track unless it is first erased.

• An Auto Track feature can add tracks every

minute or other selectable recording interval.

(Minute track: Setting the interval to one

minute provides a new track every minute of a

recording, permitting navigating a large audio

recording by time.)

• A new track can be started during recording by

pressing the Record button. (Manual TR,

Manual Track incrementing, On.)

EDL marks

EDL marks are silent during playback but locatable.

EDL (Edit Decision List) marks can be created

during recording manually or automatically. EDL

marks help you find those specific points in the

recording.

*The EDL marking system is proprietary to Marantz Professional

solid state recorders.

• During playback you can instantly locate EDL

marks.

• You can change an EDL mark into a skip mark or

an A-B repeating point. That lets you create

custom playback sequences which include

skipping audio between EDL marks or repeating

audio between EDL marks.

• EDL marks are specific to the CF card, not to

Tracks. That lets you create custom playback

sequences across Tracks.

• Up to 255 EDL marks can be added to a CF card.

EDL marks are numbered consecutively starting

at one.

• During recording you can manually add an

EDL mark by pushing and holding SHIFT

while you push the MARK button.

• EDL marks can also be added automatically.

• Marantz Professional's PMDEdit application

software, is specifically designed by Marantz.

Marantz Professional's PMDEdit application

software recognizes EDL marks generated by the

PMD570. This is especially useful for editing

audio files on your PC. For more information

visit www.d-mpro.com.

Features

• Stereo (2 channels) and mono (1 channel) audio

recording and playback.

• Records onto various types of CF cards.

(Please refer to the Marantz Professional web site

at www.d-mpro.com for what kind of media are

recommended.)

• Three different recording formats.

• Compressed recording using MPEG1 Layer II

(MP2) or MPEG1 Layer III (MP3) mono and

stereo.

• Uncompressed recording using 16-bit linear Pulse

Code Modulation (PCM).

• MS-DOS™, Windows and Macintosh compatible

audio files.

• Selectable file types:

• Wave

• Broadcast Wave Format

• RAW MP2/MP3.

• recording bit rate is selectable

• MP2/MP3 compressed at 32kbps (recommended

for dictation),

32, 48, or 64kbps (recommended for voice

recording), or

128, or 192 kbps (recommended for recording

music)

• PCM uncompressed at 768kbps (mono) (very

high quality mono audio recording)

• PCM uncompressed at 1536kbps (stereo) (recom-

mended for very high quality audio recording)

• Pre-Recording memory buffer that records 2

seconds of audio before recording is started.

• Portions of multiple recordings can be played back

in sequence using EDL marks.

• Built-in Time and Date generator marks the begin-

ning of each track.

• Three remote options, including RS-232C, permit

wired remote control.

- 10 -

Basic installation and start-up

Follow the instructions on this page to install your new

PMD570 Solid State Recorder and begin recording.

The PMD570 comes factory preset (Preset1) for

recording in stereo with MP3 compression, recom-

mended quality for music recording.

1. Rack mount the PMD570 or install on a stable cart

or stand.

2. Connect line level analog inputs and/or outputs to

the ANALOG IN/OUT jacks.

3. Connect line level XLR equipment for recording.

Connect a SPDIF coaxial digital audio cable to

DIGITAL IN and/or DIGITAL OUT and then to

output and/or input of your digital device.

DIGITAL OUT signal is available while playing,

recording or in record pause.

DIGITAL IN Use this connection for recording.

Digital input cannot be mixed with line level input

via the ANALOG IN jacks.

5. Connect to your computer (PC or Mac) via the

I/O port.

For mono

recording

use either

jack.

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

INPUT

Mixer or

cassette player

OUTPUT

Amp, Mixer / Pre-

Amp

ANALOG

IN OUT

OUTPUT

CDR, CD, DAT,

mini disc

OUT

(SPDIF)

DIGITAL

INPUT

This connection makes it easy to

copy audio files to or from your

computer's hard drive to or from

the PMD570 CF card.

The I/O connection can only be

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

I / O

made active when the PMD570 is off (neither

recording or during playback).

The CF card in the PMD570 appears as a remov-

able drive on your computer.

6. Optional: connect external (remote) control,

6a. RC600 wired remote control

6b. RS-232C host equipment

6c. wired remote with mono phone jack

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

REMOTE2

6a. Connect RC600 wired

remote control to RE-

MOTE2

Model RC600 has three buttons

that let you start recording, record

pause or add an EDL mark. See

your Marantz Professional Audio

dealer for ordering information.

BALANCED INRL

REF=+16dBu/0dBFS

+ 24 + 24

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

DIGITAL

OUT

(SPDIF)

For mono recording

use either jack.

4. Connect DIGITAL input and/or output to SPDIF

digital equipment for playing or recording.

- 11 -

Basic installation and start-up continued

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

RS 232C

6b. RS-232C host equipment.

Full control and setup of the

PMD570 is available via RS-232C

external control.

See page 47 for RS-232C control codes.

6b. Connect a wired remote switch with mono phone

jack to REMOTE1.

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

The connection offers

four remote options

outlined on page 37.

7. Use the supplied power cord to plug into 120 VAC

power.

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

AC IN

Start-up

8. Install a CF card.

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

1. Pull to open the CF

card door.

2. The Card eject button has two positions: click out

(a) and click in (b). Leave or push the Card eject

button so it is in the in (b) position.

3. Insert a CF card.

4. Close the CF card

door.

Note:

-dB

over

-dB

over

1220

-dB

LINE

MARK

TRACK

TOTAL TRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

If the CF card door won't latch, check that the Card

eject button is in the click in position (b above).

Loading appears

momentarily.

A full display

appears.

The display changes

to Reading

The display changes

to the state of the CF

card.

Example display shows a newly formatted CF card

with default Preset1.

10. The PMD570 is ready to record. You may want to

check or change the recording setup.

Recording setup

The PMD570 is shipped setup (Preset1 default).

9. Push and release the POWER ON/OFF button.

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

On power up wait for the PMD570 to

initialize.

POWER ON/OFF

REMOTE1

- 12 -

Basic installation and start-up contin-

ued

All Preset default settings are outlined on page 51. [A

128MB CF card can record about 1 hour and 45

minutes at Preset1 default settings. See table on page

51.]

If your input is not line level audio via the ANALOG

IN RCA jacks, you will need to change the Input

Menu selection.

1. Push and release the MENU/STORE button.

2. Push and release the Jog Wheel to accept Preset1.

3. Turn the Jog

Wheel so Input is

displayed and

flashing. Then

push and release the Jog Wheel.

4. The input choice

(Bal.In, UnBal., or

Dig-In) is flashing.

Turn the Jog wheel

to scroll through the Input choices.

5. When correct push and release the Jog Wheel.

Display returns to Input flashing.

6. Push and release the MENU/STORE button.

11. Push and release the Record button . PMD570

enters record pause.

Push and release the Record button again.

Recording begins.

The red light in the Record button is blinking

during record pause and lit and steady during

recording.

The display will show the recording time count-

ing up (a) on the current track (b).

Example

display

b a

Example

display

13. Push and release the Stop/CANCEL button to

stop recording and end the track (close the audio

file).

The display will show the recording time on the

track you just recorded.

example shows 0

hours 6 minutes and

23 seconds

recorded on track 1

1 2 3

Controls and Connections

Front

1. POWER ON/OFF button

Push and release to turn Power

ON or OFF.

When powered up the PMD570

goes through a start-up proce-

dure. See page 11.

Note:

Standby power mode is available via RS-232C control

only.

2. HEADPHONE jack

Plug stereo headphones in here.

Headphones are active during

recording, record pause and

playback.

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

-dB

over

1220

-dB

TRACKTIME

TRACK LINE

-dB over

1220

-dB

TRACKTIME

TRACK LINE

-dB over

1220

-dB

TRACKTIME

TRACK LINE

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

POWER ON/OFF

HEADPHONE

LEVEL

010

Adjust headphone volume with the LEVEL control.

3. LEVEL control

Turn to adjust headphone

volume.

- 13 -

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

RECREMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

Controls and Connections

Front continued

4. CF card access light (green)

Flashing while the CF card is being read from or

written to.

Lit and steady while the CF card is ready.

5. CF card compartment

Pull to open to access the CF

card

Door Open is displayed.

Card eject

button

CF card slot

CF card door

Card eject button

The Card eject button has two positions: click out (a)

and click in (b).

To eject a CF card:

1. If recording or in playback push STOP .

If other operations are in progress cancel them by

pushing STOP or wait for them to complete.

2. Open the CF card door.

3. Push and release the Card eject button so it is in

click out position (a).

4. To eject the card, push the Card eject button from

the click out position to the click in position (b).

To insert a CF card:

1. Leave or push and release the Card eject button so

it is in the click in position (b).

CAUTION

If recording is in progress, opening the CF card

door automatically stops recording and writes

critical track information to properly close the file.

2. Fully insert the CF

card.

3. Close the CF card

door.

Note: If the CF card

door won't latch, check

that the Card eject button is in the click in position (b).

CF card security

(3mm x

10mm long)

The supplied CF card compartment

security screw requires using a

small Phillips screwdriver to open

the CF card compartment door.

That reduces the possibility that the

CF card will be misplaced or stolen.

1. Remove the plastic

pin (c) and then the

retainer (d).

2. Add the screw. Tighten the screw with a small

Phillips screwdriver tight enough so the screw

cannot be removed with a fingernail.

- 14 -

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

Controls and Connections

Front continued 5

TIME

REC REMAIN L

-dB over

1220

-dB

LINE

-dB

over

1220

-dB

LINE

TRACK

-dB over

1220

-dB

MARK

-dB

over

1220

-dB

kbps

kHz

-dB over

1220

-dB

TIME

-dB

over

1220

-dB

LINE

TRACKTIME

TRACK

-dB

over

1220

-dB

TRACKTIME

TRACK

DISPLAY

LOCK

DISPLAY

LOCK

TIME

REC REMAIN L

-dB over

1220

-dB

LINE

TIME

REC REMAIN L

-dB

over

1220

-dB

LINE

5a. DISPLAY button

Push and release to tab through

alternate information displays.

Display information is slightly different in Stop,

Record and Playback.

During Stop:

Default display is

Remaining record

time for the card.

remaining record time on card

Example display

After the first push

track information is

displayed.

Total tracks on CF card.

After the second

push EDL mark

information is

displayed.

Total EDL marks on CF card.

After the third

push file parameters

are displayed.

bit rate sampling frequency

compression

algorithm

recording

channels

After the fourth

push Date and

Time information is

displayed.

Current clock time

hours:minutes:seconds

After the fifth push the display returns to the default:

remaining record time on the CF card.

During Record:

Default display is

elapsed Record time

on the current

track*.

Record time on track

The first push of the DISPLAY button switches to

remaining record time for the card.

The second push switches to file parameters.

The third push switches to date and time.

The fourth push returns to the default.

*When there are 5 minutes of recording time remain-

ing on the CF card, the display automatically switches

to indicate remaining recording time on the CF card.

During Playback

the default display

is elapsed time on

the current track.

elapsed time

The first push switches to track time remaining.

The second push switches to file parameters.

The third push switches to date and time.

The fourth push returns to the default.

5b. LOCK button LOCK

Push and hold

SHIFT

while you push

and release the DISPLAY button

to LOCK (or unlock) the keys (buttons

and controls) on the PMD570.

KeyLocked is displayed briefly.

Example

display

You can use LOCK to prevent front panel control of

the PMD570.

When locked attempting to use controls (buttons or

Jog Wheel) results in a brief "Locked" display.

Example

display

To unlock push and hold SHIFT while you push and

release the DISPLAY button. "UnLocked" is displayed

briefly. Powering off and back on also unlocks the

controls.

- 15 -

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

Controls and Connections

Front continued

MARK

TRACK

TOTAL TRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

1. REC label

The REC label appears with other labels in this

area to indicate the upper alphanumeric display

reflects recording time.

2. TOTAL label

The TOTAL label appears with other labels in this

area to indicate the upper alphanumeric display

reflects total time.

3. TRACK label

The TRACK label appears with other labels in

this area to indicate TRACK TIME displayed on

the upper alphanumeric display.

4. REMAIN label

The REMAIN label appears with other labels in

this area to indicate recording time remaining is

displayed on the upper alphanumeric display.

5. TIME label

The TIME label appears with other labels in this

area to indicate recording time remaining, or track

time is displayed on the upper alphanumeric

display.

6. kbps label

The kbps label appears to indicate that the first

five places in the upper alphanumeric display are

kilobits per second.

7. A-B label

A- indicates that the beginning (A point) of an A-

B loop has been set.

A-B indicates that the ending (B point) of an A-B

loop has also been set.

8. Upper alphanumeric display

Displays a variety of information including

remaining recording time, clock time, menu

settings etc. Associated labels are display items

1-7 and 9-10.

9. AM / PM label

Displays AM or PM when clock time is dis-

played. AM and PM are flashing after a preset is

set to default to remind you that the time has not

been set.

10. kHz label

The kHz label appears to indicate that the last

five places in the Upper alphanumeric display is

frequency in kilohertz.

11. L -dB R level meter labels

L is the label for the upper (Left) level meter.

-dB is the label for the center level meter scale in

decibels.

R is the label for the lower (Right) level meter.

12. Upper level meter

The louder the sound input to the PMD570 on the

Left /mono channel the more bars are displayed.

13. Decibel scale

The scale in dB (decibels) for the upper and

lower level meters.

14. Lower level meter

The louder the sound input to the recorder on the

Right channel the more bars are displayed.

6. Display

Labels, icons, meters and alphanumeric messages

communicate the status of the PMD570.

1 2 3 4 5 6 7 8 9 10 11 12 13 14

- 16 -

Controls and Connections

Front continued

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

15. TRACK label

The TRACK label appears to indicate that the

number displayed on the left of the lower alpha-

numeric display refers to track.

16. MARK label

The MARK label appears to indicate that the

number displayed on the left of the lower alpha-

numeric display refers to EDL marks.

17. Lower alphanumeric display

Displays a variety of information including

remaining recording algorithm, date, track

number, number of tracks on CF card, EDL Mark

number, number of EDL Marks on CF card etc.

Associated labels are display items 15 and 16.

18. LINE label

The LINE label appears when the input Menu

selection for recording is Bal.IN or UnBal.

19. Record icon

The Record icon appears when the PMD570 is in

record mode. Appears with the Play icon when

recording. Appears flashing when in record pause.

20. Play icon

The Play icon appears when the PMD570 is in

playback, play pause, recording, or record pause.

MARK

TRACK

TOTAL TRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

21. Pause icon

The Pause icon appears when the PMD570 is in

playback pause, or record pause.

22. S.SKIP label

The Silent Skip label appears when Silent Skip is

enabled.

23. Margin level

The Margin level is displayed. The PMD570

holds this display at the highest level achieved

during the current recording. If more than 0 dB,

OV (over) is displayed. To reset the Margin level

push and hold the SHIFT button while you push

and release the

M. RESET

button.

24. -dB label

The -dB label applies to the Margin level display.

15 16 17 18 19 20 21 22 23 24

6. Display continued

- 17 -

Controls and Connections

Front continued

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

7Menu selections:

Menu item see page

PRESET 1, 2, 3 ................................................. 17

Input .................................................................. 25

Date/Time.......................................................... 26

Date Form ......................................................... 27

RecFormat ......................................................... 28

PreRecord .......................................................... 31

Auto Mark ......................................................... 31

Manual TR ........................................................ 32

Auto Trk ............................................................ 32

SeamlsPly .......................................................... 33

SilentSkp ........................................................... 34

Auto Cue ........................................................... 35

Play Mode ......................................................... 36

EDL Play ........................................................... 37

Remote .............................................................. 37

ID1Dscrpt .......................................................... 38

ID2Origin .......................................................... 38

ID3OrRef .......................................................... 38

Default .............................................................. 39

7b. EDIT Menu

Edit Menu, accessed from stop by pushing and

holding

SHIFT

while pushing and releasing the

MENU/STORE button, lets you erase and renumber

tracks, erase EDL marks, and format the CF card.

Edit Menu selections:

Edit Menu item see page

Renumber .......................................................... 40

TrkERASE ........................................................ 40

TrkMkErase ...................................................... 41

AllMkERASE ................................................... 41

FORMAT (CF card) .......................................... 42

EDIT

MENU/STORE

7. MENU/STORE

EDIT

button

There are two Menu selections

Menu and EDIT Menu

-dB over

1220

-dB

LINE

TIME

REC REMAIN

7a. Menu

Menu, accessed from stop by pushing and releasing

the MENU/STORE button, lets you set or change

recording and playback parameters, such as changing

inputs and setting the Date and Time.

How to change Presets

From stop, push and release the MENU/STORE

button to enter Menu mode.

The currently

selected Preset (1,

2 or 3) will be

displayed and flashing.

Turn the Jog Wheel to scroll through Presets 1, 2 and

3. Push and release the Jog Wheel to select the dis-

played Preset.

The menu for the selected Preset will be displayed

with the parameter flashing.

See page 25 for how to change Menu parameters.

When in a Menu mode push and release MENU/

STORE to record and store menu changes. Or push

and release the CANCEL button to exit the Menu

mode without storing any changes.

Example

display

Controls and Connections

Front continued

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

8 9

8. Rewind, Fast Forward button group.

8a Rewind button

During playback push and hold to

rewind, do an audible search in the

reverse direction.

UNDO

During play pause, push and hold to rewind quickly.

8b UNDO button

During record push and release to undo

the recorded track (restart the same track

at the beginning).

9. Jog Wheel

This is a main control which

changes function depending

on the state of the PMD570

-dB over

1220

-dB

LINE

TRACKTIME

TRACK

- 18 -

M. RESET

UNDO

-dB

over

-dB

LINE

TRACKTIME

TRACK

-dB over

-dB

LINE

TRACKTIME

TRACK

When recording a live session, you can check that

inputs are working properly, set the recording level

and precisely start recording.

When recording and the UNDO button is pushed and

released, REC Undo? is displayed for about 3 seconds.

If the UNDO button is pushed and released while REC

Undo ? is displayed, the track is reset and paused at

00:00:00. Recording continues if REC Undo times

out.

REC BAL

MARK

PUSH

ENTER

REC LEVEL/SELECT

Example display

before pressing the

UNDO button

REC Undo?

displayed for 3

seconds.

Example display if

the UNDO button

pushed and

released while REC Undo ? is displayed.

8c Fast Forward button

During playback push and hold to

fast forward, do an audible search in

the forward direction.

-dB over

-dB

LINE

TRACKTIME

TRACK

During play pause, push and hold to fast forward

quickly.

8d M. RESET button

During record, record pause or

playback push and hold the

SHIFT

M. RESET

button and push and release the M. RESET button to

reset the peak level margin.

Example display

with level margin at

-02dB before

pushing the M.

RESET button. level margin

The level margin displays the highest level achieved

since the track began or the M. RESET button was

pushed and released. OV indicates a margin over 0dB.

Notes:

If the Rewind button or the Fast Forward button

is held past the beginning or end of a track the

rewind or fast forward will continue onto the previous

or next track.

If Play Mode Single or Play Mode Repeat All is on,

the rewind or fast forward will follow the repeat order.

Rewind button and Fast Forward button do

not function in EDL playback or EDL A-B repeat.

Turn to:

• choose the track (during stop or playback)

•+

SHIFT choose an EDL mark (during stop or

playback)

• adjust recording level (during rec pause or record-

ing)

•+

SHIFT adjust recording balance (during rec

pause or recording)

• scroll through settings (Menu or Edit Menu)

- 19 -

Controls and Connections

Front continued

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

9. Jog Wheel continued

Push and release the Jog Wheel to:

•+

SHIFT select the displayed EDL mark for

playback or editing

• select displayed setting (Menu or Edit Menu)

• set A-B repeat position (during playback)

How to select tracks during playback

Turn the Jog Wheel to choose the track when in stop,

play or play pause.

The PMD570 switches to the beginning of that track.

How to select an EDL mark

When in stop, playback or play pause, push and hold

SHIFT

and turn the Jog Wheel to choose an EDL

mark. The PMD570 jumps to the selected mark.

Note:

Nothing happens if there are no EDL marks on the CF

card.

When the desired EDL mark is displayed, release the

SHIFT button to jump to that mark.

• Push and release the Play/Pause button to

start or continue playback from the EDL mark.

• Push and release the Jog Wheel to edit the EDL

mark type. See How to edit EDL marks, page 45.

How to adjust record level

Turn the Jog Wheel to set or adjust the record level

(Vol.) during recording or in record pause.

The record level setting is remembered, even after

power off, you do not have to do anything to confirm

or store it.

How to adjust record balance

First check or adjust the record level (above). Push and

hold

SHIFT

while you turn the Jog Wheel to set or

adjust the record balance during recording or in record

pause.

Record balance maintains the record level of the target

channel and reduces the record level of the other

channel in 1 dB increments. For example, if you press

and hold SHIFT and turn the Jog Wheel 5 clicks to the

right, the right channel record level is not changed, and

the left channel record level is reduced 5dB.

Balance is displayed graphically.

Example

display

-dB over

-dB

LINE

TRACKTIME

TRACK

-dB over

-dB

LINE

TRACKTIME

TRACK

-dB

over

1220

-dB

TRACKTIME

Example

display

The record level can be from 0 to -78 dB.

Turn slowly to adjust 1 dB at a time.

Turn fast to adjust 5 to 15 dB at a time.

Example

display

The LR Balance bar displays up to 18 (1dB) clicks of

the Jog Wheel to the right or 18 clicks to the left.

When balance is as desired, release the SHIFT button.

The record balance setting is remembered, even after

power off, you do not have to do anything to confirm

or store it.

How to A-B repeat

During playback push and release the Jog Wheel to set

the A point.

0 1-5 6-17 18 +1-56-17

18 +

Example

display

-dB over

1220

-dB

TRACKTIME

TRACK

A-

Push and release the Jog Wheel again to set the B

point.

Example

display

Playback repeats endlessly between the A and B

points.

continues

A-B

-dB over

1220

-dB

TRACKTIME

TRACK

A-B

- 20 -

Controls and Connections

Front continued

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

During recording push and release Stop to stop

recording and end the track. The display switches to

information about the just recorded track.

13. Play/Pause button

From Stop push and release to

begin playback.

During playback push and release to pause playback.

During playback pause, push and release to resume

playback.

During recording push and release to Rec pause.

During Rec pause, push and release Record to

resume recording. If Auto Mark is ON, an EDL mark

is placed when recording resumes.

How to A-B repeat continued

To exit A-B repeat push and release the Jog Wheel. A-

B repeat is cancelled and playback is paused at the B

point.

Example

display

-dB

over

1220

-dB

TRACKTIME

TRACK

TOTAL

Total track time

Track number channel(s) recorded

You can push and release Play/Pause to play the

just recorded track, or push and release Stop again

to enter stop mode. Pushing and releasing Play/Pause

will play the beginning of the first track.

During playback push and release Stop to stop

playback. When playback resumes, by pushing and

releasing Play/Pause , playback begins at the

beginning of the first track.

During Menu and Edit Menu operations push and

release CANCEL to cancel all Menu or Edit Menu

changes and exit Menu or Edit Menu mode.

SHIFT

MARK

CANCEL

12. Stop/CANCEL button

Push and release to Stop or CANCEL an

operation.

10. SHIFT button

Push and hold while you push and

release other controls (black labels)

to activate alternate functions.

11. Record/MARK button

( /

MARK

)

Button is lit (red) and flashing while

in record pause.

Button is lit (red) and steady while recording.

How to start a new track

From stop push and release the Record button to

enter record pause at the start a new track. Push and

release the Record button again to begin recording.

When Manual TR is On, while recording, push and

release the Record button to start a new track and

continue recording. A small audio gap is inserted

between the tracks. See Seamless Play, page 33, to

avoid the audio gap during playback.

How to add an EDL mark while recording

While recording, push and hold the

SHIFT

button

while you push and release the Record MARK

button to add an EDL mark.

Notes:

EDL marks are numbered specific to the CF card not

the track.

EDL marks are numbered consecutively starting at 1

up to a maximum of 255 EDL marks per CF card.

During playback EDL marks are silent and during

EDL Play, do not result in a pause or audio gap.

10 11 12 13

-dB

over

1220

-dB

TRACKTIME

TRACK

Example

display

Push and release the Play/Pause button to con-

tinue playback from that point, or

Push and release the Jog Wheel to set the former B

point to a new A point and remain in pause, or

push and release CANCEL to cancel playback.

Back

1. BALANCED IN

ANALOG XLR inputs, L & R

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

1 2

XLR connectors are available for balanced analog

input.

The balanced XLR connection permits trimming,

adjusting the input level. See TRIM L & R below.

For mono recording use either jack. Input from both

jacks is mixed internally during mono recording.

Mono recording will appear on the left level meter.

To record an incoming signal from the XLR jacks,

Bal.In must be selected in the Input Menu.

BALANCED INRL

REF=+16dBu/0dBFS

+ 24 + 24

Example display

at stop.

- 21 -

2. ANALOG IN / OUT jacks

RCA jacks for line level input

and output.

L & R ANALOG IN jacks

Plug L and R RCA jacks in here

to connect to the Line level

IN OUT

ANALOG

To select BALANCED IN XLR jacks as inputs for

recording:

1. Push and release the MENU/STORE button.

2. Choose a Preset by turning the Jog Wheel.

3. Select the Preset by pushing and releasing the Jog

Wheel.

4. Turn the Jog Wheel so Input is flashing.

5. Push and release the Jog Wheel so the input

choice is flashing.

6. Turn the Jog Wheel so Bal.In is flashing.

7. Push and release the Jog Wheel to accept the

Bal.In choice.

8. Push and release the MENU/STORE button to

store the Menu change. Stored is displayed.

See page 24 for a full presentation of Menu

selection.

output jacks of an external mixer or other audio

playback device.

For mono recording use either jack.

To record, UnBal. must be selected in the Input Menu.

TIME

REC REMAIN L

-dB over

1220

-dB

LINE

GROUND

HOT (+) COLD (-)

REF=+16dBu/0dBFS

+ 24 + 24

BALANCED INRL

Trim L & R

You can use a small screwdriver to adjust the Trim of

the XLR L & R inputs.

The Trim is factory preset at +16 dBu with an adjust-

ment range from 0 to +24 dBu.

Some professionals prefer to first set the Trim using a

meter and to do a fine adjustment by listening for

distortion and watching the level meters on the

PMD570.

The pin out for the XLR jacks is printed on the

PMD570 for easy reference:

Pin 1 ground,

Pin 2 HOT +,

Pin 3 COLD -

Example display

at stop.

To select ANALOG IN RCA jacks as inputs for

recording:

1. Push and release the MENU/STORE button.

2. Choose a Preset by turning the Jog Wheel.

3. Select the Preset by pushing and releasing the Jog

Wheel.

4. Turn the Jog Wheel so Input is flashing.

5. Push and release the Jog Wheel so the input

TIME

REC REMAIN L

-dB over

1220

-dB

LINE

out

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

Back continued

2 3 4 5

- 22 -

3. DIGITAL IN & OUT

connectors (SPDIF)

Digital audio cable with RCA

jacks can be used for input and

output.

DIGITAL IN jack (RCA)

Connect a digital audio cable with an RCA jack from

an external device providing SPDIF digital output*.

To record from this input Dig-In must be selected

from the input menu.

*Incoming source must be at 44.1 or 48 kHz.

DIGITAL

OUT

(SPDIF)

Example

display at

stop.

is flashing.

6. Turn the Jog Wheel so Dig-In is flashing.

7. Push and release the Jog Wheel to accept the Dig-

In choice.

8. Push and release the MENU/STORE button to

store the Menu change. Stored is displayed.

See page 24 for a full presentation of Menu

selection.

DIGITAL OUT jack (RCA)

Connect a digital audio cable with RCA jacks to an

external device accepting a SPDIF digital input. This

connection will pass a digital signal when the

PMD570 is recording, in record pause or during

playback.

4. I/O port

Plug an I/O cable in here and

connect the other end to your

computer (PC or MAC).

To activate I/O:

From power off, push and hold the MENU/STORE

button while you power on by pushing and releasing

the POWER ON/OFF button.

The connection makes it easy to copy audio files to

your computer's hard drive. The I/O connection can

only be made active when the PMD570 is off (neither

recording or during playback).

See page 43 for a full discussion of the I/O connection.

I / O

2. ANALOG IN / OUT jacks continued

choice is flashing.

6. Turn the Jog Wheel so UnBal. is flashing.

7. Push and release the Jog Wheel to accept the

UnBal. choice.

8. Push and release the MENU/STORE button to

store the Menu change. Stored is displayed.

See page 24 for a full presentation of Menu

selection.

L & R ANALOG OUT jacks

Plug L and R RCA jacks in here to

connect to the Line level input jacks

of an external pre-amplifier, mixer

or recording device.

This connection will pass a line

level signal during recording, record

pause and playback.

IN OUT

ANALOG

TIME

REC REMAIN L

-dB

over

1220

-dB

To select the DIGITAL IN jack as input for recording:

1. Push and release the MENU/STORE button.

2. Choose a Preset by turning the Jog Wheel.

3. Select the Preset by pushing and releasing the Jog

Wheel.

4. Turn the Jog Wheel so Input is flashing.

5. Push and release the Jog Wheel so the input choice

5. REMOTE 2

The REMOTE2 jack accepts the

optional wired remote Marantz

model RC600. Model RC600 has

a record indicator light.

REMOTE2

Model RC600 permits:

• starting recording

• pausing recording, and

• adding EDL marks

Model RC600 connects via a TRRS (Tip Ring Ring

Sleeve) connector.

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

6 7 8

- 23 -

Back continued

RS 232C

6. RS-232C connector

Using serial communication, a

host device can control the

PMD570.

• The RS-232C host can control functions of the

PMD570 externally.

• The PMD570 automatically transmits status data

when status is changed.

• The PMD570 will respond to a status request by

transmitting the associated status data.

See RS-232C control, page 47, for details.

With Marantz Professional's PMD570 control setup

application (check the enclosed CD ROM or see

www.d-mpro.com to download) you can control the

PMD570 from your PC. See page 46 for a brief

description of the application.

7. REMOTE1 jack

REMOTE1 accepts a remote (not

supplied) that connects via a

TS 1/4 inch plug.

REMOTE1

Wiring

diagram

A connected switch

on closing and on

opening does the

following depending

on the Remote Menu setting.

Remote Menu setting:

StartPause

Close to start open to pause during recording or

playback. If Auto Mark is ON and EDL mark is

added when recording resumes.

StrtPausTR

Close to start, open to pause during recording or

playback. Start after a record pause, continues on

the next track.

EDL Mark

During record or playback close to add an EDL

mark.

Manual TRK

During recording, close to increment the track. A

new track is created at that point. There is no

break in recording.

8. AC IN

Connect the 3 prong AC

power cord.

AC IN

REMOTE1 behavior depending on switching activity:

open closed

open

closed

Remote Menu setting

StartPause StrtPausTR EDL Mark Manual TRK

Start Start

next track

Pause Pause --

add

EDL mark

create

new track

CAUTION:

Only use the supplied power cord.

Menu mode

Presets

Three menu selectable Presets make it easy to switch

between commonly used input, recording setup, and

playback conditions. Called Preset1, Preset2, and

Preset3.

How to switch Presets

From stop, push and release the MENU/STORE

button to enter Menu mode.

The currently selected Preset (1, 2 or 3) will be

displayed and flashing.

Turn the Jog Wheel to scroll through Presets 1, 2 and

3. Push and release the Jog Wheel to select the

displayed Preset.

-dB over

1220

-dB

LINE

TIME

REC REMAIN

The Input menu for the selected Preset will be

displayed.

You can edit the menu for the chosen Preset.

To accept the menu settings, push and release the

MENU/STORE button. The display returns to stop.

- 24 -

Table of Preset defaults

Display Selection range Default Setting (America) Default Setting (Europe)

Preset 1 Preset 2 Preset 3 Preset 1 Preset 2 Preset 3

Input Bal.In, UnBal., Dig-In UnBal. UnBal. Bal.In UnBal. Bal.In Unbal.

Date Time 2003 - 2099 2004 2004

JAN - DEC JAN JAN

1 - 31 1 1

AM/PM 0:00 - 11:59 AM 0:00 AM 0:00

DateForm M/D/Y, D/M/Y M/D/Y D/M/Y

RecFormat Stereo/Mono Stereo Mono Stereo Stereo Stereo Stereo

PCM/MP2/MP3 MP3 MP3 PCM PCM PCM MP3

16/22.05/24/32/44.1/48 (kHz) 44.1 44.1 44.1 44.1 48 44.1

384 - 32 (kbps) 160 32 N/A N/A N/A 160

wave/BWF/mp2/mp3 (File Format) mp3 mp3 wave wave wave mp3

wav/bwf (BWF Extension) wav wav wav wav wav wav

PreRecord On/Off On On Off On On On

Auto Mark On/Off On On Off On On On

ManualTR On/Off On On On On On On

Auto TRK On/Off Off On Off Off Off Off

1/5/10/15/30 min, 1/2/6/8/12/24 hrs 5 min* 5 min* 5 min* 5 min* 5 min* 5 min*

Seamls Ply On/Off Off Off Off Off Off Off

SilentSkp On/Off Off Off Off Off Off Off

1 - 5 sec (1 sec steps) 3 sec* 3 sec* 3 sec* 3 sec* 3 sec* 3 sec*

-60 - -20dB (5dB steps) -40dB* -40dB* -40dB* -40dB* -40dB* -40dB*

Auto Cue On/Off Off Off Off Off Off Off

5 - 95 msec (5 msec steps) 20 msec* 20 msec* 20 msec* 20 msec* 20 msec* 20 msec*

-60 - -20dB (5dB steps) -40dB* -40dB* -40dB* -40dB* -40dB* -40dB*

Play Mode Normal/Repeat All/Repeat TRK/Single Normal Normal Normal Normal Normal Normal

EDL Play On/Off Off Off Off Off Off Off

Remote StartPause/StrtPausTR/EDL Mark/Manual TRK StartPause EDL Mark Manual TRK StartPause StartPause StartPause

ID1Dscrpt 6-digit ASCII code 000000 000000 000000 000000 000000 000000

ID2Origin 6-digit ASCII code 000000 000000 000000 000000 000000 000000

ID3OrgRef 6-digit ASCII code 000000 000000 000000 000000 000000 000000

Default ---

Application: Music Meeting Highest Quality High Quality Highest Quality Music

Compressed Compressed Uncompressed Uncompressed Uncompressed Compressed

*Default when the function has been set to On.

- 25 -

General Menu procedure:

1. With the PMD570 at Stop, push and release the

MENU/STORE button.

2. Turn the Jog Wheel to scroll to the choice within

Menu.

3. When displayed push and release the Jog Wheel to

select that Menu choice.

4. Turn the Jog Wheel to scroll through the sub-menu

displays.

5. When the desired parameter or value is displayed

push and release the Jog Wheel to select it.

6. Repeat steps 2-5 as desired.

7. When done push and release the MENU/STORE

button to save your changes, or push and release

the Stop CANCEL button to cancel them.

How to select input(s) for recording

Audio input(s) and audio channels for recording are

selected using the Input Menu.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Input is displayed and

flashing.

EDIT

MARK

M. RESET

REC BAL

MARK

DISPLAY

SHIFT

HEADPHONE LEVEL

POWER ON/OFF

MENU/STORE

UNDO

SOLID STATE RECORDER PMD570

CANCEL

PUSH

ENTER

REC LEVEL/SELECT

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

LINE

S.SKIP -dB

over

010

LOCK

1 2

6. Turn the Jog Wheel to tab through the input

choices.

7. When correct push and release the Jog Wheel.

Display returns to Input flashing.

8. Turn the Jog Wheel to select other Menu choices

for editing. When editing the Preset is complete

push and release the MENU/STORE button to

accept the changes, or push and release the CAN-

CEL button to exit Menu mode without making

any changes.

Notes:

• The Bal.In and Unbal. input choices are line level

inputs. LINE is displayed on the stop and record

displays.

TIME

REC REMAIN L

-dB over

1220

-dB

LINE

Preset defaults

The default Menu settings for Presets 1, 2 and 3 can

be restored by the Default Menu choice, page 39.

Preset1 default uses the unbalanced (ANALOG IN

RCA jacks), line level, inputs. It is set for stereo

channel music recording with MP3 compression.

Selecting a higher bit rate (kbps) will improve audio

quality but decrease available recording time.

Preset2 default uses the unbalanced (ANALOG IN

RCA jacks), line level, inputs. It is set for Mono

channel recording with MP3 compression. The

settings are appropriate for recording meetings:

quality acceptable for voice recording, long recording

times possible, and capability to transfer files on

internet.

Preset3 default uses the balanced (BALANCED IN

XLR jacks) inputs. It is set for stereo channel CD

quality recording with no compression.

See chart below on page 24 for complete default

settings.

Note:

Setting any preset to default resets the main clock. We

recommend you set the date when you set a preset to

default. See page 26.

Example

display

5. Push and release the Jog Wheel while Input is

displayed and flashing. The input choice (Bal.In,

UnBal., or Dig-In) is flashing.

Example

display

LINE

• The PMD570 records only from the selected

input. For example if the input selected Bal.In and

no input source is connected to the XLR jacks the

PMD570 will record silence. Watch the level

meters while in record pause, if the level stays at

one display bar check for the proper input selec-

tion.

How to set or change the Date and time

The date and time are written on each audio track

(file) when the track is started. When an audio track

is viewed on a computer this date and time appears

as when the file was 'modified'. (US Date Form is

illustrated.)

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Date/Time is displayed

and flashing.

- 26 -

5. While Date/Time is flashing push and release the

Jog Wheel. Date and time information will be

displayed with the month flashing.

6. Turn the Jog Wheel until the current month is

displayed.

7. Push and release the Jog Wheel to confirm the

month. The day will be flashing.

Example

display

Example

display

8. With the day flashing turn the Jog Wheel to tab

through days.

9. When the day is correct, push and release the Jog

Wheel to confirm. The year will be flashing.

Example

display

10. With the year flashing turn the Jog Wheel to tab

through years. 2003-2099 are selectable.

11. When the year is correct, push and release the Jog

Wheel to confirm. The hour will be flashing.

Example

display

12. With the hour flashing turn the Jog Wheel to tab

through hours. AM, PM will change when you

pass 12, check that it is correct.

13. When the hour and AM/PM are correct push and

release the Jog Wheel to confirm. The minute will

be flashing.

Example

display

14. With the minute flashing turn the Jog Wheel to tab

through minutes (00 through 59).

15. When the minute is correct, push and release the

Jog Wheel to confirm. Seconds will be flashing.

Example

display

13. With seconds flashing turn the Jog Wheel to tab

through seconds (00 through 59).

14. When the second is correct, push and release the

Jog Wheel to confirm. Date/Time will be flashing

15. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Notes:

• The Date/Time settings will remain for about 5

years if the PMD570 is not plugged in.

• Date/Time setting applies to all three presets.

• If you set any of the three Presets to default, you

have to reset the Date and Time.

stored will be

displayed

briefly

- 27 -

How to set or change the Date Form

The date form is the date order month/day/year or

day/month/year.

The US default is M/D/Y (month/day/year).

The Europe default is D/M/Y (day/month/year).

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Date Form is displayed

and flashing.

Example

display

5. While Date Form is flashing, push and release

the Jog Wheel. The D/M/Y (or M/D/Y) will be

flashing.

Example

display

6. Turn the Jog Wheel to toggle between D/M/Y and

M/D/Y.

7. When correct, push and release the Jog Wheel.

The display returns to Date Form flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

stored will be

displayed briefly

- 28 -

RecFormat

The PMD570 can record in a variety of compression

algorithm, associated bit rate, file format, and record-

ing type (channels recorded) parameters. See explana-

tions and chart below.

First determine the input connection you want to

record from; BALANCED IN, ANALOG, or DIGI-

TAL IN. Second set the Preset Menu Input choice to

correspond with the connection: Bal.In, Unbal., or

Dig-IN.

RecFormat parameters:

Channels

The recording channel can be stereo (two discrete

channels of recording) or mono (one channel of

recording). Set to match your inputs.

File Format

The file format (3 character computer file extension)

can be .wav, .bwf, .mpg or .mp3. Broadcast Wave

format, used primarily in the broadcast industry,

includes identification codes in the file header.

Chart of RecFormat Parameters

The PMD570 parameter menu settings are extensive

but limited to plausible combinations.

This table of parameters reflects the menu setting

sequence.

Column

1. input

2. channel(s)

3. audio format

4. sampling frequency

5. bit rate

6. file format

7. extension (if BWF chosen in 6)

44.1

22.05

44.1

22.05

44.1

22.05

44.1

22.05

160,128,80,64,40,32

PCM

45 6

.wav/

.bwf

- - - (1536)

Bal.In, Unbal. or Dig-In

Stereo

Mono

MP2

MP3

PCM

MP2

MP3

384,256,192,128,96,64

320,256,160,128,80,64

192,128,96,64,48,32

.mpg/

.bwf

.mp3/

.bwf

.wav/

.bwf

.mpg/

.bwf

.mp3/

.bwf

- - - (1412)

- - - (1024)

- - - (768)

- - - (704)

- - - (512)

.mp3

160,128,80,64,40,32 .mp3

.wav/

.bwf

- - - (768)

- - - (705.6)

- - - (512)

- - - (384)

- - - (352)

- - - (256)

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

320,256,160,128,80,64

Algorithm

The PMD570 can record using three methods,

PCM and two compression algorithms: MP2,

and MP3.

PCM (Pulse Code Modulation) is

uncompressed. These are high quality audio

files used in the recording industry. For

example, for recording CD quality music.

MP3 is highly compressed, and creates

relatively small files that are commonly used

to share files on the internet.

MP2 is a compressed file format that is

commonly used in broadcasting. MP2 audio is

a higher quality than MP3. This is especially

useful when lower bitrates are used. If you are

a news reporter you will probably want to

record in Broadcast Wave format (BWF)

using MP2 compression.

Marantz Professional's PMDEdit application

software and other professional level computer

applications are available for computer process-

ing of PCM, MP2 and MP3 files.

Sampling Frequency

Sampling frequency is measured in kHz (kilo-

hertz). The sampling frequency is the number of

samples of the audio wave(s) per second. For

example, the PMD570 can record PCM at 48

kHz that is 48,000 samples per second.

Bit Rate

The bit rate for PCM is constant for each

sampling frequency. MP2 and MP3 can be

recorded at a number of different bit rates.

- 29 -

How to set or change the RecFormat parameters

This table of RecFormat parameters reflects the menu

setting procedure of those parameters.

Note:

The bitrate changed when the channel changed

to Mono.

The stereo bitrate was 128 kbps, consisting of

two channels at 64 kbps each. The change to

mono thus changed the bitrate to 64 kbps.

7. The compression algorithm will be flashing

(Col. 3).

While the compression algorithm is flashing turn

the Jog Wheel to tab between MP3, PCM, and

MP2. Push and release the Jog Wheel when

correct.

Mono, will be displayed and flashing. (Col. 2)

6. While the channel information is flashing turn

the Jog Wheel to toggle between stereo and

mono. Push and release the Jog Wheel when

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so RecFormat is displayed

and flashing.

Example

display

kbps

kHz

kbps

kHz

correct.

Example display

shows change to

mono.

kbps

kHz

Example

display shows

no change.

8. The sampling frequency (kHz) will be flashing

(Col. 4).

While the sampling frequency is flashing turn

the Jog Wheel to tab through available sampling

frequency choices (available frequencies depend

on channel, and compression algorithm choice).

Push and release the Jog Wheel when correct.

Example display

shows change to

48.00 kHz.

kbps

kHz

9. The bitrate (kbps) will be flashing (Col. 5).

While the bitrate is flashing turn the Jog Wheel to

tab through available bitrate choices.

Example

display shows

change to 32

kbps.

kbps

kHz

44.1

22.05

44.1

22.05

44.1

22.05

44.1

22.05

160,128,80,64,40,32

PCM

45 6

.wav/

.bwf

- - - (1536)

Bal.In, Unbal. or Dig-In

Stereo

Mono

MP2

MP3

PCM

MP2

MP3

384,256,192,128,96,64

320,256,160,128,80,64

192,128,96,64,48,32

.mpg/

.bwf

.mp3/

.bwf

.wav/

.bwf

.mpg/

.bwf

.mp3/

.bwf

- - - (1412)

- - - (1024)

- - - (768)

- - - (704)

- - - (512)

.mp3

160,128,80,64,40,32 .mp3

.wav/

.bwf

- - - (768)

- - - (705.6)

- - - (512)

- - - (384)

- - - (352)

- - - (256)

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

320,256,160,128,80,64

Push and release the Jog Wheel when correct.

continues

5. While RecFormat is flashing push and release

the Jog Wheel. Channel information, Stereo or

First choose Bal.In or Unbal. (Col. 1) from the Input

menu choice (see page 25.)

- 30 -

10. The file extension for the chosen file format will

be flashing (Col. 6).

While the file extension is flashing turn the Jog

Wheel to tab through available file format choices.

How to set or change the RecFormat parameters

continued

Example

display

11. When correct, push and release the Jog Wheel.

The display returns to RecFormat flashing.

12. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

44.1

22.05

44.1

22.05

44.1

22.05

44.1

22.05

160,128,80,64,40,32

PCM

45 6

.wav/

.bwf

- - - (1536)

Bal.In, Unbal. or Dig-In

Stereo

Mono

MP2

MP3

PCM

MP2

MP3

384,256,192,128,96,64

320,256,160,128,80,64

192,128,96,64,48,32

.mpg/

.bwf

.mp3/

.bwf

.wav/

.bwf

.mpg/

.bwf

.mp3/

.bwf

- - - (1412)

- - - (1024)

- - - (768)

- - - (704)

- - - (512)

.mp3

160,128,80,64,40,32 .mp3

.wav/

.bwf

- - - (768)

- - - (705.6)

- - - (512)

- - - (384)

- - - (352)

- - - (256)

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

.wav/

.bwf

320,256,160,128,80,64

Note:

If BWF is chosen an additional step (Col. 7)

permits choosing between a .bwf or .wav file

extension. Default is .wav.

Example display

with bwf selected

at Col. 6.

Pushing and releasing the Jog Wheel with

bwf selected switches to the column 7 default

(wav). Turn the Jog Wheel to switch between

.wav and .bwf.

Example

display

Note:

Choosing wav in column 6 results in a WAV

format file with a .wav extension. Choosing

wav in column 7 results in a BWF format file

with a .wav extension.

Stored is

displayed

briefly.

(or push and release the Stop CANCEL button

to cancel all changes).

- 31 -

Pre Record

When PreRecord is on and the PMD570 is in record

pause, it 'listens to' the selected audio input(s) and

continuously buffers 2 seconds of audio. When record-

ing begins the 2 second pre record buffer is written at

the beginning of the new track. The 2 seconds give you

time to precisely start recording without missing the

first seconds of audio.

Default setting is Off.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so PreRecord is displayed and

flashing.

Auto Mark

The Auto Mark Menu item turns the automatic EDL

mark feature on or off. See page 19 to manually add

EDL marks.

When On, during recording, a record pause (pushing

and releasing the Play/Pause button , then pushing

and releasing the Record button to resume record-

ing) automatically adds an EDL mark.

When Off, a record pause does not add an EDL mark to

the track.

Default setting is Off.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Auto Mark is displayed and

flashing.

Example

display

5. While PreRecord is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and

Off.

7. When correct, push and release the Jog Wheel.

The display returns to PreRecord flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Example

display

Example

display

5. While Auto Mark is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and

Off.

Example

display

7. When correct, push and release the Jog Wheel.

The display returns to Auto Mark flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

stored will

be displayed

briefly

stored will be

displayed

briefly

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Manual TR

When Manual track incrementing is On, during

recording push and release the Record button to

increment the track. A new track is created at that

point. A slight break can be heard during playback. See

Seamless Play, page 33, to eliminate the audio break

during playback.

When Manual track incrementing is Off, pushing and

releasing the Record button during recording does

nothing.

Default setting is On.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Manual TR is displayed

and flashing.

- 32 -

Auto Trk

With Auto Trk (Automatic Track incrementing) On,

new track is begun automatically at specified intervals

of recording time.

Automatic Tracks are silent. Playback across an

Automatic Track does not produce any sound.

Automatic Track can be set to increment every 1, 5, 10,

15, or 30 minutes or every 1, 2, 6, 8, 12, or 24 hours.

Minute track

Automatic Tracks make finding a particular point in a

recording easier. For example if a new track is begun

every minute. During playback the Minute Tracks

make finding a particular passage easier because of the

relationship between track numbers and time. During

playback you can select track 3 to play approximately

the 3rd minute of recording. To go directly to the

beginning of the 10th minute select track 10, etc.

Track Recording time

# minutes:seconds

1 ............................ 0:00 - 1:00

2 ............................ 1:01 - 2:00

3 ............................ 2:01 - 3:00

Note:

If you intend to transfer your PMD570 audio recording

to a CD the Auto Track function can make the CD

easily navigable without requiring any post production

to divide files into tracks.

Default setting is Off.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Auto TRK is displayed and

flashing.

Example

display

5. While Manual TR is flashing, push and release

the Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and

Off.

Example

display

7. When correct, push and release the Jog Wheel.

The display returns to Manual TR flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode. Example

display

stored will be

displayed

briefly

- 33 -

5. While Auto Trk is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and Off.

Example

display

7. When correct, push and release the Jog Wheel.

The display switches to time interval flashing.

Example

display

8. Turn the Jog Wheel to tab through the time

interval choices (1, 5, 10, 15, or 30 minutes, or 1,

2, 6, 8, 12, or 24 hours). When correct, push and

release the Jog Wheel. The display returns to Auto

TRK flashing.

Example

display

9. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

SeamlsPly (Seamless Play)

When Seamless Play is On, during playback in Play

Modes Normal and Repeat All, multiple tracks* will

be played back in sequence without any break (space)

between the tracks.

When Seamless Play is Off, during playback multiple

tracks will be played back in sequence with breaks

(brief periods of silence) between the tracks.

*Tracks created manually during a continuous record-

ing.

Default setting is Off.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so SeamlsPly is displayed

and flashing.

5. While SeamlsPly is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and Off.

Example

display

Example

display

7. When correct, push and release the Jog Wheel. The

display returns to SeamlsPly flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE button

to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

stored will

be displayed

briefly

stored will be

displayed

briefly

- 34 -

SilentSkp (Silent Skip)

Silent skip automatically pauses recording when there

is a period of silence and resumes recording when

sound resumes. Sometimes this feature is referred to

as voice activated recording. Silent Skip looks for

sound below a preset level for a preset period of time.

When that occurs the PMD570 switches to record

pause. When a signal of about -30 dB is input record-

ing resumes.

The SilentSkp Menu settings permit:

• turning Silent Skip On or Off

• adjusting the silent time period in one second

intervals from 1 to 5 seconds, and

• adjusting the margin sound level that defines

silence in -5 dB increments from -20 to -60 dB.

When the Auto Mark menu choice is at On resump-

tion of recording after a record pause by Silent Skip

adds an EDL mark.

Default settings are Off, 3 seconds, and -40 dB.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so SilentSkp is displayed and

flashing.

5. While SilentSkp is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and

Off.

Example

display

-dB

Example

display

-dB

7. When correct, push and release the Jog Wheel. The

display switches to time interval flashing.

Example

display

-dB

8. Turn the Jog Wheel to tab through the silent time

interval choices (1 - 5 seconds).

When correct, push and release the Jog Wheel.

The display switches to -dB flashing.

9. Turn the Jog Wheel to tab through the margin

sound level choices (-20 through -60 dB in 5 dB

units). When correct, push and release the Jog

Wheel. The display returns to SilentSkp flashing.

Example

display

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Note:

When Silent Skip is On S.SKIP appears in the display

during stop, record and playback.

-dB

Example

display

S.SKIP

TRACK

TRACKTIME L

-dB

S.SKIP -dB

over

10. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

-dB

stored will be

displayed

briefly

Auto Cue

Auto Cue skips the silence at the beginning of an

audio track and pauses playback at the point where the

audio begins (sound is loud enough for long enough).

You can adjust how loud (how many dB) and how

long (milliseconds) the audio has to be before play-

back is cued.

The Auto Cue Menu settings permit:

• turning Auto Cue On or Off

• adjusting the millisecond period in 5 millisecond

intervals from 5 to 95 milliseconds, and

• adjusting the margin sound level that defines

where audio begins in -5 dB increments from -20

to -60 dB.

If Normal Play Mode is selected (see Play Mode),

when the end of the track is reached Auto Cue pauses

playback cued to the sound of the next track.

Default settings are Off, 20 milliseconds, and -40 dB.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Auto Cue is displayed and

flashing.

- 35 -

-dB

Example

display

5. While Auto Cue is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and Off.

Example

display

7. When correct, push and release the Jog Wheel.

The display switches to milliseconds flashing.

Example

display

8. Turn the Jog Wheel to tab through milliseconds

(05 - 95 milliseconds).

When correct, push and release the Jog Wheel.

The display switches to -dB flashing.

Example

display

9. Turn the Jog Wheel to tab through the margin

sound level choices (-20 through -60 dB in 5 dB

units). When correct, push and release the Jog

Wheel. The display returns to Auto Cue flashing.

10. If you are done making Menu changes to the

Preset, push and release the MENU/STORE button

to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Note:

When Auto Cue is turned On, the PMD570 will

continue to search until audio of a significant level is

located within the playing track - where the unit will

then enter Play/Pause. To end this process, either

press stop or turn Auto Cue off in the menu.

stored will be

displayed

briefly

- 36 -

Play Mode

Play Mode lets you choose what happens when the

end of a track is reached during playback.

Normal

When playback reaches the end of a track it automati-

cally begins the next track until all tracks on the CF

card have been played. After the last track on the CF

card, playback stops. The PMD570 returns to stop

mode.

Repeat All

During playback all tracks are repeated. Same as

Normal except when playback reaches the end of the

last track it automatically starts playback from the

beginning of the first track.

Repeat TRK

When playback reaches the end of the track it auto-

matically starts playing again at the beginning of the

same track.

Single

When playback reaches the end of the track it auto-

matically pauses at the beginning of the next track.

Note:

For other methods of repeat playback see How to A-B

repeat on page 19 and/or How to Edit EDL marks on

page 45.

Default setting is Normal.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Play Mode is displayed

and flashing.

Example

display

6. Turn the Jog Wheel to tab through the Play Mode

choices: Normal, Repeat All, Repeat TRK and

Single.

Example

display

7. When the desired Play Mode is displayed, push

and release the Jog Wheel. The display returns to

Play Mode flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE button

to save your changes,

5. While Play Mode is flashing, push and release the

Jog Wheel. The currently selected mode will be

flashing.

stored will

be displayed

briefly

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

EDL Play

The EDL Play menu turns EDL Play On or Off.

Off

PMD570 playback does not respond to EDL mark

instructions.

PMD570 follows EDL mark instructions regarding

playback order, skipping sections of recording on the

memory card, or repeating (EDL A-B repeat) a section

of recording on the memory card. See page 45.

Note:

If EDL Play is at On and there are no EDL marks on

the CF card playback is not available. Switch to Off

for playback.

Default setting is Off.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so EDL Play is displayed and

flashing.

5. While EDL Play is flashing, push and release the

Jog Wheel. The On or Off will be flashing.

6. Turn the Jog Wheel to toggle between On and

Off.

7. When correct, push and release the Jog Wheel.

The display returns to EDL Play flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

- 37 -

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Example

display

Example

display

Remote

The Remote Menu setting is for a wired remote (not

supplied) plugged into the REMOTE1 Phone jack.

(The optional remote Marantz model RC600 that

plugs into the REMOTE2 TRRS connector is plug-

and-play and has no menu choices.)

There are four remote modes:

• StartPause

Start or pause during recording or playback. If

Auto Mark is ON and EDL mark is added when

recording resumes.

• StrtPausTR

Start or pause during recording or playback. After

a record pause, recording continues on the next

track.

• EDL Mark

During record or playback switch remote to on to

add an EDL mark.

• Manual TRK

During recording, switch remote to on to incre-

ment the track. A new track is created at that

point. There is no break in recording.

Default setting is StartPause.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so Remote is displayed and

flashing.

Example

display

5. While Remote is flashing, push and release the

Jog Wheel. The current remote setting will be

flashing.

6. Turn the Jog Wheel to tab through the remote

stored will

be displayed

briefly

Example

display during

EDL play.

-dB

over

1220

-dB

TRACKTIME

TRACK

- 38 -

settings: StartPause, StrtPausTR, EDL Mark, and

Manual TRK.

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

ID1Dscrpt, ID2Origin, ID3OrRef (Broadcast

Wave ID numbers)

Broadcast Wave Format (.bwf/.wav) has three identi-

fication numbers in the header (Extension Chunk):

Description, Originator, and Originator Reference.

For example, if the IDs are used for a broadcast

station ID1 could be the identifier of the station, ID2

could be used for the department code, and ID3 for

the badge number of the reporter.

Default is all ID numbers at 000000.

1. From stop push and release the MENU/STORE

button.

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset.

4. Turn the Jog Wheel so ID1Dscrpt, ID2Origin, or

ID3OrRef is displayed and flashing.

Example

display

5. While the ID# is flashing, push and release the Jog

Wheel. The first number of the ID will be flashing.

6. Turn the Jog Wheel to tab through numbers (and

alphabetic characters).

Example

display

Example

display

7. When correct, push and release the Jog Wheel.

The number position will be flashing.

Example

display

Repeat steps 6 and 7 until all ID numbers are

correct.

8. After the last number, push and release the Jog

Wheel. The display returns to the ID# flashing.

9. If you are done making Menu changes to the

Preset, push and release the MENU/STORE button

to save your changes,

(or push and release the Stop CANCEL button

to cancel all changes).

Display returns to stop mode.

Example

display

7. When correct, push and release the Jog Wheel.

The display returns to Remote flashing.

8. If you are done making Menu changes to the

Preset, push and release the MENU/STORE

button to save your changes,

stored will be

displayed

briefly

stored will be

displayed

briefly

- 39 -

Default (Menu Default)

The Default menu choice resets all Menu (not Edit

Menu) items in the Preset to their default values. This

is handy if you are setting up a new Preset configura-

tion because you don't have to check all the settings,

you know they are at the default.

Note:

Putting any Preset to its default also resets the main

clock.

AM/PM will be flashing to remind you that the Date

and Time are no longer current. See page 26 for how

to set the Date and Time.

Defaults are listed for each menu item.

Notes:

• US defaults are used for illustration.

1. From stop push and release the MENU/STORE

button.

Preset1, Preset2 or Preset3 flashing.

Example

display

2. Turn the Jog Wheel to select Preset1, 2 or 3.

3. Push and release the Jog Wheel to accept the

selected Preset. A Menu item will be flashing.

LINE

TIME

REC REMAIN L

-dB

over

-dB

Example

display

4. Turn the Jog Wheel so Default is flashing.

5. Push and release the Jog Wheel. Execute flashing.

6. If you are sure you want to set the Preset to its

default push and release the Jog Wheel (or push

and release the Stop CANCEL button to

cancel).

EXECUTING will be displayed for a couple of

seconds while the default is being written.

The display will briefly display Done.

Display returns to stop mode.

Example

display

LINE

TIME

REC REMAIN L

-dB

over

-dB

- 40 -

Renumber (tracks)

If you have erased tracks from the CF card it can be

easier to locate recordings if the tracks are renumbered.

1. Select the Renumber EDIT Menu choice:

While in stop, push and hold the

SHIFT

button

while you push and release the MENU/STORE

button.

Renumber is displayed and flashing.

2. While Renumber is flashing (5 seconds) push

and release the Jog Wheel. Renum OK? will be

displayed and flashing.

3. While Renum OK? is flashing push and release

the Jog Wheel.

EXECUTING will be displayed and the

percentage executing will increase to 100%.

100% Done will be displayed momentarily

The PMD570 and the display will return to stop

mode.

*To cancel push and release the Stop/CANCEL button

TrkERASE

TrkERASE lets you erase a chosen track. Identify the

track number you want to erase.

1. Select the TrkERASE EDIT Menu choice:

While in stop, push and hold the

SHIFT

button

while you push and release the MENU/STORE

button. Renumber will appear (flashing) in the

display.

TRACK

2. While Renumber is flashing (for about 3 seconds)

turn the Jog Wheel until TrkERASE is flashing.

3. Push and release the Jog Wheel while TrkERASE

is flashing (for about 5 seconds). The display

switches to TRACK 001 flashing.

4. Turn the Jog Wheel so the track number you want

to erase is flashing.

Example

display

5. Push and release the Jog Wheel*.

EXECUTING will be displayed momentarily.

Display returns to step 3 so you can erase another

track.

Push and release the Stop/CANCEL button to

exit.

Note:

Tracks are not automatically renumbered. For example

if you have 5 tracks and erase track 3, the tracks will

then be 1, 2, 4, and 5.

The recording time (file space on the CF card) used by

the erased track is available for recording.

*To cancel, push and release the Stop/CANCEL button

TRACK

- 41 -

TrkMkERASE

TrkMkERASE lets you erase all EDL marks of the

selected track.

1. Select the TrkMkERASE Menu choice:

While in stop, push and hold the

SHIFT

button

while you push and release the MENU/STORE

button. Renumber will appear (flashing) in the

display.

3. Push and release the Jog Wheel while

TrkMKERASE is flashing (for about 5 seconds).

The display switches to MARK 001 flashing.

4. Turn the Jog Wheel so the track number you want

to erase the marks from is flashing.

5. Push and release the Jog Wheel*.

EXECUTING will be displayed momentarily.

The display returns to step 3 so you can erase

another mark.

Push and release the Stop/CANCEL button to

exit.

Note:

EDL marks will automatically be renumbered.

*To cancel, push and release the Stop/CANCEL

button .

MARK

2. While Renumber is flashing (for about 3 seconds)

turn the Jog Wheel until TrkMkERASE is flashing.

Example

display

AllMkERASE

AllMkERASE erases all EDL marks on the CF card.

1. Select the AllMkERASE Edit Menu choice:

While in stop, push and hold the

SHIFT

button

while you push and release the MENU/STORE

button. Renumber will appear (flashing) in the

display.

2. While Edit Menu is flashing (for about 3 seconds)

turn the Jog Wheel until AllMkERASE is dis-

played and flashing.

3. While AllMkERASE is flashing (5 seconds) press

and release the Jog Wheel. AllMkErOK? will be

flashing. The display asks you to confirm that you

want to erase all EDL Marks on the CF card.

4. While AllMkErOK? is flashing press and release

the Jog Wheel to confirm. (Or press and release

the Stop/CANCEL button to cancel.)

EXECUTING will be displayed momentarily.

Done will be displayed momentarily.

The PMD570 and the display will return to stop

mode.

- 42 -

FORMAT (CF card)

Formatting a CF card erases all audio files on the card

and prepares it for use in the PMD570.

The CF card formats used by the PMD570 are Win-

dows compatible. You can copy audio files using a

Windows compatible computer* that can read a CF

card or be connected via the I/O port.

*Or a Macintosh computer that can recognize Win-

dows compatible removable drives.

Notes:

CF cards with less than 2 GB capacity are automatically

formatted FAT16 (FAT = File Allocation Table).

CF cards with 2 - 8 GB capacity are automatically format-

ted FAT32.

The maximum CF card that can be formatted in the

PMD570 is 8 GB. If larger cards are used please format in

your computer.

To FORMAT a CF card:

1. Select the FORMAT Edit Menu choice:

While in stop, push and hold the

SHIFT

button

while you push and release the MENU/STORE

button. Renumber will appear (flashing) in the

display.

3. Push and release the Jog Wheel while FORMAT is

flashing (for about 5 seconds). The display

switches to FORMAT OK? flashing.

FORMAT OK?

flashing in the

display.

-dB

over

1220

-dB

LINE

4. While FORMAT OK? is flashing press and release

the Jog Wheel to confirm. (Or press and release

the STOP button to cancel.)

EXECUTING will be displayed and progress to

100%.

2. While Renumber is flashing (for about 3 seconds)

turn the Jog Wheel until FORMAT is flashing.

The display asks you to confirm that you want to

format the CF card. Formatting the CF card will

erase all recordings on the card.

The PMD570 returns to stop mode.

BlankCard will be displayed.

Done will be displayed momentarily.

- 43 -

I/O port

The CF card in the PMD570 is a Windows formatted

PC compatible CF card. The CF card can be removed

from the PMD570 and read by a computer with a

compatible CF card slot, or, using an I/O cable connec-

tion between the PMD570 I/O jack and your

computer's I/O port the CF card can remain in the

PMD570 and appear as a drive on your computer.

How to connect via the I/O port

1. Connect a cable to the PMD570 I/O jack and your

computer's I/O port.

Your computer.

BALANCED IN

REF=+16dBu/0dBFS

+ 24 + 24

GROUND

HOT (+) COLD (-)

IN OUT

ANALOG DIGITAL

OUT

(SPDIF)

I / O RS 232C

REMOTE2

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

US LISTED

AUDIO SYSTEM

69 FM

SERIAL NO.

WARNING: SHOCK HAZARD- DO NOT OPEN.

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.

AC IN

MODEL NO. PMD570

AC120V 60HZ 0.5A

MADE IN JAPAN

REMOTE1

2. Select I/O Online:

From power off, push and hold the MENU/

STORE button while you power on by pushing

and releasing the POWER ON/OFF button.

The PMD570 cannot be used while Online.

Power off and back on to resume recording or play-

back on the PMD570.

While Online the CF card in the PMD570 appears as a

removable device on your computer. The audio files

are in a folder that is named MPGLANG1.

CAUTION: Only copy audio files (tracks) to other

volumes. Do not modify or delete the EDL file. If the

EDL file is missing or damaged PMD570 will not be

able to recognize EDL marks.

Do not remove a CF card during "I/O Online" mode.

Data and the CF card can be damaged.

See the enclosed CD-ROM for demo PMDEdit

software for computer audio file manipulation.

PMDEdit is a full featured software suite designed for

Marantz Professional digital recorders available for

purchase at www.d-mpro.com.

What will appear on your computer is a file titled

PMD670.EDL* and a folder (directory) titled

MPGLANG1. Files within the MPGLANG1 folder

are numbered from 1001 through the number of tracks

recorded to a maximum of 1999. The file extension

will be .mp3, .wav, .bwf or .mpg depending on the

RecFormat parameters that were set for the recording.

*PMD670 is used to insure compatibility between PMD670

and PMD570 PMDEdit operations.

Diagram of file structure (assuming .mp3 files).

Changes made to file names or file structure made on

your computer will prevent file recognition and

therefore playback in the PMD570.

I/O Online is

displayed

Root PMD670.EDL

MPGLANG1

1001.MP

1002.MP

1003.MP

1999.MP

EDL marks

EDL* (Edit Decision List) marks help you locate

specific points in the recording.

During regular playback EDL marks are silent.

*The EDL marking system is proprietary to Marantz Professional

solid state recorders.

EDL marks can be created during recording manually

or automatically. EDL marks can also be added during

playback or play pause at any time.

• During stop or play pause you can search for EDL

marks by pushing and holding SHIFT and turning

the Jog Wheel.

• You can change an EDL mark into a skip mark or

an A-B repeating point. That lets you create

custom playback sequences which include skip-

ping audio between EDL marks or repeating audio

between EDL marks. See How to Edit EDL marks

on page 45.

• Up to 255 EDL marks can be added to a CF card.

EDL marks are numbered consecutively starting at

one.

• During recording you can manually add an EDL

mark by pressing and holding the SHIFT button

while pressing and releasing the MARK button.

• PMDEdit computer software, is specifically

designed for the PMD570 and PMD670. Marantz

Professional's PMDEdit application software

recognizes EDL marks generated by the PMD570.

This is especially useful for editing audio files on

your PC. For more information visit www.d-

mpro.com.

EDL marks are initially entered as 'Point' marks. An

EDL mark can also be a Skip mark, Loop_A mark, or

Loop_B mark.

Skip marks

When EDL Play is at On, playback segments that

begin with a Skip mark are skipped. Although the

skipped segment remains on the CF card it plays back

as if it has been erased.

Loop marks

When EDL Play is at On, when there is a Loop_A and

a Loop_B mark on the CF card, playback repeats

between the A and B marks.

- 44 -

Locating EDL Marks

From stop or play pause push and hold the SHIFT

button while you turn the Jog Wheel to scroll through

the EDL marks on the CF card.

Note:

If you push and hold the SHIFT button and turn the

Jog Wheel during playback, the PMD570 automati-

cally switches to play pause to scroll through the EDL

marks.

EDL Mark location

(recording time from the

beginning of the track).

Example

display.

-dB over

1220

-dB

TRACKTIME

MARK

EDL Mark

number

EDL Mark

type

MARK displayed

(instead of TRACK)

EDL marks and the beginning of a Track

EDL marks are not automatically placed at the begin-

ning of tracks. If you want your custom playback

sequence to include track beginning points add EDL

Marks to coincide with track beginning points by:

a. Start playback by pressing and releasing the Play/

Pause button and then pause playback by

pressing and releasing the Play/Pause button

again.

b. Push and release Track jump forward or Track

jump reverse until the desired track number is

displayed and TRACK TIME is 000:00:00 .

c. Push and hold SHIFT while you push and release

the MARK button.

Custom playback sequences

EDL Marks are numbered consecutively from 001

and automatically renumbered when an EDL Mark is

added or erased. Playback is also consecutive from the

point that playback begins.

EDL Mark custom playback can:

Skip playback from the beginning of a 'Skip' EDL

Mark to the beginning of the next EDL Mark.

A-B loop from a 'Loop_A' EDL Mark to a 'Loop_B'

EDL Mark.

How to Edit EDL marks:

All EDL marks are initially entered as 'Point' marks.

From stop or play pause, push and hold the SHIFT

button while you turn the Jog Wheel to tab through

the EDL marks.

- 45 -

EDL mark types

Point

Nothing happens during EDL playback.

Skip

Audio following a Skip EDL mark will be skipped

during EDL playback. Playback will skip to the

beginning of the next EDL mark.

The skipped EDL audio is not erased. The recording is

still on the CF card. The skipped EDL recording will

play if EDL Play is at Off. You can change the EDL

mark type later.

Loop_A and Loop_B

During EDL playback audio following an EDL Point

mark is played, and audio following an EDL Skip

mark is skipped. When EDL playback reaches the

EDL Loop_B point, playback switches to the EDL

Loop_A point and continues.

There can only be one EDL A-B loop on a CF card.

When a 'Loop_A' or 'Loop_B' exists on a CF card and

another is created the old mark automatically changes

to a 'Skip'.

Erase

When an EDL mark is erased the remaining EDL

marks are automatically renumbered from 1 through

the number of EDL marks on the CF card.

EDL Play

See page 37 for instructions on turning the EDL Play

Menu item On or Off.

OFF: When the EDL Play is Off PMD570 playback

does not respond to EDL mark instructions.

ON: When EDL Play is ON PMD570 playback

follows EDL mark instructions regarding playback

order, skipping sections of recording on the memory

card, or repeating a section of recording on the

memory card.

Note:

If the EDL Play Menu item is at On and there are no

EDL marks on the CF card, playback is not available.

Switch the EDL Play Menu item to Off for playback.

Example

display

-dB

over

1220

-dB

TRACKTIME

MARK

When the EDL mark to be edited is displayed release

the SHIFT button and immediately push and release

the Jog Wheel. The current EDL Mark type will be

flashing.

Example

display

-dB

over

1220

-dB

LINE

TRACKTIME

MARK

Turn the Jog Wheel to tab through the EDL Mark

types: Point, Skip, Loop_A, Loop_B, and Erase.

Example

display

-dB over

1220

-dB

TRACKTIME

MARK

When the type you want to change the EDL mark to is

flashing press and release the Jog Wheel. TOC Write

will be displayed briefly

and the PMD670 will return to the EDL selection for 4

seconds,

-dB

over

1220

-dB

TRACKTIME

MARK

Example

display

Example

display

then return to stop or play pause.

Example

display

-dB

over

1220

-dB

TRACKTIME

MARK

-dB over

1220

-dB

TRACKTIME

TRACK

- 46 -

RS-232C Control Windows Application

An RS232 Windows Application for the PMD570 is

available for free download (see www.d-mpro.com to

download). The Application lets you control and setup

the PMD570 from your PC.

Connect your Windows compatible computer to the

PMD570 via the REMOTE RS-232C connector on the

PMD570 to your computer's RS-232C port. Install the

software on your computer.

• control all functions of PMD570

• setup/preset menu

• read/write settings to/from PMD570

• save settings as text file,

• convert settings text file to setup/presets of

PMD570

• see www.d-mpro.com for available setup text files

from Marantz Professional

Control screen as it would appear on your computer.

Preset Menu screen as it would appear on your computer (example settings).

- 47 -

RS-232C control

Connect a male (D-Sub 9 Pin) to female (D-Sub 9 Pin)

straight cable for RS-232C external control by host equip-

ment.

• The RS-232C host can control functions of the

PMD570 externally

• The PMD570 automatically transmits status data when

status is changed.

• The PMD570 will respond to status requests by

transmitting the associated status data.

RS-232C specifications:

Connector pin assignment

6 7 8 9

1 2 3 4 5

use

GND

RTS

CTS

PMD570

Not Connected

Transmit Data

Receive Data

Not Connected

Ground

Not connected

RTS receive

CTS send

Not Connected

D-Sub 9 pin

(male)

Typical Host

Not Connected

Receive Data

Transmit Data

Not Connected

Ground

Not connected

RTS send

CTS receive

Not Connected

D-Sub 9 pin

(female)

cable

connector

Cable

Baud rate

Data bits

Parity bit

Stop bit

Flow control

Straight cable

9600 bps

8 bits

None

1 bit

CTS/RTS Hardware Flow

Physical specifications

Typical Host

RTS send

PMD570

CTS out

Not Busy

(Normal)

Busy

Timing chart

Flow control and timing

CTS/RTS hardware flow control

1. The host requests data by setting RTS to L.

2. Upon data request by CTS, the PMD570 responds

by setting RTS to H if not busy.

3. The host checks if CTS is H and stats data output

on TxD.

4. When data output finishes, the host sets RTS to H.

5. The PMD570 checks if CTS is H and sets RTS to L.

Header Addr Command code Return

@10Dh

Received okay and error codes

OK (data receive successful) (ACK): 06h

Error (data receive error) (NACK): 15h

Normal Return Error Return

06h

ERR

15h

Notes:

The receiving side ignores data received prior to "@".

If code data is received without receiving "@", the

data receive error code will be returned.

The tolerance for send/receive clock error is ±10%.

For sending a command, wait more than 20ms after

reception of a response (OK, ERR or Status).

Reception of 0Dh or timeout is used to determine the

end of a command. Timeout occurs 1 second after the

reception of the last byte.

RTS

RxD

TxD

CTS

Host

CTS

RTS

PMD570

RxD

TxD

Command format

Start character: @

End character: 0Dh

Basic format

- 48 -

Hand shake flow charts for control commands

Host sends a command that causes a change in

PMD570 status.

PMD570 Typical Host

Received Command

Control Command

PMD570 Typical Host

Received Command

Control Command

PMD570 Typical Host

Received Command

Status Information

Command

Status Request

Command

PMD570 Typical Host

Status Informaton

Command

Host sends a command that causes no change in

PMD570 status. For example, Host requests Play

during Playback.

Status Request Commands from the host are received

by the PMD570, then the status information code is

transmitted to the host.

A change in the state of the PMD570 automatically

transmits a status information code to the host.

Control command codes

The control command packets have a data length of 7~10

bytes. ASCII codes from 0x00 to 0x7f are used to receive

serial data. At the transmission end, take steps to convert

the ASCII codes into HEX data to set the data in the data

packets. CR (0x0d) is added as the data packet delimiter.

Example: Control command code for number 5 (ASCII

code @02305CR)

When transmitting commands consecutively, put more than

100ms blank between commands.

Status Request and Status Information codes :

The status data packets have a fixed data length of 8 bytes.

ASCII codes from 0x00 to 0x7f are used to transmit serial

data. For this reason, the ASCII codes are converted into

HEX data before the data is set in the data packets and

transmitted. CR (0x0d) is added as the data packet delim-

iter.

Example: Status Information code "Door open"

(ASCII code @0DS01CR)

@02305CR

0x40 0x30 0x32 0x33 0x30 0x35 0x0d

@0 D S 0 1CR

0x40 0x30 0x44 0x53 0x30 0x31 0x0d

Table of Control command codes

Control Command Code

0 ........................................... “@02300” + CR

1 ........................................... “@02301” + CR

2 ........................................... “@02302” + CR

3 ........................................... “@02303” + CR

4 ........................................... “@02304” + CR

5 ........................................... “@02305” + CR

6 ........................................... “@02306” + CR

7 ........................................... “@02307” + CR

8 ........................................... “@02308” + CR

9 ........................................... “@02309” + CR

DISPLAY ........................................... “@02311” + CR

Standby ........................................... “@02312” + CR

Power ON ........................................... “@023PW” + CR

Add EDL mark .................................... “@023121” + CR

Recording Volume + ............................ “@023V+” + CR

Recording Volume - ............................. “@023V-” + CR

Recording Balance Right ..................... “@023BR” + CR

Recording Balance Left ....................... “@023BL” + CR

Track Jump >>I (Next) ........................ “@02332” + CR

Track Jump I<< (Back) ....................... “@02333” + CR

PAUSE ........................................... “@02348” + CR

Fast Reverse Start << .......................... “@02350” + CR

continues

M.Level (XX) ............................. “@0CLXX” + CR

Play Mode*

Normal ........................................ “@0PMOF” + CR

Repeat All ................................... “@0PMAL” + CR

Repeat TRK ................................ “@0PMAR” + CR

Single .......................................... “@0PMSP” + CR

EDL Play*

ON ........................................... “@0EP00” + CR

OFF ........................................... “@0EP01” + CR

Remote*

StartPause ................................... “@0RCSR” + CR

StrtPausTR .................................. “@0RCSS” + CR

EDL Mark ................................... “@0RCMA” + CR

Manual TRK ............................... “@0RCMT” + CR

ID1Dscrpt* .......................................... “@0D1XXXXXX” + CR

ID2Origin ........................................... “@0D2XXXXXX” + CR

ID3OrRef ........................................... “@0D3XXXXXX” + CR

Default* ........................................... “@0DEFL” + CR

*Must be in stop mode.

**Shorten. For example, 22.05KHz = 22.

Fast Reverse Stop << ........................... “@0235001” + CR

Fast Forward Start >> .......................... “@02352” + CR

Fast Forward Stop >> .......................... “@0235201” + CR

PLAY ........................................... “@02353” + CR

STOP ........................................... “@02354” + CR

RECORD ........................................... “@02355” + CR

A-B ........................................... “@02359” + CR

REC UNDO ......................................... “@023RU” + CR

Manual Track ....................................... “@023MT” + CR

Next EDL mark ................................... “@023M+” + CR

Previous EDL mark ............................. “@023M-” + CR

MARGIN RESET ................................ “@023MR” + CR

Preset 1* ........................................... “@0PS01” + CR

Preset 2* ........................................... “@0PS02” + CR

Preset 3* ........................................... “@0PS03” + CR

Input Select*

Unbalanced Input ....................... “@0INUB” + CR

Balanced Input ............................ “@0INBA” + CR

Digital In ..................................... “@0INDI” + CR

Date Form*

M/D/Y ........................................ “@0DFDM” + CR

D/M/Y ........................................ “@0DFMD” + CR

Recording File Format*

Channels

Stereo ................................. “@0CHST” + CR

Mono ................................. “@0CHMO” + CR

Audio Format

PCM ................................... “@0AFPM” + CR

MP2 ................................... “@0AFM2” + CR

MP3 ................................... “@0AFM3” + CR

Bit Rate (XXX)** ...................... “@0BRXXX” + CR

Sampling Rate (XX)** ............... “@0FSXX” + CR

File Format

bwf ..................................... “@0FTBW” + CR

wav .................................... “@0FTWA” + CR

mpg .................................... “@0FTMG” + CR

mp3 .................................... “@0FTM3” + CR

BWF File Extension

bwf ..................................... “@0EXBW” + CR

wav .................................... “@0EXWA” + CR

PreRecord*

ON ........................................... “@0PR00” + CR

OFF ........................................... “@0PR01” + CR

Auto Mark*

ON ........................................... “@0AM00” + CR

OFF ........................................... “@0AM01” + CR

ManualTR*

ON ........................................... “@0MT00” + CR

OFF ........................................... “@0MT01” + CR

AutoTrk*

ON ........................................... “@0AK00” + CR

OFF ........................................... “@0AK01” + CR

Time

hhmm .......................................... “@0AThhmm” + CR

SeamlsPly*

ON ........................................... “@0CP00” + CR

OFF ........................................... “@0CP01” + CR

SilentSkp*

ON ........................................... “@0SS00” + CR

OFF ........................................... “@0SS01” + CR

seconds (XX) .............................. “@0SCXX” + CR

M. Level (XX) ............................ “@0SLXX” + CR

Auto Cue*

ON ........................................... “@0AC00” + CR

OFF ........................................... “@0AC01” + CR

seconds (XX) .............................. “@0CTXX” + CR

- 49 -

Table of Control command codes continued

Status Request Information

Code Code

Power Mode .................. “@0?PW” + CR

On ................................................................... “@0PW00” + CR

Off .................................................................. —

Standby .......................................................... “@0PW01” + CR

Door Condition ..............“@0?DS” + CR

Open ............................................................... “@0DS01” + CR

Closed ............................................................ “@0DS00” + CR

Card Condition .............. “@0?CD” + CR

No Card .......................................................... “@0CDNC” + CR

Reading .......................................................... “@0CDRE” + CR

Card Inside ..................................................... “@0CDCI” + CR

Card Error ...................................................... “@0CDCE” + CR

Card 999 ......................................................... “@0CD99” + CR

Card Full ........................................................ “@0CDFL” + CR

Blank Card ..................................................... “@0CDBC” + CR

Read Error ...................................................... “@0STER” + CR

Writing ........................................................... “@0STWR” + CR

Write Error ..................................................... “@0STEW” + CR

Operation Status ............ “@0?ST” + CR

In Record

Digital In Unlock ....................................... “@0STRU” + CR

Recording .................................................. “@0STRE” + CR

Rec Pause .................................................. “@0STRP” + CR

In Stop

Stop ............................................................ “@0STST” + CR

Track Select ............................................... “@0STTS” + CR

In Playback

Play ............................................................ “@0STPL” + CR

Play Pause .................................................. “@0STPP” + CR

Seek + ........................................................ “@0STS+” + CR

Seek - ......................................................... “@0STS-” + CR

Fast Forward .............................................. “@0STFF” + CR

Fast Reverse .............................................. “@0STRW” + CR

A-B Repeat ................................................ “@0STAB” + CR

EDL Play ................................................... “@0STEP” + CR

EDL A-B Repeat ........................................ “@0STEA” + CR

Others

Track Edit /Preset ...................................... “@0STED” + CR

Operation Error .......................................... “@0STER” + CR

Display Condition ..........“@0?TMOD” + CR

Rec Remain Time ........................................... “@0TMRE” + CR

Total Track Number ....................................... “@0TMTN” + CR

Total Mark Number ........................................ “@0TMTM” + CR

File Format ..................................................... “@0TMAG” + CR

Date ................................................................ “@0TMND” + CR

Track Time ..................................................... “@0TMTT” + CR

Recorded Data ................................................ “@0TMRD” + CR

Track Remain Time ........................................ “@0TMTR” + CR

Track Number (XXX) ... “@0?PS” + CR .......... “@0TRXXX” + CR

Track Time (hhhmmss) .. “@0?TI” + CR ........... “@0TIhhhmmss” + CR

Preset Number ............... “@0?PS” + CR

Preset 1 ........................................................... “@0PS01” + CR

Preset 2 ........................................................... “@0PS02” + CR

Preset 3 ........................................................... “@0PS03” + CR

Input Selection ............... “@0?IN” + CR

Unbalanced .................................................... “@0INUN” + CR

Balanced ......................................................... “@0INBA” + CR

Digital In ........................................................ “@0INDI” + CR

Date Form ........................................................... “@0?DF” + CR

M/D/Y ............................................................ “@0DFDM” + CR

D/M/Y ............................................................ “@0DFMD” + CR

RecFormat

Channels .................... “@0?CH” + CR

Stereo ......................................................... “@0CHST” + CR

Mono ......................................................... “@0CHMO” + CR

Audio Format .................... “@0?AF” + CR

PCM ........................................................... “@0AFPM” + CR

MP2 ........................................................... “@0AFM2” + CR

MP3 ........................................................... “@0AFM3” + CR

Bit Rate (XXX) .........“@0?BR” + CR .......... “@0BRXXX” + CR

Sampling Rate (XX) . “@0?FS” + CR .......... “@0FSXX” + CR

File Format ................ “@0?FT” + CR

BWF .......................................................... “@0FSBW” + CR

Wave .......................................................... “@0FTWA” + CR

MP2 ........................................................... “@0FTMG” + CR

MP3 ........................................................... “@0FTM3” + CR

File Extension ........... “@0?EX” + CR

.bwf ............................................................ “@0EXBW” + CR

.wav ........................................................... “@0EXWA” + CR

.mpg ........................................................... “@0EXM2” + CR

.mp3 ........................................................... “@0EXM3” + CR

Pre-record ...................... “@0?PR” + CR

ON .................................................................. “@0PR00” + CR

OFF ................................................................ “@0PR01” + CR

Auto Mark ..................... “@0?AM” + CR

ON .................................................................. “@0AM00” + CR

OFF ................................................................ “@0AM01” + CR

Manual TR ..................... “@0?MT” + CR

ON .................................................................. “@0MT00” + CR

OFF ................................................................ “@0MT01” + CR

Auto Trk ........................ “@0?Ak” + CR

ON .................................................................. “@0AK00” + CR

OFF ................................................................ “@0AK01” + CR

Time (hhmm) ............ “@0?AT” + CR .......... “@0AThhmm” + CR

SeamlsPly ...................... “@0?CP” + CR

ON .................................................................. “@0CP00” + CR

OFF ................................................................ “@0CP01” + CR

SilentSkp ....................... “@0?SS” + CR

ON .................................................................. “@0SS00” + CR

OFF ................................................................ “@0SS01” + CR

seconds (XX) ............ “@0?SC” + C ............. “@0SCXX” + CR

M.Level (XX) ........... “@0?SL” + CR .......... “@0SLXX” + CR

Auto Cue ........................“@0?AC” + CR

ON .................................................................. “@0AC00” + CR

OFF ................................................................ “@0AC01” + CR

seconds (XX) ............ “@0?CT” + CR .......... “@0CTXX” + CR

M.Level (XX) ........... “@0?CL” + CR .......... “@0CLXX” + CR

Play Mode ......................“@0?PM” + CR

Normal ........................................................... “@0PMOF” + CR

Repeat All ...................................................... “@0PMAL” + CR

Repeat TRK ................................................... “@0PMAR” + CR

Single ............................................................. “@0PMSP” + CR

EDL Play ....................... “@0?EP” + CR

ON .................................................................. “@0EP00” + CR

OFF ................................................................ “@0EP01” + CR

Remote ...........................“@0?RC” + CR

StartPause ....................................................... “@0RCSS” + CR

StrtPausTR ..................................................... “@0RCSR” + CR

EDLMark ....................................................... “@0RCMA” + CR

Manual TRK .................................................. “@0RCMT” + CR

ID1Dscrpt ...................... “@0?D1” + CR .......... “@0D1XXXXXX” + CR

ID2Origin ...................... “@0?D2” + CR .......... “@0D2XXXXXX” + CR

ID3OrRef .......................“@0?D3” + CR .......... “@0D3XXXXXX” + CR

- 50 -

Table of Status Request and

Status Information codes:

When a Status Request Command from the host is

received by the PMD570, the PMD570 sends the

Status Information to the host. When the PMD570

changes status, the PMD570 automatically sends

Status Information to the host.

- 51 -

Recording time chart

The recording time available on a CF card depends on the size of the card in MB, the recording type (.mp3, .mp2 or PCM), the

bitrate of the recording and if recording in mono or stereo.

This Recording time chart lists approximate recording times based on those factors.

bitrate 32 kbps 64 kbps 40 kbps 80 kbps 64 kbps 128 kbps 80 kbps 160 kbps 128kbps 256 kbps 160 kbps 320 kbps

.mp3

mono stereo mono stereo mono stereo mono stereo mono stereo mono stereo

32 MB 2:13:00 1:06:30 1:46:24 0:53:12 1:06:30 0:33:15 0:53:12 0:26:36 0:33:15 0:16:38 0:26:36 0:13:18

64 MB 4:26:00 2:13:00 3:32:48 1:46:24 2:13:00 1:06:30 1:46:24 0:53:12 1:06:30 0:33:15 0:53:12 0:26:36

CARD 128 MB 8:52:00 4:26:00 7:05:36 3:32:48 4:26:00 2:13:00 3:32:48 1:46:24 2:13:00 1:06:30 1:46:24 0:53:12

SIZE 256 MB 17:44:00 8:52:00 14:11:12 7:05:36 8:52:00 4:26:00 7:05:36 3:32:48 4:26:00 2:13:00 3:32:48 1:46:24

340 MB 23:33:08 11:46:34 18:50:30 9:25:15 11:46:34 5:53:17 9:25:15 4:42:38 5:53:17 2:56:38 4:42:38 2:21:19

512 MB 35:28:00 17:44:00 28:22:24 14:11:12 17:44:00 8:52:00 14:11:12 7:05:36 8:52:00 4:26:00 7:05:36 3:32:48

(1 GB) 1024 MB 70:56:00 35:28:00 56:44:48 28:22:24 35:28:00 17:44:00 28:22:24 14:11:12 17:44:00 8:52:00 14:11:12 7:05:36

(2GB) 2048MB 141:52:00 70:56:00 113:29:36 56:44:48 70:56:00 35:28:00 56:44:48 28:22:24 35:26:00 17:44:00 28:22:24 14:11:12

(4GB) 4096MB 283:44:00 141:52:00 226:59:12 113:29:36 141:52:00 70:56:00 113:29:36 56:44:48 70:56:00 35:28:00 56:44:48 28:22:24

bitrate 32 kbps 64 kbps 48 kbps 96 kbps 64 kbps 128 kbps 96 kbps 192 kbps 128 kbps 256 kbps 192 kbps 384 kbps

.mp2

mono stereo mono stereo mono stereo mono stereo mono stereo mono stereo

32 MB 2:13:00 1:06:30 1:39:45 0:49:53 1:06:30 0:33:15 0:49:53 0:24:56 0:33:15 0:16:38 0:24:56 0:12:28

64 MB 4:26:00 2:13:00 3:19:30 1:39:45 2:13:00 1:06:30 1:39:45 0:49:53 1:06:30 0:33:15 0:49:53 0:24:56

CARD 128 MB 8:52:00 4:26:00 6:39:00 3:19:30 4:26:00 2:13:00 3:19:30 1:39:45 2:13:00 1:06:30 1:39:45 0:49:53

SIZE 256 MB 17:44:00 8:52:00 13:18:00 6:39:00 8:52:00 4:26:00 6:39:00 3:19:30 4:26:00 2:13:00 3:19:30 1:39:45

340 MB 23:33:08 11:46:34 17:39:51 8:49:55 11:46:34 5:53:17 8:49:55 4:24:58 5:53:17 2:56:38 4:24:58 2:12:29

512 MB 35:28:00 17:44:00 26:36:00 13:18:00 17:44:00 8:52:00 13:18:00 6:39:00 8:52:00 4:26:00 6:39:00 3:19:30

(1 GB) 1024 MB 70:56:00 35:28:00 53:12:00 26:36:00 35:28:00 17:44:00 26:36:00 13:18:00 17:44:00 8:52:00 13:18:00 6:39:00

(2GB) 2048MB 141:52:00 70:56:00 106:24:00 53:12:00 70:56:00 35:28:0 53:12:00 26:36:00 35:28:00 17:44:00 26:36:00 13:18:00

(4GB) 4096MB 283:44:00 141:52:00 212:48:00 106:24:00 141:52:00 70:56:00 106:24:00 53:12:00 70:56:00 35:28:00 53:12:00 26:36:00

fs 16 kHz 22.050kHz 24kHz 32kHz 44.1 kHz 48 kHz

PCM

mono stereo mono stereo mono stereo mono stereo mono stereo mono stereo

32 MB 0:16:40 0:08:20 0:12:06 0:06:03 0:11:07 0:05:33 0:08:20 0:04:10 0:06:03 0:03:01 0:05:33 0:02:47

64 MB 0:33:20 0:16:40 0:24:11 0:12:06 0:22:13 0:11:07 0:16:40 0:08:20 0:12:06 0:06:03 0:11:07 0:05:33

CARD 128 MB 1:06:40 0:33:20 0:48:23 0:24:11 0:44:27 0:22:13 0:33:20 0:16:40 0:24:11 0:12:06 0:22:13 0:11:07

SIZE 256 MB 2:13:20 1:06:40 1:36:45 0:48:23 1:28:54 0:44:27 1:06:40 0:33:20 0:48:23 0:24:11 0:44:27 0:22:13

340 MB 2:57:05 1:28:33 2:08:30 1:04:15 1:58:04 0:59:02 1:28:33 0:44:16 1:04:15 0:32:07 0:59:02 0:29:31

512 MB 4:26:40 2:13:20 6:27:01 1:36:45 5:55:34 1:28:54 2:13:20 1:06:40 1:36:45 0:48:23 1:28:54 0:44:27

(1 GB) 1024 MB 8:53:21 4:26:41 6:27:01 3:13:30 5:55:34 2:57:47 4:26:41 2:13:20 3:13:30 1:36:45 2:57:47 1:28:54

(2GB) 2048MB 17:46:42 8:53:21 12:54:01 6:27:01 11:51:08 5:55:34 8:53:21 4:26:41 6:27:01 3:13:30 5:55:34 2:57:47

(4GB) 4096MB 35:33:24 17:48:42 25:48:04 12:54:01 23:42:16 11:51:06 17:46:42 8:53:21 12:54:01 6:27:01 11:51:08 5:55:34

These figures are an average of 4 cards of various sizes and manufacturers.

All times are approximated record times for the PMD570/PMD670.

Different media manufacturers allow more or less space for error correction and such on their respective products.

ALL TIMES ARE APPROXIMATE

- 52 -

Troubleshooting

Should faults occur, it is in many cases not necessary

to consult your dealer or technical service department.

On the basis of the following checks, you will be able

to rectify a number of conditions yourself without

difficulty. If the condition cannot be remedied after the

following check, please consult your dealer or contact

Marantz Professional at 630 741 0330.

The PMD570 does not turn on

Check power cord and your home circuit breaker

The PMD570 seems to record but there is no sound on

playback

• check input settings (For example, if Bal.In input

is selected and no input is connected to the BAL-

ANCED IN jacks the PMD570 will record si-

lence.)

• is the amp on? Check to see if the correct input

has been selected.

The PMD570 will not playback

• check EDL Play Menu setting, if ON switch to

OFF

No audio playback through headphones

• check HEADPHONE-LEVEL control setting

• check a different track or CF card

The PMD570 will not record

• check that the maximum of 999 tracks have not

been recorded

• make sure that you have not filled up the CF card

with recordings based on time

• check that the PMD570 acknowledges the CF card

Excessive noise

• check cable connections and/or replace cables

• check for proper gain levels

Playback on a PC results in poor sound

• check quality of PC sound card and program

• check frequency conversion program*

• be sure the PMD570 is set to the desired bitrate

*The PMD570 can record audio files with a sampling

frequency of 48kHz. Some PC programs convert the

files to 44.1kHz (using a sample rate converter). Only

high quality sample rate converters should be used.

PC cannot read files

• check if the files are MP2 or MP2 with a .wav file

extension Some PC’s cannot interpret this combi-

nation. Try renaming the MP2 file so it has a .mpg

file extension.

• check the capability of the PC program

Some playback and editing programs do not

support MP2/MP3 or Broadcast Wave (.bwf/.wav)

formats. Consult the Marantz Professional website

at www.d-mpro.com for links to programs that

support MP2/MP3 and Broadcast Wave Format.

Erratic behavior

• If the PMD570 exhibits erratic behavior, the

microprocessor can be reset by, powering off and

disconnecting AC power.

Care and Maintenance

Clean case with a slightly moistened soft cloth.

Media cards that are heavily used should be occasion-

ally reformatted to avoid audio problems due to

fragmentation.

Error Messages

Display Description

NO_CARD No CF card inserted, or card is not detected.

UNFORMAT Initializing of CF card is failure or track information

renewal failure

FULL_CARD Remaining capacity of CF card is less than a few Kbytes.

You Need

FormatOnPC CF card is not formatted.

Format Fail Formatting failure

NO_FILE Correct file does not exist.

FULL_999 The number of tracks on the CF card

has reached the 999 maximum.

Can not… Wave format error was detected during PCM file

playback.

Mark_255 The number of EDL marks on the card has

reached the 255 maximum.

No_Good Accessing speed of the CF card is not suitable.

UnLock A corrupt digital audio signal was received during

recording with digital input.

NO_EDL

EDLERROR-A A or B point for EDL A-B loop was not found.

DSP ERROR DSP processing error

CF Card

Others

- 53 -

Specifications1

Digital audio system

System .................................................. Solid State Recorder

Usable Media ............................................. CF memory cards

(Microdrive) cards

Recording and media methods

.mp2 ................................ MPEG1 Layer II compression

.mp3 ............................... MPEG1 Layer III compression

.mp3 ............................. MPEG2 Layer III compression*

*for all half sample rates.

PCM ................................................... 16 bit linear PCM

Recording bit rate (selectable)

MP2 mono ............................ 192, 128, 96, 64, 48, 32 kbps

MP2 stereo ......................... 384, 256,192,128, 96, 64 kbps

MP3 mono ............................ 160, 128, 80, 64, 40, 32 kbps

MP3 stereo ......................... 320, 256,160,128, 80, 64 kbps

Sampling frequency

Analog ......................... 48, 44.1, 32, 24*, 22.05*, 16* kHz

*except MP2

Digital ............................................................ 48, 44.1 kHz

Number of channels ............................... 2 (stereo), 1 (mono)

Audio

Frequency response ................................ 20,000 Hz (-0.5dB)

Signal-to-Noise Ratio

IEC-A weighted ........................................................ 91 dB

Total Harmonic Distortion

at 0 VU (PCM) ........................................................ 0.01%

Dynamic Range ............................................................ 94 dB

Inputs

BALANCED IN L/R

Type ............................ XLR (1:GND, 2:HOT, 3:COLD)

Input Sensitivity ................................ +16dBu/@0dBFS

(+4dBu/@-12dBFS) /24 kohms

Trim Control ....................................................0 to 24dB

LINE IN L/R

Type ................................................................. RCA jack

Input Sensitivity .......................... 500 mVrms/22 kohms

DIGITAL IN

Type ................................................................. RCA jack

Input impedance ................................................ 75 ohms

Standard input level .......................................... 0.5 Vp-p

Sampling frequency .....................................44.1/48 kHz

Format ..................................... SPDIF (IEC 958 TypeII)

Outputs

LINE OUT L/R

Type ................................................................. RCA jack

Standard level ............................ 2 Vrms max./300 ohms

DIGITAL OUT

Type ................................................................. RCA jack

Output impedance ............................................. 75 ohms

Standard output level ........................................ 0.5 Vp-p

Sampling frequency .....................................44.1/48 kHz

Format ................................... SPDIF (IEC-958 Type II)

General

Power requirements

US model ................................................ AC120V 60Hz

European model ...................................... AC230V 50Hz

Power consumption .......................................................5.3W

Headphone Output power ............................ 20 mW/32 ohms

Dimensions

Width ................................................................. 483 mm

Height .................................................................. 52 mm

Depth ................................................................. 298 mm

Weight ...................................................................... 3.0 kg

Included accessories

CF card* (64MB) ......................................................... 1

Power cord .................................................................... 1

I/O cable ....................................................................... 1

Stereo audio cables ....................................................... 2

Screw (ISO 3x10 mm) .................................................. 2

Plastic pin and retainer ................................................. 1

User Guide .................................................................... 1

*A CF card (Compact Flash™ memory card) or a

Microdrive™ is needed for the PMD570 to work. Also

used in digital cameras, removable flash memory media,

widely available at consumer electronics retailers and

computer resellers, come in a variety of sizes and

connection configurations. The PMD570 accepts

"Compact Flash" and "Microdrive" media.

The recording time depends on the size of the CF card

and the recording parameters. See chart on page 51.

Optional Accessories

(See www.d-mpro.com for descriptions and/or ordering

information.)

Remote control

Model RC600 ................................................ wired remote

start recording, pause recording,

add EDL marks

1Specifications subject to change without notice.

- 54 -

Limited Warranty

Your Marantz Professional product is warranted against manufac-

turer defects in material and workmanship for a period of two years

parts and labor.

Except as specified below, this warranty covers defects in material

and workmanship. The following are not covered under warranty:

1. Damage, deterioration, malfunction or failure to meet

performance specifications resulting from:

a) Accidents, acts of nature, misuse, abuse, neglect or

unauthorized product modification.

b) Improper installation, removal or maintenance, or failure

to follow supplied instructions.

c) Repair or attempted repair by a non-Marantz authorized

agent.

d) Any shipment (claims must be presented to the carrier).

e) Any cause other than a defect of manufacturing.

2. Cleaning, check-ups with no fault found or changes incurred

for installation, removal or reinstallation of the product.

3. Any serialized product on which the serial number has been

defaced, modified or removed.

4. Batteries and battery chargers.

5. Accessories, including but not limited to: cables, mounting

hardware and brackets, cleaning accessories, power cords and

adapters, and carry cases.

6. Products purchased outside of the United States, its posses-

sions or territories.

Non-transferable warranty

This Warranty may be enforced only by the original purchaser.

What We Will Pay For

We will pay for all labor and material expenses for items covered

by the warranty.

How You Can Get Service

1. If your unit needs service in the USA, contact our service

referral at the appropriate telephone number indicated below.

We will advise you of the name and location of one or more

authorized service centers from which service may be

obtained. Please do not return the unit directly to us.

2. You must pay any shipping charges if it is necessary to ship

the product for service. If the necessary repairs are covered

by the warranty, we will pay return shipping charges to your

location anywhere in the United States or its territories.

3. Whenever warranty service is required, you must present the

original dated sales receipt or other proof of date purchased.

Limitation of Implied Warranties

All implied warranties, including warranties of merchantability

and fitness for a particular purpose, are limited in duration to the

length of this warranty.

Exclusion of Damages

Liability for any defective product is limited to repair or replace-

ment of the product at manufacturer’s option. Manufacturer shall

not be liable for damage to other products caused by any defects

in Marantz products, damages based on inconvenience or loss of

use of the product, or any other damages, whether incidental,

consequential, or otherwise.

Some States do not allow limitations on how long an implied

warranty lasts and/or do not allow the exclusion or limitation of

incidental or consequential damages, so the above limitations and

exclusions may not apply to you.

How State Law Relates to the Warranty

This warranty gives you specific legal rights, and you may have

other rights which may vary from State to State.

Marantz Professional Service Number:

Marantz Professional Factory Service (630) 741-0330

This warranty is enforceable only in the United States and its

possessions or territories.

Marantz is a registered trademark.

2004/4
