Model PMD670 User Guide

Portable Solid State Recorder

Warnings and Cautions

The lightning flash with arrowhead symbol within an equilateral

triangle is intended to alert the user to the presence of uninsulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the product.

- 2 -

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

- 3 -

Important Safety Instructions

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality

and safety standards. There are, however, some installation and

operation precautions which you should be particularly aware of.

1. Read Instructions – All the safety and operating instructions

should be read before the product is operated.

2. Retain Instructions – The safety and operating instructions

should be retained for future reference.

3. Heed Warnings – All warnings on the product and in the

operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should

be followed.

5. Cleaning – Unplug this product from the wall outlet before

cleaning. Do not use liquid or aerosol cleaners. Use a damp

cloth for cleaning.

6. Attachments – Do not use attachments not recommended by

the product manufacturer as they may cause hazards.

7. Water and Moisture – Do not use this product near water–for

example, near a bath tub, wash bowl, kitchen sink, laundry tub,

swimming pool, in a wet basement, and the like.

8. Accessories – Do not place this product on an unstable cart,

stand, tripod, bracket, or table. The product may fall, causing

serious injury to a child or adult, and serious damage to the

product. Use only with a cart, stand, tripod, bracket or table

recommended by the manufacturer, or sold with the product.

Any mounting of the product should follow the manufacturer's

instructions, and should use a mounting accessory

recommended by the manufacturer.

9. A product and cart combination

should be moved with care. Quick

stops, excessive force, and

uneven surfaces may cause the

product and cart combination to

overturn.

10. Ventilation – Slots and openings in

the cabinet are provided for

ventilation and to ensure reliable

operation of the product and to

protect it from overheating. These

openings must not be blocked or covered. The openings should

never be blocked by placing the product on a bed, sofa, rug, or

other similar surface. This product should not be placed in a

built-in installation such as a bookcase or rack unless proper

ventilation is provided or the manufacturer's instructions have

been adhered to.

11. Power Sources – This product should be operated only from the

type of power source indicated on the marking label. If you are

not sure of the type of power supply to your home, consult your

product dealer or local power company. For products intended

to operate from battery power or other sources, refer to the

operating instructions.

12. Power Cord Protection – Power supply cords should be routed

so that they are not likely to be walked on or pinched by items

placed upon or against them, paying particular attention to

cords at plugs, convenience receptacles, and the point where

they exit from the product.

13. Protective Attachment Plug – The product is equipped with an

attachment plug having overload protection. This is a safety

feature. See Instruction Manual for replacement or resetting of

protective device. If replacement of the plug is required, be sure

the service technician has used a replacement plug specified

by the manufacturer that has the same overload protection as

the original plug.

14. Outdoor Antenna Grounding – If an outside antenna or cable

system is connected to the product, be sure the antenna or

cable system is grounded so as to provide some protection

against voltage surges and built-up static charges. Article 810

of the National Electrical Code, ANSI/NFPA 70, provides

information with regard to proper grounding of the mast and

supporting structure, grounding of the lead-in wire to an

antenna discharge unit, size of grounding conductors, location

of antenna-discharge unit, connection to grounding electrodes,

and requirements for the grounding electrode. See Figure 1.

15. Lightning – Lightning – Unplug the unit from the wall outlet and

disconnect the antenna or cable system for added protection

during a lightning storm or when it is left unattended and

unused for long periods of time. This will prevent damage to the

product due to lightning and power line surges.

16. Power Lines – An outside antenna system should not be

located in the vicinity of overhead power lines or other electric

light or power circuits, or where it can fall into such power lines

or circuits. When installing an outside antenna system, extreme

care should be taken to keep from touching such power lines or

circuits as contact with them might be fatal.

17. Overloading – Do not overload wall outlets, extension cords, or

integral convenience receptacles as this can result in a risk of

fire or electric shock.

18. Object and Liquid Entry – Never push objects of any kind into

this product through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or

electric shock. Never spill liquid of any kind on the product.

19. Servicing – Do not attempt to service this product yourself as

opening or removing covers may expose you to dangerous

voltage or other hazards. Refer all servicing to qualified service

personnel.

20. Damage Requiring Service – Unplug this product from the wall

outlet and refer servicing to qualified service personnel under

the following conditions:

a. When the power supply cord or plug is damaged.

b. If liquid has been spilled, or objects have fallen into the product.

c. If the product has been exposed to rain or water.

d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions, as an improper

adjustment of other controls may result in damage and will often

require extensive work by a qualified technician to restore the

product to its normal operation.

e. If the product has been dropped or damaged in any way, and

f. When the product exhibits a distinct change in performance –

this indicates a need for service.

21. Replacement Parts – When replacement parts are required, be

sure the service technician has used replacement parts

specified by the manufacturer or have the same characteristics

as the original part. Unauthorized substitutions may result in

fire, electric shock, or other hazards.

22. Safety Check – Upon completion of any service or repairs to

this product, ask the service technician to perform safety

checks to determine that the product is in proper operating

condition.

23. Wall or Ceiling Mounting – The product should be mounted to a

wall or ceiling only as recommended by the manufacturer.

24. Heat – The product should be situated away from heat sources

such as radiators, heat registers, stoves, or other products

(including amplifiers) that produce heat.

- 4 -

ELECTRIC

SERVICE

EQUIPMENT

ANTENNA

DISCHARGE

UNIT

(NEC SECTION

810-20)

ANTENNA

LEAD IN

WIRE

FIGURE 1

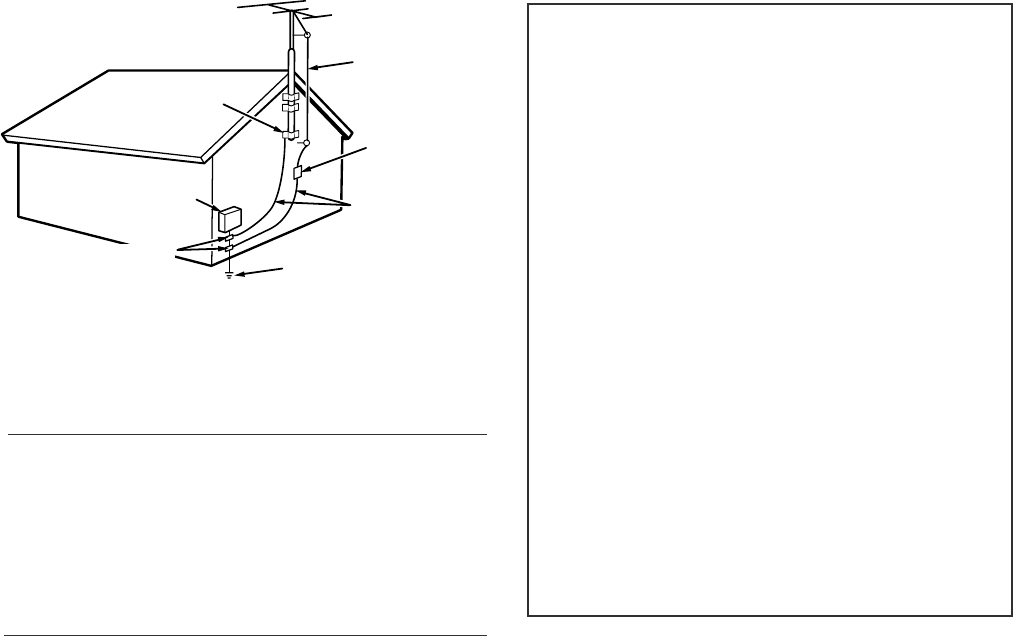

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

GROUND

CLAMP

GROUNDING

CONDUCTORS

(NEC SECTION

810-21)

POWER SERVICE

GROUNDING

ELECTRODE SYSTEM

(NEC ART 250, PART H)

GROUND CLAMPS

NEC - NATIONAL ELECTRICAL CODE

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV (Cable-TV)

system installer's attention to Article 820-40 of the

NEC, which provides guidelines for proper grounding

and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building,

as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful inter-

ference in a residential installation. This equipment

generates, uses and can radiate radio frequency en-

ergy and, if not installed and used in accordance with

the instructions, may cause harmful interference to

radio communications. However, there is no guaran-

tee that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV tech-

nician for help.

NOTE:Changes or modifications may cause this

unit to fail to comply with Part 15 of the FCC Rules and

may void the user's authority to operate the

equipment.

WARNINGS

Do not expose the equipment to rain or moisture.

Do not remove the cover from the equipment.

Do not insert anything into the equipment through

the ventilation holes.

Do not cover the ventilation with any items such

as tablecloths, newspapers, curtains, etc.

No naked flame sources, such as lighted candles,

should be placed on the equipment.

When disposing of used batteries, please comply

with governmental regulations or environmental

public instruction's rules that apply in your country

or area.

When setting up the recorder ensure that:

• it will not be exposed to interference from

external equipment.

• it will not be exposed to electrostatic dis-

charges.

• it will not be exposed to direct sunlight.

• heavy objects are not placed on the recorder.

Recording and playback of any material may require

consent. For further information refer to the following

US ordinances:

• Copyright act of 1956

• Dramatic and Musical Performance Act 1958

• Performers Protection Acts 1963 and 1972

• any subsequent statutory enactments and orders

MARANTZ EUROPE B.V.

5600 EINDHOVEN

THE NETHERLANDS

SI DICHIARA CHE L'APPARECCHIO SINTO-AMPLIFACATORE SR-39

RISPONDE ALLE PRESCRIZIONI DELL'ART. 2 COMMA 1 DEL D.M. 28

AGOSTO 1995 N° 548.

FATTO A EINDHOVEN, IL 1/1/1997.

CE marking (only EU version)

English

This product is in conformity with the EMC directive and low-voltage directive.

Français

Cet appareil est cnforme á la directive EMC et á la de directive sur les basses

tensions.

Deutsch

Dieses Greät entspricht den EMC-Richtlinien und den Richtlinien für

Niederspannungsgeräte.

Nederlands

Dit apparaat voldoet aan de EMC-richtlijnene en de richtlijnen vooor apparatuur

met laag voltage.

Italiano

Quest' unitá è conforme alle diretive EMC ed alla direttiva sulle basse tensioni.

Português

Esta unidade está em conformidade com as directivas EMC e as directivas de

baixa voltagem.

Español

Esta unidad estáde acuerdo con las normas EMC y las relacionadas con baja

tensión.

Equipment mains working system

This product complies with household power and safety requirements in your area.

- 5 -

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme á la norme NMB-003 du Canada.

"Este aparato lleva elementos antiparasitarios necesarios para cumplir con ls

limites que se estableren en el Anexo V del Reglamento sobre Pertubaciones

Radioelectricas e Interferencias aprobado en el Real Decreto 138/1989. (B.O.E.

de 9 Febrero 1989)."

- 6 -

Quick Start

Follow the instructions on this page to Quick Start your

new PMD670 Portable Solid State Recorder and begin

recording.

Note: Outside of the USA a CF card is not included.

See page 41 for installing a CF card and page 22 to

format a CF card.

a. Plug AC adapter into

household power.

b. Plug the adaptor jack into the PMD670 at DC IN

13V.

2. Slide the POWER switch to the right and release.

On first power up, wait

for the PMD670 to

initialize.

A full display will

appear momentarily.

The display will change

to Loading then to

Reading.

The display will change

to this display for a

newly formatted CF

card.

POWER

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

INT

MIC

LINE

S.SKIP -dB

over

-dB over

-dB

-dB over

1220

-dB

INT

MIC

TRACKTIME

TRACK

The Rec indicator (a)

will be lit and steady

while recording. b

4. Push and release the STOP button to stop record-

ing and end the track (close the audio file).

REC

The display will

show the recording

time (b) of the

current track (c).

The display will

show the remaining

recording time at

current settings for

the CF

card.

TIME

REC REMAIN L

-dB over

1220

-dB

INT

MIC

STOP

DC IN 13V

a. Plug the AC adapter in.

b. Slide the POWER switch to turn on.

c. Slide the REC switch to start recording.

d. Push and release REC PAUSE when record-

ing is not necessary.

e. Slide the REC switch to resume recording.

f. Push the STOP button to stop recording.

POWER

CANCEL

STOP

REC

REC PAUSE

DC IN 13V

c. e.

Quick Start Basic Instructions

To transfer audio files to your computer:

transfer the CF card, see page 37,

connect via I/O, see page 43.

-dB

over

1220

-dB

INT

MIC

Quick Start Detailed Instructions

The PMD670 comes factory preset for recording voice

using its built-in (internal) microphone. These are

settings for recording a meeting, not settings for

recording a vocal performance. Quick Start ignores

your changing any of these presets, it even ignores

installing batteries.

1. Unpack the AC adapter and the PMD670.

example shows 4 hours 21 minutes and 02 seconds

remaining

3. Slide the REC button to the right and release.

Recording begins.

- 7 -

Table of Contents

Precautions

Warnings and Cautions ........................... 2

Important Safety Instructions ................... 3

Regulatory Compliance ........................... 4

Quick Start ................................................... 6

Table of Contents ......................................... 7

US/Europe models ....................................... 8

Package Contents ........................................ 8

Control and Connection Diagrams

Top ........................................................... 9

Front ........................................................ 10

Left side ................................................... 10

Right side ................................................. 10

Bottom ..................................................... 10

Display ..................................................... 11

Introduction .................................................. 12

Features ....................................................... 13

Controls and Connections

Top ............................................................ 14

Speaker .................................................. 14

MIC (internal microphone)...................... 14

POWER switch ....................................... 14

Security cover ........................................ 14

Recording setup controls

AUTO MARK switch ............................... 14

PRE REC switch .................................... 15

INPUT LOCK switch ............................... 15

ANALOG OUT switch ............................. 15

MIC ATTEN switch ................................. 15

REPEAT switch ...................................... 16

ANC switch ............................................. 16

EDL PLAY switch ................................... 16

LEVEL CONT. switch ............................. 16

INPUT button ......................................... 17

What the Input selections do: .......... 17

Recording (file) parameters ............. 17

Input device(s) and channels........... 18

A-B REPEAT button ............................... 18

A-B Repeat playback ........................ 18

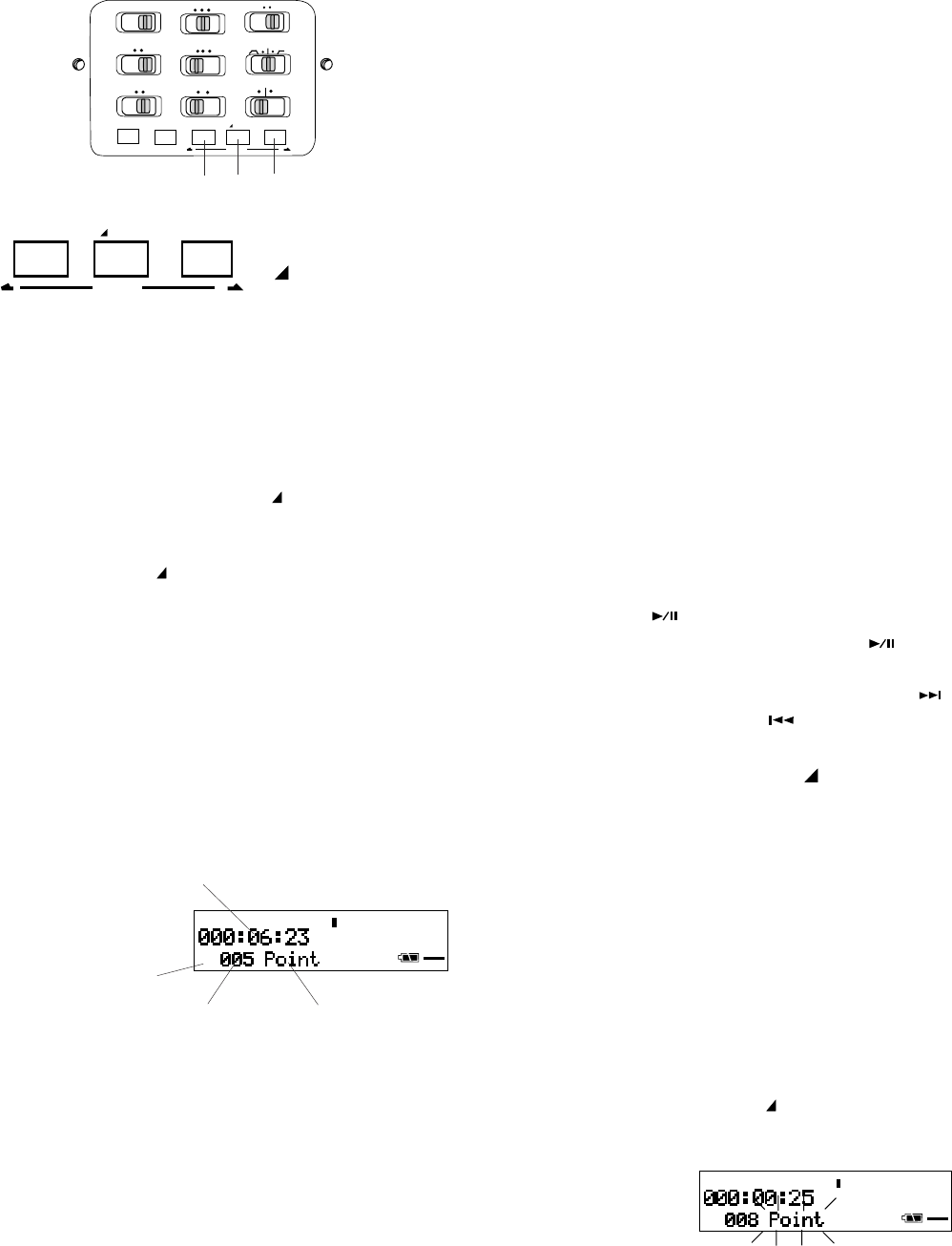

MARK/ EDIT buttons ........................... 19

EDL Marks .......................................... 19

Adding EDL Marks ........................... 19

Locating EDL Marks ........................ 19

Custom playback sequences........... 19

Editing EDL Marks ........................... 19

EDL A-B looping .............................. 20

Edit mode ........................................... 20

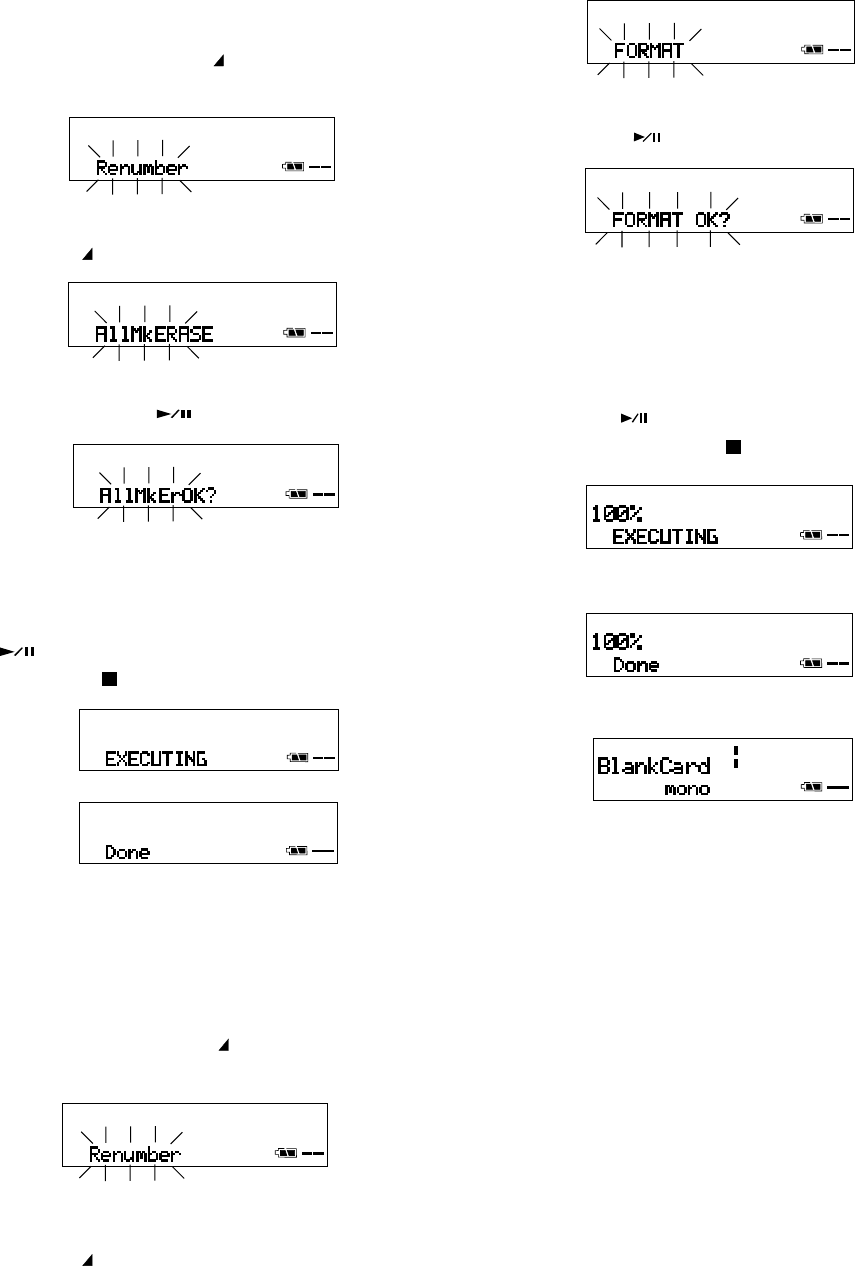

How to renumber tracks ................... 20

How to erase tracks ......................... 20

How to erase all EDL marks

wihin one track .................................... 21

How to erase all track EDL marks ....... 21

How to format a CF card ..................... 22

TRACK JUMP buttons ........................... 23

TRACK JUMP reverse button ....... 23

REC UNDO button .............................. 23

TRACK JUMP forward button ....... 23

-/REW button ...................................... 23

FWD/+ button ..................................... 23

MARGIN RESET/

I/O MENU/STORE button ..................... 24

MARGIN RESET button ......................... 24

I/O button ............................................... 24

MENU/STORE button ........................ 24

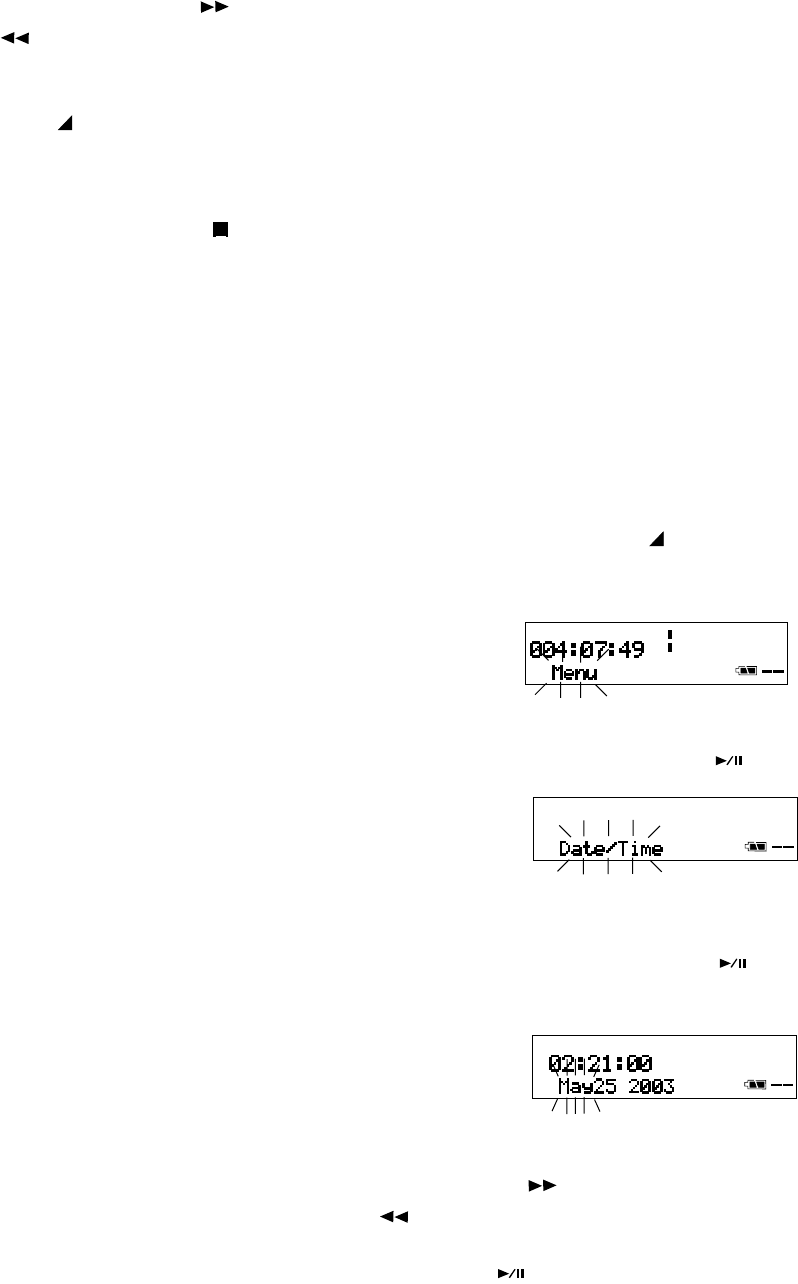

MENU operations .............................. 24

The Menu choices are: ........................ 25

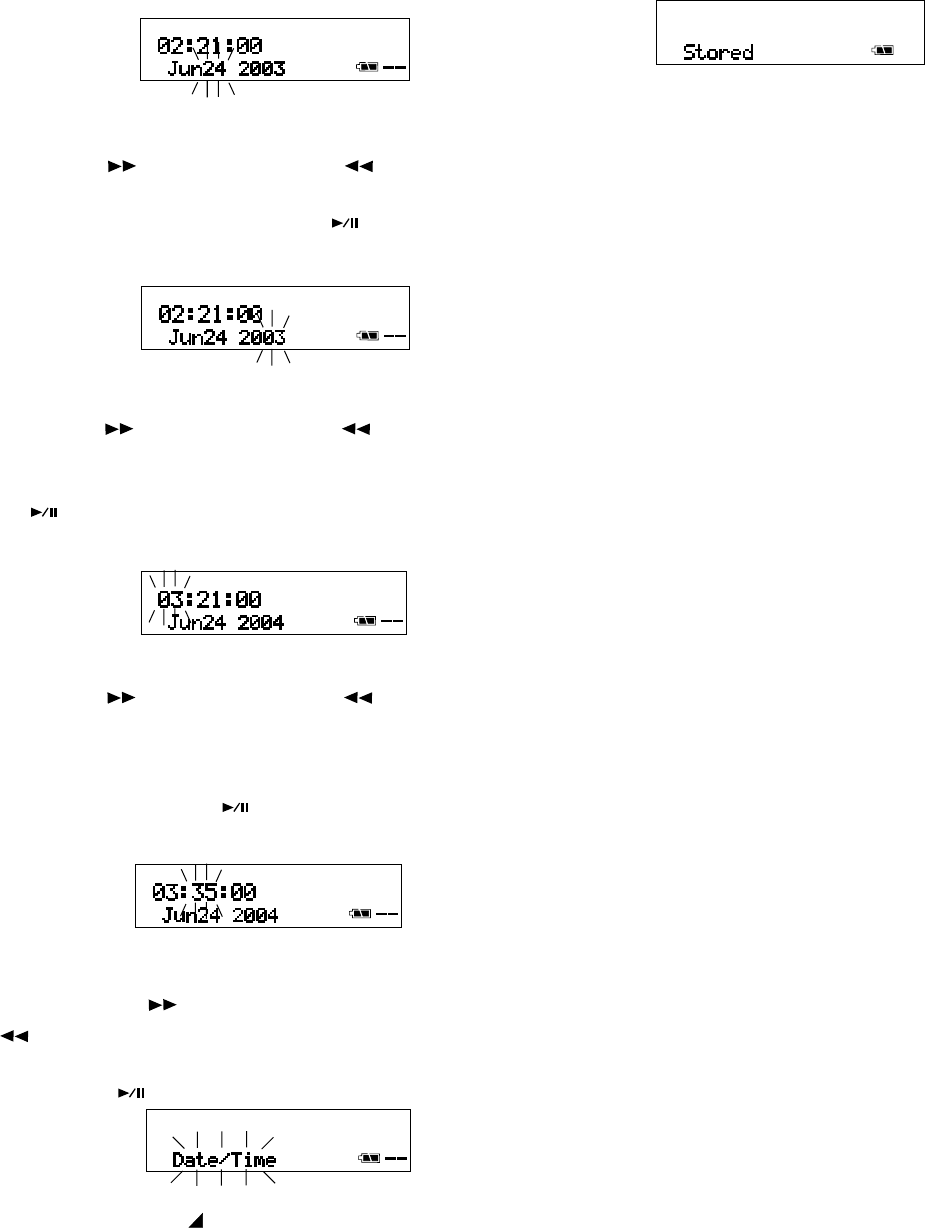

How to set or change the

Date and time ..................................... 25

Date Format ........................................ 27

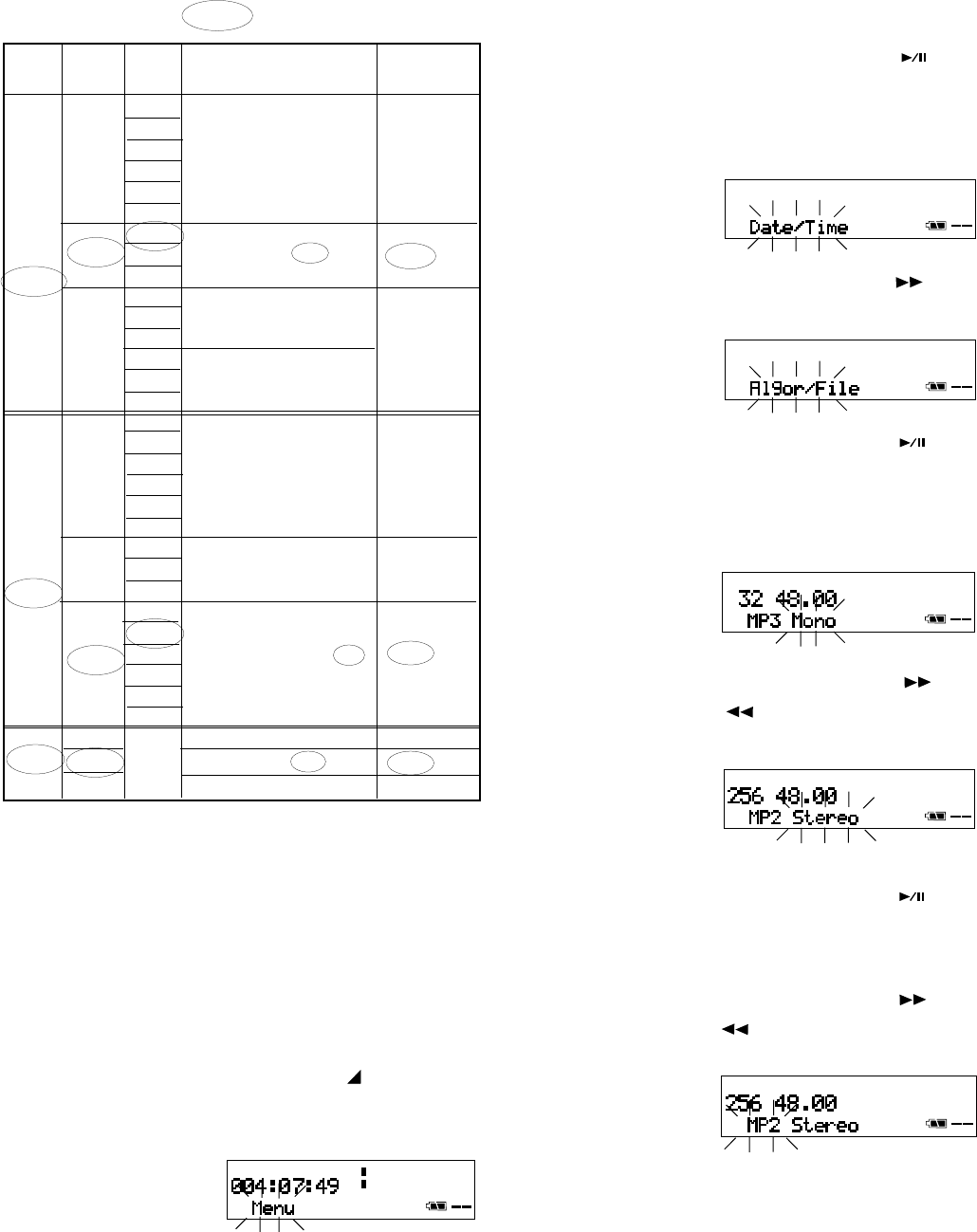

Algor/File ............................................ 28

How to set or change the

Algor/file parameters ........................ 29

Other menu choices:

Manual track incrementing ............... 31

Seamless play .................................. 31

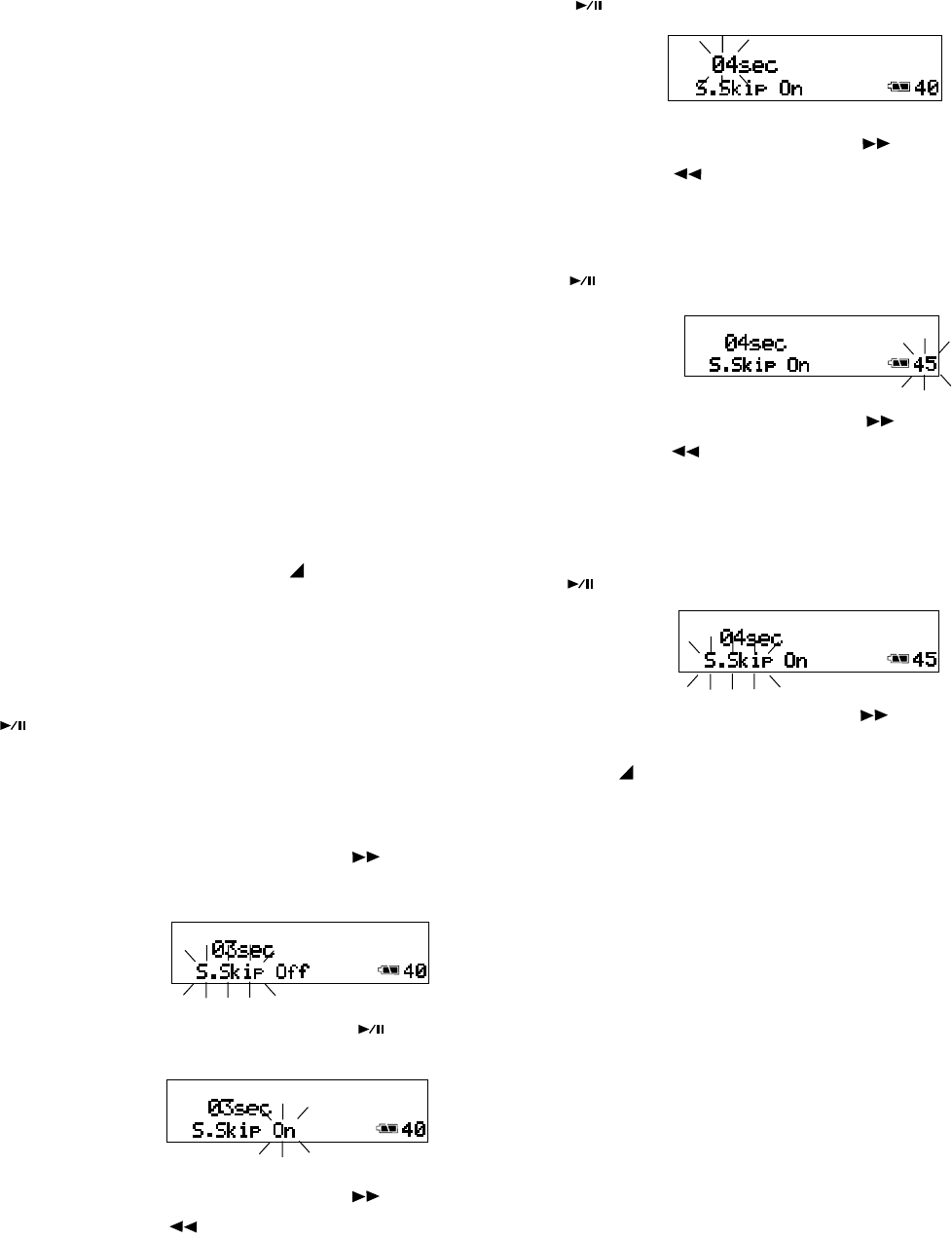

Silent Skip ........................................ 32

Auto Cue .......................................... 33

Single Play ....................................... 34

Beep ................................................. 34

Automatic Power Off ........................ 35

Battery Type ..................................... 35

Remote Mode ................................... 36

bwf ID numbers ................................ 36

Menu Default .................................... 37

PLAY/PAUSE /

ENTER button .................................... 38

PLAY/PAUSE button ....................... 38

ENTER button ................................. 38

STOP/CANCEL button ......................... 38

Front

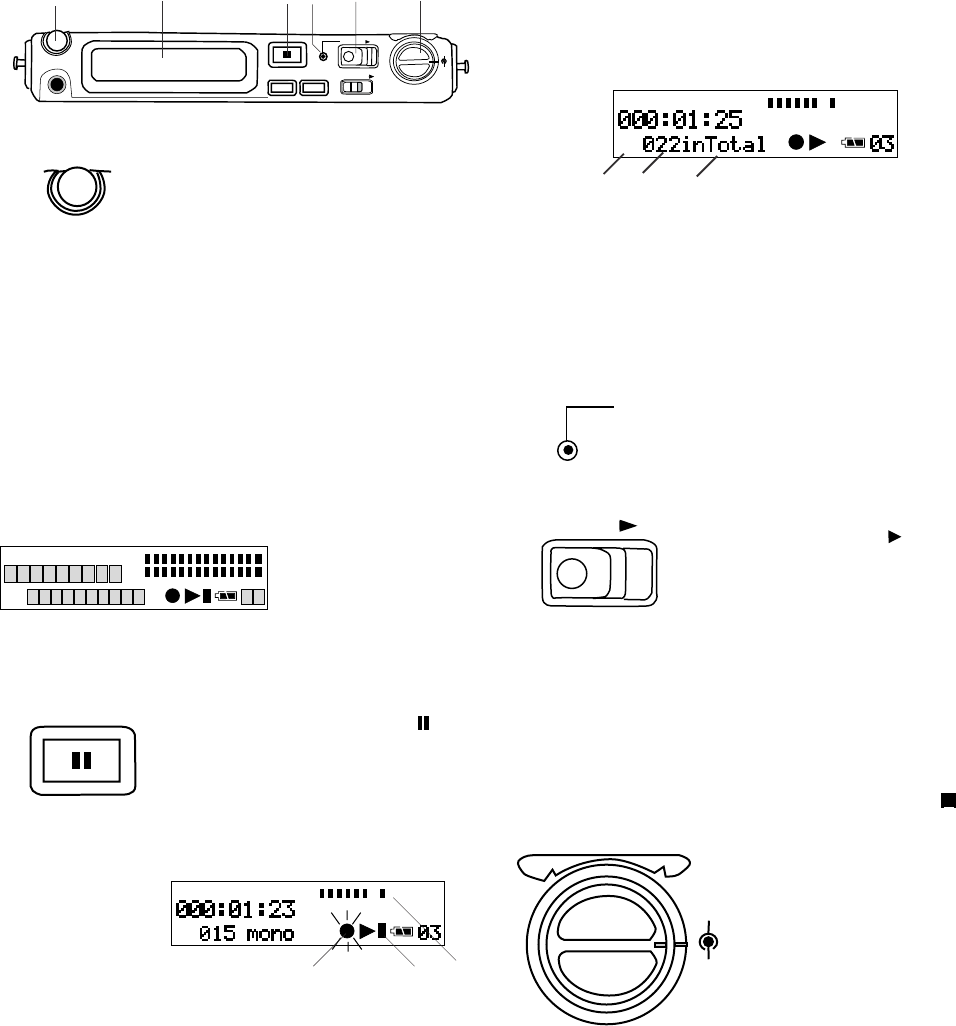

HP/SP VOLUME control ........................... 39

Display ...................................................... 39

REC PAUSE button ................................... 39

REC indicator ............................................ 39

REC switch................................................ 39

REC LEVEL controls ................................. 39

PHONES jack............................................ 40

DISPLAY button ........................................ 40

LIGHT button ............................................. 40

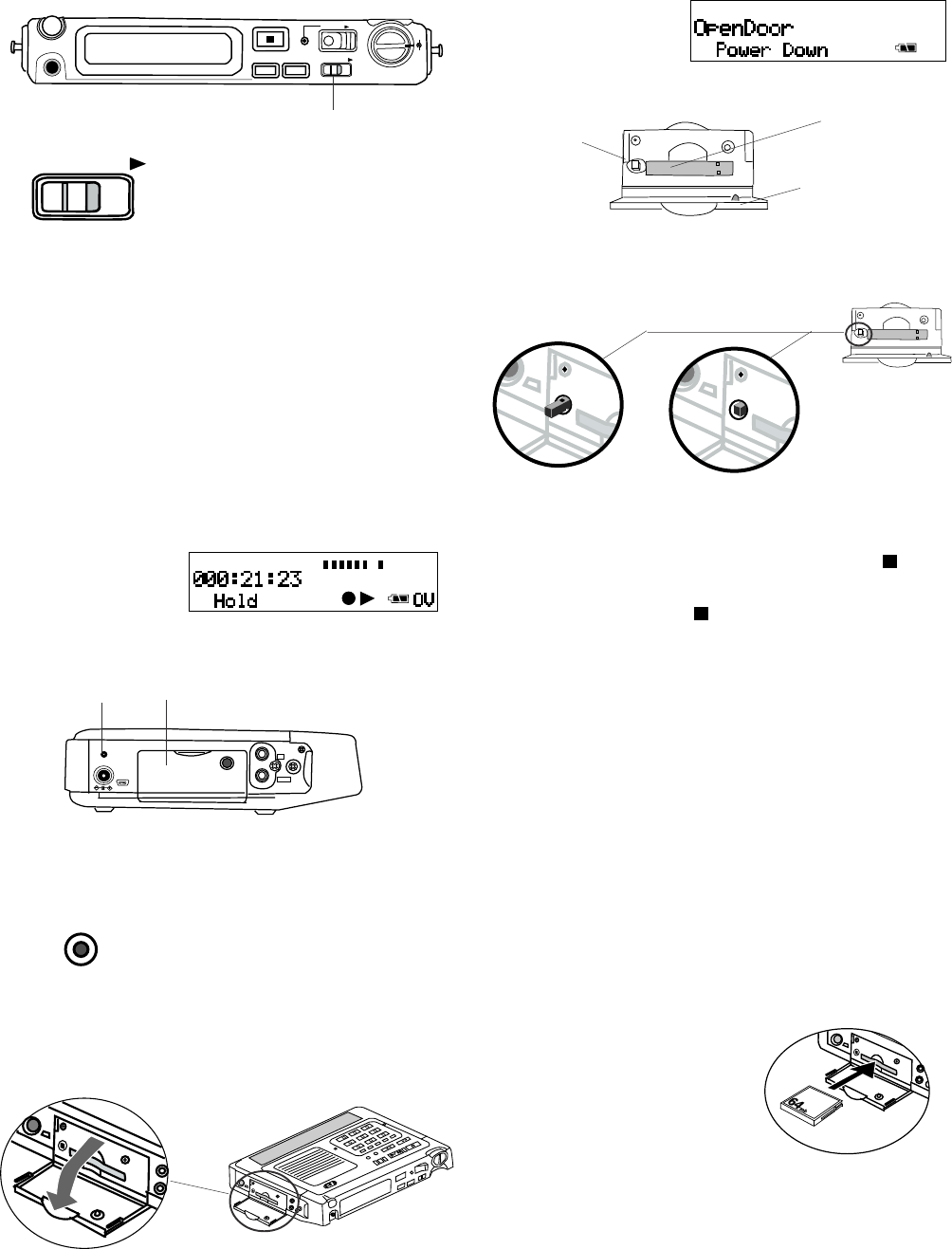

KEY LOCK switch ..................................... 41

- 8 -

Left side

CHARGE indicator .................................... 41

CF card compartment ............................... 41

To eject a CF card .................................. 41

To insert a CF card ................................. 41

DIGITAL IN/OUT jacks .............................. 42

DC IN 13V jack.......................................... 42

I/O port ...................................................... 42

How to connect via I/O port................. 43

Right side

Remote jack .............................................. 44

Remote Mode ........................................ 44

LINE OUT/IN jacks .................................... 44

MIC IN jacks .............................................. 44

PHANTOM +48V switch ............................ 45

Microphone recommendations ........... 45

Carry studs ................................................ 45

Installing the carry strap ..................... 45

Bottom

Battery compartment ................................. 46

Battery power ....................................... 46

Installing AA size batteries ............... 46

Installing an optional

Ni-Cd or Ni-MH battery ...................... 46

Display ........................................................ 47

Care and maintenance ................................. 48

Recording time chart .................................... 49

Troubleshooting ........................................... 50

Record setting recommendations ................ 50

Specifications ............................................... 51

Optional accessories .................................... 51

Menu defaults............................................... 51

Warranty ....................................................... 52

US/Europe models

MODEL NO. PMD670/U1B

The US model, PMD670/UIB distributed in the

USA, and European model, PMD670/W1B

distributed elsewhere, differ slightly in supplied

accessories and default settings. Those differ-

ences are noted in this User Guide.

MODEL NO. PMD670/UIB

MODEL NO. PMD670/W1B

Package contents

• PMD670

• 64MB CF card (US only)

(shipped formatted and

installed)

• AC adapter

• I/O cable (3 ft)

• AA battery holder

• Carry strap

• Carry strap retainers (2)

• Security screws (3)

ISO 3x10 (3mm x 10mm long)

For Memory compartment door (1)

or Security cover (2 spares).

• Plastic pin and retainer

(spare -

for Memory compartment door)

•CD

Contents of the CD may vary.

Contents usually include:

• PDF format manual(s)

Several languages may be included.

• Demonstration copy of PMD Edit software

• Instructions for obtaining full copy of PMD Edit

• This User Guide

• Customer Registration Document

- 9 -

SOLID STATE RECORDER PMD670

POWER

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEAT

INPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE ENTER CANCEL

PLAY / PAUSE STOP

I / O

REW FWD

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE ENTER CANCEL

PLAY / PAUSE STOP

I / O

REW FWD

Control and Connection Diagrams

1 2

14 15 16 17 18

19 20 21 22

23 24 25

INPUT A-B REPEAT MARK

EDIT

Top

1Speaker ..................................................... 14

2MIC (internal microphone)......................... 14

3POWER switch .......................................... 14

4Security cover ........................................... 14

Setup controls

5AUTO MARK switch .................................. 14

6PRE REC switch ....................................... 14

7INPUT LOCK switch .................................. 15

8ANALOG OUT switch ................................ 15

9MIC ATTEN switch .................................... 15

10 REPEAT switch ......................................... 15

11 ANC switch ................................................ 16

12 EDL PLAY switch ...................................... 16

13 LEVEL CONT. ........................................... 16

14 INPUT button ............................................ 17

15 A-B REPEAT button .................................. 18

MARK/ EDIT controls

16 Mark reverse button .................................. 18

17 MARK/ EDIT button ............................... 18

18 Mark forward button .................................. 18

Record/Playback controls

19 TRACK JUMP reverse button

(playback) .................................................. 23

REC UNDO button (record) ...................... 23

20 TRACK JUMP forward button

(playback) .................................................. 23

21 -/REW button ....................................... 23

22 FWD/+ button ..................................... 23

23 MARGIN RESET/

I/O MENU/STORE button

MARGIN RESET button (playback) .......... 24

I/O button .................................................. 24

MENU/STORE button ........................... 24

24 PLAY/PAUSE button (playback) ......... 38

PAUSE button (record) .............................. 38

ENTER button (menu) ........................ 38

25 STOP/CANCEL button .......................... 38

# Control Page

Front

1HP/SPK VOLUME control ...................... 39

2Display (see next page) ......................... 39

3REC PAUSE button ................................ 39

4REC indicator. ........................................ 39

5REC switch ......................................... 39

6REC LEVEL controls .............................. 39

7PHONES jack ......................................... 40

8DISPLAY button ..................................... 40

9LIGHT button .......................................... 40

10 KEY LOCK switch .................................. 41

Left side

11 CHARGE indicator ................................. 41

12 CF card compartment ............................ 41

13 DIGITAL IN/OUT jacks ........................... 42

14 DC IN 13V jack....................................... 42

15 I/O port ................................................... 42

Right side

16 REMOTE jack ........................................ 44

17 LINE IN/OUT jacks ................................. 44

18 MIC IN jacks ........................................... 44

19 PHANTOM power switch ....................... 45

20 Carry studs ............................................. 45

Bottom

21 Battery compartment .............................. 46

- 10 -

REC PAUSE

DISPLAY LIGHT

REC

LEVEL

REC

HP/SPK VOLUME

PHONES

KEY LOCK

1 2 3 4 5 6

7 8 9 10

DIGITAL

OUT

CHARGE

DC IN 13V

I/O

11 12 13

14 15

COLD

HOT

231

GND

MIC

LINE

REMOTE

LINE

OUT

PHANTOM

+48V

OFF

16 17 18 19

- 11 -

# Control Page

Display

1REC label .......................................... 47

2TOTAL label ...................................... 47

3REMAIN label .................................. 47

4TRACK label ..................................... 47

5TIME label ......................................... 47

6kbps label .......................................... 47

7A-B label ........................................... 47

8Upper alphanumeric display ............. 47

9AM/PM label...................................... 47

10 kHz label ........................................... 47

11 L -dB R level meter labels ................ 47

12 Left level meter ................................. 47

13 -dB over scale .................................. 47

14 Right level meter ............................... 47

15 TRACK label .................................... 47

16 MARK label ....................................... 47

17 Lower alphanumeric display ............. 47

18 INT MIC label .................................... 48

19 LINE label ......................................... 48

20 Record ......................................... 48

21 Play .............................................. 48

22 Pause .......................................... 48

23 Battery ...................................... 48

24 S. SKIP label ..................................... 48

25 Peak level ......................................... 48

26 -dB label ............................................ 48

1 2 3 4 5 6 7 8 9 10 11 12 13 14

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

INT

MIC

LINE

S.SKIP -dB

over

15 16 17 18 19 20 21 22 23 24 25 26

Hint:

When making major changes to your re-

cording setup we suggest the following

procedure:

1. Identify the appropriate input device

(internal microphone, microphone(s),

Line input).

2. Select the input menu choice corre-

sponding to your input device selection.

(See page 17.)

3. If necessary, set or change the default

Algor/File parameters for your recording

situation. (See page 28.)

- 12 -

Introduction

Thank you for selecting the Marantz Professional

PMD670 Portable Solid State Recorder. The

PMD670 is an audio recorder that records in

digital audio formats onto a Compact Flash™

memory card (CF card) or Microdrive™.

Compact flash memory cards, also used in digital

cameras, are widely available at consumer

electronics retailers and computer resellers.

Audio inputs may be from:

• the built-in microphone,

• condenser or dynamic microphone(s) con-

nected to the XLR jacks,

• line level audio sources connected to the

LINE IN jacks, or

• digital audio sources in SP/DIF format con-

nected to the DIGITAL IN jack.

Audio outputs may be from:

• the built-in speaker,

• headphones connected to the PHONES jack,

• analog audio devices such as an amplifier or

other device connected to the LINE OUT

jacks, and/or

• digital audio devices using SP/DIF format

connected to the DIGITAL OUT jack.

Computer compatible

The PMD670 records directly onto CF cards.

Recordings can be transferred to your desktop or

laptop computer by removing the CF card from

the PMD670 or by using the supplied cable to

connect the PMD670 to your computer via the I/O

port. Audio recorded in the popular MP3 com-

pression format is directly available for intranet or

internet file sharing.

• log and archive audio files

• play audio files on your computer

• save audio files to:

• your hard drive

• a floppy

• a CD-R disc

• post streaming audio files on your web site

• use software and your computer to transcribe

digital recordings

• An editing program (PMD Edit, available from

Marantz Professional for PC users) lets you

convert and edit audio files that were recorded

on the PMD670.

Voice recording

The PMD670 has several helpful features for

voice recording in situations such as meetings,

conferences or other events.

• Use less memory (longer recording time)

For voice recording the recording quality level

(bit rate recorded and/or sampling frequency)

can be set to the lowest levels permitting more

time recorded on the CF card.

• Easy to use for recording

One control begins recording. Simply slide and

release the red REC switch.

• Security – Input settings

After you have set up the input settings* for

your application the settings can be set to ON

with the INPUT LOCK switch.

As an added precaution the input setting

switches (including the ability to change input

devices) can be protected with the supplied

screw-on cover preventing unintentional

changes.

*Settings for recording meetings for example,

will usually be the same from meeting to meet-

ing.

• Security – CF cards

For added security the CF card compartment

door can be secured with a screw. This is

especially recommended if you transfer audio

files via the I/O cable.

Playback aids

A common problem with lengthy voice or other

recordings is difficulty in locating one or more

specific passages for playback. The PMD670 has

several ways to mark or tag specific record

starting points.

• Date and time

A built-in date and time generator marks the

beginning of each track.

- 13 -

• Tracks

A new track (file) is automatically started each

time recording is stopped using the STOP

button.

• Automatic recording

The PMD670 can be set to stop recording

when there is silence (Silent Skip) and auto-

matically start when sound resumes. The

PMD670 can be set to automatically add an

EDL mark to the track at each such starting

point.

• EDL marks*

EDL (Edit Decision List) marks can be created

during recording manually or automatically.

EDL marks help you find those specific points

in the recording.

*The EDL marking system is proprietary to Marantz

Professional solid state recorders.

• During playback you can search for EDL

marks in forward or reverse.

• You can change an EDL mark into a skip

mark or an A-B repeating point. That lets you

create custom playback sequences which

include skipping audio between EDL marks

or repeating audio between EDL marks.

• Up to 255 EDL marks can be added to a CF

card. EDL marks are numbered consecu-

tively starting at one. During recording you

can manually add an EDL mark by pressing

MARK. EDL marks can be added automati-

cally, for example at the beginning of each

track.

• PMD Edit computer software, is specifically

designed for the PMD670. PMD Edit recog-

nizes EDL marks generated by the PMD670.

This is especially useful for editing audio files

on your PC. For more information visit

www.marantzpro.com/Products/

PMDEdit.html.

Features

• Stereo (2 channels) and mono (1 channel)

audio recording and playback.

• Records onto various types of CF cards.

(Please refer to the Marantz Professional

web site at www.marantzpro.com for a

complete updated list of approved cards.)

• Two different recording formats.

• Compressed recording using MPEG1 Layer

II (MP2) or MPEG1 Layer III (MP3) mono

and stereo.

• Uncompressed recording using 16-bit linear

Pulse Code Modulation (PCM).

• MS-DOS™ and Windows compatible file

system.

• Selectable file types:

• Wave (.wav)

• Broadcast Wave Format (.bwf)

• RAW MP2 (.mpg)/MP3 (.mp3).

• recording bit rate is selectable

• .mpg/mp3 compressed at 32kbps (recom-

mended for dictation),

32, 48, or 64kbps (recommended for voice

recording), or

128, or 192 kbs (recommended for recording

music)

• PCM (.wav) uncompressed at 768kbps

(mono) (very high quality mono audio record-

ing)

• PCM (.wav) uncompressed at 1536kbps

(stereo) (recommended for very high quality

audio recording)

• Manual, manual with limiter and automatic

record level control (ALC).

• An ANC (Ambient Noise Cancel) switch for

reducing unwanted background noise.

• Pre-Recording memory buffer that records 2

seconds of audio before recording is started.

• Portions of multiple recordings can be played

back in sequence using EDL marks.

• There are four ways to power the PMD670:

• Included AC adapter

• AA Alkaline batteries (~ 6 hours)

• Optional rechargeable Ni-Cd battery pack

RB1100 (~ 5 hours).

• Optional rechargeable Ni-MH battery

RB1650 (~ 7 hours).

• Built-in Time and Date generator marks the

beginning of each track.

• REMOTE jack permits a wired remote button

for controlling the recording process.

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

- 14 -

SOLID STATE RECORDER PMD670

MARK

A-B REPEATiNPUT

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE

ENTER CANCEL

PLAY / PAUSE STOP

POWER

EDIT

- / REW FWD / +

I / O

Controls and Connections

Top

1. Speaker

The played back audio signal is simulta-

neously output to the built-in speaker, the

PHONES jack, LINE OUT jacks and DIGITAL

OUT jack. Headphones plugged into the

PHONES jack mutes the internal speaker.

The HP/SPK VOLUME control controls the

built-in Speaker and Headphone volume.

1 2

2. MIC (internal microphone)

POWER

3 4

3. POWER switch

Slide to the right and release

to turn Power on or off.

If the AC adaptor is con-

nected at DC IN and plugged in, it powers the

PMD670.

If power is not detected at DC IN, battery power is

automatically used if available.

When first powered up the PMD670 takes some

time to initialize.

4. Security cover

Use a small Phillips screw-

driver to remove or replace

the Security cover.

The Security cover makes

setup controls relatively unavailable. The setup

controls allow you to setup the PMD670 for your

unique application. You can then have someone

operate the PMD670 without concern that they

might change something that could cause failure

to record.

Recording setup controls

ON: During record, a pause (pushing the REC

PAUSE button) adds an EDL mark to the track.

During record an EDL mark is added to the track

if a remote device (plugged into the REMOTE

jack) is used to pause recording.

OFF: Pausing during record does not add an

EDL mark to the track.

Factory default: AUTO MARK switch ON.

OFF ON

AUTO MARK

Note: Two 3mm machine

screws 10mm long are used for

the security cover.

5. AUTO MARK switch

Turns the automatic EDL

mark feature on or off.

Loading is dis-

played, then a blank

screen for a while.

Reading is dis-

played while the CF

card is read.

-dB

over

-dB

over

-dB

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

OFF ON

INPUT LOCK

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

6. PRE REC switch

Lets you turn off pre

record cache if it is not

desired.

When power is on the PMD670 is constantly

saving 2 seconds of audio input. This is called

pre record cache. When recording is started by

sliding the REC switch, or resumed from REC

PAUSE by sliding the REC switch the pre-re-

corded 2 seconds is recorded.

OFF: Turns the 2 second pre-record cache off.

ON: Leaves the 2 second pre-record cache on.

Factory default: PRE REC switch at ON.

OFF ON

PRE REC

STEREO

ANALOG OUT

- 15 -

MIC ATTEN

0dB

-20d

7. INPUT LOCK switch

The INPUT LOCK switch

lets you lock your selected

input settings with a switch

covered by the Security

cover.

OFF: When the INPUT LOCK switch is at OFF

push and release the INPUT button (a) to tab

through the input choices. The selection “times

out” to the displayed input choice in 5 seconds.

Example

display:

mono with INT MIC

ON: When the INPUT LOCK switch is at ON

pushing the INPUT button (a) does nothing

(skips the input selection choices).

Factory default: INPUT LOCK switch at OFF.

8. ANALOG OUT switch

Selects the audio output

channel for playback.

Applies to playback output to LINE OUT, and

Internal speaker or headphones.

L: Audio recorded on the Left channel is output to

both the left and right output channels.

If the recording is dual level mono (a mono input

was recorded onto both the right and left channels)

the L setting outputs the audio at a normal level

while the right is reduced -15dB.

STEREO: Audio recorded on the Left channel is

output to the left output channel, and audio re-

corded on the Right channel is output to the right

output channel. Both channels are output to the

internal speaker.

R: Audio recorded on the Right stereo channel is

output to both the left and right output channels.

Factory default: ANALOG OUT switch at STEREO.

9. MIC ATTEN switch

The microphone attenuation

switch permits the direct use

of microphones that differ in

sensitivity.

0dB: No microphone attenuation.

-20dB: Input from a microphone(s) connected to

the XLR MIC IN jacks is cut by -20dB.

Factory default: MIC ATTEN switch at 0dB.

10. REPEAT switch

SINGLE

OFF ALL

REPEAT

Lets you endlessly repeat

playback of a track or entire

memory card.

OFF: No repeat.

SINGLE: During playback the current track is

repeated. When playback reaches the end of the

track it automatically starts playback from the

beginning of that track.

ALL: During playback all tracks are repeated.

When playback reaches the end of the last track

it automatically starts playback from the begin-

ning of the first track.

Factory default: REPEAT switch at OFF.

Note:

For other methods of repeat playback see the A-

B REPEAT button and/or EDL A-B looping.

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

- 16 -

ANC

FLAT

OFF ON

EDL PLAY

LEVEL CONT.

LIMITER

ALC MANUA

11. ANC switch

The ANC (Ambient Noise

Cancel) switch lets you

choose to reduce ambi-

ent noise before recording on the internal micro-

phone or MIC inputs.

Ambient Noise Cancel positions do not change

the memory used in recording. Examples of low

ambient noise sources include: traffic, air condi-

tioning hum, and wind noise.

Band pass position reduces the lows

and highs and passes (records) the center (voice

level) audio frequencies. This reduces the re-

cording of high and low frequency ambient noise.

FLAT: No filtering applied.

High pass position reduces low fre-

quency ambient noise only.

US default: ANC switch at Band pass .

Europe default: ANC switch at FLAT.

2. EDL PLAY switch

The EDL PLAY switch

turns EDL PLAY off or on.

OFF: When the EDL PLAY switch is at OFF

PMD670 playback does not respond to EDL

mark instructions.

ON: When EDL PLAY is ON PMD670 playback

follows EDL mark instructions regarding play-

back order, skipping sections of recording on the

memory card, or repeating a section of recording

on the memory card.

Note: If the EDL PLAY switch is at ON and there

are no EDL marks on the CF card (recording

was done with the AUTO MARK switch at OFF)

playback is not available. Switch to OFF for

playback.

Factory default: EDL PLAY switch at OFF.

13. LEVEL CONT. switch

The LEVEL CONT(rol)

switch lets you select the

type of input level control.

MANUAL: At MANUAL you control the input level

with the REC LEVEL controls.

LIMITER: At LIMITER peak sound levels that

would distort the recording are limited.

ALC: At ALC (Automatic Level Control = Auto-

matic Gain Control) the PMD670 automatically

responds to changes in input level. If recording is

quiet the input level is increased. If recording is

loud the input level is decreased. This is a desir-

able feature when recording a meeting with several

speakers, because a speaker close to the micro-

phone and/or with a loud voice will be automati-

cally recorded at a reduced level and a quiet

speaker will be recorded at an increased level and

is less likely to have their input missed.

ALC is usually not desired when recording music

(voice or instrument) because the transitions in

input level may be audible in the recording, and

can make the recording ‘hissy’ by raising the level

during quiet passages and recording ambient

noise.

The REC LEVEL controls do not work when the

LEVEL CONT. switch is set at ALC.

US default: LEVEL CONT. switch at ALC.

Europe default: LEVEL CONT. switch at

MANUAL.

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

INPUT

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

- 17 -

14. INPUT button

The INPUT button lets you

select the audio input and

audio channels for record-

ing.

When the INPUT LOCK switch (a) is at OFF,

press and release the INPUT button to tab

through the input choices. When the desired

input is displayed switch the INPUT LOCK

switch (a) to ON.

Example

display:

mono with INT MIC

The nine input choices are:

mono with INT MIC input

stereo with LINE input

mono with LINE input (L only)

LR mono with LINE input (L + R mix)

DigiIn (digital input)

stereo with MIC input

DLmono with MIC input (dual level mono, L

only)

mono with MIC input (L only)

LRmono with MIC input (L + R mix)

Note: The PMD670 'listens' only to the selected

input. For example if the input selected is

LRmono with LINE input, and no input source is

connected to the LINE IN jacks the PMD670 will

record silence.

US default: mono with INT MIC input.

Europe default: stereo with MIC input.

What the input selections do:

Selects the input device(s) and channels

The input selection chooses which input(s) the

PMD670 is using for recording and how many

channels are recorded.

Selects the recording (file) parameters

The input selection also determines which set of

algorithm/file parameters are used (stereo file,

mono file, or digital file).

Recording (file) parameters:

stereo (recorded as a stereo file): stereo with

LINE input, stereo with MIC input, DLmono with

MIC input.

mono (recorded as a mono file): mono with INT

MIC input, mono with LINE input, LR mono with

LINE input, mono with MIC input, LRmono with

MIC input.

digital (recorded as a digital file): DIGITAL IN

input.

The default algorithm/file parameters are:

stereo file: MP2, 48kHz sample frequency,

128kbps per channel, and file extension .mpg.

mono file: MP3, 44.1kHz sample frequency,

32kbps, and file extension .mp3.

digital file: MP2, 44.1kHz or 48kHz sample

frequency (dependent on input source rather than

default or PMD670 menu selection), 128kbps,

and file extension .mpg.

Via the Algor/File Menu choice, the algorithm/file

parameters for stereo, mono or digital files can

be changed. See Algor/File Menu choice on page

29.

Input device(s) and channels:

mono with INT MIC input

Mono audio input from the internal microphone is

recorded as a mono file.

stereo with LINE input

Audio input from the L LINE IN jack is recorded

on the Left channel.

Audio input from the R LINE IN jack is recorded

on the Right channel.

mono with LINE input

Audio input from the L LINE IN jack is recorded

as a mono file.

LR mono with LINE input

Audio input from the L LINE IN jack and the R

LINE IN jack are combined and recorded as a

mono file.

DigiIn

Digital audio data at 44.1kHz or 48kHz input

through the DIGITAL IN jack can be recorded.

stereo with MIC input

The microphone connected to the L MIC IN XLR

jack is recorded on the Left channel and the

microphone connected to the R MIC IN XLR jack

is recorded on the Right channel.

DLmono with MIC input

In Dual Level mono with MIC input the micro-

phone input from the L MIC IN XLR jack is re-

corded on both the Left and Right channels. The

Right channel is reduced -15dB.

mono with MIC input

In mono with MIC input the microphone input

from the L MIC IN XLR jack is recorded as a

mono file.

LRmono with MIC input

In LR mono with MIC input the microphone input

from the L MIC IN XLR jack and the R MIC IN

XLR are combined and recorded as a mono file.

- 18 -

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

A-B REPEA

-dB over

1220

-dB

TRACKTIME

TRACK

A-

-dB

over

1220

-dB

TRACKTIME

TRACK

A-B

15. A-B REPEAT button

While in playback press and

release to start point A to point

B repeat playback.

A-B Repeat playback

Point A (starting point) is set when the A-B RE-

PEAT button is pressed and released. The next

press and release sets point B (ending point).

Playback repeats between A and B.

Note:

You can use the -/REW or FWD/+ buttons be-

tween setting the A and B points.

You cannot use the TRACK JUMP forward or

reverse buttons.

You can pause during A-B repeat playback by

pressing and releasing the PLAY/PAUSE button

. Resume A-B playback by pressing the

PLAY/PAUSE button again.

Exit and cancel A-B repeat by pressing the STOP

button or pressing the A-B REPEAT button.

Example display

when an A point

has been set.

Example display

during A-B repeat.

Note:

For other methods of repeat playback see the

REPEAT switch and/or EDL A-B looping.

16, 17, 18. MARK/

EDIT buttons

This button group

MARK

EDIT

controls EDL Marks and Editing functions.

EDL Marks

Mark functions: manually adding Marks, and

locating Marks.

Adding EDL Marks

Press and release the MARK/ EDIT button to

manually add an EDL Mark during recording.

Press the MARK/ EDIT button during pause,

recording, or playback to add an EDL Mark.

During recording adding an EDL Mark introduces

an audible click in the recording when using the

internal microphone.

Locating EDL Marks

From Stop press and release the Mark forward

button (18) or Mark reverse button (16) to tab

through the EDL marks on the CF card.

-dB

over

1220

-dB

TRACKTIME

MARK

Example display.

EDL Mark location as recording time

from the beginning of the track.

EDL Mark

number EDL Mark type

To start playback from the displayed EDL Mark

press and release the PLAY/PAUSE button.

MARK dis-

played (instead

of TRACK)

MIC ATTEN

0dB -20dB

FLAT

ANC

LEVEL CONT.

LIMITER

ALC MANUAL

OFF ON

EDL PLAY

STEREO

ANALOG OUT

OFF ON

AUTO MARK

OFF ON

PRE REC

MARK

A-B REPEATINPUT

EDIT

SINGLE

OFF ALL

OFF ON

INPUT LOCK

16 17 18

-dB over

1220

-dB

TRACKTIME

MARK

- 19 -

Edit functions: editing EDL Marks to create

custom playback sequences, erasing and renum-

bering Tracks, and formatting the CF card.

Custom playback sequences

EDL Marks are numbered consecutively from 001

and automatically renumbered when an EDL

Mark is added or erased. Playback is also con-

secutive from the point that playback begins.

EDL Mark custom playback can:

Skip playback from the beginning of a 'Skip' EDL

Mark to the beginning of the next EDL Mark.

A-B loop from a 'Loop_A' EDL Mark to a 'Loop_B'

EDL Mark.

Note: EDL Marks are not automatically placed at

the beginning of tracks. If you want your custom

playback sequence to include track beginning

points add EDL Marks to coincide with track

beginning points by:

a. Start playback by pressing and releasing

PLAY/Pause and then pause playback by

pressing and releasing PLAY/Pause

again.

b. Press and release TRACK JUMP forward

or TRACK JUMP reverse until the desired

track number is displayed.

c. Press and release the MARK/ EDIT button.

Editing EDL Marks:

All EDL Marks are initially entered as 'Point'

marks.

From Stop display the EDL Mark by pressing and

releasing the Mark forward button (18) or Mark

reverse button (16) to tab through the EDL marks

on the CF card.

When the EDL mark to be edited is displayed

press and release the MARK/ EDIT button. The

current EDL Mark type will be flashing.

Example

display.

19 -

Skip

An EDL Mark changed to 'Skip' will be skipped

during EDL playback (playback with EDL PLAY

switch at ON). Playback will skip to the beginning

of the next EDL Mark.

A skipped EDL recording is not erased. The

recording is still on the CF card. The skipped EDL

recording will play if the EDL PLAY switch is at

OFF. You can change the type later.

EDL A-B looping

To playback an EDL A-B loop press the PLAY/

PAUSE button to begin playback then press

and release the A-B REPEAT button.

If there is an error, for example there is an EDL

Mark of type Loop_A but no EDL Mark of type

Loop_B an error message is displayed.

Only one EDL A-B loop can programmed. When

a 'Loop_A' or 'Loop_B' exists on a CF card and

another is created the old mark automatically

changes to a 'Skip'.

Erase

When an EDL mark is erased the remaining EDL

marks are automatically renumbered from 1

through the number of EDL marks on the CF

card.

-dB

over

1220

-dB

TRACKTIME

TRACK

Example

display.

Press and release the MARK/ EDIT button to

tab through the EDL Mark types: Point, Skip,

Loop_A, Loop_B, and Erase. When the type you

want to change the EDL Mark to is flashing press

and release the ENTER button .

Writing will be displayed briefly and the PMD670

will return to stop mode.

-dB over

1220

-dB

TRACKTIME

MARK

- 20 -

Edit mode

Edit mode includes: Renumber (renumber

tracks), TrkERASE (erase a track),

TrkMkERASE (erase an EDL mark),

AllMkERASE (erase all EDL marks), and FOR-

MAT (format the CF card).

How to renumber tracks

If you have erased tracks from the CF card it is

easier to locate recordings if the tracks are

renumbered.

From stop press and hold the MARK/ EDIT

button for about 2 seconds to enter Edit mode.

Renumber flash-

ing in the display.

While Renumber is flashing (5 seconds) press

and release the ENTER button . (Or press

and release the STOP button to cancel.)

EXECUTING will be displayed and the percent-

age executing will increase to 100%.

100% done will be displayed momentarily. Then

the PMD670 and the display will return to stop

mode.

How to erase tracks

From stop press and hold the MARK/ EDIT

button for about 2 seconds to enter Edit mode.

Renumber flashing

in the display.

While Renumber is flashing (5 seconds) press

and release the MARK/ EDIT button again.

TrkERASE flashing

in the display.

While TrkERASE is flashing (5 seconds) press

and release the ENTER button .

TRACK

- 21 -

TRACK

Track number flash-

ing in the ERASE

display.

Press and release the FWD/+ button or the

-/REW button to select the track number

you want to erase.

Example track

34.

While the track to be erased is flashing (5 sec-

onds) press and release the ENTER button .

(Or press and release the STOP button to

cancel.)

EXECUTING will

be displayed

momentarily.

Done will be dis-

played momen-

tarily.

The PMD670 and the display will return to stop

mode.

The recording time (file space on the CF card)

used by the erased track is available for record

ing.

press and release the MARK/ EDIT button two

more times.

While the display is

flashing (5 seconds)

How to erase all EDL marks within one track

From stop press and hold the MARK/ EDIT

button for about 2 seconds to enter Edit mode.

Renumber flashing in the display.

TrkMkErase flashing

in the display.

While TrkMkERASE is flashing (5 seconds) press

and release the ENTER button .

Press and release the FWD/+ button or the

-/REW button to select the track that con-

tains the EDL Marks you want to erase.

Example Track 12.

While the track number is flashing (5 seconds)

press and release the ENTER button . (Or

press and release the STOP button to can-

cel.)

EXECUTING

will be displayed

momentarily.

Done will be

displayed mo-

mentarily.

The PMD670 and the display will return to stop

mode.

- 22 -

MARK

-dB over

1220

-dB

INT

MIC

While the display is flashing (5 seconds) press

and release the MARK/ EDIT button three more

times.

Renumber flashing

in the display.

How to erase all EDL marks

From stop press and hold the MARK/ EDIT

button for about 2 seconds to enter Edit mode.

AllMkErase flash-

ing in the display.

While AllMkERASE is flashing (5 seconds) press

and release the ENTER button .

AllMkErOK?

flashing in the

display.

The display asks you to confirm that you want to

erase all EDL Marks on the CF card. While

AllMkErOK? is flashing press and release the

ENTER button to confirm. (Or press and

release the STOP button to cancel.)

EXECUTING will be

displayed momen-

tarily.

Done will be dis-

played momentarily.

The PMD670 and the display will return to stop

mode.

How to format a CF card

From stop press and hold the MARK/ EDIT

button for about 2 seconds to enter Edit mode.

Renumber flashing

in the display.

While the display is flashing (5 seconds) press

and release the MARK/ EDIT button four more

times.

FORMAT flashing

in the display.

While FORMAT is flashing (5 seconds) press and

release the ENTER button .

FORMAT OK?

flashing in the

display.

The display asks you to confirm that you want to

format the CF card. Formatting the CF card will

erase all recordings on the card.

While FORMAT OK? is flashing press and re-

lease the ENTER button to confirm. (Or

press and release the STOP button to cancel.)

EXECUTING will be

displayed momen-

tarily.

Done will be dis-

played momentarily.

The PMD670 returns to stop mode.

BlankCard will be

displayed.

The CF card formats used by the PMD670 are

Windows compatible. You can copy audio files

using a Windows compatible computer* that can

read a CF card or be connected via the I/O port.

*Or a Macintosh computer that can recognize

Windows compatible removable drives.

CF cards with less than 2 GB capacity are auto-

matically formatted FAT16 (FAT = File Allocation

Table).

CF cards with 2 - 8 GB capacity are automatically

formatted FAT32.

The maximum CF card that can be formatted in

the PMD670 is 8 GB. If larger cards are used

please format in your computer.

SOLID STATE RECORDER PMD670

MARK

A-B REPEATiNPUT

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE

ENTER CANCEL

PLAY / PAUSE STOP

POWER

EDIT

- / REW FWD / +

I / O

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE ENTER CANCEL

PLAY / PAUSE STOP

I / O

REW FWD

19 20 21 22

TRACK JUMP

REC

UNDO

-dB over

1220

-dB

INT

MIC

TRACKTIME

TRACK

-dB

over

1220

-dB

INT

MIC

TRACKTIME

TRACK

-dB over

1220

-dB

INT

MIC

TRACKTIME

TRACK

REW FWD

- 23 -

Controls and Connections

Top continued

19, 20. TRACK

JUMP buttons

TRACK JUMP reverse button

REC UNDO button

TRACK JUMP forward button

19. TRACK JUMP reverse button

During playback press and release to jump to the

previous track. If pressed while playing the first

track jumps to the last track on the CF card.

19. REC UNDO button

During recording press and release twice to undo

(erase) the recording and pause recording at the

beginning of the track.

Example display

during record.

Example display for

3 seconds after

REC UNDO button

is pressed.

Example if REC

UNDO button is

pressed again

within the 3 sec-

onds.

Recording is at REC pause at the beginning of

the track.

20. TRACK JUMP forward button

During playback press and release to jump to the

next track. If pressed while playing the last track

jumps to the first track on the CF card.

21. - /REW button

22. FWD/+ button

During playback press and hold the -/REW button

to "rewind", do an audible search in the

reverse direction. Press and hold the FWD/+

button to "forward", do a 2X speed audible

search in the forward direction. Release to

return to normal forward playback.

During play pause, press and hold the -/REW

button or the FWD/+ button to rewind or

fast forward quickly. The rewind or fast forward is

at 10X speed for three seconds, then automati-

cally speeds up to 140X speed.

Notes:

If the -/REW button or the FWD/+ button

is held past the beginning or end of a track the

rewind or fast forward will continue onto the

previous or next track.

If REPEAT SINGLE or REPEAT ALL is on, the

rewind or fast forward will follow the repeat order.

Does not function in EDL playback or EDL A-B

repeat.

During Editing and Menu functions press and

release the -/REW button to increment a

parameter in the - direction and press and re-

lease the FWD/+ button to increment a

parameter in the + direction.

MARGIN RESET

MENU/STOREi / O

-dB over

1220

-dB

INT

MIC

TRACKTIME

TRACK

SOLID STATE RECORDER PMD670

MARK

A-B REPEATiNPUT

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE

ENTER CANCEL

PLAY / PAUSE STOP

POWER

EDIT

- / REW FWD / +

I / O

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE ENTER CANCEL

PLAY / PAUSE STOP

I / O

REW FWD

- 24 -

SOLID STATE RECORDER PMD670

MARK

A-B REPEATiNPUT

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE

ENTER CANCEL

PLAY / PAUSE STOP

POWER

EDIT

- / REW FWD / +

I / O

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE ENTER CANCEL

PLAY / PAUSE STOP

I / O

REW FWD

1 2, 5

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

4 3

Controls and Connections

Top continued

23. MARGIN RESET/

I/0 MENU/STORE

button

Several functions depend-

ing on state of the

PMD670.

MARGIN RESET button

During record press and release to reset the

peak level margin.

Example display

with level margin at

-02dB before press-

ing the MARGIN

RESET button. level margin

The level margin displays the highest level

achieved since the track began or the MARGIN

RESET button was pressed and released. OV

indicates a margin over 0dB.

I/O button

Connects the CF card via the I/O port to a con-

nected device (usually a computer).

From power off press and hold the I/O button

while you slide the POWER switch on the

PMD670 to the right to power on.

This display

appears.

The CF card in the PMD670 appears as an

external drive on a connected computer.

Power off to disconnect.

See page 43, How to connect via the I/O port.

MENU/STORE button

The PMD670 Menu lets you preset various

parameters. To access the Menu with POWER

on and the PMD670 in Stop:

Menu operations

1. Press and hold the MENU/STORE button

for about 2 seconds. MENU will appear

(flashing) in the display.

Example

display:

2. While MENU is flashing (for about 3 seconds)

press and release the ENTER button . The

Menu choice will appear. If the flashing MENU

times out start over at 1.

The last Menu choice entered appears, the

following starts from the Date/Time menu

choice.

3. Press and release the FWD/+ button

4. or the -/REW button to tab through the

menu choices.

The rest of the menu setting procedure differs

slightly depending on the menu item. In

general you:

5. Press and release the ENTER button to

select a menu choice.

6. Press and release the FWD/+ button or

the -/REW button to change the menu

setting.

7. Press and release the ENTER button to

confirm the menu setting.

- 25 -

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

Then either:

8a. Press and release the FWD/+ button or

the -/REW button to tab to another menu

choice, or

8b. Press and release the MENU/STORE

button to write the menu changes and return

to stop mode, or

8c. Press and release the CANCEL button to

cancel any menu changes and return to stop

mode.

The Menu choices are:

Date/Time – For setting or changing the Date and

Time associated with when an audio track (file)

was created.

DateForm – For selecting the date order.

Algor/File – For setting or changing the recording

compression algorithm, associated bit rate, audio

file type, and channels recorded.

M. Track – Turn manual track incrementing

feature on or off.

SeamlsPly – Turn the Seampless play feature on

or off.

S.Skip – Turn Silent Skip feature on or off, set the

number of seconds the dB level must meet or

exceed the set threshold, and set the dB threshold

level.

A.Cue – Turn the Auto Cue feature on or off, set

the number of micro-seconds the dB level must

meet or exceed the set threshold, and set the dB

threshold level.

S.Play – Turn the single track play feature on or

off.

Beep – Turn the beep on or off.

A.PowOff – Enable or disable the Automatic

Power Off feature.

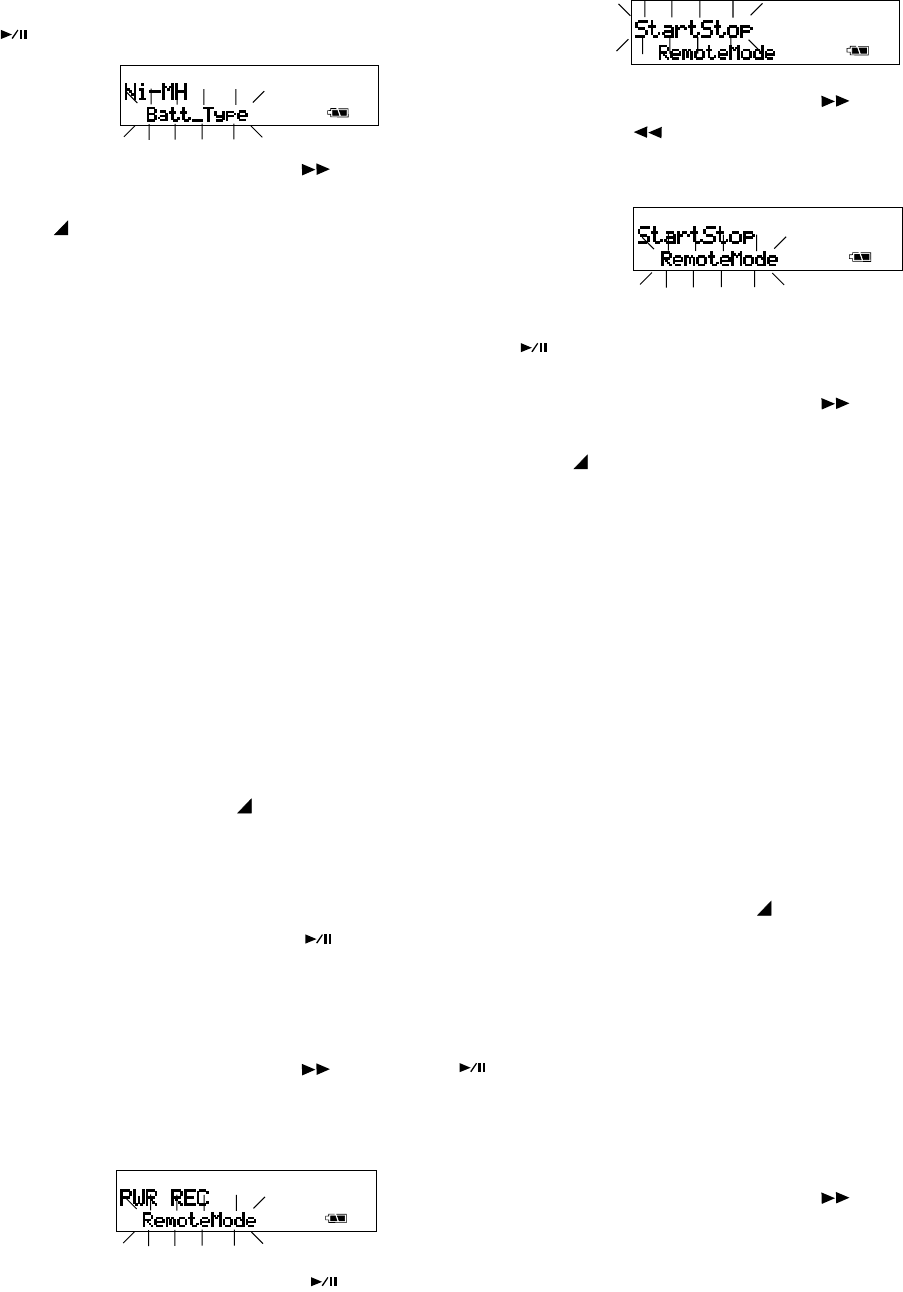

Batt_Type – Set the battery type.

RemoteMode – Set the effect of the optional

wired remote switch.

ID1 – Set the description ID code for broadcast

wave file recordings.

ID2 – Set the origin ID code for broadcast wave

file recordings.

ID3 – Set the origin reference ID code for broad-

cast wave file recordings.

Default – Reset all Menu settings to factory

default settings.

How to set or change the Date and time

The date and time are written on each audio

track (file) when the track is started. When an

audio track is viewed on a computer this date

and time appears as when the file was 'modi-

fied'. (US date format is illustrated.)

1. From stop, press and hold the MENU/

STORE button for about 2 seconds. MENU

will appear (flashing) in the display.

Example

display:

2. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The Date/Time

Menu choice

will appear.

(If the flashing MENU times out start over at 1.)

3. Press and release the ENTER button

again. The current date and time information

will be displayed with the month flashing.

Example

display.

4. With the month flashing press and release

the FWD/+ button or the -/REW but-

ton to tab through the months. When the

month is correct, Press and release the

ENTER button .

- 26 -

The day will be flashing.

5. With the day flashing press and release the

FWD/+ button or the -/REW button to

tab through days. When the day is correct,

press and release the ENTER button .

The year will be flashing.

Example

display.

Example

Display

6. With the year flashing press and release the

FWD/+ button or the -/REW button to

tab through years (2003 - 2099). When the

year is correct, press and release the ENTER

button .

The hour will be flashing.

Example

display.

7. With the hour flashing press and release the

FWD/+ button or the -/REW button to

tab through hours. AM, PM will change when

you pass 12, check that it is correct. When

the hour and AM/PM is correct, Press and

release the ENTER button .

The minute will be flashing.

Example

display.

8. With the minute flashing press and release

the FWD/+ button or the -/REW but-

ton to tab through minutes. When the

minute is correct, Press and release the

ENTER button .

Date/Time will be

flashing.

9. Press and release the MENU/STORE

button. If you have made changes to the date

and/or time Stored will be displayed briefly.

The display will return to stop mode.

Note:

The date and time settings will remain for about

a month if the AC Adapter is not plugged in and

no batteries are installed.

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

- 27 -

How to set or change the Date Form

The date form is the date order month/day/year or

day/month/year.

The US default is M/D/Y (month/day/year).

The Europe default is D/M/Y (day/month/year).

1. From stop, press and hold the MENU/

STORE button for about 2 seconds. MENU

will appear (flashing) in the display.

Example

display:

2. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The Date/Time Menu choice will appear.

(If the flashing MENU times out start over at 1.)

3. While Date/Time is flashing (for about 3

seconds) press and release the FWD/+ button

. The DateForm Menu choice will appear

4. Press and r lease the ENTER button

again. TheM/D/Y choice will flash.

Example

display.

5. Press and release the FWD/+ button or

the -/REW button to toggle between

M/D/Y and D/M/Y. When the desired form

appears press and release the ENTER button

6. Press and release the FWD/+ button or

the -/REW button to tab to another menu

choice, or

7. Press and release the MENU/STORE

button to write the menu changes and return

to stop mode, or

8. Press and release the CANCEL button to

cancel all menu changes and return to stop

mode.

- 28 -

PCM

45 6

.wav/.bwf

- - - - - - - - -

default

Algor/File

Stereo

Mono

Dig-In

MP2

MP3

PCM

MP2

MP3

PCM

MP2

MP3

384,256,192,128,96,64

320,256,160,128,80,64

160,128,80,64,40,32

- - - - - - - - -

192,128,96,64,48,32

384,256,192,128,96,64

320,256,160,128,80,64

.mpg/.bwf

.mp3/.bwf

.wav/.bwf

.mpg/.bwf

.mp3/.bwf

.wav/.bwf

.mpg/.bwf

.mp3/.bwf

- - - - - - - - -

44.1

22.05

44.1

22.05

44.1

22.05

44.1

22.05

- -

Algor/File

The PMD670 can record in a variety of compres-

sion algorithm, associated bit rate, file format, and

recording type (channels recorded) parameters.

See explanations below and chart in right column.

First select your input device (internal micro-

phone, microphone(s), Line in, or digital input).

Second select your input channel choice with the

INPUT button, see page 17.

Recording Type

The recording type can be stereo (two channels

of recording) mono (one channel of recording) or

digital. This is set by your choice of input device

and input channel choice.

Algorithm

The PMD670 can record using three methods two

of which are compression algorithms: PCM, MP3,

and MP2.

PCM (Pulse Code Modulation) is

uncompressed. These are high quality audio

files used in the recording industry. For ex-

ample, for recording CD quality music. PMD

Edit and other professional level computer

applications are available for computer process-

ing of PCM files.

MP3 (MPEG1 Layer III) is highly compressed,

and creates relatively small files that are com-

monly used to transfer files on the internet.

MP2 (MPEG1 Layer II) is a compressed file

format that is commonly used in broadcasting.

MP2 audio is a higher quality than MP3. This is

especially useful when lower bitrates are used.

If you are a news reporter you will probably

want to record in MP2 format using the .bwf

extension.

Sample Frequency

Sample frequency is measured in kHz (kilo

Hertz). The sample frequency is the number of

samples of the audio wave(s) per second. For

example, the PMD670 can record PCM at 48 kHz

that is 48,000 samples per second.

Bit Rate

The bit rate for PCM is constant at 768kbps/ch.

MP2 and MP3 can be recorded at a number of

different bit rates.

File Format

The file format (3 character computer file exten-

sion) might be .wav, .bwf, .mpg or .mp3. Broad-

cast Wave Files (.bwf) include identification codes

in the file header.

Chart of Algorithm/File Parameters

Column

2. selected by input device and input channel

choice

3. file choice

4. sample frequency

5. bit rate

6 file extension

- 29 -

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

kbps

kHz

kbps

kHz

kbps

kHz

PCM

45 6

.wav/.bwf

- - - - - - - - -

default

Algor/File

Stereo

Mono

Dig-In

MP2

MP3

PCM

MP2

MP3

PCM

MP2

MP3

384,256,192,128,96,64

320,256,160,128,80,64

160,128,80,64,40,32

- - - - - - - - -

192,128,96,64,48,32

384,256,192,128,96,64

320,256,160,128,80,64

.mpg/.bwf

.mp3/.bwf

.wav/.bwf

.mpg/.bwf

.mp3/.bwf

.wav/.bwf

.mpg/.bwf

.mp3/.bwf

- - - - - - - - -

44.1

22.05

44.1

22.05

44.1

22.05

44.1

22.05

- -

How to set or change the Algor/File parameter

defaults.

The Chart of Algorithm/File Parameters reflects

the menu setting procedure of those parameters.

The factory defaults are circled.

1. Select the Algor/File menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will ap-

pear (flashing) in the display.

Example

display:

d. Press and release the ENTER button .

You are now at column 2 of the chart of

Algorithm File Parameters where you choose

between the parameters for Stereo, Mono, or

Dig-in input selections.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button . The

Date/Time Menu choice, or the last menu

choice, will appear.

(If the flashing MENU times out start over at

a.)

c. Press and release the FWD/+ button

repeatedly until the Algor/File is flashing.

Mono flashing

in display.

2. Press and release the FWD/+ button or

the -/REW button to tab to your record-

ing type choice.

Press and release the ENTER button to

accept the Stereo choice and switch to

column 3.

3. Press and release the FWD/+ button or

the -/REW button to tab to your algorithm

choice.

Example

display with

Stereo chosen.

Example display

with MP2 cho-

sen.

- 30 -

In our example we press and release the

ENTER button to accept the MP2 choice

and switch to column 4.

4. Press and release the FWD/+ button or

the -/REW button to tab to your sample

frequency choice.

In our example we press and release the

ENTER button to accept the 44.1 choice

and switch to column 5.

5. Press and release the FWD/+ button or

the -/REW button to tab to your bit rate

choice.

Example

display with

128 chosen.

In this example we press and release the

MENU/STORE button to save the change

and exit menu. Stored is displayed briefly.

How to set or change the Algor/File param-

eters continued

Example

display with

44.1 chosen.

kbps

kHz

kbps

kHz

In our example we press and release the

ENTER button to accept the 128 choice

and switch to column 6.

6. Press and release the FWD/+ button or

the -/REW button to tab to your file

format choice.

Example

display with

.bwf chosen.

In our example we press and release the

ENTER button to accept the .bwf choice

and switch to Algor/File.

The display returns to stop mode.

Note:

Changes to Algor/File usually also mean hard-

ware and INPUT menu changes. In our example

we changed the default MP2 Stereo.mpg with to

MP2 Stereo .bwf. We would expect to connect

microphones, change the INPUT settings from

mono with INT MIC input to stereo with MIC

input, and enter ID numbers for the .bwf file

header.

PCM

45 6

.wav/.bwf

- - - - - - - - -

default

Algor/File

Stereo

Mono

Dig-In

MP2

MP3

PCM

MP2

MP3

PCM

MP2

MP3

384,256,192,128,96,64

320,256,160,128,80,64

160,128,80,64,40,32

- - - - - - - - -

192,128,96,64,48,32

384,256,192,128,96,64

320,256,160,128,80,64

.mpg/.bwf

.mp3/.bwf

.wav/.bwf

.mpg/.bwf

.mp3/.bwf

.wav/.bwf

.mpg/.bwf

.mp3/.bwf

- - - - - - - - -

44.1

22.05

44.1

22.05

44.1

22.05

44.1

22.05

- -

- 31 -

Other menu choices:

Manual track incrementing.

When Manual track incrementing is on, during

recording slide and release the REC switch to

increment the track. A new track is created at that

point. There is no break in recording. When

Manual track incrementing is off, sliding and

releasing REC switch during recording does

nothing.

Default setting is On.

1. Select the M. Track menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will appear

(flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until M. Track is displayed and

flashing.

3. Press and release the ENTER button to

accept the M. Track choice and switch to ON

or OFF.

4. Press and release the FWD/+ button or

the -/REW button to toggle between On

and Off.

5. When correct Press and release the ENTER

button .

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

Seamless Play.

When Seamless Play is On, during playback

multiple tracks will be played back in sequence

without any break (space) between the tracks.

When Seamless Play is Off, during playback

multiple tracks will be played back in sequence

with breaks (brief periods of silence) between the

tracks.

Default setting is Off.

1. Select the Seamls Ply menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until Seamls Ply is displayed and

flashing.

3. Press and release the ENTER button to

accept the SeamlsPly choice and switch to

Off or On.

4. Press and release the FWD/+ button or

the -/REW button to toggle between Off

and On.

5. When correct Press and release the ENTER

button .

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

-dB

- 32 -

Silent Skip.

Silent skip automatically pauses recording when

there is a period of silence and continues record-

ing when sound resumes. Silent Skip looks for

sound below a preset level for a preset period of

time. When that occurs the PMD670 switches to

record pause. When a signal of about -30 dB is

input recording resumes.

For example, if you are both the recorder and

master of ceremonies for an event, you can

preset the PMD670 for recording and automati-

cally start recording when you start speaking into

the microphone.

When the AUTO MARK switch is at ON resump-

tion of recording after a record pause by Silent

Skip adds an EDL mark.

Default settings are Off, 03 seconds, and -40 dB.

1. Select the S.Skip menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 sec-

onds) press and release the ENTER button

. The last Menu choice selected will

appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until S.Skip is displayed and

flashing.

3. Press and release the ENTER button to

accept the S.Skip choice and switch to On or

Off.

4. Press and release the FWD/+ button or

the -/REW button to toggle between ON

and OFF.

5. When correct Press and release the ENTER

button to switch to set or change sec-

onds.

6. Press and release the FWD/+ button or

the -/REW button to change the number

of seconds of silence. The range is 1 to 5.

7. When correct Press and release the ENTER

button to switch to the decibel threshold

level.

8. Press and release the FWD/+ button or

the -/REW button to change the (-dB)

decibel threshold level. The range is 20 to 60

in 5 dB increments.

9. When correct Press and release the ENTER

button to switch to S.Skip flashing.

10. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

- 33 -

-dB

Auto Cue

Auto Cue skips the silence at the beginning of an

audio track and pauses playback at the point

where the sound is loud enough for long enough.

You can adjust how loud (how many dB) and how

long (milliseconds) the audio has to be before

playback is cued.

If S.Play is selected (see next page), when the

end of the track is reached Auto Cue pauses

playback cued to the sound of the next track.

Default settings are Off, 20 milliseconds, and -40

dB.

1. Select the A.Cue menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will ap-

pear (flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until A.Cue is displayed and

flashing.

3. Press and release the ENTER button to

accept the A.Cue choice and switch to On or

Off.

4. Press and release the FWD/+ button or

the -/REW button to toggle between On

and Off.

5. When correct Press and release the ENTER

button to switch to set or change millisec-

onds.

6. Press and release the FWD/+ button or

the -/REW button to change the number

of milliseconds of sound exceeding the

threshold. The range is 5 to 60 in five milli-

second increments.

7. When correct Press and release the ENTER

button to switch to the decibel threshold

level.

8. Press and release the FWD/+ button or

the -/REW button to change the decibel

threshold level. The range is -60dB to -20dB

in 5dB increments.

9. When correct Press and release the ENTER

button to switch to A.Cue flashing.

10. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

- 34 -

Single Play

During playback, when Single Play and Auto Cue

are Off, and the end of a track is reached the

next track automatically starts playing.

During playback, when Single Play is On, and

the end of a track is reached the PMD670 auto-

matically pauses. This differs from Auto Cue in

that Single Play does not cue to start of audio.

Default is S.Play Off.

1. Select the S.Play menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 sec-

onds) press and release the ENTER button

. The last Menu choice selected will

appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until S.Play is displayed and

flashing.

3. Press and release the ENTER button to

accept the S.Play choice and switch to On or

Off.

4. Press and release the FWD/+ button or

the -/REW button to toggle between ON

and OFF.

5. When correct Press and release the ENTER

button to switch to S.Play flashing.

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

Beep

When battery charge can provide no more than

1-3 minutes of recording or playback and Beep is

set to On, the battery indicator will flash, the REC

indicator will flash and the PMD670 will beep.

If the PMD670 is not operated for 30 minutes

during stop or play pause, power can be auto-

matically shut off to conserve battery life. (See

A.PowOFF next page.) If A.PowOFF is set to Y,

and Beep is set to ON, the PMD670 will beep to

alert you that the power is shutting off.

Default is Beep On.

1. Select the Beep menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until Beep is displayed and flash-

ing.

3. Press and release the ENTER button to

accept the Beep choice and switch to On or

Off.

4. Press and release the FWD/+ button or

the -/REW button to toggle between ON

and OFF.

5. When correct Press and release the ENTER

button to switch to Beep flashing.

- 35 -

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop

mode.

Automatic Power Off

If the PMD670 is not operated for 30 minutes

during stop or play pause, power can be auto-

matically shut off to conserve battery life.

Default is A.PowOFF Y (on).

1. Select the A.PowOFF menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 sec-

onds) press and release the ENTER button

. The last Menu choice selected will

appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until A.PowOff is displayed and

flashing.

3. Press and release the ENTER button to

accept the A.PowOff choice and switch to Y

or N.

4. Press and release the FWD/+ button or

the -/REW button to toggle between Y

and N.

5. When correct Press and release the ENTER

button to switch to A.PowOff flashing.

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

Battery Type

The PMD670 can operate on 8 store bought AA

size Alkaline, Ni-Cd* or Ni-MH* batteries.

*Not charged by the built-in charger.

An optional Ni-Cd battery pack (Model RB1100

available from Marantz Professional) will be

charged by the built-in charger when the AC

adaptor is plugged in.

An optional Ni-MH battery pack (Model RB1650

available from Marantz Professional) can be used

but is not charged by the built in charger and

requires Marantz Professional charger model

BC600.

Default is Alkaline.

1. Select the Batt_Type menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will appear

(flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until Batt_Type is displayed and

flashing.

3. Press and release the ENTER button to

accept the Batt_Type choice and switch to

the type of battery.

4. Press and release the FWD/+ button or

the -/REW button to tab between Alka-

line, Ni-Cd, and Ni-MH.

4. Press and release the FWD/+ button or

the -/REW button to tab through the

RemoteMode choices: StartStop, EDL Mark,

PWR REC, or M.Track

5. When correct Press and release the ENTER

button to switch to RemoteMode flashing.

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

Broadcast Wave ID numbers

Broadcast Wave Format (.bwf) has three identifi-

cation numbers in the header (Extension Chunk):

Description, Originator, and Originator Refer-

ence.

For example, if the IDs are used for a broadcast

station ID1 could be the identifier of the station,

ID2 could be used for the department code, and

ID3 for the badge number of the reporter.

Default is all ID number at 000000.

1. Select the ID1 menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 sec-

onds) press and release the ENTER button

. The last Menu choice selected will

appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until ID1 is displayed and flashing.

- 36 -

5. When correct Press and release the ENTER

button to switch to Batt_Type flashing.

6. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

Remote Mode

Use a wired remote, not supplied, to control the

PMD670. There are four remote modes:

• StartStop – during recording or playback

switch the remote off to pause, on to resume.

• EDL Mark – during recording or playback

switch remote to on to add an EDL mark.

• PWR REC – during power off, switch remote

to on to turn power on and begin recording.

During recording switch remote to off to stop

recording and power off.

• M.Track – during recording, switch remote to

on to increment the track. A new track is

created at that point.

Default is StartStop.

1. Select the RemoteMode menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will

appear (flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until RemoteMode is displayed

and flashing.

3. Press and release the ENTER button to

accept the RemoteMode choice and switch

to RemoteMode choices.

- 37 -

3. Press and release the ENTER button to

accept the ID# choice and switch to the

highest number position.

4. Press and release the FWD/+ button or

the -/REW button to tab through the digits

0 through 9.

5. When correct Press and release the ENTER

button to switch to the next digit.

6. Press and release the FWD/+ button or

the -/REW button to tab through the digits

0 through 9.

Repeat steps 5 and 6 until all six digits are

set.

7. Press and release the ENTER button to

switch to ID# flashing.

8. Press and release the FWD/+ button to

switch to the next ID#.

9. Repeat 5 - 8 for all three ID numbers. When

ID3 is flashing,

10. Press and release the FWD/+ button to

switch to another menu choice, or press and

release the MENU/STORE button to write

the menu change(s) and return to stop mode.

Menu Default

The Default menu choice resets all menu items to

their defaults. This is handy if you are setting up a

new setting configuration because you don't have

to check all the settings, you know they are at the

default.

Defaults are listed for each menu item.

Note:

US defaults are used for illustration. See page 51

for a table of menu defaults.

1. Select the Default menu choice:

a. From stop, press and hold the MENU

button for about 2 seconds. MENU will appear

(flashing) in the display.

b. While MENU is flashing (for about 3 seconds)

press and release the ENTER button .

The last Menu choice selected will appear.

(If the flashing MENU times out start over at

a.)

2. Press and release the FWD/+ button

repeatedly until Default is displayed and

flashing.

3a Press and release the ENTER button to

write the defaults. EXECUTING will be

displayed,

then Done will be displayed briefly.

3b. Or, press and release the CANCEL button

to exit menu mode without changing menu

settings.

- 38 -

PLAY / PAUSE

ENTER

CANCEL

STOP

SOLID STATE RECORDER PMD670

MARK

A-B REPEATiNPUT

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE

ENTER CANCEL

PLAY / PAUSE STOP

POWER

EDIT

- / REW FWD / +

I / O

TRACK JUMP

MARGIN RESET

REC

UNDO

MENU/STORE ENTER CANCEL

PLAY / PAUSE STOP

I / O

REW FWD

24 25

PLAY / PAUSE

ENTER

Controls and Connections

Top continued

24. PLAY/PAUSE but-

ton (playback)

ENTER button

(menu)

PLAY/PAUSE button

From stop press and release to begin playback.

During playback press and release to pause

playback.

During playback pause, press and release to

resume playback.

ENTER button

During menu functions press

and release to accept the

current setting and switch to

the next menu item to be set.

25. STOP/CANCEL button

During recording, press and

release to stop recording and

end the track (file).

During playback, press and release to stop

playback and end the playback session. When

you resume playback starts at the beginning of

the first track.

During menu operations press and release to

cancel all entries made and return to stop mode.

- 39 -

Front

REC PAUSE

DISPLAY LIGHT

REC

LEVEL

REC

HP/SPK VOLUME

PHONES

KEY LOCK

1 2 3 4 5 6

HP/SPK VOLUM

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

INT

MIC

LINE

S.SKIP -dB

over

REC PAUSE

-dB over

1220

-dB

INT

MIC

TRACKTIME

TRACK

b a c

-dB

over

1220

-dB

TRACKTIME

MARK

d e f

REC

LEVE

1. HP/SPK VOLUME control

Turn to adjust the volume of

headphones plugged into the

PHONE jack or the built-in

speaker.

Audio on the built-in speaker is automatically

interrupted when recording with the internal

microphone.

During playback what is heard on the L or R

headphone depends on the recording and for a

Stereo or Dual Mono recording, the setting of the

ANALOG OUT switch.

2. Display

See Display on

page 43 for

details.

3. REC PAUSE button

During recording push and

release to pause.

When paused the REC indicator will flash.

Example

display.

The Pause symbol (a) will be displayed.

The Record symbol (b) will flash in the display

The Level meter (c) will remain active.

To resume recording slide the REC switch to the

right and release.

A REC PAUSE does not increment the track.

If the AUTO MARK switch is at ON, a REC

PAUSE adds an EDL mark. When recording is

resumed the following is displayed for a couple of

seconds.

MARK (d) is displayed to indicate that the num-

ber (e) indicates the count of EDL marks.

"inTotal" (f) reminds you that EDL marks are

counted from the beginning the Flash memory

card not the beginning of the current track.

4. REC indicator

Red indicator light is lit

and steady during

Record, flashing during Record pause.

5. REC switch

From Stop slide to the

right and release to start

recording.

From REC PAUSE slide to the right and release

to resume recording.

During recording slide to the right and release to

increment the track (start a new audio file).

To stop recording press and release STOP .

6. REC LEVEL controls

Turn to adjust the

record level when the

LEVEL CONT. switch

is at MANUAL.

The inside control (Right channel) and outside

control (Left channel) turn together unless you

hold one while turning the other.

The optimum record level is when the level meter

goes as close to 0dB as possible but does not go

OVER.

- 40 -

Front continued

REC PAUSE

DISPLAY LIGHT

REC

LEVEL

REC

HP/SPK VOLUME

PHONES

KEY LOCK

7 8 9

Adjust headphone volume with the HP/SPK

volume control.

Headphones are active during recording and

playback.

During playback plugging in headphones mutes

the internal speaker.

PHONES

8. DISPLAY button

Press and release to tab

through alternate infor-

mation displays.

DISPLAY

Displays are slightly different in Stop, Record and

Play.

TIME

REC REMAIN L

-dB

over

1220

-dB

INT

MIC

Example display.

-dB over

1220

-dB

INT

MICTRACK

After the first press

track information

is displayed.

Total tracks on CF card.

After the second

press EDL mark

information is

displayed.

-dB

over

1220

-dB

MARK

Total EDL marks on CF card.

After the third

press file pa-

rameters are

displayed.

-dB

over

1220

-dB

kbps kHz

bit rate sampling frequency

compression

algorithm

recording type

After the fourth

press Date and

Time informa-

tion is dis-

played.

-dB

over

1220

-dB

TIME

Current clock time

hours:minutes:seconds

After the fifth press the display returns to the

default: remaining record time on the card.

remaining record time on card

During Record

the default display

is Record time on

the current track.

The first press of the DISPLAY button switches

to remaining record time for the card.

The second press switches to file parameters.

The third press switches to date and time.

The fourth press returns to the default.

During Playback

the default display

is playing time on

the current track.

The first press switches to file parameters.

The second press switches to date and time.

The third press returns to the default.

-dB

over

1220

-dB

INT

MIC

TRACKTIME

TRACK

Record time on track

During Stop:

-dB

over

1220

-dB

TRACKTIME

TRACK

playing time

9. LIGHT button

Press and release to

momentarily turn the Dis-

play light on.

Press and hold for three seconds to switch the

Display light on.

Press and release to switch the Display light

off.

LIGHT

7. PHONES jack

Plug stereo head-

phones in here.

Default display is

Remaining

record time for

the card.

- 41 -

REC PAUSE

DISPLAY LIGHT

REC

LEVEL

REC

HP/SPK VOLUME

PHONES

KEY LOCK

Front continued

10. KEY LOCK switch

The KEY LOCK switch

secures the PMD670 in the

state it is in during Record,

Playback or Stop.

KEY LOCK

Slide the switch to the right to turn KEY LOCK on.

Only these controls will work:

Display LIGHT button.

POWER switch - Works during Playback or Stop.

PRE REC switch.

If you try to operate a button or switch that is

locked, "HOLD" appears briefly in the display.

Example display:

-dB over

1220

-dB

INT

MIC

TRACKTIME

TRACK

DIGITAL

OUT

CHARGE

DC IN 13V

I/O

11 12

CHARGE

Left side

11. CHARGE indicator

Lit when optional Ni-Cd

battery is charging.

12. CF card compartment

Pull to open to access the CF card.

OpenDoor Power Down is displayed for about

one second.

Card eject

button

CF card slot

CF card door

Card eject button

The Card eject button has two positions: click

out (a) and click in (b).

To eject a CF card:

1. If recording or in playback push STOP .

If other operations are in progress cancel them

by pushing STOP or wait for them to

complete.

2. Open the CF card door*.

3. Push and release the Card eject button so it is

in click out position (a).

4. Push the Card eject button from the click out

position to the click in position (b).

*Opening the CF card door turns power off. If

recording is in progress, opening the Memory card

door automatically stops recording and writes

critical track information to properly close the file

before powering off.

To insert a CF card:

1. Push and release the Card eject button so it is

in the click in position (b above).

2. Fully insert the CF

card.

3. Close the CF card

door.

Note: If the CF card door won't latch, check that

the Card eject button is in the click in position (b

above).

- 42 -

DIGITAL

OUT

CHARGE

DC IN 13V

I/O

14 15

DIGITA

OUT

DC IN 13V

I/O

(3mm x

10mm long)

The supplied Memory compart-

ment security screw requires

using a small Phillips screwdriver

to open the Memory compartment

door. That reduces the possibility that the CF card will

be misplaced or stolen.

1. Remove the plastic pin (c) and then the

retainer (d).

2. Add the screw. Tighten the screw with a small

Phillips screwdriver tight enough so the screw

cannot be removed with a fingernail.

Security

Left side continued

13. DIGITAL IN/OUT jacks

RCA jacks for connect-

ing the PMD670 to an

audio component that

accepts or outputs digital

audio signals.

IN: Connect to the digital out of a digital audio

component. PCM audio data input at 44.1 and 48

kHz can be recorded.

This input has to be selected in the Input menu for

the signal to be recorded. See INPUT button.

OUT: Connect to the digital in of a digital audio

component.

• Only files with sample frequencies of 48 or

44.1kHz can be output.

• Digital audio is only output during normal or

EDL playback.

• The receiving component must be able to

accept audio in SPDIF (IEC-958-II) format.

• The receiving component must be able to

accept a sampling frequency of 48 or

44.1kHz.

14. DC IN 13V jack

Plug the supplied AC

adapter in here. The power

supplied is 1.0A at 13V AC.

The PMD670 automatically

switches to adapter power

if it was running on battery power. If AC power is

interrupted by a power outage or unplugging the

adapter the PMD670 automatically switches to

battery power.

15. I/O port

Plug the supplied I/O cable in

here and connect the other end

to your computer (PC or MAC).

The connection makes it easy to copy audio files

to your computer's hard drive or a CD. The I/O

connection can only be made active when the

PMD670 is off (neither recording or during play-

back).

- 43 -

1. Connect the cable to the PMD670 and your

computer.

2. Slide the POWER switch on the PMD670 to

the right and release to power off.

3. Press and hold the I/O MENU/STORE button

while you slide the POWER switch on the

PMD670 to the right and release to power on.

This display appears:

The CF card in the PMD670 appears as a re-

movable device on your computer. The audio

files are in a MPGLANG1 folder.

CAUTION: Only copy audio files (tracks) to other

volumes. Do not modify or delete the EDL file. If

the EDL file is missing or damaged PMD670 will

not be able to recognize one or more recorded

tracks or all tracks.

See the enclosed CD for demo PMDEdit soft-

ware for computer audio file manipulation.

PMDEdit is a full featured software suite de-

signed for Marantz Professional digital recorders

available for purchase at www.marantzpro.com/

Products/PMDEdit.html or at (630) 741-0330.

Power off and power the PMD670 back on to

resume recording or playback.

POWER

MARGIN RESET

MENU/STOREi / O

How to connect via the I/O port

Root PMD670.EDL

MPGLANG1

1001.MP

1002.MP

1003.MP

1999.MP

What will appear on your computer is a file titled

PMD670.EDL and a folder (directory) titled

MPGLANG1. Files within the MPGLANG1 folder

are numbered from 1001 through the number of

tracks recorded to a maximum of 1999. The file

extension will be .mp3, .wav, .bwf or .mpg de-

pending on the Algor/File parameters that were

set for the recording.

Diagram of file structure (assuming .mp3 files).

Changes made to file names or file structure

made on your computer will prevent file

recognitiion and therefore playback in the

PMD670.

However audio files from your computer that are

renamed using the file names above and put into

the structure above may be playable on the

PMD670. For example, if you name an mp3 audio

file 1234.MP3 and place it in MPGLANG1 folder

the PMD670 may play it.

COLD

HOT

231

GND

MIC

LINE

REMOTE

LINE

OUT

PHANTOM

+48V

OFF

16. Remote jack

Plug a wired remote (not

supplied) in here.

REMOTE

Right side

- 44 -

LINE

OUT

LINE OUT jacks

Plug Left and Right RCA audio cables in here to

connect to the input of an amplifier or other

external unit.

During playback what is output on the L or R

channel depends on the recording and for a

Stereo or Dual Mono recording, the setting of the

ANALOG OUT switch.

LINE IN jacks

Plug Left and Right RCA audio cables in here to

connect to the output of an external unit.

17. LINE OUT/IN

jacks

Plug external line

level audio devices

in here.

18. MIC IN jacks

Plug external micro-

phones in here.

For mono recording

use the Left jack.

3COLD

2HOT

231

1GND

MIC

To record, stereo with MIC input, DLmono with

MIC input, mono with MIC input, or LRmono with

MIC input must be selected in the input select

menu. See INPUT button.

Notes:

XLR pinout is 1 ground, 2 hot and 3 cold.

Microphones with a PHONE jack can be used

with an adapter (not supplied) from PHONE to

XLR.

To record, mono, stereo, or LR mono LINE input

must be selected in the input select menu. See

INPUT button.

16 17 18

Wiring

diagram

2.5 mm jack

A switch connected to the 2.5mm mini jack off

(open) and on (closed) does the following de-

pending on the RemoteMode setting:

RemoteMode:

Start Stop

During record or playback switch remote off to

pause, on to resume.

EDL Mark

During record or playback switch remote to on

to add an EDL mark.

PWR REC

During POWER off, switch remote to on to

turn power on and begin recording.

During recording, switch remote to off to stop

recording and power off.

M.Track

During recording, switch remote to on to

increment the track. A new track is created at

that point. There is no break in recording.

See Remote Mode on page 36 to set or change

the Remote Mode.

- 45 -

Right side continued

OFF: No microphone power is supplied.

Microphone recommendations

Professional condenser microphone(s) (which

require additional power either phantom power

from the PMD670 or from another source) are

recommended because they provide greater

sensitivity, and higher quality audio recording.

Dynamic microphone(s) can be used but do not

yield optimum audio quality recordings.

Consult with your local dealer to select the

appropriate microphone(s) for your specific

application. In many cases they can demonstrate

the various performances and characteristics of

microphones for your use.

PHANTOM

+48

OFF

COLD

HOT

231

GND

MIC

LINE

REMOTE

LINE

OUT

PHANTOM

+48V

OFF

20 . Carry studs

Attach the supplied carry

strap here.

LINE

OUT

REMOTE

LINE

OUT

REMOTE

1. Attach a strap

retainer through the

round hole.

2. Add carry strap.

LINE

OUT

REMOTE

LINE

OUT

REMOTE

Installing the carry strap

3. Close strap

retainer.

19. PHANTOM +48V switch

Switch to ON to provide 48V

of power for a condenser

microphone(s).

ON: +48V is supplied to

power condenser

microphone(s).

Bottom

21. Battery com-

partment

Press and slide

at arrow to open

the Battery

compartment.

- 46 -

Battery power

The PMD670 can operate on several types of

battery power.

Hint:

Keep fully charged batteries in the PMD670

when recording using AC power. Otherwise if AC

power is interrupted, as much as 30 minutes of

your recording could be lost.

Eight AA alkaline batteries and the supplied

battery carrier can be used. Alkaline batteries

can power recording or playback for about *6

hours.

AA size rechargeable Ni-Cd or Ni-MH batteries

can be used in the supplied battery carrier, but

those cannot be recharged with the PMD670's

built in charger.

An optional Ni-Cd battery model RB1100 can be

charged in the PMD670. The RB1100 can also

be charged with an optional charger model

BC600. Ni-Cd batteries can power recording or

playback for about *5 hours.

An optional Ni-MH (Nickel metal hydride) battery

model RB1650 can be used, but cannot be

recharged with the PMD670's built-in charger. It

requires charger model BC600. Ni-MH batteries

can power recording or playback for about *7

hours.

*Using compact flash media.

Installing AA size batteries:

Power off, turn the PMD670 over.

Press and push in

the direction of the

arrow to remove

the battery com-

partment cover.

Install 8 AA size batter-

ies to the battery carrier

with the - ends towards

the springs.

Install the battery carrier with tab as shown and

over the ribbon for easy battery carrier removal.

Replace the battery compartment cover*.

tab

ribbon

Installing an optional Ni-Cd or Ni-MH battery

Install the battery with tab as shown and over the

ribbon for easy battery removal*.

*When changing battery type, for optimal battery

performance, be sure you change the Batt_Type

menu setting.

The optional Ni-Cd battery is charged only when:

• The AC adaptor is connected.

• The Ni-Cd battery is loaded correctly in the

battery compartment.

• The power to the PMD670 is off.

While charging (about 3 hours) the CHARGE

indicator will blink.

When the Ni-Cd battery charge cycle is complete

the CHARGE indicator will be lit and steady.

tab

ribbon

- 47 -

Display

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

INT

MIC

LINE

S.SKIP -dB

over

1 2 3 4 5 6 7 8 9 10 11 12 13 14

15 16 17 18 19 20 21 22 23

1. REC label

The REC label appears with other labels in

this area to indicate TOTAL REC TIME or

REC TIME REMAINING displayed on the

upper alphanumeric display.

2. TOTAL label

The TOTAL label appears with other labels in

this area to indicate TOTAL REC TIME, or

TOTAL REC TIME REMAINING displayed on

the upper alphanumeric display.

3. TRACK label

The TRACK label appears with other labels in

this area to indicate TRACK TIME displayed

on the upper alphanumeric display.

4. REMAIN label

The REMAIN label appears with other labels

in this area to indicate REC TIME REMAIN-

ING, or TOTAL REC TIME REMAINING

displayed on the upper alphanumeric display.

5. TIME label

The TIME label appears with other labels in

this area to indicate REC TIME REMAINING,

TOTAL REC TIME REMAINING, or TRACK

TIME displayed on the upper alphanumeric

display.

6. kbps label

The kbps label appears to indicate that the

first five places in the upper alphanumeric

display are kilobytes per second.

7. A-B label

A- indicates that the beginning (A point) of an

A-B loop has been set.

A-B indicates that the ending (B point) of an

A-B loop has also been set.

8. Upper alphanumeric display

Displays a variety of information including

remaining recording time, clock time, menu

settings etc. Associated labels are display

items 1-7 and 9-10.

9. AM / PM label

Displays AM or PM when clock time is dis-

played.

10. kHz label

The kHz label appears to indicate that the

last five places in the Upper alphanumeric

display is frequency in kiloHertz.

11. L -dB R level meter labels

L is the label for the upper (Left) level meter.

-dB is the label for the center level meter

scale in decibels.

R is the label for the lower (Right) level

meter.

12. Upper level meter

The louder the sound input to the recorder on

the Left channel the more bars are displayed.

13. Decibel scale

The scale in dB (decibels) for the upper and

lower level meters.

14. Lower level meter

The louder the sound input to the recorder on

the Right channel the more bars are dis-

played.

15. TRACK label

The TRACK label appears to indicate that the

number displayed on the left of the lower

alphanumeric display is the track number.

16. MARK label

The MARK label appears to indicate that the

number displayed on the left of the lower

alphanumeric display is the EDL Mark num-

ber.

17. Lower alphanumeric display

Displays a variety of information including

remaining recording algorithm, date, track

number, number of tracks on CF card, EDL

- 48 -

Mark number, number of EDL Marks on CF card

etc. Associated labels are display items 15

and 16.

18. MIC/INT MIC label

The MIC label appears when external micro-

phones are selected.

The INT MIC label appears when input se-

lected for recording is the internal micro-

phone.

19. LINE label

The LINE label appears when input(s) se-

lected for recording is (are) the LINE IN jacks.

20. Record

The Record symbol appears when the

PMD670 is in record mode. Appears with the

Play symbol when recording. Appears flashing

when in record pause.

21. Play

The Play symbol appears when the PMD670

is in playback, playback pause, recording,

record pause.

22. Pause

The Pause symbol appears when the

PMD670 is in playback pause, or record

pause.

23. Battery

The Battery symbol appears in most displays

to indicate battery charge.

indicates that battery charge is okay.

indicates that battery charge is getting low

and there is approximately 5 to 10 minutes of

record or playback time available.

MARK

TRACK

TOTALTRACKTIME

REC REMAIN kbps A-B L

-dB

kHz

INT

MIC

LINE

S.SKIP -dB

over

18 19 20 21 22 23 24 25 26

flashing indicates that battery has ap-

proximately 1 to 3 minutes of record or

playback time remaining.

The REC indicator light will flash. If BEEP is

set to On the PMD670 will also beep.

If the PMD670 continues to operate it will

automatically shut down. If recording it will

write track information, stop recording and

power off. If in playback it will stop playback

and power off.

indicates that battery charge is depleted or

no battery is installed.

24. S.SKIP label

The Silent Skip label appears when Silent

Skip is enabled.

25. Margin level

The Margin level is displayed. The PMD670

holds this display at the highest level

achieved during the current recording. If

more than 0 dB, OV is displayed. To reset

the Margin level press and release the

MARGIN RESET button.

26. -dB label

The -dB label applies to the Peak level

display.

Care and Maintenance

Use a soft cloth slightly moistened with mild

detergent solution.

- 49 -

bitrate 32 kbps 64 kbps 40 kbps 80 kbps 64 kbps 128 kbps 80 kbps 160 kbps 128kbps 256 kbps 160 kbps 320 kbps

.mp3 mono stereo mono stereo mono stereo mono stereo mono stereo mono stereo

32 MB 2:13:00 1:06:30 1:46:24 0:53:12 1:06:30 0:33:15 0:53:12 0:26:36 0:33:15 0:16:38 0:26:36 0:13:18

64 MB 4:26:00 2:13:00 3:32:48 1:46:24 2:13:00 1:06:30 1:46:24 0:53:12 1:06:30 0:33:15 0:53:12 0:26:36

CARD 128 MB 8:52:00 4:26:00 7:05:36 3:32:48 4:26:00 2:13:00 3:32:48 1:46:24 2:13:00 1:06:30 1:46:24 0:53:12

SIZE 256 MB 17:44:00 8:52:00 14:11:12 7:05:36 8:52:00 4:26:00 7:05:36 3:32:48 4:26:00 2:13:00 3:32:48 1:46:24

340 MB 23:33:08 11:46:34 18:50:30 9:25:15 11:46:34 5:53:17 9:25:15 4:42:38 5:53:17 2:56:38 4:42:38 2:21:19

512 MB 35:28:00 17:44:00 28:22:24 14:11:12 17:44:00 8:52:00 14:11:12 7:05:36 8:52:00 4:26:00 7:05:36 3:32:48

(1 GB) 1024 MB 70:56:00 35:28:00 56:44:48 28:22:24 35:28:00 17:44:00 28:22:24 14:11:12 17:44:00 8:52:00 14:11:12 7:05:36

bitrate 32 kbps 64 kbps 48 kbps 96 kbps 64 kbps 128 kbps 96 kbps 192 kbps 128 kbps 256 kbps 192 kbps 384 kbps

.mp2 mono stereo mono stereo mono stereo mono stereo mono stereo mono stereo

32 MB 2:13:00 1:06:30 1:39:45 0:49:53 1:06:30 0:33:15 0:49:53 0:24:56 0:33:15 0:16:38 0:24:56 0:12:28

64 MB 4:26:00 2:13:00 3:19:30 1:39:45 2:13:00 1:06:30 1:39:45 0:49:53 1:06:30 0:33:15 0:49:53 0:24:56

CARD 128 MB 8:52:00 4:26:00 6:39:00 3:19:30 4:26:00 2:13:00 3:19:30 1:39:45 2:13:00 1:06:30 1:39:45 0:49:53

SIZE 256 MB 17:44:00 8:52:00 13:18:00 6:39:00 8:52:00 4:26:00 6:39:00 3:19:30 4:26:00 2:13:00 3:19:30 1:39:45

340 MB 23:33:08 11:46:34 17:39:51 8:49:55 11:46:34 5:53:17 8:49:55 4:24:58 5:53:17 2:56:38 4:24:58 2:12:29

512 MB 35:28:00 17:44:00 26:36:00 13:18:00 17:44:00 8:52:00 13:18:00 6:39:00 8:52:00 4:26:00 6:39:00 3:19:30

(1 GB) 1024 MB 70:56:00 35:28:00 53:12:00 26:36:00 35:28:00 17:44:00 26:36:00 13:18:00 17:44:00 8:52:00 13:18:00 6:39:00

fs 32 kHz 44.1 kHz 48 kHz

PCM mono stereo mono stereo mono stereo

32 MB 0:08:20 0:04:10 0:06:03 0:03:01 0:05:33 0:02:47

64 MB 0:16:40 0:08:20 0:12:06 0:06:03 0:11:07 0:05:33

CARD 128 MB 0:33:20 0:16:40 0:24:11 0:12:06 0:22:13 0:11:07

SIZE 256 MB 1:06:40 0:33:20 0:48:23 0:24:11 0:44:27 0:22:13

340 MB 1:28:33 0:44:16 1:04:15 0:32:07 0:59:02 0:29:31

512 MB 2:13:20 1:06:40 1:36:45 0:48:23 1:28:54 0:44:27

(1 GB) 1024 MB 4:26:41 2:13:20 3:13:30 1:36:45 2:57:47 1:28:54

ALL TIMES ARE APPROXIMATE

Recording time chart

The recording time available on a CF card depends on the size of the card in MB, the recording type (.mp3, .mp2 or PCM), the

bitrate of the recording and if recording in mono or stereo.

This Recording time chart lists approximate recording times based on those factors.

- 50 -

TROUBLESHOOTING

Should faults occur, it is in many cases not necessary

to consult your dealer or technical service department.

On the basis of the following checks, you will be able

to rectify a number of conditions yourself without

difficulty. If the condition cannot be remedied after the

following check, please consult your dealer or contact

Marantz Professional at 630 741 0330.

The PMD670 does not turn on

Check power

• install fresh batteries

• check AC adaptor connections

The PMD670 turns on then turns itself off

• install fresh batteries

The PMD670 seems to record but there is no sound

on playback

• check input settings (For example, if LINE input is

selected and no input is connected to the LINE IN

jacks the PMD670 will record silence.)

The PMD670 will not playback

• check EDL switch, if ON switch to OFF

No audio playback through headphones or internal

speaker

• check HP/SPK VOLUME control setting

• check a different track or CF card

The PMD670 will not record

• check that the maximum of 999 tracks have not

been recorded

• check that the PMD670 acknowledges the CF

card

No signal from microphone input

• chedk input selection

• check REC level control settings

• check if microphone(s) require Phantom power

Excessive noise

• check cable connections

Playback on a PC results in poor sound

• check quality of PC sound card and program

• check frequency conversion program*

*The PMD670 records audio files with a sampling

frequency of 48kHz. Some PC programs convert

the files to 44.1kHz (using a sample rate con-

verter). Only high quality sample rate converters

should be used.

PC cannot read files

• check if the files are MP2 or MP2 with a .wav file

extension Some PC's cannot interpret this combi-

nation. Try renaming the MP2 file so it has a .mp2

or .mp3 file extension.

• check the capability of the PC program

Some playback and editing programs do not

support MP2/MP3 or Broadcast Wave (.bwf)

formats. Consult the Marantz Professional

website at www.marantzpro.com for links to

programs that support MP2/MP3 and Broadcast

Wave Format.

The rechargeable battery not recharging

• check that the CHARGE indicator is flashing

during charging and lit and steady when charging

is complete.

• check AC adaptor connections

• check that Power is turned off on the PMD670

Rechargeable battery life low

• make sure you fully charge and discharge the Ni-

Cd battery during each charge cycle

• replace battery

Media cards that are heavily used should be occa-

sionally reformatted to avoid audio problems due to

fragmentation.

If the PMD670 exhibits erratic behavior, the micropro-

cessor can be reset by, powering off, disconnecting

AC power and removing batteries.

Record setting recommendations

Recording a meeting

LEVEL CONT. switch at ALC.

ANC switch at .

Factory default settings.

Input: INT MIC mono or MIC mono

Menu settings:

Algor/File: mono, MP3, 44.1kHz, 32 kbps, .mp3.

M.Track: On

S.Skip: On

Beep: On

A.PowOff: Yes

Recording music

LEVEL CONT. switch at MANUAL.

ANC switch at FLAT.

Input: MIC stereo

Menu settings:

Algor/File: Stereo, MP3,44.1kHz, 128kbps, .mp3.

M.Track: Off

S.Skip: Off

Beep: Off

A.PowOff: Yes

Menu settings (highest quality):

Algor/File: Stereo, PCM,44.1kHz, 128kbps, .wav.

M.Track: Off

S.Skip: Off

Beep: Off

A.PowOff: Yes

SPECIFICATIONS*

Digital audio system

System ........................................ Solid State Recorder

Usable Media ................................... CF memory cards

(Microdrive) cards

Recording and media methods

.mp2 ........................ MPEG1 Layer II compression

.mp3 ....................... MPEG1 Layer III compression

.mp3 ...................... MPEG2 Layer III compression*

*for all half sample rates.

PCM ............................................ 16 bit linear PCM

Recording bit rate (selectable)

MP2 mono ................... 192, 128, 96, 64, 48, 32 kbps

MP2 stereo ................ 384, 256,192,128, 96, 64 kbps

MP3 mono ................... 160, 128, 80, 64, 40, 32 kbps

MP3 stereo ................ 320, 256,160,128, 80, 64 kbps

Sampling frequency

Analog .................. 48, 44.1, 32, 24*, 22.05*, 16* kHz

*except MP2

Digital .................................................... 48, 44.1 kHz

Number of channels ..................... 2 (stereo), 1 (mono)

Frequency response ....................... 20,000 Hz (-0.5dB)

Signal-to-Noise Ratio

IEC-A weighted ....................................... LINE 86 dB

MIC 65 dB

Total Harmonic Distortion

at 0 VU (PCM) ........................................ LINE 0.03%

MIC 0.08%

Dynamic Range ................................................... 86 dB

Inputs

MIC IN L/R

Type ....................... XLR (1:GND, 2:HOT, 3:COLD)

Input Sensitivity (MIC) ......... 1.2 mVrms/6.5 kohms

LINE IN L/R

Type ........................................................ RCA jack

Input Sensitivity ................... 300 mVrms/20 kohms

DIGITAL IN

Type ........................................................ RCA jack

Input impedance ...................................... 75 ohms

Standard input level ................................. 0.5 Vp-p

Sampling frequency ............................ 44.1/48 kHz

Format ............................. SPDIF (IEC 958 TypeII)

Outputs

LINE OUT L/R

Type ........................................................ RCA jack

Standard level ...................... 2 Vrms max./2 kohms

DIGITAL OUT

Type ........................................................ RCA jack

Output impedance.................................... 75 ohms

Standard output level ............................... 0.5 Vp-p

Sampling frequency ............................ 44.1/48 kHz

Format ............................ SPDIF (IEC-958 Type II)

- 51 -

Menu default

selecion US Europe

Date/Time

2003-2099 2003 2003

JAN-DEC JAN JAN

1-31 1 1

AM/PM 0:00-11:59 AM 0:00 AM 0:00

DateForm M/D/Y D/M/Y

Algor/Filestereo/mono Mono Stereo

PCM/MP2/MP3 MP3 MP2

kHz 44.1 48

bit rate kbps 32 128

extension .mp3 .mpg

M.Track On On

SeamlsPly Off Off

S.Skip Off Off

seconds 03 03

dB -40 -40

A.Cue Off Off

milliseconds 20 20

dB -40 -40

S.Play Off Off

Beep On On

A.PowOFF Y Y

Batt_Type Alkaline Alkaline

RemoteMode Start/Stop Start/Sto

ID1 0000000 0000000

ID2 0000000 0000000

ID3 0000000 0000000

General

Headphone Output power ............... 20 mW/32 ohms

Speaker Output power .................... 100 mW/4 ohms

Phantom power ......................................+48V, 10mA

Power consumption

Recording/Playback ...................................... 5.2 W

Charging ................................................ 12 W max

Standby (battery driven) ............................. 2.2 mW

Battery life (Alkaline) ........................6 hours (typical)

Dimensions

Width ............................................. 264 mm (10.4")

Height ............................................... 55 mm (2.0")

Depth .............................................. 185 mm (7.3")

Weight ....................................... 1.3 kg (2 lbs. 14 oz.)

Included accessories

AC adapter ........................................................... 1

Battery carrier ...................................................... 1

Carry strap ........................................................... 1

Carry strap retainers ............................................ 2

Screws (ISO 3x10 mm) ........................................ 3

Plastic pin and retainer ........................................ 1

I/O cable .............................................................. 1

User Guide ........................................................... 1

Optional accessories**

Ni-Cd battery pack .................................... RB1100

Ni-MH battery pack ................................... RB1650

Battery charger ........................................... BC600

Carrying cover (vinyl) ................................ CLC670

Carrying bag ............................................ PRC300

Professional reporter's bag ...................... PRC600

Attache carrying case ................................. CA200

**See www.marantzpro.com for details.

*Specifications subject to change without notice.

Menu defaults

- 52 -

LIMITED WARRANTY

Your Marantz Professional product is warranted against

manufacturer defects in material and workmanship for a

period of one year parts and labor.

Except as specified below, this warranty covers defects in

material and workmanship. The following are not covered

under warranty:

1. Damage, deterioration, malfunction or failure to meet

performance specifications resulting from:

a) Accidents, acts of nature, misuse, abuse, neglect or

unauthorized product modification.

b) Improper installation, removal or maintenance, or

failure to follow supplied instructions.

c) Repair or attempted repair by a non-Marantz

authorized agent.

d) Any shipment (claims must be presented to the

carrier).

e) Any cause other than a defect of manufacturing.

2. Cleaning, check-ups with no fault found or changes

incurred for installation, removal or reinstallation of the

product.

3. Any serialized product on which the serial number has

been defaced, modified or removed.

4. Batteries and battery chargers.

5. Accessories, including but not limited to: cables, mount-

ing hardware and brackets, cleaning accessories, power

cords and adapters, and carry cases.

6. Products purchased outside of the United States, its

possessions or territories.

Non-transferable warranty

This Warranty may be enforced only by the original pur-

chaser.

What We Will Pay For

We will pay for all labor and material expenses for items

covered by the warranty.

How You Can Get Service

1. If your unit needs service in the USA, contact our

service referral at the appropriate telephone number

indicated below. We will advise you of the name and

location of one or more authorized service centers

from which service may be obtained. Please do not

return the unit directly to us.

2. You must pay any shipping charges if it is necessary to

ship the product for service. If the necessary repairs

are covered by the warranty, we will pay return

shipping charges to your location anywhere in the

United States or its territories.

3. Whenever warranty service is required, you must

present the original dated sales receipt or other proof

of date purchased.

Limitation of Implied Warranties

All implied warranties, including warranties of merchantabil-

ity and fitness for a particular purpose, are limited in

duration to the length of this warranty.

Exclusion of Damages

Liability for any defective product is limited to repair or

replacement of the product at manufacturer’s option.

Manufacturer shall not be liable for damage to other

products caused by any defects in Marantz products,

damages based on inconvenience or loss of use of the

product, or any other damages, whether incidental, conse-

quential, or otherwise.

Some States do not allow limitations on how long an implied

warranty lasts and/or do not allow the exclusion or limitation

of incidental or consequential damages, so the above

limitations and exclusions may not apply to you.

How State Law Relates to the Warranty

This warranty gives you specific legal rights, and you may

have other rights which may vary from State to State.

Marantz Professional Service Number:

Marantz Professional Factory Service (630) 741-0330

This warranty is enforceable only in the United States and

its possessions or territories.

Marantz is a registered trademark.

2003/6
