Model SR4300 User Guide

AV Surround Receiver

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The lightning flash with arrowhead symbol

within an equilateral triangle is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the product.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION:

TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION:

POUR ÉVITER LES CHOC ÉLECTRIQUES,

INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE ET POUSSER

JUSQU’AU FOND.

NOTE TO CATV SYSTEM INSTALLER:

This reminder is provided to call the CATV (Cable-TV) system installer’s attention to Section 820-40 of the NEC which provides

guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the

building, as close to the point of cable entry as practical.

NOTE:

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions,

may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television

reception, which can be determined by tuning the

equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for

help.

NOTE:

Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

IMPORTANT SAFETY

INSTRUCTIONS

READ BEFORE OPERATING EQUIPMENT

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some

installation and operation precautions which you should be particularly aware of.

1. Read these instructions - All the safety and operating instructions should be read before the product is operated.

2. Keep these instructions - The safety and operating instructions should be kept for future reference.

3. Heed all warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow all instructions - All operating and use instructions should be followed.

5. Do not use this apparatus near water - Do not use this product near water-for example, near a bath tub, wash bowl,

kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.

6. Clean only with dry cloth - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or

aerosol cleaners. Use a dry cloth for cleaning.

7. Do not block any ventilation openings. Install in accordance with the manufacture's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third

prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for

replacement of the obsolete outlet.

AC POLARIZED PLUG

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any

way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,

the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is

provided or the manufacturer's instructions have been adhered to.

ENGLISH

TABLE OF CONTENTS

INTRODUCTION ............................................ 2

DESCRIPTION............................................... 2

FEATURES .................................................... 3

ACCESSORIES ............................................. 4

FRONT PANEL .............................................. 5

FL DISPLAY ........................................................................................... 6

REAR PANEL ................................................ 7

REMOTE CONTROLE UNIT ......................... 9

OPERATION .......................................................................................... 9

FUNCTION AND OPERATION .............................................................. 9

REMOTE CONTROL RANGE ............................................................. 10

LOADING BATTERIES ........................................................................ 10

GENERAL INFROMATION OF RC4300SR TO SR4300 ..................... 11

CONNECTIONS........................................... 12

SPEAKER PLACEMENT ..................................................................... 12

CONNECTING SPEAKERS................................................................. 13

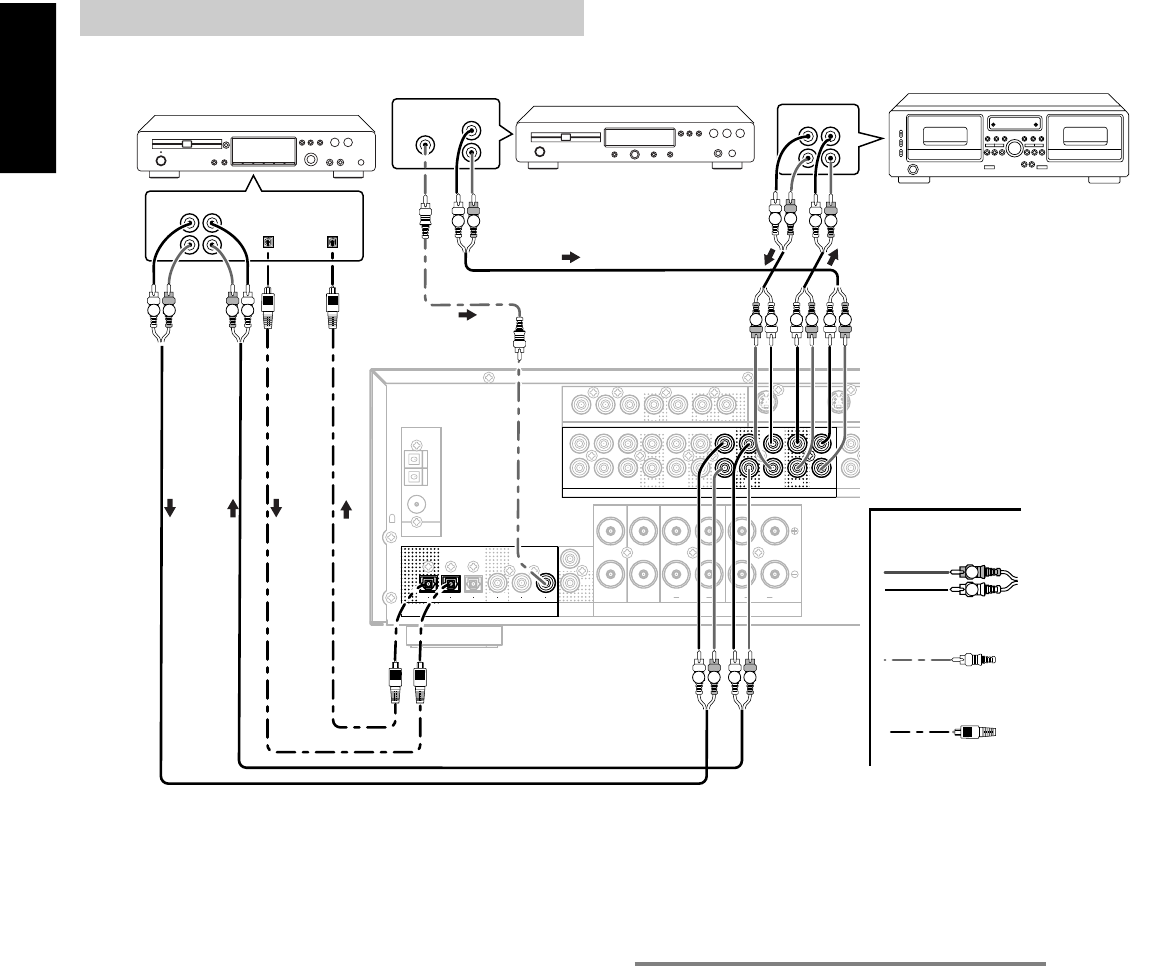

CONNECTING AUDIO COMPONENTS .............................................. 14

CONNECTING VIDEO COMPONENTS .............................................. 15

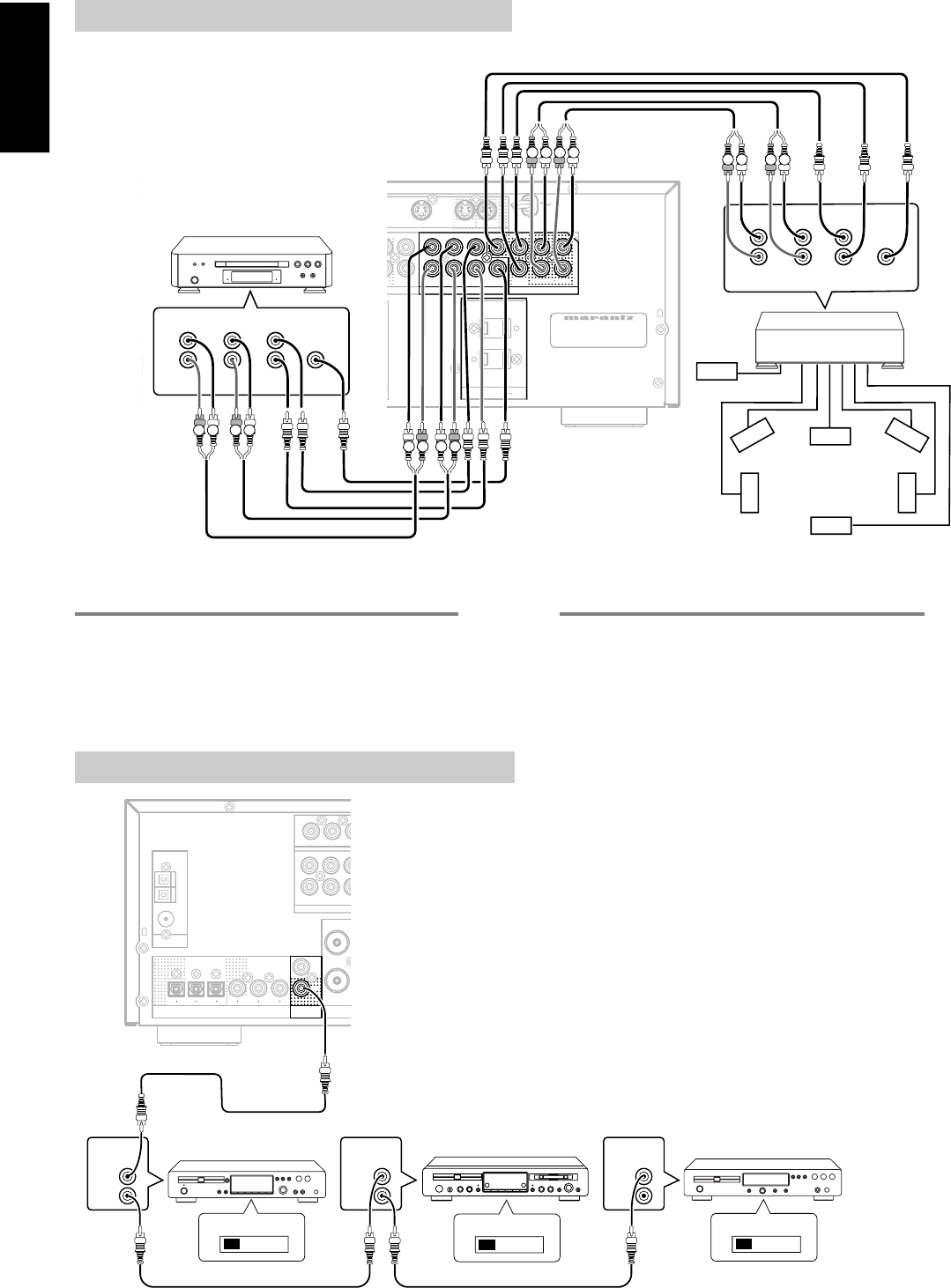

ADVANCED CONNECTING ................................................................ 16

CONNECTING REMOTE CONTROL JACKS...................................... 16

CONNECTING THE ANTENNA TERMINALS...................................... 17

SETUP ......................................................... 18

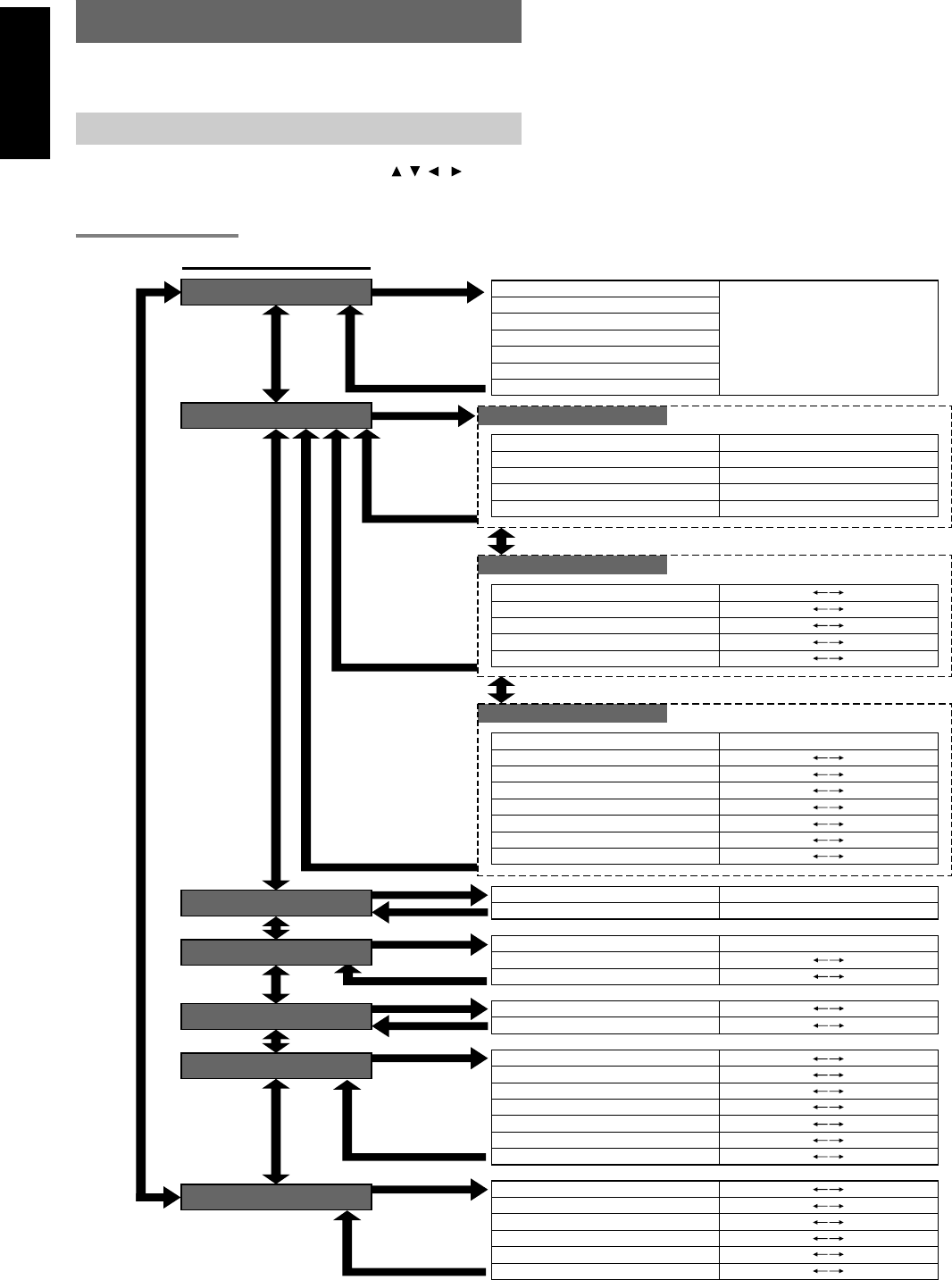

SETUP MENU SYSTEM ...................................................................... 18

ENTER THE DESIRED MENU ITEM OF THE SETUP MENU ............19

1. INPUT SETUP (ASSIGNABLE DIGITAL INPUT) ............................. 19

2. SPEAKER SETUP ........................................................................... 20

3. PREFERENCE ................................................................................. 23

4. PL II (PRO LOGIC II) ....................................................................... 23

5. CS II (CIRCLE SURROUND II) ....................................................... 24

6. 6.1 CH INPUT LEVEL ...................................................................... 24

7. SURROUND .................................................................................... 25

BASIC OPERATION (PLAY BACK) ............ 26

SELECTING AN INPUT SOURCE. ...................................................... 26

SELECTING THE SURROUND MODE ............................................... 26

ADJUSTING THE MAIN VOLUME ...................................................... 26

ADJUSTING THE TONE(BASS & TREBLE) CONTROL. .................... 26

TEMPORARILY TURNING OFF THE SOUND ....................................27

USING THE SLEEP TIMER .................................................................27

NIGHT MODE ...................................................................................... 27

SURROUND MODE ..................................... 28

OTHER FUNCTION ..................................... 31

ATTENUATION TO ANALOG INPUT SIGNAL ..................................... 31

LISTENING OVER HEADPHONES ..................................................... 31

DIMMER ............................................................................................... 31

SELECTING ANALOG AUDIO INPUT OR DIGITAL AUDIO INPUT .... 31

RECORDING AN ANALOG SOURCE .................................................31

HT-EQ .................................................................................................. 32

6.1 CH INPUT. ...................................................................................... 32

BASIC OPERATION (TUNER) .................... 33

LISTENING TO THE TUNER ............................................................... 33

PRESET MEMORY .............................................................................. 33

REMOTE CONTROLLER OPERATION ..... 36

CONTROLLING MARANTZ COMPONENTS ......................................36

TROUBLESHOOTING ................................. 38

TECHNICAL SPECIFICATIONS.................. 40

DIMENSION ................................................. 40

ENGLISH

INTRODUCTION

Thank you for purchasing the Marantz SR4300 Surround receiver.

This remarkable component has been engineered to provide you with

many years of home theater enjoyment. Please take a few minutes to

read this manual thoroughly before you connect and operate the

SR4300.

As there are a number of connection and configuration options, you

are encouraged to discuss your own particular home theater setup

with your Marantz A/V specialist dealer.

DESCRIPTION

DTS was introduced in 1994 to provide 5.1 channels of discrete digital

audio into home theater systems.

DTS brings you premium quality discrete multi-channel digital sound

to both movies and music.

DTS is a multi-channel sound system designed to create full range

digital sound reproduction.

The no compromise DTS digital process sets the standard of quality

for cinema sound by delivering an exact copy

of the studio master recordings to neighborhood and home theaters.

Now, every moviegoer can hear the sound exactly as the moviemaker

intended.

DTS can be enjoyed in the home for either movies or music on of

DVD’s, LD’s, and CD’s.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital

Theater Systems, Inc.

The advantages of discrete multichannel systems over matrix are well

known.

But even in homes equipped for discrete multichannel, there remains

a need for high-quality matrix decoding. This is because of the large

library of matrix surround motion pictures available on disc and on

VHS tape; and analog television broadcasts.

The typical matrix decoder of today derives a center channel and a

mono surround channel from two-channel matrix stereo material. It is

better than a simple matrix in that it includes steering logic to improve

separation, but because of its mono, band-limited surround it can be

disappointing to users accustomed to discrete multichannel.

Neo 6 offers several important improvements as follow,

• Neo 6 provides up to six full-band channels of matrix decoding from

stereo matrix material. Users with 6.1 and 5.1 systems will derive

six and five separate channels, respectively, corresponding to the

standard home-theater speaker layouts.

• Neo 6 technology allows various sound elements within a channel

or channels to be steered separately, and in a way which follows

naturally from the original presentation.

• Neo 6 offers a music mode to expand stereo nonmatrix recordings

into the five- or six-channel layout, in a way which does not diminish

the subtlety and integrity of the original stereo recording.

DTS-ES Extended Surround is a new multi-channel digital signal

format developed by Digital Theater Systems Inc. While offering high

compatibility with the conventional DTS Digital Surround format, DTS-

ES Extended Surround greatly improves the 360-degree surround

impression and space expression thanks to further expanded

surround signals. This format has been used professionally in movie

theaters since 1999.

In addition to the 5.1 surround channels (FL, FR, C, SL, SR and LFE),

DTS-ES Extended Surround also offers the SB (Surround Back)

channel for surround playback with a total of 6.1 channels. DTS-ES

Extended Surround includes two signal formats with different

surround signal recording methods, as DTS-ES Discrete 6.1 and DTS-

ES Matrix 6.1.

“DTS”, “DTS-ES Extended Surround” and “Neo:6” are trademarks of

Digital Theater Systems, Inc.

Dolby Digital identifies the use of Dolby Digital (AC-3) audio coding for

such consumer formats as DVD and DTV. As with film sound, Dolby

Digital can provide up to five full-range channels for left, center, and

right screen channels, independent left and right surround channels,

and a sixth ( ".1") channel for low-frequency effects.

Dolby Surround Pro Logic II is an improved matrix decoding

technology that provides better spatiality and directionality on Dolby

Surround program material; provides a convincing three-dimensional

soundfield on conventional stereo music recordings; and is ideally

suited to bring the surround experience to automotive sound. While

conventional surround programming is fully compatible with Dolby

Surround Pro Logic II decoders, soundtracks will be able to be

encoded specifically to take full advantage of Pro Logic II playback,

including separate left and right surround channels. (Such material is

also compatible with conventional Pro Logic decoders.)

Dolby Digital EX creates six full-bandwidth output channels from 5.1-

channel sources. This is done using a matrix decoder that derives

three surround channels from the two in the original recording. For

best results, Dolby Digital EX should be used with movies soundtracks

recorded with Dolby Digital Surround EX.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro

Logic”, and the double-D symbol are trademarks of Dolby

Laboratories.

Circle Surround II (CS-II) is a powerful and versatile multi-channel

technology. CS-II is designed to enable up to 6.1 multi-channel

surround sound playback from mono, stereo, CS encoded sources

and other matrix encoded sources. In all cases the decoder extends it

into 6 channels of surround audio and a LFE/subwoofer signal. The

CS-II decoder creates a listening environment that places the listener

“inside” music performances and dramatically improves both hi-fi

audio conventional surround-encoded video material. CS-II provides

composite stereo rear channels to greatly improve separation and

image positioning – adding a heightened sense of realism to both

audio and A/V productions.

CS-II is packed with other useful feature like dialog clarity (SRS Dialog)

for movies and cinema-like bass enrichment (TruBass). CS-II can

enable the dialog to become clearer and more discernable in movies

and it enables the bass frequencies contained in the original

programming to more closely achieve low frequencies – overcoming the

low frequency limitations of the speakers by full octave.

SRS Circle Surround II , SRS Dialog, SRS TruBass, SRS and

symbol are trademarks of SRS Labs, Inc.

SRS Circle Surround II , SRS Dialog and SRS TruBass technology are

incorporated under license from SRS Labs, Inc.

ENGLISH

FEATURES

BUILT-IN 6 CHANNEL POWER AMPLIFIER

80 watts to each of the six main channels ; the power amp section

features an advanced, premium high- storage power supply

capacitors, and fully discrete output stages housed in cast aluminum

heat sinks .

96 kH

/24-BIT D/A CONVERTER FOR ALL CHANNELS

High performance digital circuitry with 96 kHz / 24-bit D/A converter for

all 7 channels.

DTS-ES

DTS-ES decoder built in to decode the impeccable 6.1-channel

discrete digital audio from DTS-ES encoded DVD-Video discs, DVD-

Audio discs and CDs.

DOLBY DIGITAL EX

Dolby Digital EX decoder built in to create six full-band width output

channels from the 5.1-channel digital audio of DVDs, Digital TV,

HDTV, satellite broadcasts and other sources.

DOLBY PRO LOGIC II

Dolby Pro Logic II decoder provides better spatiality and directionality

on Dolby Surround program material and provides a convincing three-

dimensional sound field on conventional stereo music recordings.

DTS-NEO6

DTS-Neo6 decoder built in to decode 6.1-channel surround sound

from any stereo material.

CIRCLE SURROUND II

CIRCLE SURROUND II decoder built in to decode 6.1-channel

surround sound from any stereo or passive matrix-encoded material.

SOURCE DIRECT MODE

Source Direct mode bypasses, tone controls and bass management

for purest audio quality.

6.1 CHANNEL PRE-AMP OUTPUTS

6.1 channel pre-amp outputs for connection to external components

such as a subwoofer and external power amplifiers.

6.1CH DIRECT INPUT

6.1ch direct inputs accommodate future multi-channel sound

formats or an external digital decoder.

4 DIGITAL INPUTS AND 2 DIGITAL OUTPUTS

4 Digital inputs for connection to other sources, such as DVD player,

Satellite tuner, CD player, CD recorder or MD deck.

2 Digital outputs for connection to CD recorder or MD deck.

30 STATION RANDOM ACCESS PRESET TUNING

High-quality AM/FM tuner with 30 station random access preset

tuning.

ENGLISH

ACCESSORIES

Remote Controler RC4300SR

AAA-size batteries X 2

AM Loop Antenna

FM Antenna

Registration Card

User Guide

ENGLISH

FRONT PANEL

uMODE button

Press this button to select the auto stereo mode or mono mode when

the FM band is selected.

The “AUTO” indicator lights in the auto stereo mode.

iInfrared receiving (IR) sensor window

This window receives infrared signals for the remote control unit.

oVOLUME control knob

Adjusts the overall sound level. Turning the control clockwise

increases the sound level.

!0 INPUT FUNCTION SELECTOR buttons

(AUDIO/ VIDEO)

These buttons are used to select the input sources.

The video function selector, such as TV, DVD, VCR1 and DSS/VCR2,

selects video and audio simultaneously.

Audio function sources such as CD, TAPE, CDR/MD, TUNER, and

6.1CH-IN may be selected in conjunction with a Video source.

This feature (Sound Injection) combines a sound from one source with

a picture from another.

Choose the video source first, and then choose a different audio

source to activate this function.

Press TUNER button to switch the between FM or AM.

!1 6.1CH IN button

Press this button to select the output of an external multi channel decoder.

Press this button again to return the preivious function.

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON / STNDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

!5 !6

!0!2 !1

uio

qPOWER switch and STANDBY indicator

When this switch is pressed once, the unit turns ON and display

appears on the display panel. When pressed again, the unit turns OFF

and the STANDBY indicator lights.

When the STANDBY indicator is turned on, the unit is NOT

disconnected from the AC power.

wSURROUND MODE Selector knob

When this knob is turned, the surround mode is switched sequentially.

Note:

• Available surround mode is depending on the input signal.

eCLEAR button

Press this button to cancel the station-memory setting mode or preset

scan tuning.

rMEMORY button

Press this button to enter the tuner preset memory numbers or station

names.

tTUNING UP / DOWN buttons

Press thses buttons to change the frequency or the preset number.

yF/P (FREQUENCY / PRESET) button

During reception of AM or FM, you can change the function of the UP/

DOWN buttons for scanning frequencies or selecting preset stations

by pressing this button.

ENGLISH

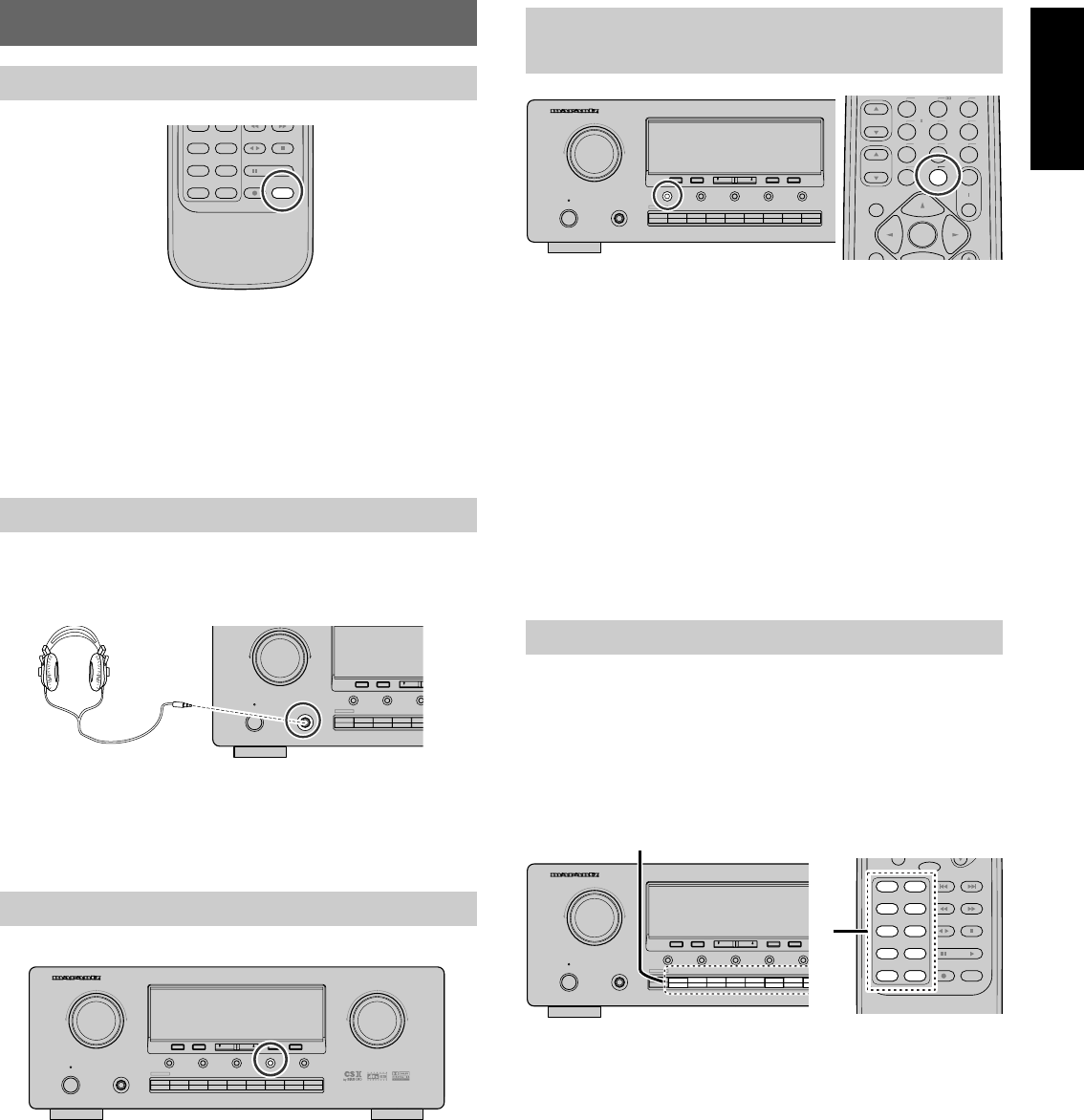

!2 PHONES jack for stereo headphones

This jack may be used to listen to the SR4300’s output through a pair

of headphones. Be certain that the headphones have a standard 1 / 4"

stereo phone plug. Note that the speakers will automatically be turned

off when the headphone jack is in use.

Notes:

•When using headphones, the surround mode will automatically

change to STEREO.

• The surround mode returns to the previous setting as soon as the

plug is removed from the jack.

!3 A/D (Analog/Digital) SELECTOR button

This is used to select between the analog and digital inputs.

Note:

•This button is not used for an input source that is not set to a

digital input in the system setup menu.

!4 HT-EQ button

Used to turn on or off HT (Home Theater)-EQ mode when the

surround mode is set as AUTO, DOLBY, DTS or STEREO.

This mode compensates for the audio portion of a movie sounding

“bright”. When this button is pressed, “EQ” indicator lights up.

!5 S- (Source) DIRECT button

When this button is pressed, the tone control circuitry is bypassed as

well as Bass Management.

Notes:

•The surround mode is automatically switched to AUTO when

the source direct function is turned on.

•S-DIRECT is turned off when the other surround mode is

selected with the SURROUND mode selector knob or the

surround mode buttons of the remote controller.

•Additionally, Speaker Configurations are fixed automatically

as follow.

(Front SPKR = Large, Center SPKR = Large, Surround SPKR =

Large, Sub woofer = On)

!6 DIMMER button

When this button is pressed once, the display is dimmed.

When this button is pressed twice, the display is turned off and “DISP”

indicator lights up.

Press this button again to turn the display ON again.

!7 MUTE button

Press this button to mute the output to the speakers and headphones.

Press it again to return to the previous volume level.

FL DISPLAY

aTEST tone indicator

This indicator blinks in generating the test tone in speaker level setup.

sDISP (Display Off) indicator

This indicator lights when the SR4300 is in the display off condition.

dTUNER’s indicators

AUTO : This indicator illuminates when the tuner’s Auto mode

is in use.

ST(Stereo) : This indicator illuminates when an FM station is being

tuned in stereo condition.

TUNED : This indicator illuminates when a station is being

received with sufficient signal strength to provide

acceptable listening quality.

fINPUT SOURCE indicators

These indicators show the current input source.

g6.1 CHANNEL DIRECT IN indicator

This indicator lights up when the 6.1CH-IN has been selected as a

input source.

hAUTO.SURR (Auto Surround mode)

indicator.

This indicator illuminates to show that the AUTO SURROUND mode is

in use.

jDIRECT (Source direct) indicator

This indicator lights when the SR4300 is in the SOURCE DIRECT

mode.

kEQ mode indicator

This indicator lights when the HT-EQ function is active.

lSLEEP timer indicator

This indicator lights when the seep timer function is in use.

¡0 DIGITAL Input Indicator

This indicator lights when digital input has been selected.

¡1 ANALOG input indicator

This indicator lights when an analog input source has been selected.

¡2 SIGNAL FORMAT indicators

2 DIGITAL, EX, 2 SURROUND, dts, ES, PCM and 96kHz

When the selected input is a digital source, some of these indicators

will light to display the specific type of signal in use.

¡3 ENCODED CHANNEL STATUS

indicators

These indicators display the channels that are encoded with a digital

input signal. If the selected digital input signal is Dolby Digital 5.1ch or

DTS 5.1ch, “L”, “C”, “R”, “SL”, “SR” and “LFE” will light up.If the digital

input signal is 2 channel PCM-audio, “L” and “R” will be displayed.

If Dolby Digital 5.1ch signal with Surround EX flag or DTS-ES signal

comes in, “L”, “C”, “R”, “SL”, “S”, “SR” and “LFE” will show.

¡4 ATT (Attenuation) indicator

This indicator lights when the attenuation function is active.

¡5 NIGHT mode indicator

This indicator lights when the SR4300 is in the Night mode, which

reduces the dynamic range of digital program material at low volume

levels.

¡6 Main Information Display

This display shows messages relating to the status, surround mode,

tuner, volume level or other aspects of unit’s operation.

96kHz

DISP AUTO CD DVD VCR1 6.1CH-IN DIRECT

NIGHT ATT

AUTO SURR

DSS / VCR2

CDR/ MD

AUX

TUNED

TUNER

TAPE

STTEST

SLEEP ANALOG

DIGITAL

DIGITAL PCM

SURROUND

SL S SR

s d f g j l ¡1

¡0 ¡2

¡3

¡6 ¡5 ¡4

ENGLISH

REAR PANEL

bMONITOR OUT

There are 2 monitor outputs and each one includes both composite

video and S-video configurations.

nSubwoofer Output

Connect this jack to the line level input of a powered subwoofer. If an

external subwoofer amplifier is used, connect this jack to the

subwoofer amplifier input. If you are using two subwoofers, either

powered or with a 2 channel subwoofer amplifier, connect a “Y”

connector to the subwoofer output jack and run one cable from it to

each subwoofer amplifier.

mPreamp Outputs (L, R, SL, SR, SB, C)

Jacks for L (front left), R (front right), C (Center), SL (surround left), SR

(surround right) and SB (surround back).

Use these jacks for connection to some external power amplifiers.

,6.1 CHANNEL INPUT

By connecting a DVD Audio player, SACD multi channel player, or

other component that has a multi channel port, you can playback the

audio with 5.1 channel or 6.1 channel output.

.Speaker outputs terminals

Six terminals are provided for the front left, front right, front center,

surround left, surround right and surround back speakers.

⁄0 REMOTE CONT. IN/OUT terminals

Connect to a Marantz component equipped with remote control (RC-

5) terminals.

zFM antenna terminal (75 ohms)

Connect an external FM antenna with a coaxial cable, or a cable

network FM source.

AM antenna and ground terminals

Connect the supplied AM loop antenna. Use the terminals marked

“AM” and “GND”. The supplied AM loop antenna will provide good

AM reception in most areas. Position the loop antenna until you hear

the best

xAUDIO IN/OUT (CD, TAPE, CDR/MD, TV,

DVD, VCR1, DSS/VCR2)

These are the analog audio inputs and outputs. There are 7 audio

inputs (4 of which are linked to video inputs) and 4 audio outputs (2 of

which are linked to video outputs). The audio jacks are nominally

labeled for cassette tape decks, compact disc players,DVD players

and etc.... The audio inputs and outputs require RCA-type connectors.

cVIDEO IN/OUT (TV, DVD, VCR1 and

DSS/VCR2)

There are 4 composite video inputs and 2 composite video outputs.

Connect VCR, DVD player, and other video components to the video

input.

The output channels can be used to be connected to video recorder

for making recordings.

vS-VIDEO IN/OUT

There are 2 S-VIDEO inputs and one S-VIDEO output.

Connect VCR, DVD player, and other video components to the S-

VIDEO input.

The output channel can be used to be connected to video recorder for

making recordings.

S-VIDEO sources can be viewed through the S-VIDEO output, and

composite sources can only be viewed through the composite output.

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

SWITCHED 100W 1A MAX

UNSWITCHED 100W 1A MAX

(

Ω

)

REMOTE

CONTROL

MODEL NO. SR4300

SERIAL NO.

SPEAKER SYSTEMS

AC OUTLET (120V 60Hz)

⁄1 ⁄0 . m,

⁄2

xbnc v

⁄3

ENGLISH

⁄1 DIGITAL INPUT (Dig.1 - 4) / OUTPUT

(coaxial, optical)

These are the digital audio inputs and outputs. There are 2 digital

inputs with coaxial jacks, 2 with optical jacks.

The inputs accept digital audio signals from a compact disc, LD, DVD,

or other digital source component.

For digital output, there is 1 coaxial output and 1 optical output.

The digital outputs can be connected to MD recorders, CD recorders,

DAT decks, or other similar components.

⁄2 Power cable

Connect to AC power outlet.

SR4300 can be powered by 120 V AC only.

Caution:

•In order to avoid potential turn-off thumps, anything plugged in

here should be powered up BEFORE the SR4300 is turned on.

⁄3 AC OUTLETS

Connect the AC power cables of components such as a DVD and CD

player to these outlets. SWITCHED and UNSWITCHED outlets are

provided.

The one marked SWITCHED provides power only when the SR4300

is turned on and is useful for components which you use every time

you play your system.

The one marked UNSWITCHED is always live as long as the SR4300

is plugged into a live outlet.

A component connected here may be left on permanently, or may be

switched off with its own power switch.

Caution:

•In order to avoid potential turn-off thumps, anything plugged in

here should be powered up before the SR4300 is turned on.

•The capacity of these AC outlets are 100W. Do not connect

devices that consume electricity more than the capacity to these

AC outlets. If total power consumption of connected devices

exceeds the capacity, protection circuit shuts down the power

supply.

ENGLISH

REMOTE CONTROLE UNIT

OPERATION

The supplied remote control unit is a system remote control unit for

Marantz AV components.

The POWER button , numeric buttons and control buttons are used in

common across different input source components.

The input source controlled with the remote control unit changes when

one of the input selector buttons is pressed.

• Example: To select the DVD as the input source and play the DVD

player.

Press the DVD button twice within 2 seconds.

The input selector of the SR4300 is switched to DVD and

the remote control unit is set for control of the DVD

player.

Press the button on the remote control unit.

FUNCTION AND OPERATION

zInfrared window

Outputs and inputs an infrared control signals.

xMEMO(Memory) button

Press this button to enter the tuner preset memory numbers and

station names.

cPOWER button

Press to switch the power of the SR4300 ON or OFF after pressing the

AMP button.

vTREBLE (Up) / (Down) buttons

These buttons are used to adjust the tone control of high frequency

sound for left and right speakers.

bBASS (Up) / (Down) buttons

These buttons are used to adjust the tone control of low frequency

sound for left, right and subwoofer speakers.

nF.(Frequency) DIRECT button

Press this button to change tuner mode Frequency Direct Call.

mSETUP / T.TONE button

Test tone function is used for adjusting the balance between the

volume levels of speaker channels.

Press AMP button and press this button to call SPEAKER LEVEL

setup menu.

Press the button again to stop the pink noise generation.

,S- ( Source) DIRECT button

When this button is pressed, the tone control circuit is bypassed as

well as Bass Management.

.MUTE button

Press this button decrease the sound temporarily .

Press this button again to return to the previous sound level.

⁄0 NIGHT button

Pressing this button prevents the Dolby Digital signal from playback at

a loud voice. This function reduces the voice by 1/3 to 1/4 at

maximum. Thus, it eliminates the occurrence of an abruptly loud voice

at night.

⁄1 Input selector buttons/ FUNCTION

SELECTOR buttons for VIDEO component

⁄2 Input selector buttons/ FUNCTION

SELECTOR buttons for AUDIO component

Press one of these buttons once or twice to select a particular source

component. For example, to set the receiver to the DVD input, press

the DVD button twice within 2 seconds.

⁄3 AMP button

To select the surround mode of the SR4300, press this button

previously.

⁄4 CLEAR button

Press this button to cancel the station memory setting mode or preset

scan tuning.

⁄5 SLEEP (sleep timer) button

This button is used for setting the sleep timer. It can be operated the

same way as the button in unit.

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

⁄1

⁄2

⁄3

¤2

¤0

⁄5

⁄0

¤1

⁄6

⁄9

⁄8

⁄7

⁄4

ENGLISH

⁄6 Numeric buttons 1 to 9 / Surround

mode buttons

Numeric buttons (1 - 9)

These buttons are used to enter figures in the selection of a tuner

preset station and station name preset or to set select a CD track

number, etc.

The functions of these buttons are dependent on the function button

selected.

Surround mode buttons (when AMP mode is selected)

These buttons are also used to select the surround mode.

Note:

•The M-CH ST button is used to 6-stereo mode.

⁄7 0 / A/D button

0 button

This button is used to enter the number “0”

A/D button (when AMP mode is selected)

This is used to switch between the analog and digital inputs.

⁄8 MENU button and MENU OFF button

MENU button is used to enter the menu functions. Use the menu

functions to setup SR4300. MENU OFF button is used to return

original display from menu functions.

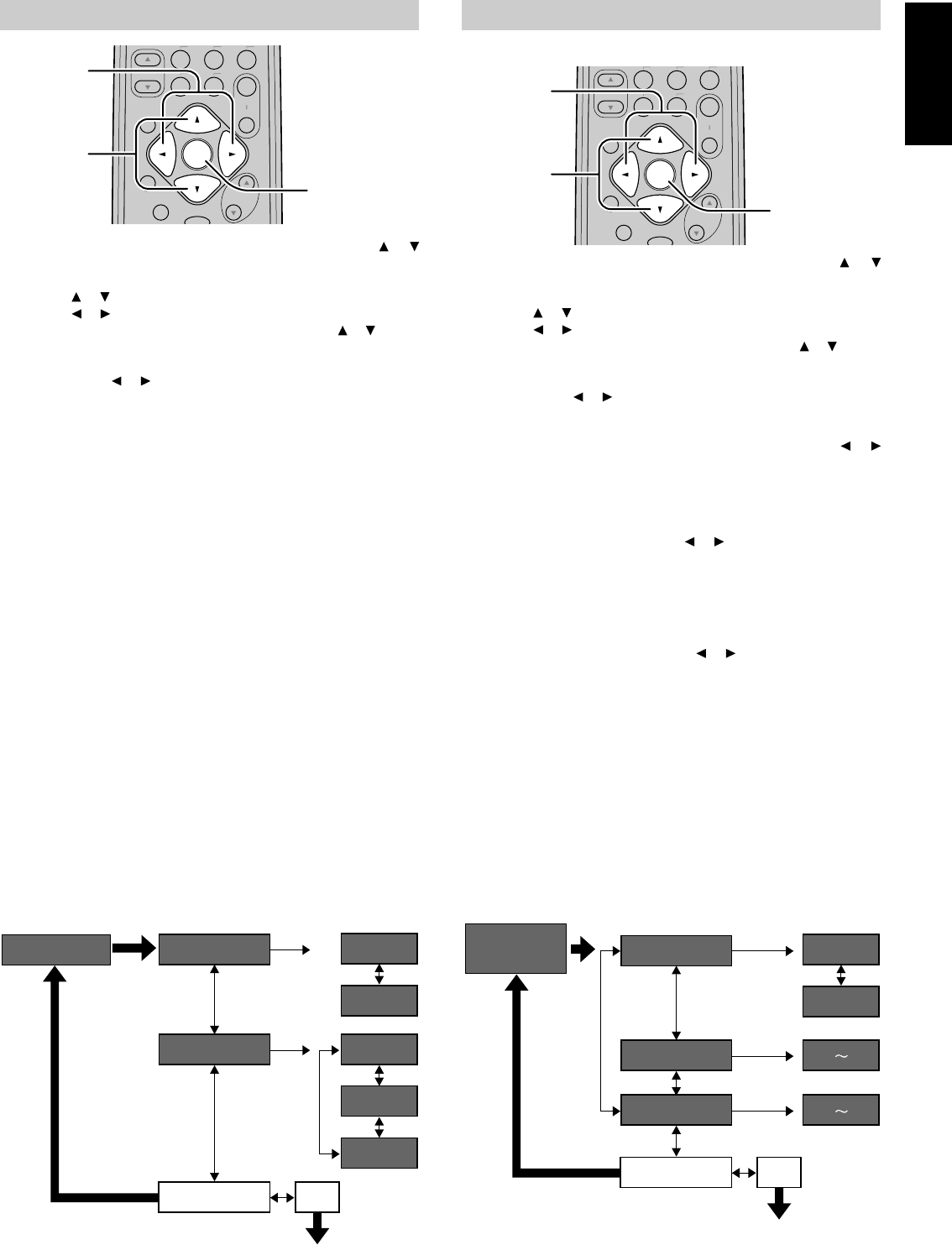

⁄9 Cursor buttons ( , , , , OK)

Use these button when operating the SETUP MENU functions.

: Moves the cursor left

: Moves the cursor right

: Moves the cursor up

: Moves the cursor down

OK : Enters to the SETUP MENU or Confirms the setting

¤0 MAIN VOLUME (Up) / (Down)

buttons

Adjusts the overall sound level. The front, surround, center and

subwoofer channel volumes controlled by these buttons

simultaneously.

¤1 CONTROL buttons

These buttons are used when operating the CD player, TAPE deck,

etc. The function of these buttons are dependent on the function

button selected.

¤2 ATT (attenuate) button

When the input signal is too high and the voice distorts even by

throttling the SR4300 VOLUME control, turn on this function. “ATT” is

indicated when this function is activated.

The input level is reduced. Attenuation is invalid for use with the output

signal of “REC OUT”.

REMOTE CONTROL RANGE

The distance between the transmitter of the remote control unit and

the IR SENSOR of the SR4300 should be less than about 5 meters. If

the transmitter is pointed to a direction other than the IR SENSOR or if

there is an obstacle between them, remote control may not be

possible.

Remote-controllable range

LOADING BATTERIES

When you use RC4300SR for the first time, you have to install the

batteries. The RC4300SR requires 2 AAA-batteries (2 x 1,5 V) to

function.

Note

• Attached batteries are to check basic function of remote control

unit.

Remove the back cover.

Insert the new batteries (AAA type) with correct (+) and (–)

polarity.

Close until it clicks.

Remote control unit (RC4300SR)

60°

SR4300

6.1CH-IN

Approx. 5 m

ENGLISH

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

POWER

VCR1

DVD

TAPE

OFF

SLEEP

TREBLE

ATT.

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

2CH

EX/ES

M-CH

A/D

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

VCR2

DSS

POWER

VCR1

DVD

TAPE

OFF

SLEEP

TREBLE

ATT.

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

2CH

EX/ES

M-CH

A/D

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

VCR2

DSS

-IN

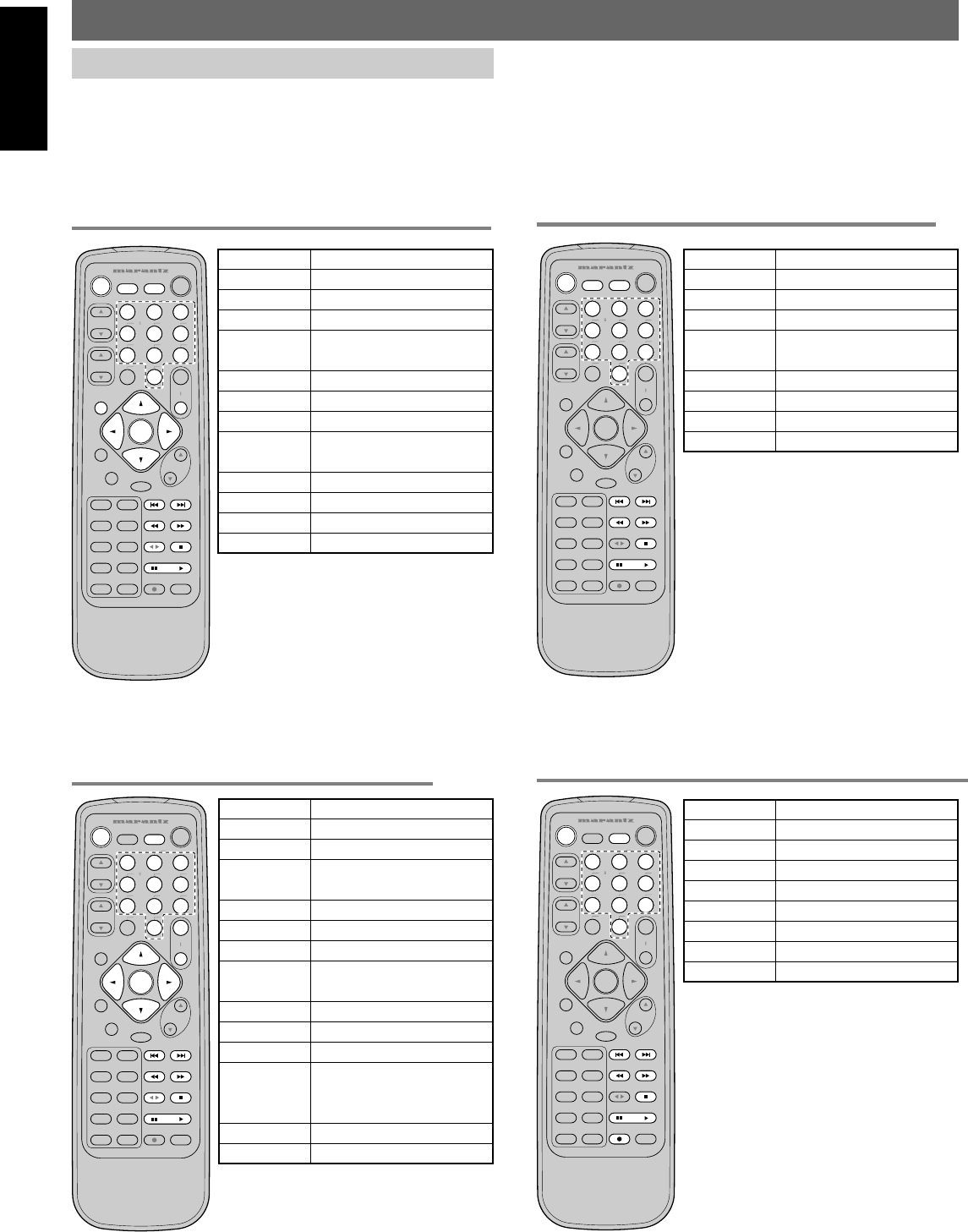

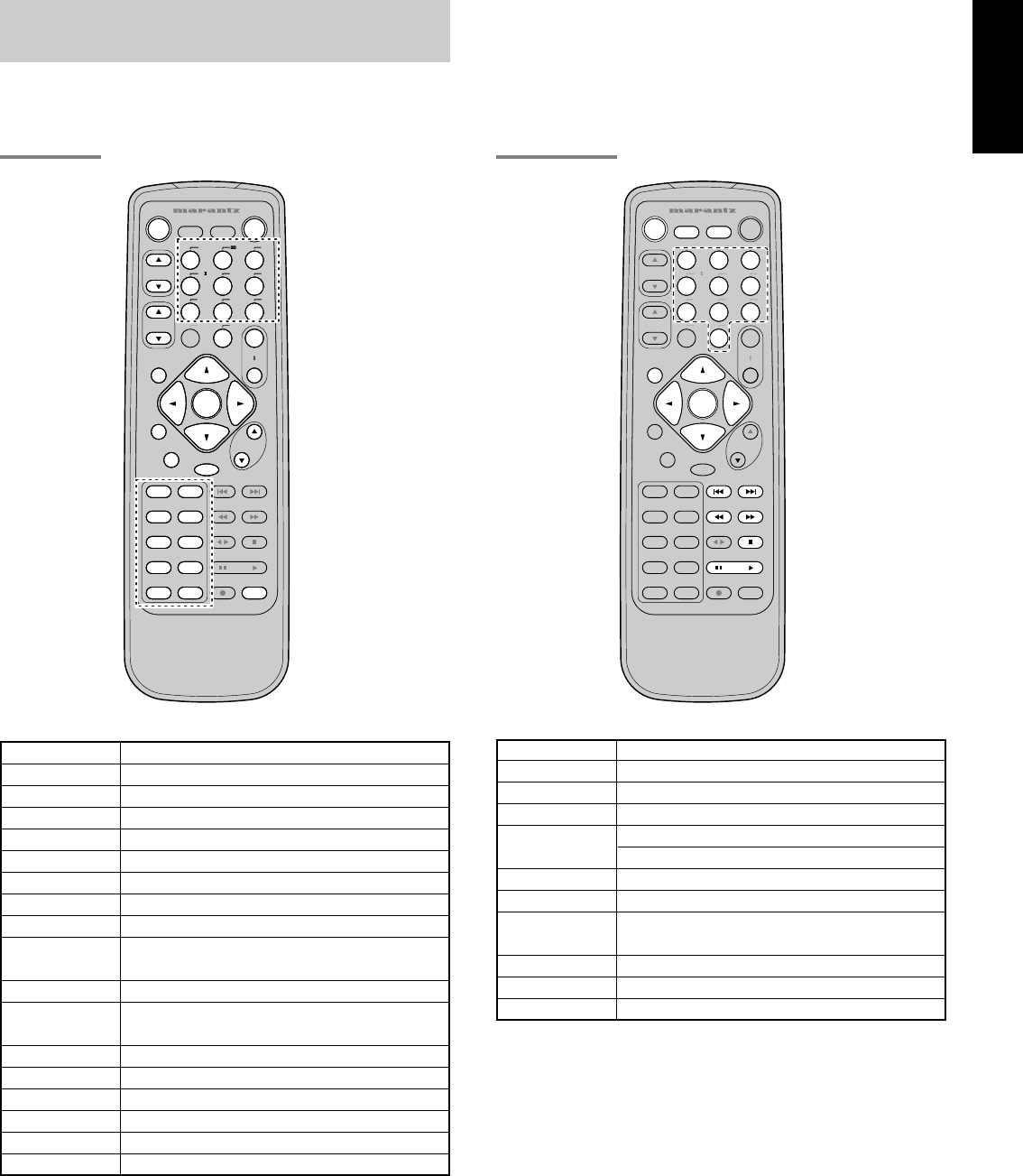

GENERAL INFROMATION OF RC4300SR

TO SR4300

To control the SR4300 by your RC4300SR, you have to select the

device AMP or TUNER by function selector button. Please refer as

below for the deatails in AMP and TUNER mode.

POWER Turns the SR4300 on and off

SLEEP * Sets the sleep timer function

TREBLE

* Adjusts the tone control of high frequency sound

BASS

* Adjusts the tone control of low frequency sound

Surround mode (1-8) Selects the surround mode

6.1CH-IN (9) Selects the 6.1CH IN

A/D (0) Switches between the analog and digital inputs

MENU Enters the SETUP MENU

MENU OFF Exits from the SETUP MENU

SETUP/T.TONE Enters the test tone mode for setting the Speaker Level

Setup

Cursor Moves the cursor for setting in SETUP MENU

OK • Enters the SETUP MENU

• Confirms the setting in SETUP MENU

S-DIRECT * Selects the Source Direct mode

MUTE * Decreases the sound temporarily

NIGHT * Turns on or off NIGHT mode

VOL

* Adjusts the over all sound level

Function selector * Selects a particular source component

ATT * Reduces the input level

* These buttons are used to control SR4300 in any function mode.

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

MEMO

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

SETUP/T.TONE

MEMO Enters the tuner preset memory numbers

CLEAR Clears the inputting

0-9 Inputs the numeric

F.DIRECT Selects the “Frequency direct input”

CHANNEL/SKIP • Selects a preset station

• Changes a PTY type (*)

TUNE/SEARCH Tunes a station

MODE Selects the auto stereo mode or mono mode

PTY Displays the programme type information of the current

station (*)

DISP./RDS Selects the display mode in RDS (*)

P.SCAN Starts preset scan

TUNER Selects a frequency band

TUNER MODEAMP MODE

(*): European model only

ENGLISH

CONNECTIONS

SPEAKER PLACEMENT

The ideal surround speaker system for this unit is 7-speaker systems,

using front left and right speakers, a center speaker, surround left and

right speakers, a surround back and a subwoofer.

For best results we recommend that all front speakers be of the same

type, with identical or similar driver units. This will deliver smooth pans

across the front sound stage as the action moves from side to side.

Your center channel speaker is very important as over 80 % of the

dialog from a typical motion picture emanates from the center channel.

It should possess similar sonic characteristics to the main speakers.

Surround channel speakers need not be identical to the front channel

speakers, but they should be of high quality.

The surround center speaker is useful for playback of Dolby Digital

Surround EX or DTS-ES. One of the benefits of both Dolby Digital

(AC-3) and DTS is that surround channels are discrete full range,

while they were frequency limited in earlier “Pro Logic’ type systems.

Bass effects are an important part of home theater. For optimal

enjoyment a subwoofer should be used as it is optimized for low

frequency reproduction. If you have full range front speakers,

however, they may be used in place of a subwoofer with proper setting

of the switches in the menu system.

Front left and right speakers

We recommend to set the front L and R speakers with 45-60 degrees

from the listening position.

Center speaker

Align the front line of the center speaker with the front L/R speakers.

Or place the center speaker a little backward from the line.

Surround left and right speakers

Place the speakers right beside of the listening position or a little

forward. Do not place the speakers backward of the listening position.

Surround back speaker

Place the speaker behind of the listening position.

Subwoofer

We recommend to use a sub-woofer to have maximum bass effect.

Sub-woofer bears only low frequency range so you can place it

anywhere in the room.

HEIGHT OF THE SPEAKER UNITS

Front left and right speakers, and a center speaker

Align the tweeters and mid-range drivers on the three front speakers

on the same height as well as possible.

Surround left and right speakers, and surround back speaker

Place the surround left, right and surround back speakers higher to

your ears (2 Ft. - 3 Ft.(70cm – 1m)). Also place the speakers on the

same height.

Note:

•Use magnetically-shielded speakers for front left, right and the

center speakers when the speakers are installed near the TV and

the TV is a monitor type.

Surround

Right

Surround

Left

Front

Left

Front

Center

Front

Right

Subwoofer

Surround

Back

(70cm

1m)

2 Ft.

3 Ft.

ENGLISH

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(

Ω

)

REMOTE

CONTROL

MODEL NO. SR4300

SPEAKER SYSTEMS

SWITCHED 100W 1A MAX

UNSWITCHED 100W 1A MAX

AC OUTLET (120V 60Hz)

SURROUND

BACK R

SURROUND L

FRONTCENTER R

SPEAKER SYSTEMS

SUB

WOOFER

INVERT

OUTPUT

INPUT

LEVEL BTL REMOTE CONT.EXT. CONT. IN

VIDEO/

+5~13V DC SYSTEM OUT O UT

INPUT

MASTER SLAVE

MIN MAX

SPEAKER SYSTEM

MINIMUM 4 OHMS

CONNECTING SPEAKERS

CONNECTING SPEAKER WIRE

Strip away approx. 10 mm of wire insulation.

Twist the bared wire ends tight to prevent short circuits.

Loosen the knob by turning counterclockwise.

Insert the bare part of the wire into the hole in the side of each

terminal.

Tighten the knob by turning clockwise to secure the wire.

Cautions:

•Be sure to use speakers with the specified impedance shown on

the rear panel of this unit.

•To prevent damage to circuitry, do

not let the bare speaker wires touch

each other and do not let them touch

any metal part of this unit.

•Do not touch the speaker terminals

when the power is on. It may cause

electric shocks.

•Do not connect more than one

speaker cable to one speaker terminal. Doing so may damage

this unit.

Note:

•Be sure to connect the positive and negative cables for the

speaker properly. If they are miss-connected, the signal phase

will reversed and the signal quality will be corrupted.

CONNECTING A SUBWOOFER

Use the PRE OUT SUBWOOFER jack to connect a powered

subwoofer (power amplifier built in ).

If your subwoofer is passive type (power amplifier is not built in),

connect a monaural power amplifier to the PRE OUT SUBWOOFER

jack and connect the subwoofer to the amplifier.

1. 2.

3. 4. 5.

POWERED

SUBWOOFER

POWER

AMPLIFIER

PASSIVE

SUBWOOFER

FRONT

RIGHT LEFT

SURROUND

BACK

CENTER

RIGHT LEFT

CONNECTING BANANA PLUG

Banana plug connections are also possible.

Tighten the knob by turning clockwise and then insert the banana plug.

3/8 inch

(10 mm)

ENGLISH

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(

Ω

)

REMOTE

CONTROL



MODEL NO. SR4300

SWITCHED 100W MAX

SPEAKER SYSTEMS

AC OUTLET

DIGITAL

DIG-1 IN

DIG.OUT

OPT

DIG-4 IN

OUT

AUDIO

TAPE

CDR

OUT IN

OUT

L R

L R L R

RLLR RL

OUT IN

DIGITAL

OUTPUT

DIGITAL

OUTPUT

DIGITAL

INPUT

R L

L R L R

L R

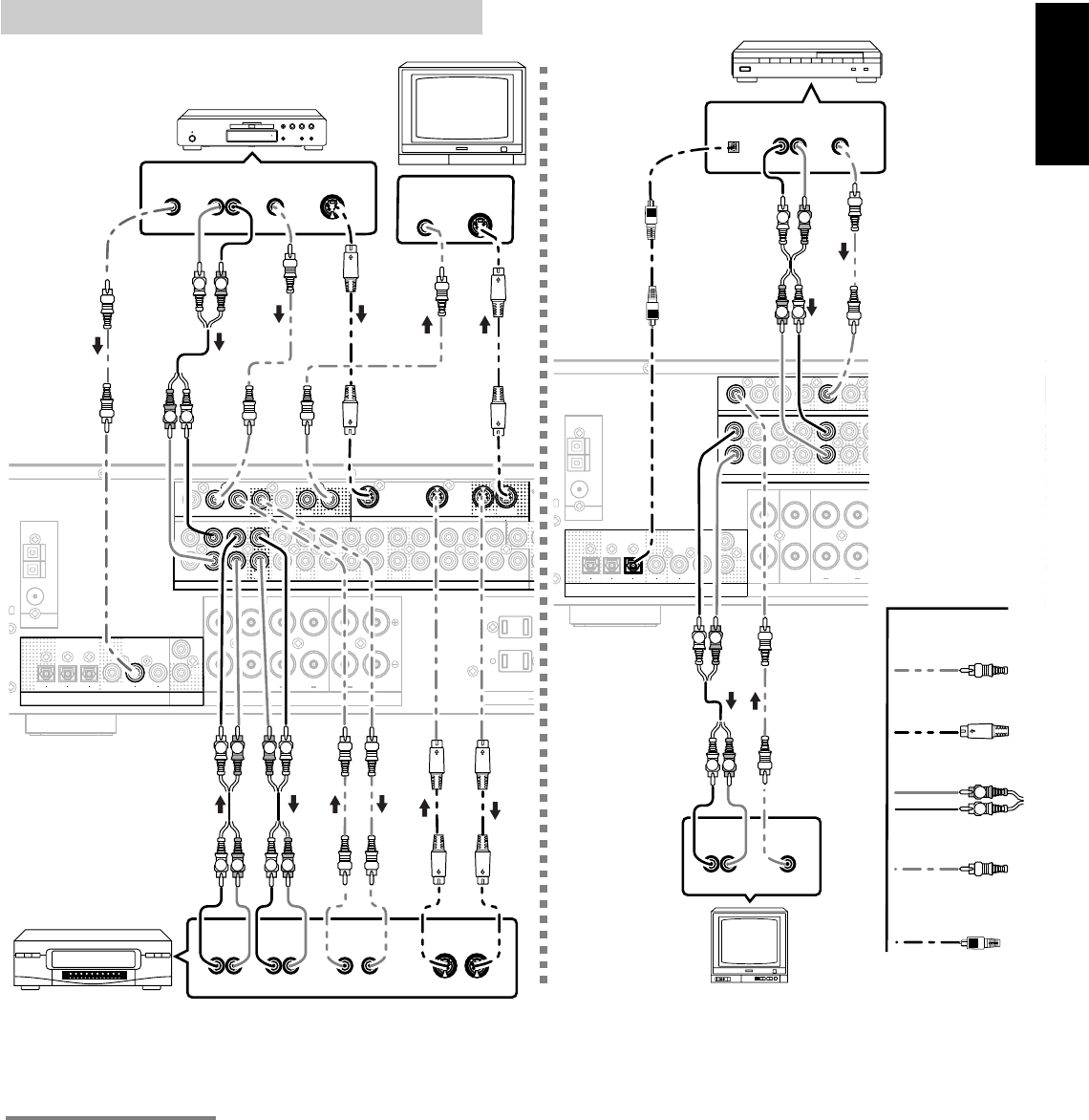

CONNECTING AUDIO COMPONENTS

The output audio signal from the TAPE OUT jack and the CD-R/MD

OUT jack is the sound source currently selected.

Caution:

•Do not connect this unit and other components to mains power

until all connections between components have been

completed.

Notes:

•Insert all plugs and connectors securely. Incomplete

connections may make noise.

•Be sure to connect the left and right channels properly.

Red connectors are for the R(right) channel, and white

connectors are for the L(left) channel.

•Be sure to connect input and output properly.

•Refer to the instructions for each component that is connected

with this unit.

•Do not bind audio/video connection cables with power cords

and speaker cables will result in generating hum or other noise.

CONNECTING DIGITAL AUDIO COMPONENTS

•There are four digital inputs, two coaxial jacks and two optical jacks,

on the rear panel. You can use these jacks to input PCM, Dolby

Digital and DTS bitstream signals from a CD, DVD, or other digital

source components.

•There are one digital output with coaxial jack and one with optical

jack on the rear panel. These jacks can be connected to CD

recorder, MD deck.

•Setup the digital audio format of DVD player, or other digital source

component. Refer to the instructions for each component to be

connected to digital input jacks.

•Use fiber optical cables(optical) for DIG-1,2 input jacks. Use 75

ohms coaxial cables(for digital audio or video) for DIG-3,4 input

jacks.

•You can designate the input for each digital input/output jacks

according to your component. See page 19.

Notes:

•There is no Dolby Digital RF input jack. Please use an external

RF demodulator Dolby Digital decoder when connecting the

Dolby Digital RF output jack of the video disc player to the

digital input jack.

•The digital signal jacks on this unit conform to the EIA

standard. If you use a cable that does not conform to this

standard, this unit may not function properly.

•Each type of audio jack works independently. Signals input

through the digital and analog jacks are output through the

corresponding digital and analog jacks, respectively.

CD RECORDER / MD DECK CD PLAYER TAPE DECK

ANALOG AUDIO

DIGITAL AUDIO

(COAXIAL)

DIGITAL AUDIO

(OPTICAL)

ENGLISH

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

CCENTER

FRONT

FRONT FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(

Ω

)

REMOTE

CONTROL

SPEAKER SYSTEMS

SWITCHED 100W 1A M

SWITCHED 100W 1A MAX

UNSWITCHED 100W 1A

MUNSWITCHED 100W 1A MAX

AC OUTLET (120V

6AC OUTLET (120V 60Hz)

DIGITAL

DIG-3 IN

VIDEO

S-VIDEO

OUT

AUDIO

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

MONITOR

DVD

VCR1

S-VIDEO

VIDEO

CVBS

AUDIO

OUT

DIGITAL

OUT

VIDEO

OUT

S-VIDEO

OUT

AUDIO

OUT

AUDIO

VIDEO

OUT IN

S-VIDEO

OUT IN

L R LR

L R L R

L R

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTE

RCENTER CENTER

FRONT

FRONT FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

OMONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(

Ω

)

REMOTE

CONTROL



SWITC

HSWITCHED 100W MAX

SPEAKER SYSTEMS

CAC OUTLET

DIGITAL

DIG-2 IN

DSS

VCR2

DSS

VCR2

AUDIO

VIDEO

AUDIO

OUT

DIGITAL

OUT

VIDEO

OUT

AUDIO

OUT

VIDEO

OUT

L R

R L

CONNECTING VIDEO COMPONENTS

VIDEO, S-VIDEO JACKS

There are two types of video jacks on the rear panel.

VIDEO jack

The video signal for the VIDEO jacks is the conventional composite

video signal.

S-VIDEO jack

The video signal is separated into luminance(Y) and color(C) signals

for the S-VIDEO jack. The S-VIDEO signals enables high-quality color

reproduction. If your video component has an S-VIDEO output, we

recommend to use it. Connect the S-VIDEO output jack on your video

component to the S-VIDEO input jack on this unit.

Notes:

•Be sure to connect the left and right audio channels properly.

Red connectors are for the R(right) channel, and white

connectors are the for L(left) channel.

•Be sure to connect input and output of video signal properly.

•Each type of video jack works independently. Signals input to

the VIDEO(composite) and S-VIDEO jacks are output to the

corresponding VIDEO(composite) and S-VIDEO jacks,

respectively.

•You may need to setup the digital audio output format of your

DVD player, or other digital source component. Refer to the

instructions of the each component connected to the digital

input jacks.

•There is no Dolby Digital RF input jack. Please use an external

RF demodulator with Dolby Digital decoder to connect a video

disc player with the Dolby Digital RF output jack to the digital

input jack on this unit.

ANALOG AUDIO

DIGITAL AUDIO

(COAXIAL)

DIGITAL AUDIO

(OPTICAL)

VIDEO

S-VIDEO

DVD PLAYER

MONITOR

VCR TV

SATELLITE TUNER

ENGLISH

ADVANCED CONNECTING

CONNECTING MULTI CHANNEL AUDIO SOURCE

The 6.1CH INPUT jacks are for multi channel audio source such as

SACD multi channel player, DVD audio player or external decoder.

If you use these jacks, switch on 6.1CH INPUT and setup 6.1CH

INPUT level by using SETUP MAIN MENU. See page 24.

CONNECTING EXTERNAL POWER AMPLIFIER

The PREOUT jacks are for connecting external power amplifiers , you

can have better sound quality.

Be sure to connect each speaker to the corresponding external power

amplifier.

DIGITAL

OUT

DIG-1 IN DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-4 INNDIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(75

Ω

)

REMOTE

CONTROL

MODEL NO. SR4300

SPEAKER SYSTEMS

SWITCHED 100W 1A MAX

UNSWITCHED 100W 1A MAX

AC OUTLET (120V 60Hz)

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

PRE OUT

FRONT SURR.

SURR.

BACK

SUB

WOOFER

CENTER

FRONT SURR.

SURR.

BACK

SUB

WOOFER

CENTER

RL RL

R L

LR LR R L

RL RL

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(

Ω

)

REMOTE

CONTROL



MODEL NO. SR4300

SWITCHED 100W MAX

SPEAKER SYSTEMS

AC OUTLET

OUT

REMOTE

CONTROL

REMOTE

CONTROL

REMOTE

CONTROL

REMOTE

CONTROL

OUT

EXTERNAL INTERNAL EXTERNAL INTERNAL EXTERNAL INTERNAL

CONNECTING REMOTE CONTROL JACKS

You can control other Marantz products through this unit with the

remote controller by connecting REMOTE CONTROL terminals on

each unit.

The signal transmitted from the remote controller is received by the

remote sensor on this unit then the signal is sent to the connected

device through this terminal. Therefore you need to aim the remote

signal only to the unit. Also, if a Marantz power amplifier (some models

excluded) is connected with this terminal, the power amplifier’s

standby function is synchronized by pressing the POWER button on

the remote.

Set the REMOTE CONTROL SWITCH on the units other than this unit

to EXT.(EXTERNAL) for this feature.

POWER

AMPLIFER

DVD AUDIO PLAYER

SACD MULTI CHANNEL PLAYER

Center

Front

Left

Front

Right

Surround

Left

Surround

Right

Subwoofer

MD DECK

CD RECORDER CD PLAYER

Surround

Back

ENGLISH

CONNECTING THE ANTENNA TERMINALS

ASSEMBLING THE AM LOOP ANTENNA

Release the vinyl tie and take out the connection line.

Bend in the reverse direction.

Inserting into the hole to attach the loop antenna to the antenna

stand.

With the antenna on top any stable surface.

CONNECTING THE SUPPLIED ANTENNAS

Connecting the supplied FM antenna

The supplied FM antenna is for indoor use only.

During use, extend the antenna and move it in various directions until

the clearest signal is received.

Fix it with push pin or similar implements in the position that will cause

the least amount of distortion.

If you experience poor reception quality, an outdoor antenna

may improve the quality.

Connecting the supplied AM loop antenna

The supplied AM loop antenna is for indoor use only.

Set it in the direction and position where you receive the clearest

sound. Put it as far away as possible from the unit, televisions,

speaker cables, and power cords.

If you experience poor reception quality, an outdoor antenna may

improve the quality.

Press and hold down the lever of the AM antenna terminal.

Insert the bared wire into the antenna terminal.

Release the lever.

CONNECTING AN FM OUTDOOR ANTENNA

Notes:

• Keep the antenna away from noise sources (neon signs, busy

roads, etc.).

• Do not put the antenna close to power lines. Keep it well away

from power lines, transformers, etc.

• To avoid the risk of lightning and electrical shock, grounding is

necessary.

CONNECTING AN AM OUTDOOR ANTENNA

An outdoor antenna will be more effective if it is stretched

horizontally above a window or outside.

Notes:

•Do not remove the AM loop antenna.

•To avoid the risk of lightning and electrical shock, grounding is

necessary.

3. 4.

DIGITAL

OUT

DIG-1 IN

DIG-2 IN

DIG.OUT

OPT

DIG-4 IN

DIG-3 IN

DIG.OUT

COAX

SURROUND

BACK

SURROUND

FRONT

CENTER

VIDEO

S-VIDEO

OUT

DSS

VCR2

VCR1

DVD

AUDIO

TAPE

CDR

SUB

WOOFER

CENTER

FRONT

SURROUND

SURR.

BACK

SURROUND

SUB

WOOFER

SURR.

BACK

6.1CH INPUT

MONITOR

OUT

VCR1 OUT

VCR1 IN

DVD IN

OUT

PRE OUT

OUT

MONITOR

DSS

VCR2

DVD

VCR1

GND

ANTENNA

(

Ω

)

REMOTE

CONTROL



MODEL NO. SR4300

SWITCHED 100W MAX

SPEAKER SYSTEMS

AC OUTLET

GND

ANTENNA

(

Ω

)

ANTENNA

FM EXTERNAL

ANTENNA AM LOOP

ANTENNA

AM EXTERNAL

ANTENNA

ENGLISH

SETUP

After all components are connected, initial setup must be performed.

SETUP MENU SYSTEM

The SR4300 incorporates an menu on the front display, which makes

various operations possible by using the cursor ( , , , ) and OK

buttons on the remote control.

MENU STRUCTURE

1. INPUT setup

2. SPEAKER setup

3. PREFERENCE setup

5. CS II setup

6. 6.1CH IN setup

7. SURROUND setup

4. PROLOGIC II setup

Main Menu

TAPE

CD-R (CD-R/MD)

DSS (DSS/VCR2)

DVD

VCR1

SUBW (Subwoofer)

L&R (Front Left&Right)

CENTER

SL&SR (Surround Left&Right)

SURR.B (Surround Back)

YES / NONE

SMALL / LARGE

SMALL / LARGE / NONE

YES / NONE

MANU (Manual) / AUTO

BOTH / MIX

OFF / ON

0dB / -10dB / OFF

L&R (Front Left&Right)

C (Center)

SLR (Surround Left&Right)

SW(Subwoofer)

SB (Surround Back)

T.MODE(Test Tone Mode)

L (Front Left)

C (Center)

R (Front Right)

SR (Surround Right)

SB (Surround Back)

SL (Surround Left)

SW (Subwoofer)

BASSMIX

LFE

TRUBASS

SRS DIALOG

PANORAMA

DIMENSION

C.WIDTH (Center width)

L (Front Left)

C (Center)

R (Front Right)

SR (Surround Right)

SB (Surround Back)

SL (Surround Left)

SW (Subwoofer)

Surround Mode

C (Center) LEV

SL (Surround Left) LEV

SR (Surround Right) LEV

SB (Surround Back) LEV

SW (Subwoofer) LEV

D1 AUTO / D2 AUTO

/D3AUTO / D4 AUTO

(DigitalAUTO mode)

DIG.1 / DIG.2 / DIG3. /

DIG4(Digital Fixed mode)

ANALOG

Speaker Size Setup

Speaker Distance Setup

Speaker Level Setup

0.3m (1f) 9.0m (30f)

-10dB +10dB

-15dB +10dB

-10dB +10dB

-15dB +10dB

-10dB +10dB

-15dB +10dB

0 6

0 7

0 6

ENGLISH

ENTER THE DESIRED MENU ITEM OF THE

SETUP MENU

Turn on this unit.

Press the AMP button to set the amp mode.

Press the MENU button or the OK button to enter the SETUP

MENU.

Press the or cursor button to select the MAIN MENU item.

Press the OK button or the MENU button to enter the desired

menu item.

After finishing all setup, press the MENU OFF button to exit the

SETUP MENU.

1. INPUT SETUP (ASSIGNABLE DIGITAL INPUT)

Four digital inputs can be assigned as the desired source.

Use this menu to select the digital input jack to be assigned to the

input source.

The Input Setup consists of 9 items, which are as below.

• D1AUTO to D4AUTO : Digital AUTO mode

If the input signal from the selected source is digital signal, this unit

chooses a digital input automatically.

• DIG.1 to DIG.4 : Digital FIXED mode

The SR4300 chooses a digital input regardless of a input signal from

the selected source.

• ANA : Analog mode

Use this menu to select the digital input jack to be assigned to the

input source.

Select “1.INPUT” in SETUP MAIN MENU with the or cursor

button.

Press the OK button to enter the menu.

Press the or cursor button to select the input source.

Press or cursor button to select the input function.

Select “DxAUTO”, “DIG.x” or “ANA” for input sources.

If you finish these setup, press the or cursor button to select

“TO MAIN MENU” then press the OK button to return the SETUP

MAIN MENU.

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

Notes:

• When a DTS-LD or DTS-CD is playing, this setup is not

available. This is to avoid noise being generated from the

analog input.

• If “Dx-AUTO” is selected and a DVD, compact disc or LD is

fast forwarded during playback, decoded signals may produce a

skipping sound. In such cases, change the setting to DIGITAL.

• Same digital input function cannot be set. In this case, the

previous setting is set to ANALOG. Same digital input number

cannot be set in Digital AUTO mode and Digital Fixed mode.

For example, D1AUTO and DIG.1 are not set at same time.

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

OFF

CHANNEL/SKIP

ATT.

CDR

BASS

897

VOLUME

MUTE

AMP

6.1CH

-IN

2CH

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

AMP

OFF

EXIT

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

NIGHT

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 5.

2. 5.

1. 3. 5.

ENGLISH

2. SPEAKER SETUP

After you have installed the SR4300, connected all the components,

and determined the speaker layout, it is now time to

perform the settings in the Speaker Setup menu for the optimum

sound acoustics for your environment and speaker layout.

Before you perform the following settings, it is important that you first

determine the following characteristics:

SPEAKER SIZE

When setting the speaker size in the SPEAKER SIZE sub-menu, use

the guidelines given below.

Large: The complete frequency range for the channel you are setting

will be output from the speaker.

Small: Frequencies of the channel you are setting lower than approx.

100Hz will be output from the subwoofer.

If the Subwoofer is set to “NONE” and the front speakers are

set to “Large,” then the sound may be output from both the left

and right speakers.

Select “2.SPEAKER” in SETUP MAIN MENU with or cursor

button,

Press the OK button to enter the menu. The first sub-menu item is

“Speaker Size” setup.

Press or cursor button to select the each speaker.

Press or cursor button to select the setting of size to each

speaker.

If you finish these setup, press the or cursor button to select

“NEXT”.

Press the OK button to enter the next “Speaker Distance” setup.

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

Or press the or cursor button to select “TO MAIN MENU” then

press the OK button to return the SETUP MAIN MENU.

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 6.

2. 6.

1. 3. 5.

MENU STRUCTURE of Speaker Size setup

Speaker Size

Select when a subwoofer is connected.

Select if the front speakers are small sized.

Select if the center speaker is small sized.

Select when a subwoofer is not connected.

Select if the front speakers are large sized.

Select if the center speaker is large sized.

Select if no center speaker is connected.

Select when a surround back speaker is not connected.

Select when a surround back speaker is connected.

Select if no surround left and right speakers are connected.

Select if the surround left and right speakers are large sized.

Select if the surround left and right speakers are small sized.

MAIN MENU

exit SETUP

Speaker Distance

setup

Speaker Size

setup

YES

NONE

SMALL

LARGE

SMALL

L & R

CENTER

LARGE

NONE

SMALL

LARGE

NONE

YES

SL & SR

SURR.B

NONE

TO MAIN

EXIT

SUBW2.SPEAKER

ENGLISH

SPEAKER DISTANCE

Use this parameter to specify the distance of each speaker’s position

from the listening position. The delay time is automatically calculated

according to these distances.

Begin by determining the ideal or most commonly used seating

position in the room.

This is important for the timing of the acoustics to create the proper

sound space that the SR4300 and today’s sound systems are able to

produce.

Note that the speakers that you selected “No” or “None” for in the

Speaker Config sub-menu will not appear here.

Enter to the “Speaker Distance setup” from the previous “Speaker

Size setup”.

Press or cursor button to select the each speaker.

Press or cursor button to set the distance from your listening

position for each speaker.

After finishing the Speaker Distance setup, press the or cursor

button to select “NEXT”.

Press the OK button to enter the next “Speaker Level” setup.

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

Or press the or cursor button to select “TO MAIN MENU” then

press the OK button to return the SETUP MAIN MENU.

Or press the or cursor button to select “RETURN” then press

the OK button to return the previous “Speaker Distance” setup.

L&R : Set the distance from the front left and right speakers to

your normal listening position between 1 and 30 feet in

1.0 foot interval (0.3 to 9 meters in 0.3-meter intervals).

C : Set the distance from the center speaker to your normal

listening position between 1 and 30 feet in 1.0 foot

interval

(0.3 to 9 meters in 0.3-meter intervals).

SLR: Set the distance from the surround left and right

speaker to your normal listening position between 1 and

30 feet in 1.0 foot interval (0.3 to 9 meters in 0.3-meter

intervals).

SW : Set the distance from the subwoofer to your normal

listening position between 1 and 30 feet in 1.0-foot

intervals

(0.3 to 9 meters in 0.3-meter intervals).

SB: Set the distance from a surround back speaker to your

normal listening position between 1 and 30 feet in 1.0-

foot intervals (0.3 to 9 meters in 0.3-meter intervals).

Note

•Speakers that you selected "No" or "None" for in the Speaker

Size menu will not appear.

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

SETUP/T.TONE

S-DIRECT

F.DIRECT

3. 5.

2. 4.

MENU STRUCTURE of Speaker Distance setup

button

30 feet (3.0m)

29 feet (2.7m)

L&R

SLR

2 feet (0.6m)

EXIT

Minimum

Maximum

1 foot interval

RETURNTO MAIN MENU

1 feet (0.3m)

Distance

Speaker

Size setup

MAIN

exit SETUP

Speaker

Level setup

Speaker

Distance setup

Speaker

Size setup

ENGLISH

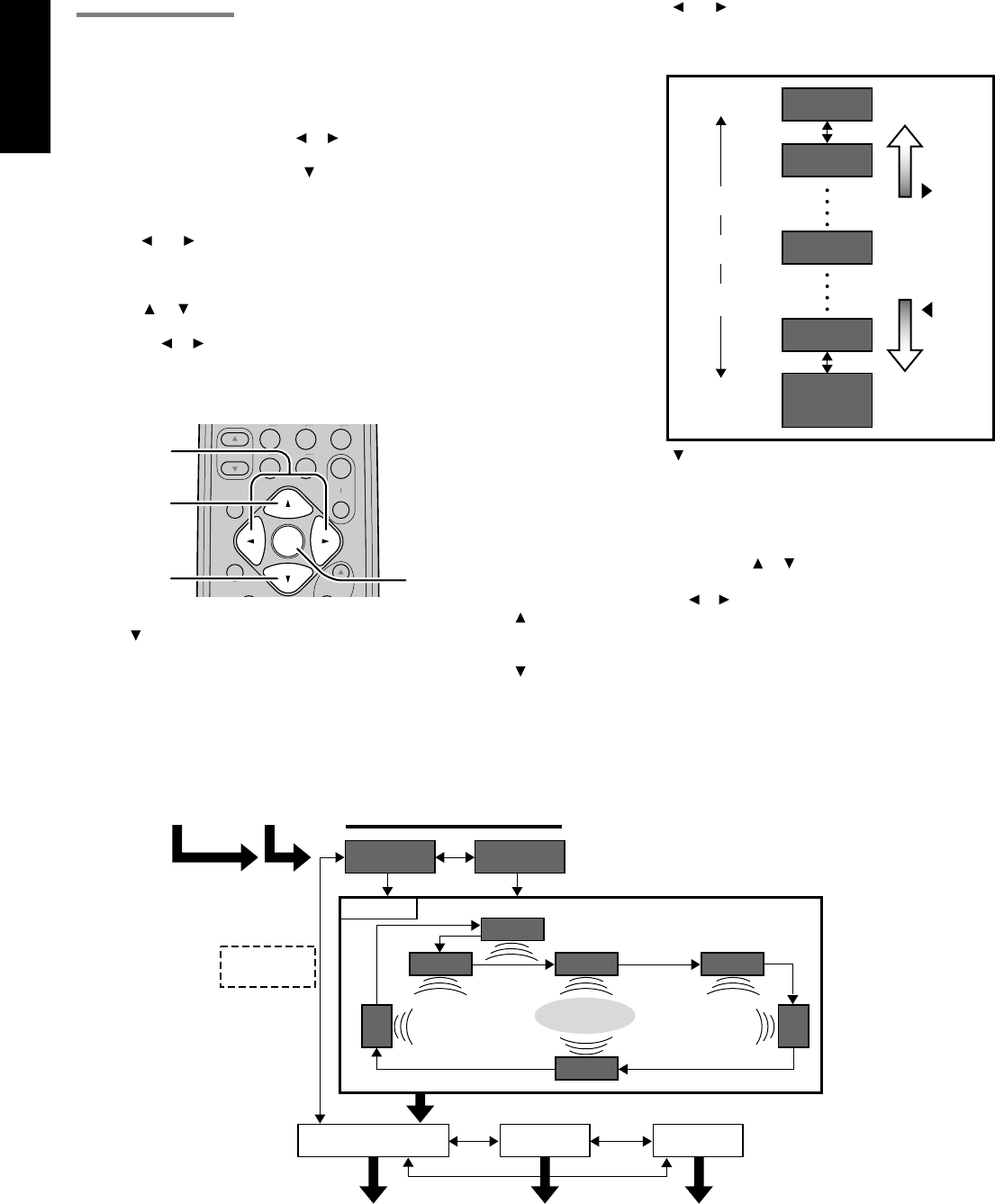

SPEAKERS LEVEL

Here you will set the volume for each speaker so that they are all

heard by the listener at the same level.

Note:

•The speaker level settings is not available in 6.1channel input

mode and S-Direct mode.

TEST MODE : Selects “MANU (manual)” or “AUTO” for generating

mode of test tone or cursor button.

If you select “AUTO” by pressing the button, the test tone will be cycled

through in a circular pattern which is L (Left) →C (Center) →R (Right)

→SR (Surround Right) →SB (Surround Back) →SL (Surround Left)

→SW (Subwoofer →L →.. increments of 2 seconds for each channel.

Using the and cursor buttons, adjust the volume level of the noise

from the speaker so that it is the same level for all speaker.

When you select “TO MAIN MENU” by pressing the OK button, you

can return the SETUP MAIN MENU by pressing the OK button . Or

press the or cursor button to select “EXIT” then press the OK

button to exit the SETUP MENU.

Or press the or cursor button to select “RETURN” then press the

OK button to return the previous “SPEAKER DISTANCE” setup.

If you select “MANU”, adjust the output level of each speaker as

follow.

When you select “MANUAL” in T.MODE menu by pressing the

or button, this unit will emit a pink noise from the front left

speaker. At this time, adjust the desired level of the master

volume. Remember the level of this noise and then press the

button. This unit will emit the pink noise from the center speaker.

Using the and cursor buttons, adjust the volume level of the

noise from the center speaker so that it is the same level as the

front left speaker (Note that this can be adjusted to any level

between –10 and +10 dB in 1dB intervals).

Press the cursor button again. This unit will now emit the pink

noise from the front right speaker.

Repeat steps 2 and 3 above for the front right and other speakers

until all speakers are adjusted to the same volume level.

When you select “TO MAIN MENU” by pressing the OK button,

you can return the SETUP MAIN MENU by pressing the OK

button . Or press the or cursor button to select “EXIT” then

press the OK button to exit the SETUP MENU.

Or press the or button to select “RETURN” then press the OK

button to return the previous “SPEAKER DISTANCE” setup.

Notes:

•Speakers that you selected “None” for in the Speaker Size Setup

menu will not appear.

•The setup level for each channel is memorized for reproduction

in all surround mode.

•To adjust the speaker levels for 6.1-channel input sources, you

will need to use the 6.1CH Level Input setup menu.

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

SETUP/T.TONE

S-DIRECT

F.DIRECT

1. 5.

2. 5.

1. 3. 5.

+10dB

+9dB

-9dB

Minimum

Maximum

1 dB interval

Reference

1 dB interval

-10dB

(SW -15 dB)

button

0dB

MENU STRUCTURE of Speaker Level setup

MANU AUTO

L C

SL SR

EXITRETURNTO MAIN MENU

Speaker

(Auto)

Speaker

Distance setup

MAIN

exit SETUP

Test Tone mode

Speaker

Level setup

Speaker

Distance

setup

Direct selec

by remote

control

Listening

Positiom

ENGLISH

3. PREFERENCE

Select “3. PREFERENCE” in SETUP MAIN MENU with or

cursor button.

Press the OK button.

Press or cursor button to select a desired item.

Press or cursor button to adjust.

When you select “TO MAIN MENU” by pressing the or button,

you can return the SETUP MAIN MENU by pressing the OK

button .

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

BASS MIX

•The bass mix setting is only valid when “LARGE” is set for the front

speakers and “YES” is set for the subwoofer at stereo playback .

•When the “BOTH” is selected, the low frequency signal range of

“LARGE” are produced simultaneously from those channels and the

subwoofer channel.

In this playback mode, the low frequency range expand more

uniformly through the room, but depending on the size and shape of

the room, interference may result in a decrease of the actual volume

of the low frequency range.

•Selection of the “MIX” will play the low frequency signal range of the

channel selected with “LARGE” from that channel only.

Therefore, the low frequency signal range that are played from the

subwoofer channel are only the low frequency signal range of LFE

(only during Dolby Digital or DTS signal playback) and the channel

specified as “SMALL” in the setup menu.

LFE

•Select the output level of the LFE signal included in the Dolby Digital

signal or the DTS signal.

Select 0dB, -10 dB or OFF with Left or Right cursor button.

4. PL II (PRO LOGIC II )

In this mode, the SR4300 includes three controls to fine-tune the

sound-field as follow.

Select “4.PRO LOGIC II” in SETUP MAIN MENU with or

cursor button.

Press the OK button to enter the menu.

Press or cursor button to select a desired item.

Press or cursor button to select the mode or set the level.

When you select “TO MAIN MENU” by pressing the or button,

you can return the SETUP MAIN MENU by pressing the OK

button .

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

PANORAMA: Select the Panorama mode On or Off with or

cursor button.

Panorama wraps the sound of the front left and

right speakers around you for an exciting

perspective.

DIMENSION: Set the Dimension level between 0 and 6 level in 1

level interval with or cursor button.

Adjust the soundfield either towards the front or

towards the rear.

This can be useful to help achieve a more suitable

balance from all the speakers with certain

recordings.

C WIDTH: Set the Center width level between 0 and 7 level in

1 level interval with or cursor button.

Center Width allows you to gradually spread the

center channel sound into the front left and right

speakers.

At its widest setting, all the sound from the center is

mixed into the left and right.

This control may help achieve a more spacious

sound or a better blend of the front image.

If “None” was selected for the Center speaker

setting in the Speaker size, then this setting will not

appear.

Note:

•When Center speaker is set ”None”, then C.WIDTH is set “7”.

(The display appears “C.WIDTH = ✱✱✱”.)

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

NIGHT

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 5.

2. 5.

1. 3. 5.

MENU STRUCTURE of PREFERENCE setup

BOTH

MIX

BASSMIX

LFE

EXITTO MAIN MENU

exit SETUP

0 dB

-10 dB

OFF

3.PREFERENCE

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

NIGHT

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 5.

2. 5.

1. 3. 5.

OFF

PANORAMA

DIMENSION

C.WIDTH 0 7

EXITTO MAIN MENU

exit SETUP

4.PROLOGIC

II setup

MENU STRUCTURE of PROLOGIC II setup

0 6

ENGLISH

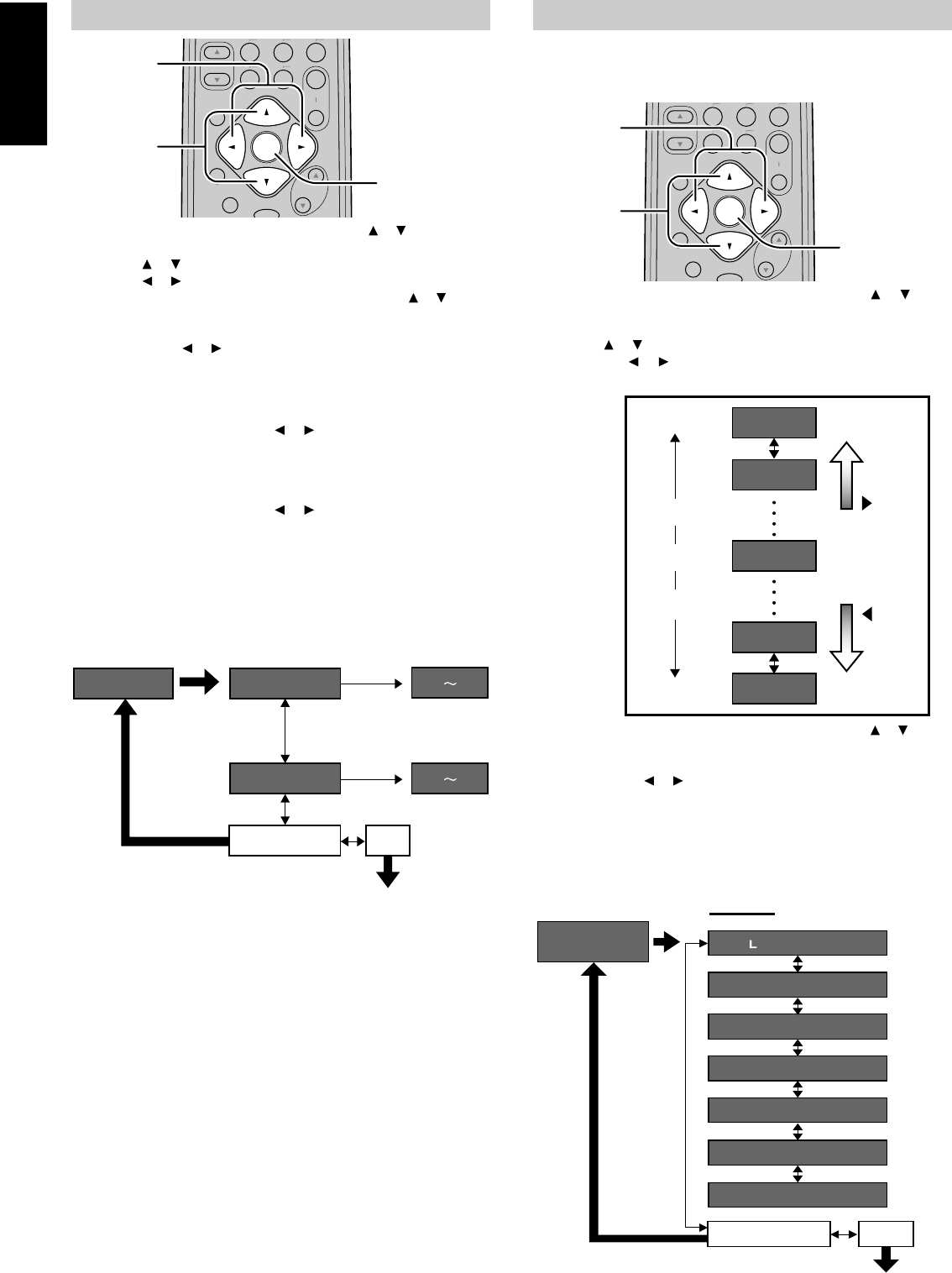

5. CS II (CIRCLE SURROUND II)

Select “5. CS II” in SETUP MAIN MENU with or cursor button.

Press the OK button to enter this menu.

Press or cursor button to select desired item.

Press or cursor button to set the level.

When you select “TO MAIN MENU” by pressing the or button,

you can return the SETUP MAIN MENU by pressing the OK

button .

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

TRUBASS: Set the TRUBASS level between 0 and 6 level in 1

level interval with or cursor button.

TRUBASS produced by the speakers to be an octave

below the actual physical capabilities of the speakers

adding exciting, deeper bass effects.

SRS DIALOG: Set the SRS DIALOG level between 0 and 6 level in 1

level interval with or cursor button.

This can be popped out of the surround audio effects

allowing the listener to easily discern what the actors

say.

If “NONE” was selected for the Center speaker setting

in the Speaker size, then this setting will not appear.

6. 6.1 CH INPUT LEVEL

This sub-menu is to adjust the speaker levels for 6.1-channel input

sources.

Here you will adjust the volume for each channel so that they are all

heard by the listener at the same level.

Select “6. 6.1 CH IN” in SETUP MAIN MENU with or cursor

button.

Press the OK button to enter this menu.

Press or cursor button to select desired channel.

Using the or cursor button, adjust the volume level of each

channel.

When you select “TO MAIN MENU” by pressing the or button,

you can return the SETUP MAIN MENU by pressing the OK

button .

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

Note:

•The condition of these setup will be memorized to 6.1CH

INPUT source.

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

NIGHT

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 5.

2. 5.

1. 3. 5.

TRUBASS

SRS DIALOG

EXITTO MAIN MENU

exit SETUP

0 6

MENU STRUCTURE of CS II setup

5.CS II setup

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

NIGHT

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 5.

2. 5.

1. 3. 5.

+10dB

+9dB

-9dB

Minimum

Maximum

1 dB interval

Reference

1 dB interval

-10dB

button

0dB

MENU STRUCTURE of 6.1CH IN setup

EXITTO MAIN MENU

exit SETUP

channel

6. 6.1CH IN

setup (Front Left)

C (Center)

R (Front Right)

SR(Surround Right)

SB(Surround back)

SL(Surround Left)

SW(Subwoofer)

ENGLISH

7. SURROUND

Select “7. SURROUND” in SETUP MAIN MENU with or

cursor button.

Press the OK button.

To select a desired item, press or cursor button.

Using the or cursor button to select the mode or adjust the

volume level of each speaker.

When you select “TO MAIN MENU” by pressing the or button,

you can return the SETUP MAIN MENU by pressing the OK

button .

Or press the or cursor button to select “EXIT” then press the

OK button to exit the SETUP MENU.

SURR-MODE : Select the desired surround mode with or cursor

button.

SURR. L/R : Adjust the volume level of the surround left/right

speaker between -10 dB and +10 dB in 1 level

interval with or cursor button.

• If “None” was selected for the Surround L/R speaker setting in

the Speaker size, then this setting will not appear.

SURR. BACK : Adjust the volume level of the surround back speaker

between -10 dB and +10 dB in 1 level interval with

or cursor button.

• If “None” was selected for the Surround back speakers setting

in the Speaker size, then this setting will not appear.

CENTER : Adjust the volume level of the center speaker

between -10 dB and +10 dB in 1 level interval with

or cursor button.

• If “None” was selected for the Center speaker setting in the

Speaker size, then this setting will not appear.

SUB W : Adjust the volume level of the subwoofer speaker

between -15 dB and +10 dB in 1 level interval with

or cursor button.

• If “None” was selected for the Subwoofer speaker setting in the

Speaker size, then this setting will not appear.

When you select “TO MAIN MENU” by pressing the or button, you

can return the SETUP MAIN MENU by pressing the OK button.

Note:

•SURR.L/R, SURR. BACK, CENTER and SUB W volume level

are synchronized with SETUP MAIN MENU 2-3 Speaker

Level.

OFF

BASS

897

VOLUME

MUTE

1CH

-IN

2CH

A/D

NIGHT

SETUP/T.TONE

S-DIRECT

F.DIRECT

4. 5.

2. 5.

1. 3. 5.

SURROUND MODE

C(Center)LEV

SL(Surround Left)LEV

SR(Surround Right)LEV

SB(Surround back)LEV

EXITTO MAIN MENU

exit SETUP

MODE

Speaker

S(Subwoofer)LEV

7.SURROUND

setup

MENU STRUCTURE of SURROUND setup

ENGLISH

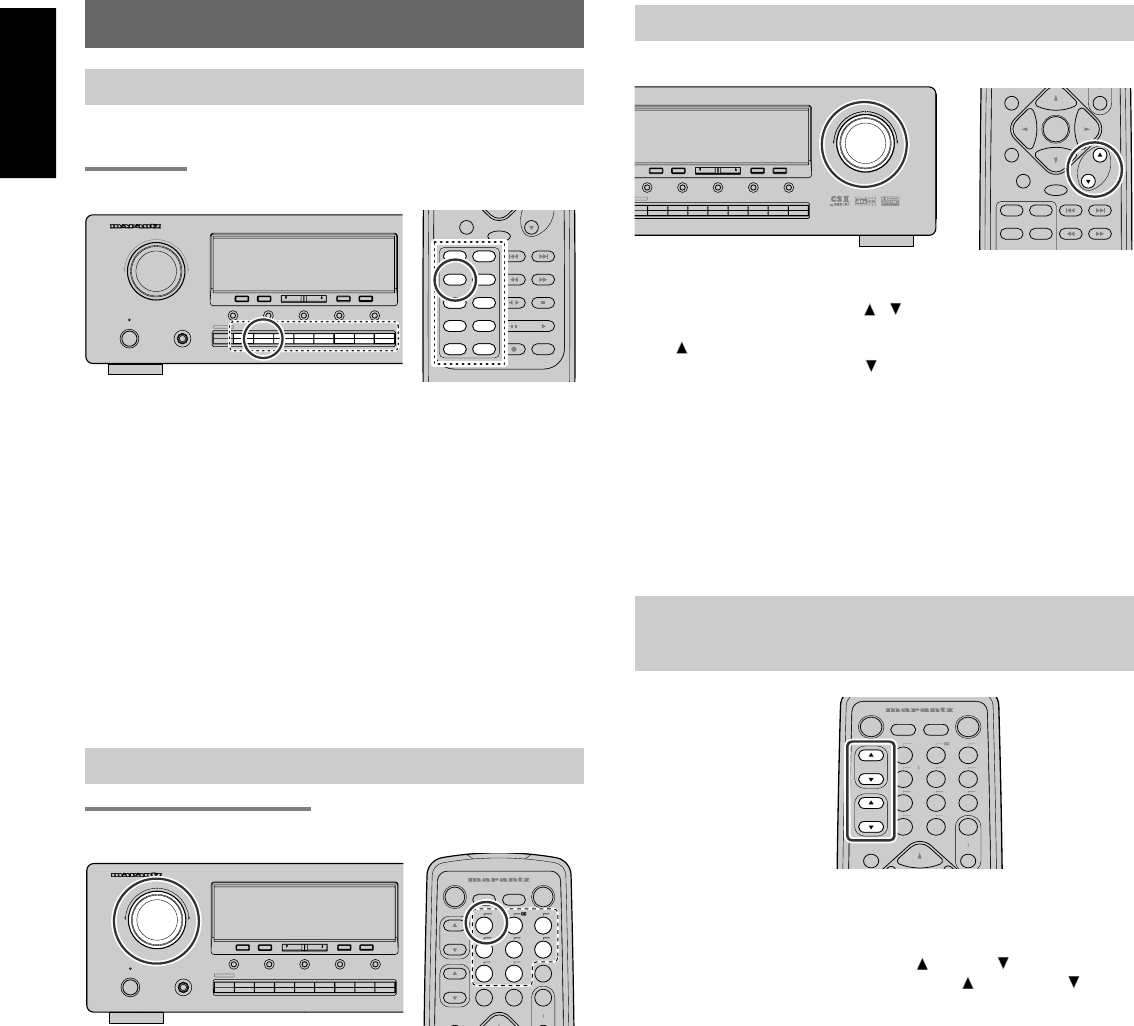

BASIC OPERATION (PLAY BACK)

SELECTING AN INPUT SOURCE.

Before you can listen to any input media, you must first select the input

source at the SR4300.

E.G. : DVD

To select DVD, simply press the DVD button on the front panel or

press DVD button on the remote.

After you have selected DVD, simply turn on the DVD player and play

the DVD.

•The input name will appear in the display on the front-panel.

•As the input is changed, the SR4300 will automatically switch to the

digital input, surround mode, attenuation, and night mode status

that were entered during the configuration process for that source.

•When an audio source is selected, the last video input used remains

routed to the VCR1 & DSS/VCR2 Outputs and Monitor Outputs.

This permits simultaneous viewing and listening to different

sources.

•When a Video source is selected, the video signal for that input will

be routed to the Monitor Outputs jack and will be viewable on a TV

monitor connected to the SR4300.

SELECTING THE SURROUND MODE

E.G. : AUTO SURROUND

To select the surround mode during playback, turn the SELECT knob

on the front panel or press the surround mode button on the remote .

ADJUSTING THE MAIN VOLUME

Adjust the volume to a comfortable level using the VOLUME control

knob on the front panel or VOL / buttons on the remote.

To increase the volume, turn the VOLUME knob to clockwise or press

VOL button on the remote, to decrease the volume, turn it to

counterclockwise or press VOL button on the remote.

Notes:

•The volume can be adjusted within the range of – ∞ to + 18 dB,

in steps of 1 dB.

•However, when the channel level is set as described on page 24,

if the volume for any channel is set at +1 dB or greater, the

volume cannot be adjusted up to +18 dB.

(In this case the maximum volume adjustment range is “+18 dB

- Maximum value of channel level)

ADJUSTING THE TONE(BASS & TREBLE)

CONTROL.

During a listening session you may wish to adjust the Bass and Treble

Control to suit your listening tastes or room acoustics.

To adjust the bass effect , press BASS or BASS on the remote.

To adjust the treble effect , press TREBLE or TREBLE on the

remote.

Notes :

•The tone control function can work for the front left and front

right speakers.

•When Source Direct mode is set, tone control is disable.

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

CH-IN

VCR1

VOLUME

DOWN

VOLUME

DOWN

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

CHANNEL/SKIP

ATT.

CDR

VOLUME

MUTE

AMP

TUNE/SEARCH

NIGHT

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

VCR1

DVD

TAPE

CDR

AMP

TUNER

VCR2

DSS

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

DVD

CHANNEL/SKIP

CDR

VOLUME

MUTE

TUNE/SEARCH

NIGHT

SETUP/T.TONE

S-DIRECT

MODE

PTY

VOLUME

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

SETUP/T.TONE

F.DIRECT

AUTO

DTS

DSP

2CH

EX/ES

M-CH

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

SETUP/T.TONE

F.DIRECT

TREBLE

BASS

ENGLISH

TEMPORARILY TURNING OFF THE SOUND

To temporarily silence all speaker outputs such as when interrupted

by a phone call, press the MUTE button on the front panel or remote.

This will interrupt the output to all speakers and the head-phone jack,

but it will not affect any recording or dubbing that may be in progress.

When the system is muted, the display will show “MUTE” .

Press the MUTE button again to return to normal operation.

USING THE SLEEP TIMER

To program the SR4300 for automatic standby, press SLEEP buton

on the remote.

Each press of the button will increase the time before shut down in the

following sequence.

The sleep time will be shown for a few seconds in the display on the

front panel, and it will count down until the time has elapsed.

When the programmed sleep time has elapsed, the unit will

automatically turn off.

Note that the SLEEP indicator on the display will light up when the

Sleep function is programmed.

To cancel the Sleep function, press the SLEEP button until the display

shows to “SLEEP OFF” and the SLEEP indicator disappear.

NIGHT MODE

Press the NIGHT button on the remote to turn on the NIGHT mode.

Selecting the Night Mode ON is effective in Dolby Digital only, and it

compresses the dynamic range.

This softens loud passages such as sudden explosions, to help

prevent disturbing others late at night.

To turn off the Night mode, press the NIGHT button again.

OFF 10 20 30 40

90 80 70 60 50

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

ER SR4300

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

MUTE

VCR1

DVD

TAPE

CHANNEL/SKIP

CDR

VOLUME

MUTE

TUNE/SEARCH

NIGHT

SETUP/T

TONE

S-DIRECT

MODE

PTY

MUTE

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

SETUP/T.TONE

F.DIRECT

SLEEP

VCR1

DVD

TAPE

CHANNEL/SKIP

CDR

VOLUME

MUTE

TUNE/SEARCH

NIGHT

SETUP/T.TONE

S-DIRECT

MODE

PTY

NIGHT

ENGLISH

SURROUND MODE

The SR4300 is equipped with many surround modes. These are

provided to reproduce a variety of surround sound effects, according

to the content of the source to be played.

The available surround modes may be restricted depending on the

input signal and speaker setup.

AUTO

When this mode is selected, the receiver determines whether the

digital input signal is Dolby Digital, Dolby Digital Surround EX, DTS,

DTS-ES or PCM-audio.

Surround EX & DTS-ES will operate for multi channel source that has

a Dolby Digital Surround EX or DTS-ES auto trigger flag in the digital

signal.

When a Dolby Digital or DTS signal is input, the number of channels

for which the corresponding signal is encoded will be played.

Inputting a Dolby Digital two channel signal with Dolby surround status

automatically subjects that signal to Pro Logic II movie processing

before play.

PCM 96 kHz source material can be played in this mode.

Notes:

•When you use this mode with certain DVD and CD players,

performing operations such as “Skip” or “Stop” may

momentarily interrupt the output.

•When the signal is not decoded is input for using mode, the

mode is changed to AUTO mode automatically. Refer to page

30 to confirm the available decoding mode.

2 MODE

(Dolby Digital,Pro Logic II MOVIE, Pro Logic II MUSIC, Pro Logic)

This mode is used with source materials encoded in Dolby Digital and

Dolby Surround.

DOLBY DIGITAL

This mode is enabled when playing source materials encoded in

Dolby Digital.

Playing multi-channel encoded 5.1-channel Dolby Digital sources

provides five main audio channels (left, center, right, surround left and

surround right) and Low Frequency Effect channel.

Dolby Digital EX decoding is not available in this mode.

Dolby Pro Logic II brings the excitement of surround sound to any

stereo mix, while making existing Dolby Surround mixes sound more

like discrete 5.1 channels Surround sound.

Dolby Pro Logic II has below 3 modes.

Pro Logic II MOVIE

This mode provides 5.1 channel surround sound from Dolby Surround

encoded stereo movie sound tracks.

Pro Logic II MUSIC

This mode provides 5.1 channel surround sound from conventional

stereo sources, analog or digital, such as CD, tape, FM, TV, stereo

VCR, etc.

Pro Logic

This mode emulated original Dolby Pro Logic decoding (3/1 surround)

suit for Dolby Surround encoded stereo movie soundtracks.

Notes:

•Pro Logic II mode is available to 2ch input signal which is

encoded Dolby Digital or PCM format.

•PCM-audio signals can be subjected to Pro Logic processing

when the sampling frequency is 32 kHz, 44.1 kHz or 48 kHz.

EX/ES

This mode provides 6.1 channel surround for DOLBY DIGITAL EX,

DTS-ES encoded source material such as DVD.

This mode cannot be used when an analog input has been selected.

Dolby Digital EX

In a movie theater, film soundtracks that have been encoded with

Dolby Digital surround EX technology are able to reproduce an extra

channel which has been added during the mixing of the program.

This channel, called Surround Back , places sounds behind the

listener in addition to the currently available front left, front center,

front right, surround right, surround left and subwoofer channels.

This additional channel provides the opportunity for more detailed

imaging behind the listener and brings more depth, spacious

ambience and sound localization than ever before.

Dolby Digital EX is not available in the system without surround back

speaker.

DTS-ES (Discrete 6.1, Matrix 6.1)

DTS-ES adds the surround back channel audio to the DTS 5.1-

channel format to improve the acoustic positioning and makes

acoustic image movement more natural with the 6.1-channel

reproduction.

This receiver incorporates a DTS-ES decoder, which can handle DTS-

ES Discrete-encoded and DTS-ES Matrix-encoded program sources

from DVD, etc..

DTS-ES Discrete 6.1 features digital discrete recording of all channels

including the surround back channels and higher quality of audio

reproduction.

DTS-ES is not available in the system without surround back speaker.

dts MODE

(dts, Neo:6 Cinema, Neo:6 Music)

This mode is for DTS encoded source materials such as LASER

DISC, CD, and DVD and some 2channel signal source.

dts : This mode is enabled when playing source materials encoded in

dts multi channel.

Playing multi-channel encoded 5.1-channel dts sources provides five

main audio channels (left, center, right, surround left and surround

right) and Low Frequency Effect channel.

dts-ES decoding is not available in this mode.

The DTS mode cannot use when an analog input has been selected.

Neo:6 Cinema, Neo:6 Music

This mode decodes 2-channel signals into 6-channel signals using

high-accuracy digital matrix technology.

The DTS NEO:6 decoder has near-discrete properties in the

frequency characteristics of the channels as well as in channel

separation.

According to the signals to be played back, DTS NEO:6 uses either

the NEO:6 CINEMA mode optimized for movie playback or the NEO:6

MUSIC mode optimized for music playback.

Note:

•PCM-audio (32 kHz, 44.1 kHz or 48 kHz) and analog source

material can playback in this mode.

MULTI CH. ST

This mode is used to create a wider, deeper and more natural

soundstage from two channel source material.

This is done by feeding the left channel signal to both left front and left

surround speaker and the right channel signal to both right front and

right surround speaker. Additionally, the center channel reproduces a

mix of the right and left channel.

ENGLISH

CIRCLE SURROUND II (CSII-CINEMA, CSII-MUSIC, CSII-MONO)

Circle Surround is designed to enable multi-channel surround sound

playback of non-encoded and multi-channel encoded material.

Backward compatibility provides listeners with up to 6.1 channels of

surround performance from entire collection of music and film,

including broadcast, videotape and stereo recorded music.

Regarding to source material, you can select CSII-Cinema mode,

CSII-Music mode or CSII-Mono mode.

Note:

•PCM-audio (32 kHz, 44.1 kHz or 48 kHz) and analog source

material can playback in this mode.

VIRTUAL

This mode creates a virtualized surround sound experience from a

two-speaker (front L and R) playback system playing any multi-

channel audio source (such as found on DVDs and digital

broadcasts), including Dolby Digital, Dolby Pro Logic or DTS.

DSP SURROUND (MOVIE, HALL, STADIUM, MATRIX)

These modes provide surround effect processing from each input

source material.

They will produce theater, concert hall and stadium like atmospheres.

Select as your taste desires.

Note:

•PCM-audio (32 kHz, 44.1 kHz or 48 kHz) and analog source

material can playback in this mode.

STEREO

This mode bypasses all surround processing.

Stereo program sources the left and right channels play normally

when PCM-audio or analog stereo is input.

With Dolby Digital and DTS sources, the 5.1 multi-channels are

converted to two channel stereo. 96 kHz PCM source material can be

playback in stereo mode.

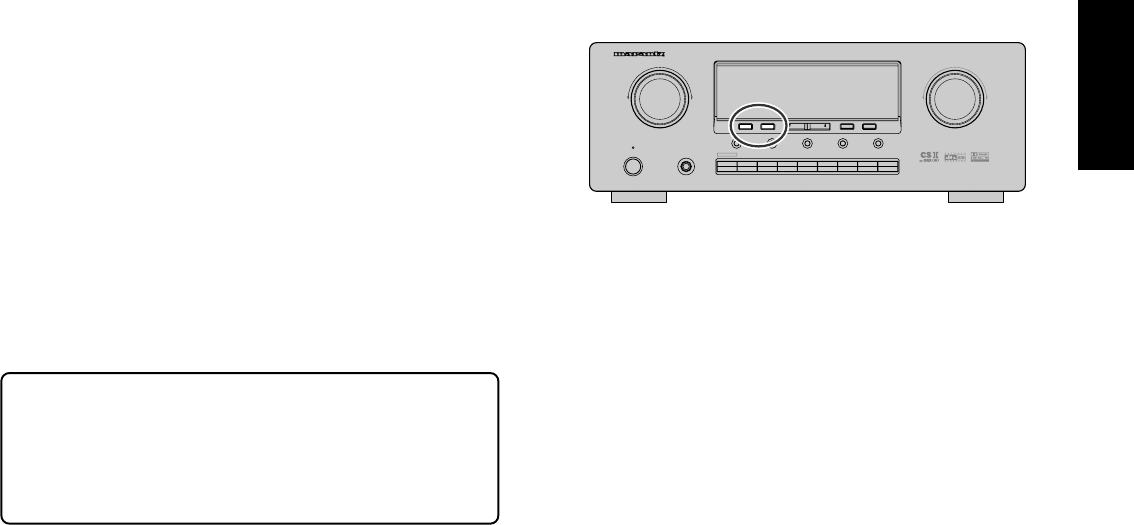

S (SOURCE ) - DIRECT

In the source direct mode, the tone control circuit and bass

management configuration are bypassed for full range frequency

response and the purist audio reproduction.

96 kHz PCM source material can be play back in this mode.

Notes:

•Internal speaker size is setup to front L/R = Large, Center =

Large, Surround L/R = Large and Subwoofer = yes

automatically. Tone controls and additional processing are also

defeated.

•When you use this mode with certain DVD and CD players,

performing operations such as “Skip” or “Stop” may

momentarily interrupt the output.

CAUTION

NOTE for DTS signal

* Connected DVD-player, laser-disc player or CD-player needs to

support DTS-digital output. You may not be able to play some DTS

source signals from certain CD players and LD players even if you

connect the player to the SR4300 digitally. This is because the

digital signal has been processed (such as the output level,

sampling frequency, or frequency response) and the SR4300

cannot recognize the signal as DTS data.

* Depending on the player used, DTS play may produce short noise.

This is not a malfunction. In such cases, select the surround mode

the “DTS” or “DTS-ES”.

* While signals from DTS-laser disc or CD are playing in another

Surround mode, you cannot switch to digital input or from digital input

to analog input by INPUT SETUP in SETUP MAIN MENU or A/D

button.

* The outputs for the VCR 1 OUT, DSS/VCR 2 OUT, TAPE OUT, and

CD-R OUT output analog audio signals. Do not record from CDs or

LDs that support DTS using these outputs. If you do, the DTS-

encoded signal will be recorded as noise.

NOTE for Dolby Digital Surround EX signal

* When playing Dolby Digital Surround EX-encoded software in 6.1

channels, it is required to set the EX/ES mode.

* Note that some of Dolby Digital Surround EX-encoded software

does not contain the identification signal. In this case, set the EX/

ES mode manually.

NOTE for 96kHz PCM audio

* AUTO, Source- DIRECT, and STEREO modes can be used when

playing PCM signals with a sampling frequency of 96 kHz (such as

from DVD-Video discs that contain 24 bit, 96 kHz audio). If such

signals are input during playback in one of the other surround

modes, output from SR4300 will be muted.

* Certain DVD player models inhibit digital output. For details, refer to

the player’s operation manual.

* Some DVD formatted discs featured copy protection. When using

such disc, 96 kHz PCM signal is not output from the DVD player. For

details, refer to the player's operation manual.

ENGLISH

The relation between the selected surround mode and the input signal

The surround mode is selected with the surround mode knob on SR4300 or the remote control unit. However, the sound you hear is subject to the

relationship between the selected surround mode and input signal. That relationship is as follows;

Surround Mode Input Signal Decoding Output Channel Front information display

L/R C SL SB SW Dot matrix display Signal format indicators Channel status

AUTO Dolby Surr. EX Dolby Digital EX

OOOOO

DOLBY D EX

DIGITAL, EX L, C, R, SL, SR, S, LFE

Dolby D (5.1ch) Dolby Digital 5.1

OOO

DOLBY D

DIGITAL L, C, R, SL, SR, LFE

Dolby D (2ch) Dolby Digital 2.0

---- DOLBY D

DIGITAL L, R

Dolby D (2ch Surr) Pro Logic

movie

OOO

- - DOLBY PL II MV

DIGITAL ,

SURROUND L, R, S

DTS-ES DTS-ES

OOOOO

DTS ES dts , ES L, C, R, SL, SR, S, LFE

DTS (5.1ch) DTS 5.1

OOO

DTS dts L, C, R, SL, SR, LFE

PCM (Audio) PCM (Stereo)

---- STEREO PCM L, R

PCM 96kHz PCM (96kHz Stereo)

---- STEREO PCM, 96kHz L, R

Analog Stereo

---- STEREO ANALOG -

S-DIRECT Dolby D Surr. EX Dolby Digital EX

OOOOO

DOLBY D EX

DIGITAL, EX L, C, R, SL, SR, S, LFE

Dolby D (5.1ch) Dolby Digital 5.1

OOO

DOLBY D

DIGITAL L, C, R, SL, SR, LFE

Dolby D (2ch) Dolby Digital 2.0

---- DOLBY D

DIGITAL L, R

Dolby D (2ch Surr) Pro Logic

movie

OOO

- - DOLBY PL II MV

DIGITAL ,

SURROUND L, R, S

DTS-ES DTS-ES

OOOOO

DTS ES dts , ES L, C, R, SL, SR, S, LFE

DTS (5.1ch) DTS 5.1

OOO

DTS dts L, C, R, SL, SR, LFE

PCM (Audio) PCM (Stereo)

---- STEREO PCM L, R

PCM 96kHz PCM (96kHz Stereo)

---- STEREO PCM, 96kHz L, R

Analog Stereo

---- STEREO ANALOG -

EX/ES Dolby D Surr. EX Dolby Digital EX

OOOOO

DOLBY D EX

DIGITAL, EX L, C, R, SL, SR, S, LFE

Dolby D (5.1ch) Dolby Digital EX

OOOOO

DOLBY D EX

DIGITAL L, C, R, SL, SR, LFE

DTS-ES DTS-ES

OOOOO

DTS ES dts , ES L, C, R, SL, SR, S, LFE

DTS (5.1ch) DTS-ES

OOOOO

DTS ES dts L, C, R, SL, SR, LFE

DOLBY Dolby D Surr. EX Dolby Digital 5.1

OOO

DOLBY D

DIGITAL, EX L, C, R, SL, SR, S, LFE

(PL

MOVIE) Dolby D (5.1ch) Dolby Digital 5.1

OOO

DOLBY PLII MS

DIGITAL L, C, R, SL, SR, LFE

(PL

MUSIC) Dolby D (2ch) Pro Logic

OOO

- - DOLBY PL

DIGITAL L, R

(PRO LOGIC) Dolby D (2ch Surr) Pro Logic

OOO

- - or DOLBY PLII MV

DIGITAL ,

SURROUND L, R, S

PCM (Audio) Pro Logic

OOO

- - or DOLBY PLII MS PCM L, R

Analog Pro Logic

OOO

- - ANALOG -

DTS DTS-ES DTS 5.1

OOO

DTS ES dts , ES L, C, R, SL, SR, S, LFE

(Neo:6 Cinema) DTS (5.1ch) DTS 5.1

OOO

DTS dts L, C, R, SL, SR, LFE

(Neo:6 Music) PCM (Audio) Neo:6

OOOO

- NEO 6 CINEMA PCM L, R

Analog Neo:6

OOOO

- or NEO 6 MUSIC ANALOG L, R

CINEMA PCM (Audio) CS

OOOOO

CSII CINEMA PCM L, R

MUSIC Analog CS

OOOOO

or CSII MUSIC ANALOG -

MONO or CSII MONO

STEREO Dolby Surr. EX Stereo

---

STEREO

DIGITAL, EX L, C, R, SL, SR, S, LFE

Dolby D (5.1ch) Stereo

---

STEREO

DIGITAL L, C, R, SL, SR, LFE

Dolby D (2ch) Stereo

---- STEREO

DIGITAL L, R

Dolby D (2ch Surr) Stereo

---- STEREO

DIGITAL ,

SURROUND L, R, S

DTS-ES Stereo

---

STEREO dts , ES L, C, R, SL, SR, S, LFE

DTS (5.1ch) Stereo

---

STEREO dts L, C, R, SL, SR, LFE

PCM (Audio) Stereo

---- STEREO PCM L, R

PCM 96kHz Stereo

---- STEREO PCM, 96kHz L, R

Analog Stereo

---- STEREO ANALOG -

VIRTUAL Dolby Surr. EX Virtual

---- VIRTUAL

DIGITAL, EX L, C, R, SL, SR, S, LFE

Dolby D (5.1ch) Virtual

---- VIRTUAL

DIGITAL L, C, R, SL, SR, LFE

Dolby D (2ch) Virtual

---- VIRTUAL

DIGITAL L, R

Dolby D (2ch Surr) Virtual

---- VIRTUAL

DIGITAL ,

SURROUND L, R, S

DTS-ES Virtual

---- VIRTUAL dts , ES L, C, R, SL, SR, S, LFE

DTS (5.1ch) Virtual

---- VIRTUAL dts L, C, R, SL, SR, LFE

PCM (Audio) Virtual

---- VIRTUAL PCM L, R

Analog Virtual

---- VIRTUAL ANALOG -

MULTI CH ST Dolby Surr. EX Dolby Digital EX

OOOOO

M-CH STEREO

DIGITAL, EX L, C, R, SL, SR, S, LFE

Dolby D (5.1ch) Dolby Digital 5.1

OOO

M-CH STEREO

DIGITAL L, C, R, SL, SR, LFE

Dolby D (2ch) Multi Channel Stereo

OOO

- - M-CH STEREO

DIGITAL L, R

Dolby D (2ch Surr) Multi Channel Stereo

OOO

- - M-CH STEREO

DIGITAL ,

SURROUND L, R, S

DTS-ES DTS-ES

OOOOO

M-CH STEREO dts , ES L, C, R, SL, SR, S, LFE

DTS (5.1ch) DTS 5.1

OOO

M-CH STEREO dts L, C, R, SL, SR, LFE

PCM (Audio) Multi Channel Stereo

OOO

- - M-CH STEREO PCM L, R

Analog Multi Channel Stereo

OOO

- - M-CH STEREO ANALOG -

DSP SURROUND

PCM (Audio) DSP

OOO

- - MOVIE PCM L, R

(MOVIE) Analog DSP

OOO

- - or HALL ANALOG -

(HALL) or STADIUM

(STADIUM) or MATRIX

(MATRIX)

L/R = Front Left and Right speakers

C = Center speaker

SL/SR = Surround Left and Right speakers

SB = Surround back speaker

SW = Sub woofer speaker

Dolby Surr.EX: Dolby Digital stream with Surround EX flag

DTS-ES: DTS digital stream with ES flag.

Dolby D(2ch Surr) : 2channel Dolby Digital stream with Dolby Surround flag

ENGLISH

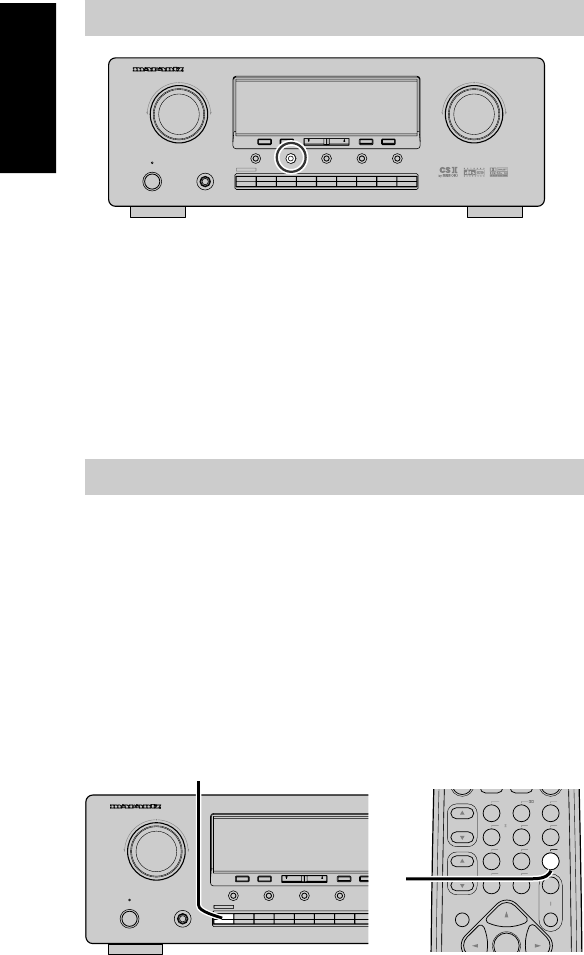

OTHER FUNCTION

ATTENUATION TO ANALOG INPUT SIGNAL

When the input signal is too high and the voice distorts even by

throttling the SR4300 VOLUME control, turn on this function. “ATT” is

indicated when this function is activated.

“ATT” indicator will light up when this function is activated. The signal-

input level is reduced by about the half. Attenuation will not work with

the output signal of TAPE-OUT, CD-R/MD-OUT, VCR1-OUT and

DSS/VCR2-OUT.

This function is memorized for each individual input source.

LISTENING OVER HEADPHONES

This jack may be used to listen to the SR4300’s output through a pair

of headphones. Be certain that the headphones have a standard 1/4"

stereo phone plug. (Note that the main room speakers will

automatically be turned off when the headphone jack is in use.)

Notes:

•When using headphones, the surround mode will automatically

change to STEREO.

•The surround mode returns to the previous setting as soon as the

plug is removed from the jack.

DIMMER

You can change the display brightness of the front display.

Press the DIMMER button on the front panel to change the brightness.

When this button is pressed, the brightness is changed in the following

sequence.

→ dimmed → Display Off → normal → dimmed ....

Note:

•Only DISP indicator will light up on the front display in display

off condition

SELECTING ANALOG AUDIO INPUT OR

DIGITAL AUDIO INPUT

If you have already assign any digital input to input source.

You can select temporarily the audio input mode for each input source

with the A/D button on the remote controller or front panel.

When this button is pressed, the input mode is switched in the

following sequence.

→ Digital Auto → Digital → Analog → Digital Auto....

In Digital Auto mode, the types of signals being input to the digital and

analog input jacks for the selected input source are detected

automatically.

If no digital signal is being input, the analog input jacks are selected

automatically.

In Digital mode, input is fixed to an assigned digital input terminal.

In analog mode, the analog input jacks are selected.

This selecting is temporarily, so the result will not be stored in memory.

If you need to change input mode completely, use SYSTEM SETUP in

SETUP menu system. (see page 19)

RECORDING AN ANALOG SOURCE

In normal operation, the audio or video source selected for listening

through the SR4300 is sent to the record outputs.

This means that any program you are watching or listening to may be

recorded simply by placing machines connected to the outputs for

TAPE OUT , CD-R/MD OUT, VCR1 OUT, and DSS/VCR2 OUT in the

record mode.

To record the input source signal you are currently watching or

listening to

Select the input source to record by pressing the corresponding

input selector button.

The input source is now selected and you may watch or listen to it

as desired.

Outputs the currently selected input source signal to the TAPE

OUT , CD-R/MD OUT, VCR1 OUT, and DSS/VCR2 OUT outputs

for recording.

Start recording at the recording component as desired.

Notes:

•If you change the input source during recording, you will record

the signals from the newly selected input source.

•You cannot record the surround effects.

•Digital input signals are only output to the digital outputs. There

is no conversion from digital to analog .

When connecting CD players and other digital components, do

not connect only the digital terminals, but the analog ones as

well.

CLEAR TUNING/

MEMORY

PHONES

STANDBY

POWER ON/STANDBY

S-DIRE

HT-EQ

DSS/VC

DVD

A/D

6.1CH-IN

VCR1

PHONES

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

A/D

DIMMER

6.1CH-IN

VCR1

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

CHANNEL/SKIP

ATT.

CDR

AMP

TUNE/SEARCH

NIGHT

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

VCR1

DVD

TAPE

CDR

AMP

TUNER

VCR2

DSS

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

ATT.

AMP

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

ATT.

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

DIMMER

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

A/D

OFF

TREBLE

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

SETUP/T.TONE

S-DIRECT

F.DIRECT

A/D

ENGLISH

HT-EQ

Press the HT-EQ button on the front panel to turn on the HT-EQ mode.

The tonal balance of a film soundtrack will be excessively bright and

harsh when played back over audio equipment in the home. This is

because film soundtracks were designed to be played back in large

movie theater environments.

Activating the HT-EQ feature when watching a film made for movie

theaters corrects this and restores the correct tonal balance.

The HT-EQ feature can be activated only while in Dolby Pro Logic

Mode, or while decoding Dolby Digital or DTS encoded material.

6.1 CH INPUT.

The SR4300 is equipped for future expansion through the use of Multi

channel SACD multi channel player or DVD-Audio player.

This is selected, the input signals connected to the Front left, Front

right, Center, Surround left, Ssurround right and Surround back

channels of the 6.1 CH. In jacks are output directly to the front (left and

right), center, surround (left and right) and surround back speaker

systems as well as the pre-out jacks without passing through the

surround circuitry.

In addition, the signal input to the SW (subwoofer) jack is output to the

PRE OUT SW (subwoofer) jack.

When 6.1 CH. INPUT is selected, the last video input used remains

routed to the Monitor Outputs.

This permits simultaneous viewing with video sources.

Select a desired Video source to decide the routed video signal to

the Monitor Outputs .

Press the 6.1 CH-IN button on the front panel or on the remote to

switch the 6.1 channel input.

If necessary to adjust the output level of each channel, use “6.1

Ch. INPUT LEVEL” in SETUP menu system as desired.

Adjust the speaker output levels so that you can hear the same

sound level from each speaker at the listening position. For the

front left, front right, center, surround left, surround right and

surround back speakers, the output levels can be adjusted

between –10 to +10 dB.

The subwoofer can be adjusted between –15 and +10 dB.

These adjusting result will be stored to 6.1 Ch. INPUT condition.

(see to page 24)

Adjust the main volume with the MAIN VOLUME knob or the VOL

buttons on the remote.

To cancel the 6.1 Ch. INPUT setting, press the 6.1 CH-IN button on

the front panel or on the remote.

Notes:

•When the 6.1 Ch. Input is in use, you may not select a surround

mode, as the external decoder determines processing.

•In addition, there is no signal at the record outputs when the 6.1

Ch. Input is in use.

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

HT-EQ

CLEAR

F/P

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

A/D

DIMMER

6.1CH-IN

VCR1

6.1CH-IN

OFF

TREBLE

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

SETUP/T.TONE

F.DIRECT

6.1CH

-IN

ENGLISH

BASIC OPERATION (TUNER)

LISTENING TO THE TUNER

Frequency scan step for AM is selectable.

Default setup is 10 kHz step, if your country’s standard is 9 kHz step,

Press TUNER button on the remote more than 6 seconds. Scan step

will change.

Note:

•Preset memory for the tuner will clear by changing this setup.

AUTO TUNING

(USING THE SR4300)

To select tuner and desired band (FM or AM), press the TUNER

button on the front panel.

Press the F/P(Frequency/Preset) button on the front panel to

appears frequency on the display.

Press the TUNING or button on the front panel for more than

1 second to start the Auto tuning function.

Automatic searching begins then stops when a station is tuned in.

(Using the remote control unit)

To select tuner and desired band (FM or AM), press the TUNER

button twice within in two seconds on the remote.

Press 55

5 or 66

more than 1 second on the remote.

Automatic searching begins then stops when a station is tuned in.

If tuning does not stop at the desired station, use to the “Manual

tuning” operation.

MANUAL TUNING

(USING THE SR4300)

To select tuner and desired band (FM or AM), press the TUNER

button on the front panel

Press the F/P(Frequency/Preset) button on front panel to appears

frequency on the display.

Press the TUNING or button.

(Using the remote control unit)

To select tuner and desired band (FM or AM), press TUNER

button twice within in two seconds on the remote.

Press 55

5 or 66

6 on the remote to tune in the desired station.

DIRECT FREQUENCY CALL

To select tuner and desired band (FM or AM), press the TUNER

on the remote.

Press the F.DIRECT button on the remote, display will show

“FREQ - - - ”.

Input your desired station’s frequency with numeric buttons on

the remote.

The desired station will automatically be tuned.

(FM) TUNING MODE (AUTO STEREO OR MONO)

When in the auto stereo mode, AUTO indicator keeps to light on the

display.

The “ST” indicator lights on when a stereo broadcast is tuned in.

At open frequencies, the noise is muted and the “TUNED” and “ST”

indicators turn off.

If the signal is weak, it may be difficult to tune into the station in stereo.

In such a case, press the MODE button on the front panel or on the

remote.

“AUTO” indicators turn off ,FM stereo broadcasts are received in

monaural and the “ST” indicator turns off.

To return to auto stereo mode, press the MODE button on the front

panel or on the remote again. AUTO indicator lights on the display.

PRESET MEMORY

With this unit you can preset up to 30 FM/AM stations in any order.

For each station, you can memorize the frequency and reception

mode if desired.

AUTO PRESET MEMORY

This function automatically scans the FM and AM band and enters all

stations with proper signal strength into the memory.

To select FM , press the TUNER button on the front panel.

While pressing the MEMORY button, press the TUNING button

to up.

“AUTO PRESET” will appear on the display, and scanning starts

from lowest frequency.

LEAR

F/P

MODE

TUNING/PRESET

MEMORY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

DIMMER

VCR1

VOLUME

DOWN

F/P

TUNING/PRESET

TUNER

3. 2. 1.

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

CHANNEL/SKIP

ATT.

CDR

AMP

TUNE/SEARCH

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

TUNE/SEARCH

TUNER

OFF

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

SETUP/T.TONE

F.DIRECTF.DIRECT

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

TUNING/PRESET

TUNER

CLEAR

MEMORY

MODE

2.4.2.5. 3.

1. 3.

LEAR

F/P

MODE

TUNING/PRESET

MEMORY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

DIMMER

VCR1

VOLUME

DOWN

F/P

TUNING/PRESET

TUNER

3. 2. 1.

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

CHANNEL/SKIP

ATT.

CDR

AMP

TUNE/SEARCH

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

TUNE/SEARCH

TUNER

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

ATT.

CDR

AMP

TUNE/SEARCH

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

TUNER

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

ER SR4300

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

MODE

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

CHANNEL/SKIP

ATT.

CDR

VOLUME

MUTE

AMP

TUNE/SEARCH

NIGHT

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

MODE

ENGLISH

Each time the tuner finds a station, scanning will pause and the

station will be played for five seconds.

During this time, the following operations are possible.

•The band can be changed by TUNER button .

If no button is pressed during this period, the current station is

memorized in location Preset 02

If you wish to skip the current station, press the TUNING button

during this period, this station is skipped and auto presetting

continues.

Operation stops automatically when all 30 preset memory

positions are filled or when auto scanning attains the highest

endof all bands. If you desire to stop the auto preset memory at

anytime, press the CLEAR button.

MANUAL PRESET MEMORY

(Using the SR4300)

Tune into the radio station you desire (Refer to the “MANUAL

TUNING” or “AUTO TUNING” section).

Press the MEMORY button on the front panel. “– –“ (preset

number) starts blinking on the display.

Select the preset number by pressing the TUNING or button,

while this is still blinking (approx. 5 seconds)

Press the MEMORY button again to enter. The display stops

blinking.

The station is now stored in the specified preset memory location.

(Using the remote control unit)

Tune into the radio station you desire (Refer to the “MANUAL

TUNING” or “AUTO TUNING” section).

Press the MEMO button on the remote unite. “– –“ (preset

number)starts blinking on the display.

Enter the desired preset number by pressping numeric buttons.

Note:

•When entering a single digit number (2 for example), either

input “02” or just input “2” and wait for a few seconds.

RECALLING A PRESET STATION

(Using the SR4300)

Press the F/P button to show the preset station on the display.

Select the desired preset station by pressing the TUNING or

button on the front panel

(Using the remote control unit)

Press the 4 or ¢ button to select the desired preset station, or

input your desired preset channel with numeric buttons on the

remote.

PRESET SCAN

(Using the remote control unit)

Press the P.SCAN on remote.

“PRESET SCAN” appears on the display and then the preset

station with the lowest preset number is recalled first.

Preset stations are recalled in sequence (No.1 → No.2 → etc.) for

5 seconds each.

No stored preset number will be skipped.

You can fast forward the preset stations by pressping the §§

§§

continuously.

When the desired preset station is received, cancel the preset

scan operation by pressping the CLEAR or P.SCAN.

CLEARING STORED PRESET STATIONS

You can remove preset stations from memory using the following

procedure.

Recall the preset number to be cleared with the method described

in “RECALLING” a preset station.

Press the MEMORY button on the front panel or press MEMO button

on the remote.

Stored preset number blinks in the display for 5 seconds. While

blinking, press the CLEAR button on the front panel or press

CLEAR on the remote unit.

“xx CLEAR” appears on the display to indicate that the specified

preset number has been cleared.

Notes:

•To clear stored all preset stations, press and hold the CLEAR

and the F/P buttons for two seconds.

LEAR

F/P

MODE

TUNING/PRESET

MEMORY

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

DIMMER

VCR1

TUNING/PRESET

F/P

2. 1

POWER

SLEEP

CLEAR

TREBLE

MEMO

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

CLEAR

F/P

MOD

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

A/D

DIMMER

6.1CH-IN

VCR1

TUNING/PRESET

MEMORY

4. 3.

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

F.DIRECT

MEMO

DVD

CHANNEL/SKIP

CDR

VOLUME

MUTE

TUNE/SEARCH

NIGHT

SETUP/T.TONE

S-DIRECT

MODE

PTY

CHANNEL/SKIP

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

F.DIRECT

MEMO

SYSTEM REMOTE CONTROLLER RC4300SR

VCR1

DVD

TAPE

ATT.

CDR

AMP

TUNE/SEARCH

TUNER

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

P.SCAN

CLEAR

F/P

MOD

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

A/D

DIMMER

6.1CH-IN

VCR1

F/P

TUNING/PRESETCLEAR

MEMORY

3. 2.

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

F.DIRECT

CLEAR

MEMO

ENGLISH

NAME INPUT OF THE PRESET STATION.

This function allows the name of each preset channel to be entered

using alphanumeric characters.

Before name inputting, need to store preset stations with the preset

memory operation.

Recall the preset number to be inputted name with the method

described in “RECALLING” a preset station.

Press the MEMORY button on the front panel or press MEMO on

the remote for more than 3 seconds.

The left most column of the station name indicator flashes,

indicating the character entry ready status.

When the SELECT knob is turned or press 55

5 / 66

6 button on the

remote, alphabetic and numeric characters will be displayed in the

following order:

A → B → C ... Z → 1 → 2 → 3 ..... 0 → – → + → / → (Blank) → A

UP →

← DOWN

To clear the input charcter, press the CLEAR button on the front

panel or on the remote.

After selecting the first character to be entered, press the

MEMORY button on the front panel, or press MEMO button on the

remote.

The entry in this column is fixed and the next column starts to

flash. Fill the next column same as.

To move back and forth between the characters, press the

TUNING / button or press 4 / ¢ buttons on the remote.

Note:

• Unused columns should be filled by entering blanks.

To save name, press the MEMORY button, press MEMO button

on the remote for more than 2 seconds.

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

TUNING/PRESETCLEAR

MEMORY

6.4.

SURROUND

VCR1

DVD

TAPE

CHANNEL/SKIP

ATT

CDR

VOLUME

MUTE

TUNE/SEARCH

NIGHT

S DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

CHANNEL/SKIP

TUNE/SEARCH

POWER

OFF

SLEEP

CLEAR

TREBLE

MEMO

BASS

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

F.DIRECT

CLEAR

MEMO

ENGLISH

REMOTE CONTROLLER OPERATION

CONTROLLING MARANTZ COMPONENTS

Press the desired function button.

Press the desired operation buttons to play the selected

component.

•For details, refer to the components’s user guide.

•It may not be possible to operate some models.

CONTROLLING A MARANTZ DVD PLAYER (DVD MODE)

CONTROLLING A MARANTZ VCR (VCR1 MODE)

POWER Turns the DVD player on and off

MEMO Calls up programming

CLEAR Clears the inputting

0-9 Inputs the numeric

SETUP/T.TONE Calls up the setup menu of the DVD

player

Cursor Moves the cursor in setup menu

OK Confirms the setting in setup menu

MENU Calls up the menu of the DVD disc

Skips forward or previous chapter/

track

Searches forward or backward

Stop

;

Pause

Play

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

MEMO

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

SETUP/T.TONE

POWER Turns the VCR on and off

CLEAR Selects the tape speed for recording

0-9 Inputs the numeric

MENU OFF Cancels the displayed "Menu"

function

Cursor Moves the cursor in setup menu

OK Confirms the setting in setup menu

MENU Calls up the menu of the VCR disc

Skips forward or previous chapter/

track

Searches forward or backward

MODE Selects sound output mode

Stop

;

Goes to still picture and if pushed

again increment the picture one by

one

Play

Record

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

OFF

MODE

CONTROLLING A MARANTZ CD PLAYER (CD MODE)

CONTROLLING A MARANTZ CD RECORDER (CDR MODE)

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

MEMO

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

POWER Turns the CD player on and off

MEMO Calls up programming

CLEAR Clears the inputting

0-9 Inputs the numeric

Skips forward or previous chapter/

track

Searches forward or backward

Stop

;

Pause

Play

POWER Turns the CD recorder on and off

CLEAR Clears the inputting

0-9 Inputs the numeric

Skips forward or previous track

Searches forward or backward

Stop

;

Pause

Play

Record

ENGLISH

CONTROLLING A MARANTZ MD DECK (MD MODE)

CONTROLLING A MARANTZ TAPE DECK (TAPE MODE)

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

MEMO

SYSTEM REMOTE CONTROLLER RC4300SR

POWER

VCR1

DVD

TAPE

OFF

SLEEP

CLEAR

TREBLE

CHANNEL/SKIP

ATT.

MEMO

CDR

BASS

VOLUME

MUTE

AMP

AUTO

DTS

DSP

6.1CH

-IN

2CH

EX/ES

M-CH

A/D

TUNE/SEARCH

NIGHT

TUNER

SETUP/T.TONE

S-DIRECT

MODE

DISP./RDS

PTY

P.SCAN

VCR2

DSS

F.DIRECT

CLEAR

CHANNEL/SKIP

TUNE/SEARCH

POWER

MEMO

POWER Turns the MD deck on and off

MEMO Calls up programming

CLEAR Clears the inputting

0-9 Inputs the numeric

Skips forward or previous chapter/

track

Searches forward or backward

Stop

;

Pause

Play

Record

POWER Turns the casette deck on and off

MEMO Calls up programming

CLEAR Clears the inputting

0-9 Inputs the numeric

Skips forward or previous chapter/

track

Searches forward or backward

1 2

Chages the direction

Stop

;

Pause

Play

Record

ENGLISH

TROUBLESHOOTING

In case of trouble, check the following before calling for service:

1. Are the connections made properly ?

2. Are you operating the unit properly following user’s guide ?

3. Are the power amplifiers and speaker working properly ?

If the unit does not operate properly, check items shown in the

following table.

If your trouble cannot be recovered with the remedy actions listed in

the following table, malfunction of the internal circuitry is suspected;

immediately unplug the power cable and contact your dealer, nearest

Marantz distributor or the Marantz Service Center in your country.

CAUSE

The power plug is not connected.

Mute is on.

The input cable is not connected correctly.

The master volume control is turned all the way down.

The function selector position is wrong.

The headphones are connected to the headphone jack.

Input cable connected incorrectly.

Speaker cable connected incorrectly.

The center speaker cable connection is incomplete.

STEREO has been selected for Surround mode.

Center = NONE has been selected in SETUP mode.

The surround speaker cable connection is incomplete.

STEREO has been selected for Surround mode.

Surround = NONE has been selected in SETUP mode.

The surround back speaker cable connection is incomplete

Surround mode is not EX/ES mode.

Surround

back

= NONE has been selected in SPEAKERS

SIZE SETUP

Surround

back

= NONE has been selected in SPEAKERS

SIZE SETUP

Input signal is incompatible.

Sub-woofer = NONE has been selected in SETUP mode.

Analog has been selected for input.

Nothing recorded on source.

Antenna connection is incomplete.

Reception is affected by other electrical fields.

The radio waves from the broadcasting station are weak.

Preset data has been erased.

Batteries are consumed..

Remote controller's function-key setting is wrong.

The distance between this SR4300 and the remote

commander is too far.

Something is blocking SR4300 and the remote

commander.

SYMPTOM

SR4300 cannot be turned up.

No sound and picture are output

even when power is on.

Speaker does not outputting any

sound.

Sound and pictures from other

than equipment selected with the

function selector.

Sound from the wrong channel is

output from the speaker.

No sound is output from the center

speaker.

No sound is output from the

surround speakers.

No sound is output from the

surround

back

Can not select EX/ES mode.

Can not select Pro Logic II mode.

Can not select Neo 6 mode.

Can not select CSII mode.

No output to Sub Woofer Out.

Noise is produced during DTS-

encoded CD or laser disc play.

A specific channel does not

produce output.

FM or AM reception fails.

Noise is heard during AM reception.

Noise is heard during FM reception.

Cannot get programmed station

when the PRESET button is

pressed.

Control with the remote control unit

fails.

REMEDY

Connect the power plug to the outlet.

Cancel mute using the remote control unit.

See the connection diagram and connect the cables correctly.

Adjust the master volume.

Select correct position.

Disconnect the headphones. (Speakers will not output sound when

headphones are connected.)

Connect the cable correctly by referring to the connection diagram.

Connect the cable correctly.

When STEREO is selected for Surround mode, no sound will be

output from the center speaker. Set another Surround mode.

Make the correct setting.

Connect the cable correctly.

When STEREO has been selected for Surround mode, no sound will

be output from the surround speaker. Set another Surround mode.

Make the correct setting.

Connect the cable correctly.

Set surround mode EX/ES

Make the correct setting.

Use 5.1channel source.

Use 2 channel Dolby Digital input signal, PCM input signal or

analog input signal.

Use PCM input signal or analog input signal.

Select Sub-woofer = YES.

Be sure to perform digital connection, select digital input, then play.

Check the encoded channel on the source side.

Correctly connect the indoor FM and AM antennas to FM and AM

antenna outlets.

Try changing location where the AM indoor antenna is set up.

Install an FM outdoor antenna.

Disconnecting power plug for long periods of time will erase preset

data. If that happens, input the preset data again.

Replace all the batteries with new ones.

Select different position from which equipment will be controlled.

Move closer to this SR4300.

Remove offending object.

ENGLISH

GENERAL MALFUNCTION

If the equipment malfunctions, this may be because an electrostatic

discharge or AC line interference has corrupted the information in the

equipment memory circuits. Therefore:

- disconnect the plug from the AC line supply

- after waiting at least three minutes, reconnect the plug to the AC

line supply

- re-attempt to operate the equipment

HOW TO RESET THE UNIT

Should the operation or display seem to be abnormal, reset the unit

with the following procedure.

The SR4300 is turned on, press and hold the CLEAR and MEMORY

buttons simultaneously for 3 seconds or more.

Remember that the procedure will reset the settings of the function

selector, Surround mode, delay time, TUNER PRESET etc., to their

initial settings.

Memory backup

•In case a power outage occurs or the power cord is accidentally

unplugged, the SR4300 is equipped with a backup function to

prevent memory data such as the preset memory from being

erased.

CLEAR

F/P

MODE

TUNING/PRESET

MEMORY

PHONES

SURROUND

AV SURROUND RECEIVER SR4300

STANDBY

POWER ON/STANDBY

MUTE

S-DIRECT

HT-EQ

DSS/VCR2

DVD

CDR/MD

TAPE

TUNER

A/D

DIMMER

6.1CH-IN

VCR1

VOLUME

DOWN

CLEAR

MEMORY

ENGLISH

TECHNICAL SPECIFICATIONS

FM TUNER SECTION

Frequency Range .................................... 87.5 - 108.0 MHz

Usable Sensitivity ................................ IHF 1.8 µV/16.4 dBf

Signal to Noise Ratio ....................... Mono/Stereo 76/72 dB

Distortion ........................................ Mono/Stereo 0.2/0.3 %

Stereo Separation ........................................... 1 kHz 45 dB

Alternate Channel Selectivity ................... ± 300 kHz 60 dB

Image Rejection ........................................... 98 MHz 70 dB

Tuner Output Level ................ 1 kHz, ± 75 kHz Dev 800 mV

AM TUNER SECTION

Frequency Range ....................................... 520 - 1710 kHz

Signal to Noise Ratio ................................................. 50 dB

Usable Sensitivity ............................................ Loop 500µV

Distortion .................................... 400 Hz, 30 % Mod. 0.5 %

Selectivity ................................................... ± 18 kHz 70 dB

AUDIO SECTION

Power Output (20Hz – 20kHz / THD=0.08%)

Front L&R .................................................. 8ohms 80W/Ch

Center ........................................................ 8ohms 80W/Ch

Surround L&R ............................................ 8ohms 80W/Ch

Surround Back ........................................... 8ohms 80W/Ch

Front L&R .................................................. 6ohms 95W/Ch

Center ........................................................ 6ohms 95W/Ch

Surround .................................................... 6ohms 95W/Ch

Surround Back............................................ 6ohms 95W/Ch

Input Sensitivity/Impedance .................. 215 mV/ 47 kohms

Signal to Noise Ratio (Analog Input/Source Direct) .. 95 dB

Frequency Response

(Analog Input/Source Direct) .................. 8Hz-70kHz(±3dB)

(Digital Input/96kHz PCM) ...................... 8Hz-45kHz(±3dB)

VIDEO SECTION

Television Format ...................................................... NTSC

Input Level/Impedance ............................. 1 Vp-p/ 75 ohms

Output Level/Impedance .......................... 1 Vp-p/ 75 ohms

Video Frequency Response ........... 5 Hz to 8 MHz (– 1 dB)

Signal to Noise Ratio ................................................. 60 dB

GENERAL

Power Requirement ................................... AC 120 V 60 Hz

Power Consumption .................................................. 325W

Weight .................................................... 27.6 lbs (12.5 Kg)

ACCESSORIES

Remote Control Unit RC4300SR ....................................... 1

AAA-size batteries ............................................................. 2

FM Antenna ....................................................................... 1

AM Loop Antenna.............................................................. 1

Registration Card .............................................................. 1

User Guide ........................................................................ 1

Specifications subject to change without prior notice.

DIMENSION

(27 mm)(318 mm)

(365 mm)

(20 mm)

(164 mm)

(14 mm) (150 mm)

SURROUND

AV SURROUND RECEIVER SR4300

1-1/16 ins.12-9/16 ins.

14-3/8 ins.6-7/16 ins.

17-5/16 ins. (440 mm)

13/16 ins.5-7/8 ins.9/16 ins.

Marantz Sr4300 Users Manual SR4300U DFU_Cover

SR4300 to the manual 82f032a6-9975-42fe-843e-8493e7af6102

Navigation menu

Versions of this User Manual:

Views

Navigation
