AV Surround Receiver
SR5005
ESPAÑOL FRANÇAIS ENGLISH
I
ENGLISHFRANÇAISESPAÑOL
n SAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
To completely disconnect this product from the mains, disconnect the plug
from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to the unit
and must be within easy access by the user.
PRECAUTION:
Pour déconnecter complètement ce produit du courant secteur, débranchez
la prise de la prise murale.
La prise secteur est utilisée pour couper complètement l’alimentation de
l’appareil et l’utilisateur doit pouvoir y accéder facilement.
PRECAUCIÓN:
Para desconectar completamente este producto de la alimentación eléctrica,
desconecte el enchufe del enchufe de la pared.
El enchufe de la alimentación eléctrica se utiliza para interrumpir por completo
el suministro de alimentación eléctrica a la unidad y debe de encontrarse en
un lugar al que el usuario tenga fácil acceso.
IMPORTANT SAFETY
INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
FCC INFORMATION (For US customers)
1. PRODUCT
This product complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) this product may not cause harmful
interference, and (2) this product must accept any interference received,
including interference that may cause undesired operation.
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained
in this manual, meets FCC requirements. Modification not expressly
approved by Marantz may void your authority, granted by the FCC, to use
the product.
3. NOTE
This product has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This product generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
product does cause harmful interference to radio or television reception,
which can be determined by turning the product OFF and ON, the user
is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the product into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the local retailer authorized to distribute this type of product or
an experienced radio/TV technician for help.
For Canadian customers:
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
II
ENGLISH FRANÇAIS ESPAÑOL
n NOTES ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS SOBRE EL USO
WARNINGS AVERTISSEMENTS ADVERTENCIAS
• Avoid high temperatures.
Allow for sufficient heat dispersion when
installed in a rack.
• Handle the power cord carefully.
Hold the plug when unplugging the cord.
• Keep the unit free from moisture, water, and
dust.
• Unplug the power cord when not using the unit
for long periods of time.
• Do not obstruct the ventilation holes.
• Do not let foreign objects into the unit.
• Do not let insecticides, benzene, and thinner
come in contact with the unit.
• Never disassemble or modify the unit in any way.
• Ventilation should not be impeded by covering
the ventilation openings with items, such as
newspapers, tablecloths or curtains.
• Naked flame sources such as lighted candles
should not be placed on the unit.
• Observe and follow local regulations regarding
battery disposal.
• Do not expose the unit to dripping or splashing
fluids.
• Do not place objects filled with liquids, such as
vases, on the unit.
• Do not handle the mains cord with wet hands.
• When the switch is in the OFF position, the
equipment is not completely switched off from
MAINS.
• The equipment shall be installed near the
power supply so that the power supply is easily
accessible.
• Eviter des températures élevées.
Tenir compte d’une dispersion de chaleur
suffisante lors de l’installation sur une étagère.
• Manipuler le cordon d’alimentation avec
précaution.
Tenir la prise lors du débranchement du cordon.
• Protéger l’appareil contre l’humidité, l’eau et la
poussière.
• Débrancher le cordon d’alimentation lorsque
l’appareil n’est pas utilisé pendant de longues
périodes.
• Ne pas obstruer les trous d’aération.
• Ne pas laisser des objets étrangers dans
l’appareil.
• Ne pas mettre en contact des insecticides, du
benzène et un diluant avec l’appareil.
• Ne jamais démonter ou modifier l’appareil d’une
manière ou d’une autre.
• Ne pas recouvrir les orifices de ventilation avec
des objets tels que des journaux, nappes ou
rideaux. Cela entraverait la ventilation.
• Ne jamais placer de flamme nue sur l’appareil,
notamment des bougies allumées.
• Veillez à respecter les lois en vigueur lorsque
vous jetez les piles usagées.
• L’appareil ne doit pas être exposé à l’eau ou à
l’humidité.
• Ne pas poser d’objet contenant du liquide, par
exemple un vase, sur l’appareil.
• Ne pas manipuler le cordon d’alimentation avec
les mains mouillées.
• Lorsque l’interrupteur est sur la position OFF,
l’appareil n’est pas complètement déconnecté du
SECTEUR (MAINS).
• L’appareil sera installé près de la source
d’alimentation, de sorte que cette dernière soit
facilement accessible.
• Evite altas temperaturas.
Permite la suficiente dispersión del calor cuando
está instalado en la consola.
• Maneje el cordón de energía con cuidado.
Sostenga el enchufe cuando desconecte el
cordón de energía.
• Mantenga el equipo libre de humedad, agua y
polvo.
• Desconecte el cordón de energía cuando no
utilice el equipo por mucho tiempo.
• No obstruya los orificios de ventilación.
• No deje objetos extraños dentro del equipo.
• No permita el contacto de insecticidas, gasolina
y diluyentes con el equipo.
• Nunca desarme o modifique el equipo de
ninguna manera.
• La ventilación no debe quedar obstruida por
haberse cubierto las aperturas con objetos como
periódicos, manteles o cortinas.
• No deberán colocarse sobre el aparato fuentes
inflamables sin protección, como velas
encendidas.
• A la hora de deshacerse de las pilas, respete la
normativa para el cuidado del medio ambiente.
• No exponer el aparato al goteo o salpicaduras
cuando se utilice.
• No colocar sobre el aparato objetos llenos de
líquido, como jarros.
• No maneje el cable de alimentación con las
manos mojadas.
• Cuando el interruptor está en la posición OFF, el
equipo no está completamente desconectado de
la alimentación MAINS.
• El equipo se instalará cerca de la fuente de
alimentación de manera que resulte fácil acceder
a ella.
n CAUTIONS ON INSTALLATION
PRÉCAUTIONS D’INSTALLATION
EMPLAZAMIENTO DE LA INSTALACIÓN
z z
z
Wall
Paroi
Pared
z
zFor proper heat dispersal, do not install this unit in a confined
space, such as a bookcase or similar enclosure.
• More than 0.3 m (12 in.) is recommended.
• Do not place any other equipment on this unit.
zPour permettre la dissipation de chaleur requise, n’installez
pas cette unité dans un espace confiné tel qu’une bibliothèque
ou un endroit similaire.
• Une distance de plus de 0,3 m (12 po) est recommandée.
• Ne placez aucun matériel sur cet appareil.
zPara la dispersión del calor adecuadamente, no instale este
equipo en un lugar confinado tal como una librería o unidad
similar.
• Se recomienda dejar más de 0,3 m (12 pulg.) alrededor.
• No coloque ningún otro equipo sobre la unidad.
1
Basic version Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Thank you for purchasing this Marantz product. To ensure proper
operation, please read this user guide carefully before using the
product.
After reading them, be sure to keep them for future reference.
Getting started
Accessories

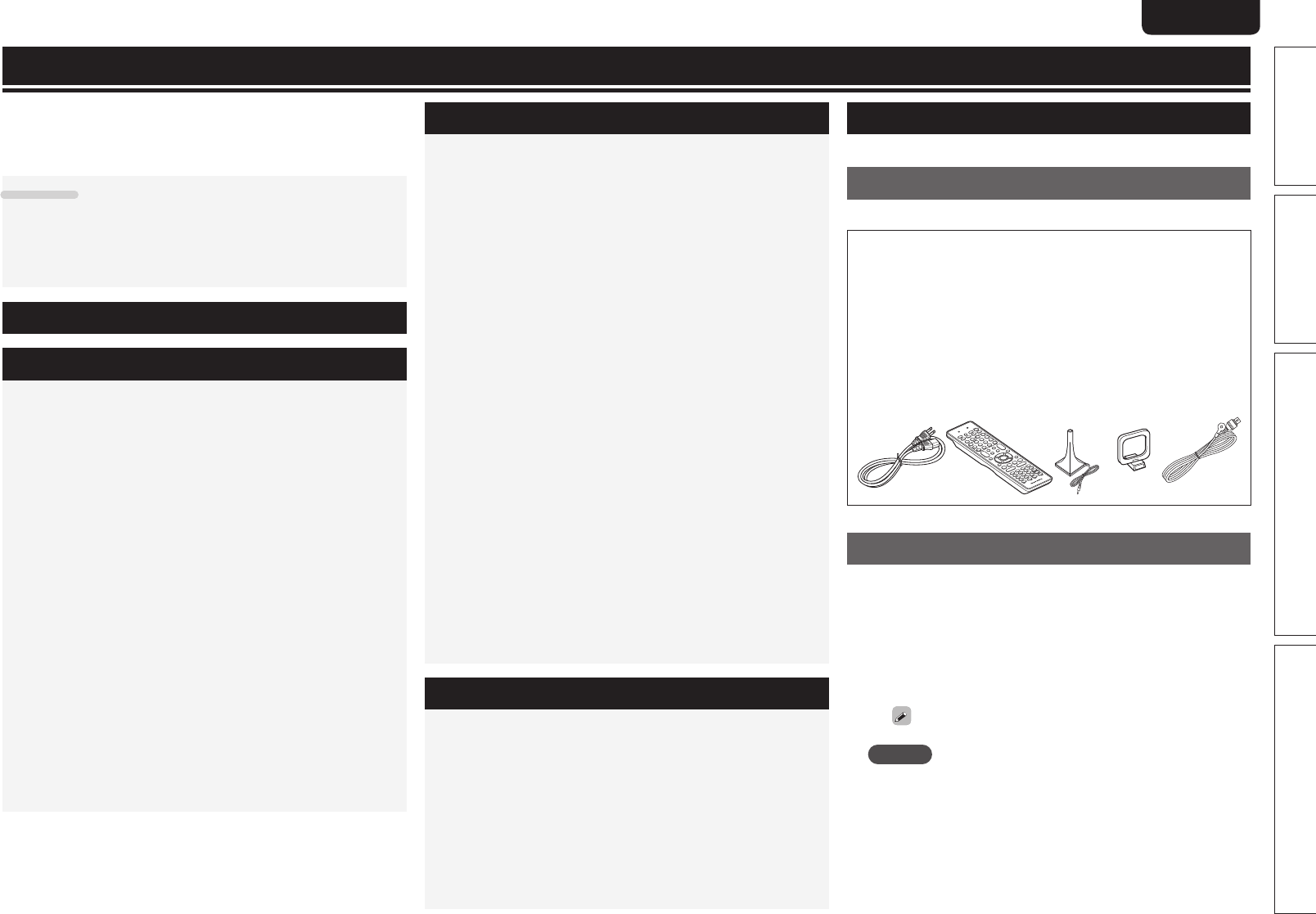

Check that the following parts are supplied with the product.
q User guide ............................................................................... 1
w Warranty card (for USA) .......................................................... 1
e Warranty card (for CANADA) ................................................... 1
r Power cord .............................................................................. 1
t Remote control unit (RC010SR) .............................................. 1
y R03/AAA batteries ................................................................... 2
u Setup microphone (ACM1H) ................................................... 1
i AM loop antenna ..................................................................... 1
o FM indoor antenna .................................................................. 1
r t i ou
About this manual
nOperation buttons
The operations described in this manual are based mainly on
remote control operation.
nSymbols
vThis symbol indicates a reference page on which
related information is described.
This symbol indicates a supplementary information
and tips for operations.
NOTE This symbol indicates points to remember operations
or function limitations.
nIllustrations
Note that the illustrations in these instructions are for explanation
purposes and may differ from the actual unit.

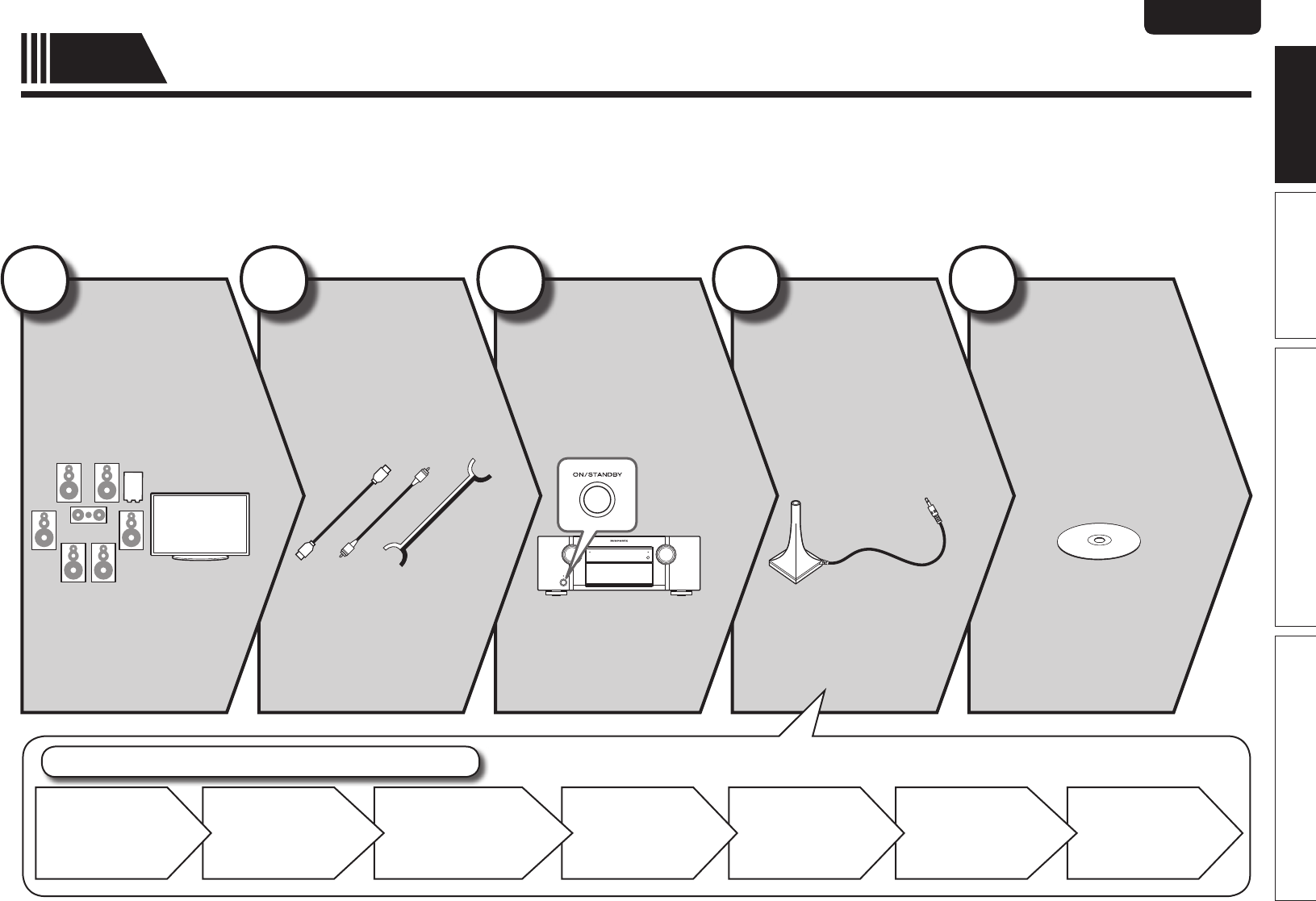

Simple version (Simple setup guide) ··························3
Basic version ··········································································12

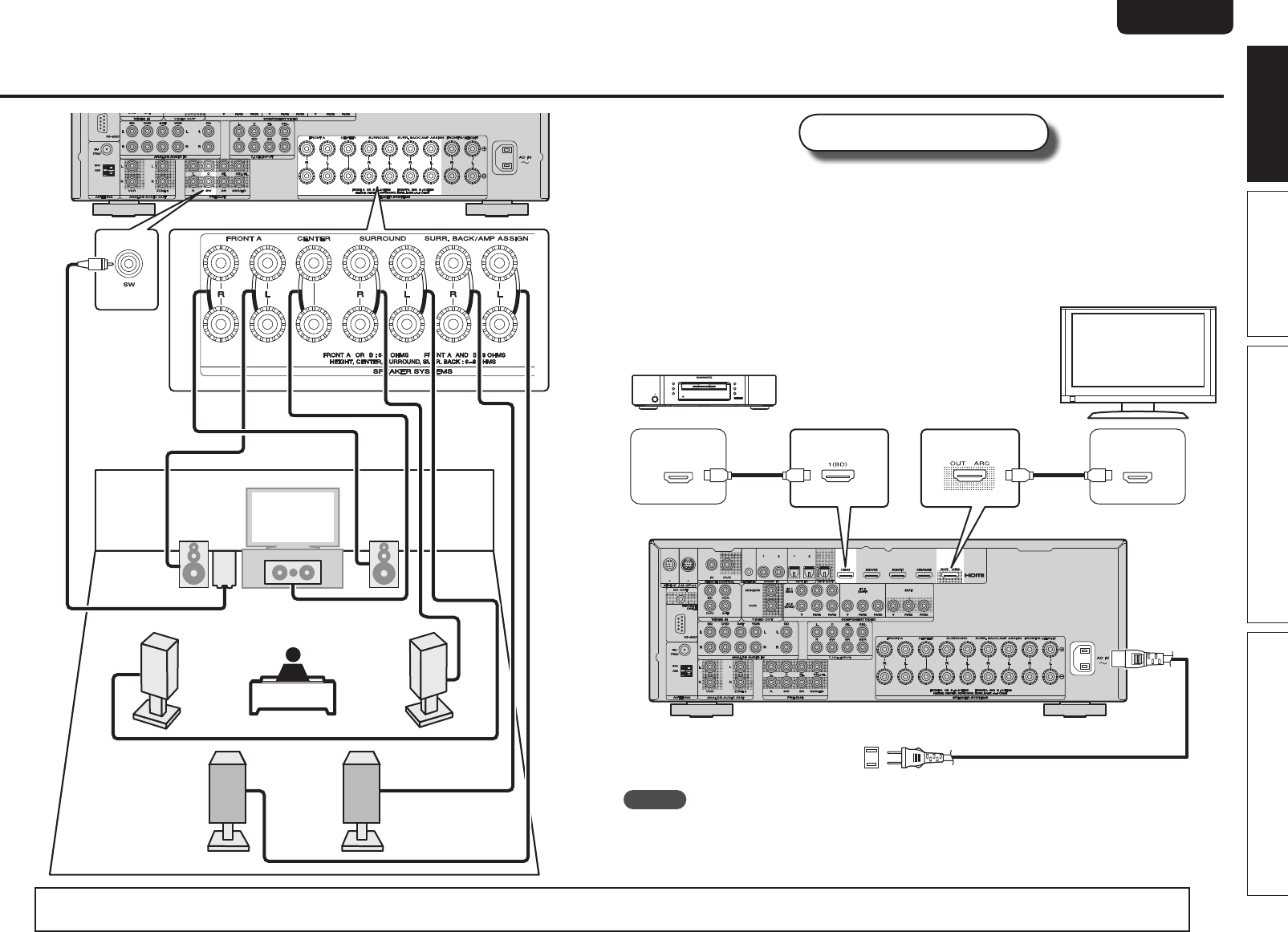

Connections ·················································································13
Important information ·································································13
Connecting an HDMI-compatible device ···································· 14
Connecting a TV··········································································16

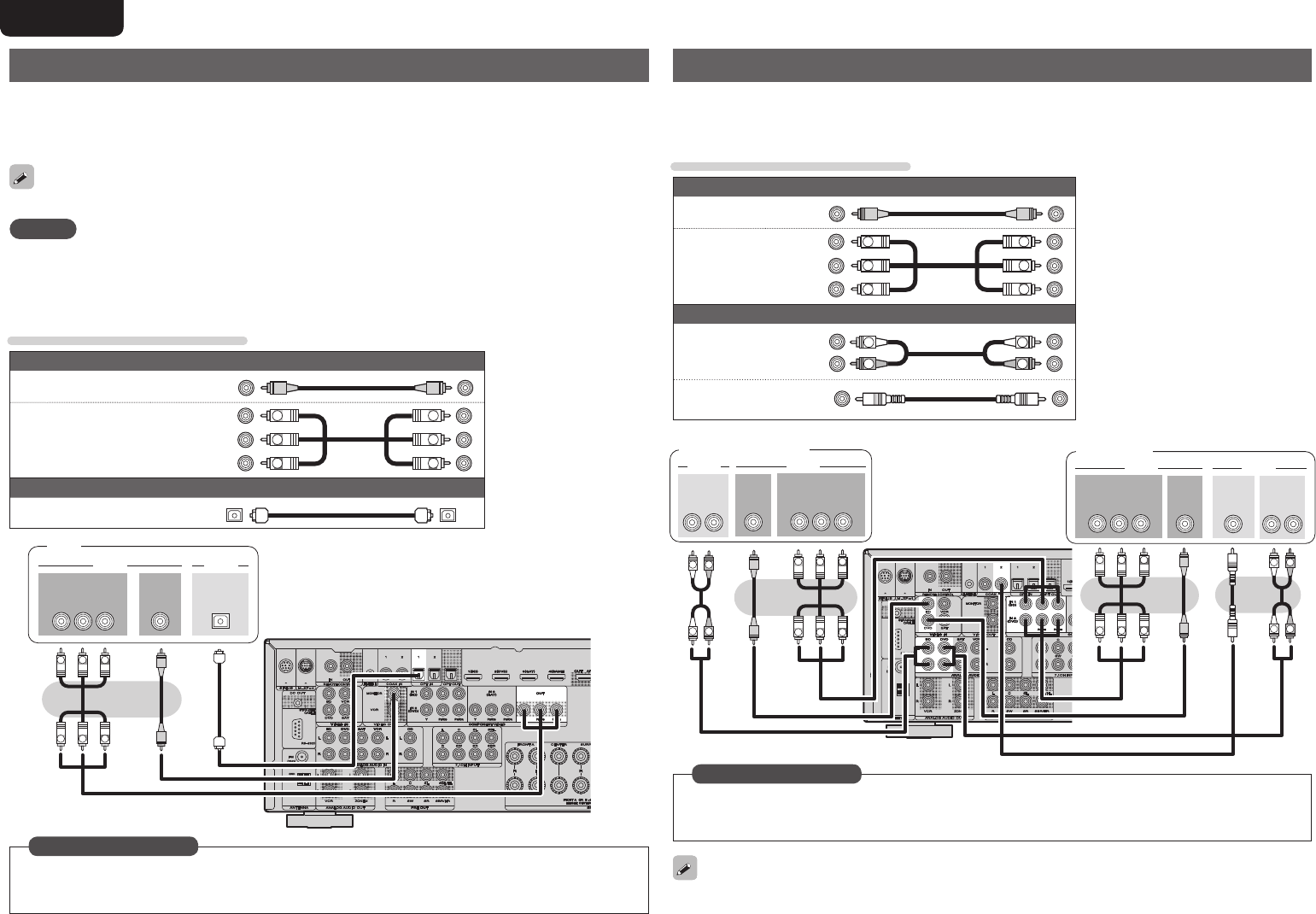

Connecting a Blu-ray Disc player / DVD player ··························· 16
Connecting a set-top box (Satellite tuner/cable TV) ····················17
Connecting a video cassette recorder ········································ 17
Connecting a digital camcorder ··················································18
Connecting a CD player ······························································ 18
Connecting a wireless receiver (RX101) ·····································18
Connecting an iPod or USB memory device to the USB Port ····19

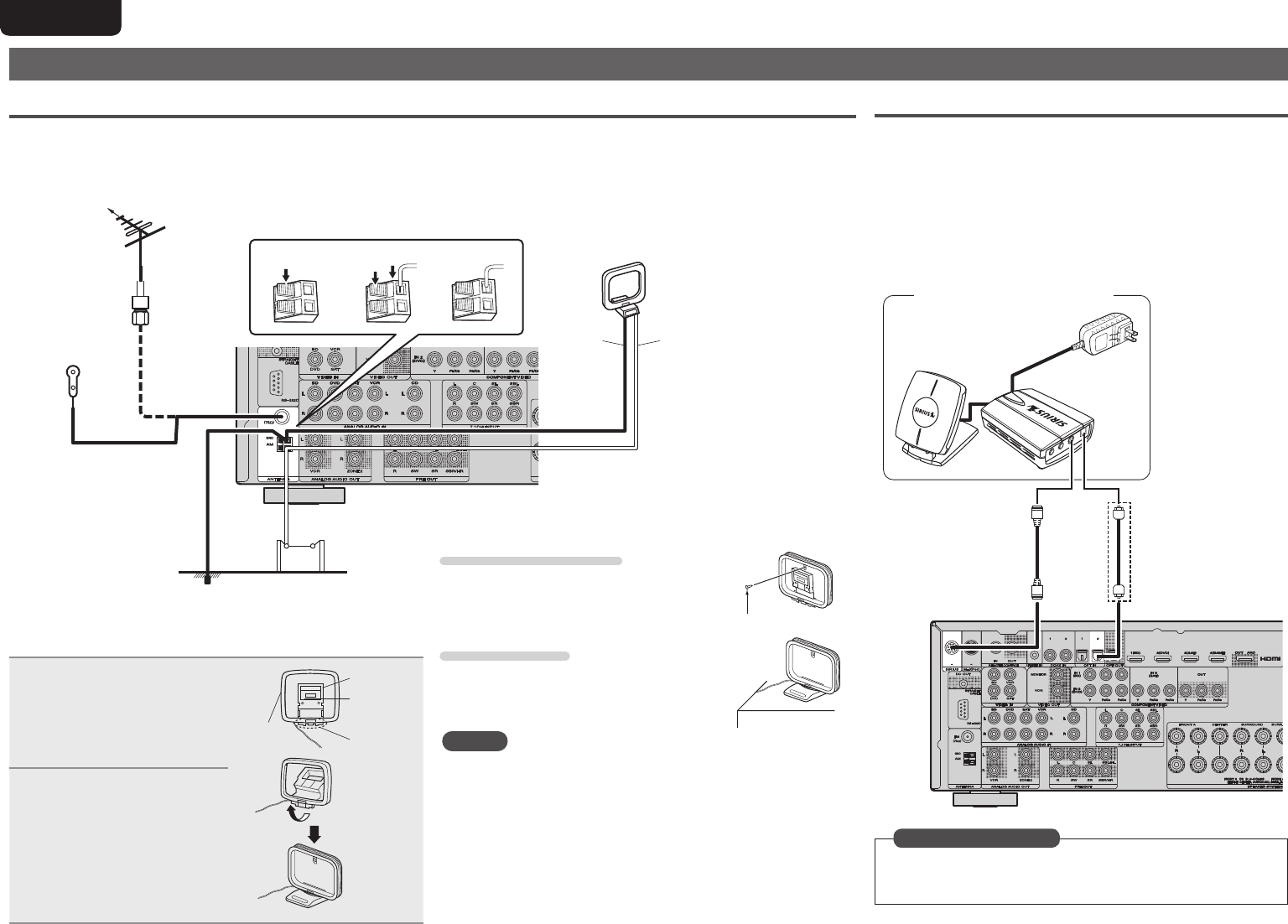

Connecting an antenna ·······························································20
Connect a device that has a multichannel output terminal ·········21
Connecting a external power amplifier ·······································21
Playback (Basic operation) ·························································22
Important information ·································································22
Playing a Blu-ray Disc player/DVD player ····································23
Playing a CD player ·····································································23
Playing an iPod® ·········································································23
Playing a USB memory device ····················································24
Tuning in radio stations ·······························································25
Selecting a listening mode (Surround mode) ·························· 29
Multi-channel playback ·······························································29
Stereo playback ·········································································· 31
Direct playback ··········································································· 31
Dolby Virtual Speaker/Dolby Headphone playback ····················· 31
Advanced version ·······························································32

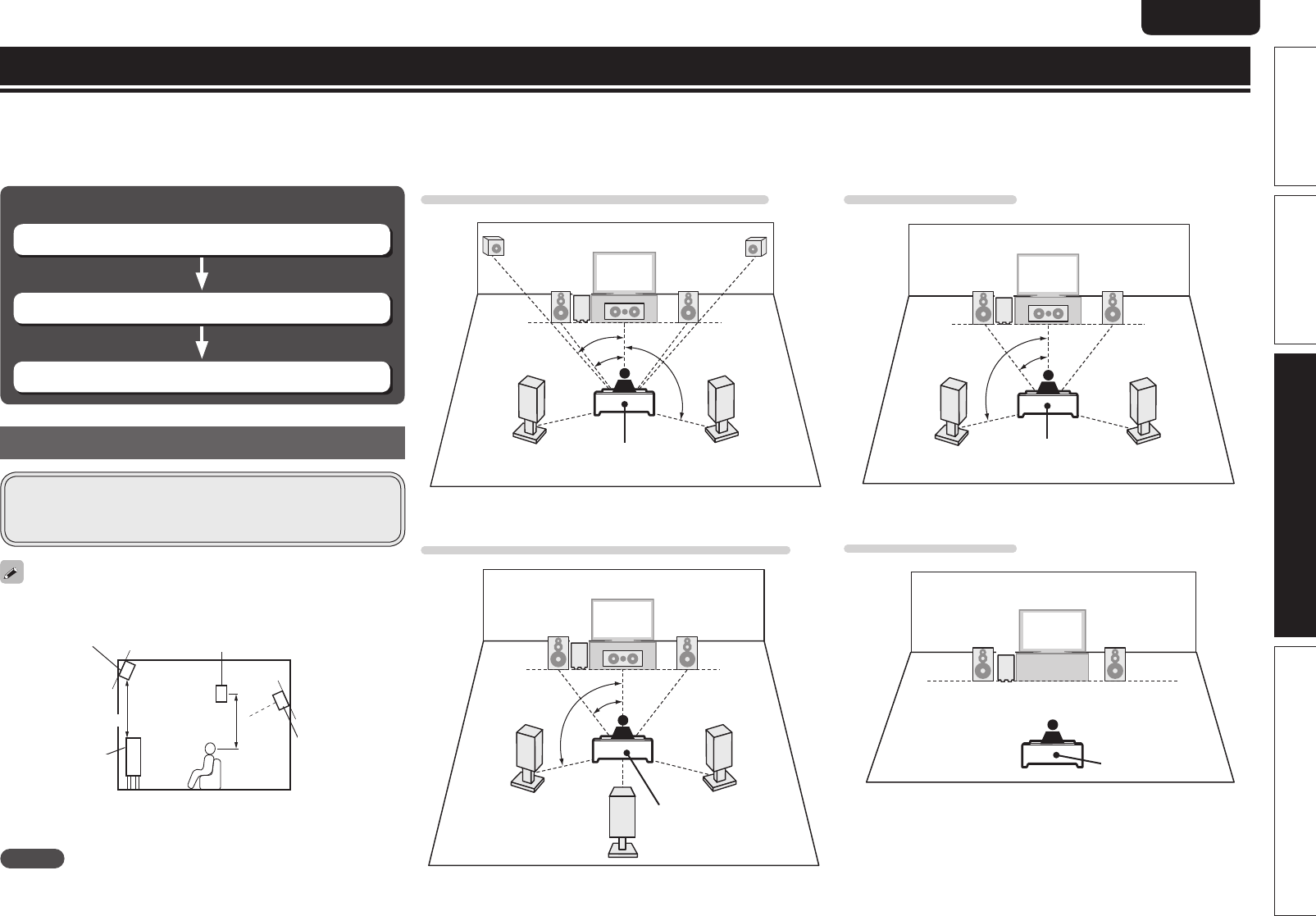

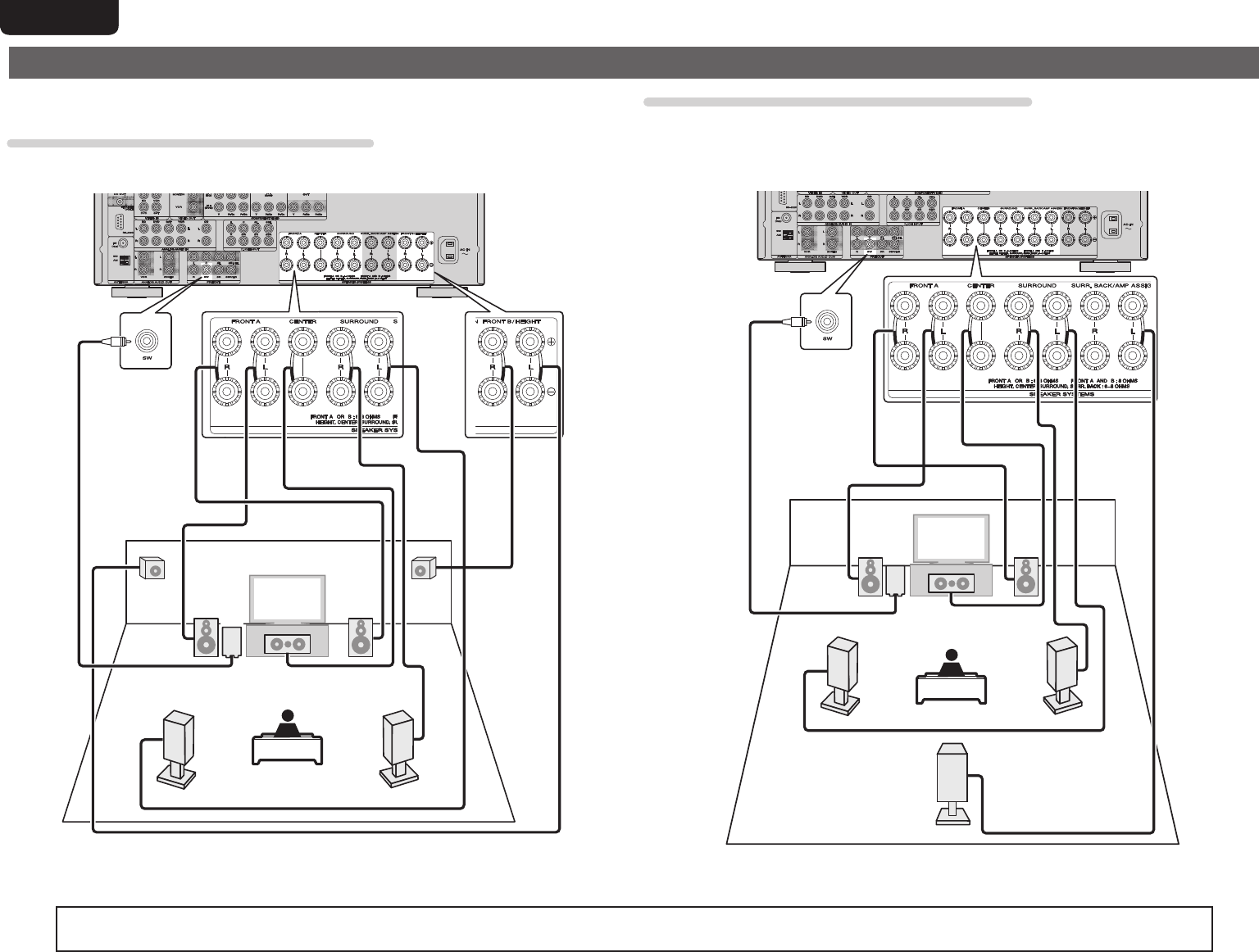

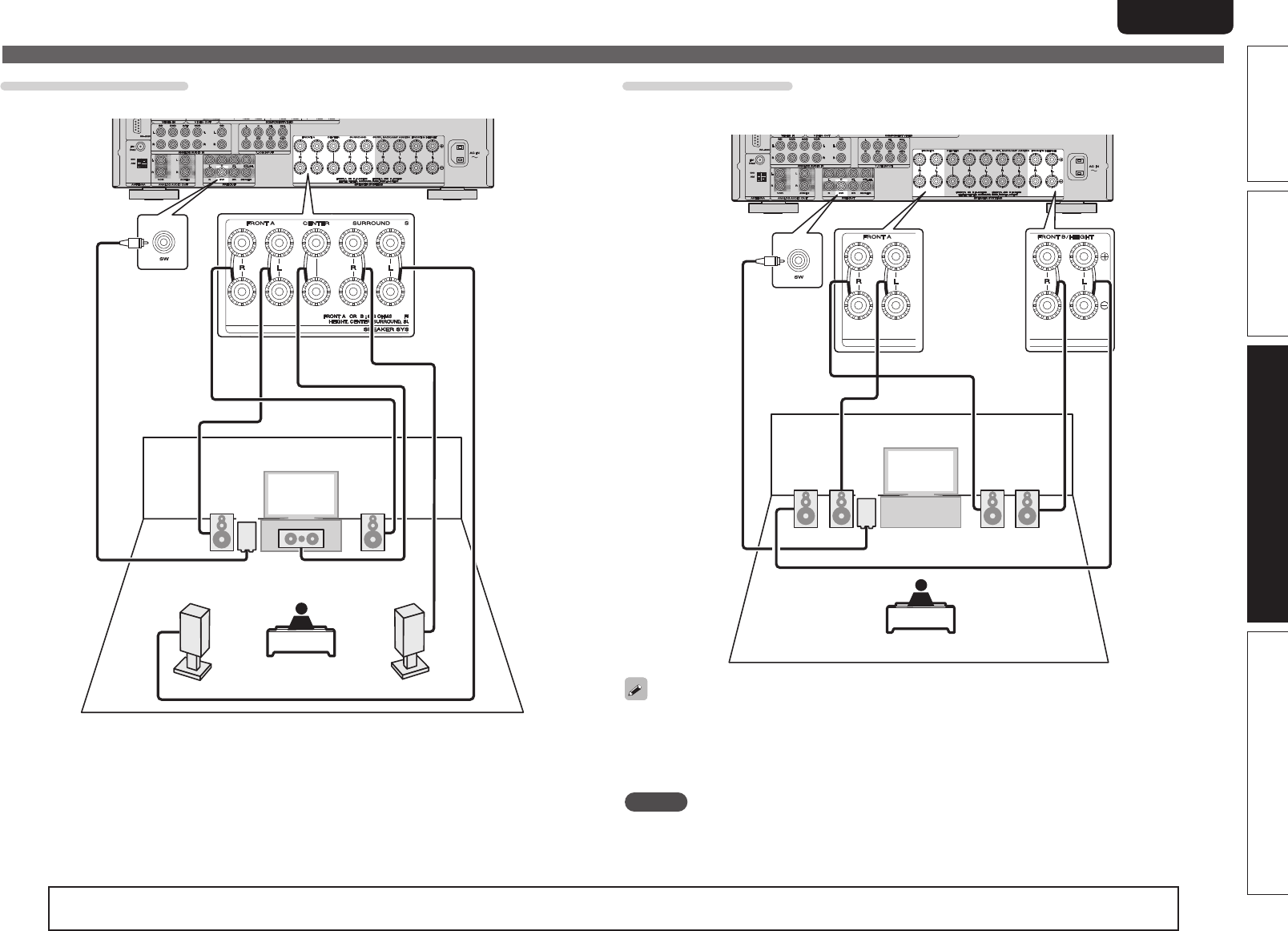

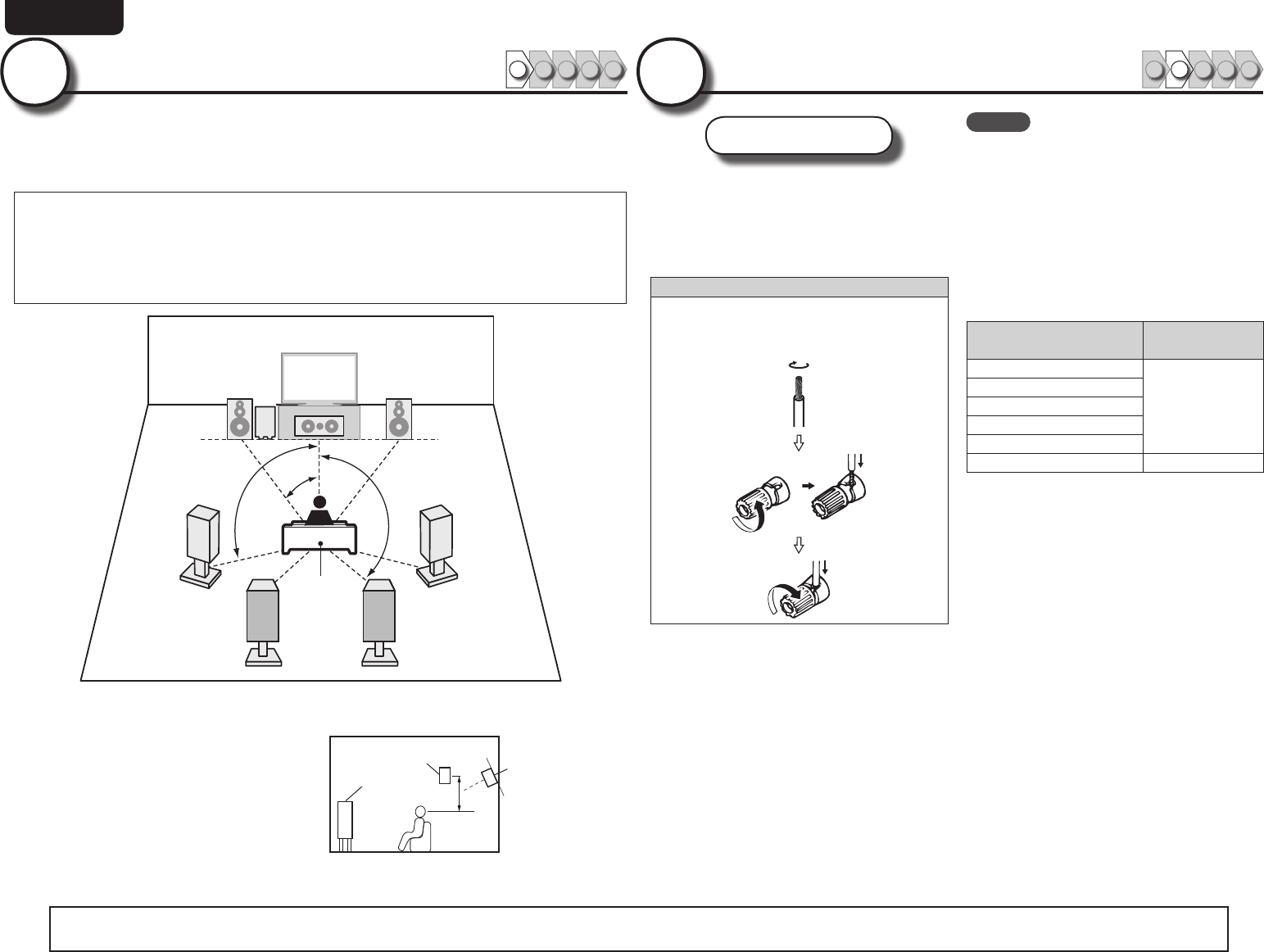

Speaker installation/connection (Other than
7.1-channel system with surround back speakers)··················33
Install ·························································································· 33
Connect ······················································································ 34
Set up speakers ·········································································37
Connections (Advanced connection)·········································38

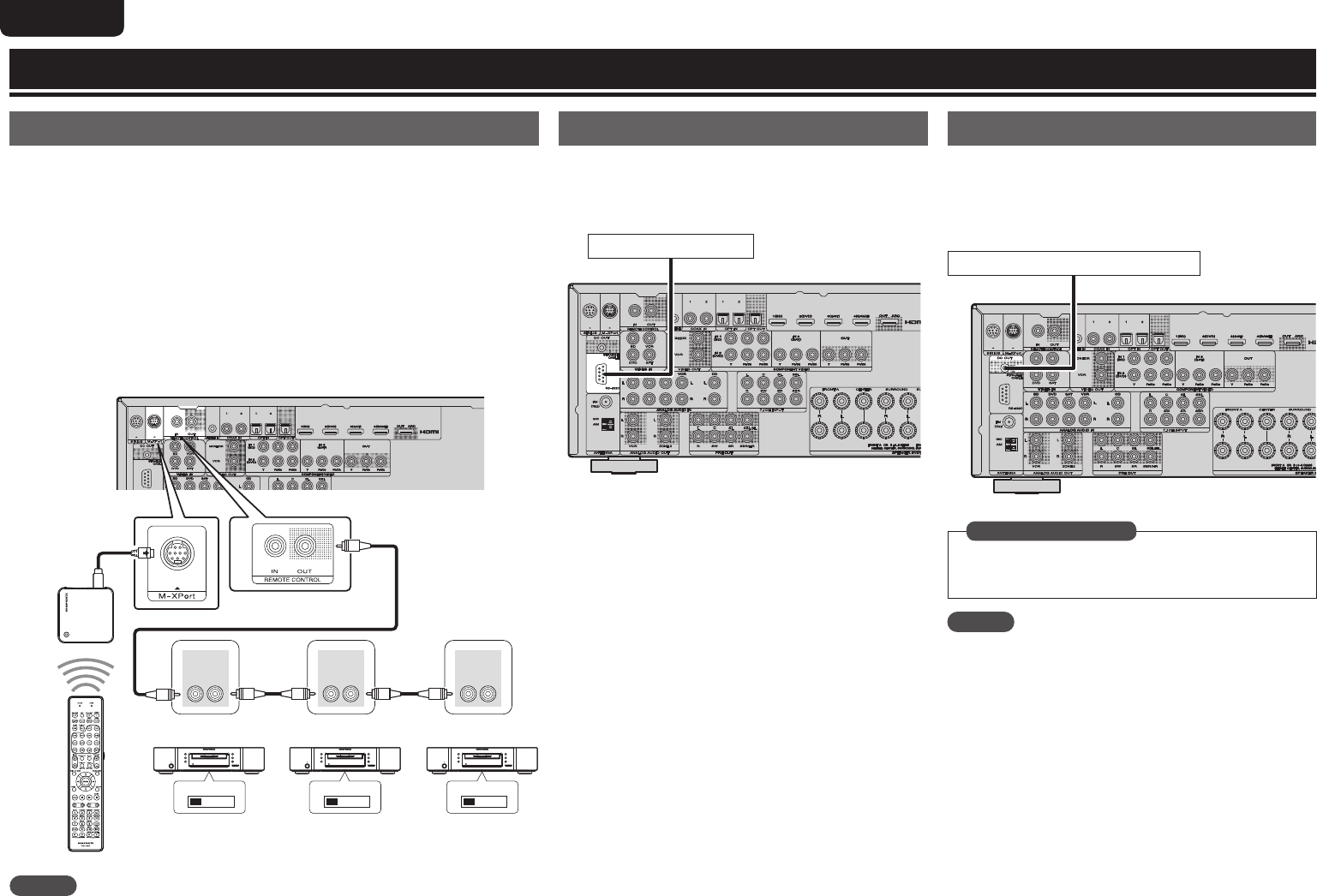

REMOTE CONTROL jacks ··························································38
RS-232C connector ·····································································38
DC OUT (TRIGGER OUT) jacks ···················································38
Playback (Advanced operation) ·················································39
Convenient functions ··································································39

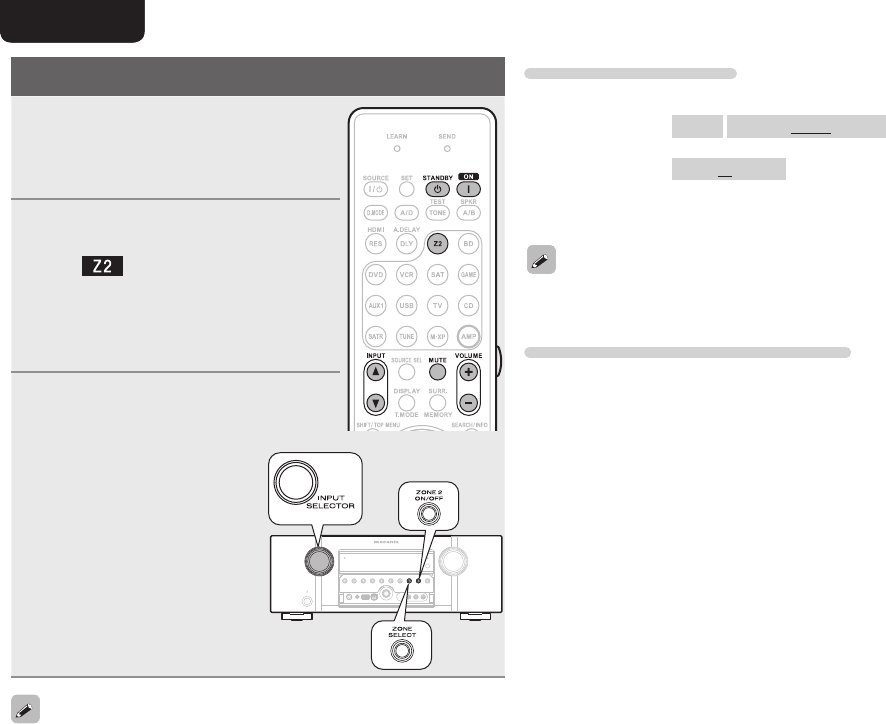

Playback in ZONE2 (Separate room) ········································41
q ZONE2 playback by speaker output ·······································41
w ZONE2 playback by audio output ···········································41
Playback ······················································································42
How to make detailed settings ··················································43
Menu map ·················································································· 43

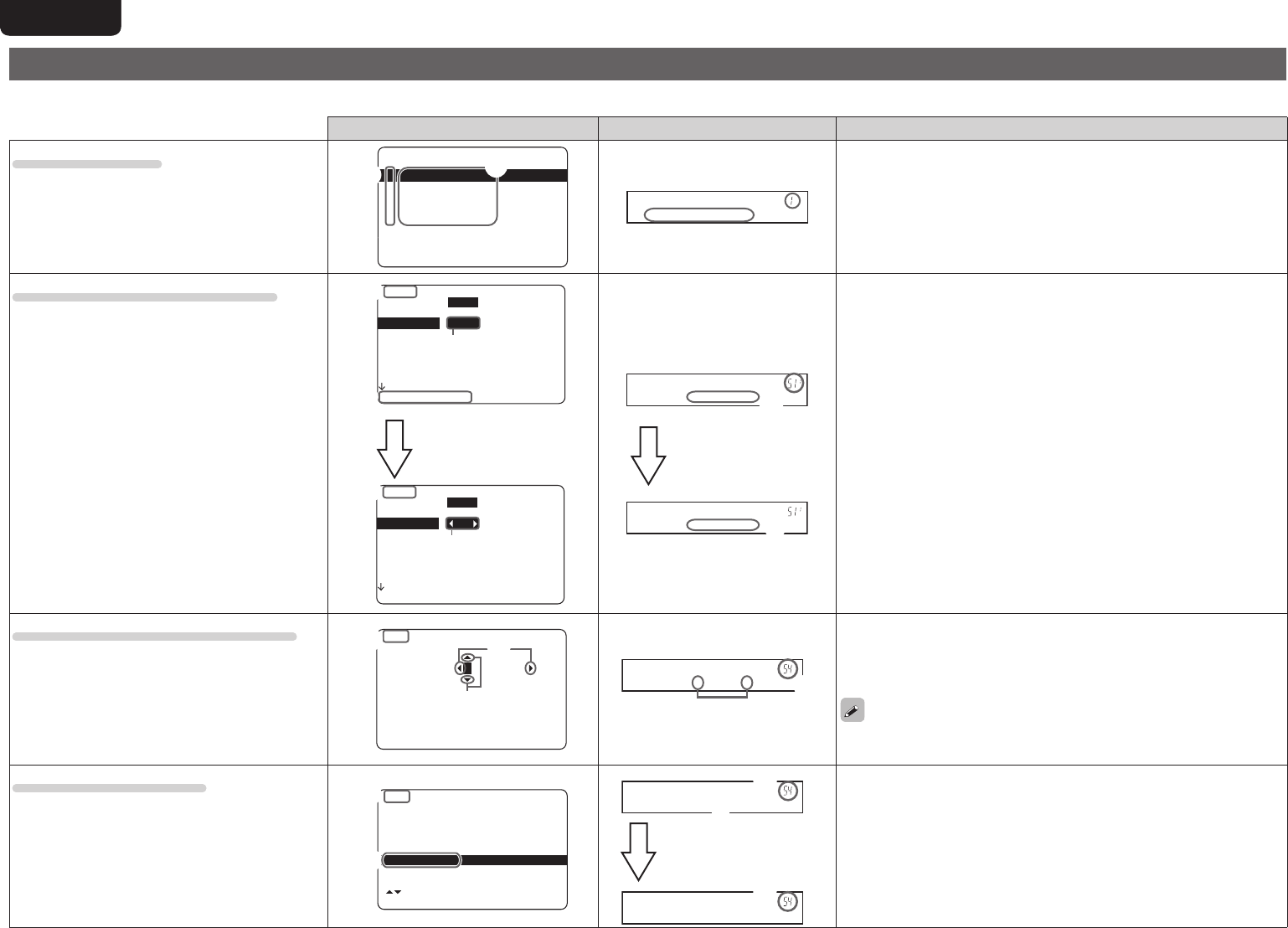

Examples of on-screen display and front display ························44
Inputting characters ···································································45
Input Setup ·················································································46
Audio Adjust ··············································································· 52
Manual Setup··············································································56
Information ················································································· 61
Other settings ··············································································62

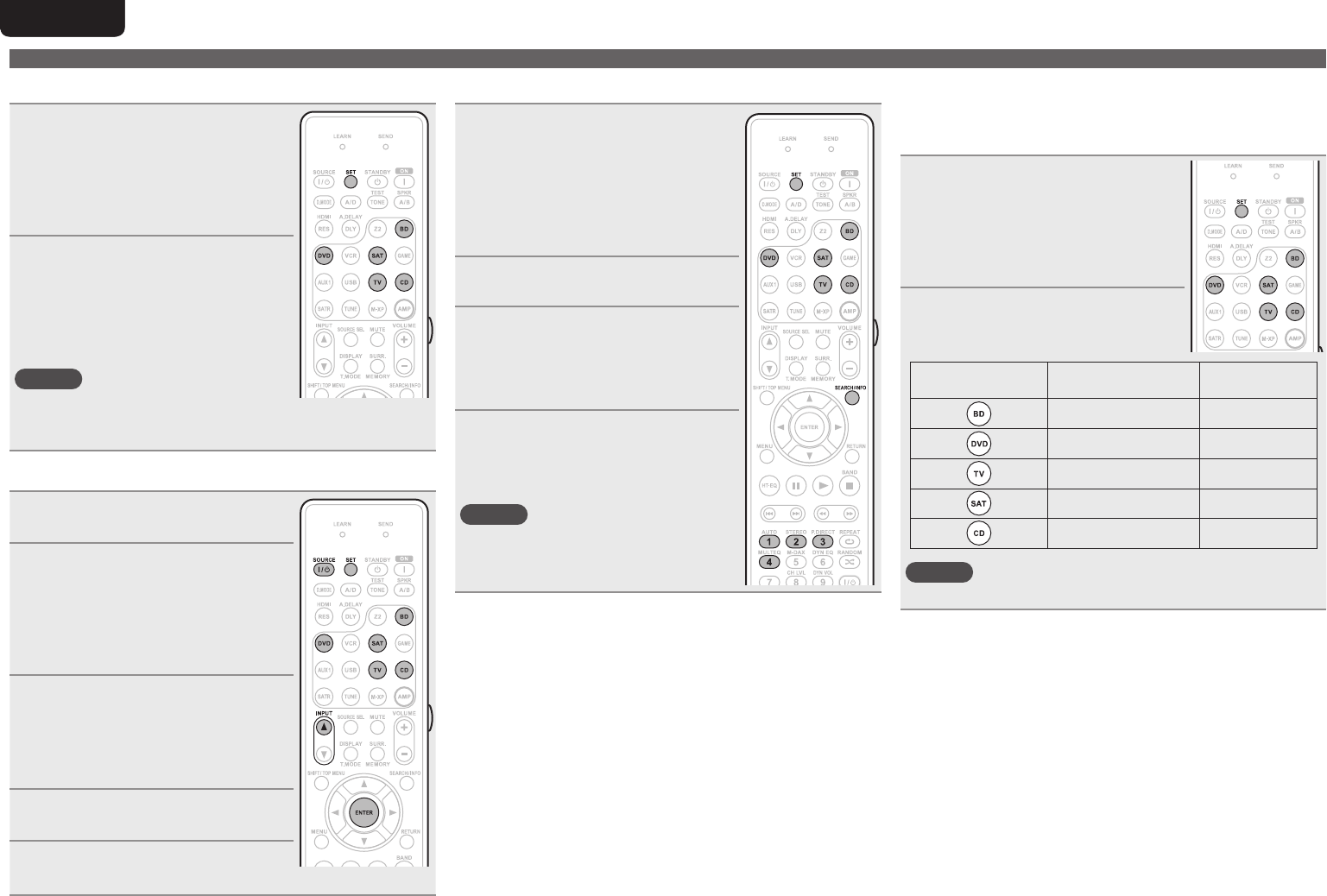

Remote control settings ····························································· 62
Switching the on-screen display output mode ···························62
Operating the connected devices by remote control unit ······ 63
Operating AV equipment ···························································· 63
Registering preset codes ····························································63
Operating components ·······························································65
Operating learn mode ·································································66
Setting the back light ··································································67
Information ·············································································68

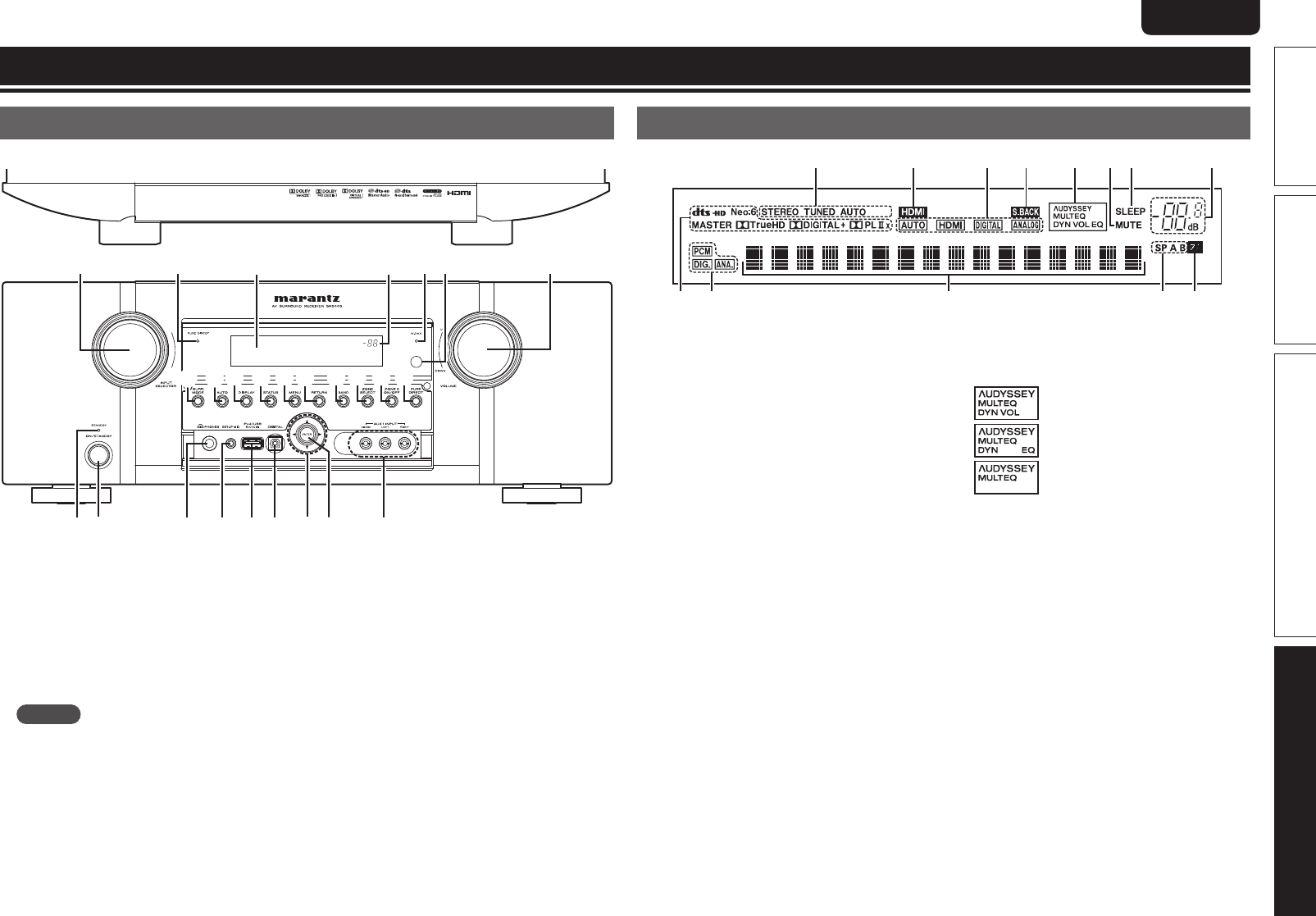

Part names and functions···························································69
Front panel ··················································································69
Display ························································································69
Rear panel ···················································································70
Remote control unit ····································································71
Other information ·······································································73
Trademark information ································································73
Surround ·····················································································74
Explanation of terms ···································································78
Troubleshooting ··········································································80
Resetting the microprocessor ····················································82

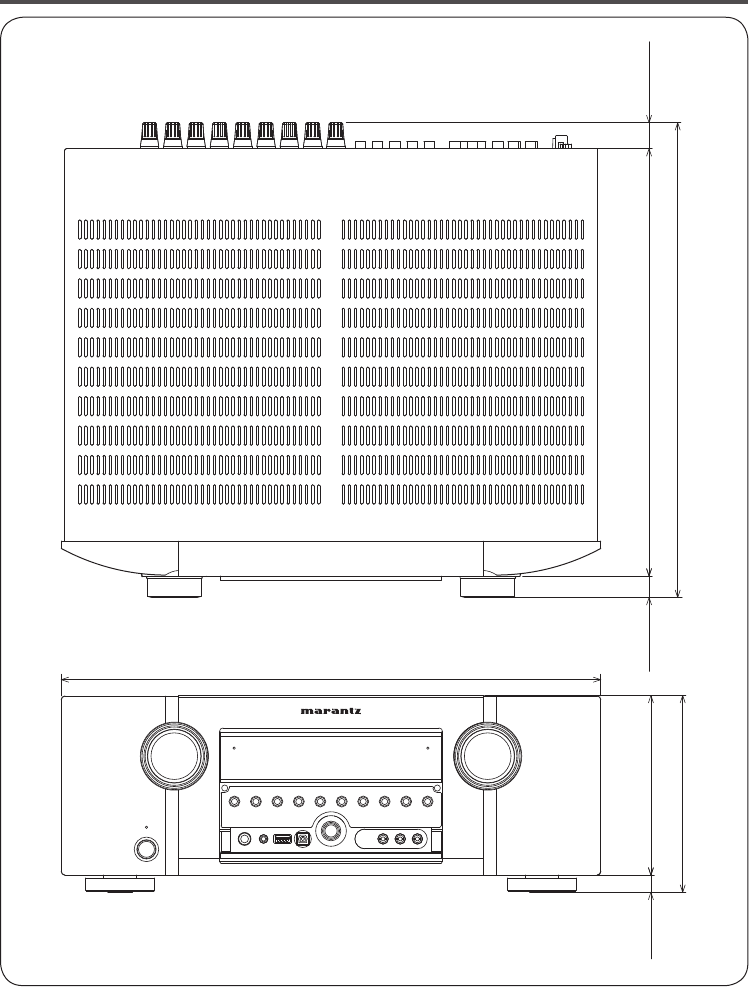

Specifications ··············································································83
Contents
Getting started ··············································································1
Accessories ·················································································· 1
About this manual ·········································································1
Features ························································································2
Cautions on handling ···································································· 2
List of preset codes ··································End of this manual
2
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Cautions on handling
• Before turning the power switch on
Check once again that all connections are correct and that there are
no problems with the connection cables.
• Power is supplied to some of the circuitry even when the unit is
set to the standby mode. When going on vacation or leaving home
for long periods of time, be sure to unplug the power cord from the
power outlet.
• About Condensation
If there is a major difference in temperature between the inside of
the unit and the surroundings, condensation (dew) may form on
the operating parts inside the unit, causing the unit not to operate
properly.
If this happens, let the unit sit for an hour or two with the power
turned off and wait until there is little difference in temperature
before using the unit.
• Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If that
occurs, move the mobile phone away from this unit when it is in use.
• Moving the unit
Turn off the power and unplug the power cord from the power
outlet. Next, disconnect the connection cables to other system units
before moving the unit.
• About Care
• Wipe the cabinet and control panel clean with a soft cloth.
• Follow the instructions when using a chemical cleaner.
• Benzene, paint thinner or other organic solvents as well as
insecticide may cause material changes and discoloration if brought
into contact with the unit, and should therefore not be used.
Features
Fully Discrete, identical quality and power for all
7 channels (100 W x 7ch, 8Ω)
The unit is equipped with a power amplifier that plays back high-
fidelity sound in surround mode with equal quality and power for all
channels, true to the original sound.
The power amplifier circuit adopts a discrete-circuit configuration
that achieves high-quality surround sound play back.
Supports HDMI 1.4a with 3D, ARC, Deep Color,
x.v.Color , Auto Lipsync and HDMI control function
This unit can output 3D video signals input from a Blu-ray Disc
player to a TV that supports a 3D system. This unit also supports
the ARC (Audio Return Channel) function, which plays back TV
sound with this unit via an HDMI cable used for connecting the
unit and a TVz.
zThe TV should support the ARC function.
4-HDMI inputs and 1-output
The unit is equipped with 4 HDMI input connectors for connecting
devices with HDMI connectors, such as a Blu-ray Disc player,
game machine, HD video camera, etc.
High Definition Audio Support
The unit is equipped with a decoder which supports high-quality
digital audio format for Blu-ray Disc players such as Dolby TrueHD,
DTS-HD Master Audio, etc.
Dolby Pro Logic gz
The unit is provided with a Dolby Pro Logic gz decoder. When
you play back the sound in Dolby Pro Logic gz playback with front
height speakers connected to the unit, you can enjoy playback
sound with rich spacial expression.
Easy to use, On-Screen Display
Simple settings are enabled with the setting menus displayed on
the TV screen. When you control the sound volume, the volume
level is displayed on the screen, and when you switch the input
source, the name of the input source is displayed.

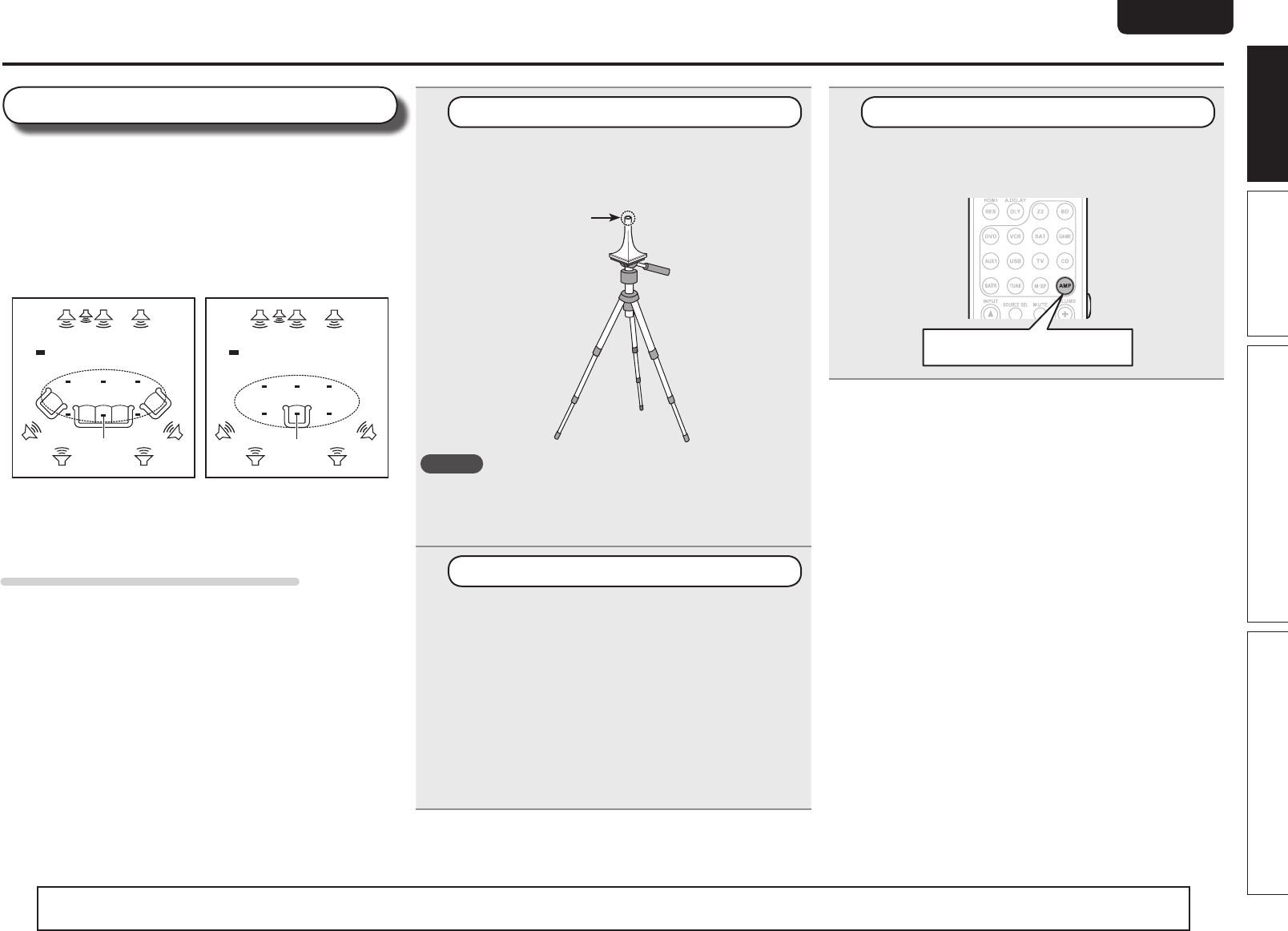

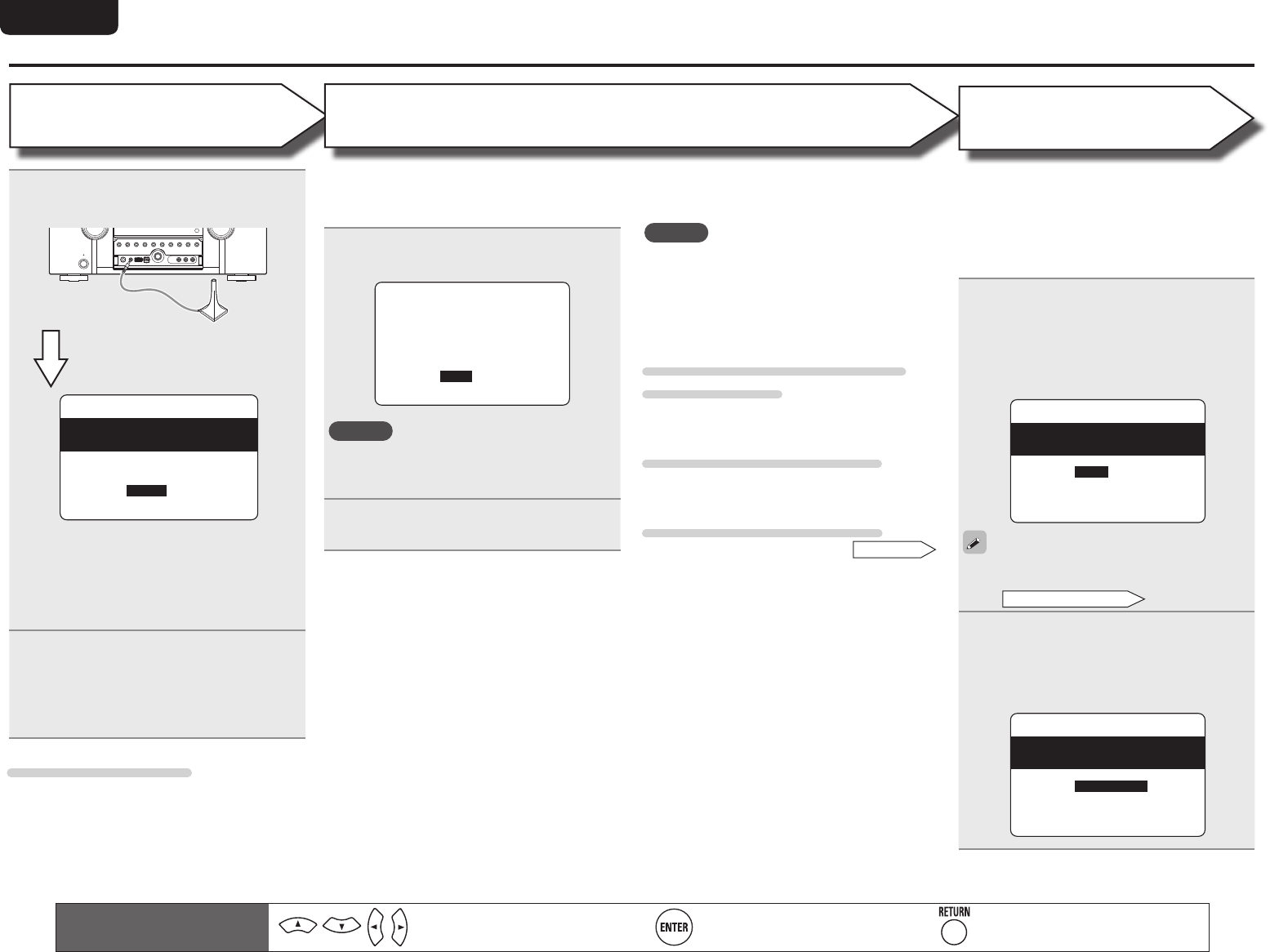

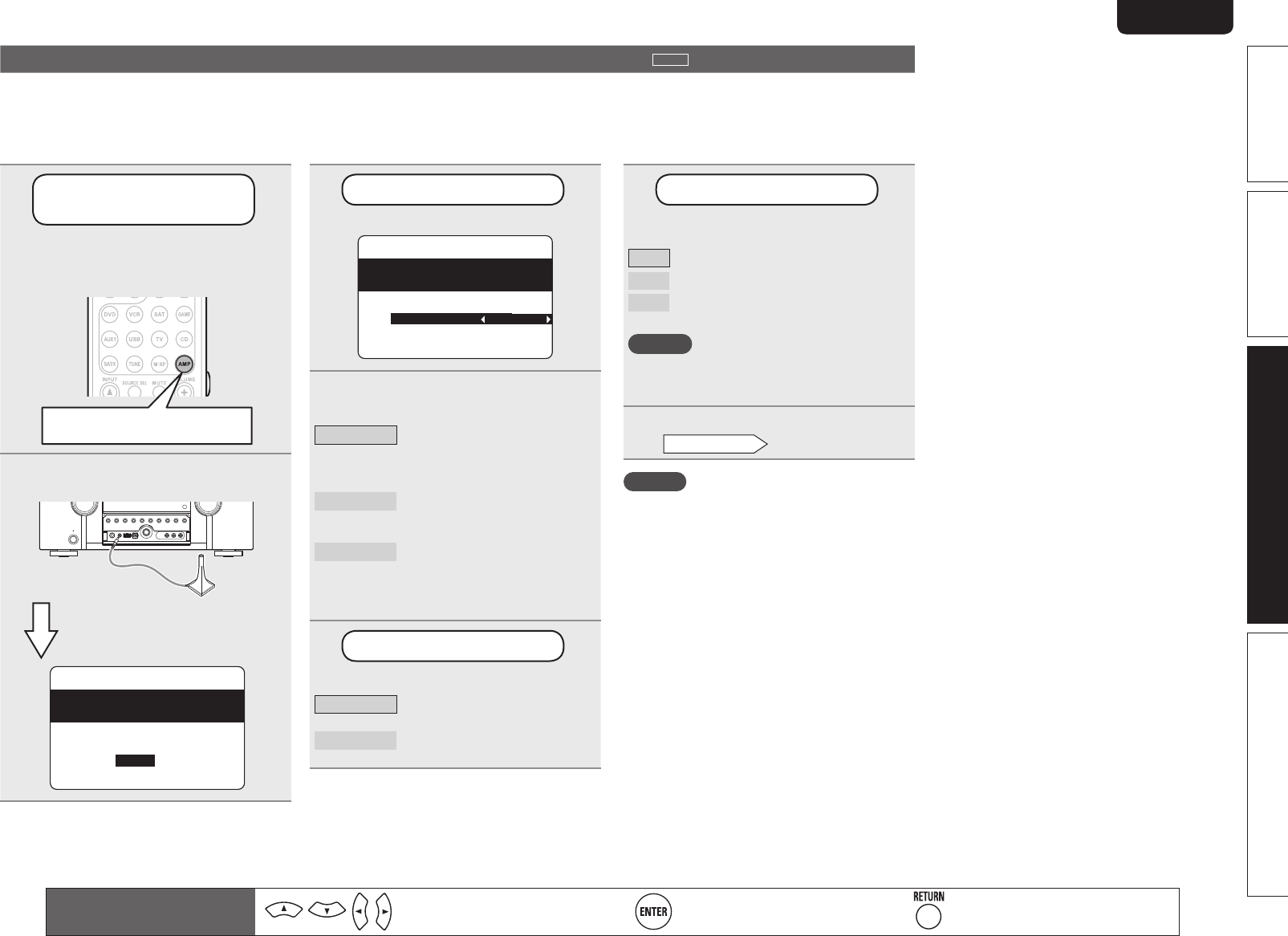

Auto setup function
The unit is provided with an “Auto setup function” which
automatically makes speaker settings best suited for the listening
environment. The sound from the speakers is picked up with the
supplied microphone. Reflecting sound and audio characteristics of
speakers are measured, and settings for an optimum sound field
are automatically made.
All sources are up-scaled to 1080p
The unit is provided with an HDMI video upscaling function that
converts an analog video signal input to the unit to a 1080p (HD
resolution) signal and supplies it to a TV via the HDMI connector.
This enables the unit and a TV connected with a single HDMI cable
and any video source to be reproduced precisely with HD level of
quality.

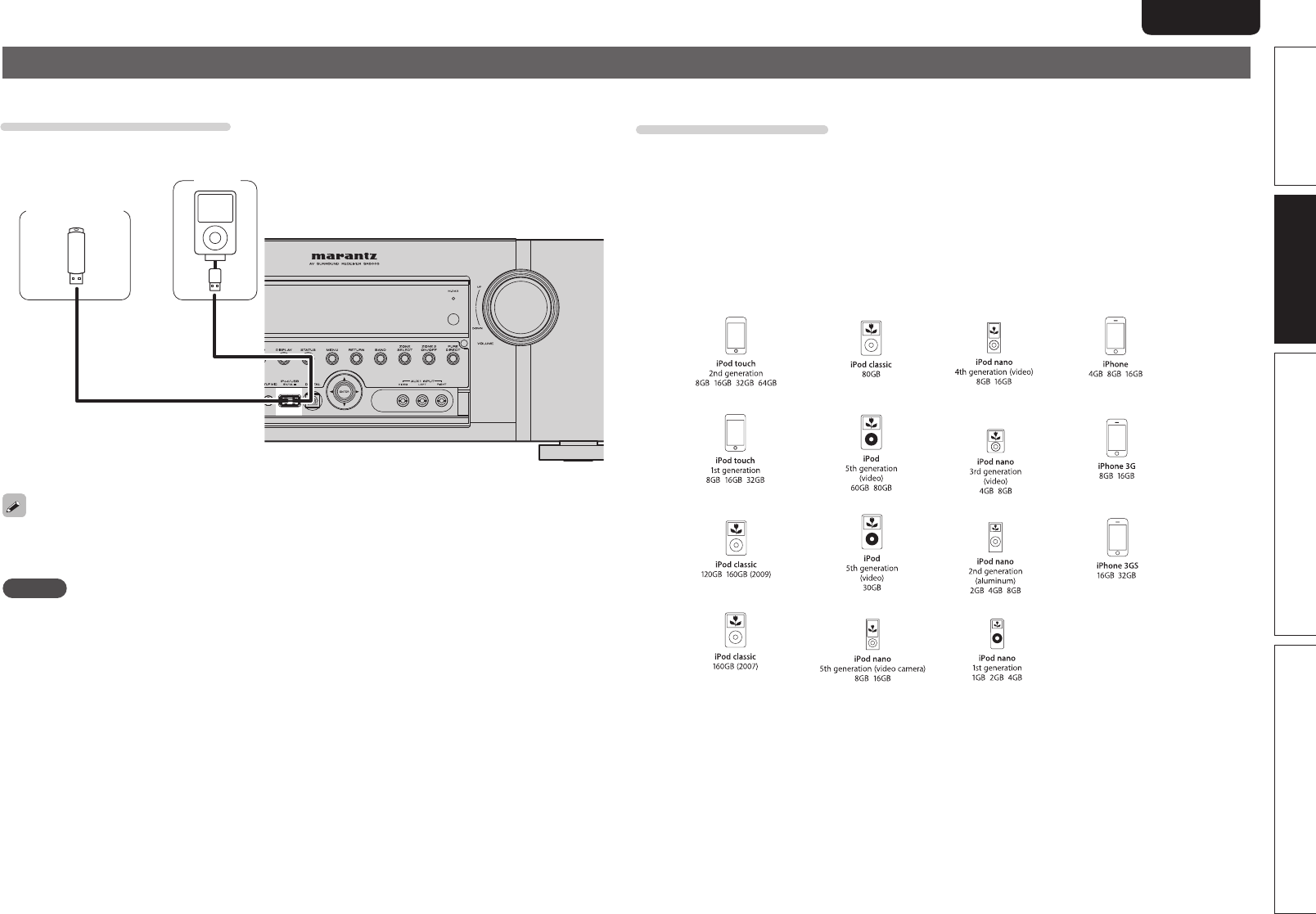

Direct Play for iPod® and iPhone® via USB
Music data from an iPod can be played back if you connect the
USB cable supplied with the iPod via the USB port of this unit, and
also an iPod can be controlled with the remote control unit for this
unit.

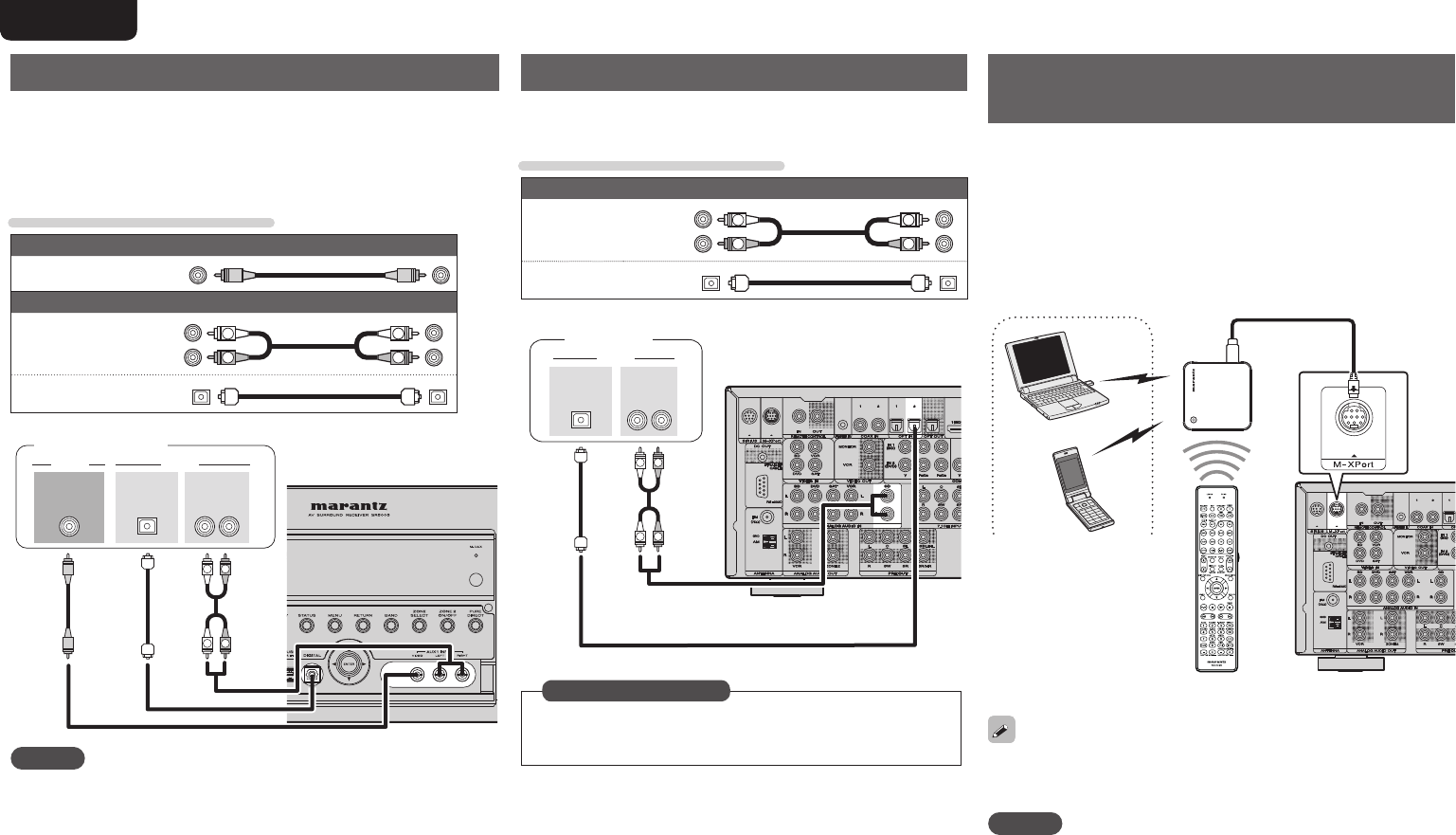

M-XPort (Marantz-eXtension Port)
This unit is equipped with the M-Xport, a Marantz original innovation
that provides outstanding expandability. You can connect the
Wireless Receiver RX101 (sold separately) to this port.
Speaker terminal for front height channel
The unit is equipped with dedicated front height channel speaker
terminals on the rear panel. You can enjoy 7.1-channel playback
using the front height channel and 7.1-channel playback using the
surround back channel, without having to reconnect the speakers.
Other features
• Dolby Virtual Speaker (vpage31)
• Dolby Headphone vpage31)
• DTS Neural Surround (vpage29)
Simple
version
3
Basic version Advanced version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Simple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Simple version (Simple setup guide)
Here, we explain the entire setup procedure, from unboxing the unit to using it in a home theater.
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround
back speakers. For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back
speakers), see page 33.
nBefore connecting the unit, turn off the power to all devices.
nFor operation of the connected devices, refer to the user manuals for each device.
Play back
disc
(vpage11)
Enjoy Blu-ray Disc and DVD
in surround sound.
5
Set up
speakers
(vpage6)
Use the setup microphone
(ACM1H) included with the
product, for automatic
setup.
4
Turn on
power
(vpage6)
3
Connect
(vpage4)
Connect 7.1-channel
speakers, a TV and Blu-
ray Disc player equipped
with an HDMI connector.
2
Install
(vpage4)
Enjoy better audio, using
the correct install method.
1
Set up speakers (Audyssey® Auto Setup)
Finish
Step 5
Store
Step 4
Check
Step 3
Calculating
Step 2
Measurement
Step 1
Speaker
Detection
Preparation
4
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Speakers
Carefully check the left (L) and right (R)
channels and + (red) and – (black) polarities
on the speakers being connected to the
this unit, and be sure to interconnect the
channels and polarities correctly.
Connecting the speaker cables
Peel off about 0.03 ft/10 mm of sheathing from
the tip of the speaker cable, then either twist the
core wire tightly or terminate it.
NOTE
• Connect so that the speaker cable core wires
do not protrude from the speaker terminal.
The protection circuit may be activated if the
core wires touch the rear panel or if the + and –
sides touch each other (vpage79 “Protection
Circuit”).
• Never touch the speaker terminals while the
power supply is connected. Doing so could
result in electric shock.
• Use speakers with the speaker impedances
shown below.
Speaker terminals Speaker
impedance
FRONT A
6 − 8 Ω
CENTER
SURROUND
SURR. BACK/AMP ASSIGN
FRONT B/HEIGHT
FRONT A + FRONT B 8 Ω
Install 12 4 53
This unit can perform 2.0/2.1 to 7.1-channel surround playback.
This page provides the speaker installation procedure for the
7.1-channel playback using surround back speakers as an example.
The default setting is 7.1-channel. You can also perform 5.1-channel playback.
To perform 5.1-channel playback, connect 5.1-channel speakers only.
Use the Audyssey Auto Setup function of this unit to automatically detect
the number of connected speakers and perform optimal settings for the
speakers to be used.
FL FR
C
SBL SBR
SL SR
SW
90 – 110˚
22 – 30˚
135 – 150˚
Listening
position
FL Front speaker (L) • Install the surround speakers in a position 2 to
3 ft (60 to 90 cm) higher than ear level.
Surround back
speaker
• Point slightly
downwards
Front
speaker
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
FR Front speaker (R)
CCenter speaker
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
SBL Surround back speaker (L)
SBR Surround back speaker (R)
1Connect 124 53
2
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.
5
Basic version Advanced version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Simple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Blu-ray Disc player and TV
Use only an HDMI (High-Definition Multimedia Interface) cable that bears the HDMI
logo (a certified HDMI product). Using a cable without the HDMI logo (an uncertified
HDMI product) may result in abnormal playback.
When outputting Deep Color or 1080p, etc., we recommend you use a “High Speed
HDMI cable” or a “High Speed HDMI cable with Ethernet” for enhanced high-quality
playback.
IN
HDMI
OUT
HDMI
To household power outlet
(AC 120 V, 60 Hz)
Power cord
(supplied)
TV
Blu-ray Disc player
HDMI cable
(sold separately)
HDMI cable
(sold separately)
NOTE
• Do not plug in the power cord until all connections have been completed.
• Do not bundle power cords together with connection cables. Doing so can result in humming or noise.
Connect
FL FR
C
SBL SBR
SL SR
SW
Speaker cables
(sold separately)
Audio cable
(sold separately)
Subwoofer
with built-in
amplifier
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.
6
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Set up speakers
(Audyssey® Auto Setup) 1 2 453
4
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.
The acoustic characteristics of the connected speakers and listening room are
measured and the optimum settings are made automatically. This is called
“Audyssey Auto Setup”.
To perform measurement, place the setup microphone in multiple locations all
around the listening area. For best results, we recommend you measure in six
positions, as shown in the illustration (up to six positions).
•When performing Audyssey Auto Setup, MultEQ®/Dynamic EQ®/Dynamic
Volume® functions become active (vpage53, 54).
•To set up the speakers manually, use “Speaker Setup” (vpage56) on the menu.
NOTE
• Make the room as quiet as possible. Background noise can disrupt the room measurements. Close
windows, silence cell phones, televisions, radios, air conditioners, fluorescent lights, home appliances,
light dimmers, or other devices as measurements may be affected by these sounds.
• Cell phones should be placed away from all audio electronics during the measurement process as Radio
Frequency Interference (RFI) may cause measurement disruptions (even if the cell phone is not in use).
• Do not unplug the setup microphone from the main unit until Audyssey Auto Setup is completed.
• Do not stand between the speakers and setup microphone or allow obstacles in the path while the
measurements are being made. This will cause inaccurate readings.
• Loud test sounds may be played during Audyssey Auto setup. This is part of
normal operation. If there is background noise in room, these test signals will
increase in volume.
• Operating VOLUME + – during the measurements will cancel the measurements.
• Measurement cannot be performed when headphones are connected.

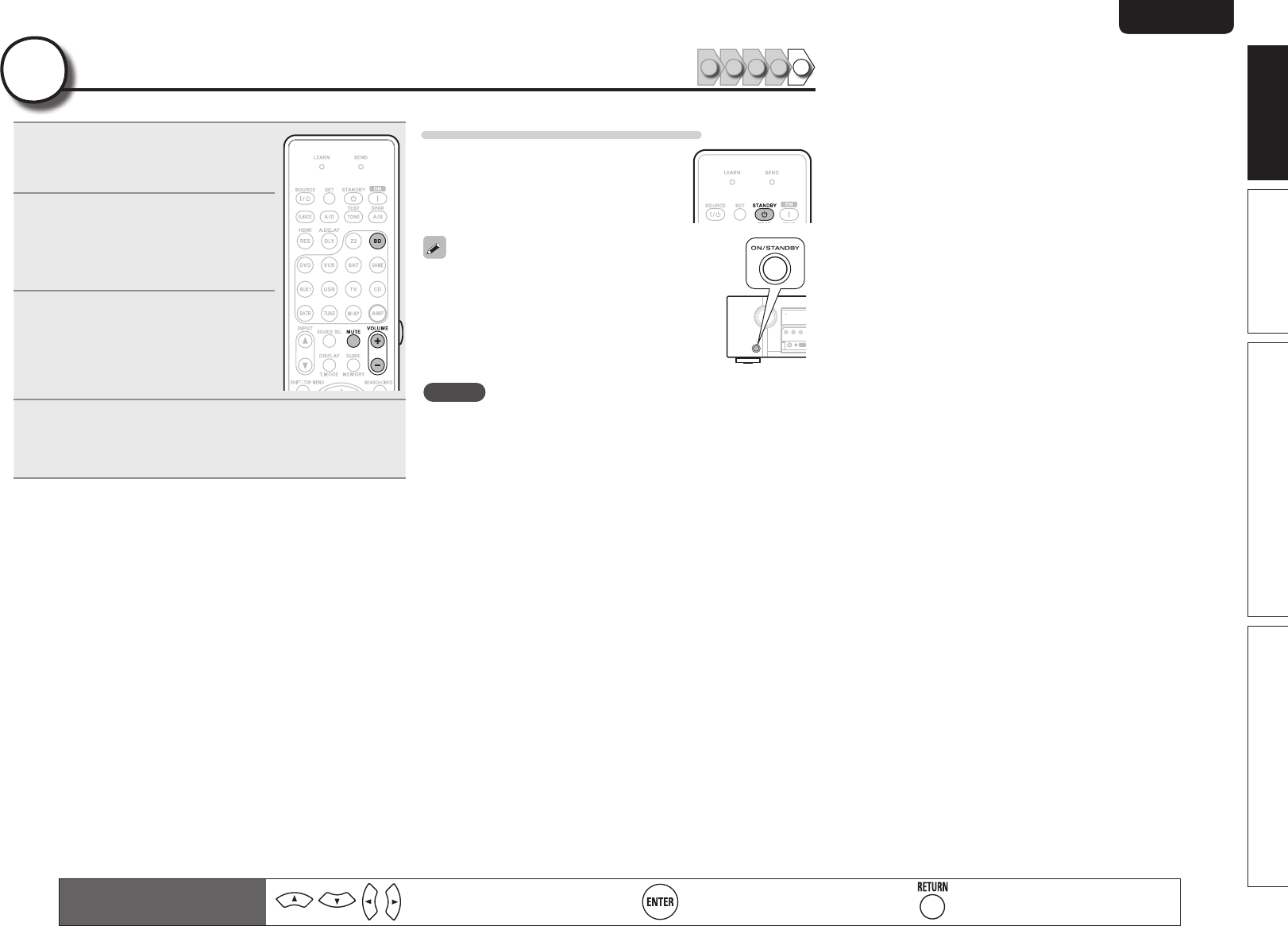

Turn on power 1 2 4 53
3
1Turn on the TV and subwoofer
power.
Power on
2Change the TV input to the input of
this unit.
3Press ON to turn on power to the unit.
The power indicator switches off, and power
is supplied to the unit.
Power on
Power on
7
Basic version Advanced version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Simple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
About setup microphone placement
• Measurements are performed by placing the setup microphone
successively at multiple positions throughout the entire listening
area, as shown in GExample qH. For best results, we recommend
you measure in six positions, as shown in the illustration (up to six
positions).
• Even if the listening environment is small as shown in GExample wH,
measuring at multiple points throughout the listening environment
results in more effective correction.
FL SW C FR
SR
SBL SBR
SL *M
FL SW C FR
SR
SBL SBR
SL *M
( : Measuring positions)
GExample qH GExample wH
( : Measuring positions)
FL Front speaker (L) SL Surround speaker (L)
FR Front speaker (R) SR Surround speaker (R)
CCenter speaker SBL Surround back speaker (L)
SW Subwoofer SBR Surround back speaker (R)
About the main listening position (*M)
The main listening position is the position where listeners would
normally sit or where one would normally sit alone within the listening
environment. Before starting Audyssey Auto Setup, place the setup
microphone in the main listening position. Audyssey MultEQ® uses
the measurements from this position to calculate speaker distance,
level, polarity, and the optimum crossover value for the subwoofer.
The “Simple version” section provides the speaker installation, connection, and setup methods for the 7.1-channel system with surround back speakers.
For the installing, connecting, and setup methods of speakers other than the 7.1-channel system (with surround back speakers), see page 33.
Set up speakers (Audyssey® Auto Setup)
3Set up the remote control unit
nSet up the operation mode
Press AMP to set the remote control unit to amplier
operation mode.
Press AMP
1Set up the microphone
Mount the setup microphone on a tripod or stand
and place it in the main listening position.
When placing the setup microphone, adjust the height of the
sound receptor to the level of the listener’s ear.
Sound receptor Setup
microphone
NOTE
• Do not hold the setup microphone in your hand during
measurements.
• Avoid placing the setup microphone close to a seat back or wall as
sound reflections may give inaccurate results.
2Set up the subwoofer
If using a subwoofer capable of the following
adjustments, set up the subwoofer as shown below.
nWhen using a subwoofer with a direct mode
Set the direct mode to “On” and disable the volume adjustment
and crossover frequency setting.
nWhen using a subwoofer without a direct mode
Make the following settings:
• Volume : “12 o’clock position”
• Crossover frequency :
“Maximum/Highest Frequency”
• Low pass filter : “Off”
• Standby mode : “Off”
8
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
6The detected speakers are displayed.
Next
Retry
[ENT]:Next
Front Sp. :Yes
F.Height Sp. :No
Center Sp. :Yes
Surround Sp. :Yes
S.Back Sp. :Yes 2ch
Subwoofer :Yes
Step1:Speaker Detection
MultEQ
NOTE
If a connected speaker is not displayed, the
speaker may not be connected correctly. Check
the speaker connection.
7Use ui to select “Next” and then
press ENTER.
8Move the setup microphone to
position 2, use ui to select “Next”,
and then press ENTER.
The measurement of the second position
starts. Measurements can be made in up to
six positions.
Step2:Measurement
MultEQ
Please place microphone
Cancel
[ENT]:Next
Next
Calculate
2nd listening position.
at ear height at
If you want to omit measurements from the next
position onward, select “Calculate”.
(Go to Step 3 Calculating )
9Repeat step 8, measuring positions 3
to 6.
When measurement of position 6 is
completed, a “All the measurements were
finished.” message is displayed.
Step2:Measurement
MultEQ
Retry
Cancel
[ENT]:Calculate
Calculate
All the measurements
were finished.
Set up speakers (Audyssey® Auto Setup)
Preparation
4Connect the setup microphone to the
SETUP MIC jack of this unit.
3-1.Audyssey Auto Setup
MultEQ
at ear height at
Amp Assign: Normal
Front Sp. : A
F.Height : Measure
Start
Cancel
[ENT]:Select [RTN]:Back
Please place microphone
main listening position.
When the setup microphone is
connected, the following screen is
displayed.
The setting method for 7.1-channel playback using
the surround back speakers is described here.
For the method of setting up speakers other than
the 7.1-channel system, select “Amp Assign”
and perform steps 3 and 4 of “Set up speakers”
(vpage37).
5Use ui to select “Start” and then
press ENTER.
When measuring begins, a test tone is
output from each speaker.
• Measurement requires several minutes.
If “Cancel” is selected
“Cancel Auto Setup?” is displayed on the TV
screen. If “Yes” is selected, “Audyssey Auto
Setup” closes.
NOTE
If “Caution” is displayed:
Go to “Error messages” (vpage 10), check
any related items, and perform the necessary
procedures.
If the problem is resolved, return and restart
“Audyssey Auto Setup”.
When performing Audyssey Auto
Setup over again
Press ui to select “Retry”, and then press
ENTER.
When measuring has stopped
Press ui to select “Cancel”, then press ENTER.
Press o p to select “Yes”, then press ENTER.
Setting up the speakers again
Repeat the operation from step 4 of Preparation .
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
Step 1
Speaker Detection
Step 2
Measurement
• In step 1, you will perform measurements at the main listening position.
• This step automatically checks the speaker configuration and speaker size, and calculates the channel
level, distance, and crossover frequency. It also corrects distortion in the listening area.
• In step 2, you will perform measurements at
multiple positions (two to six positions) other than
the main listening position.
• You can achieve a more effective correction of
distortion within the listening area by performing
measurements at multiple positions.
9
Basic version Advanced version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Simple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Set up speakers (Audyssey® Auto Setup)
Step 3
Calculating
Step 4
Check
10
On the Step 2 screen, use ui
to select “Calculate”, and then press
ENTER.
Measuring results are analyzed, and the
frequency response of each speaker in the
listening room is determined.
Step3:Calculating
MultEQ
Calculating
[----------]
Please wait...
• Analysis takes several minutes to complete. The
time required for this analysis depends on the
number of speakers connected.
The more connected speakers there are, the
longer it takes to perform analysis.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
NOTE
• If the result differs from the actual connection
status, or if “Caution!” is displayed, see “Error
messages” (vpage10). Then carry out Audyssey
Auto Setup again.
• If the result still differs from the actual connection
status after remeasurement or the error message
still appears, it is possible that the speakers
are not connected properly. Turn this unit off,
check the speaker connections and repeat the
measurement process from the beginning.
• If you change speaker positions or orientation,
perform Audyssey Auto Setup again to find the
optimal equalizer settings.
11
Use ui to select the item you want
to check, and then press ENTER.
Step4:Check
MultEQ
Please check the results
of the measured item.
Distance Check
Channel Level Check
Crossover Freq.Check
Speaker Config.Check
Next
[ENT]:Select
• Subwoofers may measure a greater reported
distance than the actual distance due to added
electrical delay common in subwoofers.
• If you want to check another item, press
RETURN.
12
Use ui to select “Next” and then
press ENTER.
Step 5
Store
13
Use ui to select “Store” and then
press ENTER.
Save the measurement results.
Step5:Store
MultEQ
Storing
Please wait...
[----------]
Step5:Store
MultEQ
Store
Cancel
[ENT]:Store
Please select “Store”
to store measurement
values.
• Saving the results requires about 10 seconds.
• If you do not want to save the measurement
results, use ui to select “Cancel”, then select
“Yes” using o p. All the measured Audyssey
Auto Setup data will be erased.
NOTE
During saving of measurement results, be sure
not to turn off the power.
Finish
NOTE
After performing Audyssey Auto Setup, do not
change the speaker connections or subwoofer
volume. In event of a change, perform Audyssey
Auto Setup again.
14
Unplug the setup microphone from
the unit’s SETUP MIC jack.
15
Set Dynamic Volume®.
Finish
MultEQ
Storing complete.
Auto Setup is now
Turn on Dynamic Volume?
Yes : No
finished.
[ ]:Select [ENT]:Exit
• For details of Dynamic Volume settings, see
page 54.
nWhen turning Dynamic Volume on
• Use o to select “Yes”, and then press ENTER.
The unit automatically enters “Evening” mode.
nWhen turning Dynamic Volume off
• Use p to select “No”, and then press ENTER.
10
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Parameter Check
This function enables you to check the measurement results and
equalizer characteristics after Audyssey Auto Setup.
1Use ui to select “Parameter Check” and then
press ENTER.
2Use ui to select the item you want to check, then
press ENTER.
3-2.Parameter Check
Speaker Config.Check
Distance Chenck
Channel Level Check
Crossover Freq.Check
Restore
EQ Check
[ENT]:Select [RTN]:Back
Speaker Config. Check
Distance Check
Channel Level Check
Crossover Freq. Check
EQ Check
Check the speaker configuration.
Check the distance.
Check the channel level.
Check the crossover frequency.
Check the equalizer.
• If “EQ Check” is selected, press ui to select equalizing curve
(“Audyssey” or “Audyssey Flat”) to be checked.
Use o p to switch the display between the different speakers.
3Press RETURN.
The confirmation screen reappears. Repeat step 2.
Retrieving Audyssey Auto Setup settings
If you set “Restore” to “Yes”, you can return to Audyssey Auto Setup
measurement result (value calculated at the start by MultEQ®) even
when you have changed each setting manually.
Error messages
An error message is displayed if Audyssey® Auto Setup could not be completed due to speaker placement, the measurement environment, etc.
If this happens, check the relevant items, be sure to take the necessary measures, then perform Audyssey Auto Setup over again.
NOTE
Be sure to turn off the power before checking speaker connections.
Examples Error details Measures
or
Retry
Cancel
[ENT]:Retry
FMicrophone:None
Speaker :None
Caution
MultEQ
• The connected setup microphone is broken, or a
device other than the supplied setup microphone
is connected.
• Not all speakers could be detected.
• The front L speaker was not properly detected.
• Connect the included setup microphone to the
SETUP MIC jack of this unit.
• Check the speaker connections.
too high or
Retry
Cancel
[ENT]:Retry
F
Ambient noise is
Level is too low.
Caution
MultEQ
• There is too much noise in the room for accurate
measurements to be made.
• Speaker or subwoofer sound is too low for
accurate measurements to be made.
• Either turn off any device generating noise or
move it away.
• Perform again when the surroundings are quieter.
• Check the speaker installation and the direction
in which the speakers are facing.
• Adjust the subwoofer’s volume.
Retry
R :None
Cancel
Skip
Front
Caution
[ ]:Up/Down [ ]:CH
MultEQ
• The displayed speaker could not be detected. • Check the connections of the displayed speaker.
Retry
L :Phase
Cancel
Skip
Front
Caution
[ ]:Up/Down [ ]:CH
MultEQ
• The displayed is connected with the polarities
reversed.
• Check the polarities of the displayed speaker.
• For some speakers, this error message may
be displayed even if the speaker is properly
connected. If you are sure the connection is
correct, press ui to select “Skip”, then press
ENTER.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
11
Basic version Advanced version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Simple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

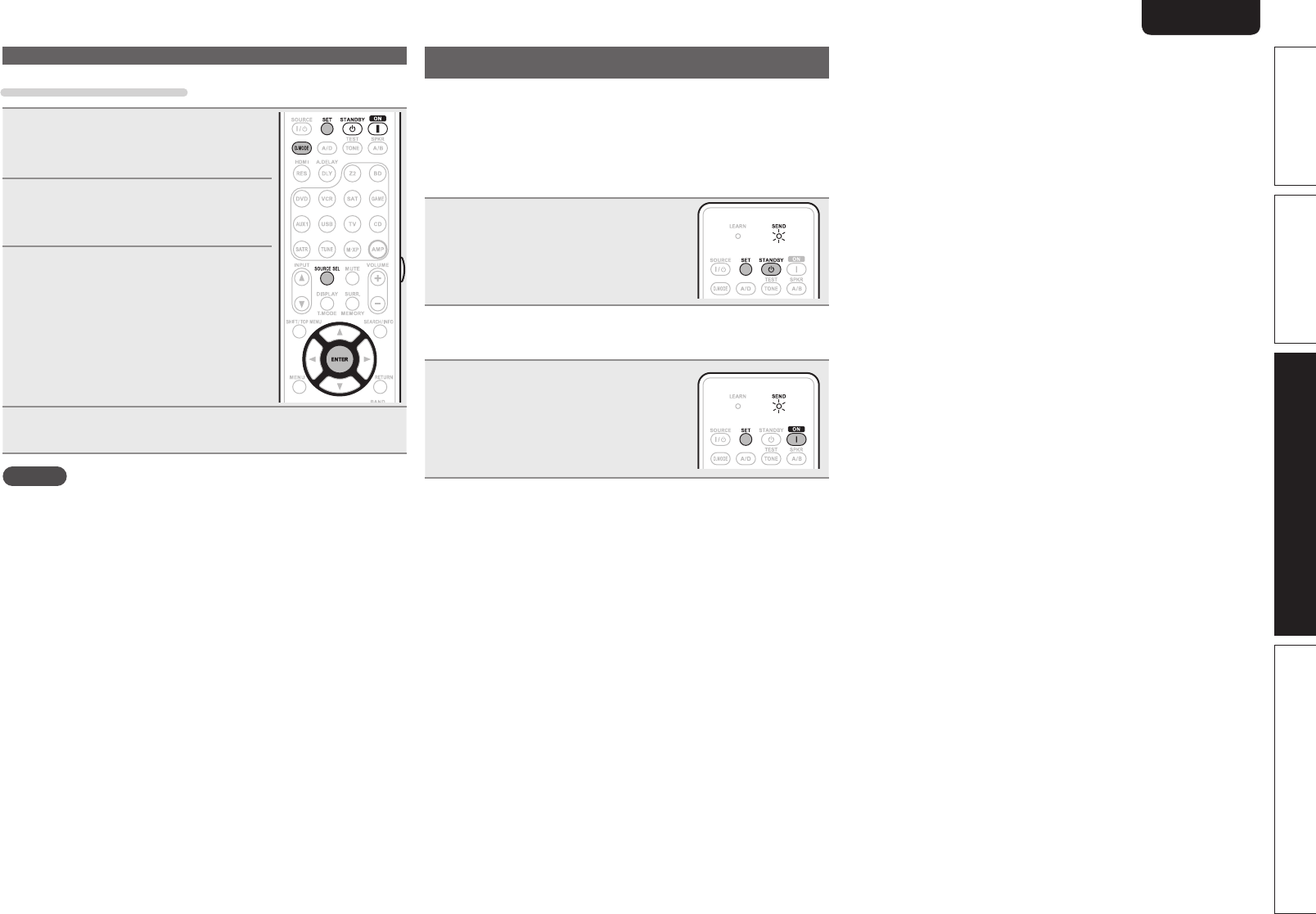

Play back disc 1 2 4 53
5
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
1Press BD two times in a row
to switch an input source for a
player used for playback.
2Play the component connected to
this unit.
Make the necessary settings on the
player (language setting, subtitles
setting, etc.) beforehand.
3Adjust the sound volume.
VOLUME + ····································· Volume up
VOLUME – ································ Volume down
MUTE ·················································· Muting
4Set the listening mode.
Set the listening mode according to the playback contents
(cinema, music, etc.) or according to your liking (vpage29
“Selecting a listening mode (Surround mode)”).
When power is switched to standby
Press STANDBY.
GPower indicator status in standby modeH
• Normal standby : Red
• When “HDMI Control” is set to “ON” : Orange
You can also switch the power to standby by
pressing ON/STANDBY on the main unit.
NOTE
During power standby, a minimal amount of power is consumed. To
totally cut off the power, remove the power cord from the power
outlet.
Basic
version
12
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
F Connections vpage13
F Playback (Basic operation) vpage22
F Selecting a listening mode (Surround mode) vpage29
nRefer to the pages indicated below for information on connecting and playing back the various
media and external devices.
Audio and video PlaybackConnection
TV vpage15, 16 –
Blu-ray Disc player vpage15, 16 vpage23
DVD player vpage15, 16 vpage23
Set-top box (Satellite tuner or cable TV) vpage15, 17 –
Game console vpage15 –
Video cassette recorder vpage17 –
Digital camcorder vpage18 –
Audio PlaybackConnection
iPod® vpage19 vpage23
USB memory device vpage19 vpage24
CD player vpage18 vpage23
SIRIUS satellite radio vpage20 vpage25
FM/AM radio vpage20 vpage27
Wireless receiver (RX101) vpage18 –
For speaker connections, see page 4.
Basic version
Here, we explain the connections and basic operation methods for this unit.
13
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Converting input video signals for output (Video conversion function)
This unit is equipped with three types of video input connector (HDMI, Component video and video) and
three types of video output connector (HDMI, Component video and video).
Use the connectors corresponding to the components to be connected.
This function automatically converts various formats of video signals input to this unit into the formats used
to output the video signals from this unit to a monitor.
GFlow of video signalsH
HDMI connector
Component video
connectors
Video connector
Monitor
HDMI connector
Component video
connectors
Video connector
HDMI
connector
Video connector
HDMI connector
Video connector
Video device
This unit
Output
Input
(IN)
Output
(MONITOR OUT) Input
Connections
• The video conversion function supports the NTSC, PAL, SECAM, NTSC 4.43, PAL-N, PAL-M and PAL-60
formats.
• Resolutions of HDMI-compatible TVs can be checked at “HDMI Monitor Information” (vpage61).
NOTE
• HDMI signals cannot be converted into analog signals.
• When a non-standard video signal from a game machine or some other source is input, the video
conversion function might not operate.
• Component video input signals cannot be converted into Video format.
Important information
• Make connections as follows before using this unit. Select an appropriate connection type
according to the components to be connected.
• You may need to make some settings on this unit depending on the connection method. Refer to
each description for more information.
• Select the cables (sold separately) according to the components being connected.
NOTE
• Do not plug in the power cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components being
connected.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Do not bundle power cords together with connection cables. Doing so can result in noise.
Component video
connectors
Component video
connectors
14
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Connecting an HDMI-compatible device
You can connect up to four HDMI-compatible devices to the unit.
HDMI function
This unit supports the following HDMI functions:
• 3D
• Deep Color (vpage78)
• Auto Lip Sync (vpage58)
• x.v.Color, sYCC601 color, Adobe RGB color, Adobe YCC601color (vpage78, 79)
• High definition digital audio format
• ARC (Audio Return Channel)
• Content Type
• CEC (HDMI control)
Copyright protection system
In order to play back digital video and audio such as BD-Video or DVD-Video via HDMI connection, both
this unit and TV or the player need to support the copyright protection system known as HDCP (High-
bandwidth Digital Content Protection System). HDCP is copyright protection technology comprised of
data encryption and authentication of the connected AV device. This unit supports HDCP.
• If a device that does not support HDCP is connected, video and audio are not output correctly. Read
the owner’s manual of your television or player for more information.
About HDMI cables
• When a device supporting Deep Color signal transfer is connected, use a cable compatible “High Speed
HDMI cable” or “High Speed HDMI cable with Ethernet”
• When the ARC function is used, connect a device with a ”Standard HDMI cable with Ethernet” or “High
Speed HDMI cable with Ethernet” for HDMI 1.4a.
HDMI control function (vpage39)
This function allows you to operate external devices from the receiver and operate the receiver from
external devices.
NOTE
• The HDMI control function may not work depending on the device it is connected to and its settings.
• You cannot operate a TV or Blu-ray Disc player / DVD player that is not compatible with the HDMI control
function.
About 3D function
This unit supports input and output of 3D (3 dimensional) video signals of the HDMI 1.4a standards. For
playing the 3D video content, a player, and a TV that support the 3D function of the HDMI 1.4a standards
are required in addition to this unit.
How the on-screen display appears in accordance with the video
input signal
The way the on-screen display of the menus, status, etc., is displayed differs according to the type of video
signal input to this unit.
nWhen video signals are input from the HDMI or component video
connector
• Menu: Switches to a screen with a black background and the menu is superimposedz.
• Status display: Not displayed.
z If you want to display the menus superimposed on the background image, input the same video signals
to the video connectors. When a menu is displayed, the picture switches to the one being input from
the video connectors and the menu is displayed superimposed over this picture.
NOTE
The menus and status display screen will not be superimposed on the video output from the component
video connector.
nWhen video signals are input from the video connector
• Menu: Menus are displayed superimposed over the background image.
• Status display: Displayed.
NOTE
When you use the component video output connector, the on-screen display is not displayed. If you want
to display the on-screen display, connect a TV to the HDMI connector or video output connector.
Examples of on-screen display
• Menu screen • Status display screen
When the input source is
switched
When the volume is adjusted
MENU
1.Audio Adjust
2.Information
3.Auto Setup
4.Manual Setup
5.Input Setup
[ENT]:Select
MODE:STEREO
IN :DVD
[Auto]
Master Volume -80.0dB
Status display: The operating status appears briefly on the screen
when the input source is switched or the volume is
changed.
NOTE
When you connect a TV to this unit using the video connector, the on-screen display may not be
displayed on a TV in some cases. If the on-screen display is not displayed on your TV, set the on-screen
display output mode to "Video" mode in accordance with “Switching the on-screen display output mode”
(vpage62).
Important information
15
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
About ARC (Audio return channel) function
The Audio Return Channel in HDMI 1.4a enables a TV, via a single HDMI cable, to send audio data
“upstream” to this unit.
NOTE
• To enable the ARC function,set “HDMI Control” to “ON” (vpage58).
• When connecting a TV that does not support the ARC function, a separate connection using an audio
cable is required. In this case, refer to “Connecting a TV” (vpage16) for the connection method.
About Content Type
The HDMI Specification Version 1.4a enables simple, automated picture setting selection with no user
intervention.
NOTE
To enable the Content type, set “Video Mode” to “Auto” (vpage49).
Cables used for connections
Audio and video cable (sold separately)
HDMI cable
• This interface allows transfer of digital video signals and digital audio signals over a single HDMI cable.
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
IN
HDMI
Blu-ray Disc
player DVD player TV
Set-top box
Game
console
Connecting an HDMI-compatible device
• When this unit is connected to other devices with HDMI cables, connect this unit and TV also with an
HDMI cable.
• When connecting a device that supports Deep Color transmission, please use a “High Speed HDMI
cable” or “High Speed HDMI cable with Ethernet”.
• Video signals are not output if the input video signals do not match the monitor’s resolution. In this case,
switch the Blu-ray Disc/DVD player’s resolution to a resolution with which the monitor is compatible.
• When this unit and monitor are connected with an HDMI cable, if the monitor is not compatible with
HDMI audio signal playback, only the video signals are output to the monitor.
NOTE
The audio signal from the HDMI output connector (sampling frequency, number of channels, etc.) may be
limited by the HDMI audio specifications of the connected device regarding permissible inputs.
Connecting to a device equipped with a DVI-D connector
When an HDMI/DVI conversion cable (sold separately) is used, the HDMI video signals are converted to
DVI signals, allowing connection to a device equipped with a DVI-D connector.
NOTE
• No sound is output when connected to a device equipped with a DVI-D connector. Make separate audio
connections.
• Signals cannot be output to DVI-D devices that do not support HDCP.
• Depending on the combination of devices, the video signals may not be output.
nSettings related to HDMI connections
Set as necessary. For details, see the respective reference pages.
Input Assign (vpage48)
Set this to change the HDMI input connector to which the input source is assigned.
HDMI Setup (vpage58)
Make settings for HDMI video/audio output.
• Auto Lip Sync
• HDMI Audio Out
• HDMI Control
• Standby Source
• Power Off Control
NOTE
The audio signals output from the HDMI connectors are only the HDMI input signals.
16
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Connecting a TV
• Select the connector to use and connect the device.
• For video connections, see “Converting input video signals for output (Video conversion function)”
(vpage13).
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
To listen to TV audio through this device, use the optical digital connection.
NOTE
This connection is not required when a TV compatible with the ARC function (Audio Return Channel (HDMI
1.4a standard function)) is connected to this unit via an HDMI connection.
For details, see “About ARC (Audio return channel) function” (vpage15) or refer to the instruction manual
for your TV.
Cables used for connections
Video cable (sold separately)
Video cable (Yellow)
Component video
cable
Y
PB
PR
Y
PB
PR
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Optical cable
IN
VIDEO
VIDEO
AUDIO
OPTICAL
OUT
COMPONENT VIDEO
Y PBPR
IN
YPBPR
YPBPR
TV
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
Connecting a Blu-ray Disc player / DVD player
• You can enjoy video and audio from a Blu-ray Disc or DVD.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable (Yellow)
Component
video cable
Y
PB
PR
Y
PB
PR
(Green)
(Blue)
(Red)
Audio cable (sold separately)
Audio cable (White)
(Red) R
L
R
L
Coaxial
digital cable (Black)
R
L
R
L
R
L
R
L
AUDIO
AUDIO
RL
OUT
OUT
COAXIAL
VIDEO
OUT
VIDEO
COMPONENT VIDEO
Y PBPR
OUT
AUDIO
AUDIO
RL
OUT
VIDEO
OUT
VIDEO COMPONENT VIDEO
Y PBPR
OUT
YPBPR
YPBPR
YPBPR
YPBPR
DVD player
Blu-ray Disc player
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
For HD audio (Dolby TrueHD, DTS-HD, Dolby Digital Plus and DTS Express) playback, connect with HDMI
(vpage14 “Connecting an HDMI-compatible device”).
17
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Connecting a set-top box (Satellite tuner/cable TV)
• You can watch satellite or cable TV.
• Select the connector to use and connect the device.
• For instructions on HDMI connections, see “Connecting an HDMI-compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable (Yellow)
Component
video cable
Y
PB
PR
Y
PB
PR
(Green)
(Blue)
(Red)
Audio cables (sold separately)
Audio cable (White)
(Red) R
L
R
L
Coaxial
digital cable (Black)
R
L
R
L
VIDEO AUDIO
AUDIO
RL
OUT
OUT
VIDEO
COMPONENT VIDEO
Y PBPR
OUT OUT
COAXIAL
YPBPR
YPBPR
Satellite Tuner/Cable TV
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
Connecting a video cassette recorder
• You can record video onto a video cassette tape.
• Select the connector to use and connect the device.
Cables used for connections
Video cable (sold separately)
Video cable (Yellow)
Audio cable (sold separately)
Audio cable (White)
(Red) R
L
R
L
RL RL
IN OUT
AUDIOAUDIO VIDEOVIDEO
OUT
AUDIOAUDIO
IN
VIDEO VIDEO
R
L
R
L
R
L
R
L
Video cassette recorder
Set this to change the digital input connector or component video input connector to which the input
source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
NOTE
To record video signals through this unit, use the same type of video cable for connection between this
unit and the player as used for connection between this unit and the recorder.
18
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Connecting a digital camcorder
• You can enjoy video and audio from a digital comcorder.
• You can enjoy games by connecting a game machine via the AUX1 input
connector. In this case, select the input source to “AUX1”.
• For instructions on HDMI connections, see “Connecting an HDMI-
compatible device” (vpage14).
Cables used for connections
Video cable (sold separately)
Video cable (Yellow)
Audio cable (sold separately)
Audio cable (White)
(Red) R
L
R
L
Optical cable
R
L
R
L
OUT
AUDIOVIDEO
VIDEO AUDIO
RL
OUT
OPTICAL
OUT
Digital camcorder
NOTE
When a non-standard video signal from a game machine or some other
source is input, the video conversion function might not operate. In this
case, use the monitor output of the same connector as the input.
Connecting a CD player
• You can enjoy CD sound.
• Select the connector to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable (White)
(Red) R
L
R
L
Optical cable
R
L
R
L
AUDIO
AUDIO
RL
OUT
OPTICAL
OUT
CD player
Set this to change the digital input connector to which the
input source is assigned.
“Input Assign” (vpage48)
in Set as Necessary
Connecting a wireless receiver
(RX101)
By connecting a wireless receiver RX101 (sold separately) to this unit,
you can receive and playback audio signals from other devices using
the Bluetooth Communication Function.
• Use a Bluetooth device that is A2DP compatible (vpage78 “A2DP”).
• You can also use wireless receiver RX101 as an external IR receiver.
• For instructions on the wireless receiver settings, refer to the
RX101’s operating instructions.
Wireless receiver RX101
Bluetooth device
(A2DP Compatibility)
Remote control unit
You can enjoy listening to music by connecting a wireless receiver
via the M-XPort input connector. In this case, set the input source to
“M-XPort”.
NOTE
To use wireless receiver RX101 as external IR receiver, set the remote
sensor function of this unit to “DISABLE” (vpage62 “Remote control
settings”).
19
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Connecting an iPod or USB memory device to the USB Port
You can enjoy music, stored on an iPod or USB memory device.
Cables used for connections
To connect an iPod to this unit, use the USB cable supplied with the iPod.
USB memory
device
iPod
or
Marantz does not guarantee that all USB memory devices will operate or receive power. When using a
portable USB connection type HDD of the kind to which an AC adapter can be connected to supply power,
use the AC adapter.
NOTE
• USB memory devices will not work via a USB hub.
• Do not use an extension cable when connecting a USB memory device. This may cause radio interference
with other devices.
Supported iPod Models
Made for
• iPod touch (2nd generation)
• iPod touch (1st generation)
• iPod classic
• iPod with video
• iPod nano (5th generation)
• iPod nano (4th generation)
• iPod nano (3rd generation)
• iPod nano (2nd generation)
• iPod nano (1st generation)
• iPhone
• iPhone 3G
• iPhone 3GS
20
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Connecting an antenna
Connecting an FM/AM antenna
• Connect the FM antenna or AM loop antenna supplied with the unit to enjoy listening to radio broadcasts.
• After connecting the antenna and receiving a broadcast signal (vpage27 “Listening to FM/AM broadcasts”), fix the antenna with tape in a
position where the noise level becomes minimal.
Direction of broadcasting station
w eq
FM outdoor
antenna
75 Ω Coaxial
cable
Ground
AM outdoor
antenna
AM loop antenna
(supplied)
Black White
FM indoor
antenna
(supplied)
nAM loop antenna assembly
1Put the stand section
through the bottom of
the loop antenna from
the rear and bend it
forward.
Stand
Square
hole
Projecting
part
Loop
antenna
2Insert the projecting part
into the square hole in
the stand.
nUsing the AM loop antenna
Suspending on a wall
Suspend directly on a wall without assembling.
Nail, tack, etc.
Standing alone
Use the procedure shown left to assemble.
NOTE
• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
• Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
• If the signal has noise interference, connect the ground terminal
(GND) to reduce noise.
• If you are unable to receive a good broadcast signal, we recommend
installing an outdoor antenna. For details, inquire at the retail store
where you purchased the unit.
Connecting a SIRIUS connector
• This unit is a SIRIUS Satellite Radio Ready® receiver. You can
receive SIRIUS® Satellite Radio by connecting to the SiriusConnect
Home Tuner and subscribing to the SIRIUS service.
• Plug the SIRIUS connector on the SIRIUS service.
• Position the Home Tuner antenna near a south-facing window to
receive the best signal.
For details, see “Listening to SIRIUS satellite radio” (vpage25).
When making connections, also refer to the operating instructions
of the SiriusConnect Home Tuner.
SiriusConnect Home Tuner
When
connecting
digital audio
When connecting digital of the SiriusConnect Home Tuner,
perform the setting “Digital”.
“Input Assign” (vpage48)
in Set as Necessary
21
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Connect a device that has a
multichannel output terminal
• You can connect this unit to an external device fitted with multi-
channel sound audio output jacks to enjoy music and video.
• The video signal can be connected in the same way as a Blu-ray Disc
player / DVD player (vpage16 “Connecting a Blu-ray Disc player /
DVD player”).
Cables used for connections
Audio cable (sold separately)
Audio cable (White)
(Red) R
L
R
L
Audio cable
R
L
R
L
R
L
R
L
R
L
R
L
SUB-
WOOFER
CENTER SURROUND
BACK
RL
SURROUND
RL
FRONT
RL
AUDIO
Blu-ray Disc player / DVD player /
External decoder
To play analog signals input from 7.1CH INPUT terminals, set
“Input Mode” (vpage50) to “7.1CH INPUT”.
“7.1CH INPUT” can also be selected with A/D on the remote
control unit.
in Set as Necessary
When a device is connected to the SBL/SBR terminal of 7.1CH INPUT
terminals, set “Amp Assign” (vpage56) to “Normal”.
Connecting a external power
amplifier
• You can use this unit as a pre-amp by connecting a commercially
available power amp to the PRE OUT connector. Adding a power amp
to each of the channels provides an even greater sound presence.
• Select the connector to use and connect the device.
Cables used for connections
Audio cable (sold separately)
Audio cable (White)
(Red) R
L
R
L
Audio cable
R
L
R
L
R
L
R
L
R
L
R
L
SUB-
WOOFER
CENTER SURROUND
BACK
RL
SURROUND
RL
FRONT
RL
AUDIO
Power amplifier
• When using just one surround back speaker, connect it to the left
channel (L) terminal.
• Use the volume control on the subwoofer to control subwoofer
volume.
• If the subwoofer volume sounds low, use the volume control
provided on the subwoofer to adjust the volume.
NOTE
• When speakers have been connected to PRE OUT terminals, do not
connect the speakers to the speaker terminals.
• The output channels for the PRE OUT connector change to SBL and
SBR in the “Amp Assign” (vpage56) settings in the menu.
Connecting an antenna
NOTE
Keep the power cord unplugged until the SiriusConnect Home Tuner
connection have been completed.
nPositioning the antenna
For a consistent satellite signal, the antenna must be positioned
correctly. Use the following map to determine which area you are
in and position the antenna accordingly.
q
we
r
t
SOUTH
NORTH
WEST
SKY
EAST
HORIZON
Area 1 Point the antenna toward the sky in the east, northeast, or
southeast, either through a window or outside.
Area 2 Point the antenna toward the sky in the north or northeast,
either through a window or outside.
Area 3 Point the antenna toward the sky in the north or northwest,
either through a window or outside.
Area 4 Point the antenna toward the sky in the west, northwest, or
southwest, either through a window or outside.
Area 5 Put the antenna outside and point it straight up. The antenna
cannot be used indoors.
22
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

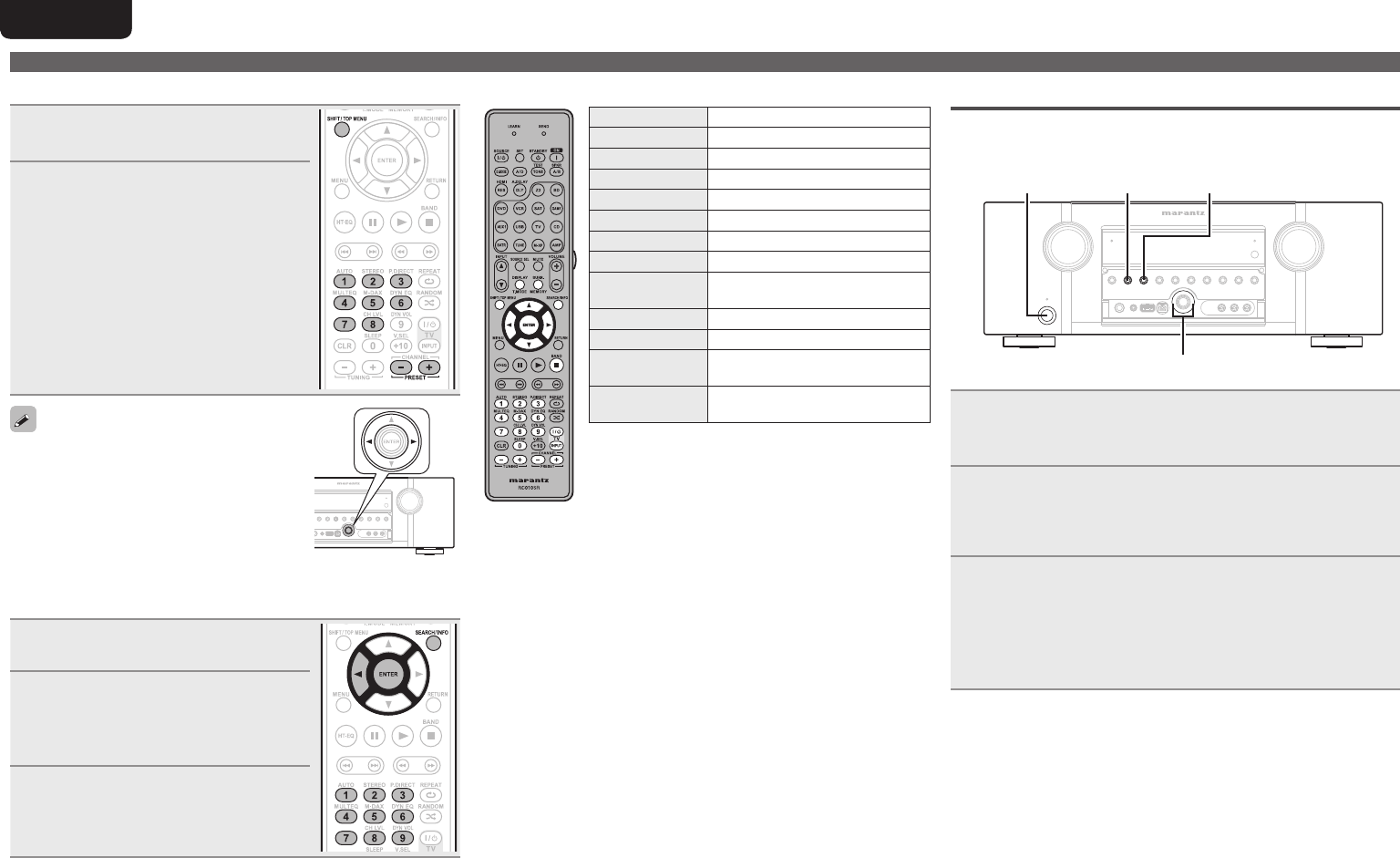

Playback (Basic operation)
nPlaying a Blu-ray Disc player/DVD player
(vpage23)
nPlaying a CD player (vpage23)
nPlaying an iPod® (vpage23)
nPlaying a USB memory device (vpage24)
nTuning in radio stations (vpage25)
Selecting a listening mode (Surround mode)
(vpage29)
nSelecting the input source (vpage22)
nAdjusting the master volume (vpage22)
nTurning off the sound temporarily (vpage22)
Playback (Advanced operation) (vpage39)
Important information
Before starting playback, make the connections between the different
components and the settings on the receiver.
NOTE
Also refer to the operating instructions of the connected components
when playing them.
Selecting the input source
Press the input source select button
(BD, DVD, VCR, SAT, GAME, AUX1,
USB, TV, CD, SATR, TUNE, M-XP)
twice to play back that source.
The desired input source can be selected
directly.
You can also use the following operation to select an input
source.

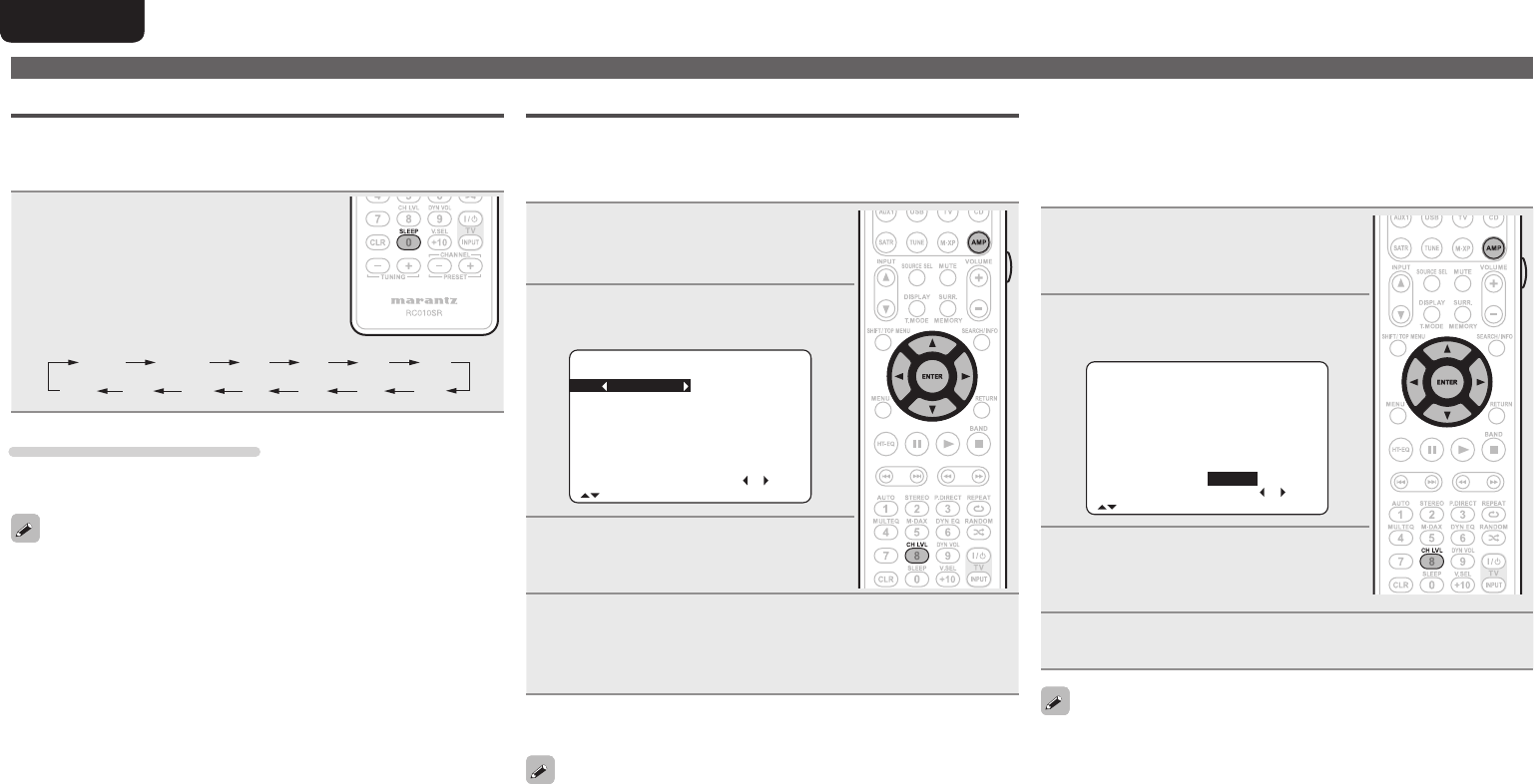

nUsing the “Source Select” menu
q Press AMP and then press SOURCE SEL.
Display the “Source Select” menu.
SAT
DVD
VCR
GAME
AUX1
TV
USB
CD
SIRIUS
TUNER
M-XPort
BD
Source Select
[ENT]:Select
[ ]:Source The currently selected input source
is highlighted.
w Use uio p to select the input source,
then press ENTER.
The input source is set and the source
selection menu is turned off.
• When using with an iPod connected directly to the USB port of this
unit, select “USB” for the input source.
• Input sources that are not going to be used can be set ahead of time.
Make this setting at “Source Delete” (vpage60).
• To turn off the source selection menu without selecting an input
source, press SOURCE SEL again.
nOperating the remote control unit
Press INPUT d f.
• When INPUT d f is pressed, the
input source is switched in the order
shown below.
BD DVD SATVCR GAME
CD TV USBM-XPort TUNER
AUX1
SIRIUS
nOperating the main unit
Turn INPUT SELECTOR.
• Turning INPUT SELECTOR switches the input
source, as shown below.
BD DVD SATVCR GAME
CD TV USBM-XPort TUNER
AUX1
SIRIUS
Adjusting the master volume
Use VOLUME + – to adjust the volume.
nWhen the “Volume Display” setting
(vpage60) is “Relative”
GAdjustable rangeH
– – – –80.5dB – 18.0dB
nWhen the “Volume Display” setting (vpage60) is
“Absolute”
GAdjustable rangeH 0.0 – 99.0
• The adjustable range may vary depending on input signal and
channel level settings.
You can also operate via the main unit.
In this case, perform the following
operations.
Turn VOLUME to adjust the volume.
Turning off the sound temporarily
Press MUTE.
• The sound is reduced to the level set at “Mute Level” (vpage60).
• To cancel, press MUTE again. Muting can also be canceled by
adjusting the master volume.
23
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Playing a Blu-ray Disc player/DVD
player
The following describes the procedure for playing Blu-ray Disc player/
DVD player.
1Prepare for playback.
q Turn on the power of the TV,
subwoofer and player.
w Change the TV input to the input of
this unit.
e Load the disc in the player.
2Press ON to turn on power to
the unit.
3Press BD or DVD twice to switch
the input source for the player
used for playback.
4Play the component connected to this unit.
Make the necessary settings on the player (language setting,
subtitles setting, etc.) beforehand.
Playing a CD player
The following describes the procedure for playing CD player.
1Prepare for playback.
q Turn on the power of the
subwoofer and player.
w Load the disc in the player.
2Press ON to turn on power to
the unit.
3Press CD twice to switch the
input source to the CD player.
4Play the component connected to this unit.
Playing an iPod®
You can play back both video, photo and audio.
Listening to music on an iPod®
1Connect the iPod® to the USB
port (vpage 19 “Connecting an
iPod or USB memory device to
the USB Port”)
2Press ON to turn on power to the
unit.
3Press USB twice to switch the
input source to “USB”.
NOTE
If the connections screen is not displayed,
the iPod may not be properly connected.
Reconnect it.
4Press SEARCH and hold it down for 2 seconds or
more to select the display mode.
• There are two modes for displaying the contents recorded on the
iPod.
Remote mode Display iPod information on the TV screen.
• English letters, numbers and certain
symbols are displayed. Incompatible
characters are displayed as “.”
(period).
• In “Remote mode”, the iPod display is
as shown at right. OK to disconnect.
Direct mode Display iPod information on the iPod screen.
• “Direct iPod” is displayed on the display of this unit.
Display mode Remote mode Direct mode
Playable
files
Music file P P
Video file z
Active
buttons
Remote
control unit
(This unit)
P P
iPod®P
z Only the sound is played.
5Use ui to select the item, then press ENTER or p to
select the le to be played.
6Press ENTER, p or 1.
Playback starts.
• You can specify the duration of the on-screen display to be
displayed (default: 30 sec) at menu “USB” (vpage60). Press
uio p to return to the original screen.
• To play back compressed audio with extended
bass or treble reproduction, we recommend
playback in M-DAX mode (vpage 55). The
default setting is “OFF”.
• In Remote mode, press STATUS during playback
to check the title name, artist name, and album
name.
iPod operation
Operation buttons Function
uio pCursor operation
ENTER Enter
SEARCH
(Press and release) Page search mode
SEARCH
(Press and hold) Direct/Remote mode switching
RETURN Return
6 7
(Press and hold)
Manual search
(fast-reverse/fast-forward)
1Playback / Pause
8 9 Auto search (cue)
3Pause
2Stop
REPEAT Repeat playback
RANDOM Shuffle playback
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
Repeat playback and shuffle playback can also be set from
“Input Setup” – “Playback Mode” (vpage51) in the menu.
NOTE
• Depending on the type of iPod and the software version, some
functions may not operate.
• Note that Marantz will accept no responsibility whatsoever for any
problems arising with the data on an iPod when using this unit in
conjunction with the iPod.
24
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Playing a USB memory device
Playing back music files recorded on a USB memory device.
Important information
nUSB memory devices
A USB memory device can be connected to the USB port of this
unit to play music files stored on the USB memory device.
• Only USB memory devices conforming to mass storage class can
be played on this unit.
• This unit is compatible with USB memory devices in “FAT16” or
“FAT32” format.
GCompatible formatsH
USB memory devices z1
WMA (Windows Media Audio) Pz2
MP3 (MPEG-1 Audio Layer-3) P
MPEG-4 AAC Pz3
WAV P
z1 USB
• This unit is compatible with MP3 ID3-Tag (Ver. 2) standards.
• This unit is compatible with WMA META tags.
z2 Copyright-protected files can not be played.
z3 Only files that are not protected by copyright can be played on
this unit.
Also, files encoded in WMA format when ripped from a CD, etc.
on a computer may be copyright protected, depending on the
computer’s settings.
GCompatible formatsH
Sampling
frequency
Bit rate
or
Bit length
Extension
WMA (Windows
Media Audio) 32/44.1/48 kHz 48 – 192 kbps .wma
MP3 (MPEG-1
Audio Layer-3) 32/44.1/48 kHz 32 – 320 kbps .mp3
MPEG-4 AAC 32/44.1/48 kHz 16 – 320 kbps .m4a
WAV 32/44.1/48 kHz 16 bit .wav
Playing files stored on USB memory
devices
1Connect the USB memory
device to the USB port
(vpage 19 “Connecting an iPod
or USB memory device to the
USB Port”).
2Press USB twice to switch the
input source to “USB”.
3Press ui to select the search
item or folder, then press ENTER
or p.
4Press ui to select the le, then
press ENTER, p or 1.
Playback starts.
• You can specify the duration of the on-screen display to be displayed
(default: 30 sec) at menu “USB” (vpage60). Press uio p to
return to the original screen.
• To play back compressed audio with extended bass or treble
reproduction, we recommend playback in M-DAX mode
(vpage55).
The default setting is “High”.
• If the USB memory device is divided into multiple partitions, only the
top partition can be selected.
• This unit is compatible with MP3 files conforming to “MPEG-1 Audio
Layer-3” standards.
NOTE
• Note that Marantz will accept no responsibility whatsoever for any
problems arising with the data on a USB memory device when using
this unit in conjunction with the USB memory device.
• USB memory devices will not work via a USB hub.
• Marantz does not guarantee that all USB memory devices will
operate or be supplied power. When using a USB portable hard disk
that can draw power from an AC adapter, we recommend using the
AC adapter.
• It is not possible to connect and use a computer via the USB port of
this unit using a USB cable.
nUSB operation
Operation buttons Function
uio pCursor operation
ENTER Enter
SEARCH Page search
RETURN Return
6 7
(Press and hold)
Manual search
(fast-reverse/fast-forward)
1Playback/Pause
8 9 Auto search (cue)
3Pause
2Stop
REPEAT Repeat playback
RANDOM Shuffle playback
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
Repeat playback and shuffle playback can also
be set from “Input Setup” – “Playback Mode”
(vpage51) in the menu.
25
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Tuning in radio stations
Important information
nAbout SIRIUS XM radio
To listen to Satellite Radio, you’ll need to connect either a SIRIUS
or XM Satellite Radio tuner (sold separately) to your satellite-ready
receiver. Satellite Radio is available to residents of the US (except
Alaska and Hawaii) and Canada.
Satellite Radio delivers a variety of commercial-free music from
categories ranging from Pop, Rock, Country, R&B, Dance, Jazz,
Classical and many more plus coverage of all the top professional
and college sports including play by play games from select
leagues and teams. Additional programming includes expert sports
talk, uncensored entertainment, comedy, family programming,
local traffic and weather and news from your most trusted sources.
Whether you purchase a SIRIUS or XM tuner, you’ll need to
activate and subscribe to begin enjoying the service. Easy to follow
installation and setup instructions are provided with the satellite
tuners. Whichever service you choose, there are a variety of
programming packages available, including the option of adding
“The Best of SIRIUS” programming to your XM tuner or “The Best
of XM” programming to your SIRIUS tuner, enabling you to enjoy
the most popular programming among both services. The “Best
of” packages are not available to SIRIUS or XM Canada subscribers
at this time.
Family friendly packages are also available to restrict channels
featuring content that may be inappropriate for children.
To subscribe to XM, U.S. customers should visit xmradio.com
or call 1-800-XMRADIO (1-800-967-2346); Canadian customers
should visit xmradio.ca or call XM Listener Care at 1-877-GETXMSR
(1-877-438- 9677).
To subscribe to SIRIUS, U.S. and Canadian customers can
call 1-888-539-SIRI (1-888-539-7474) or visit sirius.com (US) or
siriuscanada.ca (Canada).
nSIRIUS XM radio legal
SIRIUS, XM and all related marks and logos are trademarks of Sirius
XM Radio Inc. and its subsidiaries. All other marks and logos are the
property of their respective owners. All rights reserved. SIRIUS and
XM subscriptions sold separately. Taxes and a one-time activation
fee may apply. XM tuners and home docks or SIRIUS tuners (each
sold separately) are required to receive the SIRIUS or XM satellite
radio service. All programming and fees subject to change. It is
prohibited to copy, decompile, disassemble, reverse engineer,
hack, manipulate or otherwise make available any technology or
software incorporated in receivers compatible with the SIRIUS or
XM Satellite Radio Systems. Service not available in Alaska and
Hawaii.
Listening to SIRIUS satellite radio
1Press SATR twice to switch the
input source to “SIRIUS”.
2Use TUNING + or TUNING – to
select the channel.
When the channel is tuned in, the
name of the song and artist are
displayed.
• The channel switches continuously when TUNING + or TUNING – is
pressed and held.
• You can specify the duration of the on-screen display to be displayed
(default: 30 sec) at menu “TUNER” (vpage60). Press uio p to
return to the original screen.
• The song title, artist name, composer name,
category and reception level can be checked by
pressing STATUS.
nChecking the SIRIUS signal strength and radio
ID
1Press STATUS until
“SIGNAL” appears on the
display.
The display will switch as shown
below, depending on the reception
conditions.
Display Status
EXCELLENT Signal strength is excellent
GOOD Signal strength is good
WEAK Signal strength is weak
NO SIGNAL No signal
2Adjust the position of the antenna until “SIGNAL:
EXCELLENT” is shown on the display.
3Press STATUS until the channel (example: “SR001”)
is displayed.
4Press TUNING + or TUNING –
and select channel 0 (SR000).
Channel No. and Sirius ID are alternately
shown on the display.
SR000 SiriusID
************
Sirius ID
• Write your own SIRIUS ID for storage use.
Sirius ID :
The strength of both the SIRIUS satellite and terrestrial signals can be
checked “Antenna Aiming” (vpage47).
26
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Tuning in radio stations
nPresetting radio channels (Preset memory)
Your favorite broadcast channels can be preset so that you can
tune them in easily. Up to 56 channels can be preset.
1Tune in the broadcast channel
you want to preset.
2Press MEMORY.
3Press SHIFT to select the block
(A to G) in which to preset the
channel (1 to 8 per block), then
press PRESET +, PRESET – or 1 –
8 to select the preset number.
4Press MEMORY again to complete
the setting.
• To preset other stations, repeat steps 1 to
4.
NOTE
Preset channels are erased by overwriting them.
nListening to preset channels
Press PRESET +, PRESET – to select
the desired preset channel, then press
ENTER.
• Preset channels can also be selected by
pressing SHIFT/TOP MENU (Block) and 1 –
8 (Channel).
nSearching categories
1Press o p.
CATEGORY SEARCH
CAT: Pops
Channel category
2Use o p to select the category, to use ui to select
the desired channel.
Pops SR001
ChannelChannel category
nAccessing SIRIUS satellite radio channels
directly
1Press SEARCH/INFO.
2Press 0 – 9 to input the channel.
Example: Accessing channel “SR123”:
Press 1, 2 and 3.
• If no button is pressed within several
seconds, the channel automatically
switches to the one whose number has
been input.
3Press ENTER to set that channel.
Reception switches to the selected
channel.
• “UPDATING” is displayed while the encording code is being
updated.
• “SIRIUS UPDATING” is displayed when updating SIRIUS tuner
firmware.
• Refer to “Troubleshooting” – “SIRIUS Satellite Radio” (vpage81)
regarding other messages.
nParental Lock
1Tune to the channel you want to
lock.
2Press ENTER for at least 3
seconds.
“Enter Lock Code” is displayed.
3Enter the 4-digit lock code using
uio p or 0 – 9.
When you enter the correct code, the
corresponding channel is locked.
4Press ENTER.
• Channels under Parental Lock cannot be tuned in by performing
channel up/down or by category search.
• Channels stored in preset memory can be tuned in by the preset
channel select operation, even if Parental Lock is applied.
• When a channel to which Parental Lock is applied is being played,
Parental Lock for that channel is cancelled by performing step 2.
• See “Edit Lock Cord” (vpage 47) for the method of changing
Parental Lock Cord.
• You can also set “Parental Lock” (vpage47) from the menu.
27
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Tuning in radio stations
Listening to FM/AM broadcasts
1Press TUNE twice to switch the
input source to “TUNER”.
2Press BAND to select “FM” or
“AM”.
FM When listening to an FM broadcast.
AM When listening to an AM broadcast.
3Tune in the desired broadcast
station.
q To tune in automatically (Auto tuning)
Press T.MODE to light the “AUTO” indicator on the display, then
use TUNING + or TUNING – to select the station you want to
hear.
w To tune in manually (Manual tuning)
Press T.MODE to turn off the display’s “AUTO” indicator, then use
TUNING
+
or TUNING – to select the station you want to hear.
• If the desired station cannot be tuned in with auto tuning, tune it in
manually.
• When tuning in stations manually, press and hold TUNING + or
TUNING – to change frequencies continuously.
• You can specify the duration of the on-screen display to be displayed
(default: 30 sec) at menu “TUNER” (vpage60). Press uio p to
return to the original screen.
nPresetting radio stations (Manual preset)
Your favorite broadcast stations can be preset so that you can tune
them in easily. Up to 56 stations can be preset.
• Stations can be preset automatically at “Auto Preset”
(vpage47). If “Auto Preset” is performed after performing
“Manual Preset”, the “Manual Preset” settings will be overwritten.
1Tune in the broadcast station you
want to preset.
2Press MEMORY.
3Press SHIFT/TOP MENU to select
the block (A to G) in which to
preset the channel (1 to 8 per
block), then press PRESET +,
PRESET – or 1 – 8 to select the
preset number.
4Press MEMORY again to complete
the setting.
• To preset other stations, repeat steps 1 to 4.
Default settings
Block (A – G)
and
Channel (1 – 8)
Default Settings
A1 – A8 87.5 / 89.1 / 98.1 / 107.9 / 90.1 / 90.1 / 90.1 /
90.1 MHz
B1 – B8 520 / 600 / 1000 / 1400 / 1710 kHz,
90.1 / 90.1 / 90.1 MHz
C1 – C8 90.1 MHz
D1 – D8 90.1 MHz
E1 – E8 90.1 MHz
F1 – F8 90.1 MHz
G1 – G8 90.1 MHz
Specify a name for the preset broadcast station
(Preset Name) (vpage48)
nSIRIUS operation
Operation buttons Function
PRESET +, – Preset channel selection
uio pCursor operation / Category search
ENTER
(Press and hold) To parental lock password check screen
SEARCH Direct search
RETURN Return
TUNING +, – Channel selection
0 – 9 Preset channel selection (1 – 8) /
Channel direct call
SHIFT Preset channel block selection
MEMORY Preset memory registration
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
28
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
nListening to preset stations
1Press SHIFT/TOP MENU to select
the memory block (A to G).
2Press PRESET +, PRESET – or
1 – 8 to select the desired preset
channel.
You can also operate via the main unit. In this
case, perform the following operations.
Press o p to select the preset radio station.
nDirect frequency tuning
You can enter the receiving frequency directly to tune in.
1Press SEARCH/INFO.
2Input frequencies using the 0 – 9.
• If o is pressed, the immediately preceding
input is cancelled.
3When setting is completed, press
ENTER.
The preset frequency is tuned in.
nTuner (FM/AM) operation
Operation buttons Function
PRESET +, – Preset channel selection
uio pCursor operation
ENTER Enter
SEARCH Direct frequency tuning
BAND FM/AM switching
T.MODE Switch search modes
TUNING +, – Tuning (up/down)
0 – 9 Preset channel selection (1 – 8) /
Direct frequency tuning (0 – 9)
SHIFT Preset channel block selection
MEMORY Preset memory registration
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
Tuning in radio stations
Switching the tuning increment
The tuning increment factory settings are 9kHz for AM, and 0.05
MHz for FM.
o p
DISPLAYAUTOON/STANDBY
1While pressing down AUTO and DISPLAY, press ON/
STANDBY to turn on the power.
“Step 0 AM9/FM50 1” appears on the display.
2Press o p.
“Step 0 AM10/FM200 1” appears on the display, and the
tuning increment is switched to AM and FM are 10 kHz and
0.2 MHz.
3Press ON/STANDBY.
• The tuner preset memory will be cleared if this operation is
performed.
• This setting will not revert to the default values even when the
microprocessor is reset.
29
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Multi-channel playback
nSurround playback of 2-channel sources
1
Playing the source (vpage 23 – 27).
2Press SURR. to select the surround
decoder to play back multichannel
sound.
• Each time SURR. is pressed, the surround mode is switched.
Which decoder can be selected depends on the settings of “Amp
Assign” (vpage56) or “Speaker Config.” (vpage56).
DOLBY PLgz z1This mode is for 7.1-channel surround playback using
the front height speakers.
• “PLgz Height” is displayed.
DOLBY PLgx z2This mode is for 7.1-channel or 6.1-channel surround
playback using the surround back speakers.
• “PLgx Movie”, “PLgx Music”or “PLgx Game” is
displayed.
DOLBY PLgThis mode is for 5.1-channel surround playback. Select
this mode if no front height speaker nor surround back
speaker is to be used.
• “PLg Movie”, “PLg Music”or “PLg Game” is
displayed.
DTS NEO:6 This mode is for 7.1-channel, 6.1-channel or
5.1-channel surround playback using the surround
back speakers.
• “DTS NEO:6 Cinema” or “DTS NEO:6 Music” is
displayed.
MULTI CH
STEREO
This mode is for enjoying stereo sound from all
speakers.
NEURAL z3This mode is for 7.1-channel, 6.1-channel or
5.1-channel surround playback using the surround
back speakers.
• “NEURAL” is displayed.
z1 This can be selected when the “Amp Assign” (vpage56) setting
in the menu is set to “Normal”, and the “Front Speaker Setup”
setting (vpage58) is set to “A”.
This cannot be selected when the “Speaker Config.” – “Front
Height” is set to “None”.
z2 This can be selected when “Amp Assign” is set to “Normal” or
“Speaker Config.” – “S.Back” is not set to “None”.
z3 This mode supports analog 2-channel audio, and linear PCM 2
channel (44.1 kHz, 48 kHz) audio.
Selecting a listening mode (Surround mode)
This unit can play input audio signals in multi-channel surround mode or in stereo mode.
Select a listening mode suitable for the playback contents (cinema, music, etc.) or according to your liking.
Listening mode
Input audio signal Playback Listening mode
2-channel
Multi channel
Surround Multi-channel playback
(vpage29)
For 2-channel signal input:
• Surround-channel signals are created and played with surround
playback.
For multichannel signal input:
• The surround signal recorded in source is played as surround
playback. (The sound is played according to the settings of the
speaker size in “Speaker Config.” (vpage56).)
• Surround-back-channel or front-height-channel signals that are not
recorded in source can be created.
2-channel
Multi channel
Stereo Stereo playback
(vpage31)
• If multichannel signals are input, they are mixed down to 2-channel
audio and are played.
• Subwoofer signal is also output.
2-channel
Multi channel
Stereo
Surround
Direct playback
(vpage31)
Sound recorded in source is played as is.
• Surround back signals or front height signals are not created.
• In this mode, the following items cannot be adjusted.
• Tone (vpage53) • MultEQ® (vpage53)
• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage54)
• M-DAX (vpage55)
2-channel
Multi channel
Virtual
Surround
Dolby Virtual Speaker/
Dolby Headphone
playback (vpage31)
Virtual Surround processing is performed on 2-channel or
multichannel input signals that are played back.
• Some listening modes cannot be selected, depending on the audio format or number of channels of the input
signal. For details, see “Types of input signals, and corresponding surround modes” (vpage76).
• Adjust the sound field effect with the menu “Surround Parameter” (vpage52) to enjoy your favorite sound mode.
• You can select the listening mode by pressing SURROUND MODE on the main unit.
Press SURROUND MODE and the modes are switched as shown below.
DOLBY VIRTUAL
DOLBY PLg(x) Music
NEURAL
DOLBY PLg(x) Game
AUTO*(STEREO) STEREO DOLBY PLgz DOLBY PLg(x) Movie
MULTI CH STEREO DTS NEO:6 cinema
DTS NEO:6 music
zFor “AUTO”, press AUTO on the amplifier or remote control.
30
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
nSurround playback of multi-channel sources
(Dolby Digital, DTS etc.)
1
Playing the source (vpage 23 –
27).
2Press SURR. to select the
surround decoder to play back
multichannel sound.
Select the surround mode while viewing the display on the
screen (v“Displaying the currently playing surround mode”
at right).
• Which decoder can be selected depends on the input signal,
the settings of “Amp Assign” (vpage56) or “Speaker Config.”
(vpage56).
Displaying the currently playing surround mode
Input signal Surround mode Display
DOLBY DIGITAL
(2ch) NEURAL NEURAL
DOLBY DIGITAL
(other than 2ch) /
DOLBY DIGITAL EX
DOLBY DIGITAL DOLBY DIGITAL
DOLBY DIGITAL EX DOLBY DIGITAL EX
DOLBY DIGITAL + PLgx Movie D+ PL x Movie
DOLBY DIGITAL + PLgx Music D+ PL x Music
DOLBY DIGITAL + PLgzDOLBY D PL z
DOLBY DIGITAL Plus
DOLBY DIGITAL Plus DOLBY DIGITAL +
DOLBY DIGITAL Plus + EX DOLBY D + EX
DOLBY DIGITAL Plus + PLgx
Movie D + + PL x Mv
DOLBY DIGITAL Plus + PLgx
Music D + + PL x Ms
DOLBY DIGITAL Plus
+ PLgzDOLBY D + PL z
DOLBY TrueHD
DOLBY TrueHD DOLBY TrueHD
DOLBY TrueHD + EX DOLBY HD EX
DOLBY TrueHD + PLgx Movie HD +PL x Mv
DOLBY TrueHD + PLgx Music HD +PL x Ms
DOLBY TrueHD + PLgzDOLBY HD PL z
DTS (5.1ch) /
DTS-ES Discrete 6.1 /
DTS-ES Matrix 6.1 /
DTS 96/24
DTS SURROUND DTS SURROUND
DTS + PLgx Movie DTS PL x Mv
DTS + PLgx Music DTS PL x Ms
DTS + PLgzDTS PL z
DTS + NEO:6 DTS NEO:6
DTS ES MTRX6.1z1DTS ES MTRX6.1
DTS ES DSCRT6.1z2DTS ES DSCRT6.1
DTS 96/24z3DTS 96/24
DTS-HD
DTS-HD HI RES DTS-HD HI RES
DTS-HD MSTR DTS-HD MSTR
DTS-HD + NEO:6 DTS-HD NEO:6
DTS-HD + PLgx Movie DTS-HD PL x Mv
DTS-HD + PLgx Music DTS-HD PL x Ms
DTS-HD + PLgzDTS-HD PL z
DTS Express DTS Express
PCM (multi ch)
MULTI CH IN MULTI CH IN
MULTI IN + Dolby EX MULTI Dolby EX
MULTI IN + PLgx Movie MULTI IN PL x Mv
MULTI IN + PLgx Music MULTI IN PL x Ms
MULTI IN + PLgzMULTI IN PL z
MULTI CH IN 7.1 MULTI CH IN 7.1
All Input signal Dolby VIRTUAL SPEAKER DOLBY VS
z1 This is displayed when the input signal is “DTS-ES Matrix 6.1”.
z2 This is displayed when the input signal is “DTS-ES Discrete 6.1”.
z3 This is displayed when the input signal is “DTS 96/24”.
Multi-channel playback
GViews on the displayH
q w
q Shows a decoder to be used.
• A DOLBY DIGITAL Plus decoder is displayed
as “DOLBY D +”.
w Shows a decoder that creates sound output
from the surround back speakers.
• “+ PLgz” indicates the front height sound
from front height speakers.
For an input signal that can be reproduced in
each surround mode, see “Surround modes and
surround parameters” (vpage74).
31
Advanced versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Basic version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Stereo playback
This is the mode for playing in stereo. The tone can be adjusted.
• Sound is output from the front left and right speakers and subwoofer.
• If multichannel signals are input, they are mixed down to 2-channel
audio and are played.
1
Playing the source (vpage 23 –
27).
2Press STEREO.
Stereo playback begins.
Direct playback
Sound recorded in source is played as is.
• Surround back signals or front height signals are not created.
• In this mode, the following items cannot be adjusted.
• Tone (vpage53) • MultEQ® (vpage53)
• Dynamic EQ® (vpage54) • Dynamic Volume® (vpage54)
• M-DAX (vpage55)
1
Playing the source (vpage 23
– 27).
2Press P.DIRECT to select the
direct mode.
• If PURE DIRECT on the main unit is
pressed, the same function as with the
remote control unit can be obtained.
• Each time P.DIRECT is pressed, the direct mode is switched.
Source Direct This mode plays back tracks at high sound
quality without passing through the sound quality
adjustment circuits.
Pure Direct zThis mode plays back tracks at the closest to the
original sound quality.
Auto This mode detects the type of input digital signal,
and automatically selects the corresponding mode
for playback.
zThe following circuits that affect sound quality are set to off.
• Main unit’s display circuit (The display is turned off.)
• Analog video input/output circuit
• To cancel, press P. DIRECT again.
• Video signals are only output when HDMI signals are played in the
PURE DIRECT mode.
NOTE
When in the PURE DIRECT mode, the menu screen is not displayed.
Dolby Virtual Speaker/Dolby
Headphone playback
Dolby Virtual Speaker mode
This delivers a full surround sound experience from two stereo
speakers.
• Sound is output from the front left and right speakers.
• If multichannel signals are input, they are mixed down to 2-channnel
audio.
1
Playing the source (vpage 23 –
27).
2Press SURR. to select “DOLBY
VS”.
Dolby Headphone mode
You can enjoy listening to multi-channel surround sound through
headphones using this mode.
Press SURR. to select the Dolby
Headphone mode.
• Each time SURR. is pressed, the Dolby Headphone mode is
switched.
DOLBY
HEADPHONE
This is the surround mode for listening with
headphones.
The surround sound field is played through regular
headphones.
DOLBY HP
BYPASS
The sound is played in the normal stereo mode
rather than the surround mode when listening with
headphones.
DOLBY HP
PLg Movie This mode is best suited for movie sources.
DOLBY HP
PLg Music This mode is best suited for music sources.
NOTE
• The surround mode returns to the previous setting as soon as the
plug is removed from the jack.
• In headphone mode, Tone Control is not available.
• You can select Dolby HP PLⅡ Movie or Dolby HP PLⅡ Music
when a 2-channel source is played back.
Advanced
version
32
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
F Speaker installation/connection (Other than 7.1-channel system with surround
back speakers) vpage33
F Connections (Advanced connection) vpage38
F Playback (Advanced operation) vpage39
F How to make detailed settings vpage43
F Other settings vpage62
F Operating the connected devices by remote control unit vpage63
Advanced version
Here, we explain functions and operations that let you make better use of this unit.
33
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
When 5.1ch installed
FL FR
C
SL SR
SW
z1
z2
Listening
position
z1 22˚ – 30˚ z2 120˚
When 2.1ch installed
FR
SW
FL
Listening position
FL Front speaker (L) SB Surround back speaker
FR Front speaker (R) FHL Front height speaker (L)
CCenter speaker FHR Front height speaker (R)
SW Subwoofer
SL Surround speaker (L)
SR Surround speaker (R)
Procedure for speaker settings
Install
Connect (vpage34)
Set up speakers (vpage37)
Install
This unit is compatible with Dolby Pro Logic gz (vpage78),
which offers an even wider and deeper surround sensation.
When using Dolby Pro Logic gz, install front height speakers.
Install the surround back speakers in a position 2 to 3 ft (60 to 90 cm)
higher than ear level.
z
Surround
speaker
2 – 3 ft /
60 – 90 cm
GViewed from the sideH
Front height
speaker
• Point slightly
downwards
At least
3.3 ft / 1 m
Surround back
speaker
• Point slightly
downwards
Front
speaker
z Recommended for Dolby Pro Logic gz
NOTE
It is not possible to use the surround back speakers and front height
speakers simultaneously.
When 7.1ch (Front height speaker) installed
FL FR
FHRFHL
C
SL SR
SW
z1
z2
z3
Listening position
z1 22˚ – 30˚ z2 22˚ – 45˚ z3 90˚ – 110˚
When 6.1ch (Surround back speaker) installed
FL FR
C
SB
SL SR
SW
z1
z2
Listening position
z1 22˚ – 30˚ z2 90˚ – 110˚
Speaker installation/connection (Other than 7.1-channel system with surround back speakers)
This section explains a wide range of speaker installation/connection/setting procedures.
For details on installing/connecting/setting 7.1 channel audio that uses surround back speakers, see “Simple version (Simple setup guide)” (vpage3).
Use the Audyssey® Auto Setup function of this unit to automatically detect the number of connected speakers and perform optimal settings for the speakers to
be used.
34
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
6.1-channel (Surround back speaker) connection
If a single surround back speaker is to be used (with a 6.1-channel connection), connect it to the “L”
terminals of the SURR. BACK/AMP ASSIGN terminal.
For speaker settings in this case, see “When 6.1ch (Surround back speaker) installed” (vpage33).
For 6.1-channel (Surround back speaker) playback, set “Amp Assign” in “Set up speakers” (vpage37) to
“Normal”.
FL FR
C
SB
SL SR
SW
Connect
• For the method of connecting the 7.1-channel system with surround back speakers, see page 4.
• For the method of connecting the TV, see page 5.
7.1-channel (Front height speaker) connection
For 7.1-channel (Front height speaker) playback, set “Amp Assign” in “Set up speakers” (vpage37) to
“Normal”.
FL FR
FHRFHL
C
SW
SL SR
For speaker impedance and speaker cable connections, see page 4.
35
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

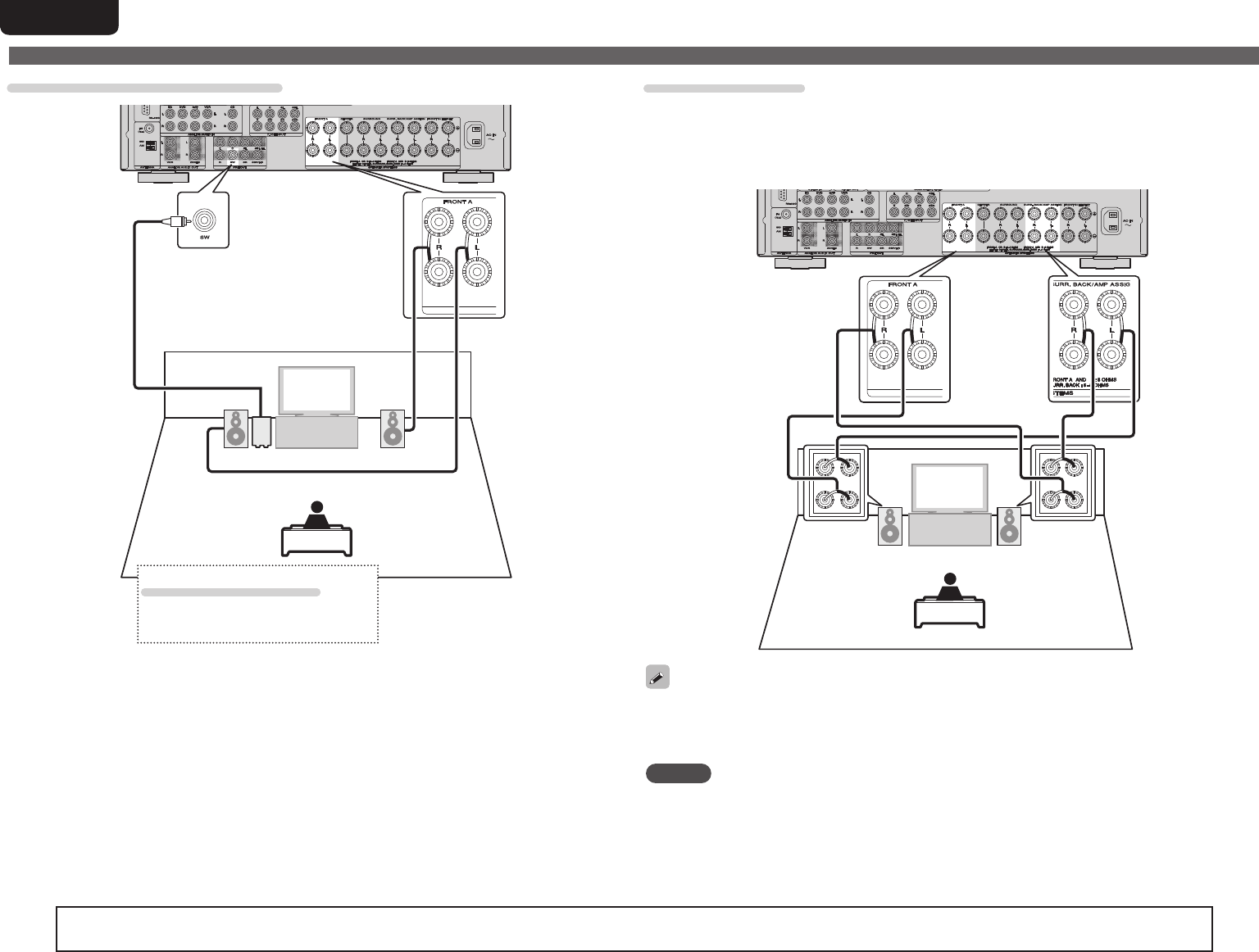

Connect
Front A/B connection
The second set of front speakers can be connected to the FRONT B/HEIGHT terminals.
In this case, set “Front Speaker Setup” (vpage58) of “Speaker Setup” to “B” or “A+B”.
FL(A)FL(B) FR(B)FR(A)
SW
For surround playback of a multichannel source, if you connect the center speaker, surround speakers,
surround back speakers and subwoofers, 7.1-channel playback is available.
Front speakers can be used separately, depending on the speaker’s specifications or playback source such
as front speakers (A) for multichannel playback and front speakers (B) for 2-channel playback (vpage58
“Front Speaker Setup”).
NOTE
When using speakers A and B at the same time, check the impedance of the connected speakers
(vpage4).
For speaker impedance and speaker cable connections, see page 4.
5.1-channel connection
For 5.1-channel playback, set “Amp Assign” in “Set up speakers” (vpage37) to “Normal”.
FL FR
C
SW
SL SR
36
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Connect
2.1-channel/2-channel connection
FL FR
SW
2-channel connection
For 2-channel playback, disconnect the
subwoofers.
Bi-amp connection
A bi-amp connection is to connect separate amplifiers to the tweeter terminals and woofer terminals
of speakers compatible with the bi-amp function. This prevents the back electromotive force (returned
force without output) of the woofer sent to the tweeter, which affects the sound quality of the tweeter,
and you can enjoy playback with higher-quality sound.
In this case, set “Amp Assign” of “Set up speakers” (vpage37) to “SPKR-C”.
FL FR
wq wq
(R) (L)
When making a bi-amp connection, the same signal is output from the FRONT A terminal and the SURR.
BACK/AMP ASSIGN terminal.
For surround playback of a multichannel source, if you connect the center speaker, surround speakers
and subwoofers, 5.1-channel playback is available.
NOTE
• Use speakers compatible with bi-amp connections.
• When making bi-amp connections, be sure to remove the short-circuiting plate or wire between the
speaker’s woofer and tweeter terminals.
For speaker impedance and speaker cable connections, see page 4.
37
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
1Set up
the remote control unit
nSet up the operation mode
Press AMP to set the remote control
unit to amplier operation mode.
Press AMP
2Connect the setup microphone.
3-1.Audyssey Auto Setup
MultEQ
at ear height at
Amp Assign: Normal
Front Sp. : A
F.Height : Measure
Start
Cancel
[ENT]:Select [RTN]:Back
Please place microphone
main listening position.
When the setup microphone is
connected, the following screen is
displayed.
3Set up “Amp Assign”
Use ui to select “Amp Assign”.
3-1.Audyssey Auto Setup
MultEQ
at ear height at
Start
Cancel
[RTN]:Back
Please place microphone
main listening position.
Front Sp. : A
F.Height : Measure
Amp Assign: Normal
4Use o p to select the conguration
of the connected speakers.
Normal Set when using 7.1-channel
(Front/Center/Surround/Surround
Back or Front height/Subwoofer)
speakers.
ZONE2 Set for connecting the speakers
for ZONE2 to the SURR. BACK/
AMP ASSIGN terminals.
SPKR-C Set for connecting a tweeter of
a front speaker to the SURR.
BACK/AMP ASSIGN terminals
and a woofer of the front speaker
to the FRONT A terminals.
5Set up “F. Height”
Press u to select “F. Height”.
Measure Set to measure the front height
speakers.
Skip Set not to measure the front
height speakers.
Set up speakers around items indicate the settings.
This section provides the setup methods of speaker systems other than the 7.1-channel system (with surround back speakers).
For the setup methods of the 7.1-channel system with surround back speakers, see “Set up speakers (Audyssey® Auto Setup)” (vpage6) of “Simple
version”.
First install and connect the speakers to this unit.
6Set up “Front.Sp.”
Use ui to select “Front Sp.” and
then press o p to select a speaker.
ASelect this to use front speaker A.
BSelect this to use front speaker B.
A+B Select this to use front speakers A and B
simultaneously.
NOTE
If “Mesure” is selected in step 5, select “A”. If
“B” is selected, the “F.Height” measurement
cannot be performed.
7Proceed to page 8
“Preparation ” step 5.
NOTE
After performing Audyssey Auto Setup, do not
change the speaker connections or subwoofer
volume. In event of a change, perform Audyssey
Auto Setup again.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
38
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
REMOTE CONTROL jacks
When you use this unit connected to Marantz audio components, it sends operation
signals to operate each component.
nConnection
Use the remote connection cable (supplied with a Marantz audio component you
want to connect) to connect the REMOTE CONTROL OUT terminal of this unit to the
REMOTE CONTROL IN terminal of the component to be connected.
nSetting
Set the remote control switch located on the rear panel of the connected audio
component to “EXTERNAL” or “EXT.” to use this feature.
• This setting will disable remote sensor reception of the connected audio component.
• To operate the connected audio component, point the remote control at the remote
sensor of this unit.
EXTERNAL INTERNAL EXTERNAL INTERNAL EXTERNAL INTERNAL
REMOTE
CONTROL
OUTIN
REMOTE
CONTROL
OUTIN
REMOTE
CONTROL
OUTIN
CD Recorder CD PlayerDVD Player
Remote control unit
Wireless receiver
RX101 (vpage18)
NOTE
To use wireless receiver RX101 as external IR receiver, set the remote sensor function
of this unit to “DISABLE” (vpage62 “Remote control settings”).
RS-232C connector
By connecting an external serial controller, you can control all
sorts of household electrical devices (including lights, electric
curtains, and air conditioning units) in addition to your audio
and video devices.
External serial controller
DC OUT (TRIGGER OUT) jacks
When a device with DC IN jack is connected, the connected
device’s power on/standby can be controlled through linked
operation to this unit.
The DC OUT (TRIGGER OUT) jack outputs a maximum 12
V/150 mA electrical signal.
12 V/150 mA trigger-compatible device
Set to change the conditions for linked operation via the
DC OUT (TRIGGER OUT) jack.
“DC Trigger” (vpage61)
in Set as Necessary
NOTE
If the permissible trigger input level for the connected device
is larger than 12V/150mA, or has shorted, the DC OUT
(TRIGGER OUT) jack cannot be used.
In this case, turn off the power to the unit, and disconnect it.
Connections (Advanced connection)
39
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
nHDMI control function (vpage39)
nSleep timer function (vpage40)
nAdjusting the volume of the speakers (vpage40)
nPanel lock function (vpage41)
Playback (Basic operation) (vpage22)
Selecting a listening mode (Surround mode)
(vpage29)
Playback (Advanced operation)
Convenient functions
HDMI control function
When you make an HDMI connection with a TV or player compatible
with this unit and HDMI control functions, you can perform the
following operations by setting the HDMI control function of each
device.
nThis unit power off can be linked to the TV power off
step.
nYou can switch audio output devices with a TV
operation.
When you set “Output audio from amp” in the TV audio output
setup operation, you can switch the amp power on.
nYou can adjust this unit volume in the TV volume
adjustment operation.
nYou can switch this unit input sources through
linkage to TV input switching.
nWhen playing the player, this unit input source
switches to the source for that player.
NOTE
• When “HDMI Control” is set to “ON”, it consumes more
standby power.
• The HDMI control function controls operations of a TV that is
compatible with the HDMI control function. Make sure that the TV
and HDMI are connected when you perform HDMI control.
• Some functions may not operate depending on the connected TV
or player. Check the owner’s manual of each device for details
beforehand.
• When “Power Off Control” on the menu is set to “OFF” (vpage59),
this unit is not set to standby even if the connected device is in the
standby mode.
• When connection changes are implemented, such as adding
connections to HDMI devices, linked operations may be initialized.
In this case, you will need to reconfigure the settings.
• When “HDMI Control” is set to “ON”, it is not possible to assign an
HDMI connector to “TV” at “Input Assign” (vpage48).
1Enable the HDMI control function of this unit.
Set “HDMI Control” (vpage58) to “ON“.
2Turn the power on for all the equipment connected
by HDMI cable.
3Set the HDMI control function for all equipment
connected by HDMI cable.
• Please consult the operating instructions for the connected
equipment to check the settings.
• Carry out steps 1 and 2 should any of the equipment be unplugged.
4Switch the television input to the HDMI input
connected to this unit.
5Switch this unit input to the HDMI input source and
check if the picture from the player is ok.
6When you turn the TV’s power to standby, check
that the power of this unit also goes to standby.
If the HDMI control function does not operate properly, check the
following points.
• Is the TV or player compatible with the HDMI control function?
• Is “HDMI Control” (vpage58) set to “ON”?
• Is “Power Off Control” (vpage59) set to “All” or “Video”?
• Are the HDMI control function settings of all equipment correct?
NOTE
Should any of the operations below be performed, the interlocking
function may be reset, in which case, repeat steps 2 and 3.
• “Input Assign” – “HDMI” (vpage48) setting has changed.
• There is a change to the connection between the equipment and the
HDMI, or an increase in equipment.
40
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Convenient functions
Sleep timer function
The power automatically goes into standby once the set time has
elapsed.
This is convenient for playing sources while going to sleep.
Press SLEEP and display the time you
want to set.
The “SLEEP” indicator on the display lights.
• The time switches as shown below each
time SLEEP is pressed.
OFF 10 min 20 30 40 50
6080 7090100
110
120
To cancel the sleep timer
Press SLEEP to set “OFF”.
The “SLEEP” indicator on the display turns off.
The sleep timer setting is canceled if this unit’s power is set to standby
or turned off.
Adjusting the volume of the speakers
You can adjust the channel level either according to the playback
sources or to your taste, as described below.
nAdjusting the volume of the different speakers
1Press AMP to set the remote
control unit to amplier
operation mode.
2Press CH LVL.
Channel Level
C 0.0dB SBR 0.0dB
FL 0.0dB SR 0.0dB
[ ]:CH Sel.
FR 0.0dB SBL 0.0dB
SW 0.0dB SL 0.0dB
Fader
FRONT : REAR
3Use ui to select the speaker.
The speaker that can be set switches
each time one of the buttons is pressed.
4Use o p to adjust the volume.
• In the case of a subwoofer, pressing o when it is at “–12 dB” will
change the setting to “OFF”.
When a headphone jack is inserted, the headphone channel level can
be adjusted.
nAdjusting the volume of groups of speakers
(Fader function)
This function lets you adjust (fade) the sound all at once from the front
(front speaker / front height speaker / center speaker) or rear (surround
speaker / surround back speaker).
1Press AMP to set the remote
control unit to amplier
operation mode.
2Press CH LVL.
Channel Level
C 0.0dB SBR 0.0dB
FL 0.0dB SR 0.0dB
[ ]:CH Sel.
FR 0.0dB SBL 0.0dB
SW 0.0dB SL 0.0dB
Fader
FRONT : REAR
3Use i to select “Fader”, then
select the item to be adjusting
using o p.
4Use o p to adjust the volume of the speakers.
(o : front, p: rear)
• The fader function does not affect the subwoofer.
• The fader can be adjusted until the volume of the speaker is adjusted
to the lowest value of –12 dB.
41
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Playback in ZONE2 (Separate room)
• You can operate this unit so as to enjoy audio in a room (ZONE2)
other than the MAIN ZONE (room where the unit is located).
• You can simultaneously play back the same source in both the MAIN
ZONE and ZONE2. You can also play back separate sources in the
MAIN ZONE and ZONE2.
• There are two methods to do this, as described below. Choose one
of the methods.
q ZONE2 playback by speaker output
w ZONE2 playback by audio output (PRE OUT)
(using an external amplifier)
q ZONE2 playback by speaker
output
The ZONE2 audio signals are output from this unit’s SURR.BACK/AMP
ASSIGN speaker terminals using the amplifier assignment function.
Connecting and setting the speakers
“Amp Assign” setting
(vpage 56) and audio
signals output
Connecting the speakers
ZONE2
Output signal :
Stereo (L / R)
MAIN ZONE
ZONE2
This unit
w ZONE2 playback by audio output
The audio signals connected to this unit’s ZONE2 output terminals
(ZONE2 OUT) are output to the ZONE2’s amplifier and played with
that amplifier.
Connection (ZONE2)
RL
AUX
IN
R
L
This unit
MAIN ZONE
ZONE2
• We recommend using high quality pin-plug cables for audio
connections in order to prevent noise.
• Also be sure to read the operating instructions of the connected
devices.
NOTE
It is not possible to play the digital audio signals input from the
HDMI, COAXIAL or OPTICAL terminals in ZONE2. Play using analog
connections (in stereo).
Convenient functions

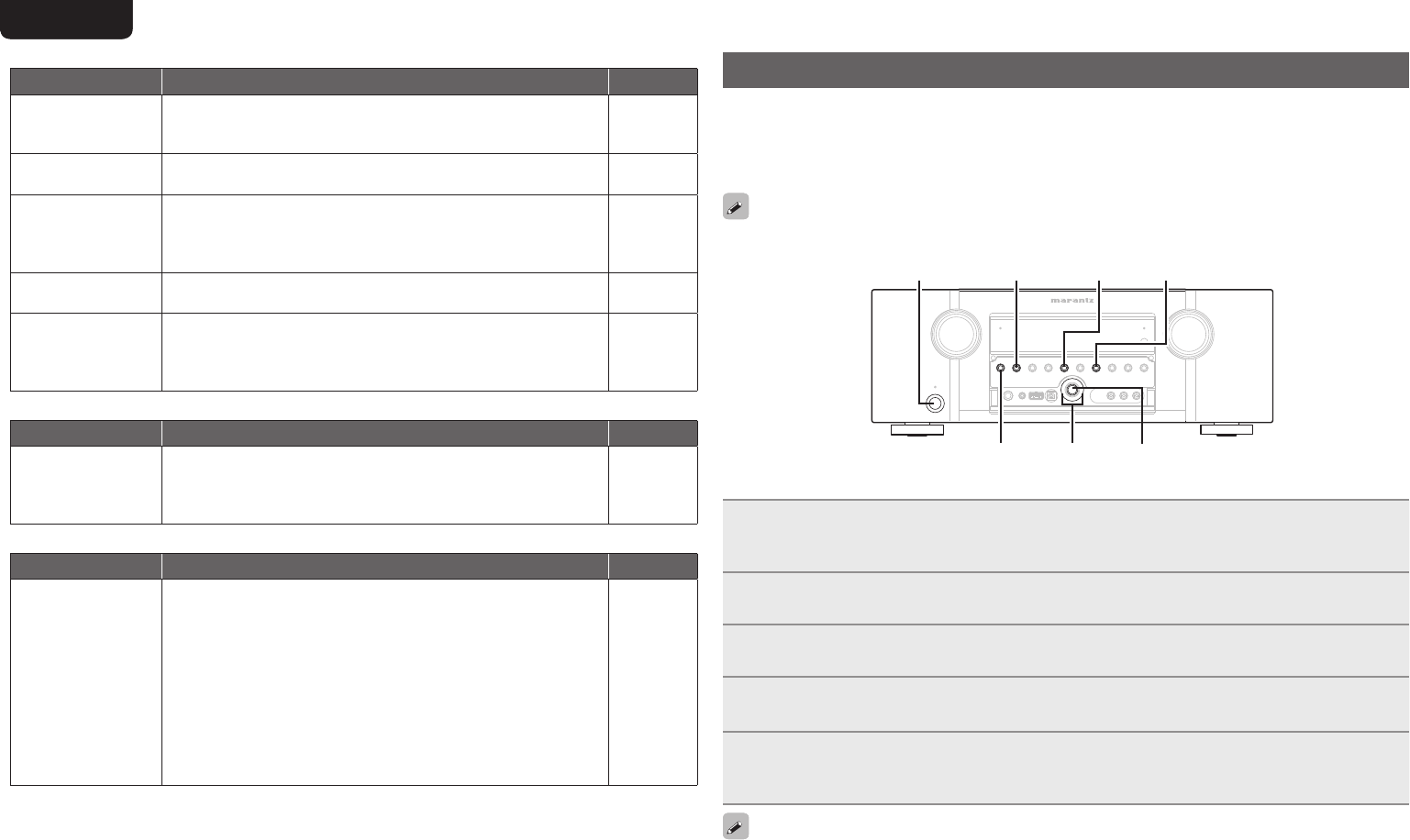

Panel lock function
To prevent accidental operation of this unit, you can disable operation
of the buttons on the front panel.
p
RETURN
ENTER
AUTO VOLUMEON/STANDBY
nDisabling all key button operations
Press ON/STANDBY while you press and hold AUTO and
ENTER with the unit in standby mode.
“Panel Lock:ON” appears on the display and all button operations
except ON/STANDBY are disabled.
nDisabling all button operations except VOLUME
Press ON/STANDBY while you press and hold AUTO and
p with the unit in standby mode.
“Panel Lock:ON” appears on the display and all button operations
except ON/STANDBY and VOLUME are disabled.
nCanceling the Panel lock function
Press ON/STANDBY while you press and hold AUTO and
RETURN with the unit in standby mode.
The Panel lock function is canceled.
Even when the Panel lock function is set, you can operate the unit
using the remote control unit.
42
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Playback
1Press Z2 to switch the remote
control operating mode.
The remote control unit switches to the
operating mode for ZONE2.
2Press ON to turn on the ZONE2
power.
The indicator on the display lights.
• When STANDBY is pressed, ZONE2 turns
off.
• Power in ZONE2 can be turned on or off by
pressing ZONE2 ON/OFF on the main unit.
3Press INPUT df.
The audio signal of the selected source
is output to ZONE2.
• Turn INPUT SELECTOR after
pressing ZONE SELECT on the
main unit to select an input
source.
When power for both MAIN ZONE and ZONE2 is set to ON, power of
the MAIN ZONE only can be turned off. Press STANDBY.
Adjusting the volume
Use VOLUME + – to adjust the volume.
GAdjustable rangeH – – – –80dB – –40dB – 18dB
(When the “Volume Display” (vpage60) setting is “Relative”)
GAdjustable rangeH 0 – 41 – 99
(When the “Volume Display” (vpage60) setting is “Absolute”)
• At time of purchase, “Volume Limit” (vpage59) is set to “–10dB
(71)”.
Turn MASTER VOLUME after pressing ZONE2 SELECT on the main
unit to adjust the sound volume.
Turning off the sound temporarily
Press MUTE.
The sound is reduced to the level set at “Mute Level” (vpage60) in
the menu.
• To cancel, either adjust the volume or press MUTE again.
• The setting is canceled when the zone’s power is turned off.
43
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Menu map
For menu operation, connect a TV to this unit and
display the menu on the TV screen. For menu
operations, see the following page.
How to make detailed settings
Setting items Number Detailed items Description Page
1. Audio Adjust
1.Audio Adjust
1.Surround Parameter
2.Tone
3.Audyssey Settings
4.Manual EQ
6.Audio Delay
5.M-DAX
[ENT]:Select [RTN]:Back
1-1 Surround Parameter Adjuts surround sound parameters. 52
1-2 Tone Adjuts the tonal quality of the sound. 53
1-3 Audyssey Settings Makes MultEQ®, Dynamic EQ® and Dynamic Volume® settings. 53
1-4 Manual EQ Uses the graphic equalizer to adjust the tone of each speaker. 55
1-5 M-DAX Uncompresses compressed sources and apply bass boost for richer
sound.
55
1-6 Audio Delay Compensates for incorrect timing between video and audio. 55
2. Information
2.Information
1.Status
2.Audio Input Signal
3.HDMI Information
4.Preset Channel
[ENT]:Select [RTN]:Back
2-1 Status Shows information about current settings. 61
2-2 Audio Input Signal Shows information about audio input signals. 61
2-3 HDMI Information Displays the HDMI input/output signals and HDMI monitor
information.
61
2-4 Preset Channel Shows information about tuner preset channels. 61
3. Auto Setup
3.Auto Setup
1.Audyssey Auto Setup
2.Parameter Check
[ENT]:Select
3-1 Audyssey Auto Setup Makes the optimum settings for the speakers being used
automatically.
6
3-2 Parameter Check Checks Audyssey® Auto Setup measurement results.
This item is only displayed after Audyssey Auto Setup procedure has
been performed.
10
4. Manual Setup
4.Manual Setup
1.Speaker Setup
2.HDMI Setup
3.Audio Setup
4.ZONE2 Setup
5.Option Setup
[ENT]:Select [RTN]:Back
4-1 Speaker Setup Sets the speaker size and distance, the channel level, etc. 56
4-2 HDMI Setup Makes settings for HDMI video/audio output. 58
4-3 Audio Setup Makes settings for audio playback. 59
4-4 ZONE2 Setup Makes settings for audio playback in a ZONE2 system. 59
4-5 Option Setup Makes various other settings. 60
5. Input Setup
(Example: BD)
5.Input Setup
BD
1.Input Assign
2.Video
3.Input Mode
4.Rename
5.Source Level
[ENT]:Select [RTN]:Back
Displayed items of the “Input
Setup” menu differs, depending on
the selected input source.
–
Auto Preset Uses the auto preset function to program radio stations. 47
Preset Skip Sets the preset memories that you do not want to display when
tuning.
47
Parental Lock Sets the Parental Lock. 47
Antenna Aiming Adjusts the SIRIUS reception sensitivity. 47
Preset Name Assigns name to a preset memory. 48
Input Assign Changes input connector assignment. 48
Video Makes the video settings. 49
Input Mode Sets the audio input mode and decode mode. 50
Rename Changes the display name for this source. 51
Source Level Adjuts the playback level of the audio input. 51
Playback Mode Makes settings for iPod and USB memory device playback. 51
Menu
1.Audio Adjust
2.Information
3.Auto Setup
4.Manual Setup
5.Input Setup
[ENT]:Select
Items that only need to be set
once
Set these for example upon purchase.
Once these items are set, there is
no need to set them again unless
the speaker layout or the connected
speakers have been changed.
44
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Examples of on-screen display and front display
Below we describe typical examples of displays on the TV screen and on the set’s display window.
On-screen Display Front Display Description
Top menu display MENU
1.Audio Adjust
2.Information
3.Auto Setup
4.Manual Setup
5.Input Setup
[ENT]:Select
q
w
e
Audio Adjust
w
e
q The menu items are displayed here.
w The selected line is displayed here.
The currently selected item is displayed on the display.
Use ui to move to the item you want to set.
e The number of the current selected setting menu is displayed.
Display when changing settings 5-1.Input Assign
Default HDMI Digi Comp
BD 1 1
DVD 2 C2 2 2
VCR
SAT 3 C1 3
GAME 4
AUX1 F
[ENT]:Select [RTN]:Back
w
q
e
5-1.Input Assign
Default HDMI Digi Comp
BD 1 1
DVD 2 C2 2
VCR
SAT 3 C1 3
GAME 4
AUX1 F
[ENT]:Select [RTN]:Back
r
q
Press ENTER.
BD [HDMI1 ]
w
q
BD •HDMI1 –
r
Press ENTER.
q The number of the current selected setting menu is displayed.
w Use uio p to move to the item you want to set.
e Press ENTER to set to the mode in which the setting can be made.
r 0 1 is displayed at the sides of item whose setting can be changed.
Use o p to change to the desired setting.
Display when inputting characters
Default
[SFT]:a/A [SRCH]:KeyBD
[ENT]:OK [RTN]:Cancel
:
DVD DVD
5-4.Rename
w
eq
q
e
DVD •DVD –
q When o p is pressed, the cursor moves to the left or right.
w When ui is pressed at the position where you want to input the
character, the character is input.
e The number of the current selected setting menu is displayed.
For inputting characters on a keyboard screen or with the number buttons
on the remote control unit, see page 45.
Display when resetting
[ ]:Up/Down
[ENT]:Select [RTN]:Back
Default
:
DVD [DVD ]
5-4.Rename
q
w
Default? :• No
w
q
w
Default
Press ENTER.
q Press i to select “Default”, then press ENTER to set.
w The number of the current selected setting menu is displayed.
45
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Inputting characters
“Preset Name” (vpage 48) and “Rename” (vpage 51) can be
changed as desired.
For inputting characters, there are three methods, as shown below.
Method for inputting characters
Method Operations
Using the cursor buttons
(normal screen)
• Operating with the remote control unit
or the main unit.
• Use uio p and ENTER to input
characters.
Using the keyboard
screen
• Operating with the remote control unit.
• Select a character on the TV screen to
input characters.
Normal screen
nDisplay of a normal input screen
5-4.Rename
[SFT]:a/A [SRCH]:KeyBD
[ENT]:OK [RTN]:Cancel
Default
DVD : DVD
w
q
e
q Cursor
w Character input section
e Guide for operation buttons
• [SFT] SHIFT Switching upper- and lower-case characters
• [SRCH] SEARCH Switching to the keyboard screen input
method
• [ENT] ENTER Registering an input character
• [RTN] RETURN Canceling an input character
Using the cursor buttons
1Display the screen for inputting characters.
(vpage 43 “Menu map”)
2Use o p to set the cursor to the
character you want to change.
3Use ui to change the character,
then press ENTER.
• The types of characters that can be input are
as shown below.
GUpper case charactersH
ABCDEFGHIJKLMNOPQRSTUVWXYZ
GLower case charactersH
abcdefghijklmnopqrstuvwxyz
GSymbolsH’ ( ) z + – . / : ; < = > ? [ ]
GNumbersH0123456789 (Space)
• The input character type can be switched by pressing SHIFT/TOP
MENU while the display name is being changed.
4Repeat steps 2 and 3 to rename then press ENTER to
register it.
Keyboard screen
nDisplay of a keyboard input screen
5-4.Rename
[DVD ]
[a/A] [SP] [ ] [ ] [OK]
UVWXYZ’()*+-./:;<=>?
[ENT]:Input [RTN]:Cancel
[SFT]:a/A [SRCH]:Normal
ABCDEFGHIJKLMNOPQRST
w
q
e
y
r
t u
i
o
q Cursor
w Character input section
e Cursor
r Keyboard section
t Upper (Symbols)- / lower (Numbers)-case character switching key
y Space key
u OK key
i Cursor keys
o Guide for operation buttons
• [SFT] SHIFT Switching upper- and lower-case characters
• [SRCH] SEARCH For switching to the normal screen input
method
• [ENT] ENTER For inputting a selected character
• [RTN] RETURN Canceling an input character
46
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
1Display the screen for inputting characters (vpage 43
“Menu map”).
2Press SEARCH/INFO while a normal screen is
displayed.
A keyboard screen is displayed.
3Select a character to be changed.
q Press uio p to select “[ ]” or “[ ]”.
w Press ENTER to place the cursor at the character
to be changed.
Each time ENTER is pressed, the cursor moves by one
character.
4Select a character to be input with
uio p then press ENTER.
• The types of characters that can be input are
as shown below.
GUpper case characters/SymbolsH
ABCDEFGHIJKLMNOPQRST
UVWXYZ ’ ( ) z + - . / : ; < = > ?
GLower case characters/NumbersH
abcdefghijklmnopqrst
uvwxyz[ ]0123456789
5Repeat steps 3 and 4 to rename.
6Use uio p to select “[OK]”, then press ENTER.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
Input Setup
Perform settings related to input source playback.
• You do not have to change the settings to use the unit. Make settings when needed.
Menu operation
1Press AMP to set the remote control unit to amplier operation mode.
2Press MENU.
The menu is displayed on the TV screen.
3Press ui to select the menu to be set or operated.
4Press ENTER to enter the setting.
• To return to the previous item, press RETURN.
• Exiting the Menu, press MENU while the menu is displayed.
The menu display disappears.
Items that can be set with the Input Setup procedure
5-1.Auto Preset
Auto Tuning
Preset Station Memory
Storing Preset Memory
Start
[ENT]:Start [RTN]:Back
5-2.Parental Lock
1.Lock Setting
2.Edit Lock Code
[ENT]:Select [RTN]:Back
5-2.Preset Skip
Block : A
A4 FM107.90MHz : ON
A3 FM 98.10MHz : ON
A Block Presets: ON
A1 FM 87.50MHz : ON
A2 FM 89.10MHz : ON
A5 FM 90.10MHz : ON
A6 FM 90.10MHz : ON
A7 FM 90.10MHz : ON
A8 FM 90.10MHz : ON
5-3.Antenna Aiming
MIN MAX
Terrestrial : 0
Satellite : 0
MIN MAX
5-3.Preset Name
Block: A
A5FM 90.10MHz:
A4FM107.90MHz:
A1FM 87.50MHz:
A2FM 89.10MHz:
A3FM 98.10MHz:
A6FM 90.10MHz:
A7FM 90.10MHz:
A8FM 90.10MHz:
[ENT]:Select [RTN]:Back
5-1.Input Assign
Default HDMI Digi Comp
BD 1
GAME 4
AUX1 F
SAT 3 C1 3
DVD 2 C2 2
VCR
[ENT]:Select [RTN]:Back
1
5-4.Rename
BD : BD
Default
[ ]:Up/Down [ ]:Rename
[RTN]:Back
5-2.Video
Video Select: Source
Video Mode : Auto
i/p Scaler : OFF
[RTN]:Back
5-5.Source Level
[RTN]:Back
Source Level(A): 0dB
Source Level(D): 0dB
5-3.Input Mode
Input Mode : Auto
Decode Mode : Auto
[RTN]:Back
5-4.Playback Mode
Shuffle Mode : OFF
[RTN]:Back
Repeat Mode : OFF
Auto Preset (vpage47) Parental Lock (vpage47)
Input Assign (vpage48)
Rename (vpage51)
Video (vpage49)
Source Level (vpage51)
Input Mode (vpage50)
Playback Mode (vpage51)
Preset Skip (vpage47) Antenna Aiming (vpage47)
Preset Name (vpage48)
Inputting characters
47
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Important information
nAbout the display of input sources
In this section, the configurable input sources for each item are shown as follows.
BD DVD VCR SAT GAME AUX1 USB TV CD SIRIUS TUNER M-XPort
NOTE
Input sources that have been set to “Delete” at “Source Delete” (vpage60) cannot be selected.
Auto Preset
Use the auto preset function to program radio stations.
Setting items Setting details
Start
Start the auto preset
process.
TUNER
If an FM station cannot be preset automatically, select the desired
station by tuning it in manually, then preset it manually.
Preset Skip Default settings are underlined.
Set preset ch to be skipped when selecting.
Setting items Setting details
A – G
Set the preset channels you
do not want to display. You
can set by preset memory
block (A to G) or by preset
channel (1 to 8).
TUNER SIRIUS
1 – 8 : Set by individual preset channels in the currently selected preset
memory block.
• ON : Display the selected preset channel.
• Skip : Do not display the selected preset channel.
If you set “Block Presets” to “Skip”, you can skip the preset memory
blocks (A to G).
Parental Lock Default settings are underlined.
For any channel, set the radio reception limits.
Setting items Setting details
Lock Setting
Set the channel radio
reception limits.
SIRIUS
1. Press ui to select “Lock Setting”, and then press p or ENTER.
2. Pressing uio p, input the password (4 digits number) and press
ENTER.
3. Select channel by pressing ui, and set the lock by pressing o p.
Unlock : Do not lock selected channel(s).
Lock : Lock selected channel(s). When a Parental Locked channel is
tuned, “Enter Lock Code” is displayed, then input the password.
• The default password is “0000”.
• If the password is wrong, “Lock Code is incorrect” is displayed. Input
the correct password.
• While listening to the channel being played, you can also set parental
lock (vpage26).
Edit Lock Code
Change the password.
SIRIUS
1. Press ui to select “Edit Lock Code”, and then press p or ENTER.
2. Input current lock code (4 digits) using uio p, and press ENTER.
3. Input new lock code (4 digits) using uio p, and press ENTER.
4. Input new lock code (4 digits) again using uio p, and press ENTER.
5. Press ui to select “Execute”, and then press ENTER.
If the correct password is input, “Completed” is displayed, and the new
password is modified.
• If the old password is incorrectly input, “Current Lock Code is incorrect”
is displayed, and proceed again from step 1.
• If the password input is 3 digits or less, “Enter 4 digits number” is
displayed, and input again with a 4 digit password.
• If the new password is not correctly input, “New Lock Codes do not
Match” is displayed and the password does not change.
Antenna Aiming
Install the antenna with radio reception sensitivity set to maximum.
Setting items Setting details
Satellite
Indicate satellite signal
strength.
SIRIUS
Display Condition
3 MIN–––MAX Signal strength is excellent
2 MIN–– MAX Signal strength is good
1 MIN– MAX Signal strength is weak
0 MIN MAX No signal
Terrestrial
Indicate terrestrial signal
strength.
SIRIUS
Input Setup
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
48
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Input Setup
Preset Name
Assign a name to a preset memory.
Setting items Setting details
A1 – G8
Select the preset channel.
TUNER
• Up to eight characters can be input.
• For character input, see page 45.
Default
The changed preset name
is returned to the default
setting.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
Input Assign
Examples of input assign menu screen displays
5-1.Input Assign
Default HDMI Digi Comp
BD 1
GAME 4
AUX1 F
SAT 3 C1 3
DVD 2 C2 2
VCR
[ENT]:Select [RTN]:Back
1
q
ew r
q Input Source
w HDMI input
e Digital audio input
r Component video input
Input assignments menu operations
1Use uio p to move the highlight to the item you want to set.
2Press ENTER, then use o p to select the input connector to be
assigned.
3Press ENTER to enter the setting.
NOTE
If all “HDMI”, “Digital” and “Component” assignment of the Game source are set to “None”, Game
source cannot be selected with the input source selection.
Setting items Setting details
HDMI
Set this to change the HDMI
input connectors assigned
to the input sources.
BD DVD VCR
SAT GAME AUX1
TV
HDMI 1 / HDMI 2 / HDMI 3 / HDMI 4
None : Do not assign an HDMI input connector to the selected input
source.
• At time of purchase, the settings of the different input sources are as
shown below.
Input
source BD DVD VCR SAT GAME AUX1 TV
Default
setting
HDMI
1
HDMI
2None HDMI
3
HDMI
4None None
• An input source to which an HDMI input connector cannot be assigned
is displayed as “–”.
• To play the video signal assigned at “HDMI” combined with the audio
signal assigned at “Input Assign“ – “Digital”, select “Digital” at “Input
Mode” (vpage50).
• The audio signals input from the analog and digital connectors are not
output to the monitor.
• When “HDMI Control” (vpage58) is set to “ON”, HDMI input connector
cannot be assigned to “TV”.
Digital
Set this to change the digital
input connectors assigned
to the input sources.
BD DVD VCR
SAT GAME TV
CD SIRIUS
C1, C2 (COAXIAL) / O1, O2 (OPTICAL)
None : Do not assign a digital input connector to the selected input source.
• At time of purchase, the settings of the different input sources are as
shown below.
Input source BD DVD VCR SAT GAME
Default
setting None COAXIAL
2None COAXIAL
1None
Input source TV CD SIRIUS
Default
setting
OPTICAL
1
OPTICAL
2None
NOTE
The OPTICAL input connectors in the front panel accept only digital input
signals from AUX1. Input connector assignments cannot be changed.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
49
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Input Setup
Setting items Setting details
Component
Set this to change the
component video input
connectors assigned to the
input sources.
BD DVD VCR
SAT GAME AUX1
TV
Comp1/Comp2/Comp3 (Component video)
None : Do not assign a component video input connector to the selected
input source.
• At time of purchase, the settings of the different input sources are as
shown below.
Input
source BD DVD VCR SAT GAME AUX1 TV
Default
setting
Component
1
Component
2
None
Component
3
None None None
An input source to which an component video input connector cannot
be assigned is displayed as “–”.
Default
The “Input Assign” settings
are returned to the default
settings.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
If you select “Default” and press ENTER, the message “Default
Setting?” is displayed. Select “Yes” or “No”, and then press ENTER.
Video Default settings are underlined.
Set the source video.
z“TV” or “GAME” can be set when “HDMI” (vpage48) or “Component” (vpage49) has been assigned.
Setting items Setting details
Video Select
Video of another input
source is played back
combined with the playing
audio.
Source : Play the picture and sound of the input source.
BD / DVD / VCR / SAT / GAME / AUX1 / TV : Select video input source to
view. This can be set for individual input sources.
“TV” and “GAME” can be selected only when a component video
connector is assigned as an input source.
NOTE
• It is not possible to select HDMI input signals.
• Input sources for which “Delete” is selected at “Source Delete”
(vpage60) cannot be selected.
Buttons on the remote control unit can be used
for operations.
Press V.SEL until the desired picture appears.
• To cancel, press V.SEL to select “Source”.
Setting items Setting details
Video Mode
Make settings for video
processing.
BD DVD
VCR
SAT GAME zAUX1
TV z
Auto : Process video automatically based on the HDMI content
information.
Movie : Process video normally.
Game : Always process video appropriate for game content.
• This can be assigned to HDMI terminal in “Input Assign” in the menu.
• If “Video Mode” is set to “Auto”, the mode is switched according to the
input contents.
• If a source is played in both MAIN ZONE (audio and video) and ZONE2
(audio only) modes in the same room, audio in MAIN ZONE and ZONE2
modes may sound out of synchronization, but this is not malfunction.
In this case, setting to “Game” mode may improve audio synchronization.
i/p Scaler
Convert the input source’s
resolution to the resolution
set at “Resolution”.
BD DVD
VCR
SAT GAME zAUX1
TV z
Analog : Use i/p scaler function for analog video signal.
Analog & HDMI : Use i/p scaler function for analog and HDMI video signal.
HDMI : Use i/p scaler function for HDMI video signal.
OFF : Do not use i/p scaler function.
• “Analog & HDMI” and “HDMI” can be set for input sources for which an
HDMI input connector is assigned.
• Which items can be set depend on the input source assigned to each
input connector.
• This function is not effective when the input signal is x.v.Color, 3D,
sYCC601 color, Adobe RGB color, Adobe YCC601 color or computer
resolution.
Resolution
Set the output resolution.
Resolution A : Analog Video
Resolution H : HDMI
BD DVD
VCR
SAT GAME zAUX1
TV z
Auto : The number of pixels the TV connected to the HDMI output
connector supports is detected automatically and the appropriate output
resolution is set.
480p / 576p / 1080i / 720p / 1080p : Set the output resolution.
• This item can be set when “i/p Scaler” is set to anything other than
“OFF”.
• When “i/p Scaler” is set to “Analog & HDMI”, the resolution of both the
analog video input signal and HDMI input signal can be set.
• This can also be set by pressing RES on the
remote control unit.
Each time RES is pressed, the setting is changed
as shown below.
Auto 480p/576p 1080i
720p1080p
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
50
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Input Setup
Setting items Setting details
Progressive Mode
Set an appropriate
progressive conversion
mode for the source video
signal.
BD DVD
VCR
SAT GAME zAUX1
TV z
Auto : The video signal is automatically detected and the appropriate
mode is set.
Video1 : Select mode suitable for video playback
Video2 : Select mode suitable for video and 30-frame film material
playback.
This item can be set when “i/p Scaler” is set to anything other than
“OFF”.
Aspect
Set the aspect ratio for the
video signals output to the
HDMI.
BD DVD
VCR
SAT GAME zAUX1
TV z
Full : Output at 16:9 aspect ratio.
Normal : Output at 4:3 aspect ratio.
“Aspect” can be set when “i/p Scaler” is set to anything other than
“OFF”.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
Input Mode Default settings are underlined.
The input modes available for selection may vary depending on the input source.
Setting items Setting details
Input Mode
Set the audio input modes
for the different input
sources.
Auto : Automatically detect input signal and perform playback.
HDMI : Play only signals from HDMI input.
Digital : Play only signals from digital input.
Analog : Play only signals from analog input.
7.1CH INPUT : Only signals input from the 7.1CH INPUT terminal will be
played back.
• “HDMI” can be set for input sources for which “HDMI” is assigned at
“Input Assign” (vpage48).
• “Digital” can be set for input sources for which “Digital” is assigned at
“Input Assign” (vpage48).
• If the input source is set to “TV” or “Game”, it cannot be set to “Analog”.
• When digital signals are properly input, the indicator lights on
the display. If the indicator does not light, check the digital input
connector assignment and the connections.
• If “HDMI Control” is set to “ON” and a TV compatible with the ARC is
connected via the HDMI MONITOR connectors, the input mode whose
input source is “TV” is fixed to ARC.
This can also be set by pressing A/D on the
remote control unit.
Each time A/D is pressed, the setting is
changed as shown below.
Auto HDMI Digital Analog
7.1CH INPUT
Decode Mode
Set the decode mode for
input source.
BD DVD VCR
SAT GAME AUX1
TV CD SIRIUS
Auto : Detect type of digital input signal and decode and play automatically.
PCM : Decode and play only PCM input signals.
DTS : Decode and play only DTS input signals.
• This item can be set for input sources for which
“HDMI” or “Digital” is assigned at “Input Assign”
(vpage48).
• Normally set this mode to “Auto”. Set “PCM” and
“DTS” when inputting the corresponding input
signal.
• This can also be set by pressing D.MODE on the
remote control unit.
51
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Rename
Change the display name of the selected input source.
Setting items Setting details
Rename
Change the display name of
the selected input source.
• Up to eight characters can be input.
• For character input, see page 45.
Default
The input source name
is returned to the default
setting.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
Source Level Default settings are underlined.
• This function corrects the playback level of the selected input source’s audio input.
• Make this setting if there are differences in the input volume levels between the different sources.
Setting details
–12dB – +12dB (0dB)
The analog input level and digital input level can be adjusted independently for input sources for
which “HDMI” or “Digital” is assigned at “Input Assign“ (vpage48).
Playback Mode
Setting items Setting details
Repeat
Make settings for repeat
mode.
USB
nFor iPod playback
All : All files are played repeatedly.
One : A file being played is played repeatedly.
OFF : Repeat playback mode is canceled.
nFor USB memory device playback
All : All files are played repeatedly.
One : A file being played is played repeatedly.
Folder : A file in the folder being played is played repeatedly.
Shuffle
Make settings for shuffle
mode.
USB
nFor iPod playback
Songs : Shuffle songs.
Albums : Shuffle albums.
OFF : Shuffle playback mode is canceled.
nFor USB memory device playback
ON : Shuffle playback mode is enabled.
OFF : Shuffle playback mode is canceled.
Input Setup
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
52
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Surround Parameter Default settings are underlined.
Adjust surround sound parameters. It may not be possible to set this item depending on the input signal.
Setting items Setting details
HT-EQ
Soften the treble range
of movie soundtracks for
better understanding.
ON : “HT-EQ” is used.
OFF : “HT-EQ” is not used.
This can also be set by pressing HT-EQ on the
remote control unit.
D.Comp
Compress dynamic range
(difference between loud
and soft sounds).
Low / Mid / High : These set the compression level.
OFF : Turn dynamic range compression off.
DRC
Compress dynamic range
(difference between loud
and soft sounds).
Auto : Automatic dynamic range compression on/off control according to
the source. This can be set in the Dolby TrueHD mode.
Low / Mid / High : These set the compression level.
OFF : Dynamic range compression is always off.
LFE
Adjust the low-frequency
effects level (LFE).
–10dB – 0dB
For proper playback of the different sources, we recommend setting
to the values below.
• Dolby Digital sources : “0dB”
• DTS movie sources : “0dB”
• DTS music sources : “–10dB”
Center Image
Assign center channel
signal to front left and right
channels for wider sound.
0.0 – 1.0 (0.3)
Panorama
Assign front L/R signal also
to surround channels for
wider sound.
ON : Set.
OFF : Do not set.
Dimension
Shift sound image center
to front or rear to adjust
playback balance.
0 – 6 (3)
Center Width
Assign center channel
signal to front left and right
channels for wider sound.
0 – 7 (3)
Audio Adjust
The sound being played in the surround mode can be adjusted to your liking.
The items (parameters) that can be adjusted depend on the signal being input and the currently
set surround mode. For details on the adjustable parameters, see “Surround modes and surround
parameters” (vpage74).
Menu operation
1Press AMP to set the remote control unit to amplier operation
mode.
2Press MENU.
The menu is displayed on the TV screen.
3Press ui to select the menu to be set or operated.
4Press ENTER to enter the setting.
• To return to the previous item, press RETURN.
• Exiting the Menu, press MENU while the menu is displayed.
The menu display disappears.
Items that can be set with the Audio Adjust procedure
Surround Parameter (vpage52)
Tone (vpage53)
Audyssey Settings (vpage53)
Manual EQ (vpage55)
M-DAX (vpage55)
Audio Delay (vpage55)
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
53
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Setting items Setting details
Height Gain
Control the front height
channel volume.
Low : Reduce the front height channel volume.
Mid : Front height channel sound is output with standard sound volume.
High : Increase the front height channel volume.
NOTE
“Height Gain” is displayed for the following settings.
• When “Amp Assign” (vpage56) is set to “Normal”.
• When the “Speaker Config.” – “Front Height” setting (vpage57) is set
to other than “None”.
• When surround mode is “PLgz” or the PLgz decoder is used.
Default
The “Surround Parameter”
settings are returned to the
default settings.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
Tone Default settings are underlined.
Adjust the tonal quality of the sound.
Setting items Setting details
Tone Control
Set the tone control function
to ON and OFF.
ON : Allow tone adjustment (bass, treble).
OFF : Playback without tone adjustment.
“Tone Control” can be set when “Dynamic EQ” (vpage54) is set to
“OFF”.
NOTE
The tone cannot be adjusted in the direct mode.
Bass
Adjust low frequency range
(bass).
–6dB – +6dB (0dB)
“Bass” can be set when “Tone Control” is set to “ON”.
Treble
Adjust high frequency range
(treble).
–6dB – +6dB (0dB)
“Treble” can be set when “Tone Control” is set to “ON”.
Audio Adjust
Audyssey Settings Default settings are underlined.
Set MultEQ®, Dynamic EQ® and Dynamic Volume®. These can be selected after Audyssey® Auto Setup
has been performed. For additional information on Audyssey technology, please see page 78.
NOTE
If you have not performed Auto Setup, or if you change the speaker settings after performing Auto Setup,
you may not be able to select Dynamic EQ/Dynamic Volume, and “Run Audyssey” may be displayed.
In this case, either perform Audyssey Auto Setup over again or perform “Restore” (vpage10) to return to
the settings after Audyssey Auto Setup was run.
Setting items Setting details
MultEQ
Select one equalizer from
three modes. MultEQ
corrects both time and
frequency response
problems in the listening
area based on Audyssey
Auto Setup calibration. We
recommend “Audyssey”.
MultEQ is the prerequisite
function for Dynamic EQ
and Dynamic Volume.
Audyssey : Optimize the frequency response of all speakers.
Audyssey Byp.L/R : Optimize frequency response of speakers except
front L and R speakers.
Audyssey Flat : Optimize frequency response of all speakers to flat
response.
Manual : Apply frequency response set with “Manual EQ” (vpage55).
OFF : Turn “MultEQ” equalizer off.
• “Audyssey”, “Audyssey Byp. L/R” and “Audyssey Flat” can be
selected after Audyssey Auto Setup has been performed. “Audyssey”
is automatically selected after performing Audyssey Auto Setup. When
“Audyssey”, “Audyssey Byp. L/R” or “Audyssey Flat” is selected,
illuminates.
• After running Audyssey Auto Setup, if the Speaker Configuration,
Distance, Channel Level, and Crossover Freq. have changed without
increasing the number of speakers measured, only illuminates.
• Press MULTEQ on the remote control unit to
set this setting.
NOTE
• “MultEQ” and “Manual” cannot be selected when “EQ Customize” is
set to “Not Used” (vpage59).
• When using headphones, “MultEQ” is automatically set to “OFF”.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
54
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Audio Adjust
Setting items Setting details
Dynamic Volume®
Solve the problem of large
variations in volume level
between TV, movies and
other content (between
quiet passages and
loud passages, etc.) by
automatically adjusting to
the user’s preferred volume
setting.
Heavy : Most adjustment to softest and loudest sounds.
Medium : Medium adjustment to loudest and softest sound.
Light : Least adjustment to loudest and softest sounds.
OFF : Do not use the “Dynamic Volume”.
• is displayed when set to “ON”.
• If “Dynamic Volume” is set to “Yes” in Auto
Setup (vpage 9), the setting is automatically
changed to “Heavy”.
• This can also be set by pressing DYN VOL on the
remote control unit.
Each time DYN VOL is pressed, the setting is changed as shown below.
Dynamic Volume : Heavy
Dynamic Volume : Medium
Dynamic Volume : OFF
Dynamic Volume : Light
Setting items Setting details
Dynamic EQ®
Solve the problem of
deteriorating sound quality
as volume is decreased
by taking into account
human perception and
room acoustics. Works with
MultEQ.
ON : Use Dynamic EQ.
OFF : Do not use Dynamic EQ.
• is displayed when set to “ON”.
• This can also be set by pressing DYN EQ on the
remote control unit.
Each time DYN EQ is pressed, the setting is changed as shown below.
Dynamic EQ : ON Dynamic EQ : OFF
Reference Level Offset
Audyssey Dynamic EQ is
referenced to the standard
film mix level. It makes
adjustments to maintain
the reference response
and surround envelopment
when the volume is turned
down from 0 dB. However,
film reference level is not
always used in music or
other non-film content.
Dynamic EQ Reference
Level Offset provides three
offsets from the film level
reference (5 dB, 10 dB, and
15 dB) that can be selected
when the mix level of the
content is not within the
standard.
0dB (Film Ref) : This is the default setting and should be used when
listening to movies.
5dB : Select this setting for content that has a very wide dynamic range,
such as classical music.
10dB : Select this setting for jazz or other music that has a wider dynamic
range. This setting should also be selected for TV content as that is usually
mixed at 10 dB below film reference.
15dB : Select this setting for pop/rock music or other program material
that is mixed at very high listening levels and has a compressed dynamic
range.
Setting is enabled when “Dynamic EQ” is “ON” (vpage54).
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
55
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Audio Adjust
Manual EQ Default settings are underlined.
Use the graphic equalizer to adjust the tone of each speaker.
“Manual EQ” can be set when “MultEQ®” setting (vpage53) is “Manual”.
Setting items Setting details
Adjust CH
Correct the tone of each
speaker.
q Select the speaker tone adjustment method.
All CH : Adjust the tone of all speakers together.
L/R CH : Adjust the tone of left and right speakers together.
Each CH : Adjust the tone of each speaker.
w Select the speaker.
e Select the adjustment frequency band.
63Hz / 125Hz / 250Hz / 500Hz / 1kHz / 2kHz / 4kHz / 8kHz / 16kHz
• Select the speakers you want to adjust when “L/R” or “Each” is
selected.
r Adjust the level.
–20.0dB – +6.0dB (0.0dB)
Base Curve Copy
Copy “Audyssey Flat” curve
from MultEQ.
Yes : Copy.
No : Do not copy.
“Base Curve Copy” is displayed after Audyssey Auto Setup has been
performed.
Default
The “Manual EQ” settings
are returned to the default
settings.
Yes : Reset to the defaults.
No : Do not reset to the defaults.
M-DAX Default settings are underlined.
Compressed audio formats such as MP3, WAV, WMA (Windows Media Audio) and MPEG-4 AAC reduce
the amount of data by eliminating signal components that are hard for the human ear to hear. The M-DAX
function generates the signals eliminated upon compression, restoring the sound to conditions near those
of the original sound before compression. It also corrects the sense of volume of the bass to obtain richer
sound with compressed audio signals.
Setting details
OFF : Do not use M-DAX.
Low : Optimized mode for compressed sources with normal highs.
Mid : Apply suitable bass and treble boost for all compressed sources.
High : Optimized mode for compressed sources with very weak highs.
• This item can be set with analog signals or when a PCM signal (fs = 44.1/48
kHz) is input.
• This cannot be set when the surround mode is set to “DIRECT” or “PURE
DIRECT”.
• When set to “OFF”, the M-DAX indicator on the front panel switches off.
• This can also be set by pressing M-DAX on the remote control unit.
Each time M-DAX is pressed, the setting is changed as shown below.
OFF LOW MID
HIGH
Audio Delay Default settings are underlined.
While viewing video, manually adjust the time to delay audio output.
Setting details
0ms – 200ms
• This item can be set within the range of 0 to 200 ms when “Auto Lip Sync” is set
to “ON” and when a TV compatible with Auto Lip Sync is connected.
• Store “Audio Delay” for each input source.
• Audio Delay for game mode can be set when “Video Mode” (vpage49) is set
to “Game”.
• You can also adjust the time to delay audio output after pressing DLY followed
by the o p on the remote control, instead of using the menu operation.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
56
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Manual Setup
Set when changing Audyssey® Auto Setup settings, or when changing the audio, video, display
or other settings.
• If you change the speaker settings after performing Audyssey Auto Setup, it will not be possible
to set MultEQ®, Dynamic EQ® and Dynamic Volume® (vpage53, 54).
• Can be used without changing the settings. Please set if necessary.
Menu operation
1Press AMP to set the remote control unit to amplier operation
mode.
2Press MENU.
The menu is displayed on the TV screen.
3Press ui to select the menu to be set or operated.
4Press ENTER to enter the setting.
• To return to the previous item, press RETURN.
• Exiting the Menu, press MENU while the menu is displayed.
The menu display disappears.
Items that can be set with the Manual Setup procedure
4-1.Speaker Setup
1.Amp Assign
2.Speaker Config.
3.Bass Setting
4.Distance
6.Crossover Freq.
7.Front Sp Setup
5.Channel Level
[ENT]:Select [RTN]:Back
4-2.HDMI Setup
Auto Lipsync : ON
HDMI Audio Out : Amp
HDMI Control : OFF
[RTN]:Back
4-3.Audio Setup
1.EQ Customize
[ENT]:Select [RTN]:Back
4-4.ZONE2 Setup
Bass : 0dB
Treble : 0dB
HPF : OFF
Level Lch : 0dB
Level Rch : 0dB
Channel : Stereo
[RTN]:Back
4-5.Option Setup
1.Volume Control
2.Source Delete
3.On-Screen Display
4.Zone Rename
5.DC Trigger
6.Display
7.Setup Lock
[ENT]:Select [RTN]:Back
Speaker Setup (vpage56)
ZONE2 Setup (vpage59) Option Setup (vpage60)
HDMI Setup (vpage58) Audio Setup (vpage59)
Speaker Setup Default settings are underlined.
Perform when setting the speakers manually or when changing settings made in Audyssey Auto Setup.
• If you change the speaker settings after performing Audyssey Auto Setup, it will not be possible to select
MultEQ, Dynamic EQ and Dynamic Volume (vpage53, 54).
• Manual Setup can be used without changing the settings. Please set if necessary.
Setting items Setting details
Amp Assign
Set the speakers connected
to this unit.
Normal : Set when using 7.1-channel (Front/Center/Surround/Surround
Back or Front Height/Subwoofer) speakers.
ZONE2 : Set for connecting the speakers for ZONE2 to the SURR. BACK/
AMP ASSIGN terminals.
SPKR-C : Set for connecting a tweeter of a front speaker to the SURR.
BACK/ AMP ASSIGN terminals and a woofer of the front speaker to the
FRONT A terminals.
Speaker Config.
Select speaker configuration
and size (bass reproduction
capability).
NOTE
Do not use the outward
shape of the speaker to
determine selection of a
“Large” or “Small” speaker.
Instead, use the frequencies
set in “Crossover Freq.”
(vpage58) as the standard
for determining bass
reproduction capability.
Front : Set the front speaker size.
• Large : Use a large speaker that can adequately play back low
frequencies.
• Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
• When “Subwoofer” is set to “No”, “Front” is automatically set to
“Large”.
• When “Front” is set to “Small”, “Center”, “Surround“, “Surround
Back” and “Front Height” can not be set to “Large”.
Center : Set the presence and size of the center speaker.
• Large : Use a large speaker that can adequately play back low
frequencies.
• Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
• None : Select when a center speaker is not connected.
“Large” is not displayed when “Front” is set to “Small”.
Subwoofer : Set the presence of a subwoofer.
• Yes : Use a subwoofer.
• No : Select when a subwoofer is not connected.
When “Front” is set to “Small”, “Subwoofer” is automatically set to
“Yes”.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
57
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Manual Setup
Setting items Setting details
Bass Setting
Set subwoofer and LFE
signal range playback.
Subwoofer Mode : Select low range signals to be reproduced by
subwoofer.
• LFE : The low range signal of the channel set to “Small” speaker size is
added to the LFE signal output from the subwoofer.
• LFE+Main : The low range signal of all channels is added to the LFE
signal output from the subwoofer.
• “Subwoofer Mode” can be set when “Speaker Config.” – “Subwoofer”
(vpage56) is set to “Yes”.
• Play music or a movie source and select the mode offering the strongest
bass.
• Select “LFE+Main” if you want the bass signals to always be produced
from the subwoofer.
NOTE
If “Front” and “Center” for “Speaker Config.” are set to “Large”, and
“Subwoofer Mode” is set to “LFE”, no sound may be output from the
subwoofers, depending on the input signal or selected surround mode.
LPF for LFE : Set LFE signal playback range.
• 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz
Distance
Set distance from listening
position to speakers.
Measure beforehand the
distance from the listening
position to each speaker.
Unit : Set the unit of distance.
• Feet / Meters
Step : Set the minimum variable width of the distance.
• 1ft / 0.1ft
• 0.1m / 0.01m
FL / FR / C / SW / SL / SR / SBLz / SBRz / FHL / FHR : Select the speaker.
z When the “Speaker Config.” – “S.Back” setting (vpage57) is set to
“1sp”, “S.Back” is displayed.
• 0.0ft – 60.0ft / 0.00m – 18.00m : Set the distance.
• The speakers that can be selected differ depending on the “Amp Assign”
(vpage56) and “Speaker Config.” (vpage56) settings.
• Default settings :
FL / FR / C / SW / FHL / FHR : 12.0 ft (3.6 m)
SL / SR / SBL / SBR : 10.0 ft (3.0 m)
• Set the difference in the distance between the speakers to less than 20
ft (6.0 m).
NOTE
Speakers set to “None” in “Speaker Config.” (vpage56) are not displayed.
Default : The “Distance” settings are returned to the default settings.
• Yes : Reset to the defaults.
• No : Do not reset to the defaults.
When you select “Default” and press ENTER, the “Default Setting?”
prompt is displayed. Select either “Yes” or “No”, and press ENTER.
Setting items Setting details
Speaker Config.
(Continued)
Surround : Set the presence and size of the surround speakers.
• Large : Use a large speaker that can adequately play back low
frequencies.
• Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
• None : Select when the surround speakers are not connected.
• When “Surround” is set to “Large”, “Surround Back” and “Front
Height” can be set to “Large”.
• When “Surround” is set to “None”, “Surround Back” and “Front
Height” can automatically set to “None”.
S.Back : Set the presence, size and number of surround back speakers.
• Large : Use a large speaker that can adequately play back low
frequencies.
• Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
• None : Select when the surround back speakers are not connected.
• 2sp : Use two surround back speakers.
• 1sp : Use only one surround back speaker. When you select this setting,
connect the surround back speaker to the left (L) channel.
NOTE
When the “Amp Assign” setting (vpage56) is other than “Normal”, you
cannot make the “S.Back” setting.
Front Height : Set the presence and size of the front height speakers.
• Large : Use a large speaker that can adequately play back low
frequencies.
• Small : Use a small speaker that has inadequate playback capacity for
low frequencies.
• None : Select when the front height speakers are not connected.
NOTE
When the “Amp Assign” setting (vpage56) is other than “Normal”, you
cannot make the “Front Height” setting.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
58
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Setting items Setting details
Channel Level
Set the volume of the test
tone to be the same when it
is output from each speaker.
Test Tone Start : Output test tone.
• FL / C / FR / SR / SBRz / SBLz / SL / FHL / FHR / SW : Select the
speaker.
z When the “Speaker Config.” – “S.Back” setting (vpage57) is set to
“1sp”, “S.Back” is displayed.
• –12.0dB – +12.0dB (0.0dB) : Adjust the volume.
• When o is pressed while the subwoofer volume is set to “–12 dB”, the
“Subwoofer” setting switches to “OFF”.
• When “Channel Level” is adjusted, the adjusted values are set for all the
surround modes. To adjust the channel level separately for the different
surround modes, use the operation see page 40.
• When you press TEST TONE on the remote control, you can enter this
setting item immediately.
NOTE
• Speakers set to “None” in the “Speaker Config.” (vpage56) settings
are not displayed.
• When a headphones jack is inserted in the PHONES jack of this unit, the
“Channel Level” is not displayed.
Default : The “Channel Level” settings are returned to the default settings.
• Yes : Reset to the defaults.
• No : Do not reset to the defaults.
Crossover Freq.
Set the maximum frequency
of the bass signal output
from each channel to
the subwoofer. Set the
Crossover Freq. to suit the
bass reproduction capability
of the speaker being used.
Crossover : Set the crossover frequency.
• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /
250Hz
Advanced : Specify crossover frequency for each speaker.
• Front / Center / Surround / S.Back / Front Height : Select the speaker.
• 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz /
250Hz : Set the crossover frequency.
• “Crossover Freq.” can be set when the “Bass Setting” – “Subwoofer
Mode” (vpage57) setting is “LFE+Main”, or when you have a speaker
that is set to “Small”.
• Always set the crossover frequency to “80Hz”. When using small
speakers, however, we recommend setting the crossover frequency to
a higher frequency.
• For speakers set to “Small”, sound below the crossover frequency
is cut from the sound output. The cut bass sound is output from the
subwoofer or front speakers.
• The speakers that can be set when “Advanced” is selected differ
depending on the “Subwoofer Mode” setting (vpage57).
• When “LFE” is selected, speakers set to “Small” at “Speaker Config.”
can be set. If the speakers are set to “Large”, “Full Band” is displayed
and the setting cannot be made.
• If set to “LFE+Main”, this setting can be made regardless of the
speaker size.
Manual Setup
Setting items Setting details
Front Speaker Setup
Set the front speakers to
use for every surround
mode.
• A：Front speaker A is used.
• B：Front speaker B is used.
• A+B：Both front speakers A and B are used.
You can switch speakers by pressing SPKR
A/B on the remote control.
HDMI Setup Default settings are underlined.
Make settings for HDMI video/audio output.
Setting items Setting details
Auto Lip Sync
Make automatic
compensation for timing
shift in audio and video
output.
ON : Compensated.
OFF : Not compensated.
HDMI Audio Out
Select HDMI audio output
device.
Amp : Play back through speakers connected to the receiver.
TV : Play back through TV connected to the receiver.
When the HDMI control function is activated, priority is given to the TV
audio setting (vpage39 “HDMI control function”).
HDMI Control
You can link operations with
devices connected to HDMI
and compatible with HDMI
Control.
ON : Use HDMI control function.
OFF : Do not use HDMI control function.
• When a device that is not compatible with the HDMI control function is
connected, set “HDMI Control” to “OFF”.
• Please consult the operating instructions for each connected component
to check the settings.
• Refer to “HDMI control function” (vpage39) for more information about
the HDMI control function.
NOTE
• When “HDMI Control” is set to “ON”, it consumes more standby
power. If you are not using this unit for an extended period, it is
recommended that you unplug the power cord from the power outlet.
• “HDMI Control” does not work when the power to the equipment is off.
Either turn power on or set to standby.
• The HDMI control function controls operations of a TV that is compatible
with the HDMI control function. Make sure that the TV and HDMI are
connected when you perform HDMI control.
• If the “HDMI Control” settings have been changed, always reset the
power to connected devices after the change.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
59
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

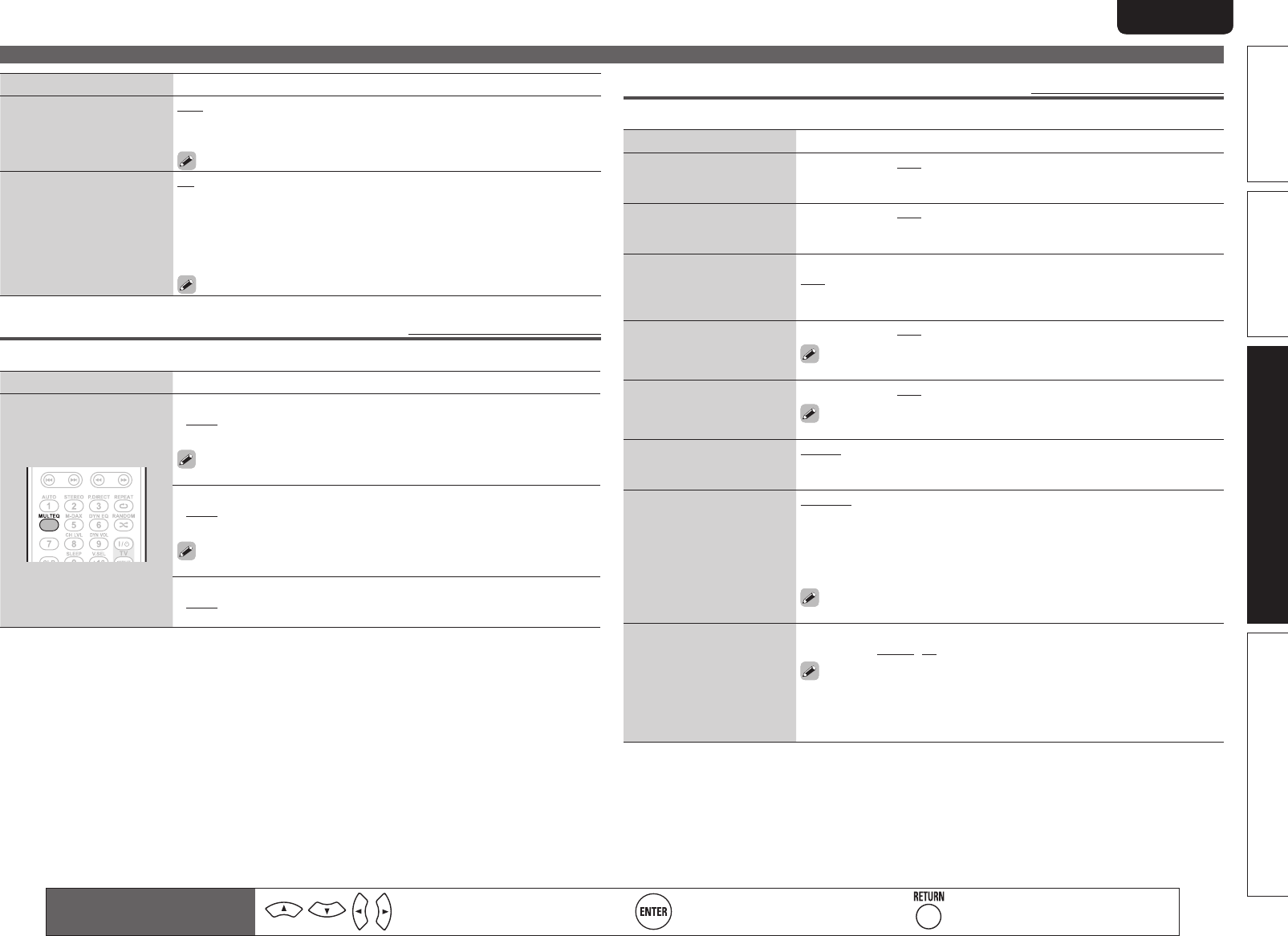

Setting items Setting details
Standby Source
Sets the HDMI input source
to put into standby when
the power is on.
Last : This item is set at the last-used input source.
HDMI1 / HDMI2 / HDMI3 / HDMI4 : Put the respective input source into
standby.
“Standby Source” can be set when “HDMI Control” is set to “ON”.
Power Off Control
Links the power standby
of this unit to external
equipment.
All : If power to a connected TV is turned off independently of the input
source, power to this unit is automatically set to standby.
Video : If power to a connected TV is turned off when the input source
is BD / DVD / VCR / SAT / GAME / AUX1 / TV, power to this unit is
automatically set to standby.
OFF : This unit does not link with power to a TV.
“Power Off Control” can be set when “HDMI Control” is set to “ON”.
Audio Setup Default settings are underlined.
Make settings for audio playback.
Setting items Setting details
EQ Customize
Set so that unused equalizer
settings are not displayed
when MULTEQ is pressed.
Audyssey Byp. L/R : Set when not using “Audyssey Byp. L/R” equalizer.
• Used : Use.
• Not Used : Do not use.
Set so that “Audyssey Byp. L/R” settings can be made when
Audyssey Auto Setup is performed.
Audyssey Flat : Set when not using “Audyssey Flat” equalizer.
• Used : Use.
• Not Used : Do not use.
Set so that “Audyssey Flat” settings can be made when Audyssey
Auto Setup is performed.
Manual : Set when not using the “Manual” equalizer.
• Used : Use.
• Not Used : Do not use.
Manual Setup
ZONE2 Setup Default settings are underlined.
Set the audio to play back with ZONE2.
Setting items Setting details
Bass
Adjust low frequency range
(bass).
–10dB – +10dB (0dB)
Treble
Adjust high frequency range
(treble).
–10dB – +10dB (0dB)
HPF
Make settings for cutting
the low range to reduce
distortion in the bass.
ON : The low range is attenuated.
OFF : The low range is not attenuated.
Level Lch
Adjust the left channel
output level.
–12dB – +12dB (0dB)
The “Level Lch” can be set when “Channel“ (vpage59) is set to
“Stereo“.
Level Rch
Adjust the right channel
output level.
–12dB – +12dB (0dB)
The “Level Rch” can be set when “Channel“ (vpage59) is set to
“Stereo“.
Channel
Set the signal output from
ZONE2.
Stereo : Select stereo output.
Mono : Select mono output.
Volume Level
Set the volume output level.
Variable : Volume adjustment is enabled by main unit and remote control
unit.
–40dB (41) : Fix volume at –40 dB. Set when adjusting volume by external
amplifier.
0dB (81) : Fix volume at 0 dB. Set when adjusting volume by external
amplifier.
When “Amp Assign” (vpage56) is set to “ZONE2”, the “Volume
Level” setting is automatically set to “Variable”.
Volume Limit
Make a setting for
maximum volume.
OFF : Do not set a maximum volume.
–20dB (61) / –10dB (71) / 0dB (81)
• This can be set when the ZONE2 “Volume Level” setting (vpage59) is
“Variable”.
• This is displayed from 0 to 99 when “Volume Display” (vpage60) is set
to “Absolute”.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
60
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Manual Setup
Setting items Setting details
Power On Level
Define the volume setting
that is active when the
power is turned on.
Last : Use the memorized setting from the last session.
– – – (0) : Always mute when power is turned on.
–80dB – 18dB (1 – 99) : The volume is adjusted to the set level.
• This can be set when the ZONE2 “Volume Level” setting (vpage59) is
“Variable”.
• This is displayed from 0 to 99 when “Volume Display” (vpage60) is set
to “Absolute”.
Mute Level
Set the amount of
attenuation when muting
is on.
Full : The sound is muted entirely.
–40dB : The sound is attenuated by 40 dB down.
–20dB : The sound is attenuated by 20 dB down.
Option Setup Default settings are underlined.
Make various other settings.
Setting items Setting details
Volume Control
Set the volume setting.
Volume Display : Set how volume is displayed.
• Relative : Display - - -dB (Min), in the range –80.5 dB – 18 dB.
• Absolute : Display in the range 0 (Min) – 99.
The “Volume Display” setting is applied also to the “Volume Limit”
and “Power On Level” display method.
Volume Limit : Make a setting for maximum volume.
• OFF : Do not set a maximum volume.
• –20dB (61) / –10dB (71) / 0dB (81)
Power On Level : Define the volume setting that is active when the
power is turned on.
• Last : Use the memorized setting from the last session.
• – – – (0) : Always use the muting on condition when power is turned on.
• –80dB – +18dB (1 – 99) : The volume is adjusted to the set level.
Mute Level : Set the amount of attenuation when muting is on.
• Full : The sound is muted entirely.
• –40dB : The sound is attenuated by 40 dB down.
• –20dB : The sound is attenuated by 20 dB down.
Source Delete
Remove from the display
input sources that are not
used.
BD / DVD / VCR / SAT / GAME / AUX1 / USB / TV / CD / SIRIUS / TUNER
/ M-XPort : Select input source that is not used.
• ON : Use this source.
• Delete : Do not use this source.
NOTE
Input sources set to “Delete” cannot be selected using SOURCE SELECT.
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
Setting items Setting details
On-Screen Display
Make the settings related to
displays on the TV screen.
Screensaver : Make screensaver settings.
• ON : The screen saver is activated during menu display, iPod or TUNER
screen display if no operation is performed for an approximately 3-minute
continuous period. When you press uio p, the screensaver is
cancelled and the screen before that screen saver started is displayed.
• OFF : Screensaver is not activated.
Text : Display the details of operation when switching surround mode,
input mode, etc.
• ON : Turn display on.
• OFF : Turn display off.
Master Volume : Display the master volume during adjustment.
• Bottom : Display at the bottom.
• Top : Display at the top.
• OFF : Turn display off.
When the master volume display is hard to see when superimposed
on movie subtitles, set to “Top”.
USB : Set the USB screen display time when the input source is “USB”.
• Always : Show display continuously.
• 30sec : Show display for 30 seconds after operation.
• 10sec : Show display for 10 seconds after operation.
• OFF : Turn display off.
TUNER : Set the tuner screen display time when the input source is
“TUNER” or “SIRIUS”.
• Always : Show display continuously.
• 30sec : Show display for 30 seconds after operation.
• 10sec : Show display for 10 seconds after operation.
• OFF : Turn display off.
Zone Rename
Change the display title of
each zone to one you prefer.
• Up to 10 characters can be input.
• For character input, see page 45.
Default : The changed display names are reset to the defaults.
• Yes : Reset to the defaults.
• No : Do not reset to the defaults.
61
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA

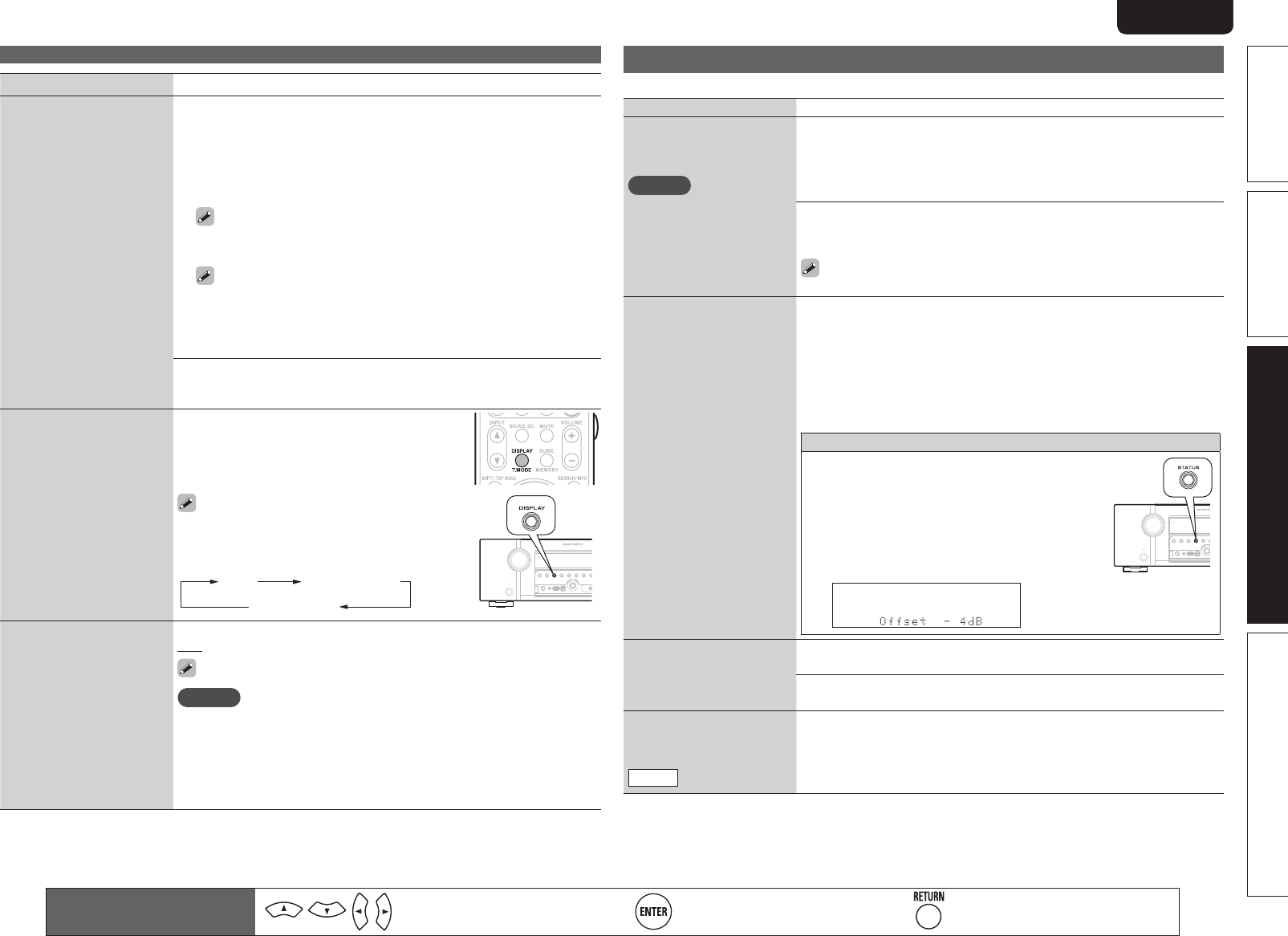

Information
Show information about receiver settings, input signals, etc.
Items Setting details
Status
Show information about
current settings.
NOTE
The information displayed
differs according to the
input source.
nMAIN ZONE
This item shows information about settings for MAIN ZONE.
Select Source / Name / Surround Mode / Input Mode /
Decode Mode / Video Select / Video Mode / Content Type /
i/p Scaler / Resolution / Progressive Mode / Aspect etc.
nZONE2
This item shows information about settings for ZONE2.
Power / Select Source / Volume Level
“Status” for ZONE2 is displayed when “Amp Assign” is set to
“ZONE2”.
Audio Input Signal
Show information about
audio input signals.
Surround Mode : The currently set surround mode.
Signal : The input signal type.
fs : The input signal’s sampling frequency.
Format : The number of channels in the input signal (front, surround, LFE).
Offset : The dialogue normalization correction value.
Flag : This is displayed when inputting signals including a surround back
channel. “MATRIX” is displayed with Dolby Digital EX and DTS-ES Matrix
signals, “DISCRETE” with DTS-ES Discrete signals.
Dialogue normalization function
This function is automatically activated when playing
Dolby Digital sources.
It automatically corrects the standard signal level for
individual program sources.
The correction value can be checked using STATUS.
The figure is the corrected
value. This cannot be
changed.
HDMI Information
Show information about
HDMI input/output signals
and monitor.
HDMI Signal Information
• Resolution / Color Space / Pixel Depth
HDMI Monitor Information
• Interface / Suport Resolution
Preset Channel
Show information about
preset channels.
TUNER
A / B / C / D / E / F / G
A1 – A8 / B1 – B8 / C1 – C8 / D1 – D8 / E1 – E8 / F1 – F8 / G1 – G8
Setting items Setting details
DC Trigger
Select the condition for
activating Trigger Out for
the input source, surround
mode, etc.
See “DC OUT (TRIGGER
OUT) jacks” (vpage38) for
more information on trigger
out.
Trigger Out
nWhen setting for zone (MAIN ZONE / ZONE2)
Trigger out is activated through linkage to the power of the zone set
to “ON”.
nWhen setting for input source
Activate trigger out when the input source set to “ON” is selected.
Active for the zone set to “ON” with “When Setting for Zone”.
nWhen setting for surround mode
Activate trigger out when the surround mode set to “ON” is selected.
Active when the “MAIN ZONE” set to “ON” with “When Setting
for Zone” is selected, and when the input source set to “ON” with
“When Setting for Input Source” is selected.
• ON : Activate trigger on this mode.
• – – – : Do not activate trigger on this mode.
Default : The “Trigger Out” settings are returned to the default settings.
• Yes : Reset to the defaults.
• No : Do not reset to the defaults.
Display
Set the display on/off
setting.
ON : Display is always on.
Display Auto OFF : Display is off except when
showing the status display.
Display OFF : Display is always off.
This can also be set by pressing DISPLAY on
the remote control unit or main unit.
Each time DISPLAY is pressed, the setting is
changed as shown below.
ON Display Auto Off
Display OFF
Setup Lock
Protect settings from
inadvertent change.
ON : Turn protection on.
OFF : Turn protection off.
When canceling the setting, set “Setup Lock” to “OFF”.
NOTE
When “Setup Lock” is set to “ON”, the settings listed below can no
longer be changed. Also, “SETUP LOCKED!” is displayed if you attempt
to operate related settings.
· Menu operations · Dynamic EQ®
· M-DAX · Dynamic Volume®
· MultEQ®· Channel Level
Manual Setup
Remote control operation
buttons
Move the cursor
(Up/Down/Left/Right) Confirm the setting Return to previous menu
62
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Other settings
Remote control settings
• When you connect a remote control receiver unit (purchased
separately) to the REMOTE CONTROL IN terminal of this unit, use
the following procedure to disable the remote sensor function of
this unit.
• The remote sensor function of remote control signals is enabled by
default.
o
pZONE2 ON/OFF
RETURN
ENTER
nDisabling the sensor function of the remote control
1
To enable the remote signal sensor function, press
and hold ZONE2 ON/OFF and RETURN for 3 seconds.
“IR:< ENABLE >” is displayed.
2Press o p to select “DISABLE”.
3Press ENTER.
The sensor function of the remote control signal of this unit is
disabled.
NOTE
If a remote control receiver unit (purchased separately) is not
connected, do not perform this setting. If you do, you will not be
able to operate this unit using the remote control.
nEnabling the remote sensor function
1
To disable the remote signal sensor function, press
and hold ZONE2 ON/OFF and RETURN for 3 seconds.
“IR:< DISABLE >” is displayed.
2Press o p to select “ENABLE”.
3Press ENTER.
The sensor function of the remote control signal of this unit is
enabled.
Switching the on-screen display
output mode
Set whether the menu is operated by the monitor connected to the
VIDEO OUT terminal or the monitor connected to the COMPONENT
VIDEO MONITOR OUT terminal.
• The factory setting is “Comp”.
ENTER
o
p
RETURN PURE DIRECT
1Press and hold RETURN and PURE DIRECT for 3
seconds.
Corresponding to the video signal format settings,
“OSD Out: 0 Comp 1” or “OSD Out: 0 Video 1” is shown
in the display.
2Press o p to change the settings according to the
connection method.
Comp Set when the COMPONENT VIDEO MONITOR OUT
connector is connected to a TV.
Video Set when the VIDEO OUT connector is connected
to a TV.
3Press ENTER to enter the setting.
NOTE
When operating the on-screen display menu using the monitor
connected to the HDMI OUT terminal, either setting may be used
without problem.
63
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Operating the connected devices by remote control unit
Registering the supplied preset codes in the remote control unit
enables you to operate devices made by other manufacturers.
Operating AV equipment
1Press the input source select
button (vpage 22).
The operation mode of the remote
control unit is switched as shown in the
table.
NOTE
Press the input source select buttons once
to switch the operation mode of the remote
control unit supplied with this unit.
Press the input source select buttons twice
consecutively to switch the operation mode
of the remote control unit and input source
of this unit.
Input
source
select
buttons
Input source
of this unit
Devices controllable with the remote
control unit
(Operation mode)
zBD Device registered on the BD button
zDVD Device registered on the DVD button
zVCR
Device registered on the VCR button
zSAT
Device registered on the SAT button
GAME Device registered on the GAME button
AUX1 Device registered on the AUX1 button
USB Device registered on the USB button
zTV Device registered on the TV button
zCD Device registered on the CD button
SIRIUS SIRIUS Satellite Radio
TUNER Radio of this unit
M-XPort Device registered on the M-XP button
z If a preset code is registered for this button, the remote control
unit of this unit can control another devices.
NOTE
If the mode of the remote control unit is set to other than amp-
operation mode, press AMP to switch the remote control unit to the
amp-operation mode to perform the following operations:
• For menu operation by pressing MENU
• For setting the channel level of the unit by pressing CH LVL
• For performing direct playback
• For switching the MultEQ, Dynamic EQ, and Dynamic Volume
settings.
• For using the Video Select function.
• For using the sleep timer function.
• For displaying the Source Select screen.
• For switching the M-DAX function.
• For directly selecting “AUTO” and “STEREO” of the listening
modes.
2Operate this unit or the device whose input source is
switched.
• For details, refer to the operating instructions for each device.
For operations of iPod, SIRIUS and TUNER, see the following
pages.
• iPod (vpage23)
• SIRIUS (vpage27)
• TUNER (vpage28)
Registering preset codes
When preset codes are registered in the included remote control unit,
it can then be used to operate any devices you have, such as DVD
players or TVs made by different manufacturers.
NOTE
• No preset codes other than BD, DVD, TV, SAT and CD can be
registered.
• In the factory settings, remote control codes for all Marantz products
are registered.
nButtons used for operating the devices
q SOURCE ON/OFF
For switching power of each device on or off.
w uio p, ENTER
For menu operation of each device.
e MENU, SETUP, TOP MENU
For displaying the menu of each device.
r 1, 2, 3, 6, 7, 8, 9
t Number button (0 – 9, +10)
y PRESET +, PRESET –
u TV POWER, TV INPUT
For operating a TV
This button is enabled in any mode.
For details on operation with the remote control unit, see pages 23
to 24, 27, 28, and 65.
64
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Registering preset codes
nProgramming with the 4-digit code
1Press and hold down the input
source select buttons for the
appliance to control, and press
SET until the SEND indicator
blinks twice.
The back light flashes.
2Press the 4-digit code for the
appliance using the numeric
buttons (code table at the end of
this book).
When the procedure is successful, the
SEND indicator blinks twice.
NOTE
If the indicator did not blink twice, then repeat
steps 1 and 2 and try entering the same code
again.
nScanning the code table
1Switch on the appliance to
control.
2Press and hold down the input
source select buttons for the
appliance to control, and press
SET until the SEND indicator
blinks twice.
The back light flashes.
3Aim the remote control at the
appliance and slowly alternate
between pressing INPUT d
and SOURCE ON/OFF for the
appliance.
4Stop when the appliance turns
off.
5Press ENTER once to lock in the
code.
nChecking the code
1Press and hold down the
input source select buttons for
appliance to control, and press
SET until the SEND indicator
blinks twice and back light
ashes.
The back light flashes.
2Press SEARCH/INFO.
The SEND indicator blinks twice.
3To view the code for rst digit,
press 1 once.
Count the number of times the SEND
indicator blinks (e.g. 3 blinks = 3) and
write down the number.
4Then press 2 to check the second
digit of the code. Now press 3 and
4 to check the third and fourth
digits of the code.
NOTE
If a code digit is “0”, the SEND indicator does
not blink.
nResetting the code
The devices shown below are registered for each input source
button as default. Settings can be changed according to the
devices to be used.
1Press and hold down the
input source select buttons for
appliance to control and press
SET until the SEND indicator
blinks twice.
The back light flashes.
2Press the codes below to reset the
code.
The indicator will blink twice.
Input source select
buttons Category Preset code
Blu-ray Disc player 5000
DVD player 2000
Television 1000
Satellite set top box 4000
CD player 3000
NOTE
After this procedure, the selected source reset to its initial code.
65
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Operating components
The supplied remote control unit can control a component other than
this unit.
1Switch the input source
(vpage 22).
2Operate the component.
• For details, refer to the component’s
operating instructions.
nBlu-ray Disc player / HD-DVD player /
DVD player / DVD recorder operation
Operation buttons Function
SOURCE ON/OFF Power on/standby
MENU (Popup) Menu
TOP MENU Top menu
uio pCursor operation
ENTER Enter
6 7 Manual search
(fast-reverse/fast-forward)
1Playback
8 9 Auto search (cue)
3Pause
2Stop
0 – 9 Select title, chapter or channel
selection
CLR Clear the inputting
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
nCD player / CD recorder operation
Operation buttons Function
SOURCE ON/OFF Power on/off
6 7 Manual search
(fast-reverse/fast-forward)
1Playback
8 9 Auto search (cue)
3Pause
2Stop
CLR Clear the inputting
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
nTV operation
Operation buttons Function
SOURCE ON/OFF TV power on/standby
(Default : Marantz)
PRESET +, – Switch channels (up/down)
CLR Clear the inputting
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
nSet top box for satellite (SAT) operation
Operation buttons Function
SOURCE ON/OFF Power on/standby
PRESET +, – Switch channels (up/down)
uio pCursor operation
ENTER Enter
0 – 9 Channel selection
CLR Clear the inputting
TV POWER TV power on/standby
(Default : Marantz)
TV INPUT Switch TV input
(Default : Marantz)
66
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA

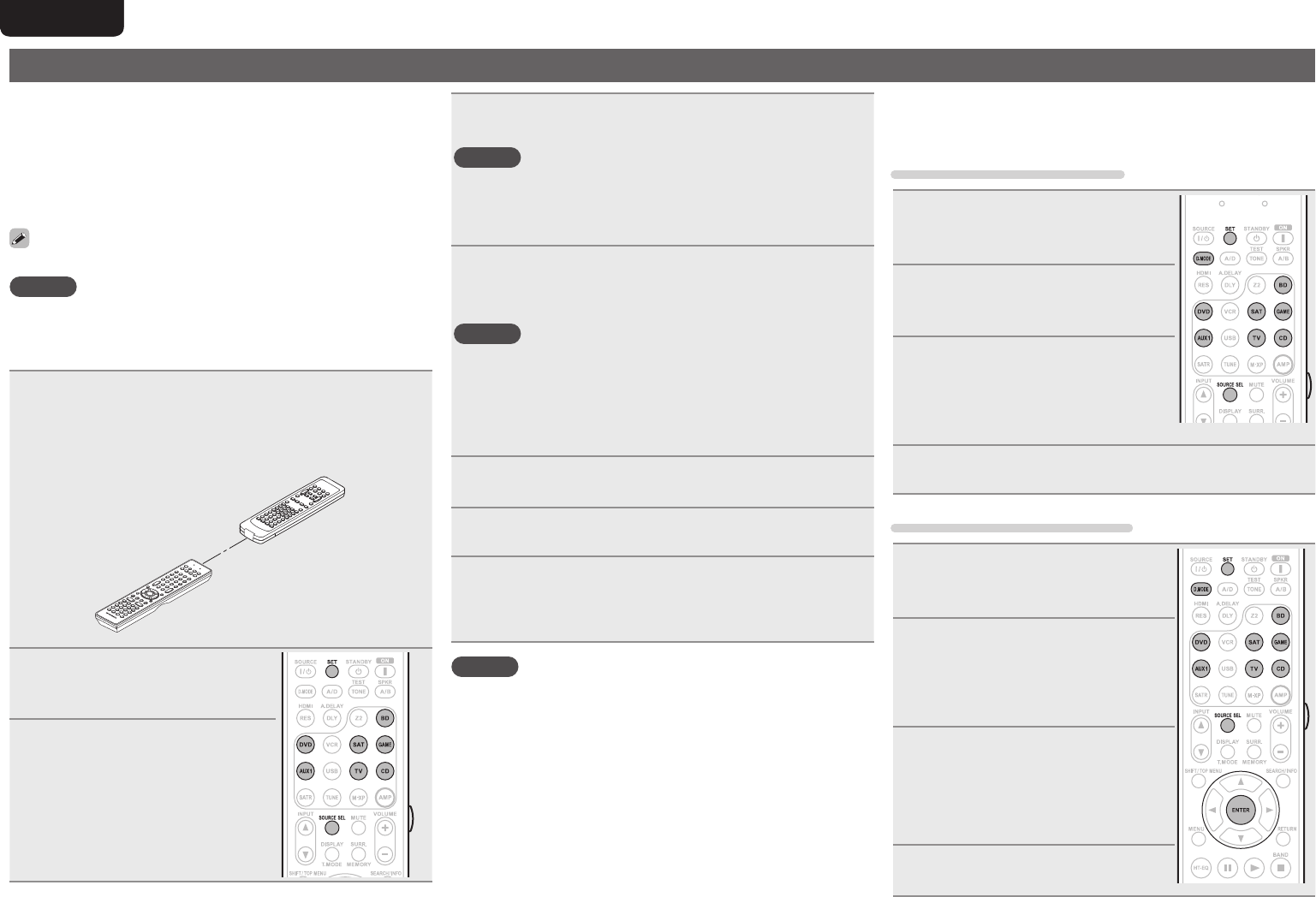

Operating learn mode
This remote control unit is capable of learning and storing codes used
by other remote controls that you already own.
For codes which are not learned, the remote control unit will transmit
either the Marantz preset codes from the initial settings, or remote
codes from another manufacturer’s AV equipment which is set by the
customer.
The receiver sensor for the remote control unit signals is located at the
top of the remote control unit.
This remote control unit is capable of learning around 160 codes.
NOTE
The learning procedure does not operate correctly if the batteries have
become worn.
nLearning procedure
1Place the Marantz remote control and remote
control from the other device approximately 5 cm
apart, with the remote control signal transmission
sections facing each other.
2Press and hold down SET and
SOURCE SEL until the LEARN
indicator blinks.
3Press input source select
buttons to select the input
source.
4Select the button to be learned.
LEARN indicator lights up.
NOTE
• The learning function is unavailable for all SOURCE and D.MODE in
any mode.
• The learning function is unavailable for all buttons in TUNER mode
and AMP mode.
5Press and hold the button of the original remote
control unit to be learned until the SEND indicator
blinks twice.
NOTE
• If the SEND indicator blinks once, repeat this step.
• If the LEARN indicator flashes when the SEND indicator is lit, then
the button cannot be learned.
• When the memory of the remote control unit is full, the LEARN and
SEND indicators blink once. If you want to learn the code, you need
to erase a different learned button.
6Repeat steps 4 and 5 to learn other buttons for the
same input source.
7Repeat steps 3 to 6 to learn other input sources.
8When programming of the remote control unit is
completed, press SET.
The LEARN display disappears, and the remote control unit
exits learn mode.
NOTE
• When the SEND indicator blinks once again, the transmitting code
is unavailable for remote control unit, or the transmitting signal has
been interrupted by noise.
• If no buttons are pressed for approximately 1 minutes while in the
LEARN mode, the remote control unit automatically exits from the
LEARN mode.
nErasing programmed codes
Codes can be erased in three ways: by buttons, sources, and by all
memory contents.
Erasing the code by buttons
1Press and hold down SET and
SOURCE SEL until the LEARN
indicator blinks.
2Press input source select buttons
to select the input source you
want to delete.
3Press and hold down D.MODE
and press the learned button to
be erased twice.
SEND indicator blinks twice and the
mode returns to LEARN mode.
4To return the normal mode, press SET.
Erasing the code by SOURCE
1Press and hold down SET and
SOURCE SEL until the LEARN
indicator blinks.
2Press and hold down D.MODE
and press the learned input
source select buttons to be erased
twice.
LEARN indicator lights.
3Press ENTER to continue erasing.
• The SEND indicator blinks twice and
the mode returns to LEARN mode.
• To cancel the erasing operation, do not
press ENTER, and simply press any
other button.
4To return the normal mode,
press SET.
5 cm
67
Basic versionSimple version Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Advanced version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Operating learn mode
Erasing the all sources
1Press and hold down SET and
SOURCE SEL until the LEARN
indicator blinks.
2Press and hold down D.MODE
and press ON and STANDBY .
LEARN indicator lights.
3Press ENTER to continue erasing.
• The SEND indicator blinks twice and
the mode returns to LEARN mode.
• To cancel the erasing operation, do
not press ENTER and simply press any
other button.
4To return the normal mode, press SET.
NOTE
Erasing codes will return to the factory preset code, or there will leave
empty if the button has no factory preset code.
Setting the back light
Press the Light button on the side of the remote control, and the
buttons on the remote control light for 2 seconds. If the Light button
is pressed while the buttons are lit, the buttons remain lit for another
2 seconds.
• Backlight is set on in the factory settings.
nDisabling the backlight
Press and hold both SET and
STANDBY until the SEND indicator
ashes twice.
nTurning the backlight on
Press and hold both SET and ON
until the SEND indicator ashes
twice.
Information
68
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
F Part names and functions vpage69
F Other information vpage73
F Troubleshooting vpage80
F Specifications vpage83
F Index vpage83
Information
Here, we list various information related to this unit.
Please refer to this information as needed.
69
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Front panel
For buttons not explained here, see the page indicated in parentheses ( ).
q e r t oy iw u
Q1
Q8Q7 Q9 W0 W1 W2 W3 W4 W5 W6
Q6 Q0
Q5 Q2
Q3Q4
q Power indicator ·········································· (11)
w Power operation button
(ON/STANDBY) ······································ (6, 11)
Turns power to this unit on and off (standby).
e Headphones jack (PHONES)
When the headphones are plugged into this
jack, audio will no longer be output from the
connected speakers or from the PRE OUT
connectors.
NOTE
To prevent hearing loss, do not raise the volume
level excessively when using headphones.
r SETUP MIC jack ······································ (8, 37)
t iPod/USB port ············································ (19)
y DIGITAL connector ····································· (18)
u Cursor buttons (uio p) ·················· (44 – 46)
i ENTER button ····································· (44 – 46)
o AUX1 INPUT connector ····························· (18)
Q0 VOLUME control knob ······························· (22)
Q1 Remote control sensor ······························ (72)
Q2 M-DAX indicator ········································· (55)
Q3 Master volume indicator
Q4 Display ························································· (69)
Q5 PURE DIRECT indicator ······························ (31)
Q6 INPUT SELECTOR knob ····························· (22)
Q7 SURROUND MODE button ························ (29)
Q8 AUTO buton ················································ (29)
Q9 DISPLAY button ·········································· (61)
W0 STATUS button ······························ (23, 25, 61)
W1 MENU button ·············································· (46)
W2 RETURN button ·································· (44 – 46)
W3 BAND button ········································ (27, 82)
W4 ZONE SELECT button ································ (42)
W5 ZONE2 ON/OFF button ······························ (42)
W6 PURE DIRECT button ··························· (31, 62)
Part names and functions
Display
i uoQ0Q1Q2Q3
wq e
y
rt
q Decoder indicators
These light when the respective decoders are
operating.
w Input signal indicators
e Information display
The input source name, surround mode, setting
values and other information are displayed here.
r Front speaker indicator
This lights when audio signals are being output
from the speakers.
t ZONE2 indicator
This lights when ZONE2 (separate room) power
is turned on (vpage42).
y Master volume indicator
When performing setting operations, displays
the menu number.
u Sleep timer indicator
This lights when the sleep mode is selected
(vpage40).
i MUTE indicator
This lights when the mute mode is selected
(vpage22).
o Audyssey® indicators
Lighting is as follows, depending on the setting
of “Dynamic EQ” (vpage54) and “Dynamic
Volume” (vpage54).
When “Dynamic EQ” and
“Dynamic Volume” are “ON”.
When “Dynamic EQ” is “ON” and
“Dynamic Volume” is “OFF”.
When “Dynamic EQ” and
“Dynamic Volume” are “OFF”.
Q0 Surround back indicator
This lights when audio signals are being output
from the surround back speakers (vpage57).
Q1 Input mode indicators
Set the audio input modes for the different input
sources (vpage50).
Q2 HDMI indicator
This lights when playing using HDMI connections.
Q3 Tuner reception mode indicators
These light according to the reception conditions
when the input source is set to “TUNER”.
STEREO: In the FM mode, this light when
receiving analog stereo broadcasts.
TUNED: Lights when the broadcast is properly
tuned in.
AUTO: This light when in the auto tuning mode.
70
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Rear panel
See the page indicated in parentheses ( ).
q w e r t y
oQ0Q2 Q1Q3Q4Q6 Q5 i u
q FM/AM antenna terminals ····················································· (20)
w Analog audio connectors ···········································(16 – 18, 21)
e PRE OUT connector ················································(5, 21, 34 – 36)
r 7.1CH INPUT connectors ························································ (21)
t Speaker terminals ·······················································(5, 34 – 36)
y AC inlet (AC IN) ·········································································· (5)
u COMPONENT VIDEO connectors ····································· (16, 17)
i HDMI connectors ····································································· (15)
o Digital audio connectors ··················································(16 – 18)
Q0 FLASHER IN jack
Used when using a control BOX or other such control devices to
control this unit.
Q1 VIDEO connectors ····························································(16 – 18)
Q2 REMOTE CONTROL connectors ············································· (38)
Q3 M-XPort connector ···························································· (18, 38)
Q4 SIRIUS connector ···································································· (20)
Q5 DC OUT jack ············································································· (38)
Q6 RS-232C connector ·································································· (38)
NOTE
Do not touch the inner pins of the connectors on the rear panel.
Electrostatic discharge may cause permanent damage to the unit.
71
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Remote control unit
For buttons not explained here, see the page indicated in parentheses ( ).
Q8
W1
W2
W3
W5
W7
W6
W8
W9
E0
E1
E2
R3
R4
R5
R6
Q7
W4
Q6
Q5
Q4
Q3
Q1
o
i
Q0
u
e
r
t
w
Q2
q
Q9
W0
y
E3 E8
E9
R0
R1
R2
E4
E5
E6
E7
q SET button ······································ (64, 66, 67)
w SOURCE power button ······················ (63 – 65)
e Decode mode button (D.MODE) ··············· (50)
r Input mode button (A/D) ··························· (50)
t Resolution button (HDMI/RES) ················· (49)
y Audio delay button (DLY) ·························· (55)
u Input source select buttons ··········· (22, 63, 65)
i Source select button
(SOURCE SEL) ············································ (22)
o INPUT buttons ······································ (22, 42)
Q0 DISPLAY/Tuner mode
(T.MODE) button ·································· (27, 61)
Q1 SHIFT/TOP MENU button ·············· (26, 27, 45)
Q2 Cursor buttons (uio p) ·················· (44 – 46)
Q3 MENU button ·············································· (46)
Q4 HT-EQ button ·············································· (52)
Q5 Number buttons ··································· (26, 65)
Q6 Clear button (CLR) ······································ (65)
Q7 TUNING buttons (+, –) ························ (25, 27)
Q8 Remote control signal transmitter ··········· (72)
Q9 SEND indicator ··········································· (67)
W0 LEARN indicator ········································· (66)
W1 Power buttons (ON, STANDBY) ············ (6, 11)
W2 Speaker A/B button (SPKR A/B) ··············· (58)
W3 TEST TONE button ····································· (58)
W4 ZONE2 button (Z2) ····································· (42)
W5 Muting button (MUTE) ························ (11, 22)
W6 Light button ················································ (67)
W7 Master volume control buttons
(VOLUME +, –) ······································ (11, 22)
W8 Surround mode (SURR.)/MEMORY button
················································· (26, 27, 29 – 31)
W9 SEARCH/Information (INFO) button
····································· (23, 24, 26 – 28, 46, 64)
E0 ENTER button ····································· (44 – 46)
E1 RETURN button ·································· (44 – 46)
E2 System buttons ······························ (23, 24, 65)
• Pause button (3)
• Play button (1)
• Stop button (2)
• Skip button (8, 9)
• Search button (6, 7)
FM/AM band switching button
(BAND) ··················································· (27, 28)
E3 AUTO button ·············································· (29)
E4 MULTEQ® button ································· (53, 59)
E5 STEREO button ··········································· (31)
E6 Channel level button (CH LVL) ·················· (40)
E7 SLEEP button ·············································· (40)
E8 Pure direct button (P.DIRECT) ··················· (31)
E9 Dynamic EQ® button (DYN EQ) ················ (54)
R0 Dynamic Volume® button (DYN VOL) ····· (54)
R1 Video select button (V.SEL) ······················ (49)
R2 M-DAX button ············································ (55)
R3 REPEAT button ····································· (23, 24)
R4 RANDOM button ·································· (23, 24)
R5 TV operation buttons
(TV POWER / INPUT) ································· (65)
R6 CHANNEL/PRESET buttons (+, –)
······················································· (26 – 28, 65)
72
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Operating range of the remote control unit
Point the remote control unit at the remote sensor when operating it.
30°
30°
Approx. 23 ft/7 m
NOTE
The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong artificial light from an inverter type fluorescent lamp or infrared
light.
Remote control unit
Inserting the batteries
q Remove the rear lid in the
direction of the arrow and
remove it.
w Load the two batteries
properly as indicated by
the marks in the battery
compartment.
R03/AAA
e Put the rear cover back on.
NOTE
• Insert the specified batteries in the remote control unit.
• Replace the batteries with new ones if the set does not operate
even when the remote control unit is operated close to the unit. (The
supplied batteries are only for verifying operation.)
• When inserting the batteries, be sure to do so in the proper direction,
following the q and w marks in the battery compartment.
• To prevent damage or leakage of battery fluid:
• Do not use a new battery together with an old one.
• Do not use two different types of batteries.
• Do not attempt to charge dry batteries.
• Do not short-circuit, disassemble, heat or dispose of batteries in
flames.
• Do not keep the battery in a place exposed to direct sunlight or in
places with extremely high temperatures, such as near a heater.
• If the battery fluid should leak, carefully wipe the fluid off the inside
of the battery compartment and insert new batteries.
• Remove the batteries from the remote control unit if it will not be in
use for long periods.
• Used batteries should be disposed of in accordance with the local
regulations regarding battery disposal.
73
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Other information
nTrademark information (vpage73)
nSurround (vpage74)
nExplanation of terms (vpage78)
Trademark information
This product uses the following technologies:
Manufactured under license from
Dolby Laboratories. “Dolby”,
“Pro Logic” and the double-D
symbol are trademarks of Dolby
Laboratories.
Manufactured under license
under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535; 7,212,872;
7,333,929; 7,392,195; 7,272,567 &
other U.S. and worldwide patents
issued & pending. DTS and the
Symbol are registered trademarks,
& DTS-HD, DTS-HD Master Audio,
and the DTS logos are trademarks
of DTS, Inc. Product includes
software.
© DTS, Inc. All Rights Reserved.
Manufactured under license from
DTS Licensing Limited. DTS and the
Symbol are registered trademarks,
& DTS Neural Surround and the DTS
logos are trademark of DTS, Inc.
Product includes software. © DTS,
Inc. All Rights Reserved.
SIRIUS, XM and all related marks
and logos are trademarks of Sirius
XM Radio Inc. and its subsidiaries.
All rights reserved.
Service not available in Alaska and
Hawaii.
HDMI, the HDMI Logo and High-
Definition Multimedia Interface
are trademarks or registered
trademarks of HDMI Licensing
LLC in the United States and other
countries.
Manufactured under license from
Audyssey Laboratories™. U.S. and
foreign patents pending. Audyssey
MultEQ® is a registered trademark
of Audyssey Laboratories.
Audyssey Dynamic EQ® is a
registered trademark of Audyssey
Laboratories. Audyssey Dynamic
Volume® is a trademark of
Audyssey Laboratories.
“Made for iPod” and “Made for
iPhone” mean that an electronic
accessory has been designed
to connect specifically to iPod
or iPhone, respectively, and has
been certified by the developer
to meet Apple performance
standards. Apple is not responsible
for the operation of this device
or its compliance with safety and
regulatory standards.
iPhone, iPod, iPod classic, iPod
nano, iPod shuffle, and iPod touch
are trademarks of Apple Inc.,
registered in the U.S. and other
countries.
• Individual users are permitted to
use iPhone, iPod, iPod classic,
iPod nano, iPod shuffle, and
iPod touch for private copy and
playback of non-copyrighted
contents and contents whose
copy and playback is permitted
by law. Copyright infringement is
prohibited by law.
74
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Surround
This unit is equipped with a digital signal processing circuit that lets you play program sources in the surround mode to achieve the same sense of presence as in a movie theater.
Surround modes and surround parameters
This table shows the speakers that can be used in each surround mode and the surround parameters adjustable in each surround mode.
Symbols in the table
S This indicates the audio output channels or surround parameters that can be set.
D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.” (vpage56).
Surround mode (vpage29)
Channel output Surround Parameter (vpage52)
Front
L/R Center Surround
L/R
Surround Back
L/R Front Height L/R Subwoofer
HT-EQ.
z3
(vpage52)
DRC
z4
(vpage52)
D. Comp
z5
(vpage52)
LFE
z6
(vpage52)
PURE DIRECT (2channel) S Dz2S S
PURE DIRECT (Multi-channel) S D D Dz1Dz1D S S S
DIRECT (2channel) S Dz2S S
DIRECT (Multi-channel) S D D Dz1Dz1D S S S
STEREO S DSSSS
MULTI CH IN SDDD DS S
DOLBY PRO LOGIC gzSDD DDSSS
DOLBY PRO LOGIC gxS D D D D S S S
DOLBY PRO LOGIC g S D D D S S S
DTS NEO:6 S D D D D S S S
DOLBY DIGITAL S D D D D D S S S
DOLBY DIGITAL Plus S D D D D D S S S
DOLBY TrueHD S D D D D D S S S
DTS SURROUND S D D D D D S S S
DTS 96/24 S D D D D D S S S
DTS-HD S D D D D D S S S
DTS Express S D D D D D S S S
MULTI CH STEREO SDDD D SS
DOLBY VIRTUAL SPEAKR S Dz2S S S
Neural S D D D D S
Dolby Headphone S
z1 A signal for each channel contained in an input signal is output as audio.
z2 Only when “Subwoofer Mode” is set to “LFE+Main” (vpage57), sound is output from the subwoofer.
z3 For HD Audio whose sampling frequency of an input signal is more than 96kHz, this sound parameter cannot be set.
z4 This item can be selected when a Dolby TrueHD signal is played.
z5 This item can be selected when a Dolby Digital or DTS signal is played.
z6 This item can be selected when a Dolby Digital or DTS signal or DVD-Audio is played.
75
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Surround
Surround mode (vpage29)
Surround Parameter (vpage52)
Tonez7
(vpage53)
Audyssey Settingsz11(vpage53)
M-DAX
z10
(vpage55)
Height Gain
(vpage53)
Panorama
(vpage52)
PRO LOGIC g/gx Music mode only NEO:6 Music
mode only
Dimension
(vpage52)
Center Width
(vpage52)
Center Image
(vpage52) MultEQ®
(vpage53)
Dynamic
EQ®z8
(vpage54)
Dynamic
Volume®
z9
(vpage54)
PURE DIRECT (2 channel)
PURE DIRECT (Multi-channel)
DIRECT (2 channel)
DIRECT (Multi-channel)
STEREO SSSSS
MULTI CH IN SSSS
DOLBY PRO LOGIC gzS SSSSS
DOLBY PRO LOGIC gxSSS SSSSS
DOLBY PRO LOGIC g SSS SSSSS
DTS NEO:6 SSSSSS
DOLBY DIGITAL SSSS
DOLBY DIGITAL Plus SSSS
DOLBY TrueHD SSSS
DTS SURROUND SSSS
DTS 96/24 SSSS
DTS-HD SSSS
DTS Express SSSS
MULTI CH STEREO SSSSS
DOLBY VIRTUAL SPEAKER SSSSS
Neural SSSSS
Dolby Headphone SSSSS
z7 This item cannot be set when “Dynamic EQ” (vpage54) is set to “ON”.
z8 This item cannot be set when “MultEQ” (vpage53) is set to “OFF” or “Manual”.
z9 This item cannot be set when “Dynamic EQ” (vpage54) is set to “OFF”.
z10 This item can be set when the input signal is analog, PCM 48 kHz or 44.1 kHz.
z11 For HD Audio whose sampling frequency of an input signal is more than 96 kHz, this sound parameter cannot be set.
76
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Surround
nTypes of input signals, and corresponding surround modes
This table shows the input signal that can be played in each surround mode. Check the audio signal of the input source then select the surround mode.
Symbols in the table
S This indicates the selectable surround mode.
Surround mode (vpage29) NOTE
Input signal types and formats
ANALOG
PCM DTS-HD DTS DOLBY DOLBY DIGITAL
LINEAR PCM
(multi ch)
LINEAR PCM
(2ch)
DTS-HD
Master
Audio
DTS-HD
High
Resolution
Audio
DTS
EXPRESS
DTS ES
DSCRT
(With Flag)
DTS ES
MTRX
(With Flag)
DTS
(5.1ch) DTS 96/24 DOLBY
TrueHD
DOLBY
DIGITAL Plus
DOLBY
DIGITAL EX
(With Flag)
DOLBY
DIGITAL EX
(With no
Flag)
DOLBY
DIGITAL
(5.1/5/4ch)
DOLBY
DIGITAL
(2ch)
DTS SURROUND
DTS-HD MSTR S
DTS-HD HI RES S
DTS ES DSCRT6.1 z1z4S
DTS ES MTRX6.1 z1z4S
DTS SURROUND SSS
DTS 96/24 S
DTS (–HD) + PLgx MOVIE z2z4SSSSSSS
DTS (–HD) + PLgx MUSIC z1z4SSSSSSS
DTS (–HD) + PLgzz3SSSSSSS
DTS EXPRESS S
DTS (–HD) + NEO:6 z1z4SSS SSS
DTS NEO:6 CINEMA S S S
DTS NEO:6 MUSIC S S S
DOLBY SURROUND
DOLBY TrueHD S
DOLBY DIGITAL+ S
DOLBY DIGITAL EX z1z4SSS
DOLBY (D+) (HD) +EX z1z4S S
DOLBY DIGITAL SSS
DOLBY (D) (D+) (HD) +PLgx MOVIE z2z4SSS S S
DOLBY (D) (D+) (HD) +PLgx MUSIC z1z4SSSSS
DOLBY (D) (D+) (HD) +PLgzz3SSSSS
DOLBY PRO LOGIC gx MOVIE z1z4S S S
DOLBY PRO LOGIC gx MUSIC z1z4S S S
DOLBY PRO LOGIC gx GAME z1z4S S S
DOLBY PRO LOGIC gzz3S S S
DOLBY PRO LOGIC g MOVIE S S S
DOLBY PRO LOGIC g MUSIC S S S
DOLBY PRO LOGIC g GAME S S S
DOLBY VIRTUAL SPEAKER SSSSSSSSSSSSSSSS
DOLBY HEADPHONE SSSSSSSSSSSSSSSS
z1 If “Speaker Config.“ – “S.Back“ (vpage57) is set to “None”, this surround mode cannot be selected.
z2 If “Speaker Config.“ – “S.Back“ (vpage57) is set to “1sp” or “None”, this surround mode cannot be selected.
z3 If “Speaker Config.“ – “Front Height“ (vpage57) is set to “None”, this surround mode cannot be selected.
z4 This surround mode can be selected when “Amp Assign” (vpage56) is set to “Normal”.
77
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Surround
Surround mode (vpage29) NOTE
Input signal types and formats
ANALOG
PCM DTS-HD DTS DOLBY DOLBY DIGITAL
LINEAR PCM
(multi ch)
LINEAR PCM
(2ch)
DTS-HD
Master
Audio
DTS-HD
High
Resolution
Audio
DTS
EXPRESS
DTS ES
DSCRT
(With Flag)
DTS ES
MTRX
(With Flag)
DTS
(5.1ch) DTS 96/24 DOLBY
TrueHD
DOLBY
DIGITAL Plus
DOLBY
DIGITAL EX
(With Flag)
DOLBY
DIGITAL EX
(With no
Flag)
DOLBY
DIGITAL
(5.1/5/4ch)
DOLBY
DIGITAL
(2ch)
MULTI CH IN
MULTI CH IN S
MULTI CH IN + PLgx MOVIE z2z4S
MULTI CH IN + PLgx MUSIC z1z4S
MULTI CH IN + PLgzz3S
MULTI CH IN + Dolby EX z1z4S
MULTI CH IN 7.1 z1z4S
DIRECT SS SSSSSSSSSSSSSS
PURE DIRECT SS SSSSSSSSSSSSSS
MULTI CH STEREO SS S SSSS SSSS
STEREO SS SSSSSSSSSSSSSS
NEURAL S S S
AUTO SS SSSSSSSSSSSSSS
z1 If “Speaker Config.“ – “S.Back“ (vpage57) is set to “None”, this surround mode cannot be selected.
z2 If “Speaker Config.“ – “S.Back“ (vpage57) is set to “1sp” or “None”, this surround mode cannot be selected.
z3 If “Speaker Config.“ – “Front Height“ (vpage57) is set to “None”, this surround mode cannot be selected.
z4 This surround mode can be selected when “Amp Assign” (vpage56) is set to “Normal”.
78
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Explanation of terms
A
A2DP
A2DP is one profile of Bluetooth definded for
in-car devices or AV devices that use wireless
communication instead of a cable.
Adobe RGB color / Adobe YCC601 color
Like x.v.Color, each of these color spaces defines
a palette of available colors that is larger than the
traditional RGB color model.
Audyssey Dynamic EQ®
Audyssey Dynamic EQ solves the problem of
deteriorating sound quality as volume is decreased
by taking into account human perception and room
acoustics. Audyssey Dynamic EQ works in tandem
with Audyssey MultEQ® to provide well-balanced
sound for every listener at any volume level.
Audyssey Dynamic Volume®
Audyssey Dynamic Volume solves the problem of
large variations in volume level between television
programs, commercials, and between the soft and
loud passages of movies. Audyssey Dynamic EQ
is integrated into Dynamic Volume so that as the
playback volume is adjusted automatically, the
perceived bass response, tonal balance, surround
impression, and dialog clarity remain the same.
Audyssey MultEQ®
Audyssey MultEQ is a room equalization solution
that calibrates any audio system so that it can
achieve optimum performance for every listener
in a large listening area. Based on several room
measurements, MultEQ calculates an equalization
solution that corrects for both time and frequency
response problems in the listening area and also
performs a fully automated surround system setup.
Auto Lip Sync
If you connect the receiver to a TV that supports the
Auto Lip Sync function, it can automatically correct
delay between the audio and video.
B
Bluetooth
Bluetooth is a short-distance wireless
communication technology used for connecting
handheld devices several meters apart. This
enables notebook computers, PDA s, mobile
phones, etc. to connect without a cable for
transmitting audio and data.
D
Deep Color
This technology allows expression of more number
of colors than the conventional 8 bits and can
reproduce colors close to natural ones without color
streak.
Dolby Digital
Dolby Digital is a multi-channel digital signal format
developed by Dolby Laboratories.
A total of 5.1 channels are played: 3 front channels
(“FL”, “FR” and “C”), 2 surround channels
(“SL” and “SR”) and the “LFE” channel for low
frequencies.
Because of this, there is no crosstalk between
channels and a realistic sound field with a “three-
dimensional” feeling (sense of distance, movement
and positioning) is achieved.
A realistic, powerful sense of presence is achieved
when playing movie sources in AV rooms as well.
Dolby Digital EX
Dolby Digital EX is a 6.1-channel surround format
proposed by Dolby Laboratories that allows users
to enjoy in their homes the “DOLBY DIGITAL
SURROUND EX” audio format jointly developed by
Dolby Laboratories and Lucas Films.
The 6.1 channels of sound, including surround back
channels, provide improved sound positioning and
expression of space.
Dolby Digital Plus
Dolby Digital Plus is an improved Dolby Digital signal
format that is compatible with up to 7.1 channels
of discrete digital sound and also improves sound
quality thanks to extra data bit rate performance.
It is upwardly compatible with conventional Dolby
Digital, so it offers greater flexibility in response to
the source signal and the conditions of the playback
equipment.
Dolby Headphone
The Dolby Headphone technology provides a surround
sound listening experience over headphones.
When listening to multichannel content such
as DVD movies over headphones, the listening
experience is fundamentally different than listening
to speakers. Since the headphone speaker drivers
are covering the pinna of the ear, the listening
experience differs greatly from traditional speaker
playback. Dolby utilizes patented headphone
perspective curves to solve this problem and
provides a non-fatiguing, immersive, home theater
listening experience. Dolby Headphone also
delivers exceptional 3D audio from stereo material.
Dolby TrueHD
Dolby TrueHD is a high definition audio technology
developed by Dolby Laboratories, using lossless
coding technology to faithfully reproduce the sound
of the studio master.
This format provides the facility to support up to
8 audio channels with a sampling frequency of
96kHz/24bit resolution and up to 6 audio channels
with a sampling frequency of 192kHz/24bit
resolution. Dolby TrueHD is adopted for applications
that put very high importance on sound quality.
Dolby Pro Logic g
Dolby Pro Logic g is a matrix decoding technology
developed by Dolby Laboratories.
Regular music such as that on CDs is encoded into
5 channels to achieve an excellent surround effect.
The surround channel signals are converted into
stereo and full band signals (with a frequency
response of 20 Hz to 20 kHz or greater) to create
a “three-dimensional” sound image offering a rich
sense of presence for all stereo sources.
Dolby Pro Logic gx
Dolby Pro Logic gx is a further improved version of
the Dolby Pro Logic g matrix decoding technology.
Audio signals recorded in 2 channels are decoded
to achieve a natural sound with up to 7.1 channels.
There are three modes: “Music” suited for playing
music, “Movie” suited for playing movies, and
“Game” which is optimized for playing games.
Dolby Pro Logic gz
Dolby Pro Logic gz introduces a new dimension to
Home Entertainment through the addition of a pair
of front height channels. Compatible with stereo,
5.1-channel and 7.1-channel content, Dolby Pro
Logic gz provides enhanced spaciousness, depth
and dimension to movies, concert video and video
game playback while maintaining the full integrity
of the source mix.
Dolby Pro Logic gz identifies and decodes spatial
cues that occur naturally in all content, directing
this information to the front height channels,
complementing the performance of left and right
surround sound speakers. Content that is encoded
with Dolby Pro Logic gz height channel information
can be even more revealing, with perceptually
discrete height channel information bringing an
exciting new dimension to home entertainment.
Dolby Pro Logic gz, with front height channels is
also an ideal alternative for households that cannot
support the placement of back surround speakers
of a typical 7.1-channel system but may have
bookshelf space available to support the addition of
height speakers.
Dolby Virtual Speaker
Dolby Virtual Speaker is a technology certified
by Dolby Laboratories that creates a virtualized
surround sound experience from two speakers
using a multichannel Dolby Digital source.
Additionally, Dolby Virtual Speaker can simulate
the surround sound effect produced by Dolby Pro
Logic or Dolby Pro Logic g.
Dolby Virtual Speaker retains all the original
Multichannel audio information and provides the
listener with the sensation of being surrounded by
additional speakers.
Downmix
This function converts the number of channels of
surround audio to less number of channels and
plays back.
DTS
This is an abbreviation of Digital Theater System,
which is a digital audio system developed by DTS.
When playing back audio by connecting this system
with a device such as DTS amplifier, accurate sound
field position and realistic sound effect as if you are
in a movie theater can be obtained.
79
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
DTS 96/24
DTS 96/24 is a digital audio format enabling high
sound quality playback in 5.1 channels with a
sampling frequency of 96 kHz and 24 bit quantization
on DVD-Video.
DTS Digital Surround
DTS Digital Surround is the standard digital surround
format of DTS, Inc., compatible with a sampling
frequency of 44.1 or 48 kHz and up to 5.1 channels
of digital discrete surround sound.
DTS-ES™ Discrete 6.1
DTS-ES™ Discrete 6.1 is a 6.1-channel discrete
digital audio format adding a surround back (SB)
channel to the DTS digital surround sound.
Decoding of conventional 5.1-channel audio signals
is also possible according to the decoder.
DTS-ES™ Matrix 6.1
DTS-ES™ Matrix 6.1 is a 6.1-channel discrete digital
audio format inserting a surround back (SB) channel
to the DTS digital surround sound through matrix
encoding. Decoding of conventional 5.1-channel
audio signals is also possible according to the
decoder.
DTS Express
DTS Express is an audio format supporting low bit
rates (max. 5.1 channels, 24 to 256 kbps).
DTS-HD
This audio technology provides higher sound quality
and enhanced functionality than the conventional
DTS and is adopted as an optional audio for Blu-ray
Disc. This technology supports multi-channel, high
data transfer speed, high sampling frequency, and
lossless audio playback. Maximum 7.1-channels are
supported in Blu-ray Disc.
DTS-HD High Resolution Audio
DTS-HD High Resolution Audio is an improved
version of the conventional DTS, DTS-ES and
DTS 96/24 signals formats, compatible with
sampling frequencies of 96 or 48 kHz and up to
7.1 channels of discrete digital sound. High data
bit rate performance provides high quality sound.
This format is fully compatible with conventional
products, including conventional DTS digital
surround 5.1-channel data.
Explanation of terms
DTS-HD Master Audio
DTS-HD Master Audio is a lossless audio format
created by Digital Theater System (DTS). This
format provides the facility to support up to 8 audio
channels with a sampling frequency of 96kHz/24bit
resolution and up to 6 audio channels with a
sampling frequency of 192kHz/24bit resolution.
It is fully compatible with conventional products,
including conventional DTS digital surround
5.1-channel data.
DTS Neural Surround
DTS Neural Surround has been chosen as the
surround sound format for XM Satellite Radio’s
“XM HD Surround”, TV sports broadcasting, 7.1
games, Music Direct Internet streaming as well as
leading FM/HD radio stations. It delivers the rich
envelopment and discrete image detail of surround
sound by unmasking the audio details, typically
lost by other playback modes. Audiences will
experience the deep ambience and subtle details of
movies, music and games.
DTS NEO:6™ Surround
DTS NEO:6™ is a matrix decoding technology
for achieving 6.1-channel surround playback
with 2-channel sources. It includes “DTS NEO:6
Cinema” suited for playing movies and “DTS
NEO:6 Music” suited for playing music.
Dynamic range
The difference between the maximum undistorted
sound level and the minimum discernible level
above the noise emitted by the device.
H
HDCP
When transmitting digital signals between devices,
this copyright protection technology encrypts
the signals to prevent content from being copied
without authorization.
HDMI
This is an abbreviation of High-Definition Multimedia
Interface, which is an AV digital interface that can
be connected to a TV or amplifier. Video signal and
audio signal can be connected using 1 cable.
L
LFE
This is an abbreviation of Low Frequency Effect,
which is an output channel that emphasizes
low frequency effect sound. Surround audio is
intensified by outputting 20 Hz to 120 Hz deep
bass.
M
MAIN ZONE
The room where this unit is placed is called the
MAIN ZONE.
MP3 (MPEG Audio Layer-3)
This is an internationally standardized audio data
compression scheme, using the “MPEG-1” video
compression standard. It compresses the data
volume to about one eleventh its original size while
maintaining sound quality equivalent to a music CD.
MPEG (Moving Picture Experts Group), MPEG-2,
MPEG-4
These are the names for digital compression format
standards used for the encoding of video and audio.
Video standards include “MPEG-1 Video”, “MPEG-
2 Video”, “MPEG-4 Visual”, “MPEG-4 AVC”. Audio
standards include “MPEG-1 Audio”, “MPEG-2
Audio”, “MPEG-4 AAC”.
P
Pairing
Pairing is an operation required for settings to
connect two Bluetooth devices. Pairing enables
Bluetooth devices to access each other.
Protection Circuit
This is a function to prevent damage to components
within the power supply when an abnormality
such as an overload, excess voltage occurs or
temperature for any reason.
In this unit, the power indicator blinks and the unit
enters standby mode when an abnormality occurs.
S
Sampling frequency
Sampling involves taking a reading of a sound wave
(analog signal) at regular intervals and expressing
the height of the wave at each reading in digitized
format (producing a digital signal).
The number of readings taken in one second is
called the “sampling frequency”. The larger the
value, the closer the reproduced sound is to the
original.
Speaker impedance
This is an AC resistance value, indicated in Ω
(ohms). Greater power can be obtained with this
value smaller.
sYCC601 color
Like x.v.Color, each of these color spaces defines
a palette of available colors that is larger than the
traditional RGB color model.
W
WAV (Wave)
WAV is a standard audio format of Windows. The
file size tends to increase, but sound near the
original sound can be maintained.
WMA (Windows Media Audio)
This is audio compression technology developed by
Microsoft Corporation.
WMA data can be encoded using Windows
Media® Player Ver.7, 7.1, Windows Media®Player
for Windows® XP and Windows Media® Player 9
Series.
To encode WMA files, only use applications
authorized by Microsoft Corporation. If you use
an unauthorized application, the file may not work
properly.
X
x.v.Color
This function lets HDTVs display colors more
accurately. It enables display with natural, vivid
colors. “x.v.Color” is a Sony registered trademark.
Z
ZONE2
This unit can operate in a room other than the room
where this unit is placed (MAIN ZONE) (ZONE2
playback). The room for ZONE2 playback is called
ZONE2.
80
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the user guide?
3. Are the other components operating properly?
If this unit does not operate properly, check the items listed in the table below. Should the problem persist,
there may be a malfunction.
In this case, disconnect the power immediately and contact your store of purchase.
GGeneralH
Symptom Cause/Solution Page
Power does not turn
on.
• Check whether the power plug is correctly inserted into the power
outlet.
• The protection circuit is active. Disconnect the power plug from
the electric outlet, wait 5 to 10 seconds and then insert it back
into the outlet.
5
4, 79
Display is off. • Set “Display” on the menu to something other than “OFF”. 61
The power indicator
is blinking red
in intervals of
approximately 2
seconds.
• The temperature inside the unit has risen. Please turn off power
once, and re-apply the power after the temperature has fallen
sufficiently.
• Please re-install this unit in a place having good ventilation.
II
II
The power indicator
is blinking red
in intervals of
approximately 0.5
seconds.
• Please use speakers which have the specified impedance.
• The speaker cable has shorted (is touching). Firmly twist the core
wire in the speaker cable, and then re-connect it to the speaker
terminal.
4
4
After turning on the
power, the power
indicator is blinking
red in intervals of
approximately 0.5
seconds.
• This unit amplifier circuit has failed. Turn off the power and please
contact the Marantz service adviser.
–
Set does not operate
properly.
• Reset the microprocessor. 82
GVideoH
Symptom Cause/Solution Page
No picture appears. • Check the TV connection.
• Set the TV input correctly.
5
6
The on-screen
display is not shown.
Or noise occurs.
• Set the on-screen display output mode to match your TV and
connection method.
62
Troubleshooting
GAudioH
Symptom Cause/Solution Page
Audio is not output. • Check the connections for all devices.
• Check the speaker connections.
• Check whether the audio device power is turned on.
• Adjust the master volume.
• Cancel the mute mode.
• Select a suitable input source.
• Select a suitable input mode.
• Disconnect the headphones. No sound is output from the speakers
or the PRE OUT connectors when headphones are connected.
5, 14 – 21
5, 34 – 36
–
22, 42
22, 42
22, 42
50
69
No sound is
produced from
surround speaker.
• Check if the surround speakers are connected to the SURROUND
terminals.
–
No sound is
produced from
surround back
speaker.
• Set “Amp Assign” on the menu to “Normal”.
• Set “Speaker Config.” – “S.Back” on the menu to something
other than “None”.
• Set the surround mode to something other than “STEREO”.
56
57
29
No sound is
produced from front
height speaker.
• Set “Amp Assign” on the menu to “Normal”.
• Set “Speaker Config.” – “Surround” on the menu to something
other than “None”.
56
57
No sound is
produced from
subwoofer.
• Check the subwoofer connections.
• Turn on the subwoofer’s power.
• Set “Speaker Config.” – “Subwoofer” on the menu to “Yes”.
• If “Front” and “Center” for “Speaker Config.” are set to “Large”,
and “Subwoofer Mode” is set to “LFE”, no sound may be output
from the subwoofers, depending on the input signal or selected
surround mode.
5, 34 – 36
6
56
56, 57
DTS sound is not
output.
• Set “Decode Mode” on the menu to “Auto” or “DTS”. 50
Dolby TrueHD, DTS-
HD, Dolby Digital
Plus audio is not
output.
• Make HDMI connections. 15
81
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
GHDMIH
Symptom Cause/Solution Page
No audio is
output with HDMI
connection.
• Check the connection of the HDMI connectors.
• When outputting HDMI audio from the speakers, set “HDMI
Audio Out” on the menu to “Amp”.
• When outputting HDMI audio from a TV, set “HDMI Audio Out”
on the menu to “TV”.
15
58
58
No video is
output with HDMI
connection.
• Check the connection of the HDMI connectors.
• Set the input source to match the connected HDMI connector.
• Check whether the TV is compatible with copyright protection
(HDCP). If connected to a device not compatible with HDCP, video
will not be output correctly.
15
15, 22, 48
14
When the following
operations are
performed on
devices compatible
with HDMI control,
the same operations
occur on this unit.
• Power ON/OFF
• Switching audio
output devices
• Adjust volume
• Switch input source
• Set “HDMI Control” on the menu to “OFF”. To operate power
only for each device, set “Power Off Control” to “OFF”.
39, 58
GSIRIUS Satellite RadioH
Symptom Cause/Solution Page
“CHECK SR TUNER”
is displayed.
• The SiriusConnect Home Tuner unit is not connected. Check that
the connections are correct.
20
”ANTENNA ERROR”
is displayed.
• The antenna is not connected. Check that the connections are
correct.
20
”INVALID
CHANNEL” is
displayed.
• Channel is not present. Select another channel. –
”ACQUIRING
SIGNAL” is
displayed.
• The signal cannot be received. Reposition your SiriusConnect
Home Tuner and Home Dock antenna.
• Displays while SiriusConnect Home Tuner is connected. Reposition
your SiriusConnect Home Tuner and Home Dock antenna.
–
–
”Call SIRIUS”z is
displayed.
• Channels are not subscribed to. If you subscribe to the channel,
you can receive the channel.
–
”SUBSCRIPTION
UPDATED” is
displayed.
• While updating contract information. –
”Enter Lock Code
[ ]” is displayed.
• Selected channels are locked. Please insert pass word (4 digits)
into “[ ]”
–
z After scroll displays “Call 888-539-....” twice, displays “Call SIRIUS”.
GFM/AM radioH
Symptom Cause/Solution Page
Reception fails, or
there is a lot of noise
or distortion.
• Change the antenna orientation or position.
• Separate the AM loop antenna from the unit.
• Use an FM outdoor antenna.
• Separate the antenna from other connection cables.
20
20
20
20
GUSB memory deviceH
Symptom Cause/Solution Page
When a USB
memory device is
connected, “USB” is
not displayed on the
menu.
• The set cannot recognize a USB memory device. Check the
connection.
• A USB memory device not conforming to mass storage class is
connected. Connect a USB memory device conforming to mass
storage class.
• A USB memory device cannot be connected via a USB hub.
19
–
19
Files on a USB
memory device
cannot be played.
• Set the USB memory device format to “FAT16” or “FAT32”. For
details, refer to the USB memory device’s operating instructions.
• If the USB memory device is divided into multiple partitions, only
files stored in the top partition can be played.
• The file is recorded in an incompatible format. Please record it in
a compatible format.
• This unit cannot play back files covered by copyright protection.
–
–
–
–
The file names
are not displayed
properly (“...”, etc.).
• Characters that cannot be displayed on this unit are replaced by
“.” (period).
23
The sound quality is
poor or there is noise
during playback.
• The file being played back has a low bit rate. –
“Connection Error”
is displayed.
• Unable to communicate properly. Turn off the power to this unit,
unplug the USB memory device and then plug it back in.
• The USB memory device is not responding. Turn off the power to
this unit, unplug the USB memory device and then plug it back in.
–
–
“Overcurrent” is
displayed.
• The USB memory device is consuming too much power. When
using a USB portable hard disk that can be powered by an AC
adapter, connect its AC adapter.
–
82
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
Resetting the microprocessor
Perform this procedure if the display is abnormal or if operations cannot be performed.
When the microprocessor is reset, all the settings are reset to their default values.
Various setting details can be saved and reset on this device. If setting details are saved before returning
to the default values, after returning to the default settings, setting details can be returned to the same
values as before returning to the defaults.
To return all of the settings to the default values, perform steps 2 to 4 without performing step 1.
ENTER
o p
AUTO MENU BAND
SURR.
MODE
ON/STANDBY
1When the power is ON, press and hold BAND and ENTER for more than 3 seconds.
After “MEMORY SAVING” is shown on the display, “COMPLETE”is shown to inform you that the
settings have been saved.
2Turn off the power using ON/STANDBY.
3Press ON/STANDBY while simultaneously pressing SURR. MODE and AUTO.
4Once the display starts ashing at intervals of about 1 second, release the two
buttons.
5Press and hold MENU and BAND for more than 3 seconds.
After “MEMORY LOAD” is shown on the display, “COMPLETE” is shown to inform you that the
settings have returned to those saved in step 1.
If in step 4 the display does not flash at intervals of about 1 second, start over from step 2.
GiPodH
Symptom Cause/Solution Page
iPod cannot be
played.
• Check the iPod connections.
• Switch the input source to “USB”.
• Incompatible iPod types cannot be played back.
19
22
19
“Connection Error”
is displayed.
• Unable to communicate properly. Turn off the power to this unit,
disconnect the iPod and then reconnect it.
–
“Not Support” is
displayed.
• The iPod connected to the unit is not compatible. Please make
sure the iPod you are connecting is compatible.
• The software version of the connected iPod is an old one. Please
update to the latest version.
19
–
“Connection Error”
is displayed.
• The iPod is not responding. Turn off the power to this unit,
disconnect the iPod and then reconnect it.
–
When an iPod is
connected, “No
Connection” is
displayed.
• “No Connection” may display if you connect an iPod that has
only a small amount of charge remaining in its battery to this unit.
Should this occur, charge the iPod before connecting it to this unit.
–
GM-XPortH
Symptom Cause/Solution Page
Audio is not output
when a wireless
receiver (RX101 is
connected).
• Check that the Bluetooth device and Wireless receiver (RX101)
are correctly paired.
–
GRemote control unitH
Symptom Cause/Solution Page
The set cannot be
operated with the
remote control unit.
• Batteries are worn out. Replace with new batteries.
• Operate the remote control unit within a distance of about 23 ft/7
m from this unit and at an angle of within 30°.
• Remove any obstacle between this unit and the remote control
unit.
• Insert the batteries in the proper direction, checking the q and
w marks.
• The set’s remote control sensor is exposed to strong light (direct
sunlight, inverter type fluorescent bulb light, etc.). Move the set
to a place in which the remote control sensor will not be exposed
to strong light.
72
72
72
72
72
83
Basic version Advanced versionSimple version
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Information
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLNEDERLANDSSVENSKA
Index
vNumerics
2.1-channel ··················································· 33, 36
3D ······································································· 14
5.1-channel ··················································· 33, 35
6.1-channel ··················································· 33, 34
7.1-channel ··············································· 4, 33, 34
vA
A2DP ···························································· 18, 78
Accessories ·························································· 1
Adjust CH ··························································· 55
Adobe RGB color / Adobe YCC601 color ··········· 78
AM loop antenna ················································ 20
Amp Assign ························································ 56
Antenna Aiming ·················································· 47
ARC ···································································· 15
Aspect ································································ 50
Audio Adjust ······················································· 52
Audio cable ··································· 5, 16, 17, 18, 21
Audio Delay ························································ 55
Audio Setup ························································ 59
Audyssey Auto Setup ····································· 6, 37
Audyssey Dynamic EQ ································· 54, 78
Audyssey Dynamic Volume ························· 54, 78
Audyssey MultEQ ·································· 53, 69, 78
Audyssey Settings ············································· 53
Auto Lip Sync ··············································· 58, 78
Auto Preset ························································ 47
Auto Setup ····················································· 6, 37
vB
Base Curve Copy ················································ 55
Bass ····························································· 53, 59
Bass Setting ······················································· 57
Bi-amp ································································ 36
Bluetooth ······················································ 18, 78
vC
Cable
Audio cable ································· 5, 16, 17, 18, 21
Coaxial digital cable ····································16, 17
Component video cable ······························16, 17
HDMI cable ·················································· 5, 15
Optical cable ·············································· 16, 18
Speaker cable ···················································· 5
Video cable ··········································· 16, 17, 18
Center Image ····················································· 52
Center Width ······················································ 52
Channel ······························································ 59
Channel Level ····················································· 58
Characters ·························································· 45
Coaxial digital cable ······································ 16, 17
Component video cable ······························· 16, 17
Condensation ······················································· 2
Connection
7.1CH INPUT ···················································· 21
Antenna ··························································· 20
Blu-ray Disc player ································· 5, 15, 16
Cable TV ··························································· 17
CD player ························································· 18
DC OUT (TRIGGER OUT) ································· 38
Digital camcorder ············································· 18
DVD player ················································· 15, 16
External power amplifier ·································· 21
Game console ·················································· 15
HDMI ······························································· 14
iPod ·································································· 19
Power cord ························································· 5
REMOTE CONTROL ········································ 38
RS-232C ··························································· 38
Satellite tuner ··················································· 17
Set-top box ·················································15, 17
SIRIUS ····························································· 20
Speaker ························································ 4, 34
TV··························································· 5, 15, 16
USB memory device ········································ 19
Video cassette recorder ··································· 17
Wireless receiver ············································· 18
Crossover Freq. ·················································· 58
vD
D.Comp ······························································ 52
DC Trigger ·························································· 61
Decode Mode ···················································· 50
Deep Color ··················································· 14, 78
Dimension ·························································· 52
Direct mode ······················································· 23
Display ·························································· 61, 69
Distance ····························································· 57
Dolby
Dolby Digital··············································· 30, 78
Dolby Digital EX ········································· 30, 78
Dolby Digital Plus ······································· 30, 78
Dolby Headphone ······································ 31, 78
Dolby Pro Logic II ············································· 78
Dolby Pro Logic IIx ··········································· 78
Dolby Pro Logic IIz ····································· 33, 78
Dolby TrueHD ············································· 30, 78
Dolby Virtual Speaker ································· 31, 78
Downmix ···························································· 78
DRC ···································································· 52
Specifications
nAudio section
• Power amplifier
Rated output: Front:
100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Center:
100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Surround:
100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Surround Back:
100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
180 W + 180 W (6 Ω, 1 kHz with 10 % T.H.D.)
Output connectors: 6 – 8 Ω (SPEAKER A + B : 8 Ω)
• Analog
Input sensitivity/Input impedance: 165 mV/50 kΩ
Frequency response: 10 Hz – 100 kHz — ±3 dB (Source Direct mode)
S/N: 98 dB (IHF–A weighted, Source Direct mode)
nVideo section
• Standard video connectors
Input/output level and impedance: 1 Vp-p, 75 Ω
Frequency response: 5 Hz – 10 MHz — +1, –3 dB
• Color component video connector
Input/output level and impedance: Y (brightness) signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response: 5 Hz – 60 MHz — +0, –3 dB
nTuner section [FM] [AM]
(Note: μV at 75 Ω, 0 dBf = 1 x 10–15 W)
Receiving Range: 87.5 MHz – 107.9 MHz 520 kHz – 1710 kHz
Usable Sensitivity: 1.2 μV (12.8 dBf) 18 μV
50 dB Quieting Sensitivity: MONO 2.8 μV (20.2 dBf)
S/N (IHF-A): MONO 70 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz): MONO 0.7 %
STEREO 1.0 %
nGeneral
Power supply: AC 120 V, 60 Hz
Power consumption: 650 W
0.2 W (Standby)
3 W (CEC standby)
Maximum external dimensions: 440 (W) x 161 (H) x 389 (D) mm
Weight: 11.6 kg
nRemote control unit (RC010SR)
Batteries: R03/AAA Type (two batteries)
For purposes of improvement, specifications and design are subject to change without notice.
84
ENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANÇAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
DTS ······························································ 30, 78
DTS 96/24 ·················································· 30, 79
DTS-ES Discrete 6.1 ·································· 30, 79
DTS-ES Matrix 6.1 ····································· 30, 79
DTS-HD ······················································ 30, 79
DTS-HD High Resolution Audio ······················· 79
DTS-HD Master Audio ····································· 79
DTS Digital Surround ······································· 79
DTS Express ···················································· 79
DTS NEO:6™ Surround ····························· 29, 79
DTS Neural Surround ································· 29, 79
Dynamic EQ ······················································· 54
Dynamic range ··················································· 79
Dynamic Volume ················································ 54
vE
EQ Customize ···················································· 59
Error messages (Auto Setup) ····························· 10
vF
FM indoor antenna ············································· 20
Front A/B (connection) ······································· 35
Front Height ······················································· 57
Front height speaker ···································· 33, 34
Front Panel ························································· 69
Front Speaker Setup ·········································· 58
vH
HDCP ··························································· 14, 79
HDMI ···························································· 14, 79
HDMI 1.4a ···················································· 14, 15
HDMI Audio Out ················································ 58
HDMI cable ···················································· 5, 15
HDMI Control ··············································· 39, 58
HDMI Setup ······················································· 58
Headphones ······················································· 69
Height Gain ························································ 53
HPF ···································································· 59
HT-EQ ································································· 52
vI
Information ························································· 61
Audio Input Signal ············································ 61
HDMI Information ············································ 61
Preset Channel ················································ 61
Status ······························································· 61
Input Assign ······················································· 48
Input Mode ························································· 50
Input Setup ························································· 46
Input signal ··················································· 30, 76
i/p Scaler ····························································· 49
vL
Learn mode ························································ 66
Level Lch ···························································· 59
Level Rch ··························································· 59
LFE ······························································· 52, 79
Listening mode ·················································· 29
Listening position ················································· 7
vM
MAIN ZONE ················································· 41, 79
Manual EQ ························································· 55
Manual Setup ····················································· 56
Master volume display ······································· 60
M-DAX ································································ 55
Menu map ·························································· 43
MP3 ···································································· 79
MPEG ································································· 79
MPEG-4 AAC ······················································ 79
MultEQ ······························································· 53
Mute Level ························································· 60
M-XPort ······························································ 18
vO
On-Screen Display ·············································· 60
Output mode ··················································· 62
Optical cable ················································· 16, 18
Option Setup ······················································ 60
DC Trigger ························································ 61
Display ····························································· 61
On-Screen Display ··········································· 60
Setup Lock ······················································· 61
Source Delete ·················································· 60
Volume Control ················································ 60
Zone Rename ·················································· 60
vP
Pairing ································································ 79
Panel lock function ············································· 41
Panorama ··························································· 52
Parameter Check ················································ 10
Parental Lock ······················································ 47
Playback
Blu-ray Disc player ··········································· 23
CD player ························································· 23
Direct ······························································· 31
DVD player ······················································· 23
FM/AM broadcasts ·········································· 25
iPod ·································································· 23
MP3 ································································· 24
MPEG-4 AAC ··················································· 24
Multi-channel ··················································· 29
SIRIUS ····························································· 25
Stereo ······························································ 31
USB memory device ········································ 24
WMA ······························································· 24
ZONE2 ····························································· 42
Playback Mode ··················································· 51
Power Off Control ·············································· 59
Power On Level ················································· 60
Preset codes ······················································ 63
Preset Name ······················································ 48
Preset Skip ························································· 47
Presetting radio stations ···································· 27
Progressive Mode ·············································· 50
Protection circuit ················································ 79
vR
Rear panel ·························································· 70
Reference Level Offset ······································ 54
Remote control unit ····································· 63, 71
Inserting the batteries ······································ 72
Operating components ···································· 65
Registering Preset Codes ································ 63
Remote mode ···················································· 23
Rename ······························································ 51
Repeat ································································ 51
Resetting the microprocessor ···························· 82
Resolution ·························································· 49
vS
Sampling frequency ··········································· 79
S.Back ································································ 57
Screensaver ······················································· 60
Selecting the input source ································· 22
Setup Lock ························································· 61
Shuffle ································································ 51
SIRIUS ·························································· 20, 25
Sleep timer ························································· 40
Source Delete ···················································· 60
Source Level ······················································ 51
Speaker
Connect ······················································· 4, 34
Install ··························································· 4, 33
Set up ·························································· 6, 37
Speaker cable ······················································· 5
Speaker Config. ·················································· 56
Speaker impedance ········································ 4, 79
Speaker Setup ···················································· 56
Standby Source ·················································· 59
Subwoofer setting ················································ 7
Surround back speaker ····························· 4, 33, 34
Surround Mode ············································ 29, 74
Surround Parameter ··········································· 52
sYCC601 color ···················································· 79
vT
Tone ··································································· 53
Tone Control ······················································· 53
Trademark ·························································· 73
Treble ··························································· 53, 59
Turn off power (standby) ···································· 11
Turn on power ······················································ 6
vV
Video ·································································· 49
Video cable ············································· 16, 17, 18
Video conversion ················································ 13
Video Mode ························································ 49
Video Select ······················································· 49
Volume Control ·················································· 60
Volume Level ····················································· 59
Volume Limit ················································ 59, 60
vW
WAV ··································································· 79
WMA ·································································· 79
vX
x.v.Color ····························································· 79
vZ
ZONE2 ·························································· 41, 79
ZONE2 Setup ····················································· 59
Zone Rename ····················································· 60
Device select : BD
Blu-ray Disc Player
DDenon 5034, 5035, 5036
HHitachi 5031, 5032, 5033
IIntegra 5013
JJWC 5014, 5015, 5017, 5018,
5019, 5020
LLG 5010, 5011
MMarantz 5000, 5026, 5027
Mitsubishi 5024, 5025
OOnkyo 5013
PPanasonic 5001, 5002, 5003
Philips 5004
Pioneer 5005
RRCA 5012
SSamsung 5005
Sharp 5028, 5029, 5030
Sony 5007, 5008, 5009, 5016
TToshiba 5012
YYamaha 5021, 5022, 5023
Device select : DVD
DVD Player
AAiwa 2036, 2037
Apex 2012, 2017, 2018, 2019,
2021, 2034
BBOSE 2038, 2039, 2063
DDenon 2047, 2048
FFunai 2049
GGE 2009, 2020, 2029, 2033
HHarman Kardon 2061
Hitachi 2008, 2012, 2031
JJVC 2006, 2010, 2040, 2041,
2042, 2043
KKenwood 2053, 2054
Koss 2058
MMagnavox 2007, 2011, 2023, 2025
Marantz 2025, 2065
Marantz (Blu-ray) 2064
Mitsubishi 2011, 0215
OOnkyo 2062
Oritron 2009, 2030
PPanasonic 2003, 2015, 2016, 2055
Philips 2007, 2011, 2058
Pioneer 2002, 2014, 2056
Proscan 2009, 2020, 2032
RRCA 2005, 2009, 2020, 2035,
2057
SSampo 2041
Samsung 2008, 2012, 2022, 2024,
2027
Sanyo 2050, 2052
Sharp 2044, 2045
Sherwood 2051
Sony 2001, 2013, 2059
TToshiba 2004, 2008, 2026, 2028
YYamaha 2046, 2060
ZZenith 2010
Device select : SAT
Satellite Receiver
AAlphastar 4027
Amstrad 4046, 4047, 4050
Atsky 4048
BB Sky B 4021, 4045, 4046
CChaparral 4039
DDIRECTV 4001, 4016, 4044
DISH Network 4030
Drake 4026
EEchostar 4007, 4017, 4018, 4019,
4020, 4062, 4063, 4064
Eurosky 4047, 4056
Express Vu 4017
FFoxtel 4051
Freesat 4056
Fujitsu 4025
GGE 4002, 4008, 4009
General Instruments 4036, 4037
Gradiente 4044, 4057
HHitachi 4001, 4015
Hughes 4001, 4016
Humax 4049, 4050, 4051, 4052,
4053
JJaneil 4025
JVC 4017
MMitsubishi 4001
NNokia 4058, 4059, 4060, 4061
OOptima 4048
PPanasonic 4004, 4010
Philips 4031, 4035, 4044, 4057
Proscan 4002, 4008, 4009, 4011
RRadio Shack 4036, 4037
RCA 4002, 4008, 4009, 4029
Realistic 4040
Rural Cable 4036
SSamsung 4022, 4027, 4042, 4043,
4050, 4054, 4055
Schneider 4041, 4043
SKY 4044, 4045, 4057
Skyplus 4048
Skysat 4041, 4047, 4056
Sony 4003, 4012, 4014, 4065,
4066, 4067
Star Choice 4032
Star Trak 4024
STS 4038
SuperDish 4028
TTeac 4049
Thomson 4046, 4056
Toshiba 4001, 4034
UUniden 4005, 4006, 4013
Universum 4056
VVideo Pall 4025
ZZenith 4023, 4025, 4033
Device select : TV
Television
AAcer 1141
Admiral 1002, 1009, 1089
Aiko 1059
Aiwa 1117, 1118
Akai 1001
Amtron 1023
Anam 1113
Anam National 1023, 1069, 1092
AOC 1003, 1024, 1049, 1127
Audiovox 1023
BBell & Howell 1009, 1025
Benq 1104, 1142
Broksonic 1003, 1097, 1098, 1113
CCelebrity 1001
Citizen 1003, 1013, 1023, 1026,
1059, 1063
Colortyme 1003, 1043
Contec 1113
Contec/Cony 1023, 1045, 1047
Craig 1020, 1022, 1023, 1113
Crown 1023, 1067
Curtis Mathes 1003, 1013, 1025, 1026,
1062, 1103, 1110
DDaewoo 1003, 1013, 1024, 1035,
1036, 1059, 1084, 1101
Daytron 1003, 1013, 1016
Dimensia 1103, 1110
Dumont 1003, 1010, 1153
EElectroband 1001
Electrohome 1001, 1003, 1069, 1133
Emerson
1003, 1013, 1015, 1020,
1021, 1022, 1023, 1025,
1038, 1044, 1045, 1048,
1055, 1061, 1094, 1096,
1099, 1101, 1113
Envision 1003
FFisher 1025, 1051, 1091, 1160
Fujitsu 1038, 1124, 1125, 1155
Funai 1023, 1038, 1113
GGateway 1150
GE
1003, 1018, 1022, 1046,
1054, 1069, 1085, 1103,
1110, 1113, 1133, 1136,
1153
Goldstar
1003, 1013, 1024, 1030,
1045, 1080, 1100
1112, 1154
HHallmark 1003
Hisense 1116
Hitachi
1003, 1012, 1031, 1032,
1037, 1041, 1045, 1047,
1065, 1068, 1082, 1088,
1094, 1139, 1140, 1145,
1159
IInfi nity 1067
JJaneil 1134
JBL 1067
JC Penney
1003, 1013, 1018, 1019,
1024, 1026, 1046, 1047,
1054, 1063, 1083, 1085,
1100, 1103, 1110, 1112,
1133, 1154
Jensen 1003
JVC 1028, 1029, 1045, 1047,
1050, 1060, 1065
KKawasho 1001, 1003
Kenwood 1003
Kloss Novabeam 1023, 1056, 1057, 1134
KTV 1013, 1023, 1033, 1034,
1073, 1099, 1113
LLG 1024, 1030
MM.Wards 1002, 1009, 1038
Magnavox
1003, 1052, 1053, 1056,
1057, 1063, 1067, 1081,
1106
Marantz 1003, 1031, 1067, 1122
Mitsubishi 1003, 1024, 1051, 1115,
1122, 1133
Motorola 1014, 1069
NNEC 1003, 1012, 1024, 1043,
1069
NET-TV 1137, 1150
OOrion 1020, 1096
PPanasonic 1017, 1067, 1069, 1095,
1111
Philips
1003, 1011, 1045, 1052,
1054, 1056, 1057, 1058,
1063, 1067, 1069, 1106
Pioneer
1003, 1018, 1037, 1070,
1071, 1094, 1145, 1147,
1149
Plasmsync 1135
Portland 1003, 1013, 1024, 1059
Price Club 1026
Prism 1018
Proscan 1004, 1005, 1006, 1007,
1008, 1085, 1103, 1110
Proton 1003, 1045
QQuasar 1010, 1069, 1073, 1111,
1153
RRadio Shack
1003, 1013, 1015, 1023,
1024, 1025, 1045, 1100,
1103, 1110, 1113
RCA
1003, 1004, 1005, 1006,
1007, 1008, 1014, 1024,
1049, 1069, 1075, 1079,
1085, 1087, 1088, 1093,
1094, 1101, 1103, 1110,
1113, 1153
Realistic 1013, 1015, 1023, 1025,
1045, 1100, 1103, 1110
Runco 1010, 1153
SSampo 1150
Samsung
1003, 1013, 1024, 1026,
1040, 1045, 1062, 1078,
1083, 1090, 1100, 1105,
1114, 1120, 1121, 1146,
1148, 1157
Sansui 1119
Sanyo
1003, 1025, 1051, 1072,
1077, 1091, 1156, 1157,
1158
Sharp
1003, 1013, 1014, 1015,
1045, 1055, 1064, 1066,
1076, 1089, 1123
Signature 1009
Sony 1001, 1102, 1108
Soundesign 1003, 1023, 1038, 1063,
1113
Starlite 1023
Supre-Macy 1134
Sylvania
1003, 1039, 1042, 1052,
1053, 1056, 1057, 1063,
1067, 1089, 1151
Symphonic 1023, 1039, 1044
TTandy 1014
Tatung 1069
Technics 1018
Techwood 1003, 1018
Teknika
1003, 1009, 1013, 1023,
1024, 1026, 1038, 1045,
1047, 1059, 1063, 1111,
1113
Telecaption 1074
Toshiba
1003, 1019, 1025, 1026,
1042, 1074, 1098, 1107,
1111, 1135, 1136
Totevision 1013
UUniversal 1046, 1054
VVideo Concepts 1113
Viewsonic
1006, 1022, 1109, 1128,
1129, 1130, 1131, 1138,
1143, 1145, 1150
WWards
1003, 1009, 1015, 1024,
1038, 1044, 1046, 1052,
1054, 1056, 1057, 1067,
1086, 1103, 1110
White
Westinghouse 1001, 1101
YYamaha 1003, 1024
ZZenith 1003, 1009, 1010, 1132,
1144, 1153
List of preset codes / Liste de codes préréglés / Lista de códigos pre-ajustados
PRESET CODE 1
Device select : CD
CD Player
AAIWA 3001, 3002, 3003
AKAI 3004, 3005, 3006
AUDIO 3007
AUDIO LABS 3008
CCALIFORNIA 3008
CARVER 3010, 3011, 3009
CASIO 3012, 3020
CURTIS 3020, 3012
DDENON 3013
EEMERSON 3014
FFISHER 3011, 3015, 3016, 3017,
3018
GGE 3019
GENEXXA 3014, 3021, 3020
HHARMON 3022, 3023, 3051
HITACHI 3020
IINKEL 3024
JJC PENNEY 3012, 3020, 3025
JVC 3026, 3027
KKARDON 3022, 3051, 3023
KRELL 3010
LLUXMAN 3035, 3036, 3037, 3038
LX I 3012, 3020, 3014
MMAGNAVOX 3010, 3039, 3040
MARANTZ 3010, 3041, 3042, 3043
MATHES 3012, 3020
MCS 3012, 3020
MGA 3023
MISSION 3010
MITSUBISHI 3023, 3044
NNAD 3034, 3045
NAKAMICHI 3046, 3047, 3048
NEC MCS 3025
NIKKO 3007, 3016
OONKYO 3049, 3050, 3051, 3052,
3055, 3102, 3103
OPTIMUS
3011, 3014, 3020, 3028,
3053, 3054, 3056, 3057,
3058, 3059
PPANASONIC 3008, 3060, 3061
PHILIPS 3009, 3010, 3010, 3040
PIONEER 3020, 3021, 3062, 3063,
3064
QQUASAR 3008
RRCA 3011, 3014, 3065, 3066,
3067, 3068, 3069
REALISTIC 3011, 3014, 3020, 3042,
3054, 3057
ROTEL 3010
RS ORIGINAL 3070
SSAE 3010, 3083
SAMSUNG 3071
SANSUI 3014, 3068, 3072, 3073
SANYO 3011, 3018, 3074, 3075,
3076
SCOTT 3014
SEARS 3012, 3014, 3020, 3028,
3042
SHARP 3028, 3042, 3077
SHERWOOD 3042, 3056, 3070, 3078,
3024
SHURE 3025
SONY
3039, 3079, 3080, 3081,
3082, 3097, 3098, 3099,
3100, 3101
SYLVANIA 3010
SYMPHONIC 3083
TTEAC 3016, 3042, 3057, 3083,
3084, 3085, 3086
TECHNICA 3007, 3008, 3061, 3087,
3088
THETA DIGITAL 3040
TOSHIBA 3045
VVICTOR 3026
YYAMAHA 3007, 3089, 3090, 3091,
3092
ZZENITH 3016, 3093, 3094, 3095,
3096
2PRESET CODE
348.5 (13 11/16)
146.5 (5 3/4)
22.5
(15/16)
17.5
(11/16)
14.5
(5/8)
389.0 (15 3/8)
161.0 (6 3/8)
440.0 (17 3/8)
Unit : mm (in)
Dimensions / Dimensions / Dimensions
D&M Holdings Inc.
Printed in China 5411 10481 021M
