March Networks GW-DS150N PCI Wireless Card User Manual

March Networks Corporation PCI Wireless Card

User Manual

Table Contents

Table Contents.................................................................................................................................. 1

Introduction ...................................................................................................................................... 2

1.1 Introduction and safety information .................................................................................................2

1.2 Safety Information............................................................................................................................3

1.3 System Requirements.......................................................................................................................3

1.4 Package Contents .............................................................................................................................4

1.5 Placement of your Wireless Card.....................................................................................................4

Installation and Configuration......................................................................................................... 6

a) Network Card Installation ................................................................................................................6

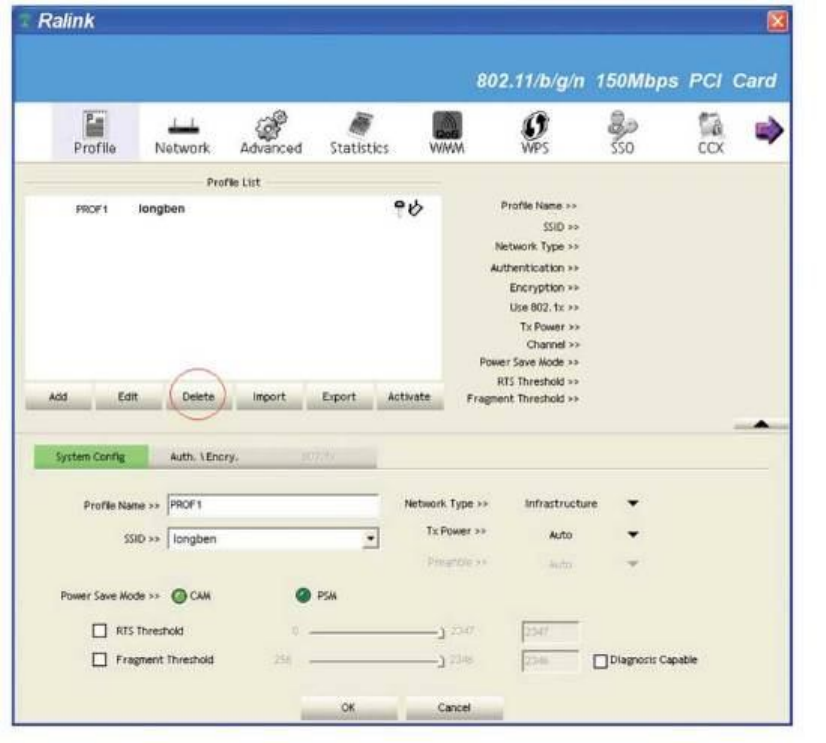

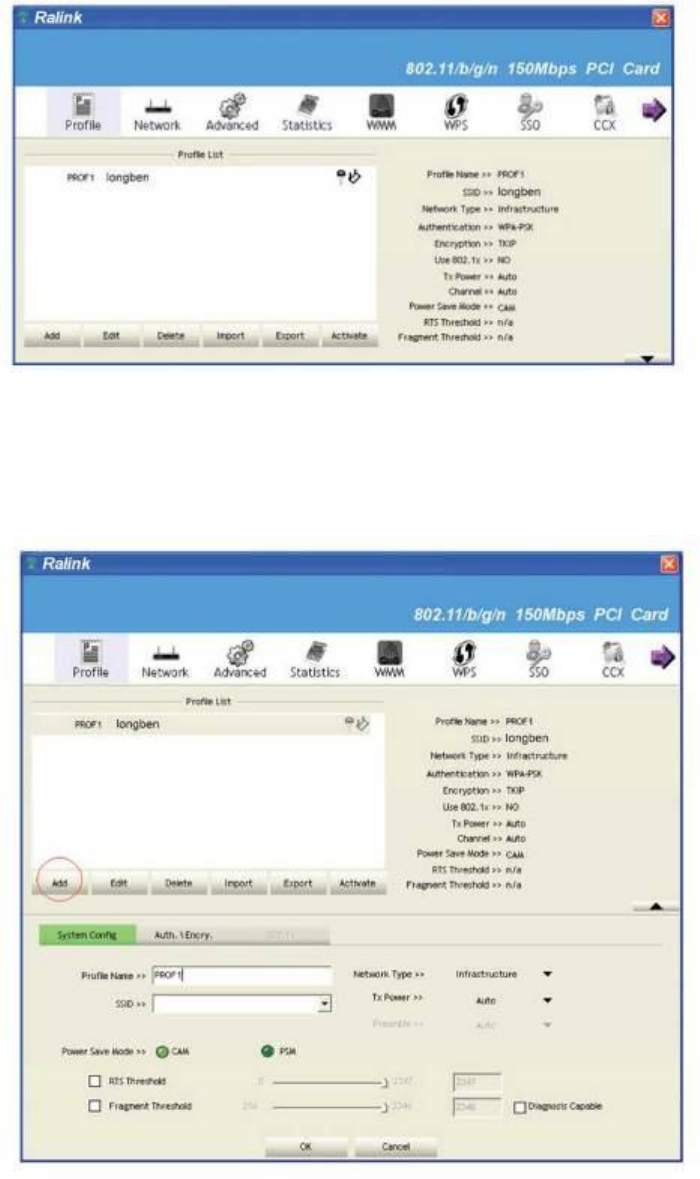

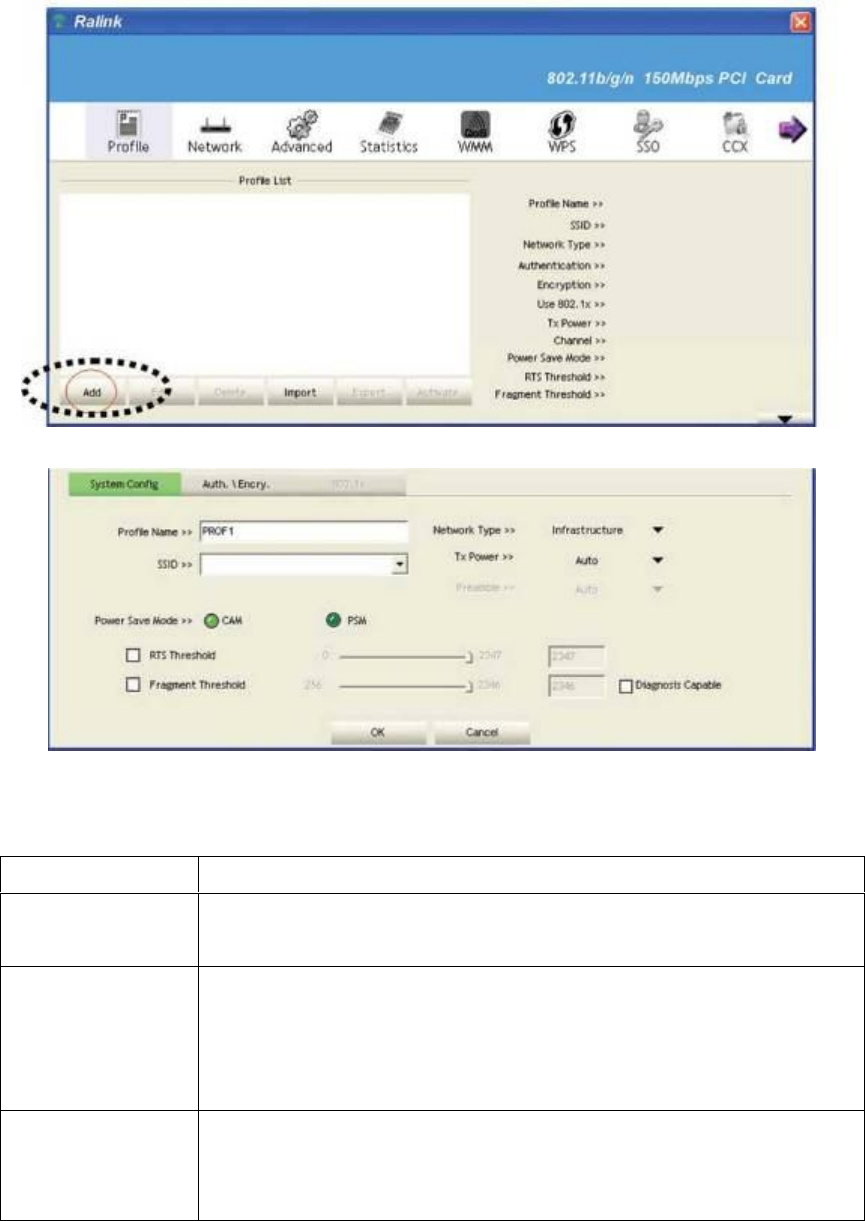

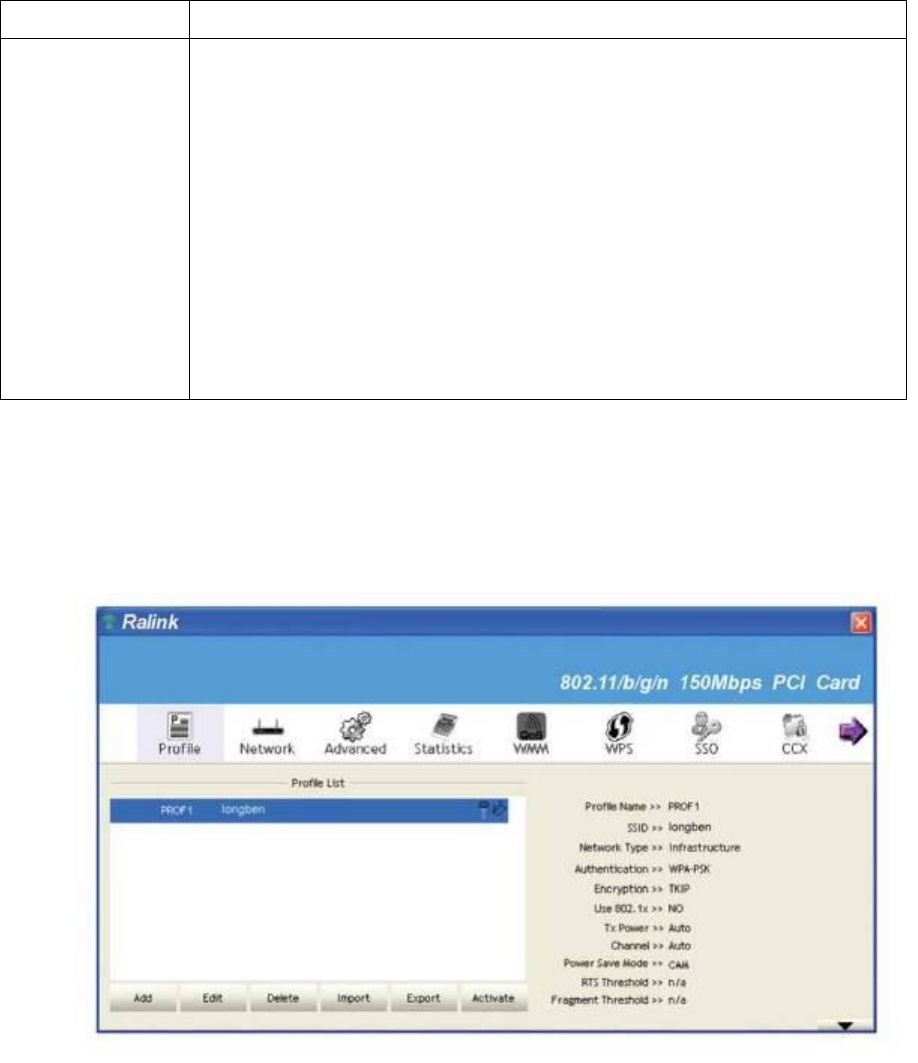

2.3 Profile Management .......................................................................................................................31

2.4 View Network Statistics.................................................................................................................37

2.5 WMM Setting.................................................................................................................................38

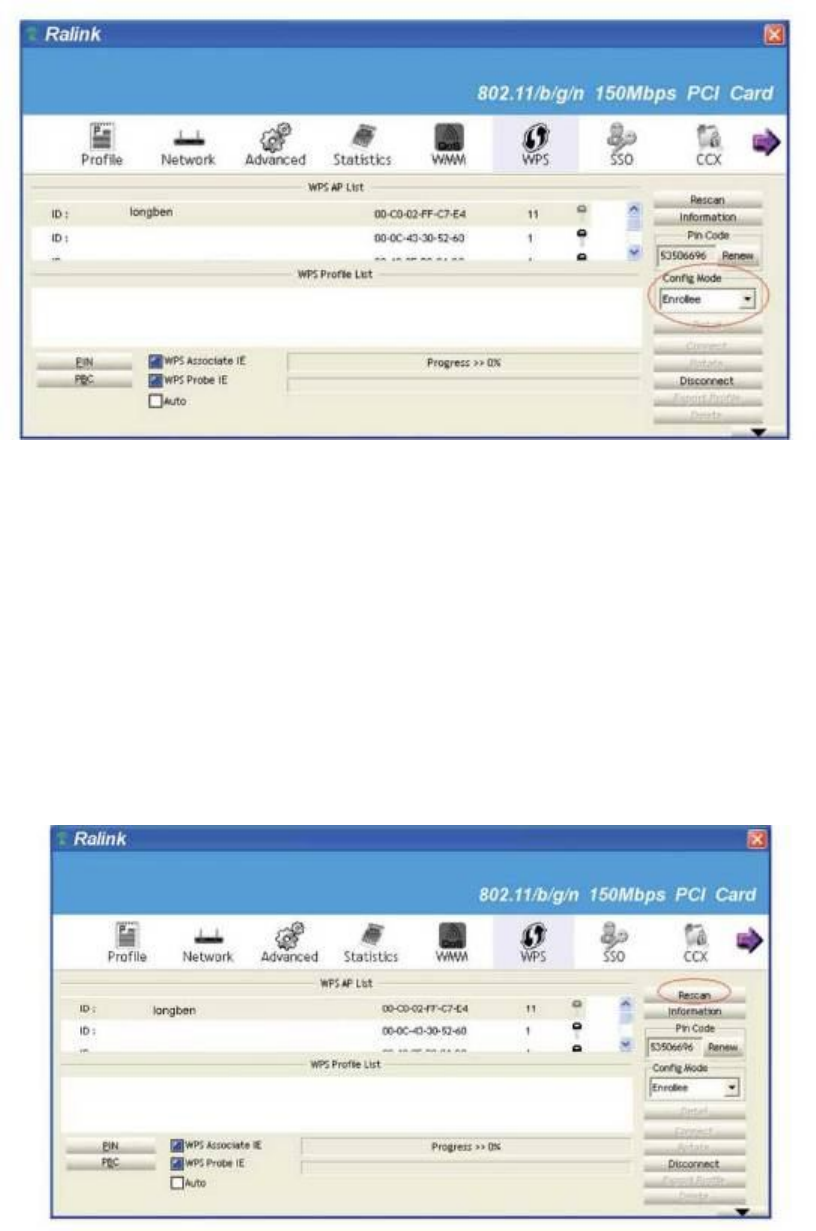

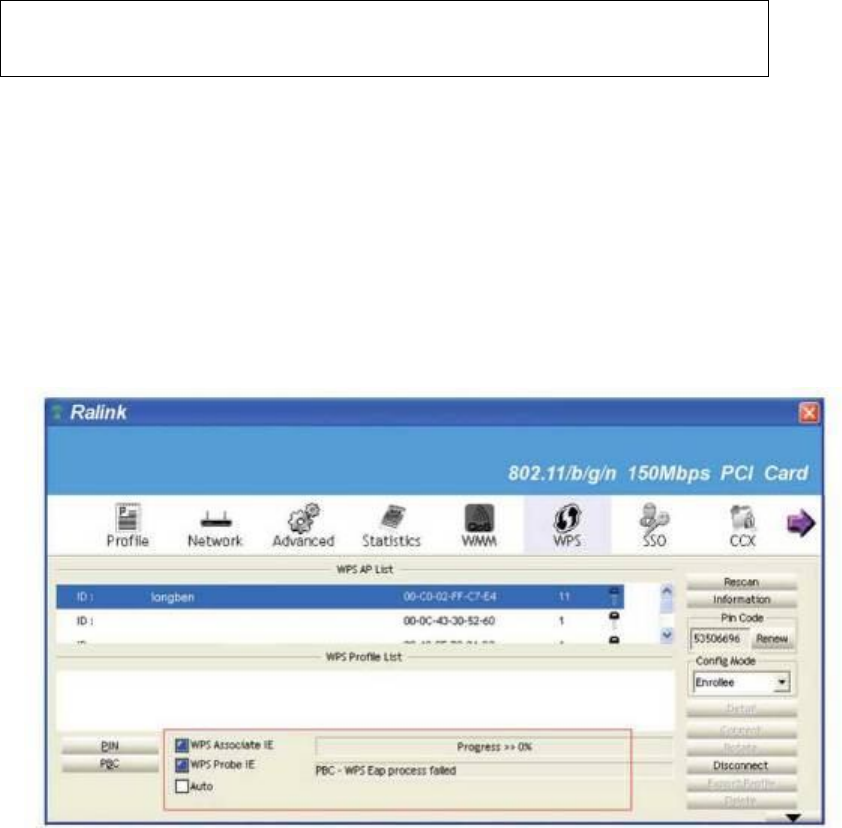

2.6 WPS Configuration ........................................................................................................................40

2.7 WPS Setup ..............................................................................................................................................40

2.8 Radio On/Off..................................................................................................................................45

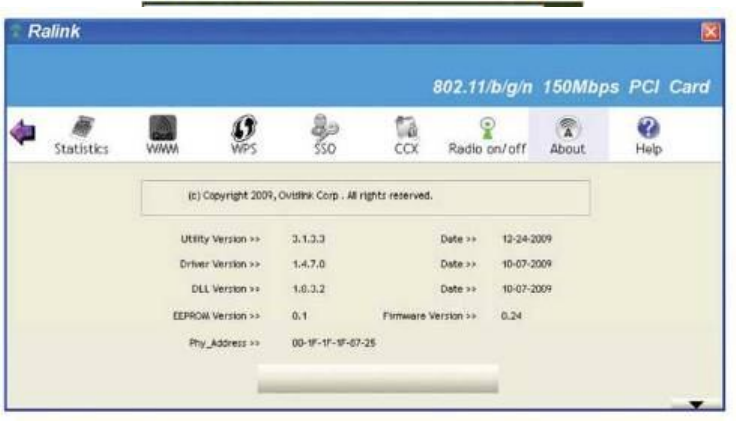

2.9 About..............................................................................................................................................46

2.10 On-line Help...................................................................................................................................46

Soft-AP Function ............................................................................................................................ 47

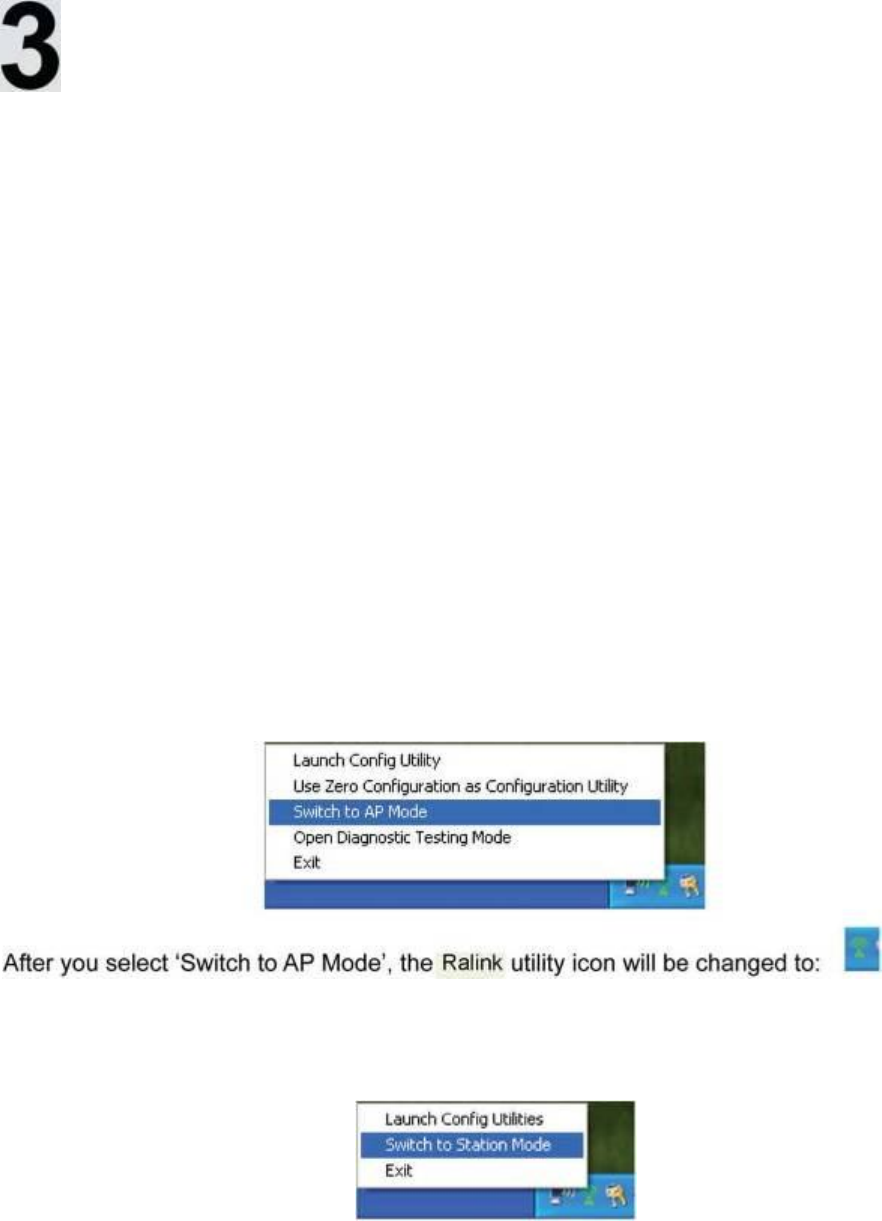

3.1 Switch to AP Mode and Basic Configuration ................................................................................47

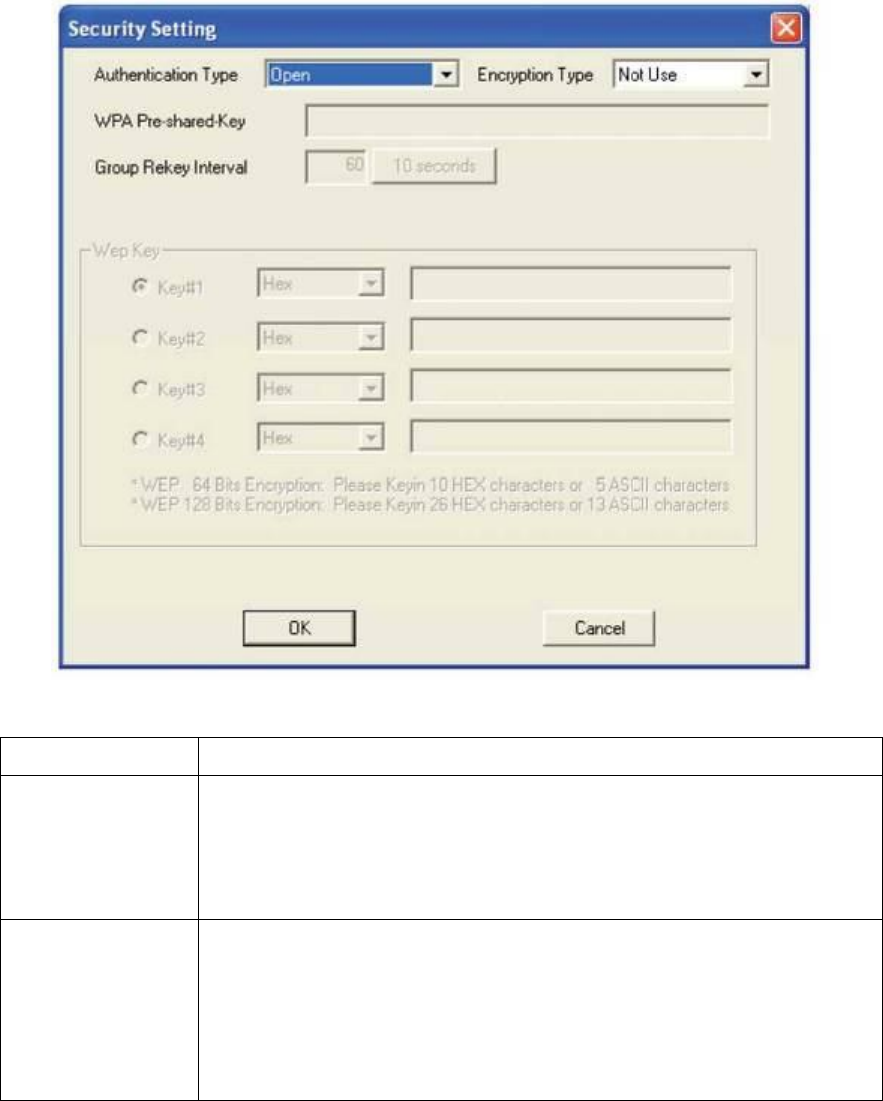

3.2 Security Setting ..............................................................................................................................51

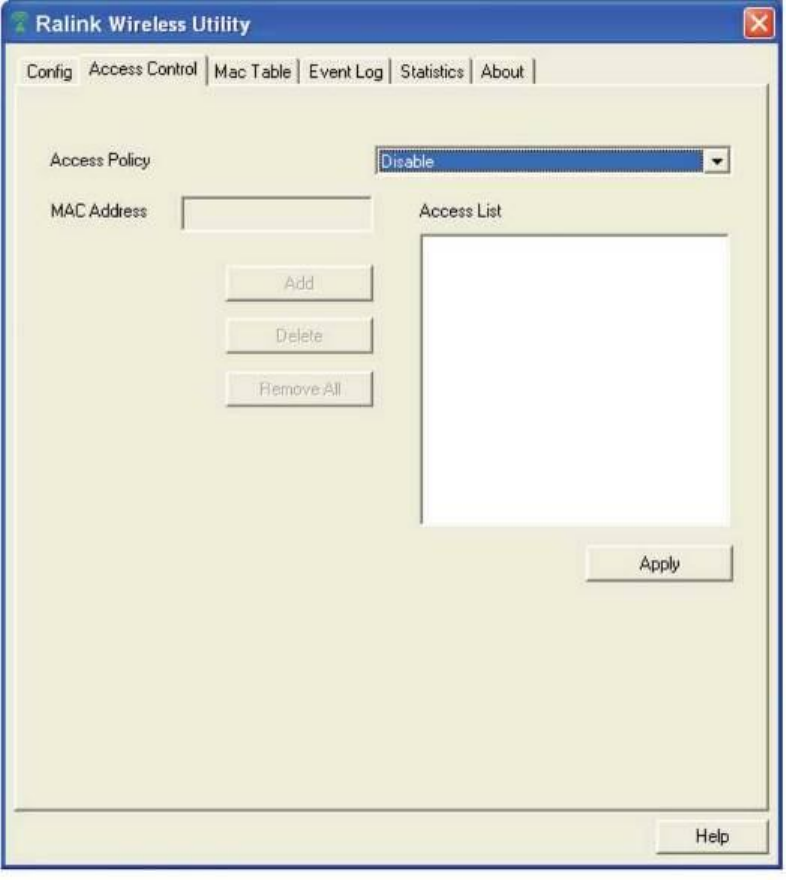

3.3 Access Control ...............................................................................................................................53

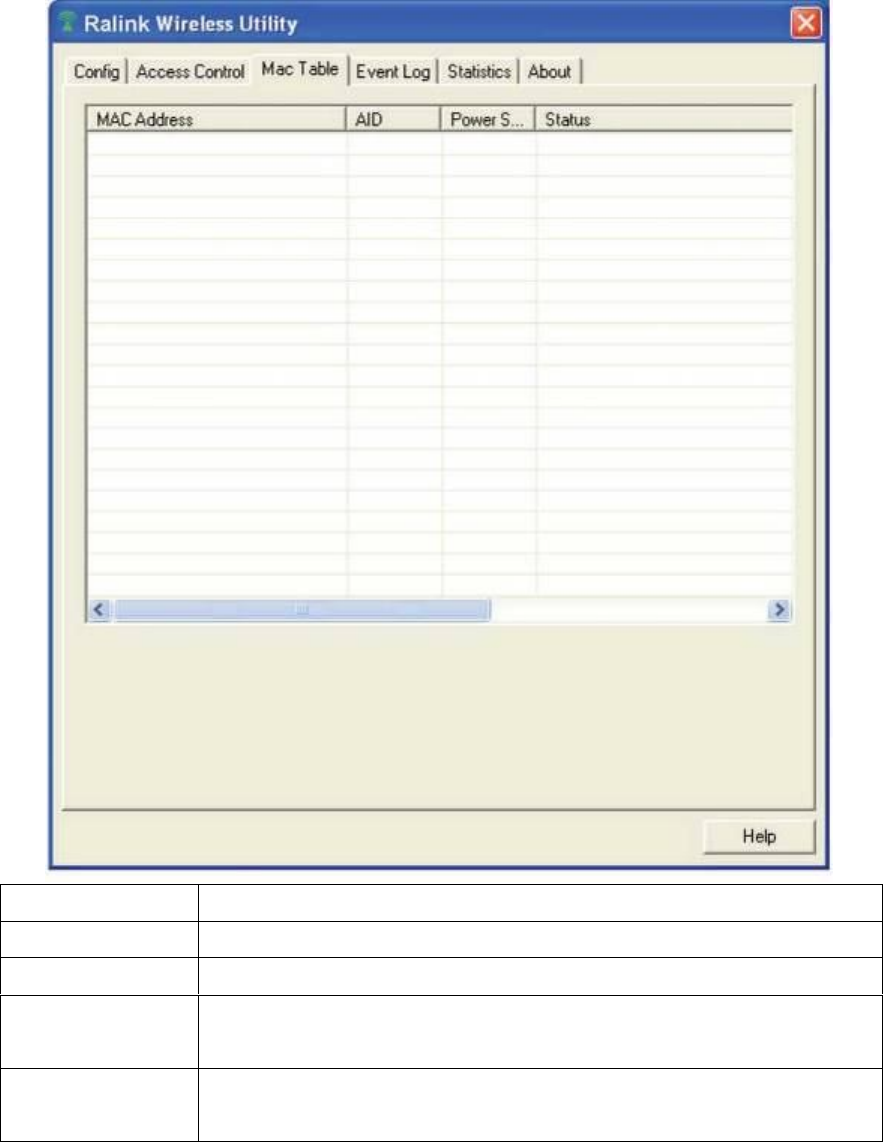

3.4 Connection Table ...........................................................................................................................55

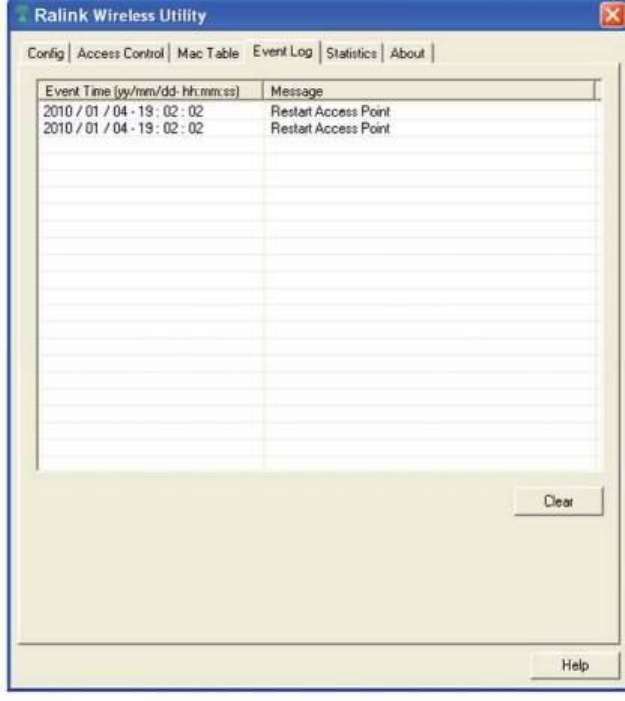

3.5 Event Log .......................................................................................................................................57

3.6 Statistics .........................................................................................................................................57

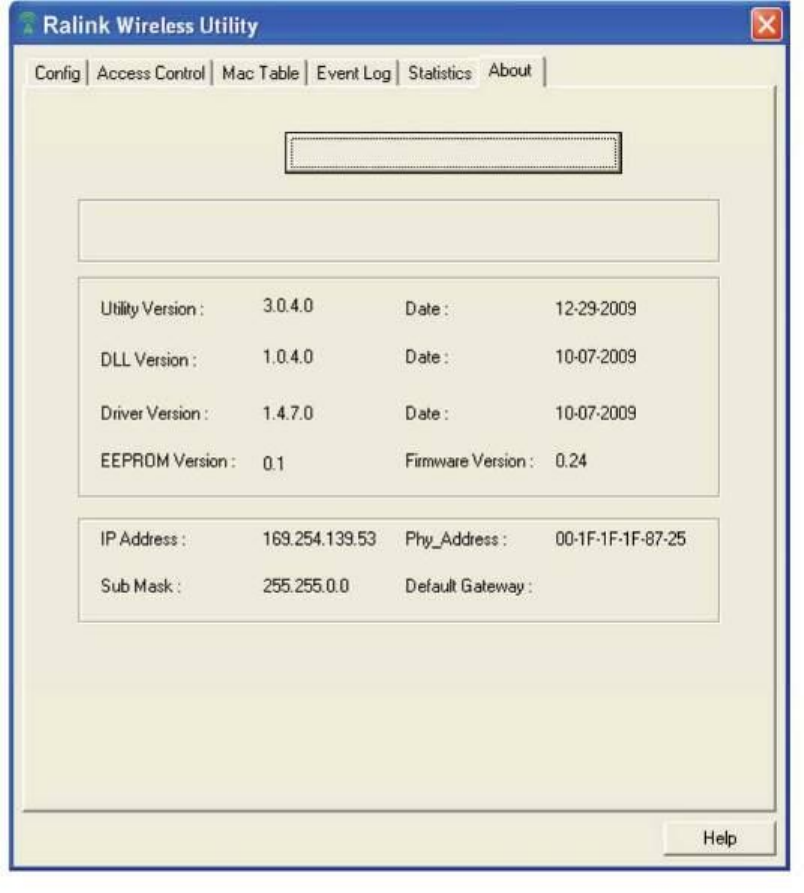

3.7 About..............................................................................................................................................58

Appendix......................................................................................................................................... 60

4.1 Specification...................................................................................................................................60

4.2 Antenna Parameter .........................................................................................................................60

4.3 Antenna Connect ............................................................................................................................61

4.4 Troubleshooting .............................................................................................................................61

4.5 Glossary..........................................................................................................................................63

1. What is the IEEE 802.11g standard?..............................................................................................63

2. What is the IEEE 802.11b standard?..............................................................................................63

What is Ad-hoc? ...........................................................................................................................................64

What is Infrastructure?..................................................................................................................................64

What is BSS ID? ...........................................................................................................................................64

What is WEP? ...............................................................................................................................................64

What is TKIP?...............................................................................................................................................64

What is AES?................................................................................................................................................64

10. Can Wireless products support printer sharing?.............................................................................64

11. Would the information be intercepted while transmitting on air?..................................................65

12. What is DSSS? What is FHSS? And what are their differences? ..................................................65

13. What is Spread Spectrum? .............................................................................................................65

15. What is WMM Power Save?..........................................................................................................65

16. What is Gl?.....................................................................................................................................66

17. What is STBC?...............................................................................................................................66

18. What is WPS?.................................................................................................................................66

Introduction

1.1 Introduction and safety information

Thank you for purchasing this high-speed wireless network card! Excepting common wireless standards

802.11 b/g, this wireless network card is also able to access 802.11 n wireless networks - data transfer

rate is 150Mbps, and that’s three times faster than 802.11g wireless network!

With easy-to-install PCI interface - a very common expansion port of computers - plug this wireless

network card into any empty PCI slot of your computer, just that simple!

The wide range of Laird Technologies let you expand your network to include devices such as printers

and gaming consoles.

Other features of this wireless network card including:

■ High-efficiency antenna expands the scope of your wireless network.

■ High-speed data transfer rate - Up to 150Mbps.

■ WMM function: control the bandwidth required for different applications.

■ Work with 802.11 b/g/n wireless devices.

■ Supports major encryption methods like WEP, WPA, and WPA2 encryption.

■ WPS configuration - You don't need an experienced computer technician to help you to get

connected. Utilizing the software program of the card, you can get your computer connected

by pushing a button or entering an 8-digit code. Pressing the button on the network card, the

WPS connection can be activated as well.

■ PCI interface - you can get it installed on your computer in just few seconds!

1.2 Safety Information

In order to keep the safety of users and your properties, please follow the following safety instructions:

1. This wireless network card is designed for indoor use only. DO NOT expose this network card to direct

sun light, rain, or snow.DO NOT put this network card at or near hot or humid places, like kitchen or

bathroom. Also, do not left this wireless network card in the car in summer.

2. This network card will become hot when being used for long time (This is normal and is not a

malfunction). DO NOT put the network card on a paper, cloth, or other flammable objects after the

network card has been used for a long time.

3. There’s no user-serviceable part inside the network card. If you found that the network card is not

working properly, please contact your dealer of purchase and ask for help. DO NOT disassemble the

network card by your self, warranty will be void.

4. If the network card falls into water, DO NOT USE IT AGAIN BEFORE YOU SEND THE CARD TO

THE DEALER OF PURCHASE FOR INSPECTION.

5. If you smell something strange or even see some smoke coming out from the network card, switch

the computer off immediately, and call dealer of purchase for help.

1.3 System Requirements

■ An empty PCI slot

■ Windows 2000, XP, Vista, or Windows 7 operating system

■ CD-ROM drive

■ At least 100MB of available disk space

1.4 Package Contents

Before you starting to use this wireless network card, please check if there’s anything missing in the

package, and contact your dealer of purchase to claim for missing items:

□ PCI Wireless Network Card (1 pcs).......................................................

□ 3dBi Dipole Antenna (1 pcs) ...............................................................

□ Cable loss(1 pcs) .................................................................................

□ Quick Installation Guide (1 pcs) ...........................................................

□ Driver/Utility/User Manual CD-ROM (1pcs) .....................................

1.5 Placement of your Wireless Card

Place your wireless card, the central connection point of your network, as close as possible to the center of

your wireless network devices.

To achieve the best wireless network coverage for your”Wireless clients”, Ensure that your wireless card’s

antenna are positioned vertically(toward the ceiling) through a long link cable, If your wireless card itself is

positoined vertically, Point the antennas as much as possible in an upward direction.

In multistory homes, place the wireless router on a floor that is as close to the center of the home as possible,

The may mean Placing the wireless card on an upper floor.

Try not to place the wireless router near a cordless 2.4GHz phone.

1.6 Familiar with your new wireless network card

1. Ant㊀nn3s

One 3dBi dipole antenna is enclosed with the PCI card. Please secure the antenna to Reverse SMA

connectors of the card.

2. WPS Button

Press this button and hold for 3 seconds to start WPS function. When WPS is enabled, the Link and Tx/Rx

LEDs will be steadily on.

3. Link and Tx/Rx LED Definitions

LED Name Light Status Description

On Link to a wireless access point Link

Off Radio is switched to off.

Blinking Transferring / receiving data Tx/Rx

Off No wireless activity

Installation and Configuration

a) Network Card Installation

Please follow the following instructions to install your new wireless network card:

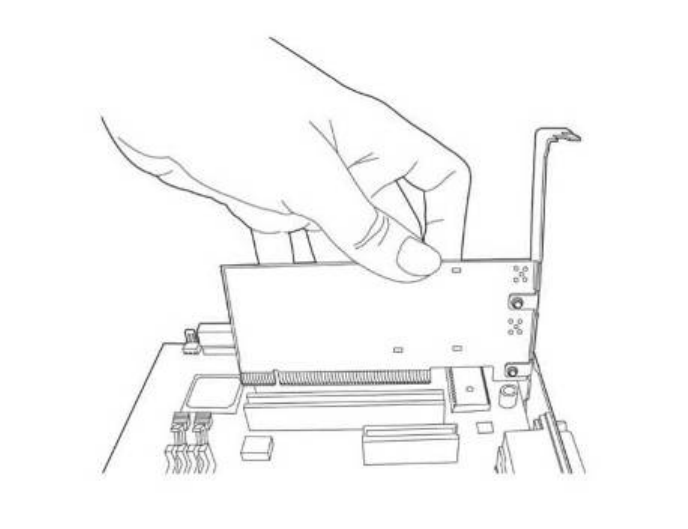

1. SWITCH THE COMPUTER OFF, remove the cover and insert the wireless network card into an empty

PCI slot of your computer.

install the antenna on the wireless network card, and make sure the antenna is securely installed. To improve

radio reception, please adjust antenna to the position.

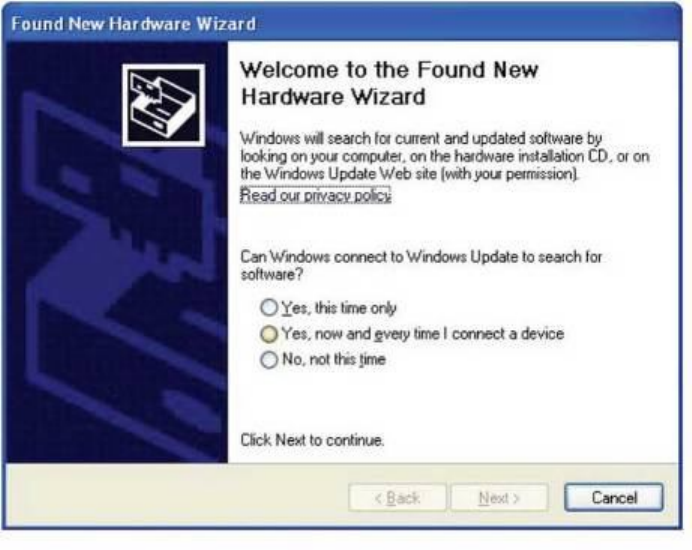

The following message will appear on your computer, click ‘cancel’.

Wireless connection is established, good signal reception.

Wireless connection is established, normal signal reception. Wireless

connection is established, weak signal reception.

LConnection is not established yet. •■Wireless network card is not

detected.

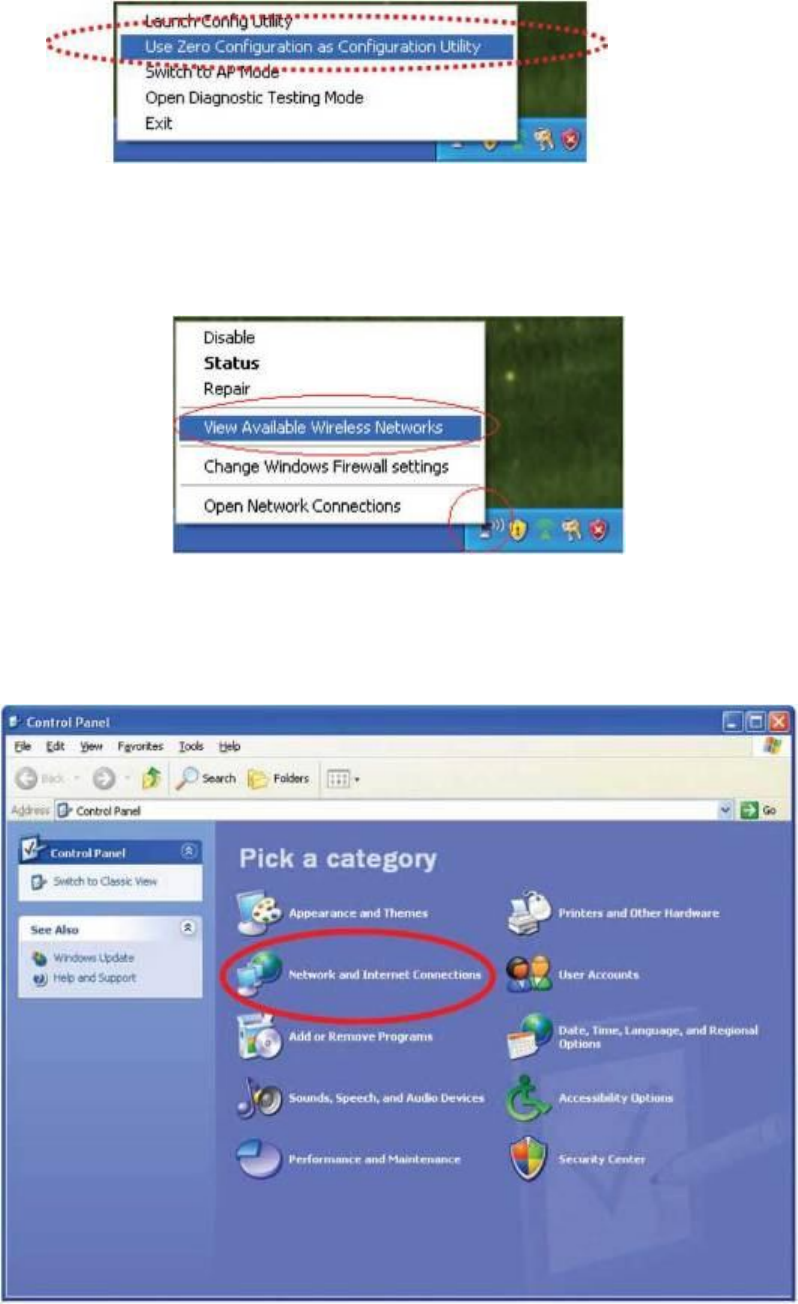

There are two ways you can configure your wireless network card to connect to wireless access point:

using the Ralink configuration utility and using built-in windows zero configuration utility.

2.2.1 Using Ralink Utility

Please follow the following instructions to use Ralink configuration utility to connect to wireless access

point.

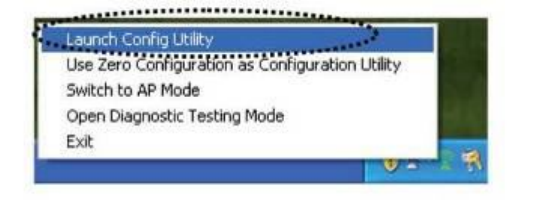

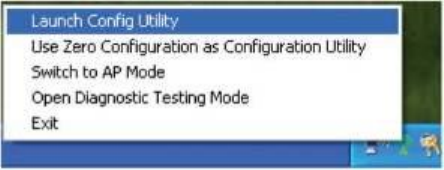

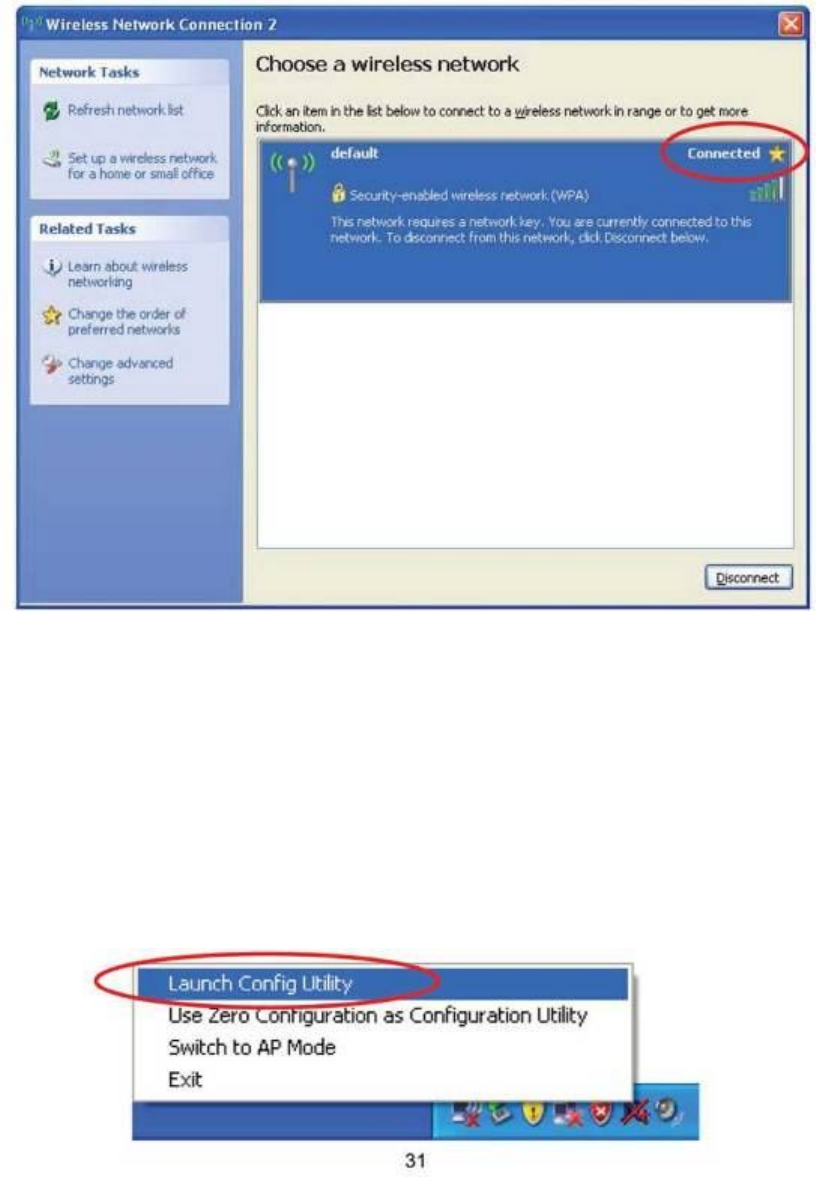

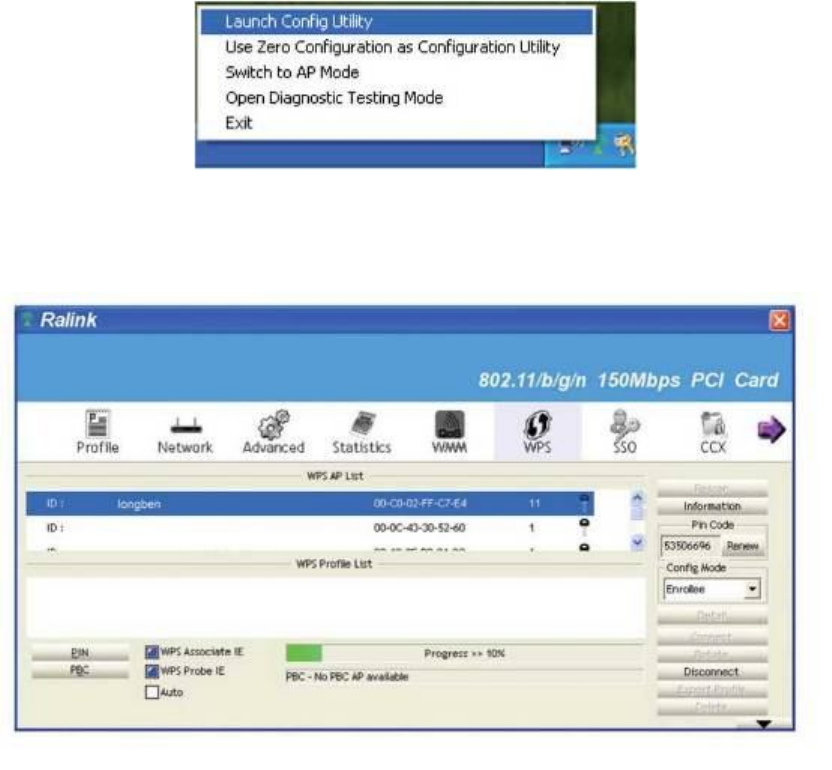

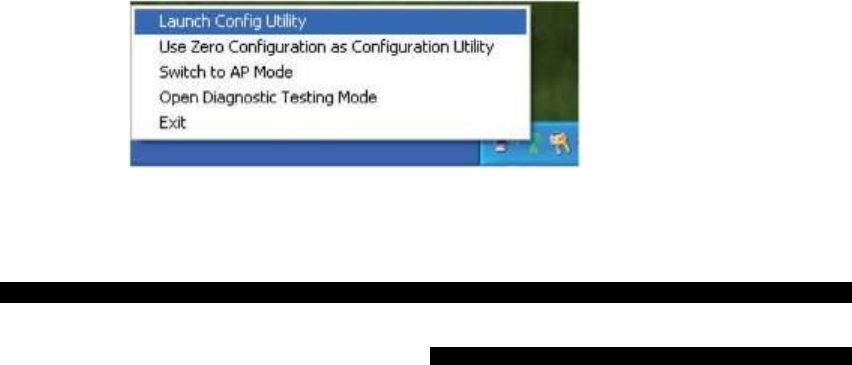

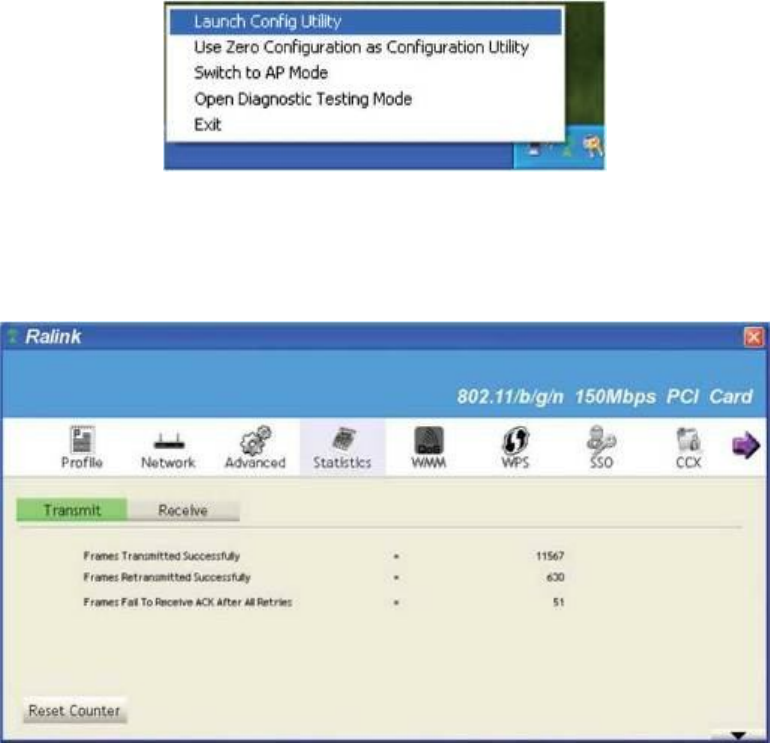

1. Right-click the Ralink configuration utility icon located at lower-right corner of computer desktop and then

clicks ‘Launch Config Utility'.

Ralink setup utility (RaUI) will launch, and begin to scan for all wireless access points

automatically.

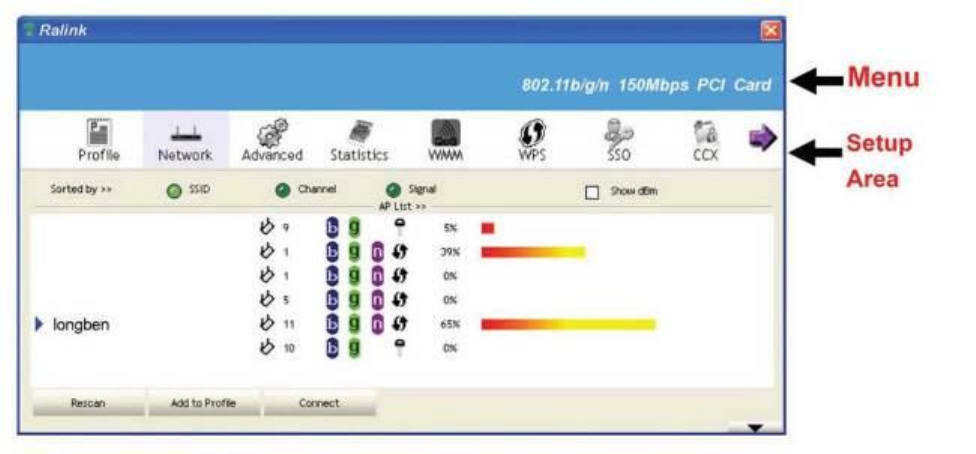

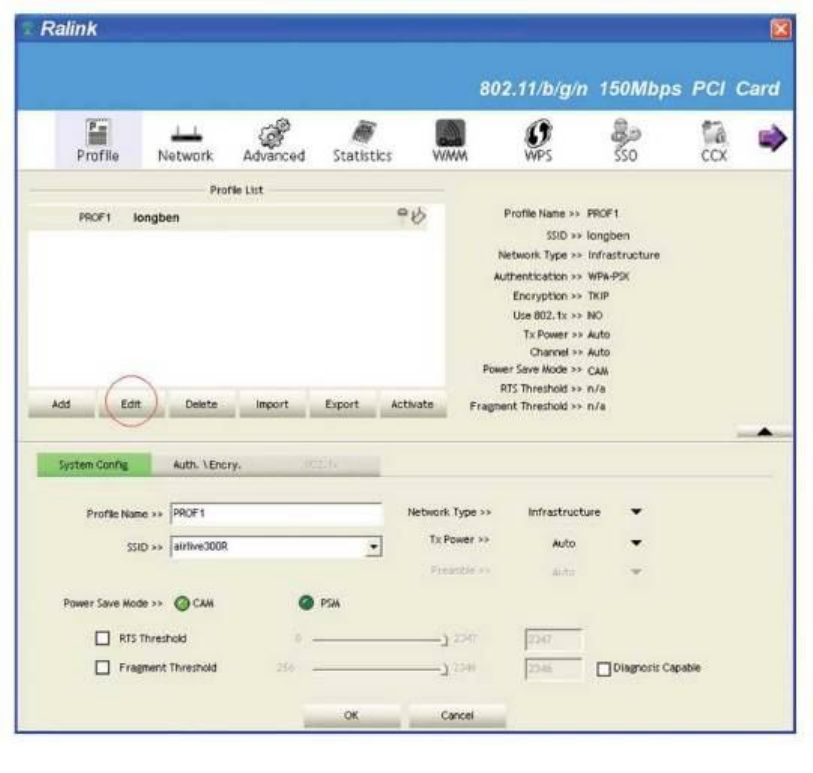

3. RaUI consists two parts: Menu and setup area. You can select a setup function (Profile, Network, etc.)

from menu, and corresponding setup items will be displayed at setup area.

Some function includes more information, and can not be fitted in setup area. In this case, you

can click 'More / less’ button to expand the setup utility window, to display more information:

You can click More / Less button again, and setup utility window will resume to its original size.

Tip: If a setup item requires more information to complete the setup

procedure, the setup utility window will expand automatically.

There are two kinds of wireless connection mode: Infrastructure and Ad-Hoc. Infrastructure mode is

used by wireless access points, which is able to establish wireless connection for you and other

2-2-1-1 Scan for Other Wireless Devices

wireless I wired network clients.

Ad-Hoc mode is also know as ‘point-to-point’ mode, and in this mode, wireless devices such as

computer or PDA will not be capable to establish wireless connection with more than one wireless

device, and is suitable for establishing a one-to-one wireless connection between two wireless devices.

Before you can connect to any wireless access point or device by infrastructure or Ad-Hoc mode, there

two things you must know:

a. Wireless device’s ‘SSID’ (Service Set IDentifier, someone will call it 'access point’s name’).

You can scan for the SSID of other wireless devices nearby, but if the SSID of the wireless

device you wish to connect is hidden, you must know exact SSID before you can establish

connection with it.

b. If the wireless device you wish to connect uses encryption, you must know its encryption

key.

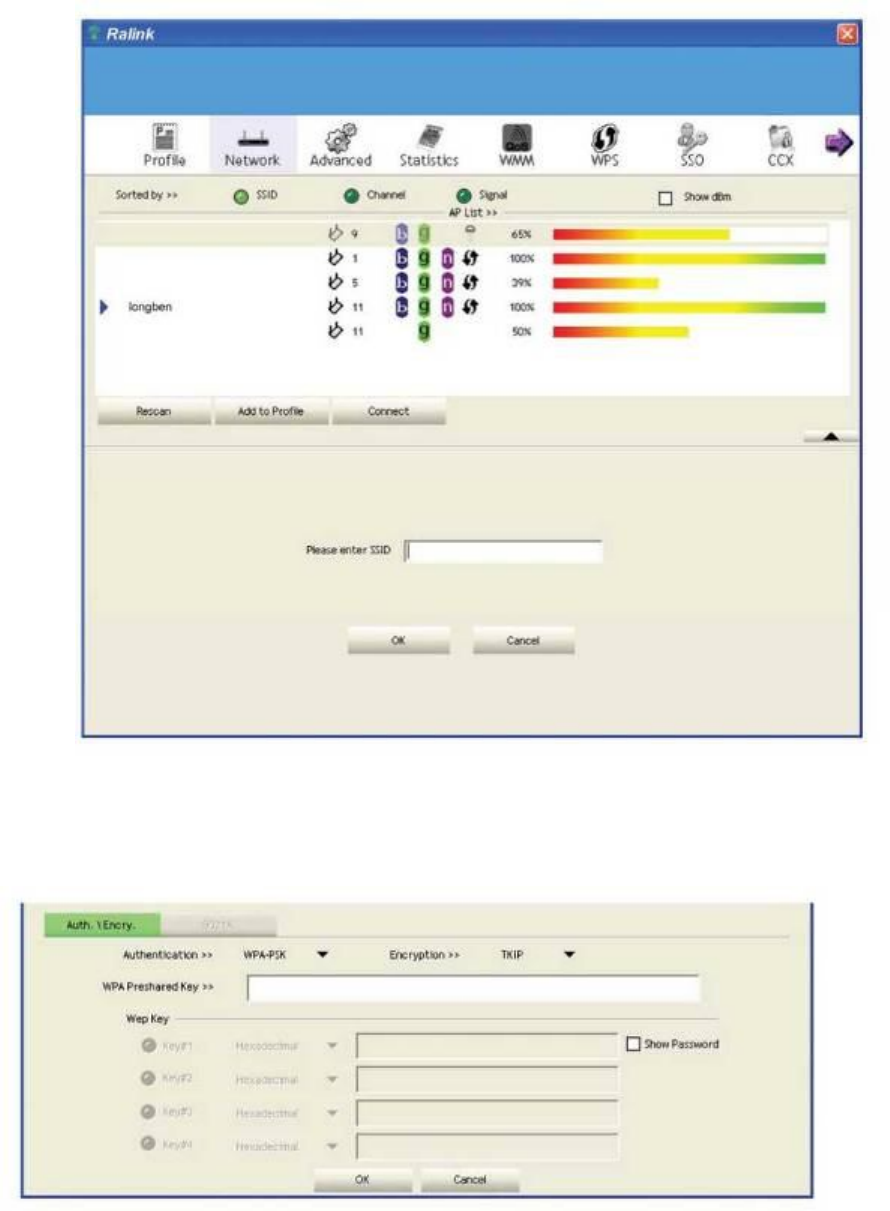

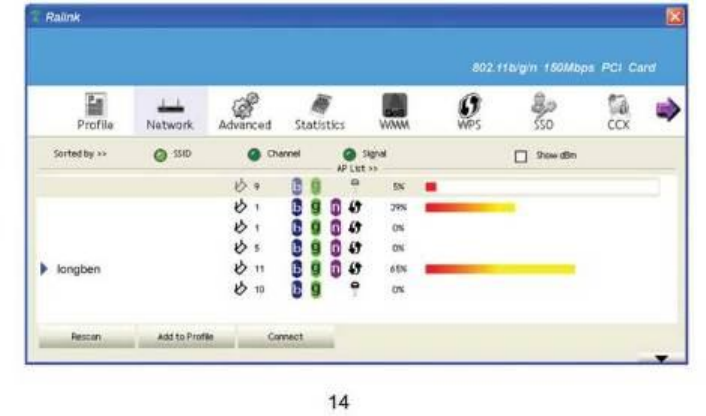

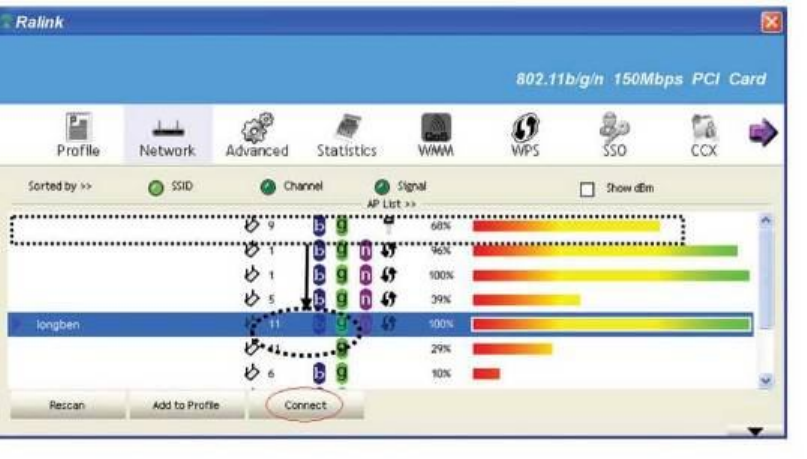

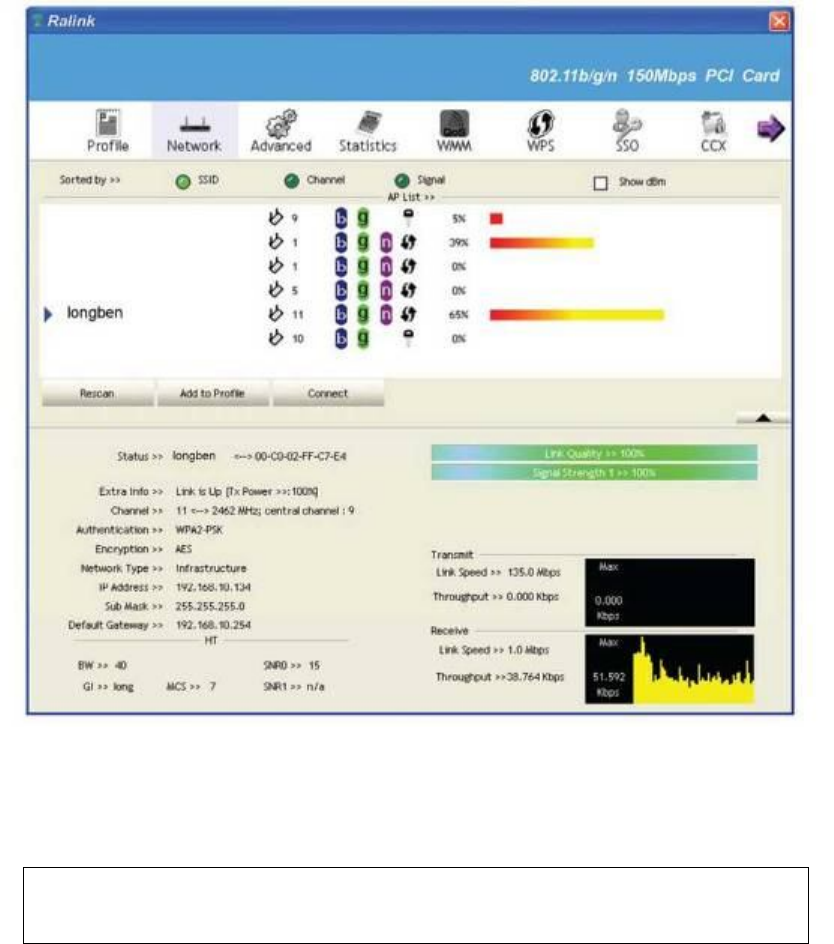

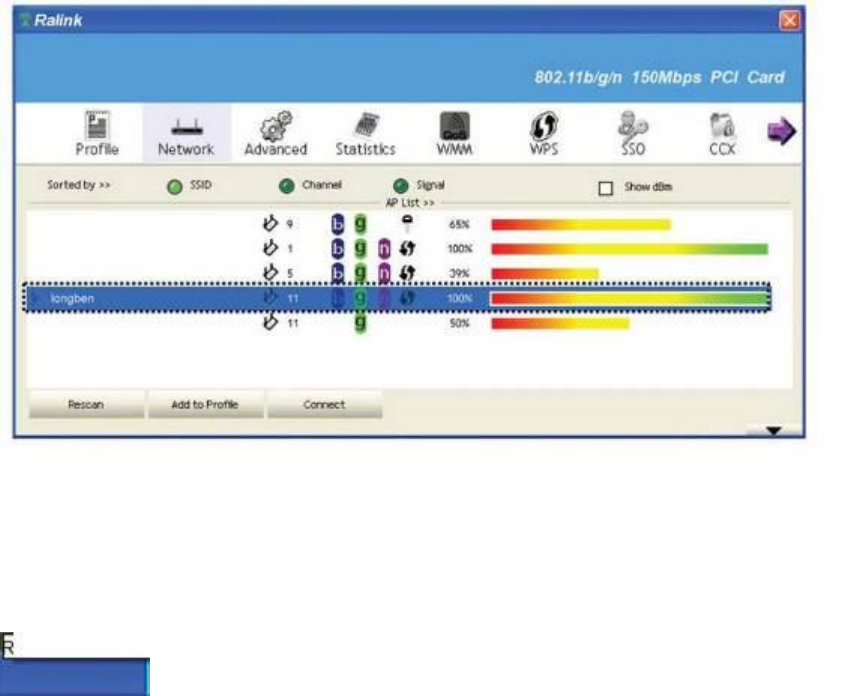

Please launch Ralink setup utility and it will scan for wireless access points near by:

Scan results will be displayed here, please check if the wireless device (access point or another

computer) with the SSID you wish to connect is shown here.

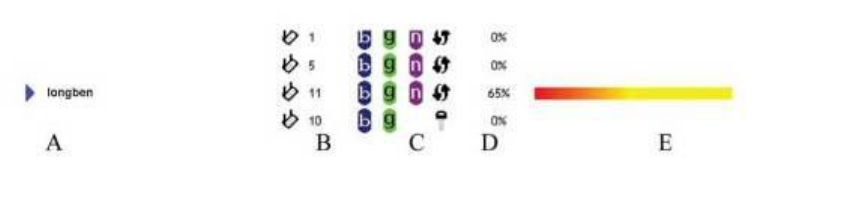

Scan result includes 6 types of information, they are:

A: The SSID (Service Set Identifier) of wireless device. If nothing is displayed here, it means the SSID

of this wireless device is hidden.

If a ^ symbol appears in front of the name of wireless device, means you’ve established connected

with that wireless device.

B: The type of this wireless device and the channel number of this wireless device.

^ Means this wireless device is an access point

Means this wireless device is a computer (Ad-Hoc mode, point-to-point connection) C The wireless

standard supported by this access point is displayed here.

‘n’for 802.11n fl_, ‘g; for 802.11g I

，

and ‘b’for 802.11b 8.

WPS icon ** will appear when the access point supports WPS. If the access point uses encryption, a key

icon will appear.

Note: When the access point supports WPS and WPS icon is appeared, you will not see the key icon °

here even through the access point uses encryption.

D Shows the signal strength of access point by percentage.

E Shows the bar graph of the signal strength.

If you can not see the access point you wish to connect here, please click Rescan button to scan for

access point again, until the one you preferred is displayed. You may have to click ‘Rescan’ for more than

two times before you can see the access point you wish to use here.

If you still can not see the access point you wish to use after clicking ‘Rescan’ for more than five times,

please move your computer closer to the location where the wireless access point is, or see instructions

in Chapter 4-2 ‘Troubleshooting’.

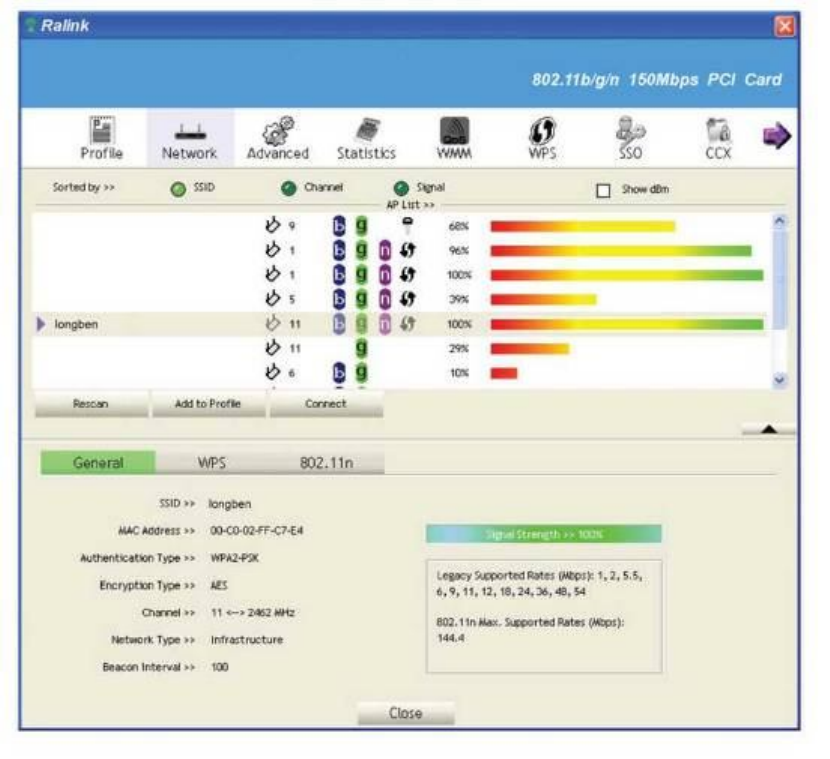

If you wish to see detailed information for a specific access point, please double-click on it, and you’ll be

provided with its detailed information.

There are 4 types of technical information:

General: Displays basic information about this access point, such as SSID, MAC Address,

authentication / encryption type, channel etc.

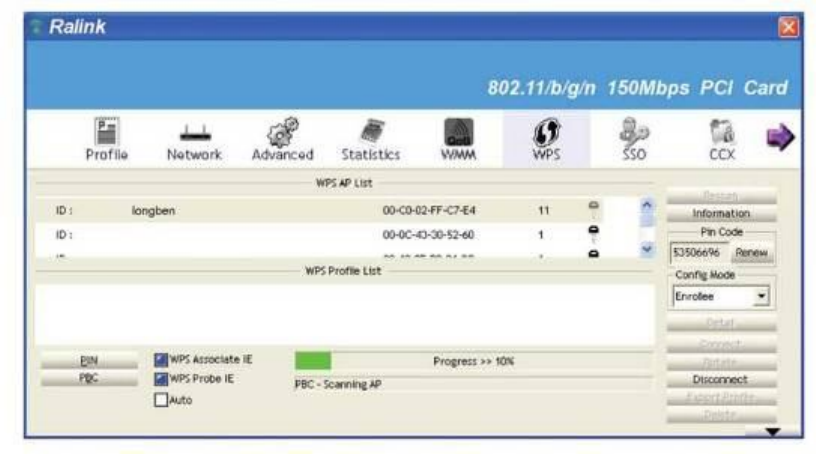

WPS: If this access point supports WPS (Wi-Fi Protected Setup), related information will be

displayed here.

CCX: If this access point supports CCX (Cisco Compatible extension), related

information will be displayed here.

802.11n: If this access point complies with 802.11n draft, related information will be

displayed here.

And here are descriptions of every setup item in setup area:

If the wireless access point you wish to connect is found, you can establish connection with it by clicking

‘Connect’ button. Instructions will be given as follow:

Item Name

Description

Sorted by » You can decide how to sort all listed access point by ‘SSID’,

‘Channel’, or ‘Signal’ (signal strength).

Show dBm Che

ck this box to show the signal strength of access point, instead

of percentage.

Rescan Click this button to rescan access points. You can click this button

for several times, if the access point you wish to use does not show

in the list.

Add to Profile Y

ou can store a specific access point to profile, so you can link to

that access point directly next time, without inputting authentication

key again.

To add an access point to profile, you have to select an access point

from the list first, then click ‘Add

to Profile’ button. Detailed

instructions will be given below.

Connect

Connect to a selected access point. You have to select an access

point from the list first and then click ‘Connect’ to connect to the

selected access point.

2 Connect to an Access Point

1. Click the wireless access point or network device you wish to connect, it will be highlighted,

then click ‘Connect’.

If the access point you selected does not use encryption, you’ll be connected to this wireless

access point within one minute. If the access point you selected uses encryption, please

proceed to step 3.

2. If the wireless access point does not have SSID, you’ll be prompted to input it now. Please ask the

owner of wireless access point for the exact SSID and input it here, then click ‘OK’ when ready. If the

SSID you provided here is wrong, you’ll not be able to connect to this access point.

3. If the wireless access point uses encryption, you will be prompted to input its WEP key or WPA

preshared key.

Please ask the owner of the wireless access point you want to connect, and input the correct key

here and then click ‘OK’. By checking 'Show Password' box, the encryption key you inputted here

will be displayed.

If the value you inputted here is wrong, you will not be able to connect to this wireless access point.

Authentication type will be selected by the authentication type of the access point

automatically, please don’t change it.

However, if you’re connecting to an access point uses 802.1x authentication, you have to check

‘802.1x’ box and input related information. Instructions for 802.1x authentication will be given later.

If the wireless access point is successfully connected, you’ll see a 卜 symbol appears in front of the

name of wireless device.

You can put the mouse cursor over the Ralink configuration utility icon, and the brief information

about link status and signal strength of current wireless connection will be shown as a popup

balloon.

alinkWireless LAN Car

d Status : Good

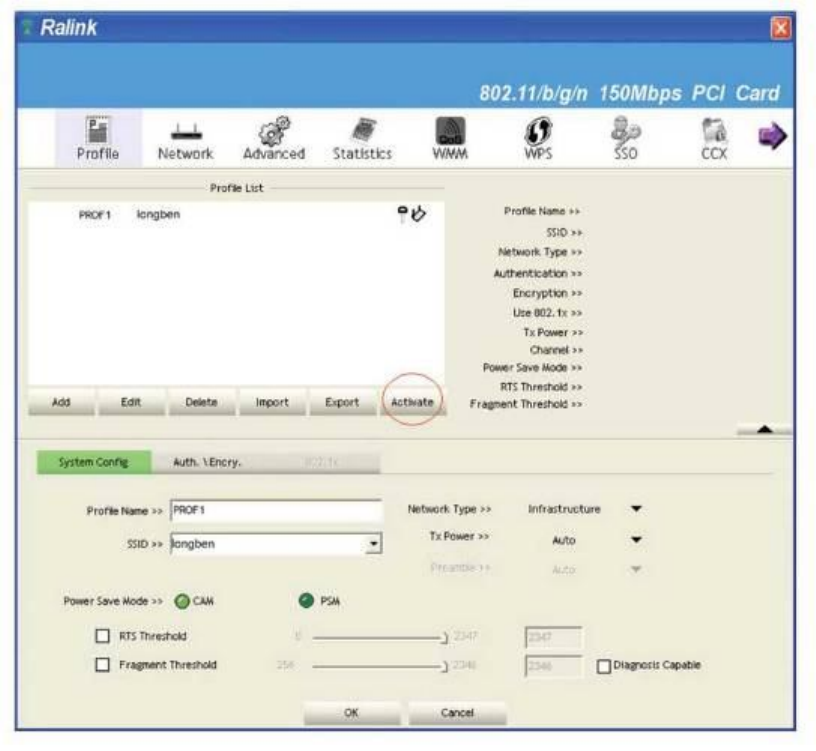

The setup utility will expand:

Here are descriptions of every setup item:

Item Name

Description

Profile Name You can give this profile a name. Every profile needs a unique name.

SSID Please input the SSID of this access point. If you selected an access

point from the list, and its SSID is not hidden, the SSID will be filled

automatically; however, you can modify the SSID by yourself.

Network Type Please select the network type: Ad hoc or Infrastructure. If you’re

connecting to an access point, please select ‘Infrastructure’； for

point-to-point wireless connection (i.e.

connecting to another computer using Ad Hoc mode), please select Ad

hoc here.

If you selected an access point from the list above, please keep this

field unchanged.

Tx Power

You can select the wireless output power here. If you’re not too far from

access point (good signal reception), you can select a lower output

power to save energy; for a distant access point, you can select a higher

output power.

It’s sugge

sted to select ‘Auto, to let setup utility decide the best output

power for you.

Preamble

Select the preamble for Ad hoc mode here. Available options are ‘Auto’

and ‘Long’.

It’s suggested to select ‘Auto’ to let setup utility decide the preamble for

you.

Channel You can select the radio channel number for Ad Hoc mode here.

Power Save Mode

Please select CAM (constantly awake mode, keep wireless radio

activity even when not transferring data), or PSM (Power saving mode,

switches radio off when not transferring data).

It’s recommended to choose ‘PSM’ if you’re using this network card

with notebook computer to help the battery live longer.

RTS Threshold

Check this box to set the RTS threshold by yourself. You can drag the

slider to set the threshold value, o

r input the value in the box located at

right.

It’s recommended to keep this value untouched unless you know the

effect of changing this value.

Fragment

Threshold

Check this box to set the packet fragment threshold by yourself. You

can drag the slider to set the threshold value, or input the value in the

box located at right.

It’s recommended to keep this value untouched unless you know the

effect of changing this value.

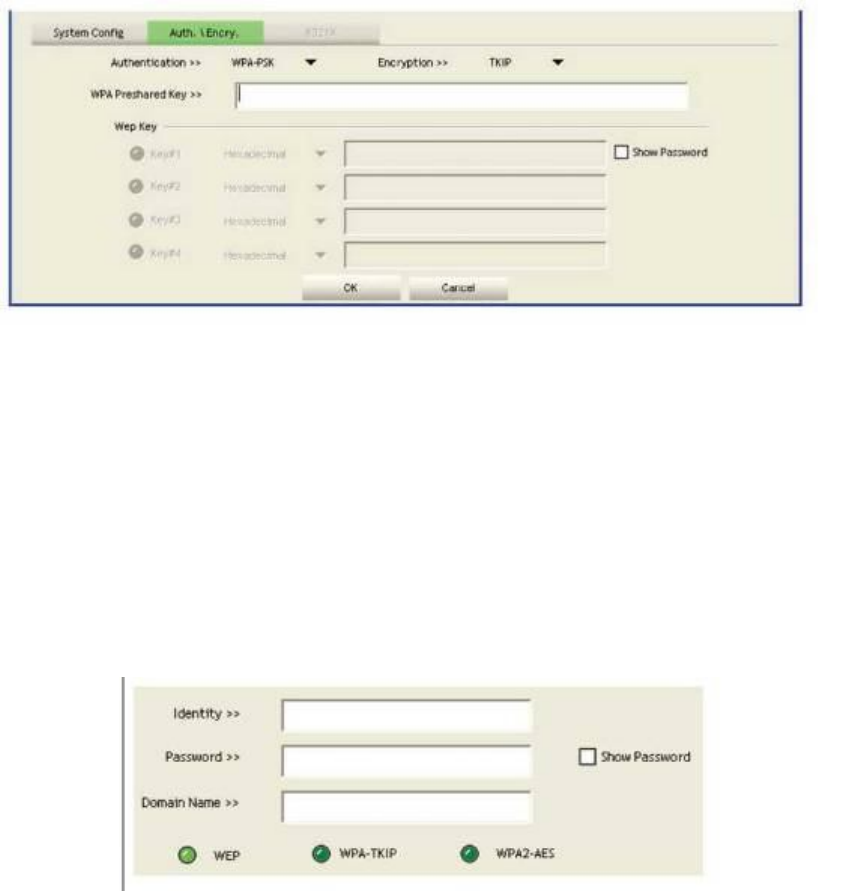

To set authentication I encryption information for the access point. Please click ‘Auth. \ Encry.' tab:

Here are descriptions of every setup item:

Item Name Description

Authentication Select the authentication type of the wireless access point or

wireless device you wish to connect. When you’re adding a profile from an

existing access point or wireless device, authentication type will be selected

automatically, and please do not change it.

If you select ‘LEAP’，you’ll be prompted to input LEAD specific settings:

Please input LEAP identity, password, domain name, and select encryption type.

You can check 'Show Password’ box so the password you inputted will be

displayed as you type, but not replace by asterisk.

Encryption Select the encryption type of the wireless access point or wireless

Here are descriptions of every setup item:

To set 802.1x authentication for the access point. Please click ‘802.1X’ tab:

REvice you wish to connect. When you’re adding a profile from an existing

access point or wireless device, the encryption type will be selected

automatically, and please do not modify it.

WPA

Preshared Key

Input WPA preshared key here. If encryption is not enabled, or you select

‘WEP，as encryption type, this field will be disabled and grayed out.

WEP Key

You can select key type (Hexadecimal or ASCII) and input WEP key here. If

encryption is not enabled, or you select ‘WPA' as encryption type, this field

will be disabled and grayed out. You can set up to 4 WEP keys here.

There are two types of WEP key: Hexadecimal and ASCII. For Hexadecimal

key, you can input number 0-9 and alphabet a-f; for example,

‘001122aabbcc’； For ASCII key, you can input number 0-9 and alphabet

a-z; for example, mywepkey12345.

The length of WEP key

depends on the type of WEP key you selected. You

can input 10 or 26 hexadecimal characters and 5 or 13 ASCII characters as

WEP key.

Show

Password

Check this box and all passphrases or security keys you inputted will be

displayed as you type, but not replace your input with asterisk.

Use 802.1x If the access point you wish to connect requires 802.1x authentication,

please click on ‘Use 802.1x’ box, then click ‘802.1X’ tab to set 802.1x

parameters.

SystemConfig Auth. VEncry. 8021X

EAP Method» PEAP ▼ Tunnel Authonticattoo» EAP-MSCHAP v2 ▼ g Session Resumption

ID \ PASSWORD Client Certification Server Certification

Item Name

Description

EAP Method

Select 802.1x EAP method from dropdown menu. Please ask the

administrator of the access point you wish to connect to select a correct EAP

method.

Tunnel

Authentication

Select 802.1x tunnel authentication type from dropdown menu. Please ask

the

administrator of the access point you wish to connect to select a correct

tunnel authentication method. This pull down menu is only available when

authentication type you use is 'PEAP', ‘TLS / Smart Card', or 'TTLS'.

When you use 'EAP-FAST' as authentication type, the protocol setting is

always 'Generic Token Card' and can not be changed. You also need to

select 'Soft Token’ or 'Static Password’ as password in ‘ID \ Password'

setting.

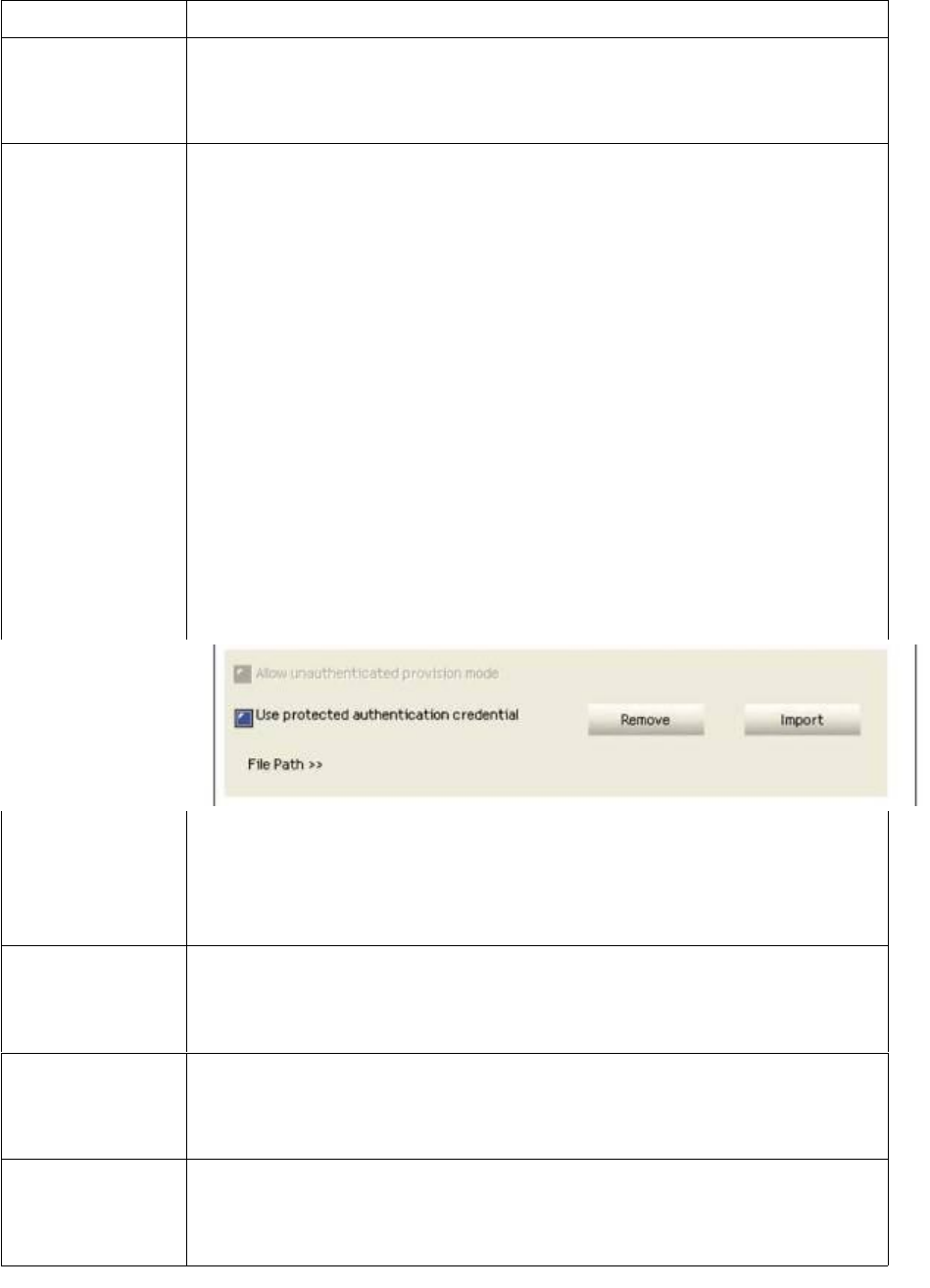

'EAP Fast’ authentication type also have a sub-menu to set EAP fast-speci

fic

parameters:

If you need to use protected authentication credential, check ‘Use protected

authentication credential' box, and click ‘Import’ to load .pac credential file; to

remove a loaded credential file, click 'Remove'.

Session

Resumption

You can enable or disable session resumption here. If you don’t know if you

should enable session resumption or not, please ask your 802.1x

authentication administrator.

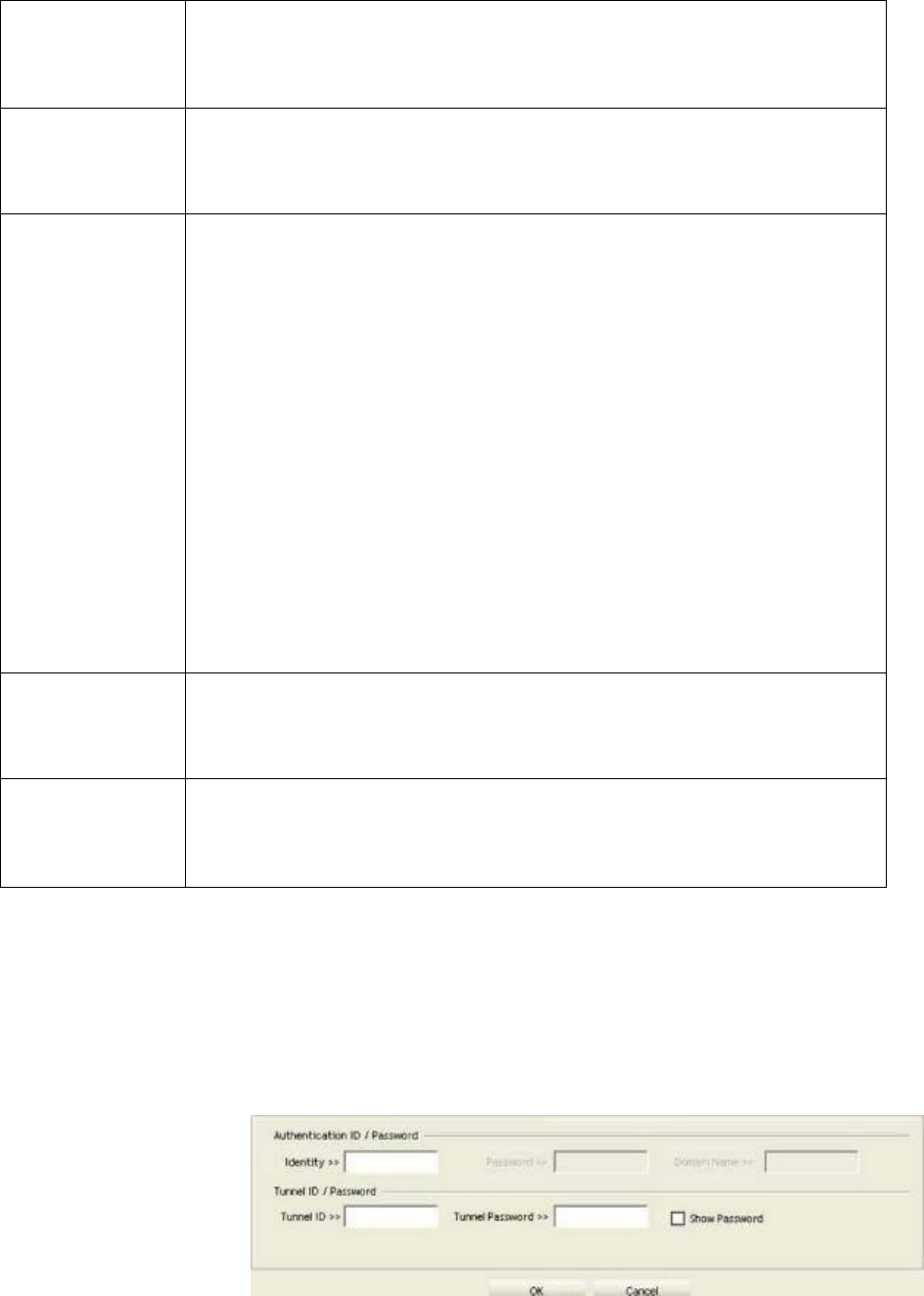

ID \ Password tab

Input 802.1x username (ID) and password and other information if it is

required here. Click ‘Show Password’ to show the password you typed.

Client

Certification tab

Use this tab to select a local certificate from dropdown menu. If the access

point you wish to connect required a specific client certificate, the certificate

must be installed on your computer, and

After you complete all information related to the access point, click ‘OK’ to save the profile, or click

'cancel' to cancel adding a new profile.

If the profile is created, you will see the information in the Profile List.

2-2-2 Using Windows Zero Configuration

Windows XP and Vista has a built-in wireless network configuration utility, called as 'Windows Zero

Configuration’ (WZC). You can also use WZC to configure your wireless network parameter:

1. Right-click Ralink configuration utility icon and select ‘Use Zero Configuration as Configuration utility’.

you can select the certificate here.

Server

Certification tab

Use this tab to use server-

based certification. Please select a CA (Certificate

Authority) from dropdown menu. If intermediate certificates are allowed,

please select 'Allow intermediate certificates'. Also, if you need to specify CA

server’s name, you can specify it in 'Server name’ field. You can select

'Server name must match’，

so the CA server’s name must be the same with

the value you set in 'Server name’ field; If only the domain name part of full

server name must the same with the value you set in 'Server name’ field,

select ‘Domain name must end in specified name’.

Right click Windows Zero Configuration icon and select 'View Available Wireless Networks’. If you can not

find the icon, please follow the procedures from step 3 to step

Click ‘Start’ button (should be located at the bottom-left corner of windows desktop), click 'Control

Panel’，then click 'Network and Internet Connections’ in Control Panel.

Click ‘Netw

ork Connections’

4. Right-click 'Wireless Network Connection’ (it may have a number as suffix if you have more than one

wireless network card, please make sure you right-click the ‘Ralink

802.11 n Wireless LAN Card), then select 'View Available Wireless Networks'.

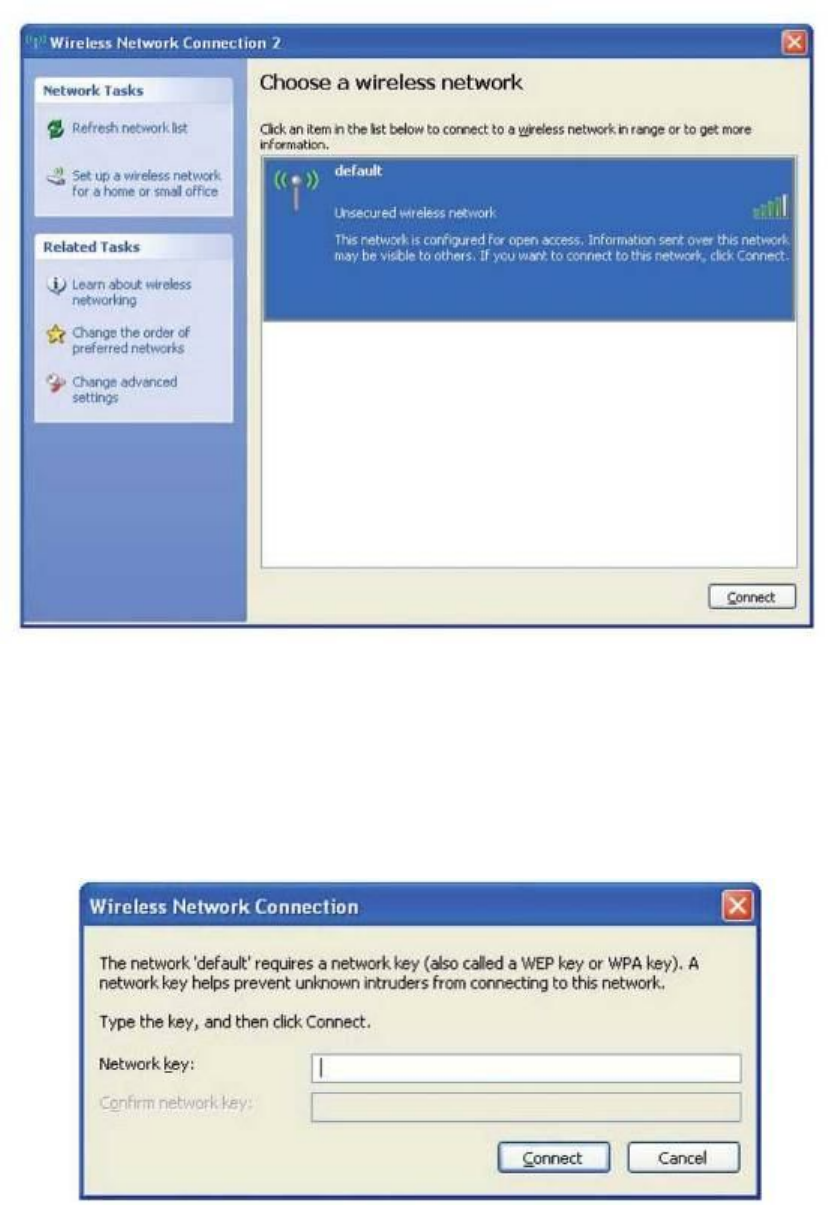

5. All wireless access points in proximity will be displayed here. If the access point you want to use is not

displayed here, please try to move your computer closer to the access point, or you can click 'Refresh

network list’ to rescan access points. Click the access point you want to use if it’s shown, then click

‘Connect’.

6. If the access point is protected by encryption, you have to input its security key or passphrase here.

It must match the encryption setting on the access point.

If the access point you selected does not use encryption, you’ll not be prompted for security key or

passphrase.

7. If you can see ‘Connected’ message, the connection between your computer and wireless access

point is successfully established.

2.3 Profile Management

If you need to connect to different wireless access points at different time, like of access point of your

home, office, cybercafe, or public wireless service, you can store the connection parameters (encryption,

passphrase, security etc, etc.) as a profile for every access point, so you don’t have to input these

parameters every time when you want to connect to a specific wireless access point. To manage profiles,

right-click the Ralink configuration utility icon located at lower-right corner of computer desktop, then click

‘Launch Config Utility'.

Click the ‘Profile’ menu. All profiles will be listed in 'Profile List’，and you can select a profile from the list,

all information about selected profile will be listed.

2-3-1 Add a profile

If you want to click new profile, click ‘Profile’ menu, then click ‘Add’ button. You’ll be prompted to input

detailed information of access point, as described in Section 2-2-1-3.

If you have added a profile before, and you wish to change the content of the profile, you can use this

function. Please select a profile from the list first, then click ‘Edit’ button. You’ll be provided with the contents

of selected profile, and you can edit them. Click ‘OK’ to save changes, or click ‘Cancel’ to discard changes.

3 Delete an existing profile

If you no longer need a profile, you can delete it. Select the profile you wish to delete from the list, and click

‘Delete’ button to delete it.

3 Delete an existing profile

4 Activate a profile

When you want to connect to a specific wireless device in the profile list, you can select it and click ‘Activate’

button, to establish connection with it.

When you selected a profile and click ‘Activate’ button to activate the profile, a ► icon will be displayed in

front of the profile to show that the connection is failed; When the connection is successfully established, a r

icon will be displayed.

Here are descriptions of every setup item:

Item Name

escription

Wireless mode Display the wireless operation mode of the network card.

Enable Tx Burst Check this box to accelerate the data transmit rate. It may not work with all

wireless access point and wireless devices.

Enable TCP

Window Size

Check this box and the configuration utility will adjust TCP window size

automatically to get better performance. It should be safe for most of wireless

environments, but if you found some problem on data transfer, uncheck this

box.

Fast Roaming

Check this box and you can control the threshold that the wireless network

card should switch to another wireless access point with better signal quality.

Only adjust value when you understand what it means and you need to roam

between multiple access points.

Show

Authentication

Status Dialog

When your computer is being authenticated by wireless authentication

server, a dialog window with the process of authentication will appear. This

function is helpful to find out the problem when you can not be authenticated,

and you can provide this information to authen

tication server’s administrator

for debugging purpose.

Enable CCX Enable Cisco Compatible extensions. CCX is a wireless feature developed

by Cisco used to improve the wireless performance with CCX compatible

wireless devices. Check this box if you need to connect to CCX-compatible

wireless devices. When you enabled CCX, the following setup items will

become available: Turn on CCKM: Check this box to enable CCKM (Cisco

Centralized Key Management), which enables wireless clients to roam

between CCKM-enabled access points in very short time. Enable Radio

Measurements: When you’re connecting to CCX-compatible access point,

check this box to enable radio measurement function to improve wireless

connectivity. Non-Serving Channel Measurements Limit: When you’re

connecting to CCX-compatible access point, check this box to enable

measurement on unused radio channels to improve wireless connectivity.

After you finish the settings, click ‘Apply’ to apply new settings.

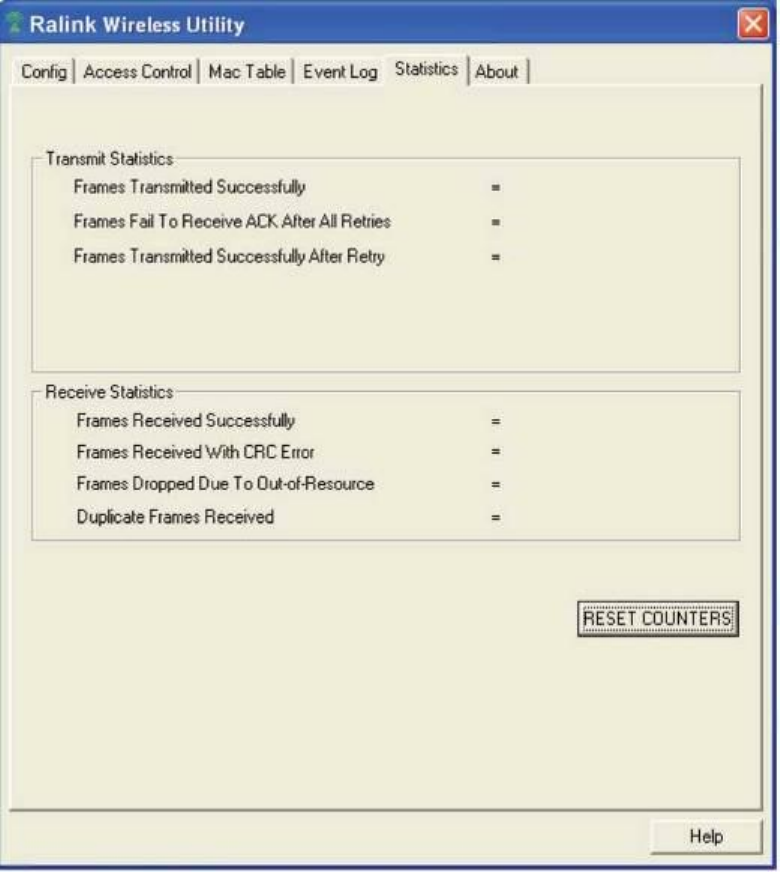

Click 'Statistics' menu and the statistics of wireless connection will be displayed:

2.4 View Network Statistics

The configuration utility provides information about network statistics and link status. If you want to know

how your wireless network card works, you can use these functions to get detailed information about the

wireless connection you’re using.

Please follow the following instructions to check network statistics:

1. Right-click the Ralink configuration utility icon located at lower-right corner of computer desktop and

then click 'Launch Config Utility，.

All connection-related statistics is displayed here. You can click ‘Transmit’ or 'Receive' tab, to view

the statistics of transmitted or received packets. You can also click 'Reset Counter’ button, to reset

the statistics of all items back to 0.

2.5 WMM Setting

This wireless network card provides WMM (Wi-Fi Multimedia) function, which can improve the

performance of certain network applications, like audio/video streaming, network telephony (VoIP), and

others. When you enable the WMM function of this network card, you can define the priority of different

kinds of data, to give higher priority to applications which require instant responding. Therefore you can

improve the performance of such network applications.

Please follow the following instructions to set advanced wireless settings:

1. Right-click the Ralink configuration utility icon located at lower-right corner of computer desktop and

then click 'Launch Config Utility*.

2. Click ‘WMM’ menu, and the following settings will appear:

Ralink

区

802.11/b/g/n 150Mbps PCI Card

Profile Network Advanced Statistics WMW WPS SSO CCX

WMM Setup Status

WMM Enable

□ WMM • PtNMer

□ ACJK □ AC.BE □ AC_VI □ AC.VO

□ Direct Link Setup EnaWe

In 'WMM Setup Status’ block, current WMM settings will be displayed. And here are descriptions of

every setup item:

Item Name

Description

WMM Enable Check this box to enable WMM function. Please click ‘Apply’ button on

the right of this check box after you check or uncheck this box, so

corresponding settings in this window will be activated or deactivated

respectively.

WMM - Power Save

Enable

Check this box to enable WMM power saving mode to save energy, and

let your computer’s battery live longer.

You also have to select WMM power save modes here:

AC_BE: Best Performance AC_BK: Worst Performance AC 一VI: Video

data has priority AC_VO: Voice data has priority

Direct Link Setup

Enable

If you have another WMM-

enabled wireless device, you can enter its MAC

address here, then click ‘Apply’ button, and thi

s network card will establish

a direct link to the wireless device you specified here.

You also have to specify the timeout value of this directly-

linked wireless

device. Valid values are from 1 to 65535 (seconds), and input ‘0’ for

infinity.

If you want to remove a specific wireless device from direct link table,

select the device and click this button to remove it.

4 Activate a profile

2. Click ‘WPS’ menu, and the following settings will appear.

2.6 WPS Configuration

Wi-Fi Protected Setup (WPS) is the latest wireless network technology which makes wireless network

setup become very simple. If you have WPS-enabled wireless access point, and you want to establish a

secure connection to it, you don’t have to configure the wireless access point and setup data encryption

by yourself. All you have to do is to go to the WPS setup page of this wireless card, click a button, and

then press a specific button or enter a set of 8-digit code on the wireless access point you wish to

establish a secure connection - just three simple steps!

For older wireless access points, it's possible to perform a firmware upgrade to become a WPS-enabled

access point. Since they may not have a hardware button to press for WPS setup, you can use an

alternative WPS setup method - input the pin code. Every WPS-compatible wireless network card support

pin code configuration method; you can just input the code to wireless access point, and the wireless

access point and wireless network card will do the rest for you.

This wireless network card is compatible with WPS. To use this function, the wireless access point you

wish to connect to must support WPS function too. Now, please follow the following instructions to

establish secure connection between WPS-enabled wireless access point and your wireless network

card.

2.7 WPS Setup

-PBC (Push-Button Configuration)

1. Right-click the Ralink configuration utility icon located at lower-right corner of computer desktop and

then click 'Launch Config Utility，.

Set ‘Config Mode’ to ‘Enrollee’，and then push the ‘WPS’ button on your wireless access point (the

button used to activate WPS standby mode may have another name), or use other way to start WPS PBC

standby mode as the instruction given by your wireless access point’s user manual.

You can also set 'Config Mode’ to ‘Registrar’. In this mode, this wireless network card will wait for other

WPS-enabled access points to send WPS pairing requests. Please refer to the instruction given by your

wireless access point’s user manual to understand how to send WPS requests.

Before you start to establish the wireless connection by using WPS, you can click ‘Rescan’ button to

search for WPS-enabled access points near you again, to make sure the WPS function of your access

point is activated.

All access points with WPS function enabled will be displayed here. Please make sure the access point

you wish to connect is displayed. If not, please click ‘Rescan’ few more times. You can also click

‘Information’ button to see the detailed information about selected access point.

Start PBC pairing procedure at access point side (please refer to the instruction given by your access

point’s manufacturer), then click ‘PBC’ button in wireless configuration utility to start to establish wireless

connection by WPS. Please be patient (This may require several seconds to one minute to complete).

When you see 'WPS status is connected successfully’ message, means the connection between this

wireless network card and access point is successfully established by WPS, and the information about

access point you connected to will be displayed.

You can click ‘Detail’ button to see detailed information of connected access point. If you wish to save this

connection as a profile, you can click 'Export Profile’ button, and this connection will be saved. You can

find this connection in ‘Profile’ tab in a later time.

Sometime WPS may fail (In the following picture, WPS pairing is failed because no WPS-enabled

access point is found):

You can click ‘PBC’ button few more times to try again. When an access point is connected, you can click

'Disconnect' to disconnect your wireless network card from a connected access point, or select another

WPS-enabled wireless access point, then

Click ‘WPS Configuration’

menu, and the following settings will appear.

click ‘Connect’ to establish connection to selected access point, if there are more than one

WPS-enabled access point found. You can also click ‘Rotate’ button, and next access point on the

list will be selected to establish connection.

If you want to delete a found access point from the list, select it and click ‘Delete’ button.

- PIN

If the wireless access point you wish to connect supports PIN, please follow the following instructions to

establish connection to it:

1. Right-click the Ralink configuration utility icon located at lower-right corner of computer desktop and

then click 'Launch Config Utility'.

3. The PIN code of your wireless network card is an eight-digit number located at the upper-right

position of configuration utility. Remember it, and input the number to your wireless access point

as the WPS PIN code (Please refer to the user manual of your wireless access point for

instructions about how to do this).

NOTE: If you experienced problem with the pin code provided here, you can click

‘Renew’ to get a new pin code.

4. Click ‘PIN’ button now, and wait for few seconds to one minute. If a wireless access point with

correct PIN code is found, you’ll be connected to that access point.

5. You may have to click ‘PIN’ for few more times to try again. If you still can not connect to access point

by this way, please make sure the PIN code you provided to access point is correct.

There are also some options available for WPS configuration:

WPS associate IE: Check this box to send the association request with WPS IE during WPS setup.

This is optional and you can use default value if you don’t know what will be affected.

WPS probe IE: Check this box to send the WPS probe request with WPS IE during WPS setup. This is

optional and you can use default value if you don’t know what will be affected.

Auto: When in PIN mode, wireless access point to be connected will be selected automatically if this box

is checked.

2.8 Radio On/Off

You can switch the wireless radio transceiver on and off by the utility, so if you want to disable wireless

network function, you don’t have to remove the network card physically.

2. To switch wireless radio on/off, please click 'Radio On/Off' button.

Radio On/Off wireless radio is on (Green)

Radio On/Off Wireless radio is off (Red)

1. Right-click the Ralink configuration utility icon located at lower-

right corner of computer desktop and then

click 'Launch Config Utility，.

Click 'About' tab, and the following information will appear.

2.9 About

The ‘About’ tab provides you the information about version number of the configuration utility, driver,

and other important information about your wireless network card.

Please follow the following instructions to see these information:

1. Right-click the Ralink configuration utility icon located at lower-right corner of computer desktop and

then click 'Launch Config Utility’.

2.10 On-line Help

If you need to know the directions of how to use specific function in the utility, please click ‘Help’ button.

On-line help documents will be presented in Windows help format.

Click this button to view on-line help documents.

4 Activate a profile

Soft-AP Function

Excepting become a wireless client of other wireless access points, this wireless card can act as a

wireless service provider also! You can switch this wireless card’s operating mode to ‘AP’ mode to

simulate the function of a real wireless access point by software, and all other computers and wireless

devices can connect to your computer wirelessly, even share the internet connection you have!

Please follow the instructions in following chapters to use the AP function of your wireless card.

3.1 Switch to AP Mode and Basic Configuration

The operating mode of the wireless card is 'Station Mode’ (becoming a client of other wireless

access points) by default. If you want to switch to AP mode, please right-click Ralink utility icon, and

select ‘Switch to AP Mode’.

Which indicated the wireless card is operating in AP mode now. If you want to switch the wireless card

back to station mode (become a client of other wireless access points), click 'Switch to Station Mode’.

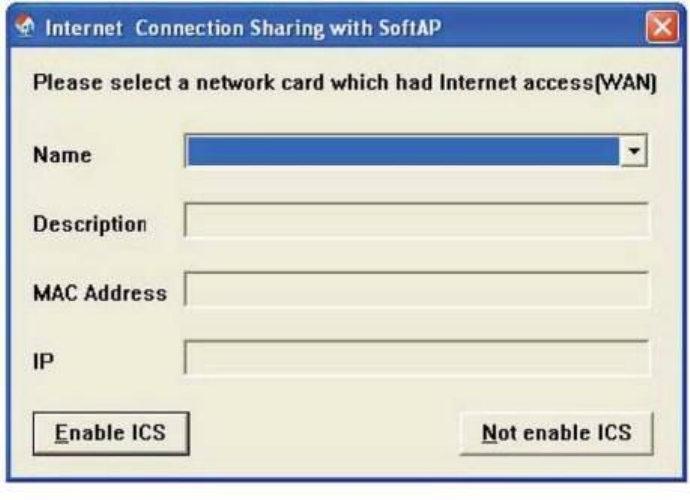

A configuration window will appear after you switch the operation mode to ‘AP’，which asks you to

assign an existing network card with internet connection.

If your computer has another network card which is connected to Internet, please select it from ‘Name’

dropdown menu, and click ‘Enable ICS，； if your computer does not have another network card with

Internet connection, please click ‘Not enable ICS’.

After you click ‘Enable ICS’ or ‘Not enable ICS’，you’ll see the basic configuration menu of the AP

function.

4 Activate a profile

Here are descriptions of every setup item:

Item Name Description

SSID Please input the SSID (the name used to identify

this wireless access point) here. Up to 32 numerical characters

can be accepted here, excepting space.

Channel Please select the wireless channel you wish to use. The number of

channels available here wil

l vary depends on the setting of 'Country Region

Code’.

Wireless Mode

Select the operation mode of the access point here.

Use Mac Address

Click this button to use the MAC address of the wireless card as SSID. A

prefix *AP' will be added automatically.

Security Setting

Set the security options (wireless data encryption). Please refer to chapter

3-2 ‘Security Settings’ for details.

Country Region

Code

Please select the country code of the country or region you live. Available

options are 0-7, which will

affect the available wireless channels you can

use:

0: FCC (US, Canada, and other countries uses FCC radio communication

standards)

1: ETSI (Europe)

2: SPAIN 3: FRANCE 4: MKK

5: MKKI (TELEC)

6: ISERAL (Channel 3 to 9)

7: ISERAL (Channel 5 to 13)

Please note that only change the country code if you are in

different country. For example: when operating this product in

US, only channels 1~11 can be operated. Selection of other

channels is not possible for devices marketed in the

US/Canada.

No forwarding

among

wireless

clients

Check this box and wireless clients will not be able to share data with each

other.

Hide SSID Check this box and the SSID will not be broadcasted to the public. Your

wireless clients must know the exact SSID to be able to connect to your

computer. This option is useful to enhance security level.

Allow BW 40 MHz Check this box to allow BW 40MHz capability.

TxBURST

Check this box to accelerate the data transmit rate. It may not work with all

wireless access point and wireless devices.

To save changes, click ‘Apply button. Or you can click ‘Default’ to reset all values to factory default

value.

3.2 Security Setting

This wireless card supports wireless encryption in AP mode, which will encrypt the data being

transferred over the air to enhance data security level. It’s recommended to enable data encryption

unless you wish to open your computer (and its internet connection) to the public.

When you click 'Security Setting’ in the utility, the following window will appear:

Beacon(ms)

You can define the time interval that a beacon signal should be send. Default

value is 100. Do not modify this value unless you know what will be affected.

TX Power

You can select the wireless output power here. Please select a proper output

power setting according to your actual needs. You may not need 100% of

output power if other wireless clients are not far from you.

Idle Time Select the idle time for the wireless access point. Default value is 300. Do

not modify this value unless you know what will be affected.

Here are descriptions of every setup item:

Item Name Description

Authentication

Type

Please select a wireless authentication type you wish to use. Available

options are ‘Open’，‘Shared’, WPA-PSK’， ‘WPA2-PSK’，and

'WPA-PSK 1WPA2-

PSK’. If you want to disable wireless data encryption,

you must select ‘Open’.

Encryption Type Please select an encryption mode. The available options in this setting

item will vary depending on the authentication type you select. If you

select ‘Not Use’，data will not be encrypted and people with some

networking knowledge will be able to read the data you transfer with

proper tool.

When you finish with setting and want to save changes, click ‘OK’ button, or click ‘Cancel’ button to discard

all changes you made.

3.3 Access Control

If you’re not going to open your computer and wireless resources to the public, you can use MAC address

filtering function to enforce your access control policy, so only wireless clients with MAC address you

defined by this function can be connected to your software access point.

WPA Pre-shared

Key

Please input the WPA pre-shared key here. Only clients with the same

pre-shared key you inputted here will be able to connect to your

computer. This setting is only available when you select one of WPA

encryptions.

Group Rekey

Interval

You can specify the time interval to re-issue the key to your wireless

clients here. You can click the button ’10 seconds’ or ‘Kpackets’ to

change the unit of time interval, (every 10 seconds or a thousand data

packets times the value you specified in 'Group Rekey Interval' field).

Wep Key Please input the WEP encryption key here when you select ‘WEP’ as

encryption type. There are 2 types of WEP key: Hex (number 0 to 9, and

ASCII characters A to F) and ASCII (all alphanumerical characters plus

symbols). Please select the type of WEP key first, and then input the

WEP key according to the type of WEP key you selected.

If you want to use WEP 64 bits encryption, please input 10 characters if

you select HEX, or input 5 characters if you select ASCII. If you want to

use WEP 128bits encryption, please input 26 characters if you select

HEX, or input 13 characters if you select ASCII. 128 bits encryption is

safer then 64 bits, but the data transfer speed will be slightly reduced.

Show Password Check this box and the WPA pre-

shared key or WEP key you inputted will

be shown, but not replaced by asterisk (*)•

4 Activate a profile

3.4 Connection Table

If you want to see the list of all wireless clients connected to this access point, please select ‘Mac Table’ tab

from the utility.

Here are descriptions of every setup item:

Item Name Description

Access Policy Select the policy type of your access rule.

Disable: Allow any wireless client with proper authentication settings to

connect to this access point.

Allow All: Only allow wireless clients with MAC address listed here to

connect to this access point.

Reject All: Reject wireless clients with MAC address listed here to be

connected to this access point.

MAC address Input the MAC address of the wireless client you wish to allow or reject

here. No colon (:) or hyphen (-) required.

Add Add the MAC address you inputted in ‘MAC address’ field to the list.

Delete Please select a MAC address from the list, then click ‘Delete’ button to

remove it.

Remove All Delete all MAC addresses in the list.

When you finish with setting and want to save changes, click ‘Apply’ button

Here are descriptions of every field:

Item Name

Description

MAC Address Displays the MAC address of this wireless client.

AID The serial number of this wireless connection.

Power Saving Mode Displays the capability of power-saving function of this wireless client.

Status

Displays additional information of this wireless Connection, like current

wireless operating mode and data transfer rate.

3.5 Event Log

This software access point will log all wireless-related activities as a log. Click 'Event Log’ tab, and the

event log will be displayed.

3.6 Statistics

If you want to know detailed information about how your software access point works, click ‘Statistics’ tab,

and the event log will be displayed.

You can click ‘Clear’ to remove all entries in the log.

Here are descriptions of every field:

You can click ‘RESET COUNTERS’ button to reset all counters to zero.

3.7 About

The ‘About’ tab provides you the information about version number of the configuration utility, driver, and

other important information about your wireless access point.

Appendix

4.1 Specification

Standards: IEEE 802.11 b/g/n (1T1R)

Interface: 32Bit PCI

Frequency Band: 2.4000 ~ 2_4835GHz (Industrial Scientific Medical Band)

Data Rate: 11b: 1/2/5.5/11 Mbps

11g: 6/9/12/24/36/48/54Mbps

11n (20MHz): MCSO-7 (up to 72Mbps)

11n (40MHz): MCSO-7 (up to 150Mbps)

Securities: WEP 64/128-bit, WPA, WPA2 Cisco CCX Support IEEE 802.1x Antenna:

External One Dipole Antenna (1T1R)

Drivers: Windows 2000/XPA/istaA/Vindows7

LEDs: Link, Tx/Rx

Temperature: 32㊀104 F (0 ~ 40°C)

Humidity: 10-90% (NonCondensing)

Certification: FCC, CE

4.2 Antenna Parameter

Model Name: TRA24003P

Description: Phantom Antenna P.Mit*

Gain: 3.0dBi

Color: White, Radome Height: 2.7”

4.3 Antenna Connect

The EUT connect to the External Antenna.

4.4 Troubleshooting

If you encounter any problem when you’re using this wireless network card, don’t panic! Before you call

your dealer of purchase for help, please check this troubleshooting table, the solution of your problem

could be very simple, and you can solve the problem by yourself!

Scenario

Solution

1 can't find any wireless

access point / wireless

device in ‘Site Survey’

function.

1 • Click 'Rescan' for few more times and see if you can find any

wireless access point or wireless device.

2. Please move closer to any known wireless access point.

3. ‘Ad hoc’

function must be enabled for the wireless device you wish

to establish a direct wireless link.

Please adjust the position of the antenna and click ‘Rescan’ button

for few more times.

Nothing happens when 1

click ‘Launch config

utilities’

1. Please make sure the wireless network card is firmly inserted into

your computer’s PCI slot. If the Ralink configuration utility’s icon is

black, the network card is not detected by your computer. Switch

the computer off and insert the card again. If this doesn’t work,

contact the dealer of purchase for help.

2. Reboot the computer and try again.

3. Remove the driver and re-install.

4. Contact the dealer of purchase for help.

1 can not establish

connection with a certain

wireless access point

1 • Click ‘Connect’ for few more times.

2. If the SSID of access point you wish to connect is hidden (nothing

displayed in ‘SSID’ field in 'Site Survey’ function), you have to input

correct SSID of the access point you wish to connect. Please

contact the owner of access point to ask for correct SSID.

3. You have to input correct passphrase 1

security key to connect an

access point with encryption. Please contact the owner of access

point to ask for correct passphrase / security key.

The access point you wish to con

nect only allows network cards with

specific MAC address to establish connection. Please go to ‘About’ tab

and write the value of

‘Phy—Addess’

down, then present this value to the owner of access

point so he / she can add the MAC address of your network card to his /

her access point’s list.

The network is slow /

having problem when

transferring large files

1. Move closer to the place where access point is located.

2. Enable 'Wireless Protection’ in ‘Advanced’ tab.

3. Disable Tx Burst' in ‘Advanced’ tab.

4. Enable ‘WMM’ in ‘QoS’ tab if you

need to use multimedia / telephony related applications.

5. Disable ‘WMM - Power Save Enable’ in ‘QoS’ tab.

6. There could be too many people using the same radio channel. Ask

the owner of the access point to change the channel number.

Please try one or more solutions listed above.

4.5 Glossary

1. What is the IEEE 802.11g standard?

802.11g is the new IEEE standard for high-speed wireless LAN communications that provides for

up to 54 Mbps data rate in the 2.4 GHz band. 802.11g is quickly becoming the next mainstream

wireless LAN technology for the home, office and public networks.

802.11g defines the use of the same OFDM modulation technique specified in IEEE 802.11a for

the 5 GHz frequency band and applies it in the same 2.4 GHz frequency band as IEEE 802.11b.

The 802.11g standard requires backward compatibility with 802.11b.

The standard specifically calls for:

A. A new physical layer for the 802.11 Medium Access Control (MAC) in the 2.4 GHz frequency

band, known as the extended rate PHY (ERP). The ERP adds OFDM as a mandatory new

coding scheme for 6, 12 and 24 Mbps (mandatory speeds), and 18, 36, 48 and 54 Mbps

(optional speeds). The ERP includes the modulation schemes found in 802.11b including CCK

for 11 and 5.5 Mbps and Barker code modulation for 2 and 1 Mbps.

B. A protection mechanism called RTS/CTS that governs how 802.11g devices and 802.11b

devices interoperate.

2. What is the IEEE 802.11b standard?

The IEEE 802.11b Wireless LAN standard subcommittee, which formulates the standard

for the industry. The objective is to enable wireless LAN hardware from different

manufactures to communicate.

4 Activate a profile

What does IEEE 802.11 feature support?

The product supports the following IEEE 802.11 functions:

• CSMA/CA plus Acknowledge Protocol

• Multi-Channel Roaming

• Automatic Rate Selection

• RTS/CTS Feature

• Fragmentation

• Power Management

What is Ad-hoc?

An Ad-hoc integrated wireless LAN is a group of computers, each has a Wireless LAN card, Connected

as an independent wireless LAN. Ad hoc wireless LAN is applicable at a departmental scale for a branch

or SOHO operation.

What is Infrastructure?

An integrated wireless and wireless and wired LAN is called an Infrastructure configuration. Infrastructure

is applicable to enterprise scale for wireless access to central database, or wireless application for mobile

workers.

What is BSS ID?

A specific Ad hoc LAN is called a Basic Service Set (BSS). Computers in a BSS must be configured with

the same BSS ID.

What is WEP?

WEP is Wired Equivalent Privacy, a data privacy mechanism based on a 40 bit shared key algorithm, as

described in the IEEE 802 .11 standard.

What is TKIP?

TKIP is a quick-fix method to quickly overcome the inherent weaknesses in WEP security, especially the

reuse of encryption keys. TKIP is involved in the IEEE 802.11 i WLAN security standard, and the

specification might be officially released by early 2003.

What is AES?

AES (Advanced Encryption Standard), a chip-based security, has been developed to ensure the highest

degree of security and authenticity for digital information, wherever and however communicated or stored,

while making more efficient use of hardware and/or software than previous encryption standards. It is

also included in IEEE 802.11 i standard. Compare with AES, TKIP is a temporary protocol for replacing

WEP security until manufacturers implement AES at the hardware level.

10. Can Wireless products support printer sharing?

Wireless products perform the same function as LAN products. Therefore, Wireless products can

work with Netware, Windows 2000, or other LAN operating systems to support printer or file

sharing.

11. Would the information be intercepted while transmitting on air?

WLAN features two-fold protection in security. On the hardware side, as with Direct Sequence

Spread Spectrum technology, it has the inherent security feature of scrambling. On the software side,

WLAN series offer the encryption function (WEP) to enhance security and Access Control. Users can

set it up depending upon their needs.

12. What is DSSS? What is FHSS? And what are their differences?

Frequency-hopping spread-spectrum (FHSS) uses a narrowband carrier that changes frequency in a

pattern that is known to both transmitter and receiver. Properly synchronized, the net effect is to

maintain a single logical channel. To an unintended receiver, FHSS appears to be short-duration

impulse noise. Direct-sequence spread-spectrum (DSSS) generates a redundant bit pattern for each

bit to be transmitted. This bit pattern is called a chip (or chipping code). The longer the chip is, the

greater the probability that the original data can be recovered. Even if one or more bits in the chip are

damaged during transmission, statistical techniques embedded in the radio can recover the original

data without-the need for retransmission. To an unintended receiver, DSSS appears as low power

wideband noise and is rejected (ignored) by most narrowband receivers.

13. What is Spread Spectrum?

Spread Spectrum technology is a wideband radio frequency technique developed by the military for

use in reliable, secure, mission-critical communication systems. It is designed to trade off bandwidth

efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in

the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and

thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal

being broadcast. If a receiver is not tuned to the right frequency, a spread -spectrum signal looks like

background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and

Frequency Hopping Spread Spectrum (FHSS).

14. What is WMM?

Wi-Fi Multimedia (WMM), a group of features for wireless networks that improve the user experience

for audio, video and voice applications. WMM is based on a subset of the IEEE 802.11e WLAN QoS

draft standard. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance

when multiple concurring

applications, each with different latency and throughput requirements, compete for network

resources. By using WMM, end-user satisfaction is maintained in a wider variety of environments

and traffic conditions. WMM makes it possible for home network users and enterprise network

managers to decide which data streams are most important and assign them a higher traffic

priority.

15. What is WMM Power Save?

WMM Power Save is a set of features for Wi-Fi networks that increase the efficiency and flexibility

of data transmission in order to conserve power. WMM Power Save has been optimized for mobile

devices running latency-sensitive applications such as voice, audio, or video, but can benefit any

Wi-Fi device. WMM Power Save uses mechanisms included in the IEEE 802.11e standard and is

an enhancement of IEEE

802.11 legacy power save. With WMM Power Save, the same amount of data can be transmitted

in a shorter time while allowing the Wi-Fi device to remain longer in a low-power “dozing” state.

16. What is Gl?

Gl stands for Guard Interval. It's a measure to protect wireless devices from crossinterference.

If there are two wireless devices using the same or near channel, and they are close enough,

radio interference will occur and reduce the radio resource usability.

17. What is STBC?

STBC stands for Space-Time Block Coding, which is a technique used to transfer multiple copies

of data by multiple antenna, to improve data transfer performance. By using multiple antennas, not

only data transfer rate is improved, but also the wireless stability.

18. What is WPS?

WPS stands for Wi-Fi Protected Setup. It provides a simple way to establish unencrypted or

encrypted connections between wireless clients and access point automatically. User can press a

software or hardware button to activate WPS function, and WPS-compatible wireless clients and

access point will establish connection by themselves. There are two types of WPS: PBC

(Push-Button Configuration) and PIN code.

FCC Statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device

may not cause harmful interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the 「eceive「is connected.

—Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the

user's authority to operate the equipment.

Only approved antennas and antennas from same type with less or equal antenna gain may be used with this device.

Exposure to radio Frequency radiation, The radiated output power of this device is far below the FCC radio frequency

exposure limits.Nevertheless, the device shall be used in such a manner that the potential for human contact during normal

operation is minimized. When connecting an human contact during normal operation is minimized. When connecting an

external antenna to the device, the antenna shall be placed in such a manner to minimize the potential for human contact

during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human

proximity to the antenna shall not be less than 20cm(8 inches) during normal operation.

March Networks GW-DS150N PCI Wireless Card User Manual

March Networks Corporation PCI Wireless Card

User Manual

Navigation menu

Namespaces

Views

Navigation
