User’s Manual
BCM2 for Passive Keyless
Model No.: S57L0
There is no User’s Manual because this equipment will not be sold to end-
user directly.
USER OPERATION INSTRUCTION (DRAFT)
KEYLESS START SYSTEM
This system uses coded radio signals to communicate with the vehicle and remote
controller when the remote controller is near the vehicle such as in your pocket or purse.
It allows the vehicle’s door lock/unlock, and start the engine without inserting the
ignition Key. It is possible to use the control entry function.
△ CAUTION
● Be sure to carry the remote controller.
● Don’t leave the vehicle when the remote controller is in it.
● This system may not perform correctly depend on the environment or operation
conditions, if you do not use it correctly.
・ The remote controller transmits the faint radio waves.
・ When there are strong signals coming from the television tower, the power station
or the cellular phone.
・ When the remote controller is in contact with a metallic material or covered by it.
・ When another radio wave-type remote controller is used nearby.
・ When the remote controller is placed near an electric appliance such as a personal
computer.
● The remote controller continually consumes battery power when it receives a
signal to communicate with the vehicles.
● Battery life is about 2 years, although it varies depending on operation conditions.
Please replace the new one if the battery runs down or power is low.
● Battery life may quickly run down if the remote controller received strong signal
long time. Don’t place the remote controller near an electric appliance such as a
television or personal computer.
1. KEYLESS START SYSTEM OPERATION
You can lock or unlock the doors without taking the remote controller out from your
pocket or purse when you carry the remote controller. You can lock or unlock all
doors by pushing the door handle request switch or the back door handle request
switch within the realm of operation.
2. Locking doors
1. Stop the engine and get out of your vehicle with your remote controller.
2. Close all the doors.
3. Push the door handle request switch or the back door handle request switch.
4. All doors will lock.
3.Unlocking doors
1. Push the door handle request switch.
・The driver door unlock Front passenger side or back door.
・Only corresponding door unlocks.
4.OPERATING THE ENGINE
・ LOCK(Normal parking position)
This position activates only lock/unlock the door functions.
・ ACC(Accessories)
This position activates electrical accessories such as the radio, when the engine is
not running.
・ ON(Normal operating position)
This position turns on the ignition system and electrical accessories.
・ START
This position is starts the engine.
Starting the engine
When driving the vehicle, be sure to carry the remote controller.
1. The shift knob located in the Parking position.
2. Securely depress the brake pedal.
3. Securely push the push engine start switch and the engine will be started.
△ WARNING
Do not start the engine from outside the vehicle through the window. Doing so could
lead an accident and injury. Be sure to sit in the driver seat to use the remote
controller.
For important safety information, see “Starting the engine “ in the Starting and
driving section.
● The warning indicated in the instrument panel (meter) if the push engine start
switch is pushed under the following condition. It is not possible to start the
engine when.
・You don’t have the remote controller.
・The remote controller battery has run down.
・You have a remote controller for another vehicle.
・The engine may not start if the remote controller is placed in below.
a) In the glove box
b) In the door pocket
c) On the instrument panel
d) Corner of interior compartment
Stopping the engine
Remove the shift knob to the Parking position.
Push the push engine start switch and the engine will be stopped.
KEYLESS START SYSTEM OPERATING RANGE
・ The keyless start function can be operated inside or outside the vehicle when you
carry the remote controller.
・ The operating range of keyless start system may narrow if the remote controller
battery is run down or the remote controller received strong wave and noise.
Operating range of the door lock/unlock function.
The outside sensors are in the front door handles and the back door handle.
The operating range of the door lock/unlock functions are shown in the illustrations.
Front door:
60cm from the front door handles and Back door handle.
・ The remote controller may not operate if you are too close to the door glass.
・ Anyone who possible to open the door lock / unlock without remote controller if it
is in the operating range.
Operating range for engine start function
The operating range for starting the engine is inside the vehicle.
● The engine may not start if the remote controller is below location.
・ On the instrument panel.
・ Inside the glove box.
・ In door pocket.
・ Corner of interior compartment.
● The engine may start if the remote controller is near the door or door glass
outside the vehicle .
OPERATION WITH REMOTE KEYLESS ENTRY SYSTEM
It is possible to lock/unlock all doors and activate the panic alarm.
The LOCK/UNLOCK button on the remote controller can operate at a distance of
approximately 10m from the vehicle. (The effective distance depends upon the condition
around the vehicle)
The BACK DOOR button on the remote controller can operate at a distance of
approximately 10m from the vehicle.
Using the panic alarm
You may activate the alarm to call attention as follows if you feel threatened near your
vehicle.
1. Push the PANIC button on the remote controller for longer 0.5 seconds.
2. The theft warning alarm and the headlights will activate stay on for 30 seconds.
3. The panic alarm stops when it satisfied below situation.
・ Running for 30 seconds.
・ Pressed the LOCK or the UNLOCK button.
・ Pressed the panic button for longer than 0.5 seconds.
BATTERY REPLACEMENT
Replace the battery as below.
1. Insert a flat-blade screwdriver wrapped with a cloth into the slit of the top and
twist it to separate the upper part from the lower part.
![](/img.php?id=1133518&img=bg6.png)
2. Replace the battery with a new one.
・ Don’t touch the internal circuit and electric terminals as it could cause a
malfunction.
Recommended battery:CR2032
Make sure that the - side faces the bottom of the case.
3. Close the lid securely.
4. Push the buttons two or three time to check its operation.
See your Suzuki dealer if you need any assistance for replacement.
5. Assemble upper case and
lower case.

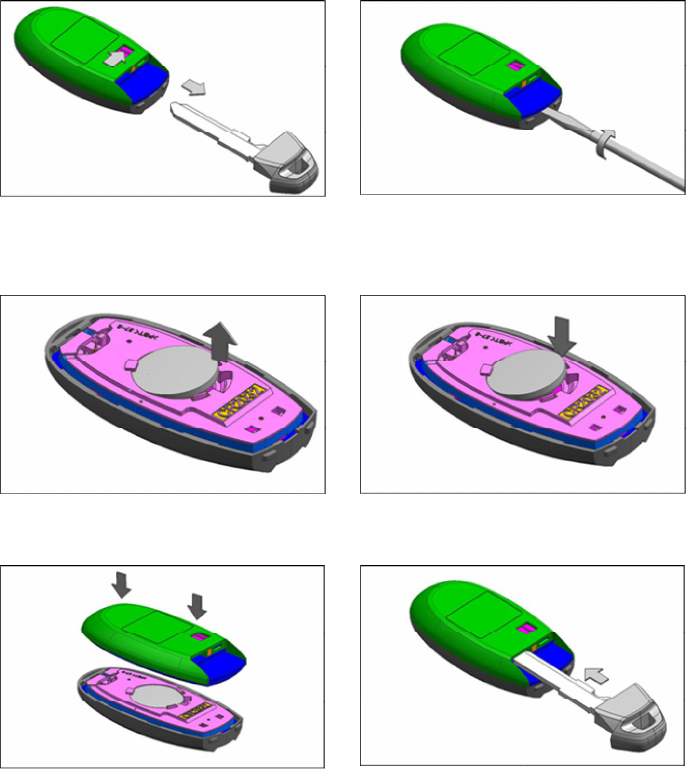

1. Bring out the mechanical key. 2. Insert a flat-blade screwdriver
and twist it.
3. Bring out the battery. 4. Replace the new battery.
6. Assemble the mechanical key.
![](/img.php?id=1133518&img=bg7.png)
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
