Mortise Locksets
Cylindrical, Tubular & Electronic
Access Control Locksets
Exit Devices
![](asset-2.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
2
MORTISE LOCKSET PRICE LIST • EFFECTIVE SEPTEMBER 2016
T C

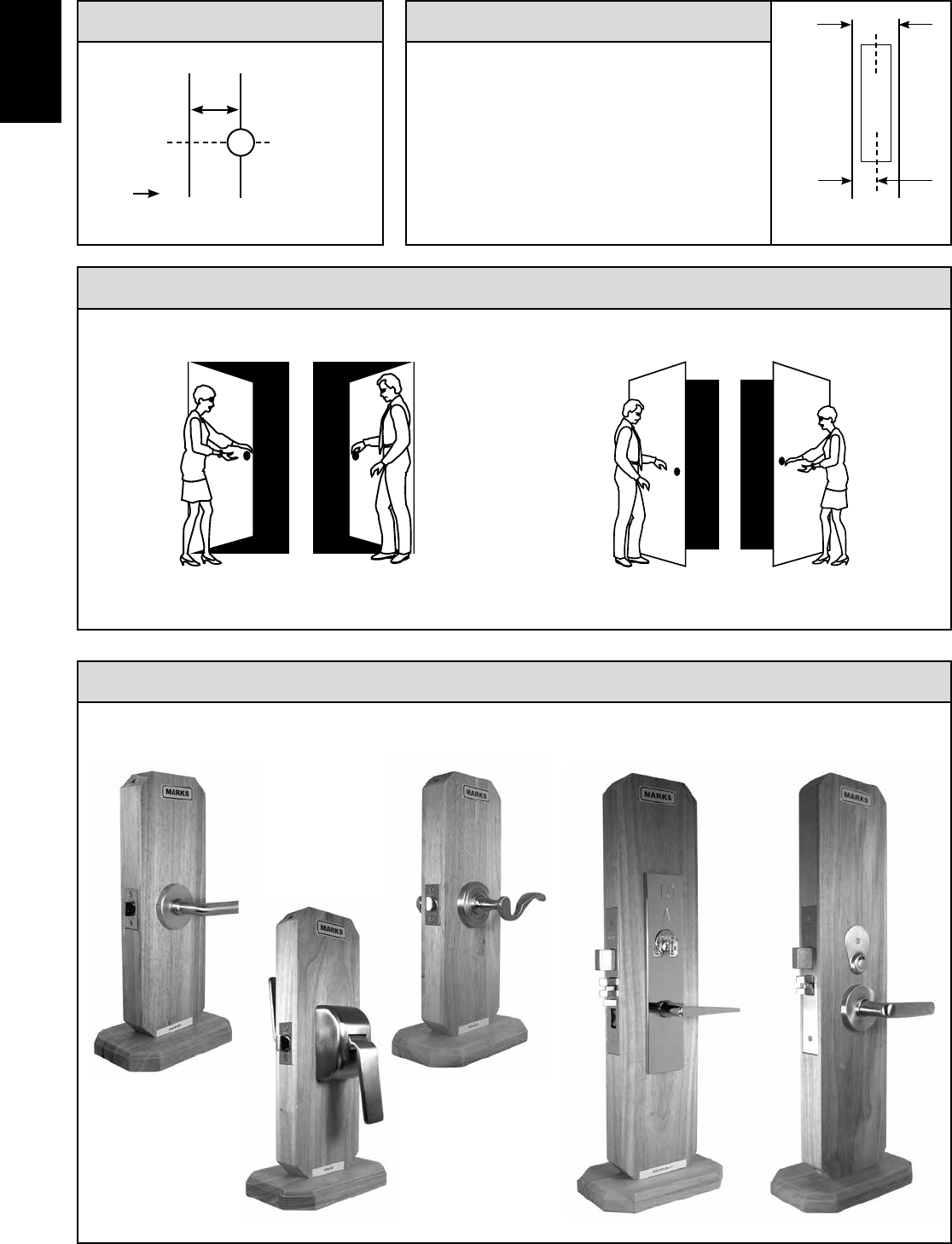

Required Information ......................................................................................................6
Backset ................................................................................................................ 6
Door Thickness ..........................................................................................................6
Handing ...............................................................................................................6
Mounts & Displays ........................................................................................................6
Mortise Lock Trim Information ..............................................................................................7
Handleset Trim ..........................................................................................................7
Leverset/Knobset Trim ....................................................................................................7
How To Order Mortise Locksets & Handlesets ...............................................................................8-10
How To Order Instructions & Examples .......................................................................................8
1. Series ...............................................................................................................9
2. Plates/Roses/Handlesets ................................................................................................9
3. Knob/Lever ...........................................................................................................9
4. Mortise Functions ......................................................................................................9
5. Finishes .............................................................................................................9
6. Options .............................................................................................................10
Plate Designs ..........................................................................................................11-27
Barrier - BA ............................................................................................................11
Classic - CL .........................................................................................................12-13
Capitol - CP .........................................................................................................14-15
Crown - CR ..........................................................................................................16-17
Drake - DR ..........................................................................................................18-19
Davos - DV ..........................................................................................................20-21
Madison - MA ........................................................................................................22-23
New Yorker - NY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
Towne - TN ..........................................................................................................26-27
Rose Designs ..........................................................................................................28-29
Rose with Ring - RR ...................................................................................................28-29
Plain Rose - RW ......................................................................................................28-29
Small Rose with Ring - RQ ..............................................................................................28-29
Small Rose - RS ......................................................................................................28-29
Square Rose - RX ....................................................................................................28-29
Square Rose - RK .....................................................................................................28-29
Square Rose - RL .....................................................................................................28-29
Handleset Designs .....................................................................................................30-31
Crown - CR ............................................................................................................ 30
Towne - TN ............................................................................................................32
Ornamental Iron ........................................................................................................32-33
Series 21 Unilock™ .....................................................................................................32
Series 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Series 9215 Unilock™ ...................................................................................................32
Series 9225. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Series 9257 Unilock™ ...................................................................................................32
Series 9267. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
THINLINE® Series 2750 .................................................................................................32
Knob & Lever Kits .......................................................................................................33
Accessories ...........................................................................................................33

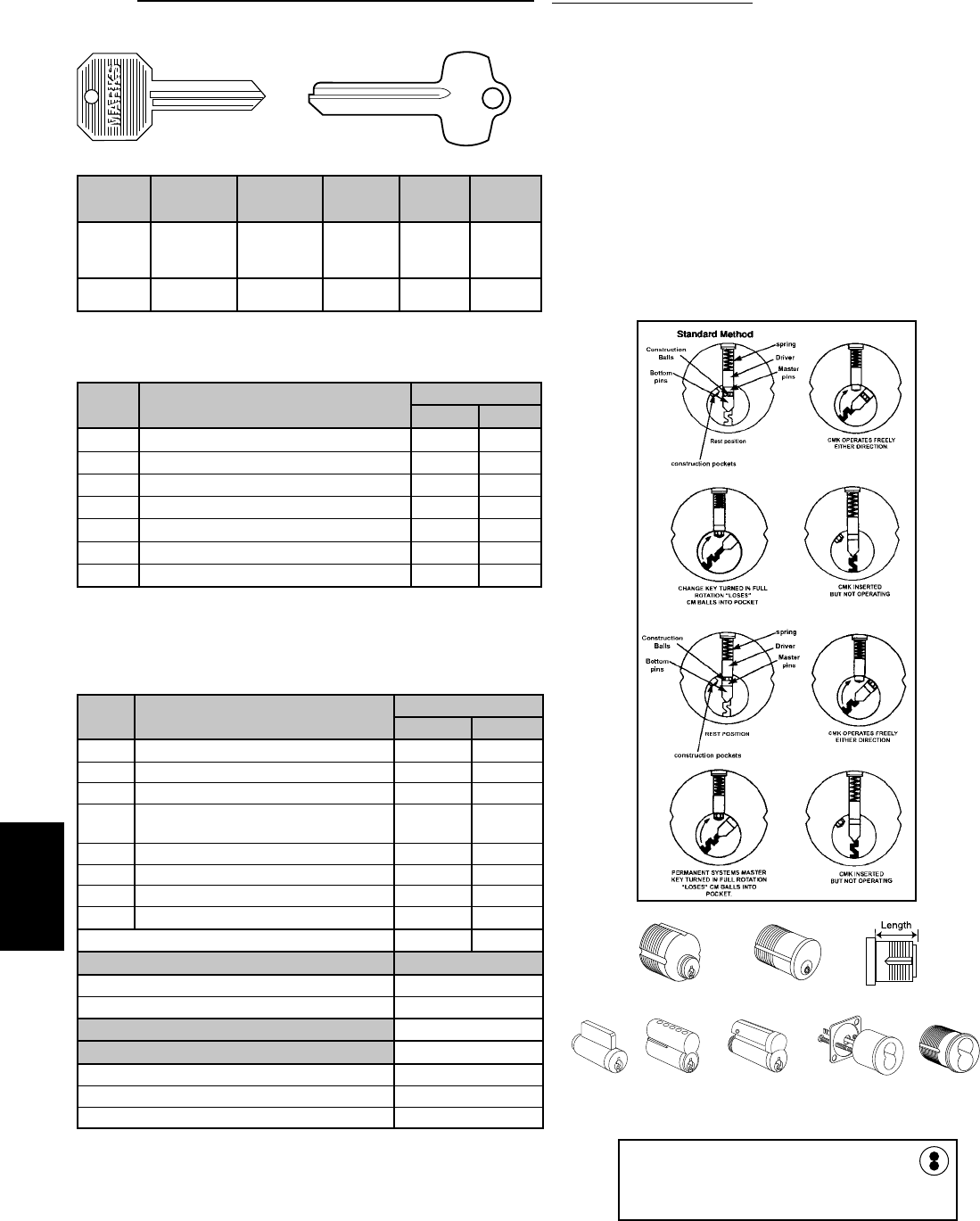

Cylinders ..............................................................................................................33
![](asset-3.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
3
MORTISE LOCKSET PRICE LIST
Mortise Parts & Trim ....................................................................................................34-46

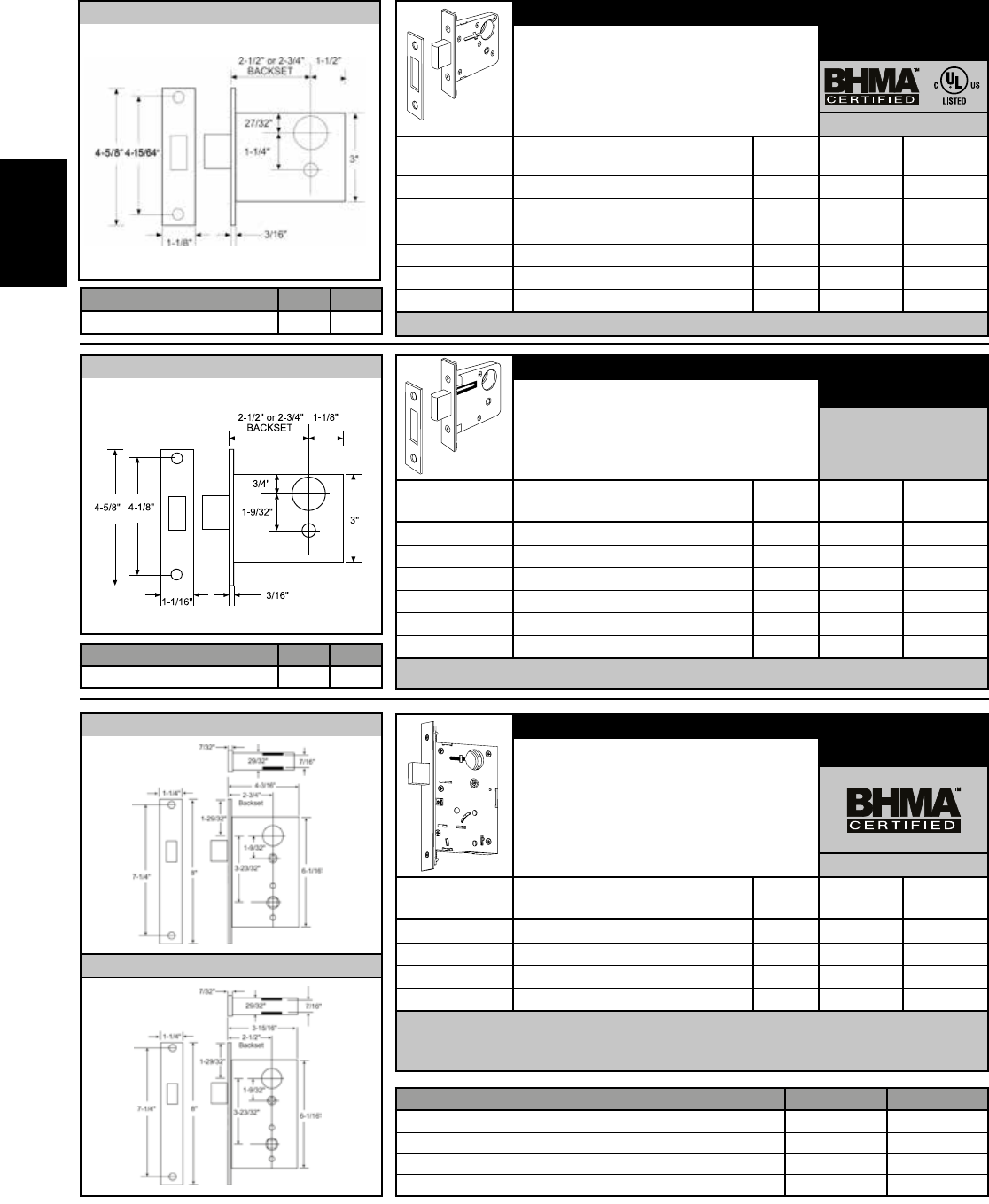

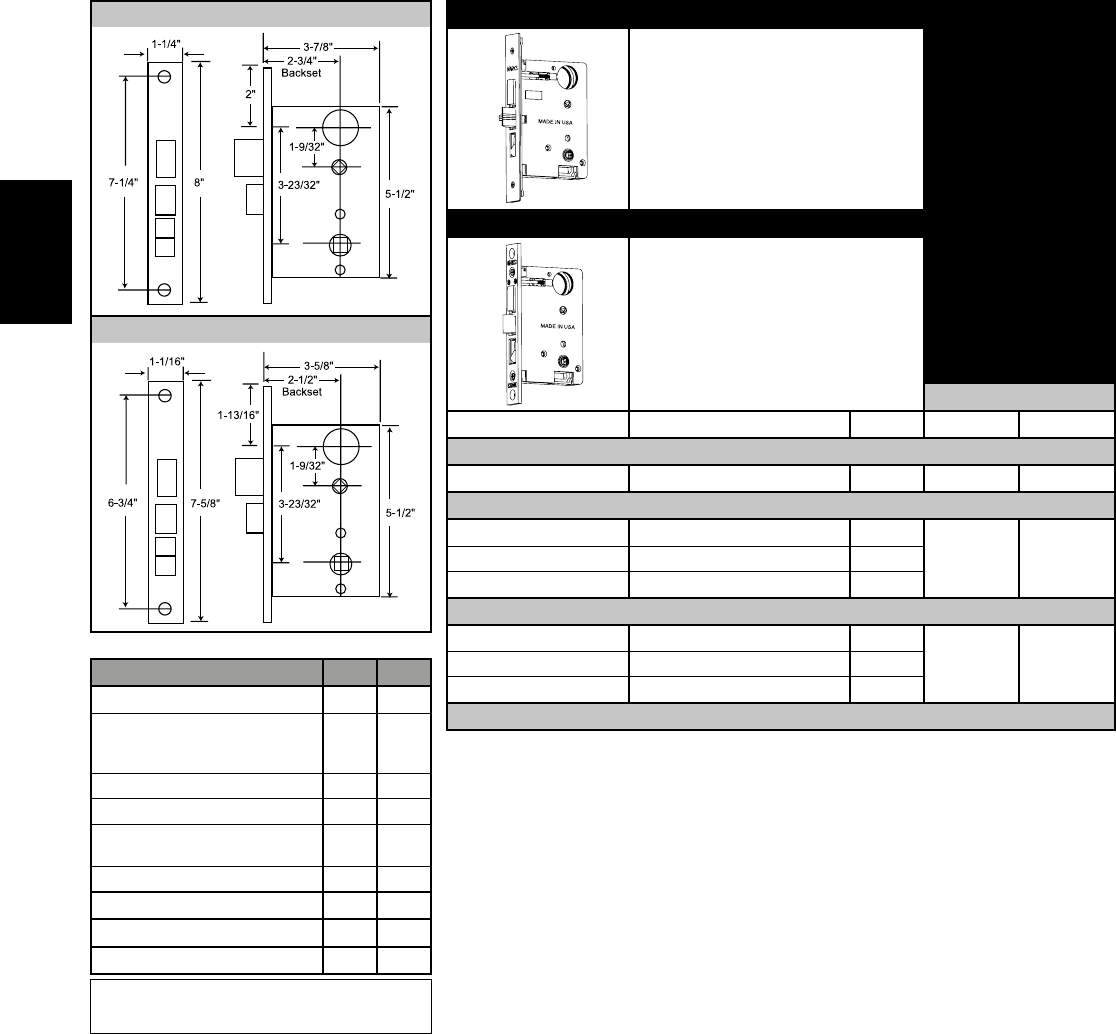

Mortise Lock Bodies Series 4 & 45 .........................................................................................34
Mortise Lock Bodies Series 5 & 55 .........................................................................................35
Mortise Lock Bodies Series 6 & 8 ..........................................................................................36
Mortise Lock Bodies Series 7 & 9 ..........................................................................................37
Mortise Deadlocks Series 31, 2, 3, 5 & 55 .................................................................................... 38
Mortise Lockset Functions ..............................................................................................39-40
Mortise Lock Parts: Knob/Lever Rose Kits ....................................................................................41

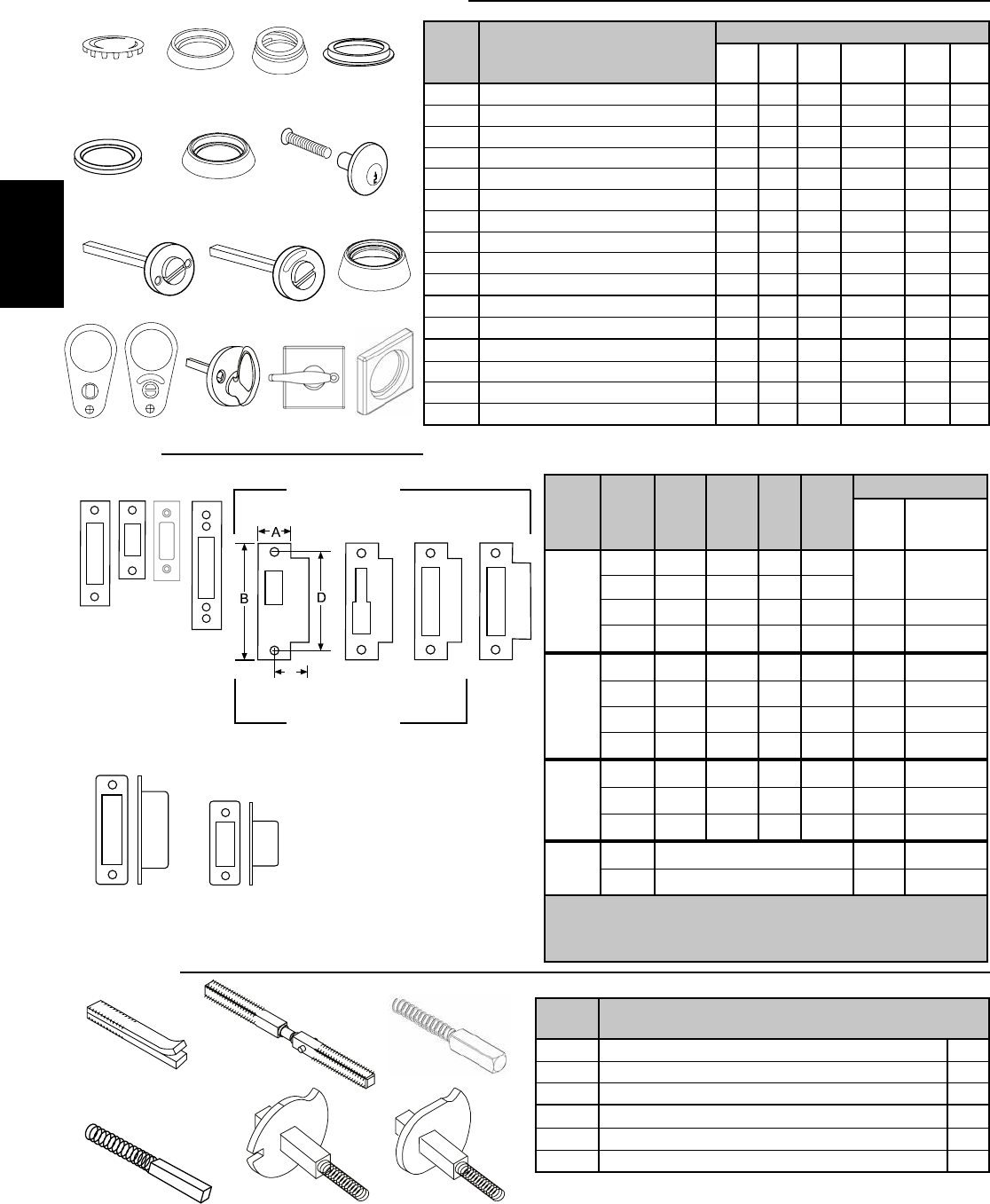

Mortise Lock Parts: Dummy Cylinder, Collars & Turnpieces, Strikes, Spindles .......................................................42
Trim Lock Parts: How to Order .............................................................................................43

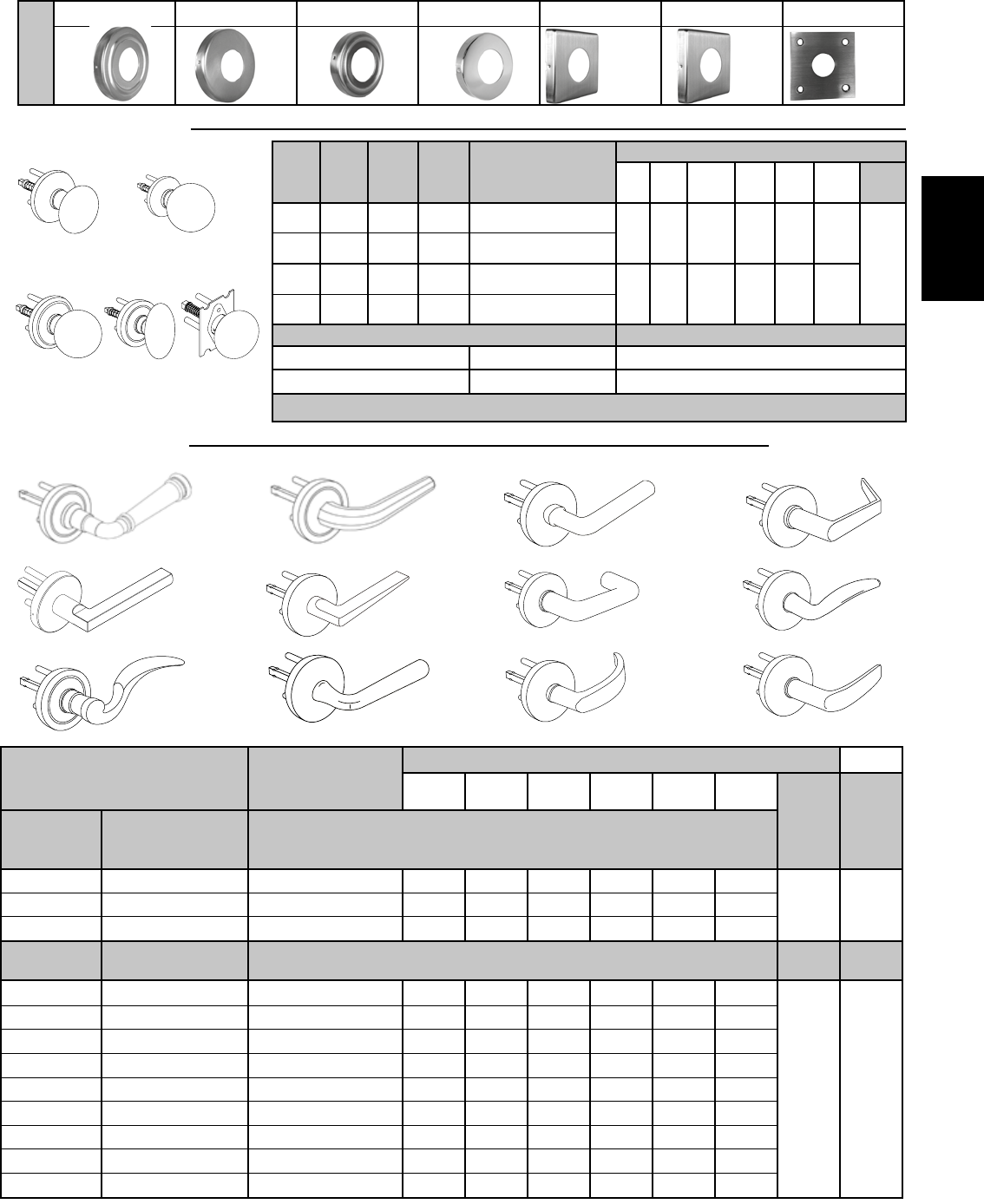

Trim Lock Parts: Plate/Rose Design ........................................................................................44
Trim Lock Parts: Knob/Lever Design ........................................................................................45
Trim Lock Parts: Handle Design ............................................................................................46
Mortise Door Accessories ................................................................................................. 46
CYLINDRICAL & TUBULAR LOCKSET PRICE LIST
How To Order Cylindrical Locksets .........................................................................................47
How To Order Example For Cylindrical Locksets ..............................................................................47
1. Series ..............................................................................................................47
2. Cylindrical Functions ..................................................................................................47
3. Finishes ............................................................................................................47
4. Options .............................................................................................................47
Cylindrical Locksets ....................................................................................................48-51
80 Line Grade 1 Cylindrical Knobsets .......................................................................................48
10 Line Grade 2 Cylindrical Knobsets .......................................................................................49
95 Line Grade 1 Cylindrical Survivor Series Leversets ..........................................................................50
75 Line Grade 2 Cylindrical Survivor Series Leversets ..........................................................................51
Residential Interior Cylindrical Locksets .....................................................................................52
1120 Series Grade 2 Knobsets (cylindrical knobsets for interior use) ...............................................................52
230 Series Knobsets (cylindrical knobsets for interior use) .......................................................................52
Cylindrical Lock Accessories ..............................................................................................53

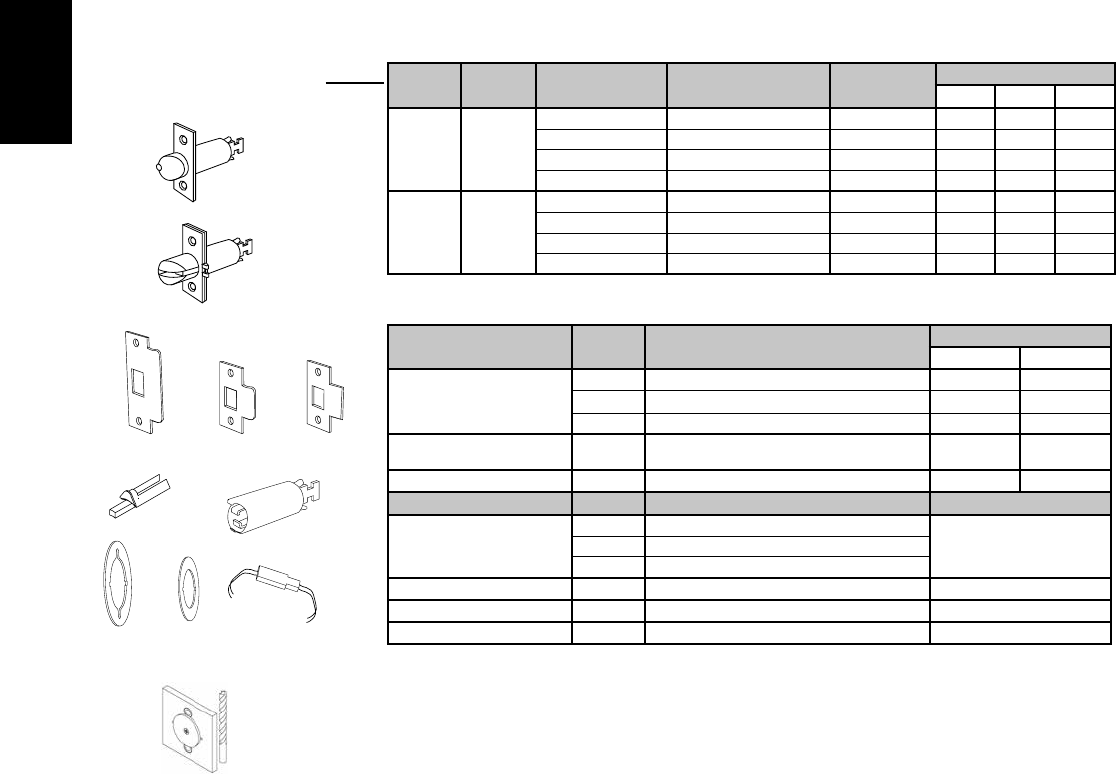

Latches, Strikes, Spacer Rings, Etc. ........................................................................................53
Marks Survivor Series Lock Installation Tool J295 .............................................................................53
Cylinders, Cylindrical Lock Tailpieces, Cylindrical IC Core Tailpieces ...............................................................53
How to order example for Cylindrical Lock Cylinders & Tailpieces .................................................................53
Cylindrical Knob/Lever Functions ........................................................................................... 54
How To Order Tubular Locksets ............................................................................................55
How To Order Example For Tubular Locksets ................................................................................. 55
1. Series ..............................................................................................................55
2. Roses ..............................................................................................................55
3. Knob/Lever ..........................................................................................................55
4. Tubular Function ......................................................................................................55
5. Finishes ............................................................................................................55
6. Options .............................................................................................................55
Tubular Knob & Lever Functions ...........................................................................................55
Rose Designs ............................................................................................................56
Rose with Ring - RR ..................................................................................................... 56
Plain Rose - RW ........................................................................................................ 56
Small Rose with Ring - RQ ................................................................................................56
Small Rose - RS ........................................................................................................ 56
Square Rose - RX ......................................................................................................56
Square Rose - RK .......................................................................................................56
Square Rose - RL .......................................................................................................56
Residential Interior Tubular Locksets ........................................................................................ 57
150 Series American Lever (tubular leversets for interior use) ....................................................................57
250 Series Crescent Lever (tubular leversets for interior use) .....................................................................57
450 Series Titan Lever (tubular leversets for interior use) ........................................................................ 57
Tubular Lockset Accessories ..............................................................................................58
Strikes, Latches, Support Housing ..........................................................................................58
Turnpieces ............................................................................................................58
Latches & Cylindrical Cartridge ............................................................................................58
How To Order For Defender Locksets .......................................................................................59
How To Order Example For Defender Locksets ...............................................................................59
1. Series ..............................................................................................................59
2. Tubular Functions .....................................................................................................59
3. Finishes ............................................................................................................59
4. Options .............................................................................................................59
Deadbolt/Deadlatch Functions ..............................................................................................59
![](asset-4.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
4
CYLINDRICAL & TUBULAR LOCKSET PRICE LIST
Defender Series Tubular Deadbolts & Cylindrical Cartridge Deadlatches ..........................................................60
130 Series Grade 1 Defender Tubular Deadbolts ..............................................................................60
145 Series Grade 1 Defender Cylindrical Cartridge Deadlatches ..................................................................60
Defender Series Accessories ...............................................................................................61
Strikes, Latches & Spacers ...............................................................................................61
Latches & Cylindrical Cartridge ............................................................................................61
Tailpieces & Cylinders ...................................................................................................61

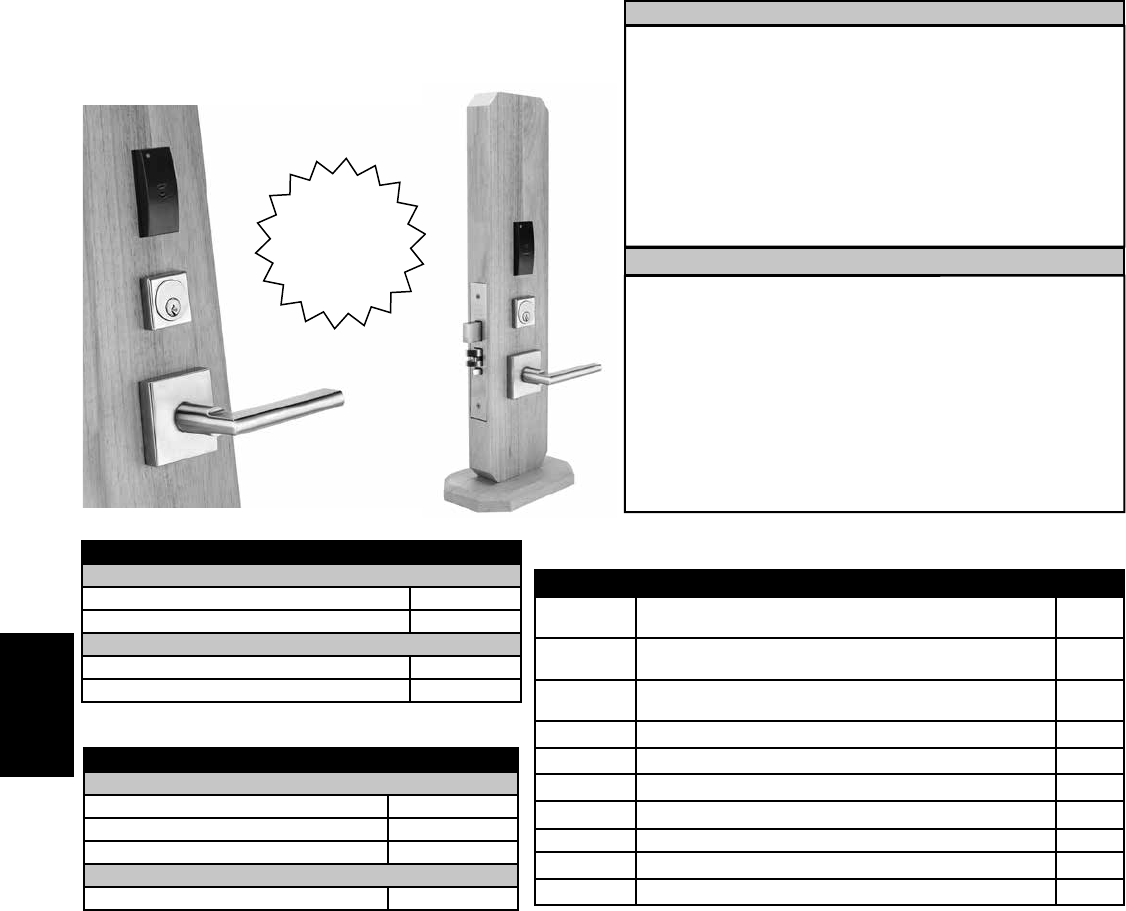

i-Qwik/i-Que Electronic Access Control Locksets ............................................................................62-64

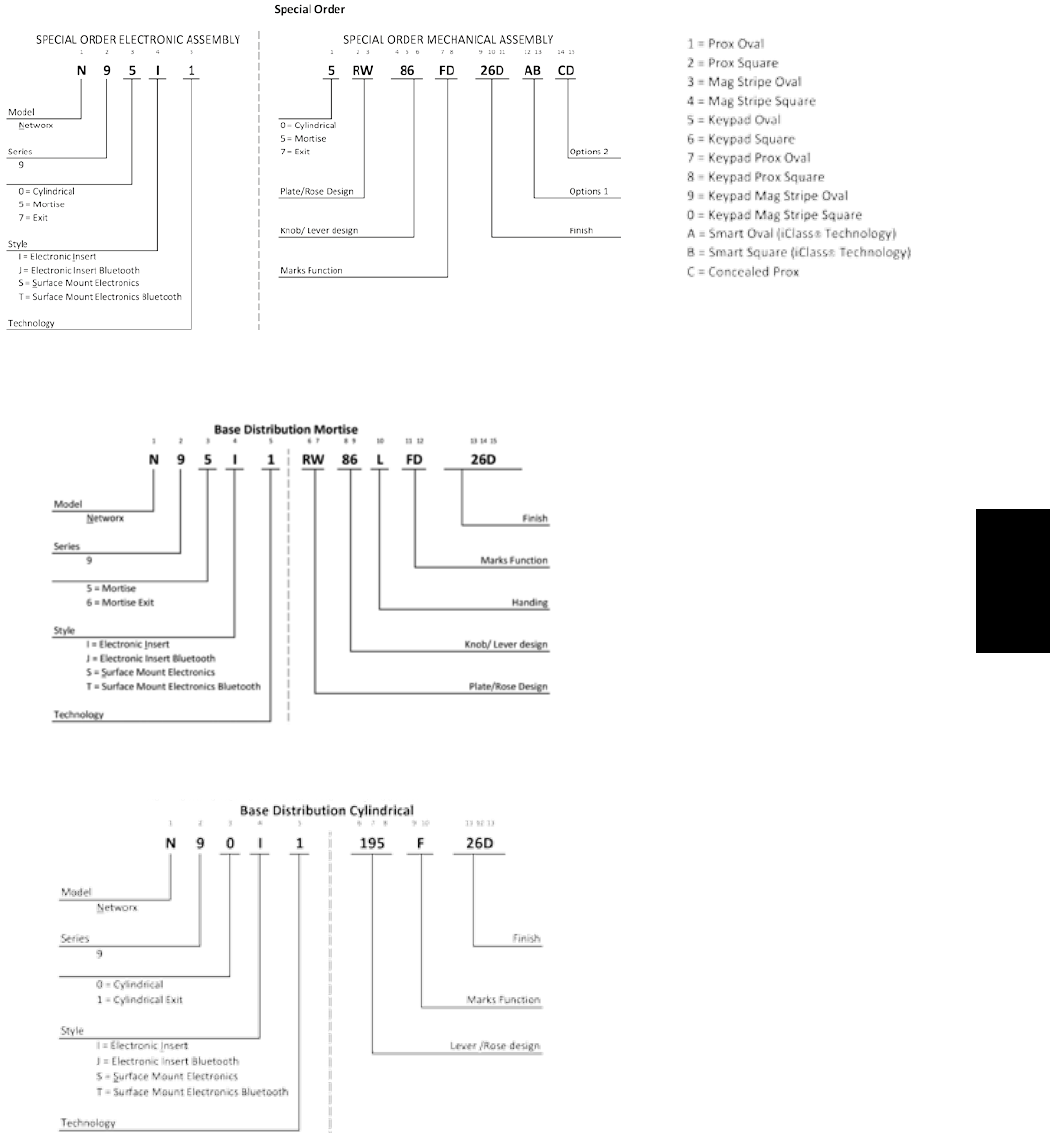

i-Qwik LITE2 Series Electronic Access Control & How To Order Example ...........................................................62
i-Qwik/i-Que Series Options ...............................................................................................63
i-Qwik/i-Que Series Accessories, Tailpieces & Cams ...........................................................................64
Request To EXit (REX) Leversets & Electrified Locksets ......................................................................65-66
Request To EXit (REX) Cylindrical Grade 1 Leversets (EA195, EA295, EA395 & EA495) ..............................................65
How To Order Example For REX Leversets ..................................................................................65

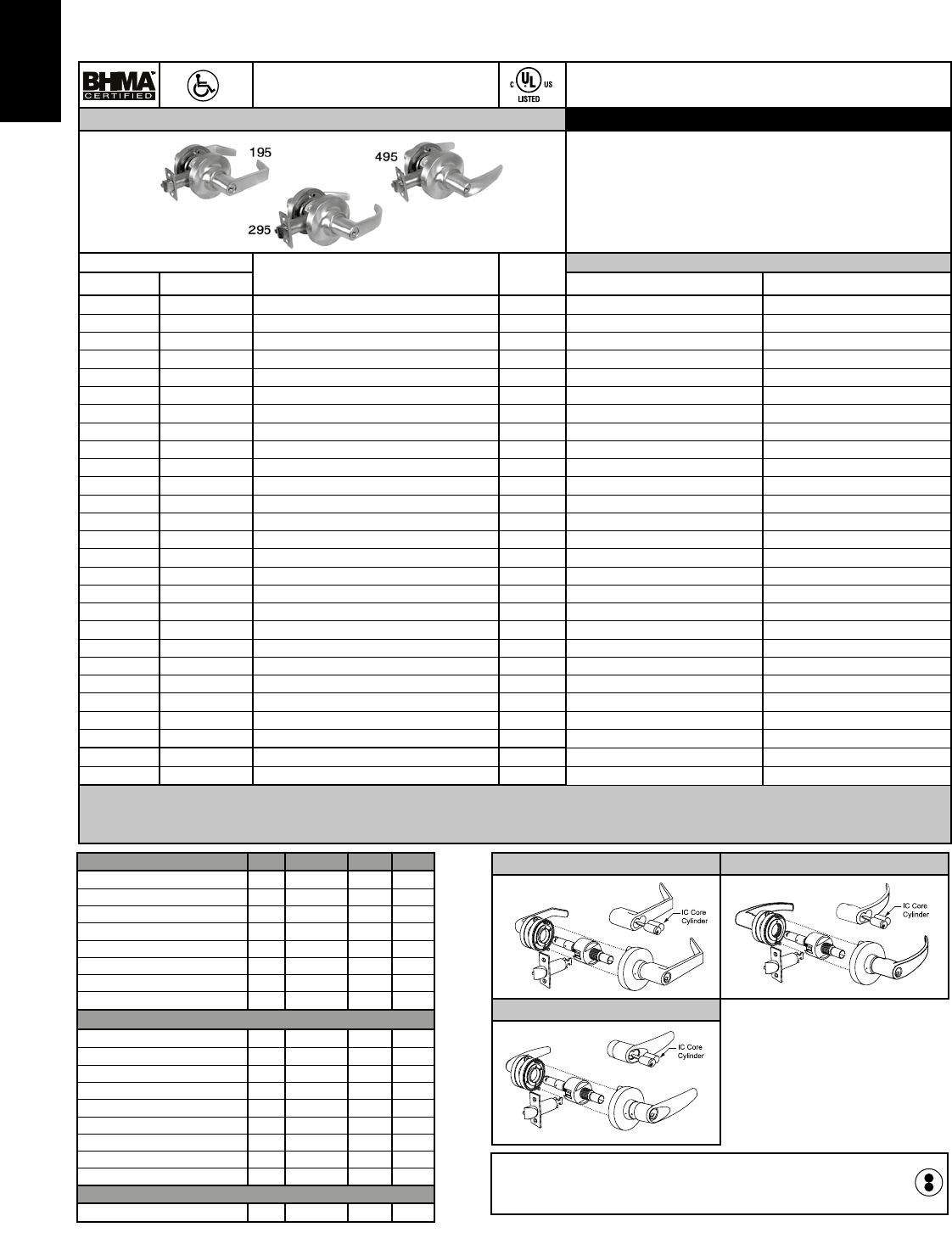

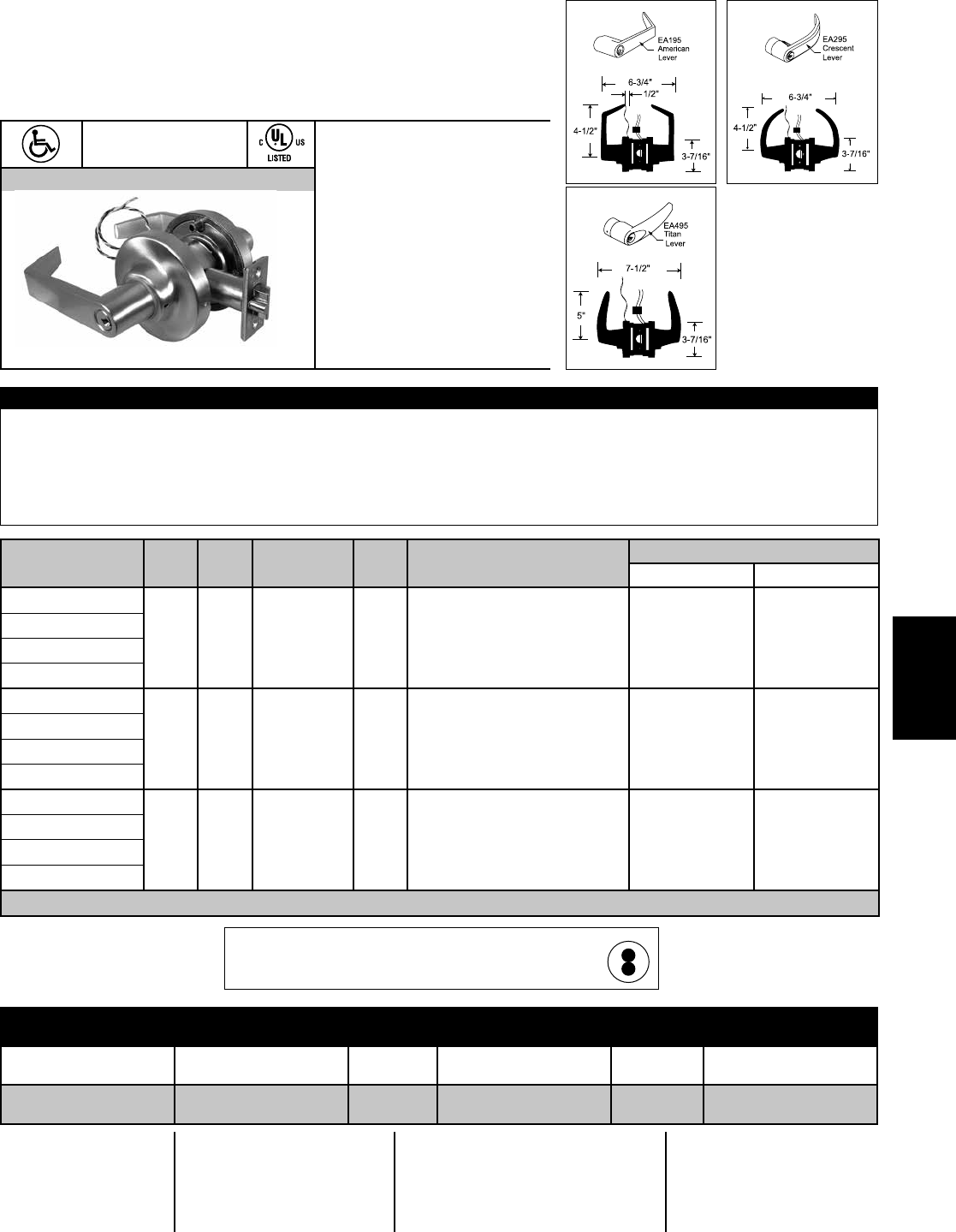

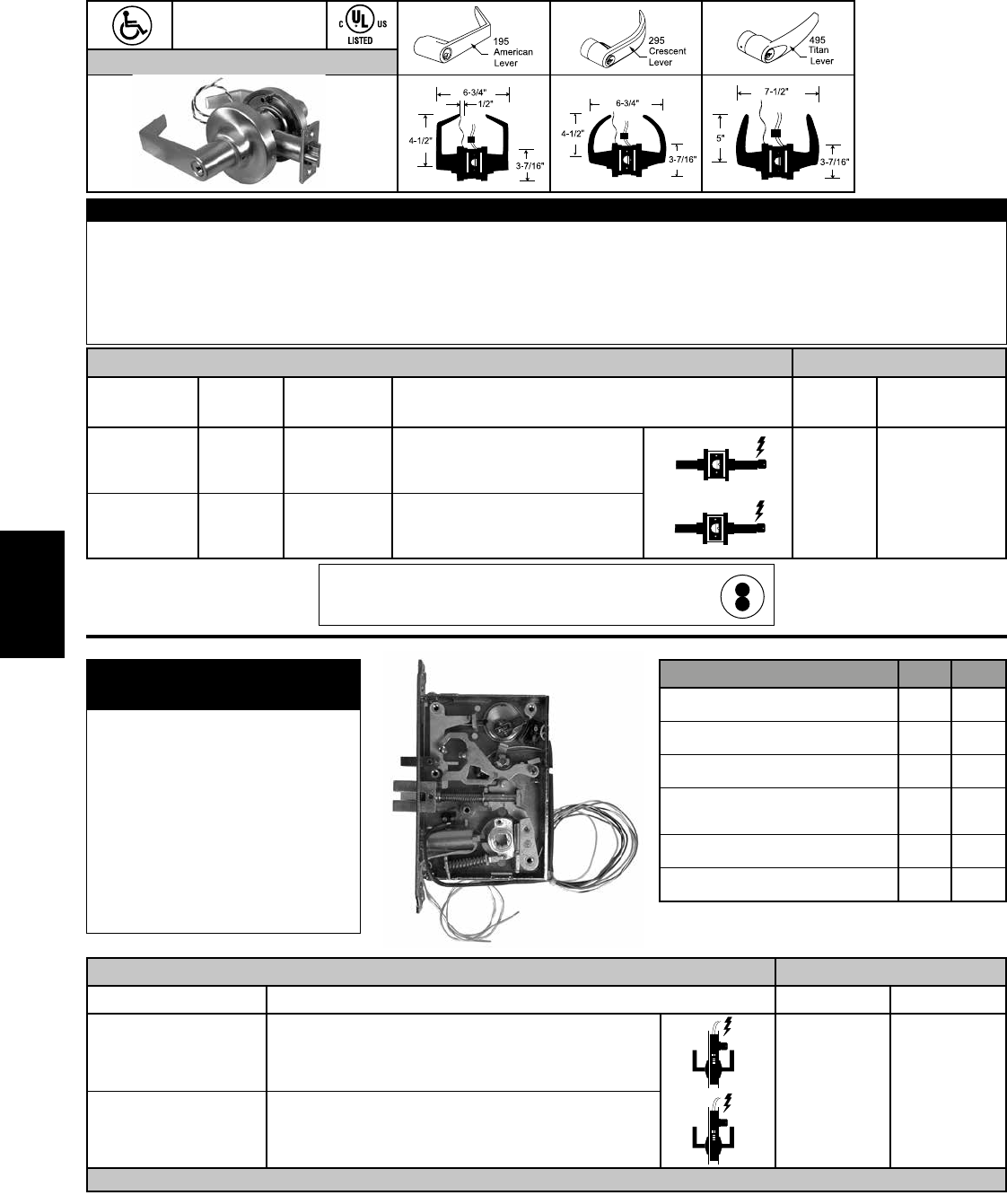

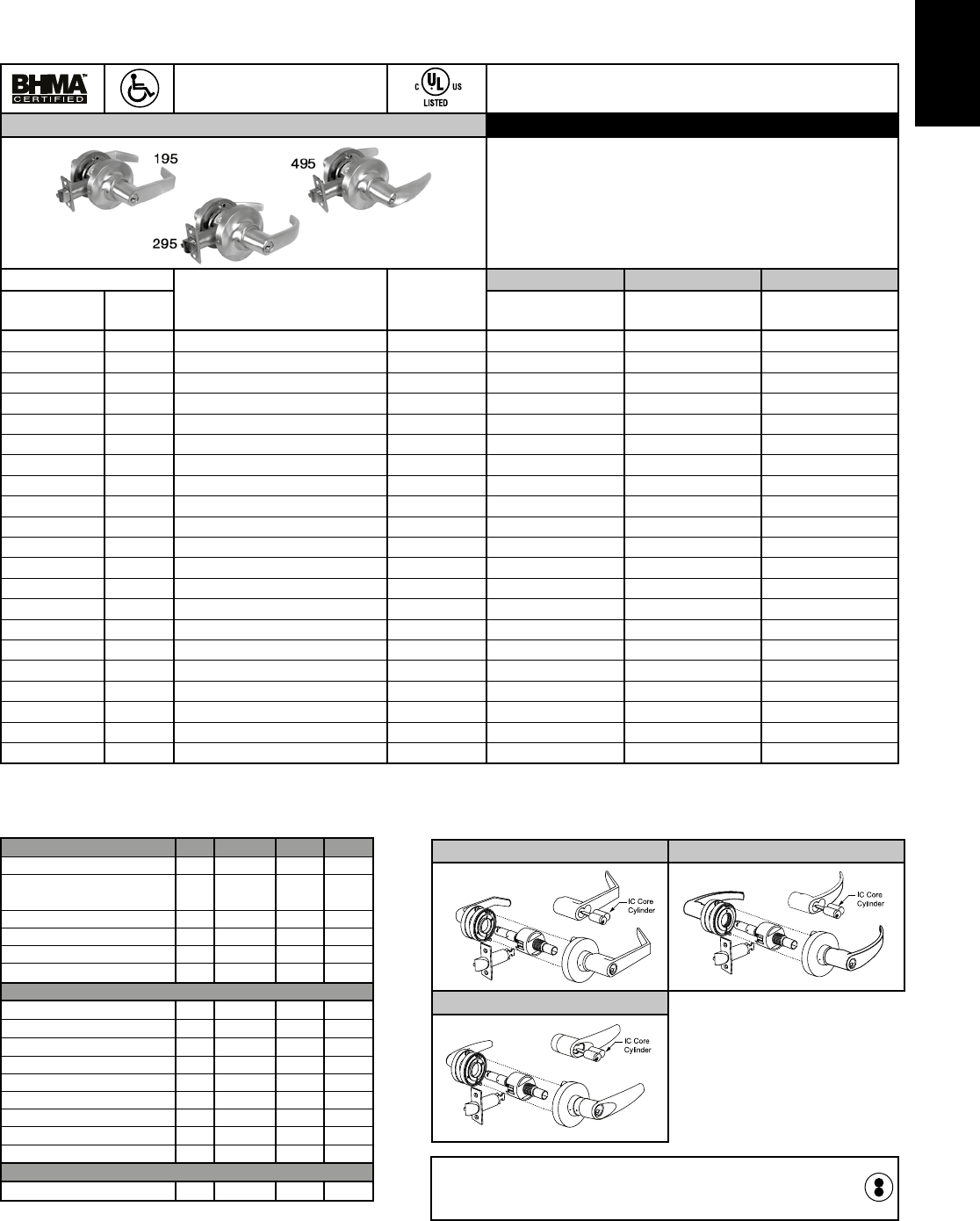

195, 295, 395 & 495 Series Grade 1 Electrified Cylindrical Leversets ..............................................................66
5 Series Grade 1 Electrified Mortise Lockset .................................................................................. 66
Gate Locks .............................................................................................................. 67
Swinging Gate Locks ....................................................................................................67
Sliding Gate Locks ......................................................................................................67
Parts .................................................................................................................67
Custom Lockset Division ................................................................................................68-70
Series HA113 Housing Authority Mortise Lockset ..............................................................................68
Series LA318GJ Maximum Security Mortise Lockset ...........................................................................69
Series BE101 & LA3118 ..................................................................................................70
Institutional Life Safety Mortise Locksets ..................................................................................71-73
Series 195SS Institutional Life Safety Cylindrical Lever Lockset ................................................................... 71
Series 5SS55 & 5SS19 Institutional Life Safety Mortise Knob & Lever Locksets ......................................................72

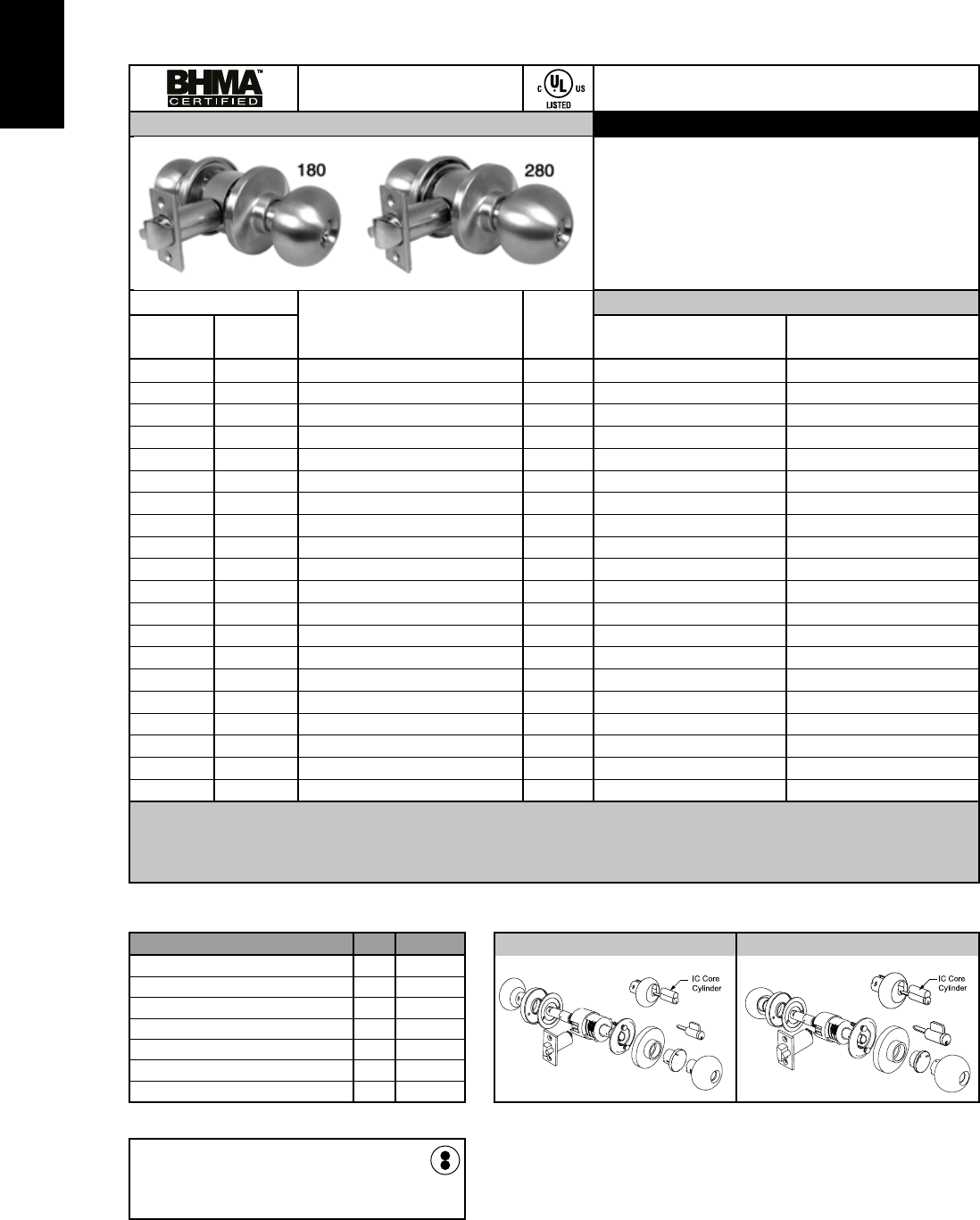

Series 180SS Institutional Life Safety Cylindrical Knobsets & Locksets .............................................................73
Series 31SS55 Institutional Life Safety Mortise Deadlock ........................................................................73
Hospital Locksets ........................................................................................................74
Series 180PD Cylindrical Push/Pull Paddlesets ................................................................................74
Series 5PD & 55PD Mortise Push/Pull Paddlesets .............................................................................74

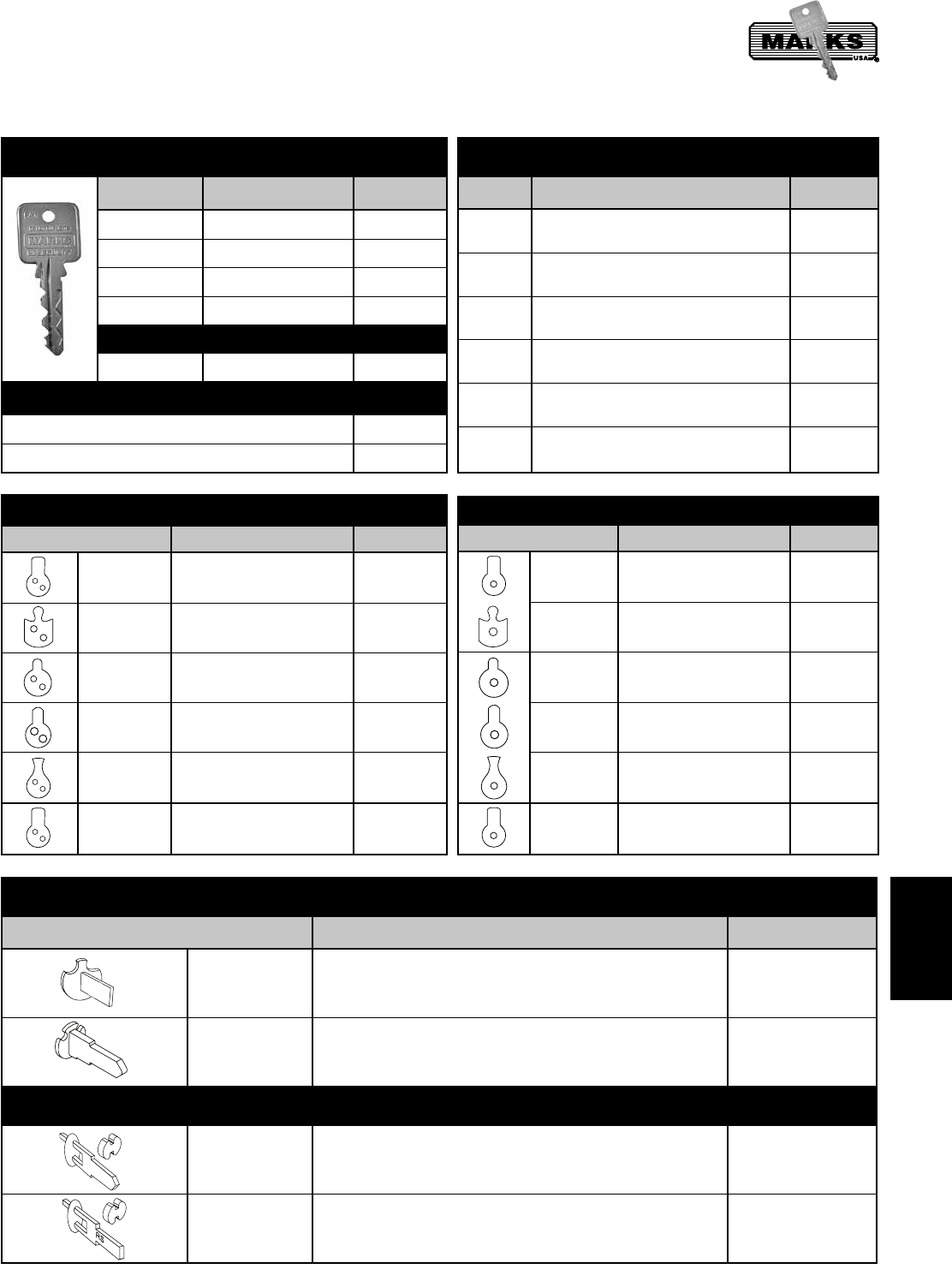

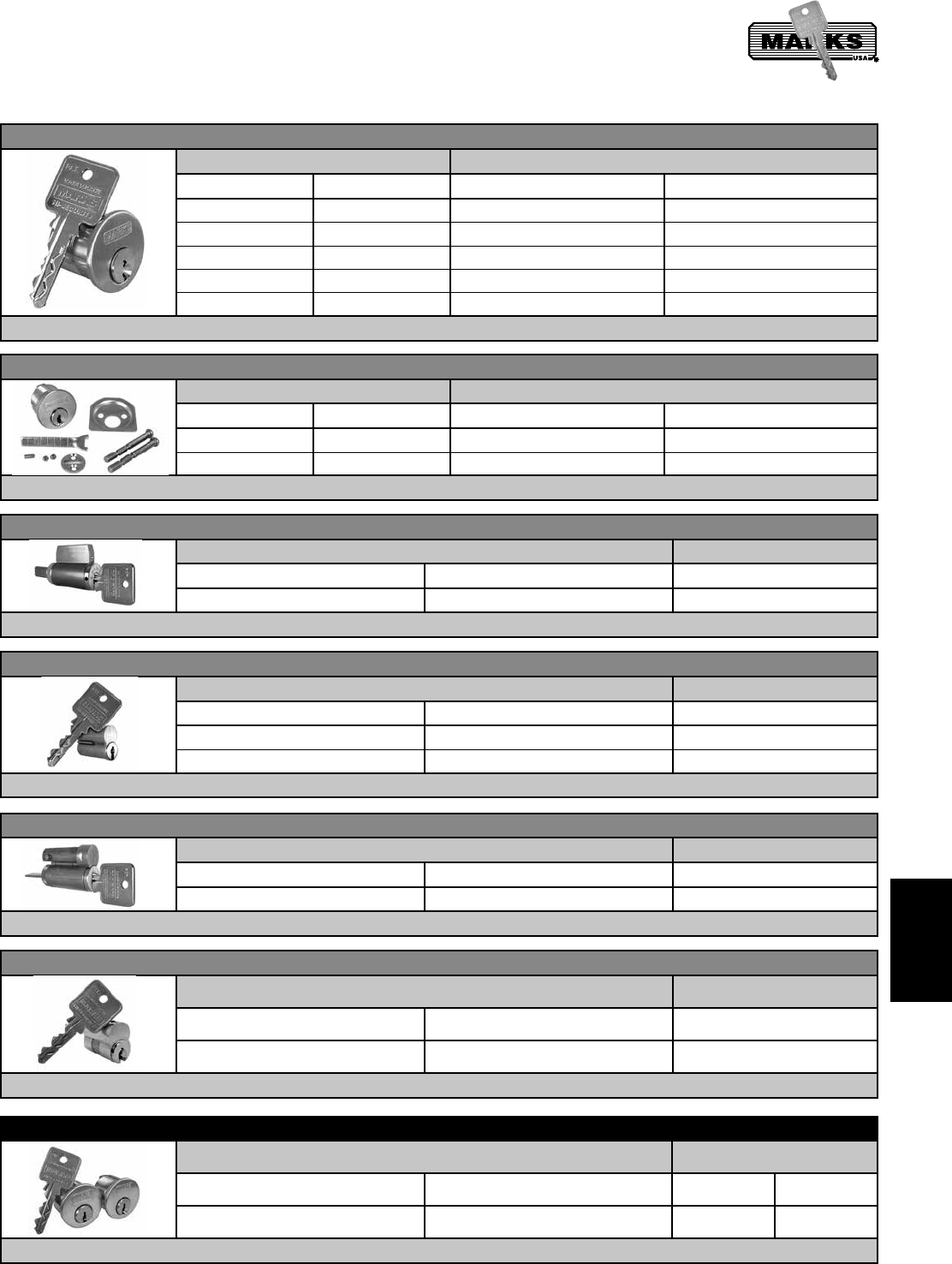

Mortise Lock Cylinders, Parts & Cams .......................................................................................75

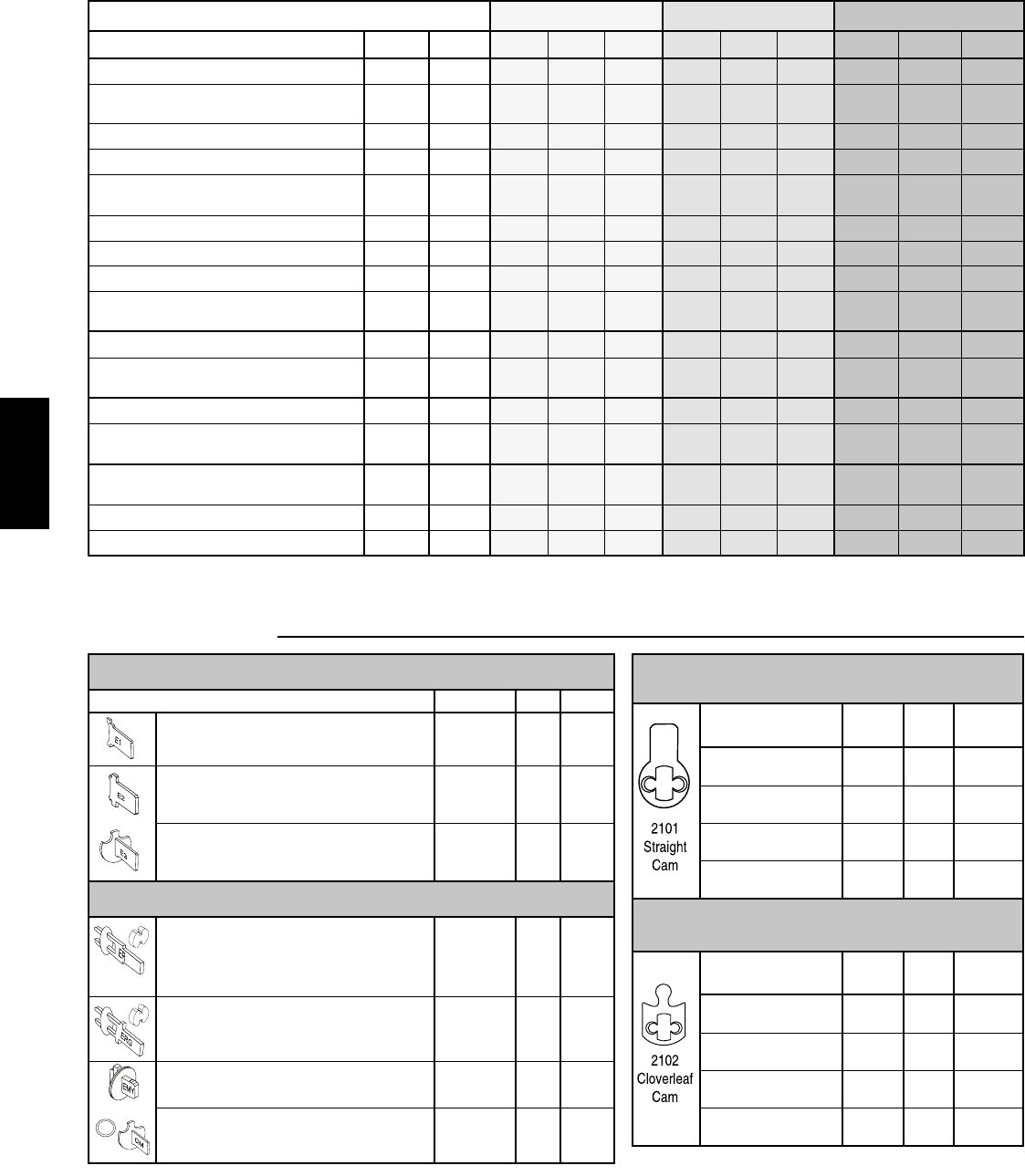

Cylinders, IC Core Cylinder Housings, Cylinder Cams ..........................................................................75
How To Order For Mortise Lock Cylinders .................................................................................... 75

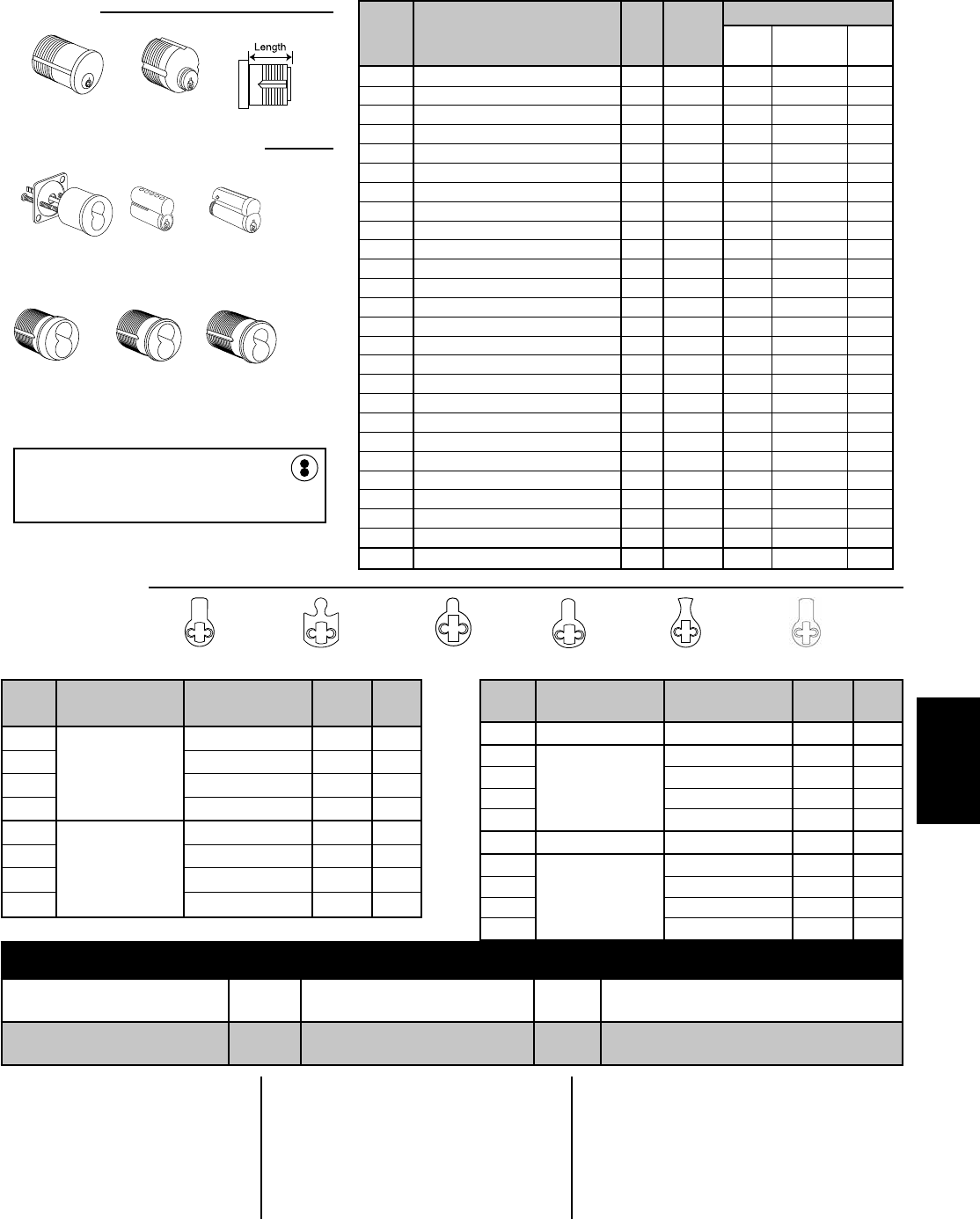

KEYS & KEYING .....................................................................................................76
HI-SECURITY™ Cylinders ...............................................................................................77-82
HI-SECURITY™ Cylinders: NON-UL .......................................................................................77
HI-SECURITY™ Cylinders: UL 437 .........................................................................................78
Security-Mate™ Cylinders, Special Application Cylinders ........................................................................79
How To Order HI-SECURITY™ Cylinders and Keys ............................................................................ 80

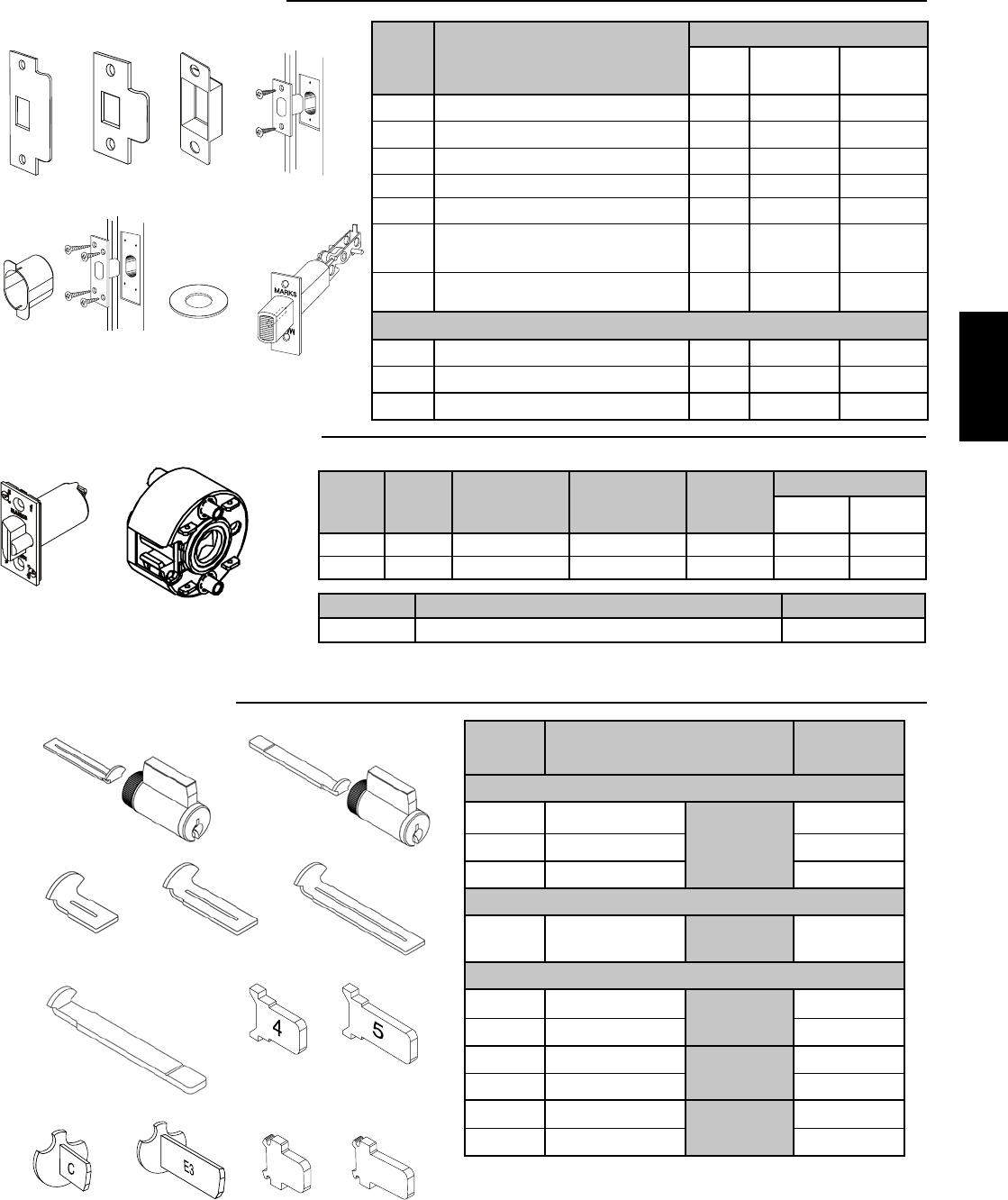

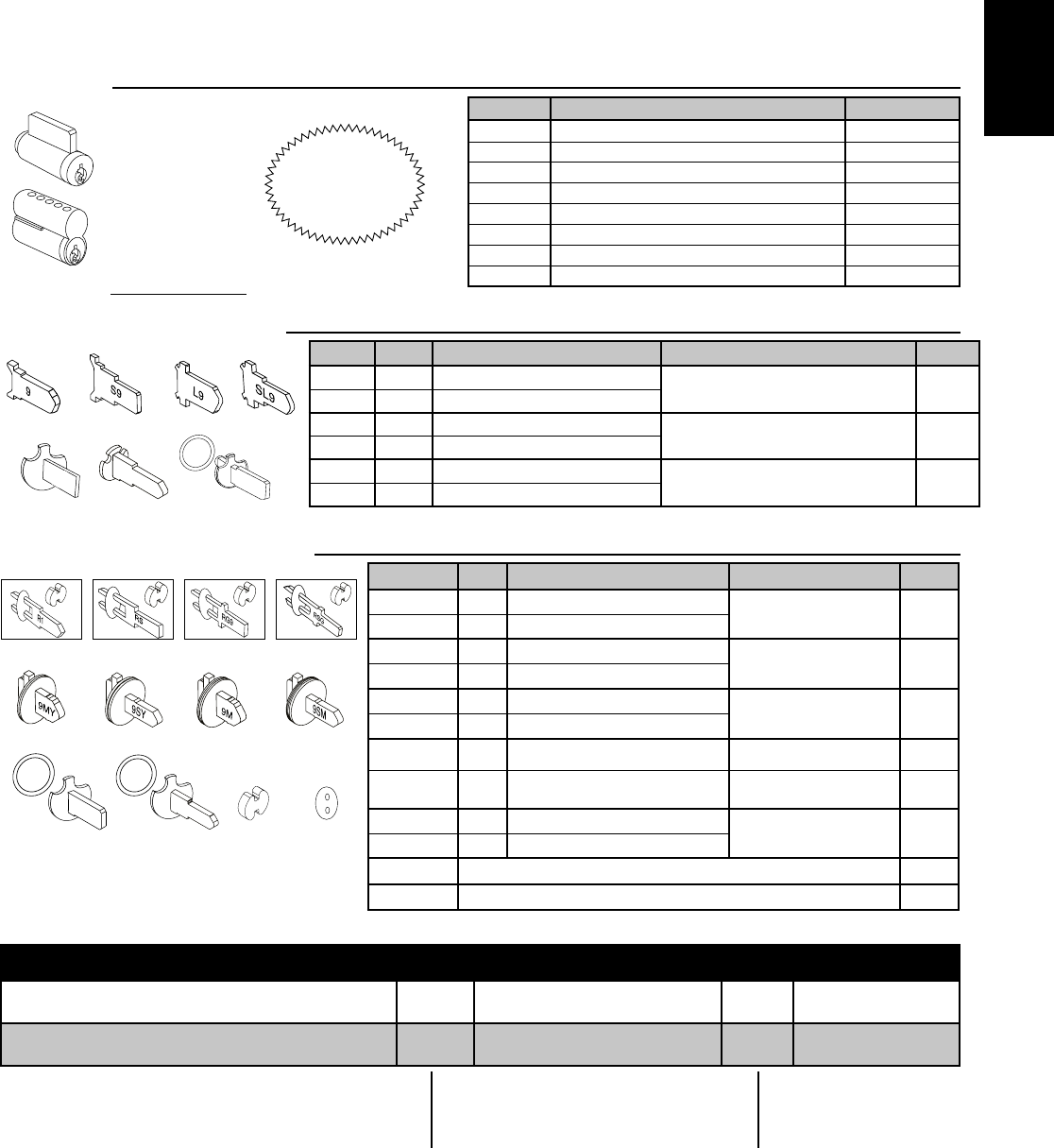

Keys, Cams & Tailpieces .................................................................................................81
Parts List ..............................................................................................................82
![](asset-5.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
5
DOOR CLOSERS & PANIC DEVICES PRICE LIST
Marks USA Antimicrobial finish
Peace of mind for your hardware application when protected against GERMS and MOLD using Stericoat AM. Marks USA antimicrobial finish is recommended for hospitals, assisted living facilities, schools and
childcare facilities. Use Code - AM
Lifetime Mechanical Limited Warranty: MARKS USA warrants that its products are free from defects in materials and workmanship. This warranty is limited to the lifetime of the door on which our lock is installed.
In the event our product does not conform to this warranty, MARKS USA will repair or replace the product free of charge. This warranty does not cover defects or damage arising from improper installation, lack of or
improper maintenance, improper storage, shipping and handling, ordinary wear and tear, misuse, abuse, accident, unauthorized service, or use with unauthorized non-MARKS products or parts. We reserve the right to
make changes in materials, components or manufacturing methods. Liability under all warranties expressed or implied is limited to replacement of the defective goods. This warranty does not cover nor provide for the
reimbursement or payment of incidental or consequential damages. Additionally, the company will not warrant ANSI A156.2 Grade 2 lever product installed in educational facilities and student housing.
2 Year Electronic Limited Warranty: MARKS USA warrants to the original purchaser that its products are free from defects in materials and workmanship so long as they occupy the premises.
In the event our product does not conform to this warranty, MARKS USA will repair or replace the product free of charge at its sole discretion. This warranty does not cover defects or damage arising from improper
installation, lack of or improper maintenance, improper storage, shipping and handling, improper application or specification, ordinary wear and tear, misuse, abuse, accident, improper voltage, unauthorized service,
or use with unauthorized non-MARKS products or parts. We reserve the right to make changes in materials, components or manufacturing methods. Liability under all warranties expressed or implied is limited to
replacement of the defective goods. This warranty does not cover nor provide for the reimbursement or payment of incidental or consequential damages or any shipping charges related to exercising of this warranty.
Lifetime Finish Limited Warranty: MARKS USA Locksets with the “3E” finish will be warranted to the original user against tarnishing as longas the user occupies the residential premises
upon which the lockset was originally installed. Locksets with this finish, used in commercial applications will be limited to two years. This warranty does not cover scratches, abrasion, abused
or misused products. Upon return of a defective product to Marks USA, we will, at our sole discretion, either replace the product or refund the purchase price in exchange for the product.
Due to climatic conditions, chemical or abrasive actions, other finishes are excluded from this warranty. This warranty does not cover nor provide for the reimbursement or payment of incidental or consequential
damages arising from the sale of the product.
Terms & Conditions:
TERMS: Net 30
FREIGHT: Prices are F.O.B. Amityville, New York. Freight allowed on shipments over $7000 net invoice value within Continental U.S.
RETURNED GOODS: Goods may not be returned without a Return ed Goods Authorization (RGA) and are subject to a restocking charge. RGA label must be on all cartons.
MINIMUM CHARGE: Orders for less than $250 net invoice are subject to a $25 handling charge.
MINIMUM SALES VOLUME: The company reserves the right to discontinue direct sales to any customer who does not meet the minimum annual sales requirements during any 12 month period. Minimum annual
sales volume is determined on the basis of accepted orders during each applicable year. All orders are acknowledged. It is the customers responsibility to check accuracy of the acknowledgment when received.
ArchiTech, Networx, iLock, LocDown, LifeSaver and Hi-Security are trademarks of Marks USA, a division of Napco Security Technologies. All other trademarks listed are properties of their respective companies.
Effective Septemeber 2016. All prices published are suggested list prices in US Dollars. Some specifications are preliminary and subject to change without prior notice. Not responsible for typographical errors.
Marks USA is a Division of Napco Security Technologies, Inc. (NASDAQ:NSSC) © Marks USA, 9.16

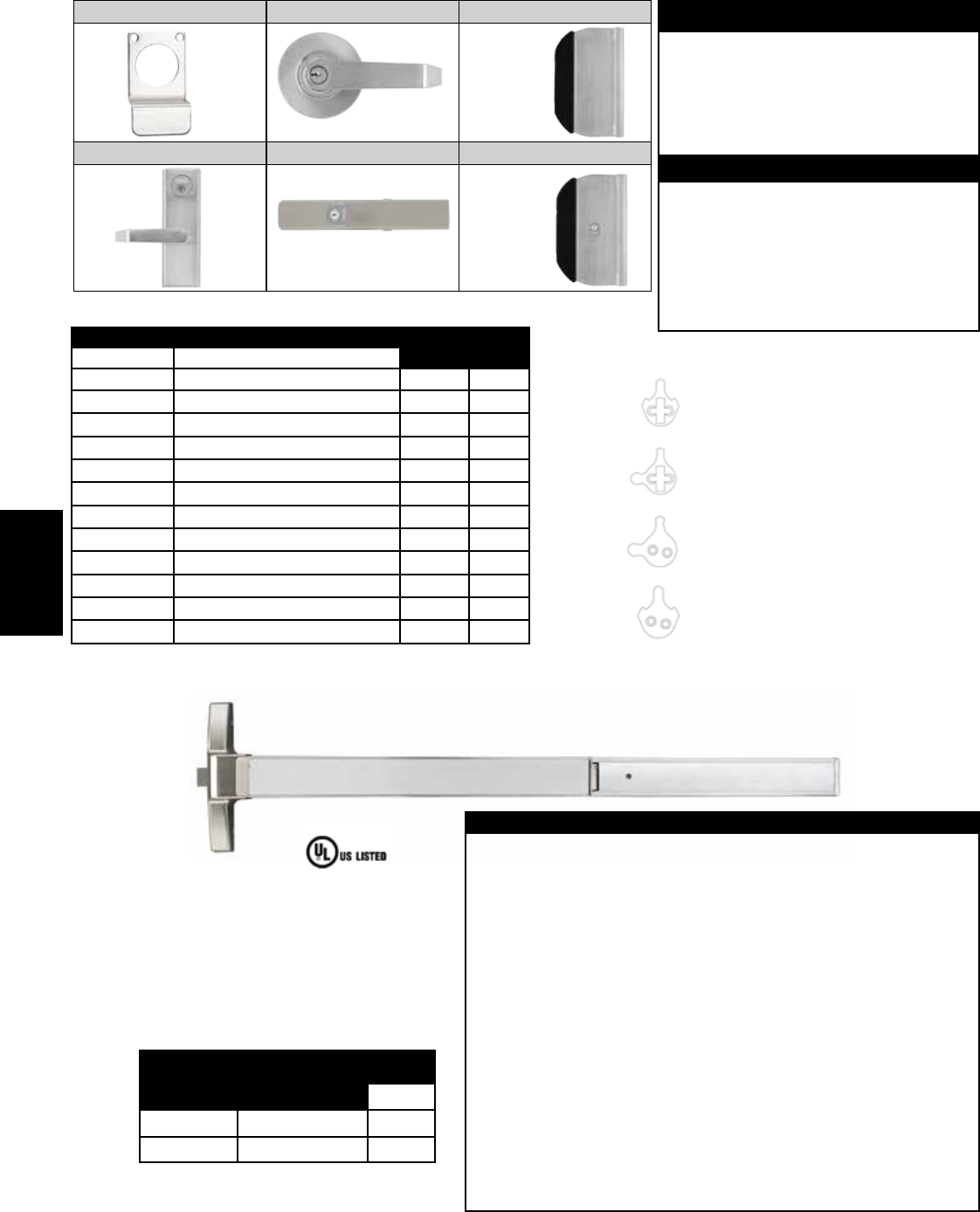

Exit Devices ...........................................................................................................83-87
Series M9900 Exit Device - Rim Mount ......................................................................................83
Series M9900 VR Exit Device - Surface Vertical Rod ...........................................................................83
Series M9900 Exterior Trim ...............................................................................................84
Series M9900 Cams & Tailpieces ..........................................................................................84
Series M8800 Exit Device ................................................................................................84
Series M195 ...........................................................................................................85

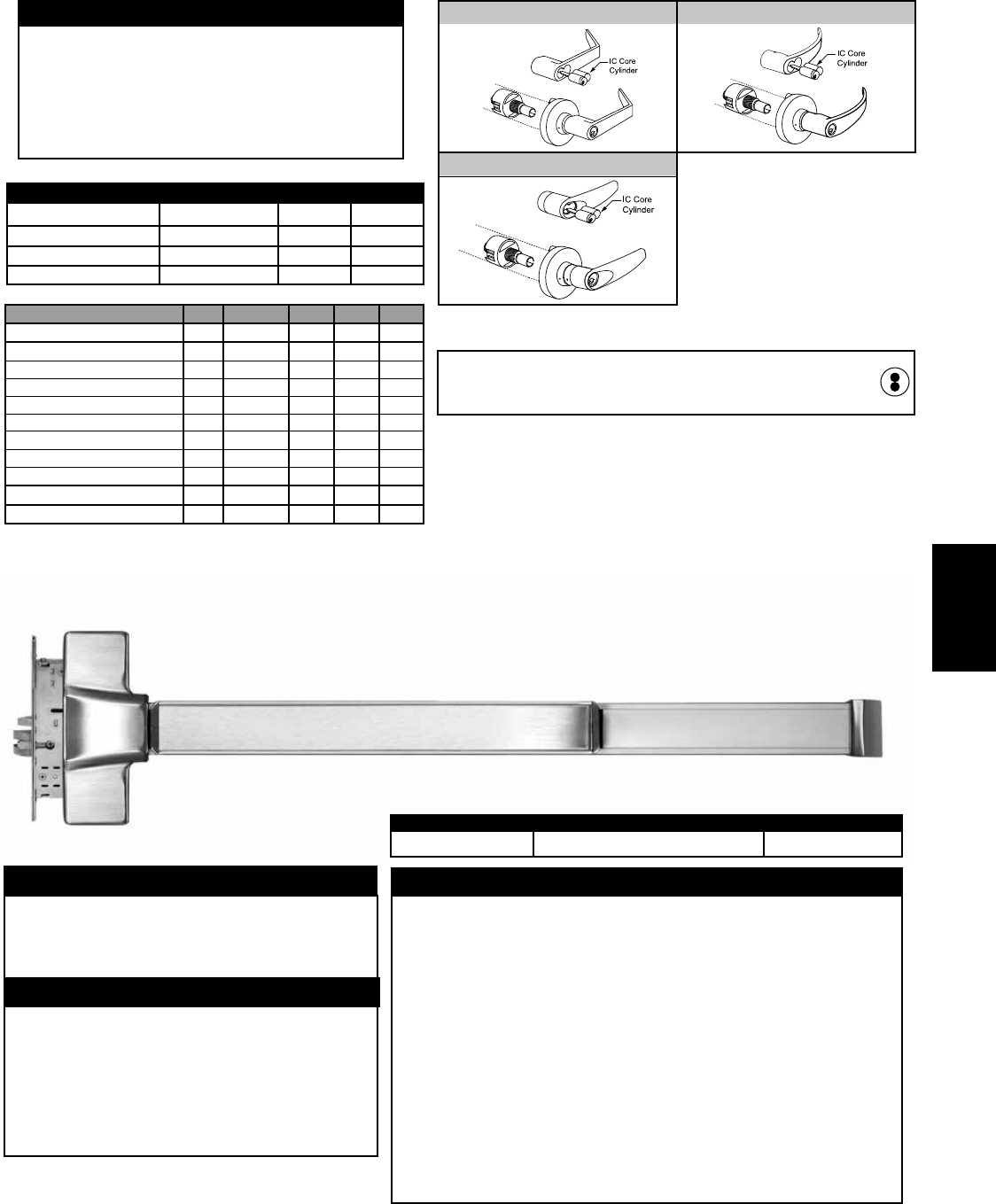

Series M9300 Exit Device - Mortise .........................................................................................85
Electric Latch Retraction with Simultaneous Dogging ...........................................................................86

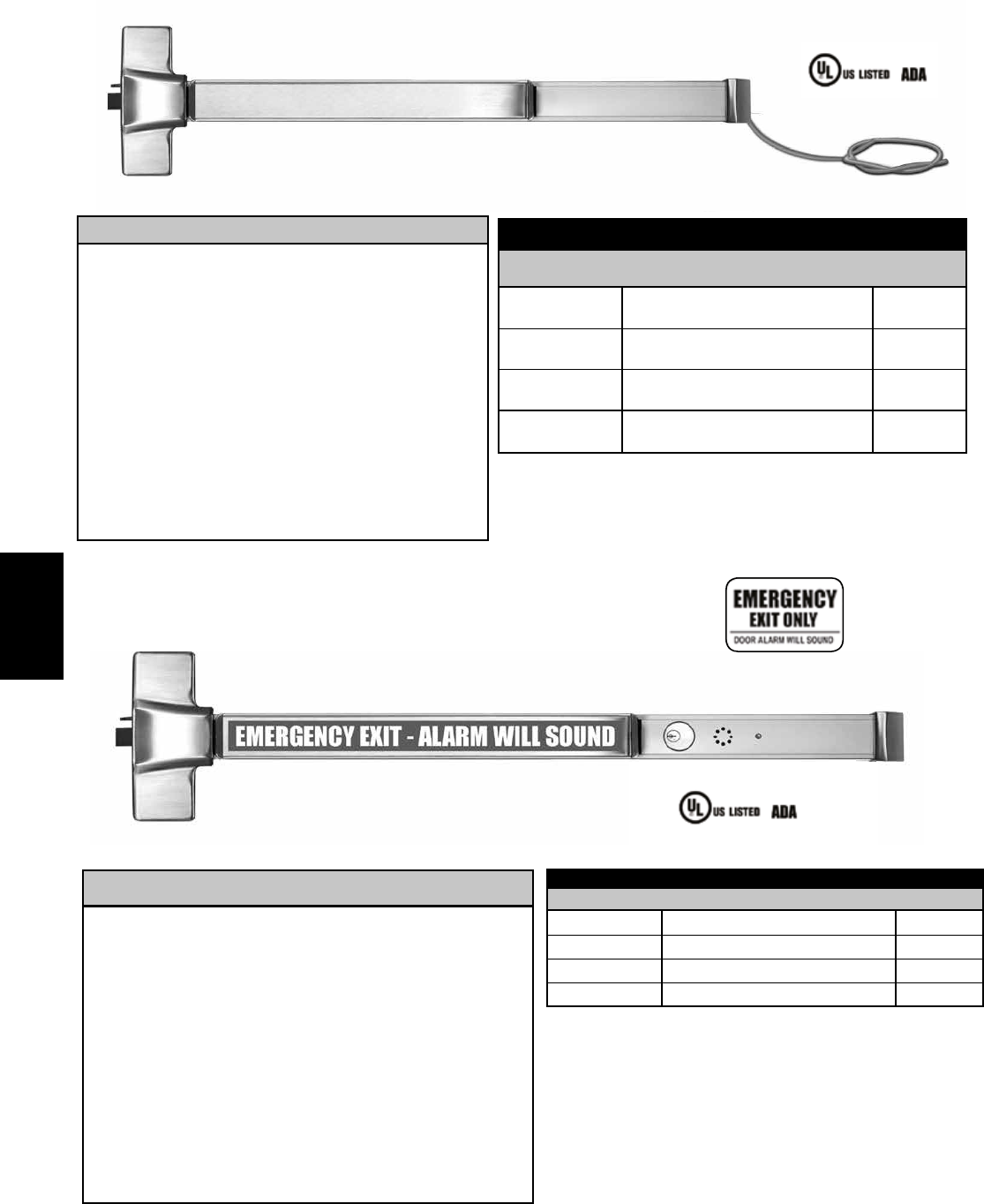

Exit Alarm .............................................................................................................86
Electric Frame Actuator ..................................................................................................87
Electric Dogging ........................................................................................................87
Delayed Egress ........................................................................................................88
M9900 LITE ...........................................................................................................88

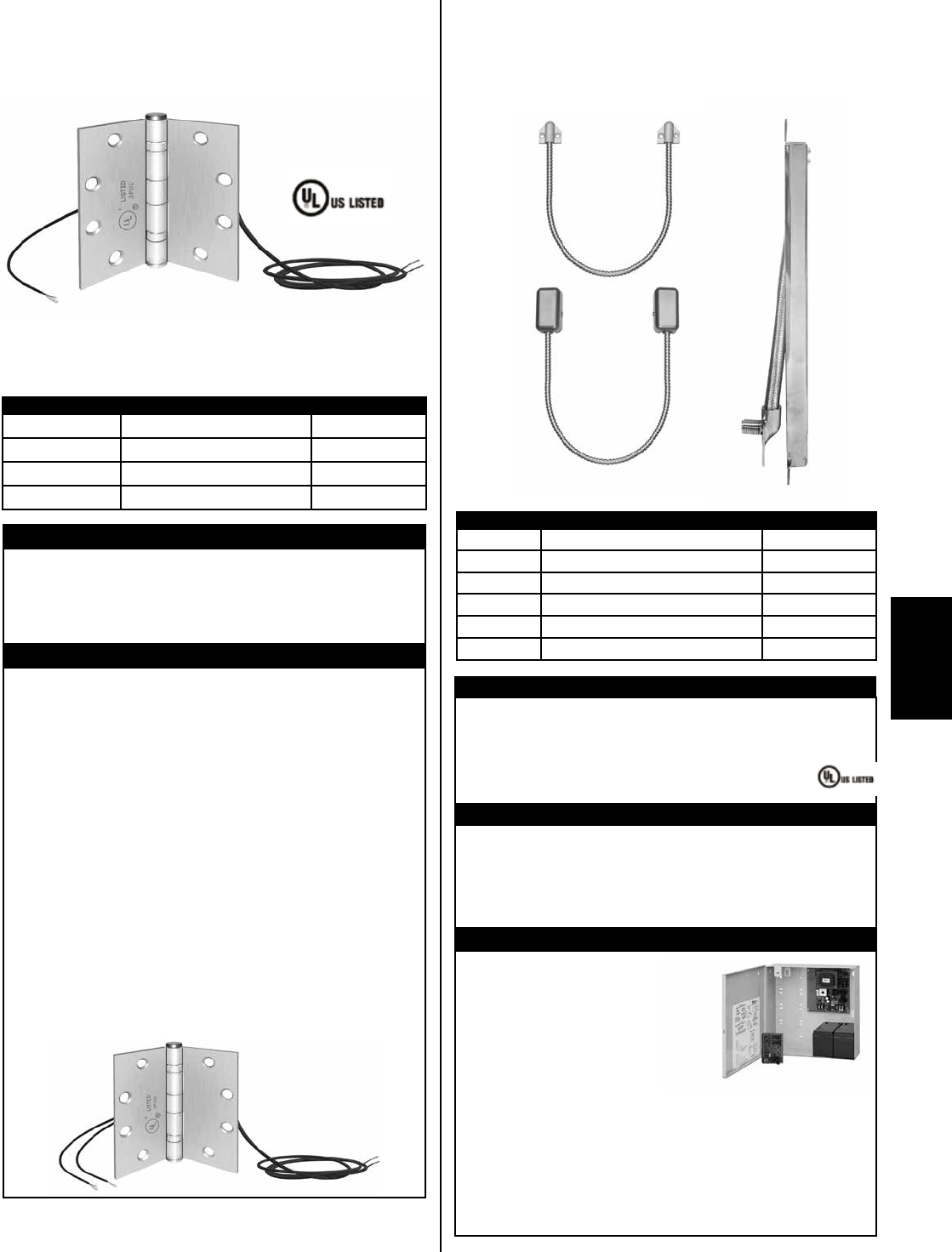

Power Transfer Hinges & Loops ............................................................................................89

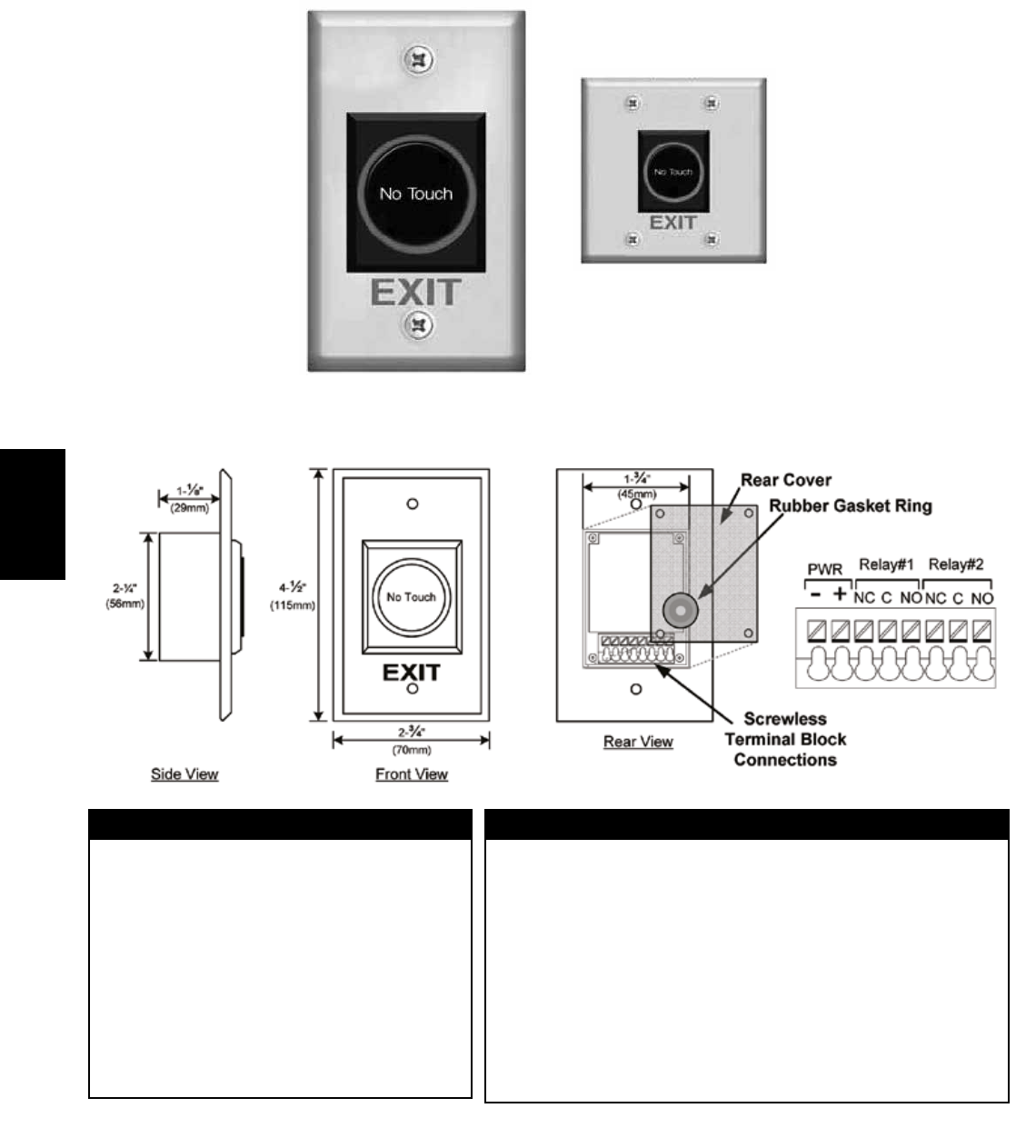

Touchless Exit Switch ....................................................................................................90
How To Order Door Closers & Panic Devices .................................................................................91
NEW! ArchiTechTM Series Networx Locks .................................................................................92-93
![](asset-6.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
6
BACKSET - Required Information
DOOR
EDGE
Backset CENTER
LINE
OF
DOOR
KNOB
OR
LEVER
HANDING - Required Information All locksets supplied 1/2 (LH) and 1/2 (RH) unless otherwise specified
(LH)
LEFT HAND
(RH)
RIGHT HAND
OUTSIDE
(LHR)
LEFT HAND
REVERSE
(RHR)
RIGHT HAND
REVERSE
OUTSIDE
Mortise Locksets
STANDARD DOOR THICKNESS RANGE:
Mortise locksets: 1-3/4”
Cylindrical locksets: 1-5/8” through 1-7/8”
Ornamental locksets: 1” through 1-1/4”
Tubular locksets: 1-3/8” through 1-3/4”
Other door thickness: Consult factory
SPECIFY:
Door thickness (A)
Lock location (B)
DOOR THICKNESS - Required Information
LOCK
A
B
DOOR
EDGE
OUTSIDE
MOUNTS & DISPLAYS AVAILABLE, CONSULT FACTORY
1RW78N/26D
1PDN/32D
1RR57N/15 5DR72FD/26 5RW96LF/26D-A21
![](asset-7.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
7

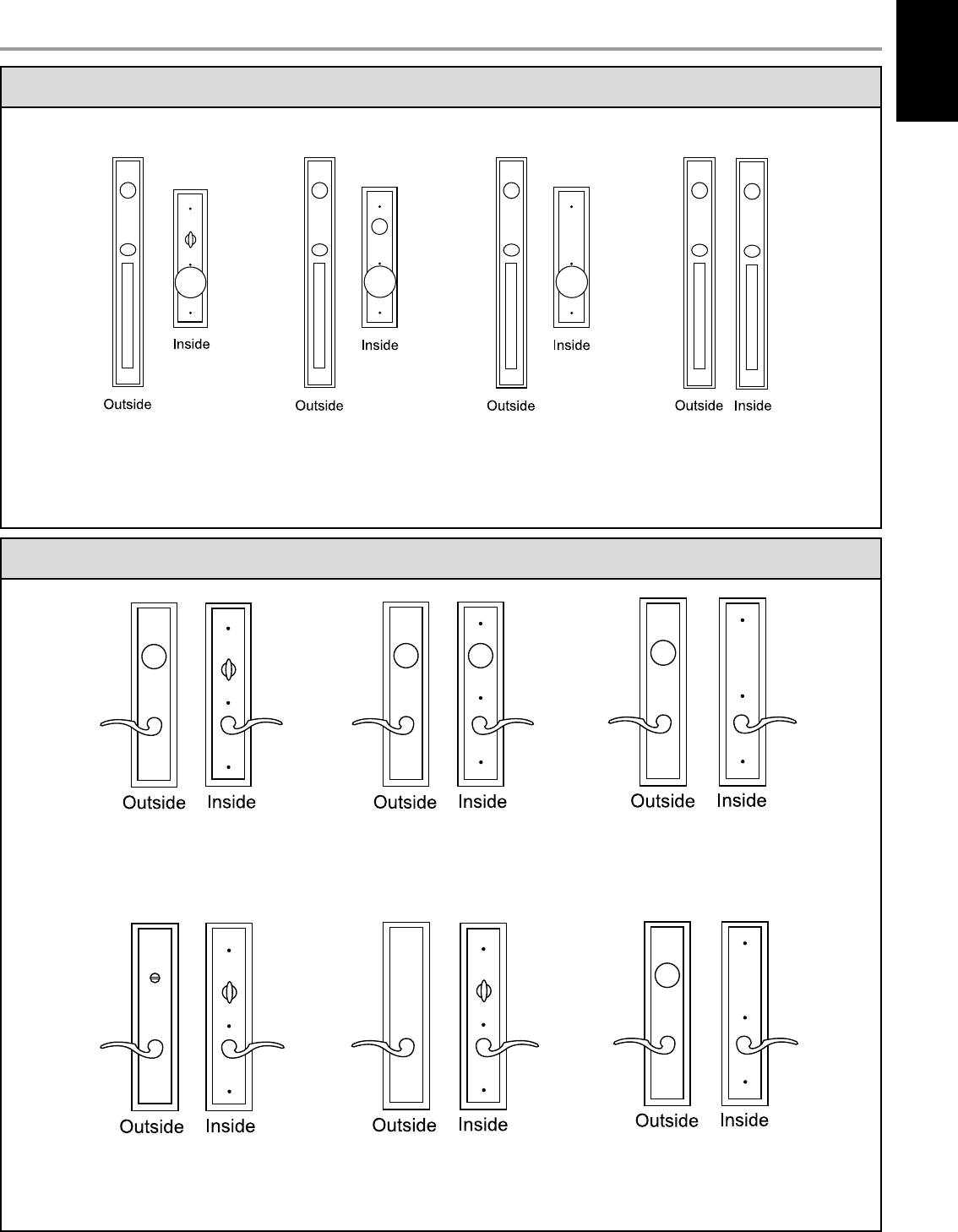

HANDLESET TRIM
ENTRANCE
Cylinder/Turnpiece
ENTRANCE
Double Cylinder
DUMMY TRIM
Both Sides
HANDLE SET
With Ext. &
Int. Handle
Mortise Locksets
M L T I
LEVERSET/KNOBSET TRIM
ENTRANCE
Cylinder/Turnpiece
ENTRANCE
Double Cylinder
OFFICE/CLASSROOM
PRIVACY EXTERIOR/PATIO DUMMY TRIM
Both sides
*Dummy cylinder optional (F17)
![](asset-8.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
8
Mortise Locksets
H T O M L & H
1. Select type of lockset.
2. See corresponding pages in the catalogues for information regarding this type of lock.
3. Create the part number for your lock by selecting the information from fields 1 through 6.
Please note dummy trim is Series “0”.
4. Options must be listed in Alpha - Numeric order.
5. Note that if Part Number is over 15 characters, it becomes a special number with the option field *1.
(Your options will then be listed separately.)
Please note the standard (default) features of each lock - they do not need to be selected in the options section.
6. Please indicate keying detail or special instructions on each item ordered.
7. Door Templates are available on the website @ www.marksusa.com/support/templates
How To Order Example
for Mortise Locksets
7 NY 10 A /3 — G3
1.
Lock Series
2.
Plate/Rose Design
3.
Knob/Lever Design
4.
Marks Function Slash 5.
Finish Dash 6.
Options
How To Order Example
for Rose Design
5 RW 92 N /10B — D1
1.
Lock Series
2.
Plate/Rose Design
3.
Knob/Lever Design
4.
Marks Function Slash 5.
Finish Dash 6.
Options
How To Order
Example for
Handlesets
6 CB 60 AC /15 — G3
1.
Series
2.
Handleset Design
3.
Interior Knob/Lever Design
4.
Marks Function Slash 5.
Finish Dash 6.
Options
How To Order Example
for Ornamental Iron
9215 AC /15 — G3
1.
Series
2.
Marks Function Slash 3.
FInish Dash 4.
Options
How To Order Example
for Mortise Lock Bodies
55 JM /26D — T
1.
Series
2.
Marks Function Slash 3.
FInish Dash 4.
Options
![](asset-9.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
9
H T O M L & H
1 SERIES
Dummy Trim 0
Dummy Trim Handlesets Only 00
Mortise Locks 4, 45, 5, 55, 6, 7, 8, 9
Mortise Deadlocks 31, 2, 3

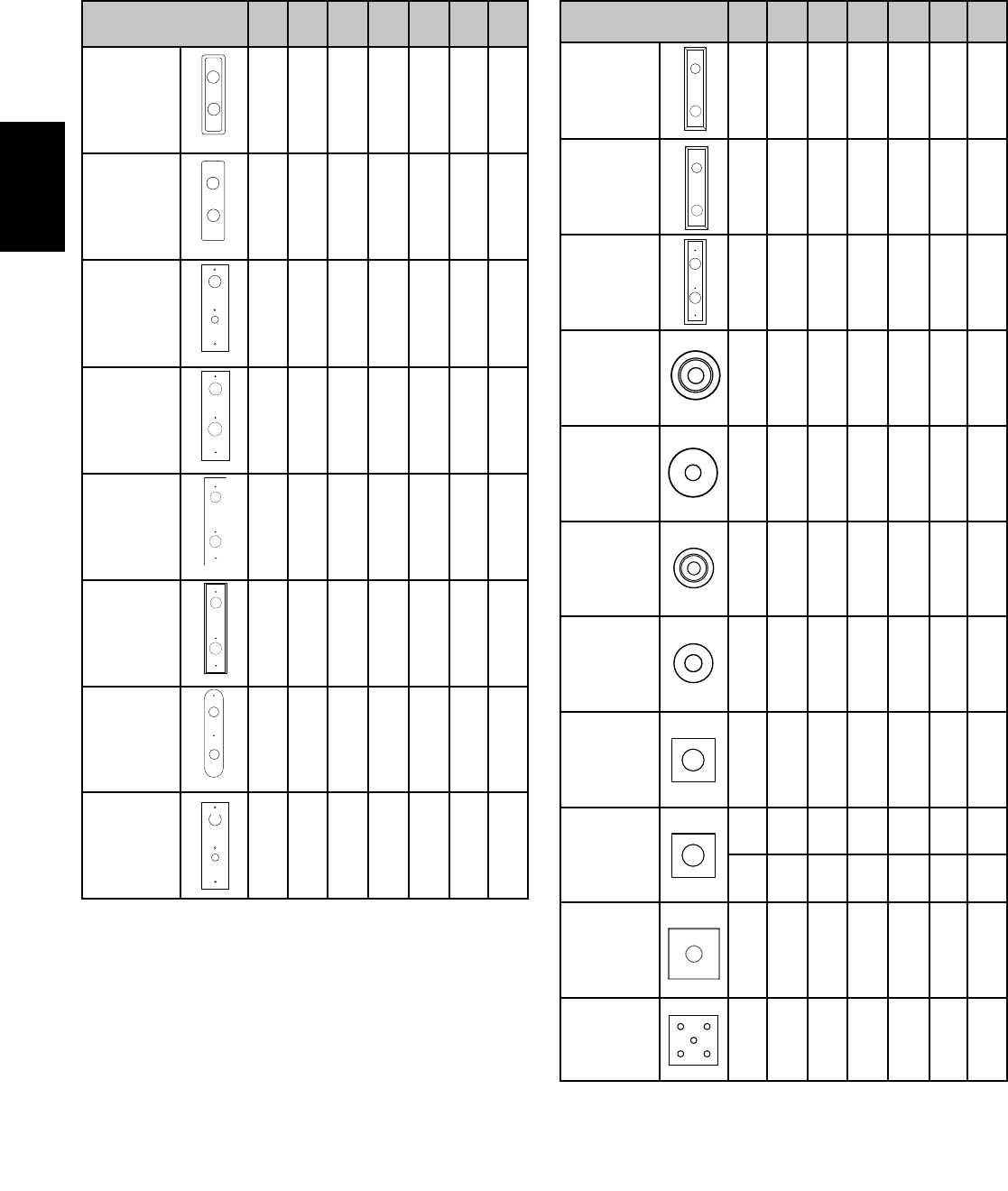

2 PLATES/ROSES/HANDLESETS
PLATES DESIGN
Barrier BA
Classic CL
Capitol CP
Crown CR
Drake DR
Davos DV
Madison MA
New Yorker NY
School LA
Towne TN

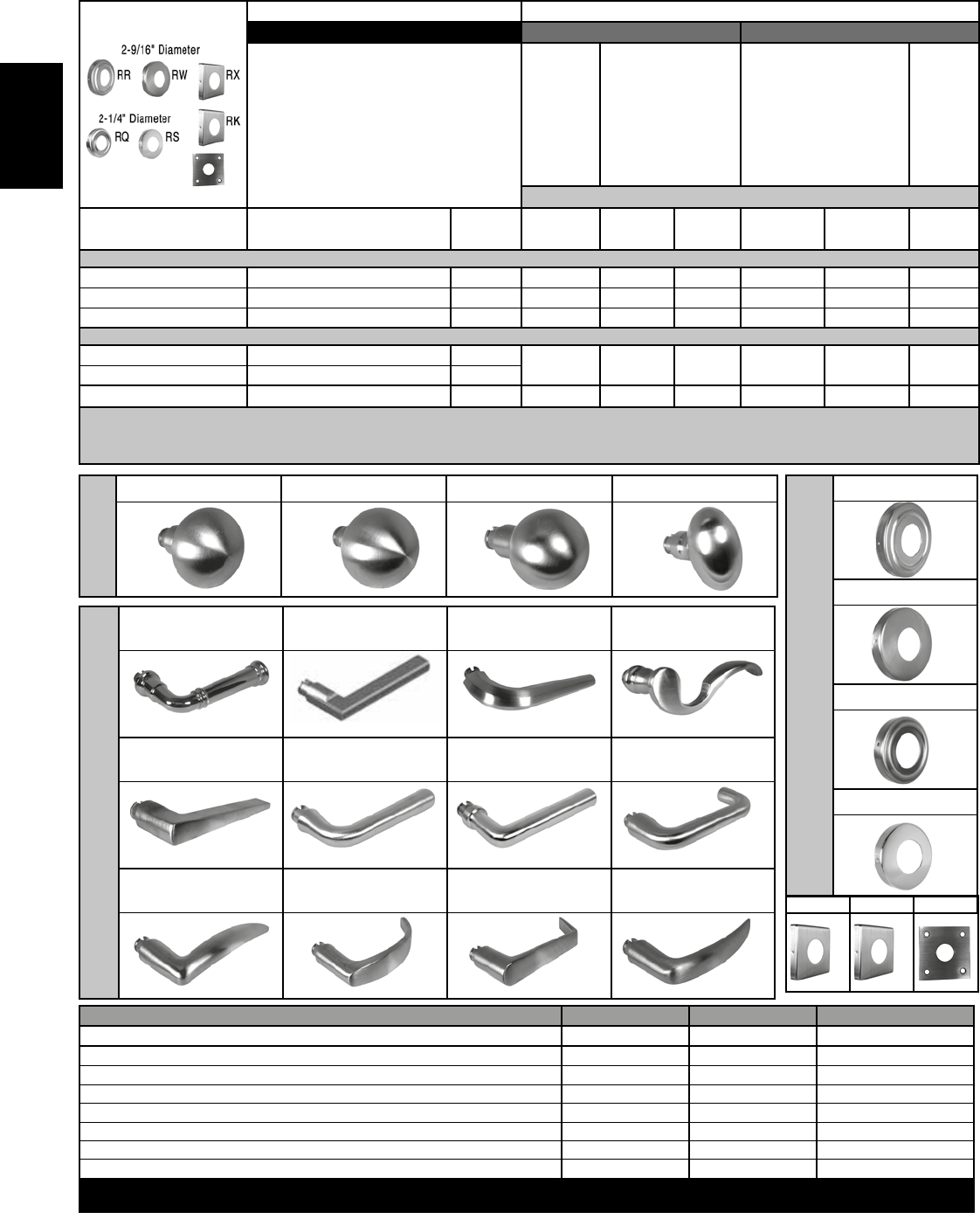

ROSES DESIGN
9602-R Rose with ring 2-9/16” dia. RR
9602 Plain rose 2-9/16” dia. RW
5602-R Small rose with ring 2-1/4” dia. RQ
5602 Small rose 2-1/4” dia. RS
7602 Square rose 2-9/16” RX
7607 Square forged rose 2-9/16” RK
HANDLESETS DESIGN
Crown CR
Towne TN
4 MORTISE FUNCTIONS
MARKS FUNCTION:
KEYED SINGLE CYLINDER,
NO DEADBOLT ANSI #
D OFFICE/VEST.
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
EX EXIT F31
J CLASSROOM F05
JM HOSPITAL F06
JR HOSPITAL F06
GL INST PRIVACY F26
EN STOREROOM
DN STOREROOM
EL ELECTRICALLY LOCKED
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER,
WITH DEADBOLT ANSI #
A ENTRANCE F08,
F10
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER,
NO DEADBOLT ANSI #
G ENTRANCE F09
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/
HOLDBACK
WW INSTITUTION F30
KEYED DOUBLE CYLINDER,
WITH DEADBOLT ANSI #
AC ENTRANCE F35
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
SO STOREROOM F25
KEYLESS ANSI #
N PASSAGE F01
L BATHROOM F02
LF PRIVACY F19
LJ PRIVACY F22
DUMMY TRIM ANSI #
DI DUMMY TRIM INSIDE
DO DUMMY TRIM OUTSIDE
DT FULL DUMMY TRIM

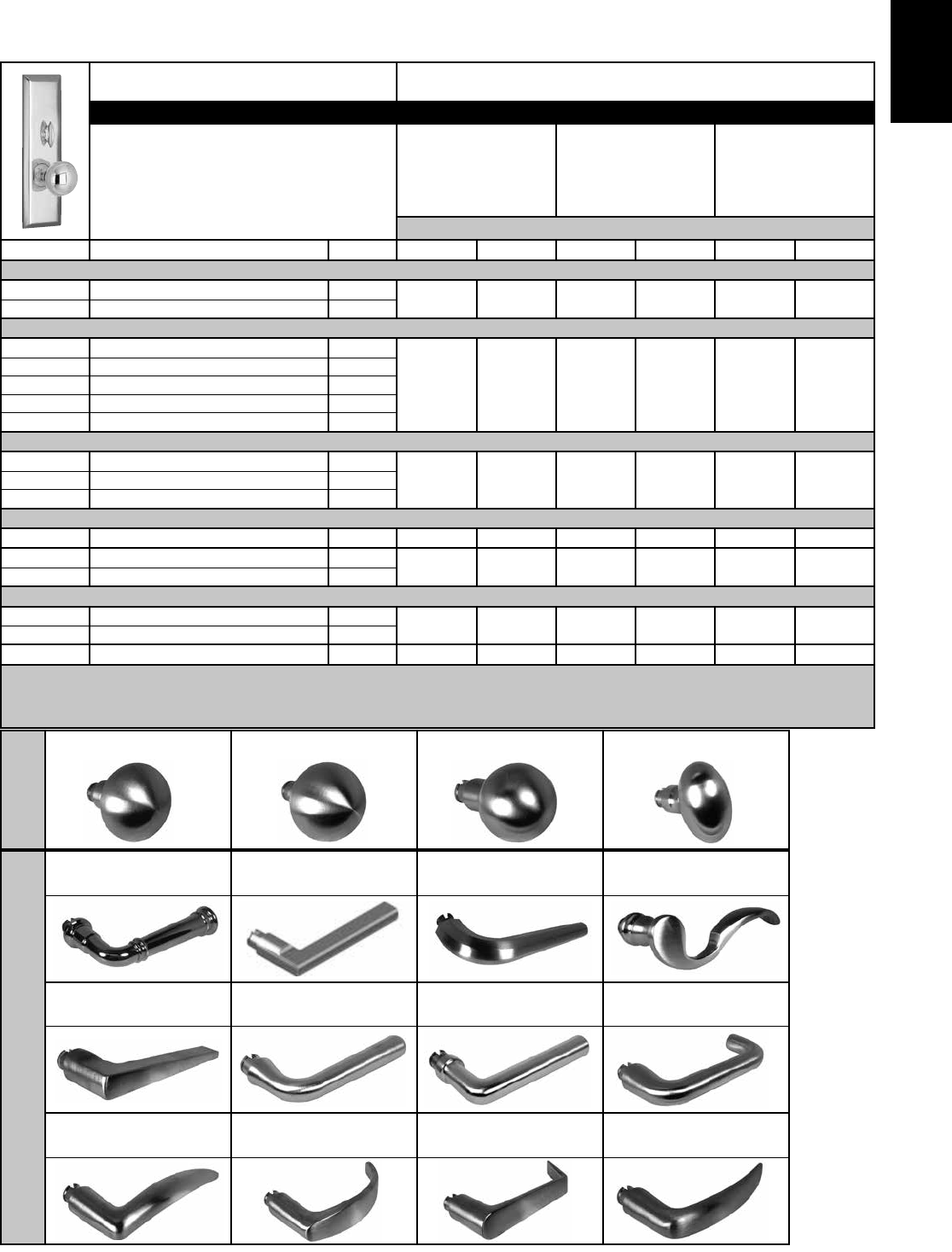

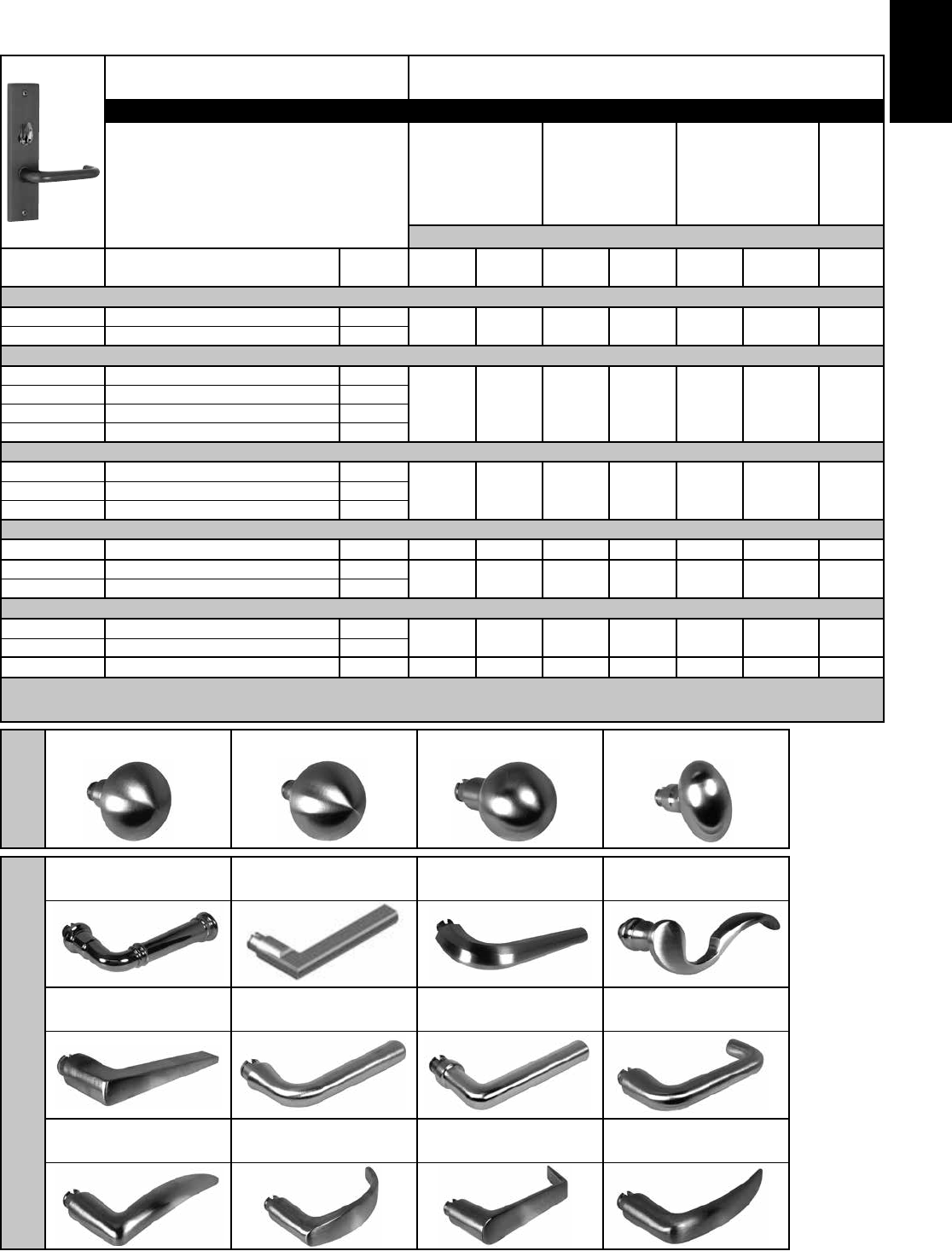

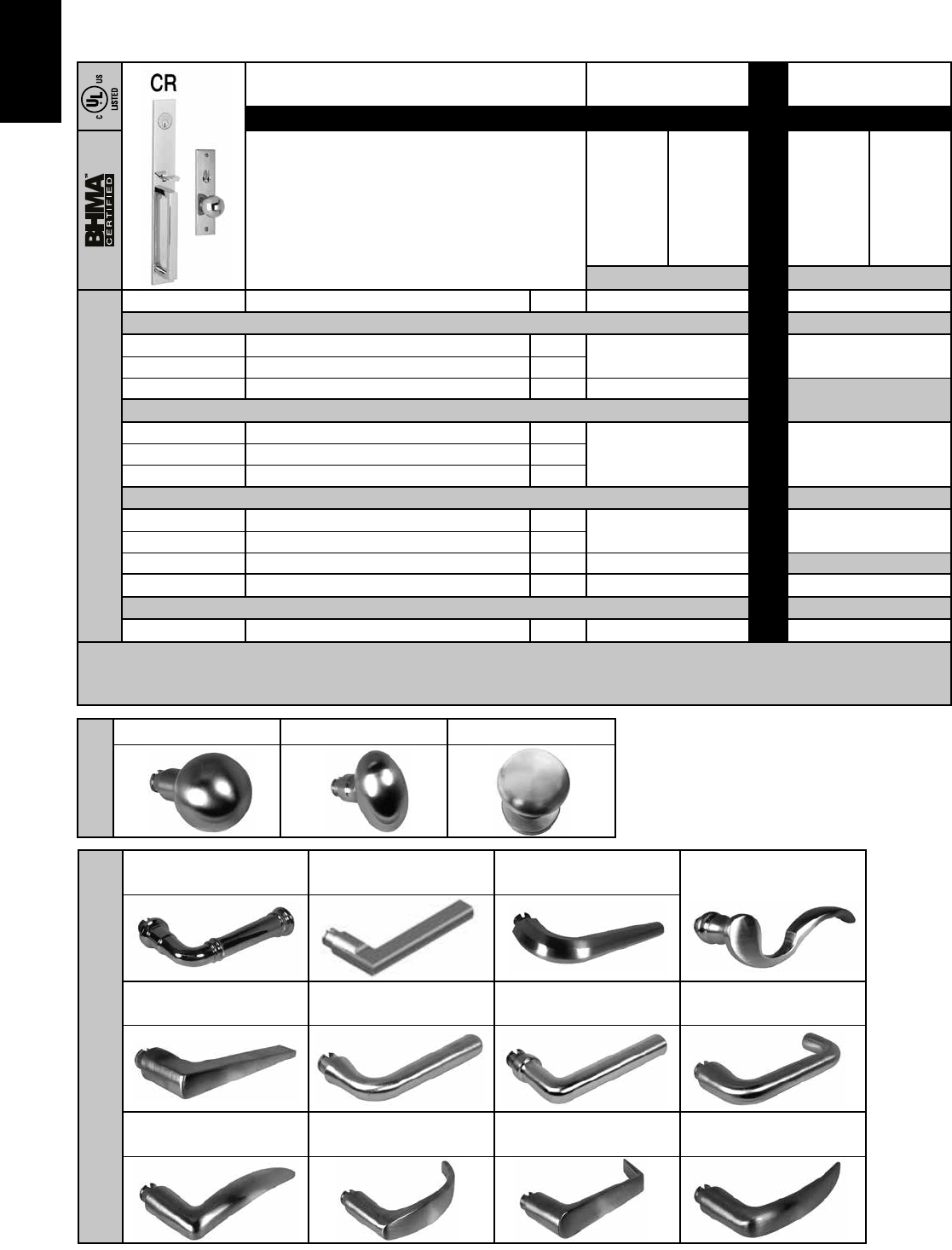

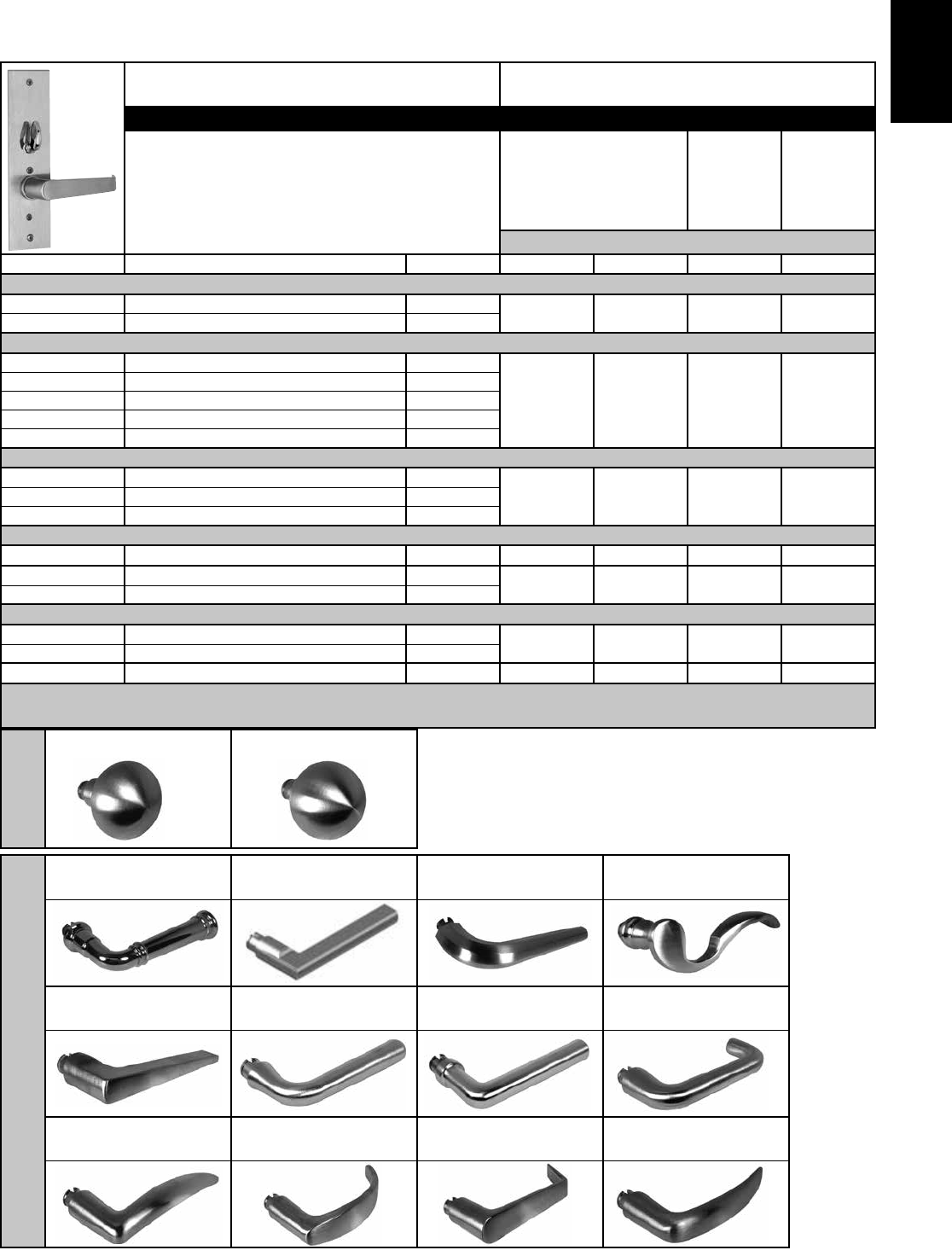

3 KNOB/LEVER
KNOBS DESIGN
1153 Round, wrought 10
1253 Ball, wrought 20
9631 Ball, forged 30
9609 Eclipse, forged 60
LEVERS DESIGN
5642 Stanhope 44
5657 Brompton 55
5662 Monaco 57
5672 Towne 72
5677 Maxwell 77
5678 Omni 78
5682 Plaza 82
5683 Dayton 83
5686 Crescent 86
5692 American 92
5696 Titan 96
Mortise Locksets
5 FINISH
MARKS ANSI #
US 3 Polished Brass, Clear Coated 605
US 3E Polished Brass “PVD” 605E
US 4 Satin Brass, Clear Coated 606, 606E
US 5 Antique Brass, Clear Coated 609, 609E
US 10E Satin Bronze “PVD” 612E
US 10 Satin Bronze, Clear Coated 612
US 10B Dark Bronze, Clear Coated 613E
US 14 Bright Nickel Plating, Clear Coated 614
US 15 Satin Nickel 619, 619E
US 19 Flat Black, Powder Coated 622, 622E
US 20A Dark Oxidized Statuary Bronze, 624
Clear Coated
US 26 Polished Chrome, Plated 625
US 26D Satin Chrome, Plated 626
US 26E Satin Chrome, Powder Coat 626E
US 32 Polished Stainless Steel 629
US 32D Satin Stainless Steel 630
AM Antimicrobial Finish AM, +40
FINISH DESIGNATIONS
Split Finish Designation
Marks USA Antimicrobial finish - Code: AM
Split Finish: Exterior one finish/interior one finish
designate by an “X”
Ex: 4TN57A/3Ex15-F3
Exterior trim 3E Interior Trim US 15
Combination Finish Designation
Combination Finish:
Alternating different finishes on
same side of trim designate by
a “/” between finishes
Ex: 4TN57A/3E/15-F3
Exterior and Interior trim 3E
US 15 cylinder, turnpiece & lever.
![](asset-a.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
10
Mortise Locksets
H T O M L & H
6 OPTIONS
LOCK FRONT CODE PRICE
1-1/16” x 8” Q 27
1-1/16” x 5-5/8” R 28
1-1/16” x 7-5/8” T 27
1-1/4” x 10” U 109
1” x 7-3/4” V 27
1” x 7-1/8” W NC
1-1/4” x 8” X 25
1-1/4” x 8-5/8” Y 109
1” x 8” Z 25
TRIM MODIFICATIONS CODE PRICE
Tactile knob/lever, coated ext. only A1 60
Emergency coinkey A2 28
Tamper-proof screws A3 14
Tactile knob/lever, knurled A4 60
Handicapped turnpiece A5 18
Hotel indicator A6 44
Pinned knob A7 35
Large rose 3-1/8” diameter A8 11
Mushroom knob A9 5
No logo A10 NC
Engraved A11 71
Concealed cylinder A12 27
Dummy trim sub-assembly A13 —
Coinkey w/ escutcheon plate A14 71
Coinkey w/ rose A15 71
Occupancy Indicator A17 90
Tactile knob/lever, coated int. & ext. A18 122
BE 1-1/2” thick door adapter plate A19 78
Rigid Lever A20 NC
“Tear Drop” occupancy indicator A21 79
Crescent Lever A22 NC
Square trim A23 29
- Square collar A23C +10
- Square turnpiece A23T +10
Small emergency hole A24 NC
SS55 Knob on EXT or INT (specify) A25 43
Plaza Lever A26 NC
Recessed Pull (one side) A28 71
Exposed Rose Screws A29 NC
Engraved and Filled A30 81
Inside Knob on Lever A31 35
No inside turnpiece A32 NC
LOCK BODY Red, Green, BCC, Ind. CODE PRICE
Lever override guard - outside* B1 44
Lever override guard - both sides* B2 62
Hardened pins - deadbolt B3 18
Lever springs B4 19
Pin and lever springs B5 37
Hollow spacer B6 18
8 mm hubs on square B7 18
Turnpiece hub on square B8 11
With deadbolt B9 18
Boxed Lock Body B10 NC
Lever spring outside only B11 NC
Lever spring inside only B12 NC
DOOR THICKNESS CODE PRICE
50 mm (2”) D1 NC
57 mm (2-1/4”) D2 44
60 mm (2-3/8”) D3 44
1-3/4” D4 NC
1-3/8” D5 NC
1” - 1-1/4” D6 NC
2” - 2-1/4” D7 44
1-1/4” - 1-1/2” D8 NC
Over 3” D9 648
63.5 mm (2-1/2”) D10 71
75 mm (3”) D11 90
72 mm (2-13/16”) D12 90
2-3/4”-3” D14 300
LATCH CODE PRICE
Solid latch E1 20
Hold open latch E2 37
Auxiliary latch E3 35
2-3/4” backset, 1-1/8” x 2-1/4” face E4 10
2-3/8” backset, 1” x 2-1/4” face E6 NC
TRIM CHANGES CODE PRICE
Lead lined F1 325
Large inside plate F2 35
Less inside trim** F4 NC
Less outside trim** F5 NC
For 1-1/2” bore F6 20
Adjustable spring collars F10 5
Corbin 6 pin IC core F12 32
Corbin 7 pin IC core F13 34
Yale 6 pin IC core F14 23
Yale 7 pin IC core F15 23
Less outside knob/lever F16
Dummy cylinder F17 44
Less outside trim w/ custom
escutcheon** F18 NC
Schlage 6 pin IC core F19 23
Sargent IC core F20 23
Medeco IC core large format F21 23
IQ lead lined F22 416
Rigid Lever F23 NC
ASSA IC Core F24 21
Blank Inside Plate/Lever F25 NC
Blank Outside Plate/Lever F26 NC
Yale 6 pin IC core w/ captivated tail F27 NC
Yale 7 pin IC core w/ captivated tail F28 NC
Screwless Inside Escutcheon F29 30
CYLINDER CODE PRICE
IC core housing - 7 Pin G1 NC
Special optional keyway G2 37
Less cylinder G3 Deduct 15
MARKS “A” keyway G4 14
MARKS “C” keyway G5 16
IC core housing w/9271 Collar - 6 Pin G6 NC
IC core housing, Schlage large format
(FOR MORTISE ONLY) G7 80
ELECTRIFIED CODE PRICE
24V H1
12V H2
Electrically locked H9
Electrically unlocked H10
STRIKE CODE PRICE
4-7/8” ASA strike S1 13
Straight lip strike S2 3
2-3/4” “T” strike S3 NC
3-5/8” x 1-1/4” Security strike S4 11
2-1/4” Curved lip strike S5 NC
4-7/8” Strikes: 1 Left / 1 Right S6 13
Strike with 1-1/2” lip S7 16
Radius corner strike S8 NC
4035-1 strike S9 NC
TURNPIECES CODE PRICE
TP 1 T1 + 17
TP 3 T3 + 17
TP 4 T4 + 17
TP 5 T5 + 17
TP 6 T6 + 17
TP 7 T7 + 17
TP 9 T9 + 17
TP 16 T16 + 17
ELECTRONICS CODE PRICE
Sensor array package: REX & key switch W1 333
Hard wired W5 26
Request to exit switch W10 136
Key sensor W11 136
Titan lever W12 19
Request to EXit switch, key sensor
& bolt sensor
W13 428
(W13 option for mortise locksets)
Bolt sensor W14 157
Latch sensor W15 157
REX + Latch sensor W16 278
MISC CODE PRICE
Please read special comments #
regarding line item.
* Not available in CP plate design.
** Consult factory before ordering.
![](asset-b.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
11

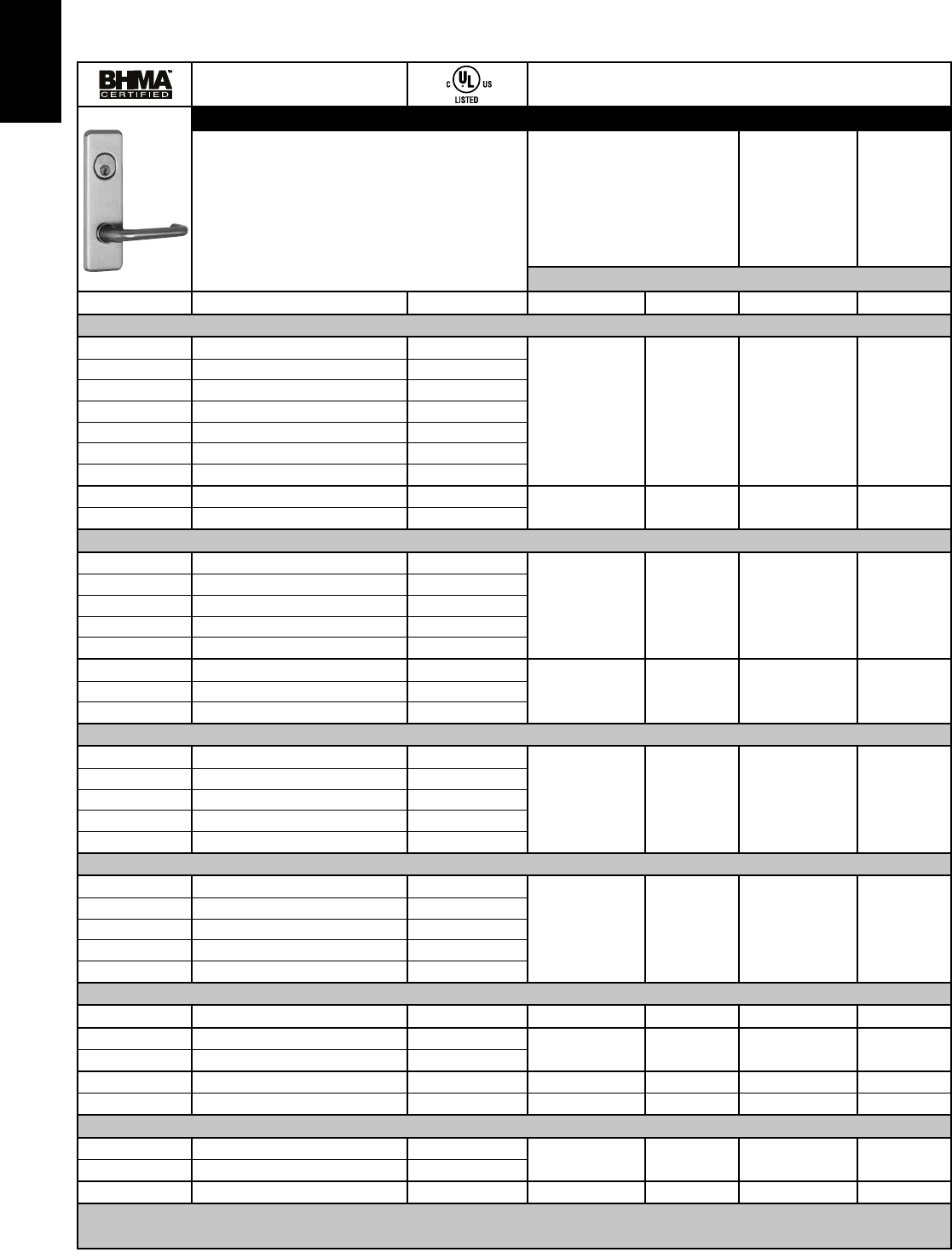

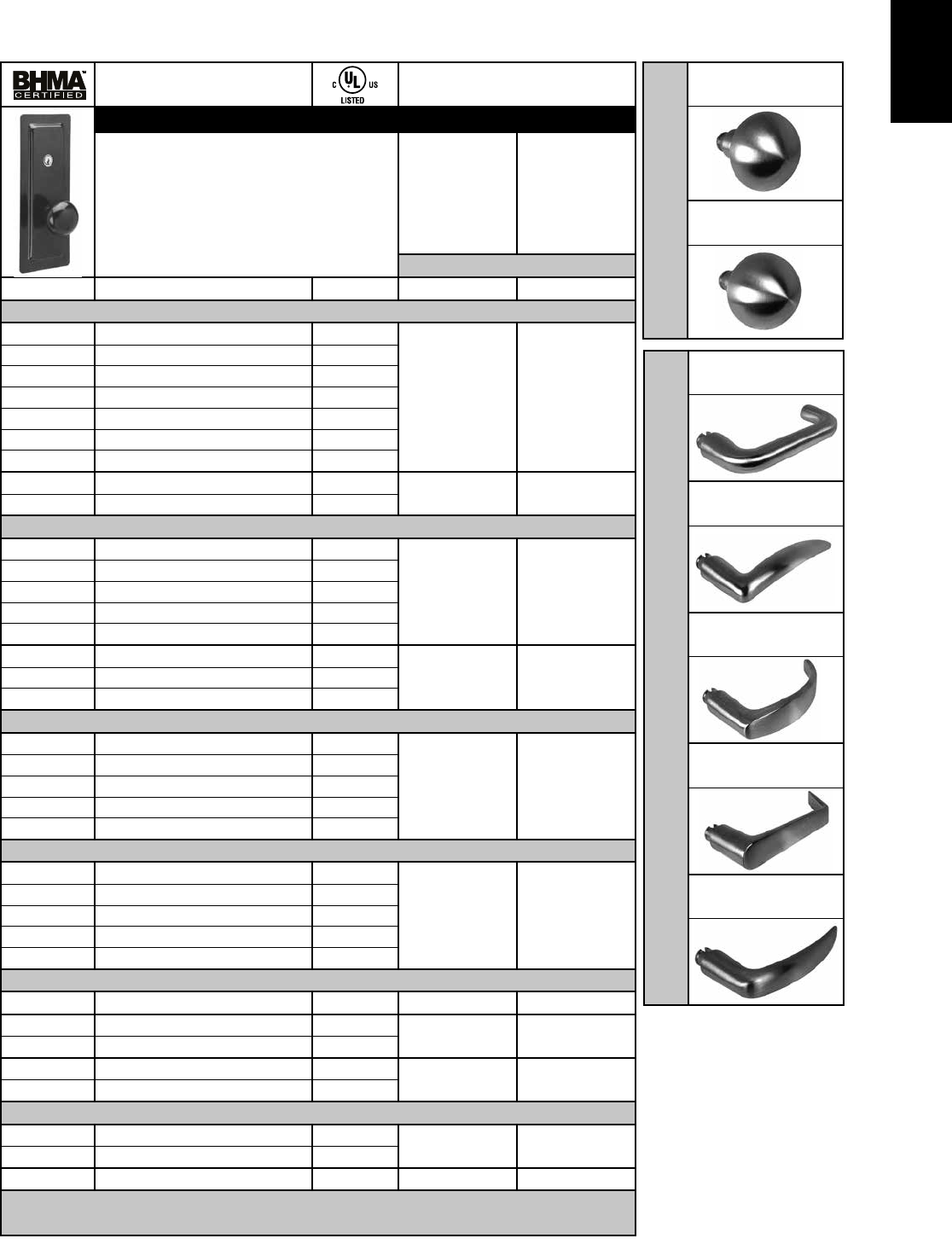

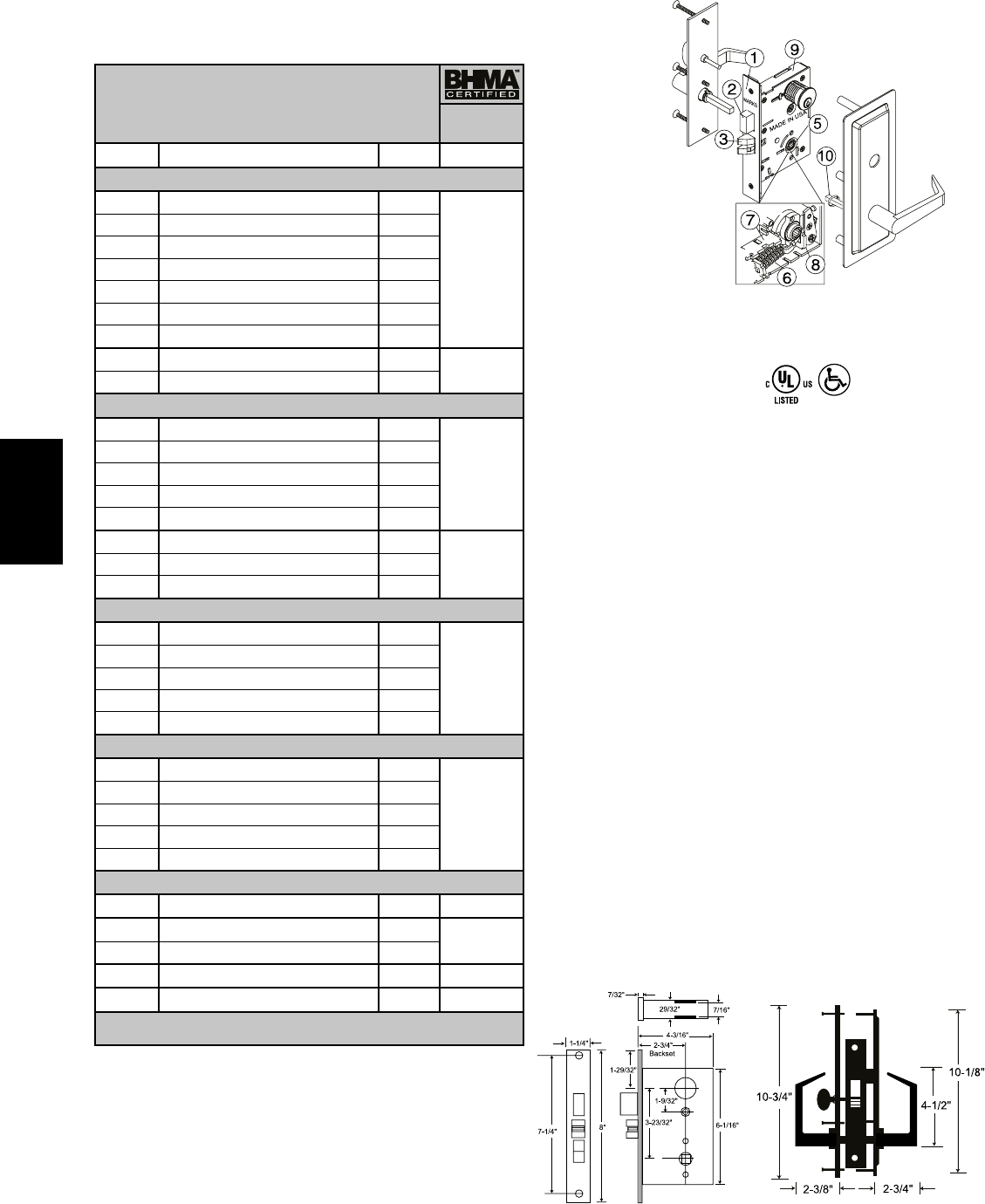

Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 10-1/8” H x 4” W, Int: 10-3/4” H x 4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
10, 20 82, 83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 32D 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
566 605
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 932 972
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
584 619
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
609 648
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
618 658
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
620 658
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 453 492
L BATHROOM F02 584 619
LF PRIVACY F19
LJ PRIVACY F22 514 551
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 230 267
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 460 497
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
BARRIER Plate Design BA
KNOBS
Round Knob 10
Ball Knob 20
LEVERS
Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86
American Lever 92
Titan Lever 96
![](asset-c.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
12
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 8” H x 2-1/2” W, Int: 8” H x 2-1/2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Height: 7/32”
10, 20
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82, 83,
86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D, 32D 10, 10B 3E, 10, 26D, 32D 10B, 32
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
613 650 756 793
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 929 966 1072 1109
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
626 664 770 807
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
688 725 831 868
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
660 697 803 841
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
660 697 803 841
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 515 552 658 695
L BATHROOM F02 628 665 771 808
LF PRIVACY F19
LJ PRIVACY F22 567 604 710 747
EX EXIT F31 567 604 710 747
DUMMY TRIM
DI DUMMY TRIM INSIDE 258 277 330 348
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 516 553 659 690
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
CLASSIC Plate Design CL
![](asset-d.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
13
Mortise Locksets
CLASSIC Plate Design CL
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7: 1-1/4” x 8”, Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 8” H x 2-1/2” W, Int: 8” H x 2-1/2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
10, 20
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82, 83,
86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D, 32D 10, 10B 3E, 10, 26D, 32D 10B, 32
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 581 618 724 761
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
595 629 738 775
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
629 666 772 809
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 483 520 626 664
L BATHROOM F02 596 633 739 776
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 259 277 330 349
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 516 553 659 696
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory

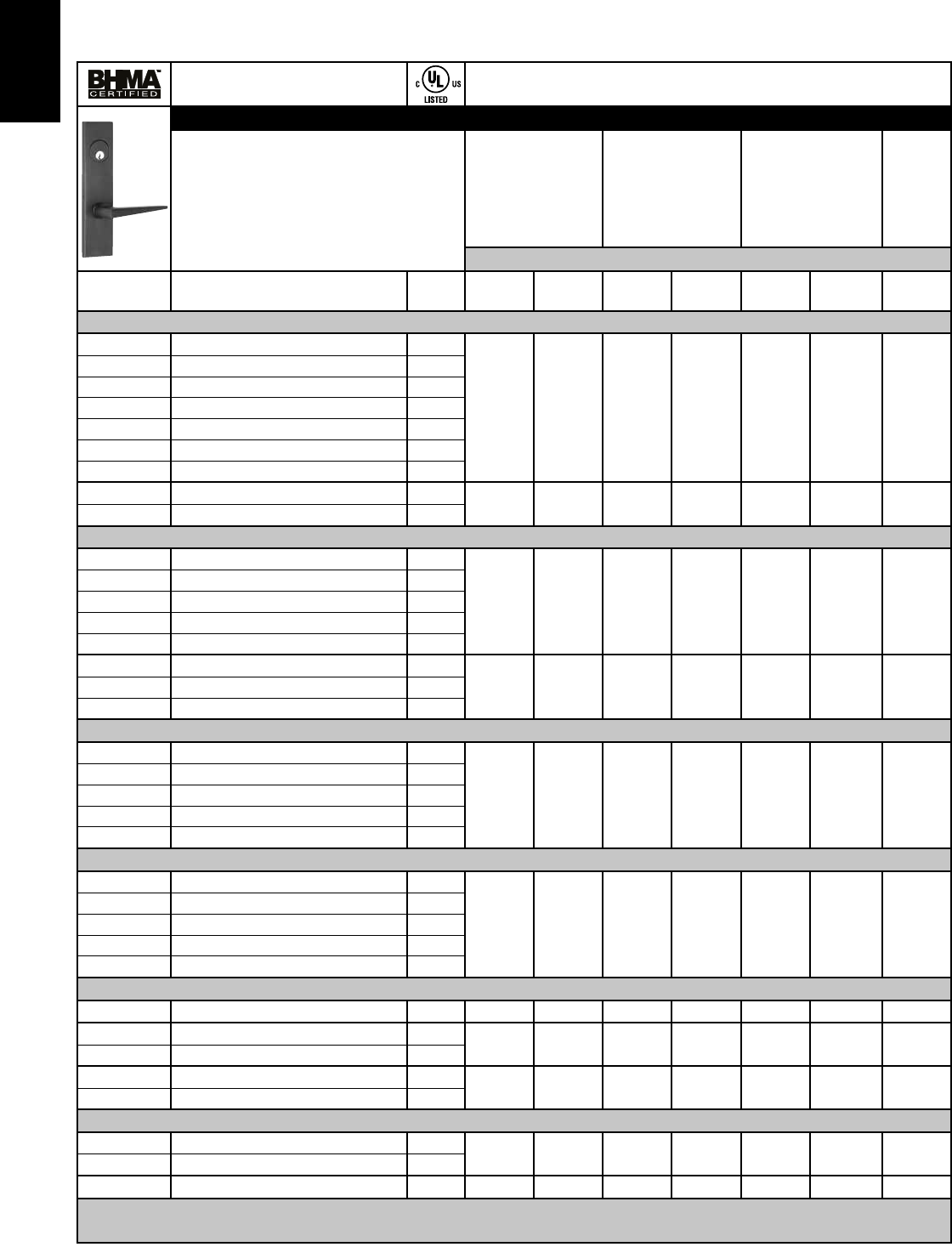

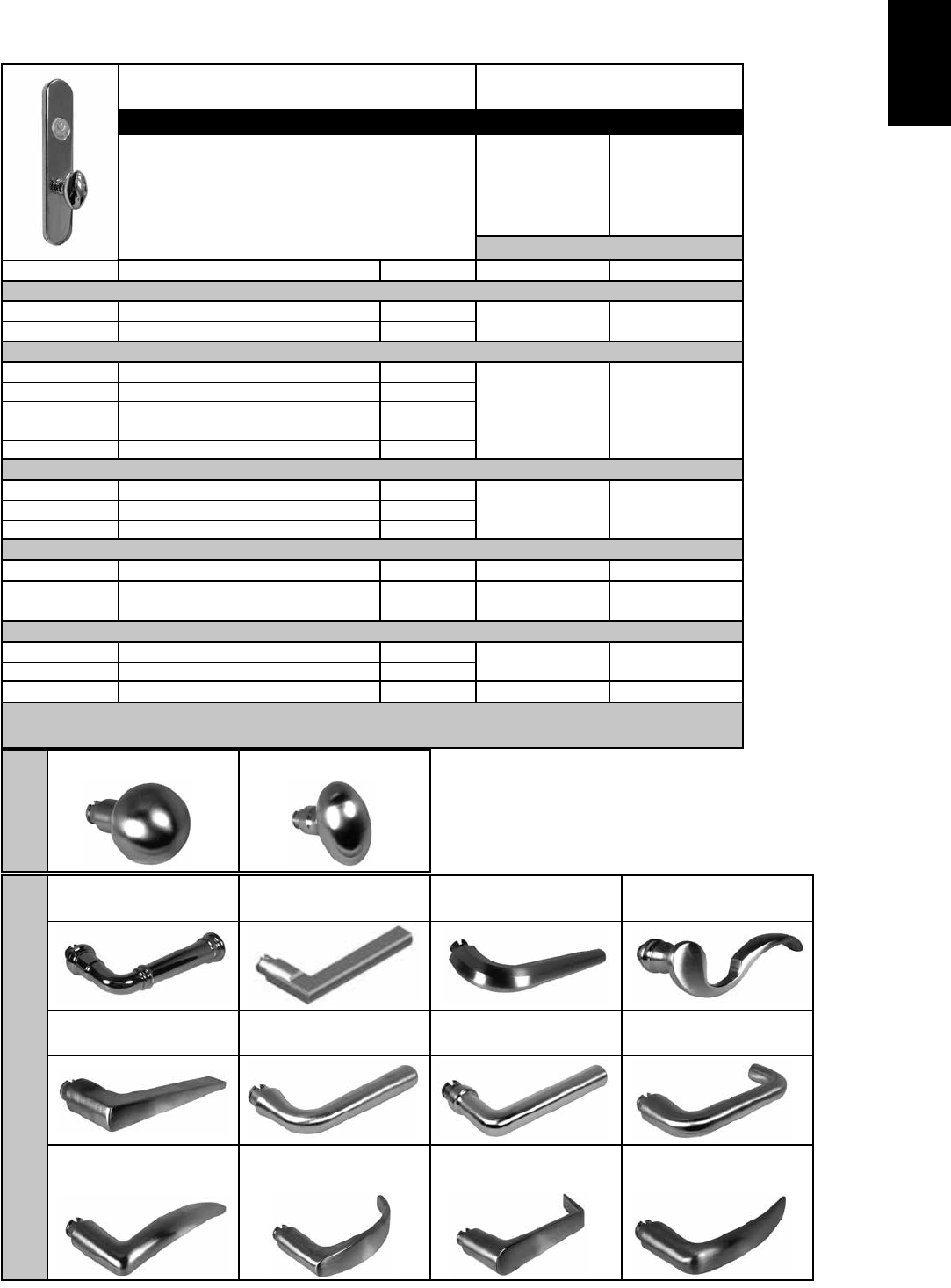

KNOBS
Round Knob 10 Ball Knob 20
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
![](asset-e.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
14

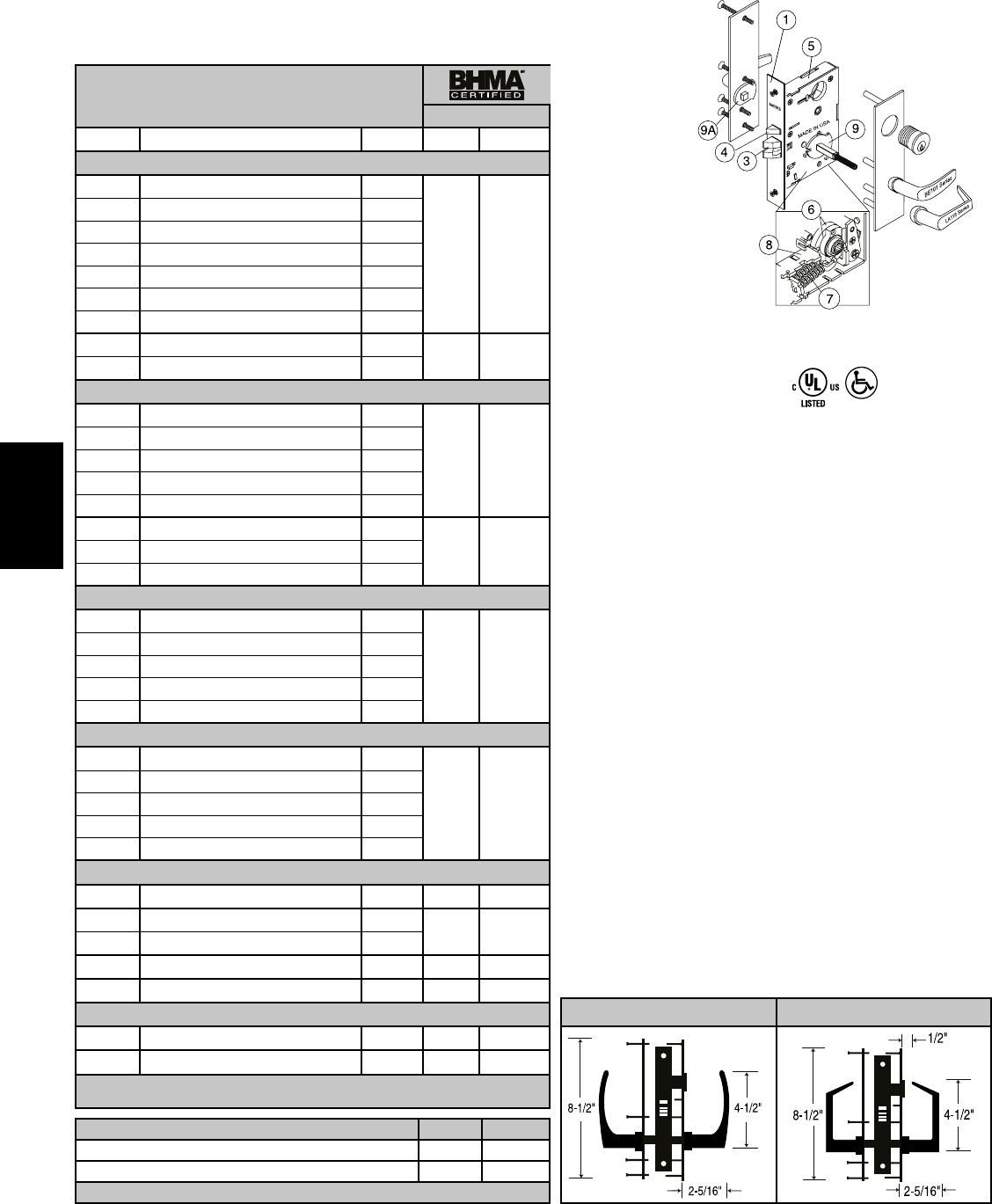

Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions:
Ext: 8-1/2” H x 2-3/4” W, Int: 8-1/2” H x 2-3/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
• Thickness: 1/8”
10, 20
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82, 83,
86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 10, 10B 3, 32D 10, 10B
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
638 675 781 818
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 954 991 1097 1134
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
651 689 795 832
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
713 750 856 894
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
686 723 829 866
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
686 723 829 866
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 541 578 684 721
L BATHROOM F02 653 690 796 833
LF PRIVACY F19
LJ PRIVACY F22 593 630 736 773
EX EXIT F31 593 630 736 773
DUMMY TRIM
DI DUMMY TRIM INSIDE 271 289 342 361
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 541 579 685 722
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
CAPITOL Plate Design CP
![](asset-f.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
15
Mortise Locksets
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset • Lever support springs
• Lock front Series 7: 1-1/4” x 8”, Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 8-1/2” H x 2-3/4” W, Int: 8-1/2” H x 2-3/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
10, 20
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82, 83,
86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 10,10B 3, 32D 10, 10B
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 606 643 749 787
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
620 657 763 800
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
654 691 797 834
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 509 546 652 689
L BATHROOM F02 621 658 764 801
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 270 289 342 361
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 542 579 685 722
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
KNOBS
Round Knob 10 Ball Knob 20
CAPITOL Plate Design CP
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
![](asset-10.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
16
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs • Lock front: 1-1/4” x 8”
• Dimensions: Ext: 8-1/2” H x 2” W, Int: 8-1/2” H x 2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
• Height: 13/32”
• Square Edges
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82,
83, 86,
92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D,
32D
10, 10B,
32
3E, 15,
26D
10, 10B,
14
3E, 15,
26D
10, 10B, 14,
19E, 26 32, 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
659 696 700 737 759 833 796
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 975 1012 1015 1038 1060 1134 1097
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
673 710 713 750 773 847 810
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
694 731 735 772 794 868 831
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
703 740 743 780 802 877 840
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
703 740 743 780 802 877 840
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 566 603 607 643 666 740 703
L BATHROOM F02 673 710 713 750 773 847 810
LF PRIVACY F19
LJ PRIVACY F22 616 653 656 693 716 790 753
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 283 304 306 324 336 391 354
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 571 608 612 649 671 745 708
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
CROWN Plate Design CR
![](asset-11.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
17
KNOBS
Round Knob 10 Ball Knob 20 Ball Knob 30 Eclipse Knob 60
Mortise Locksets

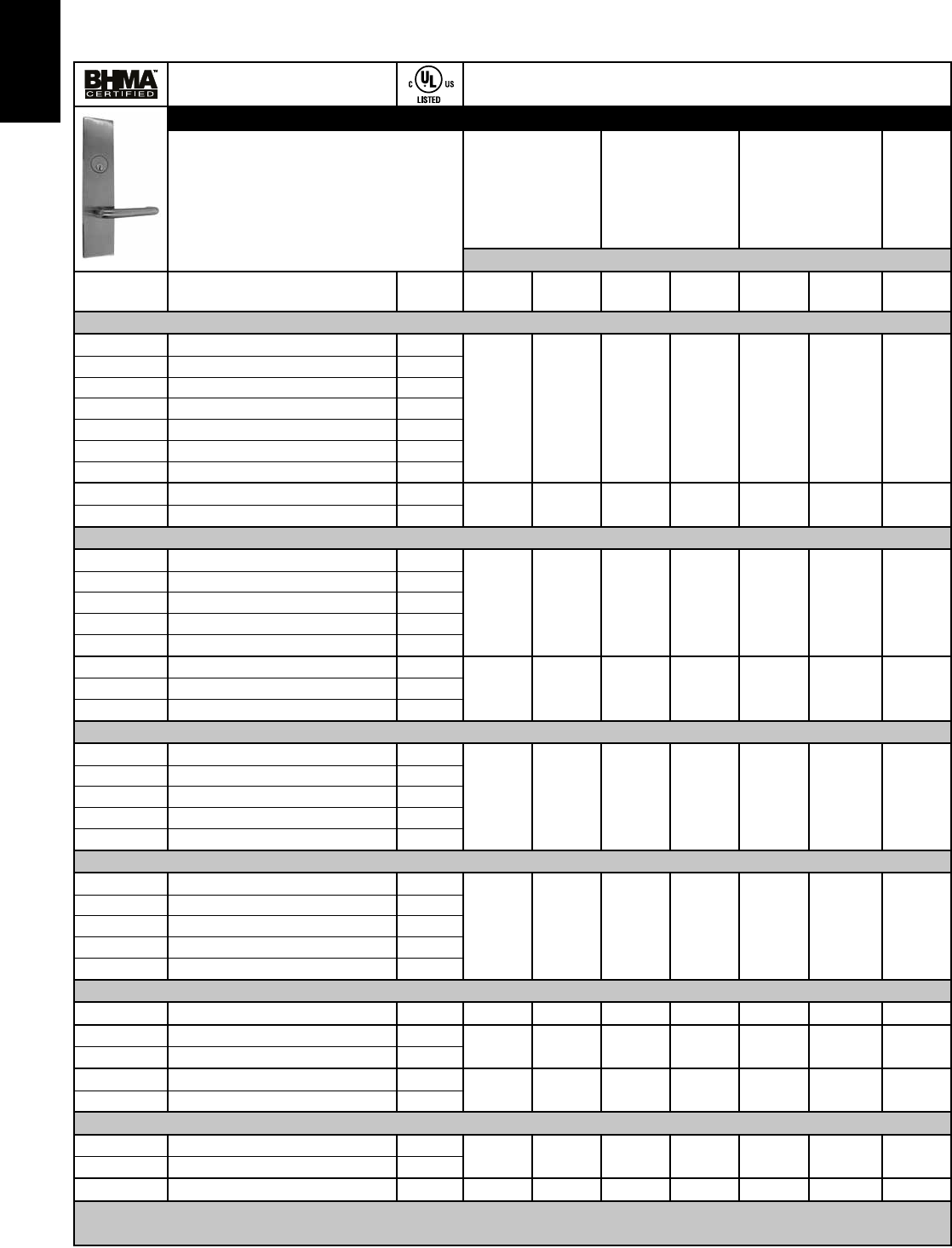

CROWN Plate Design CR
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7: 1-1/4” x 8”, Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 8-1/2” H x 2” W, Int: 8-1/2” H x 2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82,
83, 86,
92,96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3,
26D, 32D
10, 10B,
32
3E, 15,
26D
10, 10B,
14
3E, 15,
26D
10, 10B, 14,
19E, 26
32,
32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 628 665 668 705 727 801 764
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
641 678 682 718 741 815 778
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
671 708 711 748 771 845 808
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 534 571 575 612 634 708 671
L BATHROOM F02 641 678 682 719 741 815 778
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 286 304 306 324 336 391 354
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 571 598 612 649 671 745 708
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
![](asset-12.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
18
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 11” H x 2-1/2” W, Int: 11” H x 2-1/2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
• Height: 13/32” • Square Edges
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82,
83, 86,
92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D,
32D
10, 10B,
32
3E, 15,
26D
10, 10B,
14
3E, 15,
26D
10E, 10B,
14, 19E, 26 32, 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
728 765 769 806 828 902 865
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 1044 1081 1084 1106 1129 1203 1166
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
742 779 782 819 842 916 879
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
763 800 803 841 862 937 900
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
772 809 812 849 871 946 908
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
772 809 812 849 871 946 908
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 635 672 675 712 735 809 772
L BATHROOM F02 742 779 782 819 842 916 879
LF PRIVACY F19
LJ PRIVACY F22 685 722 725 762 784 859 822
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 320 339 340 359 370 426 389
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 640 677 680 718 740 814 777
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
DRAKE Plate Design DR
![](asset-13.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
19
Mortise Locksets
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7: 1-1/4” x 8”, Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 11” H x 2-1/2” W, Int: 11” H x 2-1/2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
031, 82,
83, 86,
92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D,
32D
10, 10B,
32
3E, 15,
26D
10, 10B,
14
3E, 15,
26D
10E, 10B,
14, 19E, 26 32, 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 696 734 737 774 796 870 833
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
710 747 750 788 810 884 847
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
740 777 780 817 840 914 877
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 603 640 643 681 703 777 740
L BATHROOM F02 710 747 750 788 810 884 847
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 320 339 340 359 370 426 389
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 640 667 681 718 740 814 777
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
DRAKE Plate Design DR
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
KNOBS
Round Knob 10 Ball Knob 20 Ball Knob 30 Eclipse Knob 60
![](asset-14.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
20
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 11” H x 2-1/2” W, Int: 11” H x 2-1/2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
• Height: 13/32” • Bevel Edges
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D,
32D
10, 10B,
32 3E, 15, 26D 10, 10B,
14 3E, 15, 26D 10E, 10B, 14,
19E, 26
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
798 835 838 876 898 972
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 1114 1151 1154 1177 1197 1273
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
812 849 852 889 911 986
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
833 870 873 911 933 1007
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
842 879 882 919 941 1015
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
842 879 882 919 941 1015
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 705 742 745 782 805 879
L BATHROOM F02 812 849 852 889 912 986
LF PRIVACY F19
LJ PRIVACY F22 755 792 795 832 918 929
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 355 374 375 394 405 449
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 710 747 750 788 810 884
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
DAVOS Plate Design DV
![](asset-15.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
21
Mortise Locksets

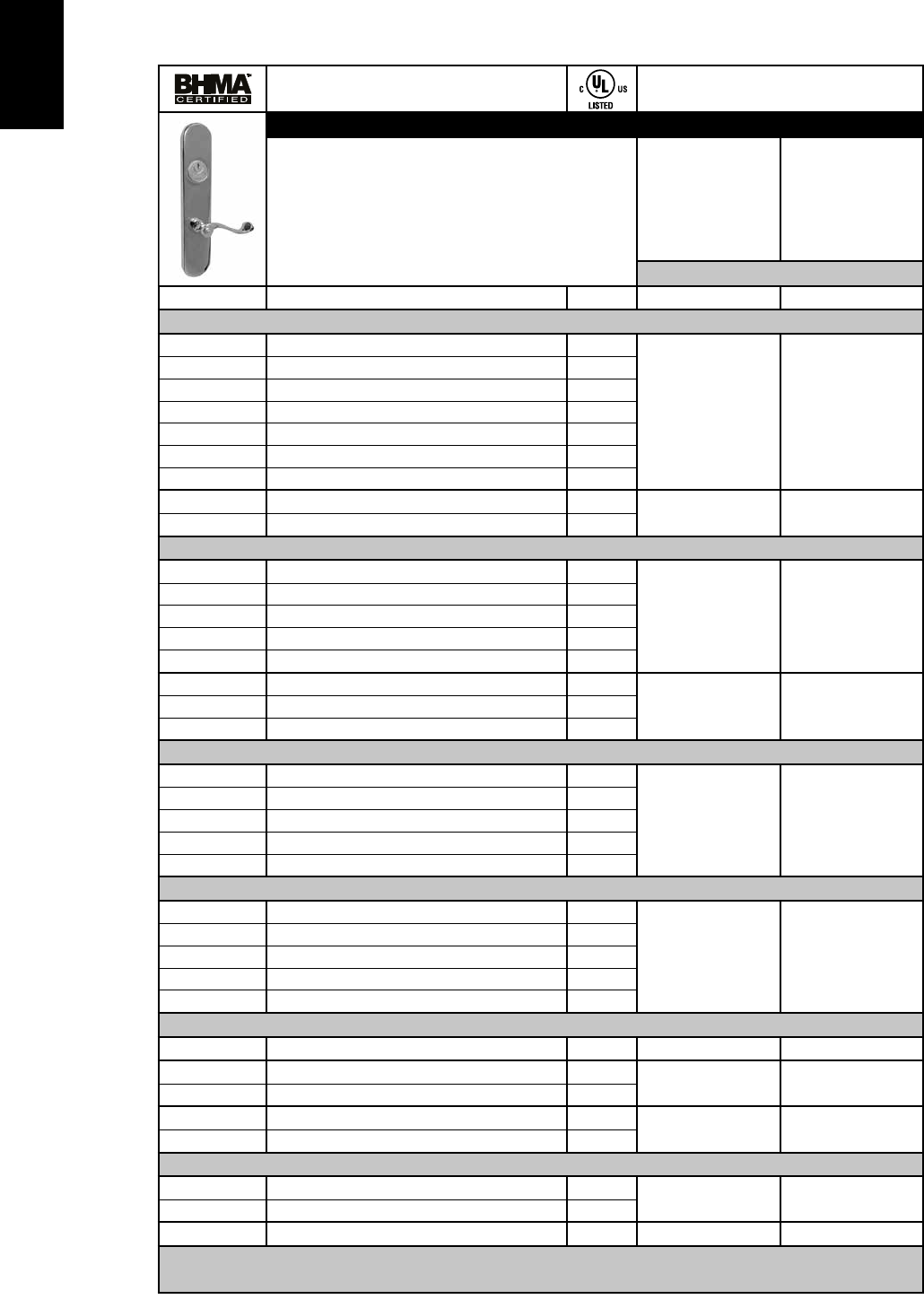

DAVOS Plate Design DV
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7: 1-1/4” x 8”, Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 11” H x 2-1/2” W, Int: 11” H x 2-1/2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Concealed 5 pin cylinder (option A12)
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 26D, 32D 10, 10B,32 3E, 15, 26D 10, 10B,14 3E, 15, 26D 10E, 10B, 14,
19E, 26
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 766 803 807 844 866 940
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
780 817 820 858 880 954
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
810 847 850 887 909 984
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 673 710 713 750 723 847
L BATHROOM F02 780 817 820 855 880 954
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 355 374 375 394 405 461
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 710 737 750 788 810 884
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
KNOBS
Round Knob 10 Ball Knob 20 Ball Knob 30 Eclipse Knob 60
![](asset-16.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
22
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 10-1/2” H x 2-5/32” W, Int: 10-1/2” H x 2-5/32” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Height: 13/32”
30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3E & 15 3E & 15
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
844 880
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 1177 1212
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
860 895
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
883 916
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
891 928
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
891 928
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 742 776
L BATHROOM F02 860 895
LF PRIVACY F19
LJ PRIVACY F22 796 832
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 374 406
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 747 782
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
MADISON Plate Design MA
![](asset-17.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
23
Mortise Locksets

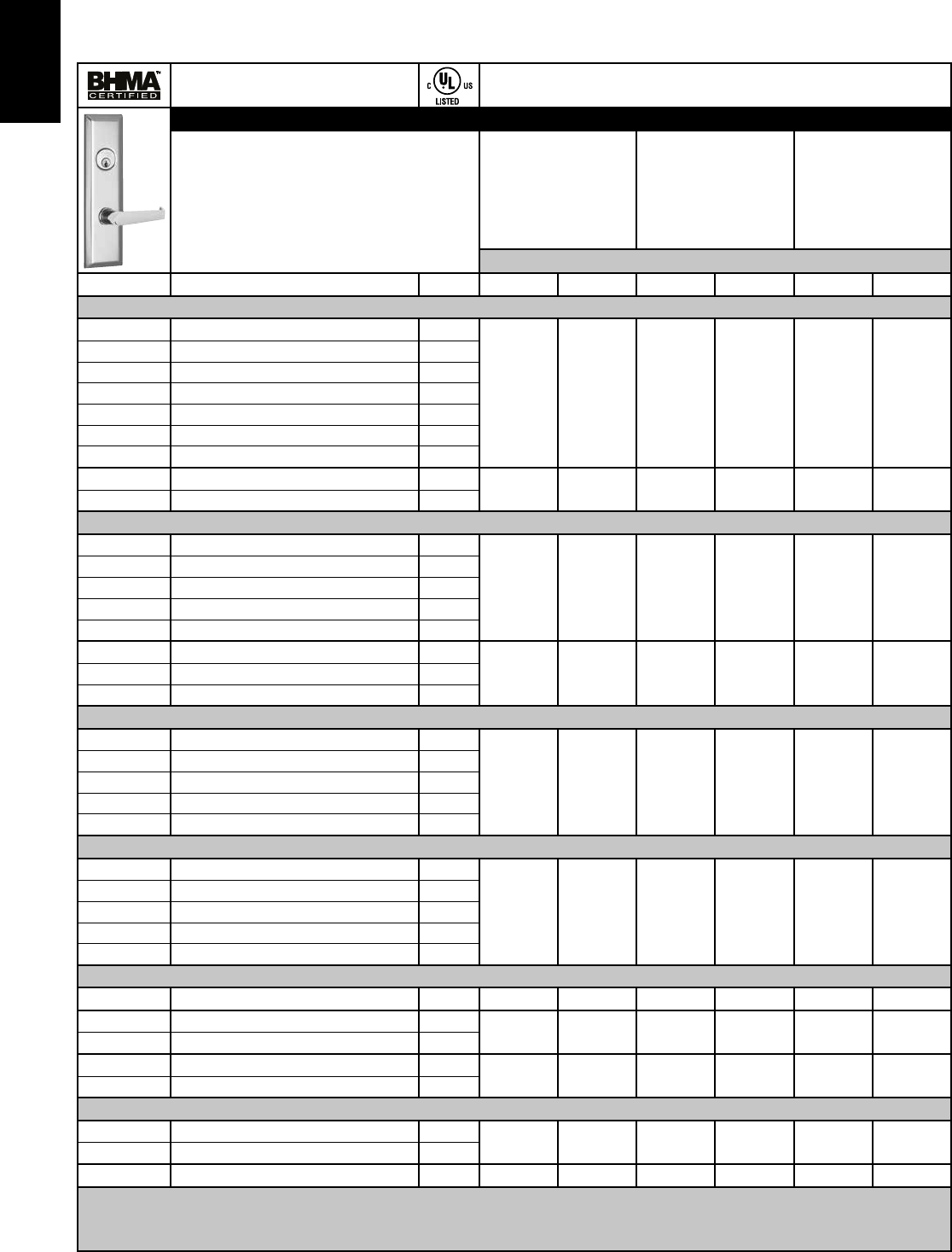

MADISON Plate Design MA
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7: 1-1/4” x 8”, Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 10-1/2” H x 2-5/32” W, Int: 10-1/2” H x 2-5/32” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Height: 13/32”
30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3E & 15 3E & 15
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 810 845
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
825 860
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
858 893
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 707 742
L BATHROOM F02 825 860
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 374 406
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 747 782
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
KNOBS
Ball Knob 30 Eclipse Knob 60
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
![](asset-18.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
24
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 10” H x 2-3/4” W, *Int: 7” H x 2-1/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Thickness: 1/4”
10, 20 30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3 26D 3 26D 3 26D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
419 457 474 511 516 554
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 767 806 823 860 865 903
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
436 471 491 528 533 571
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
460 498 515 552 558 596
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
469 516 524 561 566 604
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
469 507 524 561 566 604
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 311 349 366 403 408 446
L BATHROOM F02 436 471 491 528 533 571
LF PRIVACY F19
LJ PRIVACY F22 369 407 424 461 466 505
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 159 178 187 205 210 248
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 317 355 372 409 414 453
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
* Large interior plate available (10” H x 2-3/4” W)
NEW YORKER Plate Design NY
![](asset-19.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
25
Mortise Locksets
NEW YORKER Plate Design NY
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7:1-1/4” x 8”; Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 10” H x 2-3/4” W, *Int: 7” H x 2-1/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
10, 20 30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3 26D 3 26D 3 26D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 387 425 442 479 495 533
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
404 439 459 496 501 540
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT

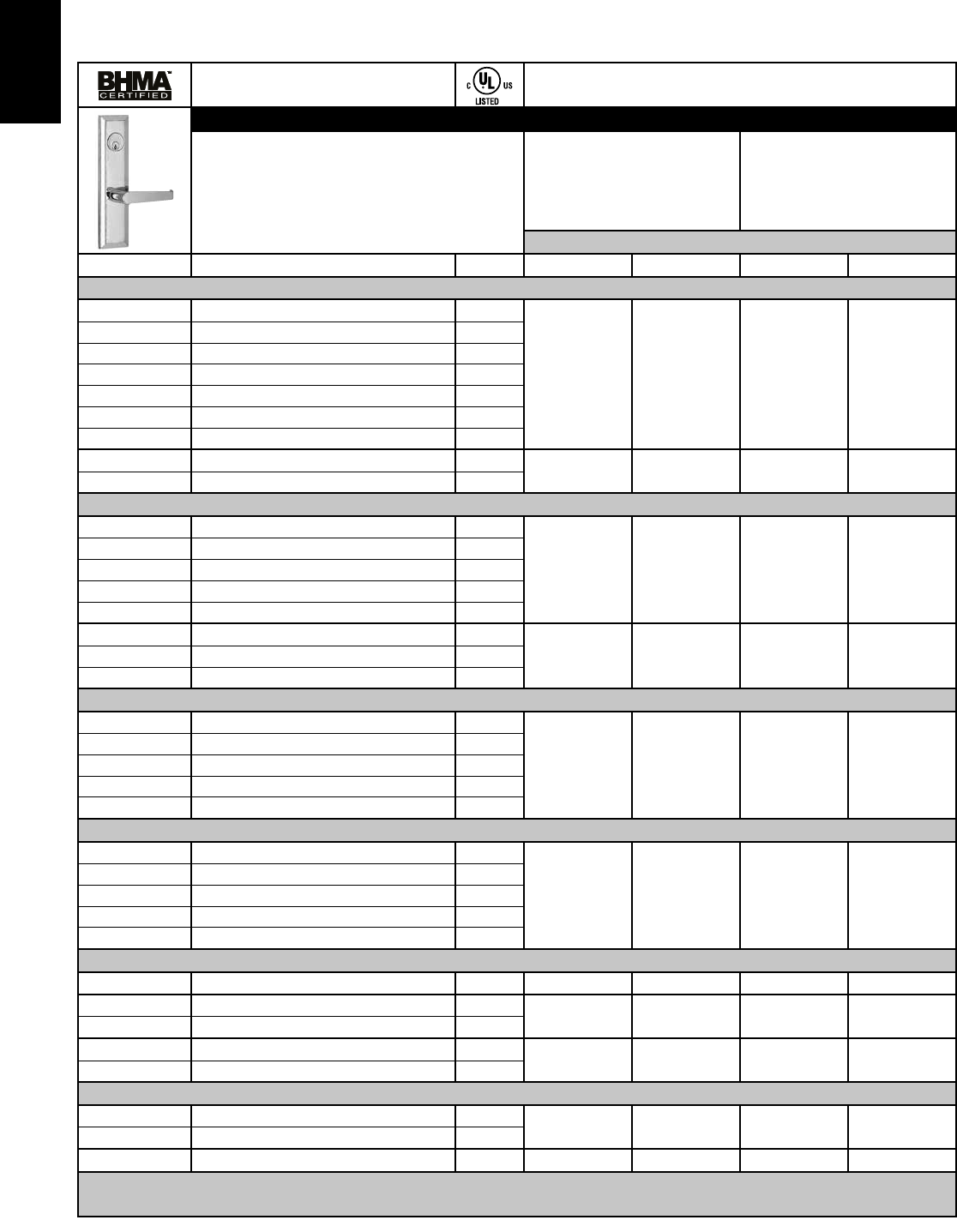

AC ENTRANCE F35
437 475 492 529 534 572
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 279 317 334 371 376 414
L BATHROOM F02 404 439 459 496 545 583
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 159 178 187 205 210 248
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 317 343 372 409 414 453
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
* Large interior plate available (10” H x 2-3/4” W)
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
KNOBS
Round Knob 10 Ball Knob 20 Ball Knob 30 Eclipse Knob 60
![](asset-1a.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
26
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Dimensions: Ext: 9-1/4” H x 2-1/4” W, Int: 9-1/4” H x 2-1/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Thickness: 13/32”
30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3E & 15 26 3E & 15 26
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
844 881 889 928
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 1194 1231 1238 1276
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
861 898 906 942
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
885 919 823 967
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
895 932 940 977
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
895 932 940 977
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 738 773 782 818
L BATHROOM F02 861 898 906 942
LF PRIVACY F19
LJ PRIVACY F22 794 832 840 878
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 371 406 394 431
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 743 779 789 826
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
TOWNE Plate Design TN
![](asset-1b.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
27
Mortise Locksets
TOWNE Plate Design TN
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front Series 7: 1-1/4” x 8”; Series 9: 1-1/16” x 7-5/8”
• Dimensions: Ext: 9-1/4” H x 2-1/4” W, Int: 9-1/4” H x 2-1/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3E & 15 26 3E & 15 26
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 770 803 813 847
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
784 819 827 863
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
817 851 861 895
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 667 707 709 744
L BATHROOM F02 784 819 827 863
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 371 406 394 431
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 743 779 789 826
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
KNOBS
Ball Knob 30 Eclipse Knob 60
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
![](asset-1c.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
28
Mortise Locksets
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever rose assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs
• Lock front: 1-1/4” x 8”
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
82, 83, 86,
92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 3E, 15 26, 10B 3, 4, 15,
26D 14, 26 10E, 10B,
19E 32, 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
560 618 655 596 633 670 596
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 876 934 971 912 949 975 912
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
573 632 669 610 647 673 610
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
595 653 690 631 668 694 631
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
603 661 699 639 676 703 639
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
603 661 699 639 676 703 639
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 435 554 591 547 591 584 547
L BATHROOM F02 573 632 669 610 647 673 610
LF PRIVACY F19
LJ PRIVACY F22 516 575 612 552 589 616 552
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 117 145 164 135 153 166 135
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 232 290 328 268 305 332 268
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
F17 Dummy Cylinder: Add $44.00
*Square Rose RX: Add $30 / *Square Rose RK: Add $100
ROSE Design RR, RW, RQ, RS, RX*, RK*, RL*
RL
![](asset-1d.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
29

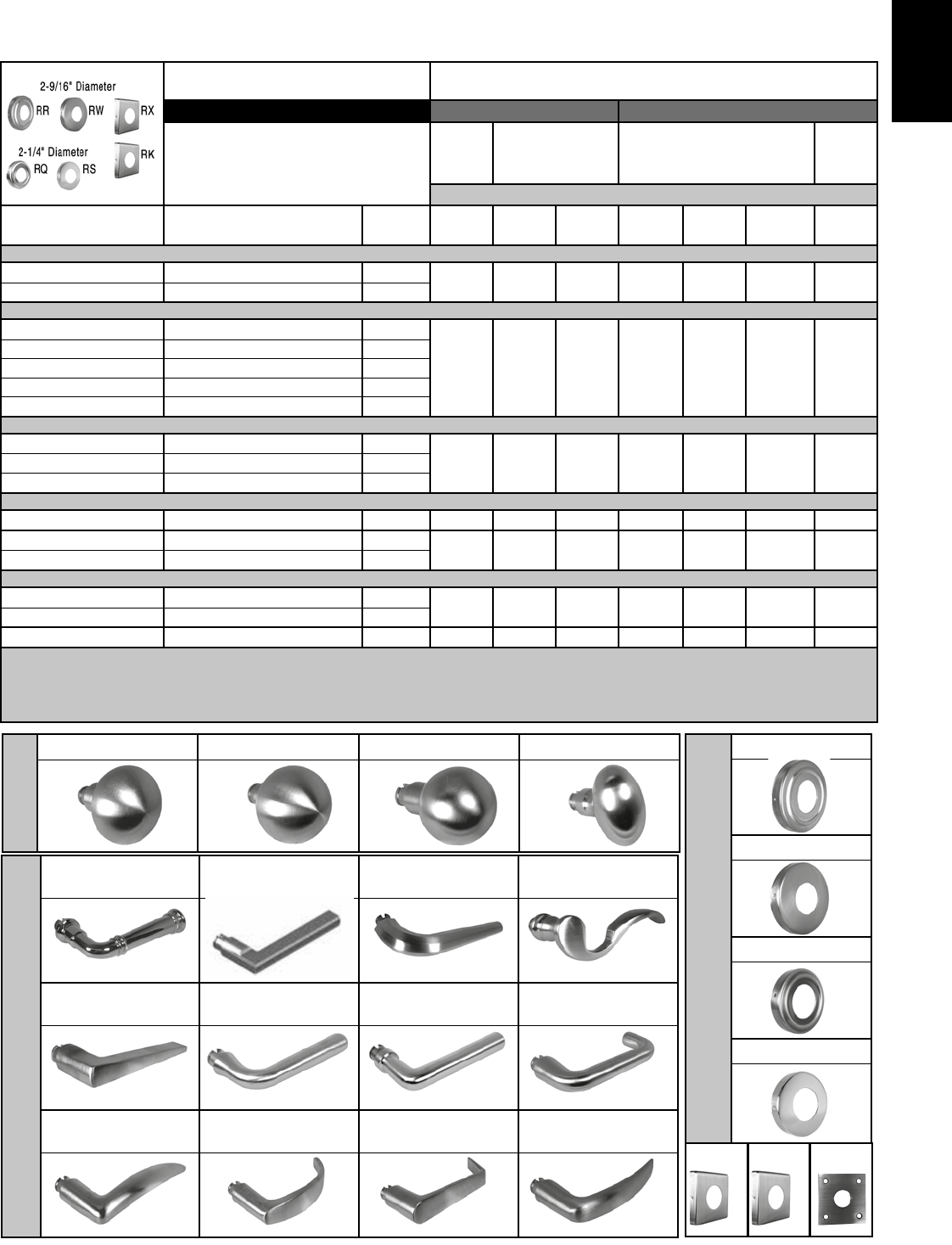

Mortise Locksets
ROSE Design RR, RW, RQ, RS, RX*, RK*, RL*
ANSI-A156.13 • Grade 2 Series 7 • 2-3/4” Backset
Series 9 • 2-1/2” Backset
Standard Features KNOBS LEVERS
• Thru-bolted screwless knob/lever rose assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs • Lock front: 1-1/4” x 8”
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
10, 20 30, 60
031, 44, 55, 57,
72, 77, 78, 82,
83, 86, 92, 96
82, 83,
86,
92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 3E, 15 26, 10B 3, 4, 15,
26D 14, 26 10E, 10B,
19E 32, 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 528 586 615 564 601 628 564
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
542 600 637 578 615 641 578
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
571 630 667 607 644 671 607
C STOREROOM F14
FX DORMITORY F33
KEYLESS
N PASSAGE F01 435 493 530 471 508 534 471
L BATHROOM F02 542 600 637 578 721 641 578
LF PRIVACY F19
DUMMY TRIM
DI DUMMY TRIM INSIDE 117 145 164 135 153 166 135
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 232 240 328 268 305 332 268
KNOBS & LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
*Square Rose RX: Add $30 / *Square Rose RK: Add $100
KNOBS
Round Knob 10 Ball Knob 20 Ball Knob 30 Eclipse Knob 60
ROSES
RR: 2-9/16” dia.
RW: 2-9/16” dia.
RQ: 2-1/4” dia.
RS: 2-1/4” dia.
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
RX: 2-1/2” sq. RK: 2-1/2” sq. RL: 2-1/2” sq.
Wrought
Forged
![](asset-1e.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
30
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 4 • 2-3/4” Backset
Series 45 • 2-1/2” Backset
GRADE 2 HANDLESETS
Series 6 • 2-3/4” Backset
Series 8 • 2-1/2” Backset
Standard Features KNOBS LEVERS KNOBS LEVERS
• Exterior handle plate assemblies with thru-posts
• Interior thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs • Lock front Series 4, 45: 1-1/4” x 8”
• Lock front Series 6: 1-1/4” x 8”; Series 8: 1-1/16” x 7-5/8”
• Dimensions: CROWN Ext: 16” H x 2” W, Int: 8-1/2” H x 2” W
• Dimensions: GRAND CROWN Ext: 16” H x 2” W, Int: 8-1/2” H x 2” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Thickness: 13/32”
30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
FINISH GROUPS FINISH GROUPS
GRADE 1 HANDLESETS
MARKS # FUNCTION ANSI # 3E & 15 3E & 15
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 1185 1126
DW VESTIBULE
EW STOREROOM F07 1185
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
1199 1141
B ENTRANCE F21
F DORMITORY F12
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35 1232 1173
C STOREROOM F25
G APARTMENT F24 1232
SO STOREROOM: DOUBLE HANDLESET ONLY F25 1526 1467
DUMMY TRIM
DT FULLY DUMMY 966 966
HANDLESETS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
SO Function Double Handleset ONLY * SERIES 45 NOT AVAILABLE IN “SO” FUNCTION
CROWN HanDleset Design CR
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
Mortise Locksets
KNOBS
Ball Knob 30 Eclipse Knob 60 9691
![](asset-1f.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
31
ANSI-A156.13 • Grade 1
3 Hour Fire Rating
Series 4 • 2-3/4” Backset
Series 45 • 2-1/2” Backset
GRADE 2 HANDLESETS
Series 6 • 2-3/4” Backset
Series 8 • 2-1/2” Backset
Standard Features KNOBS LEVERS KNOBS LEVERS
• Exterior handle plate assemblies with thru-posts
• Interior thru-bolted screwless knob/lever plate assemblies
• Independent spring loaded captivated spindles
• Reversible mortise lock 2-1/2” or 2-3/4” backset
• Lever support springs • Lock front Series 4, 45: 1-1/4” x 8”
• Lock front Series 6: 1-1/4” x 8”; Series 8: 1-1/16” x 7-5/8”
• Dimensions:
TOWNE Ext: 16-3/8” H x 2-1/4” W, Int: 9-1/4” H x 2-1/4” W
• Dimensions:
GRAND TOWNE Ext: 16-3/4” H x 2-1/4” W, Int: 9-1/4” H x 2-1/4” W
• Dimensions:
CLAREMONT Ext: 16-1/4” H x 2-1/4” W, Int: 9-1/4” H x 2-1/4” W
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Thickness: 13/32”
30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
FINISH GROUPS FINISH GROUPS
GRADE 1 HANDLESETS
MARKS # FUNCTION ANSI # 3E & 15 3E & 15
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST. 1185 1126
DW VESTIBULE
EW STOREROOM F07 1185
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
1199 1141
B ENTRANCE F21
F DORMITORY F12
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35 1232 1173
C STOREROOM F25
G APARTMENT F24 1232
SO STOREROOM: DOUBLE HANDLESET ONLY F25 1526 1467
DUMMY TRIM
DT FULLY DUMMY 966 966
HANDLESETS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
SO Function Double Handleset ONLY * SERIES 45 NOT AVAILABLE IN “SO” FUNCTION
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
Mortise Locksets

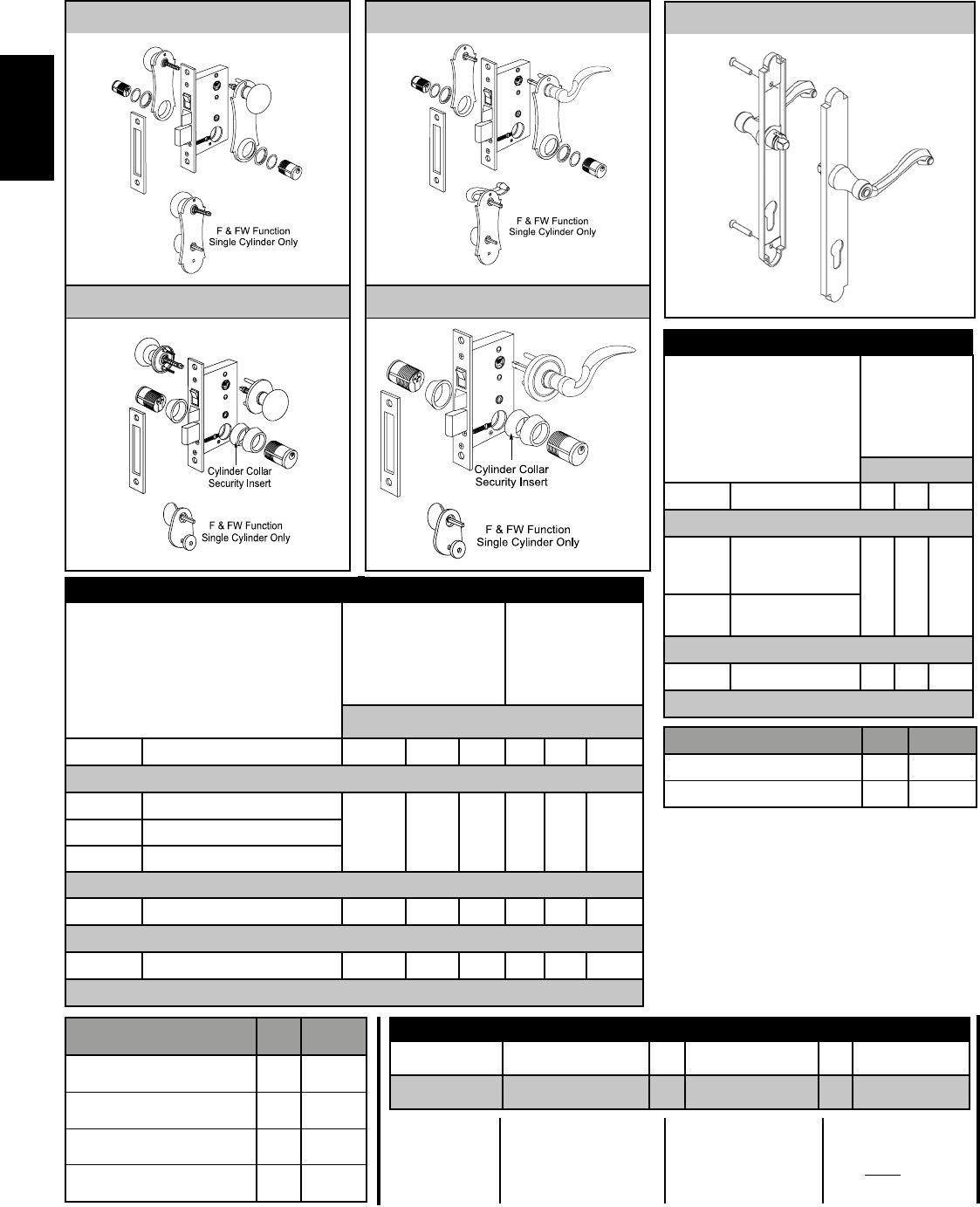

TOWNE HanDleset Design TN
KNOBS
Ball Knob 30 Eclipse Knob 60 9691
![](asset-20.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
32

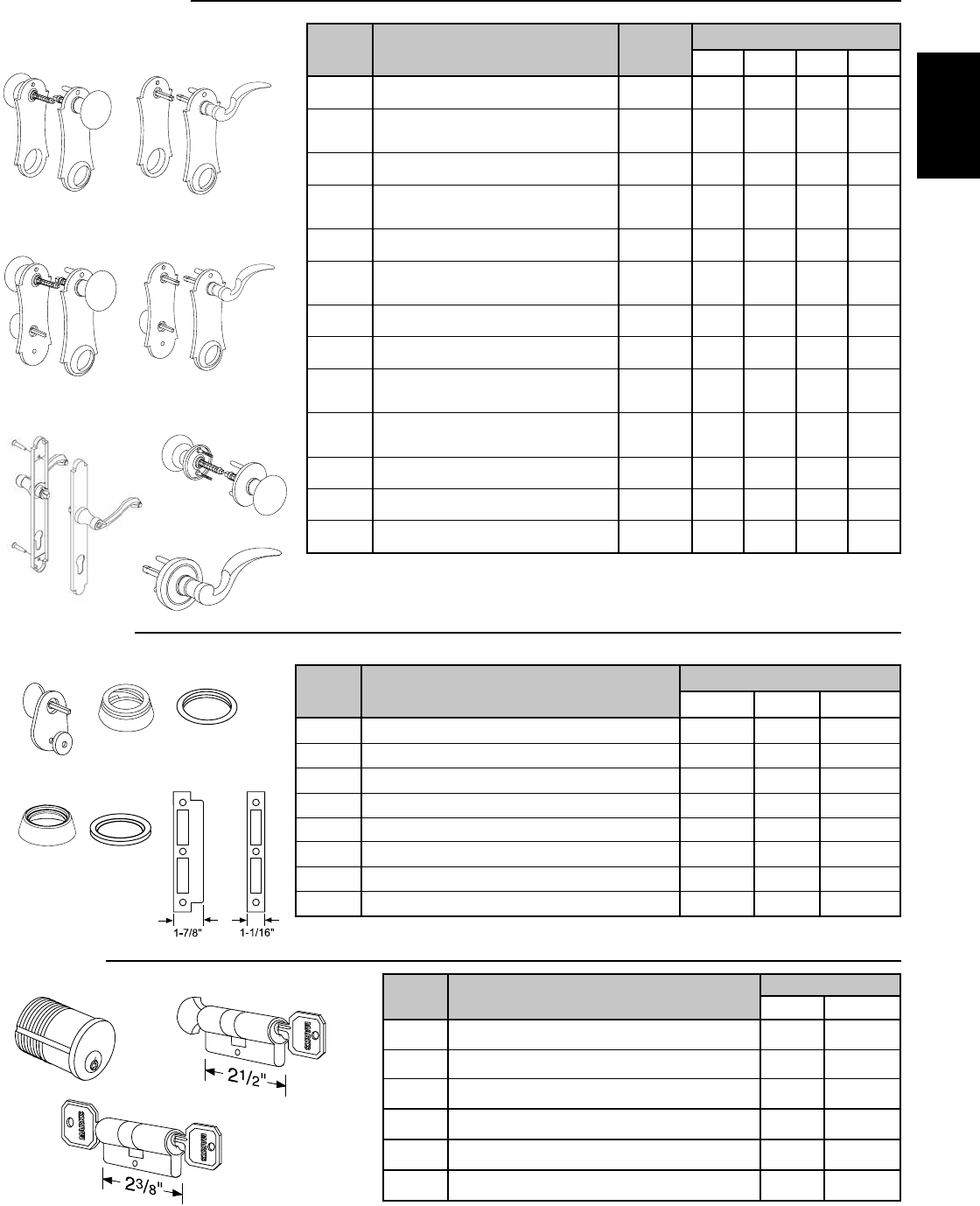

Ornamental Iron
Ornamental iron
Standard Features SERIES
• Thru-bolted solid brass trim
assemblies
• Spring loaded captivated spindles
• Reversible mortise lock 1” backset
• 1” bolt, 1/2” latch projection
• Cylinder: Marks “A” keyway,
5 pin w/ 2 keys; keyed alike - 6
FINISH GROUPS
MARKS # FUNCTION 3 10B 5, 26D
KEYED WITH DEADBOLT
BENTRANCE CYLINDER
x TURNPIECE 207 261 233
C ENTRANCE DOUBLE
CYLINDER
DUMMY TRIM
DT FULL DUMMY 125 174 145
ORNAMENTAL IRON LOCKSETS PACKED 6 PER CASE
OPTIONS - Series 2750 CODE PRICE
For 1-3/4” doors D4 NC
Marks “C” keyway G5 16
THINLINE® Series 2750 for 1” doors
2750
THINLINE®
Standard Features
• Door thickness: 1”
• Series 9 lock body, Backset: 2-1/2”
• Reversible mortise lock 1” bolt, 1/2” latch projection
• Lock front: 1” x 7-1/8”
• Thru-bolted solid brass trim assemblies
• Spring loaded captivated spindles
• Cylinder: Marks “A” keyway, 5 pin w/ 2 keys;
keyed alike-6
SERIES 21
UNILOCK™
SERIES 22
SERIES 9215
UNILOCK™
SERIES 9225
FINISH GROUPS
MARKS # FUNCTION 3 10B 5, 26D 3 10B 5, 26D
KEYED SINGLE CYLINDER, WITH DEADBOLT
DW SINGLE CYL. PANIC PROOF
278 332 296 371 419 390
F SINGLE CYL. PANIC PROOF
FW SINGLE CYL. PANIC PROOF
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE 247 304 265 341 390 359
DUMMY TRIM
DT FULL DUMMY 165 228 177 265 321 278
ORNAMENTAL IRON LOCKSETS ARE PACKED 6 PER CASE
OPTIONS CODE PRICE
Lock Front: 1” x 7-1/8” standard WNC
Mushroom knob interior; 1-7/8” prj. A9 5
For 1-3/4” doors D4 NC
Adjustable spring collars F10 5
Series 21 Unilock™
Series 22
Series 9215 Unilock™
Series 9225
___ B
___ C
___ F
___ AC
___ DT
___ DW
MARKS FUNCTION
(Pgs. 57-58)
How To Order Example for Ornamental Iron Locksets
9215 C /10B -D4
1. Lock Series 2. Marks Function Slash 3. Finish Dash 4. Options
LOCK SERIES
(Pgs. 49 & 50)
p 21 p 2750
p 22 p 9215
FINISH (Pg. 10)
p 3 p 10B
p 5 p 26D Specify
• Keying • Handing
• Door Thickness
OPTIONS
p Special
![](asset-21.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
33
K2750
K21 AC
K21 F
2635 2638
2621
2622
2122
Ornamental Iron
PART # DESCRIPTION FUNCTION FINISH GROUPS
3 4 10B 5, 26D
K21AC Ext./Int. UNILOCK™ knob/plate kit AC 122 — 159 135
K21AC-M Ext./Int. UNILOCK™ knob/plate kit
(Mushroom Int.) AC 137 — 164 141
K21F Ext./Int. UNILOCK™ knob/plate kit assemblies F146 — 176 153
K21F-M Ext./Int. UNILOCK™ knob/plate kit
(Mushroom Int.) F151 — 182 159
K2750 LEVER PLATE TRIM SET 146 — 189 166
2600B Thinline lock body, latch, deadbolt
US 4 & 26D ONLY - Strike not included — 121 189 166
K9215AC Ext./Int. UNILOCK™ lever/plate kit assemblies AC 184 — 218 195
K9215F Ext./Int. UNILOCK™ lever/plate kit assemblies F184 — 239 216
A9214-M UNILOCK™ mushroom knob/plate
(w/cylinder hole) AC 68 — 95 71
K9217-M UNILOCK™ mushroom knob/plate
(w/turnpiece) F119 — 145 122
K22 Ext./Int. knob/rose kit 1” thru 1-3/4” door 71 — 109 86
K22-M Ext./Int. knob/rose kit (mushroom int.) 78 — 114 91
K9225 Ext./Int. lever/rose kit 180 — 212 189
PART # DESCRIPTION FINISH GROUPS
NO FINISH 35, 26D
K9117 Turnpiece kit — 47 50
A9223-M Interior knob/rose assembly (mushroom knob) — 40 47
9273 Spring collar, 7/16” high — 12 12
9275 Mortise spacer, wrought brass, 1/8” high — 6 —
A9276 Collar, wrought brass w/insert, 1/2” high — 20 20
9277 Plastic spacer ring, 1/16” 1 — —
2635 Curved lip strike, solid brass — 24 15
2638 Flat strike, solid brass, no lip — 15 7
PART # DESCRIPTION FINISH GROUPS
35, 26D
2122-A 5 Pin mortise cylinder, “A” keyway, 15/16” 41 43
2621-A Cylinder x turnpiece unit, “A” keyway 67 74
2622-A double cylinder unit, “A” keyway 48 60
2122-C 5 Pin mortise cylinder, “C” keyway 41 43
2621-C Cylinder x turnpiece unit, “C” keyway 67 74
2622-C double cylinder unit, “C” keyway 48 60
Knob & Lever Kits
K9215 AC
K9215 F
K22
K9225
Accessories
Cylinders
Ornamental iron
9275K9117 9273
9277
A9276
![](asset-22.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
34

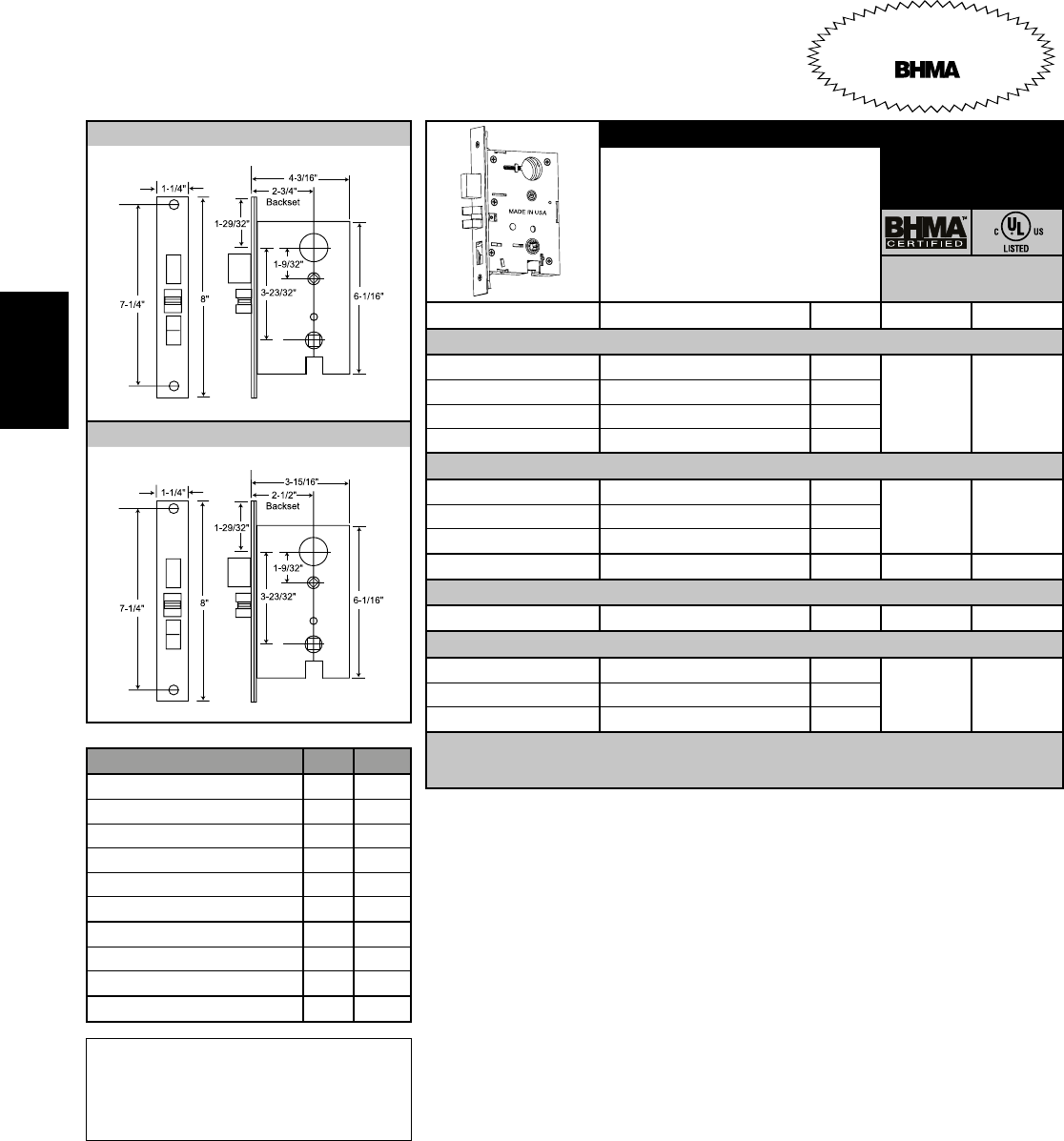

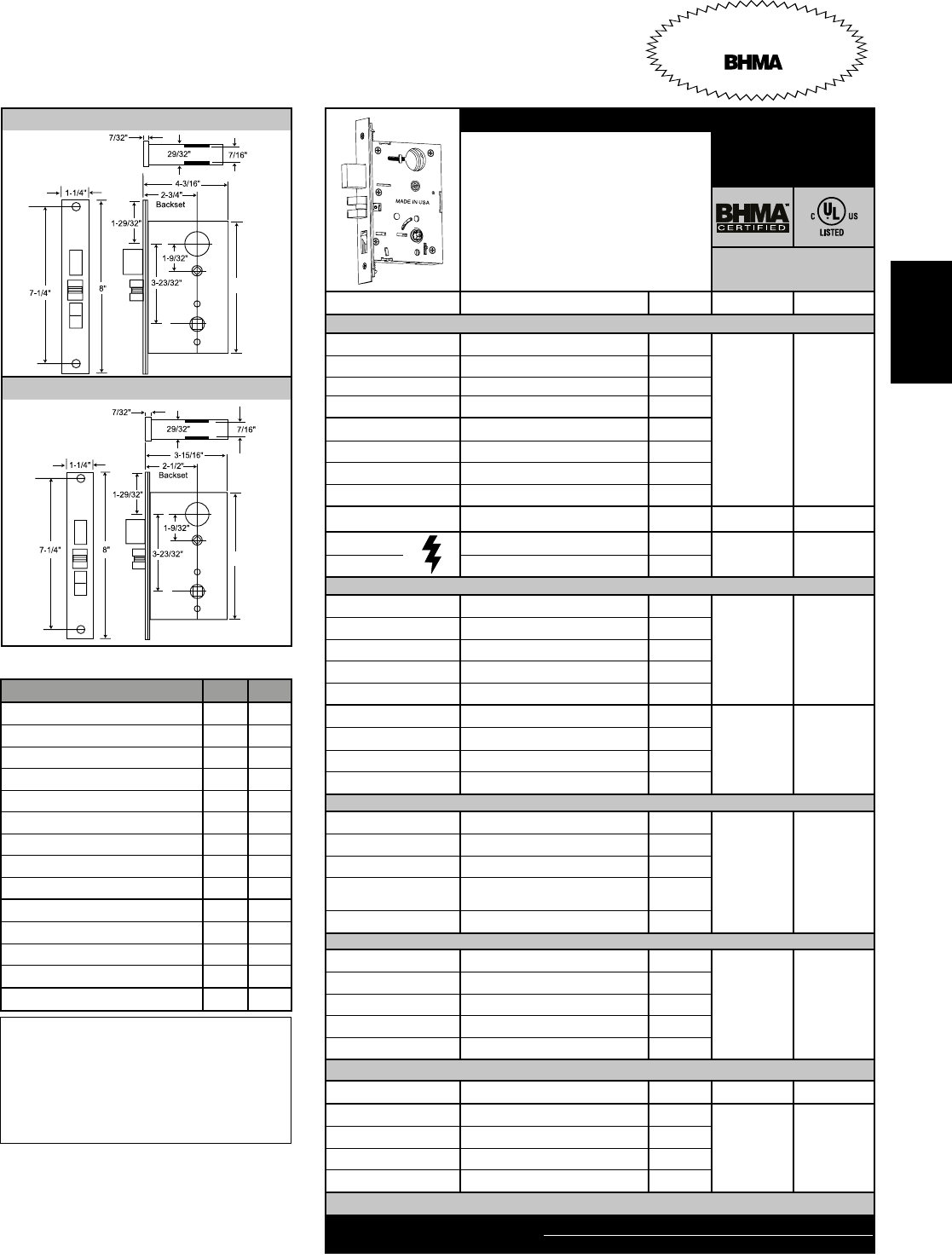

mortise lock BoDies
autoreverse series
CYLINDER CAMS REQUIRED
Locks w/o deadbolt 2101 Straight Cam
Locks w/ deadbolt 2102 Cloverleaf Cam
See pages 41 & 42 for additional cams per function
Mortise Parts, Trim
GRADE 1
MORTISE LOCKS EXCEEDS
SPECIFICATIONS
OPTIONS CODE PRICE
1-1/16” x 7-5/8” front T27
1-1/16” x 7-3/4” front V27
1-1/16” x 8” front Q27
Lever support springs w- 5/16” hubs B4 19
Turnpiece hub on square B8 11
Screws with Dust Box B10 NC
Solid latch for electric strike E1 20
Hold open latch E2 37
Lead-lined mortise lock F1 325
4-7/8” Strikes: 1 Left / 1 Right S6 13
Standard Features Grade 1 for
Handlesets
Series 4 • 2-3/4” Backset
Series 45 • 2-1/2” Backset
• Backset: 4 Series 2-3/4”; 45 Series 2-1/2”
• Bolt throw: Stainless steel full 1” throw
• Latch throw: 3/4” (anti-friction)
• Auxiliary latch: 1/2” throw
• Case: Stamped steel .090 thick.,
Zinc dichromate finish
• Front: 1-1/4” x 8”, Adjustable bevel
• Hubs: Steel, 9/32” on diamond 5/16” on square FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 10, 10B, 32
KEYED SINGLE CYLINDER, NO DEADBOLT
DW VESTIBULE
367 383
EW STOREROOM F07
EN STOREROOM
DN STOREROOM
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
378 395
B ENTRANCE F21
F DORMITORY F12
FD APARTMENT F20 394 411
KEYED DOUBLE CYLINDER, NO DEADBOLT
G ENTRANCE F09 394 411
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
394 411
C STORE DOOR “B BODY” F25
SO STORE DOOR* F25
MORTISE LOCK BODIES ARE PACKED 12 PER CASE
* SERIES 45 NOT AVAILABLE IN “SO” FUNCTION
Series 4
Series 45
![](asset-23.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
35
CYLINDER CAMS REQUIRED
Locks w/o deadbolt 2101 Straight Cam
Locks w/deadbolt 2102 Cloverleaf Cam
G function (ext. only) 2106 “G” Cam
G function (int. only) 2105 “J” Cam
J function 2105 “J” Cam
Mortise Parts, Trim
GRADE 1
MORTISE LOCKS EXCEEDS
SPECIFICATIONS
mortise lock BoDies
autoreverse series
OPTIONS CODE PRICE
1-1/16” x 7-5/8” front T27
1-1/16” x 7-3/4” front V27
1-1/16” x 8” front Q27
Lever override guard outside (Series 5) B1 44
Lever override guard both sides B2 62
Lever support springs w- 5/16” hubs B4 19
Hubs with hollow spacer (Series 55) B6 18
Turnpiece hub on square B8 11
Screws with Dust Box B10 NC
Solid latch for electric strike E1 20
Hold open latch E2 37
Lead-lined mortise lock F1 325
4-7/8” Strikes: 1 Left / 1 Right S6 13
Request to exit switch (Series 5) W10 136
Standard Features Grade 1 for
Knobs & Levers
Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
• Backset: 5 Series 2-3/4”; 55 Series 2-1/2”
• Bolt throw: Stainless steel full 1” throw
• Latch throw: 3/4” (anti-friction)
• Auxiliary latch: 1/2” throw
• Case: Stamped steel .090 thick.,
Zinc dichromate finish
• Front: 1-1/4” x 8”, Adjustable bevel
• Hubs: Steel, 9/32” on diamond 5/16” on square
w/security separator FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 10, 10B, 32
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE / VESTIBULE
308 403
DW VESTIBULE
E, Q, QH OFFICE F04
K OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL (HOLDBACK) F06
GL INST. PRIVACY F26
MT ArchiTech 1113 1134
EL*ELECTRICALLY LOCKED* 843 861
EU*ELECTRICALLY UNLOCKED*
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
323 341
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
347 365
AD F27
H HOTEL F15
LH SPEC. PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G ENTRANCE F09
354 372
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY
w/HOLDBACK
WW INSTITUTION F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
354 372
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 253 271
L BATHROOM F02
323 341
LF PRIVACY F19
LJ PRIVACY F19
EX EXIT F31
MORTISE LOCK BODIES ARE PACKED 6 PER CASE
* Electrified Functions 5 SERIES ONLY; 2-3/4” Backset ONLY:
100% Duty Cycle 24V/DC, 12V/DC Optional supplied with bridge rectifier (350 ma)
Series 5
Series 55
* 55 Series Lock Bodies are not available
in autoreverse and electrified functions
EL and EU.
5-7/8”
5-7/8”
![](asset-24.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
36
Mortise Parts, Trim
CYLINDER CAMS REQUIRED
All Functions 2101 Straight Cam
OPTIONS CODE PRICE
1-1/16” x 7-5/8” front T27
1-1/4” x 10” front,
(A function, US 4 only),
no mounting holes
U 109
1” x 7-1/8” front, (US 4 only) WNC
1-1/4” x 8” front X25
1-1/4” x 8-5/8” front
(A function, US 4 only) Y109
Screws with Dust Box B10 NC
Solid latch for electric strike E1 20
4-7/8” Strikes: 1 Left / 1 Right S6 13
Front 1-1/16” x 8” Z25

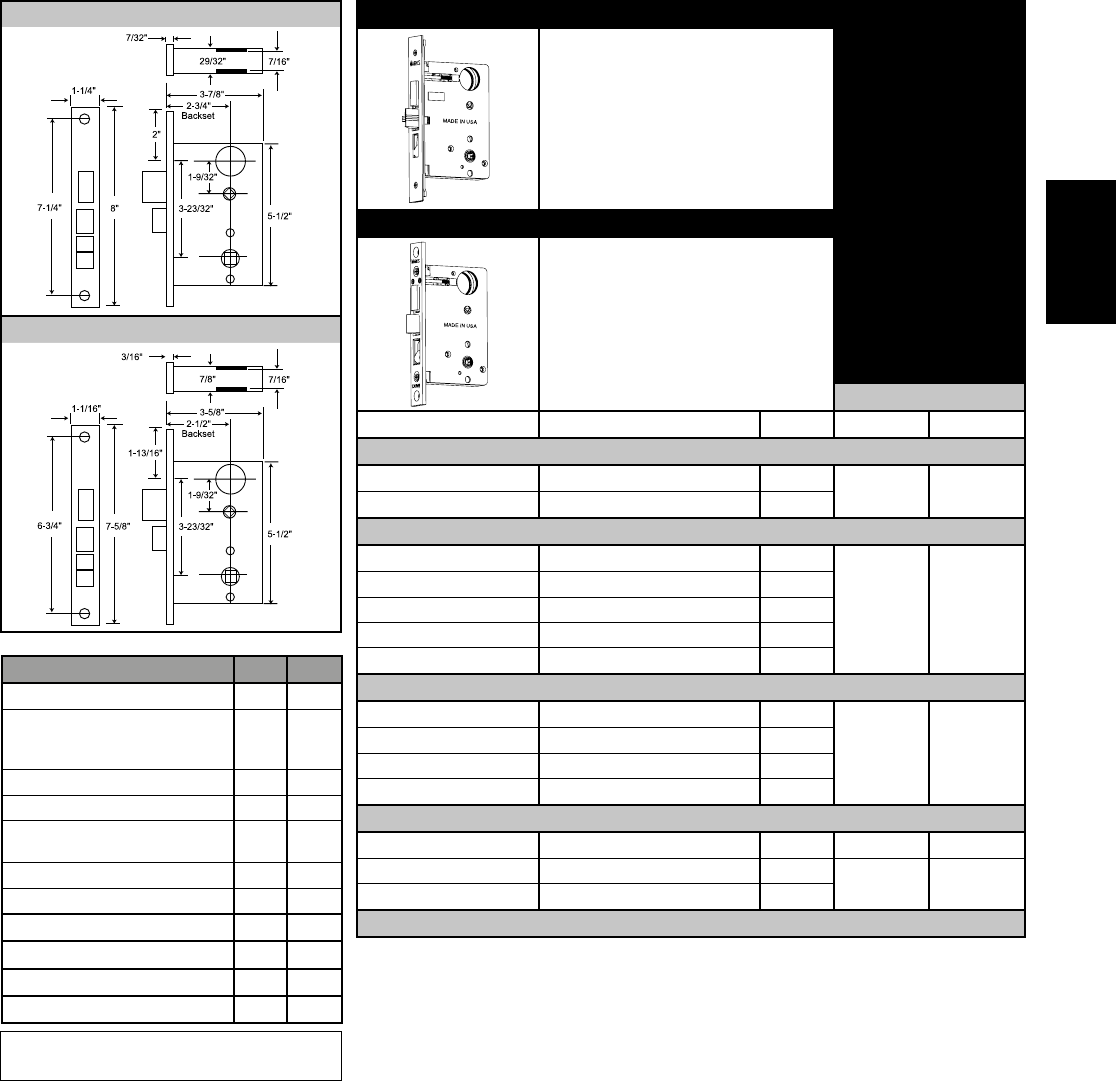

mortise lock BoDies
Series 6 Standard Features
Grade 2 for
Handlesets
Series 6
2-3/4” Backset
Series 8
2-1/2” Backset
• Backset: 2-3/4”
• Bolt throw: Cast alloy full 1” throw
• Latch throw: 5/8” (anti-friction)
• Case: High pressure cast Zamac,
baked enamel finish
• Front: 1-1/4” x 8”, Flat or 3° bevel
• Hubs: 9/32” (7.2mm) on square
Series 8 Standard Features
• Backset: 2-1/2”
• Bolt throw: Cast alloy full 1” throw
• Latch throw: Solid brass 1/2” throw, reversible
• Case: High pressure cast Zamac,
baked enamel finish
• Front: 1-1/16” x 7-5/8”, Flat or 3° bevel
• Hubs: 9/32” on square FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 10, 10B, 32
KEYED SINGLE CYLINDER, NO DEADBOLT
DW VESTIBULE 313 330
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
325 342
B ENTRANCE F21
F DORMITORY F12
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
341 358
C STORE DOOR “B BODY” F25
SO STORE DOOR F25
MORTISE LOCK BODIES ARE PACKED 6 PER CASE
Series 6
Series 8
![](asset-25.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
37
CYLINDER CAMS REQUIRED
All functions 2101 Straight Cam
Mortise Parts, Trim
Series 7 Standard Features
Grade 2 for
Knobs & Levers
Series 7
2-3/4” Backset
Series 9
2-1/2” Backset
• Backset: 2-3/4”
• Bolt throw: Cast alloy full 1” throw
• Latch throw: 5/8” (anti-friction)
• Case: High pressure cast Zamac,
baked enamel finish
• Front: 1-1/4” x 8”, Flat or 3° bevel
• Hubs: 9/32” on square steel,
w/ security separator
Series 9 Standard Features
• Backset: 2-1/2”
• Bolt throw: Cast alloy full 1” throw
• Latch throw: Solid brass 1/2” throw, reversible
• Case: High pressure cast Zamac,
baked enamel finish
• Front: 1-1/16” x 7-5/8”, Flat or 3° bevel
• Hubs: 9/32” on square steel,
w/ security separator FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 10, 10B, 32
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE / VESTIBULE 277 294
DW VESTIBULE
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
292 308
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
322 339
C STOREROOM F14
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 222 239
L BATHROOM F02 292 308
LF PRIVACY F19
MORTISE LOCK BODIES ARE PACKED 6 PER CASE
Series 7
Series 9
mortise lock BoDies
OPTIONS CODE PRICE
1-1/16” x 7-5/8” front T27
1-1/4” x 10” front,
(A function, US 4 only),
no mounting holes
U 109
1” x 7-1/8” front, (US 4 only) WNC
1-1/4” x 8” front X25
1-1/4” x 8-5/8” front
(A function, US 4 only) Y109
1-1/16” x 8”
Pin and lever springs B5 37
Screws with Dust Box B10 NC
Solid latch for electric strike E1 20
4-7/8” Strikes: 1 Left / 1 Right S6 13
Front 1” x 8” Z25
![](asset-26.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
38
Mortise Parts, Trim
OPTIONS CODE PRICE
Security Strike: 4-7/8” x 1-1/4” S4 11
OPTIONS CODE PRICE
1-1/16” x 5-5/8” front R28
OPTIONS CODE PRICE
1-1/16” x 7-5/8” front T27
1” x 7-3/4” front V 27
1” x 1/16” x 8” Q 27
Lead lined mortise lock F1 325
Standard Features Series 31
2-3/4” Backset
• Backset: Series 31: 2-3/4”
• Bolt throw: 1” stainless steel with hardened roll pins
• Case: Stamped Steel, Grade 1
• Front: 1-1/16” x 4-5/8” adjustable bevel
• Cylinder: Solid brass cylinder, 6-pin, “C” keyway, 2 keys
• Strike: #4035 (Included) 1-1/8” x 3-1/8”
• Strike: #4035-1 (Optional) 1-1/8” x 3-1/2” FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 3E, 10, 10B,
26, 32, 32D
—LOCK ONLY — 181 204
K, 31K CYLINDER x TURNPIECE E06071 239 262
L, 31L COMMUNICATING SINGLE CYL. E06081 214 237
M, 31M DOUBLE CYLINDER E06061 242 271
S, 31S CLASSROOM (Specify Handing) E06091 271 295
X, 31X TURNPIECE ONLY 191 212
MORTISE LOCK BODIES ARE PACKED 6 PER CASE
Series 31
Standard Features Series 2 • 2-1/2” Backset
Series 3 • 2-3/4” Backset
• Backset: Series 2: 2-1/2”; Series 3: 2-3/4”
• Bolt throw: 1”
• Case: High pressure cast
• Front: 1-1/16” x 4-5/8” flat or 3° bevel
• Cylinder: Solid brass cylinder, 6-pin, “C” keyway, 2 keys
• Strike: #4035 Included
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 3E, 10, 10B,
26, 32, 32D
—LOCK ONLY — 127 149
K, 2K, 3K CYLINDER x TURNPIECE E06071 186 206
L, 2L, 3L COMMUNICATING SINGLE CYL. E06081 163 186
M, 2M, 3M DOUBLE CYLINDER E06061 196 217
S, 2S, 3S CLASSROOM (Specify Handing) E06091 215 241
X, 2X, 3X TURNPIECE ONLY 137 157
MORTISE LOCK BODIES ARE PACKED 6 PER CASE
Standard Features Series 5 • 2-3/4” Backset
Series 55 • 2-1/2” Backset
• Backset: Series 5: 2-3/4”; Series 55: 2-1/2”
• Bolt throw: Stainless steel full 1” throw
• Case: Stamped steel .090 thick,
Zinc dichromate finish
• Front: 1-1/4” x 8” Adjustable bevel
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 3E, 10,
10B, 32
T, 5T DOUBLE CYLINDER F16 364 377
P, 5P CYLINDER x TURNPIECE F17 334 356
S, 5S SINGLE CYLINDER* F18 308 332
SC, 5SC CLASSROOM* F29 356 377
MORTISE LOCK BODIES ARE PACKED 6 PER CASE
*NOTE: Specify handing on “S” and “SC” functions
Series 2 & 3
mortise DeaDlocks
Series 5
Series 55
![](asset-27.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
39
Mortise Parts, Trim

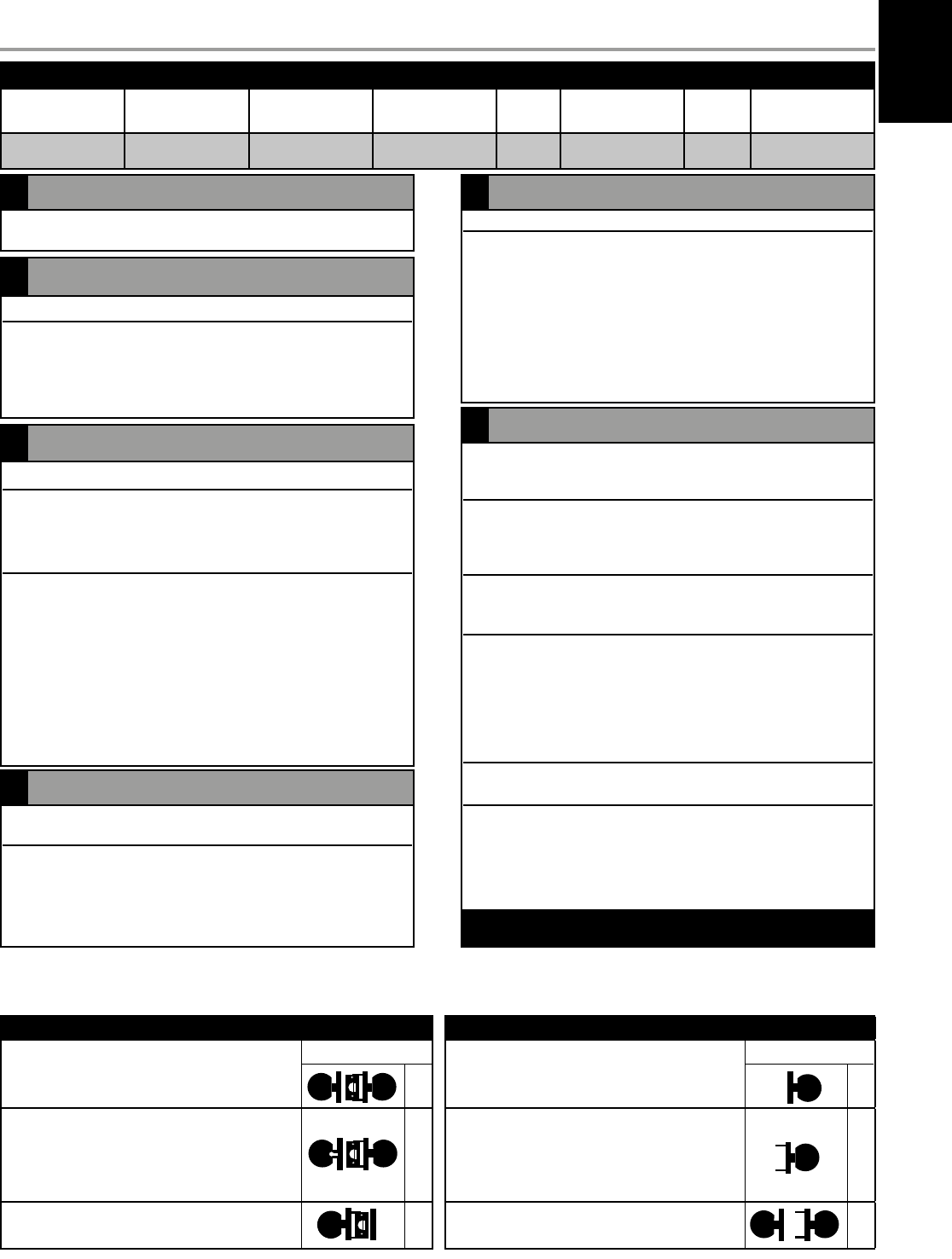

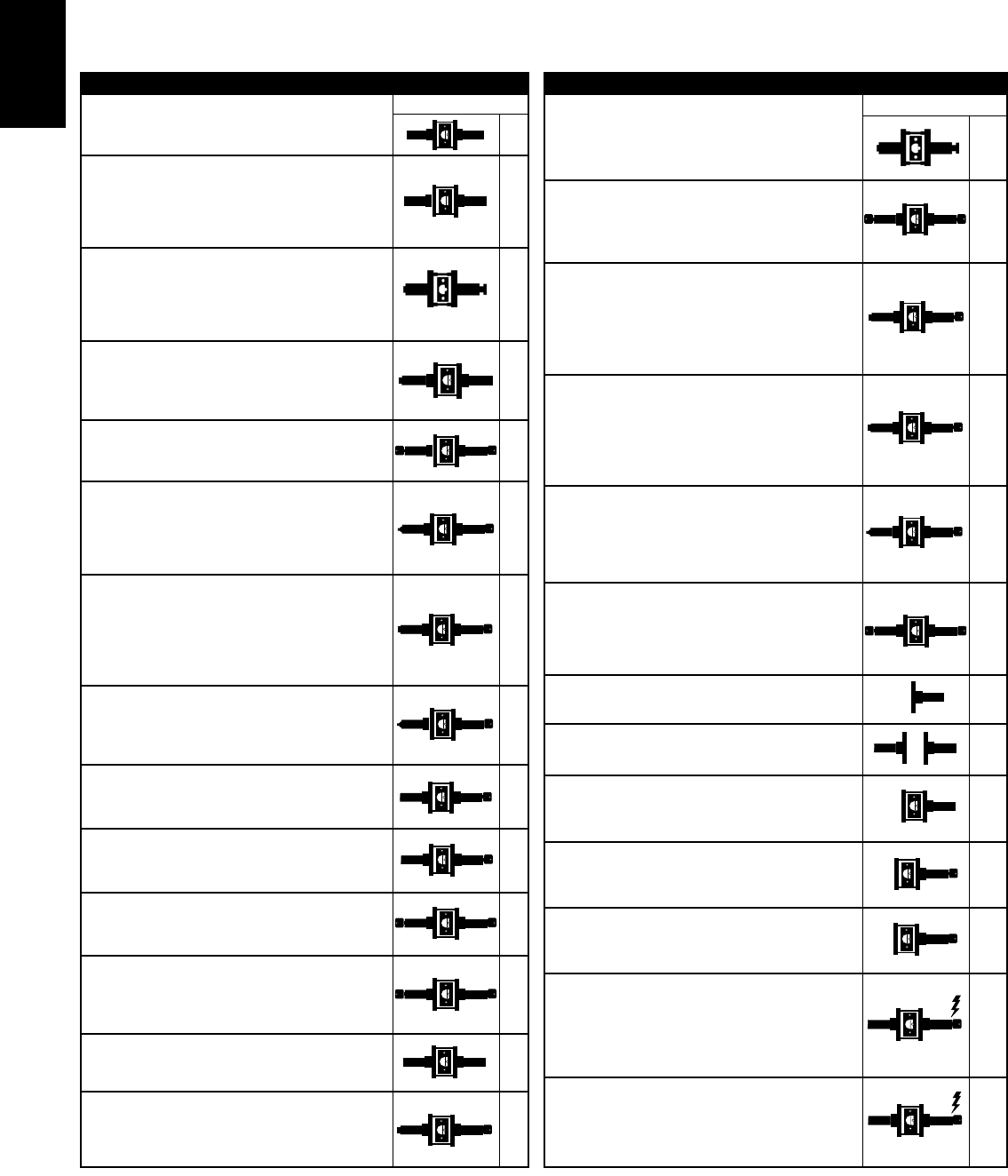

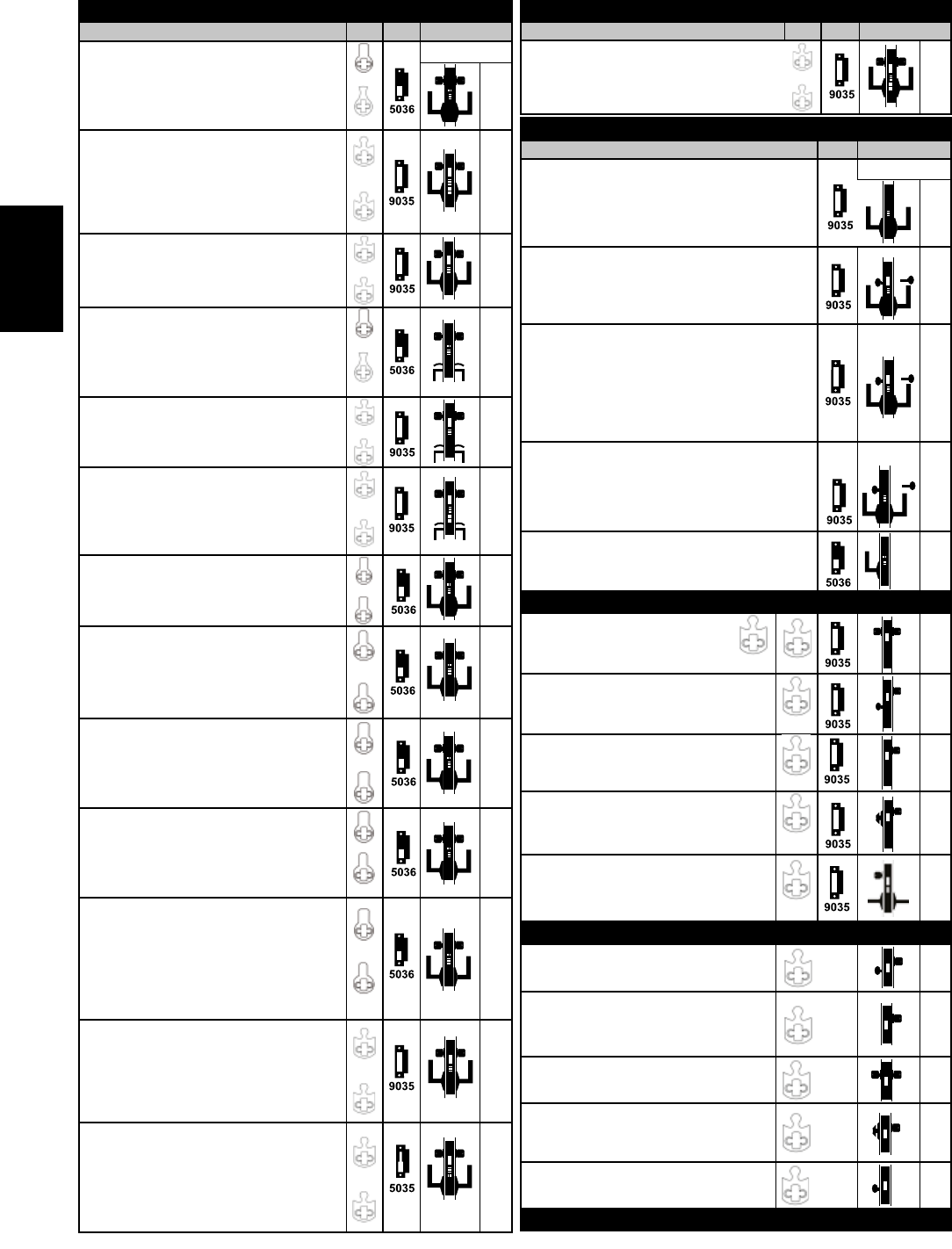

mortise lockset Functions
SINGLE CYLINDER FUNCTIONS
ANSI # Cam Strike Marks Function
F04: OFFICE
Latch by knob/lever either side except when outside knob/
lever locked by stop-button in front; then by key outside.
Auxiliary latch deadlocks latch. Inside always open.
I/S O/S
E
F04: OFFICE
Latch by knob/lever either side except when outside knob/
lever locked by turn piece inside; then by key outside.
Auxiliary latch deadlocks latch. Inside always open.
K
F05: CLASSROOM
Latch by knob/lever either side except when outside knob/
lever locked by key. When locked, latch bolt retracted by
key. Inside always open. Auxiliary latch deadlocks latch.
J
F06: HOLDBACK “A”
Latch by knob/lever either side except when outside knob/
lever locked or unlocked by key. Auxiliary latch deadlocks
latch. Inside always open. Inside knob/lever unlocks out-
side lever. Latch bolt can be locked in retracted position by
locking inside hub. Can be used with blank outside trim.
JM
F06: HOLDBACK “B”
Latch by knob/lever either side except when outside knob/
lever locked or unlocked by key. Auxiliary latch deadlocks
latch. Inside always open. Inside knob/lever will not unlock
outside knob/lever. Latch bolt can be locked in retracted
position by locking outside hub. Can not be used with
blank outside trim.
JR
F07: STOREROOM
Latch by knob/lever inside, key outside. Outside knob/
lever always rigid. Auxiliary latch deadlocks latch. Inside
always open.
EW
F08, F10: ENTRANCE
Latch by knob/lever either side except when outside
locked by stop-button; then by key outside, knob/lever
inside. Deadbolt by key outside, turnpiece inside. Deadbolt
deadlocks latch.
A
F12: DORMITORY
Latch by knob/lever either side except when outside
knob/lever locked by stop-button or projected deadbolt.
Deadbolt by turnpiece inside. Inside knob/lever retracts
latch and deadbolt simultaneously, leaving outside locked.
Deadbolt deadlocks latch.
F
F13: DORMITORY
Latch by knob/lever either side except when projected
deadbolt locks outside knob/lever and deadlocks latch.
Deadbolt and latch by key outside. Deadbolt by turnpiece
inside. Inside knob/lever retracts latch and deadbolt simul-
taneously, automatically unlocking outside knob/lever.
FW
F15: HOTEL
Inside knob/lever always free, outside rigid. Latch by
knob/lever inside, key outside. (When deadbolt projected
by turnpiece all keys are shut out except emergency
key). Inside knob/lever retracts deadbolt and latch
simultaneously. Auxiliary latch or deadbolt deadlocks latch.
Indicator available.
H
F20: APARTMENT
Latch by knob/lever either side except when outside
locked by stop-button or projected deadbolt. Latch
deadlocked by auxiliary latch or deadbolt. Deadbolt
and latch by key outside. Deadbolt by turnpiece
inside. Inside knob/lever retracts latch & deadbolt
simultaneously, leaving outside locked.
FD
SINGLE CYLINDER FUNCTIONS
ANSI # Cam Strike Marks Function
F21: ENTRANCE
Latch by knob/lever either side. Deadbolt by key
outside, turnpiece inside. Deadbolt deadlocks latch.
I/S O/S
B
F26: INSTITUTIONAL PRIVACY
Latch by knob/lever either side except when outside
knob/lever locked by inside turn piece. Latch dead-
locked by auxiliary latch. Key outside opens latch.
When outside locked, inside knob/lever retracts latch,
automatically unlocking outside knob/lever.
GL
F27: Auto Deadbolt
Depressing auxiliary latch projects deadbolt and
deadlocks latch. Remains locked even if auxiliary
latch is extended. Inside knob/lever retracts both bolts
simultaneously. When outside is locked, both bolts are
retracted by override key with outside knob/lever.
AD
OFFICE VESTIBULE:
Latch by knob/lever either side except when outside
knob/lever locked by stop-button in front; then by key
outside.
D
VESTIBULE:
Latch by knob/lever inside, key outside.
Outside knob/lever always rigid.
DW
DORMITORY:
Latch by knob/lever inside. Outside knob/lever always
rigid. Deadbolt and latch by key outside. Deadbolt by
turnpiece inside. When deadbolt is
projected, latch is deadlocked. Inside knob/lever
retracts latch and deadbolt simultaneously.
FS
SPECIAL PRIVACY:
Inside knob/lever always free, outside rigid. Latch by
knob/lever inside, key outside. Deadbolt by turnpiece
inside, emergency release outside. Inside knob/lever
retracts deadbolt and latch simultaneously. Auxiliary
latch deadlocks latch.
LH
STOREROOM:
Latch by thumbpiece inside. Key outside.
DN
STOREROOM:
Latch by thumbpiece or knob/lever inside. Key
outside. Auxiliary latch deadlocks latch.
EN
ELECTRIFIED FUNCTIONS
ELECTRICALLY LOCKED (Fail Safe):
Outside always locked electrically. Open by key
outside, switch or loss of power. Auxiliary latch dead-
locks latch. Inside always open.
EL
ELECTRICALLY UNLOCKED (Fail
Secure):
Outside always locked until unlocked by key or
electrically energized. Auxiliary latch deadlocks latch.
Inside always open.
EU
2102
2102
2101
2101
2101
2102
2102
2101
2101
2101
2101
ANSI # TYPE MARKS FUNCTION
F01 ............... Non-Keyed .................................... N
F02 ............... Non-Keyed .....................................L
F04 ............... Single Cylinder .............................. E
F05 ............... Single Cylinder ...............................J
F06 ............... Single Cylinder ............................JM
F06 ............... Single Cylinder ............................ JR
F07 ............... Single Cylinder ...........................EW
F08 ............... Single Cylinder .............................. A
F09 ............... Double Cylinder ............................G
ANSI # TYPE MARKS FUNCTION
F10 ............... Single Cylinder .............................. A
F11 ............... Double Cylinder .......................... FA
F12 ............... Single Cylinder ...............................F
F13 ............... Single Cylinder ........................... FW
F14 ............... Double Cylinder ............................ C
F15 ............... Single Cylinder .............................. H
F16 ............... Deadbolt .........................................T
F17 ............... Deadbolt ........................................ P
F18 ............... Deadbolt ........................................ S
ANSI # TYPE MARKS FUNCTION
F19 ............... Non-Keyed ...................................LF
F20 ............... Single Cylinder ............................FD
F21 ............... Single Cylinder .............................. B
F22 ............... Non-Keyed ................................... LJ
F24 ............... Double Cylinder ............................G
F25 ............... Double Cylinder ............................ C
F25 ............... Double Cylinder ..........................SO
F26 ............... Single Cylinder ............................GL
F27 ............... Auto Deadbolt .............................AD
ANSI # TYPE MARKS FUNCTION
F29 ............... Deadbolt ......................................SC
F30 ............... Double Cylinder ........................WW
F31 ............... Non-Keyed .................................. EX
F32 ............... Double Cylinder ......................... GC
F33 ............... Double Cylinder .......................... FX
F34 ............... Double Cylinder ..........................FC
F35 ............... Double Cylinder ..........................AC
2101
2105
2105
2105
2105
2101
2102
2102
2102
2102
I/S
2101
2105
![](asset-28.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
40
Mortise Parts, Trim
mortise lockset Functions
DOUBLE CYLINDER FUNCTIONS
ANSI # Cam Strike Marks Function
F09: ENTRANCE
Latch by knob/lever either side except when outside
knob/lever locked by key inside, latch retracted by key
outside. Outside remains locked. Auxiliary latch
deadlocks latch.
I/S O/S
G
F11: DORMITORY
Latch by knob/lever either side except when outside
knob/lever locked by stop-button or projected dead-
bolt. Deadbolt by key either side. Inside knob/lever
retracts latch and deadbolt simultaneously leaving
outside locked. Deadbolt deadlocks latch.
FA
F14: STOREROOM
Latch by knob/lever either side. Deadbolt by key
either side. Deadbolt deadlocks latch.
C
F24: APARTMENT HANDLE
Latch by thumbpiece either side except when outside
is locked by key inside. When outside is locked, latch
retracted by key outside or thumbpiece inside.
Auxiliary latch deadlocks latch.
G
F25: STOREROOM “B” Body
Latch by thumbpiece either side.
Deadbolt by key either side.
C
F25: STOREROOM
Latch by thumbpiece either side except when outside
thumbpiece locked by stop-button in front; then by key
outside. Deadbolt by key both sides. Deadbolt dead-
locks latch.
SO
F30: INSTITUTION
Both knob/levers rigid. Auxiliary latch deadlocks latch.
Latch by key either side.
WW
F32: INTRUDER LATCH BOLT
Latch by knob/lever either side except when outside
knob/lever is locked from inside or outside by key.
Latch operated by key from inside or outside. Auxiliary
latch, deadlocks latch. Inside always open.
GC
CLASSROOM SECURITY
Latch bolt retracted by knob/lever from either side
unless outside is locked by key from either side.
Auxiliary latch deadlocks latch bolt when door is
locked. Inside knob/lever is always free for immediate
egress.
GG
CLASSROOM SECURITY
Latch by lever either side except when outside lever is
locked or unlocked by key from either side. With out-
side locked, exterior key will retract the latch allowing
the outside to remain locked. Inside always free for
egress. Auxiliary latch deadlocks latch.
GJ
CLASSROOM SECURITY w/HOLDBACK
Latch bolt retracted by knob/lever from either side
unless outside is locked by key from either side. When
locked, latch bolt retracted by key outside or knob/
lever inside. Auxiliary latch deadlocks latch bolt when
door is locked. Depress inside knob/lever and turn key
360° for holdback feature. Inside knob/lever always
free for immediate egress.
GR
F33: DORMITORY
Latch by knob/lever either side except when projected
deadbolt locks outside knob/lever and deadlocks latch.
Deadbolt and latch by key either side. Inside knob/
lever retracts latch and deadbolt simultaneously, auto-
matically unlocking outside knob/lever.
FX
F33: DORMITORY
Latch by knob/lever either side except when projected
deadbolt locks outside knob/lever and deadlocks latch.
Deadbolt and latch by key either side. Inside knob/
lever retracts latch and deadbolt simultaneously, auto-
matically unlocking outside knob/lever.
FC
NON-KEYED FUNCTIONS
ANSI # Strike Marks Function
F01: PASSAGE
Latch by knob/lever either side.
I/S O/S
N
F02:BATHROOM*
Latch by knob/lever either side. Deadbolt by turnpiece
inside. Deadbolt deadlocks latch. To unlock from outside,
remove emergency button, insert emergency key in access
hole and turn. Optional coinkey assembly available.
L
F19: PRIVACY*
Latch by knob/lever either side except when projected
deadbolt locks outside knob/lever and deadlocks latch.
Deadbolt by turnpiece inside. Inside knob/lever retracts
latch and deadbolt simultaneously, automatically unlocking
outside knob/lever. To unlock from outside,remove
emergency button, insert emergency key in access hole and
turn. Optional coinkey assembly available.
LF
F22: PRIVACY
Latch by knob/lever either side except when outside knob/
lever is locked by inside turnpiece. Turning inside knob/
lever or closing door unlocks outside lever. To unlock from
outside, remove emergency button, insert emergency key in
access hole and turn. Optional coinkey assembly available.
LJ
F31: EXIT
Latch by knob/lever inside, no trim outside. Auxiliary latch
deadlocks latch. None removable blank trim: F26 option
EX
DEADBOLT FUNCTIONS
F16: DEADLOCK
Deadbolt by key either side. T
F17: DEADLOCK
Deadbolt by key outside and turnpiece inside. P
F18: DEADLOCK
Deadbolt by key one side only. S
F29: DEADLOCK
Deadbolt by key outside. Inside turnpiece will retract
but will not project deadbolt.
SC
DEADLOCK
Latch by knob/lever either side. Deadbolt by key
either side; latch remained unlocked at all times.
Note: With this function deadbolt protrusion is 13/16
CT
DEADLOCK FUNCTIONS
E06072: CYLINDER BY TURNPIECE
Deadbolt by inside turnpiece or outside key. K
E06082: COMMUNICATING
SINGLE CYLINDER*
Deadbolt by key from one side only.
L
E06062: DOUBLE CYLINDER
Deadbolt by key either side. M
E06092: CLASSROOM
Deadbolt by outside key.
Turnpiece will retract but not project deadbolt.
S
TURNPIECE
Deadbolt by inside turnpiece. X
*PRIVACY INDICATOR AVAILABLE
Cam
2102
21022102
2102
2102
2102
2102
2102
2102
2102
2102
I/S
DOUBLE CYLINDER FUNCTIONS (Con’t)
ANSI # Cam Strike Marks Function
F35: STORE DOOR
Latch by knob/lever either side except when outside
knob/lever locked by stop-button in front; then by
key outside. Deadbolt by key either side. Deadbolt
deadlocks latch.
AC
2102
I/S
2101
2106
2101
2106
2102
2102
2102
2102
2101
2105
2105
2105
2101
2101
2102
2102
I/S
I/S
I/S
I/S
I/S
I/S
I/S
I/S
I/S
I/S
I/S
I/S
2101
I/S
![](asset-29.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
41
mortise lockset Parts rk, rl
KRR44
KRW031
KRW96
KRW83*
KRW92
KRW86
KRW72 KRS82
KRW78
KRW77
PART # DESCRIPTION
FINISH GROUPS
3E 4 10,
10B, 26 15 26D 32D
ROSE
RK*
ROSE
RL*
ROSE WITH
RING RR
SMALL ROSE WITH
RING RQ Complete lever/rose assemblies both sides (includes spindles).
KRR44 KRQ44 Stanhope lever/rose kit 208 312 312 312 312 — +106
FOR ALL
FINISHES
+31
FOR ALL
FINISHES
KRR57 KRQ57 Monaco lever/rose kit 208 312 312 312 — —
KRR55 KRQ55 Brompton lever/rose kit 208 312 312 312 — —
PLAIN
ROSE RW
SMALL
ROSE RS Complete lever/rose assemblies both sides (includes spindles). ROSE
RK *
ROSE
RL: *
KRW031 KRS031 Copa lever/rose kit 312 312 — 312 312 —
+106
FOR ALL
FINISHES
31
FOR ALL
FINISHES
KRW72 KRS72 Towne lever/rose kit 312 312 312 312 353 —
KRW77 KRS77 Maxwell lever/rose kit 312 312 312 312 353 332
KRW78 KRS78 Omni lever/rose kit 312 312 312 312 353 332
KRW82 KRS82 Plaza lever/rose kit 312 312 312 312 353 332
KRW83 KRS83 Dayton lever/rose kit 312 312 312 312 353 332
KRW86 KRS86 Crescent lever/rose kit 312 312 312 312 353 —
KRW92 KRS92 American lever/rose kit 312 312 312 312 353 332
KRW96 KRS96 Titan lever/rose kit 312 312 312 312 353 332
ROSE
WITH
RING
PLAIN
ROSE
SMALL
ROSE
W/RING
SMALL
ROSE DESCRIPTION
FINISH GROUPS
3 3E 10,
10B 15 26 32D ROSE
RK*
KRR10 KRW10 KRQ10 KRS10 Round knob/ball assembly
195 — — — — 195
+106
KRR20 KRW20 KRQ20 KRS20 Ball knob/ball assembly
KRR30 KRW30 KRQ30 KRS30 Ball knob/ball assembly
— 212 251 284 284 —
KRR60 KRW60 KRQ60 KRS60 Eclipse knob/ball assembly
NO FINISH
K-TEMP Temporary Trim 66
K-TEMP-G3 Temporary Trim less cyl 50
Complete knob/rose assemblies both sides (includes spindles).
Mortise Parts, Trim
Knob / Rose Kits
Lever / Rose Kits
KRW10
KRQ60KRR30
KRS20
K-TEMP
* Specify handing
KRQ55
KRR57*
ROSES
RR: 2-9/16” dia. RW: 2-9/16” dia. RQ: 2-1/4” dia. RS: 2-1/4” dia. RX: 2-1/2” sq. *RK: 2-1/2” sq. *RL: 2-1/2” sq.
Wrought Forged Forged
![](asset-2a.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
42
A9624
S8516
S8519
9273
92711604
A9276
9279
A9615
A1605 A7615
ONLY 32D
9277
9275
9287
mortise lockset Parts
DUST BOX
4036
PART # DESCRIPTION
9287 2-1/2” LONG, HOOK SPINDLE, 2 PIECE 14
9289 4-3/4” LONG, SWIVEL SPINDLE 14
A5611 SPINDLE/SPRING ASSEMBLY FOR LEVERS, 5/16”, 1” L 14
A5613 SPINDLE/SPRING ASSEMBLY FOR LEVERS, 5/16”, 1-5/8” L 14
A5685-BE CAM/SPINDLE SPRING ASSEMBLY EXTERIOR 23
A5684-BE CAM/SPINDLE SPRING ASSEMBLY INTERIOR 23
TYPE PART # A B C*D
FINISH GROUPS
S3 3, 10, 10B,
32, 32D
No Lip
4035 1-1/8” 3-1/8” — — 8 16
4035-1 1-1/8” 3-1/2” 3-1/2” 2-1/2”
9038 1-1/8” 4-7/8” — 2-1/2” 9 —
3135 1-1/4” 4-7/8” — — — 21
Curved
Lip
5035 †1-1/4” 4-7/8” 1-1/4” 4-1/8” — 23
5036 †1-1/4” 4-7/8” 1-1/4” 4-1/8” — 23
9035 1-1/4” 4-7/8” 1-1/4” 4-1/8” 8 23
9035-1.5 1-1/4” 4-7/8” 1-1/2” 4-1/8” — 36
Straight
Lip
5035M †1-1/4” 4-7/8” 7/8” 4-1/8” — 28
5036M †1-1/4” 4-7/8” 7/8” 4-1/8” — 28
9035M 1-1/4” 4-7/8” 7/8” 4-1/8” — 28
Dust
Box
9036 Dust box for 9038 strike, plastic 8 —
4036 Dust box for 4035 strike, plastic 6 —
† Specify handing.
Extended lip strikes from 1-1/4” - 2”, Add $16.
*Extended lip strikes over 2”, consult factory.
A5613 A5685-BE A5684-BE
Mortise Parts, Trim
Dummy Cylinder, Collars & Turnpieces
Strikes
Spindles
C
CURVED LIP
STRAIGHT LIP
5036
5036M 5035M 9035M
5035 9035-1.59035
9289 A5611
9036
DUST BOX
For extended lip
consult factory.
*
A9119
PART # DESCRIPTION
FINISH GROUPS
3E 3,
26D 4 10,
10B, 26 32 32D
1604 Emergency hole cover — 9 — — — —
9271 Tapered collar, solid brass, 5/16” high 31 23 — 23 27 23
9273 Spring collar, 7/16” high — 14 — — — —
9275 Mortise spacer, wrought brass, 1/8” high — 8 — — — —
9277 Plastic spacer ring, 1/16” 6 — — — — —
9279 Tapered collar, wrought brass, 3/8” high 21 16 — 21 18 16
S8516 Dummy cylinder, inside 41 41 — 41 — —
S8519 Dummy cylinder, outside 41 41 — 41 — —
A1605 Emergency coinkey 69 63 63 63 — —
A7271 Square cylinder collar, 1-3/4” x 5/16” 42 36 — 36 36 36
A7615 Occupancy indicator — — — — — 52
A7616 Square Turnpiece Rose 75 57 75 66 66 66
A9276 Collar, wrought brass w/insert, 1/2” high — 21 — 29 29 29
A9624 Hotel indicator plate ass’y for rose trim 89 66 — 71 — —
A9119 Occupancy indicator plate ass’y for rose trim — 102 — — — —
A9615 Turnpiece 64 46 64 54 — 54
A7271
A7616
NO LIP
4035 4035-1
3135
9038
![](asset-2b.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
43
trim lock Parts
How to Order Example
for Knob & Lever Assemblies
DV 02 – 30 / 15 – G3
1.
Plate/Rose Design
2.
Trim Description Dash 3.
Knob/Lever Design Slash 4.
Finish Dash 5.
Options
How to Order Example
for Handle Assemblies
PO41-39 / 15 – G3
1.
Handle Assembly Design Slash 2.
Finish Dash 3.
Options
PLATE/ROSE
DESIGN
BA
CL
CP
CR
DR
DV
GC
MA
NY
NS
TN
RR
RW
RQ
RS
RX
PLATE/ROSE
DESIGN
CR41-39 Crown TN41-39 Towne
OPTIONS
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
OPTIONS
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
––––––––––––––––––
LEVER DESIGN
44
55
57
72
77
78
82
83
86
92
96
031
TRIM DESCRIPTION
01 Outside knob/lever/cylinder
02 Inside knob/lever/turnpiece
03 Inside knob/lever/cylinder
04 Inside knob/lever only
05 Outside cylinder only
06 Outside knob/lever
/emergency coinkey
07 Outside hotel
08 Outside knob/lever only
KNOB DESIGN
10
20
30
60
FINISH
3
3E
4
10
10B
15
26
26D
32D
Special
FINISH
3E
15
Special
Specify
• Keying
• Handing
• Door Thickness
Specify
• Keying
• Handing
• Door Thickness
Mortise Parts, Trim
![](asset-2c.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
44
Mortise Parts, Trim
PLATE/ROSE DESIGN 3 3E 10 10B 15 26D 32D
BARRIER
BA — — — — — — 229
CLASSIC
CL 80 — 80 80 — 81 94
CAPITOL
CP 129 — 127 127 — — 118
CROWN
CR 163 — 186 186 163 163 163
DRAKE
DR 197 — 215 215 197 197 204
DAVOS
DV 266 — 289 289 266 266 —
MADISON
MA — 214 — — 250 — —
SCHOOL
LA — — — — — — 186
PLATE/ROSE DESIGN 3 3E 10 10B 15 26D 32D
NEW YORKER
NY
10” PLATE
46 — — — — 56 —
NEW YORKER
NS
7” PLATE
34 — — — — 46 —
TOWNE
TN — 214 — — 251 — —
2-9/16” DIA.
ROSE W-RING
RR
108 141 130 130 119 108 108
2-9/16” DIA.
PLAIN ROSE
RW
108 141 130 130 119 108 108
2-1/4” DIA.
SMALL ROSE
W-RING RQ
108 141 130 130 119 108 108
2-1/4” DIA.
SMALL ROSE
RS
108 141 130 130 119 108 108
2-1/2” SQ.
SQUARE
ROSE RX
108 141 130 130 119 108 108
2-1/2” SQ.
SQUARE
ROSE RK
SQUARE
TURNPIECE
ROSE
A7616
59 75 66 66 66 66 66
2-1/2” SQ.
SQUARE
ROSE RL
192 223 213 213 202 192 192
trim lock Parts
OUTSIDE
INSIDE
181 212 201 201 191 181 181
192 223 213 213 202 192 192
![](asset-2d.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
45

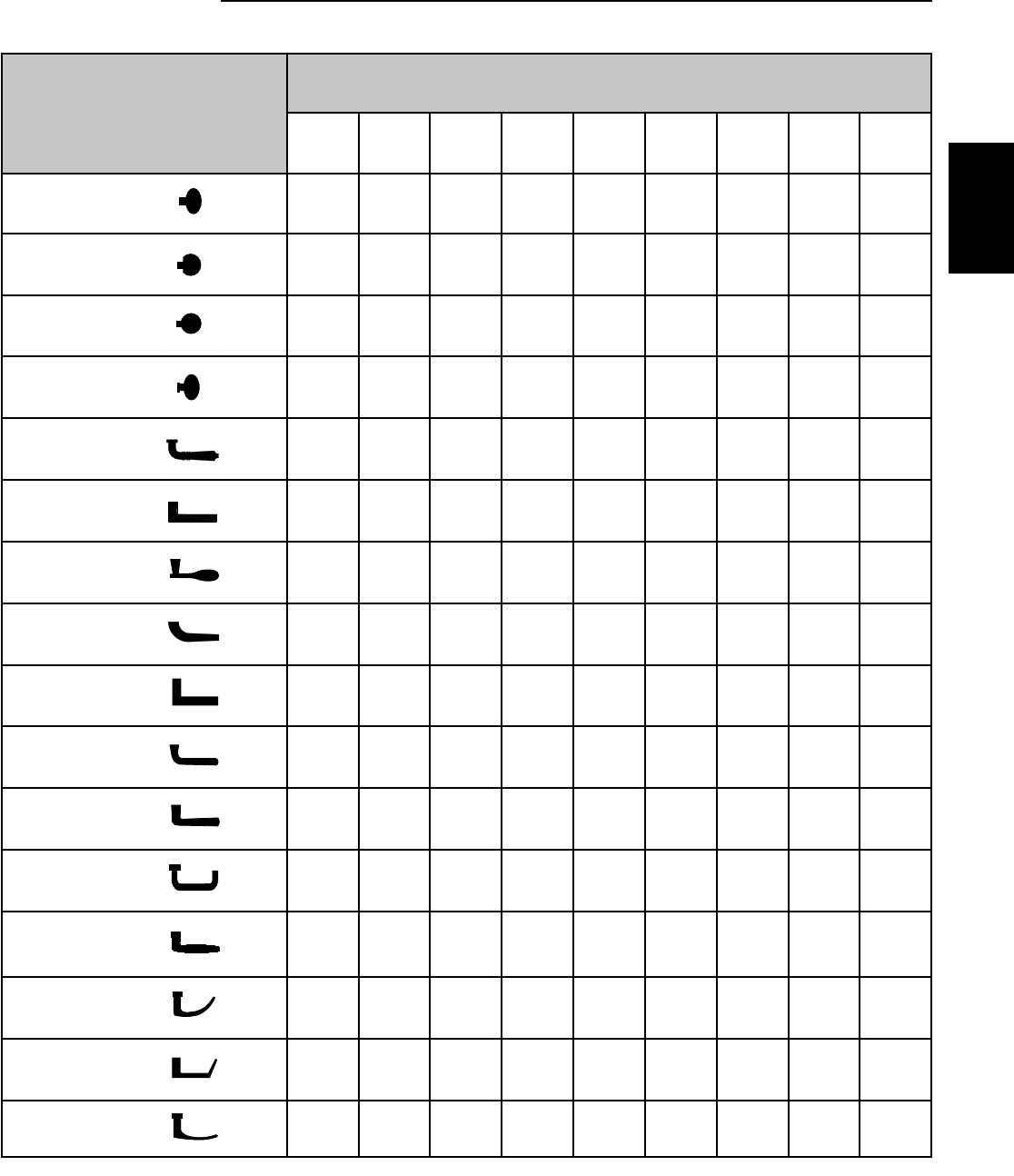

KNOB/LEVER
FINISH GROUPS
3 3E 4 10 10B 15 26 26D 32D
ROUND KNOB 10 96 — — 117 117 — 117 117 96
BALL KNOB 20 96 — — 117 117 — 117 117 96
BALL KNOB 30 —163 — — — 205 205 — —
ECLIPSE KNOB 60 — 163 — — — 205 205 — —
STANHOPE LEVER 44 — 196 196 216 216 196 216 196 —
COPA LEVER 031 163 196 196 216 216 196 216 196 —
MONACO LEVER 57 — 196 196 216 216 196 216 196 —
BROMPTON LEVER 55 — 196 196 216 216 196 216 196 —
TOWNE LEVER 72 163 196 196 216 216 196 216 196 192
MAXWELL LEVER 77 163 196 196 216 216 196 216 196 192
OMNI LEVER 78 163 196 196 216 216 196 216 196 192
PLAZA LEVER 82 163 196 196 216 216 196 216 196 192
DAYTON LEVER 83 163 196 196 216 216 196 216 196 196
CRESCENT LEVER 86 163 196 196 216 216 196 216 196 192
AMERICAN LEVER 92 163 196 196 216 216 196 216 196 192
TITAN LEVER 96 163 196 196 216 216 196 216 196 192
trim lock Parts
Knob / Lever Design
Mortise Parts, Trim
![](asset-2e.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
46

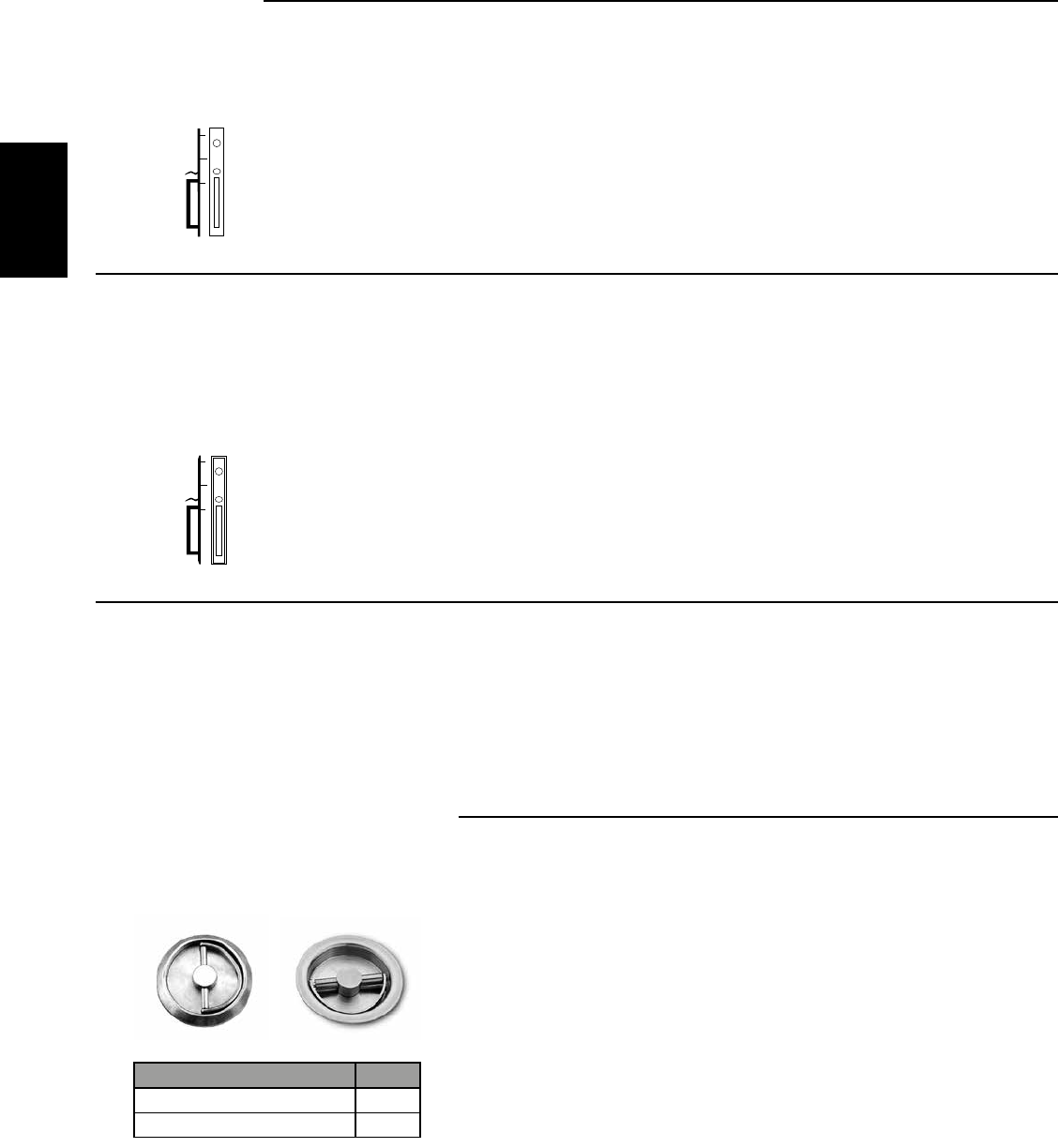

Handle Design
3E
CR41-39
Crown
16” x 3-7/32” x 11/16”
476
534
15
3E
TP015 TP046
TN41-39
Towne
16-3/8” x 2-1/4” x 3/8”
476
534
15
trim lock Parts
Recess Stainless Steel Door Pulls
mortise Door accessories
Mortise Parts, Trim
MARKS # PRICE
TP015 32
TP046 32
![](asset-2f.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
47
Cylindrical
Locksets
H T O C L
How To Order Example
for Cylindrical Locksets
195 N /26D — G3
1.
Lockset Series
2.
Marks Function Slash 3.
Finish Dash 4.
Options
1 SERIES
Cylindrical Locksets: 110, 110R, 210, 210R, 180, 180R, 280,
280R, 175, 175R, 195, 195R, 295, 295R,
495, 495R
3 FINISH
MARKS # ANSI #
US 3 Polished Brass, Clear Coated 605
US 4 Satin Brass, Clear Coated 606, 606E
US 10 Satin Bronze, Clear Coated 612E
US 10B Dark Bronze, Clear Coated 613E
US 26 Polished Chrome, Plated 625
US 26D Satin Chrome, Plated 626
US 32 Polished Stainless Steel 629
US 32D Satin Stainless Steel 630
4 OPTIONS
TRIM MODIFICATIONS CODE PRICE
Tactile knob/lever, coated ext. only A1 60
Tactile knob/lever, knurled A4 60
Large rose 3-1/8” diameter A8 11
Tactile knob/lever, coated int. & ext. A18 122
DOOR THICKNESS CODE PRICE
2” (50 mm) D1 NC
2-1/4” (57mm) D2 75
Over 2-3/8” - 4” D9 648
LATCH CODE PRICE
2-3/4” backset, 1-1/8” x 2-1/4” face E4 NC
2-3/8” backset, 1” x 2-1/4” face E6 NC
2-3/4” backset, 9/16” throw, Gr. 1, UL Listed E7 47
5” backset, 9/16” throw, Gr. 1 E9 47
3-3/4” backset, 9/16” throw, Gr. 1 E10 47
2-3/8” backset, 1-1/8” x 2-1/4” face E11 12
2-3/4” backset, 1” x 2-1/4” face E12 12
TRIM CHANGES CODE PRICE
Yale conventional F7 23
Sargent conventional cylinder F8 23
Corbin conventional cylinder F9 23
Corbin 6 pin IC core F12 34
Corbin 7 pin IC core F13 34
Yale 6 pin IC core F14 23
Yale 7 pin IC core F15 23
Schlage 6 pin IC core F19 23
Sargent IC core F20 23
Medeco IC core large format F21 23
CYLINDER CODE PRICE
Special optional keyway G2 37
Less cylinder G3 Deduct 15
STRIKE CODE PRICE
4-7/8” ASA strike S1 13
2-3/4” “T” strike S3 NC
2CYLINDRICAL FUNCTIONS
MARKS # FUNCTION ANSI
#
N — PASSAGE F75
L — PRIVACY F76
LK — HOSPITAL/PRIVACY F76 MOD.
P — PATIO F77
DC RDC COMMUNICATING F80
A RA ENTRY F81
B RB ENTRY F82A
AQ — EXIT F83
S RS CLASSROOM F84
F RF STOREROOM F86
DW RDW INSTITUTION F87
DA RDA VESTIBULE F88
FQ — EXIT F89
T RT CORRIDOR F90
TK — HOSPITAL/PRIVACY F90 MOD.
GB RGB STORE DOOR (95 SERIES ONLY) F91
BS — SERVICE STATION LOCK F92
H — HOTEL F93
AB RAB ENTRANCE F109
DB RDB CLASSRM. INTRUDER F110
NB — COMMUNICATING PASSAGE F111
FB COMMUNICATING STOREROOM F112
SB RSB COMMUNICATING CLASSROOM F113
FEL RFEL ELECTRONICALLY LOCKED
FEU RFEU ELECTRONICALLY UNLOCKED
DUMMY TRIM
DO DUMMY TRIM OUTSIDE
DT FULL DUMMY
![](asset-30.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
48
Cylindrical
Locksets
80 LINE graDe 1 cylinDrical knoBsets
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
ANSI-A156.2 • Grade 1
3 Hour Fire Rating
Series 180/180R • 2-3/4” Backset
Series 280/280R • 2-3/4” Backset
80 Series Knobsets Shown Below Standard Features
• Backset: 2-3/4”
• Latch #1834, Front: 1-1/8” x 2-1/4”
• Throw: 9/16”; Stainless steel nose
• Knobs: 2-1/4” dia. (180) round; 2-3/16” dia. (280) ball
• Roses: Adjustable both sides; Steel reinforced 2-3/4” dia.
• Strike: #1135, 4-7/8” ASA curved lip strike
• Door thickness: 1-5/8” to 1-7/8”
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
MARKS #
FUNCTION ANSI #
FINISH GROUPS
COMM.
CYL.
IC CORE
CYL.* 3v, 32D 10, 10B, 32
N — PASSAGE F75 434 473
L — PRIVACY F76 438 477
P — PATIO F77 438 477
DC RDC vCOMMUNICATING F80 508 547
A RA vENTRY F81 461 500
BRB vENTRY F82A 461 500
AB RAB vENTRY F109 461 500
AQ — EXIT F83 449 488
S RS vCLASSROOM F84 461 500
F RF vSTOREROOM F86 461 500
DW RDW vINSTITUTION F87 508 547
DA RDA vVESTIBULE F88 508 547
FQ — EXIT F89 449 488
TK — HOSPITAL/PRIVACY MOD. F90 473 511
BS RBS vSERVICE STATION LOCK F92 474 512
DO — DUMMY TRIM OUTSIDE — 262 282
DT — FULL DUMMY TRIM — 361 400
NB — COMMUNICATING PASSAGE F111 398 418
FB RFB vCOMMUNICATING STOREROOM F112 457 477
SB RSB vCOMMUNICATING CLASSROOM F113 457 477
KNOBS ARE PACKED 12 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
• IC Core Models: Tailpieces included, core not included
vIC Core Models in US3 Finish: Add $42.00 to list price
180 Series Knobset Shown Below 280 Series Knobset Shown Below
OPTIONS CODE PRICE
For 2” doors D1 NC
For 2-1/4” doors D2 75
2-3/8” backset, 1” x 2-1/4” face E6 NC
5” backset, 9/16” throw, Gr. 1 E9 47
3-3/4” backset, 9/16” throw, Gr. 1 E10 47
Less cylinder G3 Deduct 15
2-3/4” “T” strike S3 NC
![](asset-31.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
49
Cylindrical
Locksets
10 LINE graDe 2 cylinDrical knoBsets
ANSI-A156.2 • Grade 2 Plus
3 Hour Fire Rating
Series 110/110R • 2-3/8” Backset
Series 210/210R • 2-3/8” Backset
10 Series Knobsets Shown Below Standard Features
• Backset: 2-3/8”
• Latch #1138, Front: 1” x 2-1/4”; Throw: 1/2”; Stainless steel nose
• Knobs: 2-1/4” dia. (110) round; 2-3/16” dia. (210) ball
• Roses: Adjustable both sides; Steel reinforced 2-3/4” dia.
• Strike: #1136, 2-3/4” “T” strike
• Door thickness: 1-5/8” to 1-7/8”
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
MARKS #
FUNCTION ANSI #
FINISH GROUPS
COMM.
CYL.
IC CORE
CYL.* 3v, 32D 10, 10B, 32
N — PASSAGE F75 147 187
L — PRIVACY F76 176 215
P — PATIO F77 178 217
DC RDC vCOMMUNICATING F80 235 275
A RA vENTRY F81 208 247
BRB vENTRY F82A 208 247
AB RAB vENTRY F109 208 247
AQ — EXIT F83 194 233
S RS vCLASSROOM F84 208 247
F RF vSTOREROOM F86 208 247
DW RDW vINSTITUTION F87 236 276
DA RDA vVESTIBULE F88 236 276
FQ — EXIT F89 194 233
DO — DUMMY TRIM OUTSIDE — 153 173
DT — FULL DUMMY TRIM — 161 199
NB — COMMUNICATING PASSAGE F111 157 177
FB RFB vCOMMUNICATING STOREROOM F112 220 244
SB RSB vCOMMUNICATING CLASSROOM F113 220 244
KNOBS ARE PACKED 12 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
• IC Core Models: Tailpieces included, core not included
vIC Core Models in US3 Finish: Add $42.00 to list price
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
110 Series Knobset Shown Below 210 Series Knobset Shown Below
OPTIONS CODE PRICE
For 2” doors D1 NC
For 2-1/4” doors D2 75
2-3/4” backset, 1-1/8” x 2-1/4” face E4 NC
2-3/4” backset, 9/16” throw, Gr. 1, UL Listed E7 47
Solid latch for electric strike E9 47
3-3/4” backset, 9/16” throw, Gr. 1 E10 47
Less cylinder G3 Deduct 15
4-7/8” ASA strike with curved lip S1 13
![](asset-32.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
50
Cylindrical
Locksets
Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models
for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®,
KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
ANSI-A156.2 • Grade 1
3 Hour Fire Rating
SURVIVOR SERIES
Series 195/195R, 295/295R, 495/495R • 2-3/4” Backset
95 Series Leversets Shown Below Standard Features
• Backset 2-3/4”
• Latch #1834, Front: 1-1/8” x 2-1/4”; Throw: 9/16”; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2” return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16” dia., spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8” ASA curved lip strike
• Door thickness: 1-5/8” to 1-7/8”; For 1-3/8” door use K1904 spacer
Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
MARKS # FUNCTION ANSI # FINISH GROUPS
COMM. CYL. IC CORE CYL.* 3, 26D 4, 10, 10B, 26
N — PASSAGE F75 416 496
L — PRIVACY F76 439 524
LK — HOSPITAL/PRIVACY F76 MOD. 468 551
P — PATIO F77 434 518
DC RDC COMMUNICATING F80 504 585
A RA ENTRY F81 457 541
B RB ENTRY F82A 457 541
AB RAB ENTRY F109 457 541
AQ — EXIT F83 444 529
S RS CLASSROOM F84 457 541
F RF STOREROOM F86 457 541
DW RDW INSTITUTION F87 504 585
DA RDA VESTIBULE F88 504 585
FQ — EXIT F89 444 529
T RT CORRIDOR F90 468 551
TK — HOSPITAL/PRIVACY F90 MOD. 434 518
GB RGB STORE DOOR F91 621 678
BS RBS SERVICE STATION LOCK F92 468 551
H — HOTEL F93 515 596
DB RDB CLASSROOM INTRUDER F110 555 640
DO — DUMMY TRIM OUTSIDE — 258 340
DT — FULL DUMMY TRIM — 369 452
NB — COMMUNICATING PASSAGE F111 392 474
FB RFB COMMUNICATING STOREROOM F112 461 534
SB RSB COMMUNICATING CLASSROOM F113 461 534
FEL RFEL ELECTRICALLY LOCKED* — 668 752
FEU RFEU ELECTRICALLY UNLOCKED* — 668 752
Marks USA Antimicrobial Finish Available - Option Code: AM - Add $40 LEVERS ARE PACKED 6 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
*ELECTRIFIED FUNCTIONS: 100% Duty Cycle 24V AC/DC, supplied with bridge rectifier : EU - 210 ma; EL - 125 ma • IC Core Models: Tailpieces included, core not included
95 LINE graDe 1 cylinDrical survivor leversets
195 Series Leverset Shown Below 295 Series Leverset Shown Below
495 Series Leverset Shown Below
OPTIONS CODE PRICE - 195 295 495
For 2” doors D1 NC NC NC
For 2-1/4” doors D2 75 75 Call
Over 2-1/4” - 4” thickness D9 648 648 648
2-3/8” backset, 1” x 2-1/4” face E6 NC NC NC
5” backset, 9/16” throw, Gr. 1 E9 47 47 47
3-3/4” backset, 9/16” throw, Gr. 1 E10 47 47 47
Less cylinder G3 Deduct 15 -15 -15
2-3/4” “T” strike S3 NC NC NC
AMERICAN LEVER ONLY Accepts:
Yale conventional cylinder F7 23 23 —
Sargent conventional cylinder F8 23 23 —
Corbin conventional cylinder F9 23 23 —
Corbin 6 pin IC core F12 34 34 —
Corbin 7 pin IC core F13 34 — —
Yale 6 pin IC core F14 23 23 —
Yale 7 pin IC core F15 23 — —
Schlage 6 pin IC core F19 23 23 —
Sargent IC core F20 23 23 —
AMERICAN & CRESCENT LEVER ONLY Accepts:
Medeco IC core large format F21 23 23 —
![](asset-33.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
51
Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models
for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®,
KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
ANSI-A156.2 • Grade 2 Plus
3 Hour Fire Rating
SURVIVOR SERIES
Series 175/175R, 275/275R, 475/475R • 2-3/4” Backset
75 Series Leverset Shown Below Standard Features
• Backset: 2-3/4”
• Latch #1134, Front: 1-1/8” x 2-1/4”; Throw: 1/2”; Stainless steel nose
• Levers: Solid cast Zamac; w/ 1/2” return (except 475)
• Roses: Thru-bolted, 3-1/4” dia., spring loaded 2-#10 thru-bolts
• Strike: #1145, ASA strike
• Door thickness: 1-5/8” to 1-7/8”; For 1-3/8” door use K1904 spacer
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
MARKS #
FUNCTION ANSI #
175 275, 475 175, 275, 475
COMM.
CYL.
IC CORE
CYL.* 26D 26D 3, 4, 10, 10B, 26
N — PASSAGE F75 194 211 231
L — PRIVACY F76 234 251 271
P — PATIO F77 209 226 246
DC RDC COMMUNICATING F80 277 294 314
A RA ENTRY F81 234 251 271
B RB ENTRY F82A 234 251 271
AB RAB ENTRY F109 234 251 271
AQ — EXIT F83 224 241 271
S RS CLASSROOM F84 234 251 271
F RF STOREROOM F86 234 251 271
DW RDW INSTITUTION F87 281 300 320
DA RDA VESTIBULE F88 283 300 320
FQ — EXIT F89 224 241 271
T RT CORRIDOR F90 245 262 282
BS RBS SERVICE STATION LOCK F92 245 262 282
H — HOTEL F93 296 313 333
DO — DUMMY TRIM OUTSIDE — 80 96 117
DT — FULL DUMMY TRIM — 162 179 199
NB — COMMUNICATING PASSAGE F111 170 184 195
FB RFB COMMUNICATING STOREROOM F112 246 254 265
SB RSB COMMUNICATING CLASSROOM F113 246 254 265
75 LINE graDe 2 cylinDrical survivor leversets
OPTIONS CODE PRICE - 175 275 475
2-3/8” backset, 1” x 2-1/4” face E6 NC NC NC
2-3/4” backset, 9/16” throw,
Gr. 1, UL Listed E7 47 47 47
5” backset, 9/16” throw, Gr. 1 E9 47 47 47
3-3/4” backset, 9/16” throw, Gr. 1 E10 47 47 47
Less cylinder G3 Deduct 15 -15 -15
2-3/4” T strike S3 NC NC NC
AMERICAN LEVER ONLY Accepts:
Yale conventional cylinde F7 23 23 —
Sargent conventional cylinder F8 23 23 —
Corbin conventional cylinder F9 23 23 —
Corbin 6 pin IC core F12 34 34 —
Corbin 7 pin IC core F13 34 — —
Yale 6 pin IC core F14 23 23 —
Yale 7 pin IC core F15 23 23 —
Schlage 6 pin IC core F19 23 23 —
Sargent IC core F20 23 23 —
AMERICAN & CRESCENT LEVER ONLY Accepts:
Medeco IC core large format F21 23 23 —
Cylindrical
Locksets
195 Series Leverset Shown Below 295 Series Leverset Shown Below
495 Series Leverset Shown Below
![](asset-34.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
52
Cylindrical
Locksets
1904 K2804
1136 1136-M1135
Grade 2
1/2” Throw
Grade 1
3/4” Throw
1835
1855
LATCH THROW Backset: 2-3/8”
Front: 1” x 2-1/4”
Backset: 2-3/4”
Front: 1-1/8” x 2-1/4” FUNCTION FINISH GROUPS
26D 3, 32D 10, 10B
GRADE 2 1/2”
1138A 1134A ENTRANCE — 44 53
1138L 1134L PRIVACY — 32 44
1138N 1134N PASSAGE — 32 44
1138P 1134P PATIO — 44 53
GRADE 1 9/16”
— 1834A ENTRANCE — 89 97
— 1834L PRIVACY — 75 89
— 1834N PASSAGE — 75 89
— 1834P PATIO — 75 89
PART # DESCRIPTION FINISH GROUPS
3, 32D 10, 10B
STRIKES
1135 4-7/8” ASA strike, curved lip 22 22
P1136 2-3/4” “T” strike w/dust box, curved lip 13 21
1136-M 2-3/4” “T” strike w/dust box, straight lip 14 22
SURVIVOR SERIES
ALUMINUM SPACER RINGS K1904 For 1-3/8” door (2 per set), 3-7/16” dia. 39 49
KNOB SPACER RINGS K2804 For 1-3/8” door (2 per set), 2-3/4” dia. 39 50
PART # DESCRIPTION NO FINISH
EXTENSION LINK
For use with 2-3/4”
Grade 1 backset latch
1835 3-3/4”
321855 5”
1855-P 5” (Grade 1; L, P functions only)
BRIDGE RECTIFIER 1901 Bridge rectifier 24 V AC/DC (no finish) 49
CYLINDER RETAINER 1997 Lever handle cylinder retainer 5
INSTALLATION TOOL J295 175/195 installation drill jig 186
1901
1997
CylinDrical lock accessories
Latches, Strikes, Etc.
J190
![](asset-35.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
53
Specify Tailpiece; Tailpiece Not Included.
Conventional
Cylinder
PART # CODE FUNCTION CYLINDER PRICE
1903 9 AB, B, DA (ext.), DW, F, FEL, FEU MARKS 1982 6
1903S S9 S, DA (int.), DB, DC, SB, T
1903-L L9 AB, B, DA (ext.), DW, F, FEL, FEU Arrow PK 100C, Ilco 705, Lori 1539, Sargent
13-3266, Abloy, ASSA 65673, 65691 6
1903S-L SL9 S, DA (int.), DB, DC, SB, T
F1903-C — AB, B, DA (ext.), DW, F, FEL, FEU Schlage 23-001, Primus,
Corbin-Russwin 2000-034 8
F1903S-C — S, DA (int.), DB, DC, SB, T
1903 1903-L
1903S 1903S-L
IC core pricing includes KA, KD or MK Keying.
* Consult Factory on pricing of IC Cores when ordered with Locksets.
Cylindrical Lock Tailpieces
See list of cylinders available. Tailpiece & keying
information must be
included in the
option section.
p 3
p 4
p 10
p 10B
p 26
p 26D
p 32
p 32D
p Special
_____
IC Core Cylinder
(Will Fit Best® Housings)
FOR
KEYS & KEYING,
SEE PAGE
76
F1903-C A1903H
F1903S-C
CylinDrical lock accessories
How To Order Example for Cylindrical Lock Cylinders & Tailpieces
1982 /26D — 9
1.
Cylinder Slash 2.
Finish Dash 3.
Options
Cylinders
For Keying information see Pages 76-77
HR1984S HR1984S-GHR1984 HR1984-G
PART # CODE FUNCTION CORE PRICE
HR1984 R1 AB, B, DA (ext.), DW, F, FEU, FEL 6 or 7 pin Marks, KSP, Best®,
Falcon, Medeco®, Keymark™,
Sargent®, Schlage® Small Format 6
HR1984S RS S, DA (int.), DB, DC, SB, T
HR1984-G RG9 AB, B, DA (ext.), DW, F, FEU, FEL 6 or 7 pin Corbin 6
HR1984S-G RSG S, DA (int.), DB, DC, SB, T
AR1989-Y 9MY AB, B, DA (ext.), DW, F, FEU, FEL 6 or 7 pin Yale 8
AR1989S-Y 9SY S, DA (int.), DB, DC, SB, T
AR1999-M 9M AB, B, DA (ext.), DW, F, FEU, FEL Medeco®8
AR1999S-M 9SM S, DA (int.), DB, DC, SB, T Medeco®8
F1903C-F19 — AB, DW, F 6 pin Schlage®
Large Format 8
F1903S-F19 — S, DA, DB, DC, SB, T
R1981 Spacer 6
R1983 Security Disc 6
AR1989S-Y AR1999-M AR1999S-MAR1989-Y
R1981 R1983
F1903S-F19
F1903C-F19
Cylindrical IC Core Tailpieces
PART # DESCRIPTION PRICE
1982 6 Pin, w/2 nickel-silver keys 34
1982H 6 Pin, w/2 nickel-silver keys 76
R1182 6 Pin core, uncombinated 43
R1183 7 Pin core, uncombinated 43
RA1182 6 Pin core, combinated 63
RA1183 7 Pin core, combinated 63
RC1182 6 Pin core, construction core 45
RC1187 Plastic core turnknob 7
*
*
*
*
*
Cylindrical
Locksets
![](asset-36.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
54
Cylindrical
Locksets
CylinDrical knoB/lever Functions
ANSI # CODE Marks Function
F75 PASSAGE:
Latch by knob/lever either side.
I/S O/S
N
F76 PRIVACY:
Latch by knob/lever either side unless outside knob/lever
locked by push-button from inside. Outside unlocks by
turning inside knob/lever, outside emergency turn or
closing door.
L
F76 (MOD.) HOSPITAL/PRIVACY:
Latch by knob/lever either side unless outside knob/lever
locked by push-button from inside. Outside unlocks by
turning inside knob/lever, outside turn or closing door.
Emergency turn-knob A5 option.
LK
F77 PATIO:
Deadlocking latch by knob/lever either side unless outside
knob/lever locked by push-button inside. Unlocks by
turning inside knob/lever or closing door.
P
F80 COMMUNICATING:
Key both sides. Locks or unlocks either knob/lever
independent of the other. Deadlocking latch.
DC
F81 ENTRY:
Deadlocking latch bolt by knob/lever either side except
when outside locked by turn-button inside. When outside
locked, key outside or knob/lever inside opens lock.
Turn-button operated manually.
A
F82A ENTRY:
Deadlocking latch by knob/lever either side. Outside
locked by push-button inside. When outside locked by
push-button inside, key opens lock, unlocks push-button.
Inside knob/lever always opens latch. Closing door does
not release push-button.
B
F83 EXIT:
Deadlocking latch by knob/lever either side except when
outside locked by turn-button inside. Inside knob/lever
always opens latch. Turn-button operated manually.
AQ
F84 CLASSROOM:
Deadlocking latch by knob/lever inside.
Outside knob/lever locked or unlocked by key.
S
F86 STOREROOM:
Deadlocking latch by knob/lever inside, key outside.
Outside knob/lever always locked.
F
F87 INSTITUTION:
Both knob/levers always locked.
Deadlocking latch by key both sides.
DW
F88 VESTIBULE:
Deadlocking latch by knob/lever either side, except when
outside knob/lever locked by key inside. Key outside
retracts deadlocking latch. Inside always open.
DA
F89 EXIT:
Deadlocking latch by knob/lever inside.
Outside always locked.
FQ
F90 CORRIDOR:
Deadlocking latch by knob/lever either side unless outside
locked by key or inside push-button. Unlock by key, turning
inside knob/lever or closing door.
T
ANSI # CODE Marks Function
F90 (MOD.) HOSPITAL/PRIVACY:
Deadlocking latch by knob/lever either side unless outside
locked by knob/lever or inside push-button. Unlock by
turn-knob, turning inside knob/lever or closing door.
Emergency turn-knob A5 option.
I/S O/S
TK
F91 STORE DOOR
(95 Series Leverset ONLY):
Deadlocking latch by knob/lever either side except when
both knob/levers are locked by key from either side.
GB
F92 SERVICE STATION LOCK:
Deadlocking latch by knob/lever either side unless outside
locked by key or inside push-button. Unlock by key, turning
inside knob/lever or closing door, except when slotted
push-button is turned in locked position. Inside knob/lever
always opens latch.
BS
F93 HOTEL:
Deadlocking latch by knob/lever inside. Outside knob/lever
always locked. Inside push-button projects indicator on
cylinder face shutting out all keys except emergency key.
Turning inside knob/lever or closing door releases
push-button.
H
F109 ENTRY:
Outside locked by pushing turn-button inside. Key outside
opens lock. Rotating inside knob/lever releases button and
outside knob/lever. By pushing and turning inside button,
outside knob/lever remains locked. Deadlocking latch.
AB
F110 CLASSROOM INTRUDER:
Deadlocking latch by knob/lever either side, except when
outside locked by key inside. Key outside locks or unlocks
outside. Inside always open
DB
DUMMY TRIM:
Outside only, rigid. DO
DUMMY TRIM:
Both sides, rigid. DT
F111 COMMUNICATING PASSAGE:
Blank outside. Deadlocking latch by knob/lever inside. NB
F112 COMMUNICATING STOREROOM:
Blank outside. Deadlocking latch by key only.
Knob/lever always locked.
FB
F113 COMMUNICATING CLASSROOM:
Blank outside. Inside knob/lever locked or unlocked by key.
Deadlocking latch.
SB
ELECTRICALLY LOCKED - FEL
(Fail Safe):
Outside always locked electrically. Open by key outside,
switch or loss of power. Deadlocking latch by lever inside.
Lever only.
FEL
ELECTRICALLY UNLOCKED - FEU
(Fail Secure):
Outside always locked until unlocked by key or electrically
energized. Deadlocking latch by lever inside. Lever only.
FEU
F75 .......................N
F76 .......................L
F76 (MOD.) ................LK
F77 .......................P
F80 .......................DC
F81 .......................A
F82A......................B
F83 .......................AQ
F84 .......................S
F86 .......................F
F87 .............................DW
F88 .......................DA
F89 .......................FQ
F90 .......................T
F90 (MOD.) ................TK
F91 (95 Series Leverset ONLY) GB
F92 .......................BS
F93 .......................H
F109 ......................AB
F110 ......................DB
F111 ......................NB
F112 ......................
FB........................
F113 ......................SB
ANSI# CODE MARKS FUNCTIONANSI# CODE MARKS FUNCTION ANSI# CODE MARKS FUNCTIONANSI# CODE MARKS FUNCTION
![](asset-37.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
55
H T O T L
How To Order Example for Tubular Locksets
1 RW 92 N /32D — S3
1.
Lockset Series
2.
Rose Design
3.
Knob/Lever
4.
Marks Function Slash 5.
FInish Dash 6.
Options
1 SERIES
Tubular Locksets 1
Cylindrical Cartridge 1
3 KNOB/LEVER
KNOBS DESIGN
1153 Round, wrought 10
1253 Ball, wrought 20
9631 Ball, forged 30
9609 Eclipse, forged 60
LEVERS DESIGN
SF031 Copa 031
5642 Palace 42
5657 Monaco 57
5662 Royale 62
5672 Towne 72
5677 Maxwell 77
5678 Omni 78
5682 Plaza 82
5683 Dayton 83
5686 Crescent 86
5692 American 92
5696 Titan 96
4 TUBULAR FUNCTIONS
MARKS # ANSI #
TUBULAR LOCKSETS
N PASSAGE F75
L PRIVACY F76
NB COMMUNICATING F111
DI DUMMY TRIM INSIDE
DO DUMMY TRIM OUTSIDE
DT FULL DUMMY
5 FINISH
MARKS ANSI #
US 3 Polished Brass, Clear Coated 605
US 3E Polished Brass “PVD” 605E
US 4 Satin Brass, Clear Coated 606, 606E
US10 Satin Bronze, Clear Coated 612E
US 10B Dark Bronze, Clear Coated 613E
US15 Satin Nickel 619, 619E
US 26 Polished Chrome, Plated 625
US 26D Satin Chrome, Plated 626
US 32 Polished Stainless Steel 629
US 32D Satin Stainless Steel 630
6 OPTIONS
TRIM MODIFICATIONS CODE PRICE
Tactile knob/lever, coated ext. only A1 60
Tactile knob/lever, knurled A4 60
Tactile knob/lever, coated int. & ext. A18 122
DOOR THICKNESS CODE PRICE
1-3/4” D4 NC
1-3/8” D5 NC
LATCH CODE PRICE
2-3/4” backset, 1-1/8” x 2-1/4” face E4 10
2-3/4” backset, 9/16” throw, Gr. 1,
UL Listed With Cylindrical Cartridge* E7 107
2-3/8” backset, 1-1/8” x 2-1/4” face E11 13
2-3/4” backset, 1 x 2-1/4” face E12 13
Adjustable latch 1-1/8” x 2-1/4” face E13 10
TRIM CHANGES CODE PRICE
For 1-1/2” bore F6 17
STRIKE CODE PRICE
4-7/8” ASA strike S1 13
2-3/4” “T” strike S3 NC
3-5/8” Security strike S4 11
2-1/4” Curved lip strike S5 NC
* E7 Option Available: 2-3/8”, 2-3/4”, 3-3/4” & 5” Backset, for N Function ONLY.
2ROSES
ROSES DESIGN
9602-R Rose with ring 2-9/16” dia. RR
9602 Plain rose 2-9/16” dia. RW
5602-R Small rose with ring 2-1/4” dia. RQ
5602 Small rose 2-1/4” dia. RS
7602 Square rose 2-9/16” square RX
7607 Square forged rose 2-9/16” square RK
ANSI # CODE Marks Function
F75 PASSAGE:
Latch by knob/lever either side.
I/S O/S
N
F76 PRIVACY:
Latch by knob/lever either side unless outside knob/lever
locked by push-button from inside. Outside unlocks by turn-
ing inside knob/lever, outside emergency turn or
closing door.
L
F111 COMMUNICATING:
Blank outside. Deadlocking latch by knob/lever inside. NB
ANSI # CODE Marks Function
DUMMY TRIM INSIDE:
Dummy trim inside ONLY.
I/S O/S
DI
DUMMY TRIM OUTSIDE:
Dummy trim outside ONLY. DO
FULL DUMMY TRIM:
Dummy trim both sides. DT
TuBular knoB/lever Functions
Tubular Locksets
![](asset-38.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
56
Tubular Locksets
ROSE Design RR, RW, RQ, RS, RX*, RK*, RL*
ANSI-A156 • Grade 2 Series 1 • 2-3/8” Backset
Standard Features KNOBS LEVERS
• Backset: 2-3/8”, 2-3/4” optional
• Front: 1” x 2-1/4”
• Thru-bolted screwless knob/lever rose
• Concealed mounting screws
• Lever support springs
• Independent spring loaded captivated spindles
• Strike: 2-1/4” full curved lip
• Latch support housing
• Door thickness: 1-3/8” to 1-3/4”
• Privacy function - interior with automatic release
10, 20 30, 60
031, 44, 55,
57, 72, 77,
78, 82, 83,
86, 92, 96
82, 83, 86,
92, 96
FINISH GROUPS
MARKS # FUNCTION ANSI # 3, 32D 3E, 15 10B, 26 3F, 4, 15,
26D
10E, 10B,
19E 14, 26 32, 32D
KEYLESS
N PASSAGE F75 235 300 337 316 353 304
L PRIVACY F76 246 311 348 326 364 315
NB COMMUNICATING F111 288 288 326 305 342 294
DUMMY TRIM
DI DUMMY TRIM INSIDE 110 142 212 151 169 144
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 219 284 321 300 337 288
KNOBS & LEVERS ARE PACKED 16 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
*Square Rose RX: Add $30 / *Square Rose RK: Add $100
OPTIONS CODE PRICE NOTE
1-3/8” door thickness D5 NC
2-3/4” backset, 1-1/8” x 2-1/4” face E4 10
2-3/4” backset, 9/16” throw, Gr. 1, UL Listed WITH CYLINDRICAL CARTRIDGE * E7 107 N Function Only
2-3/8” backset, 1-1/8” x 2-1/4” face E11 13
2-3/4” backset, 1” x 2-1/4” face E12 13
4-7/8” ASA strike S1 13
2-3/4” “T” strike S3 NC
US 26 Interior x26 24 83, 92, 96 Only
* E7 Option Available: 2-3/8”, 2-3/4”, 3-3/4” & 5” Backset, for N Function ONLY.
ROSES
RR: 2-9/16” dia.
RW: 2-9/16” dia.
RQ: 2-1/4” dia.
RS: 2-1/4” dia.
RX: 2-1/2” sq. RK: 2-1/2” sq. RL: 1-1/2” sq.
Wrought
Forged
RL
LEVERS
Stanhope Lever 44 Copa Lever 031 Brompton Lever 55 Monaco Lever 57
Specify handing
Towne Lever 72 Maxwell Lever 77 Omni Lever 78 Plaza Lever 82
Specify handing
Dayton Lever 83
Specify handing
Crescent Lever 86 American Lever 92 Titan Lever 96
KNOBS
Round Knob 10 Ball Knob 20 Ball Knob 30 Eclipse Knob 60
![](asset-39.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
57
Tubular Locksets
interior tuBular locksets
50 Series, Residential Leversets
Standard Features
• Pressure cast Levers • Roses: 2-15/16” diameter • Adjustable Backset: 2-3/8” - 2-3/4” • Latch: 1” x 2-1/4” front, 1/2” throw
• Door thickness: 1-3/8” to 1-3/4” • Privacy Function with kick-off latch • Strike: 2-1/4” full lip strike NOTE: Latches & strikes have radius corners
MARKS # FUNCTION ANSI # FINISH GROUPS (150, 250 & 450)
26D
N PASSAGE F75 66
L PRIVACY F76 78
DO DUMMY TRIM OUTSIDE — 34
LEVERS ARE PACKED 24 PER CASE Additional finishes, consult factory
150 Series American Lever
Finishes: 26D
250 Series Crescent Lever
Finishes: 26D
450 Series Titan Lever
Finishes: 26D
160 Series
Finishes:32D
260 Series
Finishes: 32D
360 Series
Finishes: 32D
NEW! 60 Series, Stainless Steel, Commercial Locksets
Standard Features
• Latch Face: 1” x 2-1/4” standard • Backset: 2-3/4” with 2-3/4” T-strike with square corners • Door thickness: 1-3/8” to 1-3/4”
• Roses: 2-9/16” diameter • Backset: 2-3/8” with 2-1/4”, radius corner full lip strike, option E6, N/C • Privacy Function with kick-off latch
MARKS # FUNCTION ANSI # FINISH GROUPS (160, 260 & 360)
32D
N PASSAGE F75 140
L PRIVACY F76 150
DO DUMMY TRIM OUTSIDE — 70
LEVERS ARE PACKED 9 PER CASE Additional finishes, consult factory
![](asset-3a.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
58
1631
PART # DESCRIPTION BACKSET
FRONT
FINISH GROUPS
NO
FINISH
3,
26
10, 10B,
32
1631 Support housing — 9 — —
1536 “T” Strike, 2-3/4” curved lip —— 9 15
1145 4-7/8”ASA strike — — 11 21
1634 Tubular deadbolt 2-3/4” — 104 111
1636 Strike, 2-1/4” full curved lip — — 9 15
1634N Passage latch w/ strike 2-3/4” — 74 88
1634L Privacy latch w/ strike 1” x 2-1/4” — 88 98
1638N Passage latch w/ strike 2-3/8” — 48 60
1638L Privacy latch w/ strike 1” x 2-1/4” — 60 72
1648N
UL Listed
Adjustable Backset Latch
RESIDENTIAL INTERIOR
LOCKSETS ONLY
2-3/8” - 2-3/4” — — 95
Strikes, Latches, Support Housing
Turnpieces
1634L
1638L
1636
1536
1634N
1638N
1636
1648N
1145
LATCH THROW
Backset 2-3/8”;
Front
1” x 2-1/4”
Backset 2-3/4”;
Front
1-1/8” x 2-1/4”
FUNCTION
FINISH GROUPS
3, 32D 10, 10B
GRADE 2 1/2” 1138A 1134A ENTRANCE 43 53
GRADE 1 9/16” — 1834A ENTRANCE 89 96
PART # DESCRIPTION NO FINISH
A1430 Cylindrical Cartridge 107
Latches & Cylindrical Cartridge
TuBular lockset accessories
1634
1834 A1430
Cylindrical Cartridge
NOTE: Cylindrical Cartridge is
for use with E7* Option ONLY.
Tubular Locksets
5108
SKA03
PART # DESCRIPTION
FINISH GROUPS
3E 3 26D 4 10,
10B, 26 32D
SKA03 Turnpiece — — — — — 83
SKA015 Turnpiece 71 54 54 71 63 —
1351 Turnpiece — — 73 — — —
8101P Turnpiece 60 43 43 60 51 51
5108 Turnpiece — — 73 — — —
A7616 Turnpiece 71 54 54 71 63 63
1351
8101P A7616
SKA015
![](asset-3b.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
59
Defender Series
ANSI # CODE Marks Function
CYLINDER x TURNPIECE:
Deadbolt/deadlatch by inside turnpiece or outside key.
I/S O/S
K
COMMUNICATING SINGLE CYLINDER:
Deadbolt/deadlatch by key from one side only. L
CYLINDER x LEVER:
Deadlatch by key outside. Inside lever always opens latch. KL
ANSI # CODE Marks Function
DOUBLE CYLINDER:
Deadbolt/deadlatch by key either side.
I/S O/S
M
CLASSROOM:
Deadbolt by outside key.
Turnpiece will retract but not project deadbolt.
S
TURNPIECE x BLANK PLATE:
Deadbolt/deadlatch by inside turnpiece.
Blank plate outside.
X
H T O D L
How To Order Example
for Defender Locksets
145 K /32D — D1
1.
Lockset Series
2.
Marks Function Slash 3.
Finish Dash
4.
Options
Specify: Keying, Handing
& Door Thickness
1 SERIES
Defender Tubular Deadbolt Locksets 130, 130R
Defender Cylindrical Cartridge Deadlatch Locksets 145, 145R
2 TUBULAR FUNCTIONS
DEADBOLT/DEADLATCHES (* indicates IC Core) 130 Series 145 Series
K RK* CYLINDER x TURNPIECE E0151 E01101
KK RKK* CYLINDER x KNOB
L RL* COMM. SINGLE CYLINDER E0161 E0131
KL RKL* CYLINDER x LEVER E01101
M RM* DOUBLE CYLINDER E0141 E01111
S RS* CLASSROOM E0171
X TURNPIECE E0191 E01121
3 FINISH
MARKS ANSI #
US 3 Polished Brass, Clear Coated 605
US10 Satin Bronze, Clear Coated 612E
US 10B Dark Bronze, Clear Coated 613E
US 26D Satin Chrome, Plated 626
US 32 Polished Stainless Steel 629
US 32D Satin Stainless Steel 630
4OPTIONS
TRIM MODIFICATIONS CODE PRICE
Tactile knob/lever, coated ext. only A1 60
Tactile knob/lever, knurled A4 60
Tactile knob/lever, coated int. & ext. A18 122
DOOR THICKNESS CODE PRICE
50 mm (2”) D1 NC
57 mm (2-1/4”) D2 51
1-1/4” - 1-1/2” D8 NC
LATCH CODE PRICE
2-3/4” backset, 1-1/8” x 2-1/4” face E4 10
2-3/8” backset, 1-1/8” x 2-1/4” face E11 12
TRIM CHANGES CODE PRICE
Sargent conventional cylinder F8 22
CYLINDER CODE PRICE
Less cylinder G3 Deduct 15
STRIKE CODE PRICE
4-7/8” ASA strike S1 13
4-7/8” x 1-1/4” security strike S4 11
DeaDBolt/DeaDlatcH Functions
ANSI # MARKS #
CODE FUNCTION
130 SERIES:
E0151 ........................................................K
E0161 ........................................................L
E0141 ........................................................M
E0171 ........................................................S
E0191 ........................................................X
ANSI # MARKS #
CODE FUNCTION
145 SERIES:
E01101 .......................................................K
E0131 ........................................................L
E01101 .......................................................KL
E01111 .......................................................M
E01121 .......................................................X
![](asset-3c.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
60

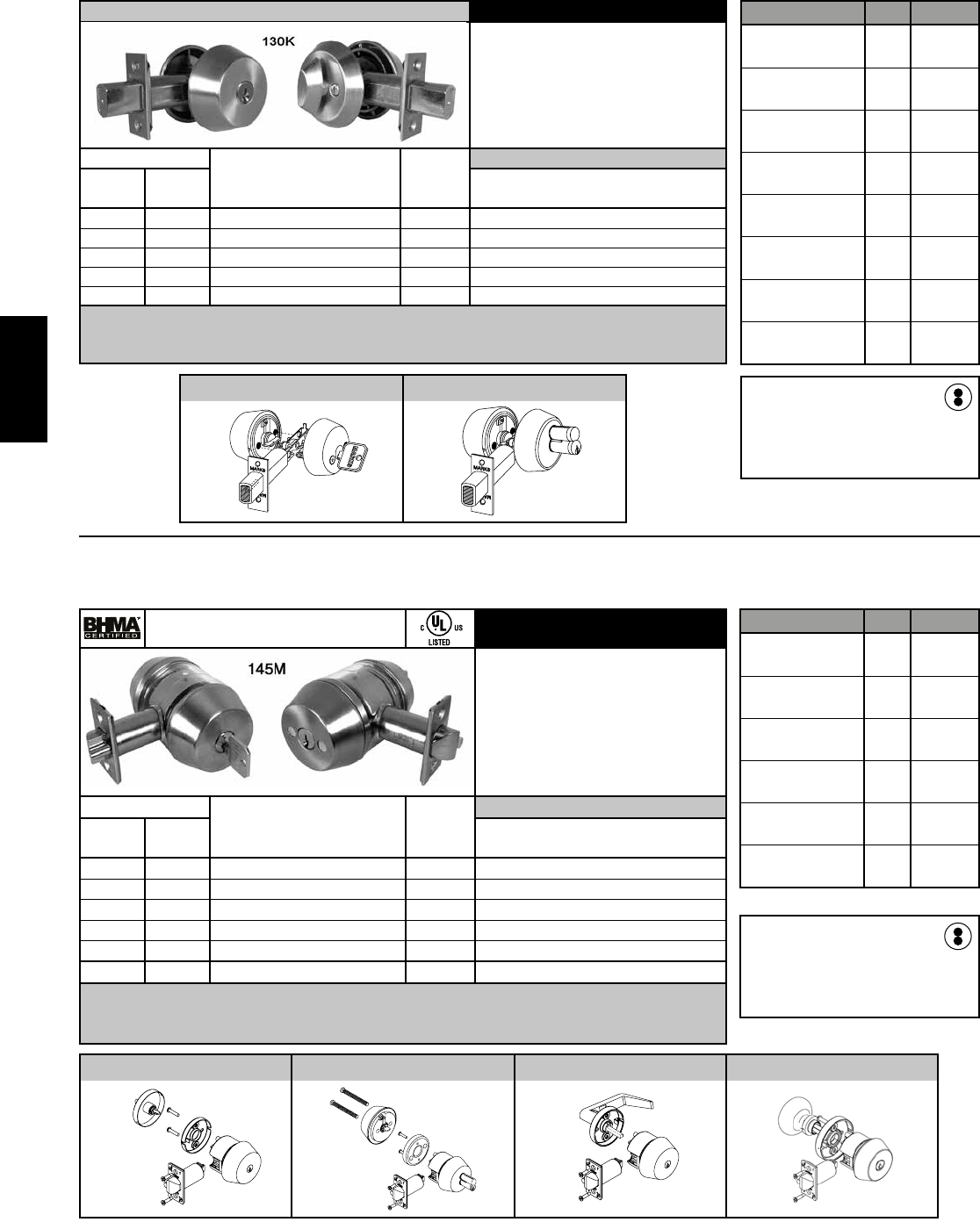

ANSI 156.5 Standard Features
• Bolt: 1” throw
• Unitized assemblies for 2-1/8” bore
• Strike: #1335, 2-3/4” x 1-1/8” strike
• Door thickness: 1-3/8” to 1-7/8”
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• 2-3/8” Backset
• Latch front: 1” x 2-1/4”
MARKS #
FUNCTION ANSI #
FINISH GROUPS
COMM.
CYL.
IC CORE
CYL.* 3, 10, 10B, 26D, 32, 32D
K RK CYLINDER x TURNPIECE E0151 204
L RL COMMUNICATING SINGLE CYL E0161 204
M RM DOUBLE CYLINDER E0141 197
S RS CLASSROOM E0171 178
X — TURNPIECE x BLANK PLATE E0191 143
DEADBOLTS ARE PACKED 24 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
• IC Core Models: Core not included
ANSI 156.5 • 3 Hour Fire Rating Standard Features
• Series 1 Cylindrical Cartridge
• Latch: Grade 1, 9/16” throw, 2-3/4” backset
• Unitized assemblies for 2-1/8” bore
• Strike: #1136, 2-3/4” strike
• Door thickness: 1-3/4”;
For 1-3/8” doors use spacer rings K1442/32D
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Latch front: 1-1/8” x 2-1/4”
MARKS #
FUNCTION ANSI #
FINISH GROUPS
COMM.
CYL.
IC CORE
CYL.* 3, 10, 10B, 32, 32D
K RK CYLINDER x TURNPIECE E01101 220
L RL COMMUNICATING SINGLE CYL E0131 220
M RM DOUBLE CYLINDER E01111 239
X — TURNPIECE x BLANK PLATE E01121 187
KL RKL CYLINDER x LEVER E01101 373
KK RKK CYLINDER x KNOB 387
DEADLATCHES ARE PACKED 24 PER CASE
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
• IC Core Models: Core not included
Standard IC Core Models:
Interchangeable Core models for 6 or 7 pin
cores (not included).
Accepts: Marks, Medeco KeyMarktm, Falcon
& Best®. IC Core Tailpieces ARE Included.
*
Standard IC Core Models:
Interchangeable Core models for 6 or 7 pin
cores (not included).
Accepts: Marks, Medeco KeyMarktm, Falcon
& Best®. IC Core Tailpieces ARE Included.
*
OPTIONS CODE PRICE
For 2” door D1 NC
For 2-1/4” door D2 51
For 1-1/4” - 1-1/2” door D8 NC
2-3/4” backset,
1-1/8” x 2-1/4” face E4 11
For 1-1/2” bore F6 20
Sargent original
cylinder or core F8 22
Less cylinder G3 Deduct 15
3-5/8” x 1-1/4”
Security strike S4 13
OPTIONS CODE PRICE
For 2” door D1 NC
For 2-1/4” door D2 53
2-3/8” backset,
1-1/8” x 2-1/4” face E11 13
Sargent original
cylinder or core F8 22
Less cylinder G3 Deduct 15
4-7/8” ASA strike S1 13
130M Double Cylinder 130RM Double Cylinder IC Core
145K Cylinder x Turnpiece 145RM Double Cylinder IC Core 145KL Cylinder x Lever 145KK Cylinder x Knob
130 SERIES “DeFenDer” tuBular DeaDBolts
145 SERIES “DeFenDer” cylinDrical cartriDge DeaDlatcHes
Defender Series
![](asset-3d.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
61
Defender Series
DeFenDer series accessories
1136 11371135 1335
1336 1337 K1342
1334
1338
PART # DESCRIPTION
FINISH GROUPS
NO
FINISH 3, 32D 10, 10B, 32
1135 4-7/8” ASA STRIKE — 22 22
1136 2-3/4” “T” STRIKE W/DUST BOX — 9 14
1137 DUST BOX, PLASTIC, LATCH 5 — —
1335 2-3/4” x 1-1/8” STANDARD STRIKE — 7 9
1336 DUST BOX, PLASTIC, DEADBOLT 5 — —
1337 3-5/8” x 1-1/4” HIGH SECURITY STEEL
STRIKE, PLATED FINISH — 66 —
K1342 1-3/8” DOOR, ROSE EXTENDERS, 130 Series — 52 65
DEADBOLTS
1334 2-3/4” BACKSET FRONT 1-1/8” x 2-1/4” — 34 43
1338 2-3/8” BACKSET FRONT 1-1/8” x 2-1/4” — 34 43
K1442 1-3/8” DOOR, 145 SERIES — 150 —
Strikes, Latches & Spacers
Tailpieces & Cylinders
LATCH THROW
Backset 2-3/8”
Front
1” x 2-1/4”
Backset 2-3/4”
Front
1-1/8” x 2-1/4”
FUNCTION
FINISH GROUPS
3, 32D 10, 10B
GRADE 2 1/2” 1138A 1134A ENTRANCE 43 53
GRADE 1 9/16” — 1834A ENTRANCE 89 96
1834
Latches & Cylindrical Cartridge
PART # DESCRIPTION NO FINISH
A1420 Cylindrical Cartridge for use with 145 Series 107
A1420 Cylindrical Cartridge
for use with 145 Series
NOTE: Cylindrical Cartridge is
for use with E7* Option ONLY.
1389 1403 1405
1403-L 1405-L
1382DC 1382
1373 1374 1375
F 1405-CF1403-C
PART # TAILPIECES FOR 130 DEADBOLTS PRICE
DOUBLE CYLINDER
1373 1-5/16” to 1-3/8”
MARKS
1382DC
5
1374 1-5/8” to 2” 5
1375 2-1/8” to 2-3/8” 5
SINGLE CYLINDER
1389 1-3/4” to 2-1/4” MARKS
1382 5
TAILPIECES FOR 145 DEADLATCHES
1403 1-5/8” to 1-7/8” MARKS
TAILPIECE
5
1405 2” to 2-1/4” 5
F1403-C 1-5/8” to 1-7/8” SCHLAGE®
TAILPIECE
6
F1405-C 2” to 2-1/4” 6
1403-L 1-5/8” to 1-7/8” LORI / ILCO
TAILPIECES
6
1405-L 2” to 2-1/4” 6
![](asset-3e.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
62

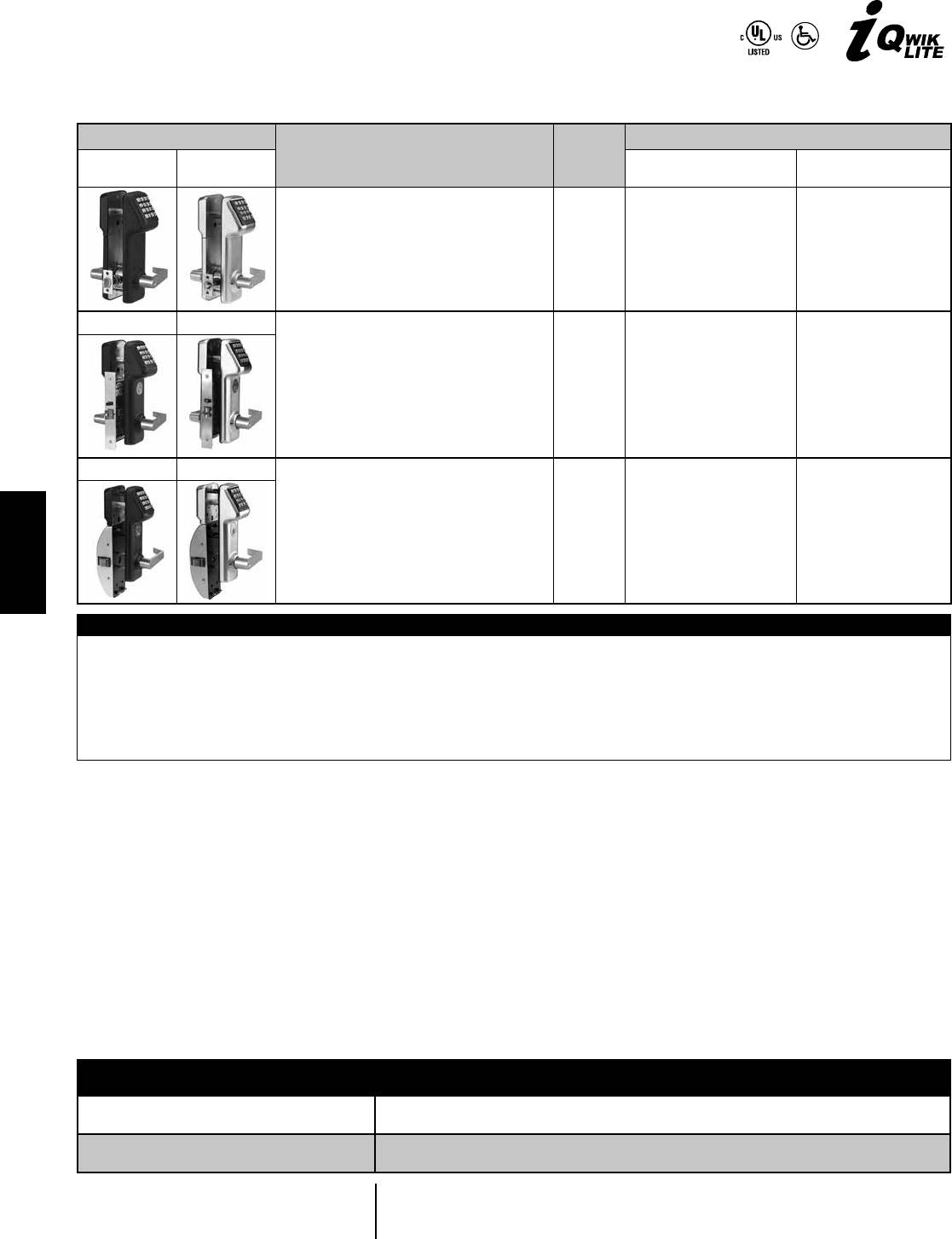

I-QWIK LITE2 Series
NO-NONSENSE ACCESS CONTROL RIGHT OUT OF THE BOX
Access Control
MARKS #
LOCKSET TYPE - PACKED PER CASE # OF
USERS
FINISH GROUPS
IQ1LITE IQ1L/26D 19 Black Powder Coat;
with 26D American Levers
26D
Satin Chrome
IQ1:
Cylindrical Lockset - PACKED 4 PER CASE 160 551 635
IQ2LITE IQ2L/26D
IQ2:
Mortise Lockset - PACKED 4 PER CASE 160 890 974
IQ7LITE IQ7L/26D
IQ7:
Rim Exit Device Interface - PACKED 6 PER CASE
Adapter plates operate most
manufacturers Rim Exit Devices.
Adapter plates for Mounting Exit Devices
are sold separately, see page 70.
160 774 858
IQ1 LITE Cylindrical Lockset Specifications
Door Thickness: 1-3/4” standard;
For thicker doors, Consult factory
Handing: Non-handed
Key Override: Marks “C” keyway, 6 pin w/2 keys,
IC Core optional
Lock Body: Cylindrical “Survivor” featuring
the “Clutch” for trouble free service
Latch: Grade 2, 2-3/4” backset, 1/2” throw,
3 Hour UL fire rating
Strike Plate: 4-7/8” ASA strike
IQ2 LITE Mortise Lockset Specifications
Door Thickness: 1-3/4” standard;
For thicker doors, Consult factory
Handing: Field reversible
Key Override: 1-1/8” Mortise cylinder, 6 pin w/2 keys
Lock Body: Grade 1, Series 5, 2-3/4” backset,
3/4” anti-friction latch, 3 Hr UL fire rating
Auxiliary Latch: 1/2” throw
Bolt Throw: 1” (Optional deadbolt functions - Consult factory)
Clutch: The “Clutch” for trouble free service
Strike Plate: 4-7/8” ASA standard
IQ7 LITE Rim Exit Device Interface Specifications
Door Thickness: 1-3/4” standard;
For thicker doors, Consult factory
Handing: Non-handed
Key Override: 1-1/8” Mortise cylinder,
6 pin w/2 keys
Clutch: The “Clutch” for trouble free service
Adapter plates operate most
manufacturers Rim Exit Devices.
Adapter plates for Mounting Exit Devices
are sold separately, see page 70.
Standard Features
• CableGardTM protects wires for easy installation
• Standard ANSI door prep with one additional hole
• Pre-programmed code
• Keypad programmable
• 160 User codes
• Temporary user codes
• Passage mode
• Pin only mode
• Double code entry for maximum security
• Two wire remote release
• 16 Digit tactile metal keypad
• Weatherproof standard
• Audible & visible entry indicator
• Audible low battery alert
• 4 “AA” batteries, 95,000 operations
• Easy installation
• Lifetime Mechanical Warranty; 2 Year Electronic Warranty
p 1LITE (Cylindrical)
p 2LITE (Mortise)
p 7LITE (Rim Exit Device Interface)
p 1L/26D (Cylindrical)
p 2L/26D (Mortise)
p 7L/26D (Rim Exit Device Interface)
p IQ
How To Order Example for i-Qwik LITE Series Electronic Access Control Locksets
IQ 1LITE
1.
Lockset Series
2.
Model Number
19 Finish 26D Finish
![](asset-3f.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
63
I-QWIK / I-QUE OPTIONS Cylindrical Mortise Rim Exit Device Interface
DESCRIPTION CODE PRICE IQLITE IQDATA IQPROX IQLITE IQDATA IQPROX IQLITE IQDATA IQPROX
Backset
2-3/8” Backset E6 NC • • •
5” Backset E9 47 • • •
3-3/4” Backset E10 47 • • •
Series 55 Mortise Lock Body (2-1/2” bkst) W8 NC • • •
Levers
Tactile Lever A1 60 • • • • • • • • •
Lever to accept Sargent conventional cyl. F8 23 • • •
Lever to accept Corbin conventional cyl. F9 23 • • •
Lever to accept Corbin IC Core 6 pin F12 34 • • •
Lever to accept Corbin IC Core 7 pin F13 34 • • •
Lever to accept Yale IC Core 6 pin F14 23 • • •
Lever to accept Yale IC Core 7 pin F15 23 • • •
Lever to accept Schlage IC Core 6 pin F19 23 • • •
Lever to accept Sargent IC Core F20 23 • • •
Lever to accept Medeco IC Core lg. format F21 23 • • •
Monaco Lever W3 20 • • • • • • • • •
Solid Exterior Handle (no cylinder) W4 NC • • • Std Std Std Std Std Std
Crescent Lever W7 20 • • Std Std • Std Std
Titan Lever W12 20 • • • • • • • • •
Cylinder
IC Core Cylinder Housing G1 NC • • • • • • • • •
Less Cylinder G3 Deduct 15 • • • • • • • • •
Strike
4-7/8” ASA Strike S1 13 • Std Std Std Std Std
2-3/4” “T” Strike S3 NC Std • •
Miscellaneous
Tamper-proof Screws A3 14 • • • • • • • • •
Lead Lined IQ F22 511 • • • • • • • • •
I-QWIK/I-QUE Series
OPTIONS
Access Control
![](asset-40.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
64
Access Control
I-QWIK / I-QUE ACCESSORIES Cylindrical Mortise Rim Exit Device Interface
ACCESSORY PART # PRICE IQLITE IQDATA IQPROX IQLITE IQDATA IQPROX IQLITE IQDATA IQPROX
Bridge rectifier (converts AC power to DC power) 1901 41 • • • • • • • • •
Gasket
(interior inside housing for full weatherproofing) E1108 7• • • • • •
Battery Pack Holder EA4011 20 • • • • • • • • •
Spacer Kit, 1-3/8” Door (Int. & Ext. Gaskets) EK1038 60 • • • • • • • • •
Internal power connector for
hardwiring i-Qwik/i-Que Locksets E1133 29 • • • • • • • • •
Memory Reset Jumper E1155 20 • • • • • • • • •
Spacer Ring for 1-1/4” mortise cylinder E2006 20 • • • • • •
Spacer Ring for 1-3/8” mortise cylinder E2007 20 • • • • • •
Von Duprin 99 Rim Adapter Plate / M9900 Marks
Detex Advantex 10 Series Rim Adapter Plate E7071 78 • • •
Precision 1100 Rim Adapter Plate E7072 78 • • •
Yale 7100 Rim Adapter Plate/
Corbin ED5200 Rim Adapter Plate E7073 78 • • •
Dorma 9300 Rim Adapter Plate E7074 78 • • •
Sargent 8800 Rim Adapter Plate/
Arrow 3800 Rim Adapter Plate E7075 78 • • •
Precision 21 Rim Adapter Plate/
Precision 2100 Rim Adapter Plate** E7076 78 • • •
Von Duprin 88 - Special Order, Consult Factory E7077 78 • • •
Monarch 18R Exit Device Adapter Plate E7078 88 • • •
CAMS
Straight cam for tubular, exit device, or mortise functions Z1 & Z4 only.
USE WITH
MORTISE CYLINDER PART # CODE PRICE
MARKS 2101 1 6
Arrow/Sargent 2101-A A1 6
Corbin Russwin 2101-C C1 6
Schlage® 2101-S S1 6
CAMS
Cloverleaf cam for mortise functions Z2, Z3, Z5, Z6 only.
USE WITH
MORTISE CYLINDER PART # CODE PRICE
MARKS 2102 2 6
Arrow/Sargent 2102-A A2 6
Corbin Russwin 2102-C C2 6
Schlage® 2102-S S2 6
CYLINDRICAL TAILPIECES Cylindrical Conventional
FOR USE WITH LEVER CODE PRICE
Marks 1982 E1903 E1 6
Arrow PK 100C, ILCO 705,
Sargent 13-3266, Lori 1539,
ASSA 65673, 65691, Abloy
E1903-L E2 6
Schlage® 23-001, Primus
Corbin-Russwin 2000-034 EF1903-C E3 8
CYLINDRICAL IC CORES
Kit for 6 & 7 pin Marks, KSP, Best®, Falcon,
Medeco® Keymark, Schlage® Small Format,
6 pin Sargent
HER1984 ER 6
Kit for 6 & 7 pin Corbin HER1984-G ERG 6
Kit for 6 & 7 pin Yale™
American Lever ONLY EAR1989-Y EMY 8
6 pin Schlage® Large Format
American Lever ONLY EF1903-F19 CM 8
TAILPIECES & CAMS
I-QWIK/I-QUE Series
ACCESSORIES, TAILPIECES & CAMS
NOTE: Consult Factory for Additional Exit Devices; **Must use Precision #BP21 backplate.
![](asset-41.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
65
LOCKSET &
LEVER DESIGN
CON.
CORE
IC
CORE FUNCTION ANSI # DESCRIPTION FINISH GROUPS
26D 3, 4, 10, 10B, 26
EA195 American lever
F RF STOREROOM F86 Latch by lever inside.
Outside lever always locked. 600 684
EA295 Crescent lever
EA395 Monaco lever
EA495 Titan lever
EA195 American lever
FEL RFEL ELECTRICALLY
LOCKED —
Outside always locked electrically.
Open by key outside, switch or loss of
power. Latch by lever inside.
812 896
EA295 Crescent lever
EA395 Monaco lever
EA495 Titan lever
EA195 American lever
FEU RFEU ELECTRICALLY
UNLOCKED —
Outside always locked until unlocked
by key or electrically energized.
Latch by lever inside.
812 896
EA295 Crescent lever
EA395 Monaco lever
EA495 Titan lever
LEVERSETS ARE PACKED 6 PER CASE
Request To EXit (REX)
CYLINDRICAL ELECTRIFIED LEVERSET
FINISH
p 3 p 4
p 10 p 10B
p 26 p 26D
___ F ___ RFEL
___ RF ___ FEU
___ FEL ___ RFEU
MARKS FUNCTION
p EA195
p EA295
p EA395
p EA495
LOCK SERIES OPTIONS
___________
___________
___________
Standard IC Core Models:
Interchangeable Core models
for 6 or 7 pin cores (not included).
Accepts: Marks, Medeco KeyMarktm,
Falcon & Best®.
IC Core Tailpieces ARE Included.
*
Standard Features
• Backsets: 2-3/4”; 2-3/8”,
3-3/4” or 5” optional
• Latch #1834, Front: 1-1/8” x 2-1/4”;
Throw: 9/16”; Stainless steel nose
• Levers: Solid cast Zamac
w/ 1/2” return (except 395 & 495)
• Rose: Thru-bolted, 3-7/16” dia.,
spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8” ASA curved lip
• Door thickness: 1-5/8” to 1-7/8”
(For 1-3/8” door use K1704 spacer)
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Request to Exit Switch: Single pole, double throw,
3 amp,125 AC, wired either normally open or normally closed
• Electrified functions - 100% duty cycle, 24V/DC standard,
supplied with bridge rectifier; 3 watts, .25amps
• 12V/DC Optional, Contact factory for additional options
• Features “The Clutch” • UL Listed, 3 hour fire rating
How To Order Example for REX Leversets
EA195 F /26D — G3
1.
Lockset Series
2.
Marks Function Slash 3.
FInish Dash 4.
Options
ANSI-A156.2 • Grade 1
3 Hour Fire Rating Marks USA has developed the
Grade 1 “Survivor” Series
Cylindrical Lockset incorporating
a Request to Exit (REX) switch in
both Electrified and Storeroom
functions. Activating the inside
lever for egress initiates the built-in
REX output, providing a momentary
signal for the access control
REX input, for alarm shunt
during egress.
EA195 Series Leverset w/American Lever
Electrified
Locksets
![](asset-42.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
66
Electrified
Locksets
Standard IC Core Models:
Interchangeable Core models
for 6 or 7 pin cores (not included).
Accepts: Marks, Medeco KeyMarktm,
Falcon & Best®.
IC Core Tailpieces ARE Included.
*
Series 195, 295, 395, 495 Cylindrical Leverset Standard Features
• Backsets: 2-3/4”, 2-3/8”, 3-3/4”, 5”
• Latch #1834, Front: 1-1/8” x 2-1/4”; Throw: 9/16”; Stainless steel nose
• Levers: Solid cast Zamac w/ 1/2” return
• Rose: Thru-bolted, 3-7/16” dia., spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8” ASA curved lip
• Door thickness: 1-5/8” to 1-7/8” (For 1-3/8” door use K1704 spacer)
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys or IC Core housing
• Electrified functions - 100% duty cycle, 24V/AC supplied with bridge rectifier; 24V/DC, .21 Amps
• 12V/DC Optional, Contact factory for additional options
• Features “The Clutch”
• UL Listed, 3 hour fire rating
Series 5 Electrified Mortise Lockset
Standard Features
• 2-3/4” Backset ONLY
• 1” Stainless steel bolt throw
• 3/4” Latch throw (anti-friction) separator
• 1/2” Auxiliary latch throw
• Stamped steel case .090 thick.,
Zinc dichromate finish
• 1-1/4” x 8” Lock front, Adjustable bevel
• Steel hubs, 9/32” on diamond,
5/16” on square w/security separator
• 100% Duty Cycle 24V/DC,
12V/DC Optional supplied
with bridge rectifier (350 ma)
SERIES 195, 295, 395, 495 GRADE 1 ELECTRIFIED CYLINDRICAL LEVERSETS FINISH GROUPS
COMMERCIAL
CYLINDER
IC CORE
CYLINDER
MARKS
FUNCTION DESCRIPTION 3, 26D 4, 10, 10B, 26
FEL RFEL
ELECTRICALLY
LOCKED
(Fail Safe)
Outside always locked electrically.
Open by key outside, switch or loss of power.
Deadlocking latch by lever inside. Lever only. 668 752
FEU RFEU
ELECTRICALLY
UNLOCKED
(Fail Secure)
Outside always locked until unlocked by key
or electrically energized.
Deadlocking latch by lever inside. Lever only.
OPTIONS CODE PRICE
Auxiliary Latch E3 46
Request to EXit Switch W10 136
Key Override Sensor W11 144
Request to EXit switch, Key Sensor
& Bolt Sensor W13 454
Bolt Sensor W14 166
Latch Sensor W15 166
Series 5 Electrified Mortise Shown
ANSI-A156.2 • Grade 1
3 Hour Fire Rating
195FEL/FEU Series Leverset w/American Lever
ElectriFieD Locksets
CYLINDRICAL LEVERSETS & MORTISE LOCKSETS
SERIES 5 ELECTRIFIED MORTISE LOCKSET FINISH GROUPS
MARKS FUNCTION DESCRIPTION 3, 32D 10, 10B, 32
EL:
ELECTRICALLY
LOCKED
(Fail Safe)
Outside always locked electrically. Open by key outside, switch or
loss of power. Auxiliary latch deadlocks latch. Inside always open.
870*890*
EU:
ELECTRICALLY
UNLOCKED
(Fail Secure)
Outside always locked until unlocked by key or electrically energized.
Auxiliary latch deadlocks latch. Inside always open.
* Lock Body Price ONLY. Due to numerous trim and finish options, please refer to the Marks USA Mortise Lockset Price Book.
![](asset-43.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
67
Gate Locks
Single
Cylinder Model
*With cylinder
Suffix K
Add $31
W3701
WA3806 to WA3836
W3705W3704 WA3706
WA9251
WA3715 to WA3745
9005
1083
2122
Double
Cylinder Model
*With cylinders
Suffix M
Add $63
Single
Cylinder Model
*With cylinder
Suffix K
Add $31
Double
Cylinder Model
*With cylinders
Suffix M
Add $63
W3703
WA9253
WA9293
(Use w/ W3791
or W3891)
W3708
W3751
W2108
W3791
L
W3891
H
W3892
MODEL # LATCH
PROJECTION
CHANNEL
SIZE
PRICE
LESS
CYL.*
WT. / LBS.
W3700 1-1/8” 1/2” 147 20
W3710 1-1/4” 5/8” 147 20
W3720 1-3/8” 3/4” 147 20
W3730 1-7/8” 1-1/4” 165 20
W3750 1-1/8” 1/2” 207 21
W3760 1-1/4” 5/8” 207 21
W3770 1-3/8” 3/4” 207 21
W3780 1-7/8” 1-1/4” 228 21
GATE LOCKS ARE PACKED 12 PER CASE
MODEL # HOOK
GAP
CHANNEL
SIZE
PRICE
LESS
CYL.*
WT. / LBS.
W3800 .825” 1/2” 147 21
W3810 .950” 5/8” 147 22
W3820 1.075” 3/4” 147 21
W3830 1.625” 1-1/4” 165 22
W3850 .825” 1/2” 207 22
W3860 .950” 5/8” 207 22
W3870 1.075” 3/4” 207 22
W3880 1.625” 1-1/4” 228 22
GATE LOCKS ARE PACKED 12 PER CASE
Gate locks
(Reversible) US PAT.#4,875,725 “NO FALL OUT” FEATURE:
Parts will not fall out when cover is removed.
Replaces Multilock gate locks.
Swinging Gate Locks
Sliding Gate Locks
• Easily reversible
• Case, cast aluminum 3-5/8” x 6-1/4” x 1”
• Bronze powder coat finish
• Groove: 1/2” wide x 3/16” deep, all sides for wire gate insertion
• 5 pin cylinder(s)
• Lock only, no keeper furnished
Standard Features
• Easily reversible
• Case, cast aluminum 3-5/8” x 6-1/4” x 1”
• Bronze powder coat finish
• Groove: 1/2” wide x 3/16” deep, all sides for wire gate insertion
• 5 pin cylinder(s)
• Lock only, no keeper furnished
Standard Features
Custom nameplate available.
Consult factory.
PART # DESCRIPTION PRICE
1083 Retainer/fork screw .61
2122 Mortise cylinder 43
W2108 Cylinder set screw .61
9005 Case screw .61
W3701 Cover 43
W3703 Case 67
W3704 Fork 8
W3705 Latch lever 7
W3708 Turnpiece 22
W3751 Double cylinder collar with set screw 43
W3791 Lever stop plate - Swinging gate lock (w/W3892) 14
W3891 Lever stop plate - Sliding gate lock (w/W3892) 14
W3892 Lever slide cover 5
WA3706 Latch adapter 14
WA3715 Latch assembly - 1-1/8” projection 32
WA3725 Latch assembly - 1-1/4” projection 32
WA3735 Latch assembly - 1-3/8” projection 32
WA3745 Latch assembly - 1-7/8” projection 43
WA3806 Hook assembly - .825” gap 43
WA3816 Hook assembly - .950” gap 43
WA3826 Hook assembly - 1.075” gap 43
WA3836 Hook assembly - 1.625” gap 53
WA9251 Exterior knob assembly 87
WA9253 Interior knob assembly 87
WA9293 Interior lever assembly (with W3791 & W3891) 129
Parts
![](asset-44.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
68
Custom Locksets
Performance Specifications:
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational and security tests of ANSI
specifications A156.13-2005 for series 1000, Grade 1.
Fire Test: UL Listed, 3 hour fire rated.
Meets ADA requirements.
Trim Specifications:
“Barrier” Thru-bolted steel lever/plate assemblies with brass machined
lever bearings. Screwless forged American levers, 4-1/2” long to meet
ADA requirements, fastened to plates with hardened snap rings. Spring
loaded 5/16” spindles (no set screws). Dark bronze powder coated finish.
Exterior: Wrought steel lever/plate assembly.
10-1/8” x 4” x 5/64” with 3 concealed welded thru-posts.
Center post braces lock body for proper alignment in
1-3/4” thick door. Plate covers cylinder with only the
keyway exposed.
Optional Exterior: Plate prepared for IC core cylinder.
Interior: Flat steel lever/plate assembly. 10-3/4” x 3-1/8” x 3/32”
thick with 3 each 1/4”-20 mounting bolts. Center bolt
passes through lock body to integrate trim with lock.
Cylinder: 1-1/8” long, 6 pin, solid brass with spacing collar
concealed under exterior “Barrier” plate; 2 keys.
Strike: 4-7/8” x 1-1/4” x 3/32” thick, 5/8” curved lip.
Conforms to ANSI spec., A115.1.
Door Thickness: 1-3/4” standard. Extended range available.
Lock Specifications: 5 Series (2-3/4” Backset)
1. Lock Front: Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick.
Cover plate 1/16” thick.
2. Deadbolt: Stainless steel w/hardened roll pins, 1” throw.
3. Latch: Solid stainless steel with antifriction latch lever, 3/4” throw (reversible).
4. Auxiliary deadlatch: 1/2” throw (reversible) - (not shown).
5. Hubs: Steel, 9/32” on diamond, 5/16” on square w/security separator.
6. Independent exterior and interior lever support springs.
7. Hub Follower: (to lock hub) steel 1/8” thick.
8. Hub Stop: (to limit lever travel) steel 1/8” thick.
9. Case: Stamped steel 3/32” thick, zinc dichromate finish.
10. Spindles: Independent spring-loaded spindles, 5/16” square.
SERIES HA113 custom lock Division
HOUSING AUTHORITY MORTISE LOCKSET
SERIES HA113 FINISH
GROUPS
MARKS # FUNCTION ANSI # 20A
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VESTIBULE
561
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
GL INST. PRIVACY F26
J CLASSROOM F05
JM, JR HOSPITAL (HOLDBACK) F06
EL ELECTRICALLY LOCKED 1118
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
576
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
617
H HOTEL F15
LH SPEC. PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G ENTRANCE F09
617
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTION F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
617
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 490
L BATHROOM F02 543
LF PRIVACY F19
LJ PRIVACY F22 596
EX EXIT F31 561
For pricing, finishes and availability, consult factory
![](asset-45.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
69

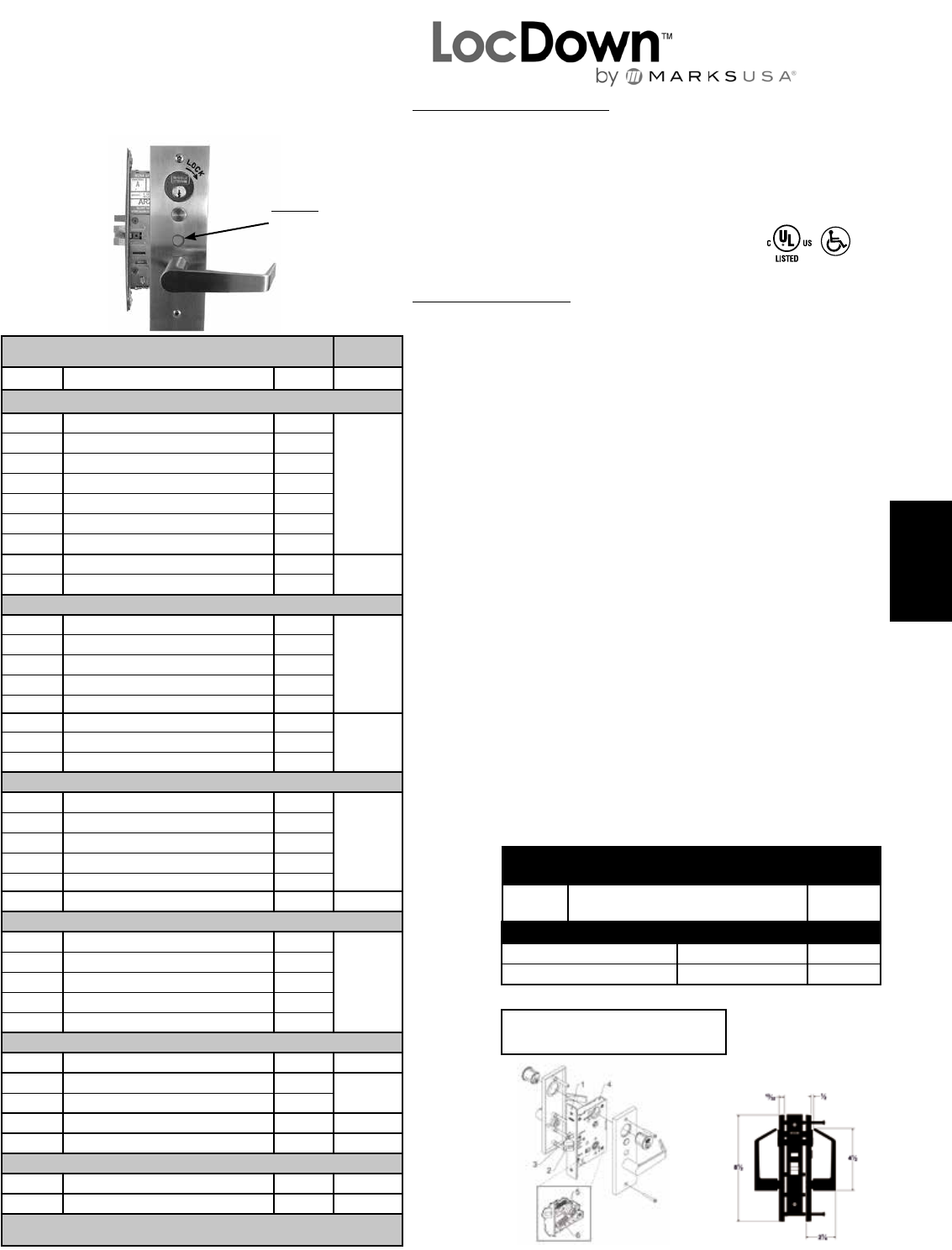

CUSTOM LOCK DIVISION
MAXIMUM SECURITY MORTISE LOCKSET
Series LA318GJ
Indicator
Unlocked - Green
Locked - Red
MARKS
# FUNCTION List Price
32D
GJ Classroom Security w/ Indicator Engraving $890
OPTIONS Code Price
Less Cylinders G3 -$30
IC Core Housing G1 N/C
Series Fuction / Finish Option
LA318 GJ / 32D - G3
HOW TO ORDER
PERFORMANCE SPECIFICATIONS:
LIFE TEST: 1,500,000 cycles, minimum
STRENGTH TEST: 530 inch lbs. torque on exterior lever. When applied, lockset remains locked.
(Torque of over 550 inch lbs. will cause spindle failure. However, lockset
remains locked once spindle is replaced, lockset is fully operational.)
ANSI TEST: Certified to meet or exceed all operational and security tests of ANSI/BHMA
A156.13-2012 for series 1000, Grade 1
FIRE TEST: UL listed, 3 hour fire rated.
Meets ADA requirements.
WARRANTY: Lifetime mechanical limited warranty
All other functions available with latch, deadlatch and deadbolt combinations
FUNCTION SPECIFICATION: LA318GJ CLASSROOM INTRUDER
Latch by lever either side except when outside lever is locked from inside or outside by key. When
locked, exterior key will retract latchbolt. Outside key locks or unlocks exterior lever. Inside key is single
acting in one direction and will lock exterior lever only; will not unlock exterior lever. Auxiliary latch
deadlocks latch. Inside always free for egress
TRIM: Cast satin stainless steel escutcheon 8-1/2”x2-3/4”x7/16”. Recess in
escutcheon to accept cylinder with rotating security cylinder ring. Cast
screwless satin stainless steel lever handles to within 1/2” from face of door
secured to escutcheon plate with hardened steel retainer ring. Lever handle,
with spring-loaded torque sensitive 5/16” spindle. Integral torque override
preventer ecessed into escutcheon plate. Spindle will yield if excessive torque
applied, preventing any damage to lock body.
EXTERIOR:Two ¼” diameter threaded thru posts.
Two ¼” diameter center posts pass thru lock body, automatically aligning trim.
INTERIOR: Two #10-32 phillips head stainless steel mounting thru bolts. Escutcheon with
“LOCK” and directional arrow engraved and black filled near cylinder location.
Occupancy indicator recessed into escutcheon plate. Indicator window to
display unlocked (green day-glo) and LocDown™ (red day-glo) positions.
CYLINDERS: Two 1-1/8”, 6-pin solid brass with 2101 cam int., 2105 cam ext., with two keys.
Outside cylinder rotates in both directions. Inside cylinder rotates in one
direction only. Cams supplied to accommodate Corbin™, Sargent™ and
Schlage™ cylinders.
STRIKE: 4-7/8” X 1-1/4” X 3/32” thick, 5/8” curved lip.
Conforms to ANSI spec. 115.1.
DOOR THICKNESS: 1-3/4”
Lock Body: 5 series “GJ” function double cylinder lock. Lock handing completely revers-
ible without opening lock case.
1. Lock Front – Adjustable bevel steel backplate 1 ¼”x 8 x 7/64” thick.
Cover plate 1/16”thick, with phillps screws
2. Latch – solid stainless steel w/ antifriction latch lever ¾” throw
3. Auxiliary Deadlatch – ½” throw
4. Case – stamped steel 3/32” thick
5. Hubs – Steel, 9/32” on diamond, 5/16” on square w/ security separator
6. Indepentant exterior and interior lever support springs
LA318 FINISH
GROUPS
MARKS # FUNCTION ANSI # 32D
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VESTIBULE
830
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
GL INST. PRIVACY F26
J CLASSROOM F05
JM, JR HOSPITAL (HOLDBACK) F06
EL ELECTRICALLY LOCKED 1143
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
844
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
866
H HOTEL F15
LH SPEC. PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G ENTRANCE F09
876
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTION F30
GJ CLASSROOM SECURITY 900
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
890
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 876
L BATHROOM F02 733
LF PRIVACY F19
LJ PRIVACY F22 844
EX EXIT F31 789
DUMMY TRIM
DI, DO DUMMY TRIM INSIDE/OUTSIDE 373
DT DUMMY TRIM 747
For pricing, finishes and availability, consult factory INTERIOR TRIM
Custom Locksets
![](asset-46.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
70
Custom Locksets
Performance Specifications:
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational and security tests of ANSI
specifications A156.13-2005 for series 1000, Grade 1.
Fire Test: UL Listed, 3 hour fire rated.
Meets ADA requirements.
Trim Specifications:
“Barrier” Thru-bolted steel lever/plate assemblies with brass machined
lever bearings. Screwless forged American levers, 4-1/2” long to meet
ADA requirements, fastened to plates with hardened snap rings. Spring
loaded 5/16” spindles (no set screws). Dark bronze powder coated finish.
Exterior: Wrought steel lever/plate assembly.
10-1/8” x 4” x 5/64” with 3 concealed welded thru-posts.
Center post braces lock body for proper alignment in
1-3/4” thick door. Plate covers cylinder with only the
keyway exposed.
Optional Exterior: Plate prepared for IC core cylinder.
Interior: Flat steel lever/plate assembly. 10-3/4” x 3-1/8” x 3/32”
thick with 3 each 1/4”-20 mounting bolts. Center bolt
passes through lock body to integrate trim with lock.
Cylinder: 1-1/8” long, 6 pin, solid brass with spacing collar
concealed under exterior “Barrier” plate; 2 keys.
Strike: 4-7/8” x 1-1/4” x 3/32” thick, 5/8” curved lip.
Conforms to ANSI spec., A115.1.
Door Thickness: 1-3/4” standard. Extended range available.
Lock Specifications: 5 Series (2-3/4” Backset)
1. Lock Front: Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick.
Cover plate 1/16” thick.
2. Deadbolt: Stainless steel w/hardened roll pins, 1” throw.
3. Latch: Solid stainless steel with antifriction latch lever, 3/4” throw (reversible).
4. Auxiliary deadlatch: 1/2” throw (reversible) - (not shown).
5. Hubs: Steel, 9/32” on diamond, 5/16” on square w/security separator.
6. Independent exterior and interior lever support springs.
7. Hub Follower: (to lock hub) steel 1/8” thick.
8. Hub Stop: (to limit lever travel) steel 1/8” thick.
9. Case: Stamped steel 3/32” thick, zinc dichromate finish.
10. Spindles: Independent spring-loaded spindles, 5/16” square.
SERIES BE101 & LA118 custom lock Division
MAXIMUM SECURITY MORTISE LOCKSET
SERIES BE101 & LA118
FINISH GROUPS
MARKS # FUNCTION ANSI # 32D 3, 10, 10B
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VESTIBULE
780 814
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
GL INST. PRIVACY F26
J CLASSROOM F05
JM, JR HOSPITAL (HOLDBACK) F06
EL ELECTRICALLY LOCKED 1109 1193
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
794 830
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
817 853
H HOTEL F15
LH SPEC. PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G ENTRANCE F09
828 861
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/HOLDBACK
WW INSTITUTION F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
828 861
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 677 710
L BATHROOM F02 794 830
LF PRIVACY F19
LJ PRIVACY F22 735 770
EX EXIT F31 735 770
DUMMY TRIM
DI, DO DUMMY TRIM INSIDE/OUTSIDE 342 359
DT DUMMY TRIM 684 770
For pricing, finishes and availability, consult factory
BE101 LA118
OPTIONS CODE PRICE
BE 1-1/2” thick for adapter plate A19 78
Spacer kit for 1-1/2” thick door K9311 78
2 Spacer kits are needed
![](asset-47.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
71
ANSI-A156.2 • Grade 1
3 Hour Fire Rating

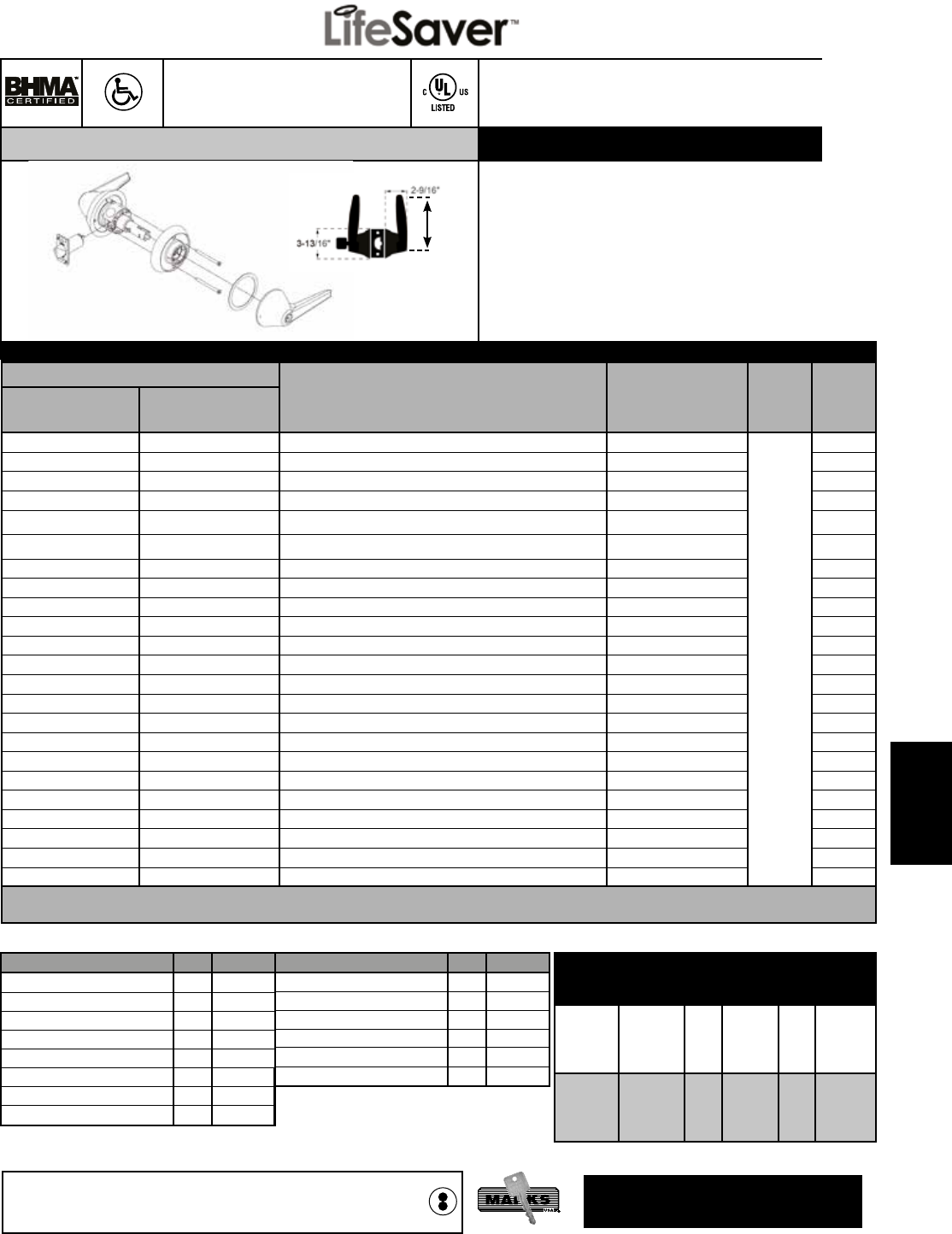

195SS SERIES
195SS Series Leversets Shown Below Standard Features
• ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
• Backset: 2-3/4” Standard, 2-3/8”, 3-3/4”, 5” Available
• Latch #1834, stainless steel nose
• Levers: Solid cast stainless steel. Levers Rotate up &
down freely
in locked or unlocked position
• Levers recessed into solid stainless steel roses eliminating any
open gap
• Roses: Thru-bolted, spring loaded, #10 thru-bolts
• Strike: #1135, 4-7/8” ASA curved lip strike
• Door thickness: 1-3/4” +/- 1/16”
• Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
• Stainless steel retractor
GRADE 1 195SS cylinDrical leversets
SERIES 1SS19
MARKS #
DESCRIPTION ANSI # FINISH PRICE
COMM.
CYL.
ACCEPTS
IC CORE CYL.*
N — PASSAGE F75
32D
814
L — PRIVACY F76 835
LK — PRIVACY F76 MOD. 861
P — PATIO F77 830
DC RDC COMMUNICATING F80 893
A RA ENTRY F81 851
B RB ENTRY F82A 851
AB RAB ENTRANCE F109 851
AQ — EXIT F83 840
S RS CLASSROOM F84 851
F RF STOREROOM F86 851
DW RDW INSTITUTION F87 893
DA RDA VESTIBULE F88 893
FQ — EXIT F89 840
T — CORRIDOR F90 861
TK — HOSPITAL/PRIV. F90 MOD. 830
GB RGB STORE DOOR F91 861
BS RBS SVC. STATION LOCK F92 903
DO — DUMMY TRIM OUTSIDE —672
DT — FULL DUMMY TRIM —772
NB — COMM. PASSAGE F111 793
FB RFB COMM. STOREROOM F112 845
SB RSB COMM. CLASSROOM F113 845
PACKED 6 PER CASE
Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models
for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®,
KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*HI-SECURITY
OPTION
OPTIONS CODE PRICE
For 2” doors D1 50
For 2-1/4” doors, Consult Factory D2
Over 2-1/4” - 4” thickness D9 648
2-3/8” backset, 1” x 2-1/4” face E6 NC
5” backset, 9/16” throw, Gr. 1 E9 47
3-3/4” backset, 9/16” throw, Gr. 1 E10 47
Less cylinder G3 Deduct 15
2-3/4” “T” strike S3 NC
4-3/4”
OPTIONS CODE PRICE
Sargent conventional cylinder F8 23
Corbin conventional cylinder F9 23
Corbin 6 pin IC core F12 34
Yale 6 pin IC core F14 23
Sargent IC core F20 23
Medeco IC core large format F21 23
How To Order
195SS F/32D — G3
1.
Lockset
Series
2.
Marks
Function
Slash 3.
FInish Dash 4.
Options
Antimicrobial Finish Available
Option Code: AM
Institutional
Life Safety
![](asset-48.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
72
Institutional
Life Safety
Performance Specifications:
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational and security tests of ANSI
specifications A156.13-2005 for series 5000, Grade 1.
Trim Specifications:
Exterior & Interior Trim:
• Solid stainless steel interior and exterior tapered knobs or levers recessed into
thru-bolted roses.
• Safety knobs with recessed grip and finger indents (Patent #D587556).
Safety lever for handicapped access on clutch operated Mortise lock.
• Ergonomically designed grooved turn knob for deadbolt functions.
Cylinder: Solid stainless steel cylinders with solid stainless steel
security collars; Optional HI-SECURITY™ cylinders available
Strike: 4-7/8” curved lip stainless steel w/tamperproof screws
Door Thickness: 1-3/4” standard; Extended range available
Door Prep: ANSI A115.1 lock face cutout, with 2-1/8” through
hole for knob/rose assembly
Lock Specifications: 5 Series (2-3/4” Backset)
55 Series (2-1/2” Backset)
Lock Front: Adjustable bevel steel backplate 1-1/4” x 8” x 7/64” thick,
Cover plate 1/16” thick with tamper proof screws
Latch: Solid stainless steel with antifriction latch lever,
3/4” throw (reversible)
Levers: Solid cast stainless steel. Levers Rotate up & down freely in
locked or unlocked position
Aux. Deadlatch: 1/2” throw, (reversible)
Case: Stamped steel 3/32” thick, zinc dichromate finish
Hubs: Steel, 9/32” on diamond, 5/16” on square w/security separator
Hub Lock Arm: (to lock hub) Steel 1/8” thick
Spindles: Independent spring-loaded spindles
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
SERIES 5
FINISH
32D
SS55
Knob
SS19
Lever
MARKS # FUNCTION ANSI #
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
1066 1066
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
GL INSTIT. PRIVACY F26
EL ELECTRICALLY LOCKED 1377 1377
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
1239 1239
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
1095 1095
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
1095 1095
C STOREROOM F14
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 1027 1027
L BATHROOM F02 1221 1221
LF PRIVACY F19
LJ PRIVACY F22 1250 1250
EX EXIT F31
DUMMY TRIM
DI DUMMY TRIM INSIDE 567 567
DO DUMMY TRIM OUTSIDE
DT FULLY DUMMY 1131 1131
Quick Privacy Access
A9618-1 Shown;
Option Code A25
SERIES 5SS55 KNOB & 5SS19 LEVER
institutional mortise locksets
SS55
SS19
How To Order
5SS55
Knob
5SS19
Lever J/32D — G3
1.
Lockset Series
2.
Marks Function Slash 3.
FInish Dash 4.
Options
4-1/2”
Antimicrobial
Finish Available
Option Code: AM
![](asset-49.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
73
Institutional
Life Safety

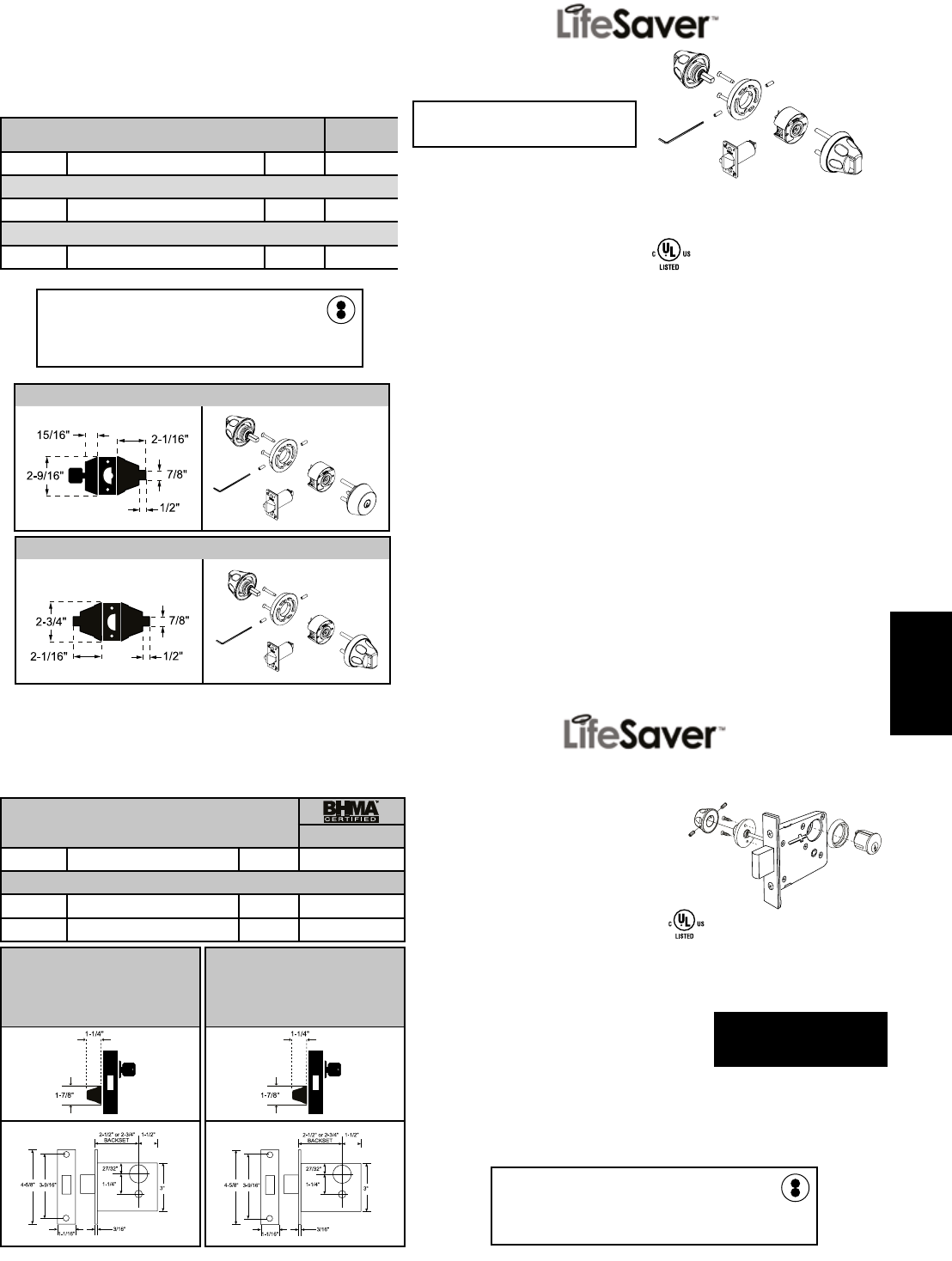

SERIES 180SS institutional locksets
INSTITUTIONAL LIFE SAFETY CYLINDRICAL KNOBSETS & LOCKSETS
SERIES 1SS55 FINISH
GROUPS
MARKS # FUNCTION ANSI # 32D
KEYED SINGLE CYLINDER, WITH DEADBOLT
K CYLINDER x KNOB E0121 1073
KEYLESS
N PASSAGE F75 1042
SERIES 31SS55 FINISH GROUPS
MARKS # FUNCTION ANSI # 32D
KEYED SINGLE CYLINDER, WITH DEADBOLT
K CYLINDER x KNOB E06071 447
S CLASSROOM E06091 476
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
Performance Specifications
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational and security tests of
ANSI specifications A156.2-2003 for series 1000, Grade 1.
Fire Test: UL Listed, 3 Hour fire rated.
Exterior & Interior Trim:
• Solid stainless steel interior and exterior tapered knobs recessed into
thru-bolted roses
• Specially designed finger indented safety knobs with recessed grip and
ergonomically designed integral grooved turn knob for elderly and handicapped
access (Patent #D587556)
• Needle bearings ensure smoothness of operation
1SS55K Cylindrical Deadlatch Lockset: ANSI E0121 Cylinder x Knob
Strike: #1136, 2-3/4” “T” strike; #1135 4-7/8” ASA strike optional
Door Prep: ANSI 115.2
Latch: ANSI 156.2, Grade 1, 3 Hour fire rated
Door Thickness: 1-3/4”
Backset: 2-3/4” Backset; 3-3/4” and 5” backsets also available
Latch Face: 1-1/8” x 2-1/4” with tamper proof screws
Cylinder: Solid brass cylinder, 6-pin, “C” keyway;
Optional HI-SECURITY™ cylinders available
1SS55N Cylindrical Lockset: ANSI F75 Passage
Strike: #1136, 2-3/4” “T” strike
Door Prep: ANSI 115.2
Latch: ANSI 156.2, Grade 1, 3 Hour fire rated
Backset: 2-3/4” backset standard, 2-3/8” backset optional;
3-3/4” and 5” backsets also available
Latch Face: 1-1/8” x 2-1/4” with tamper proof screws
Latch Throw: 9/16”
180SSK: Function E0121; Latch by knob inside, key outside.
31SS55K: Function E06071;
Deadbolt by outside key.
Interior safety knob will retract but not
project deadbolt.
3"
3
31SS55S: Function E06091;
Deadbolt by outside key.
Turnpiece will retract but not project
deadbolt.
3"
3
180SSN: Function F75; Latch by knob either side, always open.
SERIES 31SS55 institutional locksets
INSTITUTIONAL LIFE SAFETY MORTISE DEADLOCK
Performance Specifications:
Life Test: 1,500,000 cycles minimum.
ANSI Test: Meets or exceeds all operational
and security tests of
ANSI/BHMA Certified A156.5-2001
for series 31, Grade 1.
Fire Test: UL Listed, 3 Hour fire rated.
Trim Specifications:
Interior Trim: Solid stainless steel interior trim including finger indented safety knobs
which recess into solid brass through-bolted roses.
Series 31 Deadlock Specifications:
Backset: 2-3/4”
Bolt throw: 1” stainless steel w/hardened roll pins
Case: Stamped Steel
Front: 1-1/16” x 4-5/8” adjustable bevel
Cylinder: Solid brass cylinder, 6-pin, “C” keyway, 2 keys.
Optional HI-SECURITY™ cylinders available.
Strike: #4035 Included
Antimicrobial Finish Available
Option Code: AM
Antimicrobial Finish
Option Code: AM
![](asset-4a.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
74

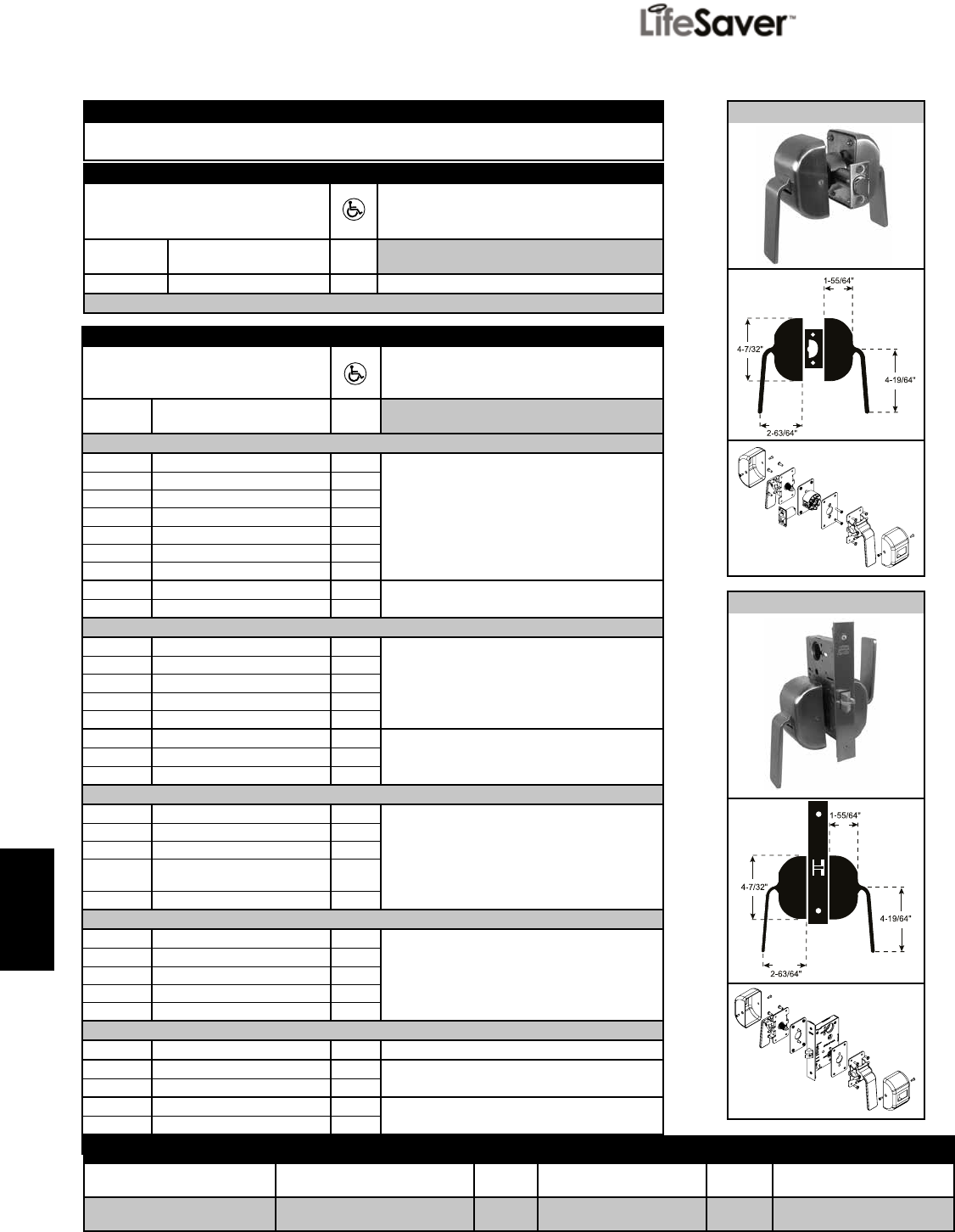

Hospital Push/Pull
Paddlesets
5PD Mortise Paddleset
180PD Cylindrical Paddleset
SERIES 180PD & 5PD HosPital locksets
CYLINDRICAL & MORTISE PUSH/PULL PADDLESETS
5PD, 55PD Mortise Standard Features SERIES 5PD, 55PD • ANSI-A156.13 • Grade 1
• 5 Series Backset: 2-3/4”;
55 Series Backset: 2-1/2”
• Strike: #9035, 4-7/8” ASA curved lip strike
LEAD LINING & ENGRAVING AVAILABLE
MARKS # FUNCTION ANSI # FINISH: 32D Standard
Consult Factory for Additional Finishes
KEYED SINGLE CYLINDER, NO DEADBOLT
DOFFICE VEST.
735
DW VESTIBULE
E OFFICE F04
EW STOREROOM F07
J CLASSROOM F05
JM, JR HOSPITAL F06
GL INSTITUTIONAL PRIVACY F26
EL ELECTRICALLY LOCKED 1064
EU ELECTRICALLY UNLOCKED
KEYED SINGLE CYLINDER, WITH DEADBOLT
A ENTRANCE F08, F10
750
B ENTRANCE F21
F DORMITORY F12
FS DORMITORY
FW DORMITORY F13
FD APARTMENT F20
773
H HOTEL F15
LH SPECIAL PRIVACY
KEYED DOUBLE CYLINDER, NO DEADBOLT
G APARTMENT F09
783
GC INTRUDER LATCHBOLT F32
GG CLASSROOM SECURITY
GR CLASSROOM SECURITY w/
HOLDBACK
WW INSTITUTIONAL F30
KEYED DOUBLE CYLINDER, WITH DEADBOLT
AC ENTRANCE F35
783
C STOREROOM F14
FC INTRUDER DEADBOLT F34
FA DORMITORY F11
FX DORMITORY F33
KEYLESS
N PASSAGE F01 633
L BATHROOM F02 750
LF PRIVACY F19
LJ PRIVACY F22 688
EX EXIT F31
PUSH/PULLS ARE PACKED 6 PER CASE
180PD Cylindrical Standard Features SERIES 180PD • ANSI-A156.2 • Grade 1
• 2-3/4” backset std., 2-3/8”, 3-3/4” & 5” optional
• 2-3/4” “T” strike; 4-7/8” ASA strike optional
• Government standard #161 door prep
LEAD LINING & ENGRAVING AVAILABLE
MARKS # FUNCTION ANSI # FINISH: 32D Standard
Consult Factory for Additional Finishes
N PASSAGE F75 318
PUSH/PULLS ARE PACKED 6 PER CASE
Hospital Push/Pull Standard Features
• 1-3/4” door thickness, self adjusting for thicker doors • Non-Handed
• Variable mounting positions • Easily reversible configuration for push or pull styles
How To Order
5PD or 180PD F/32D — G3
1.
Lockset Series
2.
Marks Function Slash 3.
Finish Dash 4.
Options
![](asset-4b.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
75
SERIES 180PD & 5PD HosPital locksets
CYLINDRICAL & MORTISE PUSH/PULL PADDLESETS
Mortise Cylinders,
Parts, Cams
Mortise Concealed
R662
2101 2102 2105 21062104
Small Format
IC Core
6 or 7 Pin
RA3182
Schlage® format
IC Core
PART # DESCRIPTION PINS LENGTH
FINISH GROUPS
3,
26D
5, 10, 10B,
15, 26, 32D 3E
2122 Mortise 5 15/16” 49 51 71
2181 Mortise 6 2-7/8” 422 — —
2182 Mortise 6 1-1/8” 53 59 74
2183 Mortise 6 1-1/4” 53 59 74
2193 Concealed 5 15/16” 71 — —
2194 Concealed 6 1-1/8” 75 — —
2196 Mortise 6 2-3/8” 294 — —
2197 Mortise 6 1-3/4” 114 119 134
2198 Mortise 6 1-1/2” 91 94 114
662 Rim 6 — 53 59 —
R2181 Mortise IC Core Housing 6 1” 53 59 —
R2182 Mortise IC Core Housing 6 1-1/4” 49 51 —
R2183 Mortise IC Core Housing 6 or 7 1-3/8” 49 51 —
R2184 IC Core Cylinder Housing 6 or 7 1-3/4” 113 113 113
R3182 Schlage® type IC Core, Uncombinated 6 113 — —
R4182 Schlage® type IC Core Housing 6 1-1/2” 134 — —
R662 Rim IC Core Housing 6 or 7 1-3/8” 56 59 —
R1182 6 Pin Core, Uncombinated 43 — —
R1183 7 Pin Core, Uncombinated 43 — —
RA1182 6 Pin Core, Combinated 63 65 —
RA1183 7 Pin Core, Combinated 63 65 —
RA3182 Schlage® type IC Core, Combinated 6 134 — —
RC1182 6 Pin Core, Construction Core 45 — —
RC1187 Plastic Core Turn Knob 8 — —
RC3182 Schlage® type Construction Core 113 — —
RM1182 Marketry Core 47 — —
PART # DESCRIPTION USE WITH
MORTISE LOCK CODE PRICE
2101
STRAIGHT CAM
MARKS 1 6
2101-A ARROW/SARGENT A1 6
2101-C CORBIN RUSSWIN C1 6
2101-S SCHLAGE S1 6
2102
CLOVERLEAF CAM
MARKS 2 6
2102-A ARROW/SARGENT A2 6
2102-C CORBIN RUSSWIN C2 6
2102-S SCHLAGE S2 6
PART # DESCRIPTION USE WITH
MORTISE LOCK CODE PRICE
2104 ADAMS-RITE CAM MARKS 4 6
2105
“J” FUNCTION CAM
MARKS 5 6
2105-A ARROW/SARGENT A5 6
2105-C CORBIN RUSSWIN C5 6
2105-S SCHLAGE S5 6
2107-CL “J-CL” FUNCTION CAM MARKS 7 6
2106
“G” CAM
Exterior only
MARKS 6 6
2106-A ARROW/SARGENT A6 6
2106-C CORBIN RUSSWIN C6 6
2106-S SCHLAGE S6 6
Cylinder Cams
*
*
*
*
*
*
*
*
*
*
*
*
*
R2183 R4182
R2181
mortise lock cylinDers
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
IC core pricing includes KA, KD or MK keying.
Cylinders
IC Core Cylinder Housings
How To Order Example for Mortise Lock Cylinders
2182 /32D — 1C
1.
Cylinder Slash 2.
Finish Dash 3.
Options
See List Of
Cylinders
Available
p Special
_____
Cam and keying information
must be included in the option section.
FINISH
(Pg. 8)
p 3 p 10 p 26
p 3E p 10B p 26D
p 5 p 15 p 32D
Specify
• Keying
• Door Thickness
2107-CL
![](asset-4c.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
76
keys & keying
Can Stamp A Maximum Of 6 Characters On Key.
BEST® A thru M keyway. Please specify.
IC Core pricing includes KA, KD or MK Keying.
Construction Master Keying:
The construction master key (CMK) is to be used temporarily while the building
is under construction. When construction is completed, the end user defeats the
CMK’s operation by turning the change key in each cylinder, rather than replace
or re-keying the cylinder.
Marks USA uses a program which is called the “lost ball” program. When
construction key system is set up, three small ball bearings (construction balls)
are placed between the bottom pin and master pin, normally in the last chamber
as a “temporary master pin”. The construction key is usually the same cut as the
top master key with the exception of the sixth cut which is two increments higher.
The construction master key will work in any cylinder until cylinder is “defeated”
by making one full rotation in the cylinder with the change key. The cylinder plug
requires a small diameter “pocket” drilled on one side of one pin chamber so when
rotating the cylinder with the change key the pocket will capture the construction
balls. The construction pocket in the plug is smaller than a pin chamber. This prevents
any top pins or master pins from entering as the plug rotates. Once the cylinder is
defeated, there is no way for the cylinder to be construction keyed again without
disassembling it.
Secondary Method: Permanent Master Key Voids CMK Operation
STANDARD
KEYWAYS
PIN LENGTH
ACCEPTS
SHOULDER
INCREMENTS
PIN TO PIN
TO 1st PIN
PLUG
DISTANCE DIAMETER
MARKS “A”
Arrow
Kwikset
Segal 9
.015” .264” .156” .504”
MARKS “C” Schlage “C” .015” .231” .156” .504”
Keys
PART # DESCRIPTION PRICE
BLANK CUT
2164A MARKS “A” 5 PIN BRASS 5 7
2164C MARKS “C” 5 PIN BRASS, NICKEL PLATED 5 7
2184A MARKS “A” 6 PIN NICKEL SILVER 6 8
2184C MARKS “C” 6 PIN NICKEL SILVER 6 6
2185C MARKS “C” 6 PIN LARGE BOW 8 9
R1164 IC CORE 6 OR 7 PIN (SMALL FORMAT) 6 8
R3164 SCHLAGE® IC CORE CONTROL KEY 6 8
PART # DESCRIPTION PRICE
REGULAR IC CORE
KA KEYED ALIKE NC NC
KD KEYED DIFFERENT NC NC
MK MASTER KEYED 21 NC
CMK CONSTRUCTION MASTER KEYED
(Includes GMK or MK) 31 —
GMK GRAND MASTER KEYED 21 13
GGMK GREAT GRAND MASTER KEYED 21 13
GGGMK GREAT GREAT GRAND MASTER KEYED 21 —
HK HOTEL KEYED (Guest, Maid, Emergency) 28 —
KEYING TO A SPECIFIC CODE NUMBER 15 15
STAMPING PRICE
LETTERS/NUMBERS ON KEY 7 PER KEY
US PROPERTY - “DO NOT DUPLICATE” 7 PER KEY
VISUAL KEY CONTROL (VKC) 6
CONCEAL KEY CONTROL 15
EXTRA CUT KEYS WITH LOCKSET SEE KEYS ABOVE
LARGE BOW KEY 7 PER KEY
KEY BITTING CODE LIST 252
Concealed Cylinder Mortise Cylinder Length
Cylindrical
Cylinder
Rim Cylinder
Housing
Removable Core
Housing
Small Format
IC Core
6 or 7 pin
Schlage®
format IC core
cylinder
Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included).
Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon,
Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
IC CORE PRICING INCLUDES KA, KD OR MK KEYING
MARKS Keys IC Core Keys
Keys & Keying
![](asset-4d.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
77

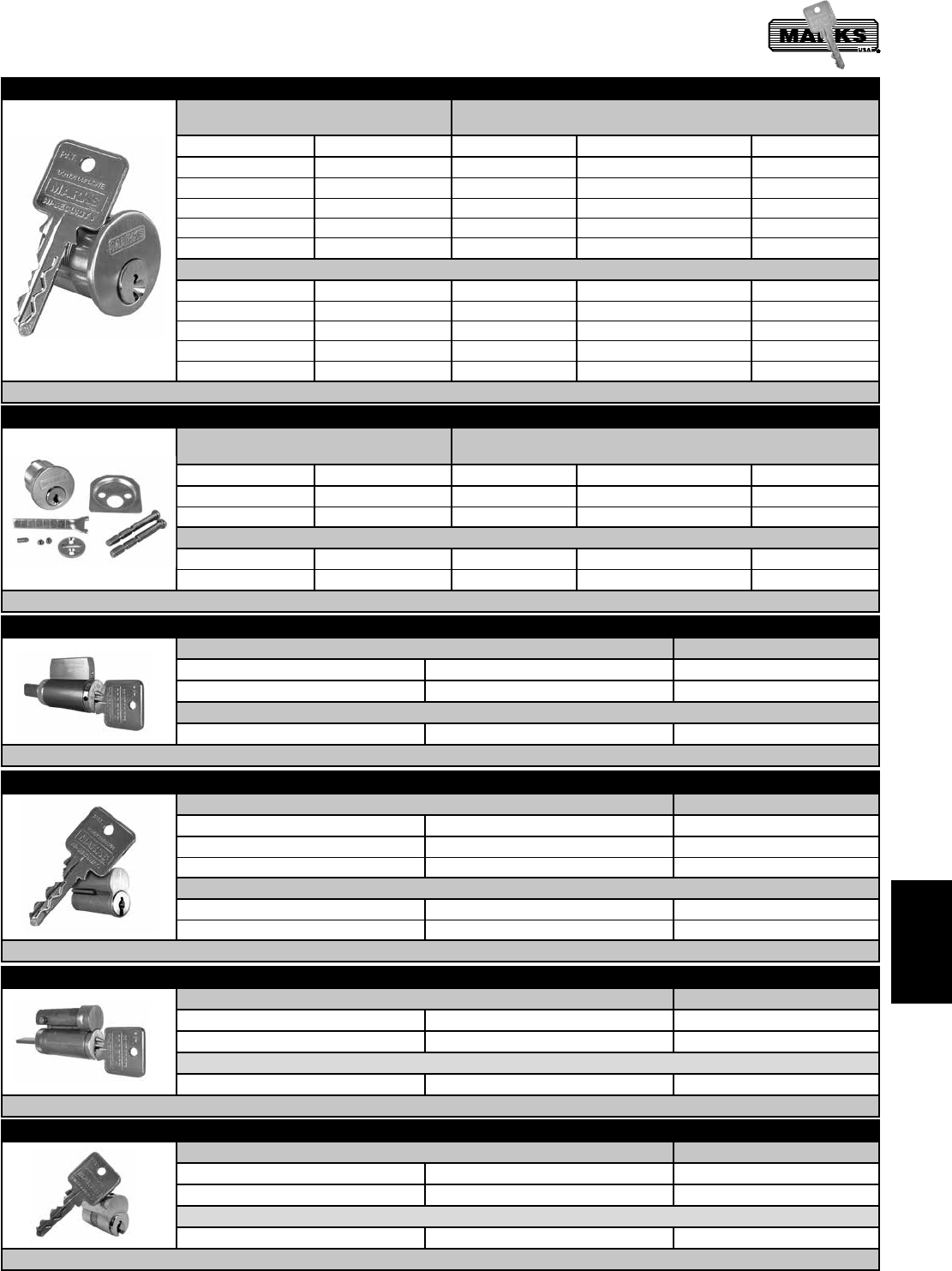

HI-SECURITY™ CylinDers: NON-UL
HI-SECURITY™ MORTISE CYLINDERS
NON-UL “0” Bitted x 2 Keys;
“0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 3, 26D 4, 5, 10, 10B, 15, 26, 32D 3E
BXXX-D001A0N2 1-1/8” Mortise Cylinder 72 78 91
CXXX-D001A0N2 1-1/4” Mortise Cylinder 78 84 97
DXXX-D001A0N2 1-3/8” Mortise Cylinder 90 95 109
LXXX-D001A0N2 1-1/2” Mortise Cylinder 101 106 119
MXXX-D001A0N2 1-3/4” Mortise Cylinder 113 120 132
NON-UL KD x 2 Keys
BXXX-D001A1N2 1-1/8” Mortise Cylinder 79 86 101
CXXX-D001A1N2 1-1/4” Mortise Cylinder 86 90 105
DXXX-D001A1N2 1-3/8” Mortise Cylinder 98 103 117
LXXX-D001A1N2 1-1/2” Mortise Cylinder 108 113 128
MXXX-D001A1N2 1-3/4” Mortise Cylinder 108 126 139
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ MORTISE/RIM COMBO CYLINDERS
NON-UL “0” Bitted x 2 Keys;
“0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 3, 26D 4, 5, 10, 10B, 15, 26, 32D 3E
EXXX-D001A0N2 1” Combo Cylinder 65 70 85
FXXX-D001A0N2 1-1/8” Combo Cylinder 78 84 97
NON-UL KD x 2 Keys
EXXX-D001A1N2 1” Combo Cylinder 73 78 91
FXXX-D001A1N2 1-1/8” Combo Cylinder 86 90 105
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ KIK CYLINDERS
NON-UL “0” Bitted x 2 Keys; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
G26D-D001X0N2 Key-In-Knob Cylinder 59
NON-UL KD x 2 Keys
G26D-D001X1N2 Key-In-Knob Cylinder 65
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ MARKS IC CORE CYLINDERS
NON-UL “0” Bitted x 2 Keys x 1 Control Key; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
H26D-D001X0N2 6 Pin IC Core Cylinder 65
J26D-D001X0N2 7 Pin IC Core Cylinder 68
NON-UL KD x 2 Keys x 1 Control Key
H26D-D001X1N2 6 Pin IC Core Cylinder 76
J26D-D001X1N2 7 Pin IC Core Cylinder 79
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ Schlage® LARGE FORMAT IC CORE CYLINDERS
NON-UL “0” Bitted x 2 Keys x 1 Control Key; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
K26D-D001X0N2 6 Pin Schlage® IC Core Cylinder 83
NON-UL KD x 2 Keys x 1 Control Key
K26D-D001X1N2 6 Pin Schlage® IC Core Cylinder 92
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ Medeco® LARGE FORMAT IC CORE CYLINDERS
NON-UL “0” Bitted x 2 Keys x 1 Control Key; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
P26D-D001X0N2 6 Pin Medeco® IC Core Cylinder 101
NON-UL KD x 2 Keys x 1 Control Key
P26D-D001X1N2 6 Pin Medeco® IC Core Cylinder 112
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY
HI-SECURITY™
Cylinders
![](asset-4e.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
78
HI-SECURITY™
Cylinders
HI-SECURITY™ Medeco® LARGE FORMAT IC CORE CYLINDERS
UL 437 “0” Bitted x 2 Keys x 1 Control Key; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
P26D-D001X0U2 6 Pin Medeco® IC Core Cylinder 116
NON-UL KD x 2 Keys x 1 Control Key
P26D-D001X1U2 6 Pin Medeco® IC Core Cylinder 128
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ MORTISE/RIM COMBO CYLINDERS
UL 437 “0” Bitted x 2 Keys;
“0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 3, 26D 4, 5, 10, 10B, 15, 26, 32D 3E
EXXX-D001A0U2 1” Combo Cylinder 84 88 102
FXXX-D001A0U2 1-1/8” Combo Cylinder 95 101 114
UL 437 KD x 2 Keys
EXXX-D001A1U2 1” Combo Cylinder 90 95 109
FXXX-D001A1U2 1-1/8” Combo Cylinder 103 108 109
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ KIK CYLINDERS
UL 437 “0” Bitted x 2 Keys; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
G26D-D001X0U2 Key-In-Knob Cylinder 75
UL 437 KD x 2 Keys
G26D-D001X1U2 Key-In-Knob Cylinder 84
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ Schlage® LARGE FORMAT IC CORE CYLINDERS
UL 437 “0” Bitted x 2 Keys x 1 Control Key; “0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 26D
K26D-D001X0U2 6 Pin Schlage® IC Core Cylinder 97
NON-UL KD x 2 Keys x 1 Control Key
K26D-D001X1U2 6 Pin Schlage® IC Core Cylinder 108
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ CylinDers: UL 437
HI-SECURITY
HI-SECURITY™ MORTISE CYLINDERS
UL 437 “0” Bitted x 2 Keys;
“0” Bitted “NO KEYS” - Deduct $6 FINISH GROUPS
PART # DESCRIPTION 3, 26D 4, 5, 10, 10B, 15, 26, 32D 3E
BXXX-D001A0U2 1-1/8” Mortise Cylinder 90 95 109
CXXX-D001A0U2 1-1/4” Mortise Cylinder 92 98 112
DXXX-D001A0U2 1-3/8” Mortise Cylinder 108 113 128
LXXX-D001A0U2 1-1/2” Mortise Cylinder 114 123 137
MXXX-D001A0U2 1-3/4” Mortise Cylinder 131 135 149
UL 437 KD x 2 Keys
BXXX-D001A1U2 1-1/8” Mortise Cylinder 98 103 117
CXXX-D001A1U2 1-1/4” Mortise Cylinder 101 107 119
DXXX-D001A1U2 1-3/8” Mortise Cylinder 116 120 134
LXXX-D001A1U2 1-1/2” Mortise Cylinder 126 131 145
MXXX-D001A1U2 1-3/4” Mortise Cylinder 138 144 158
HI-SECURITY™ CYLINDERS ARE PACKED 24 PER CASE
![](asset-4f.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
79
Security-Mate™ MORTISE CYLINDERS
“0” Bitted “NO KEYS” FINISH GROUPS
PART # DESCRIPTION 3, 26D 4, 5, 10, 10B, 15, 26, 32D
BXXX-DXXXA0N0 1-1/8” Mortise Cylinder 56 61
CXXX-DXXXA0N0 1-1/4” Mortise Cylinder 61 65
DXXX-DXXXA0N0 1-3/8” Mortise Cylinder 72 78
LXXX-DXXXA0N0 1-1/2” Mortise Cylinder 84 49
MXXX-DXXXA0N0 1-3/4” Mortise Cylinder 95 101
Security-Mate™ CYLINDERS ARE PACKED 24 PER CASE
Security-Mate™ MORTISE/RIM COMBO CYLINDERS
“0” Bitted “NO KEYS” FINISH GROUPS
PART # DESCRIPTION 3, 26D 4, 5, 10, 10B, 15, 26, 32D
EXXX-DXXXA0N0 1” Combo Cylinder 47 53
FXXX-DXXXA0N0 1-1/8” Combo Cylinder 61 65
Security-Mate™ CYLINDERS ARE PACKED 24 PER CASE
Security-Mate™ KIK CYLINDERS
“0” Bitted “NO KEYS” FINISH GROUPS
PART # DESCRIPTION 26D
G26D-DXXXX0N0 Key-In-Knob Cylinder 44
Security-Mate™ CYLINDERS ARE PACKED 24 PER CASE
Security-Mate™ MARKS IC CORE CYLINDERS
“0” Bitted “NO KEYS” FINISH GROUPS
PART # DESCRIPTION 26D
H26D-DXXXX0N0 6 Pin IC Core Cylinder 49
J26D-DXXXX0N0 7 Pin IC Core Cylinder 53
Security-Mate™ CYLINDERS ARE PACKED 24 PER CASE
Security-Mate® Schlage™ LARGE FORMAT IC CORE CYLINDERS
“0” Bitted “NO KEYS” FINISH GROUPS
PART # DESCRIPTION 26D
K26D-DXXXX0N0 6 Pin Schlage® IC Core Cylinder 67
Security-Mate™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY
HI-SECURITY™ SPECIAL APPLICATION CYLINDERS
KA Pair w/ 2 Keys, NON-UL, Straight Cam FINISH GROUPS
PART # DESCRIPTION 3, 26D 5, 15
2122XXXHSM 15/16” Mortise Cylinders 141 146
HI-SECURITY™ SPECIAL APPLICATION CYLINDERS ARE PACKED 24 PER CASE
Security-Mate® Medeco™ LARGE FORMAT IC CORE CYLINDERS
“0” Bitted “NO KEYS” FINISH GROUPS
PART # DESCRIPTION 26D
P26D-DXXXX0N0 6 Pin Medeco® IC Core Cylinder 86
Security-Mate™ CYLINDERS ARE PACKED 24 PER CASE
HI-SECURITY™ CylinDers
Security-Mate
™
& SPECIAL APPLICATION CYLINDERS
HI-SECURITY™
Cylinders
![](asset-50.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
80
KEY TYPE
p HS = HI-SECURITY™
p RS = IC Core
PINS
p 5 Pin
p 6 Pin
p 7 Pin
KEYWAY
p D = HS
SECURITY CODE
p 001 = Marks
SPECIAL KEY TYPE
p C = Control Key
CYLINDER
TYPE
p B = 1-1/8”
Mortise
p C = 1-1/4”
Mortise
p D = 1-3/8”
Mortise
p L = 1-1/2”
Mortise
p M = 1-3/4”
Mortise
p E = 1”
Combo
p F = 1-1/8”
Combo
p G = KIK
Cylinder
p H = IC Core
Marks 6 Pin
p J = IC Core
Marks 7 Pin
p K = IC Core
Schlage®
Large Format
p P = IC Core
Medeco®
Large Format
FINISH
p 3
p 4
p 5
p 10
p 10B
p 15
p 26
p 26D
p 32
p 32D
KEYWAY
p D = HS
KEYING
p 0 = “0” Bitted
p 1 = KD
p 2 = KA
p 3 = CMK
p 4 = GMK
p 5 = MK
p 6 = GGMK
KEYING
p 0 = “0” Bitted
p 1 = 1 Key
p 2 = 2 Keys
p 3 = 3 Keys
Up to 9, Then
as separate
line item
CAM TAIL
MORTISE
p A = 2101
p B = 2102
p D = 2104
p E = 2105
p F = 2106
KIK
p A =
Standard Tail
p B =
Classroom Tail
p C =
i-Que Electronic
IC CORE
p A = 6 Pin IC
p B = 7 Pin IC
UL or
NON-UL
p U =
UL 437
p N =
NON UL
SECURITY
CODE
p 001 =
MARKS
How To Order Example
for HI-SECURITY™ Cylinders
D 3 — D 001 A 3 U 2
1.
Cylinder Type
2.
Finish Dash 3.
Keyway
4.
Security Code
5.
Cam Tail
6.
Keying
7.
NON-UL / UL437
8.
# of Keys
How To Order Example
for HI-SECURITY™ Keys
HS 6 D 001 C
1.
Key Type
2.
Pins
3.
Keyway
4.
Security Code
5.
Special Key Type
HI-SECURITY™ CylinDers
HOW TO ORDER HI-SECURITY™ CYLINDERS AND KEYS
HI-SECURITY™
Cylinders
![](asset-51.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
81
HI-SECURITY™
Cylinders
Schlage® LARGE FORMAT IC CORE HOUSING CAMS
PART # DESCRIPTION PRICE
2101 HSPM Straight Cam 5
2102 HSPM Clover Cam 5
2104 HSPM Adams Rite Cam 5
2105 HSPM J - Cam 5
2106 HSPM G - Cam 5
2107-CL HSPM Straight Cam 5
MORTISE CYLINDER CAMS
PART # DESCRIPTION PRICE
2101HS Straight Cam 5
2102HS Clover Cam 5
2104HS Adams Rite Cam 5
2105HS J - Cam 5
2106HS G - Cam 5
2107-CLHS Straight Cam 5
CYLINDRICAL TAIL PIECES
PART # FUNCTIONS PRICE
F1903-C AB, DW, F 7
F1903S-C S, DA, DB, DC, SB, T 7
IC CORE TAILPIECES
R1
HR1984-HS AB, B, DA (ext.), DW, F, FEU, FEL 7
HR1984S-HS S, DA (int.), DB, DC, SB, T 7
KEYING CHARGES
PART # DESCRIPTION PRICE
KA, KD Keyed Alike, Keyed Different NC
MK Master Keyed 20
GMK Grand Master Keyed 20
GGMK Great Grand Master Keyed 20
CMK Construction Master Keyed 29
VKC Visual Key Control 14
KEYS
PART # DESCRIPTION PRICE
HS5D001 5 Pin Key Blank 8
HS6D001 6 Pin Key Blank 8
RS6D001 6 Pin IC Key Blank 8
RS7D001 7 Pin IC Key Blank 8
Schlage® IC CORE CONTROL KEY
HSR3184 6 or 7 Pin IC Key Blank 8
CUT KEYS
Conventional Cylinder 11
IC Core Cylinder 11
HI-SECURITY™ CylinDers
KEYS, CAMS & TAILPIECES
HI-SECURITY
![](asset-52.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
82
HI-SECURITY™
Cylinders
HI-SECURITY™ CylinDers
PARTS LIST
HI-SECURITY
PARTS LIST
PART # DESCRIPTION PRICE PACKED
P2031 Finger Pins #1 (Silver) 25 25 per pack
P2032 Finger Pins #2 (Copper) 25 25 per pack
P2033 Finger Pins #3 (Black) 25 25 per pack
P2034 Finger Pins #4 (Gold) 25 25 per pack
2035 Sidebar - Schlage® IC 25 25 per pack
2036 Sidebar - Combo, KIK, Mortise 25 25 per pack
2051 Sidebar - Best® IC 25 25 per pack
2037 Sidebar Springs 25 50 per pack
2044 Mortise Cam Screws 14 12 per pack
2045 IC Mortise Cam Screws - SCHLAGE® ONLY 14 12 per pack
2038 Hardened Steel Pins 14 12 per pack
2041 Schlage® IC Cap Pin 25 12 per pack
2042 Schlage® IC Cap Pin Spring 25 12 per pack
2046 Schlage® IC Screw Cap 25 6 per pack
2048 KIK Screw Cap 25 6 per pack
2043 Best® IC Clip 25 12 per pack
2039 Top Hex Screws (HI-SECURITY™ Mortise) 14 12 per pack
2040 Top Hex Screws (HI-SECURITY™ Best® IC) 14 12 per pack
2047 HI-SECURITY™ Registration Card 39 10 cards
R2984 7 Pin IC Tailpiece (AB, DW, F) 5 —
R2984S 7 Pin IC Tailpiece (S, DA, DB, DC, SB, T, TS) 5 —
R1981 Spacer 5 —
K2030 Parts Kit 277 —
2049 Plug Holder 39 —
BXXX-D133B1N1C Cut Away Mortise Cylinder 107 —
BXXX-D133B1N1P Plastic Mortise Cylinder 107 —
HSICT Shear Tool 221 —
HSC387 HPC Card C387 49 —
![](asset-53.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
83
SERIES M9900 EXIT DEVICE
RIM MOUNT
SERIES M9900 VR EXIT DEVICE
SURFACE VERTICAL ROD
Exit Devices
MARKS # FUNCTION PRICE
32D 10B
M9900 Rim Panic 419 488
M9900F Fire Rated Rim Panic 473 542
M9900 - 48 Rim Panic - 48” 462 531
M9900F - 48 Fire Rated Rim Panic - 48” 517 586
SPECIFICATIONS
• Doors: 1 3/4” thick standard
• End Cover: Stainless steel beveled “Panic Protector” design
• Strike: Roller strike
• Rail Assembly: Heavy Gauge Stainless Steel
• Dead latch Bolt: Stainless Steel 3/4” throw.
• Dead latch Bolt: Stainless Steel 5/8”.
• Dogging feature: Allen Key (M9900)
• UL listed: For “Panic Hardware” and Fire Rated Model 3 hour
re doors up to 38” x 86”.
• ANSI: ANSI 156.3 (2001), requirements for Grade 1
• 3 Hour Fire Rating
• Finished: Stainless steel satin nish
OPTIONS
M9900 33” Length for 38” Door
M9900-48” 42” Length for 48” Door
• EXTRUSION HEAVY GAGE 32D FINISH • PANIC PROTECTOR™ END CAP
• LIFETIME MECHANICAL WARRANTY • EASY INSTALLATION, ECONOMICAL
MARKS # FUNCTION PRICE
32B 10B
M9900 VR Rim Panic Vertical Rod 557 620
M9900F VR Fire Rated Rim Panic Vertical Rod 613 682
M9900 - 48 VR Rim Panic Vertical Rod - 48” 584 653
M9900F - 48 VR Fire Rated Rim Panic Vertical Rod - 48” 640 705
SPECIFICATIONS
• Device Head Cover: Zinc alloy or stainless steel
• Chassis: Steel, plated
• Mechanism Housing: Extruded aluminum
• Push Bar Base: Extruded aluminum
• Touch Plate: Stainless Steel
• End Cap: Stainless Steel
• Top Latch: Stainless Steel 37/64” (14.8mm)
• Top Strike: Included
• Bottom Latch: Stainless Steel 37/64” (14.8mm)
• Bottom Strike: Included
• Latch Case Covers: Steel, stainless steel or brass
• Vertical Rods: Aluminum tube
• Hand: Non-handed
• Mounting: Machine screws standard. Sex bolts optional.
Order “SNB” for wood or unreinforced metal doors
• Dogging: Allen-type key furnished
• Finish: 32D
• Outside Trim: Order separately
• Standard Height: 7’ doors
• UL listed: ANSI/BHMA Grade 1 Panic Exit Hardware
• 3-Hour Fire Rated
APPLICATION
• For use on single door or pair of doors
• 1 3/4” (44 mm) door thickness standard. Specify
thickness other than 1 3/4”
• RHR or LHR hollow metal, wood and mineral core doors
• Minimum Stile Width: 3 1/2” (89 mm)
![](asset-54.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
84
Specification: Conforms to ANSI BHMA A156.3 Grade 1 Exit Device Requirement Standard
ANSI/UL305 Standard for Safety for Panic Hardware
2013 California Building Code Sec. 11B-309.4
For Doors: (Please specify when ordering non standard size doors)
Thickness: Standard 1 3/4”, may fit with door thickness up to 2”
Width: Standard 36” or 48”, may fit door width 30”~48”
Mounting: Furnished Standard with Wood and Machine Screws
Head Cover: Zinc Alloy
Chassis: Aluminum
Rail Assembly: Heavy Gauge extruded aluminum with stainless steel on top of touch bar
End Cap: Zinc Alloy
Hand: Non-handed
Latch Bolt: Stainless Steel, 3/4” (18mm) throw
Strike: Roller Strike (Stainless Steel)
Dogging: Allen Key (equipped on panic rate devices only)
Finish: 32D: Satin Stainless Steel Finish
10B: Oil Rubbed Bronze Finish
Dimension: Touch bar height from finished floor: 41” (1041mm) from center of touch bar
Touch Bar Projection: Neutral: 3 5/16” (84mm)
Depressed: 2 19/32” (66mm)
Head Cover: LxWxH: 206mm x 76mm x 71mm
Device Length: 34 5/8” (88cm) for 36” door width
46 5/8” (118.5 cm) for 48” door width
SERIES M9900 exterior trim
MARKS # DESCRIPTION PRICE
26D 10B
M411 Finger Pill - no cylinder 22 25
MESC600A Lever / Escuteon Trim Entry 128 170
MESC600F Lever / Escuteon Trim Storeroom 128 170
MESC600N Lever / Escuteon Trim Passage 111 154
MESC600DT Lever / Escuteon Trim Dummy Trim 111 154
M9901 36 inch Panic Device Dogging Kit 72 —
M9902 48 inch Panic Device Dogging Kit 80 —
MVR8 Vertical Rod 8 ft extention - Code 8 40 —
MVR10 Vertical Rod 10 ft extention - Code 10 64 —
MVRB Vertical Rod - Bottom Rod 27 —
MVP/32D Rim Panic Vandal Pull 191 —
MVPCC/32D Rim Panic Vandal Pull w/ cylinder hole 212 —
ENTRY LEVER TRIM
• Standard Marks “C” Keyway KNK cylinder for panic
device.
• Cylinder locks or unlocks lever, rigid when locked;
when unlocked retracts latch bolt.
• Marks 26D Finish / Standard 1-3/4” Door Thickness
• IC Prep Code G1, Less Cylinder G3
ESCUTCHEON LEVER DESIGN
• Thru bolt design
• Non Handed design. Easily field reversible.
• Marks 32D Finish / Standard 1-3/4” Door Thickness
• Standard Marks “C” Keyway 1-1/4 Mortise cylinder
with special cam
• IC Prep Code G1
• Less Cylinder G3
SERIES M8800 exit Device
THIN LINE TM RIM MOUNT
Exit Devices
M411 Lever/Rose Rim Panic Vandal Pull
MES600A Cylindrical Dogging Kit - 32D Rim Panic Vandal Pull w/ cylinder hole
M195F
M9901
M9902
MVP/32D
MVPCC/32D
(cylinder not
included)
MORTISE CYLINDER CAMS
M9907 MESC600A
M9908 MESC600F
M9909 MESC600F IC CORE HOUSING
M9910 MESC600A IC CORE HOUSING
MARKS # FUNCTION PRICE
32D
M8800 Rim Panic 466
M8800 - 48 Rim Panic - 48” 509
Specifications
![](asset-55.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
85
SERIES M195 exit Device trim
Exit Devices
Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models
for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®,
KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.
*
M195 Series Leverset M295 Series Leversetw
M495 Series Leverset
OPTIONS CODE PRICE - 195 295 395 495
Yale Conventional F7 23 — — —
Sargent conventional cylinder F8 23 22 — —
Corbin conventional cylinder F9 23 22 — —
Corbin 6 pin IC core F12 34 32 — —
Corbin 7 pin IC core F13 34 — — —
Yale 6 pin IC core F14 23 22 — —
Yale 7 pin IC core F15 23 — — —
Schlage 6 pin IC core F19 23 22 — —
Sargent IC core F20 23 22 — —
Medeco IC core large format F21 23 22 — —
Less Cylinder G3 Deduct 15 — — —
MARKS # Trim 26D 10B
M195S/295/395/495 MLHL650S 159 201
M195F/295/395/495 MLHL650F 159 201
M195N/295/395/495 MLHL650N 148 180
M195DT/295/395/495 MLHL650DT 148 180
Levers: Solid cast Zamac, with 1/2” return (except 395 & 495)
Roses: Thru-bolted, 3-7/16” spring loaded Roses
Door Thickness: 1-5/8” – 1-7/8”
Clutch: Standard
Chassis: Aluminum
Cylinder: MARKS “C” keyway, 6 pin w/ 2 keys
IC Core model - Core not included
Lifetime Mechanical Warranty
Specifications
APPLICATION
• For use on single doors or active leaf of double doors
• 1-3/4”(44 mm) door thickness standard. Specify thickness
other than 1-3/4”.
• RHR or LHR hollow metal, wood and mineral core doors.
DEVICE SPECIFICATIONS
Device Head Cover: Zinc alloy or stainless steel
Chassis: Steel, plated
Housing: Extruded aluminum
Push Bar Base: Extruded aluminum
Touch Plate: Stainless steel
End Cap: Zinc alloy
Hand: Non-handed
Mounting: Machine screws standard. Sex bolts optional. Order “SNB” for wood
or nonreinforced metal doors
Dogging: Allen-type key furnished
Finish: 32D, Additional finishes consult factory
Outside Trims: Order separately
UL Listed: ANSI/BHMA Grade1 Panic Exit Hardware, 3-Hour Fire Exit Hardware.
Lock Case: Steel plated 6 1/16” x 3 15/16” x 29/32”
(154mm x 100mm x 23mm)
Anti-friction Latchbolt: 3/4”(19mm) throw
Hand: Reversible without removing the lock from the door
Auxiliary Deadlocking Bolt: Non-handed, stainless steel
Faceplate: Adjustable, 19/32” stainless steel or brass.
Strike: ANSI 4 7/8”
MORTISE LOCK SPECIFICATIONS
SERIES M9300 exit Device
MORTISE
MARKS # DESCRIPTION PRICE
M9300 Mortise Exit Device 1224
![](asset-56.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
86
Rim Mount & Mortise
electric latcH retraction
WITH SIMULTANEOUS DOGGING
DEVICE SPECIFICATIONS
ER Electric Latch Retraction
with simultaneous dogging
For: M9900, M9300
Example: M9900/32D-ER
Operation: Momentary or maintained latch bolt and push
pad retraction.
Automatic re-triggering of latch retraction
Voltage: 24VDC @ 450 mA activation, 180 mA continuous
602RF 1 Amp power supply (1 EMC max)
632RF 2 Amp power supply (2 EMC max)
EMC 2-station sequencer required for automatic doors only.
Monitoring Available Latch status and REX output available
MARKS # DESCRIPTION PRICE
HEAVY DUTY
M9900ER Electric Latch Retraction 776
M9900ERP Electric Latch Retraction w 602 Power Supply 1165
M9300ER Electric Latch Retraction 1892
M9300ERP Electric Latch Retraction w 602 Power Supply 2282
exit alarm
Door sign included, Bar sign optional
Rim Mount, Vertical Rod & Mortise
EA Exit Alarm, 9V battery powered
EB Exit Alarm, 12-24V AC/DC input, 9V battery backup
For: M9900, M9900VR
Example: M9900/32D-EA
• 100 dB alarm; visual and audible On/Off status:
Armed - green LED blinks every 4 seconds,
Alarm mode - red LED, Bypass - no LED
• Remote status output
• 15 or 60 second arming delay
• 2 modes: Continuous alarm with manual key reset; Automatic re-arm
2 minutes after door closes with any manual key reset before 2 minutes.
Options: • Push pad sign
• 6, 10 & 20 minutes alarm; 1 or 5 second re-arm delay
• Remote access control, arm, disarm inputs
• REX and latch status outputs
DEVICE SPECIFICATIONS MARKS # DESCRIPTION PRICE
HEAVY DUTY
M9900EA Exit Alarm 9VDC 1029
M9900EB Exit Alarm 9VDC w 12/24 AC/DC Input 1074
M9300EA Exit Alarm 9VDC 1781
M9300EB Exit Alarm 9VDC w 12/24 AC/DC Input 1825
Exit Devices
![](asset-57.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
87
electric Frame actuator
DEVICE SPECIFICATIONS
EFA Hitower Pro Frame Actuator Controlled Fire Exit Device
Features include failsafe operation and unlocks by access
control, power loss or signal from fire command center.
Door stays latched even when unlocked. All wiring is
maintained in the strike jamb. Complies with national
building and fire codes
Specify Handing and Voltage: 24VDC, 24VAC, 115VAC
Monitoring Available
MARKS # DESCRIPTION PRICE
HEAVY DUTY
M9900EFA HiTower Pro Fram Actuator Controller Fire Exit 1855
Rim Mount, Vertical Rod & Mortise
electric Dogging
DG Electric Dogging (failsecure) M9100, M9900, M9900VR, M9300
Example: M9900/32D-DG
When energized by optional built-in or remote switch manual,
depressing the pushpad, causes the pushpad and latch to remain
retraced (unlocked) providing push-pull door operation. When
de-enegrized or signaled by a fire alarm, the pushpad and latch
are released.
Voltage: 170/100 mA @ 12/24VDC
Monitoring Available: Latch status and REX output available
DEVICE SPECIFICATIONS MARKS # DESCRIPTION PRICE
HEAVY DUTY
M9900DG Electric Dogging, Fail Secure 1033
M9900DGP Electric Dogging, Fail Secure w 602 Power Supply 1405
M9300DG Electric Dogging, Fail Secure 1749
M9300DGP Electric Dogging, Fail Secure w 602 Power Supply 2120
Exit Devices
![](asset-58.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
88
Rim Mount, Vertical Rod & Mortise
DelayeD egress
DE Wall mount delayed egress controller with keypad and
electrified exit device, M9900, M9900VR
Example: M9900F/32D-DE
DEK Keypad controller with redundant key switch capable of
all keypad control features
602RF 1 Amp power supply
• User PIN codes may be assigned to 1, 2 or all control functions.
Reset, sustained bypass and momentary bypass (RES)
• Audible alarm voice release time, warning or safety message
• Visual display countdown, locked/unlocked, egress executed
• 15 or 30 second exit delay, 1 or 2 second nuisance delay 2 minutes
Monitoring Available: Latch status available
DEVICE SPECIFICATIONS MARKS # DESCRIPTION PRICE
HEAVY DUTY
M9900DE Delayed Egress 1882
M9900KDE Delayed Egress w Keyswitch 1988
M9900DEP Delayed Egress w 602 Power Supply 2253
M9900KDEP Delayed Egress w Keyswitch W 602 Power Supply 2359
M9900VRDE Delayed Egress 2014
M9900VRKDE Delayed Egress w Keyswitch 2120
M9900VRDEP Delayed Egress w 602 Power Supply 2385
M9900VRKDEP Delayed Egress w Keyswitch W 602 Power Supply 2491
m9900 lite
MARKS # FUNCTION PRICE
M9900LITE Rim Panic with IQ7LITE 949
IQ7LITE
IQ7 LITE Rim Exit Device Interface Specifications
Door Thickness: 1-3/4” standard; For thicker doors, Consult factory
Handing: Non-handed
Key Override: 1-1/8” Mortise cylinder, 6 pin w/2 keys
Clutch: The “Clutch” for trouble free service
M9900
• Doors: 1-3/4” thick standard.
• End cover: Flush mounted beveled “Panic Protector” design.
• Strike: Roller strike.
• Rail Assembly: Extruded Aluminum, 32D finish.
• Dead latch Bolt: Stainless Steel 3/4” throw.
• Dead latch Bolt: Stainless Steel 5/8”.
• Dogging feature: Allen Key (M9900)
• Ul listed: For “Panic Hardware” and Fire Rated Model 3 hour fire
doors up to 38” x 86”.
• ANSI: ANSI 156.3 (2001), requirements for Grade 1.
• 3 Hour Fire Rating
• Finish: 32D
Adapter plate included
Exit Devices
![](asset-59.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
89
Exit Devices
PT-2U
PT-3V
FEATURES
• UL10B Listed for 3 Hr Fire Doors. If the hinge you are presently
using does not bear the F mark, it is not listed for use with fire doors.
• 500,000 cycles. 5 times UL test criteria
• Wire Replacement Warranty
• 5ft wire cable
APPLICATION
Installed in the center hinge position of the door, PTH Power Transfer
Hinges provide the concealed wires required between the door and
theframe, for the purpose of powering and monitoring electric door
hardware.
• Electric Lock Power and Control
• Door and Lock Status Signaling
• Request-to-Exit Signaling
PTH-4 Four conductor hinge, 1 Amp @ 12/24V per pair,
4.5” x 4.5” five knuckle standard weight
PTH-10 Ten conductor hinge, 1 Amp @ 12/24V per pair,
4.5” x 4.5” standard weight
Consult factory for 3 knuckle, or special size
Finish
All base material steel
Aluminum, Duranodic, US 3, 10B, 26D & 32D finishes
Options
DPS Concealed Door Position Switch SPDT, 250mA @ 30VDC
FEATURES
PT-5 Concealed Mortise Mount Power Transfer Loop
Frame mortised steel dust box with flexible steel loop and chrome
finish. Recommended for use with hollow metal frames. UL Listed
Dimensions: 11.5”H x 1”W x 0.75”D (292 x 25.4 x 19mm)
10B Listed For 3 Hrs Fire Rated Doors
POWER TRANSFER LOOPS
18” (447mm) stainless steel armored flex conduit with small plastic
end caps or termination box. Recommended for use with hollow
metal and aluminum frames.
PT-2U With end caps
PT-3V With aluminum wire termination box
602 C POWER SUPPLY
Access Control Power Supply and Charger,
Selectable 12/24VDC, 1 Amp, Emergency
Release Input, Low Battery Disconnect,
12” x 12” x 4” Cabinet, UL, Class 2
Options: Key locked cover; 6 ft power cord;
cover or interior mounted on-off switches;
manual reset switches; 7 day, skip a day timer;
Rechargeable batteries.
Multiple fuse protected outputs: Fuse modules provide protection for 4 or
8 individual circuits.
Dual 12 and 24VDC output capability: 12VDC voltage regulators enable
dual 12 and 24VDC output capability for 12 and 24VDC components with
one power supply.
Relay and Timer Modules: Relay and timer modules provide interface and
control capability for single and multiple stations.
10B Listed for 3hr Fire Rated Door
F
Power transFer Hinge Fire rateD concealeD
mortise Power transFer
CODE DESCRIPTION PRICE
P1 Power Transfer Hinge MPTH - 4 156
P2 Power Transfer hinge MPTH - 10 205
PTH-4 Four conductor hinge 160
PTH-10 Ten conductor hinge 205
CODE DESCRIPTION PRICE
P3 Power Transfer loop MPT-2U 19
P4 Power Transfer Loop MPT-3V 42
PT-2U Power Transfer Loop with end caps 25
PT-3V PTL w/ aluminum wire termination box 50
PT-5 Concealed Mortise Power Transfer Loop 65
602 C Access Control Power Supply and Charger 330
![](asset-5a.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
90
SPECIFICATIONS
Input: 25mA (standby); 55mA (Active) @ 12/24VDC
Output: 2-SPDT, 3 Amp Dry Contact
Activation Time:
1 second or as long as sensor is triggered
LED Color: Standby RED; Active Green
Range: 4” (10cm)
Weight: 3 oz. (85g)
Dimensions: 4.5” x 2.75” x 1.375”
(115 x 70 x 35mm)
FEATURES & APPLICATIONS
• Uses IR Sensor technology; device is active with the simple wave of a hand
• Designed to control electric locks/strikes, magnetic locks, or automatic
door operators
• Ideal for use in sanitary applications such as cleanrooms, bathrooms, food
processing, hospitals and labs.
• Sensing Range up to 4” (10cm)
• Mounted on a durable stainless steel plate
• Dual LED, illuminated sensor, Red/Green indicates Inactive/Active status
• Quick connect screwless terminal block for easy installation
For Sanitary Entry/Exit applications
DPDT Dry Contact Output • No Moving Parts • Bi-color Status Illumination
Red: Standby
474U
Price - 85
Green: Active
474DU
Price - 140
toucHless exit switcH
NO TOUCH WAVE-TO-EXIT SWITCH
Touchless Exit
Switch
![](asset-5b.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
91
H T O D C & P D
CODE OPTIONS PRICE
P1 Power Transfer Hinge MPTH - 4 158
P2 Power Transfer hinge MPTH - 10 205
P3 Power Transfer loop MPT-2U 19
P4 Power Transfer Loop MPT-3V 42
P5 Latch Status 84
P6 REX 84
P7 Push Pad Sign
P8 Keyswitch 84
POWER SUPPLY OPTIONS
FB-4 Fused Terminal board 4 individually fused outputs 42
P8 ACM-1 Access Control Module. One SPST volttage output, One SPDT Staus output eight triggered inputs (4N/C, 4N/O) led Status
indecator 95
`````````````````````````````` EMC - Sequencer Module requiored for pair of doors and automatica doors 12/24 VDC for use with Marks M602RF amd M632RF
power suoplies 158
P10 UR2-4 , Universal Controller for 2 doors. Field select TD, LR, TD/LR, mantrap A, B, C
interlock. Two fused SPDT dry outputs, 5 Amp @ 30VD 231
P11
UR4-8 Universal Controller for 4 doors. Field select TD, LR, CR, TD/LR, mantrap A, B
interlock. Four fused SPDT dry outputs, 5 Amp @ 30VDC.
Four SPDT dry outputs, 1 Amp @ 30VDC. Two inputs per station, four auxiliary inputs.
326
P12
PSM Power Supply Monitoring Module
For remote monitoring of power supply AC input, DC output and battery backup
On/Off status. 2 SPDT Relay Outputs, 1 Amp @ 12/24VDC
231
UR1-V1 Universal Field Programmable Application Module 100
14-2
7 day programmable timer with memory battery back-up capability
Output: 1 SPDT, dry contact
Voltage: 16 Amps @ 30 VAC/DC
Specify 12V AC/DC or 24 AC/DC
268
M620RF Power supply 12/24VDC 1 amp 368
M632RF Power supply 12/24VDC 2 amp 473
MRB12V4 12V/5Ah Battery. Specify in pairs for 24V 42
MRB12V7 12V/8Ah Battery Specify 2 for 24V 63
HEAVY DUTY SERIES ECLECTIC POWER TRANSFER DEVICE
PTM-2AL Two (2) 18 Ga.Conductor 5 Amp@ 12/24V Ac/Dc Aluminum Powder coated 376
PTM-10Al Ten (10) 24GA wires 1 Amp @12/24V AC/DCAluminum Powder coated 376
TRIMS
Electric Trim for M9900 Features, Fail secure, Field Reversible to failsafe, Audible tone,
4Ft cable and connectors 600/300 Ma @ 12/24VDC
#### American Lever 709
##### Cresent Lever 709
Options for Trim
Tri Clolr LED 84
SWITCHES
M474U Sanitary, No Touch wave to exit switch. IR sensor 4” read range Red, Green LED status, output DPDT 3 Amp dry cobntact input
25mA (stand by) 55mA (active) @ 12 VD, face plate 20ga Stainless steel 79
M422U Momentary SPDT PUSH TO EXIT 74
M422AU Momentary SPDT2” Button - Blue illuminated lens only 74
M423U Integrated electronic timer, adj. 1-60 sec12/24VDC, 2A DPST Contact PUSH TO EXIT 130
M423AU Integrated 1-60 sec Timer 12/24VDC, 2A DPST Contact 2” Button - Blue illuminated lens only Symbol 130
M424U Momentary DPDT PUSH TO EXIT 110
M425U AA (On/Off) DPDT NONE 110
MD-31D-W PASSIVE INFRARED EGRESS CONTROL, Motion detector with time delay, white 247
MD-31D-B PASSIVE INFRARED EGRESS CONTROL, Motion detector with time delay , black 247
![](asset-5c.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
92
Specifications
• ANSI / BHMA Grade 1 Certified, UL Listed 3 Hours
• Includes standard lever rose hardware design
• Compatible with all 300+ optional architectural trim / lever
or knob designs
• Stainless steel latch, 2-3/4” backset
• Auto-Reverse lock body tested to 6 million cycles
• Lock Body - Self cleaning long life motor
• Door closure monitor / electronic deadbolt monitor
• Key override standard or high-Security
• Optional integrated door position indicator switch
PRODUCT DESCRIPTION PRICE
AL-IME Ethernet connected gateway w/AC adapter to plug into standard wall
outlet 541
AL-IM80211 Wi-Fi gateway to connect to 802.11 network w/AC adapter to plug
into standard wall outlet. 753
AL-IMEPOEP Power Over Ethernet, plus hardwire gateway interface capability. No
AC Power required. 647
AL-IME-USB USB Gateway 318
AL-NSM Networx Signal Meter 314
ALHID1326 Proximity Access Cards 100 Per Box 535
ALHID1336 Proximity, Magnetic Stripe and Photo ID cards 100 per box 1092
ALHID1386 Proximity and Photo ID Card 100 per box 983
ALHID1391 MicroProx Tag 10 per box 87
ALHID1346 Proximity keyfob 10 per box 125
arcHitecHTM series networx locks
Features
• 5000 Users, 500 Scheduled Events & 40,000 Event Audit Trail
• Surface-Mount or Mortised - in Electronics and Battery Pack
• Lock available in Mortise and Cylindrical versions
• Real Time Clock - Uses 4 AA Batteries – 3 to 4 year battery life
• Operated via access card, fob, key fob etc
• DL-Windows Software for programming
• USB Radio Key Programming Method or Via Networx Gateways
• Manual Card Enrollment Option for Quick Installation
• Wireless programming range: up to 20 ft. from lock
Mounted Samples
Ideal access control solution; elegantly blending advanced
wireless access control convenience within any decor, in
attractive, infinitely customizable designer locking form, in choice
of trims and finishes.
PRODUCT PRICE
Cylindrical
N90S2195F26D 933
N90S1195F26D 933
Mortise
N95S2RX92FD26D 1166
N95S1RW86FD26D 1166
PRODUCT PRICE
Cylindrical
N90S1295SK26D consult factory
S90S1195SK26D consult factory
N90S1195SK26D consult factory
Mortise
N95S1RW86SK26D consult factory
ArchiTech™ Series Networx Locks Parts and Accessories
NEW
NEW
ArchiTech Series
Networx Locks
![](asset-5d.png)
FOR ADDITIONAL DESIGNS, ASK FOR THE CUSTOM LOCK DIVISION CATALOG OR VISIT OUR WEBSITE @ WWW.MARKSUSA.COM
631-225-5400 • 1-800-645-9445 • Fax 631-225-6136 • ©2017 MARKS USA
93
ArchiTech Series
Networx Locks
arcHitecHTM series networx locks
Standard Model Ordering. Infinite Custom Models available. Call Factory For Ordering Assistance.
![](asset-60.png)
2017MARKSPB 9.17
631-225-5400 • 800-645-9445 • FAX 631-225-6136
www.marksusa.com
DISTRIBUTED BY:
